Manual Supplement

© 2012-2013 Fluke Corporation. All rights reserved. 

Manual Title: 28 II Ex Getting Started Supplement Issue: 4

Print Date: November 2011 Issue Date: 6/13

Part Number 3945752 Page Count: 8

Revision/Date:

This supplement contains information necessary to ensure the accuracy of the

above manual.

28 II EX Getting Started Manual Supplement

2/12 1

Change #1, 60849 & 60854

On page 1, replace the third paragraph with:

The Product is designed for operation in potentially explosive areas of Zone 1, 2, 21, 22, and M1 as specified in

Directive 1999/92/EC and 94/9/EC (ATEX). There can be dangerous consequences If you do not follow these

instructions.

On page 7, replace the entire page with:

28 II EX Getting Started Manual Supplement

2 2/12

Ex-Certification Data

 Ex-Type certificate no: PTB 11 ATEX 2028 X

IECEx PTB 11.0080X

 Ex-Designation: ATEX: II 2G Ex ia IIC T4 Gb

II 2D Ex ia IIIC T130 C Db

I M1 Ex ia I Ma

IECEx: Ex ia IIC T4 Gb

Ex ia IIIC T130 C Db

Ex ia I Ma

 CE: CE0102

 Operating Temperature: -15 C to 50 C

 Storage Temperature: -40 C to +60 C

 Batteries: 3 AAA Alkaline batteries, NEDA 24A IEC

LR03. Table 7 shows the approved batteries for this

Product.

For connections to intrinsically-safe circuits, observe

these Product connections:

Voltage – measurement input Ui = 65 V:

U0 = 9.54 V

Ci = negligible

I0 = 3.7 mA Ii = negligible

Li = negligible

P0 = negligible Ri = 2.47K

Lo/Co

Lo/mH 1000 100 2 0.5 0.1 0.01

Co/F 0 0.61 1 1.4 2.1 3.6

Current – measurement input Ii = 5 A:

U0 = 0 V Ui = 65 V

C0 = 1000 F Ci = negligible

I0 = 0mA

L0 = 1000 mH Li = negligible

P0 = 0 mW

mA/A Jack

U0 = 1.95 V Ui = 65 V

Ci = negligible

I0 = 9.7 A Ii = Internally limited by a 440 mA fuse

Li = negligible

P0 = negligible

28 II EX Getting Started Manual Supplement

2/12 3

Lo/Co

Lo/mH 1000 100 5 1 0.5 0.005

Co/F 0 14 19 25 30 1000

For measurements on protected electric circuits:

 Approved for Zones 2 and 1, device group II,

explosion group IIC (explosive gases, vapors and

mist), temperature class T4.

 Approved for Zones 21 and 22, device group II,

explosion group IIIC, conducting and non-

conducting dust, fibers, and flyings.

 Approved for use in mines. Device group I,

explosion group I, methane, and coal dust.

28 II EX Getting Started Manual Supplement

4 2/12

On page 22, replace Table 8 with:

Table 8. Replacement Parts

Description Qty.

Fluke Part or

Model Number

Fuse, 11 A, 1000 V, FAST 1 803293

28 II Ex Fuse Assembly 1 4016494

Alligator Clip, Black 1 AC172 or AC175

Alligator Clip, Red 1

Test Lead Set 1 TL175

28 II Ex Manual Information Pack (Includes Users Manual, CD & Getting Started Manual) 1 4013990

Fluke Input Cap, Amp Jack Plugs for DMM (10 packs) 1 4145825

 To ensure safety, use exact replacement only.

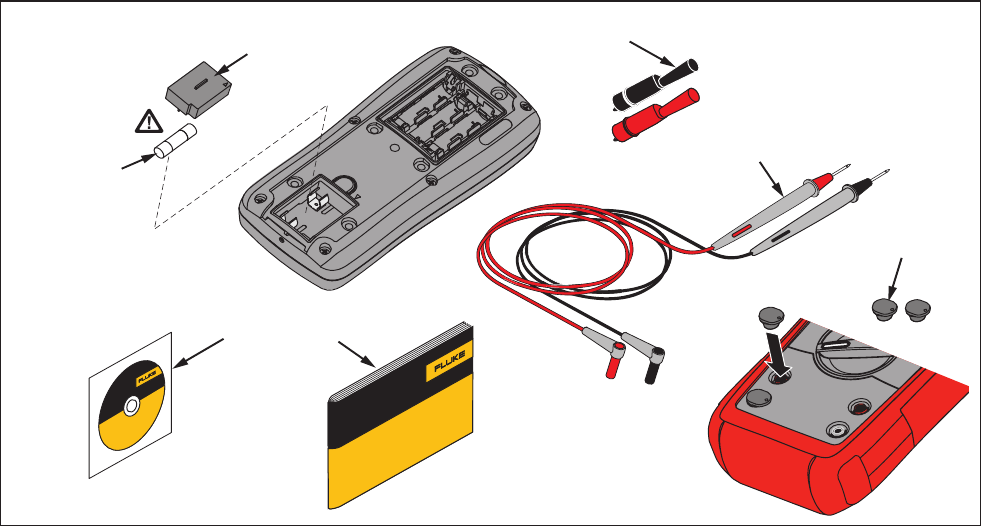

On page 23, replace Figure 4 with:

28 II EX Getting Started Manual Supplement

2/12 5

Alligator Clips

Fuse Assembly

*

Contains 440 mA

Fuse

28 II Ex Manual

Information Pack

Fuse

11 A,

1000 V, Fast

Test Lead Set

Amp Jack

Plug set

grt11.eps

Figure 4. Replacement Parts

28 II EX Getting Started Manual Supplement

6 2/12

On page 24, Replace Table 9 with:

Table 9. Accessories

Item Description

AC172 or

AC175 Alligator Clips

TL175 Silicone test lead set with probes

Amp Jack

Plug Set 2 Pack for DMM’s

I400  AC Current Clamp [1]

80PK-27  Temperature Probe [2]

All accessories in this table are approved for use in explosive hazardous environments. Fluke accessories are available

from an authorized Fluke distributor.

[1]  Warning - To prevent personal injury or property damage, do not use this accessory in hazardous areas where

dust is moved, transported, or conveyed.

[2]  Warning - To prevent personal injury or property damage, do not use this accessory in dust hazardous areas.

28 II EX Getting Started Manual Supplement

4/12 7

On page 25, under Temperature replace Storage with:

Storage -40 C to +85 C (without battery)

-40 C to +60 C (with battery)

Change #2, 62942

On page 32, replace Duty Cycle (Vdc and mVdc) with:

Duty Cycle (Vdc and mVdc)

Range Accuracy

0.0 % to 99.9 % [1] Within  (0.2 % per kHz + 0.1 %) for rise times <1 s. [2]

[1] 0.5 Hz to 200 kHz, pulse width >2 s. Pulse width range is determined by the frequency by the

frequency of the signal.

[2] For 6 V dc range accuracy is unspecified.

On page 33, under MIN MAX Recording change:

From:

250 s (peak) [1]

Specified accuracy 100 counts for changes >250 s in duration

(add 100 counts for readings over 6000 counts)

(add 100 counts for readings in Low Pass mode)

To:

250 s (peak) [1]

Specified accuracy 200 counts for changes >250 s in duration

(add 100 counts for readings over 6000 counts)

(add 100 counts for readings in Low Pass mode)

Manual Supplement 28 II EX Getting Started

8 6/13

Change #3, 65782

On page 2, under Safety Information remove The Product complies with: and all the bullets.

On page 8, in the Symbols table, remove CAT III, CAT IV and CSA C1 and add:

 Conforms to relevant South Korean EMC Standards

CAT II

Measurement Category II is applicable to test and measuring circuits connected directly

to utilization points (socket outlets and similar points) of the low-voltage MAINS

installation.

CAT III Measurement Category III is applicable to test and measuring circuits connected to the

distribution part of the building’s low-voltage MAINS installation.

CAT IV Measurement Category IV is applicable to test and measuring circuits connected at the

source of the building’s low-voltage MAINS installation.

On page 26, replace Electromagnetic Compatibility and IP Rating with the following, and

remove Shock, Safety Compliance and Certifications and add:

IP Rating .......................................................... IEC 60529: IP67 (Non-operating)

Safety ............................................................... IEC 61010-1: 600 V CAT IV / 1000 V CAT III, Pollution Degree 2

Electromagnetic Environment ....................... IEC 61326-1: Portable

Electromagnetic Compatibility ...................... In an RF field of 3 V/M, accuracy = specified accuracy +20 counts, except 600 A

dc range total accuracy = specified accuracy +60 counts. Temperature not

specified

Applies to use in Korea only. Class A Equipment (Industrial Broadcasting &

Communication Equipment) [1]

[1] This product meets requirements for industrial (Class A) electromagnetic

wave equipment and the seller or user should take notice of it. This

equipment is intended for use in business environments and is not to be

used in homes.
