Product Overview:
PM1E Wi-Fi Smart Power Outlet can be controlled through Wi-Fi wireless network. You
can switch on/off outlet and monitor its status wirelessly. You also can upgrade the
firmware of the PM1E on LinkWise App.

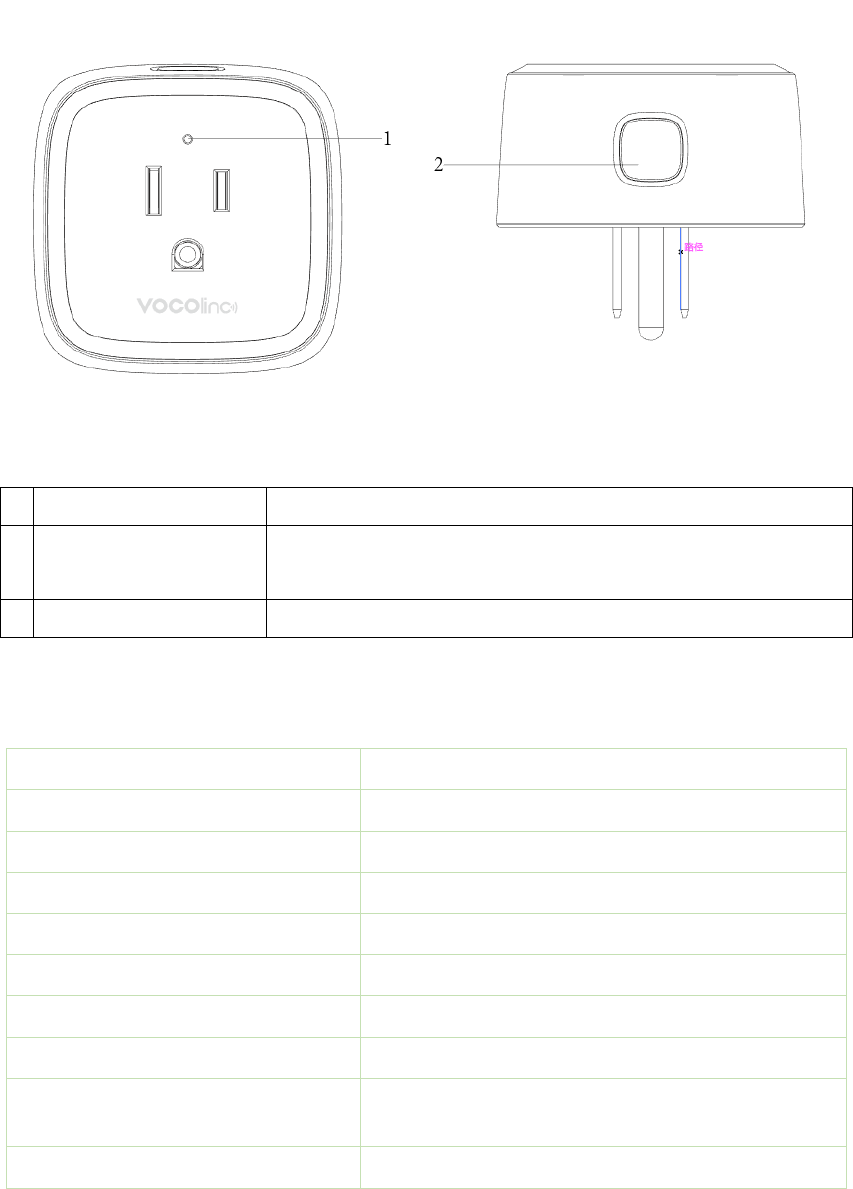

1 Status indication LED Indicate Wi-Fi/Power status
2 Power/ Reset Button Short Press:switching outlets on/off
Press &hold for about 5 seconds: factory reset
LED Indicators Status
Status Status indication LED status
Search Wi-Fi Green Flashing quickly
Adding a device Green Flashing slowly
A device added Sucessfully Red flashing slowly 5 times
Identify a device Red flashing slowly 5 times
Connected to Wi-Fi(Outlet On) Green stay on
Connected to Wi-Fi(Outlet Off) Indication LED stay off
Disconnected from Wi-Fi Red flashing fastly
Reset Press & Hold for 5s, then red flash 1 time, green
flashing fastly
OTA in Progress Red flash slowly
OTA done Red flashingfastly4 times
What’s Included:
-Wi-Fi Smart Power Outlet
-User Guide
Features:
Independent smart outlets and LED indicators
Work with Apple HomeKit
Can be applied to local or remote control of fans, lights, water coolers, heaters,
and rice cookers etc.
overload protection
Electrical Ratings
1 x Smart AC Outlet
Input: AC100~120V, 60Hz
Output: AC100~120V, 10A Max, 1200W Max (Pure Resistive Load)
General use
Safty Warnings
Plug directly into electric outlet (not into extension cord)
For indoor use only
Remove Smart Plug from outlet before cleaning
DO NOT clean with liquid
DO NOT remove ground pin (middle pin) as there is risk of electric shock
DO NOT use in wet or damp areas
Keep children away from Smart Plug and outlet
DO NOT exceed the recommended electrical ratings
DO NOT use in precision timing applications where inaccurate timing could be
dangerous
(sunlamps, saunas, etc.)
DO NOT use with devices that should not be operated unattended.
After switching off the the main power, DO NOT operate until the main power
indicator goes completely off (about 2 seconds delay)
DO NOT use the device when the casing is broken
Quick Start Quide
1. Download and open the free VOCOlinc LinkWise app from the App Store (Apple
Apple Store ).
2. Plug the Smart Power Outlet into a desired outlet. Press & Hold the Reset Buttion
for about 5 seconds, the Status indication LED will start red flash 1 time, green
flashing fastly to indicate it is ready for network setup.
3. Make sure your iPhone or iPad (iOS 12 or later) is connected to a 2.4GHz Wi-Fi
network. Using the router utility software, shutdown 5GHz Wi-Fi networks.
4. Tap “+”on the top left corner and follow the on-screen directions to complete
network setup.
Note: To add more devices (or repeat the Smart Power Outlet setup process),tap
“+”and you will be prompted to scan the setup code or manually enter the setup
code.
5. Then prompted select devices from the accessory list . Each accessory has an
identification code, e.g., XXX-XXXXXX. Make sure the last 6 characters of the
identification code is consistent with the last 6 characters of MAC on the bottom of
your Smart Power Outlet and then follow the step to add the device to the Home
and Room.
if the app prompts “Couldn’t add XXX-XXXXXX”, please refer to the first FAQ.
Please keep the setup code for future use.
6. You can assign a name to your device and use this name when speaking to Siri.
For example, you can name your device “printer”, then launch Siri and speak “Turn
on the Printer”.
7. Set up customized scenes to control multiple devices with a single command. For
example, if you assign the “I’m going to bed” command to the scene of turning off
bedroom light, when you speak “I’m going to bed” to Siri, everything is done.
The use of a HomeKit-enabled accessory need the follow permissions:
Settings > iCloud > iCloud Drive > Turn On
Settings > iCloud > Keychain > Turn On
Settings > Privacy > HomeKit >LinkWise> Turn On
Monitor AC status
If the AC outlet insert plug, the outlet icon display a tick.
