Formosa Teletek BTGPS02 Bluetooth GPS Receiver User Manual

Formosa Teletek Corporation Bluetooth GPS Receiver

User Manual

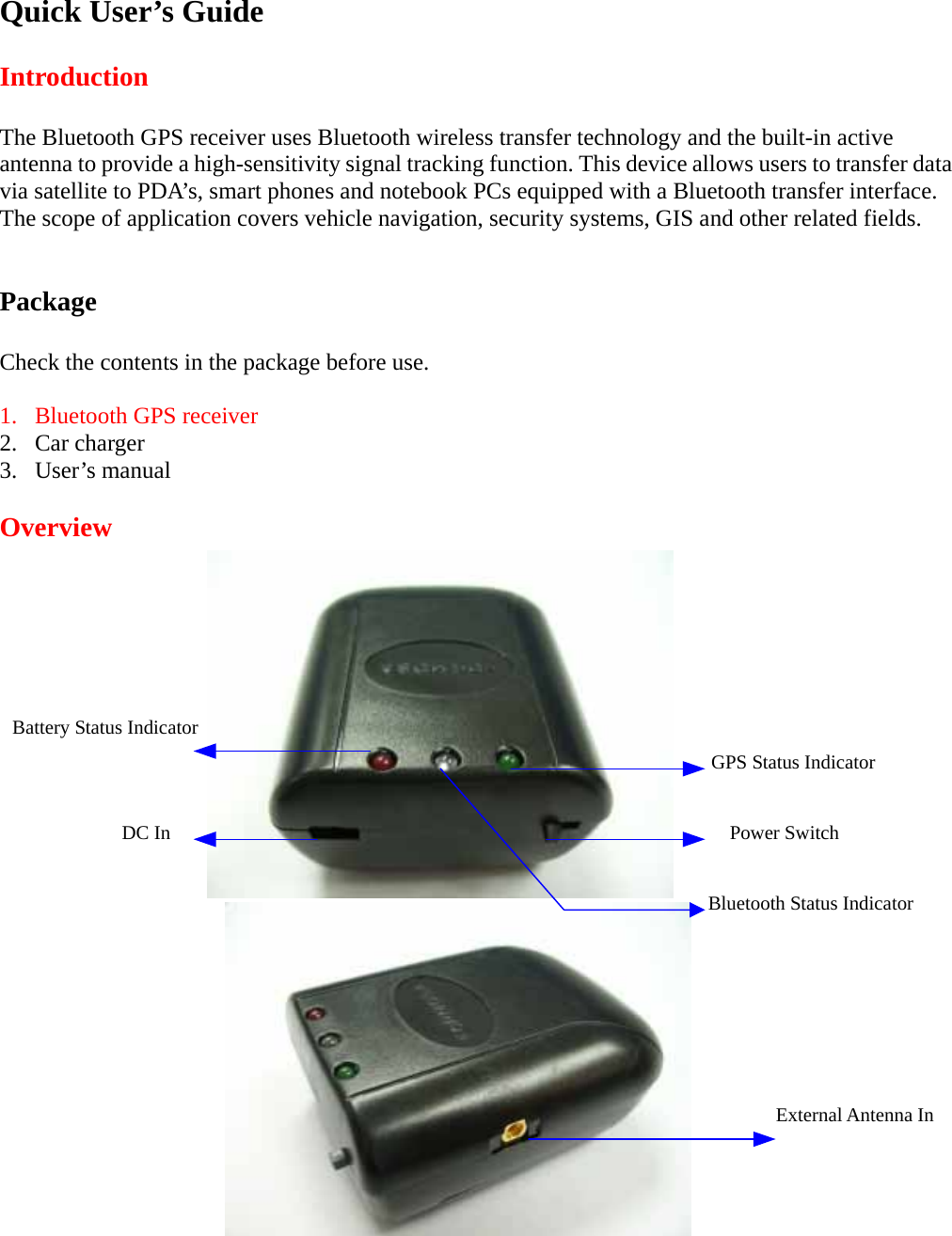

Quick User’s Guide Introduction The Bluetooth GPS receiver uses Bluetooth wireless transfer technology and the built-in active antenna to provide a high-sensitivity signal tracking function. This device allows users to transfer data via satellite to PDA’s, smart phones and notebook PCs equipped with a Bluetooth transfer interface. The scope of application covers vehicle navigation, security systems, GIS and other related fields. Package Check the contents in the package before use. 1. Bluetooth GPS receiver 2. Car charger 3. User’s manual Overview External Antenna In Power Switch DC In Bluetooth Status Indicator GPS Status Indicator Battery Status Indicator

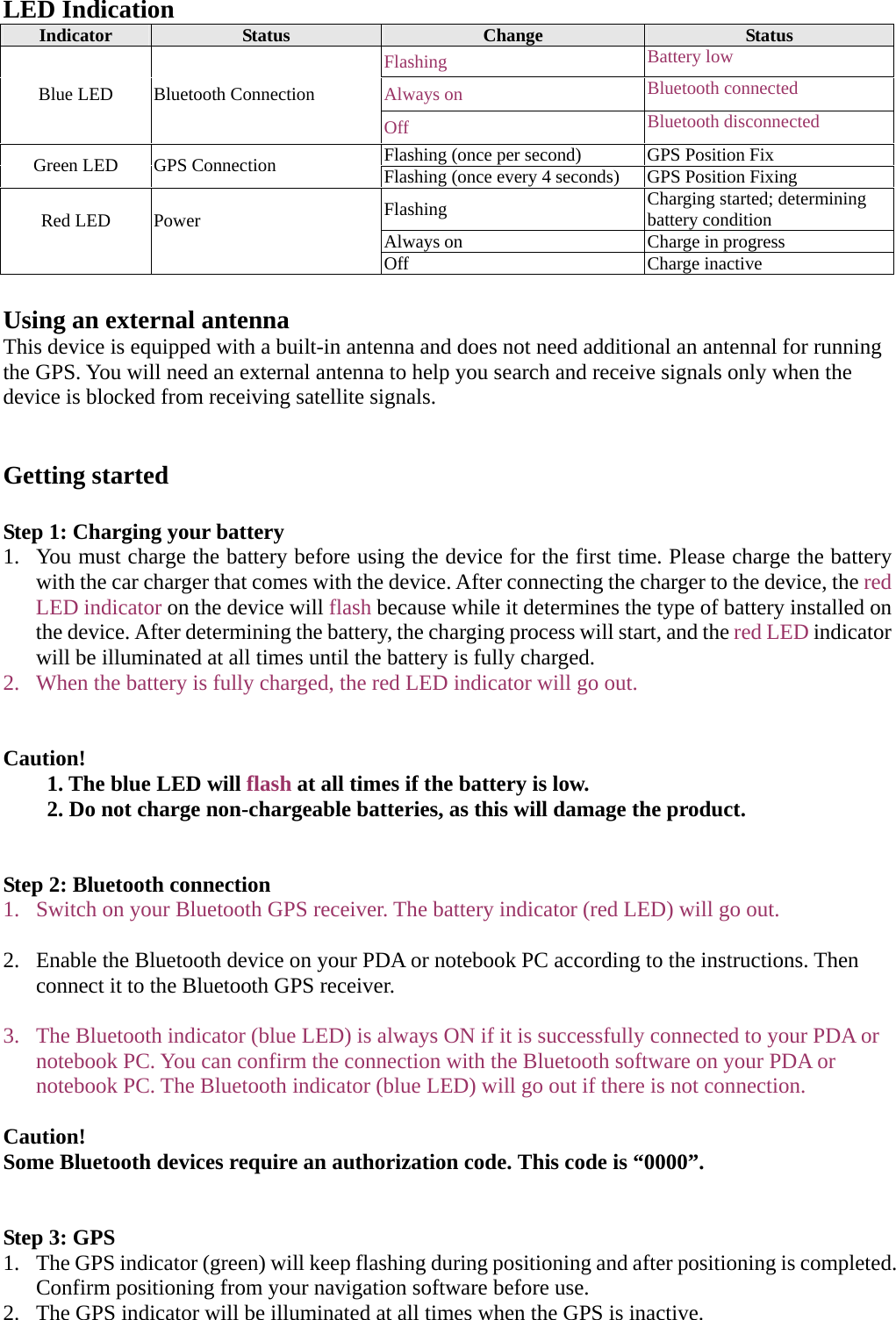

LED Indication Indicator Status Change Status Flashing Battery low Always on Bluetooth connected Blue LED Bluetooth Connection Off Bluetooth disconnected Flashing (once per second) GPS Position Fix Green LED GPS Connection Flashing (once every 4 seconds) GPS Position Fixing Flashing Charging started; determining battery condition Always on Charge in progress Red LED Power Off Charge inactive Using an external antenna This device is equipped with a built-in antenna and does not need additional an antennal for running the GPS. You will need an external antenna to help you search and receive signals only when the device is blocked from receiving satellite signals. Getting started Step 1: Charging your battery 1. You must charge the battery before using the device for the first time. Please charge the battery with the car charger that comes with the device. After connecting the charger to the device, the red LED indicator on the device will flash because while it determines the type of battery installed on the device. After determining the battery, the charging process will start, and the red LED indicator will be illuminated at all times until the battery is fully charged. 2. When the battery is fully charged, the red LED indicator will go out. Caution! 1. The blue LED will flash at all times if the battery is low. 2. Do not charge non-chargeable batteries, as this will damage the product. Step 2: Bluetooth connection 1. Switch on your Bluetooth GPS receiver. The battery indicator (red LED) will go out. 2. Enable the Bluetooth device on your PDA or notebook PC according to the instructions. Then connect it to the Bluetooth GPS receiver. 3. The Bluetooth indicator (blue LED) is always ON if it is successfully connected to your PDA or notebook PC. You can confirm the connection with the Bluetooth software on your PDA or notebook PC. The Bluetooth indicator (blue LED) will go out if there is not connection. Caution! Some Bluetooth devices require an authorization code. This code is “0000”. Step 3: GPS 1. The GPS indicator (green) will keep flashing during positioning and after positioning is completed. Confirm positioning from your navigation software before use. 2. The GPS indicator will be illuminated at all times when the GPS is inactive.

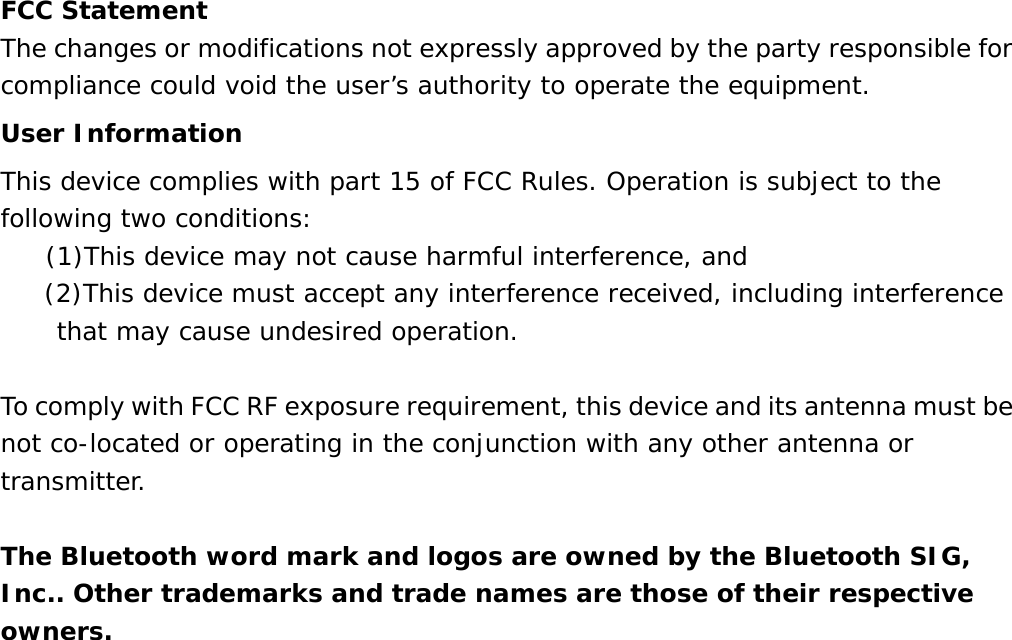

FCC Statement The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. User Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. To comply with FCC RF exposure requirement, this device and its antenna must be not co-located or operating in the conjunction with any other antenna or transmitter. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.. Other trademarks and trade names are those of their respective owners.
