WMDQ-177ACN is a 5Ghz +2.4G dual Band selectable 2T2R PCIe mini
Card Module based on the Qualcomm QCA9892 solution which features
improved transmission power and sensitivity by Gemtek.
Using the QCA9892 external FEM, it is the ideal cost effective solution for
platform integration.
With enhanced technologies such as advanced power management and
receiver boost, it makes the WMDQ-177ACN the ideal 5Ghz+2.4G 2T2R
module.
Introduction
2
General Information
Model name WMDQ-177ACN
Chipset Qualcomm QCA9892
Interface PCI Express 1.1
Operating Voltage DC 3.3V
Antenna Connectors 2 x I-PEX connectors
PCB Dimensions 30mmX 50.8mm
Temperature Range 0 to 40 °C (Operating),
-30 to 70 °C (Storage)
Security WEP,TKIP,AES and WAPI hardware encryption
Data rates 802.11b:1, 2, 5.5, 11Mbps
802.11g:6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n:
20MHz channel:
1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI
(Max.)
2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI
(Max.)
40MHz channel:
1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI
(Max.)
2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI
(Max.)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n:
20MHz channel:
1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI
(Max.)
2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI
(Max.)
40MHz channel:
1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI
(Max.)
2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI
(Max.)
802.11ac:
20MHz channel:
1Nss: 78Mbps @ 800GI, 86.7Mbps @ 400GI
(Max.)
2Nss: 156Mbps @ 800GI, 173.3Mbps @ 400GI
(Max.)
40MHz channel:
1Nss: 180Mbps @ 800GI, 200Mbps @ 400GI
(Max.)
2Nss: 360Mbps @ 800GI, 400Mbps @ 400GI
(Max.)
Hardware Specification
3
80MHz channel:
1Nss: 390Mbps @ 800GI, 433.3Mbps @ 400GI
(Max.)
2Nss: 780Mbps @ 800GI, 866.7Mbps @ 400GI
(Max.)
T x channel width
support
20MHz / 40MHz /80MHz
Standard/Compliance IEEE 802.11b/g/n/ac
RF Spec
Frequency Range 2.4G,5G
Radio Stream 2T2R
Transmit Power
(Per Radio Stream)
Tolerance ( +/- 2dBm)
802.11b 1Mbps 19 dBm
802.11g 6Mbps:18 dBm
802.11n HT-20 MCS0 :18 dBm
802.11n HT-40 MCS0 :12 dBm
802.11a 6Mbps: 19 dBm
802.11n HT20 MCS0: 18dBm
802.11n HT40 MCS0: 18dBm
802.11ac VHT20 MCS0: 18dBm
802.11ac VHT40 MCS0: 18dBm
802.11ac VHT80 MCS0: 12dBm
Receive Sensitivity
Tolerance ( +/- 2dBm)
CCK 1Mbps :-90 dbm
OFDM 6Mbps -94dbm
OFDM 54M -80dbm
HT20 MCS0 : -94dbm
HT20 MCS7 :-78dbm
HT40 MCS0 : -90dbm
HT40 MCS7 : -76dbm
802.11a:
6Mbps: -94dbm
54M: -80dbm
802.11n HT20/HT40 @5G:
HT20 MCS0: -94dbm
HT20 MCS7: -76dbm
HT40 MCS0: -90dbm
HT40 MCS7: -76dbm
802.11ac VHT20/VHT40/VHT80:
VHT20 MCS0: -94dbm
VHT20 MCS8: -74dbm
VHT40 MCS0: -90dbm
VHT40 MCS9: -70dbm
VHT80 MCS0: -88dbm
VHT80 MCS9: -66dbm
4

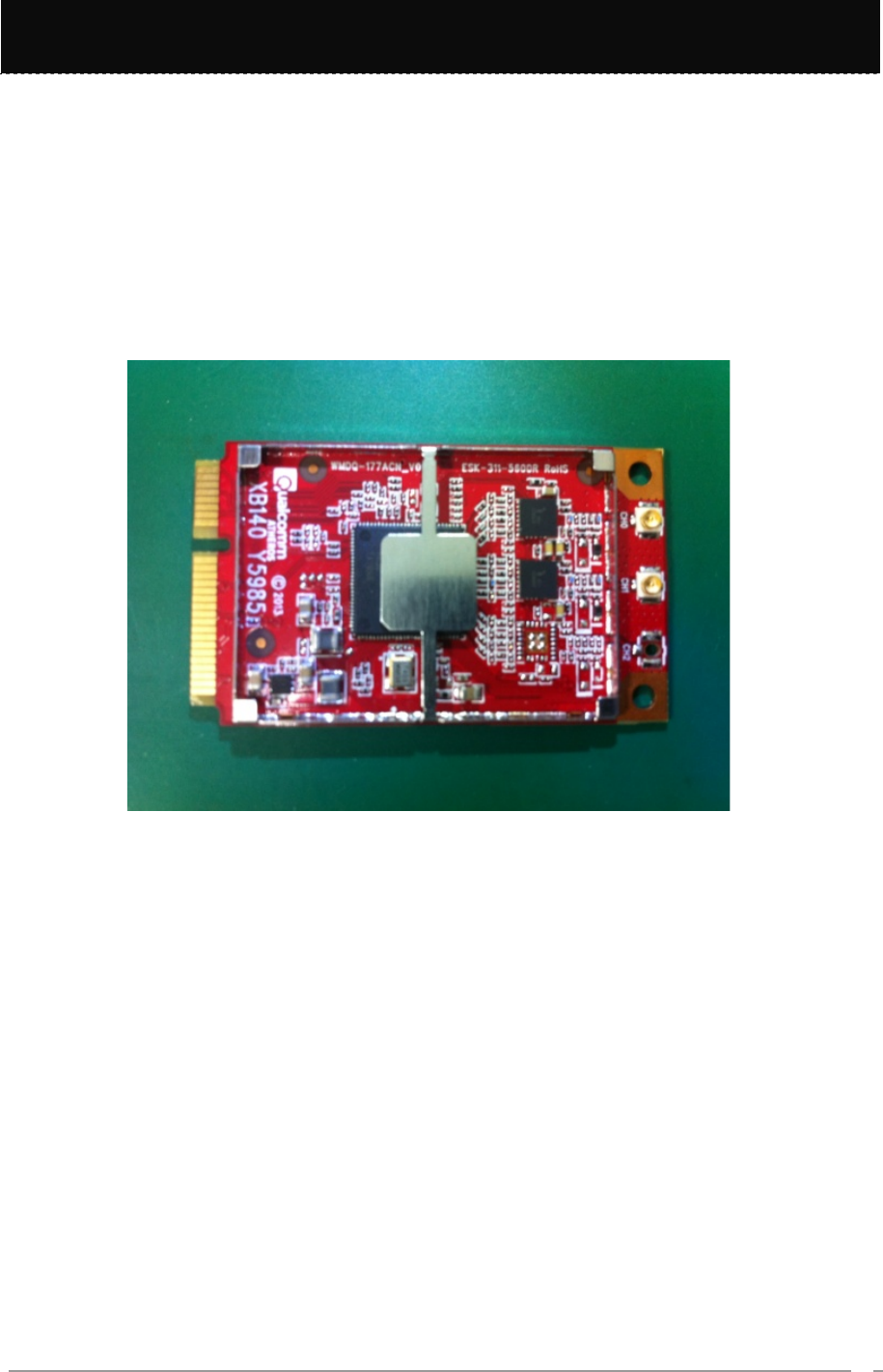

Dimension : 50mm* 30mm (Full size)
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
5
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Country Code selection feature to be disabled for products marketed to the US/CANADA.
Operation of this device is restricted to indoor use only
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users,
and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for
2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to
the end-user regarding to Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed
IMPORTANT NOTE
In the event that these conditions can not be met (for example certain laptop configurations or
co-location with another transmitter), then the FCC authorization is no longer considered valid and the
FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such
that 20 cm may be maintained between the antenna and users. The final end product must be labeled
in a visible area with the following: “Contains FCC ID: TVE-120506”.
Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install
or remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
