FreeWave Technologies PRW0010WP 2 Megapixel Wireless Bullet Camera User Manual My
FreeWave Technologies Inc. 2 Megapixel Wireless Bullet Camera My
Users Manual_rev.pdf
![](/img.php?id=2972856&img=bg1.png)
Part Number: LUM0078AA
Revision: Apr-2016

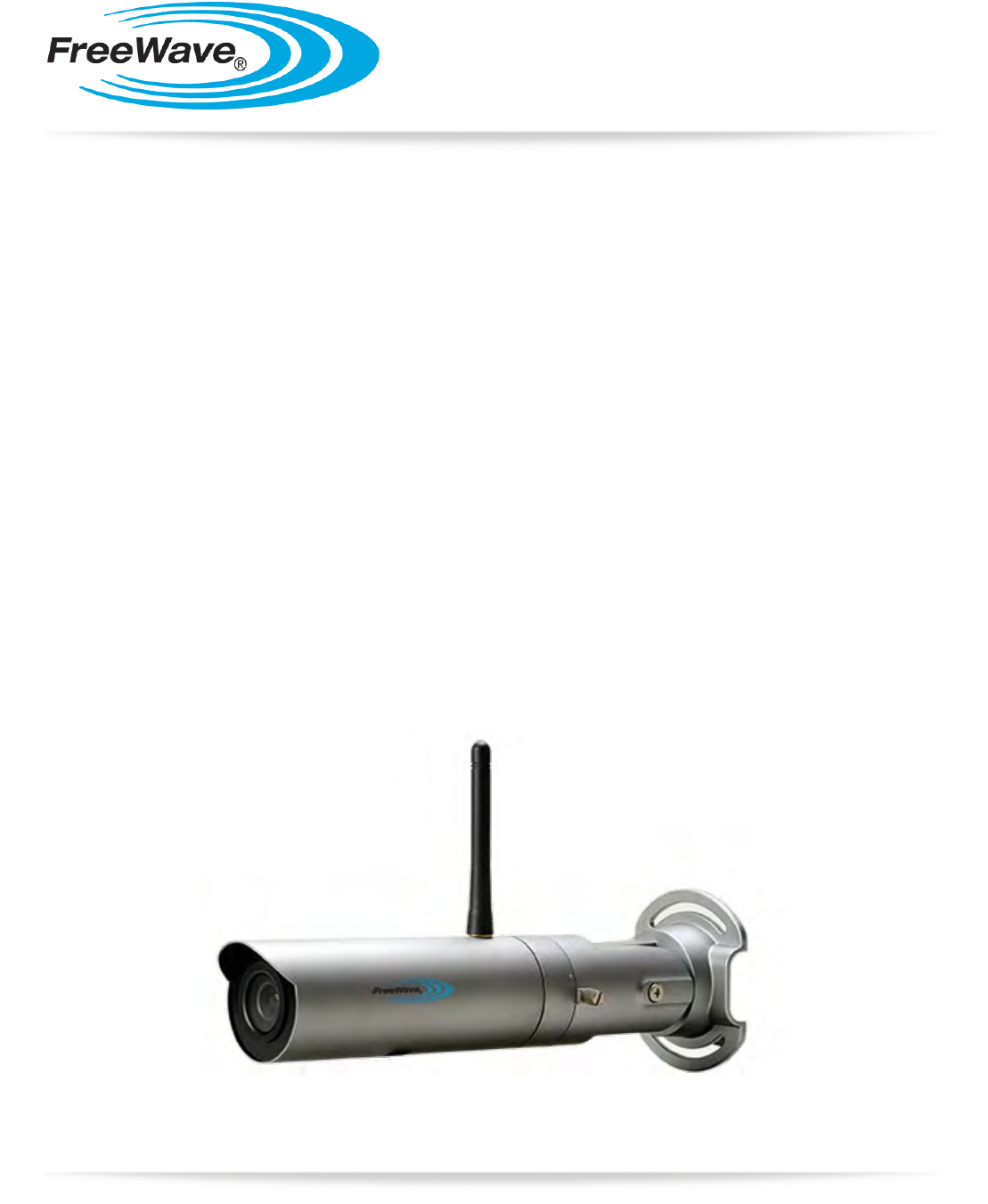

WavePro™ WPV10-100™
Camera
User Manual
![](/img.php?id=2972856&img=bg2.png)
Page 2 of 32 LUM0078AA Rev Apr-2016
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
Safety Information
The products described in this manual can fail in a variety of modes due to misuse, age, or malfunction. Systems
with these products must be designed to prevent personal injury and property damage during product operation
and in the event of product failure.
Warranty
FreeWave Technologies, Inc. warrants the FreeWave® WPV10-100™ Camera (Product) against defects in
materials and manufacturing for a period of one year from the date of shipment, depending on model number. In
the event of a Product failure due to materials or workmanship, FreeWave® will, at its discretion, repair or
replace the Product. For evaluation of Warranty coverage, return the Product to FreeWave® upon receiving a
Return Material Authorization (RMA).
In no event will FreeWave Technologies, Inc., its suppliers, or its licensors be liable for any damages arising from
the use of or inability to use this Product. This includes business interruption, loss of business information, or
other loss which may arise from the use of this Product.
Warranty Policy will not apply in the following circumstances:
1. If Product repair, adjustments, or parts replacements are required due to accident, neglect, or undue
physical, electrical, or electromagnetic stress.
2. If Product is used outside of FreeWave® specifications as stated in the Product's data sheet.
3. If Product has been modified, repaired, or altered by Customer unless FreeWave® specifically authorized
such alterations in each instance in writing.
WPV10-100™ Return Material Authorization (RMA) Policy and Procedures
This policy describes the responsibilities and procedures of the Customer and FreeWave when a WPV10-100™
Product return is required.
When a request for a WPV10-100™ Product replacement has been verified by FreeWave’s Customer Support,
FreeWave’s policy for processing the device returned due to a fault is to replace the device with a new or
refurbished device upon receipt of the reported faulty product.
FreeWave's RMA policy is subject to change without notice.
In-Warranty Replacement Procedure
1. Customer contacts FreeWave Customer Support to report the non-functioning WPV10-100™ Product .
2. FreeWave Customer Support:
a. Verifies that a Product replacement is the appropriate action.
b. Issues a FreeWave RMA number.
3. The Customer pays the shipping costs to return the WPV10-100™ Product to FreeWave.
4. FreeWave sends a new or refurbished WPV10-100™ Product to the Customer.
Important!: Any visual or external damage noted on a returned Product may void the warranty.
This will be communicated back to the customer and a Purchase Order (PO) will be requested from the
customer for Product replacement.
FreeWave Technologies, Inc.
5395 Pearl Parkway, Suite 100
Boulder, CO 80301
303.381.9200
Toll Free: 1.866.923.6168
Fax: 303.786.9948
Copyright © 2016 by FreeWave Technologies, Inc.
All rights reserved. www.freewave.com
![](/img.php?id=2972856&img=bg3.png)
WavePro™ WPV10-100™: User Manual
Export Notification
FreeWave Technologies, Inc. products may be subject to control by the Export Administration Regulations
(EAR) and/or the International Traffic in Arms Regulations (ITAR). Export, re-export, or transfer of these
products without required authorization from the U.S. Department of Commerce, Bureau of Industry and
Security, or the U.S. Department of State, Directorate of Defense Trade Controls, as applicable, is
prohibited. Any party exporting, re-exporting, or transferring FreeWave products is responsible for
obtaining all necessary U.S. government authorizations required to ensure compliance with these and other
applicable U.S. laws. Consult with your legal counsel for further guidance.
FCC Notifications
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This
device may not cause harmful interference and 2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
lConsult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The content of this guide covers FreeWave Technologies, Inc. models sold under FCC ID: KNYPRW0010WP.
All models sold under the FCC ID(s) listed above must be installed professionally. Any changes or modifications
not expressly approved by the party responsible for compliance could void the user's authority to operate this
equipment.
This radio must not be co-located or operating in conjunction with any other antenna or radio. Operations in the
5.15-5.25GHz band are restricted to indoor usage only.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.
Power Source
Input voltage for the above models is 12V / 1A.
Important!: Input power shall be derived from a single Class 2 power source.
IC Notifications
This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Ce dispositif est conforme à la norme CNR-247 d'Industrie Canada applicable aux appareils radio exempts de
licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de
LUM0078AA Rev Apr-2016 Page 3 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg4.png)
Page 4 of 32 LUM0078AA Rev Apr-2016
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible
de provoquer un fonctionnement indésirable..
IC Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.
Professional Installation Instruction
1. Installation
This product is designed for specific application and needs to be installed by a qualified personal who
has RF and related rule knowledge. The general user shall not attempt to install or change the setting.
2. Installation Location
The product shall be installed at a location where the radiating antenna can be kept 20 cm from nearby
person in normal operation condition to meet regulatory RF exposure requirement.
3. External Antenna
Use only the antennas which have been approved by the applicant. The non-approved antenna(s) may
produce unwanted spurious or excessive RF transmitting power which may lead to the violation of IC limit
and is prohibited.
4. Installation Procedure
Please refer to user’s manual for the detail.
5. Warning
Please carefully select the installation position and make sure that the final output power does not
exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal penalty.
Instructions d'installation Professionnelle
1. Installation
Ce produit est destine a un usage specifique et doit etre installe par un personnel qualifie maitrisant les
radiofrequences et les regles s'y rapportant. L'installation et les reglages ne doivent pas etre modifies par
l'utilisateur final.
2. Emplacement d'installation
En usage normal, afin de respecter les exigences reglementaires concernant l'exposition aux
radiofrequences, ce produit doit etre installe de facon a respecter une distance de 20 cm entre l'antenne
emettrice et les personnes.
3. Antenn externe.
Utiliser uniiquement les antennes approuvees par le fabricant. L'utilisation d'autres antennes peut
conduire a un niveau de rayonnement essentiel ou non essentiel depassant les niveaux limites definis
par IC, ce qui est interdit.
4. Procedure d'installation
Consulter le manuel d'utilisation.
5. Avertissement
Choisir avec soin la position d'installation et s'assurer que la puissance de sortie ne depasse pas les
limites en vigueur. La violation de cette regle peut conduire a de serieuses penalites federales.

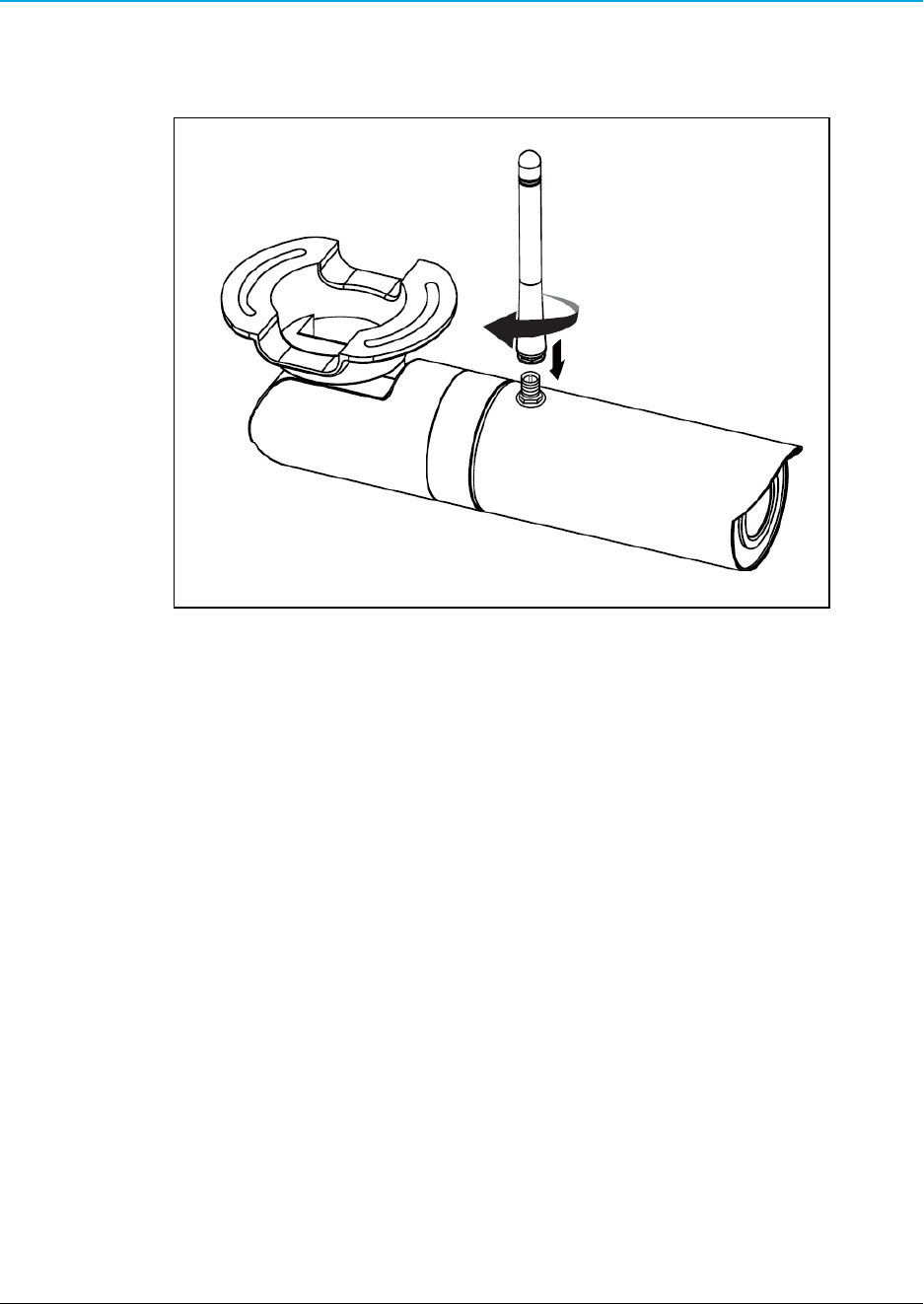

Detachable Antenna Usage
This radio transmitter (IC: 2329B-PRW0010WP / Model: WPV10) has been approved by Industry Canada to
operate with the antenna type listed below with maximum permissible gain indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for
use with this device.
![](/img.php?id=2972856&img=bg5.png)
WavePro™ WPV10-100™: User Manual
Le présent émetteur radio (IC: 2329B-PRW0010WP / Model: WPV10) a été approuvé par Industrie Canada pour
fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les types
d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué, sont strictement
interdits pour l'exploitation de l'émetteur.
Approved Antenna(s) List
Type
Gain (dBi)
Connector
2400
MHz
2450
MHz
2500
MHz
Dipole 1.53 1.51 1.68 RSMA
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R & TTE Directive 1999/5/EC. The following test
methods have been applied in order to prove presumption of conformity with the essential requirements of the R
& TTE Directive 1999/5/EC:
lEN60950-1 /A12:2011+A2:2013 - Safety of Information Technology Equipment
lEN50385:2002 - Product standard to demonstrate the compliance of radio base stations and fixed
terminal stations for wireless telecommunication systems with the basic restrictions or the reference
levels related to human exposure to radio frequency electromagnetic fields (110MHz - 40GHz) - General
public.
lEN 300 328 V1.9.1:2015 - Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using
spread spectrum modulation techniques; Harmonized EN covering essential requirements under article
3.2 of the R & TTE Directive
lEN 301 489-1 V1.9.2:2011 - Electromagnetic compatibility and Radio Spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common
technical requirements
lEN 301 489-17 V2.2.1:2012 - Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific
conditions for 2.4GHz wideband transmission systems and 5GHz high performance RLAN equipment
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain
authorization to use the device for setting up outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power
may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-
user should contact the national spectrum authority in France.
Language Description
Česky
[Czech]
FreeWave Technologies, Inc. tímto prohlašuje, že tento WPV10-100™ je ve shodě se
základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede FreeWave Technologies, Inc. erklærer herved, at følgende udstyr
WPV10-100™ overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF.
Deutsch
[German]
Hiermit erklärt FreeWave Technologies, Inc., dass sich das Gerät WPV10-100™ in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
LUM0078AA Rev Apr-2016 Page 5 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg6.png)
Page 6 of 32 LUM0078AA Rev Apr-2016
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
Language Description
Eesti
[Estonian]
Käesolevaga kinnitab FreeWave Technologies, Inc. seadme WPV10-100™ vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
English Hereby, FreeWave Technologies, Inc., declares that this WPV10-100™ is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente FreeWave Technologies, Inc. declara que el WPV10-100™
cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o
exigibles de 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ FreeWave Technologies, Inc. ΔΗΛΩΝΕΙ ΟΤΙ WPV10-100™
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente FreeWave Technologies, Inc. déclare que l'appareil WPV10-100™ est
conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.
Italiano
[Italian]
Con la presente FreeWave Technologies, Inc. dichiara che questo WPV10-100™ è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Latviski
[Latvian]
Ar šo FreeWave Technologies, Inc. / izgatavotāja nosaukums] deklarē, ka WPV10-100™
atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių
[Lithuanian]
Šiuo FreeWave Technologies, Inc. deklaruoja, kad šis WPV10-100™ atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart FreeWave Technologies, Inc. dat het toestel WPV10-100™ in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, FreeWave Technologies, Inc., jiddikjara li dan WPV10-100™ jikkonforma
mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva
1999/5/EC.
Magyar
[Hungarian]
Alulírott, FreeWave Technologies, Inc. nyilatkozom, hogy a WPV10-100™ megfelel a
vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym FreeWave Technologies, Inc. oświadcza, że WPV10-100™ jest zgodny z
zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy
1999/5/EC.
Português
[Portuguese]
FreeWave Technologies, Inc. declara que este WPV10-100™ está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
FreeWave Technologies, Inc. izjavlja, da je ta WPV10-100™ v skladu z bistvenimi
zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
FreeWave Technologies, Inc. týmto vyhlasuje, že WPV10-100™ spĺňa základné
požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
FreeWave Technologies, Inc. vakuuttaa täten että WPV10-100™ tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Svenska
[Swedish]
Härmed intygar FreeWave Technologies, Inc. att denna WPV10-100™ står I
överensstämmelse med de väsentliga egenskapskrav och övriga relevanta
bestämmelser som framgår av direktiv 1999/5/EG.
![](/img.php?id=2972856&img=bg7.png)
WavePro™ WPV10-100™: User Manual
GNU License Notification
Some of the software in the firmware is licensed under the GNU General Public License and other Open Source
and Free Software licenses. You can obtain corresponding source by contacting FreeWave and requesting the
source on CD.
Restricted Rights
Any product names mentioned in this manual may be trademarks or registered trademarks of their respective
companies and are hereby acknowledged.
This manual is only for use by purchasers and other authorized users of FreeWave products.
No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical,
or for any purpose without the express written permission of FreeWave Technologies, Inc. FreeWave reserves
the right to make changes to this manual without notice. FreeWave assumes no responsibility or liability for the
use of this manual or the infringement of any copyright or other proprietary right.
WPV10-100™ Product Safety
WPV10-100™ Conditions of Safe Use
lProvision shall be made to prevent the rated voltage from being exceeded by the transient disturbances
of more than 140% of the peak rated voltage.
lThe shall be mounted with a minimum IP54 ingress protection rating (as defined in EN-60529).
lThe WPV10-100™ CANNOT be used in an environment greater than pollution degree 2.
LUM0078AA Rev Apr-2016 Page 7 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg8.png)
Page 8 of 32 LUM0078AA Rev Apr-2016
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg9.png)
WavePro™ WPV10-100™: User Manual
Table Of Contents
Preface 10
1. WPV10-100™ Camera Overview 12
1.1 System Requirements 13
1.2 WPV10-100™ Camera Included Accessories 13
1.3 User-supplied Equipment 14
1.4 WPV10-100™ Camera Hardware Layout 14
2. WPV10-100™ Camera Installation and Setup 15
2.1 Connect to the WPV10-100™ Camera 16
2.2 Setup the Computer IP Address Configuration 18
2.3 Access the WPV10-100™ Camera 22
Appendix A: WPV10-100™ Camera Technical Specifications 28
Appendix B: WPV10-100™ Camera LEDs 31
LUM0078AA Rev Apr-2016 Page 9 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bga.png)
WavePro™ WPV10-100™: User Manual
Preface
Where to Find Additional Information
WPV10-100™ Quick Start Guide
Use the WP201™ website, WavePro™ Downloads, to download the latest version of the Quick
Start Guide.
Contacting FreeWave Technical Support
For up-to-date troubleshooting information, check the Support page at www.freewave.com.
FreeWave provides technical support Monday through Friday, 8:00 AM to 5:00 PM Mountain
Time (GMT -7).
lCall toll-free at 1.866.923.6168.
lIn Colorado, call 303.381.9200.
lContact us through e-mail at moreinfo@freewave.com.
Printing this Document
This document is set to print double-sided with a front cover and a back cover. Viewing this
document online with a PDF viewer, may show pages intentionally left blank to accommodate the
double-sided printing.
LUM0078AA Rev Apr-2016 Page 10 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bgb.png)
Preface
Page 11 of 32 LUM0078AA Rev Apr-2016
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
Document Styles
This document uses these styles:
lFreeWave applications appear as: FreeWave.
lParameter setting text appears as: [Page=radioSettings]
lFile names appear as: configuration.cfg.
lFile paths appear as: C:\Program Files (x86)\FreeWave Technologies.
lUser-entered text appears as: xxxxxxxxx.
l3rd-party names appear as: Notepad®.
Caution: Indicates a situation that MAY cause damage to personnel, the radio, data, or
network.
Example: Provides example information of the related text.
FreeWave Recommends: Identifies FreeWave recommendation information.
Important!: Provides semi-cautionary information relevant to the text or procedure.
Note: Emphasis of specific information relevant to the text or procedure.
Provides time saving or informative suggestions about using the product.
Warning! Indicates a situation that WILL cause damage to personnel, the radio, data, or
network.
Documentation Feedback
Send comments or questions about this document's content to techpubs@freewave.com. In the
e-mail, include the title of the document or the document's part number and revision letter (found
in the footer).
![](/img.php?id=2972856&img=bgc.png)
WavePro™ WPV10-100™: User Manual
1. WPV10-100™ Camera Overview
Thank you for purchasing the WavePro™WPV10-100™ Camera.
The FreeWave WPV10-100™ is a 2-Megapixel Day & Night wireless Bullet Network Camera
which adds monitoring and surveillance capabilities to a variety of network environments. With a
built-in removable mechanical IR-cut filter, it helps users keep an eye on what matters and get
notified by what just happened on demand allowing remote 24/7 monitoring.
The WPV10-100™ features:
lMegapixel HD with High speed H.264 encoding ensures high quality image recording.
lLED Infrared Night Vision (to a maximum of 82 feet (25 meters)) with Automatic Activation
System to deliver 24/7 non-stop monitoring.
lWireless 802.11b/g/n Network Compliant with optimum Wi-Fi performance.
lSupports:
lTwo simultaneous stream recording with high speed H.264 encoding.
lPush Message and Play Back on smart devices triggered by motion.
Notes
lFeatures and specifications are subject to change without notice.
lTrademarks and registered trademarks are the property of their respective owners.
LUM0078AA Rev Apr-2016 Page 12 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bgd.png)
1. WPV10-100™ Camera Overview
Page 13 of 32 LUM0078AA Rev Apr-2016
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
1.1 System Requirements
These are the system requirements needed to configure the WPV10-100™:
lComputer with:
lan Ethernet interface or wireless network capability
lWindows® 7 or greater.
lBroadband Internet Service (Cable or DSL Modem)
lWeb browser (i.e., Internet Explorer®, Firefox®, Safari®, Chrome®, Opera®).
1.2 WPV10-100™ Camera Included Accessories
The WPV10-100™ package contains these items:
WPV10-100™ Included Accessories
Qty Description Image Letter
1WPV10-100™ Quick Start Guide
1WPV10-100™ Camera A
1 2.4GHz, 2dBi, Omni-directional, detachable Antenna B
1 Power Adapter C
1 Screw Set Kit D
1 RJ-45 cable E
Figure 1: WPV10-100™ Included Accessories
![](/img.php?id=2972856&img=bge.png)
WavePro™ WPV10-100™: User Manual
1.3 User-supplied Equipment
lComputer with:
lWindows®7or greater
lan Ethernet port
lInternet browser (Chrome®, Firefox®, Internet Explorer®, Opera®, Safari®)
lCAT5e / CAT6 Ethernet cable
lMedium Phillips-head screwdriver
lHammer (for wall installation)
lDrill with 8mm diameter drill bit (for wall installation)
1.4 WPV10-100™ Camera Hardware Layout
This image identifies the hardware layout of the WPV10-100™:
Figure 2: WPV10-100™ Camera Hardware Layout
Note: See WPV10-100™ Camera Included Accessories (on page 13).
LUM0078AA Rev Apr-2016 Page 14 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bgf.png)
WavePro™ WPV10-100™: User Manual
2. WPV10-100™ Camera Installation and Setup
This section provides procedure information about installation and initial setup of the WPV10-
100™.
lConnect to the WPV10-100™ Camera (on page 16)
lSetup the Computer IP Address Configuration (on page 18)
lAccess the WPV10-100™ Camera (on page 22)
LUM0078AA Rev Apr-2016 Page 15 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg10.png)
2. WPV10-100™ Camera Installation and Setup
Page 16 of 32 LUM0078AA Rev Apr-2016
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
2.1 Connect to the WPV10-100™ Camera
1. Screw the antenna onto the WPV10-100™.
Figure 3: Antenna on the WPV10-100™
2. Connect the camera to the computer using the Ethernet cable.
3. Connect the supplied power cable from the camera to a power outlet.
![](/img.php?id=2972856&img=bg11.png)
WavePro™ WPV10-100™: User Manual
Figure 4: WPV10-100™ Connect to Power Outlet and Computer
LUM0078AA Rev Apr-2016 Page 17 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg12.png)
2. WPV10-100™ Camera Installation and Setup
Page 18 of 32 LUM0078AA Rev Apr-2016
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
2.2 Setup the Computer IP Address Configuration
Note: The images in this example procedure are for (missing or bad snippet).
1. On the computer, click the Windows®Start button and select Control Panel.
2. View the Control Panel window by Category and click Network and Internet > View
Network Status and Tasks.
3. Click the Change Adapter Settings link.
Figure 5: Change Adapter Settings Link
4. Double-click the Local Area Connection link.
Figure 6: Local Area Connection Link
The Local Area Connection Status dialog box opens.
![](/img.php?id=2972856&img=bg13.png)
WavePro™ WPV10-100™: User Manual
Figure 7: Local Area Connection Status dialog box
5. Click Properties.
The Local Area Connection Properties dialog box opens.
6. Select the Internet Protocol Version 4 (TCP/IPv4) option.
LUM0078AA Rev Apr-2016 Page 19 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg14.png)
2. WPV10-100™ Camera Installation and Setup
Page 20 of 32 LUM0078AA Rev Apr-2016
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
Figure 8: Local Area Connection Properties dialog box
7. Click Properties.
The Internet Protocol Version 4 (TCP/IPv4) Properties dialog box opens.
8. Make a note of the current settings (to reverse this procedure later).
9. Select the Use the following IP address option button.
10. In the IP Address text box, enter an IP Address that is in the same subnet range but a
DIFFERENT IP Address than the WPV10-100™ AND different than the computer IP
Address.
Note: The default WPV10-100™ Camera IP Address is 192.168.1.200. The default subnet
mask is 255.255.255.0.
Example: Enter an IP Address from 192.168.1.1 to 192.168.1.254 (but NOT 192.168.1.200)
and the Subnet Mask to 255.255.255.0.
![](/img.php?id=2972856&img=bg15.png)
WavePro™ WPV10-100™: User Manual
Figure 9: Local Area Connection Properties dialog box
Note: An IP Address is NOT required in the Default Gateway text box.
11. Click OK to save the changes and close the dialog box.
12. Click Close twice to close the Local Area Connection Properties and Local Area
Connection Status dialog boxes.
LUM0078AA Rev Apr-2016 Page 21 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg16.png)
2. WPV10-100™ Camera Installation and Setup
Page 22 of 32 LUM0078AA Rev Apr-2016
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
2.3 Access the WPV10-100™ Camera
1. On the computer connected to the WPV10-100™, open a web browser.
2. In the address bar of the browser, enter the default WPV10-100™ IP Address:
192.168.1.200.
Figure 10: Entered IP Address
3. Press <Enter>.
The Login window opens.
Figure 11: WPV10-100™ Login window
4. Enter the default Username and Password (admin for both) and click Login.
Note: When accessing the WPV10-100™ the first time, the WebCMS download window
opens.
![](/img.php?id=2972856&img=bg17.png)
WavePro™ WPV10-100™: User Manual
Figure 12: WebCMS Download window
5. Click the Download WebCMS button.
The Opening webCMS_n.n.n.n.exe dialog box opens.
Figure 13: Opening webCMS_n.n.n.n.exe dialog box
6. Click Save File.
The Enter name of file to save to dialog box opens.
LUM0078AA Rev Apr-2016 Page 23 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg18.png)
2. WPV10-100™ Camera Installation and Setup
Page 24 of 32 LUM0078AA Rev Apr-2016
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
Figure 14: Enter name of file to save to dialog box
7. Click Save.
The Enter name of file to save to dialog box closes.
8. Open the location where the webCMS_n.n.n.n.exe file was saved.
Figure 15: Designated folder in Windows®Explorer
9. Select and double-click the webCMS_n.n.n.n.exe.
The User Account Control message opens.
![](/img.php?id=2972856&img=bg19.png)
WavePro™ WPV10-100™: User Manual
Figure 16: User Account Control message
10. Click Yes.
Note: If the browser is still open, a WebCMSLive message appears.
Figure 17: WebCMSLive message
11. Close any open browsers and repeat Steps 9 and 10.
The WebCMSLive Setup: Installing window opens showing the installation process has
started.
When installation is completed, the WebCMSLive Setup message appears.
Note: The installation and setup happens very quickly. The software is installed here:
C:\Program Files (x86)\WebCMS.
LUM0078AA Rev Apr-2016 Page 25 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg1a.png)
2. WPV10-100™ Camera Installation and Setup
Page 26 of 32 LUM0078AA Rev Apr-2016
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
Figure 18: WebCMSLive Setup message
12. Click OK to close the messages.
13. Open a web browser.
14. In the address bar of the browser, enter the default WPV10-100™ IP Address:
192.168.1.200.
Figure 19: Entered IP Address
15. Press <Enter>.
The Login window opens.
Figure 20: WPV10-100™ Login window
16. Enter the default Username and Password (admin for both) and click Login.
17. Press <Enter>.
![](/img.php?id=2972856&img=bg1b.png)
WavePro™ WPV10-100™: User Manual
The WPV10-100™Camera Home Page opens showing a live-action stream to the
computer.
Figure 21: WPV10-100™ Camera Home Page
Note: See the Window Components for detailed information about the options in the window.
Note: : If a gray color is visible in the viewer, it is because the camera has detected insufficient
of light in the room and enabled night vision mode automatically. Point the camera to a brighter
area, to see it switched to normal color mode.
Try a few places to see how the switch from normal color mode to night vision works.
LUM0078AA Rev Apr-2016 Page 27 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg1c.png)
WavePro™ WPV10-100™: User Manual
Appendix A: WPV10-100™ Camera
Technical Specifications
Specifications may change at any time without notice. For the most up-to-date specifications
information, see the product's data sheet available at www.freewave.com.
WPV10-100™ Camera Technical Specifications
Specification Description
Camera
Image Sensor 1/2.7”, 1920x1080 pixel, Progressive Scan CMOS
LENs Fixed Focal, f=2.8mm / F1.8
F.O.V. 120°
Day / Night Removable IR-cut filter
Minimum Illumination lColor (IR-off): 0.1Lux / F1.8
lB/W (IR-On): 0 Lux / F1.8
IR Illuminator 12 IR LEDs with a maximum of 25m range
Shutter Time 1/2 sec. to 1/10,000 sec
Video
Compression H.264 / MJPEG / MPEG4
Frame Rates A maximum of 30fps at 1920x1080
Image Settings lImage Size
lQuality
lBit Rate
lBrightness
lContrast
lSaturation
LUM0078AA Rev Apr-2016 Page 28 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg1d.png)
Appendix A: WPV10-100™ Camera Technical Specifications
Page 29 of 32 LUM0078AA Rev Apr-2016
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
WPV10-100™ Camera Technical Specifications
Specification Description
lFlip and Mirror
lAGC / AWB / AES
lDay / Night, Manual or Auto Mode
lText Caption Overlay
lSharpness
lExposure
lTime Stamp
Web Browser lChrome®
lFirefox®
lInternet Explorer®
lOpera®
lSafari®
View Clients Live viewing for a maximum of 2 clients.
Alarm and Event / Recording
Event Trigger lMotion or Audio-In Detection
lPre-alarm and post-alarm (5 sec)
Event Notification Email / Push-Notification
Event Actions lSchedule Recording
lFile upload to SAMBA / FTP
Networking
Network 10/100 Mbps Ethernet, RJ-45
PoE 802.3af Class2
Security lAdmin / User Account Level, Password Protected
lWEP / WPA / WPA2-PSK
Protocol
l3GPP
lDDNS
lDHCP
lDNS
lFTP
lHTTP
lIPv4
lNFS / Samba client
lNTP
lPPPoE
lQoS / DSCP
lRTP
lRTSP
lSMTP
lTCP
lUDP
lUPnP
External Antenna Gain 1.68dBi
RF Connector Reverse SMA plug
Wireless Interface IEEE 802.11b/g/n
Power
![](/img.php?id=2972856&img=bg1e.png)
WavePro™ WPV10-100™: User Manual
WPV10-100™ Camera Technical Specifications
Specification Description
Power Requirements lPower Supply: 12VDC, 1.0A (power from adapter)
lPoE: 54VDC, 0.6A, 802.3af
Power Consumption 8W
Environmental
Operating Temperature -20°C to 50°C
-4°F to 122°F
Humidity Up to 100%, Condensing
Dimensions Length (including bracket): 9.25 inches (23.5cm)
Diameter of Bracket: 3.0 inches (7.62cm)
Diameter of Camera: 1.75 inches (4.45cm)
Weight 7 lbs
3.2kg
Interface Cable lRJ-45 1 x 10/100BASE-T(802.3af PoE)
lDC Jack (12V / 1A)
lReset Button
Compliance Standards
Radio Approvals l47 CFR Part 15
lIC RSS-247
lCE
Material Compliance lRoHS
lIP66 Enclosure
LUM0078AA Rev Apr-2016 Page 30 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg1f.png)
WavePro™ WPV10-100™: User Manual
Appendix B: WPV10-100™ Camera LEDs
These are the WPV10-100™ LEDs:
WPV10-100™ Camera LEDs
Function Button LED
WPS 1~5 sec Green – Blink (RJ45)
Reset 6~10 sec Orange – Solid (RJ45)
Reset to Default 10 sec or above Orange – Blink (RJ45)
LUM0078AA Rev Apr-2016 Page 31 of 32
This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by
FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from
FreeWave Technologies, Inc.
![](/img.php?id=2972856&img=bg20.png)
