MC33493MODxxx Quick Start Guide
Laurent GAUTHIER-TSPG-MCD-ARC Page 1
Last update: February 5, 2007
MC33493MODxxx KIT
Quick Start User Guide
This document provides first information to use MC33696 tools.
Last update:
V1.1: Note for FCC
Important:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Note: the manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
1 OVERVIEW
MC33493MODxxx operation requires:
An MC33493MODxxx RF Module with attached Printed antenna
A DEMO9S08RG60 MCU board
An RS232 cable
A PC with RS232 port, CD player and Hyper Terminal.
A 9V Battery

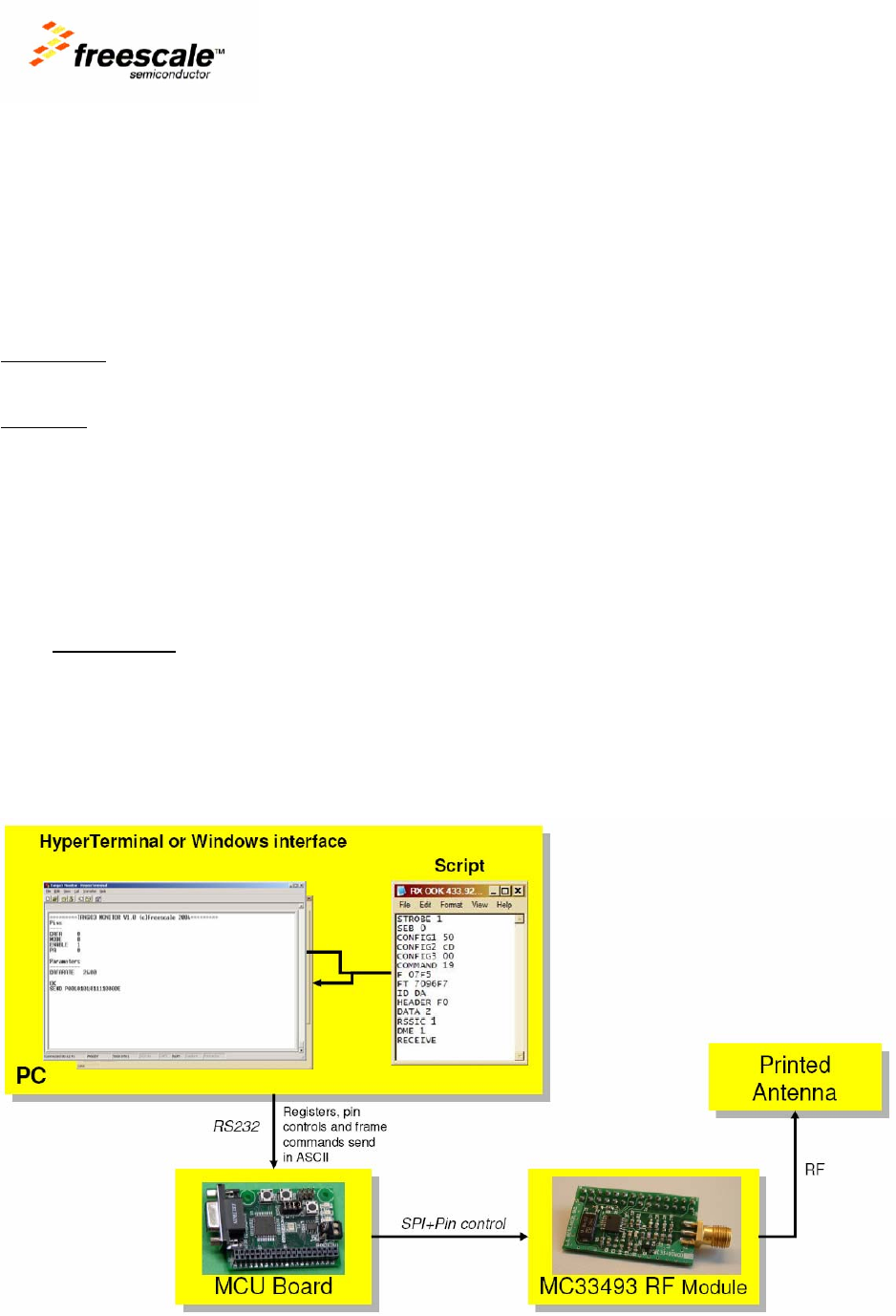

The operation of MC33493 is done by sending with Hyper Terminal a script to the MCU board that will
configure MC33493 in a defined configuration.
![](/img.php?id=760083&img=bg2.png)
MC33493MODxxx Quick Start Guide
Laurent GAUTHIER-TSPG-MCD-ARC Page 2
Available script files:
standby configuration
continuous CW transmission
continuous 4.8kHz OOK transmission
continuous 4.8kHz FSK transmission
2 LAUNCHING THE KIT
Plug the RF Module on the MCU board
Connect the MCU board to the PC using the RS232 cable
Launch HyperTerminal using the proper xxx.ht file according to available COM port
Connect the 9V battery

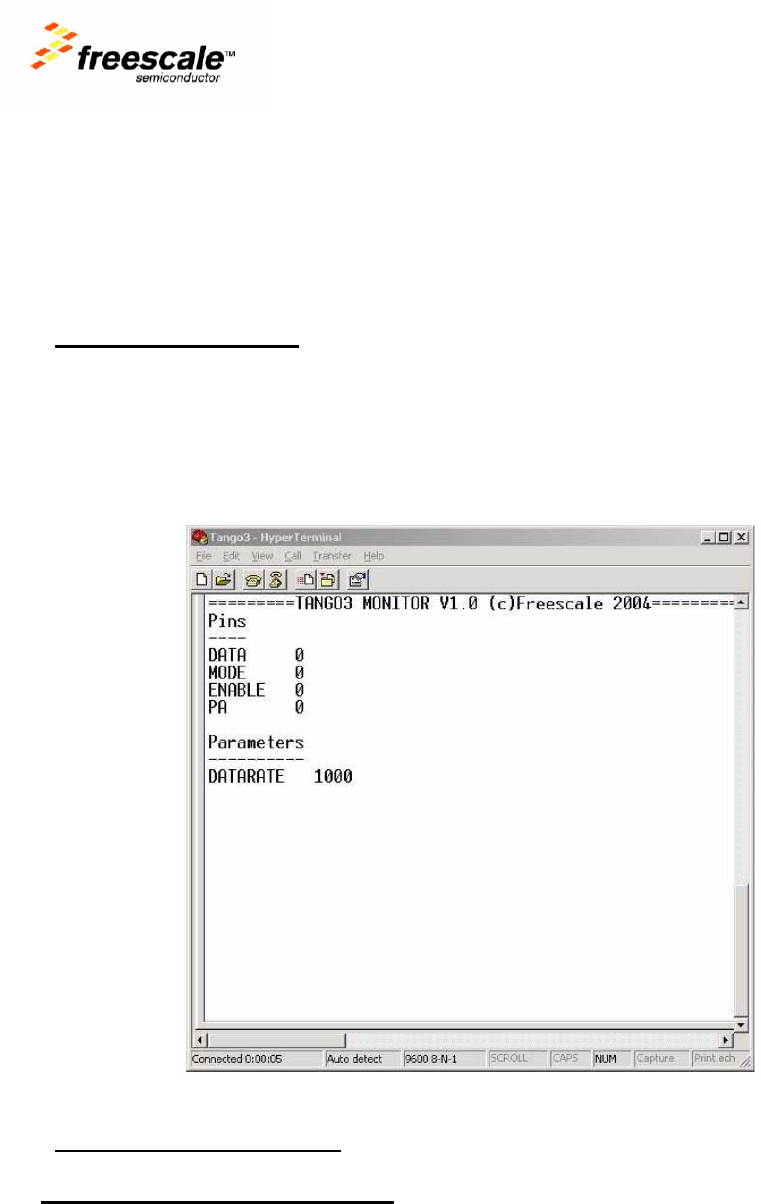

Screen on HyperTerminal receives status of MC33493 Registers and Pin levels
3 SENDING A SCRIPT FILE
3.1 Configuration in Receive mode
With the mouse, click on “Transfer/Send text file”
Select the xxx.txt Script file corresponding to the wanted configuration
For exemple :“TX OOK 433.92MHz Square 4800bps.txt” will configure the kit in Teceive mode at
433.92MHz to send a modulated signal at 4800bps.
At the end: “Sending square wave” indicates that the kit is sending a continuous modulation
