FLOATING AIR
®
SERIES
DUCTLESS SPLIT SYSTEMS
www.friedrich.com THE EXPERTS IN ROOM AIR CONDITIONING
SERIES
Superb performance. Excellent value.
You get both at exceptional pricing.
INVERTER VARIABLE CAPACITY
ADVANTAGES
Inverter technology varies the compressor
speed and the indoor fan speed, eliminating
constant compressor start-ups/shut-downs
that traditional systems require to maintain
the temperature set point.
The system can adjust capacity and cooling
output to provide only the amount of cooling
needed at a given time. The result is
optimal comfort with low energy costs.
5/5 YEAR WARRANTY
Friedrich Floating Air ductless units feature
a 5 year compressor warranty, as well as a
5 year parts warranty.
AUTO RESTART
Auto restart function allows system to
resume with previous settings in the event
of a power shutdown. (Power supply must
be restored).
CONTINUOUS AIR SWEEP
The indoor unit’s up/down air swing quickly
disperses cool air to all four corners of the
room to provide comfort throughout the
room within a few minutes.
OPTIMUM AIR FLOW
Air is directed downward in heating mode
and angled upward during cooling mode so
the room feels more comfortable faster.

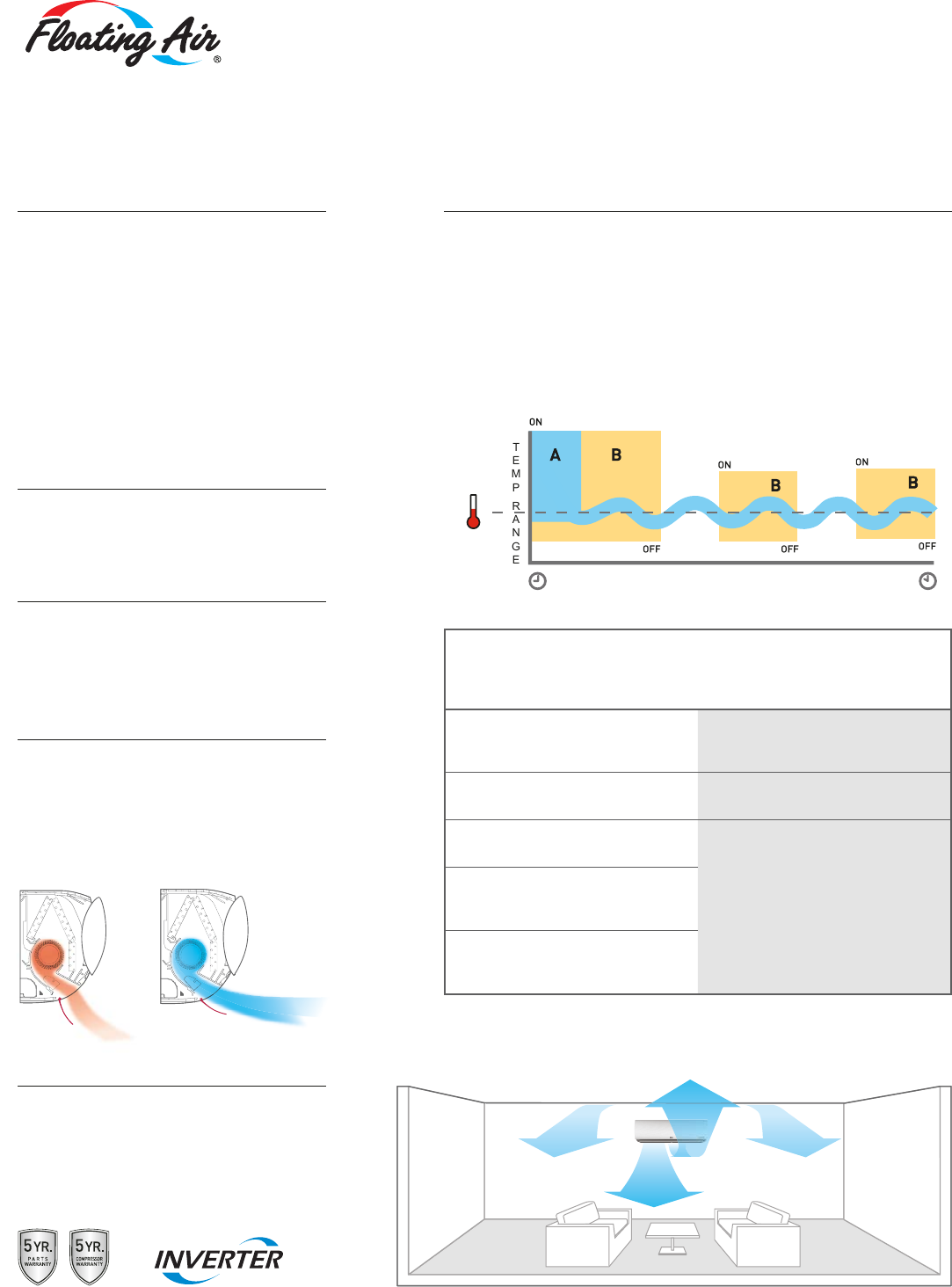

Inverter vs. traditional HVAC systems
TRADITIONAL SYSTEM INVERTER SYSTEM
At initial start up, fixed
capacity system slowly
reaches the set temperature.
At initial start up, utilizes
variable capacity to quickly
reach the set temperature.
Complete shutdown once set
temperature is achieved.
Reduces capacity as set
temperature is achieved.
Temperature rises until 2nd
system start up.
Variable capacity maintains
set temperature keeping space
comfortable with reduced
energy consumption.
System works at full
capacity to again reach set
temperature.
System cycles on and off
continually to maintain the set
temperature.
TIME
setpoint
CONTINUOUS AIR SWEEP
BETTER COMFORT, MORE ENERGY SAVINGS
A. INVERTER ENERGY USAGE
Variable capacity inverter reaches setpoint faster and maintains precise
temperature with minimal energy use.
B. NON-INVERTER ENERGY USAGE
Non-inverter technology is slow to reach setpoint, runs at full capacity,
then shuts off and on with wide temperature swings.
System Model Min. (ft.) Max. (ft.)
MM09YJ 10 66
MM12YJ 10 66
MM18YJ 10 82
MM24YJ 10 82
MM36YJ 15 98
Outside Diameter Torque
mm inch ft-lbs. N·m
Ø6.35 1/4 13~18 17.6~24.5
Ø9.52 3/8 25~30 33.3~41.2
Ø12.7 1/2 40~47 53.9~64.7
Ø15.88 5/8 45~59 61.7~80.4
TORQUE WRENCH SETTINGS
REFRIGERATION LINE SETS
MIN./MAX. LENGTHS
FEATURES
• Inverter technology is more energy
efcient and can self-adjust capacity to
match cooling needs
• Multiple operating modes including:
auto, cool, dry, fan only and heat
• TURBO mode operates the unit
at maximum performance to
quickly bring the room to set
temperature
• 4 fan speeds heating or cooling:
high, medium, low, “quiet”, plus
auto-fan
• Continuous ‘Air Sweep’ up & down
• LCD remote
• 24-hour timer and sleep timer
• Indoor unit will briey display set or
room temperature
• Auto-restart after power interruptions
• Auto-shut aps close when unit is off
for a sleek appearance
• Washable antimicrobial air lters
• 230 volt models will provide cooling in
outdoor temperatures down to 5˚ F

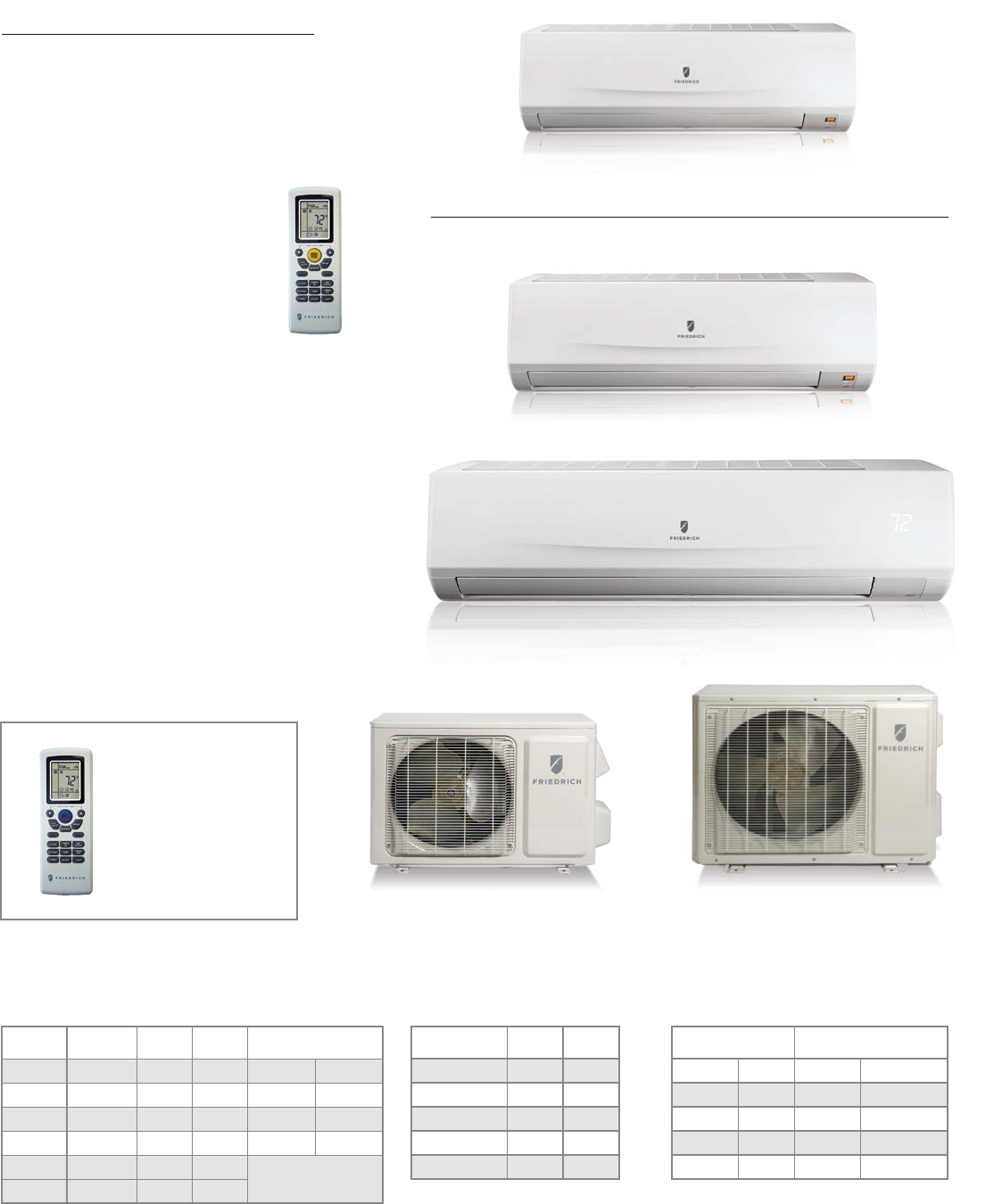

DFACC
LCD remote for cooling
only operation of all
Floating Air heat pump
models.
115 volt models
MWM09Y1J, MWM12Y1J
Features for comfort and convenience year ‘round. In heating mode, units use
approximately 1/4 of the energy required by electric heat.
230/208 volt models
MRM09Y1J, MRM12Y1J MRM18Y3J, MRM24Y3J, MRM36Y3J
MWM36Y3J
MWM18Y3J, MWM24Y3J
Kit# Length (ft.) Liquid Suction System Model
T32150 15' 1/4″ 3/8″ MM09YJ MM12YJ
T32350 35' 1/4″ 3/8″ MM09YJ MM12YJ
T42150 15′ 1/4″ 1/2″ MM18YJ MM24YJ
T42350 35′ 1/4″ 1/2″ MM18YJ MM24YJ
T52150 15′ 1/4″ 5/8″
MM36YJ
T52350 35′ 1/4″ 5/8″
REFRIGERATION LINE SET KITS
OPTIONAL ACCESSORY
PERFORMANCE RATINGS 115 volt models 230/208 volt models
SYSTEM MODEL NO.
MM09YJ MM12YJ MM18YJ MM24YJ MM36YJ
INDOOR MODEL
MWM09Y1J MWM12Y1J MWM18Y3J MWM24Y3J MWM36Y3J
OUTDOOR MODEL
MRM09Y1J MRM12Y1J MRM18Y3J MRM24Y3J MRM36Y3J
CAPACITY COOLING (RATED) Btu
9000 11800 18000 22000 33600
CAPACITY COOLING MIN - MAX Btu
3500~11000 3300~12500 4500~21000 6400~24000 7404~35997
COOLING AMPS
9.00 15.00 7.85/7.10 11.50/10.50 17.0/17.0
HEATING AMPS
9.50 15.5 11.77/10.65 12.80/13.00 16.5/16.5
SENSIBLE HEAT RATIO
0.79 0.73 0.77 0.77 0.75
CAPACITY HEATING (RATED) @ 47°F Btu
9800 13000 19200 24200 34600
CAPACITY HEATING MIN - MAX Btu
2500~11000 3400~13500 4000~23000 4100~26600 14979~35997
CAPACITY HEATING (RATED) @ 17°F Btu
5400 8500 13500 18600 20200
HSPF
8.6 8.6 8.5 8.5 9.0
SEER
16.0 16.0 16.0 16.0 18.0
EER
12.0 9.4 11.0 10.0 8.20
MOISTURE REMOVAL Pts/h
1.69 2.96 3.80 4.50 7.40
AIRFLOW (HIGH/MED/LOW/QUIET) CFM
330/277/224/188 341/288/235/200 471/400/330/271 588/441/306/206 736/647/530/412
SOUND RATING - INDOOR (HIGH/MED/LOW/QUIET) dB-A
41/37/35/32 43/39/35/32 48/43/38/34 49/43/39/34 54/49/44/37
SOUND RATING - OUTDOOR dB-A
53 55 56 53 65
OPERATING RANGE (HEATING) °F
5-75 5-75 5-75 5-75 -4-75
OPERATING RANGE (COOLING) °F
32*-113 32*-113 5-118 5-115 0~109
EST. YEARLY OPERATING COST U.S. $
67 113 146 198 —
ELECTRICAL DATA
POWER SOURCE V/Hz/Phase
115/60/1 115/60/1 208/230/60/1 208/230/60/1 208/230/60/1
MIN. AMPACITY A
13 15 15 16 24
COOLING WATTS W
750 1260 1620 2200 4100
HEATING WATTS W
830 1320 2400 2800 3800
MAX. TD FUSE/BREAKER A
20 25 25 25 40
REFRIGERATION SYSTEM
REFRIGERANT
R410A R410A R410A R410A R410A
COMPRESSOR TYPE
Inverter Inverter Inverter Inverter Inverter
CONNECTIONS
Flare Flare Flare Flare Flare
LIQUID LINE O.D. in
1/4” 1/4” 1/4” 1/4” 1/4”
SUCTION LINE O.D. in
3/8” 3/8” 1/2” 1/2” 5/8”
REFRIGERANT CHARGE oz.
35.3 35.3 45.8 54.7 91.7
FACTORY PRECHARGE ft
24.6 24.6 24.6 24.6 24.6
MIN. / MAX. LINE LENGTH ft
7 / 65 7 / 65 10 / 82 10 / 82 98
MAX. HEIGHT DIFFERENCE ft
32 32 32 32 32
DIMENSIONS & WEIGHT
INDOOR UNIT
W x H x D in
30”× 11”× 8” 34”× 12”× 8” 39 11/16”× 12 3/8”× 8” 53”x13”x10”
NET WEIGHT lbs
19 19 26 33 42
SHIPPING WEIGHT lbs
25 25 35 44 52
OUTDOOR UNIT
W x H x D in
33 3/8”× 24 1/4”× 12 5/8” 37 5/8 x 27 5/8 x 15 5/8 38 1/4”x 31”x 17”
NET WEIGHT lbs
68 68 106 115 161
SHIPPING WEIGHT lbs
77 77 117 126 172
TOTAL NET WEIGHT lbs
87 87 132 148 203
TOTAL SHIPPING WEIGHT lbs
102 102 152 170 224
BRO_FADSS_2018 Printed in USA
Friedrich Air Conditioning Co. l 10001 Reunion Place, Suite 500 l San Antonio, TX 78216 l 877.599.5665 l www.friedrich.com
SPECIFICATIONS
*Capacity is reduced as 32 degrees Fahrenheit is approached.
Due to continuing research in new energy-saving technology, specifications are subject to change without notice.
All Friedrich ductless split products require a licensed contractor for installation.
