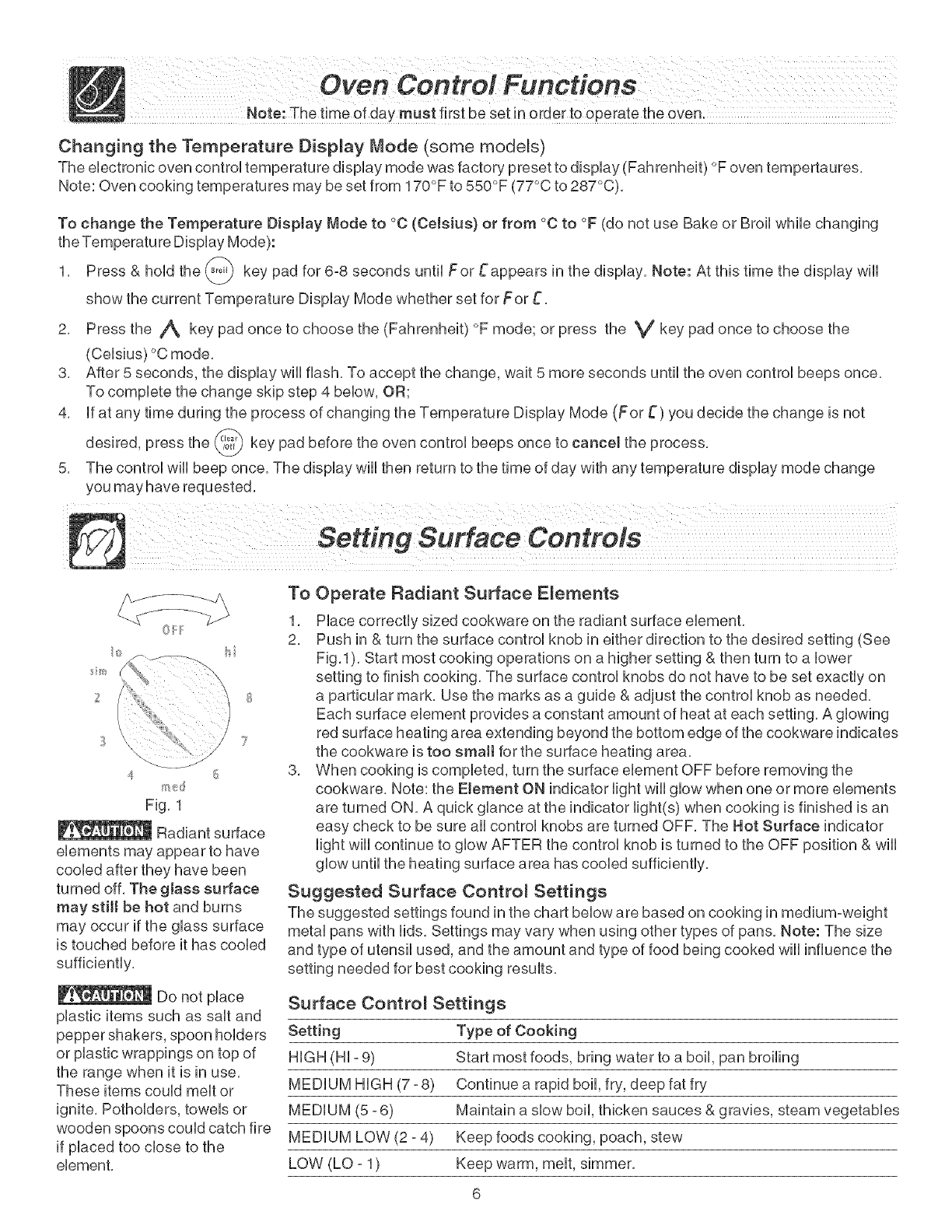

Controls ............... 6

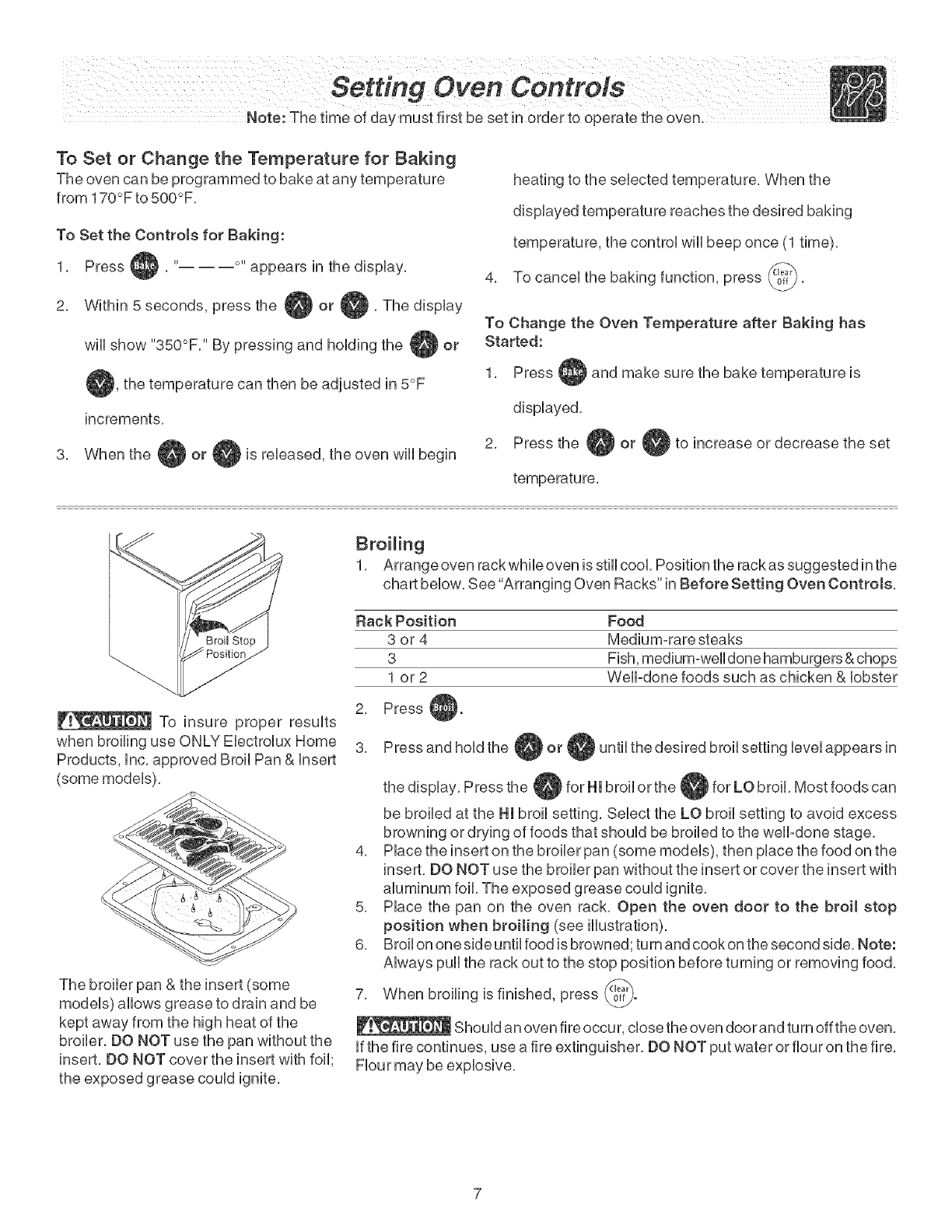

Setting Oven Controls .................... 7

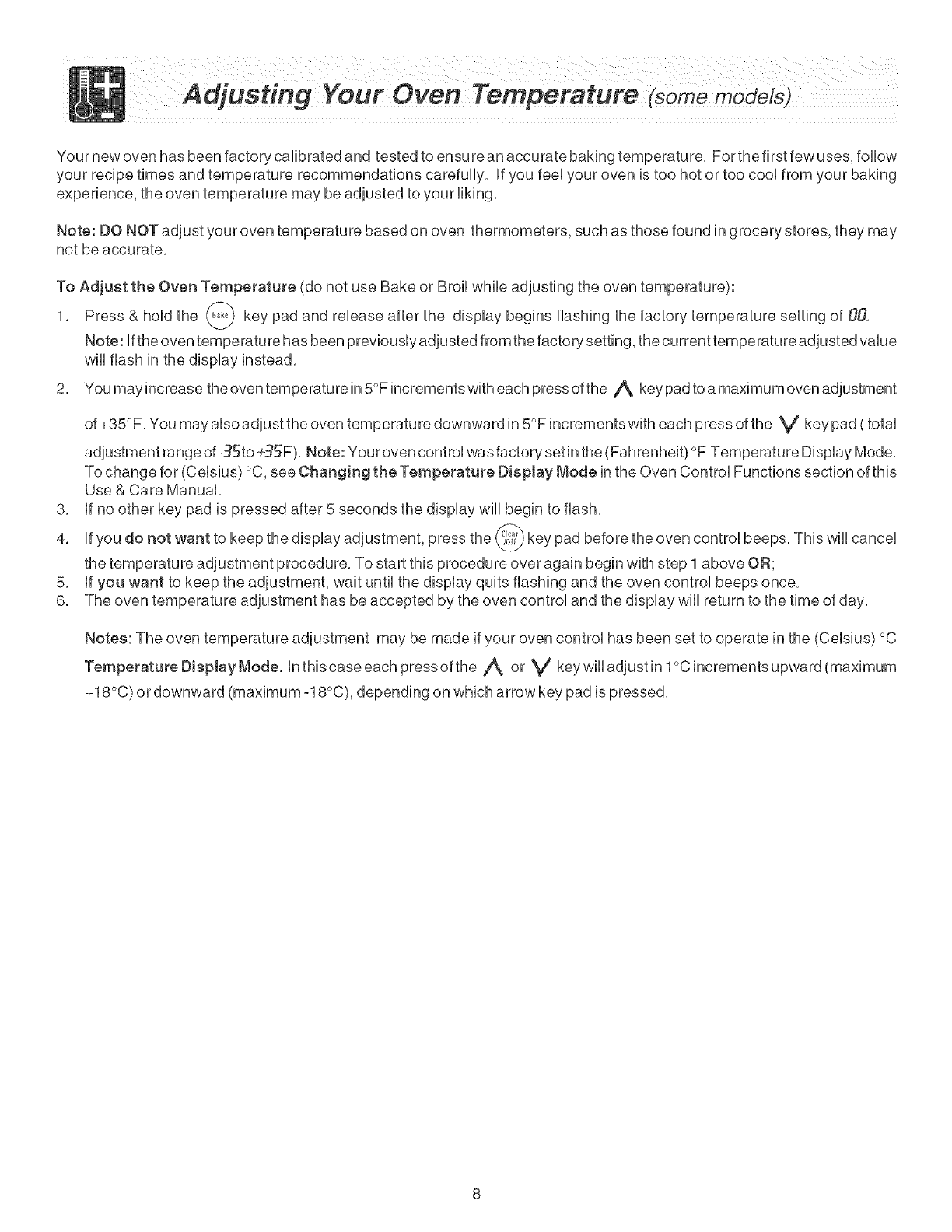

Adjusting Your Oven

Temperature (some models) ............ 8

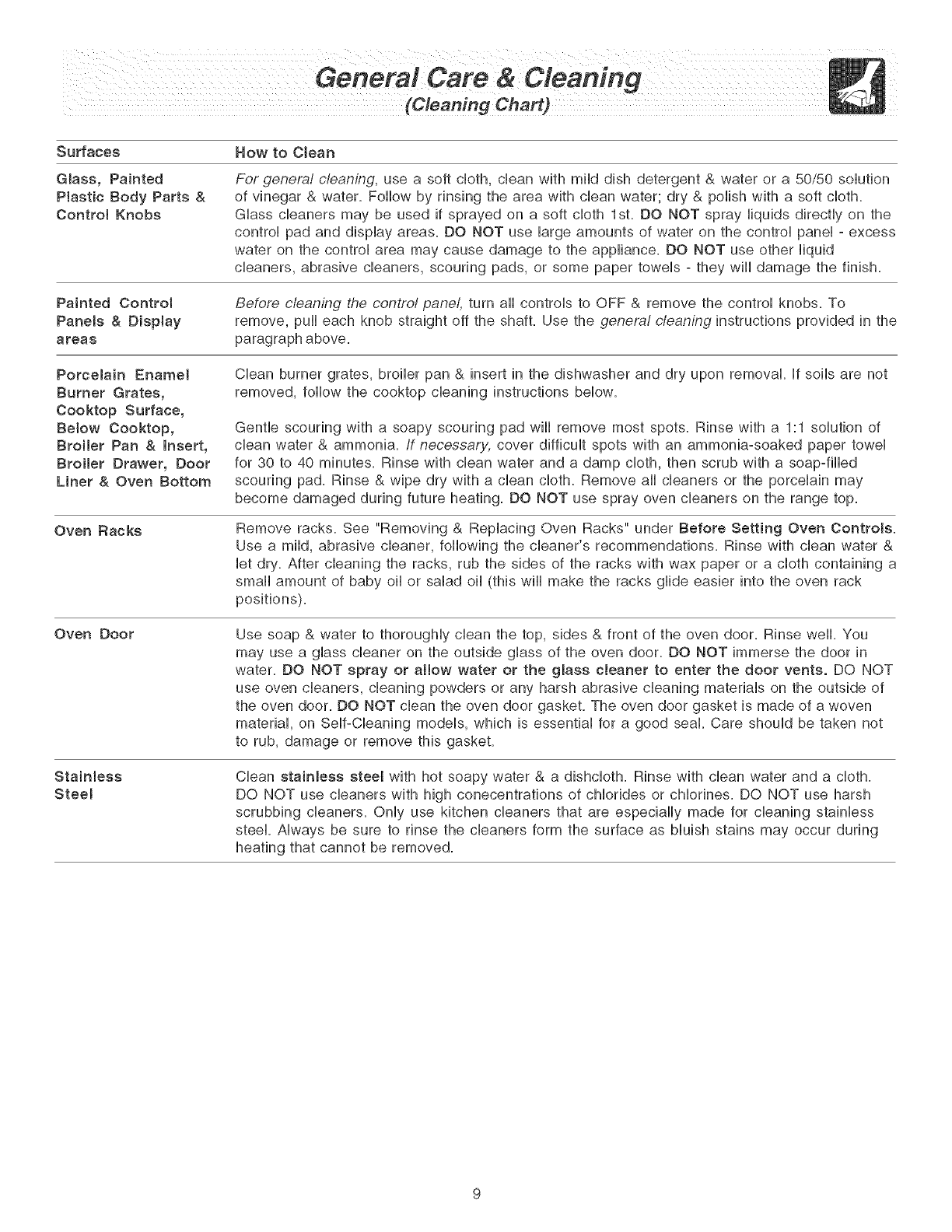

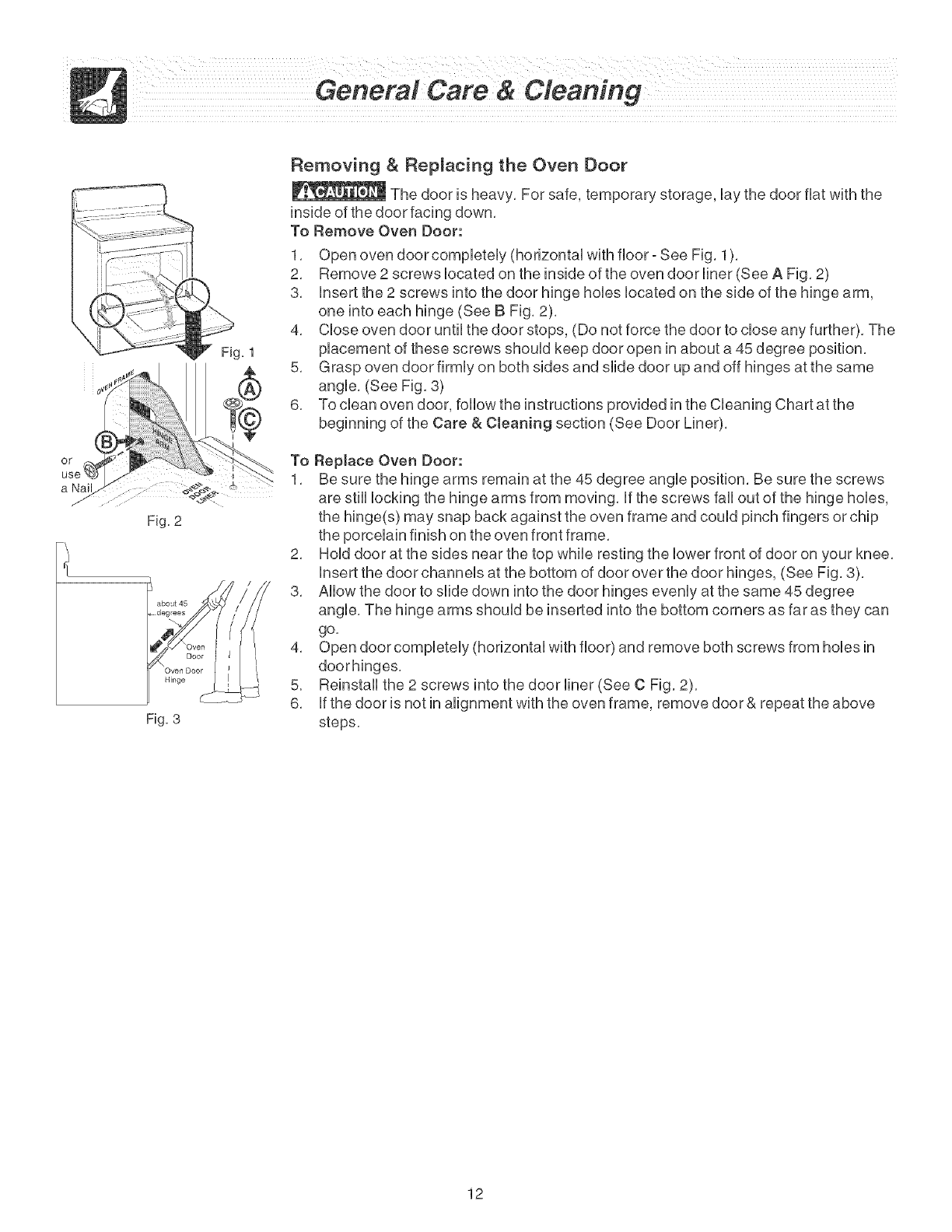

Genera_ Care & C_eaning ......... 9-12

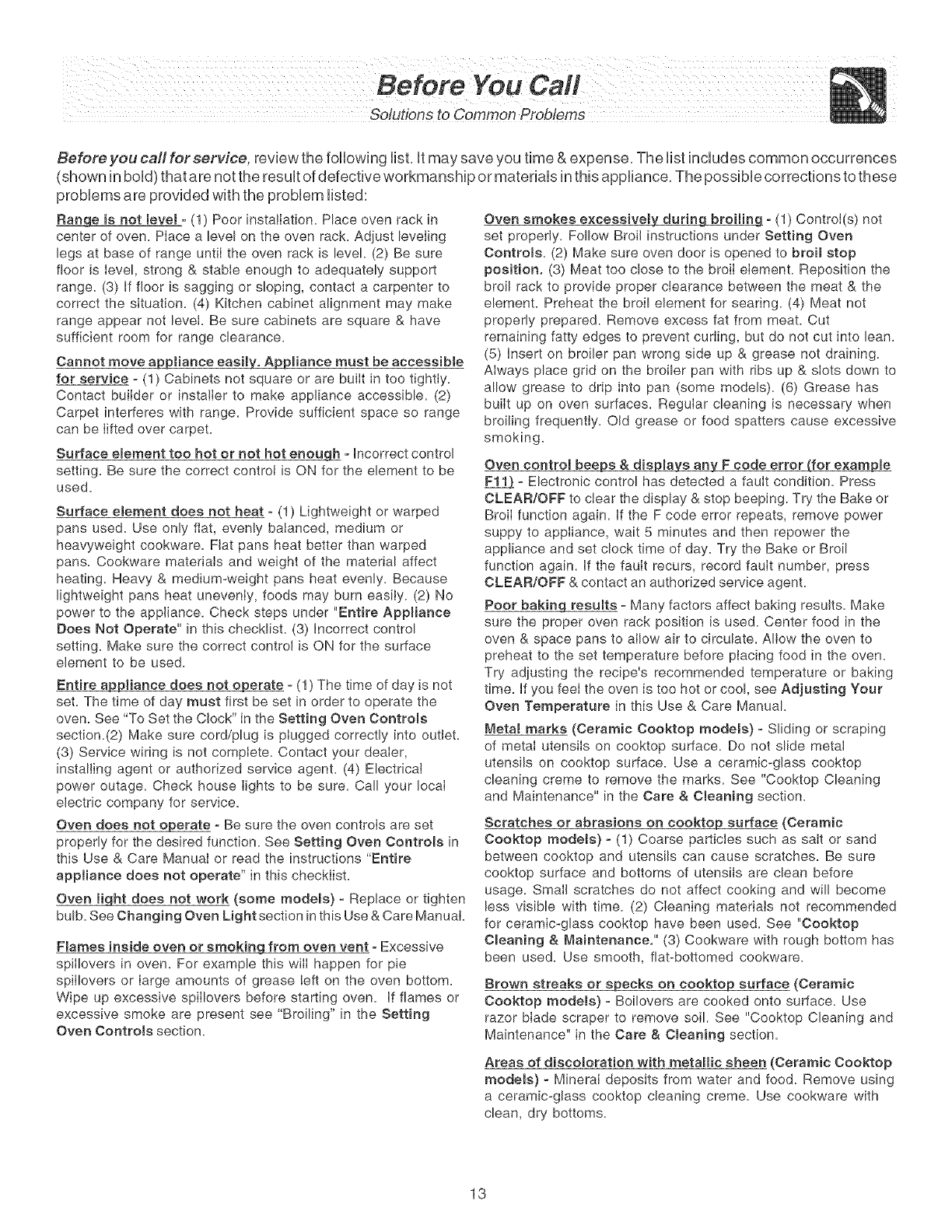

Before You Call

Solutions to Common Problems ........................ 13

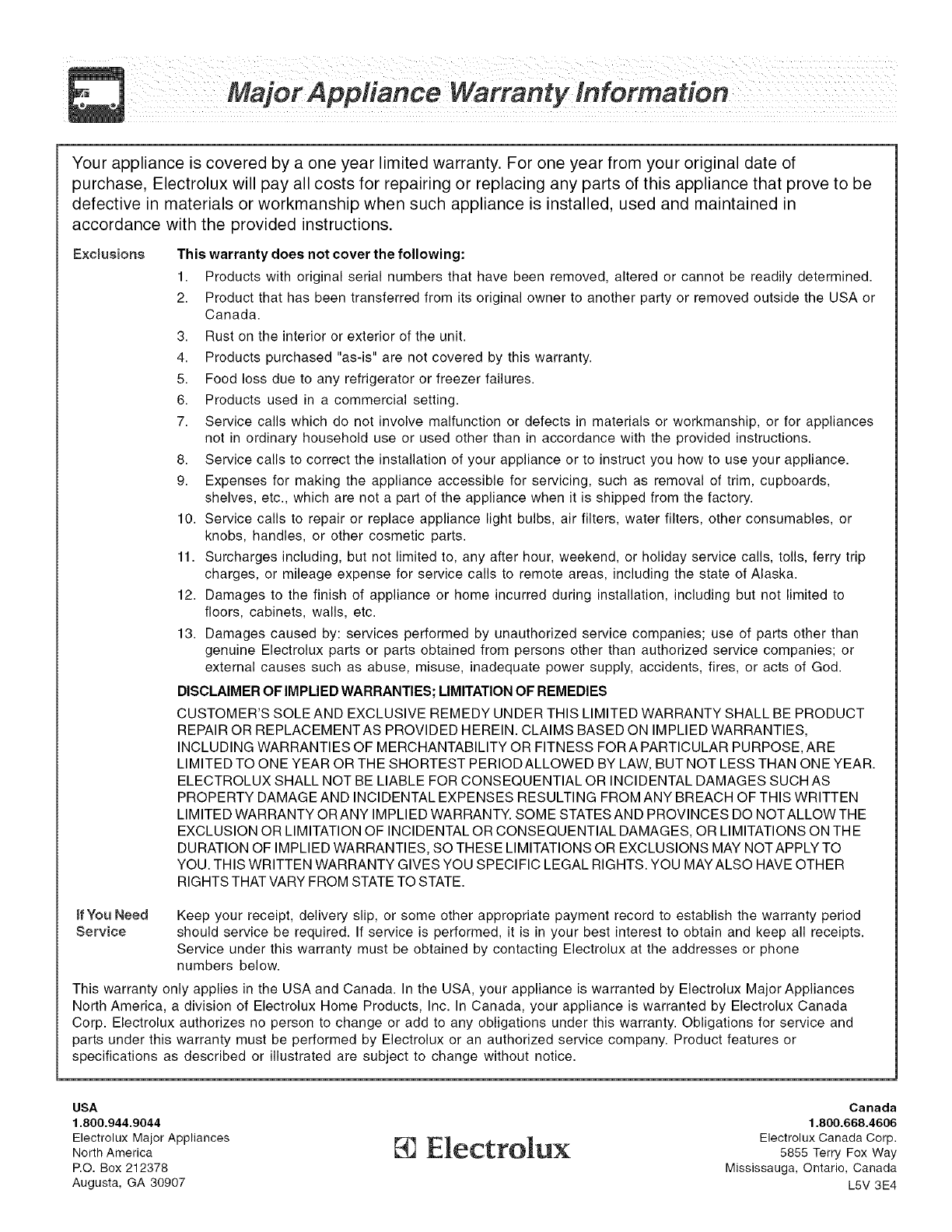

Warranty ......................... Back Page

READ AND SAVE THESE INSTRUCTIONS pin 316417025 rev A (0605)

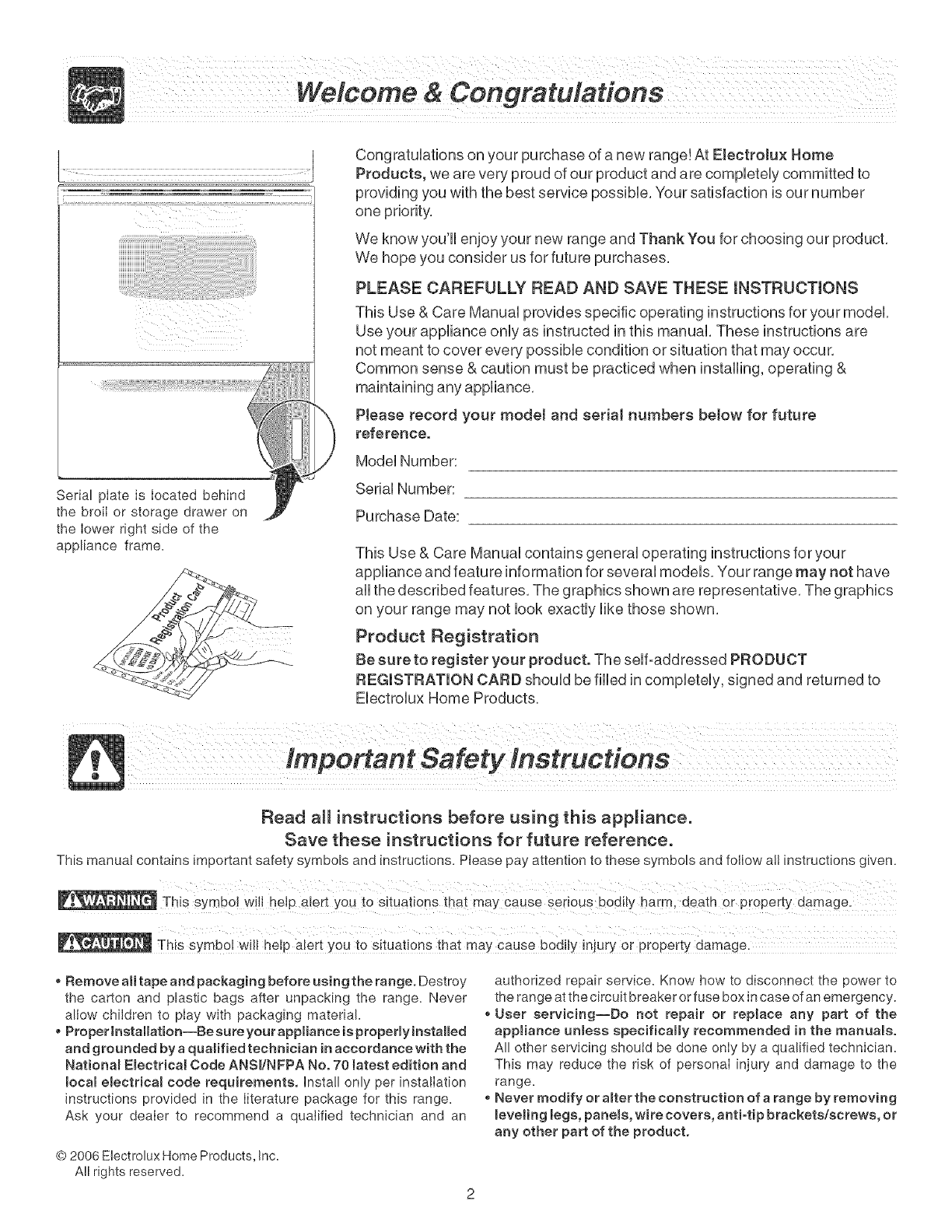

Congratulations on your purchase of a new range! At Electrolux Home

Products, we are very proud of our product and are completely committed to

providing you with the best service possible, Your satisfaction is our number

one priority,

We know you'll enjoy your new range and Thank You for choosing our product,

We hope you consider us for future purchases,

PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS

This Use & Care blanuaU provides specific operating instructions for your model

Use your appliance only as instructed in this manual, These instructions are

not meant to cover every possible condition or situation that may occur,

Common sense & caution must be practiced when installing, operating &

PJease record your model and serial numbers below for future

reference.

Serial pIate is Iocated behind

the broiI or storage drawer on

the Iower right side of the

appliance frame.

ModeUNumber:

SeriaUNumber:

Purchase Date:

This Use & Care Manual contains general operating instructions for your

appliance and feature information for several models, Your range may not have

all the described features, The graphics shown are representative, The graphics

on your range may not look exactly like those shown,

Product Registration

Be sure to register your product. The self-addressed PRODUCT

REGISTRATION CARD shouUd be filled in compUeteUy, signed and returned to

Eiectroiux Home Products.

Read aH instructions before using this appliance,

Save these instructions for future reference.

This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow al! instructions given.

This Symbol wi!l help alert you to Situations that may Cause bOdily injury Or property damage.

,, Remove all tape and packaging before using the range. Destroy

the carton and plastic bags after unpacking the range. Never

allow children to pIay with packaging material.

,, Proper Installation--Be sure your appliance is propermy installed

and grounded by a qualified technician in accordance with the

Nationam EBectricat Code ANS_/NFPA No. 70 latest edition and

IocaB emectricaB code requirements. Install only per instalIation

instructions provided in the Iiterature package for this range.

Ask your dealer to recommend a qualified technician and an

@2006 Electrolux Home Products, Inc.

authorized repair service. Know how to disconnect the power to

the range at the circuit breaker or fuse box in case of an emergency.

,, User servicing--Do not repair or replace any part of the

appliance unmess specifically recommended in the manuals.

All other servicing shouid be done only by a qualified technician.

This may reduce the risk of personal injury and damage to the

range.

,, Never modify or amterthe construction of a range by removing

meveHng legs, panems, wire covers, anti-tip brackets/screws, or

any other part of the product.

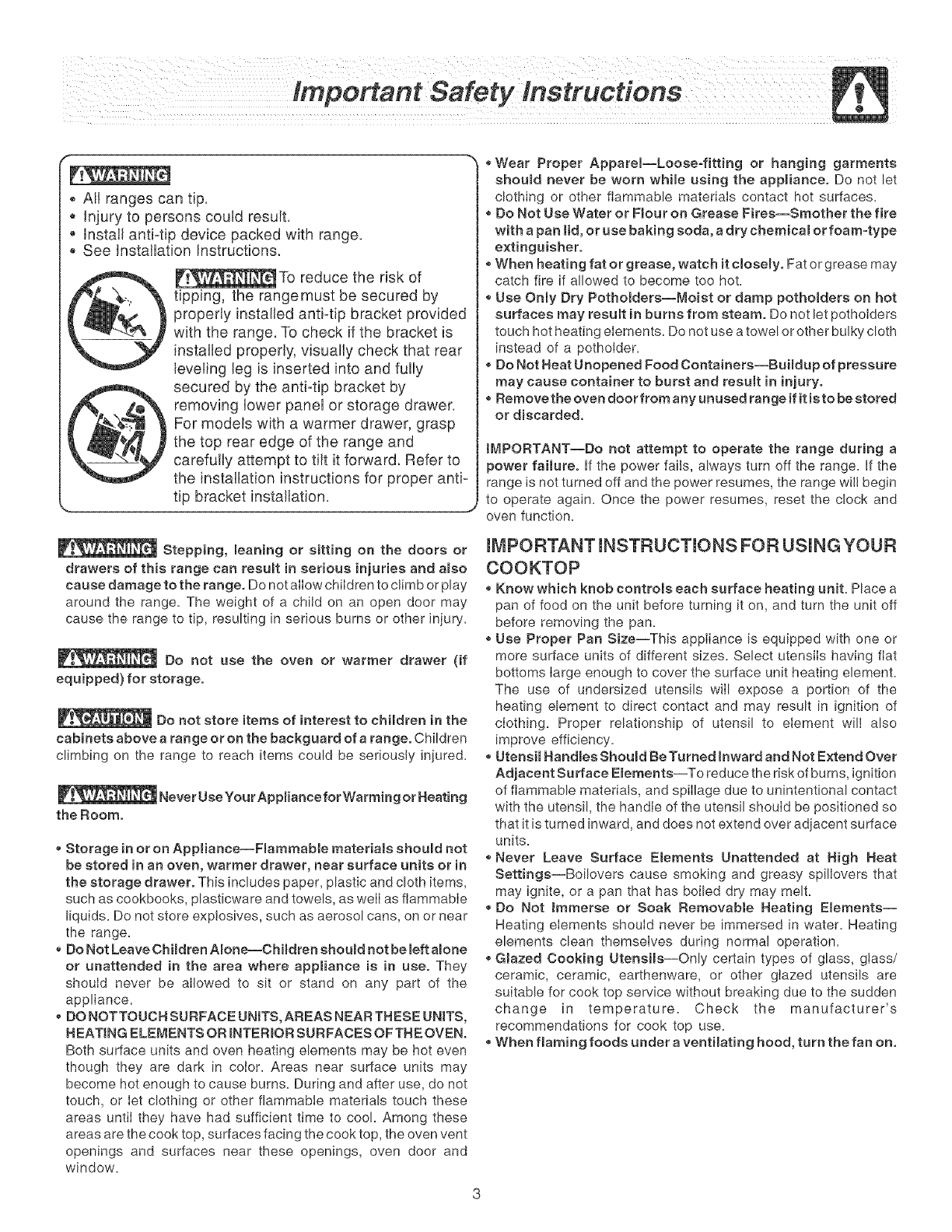

Allrangescantip.

• Injuryto personscouldresult.

Installanti-tipdevicepackedwithrange.

SeeInstallationInstructions.

_To reducetheriskof

tipping,therangemustbesecuredby

properlyinstalledanti-tipbracketprovided

withtherange.Tocheckifthebracketis

installedproperly,visuallycheckthatrear

levelinglegisinsertedintoandfully

securedbytheanti-tipbracketby

removinglowerpanelorstoragedrawer.

Formodelswithawarmerdrawer,grasp

thetoprearedgeoftherangeand

carefullyattempttotiltit forward.Referto

theinstallationinstructionsforproperanti*

Stepping,leaning or sitting on the doors or

drawers of this range can result in serious injuries and amso

cause damage to the range. Do not allow children to climb or play

around the range. The weight of a child on an open door may

cause the range to tip, resulting in serious burns or other injury.

Do not use the oven or warmer drawer (if

equipped) for storage.

Do not store items of interest to children in the

cabinets above a range or on the backguard of a range. Children

climbing on the range to reach items could be seriously injured.

the Room.

Storage in or on AppHance--Fmammable matedaBs should not

be stored in an oven, warmer drawer, near surface units or in

the storage drawer. This includes paper, plastic and cloth items,

such as cookbooks, plasticware and towels, as well as flammable

liquids. Do not store explosives, such as aerosol cans, on or near

the range.

Do Not Leave Chimdren Amone--OhHdren shoumd not be meftatone

or unattended in the area where appliance is in use. They

should never be allowed to sit or stand on any part of the

appliance.

DO NOTTOUCH SURFACE UNiTS, AREAS NEAR THESE UNITS,

HEATSNGELEMENTS OR _NTERIOR SURFACES OFTHE OVEN.

Both surface units and oven heating elements may be hot even

though they are dark in color. Areas near surface units may

become hot enough to cause burns. During and after use, do not

touch, or let clothing or other flammable materials touch these

areas until they have had sufficient time to cool Among these

areas are the cook top, surfaces facing the cook top, the oven vent

openings and surfaces near these openings, oven door and

window.

,_Wear Proper AppareI--Loose4itting or hanging garments

shoumd never be worn while using the appliance. Do not let

clothing or other flammable materials contact hot surfaces.

,_Do Not Use Water or Fmouron Grease Fires--Smother the fire

with a pan lid, or use baking soda, a dry chemicam or foam4ype

extinguisher.

,_When heating fat or grease, watch it ctosemy. Fat or grease may

catch fire if allowed to become too hot.

,_Use Only Dry Pothoiders--Moist or damp pothoJders on hot

surfaces may result in burns from steam. Do not let pothoiders

touch hot heating elements. Do not use a towel or other bulky cloth

instead of a pothoider.

,_Do Not Heat Unopened Food Containers--Buimdup of pressure

may cause container to burst and result in injury.

Removethe oven door from any unused range if it isto be stored

or discarded.

IMPORTANT--Do not attempt to operate the range during a

power failure. If the power fails, always turn off the range. If the

range is not turned off and the power resumes, the range will begin

to operate again. Once the power resumes, reset the clock and

oven function.

mMPORTANT mNSTRUCTmONS FOR USmNG YOUR

COOKTOP

Know which knob controls each surface heating unit= Place a

pan of food on the unit before turning it on, and turn the unit off

before removing the pan=

Use Proper Pan Size--This appliance is equipped with one or

more surface units of different sizes. Select utensils having fiat

bottoms large enough to cover the surface unit heating element.

The use of undersized utensils will expose a portion of the

heating element to direct contact and may result in ignition of

clothing= Proper relationship of utensil to element wilI also

improve efficiency=

Utensim Handmes Shoumd Be Turned inward and Not Extend Over

Adjacent Surface Emements--To reduce the risk of burns, ignition

of flammable materials, and spillage due to unintentional contact

with the utensil, the handle of the utensil should be positioned so

that it is turned inward, and does not extend over adjacent surface

units.

,_Never Leave Surface Elements Unattended at High Heat

Settings--Boilovers cause smoking and greasy spillovers that

may ignite, or a pan that has boiled dry may melt.

,_Do Not immerse or Soak Removable Heating E_ements--

Heating elements should never be immersed in water. Heating

elements clean themselves during normal operation.

,_Glazed Cooking Utensils--Only certain types of glass, glass/

ceramic, ceramic, earthenware, or other glazed utensils are

suitable for cook top service without breaking due to the sudden

change in temperature. Check the manufacturer's

recommendations for cook top use.

,_When flaming foods under a ventilating hood, turn the fan on.

ImportantSafetyInstructions

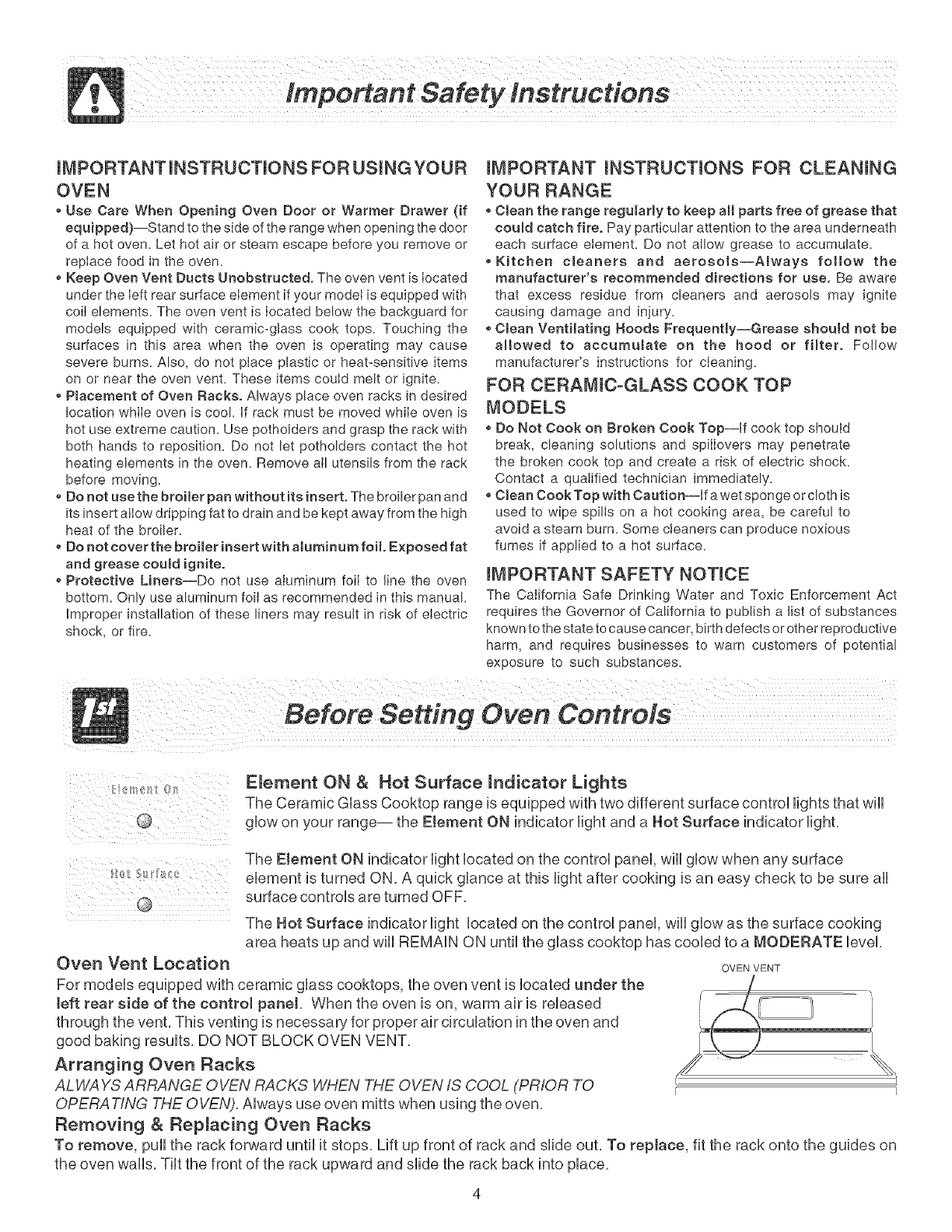

mMPORTANT mNSTRUCTmONS FOR USmNG YOUR

OVEN

.Use Care When Opening Oven Door or Warmer Drawer (if

equipped)--Stand to the side of the range when opening the door

of a hot oven, Let hot air or steam escape before you remove or

replace food in the oven,

Keep Oven Vent Ducts Unobstructed. The oven vent is located

under the left rear surface element if your model is equipped with

coiI elements. The oven vent is Iocated below the backguard for

models equipped with ceramic-glass cook tops. Touching the

surfaces in this area when the oven is operating may cause

severe burns. Also, do not piace plastic or heat-sensitive items

on or near the oven vent. These items could melt or ignite.

,, Pmacement of Oven Racks, Always place oven racks in desired

location while oven is cool. If rack must be moved while oven is

hot use extreme caution. Use potholders and grasp the rack with

both hands to reposition. Do not let potholders contact the hot

heating elements in the oven. Remove alI utensils from the rack

before moving.

,, Do not use the broiler pan without its insert. The broiler pan and

its insert allow dripping fat to drain and be kept away from the high

heat of the broiler.

Do not cover the broi_er insert with aluminum foil Exposed fat

and grease coumd }gn{te.

,, Protective Liners--Do not use aIuminum foiI to line the oven

bottom. Only use aluminum foil as recommended in this manual.

Improper installation of these liners may result in risk of electric

shock, or fire.

mMPORTANT mNSTRUCTmONS FOR CLEANmNG

YOUR RANGE

,_CBean the range regularBy to keep a_l parts free of grease that

could catch fire. Pay particular attention to the area underneath

each surface element. Do not aIIow grease to accumulate.

*Kitchen cmeaners and aeroso_s--Amways follow the

manufacturer's recommended directions for use, Be aware

that excess residue from cleaners and aerosols may ignite

causing damage and injury.

,_Clean Ventilating Hoods Frequentmy--Grease should not be

allowed to accumumate on the hood or filter. Follow

manufacturer's instructions for cIeaning.

FOR CERAMIC-GLASS COOK TOP

MODELS

,_Do Not Cook on Broken Cook Top--If cook top should

break, cleaning solutions and spiIIovers may penetrate

the broken cook top and create a risk of electric shock.

Contact a qualified technician immediately.

,_CBean Cook Top with Caution--If a wet sponge or cloth is

used to wipe spills on a hot cooking area, be careful to

avoid a steam burn. Some cleaners can produce noxious

fumes if applied to a hot surface.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act

requires the Governor of California to publish a list of substances

known to the state to cause cancer, birth defects or other reproductive

harm, and requires businesses to warn customers of potential

exposure to such substances.

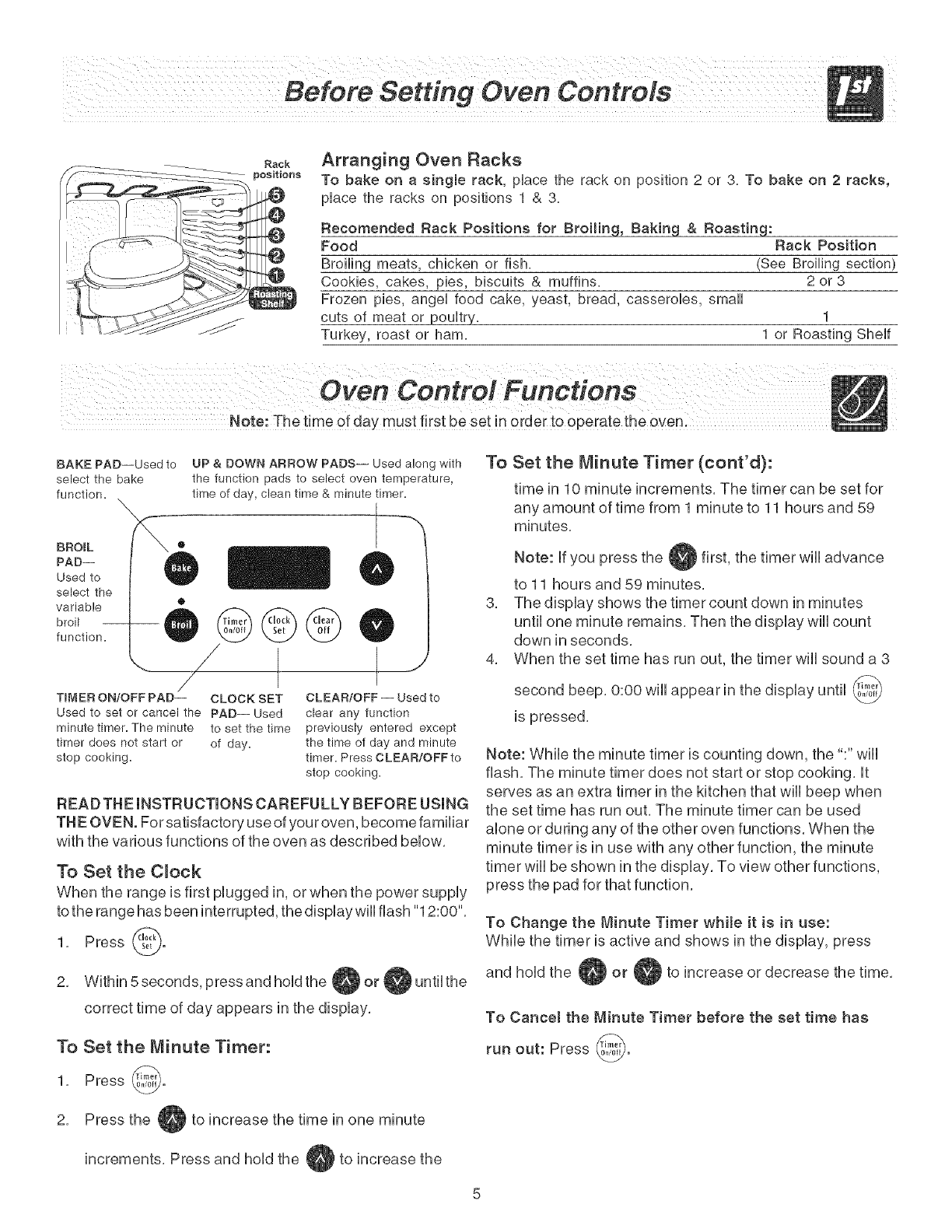

Before Setting Oven Controls

E_ement ON & Hot Surface Indicator Lights

The Ceramic Glass Cooktop range usequipped with two different surface control lights that wi

glow on your range the Element ON indicator light and a Hot Su#ace indicator light,

The Element ON indicator light located on the control panel, will glow when any surtace

element is turned ON. A quick glance at this light after cooking is an easy check to be sure all

surface controls are turned OFF.

The Hot Surface indicator light located on the control panel, will glow as the surface cooking

area heats up and will REMAIN ON until the glass cooktop has cooled to a MODERATE level.

Oven Vent Location OVENVENT

For models equipped with ceramic glass cooktops, the oven vent is located under the

teft rear side of the control panel When the oven is on, warm air is released

through the vent. This venting is necessary for proper air circulation in the oven and

good baking results. DO NOT BLOCK OVEN VENT.

Arranging Oven Racks S

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO :r I

OPERA TING THE OVEN). Always use oven mitts when using the oven.

Removing & Replacing Oven Racks

To remove, pull the rack forward until it stops. Lift up front of rack and slide out. To replace, fit the rack onto the guides on

the oven walls. Tilt the front of the rack upward and slide the rack back into place.

Arranging Oven Racks

To bake on a single rack, piace the rack on position 2 or 3. To bake on 2 racks,

piace the racks on positions 1 & 3.

Recomended Rack Positions for Broilinq, Baking & Roasting:

Food

Broiling meats, chicken or fish,

Cookies, cakes, pies, biscuits & muffins,

Frozen pies, angei food cake, yeast, bread, casserobs, small

cuts of meat or pouitry,

Turkey, roast or ham.

Rack Position

(See Broiling section)

2or3

1 or Roasting She#

Note: The time 0f day must first be set in 0rder t0 Operate the oven.

RAKE PAR--Used to

select the bake

function. \

UP & DOWN ARROW PADS-- Used along with

the function pads to select oven temperature,

time of day, clean time & minute timer.

---m

BROIL o

PAD--

Used to

select the

variable •

TmMER ON/OFF PAD-- CLOCK SET

Used to set or cancel the PAD-- Used

minute timer. The minute to set the time

timer does not start or of day.

stop cooking.

CLEAR/OFF -- Used to

clear any function

previously entered except

the time of day and minute

timer. Press CLEAR/OFF to

stop cooking.

READ THE INSTRUCTIONS CAREFULLY BEFORE USING

THE OVEN. For satisfactory use of your oven, become familiar

with the various functions of the oven as described below,

To Set the C_ock

When the range is first plugged in, or when the power supply

to the range has been interrupted, the display will flash "12:00",

1, Press _.__.

2, Within 5 seconds, press and hold the

correct time of day appears in the display,

until the

To Set the Minute Timer:

1, Press @.

2, Press the to increase the time in one minute

To Set the Minute Timer (cont'd):

time in 10 minute increments, The timer can be set for

any amount of time from 1 minute to 11 hours and 59

minutes,

Note: if you press the i first, the timer wiii advance

to 11 hours and 59 minutes,

The display shows the timer count down in minutes

until one minute remains, Then the display will count

down in seconds,

When the set time has run out, the timer will sound a 3

second beep, 0:00 will appear in the display until _

is pressed,

Note: While the minute timer is counting down, the ":" wiii

flash, The minute timer does not start or stop cooking, it

serves as an extra timer in the kitchen that will beep when

the set time has run out, The minute timer can be used

alone or during any of the other oven functions, When the

minute timer is in use with any other function, the minute

timer will be shown in the display, To view other functions,

press the pad for that function,

To Change the Minute Timer while it is in use:

While the timer is active and shows in the display, press

and hold the to increase or decrease the time,

To Cancet the Minute Timer before the set time has

run out: Press _.

increments, Press and hold the _to increase the

OvenControl Functions

Note: The time of day must first be set in order to operate the oven.

Changing the Temperature Display Mode (some models)

The electronic oven control temperature display mode was factory preset to display (Fahrenheit) °F oven tempertaures,

Note: Oven cooking temperatures may be set from 170°F to 550°F (77°C to 287°C),

To change the Temperature Display Mode to °C (Celsius) or from °C to °F (do not use Bake or Broil while changing

the Temperature Display Mode):

Press & hold the _ key pad for 6-8 seconds until For Eappears in the display, Note: At this time the display will

show the current Temperature Display Mode whether set for For C,

2, Press the /_ key pad once to choose the (Fahrenheit) °F mode; or press the V key pad once to choose the

(Celsius) °C mode,

3, After 5 seconds, the display will flash, To accept the change, wait 5 more seconds until the oven control beeps once,

To complete the change skip step 4 below, OR;

4, If at any time during the process of changing the Temperature Display Mode (For C) you decide the change is not

desired, press the _ key pad before the oven control beeps once to cancel the process,

5, The control will beep once, The display will then return to the time of day with any temperature display mode change

you may have requested,

4 6

Fig. 1

Radiant surface

elements may appear to have

cooled after they have been

turned off. The gJass surface

may stiJJ be hot and burns

may occur if the glass surface

is touched before it has cooled

sufficiently.

Do not place

plastic items such as salt and

pepper shakers, spoon holders

or plastic wrappings on top of

the range when it is in use.

These items could melt or

ignite. Potholders, towels or

wooden spoons could catch fire

if placed too close to the

element.

To Operate Radiant Surface E_ements

1, Place correctly sized cookware on the radiant surface element,

2, Push in & turn the surface control knob in either direction to the desired setting (See

Fig,l), Start most cooking operations on a higher setting & then turn to a lower

setting to finish cooking, The surface control knobs do not have to be set exactly on

a particular mark, Use the marks as a guide & adjust the control knob as needed,

Each surface element provides a constant amount of heat at each setting, A glowing

red surface heating area extending beyond the bottom edge of the cookware indicates

the cookware is too small for the surface heating area,

3, When cooking is completed, turn the surface element OFF before removing the

cookware, Note: the Element ON indicator light will glow when one or more elements

are turned ON, A quick glance at the indicator fight(s) when cooking is finished is an

easy check to be sure all control knobs are turned OFF, The Hot Surface indicator

light will continue to glow AFTER the control knob is turned to the OFF position & will

glow until the heating surface area has cooled sufficiently,

Suggested Surface Contro_ Settings

The suggested settings found in the chart below are based on cooking in medium-weight

metal pans with lids, Settings may vary when using other types of pans, Note: The size

and type of utensil used, and the amount and type of food being cooked will influence the

setting needed for best cooking results,

Surface Contro_ Settings

Setting Type of Cooking

HIGH (HI - 9) Start most foods, bring water to a boil, pan broiling

MEDIUM HIGH (7 - 8) Continue a rapid boil, fry, deep fat fry

MEDIUM (5 -6) Maintain a slow boil, thicken sauces & gravies, steam vegetables

MEDIUM LOW (2 - 4) Keep foods cooking, poach, stew

LOW (LO - 1) Keep warm, melt, simmer,

}/:::/;:& y:iCSet g/o ncon sS V:¸i£: C;i/i

Note: The time of day must first be set in Order to operate the Oven.

To Set or Change the Temperature for Baking

The oven can be programmed to bake at any temperature

from 170°F to 500°F.

To Set the Controls for Baking:

1. Press ., .... appears in the display.

2. Within 5 seconds, press the . The display

wH[ show "350°F. '' By pressing and holding the or

the temperature can then be adjusted in 5°F

increments.

3. When the or , is rebased, the oven wH[ begin

heating to the sebcted temperature. When the

displayed temperature reaches the desired baMng

temperature, the control wH[ beep once (1 time).

baking functbn, press q_.

To cancel the

To Change the Oven Temperature after Baking has

Started:

1. Press

displayed.

2. Pressthe

and make sure the bake temperature is

or to increase or decrease the set

To insure proper results

when broiling use ONLY Ebctrolux Home

Products, Inc. approved Broil Pan & Insert

(some models).

The broiler pan & the insert (some

models) allows grease to drain and be

kept away from the high heat of the

broiler. DO NOT use the pan without the

insert. DO NOT cover the insert with foil;

the exposed grease could ignite.

Broiling

1. Arrange oven rack whib oven is still cool. Position the rack as suggested in the

chart below. See "Arranging Oven Racks" in Before Setting Oven Controls,

Rack Position Food

3 or 4 Medium-rare steaks

3 Fish, medium-well done hamburgers & chops

1 or 2 WelPdone foods such as chicken & lobster

2. Press

3. Press and holdthe until the desired broil setting level appears in

the display. Press the for HI broil orthe t I for LO broil. Most foods can

be broiled at the HI broil setting. Select the LO broil setting to avoid excess

browning or drying of foods that should be broiled to the welPdone stage.

Place the insert on the broiler pan (some models), then place the food on the

insert. DO NOT use the broiler pan without the insert or cover the insert with

aluminum foil. The exposed grease could ignite.

Place the pan on the oven rack. Open the oven door to the broit stop

position when broiting (see illustration).

Broil on one side until food is browned; tum and cook on the second side. Note:

Always pull the rack out to the stop position before turning or removing food.

7. When broiling is finished, press

Should an oven fi reoccu r, close the oven door and turn off the oven.

if the fire continues, use a fire extinguisher. DO NOT put water or flour on the fire.

Flour may be explosive.

Yournewovenhasbeenfactorycalibratedandtestedtoensureanaccuratebakingtemperature,Forthefirstfewuses,follow

yourrecipetimesandtemperaturerecommendationscarefully,UfyoufeeUyourovenistoohotortoocooUfromyourbaking

experience,theoventemperaturemaybeadjustedtoyourHking,

Note:DONOTadjustyouroventemperaturebasedonoventhermometers,suchasthosefoundingrocerystores,theymay

notbeaccurate,

ToAdjusttheOvenTemperature(donotuseBakeorBroilwhileadjustingtheoventemperature):

Press& holdthe _ keypadandreleaseafterthe displaybeginsflashingthefactorytemperaturesettingofBO,

Note: if the oven temperature has been previouslyadjusted from the factory setting, the current temperature adjusted value

will flash in the display instead,

2, You may increase the oven temperatu re in 5°F increments with each press ofthe A key pad to a maximum oven adjustment

of +35°F, You may also adjust the oven temperature downward in 5°F increments with each press of the V key pad (total

adjustment range of -35to +35 F), Note: Your oven control was factory set in the (Fahrenheit) °F Temperature Display Mode,

To change for (Celsius) °C, see Changing the Temperature Display Mode in the Oven Control Functions section of this

Use & Care Manual,

3, if no other key pad is pressed after 5 seconds the display will begin to flash,

4, if you do not want to keep the display adjustment, press the @ key pad before the oven control beeps, This will cancel

the temperature adjustment procedure, To start this procedure over again begin with step 1 above OR;

5, if you want to keep the adjustment, wait until the display quits flashing and the oven control beeps once,

6, The oven temperature adjustment has be accepted by the oven control and the display will return to the time of day,

Notes: The oven temperature adjustment may be made if your oven control has been set to operate in the (Celsius) °C

Temperature DispJay Mode, in this case each press of the Aor V key wiii adjust in 1°C increments upward (maximum

+18°C) or downward (maximum -18°C), depending on which arrow key pad is pressed,

Surfaces Howto Clean

Glass, Pa{nted

Plastic Body Parts &

Contro{ Knobs

Painted Control

Pane{s & Display

areas

Porcelain Enamel

Burner Grates,

Cooktop Surface,

Be{ow Cooktop,

Bro{[er Pan & Insert,

Broiler Drawer, Door

Liner & Oven Bottom

Oven Racks

Oven Door

Stainless

Steel

For general cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution

of vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth.

Glass cleaners may be used if sprayed on a soft cloth 1st. DO NOT spray liquids directly on the

control pad and display areas. DO NOT use large amounts of water on the control panel - excess

water on the control area may cause damage to the appliance. DO NOT use other liquid

cleaners, abrasive cleaners, scouring pads, or some paper towels - they will damage the finish.

Before cleaning the control panel, turn all controls to OFF & remove the control knobs. To

remove, pull each knob straight off the shaft. Use the general cleaning instructions provided in the

paragraph above.

Clean burner grates, broiler pan & insert in the dishwasher and dry upon removal. If soils are not

removed, follow the cooktop cleaning instructions below.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of

clean water & ammonia, ff necessary, cover difficult spots with an ammonia-soaked paper towel

for 30 to 40 minutes. Rinse with clean water and a damp cloth, then scrub with a soap-filled

scouring pad. Rinse & wipe dry with a clean cloth. Remove all cleaners or the porcelain may

become damaged during future heating. DO NOT use spray oven cleaners on the range top.

Remove racks. See "Removing & Replacing Oven Racks" under Before Setting Oven Controls.

Use a mild, abrasive cleaner, following the cleaner's recommendations. Rinse with clean water &

let dry. After cleaning the racks, rub the sides of the racks with wax paper or a cloth containing a

small amount of baby oil or salad oil (this will make the racks glide easier into the oven rack

positions).

Use soap & water to thoroughly clean the top, sides & front of the oven door. Rinse well. You

may use a glass cleaner on the outside glass of the oven door. DO NOT immerse the door in

water. DO NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT

use oven cleaners, cleaning powders or any harsh abrasive cleaning materials on the outside of

the oven door. DO NOT clean the oven door gasket. The oven door gasket is made of a woven

material, on Self-Cleaning models, which is essential for a good seal. Care should be taken not

to rub, damage or remove this gasket.

Clean stainless steel with hot soapy water & a dishcloth. Rinse with clean water and a cloth.

DO NOT use cleaners with high conecentrations of chlorides or chlorines. DO NOT use harsh

scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning stainless

steel. Always be sure to rinse the cleaners form the surface as bluish stains may occur during

heating that cannot be removed.

General Care& Cleaning

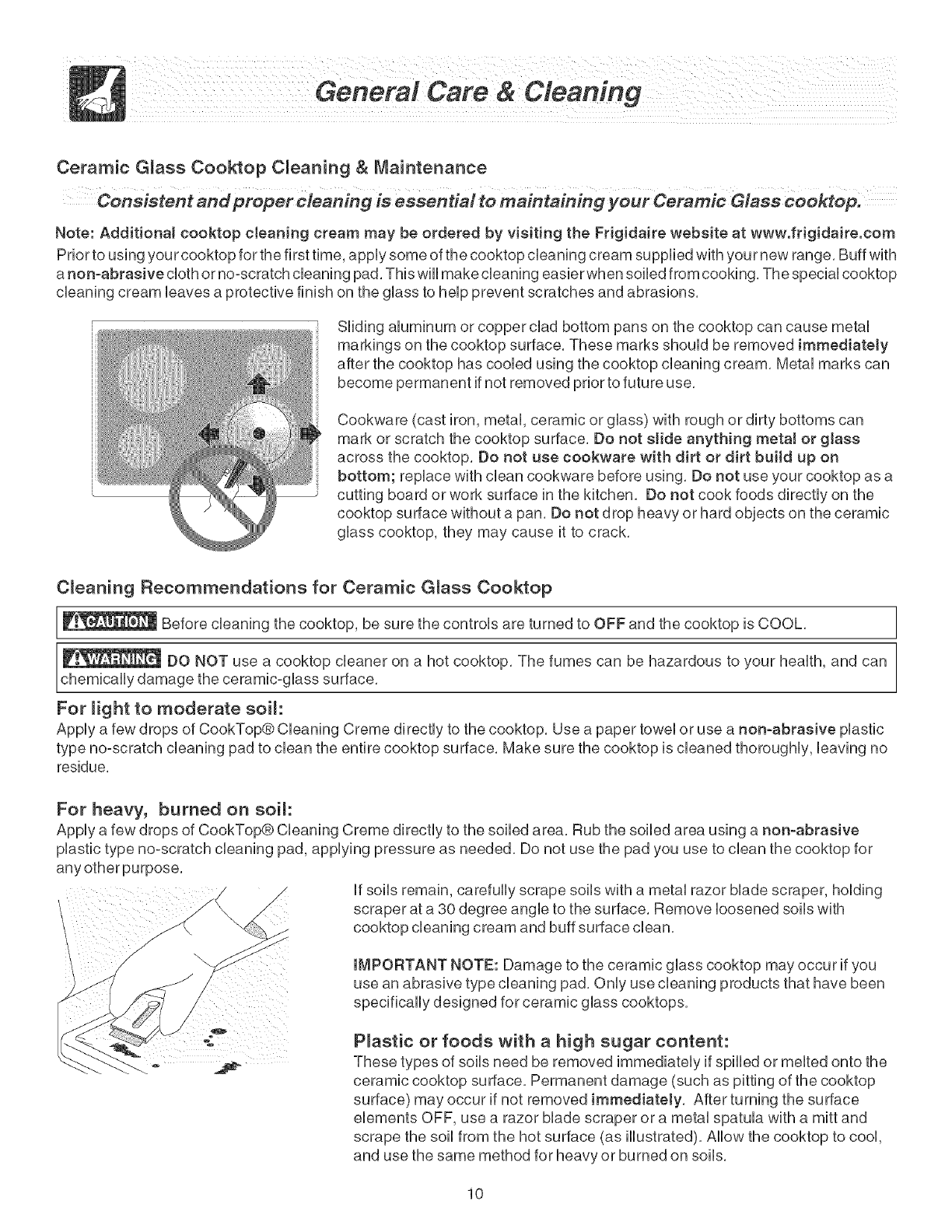

Ceramic Glass Cooktop Cmeaning & Maintenance

Consistent and proper cleaning is essential to maintaining your Ceramic GlaSs cooktop:

Note: Additiona! cooktop cleaning cream may be ordered by visiting the Frigidaire website at www.frigidaire.com

Prior to using your cooktop for the first time, appUysome of the cooktop cUeaning cream supplied with your new range, Buff with

a non-abrasive cloth or no-scratch cleaning pad, This will make cleaning easier when soiled from cooking, The special cooktop

cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions,

Sliding aluminum or copper clad bottom pans on the cooktop can cause metal

markings on the cooktop surface, These marks should be removed immediately

after the cooktop has cooled using the cooktop cleaning cream, Metal marks can

become permanent if not removed prior to future use,

Cookware (cast iron, metal, ceramic or glass) with rough or dirty bottoms can

mark or scratch the cooktop surface, Do not slide anything meta! or gJass

across the cooktop, Do not use cookware with dirt or dirt build up on

bottom; replace with clean cookware before using, Do not use your cooktop as a

cutting board or work surface in the kitchen, Do not cook foods directly on the

cooktop surface without a pan, Do not drop heavy or hard objects on the ceramic

glass cooktop, they may cause it to crack,

C_eaning Recommendations for Ceramic G_ass Cooktop

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL,

DO NOT use a cooktop cleaner on a hot cooktop, The fumes can be hazardous to your health, and can

chemically damage the ceramic-glass surface,

For _ight to moderate soil:

Apply a few drops of CookTop® Cleaning Creme directly to the cooktop, Use a paper towel or use a non-abrasive plastic

type no-scratch cleaning pad to clean the entire cooktop surface, Make sure the cooktop is cleaned thoroughly, leaving no

residue,

For heavy, burned on soil:

Apply a few drops of CookTop® Cleaning Creme directly to the soiled area, Rub the soiled area using a non-abrasive

plastic type no-scratch cleaning pad, applying pressure as needed, Do not use the pad you use to clean the cooktop for

any other purpose,

If soils remain, carefully scrape soils with a metal razor blade scraper, holding

scraper at a 30 degree angle to the surface, Remove loosened soils with

cooktop cleaning cream and buff surface clean,

IMPORTANT NOTE: Damage to the ceramic glass cooktop may occur if you

use an abrasive type cleaning pad, Only use cleaning products that have been

specifically designed for ceramic glass cooktops,

P_astic or foods with a high sugar content:

These types of soils need be removed immediately if spilled or melted onto the

ceramic cooktop surface, Permanent damage (such as pitting of the cooktop

surface) may occur if not removed immediateJy, After turning the surface

elements OFF, use a razor blade scraper or a metal spatula with a mitt and

scrape the soil from the hot surface (as illustrated), Allow the cooktop to cool,

and use the same method for heavy or burned on soils,

it ¸ : t ¸¸¸ t : t

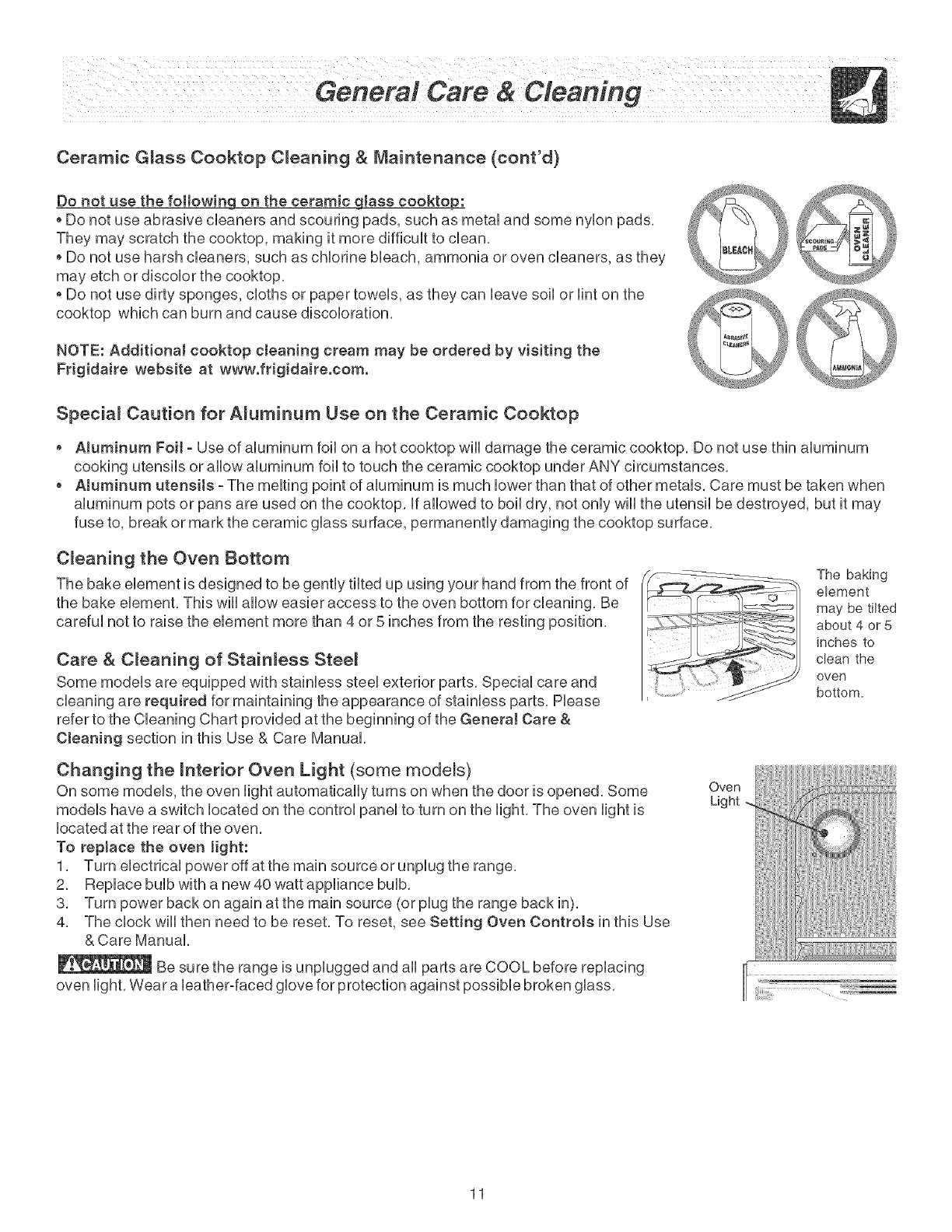

General Care & Cleaning

Ceramic G_ass Cooktop C_eaning & Maintenance (eont'd)

Do not use the following on the ceramic glass cooktopj:

oDo not use abrasive cleaners and scouring pads, such as metaUand some nyUonpads.

They may scratch the cooktop, making it more difficuUt to dean.

oDo not use harsh cleaners, such as cHorine Meach, ammonia or oven cleaners, as they

may etch or discoUor the cooktop.

oDo not use dirty sponges, cloths or paper toweUs, as they can Ueavesoil or Hnton the

cooktop which can burn and cause discoloration.

NOTE: Additional cooktop cteaning cream may be ordered by visiting the

Frigidaire website at www.frigidaire.com.

Specia_ Caution for A_uminum Use on the Ceramic Cooktop

Aluminum Foil- Use of aluminum foil on a hot cooktop will damage the ceramic cooktop. Do not use thin aluminum

cooking utensils or allow aluminum foil to touch the ceramic cooktop under ANY circumstances.

Atuminum utensils - The melting point of aluminum is much lower than that of other metals. Care must be taken when

aluminum pots or pans are used on the cooktop. If allowed to boil dry, not only will the utensil be destroyed, but it may

fuse to, break or mark the ceramic glass surface, permanently damaging the cooktop surface.

C_eaning the Oven Bottom

The bake element is designed to be gently tilted up using your hand from the front of

the bake element. This will allow easier access to the oven bottom for cleaning. Be

careful not to raise the element more than 4 or 5 inches from the resting position.

Care & C_eaning of Stainless Stee_

Some models are equipped with stainless steel exterior parts. Special care and

cleaning are required for maintaining the appearance of stainless parts. Please

refer to the Cleaning Chart provided at the beginning of the GeneraI Care &

Cleaning section in this Use & Care Manual.

The baking

element

may be tilted

about 4 or 5

inches to

clean the

oven

bottom.

Changing the mnterior Oven Light (some models)

On some models, the oven light automatically turns on when the door is opened. Some

models have a switch located on the control panel to turn on the light. The oven light is

located at the rear of the oven.

To reptace the oven light:

1. Turn electrical power off at the main source or unplug the range.

2. Replace bulb with a new 40 watt appliance bulb.

3. Turn power back on again at the main source (or plug the range back in).

4. The clock will then need to be reset. To reset, see Setting Oven Controls in this Use

& Care Manual.

Be sure the range is unplugged and all parts are COOL before replacing

oven light. Wear a leather-faced glove for protection against possible broken glass.

Ove n

Li,

a Nail

Fig. 2

about 45

Oven Door

Hinge

Fig. 3

Removing & Replacing the Oven Door

The door is heavy, For safe, temporary storage, Uaythe door fiat with the

inside of the door facing down,

To Remove Oven Door:

1, Open oven door compUeteUy(horizontaU with floor ° See Fig, 1),

2, Remove 2 screws Uocated on the inside of the oven door liner (See A Fig, 2)

3, Insert the 2 screws into the door hinge holes located on the side of the hinge arm,

one into each hinge (See B Fig, 2),

Close oven door until the door stops, (Do not force the door to close any further), The

placement of these screws should keep door open in about a 45 degree position,

Grasp oven door firmly on both sides and slide door up and off hinges at the same

angle, (See Fig, 3)

6, To clean oven door, follow the instructions provided in the Cleaning Chart at the

beginning of the Care & Cteaning section (See Door Liner),

To Replace Oven Door:

1, Be sure the hinge arms remain at the 45 degree angle position, Be sure the screws

are still locking the hinge arms from moving, If the screws fall out of the hinge holes,

the hinge(s) may snap back against the oven frame and could pinch fingers or chip

the porcelain finish on the oven front frame,

2, Hold door at the sides near the top while resting the lower front of door on your knee,

Insert the door channels at the bottom of door over the door hinges, (See Fig, 3),

3, Allow the door to slide down into the door hinges evenly at the same 45 degree

angle, The hinge arms should be inserted into the bottom corners as faras they can

go,

4, Open door completely (horizontal with floor) and remove both screws from holes in

doorhinges,

5, Reinstall the 2 screws into the door liner (See C Fig, 2),

6, If the door is not in alignment with the oven frame, remove door & repeat the above

steps,

Solutions to Common Problems

Before you call for service, review the following Hst,Utmay save you time & expense, The HstincUudescommon occurrences

(shown in boUd)that are not the resuUtof defective workmanship or materiaUs in this appliance, The possiMe corrections to these

proMems are provided with the probUem Hsted:

Range is not levet _ (1) Poor installation. Place oven rack in

center of oven. Place a level on the oven rack. Adjust leveling

legs at base of range until the oven rack is level. (2) Be sure

floor is level, strong & stable enough to adequately support

range. (3) If floor is sagging or sloping, contact a carpenter to

correct the situation. (4) Kitchen cabinet alignment may make

range appear not level. Be sure cabinets are square & have

sufficient room for range clearance.

Cannot move appliance easily. ApJ:_Hance must be accessible

for service - (1) Cabinets not square or are built in too tightly.

Contact builder or installer to make appliance accessible. (2)

Carpet interferes with range. Provide sufficient space so range

can be lifted over carpet.

Surface emement too hot or not hot enoughh -Incorrect control

setting. Be sure the correct controi is ON for the element to be

used.

Surface element does not heat - (1) Lightweight or warped

pans used. Use only fiat, evenly balanced, medium or

heavyweight cookware. Fiat pans heat better than warped

pans. Cookware materials and weight of the material affect

heating. Heavy & medium-weight pans heat evenly. Because

lightweight pans heat unevenly, foods may burn easily. (2) No

power to the appliance. Check steps under "Entire Appliance

Does Not Operate" in this checklist. (3) Incorrect control

setting. Make sure the correct control is ON for the surface

element to be used.

Entire ap_pliance does not operate -(1) The time of day is not

set. The time of day must first be set in order to operate the

oven. See "To Set the Clock" in the Setting Oven Controls

section.(2) Make sure cord/plug is plugged correctly into outlet.

(3) Service wiring is not complete. Contact your dealer,

installing agent or authorized service agent. (4) Electrical

power outage. Check house lights to be sure. Call your local

electric company for service.

Oven does not operate -Be sure the oven controls are set

properly for the desired function. See Setting Oven Controls in

this Use & Care Manual or read the instructions "Entire

appliance does not operate" in this checklist.

Oven light does not work (some models} -Replace or tighten

bulb. See Changing Oven Light section in this Use & Care Manual.

Flames inside even or emokinq from oven vent =Excessive

spilIovers in oven. For example this will happen for pie

spilIovers or large amounts of grease left on the oven bottom.

Wipe up excessive spilIovers before starting oven. If flames or

excessive smoke are present see "Broiling" in the Setting

Oven Controls section.

Oven smokes e×cessiveiy durin_ =(1) Control(s) not

set properly. Follow Broil instructions under Setting Oven

Controms. (2) Make sure oven door is opened to broil stop

position. (3) Meat too close to the broil element. Reposition the

broil rack to provide proper clearance between the meat & the

element. Preheat the broil element for searing. (4) Meat not

properly prepared. Remove excess fat from meat. Cut

remaining fatty edges to prevent curling, but do not cut into lean.

(5) Insert on broiler pan wrong side up & grease not draining.

Always place grid on the broiler pan with ribs up & slots down to

allow grease to drip into pan (some models). (6) Grease has

built up on oven surfaces. Regular cleaning is necessary when

broiling frequently. Old grease or food spatters cause excessive

smoking.

Oven control beeps & dispmays any F code error (for e×am_me

FI_ -Electronic control has detected a fault condition. Press

CLEAR/OFF to clear the display & stop beeping. Try the Bake or

Broil function again. If the F code error repeats, remove power

suppy to appliance, wait 5 minutes and then repower the

appliance and set clock time of day. Try the Bake or Broil

function again. If the fault recurs, record fault number, press

CLEAR/OFF & contact an authorized service agent.

Poor baking results -Many factors affect baking results. Make

sure the proper oven rack position is used. Center food in the

oven & space pans to allow air to circulate. Allow the oven to

preheat to the set temperature before placing food in the oven.

Try adjusting the recipe's recommended temperature or baking

time. If you feel the oven is too hot or cool, see Adjusting Your

Oven Temperature in this Use & Care Manual.

MetaB marks (Ceramic Cooktop models) -Sliding or scraping

of metal utensils on cooktop surface. Do not slide metal

utensils on cooktop surface. Use a ceramic-glass cooktop

cleaning creme to remove the marks. See "Cooktop Cleaning

and Maintenance" in the Care & Cleaning section.

Scratches or abrasions on cooktop surface (Ceramic

Cooktop modeis)- (1) Coarse particles such as salt or sand

between cooktop and utensils can cause scratches. Be sure

cooktop surface and bottoms of utensils are clean before

usage. Small scratches do not affect cooking and will become

less visible with time. (2) Cleaning materials not recommended

for ceramic-glass cooktop have been used. See "Cooktop

Cmeaning & Maintenance," (3) Cookware with rough bottom has

been used. Use smooth, flat-bottomed cookware.

Brown streaks or specks on cooktop surface (Ceramic

Cooktop modems) -Boilovers are cooked onto surface. Use

razor blade scraper to remove soil. See "Cooktop Cleaning and

Maintenance" in the Care & Cmeaning section.

Areas of discoloration with metallic sheen (Ceramic Cooktop

models) -Mineral deposits from water and food. Remove using

a ceramic-glass cooktop cleaning creme. Use cookware with

clean, dry bottoms.

Your appliance is covered by a one year limited warranty. For one year from your original date of

purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be

defective in materials or workmanship when such appliance is installed, used and maintained in

accordance with the provided instructions.

Excmueions This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or

Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances

not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,

shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or

knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to

floors, cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than

genuine Electrolux parts or parts obtained from persons other than authorized service companies; or

external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLEAND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENTAS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,

INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED TO ONE YEAR OR THE SHORTEST PERIODALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.

ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS

PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN

LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOTALLOW THE

EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE

DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOTAPPLY TO

YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER

RIGHTS THAT VARY FROM STATE TO STATE.

ffYou Need Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period

Service should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone

numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances

North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada

Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and

parts under this warranty must be performed by Electrolux or an authorized service company. Product features or

specifications as described or illustrated are subject to change without notice.

USA

1.800.944.9044

Electrolux Major Appliances

North America

P.O. Box 212378

Augusta, GA 30907

Electrolu×

Canada

1.800.668.4606

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

LSV 3E4

Frigidaire FEF336ECE User Manual ELECTRIC RANGE Manuals And Guides L0705106

FRIGIDAIRE Free Standing, Electric Manual L0705106 FRIGIDAIRE Free Standing, Electric Owner's Manual, FRIGIDAIRE Free Standing, Electric installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
