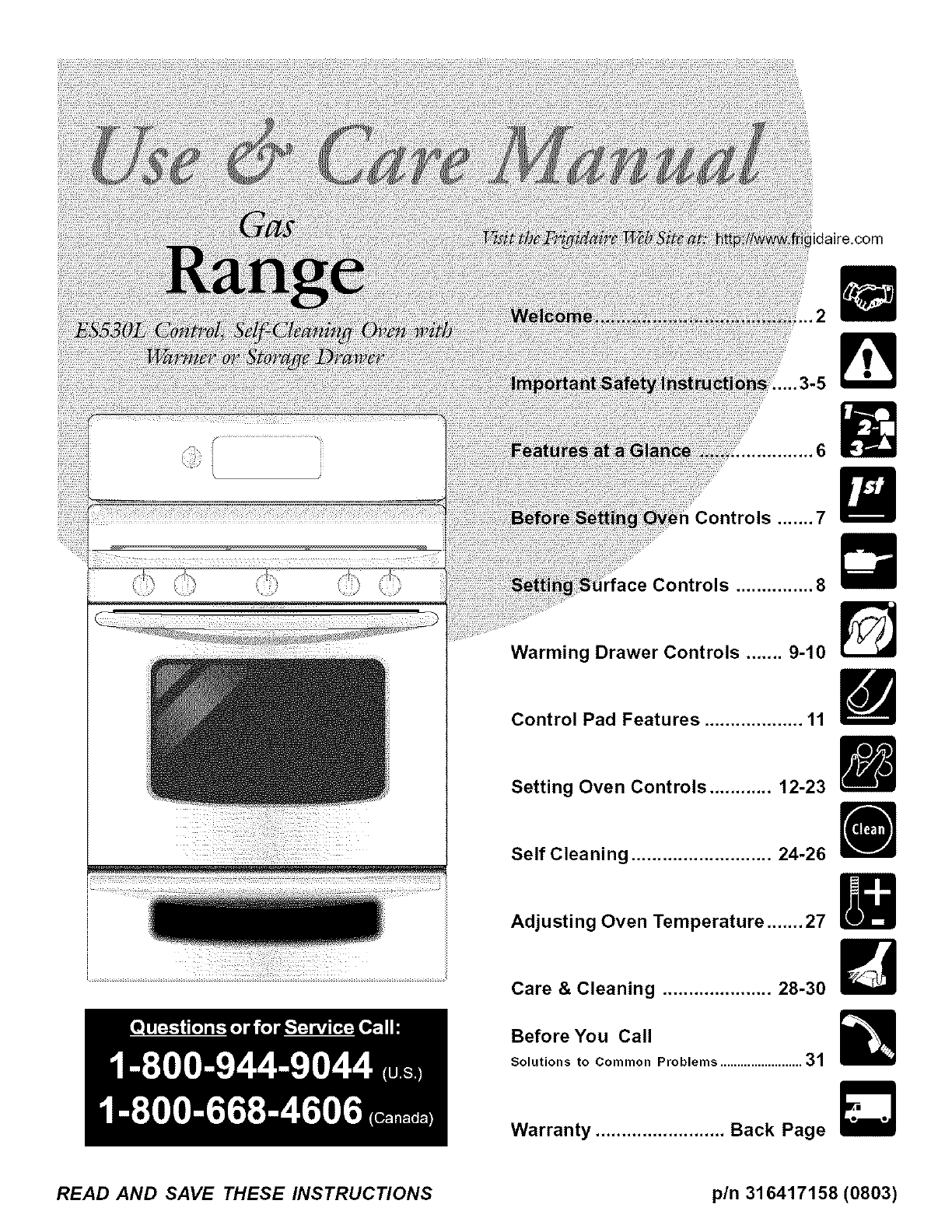

Frigidaire FGFBZ90GCC User Manual GAS RANGE Manuals And Guides L0806961

FRIGIDAIRE Free Standing, Gas Manual L0806961 FRIGIDAIRE Free Standing, Gas Owner's Manual, FRIGIDAIRE Free Standing, Gas installation guides

User Manual: Frigidaire FGFBZ90GCC FGFBZ90GCC FRIGIDAIRE GAS RANGE - Manuals and Guides View the owners manual for your FRIGIDAIRE GAS RANGE #FGFBZ90GCC. Home:Kitchen Appliance Parts:Frigidaire Parts:Frigidaire GAS RANGE Manual

Open the PDF directly: View PDF .
Page Count: 32

Controls ....... 7

............... 8

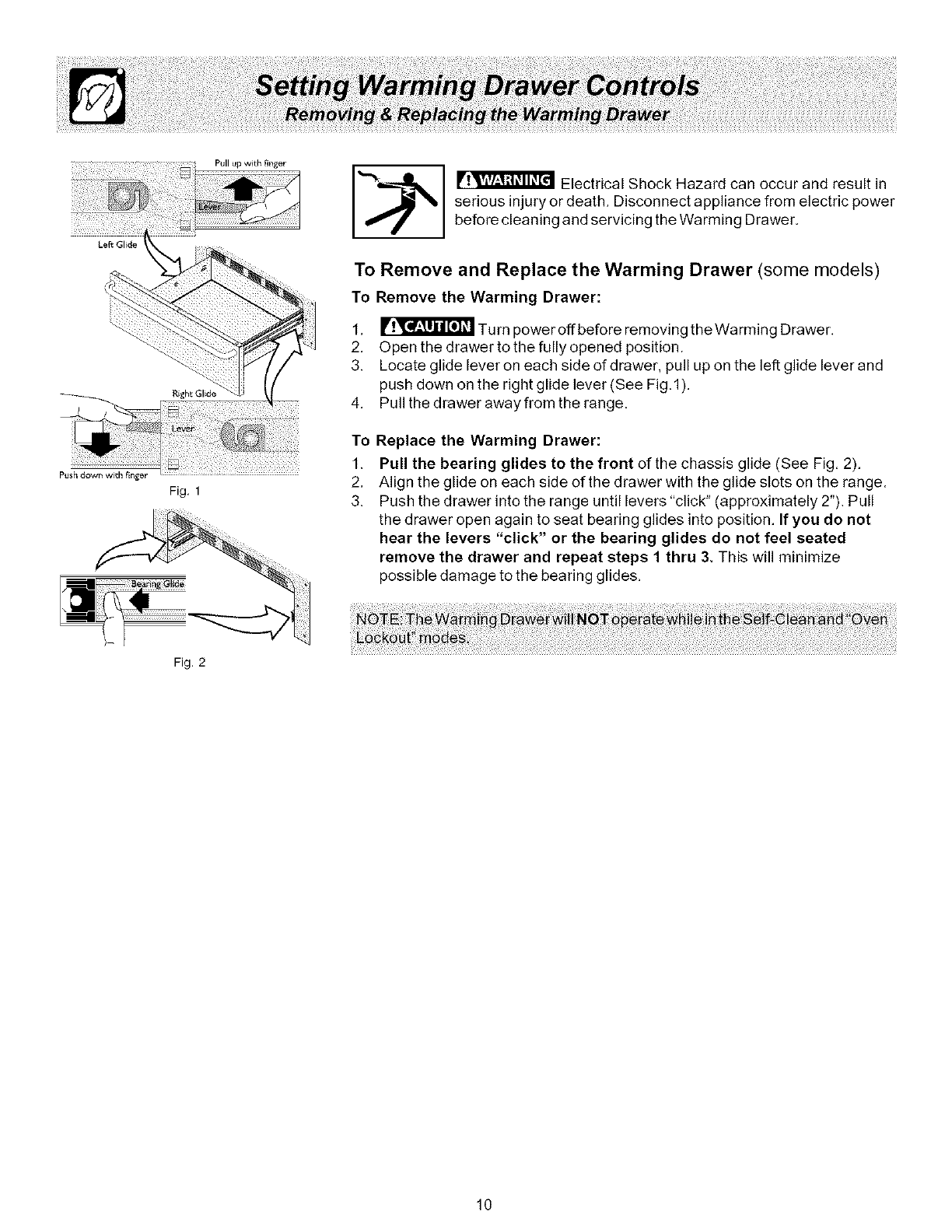

Warming Drawer Controls ....... 9-10

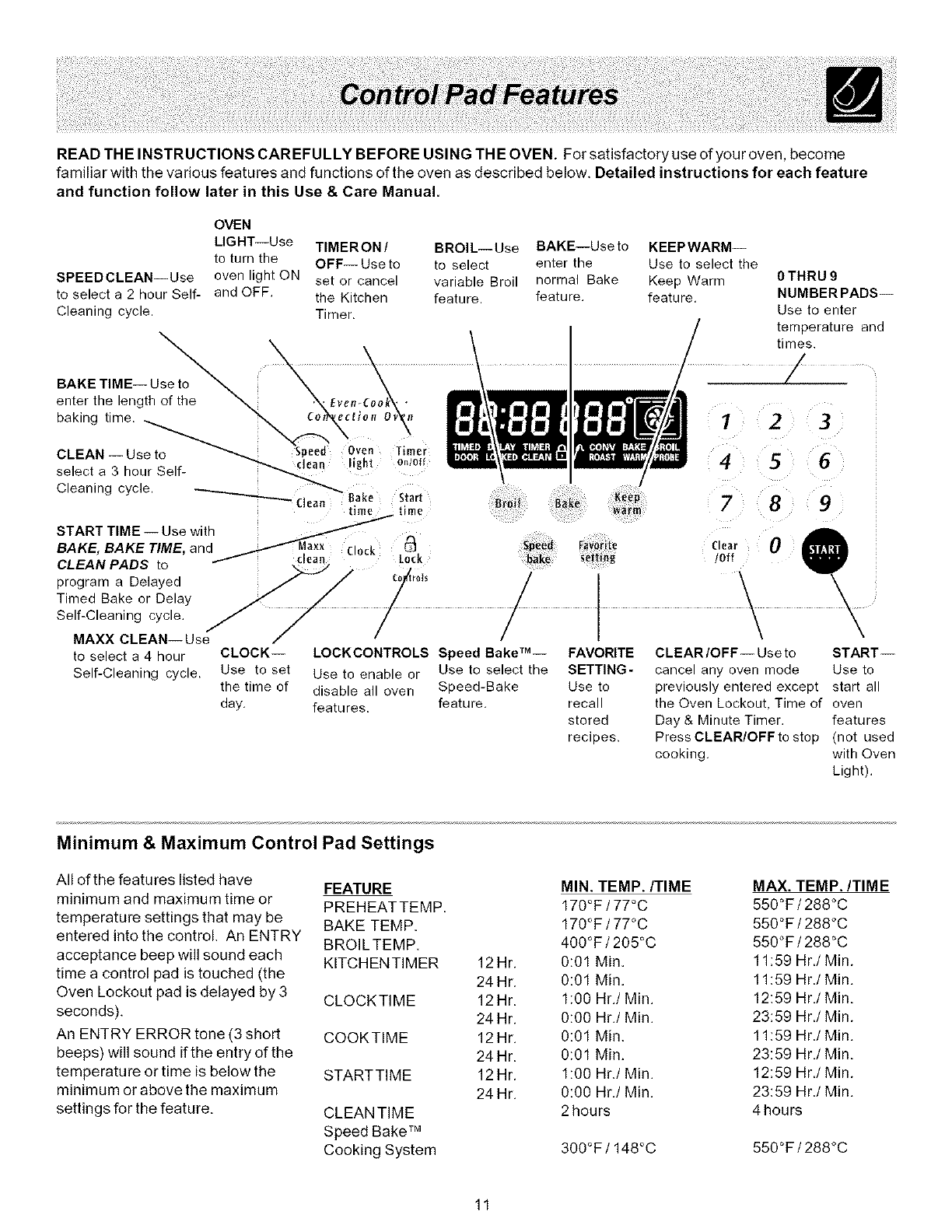

Control Pad Features ................... 11

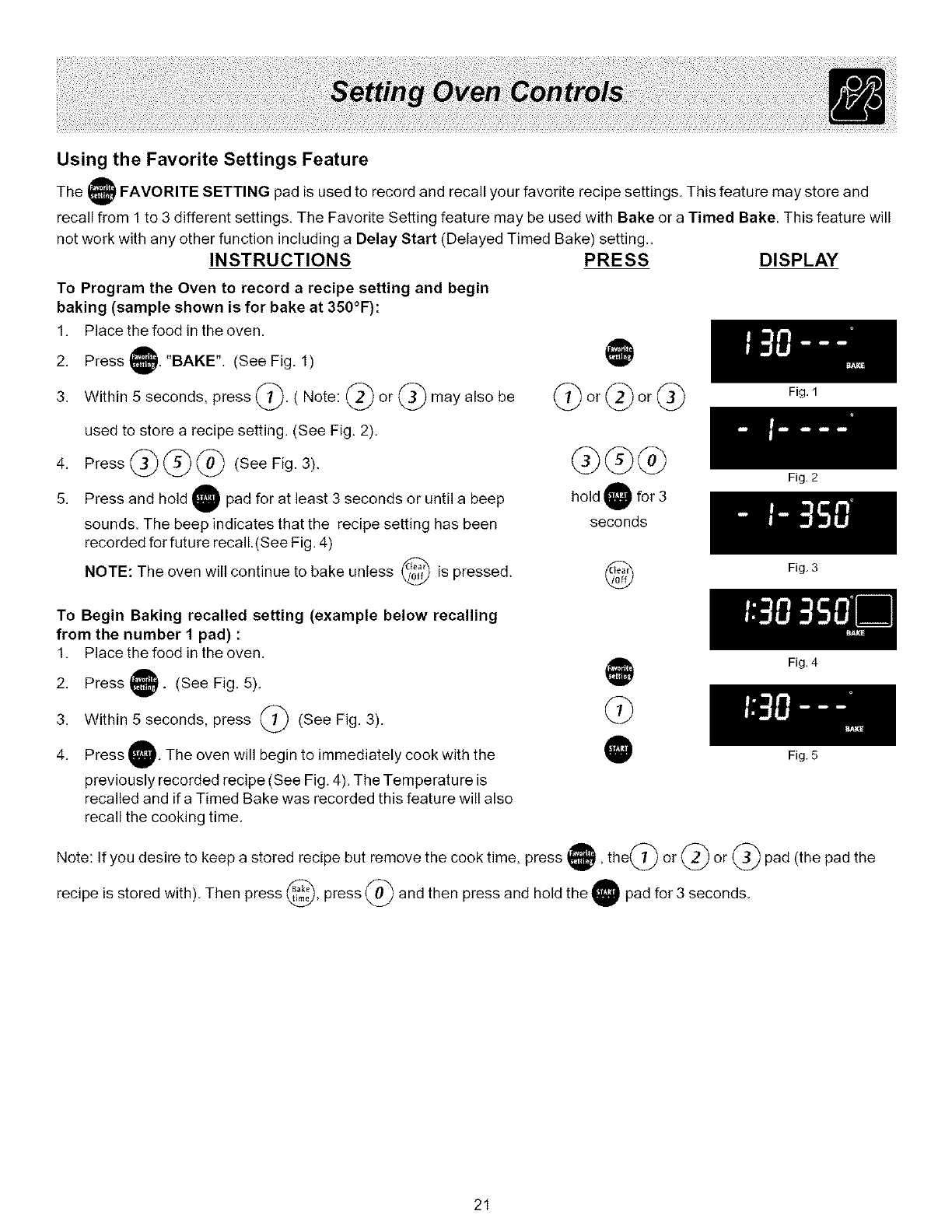

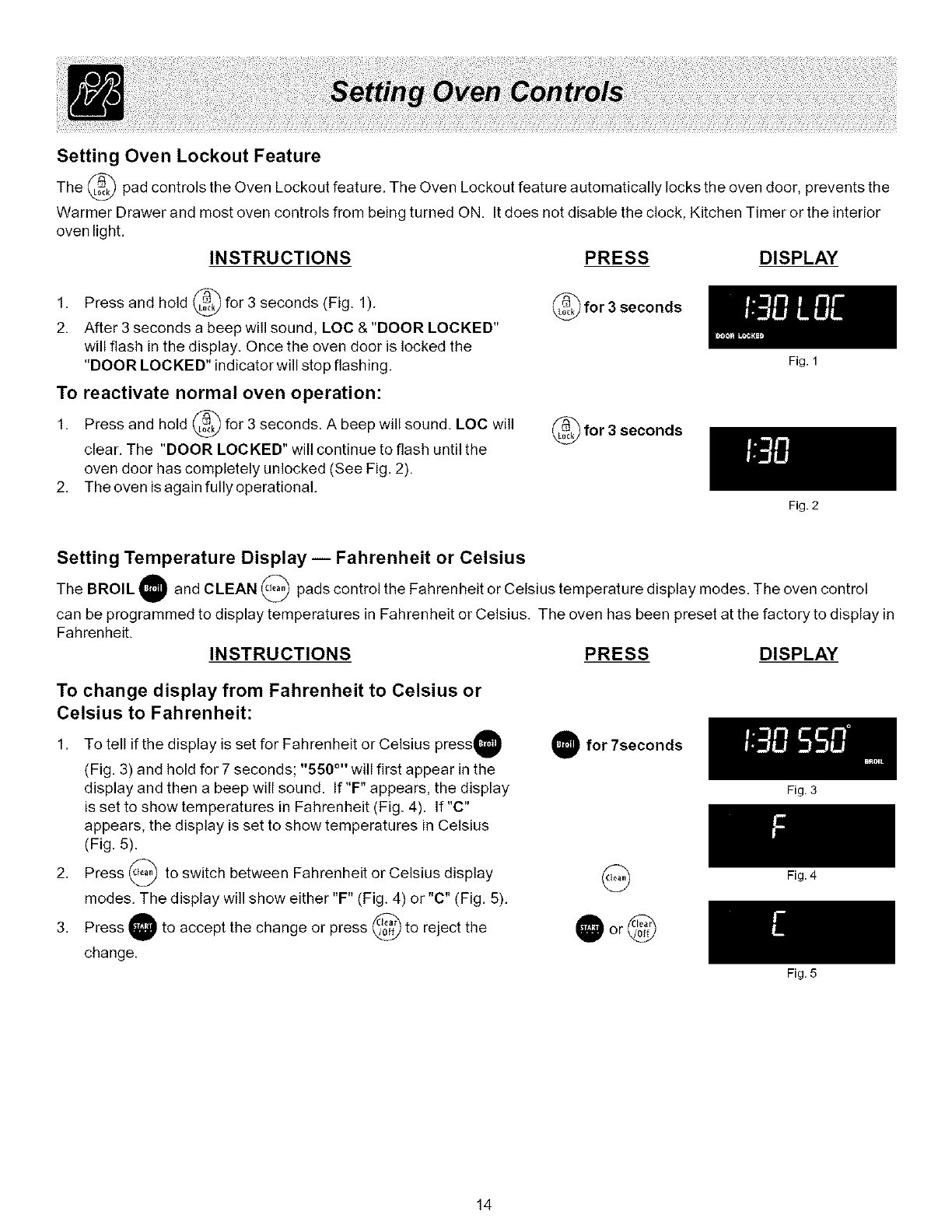

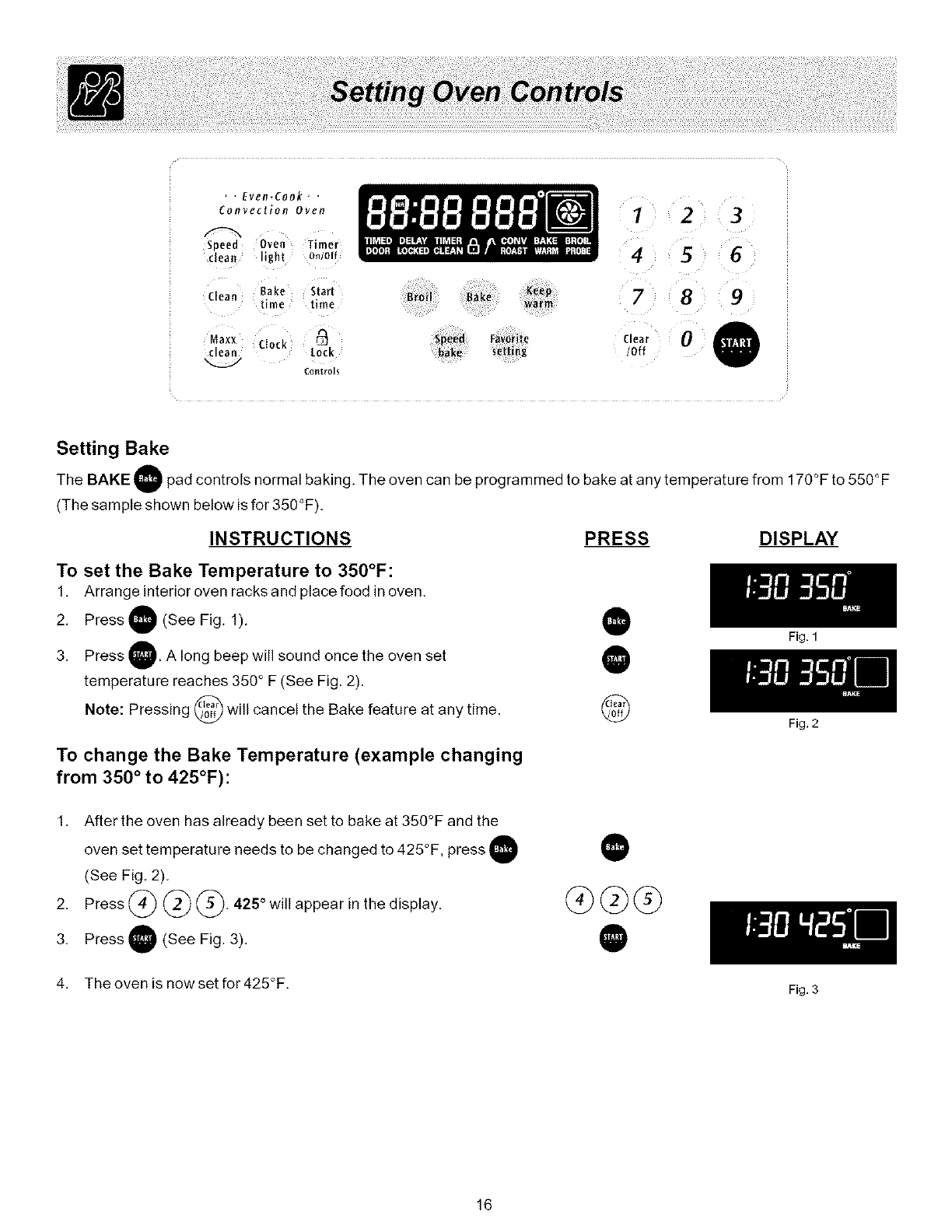

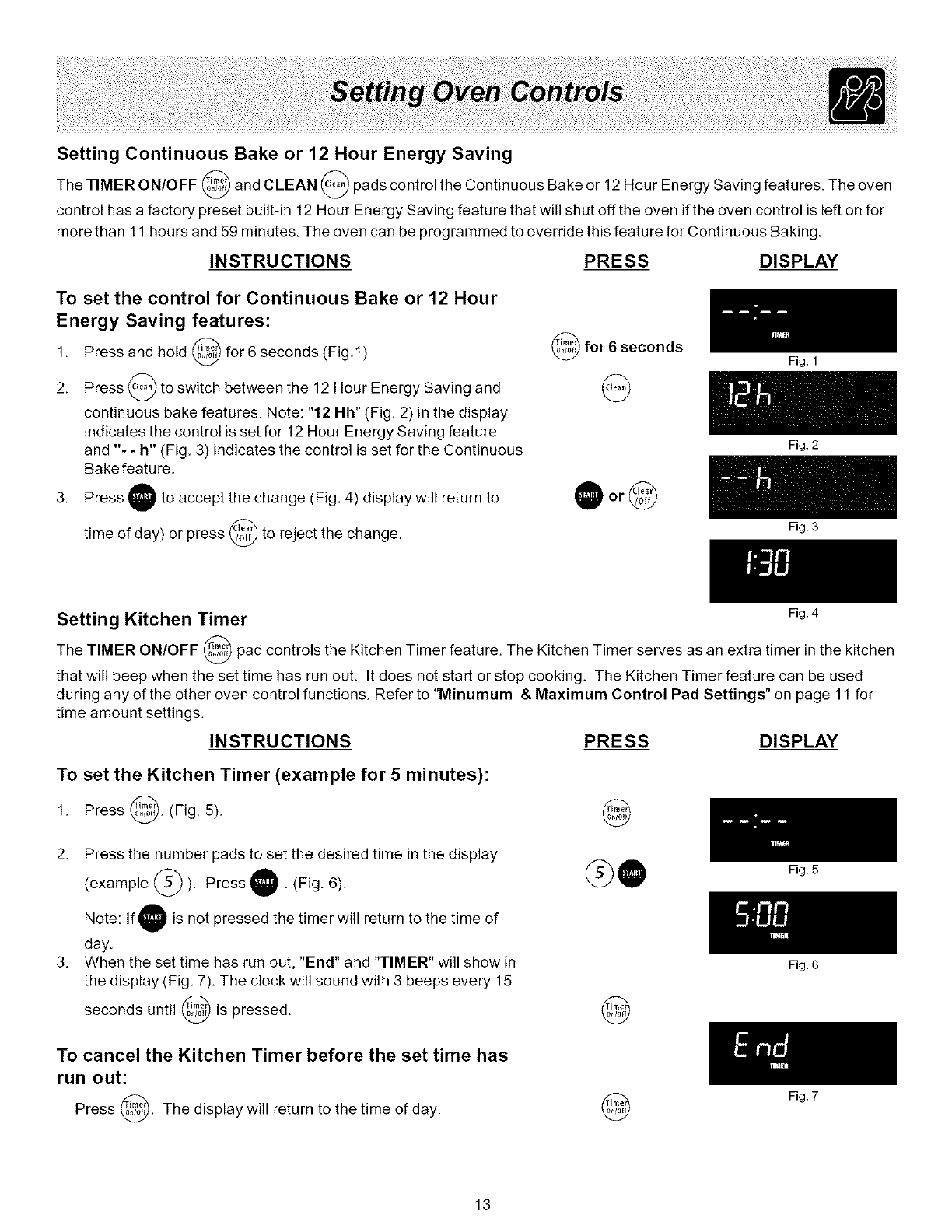

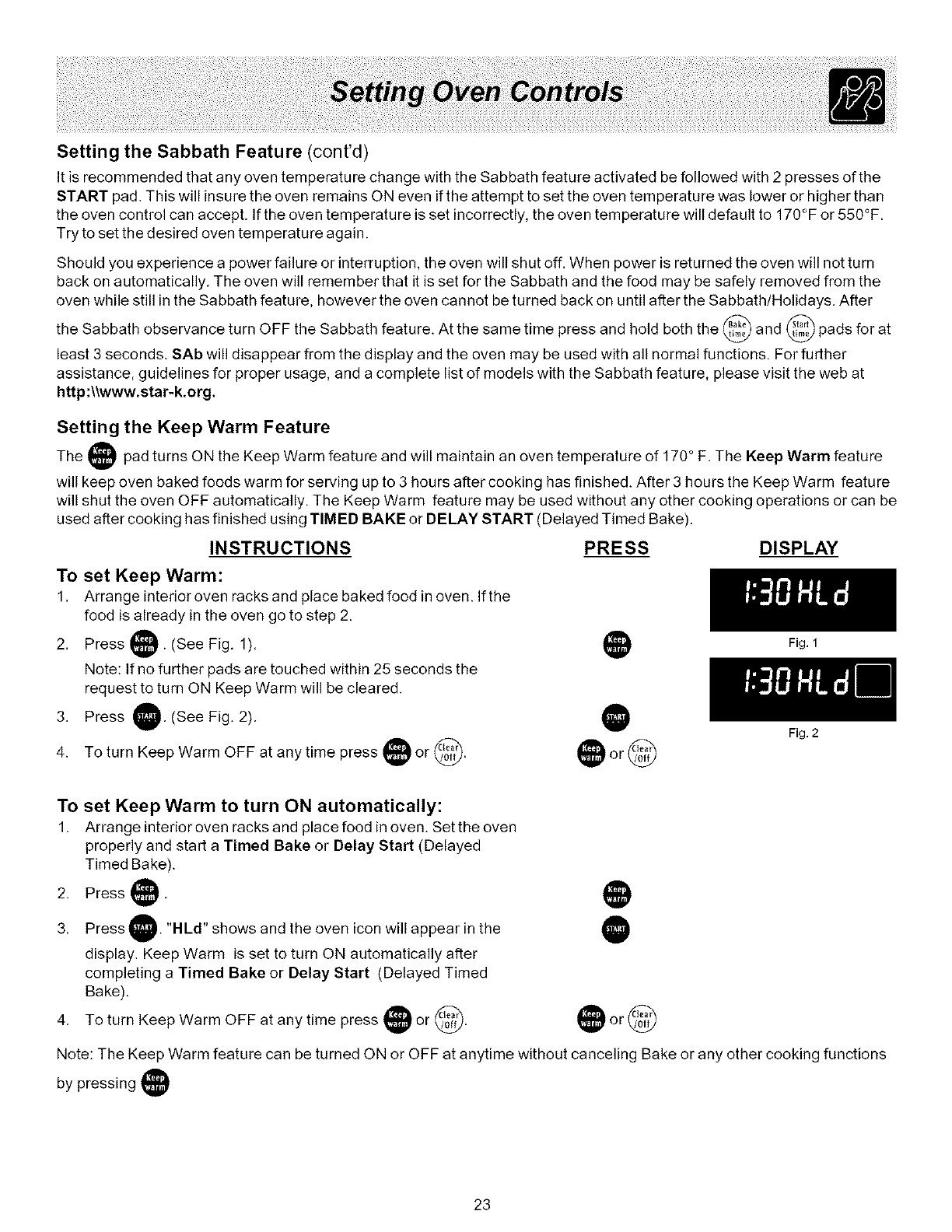

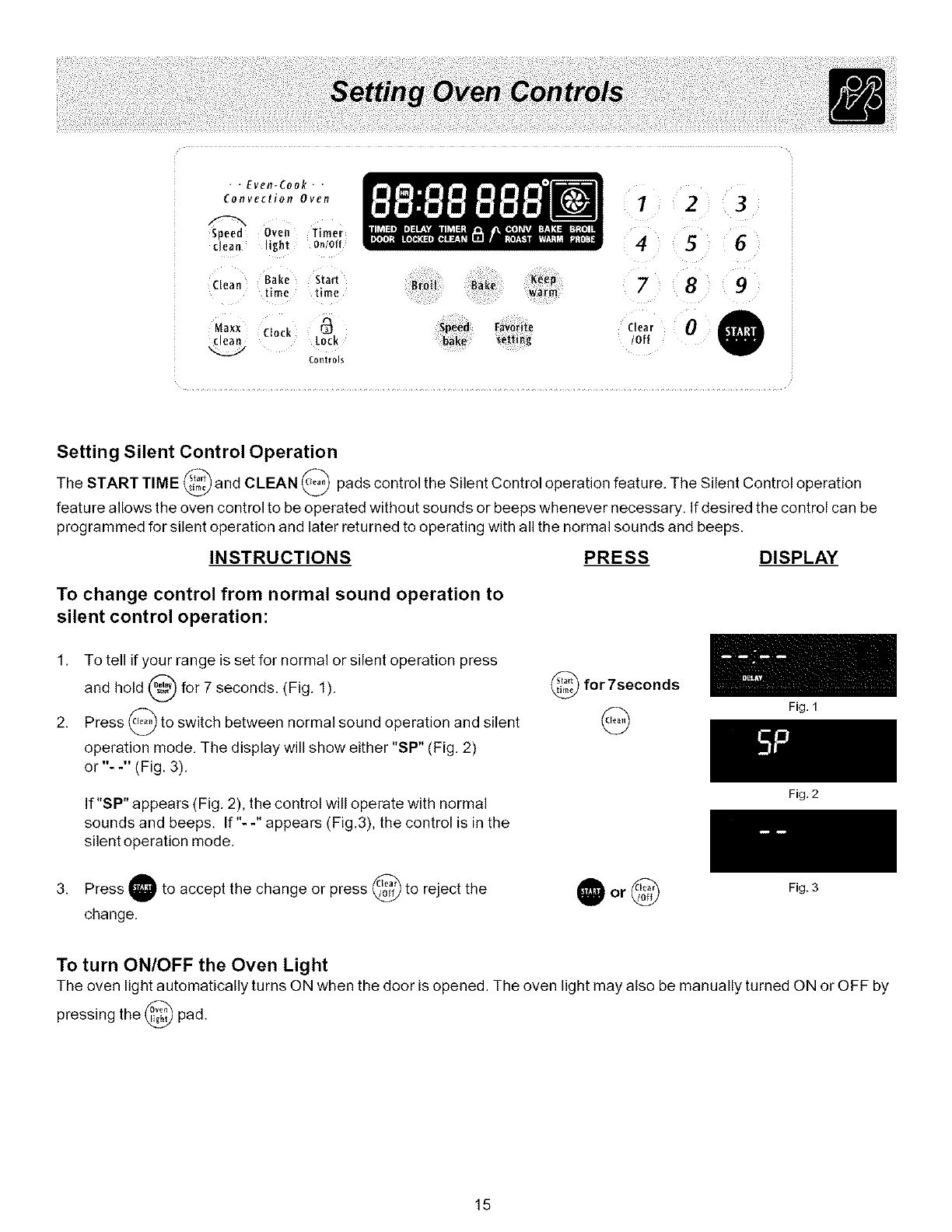

Setting Oven Controls ............ 12-23

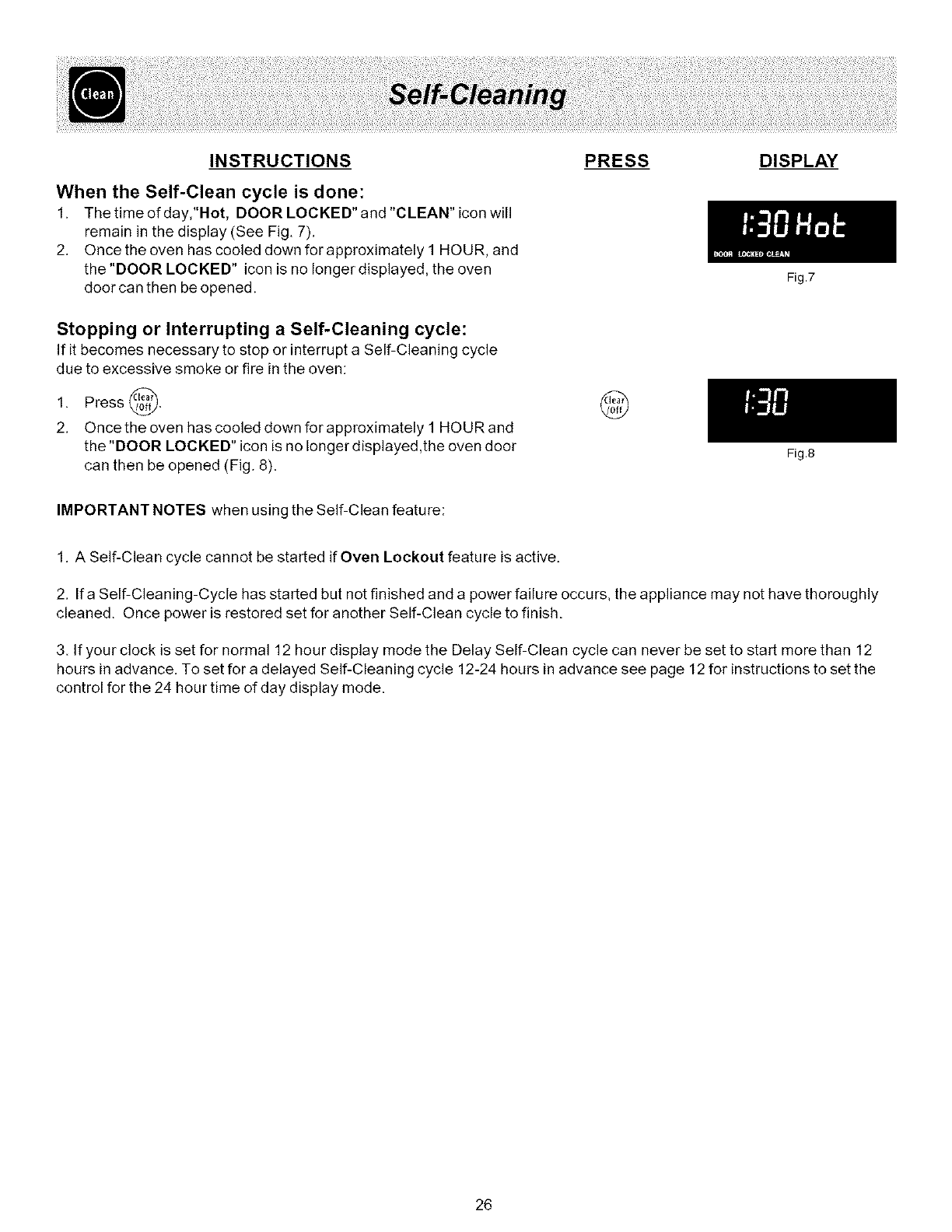

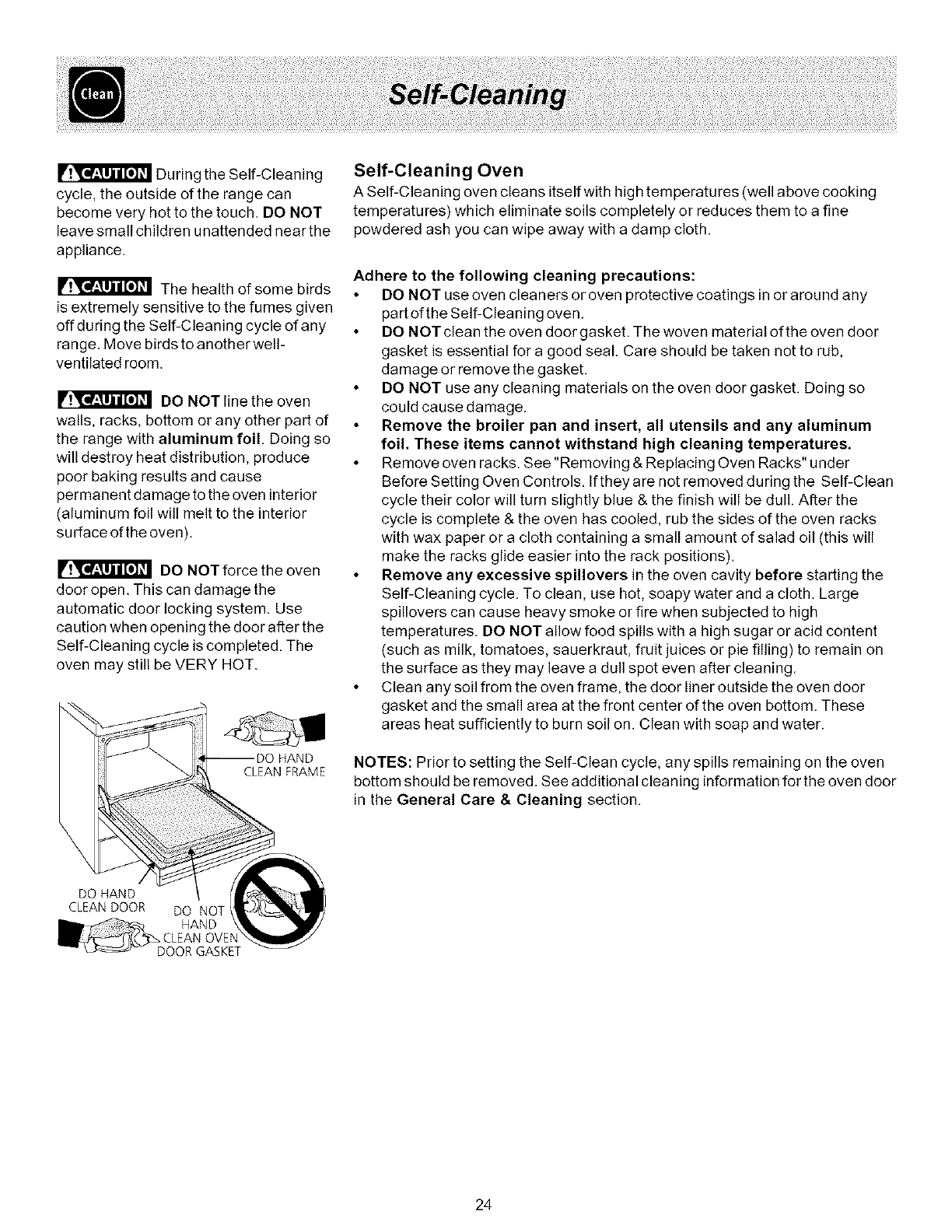

Self Cleaning ........................... 24-26

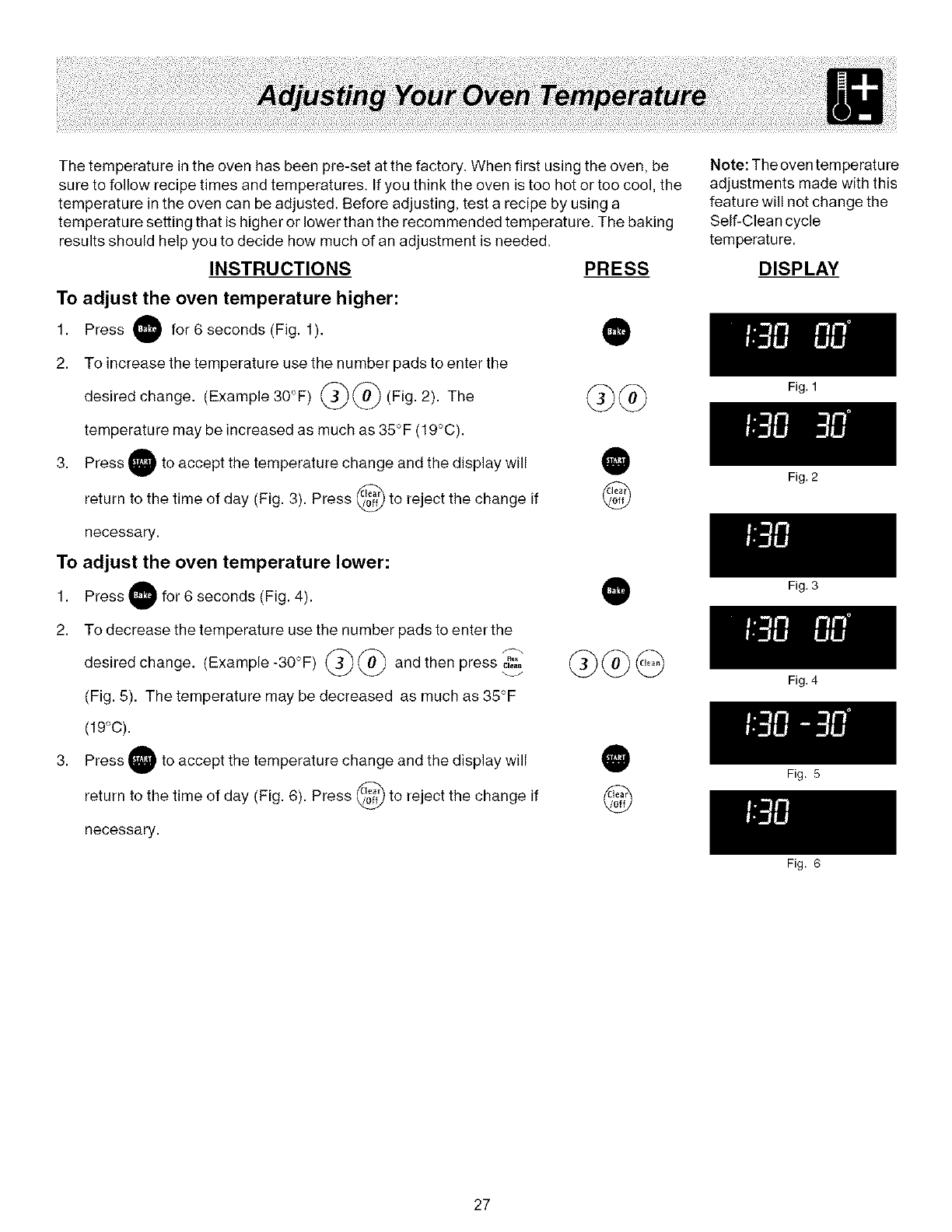

Adjusting Oven Temperature ....... 27

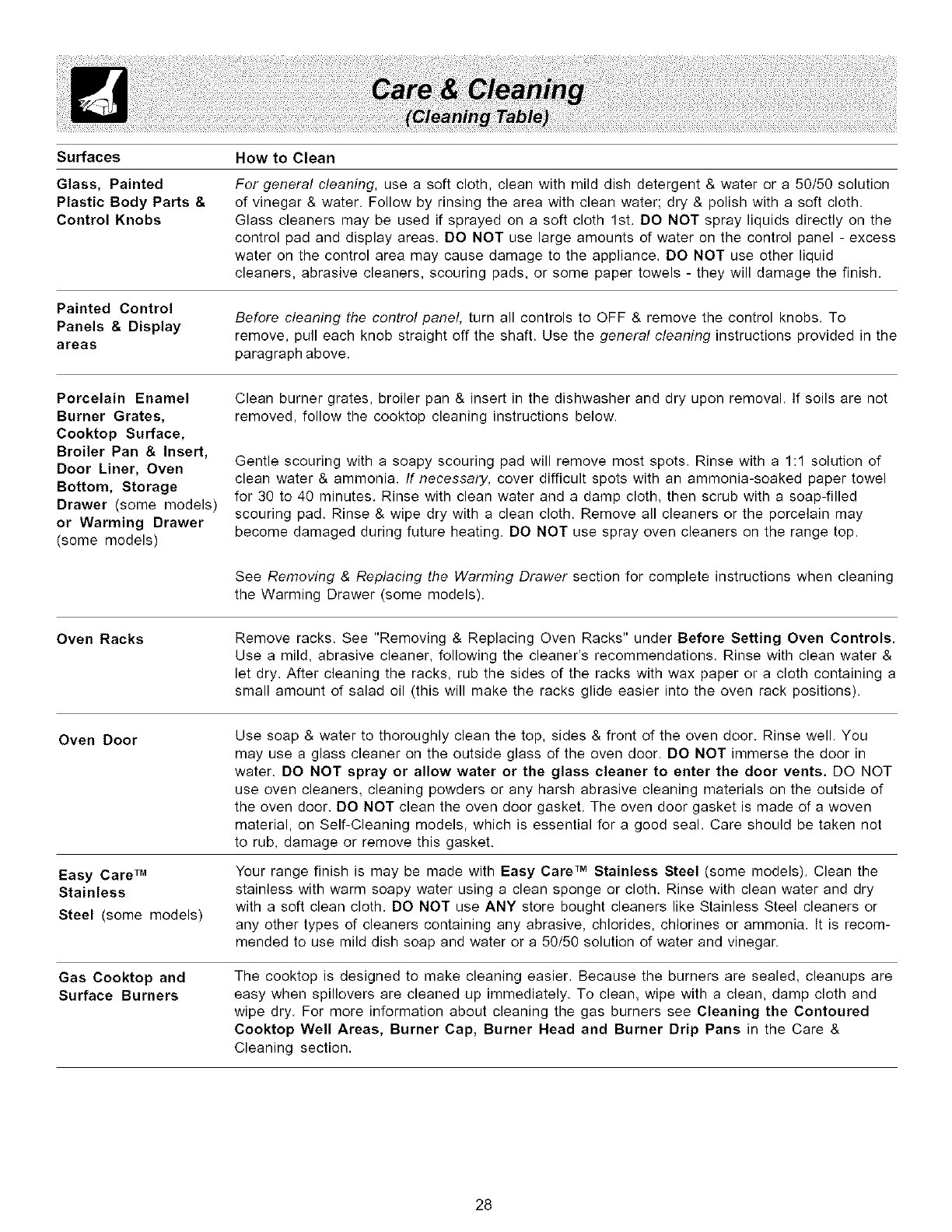

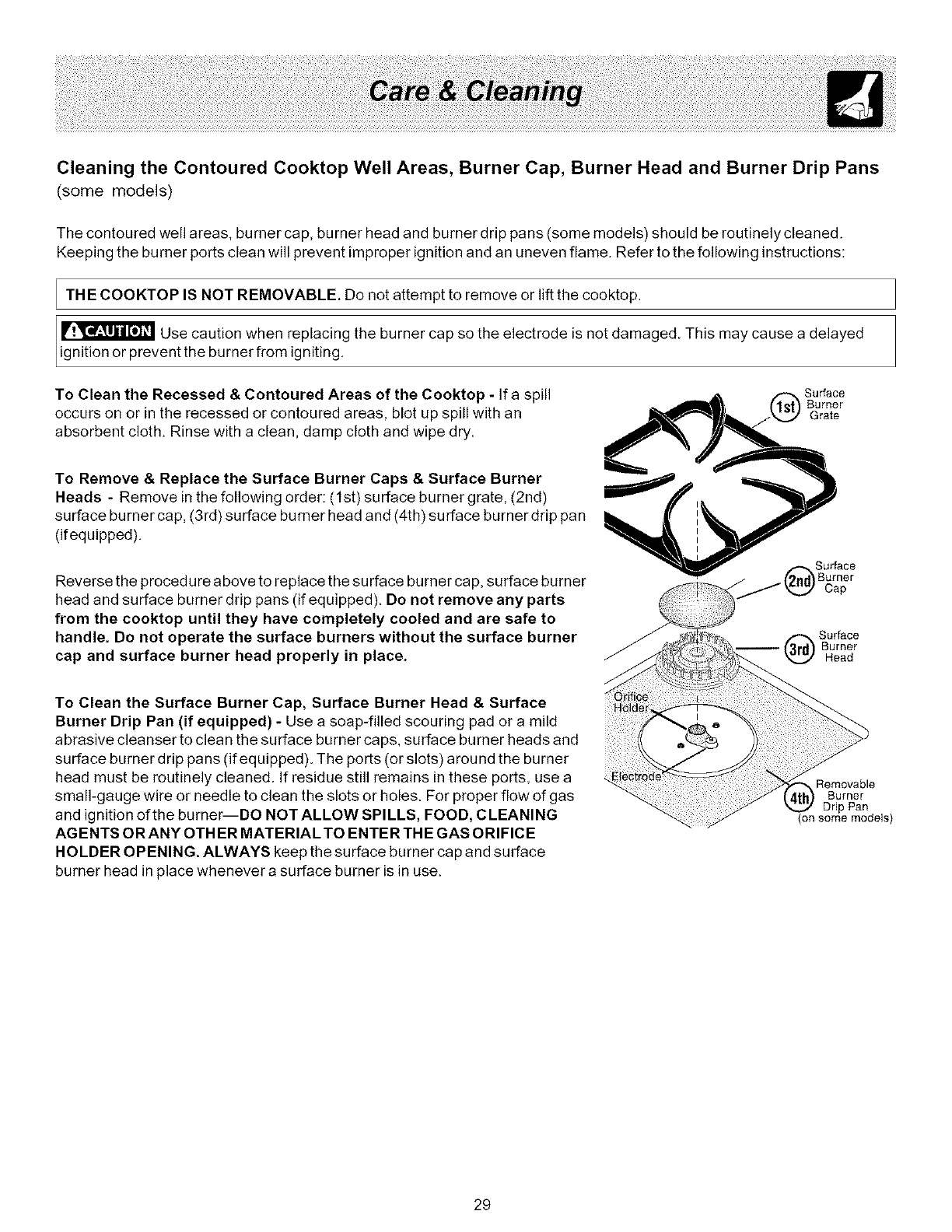

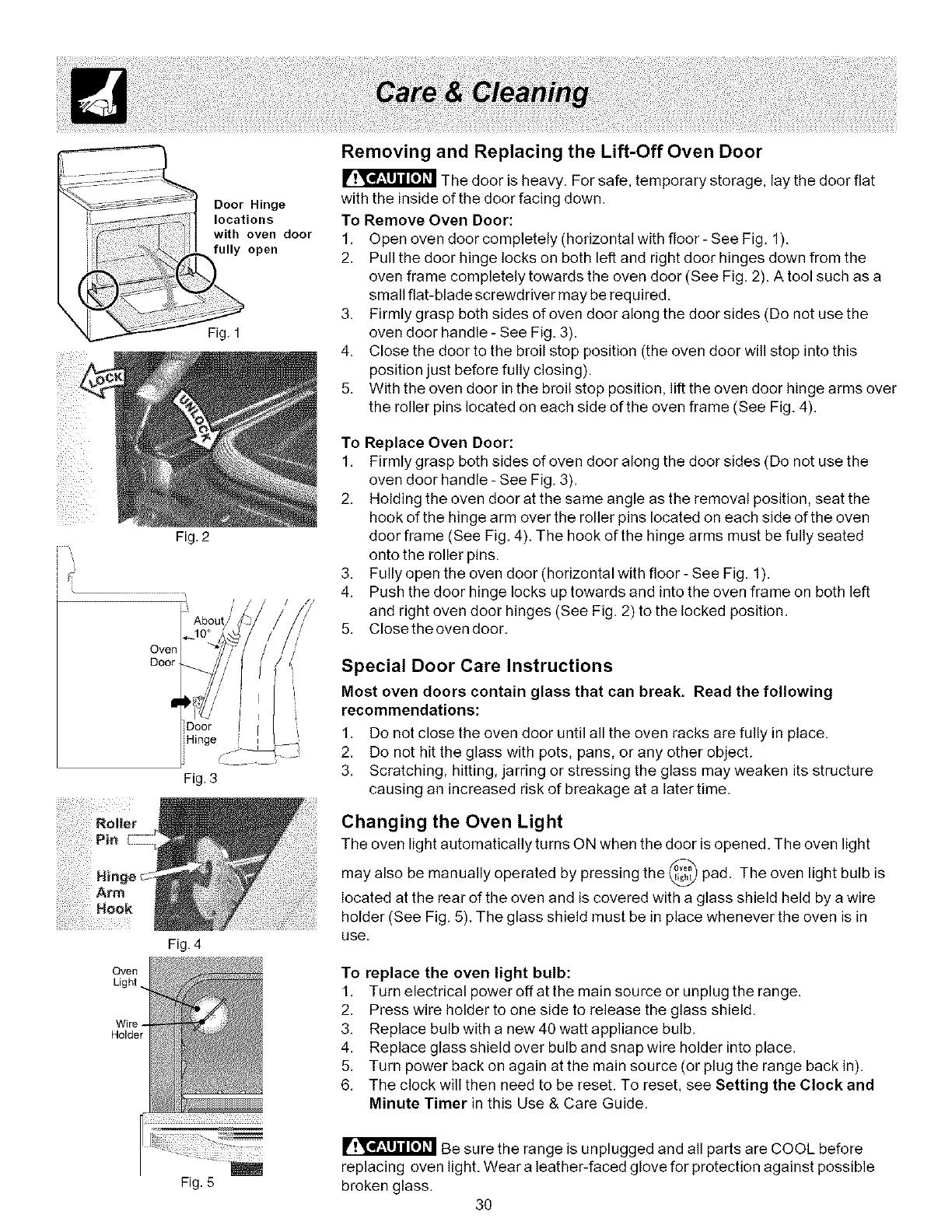

Care & Cleaning ..................... 28-30

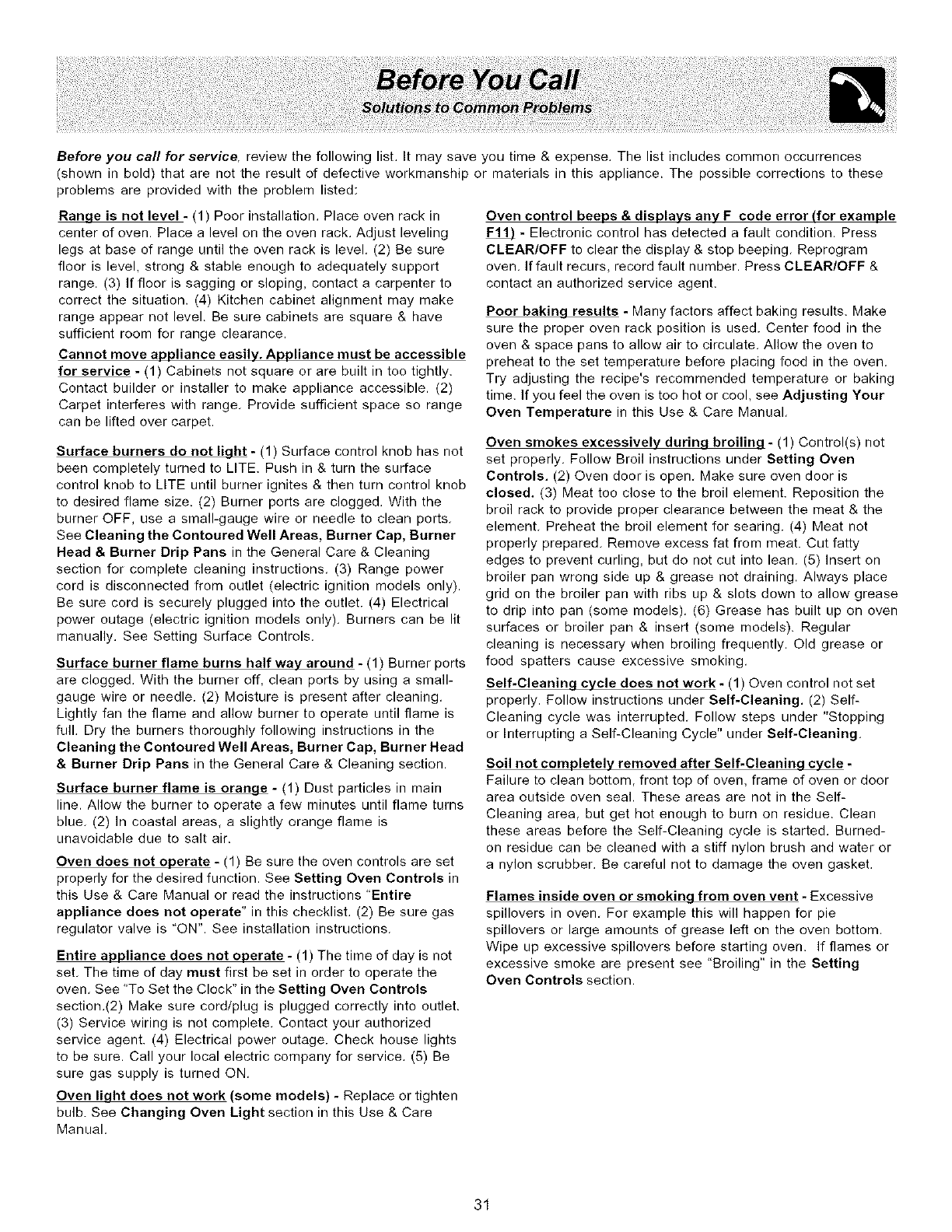

Before You Call

Solutions to Common Problems ........................ 31

Warranty ......................... Back Page

READ AND SAVE THESE INSTRUCTIONS p/n 316417158 (0803)

¢I

:[ j

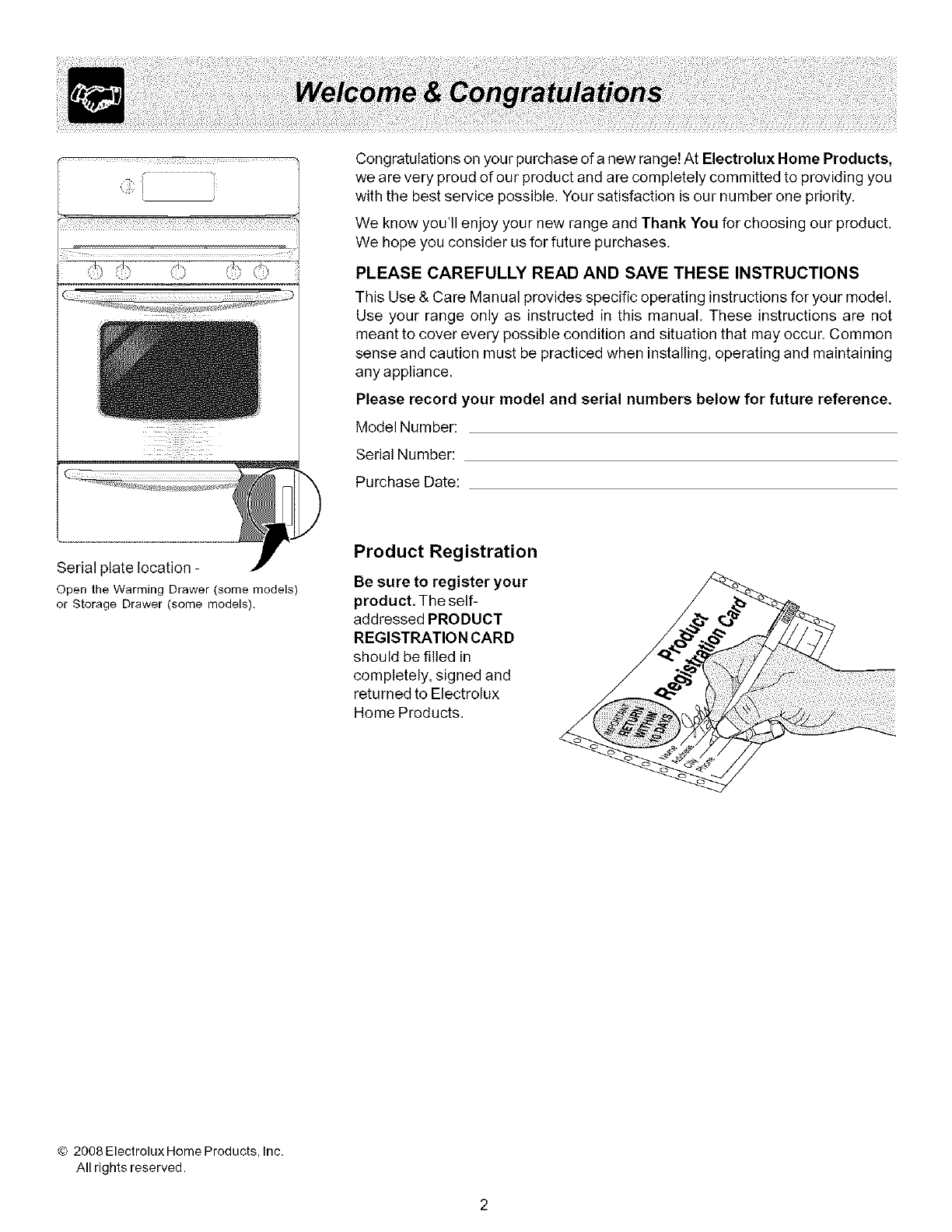

Serial plate location -

Open the Warming Drawer (some models)

or Storage Drawer (some models).

Congratulations on your purchase era new range! At Electrolux Home Products,

we are very proud of our product and are completely committed to providing you

with the best service possible. Your satisfaction is our number one priority.

We know you'll enjoy your new range and Thank You for choosing our product.

We hope you consider us for future purchases.

PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual provides specific operating instructions for your model.

Use your range only as instructed in this manual. These instructions are not

meant to cover every possible condition and situation that may occur. Common

sense and caution must be practiced when installing, operating and maintaining

any appliance.

Please record your model and serial numbers below for future reference.

Model Number:

Serial Number:

Purchase Date:

Product Registration

Be sure to register your

product. The self-

addressed PRODUCT

REGISTRATION CARD

should be filled in

completely, signed and

returned to Electrolux

Home Products.

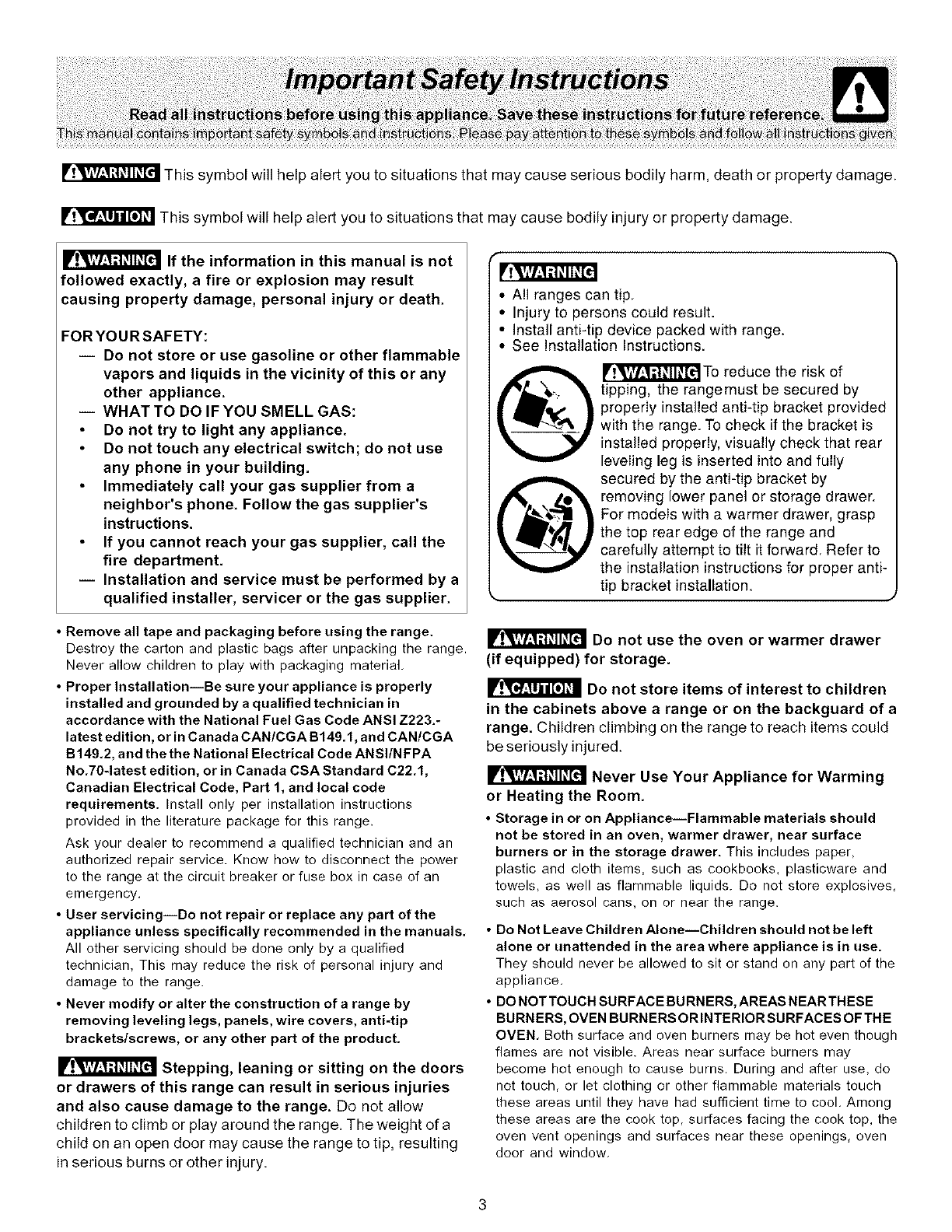

This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.

This symbol will help alert you to situations that may cause bodily injury or property damage.

If the information in this manual is not

followed exactly, a fire or explosion may result

causing property damage, personal injury or death.

FORYOURSAFETY:

iDo not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

iWHATTO DOIFYOU SMELL GAS:

Do not try to light any appliance.

Do not touch any electrical switch; do not use

any phone in your building.

Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

If you cannot reach your gas supplier, call the

fire department.

iInstallation and service must be performed by a

qualified installer, servicer or the gas supplier.

• All ranges can tip.

•Injury to persons could result.

• Install anti-tip device packed with range.

• See Installation Instructions.

r'!_i_Tl.,l;l_,ll_[elTOreduce the risk of

tipping, the rangemust be secured by

properly installed anti-tip bracket provided

with the range. To check if the bracket is

installed properly, visually check that rear

leveling leg is inserted into and fully

secured by the anti-tip bracket by

removing lower panel or storage drawer.

For models with a warmer drawer, grasp

the top rear edge of the range and

carefully attempt to tilt it forward. Refer to

the installation instructions for proper anti-

tip bracket installation.

• Remove all tape and packaging before using the range.

Destroy the carton and plastic bags after unpacking the range.

Never allow children to play with packaging material.

•Proper Installation--Be sure your appliance is properly

installed and grounded by a qualified technician in

accordance with the National Fuel Gas Code ANSI Z223.-

latest edition, or in Canada CAN/CGA B149,1, and CAN/CGA

B149.2, and the the National Electrical Code ANSI/NFPA

No,70-1ateet edition, or in Canada CSA Standard C22,1,

Canadian Electrical Code, Part 1, and local code

requirements. Install only per installation instructions

provided in the literature package for this range.

Ask your dealer to recommend a qualified technician and an

authorized repair service. Know how to disconnect the power

to the range at the circuit breaker or fuse box in case of an

emergency.

•User servicing--Do not repair or replace any part of the

appliance unless specifically recommended in the manuals,

All other servicing should be done only by a qualified

technician, This may reduce the risk of personal injury and

damage to the range.

•Never modify or alter the construction of a range by

removing leveling legs, panels, wire covers, anti4ip

brackets/screws, or any other part of the product.

Stepping, leaning or sitting on the doors

or drawers of this range can result in serious injuries

and also cause damage to the range. Do not allow

children to climb or play around the range. The weight of a

child on an open door may cause the range to tip, resulting

in serious burns or other injury.

_Do not use the oven or warmer drawer

(if equipped) for storage.

Do not store items of interest to children

in the cabinets above a range or on the backguard of a

range. Children climbing on the range to reach items could

be seriously injured.

Never Use Your Appliance for Warming

or Heating the Room.

•Storage in or on Appliance--Flammable materials should

not be stored in an oven, warmer drawer, near surface

burners or in the storage drawer. This includespaper,

plastic and cloth !terns, such as cookbooks, plasticware and

towels, as well as flammable liquids. Do not store explosives,

such as aerosol cans, on or near the range.

•Do Not Leave Children Alone--Children should not be left

alone or unattended in the area where appliance is in use.

They should never be allowed to sit or stand on any part of the

appliance,

• DO NOT TOUCH SURFACE BURNERS, AREAS NEAR THESE

BURNERS, OVEN BURNERS OR INTERIOR SURFACES OF THE

OVEN, Both surface and oven burners may be hot even though

flames are not visible. Areas near surface burners may

become hot enough to cause burns. During and after use, do

not touch, or let clothing or other flammable materials touch

these areas until they have had sufficient time to cool. Among

these areas are the cook top, surfaces facing the cook top, the

oven vent openings and surfaces near these openings, oven

door and window.

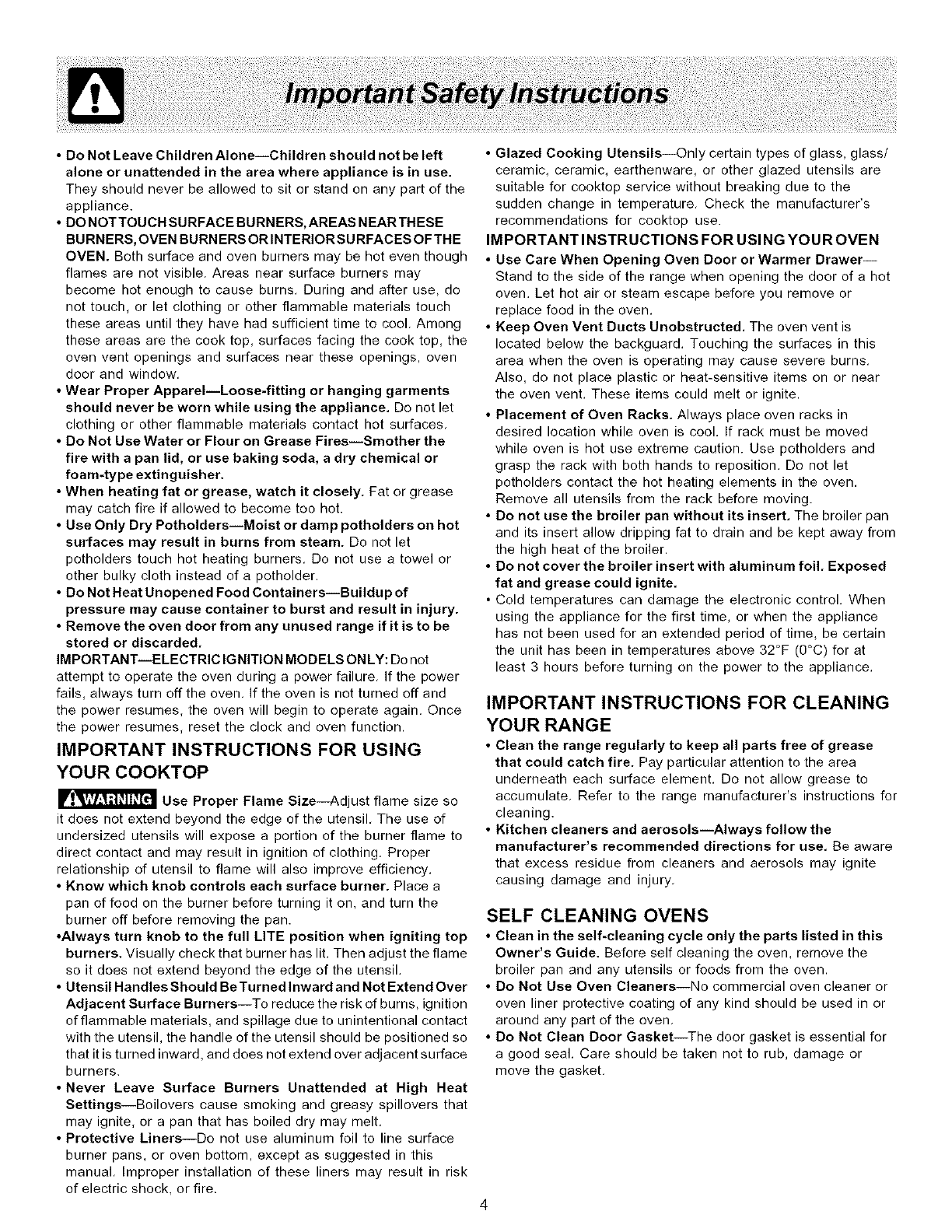

•Do Not Leave Children Alone--Children should not be left

alone or unattended in the area where appliance is in use.

They should never be allowed to sit or stand on any part of the

appliance.

• DO NOT TOUCH SURFACE BURNERS,AREAS NEAR THESE

BURNERS, OVEN BURNERS ORINTERIORSURFACES OFTHE

OVEN. Both surface and oven burners may be hot even though

flames are not visible, Areas near surface burners may

become hot enough to cause burns, During and after use, do

not touch, or let clothing or other flammable materials touch

these areas until they have had sufficient time to cool, Among

these areas are the cook top, surfaces facing the cook top, the

oven vent openings and surfaces near these openings, oven

door and window.

• Wear Proper Apparel--Loose-fitting or hanging garments

should never be worn while using the appliance, De not let

clothing or other flammable materials contact hot surfaces,

• Do Not Use Water or Flour on Grease Fires--Smother the

fire with a pan lid, or use baking soda, a dry chemical or

foam-type extinguisher,

• When heating fat or grease, watch it closely. Fat or grease

may catch fire if allowed to become too hot.

•Use Only Dry Potholders--Moist or damp potholders on hot

surfaces may result in burns from steam. Do net let

potholders touch hot heating burners. Do not use a towel or

other bulky cloth instead of a potholder.

•Do Not Heat Unopened Food Containers--Buildup of

pressure may cause container to burst and result in injury.

•Remove the oven door from any unused range if it is to be

stored or discarded,

IMPORTANT--ELECTRIC IGNITION MODELS ON LY: Do net

attempt to operate the oven during a power failure, If the power

fails, always turn off the oven. If the oven is not turned off and

the power resumes, the oven will begin to operate again. Once

the power resumes, reset the clock and oven function.

IMPORTANT INSTRUCTIONS FOR USING

YOUR COOKTOP

Use Proper Flame Size--Adjust flame size so

it does not extend beyond the edge of the utensil, The use of

undersized utensils will expose a portion of the burner flame to

direct contact and may result in ignition of clothing, Proper

relationship of utensil to flame will also improve efficiency.

•Know which knob controls each surface burner. Place a

pan of food on the burner before turning it on, and turn the

burner off before removing the pan.

•Always turn knob to the full LITE position when igniting top

burners, Visually check that burner has lit. Then adjust the flame

so it does not extend beyond the edge of the utensil.

• Utensil Handles Should Be Turned Inward and Not Extend Over

Adjacent Surface Burners--To reduce the risk of burns, ignition

of flammable materials, and spillage due to unintentional contact

with the utensil, the handle of the utensil should be positioned so

that it is turned inward, and does not extend over adjacent surface

burrers.

• Never Leave Surface Burners Unattended at High Heat

Settinge--Boilovers cause smoking and greasy spillovers that

may ignite, or a pan that has boiled dry may melt.

•Protective Liners--Do not use aluminum foil to line surface

burner pans, or oven bottom, except as suggested in this

manual, Improper installation of these liners may result in risk

of electric shock, or fire.

•Glazed Cooking Utensils--Only certain types of glass, glass/

ceramic, ceramic, earthenware, or other glazed utensils are

suitable for cooktop service without breaking due to the

sudden change in temperature, Check the manufacturer's

recommendations for cooktop use.

IMPORTANTINSTRUCTIONS FOR USING YOUR OVEN

•Use Care When Opening Oven Door or Warmer Drawer--

Stand to the side of the range when opening the door of a hot

oven. Let hot air or steam escape before you remove or

replace food in the oven.

• Keep Oven Vent Ducts Unobstructed. The oven vent is

located below the backguard. Touching the surfaces in this

area when the oven is operating may cause severe burns.

Also, do not place plastic or heat-sensitive items on or near

the oven vent. These items could melt or ignite.

•Placement of Oven Racks. Always place oven racks in

desired location while oven is cool. If rack must be moved

while oven is hot use extreme caution. Use potholders and

grasp the rack with both hands to reposition. Do not let

pothelders contact the hot heating elements in the oven.

Remove all utensils from the rack before moving.

• Do net use the broiler pan without its insert, The broiler pan

and its insert allow dripping fat to drain and be kept away from

the high heat of the broiler.

• Do net cover the broiler insert with aluminum foil. Exposed

fat and grease could ignite,

• Cold temperatures can damage the electronic control. When

using the appliance for the first time, or when the appliance

has not been used for an extended period of time, be certain

the unit has been in temperatures above 32°F (0°C) for at

least 3 hours before turning on the power to the appliance.

IMPORTANT INSTRUCTIONS FOR CLEANING

YOUR RANGE

•Clean the range regularly to keep all parts free of grease

that could catch fire. Pay particular attention to the area

underneath each surface element. Do not allow grease to

accumulate, Refer to the range manufacturer's instructions for

cleaning.

•Kitchen cleaners and aerosols--Always follow the

manufacturer's recommended directions for use, Be aware

that excess residue from cleaners and aerosols may ignite

causing damage and injury,

SELF CLEANING OVENS

•Clean in the self*cleaning cycle only the parts listed in this

Owner's Guide. Before self cleaning the oven, remove the

broiler pan and any utensils or foods from the oven.

• Do Not Use Oven Cleaners--No commercial oven cleaner or

oven liner protective coating of any kind should be used in or

around any part of the oven.

• Do Not Clean Door Gasket_The door gasket is essential for

a good seal. Care should be taken net to rub, damage or

move the gasket.

Grounding type

wall receptacle

Do not, under any

circumstance, cut, II

remove, or bypass _

the grounding prong.

Grounding Instructions

Avoid fire hazard or electrical shock. Do not use an adapter

plug, an extension cord, or remove grounding prong from electrical power cord.

Failure to follow this warning can cause serious injury, fire or death.

This appliance is equipped with a 3-prong grounding plug for

your protection against shock hazard and should be plugged directly into a

properly grounded receptacle. DO NOT cut or remove the grounding prong from

this plug.

For personal safety, the range must be properly grounded. For maximum

Powersupplycord safety, the power cord must be plugged into an electrical outlet that is correctly

with 3-prong polarized and properly grounded. Ifa 2-prong wall receptacle is the only

groundingplug available outlet, it is the personal responsibility of the consumer to have it

replaced with a properly grounded 3-prong wall receptacle installed by a

qualified electrician.

Personal injury or death from electrical shock may occur ifthe range is not installed bya qualified installer

or electrician.

See the INSTALLATION INSTRUCTIONS packaged with this range for complete installation and grounding instructions.

Important Safety Notice

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known

to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure

to such substances.

Conversion to Liquefied Petroleum Gas (or L.P. Gas)

Any additions, changes or conversions required in order for this appliance to satisfactorily meet the

application needs must be made by a qualified technician.

This Natural Gas appliance is designed to allow for conversion to Liquefied Petroleum (LP.) Gas.

If LP. conversion is needed, contact your local appliance dealer for assistance. The LP. Conversion Kit may be obtained

from your appliance dealer and should be installed by a qualified service technician. Before installing the kit be sure to

follow the LP. Installation Instructions carefully.

_rn_i_

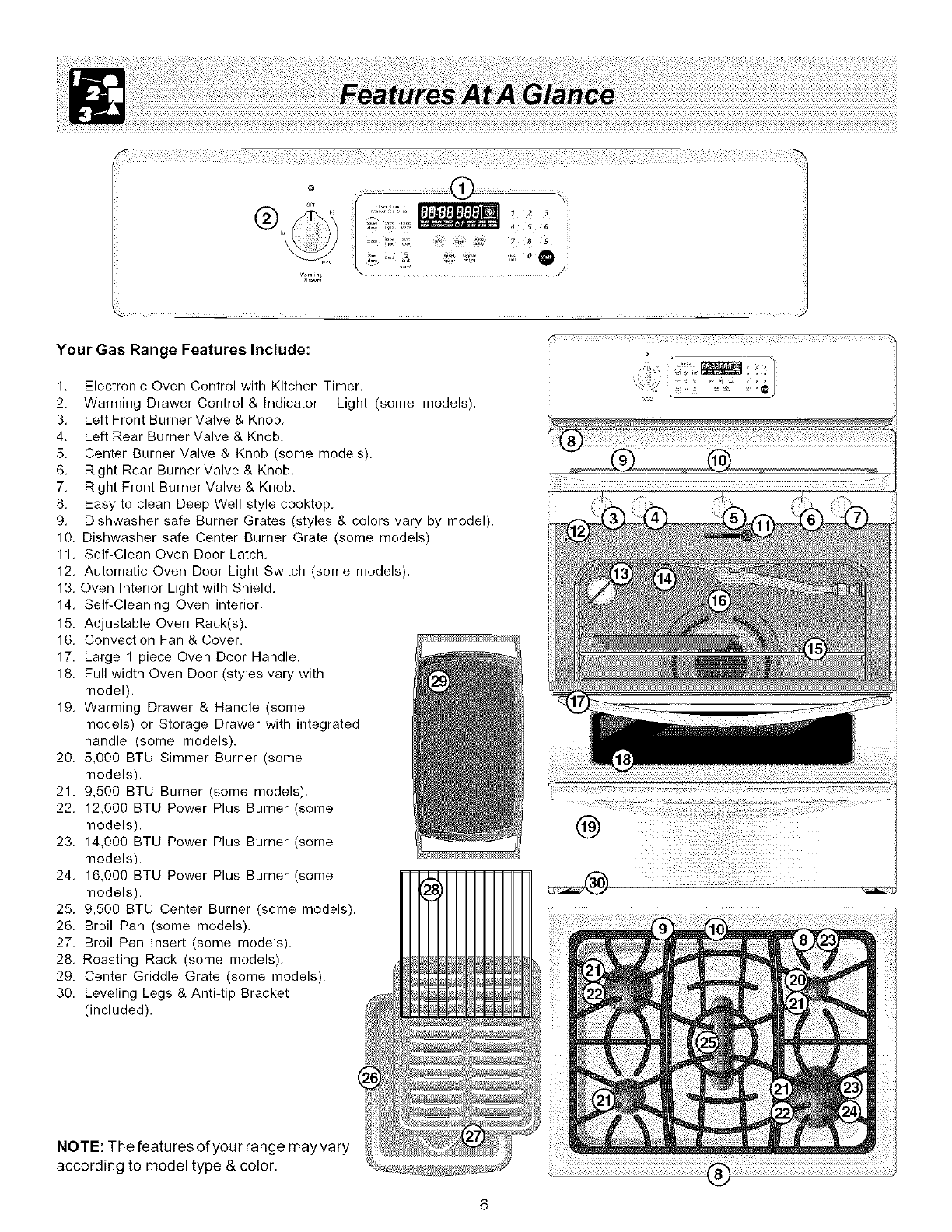

Your Gas Range Features Include:

1. Electronic Oven Control with Kitchen Timer.

2. Warming Drawer Control & Indicator Light (some models).

3. Left Front BurnerValve & Knob.

4. Left Rear Burner Valve & Knob.

5. Center Burner Valve & Knob (some models).

6. Right Rear Burner Valve & Knob.

7. Right Front Burner Valve & Knob.

8. Easy to clean Deep Well style cooktop.

9. Dishwasher safe Burner Grates (styles & colors vary by model).

10. Dishwasher safe Center Burner Grate (some models)

11. Self-Clean Oven Door Latch.

12. Automatic Oven Door Light Switch (some models).

13. Oven Interior Light with Shield.

14. Self-Cleaning Oven interior.

15. Adjustable Oven Rack(s).

16. Convection Fan & Cover.

17. Large 1 piece Oven Door Handle.

18. Full width Oven Door (styles vary with

model).

19. Warming Drawer & Handle (some

models) or Storage Drawer with integrated

handle (some models).

20. 5,000 BTU Simmer Burner (some

models).

21. 9,500 BTU Burner (some models).

22. 12,000 BTU Power Plus Burner (some

models).

23. 14,009 BTU Power Plus Burner (some

models).

24. 16,000 BTU Power Plus Burner (some

models).

25. 9,500 BTU Center Burner (some models).

26. Broil Pan (some models).

27. Broil Pan Insert (some models).

28. Roasting Rack (some models).

29. Center Griddle Grate (some models).

30. Leveling Legs & Anti-tip Bracket

(included).

NOTE: The features of your range may vary

according to model type & color.

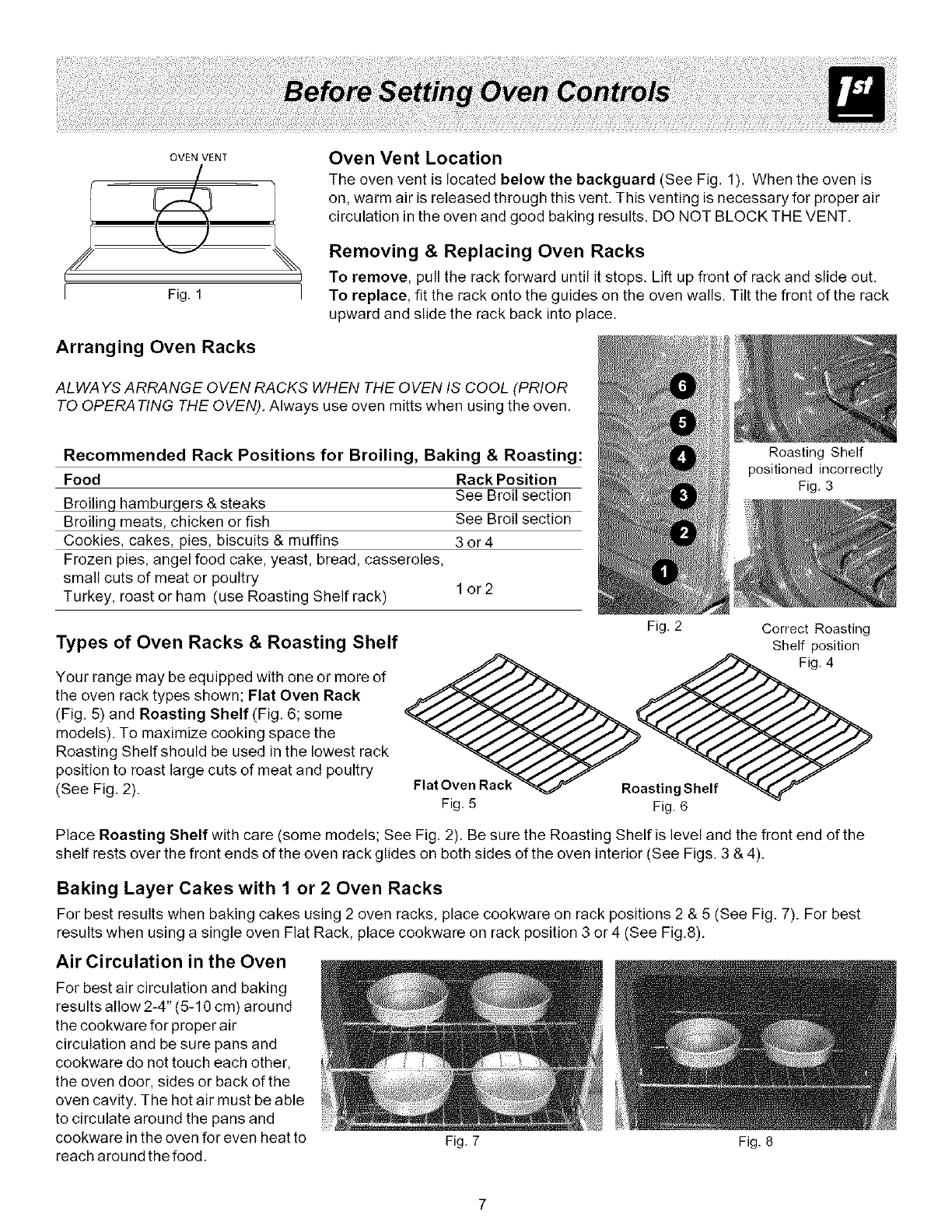

OVEN VENT

Fig. 1

Oven Vent Location

The oven vent is located below the backguard (See Fig. 1). When the oven is

on, warm air is released through this vent. This venting is necessary for proper air

circulation in the oven and good baking results. DO NOT BLOCK THE VENT.

Removing & Replacing Oven Racks

To remove, pull the rack forward until it stops. Lift up front of rack and slide out.

To replace, fit the rack onto the guides on the oven walls. Tilt the front of the rack

upward and slide the rack back into place.

Arranging Oven Racks

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR

TO OPERATING THE OVEN). Always use oven mitts when using the oven.

Recommended Rack Positions for Broiling, Baking & Roasting:

Food Rack Position

Broilinq hamburgers & steaks See Broil section

Broiling meats, chicken or fish See Broil section

Cookies, cakes, pies, biscuits & muffins 3 or 4

Frozen pies, angel food cake, yeast, bread, casseroles,

small cuts of meat or poultry

Turkey, roast or ham (use Roasting Shelf rack) 1 or 2

Roasting Shelf

positioned incorrectly

Fig. 3

Types of Oven Racks & Roasting Shelf

Your range may be equipped with one or more of

the oven rack types shown; Flat Oven Rack

(Fig. 5) and Roasting Shelf(Fig. 6; some

models). To maximize cooking space the

Roasting Shelf should be used in the lowest rack

position to roast large cuts of meat and poultry

(See Fig. 2).

Fig. 2 Correct Roasting

Shelf position

Fig, 5 Fig, 6

Place Roasting Shelf with care (some models; See Fig. 2). Be sure the Roasting Shelf is level and the front end of the

shelf rests over the front ends of the oven rack glides on both sides of the oven interior (See Figs. 3 & 4).

Baking Layer Cakes with 1 or 2 Oven Racks

For best results when baking cakes using 2 oven racks, place cookware on rack positions 2 & 5 (See Fig. 7). For best

results when using a single oven Flat Rack, place cookware on rack position 3 or 4 (See Fig.8).

Air Circulation in the Oven

For best air circulation and baking

results allow 2-4" (5-10 cm) around

the cookware for proper air

circulation and be sure pans and

cookware do not touch each other,

the oven door, sides or back of the

oven cavity. The hot air must be able

to circulate around the pans and

cookware in the oven for even heat to

reach around the food. Fig. 7 Fig. 8

Do not place plastic

items such as salt and pepper

shakers, spoon holders or plastic

wrappings on top of the range when

it is in use. These items could melt or

ignite. Potholders, towels or wood

spoons could catch fire if placed too

close to a flame.

In the event of an electrical power

outage, the surface burners can be lit

manually. To light a surface burner, hold

a lit match to the burner head, then

slowly turn the surface control knob to

LITE. After burner lights push in and turn

knob to desired setting. Use caution

when lighting surface burners manually.

I OFF .,LITE..hi 6 5 4 3 2 Io

CORRECT

Never extend the flame beyond the outer

edgeofthe utensil. A higherflame simply

wastes heat and energy, and increases

your r sk of be ng burned by the f ame.

Setting Surface Controls

Your range may be equipped with different sized surface burners. The ability to heat

food quicker and in larger volumes increases as the burner size increases. The

Simmer burner (some models) is best used for simmering delicate food items

such as sauces, etc.

The standard burners can be used for most surface cooking needs. Some models

include a center burner (or griddle burner). Note: Before using the center burner

with the griddle, REMOVE the center burner grate from the cooktop and replace with

the griddle.

The Power Plus burner or burners (some models) are best used for bringing large

quantities of liquid to temperature and when preparing larger quantities of food.

Regardless of size, always select cookware that is suitable for the amount and type

of food being prepared. Select a burner and flame size appropriate to the pan.

Never allow flames to extend beyond the outer edge of the pan.

Operating the Gas Surface Burners:

1. Place cooking utensil on surface burner.

2. Push the surface control knob in and turn counterclockwise out of the OFF

position.

3. Release the knob and rotate to the LITE position. Note: All four electronic

surface ignitors will spark at the same time. However, only the burner you are

turning on will ignite.

3. Visually check that the burner has lit.

4. Push the control knob in and turn counterclockwise to the desired flame size,

The control knobs do not have to be set at a particular setting. Use the guides

and adjust the flame as needed. DO NOT cook with the surface control knob in

the LITE position. (The electronic ignitor will continue to spark if the knob is left

in the LITE position,)

Setting Proper Surface Burner Flame Size

For most cooking, start on the highest control setting and then turn to a lower one

to complete the process, Use the recommendations below as a guide for

determining proper flame size for various types of cooking. The size and type of

utensil used and the amount of food being cooked will influence the setting needed

for cooking.

*Flame Size

High Flame

Medium Flame

Low Flame

TypeofCooking

Start most foods; bring water to a boil; pan broiling.

Maintain a slow boil; thicken sauces, gravies; steaming.

Keep foods cooking; poach; stewing.

For deep fat frying, use a thermometer and adjust the surface control knob

accordingly. If the fat is too cool, the food will absorb the fat and be greasy, If the fat

is too hot, the food will brown so quickly that the center will be undercooked. De not

attempt to deep fat fry too much food at once as the food will neither brown nor cook

properly,

*These settings are based on using medium-weight metal or aluminum pans

with lids. Settings may vary when using other types of pans. The color of the

flame is the key to proper burner adjustment, A good flame is clear, blue and hardly

visible in a well-lighted room. Each cone of flame should be steady and sharp.

Adjust or clean burner if flame is yellow-orange.

Arranging Warming Drawer Rack Positions

The rack can be used in 2 ways

In the upright position to allow low profile food items to be placed both

under and on top of the rack (for example, rolls or biscuits on top of the rack

and a casserole dish underneath).

In the downward position to allow you to place light weight food items and

empty cookware (for example, rolls or pastries and dinner plates) on the

rack.

Set the Warming Drawer rack in either position as shown below (Fig. 1).

Always use pot holders or

oven mitts when removing food from the

Warming Drawer as cookware and plates

will be hot and you can be burned.

Warming Drawer

//_R_ck in upward

position Fig. 1

} Warming Drawer

}/_ in downward

position

To Operate the Warming Drawer

The purpose of the Warming Drawer is to keep hot cooked foods at serving

temperature. Always start with hot food. It is not recommended to heat cold

food in the Warming Drawer.

All food placed in the Warming Drawer should be covered with a lid or aluminum

foil to maintain quality. Do not use plastic wrap to cover food. Plastic may

melt onto the drawer and be very difficult to clean. Use only utensils and

cookware recommended for oven use in the Warming Drawer.

To Set the Warming Drawer Control

The control is used to select the temperature of the Warming Drawer. It is

located on the control panel. To set the control, push in and turn the knob to

the desired setting. The temperatures are approximate, and are designated by

HI (high), MED (medium) and LO (low). To set the Warming Drawer control:

1. Turn the knob to select the desired temperature setting.

2. For best results, preheat the drawer before adding food. An empty drawer

will preheat in approximately 15 minutes.

3. When done, turn the control to OFF.

Warming Drawer Temperature Selection

Recommended Warming Drawer food settings are shown ill Fig. 3. If a

particular food is not listed, start with the MED setting. If more crispness is

desired, remove the lid or aluminum foil from the food. Most foods can be kept

at serving temperatures on the MED setting. When a combination of foods are

to be kept warm (for example, a meat with 2 vegetables and rolls) use the HI

setting. To avoid heat loss, do not open the Warming Drawer while in use.

Warming Drawer Indicator Light

The Warming Drawer indicator light is located above the Warming Drawer

control knob (See Fig. 2). It turns on when the control is set, and stays on until

the control is turned off. The Warming Drawer will not operate during the

Self-Clean cycle.

Warming Drawer Recommended

Food Settings Table

Food Item Setting

Bacon HI

Hamburger Patties HI

Poultry HI

Pork Chops HI

Fried Foods HI

Pizza HI

Gravies MED

Casseroles MED

Eggs MED

Roasts (Beef, Pork, Lamb) MED

Vegetables MED

Biscuits MED

Rolls, hard MED

Pastries MED

Rolls (soft) LO

Empty Dinner Plates LO

Fig. 3

Pushdown with finger

Fig. 1

Pull up with finger

Fig. 2

_ Electrical Shock Hazard can occur and result in

serious injury or death. Disconnect appliance from electric power

before cleaning and servicing the Warming Drawer.

To Remove and Replace the Warming Drawer (some models)

To Remove the Warming Drawer:

1. [_T'l!_'lr_TJ_ Turn power off before removing t he Warming Drawer.

2. Open the drawer to the fully opened position.

3. Locate glide lever on each side of drawer, pull up on the left glide lever and

push down on the right glide lever (See Fig 1).

4. Pull the drawer away from the range

Replace the Warming Drawer:

Pull the bearing glides to the front of the chassis glide (See Fig. 2).

Align the glide on each side of the drawer with the glide slots on the range.

Push the drawer into the range until levers "click" (approximately 2"). Pull

the drawer open again to seat bearing glides into position. If you do not

hear the levers "click" or the bearing glides do not feel seated

remove the drawer and repeat steps 1 thru 3. This will minimize

possible damage to the bearing glides.

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become

familiar with the various features and functions of the oven as described below. Detailed instructions for each feature

and function follow later in this Use & Care Manual.

OVEN

LIGHT--Use TIMERON /BROIL--Use BAKE--Use to KEEP WARM--

to turn the OFF--Use to to select enter the Use to select the

SPEEDCLEAN--Use oven light ON set or cancel variable Broil normal Bake Keep Warm

to select a 2 hour Self- and OFF the Kitchen feature, feature, feature,

Cleaning cycle, Timer,

BAKE TIME-- U

enter the length of the _ :_

'_ € ean Bake Start

time time

START TIME -- Use with

BAKE, BAKE TIME, and _j..,,--_Maxx Clock r_

CLEANPADS to "/_ clean ---- lock

program a Delayed

Timed Bake or Delay

Self-Cleaning cycle.

MAXX CLEAN-- Use

to select a 4 hour

Self-Cleaning cycle.

CLOCK--

Use to set

the time of

day.

LOCKCONTROLS Speed Bake TM-

Use to select the

Use to enable or

disable all oven Speed-Bake

features, feature.

FAVORITE

SETTING -

Use to

recall

stored

recipes.

0 THRU g

NUMBER PADS--

Use to enter

temperature and

times.

1 2

4 5

7 8

/Off

\\ \

\ '\,

CLEAR/OFF Useto START

cancel any oven mode Use to

previously entered except start all

the Oven Lockout, Time of oven

Day & Minute Timer. features

Press CLEAR/OFFto stop (not used

cooking, with Oven

Light).

Minimum & Maximum Control

All of the features listed have

minimum and maximum time or

temperature settings that may be

entered intothe control. An ENTRY

acceptance beep will sound each

time a control pad is touched (the

Oven Lockout pad is delayed by 3

seconds).

An ENTRY ERROR tone (3 short

beeps) will sound if the entry of the

temperature or time is below the

minimum or above the maximum

settings for the feature.

Pad Settings

FEATURE

PREHEATTEMP.

BAKE TEMP.

BROILTEMP.

KITCHENTIMER

CLOCKTIME

COOKTIME

STARTTIME

CLEANTIME

Speed Bake TM

Cooking System

12Hr.

24 Hr.

12Hr.

24 Hr.

12Hr.

24 Hr.

12Hr.

24 Hr.

MIN. TEMP./TIME

170°F /77°C

400°F/205°C

0:01 Min.

1:00 Hr./Min.

0:00 Hr./Min.

0:01 Min.

1:00 Hr./Min.

0:00 Hr./Min.

2 hours

300°F/148°C

MAX. TEMP./TIME

550°F /288°C

550 °F /288°C

11:59 Hr./Min.

12:59 Hr./Min.

23:59 Hr./Min.

11:59 Hr./Min.

23:59 Hr./Min.

12:59 Hr./Min.

23:59 Hr./Min.

4 hours

550°F /288°C

•" Even-Cook''

Convection Oven

Speed Oven Timer

dean light on/off

Clean Bake Start

time time

Lock /Off

Controls

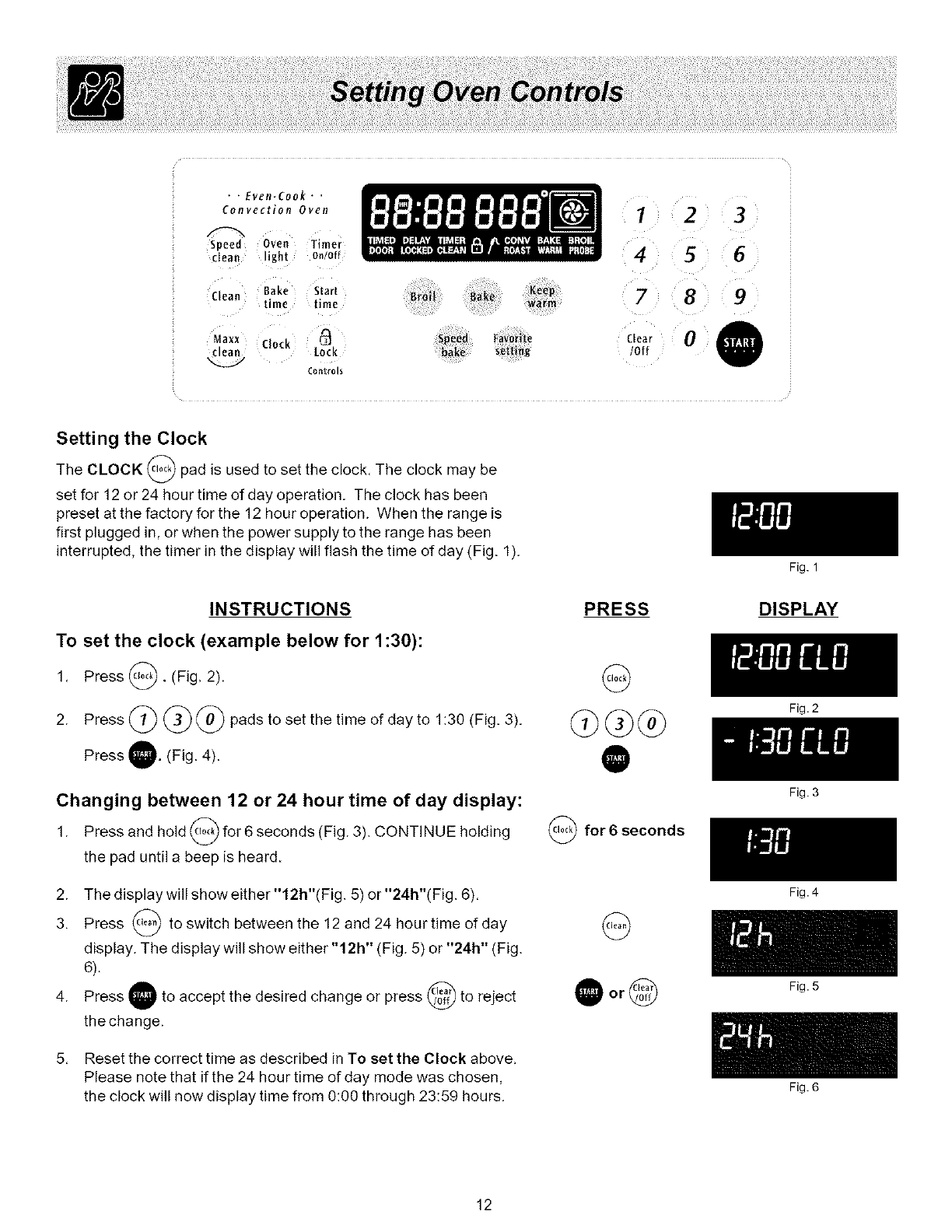

Setting the Clock

The CLOCK _ pad is used to set the clock Tile clock may be

set for 12 or 24 hour time of day operation. The clock has been

preset at the factory for the 12 hour operation. When the range is

first plugged in, or when the power supply to the range has been

interrupted, the timer in the display will flash the time of day (Fig. 1).

INSTRUCTIONS

To set the clock (example below for 1:30):

1 Press _. (Fig. 2).

2. Press _ @ @ pads to set the time of day to 1:30 (Fig. 3).

Press (Fig. 4).

PRESS

Fig. 1

DISPLAY

Changing between 12 or 24 hour time of day display:

1. Press and hold _ for 6 seconds (Fig. 3). CONTINUE holding

the pad until a beep is heard.

The display will show either "12h"(Fig. 5) or "24h"(Fig. 6).

Press _ to switch between the 12 and 24 hour time of day

display. The display will show either "12h" (Fig. 5) or "24h" (Fig.

6).

Press to accept the desired change or press @ to reject

thechange.

5. Reset the correct time as described in To set the Clock above.

Please note that if the 24 hour time of day mode was chosen,

the clock will now display time from 0:00 through 23:59 hours.

_for 6 seconds

Fig. 2

Fig. 3

Fig.4

Fig. 5

Fig. 6

Setting Continuous Bake or 12 Hour Energy Saving

The TIMER ON/OFF _ and CLEAN _) pads control the Continuous Bake or 12 Hour Energy Saving features. The oven

control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is left on for

more than 11 hours and 59 minutes. The oven can be programmed to override this feature for Continuous Baking.

INSTRUCTIONS PRESS DISPLAY

To set the control for Continuous Bake or 12 Hour

Energy Saving features:

1. Press and hold @ for 6 seconds (Fig 1)

2. Press _ to switch between the 12 Hour Energy Saving and

continuous bake features. Note: "12 Hh" (Fig. 2) in the display

indicates the control is set for 12 Hour Energy Saving feature

and "- - h" (Fig. 3) indicates the control is set for the Continuous

Bake feature.

3. Press to accept the change (Fig. 4) display will return to

time of day) or press @ to reject the change.

for 6 seconds Fig. 1

Fig. 2

Fig. 3

Fig. 4

Setting Kitchen Timer

The TIMER ON/OFF _t_ pad controls tile Kitchen Timer feature. The Kitchen Timer serves as an extra tirner in the kitchen

that will beep when the set time has run out. It does not start or stop cooking. The Kitchen Timer feature can be used

during any of the other oven control functions. Refer to "Minumum & Maximum Control Pad Settings" on page 11 for

time amount settings.

INSTRUCTIONS PRESS DISPLAY

To set the Kitchen Timer (example for 5minutes):

1. Press _. (Fig 5). @

2. Press the number pads to set the desired time in the display

(example Press i .(Fig. 6).

Note: If_ , is not pressed the timer will return to the time of

day.

When the set time has run out, "End" and "TIMER" will show in

the display (Fig. 7). The clock will sound with 3 beeps every 15

seconds until _2_ is pressed. @

To cancel the Kitchen Timer before the set time has

run out:

Press @. The display will return to the time of day.

Fig. 6

Fig. 7

Setting Oven Lockout Feature

The _ pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door, prevents the

Warmer Drawer and most oven controls from being turned ON. It does not disable the clock, Kitchen Timer or the interior

oven light.

INSTRUCTIONS PRESS DISPLAY

1. Press and hold _ for 3 seconds (Fig. 1).

2. After 3 seconds a beep will sound, LOC & "DOOR LOCKED"

will flash in the display. Once the oven door is locked the

"DOOR LOCKED" indicator will stop flashing.

To reactivate normal oven operation:

1. Press and hold _ for 3 seconds. A beep will sound. LOC will

clear. The "DOOR LOCKED" will continue to flash until the

oven door has completely unlocked (See Fig. 2).

2. The oven is again fully operational.

_for 3 seconds

Fig. 1

Fig. 2

Setting Temperature Display -- Fahrenheit or Celsius

The BROIL band CLEAN _-_ pads control the Fahrenheit or Celsius temperature display modes The oven control

can be programmed to display temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to display in

Fahrenheit.

INSTRUCTIONS PRESS DISPLAY

To change display from Fahrenheit to Celsius or

Celsius to Fahrenheit:

1. To tell if the display is set for Fahrenheit or Celsius press O

(Fig. 3) and hold for 7 seconds; "550 °" will first appear in the

display and then a beep will sound. If "F" appears, the display

is set to show temperatures in Fahrenheit (Fig. 4). If "C"

appears, the display is set to show temperatures in Celsius

(Fig. 5).

2. Press _o,,_ to switch between Fahrenheit or Celsius display

modes. The display will show either "F" (Fig. 4) or "C" (Fig. 5).

3. Press to accept the change or press @ to reject the

change.

for 7seconds

Oor@

Fig. 3

Fig. 4

Fig, 5

..Even-Cook..

ConvectionOven

Speed Oven Timer

clean light on/off

Clean Bake Start

time time

Maxx CIoek

clean Lock

Co_trols

Clear/Off 0!

5 6

8 9

Setting Silent Control Operation

The START TIME _ and CLEAN _ pads control the Silent Control operation feature. The Silent Control operation

feature allows the oven control to be operated without sounds or beeps whenever necessary. If desired the control can be

programmed for silent operation and later returned to operating with all the normal sounds and beeps.

INSTRUCTIONS PRESS DISPLAY

To change control from normal sound operation to

silent control operation:

1. To tell if your range is set for normal or silent operation press

and hold _ for 7 seconds. (Fig. 1).

2. Press _ to switch between normal sound operation and silent

operation mode. The display will show either "SP" (Fig. 2)

or "- -" (Fig. 3).

If"SP" appears (Fig. 2), the control will operate with normal

sounds and beeps. If "- -" appears (Fig.3), the control is in the

silent operation mode.

Press to accept the change or press _ to reject the

change.

_for7seconds

GFig. 1

Fig. 2

or _Fig. 3

To turn ON/OFF the Oven Light

The oven light automatically turns ON when the door is opened. The oven light may also be manually turned ON or OFF by

pressing the _ pad.

,.Even.Cook,,

Convection Oven

Speed Oven Timer

cJean Jight o_Joff

Clean Bake Start

time time

Maxxc,ock

clean

Controls

1 2 3

456

8 9

Favorite Clear 0

setth_g Off

Setting Bake

The BAKE I_ pad controls normal baking. The oven can be programmed to bake at any temperature from 170°F to 550 °F

(The sample shown below is for 350°F).

INSTRUCTIONS

To set the Bake Temperature to 350°F:

1. Arrange interior oven racks and place food in oven.

2. Press (See Fig. 1).

PRESS DISPLAY

3. Press 1.A long beep will sound once the oven set

temperature reaches 350 ° F (See Fig. 2).

Pressing _._/_will cancel the Bake feature at any time.

Note: @

To change the Bake Temperature (example changing

from 350 °to 425°F):

After the oven has already been set to bake at 350°F and the

oven set temperature needs to be changed to 425°F, press

(See Fig. 2).

Press @ _ _. 425 ° will appear in the display.

3. Press (See Fig. 3).

4. The oven is now set for 425°F.

Fig. 1

Fig, 2

Fig. 3

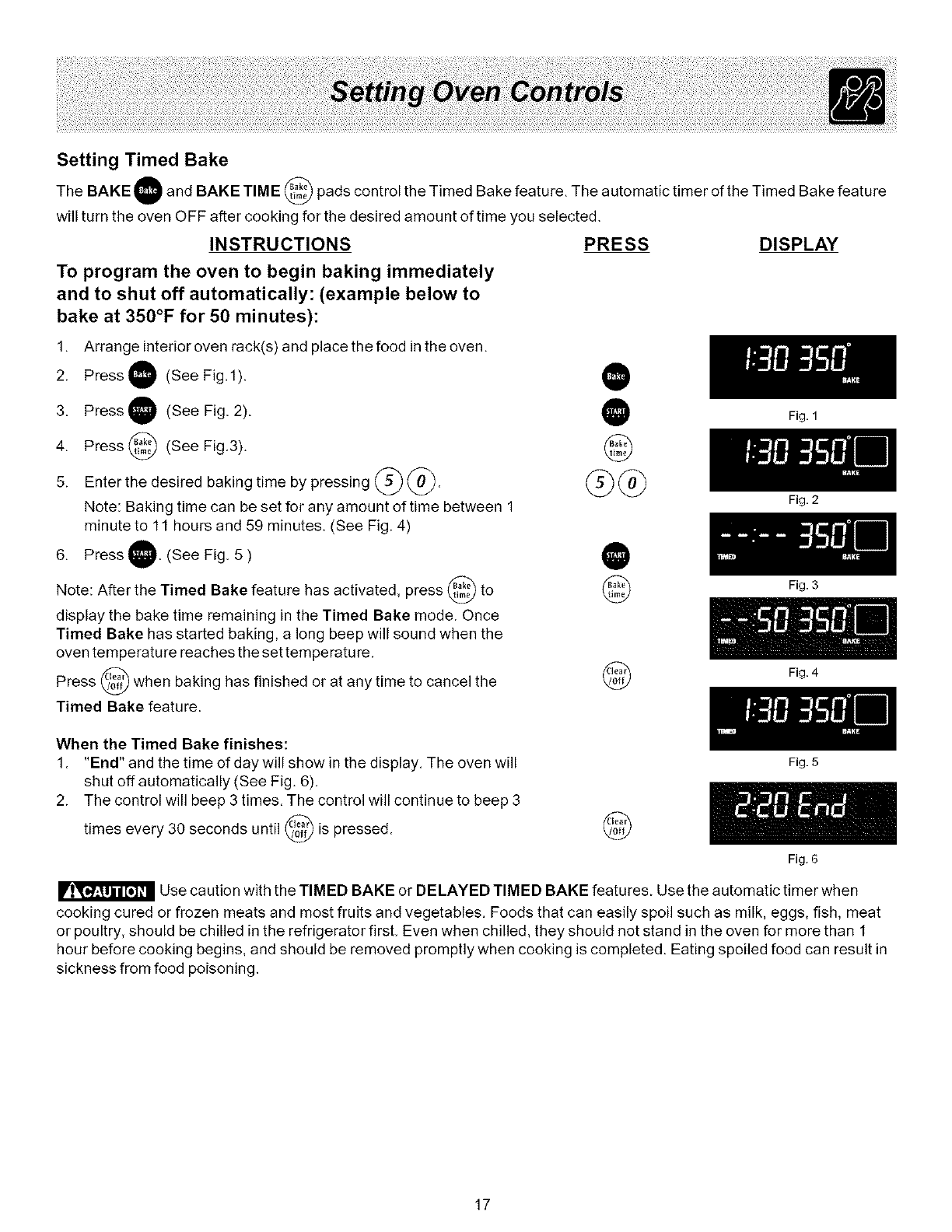

Setting Timed Bake

The BAKE4 _and BAKE TIME _,"_ pads control the Timed Bake feature. The automatic timer of the Timed Bake feature

will turn the oven OFF after cooking for the desired amount of time you selected.

INSTRUCTIONS PRESS DISPLAY

To program the oven to begin baking immediately

and to shut off automatically: (example below to

bake at 350°F for 50 minutes):

1. Arrange interior oven rack(s) and place the food in the oven.

2. Press (See Fig.l).

3. Press (See Fig. 2).

@ (See Fig.3).

4. Press

5. Enter the desired baking time by pressing _ _.

Note: Baking time can be set for any amount of time between 1

minute to 11 hours and 59 minutes. (See Fig. 4)

6. Press (See Fig. 5)

Note: After the Timed Bake feature has activated, press _'_ to

display the bake time remaining in the Timed Bake mode. Once

Timed Bake has started baking, a long beep will sound when the

oven temperature reaches the set temperature.

Press _ when baking has finished or at any time to cancel the

Timed Bake feature

Fig. 1

When the Timed Bake finishes:

1 "End" and the time of day will show in the display. The oven will

shut off automatically (See Fig. 6).

2. The control will beep 3 times The control will continue to beep 3

times every 30 seconds unti] _,_._ is pressed @

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig, 6

Use caution with the TIMED BAKE or DELAYED TIMED BAKE features. Use the automatic timer when

cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs, fish, meat

or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1

hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in

sickness from food poisoning.

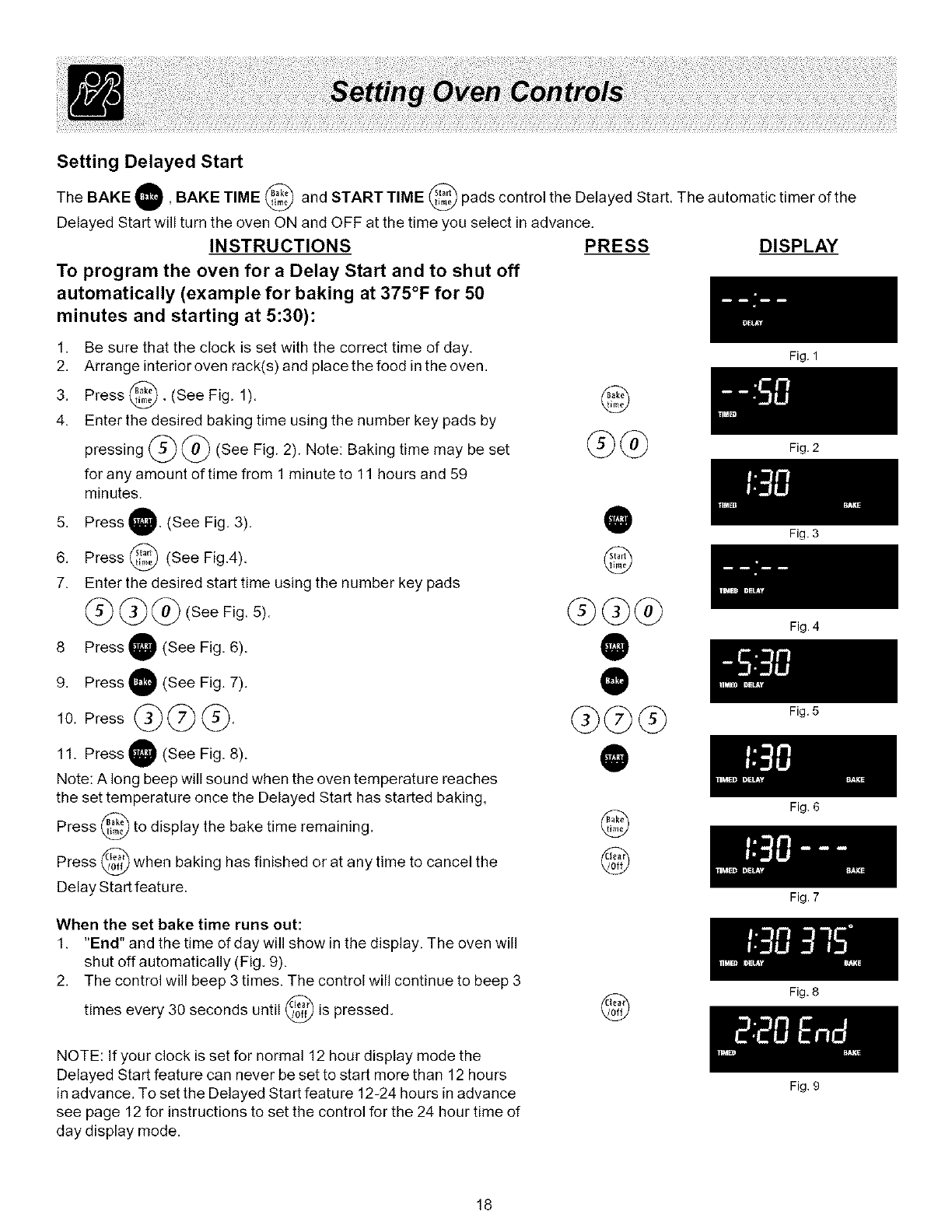

Setting Delayed Start

The BAKE O, BAKE TIME @ and START TIME @ pads control the Delayed Start The automatic timer of the

Delayed Start will turn the oven ON and OFF at the time you select in advance.

INSTRUCTIONS PRESS DISPLAY

To program the oven for a Delay Start and to shut off

automatically (example for baking at 375°F for 50

minutes and starting at 5:30):

1. Be sure that the clock is set with the correct time of day.

2. Arrange interior oven rack(s) and place the food in the oven.

3. Press @ . (See Fig. 1).

4. Enter the desired baking time using the number key pads by

pressing _._ _._ (See Fig. 2). Note: Baking time may be set

for any amount of time from 1 minute to 11 hours and 59

minutes.

5. Pressl (See Fig. 3).

@ (See Fig.4).

6. Press

7. Enter the desired start time using the number key pads

(_ (_(_ (See Fig. 5).

8 Press (See Fig. 6).

Fig. 1

Fig. 2

Fig. 3

Fig. 4

9. Press (See Fig. 7).

10. Press (_(_)(_.

11. Press (See Fig. 8).

Note: A long beep will sound when the oven temperature reaches

the set temperature once the Delayed Start has started baking,

Press @ to display the bake time remaining.

Press _ when baking has finished or at any time to cancel the

Delay Start feature.

When the set bake time runs out:

1. "End" and the time of day will show in the display. The oven will

shut off automatically (Fig. 9).

2. The control will beep 3 times. The control will continue to beep 3

times every 30 seconds until _ is pressed. @

NOTE: If your clock is set for normal 12 hour display mode the

Delayed Start feature can never be set to start more than 12 hours

in advance. To set the Delayed Start feature 12-24 hours in advance

see page 12 for instructions to set the control for the 24 hour time of

day display mode.

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Setting Broil

The )pad controls the Broil feature When broiling, heat radiates downward from the oven broiler for even coverage. The

Broil feature is preset to start broiling at 550°F however, the Broil feature temperature may be set at any temperature

between 400°F and 550°F.

The broil pan and broil pan insert used together allows dripping grease to drain and be kept away from the high heat of the

oven broiler. DO NOT use the broil pan without the insert (See Fig. 5; some models). DO NOT cover the broil pan insert

with foil. The exposed grease could catch fire.

Should an oven fire occur, leave the oven door closed and turn the oven OFF. Ifthe fire continues, throw

baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and water

can cause a grease fire to spread and cause personal injury.

To insure proper results when broiling use ONLY Electrolux Home Products, Inc. approved Broil Pan

& Insert. INSTRUCTIONS PRESS DISPLAY

To set the oven to broil at the default setting (550°F):

1. Place the broiler pan insert on the broiler pan. Then place the food

on the broiler pan insert (some models). DO NOT use the broiler

pan without the insert. DO NOT cover the broiler insert with foil.

The exposed grease could ignite.

2. Arrange the interior oven rack and place the broiler pan on the

rack. Be sure to center the broiler pan directly under the broiler

element. Close the oven door. For optimum browning,

preheat the broil burner for 3-4 minutes before adding food.

Press i (Fig. 1)

Ifa lower broil temperature is desired (minimum broil temperature

setting is 400°F), press the desired temperature before continuing

to step 5.

5. Press The oven will begin to broil. (Fig. 2).

6. Broil on one side until food is browned; turn and cook on the

second side. Season and serve. Note: Always pull the rack out to

the stop position before turning or removing food.

7. To cancel broiling or if finished broiling press @ (Fig. 3). @

Recommended Broiling Times

Use the following table for approximate broiling times. Increase or decrease broiling

times, or move the broiling pan to a different rack position to suit for doneness. If the food

you are broiling is not listed in the table, follow the instructions provided in your cookbook

and watch the item closely.

Broiling Table (Refer to Fig. 4)

Food Rack

Item Position

Steak 1" thick 5th or 6th

5th or 6th

Pork Chops 3/4" thick 5th

Chicken - Bone In 4th

Chicken - Boneless 5th

Fish 5th

Shrimp 4th

Hamburger 1" thick 6th

5th

Temp Cook Time

Setting lstside 2ndside Doneness

550 ° F 8:00 6;00 Medium

550 ° F 10:00 8:00 Medium-Well

550 ° F 12:00 8:00 Well

450 ° F 25:00 15:00 Well

450 ° F 10:00 8:00 Well

500°F as directed as directed Well

550°F as directed as directed Well

550 ° F 12:00 10;00 Medium

550 ° F 14:00 12;00 Well

Fig. 1

Fig. 2

Fig. 3

Fig.4

Fig. 5

some models

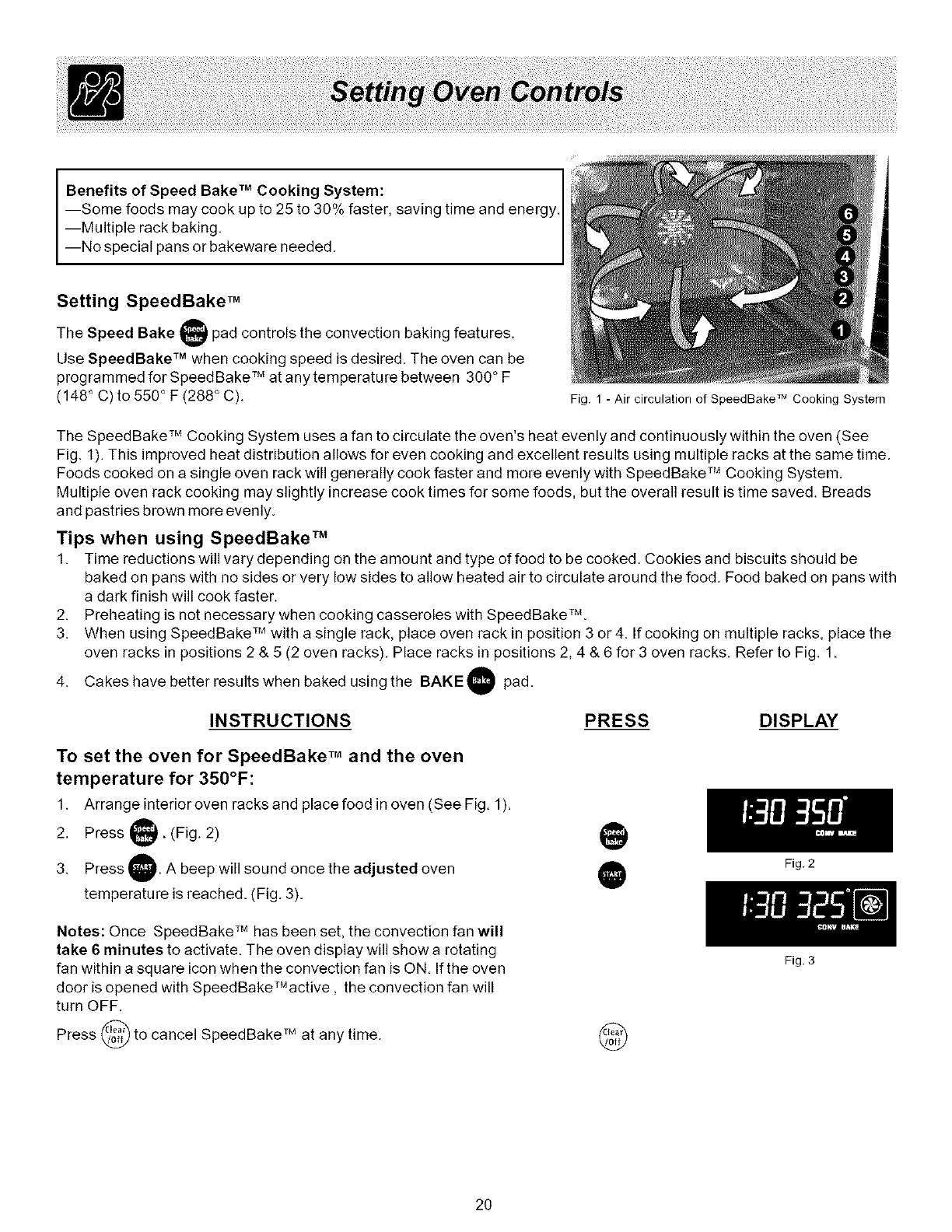

Benefits of Speed Bake TM Cooking System: I

--Some foods may cook up to 25 to 30% faster, saving time and energy. I

--Multiple rack baking. I

--No special pans or bakeware needed. J

Setting SpeedBake TM

The Speed Bake ) pad controls the convection baking features.

Use SpeedBake TM when cooking speed is desired. The oven can be

programmed for SpeedBake TM at any temperature between 300 ° F

(148 ° C)to 550 ° F (288 ° C). Fig. 1 - Air circulation of SpeedBake TM Cooking System

The SpeedBake TMCooking System uses a fan to circulate the oven's heat evenly and continuously within the oven (See

Fig. 1). This improved heat distribution allows for even cooking and excellent results using multiple racks at the same time.

Foods cooked on a single oven rack will generally cook faster and more evenly with SpeedBake TM Cooking System.

Multiple oven rack cooking may slightly increase cook times for some foods, but the overall result is time saved. Breads

and pastries brown more evenly.

Tips when using SpeedBake TM

1. Time reductions will vary depending on the amount and type of food to be cooked. Cookies and biscuits should be

baked on pans with no sides or very low sides to allow heated air to circulate around the food. Food baked on pans with

a dark finish will cook faster.

2. Preheating is not necessary when cooking casseroles with SpeedBake TM.

3. When using SpeedBake TM with a single rack, place oven rack in position 3 or 4. If cooking on multiple racks, place the

oven racks in positions 2 & 5 (2 oven racks). Place racks in positions 2, 4 & 6 for 3 oven racks. Refer to Fig. 1.

4. Cakes have better results when baked using the BAKE pad.

INSTRUCTIONS PRESS DISPLAY

To set the oven for SpeedBake TM and the oven

temperature for 350°F:

1. Arrange interior oven racks and place food in oven (See Fig 1).

2. Press, ).(Fig. 2)

3. Press A beep will sound once the adjusted oven

temperature is reached. (Fig. 3).

Notes: Once SpeedBake TM has been set, the convection fan will

take 6 minutes to activate. The oven display will show a rotating

fan within a square icon when the convection fan is ON. Ifthe oven

door is opened with SpeedBakeTMactive, the convection fan will

turn OFF.

Press _ to cancel SpeedBake TM at any time. @

Fig. 2

Fig. 3

Using the Favorite Settings Feature

The FAVORITE SETTING pad is used to record and recall your favorite recipe settings This feature may store and

recall from 1to 3 different settings. The Favorite Setting feature may be used with Bake or a Timed Bake This feature will

not work with any other function including a Delay Start (Delayed Timed Bake) setting..

INSTRUCTIONS PRESS DISPLAY

To Program the Oven to record arecipe setting and begin

baking (sample shown is for bake at 350°F):

1. Place the food in the oven.

Press _ "BAKE". (See Fig. 1)

Within 5 seconds, press _. ( Note: @ or @ may also be

used to store a recipe setting. (See Fig. 2).

Press @ @ _ (See Fig. 3).

Press and hold I pad for at least 3 seconds or until a beep

sounds. The beep indicates that the recipe setting has been

recorded for future recalL(See Fig. 4)

NOTE: The oven will continue to bake unless _,_ is pressed.

(_or @ Fig, 1

@@@

hold for 3

seconds

To Begin Baking recalled setting (example below recalling

from the number 1 pad) :

1. Place the food in the oven.

2. Press (See Fig. 5).

3. Within 5 seconds, press (See Fig. 3).

4. Press .The oven will begin to immediately cook with the

previously recorded recipe (See Fig. 4). The Temperature is

recalled and if a Timed Bake was recorded this feature will also

recall the cooking time.

Note: If you desire to keep a stored recipe but remove the cook time, press (

recipe

Fig. 2

Fig, 3

Fig. 4

Fig. 5

, the(_ or @ or (_ pad (the pad the

is stored with). Then press @, press (_ and then press and hold the 0 pad for 3 seconds.

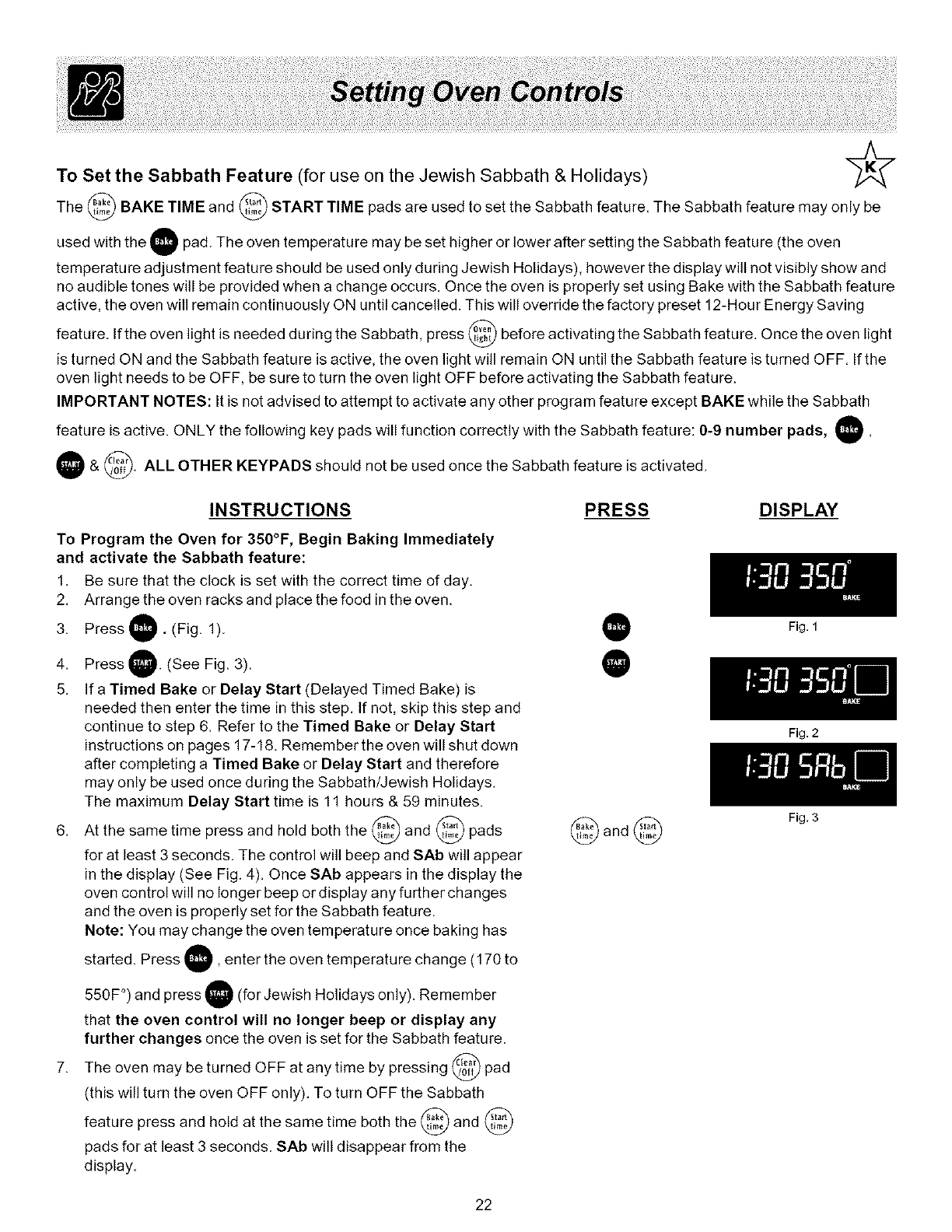

To Set the Sabbath Feature (for use on the Jewish Sabbath & Holidays)

The @ BAKE TIME and @ START TIME pads are used to set the Sabbath feature. The Sabbath feature may only be

used with the ) pad. The oven temperature may be set higher or lower after setting the Sabbath feature (the oven

temperature adjustment feature should be used only during Jewish Holidays), however the display will not visibly show and

no audible tones will be provided when a change occurs. Once the oven is properly set using Bake with the Sabbath feature

active, the oven will remain continuously ON until cancelled. This will override the factory preset 12-Hour Energy Saving

feature. Ifthe oven light is needed during the Sabbath, press _ before activating the Sabbath feature. Once the oven light

is turned ON and the Sabbath feature is active, the oven light will remain ON until the Sabbath feature is turned OFF. If the

oven light needs to be OFF, be sure to turn the oven light OFF before activating the Sabbath feature.

IMPORTANT NOTES: It is not advised to attempt to activate any other program feature except BAKE while the Sabbath

feature is active. ONLY the following key pads will function correctly with the Sabbath feature: 0-9 number pads,

& 8. ALL OTHER KEYPADS should not be used once the Sabbath feature is activated.

INSTRUCTIONS

To Program the Oven for 350°F, Begin Baking Immediately

and activate the Sabbath feature:

1. Be sure that the clock is set with the correct time of day.

2. Arrange the oven racks and place the food in the oven.

3. Pressq .(Fig. 1).

4. Press (See Fig. 3).

5. If a Timed Bake or Delay Start (Delayed Timed Bake) is

needed then enter the time in this step. If not, skip this step and

continue to step 6. Refer to the Timed Bake or Delay Start

instructions on pages 17-18. Remember the oven will shut down

after completing a Timed Bake or Delay Start and therefore

may only be used once during the Sabbath/Jewish Holidays.

The maximum Delay Start time is 11 hours & 59 minutes.

6. At the same time press and hold both the @ and @ pads

for at least 3 seconds. The control will beep and SAb will appear

in the display (See Fig. 4). Once SAb appears in the display the

oven control will no longer beep or display any further changes

and the oven is properly set for the Sabbath feature.

Note: You may change the oven temperature once baking has

started. Press enter the oven temperature change (170 to

550F °) and press t (for Jewish Holidays only). Remember

that the oven control will no longer beep or display any

further changes once the oven is set for the Sabbath feature.

The oven may be turned OFF at any time by pressing @ pad

(this will turn the oven OFF only). To turn OFF the Sabbath

feature press and hold at the same time both the @ and

pads for at least 3 seconds. SAb will disappear from the

display.

PRESS DISPLAY

@and@

Fig. 1

Fig. 2

Fig. 3

Setting the Sabbath Feature (cont'd)

It is recommended that any oven temperature change with the Sabbath feature activated be followed with 2 presses of the

START pad. This will insure the oven remains ON even ifthe attempt to set the oven temperature was lower or higher than

the oven control can accept. If the oven temperature is set incorrectly, the oven temperature will default to 170°F or 550°F.

Try to set the desired oven temperature again.

Should you experience a power failure or interruption, the oven will shut off. When power is returned the oven will not turn

back on automatically. The oven will remember that it is set for the Sabbath and the food may be safely removed from the

oven while still in the Sabbath feature, however the oven cannot be turned back on until after the Sabbath/Holidays. After

the Sabbath observance turn OFF the Sabbath feature. At the same time press and hold both the _ and _t_,_pads for at

least 3 seconds. SAb will disappear from the display and the oven may be used with all normal functions. For further

assistance, guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit the web at

http:\\www.star-k.org.

Setting the Keep Warm Feature

The pad turns ON the Keep Warm feature and will maintain an oven temperature of 170 ° F. The Keep Warm feature

will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours the Keep Warm feature

will shut the oven OFF automatically. The Keep Warm feature may be used without any other cooking operations or can be

used after cooking has finished using TIMED BAKE or DELAY START (Delayed Timed Bake).

INSTRUCTIONS PRESS DISPLAY

To set Keep Warm:

1. Arrange interior oven racks and place baked food in oven. Ifthe

food is already in the oven go to step 2.

2. Press (See Fig. 1).

Note: If no further pads are touched within 25 seconds the

request to turn ON Keep Warm will be cleared.

3. Press (See Fig. 2).

4. To turn Keep Warm OFF at any time press I!_ or {,_,_,_.

_Lv or@

To set Keep Warm to turn ON automatically:

1. Arrange interior oven racks and place food in oven. Set the oven

properly and start a Timed Bake or Delay Start (Delayed

Timed Bake).

2. Press I.

Press t "HLd" shows and the oven icon will appear in the

display. Keep Warm is set to turn ON automatically after

completing a Timed Bake or Delay Start (Delayed Timed

Bake).

turn Keep Warm OFF at any time press @ or _.

To or @

Fig. 1

Fig. 2

Note: The Keep Warm feature can be turned ON or OFF at anytime without canceling Bake or any other cooking functions

by pressing t

DuringtheSelf-Cleaning

cycle,theoutsideoftherangecan

becomeveryhottothetouch.DONOT

leavesmallchildrenunattendednearthe

appliance.

Thehealthofsomebirds

isextremelysensitivetothefumesgiven

offduringtheSelf-Cleaningcycleofany

range.Movebirdstoanotherwell-

ventilatedroom.

DONOTlinetheoven

walls,racks,bottomoranyotherpartof

therangewithaluminumfoil. Doingso

willdestroyheatdistribution,produce

poorbakingresultsandcause

permanentdamagetotheoveninterior

(aluminumfoilwillmelttotheinterior

surfaceoftheoven).

DONOTforcetheoven

dooropen.Thiscandamagethe

automaticdoorlockingsystem.Use

cautionwhenopeningthedoorafterthe

Self-Cleaningcycleiscompleted.The

ovenmaystillbeVERYHOT,

HAND

CLEAN FRAME

DO HAND

CLEAN DOOR DO NOT

Self-Cleaning Oven

A Self-Cleaning oven cleans itself with high temperatures (well above cooking

temperatures) which eliminate soils completely or reduces them to a fine

powdered ash you can wipe away with a damp cloth.

Adhere to the following cleaning precautions:

DO NOT use oven cleaners or oven protective coatings in or around any

part of the Self-Cleaning oven.

DO NOT clean the oven door gasket. The woven material of the oven door

gasket is essential for a good seal. Care should be taken not to rub,

damage or remove the gasket.

DO NOT use any cleaning materials on the oven door gasket. Doing so

could cause damage.

Remove the broiler pan and insert, all utensils and any aluminum

foil, These items cannot withstand high cleaning temperatures.

Remove oven racks. See "Removing & Replacing Oven Racks" under

Before Setting Oven Controls. If they are not removed during the Self-Clean

cycle their color will turn slightly blue & the finish will be dull. After the

cycle is complete & the oven has cooled, rub the sides of the oven racks

with wax paper or a cloth containing a small amount of salad oil (this will

make the racks glide easier into the rack positions).

Remove any excessive spillovers in the oven cavity before starting the

Self-Cleaning cycle. To clean, use hot, soapy water and a cloth. Large

spillovers can cause heavy smoke or fire when subjected to high

temperatures. DO NOT allow food spills with a high sugar or acid content

(such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on

the surface as they may leave a dull spot even after cleaning.

Clean any soil from the oven frame, the door liner outside the oven door

gasket and the small area at the front center of the oven bottom. These

areas heat sufficiently to burn soil on. Clean with soap and water.

NOTES: Prior to setting the Self-Clean cycle, any spills remaining on the oven

bottom should be removed. See additional cleaning information for the oven door

in the General Care & Cleaning section.

The SPEED CLEAN CLEAN and MAXX CLEAN pads areused tostarta Self-Cleaningcycle.When used

withSTART TIME @ pad,a delayedSelf-Cleaningcyclemay alsobe programmed Thisfeatureallowsforany Self-

Cleaningcycletimesfrom 2 hours(usingSpeed Clean),3 hours(usingClean)to4 hours(usingMaxx Clean).

DuringtheSelf-Cleaningcycle,theoutsideoftherangecan become veryhottothetouch.DO NOT leave

smallchildrenunattendedneartheappliance.

DO NOT forcetheoven dooropen.Thiscan damage theautomaticdoor lockingsystem.Use carewhen

openingtheoven dooraftertheSelf-Cleaningcycle.Standtothesideoftheoven when openingthedoortoallowhotairor

steam toescape. The oven may stillbe VERY HOT.

INSTRUCTIONS

To start an immediate Self-Cleaning cycle or to set a delay

start time of 9:00 o'clock and shut off automatically (example

provided is a default 3 hour Self-Clean cycle):

1. Be sure the clock is set with the correct time of day, the oven is

empty and the oven door is closed.

2. Press _,,_. "CLEAN" will flash and "3:00" (hours) will show in

the display (See Fig. 1). Note: 2 hours of Self-Cleaning time

may be choosen by pressing _ or 4 hours by pressing the

at this time.

3. Press O .The "DOOR LOCKED" icon will flash; "CLEAN"

and the letters "CLn" will remain on in the display (Fig. 2).

4. As soon as the control is set, the motor driven oven door lock

will begin to close automatically. Once the door has been

locked the "DOOR LOCKED" indicator light will quit flashing

and remain on(Fig. 3).

PRESS DISPLAY

Fig. 2

Fig. 3

NOTE: If the optional delay Self-Clean feature is needed, finish steps 5-7, If Self-Clean is started immediately skip the remaining

steps and continue with "When the Self-Clean cycle is done" on the following page.

Press @ (See Fig. 4). Enter the desired Self-Clean starting @

time using the number pads (_) (_ _ (See Fig. 5). (_ (_ (_

Press "CLn" icon will turn off; "DELAY", "DOOR

LOCKED" and "CLEAN" icons will remain on.

The control will calculate forward from the set start time to

determine when the Self-Cleaning cycle should end. The Self-

Cleaning cycle will turn on automatically at the set time. At that

time the icon "DELAY" will go out; the oven icon will come on,

the start time, "CLEAN" and "CLn" will remain in the display

(See Fig. 6).

Fig. 4

Fig. 5

Fig. 6

INSTRUCTIONS

When the Self-Clean cycle is done:

1. The time ofday,"Hot, DOOR LOCKED" and "CLEAN" icon will

remain in the display (See Fig. 7).

2. Once the oven has cooled down for approximately 1 HOUR, and

the "DOOR LOCKED" icon is no longer displayed, the oven

door can then be opened.

Stopping or Interrupting a Self-Cleaning cycle:

If it becomes necessary to stop or interrupt a Self-Cleaning cycle

due to excessive smoke or fire in the oven:

Press _.

Once the oven has cooled down for approximately 1 HOUR and

the "DOOR LOCKED" icon is no longer displayed,the oven door

can then be opened (Fig. 8).

IMPORTANT NOTES when using the Self-Clean feature:

PRESS DISPLAY

1. A Self-Clean cycle cannot be started if Oven Lockout feature is active.

Fig.7

Fig.8

2. If a Self-Cleaning-Cycle has started but not finished and a power failure occurs, the appliance may not have thoroughly

cleaned. Once power is restored set for another Self-Clean cycle to finish.

3. If your clock is set for normal 12 hour display mode the Delay Self-Clean cycle can never be set to start more than 12

hours in advance. To set for a delayed Self-Cleaning cycle 12-24 hours in advance see page f 2 for instructions to set the

control for the 24 hour time of day display mode.

Thetemperatureintheovenhasbeenpre-setatthefactory.Whenfirstusingtheoven,be

suretofollowrecipetimesandtemperatures.Ifyouthinktheovenistoohotortoocool,the

temperatureintheovencanbeadjusted.Beforeadjusting,testarecipebyusinga

temperaturesettingthatishigherorlowerthantherecommendedtemperature.Thebaking

resultsshouldhelpyoutodecidehowmuchofanadjustmentisneeded.

INSTRUCTIONS PRESS

To adjust the oven temperature higher:

1. Press for 6 seconds (Fig. 1).

2. To increase the temperature use the number pads to enter the

change. (Example30°F) (_ (Fig. 2).

desired The

temperature may be increased as much as 35°F (19°C).

3. Press to accept the temperature change and the display will

return to the time of day (Fig. 3). Press @ to reject the change if

necessary.

To adjust the oven temperature lower:

1. Press I for 6 seconds (Fig. 4).

2, To decrease the temperature use the number pads to enter the

desired change. (Example -30°F) and then press ....#lea_

(Fig. 5). The temperature may be decreased as much as 35°F

(19°C).

3. Press to accept the temperature change and the display will

return to the time of day (Fig. 6). Press @ to reject the change if @

necessary.

Note: The oven temperature

adjustments made with this

feature will not change the

Self-Clean cycle

temperature.

DISPLAY

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Surfaces How to Clean

Glass, Painted For general cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution

Plastic Body Parts & of vinegar & water, Fellow by rinsing the area with clean water; dry & polish with a soft cloth.

Control Knobs Glass cleaners may be used if sprayed on a soft cloth 1st. DO NOT spray liquids directly on the

control pad and display areas. DO NOT use large amounts of water on the control panel - excess

water on the control area may cause damage to the appliance, DO NOT use other liquid

cleaners, abrasive cleaners, scouring pads, or some paper towels - they will damage the finish,

Painted Control

Panels & Display Before cleaning the control panel, turn all controls to OFF & remove the control knobs, To

remove, pull each knob straight off the shaft. Use the general cleaning instructions provided in the

areas paragraph above.

Porcelain Enamel Clean burner grates, broiler pan & insert in the dishwasher and dry upon removal. If soils are not

Burner Grates, removed, follow the cooktop cleaning instructions below,

Cooktop Surface,

Broiler Pan & Insert,

Door Liner, Oven

Bottom, Storage

Drawer (some models)

or Warming Drawer

(some models)

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of

clean water & ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel

for 30 to 40 minutes. Rinse with clean water and a damp cloth, then scrub with a soap-filled

scouring pad. Rinse & wipe dry with a clean cloth. Remove all cleaners or the porcelain may

become damaged during future heating. DO NOT use spray oven cleaners on the range top.

See Removing & Replacing the Warming Drawer section for complete instructions when cleaning

the Warming Drawer (some models).

Oven Racks Remove racks. See "Removing & Replacing Oven Racks" under Before Setting Oven Controls.

Use a mild, abrasive cleaner, following the cleaner's recommendations. Rinse with clean water &

let dry. After cleaning the racks, rub the sides of the racks with wax paper or a cloth containing a

small amount of salad oil (this will make the racks glide easier into the oven rack positions).

Oven Door

Easy Care TM

Stainless

Steel (some models)

Gas Cooktop and

Surface Burners

Use soap & water to thoroughly clean the top, sides & front of the oven door. Rinse well. You

may use a glass cleaner on the outside glass of the oven door. DO NOT immerse the door in

water. DO NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT

use oven cleaners, cleaning powders or any harsh abrasive cleaning materials on the outside of

the oven door. DO NOT clean the oven door gasket. The oven door gasket is made of a woven

material, on Self-Cleaning models, which is essential for a good seal. Care should be taken not

to rub, damage or remove this gasket.

Your range finish is may be made with Easy Care TM Stainless Steel (some models). Clean the

stainless with warm soapy water using a clean sponge or cloth. Rinse with clean water and dry

with a soft clean cloth. DO NOT use ANY store bought cleaners like Stainless Steel cleaners or

any other types of cleaners containing any abrasive, chlorides, chlorines or ammonia. It is recom-

mended to use mild dish soap and water or a 50/50 solution of water and vinegar.

The cooktop is designed to make cleaning easier. Because the burners are sealed, cleanups are

easy when spillovers are cleaned up immediately. To clean, wipe with a clean, damp cloth and

wipe dry. For more information about cleaning the gas burners see Cleaning the Contoured

Cooktop Well Areas, Burner Cap, Burner Head and Burner Drip Pans in the Care &

Cleaning section.

Cleaning the Contoured Cooktop Well Areas, Burner Cap, Burner Head and Burner Drip Pans

(some models)

The contoured well areas, burner cap, burner head and burner drip pans (some models) should be routinely cleaned.

Keeping the burner ports clean will prevent improper ignition and an uneven flame. Refer to the following instructions:

THE COOKTOP IS NOT REMOVABLE. Do not attempt to remove or lift the cooktop.

Use caution when replacing the burner cap so the electrode is not damaged. This may cause a delayed

ignition or prevent the burner from igniting.

To Clean the Recessed & Contoured Areas of the Cooktop -If a spill

occurs on or in the recessed or contoured areas, blot up spill with an

absorbent cloth. Rinse with a clean, damp cloth and wipe dry.

Surface

Burner

Grate

To Remove & Replace the Surface Burner Caps & Surface Burner

Heads - Remove in the following order: (1st) surface burner grate, (2nd)

surface burner cap, (3rd) surface burner head and (4th) surface burner drip pan

(if equipped).

Reverse the procedure above to replace the surface burner cap, surface burner

head and surface burner drip pans (if equipped). Do not remove any parts

from the cooktop until they have completely cooled and are safe to

handle. Do not operate the surface burners without the surface burner

cap and surface burner head properly in place.

Surface

Burner

Cab

Surface

Burner

Head

To Clean the Surface Burner Cap, Surface Burner Head & Surface

Burner Drip Pan (if equipped) - Use a soap-filled scouring pad or a mild

abrasive cleanser to clean the surface burner caps, surface burner heads and

surface burner drip pans (if equipped). The ports (or slots) around the burner

head must be routinely cleaned. If residue still remains in these ports, use a

small-gauge wire or needle to clean the slots or holes. For proper flow of gas

and ignition of the burner--DO NOT ALLOW SPILLS, FOOD, CLEANING

AGENTS OR ANY OTH ER MATERIAL TO ENTER THE GAS ORIFICE

HOLDER OPENING. ALWAYS keep the surface burner cap and surface

burner head in place whenever a surface burner is in use.

Removable

Burner

Drip Pan

(on some models)

Door Hinge

locations

,with oven door

fully open

i I

Fig. ]

Fig, 2

Oven

Door

4inge

Fig.3

Fig.4

Oven

Light

Wire

Holder

Removing and Replacing the Lift-Off Oven Door

The door is heavy. For safe, temporary storage, lay the door flat

with the inside of the door facing down.

To Remove Oven Door:

1. Open oven door completely (horizontal with floor - See Fig. 1)

2. Pull the door hinge locks on both left and right door hinges down from the

oven frame completely towards the oven door (See Fig. 2). A tool such as a

small flat-blade screwdriver may be required.

3. Firmly grasp both sides of oven door along the door sides (Do not use the

oven door handle - See Fig. 3).

4. Close the door to the broil stop position (the oven door will stop into this

position just before fully closing).

5. With the oven door in the broil stop position, lift the oven door hinge arms over

the roller pins located on each side of the oven frame (See Fig. 4).

To Replace Oven Door:

1. Firmly grasp both sides of oven door along the door sides (Do not use the

oven door handle - See Fig. 3).

2. Holding the oven door at the same angle as the removal position, seat the

hook of the hinge arm over the roller pins located on each side of the oven

door frame (See Fig. 4). The hook of the hinge arms must be fully seated

onto the roller pins.

3. Fully open the oven door (horizontal with floor - See Fig. 1).

4. Push the door hinge locks up towards and into the oven frame on both left

and right oven door hinges (See Fig. 2) to the locked position.

5. CIosetheoven door.

Special Door Care Instructions

Most oven doors contain glass that can break. Read the following

recommendations:

1. Do not close the oven door until all the oven racks are fully in place.

2. Do not hit the glass with pots, pans, or any other object.

3. Scratching, hitting, jarring or stressing the glass may weaken its structure

causing an increased risk of breakage at a later time.

Changing the Oven Light

The oven light automatically turns ON when the door is opened The oven light

may also be manually operated by pressing the _ pad. The oven light bulb is

located at the rear of the oven and is covered with a glass shield held by a wire

holder (See Fig. 5). The glass shield must be in place whenever the oven is in

use.

To replace the oven light bulb:

1. Turn electrical power offat the main source or unplug the range.

2. Press wire holder to one side to release the glass shield.

3. Replace bulb with a new 40 watt appliance bulb.

4. Replace glass shield over bulb and snap wire holder into place.

5. Turn power back on again at the main source (or plug the range back in).

6. The clock will then need to be reset. To reset, see Setting the Clock and

Minute Timer in this Use & Care Guide.

Fig. 5

Be sure the range is unplugged and all parts are COOL before

replacing oven light. Wear a leather-faced glove for protection against possible

broken glass. 3O

Before you call for service, review the following list. It may save you time & expense. The list includes common occurrences

(shown in bold) that are not the result of defective workmanship or materials in this appliance. The possible corrections to these

problems are provided with the problem listed;

Range is not level - (1) Poor installation. Place oven rack in

center of oven. Place a level on the oven rack. Adjust leveling

legs at base of range until the oven rack is level. (2) Be sure

floor is level, strong & stable enough to adequately support

range. (3) If floor is sagging or sloping, contact a carpenter to

correct the situation. (4) Kitchen cabinet alignment may make

range appear not level. Be sure cabinets are square & have

sufficient room for range clearance.

Cannot move appliance easily. Appliance must be accessible

for service - (1) Cabinets not square or are built in too tightly.

Contact builder or installer to make appliance accessible. (2)

Carpet interferes with range. Provide sufficient space so range

can be lifted over carpet.

Surface burners do not light -(1) Surface control knob has not

been completely turned to LITE. Push in & turn the surface

control knob to LITE until burner ignites & then turn control knob

to desired flame size. (2) Burner ports are clogged. With the

burner OFF, use a small-gauge wire or needle to clean ports.

See Cleaning the Contoured Well Areas, Burner Cap, Burner

Head & Burner Drip Pans in the General Care & Cleaning

section for complete cleaning instructions. (3) Range power

cord is disconnected from outlet (electric ignition models only).

Be sure cord is securely plugged into the outlet. (4) Electrical

power outage (electric ignition models only). Burners can be lit

manually. See Setting Surface Controls.

Surface burner flame burns half way around - (1) Burner ports

are clogged. With the burner off, clean ports by using a small-

gauge wire or needle. (2) Moisture is present after cleaning.

Lightly fan the flame and allow burner to operate until flame is

full. Dry the burners thoroughly following instructions in the

Cleaning the Contoured Well Areas, Burner Cap, Burner Head

& Burner Drip Pans in the General Care & Cleaning section.

Surface burner flame is orange - (1) Dust particles in main

line. Allow the burner to operate a few minutes until flame turns

blue. (2) In coastal areas, a slightly orange flame is

unavoidable due to salt air.

Oven does not operate - (1) Be sure the oven controls are set

properly for the desired function. Bee Setting Oven Controls in

this Use & Care Manual or read the instructions "Entire

appliance does not operate" in this checklist. (2) Be sure gas

regulator valve is "ON". See installation instructions.

Entire appliance does not operate - (1) The time of day is not

set. The time of day must first be set in order to operate the

oven. See "To Set the Clock" in the Setting Oven Controls

section.(2) Make sure cord/plug is plugged correctly into outlet.

(3) Service wiring is not complete. Contact your authorized

service agent. (4) Electrical power outage. Check house lights

to be sure. Call your local electric company for service. (5) Be

sure gas supply is turned ON.

Oven light does not work (some models) - Replace or tighten

bulb. See Changing Oven Light section in this Use & Care

Manual.

Oven control beeps & displays any F code error (for example

FI_ - Electronic control has detected a fault condition. Press

CLEAR/OFF to clear the display & stop beeping. Repregram

oven. If fault recurs, record fault number. Press CLEAR/OFF &

contact an authorized service agent.

Poor baking results - Many factors affect baking results. Make

sure the proper oven rack position is used. Center food in the

oven & space pans to allow air to circulate. Allow the oven to

preheat to the set temperature before placing food in the oven.

Try adjusting the recipe's recommended temperature or baking

time. If you feel the oven is too hot or cool, see Adjusting Your

Oven Temperature in this Use & Care Manual.

Oven smokes excessively during broiling - (1) Control(s) not

set properly. Follow Broil instructions under Setting Oven

Controls, (2) Oven door is open. Make sure oven door is

closed. (3) Meat too close to the broil element. Reposition the

broil rack to provide proper clearance between the meat & the

element. Preheat the broil element for searing. (4) Meat not

properly prepared. Remove excess fat from meat. Cut fatty

edges to prevent curling, but do not cut into lean. (5) Insert on

broiler pan wrong side up & grease not draining. Always place

grid on the broiler pan with ribs up & slots down to allow grease

to drip into pan (some models). (6) Grease has built up on oven

surfaces or broiler pan & insert (some models). Regular

cleaning is necessary when broiling frequently. Old grease or

food spatters cause excessive smoking.

Self-Cleaning cycle does not work - (1) Oven control not set

properly. Follow instructions under Self-Cleaning. (2) Self-

Cleaning cycle was interrupted. Follow steps under "Stopping

or Interrupting a Self-Cleaning Cycle" under Self-Cleaning,

Soil not completely removed after Self-Cleaning cycle -

Failure to clean bottom, front top of oven. frame of oven or door

area outside oven seal. These areas are net in the Self-

Cleaning area, but get hot enough to burn on residue. Clean

these areas before the Self-Cleaning cycle is started. Burned-

on residue can be cleaned with a stiff nylon brush and water or

a nylon scrubber. Be careful net to damage the oven gasket.

Flames inside oven or smoking from oven vent - Excessive

spillevers in oven. For example this will happen for pie

spillovers or large amounts of grease left on the oven bottom.

Wipe up excessive spillovers before starting oven. If flames or

excessive smoke are present see "Broiling" in the Setting

Oven Controls section.

Your appliance is covered by a one year limited warranty. For one year from your original date of

purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be

defective in materials or workmanship when such appliance is installed, used and maintained in

accordance with the provided instructions.

Exclusions This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or

Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty,

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which de not involve malfunction or defects in materials or workmanship, or for appliances

not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,

shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or

knobs, handles, or other cosmetic parts.

11. Surcharges including, but net limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to

floors, cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than

genuine Electrelux parts or parts obtained from persons other than authorized service companies; or

external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENTAS PROVIDED HEREIN, CLAIMS BASED ON IMPLIED WARRANTIES,

INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FORA PARTICULAR PURPOSE, ARE

LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.

ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS

PROPERTY DAMAGEAND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN

LIMITED WARRANTY ORANYIMPLIED WARRANTY, SOME STATES AND PROVINCES DO NOTALLOW THE

EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE

DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOTAPPLY TO

YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAYALSO HAVE OTHER

RIGHTS THAT VARY FROM STATE TO STATE,

If You Need

Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period

should service be required, if service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone

numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances

North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada

Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and

parts under this warranty must be performed by Electrolux or an authorized service company. Product features or

specifications as described or illustrated are subject to change without notice.

USA

1.800.944.9044

Electrolux Major Appliances

North America

P.O. Box 212378

Augusta, GA 30907

[] Electrolux

Canada

1.800.668.4606

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4

Frigidaire FGFBZ90GCC User Manual GAS RANGE Manuals And Guides L0806961

FRIGIDAIRE Free Standing, Gas Manual L0806961 FRIGIDAIRE Free Standing, Gas Owner's Manual, FRIGIDAIRE Free Standing, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
