Product F
Preparing i

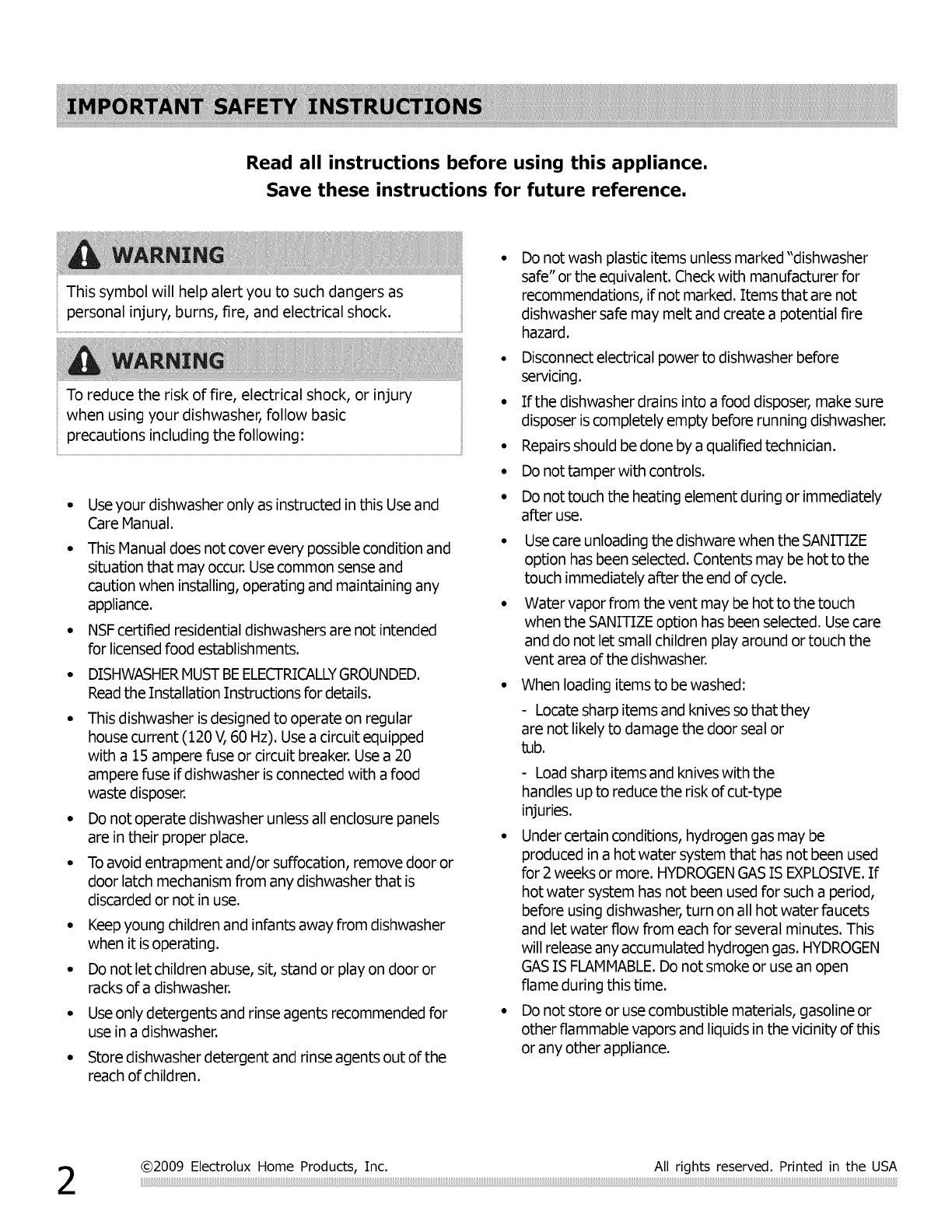

Read all instructions before using this appliance.
Save these instructions for future reference,
This symbol will help alert you to such dangers as
personal injury, burns, fire, and electrical shock.
To reduce the risk of fire, electrical shock, or injury
when using your dishwasher, follow basic
precautions including the following:
Useyour dishwasher only as instructed in this Use and
Care Manual.
•This Manual does not cover every possible condition and
situation that may occur. Use common sense and
caution when installing, operating and maintaining any
appliance.
° NSFcertified residential dishwashers are not intended
for licensed food establishments.
DISHWASHERMUSTBEELECTRICALLYGROUNDED.
Readthe Installation Instructions for details.
• This dishwasher is designed to operate on regular
house current (120 V, 60 Hz). Use a circuit equipped
with a 15 ampere fuse or circuit breaker. Use a 20
ampere fuse if dishwasher is connected with a food
waste disposer.
° Do not operate dishwasher unless all enclosure panels
are in their proper place.
° To avoid entrapment and/or suffocation, remove door or
door latch mechanism from any dishwasher that is
discarded or not in use.
• Keepyoung children and infants away from dishwasher
when it is operating.
• Do not let children abuse, sit, stand or play on door or
racks of a dishwasher.
Useonly detergents and rinse agents recommended for
use in a dishwasher.
Store dishwasher detergent and rinse agents out of the
reach of children.
Do not wash plastic items unless marked "dishwasher
safe" or the equivalent. Check with manufacturer for
recommendations, if not marked. Items that are not
dishwasher safe may melt and create a potential fire
hazard.
•Disconnect electrical power to dishwasher before
servicing.
• If the dishwasher drains into afood disposer, make sure
disposer is completely empty before running dishwasher.
• Repairs should be done by a qualified technician.
• Do not tamper with controls.
• Do not touch the heating element during or immediately
after use.
• Usecare unloading the dishware when the SANITIZE
option has been selected. Contents may be hot to the
touch immediately after the end of cycle.
• Water vapor from the vent may be hot to the touch
when the SANITIZE option has been selected. Usecare
and do not let small children play around or touch the
vent area of the dishwasher.
When loading items to be washed:
Locate sharp items and knives so that they
are not likely to damage the door seal or
tub.
Load sharp items and knives with the
handles up to reduce the risk of cut-type
injuries.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been used
for 2 weeks or more. HYDROGENGASIS EXPLOSIVE.If
hot water system has not been used for such a period,
before using dishwasher, turn on all hot water faucets
and let water flow from each for several minutes. This
will release any accumulated hydrogen gas. HYDROGEN
GASIS FLAMMABLE.Do not smoke or use an open
flame during this time.
• Do not store or use combustible materials, gasoline or
other flammable vapors and liquids in the vicinity of this
or any other appliance.
@2009 Electrolux Home Products, Inc. All rights reserved. Printed in the USA

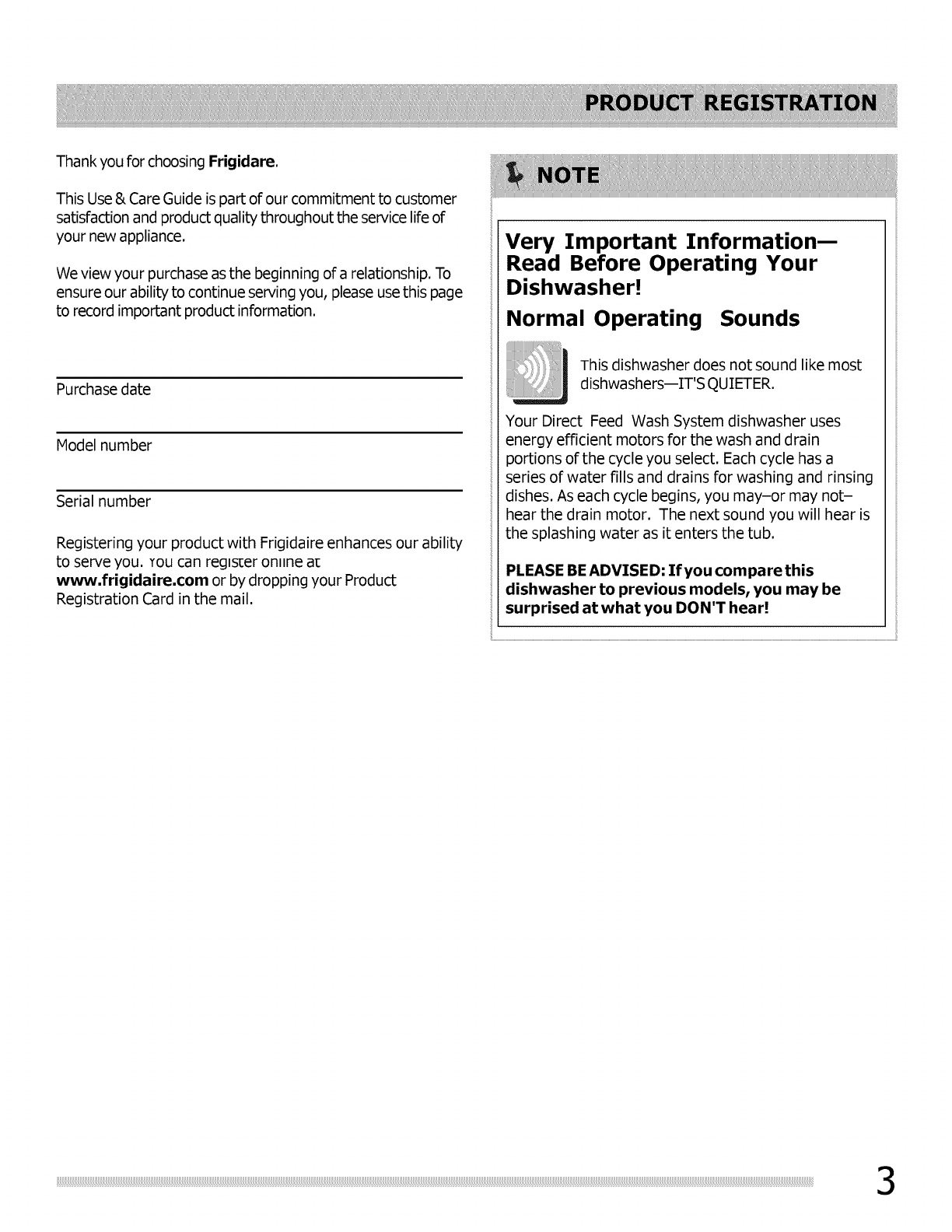

ThankyouforchoosingFrigidare.
This Use & Care Guide is part of our commitment to customer
satisfaction and product quality throughout the service life of
your new appliance.
We view your purchase as the beginning of a relationship. To
ensure our ability to continue serving you, please use this page
to record important product information.
Purchase date
Model number
Serial number
Registering your product with Frigidaire enhances our ability
to serve you. YOUcan regls[er online a[
www.frigidaire.com or by dropping your Product
Registration Card in the mail.
Very Important Information--
Read Before Operating Your
Dishwasher!
Normal Operating Sounds
This dishwasher does not sound like most
dishwashers--IT'S QUIETER.
Your Direct Feed Wash System dishwasher uses
energy efficient motors for the wash and drain
portions of the cycle you select. Each cycle has a
series of water fills and drains for washing and rinsing
dishes. As each cycle begins, you may-or may not-
hear the drain motor. The next sound you will hear is
the splashing water as it enters the tub.
PLEASE BE ADVISED: If you compare this
dishwasher to previous models, you may be
surprised at what you DON'T hear!

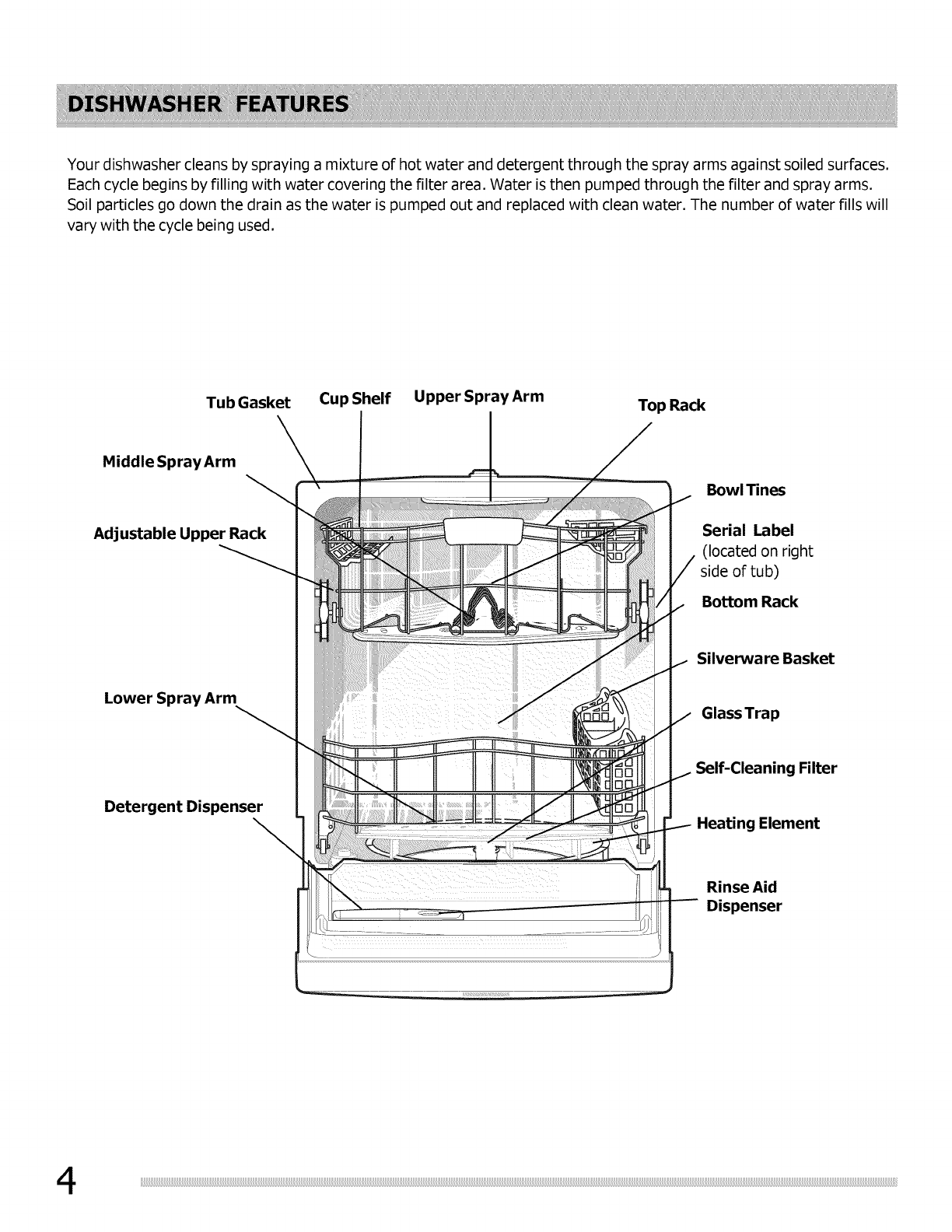

Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces.
Each cycle begins by filling with water covering the filter area. Water is then pumped through the filter and spray arms.
Soil particles go down the drain as the water is pumped out and replaced with clean water. The number of water fills will
vary with the cycle being used.
Tub Gasket Cup Shelf Upper Spray Arm Top Rack
Middle SprayArm
Adjustable Upper Rack
Lower SprayArm
Detergent Dispenser
\
Bowl Tines
Serial Label
(located on right
side of tub)
Bottom Rack
Silverware Basket
Glass Trap
Self-Cleaning Filter
Heating Element
Rinse Aid
Dispenser
Getting Started
1. Load dishwasher (See Preparing and Loading
Dishes).
2. Add detergent (See Dishwasher Dispenser &
Detergents).
3. Add rinse aid (See Rinse Aid).
4. Select desired CYCLE(See Cycle Chart). The
indicator light above the pad will glow when
selected.
5. Select desired OPTIONS (See Energy Options). The
indicator light above the pad will glow when
selected.
6. Run hot water faucet nearest dishwasher until water
is hot. Turn water off.
7. To start, press START/CANCEL pad.
8. Close door to latch.
The dishwasher is programmed to remember your last cycle
Options Selections
Hi-Temp Wash
When HI-TEMP WASH option is selected, the dishwasher
heats water in the main wash to approximately 140°F
(60°C).
This increase in water temperature helps
dishwasher detergent remove food grease and soil from
dishes more effectively and aids in drying. This option is
available in NORMAL WASH and LIGHT WASH. HI-TEMP
WASH is automatically provided when POWER PLUS cycle is
selected.
so you do not have to reset each time. To start the
dishwasher using the same cycle and options selected on
the previous wash, just press the START/CANCELpad.
Wash Cycle Selections
Cycle times are approximate and will vary with options
selected. Hot water is necessary to activate dishwasher
detergent and melt fatty food soils. An automatic sensor
will check the incoming water temperature and, if it is
not hot enough, the timer will be delayed for automatic
water heating in the main wash of all cycles. This
happens even when HI-TEMP WASH option has not been
selected. When HI-TEMP WASH is selected, an even
higher temperature will be guaranteed to handle heavier
soil loads.

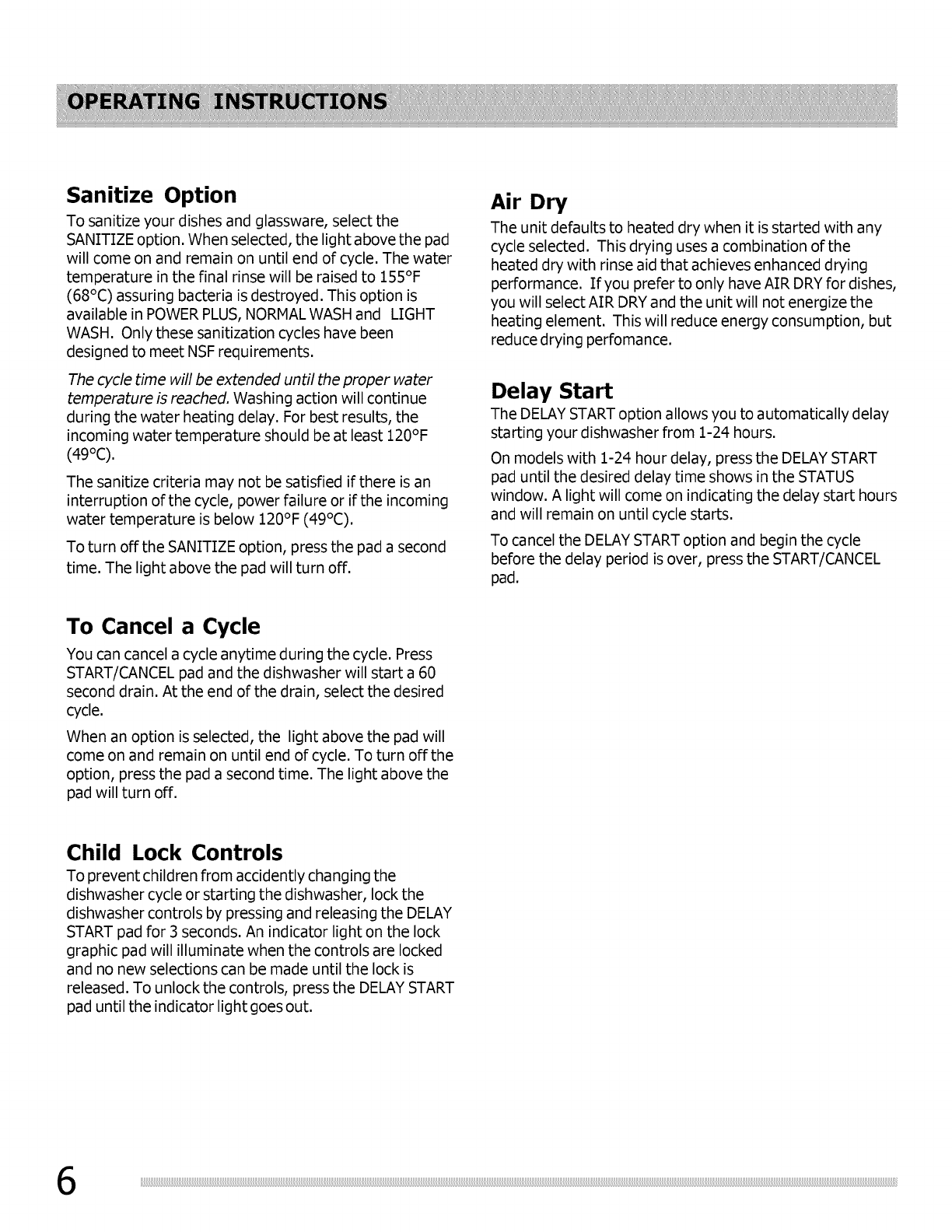

Sanitize Option
To sanitize your dishes and glassware, select the
SANITIZE option. When selected, the light above the pad
will come on and remain on until end of cycle. The water
temperature in the final rinse will be raised to 155°F
(68°C) assuring bacteria is destroyed. This option is
available in POWER PLUS, NORMAL WASH and LIGHT
WASH. Only these sanitization cycles have been
designed to meet NSF requirements.
The cycle time will be extended until the proper water
temperature is reached. Washing action will continue
during the water heating delay. For best results, the
incoming water temperature should be at least 120°F
(49°C).
The sanitize criteria may not be satisfied if there is an
interruption of the cycle, power failure or if the incoming
water temperature is below 120°F (49°C).
To turn off the SANITIZE option, press the pad a second
time. The light above the pad will turn off.
Air Dry
The unit defaults to heated dry when it is started with any
cycle selected. This drying uses a combination of the
heated dry with rinse aid that achieves enhanced drying
performance. If you prefer to only have AIR DRYfor dishes,
you will select AIR DRYand the unit will not energize the
heating element. This will reduce energy consumption, but
reduce drying perfomance.
Delay Start
The DELAY START option allows you to automatically delay
starting your dishwasher from 1-24 hours.
On models with 1-24 hour delay, press the DELAY START
pad until the desired delay time shows in the STATUS
window. A light will come on indicating the delay start hours
and will remain on until cycle starts.
To cancel the DELAY START option and begin the cycle
before the delay period is over, press the START/CANCEL
pad.
To Cancel a Cycle
You can cancel a cycle anytime during the cycle. Press
START/CANCEL pad and the dishwasher will start a 60
second drain. At the end of the drain, select the desired
cycle.
When an option is selected, the light above the pad will
come on and remain on until end of cycle. To turn off the
option, press the pad a second time. The light above the
pad will turn off.
Child Lock Controls
To prevent children from accidently changing the
dishwasher cycle or starting the dishwasher, lock the
dishwasher controls by pressing and releasing the DELAY
START pad for 3 seconds. An indicator light on the lock
graphic pad will illuminate when the controls are locked
and no new selections can be made until the lock is
released. To unlock the controls, press the DELAY START
pad until the indicator light goes out.

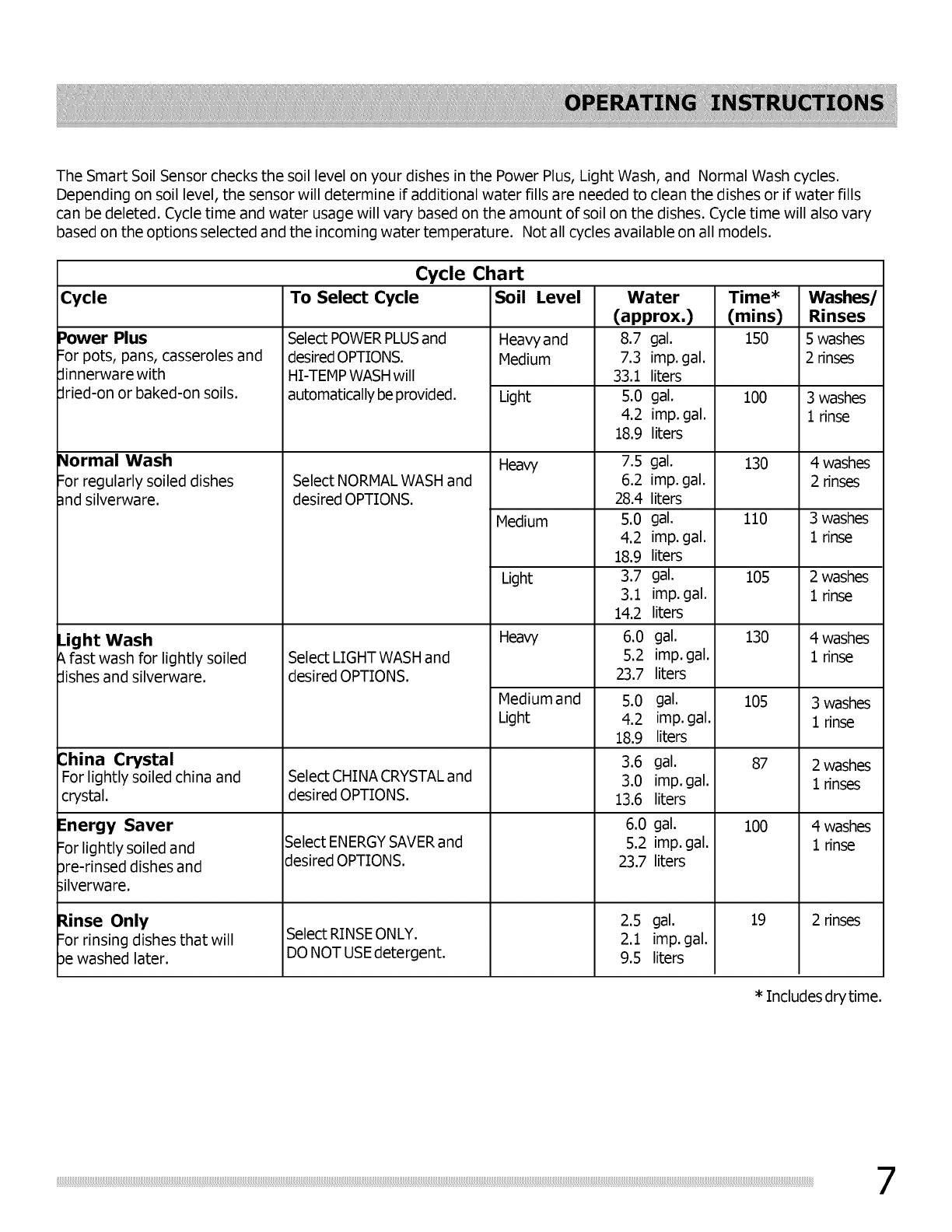

TheSmartSoilSensorchecksthesoillevelonyourdishesinthePowerPlus,LightWash,and NormalWashcycles.
Dependingonsoillevel,thesensorwilldetermineif additionalwaterfillsareneededto cleanthedishesorifwaterfills
canbedeleted.Cycletimeandwaterusagewillvarybasedontheamountofsoilonthedishes.Cycletimewillalsovary
basedontheoptionsselectedandtheincomingwatertemperature.Notallcyclesavailableonallmodels.
Soil Level
Heavy and
Medium
Light
Cycle Chart
Cycle To Select Cycle
Power Plus
:or pots, pans, casseroles and
_innerware with
_ried-on or baked-on soils.
_lormal Wash
:or regularly soiled dishes
_ndsilverware.
Light Wash
fast wash for lightly soiled
_ishes and silverware.
China Crystal
For lightly soiled china and
crystal.
Energy Saver
:or lightly soiled and
)re-rinsed dishes and
;ilverware.
_.inse Only
:or rinsing dishes that will
_ewashed later.
Select POWERPLUSand
desired OPTIONS.
HI-TEMP WASHwill
automatically be provided.
Water
(approx,)
8.7 gal.
7.3 imp. gal.
33.1 liters
5.0 gal.
4.2 imp. gal.
18.9 liters
Heaw 7.5
Select NORMAL WASH and 6.2
desired OPTIONS. 28.4
Select LIGHT WASH and
desired OPTIONS.
Select CHINA CRYSTAL and
desired OPTIONS.
Select ENERGYSAVERand
desired OPTIONS.
Medium 5.0
4.2
18.9
Light 3.7
3.1
14.2
Heaw 6.0
5.2
23.7
Medium and 5.0
Light 4.2
18.9
3.6
3.0
13.6
6.0
5.2
23.7
2.5
2.1
9.5
Select RINSE ONLY.
DO NOT USEdetergent.
gal.
imp. gal.
liters
gal.
imp. gal.
liters
gal.
imp. gal.
liters
gal.
imp. gal.
liters
Time*
(mins)
150
100
130
110
105 2
1
130 4
1
gal. 105 3
imp. gal. 1
liters
gal.
imp. gal.
liters
gal.
imp. gal.
liters
gal.
imp. gal.
liters
Washes/
Rinses
5 washes
2 rinses
3 washes
1 rinse
4 washes
2 rinses
3 washes
1 rinse
washes
rinse
washes
rinse
washes
rinse
87 2 washes
1 rinses
100 4 washes
1 rinse
19 2 rinses
* Includes dry time.

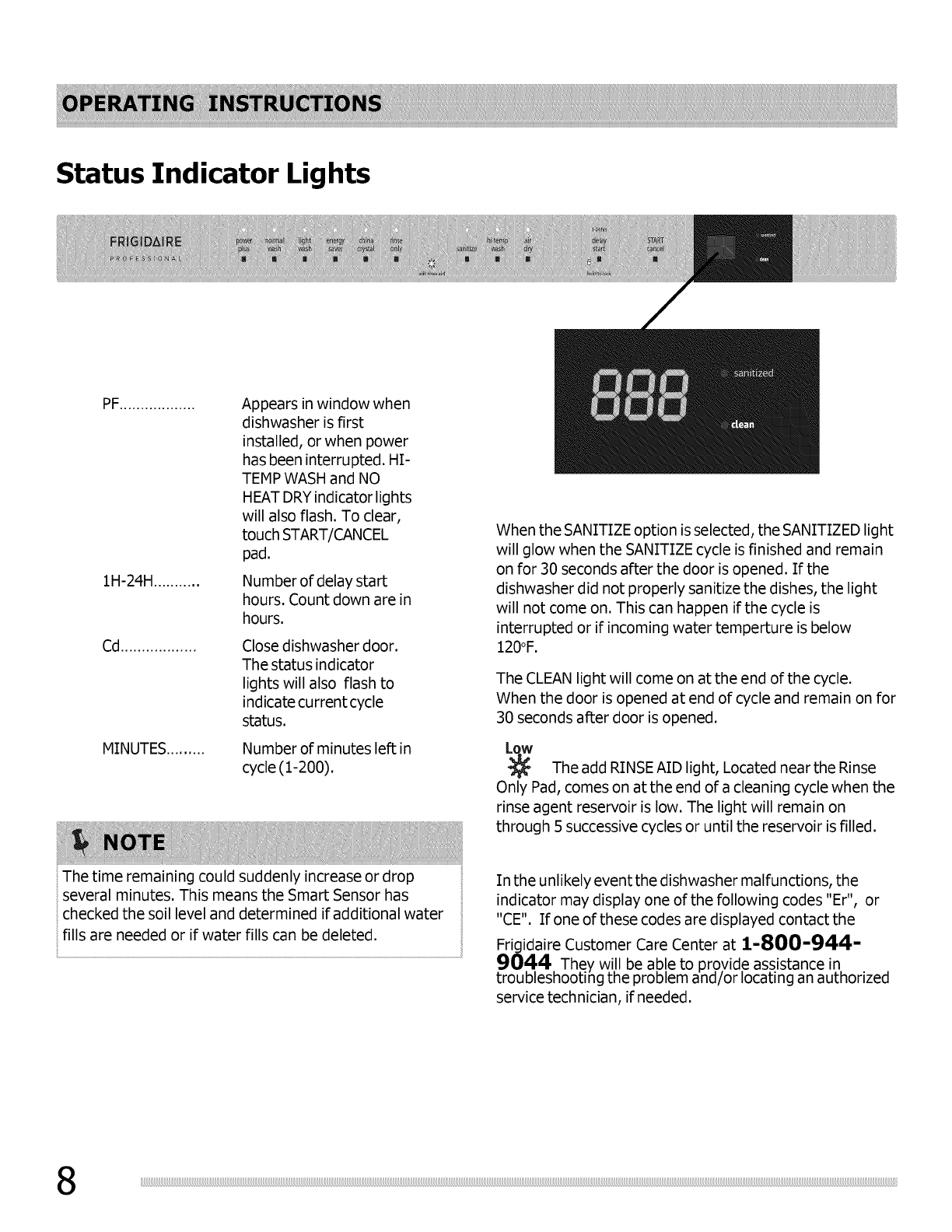

Status Indicator Lights
PF ..................
1H-24H ...........
Cd ..................
MINUTES.........
Appears in window when
dishwasher is first
installed, or when power
has been interrupted. HI-
TEMP WASH and NO
HEATDRY indicator lights
will also flash. To clear,
touch START/CANCEL
pad.
Number of delay start
hours. Count down are in
hours.
Close dishwasher door.
The status indicator
lights will also flash to
indicate cu rrent cycle
status.
Number of minutes left in
cycle (1-200).
When the SANITIZE option is selected, the SANITIZED light
will glow when the SANITIZE cycle is finished and remain
on for 30 seconds after the door is opened. If the
dishwasher did not properly sanitize the dishes, the light
will not come on. This can happen if the cycle is
interrupted or if incoming water temperture is below
120oF.
The CLEAN light will come on at the end of the cycle.
When the door is opened at end of cycle and remain on for
30 seconds after door is opened.
The add RINSE AID light, Located near the Rinse
Only Pad, comes on at the end of a cleaning cycle when the
rinse agent reservoir is low. The light will remain on
through 5 successive cycles or until the reservoir is filled.
The time remaining could suddenly increase or drop
several minutes. This means the Smart Sensor has
checked the soil level and determined if additional water
fills are needed or if water fills can be deleted.
In the unlikely event the dishwasher malfunctions, the
indicator may display one of the following codes "Er", or
"CE". If one of these codes are displayed contact the
Frigidaire Customer Care Center at 1-800-944-
9044 They will be able to provide assistance in
troubleshooting the problem and/or locating an authorized
service technician, if needed.

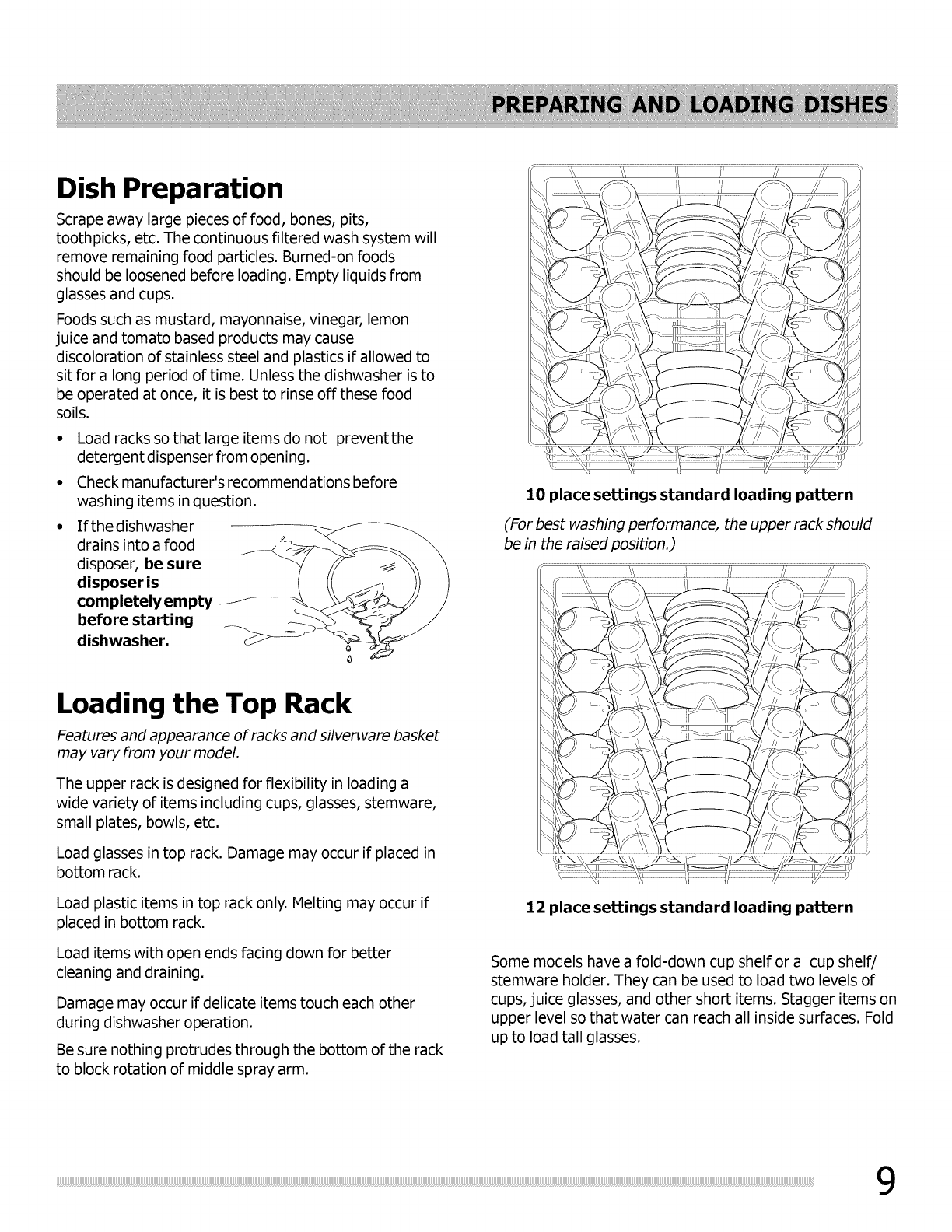

Dish Preparation
Scrape away large pieces of food, bones, pits,
toothpicks, etc. The continuous filtered wash system will
remove remaining food particles. Burned-on foods
should be loosened before loading. Empty liquids from
glasses and cups.
Foods such as mustard, mayonnaise, vinegar, lemon
juice and tomato based products may cause
discoloration of stainless steel and plastics if allowed to
sit for a long period of time. Unless the dishwasher is to
be operated at once, it is best to rinse off these food
soils.
Load racks so that large items do not preventthe
detergent dispenser from opening.
Check manufacturer's recommendations before
washing items in question.
If the dishwasher _
drains into a food
disposer, be sure
disposeris
completelyempty
before starting
dishwasher.
Loading the Top Rack
Features and appearance of racks and silverware basket
may vary from your model.
The upper rack is designed for flexibility in loading a
wide variety of items including cups, glasses, stemware,
small plates, bowls, etc.
Load glasses in top rack. Damage may occur if placed in
bottom rack.
Load plastic items in top rack only. Melting may occur if
placed in bottom rack.
Load items with open ends facing down for better
cleaning and draining.
Damage may occur if delicate items touch each other
during dishwasher operation.
Be sure nothing protrudes through the bottom of the rack
to block rotation of middle spray arm.
•'_\ t_ II /i /! //
10 place settings standard loading pattern
(For best washing performance, the upper rack should
be in the raised position.)
!_ !,\ t_ _! Jl // "
12 place settings standard loading pattern
Some models have a fold-down cup shelf or a cup shelf/
stemware holder. They can be used to load two levels of
cups, juice glasses, and other short items. Stagger items on
upper level so that water can reach all inside surfaces. Fold
up to load tall glasses.
_____________{77ii 9
Bowl Tines
The bowl tines offer the ultimate in flexibility. When
closed, load with saucers or small dishes. Open halfway
and it is perfect for small casseroles. Open completely
for those hard to fit items such as coffee pots, food
processors, etc. As you load your dishwasher, you will
find many other ways to use this unique feature.
H
To raise the rack to the middle or upper position, simply
lift the rack. The lever is spring loaded to engage the
upper position. To lower the rack to the lower position,
push lever with thumbs and push downward
simutaneously. To ensure ease of adjustment when
adjusting the rack, ensure that the rack remains level
from front to back with both sides at the same height.
Fold-down Tines
The fold-down tines in the lower rack make easy loading for
those extra large and hard-to-fit items. The tines may be
left up for normal use or folded down for more flexible
loading. Fold down for more space to load large pots or
pans.
Adjustable Upper Rack (available on
select models)
The top rack height can be easily adjusted to accommodate
loading taller dishes in either rack. Height should be
adjusted without dishes in the racks.
To accommodate taller dishes in the bottom rack, there are
2 positions available:

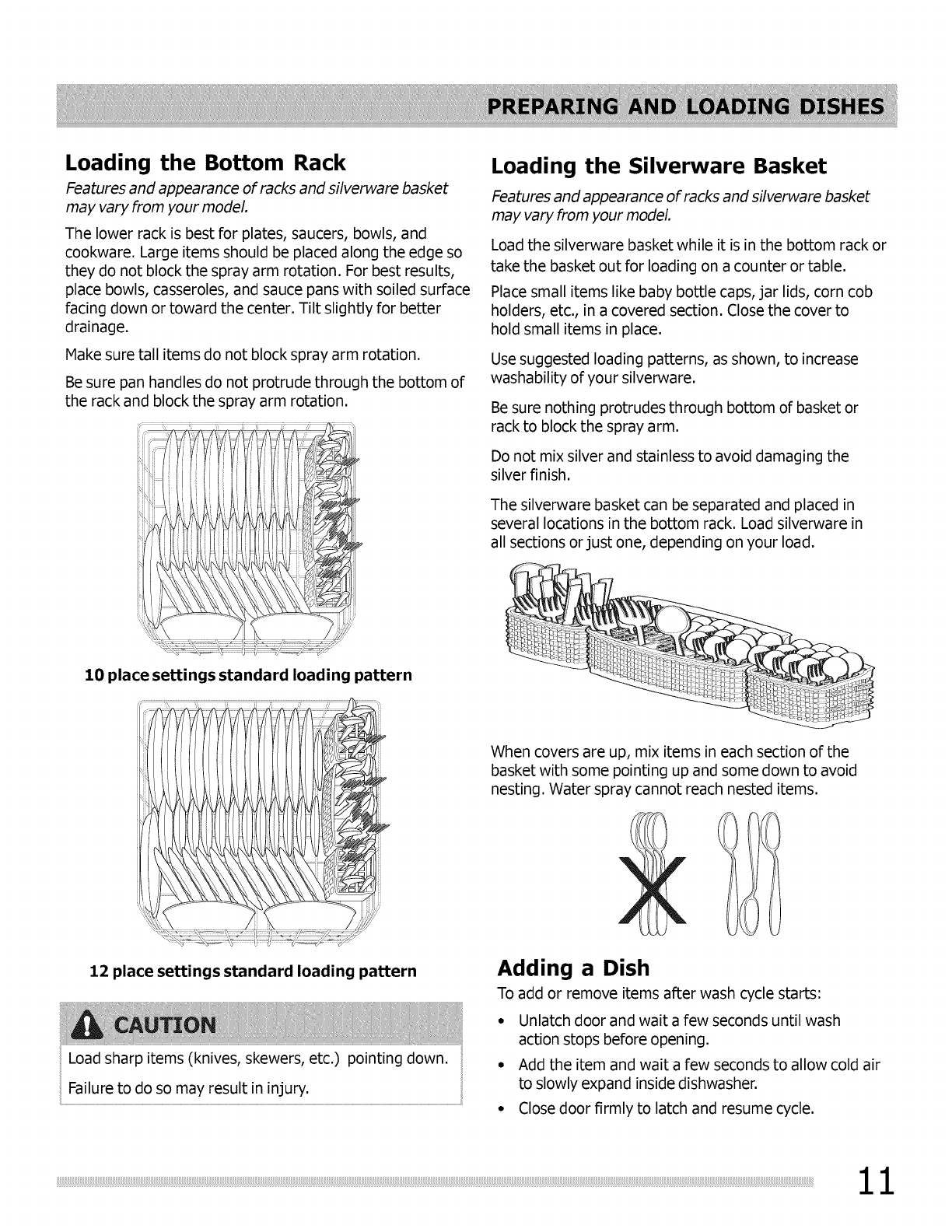

Loading the Bottom Rack
Features and appearance of racks and silverware basket
may vary from your model.
The lower rack is best for plates, saucers, bowls, and
cookware. Large items should be placed along the edge so
they do not block the spray arm rotation. For best results,
place bowls, casseroles, and sauce pans with soiled surface
facing down or toward the center. Tilt slightly for better
drainage.
Make sure tall items do not block spray arm rotation.
Be sure pan handles do not protrude through the bottom of
the rack and block the spray arm rotation.
10 place settings standard loading pattern
Loading the Silverware Basket
Features and appearance of racks and silverware basket
may vary from your model.
Load the silverware basket while it is in the bottom rack or
take the basket out for loading on a counter or table.
Place small items like baby bottle caps, jar lids, corn cob
holders, etc., in a covered section. Close the cover to
hold small items in place.
Use suggested loading patterns, as shown, to increase
washability of your silverware.
Be sure nothing protrudes through bottom of basket or
rack to block the spray arm.
Do not mix silver and stainless to avoid damaging the
silver finish.
The silverware basket can be separated and placed in
several locations in the bottom rack. Load silverware in
all sections or just one, depending on your load.
When covers are up, mix items in each section of the
basket with some pointing up and some down to avoid
nesting. Water spray cannot reach nested items.
12 place settings standard loading pattern
Load sharp items (knives, skewers, etc.) pointing down.
Failure to do so may result in injury.
Adding a Dish
To add or remove items after wash cycle starts:
• Unlatch door and wait a few seconds until wash
action stops before opening.
• Add the item and wait a few seconds to allow cold air
to slowly expand inside dishwasher.
• Close door firmly to latch and resume cycle.

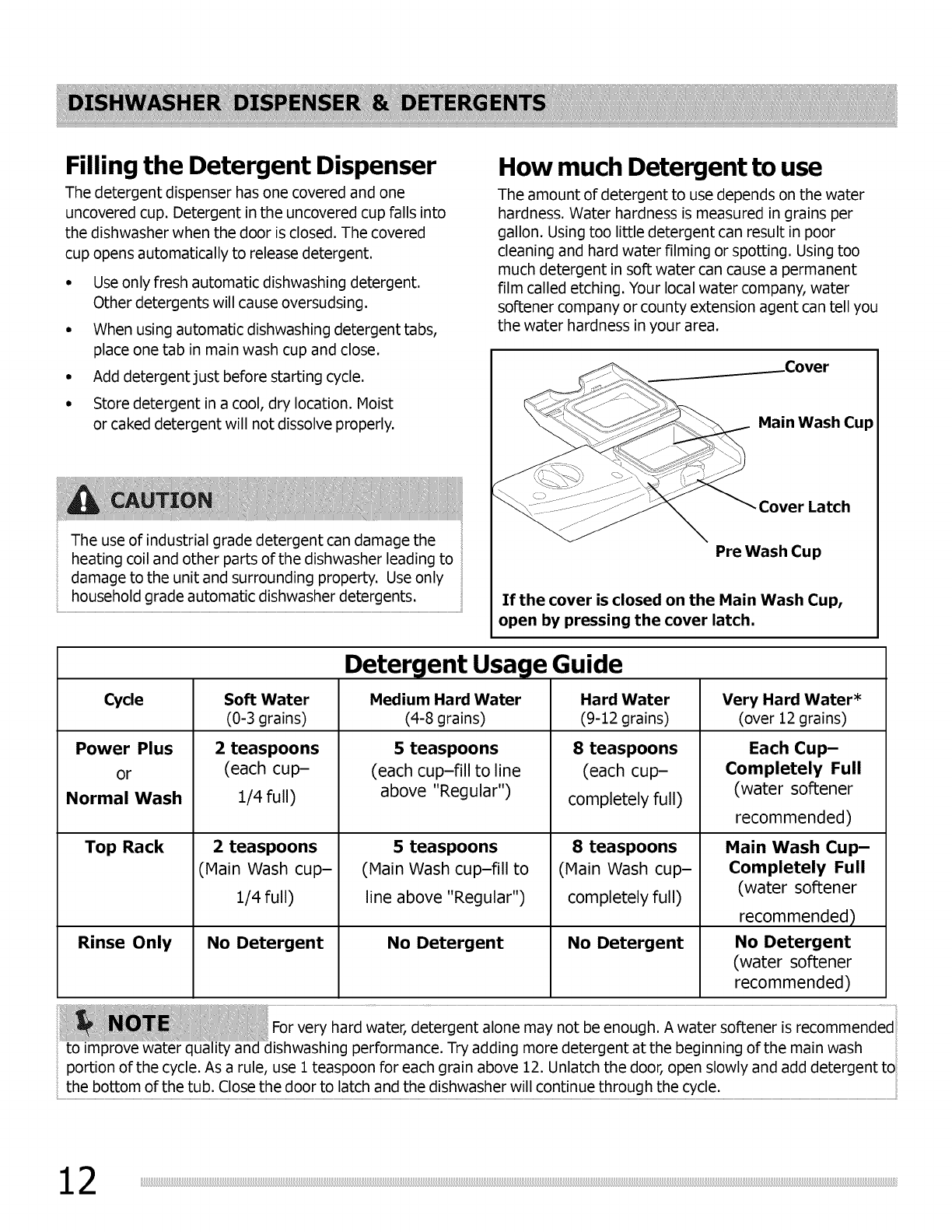

Filling the Detergent Dispenser
The detergent dispenser has one covered and one
uncovered cup. Detergent in the uncovered cup falls into
the dishwasher when the door is closed. The covered
cup opens automatically to release detergent.
•Use only fresh automaticdishwashing detergent.
Other detergents will cause oversudsing.
•When using automaticdishwashing detergent tabs,
place one tab in main wash cup and close.
• Add detergent just before starting cycle.
• Store detergent in a cool, dry location. Moist
or caked detergent will not dissolve properly.
The use of industrial grade detergent can damage the
heating coil and other parts of the dishwasher leading to
damage to the unit and surrounding property. Use only
household grade automatic dishwasher detergents.
How much Detergent to use
The amount of detergent to use depends on the water
hardness. Water hardness is measured in grains per
gallon. Using too little detergent can result in poor
cleaning and hard water filming or spotting. Using too
much detergent in soft water can cause a permanent
film called etching. Your local water company, water
softener company or county extension agent can tell you
the water hardness in your area.
_Cover
Main Wash Cup
-Cover Latch
Pre Wash Cup
If the cover is closed on the Main Wash Cup,
open by pressing the cover latch.
Cycle
Power Plus
or
Normal Wash
Top Rack
Rinse Only
Detergent Usage Guide
Soft Water
(0-3 grains)
2teaspoons
(each cup-
1/4 full)
2 teaspoons
(Main Wash cup-
1/4 full)
No Detergent
Medium Hard Water
(4-8 grains)
5 teaspoons
(each cup-fill to line
above "Regular")
5 teaspoons
(Main Wash cup-fill to
line above "Regular")
No Detergent
Hard Water
(9-12 grains)
8 teaspoons
(each cup-
completely full)
8 teaspoons
(Main Wash cup-
completely full)
No Detergent
Very Hard Water*
(over 12 grains)
Each Cup-
Completely Full
(water softener
recommended)
Main Wash Cup-
Completely Full
(water softener
recommended)
No Detergent
(water softener
recommended)
For very hard water, detergent alone may not be enough. A water softener is recommended
to improve water qua iishwashing performance. Try adding more detergent at the beginning of the main wash
portion of the cycle. As a rule, use i teaspoon for each grain above 12. Unlatch the door, open slowly and add detergent to
the bottom of the tub. Close the door to latch and the dishwasher will continue through the cycle.
Rinse Aid
Rinse aid greatly improves drying and reduces
water spots and filming. Water "sheets" off dishes
rather than forming water droplets that cling and leave
spots.
A dispenser, located next to the detergent cup,
automatically releases a measured amount of rinse aid
during the last rinse. If spotting and poor drying are
problems, increase the amount of rinse aid dispensed by
rotating the dial to a higher number. The dial is located
under the dispenser cap. The indicator will be dark when
full and will show clear when it is time to refill. On
models with a STATUS window, LO will appear at the
end of the cycle indicating that it is time to refill.
To add liquid rinse aid, turn dispenser cap 1/4 turn
counterclockwise and lift out. Pour in rinse aid until liquid
touches the indicated fill level. Replace cap.
Do not overfill since this can cause oversudsing. Wipe up
any spills with a damp cloth.
The dispenser holds enough for 35 to 140 washes,
depending on setting.
Water Pressure
The hot water line to dishwasher must provide water
pressure between 20 and 120 psi.
Low water pressure may occur when laundry or showers
are in operation. Wait until water use is reduced before
starting dishwasher.
Water Temperature
Hot water is needed for best dishwashing and drying
results. Water entering dishwasher should be at least
120°F (49°C) to give satisfactory results.
To check water temperature entering dishwasher:
• Turn on hot water faucet nearest dishwasher for
several minutes to clear cool water from pipes.
• Hold a candy or meat thermometer in stream of water
to check the temperature.
• If temperature is below 120°F (49°C), have a qualified
person raise the hot water heater thermostat setting.
DispenserOpening Indicator
RINSE AID
Less_ _-_More
- it
---2 \3
\
Adjustable setting
Dispenser Cap
Before starting a cycle, run hot water to clear
cool water from pipe,
The HEAT DRY option in combination with rinse aid
will enhance drying performance. The energy
required to use the HEAT DRY option costs pennies
per cycle. You may choose not to select the HEAT
DRY option; however you will have items in your
dish load that will not be completely dry at the end
of the cycle.

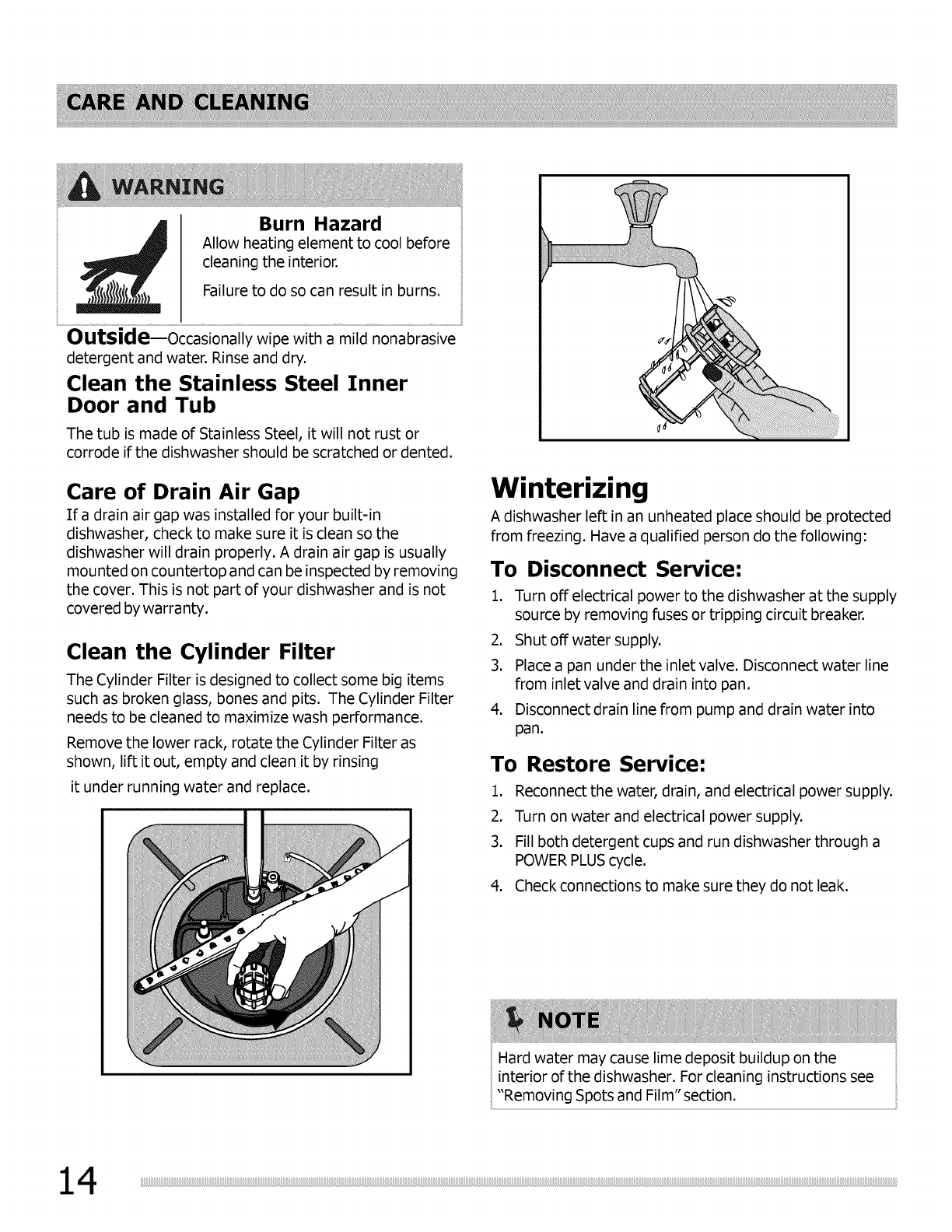

Burn Hazard
Allow heating element to cool before
cleaning the interior.
Failure to do so can result in burns.
Outside--Occasionally wipe with a mild nonabrasive
detergent and water. Rinse and dry.
Clean the Stainless Steel Inner
Door and Tub
The tub is made of Stainless Steel, it will not rust or
corrode if the dishwasher should be scratched or dented.
Care of Drain Air Gap
If a drain air gap was installed for your built-in
dishwasher, check to make sure it is clean so the
dishwasher will drain properly. A drain air gap is usually
mounted on countertop and can be inspected by removing
the cover. This is not part of your dishwasher and is not
covered by warranty.
Clean the Cylinder Filter
The Cylinder Filter is designed to collect some big items
such as broken glass, bones and pits. The Cylinder Filter
needs to be cleaned to maximize wash performance.
Remove the lower rack, rotate the Cylinder Filter as
shown, lift it out, empty and clean it by rinsing
it under running water and replace.
Winterizing
A dishwasher left in an unheated place should be protected
from freezing. Have a qualified person do the following"
To Disconnect Service:
1. Turn off electrical power to the dishwasher at the supply
source by removing fuses or tripping circuit breaker.
2. Shut off water supply.
3. Place a pan under the inlet valve. Disconnect water line
from inlet valve and drain into pan.
4. Disconnect drain line from pump and drain water into
pan.
To Restore Service:
1. Reconnect the water, drain, and electrical power supply.
2. Turn on water and electrical power supply.
3. Fill both detergent cups and run dishwasher through a
POWERPLUS cycle.
4. Check connections to make sure they do not leak.
Hard water may cause lime deposit buildup on the
interior of the dishwasher. For cleaning instructions see
"Removing Spots and Film" section.
Clean the Fine Filter
Take out the Cylinder Filter and remove the Fine Filter from
the dishwasher tub bottom. To remove the Fine Filter you
must first remove the bottom spray arm as shown below.
Flush the Fine Filter by holding it under running water and
replace.

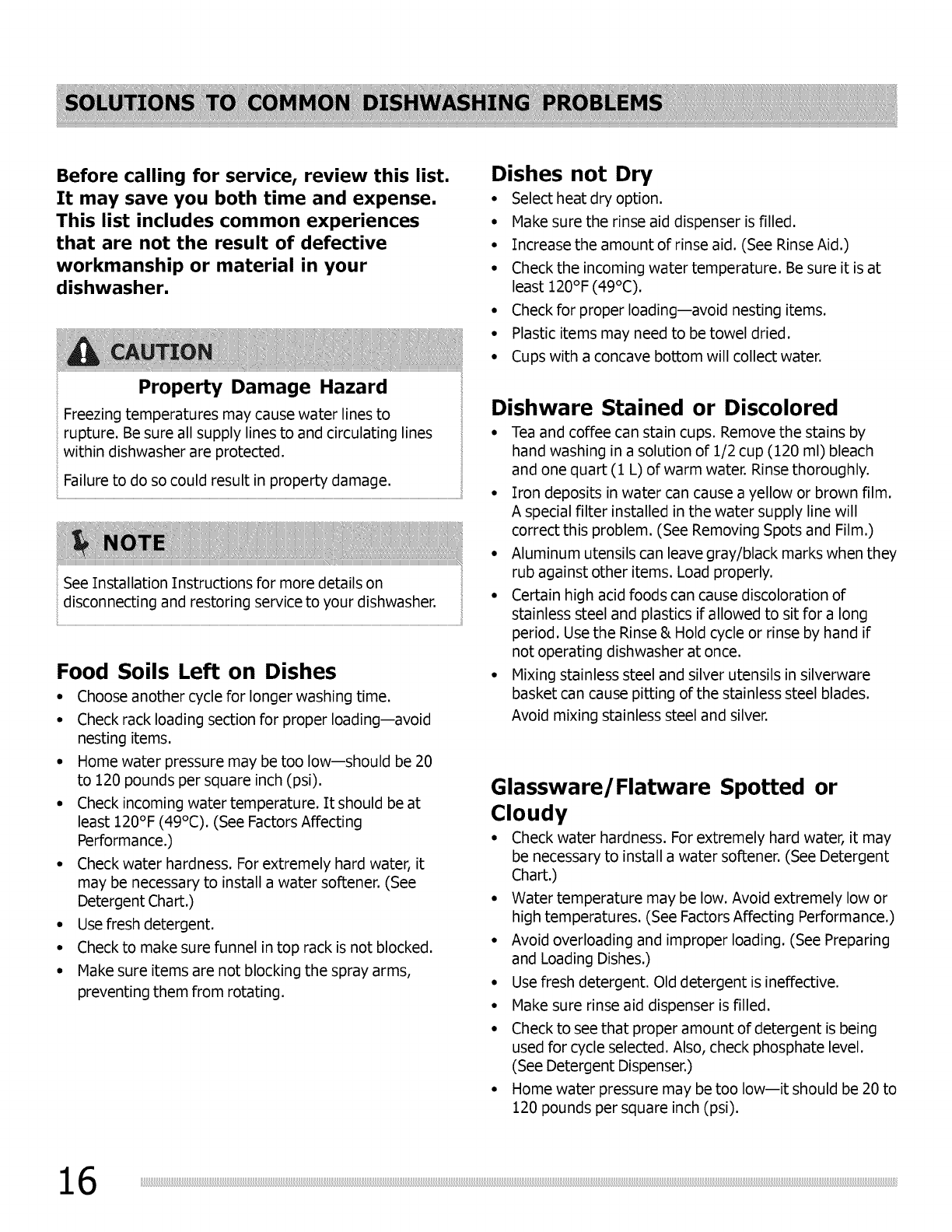

Before calling for service, review this list.
It may save you both time and expense.
This list includes common experiences
that are not the result of defective
workmanship or material in your
dishwasher.
Property Damage Hazard
Freezing temperatures may cause water lines to
rupture. Be sure all supply lines to and circulating lines
within dishwasher are protected.
Failure to do so could result in property damage.
See Installation Instructions for more details on
disconnecting and restoring service to your dishwasher.
Food Soils Left on Dishes
•Choose another cycle for longer washing time.
• Check rack loading section for proper loading--avoid
nesting items.
• Home water pressure may be too low--should be 20
to 120 pounds per square inch (psi).
• Check incoming water temperature. It should be at
least 120°F (49°C). (See Factors Affecting
Performance.)
• Check water hardness. For extremely hard water, it
may be necessary to install a water softener. (See
Detergent Chart.)
• Use fresh detergent.
• Check to make sure funnel in top rack is not blocked.
• Make sure items are not blocking the spray arms,
preventing them from rotating.
Dishes not Dry
• Select heat dry option.
• Make sure the rinse aid dispenser is filled.
• Increase the amount of rinse aid. (See Rinse Aid.)
• Check the incoming water temperature. Be sure it is at
least 120°F (49°C).
• Check for proper loading--avoid nesting items.
• Plastic items may need to be towel dried.
• Cups with a concave bottom will collect water.
Dishware Stained or Discolored
• Tea and coffee can stain cups. Remove the stains by
hand washing in a solution of 1/2 cup (120 ml) bleach
and one quart (1 L) of warm water. Rinse thoroughly.
• Iron deposits in water can cause a yellow or brown film.
A special filter installed in the water supply line will
correct this problem. (See Removing Spots and Film.)
• Aluminum utensils can leave gray/black marks when they
rub against other items. Load properly.
• Certain high acid foods can cause discoloration of
stainless steel and plastics if allowed to sit for a long
period. Use the Rinse & Hold cycle or rinse by hand if
not operating dishwasher at once.
• Mixing stainless steel and silver utensils in silverware
basket can cause pitting of the stainless steel blades.
Avoid mixing stainless steel and silver.
Glassware/Flatware Spotted or
Cloudy
• Check water hardness. For extremely hard water, it may
be necessary to install a water softener. (See Detergent
Chart.)
• Water temperature may be low. Avoid extremely low or
high temperatures. (See Factors Affecting Performance.)
• Avoid overloading and improper loading. (See Preparing
and Loading Dishes.)
• Use fresh detergent. Old detergent is ineffective.
• Make sure rinse aid dispenser is filled.
• Check to see that proper amount of detergent is being
used for cycle selected. Also, check phosphate level.
(See Detergent Dispenser.)
• Home water pressure may be too low--it should be 20 to
120 pounds per square inch (psi).

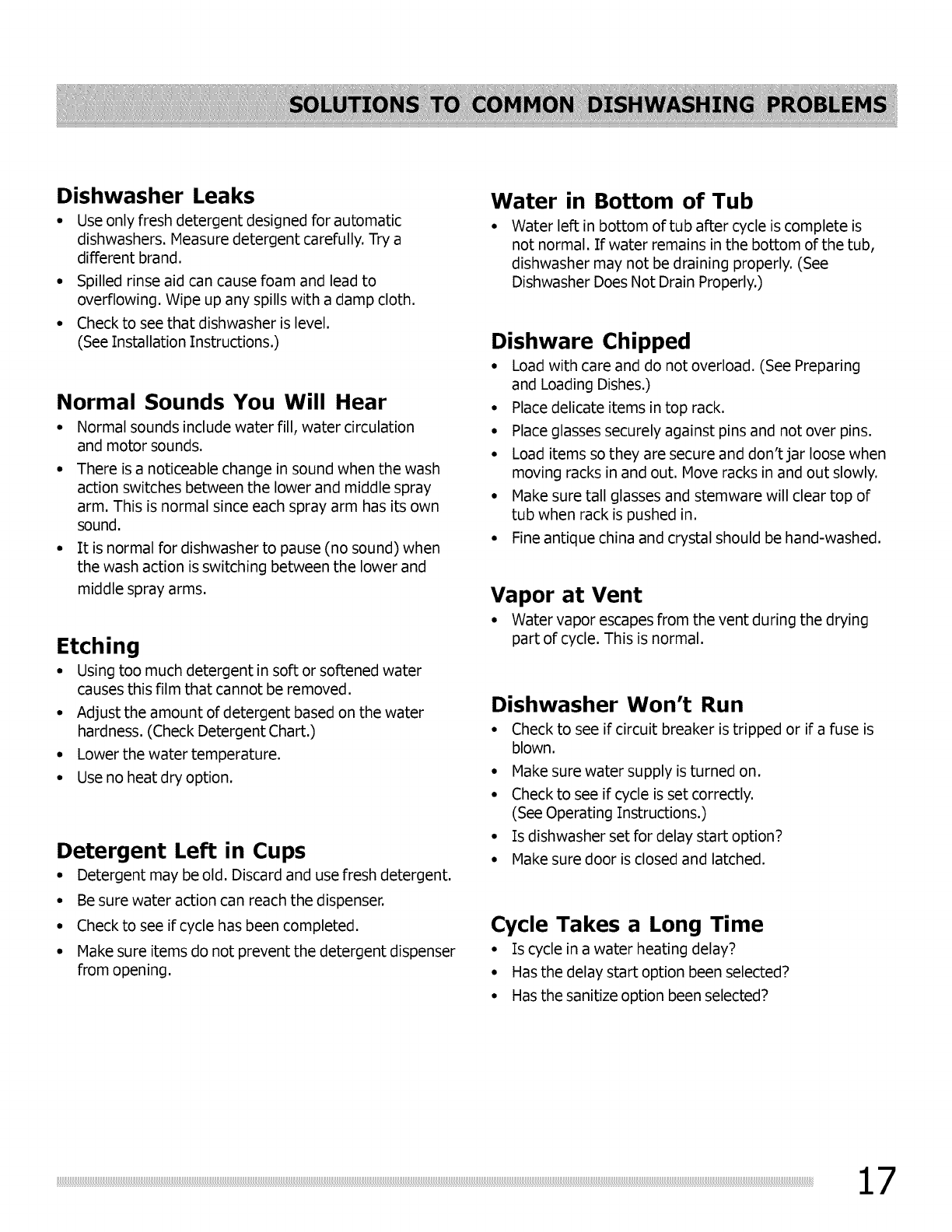

Dishwasher Leaks
•Use only fresh detergent designed for automatic
dishwashers. Measure detergent carefully. Try a
different brand.
• Spilled rinse aid can cause foam and lead to
overflowing. Wipe up any spills with a damp cloth.
• Check to see that dishwasher is level.
(See Installation Instructions.)
Normal Sounds You Will Hear
° Normal sounds include water fill, water circulation
and motor sounds.
• There is a noticeable change in sound when the wash
action switches between the lower and middle spray
arm. This is normal since each spray arm has its own
sound.
• It is normal for dishwasher to pause (no sound) when
the wash action is switching between the lower and
middle spray arms.
Etching
• Using too much detergent in soft or softened water
causes this film that cannot be removed.
• Adjust the amount of detergent based on the water
hardness. (Check Detergent Chart.)
• Lower the water temperature.
• Use no heat dry option.
Detergent Left in Cups
• Detergent may be old. Discard and use fresh detergent.
• Be sure water action can reach the dispenser.
• Check to see if cycle has been completed.
• Make sure items do not prevent the detergent dispenser
from opening.
Water in Bottom of Tub
• Water left in bottom of tub after cycle is complete is
not normal. If water remains in the bottom of the tub,
dishwasher may not be draining properly. (See
Dishwasher Does Not Drain Properly.)
Dishware Chipped
• Load with care and do not overload. (See Preparing
and Loading Dishes.)
• Place delicate items in top rack.
• Place glasses securely against pins and not over pins.
• Load items so they are secure and don't jar loose when
moving racks in and out. Move racks in and out slowly.
• Make sure tall glasses and stemware will clear top of
tub when rack is pushed in.
• Fine antique china and crystal should be hand-washed.
Vapor at Vent
•Water vapor escapes from the vent during the drying
part of cycle. This is normal.
Dishwasher Won't Run
• Check to see if circuit breaker is tripped or if a fuse is
blown.
• Make sure water supply is turned on.
• Check to see if cycle is set correctly.
(See Operating Instructions.)
• Is dishwasher set for delay start option?
• Make sure door is closed and latched.
Cycle Takes a Long Time
• Is cycle in a water heating delay?
• Has the delay start option been selected?
• Has the sanitize option been selected?
Dishwasher Does Not Drain
Properly
•If unit is hooked up to a food waste disposer, make
sure the disposer is empty.
• Check to see if the knockout plug has been removed
from inside the food waste disposer inlet.
• Check to see if drain hose is kinked.
• Make sure cycle is complete, not in a pause.
Dishwasher Won't Fill
• Is water supply turned on?
Dishwasher Has an Odor
•Soiled dishes left in dishwasher too long can create
an odor. Use Rinse & Hold cycle.
• There will be a "new" smell when first installed. This
is normal.
•Check to see if unit is draining properly. (See
Dishwasher Does Not Drain Properly.)
Removing Spots and Film
Hard water can cause lime deposit buildup on the
interior of the dishwasher. Dishes and glasses may also
get spots and film for a number of reasons. (See
Glassware/Flatware Spotted or Cloudy section.) To
remove buildup, spots and film, clean using the following
instructions:
1. Load clean dishes and glasses in normal manner. Do
not load any metal utensils or silverware.
2. Do not add detergent.
3. Select the NORMAL WASH cycle. Close and latch
door. Press START/CANCEL pad.
4. Allow dishwasher to run until it starts the second
water fill (approximately 10 minutes). The SENSING
light will be off.
5. Unlatch and open door and pour 2 cups of white
vinegar into the bottom of dishwasher.
6. Close and latch door and allow cycle to finish.
If these conditions persist, a home water softener should
be considered.

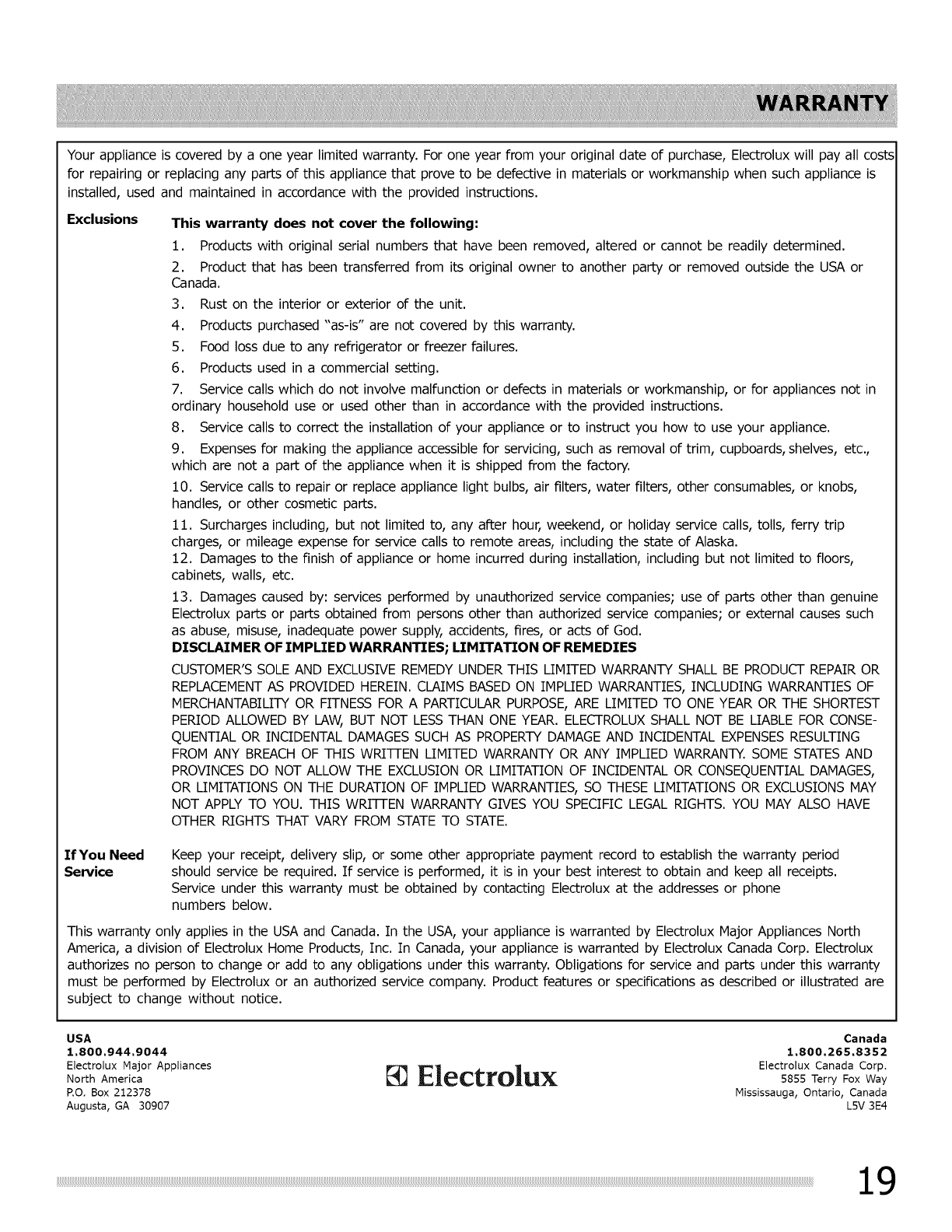

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs
for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is
installed, used and maintained in accordance with the provided instructions.
Exclusions This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in
ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc.,
which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,
handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine
Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such
as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR
REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST
PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSE-
QUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING
FROM ANY BREACH OF THIS WRI-FrEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND
PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY
NOT APPLY TO YOU. THIS WRI-I-rEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE
OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need
Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North
America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux
authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty
must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are
subject to change without notice.
USA
1,800,944,9044
Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907
Electrolux
Canada
1,800,265,8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
