Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A40
22/04/11
WARRANTY ON PHILCO FURNACES
Warranty Details:
Lifetime Heat Exchanger and 10 years on all parts when product is
registered, 1 year Heat Exchanger and 1 year parts when not registered
1 Year Comfort Quality Pledge: Replacement of the entire unit if Heat Exchanger fails within the first year
of operation to the original owner
Warranty Registration: Register your system within 60 days of installation

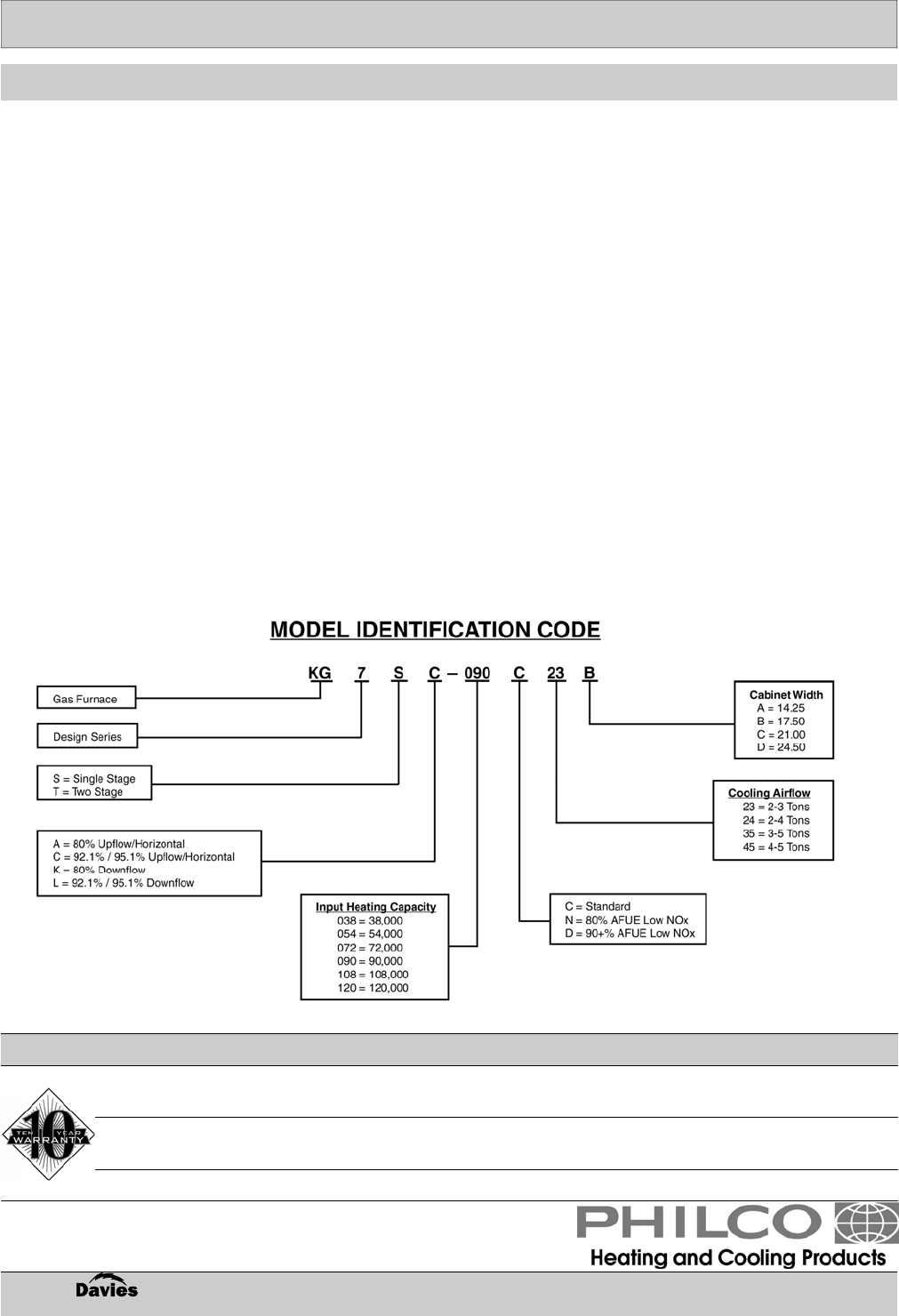

Philco KG7 Series Gas Furnace Features & Benefits
• Category IV Venting System: May be vertically or horizontally vented using either a non-direct vent (1 pipe) or direct
vent (2 pipe) system
• 100% fired and tested: All units and each component are tested on the manufacturing line
• Low boy height: Easy to apply in low ceiling applications, work well with taller high SEER coils
• Best packaging in the industry: Unique corner post design assure product will arrive to the homeowner dent free
• Tubular primary heat exchanger: Heavy gauge aluminized steel heat exchanger and stainless steel secondary heat
exchanger assures long life
• 30 second blower delay at start-up: Assures a warm duct temperature at furnace start-up. Adjustable blower settings
(60, 90, 120 and 180 seconds)
• 30 second post purge: Increases life of heat exchanger
• Hot surface igniter: Innovative application of an appliance igniter. Utilizes proven Smartlite® technology
• Color coded wire harness: Designed to fit the components, all with quick connect fittings for ease of service
• High static blowers: All models equipped with high static blowers
• 90 second fixed cooling cycle blower off delay (TDR): Increases cooling performance when matched with a coil
• LP convertible: Simple burner orifice and regulator spring change for easy of convertibility
• Diagnostic lights for easy troubleshooting without counting flashes: Dedicated light for flame signal strength and 2
lights in combination to indicate all other fault codes
• Integrated control board: Incorporates connections for electronic air clear and humidifier
• Two piece door design: Enhances furnace appearance and uses captured screw to prevent loosing door screws
• Sealed vestibule: Reduces burner and inducer sound levels
• Extended flush jacket: Jacket provides an "appliance appearance"
• CSA certified design
• 115V, 60Hz. Gas connections are 1/2" NPT
C & L are Energy Star rated
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A40-1
22/04/11
92+ AFUE Single Stage Gas Furnace (High Efficiency)
• High efficiency blower kit maximize efficiencies
• Multi-speed direct drive blower designed to give a wide range of cooling capacities.
Switches on PCB, provides ultra easy motor speed selection.
Input Btuh HP -Speed-Type-FLA R410 Coil Model Number Part Number
Upflow / Horizontal
38,000 1/3 - 4 - PSC - 4.80 C6BAX24(C,U)A
C6BAX30(C,U)A KG7SC038D23A 904639K
54,000 1/2 - 4 - PSC - 8.20
C6BAX24(C,U)B
C6BAX30(C,U)B
C6BAX35(C,U)B
C6BAX36(C,U)B
KG7SC054D24B 904640K
72.,000 1/2 - 4 - PSC - 8.20
C6BAX24(C,U)B
C6BAX30(C,U)B
C6BAX35(C,U)B
C6BAX36(C,U)B
KG7SC072D24B 904641K
72,000 1/2 - 4 - PSC - 7.50
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
KG7SC072D35C 904642K
90,000 1.0 - 4 - PSC - 13.75
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
KG7SC090D35C 904643K
108,000 1.0 - 4 - PSC - 13.75
C6BAX42(C,U)D
C6BAX48(C,U)D
C6BAX60(C,U)D
KG7SC108D45D 904644K
120,000 1.0 - 4 - PSC - 13.75
C6BAX42(C,U)D
C6BAX48(C,U)D
C6BAX60(C,U)D
KG7SC120D45D 904645K
Downflow
54,000 1/2 - 4 - PSC - 8.20
C6BAX24(C,U)B
C6BAX30(C,U)B
C6BAX35(C,U)B
C6BAX36(C,U)B
KG7SL054D24B 904651K
72.,000 1/2 - 4 - PSC - 8.20
C6BAX24(C,U)B
C6BAX30(C,U)B
C6BAX35(C,U)B
C6BAX36(C,U)B
KG7SL072D24B 904652K
90,000 1.0 - 4 - PSC - 7.50
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
KG7SL090D35C 904653K
120,000 1.0 - 4 - PSC - 13.75
C6BAX42(C,U)D
C6BAX48(C,U)D
C6BAX60(C,U)D
KG7SL120D45D 904654K
R410 Coil:
(C=Cased, U=Uncased)
PVC & CPVC Fittings
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A40-2
22/04/11

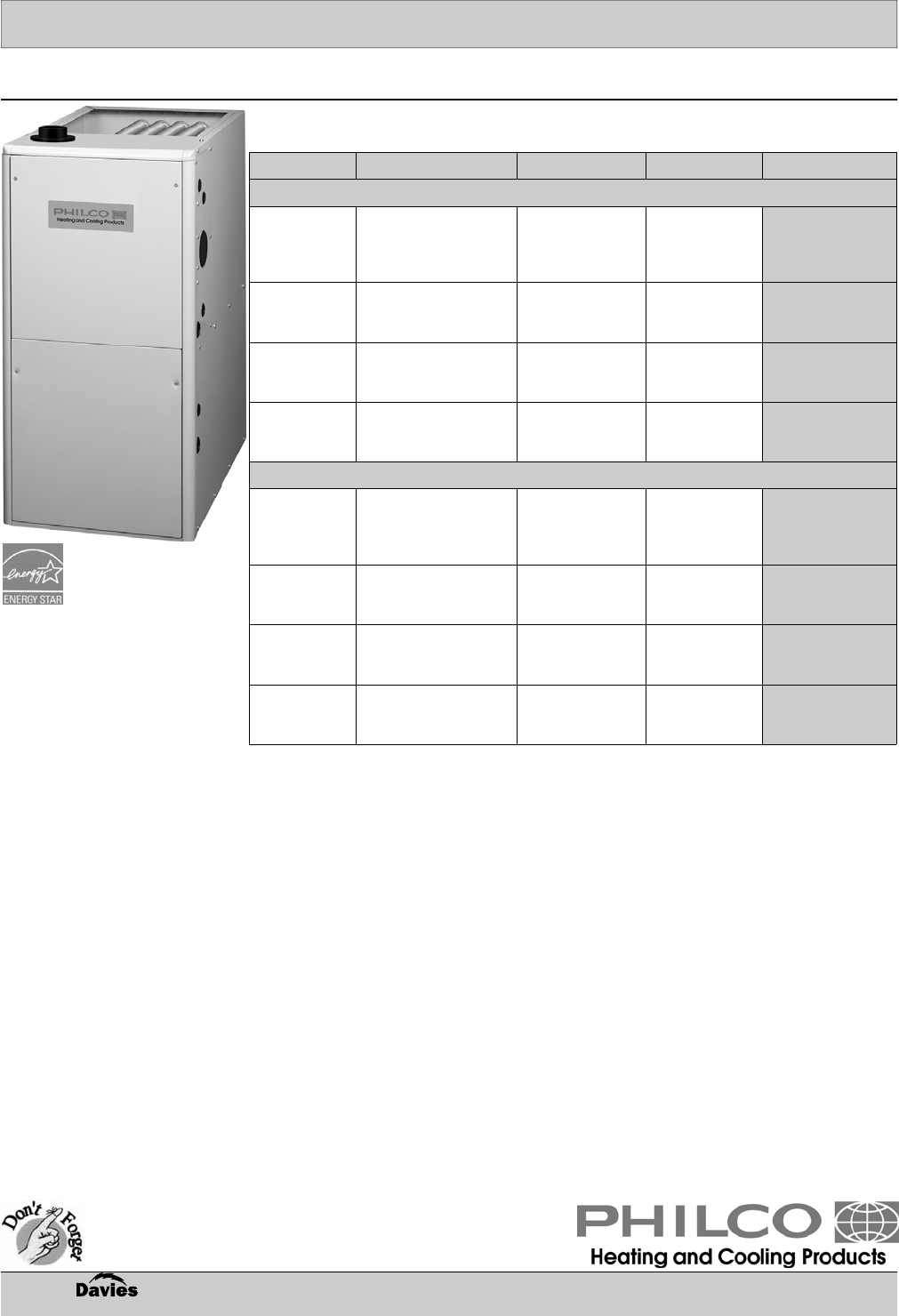

95+ AFUE Two Stage Gas Furnace (High Efficiency)
• Energy efficient brushless DC (ECM) motor
• Control board has connections for twinning
Input Btuh HP -Speed-Type-FLA R410 Coil Model Number Part Number
Fixed Speed Upflow / Horizontal
60,000 1/2 - FS - BLDC - 6.2
C6BAX24(C,U)B
C6BAX30(C,U)B
C6BAX35(C,U)B
C6BAX36(C,U)B
KG7TC060D24B 904727K
80,000 3/4 - FS - BLDC - 8.7
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
KG7TC080D35C 904728K
100,000 3/4 - FS - BLDC - 8.7
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
KG7TC100D35C 904729K
120,000 1.0 - FS - BLDC - 11.7
C6BAX42(C,U)D
C6BAX48(C,U)D
C6BAX60(C,U)D
KG7TC120D45D 904730K
Fixed Speed Downflow
60,000 1/2 - FS - BLDC - 6.2
C6BAX24(C,U)B
C6BAX30(C,U)B
C6BAX35(C,U)B
C6BAX36(C,U)B
KG7TL060D24B 904731K
80,000 3/4 - FS - BLDC - 8.7
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
KG7TL080D35C 904732K
100,000 3/4 - FS - BLDC - 8.7
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
KG7TL100D35C 904733K
120,000 1.0 - FS - BLDC - 11.7
C6BAX42(C,U)D
C6BAX48(C,U)D
C6BAX60(C,U)D
KG7TL120D45D 904734K
R410 Coil:
(C=Cased, U=Uncased)
PVC & CPVC Fittings
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A41
22/02/13

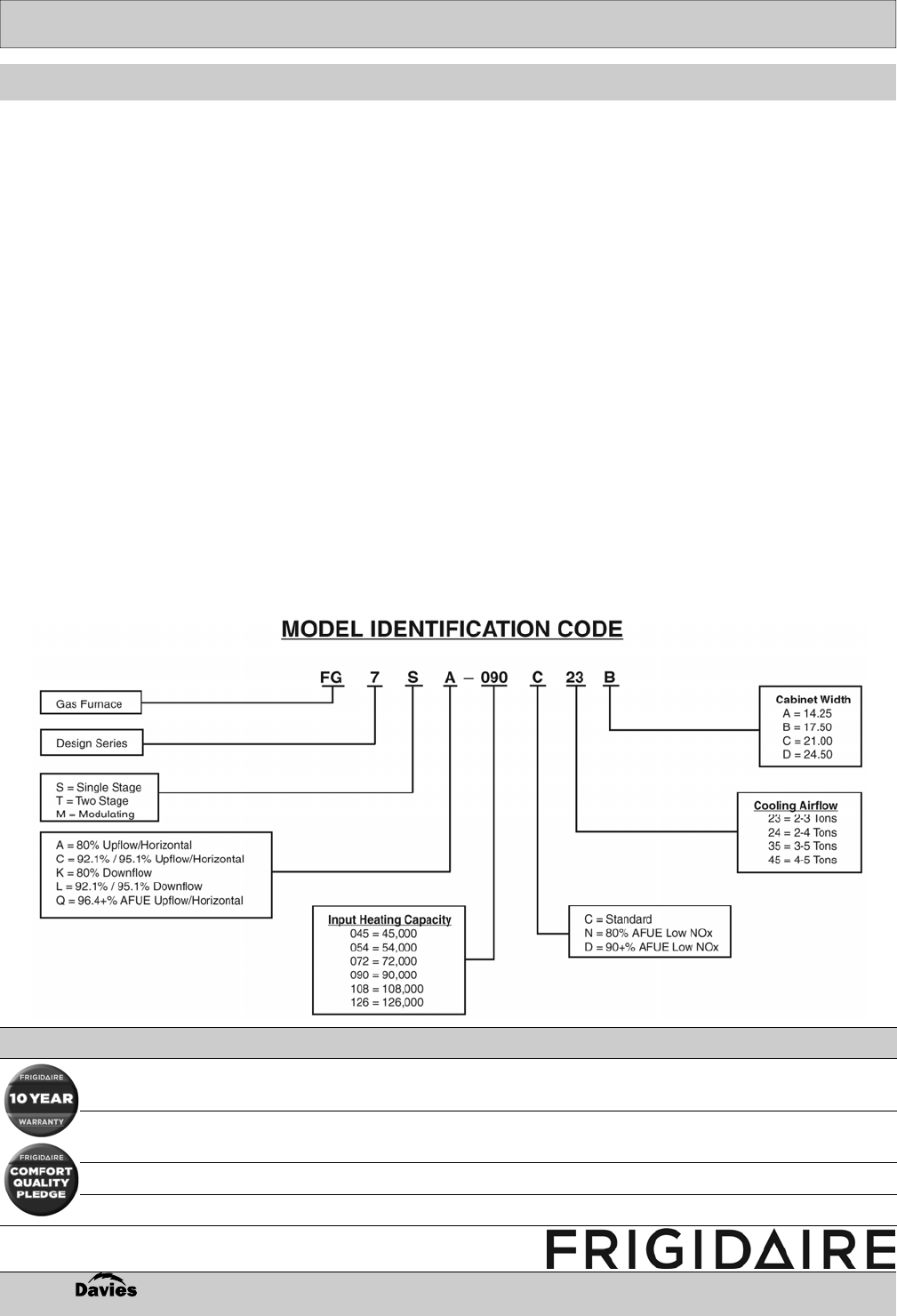

Frigidaire FG7 Series Gas Furnace Features & Benefits
• Category IV Venting System: May be vertically or horizontally vented using either a non-direct vent (1 pipe) or direct
vent (2 pipe) system
• 100% fired and tested: All units and each component are tested on the manufacturing line
• Low boy height: Easy to apply in low ceiling applications, work well with taller high SEER coils
• Best packaging in the industry: Unique corner post design assure product will arrive to the homeowner dent free
• Tubular primary heat exchanger: Heavy gauge aluminized steel heat exchanger and stainless steel secondary heat
exchanger assure a long life
• 30 second blower delay at start-up: Assures a warm duct temperature at furnace start-up. Adjustable blower settings
(60, 90, 120 and 180 seconds)
• 30 second post purge: Increases life of heat exchanger
• Hot surface igniter: Innovative application of a silicon nitride igniter. Utilizes proven Smartlite® technology
• Color coded wire harness: Designed to fit the components, all with quick connect fittings for ease of service
• High static blowers: All models equipped with high static blowers
• 90 second fixed cooling cycle blower off delay (TDR): Increases cooling performance when matched with a coil
• LP convertible: Simple burner orifice and regulator spring change for easy of convertibility
• Diagnostic lights for easy troubleshooting without counting flashes: Dedicated light for flame signal strength and 2
lights in combination to indicate all other fault codes
• Integrated control board: Incorporates connections for electronic air clear and humidifier
• Two piece door design: Enhances furnace appearance and uses captured screw to prevent loosing door screws
• Blower compartment: Sealed door to reduce air leakage and insulated for ultra quiet operation
• Sealed vestibule: Reduces burner and inducer sound levels
• Rounded corner jacket: Provides an "appliance appearance"
• CSA certified design
• 115V, 60Hz. Gas connections are 1/2" NPT
WARRANTY ON FRIGIDAIRE FURNACES
Warranty Details: Lifetime Heat Exchanger and 10 years on all parts when product is
registered, 20 years Heat Exchanger and 5 year parts when not registered
10 Year Comfort Quality Pledge: Replacement of the entire unit if Heat Exchanger fails within the first 10
years when registered, 1 year when not registered
Warranty Registration: Register your system within 60 days of installation
Extended Warranty Protection: Ask your Davies Rep for specific details on labor protection plans
C & L are Energy Star rated
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A42
22/04/11

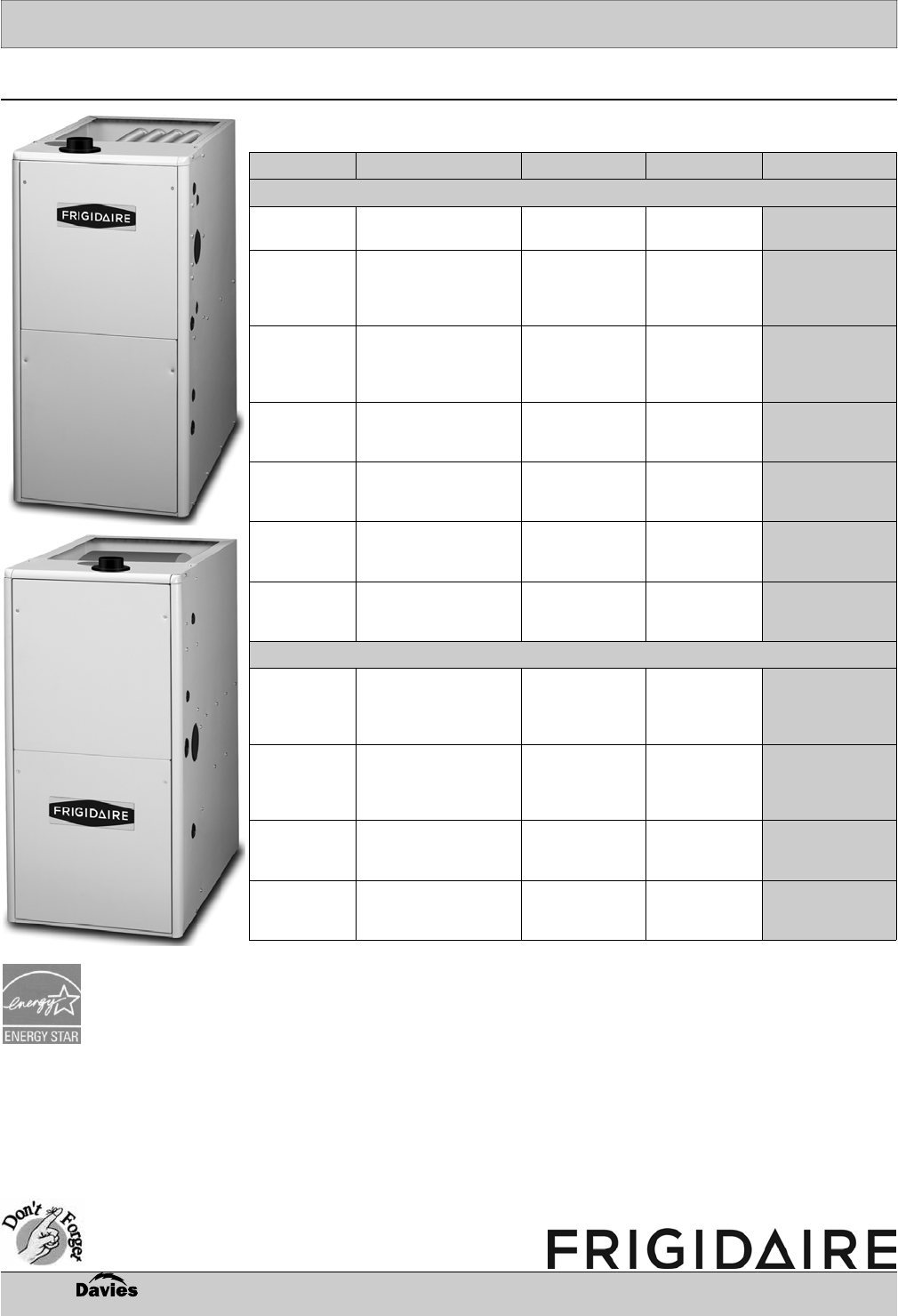

92+ AFUE Single Stage Gas Furnace (High Efficiency)
• Multi-speed direct drive blower designed to give a wide range of cooling capacities
• Switches on PCB, provide ultra easy motor speed selection
Input Btuh HP -Speed-Type-FLA R410 Coil Model Number Part Number
Upflow / Horizontal
38,000 1/3 - 4 - PSC - 4.80 C6BAX24(C,U)A
C6BAX30(C,U)A FG7SC038D23A 904639F
54,000 1/2 - 4 - PSC - 8.20
C6BAX24(C,U)B
C6BAX30(C,U)B
C6BAX35(C,U)B
C6BAX36(C,U)B
FG7SC054D24B 904640F
72,000 1/2 - 4 - PSC - 8.20
C6BAX24(C,U)B
C6BAX30(C,U)B
C6BAX35(C,U)B
C6BAX36(C,U)B
FG7SC072D24B 904641F
72,000 1/2 - 4 - PSC - 7.50
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
FG7SC072D35C 904642F
90,000 1.0 - 4 - PSC - 13.75
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
FG7SC090D35C 904643F
108,000 1.0 - 4 - PSC - 13.75
C6BAX42(C,U)D
C6BAX48(C,U)D
C6BAX60(C,U)D
FG7SC108D45D 904644F
120,000 1.0 - 4 - PSC - 13.75
C6BAX42(C,U)D
C6BAX48(C,U)D
C6BAX60(C,U)D
FG7SC120D45D 904645F
Downflow
54,000 1/2 - 4 - PSC - 8.20
C6BAX24(C,U)B
C6BAX30(C,U)B
C6BAX35(C,U)B
C6BAX36(C,U)B
FG7SL054D24B 904651F
72,000 1/2 - 4 - PSC - 8.20
C6BAX24(C,U)B
C6BAX30(C,U)B
C6BAX35(C,U)B
C6BAX36(C,U)B
FG7SL072D24B 904652F
90,000 1.0 - 4 - PSC - 7.50
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
FG7SL090D35C 904653F
120,000 1.0 - 4 - PSC - 13.75
C6BAX42(C,U)D
C6BAX48(C,U)D
C6BAX60(C,U)D
FG7SL120D45D 904654F
R410 Coil:
(C=Cased, U=Uncased)
PVC & CPVC Fittings
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A43
22/04/11

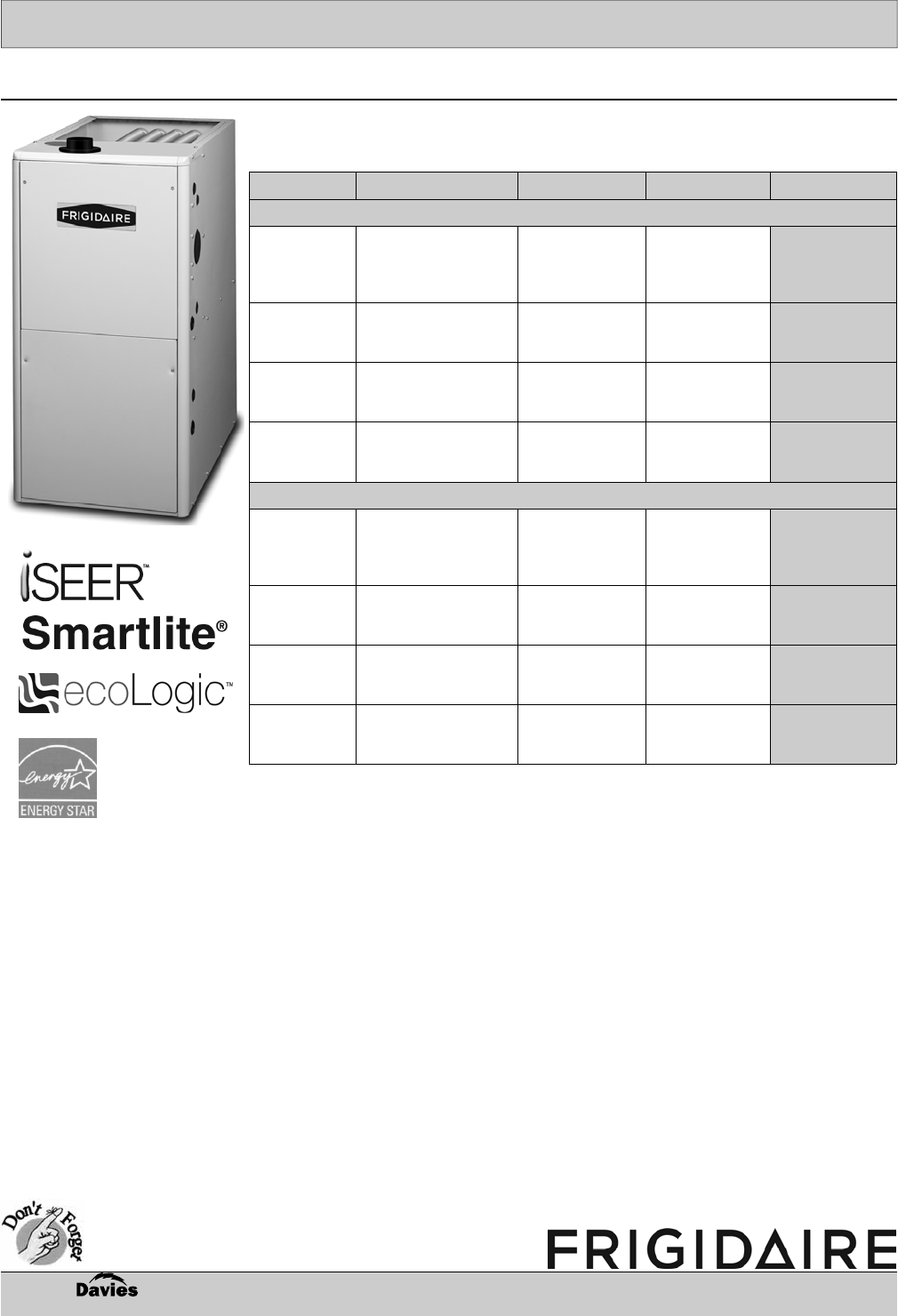

95+ AFUE Two Stage Gas Furnace (High Efficiency)
• iSEER energy efficient brushless DC (ECM) motor gives up to 1 SEER point
efficiency gain in cooling
• Two stage inducer optimizes efficiency on first stage heat and reduces sound levels
Input Btuh HP -Speed-Type-FLA R410 Coil Model Number Part Number
Fixed Speed Upflow / Horizontal
60,000 1/2 - FS - BLDC - 6.2
C6BAX24(C,U)B
C6BAX30(C,U)B
C6BAX35(C,U)B
C6BAX36(C,U)B
FG7TC060D24B 904727F
80,000 3/4 - FS - BLDC - 8.7
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
FG7TC080D35C 904728F
100,000 3/4 - FS - BLDC - 8.7
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
FG7TC100D35C 904729F
120,000 1.0 - FS - BLDC - 11.7
C6BAX42(C,U)D
C6BAX48(C,U)D
C6BAX60(C,U)D
FG7TC120D45D 904730F
Variable Speed Upflow / Horizontal
60,000 1/2 - VS - 6.2
C6BAX24(C,U)B
C6BAX30(C,U)B
C6BAX35(C,U)B
C6BAX36(C,U)B
FG7TC060DVB 904735F
80,000 3/4 - VS - 8.7
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
FG7TC080DVC 904736F
100,000 3/4 - VS - 8.7
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
FG7TC0100DVC 904737F
120,000 1.0 - VS - 11.7
C6BAX42(C,U)D
C6BAX48(C,U)D
C6BAX60(C,U)D
FG7TC120DVD 904738F
R410 Coil:
(C=Cased, U=Uncased)
PVC & CPVC Fittings
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A44
22/04/11

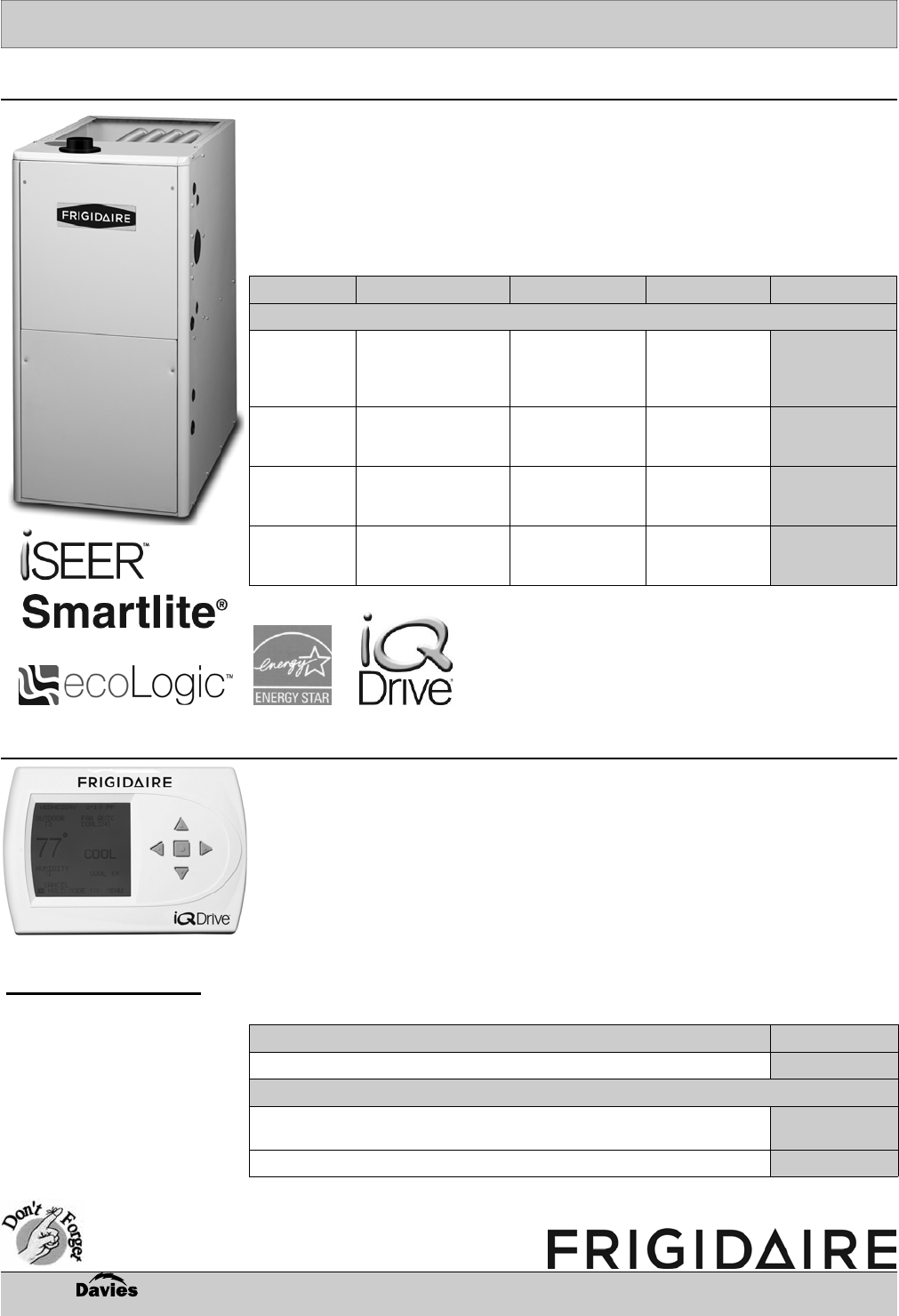

97+ AFUE iQ Drive® Modulating Gas Furnace (Ultra High Efficiency)
• iQ Drive® Modulating Heating Operation Includes:
- Modulating gas valve from 100% to 50% input in 5% increments
- Time proportioning modulation down to 15%
- Variable speed inducer and blower
• iQ Drive® thermostat provides modulation down to 15% and is required for furnace
operation
• iSEER energy efficient brushless DC (ECM) motor gives up to 1 SEER point
efficiency gain in cooling
Input Btuh HP -Speed-FLA R410 Coil Model Number Part Number
Fully Modulating, Variable Speed Upflow / Horizontal
60,000 1/2 - Variable - 6.2
C6BAX24(C,U)B
C6BAX30(C,U)B
C6BAX35(C,U)B
C6BAX36(C,U)B
FG7MQ060DVB 904743F
80,000 3/4 - Variable - 8.7
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
FG7MQ080DVC 904744F
100,000 3/4 - Variable - 8.7
C6BAX36(C,U)C
C6BAX37(C,U)C
C6BAX42(C,U)C
FG7MQ100DVC 904745F
120,000 1.0 - Variable - 11.7
C6BAX42(C,U)D
C6BAX48(C,U)D
C6BAX60(C,U)D
FG7MQ120DVD 904746F
• Customizable programming options for every day, weekdays, weekends or individ-
ual days
• On-board diagnostics alert when service or maintenance is needed
• Smart recovery gradually adjusts indoor temperatures for greater comfort
• Senses humidity and has a dehumidification mode that removes moisture quickly
• Communicates to various components within the iQ Drive® System and serves as
the main controller for an iQ Zone® System
• Auto changeover automatically switches the thermostat from heating to cooling
• No batteries required, settings are stored internally in the event of a power failure
• Two color backlight for easy viewing
• Energy saving features are customizable (temperature setbacks, heat pump/electric
heat or furnace changeover)
Description Part Number
iQ Drive® Controller - Complete System Monitor & Controller 920621F
Individually Shielded Wire, 30m (100')
2 Pair, 4 Conductor, 22 AWG Stranded (7x30) TC Conductors, 300V RMS 60ºC B8723
Optional Outdoor Sensor 920938
Accessories
iQ Drive® Controller & Accessories
IMPORTANT:
The iQ Drive® Furnace
must be controlled by the
iQ Drive® Controller.
This Controller requires
18-22 gauge stranded
wire with a grounded
shield when connecting
to furnace.
R410 Coil:
(C=Cased, U=Uncased)
PVC & CPVC Fittings
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A45
31/12/10

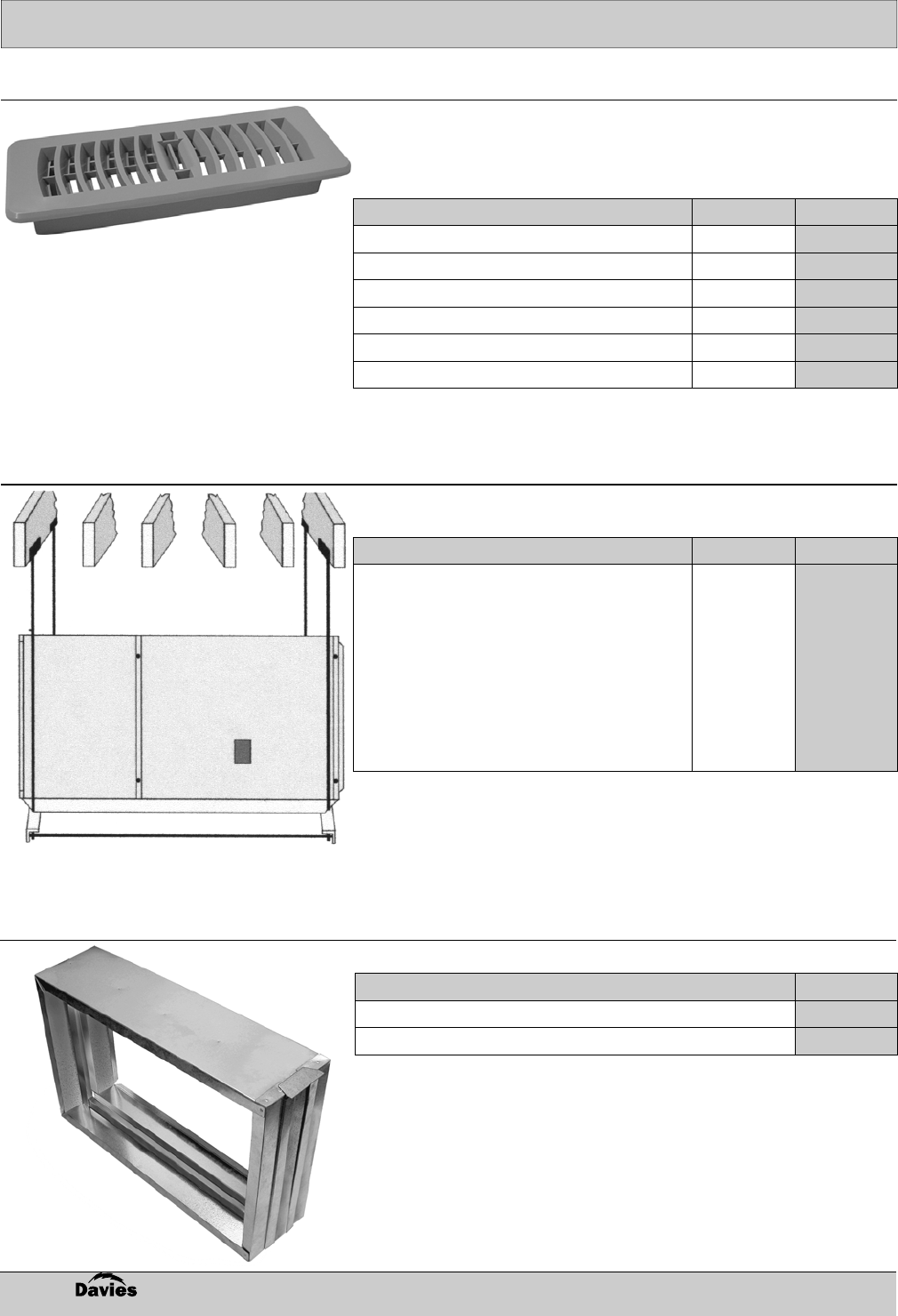

Floor Registers - Plastic
• Sleek modern look with rounded corners and blades
• Durable plastic construction, will not rust
• Smooth, quiet damper adjustment for desired level of air flow
• Easy to install, maintenance free
Description Part Number
3"x10" Register - White RF31003B
3"x10" Register - Taupe RF31028B
3"x10" Register - Brown RF31036B
Brand
Deflecto
Deflecto
Deflecto
4"x10" Register - White Deflecto RF41003B
4"x10" Register - Taupe Deflecto RF41028B
4"x10" Register - Brown Deflecto RF41036B
Horizontal Conversion Kit for Frigidaire "G6" Gas Furnaces
• For converting a 90+ upflow residential gas furnace to a horizontal
left or horizontal right position
Kit Includes Brand Part Number
Installation Instructions (#707796)
1/2" barbed fitting (#663841)
2" to 1/2" PVC reducer bushing (#663840)
2" PVC tee (#663115)
Tube, drain hard "J" - 5" x 2" (#663763)
Tube, soft - 10" (#663764)
Tube, soft - 50" (#663765)
Tube, high temp, grey - 17.5" (#263965)
Vinyl cap - 5/8" (#663723)
Vinyl cap - 1/2" (#663684)
Hose clamps (2) - 7/8" dia. (#668914)
Reducer - 3" to 2" (#663692)
Frigidaire 903568
Horizontal installation suspended in attic or crawl space
Filter Rack
• Comes with door
Filter Size Part Number
16" x 25" x 1" FR16251
20" x 25" x 1" FR20251
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnace Accessories
A45-1
15/02/13

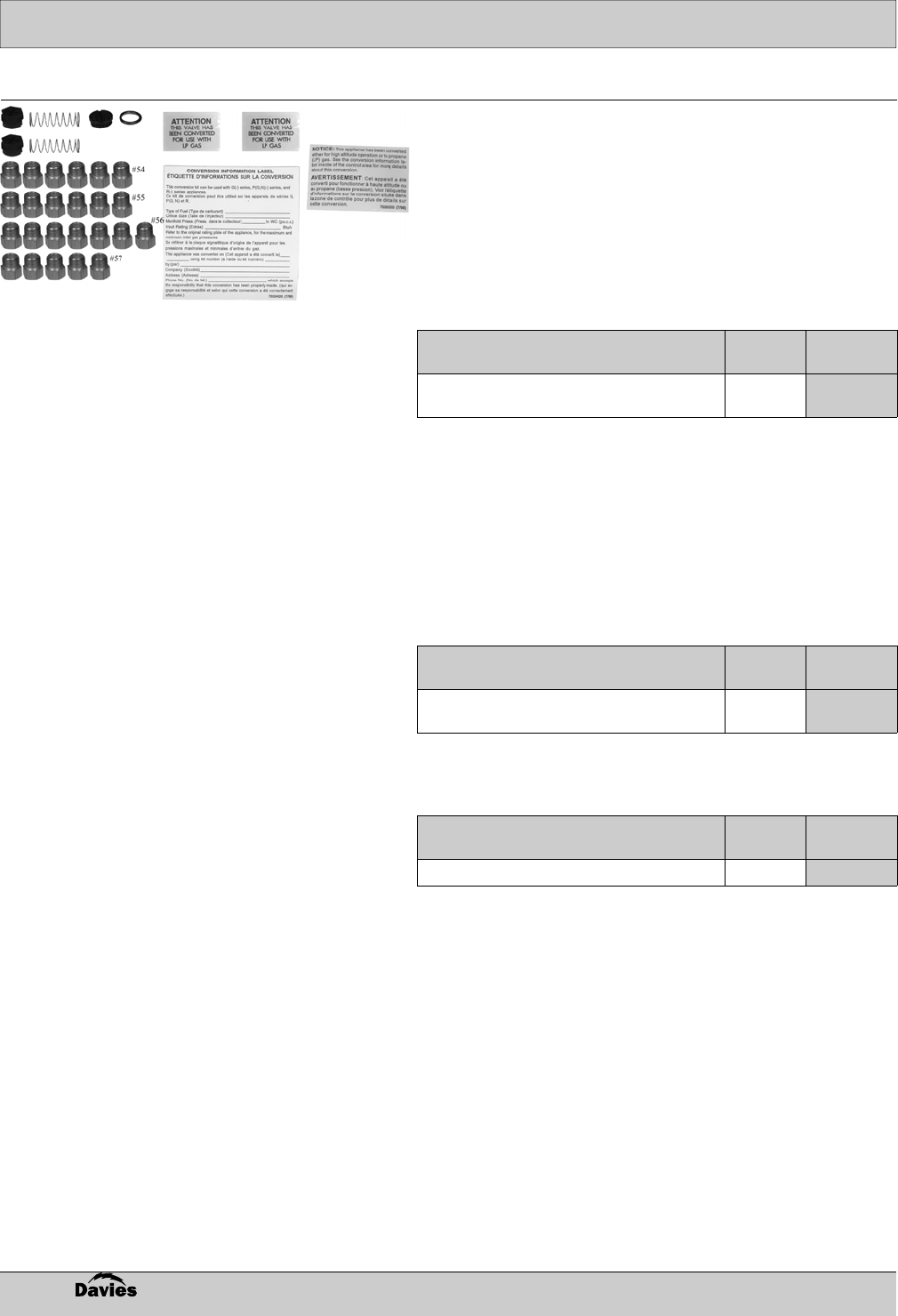

For G6 & L1 Series Furnaces
• Designed for Canadian installations. To convert a natural gas
furnace to LP/Propane gas for altitudes between 0 to 4,500
feet above sea level, the main gas orifice must be replaced.
For higher altitudes (between 2,000 & 4,500 feet above seal
level) the input must be de-rated by 10%. This can be done
by simply reducing the manifold pressure without changing
the gas orifices.
• Use on standard & slow opening models only
• Not for use with step regulator valves
Application Brand Part
Number
For use with G6 & L1 series gas furnaces using a
Honeywell Gas Valve Frigidaire 904091A
For G7 Series Furnaces
• Designed for Canadian installations to convert a natural gas
furnace to LP/Propane gas. Used for altitudes between 0 to
4,500 feet above sea level
• For altitudes between 0 and 1,999 feet, only the orifice needs
to be changed. For altitudes between 2,000 and 4,500 feet,
both the orifice and the regulator pressure need to be
changed.
Application Brand Part
Number
For use with G7 series gas furnaces using a
Honeywell Gas Valve Frigidaire 904915
For G7MQ Modulating Furnaces
Application Brand Part
Number
For use with G7MQ series gas furnaces Frigidaire 904950
LP Gas Conversion Kits
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A45-2
15/02/13
This Page Left
Intentionally
Blank
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A45-3
14/12/12

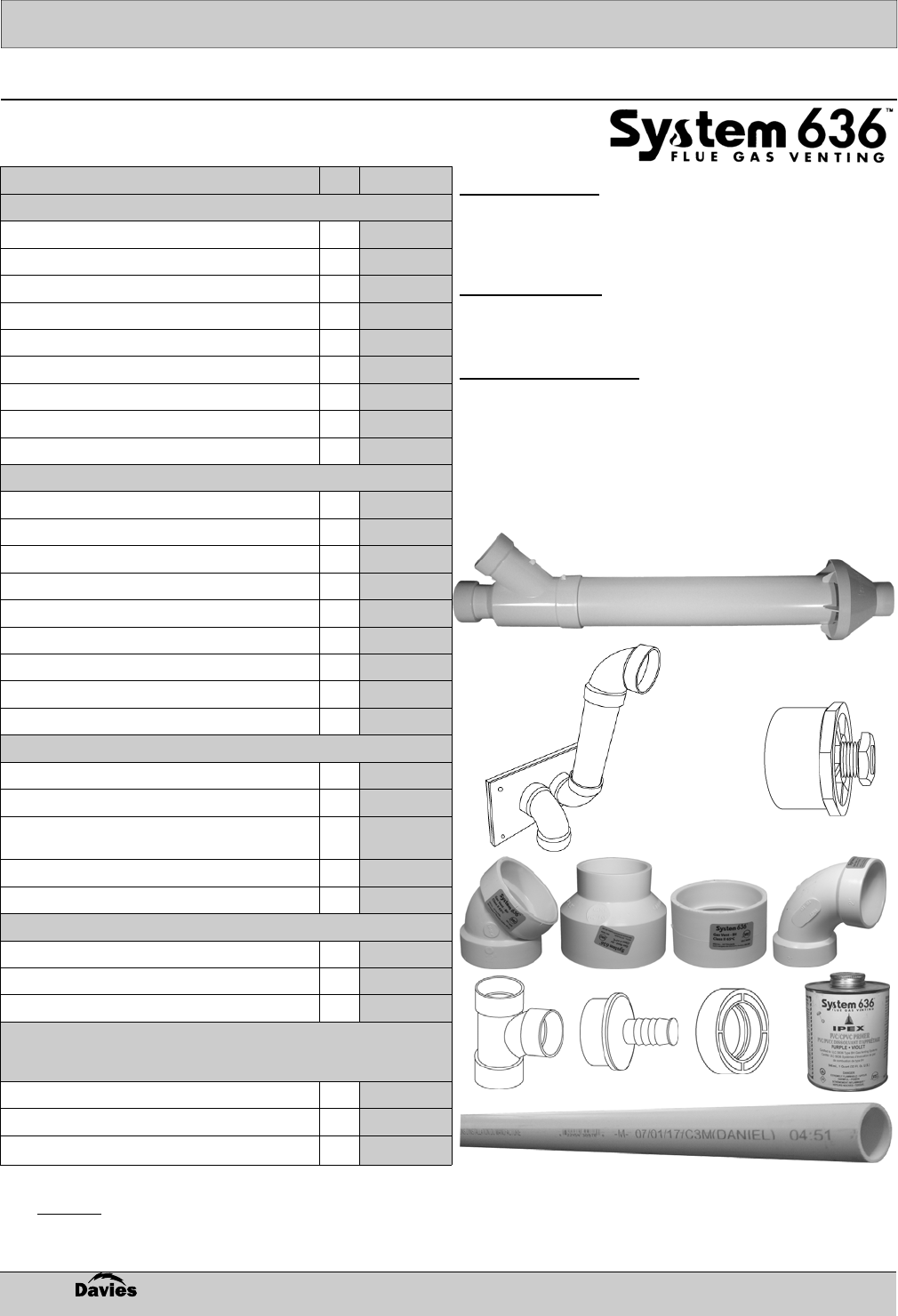

Flue Gas Venting System - System 636™ PVC
• Type BH Class IIA Vent: For use with gas fired appliances producing flue gases of 65oC or less
• Complete system fully certified to ULC S636
• White pipe with unique blue certification markings made to SCH 40 dimensions
NOTES:
1. Do Not interchange pipe, fittings or chemicals from different BH vent manufactures. Doing so will
void System636™ product certification and warranty.
2. Contractors must check local codes for proper venting
Description Case Part Number
2" Flue Gas Venting System
2" Concentric Vent Termination Kit (no vent screen) 3 196005
2" x 10' Pipe (Straight End) 10 194000
2" Coupling (HubxHub) 70 196352
2" 45o Elbow (HubxHub) 110 196242
2" 90o Street Elbow (SPxHub) 60 196232
2" 90o Long Elbow (HubxHub) 55 196122
2" 90o Extra Long Elbow (HubxHub) 40 196022
2" Sanitary Tee (HubxHubxHub) 35 196082
3" Flue Gas Venting System
3" Concentric Vent Termination Kit (no vent screen) 3 196006
3" x 10' Pipe (Straight End) 10 194001
3" Coupling (HubxHub) 60 196353
3" 45o Elbow (HubxHub) 25 196243
3" 90o Street Elbow (SPxHub) 15 196233
3" 90o Long Elbow (HubxHub) 23 196123
3" 90o Extra Long Elbow (HubxHub) 15 196023
3" Sanitary Tee (HubxHubxHub) 17 196083
Adapters & Other Components
3" x 2" Increaser Coupling (HubxHub) 45 196364
3" x 2" Reducer Tee (HubxHubxHub) 10 196822
2" x 1 1/2" Reducer Bushing (SPxHub)
Used with #196278 80 196282
1 1/2" x 1/2" Reducer Busing (SPxHose Barb) 80 196278
2" Testing Plug & Bushing Kit (SPxPlug) 10 196143
Cement
PVC Cement, Low VOC (1 pint/473ml) 12 196040
PVC Cement, Low VOC (1 quart/946ml) 12 196041
Transition Cement - To ABS Only (1 pint/473ml) 12 196044
Primer
Primer should be used when installing System636 products at temperatures
below 0oC
PVC/CPVC Purple Primer, Low VOC (1 pint/473ml) 12 196042
PVC/CPVC Clear Primer, Low VOC (1 pint/473ml) 12 196017
PVC/CPVC Purple Primer, Low VOC (1qt/946ml) 12 196043
2" Wall Termination Kit (no vent screen) 1 081216
3" Wall Termination Kit (no vent screen) 1 081219
Concentric Vent Kits
• These "pipe-in-pipe" kits allow for both exhaust and intake pipes to
penetrate the roof or side wall through only one hole and are
certified with mechanically fastened rain caps
• Screw/bolt assembly (included) for mechanically fastening the rain
cap can be easily removed for cleaning or maintenance
Wall Termination Kits
• For a traditional vent style, IPEX’s PVC Wall Termination Vent Kits
require only two small wall penetrations for intake and exhaust.
• Kits include a white finishing plate with a self sealing foam back
that can be screwed to the exterior wall.
Testing Plug & Bushing Kit
• Allows an inline access point for flue monitoring using fully certified
System 636 components. The kit consists of a 2" x 1/2" reducer
bushing (Spig x FPT) and a removable 1/2" MPT plug.
• May be installed in new installations or added to existing lines
when monitoring is required
• Bushing must be inserted in a 2" fitting socket
• May be used on vent lines in any diameter
• Certified for use only on IPEX System 636 flue gas vent lines.
Wall
Termination
Kit
Testing Plug
& Bushing
Kit
Concentric Vent Kit
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A45-4
14/12/12

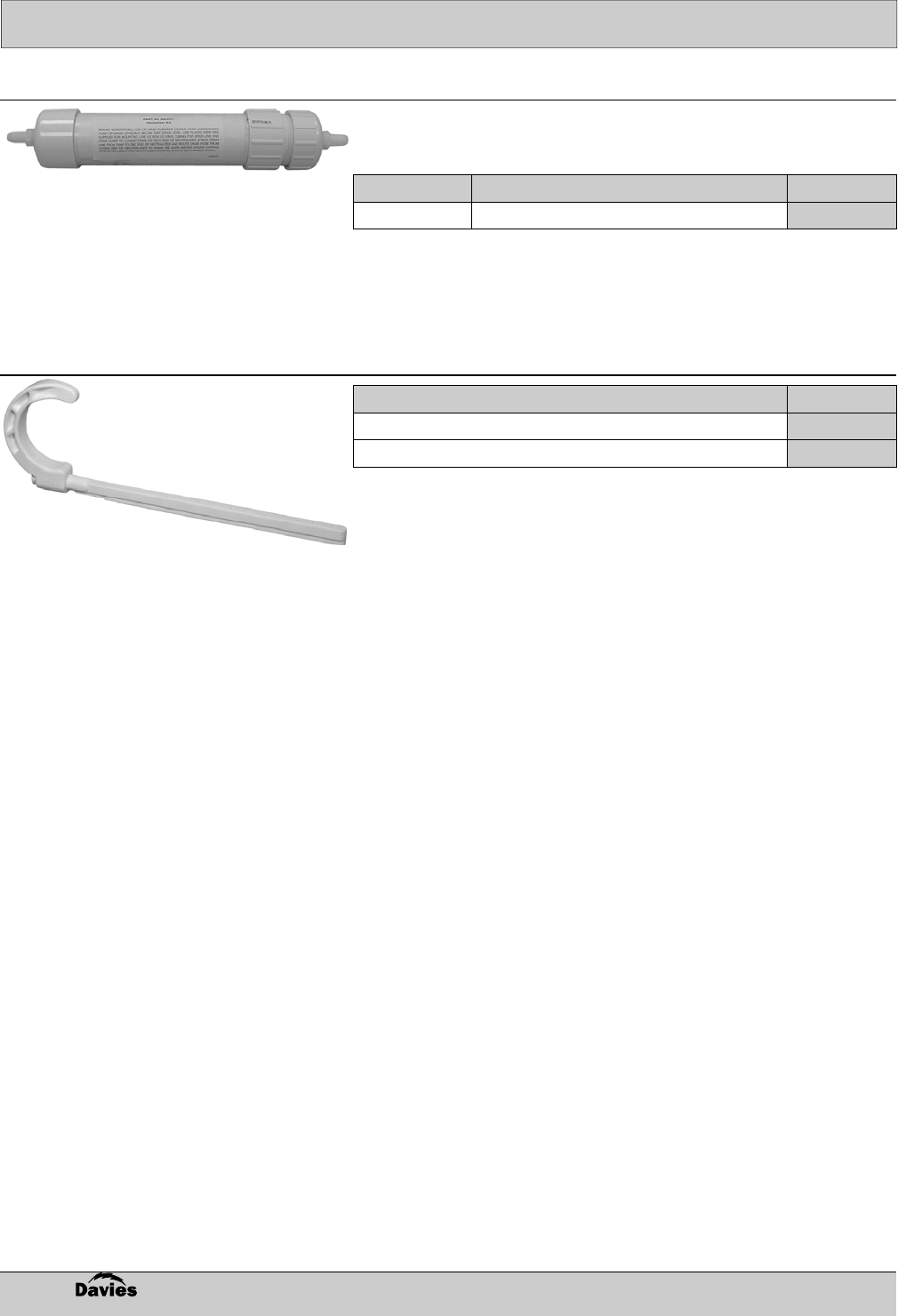

Description Part Number
2" x 7 1/2" DWV Swiveling J Hook (Plastic) 515-J2000
3" x 7 1/2" DWV Swiveling J Hook (Plastic) 515-J3000
J Hooks (Furnace Venting Accessory)
• Inline cartridge that will raise or neutralize the pH level of the
condensate water
• Limestone neutralizer material should be changed yearly
Condensate Water Neutralizer Kit For High Efficient Gas Furnaces
Description Includes Part Number
2" Inline cartridge 1/2" ID vinyl tubing, hose clamps & mounting ties 902377
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A45-5
11/06/10

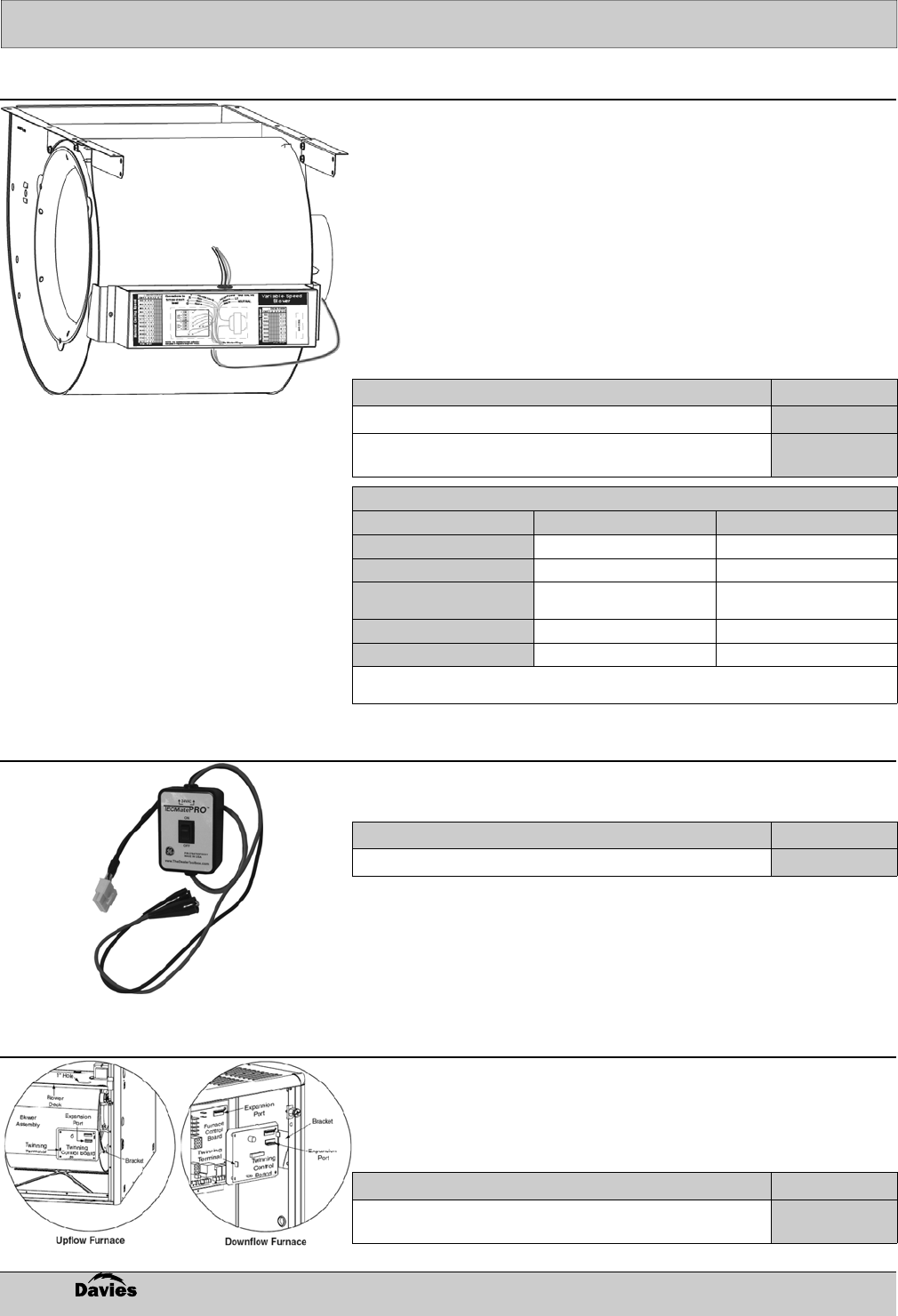

Variable Speed Blower Kits for Frigidaire "G6 & L1" Gas Furnaces
• 904231 kit fits all G6/L1 series gas furnaces with an "A" width
cabinet. May be configured for air conditioning/heat pump airflows
from 1 1/2 to 3 tons nominal capacity.
• 904075 kit fits all G6 (RA,RC,RK&RL) series gas furnaces with "B"
& "C" width cabinets. May be field configured for air conditioning/
heat pump airflows from 2 to 5 tons nominal capacity.
• Designed to maximize system efficiencies, improve air quality and
reduce sound levels
• Air conditioning and heat pump efficiencies up to 16 SEER and 8.5
HSPF
• ECM (electronically commutated motor) variable speed DC motor
allows for 12 selected cooling airflows and 8 heating airflows to
match any applications
• Extra low speed for "fan only" operation
• Extra quiet and smooth blower on and off cycles
• Warranty: Carries the balance of original equipment warranty
Description Part Number
Fits "B" & "C" Width Cabinets for G6: RA,RC,RK,RL series
(not suitable for "B" cabinet 1200 CFM applications) 904075
Fits "A" Width Cabinets for G6 & L1 series 904231
WARNING
Not for use with Model Numbers:
*G6RK096-12B & *GF1RK096-12B
Specifications
904231 904075
Nominal Blower Size 10" x 6" 11" x 10"
Maximum Motor HP 1/2 3/4
Motor Type Programmable
Variable Speed
Programmable
Variable Speed
Cooling CFM Range* 720 to 1240 720 to 1870
Heating Airflow Range* 550 to 1215 720 to 1800
* Airflow is held constant regardless of external static pressure within the HP and RPM
limits of the motor
Variable Speed Motor Tester - TECMate PRO™
• Designed to assist field service technicians by troubleshooting GE
ECM 2.3 motors independently of the HVAC system
Description Part Number
TECMate Pro™ Variable Speed Motor Tester 904232
Twinning Kit For G7 Single Stage Gas Furnaces
• Provides the capability to combine the operation of two single stage
gas furnaces with PSC motors (not for use with 2 stage, modulating or
variable speed blower models)
• Twinning function not backwards compatible with furnaces manufac-
tured prior to June 2009
Description Part Number
G7 Twinning Kit For Single Stage Gas Furnaces Manufactured After
June 2009 920919
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A45-6
06/09/13
This Page Left
Intentionally
Blank
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A45-7
18/02/11

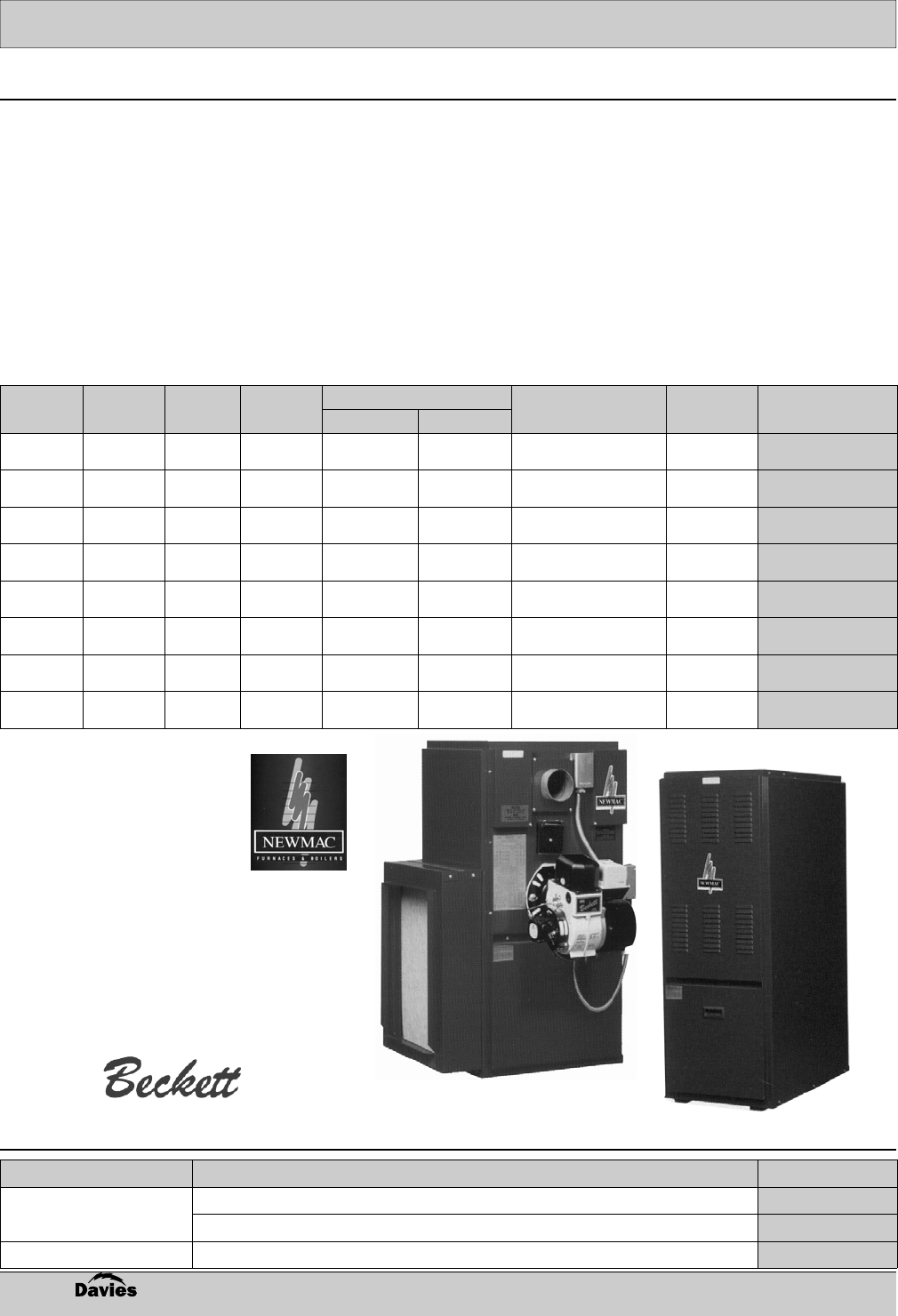

Oil-Fired Forced Air Furnaces With Burner
8010050-3B (LFR) 5010035 (NH3)
Description Specifications Part Number
Hago Nozzles
Capacity (USgal/hr): 0.50 Spray Angle: 45° - B 21566108
Capacity (USgal/hr): 0.55 Spray Angle: 45° - B 21566109
Blower Unit (less Motor) Bore: 1/2" Fan: 10" dia. Rotation: CW 2040116T
Replacement Parts For 8010050-3B (LFR80) Furnace With Beckett AFG Burner
Davies also stocks a selection
of Beckett Burners.
Call Davies Pros On Controls
for proper application.
Description Flue Btuh
Output
AC Rating
(tons)
Direct Drive Blower Motor Burner Brand Part Number
(Model Number)
HP Speed
Highboy Front / Rear 81,000 3 1/3 4 Beckett AFG Newmac 8010050-3B*
(LFR80)
Highboy Front / Rear 81,000 3 1/3 4 Beckett AFG
Pre & Post Purge Newmac 8010050-3BP*
(LFR)
Highboy Front / Rear 81,000 3 1/3 Variable
Speed Beckett AFG Newmac 8010081-3B*
(LFR-VSM)
Highboy Front / Rear 81,000 3 1/3 Variable
Speed
Beckett AFG
Pre & Post Purge Newmac 8010081-3BP*
(LFR-VSM)
Lowboy Front 118,000 3.5 1/2 4 Beckett AFG Newmac 8010033DD-3B
(NLF118)
Lowboy Rear 77,000 3.5 1/2 4 Beckett AFG Newmac
8010027DD-3B*
(NL2)
Highboy Top 101,000 3 1/2 4 Beckett AFG Newmac 5010035
(NH3-101)
Highboy Front / Rear 81,000 3 1/3 4 F3 Riello Newmac 8010050-3*
(LFR)
* Energy Star Rated
• 80+ AFUE
• Warranty: Limited lifetime on 14 gauge heat exchanger; 1 year parts
• LFR Models: Chamber-less unit is designed for compact installations requiring front or rear flue. The unit is approved
for chimney or balanced flue venting and is ideal for electric conversions. The large filter rack can be placed on either
side, bottom or rear
• LFR-VSM Models: With the Newmac Ultratech™ Motor Control. This system incorporates the furnace, control
board, motor & blower. The 24VAC powered board uses a standard external HVAC transformer, is air conditioning
ready and has LED indication and diagnostic output.
• NLF Model: For traditional replacement or new home construction requiring front flue
• NL2 Model: For traditional replacement or new home construction requiring rear flue
• NH3 Model: Vestibuled cabinet is approved for closet clearances
• All Pre & Post Purge Burners can be used with a Sealed Venting System (SVS). This system allows direct
venting without chimneys. Required for installation: Sealed Venting Unit, Oil Flex Vent & Air Duct.
Davies Supply Group Ltd.
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
(403) 244-2161 (403) 381-7707 (306) 933-2433
Furnaces
A45-8
15/01/10

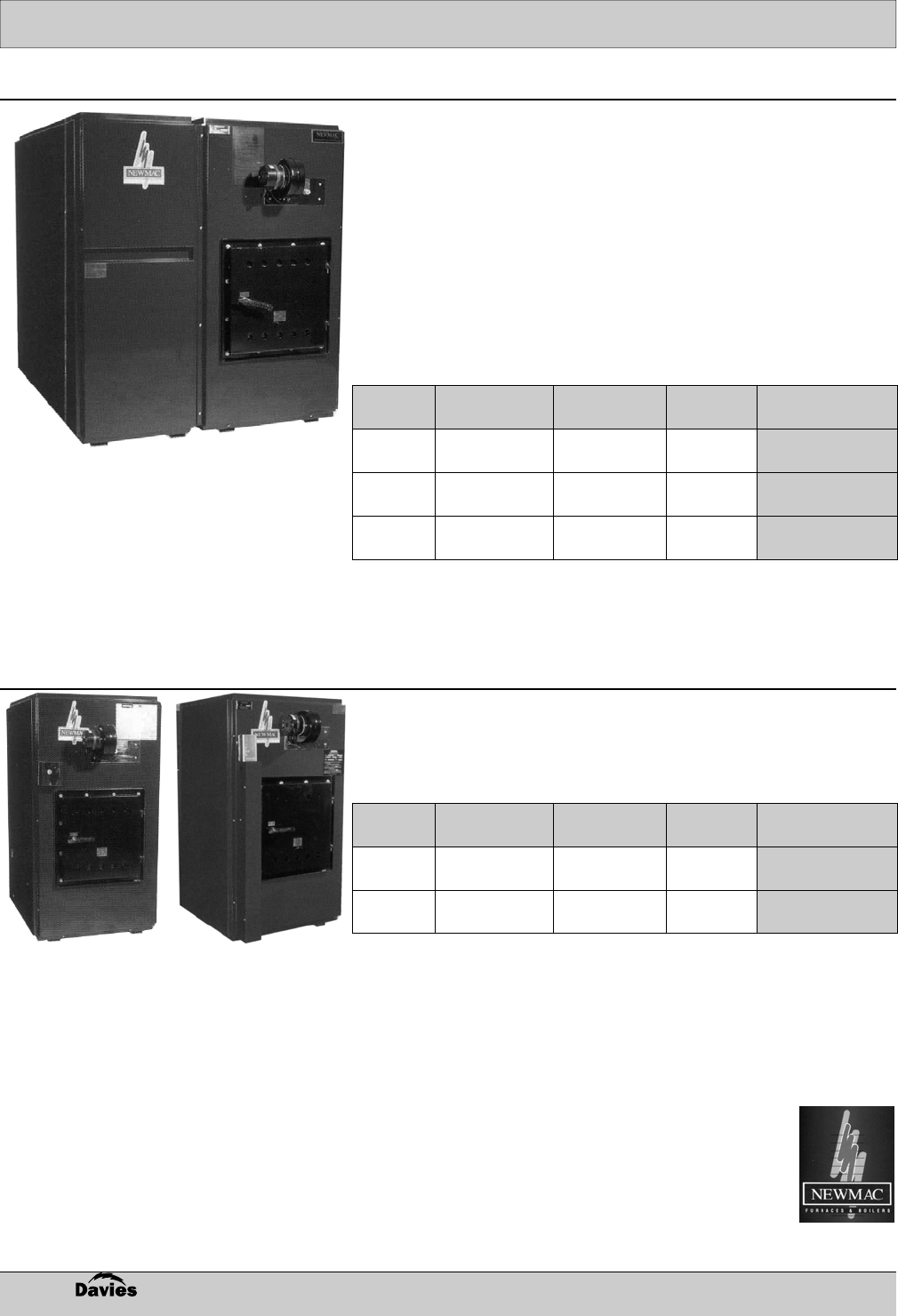

Combination Oil/Gas & Wood Furnace With Beckett AFG Burner
• Separate combustion chamber for oil/gas
• Extra large brick lined firebox
• Pre-heated combustion air is introduced by a thermostatically con-
trolled draft system
• Disposable air filters
• Warranty: 10 year limited on the heat exchanger
• CL85/95 Model: Automatic switching from wood to oil
• CL86/96C Model: Automatic switching from wood to oil, separate
thermostats & large fire door. Burns wood without grates for better
control and efficiency.
• CL86/96G Model (Wood/Oil/Coal): Where wood or coal is avail-
able, this model gives the ultimate conservation choice. Large firebox
and firedoor with shaker grates for coal.
Wood Only Furnaces
• WA0 Model: Is a wood add-on furnace designed for operation in
conjunction with an existing residential oil furnace system with a fir-
ing rate of .75 gph to 1.10 gph. 10 year limited warranty.
• WB100 Model: Can be used alone or in conjunction with an existing
residential system. 10 year limited warranty on the heat exchanger.
8010024G 8010001
CFM Btuh
Output
Blower
Motor Brand Part Number
(Model Number)
900/1000 82,000/94,000 1/3 HP Newmac 8010012-2B
(CL85/95)
1200/1200 86,000/ 96,000 1/3 HP Newmac 8010015-2B
(CL86/96C)
1200/1200 86,000/ 96,000 1/3 HP Newmac 8010014-2B
(CL86/96G)
CFM Btuh
Output
Blower
Motor Brand Part Number
(Model Number)
1200 100,000 - Newmac
8010024G
(WA0)
1200 100,000 1/2 HP Newmac 8010001
(WB100)

Navigation menu
