Front Electronics CM00080 PS4 Chat Boost User Manual CM PS4 Chat Boost EN Manual7 ai

Shenzhen Front Electronics Co., Ltd. PS4 Chat Boost CM PS4 Chat Boost EN Manual7 ai

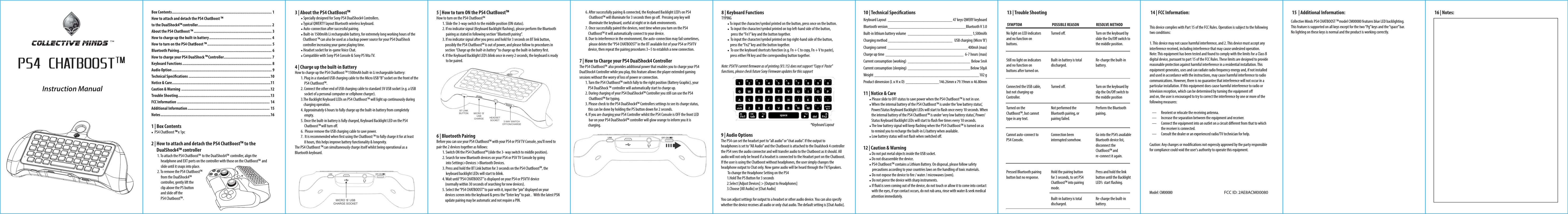

User Manual

Instruction ManualPS4 CHATBOOSTTM Box Contents................................................................................................ 1How to attach and detach the PS4 ChatBoost TM to the DualShock4TM controller....................................................................... 2About the PS4 ChatBoost TM ........................................................................... 3How to charge up the built-in battery............................................................ 4How to turn on the PS4 ChatBoost TM .............................................................. 5Bluetooth Pairing......................................................................................... 6How to charge your PS4 DualShock TM Controller.............................................. 7Keyboard Functions...................................................................................... 8Audio Option................................................................................................ 9Technical Specications ...............................................................................10Notice & Care...............................................................................................11Caution & Warning ......................................................................................12Trouble Shooting.........................................................................................13FCC Information ......................................................................................... 14Additional Information............................................................................... 15Notes..........................................................................................................161 | Box Contents● PS4 ChatBoost TM x 1pc2 | How to attach and detach the PS4 ChatBoostTM to the DualShock4TM controller1. To attach the PS4 ChatBoostTM to the DualShock4TM controller, align the headphone and EXT ports on the controller with those on the ChatBoostTM and slide until it snaps into place.2. To remove the PS4 ChatBoostTM from the DualShock4TM controller, gently lift the clip above the PS button and slide o the PS4 ChatboostTM .3 | About the PS4 ChatBoostTM● Specially designed for Sony PS4 DualShock4 Controllers.● Typical QWERTY layout Bluetooth wireless keyboard.● Auto-connection after successful pairing.● Built-in 1500mAh Li rechargeable battery, for extremely long working hours of the ChatBoost TM can also be used as a backup power source for your PS4 DualShock controller increasing your game playing time.● Headset socket for in-game Voice Chat.● Compatible with Sony PS4 Console & Sony PS Vita TV.4 | Charge up the built-in BatteryHow to charge up the PS4 ChatBoost TM 1500mAh built-in Li rechargeable battery:1. Plug in a standard USB charging cable to the Micro USB “B” socket on the front of the PS4 ChatBoostTM.2. Connect the other end of USB charging cable to standard 5V USB socket (e.g. a USB socket of a personal computer or cellphone charger).3.The Backlight Keyboard LEDs on PS4 ChatBoost TM will light up continuously during charging operation.4. Approximately 6 hours to fully charge up the built-in battery from completely empty.5. Once the built-in battery is fully charged, Keyboard Backlight LED on the PS4 Chatboost TM will turn o.6. Please remove the USB charging cable to save power.7. It is recommended when rst using the ChatBoost TM to fully charge it for at least 8 hours, this helps improve battery functionality & longevity.The PS4 ChatBoost TM can simultaneously charge itself whilst being operational as a Bluetooth keyboard.5 | How to turn ON the PS4 ChatBoostTMHow to turn on the PS4 ChatBoostTM1. Slide the 3-way switch to the middle position (ON status).2. If no indicator signal (Keyboard Backlight ashing), please perform the Bluetooth pairing as stated in following section “Bluetooth pairing”.3. If no indicator signal after you press and hold for 3 seconds on BT link button, possibly the PS4 ChatBoostTM is out of power, and please follow to procedures in section “Charge up the built-in battery” to charge up the built-in battery rst.4. If the Keyboard Backlight LED’s blink once in every 2 seconds, the keyboard is ready to be paired.6. After successfully pairing & connected, the Keyboard Backlight LED’s on PS4 ChatBoostTM will illuminate for 3 seconds then go o. Pressing any key will illuminate the keyboard, useful at night or in dark environments.7. Once successfully paired the devices, next time when you turn on the PS4 ChatBoostTM it will automatically connect to your device.8. Due to interference in the environment, the auto-connection may fail sometimes, please delete the “PS4 CHATBOOST” in the BT available list of your PS4 or PSVTV device, then repeat the pairing procedures 3~5 to establish a new connection.7 | How to Charge your PS4 DualShock4 ControllerThe PS4 ChatBoostTM also provides additional power that enables you to charge your PS4 DualShock4 Controller while you play, this feature allows the player extended gaming sessions without the worry of loss of power or connection.1. Turn the PS4 ChatBoostTM switch fully to the right position (Battery Graphic), your PS4 DualShock TM controller will automatically start to charge up.2. During charging of your PS4 DualShock4TM Controller you still can use the PS4 ChatBoostTM for typing.3. Please check to the PS4 DualShock4TM Controllers settings to see its charge status, this can be done by holding the PS button down for 2 seconds.4. If you are charging your PS4 Controller whilst the PS4 Console is OFF the front LED bar on your PS4 DualShock4TM controller will glow orange to inform you it is charging. 8 | Keyboard FunctionsTYPING● To input the character/symbol printed on the button, press once on the button.● To input the character/symbol printed on top left-hand side of the button, press the “Fn1” key and the button together.● To input the character/symbol printed on top right-hand side of the button, press the “Fn2” key and the button together.● To use the keyboard shortcuts function (e.g. Fn + C to copy, Fn + V to paste), press either FN key and the corresponding button together.Note: PSVTV current rmware as of printing (V3.15) does not support “Copy n’ Paste” functions, please check future Sony Firmware updates for this support *Keyboard Layout10 | Technical SpecicationsKeyboard Layout _____________________________ 47 keys QWERY keyboardBluetooth version___________________________________Bluetooth V 3.0Built-in lithium battery volume _____________________________1,500mAhCharging method_____________________________ USB charging (Micro ‘B’)Charging current ____________________________________400mA (max)Charge up time ___________________________________ 6-7 hours (max)Current consumption (working) ____________________________ Below 5mACurrent consumption (sleeping) ____________________________Below 50μAWeight _______________________________________________102 gProduct dimension (L x H x D) _______________146.26mm x 79.19mm x 46.80mm11 | Notice & Care● Please slide to OFF status to save power when the PS4 ChatBoost TM is not in use. ● When the internal battery of the PS4 ChatBoost TM is under the ‘low battery status’, Power/Status Keyboard Backlight LEDs will start to ash once every 10 seconds. When the internal battery of the PS4 ChatBoost TM is under ‘very low battery status’, Power/ Status Keyboard Backlight LEDs will start to ash ve times every 10 seconds.● The low battery signal will keep ashing when the PS4 ChatBoost TM is turned on as to remind you to recharge the built-in Li battery when available.● Low battery status will not ash when switched o. 12 | Caution & Warning● Do not put metal objects inside the USB socket.● Do not disassemble the device.● PS4 ChatBoost TM contains a Lithium Battery. On disposal, please follow safety precautions according to your countries laws on the handling of toxic materials.● Do not expose the device to re / water / microwaves (oven).● Do not pierce the device with sharp instruments. ● If uid is seen coming out of the device, do not touch or allow it to come into contact with the eyes, if eye contact occurs, do not rub area, rinse with water & seek medical attention immediately.6 | Bluetooth PairingBefore you can use your PS4 ChatBoostTM with your PS4 or PSV TV Console, you’ll need to pair the 2 devices together as follows:1. Switch ON the PS4 ChatBoostTM (slide the 3- way switch to middle position).2. Search for new Bluetooth devices on your PS4 or PSV TV Console by going into Settings>Devices >Bluetooth Devices.3. Press and hold the BT Link button for 3 seconds on the PS4 ChatBoostTM, the keyboard backlight LEDs will start to blink.4. Wait until “PS4 CHATBOOST” is displayed on your PS4 or PSVTV device (normally within 30 seconds of searching for new devices).5. Select the “PS4 CHATBOOST” to pair with it, input the “pin” displayed on your devices screen into the keyboard & press the “Enter key” to pair. . With the latest PSN update pairing may be automatic and not require a PIN.13 | Trouble ShootingSYMPTOM POSSIBLE REASON RESOLVE METHOD14 | FCC Information:No light on LED indicators and no function on buttons.Still no light on indicators and no function on buttons after turned on.Connected the USB cable, but not charging up Controller.Turned on the ChatBoostTM, but cannot type in any text.Cannot auto-connect to PS4 Console.Pressed Bluetooth pairing button but no response.Turned o.Built-in battery is total discharged.Turned o.Not performed the Bluetooth pairing, or pairing failed.Connection been interrupted somehow.Hold the pairing button for 3 seconds, to set PS4 ChatBoostTM into pairing mode.Built-in battery is total discharged.Turn on the keyboard by slide the On/O switch to the middle position.Re-charge the built-in battery.Turn on the keyboard by slip the On/O switch to the middle positionPerform the Bluetooth pairing.Go into the PS4’s available Bluetooth device list, disconnect the ChatBoostTM and re-connect it again.Press and hold the link button until the Backlight LED’s start ashing.Re-charge the built-in battery.This device complies with Part 15 of the FCC Rules. Operation is subject to the followingtwo conditions:1. This device may not cause harmful interference, and 2. This device must accept anyinterference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. Thisequipment generates, uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment oand on, the user is encouraged to try to correct the interference by one or more of thefollowing measures:— Reorient or relocate the receiving antenna.— Increase the separation between the equipment and receiver.— Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.— Consult the dealer or an experienced radio/TV technician for help.Caution: Any changes or modications not expressly approved by the party responsiblefor compliance could void the user's authority to operate this equipment.FCC Radiation Exposure StatementThis equipment complies with FCC RF radiation exposure limits set forth for anuncontrolled environment. This equipment should be installed and operated with aminimum distance of 20 centimeters between the radiator and your body. Model: CM00080 FCC ID: SQOCM0008015 | Additional Information:Collective Minds PS4 CHATBOOST TM model CM00080 features blue LED backlighting.This feature is supported on all keys except for the two “Pg” keys and the “space” bar. No lighting on these keys is normal and the product is working correctly.16 | Notes:9 | Audio OptionsThe PS4 can set the headset port to “all audio” or “chat audio”. If the output toheadphones is set to “All Audio” and the Chatboost is attached to the Dualshock 4 controllerthe PS4 sees the audio connector and will transfer audio to the Chatboost as it should. Allaudio will not only be heard if a headset is connected to the Headset port on the Chatboost.If the user is using the Chatboost without headphones, the user simply changes theheadphone output to Chat only. Now game audio will be heard through the TV/Speakers. To change the Headphone Setting on the PS41.Hold The PS Button for 3 seconds2.Select [Adjust Devices] > [Output to Headphones]3.Choose [All Audio] or [Chat Audio] You can adjust settings for output to a headset or other audio device. You can also specifywhether the device receives all audio or only chat audio. The default setting is [Chat Audio].FCC ID: 2AE8ACM00080
