UserManual





Model:FSL200LaserFumeExtractor



WWW.FSLASER.COM



1

1. ProductOverview



This high quality fume extractor featuring low noise brushless motor         

technology is designed for capturing dust particles and removing odors         

when cutting or engraving with the Full Spectrum Laser line of laser           

cutters. Use only OEM replacement filters from Full Spectrum Laser in          

thismachinetomaintaintopperformanceandwarranty.

2. UnpackingInspection

Please check carefully to ensure that the following listed parts are          

included. If there are any missing or damaged items, please contact          

customerservice. 



NameofParts

Qty

Remarks

MainUnit

1



PowerCord

1



4”Hose

1



TopPreFilter

1

Installed.

HEPAFilter

Cartridge

1

Installedinmainunit

ActivatedCarbon

LowerFilter

Cartridges

4

Installedinmainunit







 

FullSpectrumLaserFSL200UserManual,2016,Rev.A

2

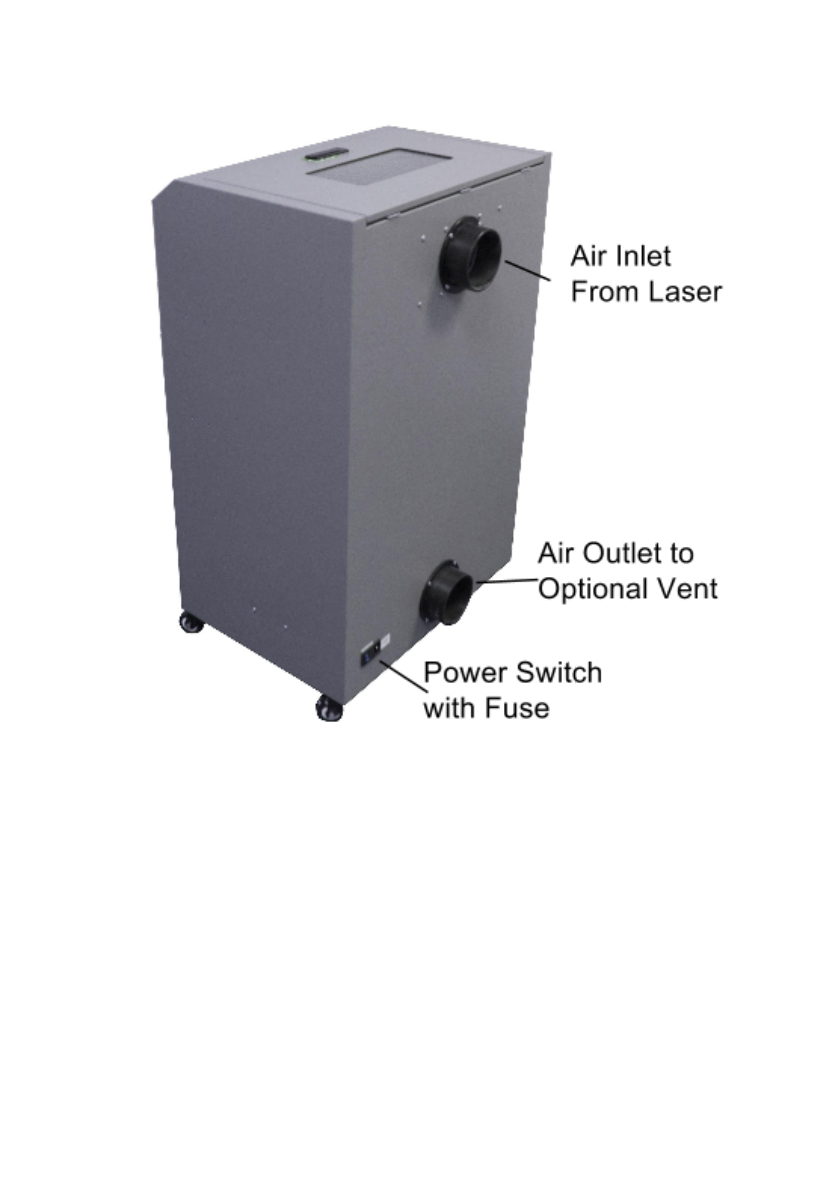

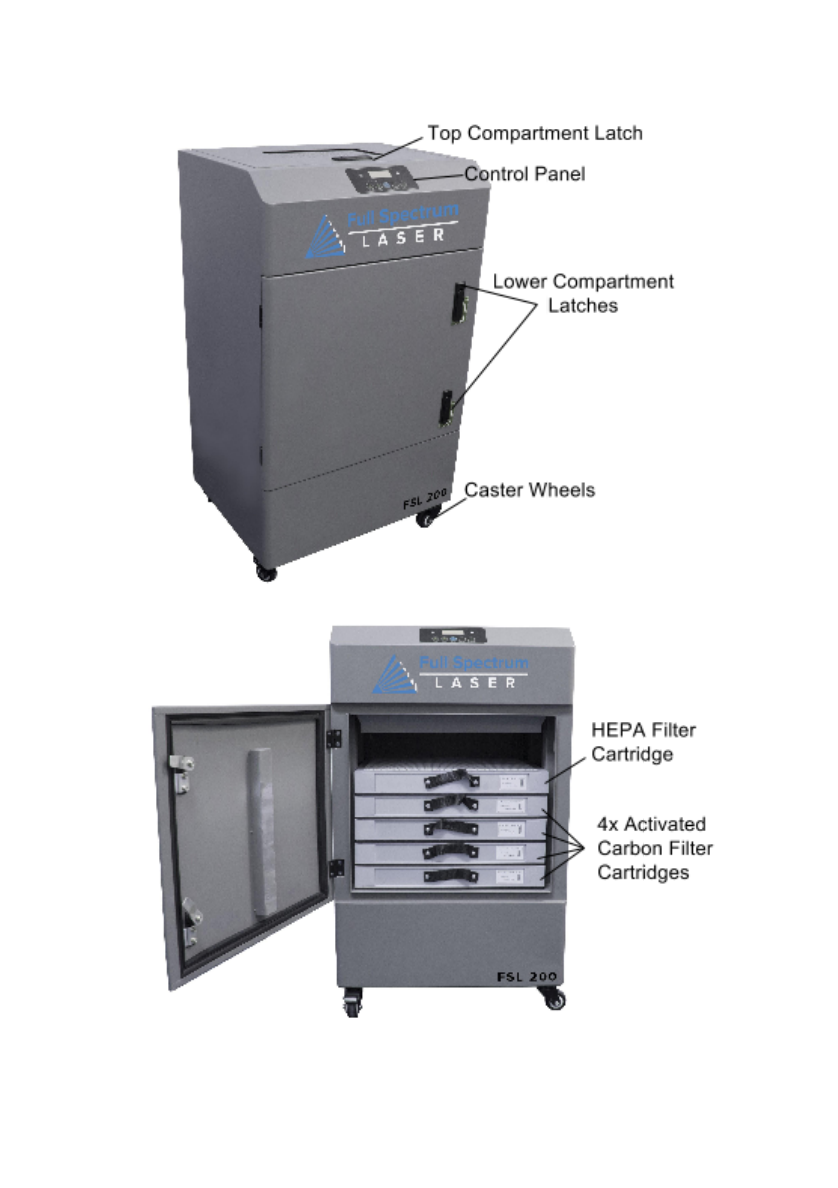

3. UnitComponents







FullSpectrumLaserFSL200UserManual,2016,Rev.A

3























FullSpectrumLaserFSL200UserManual,2016,Rev.A

4





4. Specifications  



ModelFSL200Specifications

AirInletSize

4”duct

InputVoltage

AC110V

MaximumPower

450W

Noise

＜

70dB

LengthofDuct

Ø100mmx3m

TypicalFlowRate

295CFM

DimensionsofMainUnit

21.5”×16.5”×36.25”

Weight

132lbs



5. Installation&UseInstructions



TheFSL200fumeextractorfeatures2separated

compartments:atopcompartmentcontainingtheTopPrefilter

totraplargeparticlesandabottomcompartmentcontainingthe

HEPAandActivatedCarbonfiltercartridges.



5.1 MaintenanceofTopPrefilterandTopCompartment

Airflowsfromthetopairinletdownwardthroughthroughthe

topcompartmentcontainingtheTopPrefilterdownintothe

bottomcompartment.Mostofthelargeparticlesaretrappedin

theuppercompartmentanditmustbecleanedregularly.Use

theglasswindowtocheckforcontaminants.Followthesteps

belowtocleanandmaintaintheinletboxwhencontaminants

areobserved:



FullSpectrumLaserFSL200UserManual,2016,Rev.A

5

1. Pull the twist lock upward, and rotate clockwise to the         

"OPEN"positiontoopenthetopcompartment.

2. CleanorreplacetheTopPrefilter.

3. Vacuum the inside of the top compartment to remove        

anyaccumulatedparticles.

The top compartment should be cleaned periodically (at least        

weekly)topreventprematurecloggingofthefilteringsystem.



5.2 LowerFilterCompartment

1. The bottom compartment contains 1x HEPA Filter and       

4xActivatedCarbonFiltercartridges.

2. Pull the two twist locks upward and rotate clockwise to         

the"OPEN"positiontoopenthefrontgate.

3. Grasp the handle on the top cartridge and pull out each          

ofthefilterelementsonebyone.

4. After replacement, put the elements back in sequence       

frombottomtotoplayerbylayer.



5.3 SuctionDuctHoseInstallation

Remove the hose from the package, and attach one end of the           

top 4” air inlet duct of the machine and the other end to your             

Full Spectrum Laser machine’s outlet duct. Optionally you may        

connect another hose (not included) to the bottom air outlet port          

to vent the air outside. It is not normally not necessary to vent            

theairoutside.



Donotintroduceabendradiusofmorethan10”onthehose.



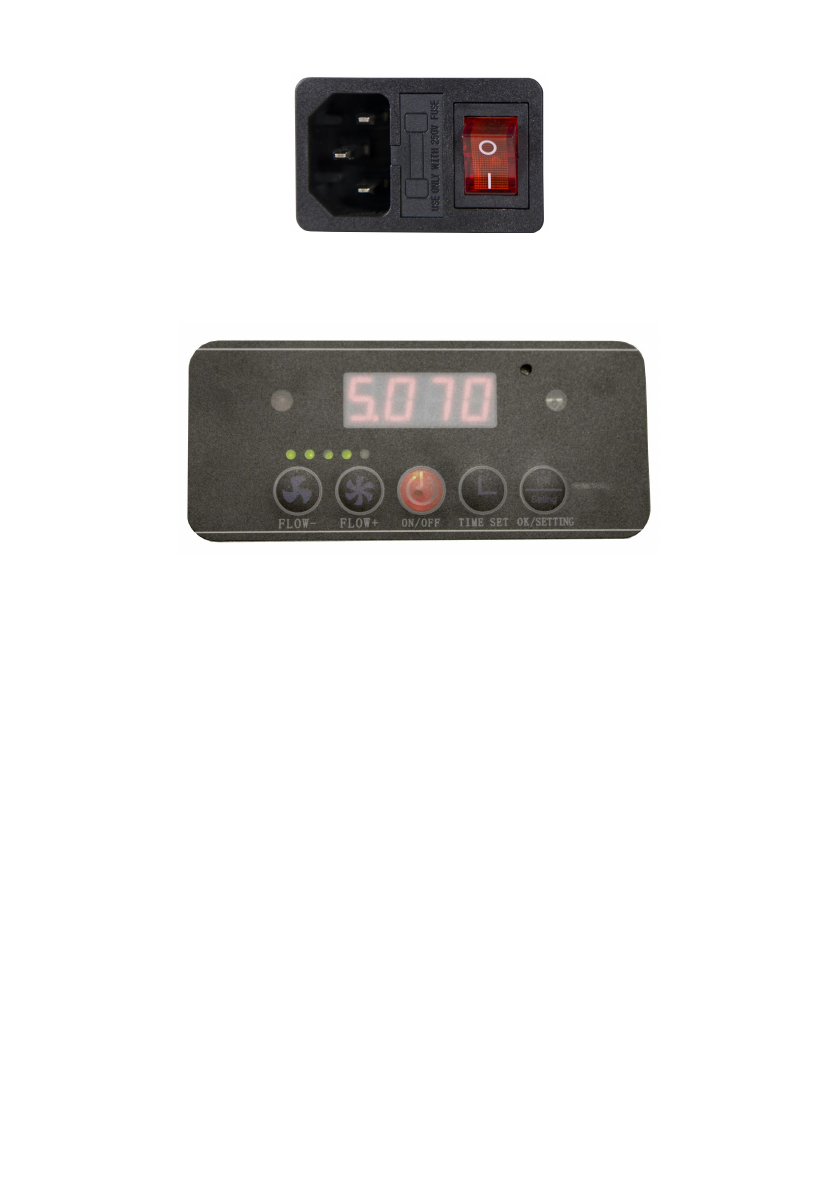

5.4 MachineOperatingInstructions

Pluginandcheckifthepowerplugisproperlyfitintothesocket.

Turnonthepowerswitch. 

FullSpectrumLaserFSL200UserManual,2016,Rev.A

6





5.5 ControlPanelButtonFunctions







On/OffButton

Pressing the On/Off button on the control panel should cause the          

machine to start running and the orange light on the machine control           

panel should turn ON. Pressing the power button again should cause          

the machine to stop running and the orange indicator light on the           

machinecontrolpanelshouldturnOFF.



Flow+Button

Press this button when the machine is running to increase the fan           

speed, the number on digital display increases in multiples of 10, the           

maximum number is 100 which means the machine is running in full           

speed.



FlowButton

Press this button when the machine is running, the number on digital           

displaydecreasesinmultiplesof10.



ProperFanSpeed

FullSpectrumLaserFSL200UserManual,2016,Rev.A

7

Thefanspeedshouldbesetaccordingtotheactualrequirementsto

removeallsmokewithoutcreatingtoomuchofavacuum.Duringlaser

cutting,thelasermachineshouldnotfillupwithsmoke.Ifthereis

lingeringsmokeduringcuttingincreasethefanspeed.Toohigha

settingmaycausetheworkpiecetoliftupandbepulledtowardthe

vacuumcreated.Inaddition,toohighafanspeed

increasesthepowerconsumptionaswellasthenoiselevel.



TimeSetButton

While the machine is running, press the Timer Set button, the digital           

display will show HXXX. Then press the Flow+/Flow buttons to adjust          

the shutdown timing. XXX represents the timer countdown in hours         

with a maximum of 300 hours and minimum of 1 hour. After you are             

satisfied with the setting, press the Timer Set button again and the           

digital display will show HXXX and start the countdown timer. For          

example, H005 represents that the machine will shut down        

automatically in 5 hours. This function is useful at the end of the day             

when you turn the laser off but still want to keep cleaning any smell             

residuesthatmayremaininsidethemachine.



Ok/SettingButton

If the machine is in alarm status and buzzer sounds, press the           

Ok/Setting button to turn OFF the alarm. If the machine is not in alarm             

status, press the Confirm/Set button to check the total working hours of           

themachine. 







 

FullSpectrumLaserFSL200UserManual,2016,Rev.A

8

6. Troubleshooting

Makesurethepowerisswitchedoffandunpluggedbefore

inspectingorrepairingthemachine!



Problem1: Themachinestillworks,buttheairflowisveryweak

andsuctionpowerisgreatlyreduced.

Cause: AirInletisblockedorforeignbodyexistsinsidetheduct.

The filter becomes saturated and hence gets blocked       

and gives an alarm. Usually only the prefilter gets        

clogged quickly with large particles and needs to be        

vacuumedorreplaced.

Solution: Turnoffthepowerandopenthetopcover.Checkif

there is any foreign objects blocking the air inlet. Then         

check if the air vent is blocked or not. If the suction           

power of the emptyloaded machine is normal, it means        

thefilterneedstobereplaced.



Problem2: Themachineshutsdownautomaticallyafteritisjust

started. Even if you restart the machine, the same        

problemhappensagain.

Cause: Theairflowthroughthemachineisobstructed.Asa

result, the starting current of the fan becomes very high,         

hence the machine shuts down automatically for self       

protection.

Solution: Turnoffthepowerandopenthetopcover.Checkif

thereisanyobstructionsintheairinletorreplacefilters.



Problem3: PowerswitchisON,butmachinedoesnotrunandthe

powerindicatordoesnotlightup.

Cause: Thefusemightbebad.

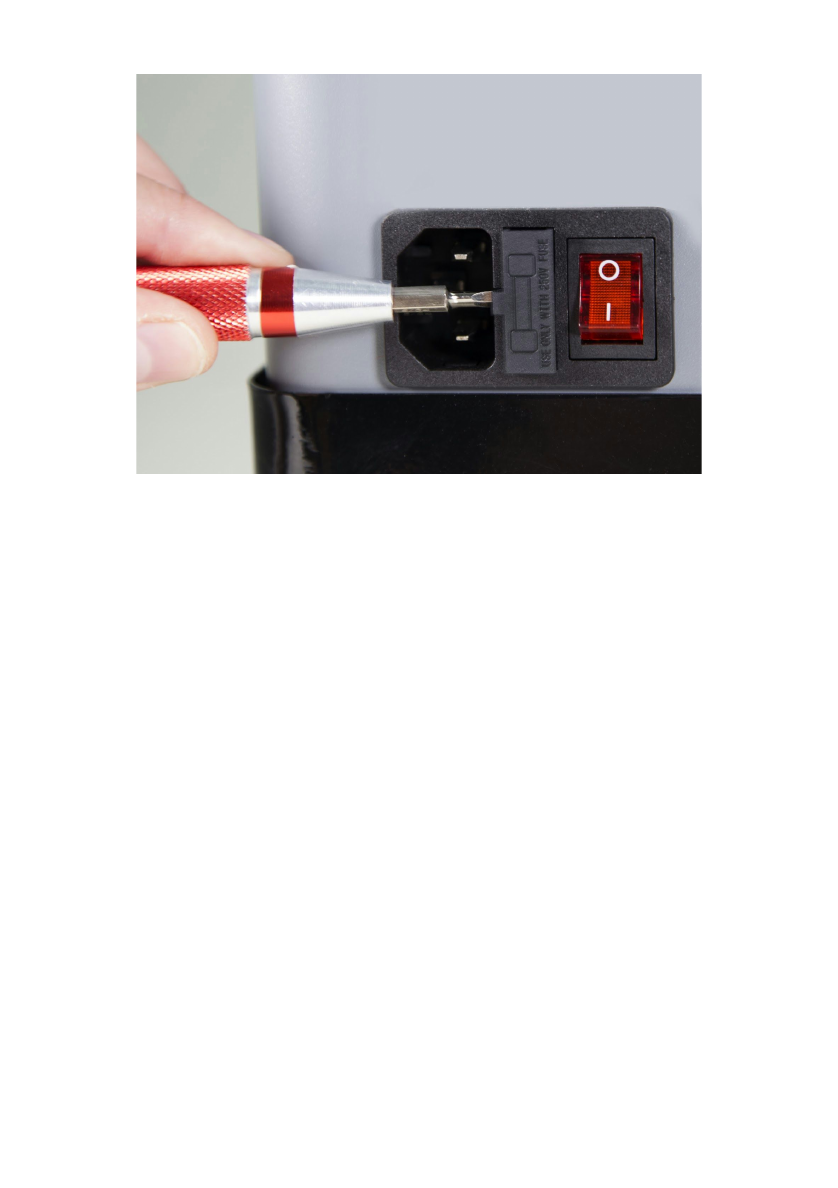

Solution: The fuse needs to be replaced. Pop the fuse out from          

the power socket using a flat head screwdriver and        

replace.

FullSpectrumLaserFSL200UserManual,2016,Rev.A

9



If the problem remains after these inspections and maintenance        

areperformed,pleasecontactcustomerservice.

 

FullSpectrumLaserFSL200UserManual,2016,Rev.A

10

7. FilterUse&Maintenance 



This product has consumable replacement filters. They need to        

becleanedorreplacedperiodicallytoensureproperoperation.



1. TopPrefilter

PlacethePrefilteratthebottomofthetop

compartment.Whentheaccumulateddustonthe

Prefilterisover70%coverageandcannotbecleaned

anymoreandmustbereplacedwithanewone. 



2. ActivatedCarbonFilterCartridges

Load4xActivatedCarbonFilterCartridgesintothe

lowercompartment.Thecartridgesaremarkedwithan

arrowinthedirectionofairflow.IntheFSL200these

cartridgesshouldbeloadedwiththearrowfacingdown.

Ifthereisgoodairflowbuttheodorsarenotremoved,

theActivatedCarbonFilterisconsumedandmustbe

replaced.



3. BottomHEPAFilterCartridge

LoadtheHEPAFilterCartridgewiththearrowpointing

downontopofthe4xactivatedcarbonfiltercartridges.

Itshouldbeimmediatelycleanedoffbyvacuuming

whenanyaccumulateddustaffectsthesuctionpower.

WhencleaningdoesnothelpreplacetheMiddleHEPA

Filterwithanewone.

 

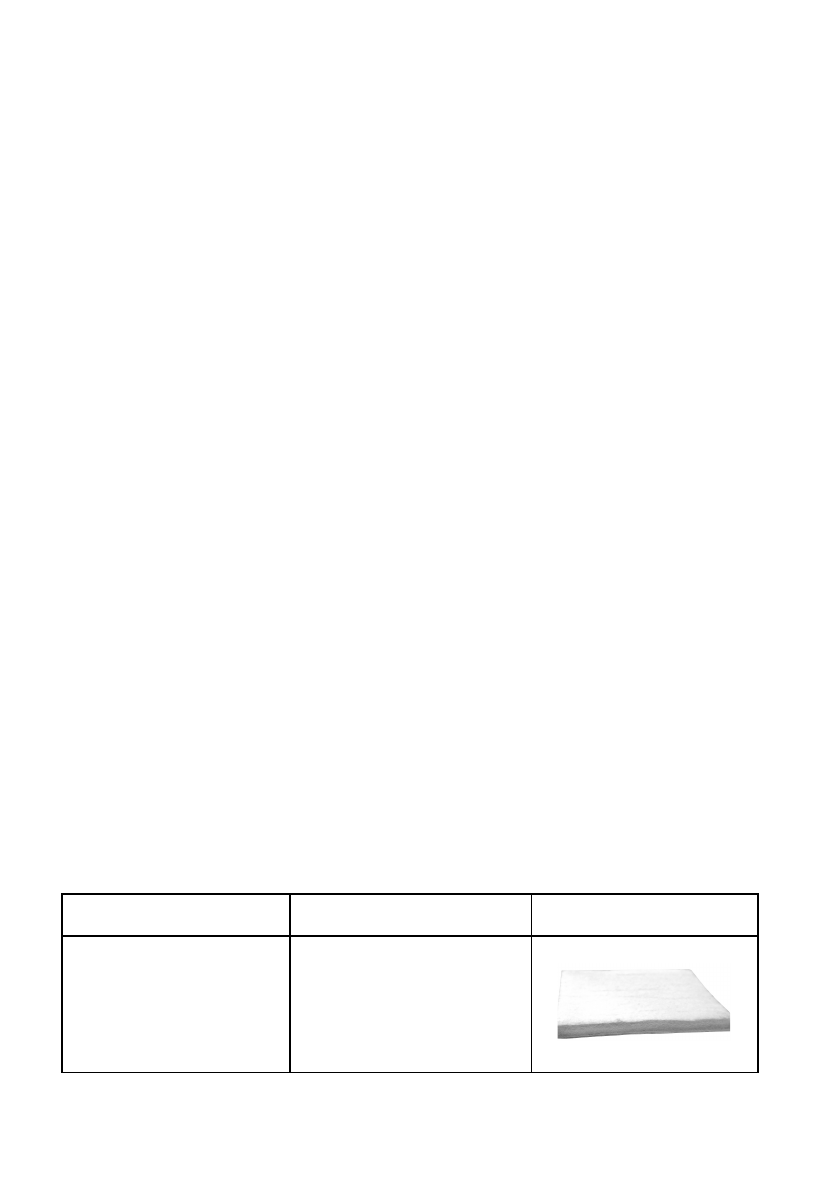

8. ReplacementParts



Name

Remarks

Pictures

TopPrefilter



ContainedinTop

Compartment.Filters

largeparticles.

Replaceorclean

weekly.



FullSpectrumLaserFSL200UserManual,2016,Rev.A

11

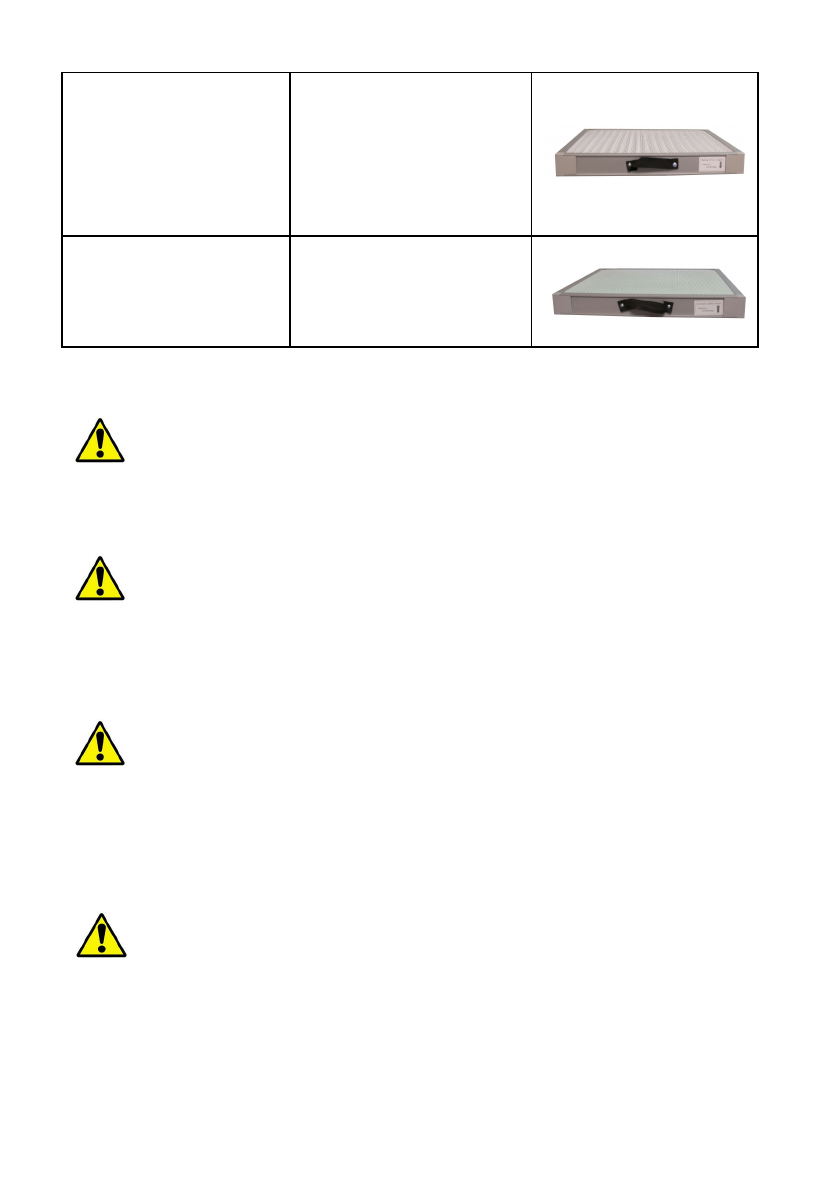

LowerHEPAFilter



Containedinthelower

Compartment.Placed

ontopofActivated

CarbonCartridges.

Removessmall

particles.



LowerActivated

CarbonFilter

Cartridges



Removesodors.





9. ImportantUseConsiderations 

Whileusingthemachine,theambienttemperaturerangeofthe

gas and the dust which is sucked into the air inlet should be            

within the range 1560ºC. Never use the machine when the         

temperatureishigherorlowerthanthistemperaturerange.

Whenusingthemachine，thehumidityofthegasandthedust

sucked into the air inlet should be between the range of          

40%80%. If the humidity is excessively high, the activated        

carbon filter element will become rapidly saturated with water        

andconsumed.

Donotusethismachinewithoutallfilterelements

because the fumes or the dust particles may be sucked into the           

air blower and the control system causing damage. Any        

operation without all filter elements installed is not covered        

under warranty. Use only OEM replacement filter elements       

fromFullSpectrumLaser.

Do not continue to use the machine when the HEPA Filter          

Cartridge or the PreFilter is clogged as this will increase motor          

wear and shorten the service life of the machine. Please clean          

and/or replace the filter elements regularly to ensure proper        

machineoperation.



FullSpectrumLaserFSL200UserManual,2016,Rev.A

12

The warranty will not cover any losses or damage that may be           

incurredbytheuserifinstructionsarenotfollowed.



10. ContactInformation



FullSpectrumLaserLLC

6216SSandhillRd,LasVegas,NV89120

Tel:(702)8023100

Fax:(702)9870150

http://fslaser.com/Support















FullSpectrumLaserFSL200UserManual,2016,Rev.A
