Users Manual

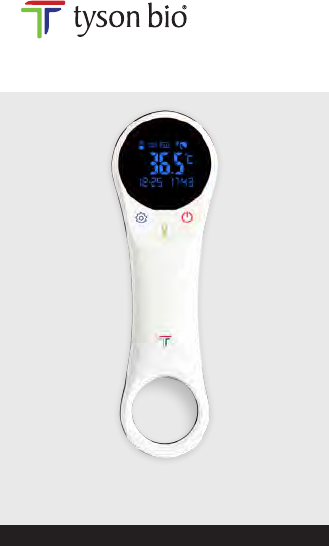

NC100 Bluetooth Non-Contact Infrared Thermometer

User Manual

NC100

Dear NC100 Owner：

Thank you for purchasing the NC100 Bluetooth Non-Contact

Infrared Thermometer. Please read this instruction manual rst so

you can use this thermometer safely and correctly. Please keep this

instruction manual for future reference. This innovative medical

device uses advanced infrared (IR) technology to measure

temperature instantly and accurately on the forehead or object.

IMPORTANT SAFETY INSTRUC-

TIONS READ BEFORE USE

The following basic safety precautions should always be taken.

1. Close supervision is necessary when the thermometer is used by,

on, or near children, handicapped persons or invalids.

2. Use the thermometer only for the intended use described in this

manual.

3. Do not use the thermometer if it is not working properly, or if it

has suered any damage.

KEEP THESE INSTRUCTIONS IN A SAFE PLACE

Table of Content

BEFORE YOU BEGIN

Cautions and Warnings

Restrictions of Use

Intended Use

How does it work

Highlighted Features

Package Contents

Meter Overview

Display Screen

Display Mode

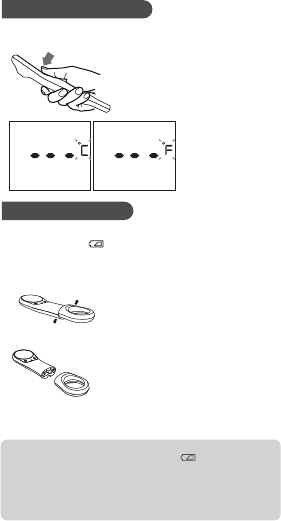

Select the Temperature Unit

Replacing the Battery

Setting the Thermometer

DETAILED INFORMATION

About Normal Body Temperature and Fever

PERFORM THE TEST

Using the Device

As a Body Measurement Thermometer

As an Object Measurement Thermometer

METER MEMORY

Recalling the Memory

MAINTENANCE

Care and Cleaning

SYSTEM TROUBLESHOOTING

Measurement Result

Troubleshooting

SYMBOL INFORMATION

SPECIFICATIONS

STATEMENTS AND DECLARATIONS

DISPOSAL

REFERENCE STANDARDS

WARRANTY

BEFORE YOU BEGIN

Cautions and Warnings

˙As with any thermometer, proper technique is crucial to

obtaining accurate temperature readings. Please read this

manual thoroughly and carefully before using.

˙Always operate the thermometer in an operating temperature

range 10°C to 40°C (50°F to 104°F), and relative humidity less

than 80%.

˙Always store the thermometer in a cool and dry place -25°C to

55°C (-13°F to 131°F) and relative humidity less than 95%.

˙Avoid direct sunlight.

˙Avoid dropping the thermometer, if it happens and you think

the thermometer may be damaged, please contact customer

services immediately.

˙Do not touch the lens.

˙Do not disassemble the thermometer.

˙Basic safety precautions should always be observed, especially

when the thermometer is used on or near children and disabled

persons.

˙This thermometer is not intended to substitute for a consulta-

tion with your physician.

˙This thermometer and the subject must remain in a stable

environment for at least 30 minutes before measuring the

temperature.

˙When the measured temperature falls within the fever tempera-

ture range of ≥37.8°C (100°F) and <43°C (109.4°F), as indicated

by the red LCD display, please consult with your physician

immediately.

This thermometer is clinically proven to produce accurate

temperature measurements. However, please be advised that the

accuracy cannot be ensured when the thermometer is not clean.

Check that the probe is clean before taking a measurement.

Restrictions of Use

Intended Use

How Does It Work

Highlighted Features

NC100 Bluetooth Non-Contact Infrared Thermometer is intended

for the intermittent measurement and monitoring of human body

temperature from forehead measurement at home. A control

measurement using a conventional thermometer is recommended

in the following cases:

1. If the reading is surprisingly low,

2. For new-born infants up to 100 days old,

3. For children under three years of age who have a weakened

immune system or who react unusually in the presence or

absence of fever.

The thermometer measures the infrared heat generated by the

surface of the skin over the vessel and its surrounding tissue. The

thermometer then converts it into a temperature value.

˙Non-contact measurement that does not require probe cover,

thereby saving cost of replacement.

˙Automatically power o if left idle for 60 seconds.

˙Memory function allows you to recall previous forehead results

up to 32 previous results.

˙Easy to read LCD with blue and red backlight in a dark environ-

ment.

˙Color visible indication of alarm (red) and measurement in

progress (blue).

˙Measurement within 5 cm.

NOTE:

The thermometer does not emit any infrared signal.

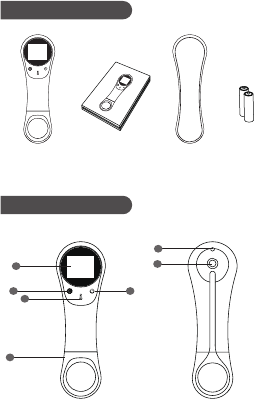

Package Content

Meter Overview

Thermometer Silicone

Dust Cover

User Manual 1.5 V AAA

Alkaline

batteries x 2

Front view Back view

1. Display Screen

2. Setting Button

3. Power Button

4. Measure / Memory Button

5. Battery Cover

6. Light Indicator

7. Sensor Probe

Press setting button once to switch between.

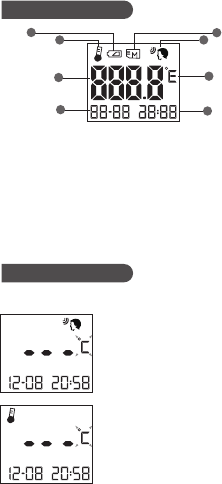

Display Mode

1. Low battery indicator

2. Object temperature indicator

3. Temperature reading

4. Date

5. Memory mode

6. Body temperature indicator

7. Temperature unit

8. Time

1. Body Mode

˙This mode is used to measure the

forehead temperature.

˙It also provides clock.

2. Object Mode

˙This mode is used to measure the

object temperature.

˙It also provides clock.

This meter provides two measurement units used for indicating

the body/object temperature, °C or °F, for your preferred selection.

Select the Temperature Unit

Replacing the Battery

The thermometer comes with two 1.5 V AAA alkaline batteries. The

meter will display " " to alert you when the meter power is

getting low. Please follow the steps below to replace new batteries

immediately.

NOTE:

1. Although the thermometer works when " " appears, we still

recommend that you change the batteries to obtain an accurate

result.

2. Remove the batteries if planned to store for a long period of time.

3. The batteries should be kept away out of child’s reach. If they are

swallowed, promptly see a doctor for help.

Press Measure /

Memory Button to

toggle between °C

or °F.

Press Setting Button

to exit.

Press Power button to turn ON

the meter. Press Setting Button

for 3 seconds to enter the screen.

LCD side facing upwards.

Press the end link upwards and

remove it.

Remove old batteries and replace

with two 1.5 V AAA alkaline

batteries. Follow the correct

position of positive “+” and

negative “-“ as indication.

Insert and press the end link

downwards into the main unit.

You will need to set time for rst-time use or after replacing the

batteries.

Setting is all completed. Press Setting Button to exit the setting

mode.

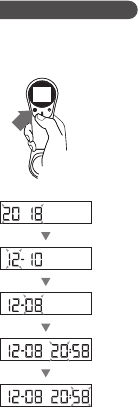

1. Entering the setting mode

Start with the meter ON, press Setting

Button for 5 seconds to enter the setting

mode.

2. To set the date and time

Press Measure / Memory Button to select

the correct year. Press Setting Button to

conrm and move to the next step. The

same step for month/day/hour/minute

settings.

Setting the Thermometer

The temperature on the forehead and temple area diers from the

internal temperature, which is taken orally or rectally. Vasoconstric-

tion, an eect which constricts the blood vessels and cools the

skin, can occur during the early stages of a fever. In this case, the

temperature measured by the NC100 Bluetooth Non-Contact

Infrared Thermometer may be unusually low. If the measurement

therefore does not match the patient’s own perception or is

unusually low, repeat the measurement every 15 minutes. As a

reference, you can also measure the internal body temperature

using a conventional oral or rectal thermometer.

Body temperature can vary from one individual/ person to next. It

also varies by location on the body and time of day. Below shows

the statistical normal ranges from dierent sites. Please keep in

mind that temperatures measured from dierent sites, even at the

same time, should not be directly compared. Fever indicates that

the body temperature is higher than normal. This symptom may be

caused by infection, overdressing or immunization. Some people

may not experience fever even when they are ill. These include, but

are not limited to, infants younger than 3 months old, persons with

compromised immune systems, persons taking antibiotics,

steroids or antipyretics (aspirin, ibuprofen, acetaminophen), or

persons with certain chronic illnesses. Please consult your

physician when you feel ill even if you do not have fever.

DETAILED INFORMATION

About Normal Body Temperature and Fever

Table* Body Site Normal Temperature Range

*1. Body Temperature at WebMD;

website: http://rstaid.webmd.com/body-temperature

retrieved at 2010 Jan 7.

Oral 0.6°C (1°F) or more above or below

37°C (98.6°F)

Rectal/ear 0.3°C to 0.6°C (0.5°F to 1°F) higher

than oral temperature

Axillary

(armpit)

0.3°C to 0.6°C (0.5°F to 1°F) lower

than oral temperature

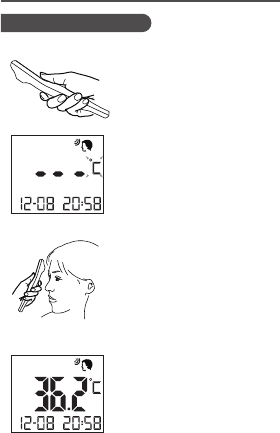

As a Body Temperature Thermometer

Using the Device

Press Power Button to turn on

the meter.

When °C or °F blinks, temperature

can be measured.

Press Setting Button to select

Body Mode.

If you started with Object Mode.

Move the probe close to the

forehead.

Make sure the probe is at , with 5 -

10 cm distance from the center of

forehead.

Press Measure/ Memory Button

to read the result.

The meter will take measurement

automatically.

The reading is shown together

with blue backlight and 1 long

beep.

Next Reading.

About 3 seconds afterwards (when

a short beep is heard), °C or °F blinks

again, and next temperature

measurement can be taken.

PERFORM THE TEST

NOTE:

˙As the forehead measurement temperature is likely to be aected

by sweat, oil and the surroundings, the reading shall be taken as a

reference only.

˙If the probe is placed at an angle close to the forehead measure-

ment, the reading will be aected by surrounding temperature.

Babies’ skin reacts very quickly to the ambient temperature.

Therefore, do not take their temperature with the NC100

thermometer during or after breastfeeding, because the skin

temperature may then be lower than the internal body

temperature.

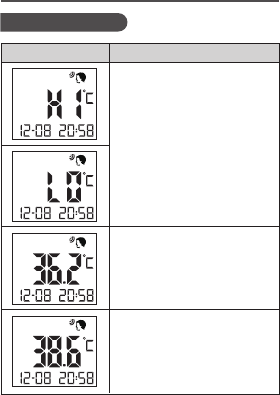

˙If the reading is < 32°C (89.6°F), the display will show together with

red backlight and two short beeps.

˙If the reading is ≥ 37.8 °C (100°F) and < 43°C (109.4°F), the display

will show together with red backlight and four short beeps.

˙The thermometer will automatically turn o if left idle for 60

seconds.

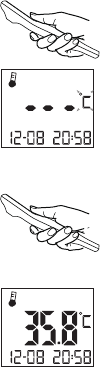

As an Object Measurement Thermometer

Press Power Button to turn on

the meter.

When °C or °F blinks, temperature

can be measured.

Press Setting Button to select

Object Mode.

If you started with Body Mode.

Move the probe close to the

object.

Make sure the probe is at , not at

an angle. with 5 - 10 cm distance

from the object.

Press Measure/ Memory Button

to read the result.

The meter will take measurement

automatically.

The reading is shown together

with blue backlight and 1 long

beep.

Next Reading.

About 3 seconds afterwards (when

a short beep is heard), °C or °F blinks

again, and next temperature

measurement can be taken.

METER MEMORY

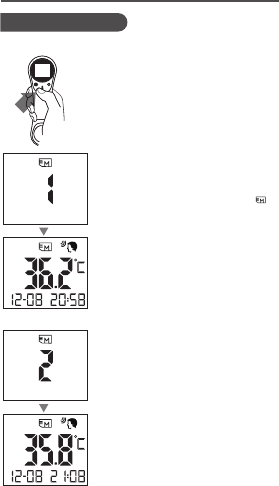

Recalling the Memory

Your thermometer stores 32 most recent forehead readings

1. Be sure the thermometer is OFF before

recalling this memory.

2. Press Measure / Memory Button to

enter the memory mode.

Each time you press the Measure /

Memory Button, a result will be

displayed in the order of dates (latest

result shown rst), together with ” ”

and number (from 1 to 32).

Backlight in blue or red will appear

according to the memory reading.

When the memory is full, the oldest

result is deleted as the new one added.

When the last record displays on the

screen, press Measure / Memory Button

again to return to the rst record.

Exit the memory.

Press Power Button to exit the memory

or keep the meter in idle for 60 seconds

to switch o automatically.

˙The probe is not waterproof. Please wipe with a clean and dry

cotton swab to clean the probe surface.

˙The body of the thermometer is not water-resistant. Never put

the thermometer under a running tap or submerge it into water.

Use a soft and dry cloth to clean it. Do not use abrasive cleaners.

˙Store the thermometer in a cool and dry location. Free from dust

and away from direct sunlight.

Care and Cleaning

MAINTENANCE

SYSTEM TROUBLESHOOTING

Measurement Result

Measured temperature falls outside

the displayed temperature range of

32°C to 43°C (89.6°F to 109.4°F), is

shown on the display with red

backlight.

˙Hi-temperature ≥ 43°C (109.4°F)

˙Lo-temperature < 32°C (89.6°F)

Measured temperature falls in normal

reading, within the range of 32°C to

37.8°C (89.6°F to 100°F), is shown on

the display with blue backlight.

Measured temperature falls in fever

reading, ≥ 37.8°C (100°F) and < 43°C

(109.4°F), is shown on the display with

red backlight.

MESSAGE WHAT IT MEANS

The table below shows problems you may encounter. All error

messages below would be shown together with backlight. Please

follow "WHAT TO DO" to resolve problems. If the problem still

exists, please call your local dealer for help.

Appear when

environmental

temperature is

below/above

system operation

range.

Put the

thermometer

under operating

temperature range

of 10°C to 40°C

(50°F to 104°F).

Please replace

batteries as soon as

possible.

Please contact the

customer service

line.

If the thermometer

is broken or

aected by EMF.

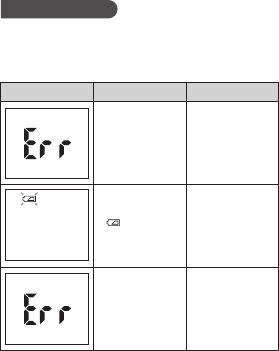

Troubleshooting

MESSAGE WHAT IT MEANS WHAT TO DO

Battery is low and

" " appears on

display.

SYMBOL INFORMATION

Consult instructions for use

Manufacturer

Serial Number

Caution, consult accompanying documents

CE mark

Authorised Representative in the European Community

Type BF Equipment

Do not use if package is damaged

185.1mm(L) x 58mm(W) x 29.1mm(H)

93g (include 2 x1.5V AAA batteries)

2 x 1.5 V AAA alkaline batteries

Forehead: 32.0°C to 42.9°C(89.6°F to109.2°F)

Object: 0.0°C to 100.0°C(32.0°F to 212.0°F)

0.1°C/0.2°F

±0.2°C / 0.4 °F (32.0 ~ 42.9°C / 89.6~ 109.2 °F )

±1.0°C / 2.0 °F (0.0 ~ 100.0°C / 32.0 ~ 212.0 °F )

°C or °F

10°C to40°C(50.0°F to 104.0°F)

≦80% RH non-condensing

-25°Cto55°C(-13.0°F to 131.0°F)

≦95% RH non-condensing

32 measurements

SPECIFICATIONS

Dimensions

Weight

Battery

Measuring

temperature range

Display resolution

Accuracy

Temperature unit

Operating

temperature range

Operating humidity

Storage

temperature range

Storage humidity

Memory capacity

1. This product needs special precautions regarding EMC and

needs to be installed and put into service according to the EMC

information provided, and this unit can be aected by portable

and mobile RF communications equipment.

2. Do not use a mobile phone or other devices that emit

electromagnetic elds, near the unit. This may result in incorrect

operation of the unit.

3. Caution: This unit has been thoroughly tested and inspected to

assure proper performance and operation!

4. Caution: this machine should not be used adjacent to or

stacked with other equipment and that if adjacent or stacked

use is necessary, this machine should be observed to verify

normal operation in the conguration in which it will be used.

The NC100 use RF energy

only for its internal

function. Therefore, its RF

emissions are very low and

are not likely to cause any

interference in nearby

electronic equipment.

The NC100 is suitable for

use in all establishments,

including domestic

establishments and those

directly connected to the

public low-voltage power

supply network that

supplies buildings used for

domestic purposes.

STATEMENTS AND DECLARATIONS:

Guidance and manufacture’s

declaration – electromagnetic emission

Emission test Compliance Electromagnetic

environment – guidance

The NC100 is intended for use in the electromagnetic

environment specied below. The customer of the user of the

NC100 should assure that it is used in such an environment.

RF emissions

CISPR 11 Group 1

Group B

RF emission

CISPR 11

Floors should be wood,

concrete or ceramic

tile. If oors are

covered with synthetic

material, the relative

humidity should be at

least 30%.

Guidance and manufacture’s

declaration – electromagnetic immunity

Immunity test IEC 60601

test level

Compliance

level

Electromagnetic

environment - guidance

The NC100 is intended for use in the electromagnetic

environment specied below. The customer or the user of

NC100 should assure that it is used in such an environment.

NOTE UT is the a.c. mains voltage prior to application of the

test level.

Electrostatic

discharge (ESD)

IEC 61000-4-2

±6 kV contact

±8 kV air

±6 kV contact

±8 kV air

Power frequency

magnetic elds should

be at levels

characteristic of a

typical location in a

typical commercial or

hospital environment.

Power

frequency

(50Hz/60Hz)

magnetic

eld

IEC 61000-4-8

3 A/m 3 A/m

DISPOSAL

Adhere to the applicable regulations when

disposing of the device.

This product must not be disposed of

together with domestic waste.

All users are obliged to hand in all electrical or electronic devices,

regardless of whether or not they contain toxic substances, at a

municipal or commercial collection point so that they can be

disposed of in an environmentally acceptable manner.

Please remove the batteries before disposing of the device/unit.

Do not dispose of old batteries with your household waste, but at

a battery collection station at a recycling site or in a shop.

The statements should be displayed in the user manual:

changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of

the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.
