Fujian Newland Auto ID Tech NLS-HR52 Hand-held Barcode Scanner User Manual
Fujian Newland Auto-ID Tech Co., Ltd. Hand-held Barcode Scanner
User manual
NLS-HR52
Hand-held Barcode Scanner
User Guide
Disclaimer
© 2018 Fujian Newland Auto-ID Tech. Co., Ltd. All rights reserved.
Please read through the manual carefully before using the product and operate it according to the manual. It is advised that you
should keep this manual for future reference.
Do not disassemble the device or remove the seal label from the device, doing so will void the product warranty provided by
Fujian Newland Auto-ID Tech. Co., Ltd.
All pictures in this manual are for reference only and actual product may differ. Regarding to the product modification and
update, Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make changes to any software or hardware to improve
reliability, function, or design at any time without notice. The information contained herein is subject to change without prior
notice.
The products depicted in this manual may include software copyrighted by Fujian Newland Auto-ID Tech. Co., Ltd or third party.
The user, corporation or individual, shall not duplicate, in whole or in part, distribute, modify, decompile, disassemble, decode,
reverse engineer, rent, transfer or sublicense such software without prior written consent from the copyright holders.
This manual is copyrighted. No part of this publication may be reproduced, distributed or used in any form without written
permission from Newland.
Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make final interpretation of the statement above.
Fujian Newland Auto-ID Tech. Co., Ltd.
Newland Science & Technology Park, No.1 Rujiang West Rd., Mawei, Fuzhou, P.R.China
http://www.newlandaidc.com
Revision History
Version Description Date
V1.0.0 Initial release. December 4, 2016
Table of Contents
Revision History ....................................................................................................................................................................... - 3 -
Preface .......................................................................................................................................................................................... 1
Introduction ...................................................................................................................................................................... 1
Chapter Description ......................................................................................................................................................... 1
Explanation of Icons ......................................................................................................................................................... 2
Chapter 1 Getting Started ............................................................................................................................................................ 3
Introduction ...................................................................................................................................................................... 3
Features of the HR52 ....................................................................................................................................................... 3
Unpacking ........................................................................................................................................................................ 3
HR52 Scanner .................................................................................................................................................................. 4
Dimensions of the Scanner (unit: mm) ...................................................................................................................... 5

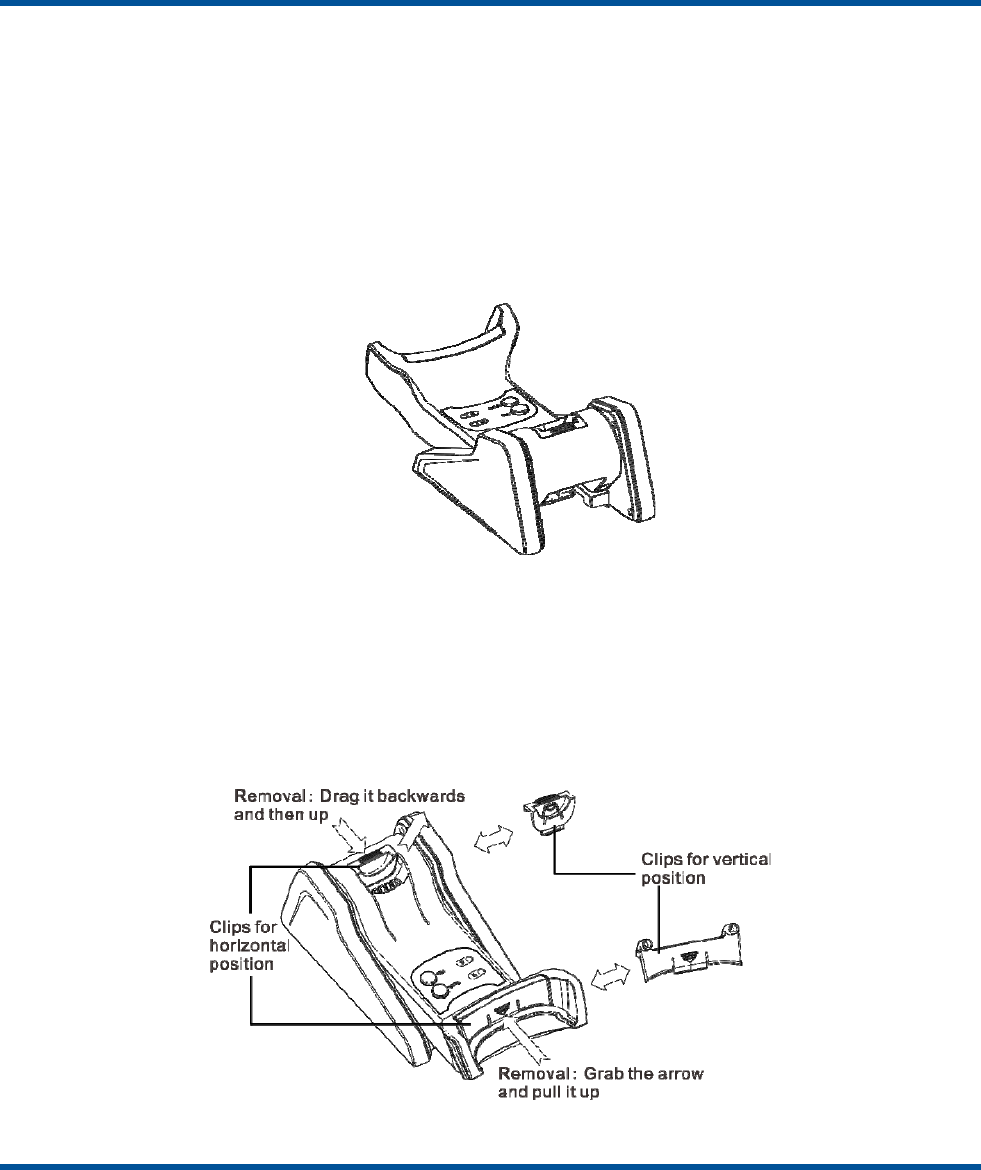

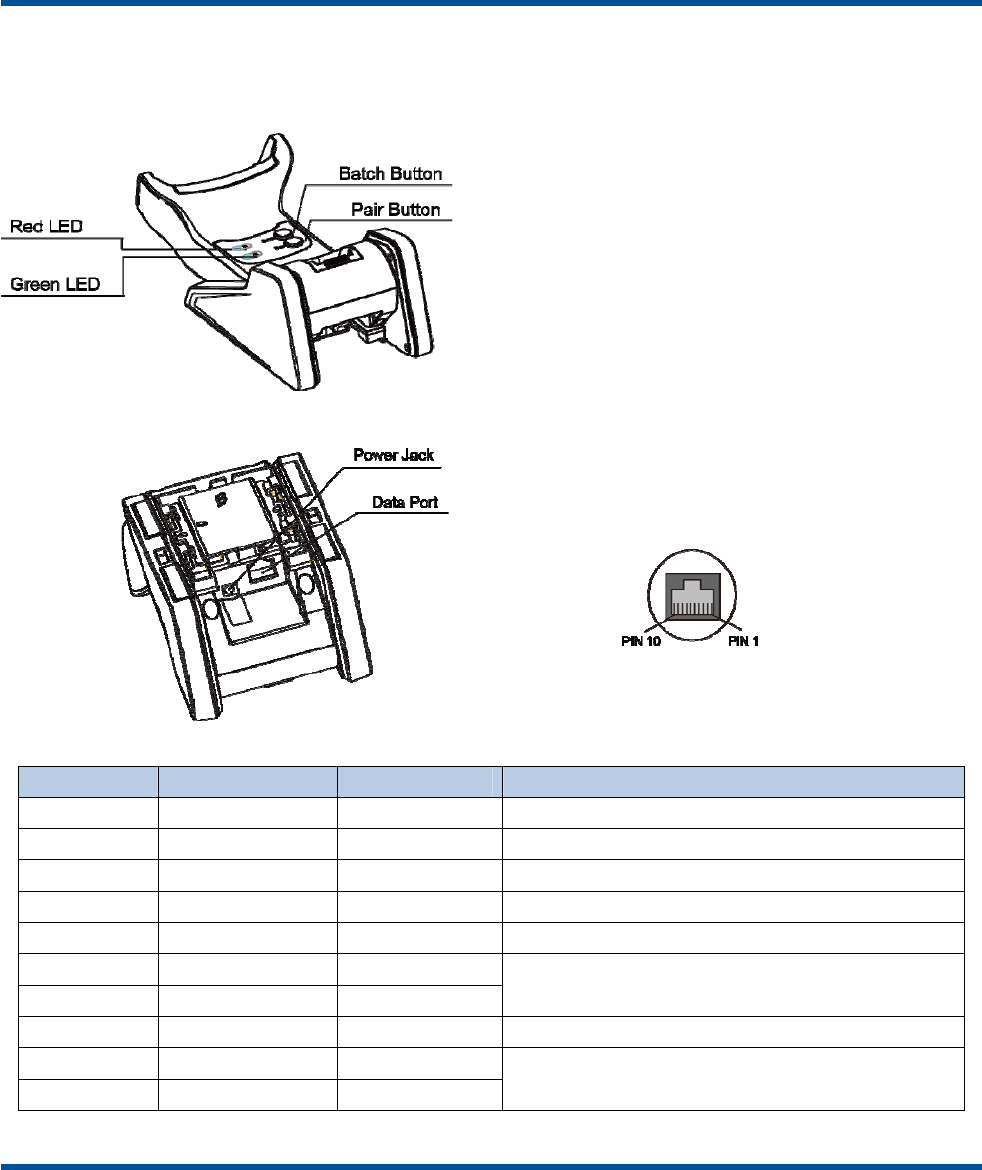

CD52 Cradle .................................................................................................................................................................... 6

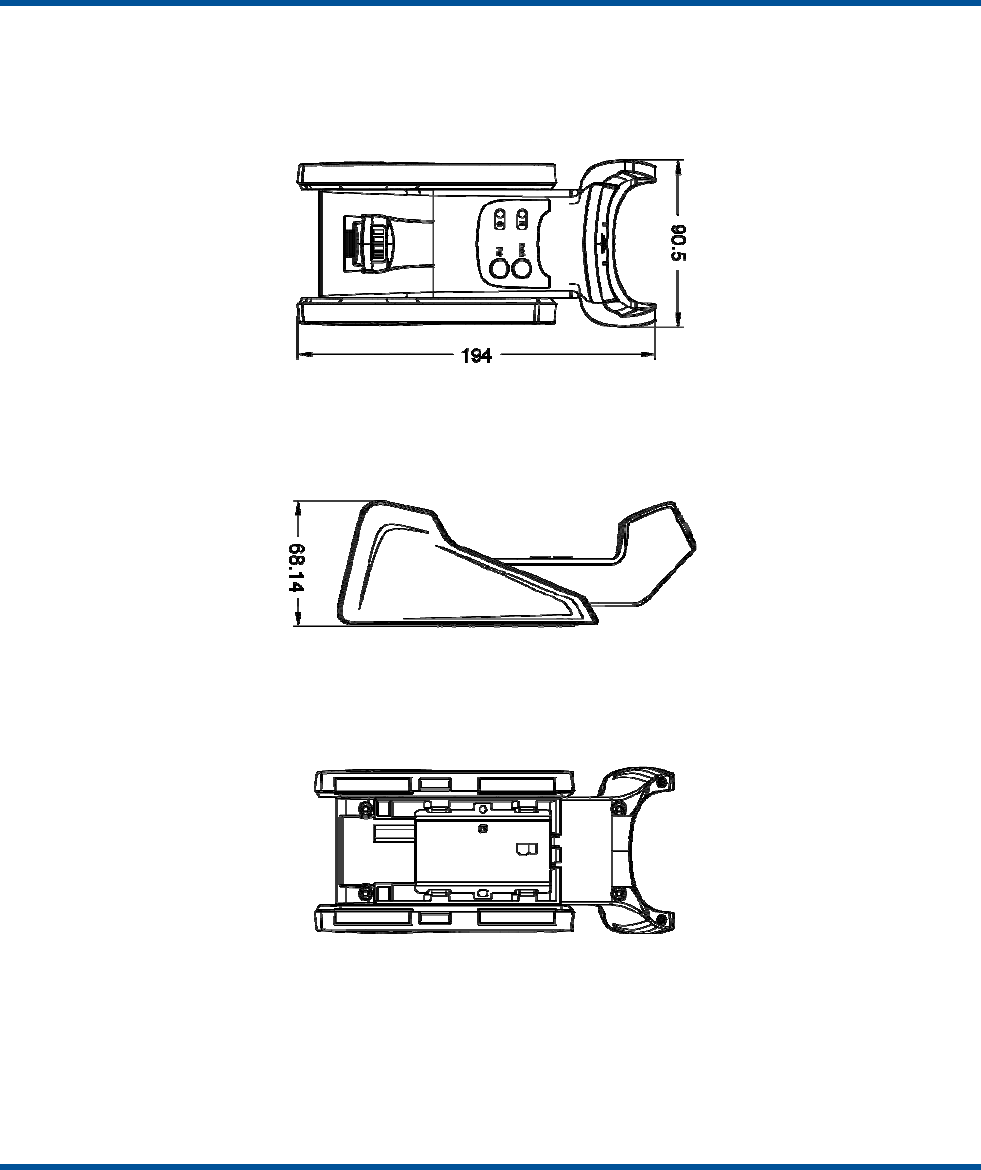

Dimensions of the Cradle (unit: mm) ......................................................................................................................... 7

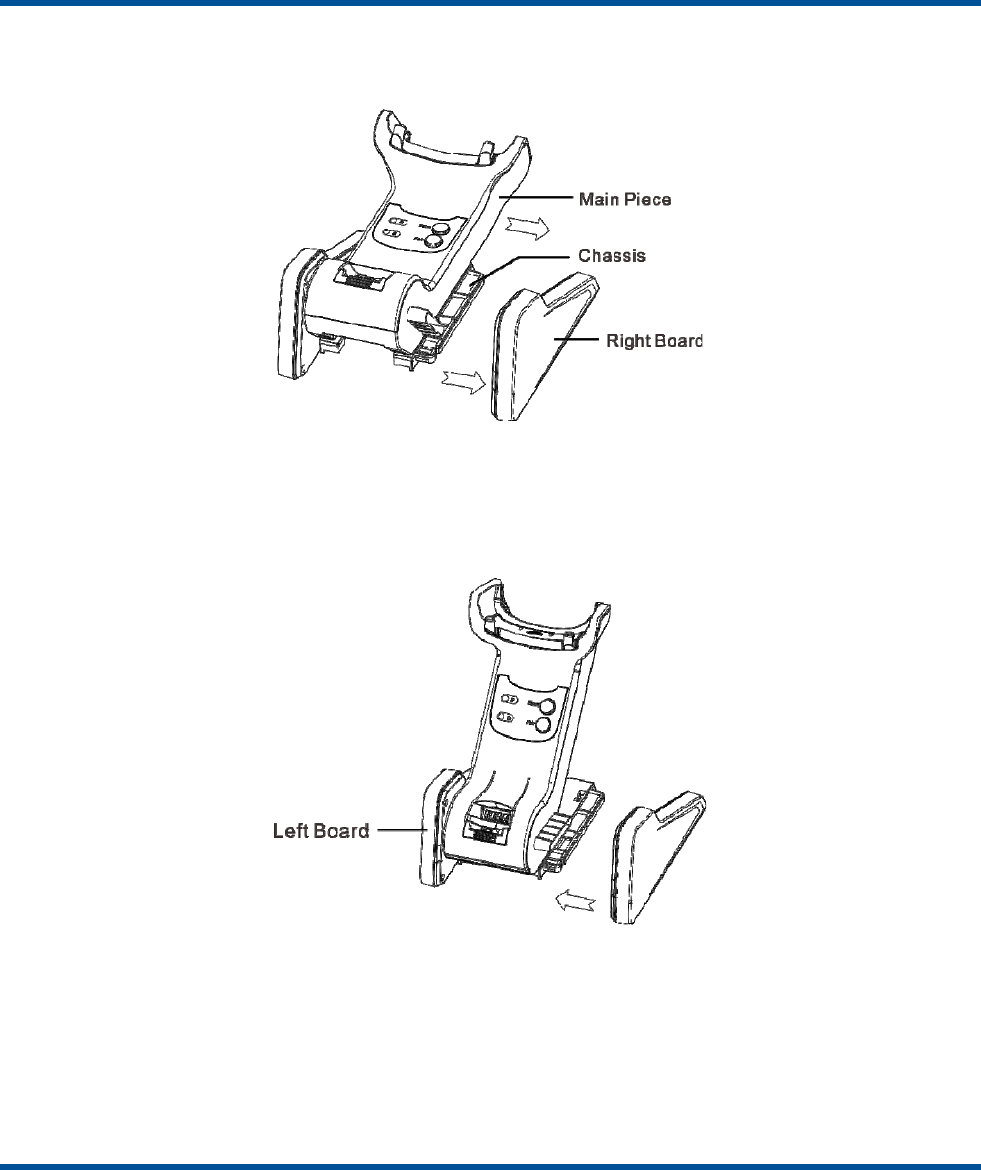

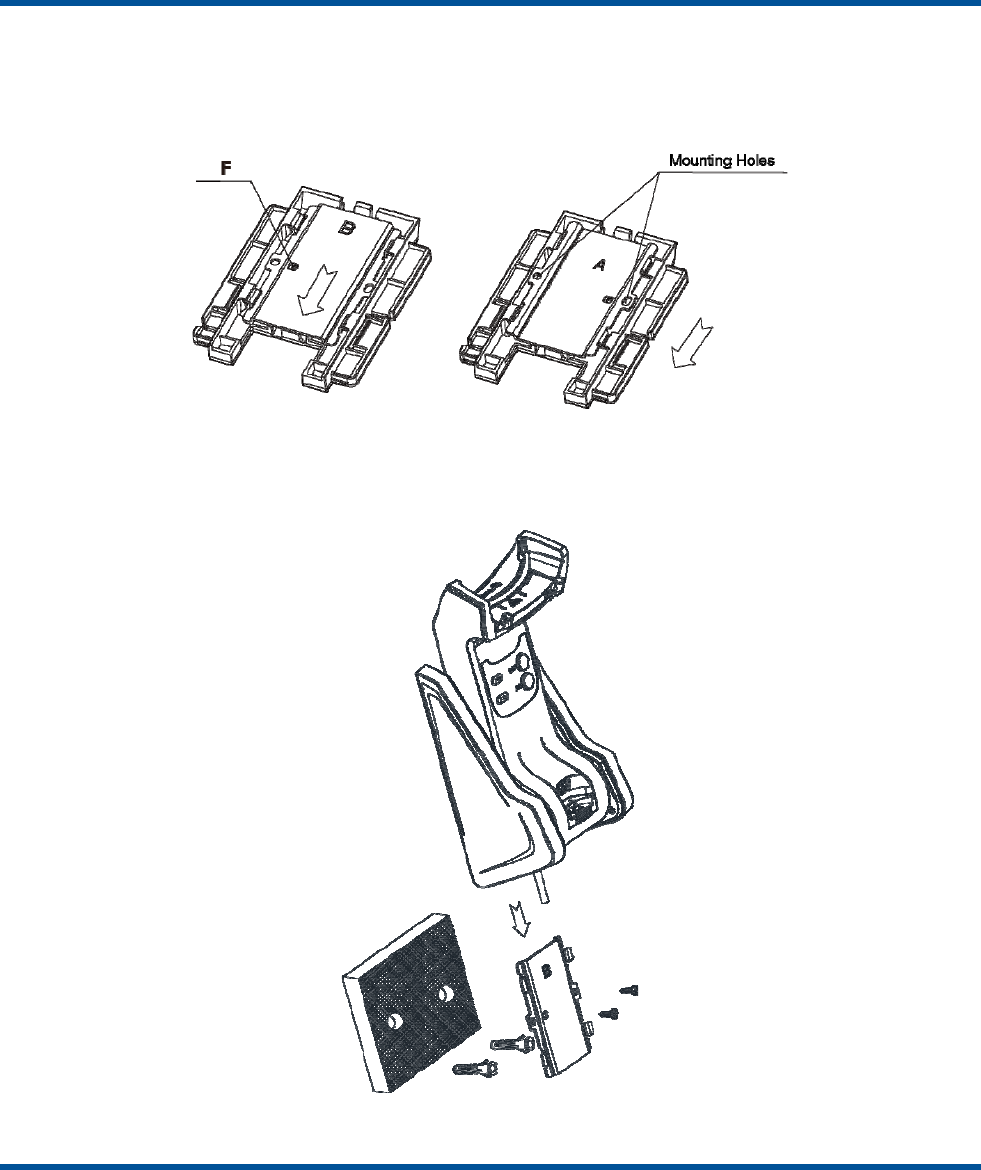

Mounting the Cradle ......................................................................................................................................................... 8
Horizontal Mount ....................................................................................................................................................... 8
Vertical Mount ........................................................................................................................................................... 8
Wall Mount .............................................................................................................................................................. 10

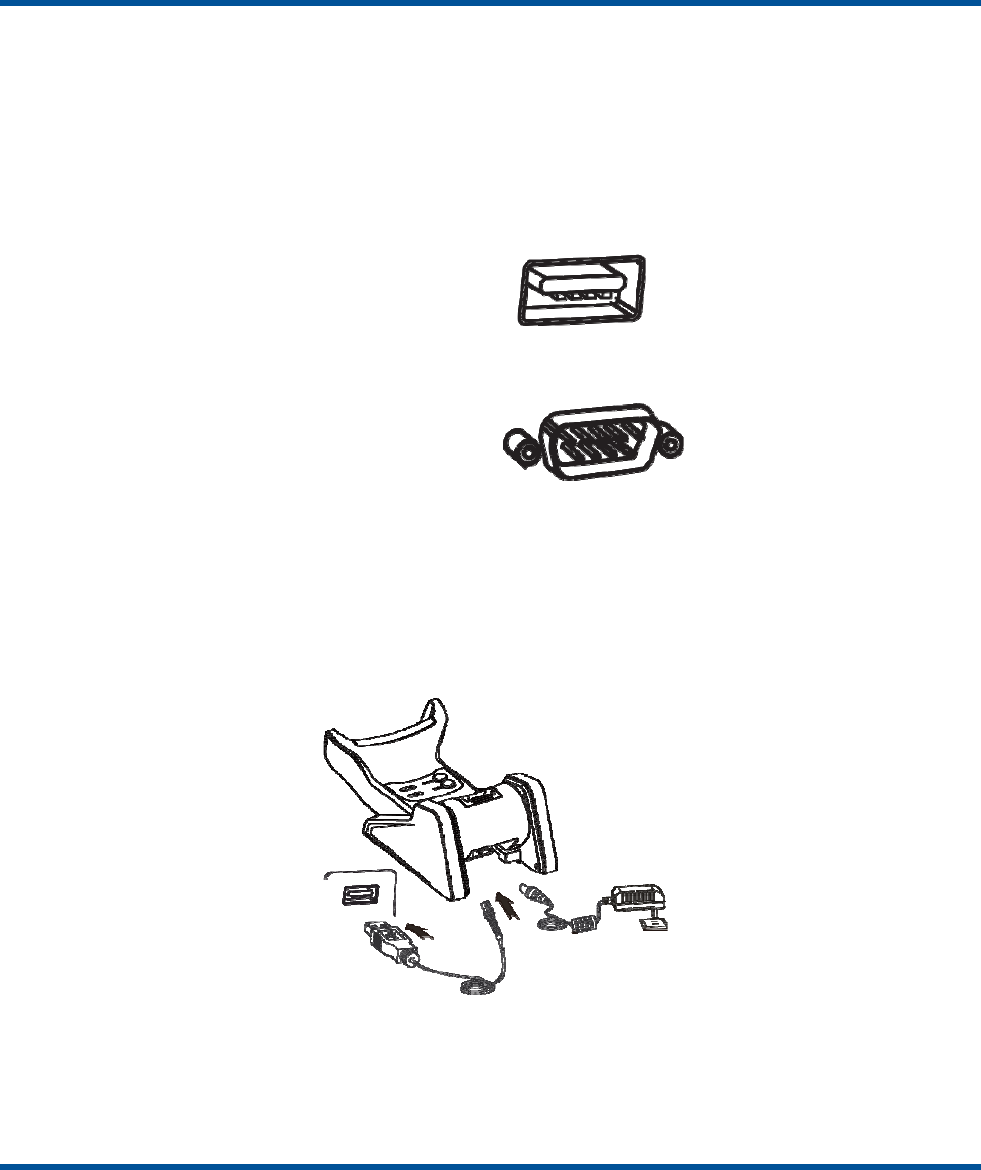

Connecting the Cradle to a Host .................................................................................................................................... 11
Using USB Cable .................................................................................................................................................... 11
Using RS-232 Cable ............................................................................................................................................... 12
Charging the Scanner Battery ........................................................................................................................................ 12
Pairing the Scanner to a Cradle ..................................................................................................................................... 13
Searching Paired Scanner(s) ......................................................................................................................................... 13
Wireless Communications .............................................................................................................................................. 13
Power On, Power Off, Reboot ........................................................................................................................................ 14
Maintenance................................................................................................................................................................... 14
Scanning Instructions ..................................................................................................................................................... 15
Chapter 2 EasySet ...................................................................................................................................................................... 16
Chapter 3 System Settings ........................................................................................................................................................ 17
Introduction .................................................................................................................................................................... 17
Barcode Programming ............................................................................................................................................ 17
Command Programming ......................................................................................................................................... 17
EasySet Programming ............................................................................................................................................ 17
Programming Barcode/ Programming Command/Function ............................................................................................ 18
Use of Programming Command ..................................................................................................................................... 19
Command Syntax ................................................................................................................................................... 19
Query Commands ................................................................................................................................................... 19
Responses .............................................................................................................................................................. 20
Examples ................................................................................................................................................................ 20

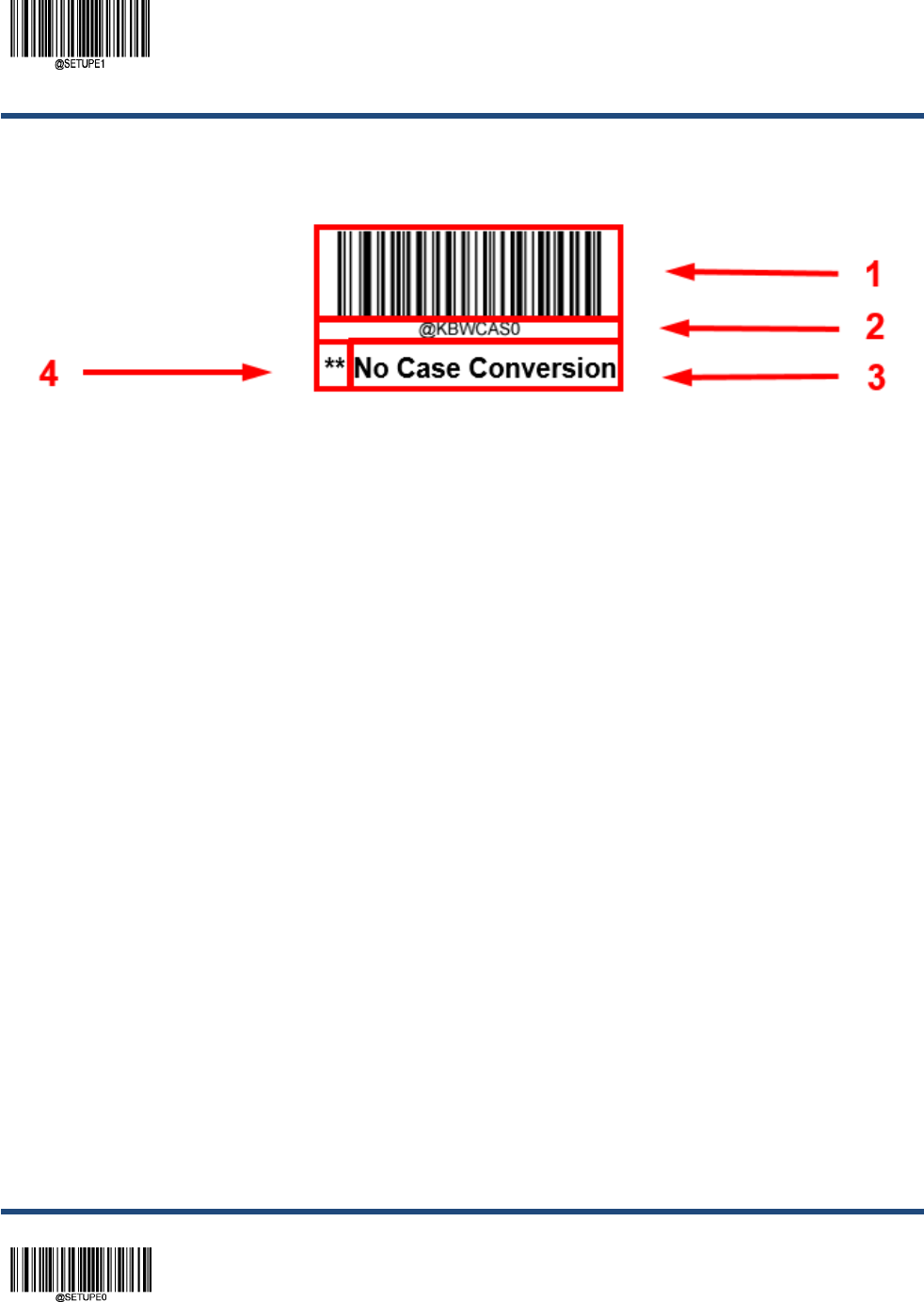

Use of Programming Barcodes ...................................................................................................................................... 21

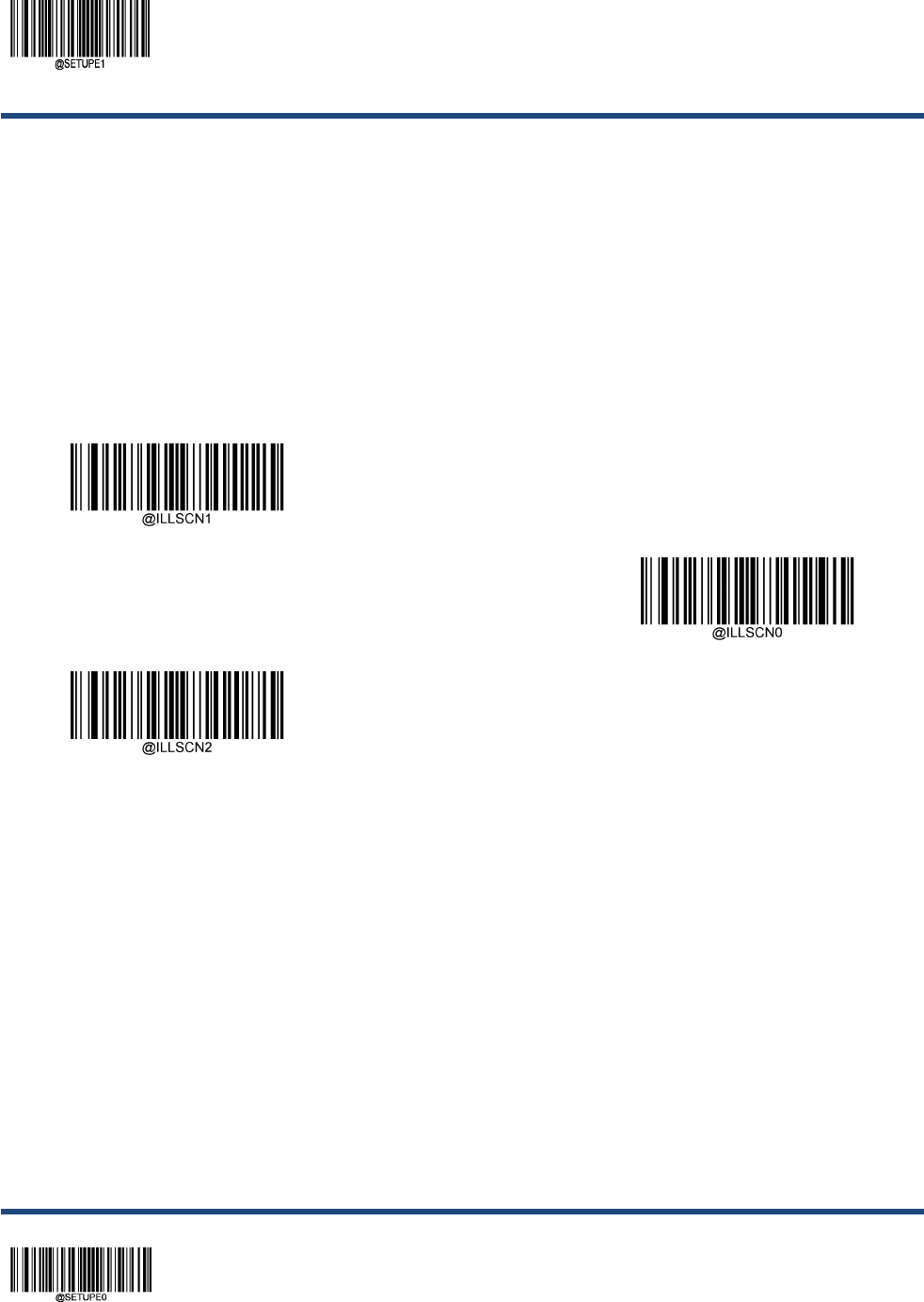

Illumination ..................................................................................................................................................................... 22
Aiming ............................................................................................................................................................................ 23
Good Read LED ............................................................................................................................................................. 23
Good Read LED Duration ....................................................................................................................................... 24
Power On Beep .............................................................................................................................................................. 25
Good Read Beep ........................................................................................................................................................... 25
Good Read Beep Duration ...................................................................................................................................... 26

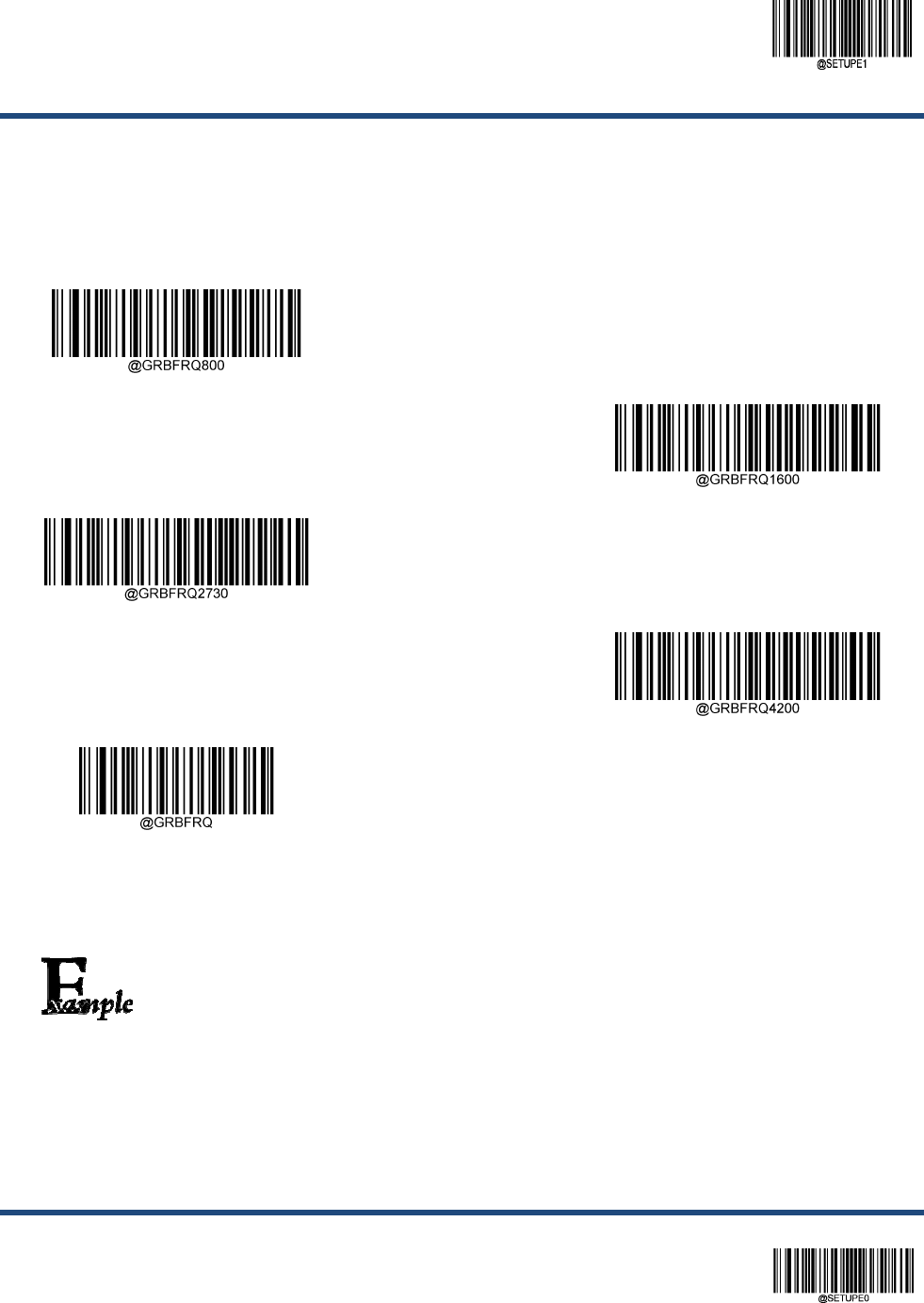

Good Read Beep Frequency .................................................................................................................................. 27
Good Read Beep Volume ....................................................................................................................................... 28
Good Read Vibration ...................................................................................................................................................... 28

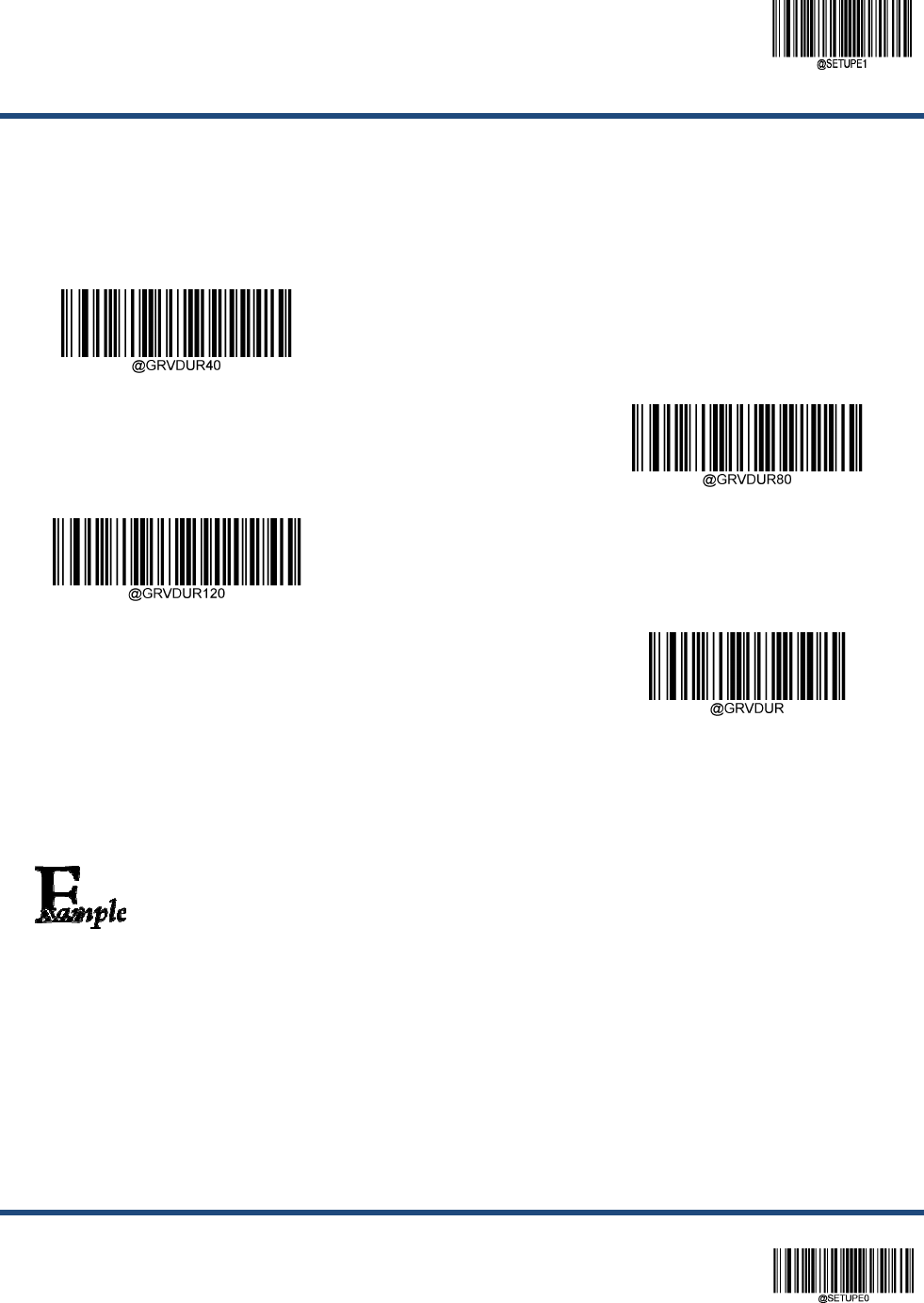

Good Read Vibration Duration ................................................................................................................................ 29
Scan Mode ..................................................................................................................................................................... 30
Decode Session Timeout ............................................................................................................................................... 31
Image Stabilization Timeout (Sense Mode) .................................................................................................................... 32
Reread Timeout .............................................................................................................................................................. 33
Image Decoding Timeout ............................................................................................................................................... 34
Sensitivity (Sense Mode) ............................................................................................................................................... 35
Scanning Preference ...................................................................................................................................................... 36
Read Barcode On/Off ..................................................................................................................................................... 36
Make a Beeping Sound .................................................................................................................................................. 36
Smart Stand Mode ......................................................................................................................................................... 37
Decode Area .................................................................................................................................................................. 37
Image Flipping ................................................................................................................................................................ 40
Bad Read Message ........................................................................................................................................................ 41
Set Bad Read Message .......................................................................................................................................... 41
Power Off/Battery Off ..................................................................................................................................................... 42
Default Settings .............................................................................................................................................................. 42
Factory Defaults ...................................................................................................................................................... 42

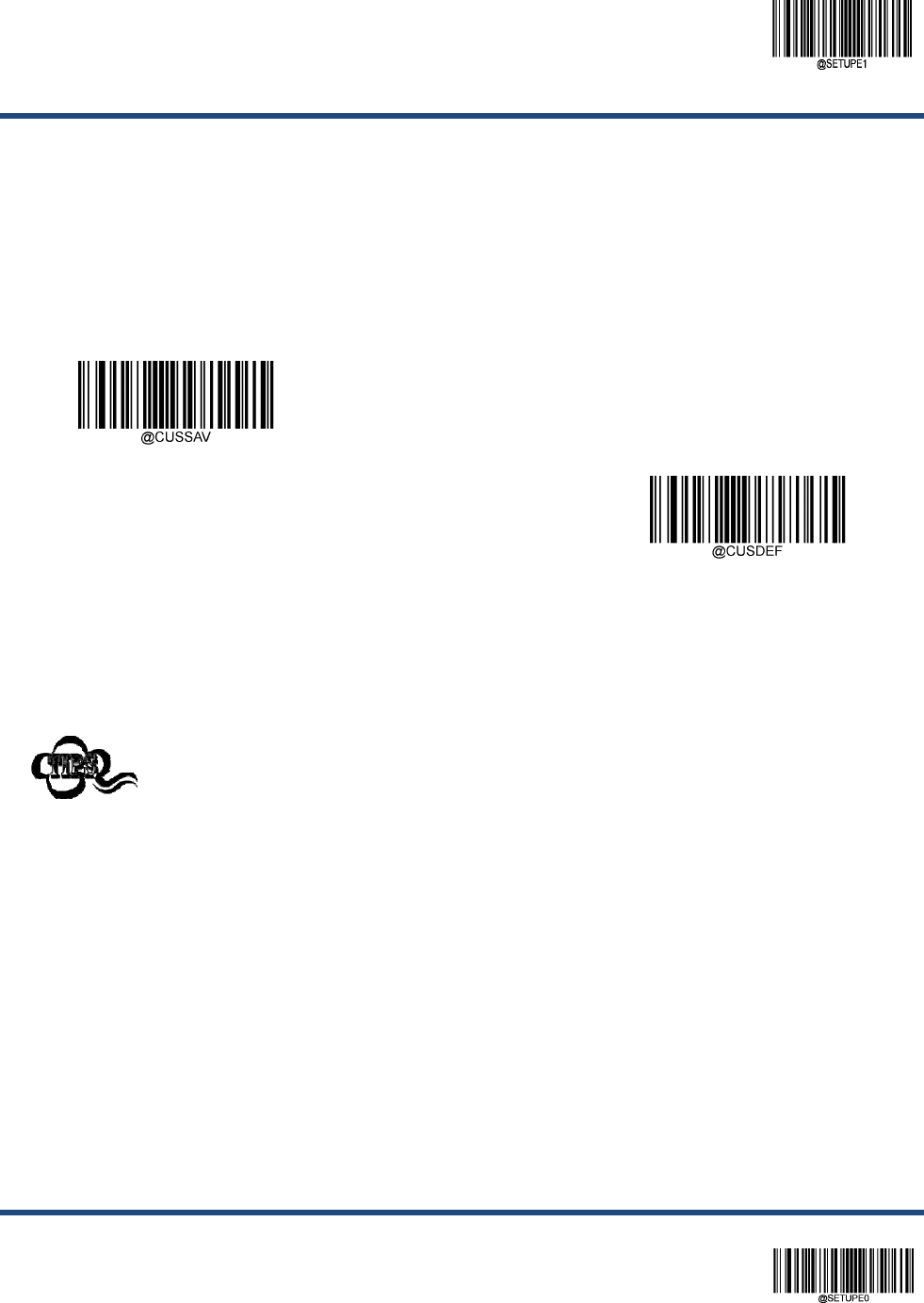

Custom Defaults ..................................................................................................................................................... 43

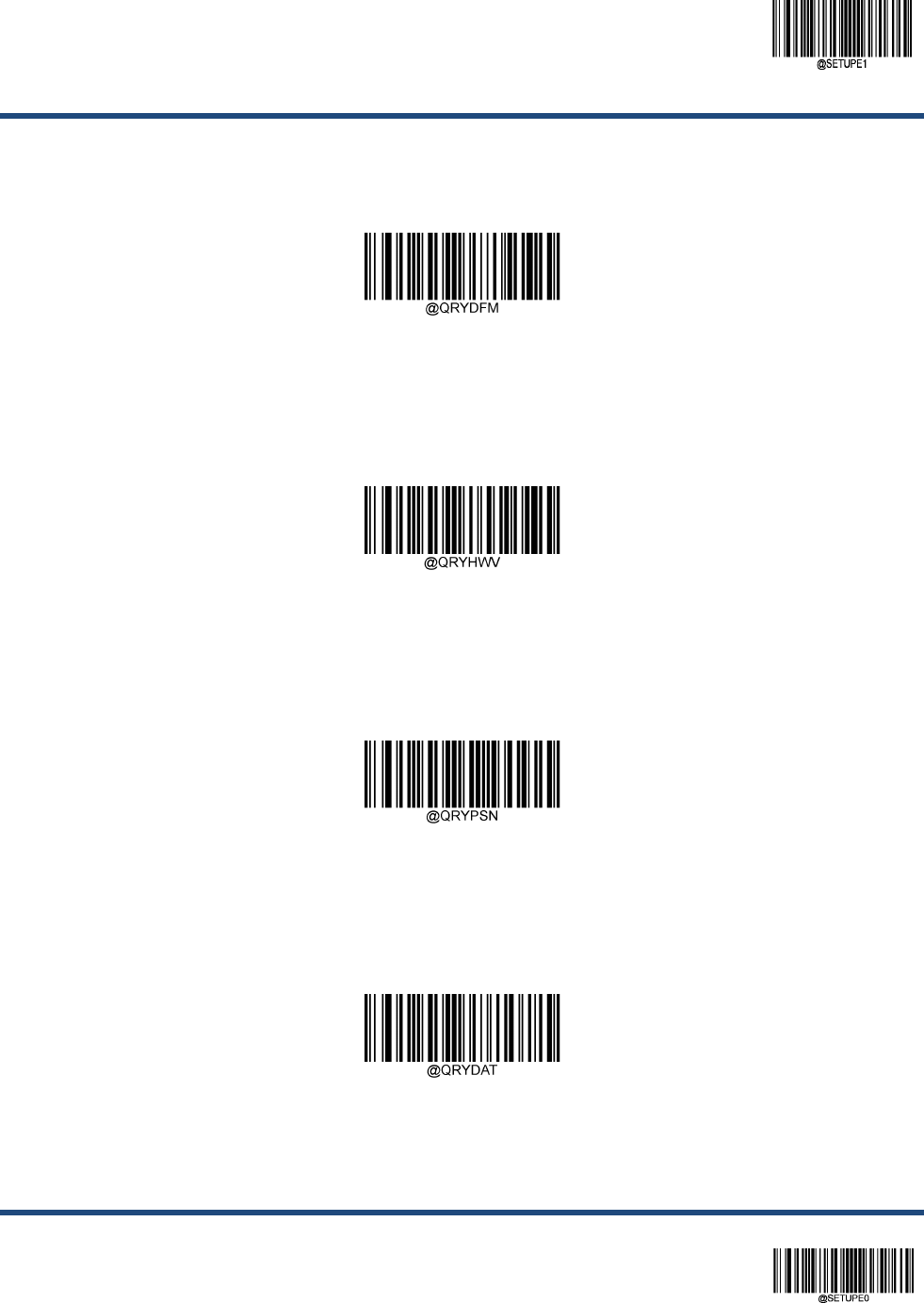

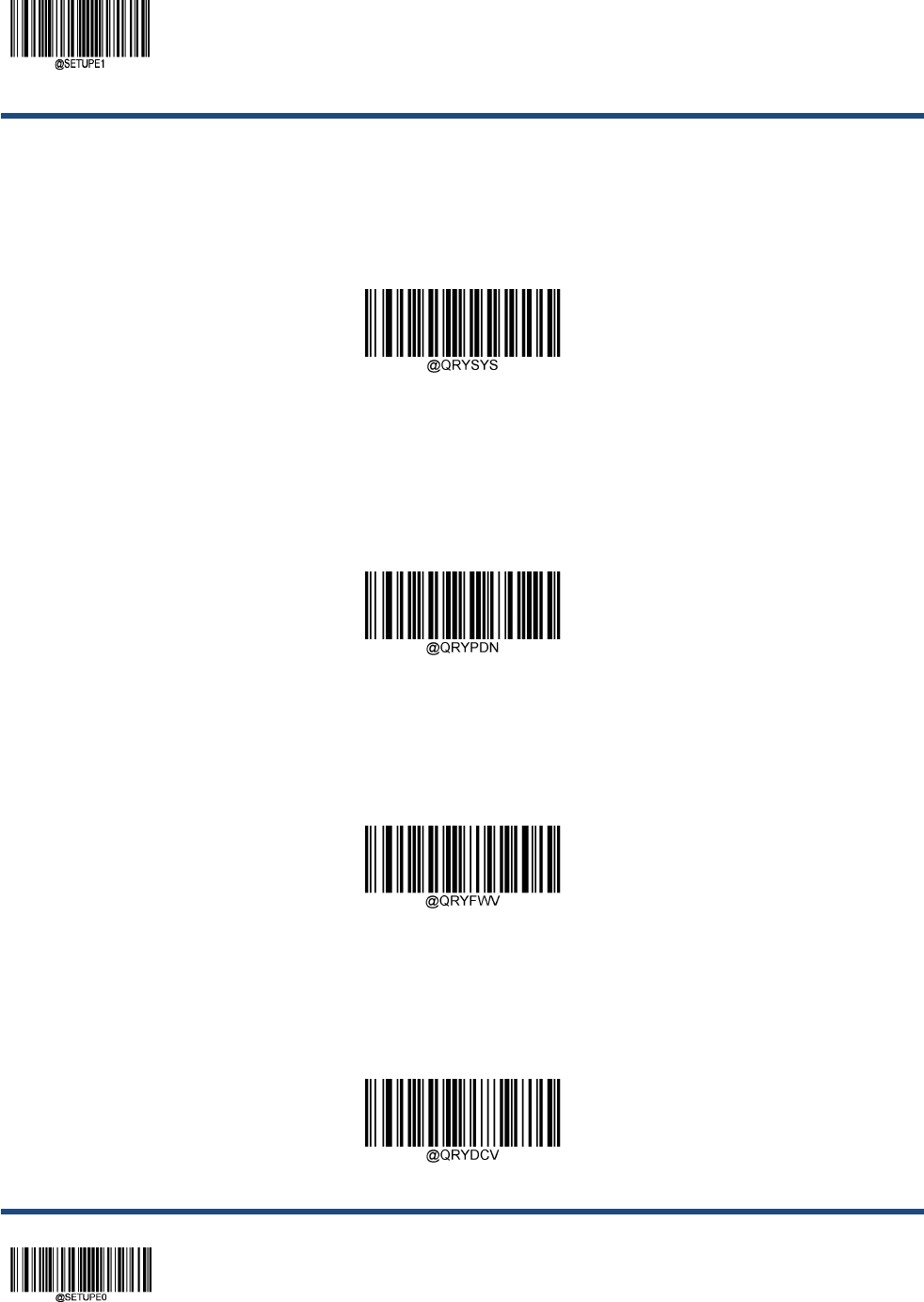

Query Scanner Information ............................................................................................................................................ 44
Query Product Name .............................................................................................................................................. 44
Query Firmware Version ......................................................................................................................................... 44
Query Decoder Version ........................................................................................................................................... 44
Query Data Formatter Version ................................................................................................................................ 45

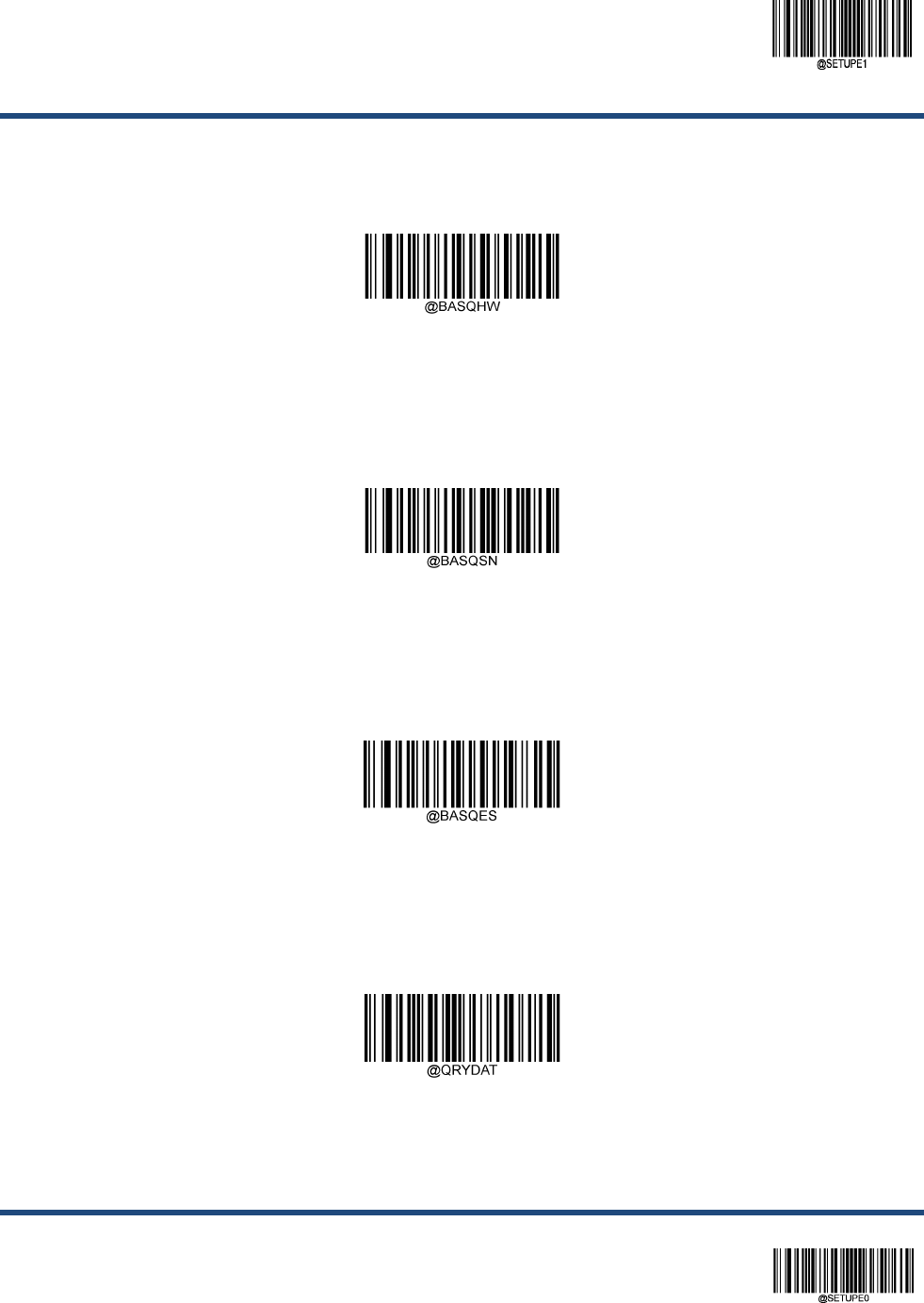

Query Hardware Version ......................................................................................................................................... 45
Query Serial Number .............................................................................................................................................. 45
Query Manufacturing Date ...................................................................................................................................... 45
Query OEM Serial Number ..................................................................................................................................... 46
Query Cradle Information ............................................................................................................................................... 46
Query Model Number .............................................................................................................................................. 46
Query Firmware Version ......................................................................................................................................... 46
Query Hardware Information ................................................................................................................................... 47
Query Serial Number .............................................................................................................................................. 47
Query OEM Serial Number (ESN) .......................................................................................................................... 47
Query Manufacturing Date ...................................................................................................................................... 47
Query Remaining Battery of Scanner ............................................................................................................................. 48
Chapter 4 Wireless Communications ....................................................................................................................................... 49
Operating Modes ............................................................................................................................................................ 49

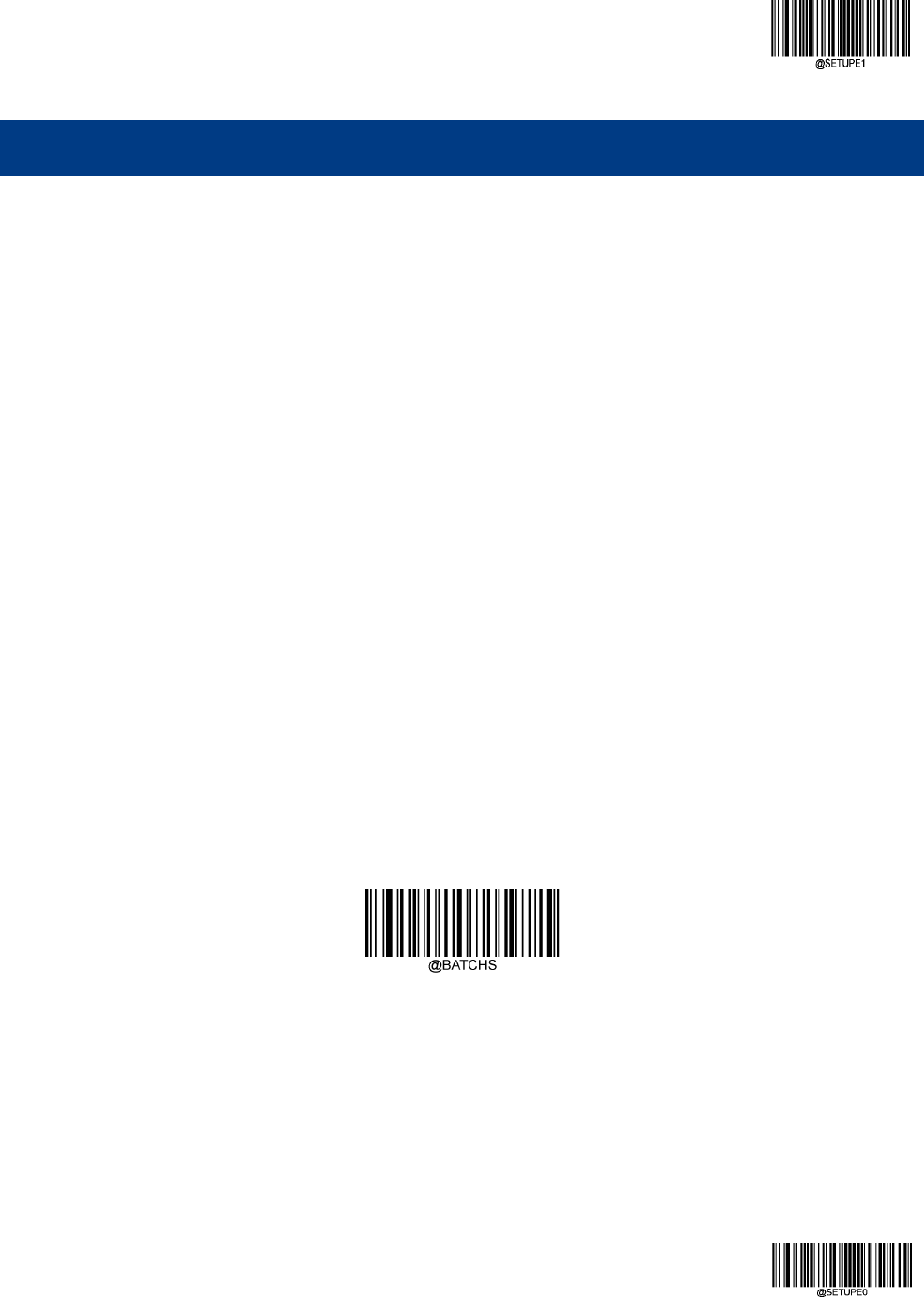

Batch Mode .................................................................................................................................................................... 49
Batch Mode Options ............................................................................................................................................... 49
Prevent Same Barcode Storage .............................................................................................................................. 50
Batch Mode Transmit Delay .................................................................................................................................... 51
End of Transmission Message for Batch Mode ....................................................................................................... 52
Transmit Stored Data .............................................................................................................................................. 53
Auto Clear Stored Data after Transmission ............................................................................................................. 53
Query/Clear Stored Data in Flash ........................................................................................................................... 53
Retransmission .............................................................................................................................................................. 54
Transmission Timeout ............................................................................................................................................. 54
Retransmission Count ............................................................................................................................................. 55
Scanner(s) to Cradle Support......................................................................................................................................... 56
Wireless Communication Modes ............................................................................................................................. 56
Clear Pairing Info on Scanner/Cradle ..................................................................................................................... 56
Set Date and Time ......................................................................................................................................................... 57
Query Current Date and Time ........................................................................................................................................ 57
Time Stamp .................................................................................................................................................................... 57
Set Time Stamp Format .......................................................................................................................................... 58
Chapter 5 RS-232 Interface ........................................................................................................................................................ 59
Introduction .................................................................................................................................................................... 59

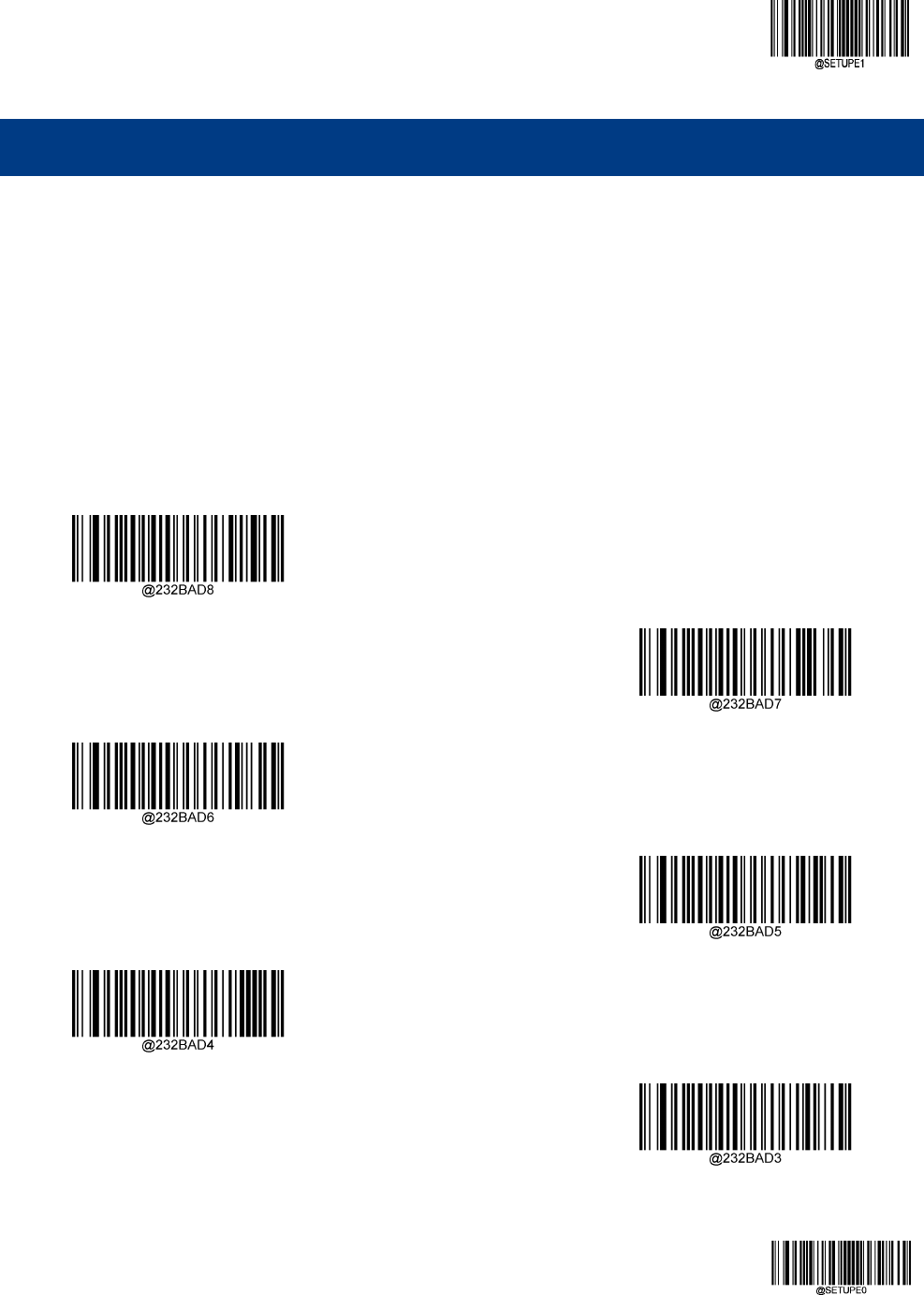

Baud Rate ...................................................................................................................................................................... 59
Parity Check ................................................................................................................................................................... 60
Data Bit .......................................................................................................................................................................... 61
Stop Bit ........................................................................................................................................................................... 61

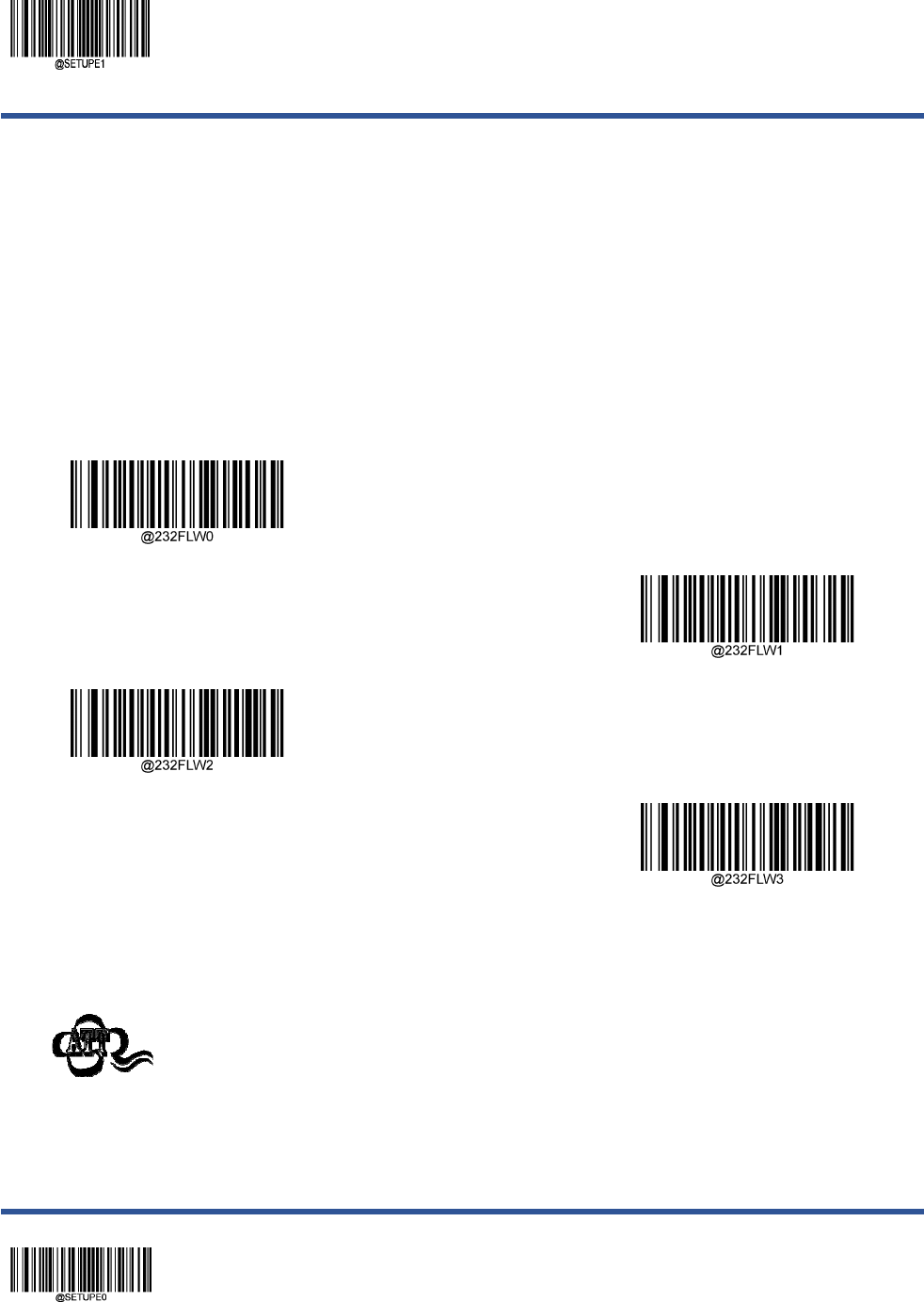

Hardware Auto Flow Control .......................................................................................................................................... 62
Chapter 6 USB Interface ............................................................................................................................................................ 63
Introduction .................................................................................................................................................................... 63
USB HID Keyboard ........................................................................................................................................................ 64

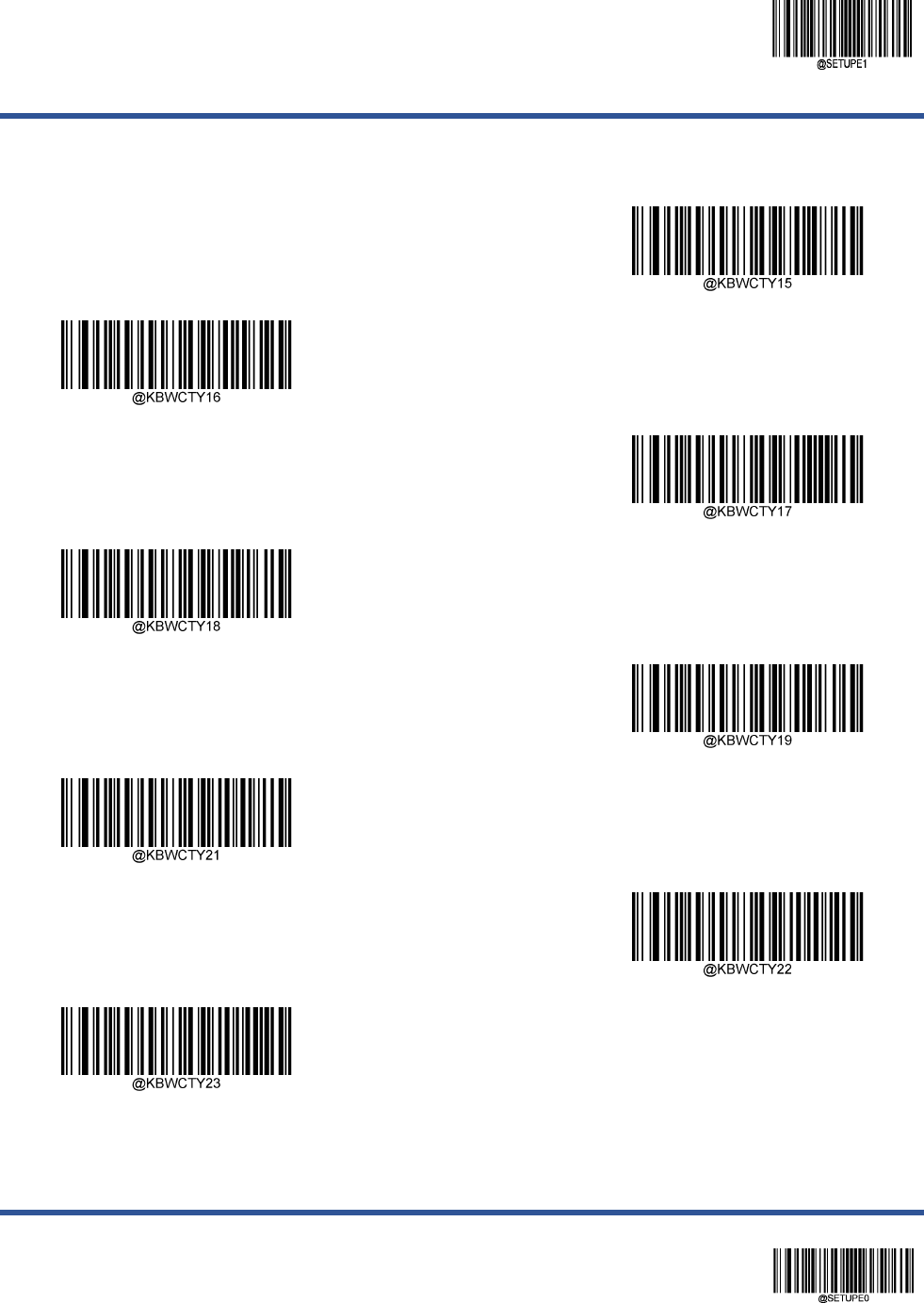

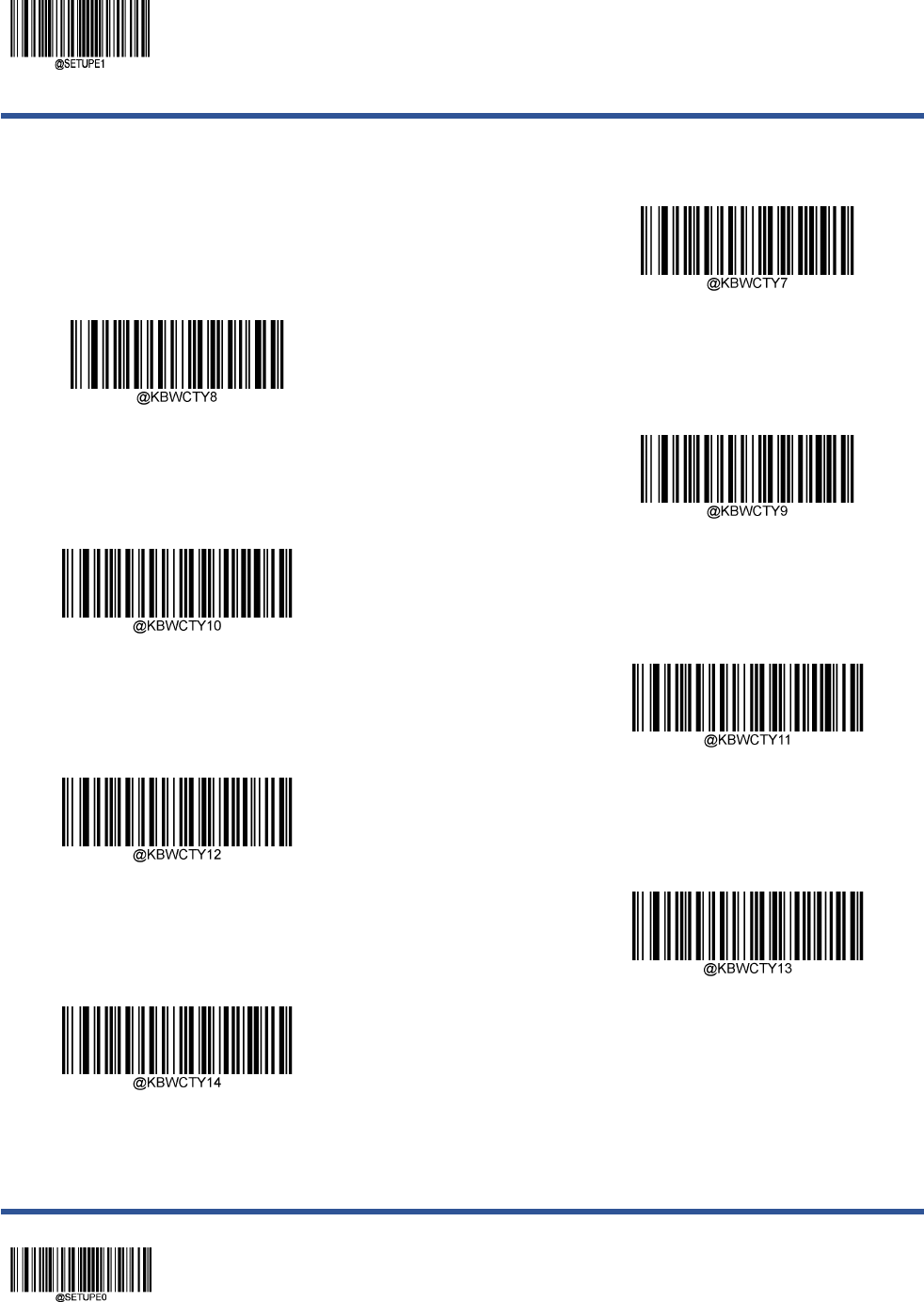

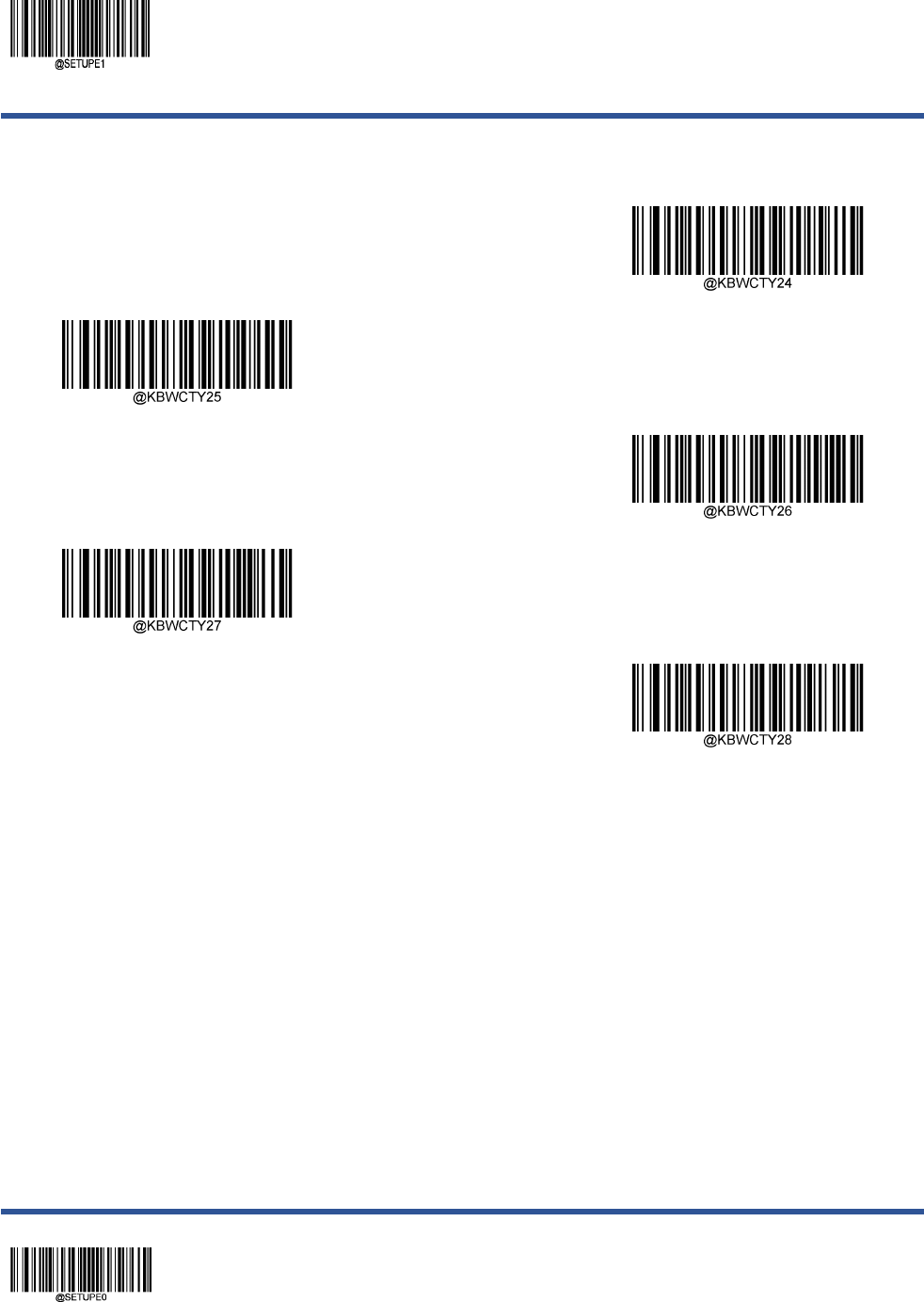

USB Country Keyboard Types ................................................................................................................................ 65
Emulate ALT+Keypad ............................................................................................................................................. 69
Code Page ....................................................................................................................................................... 70
Unicode Encoding ............................................................................................................................................ 72
Emulate Keypad with Leading Zero ................................................................................................................. 72
Function Key Mapping ............................................................................................................................................ 73
ASCII Function Key Mapping Table ........................................................................................................................ 74
ASCII Function Key Mapping Table (Continued) ..................................................................................................... 75

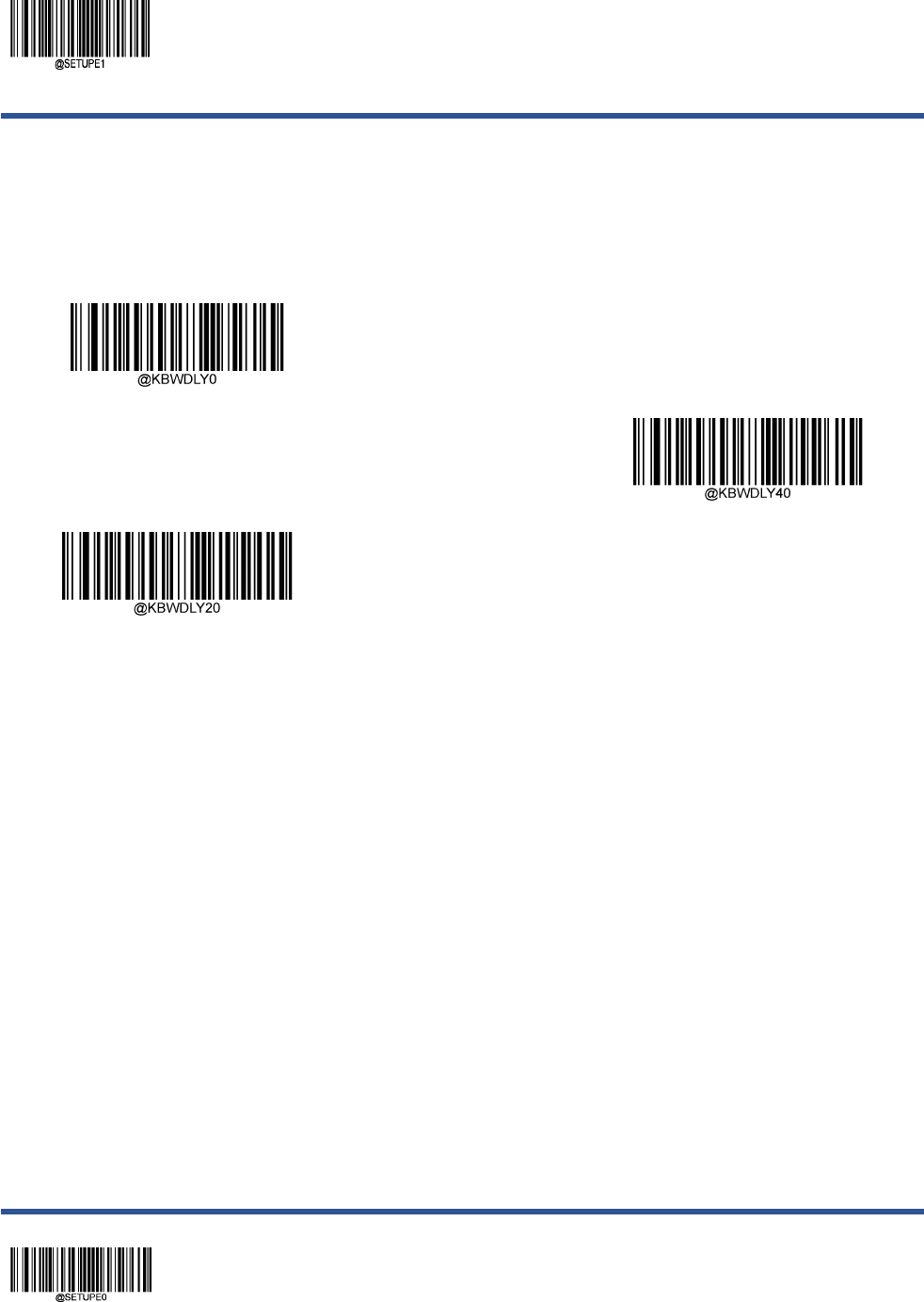

Inter-Keystroke Delay ............................................................................................................................................. 76
Convert Case .......................................................................................................................................................... 77
Emulate Numeric Keypad ....................................................................................................................................... 78
Polling Rate ............................................................................................................................................................. 80
USB CDC ....................................................................................................................................................................... 82
HID POS (POS HID Barcode Scanner) .......................................................................................................................... 83
Introduction ............................................................................................................................................................. 83
Access the Cradle with Your Program ..................................................................................................................... 83
Acquire Scanned Data ............................................................................................................................................ 84
Send Command to the Cradle ................................................................................................................................. 84
IBM SurePOS (Tabletop) ................................................................................................................................................ 85
IBM SurePOS (Handheld) .............................................................................................................................................. 85
VID/PID .......................................................................................................................................................................... 85
Chapter 7 Symbologies .............................................................................................................................................................. 86
Introduction .................................................................................................................................................................... 86
Global Settings ............................................................................................................................................................... 86

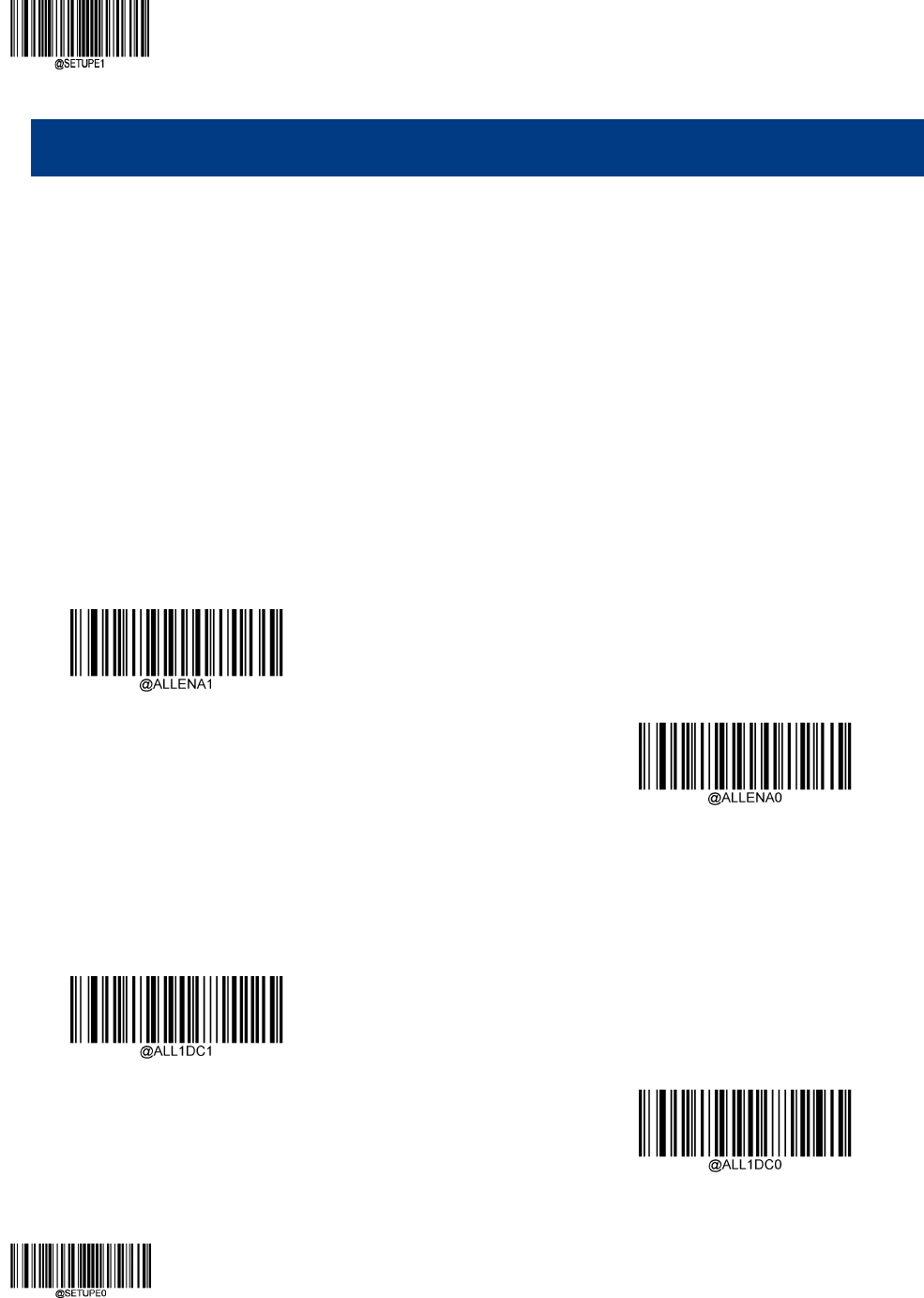

Enable/Disable All Symbologies .............................................................................................................................. 86
Enable/Disable 1D Symbologies ............................................................................................................................. 86

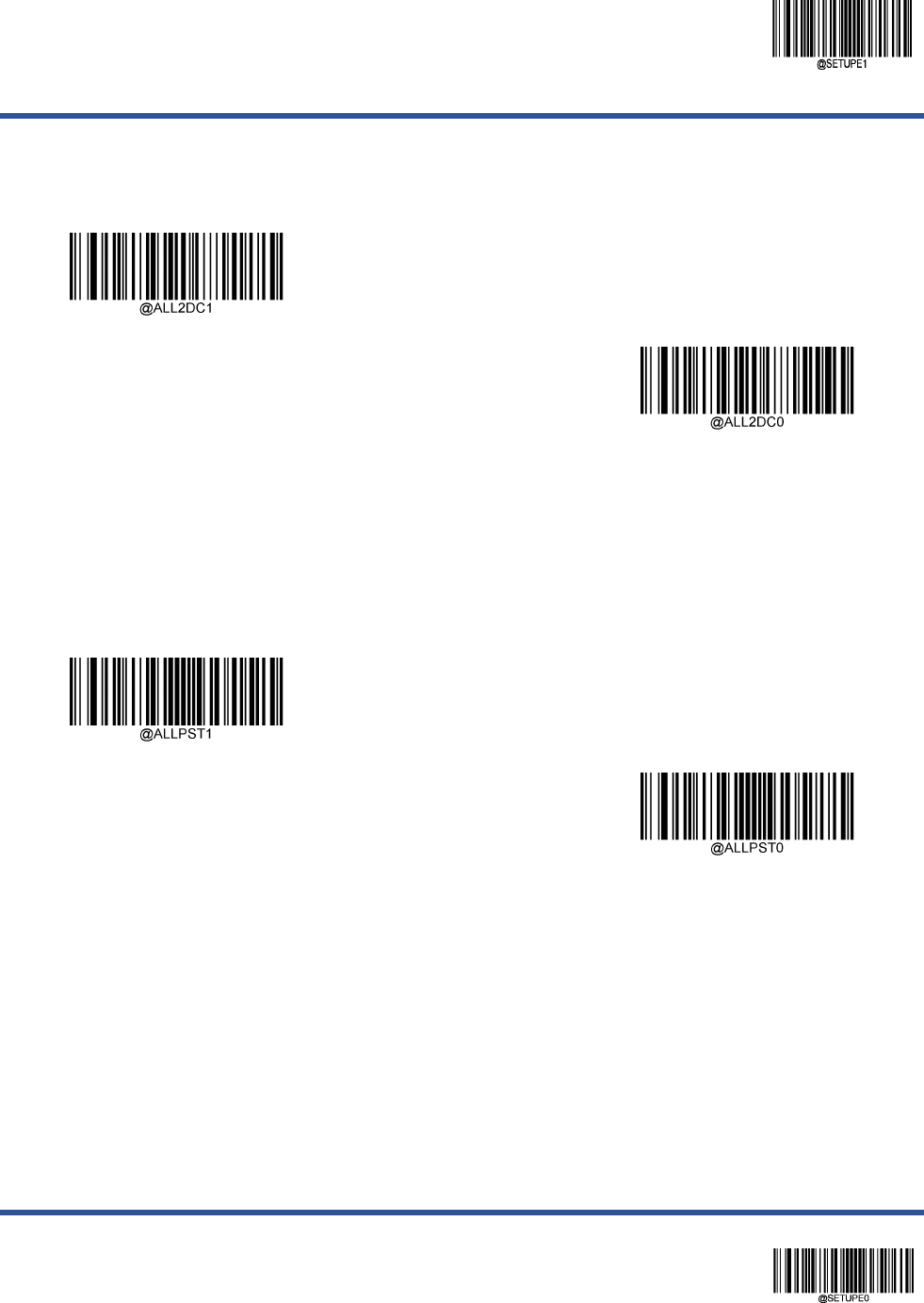

Enable/Disable 2D Symbologies ............................................................................................................................. 87
Enable/Disable Postal Symbologies ....................................................................................................................... 87
1D Twin Code ......................................................................................................................................................... 88

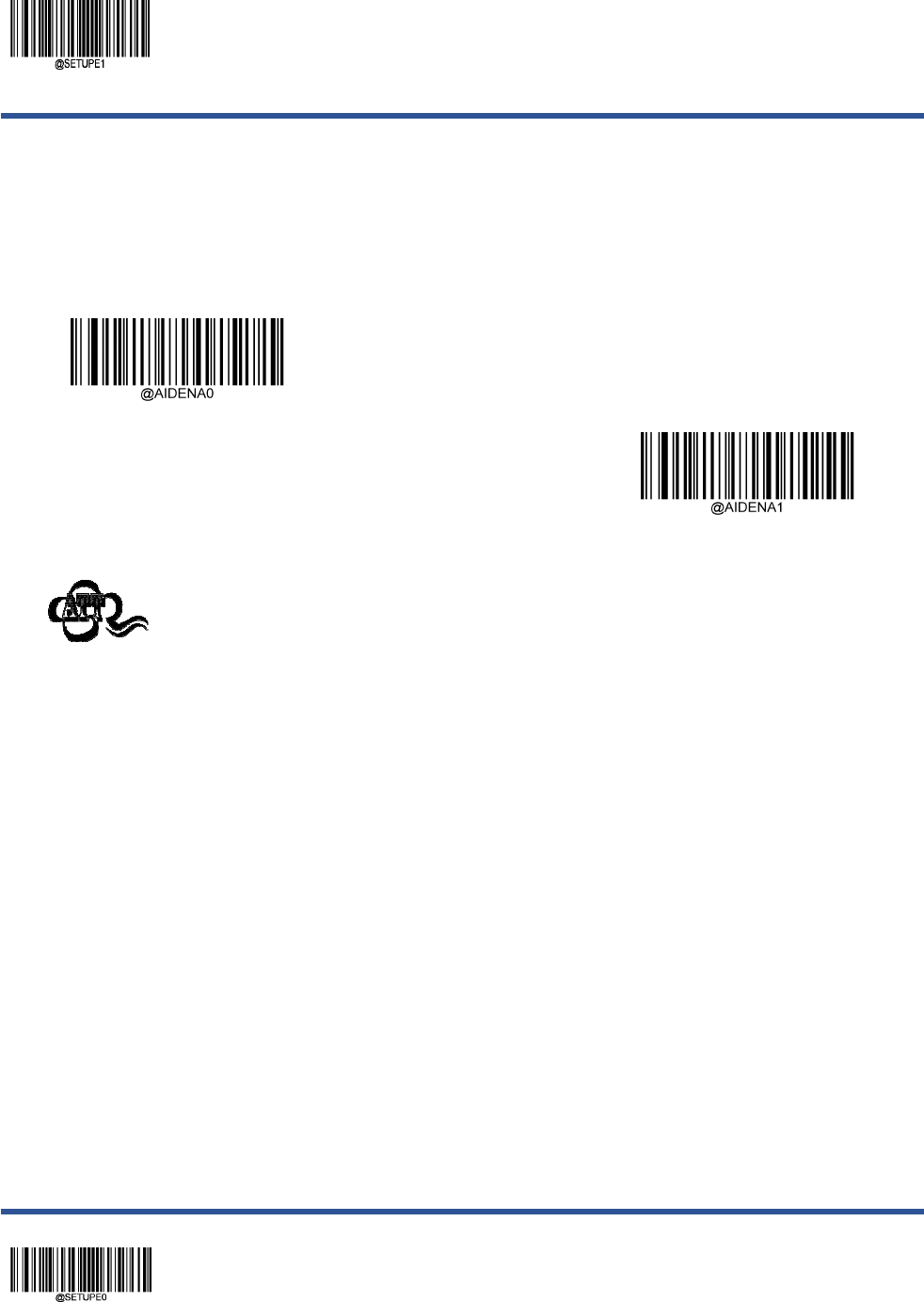

Surround GS1 Application Identifiers (AI’s) with Parentheses ................................................................................. 89
Code 128 ....................................................................................................................................................................... 90
Restore Factory Defaults ........................................................................................................................................ 90
Enable/Disable Code 128 ....................................................................................................................................... 90
Set Length Range for Code 128 ............................................................................................................................. 91

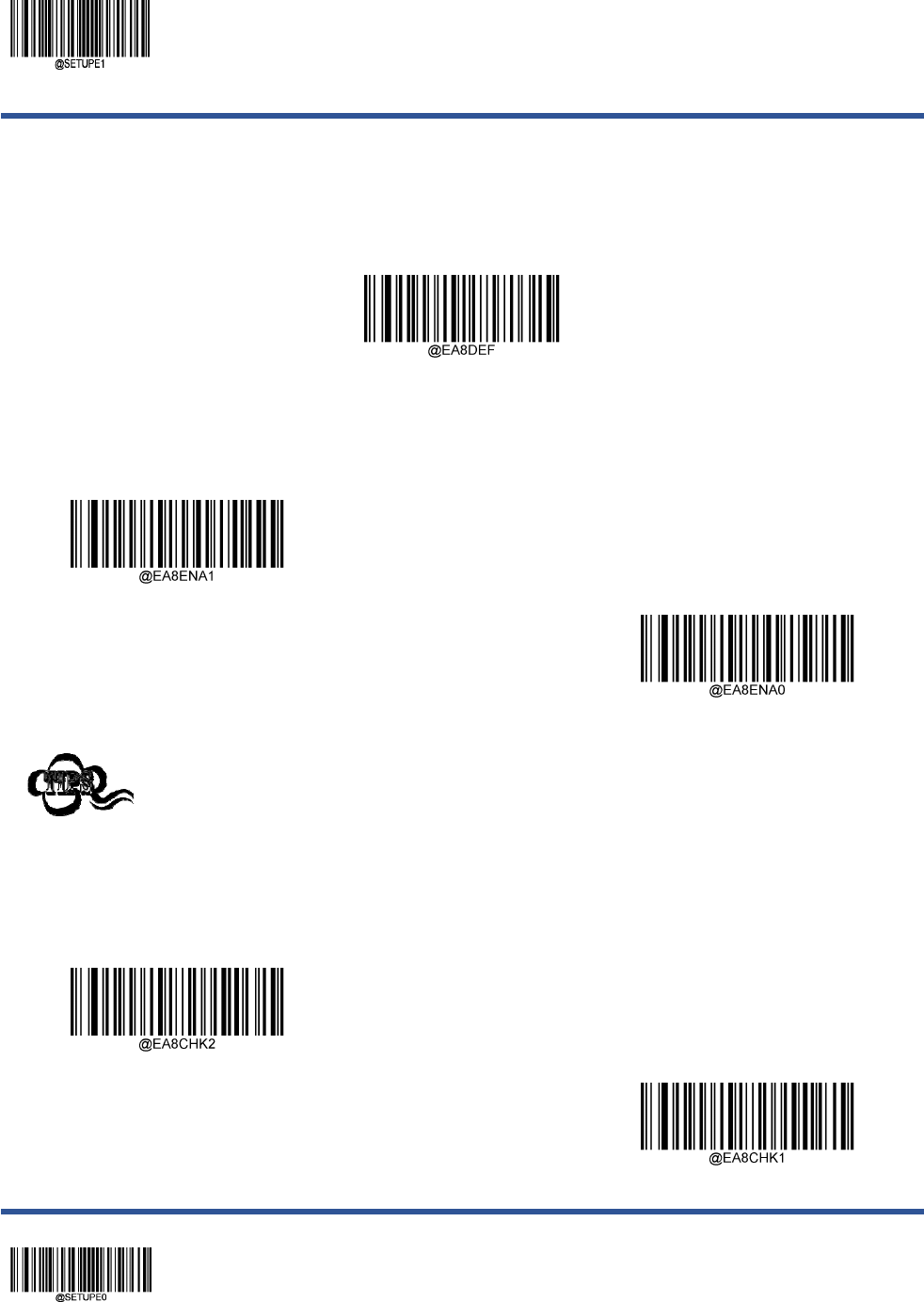

EAN-8 ............................................................................................................................................................................ 92
Restore Factory Defaults ........................................................................................................................................ 92
Enable/Disable EAN-8 ............................................................................................................................................ 92
Transmit Check Character ...................................................................................................................................... 92

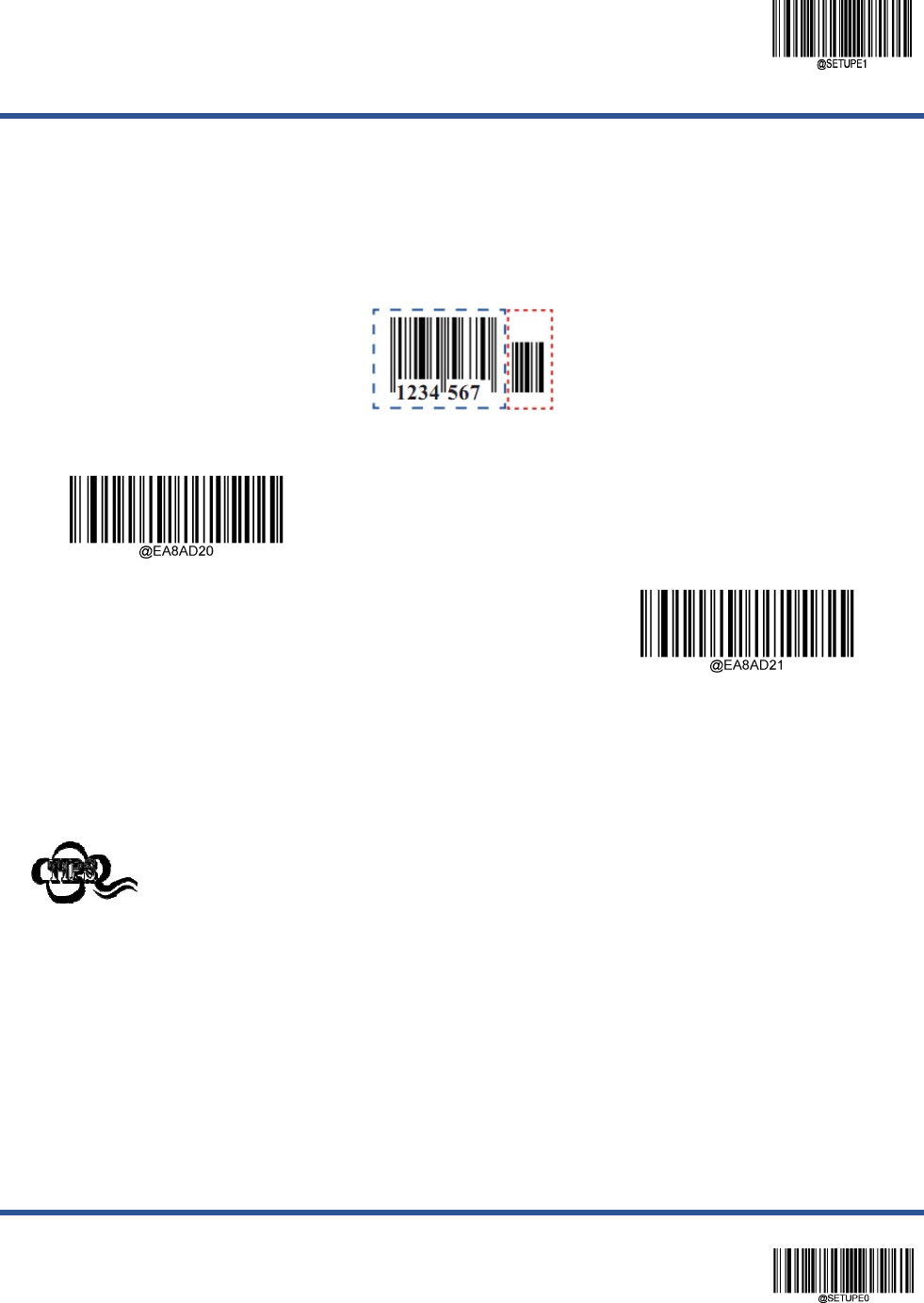

2-Digit Add-On Code ............................................................................................................................................... 93
5-Digit Add-On Code ............................................................................................................................................... 94

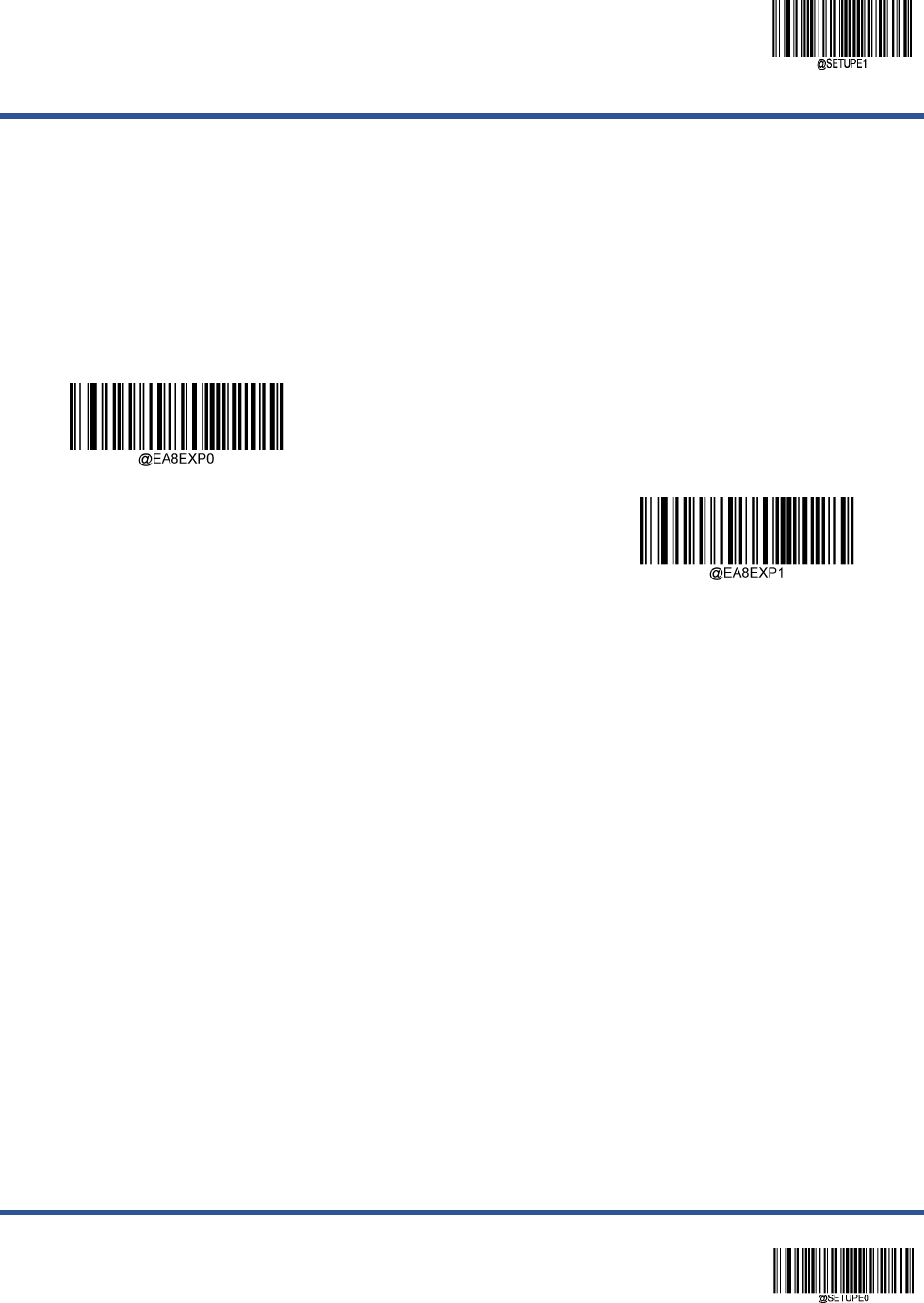

Convert EAN-8 to EAN-13 ...................................................................................................................................... 95
EAN-13 .......................................................................................................................................................................... 96
Restore Factory Defaults ........................................................................................................................................ 96

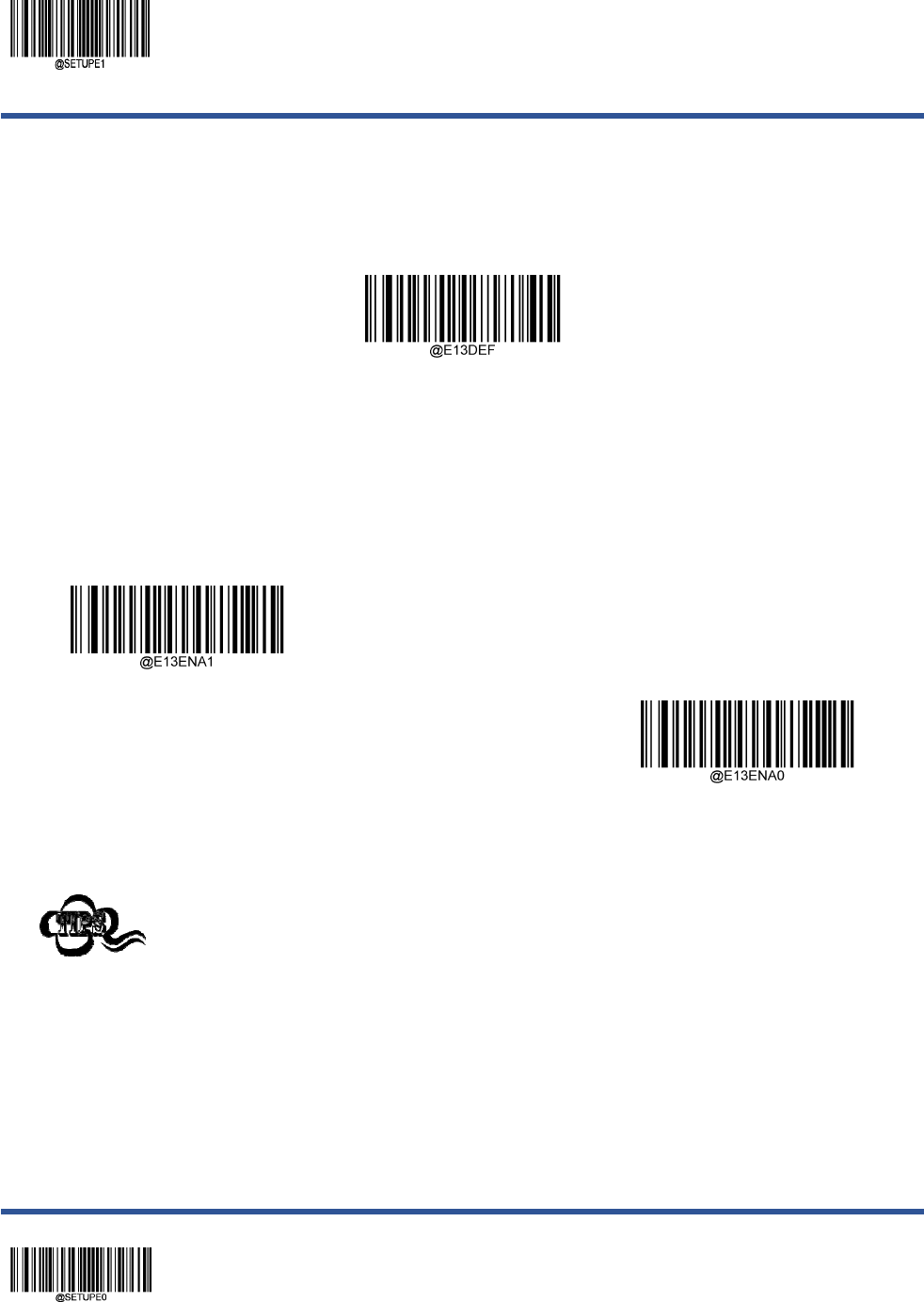

Enable/Disable EAN-13 .......................................................................................................................................... 96

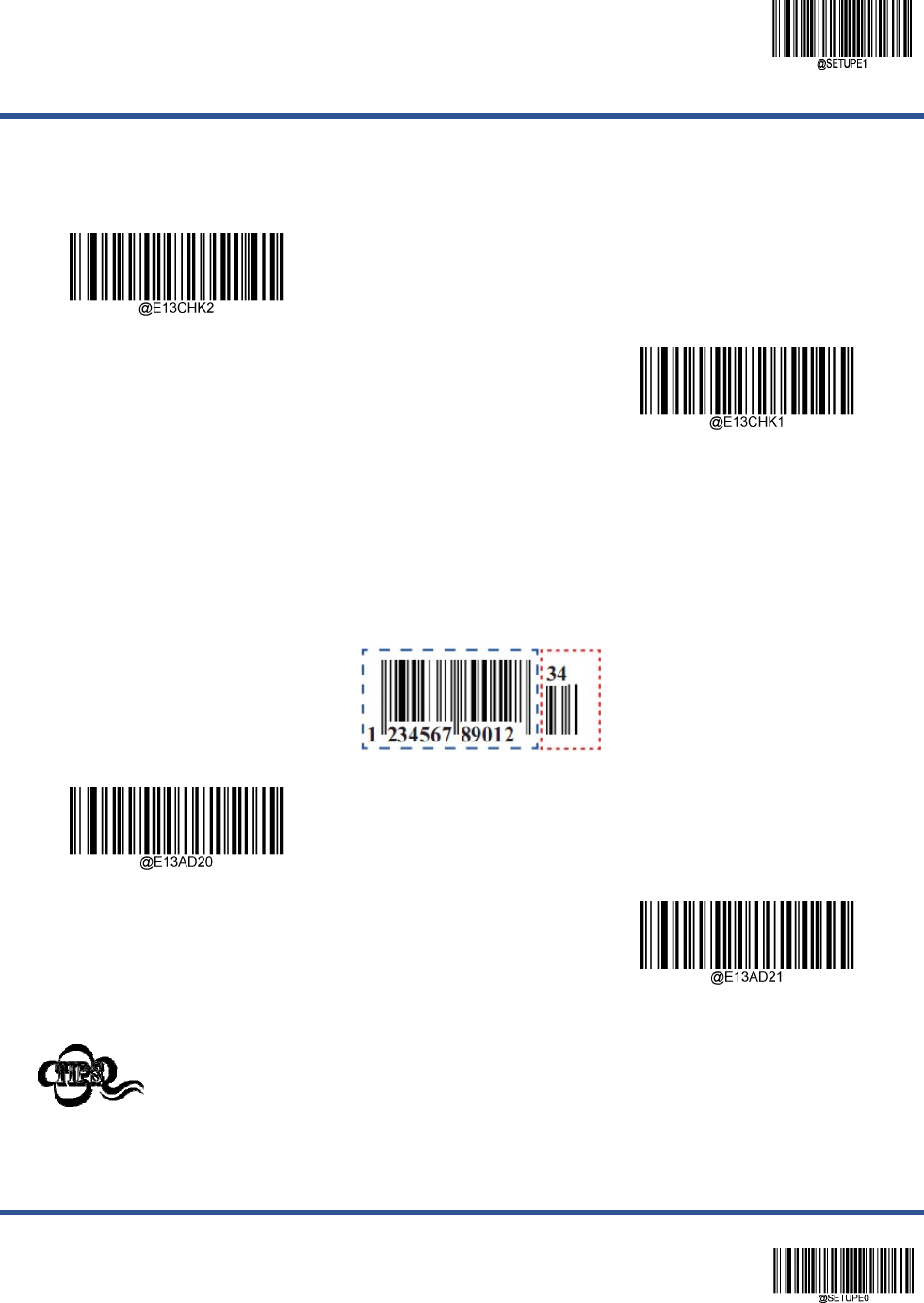

Transmit Check Character ...................................................................................................................................... 97
2-Digit Add-On Code ............................................................................................................................................... 97
5-Digit Add-On Code ............................................................................................................................................... 98
Add-On Code Required .......................................................................................................................................... 98
EAN-13 Beginning with 290 Add-On Code Required .............................................................................................. 99
EAN-13 Beginning with 378/379 Add-On Code Required ....................................................................................... 99
EAN-13 Beginning with 414/419 Add-On Code Required ..................................................................................... 100
EAN-13 Beginning with 434/439 Add-On Code Required ..................................................................................... 100
EAN-13 Beginning with 977 Add-On Code Required ............................................................................................ 101
EAN-13 Beginning with 978 Add-On Code Required ............................................................................................ 101

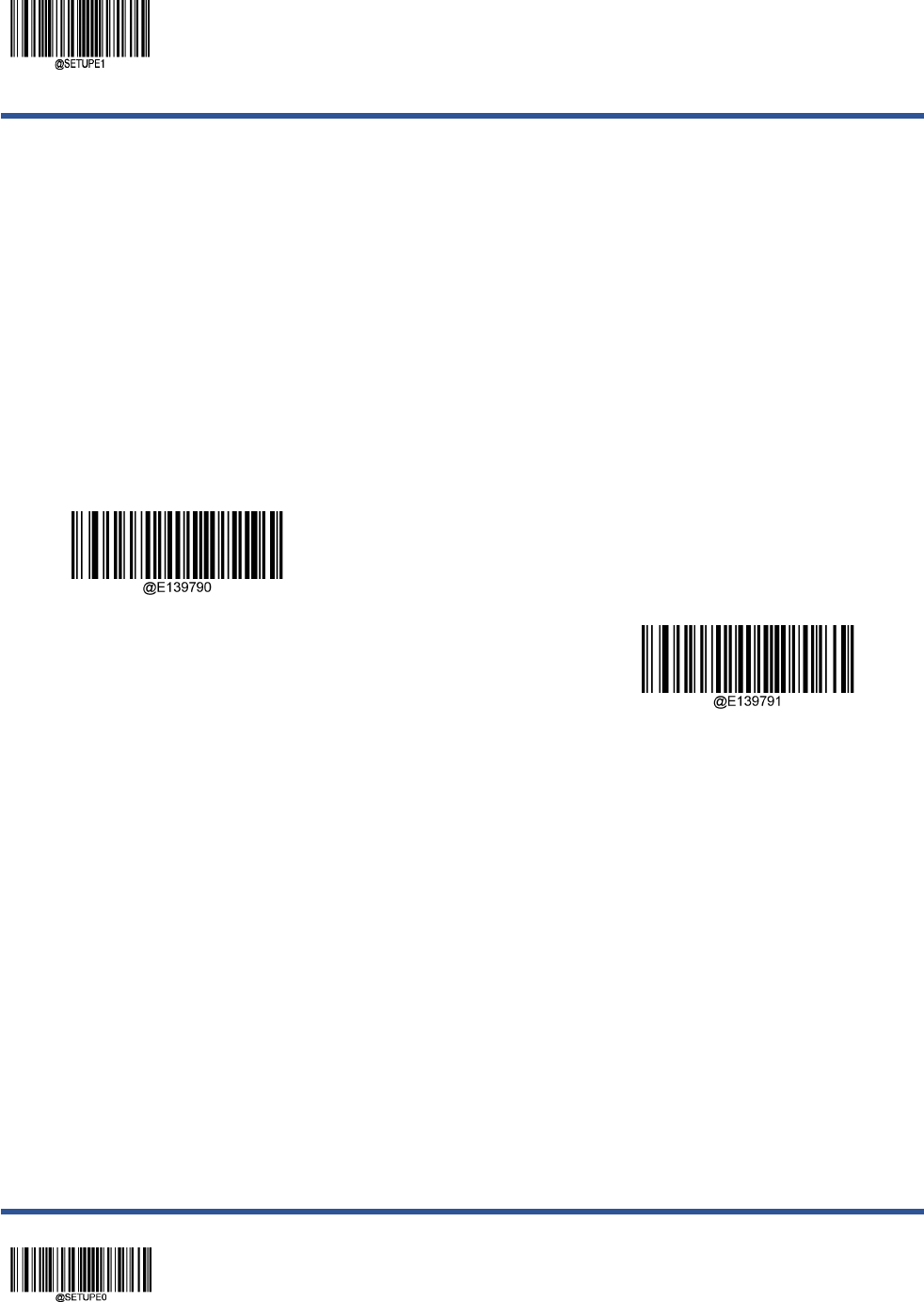

EAN-13 Beginning with 979 Add-On Code Required ............................................................................................ 102
UPC-E .......................................................................................................................................................................... 103

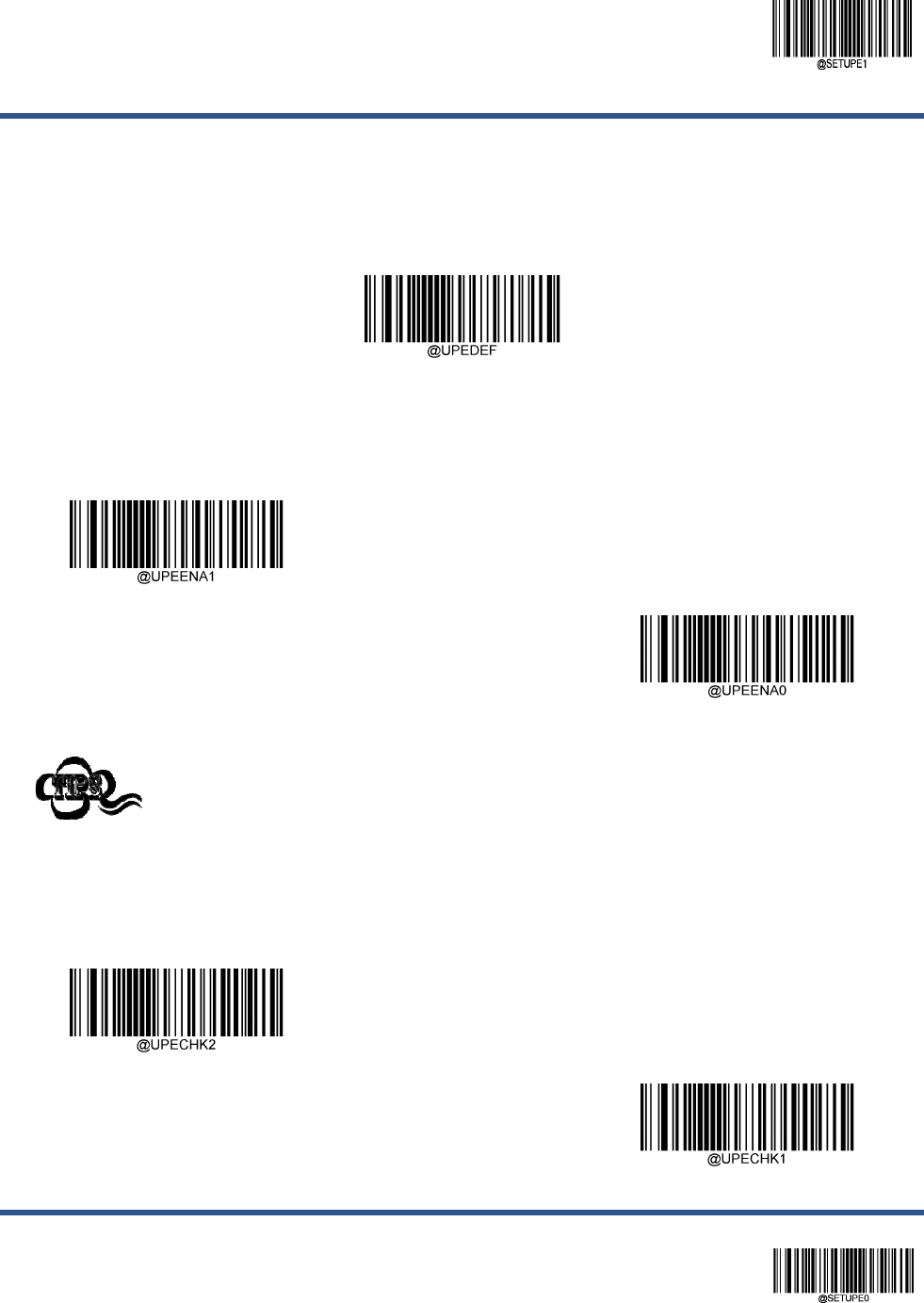

Restore Factory Defaults ...................................................................................................................................... 103
Enable/Disable UPC-E .......................................................................................................................................... 103
Transmit Check Character .................................................................................................................................... 103
2-Digit Add-On Code ............................................................................................................................................. 104
5-Digit Add-On Code ............................................................................................................................................. 105
Transmit Preamble Character ............................................................................................................................... 106
Convert UPC-E to UPC-A ..................................................................................................................................... 106
UPC-A .......................................................................................................................................................................... 107
Restore Factory Defaults ...................................................................................................................................... 107
Enable/Disable UPC-A .......................................................................................................................................... 107
Transmit Check Character .................................................................................................................................... 107

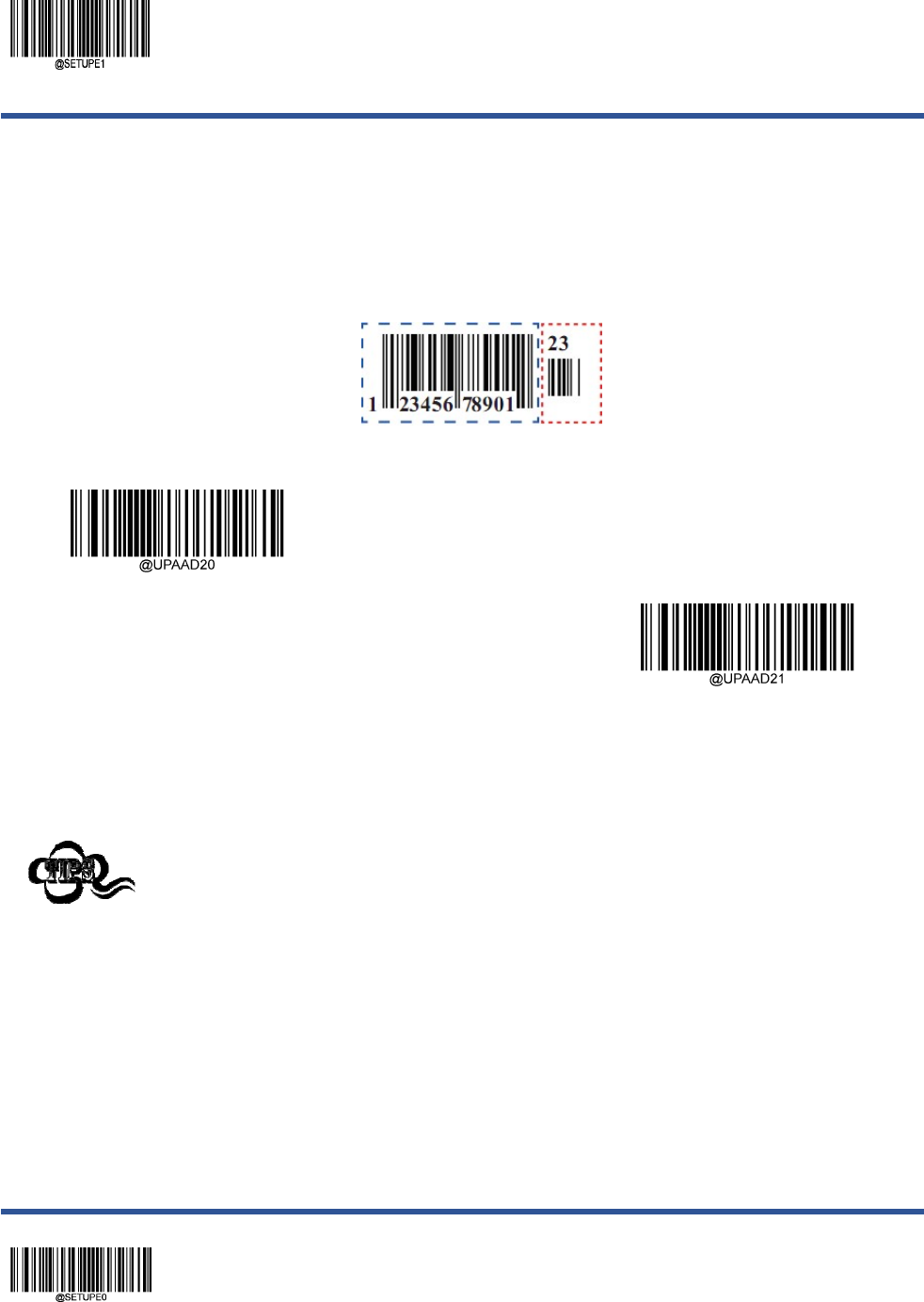

2-Digit Add-On Code ............................................................................................................................................. 108

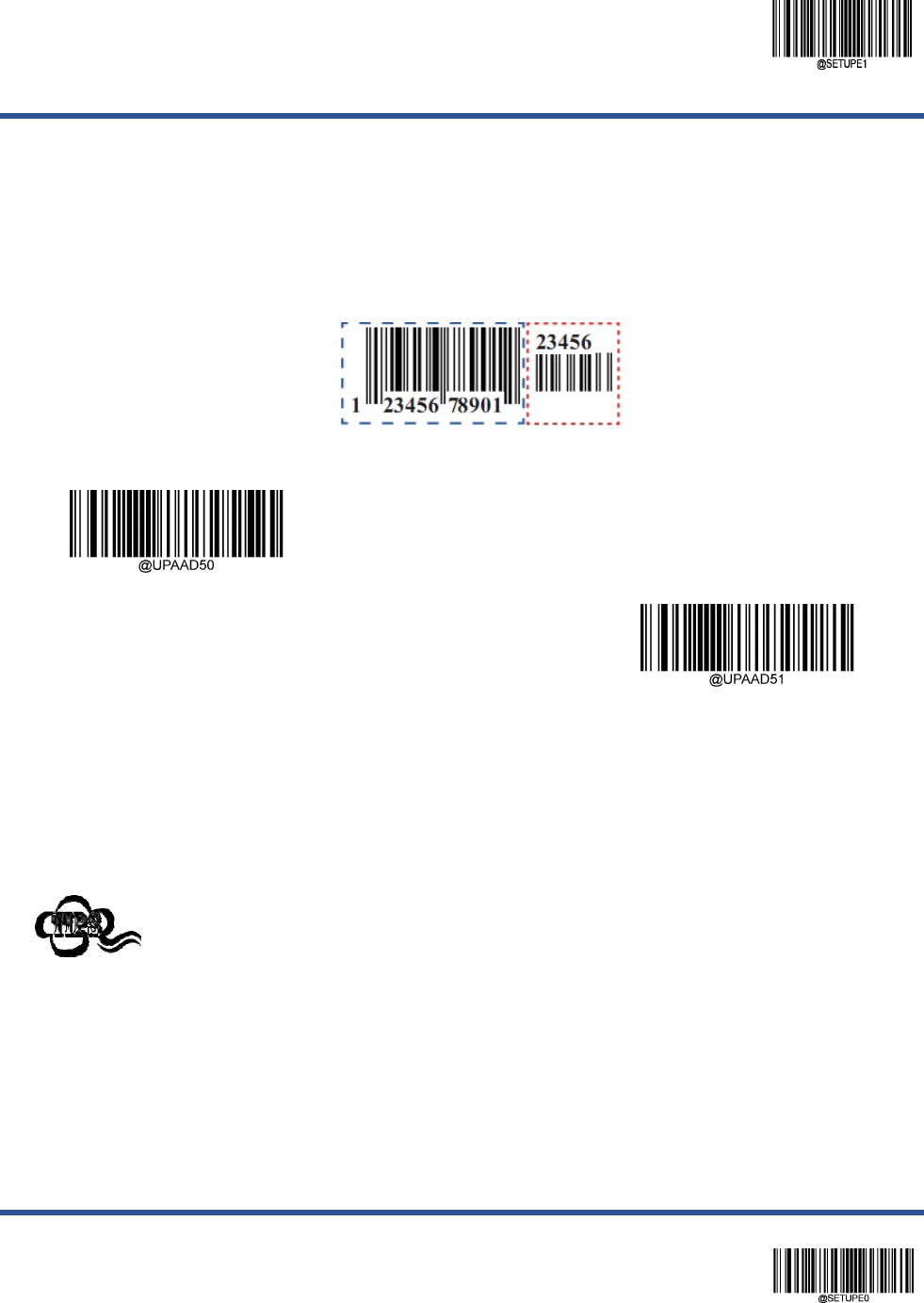

5-Digit Add-On Code ............................................................................................................................................. 109
Transmit Preamble Character ............................................................................................................................... 110

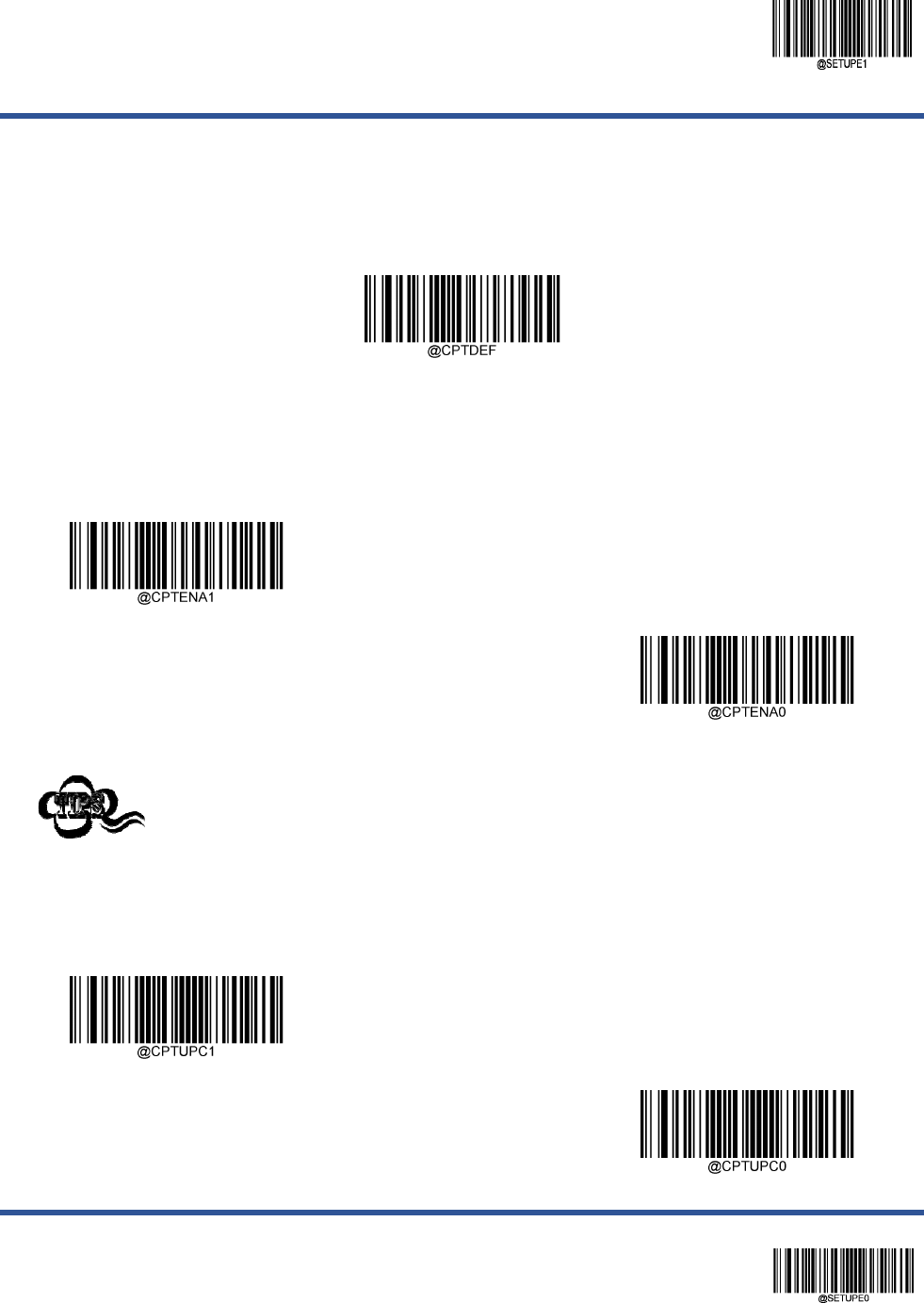

Coupon ......................................................................................................................................................................... 111
UPC-A/EAN-13 with Extended Coupon Code ........................................................................................................ 111

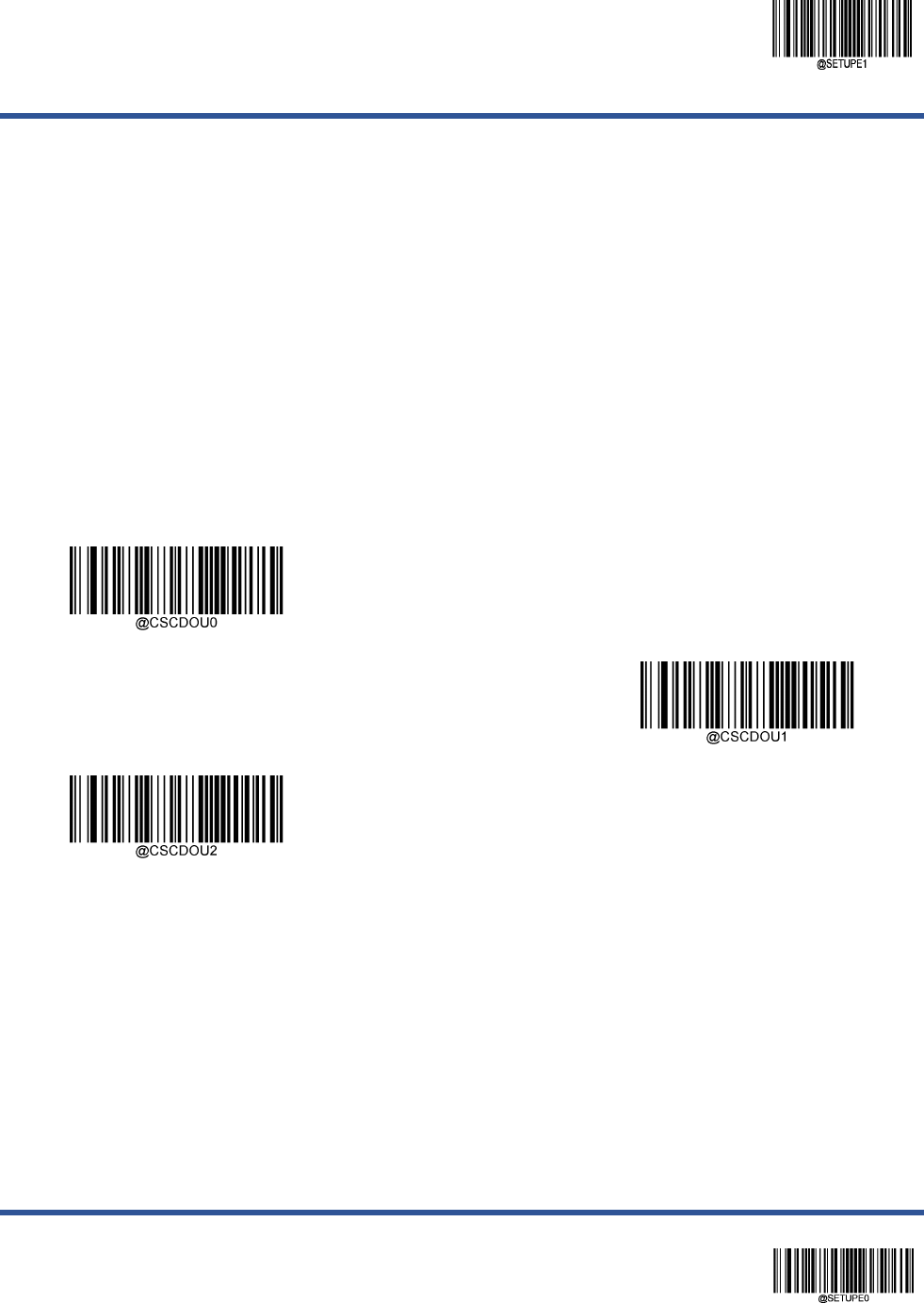

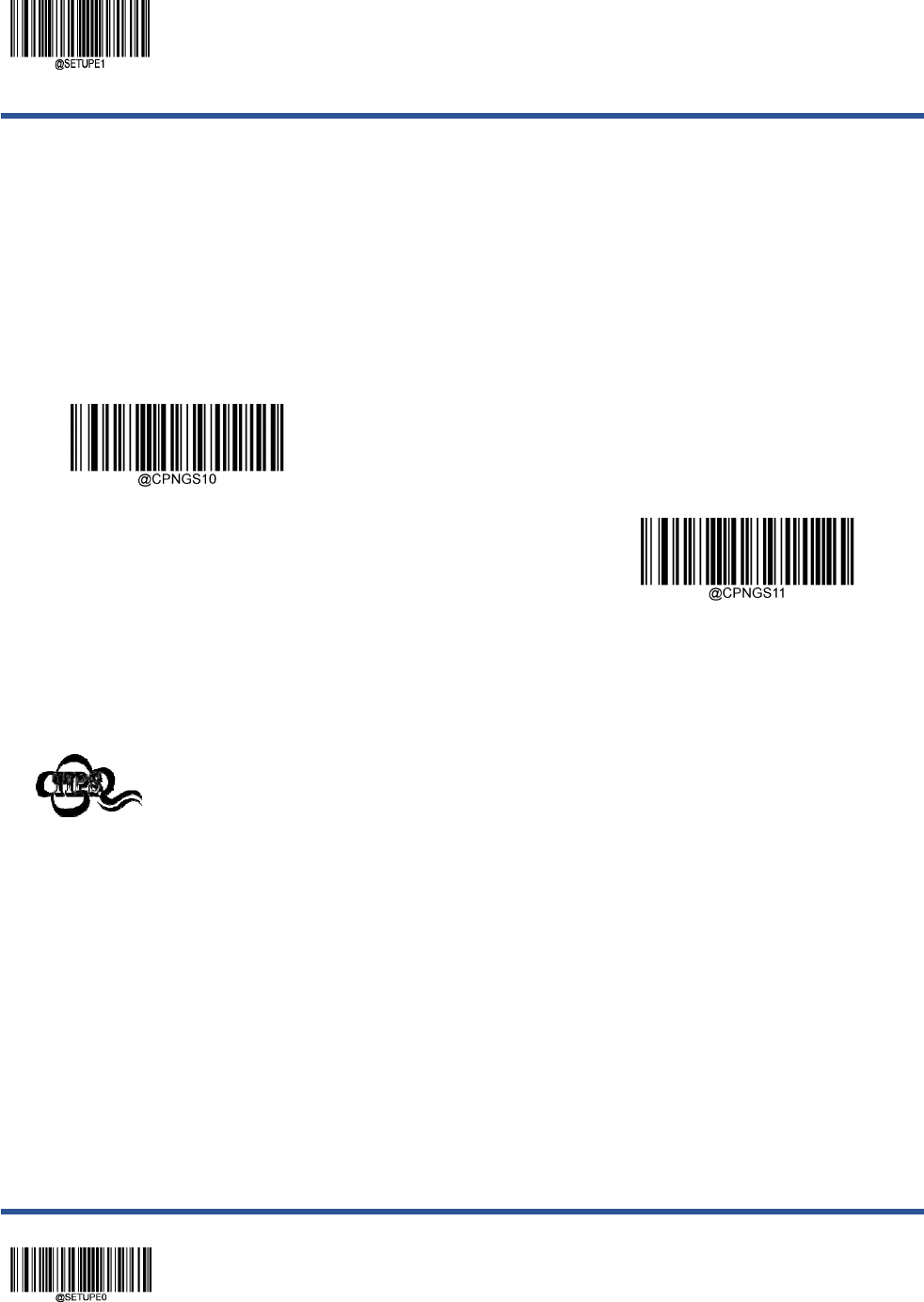

Coupon GS1 Databar Output ................................................................................................................................ 112
Interleaved 2 of 5 ......................................................................................................................................................... 113
Restore Factory Defaults ...................................................................................................................................... 113
Enable/Disable Interleaved 2 of 5 ......................................................................................................................... 113

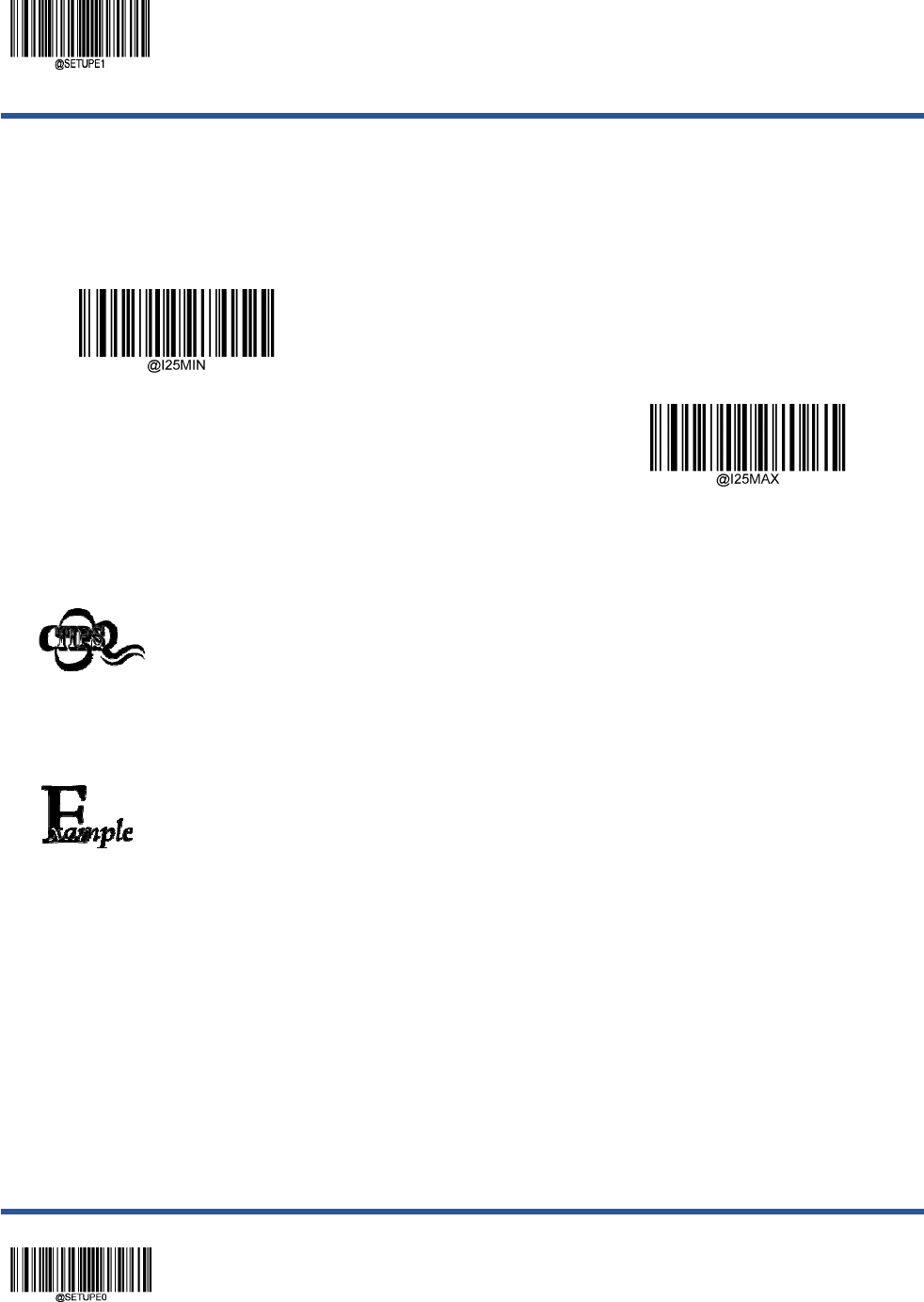

Set Length Range for Interleaved 2 of 5 ............................................................................................................... 114

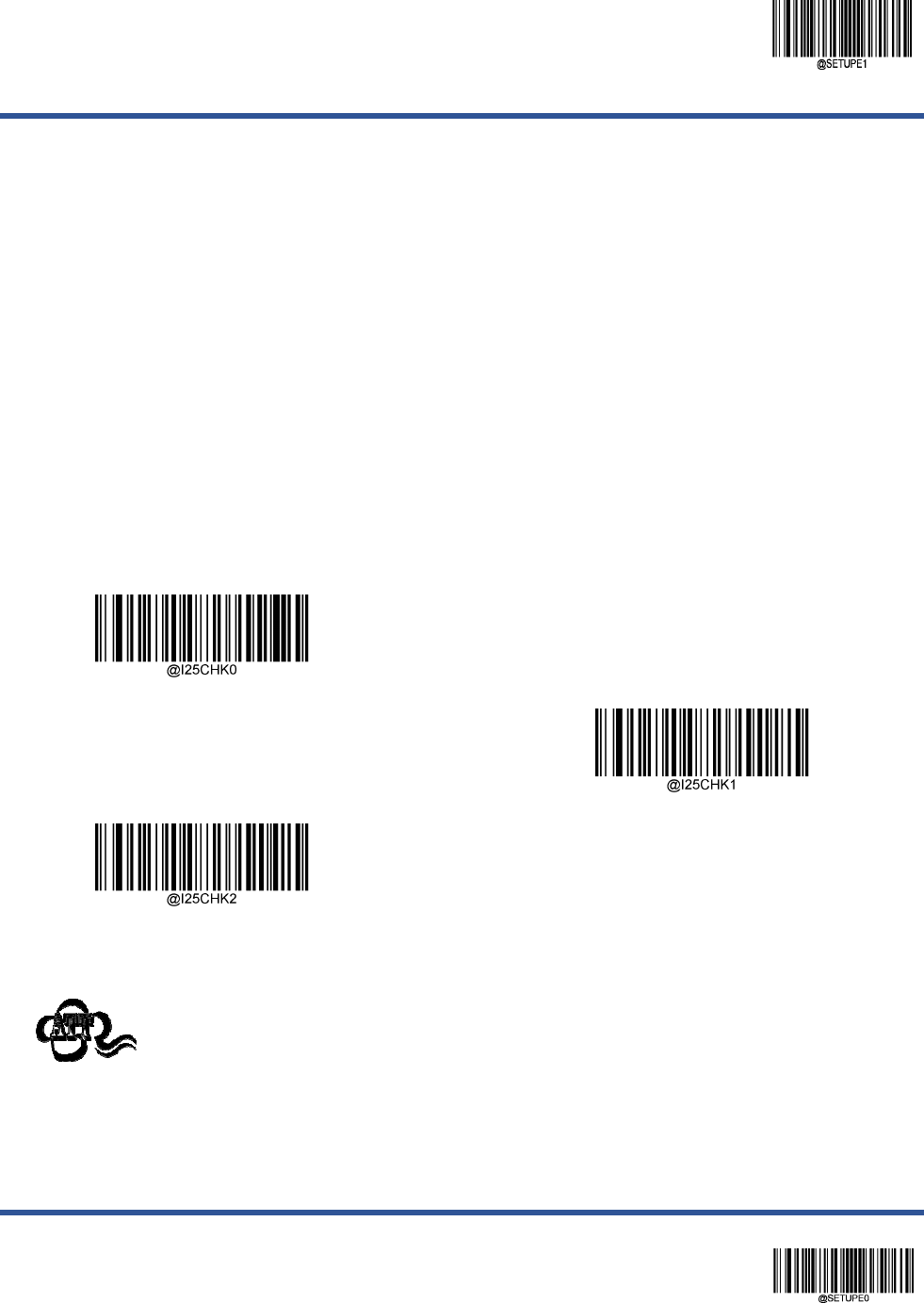

Check Character Verification ................................................................................................................................. 115

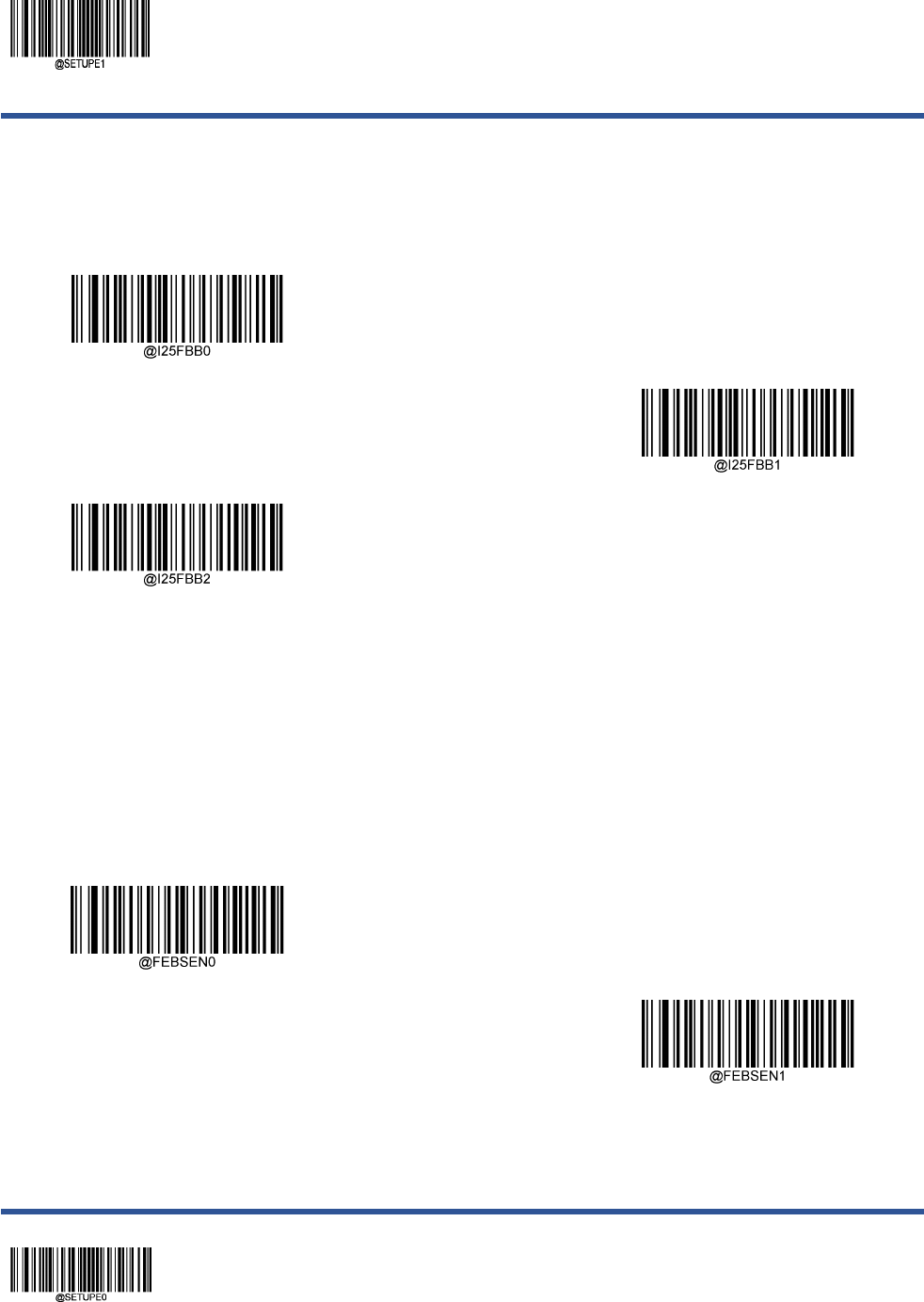

Febraban ...................................................................................................................................................................... 116

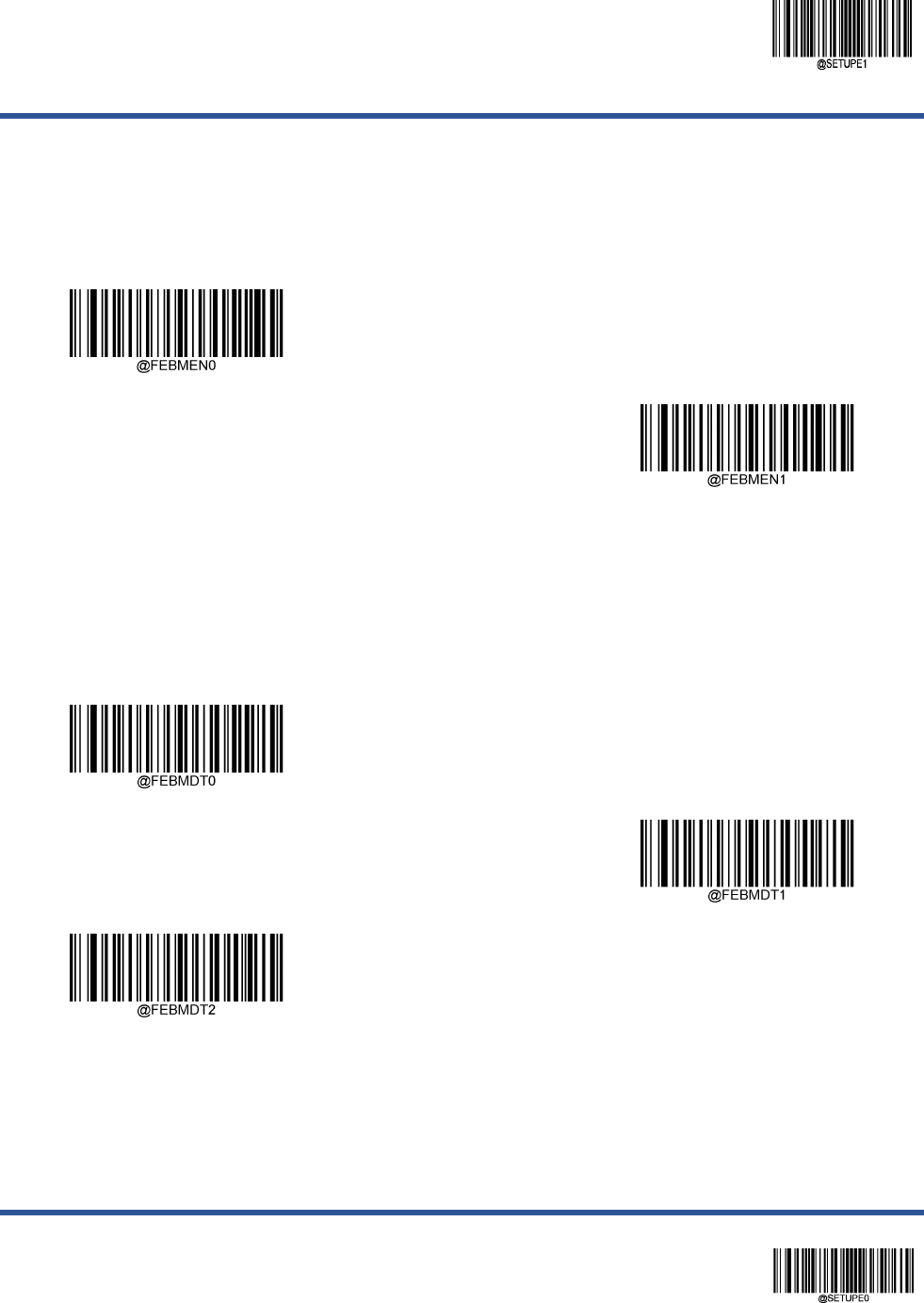

Disable/Enable Febraban...................................................................................................................................... 116
Transmit Delay per Character ............................................................................................................................... 116
Transmit Delay per 12 Characters ........................................................................................................................ 119

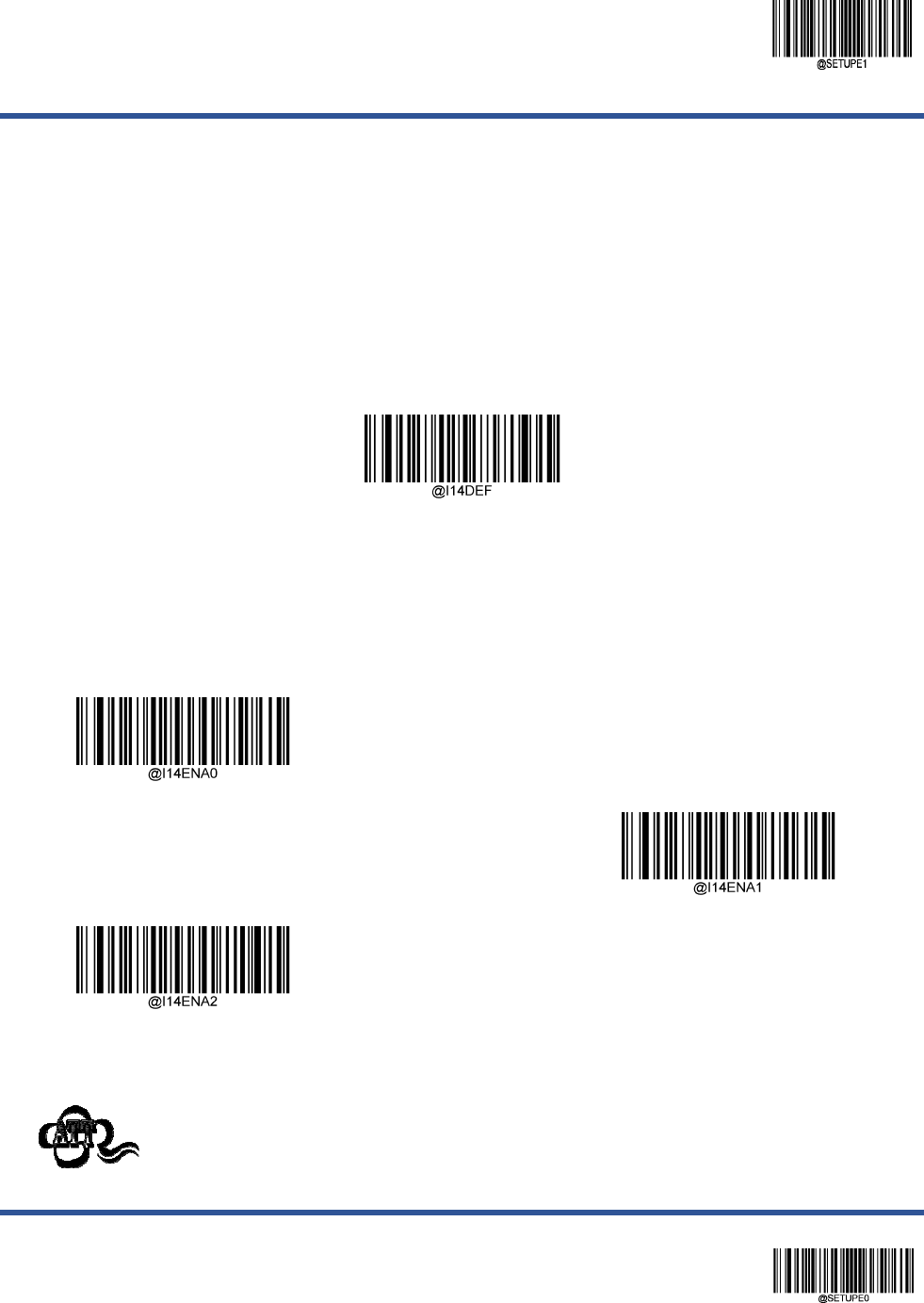

ITF-14 .......................................................................................................................................................................... 121
Restore Factory Defaults ...................................................................................................................................... 121
Enable/Disable ITF-14 .......................................................................................................................................... 121
ITF-6 ............................................................................................................................................................................ 122
Restore Factory Defaults ...................................................................................................................................... 122
Enable/Disable ITF-6 ............................................................................................................................................ 122
Matrix 2 of 5 ................................................................................................................................................................. 123
Restore Factory Defaults ...................................................................................................................................... 123
Enable/Disable Matrix 2 of 5 ................................................................................................................................. 123
Set Length Range for Matrix 2 of 5 ....................................................................................................................... 124
Check Character Verification ................................................................................................................................. 125
Code 39 ....................................................................................................................................................................... 126
Restore Factory Defaults ...................................................................................................................................... 126
Enable/Disable Code 39 ....................................................................................................................................... 126
Set Length Range for Code 39 ............................................................................................................................. 127
Check Character Verification ................................................................................................................................. 128
Transmit Start/Stop Character ............................................................................................................................... 129
Enable/Disable Code 39 Full ASCII ...................................................................................................................... 129

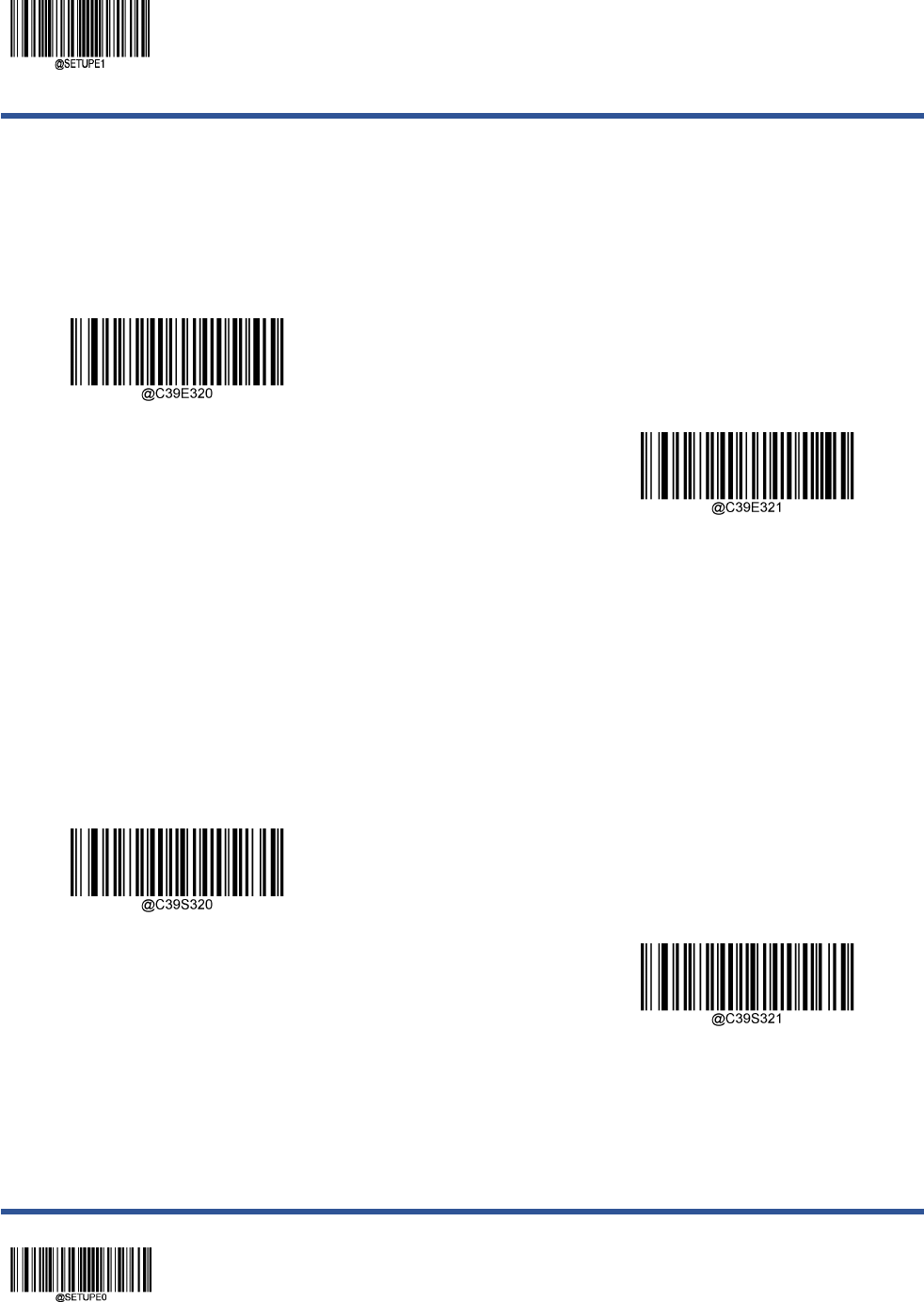

Enable/Disable Code 32 (Italian Pharma Code) ................................................................................................... 130
Code 32 Prefix ...................................................................................................................................................... 130

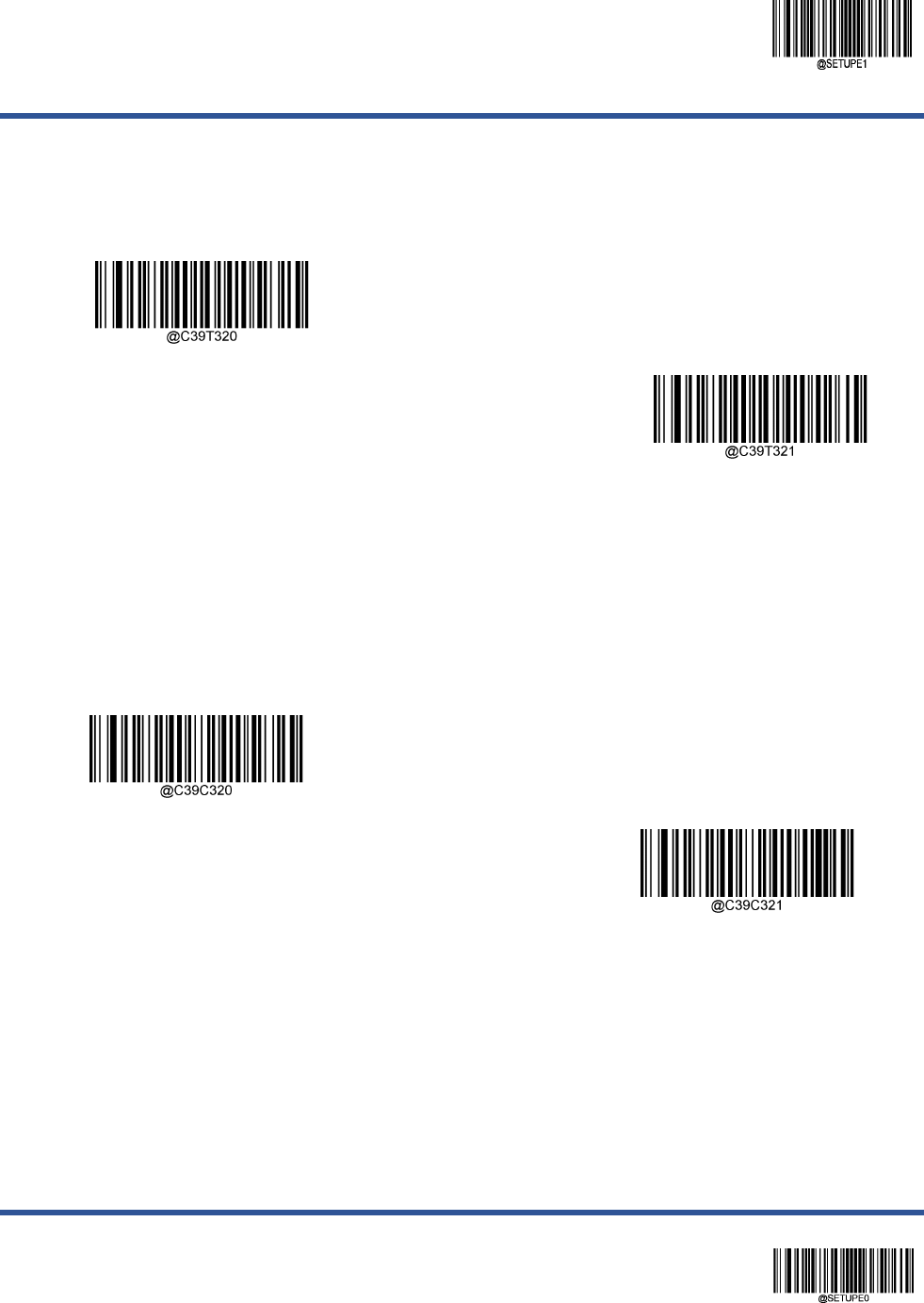

Transmit Code 32 Start/Stop Character ................................................................................................................ 131
Transmit Code 32 Check Character ...................................................................................................................... 131

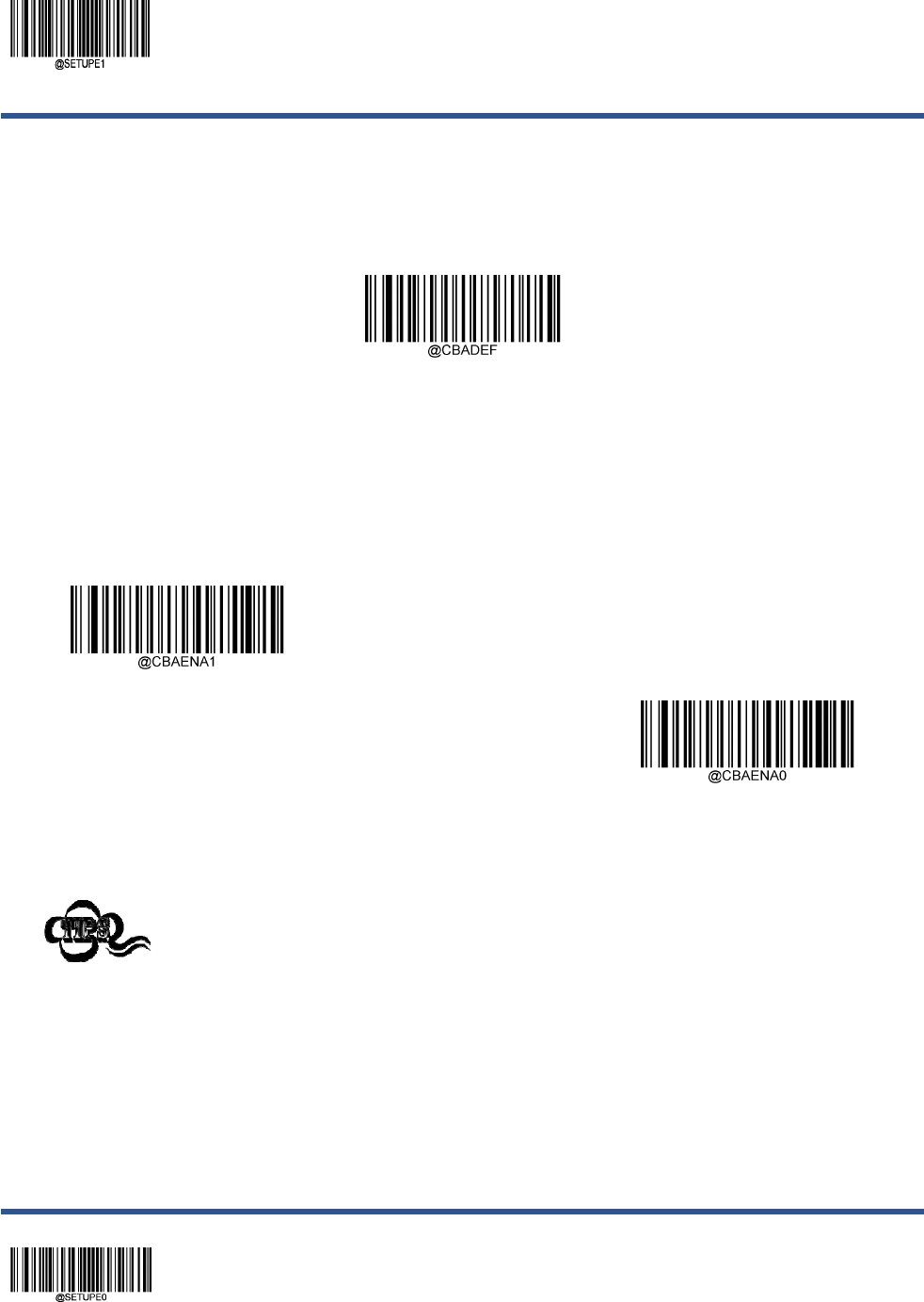

Codabar ....................................................................................................................................................................... 132
Restore Factory Defaults ...................................................................................................................................... 132
Enable/Disable Codabar ....................................................................................................................................... 132

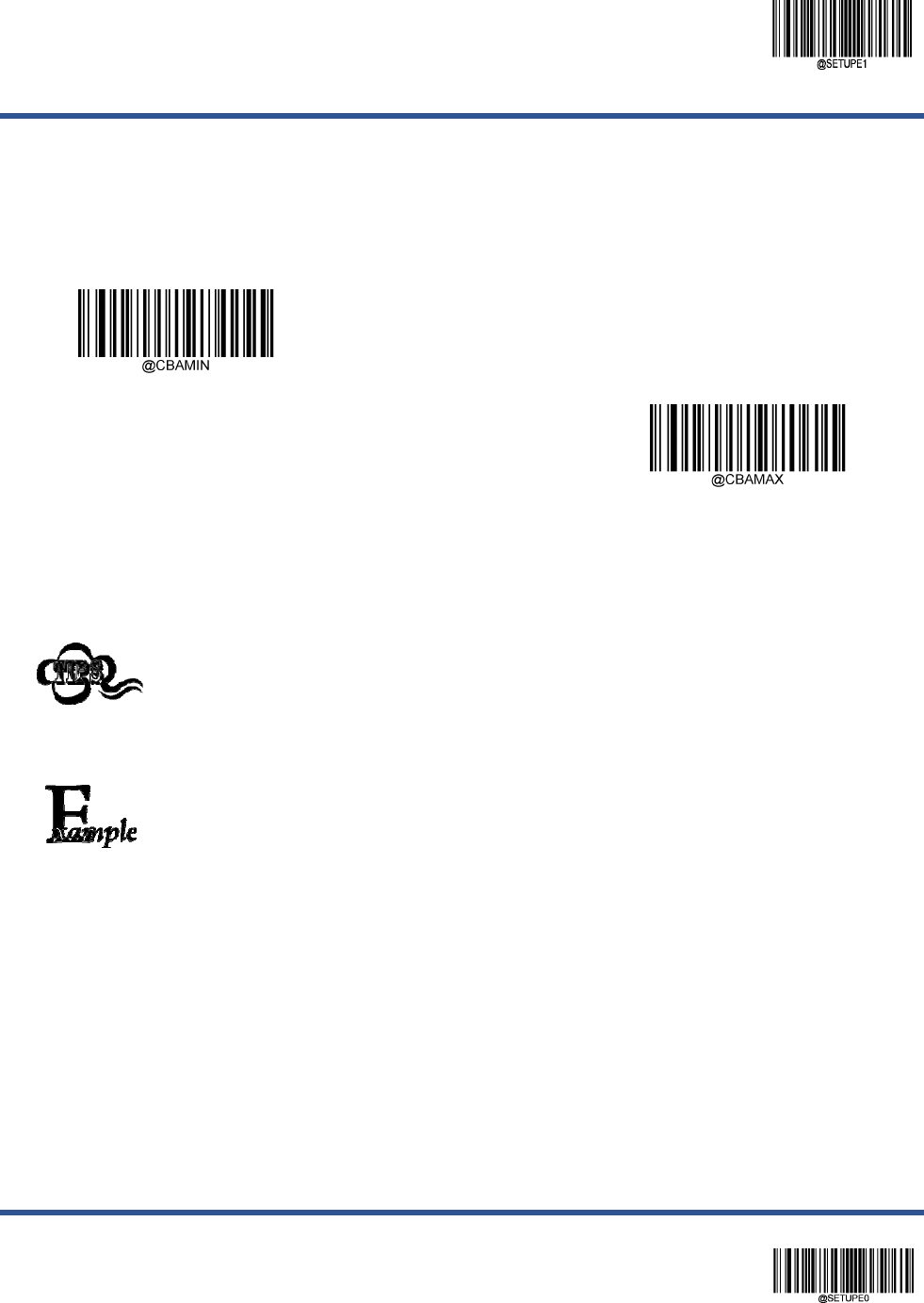

Set Length Range for Codabar ............................................................................................................................. 133

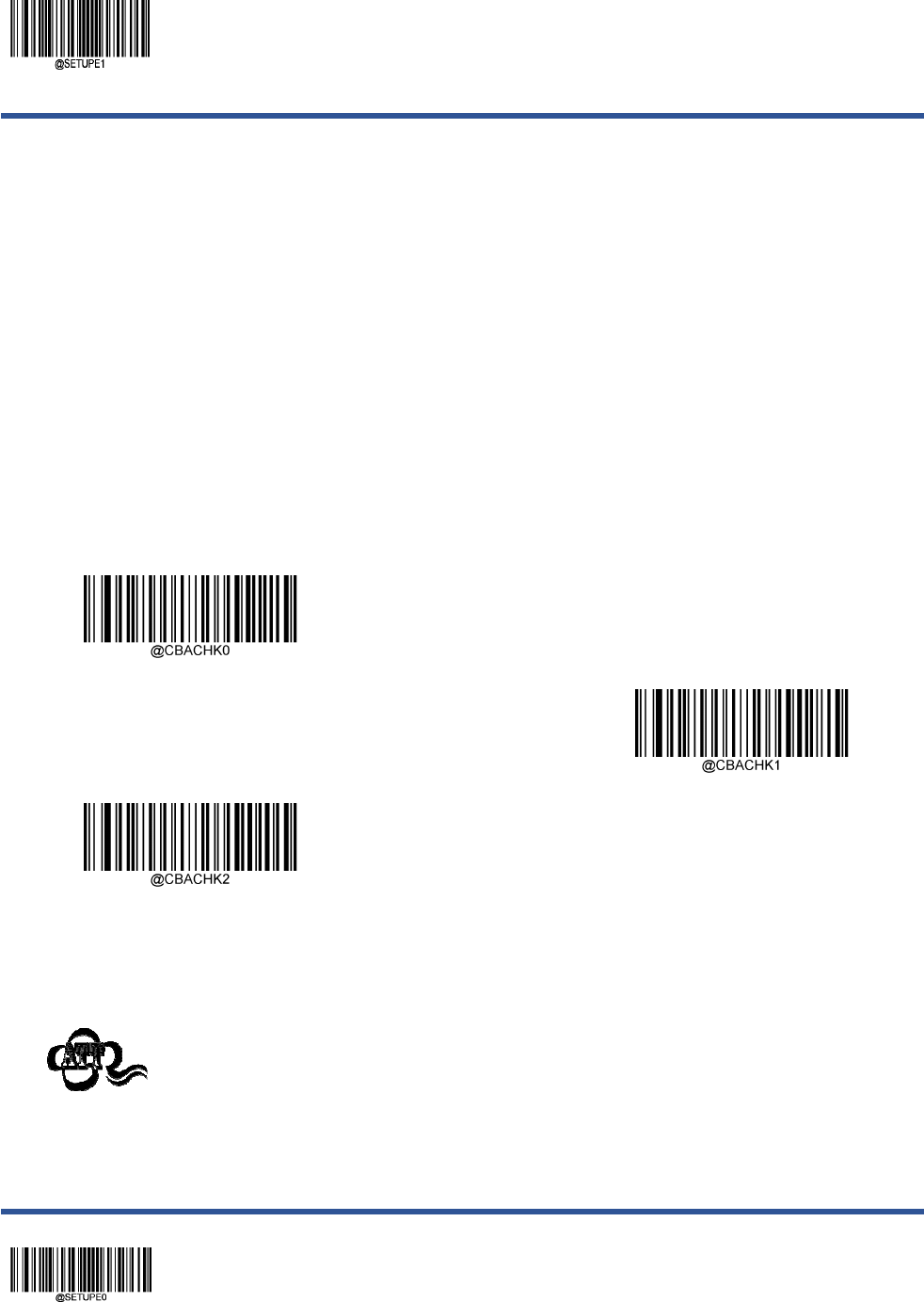

Check Character Verification ................................................................................................................................. 134
Start/Stop Character .............................................................................................................................................. 135

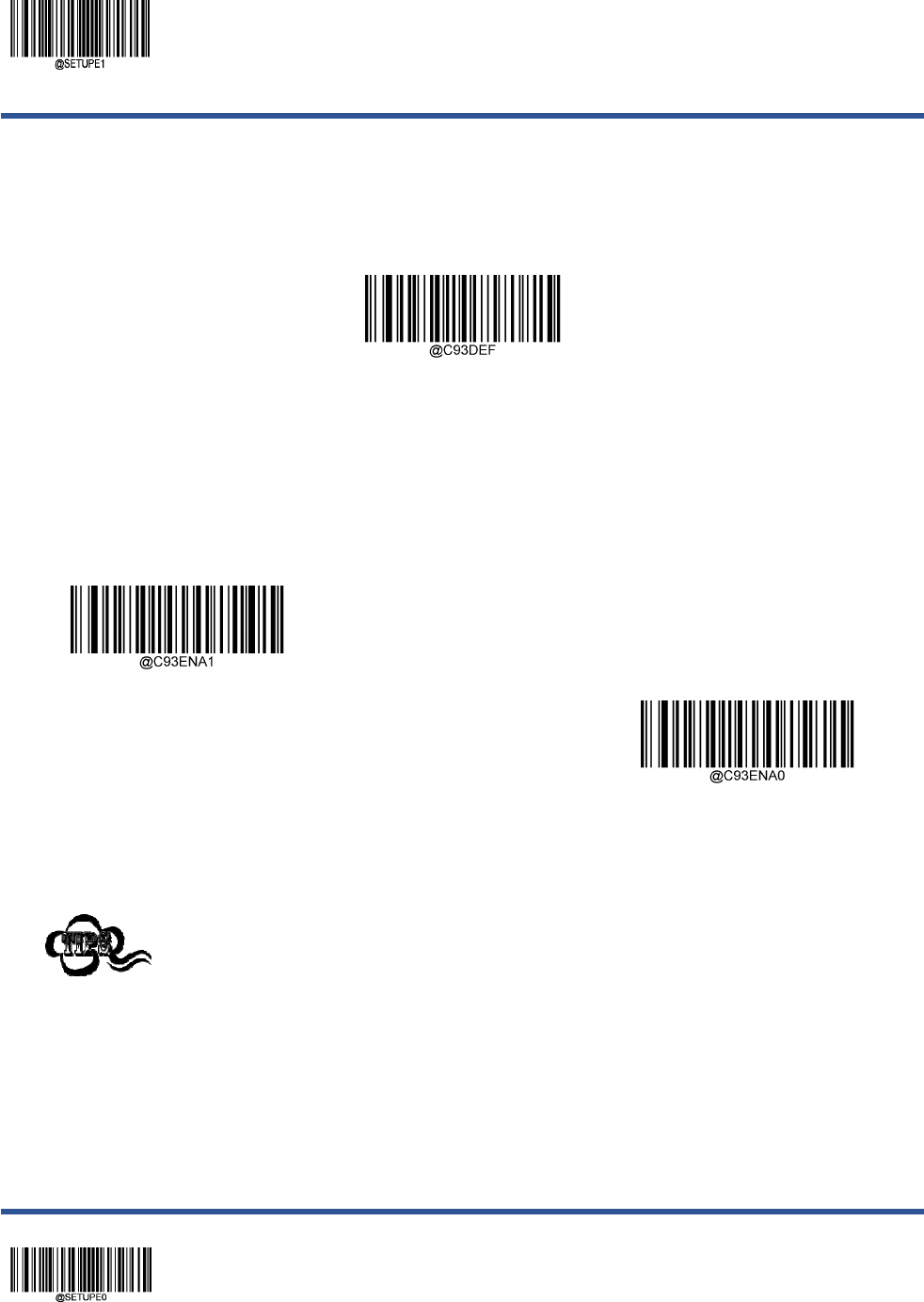

Code 93 ....................................................................................................................................................................... 136
Restore Factory Defaults ...................................................................................................................................... 136
Enable/Disable Code 93 ....................................................................................................................................... 136
Set Length Range for Code 93 ............................................................................................................................. 137

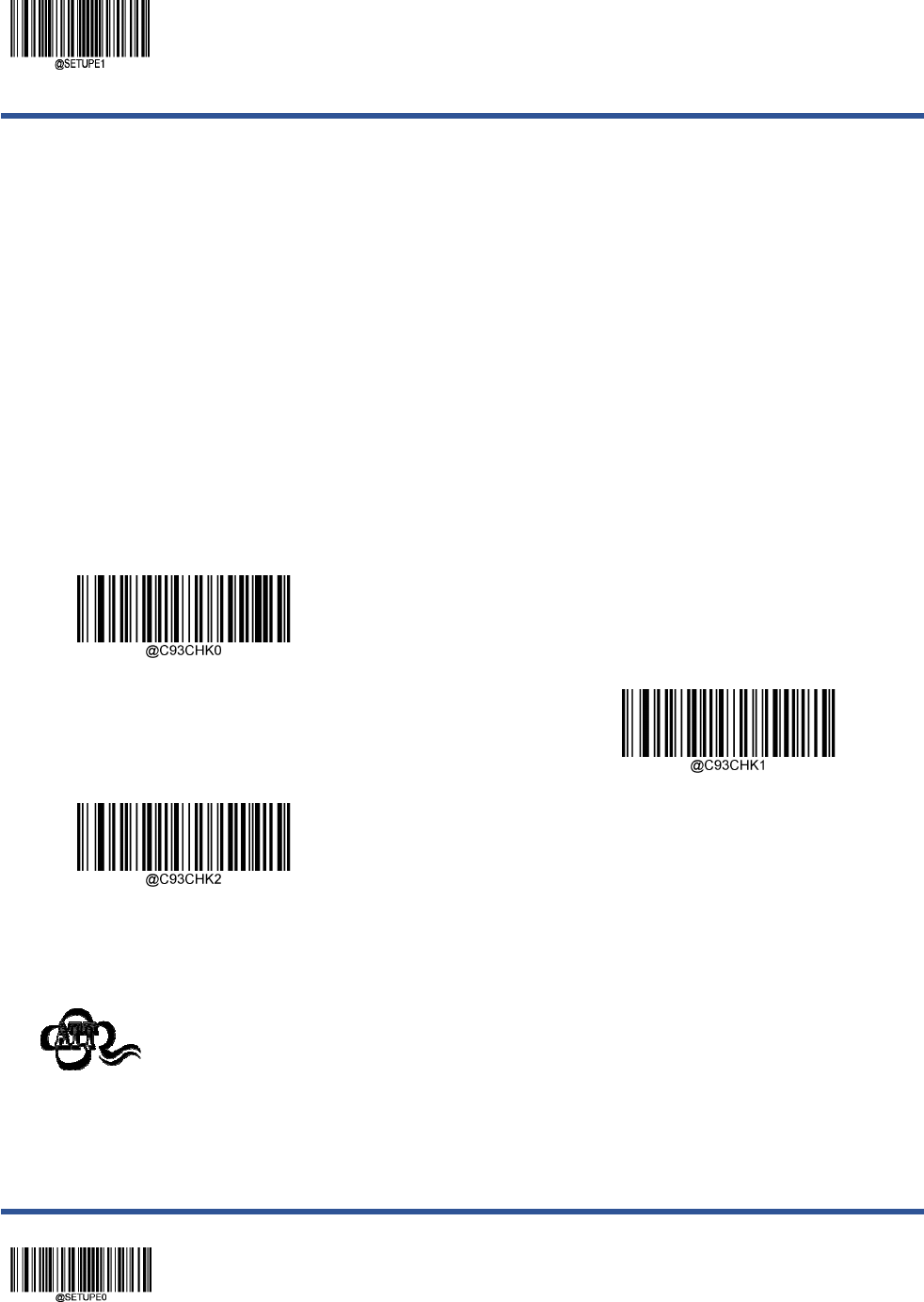

Check Character Verification ................................................................................................................................. 138
China Post 25 ............................................................................................................................................................... 139
Restore Factory Defaults ...................................................................................................................................... 139
Enable/Disable China Post 25 .............................................................................................................................. 139
Set Length Range for China Post 25 .................................................................................................................... 140
Check Character Verification ................................................................................................................................. 141
GS1-128 (UCC/EAN-128) ............................................................................................................................................ 142
Restore Factory Defaults ...................................................................................................................................... 142
Enable/Disable GS1-128....................................................................................................................................... 142
Set Length Range for GS1-128 ............................................................................................................................. 143

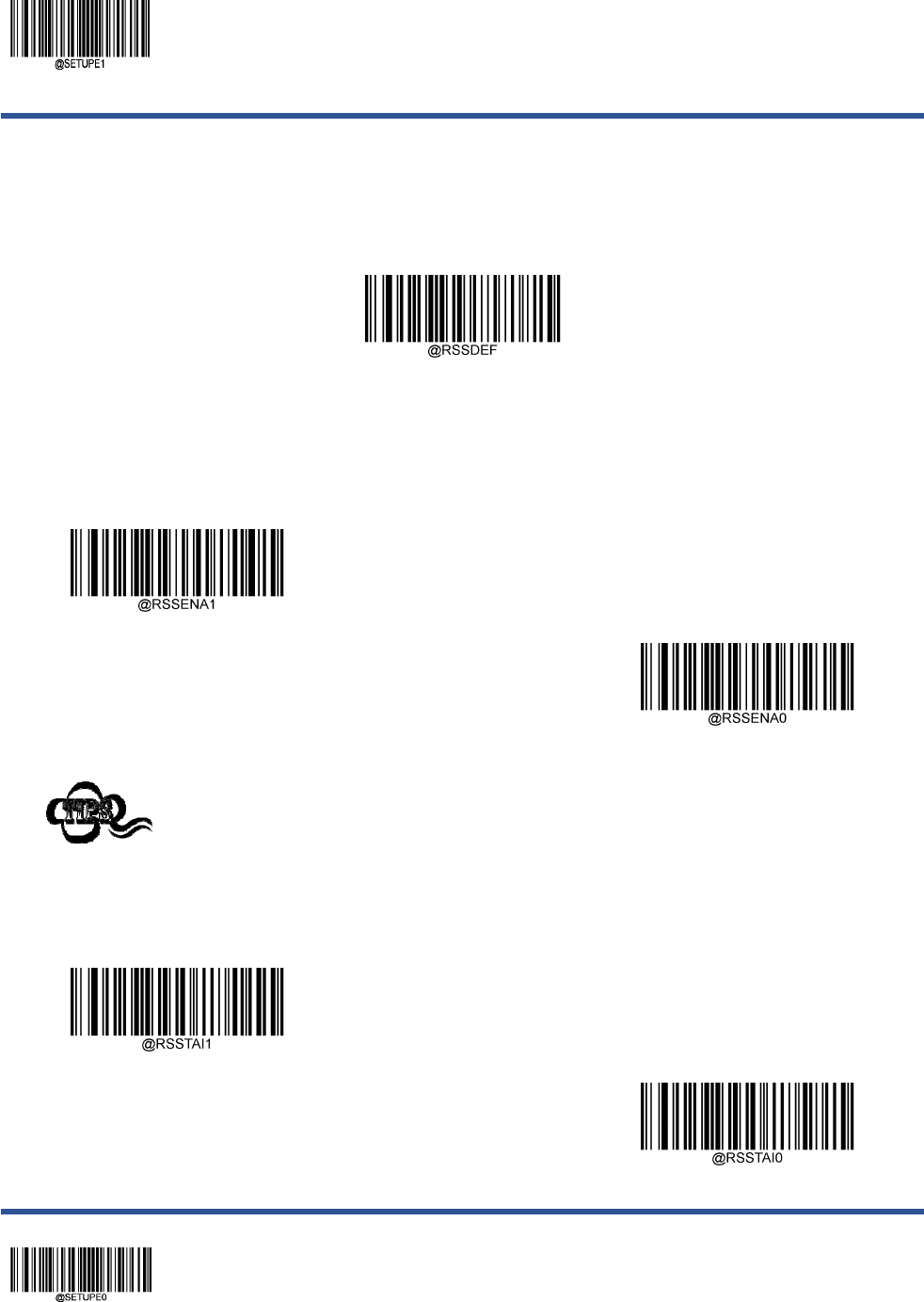

GS1 Databar (RSS) ..................................................................................................................................................... 144
Restore Factory Defaults ...................................................................................................................................... 144
Enable/Disable GS1 Databar ................................................................................................................................ 144
Transmit Application Identifier “01” ........................................................................................................................ 144
GS1 Composite (EAN·UCC Composite) ...................................................................................................................... 145
Restore Factory Defaults ...................................................................................................................................... 145
Enable/Disable GS1 Composite ............................................................................................................................ 145
Enable/Disable UPC/EAN Composite ................................................................................................................... 145

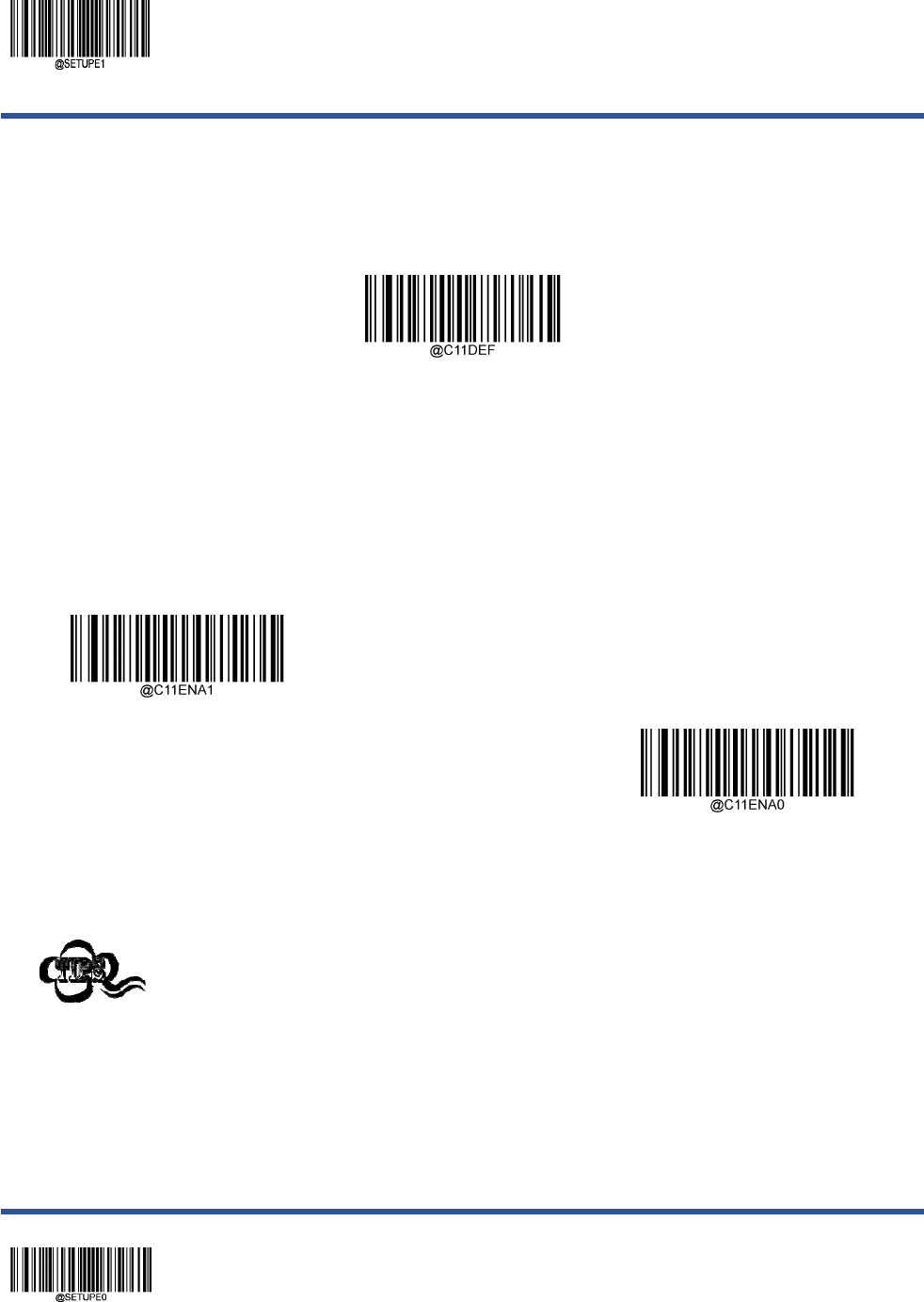

Code 11 ........................................................................................................................................................................ 146
Restore Factory Defaults ...................................................................................................................................... 146
Enable/Disable Code 11 ........................................................................................................................................ 146

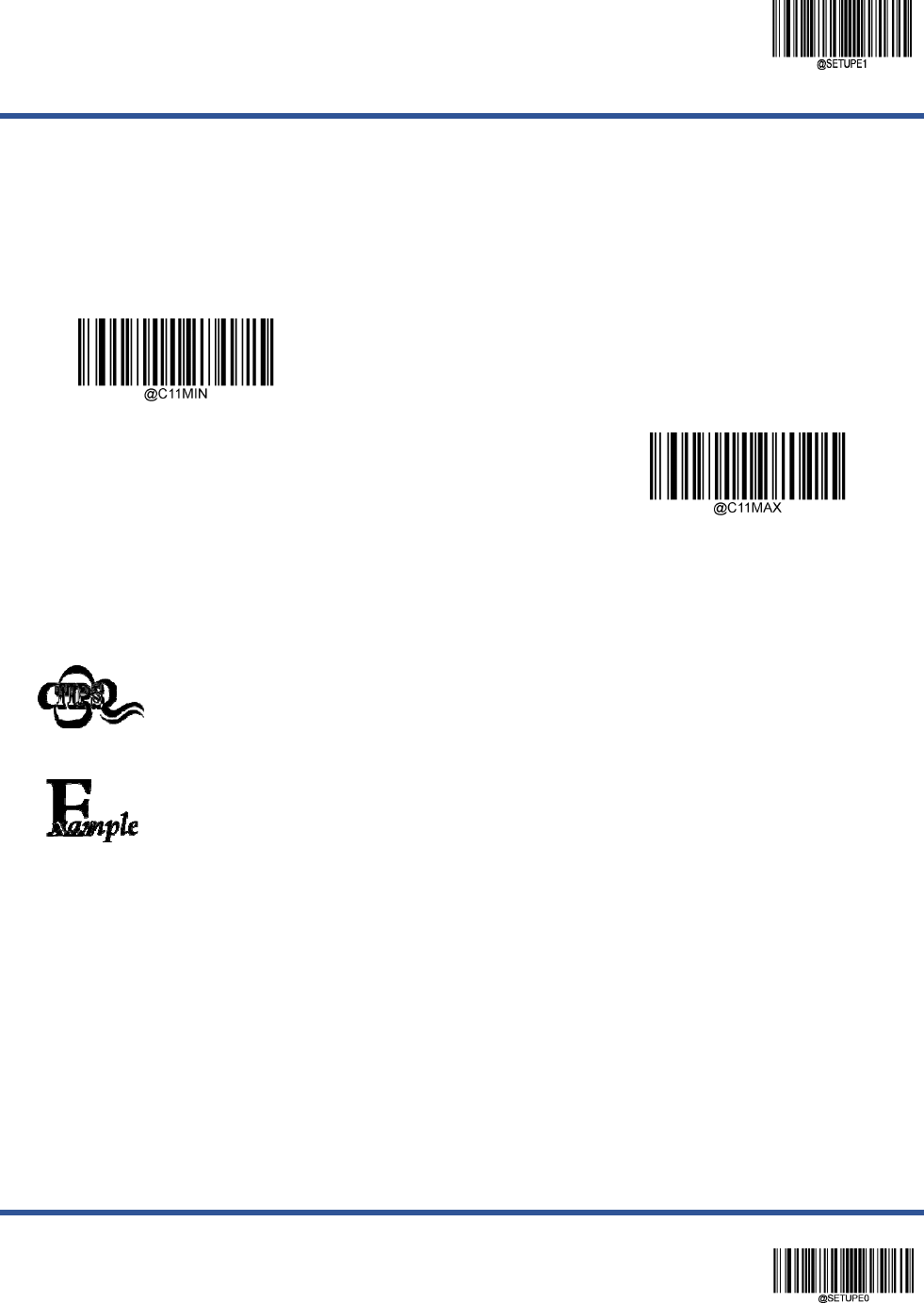

Set Length Range for Code 11 .............................................................................................................................. 147
Check Character Verification ................................................................................................................................. 148

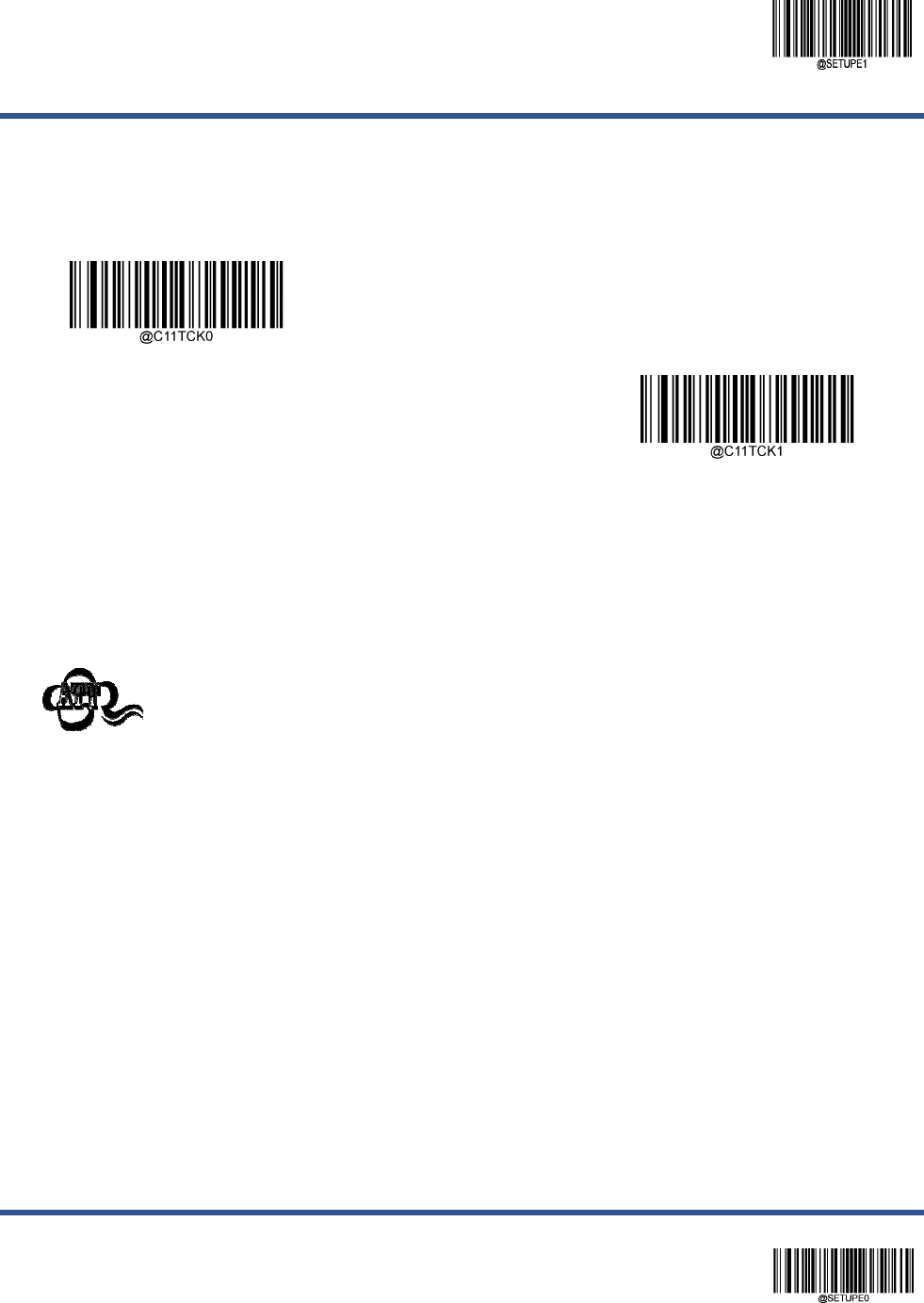

Transmit Check Character .................................................................................................................................... 149
ISBN ............................................................................................................................................................................. 150
Restore Factory Defaults ...................................................................................................................................... 150
Enable/Disable ISBN ............................................................................................................................................ 150
Set ISBN Format ................................................................................................................................................... 151
ISSN ............................................................................................................................................................................. 152
Restore Factory Defaults ...................................................................................................................................... 152
Enable/Disable ISSN ............................................................................................................................................ 152
Industrial 25.................................................................................................................................................................. 153
Restore Factory Defaults ...................................................................................................................................... 153
Enable/Disable Industrial 25 ................................................................................................................................. 153
Set Length Range for Industrial 25 ....................................................................................................................... 154
Check Character Verification ................................................................................................................................. 155
Standard 25 .................................................................................................................................................................. 156
Restore Factory Defaults ...................................................................................................................................... 156
Enable/Disable Standard 25 .................................................................................................................................. 156
Set Length Range for Standard 25 ........................................................................................................................ 157

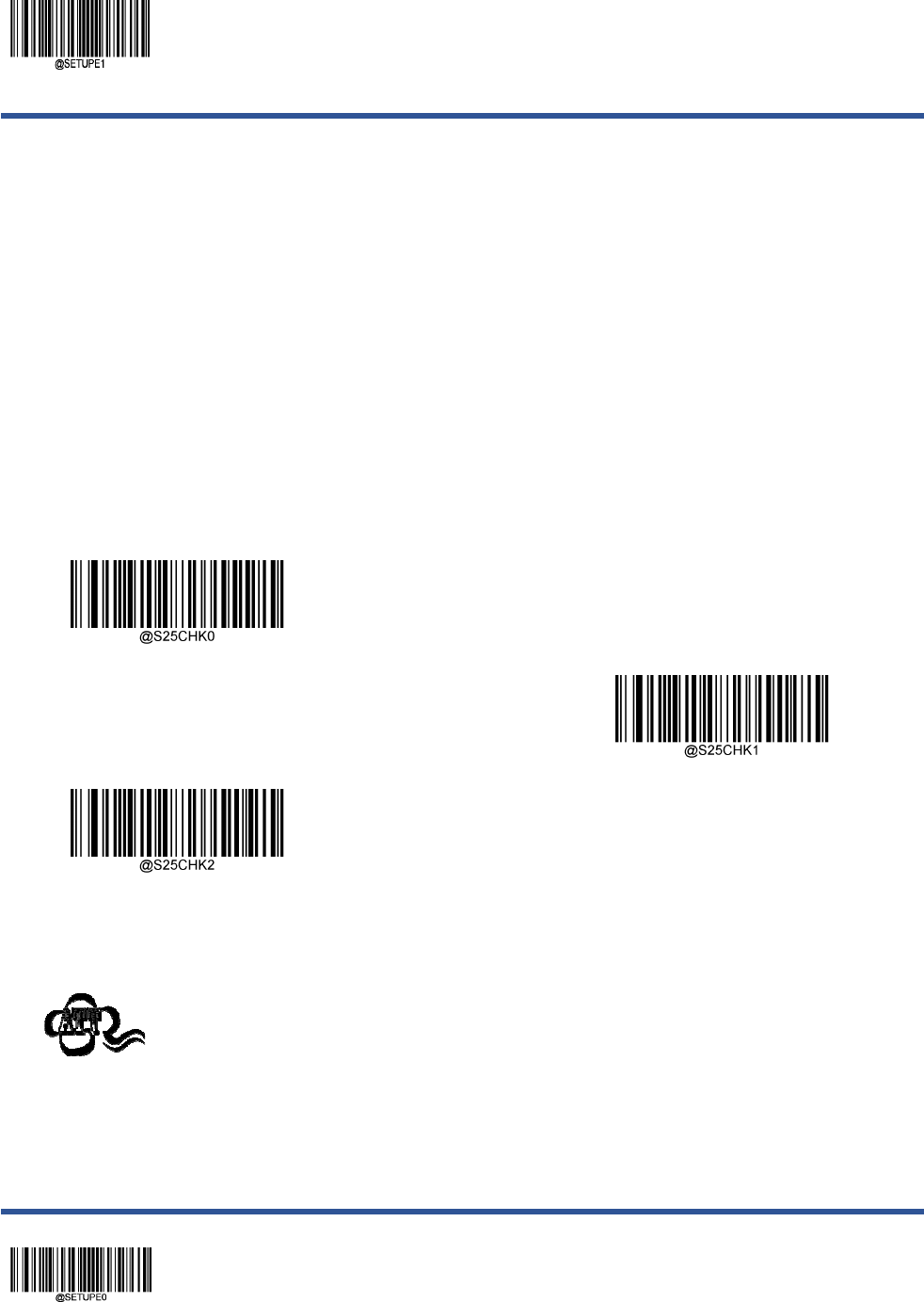

Check Character Verification ................................................................................................................................. 158
Plessey ........................................................................................................................................................................ 159
Restore Factory Defaults ...................................................................................................................................... 159
Enable/Disable Plessey ........................................................................................................................................ 159
Set Length Range for Plessey .............................................................................................................................. 160
Check Character Verification ................................................................................................................................. 161
MSI-Plessey ................................................................................................................................................................. 162
Restore Factory Defaults ...................................................................................................................................... 162
Enable/Disable MSI-Plessey ................................................................................................................................. 162
Set Length Range for MSI-Plessey ....................................................................................................................... 163
Check Character Verification ................................................................................................................................. 164
Transmit Check Character .................................................................................................................................... 165
AIM 128 ........................................................................................................................................................................ 166
Restore Factory Defaults ...................................................................................................................................... 166
Enable/Disable AIM 128 ........................................................................................................................................ 166
Set Length Range for AIM 128 .............................................................................................................................. 167

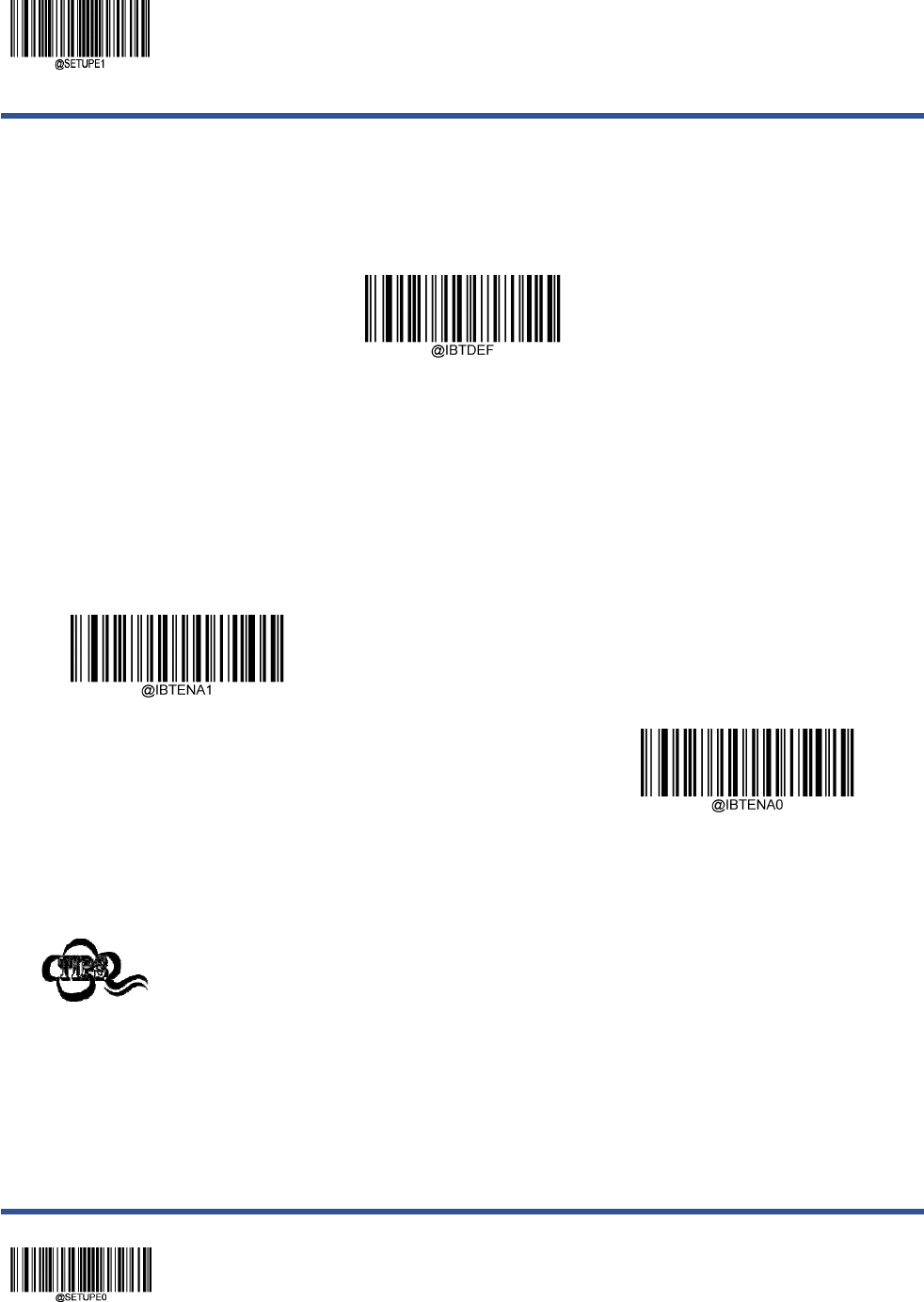

ISBT 128 ...................................................................................................................................................................... 168
Restore Factory Defaults ...................................................................................................................................... 168
Enable/Disable ISBT 128 ...................................................................................................................................... 168
Code 49 ....................................................................................................................................................................... 169
Restore Factory Defaults ...................................................................................................................................... 169
Enable/Disable Code 49 ....................................................................................................................................... 169

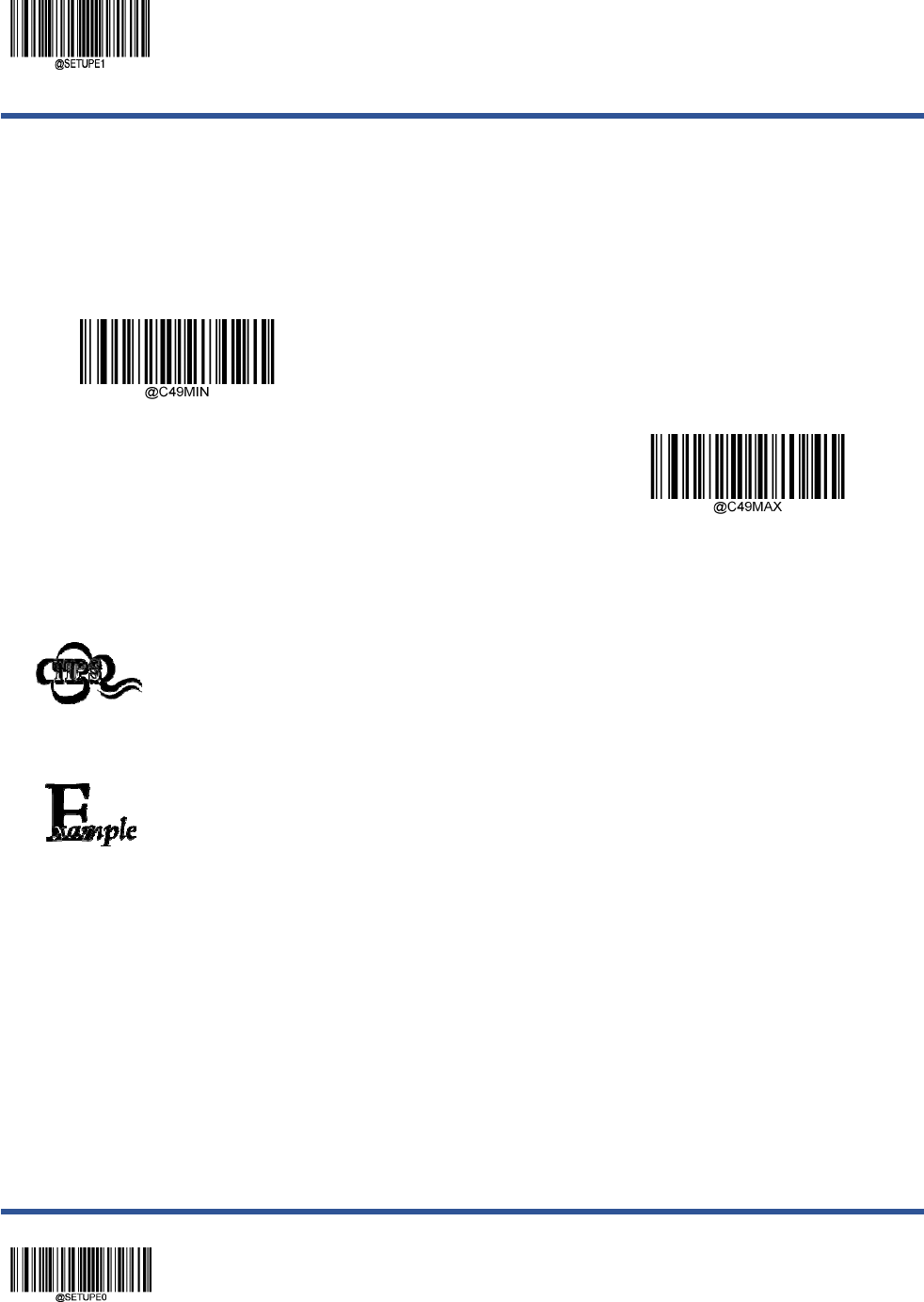

Set Length Range for Code 49 ............................................................................................................................. 170

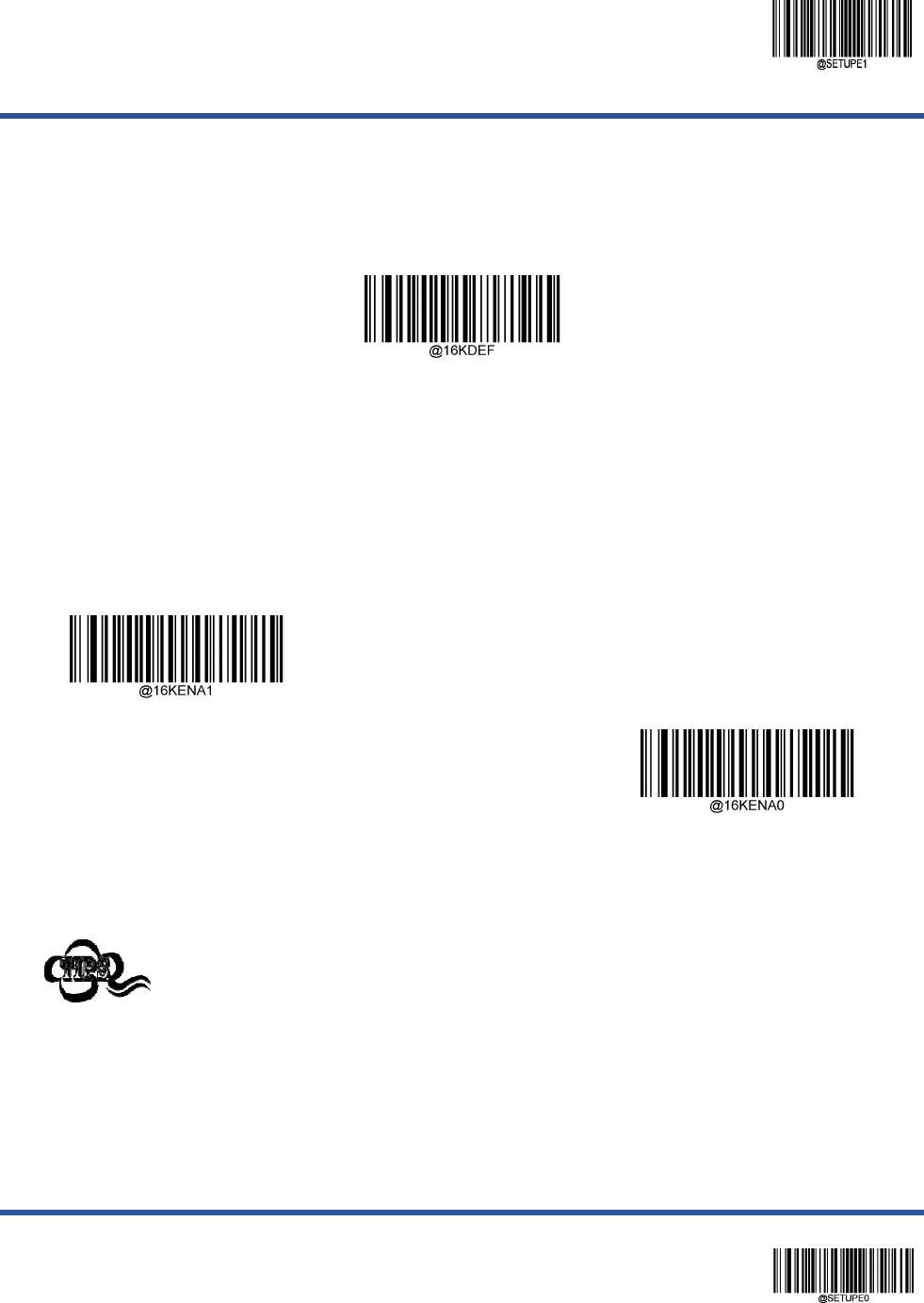

Code 16K ..................................................................................................................................................................... 171
Restore Factory Defaults ...................................................................................................................................... 171
Enable/Disable Code 16K ..................................................................................................................................... 171
Set Length Range for Code 16K ........................................................................................................................... 172
PDF417 ........................................................................................................................................................................ 173
Restore Factory Defaults ...................................................................................................................................... 173
Enable/Disable PDF417 ........................................................................................................................................ 173
Set Length Range for PDF417 .............................................................................................................................. 174

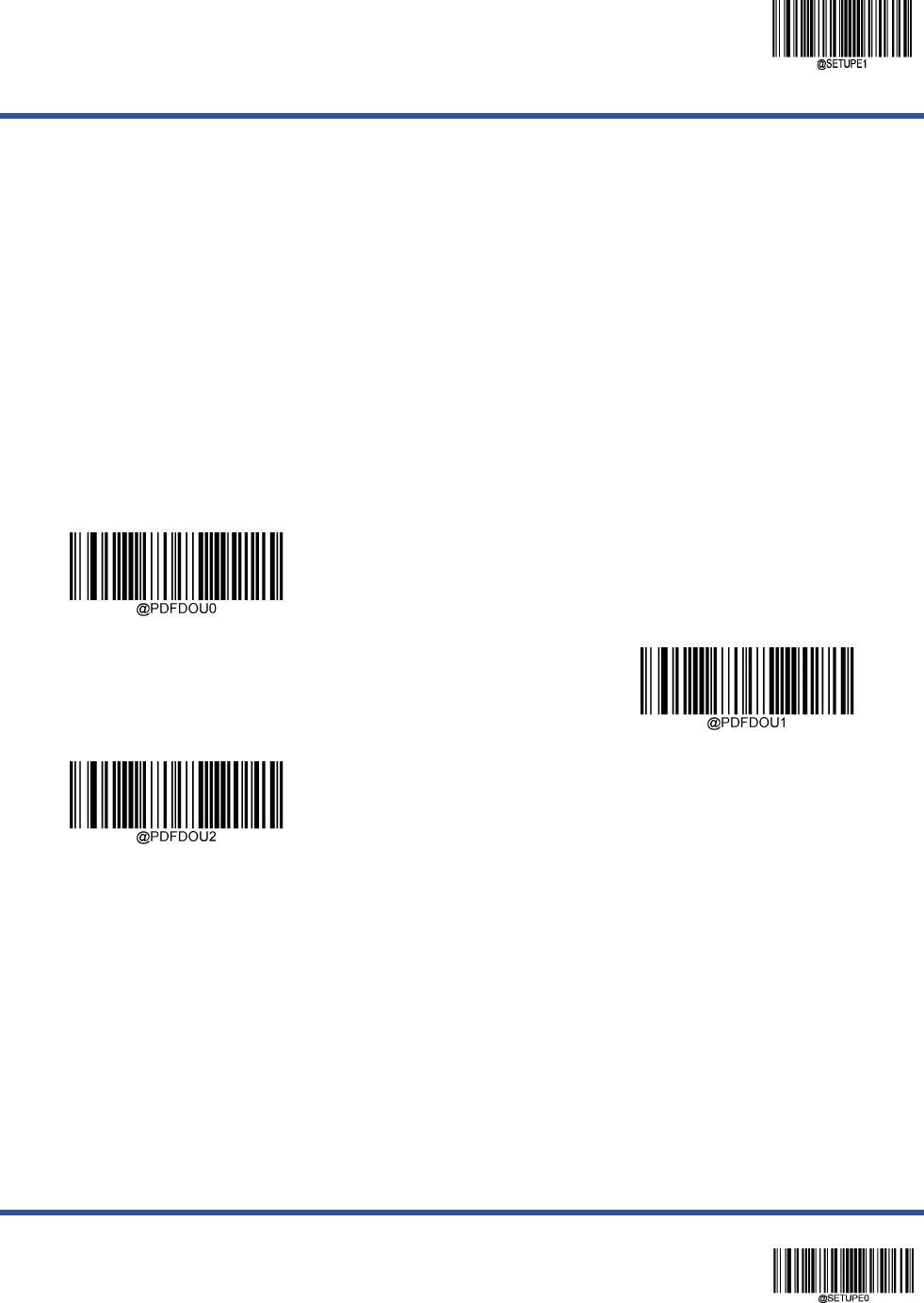

PDF417 Twin Code ............................................................................................................................................... 175

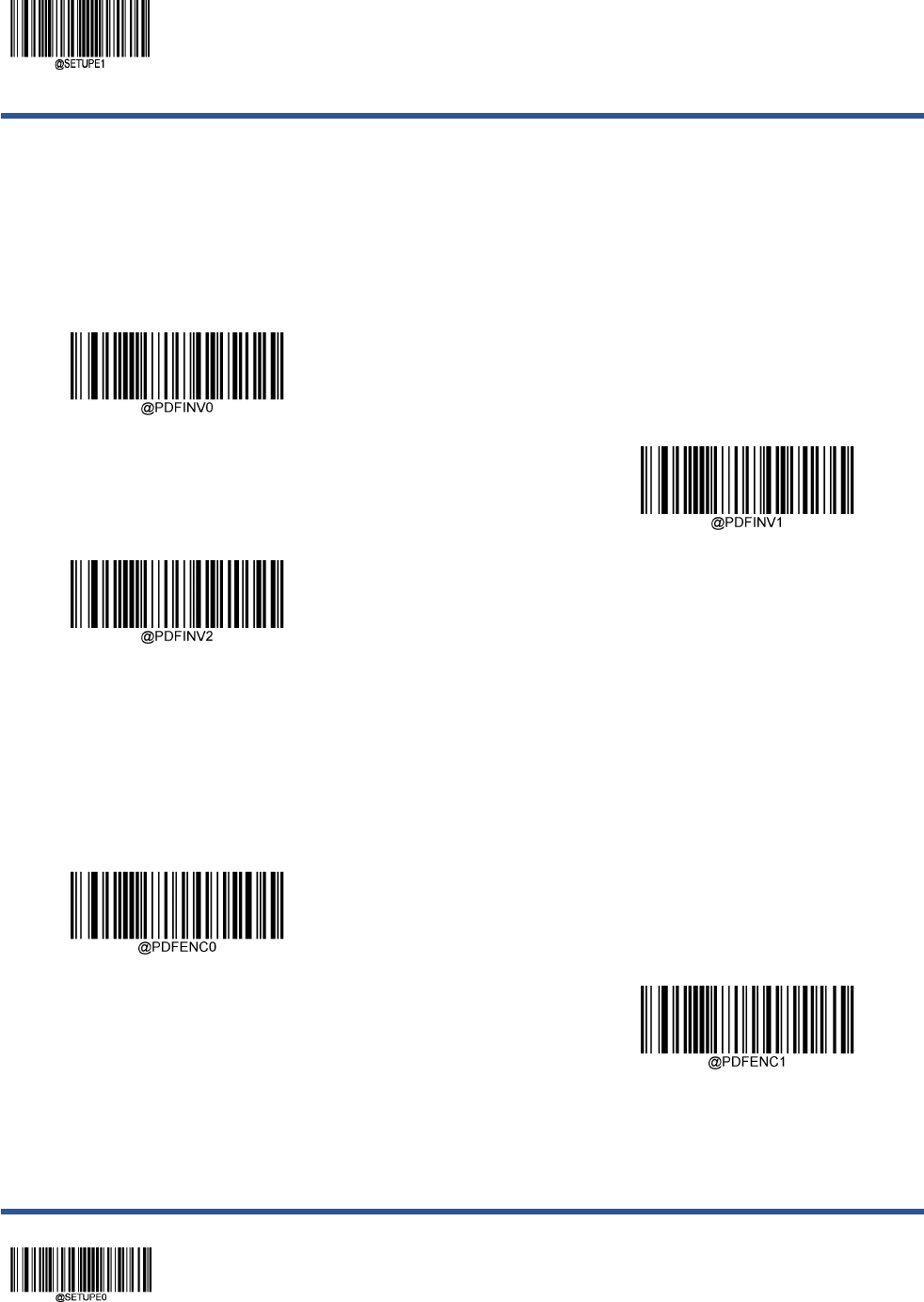

PDF417 Inverse .................................................................................................................................................... 176
Character Encoding .............................................................................................................................................. 176

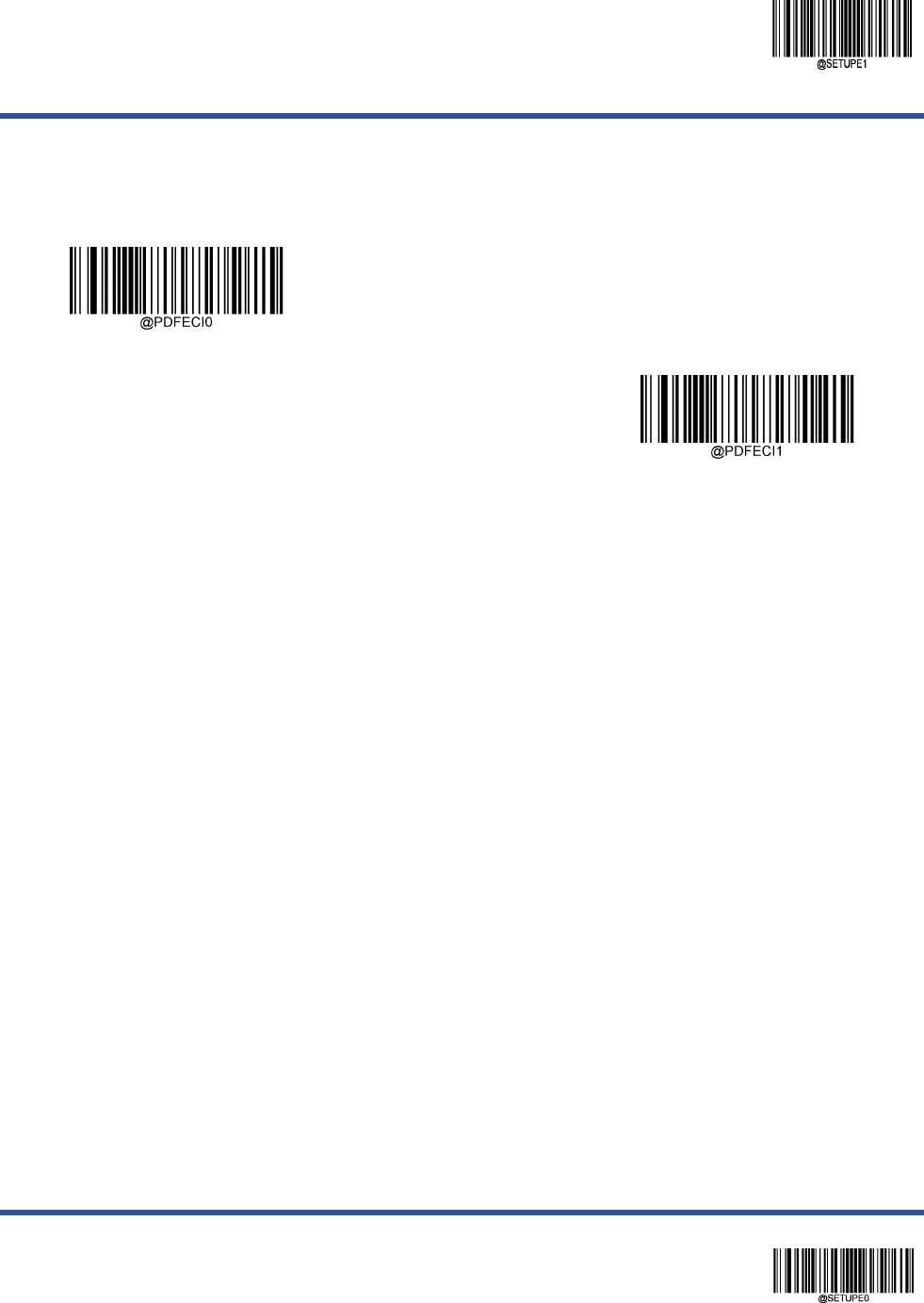

PDF417 ECI Output .............................................................................................................................................. 177
Micro PDF417 .............................................................................................................................................................. 178
Restore Factory Defaults ...................................................................................................................................... 178
Enable/Disable Micro PDF417 .............................................................................................................................. 178

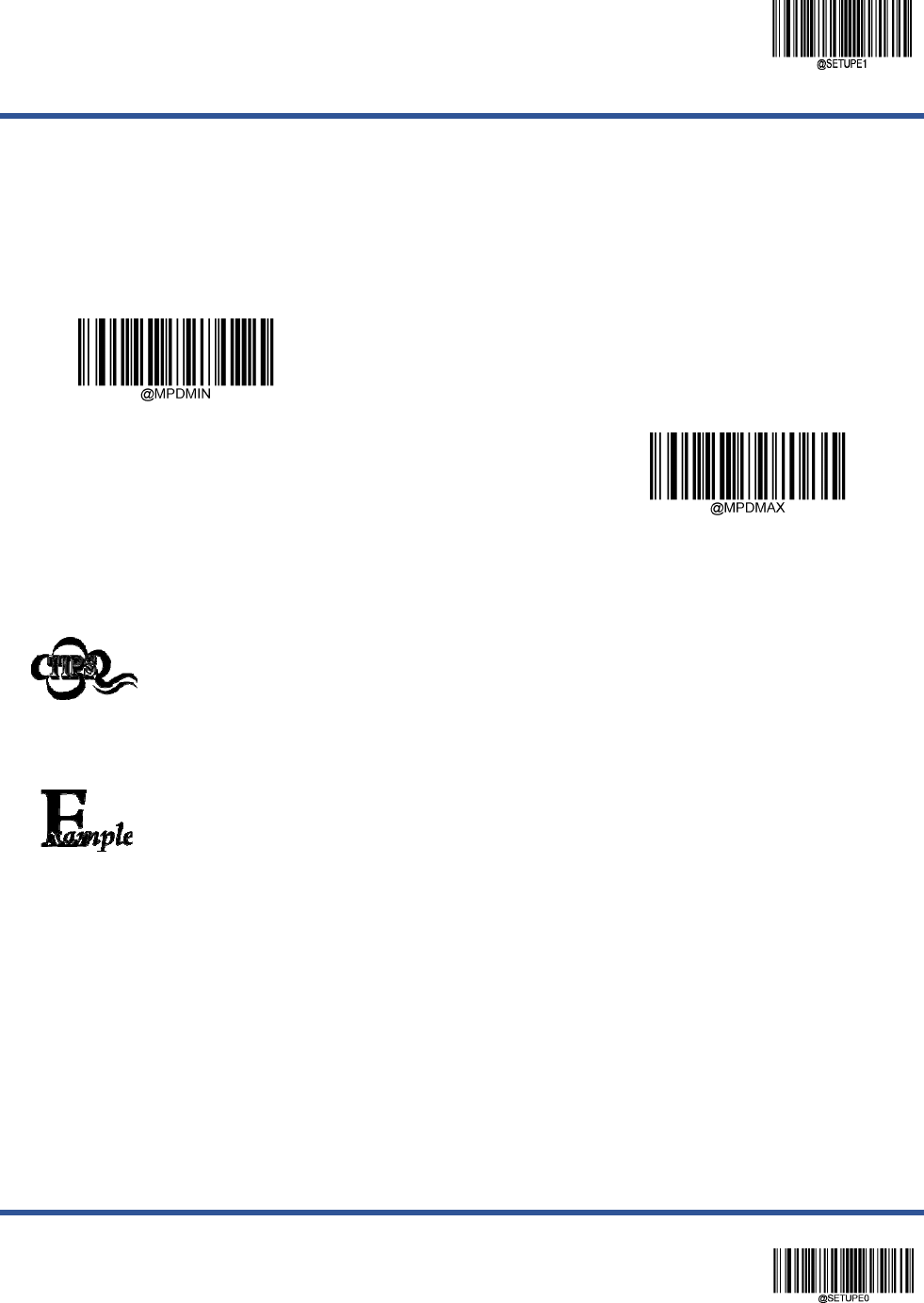

Set Length Range for Micro PDF417 .................................................................................................................... 179
QR Code ...................................................................................................................................................................... 180
Restore Factory Defaults ...................................................................................................................................... 180
Enable/Disable QR Code ...................................................................................................................................... 180
Set Length Range for QR Code ............................................................................................................................ 181
QR Twin Code ....................................................................................................................................................... 182

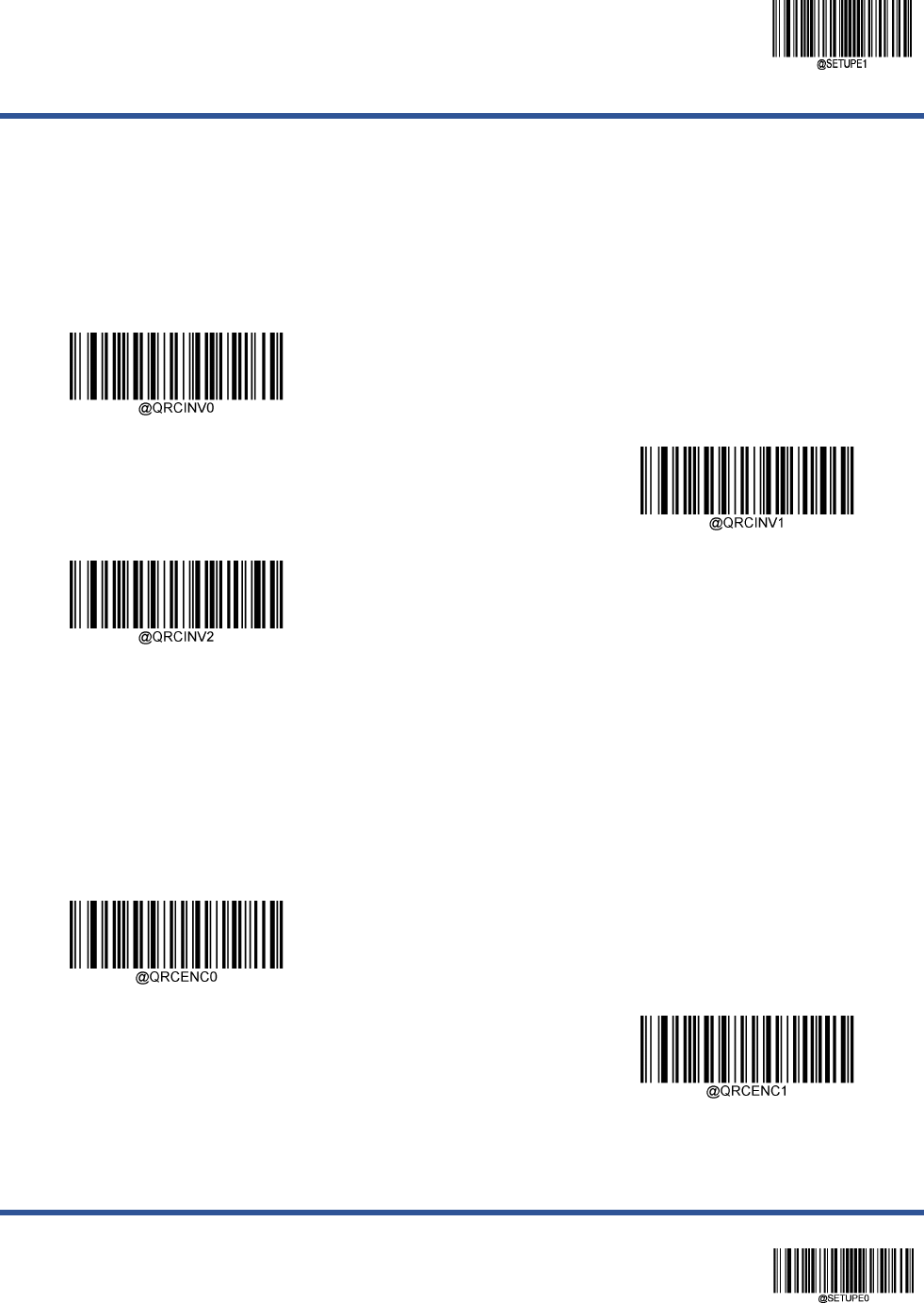

QR Inverse ............................................................................................................................................................ 183
Character Encoding .............................................................................................................................................. 183

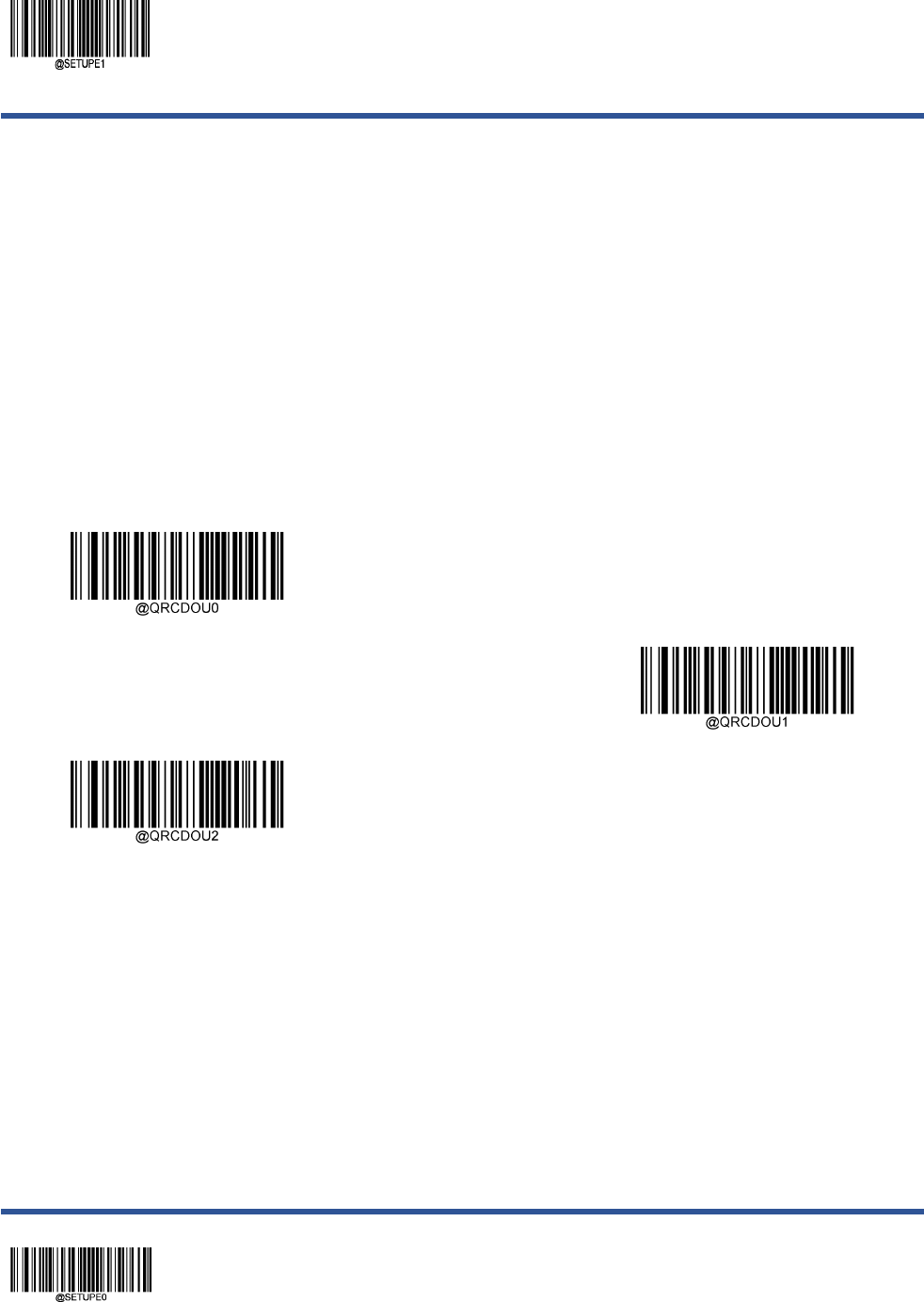

QR ECI Output ...................................................................................................................................................... 184
Micro QR Code ............................................................................................................................................................ 185
Restore Factory Defaults ...................................................................................................................................... 185
Enable/Disable Micro QR ...................................................................................................................................... 185
Set Length Range for Micro QR ............................................................................................................................ 186
Aztec ............................................................................................................................................................................ 187
Restore Factory Defaults ...................................................................................................................................... 187
Enable/Disable Aztec Code ................................................................................................................................... 187
Set Length Range for Aztec Code ......................................................................................................................... 188

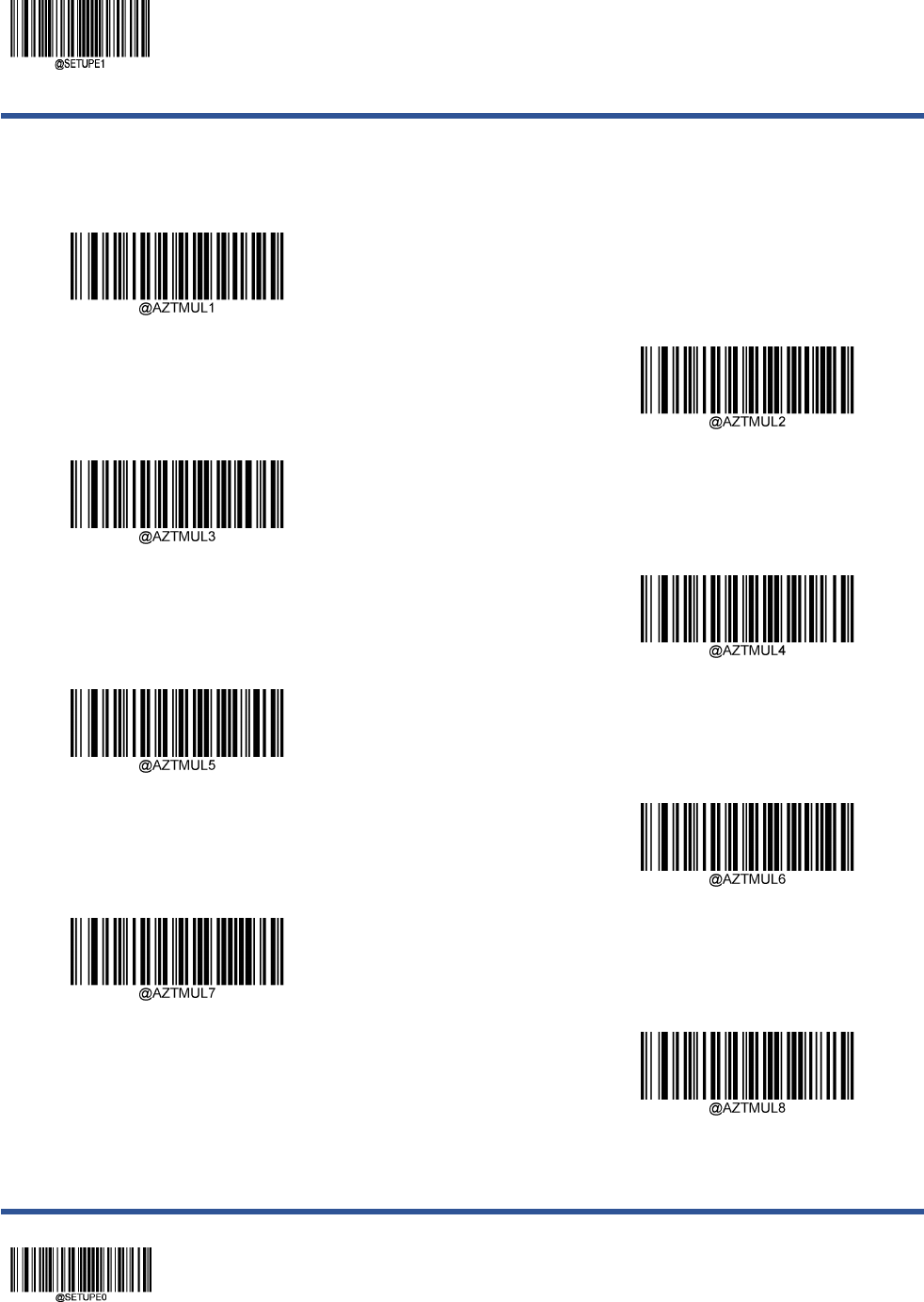

Read Multi-barcodes on an Image ........................................................................................................................ 189
Set the Number of Barcodes ................................................................................................................................. 190
Character Encoding .............................................................................................................................................. 191
Aztec ECI Output .................................................................................................................................................. 191
Data Matrix ................................................................................................................................................................... 192
Restore Factory Defaults ...................................................................................................................................... 192

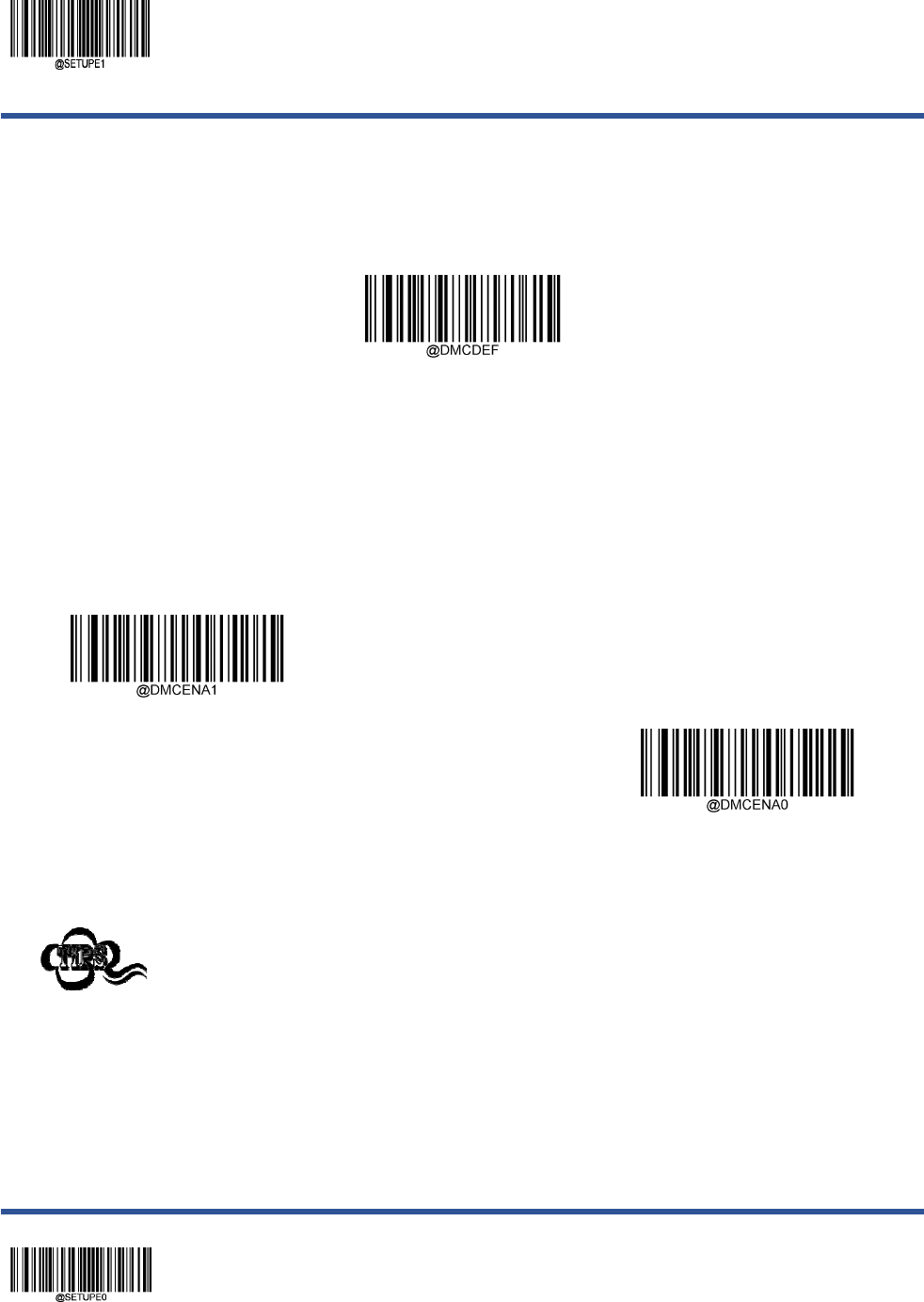

Enable/Disable Data Matrix ................................................................................................................................... 192
Set Length Range for Data Matrix ......................................................................................................................... 193
Data Matrix Twin Code .......................................................................................................................................... 194

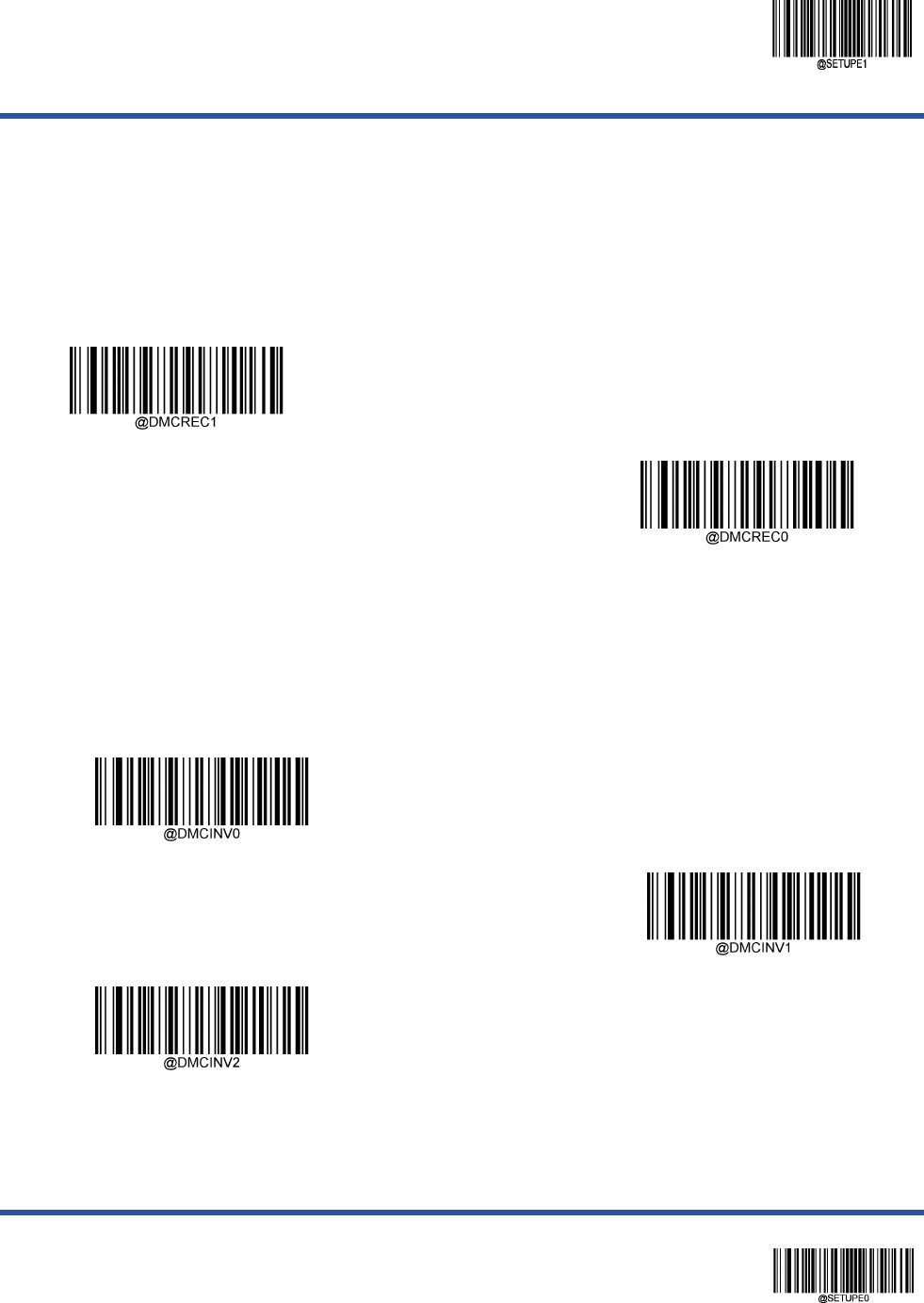

Rectangular Barcode ............................................................................................................................................ 195
Data Matrix Inverse ............................................................................................................................................... 195
Character Encoding .............................................................................................................................................. 196
Data Matrix ECI Output ......................................................................................................................................... 196
Maxicode ...................................................................................................................................................................... 197
Restore Factory Defaults ...................................................................................................................................... 197
Enable/Disable Maxicode...................................................................................................................................... 197
Set Length Range for Maxicode ............................................................................................................................ 198
Chinese Sensible Code ................................................................................................................................................ 199
Restore Factory Defaults ...................................................................................................................................... 199
Enable/Disable Chinese Sensible Code ............................................................................................................... 199
Set Length Range for Chinese Sensible Code ...................................................................................................... 200
Chinese Sensible Twin Code ................................................................................................................................ 201
Chinese Sensible Code Inverse ............................................................................................................................ 202

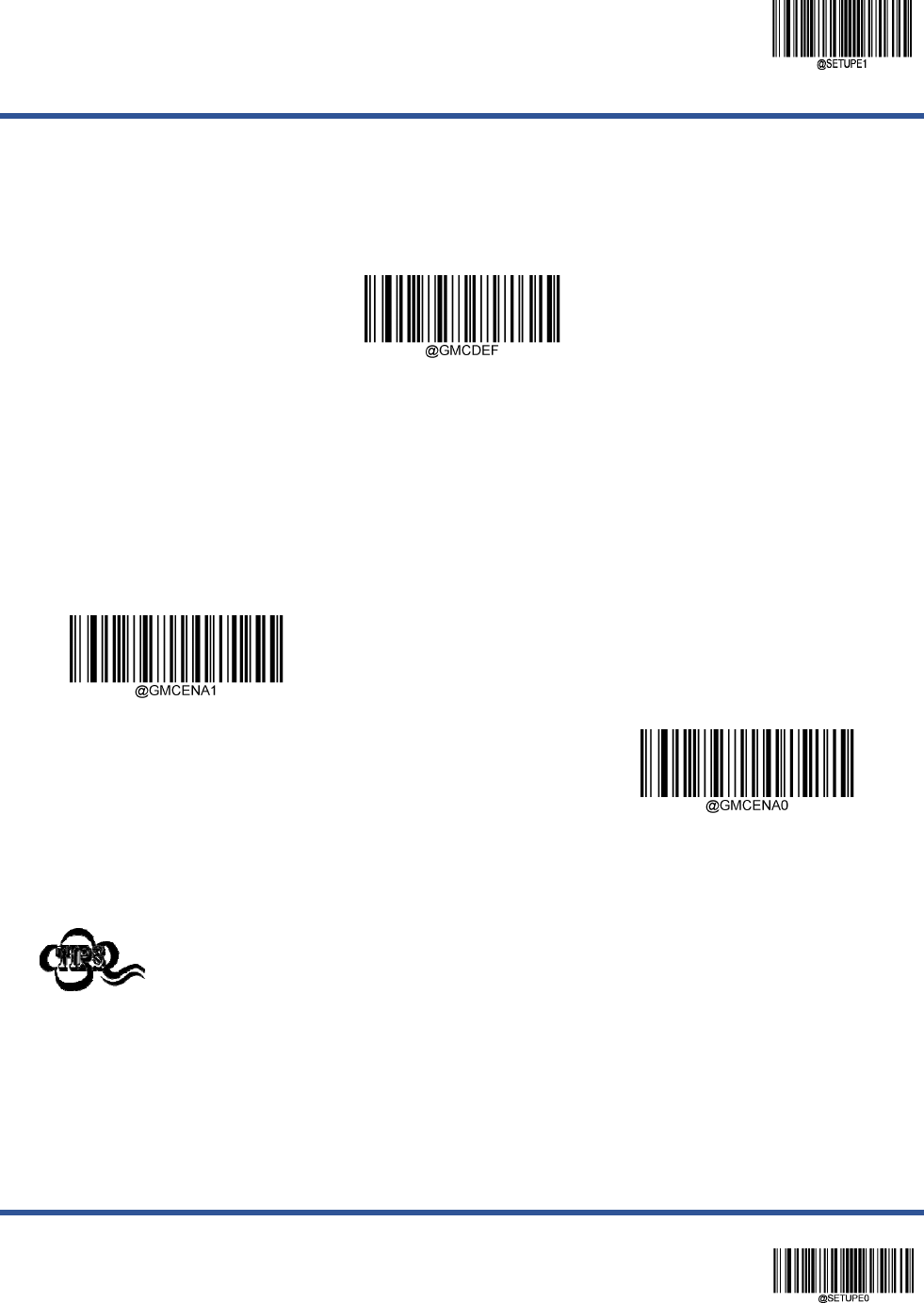

GM Code ...................................................................................................................................................................... 203
Restore Factory Defaults ...................................................................................................................................... 203
Enable/Disable GM ............................................................................................................................................... 203
Set Length Range for GM ..................................................................................................................................... 204
Code One ..................................................................................................................................................................... 205
Restore Factory Defaults ...................................................................................................................................... 205
Enable/Disable Code One ..................................................................................................................................... 205
Set Length Range for Code One ........................................................................................................................... 206
USPS Postnet .............................................................................................................................................................. 207
Restore Factory Defaults ...................................................................................................................................... 207
Enable/Disable USPS Postnet .............................................................................................................................. 207
Transmit Check Character .................................................................................................................................... 207
USPS Intelligent Mail ................................................................................................................................................... 208
Restore Factory Defaults ...................................................................................................................................... 208
Enable/Disable USPS Intelligent Mail ................................................................................................................... 208

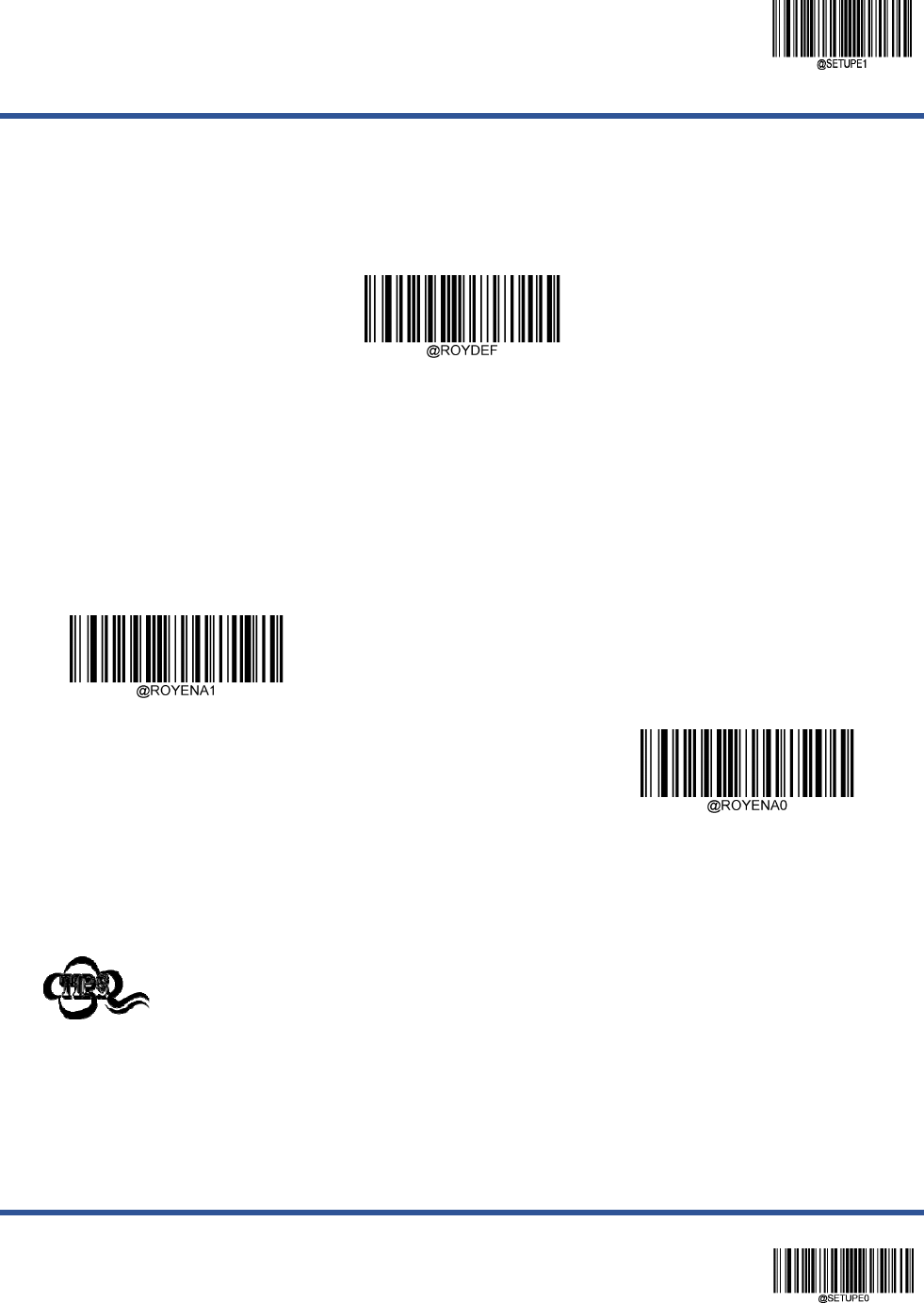

Royal Mail .................................................................................................................................................................... 209
Restore Factory Defaults ...................................................................................................................................... 209
Enable/Disable Royal Mail .................................................................................................................................... 209
USPS Planet ................................................................................................................................................................ 210
Restore Factory Defaults ...................................................................................................................................... 210
Enable/Disable USPS Planet ................................................................................................................................ 210
Transmit Check Character .................................................................................................................................... 210
KIX Post ....................................................................................................................................................................... 211
Restore Factory Defaults ...................................................................................................................................... 211
Enable/Disable KIX Post ....................................................................................................................................... 211
Australian Postal .......................................................................................................................................................... 212
Restore Factory Defaults ...................................................................................................................................... 212
Enable/Disable Australian Postal .......................................................................................................................... 212
Specific OCR-B ............................................................................................................................................................ 213
Restore Factory Defaults ...................................................................................................................................... 213
Enable/Disable Specific OCR-B ............................................................................................................................ 213
Passport OCR .............................................................................................................................................................. 214
Restore Factory Defaults ...................................................................................................................................... 214
Enable/Disable Passport OCR .............................................................................................................................. 214
Chapter 8 Data Formatter ........................................................................................................................................................ 215
Introduction .................................................................................................................................................................. 215
Add a Data Format ....................................................................................................................................................... 215
Programming with Barcodes ................................................................................................................................. 215
Programming with Serial Commands .................................................................................................................... 218
Enable/Disable Data Formatter .................................................................................................................................... 219
Non-Match Error Beep ................................................................................................................................................. 220

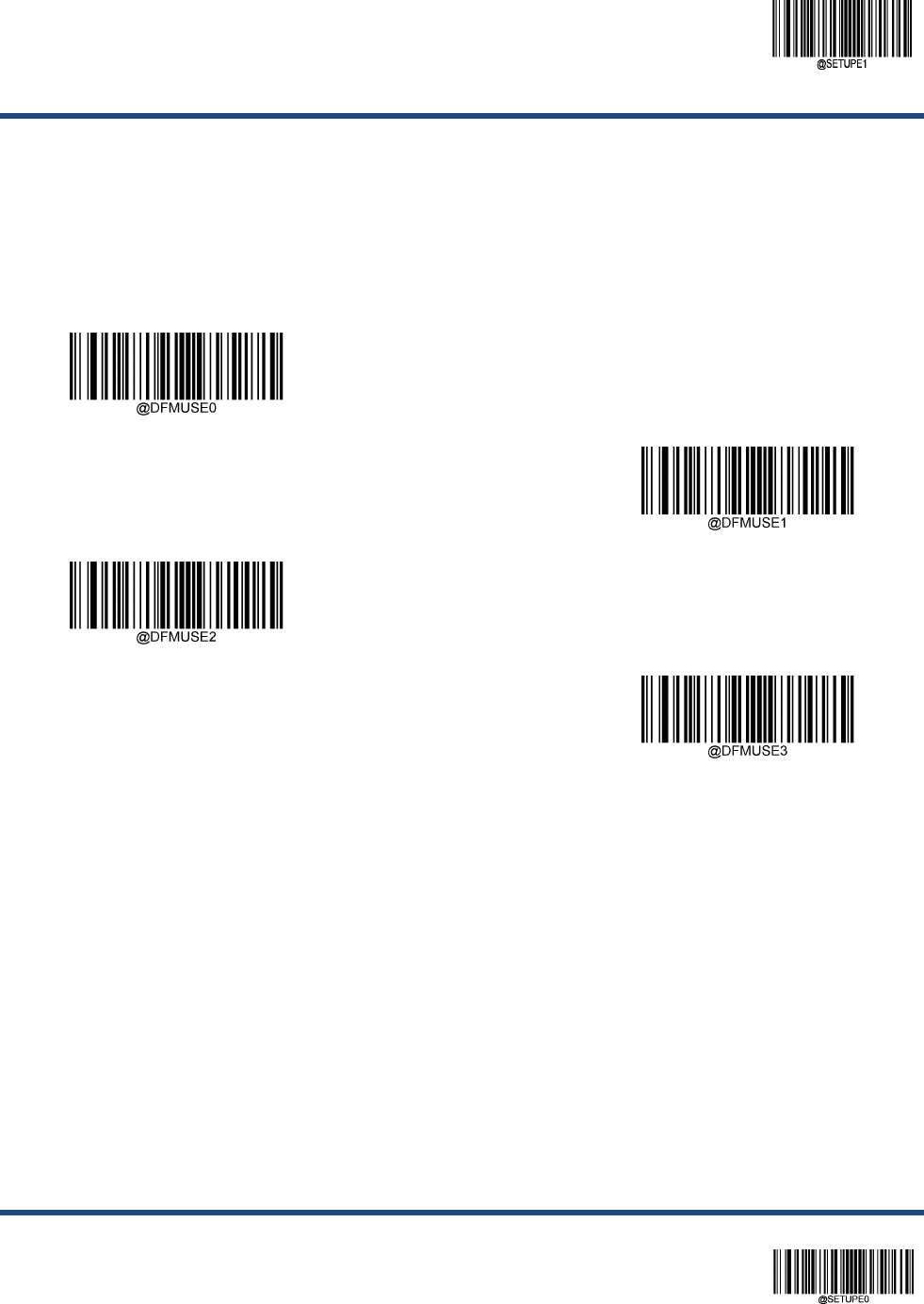

Data Format Selection ................................................................................................................................................. 221
Change Data Format for a Single Scan ....................................................................................................................... 222
Clear Data Format ........................................................................................................................................................ 223
Query Data Formats ..................................................................................................................................................... 223
Formatter Command Type 6 ........................................................................................................................................ 224
Send Commands .................................................................................................................................................. 224
Move Commands .................................................................................................................................................. 228
Search Commands ............................................................................................................................................... 230
Miscellaneous Commands .................................................................................................................................... 233
Chapter 9 Prefix & Suffix ......................................................................................................................................................... 239
Introduction .................................................................................................................................................................. 239
Global Settings ............................................................................................................................................................. 240
Enable/Disable All Prefixes/Suffixes...................................................................................................................... 240

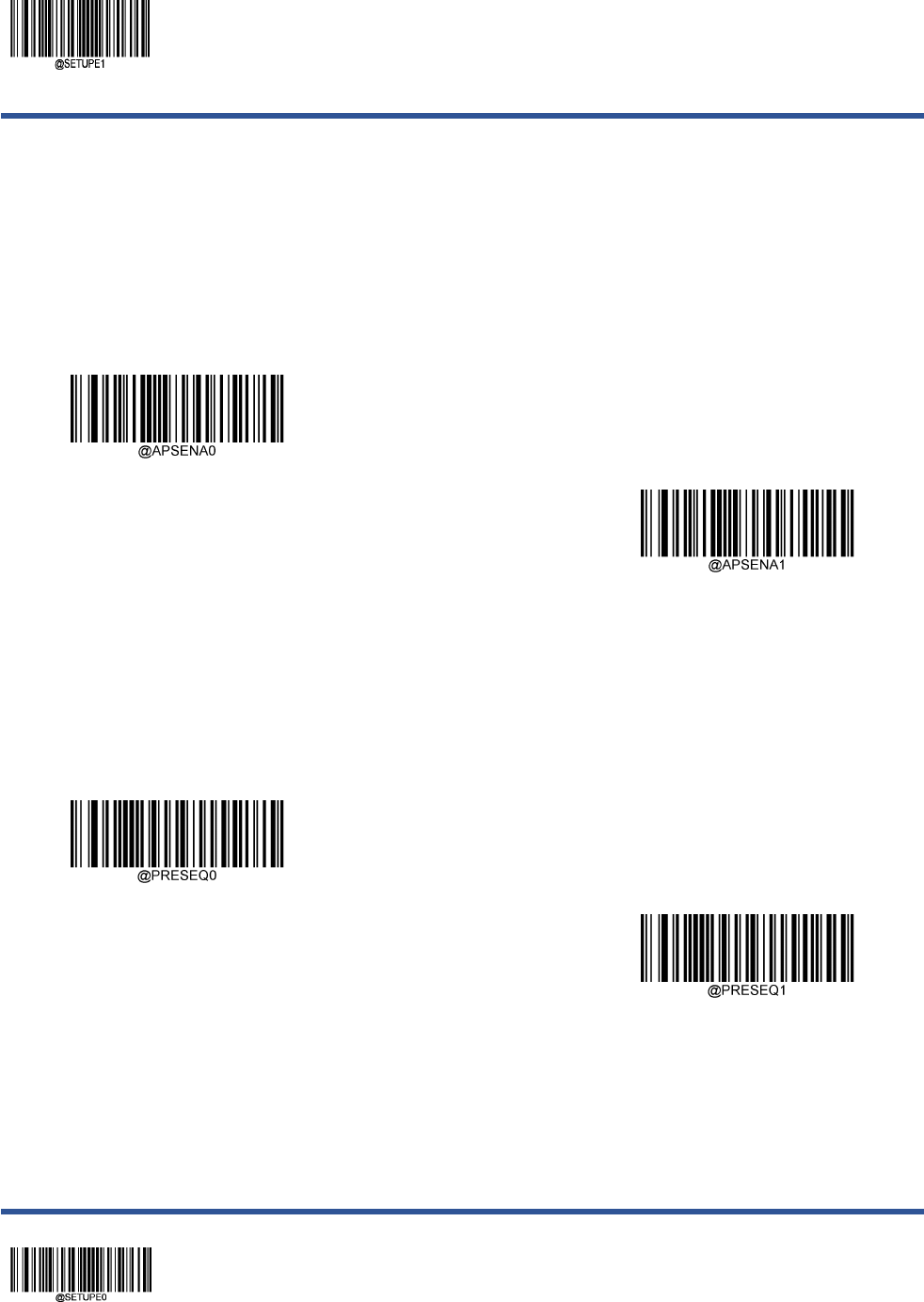

Prefix Sequence ........................................................................................................................................................... 240
Custom Prefix ............................................................................................................................................................... 241
Enable/Disable Custom Prefix .............................................................................................................................. 241
Set Custom Prefix ................................................................................................................................................. 241
AIM ID Prefix ................................................................................................................................................................ 242

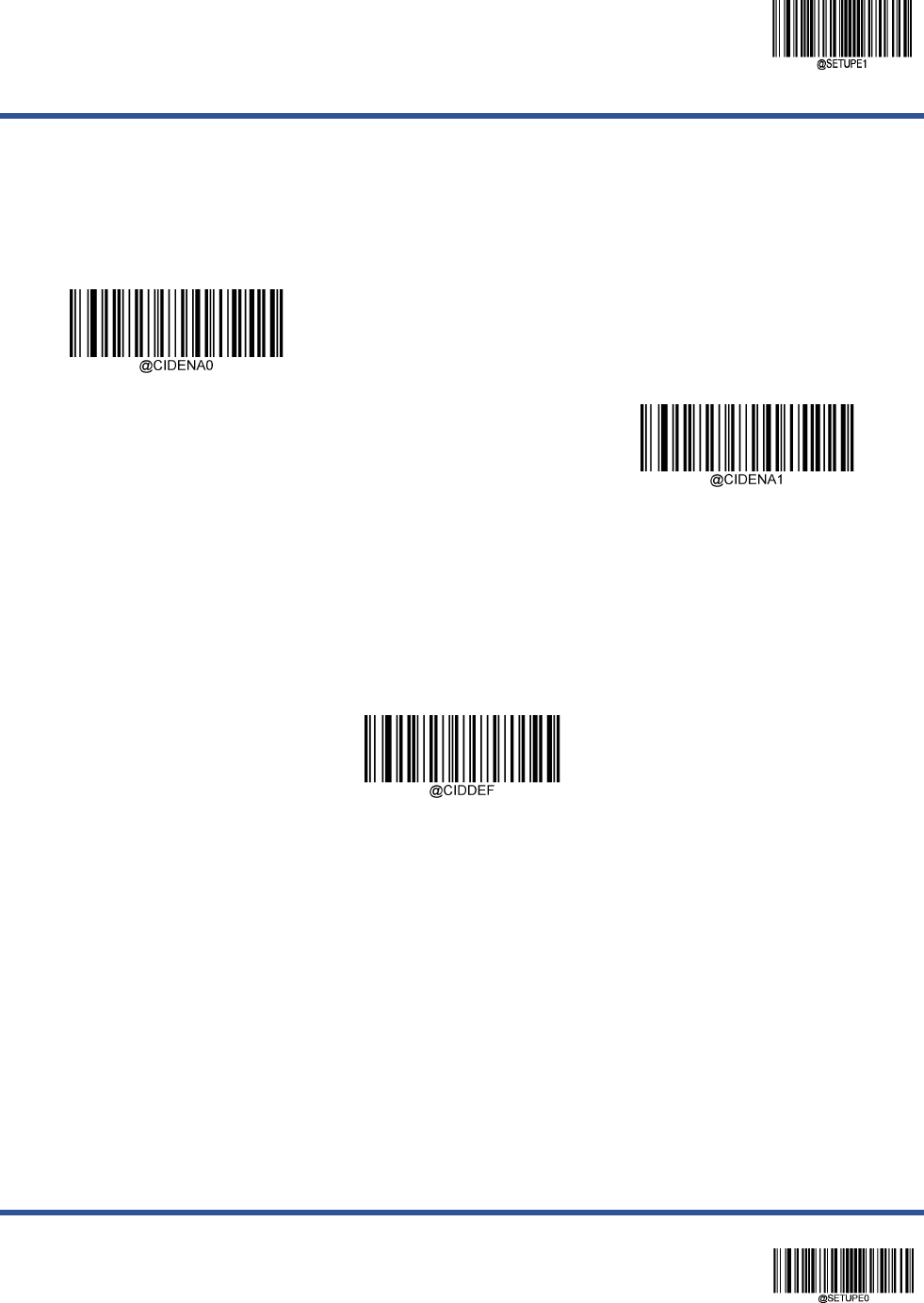

Code ID Prefix .............................................................................................................................................................. 243
Restore All Default Code IDs ................................................................................................................................ 243

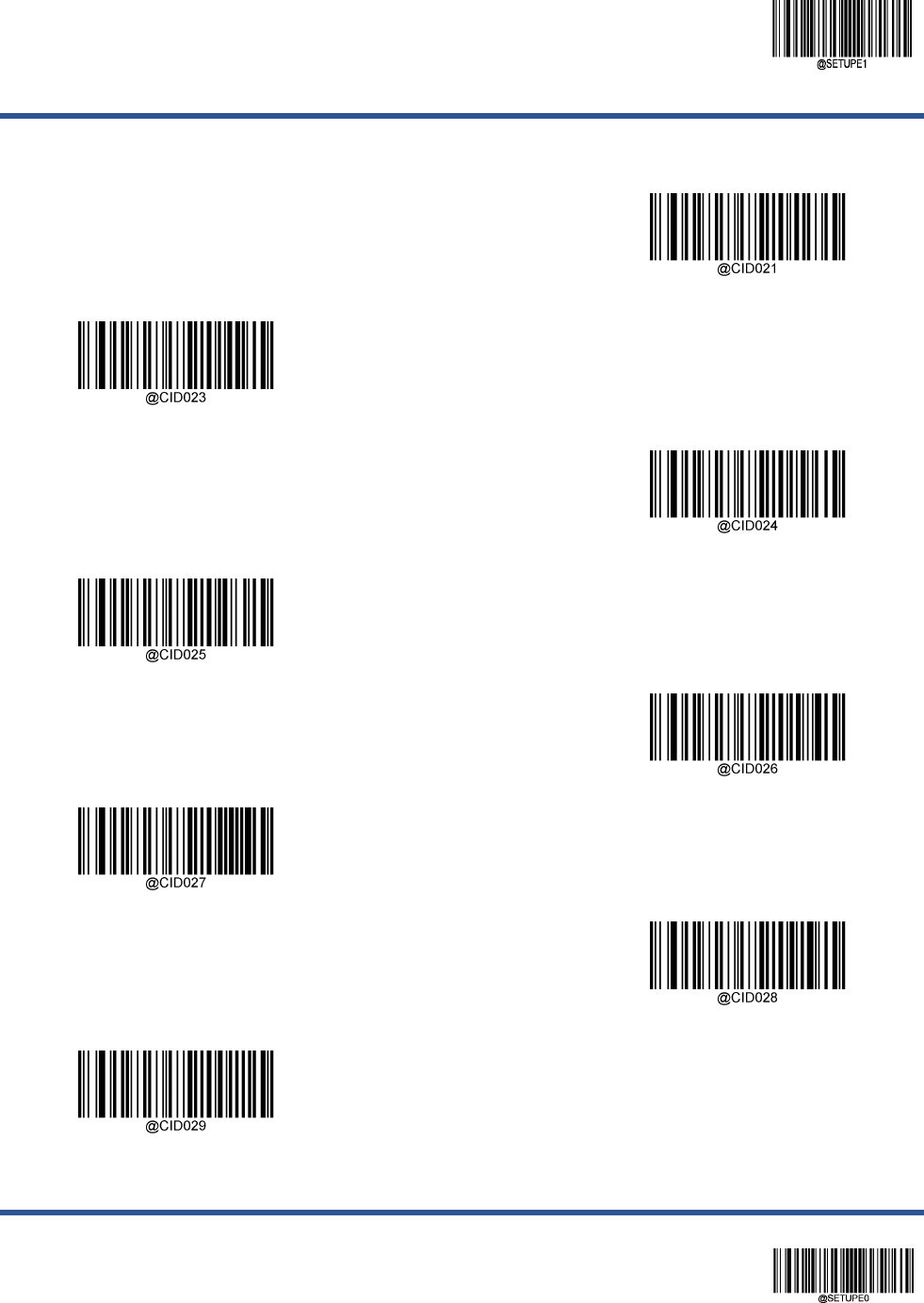

Modify Code ID ..................................................................................................................................................... 243
Custom Suffix ............................................................................................................................................................... 252
Enable/Disable Custom Suffix ............................................................................................................................... 252
Set Custom Suffix ................................................................................................................................................. 252
Data Packing ................................................................................................................................................................ 253
Introduction ........................................................................................................................................................... 253
Data Packing Options ........................................................................................................................................... 253
Terminating Character Suffix ........................................................................................................................................ 255
Enable/Disable Terminating Character Suffix ........................................................................................................ 255
Set Terminating Character Suffix ........................................................................................................................... 255
Chapter 10 Batch Programming .............................................................................................................................................. 257
Introduction .................................................................................................................................................................. 257

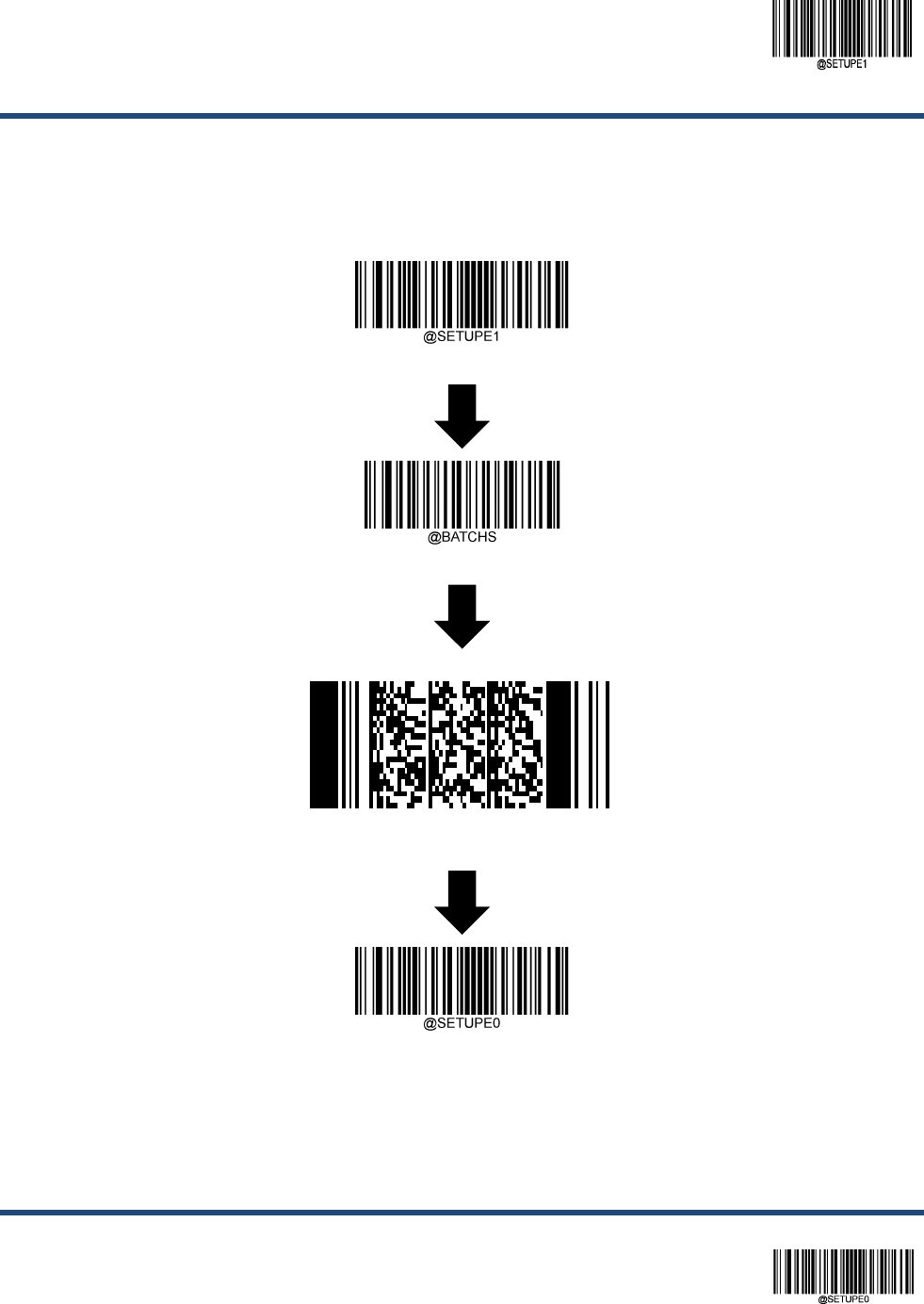

Create a Batch Command ............................................................................................................................................ 258
Create a Batch Barcode ............................................................................................................................................... 258
Use Batch Barcode ...................................................................................................................................................... 259
Appendix ................................................................................................................................................................................... 260

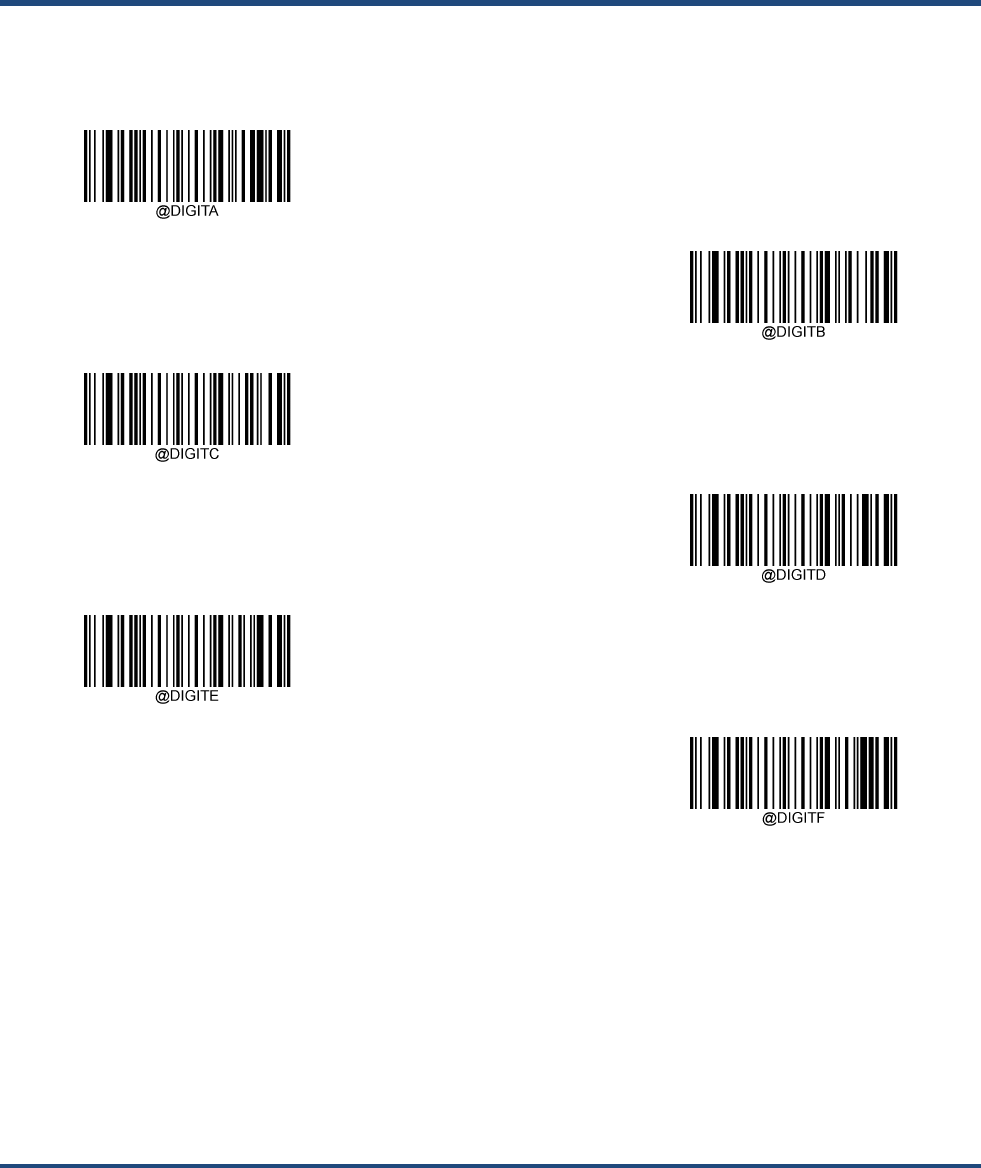

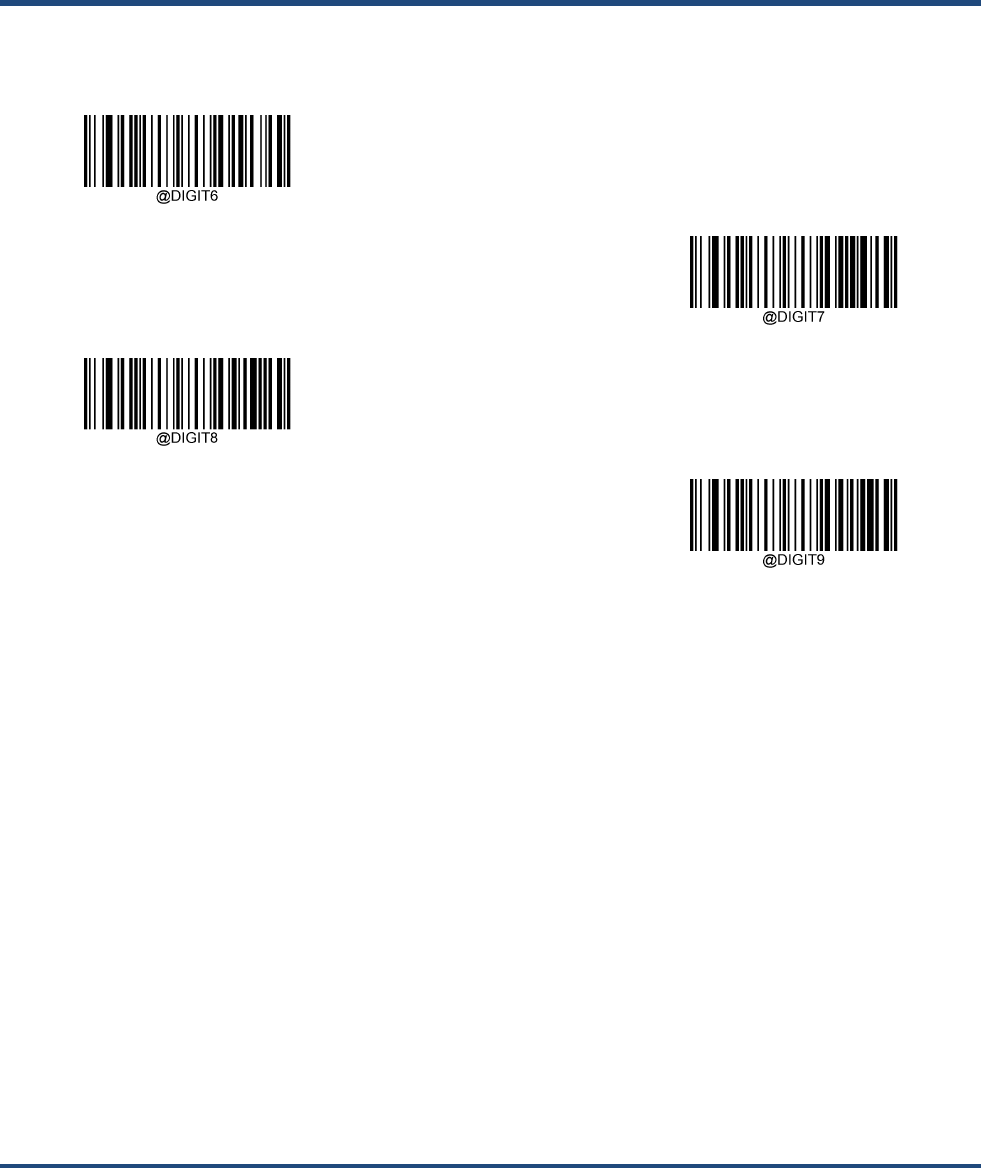

Digit Barcodes .............................................................................................................................................................. 260
Save/Cancel Barcodes ................................................................................................................................................. 263
Factory Defaults Table .................................................................................................................................................. 264
AIM ID Table ................................................................................................................................................................. 278
Code ID Table .............................................................................................................................................................. 280
Symbology ID Number ................................................................................................................................................. 282
ASCII Table .................................................................................................................................................................. 284
Unicode Key Maps ....................................................................................................................................................... 288
1
Preface
Introduction
This manual provides detailed instructions for setting up and using the NLS-HR52 wireless 2D barcode scanner
(hereinafter referred to as “the HR52” or “the scanner”) and NLS-CD52 cradle (hereinafter referred to as “the CD52” or
“the cradle”).
Chapter Description
Chapter 1 Getting Started : Gives a general description of HR52 scanner and CD52 cradle.
Chapter 2 EasySet : Introduces a useful tool you can use to set up HR52 scanner and develop
new applications.
Chapter 3 System Settings : Introduces three configuration methods and describes how to configure
general parameters of HR52 scanner.
Chapter 4 Wireless Communications : Describes how to configure the parameters necessary for wireless
communication between the scanner, cradle and host device.
Chapter 5 RS-232 Interface : Describes how to configure RS-232 communication parameters.
Chapter 6 USB Interface : Describes how to configure USB communication parameters.
Chapter 7 Symbologies : Lists all compatible symbologies and describes how to configure the
relevant parameters.
Chapter 8 Data Formatter : Explains how to customize scanned data with the data formatter.
Chapter 9 Prefix & Suffix : Describes how to use prefix and suffix to customize scanned data.
Chapter 10 Batch Programming : Explains how to integrate a complex programming task into a single
barcode.
Appendix : Provides factory defaults table and a bunch of frequently used
programming barcodes.
2
Explanation of Icons
This icon indicates something relevant to this manual.
This icon indicates this information requires extra attention from the reader.
This icon indicates handy tips that can help you use or configure the scanner with ease.
This icon indicates practical examples that can help you to acquaint yourself with operations.
3
Chapter 1 Getting Started
Introduction
The HR52 wireless 2D barcode scanner reads a 1D or 2D barcode by capturing its image. Adopting the advanced
R
technology independently developed by Newland Auto-ID Tech, it provides five scan modes, including Level mode, Sense
mode, Continuous mode, Pulse mode and Batch mode, tailored to different scanning needs.
An illustrated introduction to the HR52 is included in this chapter. If you have an HR52 scanner at hand, make good use of
it to develop a better understanding of this manual. This chapter is written for normal users, maintenance staff and software
developers.
Features of the HR52
More reliable, more versatile, more efficient scanning solution
Bluetooth 5.0 radio (Frequency: 2402-2480MHz)
User-friendly illumination & aiming
Ultra-rugged construction
Flexible mounting of cradle
Unpacking
Open the package and take out HR52 scanner and its accessories. Check to make sure everything on the packing list is
present and intact. If any contents are damaged or missing, please keep the original package and contact your dealer
immediately for after-sales service.
4
HR52 Scanner
Good Read/Network LED:
Red LED flashes - Low battery alert.
Red LED on - Scanner not paired to cradle.
Blue LED flashes slowly - Paired but no connection
established.
Blue LED on - Connection established.
Blue LED flashes quickly - Batch transmission in
progress.
Green LED flashes once - Good read.
5
Dimensions of the Scanner (unit: mm)
6
CD52 Cradle
Red/Green LEDs:
Red LED on - No scanner placed on cradle.
Red LED flashes - Charging in progress, low
battery level.
Green LED flashes - Charging in progress,
medium battery level.
Green LED on - Fully charged.
Data Port Pinouts:
PIN Signal Type Function
1 NC - No connection
2 NC - No connection
3 VCC P Power+ (+5V)
4 TXD O RS-232 output
5 RXD I RS-232 input
6 CTS I Flow control signal
7 RTS O
8 GND P Ground
9 D- I/O USB signal
10 D+ I/O
7
Dimensions of the Cradle (unit: mm)
8
Mounting the Cradle
The CD52 cradle can be set up in a horizontal or vertical position. Choose a mounting position that fits your need.
Horizontal Mount
The cradle is originally assembled in the horizontal position, as shown below.
Vertical Mount
1. Remove the clips from the horizontal cradle and then attach the clips for vertical position to the corresponding spots on
the cradle.
9
2. Grab and pull the right board horizontally away from the cradle. Then remove the main piece.
3. Insert the protruding part on the left side of the main piece into the groove on the left board, so that the main piece is
vertical. Attach the right board to the main piece.
10
Wall Mount
1. Remove the plate from the chassis by pressing the plastic clip F in with an appropriate tool.
2. Install the two plastic wall anchors in a wall and use screws to secure the plate to the wall with its A side facing the wall.
Slide the vertical cradle onto the plate.
11
Connecting the Cradle to a Host
The cradle must be connected to a host in actual application, such as PC, POS or any intelligent terminal with USB or
RS-232 port, using a communication cable (USB or RS-232 cable).
USB
USB port on the Host
RS-232
RS-232 port on the Host
Note: Please check the port on the host and purchase the cable accordingly.
Using USB Cable
Connect the cradle to a Host using a USB cable with RJ45 and USB connectors:
1. Plug the RJ45 connector of the cable into the data port on the cradle.
2. Plug the USB connector of the cable into the USB port on the Host.
3. Plug the supplied power adapter into the power jack on the cradle.
12
Using RS-232 Cable
Connect the cradle to a Host using an RS-232 cable with RJ45 and RS-232 connectors and a power jack:
1. Plug the RJ45 connector of the cable into the data port on the cradle.
2. Plug the RS-232 connector of the cable into the RS-232 port on the Host.
3. Plug the supplied power adapter into the power jack on the cradle.
Charging the Scanner Battery
To charge the scanner battery, insert the scanner in a powered cradle. You can check the charge status with the red and
green LEDs on the cradle.
Red LED steady on No scanner placed on cradle
Red LED flashes Charging in progress, low battery level
Green LED flashes Charging in progress, medium battery level
Green LED steady on Fully charged
13
Pairing the Scanner to a Cradle
Before configuring or using the scanner, you must pair it to a cradle first. A cradle can pair with up to seven scanners if
Multipoint-to-Point mode is enabled.
You need to perform the pairing operation manually: After the scanner and cradle are turned on, insert the scanner in the
cradle and then press the Pair button on the cradle. The scanner beeps on a successful pairing.
To unpair them, you may pair the scanner to another cradle, or scan the Clear Pairing Info on Cradle or Clear Pairing
Info on Scanner barcode in Chapter 4.
Searching Paired Scanner(s)
After the scanner(s) and cradle are turned on, press the Pair button on the cradle and the paired scanner(s) will beep.
Wireless Communications
The scanner can communicate with a remote host using Bluetooth, or by pairing with a CD52 cradle that supports the
following interefaces:
Standard RS-232 connection to a host. For the cable connection instructions, see the “Using RS-232 Cable” section
in this chapter. To learn how to configure RS-232 communication parameters, see Chapter 5.
USB connection to a host. For the cable connection instructions, see the “Using USB Cable” section in this chapter.
To learn how to configure USB communication parameters, see Chapter 6.
For wireless communication parameters, see Chapter 4.
14
Power On, Power Off, Reboot
Power on the scanner
Hold down the trigger on the scanner until it beeps.
Note: When using the scanner for the first time or after scanning the Battery Off barcode in Chapter 3, you MUST insert
the scanner in a powered cradle to exit battery protection mode before turning it on.
Power off the scanner
Method 1: When in the Level scan mode, the scanner will automatically power off after 5 minutes of inactivity.

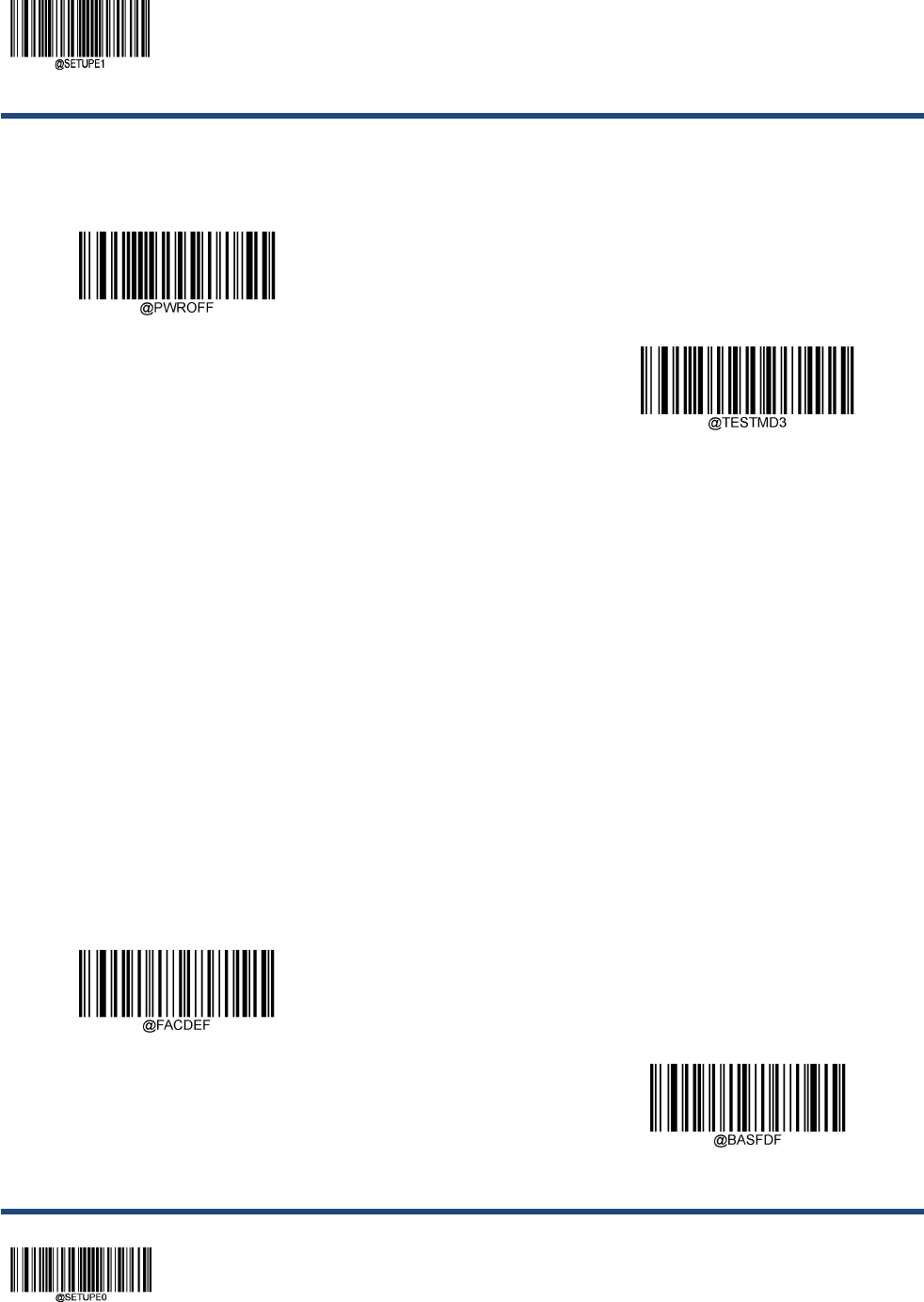

Method 2: Scan the Power Off Scanner barcode in Chapter 3.
Reboot the scanner
If the scanner stops responding to input or runs abnormally, use a straightened paperclip to press and hold the Reset
button on the bottom of the scanner to reboot it.
Maintenance
The scan window should be kept clean.
Do not scratch the scan window.
Use soft brush to remove the stain from the scan window.
Use the soft cloth to clean the window, such as eyeglass cleaning cloth.
Do not spray any liquid on the scan window.
Do not use any detergent to clean other parts of the device except for water.
The warranty DOES NOT cover damages caused by inappropriate care and maintenance.
15
Scanning Instructions
When the scanner is in the Level scan mode, you can follow the steps below to scan a barcode:
1. Press and hold the Trigger. Then the scanner will project a red aiming pattern.
2. Aim the aiming pattern across the center of barcode.
3. Release the Trigger when the aiming pattern goes off. If the barcode is decoded successfully, the scanner will emit a
good read beep and the decoded data will be sent to the Host.
Note: For barcodes of the same batch, the scanner keeps a very high success ratio in certain distance which is regarded
as the optimal scanning distance.
16
Chapter 2 EasySet
EasySet, developed by Fujian Newland Auto-ID Tech. Co., Ltd., is a configuration tool for Newland’s 1D/2D handheld
barcode scanner, fixed mount barcode scanners and OEM scan engines. Its main features include:
View device & configuration information of online device
Configure device
Update firmware of online device
Load/modify existing XML configuration file; save current settings to an XML file
Create/print/save programming barcodes to a PDF or Word file
View/edit/save image stored on online device in the original image/BMP/JPG/TIFF format
Send serial commands to online device and receive device response
Supported languages: Chinese and English.
EasySet supports 32-bit/64-bit Microsoft WinXP/Win7/Win 8/Win 8.1/Win 10 operating systems.
EasySet can communicate with device via one of the following interface: RS-232, USB COM Port Emulation (UFCOM
driver required), USB CDC (UFCOM driver required), USB DataPipe (UFCOM driver required), USB HID-POS.
Enter Setup
17 ** Exit Setup
Chapter 3 System Settings
Introduction
There are three ways to configure the HR52: Barcode programming, command programming and Easyset programming.
Barcode Programming
The HR52 can be configured by scanning programming barcodes. All user programmable features/options are described
along with their programming barcodes/commands in the following sections.
This programming method is most straightforward. However, it requires manually scanning barcodes. As a result, errors
are more likely to occur.
Command Programming
The HR52 can also be configured by serial commands (HEX) sent from the host device.
Users can design an application program to send those command strings to the scanners to perform device configuration.
EasySet Programming
Besides the two methods mentioned above, you can conveniently perform scanner configuration through EasySet too.
EasySet is a Windows-based configuration tool particularly designed for Newland products, enabling users to gain access
to decoded data and captured images and to configure scanners. For more information about this tool, refer to the EasySet
User Guide.
Before programming the scanner, you need to pair it to a cradle first. When programming the scanner
with serial commands or EasySet, you need to insert it in the paired cradle.
Enter Setup
** Exit Setup 18
Programming Barcode/ Programming Command/Function
The figure above is an example that shows you the programming barcode and command for the Enter Setup function:
1. The No Case Conversion barcode.
2. The No Case Conversion command.
3. The description of feature/option.
4. ** indicates factory default settings.
Note: “@” included in the programming command indicates permanent setting which means the setting will not be lost by
removing power from the scanner or turning off or rebooting it; whereas “#” included in the programming command
indicates temporary setting which means the setting will be lost by removing power from the scanner or turning off or
rebooting it.
Enter Setup
19 ** Exit Setup
Use of Programming Command
Besides the barcode programming method, the scanner can also be configured by serial commands (HEX) sent from the
host device. All commands must be entered in uppercase letters.
Command Syntax
Prefix StorageType Tag SubTag {Data} [,SubTag {Data}] [;Tag SubTag {Data}] […] Suffix
Prefix: “~<SOH>0000” (HEX: 7E 01 30 30 30 30), 6 characters.
StorageType: “@” (HEX: 40) or “#” (HEX: 23), 1 character. “@” means permanent setting which will not be lost by removing
power from the scanner or rebooting it; “#” means temporary setting which will be lost by removing power from the scanner
or rebooting it.
Tag: A 3-character case-sensitive field that identifies the desired command group. For example, all USB HID Keyboard
configuration settings are identified with a Tag of KBW.
SubTag: A 3-character case-sensitive field that identifies the desired parameter within the tag group. For example, the
SubTag for the keyboard layout is CTY.
Data: The value for a feature or parameter setting, identified by the Tag and SubTag.
Suffix: “;<ETX>” (HEX: 3B 03), 2 characters.
Multiple commands can be issued within one Prefix/Suffix sequence. For configuration commands, only the Tag, SubTag,
and Data fields must be repeated for each command in sequence. If an additional command is to be applied to the same
Tag, then the command is separated with a comma (,) and only the SubTag and Data fields of the additional commands
are issued. If the additional command requires a different Tag field, the command is separated from previous command by
a semicolon (;).
Query Commands
For query commands, the entry in the Data field in the syntax above is one of the following characters means:
* (HEX: 2A) What is the scanner’s current value for the setting(s).
& (HEX: 26) What is the factory default value for the setting(s).
^ (HEX: 5E) What is the range of possible values for the setting(s).
Enter Setup
** Exit Setup 20
The value of the StoreType field in a query command can be either “@” (HEX: 40) or “#” (HEX: 23).
A query command with the SubTag field omitted means to query all the settings concerning a tag. For example, to query all
the current settings about Code 11, you should enter 7E 01 30 30 30 30 40 43 31 31 2A 3B 03 (i.e.
~<SOH>0000@C11*;<ETX>).
Responses
Different from command sequence, the prefix of a response consists of the six characters of “<STX><SOH>0000” (HEX:
02 01 30 30 30 30).
The scanner responds to serial commands with one of the following three responses:
<ACK> (HEX: 06) Indicates a good command which has been processed.
<NAK> (HEX: 15) Indicates a good configuration command with its Data field entry out of the allowable range for this
Tag and SubTag combination (e.g. an entry for an inter-keystroke delay of 100 when the field will
only allow 2 digits), or an invalid query command.
<ENQ> (HEX: 05) Indicates an invalid Tag or SubTag command.
When responding, the scanner echoes back the command sequence with the status character above inserted directly
before each of the punctuation marks (the comma or semicolon) in the command.
Examples
Example 1: Enable Code 11, set the minimum and maximum lengths to 12 and 22 respectively.
Enter: 7E 01 30 30 30 30 40 43 31 31 45 4E 41 31 2C 4D 49 4E 31 32 2C 4D 41 58 32 32 3B 03
(~<SOH>0000@C11ENA1,MIN12,MAX22;<ETX>)
Response: 02 01 30 30 30 30 40 43 31 31 45 4E 41 31 06 2C 4D 49 4E 31 32 06 2C 4D 41 58 32 32 06 3B 03
(<STX><SOH>0000@C11ENA1<ACK>,MIN12<ACK>,MAX22<ACK>;<ETX>)
Example 2: Query the current minimum and maximum lengths of Code 11.
Enter: 7E 01 30 30 30 30 40 43 31 31 4D 49 4E 2A 2C 4D 41 58 2A 3B 03
(~<SOH>0000@C11MIN*,MAX*;<ETX>)
Response: 02 01 30 30 30 30 40 43 31 31 4D 49 4E 31 32 06 2C 4D 41 58 32 32 06 3B 03
(<STX><SOH>0000@C11MIN12<ACK>,MAX22<ACK>;<ETX>)
Enter Setup
21 ** Exit Setup

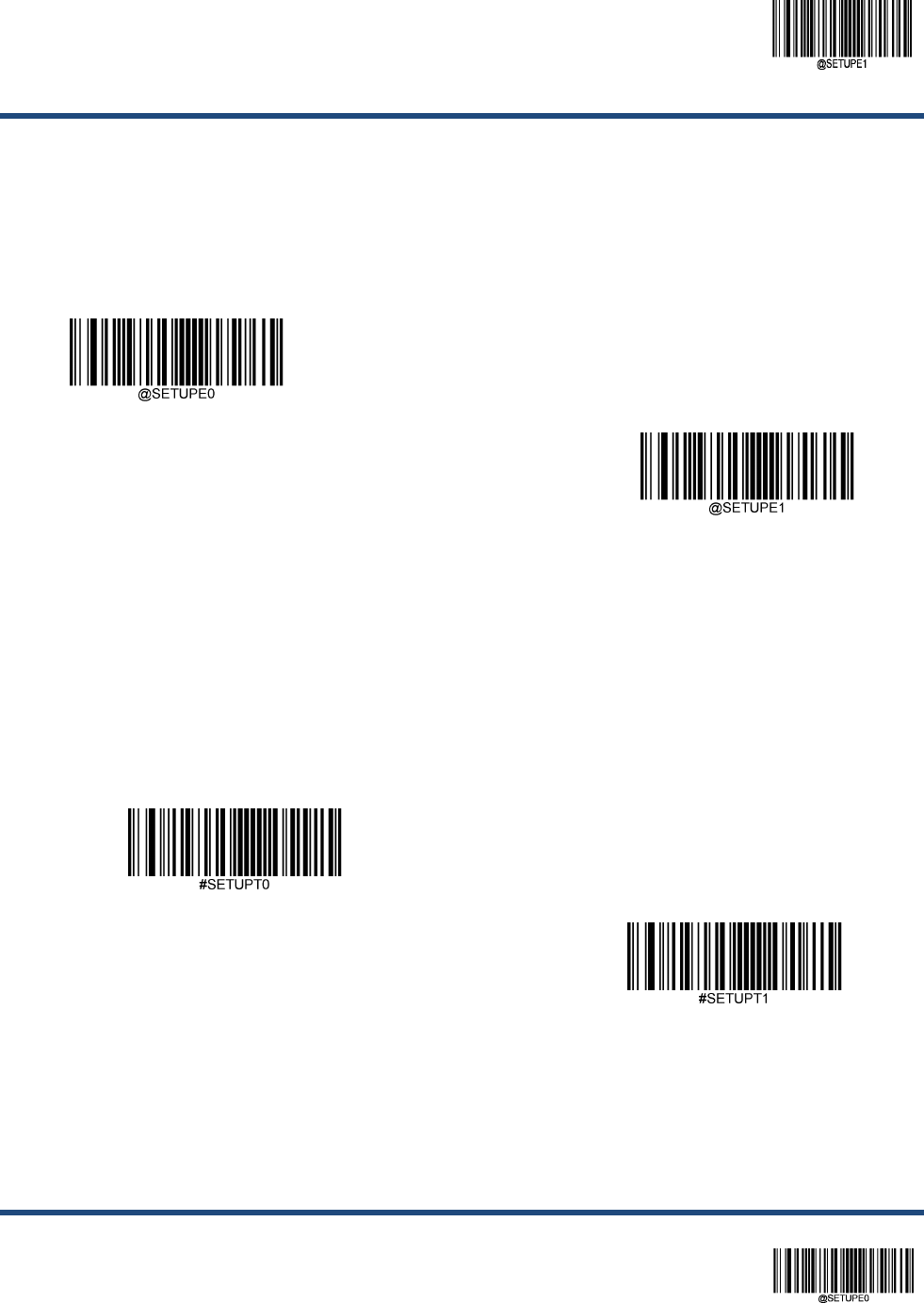

Use of Programming Barcodes
Scanning the Enter Setup barcode can enable the scanner to enter the setup mode. Then you can scan a number of
programming barcodes to configure your scanner. To exit the setup mode, scan the Exit Setup barcode or a
non-programing barcode, or reboot the scanner.
** Exit Setup
Enter Setup
Programming barcode data (i.e. the characters under programming barcode) can be transmitted to the host device. You
may scan the appropriate barcode below to enable or disable the transmission of programming barcode data to the host
device.
** Do Not Transmit Programming Barcode Data
Transmit Programming Barcode Data
Enter Setup
** Exit Setup 22
Illumination
A couple of illumination options are provided to improve the lighting conditions during every image capture:
Normal: Illumination LEDs are turned on during image capture.
Always On: Illumination LEDs keep ON after the scanner is powered on.
Off: Illumination LEDs are OFF all the time.
** Normal
Off
Always On
Enter Setup
23 ** Exit Setup

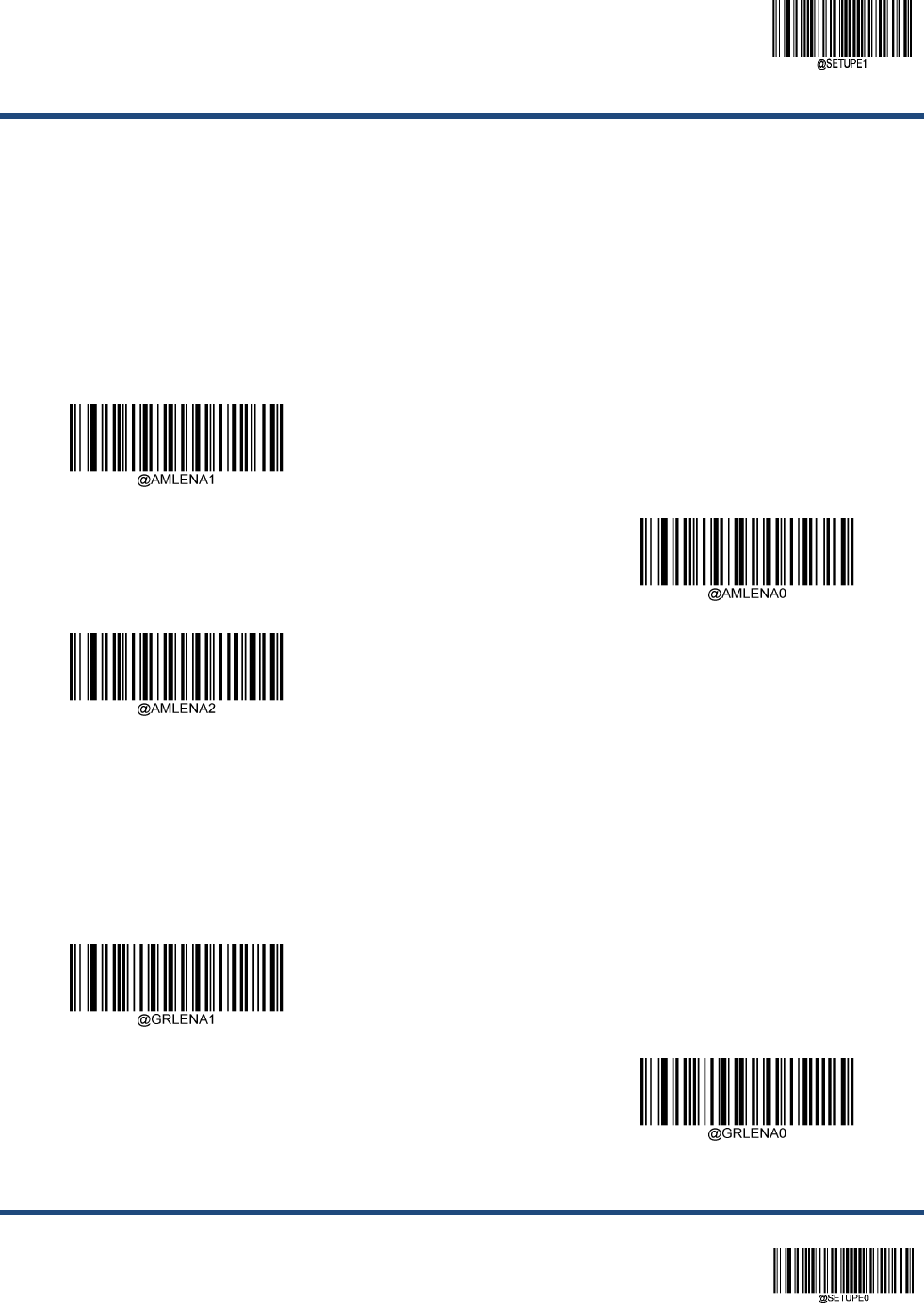

Aiming
When scanning/capturing image, the scanner projects an aiming pattern which allows positioning the target barcode within
its field of view and thus makes decoding easier.
Normal: The scanner projects an aiming pattern only during barcode scanning/capture.
Always On: Aiming pattern is constantly on after the scanner is powered on.
Off: Aiming pattern is off all the time.
** Normal
Off
Always On
Good Read LED
The green LED can be programmed to be On or Off to indicate good read.
** On
Off
Enter Setup
** Exit Setup 24
Good Read LED Duration
This parameter sets the amount of time that the Good Read LED to remain on following a good read.
** Short (20ms)
Medium (120ms)
Long (220ms)
Prolonged (320ms)
Custom (1 - 2,500ms）
Set the Good Read LED duration to 800ms:
1. Scan the Enter Setup barcode.
2. Scan the Custom barcode.
3. Scan the numeric barcodes “8”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
25 ** Exit Setup

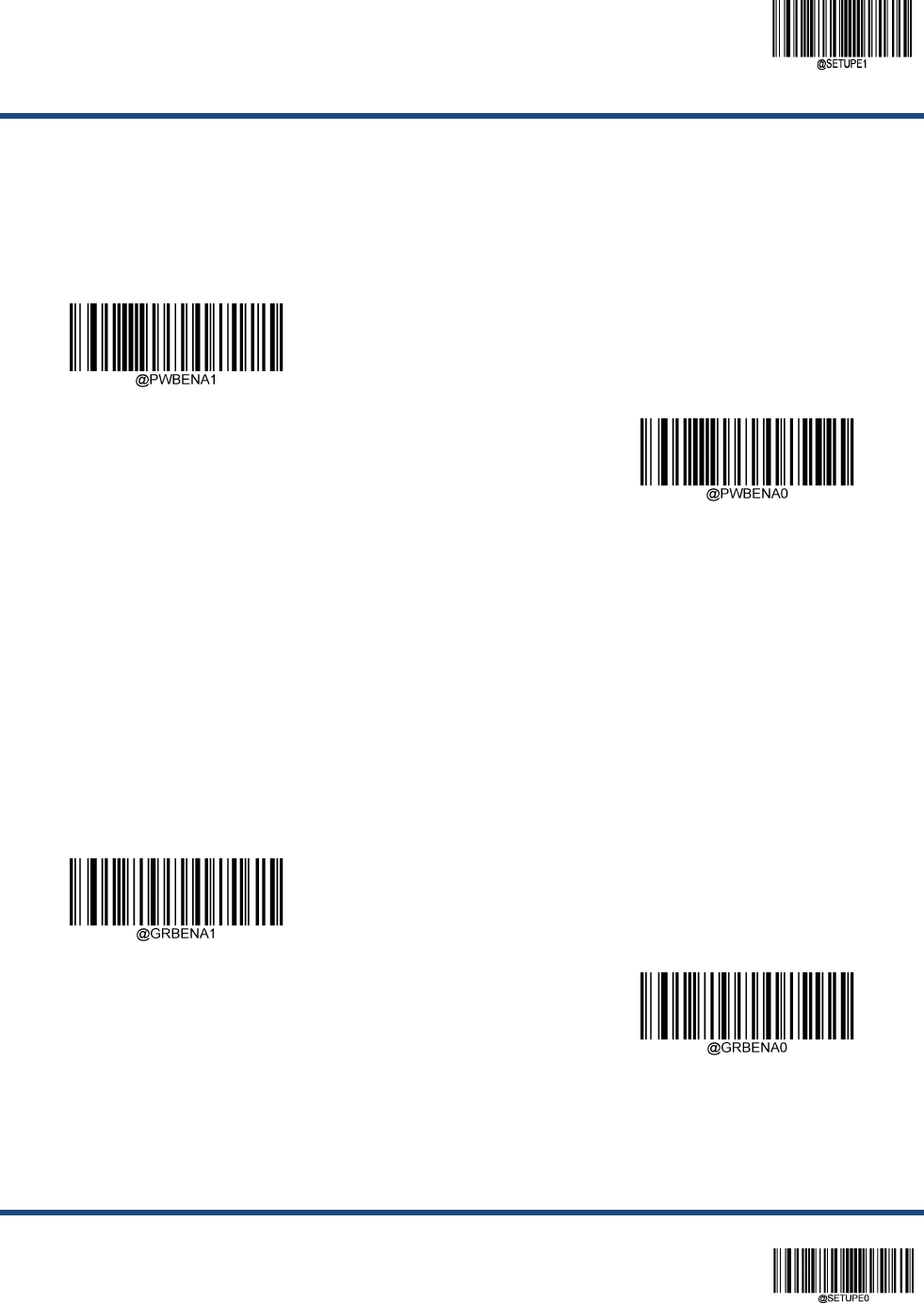

Power On Beep
The scanner can be programmed to beep when it is powered on. Scan the Off barcode if you do not want a power on beep.
** On
Off
Good Read Beep
Scanning the Off barcode can turn off the beep that indicates successful decode; scanning the On barcode can turn it back
on.
** On
Off
Enter Setup
** Exit Setup 26

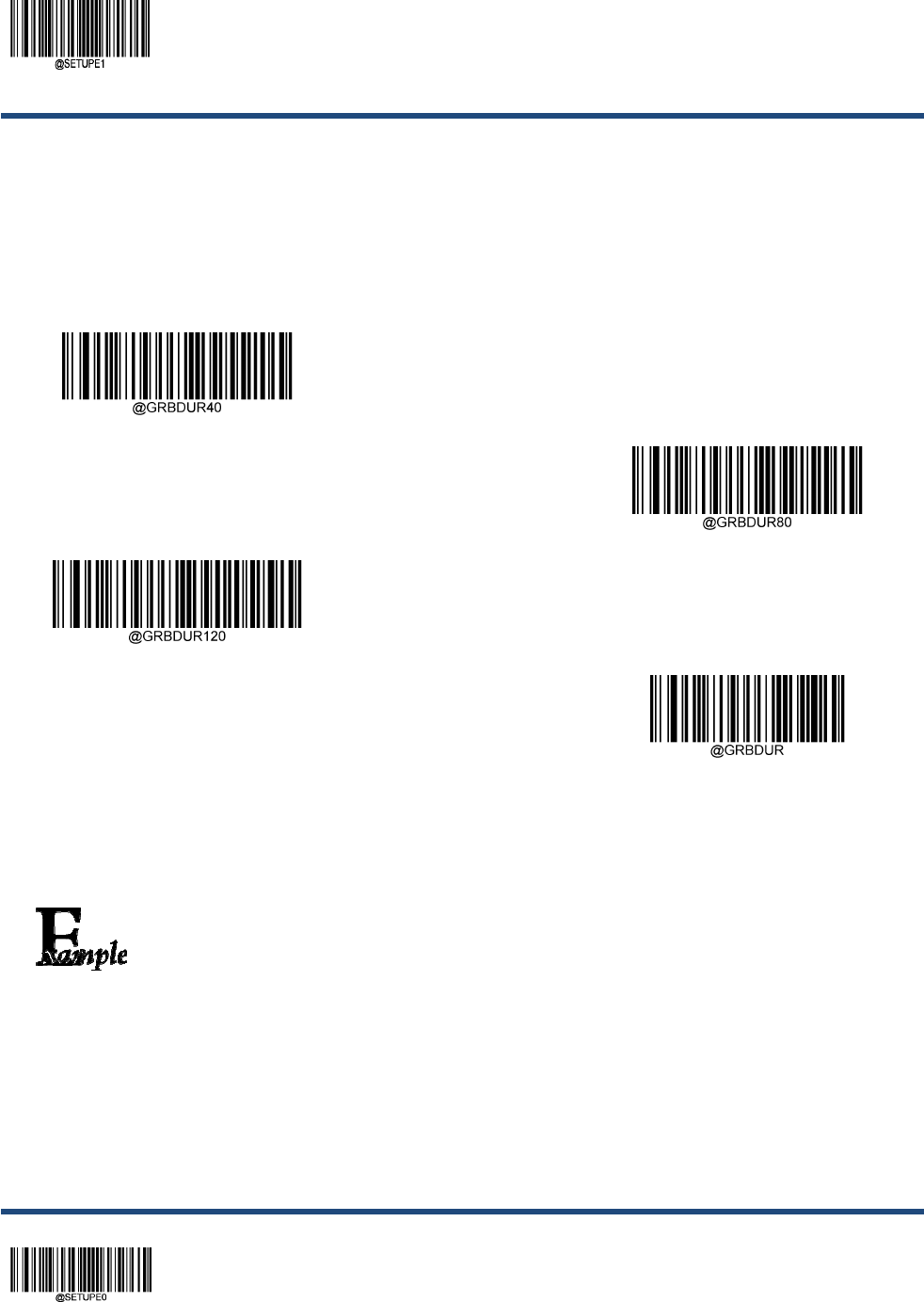

Good Read Beep Duration
This parameter sets the length of the beep the scanner emits on a good read. It is programmable in 1ms increments from
20ms to 300ms.
Short (40ms)
** Medium (80ms)
Long (120ms)
Custom (20 – 300ms)
Set the Good Read Beep duration to 200ms:
1. Scan the Enter Setup barcode.
2. Scan the Custom barcode.
3. Scan the numeric barcodes “2”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
27 ** Exit Setup
Good Read Beep Frequency
This parameter is programmable in 1Hz increments from 20Hz to 20,000Hz.
Extra Low (800Hz)
Low (1600Hz)
** Medium (2730Hz)
High (4200Hz)
Custom (20 - 20,000Hz)
Set the Good Read Beep frequency to 2,000Hz:
1. Scan the Enter Setup barcode.
2. Scan the Custom barcode.
3. Scan the numeric barcodes “2”, “0”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 28
Good Read Beep Volume
** Loud
Medium
Low
Good Read Vibration
You may choose whether or not to let the scanner vibrate when a barcode is successfully read by scanning the appropriate
barcode below.
On
** Off
Enter Setup
29 ** Exit Setup
Good Read Vibration Duration
This parameter sets the length for the Good Read Vibration. It is programmable in 1ms increments from 1ms to 2,500ms.
Short (40ms)
** Medium (80ms)
Long (120ms)
Custom (1 – 2,500ms)
Set the Good Read Vibration duration to 200ms:
1. Scan the Enter Setup barcode.
2. Scan the Custom barcode.
3. Scan the numeric barcodes “2”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 30
Scan Mode
Level Mode: A trigger pull activates a decode session. The decode session continues until a barcode is decoded or the
decode session timeout expires or you release the trigger.
Sense Mode: The scanner activates a decode session every time it detects a barcode presented to it. The decode session
continues until a barcode is decoded or the decode session timeout expires. Reread Timeout can avoid undesired
rereading of same barcode in a given period of time. Sensitivity can change the Sense Mode’s sensibility to changes in
images captured. Image Stabilization Timeout gives the scanner time to adapt to ambient environment after it decodes a
barcode and “looks” for another.
Continuous Mode: The scanner automatically starts one decode session after another. To suspend/resume barcode
reading, simply press the trigger. Reread Timeout can avoid undesired rereading of same barcode in a given period of
time.
Pulse Mode: When the trigger is pulled and released, scanning is activated until a barcode is decoded or the decode
session timeout expires (The decode session timeout begins when the trigger is released).
Batch Mode: A trigger pull activates a round of multiple decode sessions. This round of multiple scans continues until you
release the trigger. Rereading the same barcode is not allowed in the same round.
** Level Mode
Sense Mode
Continuous Mode
Pulse Mode
Batch Mode
Enter Setup
31 ** Exit Setup
Decode Session Timeout
This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 1ms
increments from 100ms to 3,600,000ms. When it is set to 0, the timeout is infinite. The default setting is 3,000ms.
Decode Session Timeout
Set the decode session timeout to 1,500ms:
1. Scan the Enter Setup barcode.
2. Scan the Decode Session Timeout barcode.
3. Scan the numeric barcodes “1”, “5”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 32
Image Stabilization Timeout (Sense Mode)
This parameter defines the amount of time the scanner will spend adapting to ambient environment after it decodes a
barcode and “looks” for another. It is programmable in 1ms increments from 0ms to 3,000ms. The default setting is 200ms.
Image Stabilization Timeout
Set the image stabilization timeout to 800ms:
1. Scan the Enter Setup barcode.
2. Scan the Image Stabilization Timeout barcode.
3. Scan the numeric barcodes “8”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
33 ** Exit Setup

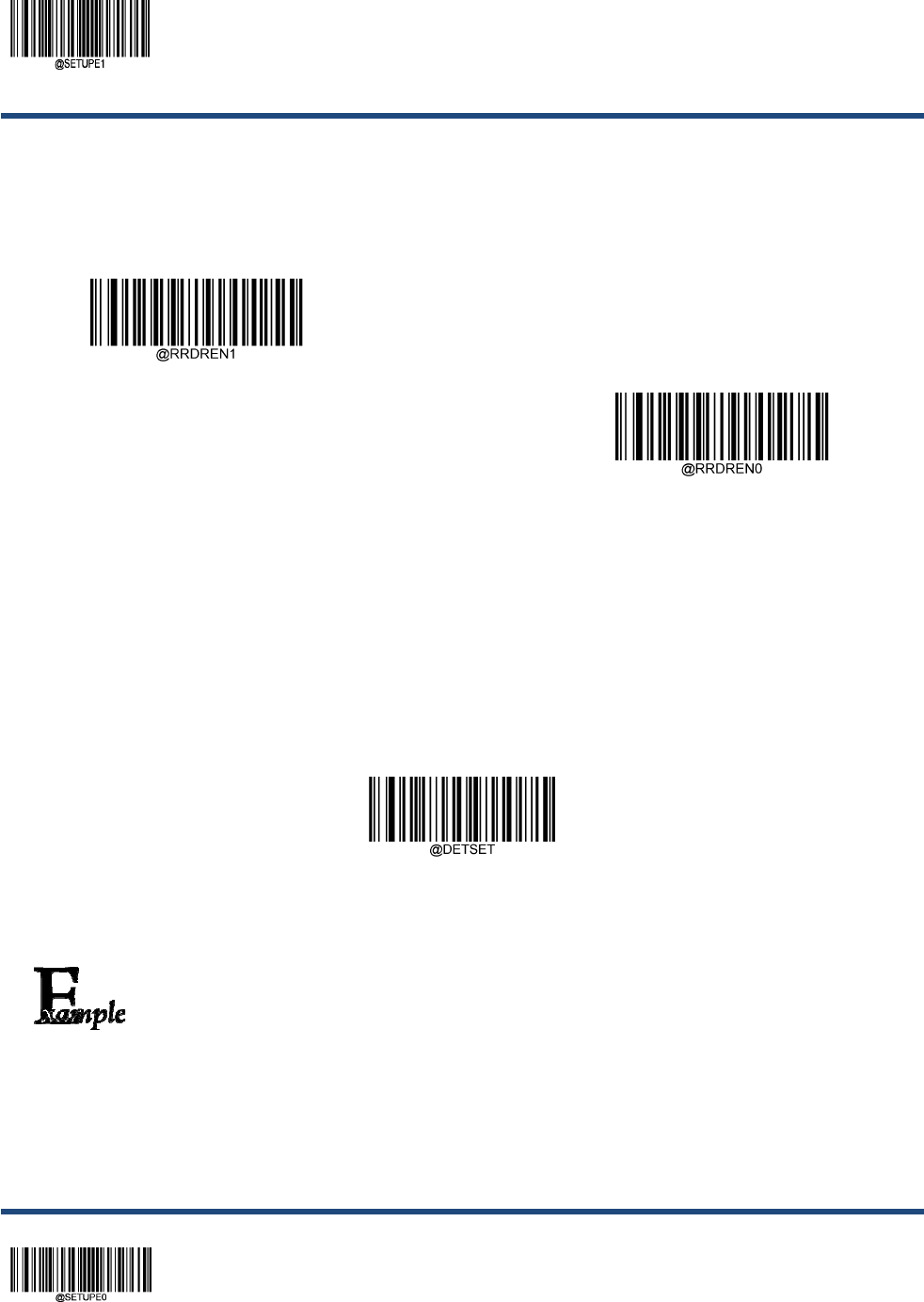

Reread Timeout
Reread Timeout can avoid undesired rereading of same barcode in a given period of time. This feature is only applicable to
the Sense and Continuous modes.
Enable Reread Timeout: Do not allow the scanner to reread same barcode before the reread timeout expires.
Disable Reread Timeout: Allow the scanner to reread same barcode.
Enable Reread Timeout
** Disable Reread Timeout
The following parameter sets the time interval between two successive reads on same barcode. It is programmable in 1ms
increments from 0ms to 3,600,000ms. When it is set to a value greater than 3,000, the timeout for rereading same
programming barcode is limited to 3,000ms. The default setting is 1,500ms.
Set Reread Timeout
Set the reread timeout to 1,000ms:
1. Scan the Enter Setup barcode.
2. Scan the Set Reread Timeout barcode.
3. Scan the numeric barcodes “1”, “0”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 34
You may wish to restart the reread timeout when the scanner encounters the same barcode that was decoded in the last
scan session before the reread timeout expires. To enable this feature, scan the Reread Timeout Reset On barcode. This
feature is only effective when Reread Timeout is enabled.
Reread Timeout Reset On
** Reread Timeout Reset Off
Image Decoding Timeout
Image Decoding Timeout specifies the maximum time the scanner will spend decoding an image. This parameter is
programmable in 1ms increments from 1ms to 3,000ms. The default timeout is 500ms.
Image Decoding Timeout
Set the image decoding timeout to 1,000ms:
1. Scan the Enter Setup barcode.
2. Scan the Image Decoding Timeout barcode.
3. Scan the numeric barcodes “1”, “0”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
35 ** Exit Setup

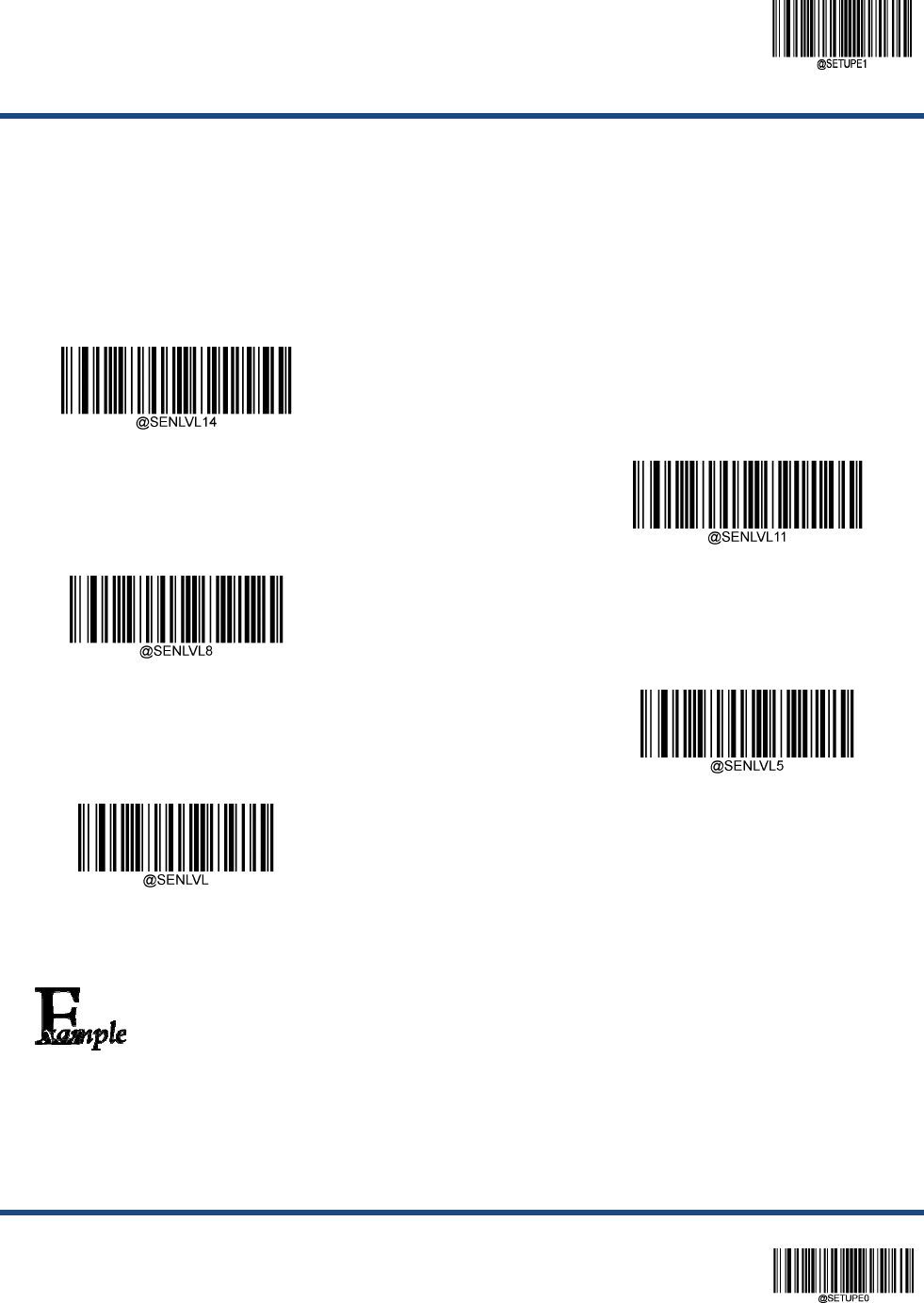

Sensitivity (Sense Mode)
This specifies the degree of acuteness of the scanner’s response to changes in images captured. There are 20 levels to
choose from. The smaller the value, the higher the sensitivity and the lower requirement in image change to trigger the
scanner. You can select an appropriate degree of sensitivity that fits your application environment. This feature is only
applicable to the Sense mode.
Low Sensitivity
** Medium Sensitivity
High Sensitivity
Enhanced Sensitivity
Custom Sensitivity (Level 1-20)
Set the sensitivity to Level 10:
1. Scan the Enter Setup barcode.
2. Scan the Custom Sensitivity barcode.
3. Scan the numeric barcodes “1” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 36
Scanning Preference
Normal Mode: Select this mode when reading barcodes on paper.
Screen Mode: Select this mode when reading barcodes on the screen.
** Normal Mode
Screen Mode
Read Barcode On/Off
Sending the Read Barcode Off command ~<SOH>0000#SCNENA0;<ETX> to the scanner can disable it from reading
barcode, and the scanner is unable to scan barcode unless you send the Read Barcode On command
~<SOH>0000#SCNENA1;<ETX> to it or power cycle it. By default, Read Barcode is On.
Make a Beeping Sound
You may wish to force the scanner to beep upon a command sent from the host. A beeping sound is made to gain a user’s
attention to an error or other important event.
BEEPONxxxFyyyT (xxx: The desired frequency, 1-20,000Hz; yyy: The desired duration, 1-10,000ms)
Example: Make a 50ms beep at 2,000Hz
Enter: 7E 01 30 30 30 30 40 42 45 45 50 4F 4E 32 30 30 30 46 35 30 54 3B 03
(~<SOH>0000#BEEPON2000F50T;<ETX>)
Response: 02 01 30 30 30 30 40 42 45 45 50 4F 4E 32 30 30 30 46 35 30 54 06 3B 03
(<STX><SOH>0000#BEEPON2000F50T<ACK>;<ETX>)
Enter Setup
37 ** Exit Setup
Smart Stand Mode
After this feature is turned on, the scanner will switch from its current scan mode to the Sense mode when it is inserted in
the stand, and it will operate in its previous scan mode when it is removed from the stand.
Off
** On
Decode Area
Whole Area Decoding: The scanner attempts to decode barcode(s) within its field of view, from the center to the periphery,
and transmits the barcode that has been first decoded.
Specific Area Decoding: The scanner attempts to read barcode(s) within a specified decoding area and transmits the
barcode that has been first decoded. This option allows the scanner to narrow its field of view to make sure it reads only
those barcodes intended by the user. For instance, if multiple barcodes are placed closely together, specific area decoding
in conjunction with appropriate pre-defined decoding area will insure that only the desired barcode is read.
Acuread Decoding: The scanner only decodes the barcode aimed squarely by the aiming pattern. For those using a
crosshair aiming pattern, only the barcode aimed by the center of crosshair will be decoded.
Enter Setup
** Exit Setup 38
** Whole Area Decoding
Specific Area Decoding
Acuread Decoding
If Specific Area Decoding is enabled, the scanner only reads barcodes that intersect the predefined decoding area.
The default decoding area is an area of 40% top, 60% bottom, 40% left and 60% right of the scanner’s field of view
You can define the decoding area using the Top of Decoding Area, Bottom of Decoding Area, Left of Decoding Area
and Right of Decoding Area barcodes as well as numeric barcode(s) that represent(s) a desired percentage (0-100). The
value of Bottom must be greater than that of Top; the value of Right must be greater than that of Left.
Top of Decoding Area
Bottom of Decoding Area
Left of Decoding Area
Right of Decoding Area
Enter Setup
39 ** Exit Setup
Program the scanner to only read Barcode 1 in the figure above by setting the decoding area to
10% top, 45% bottom, 15% left and 30% right:
1. Scan the Enter Setup barcode.
2. Scan the Top of Decoding Area barcode.
3. Scan the numeric barcode “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Bottom of Decoding Area barcode.
6. Scan the numeric barcodes “4” and “5” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Top of Decoding Area barcode.
9. Scan the numeric barcodes “1” and “0” from the “Digit Barcodes” section in Appendix.
10. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
11. Scan the Left of Decoding Area barcode.
12. Scan the numeric barcode “0” from the “Digit Barcodes” section in Appendix.
13. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
14. Scan the Right of Decoding Area barcode.
15. Scan the numeric barcodes “3” and “0” from the “Digit Barcodes” section in Appendix.
16. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
17. Scan the Left of Decoding Area barcode.
18. Scan the numeric barcodes “1” and “5” from the “Digit Barcodes” section in Appendix.
19. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
20. Scan the Exit Setup barcode.
Barcode 1
Barcode 2
Enter Setup
** Exit Setup 40
Image Flipping
** Do Not Flip
Flip Horizontally
Flip Vertically
Flip Horizontally & Vertically
Example of image not flipped Example of image flipped horizontally
Example of image flipped vertically Example of image flipped horizontally & vertically
Enter Setup
41 ** Exit Setup
Bad Read Message
You may scan the appropriate barcode below to select whether or not to send a bad read message (user-programmable)
when a good read does not occur before trigger release, or the decode session timeout expires.
** Bad Read Message OFF
Bad Read Message ON
Set Bad Read Message
A bad read message can contain up to 7 characters (HEX values from 0x00 to 0xFF). To set a bad read message, scan the
Set Bad Read Message barcode, the numeric barcodes representing the hexadecimal values of desired character(s) and
the Save barcode. The default setting is “NG”.
Set Bad Read Message
Set the bad read message to “F” (HEX: 0x46):
1. Scan the Enter Setup barcode.
2. Scan the Set Bad Read Message barcode.
3. Scan the numeric barcodes “4” and “6” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 42
Power Off/Battery Off
Power Off Scanner
Battery Off
(For Long-term Storage/Shipping)
Note: After scanning the Battery Off barcode, you MUST insert the scanner in a powered cradle to exit battery protection
mode before turning it on.
Default Settings
Factory Defaults
Scanning the Reset Scanner/Reset Cradle barcode can restore the scanner/cradle to the factory defaults.
You may need to reset your scanner/cradle when:
1. Scanner/cradle is not properly configured so that the scanner fails to decode barcodes or to communicate with the
cradle.
2. you forget previous configuration and want to avoid its impact.
3. functions that are rarely used have been enabled for the time being.
Reset Scanner
Reset Cradle
Enter Setup
43 ** Exit Setup
Custom Defaults
Scanning the Restore All Custom Defaults barcode can reset all parameters to the custom defaults. Scanning the Save
as Custom Defaults barcode can set the current settings as custom defaults.
Custom defaults are stored in the non-volatile memory.
Save as Custom Defaults
Restore All Custom Defaults
Restoring the scanner to the factory defaults will not remove the custom defaults from the scanner.
Enter Setup
** Exit Setup 44
Query Scanner Information
After scanning the barcode below, the scanner information (including product name, firmware version, decoder version,
hardware version, product serial number, OEM serial number and manufacturing date) will be sent to the host device.
Query Scanner Information
Query Product Name
Query Product Name
Query Firmware Version
Query Firmware Version
Query Decoder Version
Query Decoder Version
Enter Setup
45 ** Exit Setup
Query Data Formatter Version
Query Data Formatter Version
Query Hardware Version
Query Hardware Version
Query Serial Number
Query Serial Number
Query Manufacturing Date
Query Manufacturing Date
Enter Setup
** Exit Setup 46
Query OEM Serial Number
Query OEM Serial Number
Query Cradle Information
After scanning the barcode below, the cradle information (including model number, firmware version, hardware information,
product serial number, and manufacturing date) will be sent to the host device.
Query Cradle Information
Query Model Number
Query Model Numer
Query Firmware Version
Query Firmware Version
Enter Setup
47 ** Exit Setup
Query Hardware Information
Query Hardware Information
Query Serial Number
Query Serial Number
Query OEM Serial Number (ESN)
Query OEM Serial Number
Query Manufacturing Date
Query Manufacturing Date
Enter Setup
** Exit Setup 48

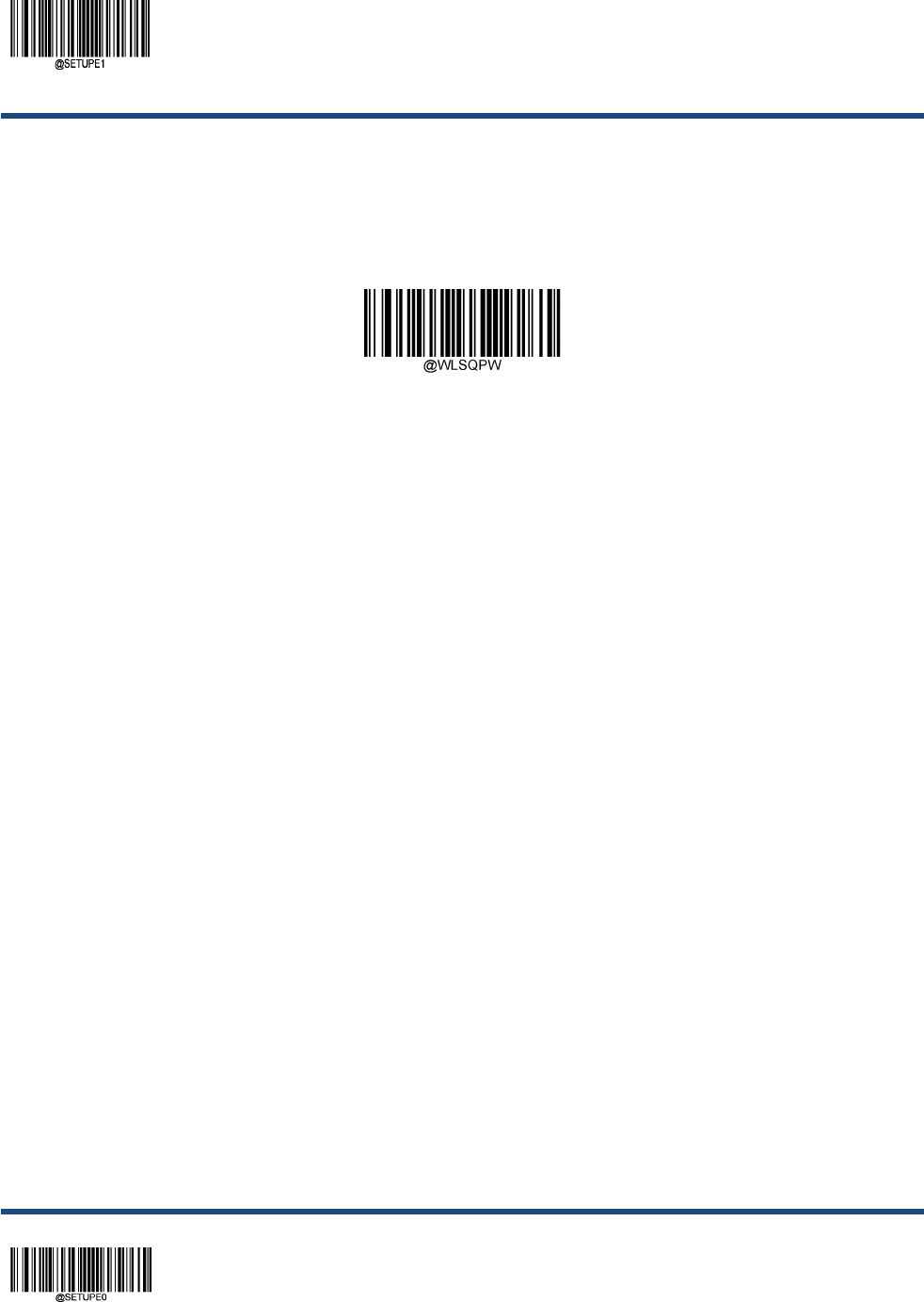

Query Remaining Battery of Scanner
After scanning the barcode below, the percentage of battery power remaining will be sent to the host device.
Query Remaining Battery of Scanner
Enter Setup
49 ** Exit Setup
Chapter 4 Wireless Communications
Operating Modes
The scanner provides the following two operating modes:
Bluetooth HID Mode allows your scanner to communicate with a remote host using Bluetooth. You must first pair your
scanner to the host before these two Bluetooth devices can communicate with each other. All features available for USB
HID Keyboard are applicable to Bluetooth HID.
Cradle Mode allows your scanner to communicate with a remote host by pairing with a cradle.
** Cradle Mode
Bluetooth HID Mode
Batch Mode
Batch Mode Options
Off: The scanner attempts to transmit every barcode you scan. When you are out of service range, the scanned data will
be lost.
Automatic Batch Mode: When in service range, the scanner attempts to transmit every barcode you scan. When out of
range, the scanner stores the scanned data in the flash memory. Once you are back to service range, the scanner will
automatically transmit the stored data and then remove it from the flash memory after transmission is done.
Manual Batch Mode: Scanned data will be stored in the flash memory no matter whether you are in service range or not.
You may send the stored data to the host in one of the following ways: (i) press the Batch button on the cradle after
inserting the scanner in cradle; (ii) scan the Transmit Stored Data barcode; or (iii) send the corresponding serial command
to the scanner. The scanner will automatically remove the stored data from the flash memory after transmission is done if
the Auto Clear Stored Data after Transmission feature is turned on.
Enter Setup
** Exit Setup 50
** Off
Automatic Batch Mode
Manual Batch Mode
Prevent Same Barcode Storage
This feature is available only when scanning barcodes in the Automatic or Manual Batch mode.
On: The scanner discards the data and generates an error beep when encountering a barcode that has existed in the flash
memory.
Off: The scanner stores the data when encountering a barcode that has existed in the flash memory.
** Off
On
Enter Setup
51 ** Exit Setup
Batch Mode Transmit Delay
Sometimes when multiple barcodes stored in the flash memory are sent to the host, the transmission of those barcodes is
too fast for the application to process. To program a transmit delay between barcodes, scan one of the following delays.
** No Transmit Delay (0ms)
Short Transmit Delay (50ms)
Medium Transmit Delay (100ms)
Long Transmit Delay (150ms)
Custom Transmit Delay (0-10,000ms)
Set the batch mode transmit delay to 200ms:
1. Scan the Enter Setup barcode.
2. Scan the Custom Transmit Delay barcode.
3. Scan the numeric barcodes “2”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 52
End of Transmission Message for Batch Mode
You may scan the appropriate barcode below to select whether or not to send an end of transmission message
(user-programmable) to notify the host when transmission of all stored data is done.
** End of Transmission Message Off
End of Transmission Message On
An end of transmission message can contain up to 10 characters (HEX values from 0x00 to 0xFF). To set an end of
transmission message, scan the Set End of Transmission Message barcode, the numeric barcodes representing the
hexadecimal values of desired character(s) and the Save barcode. The default setting is “EOT”.
Set End of Transmission Message
Set the end of transmission message to “END” (HEX: 0x45, 0x4E, 0x44):
1. Scan the Enter Setup barcode.
2. Scan the Set End of Transmission Message barcode.
3. Scan the numeric barcodes “4”, “5”, “4”, “E”, “4” and “4” from the “Digit Barcodes” section in
Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
53 ** Exit Setup

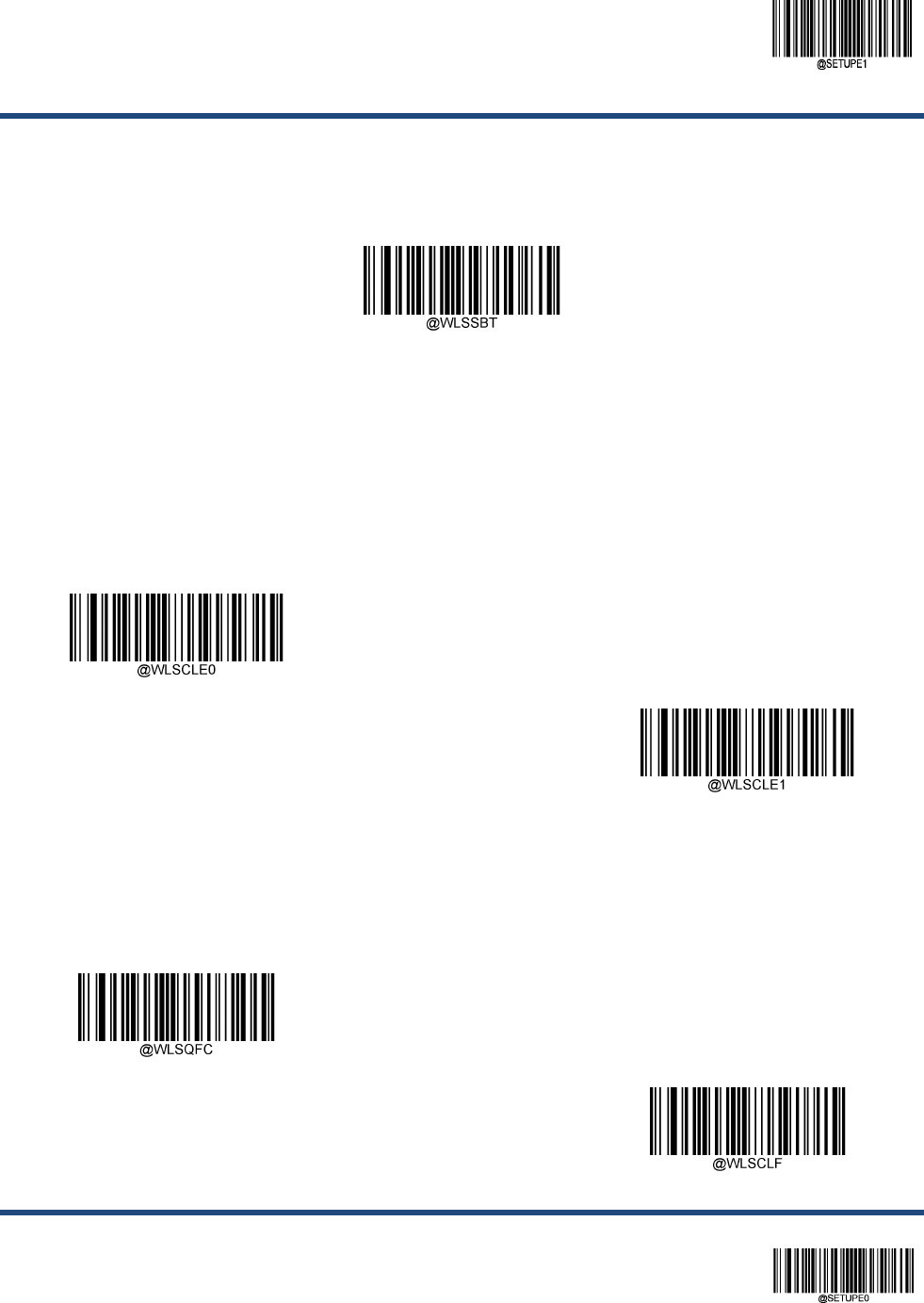

Transmit Stored Data
You may scan the barcode below to send the stored data in the flash memory to the host.
Transmit Stored Data
Auto Clear Stored Data after Transmission
You may scan the appropriate barcode below to choose whether to clear or keep the stored data in the flash memory after
transmission This feature is only available to the Manual Batch mode.
** Off
On
Query/Clear Stored Data in Flash
Query the Number of Stored Barcodes
Clear All Stored Data
Enter Setup
** Exit Setup 54

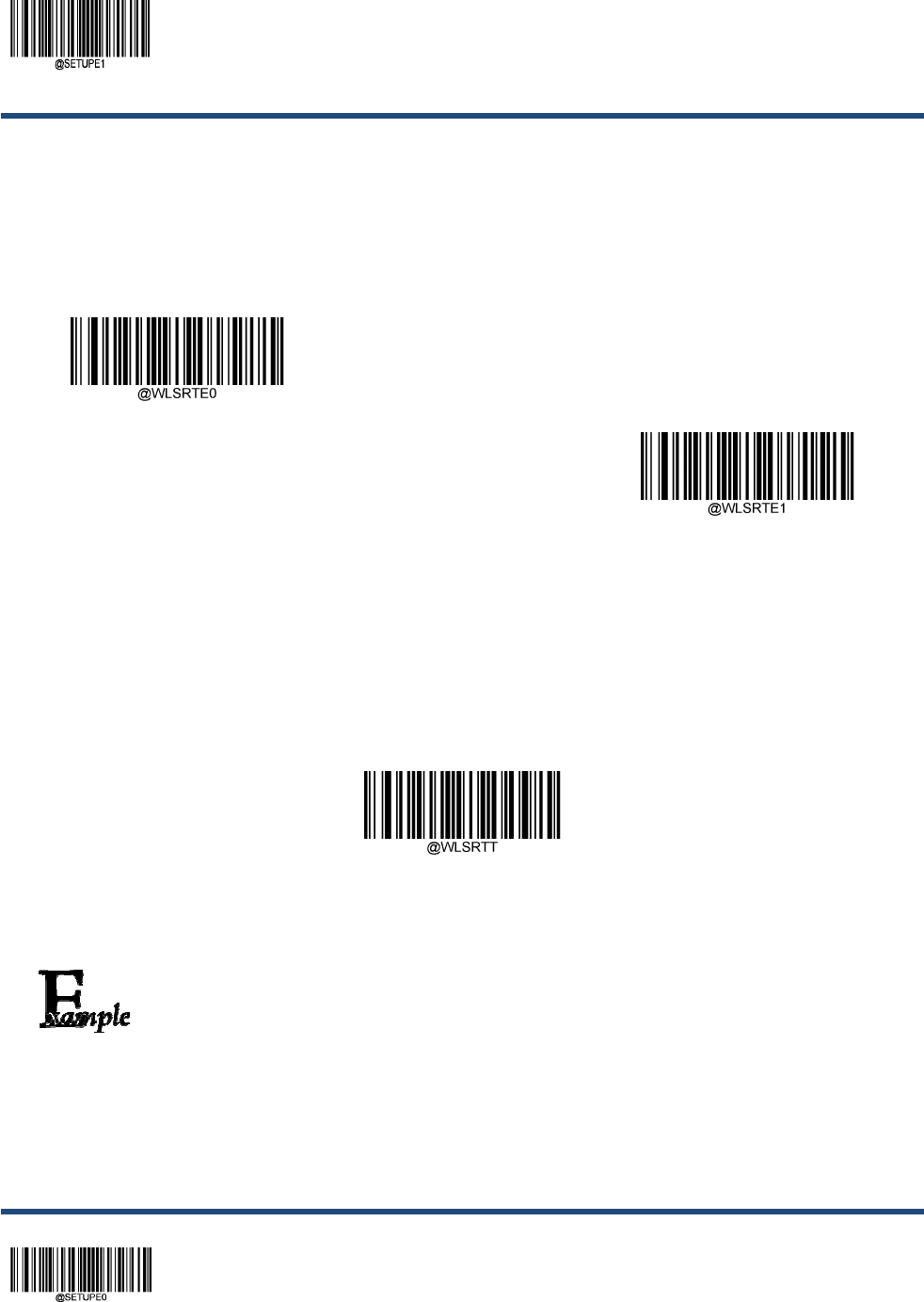

Retransmission
If the Transmission feature is on, the scanner awaits an ACK response from the host following a data packet transmission,
and resends the packet when it receives an NAK response or the retransmission timeout expires. Note that Data Packing
must be enabled for this feature to function (See the “Data Packing Options” in Chaper 9 to learn how to enable it).
** Retransmission Off
Retransmission On
Transmission Timeout
This specifies the amount of time the scanner waits for an ACK response from the host following a data packet
transmission. It is programmable in 1ms increments from 200ms to 10,000ms. The default value is 200ms. Note that the
Retransmission feature must be turned on for this to function.
Set Transmission Timeout
Set the transmission timeout to 300ms:
1. Scan the Enter Setup barcode.
2. Scan the Set Transmission Timeout barcode.
3. Scan the numeric barcodes “3”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
55 ** Exit Setup
Retransmission Count
This parameter specifies the number of times the scanner resends a data packet when it awaits an ACK response from the
host. The selection range is from 1 to 10 retransmissions. The default value is 3 (retransmissions). Note that the
Retransmission feature must be turned on for this to function.
Set Retransmission Count
Set the retransmission count to 5:
1. Scan the Enter Setup barcode.
2. Scan the Set Retransmission Timeout barcode.
3. Scan the numeric barcodes “3”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 56
Scanner(s) to Cradle Support
Wireless Communication Modes
Point-to-Point Mode: Only one scanner can be paired to one cradle at a time.
Multiple-to-Point Mode: Up to seven scanners can be paired to one cradle.
** Point-to-Point Mode
Multiple-to-Point Mode
Clear Pairing Info on Scanner/Cradle
Clear Pairing Info on Cradle
Clear Pairing Info on Scanner
Enter Setup
57 ** Exit Setup
Set Date and Time
You may use the following command to set the date and time on your scanner:
WLSTIMyyyymmddhhmmss (yyyy: The desired year; mm: The desired month; dd: The desired day; mm: The desired
month; ddmmss: The desired time)
Example: Set the date to February 5th 2018 and time to 10:30:11
Enter: ~<SOH>0000@WLSTIM20180205103011;<ETX>
Query Current Date and Time
After scanning the barcode below, the current date and time in YYYYMMDDHHMMSS format will be sent to the host device.
For example, query result “20180205103011” means February 5th 2018 10:30:11.
Query Current Date and Time
Time Stamp
You can select whether or not to send date & time before each scanned data by scanning the appropriate barcode below.
** Do Not Send Time Stamp
Send Time Stamp
Enter Setup
** Exit Setup 58

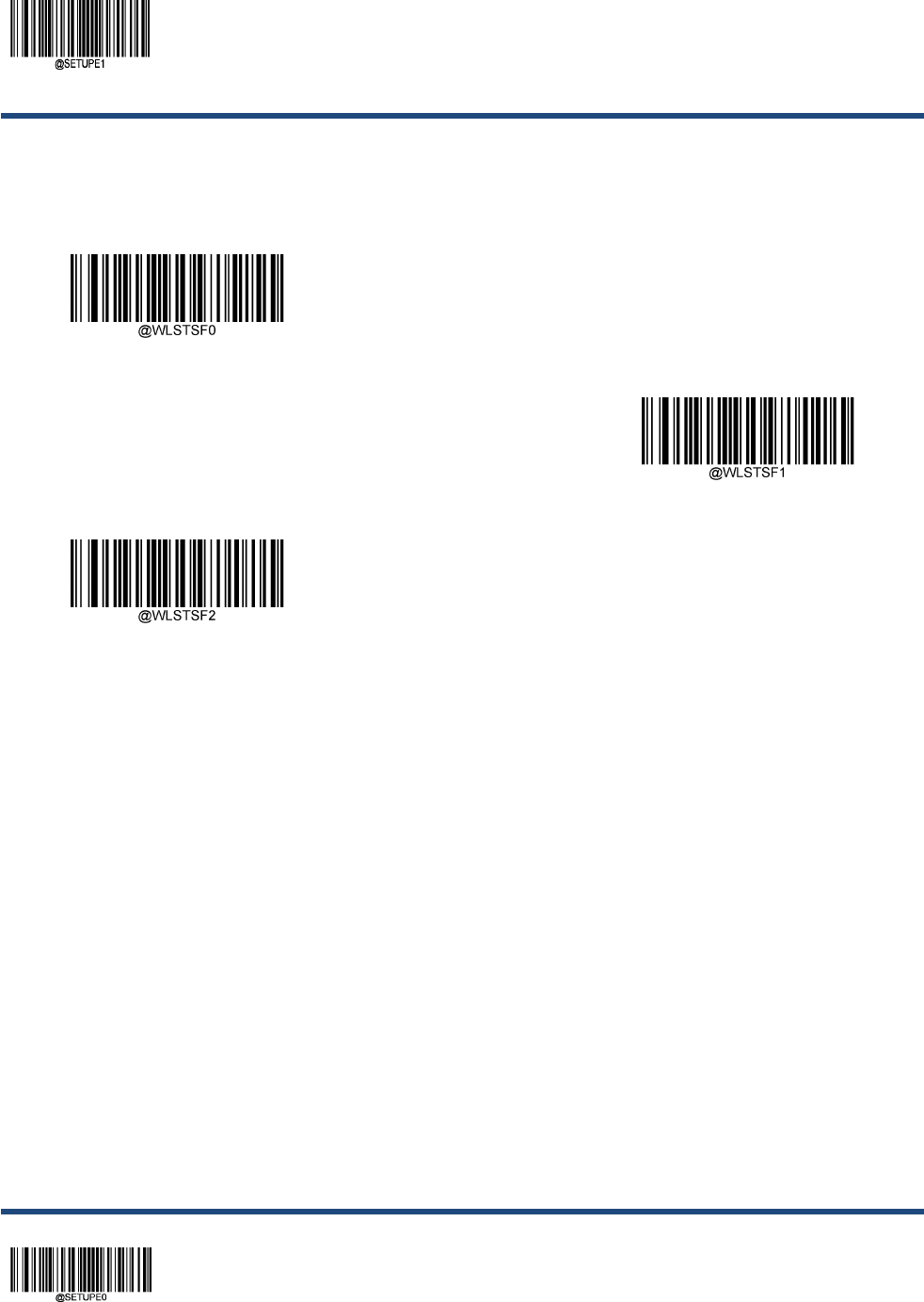

Set Time Stamp Format
** Format 1: (YYYY/MM/DD,HH:MM:SS)
(example: 2018/01/23,10:30:20)
Format 2: (DD/MM/YYYY,HH:MM:SS)
(example: 23/01/2018,10:30:20)
Format 3: (MM/DD/YYYY,HH:MM:SS)
(example: 01/23/2018,10:30:20)
Enter Setup
59 ** Exit Setup
Chapter 5 RS-232 Interface
Introduction
When the cradle is connected to the RS-232 port of a host device, you need to set communication parameters (including
baud rate, parity check, data bit and stop bit) on the cradle to match the host device so that two devices can communicate
with each other.
Baud Rate
Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the host requirements.
115200
57600
38400
19200
14400
** 9600
Enter Setup
** Exit Setup 60
4800
2400
1200
Parity Check
Set the parity type to match the host requirements.
Odd Parity: If the data contains an odd number of 1 bits, the parity bit value is set to 0.
Even Parity: If the data contains an even number of 1 bits, the parity bit value is set to 0.
None: Select this option when no parity bit is required.
** None
Even Parity
Odd Parity
Enter Setup
61 ** Exit Setup

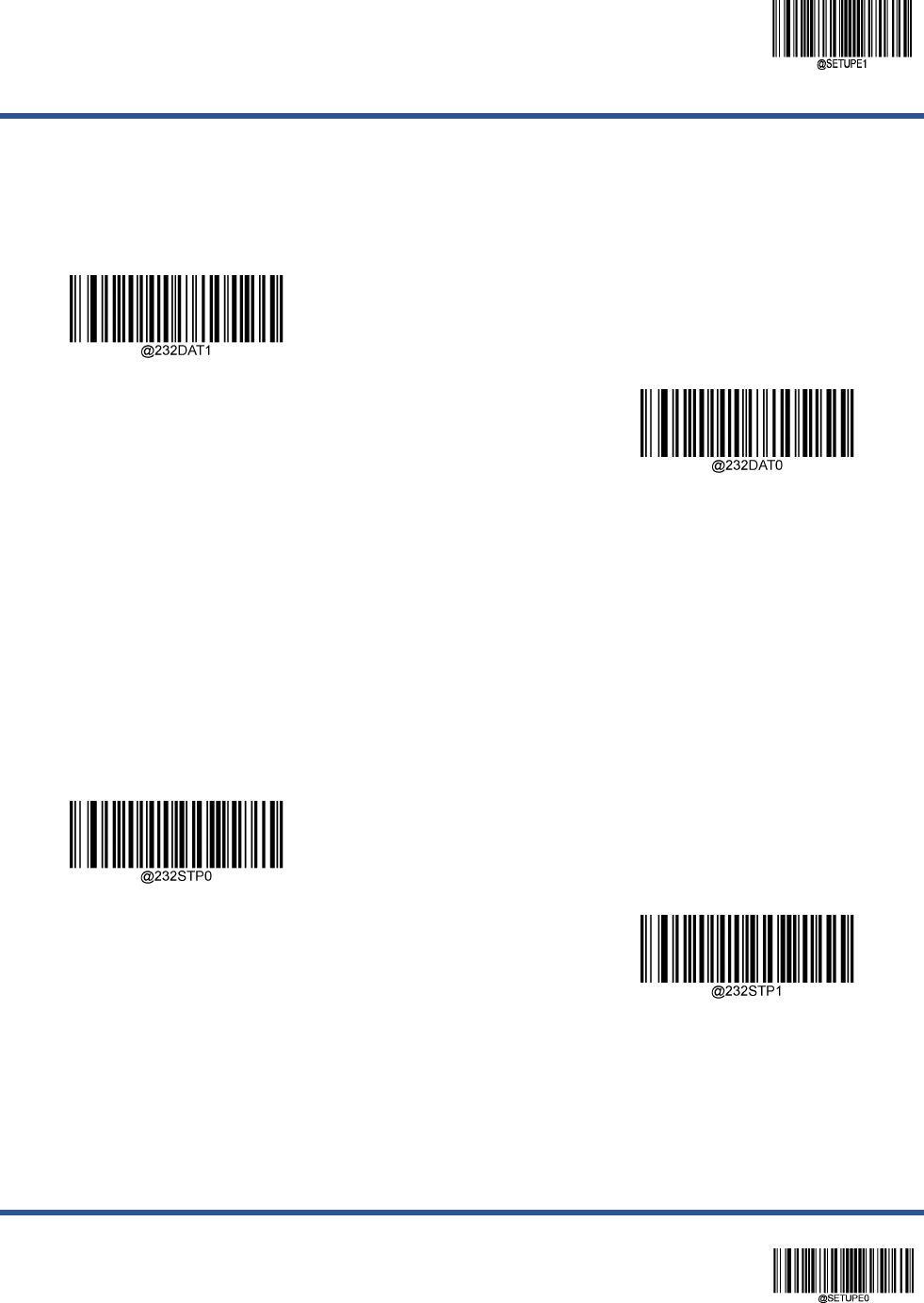

Data Bit
Set the number of data bits to match the host requirements.
7 Data Bits
** 8 Data Bits
Stop Bit
The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the
receiving device for the next character in the serial data stream. Set the number of stop bits to match the host
requirements.
** 1 Stop Bit
2 Stop Bits
Enter Setup
** Exit Setup 62
Hardware Auto Flow Control
If CTS flow control is enabled, the cradle determines whether to transmit data based on CTS signal level. When CTS signal
is at low level which means the serial port’s cache memory of receiving device (such as PC) is full, the cradle stops sending
data through serial port until CTS signal is set to high level by receiving device. If RTS flow control is enabled, whether the
cradle receives data or not is dependent on RTS signal level. If the cradle is not ready for receiving, it will set RTS signal to
low level. When sending device (such as PC) detects it, it will not send data to the cradle any more to prevent data loss.
If No Flow Control is selected, reception/transmission of serial data will not be influenced by RTS/CTS signal.
** No Flow Control
RTS Flow Control
CTS Flow Control
CTS/RTS Flow Control
Before enabling this feature, make sure that RTS/CTS signal lines are contained in RS-232 cable.
Without the signal lines, RS-232 communication errors will occur.
Enter Setup
63 ** Exit Setup
Chapter 6 USB Interface
Introduction
There are four options for USB connection between the cradle and host device:
USB HID Keyboard: The cradle’s transmission is simulated as USB keyboard input with no need for command
configuration or a driver. Barcode data could be entered by the virtual keyboard directly and it is also convenient for
the host device to receive data.
USB CDC: It is compliant with the standard USB CDC class specifications defined by the USB-IF and allows the host
device to receive data in the way as a serial port does. A driver is needed when using this feature.
HID POS (POS HID Barcode Scanner): It is based on the HID interface, with no need for a custom driver. It excels
virtual keyboard and traditional RS-232 interface in transmission speed.
IBM SurePOS: It conforms to IBM (now Toshiba Global Commerce Solutions) 4698 USB scanner interface
specifications.
When the cradle is connected to both USB and RS-232 ports on a host device, it will select the USB connection by default.
Enter Setup
** Exit Setup 64

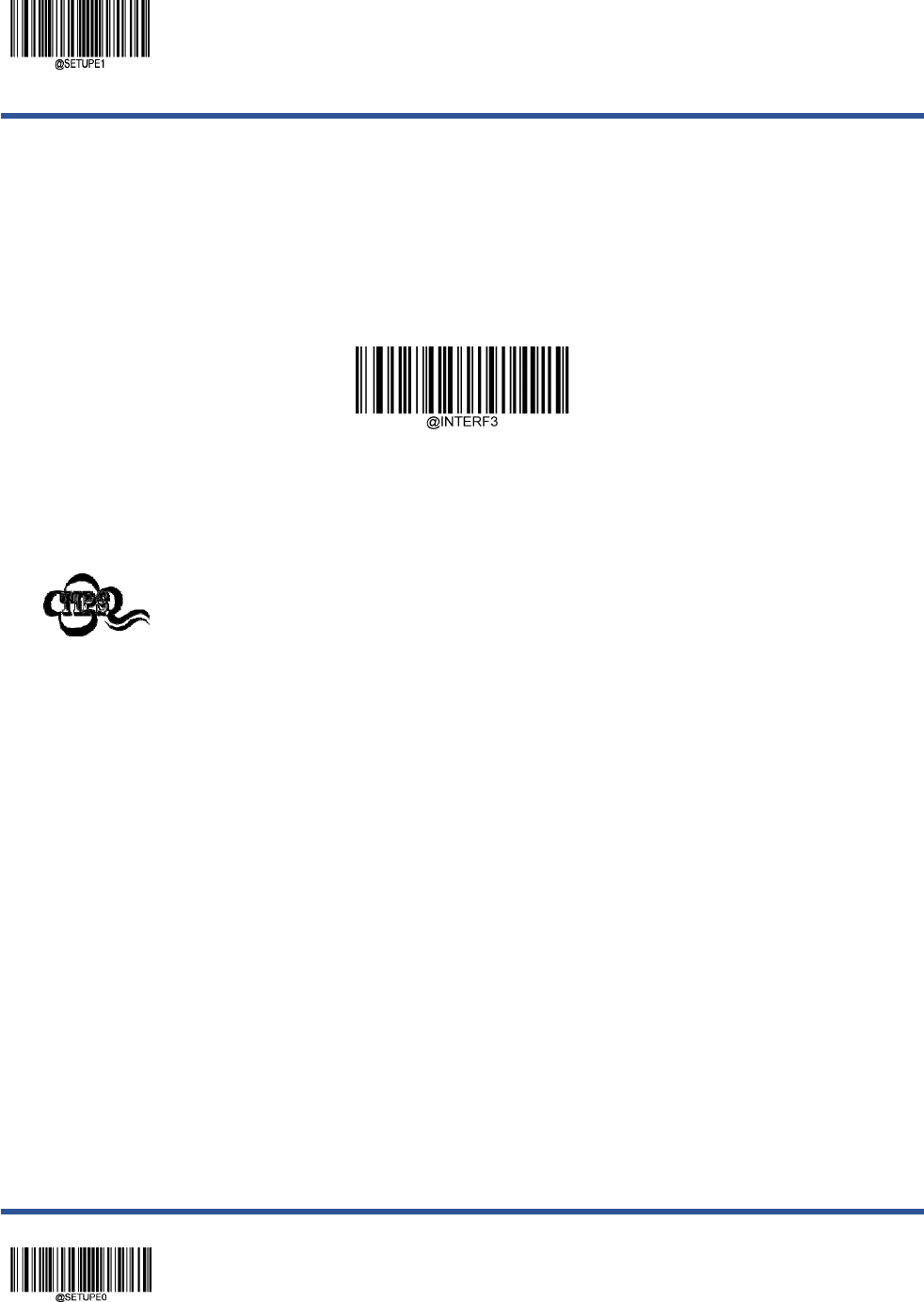

USB HID Keyboard
When the cradle is connected to the USB port on a host device, you can enable the USB HID Keyboard feature by
scanning the barcode below. The cradle’s transmission will be simulated as USB keyboard input. The Host receives
keystrokes onthe virtual keyboard. It works on a Plug and Play basis and no driver is required.
** USB HID Keyboard
If the host device allows keyboard input, then no extra software is needed for HID Keyboard input.
Enter Setup
65 ** Exit Setup
USB Country Keyboard Types
Keyboard layouts vary from country to country. The default setting is U.S. keyboard.
** U.S. (English)
Belgium
Brazil
Canada (French)
Czechoslovakia
Denmark
Finland (Swedish)
Enter Setup
** Exit Setup 66
France
Germany/ Austria
Greece
Hungary
Israel (Hebrew)
Italy
Latin America/ South America
Netherlands (Dutch)
Enter Setup
67 ** Exit Setup
Norway
Poland
Portugal
Romania
Russia
Slovakia
Spain
Sweden
Enter Setup
** Exit Setup 68
Switzerland (German)
Turkey_F
Turkey_Q
UK
Japan
Enter Setup
69 ** Exit Setup
Emulate ALT+Keypad
When Emulate ALT+Keypad is turned on, any character whose ASCII value is greater than or equal to 0x20 is sent over
the numeric keypad no matter which keyboard type is selected.
1. ALT Make
2. Enter the number corresponding to a desired character on the keypad.
3. ALT Break
After Emulate ALT+Keypad ON is selected, you need to choose the code page with which the barcodes were created and
to turn Unicode Encoding On or Off depending on the encoding used by the application software.
** Emulate ALT+Keypad OFF
Emulate ALT+Keypad ON
Since sending a character involves multiple keystroke emulations, this method appears less efficient.
Supposing Emulate ALT+Keypad is ON, Unicode Encoding is Off, Code Page 1252 (West European
Latin) is selected, and Emulate Keypad with Leading Zero is Off, barcode data ”AÐF” (65/208/70) is
sent as below:
“A” – “ALT Make” + “065” + “ALT Break”
“Д -- “ALT Make” + “208” + “ALT Break”
“F” -- “ALT Make” + “070” + “ALT Break”
Enter Setup
** Exit Setup 70

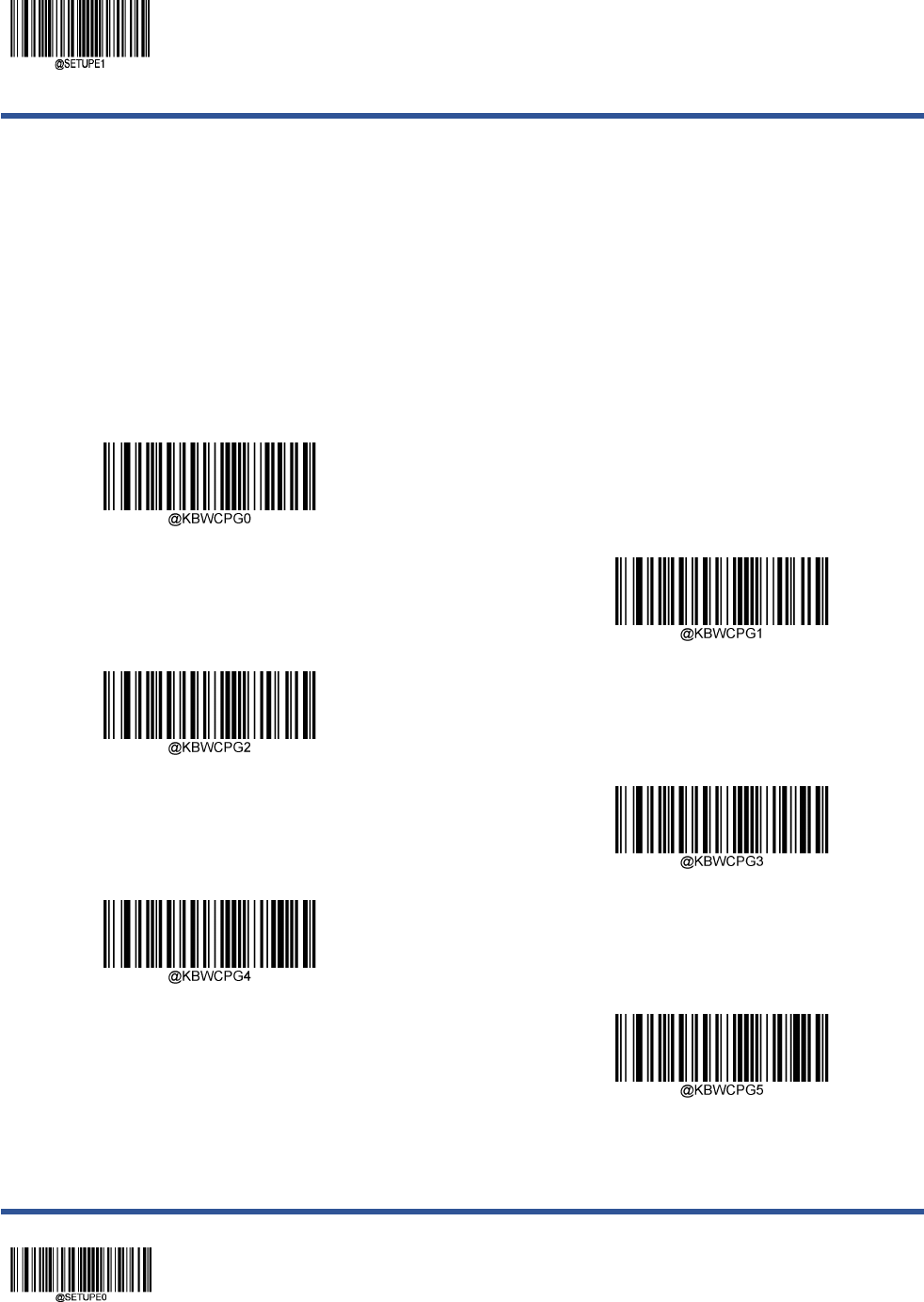

Code Page
Code pages define the mapping of character codes to characters. If the data received does not display with the proper
characters, it may be because the barcode being scanned was created using a code page that is different from the one the
host program is expecting. If this is the case, select the code page with which the barcodes were created by scanning the
appropriate barcode below. For PDF417, QR Code, Aztec and Data Matrix, besides setting the code page, you also need
to set the character encoding in the “Character Encoding” section in Chapter 7. This feature is only effective when Emulate
ALT+Keypad is turned on.
** Code Page 1252 (West European Latin)
Code Page 1251 (Cyrillic)
Code Page 1250 (Central and East European Latin)
Code Page 1253 (Greek)
Code Page 1254 (Turkish)
Code Page 1255 (Hebrew)
Enter Setup
71 ** Exit Setup
Code Page 1256 (Arabic)
Code Page 1257 (Baltic)
Code Page 1258 (Vietnamese)
Code Page 936 (Simplified Chinese, GB2312, GBK)
Code Page 950 (Traditional Chinese, Big5)
Code Page 874 (Thai)
Code Page 932 (Japanese, Shift-JIS)
Enter Setup
** Exit Setup 72

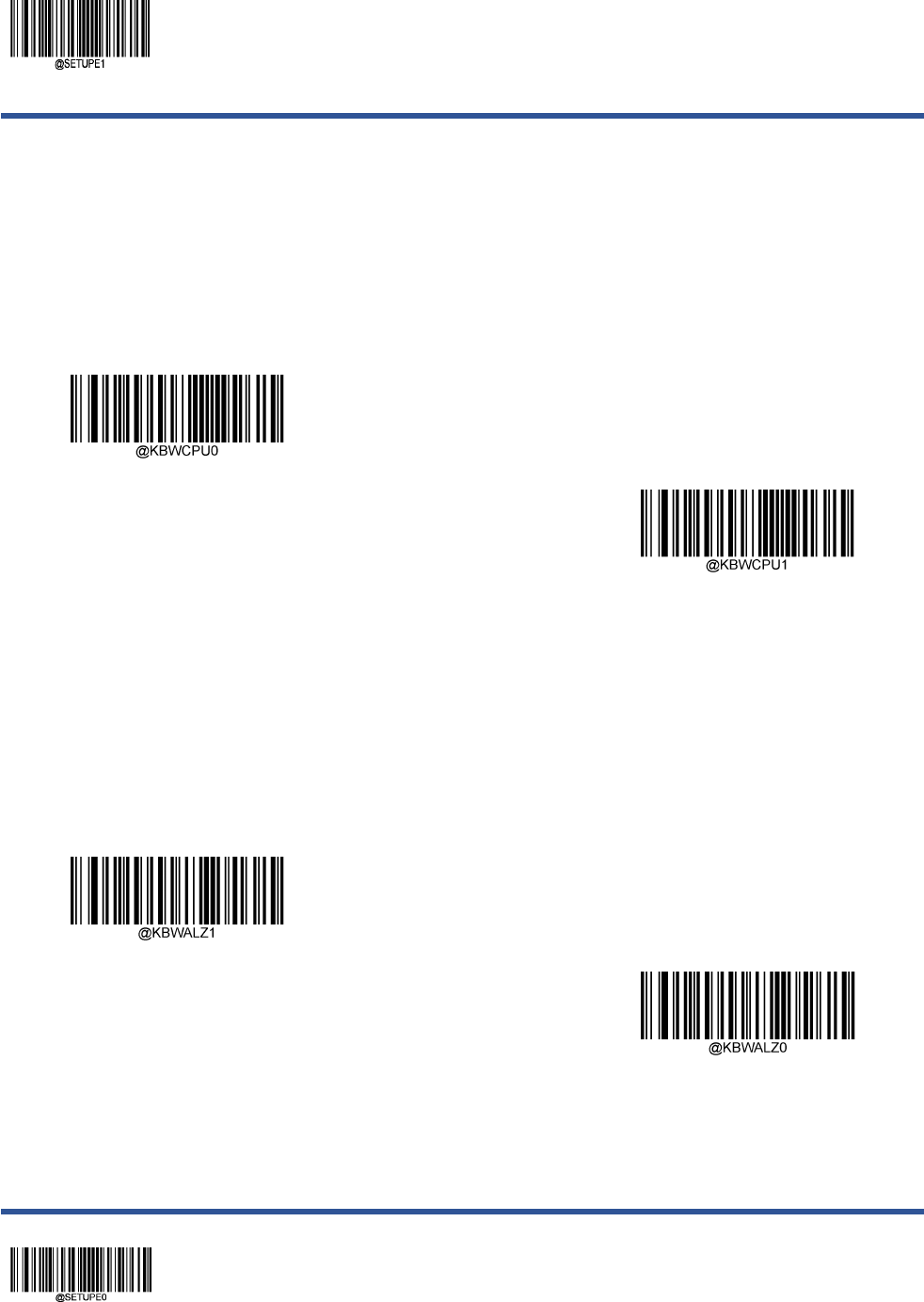

Unicode Encoding
Different host program may use different character encodings for handling incoming barcode data. For instance, Microsoft
Office Word uses Unicode encoding and therefore you should turn Unicode Encoding on, whereas Microsoft Office Excel
or Notepad uses Code Page encoding and therefore you should turn Unicode Encoding off. This feature is only effective
when Emulate ALT+Keypad is turned on.
** Off
On

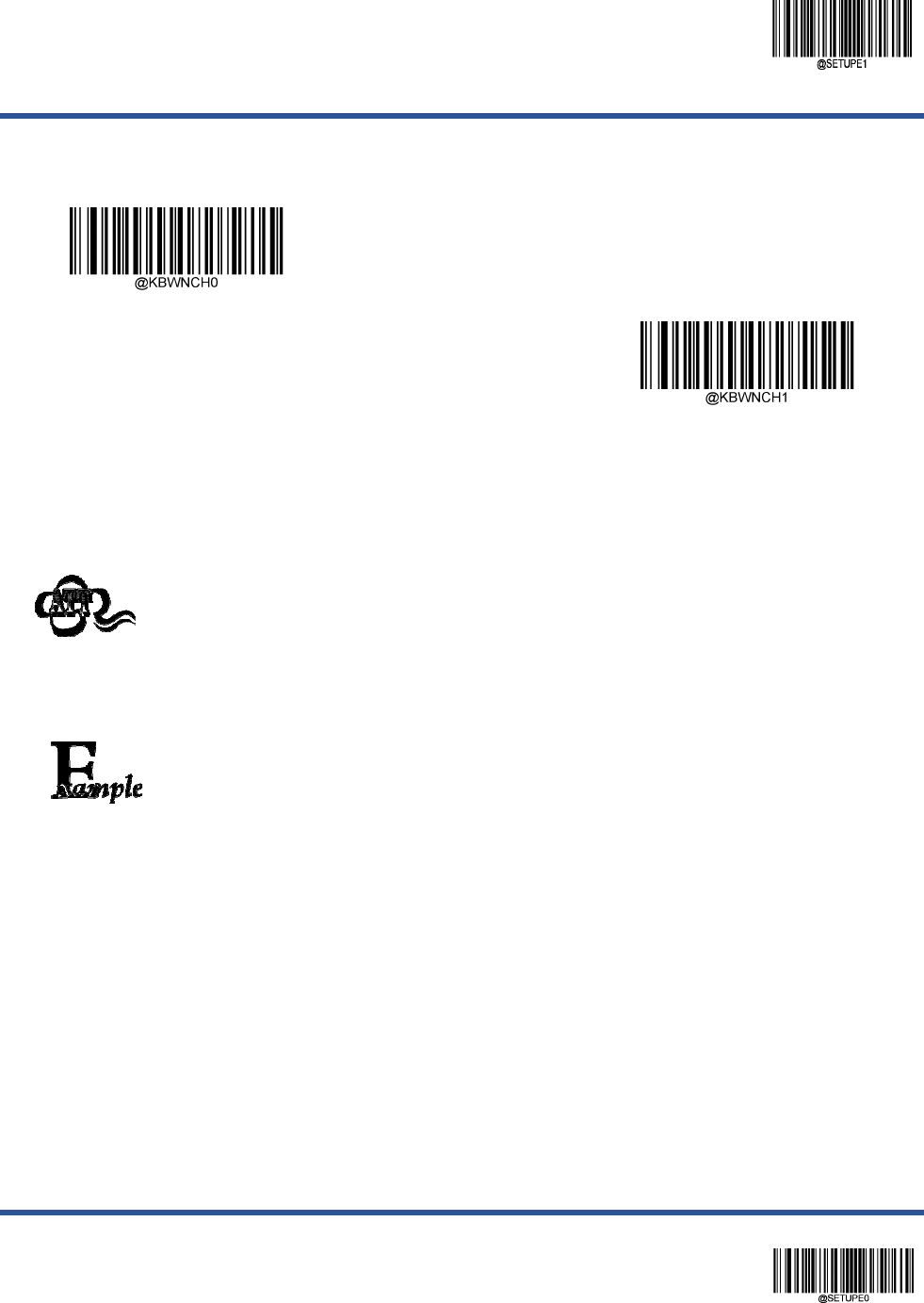

Emulate Keypad with Leading Zero
You may turn this feature on to send character sequences sent over the numeric keypad as ISO characters which have a
leading zero. For example, ASCII A transmits as “ALT MAKE” 0065 “ALT BREAK”. This feature is only effective when
Emulate ALT+Keypad is enabled.
** On
Off
Enter Setup
73 ** Exit Setup

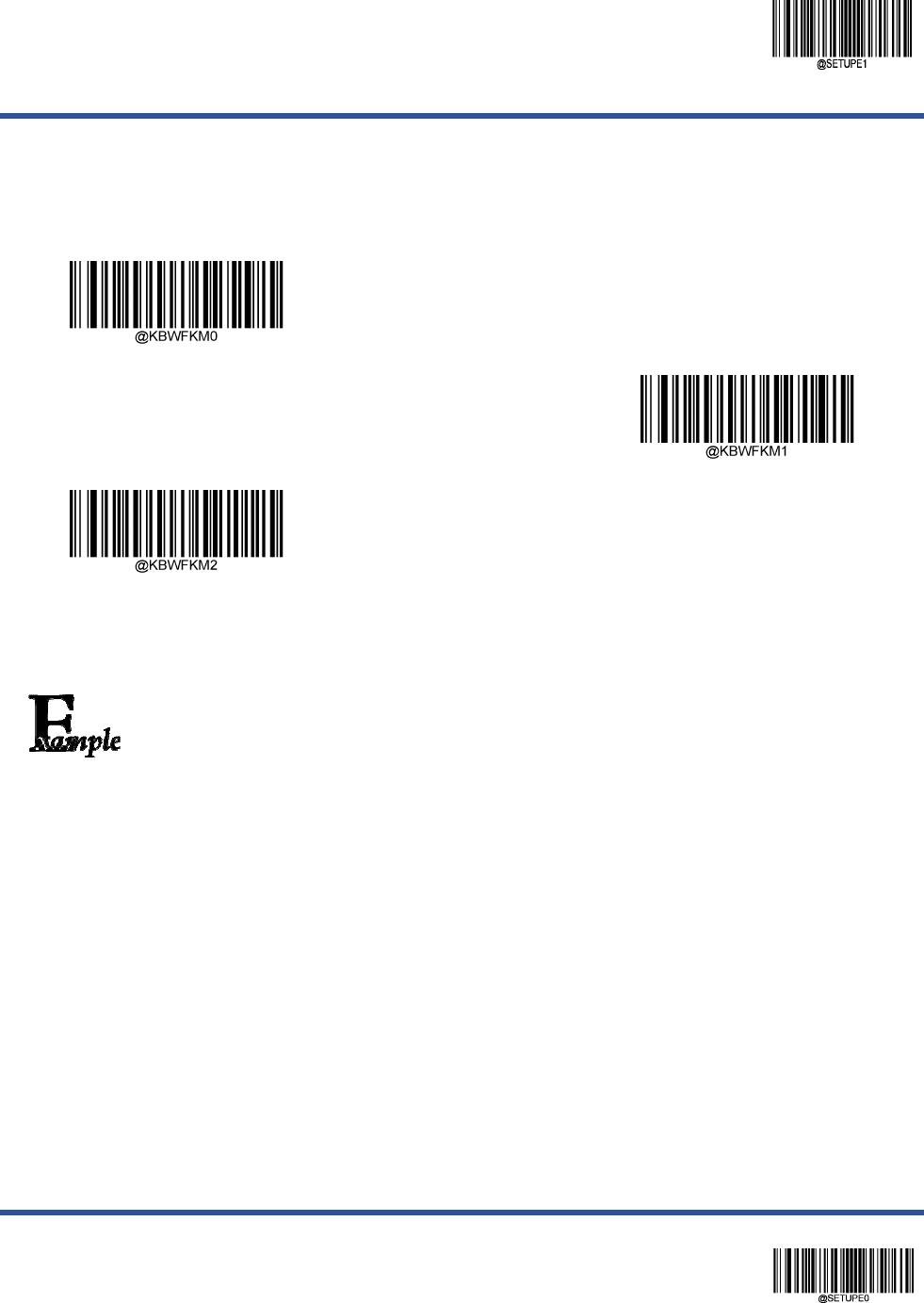

Function Key Mapping
When Ctrl+ASCII Mode is selected, function characters (0x00 - 0x1F) are sent as ASCII sequences.
** Disable
Ctrl+ASCII Mode
Alt+Keypad Mode
If Ctrl+ASCII Mode is selected and other parameters of USB HID Keyboard adopt factory defaults,
barcode data “A<HT>(i.e. Horizontal Tab)F” (0x41/0x09/0x46) is sent as below:
“A” - Keystroke “A”.
<HT> - “Ctrl Make” + Keystroke “I” + “Ctrl Break”
“F” - Keystroke “F”
For some text editors, “Ctrl I” means italic convert. So the output may be “AF”.
If Alt+Keypad Mode is selected and other parameters of USB HID Keyboard adopt factory defaults, the
data above is sent as below:
“A” - Keystroke “A”.
<HT> - “Alt Make” + Keystrokes “009” + “Alt Break”
“F” - Keystroke “F”
Enter Setup
** Exit Setup 74
ASCII Function Key Mapping Table
ASCII Function ASCII Value (HEX) Function Key Mapping Disabled Ctrl+ASCII
NUL 00 Null Ctrl+@
SOH 01 Keypad Enter Ctrl+A
STX 02 Caps Lock Ctrl+B
ETX 03 ALT Ctrl+C
EOT 04 Null Ctrl+D
ENQ 05 CTRL Ctrl+E
ACK 06 Null Ctrl+F
BEL 07 Enter Ctrl+G
BS 08 Left Arrow Ctrl+H
HT 09 Horizontal Tab Ctrl+I
LF 0A Down Arrow Ctrl+J
VT 0B Vertical Tab Ctrl+K
FF 0C Delete Ctrl+L
CR 0D Enter Ctrl+M
SO 0E Insert Ctrl+N
SI 0F Esc Ctrl+O
DLE 10 F11 Ctrl+P
DC1 11 Home Ctrl+Q
DC2 12 PrintScreen Ctrl+R
DC3 13 Backspace Ctrl+S
DC4 14 tab+shift Ctrl+T
NAK 15 F12 Ctrl+U
SYN 16 F1 Ctrl+V
ETB 17 F2 Ctrl+W
CAN 18 F3 Ctrl+X
EM 19 F4 Ctrl+Y
SUB 1A F5 Ctrl+Z
ESC 11 F6 Ctrl+[
FS 1C F7 Ctrl+\
GS 1D F8 Ctrl+]
RS 1E F9 Ctrl+6
US 1F F10 Ctrl+-
Enter Setup
75 ** Exit Setup
ASCII Function Key Mapping Table (Continued)
The last five characters (0x1B~0x1F) in the table above apply to US keyboard layout only. The following chart provides the
equivalents of these five characters for other countries.
Country Ctrl+ASCII
United States Ctrl+[ Ctrl+\ Ctrl+] Ctrl+6 Ctrl+-
Belgium Ctrl+[ Ctrl+< Ctrl+] Ctrl+6 Ctrl+-
Scandinavia Ctrl+8 Ctrl+< Ctrl+9 Ctrl+6 Ctrl+-
France Ctrl+^ Ctrl+8 Ctrl+$ Ctrl+6 Ctrl+=
Germany Ctrl+Ã Ctrl++ Ctrl+6 Ctrl+-
Italy Ctrl+\ Ctrl++ Ctrl+6 Ctrl+-
Switzerland Ctrl+< Ctrl+.. Ctrl+6 Ctrl+-
United Kingdom Ctrl+[ Ctrl+￠ Ctrl+] Ctrl+6 Ctrl+-
Denmark Ctrl+8 Ctrl+\ Ctrl+9 Ctrl+6 Ctrl+-
Norway Ctrl+8 Ctrl+\ Ctrl+9 Ctrl+6 Ctrl+-
Spain Ctrl+[ Ctrl+\ Ctrl+] Ctrl+6 Ctrl+-
Enter Setup
** Exit Setup 76
Inter-Keystroke Delay
This parameter specifies the delay between emulated keystrokes.
** No Delay
Long Delay (40ms)
Short Delay (20ms)
Enter Setup
77 ** Exit Setup

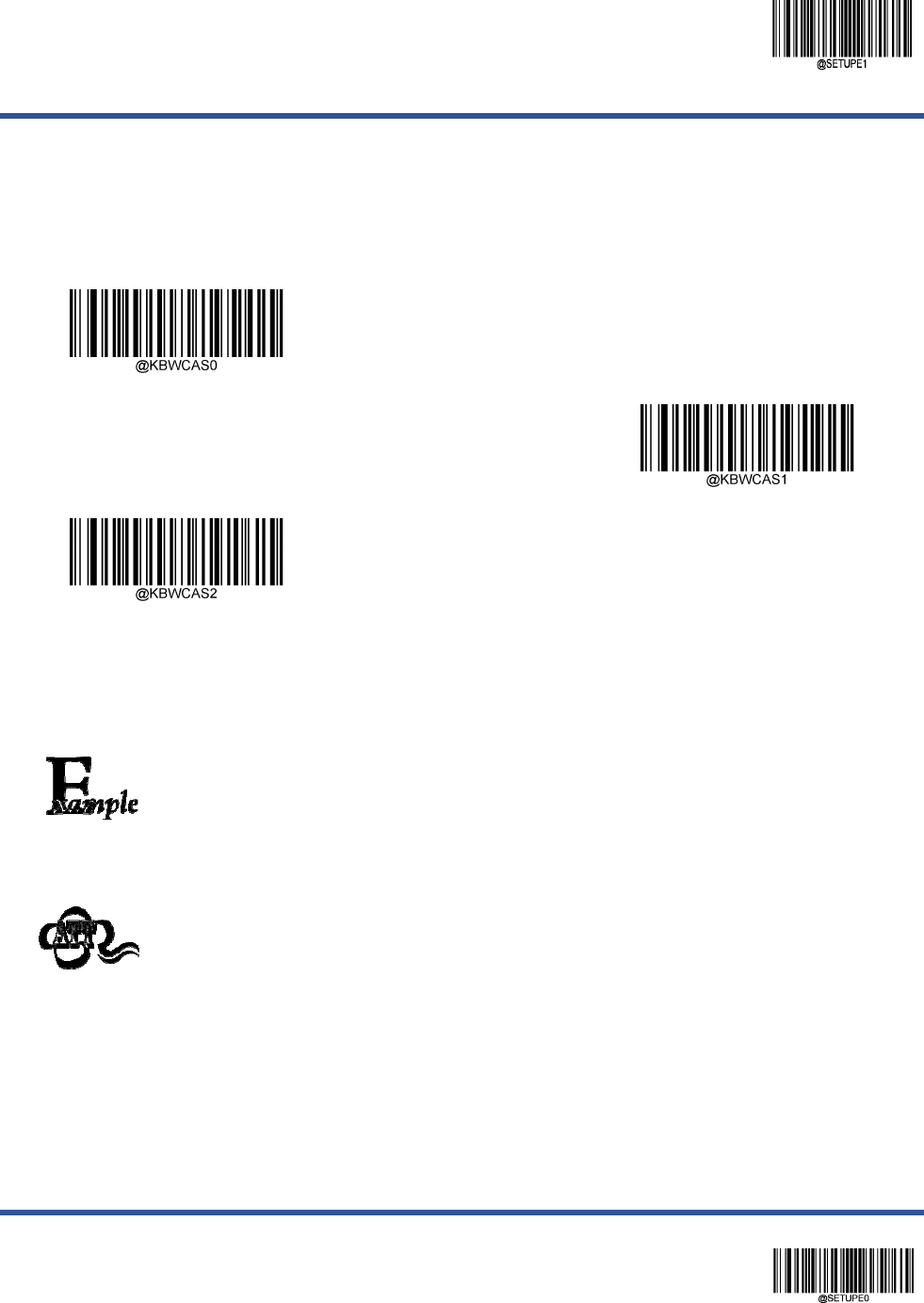

Convert Case
You may scan the appropriate barcode below to convert all bar code data to your desired case.
** No Case Conversion
Convert All to Upper Case
Convert All to Lower Case
When the Convert All to Lower Case feature is enabled, barcode data “AbC” is transmitted as “abc”.
If Emulate ALT+Keypad ON is selected, Convert All to Lower Case and Convert All to Upper Case
do not function.
Enter Setup
** Exit Setup 78
Emulate Numeric Keypad
Do Not Emulate Numeric Keypad 1: Sending a number (0-9) is emulated as keystroke(s) on main keyboard.
Emulate Numeric Keypad 1: Sending a number (0-9) is emulated as keystroke(s) on numeric keypad. The state of Num
Lock on the simulated numeric keypad is determined by its equivalent on the host device. If Num Lock on the host device is
turned off, the output of simulated numeric keypad is function key instead of number.
Do Not Emulate Numeric Keypad 2: Sending “+”, “-”, “*” and “/” is emulated as keystroke(s) on main keyboard.
Emulate Numeric Keypad 2: Sending “+”, “-”, “*” and “/” is emulated as keystroke(s) on numeric keypad.
** Do Not Emulate Numeric Keypad 1
Emulate Numeric Keypad 1
Enter Setup
79 ** Exit Setup
** Do Not Emulate Numeric Keypad 2
Emulate Numeric Keypad 2
Emulate ALT+Keypad ON prevails over Emulate Numeric Keypad.
Supposing the Emulate Numeric Keypad 1 feature is enabled:
if Num Lock on the host device is ON, “A4.5” is transmitted as “A4.5”;
if Num Lock on the host device is OFF, “A4.5” is transmitted as “.A”:
1. “A” is sent on main keyboard;
2. “4” is sent as the function key “Cursor Move to Left”;
3. “.” is sent on main keyboard;
4. “5” is not sent as it does not correspond to any function key.
Enter Setup
** Exit Setup 80
Polling Rate
This parameter specifies the polling rate for a USB keyboard. If the Host drops characters, change the polling rate to a
bigger value.
1ms
2ms
3ms
** 4ms
5ms
6ms
7ms
Enter Setup
81 ** Exit Setup

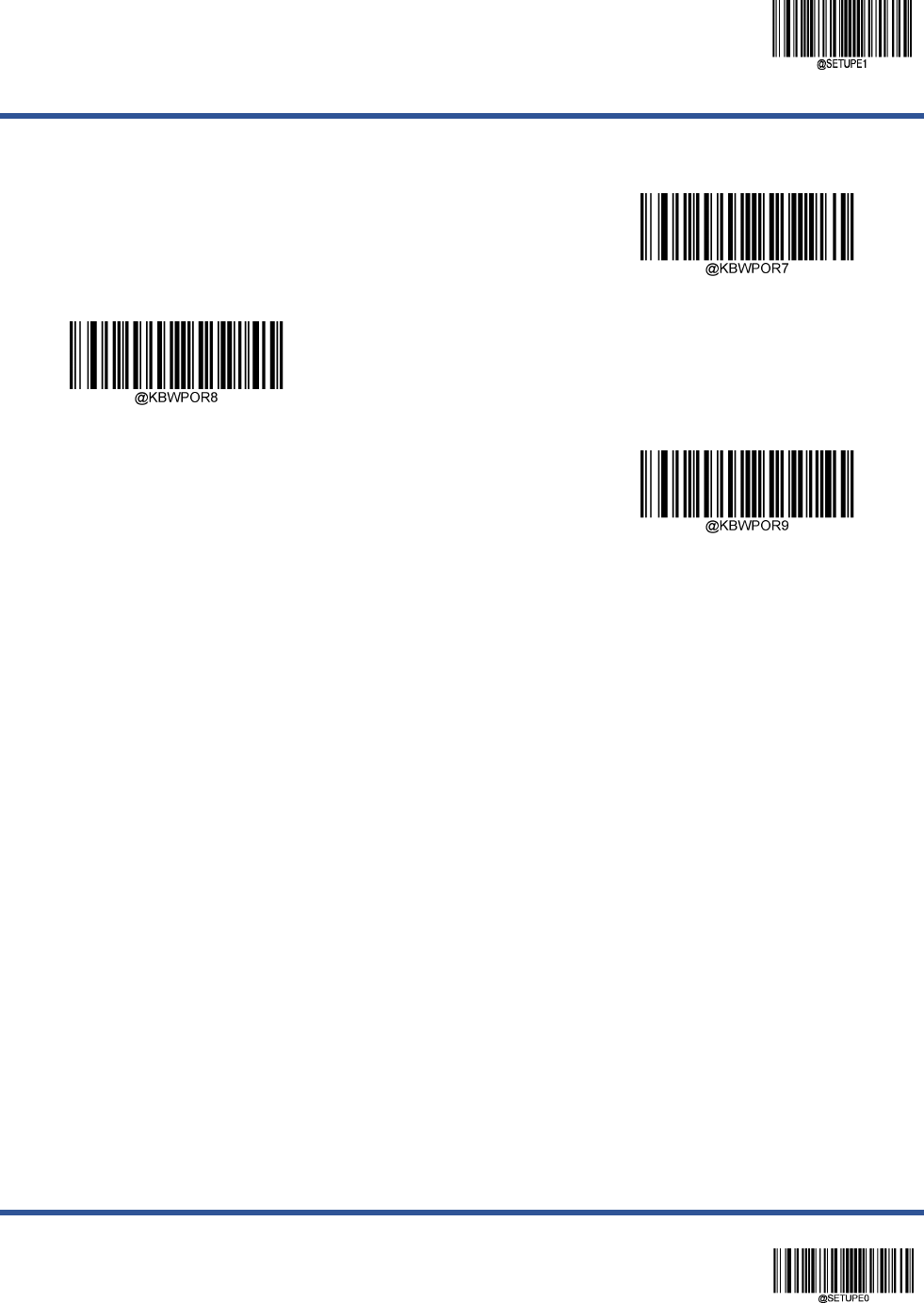

8ms
9ms
10ms
Enter Setup
** Exit Setup 82

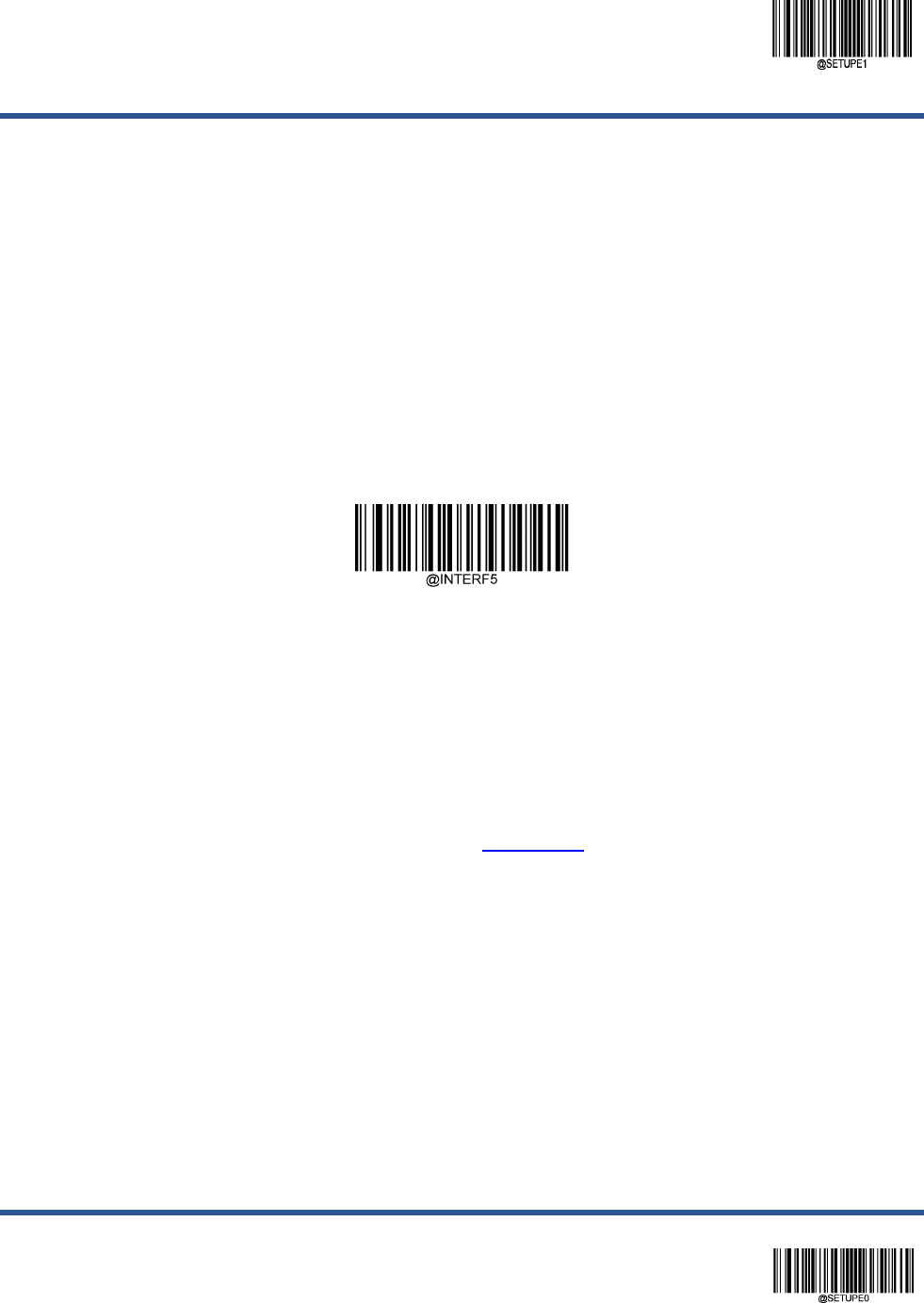

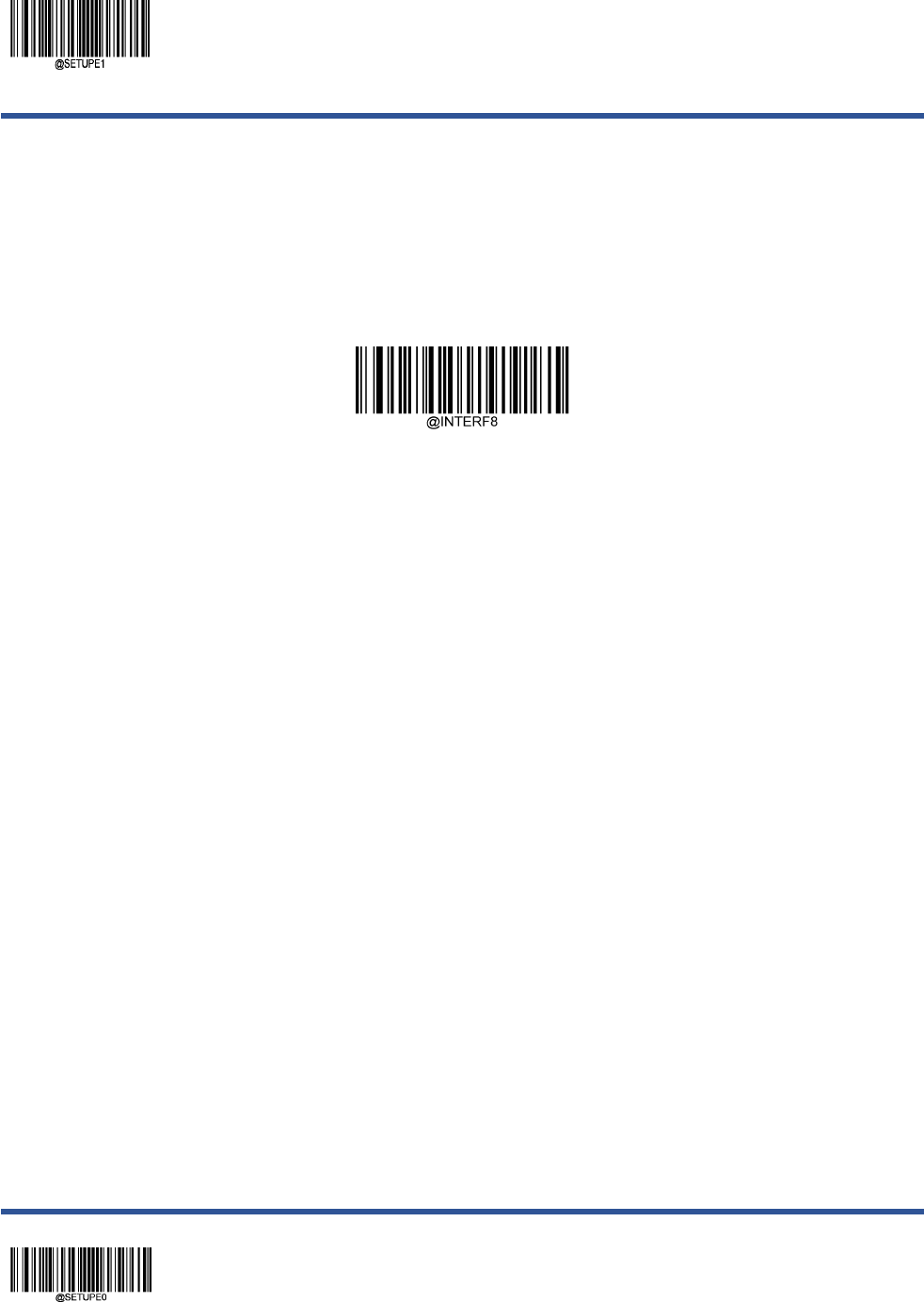

USB CDC
If your cradle is connected to the USB port on a host device, the USB CDC feature allows the host device to receive data in
the way as a serial port does. A driver is needed when using this feature. You may download it from our website at
www.newlandaidc.com.
** USB CDC
Enter Setup
83 ** Exit Setup
HID POS (POS HID Barcode Scanner)
Introduction
The HID-POS interface is recommended for new application programs. It can send up to 56 characters in a single USB
report and appears more efficient than keyboard emulation.
Features:
1. HID based, no custom driver required.
2. Way more efficient in communication than keyboard emulation and traditional RS-232 interface.
USB HID-POS
Access the Cradle with Your Program
Use CreateFile to access the cradle as a HID device and then use ReadFile to deliver the scanned data to the application
program. Use WriteFile to send data to the cradle.
For detailed information about USB and HID interfaces, go to www.USB.org.
Enter Setup
** Exit Setup 84
Acquire Scanned Data
After a barcode is decoded, the cradle sends an input report as below:
Send Command to the Cradle
This output report is used to send commands to the cradle. All programming commands can be used.
Bit
Byte 7 6 5 4 3 2 1 0
0 Report ID = 0x04
1 Length of command
2-63 Command (1-62)
Bit
Byte 7 6 5 4 3 2 1 0
0 Report ID = 0x02
1 Barcode Length
2-57 Decoded Data (1-56)
58-61 Reserved
62 Newland Symbology Identifier or N/C: 0x00
63 - - - - - - -
Decoded data
continued
Enter Setup
85 ** Exit Setup

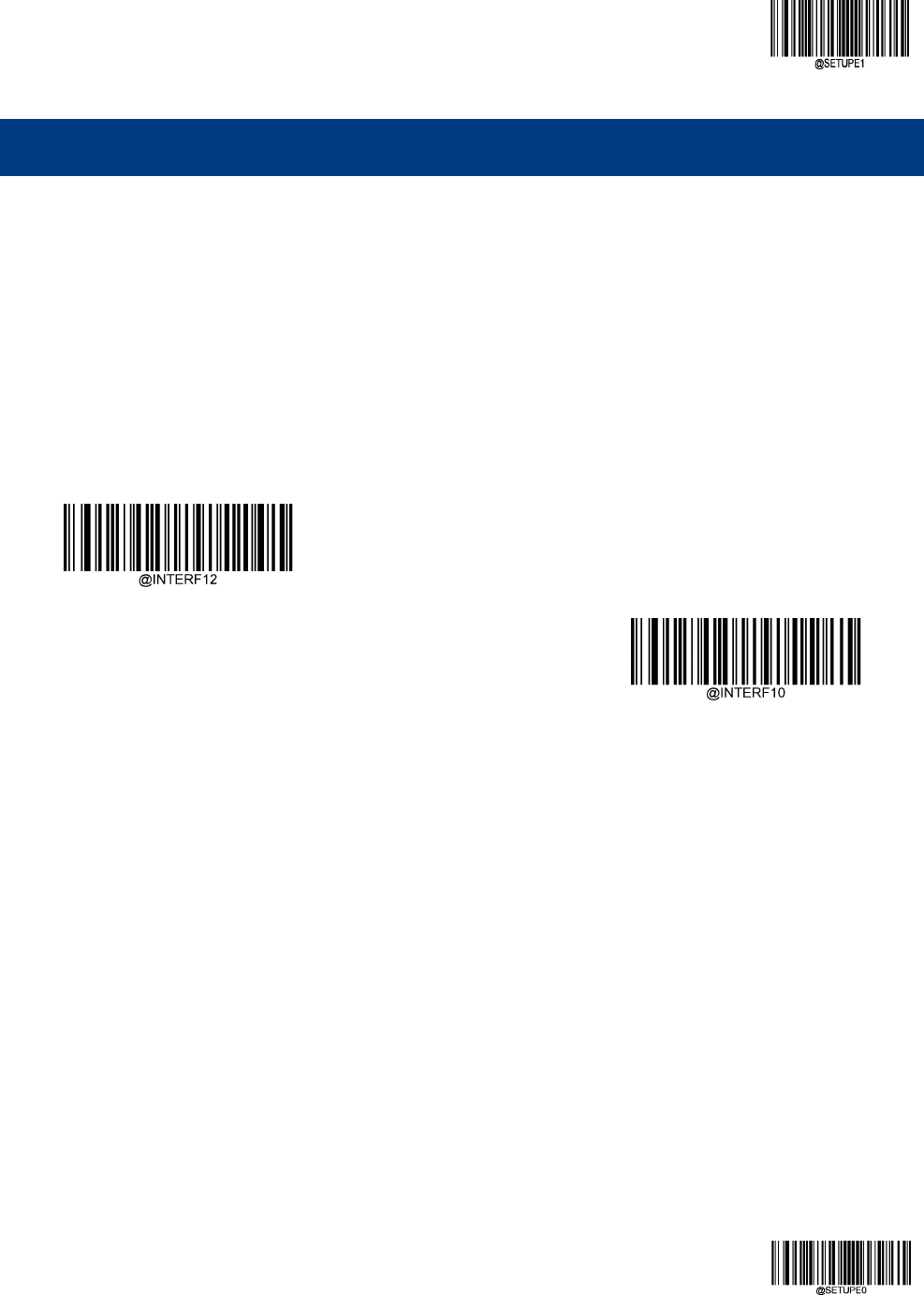

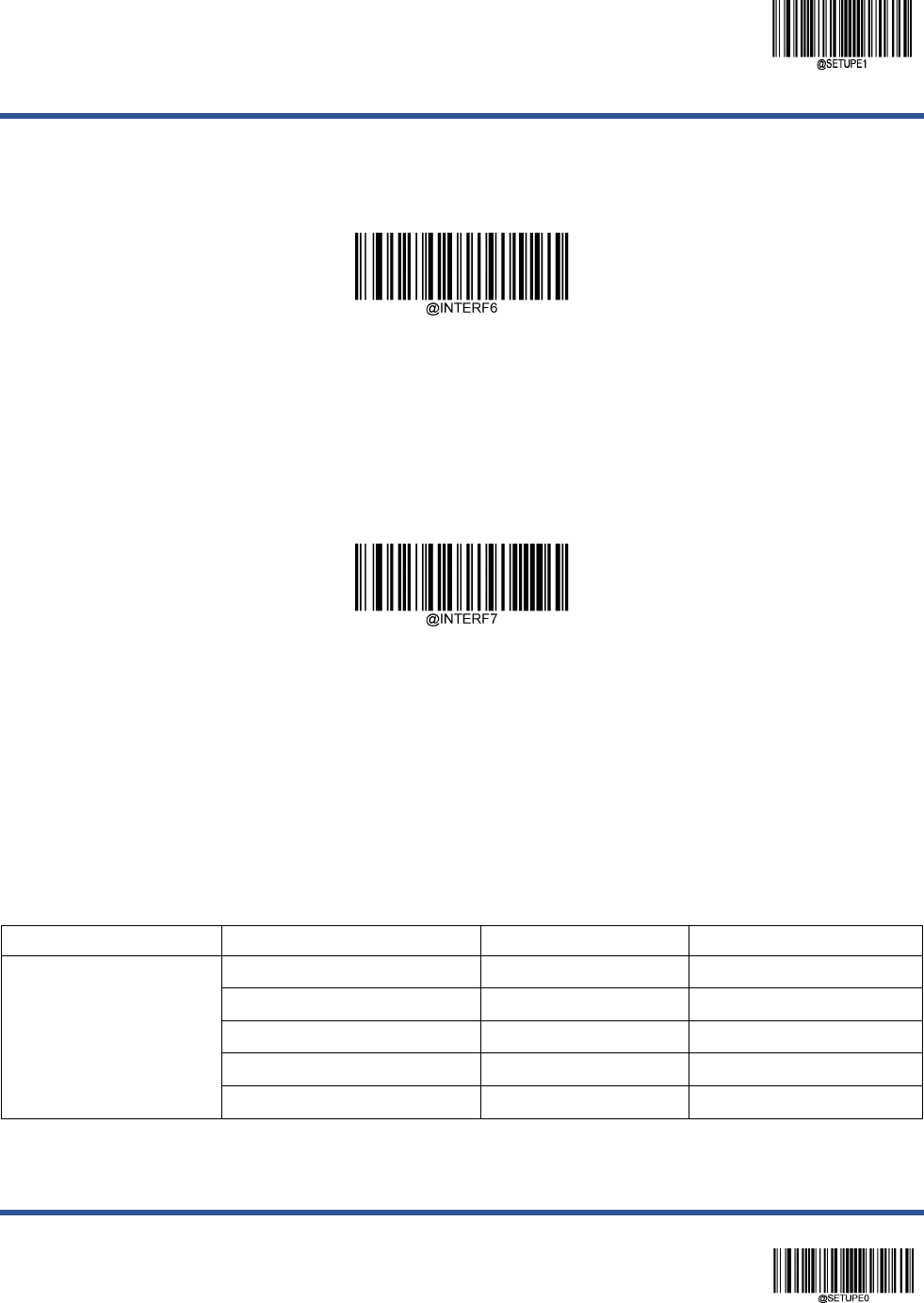

IBM SurePOS (Tabletop)
IBM SurePOS (Tabletop)
IBM SurePOS (Handheld)
IBM SurePOS (Handheld)
VID/PID
USB uses VID (Vendor ID) and PID (Product ID) to identify and locate a device. The VID is assigned by USB Implementers
Forum. Newland’s vendor ID is 1EAB (Hex). A range of PIDs are used for each Newland product family. Every PID
contains a base number and interface type (keyboard, COM port, etc.).
Product Interface PID (Hex) PID (Dec)
CD52
USB HID Keyboard 1403 5123
USB CDC 1406 5126
HID POS 1410 5136
IBM SurePOS (Tabletop) 1420 5152
IBM SurePOS(Handheld) 1421 5153
Enter Setup
** Exit Setup 86
Chapter 7 Symbologies
Introduction
Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for
configuring the scanner so that it can identify various symbologies. It is recommended to disable those that are rarely used
to increase the efficiency of the scanner.
Global Settings
Enable/Disable All Symbologies
If the Disable All Symbologies feature is enabled, the scanner will not be able to read any non-programming barcodes
except the programming barcodes.
Enable All Symbologies
Disable All Symbologies
Enable/Disable 1D Symbologies
Enable 1D Symbologies
Disable 1D Symbologies
Enter Setup
87 ** Exit Setup
Enable/Disable 2D Symbologies
Enable 2D Symbologies
Disable 2D Symbologies
Enable/Disable Postal Symbologies
Enable All Postal Symbologies
Disable All Postal Symbologies
Enter Setup
** Exit Setup 88

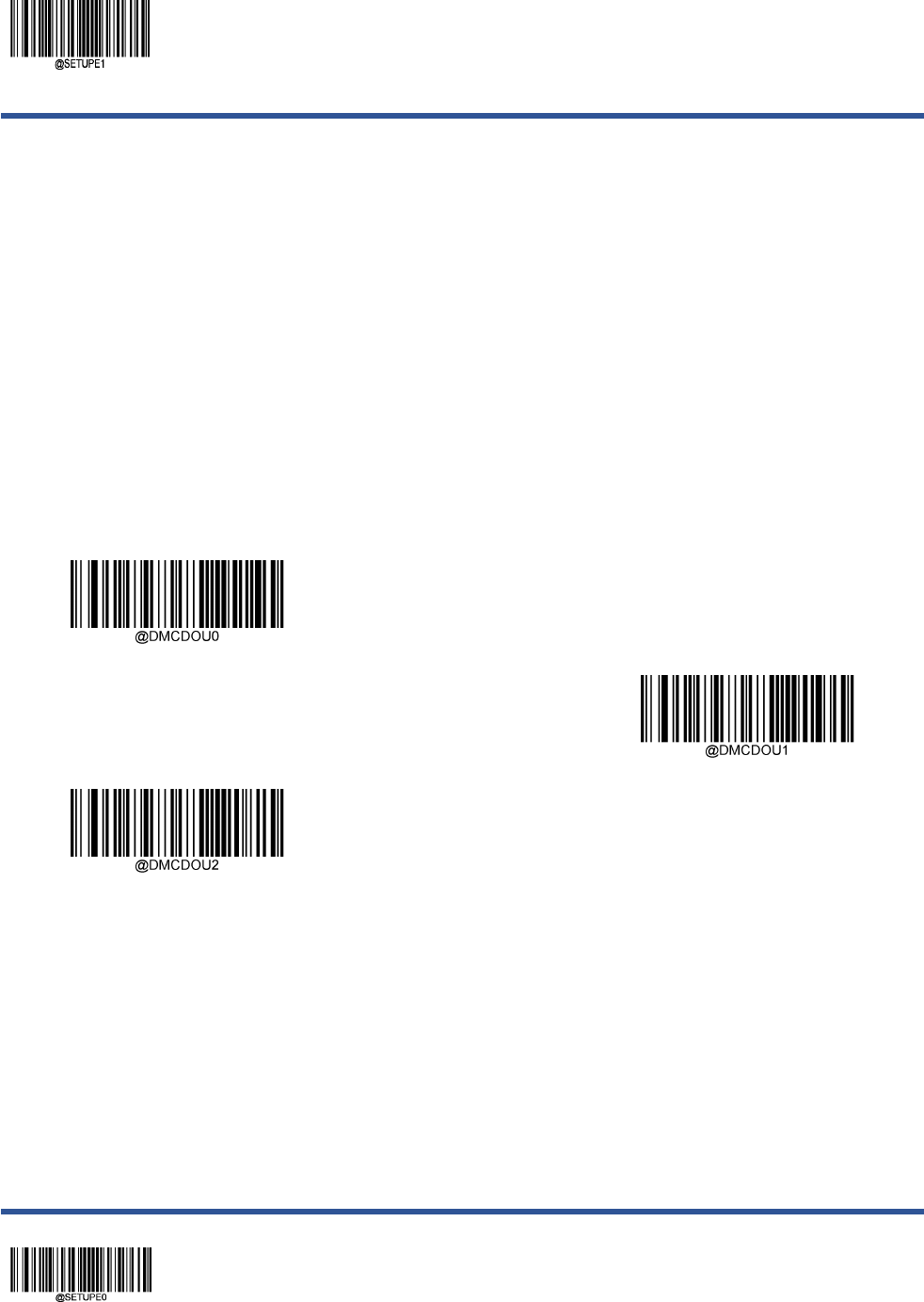

1D Twin Code
1D twin code is two 1D barcodes of a symbology or of different symbologies paralleled vertically. Both barcodes must
have similar specifications and be placed closely together.
There are 3 options for reading 1D twin code:
Single 1D Code Only: Read either 1D code.
Twin 1D Code Only: Read both 1D codes. Transmission sequence: upper 1D code followed by lower 1D code.
Both Single & Twin: Read both 1D codes. If successful, transmit as twin 1D code only. Otherwise, try single 1D
code only.
** Single 1D Code Only
Twin 1D Code Only
Both Single & Twin
Enter Setup
89 ** Exit Setup
Surround GS1 Application Identifiers (AI’s) with Parentheses
When Surround GS1 AI’s with Parentheses is selected, each application identifier (AI) contained in scanned data will be
enclosed in parentheses in the output message.
** Do Not Surround GS1 AI’s with Parentheses
Surround GS1 AI’s with Parentheses
If Surround GS1 AI’s with Parentheses is selected, the barcode above is output as
(01)00614141999996(10)10ABCEDF123456.
If Do Not Surround GS1 AI’s with Parentheses is selected, the barcode above is output as
01006141419999961010ABCEDF123456.
Enter Setup
** Exit Setup 90

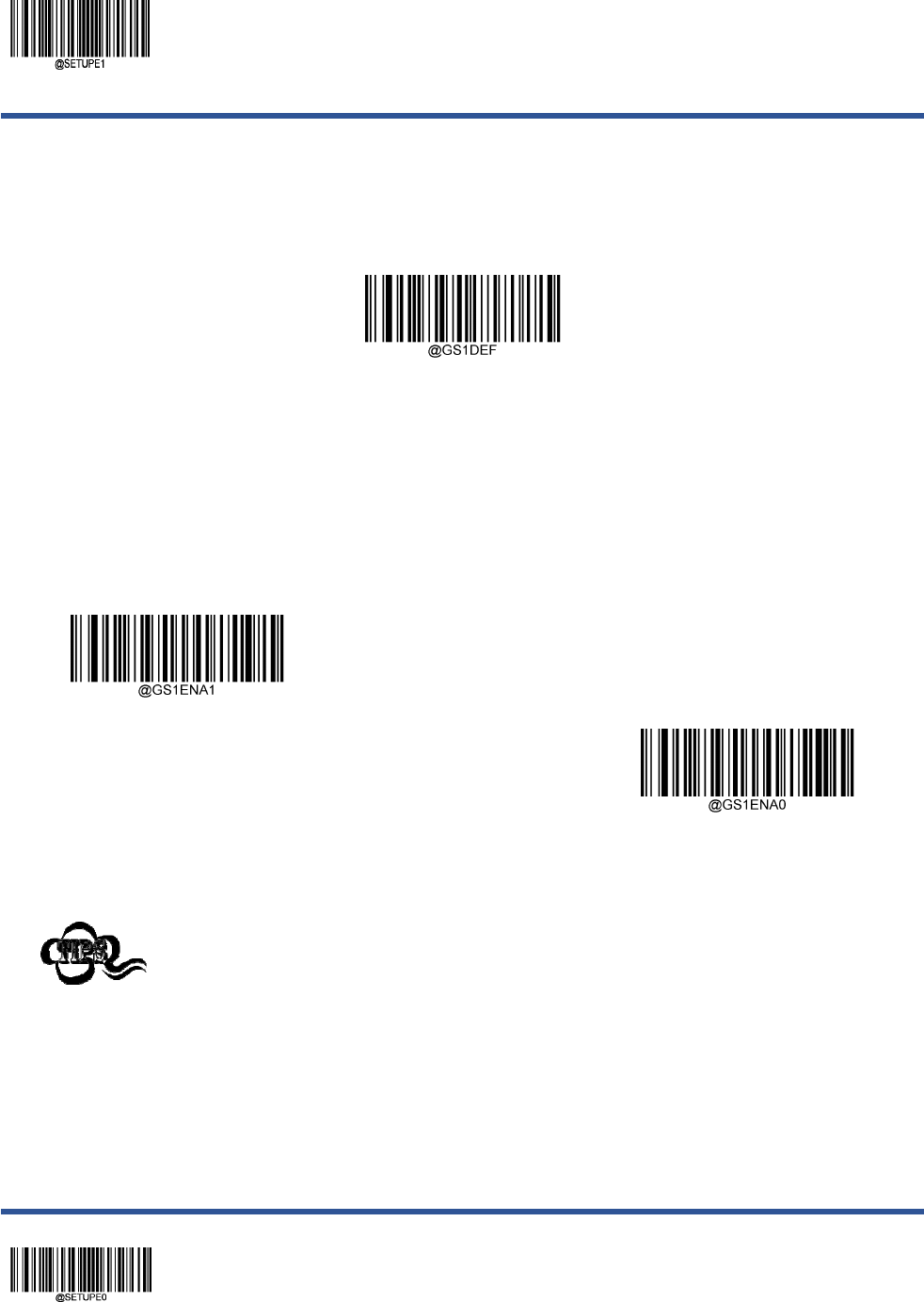

Code 128
Restore Factory Defaults
Restore the Factory Defaults of Code 128
Enable/Disable Code 128
** Enable Code 128
Disable Code 128
If the scanner fails to identify Code 128 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Code 128 barcode.
Enter Setup
91 ** Exit Setup
Set Length Range for Code 128
The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 128
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only Code 128 barcodes with that length are to be decoded.

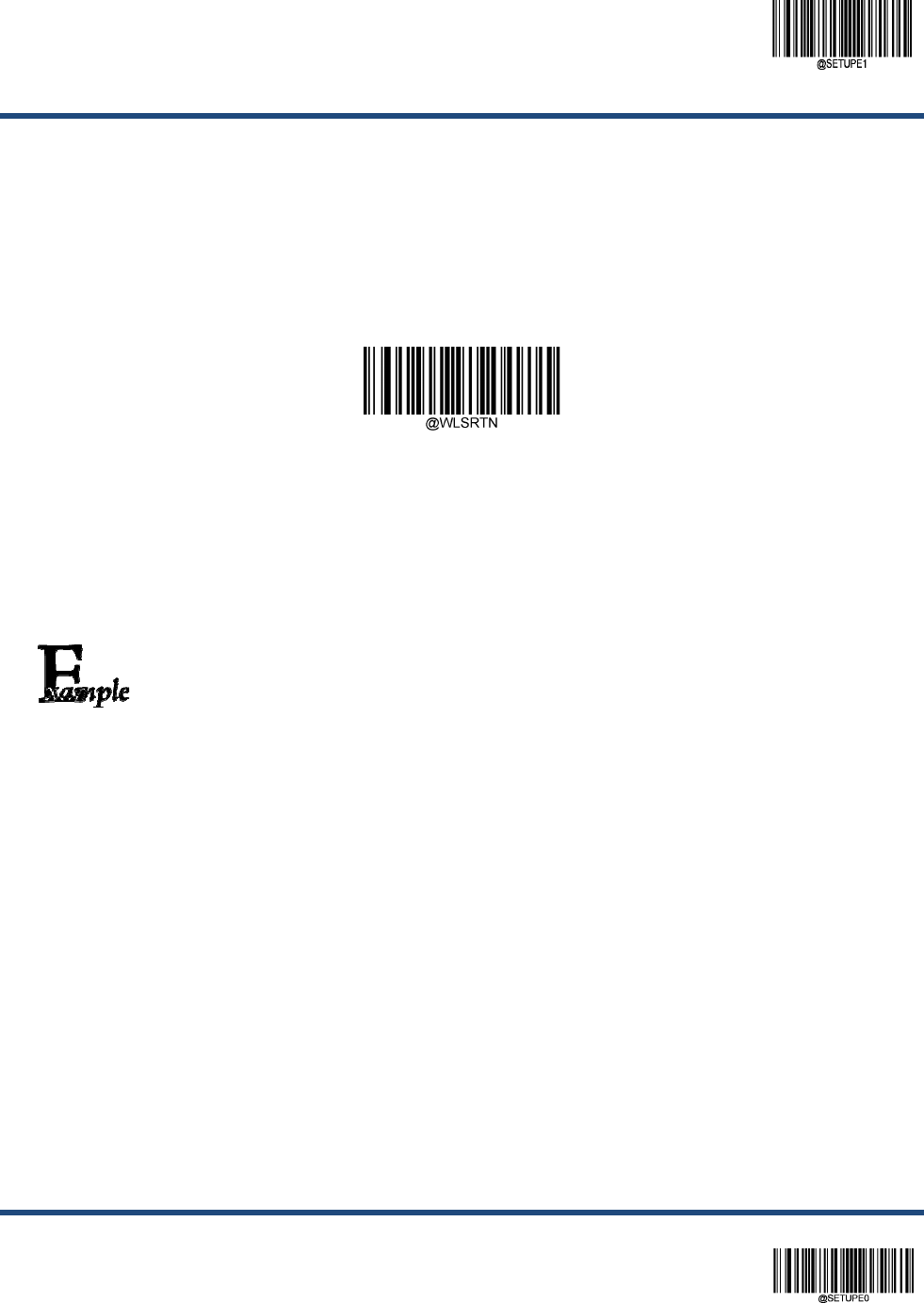

Set the scanner to decode Code 128 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 92
EAN-8
Restore Factory Defaults
Restore the Factory Defaults of EAN-8
Enable/Disable EAN-8
** Enable EAN-8
Disable EAN-8
If the scanner fails to identify EAN-8 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable EAN-8 barcode.
Transmit Check Character
EAN-8 is 8 digits in length with the last one as its check character used to verify the integrity of the data.
** Transmit EAN-8 Check Character
Do Not Transmit EAN-8 Check Character
Enter Setup
93 ** Exit Setup
2-Digit Add-On Code
An EAN-8 barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is a two-digit add-on code.
** Disable 2-Digit Add-On Code
Enable 2-Digit Add-On Code
Disable 2-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when
presented with an EAN-8 plus 2-digit add-on barcode. It can also decode EAN-8 barcodes without 2-digit
add-on codes.
Enable 2-Digit Add-On Code: The scanner decodes a mix of EAN-8 barcodes with and without 2-digit
add-on codes.
Enter Setup
** Exit Setup 94
5-Digit Add-On Code
An EAN-8 barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is a five-digit add-on code.
** Disable 5-Digit Add-On Code
Enable 5-Digit Add-On Code
Disable 5-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when
presented with an EAN-8 plus 5-digit add-on barcode. It can also decode EAN-8 barcodes without 5-digit
add-on codes.
Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-8 barcodes with and without 5-digit
add-on codes.
Enter Setup
95 ** Exit Setup
Convert EAN-8 to EAN-13
Convert EAN-8 to EAN-13: Convert EAN-8 decoded data to EAN-13 format before transmission. After conversion, the
data follows EAN-13 format and is affected by EAN-13 programming selections (e.g., Check Character).
Do Not Convert EAN-8 to EAN-13: EAN-8 decoded data is transmitted as EAN-8 data, without conversion.
** Do Not Convert EAN-8 to EAN-13
Convert EAN-8 to EAN-13
Enter Setup
** Exit Setup 96
EAN-13
Restore Factory Defaults
Restore the Factory Defaults of EAN-13
Enable/Disable EAN-13
** Enable EAN-13
Disable EAN-13
If the scanner fails to identify EAN-13 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable EAN-13 barcode.
Enter Setup
97 ** Exit Setup
Transmit Check Character
** Transmit EAN-13 Check Character
Do Not Transmit EAN-13 Check Character
2-Digit Add-On Code
An EAN-13 barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is a two-digit add-on code.
** Disable 2-Digit Add-On Code
Enable 2-Digit Add-On Code
Disable 2-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when
presented with an EAN-13 plus 2-digit add-on barcode. It can also decode EAN-13 barcodes without
2-digit add-on codes.
Enable 2-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 2-digit
add-on codes.
Enter Setup
** Exit Setup 98
5-Digit Add-On Code
An EAN-13 barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is a five-digit add-on code.
** Disable 5-Digit Add-On Code
Enable 5-Digit Add-On Code
Disable 5-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when
presented with an EAN-13 plus 5-digit add-on barcode. It can also decode EAN-13 barcodes without
5-digit add-on codes.
Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 5-digit
add-on codes.
Add-On Code Required
When EAN-13 Add-On Code Required is selected, the scanner will only read EAN-13 barcodes that contain add-on
codes.
** EAN-13 Add-On Code Not Required
EAN-13 Add-On Code Required
Enter Setup
99 ** Exit Setup
EAN-13 Beginning with 290 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “290”.
The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with “290” must have a 2-digit or 5-digit add-on code. The EAN-13
barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is
discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan
Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the “Add-On Code
Required” feature.
** Do Not Require Add-On Code
Require Add-On Code
EAN-13 Beginning with 378/379 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a “378”
or “379”. The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with a “378” or “379” must have a 2-digit or 5-digit add-on code.
The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13
barcode is discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan
Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the “Add-On Code
Required” feature.
** Do Not Require Add-On Code
Require Add-On Code
Enter Setup
** Exit Setup 100

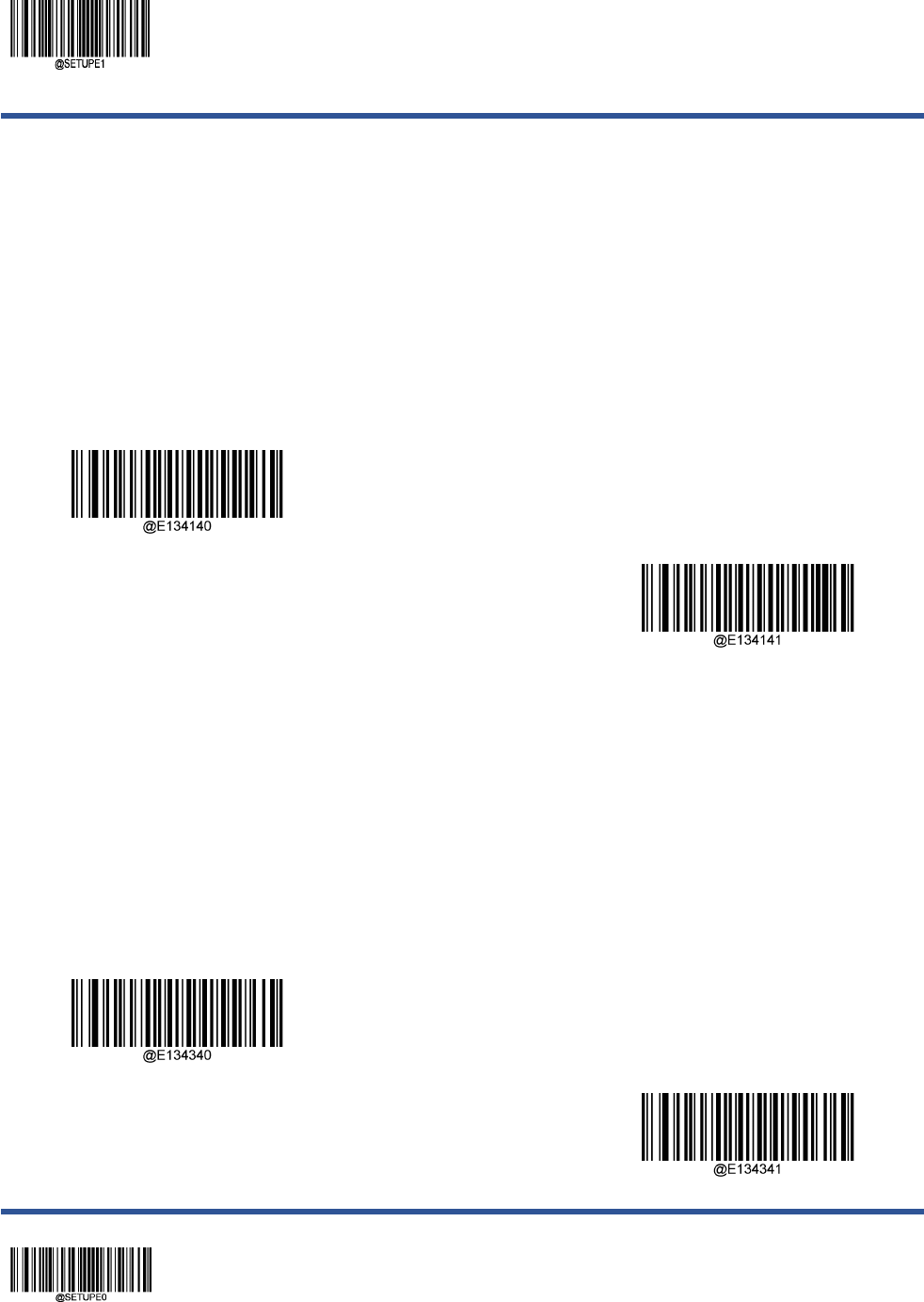

EAN-13 Beginning with 414/419 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a “414”
or “419”. The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with a “414” or “419” must have a 2-digit or 5-digit add-on code.
The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13
barcode is discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan
Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the “Add-On Code
Required” feature.
** Do Not Require Add-On Code
Require Add-On Code
EAN-13 Beginning with 434/439 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a “434”
or “439”. The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with a “434” or “439” must have a 2-digit or 5-digit add-on code.
The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13
barcode is discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan
Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the “Add-On Code
Required” feature.
** Do Not Require Add-On Code
Require Add-On Code
Enter Setup
101 ** Exit Setup
EAN-13 Beginning with 977 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “977”.
The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with “977” must have a 2-digit or 5-digit add-on code. The EAN-13
barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is
discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan
Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the “Add-On Code
Required” feature.
** Do Not Require Add-On Code
Require Add-On Code
EAN-13 Beginning with 978 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “978”.
The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with “978” must have a 2-digit or 5-digit add-on code. The EAN-13
barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is
discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan
Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the “Add-On Code
Required” feature.
** Do Not Require Add-On Code
Require Add-On Code
Enter Setup
** Exit Setup 102
EAN-13 Beginning with 979 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “979”.
The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with “979” must have a 2-digit or 5-digit add-on code. The EAN-13
barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is
discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan
Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the “Add-On Code
Required” feature.
** Do Not Require Add-On Code
Require Add-On Code
Enter Setup
103 ** Exit Setup
UPC-E
Restore Factory Defaults
Restore the Factory Defaults of UPC-E
Enable/Disable UPC-E
** Enable UPC-E
Disable UPC-E
If the scanner fails to identify UPC-E barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable UPC-E barcode.
Transmit Check Character
UPC-E is 8 digits in length with the last one as its check character used to verify the integrity of the data.
** Transmit UPC-E Check Character
Do Not Transmit UPC-E Check Character
Enter Setup
** Exit Setup 104

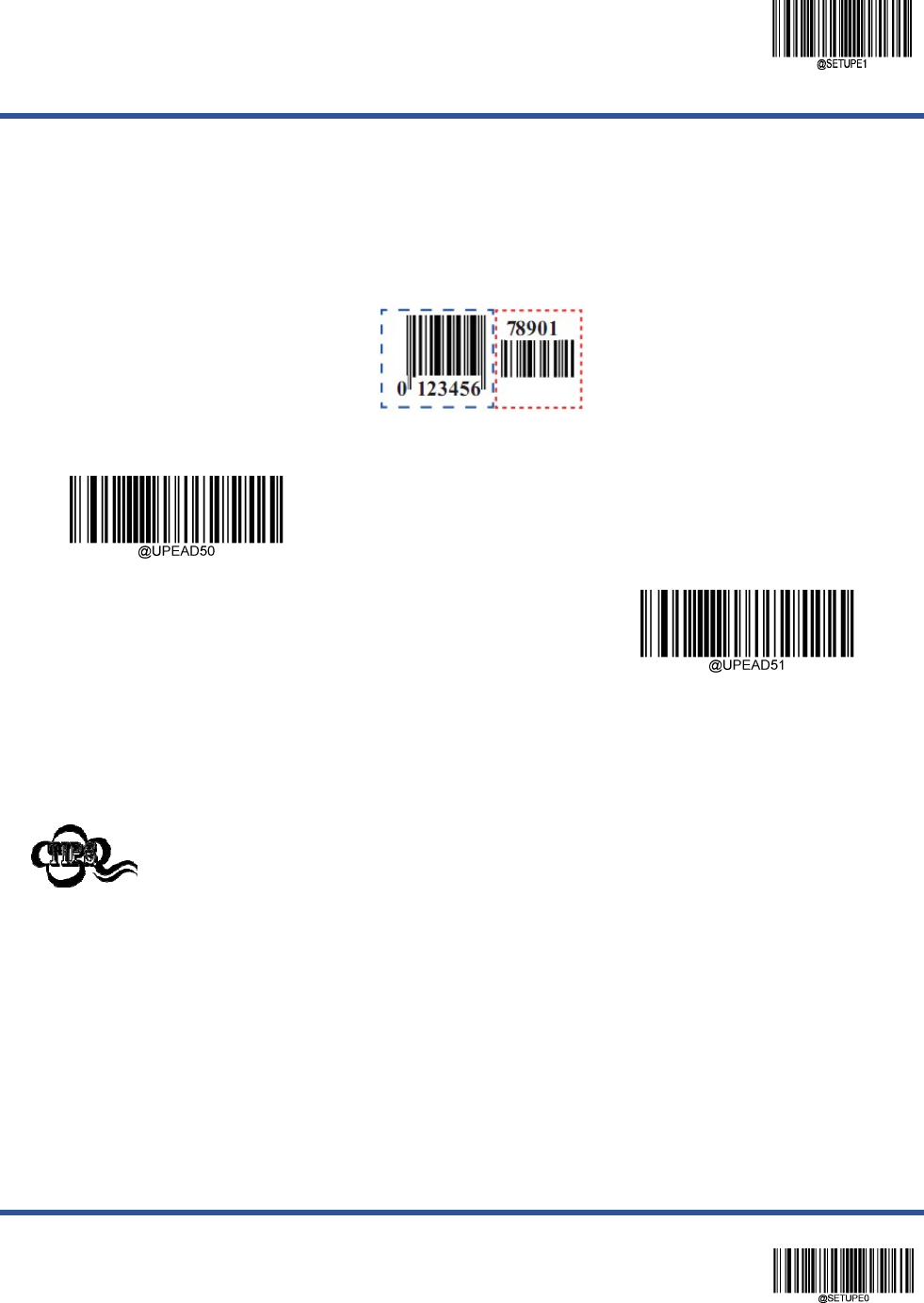

2-Digit Add-On Code
A UPC-E barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is a two-digit add-on code.
** Disable 2-Digit Add-On Code
Enable 2-Digit Add-On Code
Disable 2-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when
presented with a UPC-E plus 2-digit add-on barcode. It can also decode UPC-E barcodes without 2-digit
add-on codes.
Enable 2-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 2-digit
add-on codes.
Enter Setup
105 ** Exit Setup
5-Digit Add-On Code
A UPC-E barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is a five-digit add-on code.
** Disable 5-Digit Add-On Code
Enable 5-Digit Add-On Code
Disable 5-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when
presented with a UPC-E plus 5-digit add-on barcode. It can also decode UPC-E barcodes without 5-digit
add-on codes.
Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 5-digit
add-on codes.
Enter Setup
** Exit Setup 106
Transmit Preamble Character
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E barcode. Select one of
the following options for transmitting UPC-E preamble to the host device: transmit system character only, transmit system
character and country code (“0” for USA), or transmit no preamble.
** System Character
No Preamble
System Character & Country Code
Convert UPC-E to UPC-A
Convert UPC-E to UPC-A: Convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After
conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check
Character).
Do Not Convert UPC-E to UPC-A: UPC-E decoded data is transmitted as UPC-E data, without conversion.
** Do Not Convert UPC-E to UPC-A
Convert UPC-E to UPC-A
Enter Setup
107 ** Exit Setup
UPC-A
Restore Factory Defaults
Restore the Factory Defaults of UPC-A
Enable/Disable UPC-A
** Enable UPC-A
Disable UPC-A
If the scanner fails to identify UPC-A barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable UPC-A barcode.
Transmit Check Character
UPC-A is 13 digits in length with the last one as its check character used to verify the integrity of the data.
** Transmit UPC-A Check Character
Do Not Transmit UPC-A Check Character
Enter Setup
** Exit Setup 108
2-Digit Add-On Code
A UPC-A barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is a two-digit add-on code.
** Disable 2-Digit Add-On Code
Enable 2-Digit Add-On Code
Disable 2-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when
presented with a UPC-A plus 2-digit add-on barcode. It can also decode UPC-A barcodes without 2-digit
add-on codes.
Enable 2-Digit Add-On Code: The scanner decodes a mix of UPC-A barcodes with and without 2-digit
add-on codes.
Enter Setup
109 ** Exit Setup
5-Digit Add-On Code
A UPC-A barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is a five-digit add-on code.
** Disable 5-Digit Add-On Code
Enable 5-Digit Add-On Code
Disable 5-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when
presented with a UPC-A plus 5-digit add-on barcode. It can also decode UPC-A barcodes without 5-digit
add-on codes.
Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-A barcodes with and without 5-digit
add-on codes.
Enter Setup
** Exit Setup 110
Transmit Preamble Character
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A barcode. Select one of
the following options for transmitting UPC-A preamble to the host device: transmit system character only, transmit system
character and country code (“0” for USA), or transmit no preamble.
** No Preamble
System Character
System Character & Country Code
Enter Setup
111 ** Exit Setup
Coupon
UPC-A/EAN-13 with Extended Coupon Code
The following three types of coupon code + extended coupon code are supported:
UPC-A (starting with “5”) + GS1-128
UPC-A (starting with “5”) + GS1 Databar
EAN-13 (starting with “99”) + GS1-128
Use the appropriate barcode below to enable or disable UPC-A/EAN-13 with Extended Coupon Code. When left on the
default setting (Off), the scanner treats Coupon Codes and Extended Coupon Codes as single bar codes.
If you scan the Allow Concatenation code, when the scanner sees the coupon code and the extended coupon code in a
single scan, it transmits both as separate symbologies. Otherwise, it transmits the first coupon code it reads.
If you scan the Require Concatenation code, the scanner must see and read the coupon code and extended coupon code
in a single read to transmit the data. No data is output unless both codes are read.
** Off
Allow Concatenation
Require Concatenation
When using the UPC-A Coupon feature, please ensure that System Character or System Character &
Country Code is selected for the “Transmit UPC-A Preamble Character” feature.
Enter Setup
** Exit Setup 112
Coupon GS1 Databar Output
If you scan coupons that have both UPC and GS1 Databar codes, you may wish to scan and output only the data from the
GS1 Databar code. Scan the GS1 Output On barcode below to scan and output only the GS1 Databar code data.
When GS1 Output Off is selected, coupons that have both UPC and GS1 Databar codes are transmitted depending on
your selection for the “UPC-A/EAN-13 with Extended Coupon Code” feature.
** GS1 Output Off
GS1 Output On
When using the UPC-A Coupon feature, please ensure that System Character or System Character &
Country Code is selected for the “Transmit UPC-A Preamble Character” feature.
Enter Setup
113 ** Exit Setup
Interleaved 2 of 5
Restore Factory Defaults
Restore the Factory Defaults of Interleaved 2 of 5
Enable/Disable Interleaved 2 of 5
** Enable Interleaved 2 of 5
Disable Interleaved 2 of 5
If the scanner fails to identify Interleaved 2 of 5 barcodes, you may first try this solution by scanning the
Enter Setup barcode and then Enable Interleaved 2 of 5 barcode.
Enter Setup
** Exit Setup 114
Set Length Range for Interleaved 2 of 5
The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the
minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 6)
Set the Maximum Length (Default: 80)
If minimum length is set to be greater than maximum length, the scanner only decodes Interleaved 2 of 5
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only Interleaved 2 of 5 barcodes with that length are to be decoded.
Set the scanner to decode Interleaved 2 of 5 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
115 ** Exit Setup

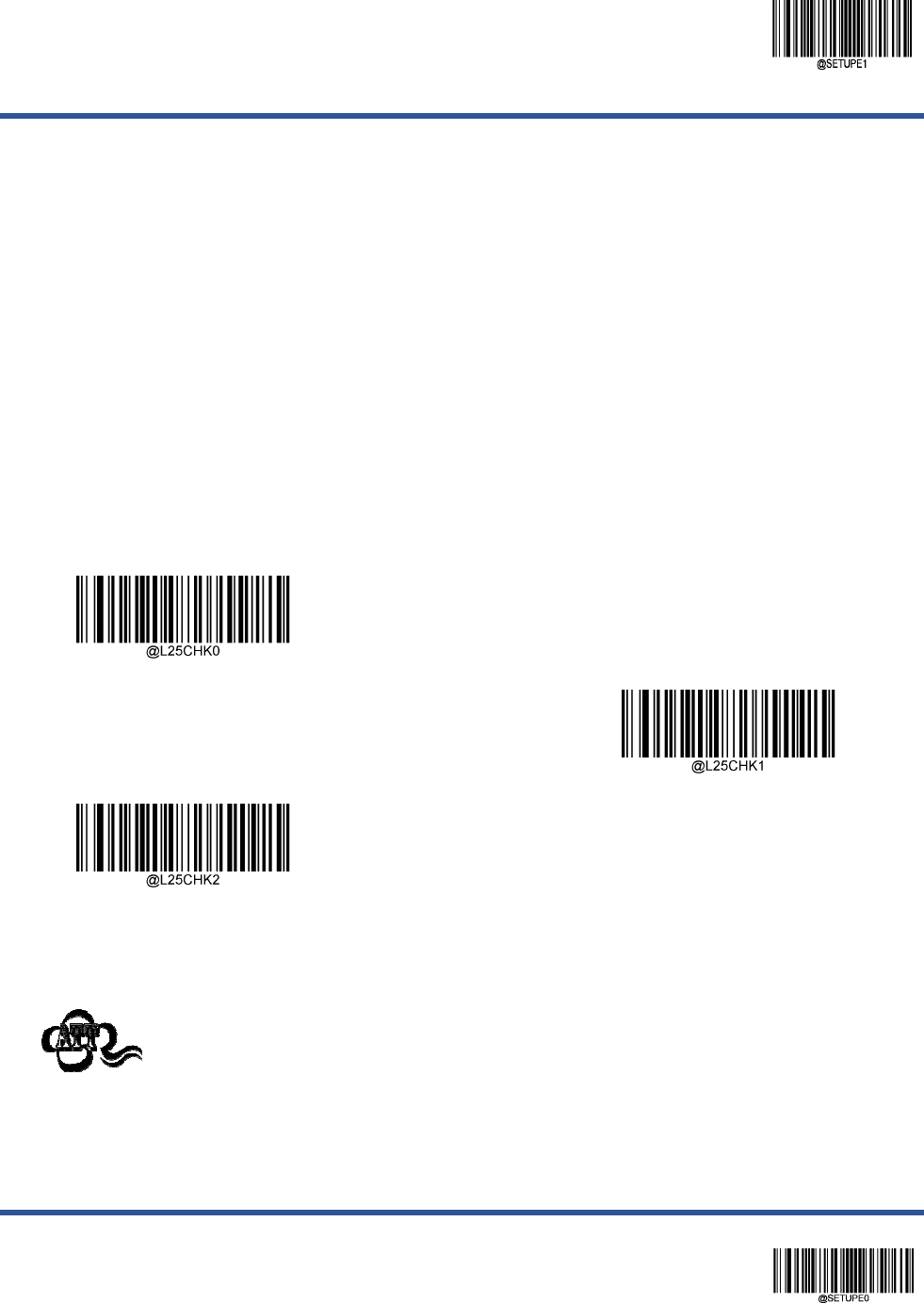

Check Character Verification
A check character is optional for Interleaved 2 of 5 and can be added as the last character. It is a calculated value used to
verify the integrity of the data.
Disable: The scanner transmits Interleaved 2 of 5 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Interleaved 2 of 5
barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be
transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Interleaved 2 of 5 barcodes to
verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted,
whereas those failing it will not be transmitted.
Since Interleaved 2 of 5 must always have an even number of digits, a zero may need to be added as the first digit when
the check character is added. The check character is automatically generated when making Interleaved 2 of 5 barcodes.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Interleaved 2 of 5
barcodes with a length that is less than the configured minimum length after having the check character
excluded will not be decoded. (For example, when the Do Not Transmit Check Character After
Verificationoption is enabled and the minimum length is set to 4, Interleaved 2 of 5 barcodes with a total
length of 4 characters including the check character cannot be read.)
Enter Setup
** Exit Setup 116
Febraban
Disable/Enable Febraban
** Disable Febraban
Enable Febraban, Do Not Expand
Enable Febraban, Expand
Transmit Delay per Character
Transmit Delay per Character applies to both Expanded and Unexpanded Febraban. This feature is available only when
USB HID Keyboard is enabled.
** Disable Transmit Delay per Character
Enable Transmit Delay per Character
Enter Setup
117 ** Exit Setup

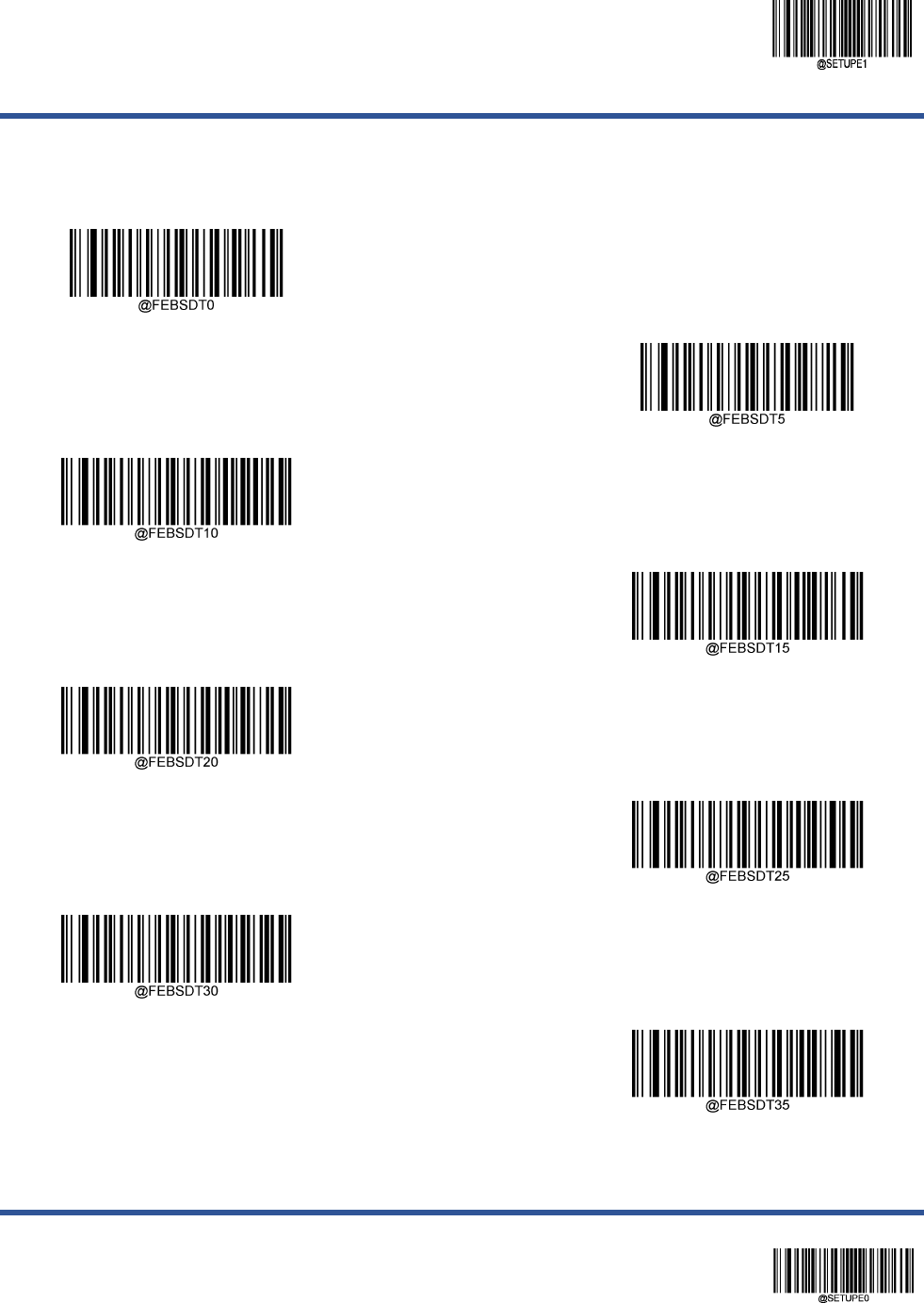

You may select an appropriate delay value from the options below as per your actual needs.
0ms
5ms
10ms
15ms
20ms
25ms
30ms
35ms
Enter Setup
** Exit Setup 118
40ms
45ms
50ms
55ms
60ms
65ms
** 70ms
75ms
Enter Setup
119 ** Exit Setup
Transmit Delay per 12 Characters
Transmit Delay per 12 Characters applies to Expanded Febraban only. This feature is available only when USB HID
Keyboard is enabled.
** Disable Transmit Delay per 12 Characters
Enable Transmit Delay per 12 Characters
You may select an appropriate delay value from the options below as per your actual needs.
0ms
300ms
400ms
Enter Setup
** Exit Setup 120
** 500ms
600ms
700ms
800ms
900ms
Enter Setup
121 ** Exit Setup
ITF-14
ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character.
ITF-14 priority principle: Forthe Interleaved 2 of 5 barcodes with a length of 14 characters and the last character as the
check character, the ITF-14 configurations shall take precedence over the Interleaved 2 of 5 settings.
Restore Factory Defaults
Restore the Factory Defaults of ITF-14
Enable/Disable ITF-14
** Disable ITF-14
Enable ITF-14 But Do Not Transmit Check Character
Enable ITF-14 and Transmit Check Character
An example of the ITF-14 priority principle: when ITF-14 is enabled and Interleaved 2 of 5 is disabled, the
scanner only decodes Interleaved 2 of 5 barcodes with a length of 14 characters and the last character
as the check character.
Enter Setup
** Exit Setup 122
ITF-6
ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character.
ITF-6 priority principle: For the Interleaved 2 of 5 barcodes with a length of 6 characters and the last character as the check
character, the ITF-6 configurations shall take precedence over the Interleaved 2 of 5 settings.
Restore Factory Defaults
Restore the Factory Defaults of ITF-6
Enable/Disable ITF-6
** Disable ITF-6
Enable ITF-6 But Do Not Transmit Check Character
Enable ITF-6 and Transmit Check Character
An example of the ITF-6 priority principle: when ITF-6 is enabled and Interleaved 2 of 5 is disabled, the
scanner only decodes Interleaved 2 of 5 barcodes with a length of 6 characters and the last character as
the check character.
Enter Setup
123 ** Exit Setup
Matrix 2 of 5
Restore Factory Defaults
Restore the Factory Defaults of Matrix 2 of 5
Enable/Disable Matrix 2 of 5
** Enable Matrix 2 of 5
Disable Matrix 2 of 5
If the scanner fails to identify Matrix 2 of 5 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Matrix 2 of 5 barcode.
Enter Setup
** Exit Setup 124
Set Length Range for Matrix 2 of 5
The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the
minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 4)
Set the Maximum Length (Default: 80)
If minimum length is set to be greater than maximum length, the scanner only decodes Matrix 2 of 5
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only Matrix 2 of 5 barcodes with that length are to be decoded.
Set the scanner to decode Matrix 2 of 5 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
125 ** Exit Setup
Check Character Verification
A check character is optional for Matrix 2 of 5 and can be added as the last character. It is a calculated value used to verify
the integrity of the data.
Disable: The scanner transmits Matrix 2 of 5 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Matrix 2 of 5 barcodes
to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted
except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Matrix 2 of 5 barcodes to verify
that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas
those failing it will not be transmitted.
Since Matrix 2 of 5 must always have an even number of digits, a zero may need to be added as the first digit when the
check character is added. The check character is automatically generated when making Matrix 2 of 5 barcodes.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Matrix 2 of 5 barcodes
with a length that is less than the configured minimum length after having the check character excluded
will not be decoded. (For example, when the Do Not Transmit Check Character After Verification
option is enabled and the minimum length is set to 4, Matrix 2 of 5 barcodes with a total length of 4
characters including the check character cannot be read.)
Enter Setup
** Exit Setup 126
Code 39
Restore Factory Defaults
Restore the Factory Defaults of Code 39
Enable/Disable Code 39
** Enable Code 39
Disable Code 39
If the scanner fails to identify Code 39 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Code 39 barcode.
Enter Setup
127 ** Exit Setup
Set Length Range for Code 39
The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 39
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only Code 39 barcodes with that length are to be decoded.
Set the scanner to decode Code 39 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 128
Check Character Verification
A check character is optional for Code 39 and can be added as the last character. It is a calculated value used to verify the
integrity of the data.
Disable: The scanner transmits Code 39 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Code 39 barcodes to
verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted
except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Code 39 barcodes to verify
that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas
those failing it will not be transmitted.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Code 39 barcodes with a
length that is less than the configured minimum length after having the check character excluded will not
be decoded. (For example, when the Do Not Transmit Check Character After Verification option is
enabled and the minimum length is set to 4, Code 39 barcodes with a total length of 4 characters
including the check character cannot be read.)
Enter Setup
129 ** Exit Setup
Transmit Start/Stop Character
Code 39 uses an asterisk (*) for both the start and the stop characters. You can choose whether or not to transmit the
start/stop characters by scanning the appropriate barcode below.
** Do Not Transmit Start/Stop Character
Transmit Start/Stop Character
Enable/Disable Code 39 Full ASCII
The scanner can be configured to identify all ASCII characters by scanning the appropriate barcode below.
** Disable Code 39 Full ASCII
Enable Code 39 Full ASCII
Enter Setup
** Exit Setup 130
Enable/Disable Code 32 (Italian Pharma Code)
Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below to enable
or disable Code 32. Code 39 must be enabled and Code 39 check character verification must be disabled for this
parameter to function.
** Disable Code 32
Enable Code 32
Code 32 Prefix
You may scan the appropriate barcode below to enable or disable adding the prefix character “A” to all Code 32 barcodes.
Code 32 must be enabled for this parameter to function.
** Disable Code 32 Prefix
Enable Code 32 Prefix
Enter Setup
131 ** Exit Setup
Transmit Code 32 Start/Stop Character
Code 32 must be enabled for this parameter to function.
** Do Not Transmit Code 32 Start/Stop Character
Transmit Code 32 Start/Stop Character
Transmit Code 32 Check Character
Code 32 must be enabled for this parameter to function.
** Do Not Transmit Code 32 Check Character
Transmit Code 32 Check Character
Enter Setup
** Exit Setup 132
Codabar
Restore Factory Defaults
Restore the Factory Defaults of Codabar
Enable/Disable Codabar
** Enable Codabar
Disable Codabar
If the scanner fails to identify Codabar barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Codabar barcode.
Enter Setup
133 ** Exit Setup
Set Length Range for Codabar
The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 2)
Set the Maximum Length (Default: 60)
If minimum length is set to be greater than maximum length, the scanner only decodes Codabar
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only Codabar barcodes with that length are to be decoded.
Set the scanner to decode Codabar barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 134
Check Character Verification
A check character is optional for Codabar and can be added as the last character. It is a calculated value used to verify the
integrity of the data.
Disable: The scanner transmits Codabar barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Codabar barcodes to
verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted
except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Codabar barcodes to verify
that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas
those failing it will not be transmitted.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Codabar barcodes with a
length that is less than the configured minimum length after having the check character excluded will not
be decoded. (For example, when the Do Not Transmit Check Character After Verification option is
enabled and the minimum length is set to 4, Codabar barcodes with a total length of 4 characters
including the check character cannot be read.)
Enter Setup
135 ** Exit Setup
Start/Stop Character
You can set the start/stop characters and choose whether or not to transmit the start/stop characters by scanning the
appropriate barcode below.
** Do Not Transmit Start/Stop Character
Transmit Start/Stop Character
** ABCD/ABCD as the Start/Stop Character
ABCD/TN*E as the Start/Stop Character
abcd/abcd as the Start/Stop Character
abcd/tn*e as the Start/Stop Character
Enter Setup
** Exit Setup 136
Code 93
Restore Factory Defaults
Restore the Factory Defaults of Code 93
Enable/Disable Code 93
Enable Code 93
** Disable Code 93
If the scanner fails to identify Code 93 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Code 93 barcode.
Enter Setup
137 ** Exit Setup
Set Length Range for Code 93
The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 93
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only Code 93 barcodes with that length are to be decoded.
Set the scanner to decode Code 93 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 138
Check Character Verification
Check characters are optional for Code 93 and can be added as the last two characters, which are calculated values used
to verify the integrity of the data.
Disable: The scanner transmits Code 93 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Code 93 barcodes to
verify that the data complies with the check character algorithm. Barcodes passing the checks will be transmitted
except the last two digits, whereas those failing them will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Code 93 barcodes to verify
that the data complies with the check character algorithm. Barcodes passing the checks will be transmitted, whereas
those failing them will not be transmitted.
Disable
** Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Code 93 barcodes with a
length that is less than the configured minimum length after having the two check characters excluded
will not be decoded. (For example, when the Do Not Transmit Check Character After Verification
option is enabled and the minimum length is set to 4, Code 93 barcodes with a total length of 4
characters including the two check characters cannot be read.)
Enter Setup
139 ** Exit Setup
China Post 25
Restore Factory Defaults
Restore the Factory Defaults of China Post 25
Enable/Disable China Post 25
Enable China Post 25
** Disable China Post 25
If the scanner fails to identify China Post 25 barcodes, you may first try this solution by scanning the
Enter Setup barcode and then Enable China Post 25 barcode.
Enter Setup
** Exit Setup 140
Set Length Range for China Post 25
The scanner can be configured to only decode China Post 25 barcodes with lengths that fall between (inclusive) the
minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes China Post 25
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only China Post 25 barcodes with that length are to be decoded.
Set the scanner to decode China Post 25 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
141 ** Exit Setup
Check Character Verification
A check character is optional for China Post 25 and can be added as the last character. It is a calculated value used to
verify the integrity of the data.
Disable: The scanner transmits China Post 25 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all China Post 25
barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be
transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all China Post 25 barcodes to
verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted,
whereas those failing it will not be transmitted.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, China Post 25 barcodes
with a length that is less than the configured minimum length after having the check character excluded
will not be decoded. (For example, when the Do Not Transmit Check Character After Verification
option is enabled and the minimum length is set to 4, China Post 25 barcodes with a total length of 4
characters including the check character cannot be read.)
Enter Setup
** Exit Setup 142
GS1-128 (UCC/EAN-128)
Restore Factory Defaults
Restore the Factory Defaults of GS1-128
Enable/Disable GS1-128
** Enable GS1-128
Disable GS1-128
If the scanner fails to identify GS1-128 barcodes, you may first try this solution by scanning the
EnterSetup barcode and then Enable GS1-128 barcode.
Enter Setup
143 ** Exit Setup
Set Length Range for GS1-128
The scanner can be configured to only decode GS1-128 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes GS1-128
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only GS1-128 barcodes with that length are to be decoded.
Set the scanner to decode GS1-128 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 144
GS1 Databar (RSS)
Restore Factory Defaults
Restore the Factory Defaults of GS1 Databar
Enable/Disable GS1 Databar
** Enable GS1 Databar
Disable GS1 Databar
If the scanner fails to identify GS1 Databar barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable GS1 Databar barcode.
Transmit Application Identifier “01”
** Transmit Application Identifier “01”
Do Not Transmit Application Identifier “01”
Enter Setup
145 ** Exit Setup
GS1 Composite (EAN·UCC Composite)
Restore Factory Defaults
Restore the Factory Defaults of GS1 Composite
Enable/Disable GS1 Composite
Enable GS1 Composite
** Disable GS1 Composite
If the scanner fails to identify GS1 Composite barcodes, you may first try this solution by scanning the
Enter Setup barcode and then Enable GS1 Composite barcode.
Enable/Disable UPC/EAN Composite
Enable UPC/EAN Composite
** Disable UPC/EAN Composite
Enter Setup
** Exit Setup 146
Code 11
Restore Factory Defaults
Restore the Factory Defaults of Code 11
Enable/Disable Code 11
Enable Code 11
** Disable Code 11
If the scanner fails to identify Code 11 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Code 11 barcode.
Enter Setup
147 ** Exit Setup
Set Length Range for Code 11
The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 4)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 11
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only Code 11 barcodes with that length are to be decoded.
Set the scanner to decode Code 11 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 148
Check Character Verification
Check characters are optional for Code 11 and can be added as the last one or two characters, which are calculated values
used to verify the integrity of the data.
If the Disable option is enabled, the scanner transmits Code 11 barcodes as is.
Disable
** One Check Character, MOD11
Two Check Characters, MOD11/MOD11
Two Check Characters, MOD11/MOD9
One Check Character, MOD11 (Len<=10)
Two Check Characters, MOD11/MOD11(Len>10)
One Check Character, MOD11 (Len<=10)
Two Check Characters, MOD11/MOD9 (Len>10)
Enter Setup
149 ** Exit Setup
Transmit Check Character
Do Not Transmit Code 11 Check Character
** Transmit Code 11 Check Character
If you select a check character algorithm and the Do Not Transmit Check Character option, Code 11
barcodes with a length that is less than the configured minimum length after having the check
character(s) excluded will not be decoded. (For example, when the One Check Character, MOD11 and
Do Not Transmit Check Character options are enabled and the minimum length is set to 4, Code 11
barcodes with a total length of 4 characters including the check character cannot be read.)
Enter Setup
** Exit Setup 150

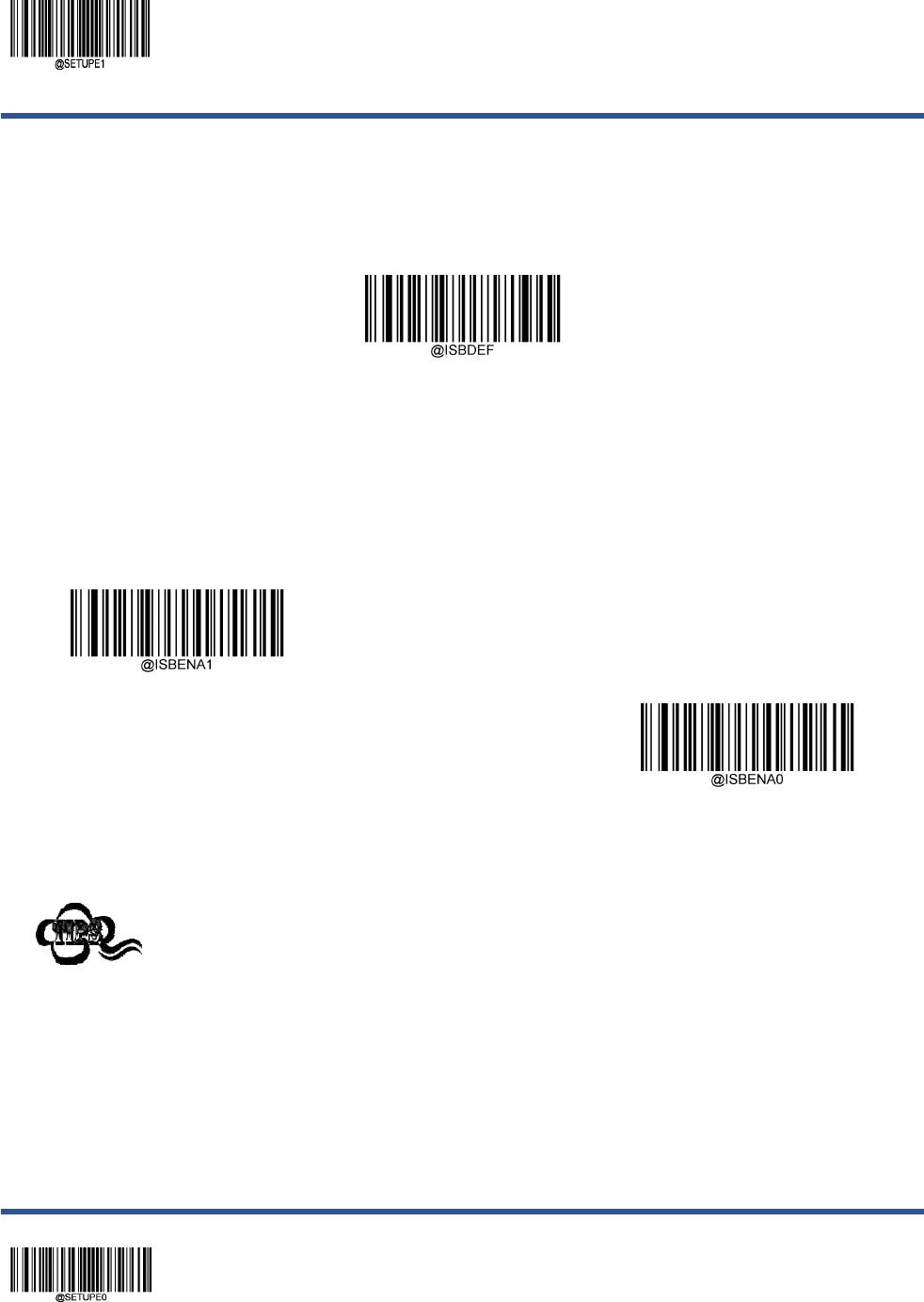

ISBN
Restore Factory Defaults
Restore the Factory Defaults of ISBN
Enable/Disable ISBN
Enable ISBN
** Disable ISBN
If the scanner fails to identify ISBN barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable ISBN barcode.
Enter Setup
151 ** Exit Setup
Set ISBN Format
** ISBN-10
ISBN-13
Enter Setup
** Exit Setup 152
ISSN
Restore Factory Defaults
Restore the Factory Defaults of ISSN
Enable/Disable ISSN
Enable ISSN
** Disable ISSN
If the scanner fails to identify ISSN barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable ISSN barcode.
Enter Setup
153 ** Exit Setup
Industrial 25
Restore Factory Defaults
Restore the Factory Defaults of Industrial 25
Enable/Disable Industrial 25
Enable Industrial 25
** Disable Industrial 25
If the scanner fails to identify Industrial 25 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Industrial 25 barcode.
Enter Setup
** Exit Setup 154
Set Length Range for Industrial 25
The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the
minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 6)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Industrial 25
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only Industrial 25 barcodes with that length are to be decoded.
Set the scanner to decode Industrial 25 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
155 ** Exit Setup
Check Character Verification
A check character is optional for Industrial 25 and can be added as the last character. It is a calculated value used to verify
the integrity of the data.
Disable: The scanner transmits Industrial 25 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Industrial 25 barcodes
to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted
except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Industrial 25 barcodes to verify
that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas
those failing it will not be transmitted.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Industrial 25 barcodes
with a length that is less than the configured minimum length after having the check character excluded
will not be decoded. (For example, when the Do Not Transmit Check Character After Verification
option is enabled and the minimum length is set to 4, Industrial 25 barcodes with a total length of 4
characters including the check character cannot be read.)
Enter Setup
** Exit Setup 156
Standard 25
Restore Factory Defaults
Restore the Factory Defaults of Standard 25
Enable/Disable Standard 25
Enable Standard 25
** Disable Standard 25
If the scanner fails to identify Standard 25 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Standard 25 barcode.
Enter Setup
157 ** Exit Setup
Set Length Range for Standard 25
The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 6)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Standard 25
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only Standard 25 barcodes with that length are to be decoded.
Set the scanner to decode Standard 25 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 158
Check Character Verification
A check character is optional for Standard 25 and can be added as the last character. It is a calculated value used to verify
the integrity of the data.
Disable: The scanner transmits Standard 25 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Standard 25 barcodes
to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted
except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Standard 25 barcodes to verify
that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas
those failing it will not be transmitted.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Standard 25 barcodes
with a length that is less than the configured minimum length after having the check character excluded
will not be decoded. (For example, when the Do Not Transmit Check Character After Verification
option is enabled and the minimum length is set to 4, Standard 25 barcodes with a total length of 4
characters including the check character cannot be read.)
Enter Setup
159 ** Exit Setup
Plessey
Restore Factory Defaults
Restore the Factory Defaults of Plessey
Enable/Disable Plessey
Enable Plessey
** Disable Plessey
If the scanner fails to identify Plessey barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Plessey barcode.
Enter Setup
** Exit Setup 160
Set Length Range for Plessey
The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 4)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Plessey barcodes
with either the minimum or maximum length. If minimum length is same as maximum length, only
Plessey barcodes with that length are to be decoded.
Set the scanner to decode Plessey barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
161 ** Exit Setup
Check Character Verification
Check characters are optional for Plessey and can be added as the last two characters, which are calculated values used
to verify the integrity of the data.
Disable: The scanner transmits Plessey barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Plessey barcodes to
verify that the data complies with the check character algorithm. Barcodes passing the checks will be transmitted
except the last two digits, whereas those failing them will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Plessey barcodes to verify that
the data complies with the check character algorithm. Barcodes passing the checks will be transmitted, whereas
those failing them will not be transmitted.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Plessey barcodes with a
length that is less than the configured minimum length after having the check characters excluded will
not be decoded. (For example, when the Do Not Transmit Check Character After Verification option
is enabled and the minimum length is set to 4, Plessey barcodes with a total length of 4 characters
including the check characters cannot be read.)
Enter Setup
** Exit Setup 162
MSI-Plessey
Restore Factory Defaults
Restore the Factory Defaults of MSI-Plessey
Enable/Disable MSI-Plessey
Enable MSI-Plessey
** Disable MSI-Plessey
If the scanner fails to identify MSI-Plessey barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable MSI-Plessey barcode.
Enter Setup
163 ** Exit Setup
Set Length Range for MSI-Plessey
The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the
minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 4)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes MSI-Plessey
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only MSI-Plessey barcodes with that length are to be decoded.
Set the scanner to decode MSI-Plessey barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 164
Check Character Verification
Check characters are optional for MSI-Plessey and can be added as the last one or two characters, which are calculated
values used to verify the integrity of the data.
If the Disable option is enabled, the scanner transmits MSI-Plessey barcodes as is.
Disable
** One Check Character, MOD10
Two Check Characters, MOD10/MOD10
Two Check Characters, MOD10/MOD11
Enter Setup
165 ** Exit Setup

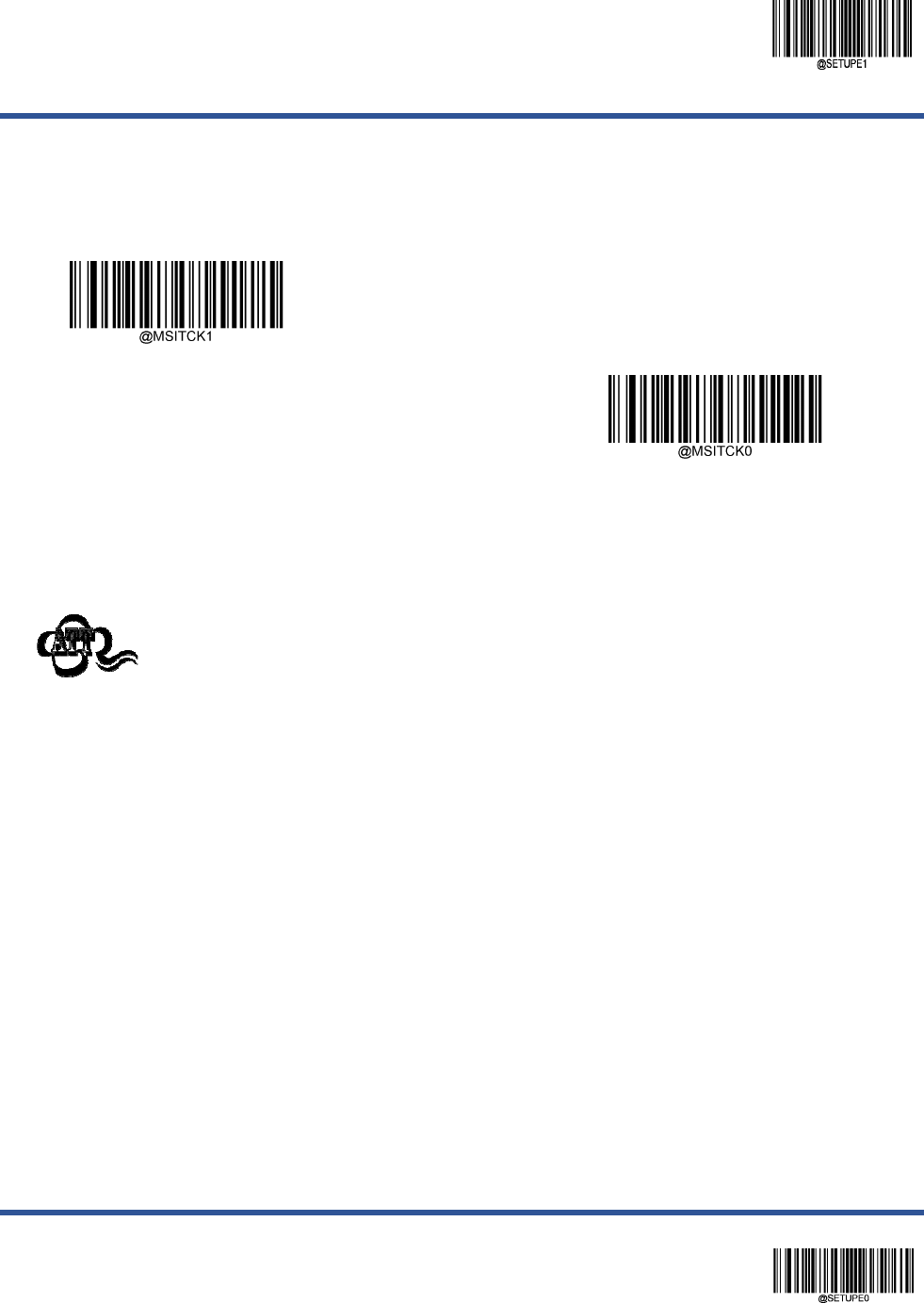

Transmit Check Character
** Transmit MSI-Plessey Check Character
Do Not Transmit MSI-Plessey Check Character
If you select a check character algorithm and the Do Not Transmit Check Character option,
MSI-Plessey barcodes with a length that is less than the configured minimum length after having the
check character(s) excluded will not be decoded. (For example, when the One Check Character,
MOD10 and Do Not Transmit Check Character options are enabled and the minimum length is set to 4,
MSI-Plessey barcodes with a total length of 4 characters including the check character cannot be read.)
Enter Setup
** Exit Setup 166

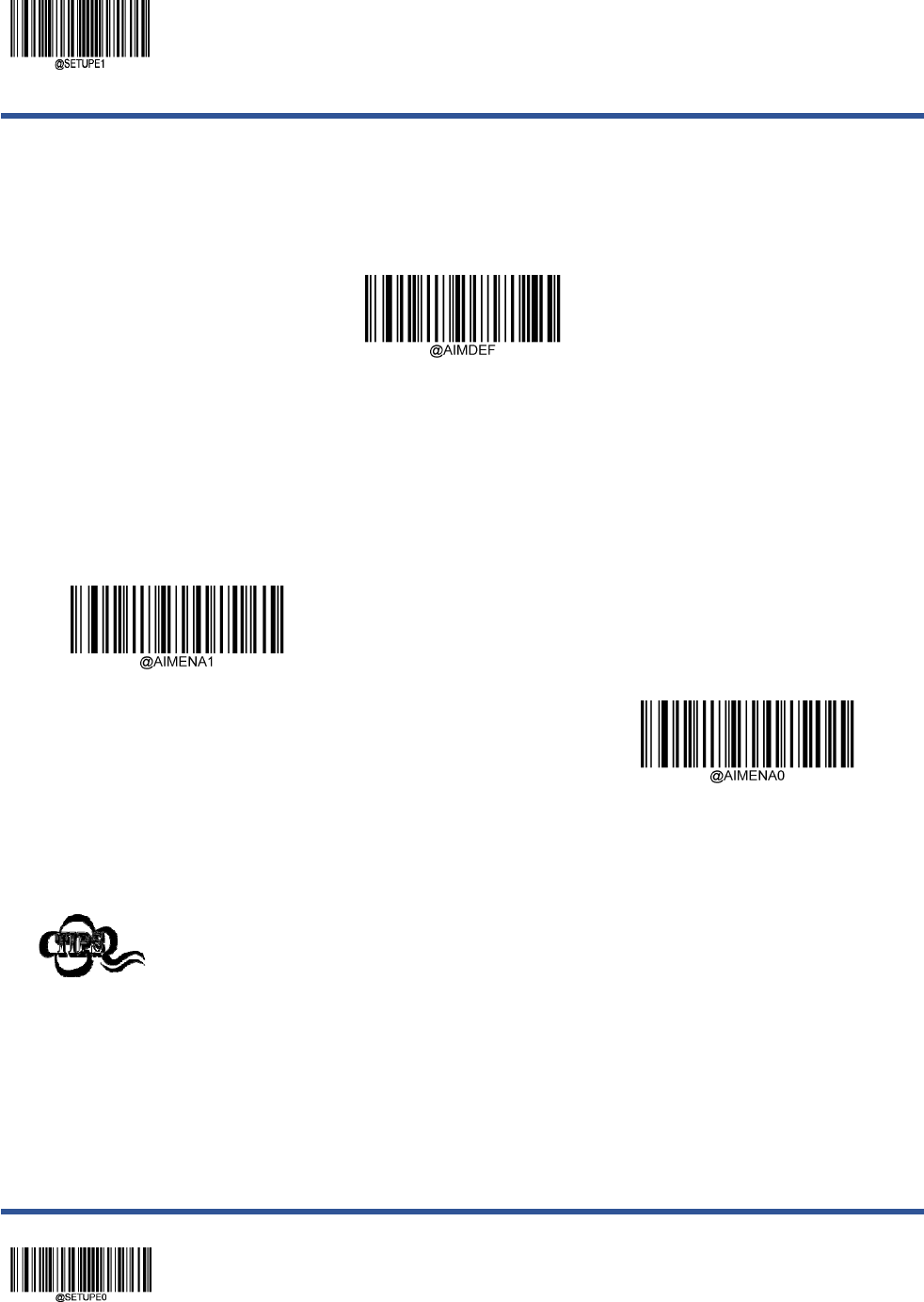

AIM 128
Restore Factory Defaults
Restore the Factory Defaults of AIM 128
Enable/Disable AIM 128
Enable AIM 128
** Disable AIM 128
If the scanner fails to identify AIM 128 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable AIM 128 barcode.
Enter Setup
167 ** Exit Setup
Set Length Range for AIM 128
The scanner can be configured to only decode AIM 128 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes AIM 128
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only AIM 128 barcodes with that length are to be decoded.
Set the scanner to decode AIM 128 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 168
ISBT 128
Restore Factory Defaults
Restore the Factory Defaults of ISBT 128
Enable/Disable ISBT 128
Enable ISBT 128
** Disable ISBT 128
If the scanner fails to identify ISBT 128 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable ISBT 128 barcode.
Enter Setup
169 ** Exit Setup
Code 49
Restore Factory Defaults
Restore the Factory Defaults of Code 49
Enable/Disable Code 49
Enable Code 49
** Disable Code 49
If the scanner fails to identify Code 49 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Code 49 barcode.
Enter Setup
** Exit Setup 170
Set Length Range for Code 49
The scanner can be configured to only decode Code 49 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 80)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 49
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only Code 49 barcodes with that length are to be decoded.
Set the scanner to decode Code 49 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
171 ** Exit Setup
Code 16K
Restore Factory Defaults
Restore the Factory Defaults of Code 16K
Enable/Disable Code 16K
Enable Code 16K
** Disable Code 16K
If the scanner fails to identify Code 16K barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Code 16K barcode.
Enter Setup
** Exit Setup 172
Set Length Range for Code 16K
The scanner can be configured to only decode Code 16K barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 80)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 16K
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only Code 16K barcodes with that length are to be decoded.
Set the scanner to decode Code 16K barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
173 ** Exit Setup
PDF417
Restore Factory Defaults
Restore the Factory Defaults of PDF417
Enable/Disable PDF417
** Enable PDF417
Disable PDF417
If the scanner fails to identify PDF417 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable PDF417 barcode.
Enter Setup
** Exit Setup 174
Set Length Range for PDF417
The scanner can be configured to only decode PDF417 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 2710)
Minimum length is not allowed to be greater than maximum length. If you only want to read PDF417
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode PDF417 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
175 ** Exit Setup
PDF417 Twin Code
PDF417 twin code is 2 PDF417 barcodes paralleled vertically or horizontally. They must both be either regular or inverse
barcodes. They must have similar specifications and be placed closely together.
There are 3 options for reading PDF417 twin codes:
Single PDF417 Only: Read either PDF417 code.
Twin PDF417 Only: Read both PDF417 codes.
Both Single & Twin: Read both PDF417 codes. If successful, transmit as twin PDF417 only. Otherwise, try single
PDF417 only.
** Single PDF417 Only
Twin PDF417 Only
Both Single & Twin
Enter Setup
** Exit Setup 176
PDF417 Inverse
Regular barcode: Dark bars on a bright background.
Inverse barcode: Bright bars on a dark background.
** Decode Regular PDF417 Barcodes Only
Decode Inverse PDF417 Barcodes Only
Decode Both
Character Encoding
** Default Character Encoding
UTF-8
Enter Setup
177 ** Exit Setup
PDF417 ECI Output
Disable PDF417 ECI Output
** Enable PDF417 ECI Output
Enter Setup
** Exit Setup 178
Micro PDF417
Restore Factory Defaults
Restore the Factory Defaults of Micro PDF417
Enable/Disable Micro PDF417
Enable Micro PDF417
** Disable Micro PDF417
If the scanner fails to identify Micro PDF417 barcodes, you may first try this solution by scanning the
Enter Setup barcode and then Enable Micro PDF417 barcode.
Enter Setup
179 ** Exit Setup
Set Length Range for Micro PDF417
The scanner can be configured to only decode Micro PDF417 barcodes with lengths that fall between (inclusive) the
minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 366)
Minimum length is not allowed to be greater than maximum length. If you only want to read Micro
PDF417 barcodes with a specific length, set both minimum and maximum lengths to be that desired
length.
Set the scanner to decode Micro PDF417 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 180

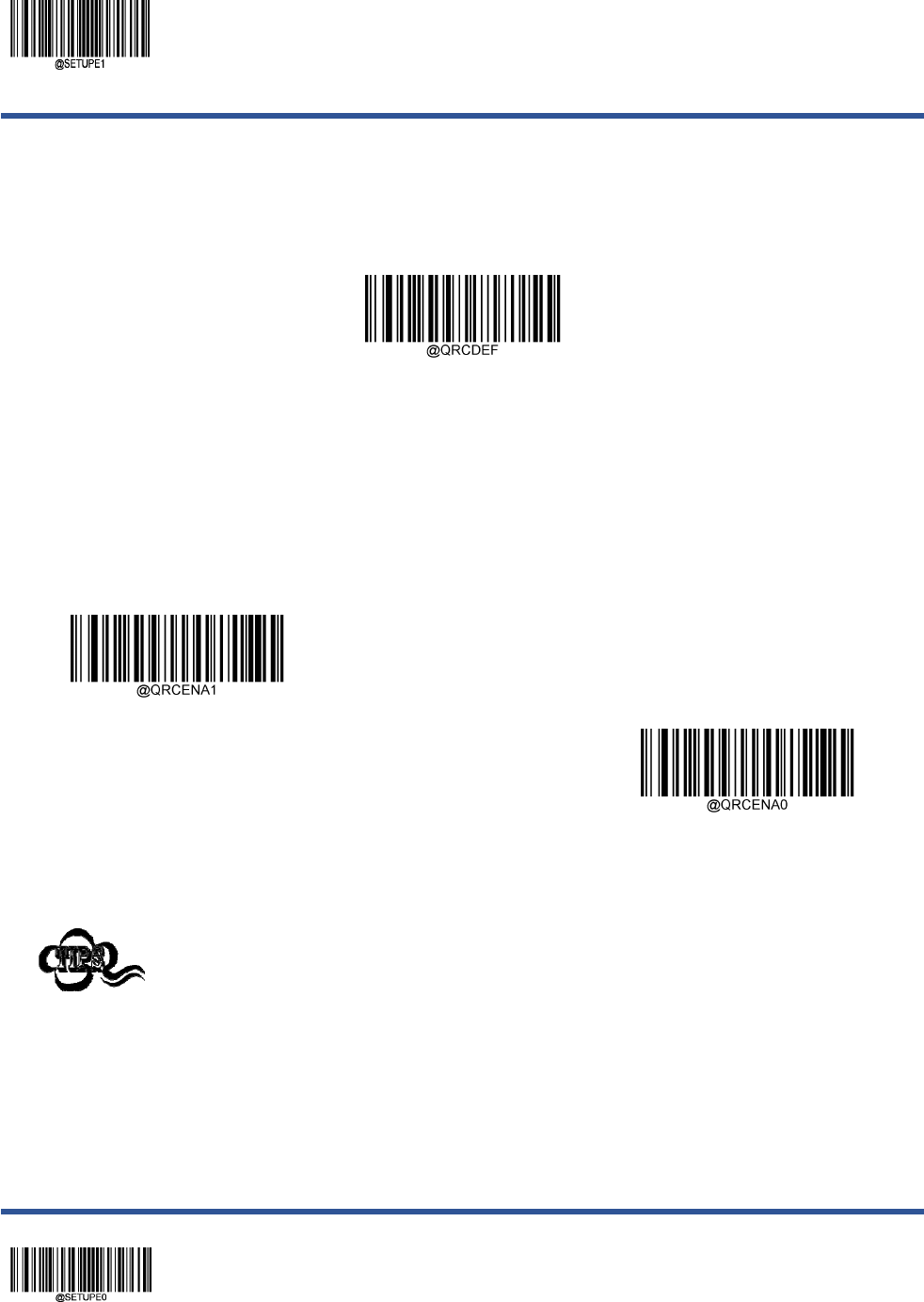

QR Code
Restore Factory Defaults
Restore the Factory Defaults of QR Code
Enable/Disable QR Code
** Enable QR Code
Disable QR Code
If the scanner fails to identify QR Code barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable QR Code barcode.
Enter Setup
181 ** Exit Setup
Set Length Range for QR Code
The scanner can be configured to only decode QR Code barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 7089)
Minimum length is not allowed to be greater than maximum length. If you only want to read QR Code
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode QR Code barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 182
QR Twin Code
QR twin code is 2 QR barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes.
They must have similar specifications and be placed closely together.
There are 3 options for reading QR twin codes:
Single QR Only: Read either QR code.
Twin QR Only: Read both QR codes. Transmission sequence: left (upper) QR code followed by right (lower) QR
code.
Both Single & Twin: Read both QR codes. If successful, transmit as twin QR only. Otherwise, try single QR only.
** Single QR Only
Twin QR Only
Both Single & Twin
Enter Setup
183 ** Exit Setup
QR Inverse
Regular barcode: Dark bars on a bright background.
Inverse barcode: Bright bars on a dark background.
** Decode Regular QR Barcodes Only
Decode Inverse QR Barcodes Only
Decode Both
Character Encoding
** Default Character Encoding
UTF-8
Enter Setup
** Exit Setup 184
QR ECI Output
Disable QR ECI Output
** Enable QR ECI Output
Enter Setup
185 ** Exit Setup
Micro QR Code
Restore Factory Defaults
Restore the Factory Defaults of Micro QR
Enable/Disable Micro QR
** Enable Micro QR
Disable Micro QR
If the scanner fails to identify Micro QR barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Micro QR barcode.
Enter Setup
** Exit Setup 186
Set Length Range for Micro QR
The scanner can be configured to only decode Micro QR barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 35)
Minimum length is not allowed to be greater than maximum length. If you only want to read Micro QR
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Micro QR Code barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
187 ** Exit Setup
Aztec
Restore Factory Defaults
Restore the Factory Defaults of Aztec Code
Enable/Disable Aztec Code
Enable Aztec Code
** Disable Aztec Code
If the scanner fails to identify Aztec Code barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Aztec Code barcode.
Enter Setup
** Exit Setup 188
Set Length Range for Aztec Code
The scanner can be configured to only decode Aztec barcodes with lengths that fall between (inclusive) the minimum and
maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 3832)
Minimum length is not allowed to be greater than maximum length. If you only want to read Aztec
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Aztec barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
189 ** Exit Setup

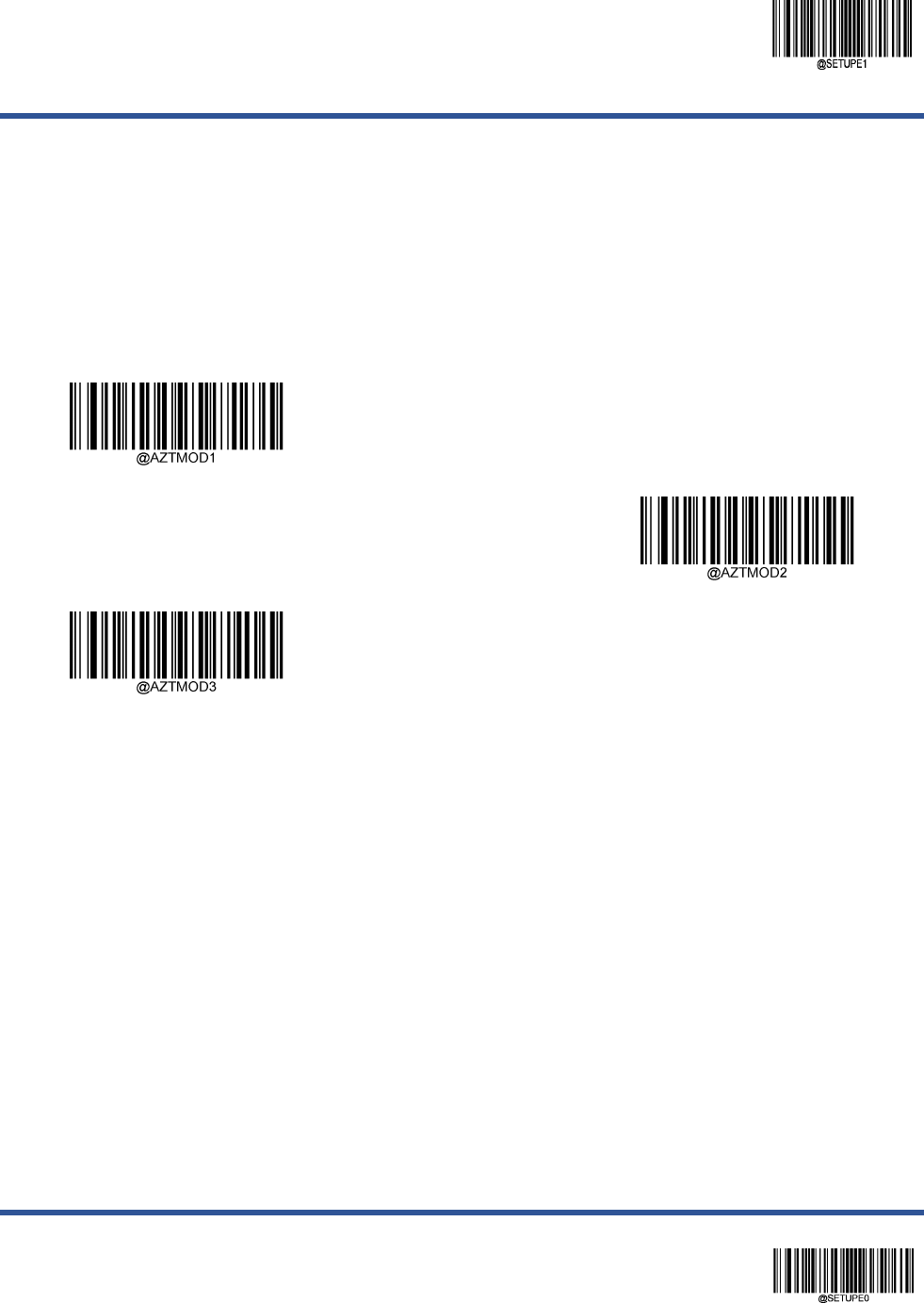

Read Multi-barcodes on an Image
There are three options:
Mode 1: Read one barcode only.
Mode 2: Read fixed number of barcodes only.
Mode 3: Composite Reading. Read fixed number of barcodes first. If unsuccessful, read one barcode only.
** Mode 1
Mode 2
Mode 3
Enter Setup
** Exit Setup 190
Set the Number of Barcodes
** 1
2
3
4
5
6
7
8
Enter Setup
191 ** Exit Setup
Character Encoding
** Default Character Encoding
UTF-8
Aztec ECI Output
Disable Aztec ECI Output
** Enable Aztec ECI Output
Enter Setup
** Exit Setup 192
Data Matrix
Restore Factory Defaults
Restore the Factory Defaults of Data Matrix
Enable/Disable Data Matrix
** Enable Data Matrix
Disable Data Matrix
If the scanner fails to identify Data Matrix barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Data Matrix barcode.
Enter Setup
193 ** Exit Setup

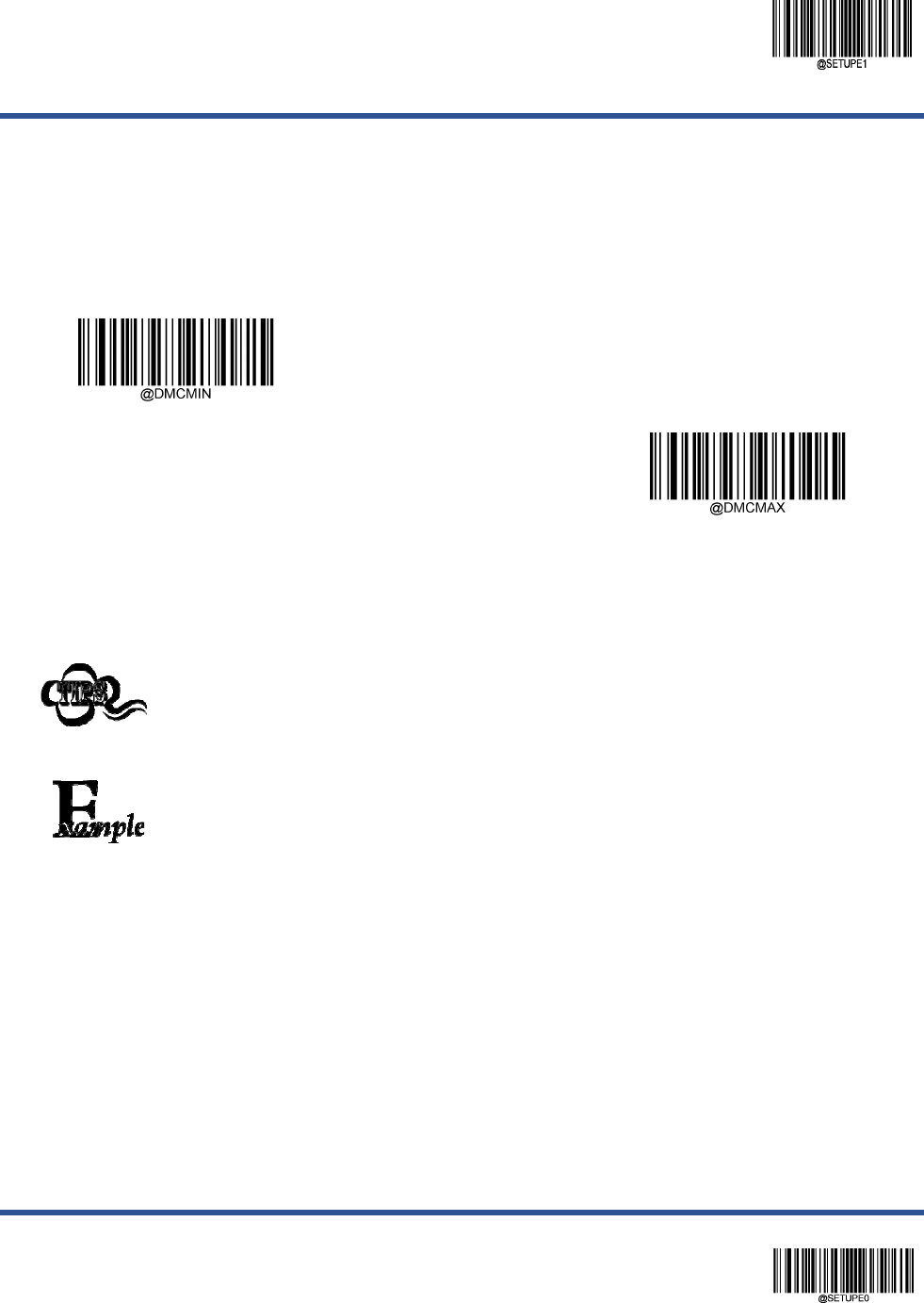

Set Length Range for Data Matrix
The scanner can be configured to only decode Data Matrix barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 3116)
Minimum length is not allowed to be greater than maximum length. If you only want to read Data Matrix
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Data Matrix barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 194
Data Matrix Twin Code
Data Matrix twin code is 2 Data Matrix barcodes paralleled vertically or horizontally. They must both be either regular or
inverse barcodes. They must have similar specifications and be placed closely together.
There are 3 options for reading Data Matrix twin codes:
Single Data Matrix Only: Read either Data Matrix code.
Twin Data Matrix Only: Read both Data Matrix codes. Transmission sequence: left (upper) Data Matrix code followed
by right (lower) Data Matrix code.
Both Single & Twin: Read both Data Matrix codes. If successful, transmit as twin Data Matrix only. Otherwise, try
single Data Matrix only.
** Single Data Matrix Only
Twin Data Matrix Only
Both Single & Twin
Enter Setup
195 ** Exit Setup
Rectangular Barcode
Data Matrix has two formats:
Square barcodes having the same amount of modules in length and width: 10*10, 12*12.... 144*144.
Rectangular barcodes having different amounts of models in length and width: 6*16, 6*14...14*22.
** Enable Rectangular Barcode
Disable Rectangular Barcode
Data Matrix Inverse
Regular barcode: Dark bars on a bright background.
Inverse barcode: Bright bars on a dark background.
** Decode Regular Data Matrix Barcodes Only
Decode Inverse Data Matrix Barcodes Only
Decode Both
Enter Setup
** Exit Setup 196

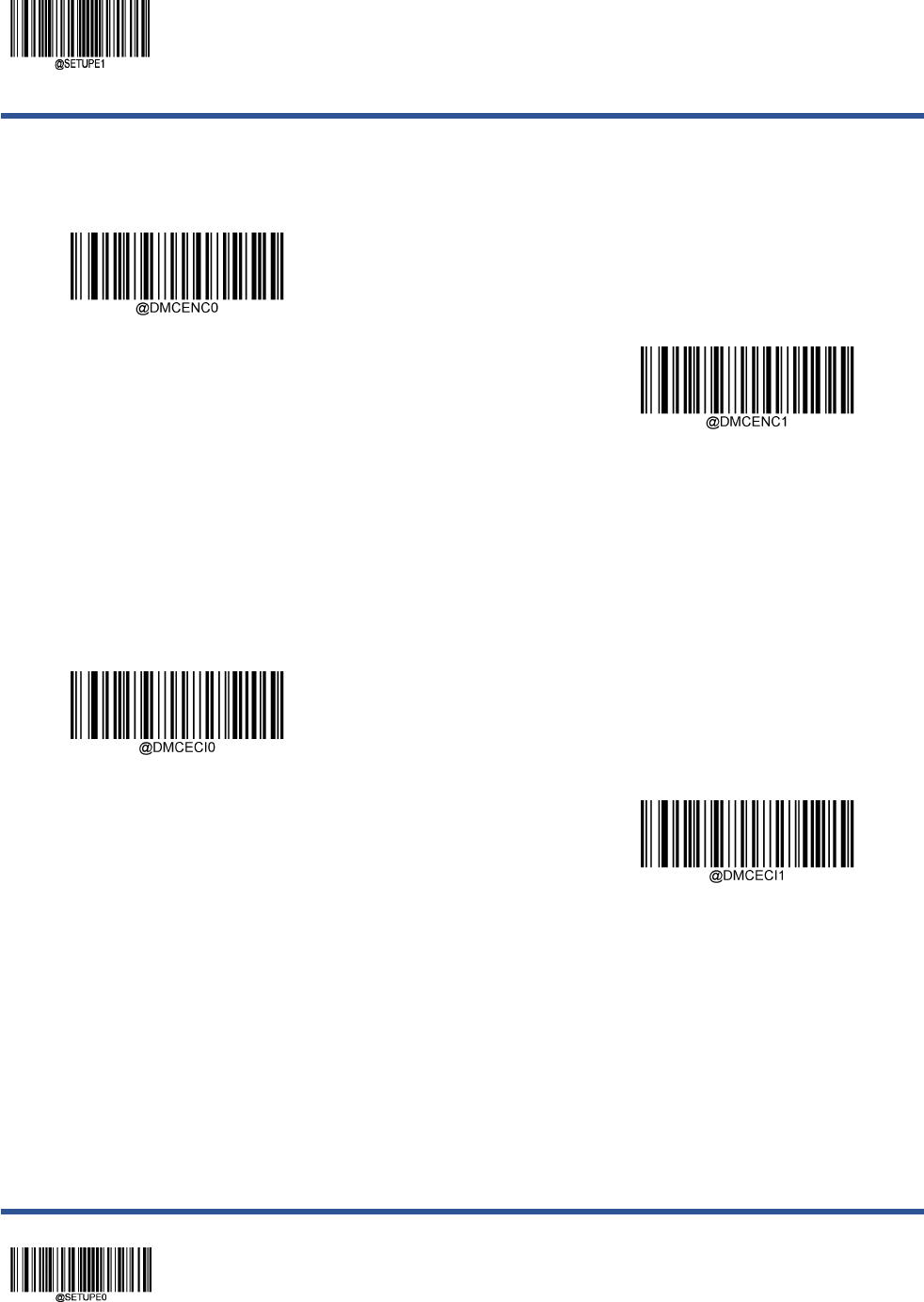

Character Encoding
** Default Character Encoding
UTF-8
Data Matrix ECI Output
Disable Data Matrix ECI Output
** Enable Data Matrix ECI Output
Enter Setup
197 ** Exit Setup
Maxicode
Restore Factory Defaults
Restore the Factory Defaults of Maxicode
Enable/Disable Maxicode
Enable Maxicode
** Disable Maxicode
If the scanner fails to identify Maxicode barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Maxicode barcode.
Enter Setup
** Exit Setup 198
Set Length Range for Maxicode
The scanner can be configured to only decode Maxicode barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default:150)
Minimum length is not allowed to be greater than maximum length. If you only want to read Maxicode
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Maxicode barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
199 ** Exit Setup
Chinese Sensible Code
Restore Factory Defaults
Restore the Factory Defaults of Chinese Sensible Code
Enable/Disable Chinese Sensible Code
Enable Chinese Sensible Code
** Disable Chinese Sensible Code
If the scanner fails to identify Chinese Sensible Code barcodes, you may first try this solution by
scanning the Enter Setup barcode and then Enable Chinese Sensible Code barcode.
Enter Setup
** Exit Setup 200
Set Length Range for Chinese Sensible Code
The scanner can be configured to only decode Chinese Sensible Code barcodes with lengths that fall between (inclusive)
the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 7827)
Minimum length is not allowed to be greater than maximum length. If you only want to read Chinese
Sensible Code barcodes with a specific length, set both minimum and maximum lengths to be that
desired length.
Set the scanner to decode Chinese Sensible Code barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
201 ** Exit Setup
Chinese Sensible Twin Code
Chinese Sensible twin code is 2 Chinese Sensible barcodes paralleled vertically or horizontally. They must both be either
regular or inverse barcodes. They must have similar specifications and be placed closely together.
There are 3 options for reading Chinese Sensible twin codes:
Single Chinese Sensible Code Only: Read either Chinese Sensible code.
Twin Chinese Sensible Code Only: Read both Chinese Sensible codes. Transmission sequence: left (upper)
Chinese Sensible code followed by right (lower) Chinese Sensible code.
Both Single & Twin: Read both Chinese Sensible codes. If successful, transmit as twin Chinese Sensible Code only.
Otherwise, try single Chinese Sensible Code only.
** Single Chinese Sensible Code Only
Twin Chinese Sensible Code Only
Both Single & Twin
Enter Setup
** Exit Setup 202
Chinese Sensible Code Inverse
Regular barcode: Dark bars on a bright background.
Inverse barcode: Bright bars on a dark background.
** Decode Regular Chinese Sensible Barcodes Only
Decode Inverse Chinese Sensible Barcodes Only
Decode Both
Enter Setup
203 ** Exit Setup
GM Code
Restore Factory Defaults
Restore the Factory Defaults of GM
Enable/Disable GM
Enable GM
** Disable GM
If the scanner fails to identify GM barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable GM barcode.
Enter Setup
** Exit Setup 204
Set Length Range for GM
The scanner can be configured to only decode GM barcodes with lengths that fall between (inclusive) the minimum and
maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 2751)
Minimum length is not allowed to be greater than maximum length. If you only want to read GM barcodes
with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode GM barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
205 ** Exit Setup
Code One
Restore Factory Defaults
Restore the Factory Defaults of Code One
Enable/Disable Code One
Enable Code One
** Disable Code One
If the scanner fails to identify Code One barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Code One barcode.
Enter Setup
** Exit Setup 206
Set Length Range for Code One
The scanner can be configured to only decode Code One barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 3550)
Minimum length is not allowed to be greater than maximum length. If you only want to read Code One
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Code One barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
Enter Setup
207 ** Exit Setup
USPS Postnet
Restore Factory Defaults
Restore the Factory Defaults of USPS Postnet
Enable/Disable USPS Postnet
Enable USPS Postnet
** Disable USPS Postnet
If the scanner fails to identify USPS Postnet barcodes, you may first try this solution by scanning the
Enter Setup barcode and then Enable USPS Postnet barcode.
Transmit Check Character
Do Not Transmit USPS Postnet Check Character
** Transmit USPS Postnet Check Character
Enter Setup
** Exit Setup 208
USPS Intelligent Mail
Restore Factory Defaults
Restore the Factory Defaults of USPS Intelligent Mail
Enable/Disable USPS Intelligent Mail
Enable USPS Intelligent Mail
** Disable USPS Intelligent Mail
If the scanner fails to identify USPS Intelligent Mail barcodes, you may first try this solution by scanning
the Enter Setup barcode and then Enable USPS Intelligent Mail barcode.
Enter Setup
209 ** Exit Setup
Royal Mail
Restore Factory Defaults
Restore the Factory Defaults of Royal Mail
Enable/Disable Royal Mail
Enable Royal Mail
** Disable Royal Mail
If the scanner fails to identify Royal Mail barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Royal Mail barcode.
Enter Setup
** Exit Setup 210
USPS Planet
Restore Factory Defaults
Restore the Factory Defaults of USPS Planet
Enable/Disable USPS Planet
Enable USPS Planet
** Disable USPS Planet
If the scanner fails to identify USPS Planet barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable USPS Planet barcode.
Transmit Check Character
Do Not Transmit USPS Planet Check Character
** Transmit USPS Planet Check Character
Enter Setup
211 ** Exit Setup
KIX Post
Restore Factory Defaults
Restore the Factory Defaults of KIX Post
Enable/Disable KIX Post
Enable KIX Post
** Disable KIX Post
If the scanner fails to identify KIX Post barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable KIX Post barcode.
Enter Setup
** Exit Setup 212
Australian Postal
Restore Factory Defaults
Restore the Factory Defaults of Australian Postal
Enable/Disable Australian Postal
Enable Australian Postal
** Disable Australian Postal
If the scanner fails to identify Australian Postal barcodes, you may first try this solution by scanning the
Enter Setup barcode and then Enable Australian Postal barcode.
Enter Setup
213 ** Exit Setup
Specific OCR-B
Restore Factory Defaults
Restore the Factory Defaults of Specific OCR-B
Enable/Disable Specific OCR-B
Enable Specific OCR-B
** Disable Specific OCR-B
If the scanner fails to identify Specific OCR-B barcodes, you may first try this solution by scanning the
Enter Setup barcode and then Enable Specific OCR-B barcode.
Enter Setup
** Exit Setup 214
Passport OCR
Restore Factory Defaults
Restore the Factory Defaults of Passport OCR
Enable/Disable Passport OCR
Enable Passport OCR
** Disable Passport OCR
If the scanner fails to identify Passport OCR barcodes, you may first try this solution by scanning the
Enter Setup barcode and then Enable Passport OCR barcode.
Enter Setup
215 ** Exit Setup
Chapter 8 Data Formatter
Introduction
You may use the Data Formatter to modify the scanner’s output. For example, you can use the Data Formatter to insert
characters at certain points in barcode data or to suppress/ replace/ send certain characters in barcode data as it is
scanned.
Normally, when you scan a barcode, it gets outputted automatically; however, when you create a format, you must use a
“send” command (see the “Send Commands” section in this chapter) within the format programming to output data.
Multiple data formats can be programmed into the scanner. The maximum size of all data formats created is 2048
characters. By default, the data formatter is disabled. Enable it when required. If you have changed data format settings,
and wish to clear all formats and return to the factory defaults, scan the Default Data Format barcode below.
Default Data Format
Add a Data Format
Data format is used to edit barcode data. When you create a data format, you must select one of the four labels (Format_0,
Format_1, Format_2 and Format_3) for your data format, specify the application scope of data format (such as barcode
type and data length) and include formatter commands. Multiple data formats may be created using the same label. When
scanned data does not match your data format requirements, you will hear the non-match error beep (if the non-match
error beep is ON).
There are two methods to program a data format: Programming with barcodes and programming with serial commands.
Programming with Barcodes
The following explains how to program a data format by scanning the specific barcodes. Scanning any irrelevant barcode
or failing to follow the setting procedure will result in programming failure. To find the alphanumeric barcodes needed to
create a data format, see the “Digit Barcodes” section in Appendix.
Step 1: Scan the Enter Setup barcode.
Enter Setup
** Exit Setup 216
Step 2: Scan the Add Data Format barcode.
Add Data Format
Step 3: Select a label (Format_0 or Format_1 or Format_2 or Format_3).
Scan a numeric barcode 0 or 1 or 2 or 3 to label this data format Format_0 or Format_1 or Format_2 or Format_3.
Step 4: Select formatter command type.
Specify what type of formatter commands will be used. Scan a numeric barcode “6” to select formatter command type 6.
(See the “Formatter Command Type 6” section in this chapter for more information)
Step 5: Set interface type
Scan 999 for any interface type.
Step 6: Set Symbology ID Number
Refer to the “Symbology ID Number” section in Appendix and find the ID number of the symbology to which you want to
apply the data format. Scan three numeric barcodes for the symbology ID number. If you wish to create a data format for all
symbologies, scan 999.
Step 7: Set barcode data length
Specify what length of data will be acceptable for this symbology. Scan the four numeric barcodes that represent the data
length. 9999 is a universal number, indicating all lengths. For example, 32 characters should be entered as 0032.
Step 8: Enter formatter command
Refer to the “Formatter Command Type 6” section in this chapter. Scan the alphanumeric barcodes that represent the
command you need to edit data. For example, when a command is F141, you should scan F141.
Step 9: Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix to save your data format.
Enter Setup
217 ** Exit Setup
Example: Program a Format_0 data format using formatter command type 6, Code 128 containing 10 characters
applicable, send all characters followed by “A”.
1. Scan the Enter Setup barcode Enter the Setup mode
2. Scan the Add Data Format barcode Add a data format
3. Scan the 0 barcode Select Format_0 as the label
4. Scan the 6 barcode Select formatter command type 6
5. Scan the 9 barcode three times All interface types applicable
6. Scan the barcodes 002 Only Code 128 applicable
7. Scan the barcodes 0010 Only a length of 10 characters applicable
8. Scan the alphanumeric barcodes F141 Send all characters followed by “A” (HEX: 41)
9. Scan the Save barcode Save the data format
To streamline the programming process, you may as well generate a batch barcode by inputting the command (e.g.
@DFMADD069990020010F141;) used to create a data format. See the “Use Batch Barcode” section in Chapter 10 to
learn how to put a batch barcode into use.
When creating multiple data formats sharing a label, the formats are separated from each other by a vertical bar (|) in the
batch command, e.g. @DFMADD069990029999F141|069990039999F142|169990049999F143;.
Enter Setup
** Exit Setup 218
Programming with Serial Commands
A data format can also be created by serial commands (HEX) sent from the host device. All commands must be entered
in uppercase letters.
The syntax consists of the following elements:
Prefix: “~<SOH>0000” (HEX: 7E 01 30 30 30 30), 6 characters.
Storage type: “@” (HEX: 40) or “#” (HEX: 23), 1 character. “@” means permanent setting which will not be lost by
removing power from the scanner or rebooting it; “#” means temporary setting which will be lost by removing power from
the scanner or rebooting it.
Add Data Format Command: “DFMADD” (HEX: 44 46 4D 41 44 44), 6 characters.
Data format label: “0” (HEX: 30) or “1” (HEX: 31) or “2” (HEX: 32) or ”3” (HEX: 33), 1 character. “0”, “1”, “2” and “3”
represent Format_0, Format_1, Format_2 and Format_3 respectively.
Formatter command type: “6” (HEX: 36), 1 character.
Interface type: “999” (HEX: 39 39 39), 3 characters.
Symbology ID Number: The ID number of the symbology to which you want to apply the data format, 3 characters. 999
indicates all symbologies.
Data length: The length of data that will be acceptable for this symbology, 4 characters. 9999 indicates all lengths. For
example, 32 characters should be entered as 0032.
Formatter commands: The command string used to edit data. For more information, see the “Formatter Command Type
6” section in this chapter.
Suffix: “;<ETX>” (HEX: 3B 03), 2 characters.
Example: Program a Format_0 data format using formatter command type 6, Code 128 containing 10 characters
applicable, send all characters followed by “A”.
Enter: 7E 01 30 30 30 30 40 44 46 4D 41 44 44 30 36 39 39 39 30 30 33 39 39 39 39 46 31 34 31 3B 03
(~<SOH>0000@DFMADD069990020010F141;<ETX>)
Response: 02 01 30 30 30 30 40 44 46 4D 41 44 44 30 36 39 39 39 30 30 33 39 39 39 39 46 31 34 31 06 3B 03
(<STX><SOH>0000@DFMADD069990020010F141<ACK>;<ETX>)
When creating multiple data formats sharing a label, the formats are separated from each other by a vertical bar (|) in the
serial command.
Example: ~<SOH>0000@DFMADD069990020010F141|069990039999F142|069990049999F143;<ETX>
Enter Setup
219 ** Exit Setup
Enable/Disable Data Formatter
When Data Formatter is disabled, the barcode data is outputted to the host as read, including prefixes and suffixes.
** Disable Data Formatter
You may wish to require the data to conform to a data format you have created. The following settings can be applied to
your data format:
Enable Data Formatter, Required, Keep Prefix/Suffix: Scanned data that meets your data format requirements is
modified accordingly and gets outputted along with prefixes and suffixes (if prefix and suffix are enabled). Any data that
does not match your data format requirements generates an error beep (if Non-Match Error Beep is turned ON) and the
data in that barcode is not transmitted.
Enable Data Formatter, Required, Drop Prefix/Suffix: Scanned data that meets your data format requirements is
modified accordingly and gets outputted without prefixes and suffixes (even if prefix and suffix are enabled). Any data that
does not match your data format requirements generates an error beep (if Non-Match Error Beep is turned ON) and the
data in that barcode is not transmitted.
Enable Data Formatter, Not Required, Keep Prefix/Suffix: Scanned data that meets your data format requirements is
modified accordingly and gets outputted along with prefixes and suffixes (if prefix and suffix are enabled). Barcode data
that does not match your data format requirements is transmitted as read along with prefixes and suffixes (if prefix and
suffix are enabled).
Enable Data Formatter, Not Required, Drop Prefix/Suffix: Scanned data that meets your data format requirements is
modified accordingly and gets outputted without prefixes and suffixes (even if prefix and suffix are enabled). Barcode data
that does not match your data format requirements is transmitted as read along with prefixes and suffixes (if prefix and
suffix are enabled).
Enter Setup
** Exit Setup 220

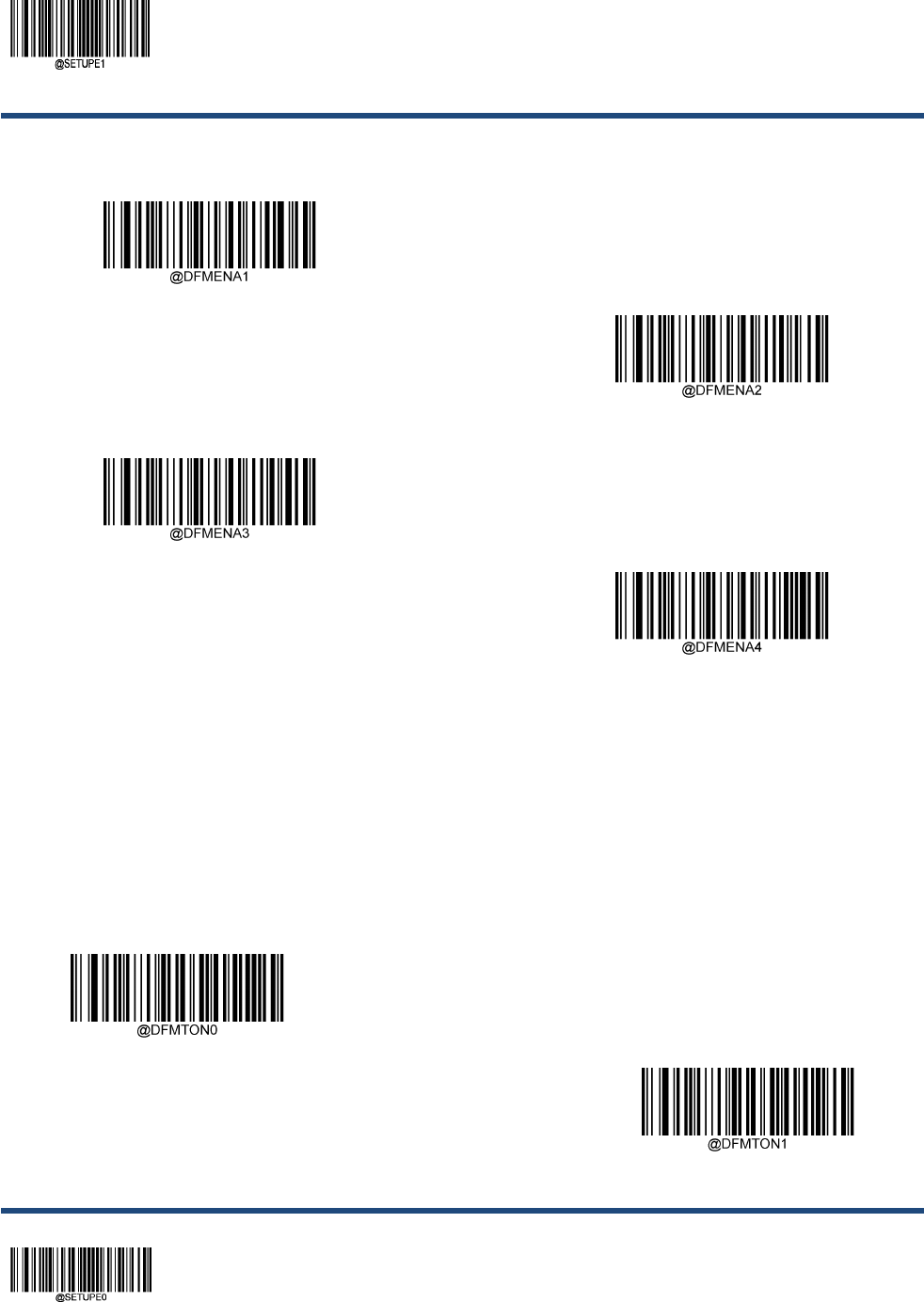

Enable Data Formatter, Required, Keep Prefix/Suffix
Enable Data Formatter, Required, Drop Prefix/Suffix
Enable Data Formatter, Not Required, Keep Prefix/Suffix
Enable Data Formatter, Not Required, Drop Prefix/Suffix
Non-Match Error Beep
If Non-Match Error Beep is turned ON, the scanner generates an error beep when a barcode is encountered that does not
match your required data format.
Non-Match Error Beep Off
** Non-Match Error Beep On
Enter Setup
221 ** Exit Setup
Data Format Selection
After enabling the Data Formatter, you can select a data format you want to use by scanning the appropriate barcode
below.
** Format_0
Format_1
Format_2
Format_3
Enter Setup
** Exit Setup 222
Change Data Format for a Single Scan
You can switch between data formats for a single scan. The next barcode is scanned using the data format selected here,
then reverts to the format you have selected above.
For example, you may have set your scanner to use the data format you saved as Format_3. You can switch to Format_1
for a single trigger pull by scanning the Single Scan – Format_1 barcode below. The next barcode that is scanned uses
Format_1, then reverts back to Format_3.
Note: This setting will be lost by removing power from the scanner, or turning off/ rebooting the device.
Single Scan – Format_0
Single Scan – Format_1
Single Scan – Format_2
Single Scan – Format_3
Enter Setup
223 ** Exit Setup
Clear Data Format
There are two methods to remove data format created from your scanner:
Delete one data format: Scan the Clear One barcode, a numeric barcode (0-3) and the Save barcode. For example, to
delete Format_2, you should scan the Clear One barcode, the 2 barcode and the Save barcode
Delete all data formats: Scan the Clear All barcode.
Clear All
Clear One
Query Data Formats
You may scan the appropriate barcode below to get the information of data format(s) created by you or preset by
manufacturer. For instance, if you have added Format_0 as per the example in the “Add a Data Format” section in this
chapter, scanning the Query Current Data Formats barcode, you will get the result: Data Format0:069990020010F141;.
Query Current Data Formats
Query Preset Data Formats
Enter Setup
** Exit Setup 224
Formatter Command Type 6
When working with the Data Formatter, a virtual cursor is moved along your input data string. The following commands are
used to both move this cursor to different positions, and to select, replace, and insert data into the final output. For the hex
value of ASCII characters involved in the commands, refer to the “ASCII Table” in Appendix.
Send Commands
F1 Send all characters
Syntax=F1xx (xx: The insert character’s hex value)
Include in the output message all of the characters from the input message, starting from current cursor position, followed
by an insert character.
F2 Send a number of characters
Syntax=F2nnxx (nn: The numeric value (00-99) for the number of characters; xx: The insert character’s hex value)
Include in the output message a number of characters followed by an insert character. Start from the current cursor position
and continue for “nn” characters or through the last character in the input message, followed by character “xx.”

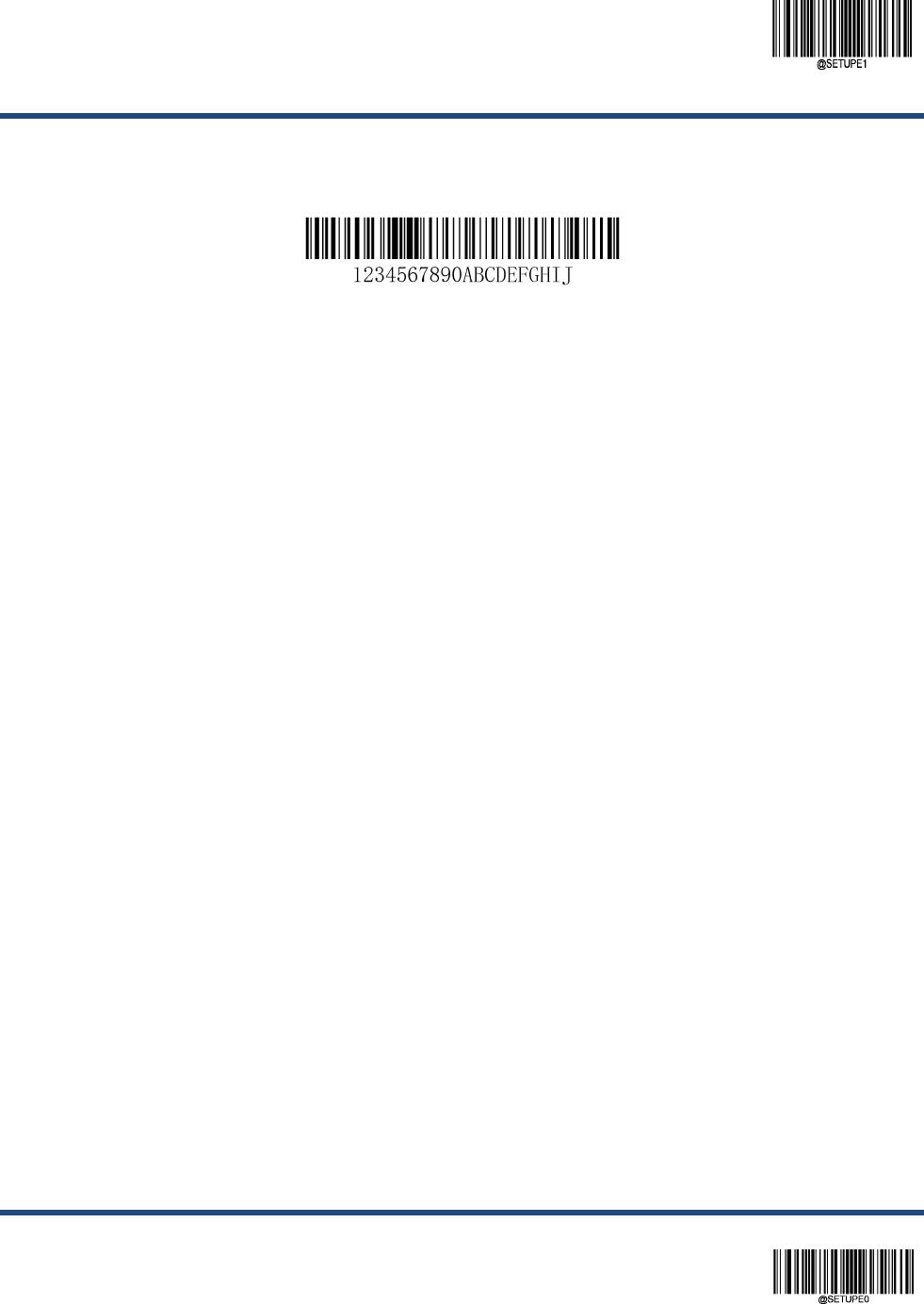

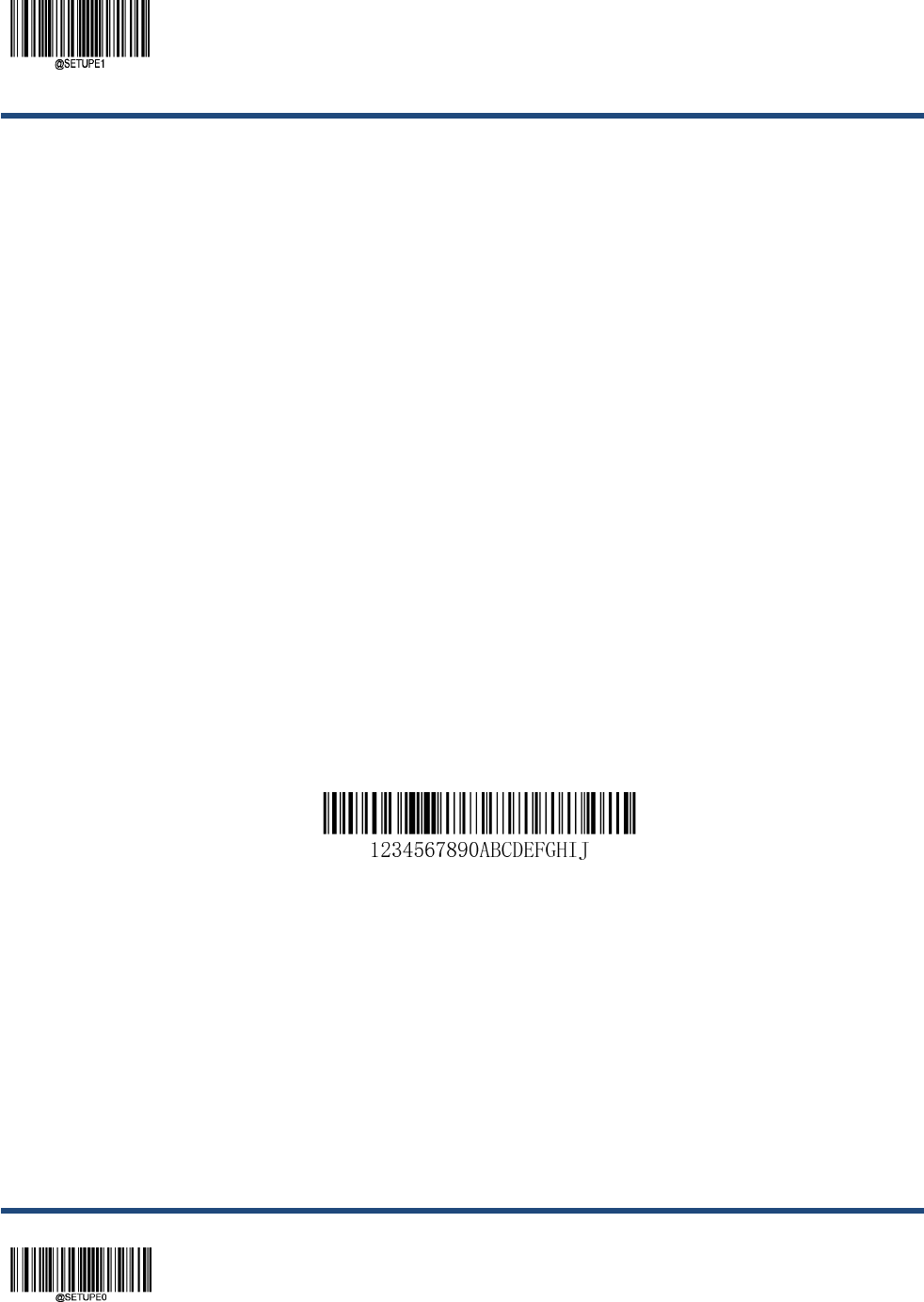

F2 Example: Send a number of characters
Send the first 10 characters from the barcode above, followed by a carriage return.
Command string: F2100D
F2 is the “Send a number of characters” command
10 is the number of characters to send
0D is the hex value for a CR
The data is output as: 1234567890
<CR>
Enter Setup
225 ** Exit Setup
F3 Send all characters up to a particular character
Syntax=F3ssxx (ss: The particular character’s hex value; xx: The insert character’s hex value)
Include in the output message all characters from the input message, starting with the character at the current cursor
position and continuing to, but not including, the particular character “ss,” followed by character “xx.” The cursor is moved
forward to the “ss” character.

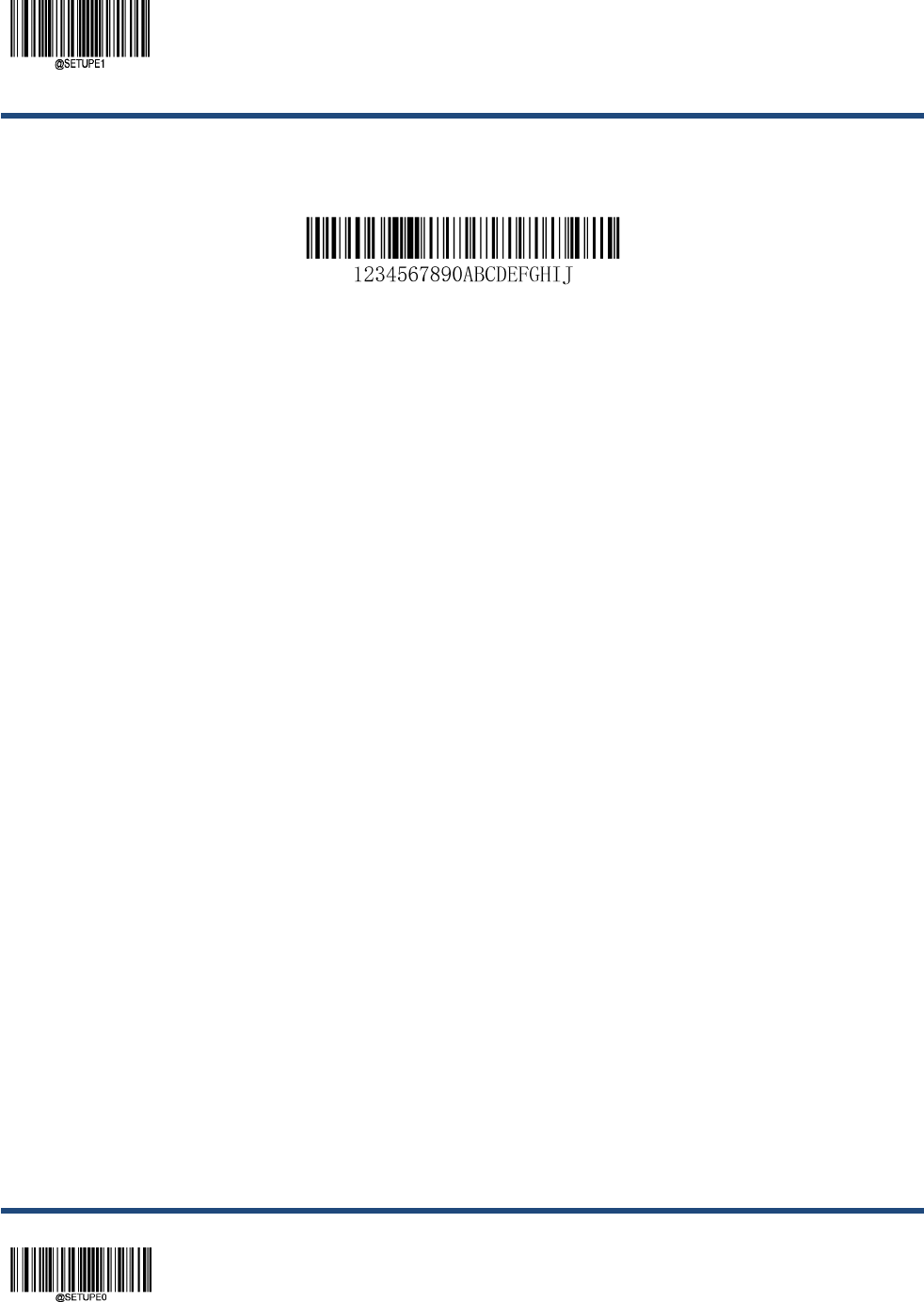

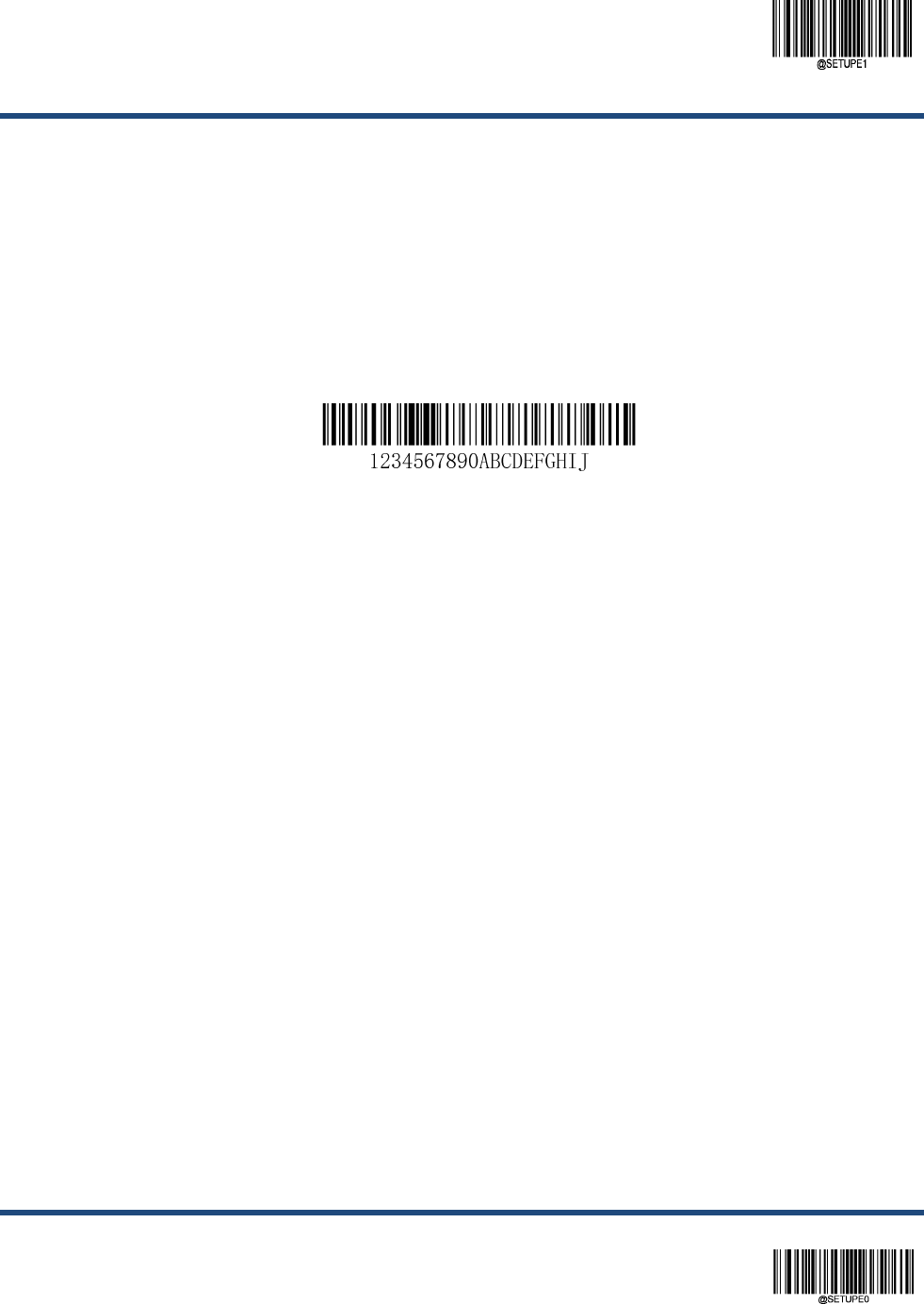

F3 Example: Send all characters up to a particular character
Using the barcode above, send all characters up to but not including “D,” followed by a carriage return.
Command string: F3440D
F3 is the “Send all characters up to a particular character” command
44 is the hex value for a “D”
0D is the hex value for a CR
The data is output as: 1234567890ABC
<CR>
Enter Setup
** Exit Setup 226
B9 Send all characters up to a particular string
Syntax=B9nnnns...s (nnnn: The length of the particular string; s...s: The hex value of each character in the particular string)
Include in the output message all characters from the input message, starting with the character at the current cursor
position and continuing to, but not including, the particular string “s...s.” The cursor is moved forward to the beginning of the
“s...s” string.
B9 Example: Send all characters up to a particular string
Using the barcode above, send all characters up to but not including “AB.”
Command string: B900024142
B9 is the “Send all characters up to a particular string” command
0002 is the length of the particular string (2 characters)
41 is the hex value for a “A” (character in the string)
42 is the hex value for a “B” (character in the string)
The data is output as: 1234567890
E9 Send all but the last characters
Syntax=E9nn (nn: The numeric value (00-99) for the number of characters that will not be sent at the end of the message)
Include in the output message all but the last “nn” characters, starting from the current cursor position. The cursor is moved
forward to one position past the last input message character included.
F4 Insert a character multiple times
Syntax=F4xxnn (xx: The insert character’s hex value; nn: The numeric value (00-99) for the number of times it should be
sent)
Send “xx” character “nn” times in the output message, leaving the cursor in the current position.
Enter Setup
227 ** Exit Setup
E9 and F4 Example: Send all but the last characters, followed by 2 tabs
Send all characters except for the last 8 from the barcode above, followed by 2 tabs.
Command string: E908F40902
E9 is the “Send all but the last characters” command
08 is the number of characters at the end to ignore
F4 is the “Insert a character multiple times” command
09 is the hex value for a horizontal tab
02 is the number of time the tab character is sent
The data is output as: 1234567890AB<tab><tab>
B3 Insert symbology name
Insert the name of the barcode’s symbology in the output message, without moving the cursor.
B4 Insert barcode length
Insert the barcode’s length in the output message, without moving the cursor. The length is expressed as a numeric string
and does not include leading zeros.
Enter Setup
** Exit Setup 228
B3 and B4 Example: Insert the symbology name and length
Send the symbology name and length before the barcode data from the barcode above. Break up these insertions with
spaces. End with a carriage return.
Command string: B3F42001B4F42001F10D
B3 is the “Insert symbology name” command
F4 is the “Insert a character multiple times” command
20 is the hex value for a space
01 is the number of time the space character is sent
B4 is the “Insert barcode length” command
F4 is the “Insert a character multiple times” command
20 is the hex value for a space
01 is the number of time the space character is sent
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: Code128 20 1234567890ABCDEFGHIJ
<CR>
Move Commands
F5 Move the cursor forward a number of characters
Syntax=F5nn (nn: The numeric value (00-99) for the number of characters the cursor should be moved ahead)
Move the cursor ahead “nn” characters from current cursor position.
Enter Setup
229 ** Exit Setup
F5 Example: Move the cursor forward and send the data
Move the cursor forward 3 characters, then send the rest of the barcode data from the barcode above. End with a carriage
return.
Command string: F503F10D
F5 is the “Move the cursor forward a number of characters” command
03 is the number of characters to move the cursor
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: 4567890ABCDEFGHIJ
<CR>
F6 Move the cursor backward a number of characters
Syntax=F6nn (nn: The numeric value (00-99) for the number of characters the cursor should be moved back)
Move the cursor back “nn” characters from current cursor position.
F7 Move the cursor to the beginning
Syntax＝F7
Move the cursor to the first character in the input message.
EA Move the cursor to the end
Syntax＝EA
Move the cursor to the last character in the input message.
Enter Setup
** Exit Setup 230
Search Commands
F8 Search forward for a character
Syntax＝F8xx (xx: The search character’s hex value)
Search the input message forward for “xx” character from the current cursor position, leaving the cursor pointing to the “xx”
character.
F8 Example: Send barcode data that starts after a particular character
Search for the letter “D” in barcodes and send all the data that follows, including the “D”. Using the barcode above:
Command string: F844F10D
F8 is the “Search forward for a character” command
44 is the hex value for “D”
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: DEFGHIJ
<CR>
F9 Search backward for a character
Syntax＝F9xx(xx: The search character’s hex value)
Search the input message backward for “xx” character from the current cursor position, leaving the cursor pointing to the
“xx” character.
Enter Setup
231 ** Exit Setup
B0 Search forward for a string
Syntax=B0nnnnS (nnnn: The string length (up to 9999); S: The ASCII hex value of each character in the string)
Search forward for “S” string from the current cursor position, leaving cursor pointing to “S” string. For example,
B0000454657374 will search forward for the first occurrence of the 4-character string “Test.”
B0 Example: Send barcode data that starts after a string of characters
Search for the letters “FGH” in barcodes and send all the data that follows, including “FGH.” Using the barcode above:
Command string: B00003464748F10D
B0 is the “Search forward for a string” command
0003 is the string length (3 characters)
46 is the hex value for “F”
47 is the hex value for “G”
48 is the hex value for “H”
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: FGHIJ
<CR>
B1 Search backward for a string
Syntax＝B1nnnnS (nnnn: The string length (up to 9999); S: The ASCII hex value of each character in the string)
Search backward for “S” string from the current cursor position, leaving cursor pointing to “S” string. For example,
B1000454657374 will search backward for the first occurrence of the 4-character string “Test.”
Enter Setup
** Exit Setup 232
E6 Search forward for a non-matching character
Syntax=E6xx (xx: The search character’s hex value)
Search the input message forward for the first non-“xx” character from the current cursor position, leaving the cursor
pointing to the non-“xx” character.
E6 Example: Remove zeros at the beginning of barcode data

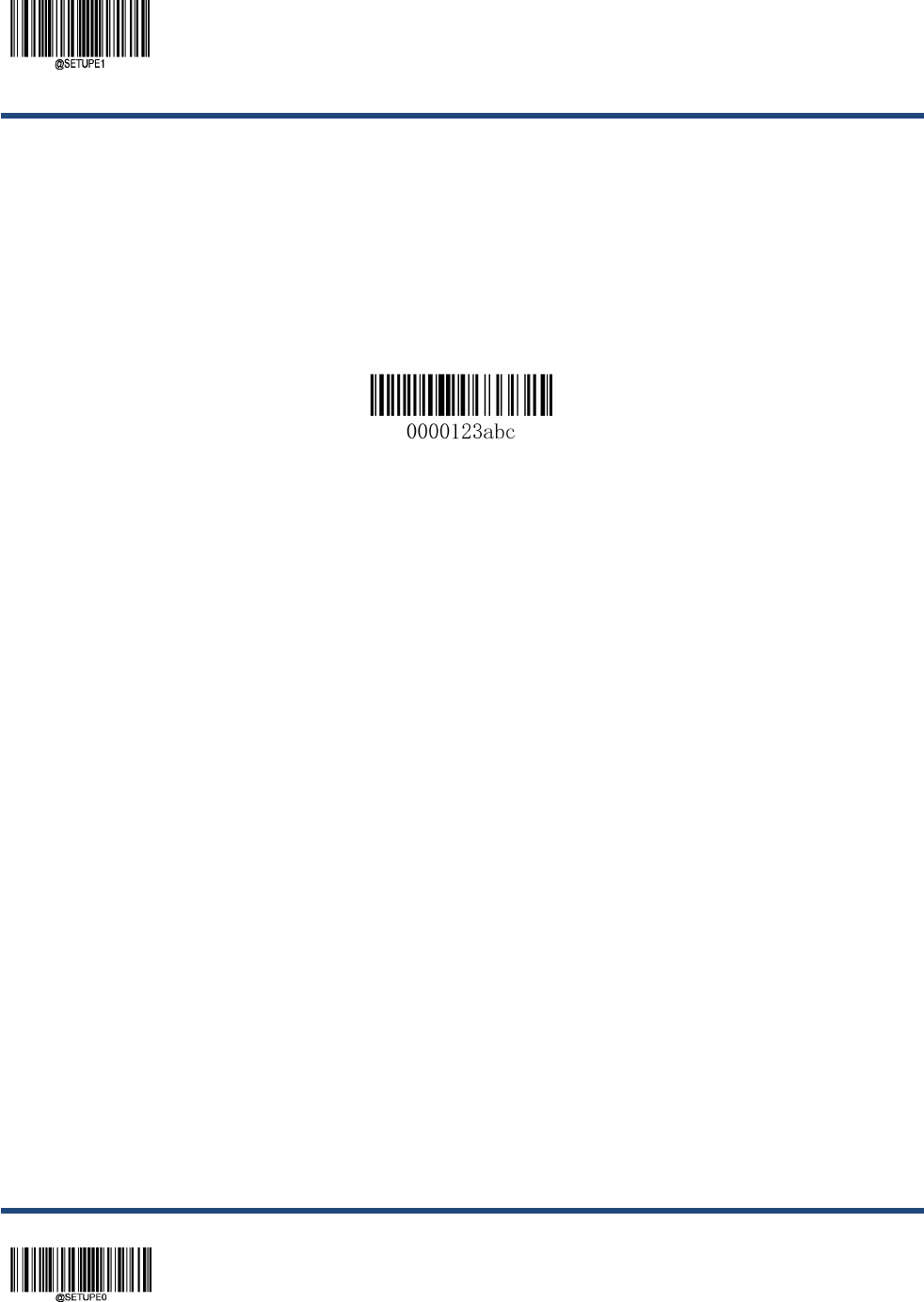

This example shows a barcode that has been zero filled. You may want to ignore the zeros and send all the data that
follows. E6 searches forward for the first character that is not zero, then sends all the data after, followed by a carriage
return. Using the barcode above:
Command string: E630F10D
E6 is the “Search forward for a non-matching character” command
30 is the hex value for 0
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: 123abc
<CR>
E7 Search backward for a non-matching character
Syntax＝E7xx(xx: The search character’s hex value)
Search the input message backward for the first non-“xx” character from the current cursor position, leaving the cursor
pointing to the non-“xx” character.
Enter Setup
233 ** Exit Setup
Miscellaneous Commands
FB Suppress characters
Syntax＝FBnnxxyy..zz (nn: The numeric value (00-15) for the number of suppressed characters; xxyy..zz: The hex value of
the characters to be suppressed)
Suppress all occurrences of up to 15 different characters, starting at the current cursor position, as the cursor is advanced
by other commands.
FB Example: Remove spaces in barcode data
This example shows a barcode that has spaces in the data. You may want to remove the spaces before sending the data.
Using the barcode above:
Command string: FB0120F10D
FB is the “Suppress characters” command
01 is the number of the characters to be suppressed
20 is the hex value for a space
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: 1234_5*678
<CR>
E4 Replace characters
Syntax＝E4nnxx1xx2yy1yy2…zz1zz2(nn: The total count of the number of characters (characters to be replaced plus
replacement characters; xx1: The characters to be replaced, xx2: The replacement characters, continuing through zz1 and
zz2)
Replace up to 15 characters in the output message, without moving the cursor.
Enter Setup
** Exit Setup 234

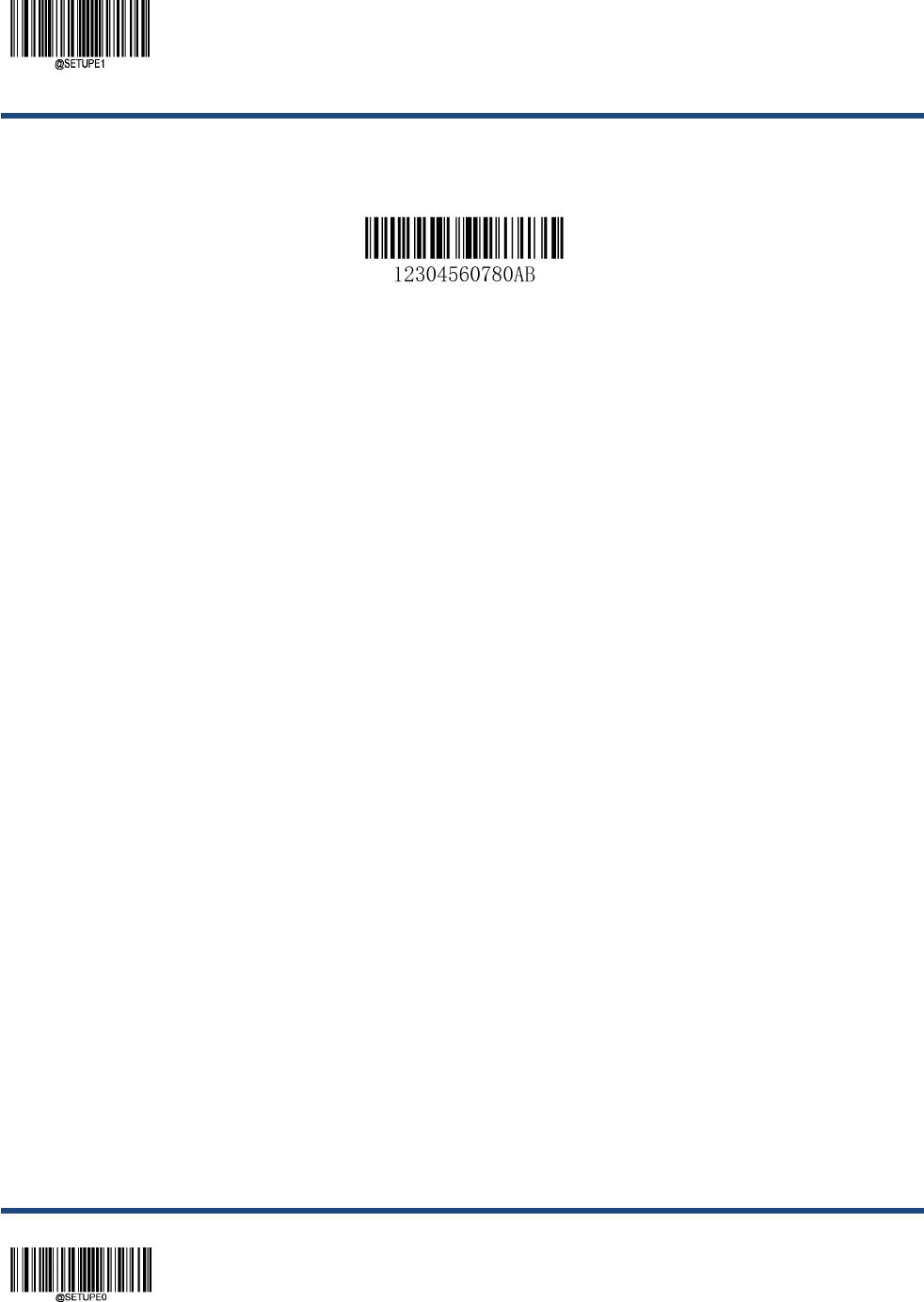

E4 Example: Replace zeros with CRs in barcode data
If the barcode has characters that the host application does not want included, you can use the E4 command to replace
those characters with something else. In this example, you will replace the zeros in the barcode above with carriage
returns.
Command string: E402300DF10D
E4 is the “Replace characters” command
02 is the total count of characters to be replaced, plus the replacement characters (0 is replaced by CR, so total
characters=2)
30 is the hex value for 0
0D is the hex value for a CR (the character that will replace the 0)
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: 123
456
78
AB
<CR>
Enter Setup
235 ** Exit Setup
BA Replace a string with another
Syntax＝BAnnNN1SS1NN2SS2
nn: The count of replacements to be made, if nn=00 or nn>=the number of occurrences of a string to be replaced, then
replace all occurrences of that string.
NN1: The length of the string to be replaced, NN1>0.
SS1: The ASCII hex value of each character in the string to be replaced.
NN2: The length of replacement string, NN2>=0. To replace string “SS1” with NUL (i.e. deIete string “SS1”), you should set
NN2 to 00 and leave out SS2.
SS2: The ASCII hex value of each character in the replacement string.
From the current cursor position, search forward for the occurrence of “SS1” string (of length “NN1”) and replace the string
with “SS2” string (of length “NN2”) in the output message until every “SS1” stringis replaced or the count of replacements
made reaches “nn” times, without moving the cursor.

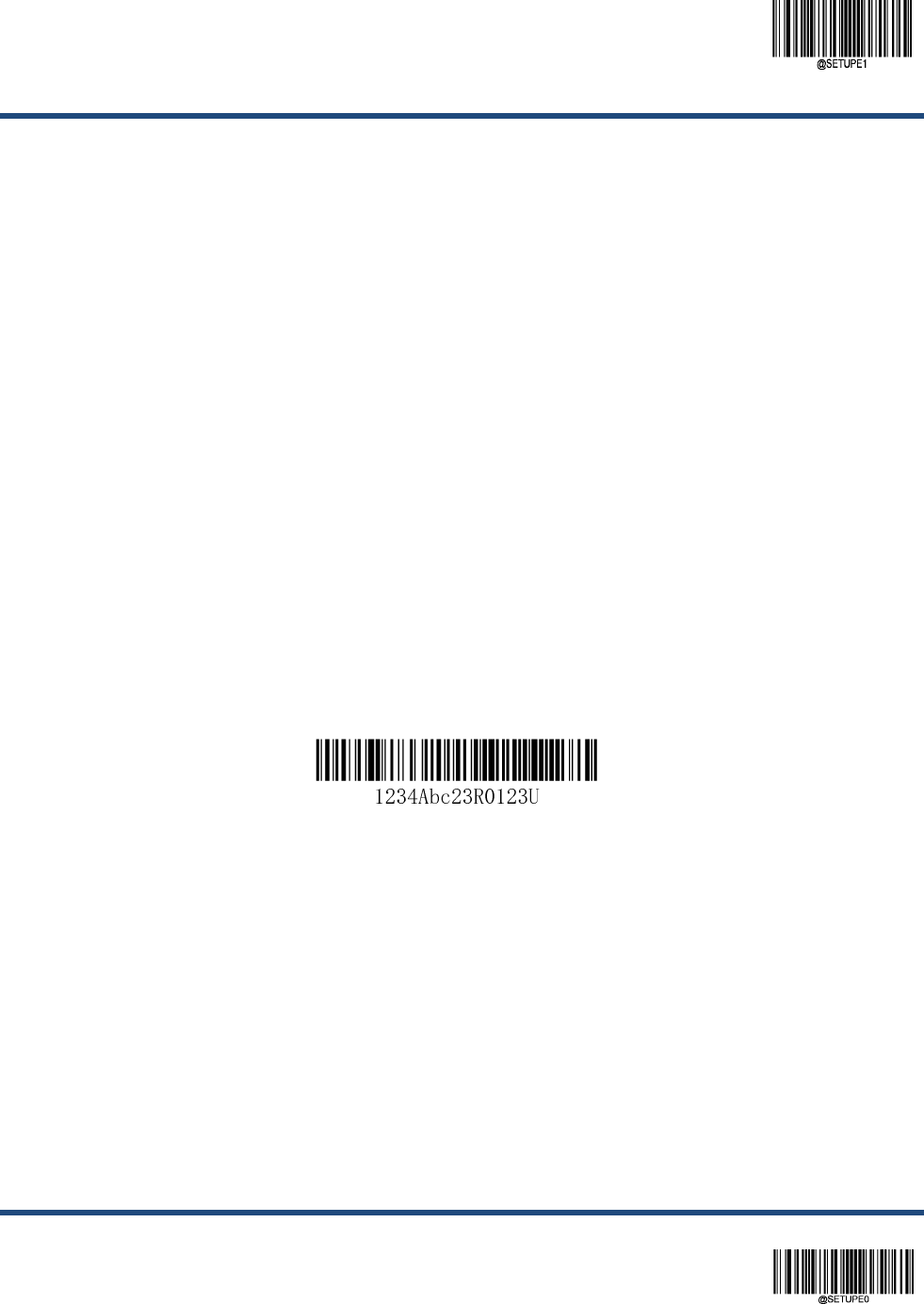

BA Example: Replace “23”s with “ABC”s in barcode data
If the barcode has a string of characters that the host application does not want included, you can use the BA command to
replace the string with something else. In this example, you will replace the “23”s in the barcode above with “ABC”s.
Command string: BA0002323303414243F100
BA is the “Replace a string with another” command
00 is the count of replacements to be made, 00 means to replace all occurrences of that string
02 is the length of the string to be replaced
32 is the hex value for 2 (character in the string to be replaced)
33 is the hex value for 3 (character in the string to be replaced)
03 is the length of the replacement string
Enter Setup
** Exit Setup 236
41 is the hex value for A (character in the replacement string)
42 is the hex value for B (character in the replacement string)
43 is the hex value for C (character in the replacement string)
F1 is the “Send all characters” command
00 is the hex value for a NUL
The data is output as: 1ABC4AbcABCR01ABCU
BA Example: Remove only the first occurrence of “23”s in barcode data
If the barcode has a string of characters that the host application wants removed, you can use the BA command to replace
the string with NUL. In this example, you will remove the first occurrence of “23” in the barcode above.
Command string: BA0102323300F100
BA is the “Replace a string with another” command
01 is the count of replacements to be made
02 is the length of the string to be replaced
32 is the hex value for 2 (character in the string to be replaced)
33 is the hex value for 3 (character in the string to be replaced)
00 is the length of the replacement string, 00 means to replace the string to be replaced with NUL
F1 is the “Send all characters” command
00 is the hex value for a NUL
The data is output as: 14Abc23R0123U
Enter Setup
237 ** Exit Setup
EF Insert a delay
Syntax＝EFnnnn (nnnn: The delay in 5ms increments, up to 9999)
Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting from the current cursor position. This command can
only be used with USB HID Keyboard.
EF Example: Insert a delay of 1s between the 5th and 6th character
Send the first 5 characters in a barcode, wait for 1s, then send the rest of the barcode data.
Command string: F20500EF0200E900
F2 is the “Send a number of characters” command
05 is the number of characters to send
00 is the hex value for a Null character
EF is the “Insert a delay” command
0200 is the delay value (5msX200=1000ms=1s)
E9 is the “Send all but the last characters” command
00 is the number of characters that will not be sent at the end of the message
Enter Setup
** Exit Setup 238
B5 Insert key strokes
Syntax=B5nnssxx (nn: The number of keys pressed (without key modifiers); ss: the key modifier from the table below; xx:
the key number from the “Unicode Key Maps” in Appendix.)
Insert a key stroke or combination of key strokes. Key strokes are dependent on your keyboard (see the “Unicode Key
Maps” in Appendix). This command can only be used with USB HID Keyboard.
Key Modifiers
No Key Modifier 00
Shift Left 01
Shift Right 02
Alt Left 04
Alt Right 08
Control Left 10
Control Right 20
For example, B501001F inserts an “a” on a U.S. style keyboard. B5 = the command, 01 = number of keys pressed (without
the key modifier), 00 is No Key Modifier, and 1F is the “a” key. If an “A” were to be inserted, B501011F or B501021F would
be entered.
If there are two keystrokes, the syntax would change from Syntax=B5nnssxx for one keystroke to Syntax=B5nnssxxssxx.
An example that would insert “aA” is as follows: B502001F011F.
Note: Key modifiers can be added together when needed. Example: Shift Left + Alt Left + Control Left =15.
Enter Setup
239 ** Exit Setup
Chapter 9 Prefix & Suffix
Introduction
A 1D barcode could contain digits, letters, symbols, etc. A 2D barcode could contain more data, such as Chinese
characters and other multi-byte characters. However, in real applications, they do not and should not have all information
we need, such as barcode type, data acquisition time and delimiter, in order to keep the barcodes short and flexible.
Preffix and suffix are how to fulfill the needs mentioned above. They can be added, removed and modified while the
original barcode data remains intact.
Barcode processing procedure:
1. Edit data with Data Formatter
2. Append prefix/suffix
3. Pack data
4. Append terminating character
Enter Setup
** Exit Setup 240
Global Settings
Enable/Disable All Prefixes/Suffixes
Disable All Prefixes/Suffixes: Transmit barcode data with no prefix/suffix.
Enable All Prefixes/Suffixes: Allow to append Code ID prefix, AIM ID prefix, custom prefix/suffix and terminating
character to the barcode data before the transmission.
** Disable All Prefixes/Suffixes
Enable All Prefixes/Suffixes
Prefix Sequence
** Code ID+ Custom +AIM ID
Custom + Code ID + AIM ID
Enter Setup
241 ** Exit Setup
Custom Prefix
Enable/Disable Custom Prefix
If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 10 characters.
For example, if the custom prefix is “AB” and the barcode data is “123”, the Host will receive “AB123”.
** Disable Custom Prefix
Enable Custom Prefix
Set Custom Prefix
To set a custom prefix, scan the Set Custom Prefix barcode then the numeric barcodes corresponding to the hexadecimal
value of a desired prefix then the Save barcode.
Note: A custom prefix cannot exceed 10 characters.
Set Custom Prefix
Set the custom prefix to “CODE” (HEX: 0x43/0x4F/0x44/0x45):
1. Scan the Enter Setup barcode.
2. Scan the Set Custom Prefix barcode.
3. Scan the numeric barcodes “4”, “3”, “4”, “F”, “4”, “4”, “4” and “5” from the “Digit Barcodes” section in
Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Enable Custom Prefix barcode.
6. Scan the Exit Setup barcode.
Enter Setup
** Exit Setup 242
AIM ID Prefix
AIM (Automatic Identification Manufacturers) ID defines symbology identifier (For the details, see the “AIM ID Table”
section in Appendix). If AIM ID prefix is enabled, the scanner will add the symbology identifier before the scanned data
after decoding.
** Disable AIM ID Prefix
Enable AIM ID Prefix
AIM ID is not user programmable.
Enter Setup
243 ** Exit Setup
Code ID Prefix
Code ID can also be used to identify barcode type. Unlike AIM ID, Code ID is user programmable. Code ID can only consist
of one or two English letters.
** Disable Code ID Prefix
Enable Code ID Prefix
Restore All Default Code IDs
For the information of default Code IDs, see the “Code ID Table” section in Appendix.
Restore All Default Code IDs
Modify Code ID
See the examples below to learn how to modify a Code ID and restore the default Code IDs of all symbologies.
Enter Setup
** Exit Setup 244
Modify PDF417 Code ID to be “p” (HEX: 0x70):
1. Scan the Enter Setup barcode.
2. Scan the Modify PDF417 Code ID barcode.
3. Scan the numeric barcodes “7” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
Restore the default Code IDs of all symbologies:
1. Scan the Enter Setup barcode.
2. Scan the Restore All Default Code IDs barcode.
3. Scan the Exit Setup barcode.
Enter Setup
245 ** Exit Setup

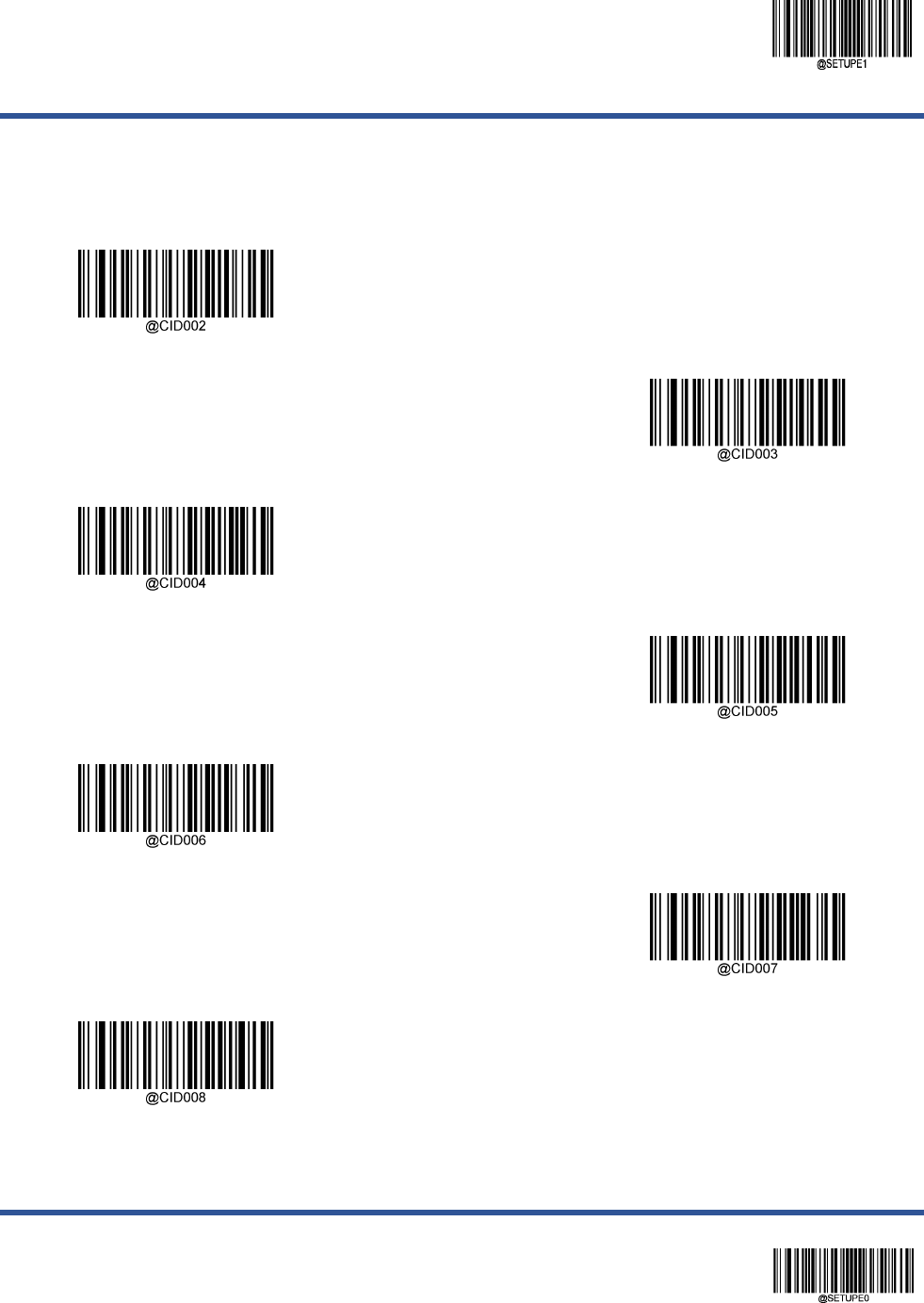

1D symbologies:
Modify Code 128 Code ID
Modify GS1-128 Code ID
Modify EAN-8 Code ID
Modify EAN-13 Code ID
Modify UPC-E Code ID
Modify UPC-A Code ID
Modify Interleaved 2 of 5 Code ID
Enter Setup
** Exit Setup 246
Modify ITF-14 Code ID
Modify ITF-6 Code ID
Modify Matrix 2 of 5 Code ID
Modify Code 39 Code ID
Modify Codabar Code ID
Modify Code 93 Code ID
Modify China Post 25 Code ID
Modify AIM 128 Code ID
Enter Setup
247 ** Exit Setup
Modify ISBT 128 Code ID
Modify ISSN Code ID
Modify ISBN Code ID
Modify Industrial 25 Code ID
Modify Standard 25 Code ID
Modify Plessey Code ID
Modify Code 11 Code ID
Modify MSI-Plessy Code ID
Enter Setup
** Exit Setup 248

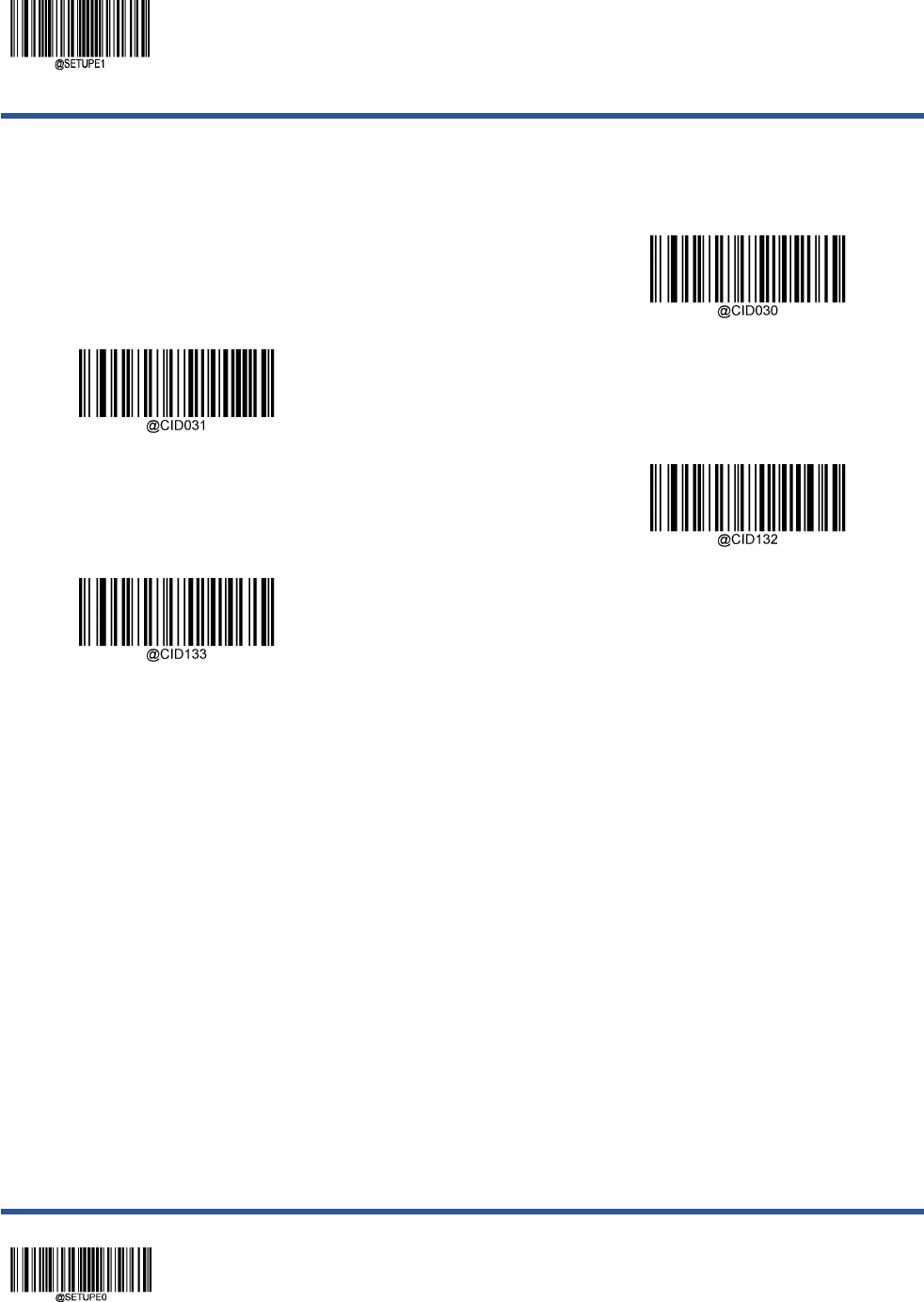

Modify GS1 Composite Code ID
Modify GS1 Databar Code ID
Modify Code 49 Code ID
Modify Code 16K Code ID
Enter Setup
249 ** Exit Setup
2D symbologies:
Modify PDF417 Code ID
Modify QR Code ID
Modify Aztec Code ID
Modify Data Matrix Code ID
Modify Maxicode Code ID
Modify Chinese Sensible Code ID
Modify GM Code ID
Enter Setup
** Exit Setup 250

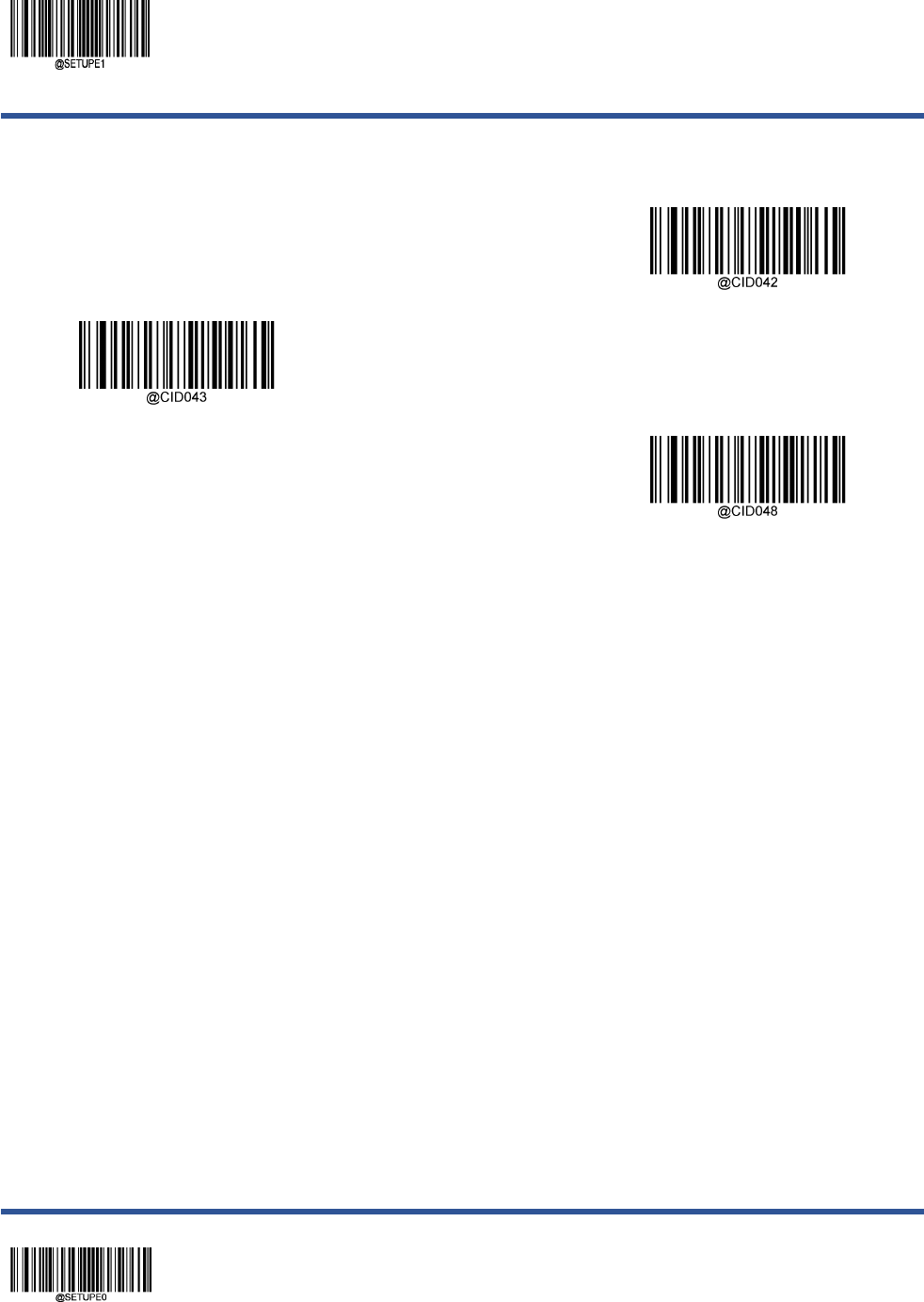

Modify Micro PDF417 Code ID
Modify Micro QR Code ID
Modify Code One Code ID
Enter Setup
251 ** Exit Setup
Postal symbologies:
Modify USPS Postnet Code ID
Modify USPS Inteligent Mail Code ID
Modify Royal Mail Code ID
Modify USPS Planet Code ID
Modify KIX Post Code ID
Modify Australian Postal Code ID
Enter Setup
** Exit Setup 252
Custom Suffix
Enable/Disable Custom Suffix
If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 10 characters.
For example, if the custom suffix is “AB” and the barcode data is “123”, the Host will receive “123AB”.
** Disable Custom Suffix
Enable Custom Suffix
Set Custom Suffix
To set a custom suffix, scan the Set Custom Suffix barcode then the numeric barcodes corresponding to the hexadecimal
value of a desired suffix then the Save barcode.
Note: A custom suffix cannot exceed 10 characters.
Set Custom Suffix
Set the custom suffix to “CODE” (HEX: 0x43/0x4F/0x44/0x45):
1. Scan the Enter Setup barcode.
2. Scan the Set Custom Suffix barcode.
3. Scan the numeric barcodes “4”, “3”, “4”, “F”, “4”, “4”, “4” and “5” from the “Digit Barcodes” section in
Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Enable Custom Suffix barcode.
6. Scan the Exit Setup barcode.
Enter Setup
253 ** Exit Setup
Data Packing
Introduction
Data packing is designed for a specific group of users who want to have the data packed before transmission. Data packing
influences data format, so it is advised to disable this feature when it is not required.
Data Packing Options
Disable Data Packing: Transmit decoded data in raw format (unpacketed).
Enable Data Packing, Format 1: Transmit decoded data with the packet format 1 defined below.
Packet format 1: [STX + ATTR + LEN] + [AL_TYPE + DATA] + [LRC]
STX: 0x02
ATTR: 0x00
LEN: Barcode data length is expressed in 2 bytes ranging from 0x0000 (0) to 0xFFFF (65535).
AL_TYPE: 0x36
DATA: Raw barcode data.
LRC: Check digit.
LRC calculation algorithm: computation sequence: 0xFF+LEN+AL_TYPE+DATA; computation method is XOR, byte
by byte.
Enable Data Packing, Format 2: Transmit decoded data with the packet format 2 defined below.
Packet format 2: [STX + ATTR + LEN] + [AL_TYPE] + [Symbology_ID + DATA] + [LRC]
STX: 0x02
ATTR: 0x00
LEN: Barcode data length is expressed in 2 bytes ranging from 0x0000 (0) to 0xFFFF (65535).
AL_TYPE: 0x3B
Symbology_ID: The ID number of symbology, 1 byte.
DATA: Raw barcode data.
LRC: Check digit.
LRC calculation algorithm: computation sequence: 0xFF+LEN+AL_TYPE+Symbology_ID+DATA; computation
method is XOR, byte by byte.
Enter Setup
** Exit Setup 254
** Disable Data Packing
Enable Data Packing, Format 1
Enable Data Packing, Format 2
Enter Setup
255 ** Exit Setup
Terminating Character Suffix
Enable/Disable Terminating Character Suffix
A terminating character such as carriage return (CR) or carriage return/line feed pair (CRLF) can only be used to mark the
end of data, which means nothing can be added after it.
** Disable Terminating Character Suffix
Enable Terminating Character Suffix
Set Terminating Character Suffix
To set a terminating character suffix, scan the Set Terminating Character Suffix barcode then the numeric barcodes
corresponding to the hexadecimal value of a desired terminating character then the Save barcode.
Note: A terminating character suffix cannot exceed 2 characters.
Set Terminating Character Suffix
Set Terminating Character to CR (0x0D)
Set Terminating Character to CRLF (0x0D,0x0A)
Enter Setup
** Exit Setup 256
Set the terminating character suffix to 0x0A:
1. Scan the Enter Setup barcode.
2. Scan the Set Terminating Character Suffix barcode.
3. Scan the numeric barcodes “0” and “A” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Enable Terminating Character Suffix barcode.
6. Scan the Exit Setup barcode.
Enter Setup
257 ** Exit Setup
Chapter 10 Batch Programming
Introduction
Batch programming enables users to integrate a batch of commands into a single batch barcode.
Listed below are batch programming rules:
1. Command format: Command + Parameter Value.
2. Each command is terminated by a semicolon (;). Note that there is no space between a command and its terminator
semicolon.
3. Use the barcode generator software to generate a 2D batch barcode.
Example: Create a batch barcode for Normal Illumination, Sense Mode, Decode Session Timeout = 2s, Disable
Interleaved 2 of 5:
1. Input the commands:
@ILLSCN1;SCNMOD2;ORTSET2000;I25ENA0;
2. Generate a batch barcode.
When setting up a scanner with the above configuration, scan the Enable Batch Barcode barcode and then the batch
barcode generated.
Enable Batch Barcode
Enter Setup
** Exit Setup 258
Create a Batch Command
A batch command may contain a number of individual commands each of which is terminated by a semicolon (;).
For more information, refer to the “Use of Programming Command” section in Chapter 3.
Create a Batch Barcode
Batch barcodes can be produced in the format of PDF417, QR Code or Data Matrix.
Example: Create a batch barcode for Normal Illumination, Sense Mode, Decode Session Timeout = 2s, Disable
Interleaved 2 of 5:
1. Input the following commands:
@ILLSCN1;SCNMOD2;ORTSET2000;I25ENA0;
2. Generate a PDF417 batch barcode.
Enter Setup
259 ** Exit Setup
Use Batch Barcode
To put a batch barcode into use, scan the following barcodes. (Use the example above.)
Enter Setup
Enable Batch Barcode
Batch Barcode
Exit Setup
Appendix
Digit Barcodes
0~9
0
1
2
3
4
5
6
7
8
9
A~F
A
B
C
D
E
F
Save/Cancel Barcodes
After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you
can either scan the Cancel barcode and then start the configuration all over again, or scan the Delete the Last Digit
barcode and then the correct digit, or scan the Delete All Digits barcode and then the digits you want.
For instance, after reading the Maximum Length barcode and numeric barcodes “1”, “2” and “3”, you scan:
Delete the Last Digit: The last digit “3” will be removed.
Delete All Digits: All digits “123” will be removed.
Cancel: The maximum length configuration will be cancelled. And the scanner is still in the setup mode.
Save
Cancel
Delete the Last Digit
Delete All Digits
Factory Defaults Table
Parameter Factory Default Remark
System Settings
Barcode Programming Disabled (Exit Setup)
Programming Barcode Data Do not transmit
Illumination Normal
Aiming Normal
Good Read LED On
Good Read LED Duration Short (20ms)
Power On Beep On
Good Read Beep On
Good Read Beep Duration Medium (80ms)
Good Read Beep Frequency Medium (2730Hz)
Good Read Beep Volume Loud
Good Read Vibration Off
Good Read Vibration Duration Medium (80ms)
Scan Mode Level Mode
Decode Session Timeout 3,000ms. 1-3,600,000ms; 0: Infinite
Image Stabilization Timeout (Sense Mode) 200ms 0-3,000ms
Reread Timeout Disabled
1,500ms 1-3,600,000ms
Reset Reread Timeout Off
Image Decoding Timeout 500ms 1-3,000ms
Sensitivity Medium Sensitivity
Scanning Preference Normal Mode
Trigger Commands Disabled
Read Barcode On
Smart Stand Mode On
Decode Area Whole Area Decoding
Specify Decoding Area 40% top, 60% bottom, 40% left, 60% right
Image Flipping Do Not Flip
Bad Read Message Off
NG 1-7 characters
Default Interface USB CDC
Wireless Communications
Operating Mode Cradle Mode
Batch Mode Option Off
Prevent Same Barcode Storage Off
Batch Mode Transmit Delay No Transmit Delay (0ms)
End of Transmission Message EOT
Auto Clear Stored Data after Transmission Off
Retransmission Off
Transmission Timeout 200ms
Retransmission Count 3 (retransmissions)
Wireless Communication Mode Point-to-Point Mode
Time Stamp Do Not Send
Time Stamp Format Format 1: (YYYY/MM/DD,HH:MM:SS)
RS-232 Interface
Baud Rate 9600
Parity Check None
Data Bits 8
Stop Bits 1
Hardware Auto Flow Control Disabled
USB Interface
USB Country Keyboard US keyboard USB HID Keyboard
Emulate ALT+Keypad Off USB HID Keyboard
Code Page Code Page 1252 (West European Latin) USB HID Keyboard
Unicode Encoding Off USB HID Keyboard
Emulate Keypad with Leading Zero On USB HID Keyboard
Function Key Mapping Disable USB HID Keyboard
Inter-Keystroke Delay No Delay USB HID Keyboard
Convert Case No Case Conversion USB HID Keyboard
Emulate Numeric Keypad 1 Off USB HID Keyboard
Emulate Numeric Keypad 2 Off USB HID Keyboard
Polling Rate 4ms USB HID Keyboard
Symbologies
Global Settings
1D Twin Code Single 1D Code Only
Surround GS1 AI’s with Parentheses Do Not Surround GS1 AI’s with Parentheses
Code 128
Code 128 Enabled
Maximum Length 48
Minimum Length 1
EAN-8
EAN-8 Enabled
Check Character Transmit
2-Digit Add-On Code Disabled
5-Digit Add-On Code Disabled
Convert EAN-8 to EAN-13 Disabled
EAN-13
EAN-13 Enabled
Check Character Transmit
2-Digit Add-On Code Disabled
5-Digit Add-On Code Disabled
Add-On Code Not Required
EAN-13 Beginning with 290 Add-On Code
Required Do Not Require Add-On Code
EAN-13 Beginning with 378/379 Add-On
Code Required Do Not Require Add-On Code
EAN-13 Beginning with 414/419 Add-On
Code Required Do Not Require Add-On Code
EAN-13 Beginning with 434/439 Add-On
Code Required Do Not Require Add-On Code
EAN-13 Beginning with 977 Add-On Code
Required Do Not Require Add-On Code
EAN-13 Beginning with 978 Add-On Code
Required Do Not Require Add-On Code
EAN-13 Beginning with 979 Add-On Code
Required Do Not Require Add-On Code
UPC-E
UPC-E Enabled
Check Character Transmit
2-Digit Add-On Code Disabled
5-Digit Add-On Code Disabled
Transmit Preamble Character System Character
Convert UPC-E to UPC-A Disabled
UPC-A
UPC-A Enabled
Check Character Transmit
2-Digit Add-On Code Disabled
5-Digit Add-On Code Disabled
Transmit Preamble Character No Preamble
Coupon
UPC-A/EAN-13 with Extended Coupon
Code
Disabled
Coupon GS1 DataBar Output Disabled
Interleaved 2 of 5
Interleaved 2 of 5 Enabled
Maximum Length 80
Minimum Length 6 No less than 4
Check Character Verification Disabled
Febraban
Febraban Disabled
Transmit Delay per Character Disabled
70ms
Transmit Delay per 12 Characters Disabled
500ms
ITF-14
ITF-14 Disabled
ITF-6
ITF-6 Disabled
Matrix 2 of 5
Matrix 2 of 5 Enabled
Maximum Length 80
Minimum Length 4 No less than 4
Check Character Verification Disabled
Code 39
Code 39 Enabled
Maximum Length 48
Minimum Length 1
Check Character Verification Disabled
Start/Stop Character Do not transmit
Code 39 Full ASCII Disabled
Code 32 Pharmaceutical (PARAF) Disabled
Code 32 Prefix Disabled
Code 32 Start/Stop Character Do not transmit
Code 32 Check Character Do not transmit
Codabar
Codabar Enabled
Maximum Length 60
Minimum Length 2
Check Character Verification Disabled
Start/Stop Character
Do not transmit
ABCD/ABCD
Code 93
Code 93 Disabled
Maximum Length 48
Minimum Length 1 No less than 1
Check Character Verification Do Not Transmit Check Character After Verification
China Post 25
China Post 25 Disabled
Maximum Length 48
Minimum Length 1
Check Character Verification Disabled
GS1-128 (UCC/EAN-128)
GS1-128 Enabled
Maximum Length 48
Minimum Length 1
GS1 Databar
GS1 Databar Enabled
Application Identifier “01” Transmit
EAN•UCC Composite
GS1 Composite Disabled
UPC/EAN Composite Disabled
Code 11
Code 11 Disabled
Maximum Length 48
Minimum Length 4 No less than 4
Check Character Verification One Check Character, MOD11
Check Character Transmit
ISBN
ISBN Disabled
Set ISBN Format ISBN-10
ISSN
ISSN Disabled
Industrial 25
Industrial 25 Disabled
Maximum Length 48
Minimum Length 6 No less than 4
Check Character Verification Disabled
Standard 25
Standard 25 Disabled
Maximum Length 48
Minimum Length 6 No less than 4
Check Character Verification Disabled
Plessey
Plessey Disabled
Maximum Length 48
Minimum Length 4 No less than 4
Check Character Verification Disabled
MSI-Plessey
MSI-Plessey Disabled
Maximum Length 48
Minimum Length 4 No less than 4
Check Character Verification One Check Character, MOD10
Check Character Transmit
AIM 128
AIM 128 Disabled
Maximum Length 48
Minimum Length 1
ISBT 128
ISBT 128 Disabled
Code 49
Code 49 Disabled
Maximum Length 80
Minimum Length 1
Code 16K
Code 16K Disabled
Maximum Length 80
Minimum Length 1
PDF417
PDF417 Enabled
Maximum Length 2710
Minimum Length 1
PDF417 Twin Code Single PDF417 Only
PDF417 Inverse Decode Regular PDF417 Barcodes Only
Character Encoding Default Character Encoding
PDF417 ECI Output Enabled
Micro PDF417
Micro PDF417 Disabled
Maximum Length 366
Minimum Length 1
QR Code
QR Code Enabled
Maximum Length 7089
Minimum Length 1
QR Twin Code Single QR Only
QR Inverse Decode Regular QR Barcodes Only
Character Encoding Default Character Encoding
QR ECI Output Enabled
Micro QR Code
Micro QR Enabled
Maximum Length 35
Minimum Length 1
Aztec
Aztec Code Disabled
Maximum Length 3832
Minimum Length 1
Read Multi-barcodes on an Image Mode 1
Set the Number of Barcodes 1
Character Encoding Default Character Encoding
Aztec ECI Output Enabled
Data Matrix
Data Matrix Enabled
Maximum Length 3116
Minimum Length 1
Data Matrix Twin Code Single Data Matrix Only
Rectangular Barcode Enabled
Data Matrix Inverse Decode Regular Data Matrix Barcodes Only
Character Encoding Default Character Encoding
Data Matrix ECI Output Enabled
Maxicode
Maxicode Disabled
Maximum Length 150
Minimum Length 1
Chinese Sensible Code
Chinese Sensible Code Disabled
Maximum Length 7827
Minimum Length 1
Chinese Sensible Twin Code Single Chinese Sensible Code Only
Chinese Sensible Code Inverse Decode Regular Chinese Sensible Barcodes Only
GM Code
GM Disabled
Maximum Length 2571
Minimum Length 1
Code One
Code One Disabled
Maximum Length 3550
Minimum Length 1
USPS Postnet
USPS Postnet Disabled
Check Character Transmit
USPS Intelligent Mail
USPS Intelligent Mail Disabled
Royal Mail
Royal Mail Disabled
USPS Planet
USPS Planet Disabled
Check Character Transmit
KIX Post
KIX Post Disabled
Australian Postal
Australian Postal Disabled
Specific OCR-B
Specific OCR-B Disabled
Passport OCR
Passport OCR Disabled
Data Formatter
Data Formatter Disabled
Non-Match Error Beep On
Data Format Selection Format_0
Prefix & Suffix
All Prefixes/Suffixes Disabled
Prefix Sequence Code ID+ Custom +AIM ID
Custom Prefix Disabled
AIM ID Prefix Disabled
Code ID Prefix Disabled
Custom Suffix Disabled
Data Packing Disable Data Packing
Terminating Character Suffix Disabled
AIM ID Table
Symbology AIM ID Possible AIM ID Modifiers (m)
Code 128 ]C0
GS1-128 (UCC/EAN-128) ]C1
EAN-8 ]E4
EAN-8 with Addon ]E3
EAN-13 ]E0
EAN-13 with Addon ]E3
UPC-E ]E0
UPC-E with Addon ]E3
UPC-A ]E0
UPC-A with Addon ]E3
Interleaved 2 of 5, Febraban ]Im 0, 1, 3
ITF-14 ]Im 1, 3
ITF-6 ]Im 1, 3
Matrix 2 of 5 ]X0
Code 39 ]Am 0, 1, 3, 4, 5, 7
Codabar ]Fm 0, 2, 4
Code 93 ]G0
China Post 25 ]X0
AIM 128 ]C2
ISBT 128 ]C4
ISSN ]X0
ISBN ]X0
Industrial 25 ]S0
Standard 25 ]R0
Plessey ]P0
Code 11 ]Hm 0, 1, 3
MSI Plessey ]Mm 0, 1
GS1 Composite ]em 0-3
GS1 Databar （RSS） ]e0
Code 49 ]T0
Code 16K ]K0
Symbology AIM ID Possible AIM ID Modifiers (m)
PDF417 ]Lm 0-2
QR Code ]Qm 0-6
Aztec ]zm 0-9, A-C
Data Matrix ]dm 0-6
Maxicode ]Um 0-3
Chinese Sensible Code ]X0
GM ]gm (0~9)
Micro PDF417 ]L0
Micro QR ]Q1
Code One ]X0
USPS Postnet ]X0
USPS Inteligent Mail ]X0
Royal Mail ]X0
USPS Planet ]X0
KIX Post ]X0
Australian Postal ]X0
Specific OCR-B ]o2
Passport OCR ]o2
Note: “m” represents the AIM modifier character. Refer to ISO/IEC 15424:2008 Information technology – Automatic
identification and data capture techniques – Data Carrier Identifiers (including Symbology Identifiers) for AIM modifier character
details.
Code ID Table
Symbology Code ID
Code 128 j
GS1-128 (UCC/EAN-128) j
EAN-8 d
EAN-13 d
UPC-E c
UPC-A c
Interleaved 2 of 5, Febraban e
ITF-14 e
ITF-6 e
Matrix 2 of 5 v
Code 39 b
Codabar a
Code 93 i
China Post 25 X
AIM 128 X
ISBT 128 X
ISSN g
ISBN B
Industrial 25 I
Standard 25 f
Plessey n
Code 11 H
MSI Plessey m
GS1 Composite y
GS1 Databar (RSS) R
Code 49 X
Code 16K X
PDF417 r
QR Code s
Aztec z
Data Matrix u
Symbology Code ID
MaxiCode x
Chinese Sensible Code h
GM Code x
Micro PDF417 R
Micro QR X
Code One X
USPS Postnet P
USPS Inteligent Mail M
Royal Mail x
USPS Planet L
KIX Post K
Australian Postal A
Specific OCR-B S
Passport OCR O
Symbology ID Number
Symbology ID Number
Code 128 002
GS1-128 (UCC/EAN-128) 003
EAN-8 004
EAN-13 005
UPC-E 006
UPC-A 007
Interleaved 2 of 5, Febraban 008
ITF-14 009
ITF-6 010
Matrix 2 of 5 011
Code 39 013
Codabar 015
Code 93 017
China Post 25 019
AIM 128 020
ISBT 128 021
ISSN 023
ISBN 024
Industrial 25 025
Standard 25 026
Plessey 027
Code11 028
MSI-Plessey 029
GS1 Composite 030
GS1 Databar (RSS) 031
PDF417 032
QR Code 033
Aztec 034
Data Matrix 035
Maxicode 036
Chinese Sensible Code 039
GM Code 040
Symbology ID Number
Micro PDF417 042
Micro QR 043
Code One 048
Specific OCR-B 064
Passport OCR 066
USPS Postnet 096
USPS Inteligent Mail 097
Royal Mail 098
USPS Planet 099
KIX Post 100
Australian Postal 101
ASCII Table
Hex Dec Char
00 0 NUL (Null char.)
01 1 SOH (Start of Header)
02 2 STX (Start of Text)
03 3 ETX (End of Text)
04 4 EOT (End of Transmission)
05 5 ENQ (Enquiry)
06 6 ACK (Acknowledgment)
07 7 BEL (Bell)
08 8 BS (Backspace)
09 9 HT (Horizontal Tab)
0a 10 LF (Line Feed)
0b 11 VT (Vertical Tab)
0c 12 FF (Form Feed)
0d 13 CR (Carriage Return)
0e 14 SO (Shift Out)
0f 15 SI (Shift In)
10 16 DLE (Data Link Escape)
11 17 DC1 (XON) (Device Control 1)
12 18 DC2 (Device Control 2)
13 19 DC3 (XOFF) (Device Control 3)
14 20 DC4 (Device Control 4)
15 21 NAK (Negative Acknowledgment)
16 22 SYN (Synchronous Idle)
17 23 ETB (End of Trans. Block)
18 24 CAN (Cancel)
19 25 EM (End of Medium)
1a 26 SUB (Substitute)
1b 27 ESC (Escape)
1c 28 FS (File Separator)
1d 29 GS (Group Separator)
Hex Dec Char
1e 30 RS (Request to Send)
1f 31 US (Unit Separator)
20 32 SP (Space)
21 33 ! (Exclamation Mark)
22 34 " (Double Quote)
23 35 # (Number Sign)
24 36 $ (Dollar Sign)
25 37 % (Percent)
26 38 & (Ampersand)
27 39 ` (Single Quote)
28 40 ( (Left/ Opening Parenthesis)
29 41 ) (Right/ Closing Parenthesis)
2a 42 * (Asterisk)
2b 43 + (Plus)
2c 44 , (Comma)
2d 45 - (Minus/ Dash)
2e 46 . (Dot)
2f 47 / (Forward Slash)
30 48 0
31 49 1
32 50 2
33 51 3
34 52 4
35 53 5
36 54 6
37 55 7
38 56 8
39 57 9
3a 58 : (Colon)
3b 59 ; (Semi-colon)
3c 60 < (Less Than)
3d 61 = (Equal Sign)
Hex Dec Char
3e 62 > (Greater Than)
3f 63 ? (Question Mark)
40 64 @ (AT Symbol)
41 65 A
42 66 B
43 67 C
44 68 D
45 69 E
46 70 F
47 71 G
48 72 H
49 73 I
4a 74 J
4b 75 K
4c 76 L
4d 77 M
4e 78 N
4f 79 O
50 80 P
51 81 Q
52 82 R
53 83 S
54 84 T
55 85 U
56 86 V
57 87 W
58 88 X
59 89 Y
5a 90 Z
5b 91 [ (Left/ Opening Bracket)
5c 92 \ (Back Slash)
5d 93 ] (Right/ Closing Bracket)
Hex Dec Char
5e 94 ^ (Caret/ Circumflex)
5f 95 _ (Underscore)
60 96 ' (Grave Accent)
61 97 a
62 98 b
63 99 c
64 100 d
65 101 e
66 102 f
67 103 g
68 104 h
69 105 i
6a 106 j
6b 107 k
6c 108 l
6d 109 m
6e 110 n
6f 111 o
70 112 p
71 113 q
72 114 r
73 115 s
74 116 t
75 117 u
76 118 v
77 119 w
78 120 x
79 121 y
7a 122 z
7b 123 { (Left/ Opening Brace)
7c 124 | (Vertical Bar)
7d 125 } (Right/ Closing Brace)
7e 126 ~ (Tilde)
7f 127 DEL (Delete)
Unicode Key Maps
104 Key U.S. Style Keyboard
105 Key European Style Keyboard
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
RF Exposure Information
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without re
striction.
