System
Operating Manual
FUJITSU Tablet STYLISTIC Q738
![](/img.php?id=3734037&img=bg2.png)
Contact address in North America
FUJITSU AMERICA INC.
1250 East Arques Avenue, Sunnyvale,
CA 94085-3470, U.S.A.
Telephone: 800 831 3183 or 408 746 6000
"http://solutions.us.fujitsu.com"
"http://solutions.us.fujitsu.com/contact"
Have a question? Email us at: "AskFujitsu@us.fujitsu.com"
Copyright
©2017Fujitsu America, Inc. All rights reserved
FPC65-7872-01
FUJITSU Tablet STYLISTIC Q738
Operating Manual
7
8
10
14
18
23
40
64
74
78
81
90
98
101
102
105
106
Declarations of conformity
Fujitsu Contact Information
Ports and controls
Important notes
First-time setup of your device
WorkingwiththeTabletPC
Accessories for your Tablet PC
(optional)
Security functions Connecting
external devices Settings in
BIOS Setup Utility
Troubleshooting and tips
Technical data
Manufacturer’s notes
Declarations of conformity
FCC and IC Regulatory
Information
Appendix
Index 115
![](/img.php?id=3734037&img=bg4.png)
Copyright and Trademark Information
Fujitsu America, Incorporated has made every effort to ensure the accuracy and completeness
of this document; however, as ongoing development efforts are continually improving the
capabilities of our products, we cannot guarantee the accuracy of the contents of this
document. We disclaim liability for errors, omissions, or future changes.
Fujitsu, the Fujitsu logo and STYLISTIC are registered trademarks of Fujitsu Limited
or its subsidiaries in the United States and other countries.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks
or registered trademarks of HDMI Licensing, LLC in the United States and other countries.
Intel and Intel Core are trademarks or registered trademarks of Intel Corporation or
its subsidiaries in the United States and other countries.
Microsoft and Windows are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
The ExpressCard word mark and logo are owned by the Personal Computer
Memory Card International Association (PCMCIA) and any use of such marks by
Fujitsu America, Incorporated is under license.
Google is a trademark or registered trademark of Google Incorporated.
Bluetooth is a trademark of Bluetooth SIG, Inc., USA.
OmniPass is a trademark of Softex, Inc.
Roxio is a trademark of Roxio, a division of Sonic Solutions.
Adobe, Acrobat, and Adobe Reader are either registered trademarks or trademarks of Adobe
Systems Incorporated in the United States and/or other countries.
![](/img.php?id=3734037&img=bg5.png)
Contents
Contents
Declarationsofconformity ............................................................. 7
Fujitsu Contact Information ............................................................ 8
Notational conventions .................................................................. 9
Portsandcontrols ..................................................................... 10
Importantnotes ........................................................................ 14
Safetyinstructions ...................................................................... 14
Additional safety notes for devices with wireless components . . ............................. 15
Protecting the displayscreen ............................................................ 15
Energysaving .......................................................................... 15
Energy saving under Windows ....................................................... 15
Traveling with your TabletPC ............................................................ 16
Beforeyoutravel ................................................................... 16
Transporting the TabletPC ........................................................... 17
Cleaning the TabletPC .................................................................. 17
First-timesetupofyourdevice ......................................................... 18
Unpacking and checking the device . . . ................................................... 18
Choose a location . ...................................................................... 19
Mounting the feet (only device versions with palm vein sensor) ............................. 19
Connecting the AC adapter . . . ........................................................... 20
Switching on the device for the firsttime .................................................. 20
Installing Bonus Apps . . . . . ........................................................... 22
Working with theTabletPC ............................................................ 23
Status indicators ........................................................................ 23
Switching theTabletPCon .............................................................. 25
ProgrammingtheON/OFFbutton ..................................................... 26
Switching theTabletPCoff .............................................................. 26
Handwriting recognition .................................................................. 26
Touchscreen ............................................................................ 26
Select displayorientation(portraitorlandscapeformat) .................................... 28
Using fingers ........................................................................... 28
Calibrate the Dual Digitizer for finger-based operation of the device. ..................... 28
Using thestylus ......................................................................... 29
Stylus location ...................................................................... 30
Adjustingthestylus .................................................................. 30
Calibratingthestylus ................................................................ 31
Securingthestylustether(optional) ................................................... 31
Tab let buttons .......................................................................... 32
Webcam ............................................................................... 32
Rechargeablebattery ................................................................... 33
Chargingandmaintainingthebattery ................................................. 33
Using the energy saving functions . ....................................................... 33
Memorycards .......................................................................... 34
Supportedformats .................................................................. 34
Insertingthememorycard ........................................................... 34
Removingthememorycard .......................................................... 35
SIM card ............................................................................... 36
InsertingaSIMcard ................................................................. 36
Fujitsu 3
![](/img.php?id=3734037&img=bg6.png)
Contents
RemovingaSIMcard ............................................................... 37
WirelessLAN/Bluetooth/4G/LTE/NFCwirelesscomponents ................................. 37
Switching the wireless components on and off ......................................... 37

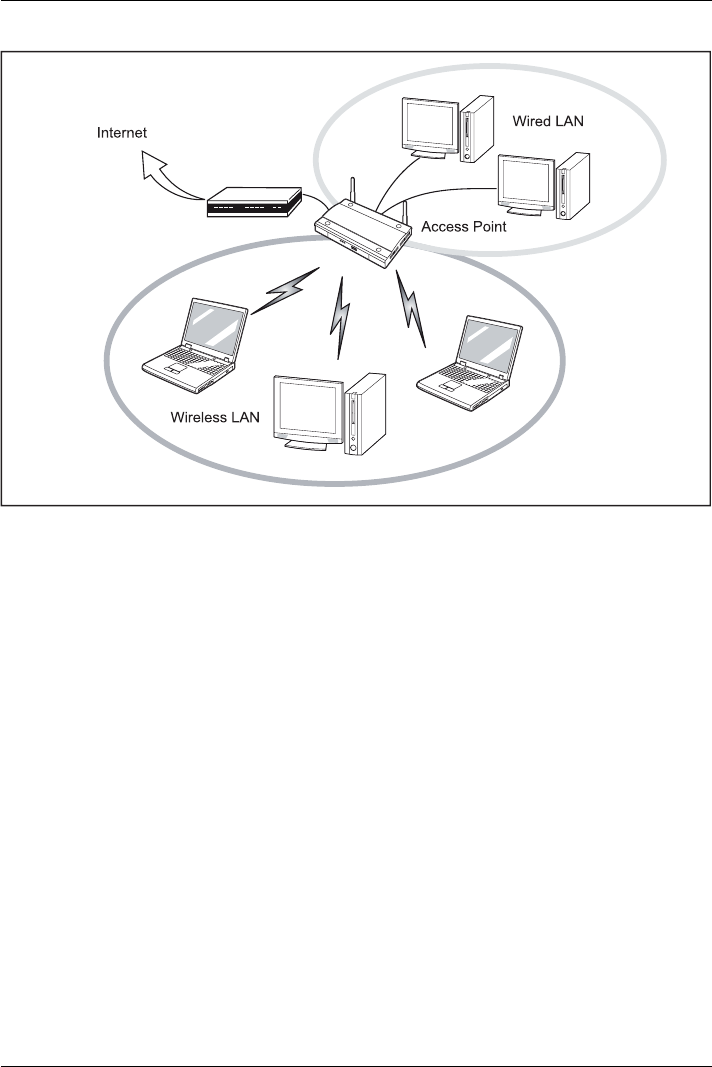

ConfiguringWLANaccess ........................................................... 37
FurtherinformationonWLANandBluetooth ........................................... 37
AccessviaUMTS ................................................................... 38
AccessviaWirelessWAN ............................................................ 38
Accessvia4G ...................................................................... 38
NFC (Near Field Communication, optional) . . . ......................................... 38
Ethernet and LAN (only cradle, keyboard docking station
station) ................................................................................. 39
GPS ................................................................................... 39
Accessories for your Tablet PC (optional) . ............................................. 40

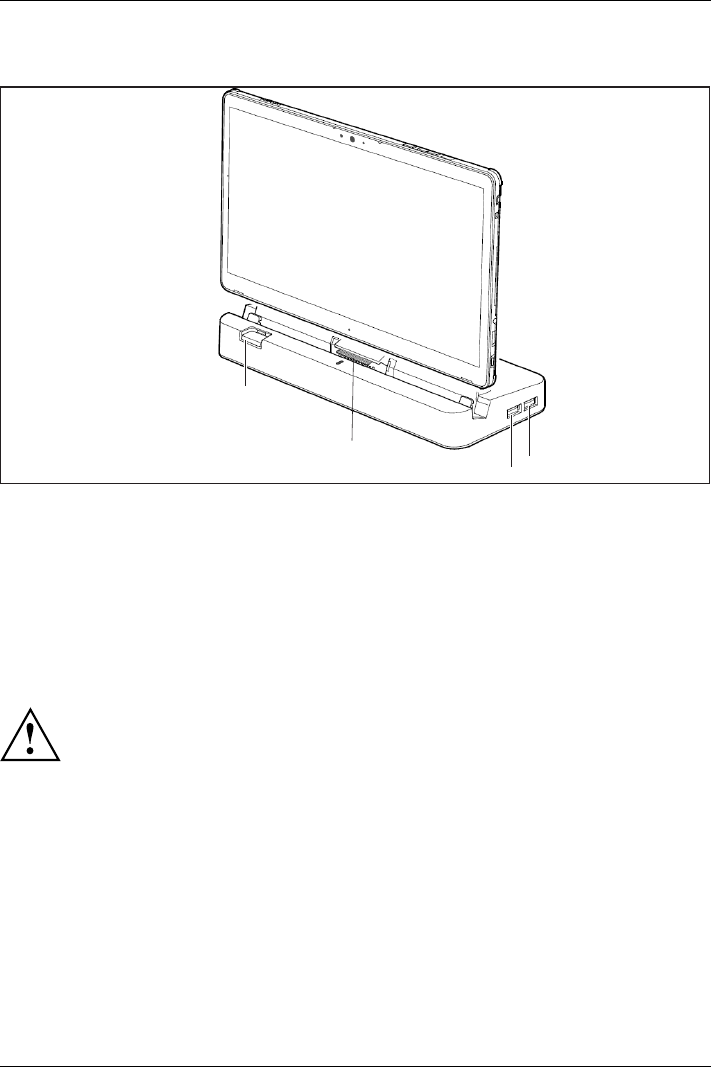

Yourdockingcradle(optional) ............................................................ 40
Cradle components . . ................................................................ 41
Settingupthecradle ................................................................ 41
Connecting the Tablet PC to the cradle . . ............................................. 42
Disconnecting the Tablet PC from the cradle . ......................................... 43
Keyboard docking station . . . ................... 44
Ports on the keyboard docking station . ............... 45

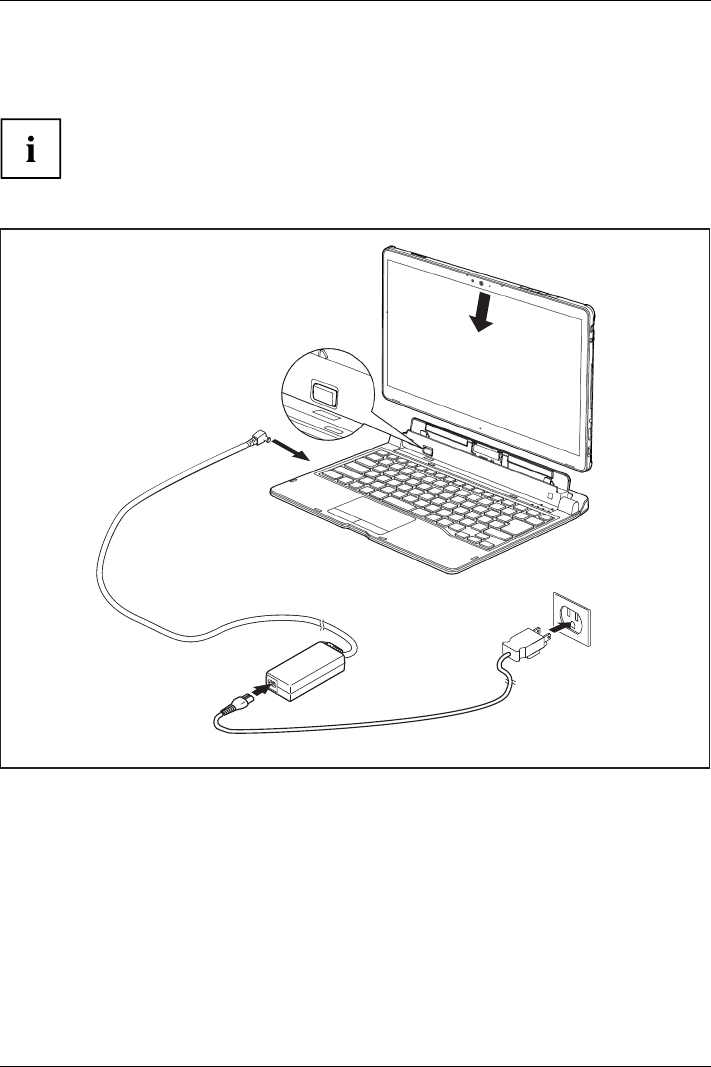

Connecting the tablet PC to the keyboard docking station
station .............................................................................. 47

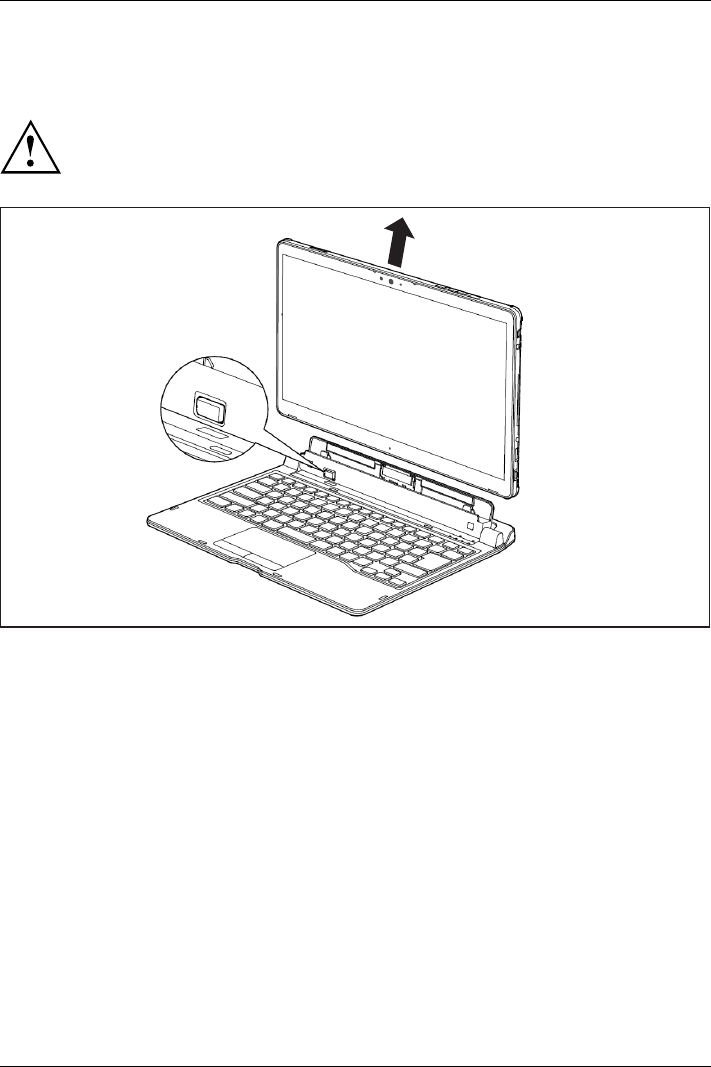

Disconnecting the tablet PC from the keyboard docking station
station ............................................................................. 48
Notes . . . .... 49

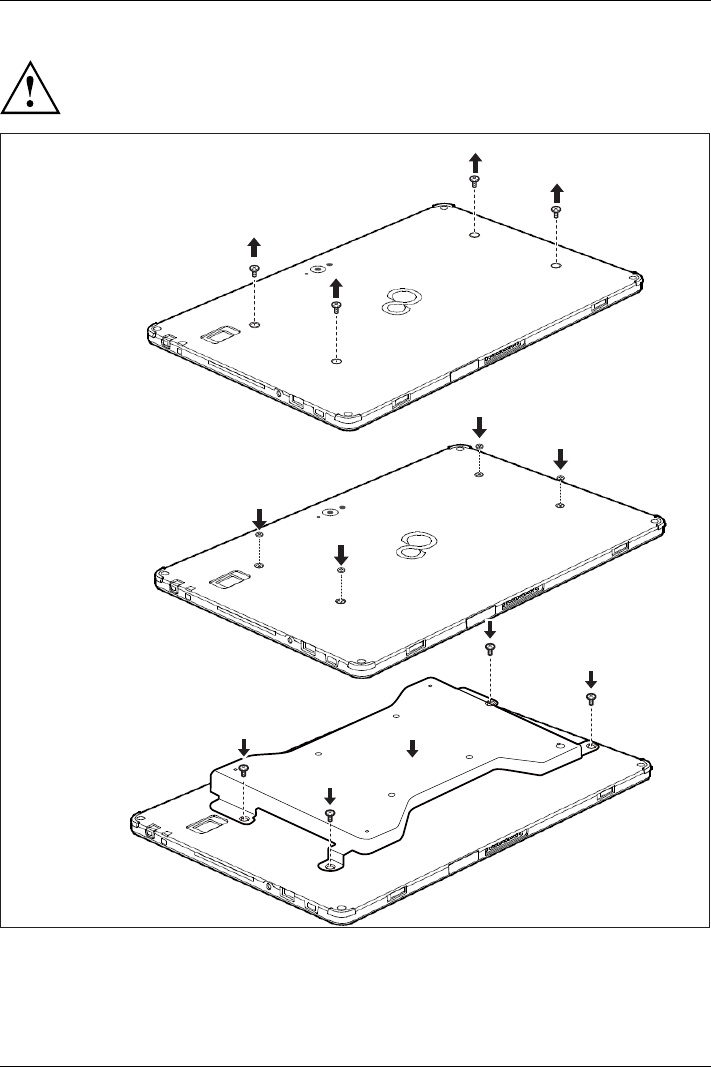

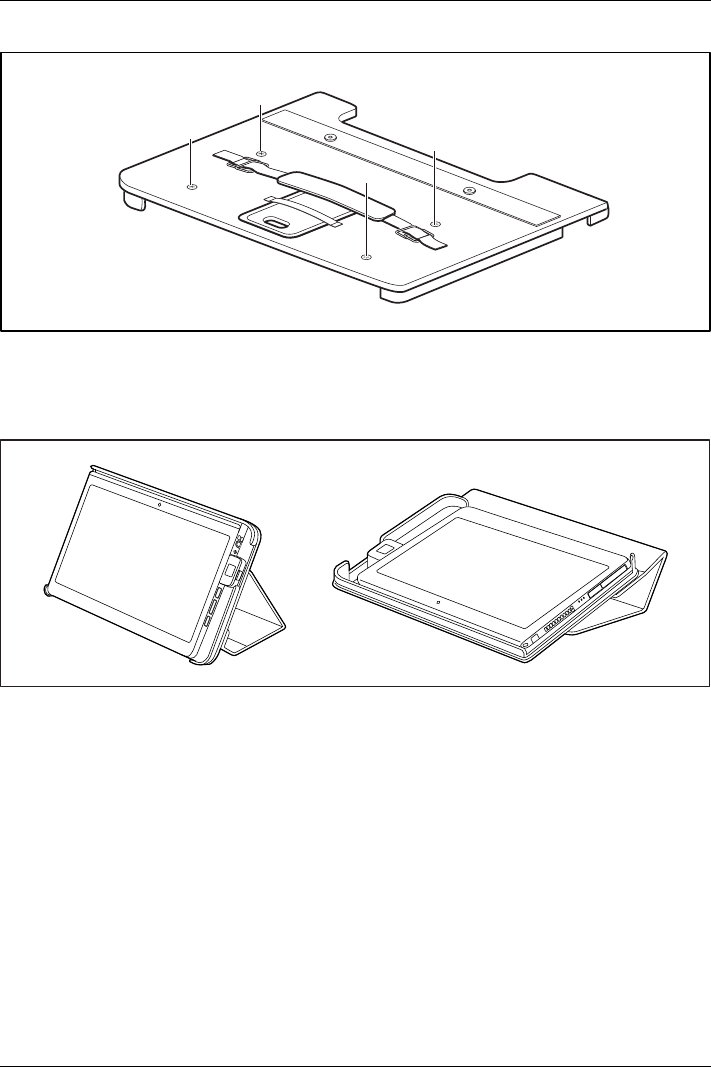

Intermediary VESA Mount Plate (optional) . . . ............................................. 52

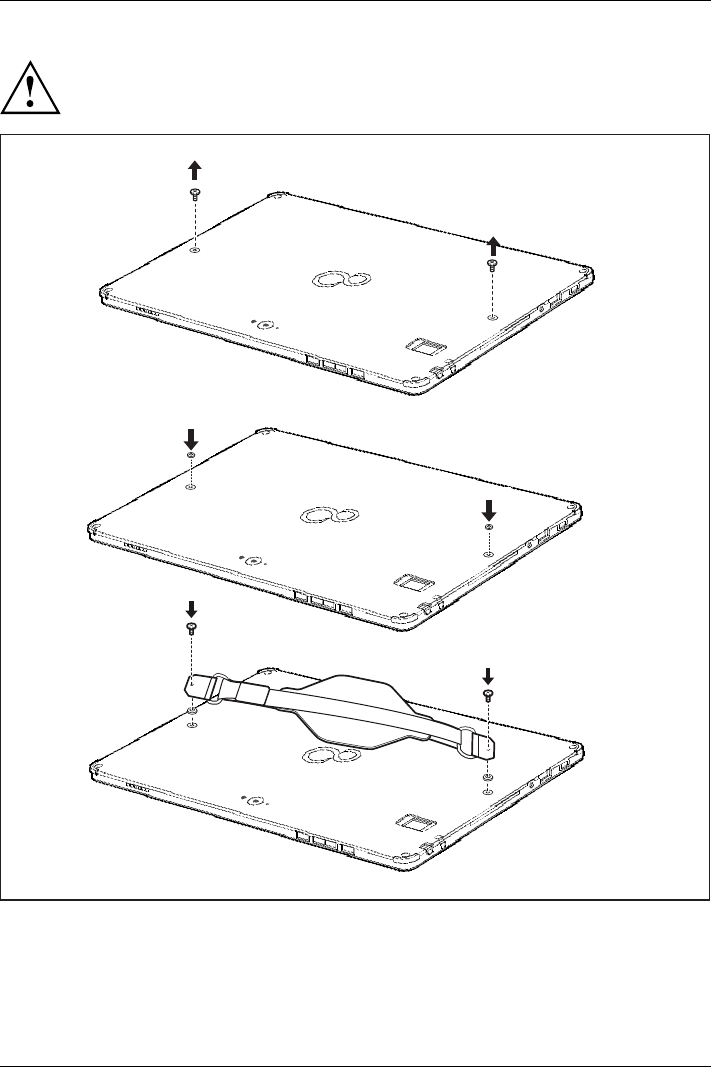

Hand strap (optional) . . . . ................................................................ 54
Folio case (optional) . . . . . ................................................................ 56
Protective TPU cover with hand strap (optional) . . ......................................... 57
Prepare installation . . ................................................................ 57
InserttheTabletPCintheprotectiveTPUcover ....................................... 58
Connecting the Tablet PC to the keyboard docking station or cradle . . ................... 60
Folio Cover Kit (optional) ................................................................ 61
Insertingthesystemintothefoliocover ............................................... 61
Caretipsforthefoliocover ........................................................... 63
Securityfunctions ..................................................................... 64
Configuring the fingerprint sensor ........................................................ 65
Using the palm vein sensor (device-dependent) . . ......................................... 66
UsingtheSecurityLock ................................................................. 68
ConfiguringpasswordprotectioninBIOSSetupUtility ...................................... 68
Protecting BIOS Setup Utility (supervisor password and user password) . . ............... 69
Password protection for booting the operating system .................................. 70
Passwordprotectionfortheharddisk ................................................. 70
SmartCard reader (optional) . ............................................................ 72
InsertingtheSmartCard ............................................................. 72
Trusted Platform Module - TPM (device dependent) . . . . . . .................................. 73
EnablingTPM ....................................................................... 73
DisablingTPM ...................................................................... 73
Connectingexternaldevices ........................................................... 74
Connecting an external monitor . . ........................................................ 74
MicroHDMIport .................................................................... 74
4Fujitsu
![](/img.php?id=3734037&img=bg7.png)
Contents
HDMI port (only with docking cradle, keyboard docking station
station) ............................................................................. 75
External monitor port (VGA) (only docking cradle, keyboard docking station and power
keyboarddockingstation) ............................................................ 75
Connecting USB devices . . . . . ........................................................... 76
HowtoremoveUSBdevicescorrectly ................................................ 76
Connecting external audio devices ....................................................... 77
Connecting headphones or other audio output devices . . . . ............................. 77
Connecting a microphone or other audio input devices . . . . ............................. 77
Settings in BIOS Setup Utility . . . ....................................................... 78
StartingtheBIOSSetupUtility ........................................................... 78
BIOSSetup Utilityoperation ............................................................. 79
ExitingBIOSSetupUtility ................................................................ 80
Exit Saving Changes - save changes and exit BIOS Setup Utility . . ..................... 80
Exit Discarding Changes - Reject changes and exit BIOS Setup Utility . . . . . .............. 80
Load Setup Defaults – load default values . ............................................ 80
Discard Changes - Discard Changes without exiting BIOS Setup Utility . . . . .............. 80
Save Changes - save changes without exiting the BIOS Setup Utility . . . . . . .............. 80
Savechangesandpoweroff ........................................................ 80
Troubleshootingandtips .............................................................. 81
Executingareset ....................................................................... 82
Forcedshutdown .................................................................... 82
Resetting the rechargeable battery . ................................................... 82
Helpifproblemsoccur ................................................................... 82
If you need to restore your system . ....................................................... 82
TheTabletPC’sdateortimeisincorrect .................................................. 82
Batterychargingindicatornotlit .......................................................... 83
TheTabletPC’stouchscreenremainsdark ................................................ 83
The display on the Tablet PC’s touchscreen is difficult to read. . ............................. 83
Theexternalmonitorremainsblank ...................................................... 84
Theexternalmonitorisblankortheimageisunstable ..................................... 84
The cursor does not correctly follow the stylus movements . . . . ............................. 84
Stylusinputnotworking ................................................................. 85
TheTabletPCdoesnotstartafterswitchon ............................................... 85
TheTabletPCstopsworking ............................................................. 85
The printer does not print . . . . . ........................................................... 86
The wireless connection to a network does not work . . . .................................... 86
Thebatterydischargestooquickly ........................................................ 86
Smart Card reader is not recognized . . . ................................................... 87
SmartCardPINforgotten ................................................................ 87
User and/or supervisor Smart Card lost . . . . . . ............................................ 87
SmartCardlost ......................................................................... 87
Acousticwarning ........................................................................ 88
Errormessagesonthescreen ........................................................... 88
Technicaldata ......................................................................... 90
TabletPC .............................................................................. 90
WLAN specifications .................................................................... 91
Screenresolutionsforintegratedscreenandexternalscreens .............................. 93
Rechargeablebattery ................................................................... 94
AC adapter 65 W for the Tablet PC ....................................................... 94
Dockingcradle(optional) ................................................................ 94
Fujitsu 5
![](/img.php?id=3734037&img=bg8.png)
Contents
AC adapter 65 W for the cradle (optional) ............................................. 95
Keyboard docking station ....................... .......................... . . ................... 95
Notes ........... 95
Intermediary VESA Mount Plate (optional) . . . ............................................. 96
Hand strap (optional) . . . . ................................................................ 96
Shoulder strap (optional) ................................................................ 96
Folio case (optional) . . . . . ................................................................ 96
Protective TPU cover with hand strap (optional) . . ......................................... 96
Folio cover kit for hand vein sensor (optional) ............................................. 97
Manufacturer’snotes .................................................................. 98
Disposalandrecycling .................................................................. 98
Recyclingyourbattery ............................................................... 98
DOC (Industry CANADA) Notices ........................................................ 98
ULNotice ........................................................................... 99
ENERGYSTARCompliance ............................................................. 100
Declarationsofconformity ............................................................. 101
FCCRegulatoryInformation ........................................................... 102
RegulatoryNotesandStatements ........................................................ 102
WirelessLAN,HealthandAuthorizationforuse ........................................ 102
Regulatory Information/Disclaimers . . ................................................. 103
Federal Communications Commission statement: . . . . .................................. 103
FCCInterferenceStatement ......................................................... 103
FCC Radio Frequency Exposure statement . . . ......................................... 104
Exportrestrictions ................................................................... 104
Restrictions concernant l’exportation . ................................................. 104
Canada,IndustryCanada(IC) .......................................................... 105
Canadian Notice . ....................................................................... 105
Avis pour le Canada . . . . . ................................................................ 106
Appendix .............................................................................. 107
Before Using the Optional Wireless LAN . ................................................. 107
WirelessLANDevicesCoveredbythisDocument ...................................... 107
CharacteristicsoftheWLANDevice .................................................. 107
Wireless LAN Modes Using this Device . . ............................................. 108
Deactivating/DisconnectingtheWLANDevice ......................................... 110
ConfiguringtheWirelessLAN ............................................................ 110
Connection to the network . . . ........................................................ 110
TroubleshootingtheWLAN ........................................................... 111
Image Backup and Recovery Procedures ................................................. 112
Windows 10 Procedures . ............................................................ 112
Creatingarecoverydrive ............................................................ 113
RecoveryoptionsinWindows10 ..................................................... 113
Downloading driver updates . ............................................................ 115
Index .................................................................................. 116
6Fujitsu
![](/img.php?id=3734037&img=bg9.png)
Declarations of conformity
Declarations of conformity
DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name:
Address:
Telephone:
Declares that product:
Fujitsu America, Inc.
1250 E. Arques Avenue
Sunnyvale, CA 94085
(408) 746-6000
Base Model Configuration: STYLISTIC Q738
Complies with Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC rules. Operations are subject to the
following two conditions: (1) This device may not cause harmful interference. (2) This
device must accept any interference received, including interference that may cause
undesired operation.
Fujitsu 7
![](/img.php?id=3734037&img=bga.png)
Fujitsu Contact Information
Fujitsu Contact Information
Service and Support
You can contact Fujitsu Service and Support in the following ways:
• Toll free phone: 1-800-8Fujitsu (1-800-838-5487)
• Website: "http://solutions.us.fujitsu.com/www/content/support/contact/index.php"
Before you place the call, have the following information ready so that the customer
support representative can provide you with the fastest possible solution:
• Product name
• Product configuration number
• Product serial number
• Purchase date
• Conditions under which the problem occurred
• Any error messages that have occurred
• Type of device connected, if any
Fujitsu Shopping Online
Please go to "http://www.shopfujitsu.com/store/ ".
Maintaining Latest Configuration
To ensure that you always have the most current driver updates related to your system, you should
occasionally access the Fujitsu Software Download Manager (FSDM) utility. The FSDM utility is
available from the Fujitsu Support site. FSDM will allow you to view a list of the most current
drivers, utilities and applications to determine whether you have the latest versions. If you have
a Windows 10 operating system, you will need to go to the Support Site to download the FSDM
Utility: "http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS".
Limited Warranty
Your STYLISTIC Tablet PC is backed by a Fujitsu International Limited Warranty. Check the
Limited Warranty Terms and Conditions Booklet that came with your Tablet PC.
8Fujitsu
![](/img.php?id=3734037&img=bgb.png)
Fujitsu Contact Information
Notational conventions
Pay particular attention to text marked with this symbol. Failure to observe
this warning will endanger your life, will damage the device or lead to loss
of data. The warranty will be invalidated if the device becomes defective
through failure to observe these warnings.
Indicates important information which is required to use the device properly.
►indicates an activity that must be performed
indicates a result
This style indicates data entered using the keyboard in a program dialogue or at
the command line, e.g. your password (Name123)oracommandusedto
start a program (start.exe)
This style indicates information that is displayed on the screen by a program, e.g.:
Installation is complete.
This style indicates
• terms and texts used in a software interface, e.g.: Click on Save.
• names of programs or files, e.g. Windows or setup.exe.
"This style" indicates
• Cross-references to another section, e.g. "Safety information"
• cross-references to an external source, e.g. a web address: For more
information, go to "http://solutions.us.fujitsu.com/"
• names of CDs, DVDs and titles or designations of other materials, e.g.:
"CD/DVD Drivers & Utilities" or "Safety/Regulations" manual
Key indicates a key on the keyboard, e.g: F10
This style indicates terms and text that are emphasized or highlighted, e.g.: Do not
switch off the device
Fujitsu 9
![](/img.php?id=3734037&img=bgc.png)
Ports and controls
Ports and controls
This chapter presents the individual hardware components of your device. It gives an
overview of the indicators and connections of the device. Please familiarize yourself
with these items before you start to work with the device.
Front (device version without palm vein sensor)
Depending on your selected device version, your tablet PC may be equipped with a palm
vein sensor on the right-hand side, see "Right side" sub-section on the following pages.
1
23
5
5
4
6
7
1 = Touch screen
2 = Webcam
3 = Webcam LED
4 = Speaker
5 = Mechanical mounting for keyboard
docking station / cradle
6 = Docking port
7 = Ambient light sensor
8 = Sim door
10 Fujitsu
4
8
![](/img.php?id=3734037&img=bgd.png)
Ports and controls
Left side
67
3 51 24
1 = Wireless indicator
2 = Battery charging indicator
3 = Micro HDMI port
4 = USB Type-C port
5 = USB 3 port
6 = Micro SD slot
7 = DC power
Right side (device version without palm vein sensor)
1 2 6
45
3
1 = Lock slot
2 = USB 2
3 = Audio jack
4 = SmartCard slot
5 = Tether slot
6 = Pen garage
Fujitsu 11
![](/img.php?id=3734037&img=bge.png)
Ports and controls
Right side (device version with palm vein sensor)
1
5
6
2
3
7
4
8
9
1 = Shortcut button
2 = Volume Down button
3=VolumeUpButton
4 = ON/OFF button
5 = USB port (USB 2.0)
6 = Palm vein sensor
7 = Combined headphone and microphone
port (not visible in diagram)
8 = Stylus slot
9 = Tether eyelet for stylus tether
12 Fujitsu
![](/img.php?id=3734037&img=bgf.png)
Ports and controls
Back
1
24
1 = Fingerprint sensor
2 = Webcam LED
3 = Webcam light
4 = Webcam
5 = Sim card slot
Fujitsu 13
3
5
![](/img.php?id=3734037&img=bg10.png)
Important notes
Important notes
ImportantnotesNotes
This chapter contains essential safety information which must be followed when working
with your Tablet PC. The other notes provide useful information about your Tablet PC.
Safety instructions
SafetyinformationInform ation,
Please follow the safety notes provided in the "Safety/Regulations" manual
as well as the safety notes given below.
Please pay special attention to the sections in the manual marked
with the symbol on the left.
When connecting and disconnecting cables, observe the relevant
notes in this operating manual.
Read the information on the ambient conditions in the "Technical data", Page 90 chapter
and the information in the "First-time setup of your device", Page 18 chapter before
preparing your Tablet PC for use and switching it on for the first time.
When cleaning the device, please observe the relevant notes in the
section "Cleaning the Tablet PC", Page 17.
Pay attention to the additional safety notes for devices with wireless components
provided in the "Safety/Regulations" manual.
When handling this device, you come into contact with lead, a chemical which in
California is held to be a possible cause of birth defects and other damage to fertility.
Wash your hands after using the device.
This Tablet PC complies with the relevant safety regulations for data processing equipment. If
you have questions as to whether you can set up the Tablet PC in the intended environment,
please contact your sales outlet or our hotline/service desk.
14 Fujitsu
![](/img.php?id=3734037&img=bg11.png)
Important notes
Additional safety notes for devices with
wireless components
Wirelesscom ponentsWirelessLANBluetooth,Safetynotes
If a wireless component (Wireless LAN, Bluetooth, 4G) is integrated in your Tablet PC, you must
be sure to observe the following safety precautions when using your Tablet PC:
• Switch off the wireless components when you are in an aircraft or driving in a car.
• Switch off the wireless components when you are in a hospital, an operating
room or near a medical electronics system. The transmitted radio waves
can impair the operation of medical devices.
• Switch off the wireless components, when you let the device get near flammable
gases or into hazardous environments (e.g. gas station, paint stores), as the
transmitted radio waves can cause an explosion or a fire.
For further information on how to switch the wireless components on and off, refer
to section "Switching the wireless components on and off", Page 37.
Protecting the display screen
Do not pour liquids on the system or wash it with a heavily soaked cloth. Do not place
itemsonthetopo
f the monitor in order to prevent it from being damaged.
During normal use of the device, small particles from the environment
can become embedded in the stylus tip and scratch the screen. The
warranty does not cover a scratched screen.
Energy saving
NotesEnergyPowersaving
If you will not be using your Tablet PC, switch it off. Switch off any connected external devices when
they are not in use. If you use the energy-saving functions, the Tablet PC uses less power. If you do
this, you will be able to work longer with the Tablet PC before having to recharge the battery.
The energy efficiency is increased and environmental pollution is reduced.
You save money and help protect the environment.
Energy saving under Windows
►Make use of the available energy-saving functions as described in chapter
"Using the energy saving functions", Page 33.
Fujitsu 15
![](/img.php?id=3734037&img=bg12.png)
Important notes
Traveling with your Tablet PC
MobileoperationNotesTrans portati onTabletPC
Please follow the instructions below when traveling with your Tablet PC.
Before you travel
►Back up important data stored on your hard disk.
beforeyou travelTravel
►Switch off the wireless component for data security reasons. With data traffic via a wireless
connection, it is also possible for unauthorized third parties to receive data.
Information on activating data encryption is provided in the documentation
for your wireless component.
►If you want to use your Tablet PC during a flight, ask the flight attendants to seeit is safe to use it.
When traveling in other countries
►If you are traveling abroad, check that the AC adapter can be operated with the
local AC voltage. If this is not the case, obtain the appropriate AC adapter for
your Tablet PC. Do not use any other voltage converter!
►Check whether the local AC voltage and the AC cable are compatible. If this is not
the case, buy an AC cable that suits the local conditions.
►Enquire with the appropriate government office of the country you will be traveling in as to
whether you may there operate the wireless component integrated in your Tablet PC.
►Take the necessary travel adapters with you when traveling abroad. Check in the following
table for which travel adapters you will need, or ask your travel organizer.
Power connection Travel destination
United States, Canada, Mexico, parts of Latin
America, Japan, Korea, Philippines, Taiwan
Russia and the Commonwealth of Independent
States (CIS), much of Europe, parts of Latin
America, the Middle East, parts of Africa, Hong
Kong, India, much of south-east Asia
United Kingdom, Ireland, Malaya, Singapore,
parts of Africa
China, Australia, New Zealand
16 Fujitsu
![](/img.php?id=3734037&img=bg13.png)
Important notes
Transporting the Tablet PC
Protect the Tablet PC from severe shocks and extreme temperatures
(e.g. direct sunlight in a car).
• Do not transport your Tablet PC while it is turned on.
• Carry your Tablet PC with you while traveling. Do not check it in as baggage.
• Never put your Tablet PC through a metal detector. Have it hand-inspected by
security personnel. You can however put your Tablet PC through a properly
tuned X-ray machine. To avoid problems, place it close to the entrance of
the machine and remove it as soon as possible or have it hand-inspected by
security personnel. Security officials may require you to turn your Tablet PC
on. So make sure you have a charged battery on hand for this.
►Switch the Tablet PC off.
►Unplug the AC plug of the AC adapter and all external devices from the power outlets.
►Disconnect the AC adapter cable and the data cables for all external devices.
►To protect against damaging jolts and bumps, use a suitable Tablet PC
carrying case to transport your Tablet PC.
Cleaning the Tablet PC
Do not clean any interior parts yourself; leave this job to a service technician.
Only use detergents designed for computers. Normal household cleaners
and polishes can damage the labels on the keyboard and the Tablet
PC, the paintwork or the Tablet PC itself.
Ensure that no liquid enters the Tablet PC.
The touchscreen is very sensitive to scratches! Only clean the display
surface with a very soft, slightly damp cloth.
►Switch the Tablet PC off.
CleaningInstructions
Tab l e t P CKeyboardTouchpadTouchscreen
►To prevent the device from being switched on unintentionally, remove the AC
plug of the AC adapter from the power outlet.
The surfaces may be cleaned with a dry cloth. If particularly dirty, use a cloth which has
been moistened in mild domestic detergent and then carefully wrung out.
Fujitsu 17
![](/img.php?id=3734037&img=bg14.png)
First-time setup of your device
First-time setup of your device
First- timese tupGettingstarted
Please read the chapter "Important notes", Page 14.
If your device is equipped with a Windows operating system, the necessary
hardware drivers and supplied software are already pre-installed.
Beforeswitchingitonforthefirst time, connect the device to the AC voltage using
the AC adapter, see "Connecting the AC adapter", Page 20. The AC adapter must
remain connected during the whole of the installation process.
A system test is performed when your device is first switched on. Various messages
can appear. The display may remain dark for a short time or may flicker.
Please follow the instructions on the screen.
NEVER switch off your device during the first-time setup process.
The battery must be charged if you want to operate your device using the battery.
When used on the move, the built-in battery provides the device with the necessary power. You
can increase the operating time by using the available energy-saving functions.
For instructions on how to connect external devices (e.g. mouse, printer) to your Tablet
PC, please refer to the operating manual for your device.
Unpacking and checking the device
If you find that damage has occurred during transport, please notify
your local sales outlet immediately!
►Unpack all the individual parts.
PackagingTransport
►Check your device for any visible damage which may have occurred during transportation.
You may need to reuse the packaging in the future, for example if
you need to ship your device.
18 Fujitsu
![](/img.php?id=3734037&img=bg15.png)
First-time setup of your device
Choosealocation
Choosealoc ationSetupACadapter
Choose a suitable location for the device before setting it up. In doing
so, please follow these instructions:
• Never place the device or the AC adapter on a heat-sensitive surface.
The surface could be damaged as a result.
• Never place the device on a soft surface (e.g. carpeting, upholstered furniture,
bed). This can result in damage caused by overheating.
• The back of the device heats up during normal operation. Prolonged contact
with skin can become unpleasant or even result in burns.
• Place the device on a stable, flat, non-slippery surface. Please note that the
rubber feet of the device may mark certain types of delicate surfaces.
• Keep other objects at least 100 mm / 4 inches away from the device
and its AC adapter to ensure adequate ventilation.
• Do not expose the device to extreme environmental conditions. Protect
the device against dust, humidity and heat.
Mounting the feet (only device versions
with palm vein sensor)
FeetFeet
Before initial startup of the above-mentioned device versions, Fujitsu recommends
that you mount the supplied feet.
►For how to install the feet, see section "Using the palm vein sensor (device-dependent)", Page 66.
Fujitsu 19
![](/img.php?id=3734037&img=bg16.png)
First-time setup of your device
Connecting the AC adapter
MakingreadytouseACadapter
Observe the safety notes in the enclosed "Safety/Regulations" manual.
The supplied AC cable conforms to the requirements of the country in which
you purchased your device. Make sure that the AC cable is approved for
use in the country in which you intend to use it.
3
1
2
►Connect the AC cable (1) to the AC adapter.
►Plug the AC cable (2) into a power outlet.
►Connect the AC adapter cable (3) to the
DC jack (DC IN) of the device.
Switching on the device for the first time
Switchingonforthefirstt ime
To make it easier to use your device for the first time, the operating system
is pre-installed on the hard disk.
20 Fujitsu
![](/img.php?id=3734037&img=bg17.png)
First-time setup of your device
1
2
►Press the ON/OFF button (1) for about one second to switch the device on.
The power-on indicators (2) light up whenever the system is switched on.
►During the installation process, follow the on-screen instructions.
You can find information and help on the Windows operating system
functions online at "http://windows.microsoft.com".
Fujitsu 21
Top
![](/img.php?id=3734037&img=bg18.png)
First-time setup of your device
Installing Bonus Apps
BonusApps
The Bonus Apps canbefoundintheStart menu
►In the Start menu, click on Bonus Apps to view the additional apps that are available to you.
Applications that are already installed appear in grey, those that are
available for installation appear in blue.
►Select the applications you wish to install by selecting the checkbox adjacent to your selection.
or
►Click Select All if you would like to install all available applications.
►To confirm your selection, click Install.
Note that in some cases (depending upon which application was selected for
installation) after installation completes, the system will prompt you to reboot.
There are also cases in which if multiple applications are selected to install
but one of them needs a reboot, the system will reboot and continue
installing the rest of the selected applications.
22 Fujitsu
![](/img.php?id=3734037&img=bg19.png)
Working with the Tablet PC
Working with the Tablet PC
Tablet,operationTablet
This chapter describes the basics for operating your Tablet PC. You can find instructions
on how to connect external devices (e.g. mouse, flash storage) to the Tablet PC in
the chapter "Connecting external devices", Page 74.
Please refer to the notes in the chapter "Important notes", Page 14.
Status indicators
StatusindicatorsSymbols
The status indicators (1, 2, 3) provide information about the statuses of the power supply,
the rechargeable batteries and the wireless components.
2
1
3
Fujitsu 23
![](/img.php?id=3734037&img=bg1a.png)
Working with the Tablet PC
No. Status indicator Description
1Power-on indicator
• The indicator lights up white: The Tablet PC is
switched on.
• The indicator flashes: The Tablet PC is in sleep mode
(Save-to-RAM).
• The indicator is not lit up: The Tablet PC is switched
off or in Save-to-Disk mode.
2Battery charging indicator
Please note: If the AC adapter is connected when the
state of charge of the battery is more than 90%, charging
will not be started. When the state of charge of the battery
is less than 90%, the battery will be charged to 100% as
soon as the AC adapter is connected.
• The indicator lights up orange: The rechargeable
battery is charging.
• The indicator is not lit up: The battery is not charging
(the battery is already fully charged or the AC adapter
is not connected).
3Wireless indicator
• The indicator lights up white: The wireless components
are switched on while the Tablet PC is switched on.
• The indicator flashes: The wireless components are
switched on while the Tablet PC is in Sleep mode or
Save-to-Disk mode, or while the Tablet PC is switched
off.
• The indicator is not lit up: The wireless components
are switched off.
24 Fujitsu
![](/img.php?id=3734037&img=bg1b.png)
Working with the Tablet PC
Switching the Tablet PC on
Tablet:SwitchingonPower-onPower-onindicator
►Press the ON/OFF button (1) for about one second to switch the device on.
The power-on indicators (2) light up whenever the system is switched on.
Fujitsu 25
1
2
Top
![](/img.php?id=3734037&img=bg1c.png)
Working with the Tablet PC
Programming the ON/OFF button
You can program the ON/OFF button:
Operating system Menu
Windows 10 Windows 10 Start - Control Panel - (Browse Control
Panel - ) Power Options - Choose what the power
buttons do
If you have assigned a password, you must enter this when requested to
do so, in order to start the operating system. Detailed information can be
found in the chapter "Security functions", Page 64.
Switching the Tablet PC off
Back up your data and close all applications before you switch off your
device. Otherwise data might be lost.
►Shut down the operating system correctly.
Switchingoffthe
►If the Tablet PC does not switch itself off automatically, press the ON/OFF
button for approx. five seconds.
Handwriting recognition
For detailed information on handwriting recognition, see the documentation for your operating system.
At present, handwriting recognition on Windows supports the following languages:
English, German, French, Italian, Japanese, Korean, Chinese (traditional and simplified), Dutch,
Portuguese, Spanish, Brazilian, Norwegian (Bokmål and Nynorsk), Swedish, Finnish, Danish,
Polish, Rumanian, Serbian (Cyrillic and Latin script), Catalan, Russian, Czech and Croatian.
On Windows you can set the required language under Control Panel – Time,
Language and Region – Language.
Touchscreen
Tou ch s creen
Notes
Information on screen resolution can be found in the section "Screen resolutions
for integrated screen and external screens", Page 93.
High-quality LCD screens (TFT) are installed in Fujitsu Tablet PCs. For technical reasons,
these screens are manufactured for a specific resolution. An optimal, clear picture can
only be ensured in the resolution intended for the particular screen. A screen resolution
which differs from the specification can result in an unclear picture.
The screen resolution of your Tablet PC’s touchscreen is optimally set at the factory.
26 Fujitsu
![](/img.php?id=3734037&img=bg1d.png)
Working with the Tablet PC
Current production technology cannot guarantee an absolutely fault-free screen display. A few
isolated constantly lit or unlit pixels may be present. The maximum permitted number of such
faulty pixels is specified in the international standard ISO 9241-307 (Class II).
Example:
A monitor with HD resolution 1280 x 1024 has 1,310,720 pixels. Each pixel consists of
three subpixels (red, green, and blue), which means that there are almost 3.9 million
subpixels in total. According to ISO 9241-307 (class II), a maximum of 3 light and 3
dark pixels and, in addition, 7 light or 13 dark subpixels or an equivalent mix (1 light
subpixel counts as 2 dark subpixels) are allowed to be defective.
Pixel A pixel consists of 3 subpixels, normally red, green and
blue. A pixel is the smallest element that can be generated
by complete functionality of the display.
Subpixel A subpixel is a separately addressable internal structure
within a pixel that enhances the pixel function.
Cluster A cluster contains two or more defective pixels or
subpixels in a 5 x 5 pixel block.
Background lighting
LCD screens are operated with background lighting. The luminosity of the background
lighting can decrease over the period of use of the Tablet PC. However, you
can set the brightness of your screen yourself.
Ambient light sensor
If your Tablet PC was shipped with the Windows operating system, the screen brightness is
regulated by means of the ambient light sensor and depending on the respective light conditions.
This results in optimum readability and longer battery life at the same time.
If your Tablet PC was shipped with Windows 10, the adaptive brightness setting is activated. To
change the ambient light sensor settings, select Control Panel - System and Security - Power Options -
Change plan settings - Change advanced power settings - Display - Enable adaptive brightness..
Synchronizing the display on the touchscreen and an external monitor
In Windows 10 you can proceed as follows to set the output type:
►Wipe your finger over the screen starting from the right-hand edge.
►Select All settings.
►Look for the keyword "project".
►Select the required function.
Fujitsu 27
![](/img.php?id=3734037&img=bg1e.png)
Working with the Tablet PC
Select display orientation (portrait or
landscape format)
Landscapeform atPortraitformatDisplayorientation
You can choose to use either portrait or landscape for the display, or whether the screen
orientation should automatically adjust to the orientation of the tablet PC.
If you have a device with an installed Wireless WAN module, do not operate WWAN with
the antenna folded out when holding the device horizontally with the camera pointing
downwards (in the tablet position Rotated Landscape format (secondary landscape)).
Operating the device in that position can result in damage to the antenna.
You can change these settings under Control Panel - Hardware and Sound
- Windows Mobility Center / Rotate screen.
In the settings there are profiles saved for operation with different screen orientations.
These profiles have preset standard configurations that can be modified as desired.
These settings do not just affect the screen settings on the Tablet PC, but
also on external monitors that are connected.
Using fingers
You can execute certain commands by using your finger tip on the touchscreen of your device.
Alternatively, everything which you can select or activate using your finger
tip can also be selected or activated using the stylus.
Calibrate the Dual Digitizer for finger-based
operation of the device.
Before the first finger-based operation, you must calibrate your Tablet PC via the
operating system, so that it recognizes your fingertips as accurately as possible.
As soon as you notice that the accuracy is becoming worse, you
must recalibrate the device.
Please note: There are separate calibration programs available for calibrating
the stylus and for calibrating finger-based operation. Do not use the calibration
tool for the stylus to calibrate finger-based operation.
Operating system Menu
Windows 10 To calibrate, run the Hardware and Sound / Tablet PC Settings function in the
Control Panel. You need to calibrate both portrait and landscape formats.
28 Fujitsu
![](/img.php?id=3734037&img=bg1f.png)
Working with the Tablet PC
Using the stylus
Pen
1
2
3
1 = stylus tip
2 = stylus button (right mouse button)
3 = eyelet for optional stylus tether
You can use the stylus on your Tablet PC as an electronic writing tool, to select menu items and to
navigate through the programs. Programs that support handwriting recognition also allow you to
write directly on the screen with the stylus. You can also use the stylus as a drawing tool.
A stylus tether is available as an optional extra and you can use this to tie the
eyelet on the stylus to the eyelet on the Tablet PC.
Use only the stylus that was provided with your Tablet PC. Do not use any other pointed
object as a substitute, that was not specially designed for your Tablet PC. Replace
the stylus tip if it is worn. The warranty does not cover a scratched screen.
While writing, take care that you do not scratch the surface of the
display (e.g. with a wristwatch or bracelet).
The stylus of the Tablet PC is an electronic instrument that can be damaged
if used improperly. Handle the stylus with care.
Our recommendations for proper handling of the stylus are as follows:
• Do not gesture with the stylus.
• Do not use the stylus as a pointer.
•Donotuseth
e stylus on surfaces other than the screen of the Tablet PC.
• Do not try to turn the grip of the stylus. The grip is used to put the
stylus into its slot or to take it out of its slot.
• Never store the stylus with its weight on the tip (e.g. with the tip down in a stylus
container). If the stylus is stored with the tip pointing down, this may have an
adverse effect on the stylus mechanism (particularly in high temperatures). In this
case, the stylus tip may react as though it is constantly being pressed down. To
avoid damage, the stylus should be stored in the slot when not in use.
The stylus can be influenced by electromagnetic fields (cursor quivers or
jumps). There may be a few areas on the screen where the cursor quivers
slightly in spite of pressing the stylus down firmly.
The screen responds to entries made with the tip of the finger or the stylus when the
tip of the finger or the stylus directly touches the screen.
You can use the stylus to perform almost all functions for which you would otherwise use a mouse.
Fujitsu 29
![](/img.php?id=3734037&img=bg20.png)
Working with the Tablet PC
Delete functions are not supported by the stylus.
Action Mouse Stylus
Selecting menu
items
Click with the left mouse button. Tap on the menu entry with the tip of
the stylus.
Starting programs Double-click with the left mouse
button.
Tap on the program symbol twice in
rapid succession using the stylus tip.
Moving an object
or window
Drag with the left mouse button
pressed.
Place the stylus tip directly on the
object or window. Keep the stylus tip
held against the screen. Drag the
desired object or window.
Opening a context
menu
Click with the right mouse button. Tap on the desired element with the
stylus and keep the stylus pressed
against the screen.
Moving the cursor Move the mouse Place the tip of the stylus directly on
the screen.
Stylus location
To prevent the stylus from jamming in its slot, always make sure that you insert the stylus
correctly into its slot (flat part of the stylus points towards the bottom of the Tablet PC).
On delivery, the stylus (1) is located in the stylus
slot:
1
Adjusting the stylus
Operating system Menu
Windows 10 Under System Control - Hardware and Sound - Pen and Touch you can make
various settings for the stylus.
30 Fujitsu
![](/img.php?id=3734037&img=bg21.png)
Working with the Tablet PC
Calibrating the stylus
Before first use with the stylus, you must calibrate your Tablet PC via the operating
system, so that it recognizes the stylus as accurately as possible.
You should also always repeat the calibration if the co-ordination between the
stylus and the cursor movement deteriorates.
Operating system Menu
Windows 10 To calibrate, run the Hardware and Sound / Tablet PC Settings function in the
Control Panel. You need to calibrate both portrait and landscape formats.
Securing the stylus tether (optional)
To prevent accidentally dropping or losing the stylus, you should secure it
with the optional stylus tether.
►Attach one end of the stylus cord to the stylus and the other end of the stylus cord to the Tablet PC.
Fujitsu 31
![](/img.php?id=3734037&img=bg22.png)
Working with the Tablet PC
Tablet buttons
In addition to the ON/OFF button (4), your Tablet PC is fitted with three tablet buttons.
124
3
No. Description Functions
1Power Start function manager or screen shot function
2Volume Up button Increase volume
3Volume Down button Decrease volume
If the Volume Down button on the Tablet PC is pressed in combination with
the ON/OFF button (4), this is equivalent to pressing the Ctrl +Alt +Del
key combination on a keyboard.
Webcam
Webcam
Your device has two webcams: one on the front of the device and one on the rear.
The webcam has its own status indicator. The indicator lights up when the webcam is active.
Depending on the software used, you can use your webcam to take pictures,
record video clips or take part in web chats.
• The picture quality depends on the lighting conditions and the software being used.
• You can only operate the webcam with a particular application (e.g. an Internet telephony
program or a video conferencing program which supports a webcam).
• When using the webcam the support of the Tablet PC must not wobble.
• The webcam automatically adjusts itself to the current light level. For this reason,
the touchscreen may flicker while the light level is adjusted.
Further information on use of the webcam and additional settings for your webcam
can be found in the help function of the program using the webcam.
32 Fujitsu
Quickly launch an app
Quick Start button
4
![](/img.php?id=3734037&img=bg23.png)
Working with the Tablet PC
Rechargeable battery
BatteryBatteryServicelife,batteryRechargeablebatteryBattery
The built-in battery provides the Tablet PC with the necessary power for use on the move.
You can increase the service life of the battery by caring for the battery properly. The
average battery service life is around 500 charge/discharge cycles.
You can extend the battery service life by taking advantage of the available energy-saving functions.
Charging and maintaining the battery
BatteryBattery
The Tablet PC battery can only be charged when the ambient temperature is
between 5°C / 41 °F and max. 35°C / 95°F.
You can charge the battery by connecting the Tablet PC to the AC adapter
(see "Connecting the AC adapter", Page 20).
If the AC adapter is connected, charging will not begin if the battery is at least 90% charged. Once
the battery charge drops below 90%, and the AC adapter is connected, charging will begin.
If the battery is running low you will hear a warning alarm. If you do not connect the AC adapter
within five minutes of hearing the warning alarm, your Tablet PC will switch off automatically.
Monitoring the battery state of charge
Batterybatterychargemeter
A battery symbol for monitoring the battery capacity is displayed in the system bar /
status indicator. The battery symbol shows you the battery charge.
Using the energy saving functions
EnergyEnergyBattery
The Tablet PC uses less power when the energy saving features are enabled. You will then
be able to work longer when using the battery before having to recharge it.
The energy efficiency is increased and environmental pollution is reduced.
By choosing the best power options, you can make significant savings and
at the same time help protect the environment.
►Set the energy saving functions in your Control Panel.
When the Tablet PC is in a power-saving mode, you must remember the following:
During power-saving mode, open data is held in main memory or
in a swap file on the hard disk.
Never switch off the Tablet PC while it is in a power-saving mode. If the built-in battery
is nearly flat, close all open files and do not go into power-saving mode.
If you do not intend to use your Tablet PC for a long period of time:
►Exit the power-saving mode if necessary by touching the screen or by switching the Tablet
PC on.
►Close all opened programs and completely shut down the Tablet PC.
Fujitsu 33
![](/img.php?id=3734037&img=bg24.png)
Working with the Tablet PC
Memory cards
Slot
Your Tablet PC is equipped with an integrated storage card reader. Use storage
cards to enlarge the storage of your Tablet PC.
Follow the manufacturer’s instructions when handling the memory cards.
Memorycard
Supported formats
The following formats are supported:
• Micro Secure Digital (microSDTM Card)
•microSDHC
•microSDXC
Inserting the memory card
2
►Open the slot cover (1).
►Carefully slide the memory card into
the slot (2). The label area must be
facing downward. Do not apply any
force, otherwise the delicate contact
surfaces could be damaged.
Memorycard
►Close the slot cover.
34 Fujitsu
1
![](/img.php?id=3734037&img=bg25.png)
Working with the Tablet PC
Removing the memory card
Memorycard
To avoid any loss of data, always follow the correct procedure for removing the
card (see the documentation for your operating system).
1a
3
2
►Open the slot cover (1).
►Press the edge of the memory card so
that the memory card jumps (2) slightly
out of the slot (a).
►Pull the memory card out of the slot (a)
in the direction of the arrow (3).
►Close the slot cover.
Fujitsu 35
![](/img.php?id=3734037&img=bg26.png)
Working with the Tablet PC
SIM card
A SIM Card (Subscriber Identity Module) is a chip card which is inserted in a cellular phone or Tablet
PC and, together with an integrated 4G module, enables access to a cellular radio network.
Follow the instructions supplied by the provider of the SIM card. If you do not feel the
the SIM card engage as you insert it, use a pointed object to insert the SIM card.
Please note that the SIM card format must be micro-SIM (3FF). Other SIM
card formats, such as full-size (1FF), mini-SIM (2FF) or nano-SIM (4FF) do
not fit in the SIM card slot of your Tablet PC.
Please do not insert any other format of SIM card as they may become
twisted, they could even damage the system.
Inserting a SIM card
124
3
►Open the slot cover (1).
►Remove the SIM card carrier from
its location (2).
►Insert the SIM card (3) as shown on
the SIM card carrier.
►Push the SIM card carrier back into
its location (4).
►Close the slot cover.
36 Fujitsu
![](/img.php?id=3734037&img=bg27.png)
Working with the Tablet PC
Removing a SIM card
124
3
►Open the slot cover (1).
►Remove the SIM card carrier from
its location (2).
►Remove the SIM card from the SIM
card carrier (3).
►Push the SIM card carrier back into
its location (4).
►Close the slot cover.
Wireless LAN/Bluetooth/4G/LTE/NFC wireless
components
The installation of wireless components not approved by Fujitsu will
invalidate the certifications issued for this device.
Switching the wireless components on and off
The wireless components are switched on and off using the appropriate
functions of the operating system.
►To switch wireless components on and off individually, select Settings –
Network & Internet – Flight Mode.
Configuring WLAN access
• Requirement: A WLAN is available and you have the necessary access data to hand.
Information on configuring WLAN access can be found in the
documentation for your operating system.
Further information on WLAN and Bluetooth
For further information about WLAN or Bluetooth, please refer to the
appendix of this Operating Manual.
For WLAN specifications, see chapter "WLAN specifications", Page 91.
Fujitsu 37
![](/img.php?id=3734037&img=bg28.png)
Working with the Tablet PC
Access via UMTS
If you ordered an integrated UMTS module with your system, you can enjoy optimum
reception and maximum energy efficiency without awkward cables or antennas. The
optional UMTS module is ready for use immediately.
You will find information on establishing the connection with the UMTS network
in the documentation for the hardware used.
Your device can connect to the Internet via UMTS. To do this, use one of
the following types of connection:
• Integrated UMTS module (availability dependent on your configuration)
• USB dongle (a USB stick containing a SIM card from your cellular phone network provider)
• A mobile end-device (e.g. cellular phone with Bluetooth or cable connection)
Access via Wireless WAN
You can purchase the accessories for Wireless WAN reception from your Fujitsu dealer.
If you have ordered a Wireless WAN module, your device will already
be prepared when you receive it.
You will find information on establishing the connection with the Wireless WAN
network in the documentation for the hardware you plan to use.
Access via 4G
You can order the accessories for 4G reception from your Fujitsu dealer.
If you have ordered an integrated 4G module with your system, the 4G
module is ready for use straight away.
You can find information on establishing the connection with the 4G network
in the documentation for the hardware used.
NFC (Near Field Communication, optional)
Your Tablet PC can be equipped with an optional built-in NFC chip. Near Field Communication is
used for contactless exchange of data via radio over short distances (a few centimeters).
38 Fujitsu
![](/img.php?id=3734037&img=bg29.png)
Working with the Tablet PC
Ethernet and LAN (only cradle, keyboard docking
station
EthernetLAN
The internal network module of your Tablet PC supports Ethernet LAN. You can use it to
establish a connection to a local network (LAN = Local Area Network).
2
1
►Connect the network cable to the LAN
port of the cradle (1).
or
►Connect the network cable to the LAN
port of the keyboard docking station
(1).
►Connect the network cable to your
network connection (2).
Your network administrator can help you to configure and use the LAN connections.
The network cable is not included in the delivery scope. This type of
cable can be obtained from a specialist dealer.
GPS
GPS
Whether or not your device has this function depends on the chosen equipment level.
Fujitsu 39
![](/img.php?id=3734037&img=bg2a.png)
Accessories for your Tablet PC (optional)
Accessories for your Tablet PC (optional)
The following accessories are available for your Tablet PC:
• Docking cradle for charging the Tablet PC and with additional ports
•Keyboard docking station with additional ports (without removable battery)
•Intermediary VESA Mount Plate
•Hand strap
•Shoulder strap
•Folio case
•ProtectiveTPU coverwithhandstrap
•Folio Cover Kit
The following sections provide more information on handling the accessories.
Your docking cradle (optional)
Your docking cradle is a device that not only enables fast charging, but also allows you to
quickly connect your Tablet PC to your peripherals, such as a monitor, keyboard, mouse, etc.
You only need to dock the Tablet PC to be able to work with your peripheral devices.
40 Fujitsu
![](/img.php?id=3734037&img=bg2b.png)
Accessories for your Tablet PC (optional)
Cradle components
PortsPortsCradle
1
2
34
1 = Dock release button
2 = Docking port
3= USBport3.0
4= USBport3.0
Settingupthecradle
Select a suitable location for the cradle before setting it up. In doing
so, please follow these instructions:
• Placethecradleonaflat, stable, non-slippery surface.
•Neve
r place the cradle or the AC adapter on a heat-sensitive surface.
• Do not expose the cradle to extreme environmental conditions.
•Pro
tect the cradle from dust, moisture and heat.
Fujitsu 41
![](/img.php?id=3734037&img=bg2c.png)
Accessories for your Tablet PC (optional)
Connecting the Tablet PC to the cradle
It is possible to connect the Tablet PC to the cradle while it is running.
Disconnect the AC adapter from the Tablet PC before connecting
the Tablet PC to the cradle.
When the Tablet PC is connected to the cradle, you must connect the AC adapter
to the cradle, to be able to use all the cradle’s functions.
Cradle
►Remove the AC plug of the AC adapter from the power outlet.
►Remove the AC adapter cable from the DC jack (DC IN) of the Tablet PC.
1
2
4
3
Your cradle is supplied with a separate AC adapter (19 V, 3.42 A). Make
sure that you only use this AC adapter for the cradle.
►Position the Tablet PC so that it lies against the storage surface of the cradle.
42 Fujitsu
![](/img.php?id=3734037&img=bg2d.png)
Accessories for your Tablet PC (optional)
►Push the Tablet PC onto the cradle in the direction of the arrow (1) until you feel it engage
on the connector and until the slide-out position returns to its original position.
►Plug the AC adapter cable into the DC jack (DC IN) on the cradle (2).
►Connect the AC cable to the AC adapter (3).
►Plug the AC cable into the power outlet (4).
Disconnecting the Tablet PC from the cradle
It is possible to separate the Tablet PC from the cradle while it is running.
2
1
►Press the slide-out button in the direction of the arrow (1) until it firmly
remains in pressed position (red marking visible).
►While holding down the lower part of the cradle, lift the Tablet PC off the
cradle in the direction of the arrow (2).
Fujitsu 43
![](/img.php?id=3734037&img=bg2e.png)
Accessories for your Tablet PC (optional)
Keyboard docking station
The keyboard docking station is available without a removable battery
44 Fujitsu
![](/img.php?id=3734037&img=bg2f.png)
Accessories for your Tablet PC (optional)
Ports on the keyboard docking station
KePorytbsoardDock
5
1
6
234
1=Release button
2 = Num Lock indicator (to switch virtual
numeric keypad on and off)
3 = Caps Lock indicator (to switch
capitalization function on and off)
4 = Scroll Lock indicator (function dependent
on the application program)
5 = Docking port for the Tablet PC
6 = LAN port
Fujitsu 45
![](/img.php?id=3734037&img=bg30.png)
Accessories for your Tablet PC (optional)
46 Fujitsu
Notes
KePorytbsoardDock
![](/img.php?id=3734037&img=bg31.png)
Accessories for your Tablet PC (optional)
Connecting the tablet PC to the keyboard docking station
If the tablet PC is connected to the keyboard docking station, you can
connect the AC adapter either to the keyboard docking station or to the
tablet PC.
Keyboarddo ckingstation
►Position the keyboard docking station as shown.
1
2
3
4
►Push the Tablet PC onto the keyboard docking station in the direction of the
arrow (1) until you feel it engage with the plug.
►Connect the AC adapter cable to the DC input connector (DC IN) of
the keyboard docking station (2).
►Connect the AC cable to the AC adapter (3).
►Plug the AC cable into the power outlet (4).
Fujitsu 47
![](/img.php?id=3734037&img=bg32.png)
Accessories for your Tablet PC (optional)
Disconnecting the tablet PC from the keyboard docking
station
It is possible to separate the tablet PC from the keyboard docking station
while it is running. However, to prevent any problems, we recommend that
you execute the appropriate undocking function provided by the operating
system.
2
►Press the slide-out button down (1) until it remains in the pressed position (red marking visible).
►Lift the Tablet PC away from the keyboard docking station in the direction of the arrow (2).
48 Fujitsu
1
![](/img.php?id=3734037&img=bg33.png)
Fujitsu 49
Notes:
![](/img.php?id=3734037&img=bg34.png)
50 Fujitsu
Notes:
![](/img.php?id=3734037&img=bg35.png)
Fujitsu 51
Notes:
![](/img.php?id=3734037&img=bg36.png)
Accessories for your Tablet PC (optional)
Intermediary VESA Mount Plate (optional)
For models with screw holes, Smart Card readers or palm vein scanners, an optional VESA
mounting attachment, the Intermediary VESA Mount Plate, can be attached to the rear.
Use the Intermediary VESA Mount Plate to secure the Tablet PC to a cart, counter
or stand with the corresponding screw holes, for example.
The Intermediary VESA Mount Plate cannot be used in combination
with hand or shoulder straps.
The Intermediary VESA Mount Plate kit contains the following components:
Intermediary VESA Mount Plate, two M2x8 screws and two spacers.
52 Fujitsu
![](/img.php?id=3734037&img=bg37.png)
Accessories for your Tablet PC (optional)
• Use the appropriate tool of the correct size when securing the screws.
• Keep the screws out of the reach of children.
4
4
4
4
3
1
1
1
1
2
2
2
2
►Remove the covers from the screw holes on the rear of the Tablet PC (1).
►Position the spacers between the Tablet PC and Intermediary VESA Mount Plate (2).
Fujitsu 53
![](/img.php?id=3734037&img=bg38.png)
Accessories for your Tablet PC (optional)
►Position the Intermediary VESA Mount Plate on the Tablet PC (3). Make sure that the screw
holes of the Intermediary VESA Mount Plate and of the Tablet PC lie exactly on top of each other.
►Secure the Intermediary VESA Mount Plate using the screws (4).
Hand strap (optional)
For models with screw holes, Smart Card readers or palm vein sensors, an
optional hand strap can be attached to the rear.
The hand strap cannot be used in combination with the Intermediary
VESA Mount Plate or shoulder strap.
The hand strap accessory contains the following components: Hand straps,
two M2x6 screws, two M2x8 screws and two spacers.
54 Fujitsu
![](/img.php?id=3734037&img=bg39.png)
Accessories for your Tablet PC (optional)
• Use the appropriate tool of the correct size when securing the screws.
• Keep the screws out of the reach of children.
• Do not shake the device too much when you are holding it on the hand strap.
1
1
2
2
3
3
►Remove the caps from the screw holes on the rear of the Tablet PC (1).
►Position the spacers between the Tablet PC and the hand strap (2).
►Position the hand strap on the Tablet PC (3). Make sure that the screw holes of the
hand strap and of the Tablet PC lie exactly on top of each other.
Fujitsu 55
![](/img.php?id=3734037&img=bg3a.png)
Accessories for your Tablet PC (optional)
Only use M2x8 screws to secure the hand strap.
►Secure the hand strap with the screws (4).
Folio case (optional)
When using the cover, we do not recommend connecting the tablet PC to the keyboard
docking station. Please note that the device cannot be placed into the docking station
in clamshell mode if the tablet still has its cover on.
• This folio case contains magnets. Keep it away from objects that may be easily
affected by the influence of magnetism, e.g. pacemakers and magnetic cards.
• Make sure the device is firmly fitted into the folio case fasteners in
order to prevent it from falling out.
• The folio case is only designed to safely store and transport the device.
Do not use the folio case for any other purpose.
• Keep the folio caseawayfromfire or heaters.
• Neither put the folio case in direct sunlight nor expose it to
high temperature or humidity.
1
2
►Position the Tablet PC on the cover as shown (1).
►Insert the Tablet PC into the cover (2).
The following illustration shows you the many ways in which the folio case can be used:
56 Fujitsu
![](/img.php?id=3734037&img=bg3b.png)
Accessories for your Tablet PC (optional)
Protective TPU cover with hand strap (optional)
Prepare installation
12
3
4
►Remove the soft pad from the hand strap belt (2).
►Loosen and remove the hand strap belt (1).
►Separate the rigid cover (3) from the soft cover (4).
Fujitsu 57
![](/img.php?id=3734037&img=bg3c.png)
Accessories for your Tablet PC (optional)
Insert the Tablet PC in the protective TPU cover
►Lay the soft cover on the table.
►Place the Tablet PC with the connection side
forwards into the corners of the soft cover.
►Allow the Tablet PC to click into place
in the soft cover.
►Turn over the Tablet PC and soft cover.
►Allow the rigid cover to click into place
on the soft cover.
►Fit the hand strap belt on the rigid cover,
align it and pull it tight.
58 Fujitsu
![](/img.php?id=3734037&img=bg3d.png)
Accessories for your Tablet PC (optional)
►Install the soft pad on the hand strap belt (5).
a
a
a
a
►If required, secure the shoulder strap
at the four holders (a).
Fujitsu 59
5
![](/img.php?id=3734037&img=bg3e.png)
Accessories for your Tablet PC (optional)
Connecting the Tablet PC to the keyboard docking
station or cradle
12
►Push the Tablet PC onto the keyboard docking station in the direction of the
arrow (1) until you feel it engage with the plug.
or
►Press the Tablet PC onto the cradle in the direction of the arrow (2).
To prevent damage to the system, never fold the Tablet PC on the keyboard
docking station if the Tablet PC is in the TPU cover.
Do not connect the Tablet PC to the keyboard dock and carry both
if you are using the TPU cover.
60 Fujitsu
![](/img.php?id=3734037&img=bg3f.png)
Accessories for your Tablet PC (optional)
Folio Cover Kit (optional)
This protective folio cover is a rugged, lightweight cover for protecting your Tablet.
The folio cover can also be used in two different standing positions to make it easier
to view and use your Tablet when it is on a flat surface.
Kit contents
The kit includes the following items:
• Folio cover with handstrap attached
• Cover attachments screws, 4 ea.
The folio cover consists of two parts, cover (1) and holder (2), connected by
Velcro® (3) and snap buttons (4). The left image shows the inside of the folio
cover, the right image the outside of the folio cover.
2
1
344
Inside of folio cover Outside of folio cover
Inserting the system into the folio cover
The folio cover is designed to provide a secure fit for the system. In order to ensure your
system is installed correctly, please perform the following steps.
►Turn the device over and place it on a stable, flat and clean surface. If necessary, lay an
anti-slip cloth on this surface to prevent the device from being scratched.
►Locate the four inserts on the bottom of the system (1):
Fujitsu 61
![](/img.php?id=3734037&img=bg40.png)
Accessories for your Tablet PC (optional)
1
1
1
1
►Note that there may be round adhesive covers over the inserts; if they are present, remove them.
►Position the folio cover on a stable, flat and clean surface, with the inside
of the folio cover pointing down.
►Disengage the Velcro and snap buttons.
►Detach the cover part from the holder part.
►Turn over the system and align the palm vein sensor (a) with the corresponding
indent on the right side (b) of the holder:
a
b
2
►Carefully press the system into the holder (2).
Be sure that you do not over-tighten the screws. Overtightening the
screws could damage the unit.
►Turn over the folio cover and attach the system to the folio cover using the four screws
(3) provided in the kit. Use Phillips screwdriver with bit #0:
62 Fujitsu
![](/img.php?id=3734037&img=bg41.png)
Accessories for your Tablet PC (optional)
3
3
3
3
►Reattach the cover part to the holder part using the Velcro® and the snap buttons.
►If required, adjust the handstrap on the back and use steel D-rings for
the shoulder strap attachment.
The cover can be used in two different orientations as a stand for your Tablet:
Care tips for the folio cover
The folio cover is made of top-quality materials and is designed to withstand daily use.
• Treat the folio cover as you would a briefcover or purse.
• Occasionally, the folio cover may become soiled. To clean it, use a commercially available
cleaner and follow the instructions contained with the cleaner.
• Never submerge the folio cover in water.
Fujitsu 63
![](/img.php?id=3734037&img=bg42.png)
Security functions
Security functions
Securityfunctions
Your Tablet PC has several security features that you can use to secure your system
and your personal data from unauthorized access.
This chapter explains how to use these functions, and what the benefits are.
Please remember that in some cases, for example, forgetting your password,
you may be locked out of the system and unable to access your data.
Therefore, please note the following information:
• Back up your data on external data carriers at regular intervals.
• Some security functions need you to choose passwords. Make a note
of the passwords and keep them in a safe place.
If you forget your passwords you will need to contact our Service Desk.
Deletion or resetting of passwords are not covered by your warranty
and a charge will be made for assistance.
64 Fujitsu
![](/img.php?id=3734037&img=bg43.png)
Security functions
Configuring the fingerprint sensor
Fingerprintsens orFingerpr intsensor
The fingerprint sensor can record the image of a fingerprint. With additional fingerprint
software, this image can be processed and used instead of a password.
1
1
►Install the fingerprint software to be able to use the fingerprint sensor (1).
Fujitsu 65
![](/img.php?id=3734037&img=bg44.png)
Security functions
Using the palm vein sensor (device-dependent)
PalmveinsensorPalmveinsensor
Whether your device has a palm vein sensor or not depends on the
device configuration which you ordered,
The palm vein sensor (1) can record the image of the veins on the palm of your hand. This
image is evaluated with additional software and can be used in place of a password.
1
Before initial startup, Fujitsu recommends that you mount the supplied feet:
►Turn the device over and place it on a stable, flat and clean surface. If necessary, lay an
anti-slip cloth on this surface to prevent the device from being scratched.
66 Fujitsu
![](/img.php?id=3734037&img=bg45.png)
Security functions
2
2
►Secure the feet with the screws (2).
►Install the software to use the palm vein sensor.
You can obtain further information on the palm vein sensor in the
"appendix: Miscellaneous Information".
You can find the current software and drivers for the palm vein sensor
online on the Fujitsu Service Desk website.
Fujitsu 67
![](/img.php?id=3734037&img=bg46.png)
Security functions
Using the Security Lock
SecurityLockAnti-theftprotectionSecurityLock
Your device comes with a Security Lock device for the Kensington Lock Cable. With the
Kensington Lock Cable, a sturdy steel cable, you can protect your device and the port replicator
against theft. The Kensington Lock Cable is available as an accessory.
►Fit the Kensington Lock Cable to the
corresponding mechanism on your device.
Attach another Kensington Lock Cable to your cradle, keyboard docking station to
protect your port replicator from theft as well.
Configuring passwordprotectioninBIOSSetupUtility
Before using the various options for password protection in the BIOS Setup
Utility, please proceed as follows to increase data security:
Make a note of the passwords and keep them in a safe place. If you forget your
supervisor password you will not be able to access your Tablet PC. Passwords are
not covered by your warranty and a charge will be made for assistance.
Password protection
Your password can be up to 32 characters long and can contain letters, numbers and
special characters. A distinction is made between upper and lower case.
When using special characters, please note that these are dependent on
the country-specific variant of the keyboard used.
68 Fujitsu
![](/img.php?id=3734037&img=bg47.png)
Security functions
Protecting BIOS Setup Utility (supervisor password
and user password)
If you have opened these operating instructions on the screen, we recommend
that you print them out. You cannot call up the instructions on the screen
while you are setting up the password.
BIOSSetupUtility
The supervisor password and the user password both prevent unauthorized use of the BIOS
Setup Utility. The supervisor password allows you to access all of the functions of the BIOS Setup
Utility, while the user password will only give you access to some of the functions. You can
only set up a user password if a supervisor password has already been assigned.
Calling and using the BIOS Setup Utility is described in the chapter
"Settings in BIOS Setup Utility", Page 78.
Assigning the supervisor and user passwords
►Start the BIOS Setup Utility and go to the Security menu.
►Select the Set Supervisor Password field and press the Enter key.
With Enter new Password: you are asked to enter a password.
►Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
►Enter the password again and press the Enter key.
Changes have been saved is displayed as a confirmation that the new password has been saved.
►To set the user password, select Set User Password and proceed exactly as
when configuring the supervisor password.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
►In the Exit menu, select the option Save Changes & Exit.
►Select Yes and press the Enter key.
PasswordSupervisorpasswordUserpassword
The Tablet PC is rebooted and the new password is effective. It will now be necessary to
first enter your supervisor or user password in order to open the BIOS Setup Utility. Please
note that the user password only provides access to a few of the BIOS settings.
Changing the supervisor password or user password
You can only change the supervisor password when you have logged into the
BIOS Setup Utility with the supervisor password.
PasswordSupervisorpasswordUserpassword
►Start the BIOS Setup Utility and go to the Security menu.
►When changing the password, proceed exactly as when assigning a password.
Fujitsu 69
![](/img.php?id=3734037&img=bg48.png)
Security functions
Removing passwords
To remove a password (without setting a new password) perform the following steps:
PasswordSupervisorpasswordUserpassword
►Start the BIOS Setup Utility and go to the Security menu.
►Highlight the Set Supervisor Password or Set User Password field and press the Enter key.
You will be requested to enter the current password by the Enter Current Password prompt.
Enter New Password will appear and you will be requested to enter a new password.
►Press the Enter key twice at this request.
►In the Exit menu, select the option Save Changes & Exit.
►Select Yes and press the Enter key.
The Tablet PC is rebooted and the password is removed.
Removing the supervisor password simultaneously deactivates the user password.
Password protection for booting the operating system
With the supervisor password you have set in the BIOS Setup Utility (see
section "Assigning the supervisor and user passwords", Page 69), you can
also prevent booting of the operating system.
Operating system
Activating system protection
►Start the BIOS Setup Utility and go to the Security menu.
Operatingsystem
►Select the Password on Boot option and press the Enter key.
►Select the option you require (First Boot or Every Boot) and press the enter key
►Select the Save Changes & Exit option under Exit.
The Tablet PC reboots. You will be prompted to enter your password (the supervisor password).
Deactivating system protection
►Start the BIOS Setup Utility and go to the Security menu.
Operatingsystem
►Select the Password on Boot option and press the Enter key.
►Select the Disabled option and press the Enter key.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
►Select the Save Changes & Exit option under Exit.
The Tablet PC reboots. The system is no longer password-protected.
Password protection for the hard disk
Passwordpr otection
The hard disk password prevents unauthorized access to the hard disk drives
and is checked internally each time the system is booted. The condition for this
is that you have assigned at least the supervisor password.
70 Fujitsu
![](/img.php?id=3734037&img=bg49.png)
Security functions
Activating hard disk protection
►Call up the BIOS Setup and select the Security menu.
If you have not assigned BIOS passwords yet, define the supervisor and the user
password now, if desired (see "Security functions", Page 64).
►Mark the Hard Disk Security field and press the Enter key.
►In the area Drive0, mark the field Set Master Password and press the Enter key.
Enter new Password then appears and you are asked to enter a password.
►Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
►Enter the password again and press the Enter key.
With Setup Notice: Changes have been saved you receive confirmation that
the new password has been saved.
►If you wish to enter a password for a second hard disk (Drive1), in the area
Drive1 mark the field Set Master Password and proceed in exactly the same way
as for the set up of the first hard disk (Drive0).
The field Password Entry on Boot is set to Enabled by default. You can exit the BIOS
Setup once you have finished changing the settings.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC reboots and your hard disk is now protected with a password. The
password prompt is enabled as soon as the Tablet PC has rebooted.
Deactivating hard disk protection
To cancel a password (without setting a new password) proceed as follows:
►Call up the BIOS Setup and select the Security menu.
►Mark the Hard Disk Security field and press the Enter key.
►In the area Drive0, mark the field Set Master Password and press the Enter key.
With the prompt Enter current Password you are first asked to enter the old password again.
With Enter new Password you are then prompted to enter a new password.
►After the request, press the Enter key three times.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC reboots and there is no longer any password protection for this hard disk.
►If you wish to remove a password for a second hard disk (Drive1), in the area
Drive1 mark the field Set Master Password and proceed in exactly the same way
as for the removal of the first hard disk (Drive0).
Fujitsu 71
![](/img.php?id=3734037&img=bg4a.png)
Security functions
SmartCard reader (optional)
Your device may be fitted with a SmartCard reader depending on your chosen model
(only available in models with screw holes and SmartCard reader).
SecurityfunctionsSecurityfunctions
SmartCards are not supplied as standard equipment. You can use all SmartCards that comply with
the ISO standard 7816-1, -2 or -3. These SmartCards are available from various manufacturers.
With the appropriate software you can use your SmartCard as an alternative to password protection,
but also as a digital signature, for encrypting your e-mails or for home banking.
We recommend that you always use two SmartCards. Always keep one of the SmartCards
in a safe place if you are carrying the other SmartCard with you.
Inserting the SmartCard
Your device may be fitted with a SmartCard reader depending on your chosen model
(only available in models with screw holes and SmartCard reader).
Do not use force when inserting and removing the SmartCard.
Make sure that foreign objects do not fall into the SmartCard reader.
1
►Push the SmartCard into the SmartCard reader with the chip facing the rear of the Tablet PC.
72 Fujitsu
![](/img.php?id=3734037&img=bg4b.png)
Security functions
Trusted Platform Module - TPM (device dependent)
TPMTrustedPlatform Module
To use the TPM, you must enable the TPM in the BIOS Setup before the software is
installed. The requirement for this is that you have assigned at least the supervisor
HDD password (see "Security functions", Page 64).
Enabling TPM
• Requirement: You have assigned a supervisor password (see "Security functions", Page 64).
►Call BIOS Setup and select the Security menu.
►Mark the TPM Security Chip Setting field and press the Enter key.
►Select the entry Enabled to enable the TPM
Once you have enabled the TPM the Clear Security Chip menu item appears.
You can clear the holder in the TPM using Clear Security Chip.WithEnabled,
all secret keys (e.g. SRK - Storage Root Keys, AIK - Attestation Identity Keys
etc.) generated by applications are deleted.
Take note that you can then no longer access the data you have
encrypted on the holder-based keys!
►Select the Exit Saving Changes option in the Exit menu.
►Press the Enter key and select Yes.
The Tablet PC restarts and the TPM is enabled after the reboot.
Disabling TPM
• Requirement: You have assigned a supervisor password (see "Security functions", Page 64).
►Call BIOS Setup and select the Security menu.
►Mark the TPM Security Chip Setting field and press the Enter key.
►Select the entry Disabled to disable the TPM.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC is rebooted and the TPM is disabled.
Fujitsu 73
![](/img.php?id=3734037&img=bg4c.png)
Connecting external devices
Connecting external devices
Under all circumstances, please observe the safety notes provided in the
"Important notes", Page 14 chapter before connecting or disconnecting
any devices to or from your Tablet PC.
Always read the documentation supplied with the device you wish to connect.
Never connect or disconnect cables during a thunderstorm.
Never pull at a cable when disconnecting it. Always grasp the plug.
With some devices, such as USB devices, it is not necessary to switch off
the Tablet PC and the device before connecting/disconnecting. For more
information about whether or not devices need to be switched off, please refer
to the documentation supplied with your external device.
Some of the external devices require special drivers (see the operating
system and external device documentation).
Connecting an external monitor
Micro HDMI port
HDMIport
The micro HDMI port on your device can be used to connect an external amplifier,
LCD TV or a plasma TV with an HDMI connection.
►Connect the data cable to the
external device.
►Connect the data cable to the micro
HDMI port.
Some LCD televisions have only two speakers/speaker ports and therefore
cannot reproduce Dolby Digital or DTS. To play back HDMI sound, you
must change the HDMI sound settings accordingly.
You can find the settings under Control Panel - Hardware and Sound. Deactivate the
settings for DTS Audio and Dolby Digital to enable playback of HDMI sound.
74 Fujitsu
![](/img.php?id=3734037&img=bg4d.png)
Connecting external devices
HDMI port (only with docking cradle, keyboard docking
station
HDMIport
The HDMI port can be used to connect an external amplifier, LCD TV or a
plasma TV with an HDMI connection.
►Connect the data cable to the
external device.
►Connect the data cable to the HDMI port.
Some LCD televisions have only two speakers/speaker ports and therefore
cannot reproduce Dolby Digital or DTS. To play back HDMI sound, you
must change the HDMI sound settings accordingly.
You can find the settings under Control Panel - Hardware and Sound. Deactivate the
settings for DTS Audio and Dolby Digital to enable playback of HDMI sound.
External monitor port (VGA) (only docking cradle, keyboard
docking station
An analog monitor is connected to the analog VGA monitor port. Screen output is
limited to a maximum of two screens at the same time.
SMMVGcronionieAttpenooorrrcctonnonneeccttiioonn
►Switch off the Tablet PC and the
external monitor.
►Plug the data cable of the external
monitor into the monitor port.
►First switch on the external monitor and
then switch on the Tablet PC.
You can also switch back and forth between the external monitor and the LCD
screen of the Tablet PC, see "Touchscreen", Page 26.
You can display the same image on the external monitor and on the LCD
screen of the Tablet PC at the same time.
Fujitsu 75
![](/img.php?id=3734037&img=bg4e.png)
Connecting external devices
Connecting USB devices
USBports
On the USB ports you can connect external devices that also have a USB port
(e.g. a DVD drive, a printer, a scanner or a modem).
USB devices are hot-pluggable. This means you can connect and disconnect the
cables of USB devices while the operating system is running.
USB 1.x has a maximum data transfer rate of 12 Mbps.
USB 2.0 has a data transfer rate of up to 480 Mbps.
USB 3.0 has a data transfer rate of up to 5 Gbps.
USB 3.1 has a data transfer rate of up to 10 Gbps.
Additional information can be found in the documentation for the USB devices.
►Connect the data cable to the
external device.
►Connect the data cable to the USB
port on the Tablet PC.
or
or
or
►Connect the data cable to a USB port
of the Cradle.
►Connect the data cable to a USB port of
the keyboard docking station.
►Connect the data cable to a USB port of
the docking station.
Device drivers
USB devices will be automatically recognized and installed by your operating system.
How to remove USB devices correctly
Always correctly remove the device according to the rules described below,
to ensure that none of your data is lost.
►Tap the symbol for safe removal of the hardware.
►Select the device you wish to shut down and remove.
►Tap OK.
Wait for the dialog box which tells you that it is now safe to remove the device.
76 Fujitsu
![](/img.php?id=3734037&img=bg4f.png)
Connecting external devices
Connecting external audio devices
Your Tablet PC has a combined headphone and microphone port, your (optional) docking
cradle has separate ports for headphones and a microphone.
Connecting headphones or other audio output devices
Connectingaudio devicesAudioconnectionsConnectinghe adphones
The combined headphones and microphone port of the Tablet PC or the headphone
port of the docking cradle (optional) allows you to connect output devices, such as
headphones, external speakers, etc., to your Tablet PC.
►Connect the audio cable to the
external device.
►Connect the audio cable to the combined
headphone and microphone port of the
Tablet PC or to the headphone port of
the docking cradle (optional).
The internal speakers are disabled.
If you buy a cable from a retailer, please note the following:
The combined headphone and microphone port on your Tablet PC
isa"3.5mmjacksocket".
If you want to connect headphones or speakers you will need a "3.5 mm jack plug".
Connecting a microphone or other audio input devices
Connectingaudio devicesAudioconnectionsConnectingmicrophone
The combined headphones and microphone port of the Tablet PC or the microphone port
of the docking cradle (optional) allows you to connect an external microphone, a MiniDisc
player, MP3 player, CD player or a tape deck to your Tablet PC.
►Connect the audio cable to the
external device.
►Connect the audio cable to the combined
headphones and microphone port of the
Tablet PC or to the microphone port of
the docking cradle (optional).
Fujitsu 77
![](/img.php?id=3734037&img=bg50.png)
Settings in BIOS Setup Utility
Settings in BIOS Setup Utility
BIOSSetupUtilitySystemsettings,BIOSSetupUtilityConfiguration,BIOSSetupUtilitySetupConfiguringsyst emConfiguringhardware
To navigate more easily in the BIOS Setup Utility, you can use an external USB keyboard.
The BIOS Setup Utility allows you to set the system functions and the hardware
configuration for the Tablet PC.
When the Tablet PC is delivered, the default settings are effective. You can change
these settings in the menus of the BIOS Setup Utility. Any changes you make take
effect as soon as you save and exit the BIOS Setup Utility.
The BIOS Setup Utility program contains the following menus:
Info Displays information relating to the BIOS, processor and Tablet PC
System Advanced system settings
Advanced Configuration of various hardware components, such as mouse, keyboard,
processor
Security Password settings and security functions
Boot Configuration of the start-up sequence
Exit Exits the BIOS Setup Utility
Starting the BIOS Setup Utility
►Keep the Volume Down button pressed and switch on the Tablet PC.
BIOSSetupUtility
►If a password has been assigned, enter the password and press the Enter key.
If you have forgotten the password, contact your system administrator
or contact our customer service centre.
The BIOS Setup Utility starts.
78 Fujitsu
![](/img.php?id=3734037&img=bg51.png)
Settings in BIOS Setup Utility
BIOS Setup Utility operation
BIOSSetupUtility
Press the F1 key to display help about operation of the BIOS Setup Utility. The description
of the individual settings is shown in the right-hand window of the BIOS Setup Utility.
With the F9 key you can load the default settings of the BIOS Setup Utility.
►Use the cursor keys ←or →to select the menu you wish to access to make changes.
The menu is displayed on the screen.
►Select the option you want to change with the cursor keys ↑or ↓.
►Press the "Enter" key.
►Press the ESC key to exit the selected menu.
►For future reference, make a note of the changes you have made (for example, in this manual).
Fujitsu 79
![](/img.php?id=3734037&img=bg52.png)
Settings in BIOS Setup Utility
Exiting BIOS Setup Utility
BIOSSetupUtility
You need to select the desired option in the Exit menu and activate it by pressing the Enter key:
Exit Saving Changes - save changes and exit BIOS Setup Utility
►To save the current menu settings and exit the BIOS Setup Utility, select Exit Saving Changes and Yes.
The Tablet PC is rebooted and the new settings come into effect.
Exit Discarding Changes - Reject changes and
exit BIOS Setup Utility
►To discard the changes, select Exit Discarding Changes and Yes.
The settings which were valid when BIOS Setup Utility was called remain effective.
The BIOS Setup Utility ends and the Tablet PC is rebooted.
Load Setup Defaults – load default values
►To copy the standard entries for all menus of the BIOS Setup Utility,
choose Load Setup Defaults and Yes.
Discard Changes - Discard Changes without
exiting BIOS Setup Utility
►To discard the changes you have made, select Discard Changes and Yes.
The settings in place when BIOS Setup Utility was called remain effective.
You can now make additional settings in the BIOS Setup Utility.
►IfyouwanttoexittheBIOS Setup Utility with these settings, select Exit Saving Changes and Yes.
Save Changes - save changes without exiting
the BIOS Setup Utility
►To save the changes, select Save Changes and Yes.
The changes are saved. You can now make additional settings in the BIOS Setup Utility.
►If you want to exit BIOS Setup Utility with these settings, choose Exit Saving Changes and Yes.
Save changes and power off
►To save the changes and switch off your device, select Save Changes and Power Off and Yes.
The changes are saved. Your device is shut down.
80 Fujitsu
![](/img.php?id=3734037&img=bg53.png)
Troubleshooting and tips
Troubleshooting and tips
TroubleshootingTipsFaultProblemsolving
If a fault occurs, try to correct it as described. If you fail to correct the problem, proceed as follows:
►Make a note of the steps and the circumstances that led to the fault. Also
make a note of any error messages displayed.
►Switch the Tablet PC off.
►Please contact the Hotline/Service Desk.
You can contact Fujitsu Service and Support in the following ways:
• Toll free phone: 1-800-8Fujitsu (1-800-838-5487)
• Website: "http://solutions.us.fujitsu.com/www/content/support/contact/index.php"
Before you place the call, have the following information ready so that the customer
support representative can provide you with the fastest possible solution:
• The model name and serial number of the Tablet PC. The serial number
is located on a sticker on the underside of the Tablet PC.
• Notes with the messages that appeared on the screen and
informationonaco
ustic signals.
• All changes you have made to the hardware or software after receiving the Tablet PC.
• All changes you have made to the BIOS Setup settings after receiving the Tablet PC.
• Your system configuration and all peripheral devices connected to your system.
• Your sales contract.
Our Tablet PCs have been designed primarily with mobile applications in mind.
This means that considerable effort has been made to optimize components and
equipment in terms of weight, space and energy requirements. Depending on the
particular configuration you have purchased, it is possible that functionality may be
slightly reduced compared to a desktop PC if you are running processor-intensive
gaming software, e.g. games with intensive 3D graphics. Updating your hardware with
drivers which have not been approved by Fujitsu may result in performance losses,
data losses or malfunction of the equipment. A list of approved drivers and current
BIOS versions can be downloaded from: "http://solutions.us.fujitsu.com"
Fujitsu 81
![](/img.php?id=3734037&img=bg54.png)
Troubleshooting and tips
Executing a reset
If the device no longer responds to your inputs, choose one of the following options:
Forced shutdown
►Press and hold the ON/OFF button for at least 4 seconds.
The device will be shut down. You can then restart it.
Resetting the rechargeable battery
►Shut down the device.
If the device does not respond, you may have to force the shutdown, as described above.
►Disconnect the AC adapter from the device.
►Press the Volume Up button and the Shortcut button at the same time.
The device resets in a similar way to the removal of the rechargeable
battery. You can then restart it.
Help if problems occur
Should you encounter a problem with your computer that you cannot resolve yourself:
►Note the ID number of your device. The ID number is found on the type rating
plate on the back or underside of the casing.
►For further clarification of the problem, contact the Fujitsu Service Desk. When you do
this, please have ready the ID number and serial number of your system.
If you need to restore your system
In the event you need to restore your original Factory Image, please refer to
the appendix of this Operating Manual.
TheTabletPC’sdateortimeisincorrect
SummertimeWintertim eIncorrecttimeTimeno tcorrectWrongdate/timeDatenotcorrect
Cause Troubleshooting
Time and date are incorrect. ►With the BIOS-Setup-Utility, you can set the
date and time in the Main menu.
Date and time are still set incorrectly after
switching on the Tablet PC.
►Please contact your sales outlet or our
hotline/service desk.
82 Fujitsu
![](/img.php?id=3734037&img=bg55.png)
Troubleshooting and tips
Battery charging indicator not lit
Cause Troubleshooting
The battery is not being charged. ►Connect the Tablet PC to a power outlet
using the AC adapter.
Note: The battery will only be charged again
when the battery capacity is less than 90%.
The Tablet PC’s touchscreen remains dark
Tou ch s c re e ndark touchscreen
Cause Troubleshooting
Touchscreen is switched off. ►Press a key (external keyboard) or tap on
the touchscreen.
External monitor or television set connected. ►Check whether the graphics driver settings
are correct or whether an external monitor
has been detected in "Intel Graphics Media
Accelerator Driver for mobile".
The display on the Tablet PC’s touchscreen
is difficult to read.
Tou ch s c re e nTo u ch s c re e n
Cause Troubleshooting
Reflected glare ►Move the Tablet PC into a different position.
►Increase the brightness of the screen.
Fujitsu 83
![](/img.php?id=3734037&img=bg56.png)
Troubleshooting and tips
The external monitor remains blank
Monitor
Cause Troubleshooting
Monitor is switched off. ►Switch the external monitor on.
Power saving has been activated (monitor is
blank).
►Press a key (external keyboard) or tap on
the touchscreen.
Brightness is set to dark. ►Adjust the brightness of the monitor.
Screen output is set to the Tablet PC
touchscreen.
►Check whether the graphics driver settings
are correct or whether an external monitor
has been detected in "Intel Graphics Media
Accelerator Driver for mobile".
The external monitor’s AC cable or data cable is
not connected properly.
►Switch off the Tablet PC and the external
monitor.
►Check whether the AC cable is plugged
properly into the external monitor and into
the power outlet.
►Check that the data cable is properly
connected to the Tablet PC and the external
monitor (if it is plugged in with a connector).
►Switch on the external monitor and the
Tablet PC.
The external monitor is blank or the image is unstable
MonitorMonitor
Cause Troubleshooting
The wrong external monitor has been selected
or the wrong screen resolution has been set for
the application program.
►Shut down the application program in
Windows. If the error persists after shutting
down the program, use the key combination
for switching the screen output in order to
switch to the touchscreen of the Tablet PC.
Change the following setting:
►Set the screen resolution: Set the screen
resolution as described in the documentation
foryouroperatingsystem.
►Select monitor: Select monitor 1 or 2 as
described in the documentation for your
operating system.
The cursor does not correctly follow the
stylus movements
Cause Troubleshooting
Stylus incorrectly calibrated. ►Calibrate the stylus as described in chapters
"Adjusting the stylus", Page 30 and
"Calibrating the stylus", Page 31.
84 Fujitsu
![](/img.php?id=3734037&img=bg57.png)
Troubleshooting and tips
Stylus input not working
Cause Troubleshooting
Incorrect driver installed. ►If your device is one which can only be
operated using the stylus, install the driver
for the standard model.
or
►If your device is one which can be
operated using the stylus and by finger,
install the driver for the "Dual Digitizer"
model.
The Tablet PC does not start after switch on
TabletPC
Cause Troubleshooting
The battery is dead. ►Charge the battery.
or
►Connect the AC adapter to the Tablet
PC.
The AC adapter is not connected properly. ►Check whether the AC adapter is properly
connected to the Tablet PC.
►Switch the Tablet PC on.
The Tablet PC stops working
TabletPCEnding
Cause Troubleshooting
The Tablet PC is in energy saving mode. ►End energy saving mode.
An application program has caused the
malfunction.
►Close the application program or restart
the Tablet PC (by restarting the operating
system or switching the device off and back
on again).
The battery is dead. ►Charge the battery.
or
►Connect the AC adapter to the Tablet
PC.
Fujitsu 85
![](/img.php?id=3734037&img=bg58.png)
Troubleshooting and tips
The printer does not print
Printerdoesnot print
Cause Troubleshooting
The printer is not switched on. ►Make sure that the printer is switched
on and ready for operation (refer to the
documentation supplied with the printer).
The printer is not connected correctly. ►Check that the data cable between the Tablet
PC and the printer is properly connected.
The printer driver is faulty or not correctly
installed, or it is the wrong printer driver.
►Check that the data cable between the Tablet
PC and the printer is properly connected.
►Check whether the correct printer driver is
loaded (refer to the printer documentation).
The wireless connection to a network does not work
Thewireless connectiontoa networkdoes notwork
Cause Troubleshooting
The wireless component is switched off. ►Switch the wireless component on (see
"Switching the wireless components on and
off", Page 37).
The wireless component is switched on. Despite
this, the wireless connection to a network does
not work.
►Check whether the wireless connection is
enabled by the software.
►Further information on using the wireless
component can be found in the help files.
The battery discharges too quickly
Battery
Cause Troubleshooting
The battery is either too hot or too cold. In this
case the battery indicator flashes.
►Bring the Tablet PC up/down to a normal
operating temperature again.
►If the operating time of the battery life is
extremely short, the battery is probably too
old. Replace the battery if necessary.
You may have an application running that
consumes a great deal of power due to frequent
accessing of the hard disk or optical drive.
►Use the AC adapter whenever possible.
The maximum brightness may have been set
for the screen.
►Reduce the brightness of the screen to
lower energy consumption: You will find the
setting under Control Panel – Hardware and
Sounds – Windows Mobility Center.
86 Fujitsu
![](/img.php?id=3734037&img=bg59.png)
Troubleshooting and tips
Smart Card reader is not recognized
Cause Troubleshooting
Smart Card inserted incorrectly. ►Make sure you have inserted your Smart
Card into the Smart Card reader with
the chip facing upwards / downwards
(device-dependent).
►Check whether the Smart Card you are
using is supported. Your Smart Card must
comply with the ISO standard 7816-1, -2,
-3 and -4.
Smart Card PIN forgotten
Cause Troubleshooting
PIN forgotten ►If you work in a network, contact your
system administrator, who can unlock your
Tablet PC using a supervisor PIN.
User and/or supervisor Smart Card lost
Cause Troubleshooting
User and/or Supervisor Smart Card lost. ►If you have lost your user Smart Card, you
can continue working with the Supervisor
Smart Card and initialize a new user Smart
Card.
►If you have lost the Supervisor Smart Card,
you can also continue working, but you no
longer have all rights and cannot initialize
another Supervisor Smart Card.
►If you have lost both Smart Cards, you
cannot boot your system. Please contact our
customer service center. You must provide
proof of ownership for the device. The
customer service center will then refer you
to our service partner, who will unlock your
device (for a charge).
Smart Card lost
Cause Troubleshooting
Smart Card lost. ►If you work in a network, contact your
system administrator, who can boot your
Tablet PC with a supervisor Smart Card.
Fujitsu 87
![](/img.php?id=3734037&img=bg5a.png)
Troubleshooting and tips
Acoustic warning
Acous tic wa rnin gsErrors Cause Troubleshooting
A beep sounds every few seconds.
The battery is almost dead.
►Charge the battery.
Error messages on the screen
Errormessages onthescreen
Errors
This section describes the error messages generated by the BIOS Setup. Error messages displayed
by the operating system or programs are described in the documentation for these programs.
If the error message appears repeatedly despite troubleshooting measures,
contact the place of purchase or our customer service center.
88 Fujitsu
![](/img.php?id=3734037&img=bg5b.png)
Troubleshooting and tips
Error message/cause Troubleshooting
CMOS battery bad
If the error message occurs repeatedly, the
buffer battery in the Tablet PC is flat.
►Contact your sales outlet or our customer
service center.
System CMOS checksum bad - Default configuration
used
The system configuration information is
incorrect.
►Switch the Tablet PC off.
►Switch the Tablet PC on.
►In the BIOS Setup, select the Exit menu.
►Select the entry Load Setup Defaults.
►Select OK and press the Enter key.
Extended memory failed at offset: xxxx Failing Bits:
zzzz zzzz
When testing the extended memory. an error
has resulted at the address xxxx.
►Contact your sales outlet or our customer
service center.
Failure Fixed Disk n
The settings of the hard disk drive are incorrect.
►Start the BIOS Setup (Primary Master
submenu) and select the correct settings.
Keyboard controller error ►Switch your Tablet PC off with the ON/OFF
button.
►Wait 3 - 5 seconds and switch the Tablet PC
on again.
Keyboard error If you use an external keyboard:
►Check the connection and reboot the Tablet
PC.
nn Stuck key ►Make sure that no key is pressed.
Operating system not found ►Check in the BIOS Setup whether your hard
disk has been set correctly.
►Make sure that the operating system is
installed on the corresponding drive.
Press <F1> to resume, <F2> to SETUP
This error message appears if an error occurs
during the self-test before starting the operating
system.
►Press theVolumeUpbuttontostartthe
BIOS setup.
or
►If you are working with an external
keyboard, press the F1 or F2 key on
the keyboard.
Real time clock error ►Contact your sales outlet or our customer
service center.
nnnnK Shadow RAM failed at offset: xxxx Failing
Bits: zzzz ►Contact your sales outlet or our customer
service center.
System battery is dead - Replace and run SETUP ►Contact your sales outlet or our customer
service center.
System cache error - Cache disabled ►Contact your sales outlet or our customer
service center.
System timer error ►Contact your sales outlet or our customer
service center.
Fujitsu 89
![](/img.php?id=3734037&img=bg5c.png)
Technical data
Technical data
Tablet PC
General
Processor 7th Generation Intel® Core™ with vPro™
technology (vPro, depending on configuration)
Main memory (SO DIMM) 8 GB / 16 GB DIMM onboard
Electrical data
Safety regulations complied with CE, cULus
Protection class III
Maximum power consumption (when the
tablet PC is switched on, connected to the
keyboard docking station and the battery is
being charged):
65 W
Touch screen
Size 13.3" Full HD Wide View
Screen resolution 1920 x 1080 / 16 million colors
Pixel class II
Brightness control 11 levels
Technology Wide-View Bright or Anti-Glare Display with LED
backlight
Digitizer and glass panel Dual Digitizer touch screen
Cameras • Front: HD camera
• Back: 5 megapixels, autofocus, mobile light
Graphics card
Chip Intel (c) HD Graphics 620
Maximum resolution of external display: 4096 x 2160
Dimensions
Width x Depth x Height • Standard housing only: 12.56 x 8.19 x 0.5
inches (319 x 208 x 12.7 mm)
•Standard housing with keyboard docking
station without battery: 12.56 x 9.76 x 1.17
inches (319 x 248 x 29.6 mm)
90 Fujitsu
![](/img.php?id=3734037&img=bg5d.png)
Technical data
Weight depending on configuration • Standard housing only: 2.15 lbs / 0.98 kg
•Standard housing with keyboard docking
station without battery: 4.13 lbs / 1.87 kg
Depending on the respective configuration
(including battery), the weight may differ from
the above-mentioned values.
Input devices
Tablet buttons 3 keys
Stylus Stylus with a pressure button
Slots
Memory card slot 1xmicroSD
SIM card slot 1 x Micro-SIM
Smart Card slot (optional housing) 1x
Ports
Combined headphones and microphone port 3.5mmstereominijack
Docking port 1 x
Micro HDMI port 1 x
USB (Universal Serial Bus) 1 x USB 2.0, 1 x USB 3.0
Security Lock device 1x
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 41 °F .... 95 °F / 5 °C .... 35 °C
Transport temperature (2K2) 5 °F .... 140 °F / -15 °C .... 60 °C
WLAN specifications
Type of network Intel® Dual Band Wireless 8265NGW
(11ac/abgn), WLAN and Bluetooth*
Transfer rate (Automatic switching) IEEE802.11 a and g: 54
Mbps max. data rate; IEEE802.11n: 300 Mbps
max. data rate, IEEE802.11ac: 867 Mbps max.
data rate
Active frequency • 802.11n: 2.4 GHz or 5 GHz
• 802.11b/g: 2400~2473 MHz
• 802.11a: 4900~5850 MHz
• 802.11ac: 2.4 GHz / 5 GHz
Fujitsu 91
![](/img.php?id=3734037&img=bg5e.png)
Technical data
Typical operating distances** • 802.11a: 40 ft. (12 m) @ 54 Mbps; 300 ft.
(91m)@6Mbps
• 802.11ac: 40 ft. (12 m) @ 54 Mbps; 300
ft.(91 m) @ 6 Mbps
• 802.11b: 100 ft. (30 m) @ 11 Mbps; 300 ft.
(91m)@1Mbps
• 802.11g: 100 ft. (30 m) @ 54 Mbps; 300 ft.
(91m)@1Mbps
• 802.11n: Estimated double the operating
distance of 802.11g and 802.11a in their
respective frequencies
Number of channels • 802.11a: 8 independent channels
• 802.11b/g: 11 channels, 3 non-overlapping
channels
• 802.11n: Channel bonding takes two of
the non-overlapping 20MHz channels and
combines it into one 40MHz channel. It is
actually 12 non-overlapping channels with
channel bonding and 24 without. Also it is 1
non-overlapping channel in 2.4GHz when
channel bonding is used.
• 802.11ac: 5 independent channels
Security Encryption types: compatible with WEP, TKIP,
AES***, WPA 1.0 and WPA 2.0
Encryption key, lengths supported: 64 bits and
128 bits
Maximum recommended number of computers
to be connected over wireless LAN (during ad
hoc connection)
10 units or less ****
* “Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the
interconnectivity of wireless LANs (Wi-Fi Alliance) was passed.
** The operating distances given above increase or decrease depending on factors such as the
number of walls, reflecting material or interference by external RF sources.
*** Network key encryption (WEP) occurs with the number of bits given above, after deduction of
the fixed length of 24 bits the user may however also set 40 or 104 bits.
**** Depending on the particular practical application, the number of computers which can be
networked is reduced if necessary.
92 Fujitsu
![](/img.php?id=3734037&img=bg5f.png)
Technical data
Screen resolutions for integrated screen
and external screens
System
interface
Max.
number
of
screens
Number
of
external
screens
Inte-
grated
screen
micro
HDMI
port
Only
Tablet PC 21
4096x2160
@24Hz
3840x2160
@30Hz
1920x1080
@60Hz
-
-
21
-
4096x2160
@24Hz
3840x2160
@30Hz
1920x1080
@60Hz
-
with
cradle/keyboard
docking
32
1920x1080
@60Hz
-
Fujitsu 93
![](/img.php?id=3734037&img=bg60.png)
Technical data
Rechargeable battery
For information on the batteries used in your device, please see
"http://solutions.us.fujitsu.com/www/content/support/contact/index.php".
3-cell lithium polymer battery 4,250 mAh
Rated voltage 19 V
Rated capacity 46 Wh
AC adapter 65 W for the Tablet PC
Technicaldata
Rated voltage 19 V
Max. rated current 4.74 A
An additional AC adapter or AC cable can be ordered at any time.
Docking cradle (optional)
Electrical data
Safety regulations complied with CE
Protection class III
Ports
Docking port 40-pin
HDMI port 1 x
VGA monitor port 1x
USB (Universal Serial Bus) 3xUSB3.
0
LAN port 1 x
Security Lock device 1x
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 41 °F .... 95 °F / 5 °C .... 35 °C
Temperature in transit 5 °F .... 140 °F / -15 °C .... 60 °C
94 Fujitsu
![](/img.php?id=3734037&img=bg61.png)
Technical data
AC adapter 65 W for the cradle (optional)
Technicaldata
Rated voltage 19 V
Max. rated current 3.42 A
An additional AC adapter or AC cable can be ordered at any time.
Keyboard docking station
Electrical data
Safety regulations complied with CE
Protection class III
Ports
Docking port 16-pin
LAN port 1 x
1 x
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 41 °F .... 95 °F / 5 °C .... 35 °C
Temperature in transit 5 °F .... 140 °F / -15 °C .... 60 °C
Fujitsu 95
![](/img.php?id=3734037&img=bg62.png)
Technical data
Intermediary VESA Mount Plate (optional)
Dimensions
Width x Depth x Height 222 mm x 91 mm x 12.2 mm /
8.74 in x 3.58 in x 0.48 in
Weight 130 g / 0.29 lbs
Hand strap (optional)
Dimensions
Width x Depth x Height 478 mm x 77 mm x 13 mm /
18.8 in x 3.03 in x 0.51 in
Weight approx. 24 g / 0.053 lbs.
Shoulder strap (optional)
Dimensions
Width x Depth x Height 1265 mm x 25 mm x 4.8 mm /
49.80 in x 0.98 in x 0.189 in
Weight approx. 33.4 g / 0.074 lbs.
Folio case (optional)
Dimensions
Width x Depth x Height 332 mm x 231 mm x 27 mm /
13.1inx9.1inx1.1in
Weight Approx. 480 g / 1.1 lbs.
Protective TPU cover with hand strap (optional)
Dimensions
Width x Depth x Height 332 mm x 220 mm x 29 mm /
13.1 inx8.7inx1.2in
WeightApprox. 365 g / 0.8 lbs.
96 Fujitsu
![](/img.php?id=3734037&img=bg63.png)
Technical data
Folio cover kit for hand vein sensor (optional)
Dimensions
Width x Depth x Height 365 mm x 228 mm x 38 mm /
14.4 in x 9 in x 1.5 in
Weight Approx. 860 g / 1.9 lbs.
Fujitsu 97
![](/img.php?id=3734037&img=bg64.png)
Manufacturer’s notes
Manufacturer’s notes
Disposal and recycling
Notes
You can find information on this subject on your Tablet PC or on our website
("http://solutions.us.fujitsu.com/www/content/products/trade-in_program/").
Recycling your battery
Over time, the batteries that run your mobile computer will begin to hold a charge for a
shorter amount of time; this is a natural occurrence for all batteries. When this occurs, you
may want to replace the battery with a brand new one*. If you replace it, it is important
that you dispose of the old battery properly because batteries contain materials that
could cause environmental damage if disposed of improperly.
Fujitsu is very concerned with environmental protection, and has enlisted the services of the
Rechargeable Battery Recycling Corporation (RBRC)**, a nonprofit public service organization
dedicated to protecting our environment by recycling old batteries at no cost to you.
RBRC has drop-off points at many convenient locations throughout the United States and Canada.
To find the location nearest you, go to "www.RBRC.org" or call 1-800-822-8837.
If there are no convenient RBRC locations near you, you can also go to the EIA Consumer
Education Initiative website "http://EIAE.org/ " and search for a convenient disposal location.
Remember – protecting the environment is a cooperative effort, and you should
make every effort to protect it for current and future generations.
* To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site
at "www.shopfujitsu.com" in the US or "www.fujitsu.ca/products/notebooks" in Canada.
** RBRC is an independent third party to which Fujitsu provides funding for
battery recycling; RBRC is in no way affiliated with Fujitsu.
DOC (Industry CANADA) Notices
DOC(INDUSTRYCANADA)NOTICES
Radios and Television
This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment
Regulations.
CET appareil numérique de la class B respecte toutes les exigence du Réglement
sur le matérial brouilleur du Canada.
98 Fujitsu
![](/img.php?id=3734037&img=bg65.png)
Manufacturer’s notes
UL Notice
IMPORTANT SAFETY INSTRUCTIONS
This unit requires an AC adapter to operate. Only use UL Listed I.T.E. adapters with an output rating
of 19 VDC, with a minimum current of 3.42 A (65 W). The correct output rating is indicated on the
AC adapter label. Refer to the illustration below for the correct AC Adapter output polarity:
When using your tablet PC equipment, basic safety precautions should always be followed to
reduce the risk of fire, electric shock and injury to persons, including the following:
• Do not use this product near water, for example near a bathtub, washbowl, kitchen
sink or laundry tub, in a wet basement or near a swimming pool.
• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a
fire. They may explode. Check with local codes for possible special disposal instructions.
SAVE THESE INSTRUCTIONS
For Authorized Repair Technicians Only
CAUTION:
For continued protection against risk of fire, replace only with the
same type and rating fuse.
WARNING:
Danger of explosion if Lithium (CMOS) battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instruction.
Fujitsu 99
![](/img.php?id=3734037&img=bg66.png)
Manufacturer’s notes
ENERGY STAR Compliance
Your Fujitsu system is an ENERGY STAR qualified mobile PC. By
choosing a computer with the latest energy-saving technology, you’re
helping to preserve our environment for future generations. ENERGY
STAR is a joint program of the U.S. Environmental Protection Agency,
U.S. Department of Energy, Natural Resources Canada, and other
governments around the world helping us save money while protecting
the environment through energy efficient products and practices. With
energy costs and global warming top-of-mind for consumers, Fujitsu is
committed to offering solutions that help consumers conserve energy
and improve the quality of our environment.
Sleep mode:
You will notice that your computer is initially set so that the display turns off after 5 minutes
and sleeps after 15 minutes. When plugged in: the display turns off after 10 minutes
and sleeps after 30 minutes (as OS default value). When going into Sleep mode, the
computer also reduces the speed of any active Ethernet network links. To “wake” the
computer from Sleep mode, press the Suspend/Resume Button.
Energy saving benefits:
Fujitsu ENERGY STAR qualified mobile PCs use about half as much electricity as standard
equipment – saving half in utility costs. But more than that, ENERGY STAR also makes a difference
for the environment. Did you know that the average house can be responsible for twice the
greenhouse gas emissions as the average car? That’s because every time you flip on a light
switch, run your dishwasher, or turn on your PC, you use energy, which means more greenhouse
gas emissions from power plants. So the more energy we can save through energy efficiency,
the more we help to reduce greenhouse gases and the risks of global warming.
To learn more about the important ENERGY STAR program, visit:"www.energystar.gov".
To read about how Fujitsu is supporting Sustainable Management along with
several other environmental activities, visit the Fujitsu Corporate Citizenship page at:
"http://www.computers.us.fujitsu.com/www/content/aboutus/environmental/environment.php".
100 Fujitsu
![](/img.php?id=3734037&img=bg67.png)
Declarations of conformity
Declarations of conformity
Declarationsof conformity
This device complies with Part 15 of the FCC Rules. Operations are subject to the following two
conditions: (1) This device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
Fujitsu 101
![](/img.php?id=3734037&img=bg68.png)
FCC and IC Regulatory Information
FCC and IC Regulatory Information
Please note the following regulatory information related to the wireless LAN
device.
Regulatory Notes and Statements
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of
these emissions, however, are far much less than the electromagnetic energy emissions from wireless
devices such as mobile phones. Wireless LAN devices are safe for use by consumers because they
operate within the guidelines found in radio frequency safety standards and recommendations. The
use of Wireless LAN devices may be restricted in some situations or environments, such as:
• On board an airplane, or
• In an explosive environment, or
• In situations where the interference risk to other devices or services is
perceived or identified as harmful.
In cases in which the policy regarding use of Wireless LAN devices in specific environments is not
clear (e.g., airports, hospitals, chemical/oil/gas industrial plants, private buildings), obtain
authorization to use these devices prior to operating the equipment.
102 Fujitsu
WARNING: The Fujitsu Tablet when used in dock mode in the cradle will communicate
via RF. The device radiates radio frequency energy at a level below the United States
FCC and Canada’s ISED radio frequency exposure limits. However, the Tablet in
docked mode shall not be used in body worn positions. Human contact during normal
operation should be minimized and a body to Tablet distance of >20cms shall be
maintained. Use of other accessories may not ensure compliance with FCC RF
exposure guidelines. Details of the authorized configurations can be found on FCC
website by entering the FCC ID number that is shown on this device.
![](/img.php?id=3734037&img=bg69.png)
FCC and IC Regulatory Information
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician for help.
Fujitsu 103
Regulatory Information/Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with the instructions
included in the user documentation provided with the product. Any changes or modifications made to
this device that are not expressly approved by the manufacturer may void the user’s authority to
operate the equipment. The manufacturer is not responsible for any radio or television interference
caused by unauthorized modification of this device, or the substitution or attachment of connecting
cables and equipment other than those specified by the manufacturer. It is the responsibility of the
user to correct any interference caused by such unauthorized modification, substitution or
attachment. The manufacturer and its authorized resellers or distributors will assume no liability for
any damage or violation of government regulations arising from failure to comply with these
guidelines.
This device must not be co-located or operated in conjunction with any other antenna or transmitter.
For IEEE 802.11a Wireless LAN: For operation within 5.15~5.25 GHz frequency range, it is
restricted to indoor environments, and the antenna of this device must be integral.
Federal Communications Commission and Industry
Canada statement:
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND INDUSTRY CANADA
LICENSE-EXEMPT RSS STANDARD(S). OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS
DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED OPERATION.
Déclaration d’Industrie Canada
Cet appareil est conforme à la partie 15 des règlements de la FCC et aux normes RSS exemptes
de licence d'Industrie Canada. L'utilisation est soumise aux deux conditions suivantes: (1) Cet
appareil ne doit pas causer d'interférence nuisible, et (2) les interférences reçues, y compris les
interférences susceptibles de provoquer un fonctionnement indésirable.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. If not installed and used in accordance with
the instructions, it may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try and
correct the interference by one or more of the following measures:
![](/img.php?id=3734037&img=bg6a.png)
FCC and IC Regulatory Information
FCC Radio Frequency Exposure statement
The available scientific evidence does not show that any health problems are associated with
using low power wireless devices. There is no proof, however, that these low power wireless
devices are absolutely safe. Low power wireless devices emit low levels of radio frequency
energy (RF) in the microwave range while being used. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low-level RF that does not produce heating
effects causes no known adverse health effects. Many studies of low-level RF exposure have
not found any biological effects. Some studies have suggested that some biological effects
might occur, but such findings have not been confirmed by additional research.
The wireless LAN radio device has been tested and found to comply with FCC radiation
exposure limits set forth for an uncontrolled equipment and meets the FCC radio frequency
(RF) Exposure Guidelines in Supplement C to OET65.
The exposure standard for wireless devices employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg, and 1.6W/kg by Industry Canada.
This device is compliant with SAR for general population /uncontrolled exposure limits in
ANSI/IEEE C95.1-1992 and Canada RSS 102, and had been tested in accordance with
the measurement methods and procedures specified in OET Bulletin 65 Supplement C,
and Canada RSS 102. This device has been tested, and meets the FCC, IC RF exposure
guidelines when tested with the device operating conditions.
Déclaration de la FCC/d’Industrie Canada sur
l’exposition aux radiofréquences
La norme régissant l’exposition des appareils sans fil aux radiofréquences emploie une unité
de mesure dénommée Taux d’absorption spécifique, ou TAS. La FCC et Industrie Canada ont
défini la même limite de TAS : 1,6 W/kg. Cet appareil est conforme au TAS pour les limites
d’exposition générales de la population/non contrôlées définies par les règles C95.1-1992 de
l’ANSI/IEEE et RSS 102 d’Industrie Canada ; il a été testé en conformité avec les méthodes
et procédures de mesure spécifiées dans le supplément C du bulletin 65 de l’OET (Office
d’ingénierie et de technologie) et la règle RSS 102 d’Industrie Canada. Cet appareil a été testé
selon les directives de la FCC et d’IC concernant l’exposition aux radiofréquences et s’est révélé
conforme à ces dernières lorsqu’il a été testé en contact direct avec le corps.
Export restrictions
This product or software contains encryption code which may not be exported or transferred
from the US or Canada without an approved US Department of Commerce export license.
This device complies with Part 15 of FCC Rules., as well as ICES 003 B / NMB 003 B.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesirable operation. Modifications not expressly authorized by Fujitsu
America, Inc. may invalidate the user’s right to operate this equipment.
104 Fujitsu
![](/img.php?id=3734037&img=bg6b.png)
FCC and IC Regulatory Information
Restrictions concernant l’exportation
Ce produit ou logiciel contient du code de chiffrement qui ne peut être exporté ou transféré du
Canada ou des États-Unis sans un permis d’exportation du département du commerce des États-
Unis. Ce matériel est conforme à la Partie 15 des règlements de la FCC, ainsi qu’à la norme ICES
003 B/NMB 003 B. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet
appareil ne doit pas causer d’interférence nuisible; (2) cet appareil doit accepter toutes les
interférences reçues, y compris celles pouvant causer un mauvais fonctionnement de l’appareil.
Toute modification n’ayant pas été expressément approuvée par la société Fujitsu America
Incorporated peut annuler le droit de l’utilisateur de se servir du matériel.
Canadian Notice
The device could automatically discontinue transmission in case of absence of information to
transmit, or operational failure. Note that this is not intended to prohibit transmission of control or
signaling information or the use of repetitive codes where required by the technology.
The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential
for harmful interference to co-channel mobile satellite systems;
High-power radars are allocated as primary users (i.e. priority users) of the bands 5250–5350 MHz
and 5650–5850 MHz and that these radars could cause interference and/or damage to LE-LAN
devices.
Avis pour le Canada
-Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont reserves uniquement pour une
utilisation a l’interieur afin de reduire les risques de brouillage prejudiciable aux systemes de
satellites mobiles utilisant les memes canaux.
-De plus, les utilisateurs devraient aussi etre avises que les utilisateurs de radars de haute
puissance sont designes utilisateurs principaux (c.-ad., qu’ils ont la priorite) pour les bandes
5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des
dommages aux dispositifs LAN-EL)
Fujitsu 105
AVERTISSEMENT – La tablette Fujitsu communiquera par radiofréquences (RF)
lorsqu’elle est utilisée en mode station d’accueil dans le socle. L’appareil émet de
l’énergie radiofréquence d’une intensité inférieure aux limites d’exposition humaine
aux radiofréquences établies par la FCC aux États-Unis et par ISDE au Canada.
Toutefois, en mode station d’accueil, la tablette ne doit pas toucher le corps. Les
contacts avec le corps pendant le fonctionnement normal de l’appareil doivent être
minimisés et une distance de plus de 20 cm doit être maintenue entre le corps et la
tablette. L’utilisation d’autres accessoires peut conduire à un usage non conforme
aux limites d’exposition aux radiofréquences de la FCC. Des détails au sujet des
configurations autorisées sont fournis sur le site Web de la FCC. Entrez alors le
numéro d’identification FCC qui apparaît sur cet appareil.
![](/img.php?id=3734037&img=bg6c.png)
Appendix
Appendix
Before Using the Optional Wireless LAN
This manual describes the procedures required to properly set up and configure the optional
integrated Wireless LAN Mini-PCI device (referred to as "WLAN device" in the rest of the
manual). Before using the WLAN device, read this manual carefully to ensure its correct
operation. Keep this manual in a safe place for future reference.
Wireless LAN Devices Covered by this Document
This document is applicable to systems containing the following device:
• Intel® Dual Band Wireless-AC 8265 (11ac/abgn) WLAN and Bluetooth
Characteristics of the WLAN Device
• The WLAN devices are PCI Express Mini cards attached to the main board of the mobile computer.
• The WLAN devices operate in license-free RF bands, eliminating the need to procure
an FCC operating license. The WLAN operates in the 2.4GHz Industrial, Scientific,
and Medical (ISM) RF band and the lower, middle, and upper bands of the 5GHz
Unlicensed National Information Infrastructure (UNII) bands.
• The WLAN devices are capable of five operating modes, IEEE802.11a, IEEE802.11ac,
IEEE802.11b, IEEE802.11g, and IEEE802.11n.
• The WLAN device is Wi-Fi certified and operates (as applicable) at a the maximum
data rate of 450 Mbps in IEEE802.11n mode (300 Mbps in this configuration); 54 Mbps
in IEEE802.11g mode; and 11 Mbps in IEEE802.11b mode.
• The WLAN devices support the following encryption methods - WEP,
TKIP, CKIP, and AES encryption.
• The Wireless LAN devices are compliant with the following standards: WPA,
WPA2, CCX1.0, CCX2.0, CCX3.0, and CCX4.0.
Fujitsu 106
![](/img.php?id=3734037&img=bg6d.png)
Appendix
Wireless LAN Modes Using this Device
Ad Hoc Mode
"Ad Hoc Mode" refers to a wireless network architecture where wireless network connectivity
between multiple computers is established without a central wireless network device, typically
known as Access Point(s). Connectivity is accomplished using only client devices in a peer-to-peer
fashion. That is why Ad Hoc networks are also known as peer-to-peer networks. Ad Hoc
networks are an easy and inexpensive method for establishing network connectivity between
multiple computers. Ad Hoc mode requires that the SSID, network authentication, and encryption
key settings are identically configured on all computers in the Ad Hoc network.
Access Point (Infrastructure) Mode
Infrastructure mode refers to a wireless network architecture in which devices communicate with
wireless or wired network devices by communicating through an Access Point. In infrastructure
mode, wireless devices can communicate with each other or with a wired network. Corporate
wireless networks operate in infrastructure mode because they require access to the WLAN in
order to access services, devices, and computers (e.g., file servers, printers, databases).
107Fujitsu
![](/img.php?id=3734037&img=bg6e.png)
Appendix
**
*
* = An optional hub for a wired LAN may
be required depending upon the type
of access point used.
** = ADSL modem, cable modem, or similar
How to Handle This Device
The WLAN device is an optional device that may come pre-installed in your mobile computer. Under
normal circumstances, it should not be necessary for you to remove or re-install it. The Operating
System that your mobile computer comes with has been pre-configured to support the WLAN device.
• Integrated Intel Centrino wireless LAN devices support IEEE802.11a,
IEEE802.11b, IEEE802.11g, and IEEE802.11n.
• The WLAN device operates in the 2.4 GHz ISM band and the 5 GHz
lower, middle, and upper UNII bands.
• Microwave ovens may interfere with the operation of WLAN devices since they operate in the
same 2.4 GHz frequency range as IEEE802.11b/g/n devices. Interference by microwaves
does not occur with IEEE802.11a radio which operates in the 5 GHz RF band.
• Wireless devices that transmit in the 2.4 GHz range may interfere with operation of WLAN
devices in IEEE802.11b/g/n modes. Symptoms of interference include reduced throughput,
intermittent disconnects, and many frame errors. It is HIGHLY recommended that these
interfering devices be powered off to ensure proper operation of the WLAN device.
Fujitsu 108
![](/img.php?id=3734037&img=bg6f.png)
Appendix
Deactivating/Disconnecting the WLAN Device
Disconnecting the WLAN device may be desired in certain circumstances (to extend battery
life) or where certain environments require it (i.e. hospitals, clinics, airplanes, etc.). The
WLAN device can be disconnected in Windows using the WLAN icon in the system tray
(Note that disconnecting via the icon in the system tray does not turn off the radio; it
continues to transmit and receive even though it’s not connected.)
The radio components are switched on and off using the appropriate functions of the operating system.
►To switch radio components on and off individually, select Network & Internet - WiFi - On / Off.
Configuring the Wireless LAN
The optional WLAN device can be configured to establish wireless network connectivity
using the software that is built into Windows. Support for most industry standard
security solutions is contained in this software.
Pre-defined parameters will be required for this procedure. Please consult with
your network administrator for these parameters:
Connection to the network
After you have configured your computer, you can connect to an active network
by performing the following steps:
1. Click on the WLAN icon in the system tray.
2. Select Connect toanetwork.
3. Select a network from the list that appears, and click the Connect button.
109 Fujitsu
![](/img.php?id=3734037&img=bg70.png)
Appendix
Troubleshooting the WLAN
Causes and countermeasures for troubles you may encounter while using your
wireless LAN are described in the following table.
Problem Possible Cause Possible Solution
Incorrect network name (SSID)
or network key Ad hoc connection: verify that
the network names (SSID’s)
and network keys (WEP) of
all computers to be connected
have been configured correctly.
SSID’s and WEP key values
must be identical on each
machine.
Access Point (Infrastructure)
connection: set the network
name (SSID) and network key
to the same values as those of
the access point.
Set the Network Authentication
value identically to that of the
Access Point. Please consult
your network administrator for
this value, if necessary.
Unavailable network connection
Weak received signal strength
and/or link quality Ad hoc connection: Retry
connection after shortening
the distance to the destination
computer or removing any
obstacles for better sight.
Access Point (Infrastructure)
connection: Retry connection
after shortening the distance to
the access point or removing
any obstacles for better sight.
Fujitsu 110
![](/img.php?id=3734037&img=bg71.png)
Appendix
Problem Possible Cause Possible Solution
The WLAN device was
deactivated or is disabled
Check if the wireless switch is
turned On. Open Control Panel
- Hardware and Sound - Windows
Mobility Center.Ifthewirele
ss
network is off, click the Turn
wireless on button.
The computer to be connected
is turned off
Check if the computer to be
connected is turned ON.
Incorrectly configured network
settings
Recheck the configuration of
your network settings.
RF interference from Access
Points or other wireless
networks
The use of identical or
overlapping RF channelscan
cause interference with the
operation of the WLAN device.
Change the channel of your
Access Point to a channel
that does not overlap with the
interfering device.
Wireless network authentication
has failed
Re-check your Network
Authentication, Encryption,
and Security settings.
Incorrectly configured
security settings such as
an incorrectly typed WEP
key, a mis-configured LEAP
username, or anincorrectly
chosen authentication method
will cause theLANdeviceto
associate but not authenticate
to the wireless network.
Unavailable network connection
(continued)
Incorrect IP address
configuration
This only applies to networks
using static IP addresses.
Please contact your network
administrator for the correct
settings.
Image Backup and Recovery Procedures
Windows 10 Procedures
It is very important that you create your Recovery Drive before beginning to use your system.
It is also important that you create a backup of the content of the C:\Drivers folder on
your system to writable media or an external drive. System-specific software drivers
are also available for download through the Fujitsu support site.
Note: Most of the information below comes from the Microsoft® page
"http://windows.microsoft.com/en-us/windows-10/windows-10-recovery-options".
Please refer to it for more details.
111Fujitsu
![](/img.php?id=3734037&img=bg72.png)
Appendix
Creating a recovery drive
A recovery drive can help you troubleshoot and fix problems with your PC, even if it
won’t start. To create one, all you need is a USB flash drive. Windows will inform you
ofthesizetheUSBflash drive needed to hold the required data.
1. From the taskbar, search for Create a recovery drive and then select it. You may be
asked to enter an administrator password or confirm your selection.
2. When the tool opens, make sure Backup system files to the recovery drive
is selected and then select Next.
3. Connect a USB drive to your PC, select it, and then select Next - Create. A large number of
files need to be copied to the recovery drive, so this could take some time.
4. When it’s done, select Finish.
Note:
If you chose not to back up the system files when you created your recovery drive on
Windows 10, you won’t be able to use it to reinstall Windows.
Recovery options in Windows 10
If your PC isn’t running as quickly or reliably as it used to, try one of these recovery
options. The following table can help you decide which one to use.
Problem Try this
Your PC isn’t working well and you recently
installed an app, driver, or update.
Restore from a system restore point
Your PC isn’t working well and it’s been a while
since you installed anything new.
Reset your PC
Your PC won’t start and you’ve created a
recovery drive.
Use a recovery drive to reinstall Windows
Your PC won’t start and you haven’t created a
recovery drive.
Use installation media to reinstall Windows
Restore from a system restore point
This option takes your PC back to an earlier point in time, called a system restore point. Restore
points are generated when you install a new app, driver, or Windows update, and when you
create a restore point manually. Restoring won’t affect your personal files, but it will remove
apps, drivers, and updates installed after the restore point was made.
1. Right-click (or press and hold) the Start button, and then select Control Panel.
2. Search Control Panel for Recovery.
3. Select Recovery - Open System Restore - Next.
4. Choose the restore point related to the problematic app, driver, or update,
and then select Next - Finish.
Note: If you don’t see any restore points, it could be because the system protection isn’t turned
on. To check, go to the Control Panel, search for Recovery, and then select Recovery - Configure
System Restore - Configure and make sure that Turn On System Protection is selected.
Fujitsu 112
![](/img.php?id=3734037&img=bg73.png)
Appendix
Reset your PC
Option What it does
Keep my files This reinstalls Windows 10, but keeps your personal files and any
apps that came with your PC. It removes:
• Changes you made to settings
• Apps and drivers you installed
Reset your PC Select Settings - Update & security - Recovery - Reset this PC - Get
started.
Remove everything This reinstalls Windows 10 and any apps that came with your PC.
It removes:
• Personal files
• Changes you made to settings
• Apps and drivers you installed
If you’re planning to donate, recycle, or sell your PC, use this option
and choose to fully clean the drive. This might take an hour or
two, but it makes it harder for other people to recover files you’ve
removed.
Use a recovery drive to reinstall Windows
Note: This process utilizes the USB Recovery Drive that you created in the
previous section "Create a Recovery Drive".
1. To reset your PC,selectSettings - Update & security - Recovery - Advanced startup - Restart now.
If that doesn’t fix the problem, try Troubleshoot - Recover from a drive. This will remove your personal
files, apps and drivers you installed, and changes you made to settings. If you repartitioned the
drive Windows is installed on, note that this will restore the drive’s default partitions.
Use installation media to reinstall Windows
If you have installation media, like a Recovery DVD that you purchased from
Fujitsu, you can use it to reinstall Windows. You will need to install additional
drivers and applications after reinstalling Windows.
To reinstall Windows, follow the steps below:
1. Power on your system. When the Fujitsu logo appears on the screen, press the F12 key.
2. Insert the bootable disc in your DVD drive.
3. Highlight the CD/DVD option from the Boot Menu and press Enter .
4. Follow the on-screen instructions to restore the image.
• Select the language.
•AttheW
indows Setup dialog window, enter your OS, language and other
preferences and click Next to continue.
•ClickInstall now to proceed with reinstalling Windows.
•AtLic
ense terms, check on I accept the license terms and click Next.
•AtWhich type of installation do you want,clickonCustom: Install Windows only (advanced).
•Dele
te all partitions on the drive and click Next. Installation of Windows will start. This will
take some time so please wait until the installation is finished and the system restarts.
5. When the system restarts, perform all set-up steps to arrive at the Desktop.
113Fujitsu
![](/img.php?id=3734037&img=bg74.png)
Appendix
6. Connect to the Internet.
7. Use the Backup of the contents of the C:\Drivers folder to install needed drivers and
applications to your system. If it is not available, download the software from the
Fujitsu Support Site, as described below in the "Auto Installation support for the
software downloaded from support website" section below.
Installation of essential access software
1. Insert the Recovery Disc in your DVD drive.
2. You can now connect to the internet and download FSDM (Fujitsu Software Download
Manager) from the support site and download all the software applicable to the
model and OS using FSDM if they are not downloaded yet.
Auto Installation support for the software downloaded from support website
1. Download FSDM (Fujitsu Software Download Manager) from the support site and download all
the drivers applicable to the model and OS using FSDM if they are not downloaded yet.
2. When the software packages are downloaded from the web, it is important to
download the Auto Installer Software package and the model/language-specific
Readme file if you prefer to auto install the software.
3. It is important to have the extracted Auto Installer software package folder and
Readme file in the same location as the other software folders. Otherwise
auto-installation of the software will not be supported.
4. Inside the Auto Installer software package, launch FjAutoinstall.exe as administrator.
5. Click Yes on the User Account Control dialog box. This will take some time to
process the software packages. A message will be displayed during this time
stating Please wait while the content is being processed.
6. If the EULA is displayed for Fujitsu Software Auto Installer, accept the EULA, otherwise continue.
7. The Fujitsu Software Auto Installer user interface will be launched providing the ability
to auto install the software downloaded from the support site.
8. It is recommended that you install all the software in the listed order. You can
Select All, to install the software in the order listed.
9. Click the Install button to start the installation.
10. After installing all the selected drivers, the Installation Results window is displayed. Click OK.
11. You must restart the system for the settings to take effect. Do you wish to reboot
now? message appears. Select Yes.
12. The system will now reboot.
Downloading driver updates
To ensure that you always have the most current driver updates related to your system,
you should occasionally access the Fujitsu Software Download Manager (FSDM) utility.
The FSDM utility is available from the Fujitsu Support site. FSDM will allow you to view
and download the most current drivers, utilities and applications to determine whether
you have the latest versions. To download the FSDM Utility, go to the Support Site:
"http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS".
Fujitsu 114
![](/img.php?id=3734037&img=bg75.png)
Index
Index
A
AC adapter
connecting 20
Set up 19
Acoustic warnings 88
Anti-theft protection 68
Audio connections 77
B
Battery 33, 49
battery charge 33
Caring for and maintaining 33
charge level 33
Charging 33
Discharges too quickly 86
see Rechargeable battery 33, 49
Service life 33, 49
battery charge meter 33
before you travel 16
BIOS Setup Utility
, protecting with password 69
calling 78
exiting 80
operation 79
Settings 78
Bluetooth, Safety notes 15
Bonus Apps 22
C
Choose a location 19
Cleaning 17
Configuration, BIOS Setup Utility 78
Configuring hardware 78
Configuring system 78
Connecting audio devices 77
Connecting headphones 77
Connecting microphone 77
Cradle 41
Connecting a Tablet PC 42
D
dark touchscreen 83
Date not correct 82
Declarations of conformity 101
Display orientation
select 28
DOC (INDUSTRY CANADA) NOTICES 98
E
Ending
energy saving mode 85
Energy
Energy consumption 33
Energy saving 15
Energy saving functions 33
Error messages on the screen 88
Errors
Acoustic warnings 88
Screen messages 88
Ethernet LAN 39
F
Fault
Elimination 81
Feet
Magnetic card reader 19
Palm vein sensor 19
Fingerprint sensor 65
configuring 65
First-time setup 18
G
Getting started 18
GPS 39
H
HDMI port 74–75
I
Important notes 14
Incorrect time 82
Information,
safety 14
Instructions
Cleaning 17
K
Keyboard
cleaning 17
Keyboard Dock
Ports 45
Keyboard docking station
Connecting a Tablet PC 47
115Fujitsu
![](/img.php?id=3734037&img=bg76.png)
Index
L
Landscape format
display 28
M
Making ready to use 20
Memory card
handling 34
inserting 34
removing 35
Mobile operation 16
Monitor
connection 75
no image 84
remains blank 84
unstable image 84
Monitor connection
see VGA port 75
N
Notes 14
disposal / recycling 98
Energy saving 15
touchscreen 26
Transport 16
O
Operating system
activating system protection 70
cancel system protection 70
Protecting with password 70
P
Packaging 18
Palm vein sensor 66
setting up 66
Password
changing 69
entering 69
removing 70
Password protection 68
hard disk 70
Pen 29
Portrait format
display 28
Ports 41
Keyboard Dock 45
Power saving 15
Power-on Power-on indicator 25
Printer does not print 86
Problem solving 81
R
Rechargeable battery
see battery 33, 49
S
Safety information 14
Screen connection
see VGA port 75
Security functions 64
SmartCard 72
SystemLock 72
Security Lock
Anti-theft protection 68
using 68
Service life, battery 33, 49
Set up
Device 19
Setup
see BIOS Setup Utility 78
Slot
Memory cards 34
Status indicators 23
Summer time 82
Supervisor password
change 69
entering 69
removing 70
Switching off the
Tablet PC 26
Switchingonforthefirst time 20
Symbols
Indicators 23
System settings, BIOS Setup Utility 78
T
Tablet
operating 23
Tablet PC
cannot be started 85
cleaning 17
doesn’t work 85
transporting 16
Tablet, operation 23
Tablet: Switching on 25
Technical data
AC adapter 94–95
The wireless connection to a network
does not work 86
Time not correct 82
Tips 81
Touchpad
cleaning 17
Fujitsu 116
![](/img.php?id=3734037&img=bg77.png)
Index
Touchscreen
cleaning 17
difficult to read 83
notes 26
reflected glare 83
remains dark 83
TPM 73
Transport
Damage during transportation 18
Transportation 16
Travel 16
Troubleshooting 81
Trusted Platform Module 73
U
USB ports 76
User password
change 69
entering 69
removing 70
V
VGA port 75
W
Webcam 32
Winter time 82
Wireless components
Safety notes 15
Wireless LAN
Safety notes 15
Wrong date/time 82
117Fujitsu
