Specifications

T Series.book Page 75 Wednesday, July 28, 2004 3:35 PM

LifeBook T Series Tablet PC - Section Seven

T Series.book Page 76 Wednesday, July 28, 2004 3:35 PM

Specifications

This section provides the hardware and environmental

specifications for your LifeBook T Series Tablet PC.

Specifications of particular configurations will vary.

CONFIGURATION LABEL

Your LifeBook T Series Tablet PC has a configuration

label located on the bottom. (See figure 2-8 on page 16

for location). This label contains specific information

regarding the options you’ve chosen for your Tablet PC.

Following is an example label and information on how

to read your own configuration label.

Figure 7-1. Configuration Label

LifeBook T Series Tablet PC Specifications

The specifications for your particular model may vary.

To determine the specifications for your system, please

visit our Web site at: us.fujitsu.com/computers.

Physical Specifications

Dimensions 11.54” w x 9.61” d x 1.38" / 1.48"

(293 mm x 244 mm x 35 / 37.5 mm)

Processing Specifications

CPU/Speed Intel® Pentium® M Processor

725/745*

Chip set Intel 855GME - 400 MHz

Memory/Storage Specifications

Main RAM • 256 MB SDRAM (DDR 333 MHz)

• 144-pin SO DIMM slots x 2

256 MB, 512 MB, and 1.0 GB

modules available, with a system

maximum of 2.0 GB.

L1 cache

(CPU)

64 KB on-die

L2 cache 2 MB on-die

T3010, PM 1.4G, 12.1 XGA, XPTE, 40G, 256M

Configuration P/N: ATEXXXXXXXXXXXX

FPC P/N: FPCXXXXXX

Model

Processor

Screen

Size

Operating

System

Hard Drive

Memory

Part Number

Configuration ID

New La

BIOS ROM 1 MB (Boot Block Type Flash ROM)

Hard disk

drive

• 2.5” HDD

• Minimum 40 GB IDE (4200 rpm)

Also available:

60 GB (4200 rpm)

80 GB (5400 rpm)

• ATA 100

• Shock-mounted

• SMART Support

Display Specifications

Display 12.1" TFT XGA (1024 x 768),

16M colors:

• Color LCD

• Active Digitizer

• 32-bit color

• External monitor support: VGA

(1024 x 768 maximum)

• Brightness: 8 levels

• Dot pitch: 0.240 x 0.240 mm

• Viewing Angle:

Horizontal: 80 degrees (min.)

Vertical: 80 degrees (min.)

12.1" TFT SXGA+ (1400 x 1050),

16M colors:

• Color LCD

• Active Digitizer

• 32-bit color

• External monitor support: (TBD

maximum)

• Brightness: 8 levels

• Dot pitch: 0.1755 x 0.1755 mm

• Viewing Angle:

Horizontal: 45 degrees (min.)

Vertical: 50 degrees (min.)

VRAM Intel 855GME chipset with 8 MB

shared memory using Dynamic Video

Memory Technology (DVMT) delivers

low-power, high-performance 3D/2D

graphics, video, and display

capabilities. Dynamic Video Memory

Technology (DVMT) dynamically

responds to application requirements

and efficiently allocates the proper

amount of memory (maximum is 64

MB) for optimal graphics and system

performance.

LifeBook T Series Tablet PC Specifications (Continued)

T Series.book Page 77 Wednesday, July 28, 2004 3:35 PM

LifeBook T Series Tablet PC - Section Seven

Interface Specifications

Integrated

Interfaces

• Modem (RJ-11)

• LAN (RJ-45)

• USB 2.0 x 2

•DC-In

•IrDA

• IEEE1394

• 15-pin D-SUB connector for

external VGA monitor

• Docking connector

Interfaces

on Optional

Port

Replicator

• DC Power

• Pass-through LAN Port

• External Monitor

• USB 2.0 x 4

•Line Out

• Docking Port

PC Card

Slots

• One Type I or Type II

• PCMCIA CardBus version 3.0

SD/Memory

Stick Slot

• One slot for SD/Memory Stick

card

Smart Card

Slot

• Dedicated slot for SmartCard

Modular Bay

Devices One of the following devices is pre-

installed:

•Super-Multi DVD Drive:

(modular 4x DVD-R, 2x DVD-RW,

2.4x DVD+R, 2.4x DVD+RW, 2x

DVD-RAM, 8x DVD-ROM, 16x

CD-R, 8x CD-RW, 24x CD-ROM)

•DVD-RW Drive:

1x (DVD-R) / 1x (DVD-RW) / 8x

(DVD-ROM) / 16x (CD-R) / 10x

(CD-RW) / 24x (CD-ROM)

•DVD/CD-RW Combo Drive:

16x (CD-R) / 10x (CD-RW) / 24x

(CD) / plus 8x DVD

• Modular Bay Battery

• Weight Saver

Infrared • System IR Port

• IrDA version 1.1 (FIR, 4 Mbps)

User

Interface

support

• Keyboard

Pitch: 19 mm, Stroke: 2.7 mm

• TouchPad pointing device with

scroll button

• Active digitizer with pen input

• On-screen keyboard

LifeBook T Series Tablet PC Specifications (Continued)

Audio • Sigmatel STAC9753A

• Internal mono microphone x 2

• Stereo speaker x 2

• Mono microphone and stereo

headphone jacks

User

Controls

• Programmable Application

Buttons, each with primary and

secondary functions (default

applications: Microsoft Journal

and Calculator)

• Security button support

• Trusted Platform Module (TPM)

support (on some models)

• Suspend/Resume button

Status

Indicators

(LCDs)

• Power

•Charge/DC-In

• Battery level

• TBD - SECOND BATTERY?

• HDD

• PC Card

•Caps Lock

•Num Lock

• Scroll Lock

• TBD - Security?

Power Specifications

Main Battery • 6-cell

• Removable, Lithium ion

• 10.8 V @4800 mAh, 51.8 Wh

• Warm-swappable

• TBD - Recharge Time:

Approximately 3.2 hours

• Suspend Life: Minimum 3 days

Off State: Approximately 20 days

Optional Bay

Battery

•6-cell

• Removable, Lithium ion

• 10.8V @ 3800 mAh, 41.0 Wh

Bridge

Battery

• 6-cell NiMH, 35 mAh

• Life (with Suspend-to-RAM on

bridge battery only):

5 minutes from full charge

AC Adapter Autosensing 100 - 240V, supplying 19

VDC, with a current of 3.15 A

Environmental Specifications

Temperature Operating: 41o to 95o F (5o to 35o C)

Non-operating: 5o to 140o F

(-15o to 60o C)

LifeBook T Series Tablet PC Specifications (Continued)

T Series.book Page 78 Wednesday, July 28, 2004 3:35 PM

Specifications

Humidity Operating:

20 to 85% non-condensing

Non-operating:

8 to 85% non-condensing

Agency Approval Specifications

Emissions

TBD - VERIFY ALL

• EN55022 (CISPR22) Class B

• FCC 15, Class B

• FCC 15C, 15.247

• ETSI EN 300-328

• ICES-003

• Canada RSS-210

Immunity

• EN55024 (1998)

• ETSI EN 301-489-17 V.1.1.1

(2000-9)

Safety • UL and cUL Listed, UL 60950

• TuV T-Mark, EN60950

Telecom • FCC Part 68

• IC CS-03

Additional Specifications

Operating

systems •Microsoft

 Windows

XP Tablet PC Edition

LifeBook T Series Tablet PC Specifications (Continued)

T Series.book Page 79 Wednesday, July 28, 2004 3:35 PM

LifeBook T Series Tablet PC - Section Seven

Regulatory Information

FCC NOTICES

Notice to Users of Radios and Television

These limits are designed to provide reasonable protec-

tion against harmful interference in a residential installa-

tion. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a partic-

ular installation. If this equipment does cause harmful

interference to radio or television reception, which can

be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet that is on a

different circuit than the receiver.

• Consult the dealer or an experienced radio/TV

technician for help.

Shielded interconnect cables must be employed with this

equipment to ensure compliance with the pertinent RF

emission limits governing this device.

Notice to Users of the US Telephone Network

This equipment contains an internal modem (Fujitsu

Media Devices, MBH 7MD33) that complies with Part

68 of the FCC rules. On the bottom of this equipment is

a label that contains, among other information, the FCC

registration number and ringer equivalence number

(REN) for this equipment. If requested, this information

must be provided to the telephone company.

This equipment is designed to be connected to the tele-

phone network or premises wiring using a standard jack

type USOC RJ11C. A plug and jack used to connect this

equipment to the premises wiring and telephone

network must comply with the applicable FCC Part 68

rules and requirements adopted by the ACTA. A

compliant telephone cord and modular plug is provided

with this product. It is designed to be connected to a

compatible modular jack that is also compliant.

The ringer equivalent number (REN) of this equipment

is 0.0B as shown on the label. The REN is used to deter-

mine the number of devices that may be connected to a

telephone line. Excessive RENs on a telephone may

result in the devices not ringing in response to an

incoming call. In most but not all areas, the sum of

RENs should not exceed five (5.0). To be certain of the

number of devices that may be connected to a line, as

determined by the total RENs, contact the local tele-

phone company.

If this equipment causes harm to the telephone network,

the telephone company will notify you in advance that

temporary discontinuance of service may be required.

But if advance notice isn’t practical, the telephone

company will notify the customer as soon as possible.

Also, you will be advised of your right to file a complaint

with the FCC if you believe it is necessary.

The telephone company may make changes in its facili-

ties, equipment, operations or procedures that could

effect the operation of the equipment. If this happens

the telephone company will provide advance notice in

order for you to make necessary modifications to main-

tain uninterrupted service.

If trouble is experienced with this equipment, for repair

or warranty information, please refer to the manual or

contact Fujitsu Computer Systems Corporation,

Customer Service. If the equipment is causing harm to

the telephone network, the telephone company may

request that you disconnect the equipment until the

problem is resolved.

The equipment cannot be used on public coin service

provided by the telephone company. Connection to

party line service is subject to state tariffs. (Contact the

state public utility commission, public service commis-

sion or corporation commission for information).

If your home has specially wired alarm equipment

connected to the telephone line, ensure the installation

of this computer does not disable your alarm equip-

ment. If you have any questions about what will disable

alarm equipment, consult your telephone company or a

qualified installer.

The Telephone Consumer Protection Act of 1991 makes

it unlawful for any person to use a computer or other

electronic device to send any message via a telephone fax

machine unless such message clearly contains in a

margin at the top or bottom of each transmitted page or

on the first page of the transmission, the date an time it

is sent and an identification of the business or other

entity, or other individual sending the message and the

telephone number of the sending machine or such busi-

ness, other entity, or individual.

Changes or modifications not expressly

approved by Fujitsu could void this user’s

authority to operate the equipment

T Series.book Page 80 Wednesday, July 28, 2004 3:35 PM

Regulatory Information

DOC (INDUSTRY CANADA) NOTICES

Notice to Users of Radios and Television

This Class B digital apparatus meets all requirements of

Canadian Interference-Causing Equipment Regulations.

CET appareil numérique de la class B respecte toutes les

exigence du Réglement sur le matérial brouilleur du

Canada.

Notice to Users of the Canadian Telephone Network

NOTICE: This equipment (Fujitsu Media Devices

modem, MBH 7MD33) meets the applicable Industry

Canada Terminal Equipment Technical Specifications.

This is confirmed by the registration number. The

abbreviation, IC, before the registration number

(4061A-8687) signifies that registration was performed

based on a Declaration of Conformity indicating that

Industry Canada technical specifications were met. It

does not imply that Industry Canada approved the

equipment.

Before connecting this equipment to a telephone line the

user should ensure that it is permissible to connect this

equipment to the local telecommunication facilities. The

user should be aware that compliance with the certifica-

tion standards does not prevent service degradation in

some situations.

Repairs to telecommunication equipment should be

made by a Canadian authorized maintenance facility.

Any repairs or alterations not expressly approved by

Fujitsu or any equipment failures may give the telecom-

munication company cause to request the user to

disconnect the equipment from the telephone line.

NOTICE: The Ringer Equivalence Number (REN) for

this terminal equipment is 0.0. The REN assigned to

each terminal equipment provides an indication of the

maximum number of terminals allowed to be connected

to a telephone interface. The termination on an interface

may consist of any combination of devices subject only

to the requirement that the sum of the Ringer Equiva-

lence Numbers of all the devices does not exceed five.

Avis Aux Utilisateurs Du Réseau

Téléphonique Canadien

AVIS: Le présent matériel est conforme aux spécifica-

tions techniques d’Industrie Canada applicables au

matériel terminal. Cette conformité est confirmée par le

numéro d’enregistrement. Le sigle IC, placé devant le

numéro d’enregistrement (4061A-8687), signifie que

l’enregistrement s’est effectué conformément à une

déclaration de conformité et indique que les spécifica-

tions techniques d’Industrie Canada ont été respectées.

Il n’implique pas qu’Industrie Canada a approuvé le

matériel.

Avant de connecter cet équipement à une ligne télépho-

nique, l’utilisateur doit vérifier s’il est permis de

connecter cet équipement aux installations de télécom-

munications locales. L’utilisateur est averti que même la

conformité aux normes de certification ne peut dans

certains cas empêcher la dégradation du service.

Les réparations de l’équipement de télécommunications

doivent être eVectuées par un service de maintenance

agréé au Canada. Toute réparation ou modification, qui

n’est pas expressément approuvée par Fujitsu, ou toute

défaillance de l’équipement peut entraîner la compagnie

de télécommunications à exiger que l’utilisateur décon-

necte l’équipement de la ligne téléphonique.

AVIS: L’indice d’équivalence de la sonnerie (IES) du

présent matériel est de 0.0. L’IES assigné à chaque

dispositif terminal indique le nombre maximal de

terminaux qui peuvent être raccordés à une interface

téléphonique. La terminaison d’une interface peut

consister en une combinaison quelconque de dispositifs,

à la seule condition que la somme d’indices d’équiva-

lence de la sonnerie de tous les dispositifs n’excède pas 5.

For safety, users should ensure that the

electrical ground of the power utility, the

telephone lines and the metallic water

pipes are connected together. Users should

NOT attempt to make such connections

themselves but should contact the appro-

priate electric inspection authority or elec-

trician. This may be particularly important

in rural areas.

Pour assurer la sécurité, les utilisateurs

doivent vérifier que la prise de terre du ser-

vice d’électricité, les lignes télphoniques et

les conduites d’eau métalliques sont con-

nectées ensemble. Les utilisateurs NE

doivent PAS tenter d’établir ces connex-

ions eux-mêmes, mais doivent contacter

les services d’inspection d’installations

électriques appropriés ou un électricien.

Ceci peut être particulièrement important

en régions rurales.

T Series.book Page 81 Wednesday, July 28, 2004 3:35 PM

LifeBook T Series Tablet PC - Section Seven

UL Notice

This unit requires an AC adapter to operate. Use only

UL Listed Class 2 Adapters with an output rating of

19 VDC, with a current of 3.15 A.

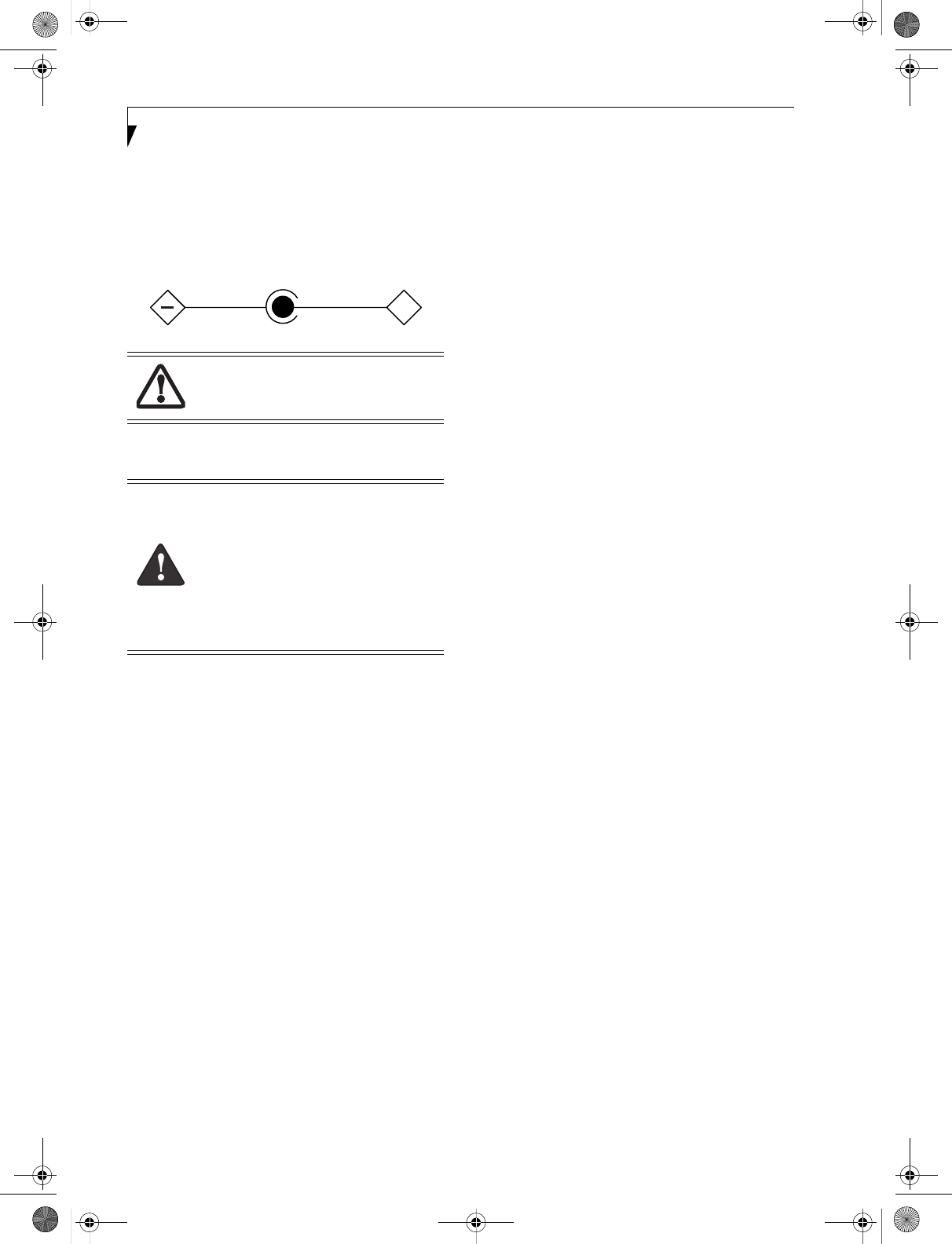

AC Adapter output polarity:

For Authorized Repair Technicians Only

The modem-to-telephone network

connection must be a line cord using a

minimum #26 AWG wire.

nFor continued protection against risk of

fire, replace only with the same type and

rating fuse.

nDanger of explosion if Lithium (clock)

battery is incorrectly replaced. Replace

only with the same or equivalent type

recommended by the manufacturer. Dis-

pose of used batteries according to the

manufacturer’s instruction.

T Series.book Page 82 Wednesday, July 28, 2004 3:35 PM

Glossary

T Series.book Page 83 Wednesday, July 28, 2004 3:35 PM

LifeBook T Series Tablet PC - Section Eight

T Series.book Page 84 Wednesday, July 28, 2004 3:35 PM

Glossary

AC Adapter

A device which converts the AC voltage from a wall

outlet to the DC voltage needed to power your Tablet

PC.

ACPI

Advanced Configuration and Power Interface

Active-Matrix Display

A type of technology for making flat-panel displays

which has a transistor or similar device for every pixel

on the screen.

AdHoc

A designation for wireless LAN network configuration.

It indicates a form of communication limited to those

personal computers which have wireless LAN function.

For details, refer to "Ad hoc connection" on page 90.

ADSL

Asymmetric Digital Subscriber Line

Technology for transporting high bit-rate services over

ordinary phone lines.

Auto/Airline Adapter

A device which converts the DC voltage from an auto-

mobile cigarette lighter or aircraft DC power outlet to

the DC voltage needed to power your Tablet PC.

BIOS

Basic Input-Output System. A program and set of

default parameters stored in ROM which tests and

operates your Tablet PC when you turn it on until it

loads your installed operating system from disk. Infor-

mation from the BIOS is transferred to the installed

operating system to provide it with information on the

configuration and status of the hardware.

Bit

An abbreviation for binary digit. A single piece of

information which is either a one (1) or a zero (0).

bps

An abbreviation for bits per second. Used to describe

data transfer rates.

Boot

To start-up a computer and load its operating system

from disk, ROM or other storage media into RAM.

Bus

An electrical circuit which passes data between the CPU

and the sub-assemblies inside your Tablet PC.

Byte

8 bits of parallel binary information.

Cache Memory

A block of memory built into the micro-processor

which is much faster to access than your system RAM

and used in specially structured ways to make your

overall data handling time faster.

CardBus

A faster, 32-bit version of the PC Card interface which

offers performance similar to the 32-bit PCI

architecture.

CD-ROM

Compact disk read only memory. This is a form of

digital data storage which is read optically with a laser

rather than a magnetic head. A typical CD-ROM can

contain about 600MB of data and is not subject to heads

crashing into the surface and destroying the data when

there is a failure nor to wear from reading.

Channel

The frequency band of wireless LAN to be used in

communications over wireless LAN or at the access

point.

CMOS RAM

Complementary metal oxide semiconductor random

access memory. This is a technology for manufacturing

random access memory which requires very low levels of

power to operate.

Command

An instruction which you give your operating system.

Example: run a particular application or format a floppy

disk.

Configuration

The combination of hardware and software that makes

up your system and how it is allocated for use.

CRT

Cathode Ray Tube. A display device which uses a beam

of electronic particles striking a luminescent screen. It

produces a visual image by varying the position and

intensity of the beam.

Data

The information a system stores and processes.

Direct current. A voltage or current that does not

fluctuate periodically with time.

Default Value

A pre programmed value to be used if you fail to set

your own.

T Series.book Page 85 Wednesday, July 28, 2004 3:35 PM

LifeBook T Series Tablet PC - Section Eight

DHCP

Dynamic Host Configuration Protocol

A protocol used for automatically fetching communica-

tion parameters such as IP addresses. The side which

assigns IP address is called DHCP server and the side

that is assigned it is called DHCP client.

DIMM

Dual-in-line memory module.

DISE

Drive Image Special Edition.

A utility that allows you to restore the original factory

image on your hard drive in the event of corruption or

accidental erasure of files or applications.

Disk

A spinning platter of magnetic data storage media. If the

platter is very stiff it is a hard drive, if it is highly flexible

it is a floppy disk, if it is a floppy disk in a hard housing

with a shutter it is commonly called a diskette.

Disk Drive

The hardware which spins the disk and has the heads

and control circuitry for reading and writing the data

on the disk.

Diskette

A floppy disk in a hard housing with a shutter.

DMA

Direct Memory Access

Special circuitry for memory to memory transfers of

data which do not require CPU action.

DMI

Desktop Management Interface

A standard that provides PC management applications

with a common method of locally or remotely querying

and configuring PC computer systems, hardware and

software components, and peripherals.

DNS

Domain Name System

A function that controls the correspondence of IP

addresses assigned to a computer with the name. Even

for those computers whose IP addresses are unknown, if

their names are known, it is possible to communicate

with them.

DOS

Disk Operating System (MS-DOS is a Microsoft Disk

Operating System).

Driver

A computer program which converts application and

operating system commands to external devices into the

exact form required by a specific brand and model of

device in order to produce the desired results from that

particular equipment.

ECP

Extended Capability Port. A set of standards for high

speed data communication and interconnection

between electronic devices.

Encryption Key (Network Key)

Key information used to encode data for data transfer.

This device uses the same encryption key to encode and

decode the data, and the identical encryption key is

required between the sender and receiver.

ESD

Electro-Static Discharge. The sudden discharge of elec-

tricity from a static charge which has built-up slowly.

Example: the shock you get from a doorknob on a dry

day or the sparks you get from brushing hair on a dry

day.

Extended Memory

All memory more than the 640KB recognized by

MS-DOS as system memory.

FCC

Federal Communication Commission.

Floppy Disk

A spinning platter of magnetic data storage media which

is highly flexible.

Gigabyte.

Hard drive

A spinning platter of magnetic data storage media where

the platter is very stiff.

I/O

Input/Output. Data entering and leaving your Tablet PC

in electronic form.

I/O Port

The connector and associated control circuits for data

entering and leaving your Tablet PC in electronic form.

IDE

Intelligent Drive Electronics. A type of control interface

for a hard drive which is inside the hard drive unit.

T Series.book Page 86 Wednesday, July 28, 2004 3:35 PM

Glossary

IEEE 1394

Industry standard that allows you to connect between

your Tablet PC and a peripheral device such as a digital

camera. Also known as "Firewire" or "iLINK".

IEEE802.11a

One of the wireless LAN standards prescribed by the 802

committee in charge of establishing standards of LAN

technology in IEEE (Institute of Electrical and Elec-

tronic Engineers). This standard allows communica-

tions at the maximum speed of 54 Mbps by using a 5

GHz band which can freely be used without radio

communication license.

IEEE802.11b

One of the wireless LAN standards prescribed by 802

committee in charge of establishing standards of LAN

technology in IEEE (Institute of Electrical and Elec-

tronic Engineers). It allows communications at the

maximum speed of 11 Mbps by a band of 2.4 GHz (ISM

band) which can freely be used without radio communi-

cation license.

IEEE802.11g

One of the wireless LAN standards prescribed by 802

committee in charge of establishing standards of LAN

technology in IEEE (Institute of Electrical and Elec-

tronic Engineers). It allows communications at the

maximum speed of 54 Mbps by a band of 2.4 GHz (ISM

band) which can freely be used without radio communi-

cation license.

Infrared

Light just beyond the red portion of the visible light

spectrum which is invisible to humans.

Infrastructure

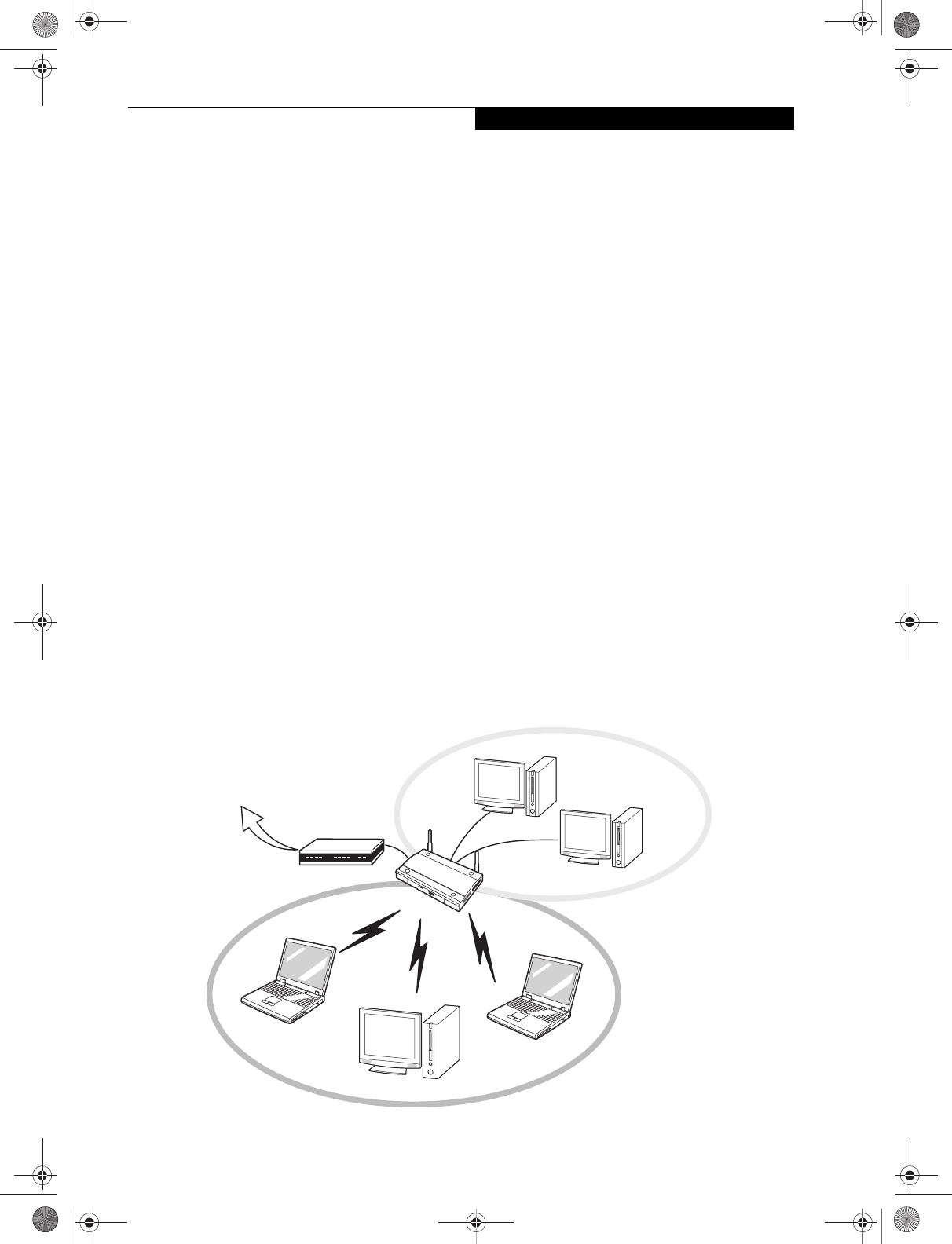

A designation of Wireless LAN network configurations.

It indicates a form of communication using an Access

Point. For details, refer to "Infrastructure connection"

on page 90.

IP Address

An address used for computers to communicate in the

TCP/IP environment.

Current IPv4 (version 4) uses four values in the range

between 1 and 255. (Example: 192.168.100.123).

There are two types of IP address: global address and

private address.

The global address is an only address in the world. It is

controlled by JPNIC (Japan Network Information

Center). A private address is an only address in the

closed network.

An abbreviation for infrared.

IrDA

Infrared Data Association. An organization which

produces standards for communication using infrared

as the carrier.

IRQ

Interrupt Request

An acronym for the hardware signal to the CPU that an

external event has occurred which needs to be

processed.

Kilobyte.

LAN

Local Area Network

An interconnection of computers and peripherals

within a single limited geographic

location which can pass programs and data amongst

themselves.

LCD

Liquid Crystal Display

A type of display which makes images by controlling the

orientation of crystals in a crystalline liquid.

Lithium ion Battery

A type of rechargeable battery which has a high power-

time life for its size and is not subject to the memory

effect as Nickel Cadmium batteries.

LPT Port

Line Printer Port. A way of referring to parallel interface

ports because historically line printers were the first and

latter the most common device connected to parallel

ports.

MAC Address

Media Access Control Address

A unique physical address of a network card. For

Ethernet, the first three bytes are used as the vendor

code, controlled and assigned by IEEE. The remaining

three bytes are controlled by each vendor (preventing

overlap), therefore, every Ethernet card is given a unique

physical address in the world, being assigned with a

different address from other cards. For Ethernet, frames

are sent and received based on this address.

Megabyte.

Megahertz

1,000,000 cycles per second.

T Series.book Page 87 Wednesday, July 28, 2004 3:35 PM

LifeBook T Series Tablet PC - Section Eight

Memory

A repository for data and applications which is readily

accessible to your Tablet PC’s CPU.

MHz

Megahertz.

MIDI

Musical Instrument Digital Interface. A standard

communication protocol for exchange of information

between computers and sound producers such

as synthesizers.

Modem

A contraction for MOdulator-DEModulator. The

equipment which connects a computer or other data

terminal to a communication line.

Monaural

A system using one channel to process sound from all

sources.

MPU-401

A standard for MIDI interfaces and connectors.

MTU

Maximum Transmission Unit

The maximum data size that can be transferred at a time

through the Internet or other networks. You can set a

smaller MTU size to obtain successful communication,

if you have difficulty transferring data due to the fact

that the maximum size is too large.

Network authentication

The method of authentication performed by wireless

LAN clients to connect with the access point. There are

two types: open system authentication and shared key

authentication. The type of authentication must be set

to each client and also coincide with the setting of access

point with which to communicate. Network authentica-

tion is sometimes called authentication mode.

Network key

Data that is used for encrypting data in data communi-

cation. The personal computer uses the same network

key both for data encryption and decryption, therefore,

it is necessary to set the same network key as the other

side of communication.

Network name (SSID: Security Set Identifier)

When a wireless LAN network is configured, grouping is

performed to avoid interference or data theft. This

grouping is performed with "Network name (SSID)". In

order to improve security, the network key is set

allowing no communication unless "Network name

(SSID)" coincides with the network key.

NTSC

National TV Standards Commission. The standard for

TV broadcast and reception for the USA.

Open system authentication

One of network authentication types for wireless LAN.

Since there is no check of network key upon authentica-

tion, clients can connect to the access point without

submitting correct network keys. However, in case of

actual communications, the same network key must be

set. Open system authentication is sometimes called

Open key authentication.

Operating System

A group of control programs that convert application

commands, including driver programs, into the exact

form required by a specific brand and model of micro-

processor in order to produce the desired results from

that particular equipment.

Partition

A block of space on a hard drive which is set aside and

made to appear to the operating system as if it were a

separate disk, and addressed by the operating system

accordingly.

PCI

Peripheral Component Interconnect

Self-configuring PC local bus. Designed by Intel, PCI has

gained wide acceptance as a standard bus design.

PCMCIA

PCMCIA is a trademark of the Personal Computer

Memory Card International Association. The Personal

Computer Memory Card International Association is an

organization that sets standards for add-in cards for

personal computers.

Peripheral Device

A piece of equipment which performs a specific

function associated with but not integral to a computer.

Examples: a printer, a modem, a CD-ROM.

Pitch (keyboard)

The distance between the centers of the letter keys of a

keyboard.

Pixel

The smallest element of a display, a dot of color on your

display screen. The more pixels per area the clearer your

image will appear.

POST

Power On Self Test. A program which is part of the BIOS

which checks the configuration and operating condition

of your hardware whenever power is applied to your

Tablet PC. Status and error messages may be displayed

T Series.book Page 88 Wednesday, July 28, 2004 3:35 PM

Glossary

before the operating system is loaded. If the self test

detects failures that are so serious that operation can not

continue, the operating system will not be loaded.

PPPoE

Point to Point Protocol over Ethernet.

A protocol for Ethernet, using a Point-to-Point Protocol

(PPP), which is used for connection on the phone line.

Program

An integrated set of coded commands to your

computers telling your hardware what to do and how

and when to do it.

Protocol

Procedures and rules use to send and receive data

between computers.

- Method of sending and receiving data

- Process used to handle communication errors

Conditions required for communication are organized

in procedures for correct transfer of information.

RAM

Random Access Memory. A hardware component of

your Tablet PC that holds binary information (both

program and data) as long as it has the proper power

applied to it.

RAM Module

A printed circuit card with memory and associated

circuitry which allows the user to add additional

memory to the computer without special tools.

Reset

The act of reloading the operating system. A reset erases

all information stored in RAM.

Restart

See Reset.

Resume

To proceed after interruption. In your Tablet PC this

refers to returning to active operation after having been

in one of the suspension states.

ROM

Read Only Memory. A form of memory in which infor-

mation is stored by physically altering the material. Data

stored in this way can not be changed by your Tablet PC

and does not require power to maintain it.

SDRAM

Synchronous Dynamic Random Access Memory.

Serial Port

A connection to another device through which data is

transferred one bit at a time on a single wire with any

other wires only for control of the device not for transfer

of data.

Shared key authentication

One of the network authentication types for wireless

LAN. Upon authentication, the access point checks

whether the same network key is set to the client. If the

client uses a wrong network key or the network key itself

is not set, authentication is unsuccessful, allowing no

communications with the access point.

SMART

Self-Monitoring, Analysis and Reporting Technology

(SMART) is an emerging technology that provides near-

term failure predictions for hard drives. When SMART

is enabled the hard drive monitors pre-determined drive

attributes that are susceptible to degradation over time.

If a failure is likely to occur, SMART makes a status

report available so that the Tablet PC can prompt the

user to back up the data on the drive. Naturally not all

failures are predictable. SMART predictability is limited

to those attributes which the drive can self-monitor. In

those cases where SMART can give advance warning, a

considerable amount of precious data can be saved.

SRAM

Static random access memory. A specific technology of

making RAM which does not require periodic data

refreshing.

SSID

Service Set Identifier

Specifies which network you are joining. Some systems

allow you to specify any SSID as an option so you can

join any network.

Standby

To make inoperative for a period of time. Your Tablet PC

uses various suspension states to reduce power

consumption and prolong the charge of your battery.

Status Indicator

A display which reports the condition of some portion

of your hardware. On your Tablet PC this is an LCD

screen just above the keyboard.

Stereo (audio)

A system using two channels to process sound from two

different sources.

Subnet mask

TCP-IP network is controlled by being divided into

multiple smaller networks (subnets). IP address consists

of the subnet address and the address of each computer.

T Series.book Page 89 Wednesday, July 28, 2004 3:35 PM

LifeBook T Series Tablet PC - Section Eight

Subnet mask defines how many bits of IP address

comprise the subnet address. The same value shall be set

among computers communicating with each other.

SVGA

Super VGA.

S-Video

Super Video. A component video system for driving a

TV or computer monitor.

System Clock

An oscillator of fixed precise frequency which synchro-

nizes the operation of the system and is counted to

provide time of day and date.

TCP/IP

Transmission Control Protocol/Internet Protocol.

A standard Internet protocol that is most widely used.

TFT

Thin Film Transistor – A technology for flat display

panels which uses a thin film matrix of transistors to

control each pixel of the display screen individually.

Underwriters Laboratories – An independent organiza-

tion that tests and certifies the electrical safety of devices.

USB

Universal Serial Bus.

Standard that allows you to simultaneously connect up

to 127 USB devices such as game pads, pointing devices,

printers, and keyboards to your computer.

VGA

Video Graphics Array. A video display standard

originally introduced by IBM with the PS/2 series of

personal computers.

VRAM

Video Random Access Memory. A memory dedicated to

video display data and control.

WFM

Wired for Management is Intel’s broad-based initiative

to reduce the total cost of ownership (TCO) of business

computing without sacrificing power and flexibility.

Wi-Fi Compatible

Wi-Fi (Wireless Fidelity) Identifies that the product has

passed the interoperability test, supplied by the WECA

(Wireless Ethernet Compatibility Alliance), which guar-

antees the interoperability of wireless IEEE 802.11 LAN

products. For more information on the Wi-Fi standard,

go to the WECA website at: www.wirelessethernet.com.

WLAN

Wireless Local Area Network. A wireless interconnection

of computers and peripherals within a single limited

geographic location which can pass programs and data

amongst themselves.

Write Protect

Prevent alteration of the binary state of all bits in a

storage media. Example: all information on a device

such as a floppy diskette; a block of space in a storage

media such as a partition of a hard drive; a file or direc-

tory of floppy diskette or hard drive.

XGA

Extended VGA.

Zip Drive

A 100MB or 250MB read/write removable media disk

drive.

T Series.book Page 90 Wednesday, July 28, 2004 3:35 PM

Appendix A

Integrated Wireless

LAN* User’s Guide

*Optional Device

T Series.book Page 91 Wednesday, July 28, 2004 3:35 PM

LifeBook T Series Tablet PC - Appendix A

T Series.book Page 92 Wednesday, July 28, 2004 3:35 PM

W Ire less LAN User’s Guide

FCC REGULATO RY INFO RM ATIO N

Please note the following regulatory information related to the

wireless LAN device.

Regulatory Notes and Statements

Wireless LAN, Health and Authorization for use

Radio frequency electromagnetic energy is emitted from Wire-

less LAN devices. T he energy levels of these emissions, however,

are far much less than the electromagnetic energy emissions

from wireless devices such as mobile phones. Wireless LAN

devices are safe for use by consumers because they operate

within the guidelines found in radio frequency safety standards

and recommendations. The use of Wireless LAN devices may be

restricted in some situations or environments, such as:

On board an airplane, or

In an explosive environment, or

In situations where the interference risk to other devices or

services is perceived or identified as harmful.

In cases in which the policy regarding use of Wireless LAN

devices in specific environments is not clear (e.g., airports,

hospitals, chemical/oil/gas industrial plants, private buildings),

obtain authorization to use these devices prior to operating the

equipment.

Regulatory I nformation/Disclaimers

Installation and use of this Wireless LAN device must be in

strict accordance with the instructions included in the user

documentation provided with the product. Any changes or

modifications made to this device that are not expressly

approved by the manufacturer may void the user’s authority to

operate the equipment. T he manufacturer is not responsible for

any radio or television interference caused by unauthorized

modification of this device, or the substitution or attachment of

connecting cables and equipment other than those specified by

the manufacturer. It is the responsibility of the user to correct

any interference caused by such unauthorized modification,

substitution or attachment. T he manufacturer and its autho-

rized resellers or distributors will assume no liability for any

damage or violation of government regulations arising from

failure to comply with these guidelines.

This device must not be co-located or operating in conjunction

with any other antenna or transmitter.

Federal Communications Commission statement

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions: (1) This

device may not cause interference, and, (2) T his device must

accept any interference, including interference that may cause

undesired operation of this device.

FCC Interference Statement

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. T hese limits are designed to provide reasonable

protection against harmful interference in a residential installa-

tion. T his equipment generates, uses, and can radiate radio

frequency energy. If not installed and used in accordance with

the instructions, it may cause harmful interference to radio

communications. However, there is no guarantee that interfer-

ence will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try and correct

the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the distance between the equipment and the

receiver.

3. Connect the equipment to an outlet on a circuit different

from the one the receiver is connected to.

4. Consult the dealer or an experienced radio/TV technician

for help.

FCC Radio Frequency Exposure statement

This Wireless LAN radio device has been evaluated under FCC

Bulletin OET 65C and found compliant with the requirements

as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b)

(4) addressing RF Exposure from radio frequency devices. The

radiated output power of this Wireless LAN device is far below

the FCC radio frequency exposure limits.

The maximum SAR values measured from the devices are:

Intel PROSet Wireless LAN (WM 3B2200BG): 0.600 W/kg

Atheros Wireless LAN (WLL4030): 1.30 W/kg

Intel PROSet Wireless LAN (WM3B2200BG) + Bluetooth

Simulatneous: 0.583 W/kg

Export restrictions

This product or software contains encryption code which may

not be exported or transferred from the US or Canada without

an approved US Department of Commerce export license. This

device complies with Part 15 of FCC Rules., as well as ICES 003

B / NMB 003 B. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received,

including interference that may cause undesirable operation.

Modifications not expressly authorized by Fujitsu Computer

Systems Corporation may invalidate the user's right to operate

this equipment.

Canadian Notice

To prevent radio interference to the licensed service, this device

is intended to be operated indoors and away from windows to

provide maximum shielding. Equipment (or its transmit

antenna) that is installed outdoors is subject to licensing.

T Series.book Page 93 Wednesday, July 28, 2004 3:35 PM

Atheros Wireless LAN (WLL4030) + Bluetooth

Simultaneous: 1.41 W/kg

High power radars are allocated as primary users of 5250 - 5350

MH z and 5650 - 5850 MH z and these radars could cause

interference and/or damage to LELAN (license exempt LAN)

devices operating in these bands.

Intel PROSet Wireless LAN (WM 3B2915ABG): 1.55 W/kg

Intel PROSet Wireless LAN (WM3B2915ABG) + Bluetooth

Simulatneous: 1.28 W/kg

LifeBook T Series Tablet PC - Appendix

Before Using the Wireless LAN

This manual describes the procedures required to prop-

erly setup and configure the integrated Wireless LAN

Mini-PCI device (referred to as "WLAN device" in the

rest of the manual). Before using the WLAN device, read

this manual carefully to ensure it's correct operation.

Keep this manual in a safe place for future reference.

W ireless LAN Devices Covered by this Document

This document is applicable to systems containing one

of the following two devices. Most of the procedures are

identical. Sections that differ between the two devices

have been noted in the text:

Intel PROSet Wireless LAN card (WM3B2200BG or

Atheros Wireless LAN card (WLL4030)

Characteristics of the W LAN Device

The WLAN device is a Mini-PCI card attached to the

mainboard of the mobile computer.

It is a dual-band radio that operates in two license-free

RF bands, therefore eliminating the need to procure an

FCC license to operate. It operates in the 2.4 GH z

Industrial, Scientific, and Medical (ISM) RF band.

Additionally, the Atheros device operates in the lower

and middle bands of the 5 GH z Unlicensed National

Information Infrastructure (UNII) bands (for

IEEE802.11a).



operating mode, IEEE802.11b.

Encoding of data is modulated using Direct Sequence

Spread Spectrum (DSSS) and Complementary Code

Keying (CCK ) when the W LAN device is operating in

IEEE 802.11b mode and Orthogonal Frequency Divi-

sion Multiplexing (OFDM) when operating in

IEEE802.11a or IEEE802.11g mode.

The WLAN device is Wi-Fi certified and operates at

the maximum data transfer rate of 54 Mbps in

IEEE802.11a or IEEE802.11g mode and 11 Mbps in

IEEE802.11b mode.

The maximum communication range indoors is

approximately 80 feet (25 meters). However, that

range will increase or decrease depending on factors

such as number of walls, reflective material, or inter-

ference from external RF sources.

The specific WLAN devices support some or all of the

following encryption methods - WEP, TKIP, AES,

LEAP, EAP-TLS and PEAP encryption.

W IRELESS LAN MO DES USING THIS DEVICE

Ad Hoc M ode

(See Figure 5-1)

"Ad Hoc Mode" refers to a wireless network architecture

where wireless network connectivity between multiple

computers is established without a central wireless

network device, typically known as Access Point(s).

Connectivity is accomplished using only client devices in

a peer-to-peer fashion. T hat is why Ad Hoc networks are

also known as peer-to-peer networks. Ad Hoc networks

are an easy and inexpensive method for establishing

network connectivity between multiple computers.

Ad Hoc mode requires that the SSID, network authenti-

cation, and encryption key settings are identically

configured on all computers in the Ad Hoc network.

Figure 5-1. Ad Hoc M ode Network

T Series.book Page 94 Wednesday, July 28, 2004 3:35 PM

WB3B2915ABG)

The Atheros and Intel(WM3B2915ABG) WLANs are

capable of three operating modes, IEE802.11a, IEE802.

11b and IEEE802.11g, wireless LAN standards governed

by the IEEE(Institute of Electronics and Electrical

Engineers). T he Intel(W M3B2200GB) and Broadcom

WLANs are capable of two operating modes, IEEE802.

11b and IEEE802.11g. T he Intel(WM3B2100) is capable

of one

W Ire less L A N U ser’s G uide

Access Point (Infrastructure) M ode

(See Figure 5-2)

Infrastructure mode refers to a wireless network archi-

tecture in which devices communicate with wireless or

wired network devices by communicating through an

Access Point. In infrastructure mode, wireless devices

can communicate with each other or can communicate

with a wired network. Corporate wireless networks

operate in infrastructure mode because they require

access to the wired LAN in order to access computers,

devices, and services such as file servers, printers, and

databases.

How to Handle This Device

The WLAN device comes pre-installed in your mobile

computer. Under normal circumstances, it should not be

necessary for you to remove or re-install it. T he Oper-

ating System that your mobile computer comes with has

been pre-configured to support the WLAN device.

W IRELESS NETW O RK CO NSIDERATIO NS

The Intel (WM3B2200BG) and Broadcom WLAN

devices are dual-mode wireless network cards (sup-

The Intel and Broadcom WLAN devices operate in the

2.4GH z ISM band; the Atheros WLAN device also

operates in the 5 GH z lower and middle UNI I bands.

The maximum range of the WLAN device indoors is

typically 80 feet (25 meters). Please note that the max-

imum range you achieve may be shorter or longer than

80 feet, depending on factors such as access point

transmit power, number and density of obstructions,

or external RF interference.

Microwave ovens, cordless phones, and wireless cam-

eras may interfere with the operation of WLAN device

as microwave ovens operate in the same 2.4 GH z fre-

quency range that IEEE802.11b/g devices operate in.

Interference by microwaves does not occur with

IEEE802.11a radio which operates in the 5 GHz RF

band.

Wireless devices that transmit in the 2.4 GH z fre-

quency range may interfere with the operation of

WLAN devices in IEEE802.11b/g modes. Symptoms of

interference include reduced throughput, intermittent

disconnects, and large amounts of frame errors. It is

HIGHLY recommended that these interfering devices

be powered off to ensure the proper operation of the

WLAN device.

Figure 5-2. Access Point (Infrastructure) M ode Network

ADSL modem,

cable modem,

or similar

Internet

W ired LAN

Access Point*

W ireless LAN

* An optional hub for a wired

LAN may be required depending

upon the type of access point used.

T Series.book Page 95 Wednesday, July 28, 2004 3:35 PM

ports IEEE802.11b/g); the Atheros and Intel

(WM3B2915ABG) WLAN devices support IEEE802.

11a/b/g; the Intel(WM3B2100) WLAN device supports

802.11b.

LifeBook T Series Tablet PC - Appendix

DEACTIVATING THE WLAN DEVICE

Deactivation of the WLAN device may be desired in

certain circumstances (to extend battery life) or where

certain environments require it (e.g., hospitals, clinics,

airplanes, etc.). Fujitsu mobile computers employ two

methods with which to deactivate the WLAN device,

1) the Wireless On/Off Switch and 2) in Windows using

the Intel PROSet, Atheros Client Utility, or Broadcom

Wireless Utility software.

Deactivation using the Wireless On/Off Switch

The WLAN device can be deactivated quickly and effi-

ciently by toggling the Wireless On/Off Switch to the Off

position. (Figure 5-3)

The Wireless On/Off switch has no effect on non-Wire-

less LAN models.

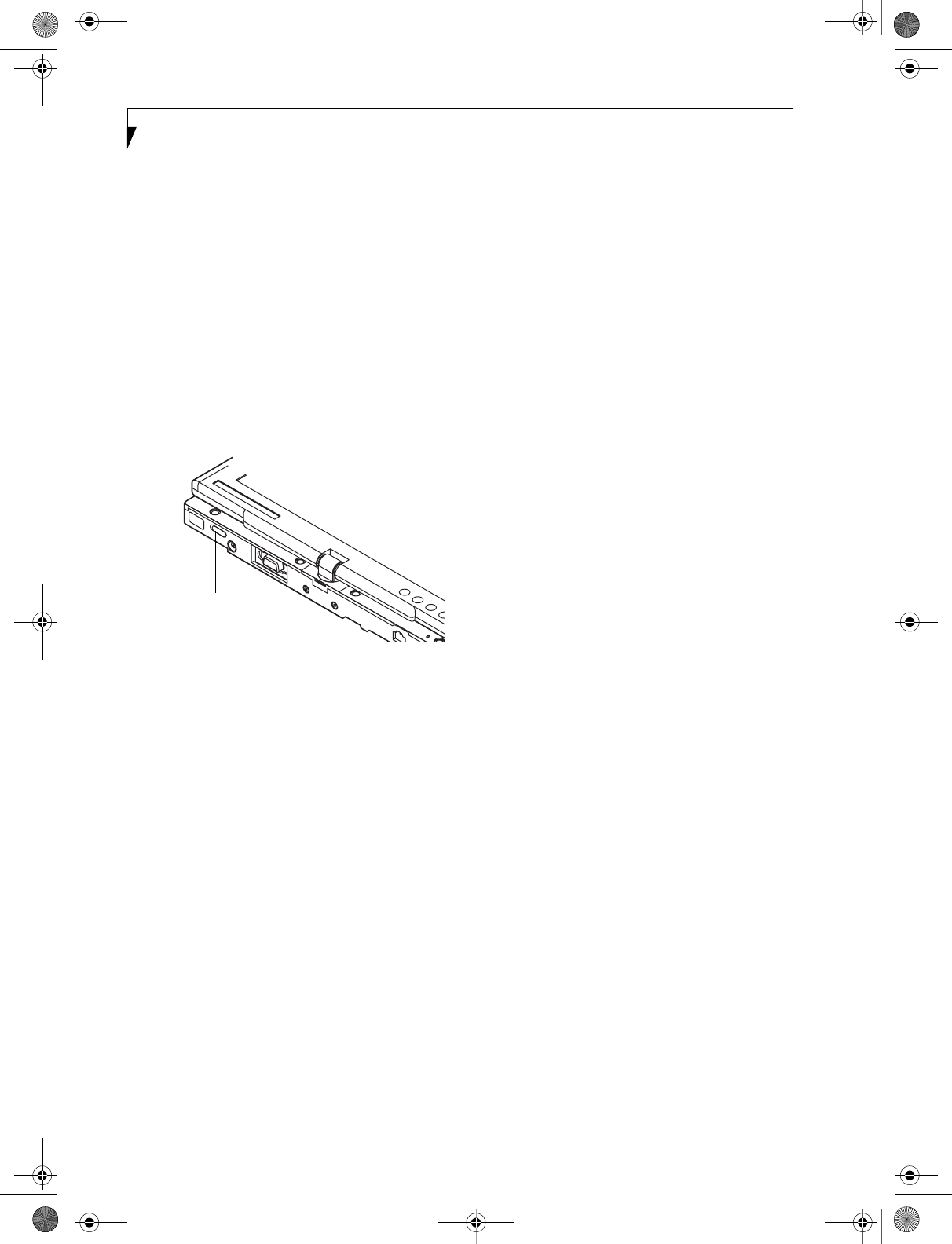

Figure 5-3. Wireless LAN On/Off Switch Location

Deactivation using the Intel PROSet Software

The WLAN device can also be deactivated in Windows

using the Intel PROSet Software. The procedure to

accomplish this:

1. Click [Start]-> [Control Panel].

2. If the Control Panel is in Category view, switch to

Classic view by clicking "Switch to Classic View"

which can be found in the left frame of the Control

Panel window.

3. Click on the Intel PROSet for Wireless icon which

will execute the Intel PROSet application.

4. Select the General tab if it is not already selected.

5. Check the Off radio button next to "Switch radio:"

then click the [OK] button.

Deactivation using Atheros Client Utility software

1. Click [Start] -> [Program Files] -> [Atheros] ->

Atheros Client Utility.

2. Choose Action and click Disable Radio.

Deactivation using Broadcom Wireless Utility

1. Click [Start] --> [Control Panel] --> [Broadcom

Wireless Utility]. The Broadcom Wireless Configu-

ration Utility window will be displayed.

2. Click the Wireless Networks tab.

Click the [Enable Radio] box to clear it, then click the

[OK] button. Wireless communications on/off

switching will be deactivated and the transmission of

radio waves from the wireless LAN will be stopped

ACTIVATING THE WLAN DEVICE

Activation of the WLAN device can be accomplished

using the same methods as the deactivation process

■Using the Wireless On/Off Switch

■In Windows using the Intel PROSet, Atheros, or

Broadcom software.

Wireless LAN

On/Off Switch

TBD - NEW GRAPHIC

T Series.book Page 96 Wednesday, July 28, 2004 3:35 PM

WIreless LAN User’s Guide

Configuration of the WLAN Device

The WLAN Device can be configured to establish wire-

less network connectivity using one of the following

tools:

■Windows XP Wireless Zero Configuration (WZC) -

The WZC allows for multiple profile setup and sup-

port for most industry standard security solutions.

This configuration should be used for the Broadcom

WLAN device.

■Intel PROSet Software - The Intel PROSet Software

allows for multiple profile setup and supports auto-

matic profile switching. Support for most industry

standard security solutions as well as Cisco Compati-

ble Extensions (CCX) is contained in this software.

■Atheros Client Utility - The Atheros Client Utility soft-

ware allows for multiple profile setups and supports

automatic profile switching. Support for most indus-

try standard security solutions, as well as Cisco Com-

patible Extensions (CCX), is contained in this

software.

FLOW OF OPERATIONS

1. Activate the WLAN Device (See Activating the

WLAN Device on page 96 for more information).

2. Configure the Wireless Network parameters (See

Configure Wireless Network Parameters on page 98

for more information).

■Enter the network name (SSID)

■Choose the appropriate WLAN architecture (Ad

Hoc or Infrastructure)

■Choose Authentication method: Open, Shared,

WPA, or WPA-PSK

■If using static WEP keys, enter static WEP key and

choose key index.

3. Configure network settings (See Configure Net-

work Parameters on page 98 for more information)

■TCP/IP settings

■Workgroup or Domain settings.

CONFIGURATION USING WIRELESS

ZERO CONFIGURATION TOOL

This section explains the procedure to properly

configure the WLAN device using the WZC. Pre-defined

parameters will be required for this procedure. Please

consult with your network administrator for these

parameters:

Network Name - Also known as the SSID

Network Key (WEP) - Required if using static WEP

keys.

Authentication Type - Open, Shared, WPA, or WPA-

PSK

Procedure

1. Activate the WLAN device using the Wireless On/

Off Switch, the Intel PROSet software, or the

Atheros Client Utility.

2. Click the [Start] button first and then [Control

Panel].

3. If the Control Panel is in Category view, switch to

Classic view by clicking "Switch to Classic View"

which can be found in the left frame of the Control

Panel window.

4. Double-click the Network Connections icon. A list

of previously configured networks will be dis-

played.

5. Right-click [Wireless Network Connection] in the

list, and then click [Properties] in the menu dis-

played.

6. Click the [Wireless Networks] tab.

7. Click [Refresh], then choose the correct SSID from

the [Available Networks] window. Click [Config-

ure] and proceed to step 8. Please note that only

wireless networks that broadcast their SSID will be

displayed. If the SSID of the wireless network is not

visible, you must manually add it. This can be

accomplished by clicking [Add]

8. From within the Association tab configure the

appropriate WLAN parameters. Please have ready

the following parameters:

■Network name (SSID) - ASCII string of up to 33

characters used by the WLAN to logically separate

wireless networks.

■Authentication Type - Options include Open,

Shared, WPA, or WPA-PSK

■Network Key - If Authentication Type is Open or

Shared, choices are None or WEP. If Authentica-

tion Type is WPA or WPA-PSK, choices are WEP

or TKIP.

Ad Hoc Networks: All computers in an Ad Hoc

network must be assigned with the same SSID and

T Series.book Page 97 Wednesday, July 28, 2004 3:35 PM

LifeBook T Series Tablet PC - Appendix

the checkbox for the field [This is a computer to

computer (ad hoc) network, wireless access points

are not used.] must be checked.

Access Point (Infrastructure) Networks: The SSID

must be identical to the SSID of the access point(s)

and the checkbox for the following field must be

unchecked [This is a computer to computer (ad

hoc) network wireless access points are not used.]

Refer to the access point manual, or contact your

network administrator

9. Configure Wireless Network Key parameters (Net-

work Authentication and Encryption).

a. Choose the Network Authentication method

appropriate for your wireless LAN. Options

include Open, Shared, WPA, and WPA-PSK.

Ad Hoc Networks: Network Authentication

settings must be identical for all computers in

the Ad Hoc network.

Access Point (Infrastructure Networks):

Network Authentication setting must be config-

ured to match the setting of the Access Point(s).

Please contact your network administrator for

this information.

b. Choose the Encryption method appropriate for

your wireless LAN. Options for Open or Shared

Authentication are None or WEP. Options for

WPA or WPA-PSK are WEP or TKIP.

c. If using static WEP keys, clear the check mark

from the [The key is provided for me automati-

cally] check box. If using an authentication

method that uses dynamic WEP (e.g., WPA,

WPA-PSK, 802.1x/EAP), the check box should

remain checked. Please contact your network

administrator for the correct settings.

d. Static WEP keys (if applicable) are entered in the

[Network Key] box. Configuration of the

[Network Key] is not required if the [The key is

provided for me automatically] check box is

checked.

■Static WEP keys entered in ASCII code

format will be either five characters (40-bit)

or thirteen characters (104-bit) in length.

Valid characters are 0 - 9, A - Z.

■Static WEP keys entered in hexadecimal

code format will be either ten characters

(40-bit) or twenty-six characters (104-bit)

in length. Valid characters are 0 - 9, A - F.

Ad Hoc Networks: Assign the same net-work

key to all the personal computers to be

connected.

Access Point (Infrastructure) Networks:

Assign the identical network key that is

programmed into the access point. Please

contact your network administrator for this

information.

e. If using static WEP keys, confirm the Network

key by re-entering the same data in the [Confirm

network key:] field.

f. The Key index used must be identical to the

transmit key used in the Access Point or other

wireless device. This is only applicable when

static WEP keys are used. Please contact your

network administrator for this information.

10. Access Point (Infrastructure) Networks Only: If

the wireless network you are establishing connec-

tivity to implements an access control security

mechanism, configuration of 802.1x parameters

may be necessary. Please contact your network

administrator for these settings. Configuration of

these parameters is not applicable to home users.

11. Click [OK] to close the [Wireless Network] window

which will cause the WLAN device to re-establish

wireless network connectivity using the recently

configured parameters.

CONFIGURATION USING

INTEL PROSET SOFTWARE

This section explains the procedure to properly

configure the WLAN device using the Intel PROSet Soft-

ware. Pre-defined parameters will be required for this

procedure. Please consult with your network adminis-

trator for these parameters:

Network Name - Also known as the SSID

Network Key (WEP) - Required if using static WEP

keys.

Authentication Type - Open, Shared, WPA, or WPA-

PSK

Procedure

1. Activate the WLAN device using either the Wireless

On/Off Switch or the Intel PROSet software.

2. Click the [Start] button first and then [Control

Panel].

3. If the Control Panel is in Category view, switch to

Classic view by clicking "Switch to Classic View"

which can be found in the left frame of the Control

Panel window.

4. Double-click the icon [Intel PROSet] to execute the

Intel PROSet Software.

5. From the General page, click the Networks tab.

T Series.book Page 98 Wednesday, July 28, 2004 3:35 PM

WIreless LAN User’s Guide

6. Click the [Add] button. The General Settings dialog

displays.

7. From the General page, click the Networks tab.

8. Click the [Add] button. The General Settings dialog

displays.

9. Enter a profile name in the Profile Name field.

10. Enter the network SSID, in the Network Name

(SSID) field.

11. Click Infrastructure or Ad Hoc for the operating

mode.

12. The Mandatory AP option is only used if Infra-

structure mode is selected. Use this option to con-

nect to a specific access point. Click the Mandatory

AP button, enter the MAC address for the access

point. Click OK to save the setting and return to the

General Settings page.

13. If you are using Cisco CCX, click the Enable Cisco

Client eXtentions option to enable Cisco CKIP data

encryption on the Security Settings page. If you

have checked the Cisco's "Mixed-Cell" box in the

Advanced Setting, this option must also be

checked.

14. Click Next.

15. Click the Security tab

16. Select Open, Shared, WPA, or WPA-PSK in the

Network Authentication options.

17. Select either None, WEP, CKIP (if Enable Cisco Cli-

ent eXtentions is enabled on the General Settings

page), or TKIP for the data encryption.

18. If WEP is selected, select either 64 or 128-bit for the

Encryption Level.

19. Select the key index 1, 2, 3 or 4.

20. Enter the WEP key if required. If your network does

not employ a 802.1x/EAP security mechanism,

please skip to step 24.

21. Click the 802.1x Enabled checkbox to enable the

802.1x security option. Please contact your network

administrator if configuration of this setting is

required.

22. Select the appropriate 802.1x/EAP Type. Please

contact your network administrator if configura-

tion of this setting is required.

23. After selecting your authentication type, click the

Configure button to open the Settings dialog. Enter

the user name and password of the user you have

created on the authentication server. The user

name and password do not have to be the same as

name and password of your current Windows user

setting. The "Client Certificate" should be the one

obtained from your RADIUS server or other certifi-

cation server.

24. Click Close to save the settings.

25. From the General settings page, click the new pro-

file name shown in the Profile List. Use the up and

down arrows to position the priority of the new

profile in the priority list.

26. Click the Advanced button to set the network con-

nection preferences.

27. Click the Connect button to connect to the net-

work.

28. Click OK to close the Intel(R) PROSet for Wireless

utility

CONFIGURATION USING ATHEROS

CLIENT UTILITY SOFTWARE

This section explains the procedure to properly

configure the WLAN device using the Atheros Client

Utility. Pre-defined parameters will be required for this

procedure. Please consult with your network adminis-

trator for these parameters:

Network Name - Also known as the SSID

Network Key (WEP) - Required if using static WEP

keys.

Authentication Type - Open, Shared, WPA, or WPA-

PSK

Procedure

1. Activate the WLAN device using either the Wireless

On/Off Switch or the Atheros Client Utility

2. Click the [Start] button first and then [Control

Panel].

3. If the Control Panel is in Category view, switch to

Classic view by clicking "Switch to Classic View"

which can be found in the left frame of the Control

Panel window.

4. Double-click the icon [Atheros Client Utility] to

execute the Atheros Client Utility.

5. From the Current Status page, click the Profile

Management tab.

6. If this is your first time using this utility, highlight

the profile [Default] and Click the [Modify] button,

otherwise Click the [New] button. The General Set-

tings dialog displays.

7. From the General page, enter a profile name in the

Profile Name field.

T Series.book Page 99 Wednesday, July 28, 2004 3:35 PM

100

LifeBook T Series Tablet PC - Appendix

8. Enter the network SSID, in the SSID1 field. If you

wish to create a profile that can connect to up to 3

different wireless networks, SSID's can be entered

in the SSID2 and SSID3 fields as well.

9. Click the Security tab.

10. The Security tab allows for the configuration of the

Security modes listed in the table below. Please

select the radio button of the desired security

mode. If these settings are not known to you,

please consult with your network administrator for

the correct settings.

11. Click OK

12. Click the Advanced tab

13. The Advanced tab allows for the configuration of

the options detailed in the table below.

14. Click OK

15. If the profile you just created does not activate

immediately, click the Profile Management tab,

highlight the desired Profile, and click Activate.

16. Click OK to close the Atheros Client Utility.

Field Name Description

WPA Enables the use of Wi-Fi Protected

Access. Choosing WPA opens the

WPA EAP drop-down menu.

Options include TLS and PEAP. If

these settings are not known to you,

please consult with your network

administrator for the correct settings.

WPA-PSK Enables WPA-Pre-Shared Key. Click

on the Configure button to enter the

WPA Passphrase. If these settings

are not known to you, please consult

with your network administrator for

the correct settings.

802.1x Enables 802.1x security. If these

settings are not known to you,

please consult with your network

administrator for the correct settings.

Choosing this option opens the

802.1x EAP type drop-down menu.

Options include TLS, PEAP, and LEAP

Pre-Shared Key Enables the use of pre-shared keys

that are defined on both the access

point and the station. This is where

static WEP keys are entered. Click

the Configure button to fill in the

Define Pre-Shared Keys window.

None No security

Field Name Description

Power Save

Mode

Options are Maximum, Normal, or

Off

Network Type Options are AP (Infrastructure) or Ad

Hoc

802.11b

Preamble

Specifies the preamble setting in

802.11b. The default setting is Short

and Long (Access Point mode),

which allows both short and long

headers in the 802.11b frames. Set

to Long Only to override allowing

short frames.

Transmit Power

Level

Options are 100%, 50%, 25%,

12.5% or Lowest transmit power

(0mW)

Wireless Mode Specifies 5 GHz 54 Mbps, 5 GHz 108

Mbps, 2.4 GHz 11 Mbps, or 2.4 GHz

54 Mbps operation in an access

point network.

Wireless Mode

when Starting

Ad Hoc

Network

Specifies 5 GHz 54 Mbps, 5 GHz 108

Mbps, 2.4 GHz 11 Mbps, 2.4 GHz

54 Mbps, or 2.4 GHz 108 Mbps to

start an Ad Hoc network if no

matching network name is found

after scanning all available modes.

T Series.book Page 100 Wednesday, July 28, 2004 3:35 PM

101

WIreless LAN User’s Guide

CONNECTION TO THE NETWORK

This section explains connection to the network.

If there is an administrator of the network, contact the

network administrator for data settings.

Setting the network

Perform the “Setting TCP/IP” and “Confirming the

computer and work group names” operations required for

network connection.

Setting TCP/IP

1. Click the [Start] button first and then [Control

Panel].

2. If the Control Panel is in Category view, switch to

Classic view by clicking “Switch to Classic View”

under Control Panel the left frame. (If you are

already in Classic view, “Switch to Category View”

will be displayed.)

3. Double-click [Network Connections]. A list of cur-

rently installed networks will be displayed.

4. Right-click [Wireless Network Connection] in the

list, and then click [Properties] in the menu dis-

played. The [Wireless Network Connection Proper-

ties] window will be displayed.

5. Click the [General] tab if it is not already selected.

6. Click [Internet Protocol (TCP/IP] and then click

[Properties]. The [Internet Protocol (TCP/IP)

Properties] window will be displayed.

7. Set the IP address as follows:

■For ad hoc connection: Select [Use the following

IP address:] and then enter data for [IP address]

and [Subnet mask]. See page 107 for IP address

setting.

■For access point (infrastructure) connection: If

your network uses DHCP, select [Obtain an IP

address automatically] and [Obtain DNS server

address automatically]. If your network uses static

IP addresses, consult with your network adminis-

trator for the correct IP address settings.

8. Click the [OK] button. Processing will return to the

[Wireless Network Connection Properties] window.

9. Click the [OK] button.

10. Close the [Network Connection] window.

Following this operation, confirm the names of the

computer and the workgroup as follows.

Confirming the computer and work group names

1. Click the [Start] button, then [Control Panel].

2. If the Control Panel is in Category view, switch to

Classic view by clicking “Switch to Classic View”

under Control Panel the left frame. (If you are

already in Classic view, “Switch to Category View”

will be displayed.)

3. Double-click the [System] icon. The [System Prop-

erties] window will be displayed.

4. Click the [Computer Name] tab.

5. Confirm the settings of [Full computer name:] and

[Workgroup:].

a. The setting of [Full computer name:] denotes the

name for identifying the computer. Any name

can be assigned for each personal computer.

Enter the desired name in less than 15 ASCII

character code format. Identifiability can be

enhanced by entering the model number, the

user name, and other factors.

b. [Workgroup name] is the group name of the

network. Enter the desired name in less than 15

ASCII character code format.

For ad hoc connection: Assign the same network

name to all personal computers existing on the

network.

For access point (infrastructure) connection:

Assign the name of the work group to be

accessed.

6. Click the [OK] button. If a message is displayed

that requests you to restart the personal computer,

click [Yes] to restart the computer.

Setting the sharing function

Set the sharing function to make file and/or printer sharing

with other network-connected personal computers valid.

This operation is not required unless the sharing func-

tion is to be used.

To change the setting of the IP address,

you need to be logged in from Windows

as an administrator.

To modify the computer name and/or the

work group name, you need to be logged

in from Windows as an administrator.

To change the name, click [Change] and

then proceed in accordance with the

instruction messages displayed on the

screen.

T Series.book Page 101 Wednesday, July 28, 2004 3:35 PM

102

LifeBook T Series Tablet PC - Appendix

The folder and printer for which the sharing function

has been set will be usable from any personal computer

present on the network.

Setting the Microsoft network-sharing service

1. Click the [Start] button first and then [Control

Panel].

2. If the Control Panel is in Category view, switch to

Classic view by clicking “Switch to Classic View”

under Control Panel the left frame. (If you are

already in Classic view, “Switch to Category View”

will be displayed.)

3. Double-click [Network Connections]. A list of cur-

rently installed networks will be displayed.

4. Right-click [Wireless Network Connection] in the

list, and then click [Properties] in the menu dis-

played. The [Wireless Network Connection Proper-

ties] window will be displayed.

5. If [File and Printer Sharing for Microsoft Net-

works] is displayed, proceed to step 6. If [File and

Printer Sharing for Microsoft Networks] is not dis-

played, skip to step 7.

6. Make sure that the [File and Printer Sharing for

Microsoft Networks] check box is checked, and

then click the [OK] button. Skip to “Setting file-

sharing function”.

7. Click [Install]. The [Select Network Component

Type] window will be displayed.

8. Click [Service], then click the [Add] button. The

[Select Network Service] window will be displayed.

9. Click [File and Printer Sharing for Microsoft Net-

works] and then click the [OK] button. Processing

will return to the [Wireless Network Connection

Properties] window, and [File and Printer Sharing

for Microsoft Networks] will be added to the list.

10. Click the [Close] button.

Setting the file-sharing function

The procedure for setting the file-sharing function

follows, with the “work” folder in drive C: as an

example.

1. Click the [Start] button first and then [My Com-

puter].

2. Double-click [Local disk (C:)].

3. Right-click the “work” folder (or whichever folder

you want to share), and then click [Sharing and

Security...] in the menu displayed. The [Folder

Name Properties] window will be displayed.

4. Click [Sharing] if it isn’t already selected.

5. Click the link stating “If you understand the secu-

rity risks, but want to share files without running

the wizard, click here”.

6. Click “Just enable file sharing” and click [OK].

7. Check the [Share this folder on the network] check

box.

8. Click the [OK] button. The folder will be set as a

sharable folder, and the display of the icon for the

“work.” folder will change.

Setting the printer-sharing function

1. Click the [Start] button first and then [Printers and

FAX]. A list of connected printers will be displayed.

2. Right-click the printer for which the sharing func-

tion is to be set, and then click [Sharing] in the

menu displayed. The property window correspond-

ing to the selected printer will be displayed.

To share a file and/or the connected

printer, you need to be logged in as an

administrator. Setting the file-sharing function for the file

which has been used to execute Network

Setup Wizard is suggested on the screen.

For the wireless LAN, however, since

security is guaranteed by entry of the

network name (SSID) and the network

key, the steps to be taken to set the file-

sharing function easily without using

Network Setup Wizard are given below.

To specify the corresponding folder as a

read-only folder, select the [Read only]

checkbox under the General tab.

Setting the printer-sharing function when

Network Setup Wizard has been executed

is suggested on the screen. For the wireless

LAN, however, since security is guaranteed

by entry of the network name (SSID) and

the network key, the steps to be taken to

set the printer-sharing function without

using Network Setup Wizard are laid down

below.

T Series.book Page 102 Wednesday, July 28, 2004 3:35 PM

103

WIreless LAN User’s Guide

3. Click the [Sharing] tab.

4. Click [Share this printer].

5. Enter the sharing printer name in [Share name].

6. Click the [OK] button.

Confirming connection

After you have finished the network setup operations,

access the folder whose sharing has been set for other

personal computers. Also, confirm the status of the radio

waves in case of trouble such as a network connection

failure.

Connecting your personal computer to another

personal computer

1. Click [Start] first and then [My Computer]. The

[My Computer] window will be displayed in the left

frame.

2. Click [My Network Places] in the “Other Places”

list. The window [My Network Places] will be dis-

played.

3. Click [View workgroup computers] under Network

Tasks in the left frame.

4. Double-click the personal computer to which your

personal computer is to be connected. The folder

that was specified in “Setting the file-sharing func-

tion” on page 102 will be displayed.

5. Double-click the folder to be accessed.

In the case of access point (infrastructure)

connection, enter the necessary data for

the access point before confirming

connection. Refer to the manual of the

access point for the access point setup

procedure.

T Series.book Page 103 Wednesday, July 28, 2004 3:35 PM

104

LifeBook T Series Tablet PC - Appendix

Troubleshooting

Causes and countermeasures for troubles you may encounter while using your wireless LAN are described in the

following table.

Problem Possible Cause Possible Solution

Unavailable

network

connection

Incorrect network

name (SSID) or

network key

Ad hoc connection: verify that the network names (SSID’s) and network

keys (WEP) of all computers to be connected have been configured

correctly. SSID’s and WEP key values must be identical on each machine.

Access Point (Infrastructure) connection: set the network name (SSID)

and network key to the same values as those of the access point.

Set the Network Authentication value identically to that of the Access

Point. Please consult your network administrator for this value, if

necessary.

For the method of setting network authentication, refer to the following

page:·”Assigning parameters” on page 98·

Weak received signal

strength and/or link

quality

Ad hoc connection: Retry connection after shortening the distance to

the destination computer or removing any obstacles for better sight.

Access Point (Infrastructure) connection: Retry connection after short-

ening the distance to the access point or removing any obstacles for

better sight.

The WLAN device

has been deactivated

or disabled

Check if the wireless switch is turned ON. Also verify “Disable Radio” is

not checked in “Network setting” window. Refer to “Starting Transmis-

sion” on page 96.

The computer to be

connected is turned

off

Check if the computer to be connected is turned ON.

RF interference from

Access Points or

other wireless

networks

The use of identical or overlapping RF channels can cause interference

with the operation of the WLAN device. Change the channel of your

Access Point to a channel that does not overlap with the interfering

device.

Wireless network

authentication has

failed

Re-check your Network Authentication, Encryption, and Security

settings. Incorrectly configured security settings such as an incorrectly

typed WEP key, a mis-configured LEAP username, or an incorrectly

chosen authentication method will cause the LAN device to associate

but not authenticate to the wireless network.

Incorrectly

configured network

settings

Recheck the configuration of your network settings.

For the method of checking, refer to the following page:·“Connection to

the Network” on page 101.

Incorrect IP address

configuration

This only applies to networks using static IP addresses. Please contact

your network administrator for the correct settings.

T Series.book Page 104 Wednesday, July 28, 2004 3:35 PM

105

WIreless LAN User’s Guide

Wireless LAN Glossary

Ad Hoc Mode

Ad Hoc Mode refers to a wireless network architecture

where wireless network connectivity between multiple

computers is established without a central wireless

network device, typically known as Access Points.

Connectivity is accomplished using only client devices in

a peer-to-peer fashion. For details, refer to “Ad hoc

connection” on page 94.

Channel

Range of narrow-band frequencies used by the WLAN

device to transmit data. IEEE802.11b/g - 11 channels, 22

MHz wide channels.

DHCP (Dynamic Host Configuration Protocol)

A protocol that provides a means to dynamically allocate

IP addresses to computers on a local area network.

DNS (Domain Name System)

A data query service that provides a mechanism with

which to translate host names into Internet addresses.

IEEE802.11a

Wireless LAN standard that supports a maximum data

rate of 54 Mbps. 802.11a devices operate in the 5 GHz

lower and middle UNII bands.

IEEE802.11b

Wireless LAN standard that supports a maximum data

rate of 11 Mbps. 802.11b devices operate in the 2.4 GHz

ISM band.

Access point

Wireless network device used to bridge wireless and

wired network traffic.

IP address

The logical 32-bit host address defined by the Internet

Protocol that uniquely identifies a computer on a

network. The IP address is usually expressed in dotted

decimal notation.

LAN (Local Area Network)

A LAN or Local Area Network is a computer network (or

data communications network) which is confined to a

limited geographical area.

MAC address (Media Access Control Address)

A MAC address (also called an Ethernet address or IEEE

MAC address) is the 48-bit address (typically written as

twelve hexadecimal digits, 0 through 9 and A through F,

or as six hexadecimal numbers separated by periods or

colons, e.g., 0080002012ef, 0:80:0:2:20:ef) which

uniquely identifies a computer that has an Ethernet

interface.

MTU (Maximum Transmission Unit)

The maximum size of data which can be transmitted at

one time in networks including the Internet. In an envi-

ronment whose maximum size of data is too large to

correctly receive data, normal communications can be

restored by setting the size of MTU to a smaller value.

Network key

Data that is used for encrypting data in data communi-

cation. The personal computer uses the same network

key both for data encryption and decryption, therefore,

it is necessary to set the same network key as the other

side of communication.

Network name (SSID: Security Set Identifier)

When a wireless LAN network is configured, grouping is

performed to avoid interference or data theft. This

grouping is performed with “Network name (SSID)”. In

order to improve security, the network key is set

allowing no communication unless “Network name

(SSID)” coincides with the network key.

Open system authentication

Null authentication method specified in the 802.11 stan-

dard that performs no authentication checks on a wire-

less client before allowing it to associate.

PPPoE (Point to Point Protocol over Ethernet)

A method of allowing the authentication protocol

adopted in telephone line connection (PPP) to be used

over an Ethernet.

Protocol

A procedure or rule of delivering data among

computers. Ordered data communication is allowed by

making all conditions required for communication

including the method of data transmission/reception

and actions upon communication errors into proce-

dures.

T Series.book Page 105 Wednesday, July 28, 2004 3:35 PM

106

LifeBook T Series Tablet PC - Appendix

Shared key authentication

802.11 network authentication method in which the AP

sends the client device a challenge text packet that the

client must then encrypt with the correct WEP key and

return to the AP. If the client has the wrong key or no

key, authentication will fail and the client will not be

allowed to associate with the AP. Shared key authentica-

tion is not considered secure, because a hacker who

detects both the clear-text challenge and the same chal-

lenge encrypted with a WEP key can decipher the WEP

key.

SSID (Service Set Identifier)

Service Set Identifier, a 32-character unique identifier

attached to the header of packets sent over a WLAN that

acts as a password when a mobile device tries to connect

to the BSS. The SSID differentiates one WLAN from

another, so all access points and all devices attempting to

connect to a specific WLAN must use the same SSID. A

device will not be permitted to join the BSS unless it can

provide the unique SSID. Because the SSID is broadcast

in plain text, it does not supply any security to the

network.

Subnet mask

TCP-IP network is controlled by being divided into

multiple smaller networks (subnets). IP address consists

of the subnet address and the address of each computer.

Subnet mask defines how many bits of IP address

comprise the subnet address. The same value shall be set

among computers communicating with each other.

TCP/IP (Transmission Control Protocol/Internet

Protocol)

A standard protocol of the Internet.

Wi-Fi

Wi-Fi, or Wireless Fidelity, is a set of standards for wire-

less local area networks (WLAN) based on the IEEE

802.11 specifications. Certified products can use the

official Wi-Fi logo, which indicates that the product is

interoperable with any other product also showing that

logo.

T Series.book Page 106 Wednesday, July 28, 2004 3:35 PM

107

WIreless LAN User’s Guide

IP address information

If IP address is unknown, set IP address as follows:

If you have an access point (DHCP server) on the

network, set the IP address as follows:

[Obtain an IP address automatically]

If the IP address is already assigned to the computer in

the network, ask the network administrator to check the

IP address to be set for the computer.

If no access point is found in the network:

An IP address is expressed with four values in the range

between 1 and 255.

Set the each computer as follows: The value in paren-

theses is a subnet mask.

Computer A: 192.168.100.2 (255.255.255.0)

Computer B: 192.168.100.3 (255.255.255.0)

Computer C: 192.168.100.4 (255.255.255.0)

Computer X: 192.168.100.254 (255.255.255.0)

IP addressing is much more complicated

than can be briefly explained in this

document. You are advised to consult with

your network administrator for additional

information.

A DHCP server is a server that

automatically assigns IP addresses to

computers or other devices in the network.

There is no DHCP server for the AdHoc

network.

T Series.book Page 107 Wednesday, July 28, 2004 3:35 PM

108

LifeBook T Series Tablet PC - Appendix

Specifications

* “Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the interconnectivity of

wireless LAN (Wi-Fi Alliance) has been passed.

** Encryption with network key ( WEP) is performed using the above number of bits, however, users can set 40 bits/

104 bits after subtracting the fixed length of 24 bits.

*** Depending on practical environments, the allowable number of computers to be connected may be decreased.

Item Specification

Type of network Atheros W LAN and Intel W LAN(W M 3B2915ABG) devices

conforms to IEEE 802.11a/802.11b/g (W i-Fi based)*

Intel W LAN (W M 3B2200BG) device conforms to IEEE 802.11b/

g (W i-Fi based)*

Intel W LAN (W M 3B2100) conforms to IEEE 802.11b (W i-Fi

based)

Transfer rate (Automatic switching)

IEEE 802.11a/g: 54 M bps maximum data rate

IEEE 802.11b: 11 M bps maximum data rate

Active frequency 802.11b/g: 2400~2473 M Hz

802.11a: 4900 ~ 5850 M Hz

Number of channels 802.11a: 8 independent channels

802.11b/g: 11 channels, 3 non-overlapping channels

Security Encryption Types - W EP, TKIP, AES* *

W PA 1.0 compliant

Encryption Keylengths Supported: 64 bits, 128 bits, and 152 bits

(Atheros module using AES encryption only)

802.1x/ EAP

CCX 1.0 compliant

M aximum recommended number of computers to

be connected over wireless LAN (during ad hoc

connection)

10 units or less * * *

T Series.book Page 108 Wednesday, July 28, 2004 3:35 PM

109

W Ire less L A N U ser’s G uide

Using the Bluetooth Device

The integrated Bluetooth module is an optional device

available for Fujitsu mobile computers.

W HAT IS BLUETO O TH?

Bluetooth technology is designed as a short-range wire-

less link between mobile devices, such as laptop

computers, phones, printers, and cameras. Bluetooth

technology is used to create Personal Area Networks

(PANs) between devices in short-range of each other.

W HERE TO FIND INFO RM ATIO N

ABO UT BLUETO O TH

The Bluetooth module contains a robust H elp user’s

guide to assist you in learning about operation of the

Bluetooth device.

To access the Help file, click [Start] -> All Programs, and

click on Toshiba. Select Bluetooth, then select User’s

Guide.

For additional information about Bluetooth Technology,

visit the Bluetooth Web site at: www.bluetooth.com.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment. T he

The transmitters in this device must not be co-located or

operated in conjunction with any other antenna or

transmitter.

Canadian Notice

To prevent radio interference to the licensed service, this

device is intended to be operated indoors and away from

windows to provide maximum shielding. Equipment (or

its transmit antenna) that is installed outdoors is subject

to licensing.

Warranty

Users are not authorized to modify this product. Any

modifications invalidate the warranty.

This equipment may not be modified, altered, or

changed in any way without signed written permission

from Fujitsu. Unauthorized modification will void the

equipment authorization from the FCC and Industry

Canada and the warranty.

T Series.book Page 109 Wednesday, July 28, 2004 3:35 PM

maximum power output is less than 20mW and meets

the exemption criteria for radiation exposure limits.

110

LifeBook T Series Tablet PC - Appendix

T Series.book Page 110 Wednesday, July 28, 2004 3:35 PM

121

Index

adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33, 81

indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

plug adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

ACPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Active-Matrix Display . . . . . . . . . . . . . . . . . . . . . . . . .81

ADSL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Anti-theft Lock Slot . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Auto/Airline Adapter . . . . . . . . . . . . . . . . . . . . . . .33, 81

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

charging indicator . . . . . . . . . . . . . . . . . . . . . . . . . .16

cold-swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

conserving power . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

dead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

increasing life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

level indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

lithium ion battery . . . . . . . . . . . . . . . . . . . . . . .41, 83

low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57, 58

recharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

shorted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

suspend mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

warm-swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

battery release latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

setup utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

bps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Built-in Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Button Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Cache Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

CapsLock Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . .16

CardBus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Changing Tablet PC Button Functions . . . . . . . . . . .22

Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Closed Cover Switch . . . . . . . . . . . . . . . . . . . . . . . . . . 10

CMOS RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Conventions used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

CRT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

DC Output Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

DC Power Jack . . . . . . . . . . . . . . . . . . . . . . . . . .9, 13, 33

Default Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43, 82

DISE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Display Panel Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

DMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

DMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Docking Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Drive Image Special Edition (DISE) . . . . . . . . . . . . . . 63

Drivers and Application Restore CD . . . . . . . . . . . . .64

ECP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Encryption Key (Network Key) . . . . . . . . . . . . . . . . .82

Enlarging the Backup Partition . . . . . . . . . . . . . . . . . . 64

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Extended Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

External Monitor Port . . . . . . . . . . . . . . . . . . . . . .13, 49

Floppy Disk

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Function Keys

F10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

F3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

F4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

T Series.book Page 121 Wednesday, July 28, 2004 3:35 PM

122

LifeBook T Series Tablet PC - Index

F6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

F7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

F8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

F9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

FN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Fn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Hard Disk Drive

access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Hard Disk Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . 9, 11, 49

Hibernate Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Hibernation Feature . . . . . . . . . . . . . . . . . . . . . . . . . . 37

IDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

IEEE 1394 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Infrared Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 48

Internal LAN Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

IrDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48, 83

IrDA/FIR port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

IRQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 19

cursor keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

windows keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

LAN (RJ-45) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

LifeBook Security Application Panel

operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

uninstalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

LifeBook Security/Tablet PC Buttons . . . . . . . . . 10, 21

LifeBook T Series Tablet PC

additional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

agency approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

display specifications . . . . . . . . . . . . . . . . . . . . . . . 73

environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

physical specifications . . . . . . . . . . . . . . . . . . . . 73, 74

power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Local Area Network (LAN) . . . . . . . . . . . . . . . . . . . . . 9

Memory

capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

compartment . . . . . . . . . . . . . . . . . . . . . . . . . . .14, 43

installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

upgrade module . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . . 9, 11, 49

microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

MIDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9, 12

Modem (RJ-11) Port . . . . . . . . . . . . . . . . . . . . . . .12, 48

Modem Result Codes . . . . . . . . . . . . . . . . . . . . . . . . . .62

Mouse

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

See Touchpad

MPU-401 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

NTSC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

NumLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Additional Accessories . . . . . . . . . . . . . . . . . . . . . . . .8

additional accessories . . . . . . . . . . . . . . . . . . . . . . . . .8

carrying cases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

docking options . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

power options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

storage options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Parallel Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

PC Card

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

PC Card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

PCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

PCMCIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

pen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

calibrating the pen . . . . . . . . . . . . . . . . . . . . . . . . . .27

replacing the tip . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

using the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Pen and Active Digitizer . . . . . . . . . . . . . . . . . . . . . . . .27

T Series.book Page 122 Wednesday, July 28, 2004 3:35 PM

123

Index

Port Replicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

attaching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

detaching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Port Replicator Connector . . . . . . . . . . . . . . . . . . . . .14

POST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Power

AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Auto/Airline adapter . . . . . . . . . . . . . . . . . . . . . . . . 33

failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56, 57

indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Power Management . . . . . . . . . . . . . . . . . . . . . . . .36, 37

Power On Self Test . . . . . . . . . . . . . . . . . . . . . . . . .34, 61

Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Re-Installing Individual Drivers and Applications . .64

Restarting the system . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Restoring a Backup Image . . . . . . . . . . . . . . . . . . . . . . 64

Restoring Your Pre-installed Software . . . . . . . . . . . .63

RJ-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

RJ-45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9, 48

Rotation Hinge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

SDRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14, 43

Security Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Security lock slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Setting up LifeBook Security Panel . . . . . . . . . . . . . . . 22

Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Smart Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

SSID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Status Indicator Panel . . . . . . . . . . . . . . . . . . . . . .10, 15

Suspend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36, 85

Suspend/Resume Button . . . . . . . . . . . . . . . . . .9, 12, 36

S-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Tablet Dock port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Tablet PC

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

traveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

TCP/IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Touch Screen

clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

double-clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Touchpad

clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

control adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 26

double-clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Touchpad Pointing Device . . . . . . . . . . . . . . . . . .10, 25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

built-in Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

hard drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

mouse/keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

PC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

port replicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Universal Serial Bus Port . . . . . . . . . . . . . . . . . . . . . . .48

USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

USB 2.0

ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Using the Active Digitizer . . . . . . . . . . . . . . . . . . . . . . 28

Using the system as a Tablet . . . . . . . . . . . . . . . . . . . . 17

volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Warm-swap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

WFM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Wi-Fi Compatible . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Windows

end user license agreement . . . . . . . . . . . . . . . . . . .35

Windows keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Application key . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Start key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

T Series.book Page 123 Wednesday, July 28, 2004 3:35 PM

124

LifeBook T Series Tablet PC - Index

Wireless LAN

Before Using the Wireless LAN . . . . . . . . . . . . . . . 90

IP address information . . . . . . . . . . . . . . . . . . . . . 103

On/Off Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 13

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Wireless LAN Glossary . . . . . . . . . . . . . . . . . . . . . 101

T Series.book Page 124 Wednesday, July 28, 2004 3:35 PM

Fujitsu Client Computing WB0011 LifeBook T Seriew with wth (Calexico2 11abg) & BT User Manual T Series

Fujitsu Limited LifeBook T Seriew with wth (Calexico2 11abg) & BT T Series

Contents

user manual part5

Navigation menu

Namespaces

Views

Navigation
