Fujitsu Client Computing WB0043 Stylistic ST series with AR5BXB6 WLAN & Bluetooth User Manual Appendix I1 revised part 1

Fujitsu Limited Stylistic ST series with AR5BXB6 WLAN & Bluetooth Appendix I1 revised part 1

Appendix I1 revised user manual part 1

FCC ID: EJE-WB0043 (IC: 337J-WB0043) Report No. M060760_Cert_AR5BXB6_NII_BT

EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia

www.emctech.com.au

EMC Technologies Report Number: M060760_Cert_AR5BXB6_NII_BT

APPENDIX I1

FUJITSU NOTEBOOK USER MANUAL (part 1)

Fujitsu Computer Systems Corporation has made every

effort to ensure the accuracy and completeness of this

document. However, as ongoing development efforts are

continually improving the capabilities of our products,

we cannot guarantee the accuracy of the contents of this

document. We disclaim liability for errors, omissions, or

future changes.

Fujitsu, the Fujitsu logo, and LifeBook are registered

trademarks of Fujitsu Limited.

Microsoft, MS-DOS, and Windows are either registered

trademarks or trademarks of Microsoft Corporation in

the United States and/or other countries.

Atheros and Super AG are registered trademarks of

Atheros Communications, Inc.

Adobe, Acrobat, and Acrobat Reader are either regis-

tered trademarks or trademarks of Adobe Systems

Incorporated in the United States and/or other coun-

tries.

Realtek is a trademark of Realtek Semiconductor Corpo-

ration.

Bluetooth is a registered trademark of Bluetooth SIG,

Inc.

All other trademarks mentioned herein are the property

of their respective owners.

be copied, reproduced, or translated, without prior

written consent of Fujitsu Computer Systems Corpora-

tion. No part of this publication may be stored or trans-

mitted in any electronic form without the written

consent of Fujitsu Computer Systems Corporation.

B6FH-8231-02EN-00

WARNING

Handling the cord on this product or cords

associated with accessories sold with this

product, will expose you to lead, a

chemical known to the State of California

to cause birth defects or other

reproductive harm.

Wash hands after handling.

DECLARATION OF CONFORMITY

according to FCC Part 15

Responsible Party Name: Fujitsu Computer Systems Corporation

Address: 1250 E. Arques Avenue, MS 122

Sunnyvale, CA 94085

Telephone: (408) 746-6000

Declares that product: Model Configuration:

LifeBook P1610 Notebook

LifeBook P1610 Tablet PC

Complies with Part 15 of the FCC Rules.

This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions:

(1) This device may not cause harmful interference, (2) This device must accept any interference

received, including interference that may cause undesired operation.

P Series.book Page 1 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

IMPORTANT SAFETY INSTRUCTIONS

This unit requires an AC adapter to operate. Use only UL

Listed Class 2 Adapters with an output rating of 16

VDC, with a minimum current of 2.5 A.

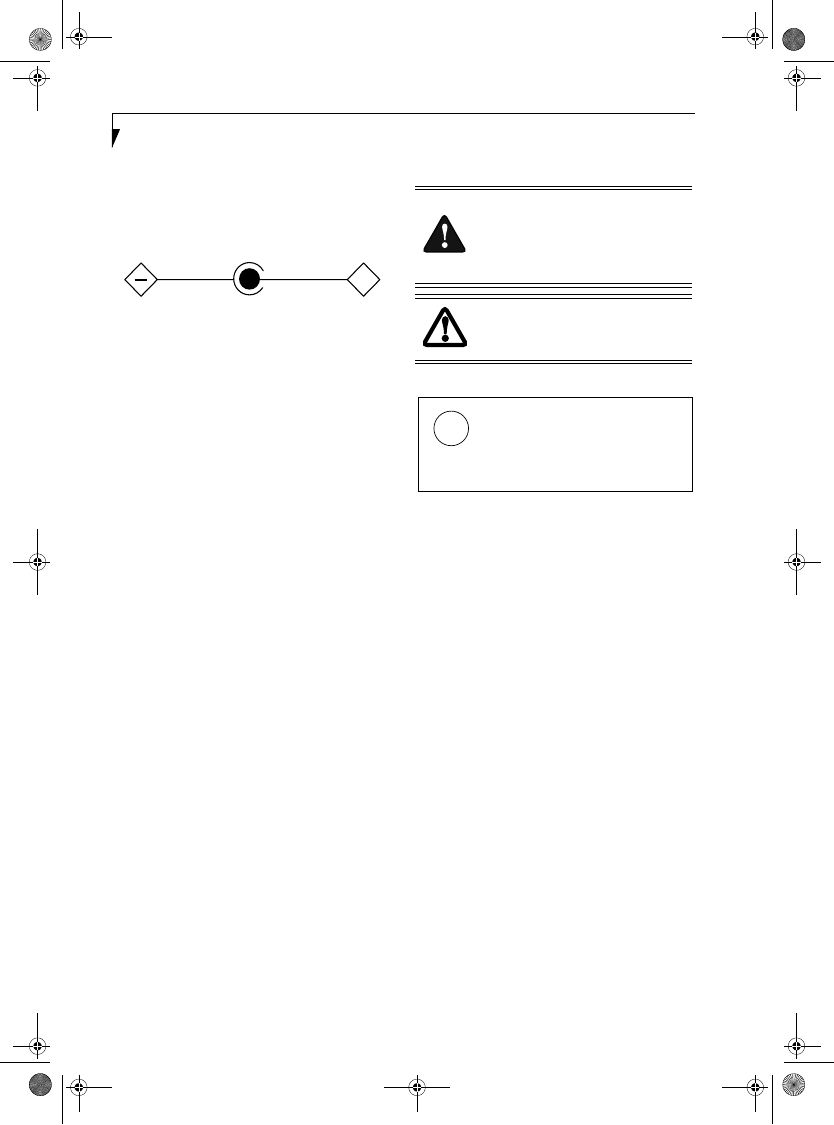

AC adapter output polarity:

When using your notebook/Tablet PC equipment, basic

safety precautions should always be followed to reduce

the risk of fire, electric shock and injury to persons,

including the following:

■Do not use this product near water for example, near

a bathtub, washbowl, kitchen sink or laundry tub, in a

wet basement or near a swimming pool.

■Avoid using the modem during an electrical storm.

There may be a remote risk of electric shock from

lightning.

■Do not use the modem to report a gas leak in the

vicinity of the leak.

■Use only the power cord and batteries indicated in

this manual. Do not dispose of batteries in a fire. They

may explode. Check with local codes for possible

special disposal instructions.

■To reduce the risk of fire, use only No. 26 AWG or

larger UL Listed or CSA Certified Telecommunication

Line Cord.

SAVE THESE INSTRUCTIONS

For Authorized Repair Technicians Only

System Disposal

Danger of explosion if Lithium (clock) bat-

tery is incorrectly replaced. Replace only

with the same or equivalent type recom-

mended by the manufacturer. Dispose of

used batteries according to the manufac-

turer’s instruction.

For continued protection against risk of

fire, replace only with the same type and

rating fuse.

LAMP(S) INSIDE THIS PRODUCT

CONTAIN MERCURY AND MUST

BE RECYCLED OR DISPOSED OF

ACCORDING TO LOCAL, STATE, OR

FEDERAL LAWS.

P Series.book Page 2 Tuesday, February 21, 2006 1:44 PM

Table of Contents

Fujitsu LifeBook® P Series Notebook/Tablet PC

Table of Contents

PREFACE

Preface

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . .3

Fujitsu Contact Information . . . . . . . . . . . . . . . . .3

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

GETTING TO KNOW

YOUR LIFEBOOK

Overview

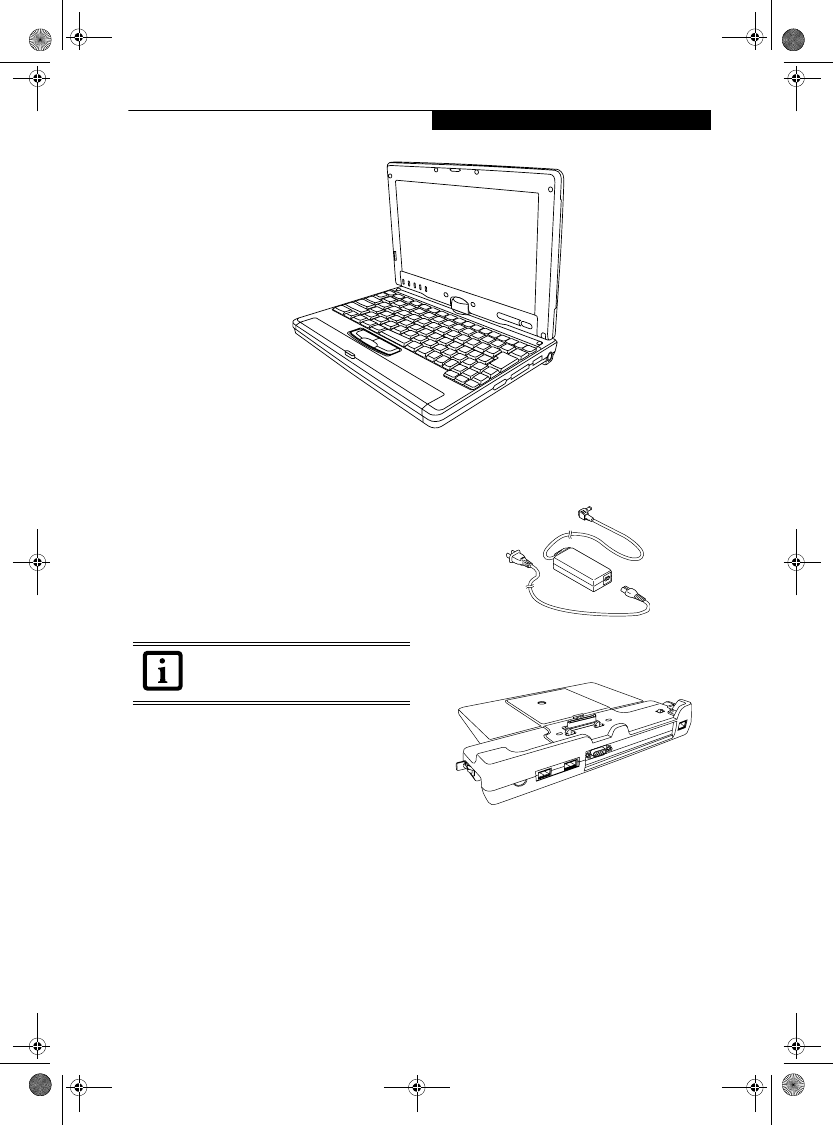

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Optional Accessories . . . . . . . . . . . . . . . . . . . . . .7

Locating the Controls and Connectors

Front and Display Components . . . . . . . . . . . . . .9

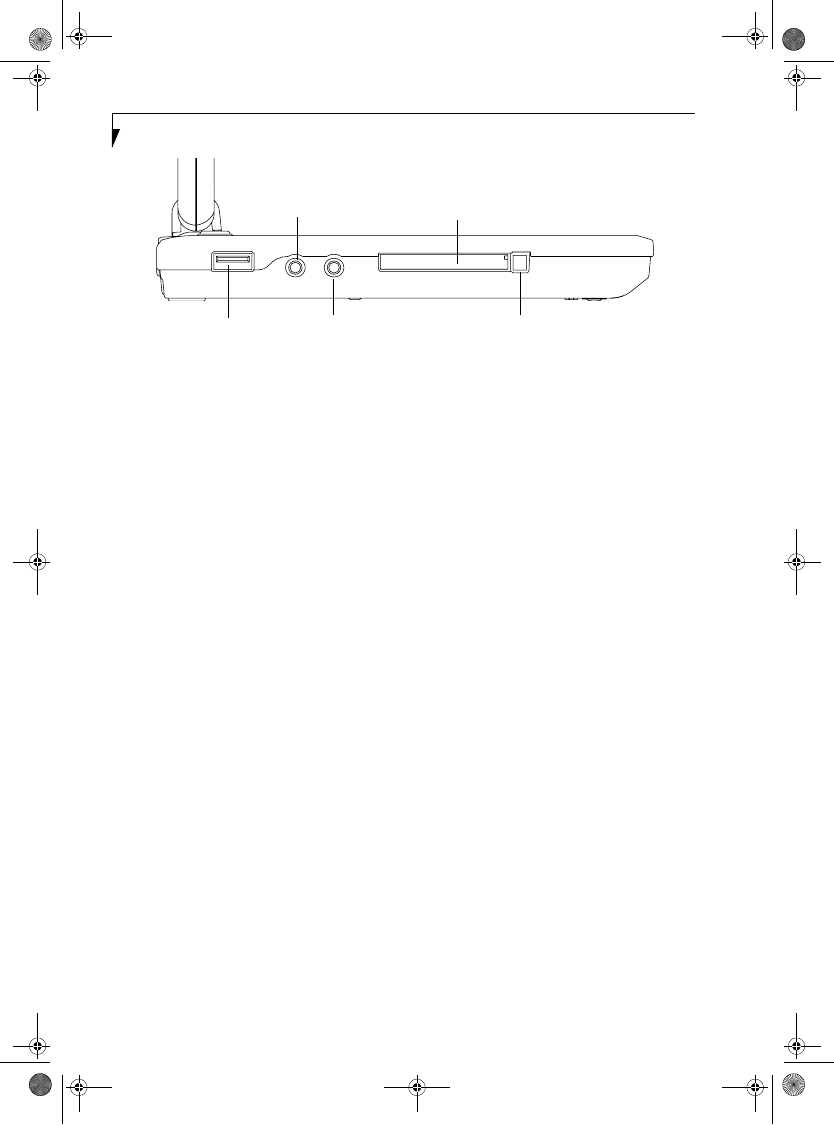

Left-Side Panel Components . . . . . . . . . . . . . . .10

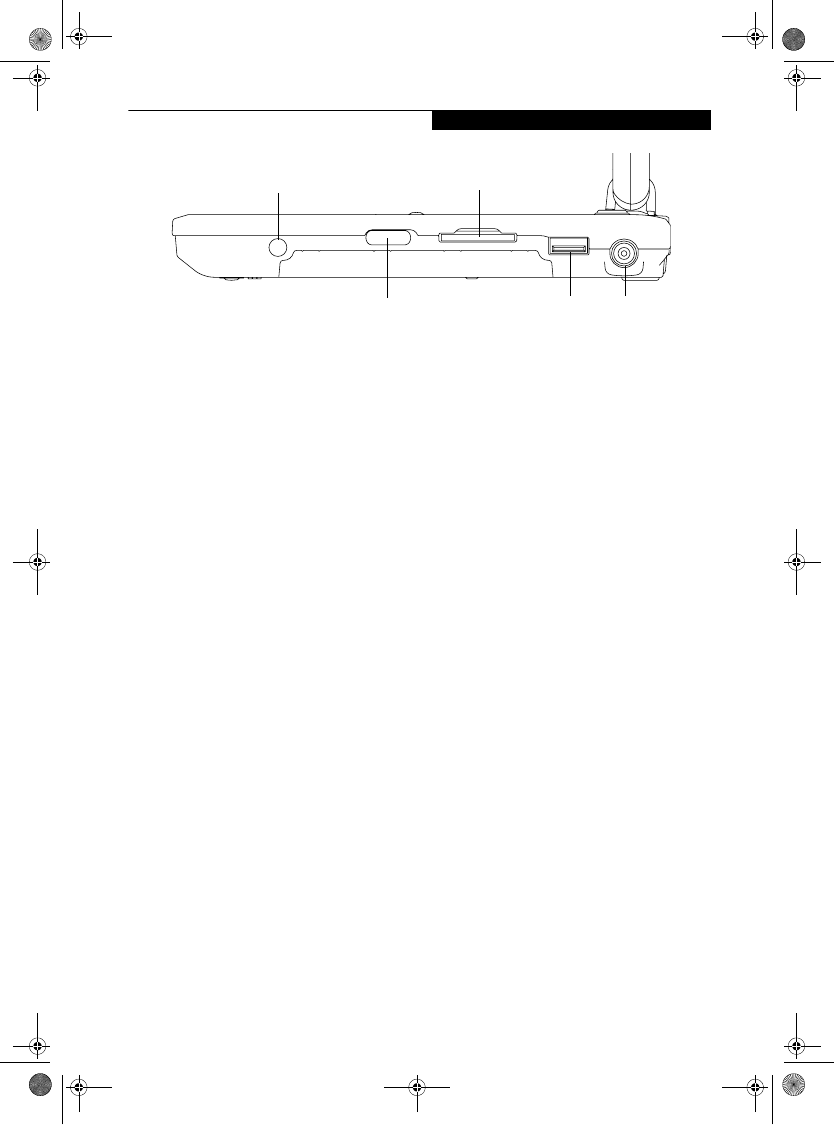

Right-Side Panel Components . . . . . . . . . . . . . .11

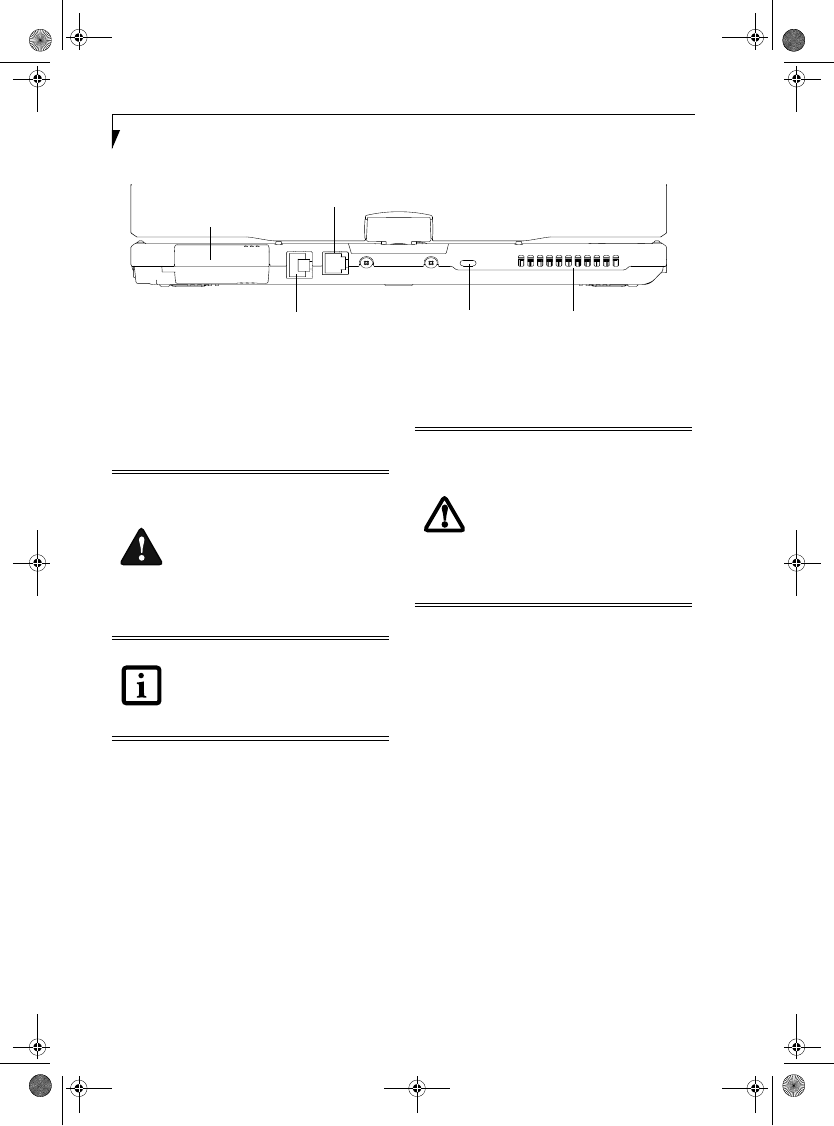

Rear Panel Components . . . . . . . . . . . . . . . . . . .12

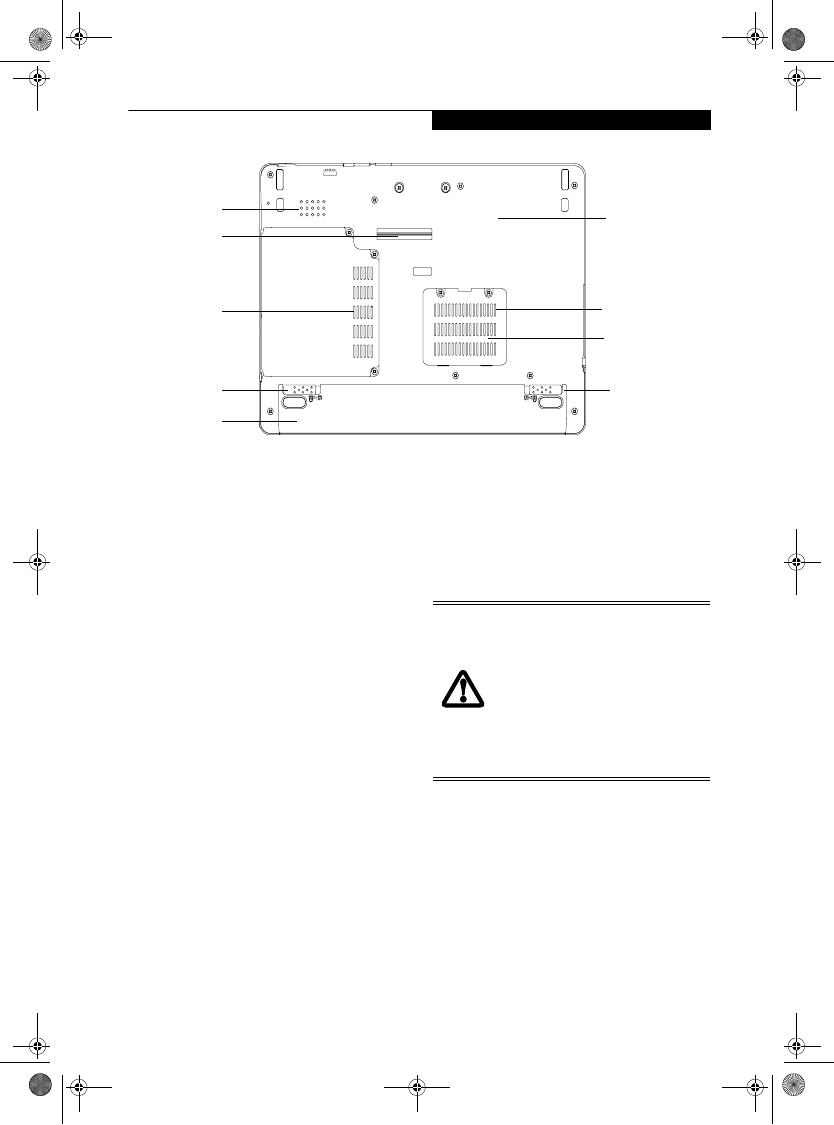

Bottom Components . . . . . . . . . . . . . . . . . . . . .13

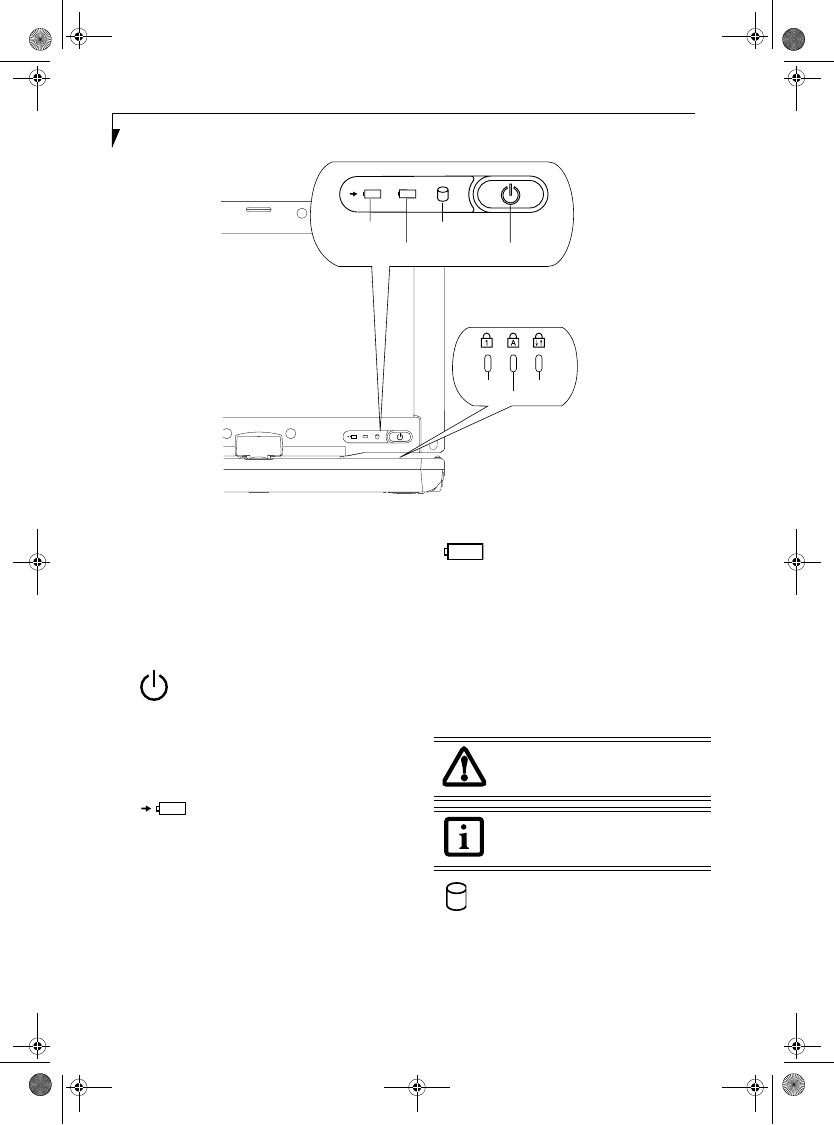

Status Indicators

Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . .14

AC Adapter/Battery Charging Indicator . . . . . . .14

Battery Level Indicator . . . . . . . . . . . . . . . . . . . .14

Hard Drive Access Indicator . . . . . . . . . . . . . . . .14

NumLk Indicator. . . . . . . . . . . . . . . . . . . . . . . . .15

CapsLock Indicator. . . . . . . . . . . . . . . . . . . . . . .15

ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . .15

Display Panel

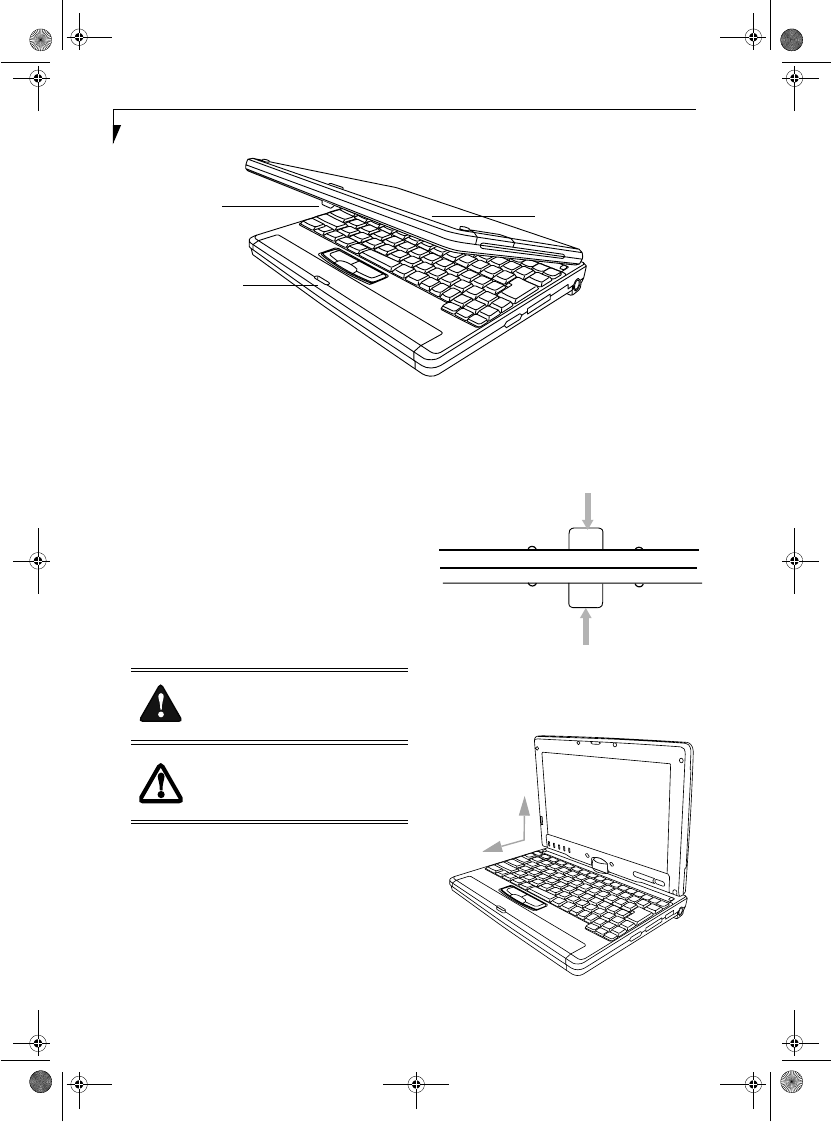

Opening the Display Panel . . . . . . . . . . . . . . . . .16

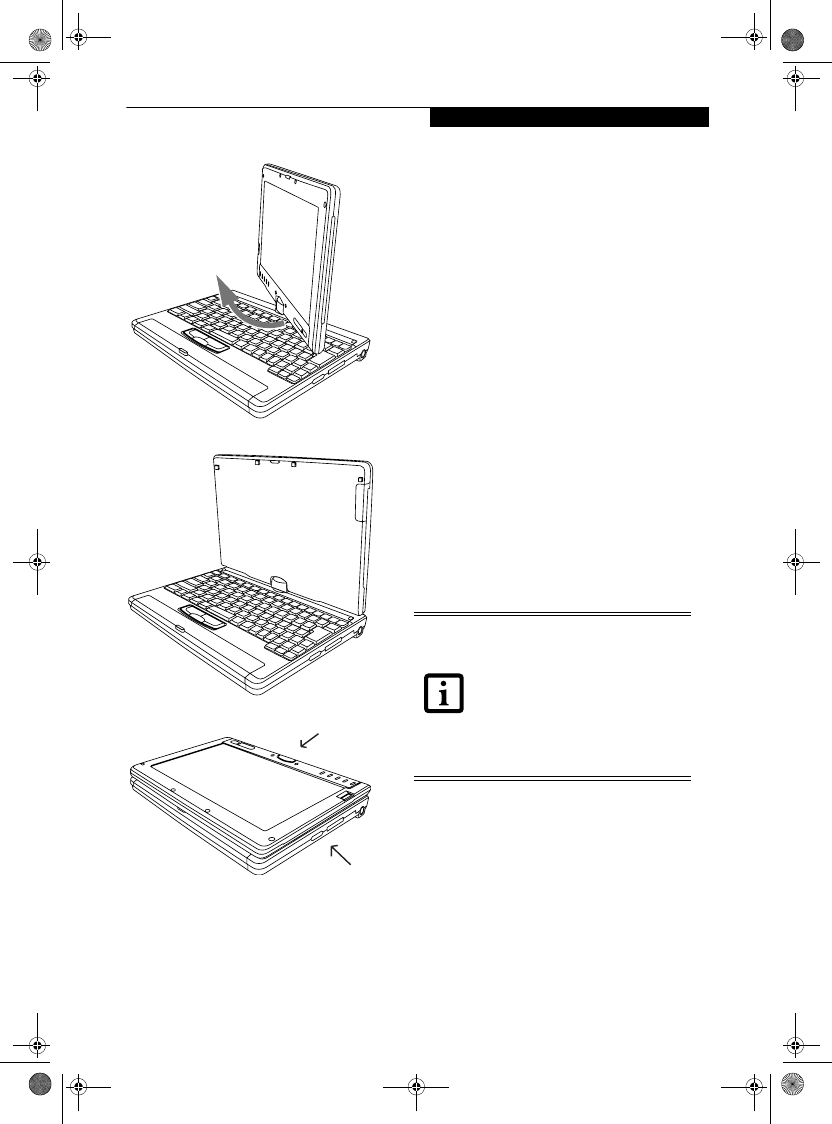

Using the System as a Tablet . . . . . . . . . . . . . . .16

Adjusting Display Panel Brightness . . . . . . . . . . .17

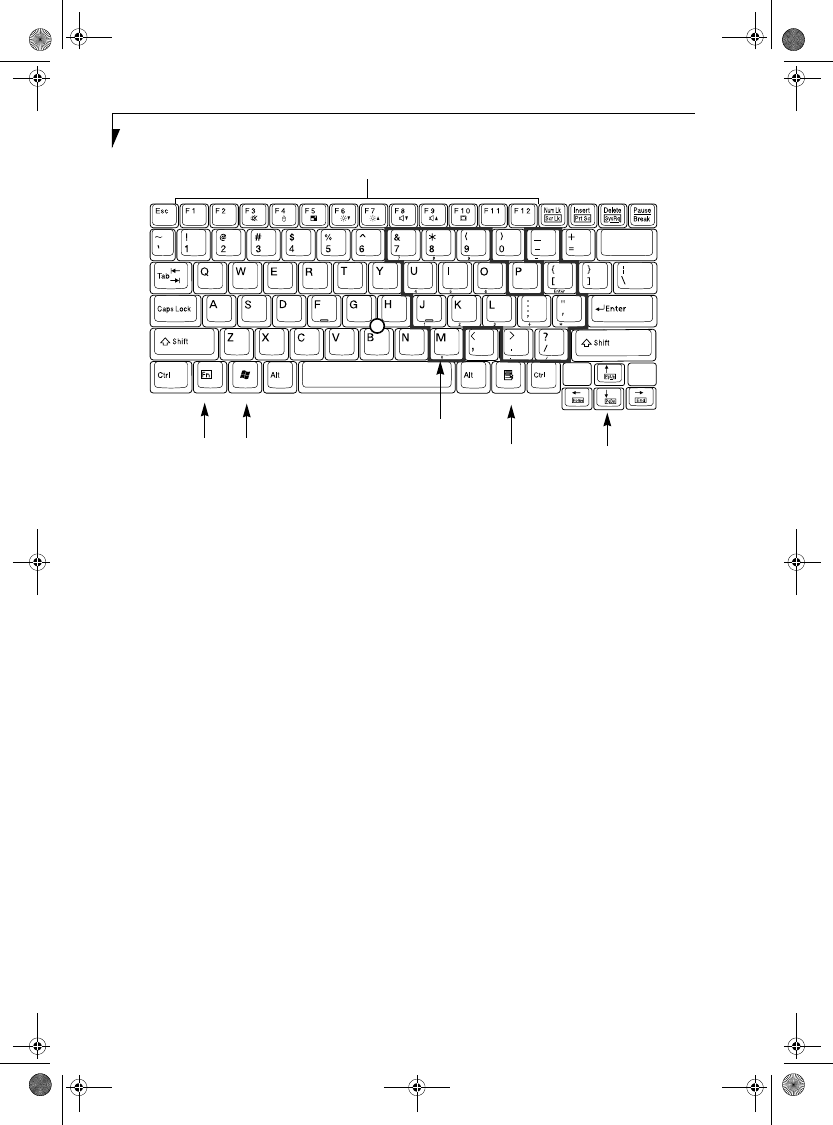

Keyboard

Using the Keyboard . . . . . . . . . . . . . . . . . . . . . .18

Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . .18

Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . .18

Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Function Keys. . . . . . . . . . . . . . . . . . . . . . . . . . .19

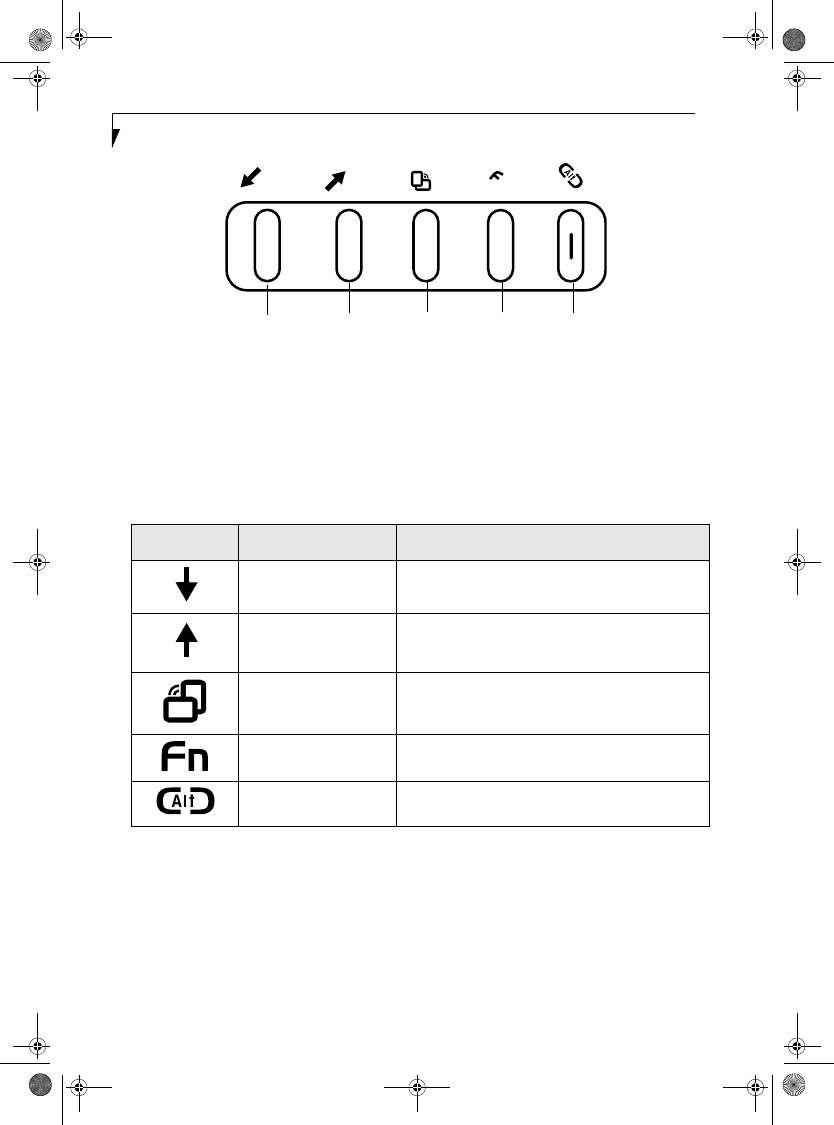

LifeBook Application Panel

Changing Button Functions . . . . . . . . . . . . . . . .21

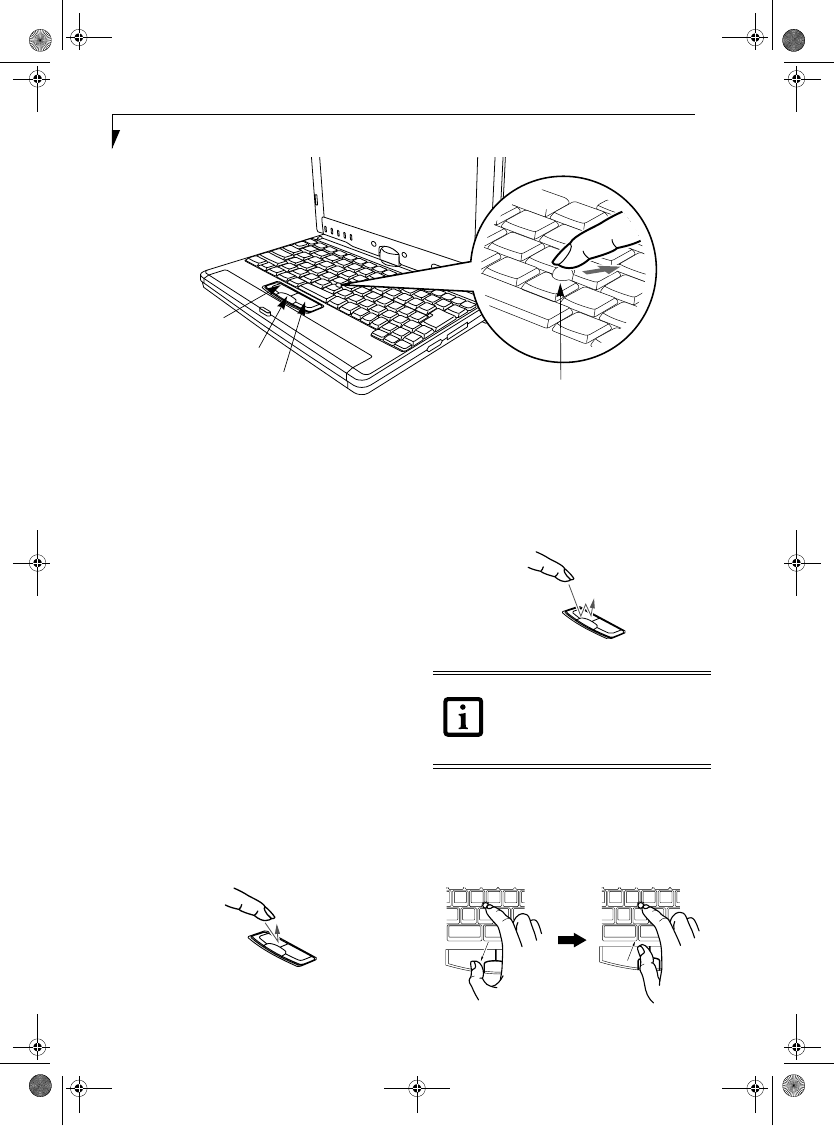

Quick Point Device/Touch Screen

Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Double-Clicking . . . . . . . . . . . . . . . . . . . . . . . . .22

Dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Quick Point Control Adjustment. . . . . . . . . . . . .23

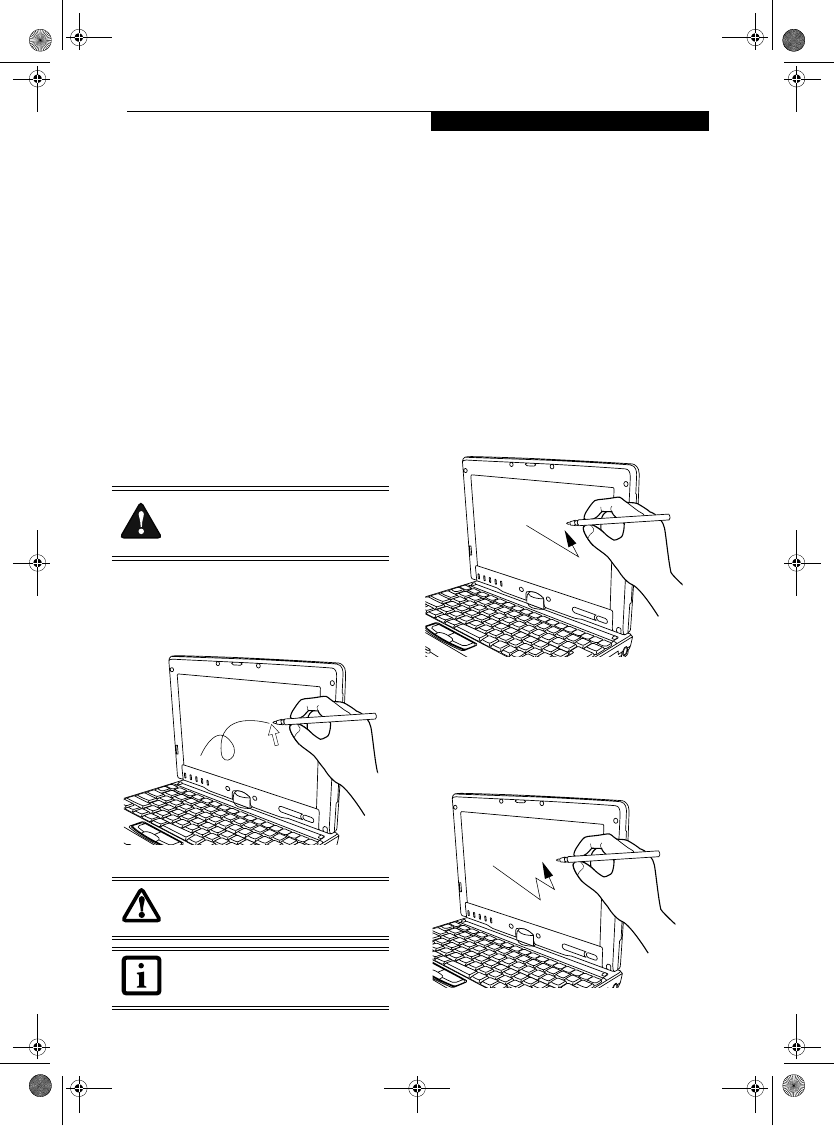

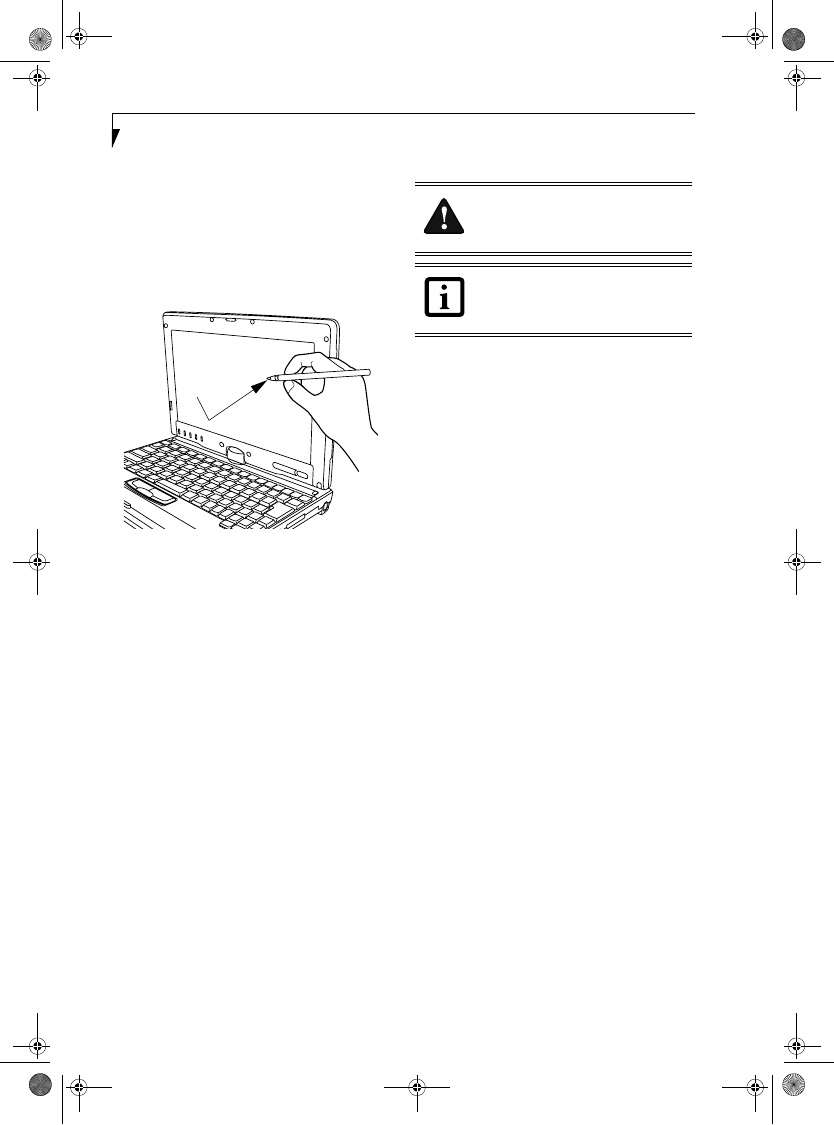

Touch Screen . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Volume Control

Controlling the Volume . . . . . . . . . . . . . . . . . . .25

USING YOUR LIFEBOOK

Power Sources

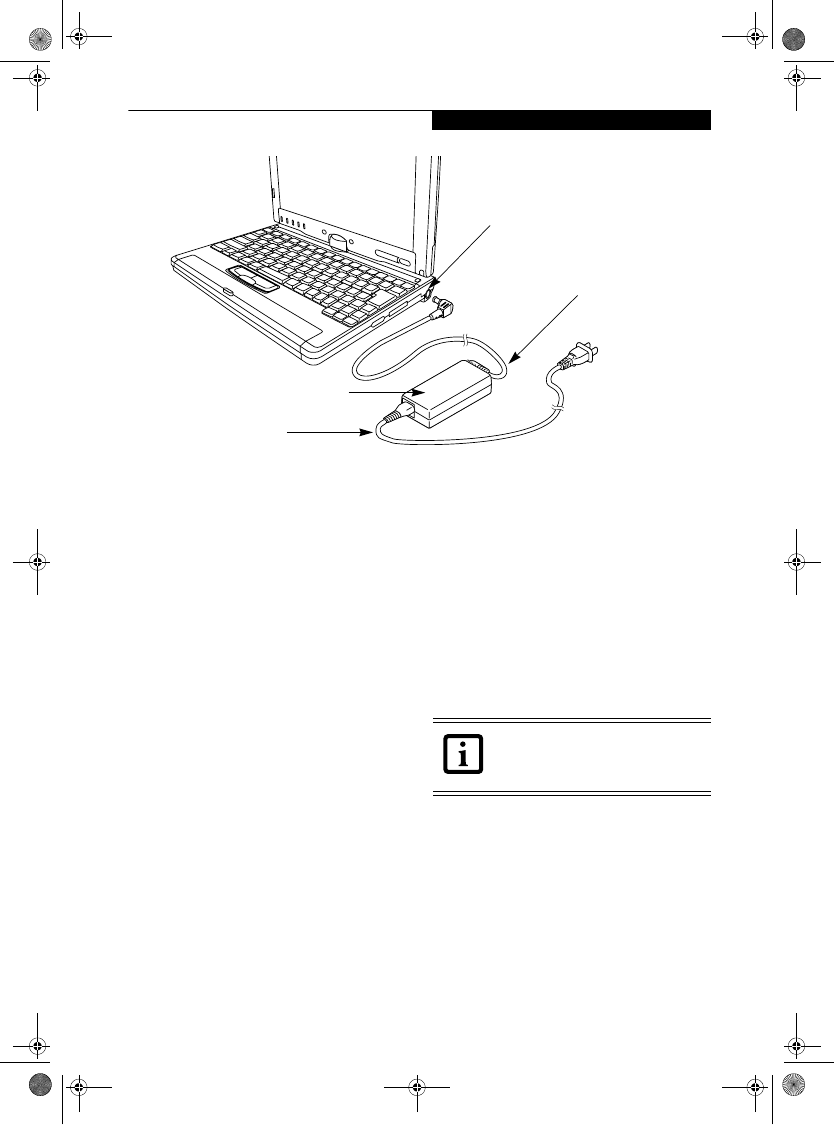

Connecting the Power Adapters . . . . . . . . . . . . .29

Starting Your LifeBook

Power On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . .30

BIOS Setup Utility. . . . . . . . . . . . . . . . . . . . . . . .30

Booting the System . . . . . . . . . . . . . . . . . . . . . .31

Registering Your Notebook/Tablet PC . . . . . . . .31

Installing Click Me!. . . . . . . . . . . . . . . . . . . . . . .31

P Series.book Page 3 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Power Management

Suspend/Resume Button . . . . . . . . . . . . . . . . . . 32

Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Hibernate Mode. . . . . . . . . . . . . . . . . . . . . . . . . 33

Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . . 33

Hard Disk Timeout . . . . . . . . . . . . . . . . . . . . . . . 33

Windows Power Management . . . . . . . . . . . . . . 33

Restarting the System. . . . . . . . . . . . . . . . . . . . . 33

Power Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

USER-INSTALLABLE FEATURES

Lithium ion Battery

Recharging the Battery. . . . . . . . . . . . . . . . . . . . 37

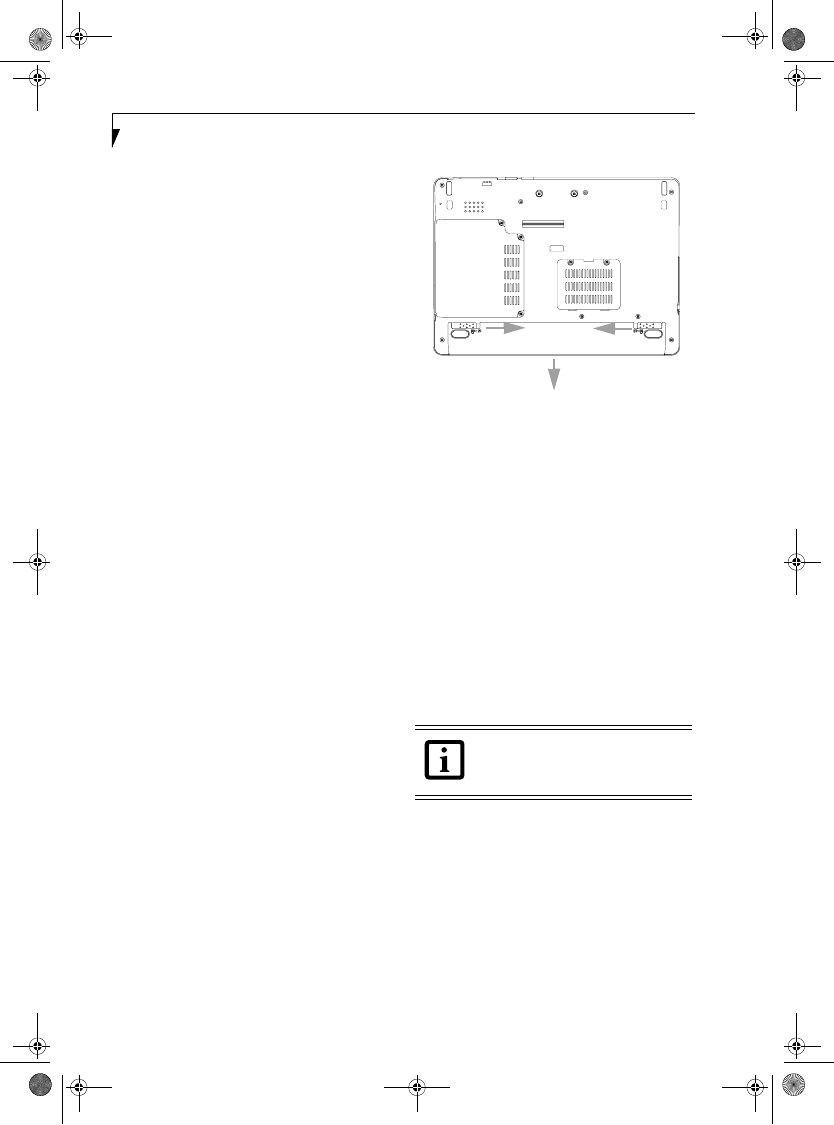

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . 38

Memory Upgrade Module

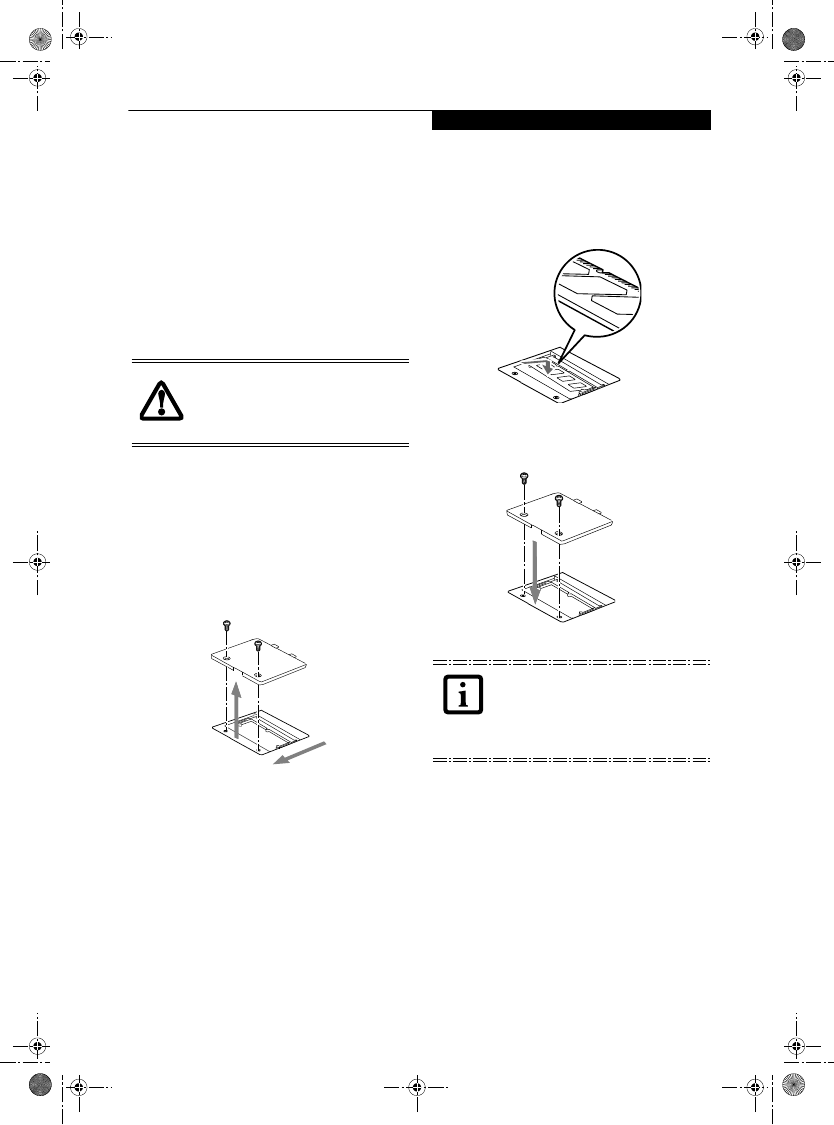

Installing/Removing Memory Upgrade Modules 39

Checking the Memory Capacity . . . . . . . . . . . . . 40

Secure Digital Media

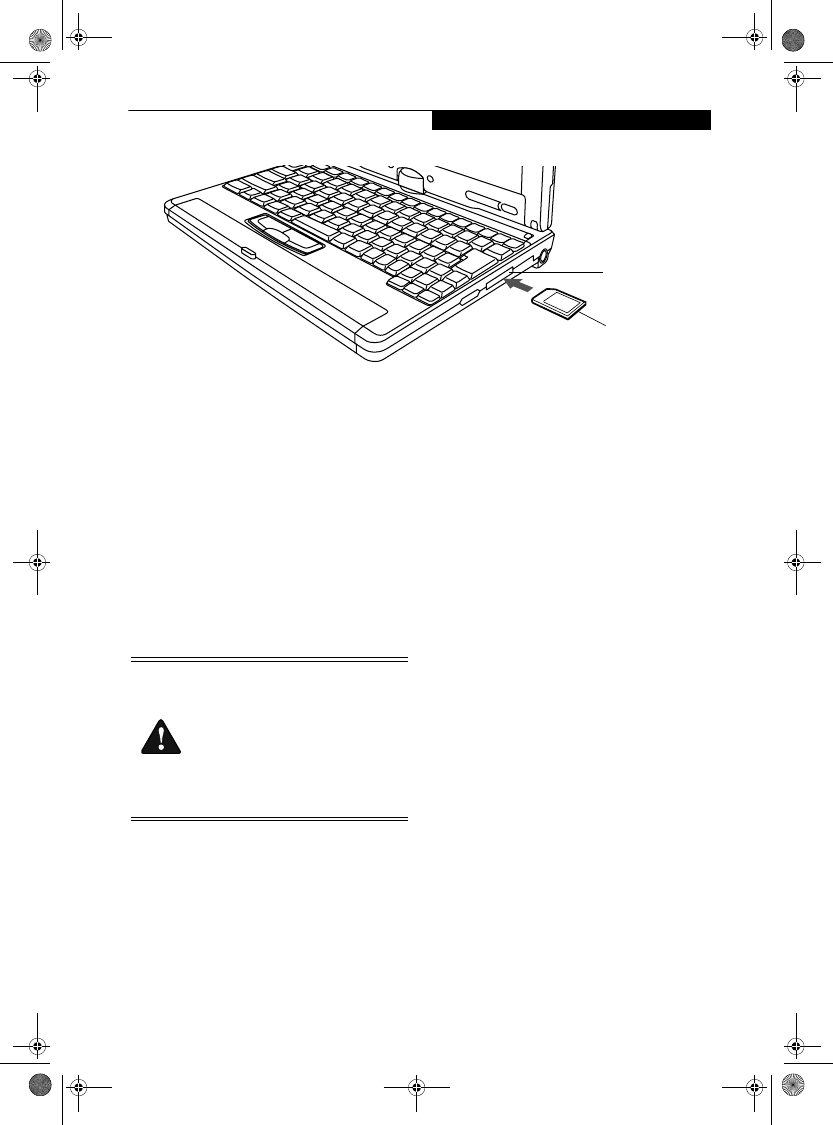

Inserting/Removing SD Cards . . . . . . . . . . . . . . 41

Compact Flash Cards

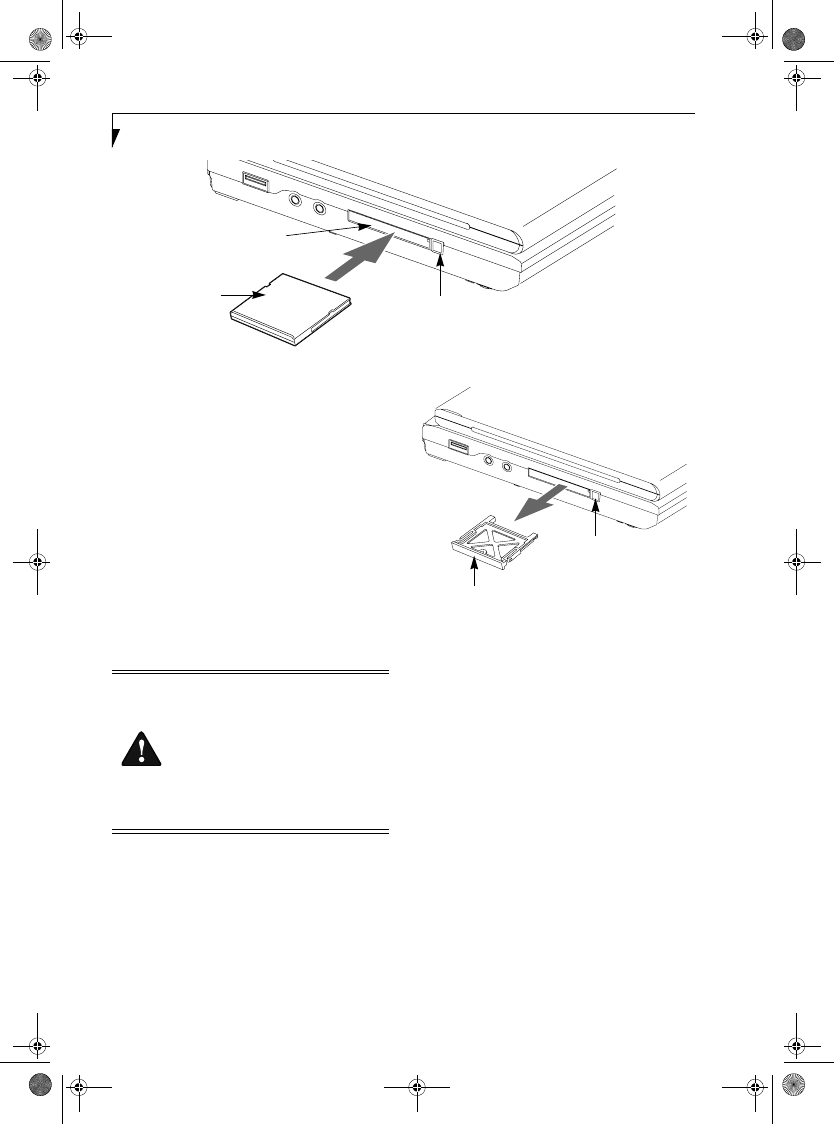

Inserting Compact Flash Cards . . . . . . . . . . . . . . 42

Removing Compact Flash Cards. . . . . . . . . . . . . 43

Port Replicator

Port Replicator Components. . . . . . . . . . . . . . . . 44

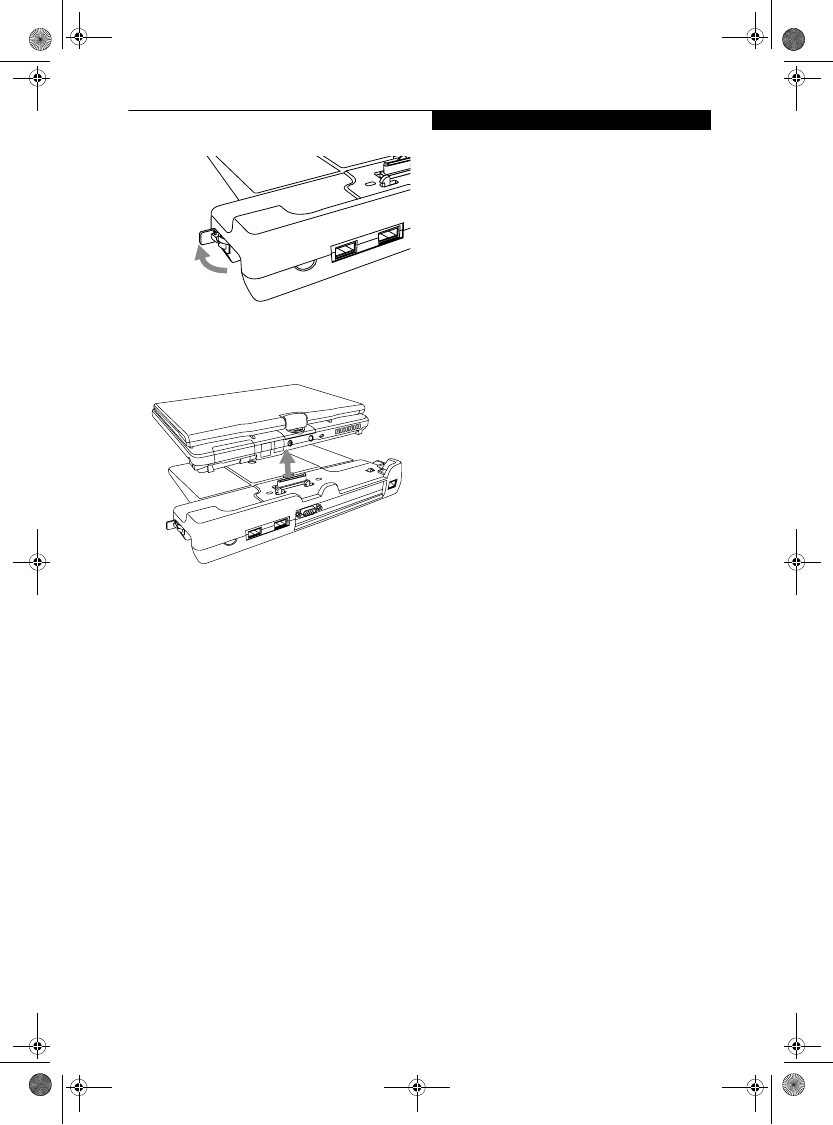

Attaching/Detaching Port Replicator . . . . . . . . . 44

Device Ports

Modem (RJ-11) Jack . . . . . . . . . . . . . . . . . . . . . 46

Internal LAN (RJ-45) jack . . . . . . . . . . . . . . . . . . 46

Docking Port . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . 46

Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . . 46

Headphone Jack. . . . . . . . . . . . . . . . . . . . . . . . . 46

External Video Port . . . . . . . . . . . . . . . . . . . . . . 47

TROUBLESHOOTING

Troubleshooting

Identifying the Problem . . . . . . . . . . . . . . . . . . . 51

Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . 51

Troubleshooting Table . . . . . . . . . . . . . . . . . . . . 52

Power On Self Test Messages . . . . . . . . . . . . . . 58

Modem Result Codes. . . . . . . . . . . . . . . . . . . . . 59

Restoring Pre-installed Software

Restoring the Factory Image . . . . . . . . . . . . . . . 60

Automatically Downloading Driver Updates. . . . 61

CARE AND MAINTENANCE

Care and Maintenance

LifeBook P Series NoteBook/Tablet PC. . . . . . . . 65

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Optional Floppy Disk Drive and Floppy Disks. . . 66

Optional Optical Drive and Discs . . . . . . . . . . . . 67

CF Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

SYSTEM SPECIFICATIONS

Specifications

Physical Specifications . . . . . . . . . . . . . . . . . . . . 71

Processing Specifications . . . . . . . . . . . . . . . . . . 71

Memory/Storage Specifications . . . . . . . . . . . . . 71

Display Specifications. . . . . . . . . . . . . . . . . . . . . 71

Interface Specifications . . . . . . . . . . . . . . . . . . . 71

Power Specifications . . . . . . . . . . . . . . . . . . . . . 72

Environmental Specifications . . . . . . . . . . . . . . . 72

Agency Approval Specifications . . . . . . . . . . . . . 72

Additional Specifications . . . . . . . . . . . . . . . . . . 72

Regulatory Information . . . . . . . . . . . . . . . . . . . 73

GLOSSARY

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

P Series.book Page 4 Tuesday, February 21, 2006 1:44 PM

Table of Contents

APPENDIX A: INTEGRATED

WIRELESS LAN USER’S GUIDE

Before Using the Wireless LAN

Wireless LAN Modes Using this Device. . . . . . . .86

Wireless Network Considerations . . . . . . . . . . . .87

Deactivating the WLAN Device . . . . . . . . . . . . .87

Activating the WLAN Device . . . . . . . . . . . . . . .88

Configuration of the WLAN Device

Flow of Operations. . . . . . . . . . . . . . . . . . . . . . .89

Configuration Using Intel PROSet Software . . . .89

Configuration Using Atheros Client Utility . . . . . 90

Connection to the network. . . . . . . . . . . . . . . . .91

Troubleshooting the WLAN

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .95

Wireless LAN Glossary

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .96

IP address information

About IP Addresses . . . . . . . . . . . . . . . . . . . . . .98

WLAN Specifications

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .99

Using the Bluetooth Device

What is Bluetooth. . . . . . . . . . . . . . . . . . . . . . .100

Where to Find Information About Bluetooth . .100

APPENDIX B: USING THE

FINGERPRINT SWIPE SENSOR

Fingerprint Sensor Device

Introducing the Fingerprint Sensor Device . . . . 103

Getting Started. . . . . . . . . . . . . . . . . . . . . . . . .103

Installing OmniPass . . . . . . . . . . . . . . . . . . . . .103

User Enrollment . . . . . . . . . . . . . . . . . . . . . . . .104

Using OmniPass . . . . . . . . . . . . . . . . . . . . . . . .105

Configuring OmniPass . . . . . . . . . . . . . . . . . . .107

OmniPass Control Center. . . . . . . . . . . . . . . . .108

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .109

P Series.book Page 5 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

P Series.book Page 6 Tuesday, February 21, 2006 1:44 PM

Preface

P Series.book Page 1 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

P Series.book Page 2 Tuesday, February 21, 2006 1:44 PM

Preface

ABOUT THIS GUIDE

The LifeBook® P Series notebook/Tablet PC from

Fujitsu Computer Systems Corporation is a small yet

powerful convertible computer. It can be used either as a

standard notebook using keyboard input, or in tablet

configuration using pen input. It is powered by an Intel®

Pentium® M microprocessor, has a built-in color display

with a passive digitizer, and brings the computing power

of desktop personal computers (PCs) to a versatile

portable environment.

This manual explains how to operate your LifeBook P

Series notebook/Tablet PC’s hardware and built-in

system software. Your notebook/Tablet PC comes with

the Windows® XP or Windows Tablet PC Edition 2005

operating system pre-installed.

Your LifeBook P Series notebook/Tablet PC is a

completely self-contained unit with an active-matrix

(TFT) color LCD display. The system has a powerful

interface that enables it to support a variety of optional

features.

Conventions Used in the Guide

Keyboard keys appear in brackets.

Example: [Fn], [F1], [Esc], [Enter] and [Ctrl].

Pages with additional information about a specific topic

are cross-referenced within the text.

Example: (See page xx.)

On screen buttons or menu items appear in bold.

Example: Click OK to restart your notebook.

DOS commands you enter appear in Courier type.

Example: Shutdown the computer?

FUJITSU CONTACT INFORMATION

Service and Support

You can contact Fujitsu Computer Systems Service and

Support the following ways:

■Toll free: 1-800-8Fujitsu (1-800-838-5487)

■Fax: 1-408-764-2724

■E-mail: 8fujitsu@us.fujitsu.com

■Website:

http://www.computers.us.fujitsu.com/support

Before you place the call, you should have the following

information ready so that the customer support

representative can provide you with the fastest possible

solution:

■Product name

■Product configuration number

■Product serial number

■Purchase date

■Conditions under which the problem occurred

■Any error messages that have occurred

■Type of device connected, if any

Fujitsu Online

You can go directly to the online Fujitsu Product catalog

for your notebook/Tablet PC. Go to Start -> Fujitsu

Weblinks -> LifeBook Accessories.

You can also reach Fujitsu Service and Support online by

going to Start -> Fujitsu Weblinks -> Fujitsu Service and

Support.

WARRANTY

Your LifeBook P Series notebook/Tablet PC is backed by

an International Limited Warranty and includes toll-free

technical support. Check the service kit that came with

your system for warranty terms and conditions.

The operating system installed on your

computer determines whether your system

is classified as a notebook or Tablet PC.

The information icon highlights

information that will enhance your

understanding of the subject material.

The caution icon highlights information

that is important to the safe operation of

your computer, or to the integrity of your

files. Please read all caution information

carefully.

The warning icon warns you about

possible hazards that can occur to you,

your system, or your files. Please read all

warning information carefully.

You must have an active internet

connection to use the online URL links.

P Series.book Page 3 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

P Series.book Page 4 Tuesday, February 21, 2006 1:44 PM

Getting to Know

Your LifeBook

P Series.book Page 5 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

P Series.book Page 6 Tuesday, February 21, 2006 1:44 PM

Getting to Know Your LifeBook

Figure 2-1. Fujitsu LifeBook P Series notebook/Tablet PC

Overview

This section describes the components of your Fujitsu

LifeBook P Series notebook/Tablet PC. We strongly

recommend that you read it before using your system,

even if you are already familiar with mobile computers.

UNPACKING

When you receive your LifeBook P Series notebook/

Tablet PC, unpack it carefully, and compare the parts

you have received with the items listed below.

For a pre-configured model you should have:

■LifeBook P Series notebook/Tablet PC (Figure 2-1)

■AC adapter with AC power cord (Figure 2-2)

■Phone/Modem (RJ-11) telephone cable

■Pen

■Pen tether

■Driver and Application Restore (DAR) CD

■Recovery CD

■Getting Started Guide

■User’s Guide (this document)

■International Limited Warranty Booklet

■Certificate of Authenticity

■Lithium ion battery (pre-installed)

You may also have one or more of the following devices

in the box, depending upon the configuration of your

system:

■Port Replicator (Figure 2-3)

■External USB Floppy Disk Drive

■Additional battery(s)

■Application CD(s) for third-party software

Figure 2-2. AC Adapter

Figure 2-3. Optional Port Replicator

OPTIONAL ACCESSORIES

A variety of optional accessories is available for use with

your LifeBook P Series notebook/Tablet PC. For the

latest list of accessories available, be sure to frequently

check the Fujitsu website at: www.shopfujitsu.com.

Refer to the instructions provided with these accessories

for details on their use.

The operating system installed on your

computer determines whether your system

is classified as a notebook or Tablet PC.

P Series.book Page 7 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Locating the Controls and Connectors

Connectors and peripheral interfaces on the LifeBook P

Series notebook/Tablet PC and the optional port repli-

cator allow you to connect a variety of devices. Specific

locations are illustrated in Figures 2-4 through 2-8. The

table below provides a short description of each icon on

the LifeBook P Series notebook/Tablet PC. Each of the

icons is either molded into or printed on the system

chassis.

Table 2-1. System icons

Connection LifeBook

Icon Purpose

DC in connector Connect an external power source such as the AC adapter or auto/airline

adapter.

Secure Digital

(SD) Slot The Secure Digital (SD) card slot allows you to install a flash memory card for

data storage. Flash memory cards allow you to transfer data to and from a

variety of different digital devices.

USB Ports Connect Universal Serial Bus 2.0 or 1.1 compliant devices to the notebook/

Tablet PC.

Microphone Jack Connect an external microphone. The internal microphone is disabled when

you plug in an external microphone.

Fingerprint Sensor Use the fingerprint sensor to log onto the system using your fingerprint as the

“password”.

Headphone Jack Connect stereo headphones or powered external speakers. The internal

speaker is disabled when you plug in external headphones or powered

speakers.

Modem Connect a telephone line to the internal modem using a standard RJ-11

telephone plug.

Port Replicator Connect the port replicator or other approved docking device. Refer to

documentation accompanying the dock for more information.

Security lock slot The security slot allows you to secure the notebook/Tablet PC using notebook

locking devices.

Suspend/Resume

button

The Suspend/Resume button allows you to suspend system activity without

powering off, resume from suspend mode, and power on the system when it

has been shut down from Windows.

Local Area

Network (LAN)

The LAN (RJ-45) jack is used to connect the internal 10/100 Base-T/Tx Ethernet

to a Local Area Network (LAN) in your office or home, or broadband devices

such as a cable modem, DSL, or satellite Internet.

Battery Release

Latch

The battery release latch allows you to remove the battery from your system

for storage or replacement.

Wireless LAN/

Bluetooth

On-Off Switch

The wireless LAN switch allows you to turn power to the optional wireless LAN

or Bluetooth device on and off.

Display Rotation This icon indicates the direction in which the display should be rotated when

converting to tablet mode.

P Series.book Page 8 Tuesday, February 21, 2006 1:44 PM

Getting to Know Your LifeBook

Figure 2-4. LifeBook P Series notebook/Tablet PC with display open

FRONT AND DISPLAY COMPONENTS

The following is a brief description of the front and

display features of the LifeBook P Series notebook/

Tablet PC. (Figure 2-4)

Display Panel Latch

The display panel latch holds the display panel in posi-

tion.

Display Panel

The display panel is a color LCD panel with back

lighting for the display of text and graphics and touch

screen functionality.

Built-in Microphone

The built-in microphone allows you to input mono

audio.

LifeBook Application/Tablet PC Buttons

The LifeBook P Series notebook/Tablet PC Application

Buttons provide application launch capabilities. See

“LifeBook Application Panel” on page 20.

Suspend/Resume Button

The Suspend/Resume button allows you to suspend

system activity without powering off, resume your

system from standby mode, and power on your system

when it has been shut down from the Windows oper-

ating system. See “Power On” on page 30.

Keyboard

A full-function keyboard with dedicated Windows keys.

See “Keyboard” on page 18.

Quick Point Pointing Device

The Quick Point pointing device consists of two mouse-

like buttons, one scroll button, and a cursor control

button (located near the center of the keyboard). See

“Quick Point Pointing Device/Touch Screen” on

page 22.

Rotation Hinge

The rotation hinge allows you to transform your

computer from a notebook configuration into a tablet

configuration. See “Using the System as a Tablet” on

page 16.

Fingerprint Sensor

The optional fingerprint recognition sensor allows you

to log into Windows or other applications by replacing

your username and password. See “Fingerprint Sensor

Device” on page 103.

Status Indicator Panel

The Status Indicator Panel displays symbols that corre-

spond to specific components of your LifeBook P Series

notebook/Tablet PC. See “Status Indicators” on page 14.

Display

Status

LifeBook

Indicator

Panel

Latch

Rotation Hinge

Application/

Suspend/

Resume

Button

Built-in Microphone

Fingerprint

Sensor

Tablet PC

Quick Point Pointing

Device (in front of keyboard)

Buttons

P Series.book Page 9 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Figure 2-5. LifeBook P Series notebook/Tablet PC left-side panel

LEFT-SIDE PANEL COMPONENTS

Following is a brief description of your notebook/Tablet

PC’s left-side components. (Figure 2-5)

USB 2.0 Port

The USB 2.0 port allow you to connect Universal Serial

Bus devices. See “Universal Serial Bus Ports” on page 46.

Compact Flash Card Slot

The Compact Flash (CF) Card Slot allows you to insert a

CF Card. The CF Card Eject Button is used when

ejecting a CF Card from the slot. See “Inserting Compact

Flash Cards” on page 42.

Microphone Jack

The microphone jack allows you to connect an external

mono microphone. See “Microphone Jack” on page 46.

Headphone Jack

The headphone jack allows you to connect stereo head-

phones or powered external speakers. See “Headphone

Jack” on page 46.

Compact Flash Card Slot

USB 2.0 Port Compact Flash Card

Eject Button

Headphone Jack

Microphone Jack

P Series.book Page 10 Tuesday, February 21, 2006 1:44 PM

Getting to Know Your LifeBook

Figure 2-6. LifeBook P Series notebook/Tablet PC right-side panel

RIGHT-SIDE PANEL COMPONENTS

Following is a brief description of your notebook/Tablet

PC’s right-side components.

Pen/Pen Holder

The pen is used as the interface with the digitizer display.

WLAN/Bluetooth On/Off Switch

The wireless LAN/Bluetooth On/Off Switch is used to

power off the wireless antenna when not in use.

SD Card

The Secure Digital (SD) card slot allows you to insert a

flash memory card for data storage. Flash memory cards

allow you to transfer data to and from a variety of

different digital devices.

USB 2.0 Port

The USB 2.0 port allow you to connect Universal Serial

Bus devices. See “Universal Serial Bus Ports” on page 46.

DC Power Jack

The DC power jack allows you to plug in the AC adapter

or the optional Auto/Airline adapter to power your

system and charge the internal Lithium ion Battery.

USB 2.0 Port

Secure Digital (SD) Card Slot

Pen/Pen Holder

WLAN/Bluetooth On/Off Switch DC Power Jack

P Series.book Page 11 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Figure 2-7. LifeBook P Series notebook/Tablet PC rear panel

REAR PANEL COMPONENTS

Modem (RJ-11) Telephone Port

The Modem (RJ-11) telephone port is for attaching

a telephone line to the internal multinational 56K

modem.

Anti-theft Lock Slot

The anti-theft lock slot allows you to attach a optional

physical lock-down device.

LAN (RJ-45) Port

The internal LAN (RJ-45) port is used for an internal 10/

100Base-Tx Ethernet. See “Internal LAN (RJ-45) jack”

on page 46.

External Video Port

The external video port allows you to connect an

external CRT monitor or LCD projector. Note that when

the optional Port Replicator is attached to the system,

you must use the external video port on the Port Repli-

cator rather than the port on the system. See “External

Video Port” on page 47.

Air Vents

The air vents allow proper air circulation to ensure that

the system does not overheat.

External

LAN (RJ-45) Port

Modem (RJ-11) Port

Video Port

Air VentsAnti-theft Lock Slot

(behind cover)

The internal multinational modem is not

intended for use with Digital PBX systems.

Do not connect the internal modem to a

Digital PBX as it may cause serious damage

to the internal modem or your entire

LifeBook P Series notebook/Tablet PC.

Consult your PBX manufacturer’s

documentation for details. Some hotels

have Digital PBX systems. Be sure to find

out BEFORE you connect your modem.

The internal modem is designed to the

ITU-T V.90 standard. Its maximum speed

of 53000 bps is the highest allowed by

FCC, and its actual connection rate

depends on the line conditions. The

maximum speed is 33600 bps at upload.

To protect your notebook/Tablet PC from

damage and to optimize system

performance, be sure to keep all air all

vents unobstructed,clean, and clear of

debris. This may require periodic cleaning,

depending upon the environment in which

the system is used.

Do not operate the notebook/Tablet PC in

areas where the air vents can be

obstructed, such as in tight enclosures or

on soft surfaces like a bed or cushion.

P Series.book Page 12 Tuesday, February 21, 2006 1:44 PM

Getting to Know Your LifeBook

Figure 2-8. LifeBook P Series notebook/Tablet PC bottom panel

BOTTOM COMPONENTS

Following is a brief description of your notebook/Tablet

PC’s bottom panel components. (Figure 2-8)

Lithium ion Battery Compartment

The battery compartment contains the internal Lithium

ion battery. The battery should be removed when the

computer is stored over a long period of time or for

swapping a discharged battery with a charged Lithium

ion battery. See “Lithium ion Battery” on page 37.

Port Replicator Connector

This connector allows you to connect the optional port

replicator.

Speaker

The speaker allows you to listen to sound from your

system.

Main Unit and Configuration Label

The configuration label shows the model number and

other information about your LifeBook P Series note-

book/Tablet PC. In addition, the configuration portion

of the label has the serial number and manufacturer

information that you will need to give your support

representative. It identifies the exact version of various

components of your system.

Memory Upgrade Compartment

Your notebook/Tablet PC comes with high speed DDR2

Synchronous Dynamic RAM (SDRAM). The memory

upgrade compartment allows you to expand the system

memory capacity of your system, hence improving

overall performance. See “Memory Upgrade Module”

on page 39.

Air Vents

The air vents allow proper air circulation to ensure that

the system does not overheat.

Memory

Lithium ion

Battery

Main Unit and

Configuration

Label (approximate

Battery

Port Replicator

Connector

location)

Pack

Latch

Battery

Pack

Latch

Upgrade

Compartment

Speaker

Air Vents

To protect your system from damage and

to optimize system performance, be sure

to keep all air all vents unobstructed,

clean, and clear of debris. This may

require periodic cleaning, depending upon

the environment in which the system is

used.

Do not operate the system in areas where

the air vents can be obstructed, such as in

tight enclosures or on soft surfaces like a

bed or cushion.

P Series.book Page 13 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Figure 2-9. Status Indicators

Status Indicators

The status indicators display symbols that correspond to

specific components of your notebook/Tablet PC.

(Figure 2-9) The symbols show how each of those

components is operating. Note that keyboard-related

indicators (CapsLk, NumLk, ScrLk) are located above

the keyboard.

POWER INDICATOR

The Power indicator symbol located on the power

button shows whether your system is operational. When

it is lit blue, it means that there is power to your

computer and that it is ready for use.

AC ADAPTER/BATTERY

CHARGING INDICATOR

The AC Adapter/Battery Charging indicator shows that

your notebook/Tablet PC is operating from the AC

adapter or an auto/airline adapter. This icon has two

different states that can tell you the battery charge status.

■Green: This means that a power adapter is currently in

use and the battery is not charging.

■Amber: This means that a power adapter is currently

in use and the battery is charging.

BATTERY LEVEL INDICATOR

The Battery Level indicators shows whether the Lithium

ion battery is installed and charging, and how much

charge is available within the batteries.

■Green: The battery is installed and fully charged.

■Amber: The battery is installed and is approximately

half charged.

■Red: The battery charge is low and it should be

charged with an adapter or replaced with a charged

battery.

HARD DRIVE ACCESS INDICATOR

The Hard Drive Access indicator lights green when your

internal hard drive is being accessed.

Battery Level

Hard Drive Access

NumLk

ScrLk

CapsLk

Power Button/

AC Adapter/

Indicator

Charging

Batteries subjected to shocks, vibration or

extreme temperatures can be permanently

damaged.

If there is no battery activity and the

power adapters are not connected, the

Battery Level indicators will also be off.

P Series.book Page 14 Tuesday, February 21, 2006 1:44 PM

Getting to Know Your LifeBook

NUMLK INDICATOR

The NumLk indicator shows that the integral keyboard

is set in ten-key numeric keypad mode.

CAPSLOCK INDICATOR

The CapsLock indicator shows that your keyboard is set

to type in all capital letters.

SCRLK INDICATOR

The ScrLk indicator shows that your scroll lock is active.

P Series.book Page 15 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Figure 2-10. Opening the display

Display Panel

The convertible design of your LifeBook P Series note-

book/Tablet PC allows you to open the display fully,

rotate it 180 degrees, and lay it face up on the keyboard.

This allows you to use the system as a tablet, much as

you would a pad of paper.

OPENING THE DISPLAY PANEL

Lift the display cover backwards, being careful not to

touch the screen, until it is at a comfortable viewing

angle. (Figure 2-10)

USING THE SYSTEM AS A TABLET

If you would like to use the system as a tablet, perform

the following steps.

1. Lift the display until it is perpendicular to the

keyboard. (Figure 2-12).

2. When the display is perpendicular to the keyboard,

rotate it clockwise (when viewed from the top). Be

very careful to rotate it in the direction indicated.

(Figure 2-13). Turn the display 180 degrees so that it

is facing backwards. (Figure 2-14)

3. Holding the top edge of the display panel, pull it

forward until it is lying nearly atop the keyboard.

4. Push the latch towards the display (See “A” in

Figure 2-11). The latch will click twice and the top

latch disappears, and the bottom latch appears (See

“B” in Figure 2-11). Lay the display flush against the

system so that the latch rests in the slot in the battery

pack. You can now use the system as a tablet.

(Figure 2-15)

Figure 2-11. Using the Display Latch

5. To return the system to notebook configuration,

repeat step 3 and 2. Be sure to turn the display in the

opposite direction when performing step 2.

Figure 2-12. Fully open display

Display Cover

Latch Slot

Latch

Rotate the system display only in the

direction indicated in the procedure.

Turning the display in the incorrect

direction could damage the hinge.

In the following step, be sure to position

the display perpendicular to the keyboard,

otherwise the keyboard or display cover

could get scratched.

Top latch

Bottom latch

Display Side

P Series.book Page 16 Tuesday, February 21, 2006 1:44 PM

Getting to Know Your LifeBook

Figure 2-13. Rotating the display

Figure 2-14. Display rotated completely

Figure 2-15. System in tablet configuration

ADJUSTING DISPLAY PANEL BRIGHTNESS

Once you have turned on your system, you may want to

adjust the brightness level of the screen to a more

comfortable viewing level. There are three ways to adjust

the brightness, keyboard, power management utility,

and Fujitsu menu.

Using Keyboard to Adjust Brightness

Adjusting the brightness using the keyboard changes the

system setting (i.e., the settings you make via the func-

tion keys automatically changes the brightness settings

in the system’s Brightness Control settings).

[Fn+F6]: Pressing repeatedly will lower the brightness

of your display.

[Fn+F7]: Pressing repeatedly will increase the

brightness of the display.

Using Control Panel to Adjust Brightness

Windows XP Pro:

To adjust brightness with the power management utility,

click Start -> Control Panel -> Brightness Control. Set

the screen brightness slider for battery and AC power

scenarios.

Windows XP Tablet PC Edition

To adjust brightness with the Tablet and Pen Settings

utility, click Start -> Control Panel -> Tablet and Pen

Settings, then select the Display tab.

Using the Fujitsu Menu to Adjust Brightness

To adjust brightness using the Fujitsu menu, click on the

Fujitsu Menu icon in the system tray in the lower right

corner of the screen. From the menu that appears, select

Brightness Control. The Brightness Control window will

open. Set the screen brightness slider for battery and AC

power scenarios.

If using AC power, your brightness setting

is set to its highest level by default. If using

battery power your brightness settings is

set to approximately mid-level by default.

The higher the brightness level, the more

power the LifeBook P Series notebook/

Tablet PC will consume and the faster your

batteries will discharge. For maximum

battery life, make sure that the brightness

is set as low as possible.

P Series.book Page 17 Tuesday, February 21, 2006 1:44 PM

Display orientations in tablet configuration

The display orientations are limited to only 2 positions,

landscap and portrait as the arrow marks in Figure 2-15.

User view

LifeBook P Series Notebook/Tablet PC

Figure 2-16. Keyboard

Keyboard

USING THE KEYBOARD

Your LifeBook P Series notebook/Tablet PC has an inte-

gral 82-key keyboard. The keys perform all the standard

functions of a 101-key keyboard, including the Windows

keys and other special function keys. This section

describes the following keys. (Figure 2-16)

■Numeric keypad: Your system allows certain keys to

serve dual purposes, both as standard characters and

as numeric and mathematical keys. The ability to tog-

gle between the standard character and numerical keys

is controlled through the [NumLk] key.

■Cursor keys: Your keyboard contains four arrow

keys for moving the cursor or insertion point to the

right, left, up, or down within windows, applications

and documents.

■Function keys: The keys labeled [F1] through [F12],

are used in conjunction with the [Fn] key to produce

special actions that vary depending on what program

is running.

■Windows keys: These keys work with your Windows

operating system and function the same as the

onscreen Start menu button, or the right button on

your pointing device.

NUMERIC KEYPAD

Certain keys on the keyboard perform dual functions as

both standard character keys and numeric keypad keys.

NumLk can be activated by pressing the [NumLk] key.

Turning off the NumLk feature is done the same way.

Once this feature is activated you can enter numerals 0

through 9, perform addition ( + ), subtraction ( - ),

multiplication ( * ), or division ( / ), and enter decimal

points ( . ) using the keys designated as ten-key function

keys. The keys in the numeric keypad are marked on the

front edge of the key to indicate their secondary func-

tions. (Figure 2-16)

WINDOWS KEYS

Your LifeBook P Series notebook/Tablet PC has two

Windows keys: a Start key and an Application key. The

Start key displays the Start menu. This button functions

the same as your onscreen Start menu button. The

Application key functions the same as your right mouse

button and displays shortcut menus for the selected

item. (Please refer to your Windows documentation for

additional information regarding the Windows keys.)

(Figure 2-16)

CURSOR KEYS

The cursor keys are the four arrow keys on the keyboard

which allow you to move the cursor up, down, left, and

right in applications. In programs such as Windows

Explorer, it moves the “focus” (selects the next item up,

down, left, or right). (Figure 2-16)

Back

Space

Fn Key Start Key

Function Keys

Numeric Keypad

Application Key Cursor Keys

(outlined with thick

black line)

P Series.book Page 18 Tuesday, February 21, 2006 1:44 PM

Getting to Know Your LifeBook

FUNCTION KEYS

Your system has 12 function keys, F1 through F12. The

functions assigned to these keys differ for each applica-

tion. You should refer to your software documentation

to find out how these keys are used. (Figure 2-16)

[Fn] Key

The [Fn] key provides extended functions for the

notebook/Tablet PC and is always used in conjunction

with another key.

■[Fn+F3]: Pressing [F3] while holding [Fn] will toggle

the Audio Mute on and off.

■[Fn+F4]: Pressing [F4] while holding [Fn] will toggle

the built-in pointing device on and off. Note that the

[Fn+F4] combination only works if Manual Setting is

selected in the BIOS. (See “Entering the BIOS Setup

Utility” on page 30)

■[Fn +F5]: Pressing [F5] while holding [Fn] allows

you to toggle between video compensation and no

compensation. (Video compensation controls spacing

on the display. When it is enabled, displays with less

than 1024 x 600 or 800 x 600 pixel resolution will still

cover the entire screen.)

■[Fn+F6]: Pressing [F6] repeatedly while holding [Fn]

will lower the brightness of your display. Note that

adjusting the brightness using the keyboard changes

the system setting.

■[Fn+F7]: Pressing [F7] repeatedly while holding [Fn]

will increase the brightness of the display.

■[Fn+F8]: Pressing [F8] repeatedly while holding [Fn]

will decrease the volume of your system.

■[Fn+F9]: Pressing [F9] repeatedly while holding [Fn]

will increase the volume of your system.

■[Fn+F10]: Pressing [F10] while holding [Fn] allows

you to change your selection of where to send your

display video. Each time you press the combination of

keys you will step to the next choice. The choices, in

order, are: built-in display panel only, external moni-

tor only, and both built-in display panel and external

monitor.

P Series.book Page 19 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Figure 2-17. LifeBook P Series notebook/Tablet PC application buttons

LifeBook Application Panel

A unique feature of your LifeBook P Series notebook/

Tablet PC is the application panel buttons. These

buttons allow you to launch specific applications with

the touch of a button.

The five application buttons are located on the bottom

left-hand side of the display when it is configured to be

used as a notebook. (Figure 2-17)

All five of the buttons have primary functions. Four of

the buttons have secondary functions when used as

application buttons. The secondary functions are acti-

vated by pressing the Function (Fn) button while

pressing the application button. See Table 2-2 for

specific functions. The secondary functions of the

Application A and B buttons can be changed to launch

any application. See “Changing Button Functions” on

page 21.

Table 2-2. Application Button Functions

Page Down / Application A Button

When you press the Page Down button when the system

is running, each press of the button will scroll the screen

down one frame. This allows you to navigate quickly

through large documents.

When you press the Fn button while you press then

release the Page Down/Application A button, you will

automatically start whichever program is assigned to the

button. The default application for this button is Calcu-

lator.

See “Changing Button Functions” on page 21 to select a

different application for this button.

Page Up / Application B Button

When you press the Page Up button when the system is

running, each press of the button will scroll the screen

up one frame. This allows you to navigate quickly

through large documents.

Application A Application B

Button 4

Enter

Button Button

Button 3

Button

Button Icon Primary Function Secondary Function

(Fn + Button)

Page Down User-defined Application A

Default = Calculator

Page Up

User-Defined Application B

Windows XP Professional Default = WordPad

Windows XP Tablet PC Edition Default = MS Journal

Screen Rotation VGA-Out

Secondary Function

Selection Fujitsu Menu Utility

Ctl+Alt+Del Button None

P Series.book Page 20 Tuesday, February 21, 2006 1:44 PM

Getting to Know Your LifeBook

When you press the Fn button while you press then

release the Page Up/Application A button, you will

automatically start whichever program is assigned to the

button. The default application for this button is

WordPad (Windows XP Professional) or MS Journal

(Windows XP Tablet PC Edition).

See “Changing Button Functions” on page 21. to select a

different application for this button.

Screen Rotation / VGA-Out Button

The screen rotation feature would normally be used

only when the system is configured as a tablet. When

you would like to use the tablet as an eBook, for

example, you would use the portrait orientation; when

accessing spreadsheets or using the system as a note-

book, you would more typically use landscape orienta-

tion.

When the system is changed to tablet configuration, the

orientation automatically changes to portrait mode by

default.

When you press the Screen Rotation / VGA-Out button,

the system screen orientation changes from portrait

(vertical) to landscape (horizontal) or from landscape to

portrait.

When you press the Fn button while you press then

release the Screen Rotation / VGA-Out button, you will

automatically

Function / Fujitsu Menu Utility Button

The Function button works in conjunction with the

other application buttons to provide additional func-

tionality for the buttons. Refer to specific details above.

Pressing the Fn button twice in succession causes the

Fujitsu Menu Utility to appear on your screen, allowing

you to modify certain system settings.

Ctl+Alt+Del Button

Pressing and holding the Ctl-Alt-Del button for up to

750 milliseconds launches the Logon screen or the

Windows Task Manager (if the system hasn’t yet been

configured).

CHANGING BUTTON FUNCTIONS

The Application A and B buttons can be changed to

launch a program or perform an action you select. By

default, the Application A button launches the Calcu-

lator, and the Application B button launches WordPad

(Windows XP Professional) or MS Journal (Windows

XP Tablet PC Edition).

To launch different applications or cause the Applica-

tion A or B buttons to perform a specific action:

Windows XP Professional:

1. Double-click on the Tablet Button Settings icon in

the Control Panel.

2. Select the button you would like to change from the

list.

3. Click [Change] and open the drop down list in the

Action: field.

4. Select the action you would like the button to

perform. If you want to launch a program, click on

Launch an Application then browse to the location

of the program.

5. Click [OK], then click [OK] again. The buttons will

now perform the actions you have assigned to them.

Windows XP Tablet PC Edition:

1. Double-click on the Tablet and Pen Settings icon in

the Control Panel.

2. Select the Tablet Buttons tab.

2. Select the button you would like to change from the

list.

3. Click [Change] and open the drop down list in the

Action: field.

4. Select the action you would like the button to

perform. If you want to launch a program, click on

Launch an Application then browse to the location

of the program.

5. Click [OK], then click [OK] again. The buttons will

now perform the actions you have assigned to them.

The screen orientation default can be

changed by going to the Control Panel and

double-clicking on the Fujitsu Display

Control icon (Windows XP Pro) or Fujitsu

Tablet Controls icon (Windows XP Tablet

PC Edition) and selecting the desired

defaults from the Display Orientation

section. After changing the defaults, click

[OK].

P Series.book Page 21 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Figure 2-18. Touchpad pointing device

Quick Point Pointing

Device/Touch Screen

The Quick Point is built into your LifeBook notebook/

Tablet PC. It is used to control the movement of the

cursor to select items on your display panel. The Quick

Point is composed of a cursor control at the center of the

keyboard and three buttons on the palm rest of your

computer. The cursor control works the same way a

mouse ball does, and moves the cursor around the

display. It only requires light pressure with the tip of

your finger, and the more pressure you use, the faster the

cursor will move. The left button functions the same as a

left mouse button while the right button has the same

function as a right mouse button. When used with the

cursor control, the middle button allows you to scroll up

and down a screen. The actual functionality of the

buttons may vary depending on the application that is

being used. (Figure 2-19)

CLICKING

Clicking means pushing and releasing a button. To left-

click, move the cursor to the item you wish to select,

press the left button once, and then immediately release

it. To right-click, move the cursor to the item you wish

to select, press the bottom button once, and then imme-

diately release it. (Figure 2-19)

Figure 2-19 Clicking

DOUBLE-CLICKING

Double-clicking means pushing and releasing the left

button twice in rapid succession. This procedure does

not function with the right button. To double-click,

move the cursor to the item you wish to select, press and

release the left button twice. (Figure 2-20)

Figure 2-20 Double-clicking

DRAGGING

Dragging means pressing and holding the left button,

while moving the cursor. To drag, move the cursor to the

item you wish to move. Press and hold the left button

while moving the item to its new location and then

release it. (Figure 2-21)

Figure 2-21 Dragging

Left Button

Right Button

Scroll Button

Cursor Control

■If the interval between clicks is too long,

the double-click will not be executed.

■Parameters for the Quick Point can be

adjusted from the Mouse dialog box

located in the Windows Control Panel.

P Series.book Page 22 Tuesday, February 21, 2006 1:44 PM

Getting to Know Your LifeBook

QUICK POINT CONTROL ADJUSTMENT

The Windows Control Panel allows you to customize

your Quick Point with selections made from within the

Mouse Properties dialog box. There are three aspects of

Quick Point operation, which you can adjust:

■Buttons: This tab lets you set up the buttons for right

or left handed operation, in addition to setting up the

time interval allowed between clicks in double-click-

ing.

■Pointers: This tab lets you set up the scheme for

the cursor depending on its functionality.

■Pointer Options: This tab lets you set up a relation

between the speed of your finger motion and the speed

of the cursor. It also allows you to enable a Pointer

Trail for the cursor arrow.

TOUCH SCREEN

The integrated Touch Screen allows you to use either the

included stylus or your fingertip, as a pointing device.

You can use the stylus to click, double-click, drag items

and icons, or to draw like a pen or pencil in applications

that support this behavior, such as drawing or painting

programs. See the documentation that came with your

application for details. (Figure 2-22)

Figure 2-22 Using the Stylus with the Touch Screen

Clicking

To left-click, touch the object you wish to select and then

lift the stylus tip immediately. You also have the option

to perform the left-click operation by tapping lightly

with your finger on the Touch Screen once. (Figure 2-23)

Right-Clicking

Windows XP Professional:

To right-click, go to Start -> Control Panel -> Touch

Panel. From the Right Button Simulation tab you can

specify a right button tool by using the selected button

prior to the desired right mouse click.

Windows XP Tablet PC Edition:

Right-click can be accomplished by holding the pen

down until a circular icon appears. To change the

settings for the right-click feature, go to Start -> Control

Panel -> Tablet and Pen Settings. In the Pen Options tab,

select “Press and Hold” then click the [Settings] button.

Figure 2-23 Clicking the Touch Screen

Double-Clicking

To double-click, touch the item twice, and then immedi-

ately remove the stylus tip. You also have the option to

perform the double-click operation by tapping lightly

with your finger on the Touch Screen twice.

(Figure 2-24)

Figure 2-24 Double-clicking the Touch Screen

Do not use excessive force when tapping

or writing on the screen with the stylus or

your finger. Excessive force could result in

damage to the LCD and/or Touch Screen.

To avoid potential scratching and damage,

never use anything but the included stylus

or your finger with the Touch Screen.

To purchase additional or replacement

styluses, visit Fujitsu’s accessories website

at: www.shopfujitsu.com.

P Series.book Page 23 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Dragging

Dragging means moving an item with the stylus by

touching the screen, moving and then lifting the stylus.

To drag, touch the Touch Screen with your stylus on the

item you wish to move. While continuing to touch the

screen with the stylus, drag the item to its new location

by moving the stylus across the screen, and then lifting

the stylus to release it. Dragging can also be done using

your fingertip. (Figure 2-25)

Figure 2-25 Dragging on the Touch Screen

Calibrating the Touch Screen

In order to ensure accurate tracking between the stylus

and cursor, you must run the Touch Screen Calibration

Utility before you use the Touch Screen for the first time,

or after you change the display resolution and/or orien-

tation.

To run the calibration utility:

1. Go to Start -> Control Panel. If you are not in

Classic View, select “Switch to Classic View” in the

left panel.

2. Windows XP Professional: Double-click the Touch

Panel icon and select the Calibration tab.

Windows XP Tablet PC Edition: Double-click the

Tablet and Pen Settings icon and select the Settings

tab.

3. Windows XP Professional: Press the [Calibrate Now]

button.

Windows XP Tablet PC Edition: Click the [Calibrate]

button.

3. Adjust the display of your notebook/Tablet PC to a

comfortable angle and find the (+) symbol in the

upper-left corner of the display.

4. Using the stylus, firmly touch the screen directly on

the (+) symbol. Lift the stylus from the screen and

the target will move to a different location on the

screen.

5. Repeat step 4 until you have selected all of the (+)

symbols.

6. Once you have selected all the symbols, press the

[Update] button (Windows XP Professional) or the

[OK] button (Windows XP Tablet PC Edition).

7. Touch the stylus to various points on the screen to

verify that the screen is correctly calibrated. If you

are not satisfied with the screen’s calibration, press

the [Calibrate Now] (or [Calibrate]) button to begin

again.

Do not use excessive force when tapping

on the screen during calibration. Use of

excessive force could result in damage to

the LCD and/or touch panel.

When using the stylus to calibrate the

screen, be sure to avoid touching the

screen with your fingers; doing so could

result in faulty calibration.

P Series.book Page 24 Tuesday, February 21, 2006 1:44 PM

Getting to Know Your LifeBook

Volume Control

Your Fujitsu LifeBook notebook/Tablet PC has multiple

volume controls which interact with each other.

CONTROLLING THE VOLUME

The volume can be controlled in several different ways:

■Volume can be set from within the Volume Control on

the Taskbar.

■Volume can be controlled with the [F8] and [F9] func-

tions keys. Pressing [F8] repeatedly while holding [Fn]

will decrease the volume of your notebook/Tablet PC.

Pressing [F9] repeatedly while holding [Fn] will

increase the volume of your notebook/Tablet PC.

■Volume can be controlled by many volume controls

that are set within individual applications.

■Certain external audio devices you might connect to

your system may have hardware volume controls.

■Each source discussed above puts an upper limit on

the volume level that must then be followed by the

other sources.

We recommend that you experiment with the various

volume controls to discover the optimal sound level.

Any software that contains audio files will

also contain a volume control of its own. If

you install an external audio device that has

an independent volume control, the

hardware volume control and the software

volume control will interact with each other.

It should be noted that if you set your

software volume to Off, you will override

the external volume control setting.

There are twenty-six levels through which

the function keys cycle.

P Series.book Page 25 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

P Series.book Page 26 Tuesday, February 21, 2006 1:44 PM

Using Your LifeBook

P Series.book Page 27 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

P Series.book Page 28 Tuesday, February 21, 2006 1:44 PM

Getting Started

Figure 3-1. Connecting the AC Adapter

Power Sources

Your LifeBook P Series notebook/Tablet PC has three

possible power sources: a primary Lithium ion battery,

an AC adapter or an optional Auto/Airline adapter.

CONNECTING THE POWER ADAPTERS

The AC adapter or optional Auto/Airline adapter

provides power for operating your system and charging

the battery.

Connecting the AC Adapter

1. Plug the DC output cable into the DC power jack

of your notebook/Tablet PC.

2. Plug the AC adapter into an AC electrical outlet.

(Figure 3-1)

Connecting the Optional Auto/Airline Adapter

1. Plug the DC output cable into the DC power jack

on your notebook/Tablet PC.

2. Plug the Auto/Airline adapter into the cigarette

lighter of an automobile with the ignition key in

the On or Accessories position.

3. Plug the Auto/Airline adapter into the DC power

jack on an airplane seat.

Switching from AC Adapter Power or the

Auto/Airline Adapter to Battery Power

1. Be sure that you have a charged battery installed.

2. Remove the AC adapter or the Auto/Airline adapter.

DC Power Plug

DC Output Cable

AC Adapter

AC Cable

The Lithium ion battery is not charged

upon purchase. Initially, you will need to

connect either the AC adapter or the

Auto/Airline adapter to use your system.

P Series.book Page 29 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Starting Your LifeBook

POWER ON

The Suspend/Resume button is used to turn on your

LifeBook P Series notebook/Tablet PC from its off state.

Once you have connected your AC adapter or charged

the internal Lithium ion battery, you can power on your

notebook/Tablet PC. (See figure 2-4 on page 9 for loca-

tion).

Press the Suspend/Resume button to start your system.

When you are done working you can either leave your

system in Standby mode, (See “Standby Mode” on

page 32), or you can turn it off. See “Power Off ” on

page 34.

When you Power On your system, it will perform a

Power On Self Test (POST) to check the internal parts

and configuration for correct functionality. If a fault is

found, your system will emit an audio warning and/or

an error message will be displayed. See “Power On Self

Test Messages” on page 58 Depending on the nature of

the problem, you may be able to continue by starting the

operating system or by entering the BIOS setup utility

and revising the settings.

After satisfactory completion of the Power On Self Test

(POST), your notebook/Tablet PC will load your oper-

ating system.

BOOT SEQUENCE

The procedure for starting-up your notebook/Tablet PC

is termed the Bootup sequence and involves your

system’s BIOS. When your notebook/Tablet PC is first

turned on, the main system memory is empty, and it

needs to find instructions to start up your notebook/

Tablet PC. This information is in the BIOS program.

Each time you power up or restart your system, it goes

through a boot sequence which displays a Fujitsu logo

until your operating system is loaded. During booting,

your system is performing a standard boot sequence

including a Power On Self Test (POST). When the boot

sequence is completed without a failure and without a

request for the BIOS Setup Utility, the system displays

the operating system’s opening screen.

The boot sequence is executed when:

■You turn on the power to your notebook/Tablet PC.

■You restart your notebook/Tablet PC from the

Windows Shut Down dialog box.

■The software initiates a system restart (e.g., when you

install a new application).

BIOS SETUP UTILITY

The BIOS Setup Utility is a program that sets up the

operating environment for your notebook/Tablet PC.

Your BIOS is set at the factory for normal operating

conditions, therefore there is no need to set or change

the BIOS’ environment to operate your system.

The BIOS Setup Utility configures:

■Device control feature parameters, such as changing

I/O addresses and boot devices.

■System Data Security feature parameters, such

as passwords.

Entering the BIOS Setup Utility

To enter the BIOS Setup Utility do the following:

1. Turn on or restart your notebook/Tablet PC.

2. Press the [F2] key once the Fujitsu logo appears on

the screen. This will open the main menu of the

BIOS Setup Utility with the current settings

displayed.

3. Press the [RIGHT ARROW] or [LEFT ARROW] key

to scroll through the other setup menus to review or

alter the current settings.

BIOS Guide

A guide to your system’s BIOS is available online. Please

visit our service and support website at http://

www.computers.us.fujitsu.com/support. Once there,

select LifeBook BIOS Guides from the pull-down menu

for your notebook/Tablet PC series. If you are unsure of

your system’s BIOS number, refer to your packing slip.

When you turn on your notebook/Tablet

PC, be sure you have a power source. This

means that a battery is installed and

charged, or that a power adapter is

connected and has power.

When the system display is closed, the

Suspend/Resume button is disabled. This

feature prevents the system from being

accidentally powered up when not in use.

Never turn off your notebook/Tablet PC

during the Power On Self Test (POST) or it

will cause an error message to be displayed

when you turn your system on the next

time. See “Power On Self Test Messages”

on page 58

If your data security settings require it, you

may be asked for a password before the

BIOS main menu will appear.

P Series.book Page 30 Tuesday, February 21, 2006 1:44 PM

Getting Started

BOOTING THE SYSTEM

We strongly recommend that you not attach any

external devices until you have gone through the initial

power on sequence.

When you turn on your LifeBook notebook/Tablet PC

for the first time, it will display a Fujitsu logo on the

screen. If you do nothing the system will load the oper-

ating system, and then the Windows Welcome will

begin.

Registering Windows with Microsoft

In order to ensure that you receive the most benefit from

the Windows operating system, it should be registered

the first time you use it.

After you receive the Windows Welcome screen, you will

be prompted to enter registration information in the

following order.

First of all, you will need to read and accept the End

User License Agreements (EULAs). After accepting the

EULAs, you will be asked if you want to enable the Auto-

matic Updates feature. Acceptance of this feature is

recommended because it allows your system to be

updated automatically whenever an important change

becomes available for your notebook/Tablet PC.

Several additional windows will appear, prompting you

to enter a name and description for your computer, an

Administrator password, and a domain name. Read the

instructions on the screens carefully and fill in the infor-

mation as directed.

You will then be automatically connected to the

Internet, if you have an appropriate connection avail-

able. If an automatic connection is not possible, you will

be advised on how to select and change an available

connection at a later date. You will then be asked if you

want to register with Microsoft. If you are not connected

to a phone line and plan to register at a later time, you

may click the Skip button.

Once you are connected to the Internet, you will be

asked if you wish to continue with the registration. If

you select Ye s you will then enter your name and

address, and email address if desired. Click Next to

complete registration.

REGISTERING YOUR NOTEBOOK/TABLET PC

How do I register my notebook/Tablet PC?

You can register your LifeBook by going to our website:

http://www.computers.us.fujitsu.com/support

You will need to be set up with an Internet Service

Provider (ISP) to register online.

INSTALLING CLICK ME!

The first time you boot up your system, you will see an

icon called Click Me! in the Start menu. When you click

the Click Me! icon, your system will automatically build

the icon tray in the bottom right of the screen. These

icons provide links to utilities that you will frequently

access, such as wireless client software from the manu-

facturer of the wireless device in your system.

■If you reject the terms of the license

agreement you will be asked to review

the license agreement for information

on returning Windows or to shut down

your LifeBook notebook/Tablet PC.

■You cannot use your LifeBook note-

book/Tablet PC until you have accepted

the License Agreement. If you stop the

process, your system will return to the

beginning of the Windows Welcome

Process, even if you shut your system

down and start it up again.

ClickMe!

P Series.book Page 31 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Power Management

Your LifeBook P Series notebook/Tablet PC has many

options and features for conserving battery power. Some

of these features are automatic and need no user inter-

vention, such as those for the internal modem. However,

others depend on the parameters you set to best suit

your operating conditions, such as those for the display

brightness. Internal power management for your note-

book/Tablet PC may be controlled from settings made in

your operating system, pre-bundled power management

application, or from settings made in BIOS setup utility.

Besides the options available for conserving battery

power, there are also some things that you can do to

prevent your system battery from running down as

quickly. For example, you can create an appropriate

power saving profile, put your system into Standby

mode when it is not performing an operation, and you

can limit the use of high power devices. As with all

mobile, battery powered computers, there is a trade-off

between performance and power savings.

Table 3-1. System Power States

SUSPEND/RESUME BUTTON

When your notebook/Tablet PC is active, the Suspend/

Resume button can be used to manually put your system

into Standby mode. Push the Suspend/Resume button

when your notebook/Tablet PC is active, but not actively

accessing anything, and immediately release the button.

You will hear two short beeps and your system will enter

Standby mode. (See figure 2-6 on page 11 for location).

If your notebook/Tablet PC is suspended, pushing the

Suspend/Resume button will return your system to

active operation. You can tell whether or not your

system is in Standby mode by looking at the Power indi-

cator. See “” on page 14. If the indicator is visible and not

flashing, your system is fully operational. If the indicator

is both visible and flashing, your system is in Standby

mode. If the indicator is not visible at all, the power is off

or your system is in Hibernate mode (See Hibernate

Mode)

STANDBY MODE

Standby mode in Windows saves the contents of your

notebook/Tablet PC’s system memory during periods of

inactivity by maintaining power to critical parts. This

mode will turn off the CPU, the display, the hard drive,

and all of the other internal components except those

necessary to maintain system memory and allow for

restarting. Your system can be put in Standby mode by:

■Pressing the Suspend/Resume button when your

system is turned on.

■Selecting Standby from the Windows Shut Down

menu.

■Timing out from lack of activity.

■Allowing the battery to reach the Dead Battery

Warning condition.

■Closing the system cover.

Your notebook/Tablet PC’s system memory typically

stores the file(s) on which you are working, open appli-

cation(s) information, and any other data required to

support the operation(s) in progress. When you resume

Power Mode System Activity Events causing system to enter mode state

Fully On Mode System is running. CPU, system bus, and

all other interfaces operate at full speed.

■From Standby mode: System operation resumed

(Suspend/Resume button pressed, resume on

modem ring, resume on time).

■From Hibernation mode: Suspend/Resume button

pressed.

■From Off mode: Suspend/Resume button pressed.

Standby Mode

(Suspend-to-RAM)

Resume system logic remains powered

and RAM remains powered to maintain

active data. All other devices are turned

off.

■Standby timeout occurs.

■Suspend request issued by software or by pressing

the Suspend/Resume button.

■Low battery.

Hibernation Mode

(Suspend-to-Disk)

Windows saves desktop state (including

open files and documents) to hard disk.

CPU stops. All other devices are turned

off.

■Suspend timeout occurs.

■Clicking Start -> Shut Down -> Hibernate

(It may be necessary to Enable Hibernate Support

from Windows Power Options.)

■Low battery condition

Power Off System is fully powered off except for

logic components required for Suspend/

Resume button and real-time clock

operation.

■System shutdown.

■Low battery condition

P Series.book Page 32 Tuesday, February 21, 2006 1:44 PM

Getting Started

operation from Standby mode, your system will return

to the point where it left off. To resume operation, you

must use the Suspend/Resume button to resume opera-

tion, and there must be an adequate power source avail-

able, or your system will not resume.

HIBERNATE MODE

The Hibernate mode saves the contents of your

notebook/Tablet PC’s system memory to the hard drive

as a part of the Suspend/Resume mode. Your system is

pre-configured to perform this function. The Hibernate

mode can also be configured through the system BIOS

to run in other ways depending on what you need to

accomplish. See “BIOS Setup Utility” on page 30.

Using Hibernate Mode

Hibernate default setting is enabled for Windows XP.

To enable or disable the Hibernation feature follow these

easy steps:

1. From the Start menu, select Control Panel -> Power

Options.

2. Select the Hibernate tab and then select the box to

enable or disable this feature.

To use Hibernate mode with your system:

1. From the Start menu, select Control Panel -> Power

Options.

2. Select the Power Schemes tab and in the System

hibernates boxes, select the amount of time you

want to elapse until the system goes into hibernation

(when plugged in and when running on battery

power).

DISPLAY TIMEOUT

The Video Timeout is one of the power management

parameters. This feature saves power by turning off the

display if there is no keyboard or pointer activity for the

user selected timeout period. Any keyboard or pointer

activity will cause the display to restart automatically.

This feature is independent of the Suspend/Resume

button and can be enabled and disabled in Windows

Power Management.

HARD DISK TIMEOUT

The Hard Disk Timeout is another one of the power

management parameters. This feature saves power by

turning off the hard drive if there is no hard drive

activity for the user selected timeout period. Any

attempt to access the hard drive will cause it to restart

automatically. This feature is independent of the

Suspend/Resume button and can be enabled and

disabled in Windows.

WINDOWS POWER MANAGEMENT

The Power Options icon located in the Windows

Control Panel allows you to configure some of the power

management settings. For example, you can use the

Power Options to set the timeout values for turning off

the display and hard disks whether you are running the

notebook/Tablet PC on battery power or one of the

adapters.

RESTARTING THE SYSTEM

If your system is on and you need to restart it, be sure

that you use the following procedure.

1. Click the Start button, and then click Tur n Of f

Computer.

2. Select the Restart button from within the Turn Off

Computer window.

If you are running your notebook/Tablet

PC on battery power, be aware that the

battery continues to discharge while your

system is in Standby mode, though not as

fast as when fully operational.

■Standby or Hibernate modes should not

be used with certain PC Cards. Check

your PC Card documentation for more

information.

■Disabling the Suspend/Resume button

prevents it from being used to put your

notebook/Tablet PC in Standby or

Hibernate mode. The resume function of

the button cannot be disabled.

■If your notebook/Tablet PC is actively

accessing information when you enter

Standby or Hibernate mode, changes to

open files are not lost. The files are left

open and memory is kept active during

Standby mode or the memory is trans-

ferred to the hard drive during Hibernate

mode.

■When PC Cards or external devices are

in use, Save-to-Disk mode cannot return

to the exact state prior to suspension,

because all peripheral devices will be re-

initialized when the system restarts.

■The main advantage of using Hibernate

mode is that power is not required to

maintain your data. This is very impor-

tant if you will be leaving your system in

a suspended state for a prolonged

period of time. The drawback of using

Hibernate mode is that it lengthens the

power down and power up sequences

and resets peripheral devices.

P Series.book Page 33 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

POWER OFF

Before turning off the power by choosing Turn Off

Computer from the Windows Start menu, check that the

Hard Drive access indicator is off. (See Figure 2-9 on page

14) If you turn off the power while accessing a disk there

is a risk of data loss. To ensure that your notebook/Tablet

PC shuts down without error, use the Windows shut

down procedure.

Using the correct procedure to shut down from

Windows allows your notebook/Tablet PC to complete

its operations and turn off power in the proper sequence

to avoid errors. The proper sequence is:

1. Click the Start button, and then click Turn Off

Computer.

2. Select the Tur n Of f option from within the window.

If you are going to store your notebook/Tablet PC for a

month or more, see the Care and Maintenance section.

Turning off your system without exiting

Windows or turning on your system within

10 seconds of the system being shut off

may cause an error when you start the

next time.

P Series.book Page 34 Tuesday, February 21, 2006 1:44 PM

User-Installable

Features

P Series.book Page 35 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

P Series.book Page 36 Tuesday, February 21, 2006 1:44 PM

User-Installable Features

Lithium ion Battery

Your LifeBook P Series notebook/Tablet PC has a

Lithium ion battery that provides power for operating

your notebook/Tablet PC when no external power

source is available. The battery is durable and long

lasting, but should not be exposed to extreme tempera-

tures, high voltages, chemicals or other hazards.

The Lithium ion battery operating time may become

shorter if it is used under the following conditions:

■When used at temperatures lower than 41° F (5° C) or

higher than 95° F (35° C). Extreme temperatures not

only reduce charging efficiency, but can also cause

battery deterioration. The Charging icon on the Status

Indicator panel will flash when you try to charge a

battery that is outside its operating temperature range.

See “” on page 14.

■When using a high current device such as a modem,

CD-ROM drive, or hard drive, using the AC adapter

will conserve your battery life.

RECHARGING THE BATTERY

If you want to know the condition of the Lithium ion

battery, check the Battery Level indicator located on the

Status Indicator panel. The indicator changes as the

battery level changes.

The Lithium ion battery is recharged internally using the

AC adapter or Auto/Airline adapter. To recharge the

battery make sure the battery that needs to be charged is

installed in your notebook/Tablet PC and connect the

AC or Auto/Airline adapter.

There is no memory effect on the Lithium ion battery,

therefore you do not need to discharge the battery

completely before recharging. The charge times will be

longer if your system is in use while the battery is

charging. If you want to charge the battery more quickly,

put your system into Standby mode, or turn it off while

the adapter is charging the battery. See “Power Manage-

ment” on page 32.

Low Battery State

When the battery is running low, the Battery Level indi-

cator will glow red. If you do not respond to the low

battery alarm, the batteries will continue to discharge

until they are too low to operate. Your notebook/Tablet

PC will then go into Standby mode to try and protect

your data for as long as possible. There is no guarantee

that your data will not be lost once the system reaches

this point.

■Do not leave a faulty battery in your sys-

tem. It may damage your AC adapter,

optional Auto/Airline adapter, or your

notebook/Tablet PC itself. It may also

prevent operation of your notebook/

Tablet PC by draining all available cur-

rent into the bad battery.

■Under federal, state, or local law it may

be illegal to dispose of batteries by

putting them in the trash. Please take

care of our environment and dispose of

batteries properly. Check with your local

government authority for details

regarding recycling or disposing of old

batteries. If you cannot find this infor-

mation elsewhere, contact your support

representative at 1-800-8Fujitsu.

Actual battery life will vary based on

screen brightness, applications, features,

power management settings, battery

condition and other customer preferences.

CD-ROM drive or hard drive usage may

also have a significant impact on battery

life. The battery charging capacity is

reduced as the battery ages. If your

battery is running low quickly, you should

replace it with a new one.

Make sure that the Battery Charging

indicator and the Battery Level indicator

icon on the Status Indicator Panel light.

Using heavy current devices such as a

modem or frequent CD-ROM and

PCMCIA powered external device accesses

may prevent charging completely.

■Once the low battery indicator appears

you must save all your data and put your

notebook/Tablet PC into Standby mode

until you can provide a new power

source. You should provide a charged

battery or AC or Auto/Airline Adapter as

soon as possible.

■When you are in Standby mode there

must always be at least one power

source active. If you remove all power

sources while your notebook/Tablet PC

is in Standby mode, any data that has

not been saved to the hard drive will be

lost.

P Series.book Page 37 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Once your notebook/Tablet PC goes into Dead Battery

Suspend mode you will be unable to resume operation

until you provide a source of power either from an

adapter, or a charged battery. Once you have provided

power, you will need to press the Suspend/Resume

button to resume operation. In the Dead Battery

Suspend mode, your data can be maintained for some

time, but if a power source is not provided promptly, the

Power indicator will stop flashing and go out, meaning

that you have lost the data that was not stored. Once you

provide power, you can continue to use your system

while an adapter is charging the battery.

REPLACING THE BATTERY

Your LifeBook P Series notebook/Tablet PC comes with

one battery pack; you might want to consider

purchasing a spare. By keeping a spare battery fully

charged, you can immediately swap with one that is not

charged.

There are two ways to swap batteries: cold-swapping and

hot-swapping. Cold-swapping means swapping batteries

when the system has been powered down; hot-swapping

is performed when the system is powered by AC power.

Cold-swapping batteries

To cold-swap batteries in your battery compartment,

follow these easy steps: (Figure 4-1)

1. Have a charged battery ready to install.

2. Shut down your system and disconnect the AC

adapter.

3. Lift the display enough to pull the display latch from

the slot.

4. Press the battery release latches to open the

compartment.

5. Remove the battery from the compartment.

6. Slide the new battery into the compartment.

7. Close the compartment and the battery release

latches will click into place.

8. Plug in the AC adapter and turn the power on.

Figure 4-1. Removing the Battery

Hot-swapping Batteries

To hot-swap batteries in your battery compartment

follow these easy steps: (Figure 4-1)

1. Close any open files and put your system into

Standby mode.

2. Connect an AC adapter or Auto/Airline power

adapter to provide power to the system.

3. Lift the display enough to pull the display latch from

the slot.

4. Press the battery release latches inward to open the

compartment.

5. Remove the battery from the compartment.

6. Slide the new battery into the compartment.

7. Close the compartment and the battery release

latches will click into place.

8. Press the Suspend/Resume button to return your

system to normal operation.

If the Lithium ion battery connector is not

fully seated, you may not be able to use

your notebook/Tablet PC or charge your

battery.

P Series.book Page 38 Tuesday, February 21, 2006 1:44 PM

User-Installable Features

Memory Upgrade

Module

Your Fujitsu LifeBook P Series notebook/Tablet PC comes

with a minimum of 256 MB of high speed Double Data

Rate Synchronous Dynamic RAM 2 (DDR2 SDRAM),

400 MHz factory installed. To increase your system’s

memory capacity, you may install a memory upgrade

module. The memory upgrade must be a dual-in-line

(DIMM) SDRAM module. To ensure 100% compati-

bility, purchase the SDRAM module only from the

Fujitsu web store at www.shopfujitsu.com.

INSTALLING MEMORY UPGRADE MODULES

1. Turn off power to your LifeBook notebook/Tablet

PC and remove any power adapter (AC or auto/

airline).

2. Make sure that all the connector covers are closed.

3. Turn the system bottom side up, and remove the

screws of the memory upgrade module compart-

ment. (Figure 4-2)

4. Remove the cover.

Figure 4-2. Opening the Memory Upgrade Compartment

5. Remove the memory upgrade module from the

static guarded sleeve.

6. Align the memory upgrade module with the

component side up. Align the connector edge of the

memory upgrade module with the connector slot in

the compartment. (Figure 4-3)

7. Insert the memory upgrade module at a 45° angle.

Press the connector edge of the module firmly down

and into the connector until it lodges under the

retaining clip. You will hear a click when it is prop-

erly in place.

Figure 4-3. Installing a Memory Module

8. Replace the cover. (Figure 4-4)

9. Replace the screws.

Figure 4-4. Replacing the Memory Compartment Cover

REMOVING A MEMORY UPGRADE MODULE

1. Perform steps 1 through 4 of Installing a Memory

Upgrade Module.

2. Pull the clips sideways away from each side of the

memory upgrade module at the same time.

3. While holding the clips out, remove the module

from the slot by lifting it up and pulling towards the

rear of your notebook/Tablet PC.

4. Store the memory upgrade module in a static

guarded sleeve.

5. Replace the cover. (Figure 4-4)

6. Replace the screws.

Do not remove any screws from the

memory upgrade module compartment

except those specifically shown in the

directions for installing and removing the

module.

The memory upgrade module is not

something you routinely remove from

your notebook/Tablet PC. Once it is

installed, you should leave it in place

unless you want to change system

memory capacity.

P Series.book Page 39 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

CHECKING THE MEMORY CAPACITY

Once you have changed the system memory capacity by

either adding or removing a memory upgrade module,

be sure to check that your system has recognized the

change.

You can check the memory capacity by clicking [Start]

-> Control Panel, then double-clicking the System icon.

Select the General tab and check the amount of memory

under “Computer.”

The amount of memory displayed should be approxi-

mately the total of all memory modules installed. There

may be a discrepancy of several megabytes which are

allocated for fixed video memory.

Your notebook/Tablet PC uses Dynamic

Video Memory Technology (DVMT),

which allows the video driver to

dynamically determine the amount of

memory that is used. Your system can use

a maximum of 128 MB of system memory

for video functions.

If the total memory displayed is incorrect,

check that your memory upgrade module

is properly installed. (If the module is

properly installed and the capacity is still

not correctly recognized, see

Troubleshooting on page 52.

P Series.book Page 40 Tuesday, February 21, 2006 1:44 PM

User-Installable Features

Figure 4-5. Inserting an SD Card

Secure Digital Media

Your LifeBook notebook/Tablet PC supports Secure

Digital (SD) cards, on which you can store and transfer

data to and from a variety of digital devices. These cards

use flash memory architecture, which means they don’t

need a power source to retain data.

Secure Digital (SD) Cards allow portable storage among

a variety of devices, such as cell phones, GPS systems,

digital cameras, and PDAs. SD Cards transfer data

quickly, with low battery consumption. It uses flash

memory architecture.

INSERTING SD CARDS

SD Cards are inserted in the SD Card slot (Figure 4-5).

To insert an SD Card, follow these steps:

1. See your SD Card manual for instructions on the

insertion of your card. Some cards may require that

your system is off while inserting them.

2. Make sure there is no card currently in the slot. If

there is, see Removing an SD Card.

3. Insert your card into the slot with the product label

facing up.

4. Push the card firmly into the slot until it is seated in

the connector.

REMOVING AN SD CARD

To remove an SD Card, first see your SD Card manual

for instructions. Some cards may require your LifeBook

notebook/Tablet PC to be in Suspend Mode or Off while

removing them. To remove the card from the slot,

simply pull it out.

SD Card Slot

SD Card

■inserting or removing an SD Card during

your LifeBook notebook/Tablet PC’s

shutdown or bootup process may dam-

age the card and/or your LifeBook note-

book/Tablet PC.

■Do not insert a card into a slot if there is

water or any other substance on the

card as you may permanently damage

the card, your LifeBook notebook/Tablet

PC, or both.

P Series.book Page 41 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Figure 4-6. Compact Flash Card Slot

Compact Flash Cards

Your Fujitsu LifeBook notebook/Tablet PC supports

Compact Flash (CF) cards, which can perform a variety

of functions.

Some available Compact Flash Cards:

■Memory cards

■Fax/data modem cards

■Local area network (LAN) cards

For further information, refer to the instructions

supplied with your CF Card.

INSERTING COMPACT FLASH CARDS

Compact Flash Cards are inserted in the Compact Flash

Card slot. To insert a Compact Flash Card, follow these

steps: (Figure 4-6)

1. See your Compact Flash Card manual for specific

instructions on the insertion of your card. Some

Compact Flash Cards may require your notebook/

Tablet PC to be Off while inserting them.

2. When you receive your LifeBook, there will be a

protective plug inserted in the slot. Whenever you

don’t have a Compact Flash Card inserted, be sure to

replace the plug to prevent system contamination.

To remove the plug, press the Compact Flash Card

eject button. (Figure 4-7)

Figure 4-7. Removing Compact Flash Slot plug

3. When the Compact Flash Slot plug is ejected,

remove it from the slot.

4. Insert your Compact Flash Card into the slot, with

the product label facing up.

5. Push the card into the slot firmly until it is seated

in the opening. You will hear a click and the Eject

button will pop away from your notebook/Tablet

PC.

Compact Flash Card

Compact Flash Card Slot

Compact

Eject Button

Flash Card

■Inserting or removing a Compact Flash

Card during your LifeBook notebook/

Tablet PC’s shutdown or bootup process

may damage the card and/or your sys-

tem.

■Do not insert a Compact Flash Card into

a slot if there is water or any other sub-

stance on the card as you may perma-

nently damage the card, your LifeBook

notebook/Tablet PC, or both.

Compact Flash Slot Plug

Compact Flash

Card Eject Button

P Series.book Page 42 Tuesday, February 21, 2006 1:44 PM

User-Installable Features

REMOVING COMPACT FLASH CARDS

To remove a Compact Flash Card, follow these easy

steps:

1. See your Compact Flash Card manual for specific

instructions on removing your card. Some Compact

Flash Cards may require your system to be in

Suspend Mode or Off while removing them.

2. Push the eject button in until it is flush with the

notebook/Tablet PC. This will push the Compact

Flash Card slightly out of the slot allowing you to

remove the card.

Windows has a shutdown procedure for

Compact Flash Cards that must be fol-

lowed before removing a card. (Please

review your operating system manual for

the correct procedure).

If the dialog box states that the device

cannot be removed, you must save all of

your open files, close any open applica-

tions and shut down your notebook/Tablet

PC.

P Series.book Page 43 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Figure 4-8. Port Replicator rear panel

Port Replicator

An optional Port Replicator is available from Fujitsu to

support your LifeBook P Series notebook/Tablet PC.

The Port Replicator extends the functionality of your

system by providing ports to connect USB devices, an

external monitor, external speaker, or a LAN device. The

Port Replicator connects to the bottom of your note-

book/Tablet PC. See “Device Ports” on page 46.

PORT REPLICATOR COMPONENTS

Following is a description of the Port Replicator components.

(Figure 4-8)

DC Power Jack

The DC power jack allows you to plug in the AC adapter to

power your notebook/Tablet PC and charge the internal

Lithium ion battery.

USB 2.0 Ports (Qty. 2)

Universal Serial Bus (USB) 2.0 ports allow you to connect USB

devices. USB 2.0 ports are backward-compatible with USB 1.1

devices.

External Monitor Port

The external monitor port allows you to connect an external

VGA or SVGA monitor. Note that if a Port Replicator is

attached, you must use the external monitor port on the Port

Replicator, not the one on your system.

LAN (RJ-45) Jack

The LAN jack allows you to connect a LAN to the Port Repli-

cator. Note that when the system is attached to the Port Repli-

cator, the LAN Jack on the Port Replicator should be used, not

the one on the system.

Docking Port

The docking port connects the Port Replicator to your LifeBook

notebook/Tablet PC.

Port Replicator Release Latch

Pull the Port Replicator Release latch away from the Port Repli-

cator to remove the Port Replicator from your notebook/Tablet

PC.

ATTACHING PORT REPLICATOR

To attach the Port Replicator, align the Port Replicator

connector on the bottom of your notebook/Tablet PC with the

connector on the Port Replicator and push the corners down

simultaneously. (Figure 4-9)

Figure 4-9. Attaching the Port Replicator

DETACHING PORT REPLICATOR

To detach the Port Replicator:

1. Pull the Port Replicator’s release latch away from the Port

Replicator to release it from your notebook/Tablet PC.

(Figure 4-10)

LAN (RJ-45) Jack

DC Power Jack

USB Ports

External Monitor Port

Port Replicator

Release Latch

Docking Port

P Series.book Page 44 Tuesday, February 21, 2006 1:44 PM

User-Installable Features

Figure 4-10. Unlatching the Port Replicator

2. Pull the notebook/Tablet PC away from the Port Replicator

to detach it from your system. (Figure 4-11)

Figure 4-11. Removing the Port Replicator

P Series.book Page 45 Tuesday, February 21, 2006 1:44 PM

LifeBook P Series Notebook/Tablet PC

Device Ports

Your LifeBook P Series notebook/Tablet PC and the

optional Port Replicator come equipped with multiple

Device Ports to which you can connect an external

device including: disk drives, keyboards, modems,

printers, etc.

MODEM (RJ-11) JACK

The modem (RJ-11) jack is used for an internal modem.

To connect the telephone cable follow these easy steps:

(See figure 2-7 on page 12 for location)

1. Align the connector with the jack opening.

2. Push the connector into the jack until it is seated.

3. Plug the other end of the telephone cable into a

telephone outlet.

INTERNAL LAN (RJ-45) JACK

The internal LAN (RJ-45) jack is used for an internal 10/

100 BaseTx Ethernet connection. You will need to

configure your notebook/Tablet PC to work with your

particular network. (Please refer to your network

administrator for information on your network

configuration.) To connect the LAN cable follow these

easy steps: (See figure 2-7 on page 12 for location)

1. Align the connector with the jack opening.

2. Push the connector into the jack until it is seated.

3. Plug the other end of the cable into a LAN outlet.

DOCKING PORT

The docking port is used for the connection of your

system to an optional port replicator. In order to connect

your system to one of these devices follow the instruc-

tions that came with your port replicator. (See figure 2-8

on page 13 for location)

UNIVERSAL SERIAL BUS PORTS

The two Universal Serial Bus 2.0 ports (USB) allow you

to connect USB devices such as external floppy disk

drives, external DVD drives, game pads, pointing

devices, keyboards and/or speakers. USB 2.0 is down-

ward-compatible with USB 1.1 devices, so older USB

devices will work with these ports. USB 2.0 is a much

faster design, running forty times faster than USB 1.1.

In order to connect a USB device, follow these easy

steps: (See figure 2-7 on page 12 for location)

1. Align the connector with the port opening.

2. Push the connector into the port until it is seated.

MICROPHONE JACK

The microphone jack allows you to connect an external

mono microphone. Your microphone must be equipped

with a 1/8”(3.5 mm) mono mini-plug in order to fit into

the microphone jack of your notebook/Tablet PC. In

order to connect a microphone follow these easy steps:

(See figure 2-4 on page 9 for location)

1. Align the connector with the port opening.

2. Push the connector into the port until it is seated.

HEADPHONE JACK

The headphone jack allows you to connect headphones

or powered external speakers to your notebook/Tablet

PC. Your headphones or speakers must be equipped

with a 1/8” (3.5 mm) stereo mini-plug. In order to

connect headphones or speakers follow these easy steps:

(See figure 2-4 on page 9 for location)

1. Align the connector with the port opening.

2. Push the connector into the port until it is seated.

The internal modem is not intended for

use with Digital PBX systems. Do not

connect the internal modem to a Digital

PBX as it may cause serious damage to the

internal modem or your entire LifeBook P

Series notebook/Tablet PC. Consult your

PBX manufacturer’s documentation for

details. Some hotels have Digital PBX

systems. Be sure to find out BEFORE you

connect your modem.

■The internal modem is designed to the

ITU V.90 standard. Its maximum speed

of 53000 bps is the highest allowed by

FCC, and its actual connection rate

depends on the line conditions. The

maximum speed is 33600 bps at upload.

■The internal modem on all LifeBook P

Series notebook/Tablet PC’s from Fujitsu

Computer Systems Corporation are

certified for use in the United States and

Canada.

■Depending upon the configuration of

your system, your LifeBook notebook/

Tablet PC may have either a LAN jack or

an IEEE 1394 jack.

Note that the optional Port Replicator is

designed to cover the LAN jack located on

the system. This design ensures that the

LAN jack on the Port Replicator is the only

one used when the Port Replicator is

installed.

P Series.book Page 46 Tuesday, February 21, 2006 1:44 PM

User-Installable Features

EXTERNAL VIDEO PORT

The external video port allows you to connect an

external monitor or LCD projector. In order to connect

an external device follow these easy steps: (See figure 2-7

on page 12 for location). There is also an external VGA

monitor on the port replicator (See figure 4-8 on page 44

for location).

1. Remove the cover from the port opening, if present.

2. Align the connector with the port opening.

3. Push the connector into the port until it is seated.

4. Tighten the two hold-down screws, located on

each side of the connector.

If you plug headphones into the

headphone jack, the built-in stereo

speakers will be disabled.

When an external monitor is plugged in,

pressing the [Fn] + [F10] keys allows you

to change your selection of where to send

your display video. Each time you press the

key combination, you will step to the next

choice, starting with the built-in display

panel only, moving to the external monitor

only, finally moving to both the built-in

display panel and an external monitor.

When an external monitor is plugged in,

pressing the LifeBook Application Panel

Secondary Function buttons (Fn + Screen

Rotation Button) also allows you to

change your selection of where to send

your display video.
