System Specifications
Stylistic ST5000 Series Hardware Specifications
The following table provides general hardware specifica-
tions of the Stylistic ST5000 Series Tablet PC by category.
Stylistic ST5000 Specifications
Processing Specifications
CPU Intel® Pentium® M Processor
ULV 753*
Chip set Intel 915GM - 400 MHz FSB
Processor
Speed
1.2 GHz*
Memory/Storage Specifications
Main RAM • 2 DIMM slots available
• 200-pin SO DIMM modules
• DDR2 400 MHz
• 256 MB, 512 MB, and 1 GB
module configurations available,
with a system maximum of 2 GB.
L1 cache
(CPU)
32 KB on-die
L2 cache 2 MB on-die
BIOS ROM 1 MB (FWH)
Hard disk
drive
• 2.5” HDD
• Minimum 40 GB IDE HDD*
•ATA 100
• 5400 rpm
• Shock-mounted
Display Specifications
Depending on the configuration of your system, it has
either a 12.1" transmissive or a 10.4" reflective display
12.1"
Display
• Transmissive Color LCD
• Active Digitizer
• 16-bit color
• 12.1” TFT XGA (1024 x 768),
16M colors
• Brightness: 8 levels
• Viewing Angle:
Horizontal: 80 degrees (max.)
Vertical: 80 degrees (max.)
• Contrast Ratio: Typ. 250, Min. 100
* The specifications for your particular model may vary.
To determine the specifications for your system, please
visit our Web site at: us.fujitsu.com/computers.
10.4"
Display
• Reflective Color LCD
• Active Digitizer
• Outdoor-viewable
• 16-bit color
• 10.4” TFT XGA (1024 x 768),
16M colors
• Brightness: 8 levels
VRAM Up to 128 MB of shared memory using
Unified Memory Architecture (UMA).
Dynamically responds to application
requirements and allocates the proper
amount of memory for optimal
graphics and performance.
Physical Specifications
Dimensions 12.1" Display (Active Digitizer):
8.66" w x 12.77" d x 0.82"-0.88" h
(220 mm x 324.4 mm x 20.9-22.3
mm)
10.4" Display (Reflective Digitizer):
8.66" x 12.76" x 0.91"-0.98"
(220 mm x 324.1 mm x 23.0-24.9
mm)
Weight 3.5 lbs. (1.59 Kg) (with battery)
Interface Specifications
Card Slots • PCMCIA: One Type I or Type II,
PCMCIA CardBus version 3.0
• Secure Digital (SD)/
Memory Stick slot
•Smart Card slot
Integrated
Interfaces
• Modem (RJ-11)
• LAN (RJ-45)
• IEEE 1394 (S400 4-pin)
• USB 2.0 (Qty. 2)
•DC-In
•IrDA
• 15-pin D-SUB connector for
external VGA monitor
• Docking connector
Infrared IrDA version 1.1 (FIR, 4Mbps)
Keyboard/
Mouse
support
Keyboard/Mouse IR Port (Qty. 2)
Stylistic ST5000 Specifications (Continued)
Niechen_UG.book Page 41 Thursday, July 14, 2005 3:52 PM
42
Stylistic ST5000 Series Tablet PC User’s Guide – Section Four
Wireless LAN Your system may have one of the two
following Wireless LAN devices
installed:
• Integrated Intel PRO/Wireless
2915ABG Network Connections
(802.11a+b/g)
• Integrated Atheros Super AG
Wireless LAN (802.11a/b/g)
Audio • Sigmatel STAC9753A codec
• Internal mono microphone and
speaker
• Dual microphones (12.1" model
only)
• Stereo headphone jacks
User
Controls
• Application Buttons, each with
primary, secondary, tertiary, and
security functions
• Fingerprint swipe sensor for
biometric security (12.1" model
only)
• Power On/Suspend/Resume
button
• Emergency Shutoff Button (Power
Off button)
• Two Navigation buttons
Status
Indicators
(LEDs)
• Power
•Charge/DC-In
• Battery level
•HDD
•Security
Power Specifications
Main Battery • 6-cell (standard), 10.8V, 5200
mAh, 56 Wh
• 9-cell (optional), 10.8V, 7800
mAh, 84 Wh
• Removable, Lithium ion
• Warm-swappable
Bridge
Battery
• 6-cell NiMH, 35 mAh
• Life (with Suspend-to-RAM on
bridge battery only):
5 minutes from full charge
AC Adapter • Autosensing 100 - 240V,
supplying 16 VDC, with a current
of 3.75 A
Environmental Specifications
Temperature Operating: 41o - 95o F (5o - 35o C)
Non-operational: 5o - 140o F
(-15o - 60o C)
Stylistic ST5000 Specifications (Continued)
Humidity Operating: 20 - 85% non-condensing
Non-operating: 8 - 85% non-
condensing
Agency Approval Specifications
Emissions
• EN55022 (CISPR22) Class B
• FCC 15/15E, Class B
• VCCI Class B
Immunity • EN55024 (1998)
Safety
• UL and cUL Listed, UL 60950,
3rd edition
• CB Report, IEC 60950, 3rd Edition
Specific
Absorption
Rate (SAR)
• FCC/RSS
• ACA/EN
Wireless
• EN300328
• EN301489
• EN301893
• FCC 15E
• RSS210
• RSS220
Telecom • FCC Part 68
• IC CS-03
Other • Energy Star
Additional Specifications
Security
Features
• Security Panel
• Fingerprint Swipe Sensor (12.1"
model only)
• Trusted Platform Module (TPM)
Operating
Systems •Microsoft
® Windows®
XP Tablet PC Edition 2005
* Optional feature
Stylistic ST5000 Specifications (Continued)
Niechen_UG.book Page 42 Thursday, July 14, 2005 3:52 PM
43
System Specifications
Regulatory Information
NOTICE
Changes or modifications not expressly approved by
Fujitsu could void this user’s authority to operate the
equipment.
FCC NOTICES
Notice to Users of Radios and Television
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules.
These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a partic-
ular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet that is on a
different circuit than the receiver.
Consult the dealer or an experienced radio/TV
technician for help.
Shielded interconnect cables must be employed with this
equipment to ensure compliance with the pertinent RF
emission limits governing this device.
Notice to Users of the US Telephone Network
This equipment complies with Part 68 of the FCC rules,
and the requirements adopted by ACTA.
On the bottom of this equipment is a label that
contains, among other information, the FCC
registration number and ringer equivalence number
(REN) for this equipment; or a product identifier in the
format US:AAAEQ##TXXXX. If requested, this informa-
tion or number must be provided to the telephone
company.
This equipment is designed to be connected to the tele-
phone network or premises wiring using a standard jack
type USOC RJ11C. A plug and jack used to connect this
equipment to the premises wiring and telephone network
must comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A compliant tele-
phone cord and modular plug is provided with this
product. It is designed to be connected to a compatible
modular jack that is also compliant.
The ringer equivalent number (REN) of this equipment
is 0.1B as shown on the label. The REN is used to deter-
mine the number of devices that may be connected to a
telephone line. Excessive RENs on a telephone may result
in the devices not ringing in response to an incoming
call. In most but not all areas, the sum of RENs should
not exceed five (5.0). To be certain of the number of
devices that may be connected to a line, as determined by
the total RENs, contact the local telephone company.
If this equipment causes harm to the telephone network,
the telephone company will notify you in advance that
temporary discontinuance of service may be required.
But if advance notice isn’t practical, the telephone
company will notify the customer as soon as possible.
Also, you will be advised of your right to file a complaint
with the FCC if you believe it is necessary.
The telephone company may make changes in its facili-
ties, equipment, operations or procedures that could
effect the operation of the equipment. If this happens the
telephone company will provide advance notice in order
for you to make necessary modifications to maintain
uninterrupted service.
If trouble is experienced with this equipment, for repair
or warranty information, please refer to the manual or
contact Fujitsu Computer Systems Corporation,
Customer Service. If the equipment is causing harm to
the telephone network, the telephone company may
request that you disconnect the equipment until the
problem is resolved.
The equipment cannot be used on public coin service
provided by the telephone company. Connection to party
line service is subject to state tariffs. (Contact the state
public utility commission, public service commission or
corporation commission for information).
If your home has specially wired alarm equipment
connected to the telephone line, ensure the installation of
this computer does not disable your alarm equipment. If
you have any questions about what will disable alarm
equipment, consult your telephone company or a quali-
fied installer.
The Telephone Consumer Protection Act of 1991 makes
it unlawful for any person to use a computer or other
electronic device to send any message via a telephone fax
machine unless such message clearly contains in a margin
at the top or bottom of each transmitted page or on the
first page of the transmission, the date an time it is sent
and an identification of the business or other entity, or
other individual sending the message and the telephone
number of the sending machine or such business, other
entity, or individual.
Niechen_UG.book Page 43 Thursday, July 14, 2005 3:52 PM
44
Stylistic ST5000 Series Tablet PC User’s Guide – Section Four
DOC (INDUSTRY CANADA) NOTICES
Notice to Users of Radios and Television
This Class B digital apparatus meets all requirements of
Canadian Interference-Causing Equipment Regulations.
CET appareil numérique de la class B respecte toutes les
exigence du Réglement sur le matérial brouilleur du
Canada.
Notice to Users of the Canadian Telephone Network
NOTICE: This equipment
meets the applicable Industry Canada Terminal Equip-
ment Technical Specifications. This is confirmed by the
registration number. The abbreviation, IC, before the
registration number signifies that registration was
performed based on a Declaration of Conformity indi-
cating that Industry Canada technical specifications
were met. It does not imply that Industry Canada
approved the equipment.
Before connecting this equipment to a telephone line the
user should ensure that it is permissible to connect this
equipment to the local telecommunication facilities.
The user should be aware that compliance with the
certification standards does not prevent service
degradation in some situations.
Repairs to telecommunication equipment should be
made by a Canadian authorized maintenance facility.
Any repairs or alterations not expressly approved by
Fujitsu or any equipment failures may give the telecom-
munication company cause to request the user to
disconnect the equipment from the telephone line.
NOTICE: The Ringer Equivalence Number (REN) for
this terminal equipment is 0 .1B. The REN assigned to
each terminal equipment provides an indication of the
maximum number of terminals allowed to be connected
to a telephone interface. The termination on an interface
may consist of any combination of devices subject only
to the requirement that the sum of the Ringer Equiva-
lence Numbers of all the devices does not exceed five.
Avis Aux Utilisateurs Du Réseau
Téléphonique Canadien
AVIS: Le présent matériel
est conforme aux spécifications techniques d’Industrie
Canada applicables au matériel terminal. Cette confor-
mité est confirmée par le numéro d’enregistrement. Le
sigle IC, placé devant le numéro d’enregistrement,
signifie que l’enregistrement s’est effectué conformé-
ment à une déclaration de conformité et indique que les
spécifications techniques d’Industrie Canada ont été
respectées. Il n’implique pas qu’Industrie Canada a
approuvé le matériel.
Avant de connecter cet équipement à une ligne télépho-
nique, l’utilisateur doit vérifier s’il est permis de
connecter cet équipement aux installations de télécom-
munications locales. L’utilisateur est averti que même la
conformité aux normes de certification ne peut dans
certains cas empêcher la dégradation du service.
Les réparations de l’équipement de télécommunications
doivent être eVectuées par un service de maintenance
agréé au Canada. Toute réparation ou modification, qui
n’est pas expressément approuvée par Fujitsu, ou toute
défaillance de l’équipement peut entraîner la compagnie
de télécommunications à exiger que l’utilisateur décon-
necte l’équipement de la ligne téléphonique.
AVIS: L’indice d’équivalence de la sonnerie (IES) du
présent matéri el est de 0.1B. L’IES assigné à chaque
dispositif terminal indique le nombre maximal de
terminaux qui peuvent être raccordés à une interface
téléphonique. La terminaison d’une interface peut
consister en une combinaison quelconque de dispositifs,
à la seule condition que la somme d’indices d’équiva-
lence de la sonnerie de tous les dispositifs n’excède pas 5.
For safety, users should ensure that the
electrical ground of the power utility, the
telephone lines and the metallic water
pipes are connected together. Users should
NOT attempt to make such connections
themselves but should contact the appro-
priate electric inspection authority or elec-
trician. This may be particularly important
in rural areas.
Pour assurer la sécurité, les utilisateurs
doivent vérifier que la prise de terre du ser-
vice d’électricité, les lignes télphoniques et
les conduites d’eau métalliques sont con-
nectées ensemble. Les utilisateurs NE
doivent PAS tenter d’établir ces connex-
ions eux-mêmes, mais doivent contacter
les services d’inspection d’installations
électriques appropriés ou un électricien.
Ceci peut être particulièrement important
en régions rurales.
Niechen_UG.book Page 44 Thursday, July 14, 2005 3:52 PM
45
Appendix A
Wireless LAN/Bluetooth*
User’s Guide
* Optional devices
Niechen_UG.book Page 45 Thursday, July 14, 2005 3:52 PM
46
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix A
Niechen_UG.book Page 46 Thursday, July 14, 2005 3:52 PM
47
Wireless LAN User’s Guide
FCC REGULATORY INFORMATION
Please note the following regulatory information related to the
optional wireless LAN module.
Regulatory Notes and Statements
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wire-
less LAN devices. The energy levels of these emissions, however,
are far much less than the electromagnetic energy emissions
from wireless devices such as mobile phones. Wireless LAN
devices are safe for use by consumers because they operate
within the guidelines found in radio frequency safety standards
and recommendations. The use of Wireless LAN devices may
be restricted in some situations or environments, such as:
On board an airplane, or
In an explosive environment, or
In situations where the interference risk to other devices or
services is perceived or identified as harmful.
In cases in which the policy regarding use of Wireless LAN
devices in specific environments is not clear (e.g., airports,
hospitals, chemical/oil/gas industrial plants, private buildings),
obtain authorization to use these devices prior to operating the
equipment.
Regulatory Information/Disclaimers
Installation and use of this Wireless LAN device must be in
strict accordance with the instructions included in the user
documentation provided with the product. Any changes or
modifications made to this device that are not expressly
approved by the manufacturer may void the user’s authority to
operate the equipment. The manufacturer is not responsible for
any radio or television interference caused by unauthorized
modification of this device, or the substitution or attachment
of connecting cables and equipment other than those specified
by the manufacturer. It is the responsibility of the user to
correct any interference caused by such unauthorized modifica-
tion, substitution or attachment. The manufacturer and its
authorized resellers or distributors will assume no liability for
any damage or violation of government regulations arising
from failure to comply with these guidelines.
This device must not be co-located or operating in conjunction
with any other antenna or transmitter.
For Wireless LAN:
For operation within 5.15~5.25GHz frequency range, it is
restricted to indoor environment, and the antenna of this
device must be integral.
Federal Communications Commission statement
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause interference, and, (2) This device must
accept any interference, including interference that may cause
undesired operation of this device.
FCC Interference Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate radio
frequency energy. If not installed and used in accordance with
the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try and correct
the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the
receiver.
3. Connect the equipment to an outlet on a circuit different
from the one the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician
for help.
FCC Radio Frequency Exposure statement
The available scientific evidence does not show that any health
problems are associated with using low power wireless devices.
There is no proof, however, that these low power wireless devices
are absolutely safe. Low power wireless devices emit low levels of
radio frequency energy (RF) in the microwave range while being
used. Whereas high levels of RF can produce health effects (by
heating tissue), exposure to low-level RF that does not produce
heating effects causes no known adverse health effects. Many
studies of low-level RF exposure have not found any biological
effects. Some studies have suggested that some biological effects
might occur, but such findings have not been confirmed by addi-
tional research. The wireless LAN radio device has been tested and
found to comply with FCC radiation exposure limits set forth for an
uncontrolled equipment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65.
The maximum SAR values measured from the devices are:
Intel PROSet Wireless LAN(WM3945ABG) : under evaluation
Atheros Wireless LAN(AR5BXB6) : 1.57 W/kg
Intel PROSet Wireless LAN(WM3945ABG) + Bluetooth
Simultaneous: under evaluation
Atheros Wireless LAN (AR5BXB6) +Bluetooth Simultaneous:
1.56 W/kg
Export restrictions
This product or software contains encryption code which may
not be exported or transferred from the US or Canada without
an approved US Department of Commerce export license. This
device complies with Part 15 of FCC Rules., as well as ICES 003
B / NMB 003 B. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesirable operation.
Modifications not expressly authorized by Fujitsu Computer
Systems Corporation may invalidate the user's right to operate
this equipment.
Canadian Notice
Niechen_UG.book Page 47 Thursday, July 14, 2005 3:52 PM
The device for the band 5150-5250 MHz is only for indoor usage to
reduce the potential for harmful interference to co-channel mobile
satellite system.
The maximum antenna gain of 6 dBi permitted (for devices in the
5250-5350 MHz and 5470-5725 MHz bands) to comply with the
e.i.r.p. limit.
In addition, users are also cautioned to take note that high power
radars are allocated as primary users (meaning they have priority) of
5250-5350 MHz and 5650-5850 MHz and these radars could cause
interference and/or damage to LE-LAN devices.
48
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix A
Before Using the Wireless LAN
The Integrated Wireless LAN is a standard device on
Stylistic ST5110 Tablet PC’s, and an option on Stylistic
ST5110 Tablet PC’s. This manual describes the basic
operating procedures for the wireless LAN (referred to
as the “wireless module” in this manual) and how to set
up a wireless LAN network. Before using the wireless
module, read this manual carefully to ensure correct
operation of the device. Keep this manual in a safe place
for reference while using the wireless module.
Types of Wireless LANs Covered by this Document
This document is applicable to systems containing one
of the following two wireless modules. Most of the
procedures are identical. Sections that differ between the
two devices have been noted in the text:
Intel PRO/Wireless LAN 3945ABG Network
Atheros AR5006EXS Mini-Card Wireless
Characteristics of the Wireless Module
This wireless module is a mini-PCI card attached to a
mini-PCI slot inside the computer.
The main characteristics are as follows:
It operates in the 2.4 GHz Industrial, Scientific, and
Medical (ISM) RF band; additionally, the Atheros
wireless LAN operates in both the 2.4 GHz and 5 GHz
RF bands.
It does not require an FCC license to operate.
It uses Direct Sequence Spread Spectrum (DSSS), an
RF modulation scheme that is resistant to noise.
This wireless module is Wi-Fi compliant. The wireless
module can communicate at a maximum data rate of
54 Mbps.
The maximum communication range is approxi-
mately 80 feet (25 meters) inside a building. Please
note that the range you achieve may be shorter or
longer than 80 feet, depending on factors such as
obstructions, walls, columns, construction material,
and reflective objects.
The wireless modules support a number of industry-
standard security mechanisms, including WEP, WPA,
TKIP, and 802.1x/EAP (LEAP, TLS, PEAP, MD5).
Wireless LAN Modes Using this Wireless Module
Ad Hoc Mode (See Figure A-1)
“Ad Hoc Mode” refers to a type of wireless network that
involves connecting multiple computers without the use
of an Access Point. Network connectivity between
computers can be established using only wireless LAN
cards in a peer-to-peer fashion.
Ad Hoc networks are an easy and inexpensive method
for establishing network connectivity between multiple
computers.
In Ad Hoc mode, you can use Microsoft Network func-
tions, such as File and Print Sharing to share folders,
printers, or other peripheral devices, and exchange files
with other computers.
To use Ad Hoc Mode, you must set the same SSID and
the same encryption key for all the computers that are
connected. Communication between computers in an
Ad Hoc network will occur provided they are within
each other’s RF coverage area.
Figure A-1. Ad Hoc Mode Network
Niechen_UG.book Page 48 Thursday, July 14, 2005 3:52 PM
connection
network card
(WM3945ABG)
(AR5BXB6)
49
Wireless LAN User’s Guide
Access Point (Infrastructure) Mode (See Figure A-2)
Infrastructure mode refers to a wireless network in which
devices communicate with each other by first going
through an Access Point (AP). In infrastructure mode,
wireless devices can communicate with each other or can
communicate with a wired network. Most corporate
wireless LANs operate in infrastructure mode because
they require access to the wired LAN in order to use
services such as file servers or printers.
How to Handle This Wireless Module
The Integrated Wireless LAN device is already installed in
your mobile computer. Under normal circumstances, it
should not be necessary for you to remove or re-install it.
The wireless LAN has been configured to support the
operating system with which your system shipped.
FOR BETTER COMMUNICATIONS
This personal computer may not operate properly due to
the operating environment. It is highly recommended
that you observe the following precautions when using
your wireless LAN module:
■For optimum wireless communications, it recom-
mended that operation of the wireless LAN module
occur within 25 meters of the Access Point. Wireless
range is dependent on a multitude of factors including
number of obstructions, walls, type of construction
material, reflective objects, etc.
■If the computer is unable to communicate properly,
change the channel to be used or the installation loca-
tion. During the use of a microwave oven or other
equipment generating strong high-frequency energy, in
particular, the personal computer may be highly sus-
ceptible to the energy and unable to communicate
properly.
■Broadcast stations or wireless communication equip-
ment that operate in the 2.4GHz or 5GHz RF Fre-
quency band may interfere with the operation of the
wireless LAN module. Increasing of transmit power or
relocating Access Points may be necessary to combat
the effects of the interference.
Figure A-2. Access Point (Infrastructure) Mode Network
Internet ADSL modem,
cable modem,
or similar
Wired LAN
Wireless LAN
Access Point*
* An optional hub for a wired
LAN may be required depending
upon the type of access point used.
Niechen_UG.book Page 49 Thursday, July 14, 2005 3:52 PM
50
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix A
STOPPING TRANSMISSION
To use this product inside hospitals, clinics, or airplanes,
or in other places where the use of electronic equipment
is regulated, stop the transmission of radio waves from
the wireless LAN beforehand.
Deactivation using the wireless switch
The transmission of radio waves from the wireless LAN
can be stopped by setting the wireless switch to the Off
position. Note that the wireless LAN On/Off switch has
no effect on non-wireless LAN models.
(See Figure 3 for Wireless LAN switch location.)

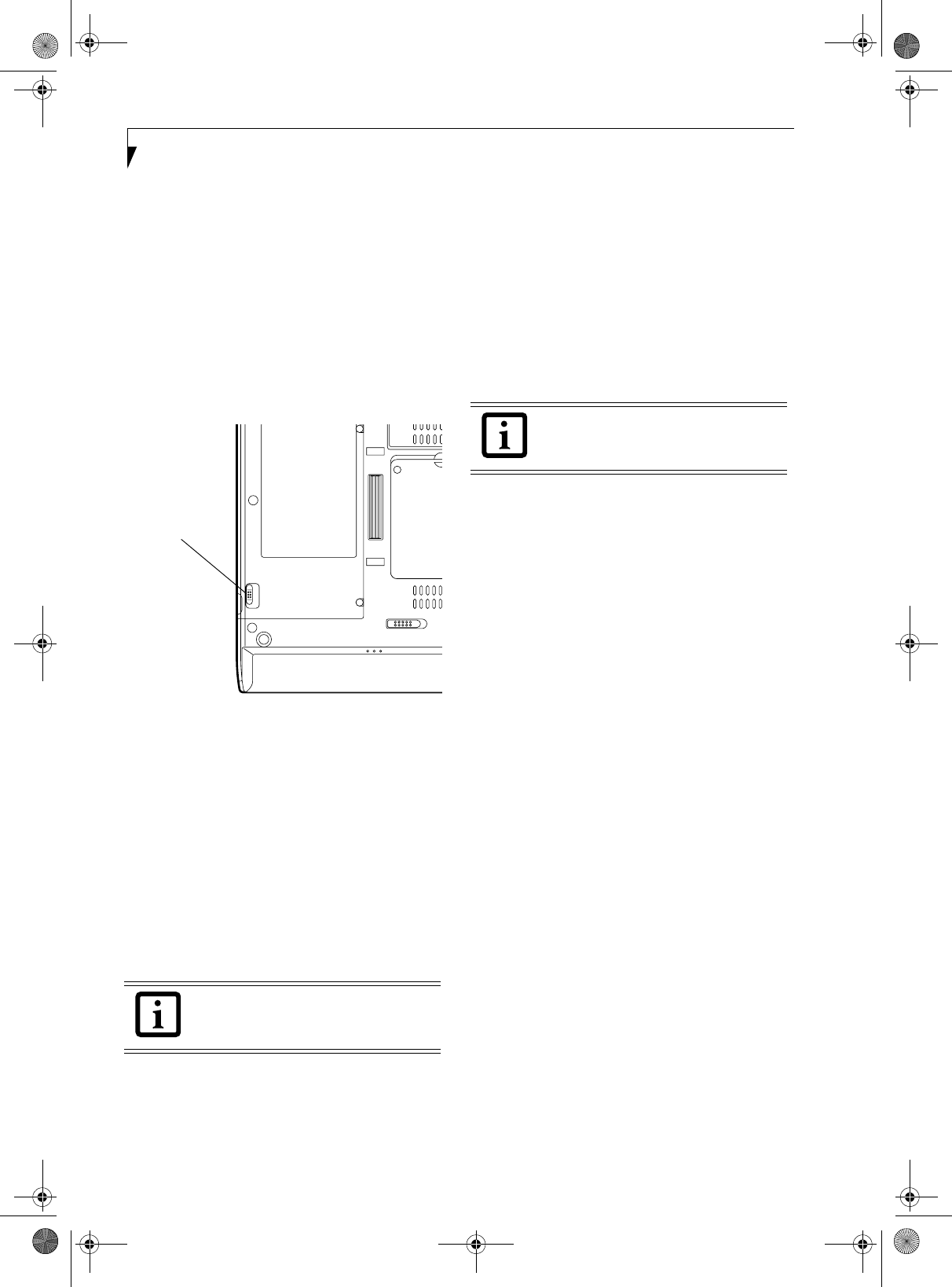

Figure A-3. Wireless LAN On/Off Switch
Deactivation using Windows
Intel PROSet Wireless LAN:
1. Click [Start] --> [(All) Programs] --> [Intel Net-
work Adapters] --> [Intel(R) PROSet]. The
Intel(R) PROSet window will be displayed.
2. Click the General tab.
3. Select [Off] for the wireless communications
Switch Radio: function, and then click the [OK]
button. Wireless communications on/off switching
will be deactivated and the transmission of radio
waves from the wireless LAN will be stopped.
Atheros Wireless LAN
1. Click [Start] --> [Control Panel] --> [Atheros Cli-
ent Utility]. The Atheros Wireless Configuration
Utility window will be displayed.
2. Click the Wireless Networks tab.
3. Click the [Enable Radio] box to clear it, then click
the [OK] button. Wireless communications on/off
switching will be deactivated and the transmission
of radio waves from the wireless LAN will be
stopped.
STARTING TRANSMISSION
To communicate using the wireless LAN function, set
the computer to a status from which it can transmit, as
follows:
Intel PROSet Wireless LAN:
1. Set the wireless switch to the On position.
2. Click [Start] --> [(All) Programs] --> [Intel Net-
work Adapters] --> [Intel(R) PROSet]. The
Intel(R) PROSet window will be displayed.
3. Click the [General] tab if it is not already selected.
4. Select [ON] for the Switch radio: function, then
click [OK]. Wireless communications on/off
switching will be activated and the transmission of
radio waves will be restarted.
Atheros Wireless LAN:
1. Click the Wireless Network Connection icon in the
system tray at the lower right of your screen.
2. Click [Enable Radio]. The radio will be turned on.
Access Point Mode: Transmission is enabled.
Ad Hoc Mode: Restart your computer to enable the
radio.
To restart transmission, select [On] for the
wireless communications Switch Radio:
function, and then click the [OK] button.
Wireless LAN
On/Off
Switch
To restart transmission, check the [Enable
Radio] checkbox to select it., then click the
[OK] button.
Niechen_UG.book Page 50 Thursday, July 14, 2005 3:52 PM
51
Wireless LAN User’s Guide
Connecting the WLAN
FLOW OF OPERATIONS
The wireless LAN connection procedure contained in
this section is outlined below.
1. Make sure the mobile computer is ready for the
transmission of radio waves from the wireless LAN.
For further details, see (See Starting Transmission
on page 50 for more information.).
2. Assign the parameters required for wireless LAN
connection. (See Preparation for wireless LAN con-
nection on page 51 for more information.).
■Configure network name (SSID).
■Configure wireless LAN security parameters as
appropriate (e.g., WEP, TKIP, 802.1x/EAP).
3. Perform setting operations relating to network con-
nection. (See Connection to the network on page 53
for more information.)
■Specify TCP/IP as the protocol, and confirm the name
of the work group and other settings.
■Enter the data required for file/printer sharing on the
network. Perform this operation as required.
■For access point (or “infrastructure”) connection,
configure the wireless module with appropriate
parameters required to associate to the access point
network.
■Verify that you are able to connect your computer to
the network.
PREPARATION FOR WIRELESS LAN
CONNECTION
This section explains the preparations required to use
the wireless LAN when using the Windows XP Wireless
Zero Configuration Tool. Configuration can also be
accomplished using the wireless module (Intel or
Atheros) configuration utility.
Assigning parameters
Enter the network name (SSID), the network key, and
other data required for wireless LAN connection. If there
is the administrator of the network, contact the network
administrator for data settings.
1. Make sure the Wireless LAN switch is switched on.
2. Click the [Start] button first and then [Control
Panel].
3. If the Control Panel is in Category view, switch to
Classic view by clicking “Switch to Classic View”
under Control Panel the left frame. (If you are
already in Classic view, “Switch to Category View”
will be displayed instead.)
4. Double-click the Network Connections icon. A list
of currently installed networks will be displayed.
5. Right-click [Wireless Network Connection] in the
list, and then click [Properties] in the menu dis-
played. The [Wireless Network Connection Proper-
ties] window will be displayed.
6. Click the [Wireless Networks] tab.
7. Click [Refresh], then choose the correct SSID from
the [Available Networks] window. Click [Config-
ure] and proceed to step 10. If the SSID of your
access point does not appear in the list, click [Add].
The [Wireless Network Properties] window will be
displayed.
8. Select the Association tab if it is not already
selected.
9. Enter the information required for connection to
the wireless LAN.
a. Enter the network name (SSID). (i.e., Enter the
name of the desired network in less than 33
ASCII characters).
■To use access point (infrastructure) con-
nection, refer to the access point manual
for the access point-setting procedure.
■You do not need to set the channel
when using access point (infrastructure)
mode. Channel selection is controlled by
the access point. In ad hoc networks,
channel selection defaults to channel 11;
however, channel selection can be man-
ually changed if desired. This can be
accomplished only when using the client
utility.
If it is necessary to change the channel,
change the setting of the access point.
For the setting procedure, refer to the
manual of the access point.
Niechen_UG.book Page 51 Thursday, July 14, 2005 3:52 PM
52
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix A
For ad hoc connection: Assign the same network
name to all the personal computers to be
connected.
For access point (infrastructure) connection:
Assign the appropriate SSID. The SSID must be
identical to the SSID of the access point. Refer to
the access point manual, or contact your network
administrator.
b. For ad hoc connection, check the following field.
For access point (infrastructure) connection,
clear the check mark for the following field:
[This is a computer-to-computer (ad hoc) net-
work; wireless access points are not used.]
10. Choose the appropriate Network Authentication
type. Options are Open, Shared, WPA, or WPA-
PSK. Please contact your network administrator for
the correct setting.
11. Choose the Data Encryption type. Options are
WEP, TKIP, or AES. The latter two encryption
methods are available only when the Network
Authentication scheme is WPA or WPA-PSK. WEP,
TKIP, and AES are different methods used to
encrypt communications data. Proceed to Step 11a
if using static WEP keys, otherwise proceed to step
12.
a. Clear the check mark from the [The key is
provided for me automatically] check box.
b. Enter data in [Network Key]. Depending on the
number of entered characters or digits, whether
the key is an ASCII character code or a hexadec-
imal code will be identified automatically.
■Use five or thirteen characters to enter the key in
the ASCII character code format. The characters
that can be used as the “network key” are as fol-
lows: 0 - 9, A - Z, _ (underscore), or,
■Use 10 or 26 characters to enter the key in the
hexadecimal character code format. The charac-
ters that can be used as the “network key” in this
case are as follows: 0- 9, A - Z, a - f
For ad hoc connection: Assign the same network
key to all the personal computers to be con-
nected.
For access point (infrastructure) connection:
Assign the identical network key that is pro-
grammed into the access point. For this setting,
refer to the access point manual or contact your
network administrator.
c. Confirm the Network key by re-entering the
same data in the [Confirm network key:] field.
d. Make sure that the key index used is identical to
the key index used by the Access Point(s).
12. Click the [Authentication] tab and then verify the
settings of [Enable network access control using
IEEE 802.1x].
For internal use at an organization such as a com-
pany, when access by wireless LAN clients is to be
limited using IEEE 802.1x authentication, check the
[Enable network access control using IEEE 802.1x]
check box.
For home use, clear the check mark from [Enable
network access control using IEEE 802.1x].
For the setting method relating to IEEE 802.1x
authentication, refer to the manual of the access
point which you are using.
13. After completion of setting operations, click the
[OK] button. Processing will return to the [Wire-
less Network Connection Properties] window.
14. Verify that the network name entered in step 7
above is added in [Preferred Networks], and then
click the [OK] button.
15. Close the [Wireless Network] window.
It is strongly recommended that you enter
the network key for encoding
communications data. If the network key
is not entered, since the network can be
accessed from all personal computers
containing the wireless LAN function,
there is the danger of your data being
stolen or damaged by other users.
In [Preferred Networks], register only the
desired connection settings.
Niechen_UG.book Page 52 Thursday, July 14, 2005 3:52 PM
53
Wireless LAN User’s Guide
CONNECTION TO THE NETWORK
This section explains connection to the network.
If there is an administrator of the network, contact the
network administrator for data settings.
Setting the network
Perform the “Setting TCP/IP” and “Confirming the
computer and work group names” operations required for
network connection.
Setting TCP/IP
1. Click the [Start] button first and then [Control
Panel].
2. If the Control Panel is in Category view, switch to
Classic view by clicking “Switch to Classic View”
under Control Panel the left frame. (If you are
already in Classic view, “Switch to Category View”
will be displayed.)
3. Double-click [Network Connections]. A list of cur-
rently installed networks will be displayed.
4. Right-click [Wireless Network Connection] in the
list, and then click [Properties] in the menu dis-
played. The [Wireless Network Connection Proper-
ties] window will be displayed.
5. Click the [General] tab if it is not already selected.
6. Click [Internet Protocol (TCP/IP] and then click
[Properties]. The [Internet Protocol (TCP/IP)
Properties] window will be displayed.
7. Set the IP address as follows:
■For ad hoc connection: Select [Use the following
IP address:] and then enter data for [IP address]
and [Subnet mask]. See page 62 for IP address
setting.
■For access point (infrastructure) connection: If
your network uses DHCP, select [Obtain an IP
address automatically] and [Obtain DNS server
address automatically]. If your network uses static
IP addresses, consult with your network adminis-
trator for the correct IP address settings.
8. Click the [OK] button. Processing will return to the
[Wireless Network Connection Properties] window.
9. Click the [OK] button.
10. Close the [Network Connection] window.
Following this operation, confirm the names of the
computer and the workgroup as follows.
Confirming the computer and work group names
1. Click the [Start] button, then [Control Panel].
2. If the Control Panel is in Category view, switch to
Classic view by clicking “Switch to Classic View”
under Control Panel the left frame. (If you are
already in Classic view, “Switch to Category View”
will be displayed.)
3. Double-click the [System] icon. The [System Prop-
erties] window will be displayed.
4. Click the [Computer Name] tab.
5. Confirm the settings of [Full computer name:] and
[Workgroup:].
a. The setting of [Full computer name:] denotes the
name for identifying the computer. Any name
can be assigned for each personal computer.
Enter the desired name in less than 15 ASCII
character code format. Identifiability can be
enhanced by entering the model number, the
user name, and other factors.
b. [Workgroup name] is the group name of the
network. Enter the desired name in less than 15
ASCII character code format.
For ad hoc connection: Assign the same network
name to all personal computers existing on the
network.
For access point (infrastructure) connection:
Assign the name of the work group to be
accessed.
6. Click the [OK] button. If a message is displayed
that requests you to restart the personal computer,
click [Yes] to restart the computer.
Setting the sharing function
Set the sharing function to make file and/or printer sharing
with other network-connected personal computers valid.
To change the setting of the IP address,
you need to be logged in from Windows
as an administrator.
To modify the computer name and/or the
work group name, you need to be logged
in from Windows as an administrator.
To change the name, click [Change] and
then proceed in accordance with the
instruction messages displayed on the
screen.
Niechen_UG.book Page 53 Thursday, July 14, 2005 3:52 PM
54
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix A
This operation is not required unless the sharing func-
tion is to be used.
The folder and printer for which the sharing function
has been set will be usable from any personal computer
present on the network.
Setting the Microsoft network-sharing service
1. Click the [Start] button first and then [Control
Panel].
2. If the Control Panel is in Category view, switch to
Classic view by clicking “Switch to Classic View”
under Control Panel the left frame. (If you are
already in Classic view, “Switch to Category View”
will be displayed.)
3. Double-click [Network Connections]. A list of cur-
rently installed networks will be displayed.
4. Right-click [Wireless Network Connection] in the
list, and then click [Properties] in the menu dis-
played. The [Wireless Network Connection Proper-
ties] window will be displayed.
5. If [File and Printer Sharing for Microsoft Net-
works] is displayed, proceed to step 6. If [File and
Printer Sharing for Microsoft Networks] is not dis-
played, skip to step 7.
6. Make sure that the [File and Printer Sharing for
Microsoft Networks] check box is checked, and
then click the [OK] button. Skip to “Setting file-
sharing function”.
7. Click [Install]. The [Select Network Component
Type] window will be displayed.
8. Click [Service], then click the [Add] button. The
[Select Network Service] window will be displayed.
9. Click [File and Printer Sharing for Microsoft Net-
works] and then click the [OK] button. Processing
will return to the [Wireless Network Connection
Properties] window, and [File and Printer Sharing
for Microsoft Networks] will be added to the list.
10. Click the [Close] button.
Setting the file-sharing function
The procedure for setting the file-sharing function
follows, with the “work” folder in drive C: as an
example.
1. Click the [Start] button first and then [My Com-
puter].
2. Double-click [Local disk (C:)].
3. Right-click the “work” folder (or whichever folder
you want to share), and then click [Sharing and
Security...] in the menu displayed. The [Folder
Name Properties] window will be displayed.
4. Click [Sharing] if it isn’t already selected.
5. Click the link stating “If you understand the secu-
rity risks, but want to share files without running
the wizard, click here”.
6. Click “Just enable file sharing” and click [OK].
7. Check the [Share this folder on the network] check
box.
8. Click the [OK] button. The folder will be set as a
sharable folder, and the display of the icon for the
“work.” folder will change.
Setting the printer-sharing function
1. Click the [Start] button first and then [Printers and
FAX]. A list of connected printers will be displayed.
2. Right-click the printer for which the sharing func-
tion is to be set, and then click [Sharing] in the
menu displayed. The property window correspond-
ing to the selected printer will be displayed.
3. Click the [Sharing] tab.
4. Click [Share this printer].
To share a file and/or the connected
printer, you need to be logged in as an
administrator.
Setting the file-sharing function for the file
which has been used to execute Network
Setup Wizard is suggested on the screen.
For the wireless LAN, however, since
security is guaranteed by entry of the
network name (SSID) and the network
key, the steps to be taken to set the file-
sharing function easily without using
Network Setup Wizard are given below.
To specify the corresponding folder as a
read-only folder, select the [Read only]
checkbox under the General tab.
Setting the printer-sharing function when
Network Setup Wizard has been executed
is suggested on the screen. For the wireless
LAN, however, since security is guaranteed
by entry of the network name (SSID) and
the network key, the steps to be taken to
set the printer-sharing function without
using Network Setup Wizard are laid down
below.
Niechen_UG.book Page 54 Thursday, July 14, 2005 3:52 PM
55
Wireless LAN User’s Guide
5. Enter the sharing printer name in [Share name].
6. Click the [OK] button.
Confirming connection
After you have finished the network setup operations,
access the folder whose sharing has been set for other
personal computers. Also, confirm the status of the radio
waves in case of trouble such as a network connection
failure.
Connecting your personal computer to another
personal computer
1. Click [Start] first and then [My Computer]. The
[My Computer] window will be displayed in the left
frame.
2. Click [My Network Places] in the “Other Places”
list. The window [My Network Places] will be dis-
played.
3. Click [View workgroup computers] under Network
Tasks in the left frame.
4. Double-click the personal computer to which your
personal computer is to be connected. The folder
that was specified in “Setting the file-sharing func-
tion” on page 54 will be displayed.
5. Double-click the folder to be accessed.
Confirming the status of the radio
Intel PROSet Wireless LAN:
1. Click [Start] -> [All Programs] -> [Intel Network
Adapters] -> [Intel(R) PROSet]. The [Intel(R)
PROSet] window will be displayed.
2. Click the [General] tab and confirm radio status in
the window displayed. The current connection sta-
tus will be displayed.
■Signal Quality
The quality of the signals is displayed on a graph.
■Network name (SSID)
The connected network name (SSID) is displayed.
■Profile name
“<No profile>” is displayed.
■Mode
If access point (infrastructure) connection is in
use, “Infrastructure (AP)” will be displayed. If ad
hoc connection is in use, “Ad hoc (Peer-to-peer)”
will be displayed.
■Security
Displays the encryption type currently used by
the radio.
■Speed
Displays the current data rate used by the radio to
transmit and receive data.
■Band (Frequency)
The current operating frequency band is
displayed. When communication is possible,
“802.11b (2.4 GHz)” is displayed.
■Channel
The channel number currently being used for the
communications is displayed.
If connection cannot be made to the network or if you
want to check for normal connection, see “Trouble-
shooting” on page 58.
Atheros Wireless LAN:
1. Right-click the Atheros icon in the lower right cor-
ner of the screen.
2. Click [Open Client Utility]. The Atheros Wireless
Configuration Utility window opens.
3. Contained within the Current Status tab and
Advanced Current Status, you will find the current
operating status of the radio. (When the radio is
turned off or the computer is not yet connected,
some of the conditions will not be displayed.)
■Profile Name
The current configuration profile is displayed.
■Network Type - Configured Network Type
[Access Point] or [AdHoc] will be displayed.
■Current Mode
Indicates the frequency and data rate currently
used by the radio.
■Current Channel
The channel number currently used by the radio.
■Link Status
Displays the current connected state of the
WLAN module.
■Encryption Type
Displays the encryption type currently used by
the radio.
In the case of access point (infrastructure)
connection, enter the necessary data for
the access point before confirming
connection. Refer to the manual of the
access point for the access point setup
procedure.
Niechen_UG.book Page 55 Thursday, July 14, 2005 3:52 PM
56
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix A
■IP Address
Displays the current TCP/IP address assigned to
the WLAN adapter.
■Country
The country with the country code for which the
radio is configured.
■Transmit Power Level
Displays the current transmit power level of the
radio.
■Network Name (SSID)
Displays the Network Name (SSID) currently
used by the radio.
■Power Save Mode
Displays the configured Power Save Mode
currently used by the radio. [Off], [Normal], or
[Maximum] will be displayed.
■BSSID
Displays the Basic Service Set Identifier. This is
typically the MAC address of the Access Point or
in the case of AdHoc networks, is a randomly
generated MAC address.
■Frequency
Displays the center frequency currently being
used by the radio.
■Transmit Rate
Displays the current data rate used by the radio
to transmit data.
■Receive Rate
Displays the current data rate used by the radio
to receive data.
Niechen_UG.book Page 56 Thursday, July 14, 2005 3:52 PM
57
Wireless LAN User’s Guide
Other settings
SETTING OF POWER-SAVING FUNCTION
You can set the power-saving function of wireless LAN.
Default setting is auto-setting. In case of using the power-
saving function, manually control the communication
performance.
Intel PROSet Wireless LAN:
1. Click [Start] -> [(All) Programs] -> [Intel Network
Adapters] -> [Intel(R) PROSet]. The Intel(R)
PROSet window will be displayed.
2. Click the [Adapter] tab.
3. Click the [Configure] button in [Power settings].
The [Power settings] window will be displayed.
4. Select [Manual], and adjust the bar to set the power-
saving function.
Setting of transmission power during ad hoc
connection
By controlling the transmission power during ad hoc
connection, you can broaden or narrow the communica-
tion range. This setting is only effective during ad hoc
connection. It will be ineffective during access point
connection.
Intel PROSet Wireless LAN:
1. Click [Start] -> [(All) Programs] -> [Intel Network
Adapters] -> [Intel(R) PROSet]. The Intel(R)
PROSet window will be displayed.
2. Click the [Adapter] tab.
3. Click the [Configure] button in [Power settings].
The [Power settings] window will be displayed.
4. Adjust the “Transmission Power (Ad Hoc)” bar to
set the transmission power.
Setting of channels during ad hoc connection
You can set channels during ad hoc connection. Channel
11 is set by default. When connecting to an existing ad
hoc network, no channel setting will be effective.
This setting is only effective during ad hoc connection; it
will be ineffective during access point connection.
Intel PROSet Wireless LAN:
1. Click [Start] -> [(All) Programs] -> [Intel Network
Adapters] -> [Intel(R) PROSet]. The Intel(R)
PROSet window will be displayed.
2. Click the [Adapter] tab.
3. Click the [Configure] button in [Ad hoc settings].
The [Ad hoc settings] window will be displayed.
4. Change channels during ad hoc connection by
selecting a new channel from the drop down list.
5. Click [OK].
Atheros Wireless LAN:
1. Click on the My Computer icon. Select [View sys-
tem information] from the left frame.
2. Select the Hardware tab and click [Device Manager].
3. Double-click “Atheros Wireless LAN Adapter”
under [Network Adapters].
4. In the Atheros Wireless LAN Adapter window, select
the Advanced tab.
5. Select IBSS Channel Number from the list, and
change the value from the [Value:] dropdown list to
the desired channel.
6. Click [OK].
When changing channels during ad hoc
connection, change the channel settings of
all connected computers with the same
Network name (SSID) at the same time.
After changing the channels, turn off all
computers and -- after they are all turned
off -- turn them back on.
Niechen_UG.book Page 57 Thursday, July 14, 2005 3:52 PM
58
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix A
Troubleshooting
Causes and countermeasures for troubles you may encounter while using your wireless LAN are described in the
following table.
Problem Possible Cause Possible Solution
Unavailable
network
connection
Incorrect network
name (SSID) or
network key
Ad hoc connection: verify that the network names (SSID’s) and network
keys (WEP) of all computers to be connected have been configured
correctly. SSID’s and WEP key values must be identical on each machine.
Access Point (Infrastructure) connection: set the network name (SSID)
and network key to the same values as those of the access point.
Set the Network Authentication value identically to that of the Access
Point. Please consult your network administrator for this value, if
necessary.
For the method of setting network authentication, refer to the following
pages:· “Assigning parameters” on page 51·
Poor radio wave
condition
Ad hoc connection: Retry connection after shortening the distance to
the destination computer or removing any obstacles for better sight.
Access Point (Infrastructure) connection: Retry connection after short-
ening the distance to the access point or removing any obstacles for
better sight.
To check the wave condition, refer to the following pages:· “Confirming
the status of the radio waves” on page 55.·
Radio wave
transmission has
stopped
Check if the wireless switch is turned ON. Also verify “Disable Radio” is
not checked in “Network setting” window. Refer to “Starting Transmis-
sion” on page 50.
The computer to be
connected is turned
off
Check if the computer to be connected is turned ON.
Active channel
duplication due to
multiple wireless
LAN networks
If there is any other wireless LAN network nearby, change channels to
avoid active channel duplication. For the method of checking active
channels, refer to the following pages:· “Confirming the status of the
radio waves” on page 55·
No right of access to
the network to be
connected
Check if you have a right of access to the network to be connected with.
Incorrectly-
performed network
setting
Check the protocol, work group name or shared setting.
For the method of checking, refer to the following pages:· “Connection
to the Network” on page 53.
Unmatched
[Network
authentication
(shared mode)]
settings in Windows
XP
If the setting of [Network authentication (shared mode)] is not matched
with that of access point or computer to be connected with, no commu-
nication can be established. Check the parameter setting. Refer to
“Assigning parameters” on page 51.
Niechen_UG.book Page 58 Thursday, July 14, 2005 3:52 PM
59
Wireless LAN User’s Guide
Unavailable
network
connection
(continued)
It takes too long to
retrieve the network
and display the
connected
computers.
Retrieve computers as follow:
1. Click [Start] button, then click [Search].
2. Click [Computers or people].
3. Click [Computers on the network].
4. Input the name of computer to be connected with in [Computer
name] and click [Search].
5. Double-click the icon of connected computer.·
Incorrect setting of IP
address
Check the network setting.
“Setting the network” on page 53.
In case of using TCP/IP protocol, you can check IP address as follows:
1. Click [Start] -> [All programs] -> [Accessories] ->
[Command prompt].·
2. In [Command prompt] or [MS-DOS prompt] window, input
[IPCONFIG] command as follows, then press [Enter] key.
Example: In case of C drive being the hard disk:
C:\ipconfig [Enter]
Check that the IP address is correctly displayed:.
IP Address................: 10.0.1.3
Subnet Mask.............: 255.255.255.0
Default Gateway.........: 10.0.1.1
When IP address is displayed as [169.254.XXX.YYY] or [0.0.0.0],
IP address is not correctly fetched from the access point. In that
case, restart the computer itself. If the display is still unchanged,
check the setting of TCP/IP.
If [Cable Disconnected] or [Media Disconnected] is displayed
without showing IP address, check the setting of network name
(SSID) and network key. Also, set the network authentication
according to the access point.
Communication
is disconnected
soon after
connection to
the access point
Access control may
be disabled
Check the setting of “Enable network access control using IEEE
802.1X”.Refer to “Assigning parameters” on page 51.
When restricting the access of wireless LAN clients using IEEE802.1X
authentication, put a check mark on “Enable network access control
using IEEE 802.1X”.
When using at home, remove a check mark on “Enable network access
control using IEEE802.1X”.
For the method of setting related with IEEE802.1X authentication, refer
to the access point manual.
Authentication
method may have
been entered
incorrectly
Re-enter your WEP key and verify that your authentication method
(Open or Shared) is correct.
Problem Possible Cause Possible Solution
Niechen_UG.book Page 59 Thursday, July 14, 2005 3:52 PM
60
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix A
Wireless LAN Glossary
Access point
A designation of wireless LAN network configurations.
It indicates a form of communication using an Access
Point. For details, refer to “access point connection” on
page 48.
Ad hoc
A designation for wireless LAN network configuration.
It indicates a form of communication limited to those
personal computers which have wireless LAN function.
For details, refer to “Ad hoc connection” on page 48.
Channel
The frequency band of wireless LAN to be used in
communications over wireless LAN or at the access
point.
DHCP (Dynamic Host Configuration Protocol)
A protocol used for automatically fetching communica-
tion parameters such as IP addresses. The side which
assigns IP address is called DHCP server and the side
that is assigned it is called DHCP client.
DNS (Domain Name System)
A function that controls the correspondence of IP
addresses assigned to a computer with the name. Even
for those computers whose IP addresses are unknown, if
their names are known, it is possible to communicate
with them.
IEEE802.11a
One of the wireless LAN standards prescribed by the
802.11 committee in charge of establishing standards of
LAN technology in IEEE (Institute of Electrical and
Electronic Engineers). It allows communications at the
maximum speed of 54 Mbps by using a 5GHz band
which can freely be used without radio communication
license.
IEEE802.11b
One of the wireless LAN standards prescribed by the
802.11 committee in charge of establishing standards of
LAN technology in IEEE (Institute of Electrical and
Electronic Engineers). It allows communications at the
maximum speed of 11Mbps by a band of 2.4 GHz (ISM
band) which can freely be used without radio communi-
cation license.
IP address
An address used by computers for communicating in
TCP/IP environment. IP addresses have global and
private addresses. A global address is a unique address in
the world. A private address is a unique address within a
closed network.
LAN (Local Area Network)
An environment connecting computers within a rela-
tively small range, such as the same floor and building.
MAC address (Media Access Control Address)
A physical address inherent to a network card. For
Ethernet, the top three bytes are controlled/assigned as a
vendor code. The remaining three bytes comprise the
code uniquely (to avoid duplication) controlled by each
vendor. As a result, there is no Ethernet card with the
same physical address in the world. In Ethernet, the
frame transmission/reception is performed based on this
address.
MTU (Maximum Transmission Unit)
The maximum size of data which can be transmitted at
one time in networks including the Internet. In an envi-
ronment whose maximum size of data is too large to
correctly receive data, normal communications can be
restored by setting the size of MTU to a smaller value.
Network authentication
The method of authentication performed by wireless
LAN clients to connect with the access point. There are
two types: open system authentication and shared key
authentication. The type of authentication must be set
to each client and also coincide with the setting of access
point with which to communicate. Network authentica-
tion is sometimes called authentication mode.
Network key
Data that is used for encrypting data in data communi-
cation. The personal computer uses the same network
key both for data encryption and decryption, therefore,
it is necessary to set the same network key as the other
side of communication.
Network name (SSID: Service Set Identifier)
The network name is a unique identifier attached to the
WLAN packet header that acts as a password when the
client attempts to connect to a WLAN. The SSID differ-
entiates one WLAN from another so all WLAN devices
attempting to connect to a specific WLAN must use the
same SSID. SSID’s are transmitted in cleartext, thus
supplying no security to the WLAN.
Niechen_UG.book Page 60 Thursday, July 14, 2005 3:52 PM
61
Wireless LAN User’s Guide
Open system authentication
An 802.11 wireless LAN authentication method. Open
System does not exchange any key or other information,
it is a simple request by the mobile station to be authenti-
cated without verifying identity.
PPPoE (Point to Point Protocol over Ethernet)
A method of allowing the authentication protocol
adopted in telephone line connection (PPP) to be used
over an Ethernet.
Protocol
A procedure or rule of delivering data among computers.
Ordered data communication is allowed by making all
conditions required for communication including the
method of data transmission/reception and actions upon
communication errors into procedures.
Shared key authentication
An 802.11 wireless LAN authentication method. When a
client attempts to associate to an access point, the access
point will send a challenge to the client. The client
encrypts the challenge with the network key and sends it
back to the access point. If the access point can decrypt
the challenge, then authentication has succeeded.
SSID (Service Set Identifier)
See “Network name”
Subnet mask
TCP-IP network is controlled by being divided into
multiple smaller networks (subnets). IP address consists
of the subnet address and the address of each computer.
Subnet mask defines how many bits of IP address
comprise the subnet address. The same value shall be set
among computers communicating with each other.
TCP/IP (Transmission Control Protocol/Internet
Protocol)
A standard protocol of the Internet.
Wi-Fi
Short for “Wireless Fidelity”. A term meant to be used
generically when referring to any type of 802.11 network,
whether 802.11b, 802.11a, 802.11g, etc.
Niechen_UG.book Page 61 Thursday, July 14, 2005 3:52 PM
62
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix A
IP address information
If IP address is unknown, set IP address as follows:
If you have an access point (DHCP server) on the
network, set the IP address as follows:
[Obtain an IP address automatically]
If the IP address is already assigned to the computer in
the network, ask the network administrator to check the
IP address to be set for the computer.
If no access point is found in the network:
An IP address is expressed with four values in the range
between 1 and 255.
Set the each computer as follows: The value in paren-
theses is a subnet mask.
<Example>
Computer A: 192.168.100.2 (255.255.255.0)
Computer B: 192.168.100.3 (255.255.255.0)
Computer C: 192.168.100.4 (255.255.255.0)
:
:
Computer X: 192.168.100.254 (255.255.255.0)
IP addressing is much more complicated
than can be briefly explained in this
document. You are advised to consult with
your network administrator for additional
information.
A DHCP server is a server that
automatically assigns IP addresses to
computers or other devices in the network.
There is no DHCP server for the AdHoc
network.
Niechen_UG.book Page 62 Thursday, July 14, 2005 3:52 PM
63
Wireless LAN User’s Guide
Specifications
* “Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the interconnectivity of
wireless LAN (Wi-Fi Alliance) has been passed.
** Encryption with network key (WEP) is performed using the above number of bits, however, users can set 40 bits/104
bits after subtracting the fixed length of 24 bits.
*** The maximum number of computers that can be supported by an Access Point is highly variable, and can be affected
by such factors as application bandwidth utilization, broadcast packet traffic, type of applications used, etc. The
number of 10 provided by this document is meant only as a guideline and not a limitation of the technology.
Item Specification
Type of network Conforms to IEEE 802.11a/802.11b/g (Wi-Fi based)*
Transfer rate (Automatic switching)
54 Mbps maximum data rate
Active frequency 802.11b/g: 2400~2473 MHz
802.11a: 4900 ~ 5850 MHz
Number of channels 802.11a: 8 independent channels
802.11b/g: 11 channels, 3 non-overlapping channels
Security • Encryption Types: WEP, TKIP, AES
• WPA 1.0 compliant
• Encryption Keylengths Supported: 64 bits, 128 bits, 152
bits (Atheros module using AES encryption only)
• 802.1x/EAP
• CCX 1.0 compliant
Maximum recommended number of computers to be
connected over wireless LAN (during ad hoc connection)
10 units or less ***
Niechen_UG.book Page 63 Thursday, July 14, 2005 3:52 PM
64
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix A
Using the Bluetooth Device
The Integrated Bluetooth module (EYTF3CSFT) is an
optional device available for Fujitsu mobile computers.
WHAT IS BLUETOOTH?
Bluetooth technology is designed as a short-range
wireless link between mobile devices, such as laptop
computers, phones, printers, and cameras. Bluetooth
technology is used to create Personal Area Networks
(PANs) between devices in short-range of each other.
WHERE TO FIND INFORMATION
ABOUT BLUETOOTH
The Bluetooth module contains a robust Help user’s
guide to assist you in learning about operation of the
Bluetooth device.
To access the Help file, click [Start] -> All Programs, and
click on Toshiba. Select Bluetooth, then select User’s
Guide.
For additional information about Bluetooth Technology,
visit the Bluetooth Web site at: www.bluetooth.com.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
The transmitters in this device must not be co-located or
operated in conjunction with any other antenna or
transmitter.
Canadian Notice
To prevent radio interference to the licensed service, this
device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or
its transmit antenna) that is installed outdoors is subject
to licensing.
Warranty
Users are not authorized to modify this product. Any
modifications invalidate the warranty.
This equipment may not be modified, altered, or
changed in any way without signed written permission
from Fujitsu. Unauthorized modification will void the
equipment authorization from the FCC and Industry
Canada and the warranty.
Niechen_UG.book Page 64 Thursday, July 14, 2005 3:52 PM
65
Appendix B
Security Device*
User’s Guide
* Availability varies by model
Niechen_UG.book Page 65 Thursday, July 14, 2005 3:52 PM
66
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix B
Niechen_UG.book Page 66 Thursday, July 14, 2005 3:52 PM
67
Security Device User’s Guide
Fingerprint Sensor Device
INTRODUCING THE
FINGERPRINT SENSOR DEVICE
Your system may have a fingerprint sensor device on the
side of the display opposite the function buttons. The
device is a standard feature on 12.1” models; it is not
available on 10.4” models. (See Figure 1-2 on page 3 for
location)
Figure B-1 Fingerprint sensor
With a fingerprint sensor, you can avoid having to enter
a username and password every time you want to:
■Log onto Windows
■Recover from suspend mode
■Cancel a password-protected screen saver
■Log into homepages that require a username and pass-
word
After you have “enrolled” - or registered - your finger-
print, you can simply swipe your fingertip over the
sensor for the system to recognize you.
The fingerprint sensor uses Softex OmniPass which
provides password management capabilities to
Microsoft Windows operating systems. OmniPass
enables you to use a "master password" for all Windows,
applications, and on-line passwords.
OmniPass requires users to authenticate themselves
using the fingerprint sensor before granting access to the
Windows desktop. This device results in a secure
authentication system for restricting access to your
computer, applications, web sites, and other password-
protected resources.
OmniPass presents a convenient graphical user inter-
face, through which you can securely manage pass-
words, users, and multiple identities for each user.
GETTING STARTED
This section guides you through the preparation of your
system for the OmniPass fingerprint recognition
application. You will be led through the OmniPass
installation process. You will also be led through the
procedure of enrolling your first user into OmniPass.
INSTALLING OMNIPASS
If OmniPass has already been installed on your system,
skip this section and go directly to “User Enrollment” on
page 68. You can determine whether OmniPass has
already been installed by checking to see if the following
are present:
■The presence of the gold key-shaped OmniPass icon in
the system tray at the bottom right of the screen.
■The presence of the Softex program group in the
Programs group of the Start menu
System Requirements
The OmniPass application requires space on your hard
drive; it also requires specific Operating Systems (OS’s).
The minimum requirements are as follows:
■Windows XP Home Edition, Windows XP Profes-
sional or Windows 2000 operating system
■At least 35 MB available hard disk space
Installing the OmniPass Application
If OmniPass is already installed on your system, go to
“User Enrollment” on page 68. Otherwise continue with
this section on software installation.
To install OmniPass on your system you must:
1. Insert the installation media for the OmniPass
application into the appropriate drive. If you are
installing from CD-ROM or DVD-ROM, you must
find and launch the OmniPass installation program
(setup.exe) from the media.
2. Follow the directions provided in the OmniPass
installation program. Specify a location to which
you would like OmniPass installed. It is recom-
mended that you NOT install OmniPass in the root
directory (e.g. C:\).
3. Once OmniPass has completed installation you will
be prompted to restart you system. Once your
system has rebooted you will be able to use
OmniPass. If you choose not to restart immediately
after installation, OmniPass will not be available for
use until the next reboot.
The installation program automatically places an icon
(Softex OmniPass) in the Windows Control Panel as
well as a golden key shaped icon in the taskbar.
For installation, OmniPass requires that the
user installing OmniPass have
administrative privileges to the system. If
your current user does not have
administrative privileges, log out and then
log in as an administrator before
proceeding with OmniPass installation.
Niechen_UG.book Page 67 Thursday, July 14, 2005 3:52 PM
68
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix B
Verifying Information about OmniPass
After you have completed installing OmniPass and
restarted your system, you may wish to check the version
of OmniPass on your system.
To check the version information of OmniPass:
1. From the Windows Desktop, double-click the key-
shaped OmniPass icon in the taskbar (usually
located in the lower right corner of the screen),
or,
Click the Start button, select Settings, and click
Control Panel (if you are using Windows XP you
will see the Control Panel directly in the Start menu;
click it, then click Switch to Classic View). Double-
click Softex OmniPass in the Control Panel, and the
OmniPass Control Center will appear. If it does not
appear, then the program is not properly installed,
or,
Click the Start button, select Programs, and from
the submenu select the Softex program group, from
that submenu click OmniPass Control Center.
2. Select the About tab at the top of the OmniPass
Control Panel. The About tab window appears with
version information about OmniPass.
Uninstalling OmniPass
To remove the OmniPass application from your system:
1. Click Start on the Windows taskbar. Select Settings,
and then Control Panel.
2. Double-click Add/Remove Programs.
3. Select OmniPass, and then click Change/Remove.
4. Follow the directions to uninstall the OmniPass
application.
5. Once OmniPass has finished uninstalling, reboot
your system when prompted.
USER ENROLLMENT
Before you can use any OmniPass features you must first
enroll a user into OmniPass.
Master Password Concept
Computer resources are often protected with passwords.
Whether you are logging into your computer, accessing
your email, e-banking, paying bills online, or accessing
network resources, you often have to supply credentials
to gain access. This can result in dozens of sets of creden-
tials that you have to remember.
During OmniPass user enrollment a "master password”
is created for the enrolled user. This master password
“replaces” all other passwords for sites you register with
OmniPass.
Example: A user, John, installs OmniPass on his system
(his home computer) and enrolls an OmniPass user with
username “John_01” and password “freq14”. He then
goes to his webmail site to log onto his account. He
inputs his webmail credentials as usual (username
“John_02” and password “tablet”), but instead of
clicking [Submit], he directs OmniPass to Remember
Password. Now whenever he returns to that site,
OmniPass will prompt him to supply access credentials.
John enters his OmniPass user credentials (“John_01”
and “freq14”) in the OmniPass authentication prompt,
and he is allowed into his webmail account. He can do
this with as many web sites or password protected
resources he likes, and he will gain access to all those
sites with his OmniPass user credentials (“John_01” and
“freq14”). This is assuming he is accessing those sites
with the system onto which he enrolled his OmniPass
user. OmniPass does not actually change the credentials
of the password protected resource. If John were to go to
an Internet cafe to access his webmail, he would need to
enter his original webmail credentials (“John_02” and
“tablet”) to gain access. If he attempts his OmniPass user
credentials on a system other than where he enrolled
that OmniPass user, he will not gain access.
Basic Enrollment
The Enrollment Wizard will guide you through the
process of enrolling a user. Unless you specified other-
wise, after OmniPass installation the Enrollment Wizard
will launch on Windows login. If you do not see the
Enrollment Wizard, you can bring it up by clicking Start
on the Windows taskbar; select Programs; select Softex;
click OmniPass Enrollment Wizard.
1. Click Enroll to proceed to username and password
verification. By default, the OmniPass Enrollment
Wizard enters the credentials of the currently logged
in Windows user.
2. Enter the password you use to log in to Windows.
This will become the “master password” for this
For uninstallation, OmniPass requires that
the user uninstalling OmniPass have
administrative privileges to the system. If
your current user does not have
administrative privileges, log out and then
log in as an administrator before
proceeding with OmniPass uninstallation.
The basic enrollment procedure assumes
you have no hardware authentication
devices or alternate storage locations that
you wish to integrate with OmniPass. If
you desire such functionality, consult the
appropriate sections after reviewing this
section.
Niechen_UG.book Page 68 Thursday, July 14, 2005 3:52 PM
69
Security Device User’s Guide
OmniPass user. In most cases, the Domain: value will
be your Windows computer name. In a corporate
environment, or when accessing corporate resources,
the Domain: may not be your Windows computer
name. Click [Next] to continue.
3. In this step OmniPass captures your fingerprint.
Refer to “Enrolling a Fingerprint” on page 69 for
additional information.
4. Next, choose how OmniPass notifies you of various
events. We recommend you keep Taskbar Tips on
Beginner mode taskbar tips and Audio Tips on at
least Prompt with system beeps only until you get
accustomed to how OmniPass operates. Click [Next]
to proceed with user enrollment. You will then see a
Congratulations screen indicating your completion
of user enrollment.
5. Click [Done] to exit the OmniPass Enrollment
Wizard. You will be asked if you’d like to log in to
OmniPass with your newly enrolled user; click [Yes].
Enrolling a Fingerprint
Enrolling a fingerprint will increase the security of your
system and streamline the authentication procedure.
You enroll fingerprints in the OmniPass Control Center.
With an OmniPass user logged in, double-click the
system tray OmniPass icon. Select the User Settings tab
and click Enrollment under the User Settings area. Click
Enroll Authentication Device and authenticate at the
authentication prompt to start device enrollment.
1. During initial user enrollment, you will be prompted
to select the finger you wish to enroll. Fingers that
have already been enrolled will be marked by a green
check. The finger you select to enroll at this time will
be marked by a red arrow. OmniPass allows you to
re-enroll a finger. If you choose a finger that has
already been enrolled and continue enrollment,
OmniPass will enroll the fingerprint, overwriting the
old fingerprint. Select a finger to enroll and click
[Next].
2. It is now time for OmniPass to capture your selected
fingerprint. It may take a several capture attempts
before OmniPass acquires your fingerprint. Should
OmniPass fail to acquire your fingerprint, or if the
capture screen times out, click [Back] to restart the
fingerprint enrollment process.
Your system has a “swipe” fingerprint sensor. A swipe
sensor is small and resembles a skinny elongated rect-
angle. To capture a fingerprint, gently swipe or pull
your fingertip over the sensor (starting at the second
knuckle) in the direction of the arrow. Swiping too
fast or too slow will result in a failed capture. The
Choose Finger screen has a [Practice] button; click it
to practice capturing your fingerprint. When you are
comfortable with how your fingerprint is captured,
proceed to enroll a finger.
3. Once OmniPass has successfully acquired the finger-
print, the Verif y Fin ger p r i nt screen will automati-
cally appear. To verify your enrolled fingerprint, place
your fingertip on the sensor and hold it there as if
you were having a fingerprint captured. Successful
fingerprint verification will show a green fingerprint
in the capture window and the text Ve r i f i c a t i o n
Successful under the capture window.
USING OMNIPASS
You are now ready to begin using OmniPass. Used regu-
larly, OmniPass will streamline your authentication
procedures.
Password Replacement
You will often use the password replacement function.
When you go to a restricted access website (e.g., your
bank, your web-based email, online auction or payment
sites), you are always prompted to enter your login
credentials. OmniPass can detect these prompts and you
can teach OmniPass your login credentials. The next time
you go to that website, you can authenticate with your
fingerprint to gain access.
OmniPass Authentication Toolbar
After installing OmniPass and restarting, you will notice
a dialog you have not seen before at Windows Logon.
This is the OmniPass Authentication Toolbar, and it is
displayed whenever the OmniPass authentication system
is invoked. The OmniPass authentication system may be
invoked frequently: during Windows Logon, during
OmniPass Logon, when unlocking your workstation,
when resuming from standby or hibernate, when
unlocking a password-enabled screensaver, during pass-
word replacement for remembered site or application
logins, and more. When you see this toolbar, OmniPass is
prompting you to authenticate.
The Logon Authentication window indicates what
OmniPass-restricted function you are attempting. The
icons in the lower left (fingerprint and key) show what
authentication methods are available to you. Selected
authentication methods are highlighted while unselected
methods are not. When you click the icon for an unse-
lected authentication method, the authentication prompt
associated with that method is displayed.
When prompted to authenticate, you must supply the
appropriate credentials: an enrolled finger for the finger-
print capture window or your master password for the
master password prompt (the key icon).
Remembering a Password
OmniPass can remember any application, GUI, or pass-
word protected resource that has a password prompt.
Niechen_UG.book Page 69 Thursday, July 14, 2005 3:52 PM
70
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix B
Using the following procedure, you can store a set of
credentials into OmniPass. These credentials will then be
linked to your “master password” or fingerprint.
Go to a site that requires a login (username and pass-
word), but do not log in yet. At the site login prompt,
enter your username and password in the prompted
fields, but do not enter the site (do not hit [Enter],
[Submit], [OK], or Login). Right-click the OmniPass
system tray icon and select Remember Password from
the submenu. The Windows arrow cursor will change to
a golden key OmniPass cursor. Click this OmniPass
cursor in the login prompt area, but do not click the
[Login] or [Submit] button.
Associating a Friendly Name
After clicking the OmniPass key cursor near the login
prompt, OmniPass will prompt you to enter a “friendly
name” for this site. You should enter something that
reminds you of the website, the company, or the service
you are logging into. In its secure database, OmniPass
associates this friendly name with this website.
Additional Settings for Remembering a Site
When OmniPass prompts you to enter a “friendly name”
you also have the opportunity to set how OmniPass
authenticates you to this site. There are three effective
settings for how OmniPass handles a remembered site.
The default setting is Automatically click the “OK” or
“Submit” button for this password protected site once
the user is authenticated. With this setting, each time
you navigate to this site OmniPass will prompt you for
your master password or fingerprint authentication
device. Once you have authenticated with OmniPass,
you will automatically be logged into the site.
Less secure is the option to Automatically enter this
password protected site when it is activated. Do not
prompt for authentication. Check the upper box to get
this setting, and each time you navigate to this site
OmniPass will log you into the site without prompting
you to authenticate.
If you uncheck both boxes in Settings for this Password
Site, OmniPass will prompt you for your master pass-
word or fingerprint authentication device. Once you
have authenticated with OmniPass your credentials will
be filled in to the site login prompt, but you will have to
click the website [OK], [Submit], or [Login] button to
gain access to the site.
Click Finish to complete the remember password proce-
dure. The site location, the credentials to access the site,
and the OmniPass authentication settings for the site are
now stored in the OmniPass secure database. The
OmniPass authentication settings (Settings for this Pass-
word Site) can always be changed in Vault Management.
Logging in to a Remembered Site
Whether or not OmniPass prompts you to authenticate
when you return to a remembered site is determined by
Settings for this Password Site and can be changed in
Vault Management.
The following cases are applicable to using OmniPass to
login to: Windows, remembered web sites, and all other
password protected resources.
With Master Password
Once you return to a site you have remembered with
OmniPass, you may be presented with a master pass-
word prompt. Enter your master password and you will
be allowed into the site.
Logging into Windows with a Fingerprint Device
When logging into Windows with a fingerprint device,
the fingerprint capture window will now appear next to
the Windows Login screen. Place your enrolled fingertip
on the sensor to authenticate. You will be simultaneously
logged into Windows and OmniPass. The capture
window will also appear if you have used Ctrl-Alt-Del to
lock a system, and the fingerprint device can be used to
log back in as stated above.
In Windows XP, your login options must be set either for
classic login, or for fast user switching and logon screen
to be enabled to use your fingerprint to log on to
Windows. To change this go to Control Panel, select
User Accounts and then click Change the way users log
on or off. If your Windows screensaver is password
protected, the fingerprint capture window will now
appear next to screensaver password dialog during
resume. You can authenticate to your screensaver pass-
word prompt with your enrolled finger.
Password Management
OmniPass provides an interface that lets you manage
your passwords. To access this GUI, double-click the
This setting is more convenient in that
whenever you go to a site remembered
with this setting, you will bypass any
authentication procedure and gain instant
access to the site. But should you leave
your system unattended with your
OmniPass user logged in, anyone using
your system can browse to your password
protected sites and gain automatic access.
If a machine is locked and OmniPass
detects a different user logging back in
with a fingerprint, the first user will be
logged out and the second user logged in.
Niechen_UG.book Page 70 Thursday, July 14, 2005 3:52 PM
71
Security Device User’s Guide
OmniPass key in the system tray. Click Vaul t Manage -
ment; you will be prompted to authenticate. Once you
gain access to Vault Management, click Manage Pass-
words under Vault Settings. You will see the Manage
Passwords interface, with a list of friendly names.
You can view the credentials stored for any remembered
website by highlighting the desired resource under Pass-
word Protected Dialog and clicking Unmask Values.
Should a password be reset, or an account expire, you
can remove stored credentials from OmniPass. Highlight
the desired resource under Password Protected Dialog
and click Delete Page. You will be prompted to confirm
the password deletion.
The two check boxes in Manage Passwords govern
whether OmniPass prompts you to authenticate or
directly logs you into the remembered site.
OmniPass will overwrite an old set of credentials for a
website if you attempt to use Remember Password on an
already remembered site.
The exception to the above rule is the resetting of your
Windows password. If your password is reset in
Windows, then the next time you login to Windows,
OmniPass will detect the password change and prompt
you to “Update” or “Reconfirm” your password with
OmniPass. Enter your new Windows password in the
prompt(s) and click OK and your OmniPass "master
password" will still be your Windows password.
OmniPass User Identities
Identities allow OmniPass users to have multiple
accounts to the same site (e.g., bob@biblomail.com and
boballen@biblomail.com). If OmniPass did not provide
you identities, you would be limited to remembering
one account per site.
To create and manage identities, double-click the
OmniPass key in the system tray. Click Vaul t Manage -
ment; OmniPass will prompt you to authenticate. Once
you gain access to Vault Management, click Manage
Identities under Vault Settings. You can only manage
the identities of the currently logged in OmniPass user
To add a new identity, click New Identity or double-click
Click here to add a new identity. Name the new identity
and click [OK], then click [Apply]. You can now switch
to the new identity and start remembering passwords.
To delete an identity, highlight the identity you want to
delete and click [Delete Identity], then click [Apply].
To set the default identity, highlight the identity you
want as default and click [Set as Default]; click [Apply]
to ensure the settings are saved. If you log in to
OmniPass with a fingerprint device, you will automati-
cally be logged in to the default identity for that
OmniPass user. You can choose the identity with which
you are logging in if you login using "master password".
Choosing User Identity during Login
To choose your identity during login, type your user-
name in the User Name: field. Press [Tab] and see that
the Domain: field self-populates. Click the Password:
field to bring the cursor to it, and you will see the pull-
down menu in the Identity: field. Select the identity you
wish to login as and then click OK to login.
Switch User Identity
To switch identities at any time, right-click the
OmniPass system tray icon and click Switch User Iden-
tity from the submenu. The Switch Identity dialog will
appear. Select the desired identity and then click OK.
Identities and Password Management
On the Manage Passwords interface of the Va u l t
Management tab of the OmniPass Control Center, there
is a pull-down selection box labeled, Identity. This field
lets you choose which identity you are managing pass-
words for. When you select an identity here, only those
password protected dialogs that are associated with that
identity are shown. You can perform all the functions
explained in “Password Management” on page 70.
CONFIGURING OMNIPASS
This section gives an overview of both the Export/
Import function and the OmniPass Control Center.
Exporting and Importing Users
Using the OmniPass Control Center, you can export and
import users in and out of OmniPass. The export
process backs up all remembered sites, credentials, and
any enrolled fingerprints for an OmniPass user. All
OmniPass data for a user is backed up to a single
encrypted database file. During the import process, the
Windows login of the exported user is required. If the
When you delete an identity, all of its
associated remembered sites and password
protected dialogs are lost.
Niechen_UG.book Page 71 Thursday, July 14, 2005 3:52 PM
72
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix B
proper credentials cannot be supplied, the user profile
will not be imported.
Exporting an OmniPass User Profile
To export a user, open the OmniPass Control Center,
and click Import/Export User under Manage Users.
Click Exports an OmniPass user profile. OmniPass will
prompt you to authenticate. Upon successfully authenti-
cation, you must name the OmniPass user profile and
decide where to save it. An .opi file is generated, and you
should store a copy of it in a safe place.
This .opi file contains all your user specific OmniPass
data, and it is both encrypted and password protected.
This user profile does NOT contain any of your
encrypted data files.
Importing an OmniPass User Profile
To import an OmniPass user open the OmniPass
Control Center, and click Import/Export User under
Manage Users. Click Imports a new user into OmniPass
and then select OmniPass Import/Export File (*.opi)
and click Next. OmniPass will then prompt you to
browse for the file you had previously exported (.opi
file). When you select the .opi file for importation,
OmniPass will prompt you for authentication. The
credentials that will allow a user profile to be imported
are the Windows login credentials of the exported user.
They are the credentials that had to be submitted when
the user profile was exported. You will need User Name,
Password, and Domain. If you don’t remember the value
for Domain, in a PC or SOHO environment Domain
should be your computer name.
OmniPass will notify you if the user was successfully
imported.
Things to Know Regarding Import/Export
■Assume you export a local Windows User profile from
OmniPass. You want to import that profile to another
machine that has OmniPass. Before you can import
the profile, a Windows user with the same login cre-
dentials must be created on the machine importing the
profile.
Example: I have a Windows user with the username
“Tom” and the password “Sunshine” on my system. I
have enrolled Tom into OmniPass and remembered
passwords. I want to take all my passwords to new sys-
tem. I export Tom’s OmniPass user profile. I go to my
new system and using the Control Panel I create a user
with the username "Tom" and the password "Sun-
shine". I can now successfully import the OmniPass
user data to the new system.
■If you export an OmniPass-only user, you can import
that user to any computer running OmniPass, pro-
vided that a user with that name is not already
enrolled in OmniPass.
■If you attempt to import a user profile who has the
same name as a user already enrolled in OmniPass, the
OmniPass import function will fail.
OMNIPASS CONTROL CENTER
This section will serve to explain functions within the
OmniPass Control Center that weren’t explained earlier.
You can access the OmniPass Control Center any of
three ways:
■Double-click the golden OmniPass key shaped icon in
the Windows taskbar (typically in the lower-right cor-
ner of the desktop)
■Click the Start button; select the Programs group;
select the Softex program group; and click the
OmniPass Control Center selection.
■Open the Windows Control Panel (accessible via Start
button --> Settings --> Control Panel) and double-
click the Softex OmniPass icon.
User Management
The User Management tab has two major interfaces:
Add/Remove User and Import/Export User. Import/
Export User functionality is documented in “Exporting
and Importing Users” on page 71. Add/Remove User
functionality is straightforward.
If you click Adds a new user to OmniPass you will start
the OmniPass Enrollment Wizard. The Enrollment
Wizard is documented in “User Enrollment” on page 68.
■You should periodically export your user
profile and store it in a safe place. If
anything happens to your system, you
can import your OmniPass profile to a
new system and have all your remem-
bered settings and fingerprints instantly.
■When you examine the importation, you
are prompted for authentication. The
credentials that will allow a user profile
to be imported are the Windows login
credentials of the exported user. They
are the credentials that had to be
submitted when the user profile was
exported. You will need User Name,
Password, and Domain.
You cannot import a user into OmniPass if
there already is a user with the same name
enrolled in OmniPass.
Niechen_UG.book Page 72 Thursday, July 14, 2005 3:52 PM
73
Security Device User’s Guide
If you click Removes a user from OmniPass, OmniPass
will prompt you to authenticate. Authenticate with the
credentials (or enrolled fingerprint) of the user you wish
to remove. OmniPass will prompt you to confirm user
removal. Click OK to complete user removal.
User Settings
The User Settings tab has four interfaces: Audio Settings,
Taskba r Tip s, and Enrollment. User settings allow users
to customize OmniPass to suit their individual prefer-
ences. Under User Settings (Audio Settings and Ta s k b a r
Tips) you can set how OmniPass notifies the user of
OmniPass events (e.g., successful login, access denied,
etc.). The details of each setting under the Audio
Settings and Tas kba r Tip s interfaces are self-explana-
tory.
The Enrollment interface allows you to enroll finger-
prints. For the procedure to enroll and authentication
device refer to Chapter 2.3. To enroll additional finger-
prints, click Enroll Authentication Device, and authen-
ticate with OmniPass. Select the fingerprint recognition
device in the Select Authentication Device screen (it
should already be marked by a green check if you have a
finger enrolled) and click Next.
System Settings
The OmniPass Startup Options interface can be found
in the System Settings tab. With these options you can
specify how your OmniPass Logon is tied to your
Windows Logon.
The first option, Automatically log on to OmniPass as
the current user, will do just as it says; during Windows
login, you will be logged on to OmniPass using your
Windows login credentials. If the user logging into
Windows was never enrolled into OmniPass, upon login
no one will be logged on to OmniPass. This setting is
appropriate for an office setting or any setting where
users must enter a username and password to log into a
computer. This is the default setting.
With the second option, Manually log on to OmniPass
at startup, OmniPass will prompt you to login once you
have logged on to Windows.
With the third option, Do not log on to OmniPass at
startup, OmniPass will not prompt for a user to be
logged on.
You can manually log on to OmniPass by right-clicking
the OmniPass taskbar icon and clicking Log in User
from the right-click menu.
Removing a user will automatically destroy
all OmniPass data associated with that
user. All identities and credentials
associated with the user will be lost. If you
are sure about removing the user, we
recommend you export the user profile.
Niechen_UG.book Page 73 Thursday, July 14, 2005 3:52 PM
74
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix B
TROUBLESHOOTING
You cannot use OmniPass to create Windows users. You
must first create the Windows user, and you will need
administrative privileges to do that. Once the Windows
user is created, you can add that user to OmniPass using
the same username and password
Cannot add Windows users to OmniPass
If you experience difficulties adding a Windows user
to OmniPass, you may need to adjust your local secu-
rity settings. You can do this by going to Start,
Control Panel, Administrative Tools, and Local
Security Settings. Expand Local Policies, expand
Security Options, and double-click Network Access:
Sharing and Security Model for Local Accounts. The
correct setting should be Classic - Local Users Authen-
ticate as Themselves.
Cannot add a User with a Blank Password to OmniPass
If you experience difficulties adding a user with a
blank password to OmniPass, you may need to adjust
your local security settings. First attempt the proce-
dure explained in the Cannot add Windows user to
OmniPass section. If the difficulties persist, then try
the following procedure.
Click Start, Control Panel, Administrative Tools,
and Local Security Settings. Expand Local Policies,
expand Security Options, and double-click
Accounts: Limit local account use of blank pass-
words to console login only. This setting should be
set to Disabled.
Dialog appears after OmniPass authentication during
Windows Logon
After installing OmniPass on your system, you can
choose to logon to Windows using OmniPass. You
authenticate with OmniPass (via master password, or
an enrolled security device) and OmniPass logs you
into Windows. You may, during this OmniPass
authentication, see a Login Error dialog box.
This dialog box occurs when OmniPass was unable to
log you into Windows with the credentials supplied
(username and password). This could happen for any
of the following reasons:
■Your Windows password has changed
■Your Windows account has been disabled
If you are having difficulties due to the first reason,
you will need to update OmniPass with your changed
Windows account password. Click Update Password
and you will be prompted with a dialog to reconfirm
your password.
Enter the new password to your Windows user
account and click OK. If the error persists, then it is
unlikely the problem is due to your Windows user
account password changing.
Niechen_UG.book Page 74 Thursday, July 14, 2005 3:52 PM
75
Security Device User’s Guide
Trusted Platform Module Installation
This disc contains several utilities that allow you to
enhance the security of your system using the optional
Trusted Platform Module (TPM) contained in the sys-
tem. TPM is a Trusted Computer Group (TCG)-compli-
ant embedded security chip that allows computers to run
applications more securely and to make transactions and
communications more trustworthy. TPM is an important
component of the Fujitsu Security Platform.
Procedure
Be sure you have a built-in or external drive attached to
your system that can read CDs. You will also need a
means to write to removable media during the installa-
tion.
Enabling the Security Chip in BIOS
1. Before installing the TPM software, you will need to
enable the security chip in the system BIOS. To do so:
• If your system is running, click [Start] -> Shut
Down, and select Restart. Click [OK].
• If the system is not running, power it up.
2. When the Fujitsu logo appears, press the [F2] but-
ton. The BIOS Setup Utility will appear.
3. Open the Security menu, scroll down to Set Super-
visor Password, and enter a password (if not already
set).
4. While in the Security menu, scroll down to Security
Chip Setting, and click on it. The Security Chip Set-
ting submenu will appear.
5. Click on Security Chip to enable it.
6. Click [F10] to save changes and exit.
Installing the TPM Applications
1. Insert the “Trusted Platform Module Drivers and
Applications CD” in the drive.
2. The setup program should start the installation
automatically. If the installation does not start auto-
matically, go to the setup.exe file on the disc and
double-click on it.
3. Follow the instructions that appear on your screen
to load the drivers and applications for TPM.
4. After loading the software, you will be prompted to
reboot your system. Remove the CD from the drive,
then reboot.
5. After rebooting, the Security Platform Installation
Wizard will open and lead you through the setup
and customization of the TPM applications.
Getting Help
■For detailed help about installing the TPM applica-
tions, go to the readme.txt file on the disc.
■For in-depth help and information about the TPM
applications, double-click on the Security Platform
icon in the system tray, and click {Getting Started
Guide].
• The use of this disc requires that you
have a device capable of reading CDs
attached to your system. If you do not
have a built-in CD or DVD player, you
will need to attach an external player.
• The use of this disc also requires a
device capable of writing to removable
media (such as a floppy disk drive, CD-
RW drive, or PCMCIA memory card).
This drive will be used to store the
Emergency Recovery Token file and -- if
desired -- the Emergency Recovery
Archive file. For more information on
available external devices, visit our Web
site at: us.fujitsu.com/computers.
When installing the software, be sure to
create Emergency Recovery Archive and
Emergency Recovery Token files when
prompted by the Security Platform
Initialization Wizard. These files will be
necessary in the event of hardware failure.
Failure to create these files could result in
a loss of the Security Platform owner key,
which is the physical root for secrets as
well as the logical root for all Security
Platform user-specific keys. The
Initialization Wizard provides step-by-step
instructions for creating the files.
Niechen_UG.book Page 75 Thursday, July 14, 2005 3:52 PM
76
Stylistic ST5000 Series Tablet PC User’s Guide – Appendix B
Niechen_UG.book Page 76 Thursday, July 14, 2005 3:52 PM
77
Index
Index
A
adjusting the display brightness . . . . . . . . . . . . . . . . . 24
air flow vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
application buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
application A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
application B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Ctl-Alt-Del button . . . . . . . . . . . . . . . . . . . . . . . . . 10
display mode button . . . . . . . . . . . . . . . . . . . . . . . . 10
EMail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
enter button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
escape button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Fujitsu Menu Utility . . . . . . . . . . . . . . . . . . . . . . . . 11
function button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
orientation button . . . . . . . . . . . . . . . . . . . . . . . . . 10
security button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
tertiary functions . . . . . . . . . . . . . . . . . . . . . . . . 13, 14
Automatically Downloading Driver Updates . . . . . . 37
B
battery gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
battery gauge icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
battery icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
battery pack
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
critically low level . . . . . . . . . . . . . . . . . . . . . . . . . . 23
low-battery warning . . . . . . . . . . . . . . . . . . . . . . . . 23
no memory effect . . . . . . . . . . . . . . . . . . . . . . . . . . 26
overcharge protection . . . . . . . . . . . . . . . . . . . . . . . 26
removing and installing . . . . . . . . . . . . . . . . . . . . . 26
will not begin charging . . . . . . . . . . . . . . . . . . . . . . 26
battery power
conserving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
used in suspend-to-RAM mode . . . . . . . . . . . . . . . 23
battery release latch . . . . . . . . . . . . . . . . . . . . . . . . . 4, 18
BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
application buttons, for . . . . . . . . . . . . . . . . . . 13, 14
BOOT Priority Change . . . . . . . . . . . . . . . . . . . . . . . . 36
bridge battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
built-in microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
C
calibrating the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
care and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 33
charge/DC input icon . . . . . . . . . . . . . . . . . . . . . . . . . . 8
charging the battery pack . . . . . . . . . . . . . . . . . . . . . . .25
cleaning the display screen . . . . . . . . . . . . . . . . . . . . . .34
configuring peripherals interface . . . . . . . . . . . . . . . .35
connectors and peripheral interfaces . . . . . . . . . . . . .17
conserving battery power . . . . . . . . . . . . . . . . . . . . . . .26
conventions used in the guide . . . . . . . . . . . . . . . . . . . .v
critically low battery level . . . . . . . . . . . . . . . . . . . . . . .23
cursor
not tracking pen . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
D
DC input connector . . . . . . . . . . . . . . . . . . . . . . . . .6, 17
DIMM card, removing . . . . . . . . . . . . . . . . . . . . . . . . .29
display
screen is blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
screen, cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Drivers and Application Restore CD . . . . . . . . . . . . .35
E
external monitor connector . . . . . . . . . . . . . . . . . . . . . .6
F
FDU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
fingerprint sensor device . . . . . . . . . . . . . . . . . . . . .3, 67
enrolling a fingerprint . . . . . . . . . . . . . . . . . . . . . . .69
importing an OmniPass user profile . . . . . . . . . . . .72
installing OmniPass . . . . . . . . . . . . . . . . . . . . . . . . .67
introducing the fingerprint sensor device . . . . . . .67
using OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
verifying information about OmniPass . . . . . . . . .68
Fujitsu contact information . . . . . . . . . . . . . . . . . . . . . .v
Fujitsu Driver Update utility . . . . . . . . . . . . . . . . . . . .37
Fujitsu online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v
H
hard disk drive access icon . . . . . . . . . . . . . . . . . . . . . . .9
headphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
headphone jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Hibernate (Save-to-Disk) mode . . . . . . . . . . 21, 23, 24
I
idle state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
IEEE 1394 jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6, 18
Niechen_UG.book Page 77 Thursday, July 14, 2005 3:52 PM
78
Stylistic ST5000 Series Tablet PC
infrared data transfer not working . . . . . . . . . . . . . . 35
infrared keyboard port . . . . . . . . . . . . . . . . . . . . . . . 3, 7
infrared keyboard/mouse port . . . . . . . . . . . . . . . . . . 18
Installing a Memory Stick . . . . . . . . . . . . . . . . . . . . . . 27
interfaces
connectors and peripherals . . . . . . . . . . . . . . . . . . 17
IrDA port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
IrDA/FIR port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
L
LAN jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Local Area Network (LAN) . . . . . . . . . . . . . . . . . . . . 18
Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 18
low-battery warning . . . . . . . . . . . . . . . . . . . . . . . . . . 23
M
memory cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
memory module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Memory Stick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
microphone jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
N
navigation buttons . . . . . . . . . . . . . . . . . . . . . . . . . 3, 12
O
Off state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 22
OmniPass
Control Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
importing an OmniPass user profile . . . . . . . . . . . 72
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
verifying information . . . . . . . . . . . . . . . . . . . . . . . 68
optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
additional accessories . . . . . . . . . . . . . . . . . . . . . . . . 2
carrying cases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
docking options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
input devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
media options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
power options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
overheating, avoiding . . . . . . . . . . . . . . . . . . . . . . . . . .34
P
page up/page down . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
PC Card eject button . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PC card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5, 17, 28
PC Cards
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 7
installing a pen tether . . . . . . . . . . . . . . . . . . . . . . . .25
not responding . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
replacing the tip . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
pen tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
pen tether point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
peripheral connectors . . . . . . . . . . . . . . . . . . . . . . . . . .17
power icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8, 22
blinking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22, 23
not displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
power on/suspend/resume
button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
power usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
powering up the pen tablet . . . . . . . . . . . . . . . . . . . . .22
preparation for wireless LAN connection . . . . . . . . . .51
problems, solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
protecting the display screen . . . . . . . . . . . . . . . . . . . .33
R
removable battery pack . . . . . . . . . . . . . . . . . . . . . . . . .4
removing a DIMM card . . . . . . . . . . . . . . . . . . . . . . . .29
removing a Memory Stick . . . . . . . . . . . . . . . . . . . . . .28
restoring the factory image . . . . . . . . . . . . . . . . . . . . .36
restoring your pre-installed software . . . . . . . . . . . . .35
resuming system operation . . . . . . . . . . . . . . . . . .24, 34
RJ-45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
S
Save-to-Disk mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
SD Card
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
SD Card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
SD Card/Memory Stick Slot . . . . . . . . . . . . . . . . . . . . .5
Secure Digital Card
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Niechen_UG.book Page 78 Thursday, July 14, 2005 3:52 PM
79
Index
Security Application Panel
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
uninstalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting up Security Panel . . . . . . . . . . . . . . . . . . . . . . 14
shutting down the system . . . . . . . . . . . . . . . . . . . . . . 22
Smart Card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
solving problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
speaker/headphone volume too low . . . . . . . . . . . . . 35
status display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
battery icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
charge/DC input icon . . . . . . . . . . . . . . . . . . . . . . . . 8
hard disk drive access icon . . . . . . . . . . . . . . . . . . . . 9
power icon, blinking . . . . . . . . . . . . . . . . . . . . . . . . 22
power icon, system states indicated by . . . . . . . 8, 22
storing the system unit . . . . . . . . . . . . . . . . . . . . . . . . 34
Stylistic ST5000
care and maintenance . . . . . . . . . . . . . . . . . . . . . . . 33
features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3, 4, 5, 6, 7
items included with . . . . . . . . . . . . . . . . . . . . . . . . . . 1
storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Stylistic ST5000 specifications
additional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
agency approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
suspend mode, determining . . . . . . . . . . . . . . . . . . . . 23
Suspend/Resume
disabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Suspend/Resume button . . . . . . . . . . . . . . . . . . . . . . . 18
suspending system operation . . . . . . . . . . . . . . . . . . . 22
Suspend-to-RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 24
system interface connector . . . . . . . . . . . . . . . . . . . . . . 4
system states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 22
Hibernate (Save-to-Disk) . . . . . . . . . . . . . . . . . . . . 21
Idle state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Off state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
On state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Suspend-to-RAM . . . . . . . . . . . . . . . . . . . . . . . . . . 21
system status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
system will not resume operation . . . . . . . . . . . . . . . 34
T
Tablet Dock latch point . . . . . . . . . . . . . . . . . . . . . . . . .4
Tablet Dock port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
tertiary functions of application buttons . . . . . . .13, 14
thermal suede . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Trusted Platform Module
enabling the security chip in BIOS . . . . . . . . . . . . .75
getting help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
turning off the system . . . . . . . . . . . . . . . . . . . . . . . . . .22
U
Universal Serial Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
USB ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6, 17
using the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
W
Windows XP Tablet PC Edition . . . . . . . . . . . . . . . .v, 1
Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Ad Hoc Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Atheros Wireless LAN . . . . . . . . . . . . . . . . . . . . . . .48
connecting the WLAN . . . . . . . . . . . . . . . . . . . . . . .51
for better communications . . . . . . . . . . . . . . . . . . .49
Infrastructure Mode . . . . . . . . . . . . . . . . . . . . . . . . .49
Intel PROSet Wireless LAN . . . . . . . . . . . . . . . . . . .48
IP address information . . . . . . . . . . . . . . . . . . . . . . .62
Other settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
setting of power-saving function . . . . . . . . . . . . . . .57
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
starting transmission . . . . . . . . . . . . . . . . . . . . . . . .50
stopping transmission . . . . . . . . . . . . . . . . . . . . . . .50
troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Wireless LAN glossary . . . . . . . . . . . . . . . . . . . . . . .60
wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
before using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
wireless LAN/Bluetooth on/off switch . . . . . . . . . .4, 18
Niechen_UG.book Page 79 Thursday, July 14, 2005 3:52 PM
80
Stylistic ST5000 Series Tablet PC
Niechen_UG.book Page 80 Thursday, July 14, 2005 3:52 PM
Niechen_UG.book Page 81 Thursday, July 14, 2005 3:52 PM
Niechen_UG.book Page 82 Thursday, July 14, 2005 3:52 PM
Niechen_UG.book Page 83 Thursday, July 14, 2005 3:52 PM
Niechen_UG.book Page 84 Thursday, July 14, 2005 3:52 PM
Niechen_UG.book Page 85 Thursday, July 14, 2005 3:52 PM
Niechen_UG.book Page 86 Thursday, July 14, 2005 3:52 PM

Navigation menu
