Fujitsu Client Computing WB0079 NOTEBOOK COMPUTER User Manual Coco B6FJ 3001 01ENZ0 00
Fujitsu Limited NOTEBOOK COMPUTER Coco B6FJ 3001 01ENZ0 00
Contents
- 1. users manual
- 2. USERS MANUAL
USERS MANUAL
User’s Guide
Learn how to use
your Fujitsu LifeBook
P3010 notebook
Copyright and Trademark Information
Fujitsu America, Inc. has made every effort to ensure the accuracy and completeness of this document; however, as ongoing development
efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We
disclaim liability for errors, omissions, or future changes.
Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited.
Intel and Intel Atom are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Bluetooth is a trademark of Bluetooth SIG, Inc., USA.
ENERGY STAR and the ENERGY STAR certification mark are registered trademarks of the U. S. Government.
Adobe, Acrobat, and Acrobat Reader are either a registered trademarks or trademarks of Adobe Systems Incorporated in the United States
and/or other countries.
Roxio is a trademark of Roxio, a division of Sonic Solutions.
PowerDVD and YouCam are trademarks of CyberLink Corp.
Athlon is a trademark of Advanced Micro Devices, Inc.
Norton and Norton Internet Security are trademarks or registered trademarks of Symantec Corporation in the United States and other
countries.
All other trademarks mentioned herein are the property of their respective owners.
© Copyright 2009 Fujitsu America, Inc. All rights reserved.
No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication may
be stored or transmitted in any electronic form without the written consent of Fujitsu.
B6FJ-'5$)7-
DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name: Fujitsu America, Inc.
Address: 1250 E. Arques Avenue
Sunnyvale, CA 94085
Telephone: (408) 746-6000
Declares that product: Base Model Configuration:
Fujitsu P3010 notebook
Complies with Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions:
(1) This device may not cause harmful interference, (2) This device must accept any interference received,
including interference that may cause undesired operation.
WARNING
HANDLING THE CORD ON THIS PRODUCT WILL EXPOSE YOU TO LEAD,A CHEMICAL KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
WASH HANDS AFTER HANDLING.
IMPORTANT SAFETY INSTRUCTIONS
This unit requires an AC adapter to operate. Use only UL Listed I.T.E. Class II Adapters with an output rating of 19 VDC, with a
minimum current of 3.16 A (60 W).
When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury
to persons, including the following:
•CAUTION - HOT SURFACE: The bottom of this notebook computer can become hot when used for long periods of time. When
using this notebook, take caution to limit long term or continuous use while resting it on exposed skin, such as the lap.
•Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.
•Avoid using a modem during an electrical storm. There may be a remote risk of electric shock from lightning.
•Do not use a modem to report a gas leak in the vicinity of the leak.
•Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with
local codes for possible special disposal instructions.
•To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.
•For TV tuner use: To protect from overvoltages and transients on the Cable Distribution System, make sure that the outer shield of
the coaxial cable is connected to earth (grounded) at the building premise as close to the point of cable entrance as practicable, as
required per NEC Article 820.93, ANSI/NFPA 70: 2005. If you have questions about your CATV installation, contact your service
provider.
SAVE THESE INSTRUCTIONS
For Authorized Repair Technicians Only
DANGER OF EXPLOSION IF LITHIUM (CLOCK)BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED
BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTION.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,REPLACE ONLY WITH THE SAME TYPE AND
RATING FUSE.
+

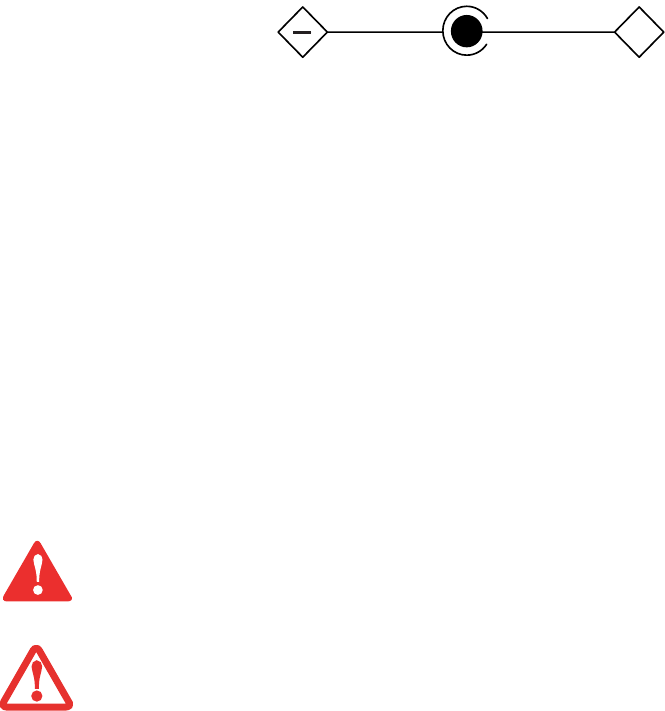

AC adapter output polarity:
Copyright and Trademark Information
6
Recycling your battery
Over time, the batteries that run your mobile computer will begin to hold a charge for a shorter amount of time; this is a natural occurrence
for all batteries. When this occurs, you may want to replace the battery with a fresh one*. If you replace it, it is important that you dispose of
the old battery properly because batteries contain materials that could cause environmental damage if disposed of improperly.
Fujitsu is very concerned with environmental protection, and has enlisted the services of the Rechargeable Battery
Recycling Corporation (RBRC)**, a non-profit public service organization dedicated to protecting our environment by
recycling old batteries at no cost to you.
RBRC has drop-off points at tens of thousands of locations throughout the United States and Canada. To find the location
nearest you, go to www.RBRC.org or call 1-800-822-8837.
If there are no convenient RBRC locations near you, you can also go to the EIA Consumer Education Initiative website (http://EIAE.org/)
and search for a convenient disposal location.
Remember – protecting the environment is a cooperative effort, and you should make every effort to protect it for current and future
generations.
* To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site at www.shopfujitsu.com in the US or
www.fujitsu.ca/products/notebooks in Canada.
** RBRC is an independent third party to which Fujitsu provides funding for battery recycling; RBRC is in no way affiliated with
Fujitsu.
7
- LifeBook E8410 Notebook
Contents
Preface
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Conventions Used in the Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fujitsu Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Chapter 1 Getting to Know Your Notebook
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Locating the Controls and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Front and Display Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Left-Side Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Right-Side Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Bottom Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Status Indicator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Hard Drive Access Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
CapsLock Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
NumLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9
Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Opening the Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Adjusting Display Panel Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Touchpad Pointing Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Clicking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Double-Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Touchpad Control Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Controlling the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Chapter 2 Getting Started with Your Notebook
Power Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Connecting the Power Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Starting Your P3010 LifeBook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Booting the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Starting Windows the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Installing ClickMe!. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Fujitsu Driver Update Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
10
Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Power/Suspend/Resume Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Standby Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Hibernation (Save-to-Disk) Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Windows Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Restarting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Powering Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
ENERGY STAR® Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Chapter 3 User-Installable Features
Lithium ion Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Recharging the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Removing Memory Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Installing a Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Checking the Memory Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Memory Stick/Secure Digital Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Inserting MS/SD Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Removing an MS/SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Internal LAN (RJ-45) jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Microphone Jack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
External Video Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
11
Chapter 4 Troubleshooting Your Notebook
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Identifying the Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Troubleshooting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Power On Self Test Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Restoring Your System Image and Software . . . . . . . . . . . . . . . . . . . . . . . 80
Drivers and Applications Restore Disc. . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Recovery and Utility Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Automatically Downloading Driver Updates . . . . . . . . . . . . . . . . . . . . . . . 82
Chapter 5 Care and Maintenance
Caring for your P3010 LifeBook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Cleaning your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Cleaning the dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Storing your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Traveling with your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Media Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Chapter 6 System Specifications
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Mass Storage Device Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
12
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Popular Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Included Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Learning About Your Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Glossary/Regulatory
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Appendix A: WLAN User’s Guide
Before Using the Optional Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Wireless LAN Device Covered by this Document. . . . . . . . . . . . . . . . . . . 117
Characteristics of the WLAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Wireless LAN Modes Using this Device . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Deactivating the WLAN Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Disconnection Using the Icon in the Taskbar. . . . . . . . . . . . . . . . . . . . . . . 120
Activating the WLAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Configuring the Wireless LAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Configuring the WLAN using Windows XP . . . . . . . . . . . . . . . . . . . . . . . 122
Connection to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Troubleshooting the WLAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
13
WLAN Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Using the Bluetooth Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
What is Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Where to Find Information About Bluetooth . . . . . . . . . . . . . . . . . . . . . . . 127
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
14
Preface
About This Guide
The P3010 LifeBook from Fujitsu is a small yet powerful computer, perfect for networking. It is powered
by an AMD Athlon™ Neo MV-40 processor and integrated AMD RS780MN chipset. The notebook has
a built-in 11.6” wide SVGA color display with LED backlight.
This manual explains how to operate your P3010 notebook’s hardware and built-in system software. Your
P3010 notebook comes with Windows® 7 Home Premium Edition pre-installed.
Conventions Used in the Guide
Keyboard and on-screen keys appear in brackets. Example: [Fn], [F1], [ESC], [ENTER] and [CTRL].
Pages with additional information about a specific topic are cross-referenced within the text.
For example: (“See Installation Procedure on page 43”.) Note that all cross-references are linked to the
referenced items, so by clicking the link, you will automatically go to the referenced item or page.
On-screen menu items appear in bold. Example: “Click Object Properties and select your choice”.
THE INFORMATION ICON HIGHLIGHTS INFORMATION THAT WILL ENHANCE YOUR UNDERSTANDING OF
THE SUBJECT MATERIAL.
15
- About This Guide
Fujitsu Contact Information
Service and Support
You can contact Fujitsu Service and Support in the following ways:
•Toll free: 1-800-8Fujitsu (1-800-838-5487)
•Website: http://www.computers.us.fujitsu.com/support
Before you place the call, you should have the following information ready so that the customer support
representative can provide you with the fastest possible solution:
•Product name
•Product configuration number
•Product serial number
•Purchase date
•Conditions under which the problem occurred
•Any error messages that have occurred
•Type of device connected, if any
THE CAUTION ICON HIGHLIGHTS INFORMATION THAT IS IMPORTANT TO THE SAFE OPERATION OF YOUR
COMPUTER,OR TO THE INTEGRITY OF YOUR FILES. PLEASE READ ALL CAUTION INFORMATION
CAREFULLY.
THE WARNING ICON HIGHLIGHTS INFORMATION THAT CAN BE HAZARDOUS TO EITHER YOU,YOUR
NOTEBOOK,OR YOUR FILES. PLEASE READ ALL WARNING INFORMATION CAREFULLY.
16
- About This Guide
Fujitsu Shopping Online
You can go directly to the online by going to the website at: www.shopfujitsu.com.
Limited Warranty
Your P3010 notebook is backed by a Fujitsu International Limited Warranty. Check the service kit that
came with your notebook for the Limited Warranty period and terms and conditions.
YOU MUST HAVE AN ACTIVE INTERNET CONNECTION TO USE THE ONLINE URL LINKS.
17
Chapter 1
Getting to Know Your Notebook
Overview
This section describes the
components of your Fujitsu P3010
LifeBook notebook. We strongly
recommend that you read it before
using your notebook – even if you
are already familiar with notebook
computers.

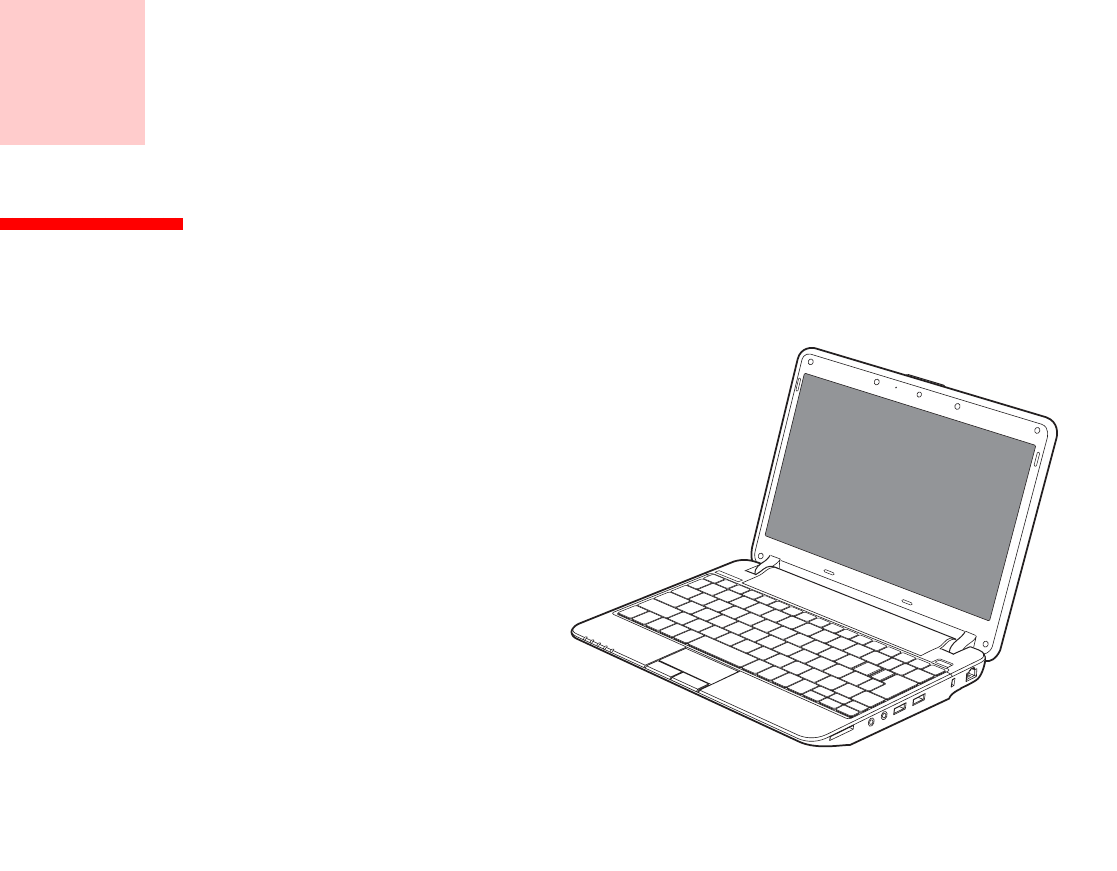

Figure 1. Fujitsu P3010 LifeBook
18
- Locating the Controls and Connectors
Locating the Controls and Connectors
Connectors and peripheral interfaces on the P3010 notebook allow you to connect a variety of devices.

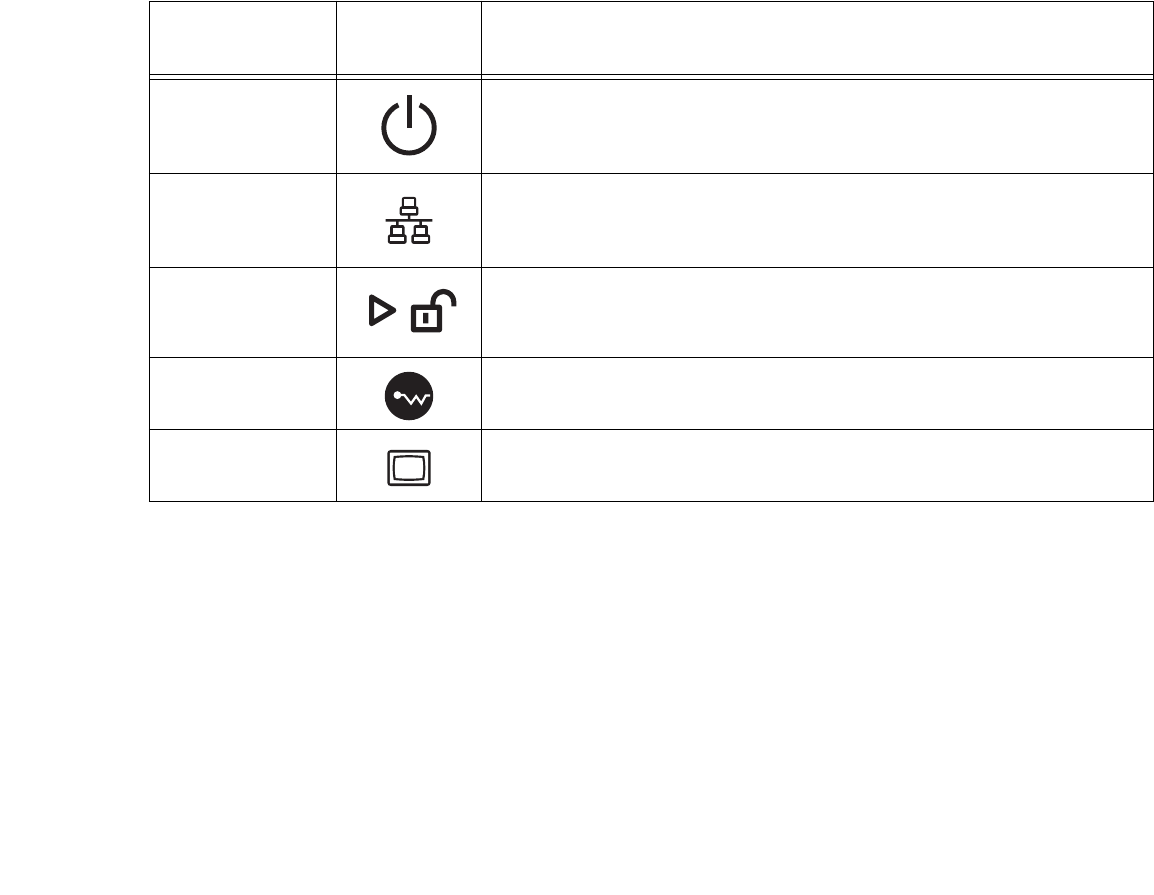

Specific locations are illustrated in Figures 2 through 5. The table below provides a short description of
each icon on the P3010 notebook. Each of the icons is either molded into or printed on the notebook
chassis.
Connection Notebook
Icon
Purpose
DC in connector Connect an external power source such as the AC adapter or auto/airline
adapter.
Secure Digital/
Memory Stick
(SD/MS) Slot
The Secure Digital/Memory Stick (SD/MS) card slot allows you to install a
flash memory card for data storage. Flash memory cards allow you to
transfer data to and from a variety of different digital devices.
USB Ports Connect Universal Serial Bus 2.0 or 1.1 compliant devices to the
notebook.
Microphone Jack Connect an external microphone. The internal microphone is disabled
when you plug in an external microphone. The same icon is used for the
internal microphone.
Headphone Jack Connect stereo headphones or powered external speakers. The internal
speaker is disabled when you plug in external headphones or powered
speakers.
Security lock slot The security slot allows you to secure the notebook using compatible
locking devices.
19
- Locating the Controls and Connectors
Suspend/ Resume
button
The Suspend/Resume button allows you to suspend notebook activity
without powering off, resume your notebook from suspend mode, and
power on the system when it has been shut down from Windows.
Local Area
Network (LAN)
The LAN (RJ-45) jack is used to connect the internal 10/100 Base-T/Tx
Ethernet to a Local Area Network (LAN) in your office or home, or
broadband devices such as a cable modem, DSL, or satellite Internet.
Battery Release
Latch
The battery release latch allows you to remove the battery from your
system for storage or replacement.
Wireless LAN
On-Off Switch
The wireless LAN switch allows you to turn power to the optional wireless
LAN device on and off.
External Video
port
The external video port allows you to connect an external monitor or LCD
projector to your computer.
Connection Notebook
Icon
Purpose
20
- Locating the Controls and Connectors

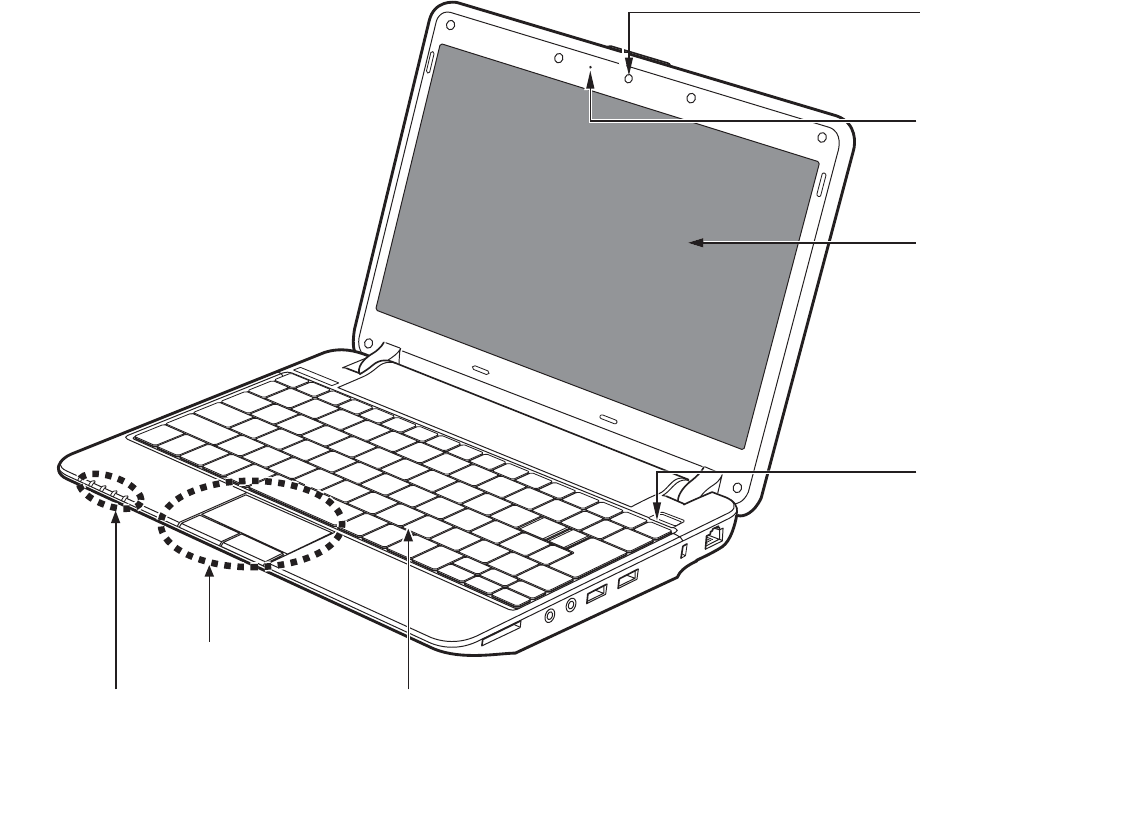

Figure 2. P3010 LifeBook with display open
Display Panel
Keyboard
Power/Suspend/
Resume Button
Touchpad Pointing Device
Built-in Microphone
1.3 Megapixel Web Camera
Status Indicator Panel
21
- Locating the Controls and Connectors
Front and Display Components
The following is a brief description of your notebook’s front and display features.
Web Camera
The 1.3 megapixel web camera allows you to take pictures of yourself to send over the internet. For
information on using the camera, see the documentation associated with the ArcSoft WebCam Companion
application.
Built-in Microphone
The built-in microphone allows you to input mono audio.
Display Panel
The display panel is a color LCD panel with back lighting for the display of text and graphics and touch
screen functionality.
Power/Suspend/Resume Button
The Power/Suspend/Resume button allows you to suspend system activity without powering off, resume
your system from standby mode, and power on your system when it has been shut down from the
Windows operating system. See “Power On” on page 43.

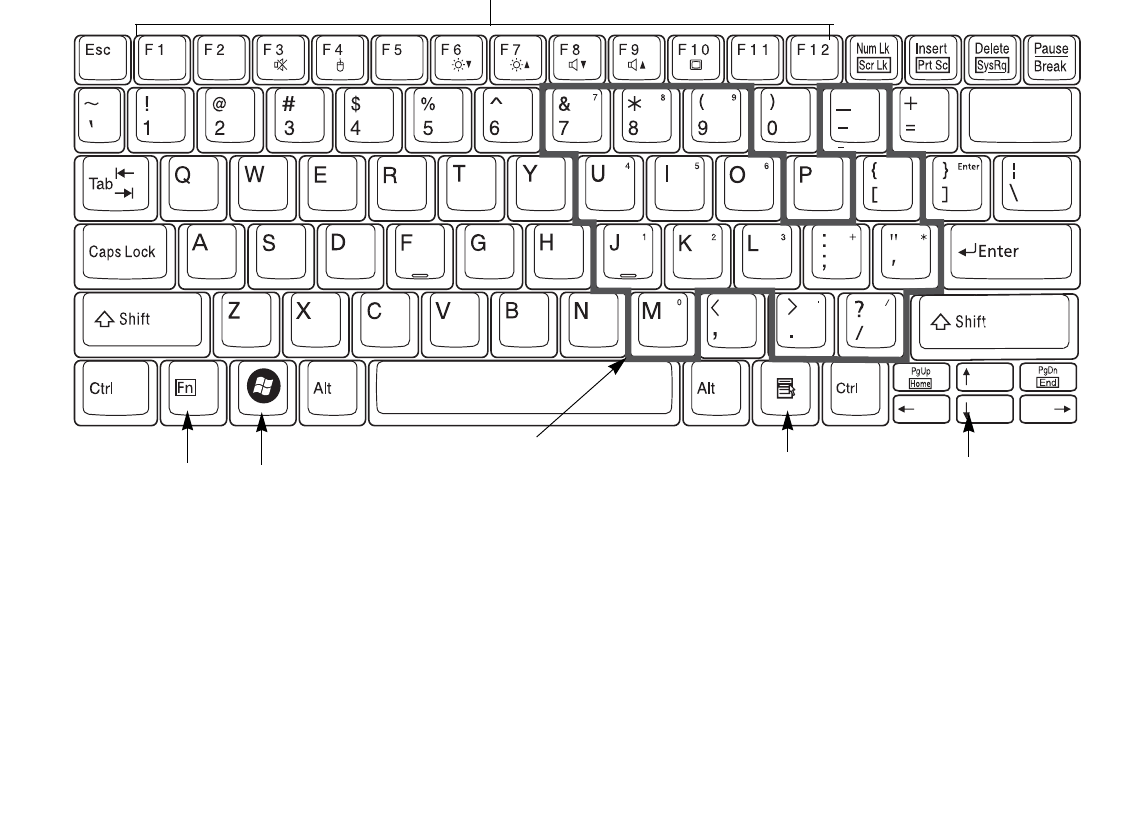

Keyboard
A full-function keyboard with dedicated Windows keys. See “Keyboard” on page 33.
Status Indicator Panel
There are two Status Indicator Panels that display symbols corresponding to specific components of your
P3010 notebook. See “Status Indicator Panel” on page 28.

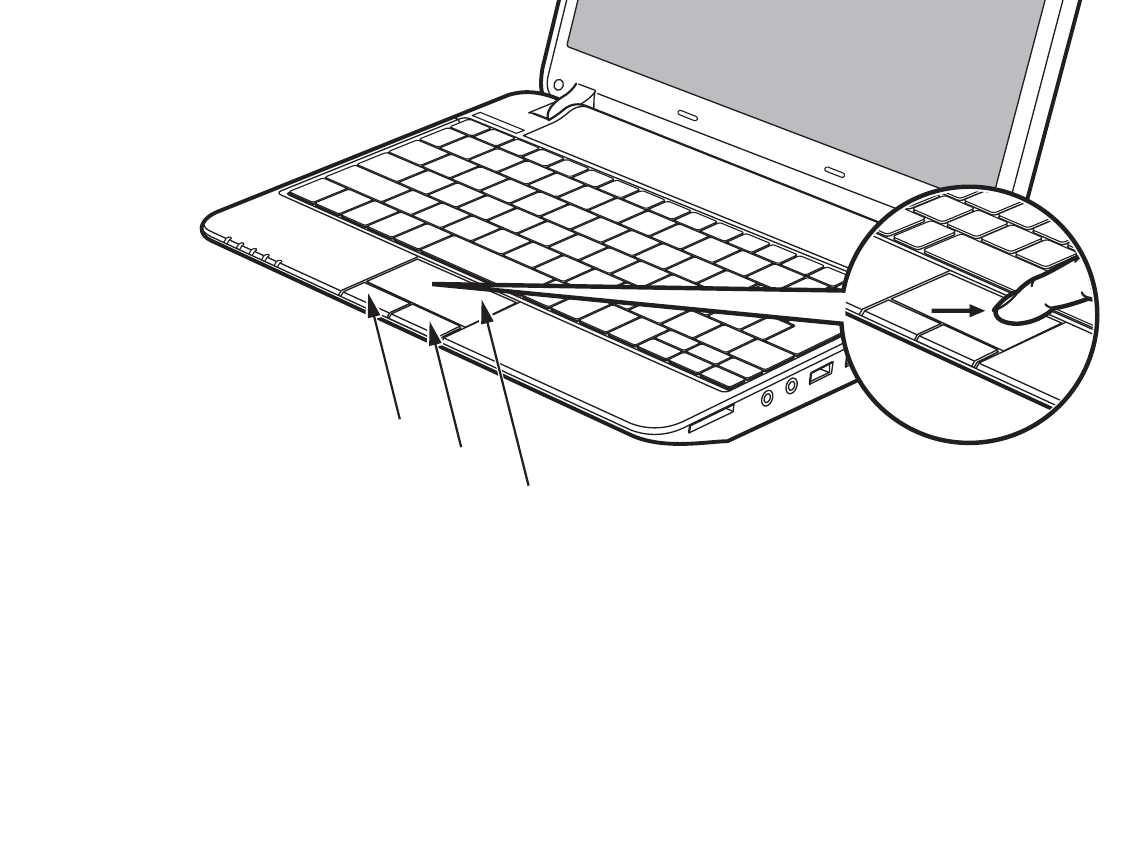

Touchpad Pointing Device
The Touchpad pointing device is a mouse-like cursor control with a right button, a left button, and a cursor
control pad. See “Touchpad Pointing Device” on page 36.
22
- Locating the Controls and Connectors

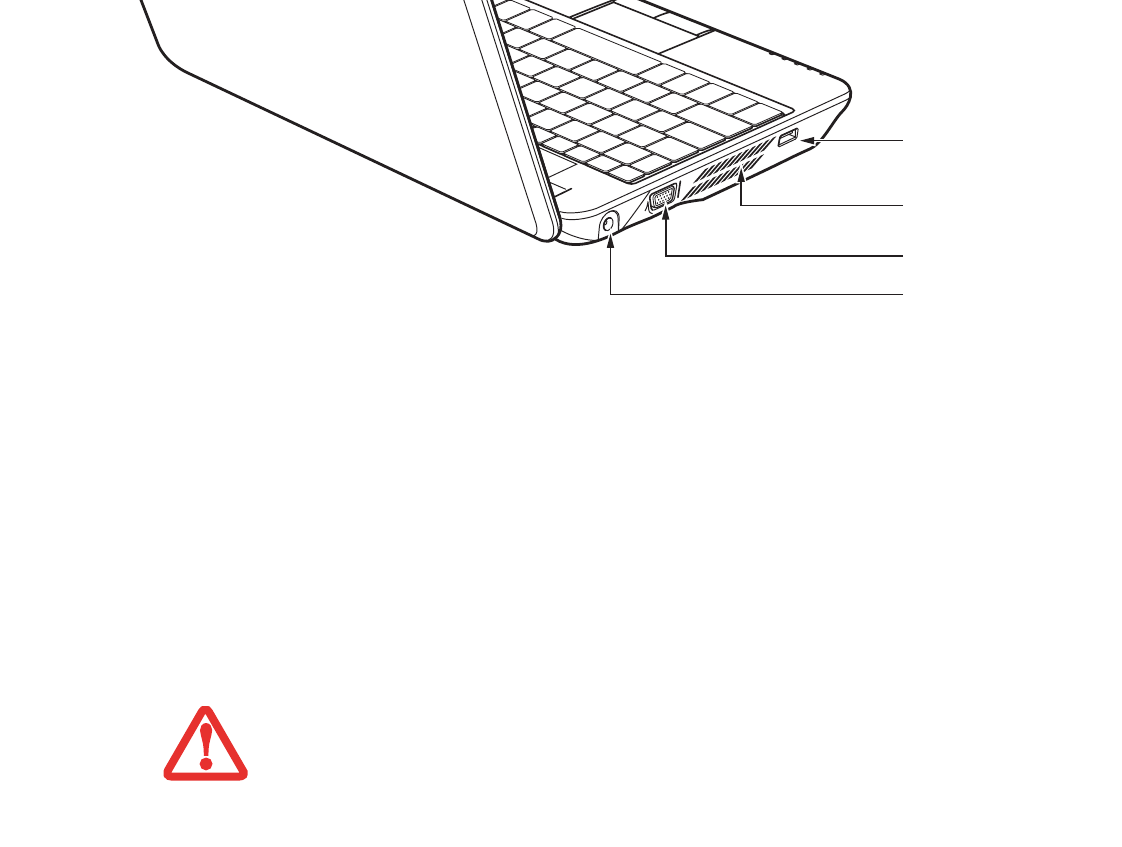

Figure 3. P3010 Lifebook left-side panel
Left-Side Panel Components
The following is a brief description of your notebook’s left-side components.

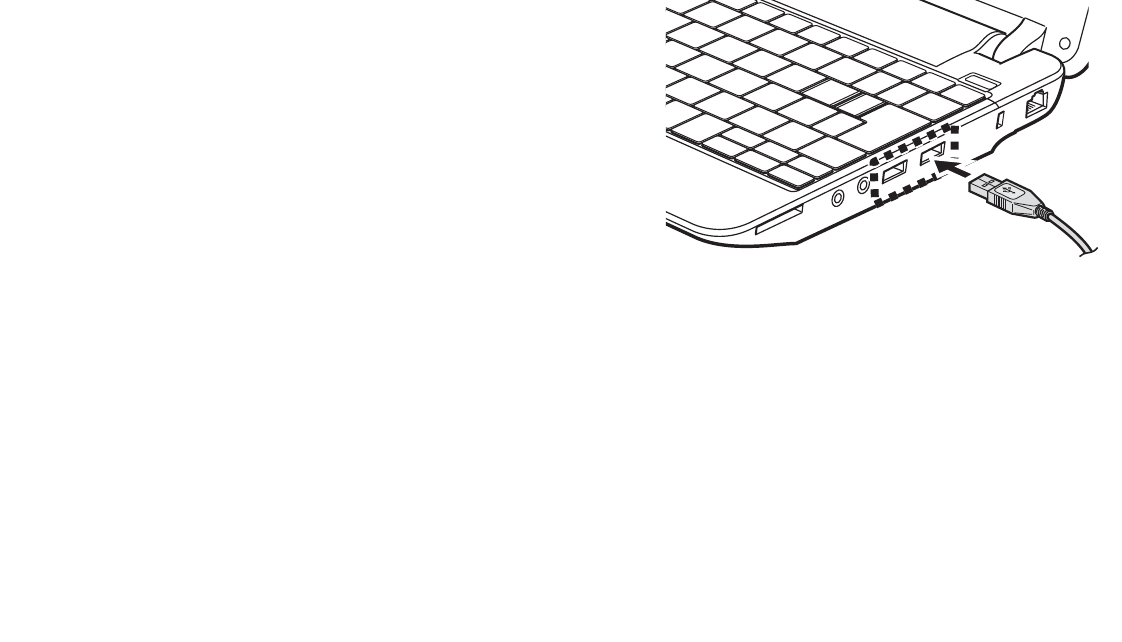

USB 2.0 Ports
The three USB 2.0 ports (one on the left side, two on the right side) allow you to connect Universal Serial
Bus devices. USB 2.0 transfers data at up to 480 Mbps and is backward-compatible with USB 1.1 devices,
which transfer data at up to 12 Mbps. See “Universal Serial Bus Ports” on page 65.
Air Vents
The air vents allow proper air circulation to ensure that the system does not overheat.
DC Power Jack
Air Vents
External Video Port
USB 2.0 Port
TO PROTECT YOUR NOTEBOOK FROM DAMAGE AND TO OPTIMIZE SYSTEM PERFORMANCE,BE SURE TO
KEEP ALL AIR ALL VENTS UNOBSTRUCTED,CLEAN,AND CLEAR OF DEBRIS. THIS MAY REQUIRE
PERIODIC CLEANING,DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.
DO NOT OPERATE THE NOTEBOOK IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED,SUCH AS IN
TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.
23
- Locating the Controls and Connectors

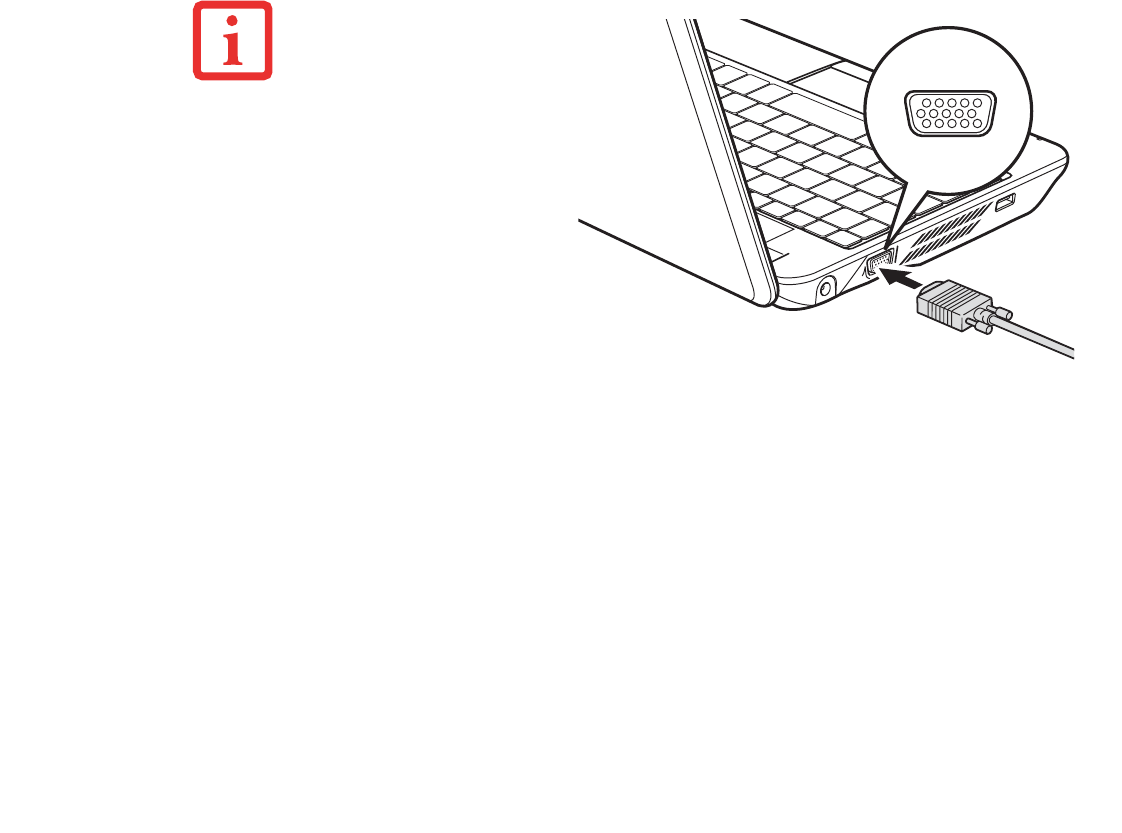

External Video Port
The external video port allows you to connect an external monitor or LCD projector. See “External Video
Port” on page 65.

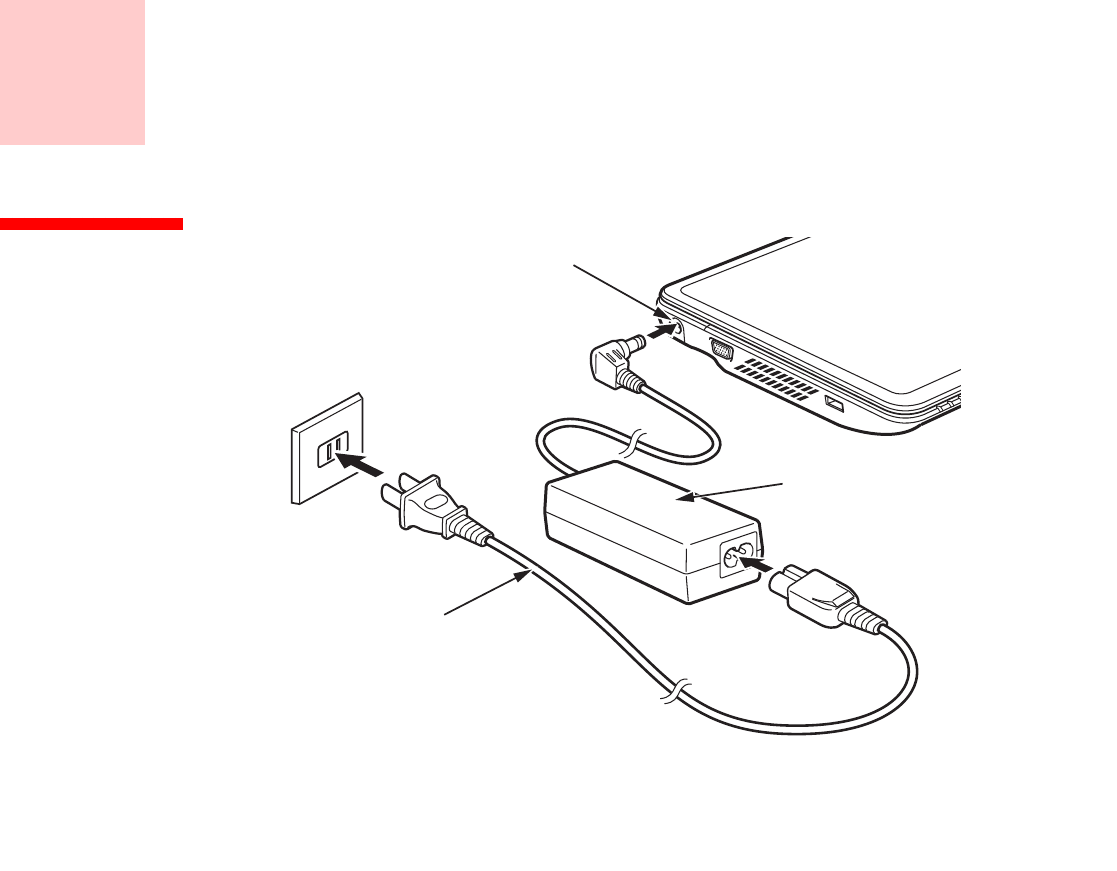

DC Power Jack
The DC power jack allows you to plug in the AC adapter or the optional Auto/Airline adapter to power
your system and charge the internal Lithium ion Battery.
24
- Locating the Controls and Connectors

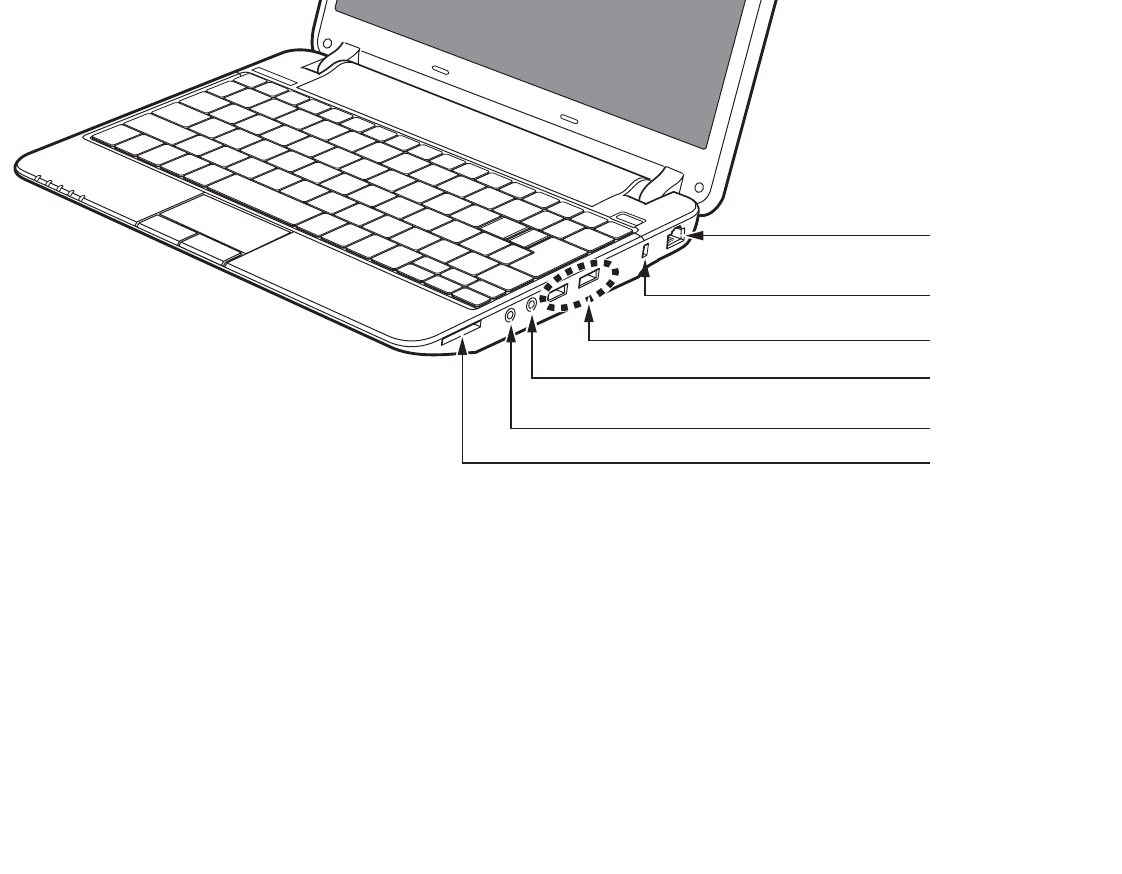

Figure 4. P3010 LifeBook right-side panel
Right-Side Panel Components
The following is a brief description of your notebook’s right-side components.
LAN (RJ-45) Port
The internal LAN (RJ-45) port is used for an internal 10/100 Base-Tx Ethernet. See “Universal Serial Bus
Ports” on page 65.
Anti-theft Lock Slot
The anti-theft lock slot allows you to attach a optional physical lock-down device.
Microphone Jack
Headphone Jack
Secure Digital/
USB 2.0 Ports
LAN (RJ-45) Jack
Anti-Theft Lock Slot
Memory Stick Card Slot
25
- Locating the Controls and Connectors
USB 2.0 Ports
The three USB 2.0 ports (one on the left side, two on the right side) allow you to connect Universal Serial
Bus devices. USB 2.0 transfers data at up to 480 Mbps and is backward-compatible with USB 1.1 devices,
which transfer data at up to 12 Mbps. See “Universal Serial Bus Ports” on page 65.
Microphone Jack
The microphone jack allows you to connect an external mono microphone. See “Microphone Jack” on
page 65.
Headphone Jack
The headphone jack allows you to connect stereo headphones or powered external speakers. See “External
Video Port” on page 65.

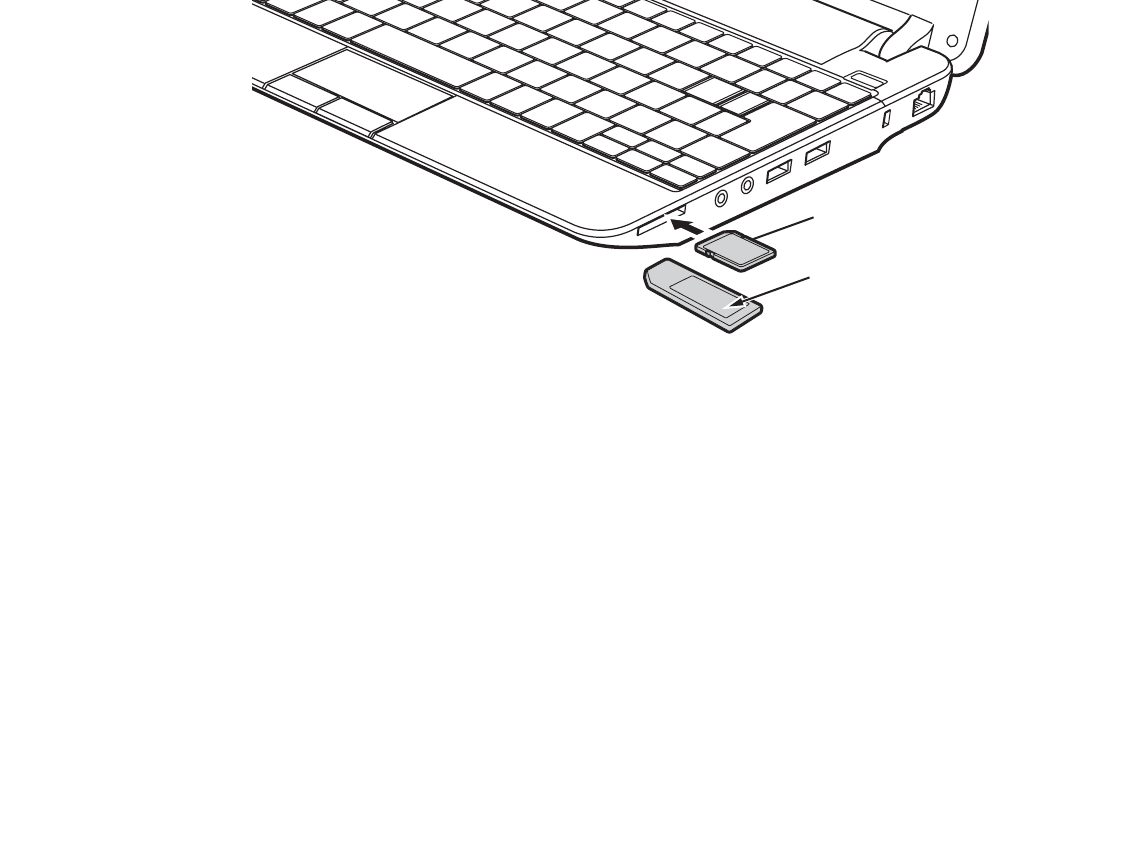

Secure Digital/Memory Stick Card Slot
The Secure Digital/Memory Stick (SD/MS) card slot allows you to insert a flash memory card for data
storage. Flash memory cards allow you to transfer data to and from a variety of different digital devices.
26
- Locating the Controls and Connectors

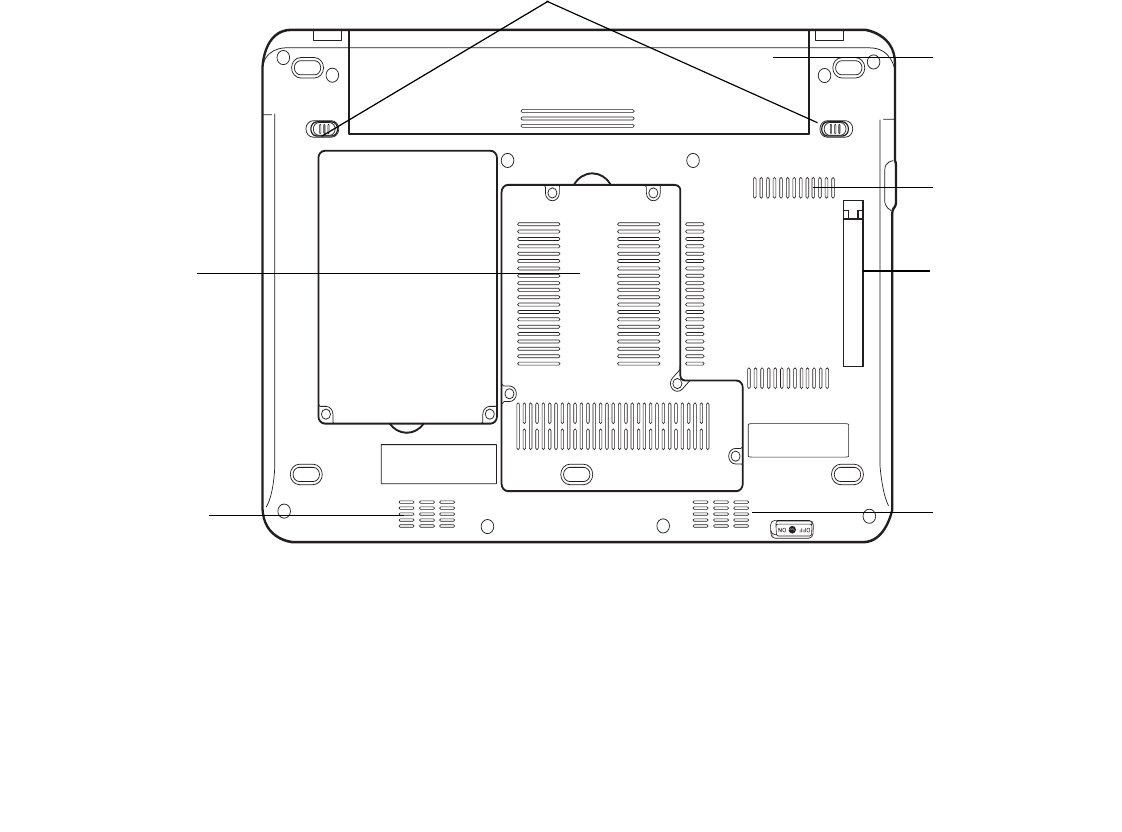

Figure 5. P3010 LifeBook bottom panel
Bottom Components
The following is a brief description of your notebook’s bottom panel components.
Battery Latches
The battery latches are used to secure the Lithium ion battery in the battery bay.
Memory
Lithium ion Battery
Air Vents
Battery Latches
(various locations)
Stereo Speaker
Stereo Speaker
Upgrade
Compartment
Dust Filter
27
- Locating the Controls and Connectors
Lithium ion Battery Bay
The battery compartment contains the Lithium ion battery. The battery should be removed when the
computer is stored over a long period of time or for swapping a discharged battery with a charged Lithium
ion battery. See “Lithium ion Battery” on page 53.
Air Vents
The air vents allow air to circulate through the system to cool down the components.
Dust Filter
Stereo Speakers
The speakers allows you to listen to stereo sound from your system.

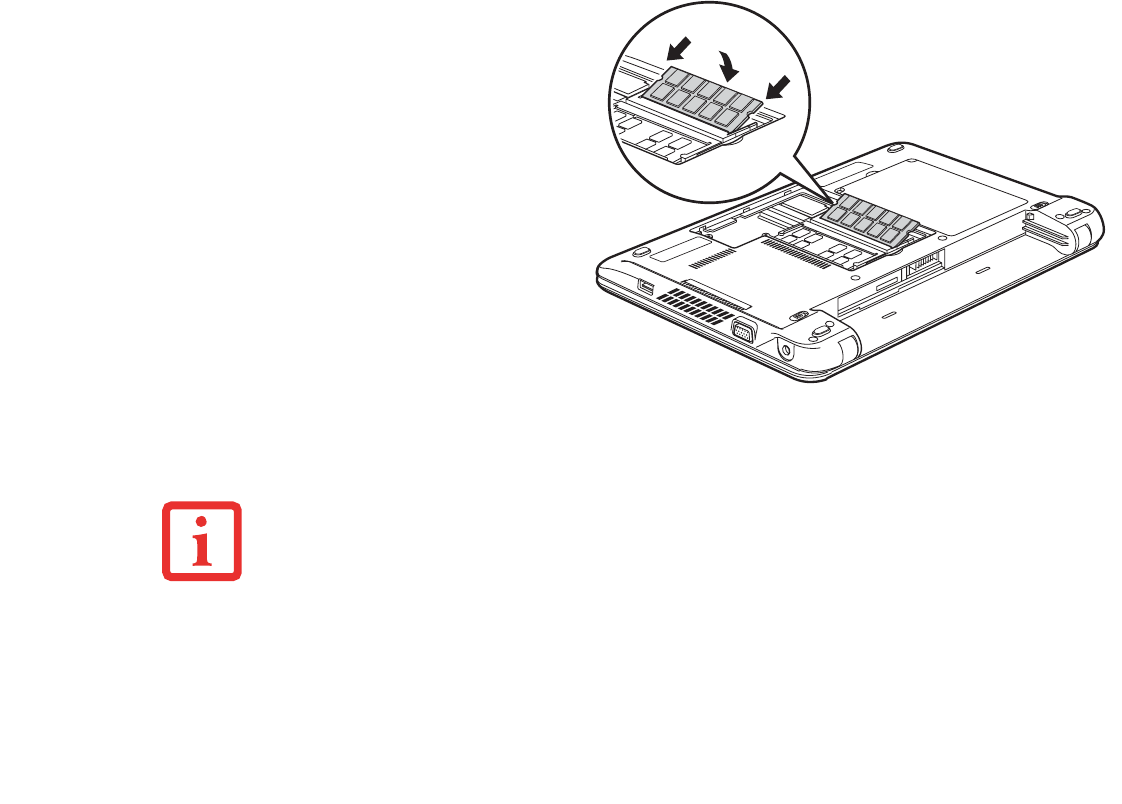

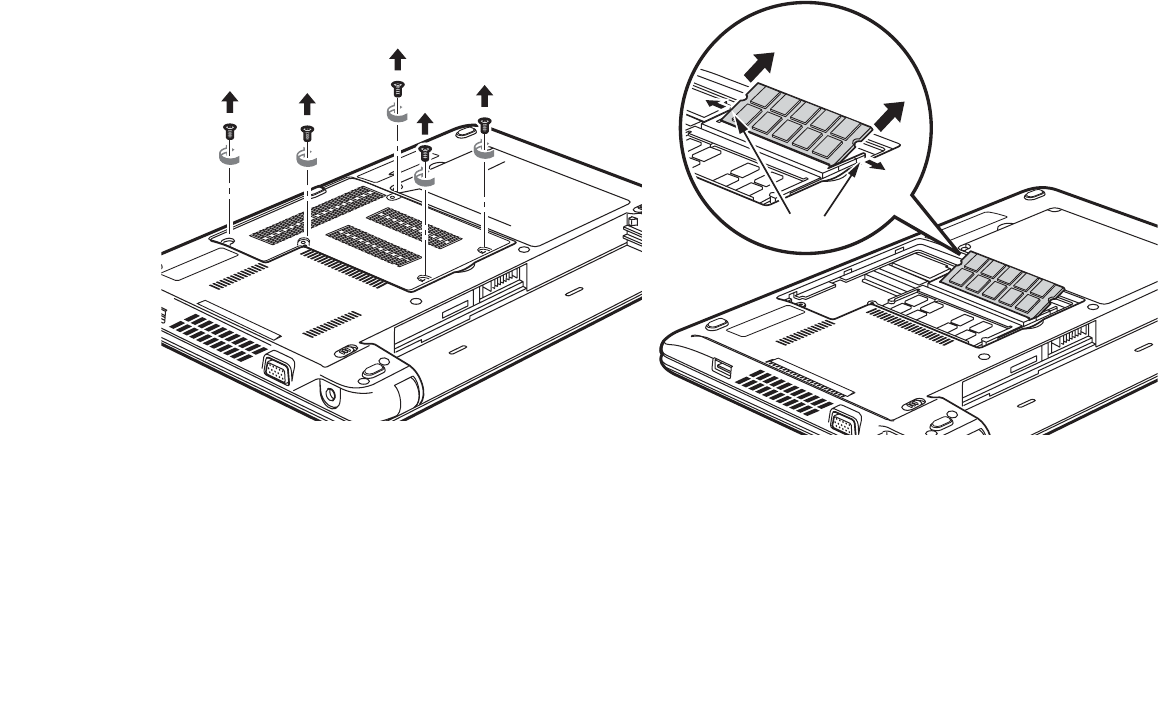

Memory Upgrade Compartment
Your notebook comes with high speed DDR2 Synchronous Dynamic RAM (SDRAM). The memory
upgrade compartment allows you to expand the system memory capacity of your system, hence improving
overall performance. See “Memory Upgrade Module” on page 58.
TO PROTECT YOUR NOTEBOOK FROM DAMAGE AND TO OPTIMIZE SYSTEM PERFORMANCE,BE SURE TO
KEEP ALL AIR ALL VENTS UNOBSTRUCTED,CLEAN,AND CLEAR OF DEBRIS. THIS MAY REQUIRE
PERIODIC CLEANING,DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.
DO NOT OPERATE THE NOTEBOOK IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED,SUCH AS IN
TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.
28
Figure 6. Status Indicator Panel
Status Indicator Panel
The status indicators display symbols that correspond to specific components of your notebook. (Figure 6)
The symbols show how each of those components is operating. Note that there are two locations that
contain status indicators: above the keyboard and on the front edge of the notebook.
Hard
Drive
Access CapsLock
NumLock
Power
Indicator
Battery
Charge/
DC In
29
Power Indicator
The Power indicator symbol located on the power button shows whether your system is operational. When
it is solid blue, it means that there is power to your computer and that it is ready for use.
Battery Charge/DC-In Indicator
Depending upon whether you have an AC adapter connected or not, the battery indicator will appear in a
variety of colors and states.
Table 1. Battery indicator states
AC Adapter connected...
Solid blue Charge complete
Solid orange Charging in process
Purple, blinking Battery malfunction
No AC Adapter connected...
Orange, blinking Battery is charged 12% or less.
Purple, blinking Battery malfunction
Off Battery charge between 13% and 100%
Battery completely discharged
No battery installed
30
Hard Drive Access Indicator
The Hard Drive Access indicator lights green when your internal hard drive is being accessed.
CapsLock Indicator
The CapsLock indicator shows that your keyboard is set to type in all capital letters.
NumLk Indicator
The NumLk indicator shows that the integral keyboard is set in ten-key numeric keypad mode.
BATTERIES SUBJECTED TO SHOCKS,VIBRATION OR EXTREME TEMPERATURES CAN BE PERMANENTLY
DAMAGED.
31
- Display Panel
Figure 2. Opening the Display Panel
Display Panel
Your Fujitsu notebook contains a display panel that is backlit for easier viewing in bright environments.
Opening the Display Panel
Lift the display backwards, being careful not to touch the screen with your fingers, until it is at a
comfortable viewing angle. (Figure 2)
Display Cover
32
- Display Panel
Adjusting Display Panel Brightness
Once you have turned on your system, you may want to adjust the brightness level of the screen to a more
comfortable viewing level. There are two ways to adjust the brightness: keyboard and power management
utility.
Using the Keyboard to Adjust Brightness
Use the following key combinations to adjust the screen brightness:
•[Fn+F6]: Pressing repeatedly will lower the brightness of your display.
•[Fn+F7]: Pressing repeatedly will increase the brightness of the display.
Using Power Management to Adjust Brightness
To adjust brightness with the power management utility, click Start > Control Panel (Classic View) >
Brightness Control. Set the screen brightness slider for battery and AC power scenarios.
NOTE THAT WHEN YOU CHANGE THE DISPLAY SETTINGS,THE CHANGES WILL BE RETAINED AFTER
SLEEP AND RESTART.
IF USING AC POWER,YOUR BRIGHTNESS SETTING IS SET TO ITS HIGHEST LEVEL BY DEFAULT. IF USING
BATTERY POWER,YOUR BRIGHTNESS SETTING IS SET TO APPROXIMATELY MID-LEVEL BY DEFAULT.
THE HIGHER THE BRIGHTNESS LEVEL,THE MORE POWER THE NOTEBOOK WILL CONSUME AND THE
FASTER YOUR BATTERIES WILL DISCHARGE. FOR MAXIMUM BATTERY LIFE,MAKE SURE THAT THE
BRIGHTNESS IS SET AS LOW AS POSSIBLE.
33
- Keyboard
Keyboard
Figure 3. Keyboard
Using the Keyboard
Your P3010 notebook has an integral 84-key keyboard. The keys perform all the standard functions of a
101-key keyboard, including the Windows keys and other special function keys. This section describes
the following keys. (Figure 3)
•Numeric keypad: Your system allows certain keys to serve dual purposes, both as standard
characters and as numeric and mathematical keys. The ability to toggle between the standard
character and numerical keys is controlled through the [NumLk] key.
Back
Space
ECO
Fn Key Start Key
Function Keys
Numeric Keypad Application Key Cursor Keys
(surrounded by heavy line)
34
- Keyboard
•Cursor keys: Your keyboard contains four arrow keys for moving the cursor or insertion point to
the right, left, up, or down within windows, applications and documents.
•Function keys: The keys labeled [F1] through [F11/F12], are used to produce special actions that
vary depending on what program is running. They are also used in conjunction with the [Fn] key to
perform certain tasks, as detailed below under “Function Keys”.
•Windows keys: These keys work with your Windows operating system and function the same as
the onscreen Start menu button, or the right button on your pointing device.
Numeric Keypad
Certain keys on the keyboard perform dual functions as both standard character keys and numeric keypad
keys. NumLk can be activated by pressing the [NumLk] key. Turning off the NumLk feature is done the
same way. Once this feature is activated you can enter numerals 0 through 9, perform addition ( + ),
subtraction ( - ), multiplication ( * ), or division ( / ), and enter decimal points ( . ) using the keys designated
as ten-key function keys. The keys in the numeric keypad are marked on the front edge of the key to
indicate their secondary functions. (Figure 3)
Windows Keys
Your P3010 notebook has two Windows keys: a Start key and an Application key. The Start key displays
the Start menu. This button functions the same as your onscreen Start menu button. The Application key
functions the same as your right mouse button and displays shortcut menus for the selected item. (Please
refer to your Windows documentation for additional information regarding the Windows keys.) (Figure 3)
Cursor Keys
The cursor keys are the four arrow keys on the keyboard which allow you to move the cursor up, down,
left and right in applications. In programs such as Windows Explorer, it moves the “focus” (selects the
next item up, down, left, or right).
35
- Keyboard
Function Keys
Your notebook has 11 function keys, F1 through F11/F12. The functions assigned to these keys differ for
each application.
•[Fn+F3]: Pressing [F3] while holding [Fn] will toggle the Audio Mute on and off.
•[Fn +F4]: Pressing [F4] while holding [Fn] allows you to toggle the mouse on and off.
•[Fn+F6]: Pressing [F6] repeatedly while holding [Fn] will lower the brightness of your display.
Note that adjusting the brightness using the keyboard changes the system setting.
•[Fn+F7]: Pressing [F7] repeatedly while holding [Fn] will increase the brightness of the display.
•[Fn+F8]: Pressing [F8] repeatedly while holding [Fn] will decrease the volume of your system.
•[Fn+F9]: Pressing [F9] repeatedly while holding [Fn] will increase the volume of your system.
•[Fn+F10]: Pressing [F10] while holding [Fn] allows you to change your selection of where to send
your display video. Each time you press the combination of keys you will step to the next choice.
The choices, in order, are: built-in display panel only, external monitor only, and both built-in
display panel and external monitor.
•[Fn +F11]: Pressing [F11] while holding the [Fn] (ECO) key will help to extend system power by
reducing the LCD brightness, shutting down the optical drive, and enabling the hard disk drive’s
auto power off mode.
36
- Touchpad Pointing Device
Touchpad Pointing Device
Figure 4. Touchpad pointing device
The Touchpad pointing device comes built into your Fujitsu notebook. It is used to control the movement
of the pointer to select items on your display panel. The Touchpad is composed of a cursor control, a left
button and a right button. The cursor control works the same way a mouse does, and moves the cursor
around the display. It only requires light pressure with the tip of your finger. The left and right buttons
function the same as mouse buttons. The actual functionality of the buttons may vary depending on the
application that is being used.
Left Button
Right Button
Cursor Control
37
- Touchpad Pointing Device
Clicking
AN EXTERNAL MOUSE CAN BE CONNECTED TO THE USB PORTS ON YOUR NOTEBOOK AND USED
SIMULTANEOUSLY WITH THE TOUCHPAD. HOWEVER,IF YOU BOOT THE SYSTEM WITH AN EXTERNAL
MOUSE CONNECTED THE TOUCHPAD WILL BE DISABLED OR ENABLED DEPENDING ON THE
SPECIFICATIONS IN YOUR BIOS SETTINGS.See “BIOS Setup Utility” on page 44.
Clicking means pushing and releasing a button. To
left-click, move the cursor to the item you wish to
select, press the left button once, and then immediately
release it. To right-click, move the mouse cursor to the
item you wish to select, press the right button once,
and then immediately release it. You also have the
option to perform the clicking operation by tapping
lightly on the Touchpad once.
Figure 5. Clicking with button
Figure 6. Clicking with Touchpad
38
- Touchpad Pointing Device
Double-Clicking
Double-clicking means pushing and releasing the left
button twice in rapid succession. This procedure does
not function with the right button. To double-click,
move the cursor to the item you wish to select, press the
left button twice, and immediately release it. You can
also perform the double-click operation by tapping
lightly on the Touchpad twice.
Figure 7. Double-clicking with button
Figure 8. Double-clicking with Touchpad
39
- Touchpad Pointing Device
Dragging
Touchpad Control Adjustment
The Windows Control Panel allows you to customize your Touchpad with selections made from within
the Mouse Properties dialog box.
Dragging means pressing and holding the left button,
while moving the cursor. To drag, move the cursor to
the item you wish to move. Press and hold the left
button while moving the item to its new location and
then release it. Dragging can also be done using the
Touchpad. First, tap the Touchpad twice over the item
you wish to move making sure to leave your finger on
the pad after the final tap. Next, move the object to its
new location by moving your finger across the
Touchpad, and then release your finger.
Figure 9. Dragging
40
- Volume Control
Volume Control
Your Fujitsu notebook has multiple volume controls which interact with each other.
Controlling the Volume
The volume can be controlled in several different ways:
•Volume can be set from within the Volume Control in the Notification Area at the bottom right of
your screen.
•Volume can be controlled with the [F8] and [F9] functions keys. Pressing [F8] repeatedly while
holding [Fn] will decrease the volume of your notebook. Pressing [F9] repeatedly while holding
[Fn] will increase the volume of your notebook.
•Volume can be changed by opening the Control Panel and selecting Windows Mobility Center.
From there, you can either mute or adjust the sound in the Volume area.
•Volume can be controlled by many volume controls that are set within individual applications.
•Certain external audio devices you might connect to your system may have hardware volume
controls.
Each source discussed above puts an upper limit on the volume level that must then be followed by
the other sources. We recommend that you experiment with the various volume controls to discover
the optimal sound level.
ANY SOFTWARE THAT CONTAINS AUDIO FILES WILL ALSO CONTAIN A VOLUME CONTROL OF ITS OWN. IF
YOU INSTALL AN EXTERNAL AUDIO DEVICE THAT HAS AN INDEPENDENT VOLUME CONTROL,THE
HARDWARE VOLUME CONTROL AND THE SOFTWARE VOLUME CONTROL WILL INTERACT WITH EACH
OTHER. IT SHOULD BE NOTED THAT IF YOU SET YOUR SOFTWARE VOLUME TO OFF,YOU WILL OVERRIDE
THE EXTERNAL VOLUME CONTROL SETTING.
41
Chapter 2
Getting Started with Your Notebook
Figure 10. Connecting the AC Adapter
DC Power Jack
AC Adapter
AC Cable
42
- Power Sources
Power Sources
Your Fujitsu notebook has three possible power sources: a primary Lithium ion battery, an AC adapter or
an optional Auto/Airline adapter.
Connecting the Power Adapters
The AC adapter or optional Auto/Airline adapter provides power for operating your notebook and
charging the batteries.
Connecting the AC Adapter
1Plug the DC output cable into the DC power jack of your notebook.
2Plug the AC adapter into an AC electrical outlet.
Connecting the Optional Auto/Airline Adapter
1Plug the DC output cable into the DC power jack on your notebook.
2Plug the Auto/Airline adapter into the cigarette lighter of an automobile with the ignition key in the On or Access
OR
3Plug the Auto/Airline adapter into the DC power jack on an airplane seat.
Switching from AC Adapter Power or the Auto/Airline Adapter to Battery Power
1Be sure that you have at least one charged battery installed.
2Remove the AC adapter or the Auto/Airline adapter.
THE LITHIUM ION BATTERY IS NOT CHARGED UPON PURCHASE. INITIALLY,YOU WILL NEED TO CONNECT
EITHER THE AC ADAPTER OR THE AUTO/AIRLINE ADAPTER TO USE YOUR NOTEBOOK.
43
- Starting Your P3010 LifeBook
Starting Your P3010 LifeBook
Power On
Power/Suspend/Resume Button
The Power/Suspend/Resume button is used to turn on your notebook from its off state. Once you have
connected your AC adapter or charged the internal Lithium ion battery, you can power on your notebook.
To turn on your notebook from its off state, press the Power/Suspend/Resume button, located above the
keyboard to the right. When you are done working you can either leave your notebook in Suspend mode,
See “Standby Mode” on page 49. or you can turn it off. See “Powering Off” on page 51..
When you power on your notebook, it will perform a Power On Self Test (POST) to check the internal
parts and configuration for correct functionality. If a fault is found, your notebook will emit an audio
warning and/or an error message will be displayed. See “Power On Self Test Messages” on page 77.
Depending on the nature of the problem, you may be able to continue by starting the operating system or
by entering the BIOS setup utility and revising the settings.
After satisfactory completion of the POST, your notebook will load your operating system.
WHEN YOU TURN ON YOUR NOTEBOOK BE SURE YOU HAVE A POWER SOURCE. THIS MEANS THAT AT
LEAST ONE BATTERY IS INSTALLED AND CHARGED,OR THAT THE AC OR AUTO/AIRLINE ADAPTER IS
CONNECTED AND HAS POWER.
DO NOT CARRY YOUR NOTEBOOK AROUND WITH THE POWER ON OR SUBJECT IT TO SHOCKS OR
VIBRATION,AS YOU RISK DAMAGING YOUR NOTEBOOK.
44
- Starting Your P3010 LifeBook
Boot Sequence
The procedure for starting-up your notebook is termed the Bootup sequence and involves your notebook’s
BIOS. When your notebook is first turned on, the main system memory is empty, and it needs to find
instructions to start up your notebook. This information is in the BIOS program. Each time you power up
or restart your notebook, it goes through a boot sequence which displays a Fujitsu logo until your
operating system is found. During booting, your notebook is performing a standard boot sequence
including a Power On Self Test (POST). When the boot sequence is completed without a failure and
without a request for the BIOS Setup Utility, the system displays the operating system’s opening screen.
The boot sequence is executed when:
•You turn on the power to your notebook.
•You restart your notebook from the Windows Shut Down dialog box.
•The software initiates a system restart. Example: When you install a new application.
BIOS Setup Utility
The BIOS Setup Utility is a program that sets up the operating environment for your notebook. Your BIOS
is set at the factory for normal operating conditions, therefore there is no need to set or change the BIOS’
environment to operate your notebook.
The BIOS Setup Utility configures:
•Device control feature parameters, such as changing boot devices.
•System Data Security feature parameters, such as passwords.
NEVER TURN OFF YOUR NOTEBOOK DURING THE POWER ON SELF TEST (POST) OR IT WILL CAUSE AN
ERROR MESSAGE TO BE DISPLAYED WHEN YOU TURN YOUR NOTEBOOK ON THE NEXT TIME.See “Power
On Self Test Messages” on page 77.
45
- Starting Your P3010 LifeBook
Entering the BIOS Setup Utility
To enter the BIOS Setup Utility do the following:
1Turn on or restart your notebook.
2To enter the BIOS Setup Utility, press the [F2] key once the Fujitsu logo appears on the screen. This will open
the main menu of the BIOS Setup Utility with the current settings displayed.
3Press the [RIGHT ARROW] or [LEFT ARROW] key to scroll through the other setup menus to review or alter
the current settings.
The Boot Menu can also be invoked by pressing the [F11] key when the Fujitsu logo appears on the screen.
Setting the Supervisor Password and Password on Boot Settings
1Enter the BIOS Setup Utility.
2Scroll to the Security Tab.
3Select Set Supervisor Password, press [ENTER].
4Enter New Password and confirm new password.
5In the Security Tab, scroll to Password on Boot, and press [ENTER].
6Press [F10]. The Save and Exit, a screen will pop up. If you are finished making changes, select Yes and press
[ENTER].
BIOS Guide
A guide to your notebook’s BIOS is available online. Please visit our service and support website at
http://www.computers.us.fujitsu.com/support, then select User’s Guides under Online Support. Select
your Product, Series, and Model, then click [Go]. Under the Manuals tab, select the BIOS Guide.
Booting the System
We strongly recommend that you not attach any external devices until you have gone through the initial
power on sequence.
When you turn on your notebook for the first time, it will display a Fujitsu logo on the screen. If you do
nothing the system will load the operating system, and then the Windows Welcome will begin.
46
- Starting Your P3010 LifeBook
Starting Windows the First Time
Registering with Microsoft
In order to ensure that you receive the most benefits from the Windows operating system, it should be
registered the first time you use it.
After you receive the Windows Welcome screen, you will be prompted to enter registration information
in the following order.
First of all, you will need to read and accept the End User License Agreements (EULAs). After accepting
the EULAs, you will be asked if you want to enable the Automatic Updates feature. Acceptance of this
feature is recommended because it allows your system to be updated automatically whenever an important
change becomes available for your notebook.
Several additional windows will appear, prompting you to enter a name and description for your computer,
an Administrator password, and a domain name. Read the instructions on the screens carefully and fill in
the information as directed.
You will then be automatically connected to the Internet, if you have an appropriate connection available.
If an automatic connection is not possible, you will be asked about how you dial out from where you will
be using your notebook. If you are not connected to a phone line and plan to register at a later time, you
may click the Skip button.
Once you are connected to the Internet, you will be asked if you wish to continue with the registration. If
you select Ye s you will then enter your name and address, and email address if desired. Click Next to
complete registration.
•IF YOU REJECT THE TERMS OF THE LICENSE AGREEMENT YOU WILL BE ASKED TO REVIEW THE LICENSE
AGREEMENT FOR INFORMATION ON RETURNING WINDOWS OR TO SHUT DOWN YOUR NOTEBOOK.
•YOU CANNOT USE YOUR NOTEBOOK UNTIL YOU HAVE ACCEPTED THE LICENSE AGREEMENT. IF YOU STOP THE
PROCESS YOUR NOTEBOOK WILL RETURN TO THE BEGINNING OF THE WINDOWS WELCOME PROCESS,EVEN IF
YOU SHUT YOUR NOTEBOOK DOWN AND START IT UP AGAIN.
47
- Starting Your P3010 LifeBook
Registering your notebook with Fujitsu
You can register your notebook by going to our website at: us.fujitsu.com/computers. You will need to
be set up with an Internet Service Provider (ISP) to register online.
Installing ClickMe!
The first time you boot up your system, you will see an icon called Click Me! in the Start menu. We highly
recommend that you install the ClickMe! utility the first time you boot up. When you click the Click
Me! icon, your system will automatically create the related icons in the system tray in the bottom right of
the screen. These icons provide links to utilities that you will frequently access, such as wireless LAN
software provided by the wireless LAN manufacturer.
Fujitsu Driver Update Utility
Your system has a convenient tool called the Fujitsu Driver Update (FDU) utility. With FDU, you can
choose to automatically or manually go to the Fujitsu site to check for new updates for your system. For
more information about the FDU utility, refer to “Automatically Downloading Driver Updates” on
page 82.
BEFORE INSTALLING THE CLICKME!UTILITY,BE SURE THE WIRELESS LAN DEVICE IS ENABLED BY
PRESSING THE [FN] + [F5] KEY COMBINATION.
THERE MAY BE SOME THIRD-PARTY APPLICATIONS THAT DO NOT GET INSTALLED USING THE CLICKME!
UTILITY. FOR MORE INFORMATION,REFER TO YOUR GETTING STARTED GUIDE.
ClickMe!
48
- Power Management
Power Management
Your notebook has many options and features for conserving battery power. Some of these features are
automatic and need no user intervention. However, others depend on the parameters you set to best suit
your operating conditions, such as those for the display brightness. Internal power management for your
notebook may be controlled from settings made in your operating system, pre-bundled power
management application, or from settings made in BIOS setup utility.
Besides the options available for conserving battery power, there are also some things that you can do to
prevent your battery from running down as quickly. For example, you can create an appropriate power
saving profile, put your notebook into standby mode when it is not performing an operation, and you can
limit the use of high power devices. As with all mobile, battery powered computers, there is a trade-off
between performance and power savings.
Power/Suspend/Resume Button
When your notebook is active, the Power/Suspend/Resume button can be used to manually put the
notebook into standby mode. Push the Power/Suspend/Resume button when the notebook is active, but
not actively accessing anything, and immediately release the button.
If your notebook is suspended, pushing the Power/Suspend/Resume button returns your notebook to
active operation. You can tell whether the system is Suspended by looking at the Power indicator. If the
indicator is visible and not flashing, your notebook is fully operational. If the indicator is visible and
flashing, your notebook is in standby mode. If the indicator is not visible, the power is off or your
notebook is in Hibernation mode. (See Hibernation Feature)
49
- Power Management
Standby Mode
Standby mode in Windows saves the contents of your system memory during periods of inactivity by
maintaining power to critical parts. This mode turns off the CPU, display, hard drive, and all other internal
components except those necessary to maintain system memory and for restarting.
Your notebook can be put in Standby mode by:
•Pressing the Power/Suspend/Resume button when your system is turned on.
•Selecting Standby from the Turn off computer menu.
•Timing out from lack of activity.
•Allowing the battery to reach the Dead Battery Warning condition.
Your notebook’s system memory typically stores the file on which you are working, open application
information, and any other data required to support operations in progress. When you resume operation
from Standby mode, your notebook will return to the point where it left off. You must use the
Power/Suspend/Resume button to resume operation, and there must be an adequate power source
available, or your notebook will not resume.
■IF RUNNING YOUR NOTEBOOK ON BATTERY POWER,BE AWARE THAT THE BATTERY CONTINUES TO DISCHARGE
WHILE YOUR NOTEBOOK IS IN STANDBY MODE,THOUGH NOT AS FAST AS WHEN FULLY OPERATIONAL.
■DISABLING THE POWER/SUSPEND/RESUME BUTTON PREVENTS IT FROM BEING USED TO PUT THE NOTEBOOK INTO
SLEEP OR HIBERNATION (SAVE-TO-DISK)MODE. THE BUTTON RESUME FUNCTION CAN’T BE DISABLED.
■THE SLEEP OR HIBERNATION (SAVE-TO-DISK)MODE SHOULD NOT BE USED WITH CERTAIN PC CARDS. CHECK
YOUR PC CARD DOCUMENTATION FOR MORE INFORMATION. WHEN PC CARDS OR EXTERNAL DEVICES ARE IN
USE, HIBERNATION (SAVE-TO-DISK)MODE CANNOT RETURN TO THE EXACT STATE PRIOR TO SUSPENSION,
BECAUSE ALL OF THE PERIPHERAL DEVICES WILL BE RE-INITIALIZED WHEN THE SYSTEM RESTARTS.
■IF YOUR NOTEBOOK IS ACTIVELY ACCESSING INFORMATION WHEN YOU ENTER STANDBY OR HIBERNATION MODE,
CHANGES TO OPEN FILES ARE NOT LOST. FILES ARE LEFT OPEN AND MEMORY IS KEPT ACTIVE DURING STANDBY
MODE OR THE MEMORY IS TRANSFERRED TO THE INTERNAL HARD DRIVE DURING HIBERNATION MODE.
■THE MAIN ADVANTAGE OF USING HIBERNATION IS THAT POWER IS NOT REQUIRED TO MAINTAIN YOUR DATA. THIS IS
PARTICULARLY IMPORTANT IF YOU WILL BE LEAVING YOUR NOTEBOOK IN A SUSPENDED STATE FOR A PROLONGED
PERIOD OF TIME. THE DRAWBACK OF USING HIBERNATION MODE IS THAT IT LENGTHENS THE POWER DOWN AND
POWER UP SEQUENCES AND RESETS PERIPHERAL DEVICES.
50
- Power Management
Hibernation (Save-to-Disk) Feature
The Hibernation feature saves the contents of your notebook’s system memory to the hard drive as a part
of the Suspend/Resume mode. You can enable or disable this feature.
Enable or Disable the Hibernation Feature
The default settings are not enabled. To enable or disable the Hibernation feature follow these steps:
1From the Start menu, select Settings, and then select Control Panel.
2From the Control Panel select Power Options.
3Select the Hibernate tab. Select the box to enable or disable this feature.
Windows Power Management
The Power Options icon located in the Windows Control Panel allows you to configure some of the power
management settings. For example, you can use the Power Options to set the timeout values for turning
off the display and hard disks whether you are running the notebook on battery power or one of the
adapters.
Restarting the System
If your system is on and you need to restart it, be sure that you use the following procedure.
1Click the [Start] button, and then click Turn Off Computer.
2Select the Restart option. Your notebook will shut down and then reboot.
TURNING OFF YOUR NOTEBOOK WITHOUT EXITING WINDOWS OR TURNING ON YOUR NOTEBOOK WITHIN
10 SECONDS OF THE NOTEBOOK BEING SHUT OFF MAY CAUSE AN ERROR WHEN YOU START THE NEXT
TIME.
51
- Power Management
Powering Off
Before turning off the power, check that the hard drive/optical drive access indicator is off. If you turn off
the power while accessing a disk there is a risk of data loss. To ensure that your notebook shuts down
without error, use the Windows shut down procedure.
Using the correct procedure to shut down from Windows allows your notebook to complete its operations
and turn off power in the proper sequence to avoid errors. The proper sequence is:
1Click the [Start] button, and then click Turn Off Computer.
2Select the Turn Off option.
If you are going to store your notebook for a month or more, see Care and Maintenance Section.
BE SURE TO CLOSE ALL FILES,EXIT ALL APPLICATIONS,AND SHUT DOWN YOUR OPERATING SYSTEM
PRIOR TO TURNING OFF THE POWER. IF FILES ARE OPEN WHEN YOU TURN THE POWER OFF,YOU WILL
LOSE ANY CHANGES THAT HAVE NOT BEEN SAVED,AND MAY CAUSE DISK ERRORS.
52
- Power Management
ENERGY STAR® Compliance
Your Fujitsu system is an ENERGY STAR® qualified mobile PC. By choosing a computer
with the latest energy-saving technology, you’re helping to preserve our environment for
future generations.
ENERGY STAR is a joint program of the U.S. Environmental Protection Agency, U.S.
Department of Energy, Natural Resources Canada, and other governments around the world
helping us save money while protecting the environment through energy efficient products
and practices. With energy costs and global warming top-of-mind for consumers, Fujitsu is committed to
offering solutions that help consumers conserve energy and improve the quality of our environment.
Sleep Mode:
You will notice that your computer is initially set so that the display turns off after 15 minutes of user
inactivity, and the computer goes into Sleep mode after 20 minutes of user inactivity. When going into
Sleep mode, the computer also reduces the speed of any active Ethernet network links. To “wake” the
computer from Sleep mode, press the Suspend/Resume Button.
Energy saving benefits:
Fujitsu ENERGY STAR qualified mobile PCs use about half as much electricity as standard equipment –
saving half in utility costs. But more than that, ENERGY STAR also makes a difference for the
environment. Did you know that the average house can be responsible for twice the greenhouse gas
emissions as the average car? That’s because every time you flip on a light switch, run your dishwasher,
or turn on your PC, you use energy, which means more greenhouse gas emissions from power plants. So
the more energy we can save through energy efficiency, the more we help to reduce greenhouse gases and
the risks of global warming.
To learn more about the important ENERGY STAR program, visit: www.energystar.gov.
To read about how Fujitsu is supporting Sustainable Management along with several other environmental
activities, visit the Fujitsu Corporate Citizenship page at:
http://www.computers.us.fujitsu.com/www/content/aboutus/environmental/environment.php
53
Chapter 3
User-Installable Features
Lithium ion Battery
Your notebook has a Lithium ion battery that provides power for operating your notebook when no
external power source is available. The battery is durable and long lasting, but should not be exposed to
extreme temperatures, high voltages, chemicals or other hazards.
The Lithium ion battery operating time may become shorter if it is used under the following conditions:
•When used at temperatures that exceed a low of 5°C or a high of 35°C. Extreme temperatures not
only reduce charging efficiency, but can also cause battery deterioration. The Charging icon on the
Status Indicator panel will flash when you try to charge a battery that is outside its operating
temperature range.
•When using a high current device such as an external optical drive or the hard drive, using the AC
adapter will conserve your battery life.
DO NOT LEAVE A FAULTY BATTERY IN YOUR NOTEBOOK. IT MAY DAMAGE YOUR AC ADAPTER,OPTIONAL
AUTO/AIRLINE ADAPTER,ANOTHER BATTERY OR YOUR NOTEBOOK ITSELF. IT MAY ALSO PREVENT
OPERATION OF YOUR NOTEBOOK BY DRAINING ALL AVAILABLE CURRENT INTO THE BAD BATTERY
.
54
- Lithium ion Battery
Recharging the Batteries
If you want to know the condition of the primary Lithium ion battery, check the Battery Level indicator
located on the Status Indicator panel. The indicator changes as the battery level changes. (See Table 1 on
page 29 for more information.)
The Lithium ion battery is recharged internally using the AC adapter or Auto/Airline adapter. To recharge
the battery make sure the battery that needs to be charged is installed in your notebook and connect the
AC or Auto/Airline adapter.
There is no memory effect on the Lithium ion battery therefore you do not need to discharge the battery
completely before recharging. The charge times will be significantly longer if your notebook is in use
while the battery is charging. If you want to charge the battery more quickly, put your notebook into
Standby mode, or turn it off while the adapter is charging the battery. (See Power Management on page
48 for more information on Standby mode and shutdown procedure)
•ACTUAL BATTERY LIFE WILL VARY BASED ON SCREEN BRIGHTNESS,APPLICATIONS,FEATURES,
POWER MANAGEMENT SETTINGS,BATTERY CONDITION AND OTHER CUSTOMER PREFERENCES.
OPTICAL DRIVE OR HARD DRIVE USAGE MAY ALSO HAVE A SIGNIFICANT IMPACT ON BATTERY LIFE.
THE BATTERY CHARGING CAPACITY IS REDUCED AS THE BATTERY AGES. IF YOUR BATTERY IS
RUNNING LOW QUICKLY
,YOU SHOULD REPLACE IT WITH A NEW ONE.
•UNDER FEDERAL,STATE,OR LOCAL LAW IT MAY BE ILLEGAL TO DISPOSE OF BATTERIES BY PUTTING
THEM IN THE TRASH. PLEASE TAKE CARE OF OUR ENVIRONMENT AND DISPOSE OF BATTERIES
PROPERLY
. CHECK WITH YOUR LOCAL GOVERNMENT AUTHORITY FOR DETAILS REGARDING
RECYCLING OR DISPOSING OF OLD BATTERIES. IF YOU CANNOT FIND THIS INFORMATION
ELSEWHERE,CONTACT YOUR SUPPORT REPRESENTATIVE AT 1-800-8FUJITSU (1-800-838-5487)
MAKE SURE THAT THE BATTERY CHARGING INDICATOR AND THE BATTERY LEVEL INDICATOR ICON ON
THE STATUS INDICATOR PANEL LIGHT.
55
- Lithium ion Battery
Low Battery State
When the battery is running low, the Battery Level indicator will glow red. If you do not respond to the
low battery alarm, the batteries will continue to discharge until they are too low to operate. Your notebook
will then go into Standby mode to try and protect your data for as long as possible. There is no guarantee
that your data will not be lost once the system reaches this point.
Once your notebook goes into Dead Battery Suspend mode you will be unable to resume operation until
you provide a source of power either from an adapter, or a charged battery. Once you have provided power,
you will need to press the Suspend/Resume button to resume operation. In the Dead Battery Suspend
mode, your data can be maintained for some time, but if a power source is not provided promptly, the
Power indicator will stop flashing and go out, meaning that you have lost the data that was not stored.
Once you provide power, you can continue to use your system while an adapter is charging the battery.
Replacing the Battery
Your notebook comes with one battery pack; you might want to consider purchasing a spare. By keeping
a spare battery fully charged, you can immediately swap with one that is not charged.
There are two ways to swap batteries: cold- and hot-swapping. Cold-swapping means swapping batteries
when the system is powered down; hot-swapping is performed when the system is powered by AC power:
USING HEAVY CURRENT DEVICES OR FREQUENT EXTERNAL OPTICAL DRIVE ACCESSES MAY PREVENT
CHARGING COMPLETELY
.
■ONCE THE LOW BATTERY NOTIFICATION MESSAGE APPEARS,YOU NEED TO SAVE ALL YOUR ACTIVE DATA AND PUT
YOUR NOTEBOOK INTO STANDBY MODE UNTIL YOU CAN PROVIDE A NEW POWER SOURCE. YOU SHOULD PROVIDE A
CHARGED BATTERY,AN AC POWER ADAPTER,OR AUTO/AIRLINE ADAPTER AS SOON AS POSSIBLE.
■ WHEN YOU ARE IN STANDBY MODE THERE MUST ALWAYS BE AT LEAST ONE POWER SOURCE ACTIVE. IFYOU
REMOVE ALL POWER SOURCES WHILE YOUR NOTEBOOK IS IN STANDBY MODE,ANY DATA THAT HAS NOT BEEN
SAVED TO THE HARD DRIVE WILL BE LOST.
56
- Lithium ion Battery
Cold-swapping Batteries
1Have a charged battery ready to install.
2Shut down your system and disconnect the AC adapter.
3Turn the system upside down on a secure surface.
4Press the battery release latches to open the compartment.
5Remove the battery from the compartment.
6Slide the new battery into the compartment.
7Close the compartment and the battery release latches will click into place.
8Plug in the AC adapter and turn the power on.
Hot-swapping Batteries
To hot-swap batteries in your battery bay follow these easy steps:
1Close any open files and put your system into Standby mode.
2Connect an AC adapter or Auto/Airline power adapter to provide power to the system.
3Turn the system upside down on a secure surface.
4Press the battery release latches inward to open the compartment.
5Remove the battery from the compartment.
6Slide the new battery into the compartment.
7Close the compartment and the battery release latches will click into place.
8Press the Suspend/Resume button to return your system to normal operation.
BE SURE TO PLUG IN AN AC ADAPTER PRIOR TO REMOVING THE BATTERY. THERE IS NO BRIDGE
BATTERY PRESENT TO SUPPORT THE SYSTEM WHILE THE BATTERY IS BEING REPLACED. IFYOUDONOT
USE AN AC ADAPTER YOU WILL LOSE ANY UNSAVED FILES.
57
- Lithium ion Battery
Figure 11. Removing a Battery
IFTHE LITHIUM ION BATTERY CONNECTOR IS NOT FULLY SEATED,YOU MAY NOT BE ABLE TO USE YOUR
NOTEBOOK OR CHARGE YOUR BATTERY
.
58
- Memory Upgrade Module
Memory Upgrade Module
Your Fujitsu P3010 notebook comes with 1GB of high speed Double Data Rate Synchronous Dynamic RAM
2 (DDR2 SDRAM), 533 MHz factory installed. To increase your system’s memory capacity, you may
remove the original module and replace it with a memory upgrade module. To ensure 100% compatibility,
purchase the SDRAM module only from the Fujitsu web store at www.shopfujitsu.com.
Removing Memory Modules
1Turn off power to your notebook and remove any power adapter (AC or auto/airline).
2Make sure that all the connector covers are closed.
3Turn the system bottom side up, and remove the screws of the memory upgrade module compartment.
(Figure 13).
4Remove the cover.
5Pull the clips sideways away from each side of the memory upgrade module at the same time. (Figure 13)
6While holding the clips out, remove the module from the slot by lifting it up and pulling towards the rear of your
notebook.
•DO NOT REMOVE ANY SCREWS FROM THE MEMORY UPGRADE MODULE COMPARTMENT EXCEPT THE
ONES SPECIFICALLY SHOWN IN THE DIRECTIONS FOR INSTALLING AND REMOVING THE MEMORY
UPGRADE MODULE.
•THE MEMORY UPGRADE MODULE CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE
(ESD). TO MINIMIZE RISK TO THE MODULE,OBSERVE THE FOLLOWING PRECAUTIONS:
•BEFORE HANDLING A MEMORY MODULE,TOUCH A GROUNDED METAL OBJECT TO DISCHARGE
STATIC ELECTRICITY BUILT UP IN YOUR BODY.
•WHEN INSTALLING OR REMOVING A MEMORY MODULE,HOLD IT BY THE EDGE SO AS NOT TO
TOUCH ANY CONTACTS OR CHIPS. BE CAREFUL NOT TO TOUCH ANY INTERNAL COMPUTER
TERMINALS OR COMPONENTS;THE OIL FROM YOUR FINGERS COULD CAUSE A SHORT TO THE
COMPONENTS.
•BE SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING MEMORY MODULES.
EVEN IF THE SYSTEM IS IN HIBERNATE OR SLEEP STATES,DATA COULD BE LOST OR THE MEMORY
COULD BE DAMAGED IF POWER IS STILL AVAILABLE TO THE SYSTEM.
59
- Memory Upgrade Module
7Store the memory module in a static guarded sleeve.
8Install a new module as outlined in the procedure below.
9Replace the cover.
10 Replace the screws.
Figure 12. Opening the Memory Compartment Figure 13. Removing a Memory Module
Retainer clips
60
- Memory Upgrade Module
Installing a Memory Upgrade
Module
1Remove the new memory upgrade
module from the static guarded sleeve.
2Align the memory upgrade module with
the component side up. Align the
connector edge of the memory upgrade
module with the connector slot in the
compartment. (Figure 14)
3Insert the memory upgrade module at a
45° angle. Press the connector edge of
the module firmly down and into the
connector until it lodges under the
retaining clip. You will hear a click when it
is properly in place.
4Replace the cover.
5Replace the screws.
Figure 14. Installing a Memory Module
THE MEMORY UPGRADE MODULE IS NOT SOMETHING YOU ROUTINELY REMOVE FROM YOUR NOTEBOOK.
ONCE IT IS INSTALLED,YOU SHOULD LEAVE IT IN PLACE UNLESS YOU WANT TO CHANGE SYSTEM
MEMORY CAPACITY.
61
- Memory Upgrade Module
Checking the Memory Capacity
Once you have changed the system memory capacity by replacing the installed module with a larger one,
be sure to check that your notebook has recognized the change.
Check the memory capacity by clicking [Start] > Control Panel, then double-clicking the System icon.
Select the General tab and check the amount of memory in the General tab.
IF THE TOTAL MEMORY DISPLAYED IS INCORRECT,CHECK THAT YOUR MEMORY UPGRADE MODULE IS
PROPERLY INSTALLED. (IF THE MODULE IS PROPERLY INSTALLED AND THE CAPACITY IS STILL NOT
CORRECTLY RECOGNIZED,SEE TROUBLESHOOTING ON PAGE 67.
62
- Memory Stick/Secure Digital Cards

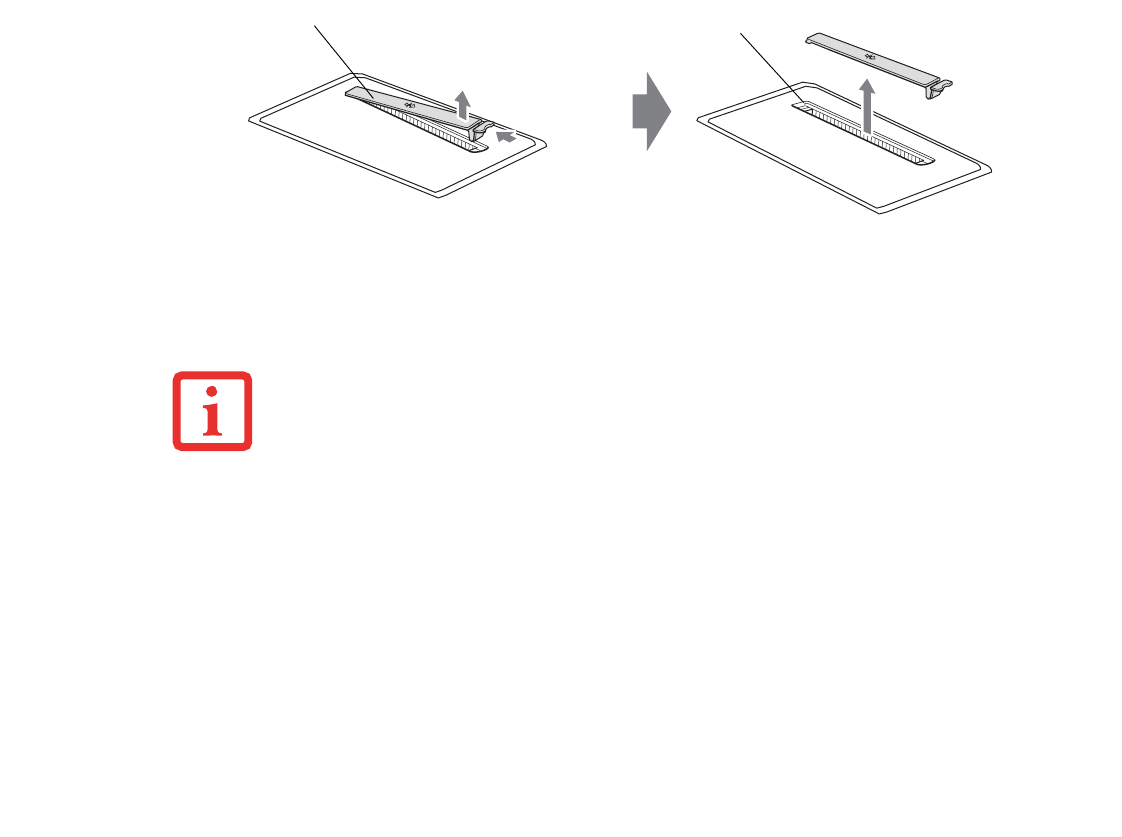

Figure 15. Installing a Meomory Stick/SD Card
Memory Stick/Secure Digital Cards
Your notebook supports Memory Stick (MS) and Secure Digital (SD) cards, on which you can store and
transfer data to and from a variety of digital devices. These cards use flash memory architecture, which
means they don’t need a power source to retain data.
Memory Stick and Secure Digital Cards allow portable storage among a variety of devices, such as cell
phones, GPS systems, digital cameras, and PDAs. These cards transfer data quickly, with low battery
consumption.
Memory Stick
SD Card
63
- Memory Stick/Secure Digital Cards
Inserting MS/SD Cards
MS and SD Cards are inserted in the MS/SD Card slot (Figure 15). To insert a card, follow these steps:
1See your card manual for instructions on the insertion of your card. Some cards may require that your system
is off while inserting them.
2Make sure there is no card currently in the slot. If there is, see Removing an SD Card.
3Insert your card into the slot with the product label facing up.
4Push the card firmly into the slot until it is seated in the connector.
Removing an MS/SD Card
To remove a card, first see your card manual for instructions. Some cards may require your notebook to
be in Suspend Mode or Off while removing them. Prior to removing the card from the slot, first select it
using the Safely Remove Hardware icon in the notification area. To remove the card, push it in to release
it, then pull it out.
•INSERTING OR REMOVING AN MS OR SD CARD DURING YOUR NOTEBOOK’S SHUTDOWN OR BOOTUP
PROCESS MAY DAMAGE THE CARD AND/OR YOUR NOTEBOOK.
•DO NOT INSERT A CARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON THE CARD
AS YOU MAY PERMANENTLY DAMAGE THE CARD,YOUR NOTEBOOK,OR BOTH.
64
- Device Ports
Device Ports
Your P3010 LifeBook notebook comes equipped with multiple device ports to which you can connect an
external device including: disk drives, keyboards, printers, etc.
Headphone Jack
The headphone jack allows you to connect headphones or powered external speakers to your notebook.
Your headphones or speakers must be equipped with a 1/8” (3.5 mm) stereo mini-plug. In order to connect
headphones or speakers follow these easy steps: (See Figure 4 on page 24 for location)
1Align the connector with the port opening.
2Push the connector into the port until it is seated.
Internal LAN (RJ-45) jack
The internal LAN (RJ-45) jack is used for an
internal 10/100 BaseTx Ethernet connection.
You will need to configure your notebook to
work with your particular network. (Please
refer to your network administrator for
information on your network configuration.)
To connect the LAN cable follow these easy
steps: (Figure 16)
1Align the connector with the jack opening.
2Push the connector end into the jack until it is
seated.
3Plug the other end into a LAN outlet. Figure 16. Connecting a LAN plug
IF YOU PLUG HEADPHONES INTO THE HEADPHONE JACK,THE BUILT-IN STEREO SPEAKERS WILL BE
DISABLED.
65
- Device Ports
Microphone Jack
The microphone jack allows you to connect an external mono microphone. Your microphone must be
equipped with a 1/8”(3.5 mm) mono mini-plug in order to fit into the microphone jack of your notebook.
In order to connect a microphone follow these easy steps: (Figure 4)
1Align the connector with the port opening.
2Push the connector into the port until it is seated.
External Video Port
The external video port allows you to connect an external monitor or LCD projector. In order to connect
an external device follow these easy steps: (Figure 18)
1Align the connector with the port opening.
2Push the connector into the port until it is seated.
3Tighten the two hold-down screws, located on each side of the connector.
Universal Serial Bus Ports
The three Universal Serial Bus 2.0 ports (USB)
allow you to connect USB devices such as
external floppy disk drives, external DVD
drives, game pads, pointing devices, keyboards
and/or speakers. USB 2.0 is downward-
compatible with USB 1.1 devices, so older USB
devices will work with these ports. USB 2.0 is a
much faster design, running forty times faster
than USB 1.1.
In order to connect a USB device, follow these
easy steps: (Figure 17)
1Align the connector with the port opening.
2Push the connector into the port until it is seated Figure 17. Connecting a USB device
66
- Device Ports
WHEN AN EXTERNAL MONITOR IS
PLUGGED IN,PRESSING THE [FN]
+ [F10] KEYS ALLOWS YOU TO
CHANGE YOUR SELECTION OF
WHERE TO SEND YOUR DISPLAY
VIDEO. EACH TIME YOU PRESS THE KEY
COMBINATION,YOU WILL STEP TO THE NEXT
CHOICE,STARTING WITH THE BUILT-IN DISPLAY
PANEL ONLY
,MOVING TO THE EXTERNAL
MONITOR ONLY
,FINALLY MOVING TO BOTH THE
BUILT-IN DISPLAY PANEL AND AN EXTERNAL
MONITOR.
Figure 18. Connecting an external video device
67
Chapter 4
Troubleshooting Your Notebook
Troubleshooting
There may be occasions when you encounter simple setup or operating problems that you can solve on the
spot, or problems with peripheral devices that can be solved by replacing the device. The information in
this section helps you isolate and resolve some of these straightforward issues and identify failures that
require service.
Identifying the Problem
If you encounter a problem, go through the following procedure before pursuing complex troubleshooting:
1Turn off your notebook.
2Make sure the AC adapter is plugged into your notebook and to an active AC power source.
3Make sure that any devices connected to the external connectors are plugged in properly. You can also
disconnect such devices, thus eliminating them as possible causes of failure.
4Turn on your notebook. Make sure it has been off at least 10 seconds before you turn it back on.
5Go through the boot sequence.
6If the problem has not been resolved, refer to the Troubleshooting Table, that follows, for more detailed
troubleshooting information.
68
- Troubleshooting Your Notebook
7If you have tried the solutions suggested in the Troubleshooting Table without success, contact your support
representative:
Toll free: 1-800-8Fujitsu (1-800-838-5487)
Web site: http://www.computers.us.fujitsu.com/support.
Before you place the call, you should have the following information ready so that the customer support
representative can provide you with the fastest possible solution:
•Product name
•Product configuration number
•Product serial number
•Purchase date
•Conditions under which the problem occurred
•Any error messages that have occurred
•Type of device connected, if any
See the Configuration Label on the bottom of your notebook for configuration and serial numbers.
•IF YOU KEEP NOTES ABOUT WHAT YOU HAVE TRIED,YOUR SUPPORT REPRESENTATIVE MAY BE
ABLE TO HELP YOU MORE QUICKLY BY GIVING ADDITIONAL SUGGESTIONS OVER THE PHONE.
•DO NOT RETURN A FAILED NOTEBOOK TO YOUR SUPPLIER UNTIL YOU HAVE TALKED TO A SUPPORT
REPRESENTATIVE.
69
- Troubleshooting Your Notebook
Specific Problems
Using the Troubleshooting Table
When you have problems with your notebook, try to find the symptoms under the Problem column of the
troubleshooting table for the feature giving you difficulty. You will find a description of common causes
for that symptom under the column Possible Cause and what, if anything, you can do to correct the
condition under Possible Solutions. All possible causes or solutions may not apply to your notebook.
Troubleshooting Table
Problem Page
Audio Problems. . . . . . . . . . . . . . . . . . . . . . . page 70
Hard Drive Problems. . . . . . . . . . . . . . . . . . . page 70
Keyboard or Mouse Problems. . . . . . . . . . . . page 70
Memory Problems. . . . . . . . . . . . . . . . . . . . . page 71
USB Device Problems. . . . . . . . . . . . . . . . . . page 71
Problem Page
Power Failures . . . . . . . . . . . . . . . . . . . . . page 72
Shutdown and Startup Problems . . . . . . . page 74
Video Problems . . . . . . . . . . . . . . . . . . . . page 75
Miscellaneous Problems . . . . . . . . . . . . . page 76
70
- Troubleshooting Your Notebook
Problem Possible Cause Possible Solutions
Audio Problems
There is no sound coming
from the built-in speakers.
The volume is turned too low. Adjust the volume control on your notebook and operating
system. Use the [Fn+F9] key combination on your keyboard
to increase the volume of your notebook.
The software volume control
is set too low.
Manually adjusting the volume (i.e., keyboard "hot keys")
should dynamically adjust the volume of the operating sys-
tem (see above). If that doesn’t work, adjust the sound vol-
ume control settings in your software or application.
Headphones are plugged into
your notebook.
Plugging in headphones disables the built-in speakers.
Remove the headphones.
The speakers have been
muted using the Volume icon
in the system tray.
Click the Volume icon in the system tray on the bottom right
of the screen. If the Mute box is checked, click on it. You can
also press [Fn] + [F3] to toggle the audio on and off.
Hard Drive Problems
You cannot access your
hard drive.
The wrong drive designator
was used by an application
when a bootable disc was
used to start the notebook.
Verify drive designator used by application is in use by the
operating system. When the operating system is booted from
a CD, drive designations are automatically adjusted.
Security is set so your operat-
ing system cannot be started
without a password.
Verify your password and security settings.
Keyboard or Mouse Problems
The built-in keyboard does
not seem to work.
The notebook has gone into
Standby mode.
Push the Power/Suspend/Resume button.
Your application has locked
out your keyboard.
Try to use your integrated pointing device to restart your sys-
tem.
NumLock key has been set. Press the NumLock key to toggle it off.
71
- Troubleshooting Your Notebook
You have installed an
external keyboard or
mouse, and it does not
seem to work.
Your external device is not
properly installed.
Re-install your device. See “Device Ports” on page 64.
Your operating system (OS) is
not set up with correct soft-
ware driver for that device.
Check your device and operating system documentation
and activate the proper driver.
You have connected an
external keyboard or a
mouse and it seems to be
locking up the system.
Your OS is not set up with the
correct driver for that device.
Check your device and operating system documentation
and activate the proper driver.
Your system has crashed. Try to restart your notebook.
Memory Problems
Your System screen in the
Control Panel does not
show the correct amount
of installed memory.
Your memory upgrade mod-
ule is not properly installed.
Remove and re-install your memory upgrade module. See
“Memory Upgrade Module” on page 58.
You have a memory failure. Check for Power On Self Test (POST) messages. See
“Power On Self Test Messages” on page 77.
Modem Problems (optional external device)
Messages about modem
operation.
Modem operation messages
are generated by whichever
modem application is in use.
See your application software documentation for additional
information.
USB Device Problems
You installed a USB device
but your notebook does
not recognize the device.
The device is not properly
installed.
Remove and re-install the device. See “Device Ports” on
page 64.
The device may have been
installed while an application
was running, so the notebook
is not aware of its installation.
Close the application and restart your notebook.
Your device may not have the
correct software driver active.
See your software documentation and activate the correct
driver.
Problem Possible Cause Possible Solutions
72
- Troubleshooting Your Notebook
Power Failures
You turn on your notebook
and nothing seems to hap-
pen.
The installed battery is com-
pletely discharged or there is
no Power adapter (AC or
Auto/Airline) installed.
Check the Status Indicator Panel to determine the presence
and condition of the battery. See “Status Indicator Panel” on
page 28. Install a charged battery or a Power adapter.
The battery is installed but is
faulty.
Use the Status Indicator panel to verify the presence and
condition of the battery. See “Status Indicator Panel” on
page 28. If the battery indicates a malfunction, remove it and
operate from another power source or replace that battery.
The battery is low. Check the Status Indicator Panel to determine the presence
and condition of the battery. See “Status Indicator Panel” on
page 28. Use a Power adapter to operate until a battery is
charged or install a charged battery.
The power adapter (AC or
auto/airline) is not plugged in
properly.
Verify that your adapter is connected correctly. See “Power
Sources” on page 42.
The power adapter (AC or
auto/airline) has no power
from the AC outlet, airplane
jack, or car cigarette lighter.
Move the AC cord to a different outlet, check for a line switch
or tripped circuit breaker for the AC outlet. If you are using an
auto/airline adapter in a car make sure the ignition switch is
in the On or Accessories position.
The power adapter (AC or
auto/airline) is faulty.
Try a different power adapter.
Your notebook turns off all
by itself.
The power management
parameters are set for auto
timeouts which are too short
for your operating needs.
Press any button on the keyboard, or move the mouse to
restore operation. If that fails, push the Power/Sus-
pend/Resume button. Check your power management set-
tings, or close your applications and go to the Power Options
located in the Control Panel to adjust the timeout values to
better suit your needs.
Problem Possible Cause Possible Solutions
73
- Troubleshooting Your Notebook
Your notebook turns off all
by itself.
(continued)
You are operating on battery
power and ignored a low bat-
tery alarm until the battery
was at the dead battery state
and the system has entered
Dead Battery Suspend mode.
Install a power adapter, then push the Power/Sus-
pend/Resume button. See “Power Sources” on page 42.
You have a battery failure. Verify the condition of the battery using the Status Indicator
panel. If the battery is shorted, replace or remove it. See
“Status Indicator Panel” on page 28.
Your power adapter has failed
or lost its power source.
Make sure the adapter is plugged in and the outlet has
power.
Your notebook will not
work on battery alone.
The installed battery is dead. Replace the battery with a charged one or install a power
adapter.
No battery is installed. Install a charged battery.
The battery is improperly
installed.
Verify that the battery is properly connected by re-installing it.
Your installed battery is faulty. Verify the condition of the battery using the Status Indicator
panel and replace or remove any batteries that are shorted.
See “Status Indicator Panel” on page 28.
The battery seems to
discharge too quickly.
The power savings features
may be disabled.
Check the Power Options menu settings and adjust accord-
ing to your operating needs.
You are running an applica-
tion that uses a lot of power
due to frequent hard drive
access or optical drive
access, or use of a Wireless
LAN or other device.
Use a power adapter for this application when at all possible.
The battery is very old. Replace the battery.
Problem Possible Cause Possible Solutions
74
- Troubleshooting Your Notebook
The battery seems to
discharge too quickly.
(continued)
The brightness is turned all
the way up.
Turn down the brightness adjustment. The higher the bright-
ness the more power your display uses.
Battery has been exposed to
high temperatures.
Replace the battery.
The battery is too hot or too
cold.
Restore the notebook to normal operating temperature.
Charging icon on the Status Indicator panel will flash when
battery is outside of operating range.
Shutdown and Startup Problems
The Suspend/Resume
button does not work.
Suspend/Resume button is
disabled.
Enable the button by going to the Control Panel > Power
Options Properties and clicking on the Advanced tab. In the
Power buttons area, select the option that suits your needs.
There may be application
software conflict.
Close all applications and try the button again.
The system powers up,
and displays power on
information, but fails to
load the operating system.
The boot sequence settings
of the setup utility are not
compatible with your configu-
ration.
Set the operating source by pressing the [ESC] key while the
Fujitsu logo is on screen or use the [F2] key and enter the
setup utility and adjust the source settings from the Boot
menu. See “BIOS Setup Utility” on page 44.
You have a secured system
requiring a password to load
your operating system.
Make sure you have the right password. Enter the setup util-
ity and verify the Security settings and modify them as
accordingly. See “BIOS Setup Utility” on page 44.
An error message is
displayed on the screen
during the boot sequence.
Power On Self Test (POST)
has detected a problem.
See the Power On Self Test (POST) messages to determine
the meaning and severity of the problem. Not all messages
are errors; some are simply status indicators. See “Power On
Self Test Messages” on page 77.
Your notebook appears to
change setup parameters
when you start it.
BIOS setup changes were not
saved when made and you
exited the setup utility.
Make sure you select Save Changes And Exit when exiting
the BIOS setup utility.
Problem Possible Cause Possible Solutions
75
- Troubleshooting Your Notebook
Your notebook appears to
change setup parameters
when you start it..
(continued)
The BIOS CMOS hold-up bat-
tery has failed.
Contact your support representative for repairs. This is not a
user serviceable part but has a normal life of 3 to 5 years.
Video Problems
The built-in display is blank
when you turn on your
notebook.
An external monitor is
plugged in, and the system is
set for an external monitor
only.
Pressing [F10] while holding down [Fn] allows you to change
where to send your display video. Each time you press the
combination of keys you will step to the next choice. The
choices, in order are: built-in display, external monitor, both
built-in display and external monitor.
Display angle and brightness
settings are not adequate for
your lighting conditions.
Move the display and the brightness control until you have
adequate visibility. Pressing either the [F6] or [F7] keys while
holding down the [Fn] key also allows you to change the
brightness level of the display.
Power management timeouts
are set for short intervals and
you didn’t see the display go
on and off again.
Press a keyboard button or move the mouse to restore oper-
ation. If that fails, push the Power/Suspend/Resume button.
(The display may be shut off by Standby mode, Auto Sus-
pend or Video Timeout)
The notebook turned on
with a series of beeps and
the built-in display is blank.
Power On Self Test (POST)
detected a failure which does
not allow display to operate.
Contact your support representative.
The display goes blank by
itself after you have been
using it.
The notebook has gone into
Video timeout, Standby
mode, or Save-to-Disk mode
because you have not used it
for a period of time.
Press any button on the keyboard, or move the mouse to
restore operation. If that fails, push the Power/Sus-
pend/Resume button. Check power management settings, or
close your applications and go to the Power Savings menu of
the setup utility to adjust the timeout values to better suit your
operation needs. See “BIOS Setup Utility” on page 44.
The display does not
close.
Foreign object stuck between
display and keyboard.
Remove all foreign objects, such as a paperclip, from the
keyboard.
Problem Possible Cause Possible Solutions
76
- Troubleshooting Your Notebook
The display goes blank by
itself after you have been
using it.
(continued)
Power timeouts are set for
very short intervals and you
failed to notice the display
come on and go off again.
Press any button on the keyboard, or move the mouse to
restore operation. If that fails, push the Power/Sus-
pend/Resume button. (The display may be shut off by
Standby Mode, Auto Suspend or Video Timeout)
The display has bright or
dark spots.
If the spots are very tiny and
few in number, this is normal
for a large LCD display.
This is normal; do nothing.
If the spots are numerous or
large enough to interfere with
your operation needs.
Display is faulty; contact your support representative.
The application display
uses only a portion of
your screen and is sur-
rounded by a dark frame.
You are running an applica-
tion that does not support the
system’s native resolution and
display compression is
enabled.
Display compression gives a clearer but smaller display for
applications that do not support the system’s native pixel
resolution. You can fill the screen but have less resolution by
changing display compression settings. These settings can
be changed in the Intel GMA control panel.
You connected an exter-
nal monitor and it does not
display any information.
Your external monitor is not
properly installed.
Reinstall your device. See “External Video Port” on page 65.
Your operating system is not
setup with the correct soft-
ware driver for that device.
Check your device and operating system documentation and
activate the proper driver.
You have connected an
external monitor and it
does not come on.
Your external monitor is not
compatible with your note-
book.
See your monitor documentation and the External Monitor
Support portions of the Specifications section. See “Specifi-
cations” on page 91.
Miscellaneous Problems
Error message displayed
on the screen during oper-
ation of an application.
Application software often has
its own set of error message
displays.
See your application manual and help displays screens for
more information. Not all messages are errors some may
simply be status.
Problem Possible Cause Possible Solutions
77
- Troubleshooting Your Notebook
Power On Self Test Messages
The following is an alphabetic list of error-and-status messages that Phoenix BIOS and/or your operating
system can generate and an explanation of each message. Error messages are marked with an *. If an error
message is displayed that is not in this list, write it down and check your operating system documentation
both on screen and in the manual. If you can find no reference to the message and its meaning is not clear,
contact your support representative for assistance.
Check date and time settings
Verify that the date and time settings are correct.
*Extended Memory Failed at address line: nn
Extended memory not working or not configured properly. If you have an installed memory upgrade
module, verify that the module is properly installed. If it is properly installed, you may want to check your
Windows Setup to be sure it is not using unavailable memory until you can contact your support
representative.
*Failure Fixed Disk n
The fixed disk is not working or not configured properly. This may mean that the hard drive type identified
in your setup utility does not agree with the type detected by the Power On Self Test. Run the setup utility
to check for the hard drive type settings and correct them if necessary. If the settings are OK and the
message appears when you restart the system, there may be a serious fault which might cause you to lose
data if you continue. Contact your support representative.
Fan error has occurred
POST has determined that there is an error with the system fan. Contact your support representative.
*Invalid system disk
Problem with the system disk. Replace the disk and then press any key to continue.
78
- Troubleshooting Your Notebook
*Keyboard error
Keyboard not working. You may have to replace your keyboard or keyboard controller but may be able to
use an external keyboard until then. Contact your support representative.
Non-system disk or disk error
Replace the disk and then press any key to continue.
NTLDR is missing
Press any key to restart.
*Operating system not found
Operating system cannot be located on either drive A: or drive C: Enter the setup utility and see if both
the fixed disk, and drive A: are properly identified and that the boot sequence is set correctly. Unless you
have changed your installation greatly, the operating system should be on drive C:. If the setup utility is
correctly set, your hard drive may be corrupted.
*Press <F1> to resume, <F2> to SETUP
Displayed after any recoverable error message. Press the [F1] key to continue the boot process or the [F2]
key to enter Setup and change any settings.
PXE-E32: TFTP open timeout
Contact your support representative for more information.
PXE-E53: No boot filename received
Contact your support representative for more information.
PXE-E61: Media test failure, check cable
Check the system cables. If that does not correct the failure, contact your support representative for more
information.
79
- Troubleshooting Your Notebook
PXE-E78: Could not locate boot server
Contact your support representative for more information.
PXE-E89: Could not download boot image
Contact your support representative for more information.
*Real time clock error
Real-time clock fails BIOS test. May require board repair. Contact your support representative.
Remove disks or other media
Remove disks or other media, then press any key torestart.
*Stuck key
BIOS discovered a stuck key. You may have to replace your keyboard but may be able to use an external
keyboard until then. Contact your support representative.
*System CMOS checksum bad – Default configuration used
BIOS CMOS RAM has been corrupted or modified incorrectly, perhaps by an application program that
changes data stored in BIOS memory. Run Setup and reconfigure the system.
*System timer error
The timer test failed. The main clock that operates the computer is faulty. Requires repair of system board.
Contact your support representative for repairs.
Thermal sensor error has occurred
The thermal sensor has either failed or is out of thermal range.
80
- Restoring Your System Image and Software
Restoring Your System Image and Software
Packed with your system you will find two discs for recovering your pre-installed software:
•Drivers and Applications Restore Disc
•Recovery and Utility Disc
Drivers and Applications Restore Disc
The Drivers and Applications Restore (DAR) disc included with your system contains sets of device
drivers and Fujitsu utilities (in specific directories) that are unique to your computer configuration.
Re-installing Individual Drivers and Applications
The Drivers and Applications disc can be used to selectively re-install drivers and/or applications that may
have been un-installed or corrupted.
To re-install drivers and/or applications:
1Boot up the system and insert the DAR disc after Windows has started. A Fujitsu Installer screen is displayed
after the disc is inserted.
2After reading the License Agreement, click [I agree].
3A window will appear containing a list of applications, drivers, and utilities that you can install from the DAR disc.
IF YOU HAVE ACCESS TO THE INTERNET,VISIT THE FUJITSU SUPPORT WEBSITE AT
HTTP://WWW.COMPUTERS.US.FUJITSU.COM/SUPPORT TO CHECK FOR THE MOST CURRENT INFORMATION,
DRIVERS AND HINTS ON HOW TO PERFORM RECOVERY AND SYSTEM UPDATES.
THERE MAY BE CERTAIN FREE THIRD-PARTY APPLICATIONS PRE-INSTALLED ON YOUR SYSTEM THAT ARE
NOT ON THE DAR DISC. THE LATEST VERSIONS OF THE APPLICATIONS CAN BE DOWNLOADED FROM THE
THIRD-PARTY’S WEBSITE.
81
- Restoring Your System Image and Software
4In the list, check off all the components you want to install. If you want to install all components, click [Select
All]. Clicking [Select All] will select all of the blue-coded components; you must select grey and green
components separately.
5Once you have selected the components you wish to install, click [Install Selected Subsystems]; the
components will be installed.
6After the components are installed, click [OK], then click [Yes] when asked if you want to reboot the system.
Recovery and Utility Disc
The Recovery and Utility disc contains four utilities:
•The Recovery utility allows you to restore the system operating system (OS). The restored OS is
the same one that was originally installed on the hard disk drive. After the OS is restored, you will
need to reinstall the drivers and applications from the Drivers and Applications Restore disc and
from any application discs that were bundled with the system when you purchased it.
•The Hard Disk Data Delete utility on this disc is used to delete all data on your hard disk
and prevent it from being reused. Do not use the Hard Disk Data Delete utility unless you are
absolutely certain that you want to erase your entire hard disk, including all partitions.
•The Partition Creation utility allows you to create a new D: partition or resize existing
partitions on your hard disk. NOTE: Creating or resizing partitions with this utility will cause
all data on the hard disk to be completely erased.
•The Diagnostics utility allows the IT professional to determine device status/condition by
executing diagnostics tests on selected system components.
To use the disc, follow the instructions in the “Using the Recovery and Utility Disc” booklet that is
packaged with the disc.
82
- Restoring Your System Image and Software
Automatically Downloading Driver Updates
Your system has a convenient tool called the Fujitsu Driver Update (FDU) utility. With FDU, you can
choose to automatically or manually go to the Fujitsu site to check for new updates for your system.
The FDU icon should appear in the system tray at the bottom right of your screen (roll the cursor over the
icons to find the correct one). If the icon does not appear in the system tray, go to [Start] -> All Programs,
and click on Fujitsu Driver Update; this will create the icon automatically.
To invoke the FDU menu, right-click on the FDU icon. The menu contains the following items:
Check for updates now
Allows for manual driver update search. The first time it is used, you are prompted to agree to a user
agreement. After clicking on the icon, the FDU automatically connects with the Fujitsu site to check for
updates and downloads them. While downloading, the icon has a red bar through it, indicating that it
cannot be used while the download is in process. When the update is complete, a message appears
informing you of the fact.
Enable Automatic Update Notifications
Automatically searches for new updates on a regular basis (approximately every 3 days).
Show update history
Brings up a screen that displays a history of updates that have been made via the FDU.
About Fujitsu Driver Update
Displays the FDU version number and copyright information.
Fujitsu Driver Update Readme
Displays the FDU readme.
83
Chapter 5
Care and Maintenance
Caring for your P3010 LifeBook
If you use your Fujitsu notebook carefully, you will increase its life and reliability. This section provides
some tips for looking after the notebook and its devices.
•IN THE EVENT YOU DROP YOUR NOTEBOOK OR DAMAGE THE HOUSING IN ANY WAY,IMMEDIATELY TURN OFF POWER
AND DISCONNECT THE POWER PLUG. FAILURE TO DO SO COULD RESULT IN A SHORT CIRCUIT,SMOKE,AND/OR FIRE.
CONTACT FUJITSU SERVICE AND SUPPORT BY PHONE AT 1-800-8FUJITSU (1-800-838-5487), BY EMAIL AT
8FUJITSU@US.FUJITSU.COM,OR THROUGH THE WEBSITE AT HTTP://WWW.COMPUTERS.US.FUJITSU.COM/SUPPORT
TO LEARN HOW TO GET THE SYSTEM REPAIRED.
•THE SYSTEM CONTAINS COMPONENTS THAT CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE (ESD).
TO MINIMIZE RISK TO THE COMPONENTS,OBSERVE THE FOLLOWING PRECAUTIONS:
- BEFORE DOCKING OR UNDOCKING YOUR NOTEBOOK (WHEN USING A PORT REPLICATOR), IT IS A GOOD IDEA TO
ALWAYS TOUCH A GROUNDED METAL OBJECT TO DISCHARGE STATIC ELECTRICITY BUILT UP IN YOUR BODY.
- BE SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING SYSTEM COMPONENTS. EVEN IF THE
SYSTEM IS IN HIBERNATE OR SLEEP STATES,DATA COULD BE LOST OR MEMORY COULD BE DAMAGED IF POWER
IS STILL AVAILABLE TO THE SYSTEM.
- WHEN INSTALLING OR REMOVING A MEMORY MODULE,HOLD IT BY THE EDGE SO AS NOT TO TOUCH ANY
CONTACTS OR CHIPS. BE CAREFUL NOT TO TOUCH ANY INTERNAL COMPUTER TERMINALS OR COMPONENTS;
THE OIL FROM YOUR FINGERS COULD CAUSE A SHORT TO THE COMPONENTS.
•ELECTRICAL EQUIPMENT MAY BE HAZARDOUS IF MISUSED. OPERATIONS OF THIS PRODUCT OR SIMILAR PRODUCTS,
MUST ALWAYS BE SUPERVISED BY AN ADULT. DO NOT ALLOW CHILDREN ACCESS TO THE INTERIOR OF ANY
ELECTRICAL PRODUCTS AND DO NOT PERMIT THEM TO HANDLE ANY CABLES.
84
- Care and Maintenance
•Your notebook is a durable but sensitive electronic device. Treat it with respect and care.
•Make a habit of transporting it in a suitable carrying case.
•Do not attempt to service the computer yourself. Always follow installation instructions closely.
•Keep it away from food and beverages.
•To protect your notebook from damage and to optimize system performance, be sure to keep all air
vents unobstructed,clean, and clear of debris. This may require periodic cleaning, depending
upon the environment in which the system is used.
•Do not operate the notebook in areas where the air vents can be obstructed, such as in tight
enclosures or on soft surfaces like a bed or cushion.
•If you accidentally spill liquid on your notebook:
1Tu r n i t o f f.
2Position it so that the liquid can run out.
3Let it dry out for 24 hours, or longer if needed.
4If your notebook will not boot after it has dried out, call your support representative.
•Do not use your Fujitsu notebook in a wet environment (near a bathtub, swimming pool).
•Always use the AC adapter and batteries that are approved for your notebook.
•Avoid exposure to sand, dust and other environmental hazards.
•Do not expose your notebook to direct sunlight for long periods of time as temperatures above 140°
F (60° C) may damage your notebook.
•Do not put heavy or sharp objects on the computer.
•If you are carrying your notebook in a briefcase, or any other carrying case, make sure that there
are no objects in the case pressing on the lid.
•Never position your notebook such that the optical drive is supporting the weight of the notebook.
85
- Care and Maintenance
Cleaning your notebook
•Always disconnect the power plug. (Pull the plug, not the cord.)
•Clean your notebook with a damp, lint-free cloth. Do not use abrasives or solvents.
•Use a soft cloth to remove dust from the screen. Never use glass cleaners.
•Always shut down the computer, unplug the power adapter, and remove the battery when cleaning
or disinfecting the computer exterior, keyboard or LCD display.
Cleaning guidelines using recommended off-the-shelf cleaners
Computer exterior, computer keyboard
To clean the exterior and keyboard, use one of the following off-the-shelf products:
•Office Depot® #154-616 Notebook Cleaning Kit
•Meridrew Enterprises Klear_Screen® Wipes
•3M CL563 Cleaner Wipes
Note: After cleaning with one of these products, gently polish with a dry, soft, lint-free cloth until the
solution is no longer visible.
LCD display
To clean the LCD display, use one of the following off-the-shelf products:
•Office Depot® #154-616 Notebook Cleaning Kit
•Meridrew Enterprises Klear_Screen® Wipes
* Applies to Tablet PC, convertible PC with LCD shield, and standard notebook LCD displays.
Wipe the LCD surface gently, allowing it to dry before turning on the computer.
Disinfecting notebook computers
Wipe the surface with a soft cloth wipe and a 50% ethanol solution or use another ethanol-based germicide
which has been registered as a hospital disinfectant by the EPA.
/
86
- Care and Maintenance
Cleaning the dust filter
Your LifeBook is equipped with fans to make air flow inside by pulling in outside air to cool the inside of
the system. Depending on the environment in which the system is used, dust and dirt may be pulled in
along with the air. Accumulated dust and dirt could impair the function of the system.
1Turn off your computer and disconnect the AC adapter.
2Close the display panel and turn the system upside down.
3Remove the dust filter access cover by pressing the latch toward the center of the cover and lifting it out (Fig.19).
4Carefully clean the embedded dust filter and the air-cooling duct using a vacuum cleaner attachment (such as
an extension wand).
•USE OF INCORRECT CLEANERS CAN RESULT IN OPTICAL IMPAIRMENT OF THE LCD AND/OR DAMAGE TO
THE COMPUTER. ALWAYS REFER TO THE CLEANER MANUFACTURER'S GUIDELINES AND MATERIAL
SAFETY DATA SHEETS FOR PROPER HANDLING AND USE OF THE PRODUCTS.
•NEVER USE AMMONIA,ACIDIC,OR ALKALINE CLEANERS OR ORGANIC CHEMICALS SUCH AS PAINT
THINNER,ACETONE,PROPYL OR ISOPROPYL ALCOHOL,OR KEROSENE. IT MAY DAMAGE SURFACE
FINISHES AND THE COATING OF THE LCD SCREEN.
•NEVER USE COMPRESSED AIR FOR CLEANING YOUR NOTEBOOK.
•REMOVE AC ADAPTER: BEFORE CLEANING THE FILTER,TURN OFF THE SYSTEM AND PERIPHERALS AND
DISCONNECT THE AC ADAPTER.
•CLEANING THE FILTER:
- DO NOT USE DETERGENT
- AVOID DAMAGING THE FILTER;DAMAGE TO THE FILTER IS NOT COVERED BY WARRANTY.
- USE A VACUUM CLEANER HANDHELD ATTACHMENT TO CLEAN THE FILTER. METAL OR WOODEN TOOLS
COULD DAMAGE THE FILTER.
•ESD: BEFORE CLEANING THE FILTER,TOUCH A METAL OBJECT TO DISCHARGE STATIC ELECTRICITY.
87
- Care and Maintenance
Figure 19. Removing/installing the dust filter access cover
5Put back the dust filter access cover by inserting the end without latch first (positioning the key inside first), and
pushing in the cover until it latches.
Storing your notebook
•If storing your notebook for a month or longer, turn your notebook off, fully charge the battery, then
remove and store all Lithium ion batteries.
•Store your notebook and batteries separately. If you store your notebook with a battery installed,
the battery will discharge, and battery life will be reduced. In addition, a faulty battery might
damage your notebook.
•Store your Fujitsu notebook in a cool, dry location. Temperatures should remain between 13ºF
(-25ºC) and 140ºF (60ºC).
Dust filter access cover Embedded dust filter
ALWAYS BE SURE THE DUST FILTER ACCESS COVER IS INSTALLED WHEN RUNNING YOUR SYSTEM. NOT
USING THE FILTER COVER COULD CAUSE CONTAMINATION AND POSSIBLE DAMAGE TO THE SYSTEM.
88
- Care and Maintenance
Traveling with your notebook
•Do not transport your notebook while it is turned on.
•It is recommended that you carry your notebook with you while traveling, rather than checking it
in as baggage.
•Always bring your System Recovery CD that came with your notebook when you travel. If you
experience system software problems while traveling, you may need it to correct any problems.
•Take the necessary plug adapters if you're traveling overseas. Check the following diagram to
determine which plug adapter you'll need or ask your travel agent.
•ALWAYS POWER OFF THE COMPUTER BEFORE TRANSPORTING AND/OR PACKAGING IT. AFTER SHUTTING
DOWN THE SYSTEM,WAIT UNTIL THE STATUS LED PANEL INDICATES POWER OFF CONDITION (NO LIGHTS
ARE ILLUMINATED).
•IT IS POSSIBLE THAT THE UNIT MAY NOT AUTOMATICALLY GO TO POWER OFF OR HIBERNATE MODE
WHEN YOU CLOSE THE LID. THIS SITUATION MAY OCCUR DUE TO PRE-OS BOOT PASSWORD SECURITY
SETTINGS OR SOME OTHER APPLICATION RUNNING ON THE COMPUTER.
•ATTEMPTING TO TRANSPORT THE COMPUTER WHILE POWER IS ON MAY DAMAGE THE NOTEBOOK DUE
TO SHOCK OR OVERHEATING SINCE THE AIR VENTS MAY BE BLOCKED OR RESTRICTED.
Outlet Type Location Outlet Type Location
United States, Canada, parts of Latin
America, Mexico, Japan, Korea,
the Philippines, Taiwan
Russia and the Commonwealth
of Independent States (CIS), most
of Europe, parts of Latin America,
the Middle East, parts of Africa,
Hong Kong, India, most of South Asia
United Kingdom, Ireland, Malaysia,
Singapore, parts of Africa China, Australia, New Zealand
89
- Care and Maintenance
•Never put your notebook through a metal detector. Have your notebook hand-inspected by security
personnel. You can however, put your notebook through a properly tuned X-ray machine. To avoid
problems, place the notebook close to the entrance of the machine and remove it as soon as possible
or have it hand-inspected by security personnel. Security officials may require you to turn your
notebook on, so make sure you have a charged battery on hand.
Batteries
Caring for your Batteries
•Always handle batteries carefully.
•Do not short-circuit the battery terminals (that is, do not touch both terminals with a metal object).
Do not carry lose batteries in a pocket or purse where they may mix with coins, keys, or other metal
objects. Doing so may cause an explosion or fire.
•Do not drop, puncture, disassemble, mutilate or incinerate the battery.
•Recharge batteries only as described in this manual and only in ventilated areas.
•Do not leave batteries in hot locations for more than a day or two; high heat can shorten battery life.
•Do not leave a battery in storage for longer than 6 months without recharging it.
Increasing Battery Life
•Power your notebook through the AC or optional auto/airline adapter whenever possible.
•If your notebook is running on battery power all day, connect it to the AC adapter overnight to
recharge the battery.
•Keep brightness to the lowest level comfortable.
•Set the power management for maximum battery life.
•Put your notebook in standby mode when it is turned on and you are not actually using it.
•Limit your media drive access.
•Disable the Media Player auto insert notification function.
•Always use fully charged batteries.
90
- Care and Maintenance
Media Care
Caring for your Media (optional)
Media discs (DVD/CD/CD-R) are precision devices and will function reliably if given reasonable care.
•Always store your media disc in its case when it is not in use.
•Always handle discs by the edges and avoid touching the surface.
•Avoid storing any media discs in extreme temperatures.
•Do not bend media discs or set heavy objects on them.
•Do not spill liquids on media discs.
•Do not scratch or get dust on media discs.
•Never write on the label surface with a ballpoint pen or pencil. Always use a felt pen.
•If a media disc is subjected to a sudden change in temperature, cold to warm condensation may form
on the surface. Wipe the moisture off with a clean, soft, lint free cloth and let it dry at room
temperature. DO NOT use a hair dryer or heater to dry media discs.
•If a disc is dirty, use only a DVD/CD cleaner or wipe it with a clean, soft, lint free cloth starting
from the inner edge and wiping to the outer edge.
Caring for your Optical Drive (optional)
The optional external optical drive is durable but you must treat it with care. Pay attention to the following:
•The drive rotates the compact disc at a very high speed. Do not carry it around or subject it to shock
or vibration with the power on.
•Avoid using or storing the drive where it is damp, dusty, or will be exposed to extreme temperatures.
•Avoid using or storing the drive near magnets or devices that generate strong magnetic fields.
•Avoid using or storing the drive where it will be subjected to shock or vibration.
•Do not disassemble or dismantle the optical drive.
•Use of a commercially available lens cleaner is recommended for regular maintenance of the drive.
91
Chapter 6
System Specifications
Specifications
This section provides the hardware and environmental specifications for your Fujitsu P3010 LifeBook
notebook. Specifications of particular configurations will vary.
Configuration Label
The configuration label located on the bottom of your notebook contains specific information regarding the
options you’ve chosen for your notebook. Following is an example configuration label.
M2010,N280,10.1”WSVGA,XPH,1G,160G,WLAN,BT,WEBCM,AC ADAPTER
Configuration P/N: CP4XXXX-XX
FPC P/N: FPCMXXXXXX
Hard Drive
Part Number
Processor
Model # Memory
Operating System
Screen Size/Type
Configuration ID
Communications
Camera
Power
92
- Specifications
Microprocessor
MD Athlon™ Neo MV-40 processor
Chipset
•AMD RS780MN
•I/O Controller Hub 7 Mobile (ICH7M)
Memory
System Memory
•DDR2-800 MHz SDRAM memory module.
•Two DIMM slots; upgradeable.
Cache Memory
512 KB L2 cache on-die
Video
Built-in color flat-panel TFT active matrix LED backlight display with simultaneous display capability.
Video Color and Resolution
11.6" Wide SVGA display
•Internal: 1366 x 768 pixel resolution (16:9), 16M colors
•External: 1600 x 1200 pixel resolution, 16M colors
•Simultaneous: 1600 x 1200 pixel resolution, 16M colorsVideo RAM
AMD RS780 video graphics. Up to 128 MB shared video memory using Dynamic Video Memory
Technology (DVMT)
93
- Specifications
Audio
•Realtek codec ALC269Q-GR with High Definition (HD) audio.
•Headphones: Stereo headphone jack, 3.5 mm, 1 Vrms or less, minimum impedance 32 Ohms
•Microphone: Stereo microphone jack, 3.5 mm, 100 mVp-p or less, minimum impedance 10K Ohms
•Two built-in stereo speakers
•One built-in digital mono microphone
Mass Storage Device Options
Hard Drive
Serial ATA, 150 Mbps data buffer, 5400 rpm, 2.5”
Features
Integrated Pointing Device
Touchpad cursor control
Web Camera
Integrated 1.3 MP web camera
Communications
•Gigabit LAN: Internal wired 10/100 Ethernet LAN
•WLAN: Atheros Align™ 802.11bgn
•Bluetooth: Bluetooth V2.1 device for wireless personal area network communication
•Wireless LAN antenna
Theft Prevention Lock
Lock slot for use with security restraint systems.
94
- Specifications
Device Ports
On the notebook:
•Memory Stick/Secure Digital (MS/SD) Card slot
•One 15-pin D-SUB connector for VGA external monitor (see Display specifications)
•Three USB 2.0 (Universal Serial Bus) connectors for input/output devices
•One DC In connector
•One LAN (RJ-45) connector
•One stereo headphone jack
•One stereo microphone/line-in jack
Keyboard
Built-in keyboard with all functions of 101 key PS/2 compatible keyboards.
•Total number of keys: 84
•Function keys: F1 through F12, plus Fn extension key
•Two Windows keys: one Start key, one application key
•Key pitch: 19 mm; key stroke: 1.8 mm
•Left and right buttons
•External USB keyboard/mouse support
Power
Battery
Standard Lithium ion battery, rechargeable, 6-cell 10.8V, 5200 mAh
AC Adapter
Autosensing 100-240V AC, supplying 19V DC, 3.16A (60W), to the notebook; includes an AC cable
95
- Specifications
Power Management
Conforms to ACPI (Advanced Configuration and Power Interface).
Dimensions and Weight
Overall Dimensions
Approximately 10.16"(w) x 7.4"(d) x 1.26” / 1.69” (h) (258 mm x 188 mm x 32 mm / 42.9 mm)
Weight
Approximately 2.93 lb. (1.33 Kg) with battery
Environmental Requirements
Temperature
Operating: 41° to 95° F (5° to 35° C). Non-operating: 5° to 140° F (–15° to 60° C)
Humidity
Operating: 20% to 85%, relative, non-condensing. Non-operating: 8% to 85%, relative, non-condensing
Altitude
Operating: 10,000 feet (3,048 m) maximum
Popular Accessories
For ordering or additional information on Fujitsu accessories please visit our Web site at
www.shopfujitsu.com or call 1-800-FUJITSU.
96
- Specifications
Included Software
Depending on your operating system, your notebook comes with software for playing audio and video
files of various formats. In addition there is file transfer software, virus protection software and Power
Management software. The following list indicates the software included with your system.
•Adobe Reader
•CyberLink PowerDVD
•CyberLink YouCam
•Norton Internet Security™ (90-day free trial)
•Roxio Creator
•Fujitsu Driver Update Utility
•Microsoft Office Activation Assistant
•Microsoft Works 9.0 with Office 2007 Student and Home Trial Edition
Learning About Your Software
Tutorials
All operating systems and most application software have tutorials built into them upon installation. We
highly recommend that you step through the tutorial before you use an application.
Manuals
Included with your notebook you will find manuals for your installed operating system and other pre-
installed software. Any manuals that are not included, are available online through the help system of the
software. We recommend that you review these manuals for general information on the use of these
applications.
Adobe Reader
The Adobe Reader allows you to view, navigate, and print PDF files from across all of the major
computing platforms.
97
- Specifications
Norton Internet Security
Your system is preinstalled with a free 60-day trial version of Symantec’s Norton Internet Security™.
Norton Internet Security is a suite of tools designed to protect your notebook from computer viruses,
hackers, spyware, and spam. It assists in the protection of data currently on your hard disk from
destruction or contamination. The trial version is activated upon your acceptance of software license
agreement. After 60 days, you will need to purchase a subscription from Symantec to download latest
virus, spyware, and spam definitions.
Roxio Creator
Roxio Creator lets you burn CDs and organize, edit and share digital photos, music, data, or videos.
CyberLink PowerDVD
CyberLink PowerDVD allows you to produce and edit home movies and slideshows on discs.
CyberLink YouCam
CyberLink YouCam allows you to capture photos or movies on the embedded webcam, add special effects
to them, and share them in a variety of formats or via social networks.
Fujitsu Driver Update Utility
The Fujitsu Driver Update (FDU) utility is pre-installed on your system. With FDU, you can choose to
automatically or manually go to the Fujitsu site to check for new updates for your system. See
“Automatically Downloading Driver Updates” on page 82.
Microsoft Works with Office 2007 Student and Home Trial Edition
Microsoft Works 9.0 is a software suite containing the basic tools to write letters and reports, track family
and friends with address books, manage home finances, and create a home inventory.
98
Glossary
AC Adapter
A device which converts the AC voltage from a wall outlet to the DC voltage needed to power your
notebook.

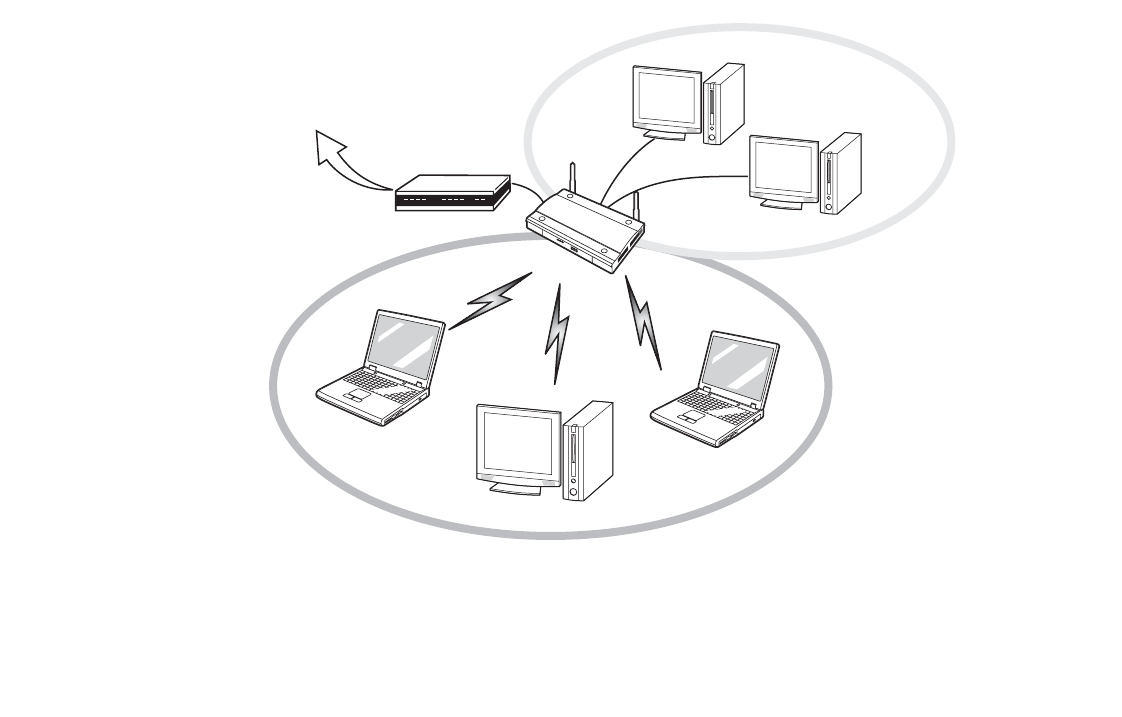

Access point
Wireless network device used to bridge wireless and wired network traffic.
ACPI
Advanced Configuration and Power Interface
Active-Matrix Display
A type of technology for making flat-panel displays which has a transistor or similar device for every
pixel on the screen.

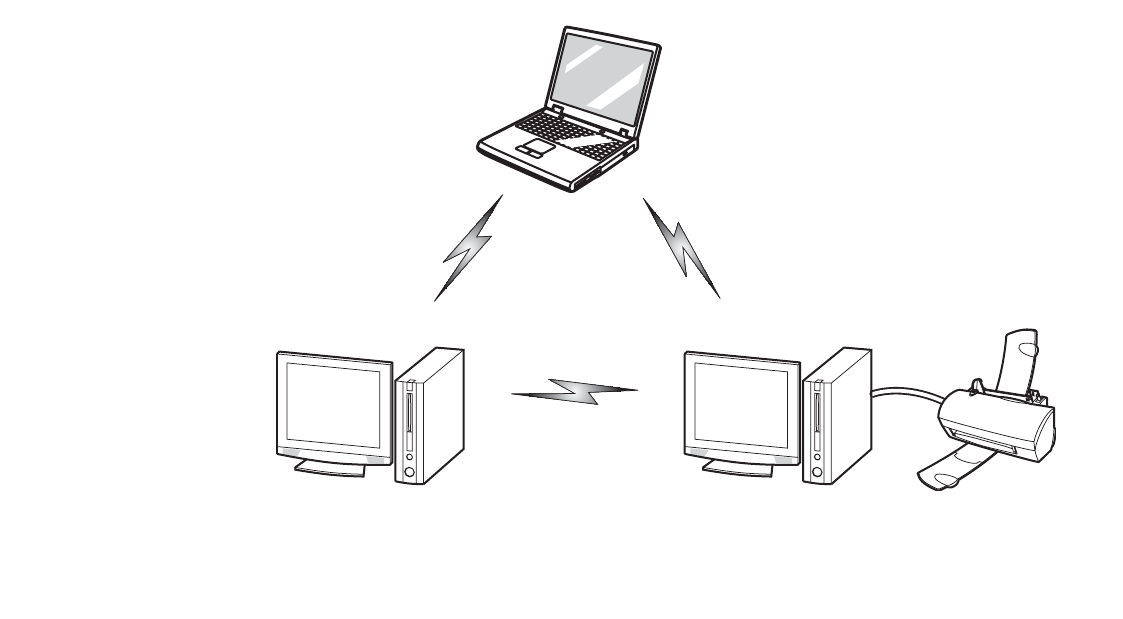

Ad Hoc Mode
Ad Hoc Mode refers to a wireless network architecture where wireless network connectivity between
multiple computers is established without a central wireless network device, typically known as Access
Points. Connectivity is accomplished using only client devices in a peer-to-peer fashion.
99
- Glossary
ADSL
Asymmetric Digital Subscriber Line. Technology for transporting high bit-rate services over ordinary
phone lines.
AGP
Accelerated Graphics Port. Graphics port specifically designed for graphics-intensive devices, such as
video cards and 3D accelerators.
Auto/Airline Adapter
A device which converts the DC voltage from an automobile cigarette lighter or aircraft DC power
outlet to the DC voltage needed to power your notebook.
BIOS
Basic Input-Output System. A program and set of default parameters stored in ROM which tests and
operates your notebook when you turn it on until it loads your installed operating system from disk.
Information from the BIOS is transferred to the installed operating system to provide it with
information on the configuration and status of the hardware.
Bit
An abbreviation for binary digit. A single piece of information which is either a one (1) or a zero (0).
bps
An abbreviation for bits per second. Used to describe data transfer rates.
Boot
To start-up a computer and load its operating system from disk, ROM or other storage media into
RAM.
100
- Glossary
Bus
An electrical circuit which passes data between the CPU and the sub-assemblies inside your notebook.
Byte
8 bits of parallel binary information.
Cache Memory
A block of memory built into the micro-processor which is much faster to access than your system
RAM and used in specially structured ways to make your overall data handling time faster.
CD-ROM
Compact disk read only memory. This is a form of digital data storage which is read optically with a
laser rather than a magnetic head. A typical CD-ROM can contain about 600MB of data and is not
subject to heads crashing into the surface and destroying the data when there is a failure nor to wear
from reading.
Channel
Range of narrow-band frequencies used by the WLAN device to transmit data. IEEE802.11b/g - 11
channels, 22 MHz wide channels.
Command
An instruction which you give your operating system. Example: run a particular application or format
a floppy disk.
Configuration
The combination of hardware and software that makes up your system and how it is allocated for use.
Data
The information a system stores and processes.
101
- Glossary
DC
Direct current. A voltage or current that does not fluctuate periodically with time.
Default Value
A pre-programmed value to be used if you fail to set your own.
DHCP
Dynamic Host Configuration Protocol. A protocol used to automatically acquire parameters required
for the communication, such as IP address. The sender of IP address is called a DHCP server, and the
receiver is called a DHCP client.
DIMM
Dual-in-line memory module.
Disk
A spinning platter of magnetic data storage media. If the platter is very stiff it is a hard drive, if it is
highly flexible it is a floppy disk, if it is a floppy disk in a hard housing with a shutter it is commonly
called a diskette.
Disk Drive
The hardware which spins the disk and has the heads and control circuitry for reading and writing the
data on the disk.
Diskette
A floppy disk in a hard housing with a shutter.
DMA
Direct Memory Access. Special circuitry for memory to memory transfers of data which do not require
CPU action.
102
- Glossary
DMI
Desktop Management Interface. A standard that provides PC management applications with a
common method of locally or remotely querying and configuring PC computer systems, hardware and
software components, and peripherals.
DNS
Domain Name System. A function to control the association between the IP address and the name
assigned to the computer. If you do not know the IP address but if you know the computer name, you
can still communicate to that computer.
DOS
Disk Operating System (MS-DOS is a Microsoft Disk Operating System).
Driver
A computer program which converts application and operating system commands to external devices
into the exact form required by a specific brand and model of device in order to produce the desired
results from that particular equipment.
DVMT
Dynamic Video Memory Technology. A video memory architecture that increases the efficiency of the
motherboard by using innovative memory utilization and direct AGP.
Encryption Key (Network Key)
Data encryption key used to encrypt message text and for computing message integrity checks. Data
encryption protects data from unauthorized viewing.
This device uses the same encryption key to encode and decode the data, and the identical encryption
key is required between the sender and receiver.
103
- Glossary
ESD
Electrostatic Discharge. The sudden discharge of electricity from a static charge which has built-up
slowly. Example: the shock you get from a doorknob on a dry day or the sparks you get from brushing
hair on a dry day.
FCC
Federal Communication Commission.
GB
Gigabyte. One billion bytes.
Hard drive
A spinning platter of magnetic data storage media where the platter is very stiff.
I/O
Input/Output. Data entering and leaving your notebook in electronic form.
I/O Port
Connector and associated control circuits for data entering and leaving a notebook in electronic form.
IDE
Intelligent Drive Electronics. A type of control interface for a hard drive which is inside the hard drive
unit.
IEEE802.11a
Wireless LAN standard that supports a maximum data rate of 54 Mbps. 802.11a devices operate in the
5 GHz lower and middle UNII bands.
IEEE802.11b
Wireless LAN standard that supports a maximum data rate of 11 Mbps. 802.11b devices operate in the
2.4 GHz ISM band.
104
- Glossary
IEEE802.11g
Wireless LAN standard that supports a maximum data rate of 54 Mbps. 802.11g devices operate in the
2.4 GHz ISM band.
Infrastructure
A name of a wireless LAN configuration. This type of communication uses an access point. Another
type of communication is called Ad Hoc.
IP Address
An identifier for a computer or device on a TCP/IP network. Networks using the TCP/IP protocol
route messages based on the IP address of the destination. The format of an IP address is a 32-bit
numeric address written as four numbers separated by periods. Each number can be zero to 255. For
example, 1.160.10.240 could be an IP address.
Within an isolated network, you can assign IP addresses at random as long as each one is unique.
However, connecting a private network to the Internet requires using registered IP addresses (called
Internet addresses) to avoid duplicates.
The four numbers in an IP address are used in different ways to identify a particular network and a
host on that network. Three regional Internet registries -- ARIN, RIPE NCC and APNIC -- assign
Internet addresses from the following three classes.
Class A - supports 16 million hosts on each of 126 networks
Class B - supports 65,000 hosts on each of 16,000 networks
Class C - supports 254 hosts on each of 2 million networks
The number of unassigned Internet addresses is running out, so a new classless scheme called CIDR
is gradually replacing the system based on classes A, B, and C and is tied to adoption of IPv6.
IRQ
Interrupt Request. An acronym for the hardware signal to the CPU that an external event has occurred
which needs to be processed.
105
- Glossary
KB
Kilobyte. One thousand bytes.
LAN
Local Area Network. An interconnection of computers and peripherals within a single limited
geographic location which can pass programs and data amongst themselves.
LCD
Liquid Crystal Display. A type of display which makes images by controlling the orientation of
crystals in a crystalline liquid.
Lithium ion Battery
A type of rechargeable battery which has a high power-time life for its size and is not subject to the
memory effect as Nickel Cadmium batteries.
MAC Address
Media Access Control Address. A unique physical address of a network card. For Ethernet, the first
three bytes are used as the vendor code, controlled and assigned by IEEE. The remaining three bytes
are controlled by each vendor (preventing overlap), therefore, every Ethernet card is given a unique
physical address in the world, being assigned with a different address from other cards. For Ethernet,
frames are sent and received based on this address.
MB
Megabyte. One million bytes.
Megahertz
1,000,000 cycles per second.
Memory
A repository for data and applications which is readily accessible to your notebook’s CPU.
106
- Glossary
MHz
Megahertz.
MIDI
Musical Instrument Digital Interface. A standard communication protocol for exchange of
information between computers and sound producers such as synthesizers.
Modem
A contraction for MOdulator-DEModulator. The equipment which connects a computer or other data
terminal to a communication line.
Monaural
A system using one channel to process sound from all sources.
MTU
Maximum Transmission Unit
The maximum data size that can be transferred at a time through the Internet or other networks. You
can set a smaller MTU size to obtain successful communication, if you have difficulty transferring
data due to the fact that the maximum size is too large.
Network key
Data that is used for encrypting data in data communication. The personal computer uses the same
network key both for data encryption and decryption, therefore, it is necessary to set the same network
key as the other side of communication.
Network name (SSID: Service Set Identifier )
When a wireless LAN network is configured, grouping is performed to avoid interference or data theft.
This grouping is performed with “Network name (SSID)”. In order to improve security, the network
key is set allowing no communication unless “Network name (SSID)” coincides with the network key.
107
- Glossary
Open system authentication
Null authentication method specified in the 802.11 standard that performs no authentication checks on
a wireless client before allowing it to associate.
Operating System
A group of control programs that convert application commands, including driver programs, into the
exact form required by a specific brand and model of microprocessor in order to produce the desired
results from that particular equipment.
Partition
A block of space on a hard drive which is set aside and made to appear to the operating system as if it
were a separate disk, and addressed by the operating system accordingly.
Peripheral Device
A piece of equipment which performs a specific function associated with but not integral to a
computer. Examples: a printer, a modem, a CD-ROM.
Pitch (keyboard)
The distance between the centers of the letter keys of a keyboard.
Pixel
The smallest element of a display, a dot of color on your display screen. The more pixels per area the
clearer your image will appear.
POST
Power On Self Test. A program which is part of the BIOS which checks the configuration and
operating condition of your hardware whenever power is applied to your notebook. Status and error
messages may be displayed before the operating system is loaded. If the self test detects failures that
are so serious that operation can not continue, the operating system will not be loaded.
108
- Glossary
PPPoE
Point to Point Protocol over Ethernet. A protocol for Ethernet, using a Point-to-Point Protocol (PPP),
which is used for connection on the phone line.
Program
An integrated set of coded commands to your computers telling your hardware what to do and how
and when to do it.
Protocol
Procedures and rules use to send and receive data between computers.
- Method of sending and receiving data
- Process used to handle communication errors
Conditions required for communication are organized in procedures for correct transfer of
information.
RAM
Random Access Memory. A hardware component of your notebook that holds binary information
(both program and data) as long as it has the proper power applied to it.
RAM Module
A printed circuit card with memory and associated circuitry which allows the user to add additional
memory to the computer without special tools.
Reset
The act of reloading the operating system. A reset erases all information stored in RAM.
Restart
See Reset.
109
- Glossary
Resume
To proceed after interruption. In your notebook this refers to returning to active operation after having
been in one of the suspension states.
SDRAM
Synchronous Dynamic Random Access Memory.
Serial Port
A connection to another device through which data is transferred one bit at a time on a single wire with
any other wires only for control of the device not for transfer of data.
Shared key authentication
802.11 network authentication method in which the AP sends the client device a challenge text packet
that the client must then encrypt with the correct WEP key and return to the AP. If the client has the
wrong key or no key, authentication will fail and the client will not be allowed to associate with the
AP. Shared key authentication is not considered secure, because a hacker who detects both the clear-
text challenge and the same challenge encrypted with a WEP key can decipher the key.
SSID
Service Set Identifier, a 32-character unique identifier attached to the header of packets sent over a
WLAN that acts as a password when a mobile device tries to connect to the BSS. The SSID
differentiates one WLAN from another, so all access points and all devices attempting to connect to a
specific WLAN must use the same SSID. A device will not be permitted to join the BSS unless it can
provide the unique SSID. Because the SSID is broadcast in plain text, it does not supply any security
to the network.
Standby
To make inoperative for a period of time. Your notebook uses various suspension states to reduce
power consumption and prolong the charge of your battery.
110
- Glossary
Status Indicator
A display which reports the condition of some portion of your hardware. On your notebook this is an
LCD screen just above the keyboard.
Stereo (audio)
A system using two channels to process sound from two different sources.
Subnet mask
TCP-IP network is controlled by being divided into multiple smaller networks (subnets). IP address
consists of the subnet address and the address of each computer. Subnet mask defines how many bits
of IP address comprise the subnet address. The same value shall be set among computers
communicating with each other.
SVGA
Super VGA.
S-Video
Super Video. A component video system for driving a TV or computer monitor.
System Clock
An oscillator of fixed precise frequency which synchronizes the operation of the system and is counted
to provide time of day and date.
TCP/IP
Transmission Control Protocol/Internet Protocol. A standard Internet protocol that is most widely
used.
TFT
Thin Film Transistor – A technology for flat display panels which uses a thin film matrix of transistors
to control each pixel of the display screen individually.
111
- Glossary
UL
Underwriters Laboratories – An independent organization that tests and certifies the electrical safety
of devices.
USB
Universal Serial Bus. Standard that allows you to simultaneously connect up to 127 USB devices such
as game pads, pointing devices, printers, and keyboards to your computer.
VRAM
Video Random Access Memory. A memory dedicated to video display data and control.
WFM
Wired for Management is Intel’s broad-based initiative to reduce the total cost of ownership (TCO) of
business computing without sacrificing power and flexibility.
Wi-Fi Compatible
Wi-Fi (Wireless Fidelity) Identifies that the product has passed the interoperability test, supplied by
the WECA (Wireless Ethernet Compatibility Alliance), which guarantees the interoperability of
wireless IEEE 802.11 LAN products. For more information on the Wi-Fi standard, go to the WECA
Web site at: www.wirelessethernet.com.
WLAN
Wireless Local Area Network. A wireless interconnection of computers and peripherals within a
single limited geographic location which can pass programs and data amongst themselves.
112
- Regulatory Information
Regulatory Information
Notice
Changes or modifications not expressly approved by Fujitsu could void this user’s authority to operate the
equipment.
FCC NOTICES
Notice to Users of Radios and Television
This equipment has been tested and found to comply with the limit for class B digital devices, pursuant to
parts 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet that is on a different circuit than the receiver.
•Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables must be employed with this equipment to ensure compliance with the
pertinent RF emission limits governing this device.
113
- Regulatory Information
DOC (INDUSTRY CANADA) NOTICES
Notice to Users of Radios and Television
This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment
Regulations.
CET appareil numérique de la class B respecte toutes les exigence du Réglement sur le matérial brouilleur
du Canada.
114
Appendix A: WLAN User’s Guide
FCC Regulatory Information
Please note the following regulatory information related to the optional wireless LAN device.
Regulatory Notes and Statements
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions, however,
are much less than the electromagnetic energy emissions from wireless devices such as mobile phones. Wireless LAN devices
are safe for use by consumers because they operate within the guidelines found in radio frequency safety standards and
recommendations. The use of Wireless LAN devices may be restricted in some situations or environments, such as:
•On board an airplane, or
•In an explosive environment, or
•In situations where the interference risk to other devices or services is perceived or identified as harmful.
In cases in which the policy regarding use of Wireless LAN devices in specific environments is not clear (e.g., airports,
hospitals, chemical/oil/gas industrial plants, private buildings), obtain authorization to use these devices prior to operating the
equipment.
115
Regulatory Information/Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user
documentation provided with the product. Any changes or modifications made to this device that are not expressly approved
by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio
or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting
cables and equipment other than those specified by the manufacturer. It is the responsibility of the user to correct any
interference caused by such unauthorized modification, substitution or attachment. The manufacturer and its authorized
resellers or distributors will assume no liability for any damage or violation of government regulations arising from failure to
comply with these guidelines.
This device must not be co-located or operated in conjunction with any other antenna or transmitter.
For IEEE 802.11a Wireless LAN: For operation within 5.15~5.25 GHz frequency range, it is restricted to indoor
environments, and the antenna of this device must be integral.
Federal Communications Commission statement
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause interference, and, (2) This device must
accept any interference, including interference that may cause undesired operation of this device.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions,
it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:
1Reorient or relocate the receiving antenna.
2Increase the distance between the equipment and the receiver.
3Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.
4Consult the dealer or an experienced radio/TV technician for help.
116
FCC Radio Frequency Exposure statement
The available scientific evidence does not show that any health problems are associated with using low power wireless
devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power wireless devices
emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can pro-
duce health effects (by heating tissue), exposure to low-level RF that does not produce heating effects causes no known
adverse health effects. Many studies of low-level RF exposure have not found any biological effects. Some studies have sug-
gested that some biological effects might occur, but such findings have not been confirmed by additional research. The wire-
less LAN radio device has been tested and found to comply with FCC radiation exposure limits set forth for an uncontrolled
equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65.
Export restrictions
This product or software contains encryption code which may not be exported or transferred from the US or Canada without
an approved US Department of Commerce export license. This device complies with Part 15 of FCC Rules., as well as ICES
003 B / NMB 003 B. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesirable operation.
Modifications not expressly authorized by Fujitsu America Inc. may invalidate the user's right to operate this equipment.
Canadian Notice
The device for the 5150 - 5250 MHz band is only for indoor usage to reduce the potential for harmful interference to co-channel
mobile satellite systems.
The maximum antenna gain of 6 dBi permitted (for devices in the 5250 - 5350 MHz, 5470 - 5725 MHz and 5725 - 5825 MHz
bands) to comply with the e.i.r.p. limit as stated in A9.2 of RSS210.
In addition, users are cautioned to take note that high power radars are allocated as primary users (meaning they have priority)
of 5250 - 5350 MHz and 5650 - 5850 MHz and these radars could cause interference and/or damage to LE-LAN devices.
117
Before Using the Optional Wireless LAN
Before Using the Optional Wireless LAN
This manual describes the procedures required to properly set up and configure the optional integrated
Wireless LAN Mini-PCI device (referred to as "WLAN device" in the rest of the manual). Before using
the WLAN device, read this manual carefully to ensure its correct operation. Keep this manual in a safe
place for future reference.
Wireless LAN Device Covered by this Document
This document is applicable to systems containing the following optional device:
•Integrated Atheros Align™ 802.11bgn
Characteristics of the WLAN Device
•The WLAN device is a Mini-PCI card attached to the main board of the mobile computer.
•The WLAN device operates in license-free RF bands, eliminating the need to procure an FCC operating
license. The WLAN operates in the 2.4 GHz Industrial, Scientific, and Medical (ISM) RF band.
•The WLAN devices are capable of two operating modes: IEEE802.11b and IEEE802.11g
•The WLAN devices are Wi-Fi certified and operate (as applicable) at 54 Mbps in IEEE802.11g mode and 11
Mbps in IEEE802.11b mode.
•The WLAN devices support the following encryption methods - WEP, TKIP, CKIP, and AES encryption.
•The Wireless LAN devices are compliant with the following standards: WPA, WPA2, CCX1.0, CCX2.0,
CCX3.0, and CCX4.0.
118
Before Using the Optional Wireless LAN
Wireless LAN Modes Using this Device
Ad Hoc Mode
"Ad Hoc Mode" refers to a wireless network architecture where wireless network connectivity between
multiple computers is established without a central wireless network device, typically known as Access
Point(s). Connectivity is accomplished using only client devices in a peer-to-peer fashion. That is why Ad
Hoc networks are also known as peer-to-peer networks. Ad Hoc networks are an easy and inexpensive
method for establishing network connectivity between multiple computers. Ad Hoc mode requires that the
SSID, network authentication, and encryption key settings are identically configured on all computers in
the Ad Hoc network.
Figure 20. Ad Hoc Mode Network
119
Before Using the Optional Wireless LAN
Access Point (Infrastructure) Mode
Infrastructure mode refers to a wireless network architecture in which devices communicate with wireless
or wired network devices by communicating through an Access Point. In infrastructure mode, wireless
devices can communicate with each other or with a wired network. Corporate wireless networks operate
in infrastructure mode because they require access to the WLAN in order to access services, devices, and
computers (e.g., file servers, printers, databases).
Figure 21. Access Point (Infrastructure) Mode Network
ADSL modem,
cable modem,
or similar
Internet Wired LAN
Access Point*
Wireless LAN *An optional hub for a wired
LAN may be required depending
upon the type of access point used.
120
Before Using the Optional Wireless LAN
How to Handle This Device
The WLAN device is an optional device that may come pre-installed in your mobile computer. Under
normal circumstances, it should not be necessary for you to remove or re-install it. The operating system
that your mobile computer comes with has been pre-configured to support the WLAN device.
•The Wireless LAN devices support IEEE802.11b and IEEE802.11g.
•The WLAN devices operate in the 2.4 GHz ISM band.
•Microwave ovens may interfere with the operation of WLAN devices since they operate in the same 2.4 GHz
frequency range as IEEE802.11 b/g devices.
•Wireless devices that transmit in the 2.4 GHz range may interfere with operation of WLAN devices in
IEEE802.11 b/g modes. Symptoms of interference include reduced throughput, intermittent disconnects,
and many frame errors. It is HIGHLY recommended that these interfering devices be powered off to ensure
proper operation of the WLAN device.
Deactivating the WLAN Device
Deactivating the WLAN device may be desired in certain circumstances (to extend battery life) or where
certain environments require it (i.e. hospitals, clinics, airplanes, etc.). The WLAN device can be
deactivated in Windows using the WLAN On/Off key (Fn + F5). Note that disconnecting via the icon in
the system tray does not turn off the radio; it continues to transmit and receive even though it’s not
connected.
Disconnection Using the Icon in the Taskbar
Note that disconnecting via the icon in the system tray does not turn off the radio; it continues to transmit
and receive even though it’s not connected.
BEFORE USING THE WIRELESS LAN DEVICE,YOU MUST FIRST INSTALL CLICKME!TO ENSURE THAT THE
CORRECT SOFTWARE FOR YOUR DEVICE IS INSTALLED. SEE “INSTALLING CLICKME!” ON PAGE 73.
121
Before Using the Optional Wireless LAN
1Right-click the WLAN icon in the taskbar at the bottom right of your screen.
2Choose Disconnect from a network.
Activating the WLAN Device
Activation of the WLAN device can be accomplished using the same methods as the deactivation process,
by right-clicking the WLAN icon then clicking “Connect to a network”, or by using the WLAN On/Off
key combination (Fn + F5).
122
Configuring the Wireless LAN
Configuring the Wireless LAN
The optional WLAN device can be configured to establish wireless network connectivity using the
software that is built into Windows for most industry standard security solutions is contained in this
software.
Pre-defined parameters will be required for this procedure. Please consult with your network
administrator for these parameters:
Configuring the WLAN using Windows XP
Procedure
1Click the Start button, then select Control Panel.
2If the Control Panel is not in Classic View, select Classic View from the left panel. Double-click the Network
Connections icon.
3Double-click on the Wireless Network Connection icon.
4Choose a wireless network.
5Click [Connect].
6Enter the Network Key, if required.
7Enter any required information. It may be necessary to consult with your network administrator for some of the
information.
8In the event you require assistance, go to [Start] -> Help and Support -> Networking and the Web. Select the
main topic in which you are interested, then type in relevant keywords in the Search box.
Connection to the network
After you have configured your computer, you can connect to an active network by clicking on the
Wireless Network icon in the system tray:
123
Troubleshooting the WLAN
Troubleshooting the WLAN
Troubleshooting
Causes and countermeasures for troubles you may encounter while using your wireless LAN are described
in the following table. If you are unfamiliar with the steps required, consult your System Administrator or
go to [Start] -> Help and Support -> Networking and the Web
Problem Possible Cause Possible Solution
Unavailable
network
connection
Incorrect network
name (SSID) or
network key
Ad hoc connection: verify that the network names (SSID’s) and network keys
(WEP) of all computers to be connected have been configured correctly. SSID’s
and WEP key values must be identical on each machine.
Access Point (Infrastructure) connection: set network name (SSID) and
network key to the same values as those of the access point.
Set the Network Authentication value identically to that of the Access Point.
Please consult your network administrator for this value, if necessary.
Weak received
signal strength
and/or link quality
Ad hoc connection: Retry connection after shortening the distance to the
destination computer or removing any obstacles for better sight.
Access Point (Infrastructure) connection: Retry connection after shortening the
distance to the access point or removing any obstacles for better transmission.
The WLAN device
has been
deactivated or
disabled
Go to Start -> Control Panel, and double-click on Windows Mobility Center. If
the wireless network is off, click the [Turn wireless on] button.
The computer to be
connected is turned
off
Check if the computer to be connected is turned ON.
124
Troubleshooting the WLAN
Unavailable
network
connection
(continued)
RF interference from
Access Points or
other wireless
networks
The use of identical or overlapping RF channels can cause interference with the
operation of the WLAN device. Change the channel of your Access Point to a
channel that does not overlap with the interfering device.
Wireless network
authentication has
failed
Re-check your Network Authentication, Encryption, and Security settings.
Incorrectly configured security settings such as an incorrectly typed WEP key,
a mis-configured LEAP username, or an incorrectly chosen authentication
method will cause the LAN device to associate but not authenticate to the
wireless network.
Incorrectly
configured network
settings
Recheck the configuration of your network settings.
Incorrect IP address
configuration
This only applies to networks using static IP addresses. Please contact your
network administrator for the correct settings.
Problem Possible Cause Possible Solution
125
WLAN Specifications
WLAN Specifications
Specifications
Item Specification
Type of network The integrated Atheros Align™ 802.11bgn Wireless LAN device conforms to
802.11b, 802.11g, and 802.11n Wi-Fi based*.
Transfer rate (Automatic switching) 54 Mbps maximum data rate
Active frequency •802.11n (draft): 2.4 GHz or 5 GHz
•802.11b/g: 2400~2473 MHz
Typical operating distances** •802.11b: 100 ft. (30 m) @ 11 Mbps; 300 ft. (91 m) @ 1 Mbps
•802.11g: 100 ft. (30 m) @ 54 Mbps; 300 ft. (91 m) @ 1 Mbps
•802.11n (draft): Estimated double the operating distance of 802.11g and
802.11b in their respective frequencies.
Number of channels •802.11b/g: 11 channels, 3 non-overlapping channels
•802.11n (draft): 2.4 GHz - 3 non-overlapping channels when Channel Bonding
is not used; 2 non-overlapping channels when Channel Bonding is used.
5 GHz - 12 non-overlapping UNII channels with or without Channel Bonding
Security Encryption Types - WEP, TKIP, AES***, WPA 1.0 compliant
Encryption Key lengths Supported: 64 bits and 128 bits 802.1x/EAP
Maximum recommended number
of computers to be connected
over wireless LAN (during ad hoc
connection)
10 units or less ****
126
WLAN Specifications
* “Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the interconnectivity of
wireless LAN (Wi-Fi Alliance) has been passed.
** The communication ranges shown above will increase or decrease depending on factors such as number of walls, reflective
material, or interference from external RF sources.
*** Encryption with network key (WEP) is performed using the above number of bits, however, users can set 40 bits/ 104
bits after subtracting the fixed length of 24 bits.
**** Depending on practical environments, the allowable number of computers to be connected may be decreased.
127
Using the Bluetooth Device
Using the Bluetooth Device
The Integrated Bluetooth module (QBTM400) is an optional device available for Fujitsu mobile
computers.
What is Bluetooth
Bluetooth technology is designed as a short-range wireless link between mobile devices, such as laptop
computers, phones, printers, and cameras. Bluetooth technology is used to create Personal Area Networks
(PANs) between devices in short-range of each other.
Where to Find Information About Bluetooth
The Bluetooth module contains a robust Help user’s guide to assist you in learning about operation of the
Bluetooth device.
To access the Help file, click [Start] > All Programs, and click on Toshiba. Select Bluetooth, then select
User’s Guide.
For additional information about Bluetooth Technology, visit the Bluetooth Web site at:
www.bluetooth.com.
TO ENABLE OR DISABLE EITHER THE WIRELESS LAN OR BLUETOOTH DEVICES INDIVIDUALLY,PERFORM
THE FOLLOWING STEPS:
1Press the WLAN On/Off key combination (Fn + F5) on the keyboard.
2Go to Start > All Programs > Bluetooth.
3Click on Options under the Bluetooth menu and click on the Bluetooth Radio Power button.
4Click [OK].
128
Using the Bluetooth Device
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
The Bluetooth antenna is located on the front edge of the right palm rest and is exempt from minimum
distance criteria due to its low power.
The transmitters in this device must not be co-located or operated in conjunction with any other antenna
or transmitter.
Canadian Notice
To prevent radio interference to the licensed service, this device is intended to be operated indoors and
away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed
outdoors is subject to licensing.
Warranty
Users are not authorized to modify this product. Any modifications invalidate the warranty.
This equipment may not be modified, altered, or changed in any way without signed written permission
from Fujitsu. Unauthorized modification will void the equipment authorization from the FCC and
Industry Canada and the warranty.
129
Index
A
About This Guide 1,14
AC
adapter 42
plug adapters 88
Air Vents 27
Anti-theft Lock Slot 26
Auto/Airline Adapter 42
B
Battery 53
alarm 55
care 89
Charge/DC-In Indicator 29
cold-swapping 56
conserving power 48
dead 73
faulty 73
hot-swapping 56
increasing life 89
lithium ion battery 53
low 55
problems 73,74
recharging 54
replacing 55
suspend mode 55
Battery Latches 26
BIOS
guide 45
setup utility 44
Bluetooth
Where to Find Information 127
Boot Sequence 44
Booting the System 45
Built-in Speakers 70
C
CapsLock Indicator 30
Click Me! 47
Clicking 37
Configuration Label 91
Contact Information 15
Controls and Connectors 18
Conventions Used in the Guide 14
Cursor 36
Cursor Keys 34
D
DC in connector 18
DC Output Cable 42
DC Power Jack 42
Display Panel 21,31
brightness 32
opening 31
problems 75,76
130
Double-Clicking 38
Dragging 39
Drivers and Application Restore CD 80
E
Error Messages 77
External Monitor Port 23,65
External Video port 19
F
FDU 47,82,97
Fujitsu Contact Information 15
Fujitsu Driver Update utility 47,82,97
Fujitsu LifeBook
storing 86
traveling 88
Fujitsu Shopping Online 16
Function Key
F10 35
F3 35
F5 35
F6 35
F7 35
F8 35
F9 35
G
Glossary 98
H
Hard Disk Drive
access indicator 30
problems 70
Hard Disk Drive Passwords 44
Headphone Jack 18,25,64
Hibernation Feature 50
disable/enable 50
I
Installing a Memory Stick 63
K
Keyboard 21,33
cursor keys 34
numeric keypad 33
problems 70
windows keys 34
L
LAN (RJ-45) Jack 24
Lithium ion Battery Bay 27
Local Area Network (LAN) 19
M
Memory
capacity 61
checking capacity 61
compartment 27,60
installing 59
problems 71
removing 61
upgrade module 58
Memory Stick
installing 63
Microphone Jack 18,26,65
Microsoft Works 97
Mouse problems 70
N
NumLk Indicator 30
131
O
Optical drive, care 90
P
Power
AC adapter 42
Auto/Airline adapter 42
failure 72
indicator 29
management 48
off 51
on 43
problems 74
sources 42
Power Management 48
Power On Self Test 43,77
Power/Suspend/Resume Button 48
Pre-Installed Software 96
Adobe Acrobat Reader 96
manuals 96
R
Registration 47
Regulatory Information 112
Removing a Memory Stick 63
Restarting 50
Restoring Your Pre-installed Software 80
RJ-45 19,64
S
SD Card Slot 18
SD Cards
removing 63
SDRAM 27,58
Secure Digital Cards 62
Security lock slot 18
Sleep Mode 49
Specifications 91
Audio 93
Chipset 92
Device Ports 94
Dimensions and Weight 95
Environmental Requirements 95
Keyboard 94
mass storage device options 93
Memory 92
Microprocessor 92
Power 94
Video 92
status indicators 21,28
Suspend/Resume Button 19,21
T
Touchpad 36
buttons 36
controls 39
Troubleshooting 67
U
Universal Serial Bus Port 65
USB 65,71
problems 71
USB 2.0 Ports 18,24,26
V
Volume control 40
W
Warranty 16
132
Windows keys 34
Application key 34
Start key 34
Windows Power Management 50
Windows XP
configuring the Wireless LAN 122
starting the first time 46
Wireless LAN
Before Using the Wireless LAN 117
configuring 117
connection to the network 122
deactivating/disconnecting 120
modes 118
Specifications 125
Troubleshooting 123
Wireless LAN/Bluetooth On/Off Switch 19
