Fujitsu Client Computing WB0090 FUJITSU STYLISTIC Q775 User Manual
Fujitsu Limited FUJITSU STYLISTIC Q775
User Manual
System
Operating Manual
FUJITSU Tablet STYLISTIC Q775
Contact address in North America
FUJITSU AMERICA INC:
1250 East Arques Avenue Sunnyvale
CA 94085-3470, U.S.A.
Telephone: 800 831 3183 or 408 746 6000
"http://solutions.us.fujitsu.com"
"http://solutions.us.fujitsu.com/contact"
Have a question? Email us at: "AskFujitsu@us.fujitsu.com"
Copyright
©2014Fujitsu America, Inc. All rights
reserved. B5FK-5481-01ENZ0-00
FUJITSU Tablet STYLISTIC Q775
Operating Manual
94
8
9
12
17
21
43
61
68
72
75
82
88
98
Declaration of conformity
Fujitsu Contact Information Notational
conventions

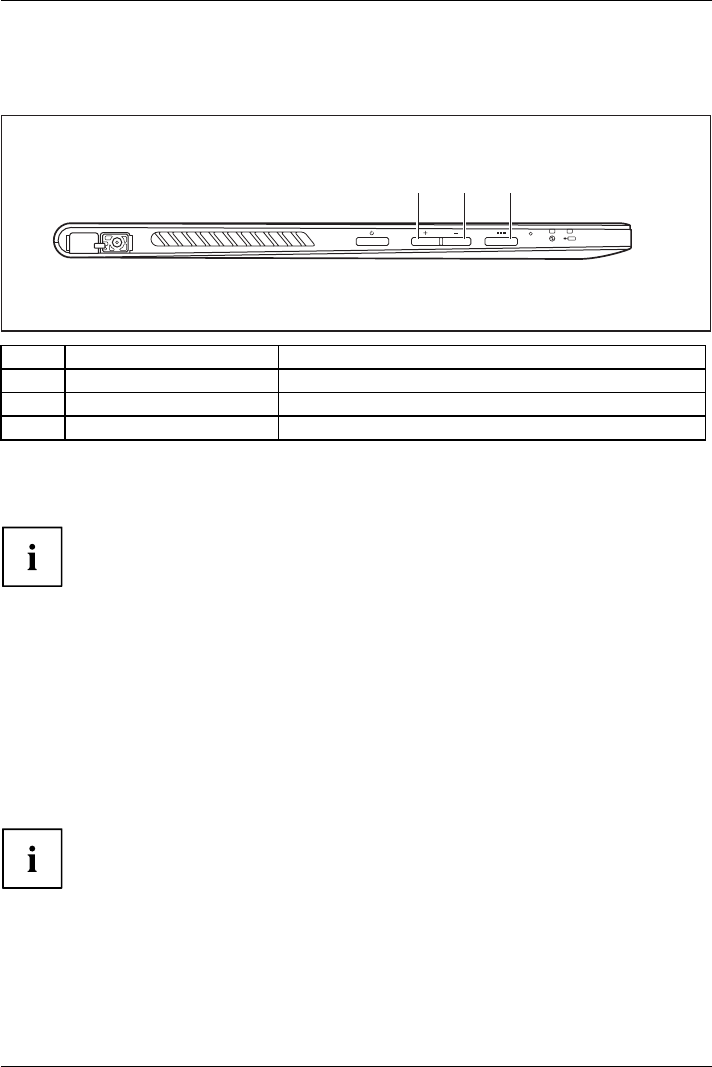

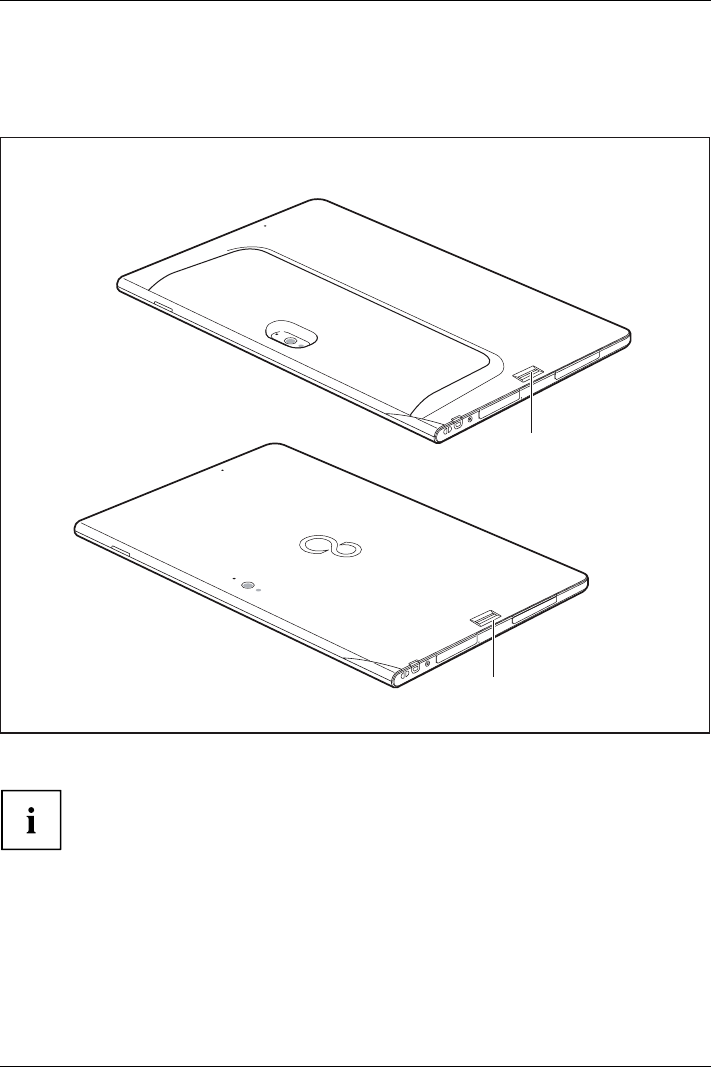

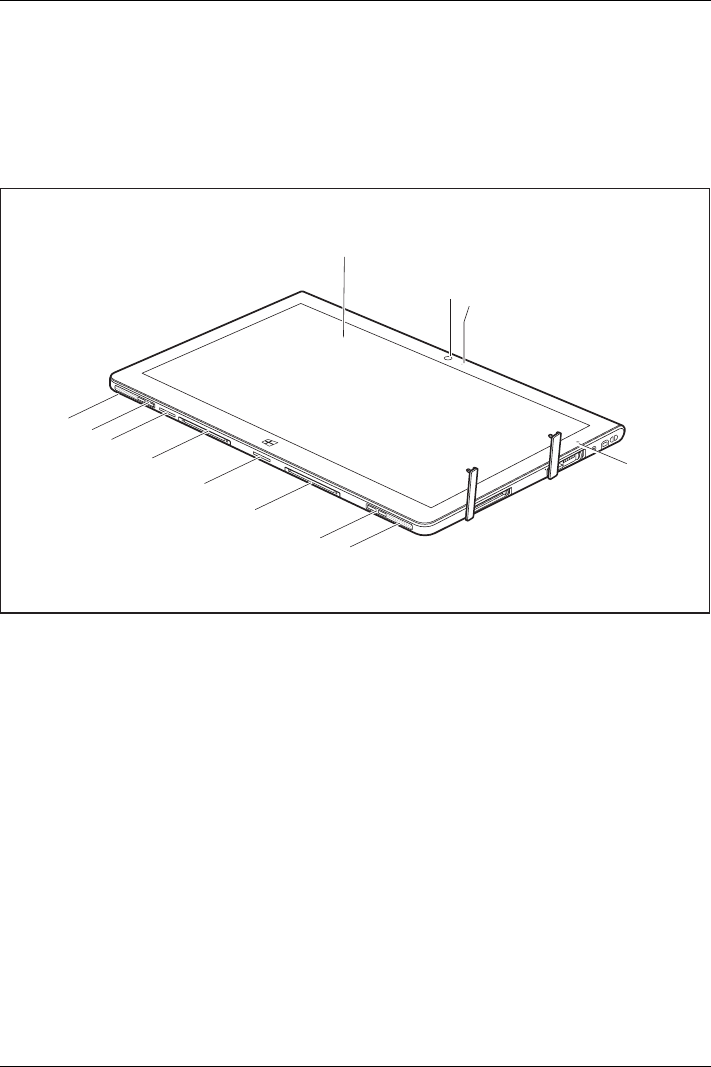

Ports and controls
Important notes
First-time setup of your device
Working with the Tablet PC
Accessories for your Tablet PC
(optional)
Security functions Connecting
external devices Settings in BIOS
Setup Utility Troubleshooting and tips
Technical data
Manufacturer’s notes
Appendix
FCC and IC Regulatory Information
Index 113
2
Copyright and Trademark Information
Fujitsu America, Incorporated has made every effort to ensure the accuracy and completeness
of this document; however, as ongoing development efforts are continually improving the
capabilities of our products, we cannot guarantee the accuracy of the contents of this
document. We disclaim liability for errors, omissions, or future changes.
Fujitsu, the Fujitsu logo and STYLISTIC are registered trademarks of Fujitsu Limited
or its subsidiaries in the United States and other countries.
Intel and Intel Core are trademarks or registered trademarks of Intel Corporation or
its subsidiaries in the United States and other countries.
Microsoft and Windows are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
The ExpressCard word mark and logo are owned by the Personal Computer
Memory Card International Association (PCMCIA) and any use of such marks by
Fujitsu America, Incorporated is under license.
Google is a trademark or registered trademark of Google Incorporated.
Bluetooth is a trademark of Bluetooth SIG, Inc., USA.
OmniPass is a trademark of Softex, Inc.
Roxio is a trademark of Roxio, a division of Sonic Solutions.
PowerDirector, PowerDVD, YouCam, and MakeDisc are trademarks of CyberLink Corp.
Adobe, Acrobat, and Adobe Reader are either a reg istered trademarks or trademarks of
Adobe Systems Incorporated in the United States and/or other countries.
All other trademarks specified here are the property of their respective owners.
DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name: Fujitsu America, Inc.
Address: 1250 E. Arques Avenue
Sunnyvale, CA 94085
Telephone: (408) 746-6000
Declares that product: Base Model Configuration: LIFEBOOK Q775 Notebook
Complies with Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC rules. Operations are subject to the following two
conditions:
(1) This device may not cause harmful interference, (2) This device must accept any interference
received, including interference that may cause undesired operation.
Contents
Contents
FujitsuContactInformation ............................................................ 7
Notationalconventions ................................................................ 8

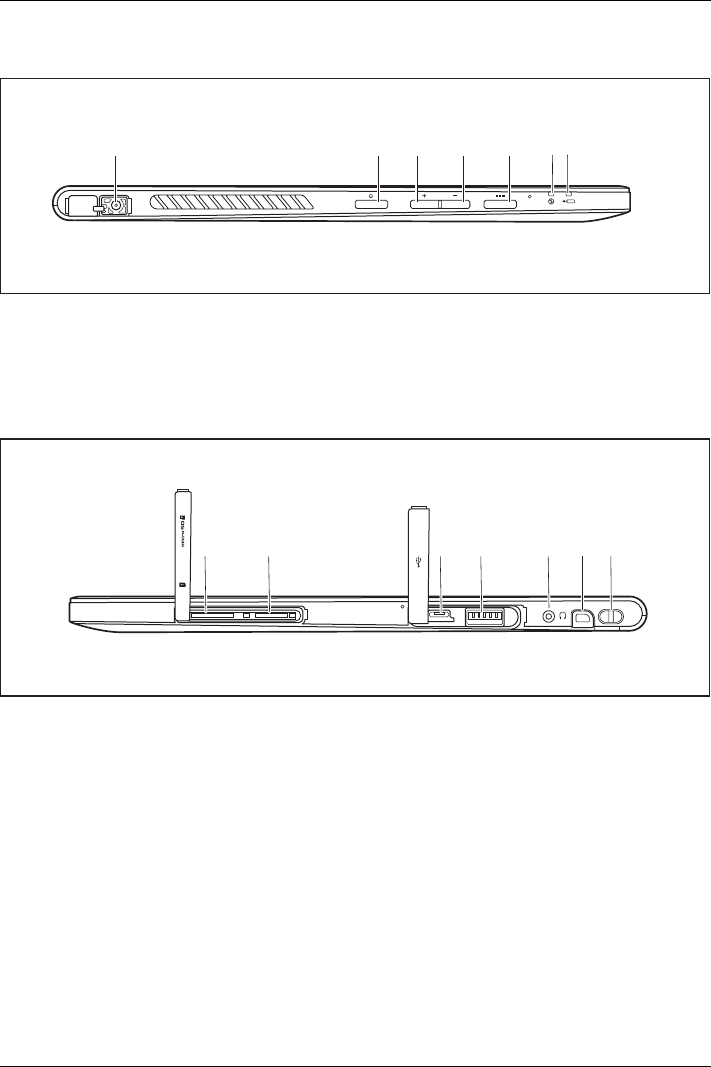

Portsandcontrols ..................................................................... 9
Importantnotes ........................................................................ 12
Safetyinstructions ...................................................................... 12
Additional safety notes for devices with wireless components . . ............................. 13
Protecting the display screen ............................................................ 13
Energy saving .......................................................................... 13
Energy saving under Windows ....................................................... 13
Traveling with your Tablet PC ............................................................ 13
Beforeyoutravel ................................................................... 14
Transporting the Tablet PC ........................................................... 15
Storing your TabletPC .................................................................. 15
Cleaning the TabletPC .................................................................. 16
First-timesetupofyourdevice ......................................................... 17
Unpacking and checking the device . . . ................................................... 17
Choose a location . ...................................................................... 18
Connecting the AC adapter . . . ........................................................... 18
Switching on the device for the firsttime .................................................. 19
Installing Bonus Apps . . . . . ........................................................... 20
Working with theTabletPC ............................................................ 21

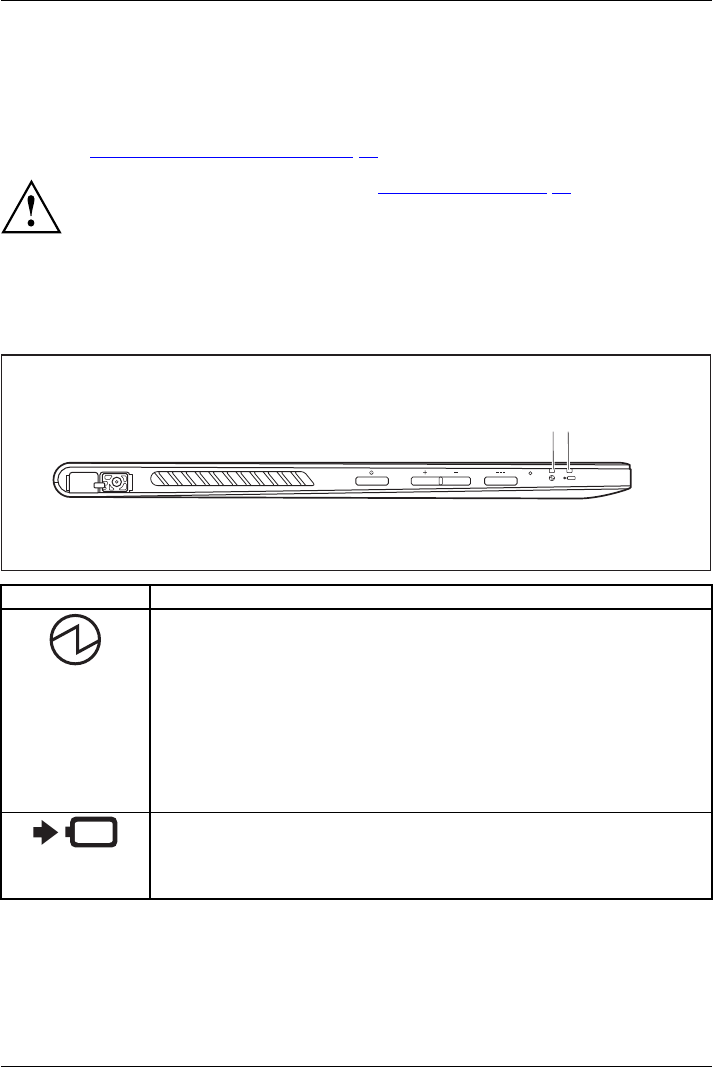

Status indicators ........................................................................ 21
Switching theTabletPC on .............................................................. 22
Programing the ON/OFFbutton ...................................................... 22
Switching theTabletPCoff .............................................................. 23
Handwriting recognition .................................................................. 23
Touchscreen ............................................................................ 24
Select displayorientation(portraitorlandscapeformat) .................................... 25
Using fingers ........................................................................... 25
Calibrate the Dual Digitizer for finger-based operation of the device. ..................... 25

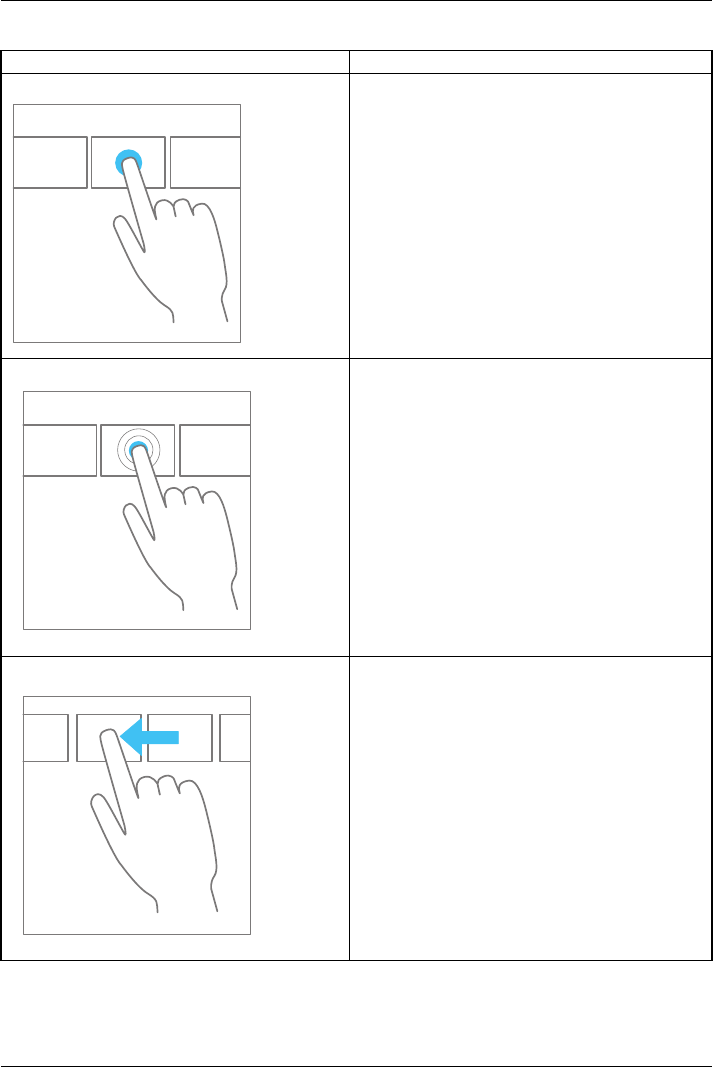

Actions with one finger (Windows 8.1 Pro) . ............................................ 26
Actions with one finger (Windows 7 / Windows 8.1 Desktop) . . . ......................... 28

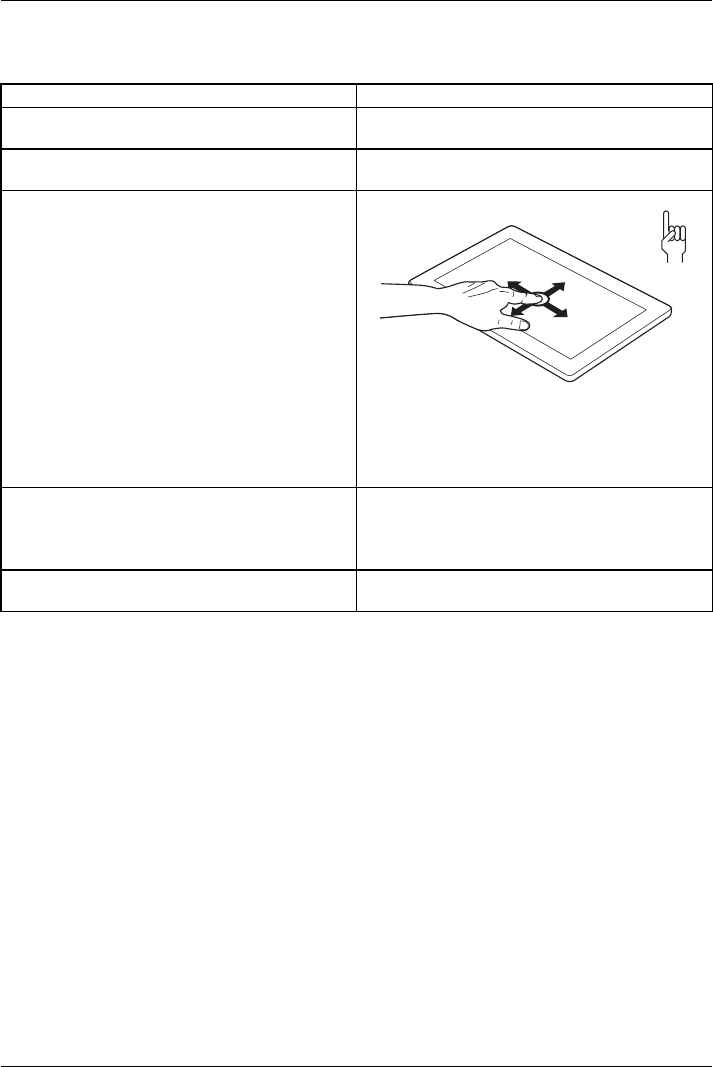

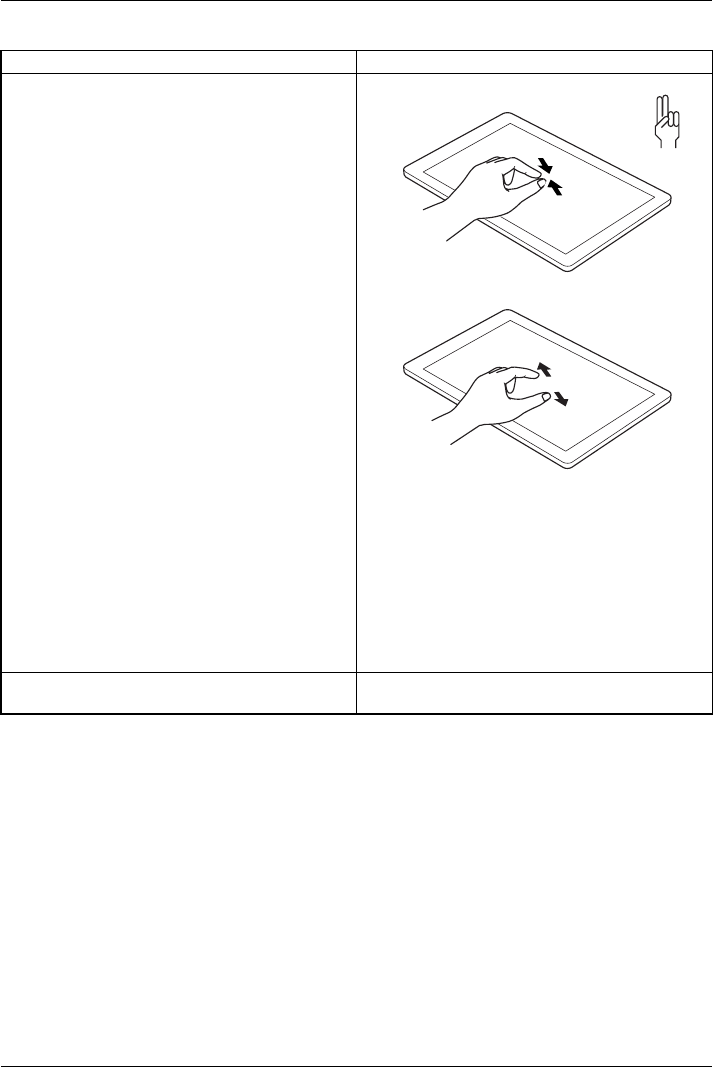

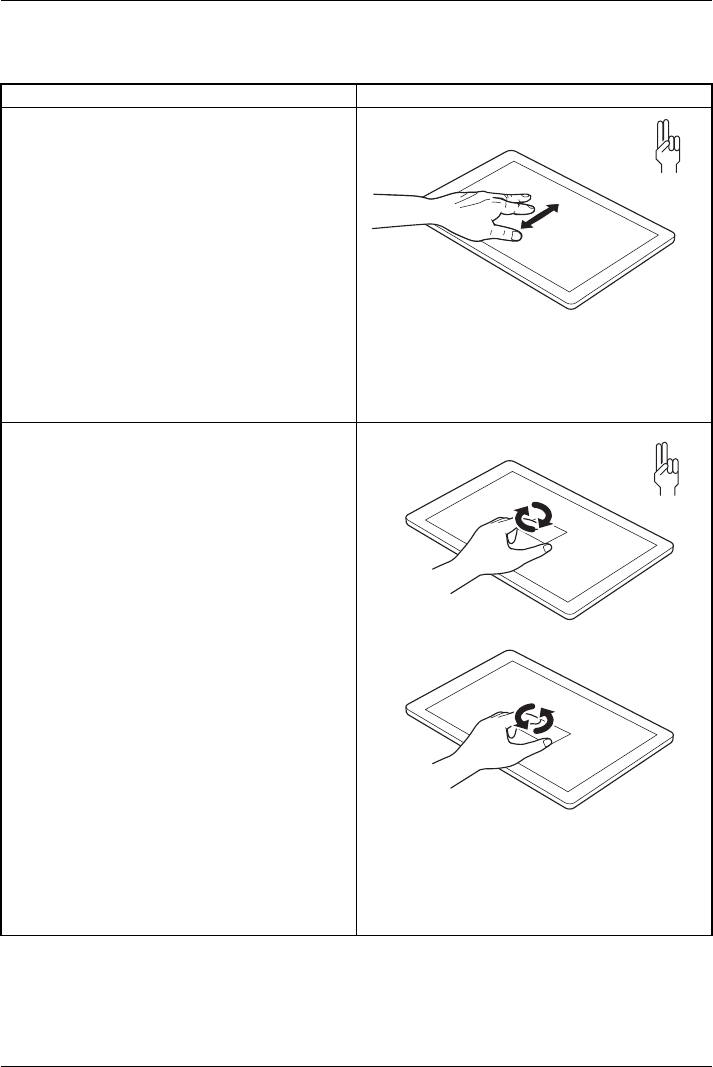

Actions with two fingers (Windows 7 / Windows 8.1 Desktop) . . ......................... 29
Using thestylus ......................................................................... 31
Stylus location ...................................................................... 32
Adjustingthe stylus .................................................................. 32
Calibratingthestylus ................................................................ 33

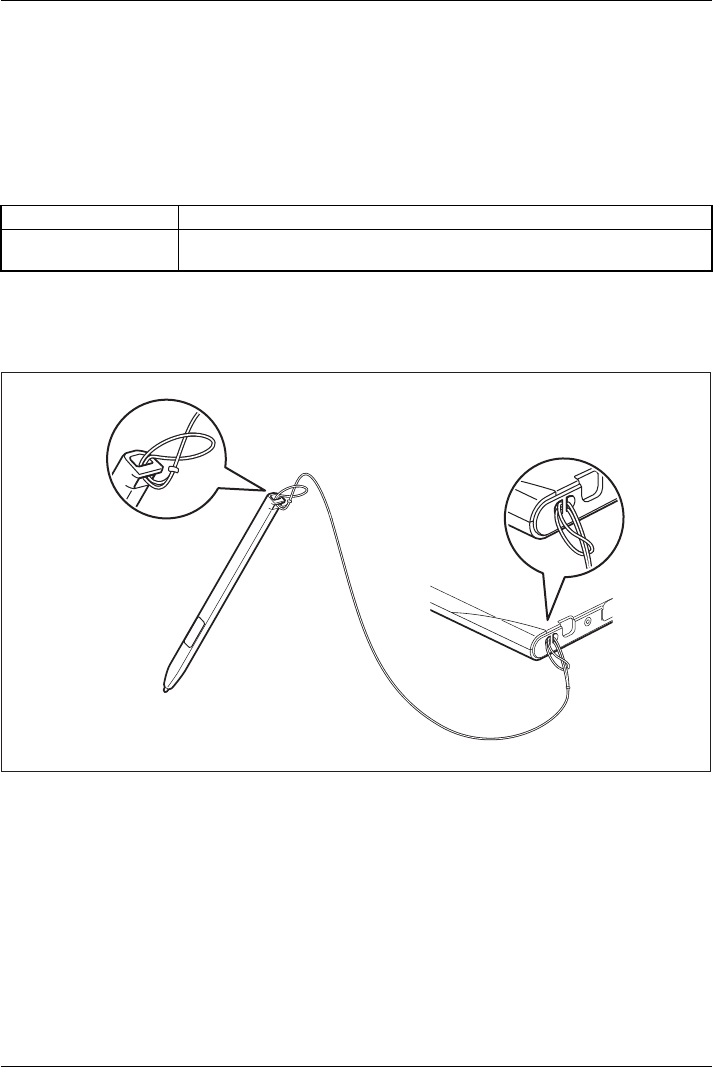

Installingastylustether .............................................................. 33

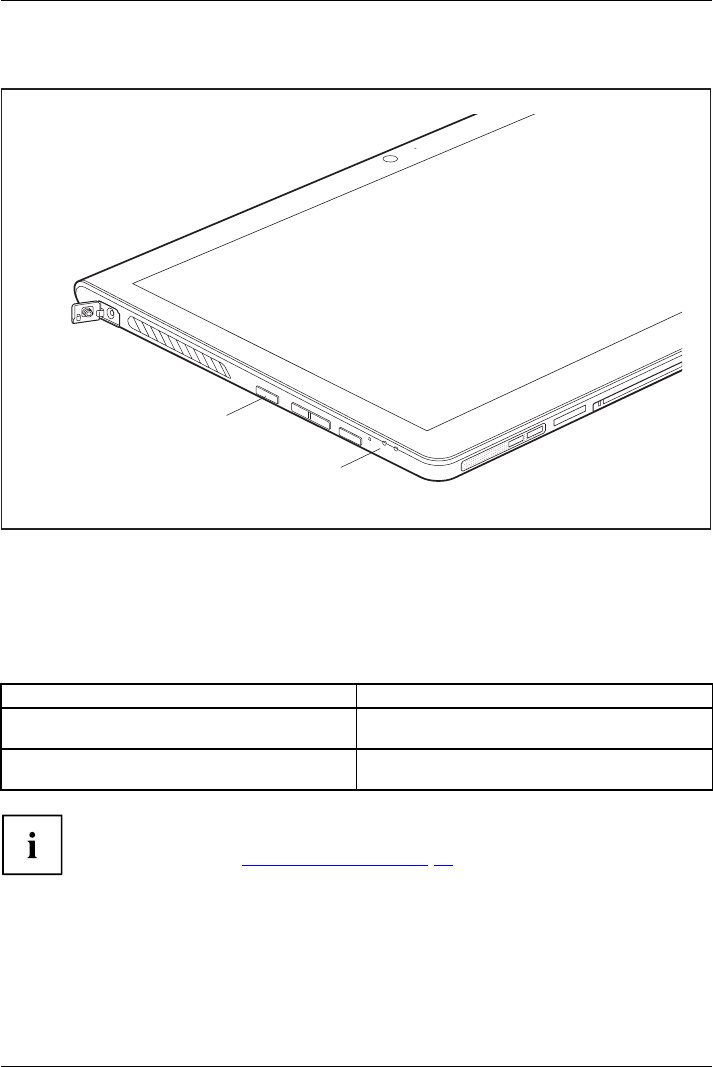

Tab l etbuttons .......................................................................... 34
Webcam ............................................................................... 34
Rechargeablebattery ................................................................... 35
Charging and maintainingthebattery ................................................. 35
Using the energy saving functions . ....................................................... 36
Memory cards .......................................................................... 37
Supportedformats .................................................................. 37

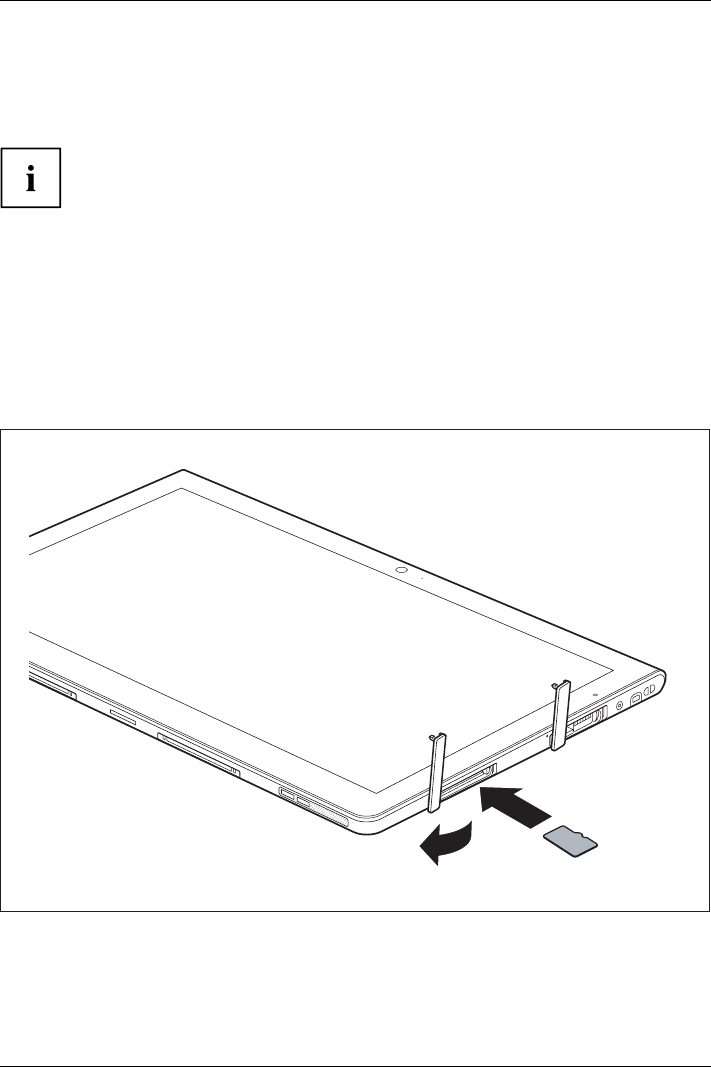

Insertingthememorycard ........................................................... 37
Removing the memorycard .......................................................... 38
Fujitsu 3
Contents
SIMcard ............................................................................... 39
InsertingaSIMcard ................................................................. 39

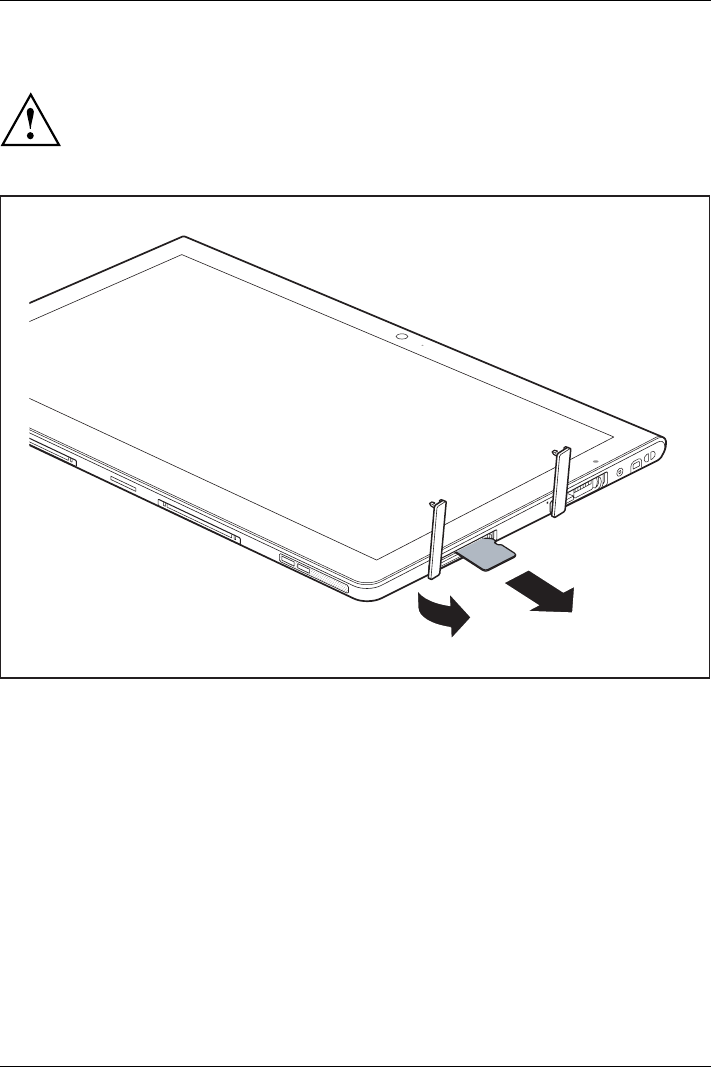

Removing a SIMcard ............................................................... 40
Wireless LAN/Bluetooth/4G/NFC wireless components . . . .................................. 40
Switching the wireless components on and off ......................................... 40
Furtherinformation on WLANandBluetooth ........................................... 41
Access via WirelessWAN ............................................................ 41
NFC ............................................................................... 41

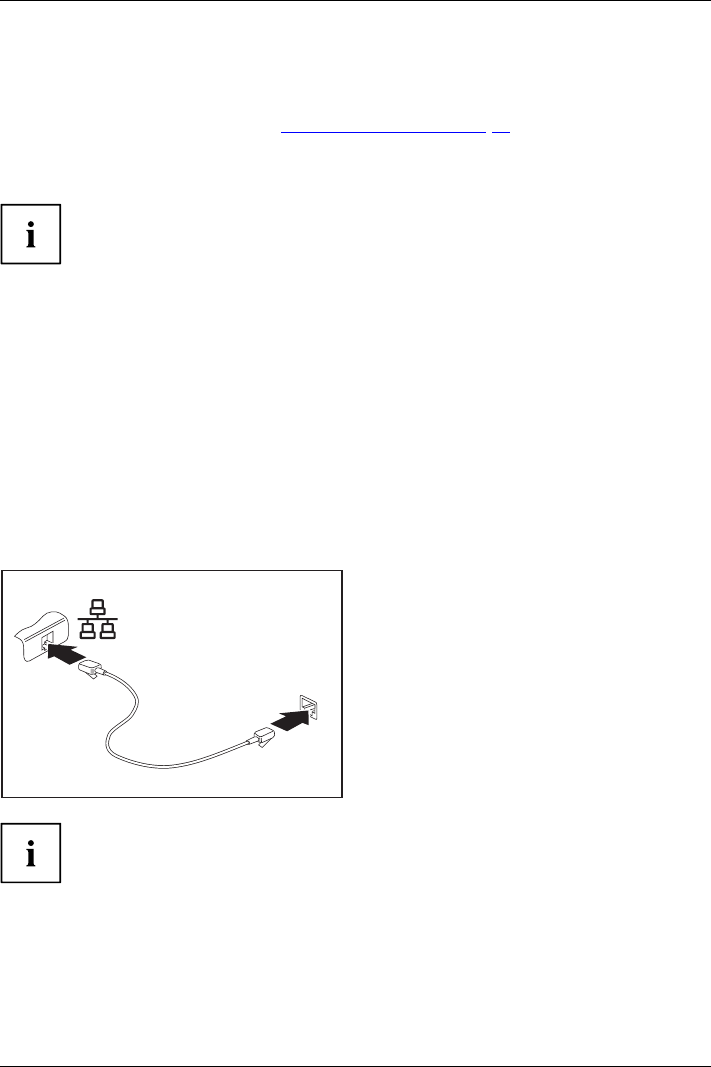

Ethernet and LAN (only with performance docking cradle or keyboard docking station) . . . . .... 41
GPS ................................................................................... 42

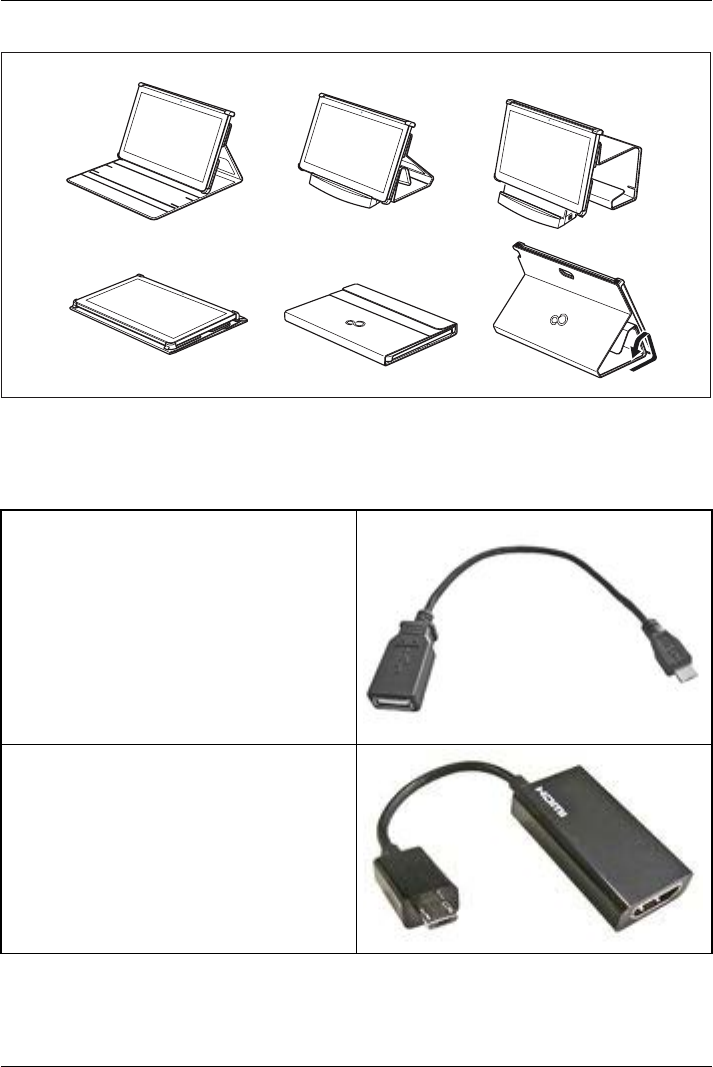

Accessories for your Tablet PC (optional) . ............................................. 43
Your performance docking cradle (optional) . . ............................................. 44

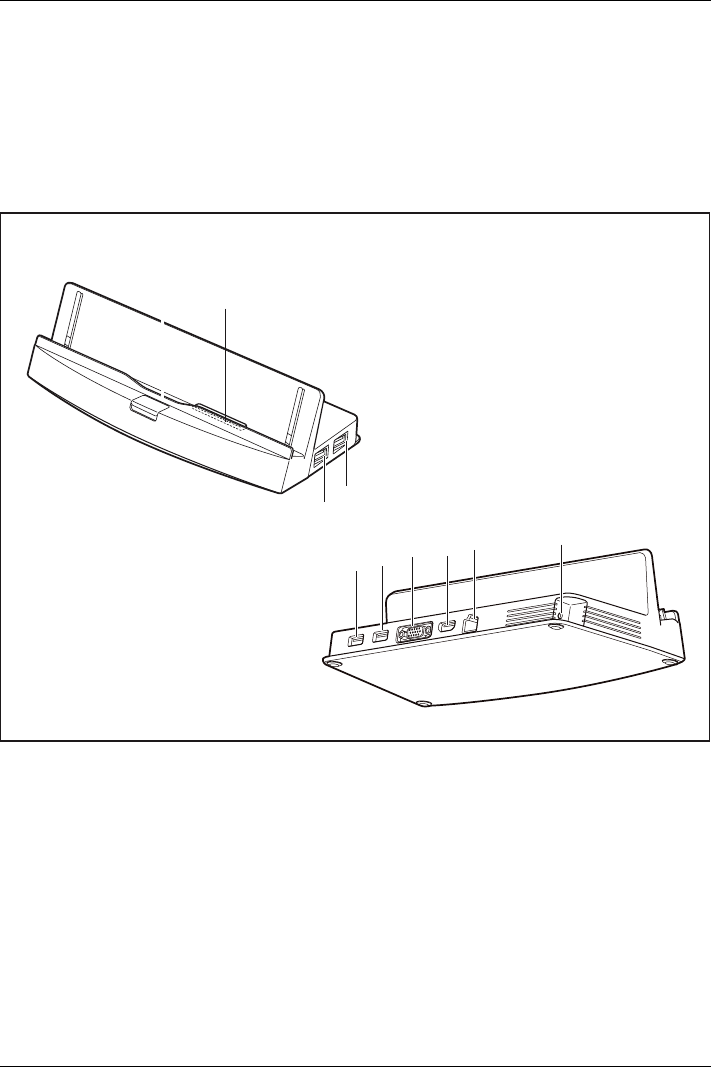

Cradle components . . ................................................................ 44
Settingup the cradle ................................................................ 45

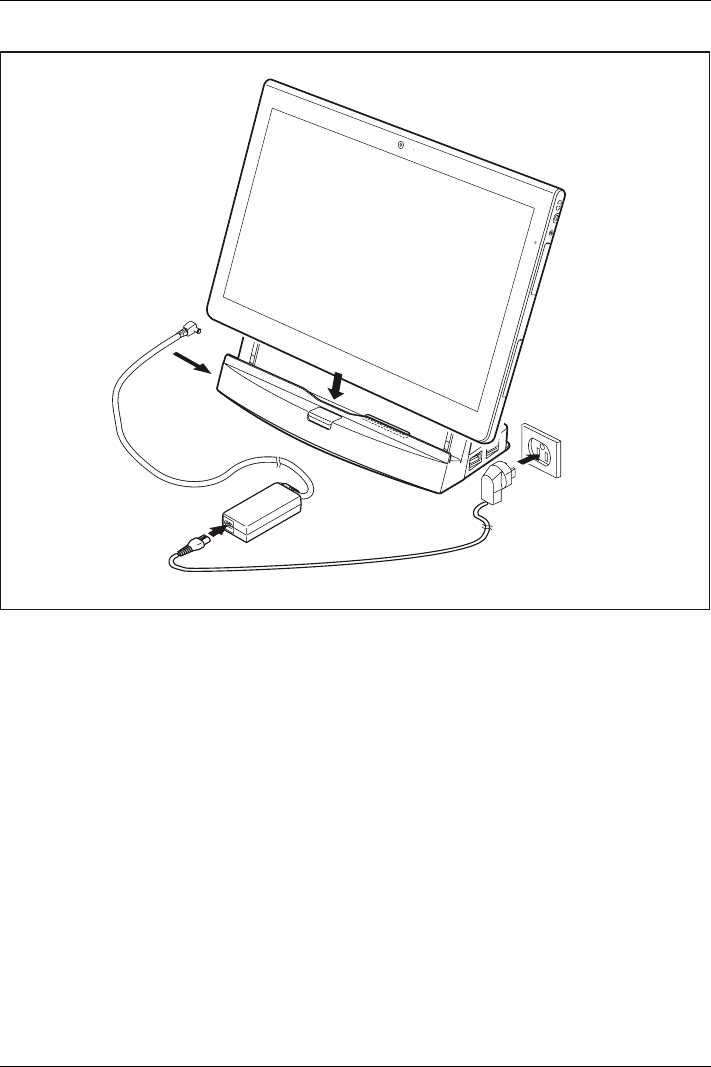

Connecting the Tablet PC to the cradle . . ............................................. 45

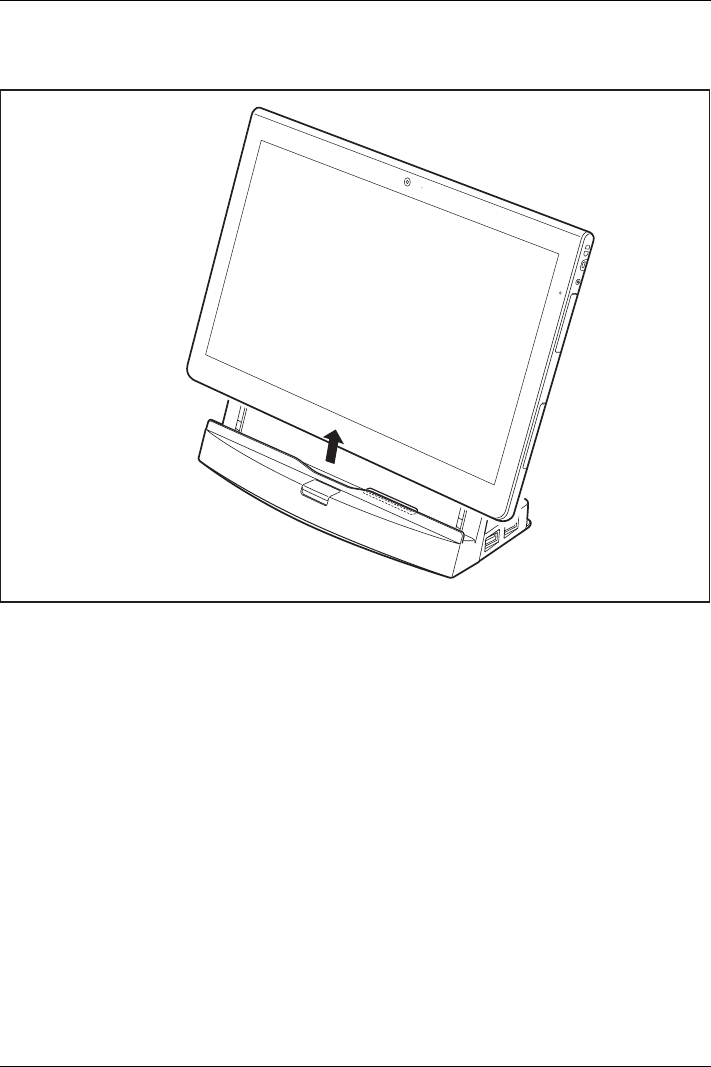

Disconnecting the Tablet PC from the cradle . ......................................... 47
Keyboard cover (optional) . . . ............................................................ 48
Keyboard cover components . ........................................................ 48

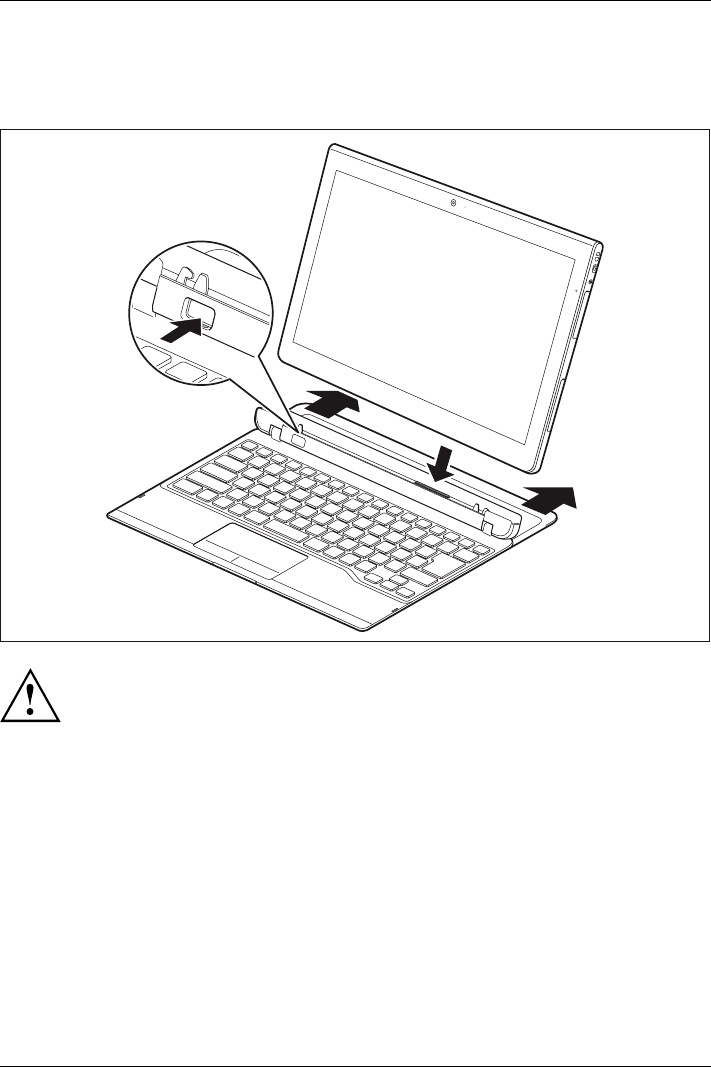

Connecting the Tablet PC to the keyboard cover . . . . . .................................. 49
Separating the Tablet PC from the keyboard cover . . .................................. 50

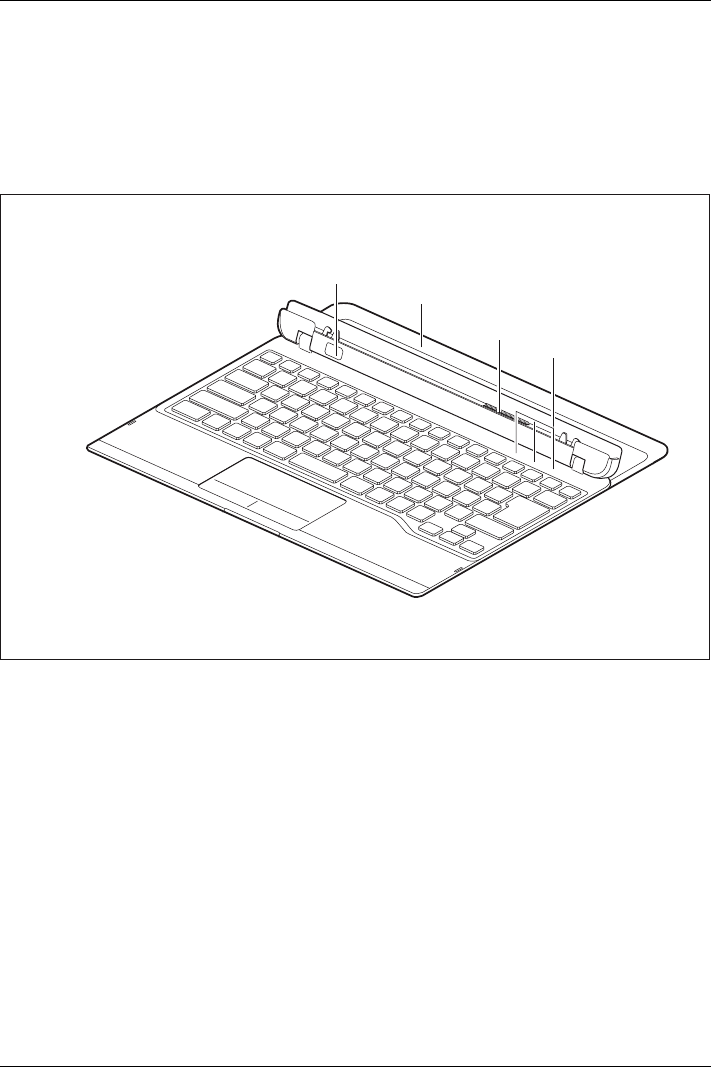

Keyboard docking station (optional) . . . . . . ................................................. 51

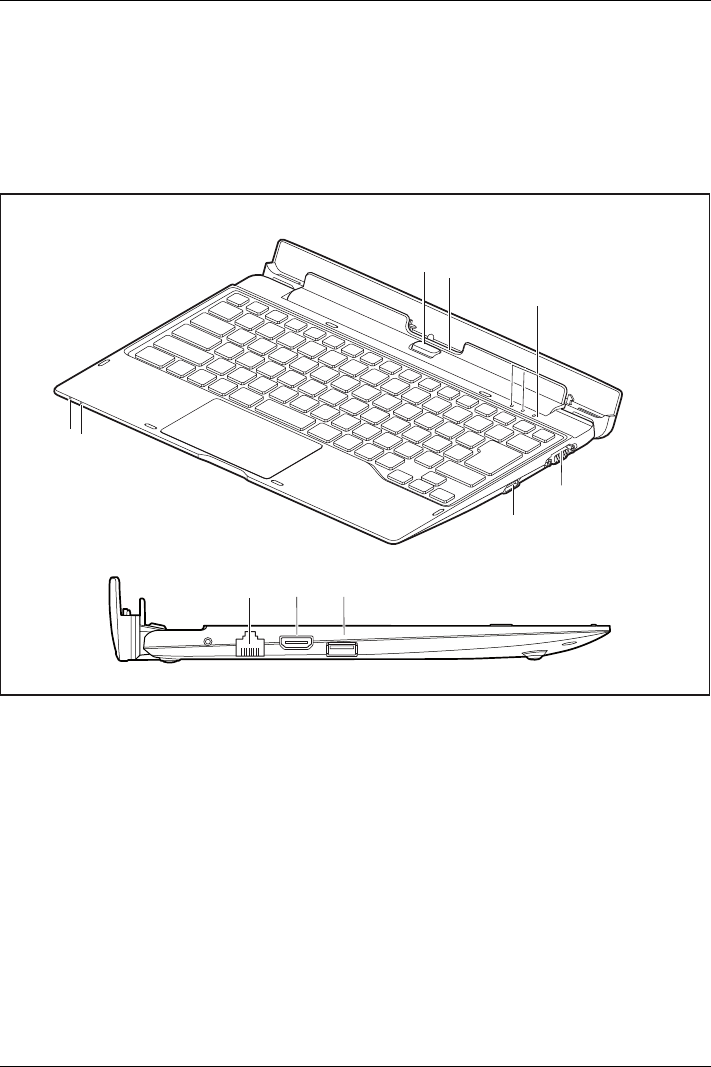

Ports on the keyboard docking station . . . ............................................. 51

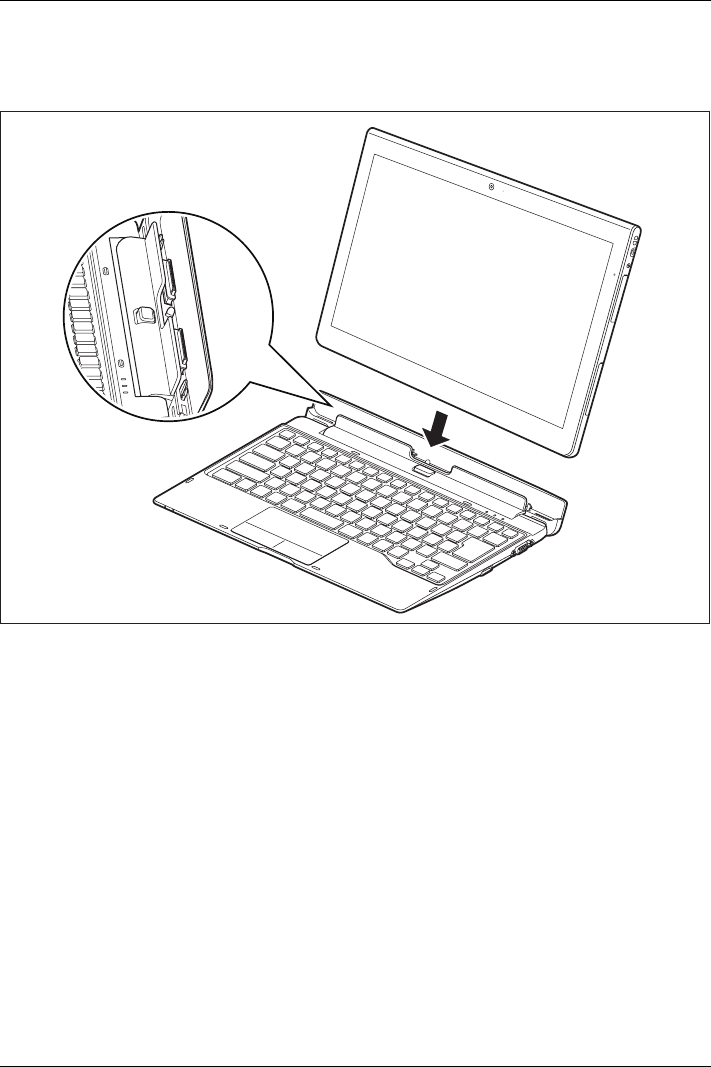

Connecting the Tablet PC to the keyboard docking station .............................. 53

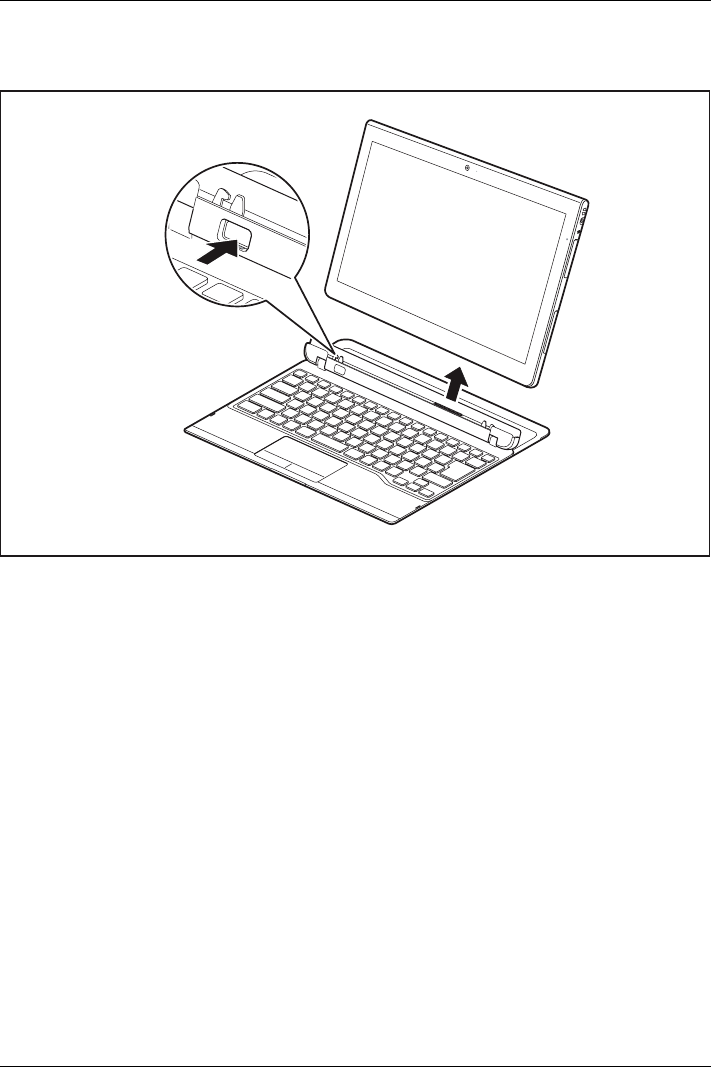

Separating the Tablet PC from the keyboard docking station . . .......................... 54

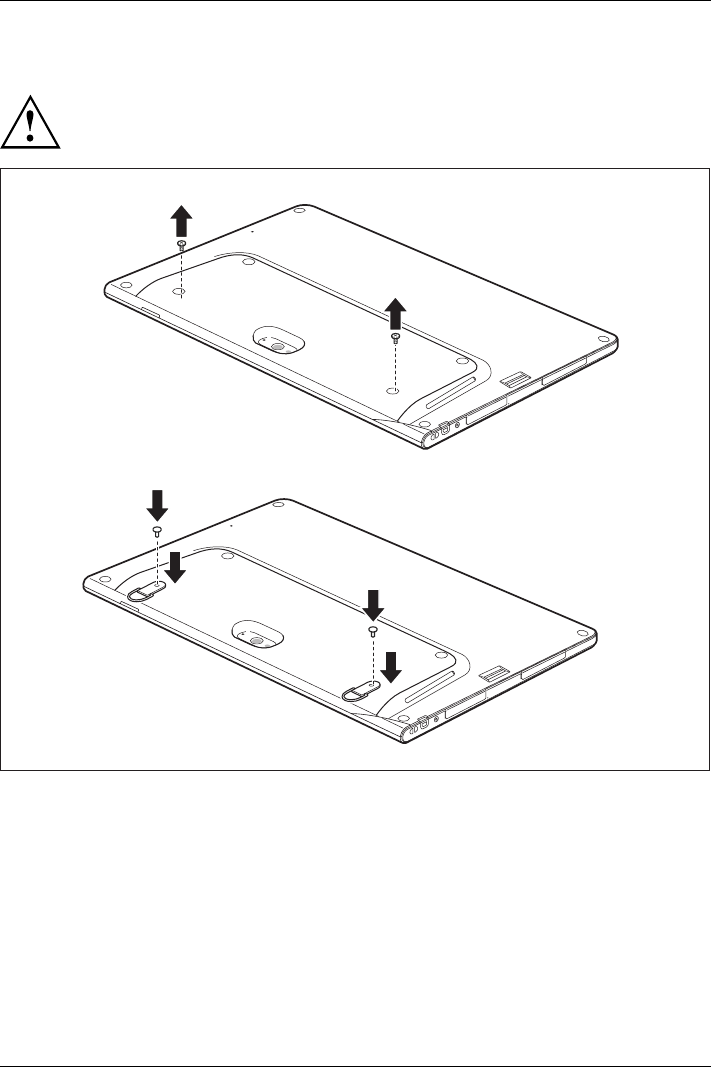

VESA mounting attachment (optional) . . . ................................................. 55

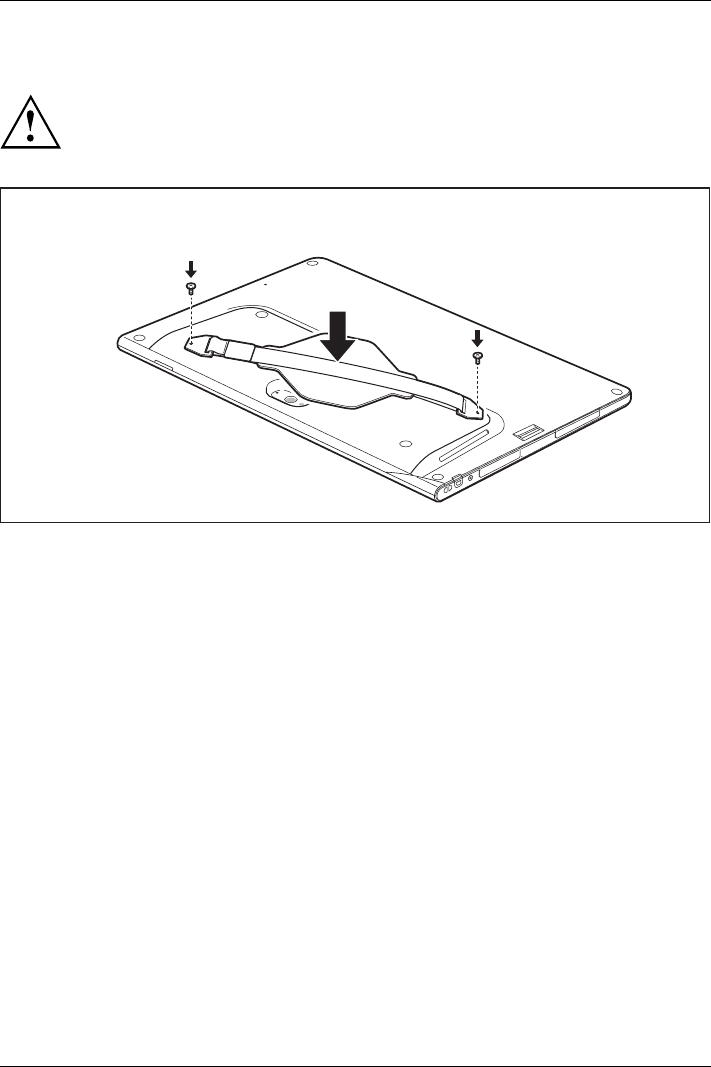

Hand strap (optional) . . . . ................................................................ 56

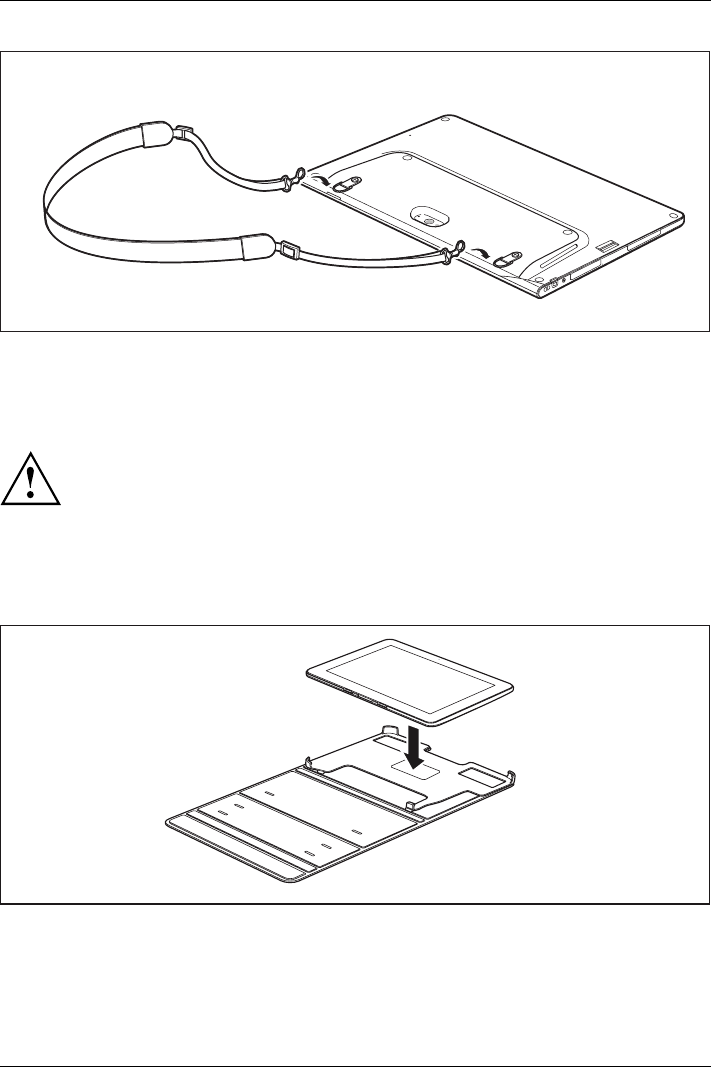

Shoulder strap (optional) ................................................................ 57
Folio case (optional) . . . . . ................................................................ 58

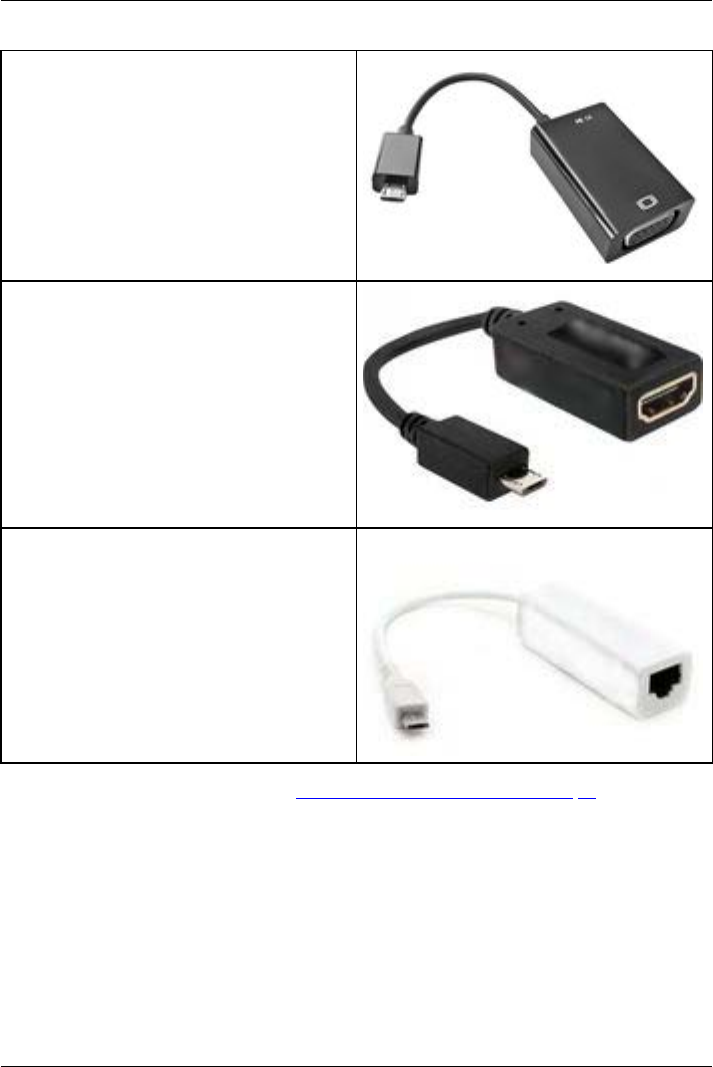

MicroUSBadapters ..................................................................... 59
Securityfunctions ..................................................................... 61
Configuring the fingerprint sensor ........................................................ 62
Configuring passwordprotectionin BIOS Setup Utility ...................................... 63
Protecting BIOS Setup Utility (supervisor HDD password and user HDD password) . . . .... 63
Password protection for booting the operating system .................................. 64
Password protection forthehard disk ................................................. 65
Smart Card reader (optional) . ............................................................ 66
InsertingtheSmartCard ............................................................. 66
Trusted Platform Module - TPM (device dependent) . . . . . . .................................. 67
EnablingTPM ....................................................................... 67
DisablingTPM ...................................................................... 67
Connectingexternaldevices ........................................................... 68

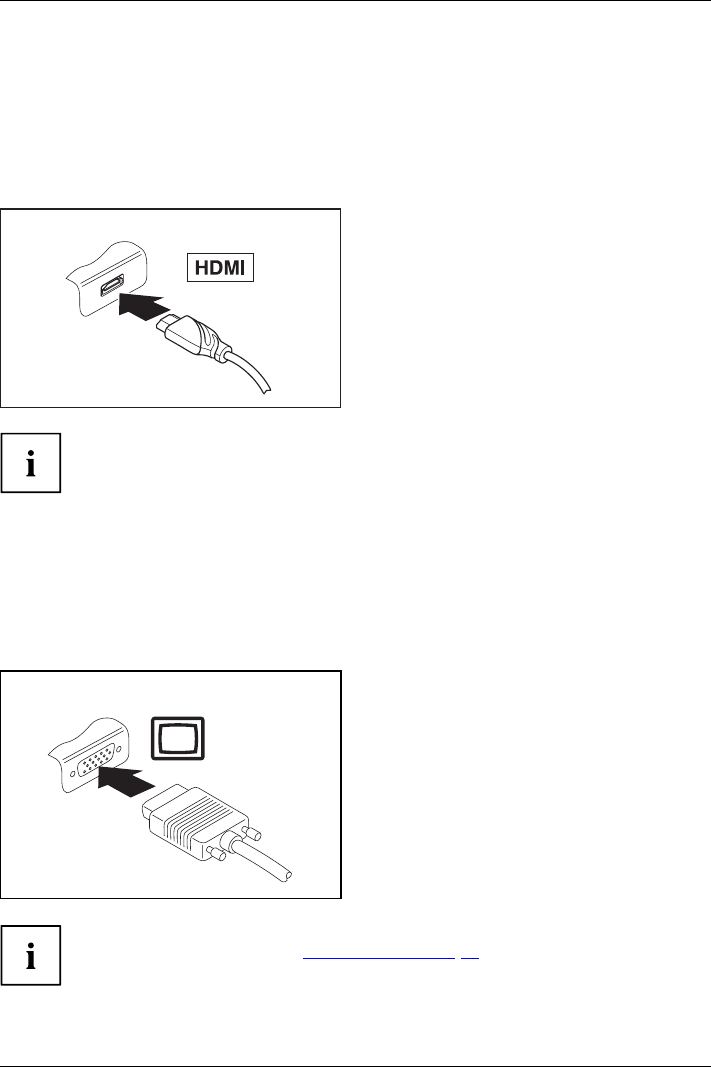

Connecting an external monitor . . ........................................................ 69
HDMIport(onlyperformancedocking cradleandkeyboarddocking station) .............. 69
External monitor port (VGA) (only performance docking cradle and keyboard docking
station) ............................................................................. 69

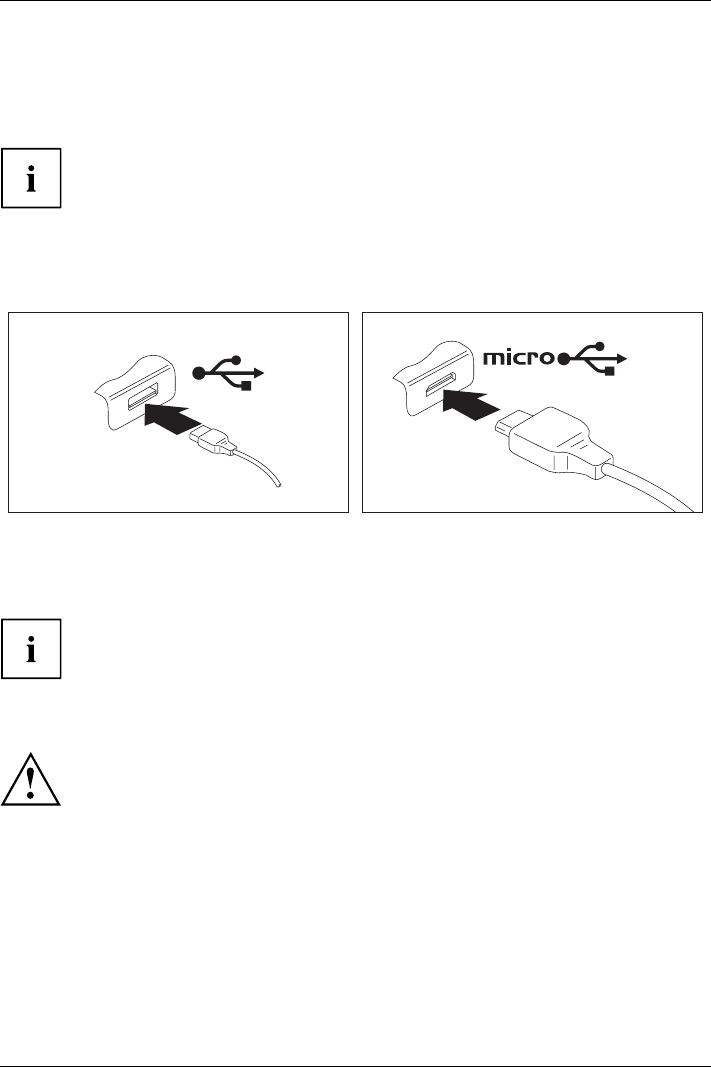

Connecting USB devices ................................................................ 70
Howto remove USB devicescorrectly ................................................ 70

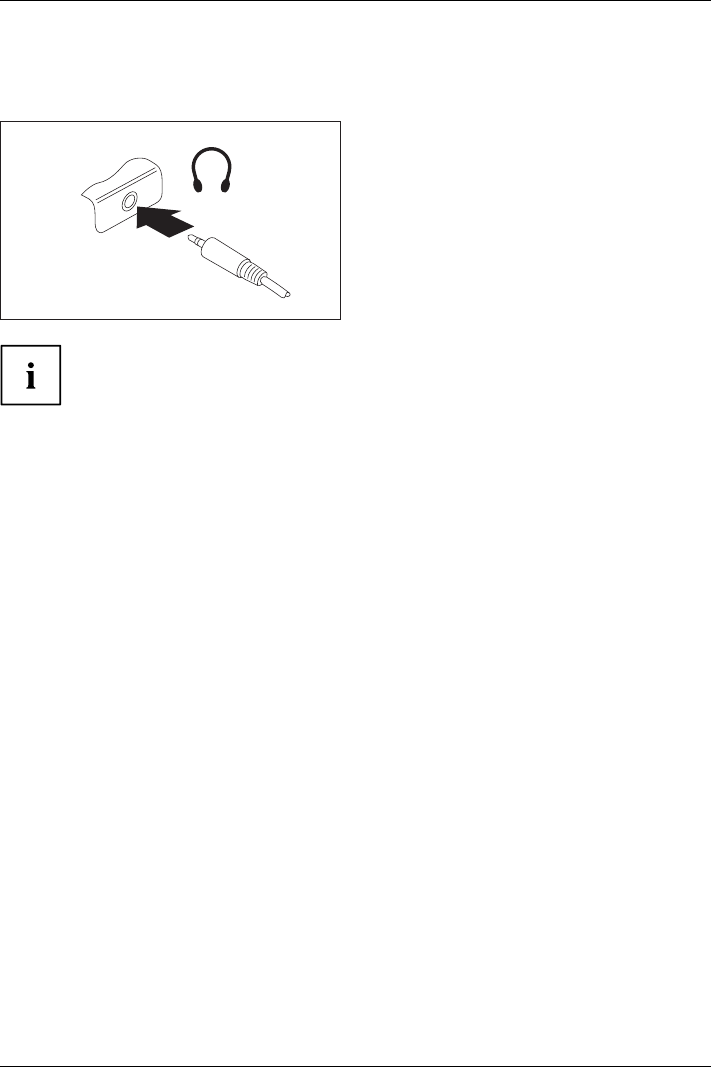

Headphones port ....................................................................... 71
Settings in BIOS Setup Utility . . ........................................................ 72
StartingtheBIOSSetupUtility ........................................................... 72
4Fujitsu
Contents
BIOS SetupUtilityoperation ............................................................. 73
ExitingBIOSSetup Utility ................................................................ 74
Exit Saving Changes - save changes and exit BIOS Setup Utility . . ..................... 74
Exit Discarding Changes - Reject changes and exit BIOS Setup Utility . . . . . .............. 74
Load Setup Defaults – load default values . ............................................ 74
Discard Changes - Discard Changes without exiting BIOS Setup Utility . . . . .............. 74
Save Changes - save changes without exiting the BIOS Setup Utility . . . . . . .............. 74
Save changes and power off ........................................................ 74
Troubleshootingandtips .............................................................. 75
Help ifproblemsoccur ................................................................... 75
RecoveringyourFactory Image ...................................................... 75
TheTabletPC’sdateortimeisincorrect .................................................. 76
Battery indicator does not illuminate . . . ................................................... 76
TheTabletPC’stouchscreenremainsdark ................................................ 76
The display on the Tablet PC’s touchscreen is difficult to read. . ............................. 76
Theexternalmonitorremainsblank ...................................................... 77
Theexternalmonitorisblank or the image isunstable ..................................... 77
The cursor does not correctly follow the stylus movements . . . . ............................. 77
Stylus inputnotworking ................................................................. 78
TheTabletPCdoesnotstartafterswitchon ............................................... 78
TheTabletPCstops working ............................................................. 78
The printer does not print . . . . . ........................................................... 79
The wireless connection to a network does not work . . . .................................... 79
Thebatterydischargestooquickly ........................................................ 79
Smart Card reader is not recognized . . . ................................................... 80
Acousticwarning ........................................................................ 80
Errormessagesonthescreen ........................................................... 80
Technical data ......................................................................... 82
TabletPC .............................................................................. 82
WLAN specifications .................................................................... 84
Rechargeablebattery ................................................................... 84
AC adapter (65 W) ...................................................................... 85
Performance docking cradle (optional) . ................................................... 85
Keyboard cover(optional) ............................................................... 86
Keyboard docking station (optional) ....................................................... 86
VESA mounting attachment (optional) . ................................................... 87
Hand strap (optional) . . .................................................................. 87
Shoulder strap (optional) . . . . . ........................................................... 87
Micro USB adapters (optional) ........................................................... 87
Manufacturer’snotes .................................................................. 88
Disposal and recycling .................................................................. 88
Recyclingyourbattery ............................................................... 88
DOC(IndustryCANADA)Notices ........................................................ 88
UL Notice ........................................................................... 89
ENERGYSTARCompliance ............................................................. 90
DeclarationsofConformity ............................................................... 90
FCCandICRegulatoryInformation ...................................................... 90
Regulatory Notes and Statements . ................................................... 91
Appendix .............................................................................. 94
Before Using the Optional Wireless LAN . . . . . . ............................................ 94
Fujitsu 5
Contents
WirelessLAN DevicesCoveredbythisDocument ...................................... 94
Characteristics oftheWLAN Device .................................................. 94
Wireless LAN Modes Using this Device . . ............................................. 95
Deactivating/Disconnecting theWLANDevice ......................................... 96
Configuring the WirelessLAN ............................................................ 97
Connection to the network . . . ........................................................ 97
TroubleshootingtheWLAN ........................................................... 98
Image Backup and Recovery Procedures ................................................. 100
CreatingaBackupofBootableDiskandRecovery Image .............................. 100
RECOVERYOURSYSTEM WHENTHEHARDDRIVEIS STILL ACCESSIBLE ............. 101
UsingtheRecovery and UtilityTools .................................................. 101
Restore the Recovery Image from Hidden Partition . . . .................................. 103
RECOVERYOURSYSTEM WHENTHEHARDDRIVEIS NOT BOOTABLE ................ 104
RestoretheRecoveryImageforFullHardDrive ....................................... 104
Recovering Your Recovery Image Using Recovery and Utility (for new hard drive or
non-bootableharddrive) ............................................................. 105
InstallingtheSoftware aftertheRecoveryImageisRestored ............................ 106
Index .................................................................................. 109
6Fujitsu
Fujitsu Contact Information
Fujitsu Contact Information
Service and Support
You can contact Fujitsu Service and Support in the following ways:
• Toll free phone: 1-800-Fujitsu (1-800-838-5487)
• Website: "http://solutions.us.fujitsu.com/www/content/support/contact/index.php"
Before you place the call, you should have the following information ready so that the
customer support representative can provide you with the fastest possible solution:
• Product name
• Product configuration number
• Product serial number
• Purchase date
• Conditions under which the problem occurred
• Any error messages that have occurred
• Type of device connected, if any
Fujitsu Shopping Online
Please go to "http://www.shopfujitsu.com/store/ ".
Maintaining Latest Configuration
To ensure that you always have the most current driver updates related to your system, you should
occasionally access the Fujitsu Software Download Manager (FSDM) utility. The FSDM utility is
available from the Fujitsu Support site. FSDM will allow you to view a list of the most current
drivers, utilities, and applications to determine whether you have the latest versions. If you have a
Windows 7 or Windows 8/8.1 operating system, you will need to go to the Support Site to download
the FSDM Utility: "http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS".
Limited Warranty
Your LIFEBOOK notebook is backed by a Fujitsu International Limited Warranty. Check the service
kit that came with your notebook for the Limited Warranty period and terms and conditions.
Fujitsu 7
Notational conventions
Notational conventions
Pay particular attention to text marked with this symbol. Failure to observe
these warnings could pose a risk to health, damage the device, or lead
to loss of data. The warranty will be invalidated if the device becomes
defective through failure to observe these warnings.
Indicates important information for the proper use of the device.
►Indicates an activity that must be performed.
Indicates a result.
This font Indicates data entered using the keyboard in a program dialog or at the
command line, e.g. your password (Name123)oracommandusedtostart
a program (start.exe)
This font Indicates information that is displayed on the screen by a program, e.g.:
Installation is complete.
This font Indicates
• terms and texts used in a software interface, e.g.: Click on Save
• names of programsorfiles, e.g. Windows or setup.exe.
"This font" Indicates
• cross-references to another section, e.g. "Safety information"
• cross-references to an external source, e.g. a web address: For more
information, go to "http://solutions.us.fujitsu.com/"
• names of CDs, DVDs and titles or designations for other materials, e.g.:
"CD/DVD Drivers & Utilities" or "Safety/Regulations" manual
Key Indicates a key on the keyboard, e.g: F10 .
This font Indicates terms and texts that are emphasized or highlighted, e.g.: Do
not switch off the device.
8Fujitsu
Ports and controls
Ports and controls
This chapter presents the individual hardware components of your device. It gives an
overview of the indicators and connections of the device. Please familiarize yourself
with these items before you start to work with the device.
Front
1
23
5
6
4
7
56
7
8
8
1 = Touchscreen
2 = Webcam
3 = Webcam LED
4 = Ambient light sensor
5 = Speaker
6 = Mechanical mounting for keyboard docking
station / keyboard cover / cradle
7 = Docking port
8 = Air inlet
Fujitsu 9
Ports and controls
Left-hand side
1 2 3 4 5 6 7
1 = DC jack (DC IN, protected by cover)
2 = ON/OFF button
3 = Increase volume button
4 = Decrease volume button
5 = Shortcut button
6 = Power-on indicator
7 = Battery charging indicator
Right-hand side
12 34 567
1=SIM
card slot (format: micro SIM,
protected by cover)
2 = Storage card slot (format: micro SD,
protected by cover)
3=M
icro USB port (protected by cover)
4=USB
port (USB 3.0, protected by cover)
5 = Headphones port
6=St
ylus holder
7 = Eyelet for stylus cord
10 Fujitsu
Ports and controls
Back (2 variants: standard shell and smart card shell)
432
1
6
5
5
5
5
432
1
7
7
1 = Fingerprint sensor
2 = Camera light
3 = Webcam
4 = Webcam LED
5 = Screw holes (device-dependent) for
securing accessories
6 = Smart Card reader (device dependent)
7 = NFC (Near Field Communication)
(device-dependent)
Fujitsu 11
Important notes
Important notes
ImportantnotesNotes
This chapter contains essential safety information which must be followed when working
with your Tablet PC. The other notes provide useful information about your Tablet PC.
Safety instructions
SafetyinformationInform ation,
Please follow the safety notes provided in the "Safety/Regulations" manual
as well as the safety notes given below.
Please pay special attention to the sections in the manual marked
with the symbol on the left.
When connecting and disconnecting cables, observe the relevant
notes in this operating manual.
Read the information on the ambient conditions in the "Technical data", Page 82 chapter
and the information in the "First-time setup of your device", Page 17 chapter before
preparing your Tablet PC for use and switching it on for the first time.
When cleaning the device, please observe the relevant notes in the section .
Pay attention to the additional safety notes for devices with wireless components
provided in the "Safety/Regulations" manual.
When handling this device, you come into contact with lead, a chemical which in
California is held to be a possible cause of birth defects and other damage to fertility.
Wash your hands after using the device.
This Tablet PC complies with the relevant safety regulations for data processing equipment. If
you have questions as to whether you can set up the Tablet PC in the intended environment,
please contact your sales outlet or our hotline/service desk.
12 Fujitsu
Important notes
Additional safety notes for devices with
wireless components
wirelesscomponentsWirelessLANBluetooth,Safetynotes
If a wireless component (Wireless LAN, Bluetooth, 4G) is integrated in your Tablet PC, you must
be sure to observe the following safety precautions when using your Tablet PC:
• Switch off the wireless components when you are in an aircraft or driving in a car.
• Switch off the wireless components when you are in a hospital, an operating
room or near a medical electronics system. The transmitted radio waves
can impair the operation of medical devices.
• Switch off the wireless components, when you let the device get near flammable
gases or into hazardous environments (e.g. gas station, paint stores), as the
transmitted radio waves can cause an explosion or a fire.
For further information on how to switch the wireless components on and off,
refer to "Switching the wireless components on and off", Page 40.
Protecting the display screen
Depending on your device configuration, where applicable your device is not waterproof.
In this event, do not pour liquids onto the device and do not wash it with a wet cloth.
Do not place items on the top of the display, or damage may occur.
During normal use of the device, small particles from the environment
can become embedded in the stylus tip and scratch the screen. The
warranty does not cover a scratched screen.
Energy saving
NotesEnergyEnergysaving
If you will not be using your Tablet PC, switch it off. Switch off any connected external devices when
they are not in use. If you use the energy-saving functions, the Tablet PC uses less power. If you do
this, you will be able to work longer with the Tablet PC before having to recharge the battery.
The energy efficiency is increased and environmental pollution is reduced.
You save money and help protect the environment.
Energy saving under Windows
►Make use of the available energy saving functions as described in chapter
"Using the energy saving functions", Page 36.
Traveling with your Tablet PC
MobileoperationNotesTranspo rtTabletPC
Please follow the instructions below when traveling with your Tablet PC.
Fujitsu 13
Important notes
Before you travel
►Back up important data stored on your hard disk.
NotebookTraveling,notebo ok
►Switch off the wireless component for data security reasons. With data traffic via a wireless
connection, it is also possible for unauthorized third parties to receive data.
Information on activating data encryption is provided in the documentation
for your wireless component.
►If you want to use your Tablet PC during a flight, ask the flight attendants to see it is safe to use it.
When traveling in other countries
►If you are traveling abroad, check that the AC adapter can be operated with the
local AC voltage. If this is not the case, obtain the appropriate AC adapter for
your Tablet PC. Do not use any other voltage converter!
►Check whether the local AC voltage and the AC cable are compatible. If this is not
the case, buy an AC cable that suits the local conditions.
►Enquire with the appropriate government office of the country you will be traveling in as to
whether you may there operate the wireless component integrated in your Tablet PC.
►Take the necessary travel adapters with you when traveling abroad. Check in the following
table for which travel adapters you will need, or ask your travel organizer.
Power connection Travel destination
United States, Canada, Mexico, parts of Latin
America, Japan, Korea, Philippines, Taiwan
Russia and the Commonwealth of Independent
States (CIS), much of Europe, parts of Latin
America, the Middle East, parts of Africa, Hong
Kong, India, much of south-east Asia
United Kingdom, Ireland, Malaya, Singapore,
parts of Africa
China, Australia, New Zealand
14 Fujitsu
Important notes
Transporting the Tablet PC
Protect the Tablet PC from severe shocks and extreme temperatures
(e.g. direct sunlight in a car).
• Do not transport your Tablet PC while it is turned on.
• Carry your Tablet PC with you while traveling, rather than checking it in as baggage.
• Never put your Tablet PC through a metal detector; have it hand-inspected by
security personnel. You can however, put your Tablet PC through a properly
tuned X-ray machine. To avoid problems, place it close to the entrance of
the machine and remove it as soon as possible or have it hand-inspected
by security personnel. Security officials may require you to turn your Tablet
PC on, so make sure you have a charged battery on hand.
►Switch the Tablet PC off.
►Unplug the AC plug of the AC adapter and all external devices from the power outlets.
►Disconnect the AC adapter cable and the data cables for all external devices.
►To protect against damaging jolts and bumps, use a suitable Tablet PC
carrying case to transport your Tablet PC.
Storing your Tablet PC
• If storing your Tablet PC for a month or longer, turn it off, fully charge the battery,
then remove and store all Lithium Polymer batteries.
• Store your Tablet PC in a cool, dry location. Temperatures should remain
between 13ºF / -25ºC and 140ºF / 60ºC.
• Store your Tablet PC and batteries separately. If you store your Tablet PC with
a battery installed, the battery will discharge, and battery life will be reduced. In
addition, a faulty battery might damage your Tablet PC.
• Always power off the Tablet PC before transporting and/or packaging it.
After shutting down the Tablet PC, wait until the status led panel indicates
power off condition (i.e., no lights are illuminated).
• It is possible that the Tablet PC may not automatically go to power-off or hibernate
mode when you close the lid. This situation may occur due to pre-operating system
boot password security settings or some other application running on the Tablet PC.
• Attempting to transport the Tablet PC while power is on may damage
the Tablet PC due to shock or overheating.
Fujitsu 15
Important notes
Cleaning the Tablet PC
• Use of incorrect cleaners can result in optical impairment of the LCD and / or
damage to the computer. Always refer to the cleaner manufacturer’s guidelines and
material safety data sheets fo proper handling and use of the products.
• Never use ammonia, acidic, or alkaline cleaners or organic chemicals
such as paint thinner, acetone or kerosene. It may damage surface
finishes and the coating of the LCD screen.
• Never use compressed air for cleaning your computer.
• If your Tablet PC has a Smart Card slot, be very careful to avoid any
liquid entering the slot as this can damage the unit.
Cleaning guidelines using recommended off-the-shelf cleaners: Computer exterior
To clean the exterior, use one of the following off-the-shelf products:
•Office Depot® #154-616 b Cleaning Kit
• Meridrew Enterprises Klear Screen® Wipes
• 3M CL563 Cleaner Wipes
After cleaning with one of these products, gently polish with a dry, soft,
lint-free cloth until the solution is no longer visible.
Disinfecting STYLISTIC computers
Wipe the surface with a soft cloth wipe and a 50% ethanol solution or use another ethanol-based
germicide which has been registered as a hospital disinfectant by the EPA.
16 Fujitsu
First-time setup of your device
First-time setup of your device
First- timese tupGettingstarted
Please read the chapter "Important notes", Page 12.
If your device is equipped with a Windows operating system, the necessary
hardware drivers and supplied software are already pre-installed.
Before switching it on for the first time, connect the device to the AC voltage using
the AC adapter, see "Connecting the AC adapter", Page 18. The AC adapter must
remain connected during the whole of the installation process.
A system test is performed when your device is first switched on. Various messages
can appear. The display may remain dark for a short time or may flicker.
Please follow the instructions on the screen.
NEVER switch off your device during the first-time setup process.
The battery must be charged if you want to operate your device using the battery.
When used on the move, the built-in battery provides the device with the necessary power. You
can increase the operating time by using the available energy-saving functions.
For instructions on how to connect external devices (e.g. mouse, printer) to your Tablet
PC, please refer to the operating manual for your device.
Unpacking and checking the device
If you find that damage has occurred during transport, please notify
your local sales outlet immediately!
►Unpack all the individual parts.
PackagingTransport
►Check your device for any visible damage which may have occurred during transportation.
You may need to reuse the packaging in future, for example if you
need to transport your device.
Fujitsu 17
First-time setup of your device
Choose a location
ChoosealocationSetupACadapter
Choose a suitable location for the device before setting it up. In doing
so, please follow these instructions:
• Never place the device or the AC adapter on a heat-sensitive surface.
The surface could be damaged as a result.
• Never place the device on a soft surface (e.g. carpeting, upholstered furniture,
bed). This can result in damage caused by overheating.
• The underside of the device heats up during normal operation. Prolonged
contact with skin can become unpleasant or even result in burns.
• Place the device on a stable, flat, non-slippery surface. Please note that the
rubber feet of the device may mark certain types of delicate surfaces.
• Keep other objects at least 100 mm / 4 inches away from the device
and its AC adapter to ensure adequate ventilation.
• Do not expose the device to extreme environmental conditions. Protect
the device against dust, humidity and heat.
Connecting the AC adapter
MakingreadytouseACadapter
Observe the safety notes in the enclosed "Safety/Regulations" manual.
ThesuppliedACc
able conforms to the requirements of the country in which
you purchased your device. Make sure that the AC cable is approved for
use in the country in which you intend to use it.
2
►Open the cover of the DC jack
socket (DC IN).
►Connect the AC cable (1) to the AC adapter.
►Plug the AC cable (2) into a power outlet.
►Connect the AC adapter cable (3) to the
DC jack socket (DC IN) of the device.
18 Fujitsu
First-time setup of your device
Switching on the device for the first time
Switchingonforthefirstt ime
To make it easier to use your device for the first time, the operating system
is pre-installed on the hard disk.
1
2
►Press the ON/OFF button (1) for about one second to switch the device on.
The power-on indicator (2) lights up whenever the system is switched on.
►During the installation process, follow the on-screen instructions.
You can find information and help on the Windows operating system
functions online at "http://windows.microsoft.com".
If a Windows 8.1 operating system is installed on your Tablet PC, a tutorial
is automatically started when a new user logs on for the firsttimetoshow
you how to use the new functions of Windows 8.1.
Fujitsu 19
First-time setup of your device
Installing Bonus Apps
After you have started your system the first time, you will see a Bonus Apps icon on your desktop.
►Click on the icon to see which additional applications are available for you to install.
Applications that are already installed appear in grey, those that are
available for installation appear in blue.
►Select the applications you wish to install by selecting the checkbox adjacent to your selection.
or
►Click Select All if you would like to install all available applications
►To co n firm your selection click Install.
Note that in some cases (depending upon which application was selected for
installation) after installation completes, the system will prompt you to reboot.
There are also cases in which if multiple applications are selected to install
but one of them needs a reboot, the system will reboot and continue
installing the rest of the selected applications.
20 Fujitsu
Working with the Tablet PC
Working with the Tablet PC
Tablet,operationTablet
This chapter describes the basics for operating your Tablet PC. You can find instructions
on how to connect external devices (e.g. mouse, flash storage) to the Tablet PC in
the chapter "Connecting external devices", Page 68.
Please refer to the notes in the chapter "Important notes", Page 12.
Status indicators
StatusindicatorsSymbols
The status indicators (1,2) provide information about the status of the power
supply, the drives, and the keyboard functions etc.
1 2
Status indicator Description
Power-on indicator
• Indicator lights up blue: The Tablet PC is switched on.
• The indicator flashes: The Tablet PC is in sleep mode (Save-to-RAM).
• The indicator lights up, alternating between blue and white: The Tablet
PC is in S3 mode and the wireless component (Wi-Fi or WWAN) is
switched on.
• The indicator lights up white: The Tablet PC is in S4 or S5 mode and the
wireless component (Wi-Fi or WWAN) is switched on.
• The indicator is not lit up: The Tablet PC is switched off or in Save-to-Disk
mode.
Battery charging indicator
• The indicator lights up red: The AC adapter is connected.
• The indicator is flashing red: The battery has a charging error.
• The indicator is not lit up: The AC adapter is not connected.
Fujitsu 21
Working with the Tablet PC
Switching the Tablet PC on
Tablet:SwitchingonPower-onPower-onindicatorSuspend/Resume button
1
2
►Press the ON/OFF button (1) for about one second to switch the device on.
The power-on indicator (2) lights up whenever the system is switched on.
Programing the ON/OFF button
You can program the ON/OFF button:
Operating system Menu
Windows 7 Start - (Settings) - Control Panel - System and
Security - Power Options
Windows 8.1 Windows 8.1 Desktop - Control Panel - Hardware
and Sound - Power Options
If you have assigned a password, you must enter this when requested to
do so in order to start the operating system. Detailed information can be
found in the chapter "Security functions", Page 61.
22 Fujitsu
Working with the Tablet PC
Switching the Tablet PC off
Back up your data and close all applications before you switch off your
device. Otherwise data might be lost.
►Shut down the operating system correctly.
Notebook
►If the Tablet PC does not switch itself off automatically, press the ON/OFF
button for approx. five seconds.
Handwriting recognition
For detailed information on handwriting recognition, see the documentation for your operating system.
At present, handwriting recognition under Windows 7 or Window 8.1 supports the following languages:
English, German, French, Italian, Japanese, Korean, Chinese (traditional and simplified), Dutch,
Portuguese, Spanish, Brazilian, Norwegian (Bokmål and Nynorsk), Swedish, Finnish, Danish,
Polish, Rumanian, Serbian (Cyrillic and Latin script), Catalan, Russian, Czech and Croatian.
Under Windows 8.1 you can set the required language under Control Panel –
Time, Language and Region – Language.
Fujitsu 23
Working with the Tablet PC
Touchscreen
Tou ch s c re e nNotes
High-quality LCD screens (TFT) are installed in Fujitsu Tablet PCs. For technical reasons,
these screens are manufactured for a specific resolution. An optimal, clear picture can
only be ensured in the resolution intended for the particular screen. A screen resolution
which differs from the specification can result in an unclear picture.
The screen resolution of your Tablet PC’s touchscreen is optimally set at the factory.
Current production technology cannot guarantee an absolutely fault-free screen display. A few
isolated constantly lit or unlit pixels (picture elements) may be present. The maximum permitted
number of such faulty pixels is specified in the international standard ISO 9241-307 (Class II).
Example:
A screen with a resolution of 1280 x 800 has 1280 x 800 = 1024000 pixels. Each pixel consists of
three subpixels (red, green and blue), so there are almost 3 million subpixels in total. According to ISO
9241-307 (class II), a maximum of 2 light and 2 dark pixels and in addition 5 light or 10 dark subpixels
or an equivalent mix (1 light subpixel counts as 2 dark subpixels) are allowed to be defective.
Pixel A pixel consists of 3 subpixels, normally red, green and
blue. A pixel is the smallest element that can be generated
by complete functionality of the display.
Subpixel A subpixel is a separately addressable internal structure
within a pixel that enhances the pixel function.
Cluster A cluster contains two or more defective pixels or
subpixels in a 5 x 5 pixel block.
Background lighting
LCD screens are operated with background lighting. The luminosity of the background
lighting can decrease over the period of use of the Tablet PC. However, you can
adjust the brightness of your monitor yourself.
Ambient light sensor
If your notebook was shipped with the Windows operating system,the screen brightness is
regulated by the ambient light sensor and is dependent on the particular light conditions.
This results in optimum readability and longer battery life at the same time.
If your notebook was shipped with Windows 8.1, the adaptive brightness setting is deactivated. To
change the ambient light sensor settings, select Control Panel - System and Security - Power Options -
Change plan settings - Change advanced power settings - Display - Activate adaptive brightness setting..
Select On to activate the adaptive brightness setting with the help of the ambient light sensor.
Synchronizing the display on the touchscreen and an external monitor
In Windows 7, you can switch between touchscreen and external monitor, if you open
Control Panel - Windows Mobility Center,sectionExternal Display.
In Windows 8.1 wipe your finger over the screen from the right-hand edge. The setting
Charms - Devices - Second monitor opens. Select the desired output type.
You can also use the Fujitsu Display Manager in the Windows Mobility Center to set the output type.
24 Fujitsu
Working with the Tablet PC
Select display orientation (portrait or
landscape format)
Landscapeform atPortraitformatDisplayorientation
You can choose to use either portrait or landscape format for the display.
Windows 7
You can change these settings in the Fujitsu menu or under Start -(Settings -)
Control Panel -Hardware and Sound -Display -Settings.
Windows 8.1
You can change these settings under Windows 8.1 Desktop - Control Panel -
Hardware and Sound - Windows Mobility Center / Rotate screen.
In the Fujitsu Tablet Controls settings, profiles are saved for operation
with different screen orientations. These profiles have preset standard
configurations that can be modified as desired.
These settings do not just affect the screen settings on the Tablet PC, but
also on external monitors that are connected.
Using fingers
You can execute certain commands by using your finger tip on the touchscreen of your device.
Alternatively, everything which you can select or activate using your finger
tip can also be selected or activated using the stylus.
Calibrate the Dual Digitizer for finger-based
operation of the device.
If Windows 8.1 is installed on your Tablet PC, your Tablet PC is
already calibrated at initial setup.
If a different operating system is installed on your Tablet PC, you must calibrate it with
your fingers before first use, so that it recognizes your fingertips as accurately as possible.
As soon as you notice that the accuracy is becoming worse, you
must recalibrate the device.
Operating system Menu
Windows 7 /
Windows 8.1 Desktop
To calibrate, run the Hardware and Sound / Tablet PC Settings function in the
Control Panel. You need to calibrate both portrait and landscape formats.
Fujitsu 25
Working with the Tablet PC
Actions with one finger (Windows 8.1 Pro)
Action Description
Wipe your finger over the screen from the
right-hand edge.
►Open Charms with system commands
(equivalent to pressing the Windows button +
Cbutton).
►Working with the mouse: Position the mouse
pointer at the bottom right-hand edge of the
screen.
Wipe your finger over the screen from the
left-hand edge.
►Switch between the most recently used
applications (equivalent to pressing the
Windows button + Ctrl +Space).
►Working with the mouse: Position the mouse
pointer at the bottom left-hand edge of the
screen.
Wipe your finger over the screen from the top
or bottom edge.
►Open the App commands (equivalent to
pressing the Windows button + Zbutton).
Wipe from the top to the bottom of the screen
to dock or close the current App.
►Working with the mouse: Right-click on the
Apptod
isplay the App commands.
26 Fujitsu
Working with the Tablet PC
Action Description
Press and hold ►Keep your finger pressed on an object on the
screen to display a menu with further options.
►Working with the mouse: Move the mouse
pointer over the object to display a menu with
further options.
Taponanobject ►Tap y our finger on an object on the screen
to open an App or a link or to execute a
command.
►Working with the mouse: Left-click on the
object.
Scroll / Move object / Swivel object ►Use this function to scroll through lists or
websites or to swivel or move an object.
►Working with the mouse: Left-click on the
object, keep the mouse button pressed and
move / swivel the object or scroll.
Fujitsu 27
Working with the Tablet PC
Actions with one finger (Windows 7 / Windows 8.1 Desktop)
Action Description
Selecting objects (click with the left mouse
button)
►Tap once briefly with the finger on the object.
Starting programs (double-click with the left
mouse button)
►Use one finger to tap twice in quick
succession on the program symbol.
Moving objects/windows (while holding the left
mouse button pressed, drag & drop)
►Place your finger on the object/window,
keep your fingertip pressed against
the touchscreen and move the desired
object/window.
Opening a context menu (click with the right
mouse button)
►Tap your finger on the desired item.
Keep your fingertip pressed against the
touchscreen.
The context menu appears.
Moving the cursor ►Position one finger on the touchscreen and
move your finger in the desired direction.
28 Fujitsu
Working with the Tablet PC
Actions with two fingers (Windows 7 / Windows 8.1 Desktop)
Action Description
Scrolling
►Place two fingers on the touchscreen.
►Move the fingers up to scroll up.
or
►Move the fingers down to scroll down.
Rotating
►Position your thumb on the touchscreen
and rotate the image clockwise or
counter-clockwise using your index finger.
Fujitsu 29
Working with the Tablet PC
Action Description
Increase or decrease view
►Put two fingers on the touch screen and
move them apart to increase the size of the
view.
or
►Put two fingers on the touch screen and
move them together to decrease the size
of the view.
Lock context-sensitive menus ►Use two fingers to tap twice in quick
succession on the touchscreen.
30 Fujitsu
Working with the Tablet PC
Using the stylus
1
2
3
1 = stylus tip
2 = stylus button (right mouse button)
3 = eyelet for stylus cord
You can use the stylus on your Tablet PC as an electronic writing tool, to select menu items and to
navigate through the programs. Programs that support handwriting recognition also allow you to
write directly on the screen with the stylus. You can also use the stylus as a drawing tool.
The Tablet PC is supplied with a stylus tether which you can attach to the
eyelets on the stylus and on the Tablet PC.
Use only the stylus that was provided with your Tablet PC. Do not use any other pointed
object as a substitute, that was not specially designed for your Tablet PC. Replace
the stylus tip if it is worn. The warranty does not cover a scratched screen.
While writing, you should take care that you do not scratch the surface of
the display (e.g. with a wristwatch or bracelet).
The stylus of the Tablet PC is an electronic instrument that can be damaged
if used improperly. Handle the stylus with care.
Our recommendations for proper handling of the stylus are as follows:
• Do not gesture with the stylus.
• Do not use the stylus as a pointer.
•Donotuseth
e stylus on surfaces other than the screen of the Tablet PC.
• Do not try to turn the grip of the stylus. The grip is used to put the
stylus into its slot and to take it out of its slot.
• Never store the stylus with its weight on the tip (e.g. with the tip down in a stylus
container). If the stylus is stored with the tip pointing down, this may have an
adverse effect on the stylus mechanism (particularly under high temperatures). In
this case the stylus tip may react as though it is constantly being pressed down. To
avoid damage, the stylus should be stored in the stylus slot when not in use.
The stylus can be influenced by electromagnetic fields (cursor quivers or
jumps). There may be a few areas on the screen where the cursor quivers
slightly in spite of pressing the stylus down firmly.
The screen responds to entries made with the tip of the finger or the stylus when the
tip of the finger or the stylus directly touches the screen.
You can use the stylus to perform all functions for which you would otherwise use a mouse.
Fujitsu 31
Working with the Tablet PC
Delete functions are not supported by the stylus.
Action Mouse Stylus
Selecting menu
items
Click with the left mouse button. Tap on the menu entry with the tip of
the stylus.
Starting programs Double-click with the left mouse
button.
Tap on the program symbol twice in
rapid succession using the stylus tip.
Moving an object
or window
Drag with the left mouse button
pressed.
Place the stylus tip directly on the
object or window. Keep the stylus tip
held against the screen. Drag the
desired object or window.
Opening a context
menu
Click with the right mouse button. Tap on the desired element with the
stylus and keep the stylus pressed
against the screen.
Moving the cursor -Place the tip of the stylus directly on
the screen.

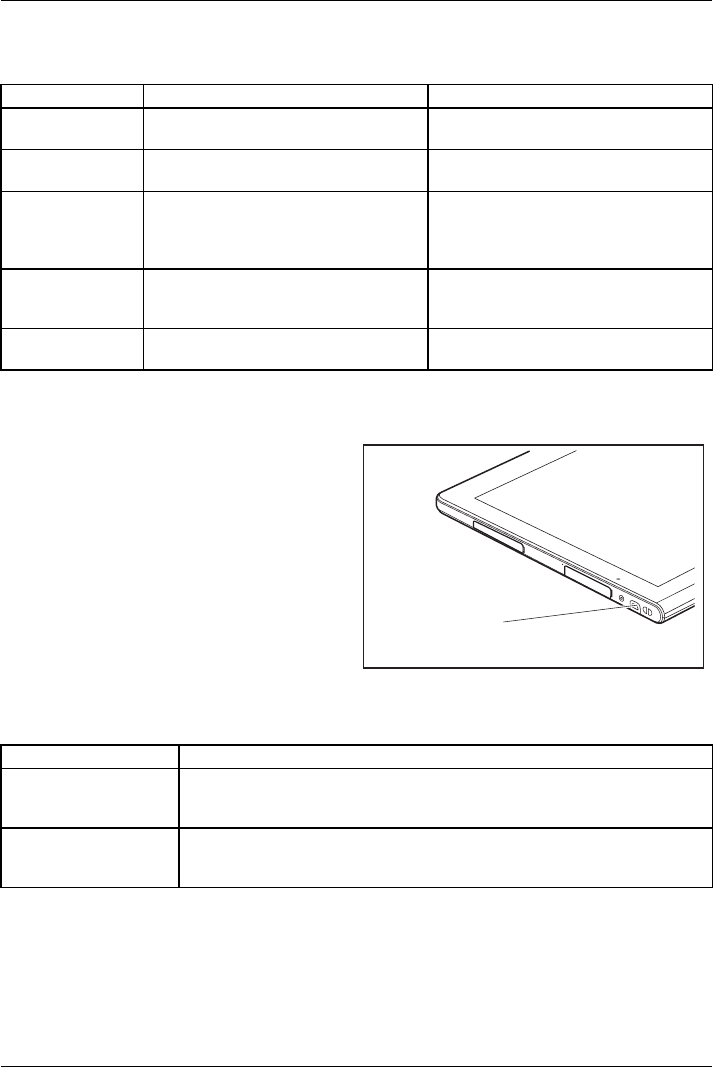

Stylus location
On delivery, the stylus is located in the stylus
garage:
1
Adjusting the stylus
Operating system Menu
Windows 7 Under HardwareandSound-PenandInputDevices,youcanmakevarious
settings for the stylus in the control panel (assignment and function of
the stylus button).
Windows 8.1 Under Windows 8.1 Desktop - Control Panel - Hardware and Sound - Pen and
Input Devices you can make various settings for the stylus (assignment
and function of the stylus button).
32 Fujitsu
Working with the Tablet PC
Calibrating the stylus
If Windows 8.1 is installed on your Tablet PC, your Tablet PC is already calibrated at initial setup.
If a different operating system is installed on your Tablet PC, you must calibrate it with the
stylus before first use, so that it recognizes the stylus as accurately as possible.
You should also always repeat the calibration if the coordination between the
stylus and the cursor movement deteriorates.
Operating system Menu
Windows 7 /
Windows 8.1 Desktop
To calibrate, run the Hardware and Sound / Tablet PC Settings function in the
Control Panel. You need to calibrate both portrait and landscape formats.
Installing a stylus tether
You can attach the stylus with a stylus tether to prevent accidentally dropping it or losing it.
►Fasten the stylus tether to the stylus eyelet and to the eyelet on the Tablet PC.
Fujitsu 33
Working with the Tablet PC
Tablet buttons
Your Tablet PC is fitted with three tablet buttons.
1 2 3
No. Description Functions
1 Increase volume button Increase the volume
2 Decrease volume button Decrease volume
3Shortcut button Start function manager or screen shot function
Webcam
Webcam
Your device has two webcams: one on the front of the device and one on the rear.
The webcam has its own status indicator. The indicator lights up when the webcam is active.
Depending on the software used, you can use your webcam to take pictures,
record video clips or take part in web chats.
• The picture quality depends on the lighting conditions and the software being used.
• You can only operate the webcam with a particular application (e.g. an Internet telephony
program or a video conferencing program which supports a webcam).
• When using the webcam the support of the Tablet PC must not wobble.
• The webcam automatically adjusts itself to the current light level. For this reason,
the touchscreen may flicker while the light level is adjusted.
Further information on use of the webcam and additional settings for your webcam
canbef
ound in the help function of the program using the webcam.
34 Fujitsu
Working with the Tablet PC
Rechargeable battery
BatteryBatteryServicelife,batteryRechargeablebatteryBattery
The built-in battery provides the Tablet PC with the necessary power for use on the move.
You can increase the service life of the battery by caring for the battery properly. The
average battery service life is around 500 charge/discharge cycles.
You can extend the battery service life by taking advantage of the available energy-saving functions.
Charging and maintaining the battery
BatteryBattery
The Tablet PC battery can only be charged when the ambient temperature is
between 5°C / 41 °F and max. 35°C / 95°F.
You can charge the battery by connecting the Tablet PC to the AC adapter
(see "Connecting the AC adapter", Page 18).
If the battery is running low you will hear a warning alarm. If you do not connect the AC adapter
within five minutes of hearing the warning alarm, your Tablet PC will switch off automatically.
Monitoring the battery state of charge
Batterybatte rycha rge meter
A battery symbol for monitoring the battery capacity is displayed in the system bar /
status indicator. The battery symbol shows you the battery charge.
Fujitsu 35
Working with the Tablet PC
Using the energy saving functions
EnergyEnergyBattery
The Tablet PC uses less power when the energy saving features are enabled. You will then
be able to work longer when using the battery before having to recharge it.
The energy efficiency is increased and environmental pollution is reduced.
By choosing the best power options, you can make significant savings and
at the same time help protect the environment.
We recommend the following settings:
Function Operating on AC power Operating on battery power
Turn off monitor After 10 minutes After 5 minutes
Turn off hard disk(s) After 15 minutes After 10 minutes
Energy saving (S3) After 20 minutes After 15 minutes
Hibernate mode (S4)After 1 hour After 30 minutes
►Set the energy saving functions in your Control Panel.
►Set the screen saver in your Control Panel.
or
►Keep a finger pressed on the desktop to display the context menu. Configure the screen
saver under Change screen saver.
If you need further information about an option, you can get help with most settings by
pressing the ?symbol in the upper right of the screen to open Microsoft Help.
When the Tablet PC is in a power-saving mode, you must remember the following:
During power-saving mode, open data is held in main memory or
in a swap file on the hard disk.
Never switch off the Tablet PC while it is in a power-saving mode. If the built-in battery
is nearly flat, close all open files and do not go into power-saving mode.
If you do not intend to use your Tablet PC for a long period of time:
►Exit the power-saving mode if necessary by touching the screen or by switching the Tablet
PC on.
►Close all opened programs and completely shut down the Tablet PC.
36 Fujitsu
Working with the Tablet PC
Memory cards
Slot
Your Tablet PC is equipped with an integrated storage card reader. Use storage
cards to enlarge the storage of your Tablet PC.
Follow the manufacturer’s instructions when handling the memory cards.
Memorycard
Supported formats
The following formats are supported:
• Micro Secure Digital (Micro SDTM Card)
•MicroSDHC
•MicroSDXC
Inserting the memory card
2
1
►Open the slot cover (1).
►Carefully slide the storage card into the slot (2). The label area must be facing upward. Do
not apply any force, otherwise the delicate contact surfaces could be damaged.
Memorycard
►Close the slot cover.
Fujitsu 37
Working with the Tablet PC
Removing the memory card
Memorycard
To avoid any loss of data, always follow the correct procedure for removing the
card (see the documentation for your operating system).
►Open the slot cover.
1
2
►Pull the storage card out of the slot (1).
►Close the slot cover (2).
38 Fujitsu
Working with the Tablet PC

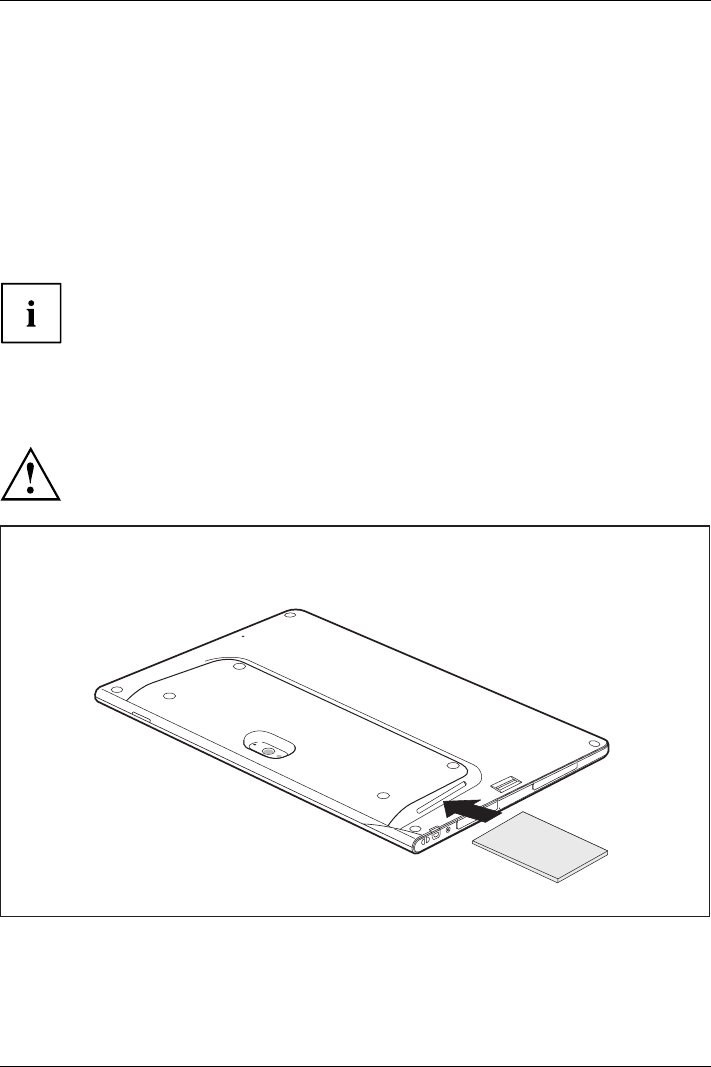

SIM card
A SIM Card (Subscriber Identity Module) is a chip card which is inserted in a cellular phone or Tablet
PC and, together with an integrated 4G module, enables access to a cellular radio network.
Follow the instructions supplied by the provider of the SIM card. If you do not feel the
the SIM card engage as you insert it, use a pointed object to insert the SIM card.
Please note that the SIM card format must be micro-SIM (3FF). Other SIM
card formats, such as full-size (1FF), mini-SIM (2FF) or nano-SIM (4FF) do
not fit in the SIM card slot of your Tablet PC.
Please do not insert any other format of SIM card as they may become
twisted, they could even damage the system.
Inserting a SIM card
12
►Open the slot cover (1).
►Carefully push the SIM card into the slot (2) until the SIM card clicks into place.
The label area must be facing upward. Do not apply any force, otherwise the
delicate contact surfaces could be damaged.
►Close the slot cover.
Fujitsu 39
Working with the Tablet PC
Removing a SIM card
►Open the slot cover.
2
1
►Pull the SIM card out of the slot (1).
►Close the slot cover (2).
Wireless LAN/Bluetooth/4G/NFC wireless
components
The installation of wireless components not approved by Fujitsu will
invalidate the certifications issued for this device.
Switching the wireless components on and off
The wireless components are switched on and off using the appropriate
functions of the operating system.
►To switch wireless components on and off individually, select Settings – Change
PC settings – Network – Airplane mode.
40 Fujitsu
Working with the Tablet PC
Further information on WLAN and Bluetooth
For further information about WLAN or Bluetooth, see "Appendix: Miscellaneous Information".
For WLAN specifications, see chapter "WLAN specifications", Page 84.
Access via Wireless WAN
You can purchase the accessories for Wireless WAN reception from your Fujitsu dealer.
If you have ordered a Wireless WAN module, your device will already
be prepared when you receive it.
You will find information on establishing the connection with the Wireless WAN
network in the documentation for the hardware you plan to use.
NFC
Your Tablet PC is optionally equipped with an integrated NFC chip. Near Field Communication
allows a contactless, wireless exchange of data at a short distance (a few centemetres).
Ethernet and LAN (only with performance docking
cradle or keyboard docking station)
EthernetLAN
The internal network module of your Tablet PC supports Ethernet LAN. You can use it to
establish a connection to a local network (LAN = Local Area Network).
2
1
►Connect the network cable to the LAN
port of the cradle (1).
or
►Connect the network cable to the LAN
port of the keyboard docking station (1).
►Connect the network cable to your
network connection (2).
Your network administrator can help you to configure and use the LAN connections.
The network cable is not included in the delivery scope. This type of
cable can be obtained from a specialist dealer.
Fujitsu 41
Working with the Tablet PC
GPS
GPS
Whether your device has this function depends on the chosen equipment level.
42 Fujitsu
Accessories for your Tablet PC (optional)
Accessories for your Tablet PC (optional)
The following accessories are available for your Tablet PC:
• Performance docking cradle for charging the Tablet PC and with additional ports
• Keyboard cover
• Keyboard docking station
• VESA mounting attachment and hand strap
• Shoulder strap
• Folio case
• Micro USB adapters
The following sections provide more information on handling the accessories.
Fujitsu 43
Accessories for your Tablet PC (optional)
Your performance docking cradle (optional)
As well as fast charging, your performance docking cradle is a device that also allows you to
quickly connect your Tablet PC to your peripherals such as a monitor, keyboard, mouse, etc.
You only need to dock the Tablet PC to be able to work with your peripheral devices.
Cradle components
PortsPortsCradle
1
2
334567
2
1 = Connector on the cradle for the docking
port of the Tablet PC
2 = USB port 3.0
3 = USB port 3.0
4 = External monitor port (VGA)
5 = HDMI
6 = LAN port
7 = DC jack socket (DC IN)
44 Fujitsu
Accessories for your Tablet PC (optional)
Settingupthecradle
Select a suitable location for the cradle before setting it up. In doing
so, please follow these instructions:
• Placethecradleonaflat, stable, non-slippery surface.
• Never place the cradle or the AC adapter on a heat-sensitive surface.
• Do not expose the cradle to extreme environmental conditions.
Protect the cradle from dust, moisture and heat.
Connecting the Tablet PC to the cradle
It is possible to connect the Tablet PC to the cradle while it is running. To prevent
problems, we recommend that you switch the Tablet PC off first.
Disconnect the AC adapter from the Tablet PC before connecting
the Tablet PC to the cradle.
When the Tablet PC is connected to the cradle, you must connect
the AC adapter to the cradle.
Information for using the performance docking cradle:
• If your Tablet PC is connected to the performance docking cradle, the micro USB
port of the Tablet PC cannot be used. Use the alternative ports of the cradle.
• The HDMI and VGA ports of the performance docking cradle cannot
be used at the same time. If devices are connected to both ports, only
the device at the HDMI port can be used.
• The maximum supported resolution for VGA/HDMI is 1920 x 1080 pixels.
Cradle
►Switch the Tablet PC off.
►Remove the AC plug of the AC adapter from the power outlet.
►Remove the AC adapter cable from the DC jack (DC IN) of the Tablet PC.
Fujitsu 45
Accessories for your Tablet PC (optional)
1
2
4
3
►Position the Tablet PC so that it aligns with the surface of the cradle.
►Push the Tablet PC on to the cradle in the direction of the arrow (1) until
you feel it engage on the connector.
►Plug the AC adapter cable into the DC jack (DC IN) on the cradle (2).
►Connect the AC cable to the AC adapter (3).
►Plug the AC cable into the power outlet (4).
46 Fujitsu
Accessories for your Tablet PC (optional)
Disconnecting the Tablet PC from the cradle
1
►While holding down the lower part of the cradle, lift the Tablet PC from
the cradle in the direction of the arrow (1).
Fujitsu 47
Accessories for your Tablet PC (optional)
Keyboard cover (optional)
The keyboard cover is optimized for the convenient input of text. It only needs
to be docked with the Tablet PC.
Keyboard cover components
Keyboardco verCom ponents
2
4
1
3
1 = Slide-out button
2 = Extending stand (in extended state)
3 = Docking connector for the Tablet PC
4 = Status indicators (Num Lock, Caps
Lock, Scroll Lock)
48 Fujitsu
Accessories for your Tablet PC (optional)
Connecting the Tablet PC to the keyboard cover
Keyboardco ver
►Place the keyboard cover on a smooth and level surface. Make sure
that the stand is fully extended.
1
1
3
2
To prevent the Tablet PC from tipping over and becoming damaged, always make
sure that the stand is fully extended when you use the keyboard cover.
►Completely pull out the extending stand (1).
►Press the slide-out button (2) until it firmly remains in pressed position (red marking visible).
►Push the Tablet PC onto the keyboard cover in the direction of the arrow
until you feel it engage on the connector (3).
Fujitsu 49
Accessories for your Tablet PC (optional)
Separating the Tablet PC from the keyboard cover
1
2
►Keep the slide-out button pressed (1).
►Lift the Tablet PC away from the keyboard cover in the direction of the arrow (2).
50 Fujitsu
Accessories for your Tablet PC (optional)
Keyboard docking station (optional)
The keyboard docking station is a device which has been optimized for convenient input of texts
and allows external devices to be connected. It only needs to be docked with the Tablet PC.
Ports on the keyboard docking station
keyboardd ocking statio nPorts
2
3
1
6
5
4
7 8
9
10
1 = Slide-out button
2 = Docking port for the Tablet PC
3=Statusi
ndicators (Num Lock, Caps
Lock, Scroll Lock)
4 = External monitor port (VGA)
5=USBpo
rt (USB 3.0)
6 = LAN port
7=HDMIport
8 = USB port (USB 3.0)
9 = Battery indicator
10 = Battery charging indicator
Fujitsu 51
Accessories for your Tablet PC (optional)
Status indicators
Status indicator Description
Battery indicator The battery indicator shows the state of charge of the battery.
• The indicator lights up white: The battery is between 50% and
100% charged.
• The indicator lights up orange: The battery is between 13 %
and 49 % charged.
• The indicator lights up red: The battery is between 0 % and
12 % charged.
Battery charging indicator The battery charging indicator shows whether the battery is being
charged.
• The indicator lights up red: The AC adapter is connected and
the battery is being charged.
• The indicator lights up white: The AC adapter is connected and
the battery is fully charged / is not being charged.
• The indicator is not lit up: The AC adapter is not connected.
52 Fujitsu
Accessories for your Tablet PC (optional)
Connecting the Tablet PC to the keyboard docking station
keyboardd ocking statio n
►Position the keyboard docking station as shown.
►Push the Tablet PC onto the keyboard docking station in the direction of the
arrow until you feel it engage on the connector.
Fujitsu 53
Accessories for your Tablet PC (optional)
Separating the Tablet PC from the keyboard docking station
1
2
►Keep the unlocking button pressed (1).
►Lift the Tablet PC away from the keyboard docking station in the direction of the arrow (2).
54 Fujitsu
Accessories for your Tablet PC (optional)
VESA mounting attachment (optional)
Use the VESA mounting attachment to secure the Tablet PC to a monitor
with the corresponding screw holes.
• Use the appropriate tool of the correct size when securing the screws:
Use a No. 0 cross slot screwdriver.
• Keep the screws out of the reach of children.
1
1
1
1
2
3
3
3
3
►Remove the 4 screws (1).
►Position the VESA mounting attachment on the Tablet PC (2). Make sure that the screw holes of
the VESA mounting attachment and of the Tablet PC lie exactly on top of each other.
►Secure the VESA mounting attachment using the screws (3).
Fujitsu 55
Accessories for your Tablet PC (optional)
Hand strap (optional)
• Use the appropriate tool of the correct size when securing the screws.
• Keep the screws out of the reach of children.
• Do not shake the device too much when you are holding it on the
hand strap, otherwise it may fall down.
1
2
2
►Position the hand strap on the Tablet PC (1). Make sure that the screw holes of the
hand strap and of the Tablet PC lie exactly on top of each other.
►Secure the hand strap with the screws (2).
56 Fujitsu
Accessories for your Tablet PC (optional)
Shoulder strap (optional)
• Use the appropriate tool of the correct size when securing the screws.
• Keep the screws and mountings out of the reach of children.
• Do not use motorized screw driver so to not damage the screws
1
1
3
2
3
2
►Remove the screws (1).
►Position the fittings (2).
►Secure the fittings using the screws (3).
Fujitsu 57
Accessories for your Tablet PC (optional)
►Secure the shoulder strap to the fittings.
Folio case (optional)
• The folio case contains magnets. Keep away from objects that may be
easily affected bytheinfluence of magnetism.
• LCD may be accidently turned on if the cover is not properly closed.
• Make sure the unit is firmly fitted into the folio case fasteners so it will not fall out.
• This folio case is only designed to contain and carry this unit.
Do not use it for any other purpose.
• Do not put the folio case in a direct sunlight or expose to high
temperature and humidity.
►Position the Tablet PC on the folio case as shown.
►Engage the top edge and then press it down.
The following illustration shows you the many ways in which the folio case can be used:
58 Fujitsu
Accessories for your Tablet PC (optional)
Micro USB adapters
5 USB adapters are available for the device:
Micro USB to USB adapter
Micro USB to HDMI adapter
Fujitsu 59
Security functions
Security functions
Securityfunctions
Your Tablet PC has several security features that you can use to secure your system
and your personal data from unauthorized access.
This chapter explains how to use these functions, and what the benefits are.
Please remember that in some cases - for example, forgetting your password
- you may be locked out of the system and unable to access your data.
Therefore, please note the following information:
• Back up your data on external data carriers at regular intervals.
• Some security functions need you to choose passwords. Make a note
of the passwords and keeptheminasafeplace.
If you forget your passwords you will need to contact our Service Desk.
Deletion or resetting of passwords are not covered by your warranty
and a charge will be made for assistance.
Fujitsu 61
Security functions
Configuring the fingerprint sensor
Fingerprintsens orFinger printsensor
The fingerprint sensor can record the image of a fingerprint. With additional fingerprint
software, this image can be processed and used instead of a password.
1
1
►Install the fingerprint software to be able to use the fingerprint sensor (1).
You can obtain further information on the fingerprint sensor in the
"appendix: Miscellaneous Information".
62 Fujitsu
Security functions
Configuring password protection in BIOS Setup Utility
Before using the various options for password protection in the BIOS Setup
Utility, please proceed as follows to increase data security:
Make a note of the passwords and keep them in a safe place. If you forget your supervisor
HDD password you will not be able to access your Tablet PC. Deletion of passwords is
not covered by your warranty and a charge will therefore be made for assistance.
Password prote ction
Yourpasswordcanbeuptoeight characters long and can contain letters and
numbers. No distinction is made between uppercase and lowercase.
Protecting BIOS Setup Utility (supervisor HDD password
and user HDD password)
If you have opened these operating instructions on the screen, we recommend
that you print them out. You cannot call up the instructions on the screen
while you are setting up the password.
BIOSSetupUtility
The supervisor HDD password and the user HDD password both prevent unauthorized use of the
BIOS Setup Utility. The supervisor HDD password allows you to access all of the functions of the BIOS
Setup Utility, while the user HDD password will only give you access to some of the functions. You
can only set a user HDD password when a supervisor HDD password has already been assigned.
Calling and using the BIOS Setup Utility is described in the chapter
"Settings in BIOS Setup Utility", Page 72.
Assigning the supervisor and user passwords
►Start the BIOS Setup Utility and go to the Security menu.
►Select the Set Supervisor Password field and press the Enter key.
With Enter new Password: you are asked to enter a password.
►Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
►Enter the password again and press the Enter key.
Changes have been saved is displayed as a confirmation that the new password has been saved.
►To set the user password, select Set User Password and proceed exactly as
when configuring the supervisor password.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
►In the Exit menu, select the option Save Changes & Exit.
►SelectYes and press the Enter key.
Password
Supervisorpasswor d
Userpassword
The Tablet PC is rebooted and the new password is effective. It will now be necessary to
first enter your supervisor or user password in order to open the BIOS Setup Utility. Please
note that the user password only provides access to a few of the BIOS settings.
Fujitsu 63
Security functions
Changing the supervisor HDD password or user HDD password
You can only change the supervisor HDD password when you have logged into the
BIOS Setup Utility with the supervisor HDD password.
PasswordSupervisorHDDpasswordUserHDDpassword
►Start the BIOS Setup Utility and go to the Security menu.
►When changing the password, proceed exactly as when assigning a password.
Removing passwords
To remove a password (without setting a new password) perform the following steps:
PasswordSupervisorpasswordUserpassword
►Start the BIOS Setup Utility and go to the Security menu.
►Highlight the Set Supervisor Password or Set User Password field and press the Enter key.
You will be requested to enter the current password by the Enter Current Password prompt.
Enter New Password will appear and you will be requested to enter a new password.
►Press the Enter key twice at this request.
►In the Exit menu, select the option Save Changes & Exit.
►Select Yes and press the Enter key.
The Tablet PC is rebooted and the password is removed.
Removing the supervisor password simultaneously deactivates the user password.
Password protection for booting the operating system
You can also prevent booting of the operating system with the supervisor
HDD password you have set in the BIOS Setup Utility (see section "Assigning
the supervisor and user passwords", Page 63).
Operating system
Activating system protection
►Start the BIOS Setup Utility and go to the Security menu.
Operatingsystem
►Select the Password on Boot option and press the Enter key.
►Select the option you require (Disabled,First Boot or Every Boot) and press the enter key
►Select the Save Changes & Exit option under Exit.
The Tablet PC reboots. You will be prompted to enter your password (the supervisor password).
Deactivating system protection
►Start the BIOS Setup Utility and go to the Security menu.
Operatingsystem
►Select the Password on Boot option and press the Enter key.
►Select the Disabled option and press the Enter key.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
►Select the Save Changes & Exit option under Exit.
The Tablet PC reboots. The system is no longer password protected.
64 Fujitsu
Security functions
Password protection for the hard disk
Passwordprotect ion
The hard disk password prevents unauthorized access to the hard disk drives
and is checked internally each time the system is booted. The condition for this
is that you have assigned at least the supervisor HDD password.
Activating hard disk protection
►Call up the BIOS Setup and select the Security menu.
If you have not assigned BIOS passwords yet, define the supervisor and the user
password now, if desired (see "Security functions", Page 61).
►Mark the Hard Disk Security field and press the Enter key.
►In the area Drive0, mark the field Set Master Password and press the Enter key.
Enter new Password then appears and you are asked to enter a password.
►Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
►Enter the password again and press the Enter key.
With Setup Notice: Changes have been saved you receive confirmation that
the new password has been saved.
►If you wish to enter a password for a second hard disk (Drive1), in the area
Drive1 mark the field Set Master Password and proceed in exactly the same way
as for the set up of the first hard disk (Drive0).
The field Password Entry on Boot is set to Enabled by default. You can exit the BIOS
Setup once you have finished changing the settings.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC reboots and your hard disk is now protected with a password. The
password prompt is enabled as soon as the Tablet PC has rebooted.
Deactivating hard disk protection
To cancel a password (without setting a new password) proceed as follows:
►Call up the BIOS Setup and select the Security menu.
►Mark the Hard Disk Security field and press the Enter key.
►In the area Drive0, mark the field Set Master Password and press the Enter key.
With the prompt Enter current Password you are first asked to enter the old password again.
With Enter new Password you are then prompted to enter a new password.
►After the request, press the Enter key three times.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC reboots and there is no longer any password protection for this hard disk.
►If you wish to remove a password for a second hard disk (Drive1), in the area
Drive1 mark the field Set Master Password and proceed in exactly the same way
as for the removal of the first hard disk (Drive0).
Fujitsu 65
Security functions
Smart Card reader (optional)
SecurityfunctionsSecurityfunctions
Smart Cards are not supplied as standard equipment. You can use all Smart Cards that comply with
the ISO standard 7816-1, -2 or -3. These Smart Cards are available from various manufacturers.
With the appropriate software you can use your Smart Card as an alternative to password
protection, but also as a digital signature, for encrypting your e-mails or for home banking.
We recommend that you always use two Smart Cards. Always keep one of the Smart Cards
inasafeplaceifyouarecarryingtheotherSmartCardwithyou.
In order to be able to take advantage of all the security features of your Tablet PC,
you will need a CardOS Smart Card from Fujitsu.
The Smart Card can only be used with a PIN, so maximum protection is maintained
even when the Smart Card is lost. In order to maximize your security, the CardOS
Smart Card is disabled if three incorrect attempts are made to enter the PIN.
During first time use of your CardOS Smart Card, you must either enter the preset PIN
"12345678" or the PIN which has been notified to you by your system administrator.
Inserting the Smart Card
Do not use force when inserting and removing the Smart Card.
Make sure that foreign objects do not fall into the Smart Card reader.
►Push the Smart Card into the Smart Card reader with the chip facing the rear of the Tablet PC.
66 Fujitsu
Security functions
Trusted Platform Module - TPM (device dependent)
TPMTrusted Platform Module
To use the TPM, you must enable the TPM in the BIOS Setup before the software is
installed. The requirement for this is that you have assigned at least the supervisor
HDD password (see "Security functions", Page 61).
Enabling TPM
• Requirement: You have assigned a supervisor HDD password (see "Security functions", Page 61).
►Call BIOS Setup and select the Security menu.
►Mark the TPM Security Chip Setting field and press the Enter key.
►Select the entry Enabled to enable the TPM
Once you have enabled the TPM the Clear Security Chip menu item appears.
You can clear the holder in the TPM using Clear Security Chip.WithEnabled,
all secret keys (e.g. SRK - Storage Root Keys, AIK - Attestation Identity Keys
etc.) generated by applications are deleted.
Take note that you can then no longer access the data you have
encrypted on the holder-based keys!
►Select the Exit Saving Changes option in the Exit menu.
►Press the Enter key and select Yes.
The Tablet PC restarts and the TPM is enabled after the reboot.
Disabling TPM
• Requirement: You have assigned a supervisor HDD password (see "Security functions", Page 61).
►Call BIOS Setup and select the Security menu.
►Mark the TPM Security Chip Setting field and press the Enter key.
►Select the entry Disabled to disable the TPM.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC is rebooted and the TPM is disabled.
Fujitsu 67
Connecting external devices
Connecting external devices
Under all circumstances, please observe the safety notes provided in the
"Important notes", Page 12 chapter before connecting or disconnecting
any devices to or from your Tablet PC.
Always read the documentation supplied with the device you wish to connect.
Never connect or disconnect cables during a thunderstorm.
Never pull at a cable when disconnecting it. Always grasp the plug.
Follow the order described below when you connect external devices to
the Tablet PC or separate them from it:
With some devices, such as USB devices, it is not necessary to switch off
the Tablet PC and the device before connecting/disconnecting. For more
information about whether or not devices need to be switched off, please refer
to the documentation supplied with your external device.
Some of the external devices require special drivers (see the operating
system and external device documentation).
Connecting devices to the Tablet PC (or to the cradle / keyboard docking station).
1. Switch off the Tablet PC and all the external devices.
2. Disconnect the AC plugs for the Tablet PC and all the affected devices from the power outlets.
3. Connect the cables for all the external devices according to the instructions.
4. Plug all the AC plugs into the power outlets.
Devices,Peripherals,
Disconnecting devices from the Tablet PC (or from the cradle / keyboard docking station)
1. Switch off the Tablet PC and all the external devices.
2. Disconnect the AC plugs for the Tablet PC and all the affected devices from the power outlets.
3. Disconnect the cables for all the external devices following the instructions.
Devices,Peripherals,
68 Fujitsu
Connecting external devices
Connecting an external monitor
HDMI port (only performance docking cradle and
keyboard docking station)
HDMIport
The HDMI port can be used to connect an external amplifier, LCD TV or a
plasma TV with an HDMI connection.
►Connect the data cable to the
external device.
►Connect the data cable to the HDMI port.
Some LCD televisions have only two speakers/speaker ports and therefore
cannot reproduce Dolby Digital or DTS. To play back HDMI sound, you
must change the HDMI sound settings accordingly.
You can find the settings under Control Panel - Hardware and Sound. Deactivate the
settings for DTS Audio and Dolby Digital to enable playback of HDMI sound.
External monitor port (VGA) (only performance docking
cradle and keyboard docking station)
An analog monitor is connected to the analog external monitor port (VGA). Screen output
is limited to a maximum of two screens at the same time.
MonitorVGAportScreenc onnection
Monitorconnection
►Switch off the Tablet PC and the
external monitor.
►Plug the data cable of the external
monitor into the monitor port.
►First switch on the external monitor and
then switch on the Tablet PC.
You can also switch back and forth between the external monitor and the LCD
screen of the Tablet PC, see "Touchscreen", Page 24.
You can display the same image on the external monitor and on the LCD
screen of the Tablet PC at the same time.
Fujitsu 69
Connecting external devices
Connecting USB devices
USBports
On the USB ports you can connect external devices that also have a USB port
(e.g. a DVD drive, a printer, a scanner or a modem).
USB devices are hot-pluggable. This means you can connect and disconnect the
cables of USB devices while the operating system is running.
USB 1.x has a maximum data transfer rate of 12 Mbps.
USB 2.0 has a data transfer rate of up to 480 Mbps.
USB 3.0 has a data transfer rate of up to 5 Gbps.
Additional information can be found in the documentation for the USB devices.
+
►Connect the data cable to the external device.
►Connect the data cable to a USB port (Tablet PC, keyboard docking station or
cradle) or micro USB port (only on Tablet PC).
Device drivers
USB devices will be automatically recognized and installed by your operating system.
How to remove USB devices correctly
Always correctly remove the device according to the rules described below,
to ensure that none of your data is lost.
►Tap the symbol for safe removal of the hardware.
►Select the device you wish to shut down and remove.
►Tap OK.
Wait for the dialog box which tells you that it is now safe to remove the device.
70 Fujitsu
Connecting external devices
Headphones port
Connectingaudio dev icesAudioconnectionsConnectinghe adphones
You can connect either headphones or external speakers to your Tablet PC via the headphone port.
►Connect the audio cable to the
external device.
►Connect the audio cable to the headphone
port of the Tablet PC.
The internal speakers are disabled.
If you buy a cable from a retailer, please note the following information:
The headphone port on your Tablet PC is a "3.5 mm / 1/8" jack socket".
If you want to connect headphones or speakers you will need a "3.5 mm / 1/8" jack plug".
Fujitsu 71
Settings in BIOS Setup Utility
Settings in BIOS Setup Utility
BIOSSetupUtilitySystemsettings,BIOSSetupUtilityConfiguration,BIOSSetupUtilitySetupConfigurin gsystemConfiguringhardware
To navigate more easily in the BIOS Setup Utility, you can use an external USB keyboard.
The BIOS Setup Utility allows you to set the system functions and the hardware
configuration for the Tablet PC.
When the Tablet PC is delivered, the default settings are effective. You can change
these settings in the menus of the BIOS Setup Utility. Any changes you make take
effect as soon as you save and exit the BIOS Setup Utility.
The BIOS Setup Utility program contains the following menus:
About Displays information relating to the BIOS, processor and Tablet PC
System Advanced system settings
Advanced Configuration of various hardware components, such as mouse, keyboard,
processor
Security Password settings and security functions
Boot Configuration of the start-up sequence
Exit Exits the BIOS Setup Utility
Starting the BIOS Setup Utility
►Keep the "Lock screen orientation" tablet button pressed and switch the Tablet PC on.
BIOSSetupUtility
►If a password has been assigned, enter the password and press the Enter key.
If you have forgotten the password, contact your system administrator
or contact our customer service center.
The BIOS Setup Utility starts.
72 Fujitsu
Settings in BIOS Setup Utility
BIOS Setup Utility operation
BIOSSetupUtility
Press the F1 key to display help about operation of the BIOS Setup Utility. The description
of the individual settings is shown in the right-hand window of the BIOS Setup Utility.
With the F9 key you can load the default settings of the BIOS Setup Utility.
►Use the cursor keys ←or →to select the menu you wish to access to make changes.
The menu is displayed on the screen.
►Select the option you want to change with the cursor keys ↑or ↓.
►Press the "Enter" key.
►Press the ESC key to exit the selected menu.
►For future reference, make a note of the changes you have made.
Fujitsu 73
Settings in BIOS Setup Utility
Exiting BIOS Setup Utility
BIOSSetupUtility
You need to select the desired option in the Exit menu and activate it by pressing the Enter key:
Exit Saving Changes - save changes and exit BIOS Setup Utility
►To save the current menu settings and exit the BIOS Setup Utility, select Exit Saving Changes and Yes.
The Tablet PC is rebooted and the new settings come into effect.
Exit Discarding Changes - Reject changes and
exit BIOS Setup Utility
►To discard the changes, select Exit Discarding Changes and Yes.
The settings which were valid when BIOS Setup Utility was called remain effective.
The BIOS Setup Utility ends and the Tablet PC is rebooted.
Load Setup Defaults – load default values
►To copy the standard entries for all menus of the BIOS Setup Utility,
choose Load Setup Defaults and Yes.
Discard Changes - Discard Changes without
exiting BIOS Setup Utility
►To discard the changes you have made, select Discard Changes and Yes.
The settings in place when BIOS Setup Utility was called remain effective.
You can now make additional settings in the BIOS Setup Utility.
►IfyouwanttoexittheBIOS Setup Utility with these settings, select Exit Saving Changes and Yes.
Save Changes - save changes without exiting
the BIOS Setup Utility
►To save the changes, select Save Changes and Yes.
The changes are saved. You can now make additional settings in the BIOS Setup Utility.
►If you want to exit BIOS Setup Utility with these settings, choose Exit Saving Changes and Yes.
Save changes and power off
►To save the changes and switch off your device, select Save Changes and Power Off and Yes.
The changes are saved. Your device is shut down.
74 Fujitsu
Troubleshooting and tips
Troubleshooting and tips
TroubleshootingTipsFaultTroubleshooting
If a fault occurs, try to correct it as described. If you are unable to correct
the problem, proceed as follows:
►Make a note of the steps and the circumstances that led to the fault. Also
make a note of any error messages displayed.
►Switch the notebook off.
►Please contact the Hotline/Service Desk.
You can contact Fujitsu Service and Support in the following ways:
• Toll free number: 1-800-Fujitsu (1-800-838-5487)
• Website: "http://solutions.us.fujitsu.com/www/content/support/contact/index.php"
Please have the following information ready when you call:
• The model name and serial number of the notebook. The serial number is
located on a sticker on the underside of the notebook.
• Notes of any messages that appear on the screen and information on acoustic signals.
• Any changes you have made to the hardware or software since
receiving the notebook.
• Any changes you have made to the BIOS Setup settings since receiving the notebook.
• Your system configuration and all peripheral devices connected to your system.
• Your sales contract.
Our notebooks have been designed primarily with mobile applications in mind.
This means that considerable effort has been made to optimize components and
equipment in terms of weight, space and energy requirements. Depending on the
particular configuration you have purchased, it is possible that functionality may be
slightly reduced compared to a desktop PC if you are running processor-intensive
gaming software, e.g. games with intensive 3D graphics. Updating your hardware with
drivers which have not been approved by Fujitsu may result in performance losses,
data losses or malfunction of the equipment. A list of approved drivers and current
BIOS versions can be downloaded from: "http://solutions.us.fujitsu.com"
Help if problems occur
Should you encounter a problem with your computer that you cannot resolve yourself:
►Note the ID number of your device. The ID number is found on the type rating
plate on the back or underside of the casing.
►For further clarification of the problem, contact the Fujitsu Service Desk. When you do
this, please have ready the ID number and serial number of your system.
Recovering your Factory Image
Harddisk:
Operatingsystem,recovering
FactoryImage
In the event you need to restore your original Factory Image refer to the steps
in "Appendix: Miscellaneous Information".
Fujitsu 75
Troubleshooting and tips
TheTabletPC’sdateortimeisincorrect
SummertimeWint ertimeIncorrect timeTimenot correctWrongdate/timeDatenotcorrectChargingb ack-up batte ry
Cause Troubleshooting
Time and date are wrongly set. ►With the BIOS-Setup-Utility, you can set the
date and time in the Main menu.
Date and time are still set incorrectly after
switching on the Tablet PC.
►Please contact your sales outlet or our
hotline/service desk.
Battery indicator does not illuminate
Cause Troubleshooting
The battery is discharged. ►Charge the battery.
or
►Connect the Tablet PC to a power outlet
using the AC adapter.
The Tablet PC’s touchscreen remains dark
Tou ch s c re e ndark touchscreen
Cause Troubleshooting
Touchscreen is switched off. ►Press a key (external keyboard) or tap on
the touchscreen.
External monitor or television set connected. ►Check whether the graphics driver settings
are correct or whether an external monitor
has been detected in "Intel Graphics Media
Accelerator Driver for mobile."
The display on the Tablet PC’s touchscreen
is difficult to read.
Tou ch s c re e nTo u ch s c re e n
Cause Troubleshooting
Reflected glare ►Move the Tablet PC into a different position.
►Increase the brightness of the screen.
76 Fujitsu
Troubleshooting and tips
The external monitor remains blank
Monitor
Cause Troubleshooting
Monitor is switched off. ►Switch the external monitor on.
Energy saving has been activated (monitor is
blank).
►Press a key (external keyboard) or tap on
the touchscreen.
Brightness is set to dark. ►Adjust the brightness of the monitor.
Screen output is set to the Tablet PC
touchscreen.
►Check whether the graphics driver settings
are correct or whether an external monitor
has been detected in "Intel Graphics Media
Accelerator Driver for mobile."
The external monitor’s AC cable or data cable is
not connected properly.
►Switch off the Tablet PC and the external
monitor.
►Check whether the AC cable is plugged
properly into the external monitor and into
the power outlet.
►Check that the data cable is properly
connected to the Tablet PC and the external
monitor (if it is plugged in with a connector).
►Switch on the external monitor and the
Tab l et P C .
The external monitor is blank or the image is unstable
MonitorMonitor
Cause Troubleshooting
The wrong external monitor has been selected
or the wrong screen resolution has been set for
the application program.
►Terminate the application program in
Windows. If the error persists after
terminating the program, use the key
combination for switching the screen output
in order to switch to the touchscreen of the
Tab l et P C . Change the following setting:
►Set the screen resolution: Set the screen
resolution as described in the documentation
for your operating system.
►Select monitor: Select monitor 1 or 2 as
described in the documentation for your
operating system.
The cursor does not correctly follow the
stylus movements
Cause Troubleshooting
Stylus incorrectly calibrated. ►Calibrate the stylus as described in chapters
"Adjusting the stylus", Page 32 and
"Calibrating the stylus", Page 33.
Fujitsu 77
Troubleshooting and tips
Stylus input not working
Cause Troubleshooting
Incorrect driver installed. ►If your device is one which can only be
operated using the stylus, install the driver
for the standard model.
or
►If your device is one which can be
operated using the stylus and by finger,
install the driver for the "Dual Digitizer"
model.
The Tablet PC does not start after switch on
TabletPC
Cause Troubleshooting
The battery is discharged. ►Charge the battery.
or
►Connect the AC adapter to the Tablet
PC.
The AC adapter is not properly connected. ►Check whether the AC adapter is properly
connected to the Tablet PC.
►Switch the Tablet PC on.
The Tablet PC stops working
TabletPCEnding
Cause Troubleshooting
The Tablet PC is in energy saving mode. ►End energy saving mode.
An application program has caused the
malfunction.
►Close the application program or restart
the Tablet PC (by restarting the operating
system or switching the device off and back
on again).
The battery is discharged. ►Charge the battery.
or
►Connect the AC adapter to the Tablet
PC.
78 Fujitsu
Troubleshooting and tips
The printer does not print
Printerdoesnot print
Cause Troubleshooting
The printer is not switched on. ►Make sure that the printer is switched
on and ready for operation (refer to the
documentation supplied with the printer).
The printer is not connected correctly. ►Check that the data cable between the Tablet
PC and the printer is properly connected.
The printer driver is faulty or not correctly
installed, or it is the wrong printer driver.
►Check that the data cable between the Tablet
PC and the printer is properly connected.
►Check whether the correct printer driver is
loaded (refer to the printer documentation).
The wireless connection to a network does not work
Thewireless connectionto anetwork doesnotwor k
Cause Troubleshooting
The wireless component is switched off. ►Switch the wireless component on (see
"Switching the wireless components on and
off", Page 40).
The wireless component is switched on. Despite
this, the wireless connection to a network does
not work.
►Check whether the wireless connection is
enabled by the software.
►Further information on using the wireless
component can be found in the help files.
The battery discharges too quickly
Battery
Cause Troubleshooting
The battery is either too hot or too cold. In this
case the battery indicator flashes.
►Bring the Tablet PC up/down to a normal
operating temperature again.
►If the operating time of the battery life is
extremely short, the battery is probably too
old. Replace the battery if necessary.
You may have an application running that
consumes a great deal of power due to frequent
accessing of the hard disk or optical drive.
►Use the AC adapter whenever possible.
The maximum brightness may have been set
for the screen.
►Reduce the brightness of the screen to
lower energy consumption: You will find the
setting under Control Panel – Hardware and
Sounds – Windows Mobility Center.
Fujitsu 79
Troubleshooting and tips
Smart Card reader is not recognized
Cause Troubleshooting
Chip card inserted incorrectly. ►Make sure you have inserted your Smart
Card into the Smart Card reader with the
chip facing upwards.
►Check whether the Smart Card you are
using is supported. Your Smart Card must
comply with the ISO standard 7816-1, -2,
-3 and -4.
Acoustic warning
Acous tic wa rnin gsErrors
Cause Troubleshooting
A beep sounds every few seconds.
The battery is almost flat.
►Charge the battery.
Error messages on the screen
Errormessagesonthe screen
Errors
This section describes the error messages generated by the BIOS Setup. Error messages displayed
by the operating system or programs are described in the documentation for these programs.
If the error message appears repeatedly despite troubleshooting measures,
contact the place of purchase or our customer service center.
80 Fujitsu
Troubleshooting and tips
Error message/cause Troubleshooting
CMOS Battery Bad
If the error message occurs repeatedly, the
buffer battery in the Tablet PC is flat.
►Contact your sales outlet or our customer
service center.
System CMOS checksum bad - Default configuration
used
The system configuration information is
incorrect.
►Switch the Tablet PC off.
►Switch the Tablet PC on.
►In the BIOS Setup, select the Exit menu.
►Select the entry Load Setup Defaults.
►Select OK and press the Enter key.
Extended memory failed at offset: xxxx Failing Bits:
zzzz zzzz
When testing the extended memory. an error
has resulted at the address xxxx.
►Contact your sales outlet or our customer
service center.
Failure Fixed Disk n
The settings of the hard disk drive are incorrect.
►Start the BIOS Setup (Primary Master
submenu) and select the correct settings.
Keyboard controller error ►Switch your Tablet PC off with the ON/OFF
button.
►Wait 3 - 5 seconds and switch the Tablet PC
on again.
Keyboard error If you use an external keyboard:
►Check the connection and reboot the Tablet
PC.
nn Stuck key ►Make sure that no key is pressed.
Operating system not found ►Check in the BIOS Setup whether your hard
disk has been set correctly.
►Make sure that the operating system is
installed on the corresponding drive.
Press <F1> to resume, <F2> to SETUP
This error message appears if an error occurs
during the self-test before starting the operating
system.
►Press theAlt tablet button to boot the
operating system
Real time clock error ►Contact your sales outlet or our customer
service center.
nnnnK Shadow RAM failed at offset: xxxx Failing
Bits: zzzz
►Contact your sales outlet or our customer
service center.
System battery is dead - Replace and run SETUP ►Contact your sales outlet or our customer
service center.
System cache error - Cache disabled ►Contact your sales outlet or our customer
service center.
System timer error ►Contact your sales outlet or our customer
service center.
Fujitsu 81
Technical data
Technical data
Tablet PC
General
Processor Core i5 or core i7 (dependent on configuration)
Main memory (SO DIMM) • Core i5: 4 GB
• Corei7:8GB
Electrical data
Safety regulations complied with CE
Protection class II
Maximum power consumption (when the Tablet
PC is switched on, connected to the keyboard
cover and the battery is charged):
65 W
Touchscreen
Size 12.5" Full HD Wide View IPS
Screen resolution 1920 x 1080 / 16 million colors
Pixel class II
Brightness control 12 levels
Technology Wide-View High-Bright Display with LED
background lighting
Digitizer and glass panel Dual digitizer with Glare touch screen
Cameras • Front: HD camera
• Back: 8 megapixels, autofocus, mobile light
Graphics card
Chip Intel® HD Graphics 4400
Maximum resolution of external display: 1920 x 1080
Dimensions
Width x Depth x Height Standard Shell tablet only: 12.19 x 7.85 x 0.47
inches (309.6 x 199.3 x 11.9 mm)
Standard Shell tablet w/keyboard cover: 12.19 x
7.85 x 0.79 inches (309.6 x 199.3 x 20 mm)
Standard Shell tablet w/keyboard docking
station: 12.19 x 7.85 x 1.22 inches (309.6 x
199.3 x 31.1 mm)
Smart Card Shell tablet only: 12.19 x 7.85 x 0.74
inches (309.6 x 199.3 x 18.8 mm)
Smart Card Shell tablet w/keyboard cover: 12.19
x 7.85 x 1.09 inches (309.6 x 199.3 x 27.8 mm)
Smart Card Shell tablet w/keyboard docking
station: 12.19 x 7.85 x 1.31 inches (309.6 x
199.3 x 33.3 mm)
82 Fujitsu
Technical data
Weight depending on configuration Standard Shell tablet only: 2.16 lbs (.98 kg)
Standard Shell tablet w/keyboard cover: 3.68
lbs (1.67 kg)
Standard Shell tablet w/keyboard docking
station: 4.72 lbs (2.14 kgs)
Smart Card Shell tablet only: 2.38 lbs (1.08 kgs)
Smart Card Shell tablet w/keyboard cover: 3.90
lbs (1.77 kgs)
Smart Card Shell tablet w/keyboard docking
station: 4.94 lbs (2.24 kgs)
Input devices
Tablet buttons 3 keys
Stylus Active stylus with one press-button
Slots
Storage card slot 1 x Micro SD
SIM card slot 1 x Micro SIM
Ports
Headphones port 3.5 mm / 1/8" stereo mini jack
Docking port 1 x
USB (Universal Serial Bus) 1 x USB 3.0, 1 x micro USB 2.0
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5 °C .... 35 °C / 41 °F .... 95 °F
Transport temperature (2K2) –15 °C .... 60 °C / 5 °F .... 140 °F
Fujitsu 83
Technical data
WLAN specifications
Type of network Intel® Dual Band Wireless 7265NGW (Stone
Peak – 11a/b/g/n/11ac), Wi-Fi based*
Transfer rate (Automatic switching) IEEE802.11 a and g: 54
Mbps max. data rate; IEEE802.11n: 300 Mbps
max. data rate
Active frequency
Typical operating distances**
Number of channels
Security
Maximum recommended number of computers
to be connected over wireless LAN (during ad
hoc connection)
10 units or less****
Rechargeable battery
3-cell lithium polymer battery 4250 mAh
Rated voltage 10.8 V
Rated capacity 46 Wh
84 Fujitsu
• 802.11n: 2.4 GHz or 5 GHz
• 802.11b/g: 2400~2473 MHz
• 802.11a: 4900~5850 MHz
• 802.11a: 40 f . (12 m8 @ 54 Mbp02 300 f . (91 m8 @ 6 Mbp0
• 802.11ac: 40 f . (12 m8 @ 54 Mbp02 300 f .(91 m8 @ 6 Mbp0
• 802.11b: 100 f . (30 m8 @ 11 Mbp02 300 f . (91 m8 @ 1 Mbp0
• 802.11g: 100 f . (30 m8 @ 54 Mbp02 300 f . (91 m8 @ 1 Mbp0
• 802.11n: E0 .1atn: doubln t4n opnrat.ng d.0 ancn of 802.11g
---and 802.11a in t4n.r re0GnH .zn freornnc.n0
• 802.11a: 8 indnGnndnnt c4anne50
• 802.11b/g: 11 c4anne50• 3 non-ovnrlapG.ng c4anne50
• 802.11n: C4anne5 bond.ng takn0 tbo of 4n non
ovnrlapG.ng 20MHz c4anne50 and Hombine0 i into one
40MHz c4anne5. I i0 ac ral5/ 12 non-ovnrlapG.ng c4anne50
w. 4 H4anne5 bond.ng and 24 w. 4ou . A50o i i0 1 non
ovnrlapG.ng c4anne5 in 2.4GHz w4nn 4anne5 bond.ng i0
u0n.
EncryG .on t/Gn0: comGat.bln w. 4 Wg~• T73~•
Mga999• W~M 1.0 and W~M 2.0
EncryG .on kn/• lnngt40 srGGortn:: 64 bi 0 and
128 bi 0
* “Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the interconnectivity of wireless LANs (Wi-Fi
---Alliance) was passed.
** The operating distances given above increase or decrease depending on factors such as the number of walls, reflecting material or ------
----interference by external RF sources.
*** Network key encryption (WEP) occurs with the number of bits given above, after deduction of the fixed length of 24 bits the user may
-----however also set 40 or 104 bits.
**** Depending on the particular practical application, the number of computers which can be networked is reduced if necessary.
Technical data
AC adapter (65 W)
Technicaldata
Rated voltage 19 V
Max. rated current 3.16 A
An additional AC adapter or AC cable can be ordered at any time.
Performance docking cradle (optional)
Electrical data
Safety regulations complied with CE
Protection class II
Dimensions
Width x Depth x Height 9.89 x 4.24 x 2.48 in. / 251 x 108 x 63.1 mm
Weight approx. 0.88 lbs / 400 g
Ports
USB (Universal Serial Bus) 4 x USB 3.0
Docking port 40-pin
External monitor port (VGA) 1 x, max. resolution supported 1920 x 1080 (Full
HD)
LAN port 1 x
HDMI port 1 x, max. resolution supported 1920 x 1080 (Full
HD)
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5 °C .... 35 °C / 41 °F .... 95 °F
Temperature in transit –15 °C .... 60 °C / 5 °F .... 140 °F
Fujitsu 85
Technical data
Keyboard cover (optional)
Electrical data
Safety regulations complied with CE
Protection class II
Dimensions
Width x Depth x Height 12.19 x 8.37 x 0.78 in. / 309.6 x 212.7 x 20.0 mm
Weight approx. 1.52 lbs. / 690 g
Ports
Docking port 40-pin
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5 °C .... 35 °C / 41 °F .... 95 °F
Temperature in transit –15 °C .... 60 °C / 5 °F .... 140 °F
Keyboard docking station (optional)
The battery of the keyboard docking station is not user-replaceable.
Electrical data
Safety regulations complied with CE
Protection class II
Battery 46 Wh
Dimensions
Width x Depth x Height 12.189 x 8.46 x 1.78 in. / 309.6 x 214.8 x 29.9
mm
Weight approx. 2.56 lbs. / 1.16 kg
Ports
Docking port 16-pin
USB (Universal Serial Bus) 2 x USB 3.0
External monitor port (VGA) 1x
LAN port 1 x
HDMI port 1 x
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5 °C .... 35 °C / 41 °F .... 95 °F
Temperature in transit –15 °C .... 60 °C / 5 °F .... 140 °F
86 Fujitsu
Technical data
VESA mounting attachment (optional)
Dimensions
Width x Depth x Height approx. 218 mm x 103.5 mm x 13.5 mm / 8.58
inx4.07inx0.53in
Weight approx. 120 g / 0.26 lbs
Hand strap (optional)
Dimensions
Width x Depth x Height approx. 480 mm x 77 mm x 13 mm / 18.89 in x
3.03 in x 0.51 in
Weight approx. 30 g / 0.066 lbs
Shoulder strap (optional)
Dimensions
Length x Depth x Height approx. 1270 mm x 25 mm x 5 mm / 50 in x
0.98 in x 0,19 in
Weight approx. 25 g / 0.055 lbs
Micro USB adapters (optional)
Adapter Length Max. resolution
Micro USB to USB adapter 6 inches N/A
Micro USB to HDMI adapter 6 inches 1920 x 1080
Micro USB to VGA adapter 6 inches 1920 x 1080
Micro USB to Display Port
adapter
6 inches 1920 x 1080
Micro USB to LAN adapter 6 inches N/A
Fujitsu 87
Manufacturer’s notes
Manufacturer’s notes
Disposal and recycling
Notes
You can find information on this subject on your notebook or on our website
("http://solutions.us.fujitsu.com/www/content/products/trade-in_program/").
Recycling your battery
Over time, the batteries that run your mobile computer will begin to hold a charge for a
shorter amount of time; this is a natural occurrence for all batteries. When this occurs,
you may want to replace the battery with a fresh one*. If you replace it, it is important
that you dispose of the old battery properly because batteries contain materials that
could cause environmental damage if disposed of improperly.
Fujitsu is very concerned with environmental protection, and has enlisted the services of the
Rechargeable Battery Recycling Corporation (RBRC)**, a nonprofit public service organization
dedicated to protecting our environment by recycling old batteries at no cost to you.
RBRC has drop-off points at tens of thousands of locations throughout the United States and
Canada. To find the location nearest you, go to "www.RBRC.org" or call 1-800-822-8837.
If there are no convenient RBRC locations near you, you can also go to the EIA Consumer
Education Initiative website "http://EIAE.org/ " and search for a convenient disposal location.
Remember – protecting the environment is a cooperative effort, and you should
make every effort to protect it for current and future generations.
* To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site
at "www.shopfujitsu.com" in the US or "www.fujitsu.ca/products/notebooks" in Canada.
** RBRC is an independent third party to which Fujitsu provides funding for
battery recycling; RBRC is in no way affiliated with Fujitsu.
DOC (Industry CANADA) Notices
DOC(INDUSTRYCANADA)NOTICES
Radios and Television
This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment
Regulations.
CET appareil numérique de la class B respecte toutes les exigence du Réglement
sur le matérial brouilleur du Canada.
88 Fujitsu
Manufacturer’s notes
UL Notice
IMPORTANT SAFETY INSTRUCTIONS
This unit requires an AC adapter to operate. Only use UL Listed I.T.E. adapters with an output rating
of 19 VDC, with a minimum current of 3.42A (65W). The correct output rating is indicated on the
AC adapter label. Refer to the illustration below for the correct AC Adapter output polarity:
When using your notebook equipment, basic safety precautions should always be followed to
reduce the risk of fire, electric shock and injury to persons, including the following:
• Do not use this product near water for example, near a bathtub, washbowl, kitchen
sink or laundry tub, in a wet basement or near a swimming pool.
• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a
fire. They may explode. Check with local codes for possible special disposal instructions.
SAVE THESE INSTRUCTIONS
For Authorized Repair Technicians Only
CAUTION:
For continued protection against risk of fire, replace only with the
same type and rating fuse.
WARNING:
Danger of explosion if Lithium (CMOS) battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instruction.
Fujitsu 89
Manufacturer’s notes
ENERGY STAR Compliance
Your Fujitsu system is an ENERGY STAR qualified mobile PC. By choosing a computer with the
latest energy-saving technology, you’re helping to preserve our environment for future generations.
ENERGY STAR is a joint program of the U.S. Environmental Protection Agency, U.S. Department
of Energy, Natural Resources Canada, and other governments around the world helping us save
money while protecting the environment through energy efficient products and practices. With
energy costs and global warming top-of-mind for consumers, Fujitsu is committed to offering
solutions that help consumers conserve energy and improve the quality of our environment.
Sleep Mode:
You will notice that your computer is initially set so that the display turns off after 15 minutes of
user inactivity, and the computer goes into Sleep mode after 20 minutes of user inactivity. When
going into Sleep mode, the computer also reduces the speed of any active Ethernet network
links. To “wake” the computer from Sleep mode, press the Suspend/Resume Button.
Energy saving benefits:
Fujitsu ENERGY STAR qualified mobile PCs use about half as much electricity as standard
equipment – saving half in utility costs. But more than that, ENERGY STAR also makes a difference
