Page 1 of 4 us.fujitsu.com/telecom

Data Sheet

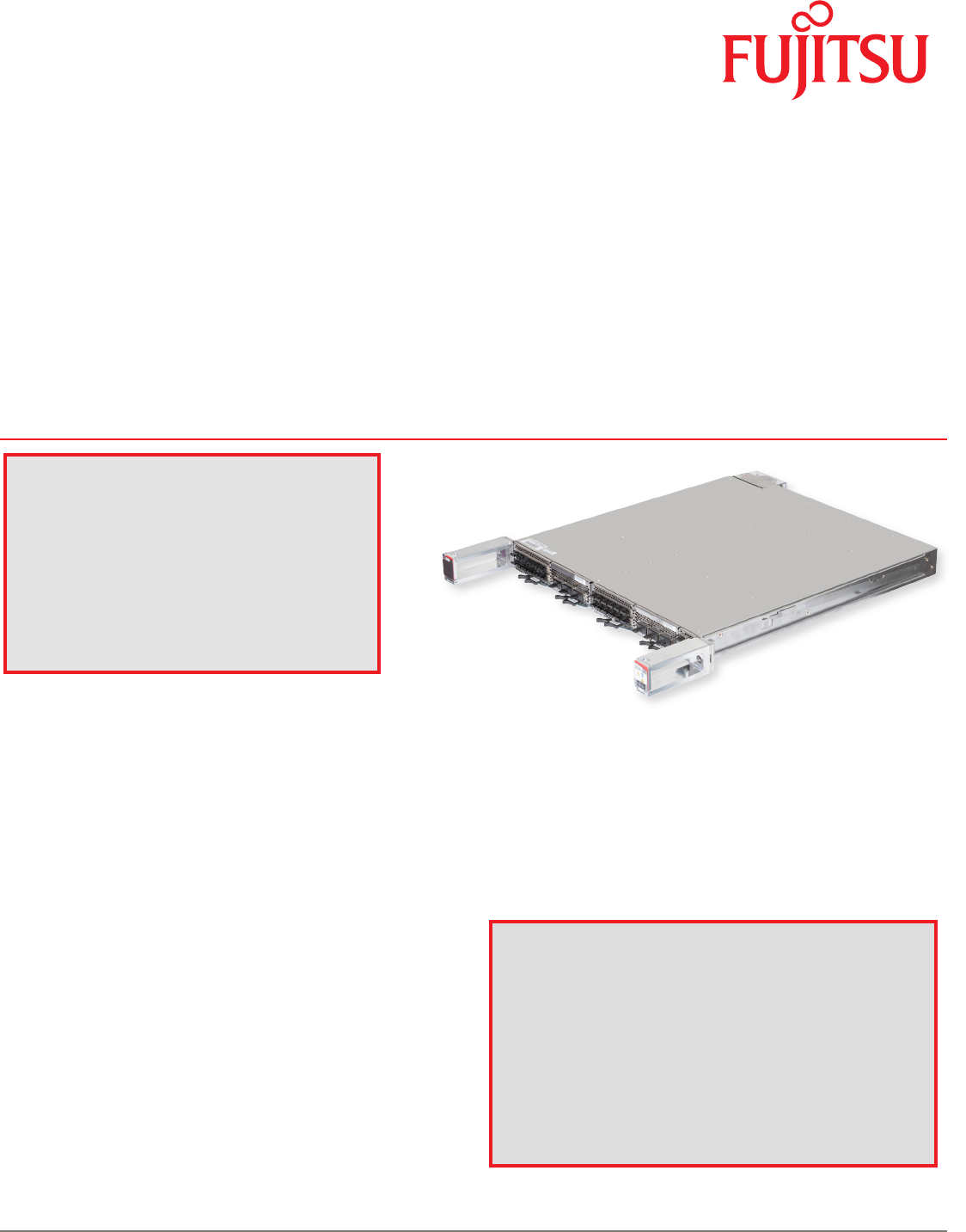

1FINITY™ S100 Switch

Layer 2 switch delivers dense Ethernet aggregation

Product Overview

The 1FINITY S100 Layer 2 switch is a compact, carrier-grade

platform that delivers dense 1 GbE or 10 GbE to 100 GbE aggregation in

a 1RU blade. The S100 solves space and power challenges, delivers

high-performance scalable services, and reduces operating costs.

Solving the Problems of Convergence

Optical and switching technologies are advancing rapidly, and new

platforms often integrate the two. In recent years, vendors have created

sophisticated, converged, chassis-based platforms. This approach has

been successful, but it has also inflated initial costs; slowed innovation;

reduced space efficiency and physical flexibility; and encouraged vendor

lock-in.

Solutions to these problems can be found in a modular, disaggregated

product that employs pluggable elements. One of these is the 1FINITY™

S100 Switch, an innovative, modular Layer 2 switch that combines high

density and simplicity.

Modular Blade-Based Design

The modular design results in maximum pay-as-you-grow flexibility.

This design offers efficient scaling by adding additional 1RU systems as

needed. The small, dense form factor allows full utilization of rack space

in 1RU increments, and the absence of a large, multislot chassis

eliminates the need for rack partitioning.

Operationally, the 1FINITY architecture is as close as possible to zero

intercept—with no chassis, there is zero space and zero cost prior to

initial service. The modular design enhances availability by minimizing

Mean Time To Repair(MTTR), since most sources of failure can be

quickly repaired. Additionally, the blade-based design is future-proof

and evergreen; users can upgrade modules as new technology becomes

available. Finally, with support for open optics, purchases can be made

from Fujitsu or directly from third-party vendors.

1FINITY: A Revolutionary, Disaggregated Platform

For network operators seeking an open, simple, scalable

architecture to meet escalating bandwidth demand, Fujitsu

provides 1FINITY, a revolutionary disaggregated platform that

delivers unprecedented flexibility, scalability, and efficiency. Unlike

the traditional converged systems other vendors provide, the

programmable, blade-centric design of 1FINITY offers operators a

pay-as-you grow approach with low initial investment. Additional

benefits include high rack space utilization, evergreen technology

design, operational convergence, open pluggable optics, open

APIs, and open protocols.

S100 Blade at a Glance

• Modular 1RU blade design

• 1.2 Tbps switching capacity

• Four front-access slots for several combinations:

12 × SFP+ 10 GbE/OTU2

3 × CPF4 100 GbE

12 × SFP+ 1 GbE/10 GbE

1 × 100G NBO CFP2-ACO*

• Web-based GUI, CLI scripts, or NETCONF API

Page 2 of 4 us.fujitsu.com/telecom

Data Sheet Fujitsu 1FINITY S100 Switch

Efcient 1 GbE or 10 GbE to 100 GbE Aggregation

Layer 2 Switching

The 1FINITY S100 Switch is a modular Ethernet switching platform ideal

for networks that require 1 GbE or 10 GbE to 100 GbE aggregation for

Carrier Ethernet 2.0–compliant E-Line services. The 1RU blade provides

1.2 Tbps bidirectional switching with four Plug-In Units (PIUs). The S100

blade supports 12 × SFP+ 10 GbE/OTU2, 3 × CPF4 100 GbE, 12 × SFP+ 1

GbE/10 GbE, or 1 × 100G NBO CFP2-ACO*.

The S100 simplifies operation with ITU-T Y.1731 for performance

monitoring, ITU-T G.8031, and G.8032 for sub-50 millisecond Ethernet

linear and ring protection switching, in addition to link aggregation for

facility protection.

Metro to Long-Haul Applications

The scalable blade architecture of the 1FINITYS100 can be used with

existing FLASHWAVE®9500 and FLASHWAVE CDS deployments and with

the 1FINITY Transport blade family. The combination of an S100 and a

DWDM optical transport device like the FLASHWAVE 9500 can efficiently

transport 10GbE and 100 GbE services on 100G optical lambdas. For

long-haul transport up to 200G per lambda, the S100 can be teamed

with the FLASHWAVE 9500 and the 1FINITY T200 blade. For dense metro

DCI applications requiring up to 200G per lambda transport, the S100

can be deployed with the 1FINITY T100 blade.

Simplified Network Operations

The 1FINITY S100 blade has a Linux-based operating system and can be

managed with a Web-based GUI, CLI scripts, or the NETCONF API. The

GUI or CLI script can provision various service options. The NETCONF

management API makes it easy to use the 1FINITY S100 with SDN

network controllers, including Fujitsu Virtuora® Network Controller (NC).

×

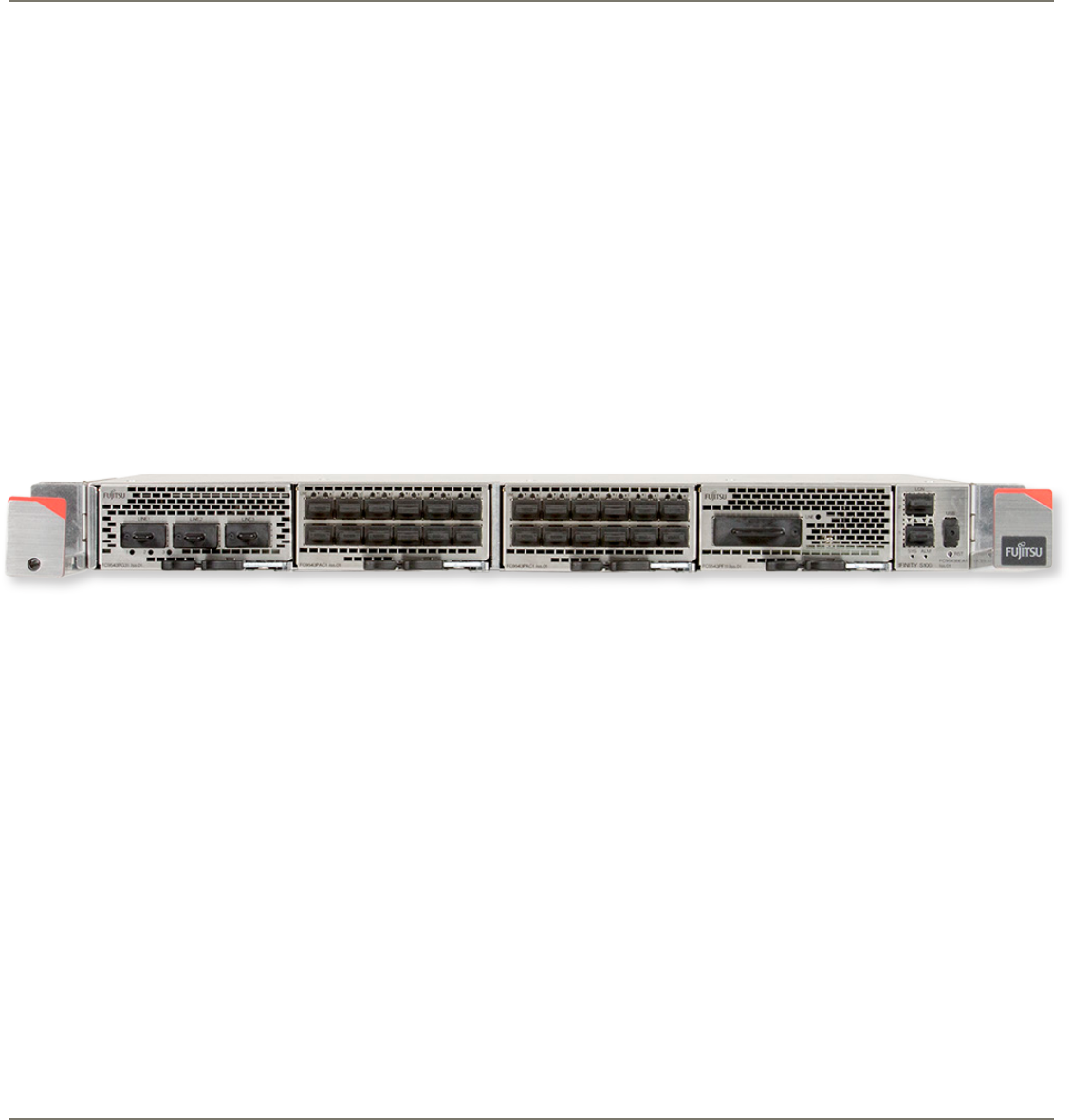

Up to 3 × CFP4

100 GbE ports

Up to 12 × SFP+

1 GbE/10GbE ports

Up to 12 × SFP+

10 GbE/OTU2 ports

Up to 1 × CFP2-ACO

100 GbE DWDM port

Page 3 of 4 us.fujitsu.com/telecom

Data Sheet Fujitsu 1FINITY S100 Switch

Technical Specications

Base System Hardware

System Configuration Modular 1RU blade

PIU/FRU per Blade 4

Local Management Port

(LMP)

None

Management Port (LCN) 2 × Gigabit Ethernet SFP (T, SX, LX, EX, ZX)

Front LEDs System Status, Severity, Port

Fan Hot swappable fan unit

3 fans, alarm monitored

Power Supply Dual fixed DC power supplies

Software OS Linux

Service Ports

10 GbE/

OTU2

100 GbE 100 GbE

DWDM*

1 GbE/

10 GbE

Service Ports per Blade/PIU 12 × 10

GbE/OTU2

per PIU

3 ×

100 GbE

per PIU

1 ×

100 GbE

DWDM per

PIU

12 ×

1 GbE/

10 GbE

per PIU

Optical/Electrical Interface SFP+ CFP4 CFP2-ACO SFP/SFP+

Supported Interfaces SR, ER,

LR, ZR,

DWDM

SR4, LR4,

ERL, ERL,

ER4

TBD SX, LX,

EX, ZX,

SR, ER,

LR, ZR,

CWDM

(Ethernet

Only)

Performance Monitoring

Service PMs 24-hour, 15-minute, and 5-minute bins for PMs

Thresholds and TCA Support (user assignable)

Ethernet SLA PMs (Y.1731) • Frame delay

• Delay variation

• Loss ratio

Ethernet Port PMs • Rx, Tx and error statistics

• Input and output rate per port

• Input and output utilization per port

Management

Virtuora NC Yes

Web GUI Yes

CLI Yes

NETCONF/YANG Yes

SNMP SNMPv2

NTP, SNTP, Telnet, and FTP Telnet, FTP and SFTP, NTP

In-Band Management MVLAN

OSMINE Support CLEI

Physical Characteristics

Dimensions

H × W × D

1.75 × 19 × 17.72” (44.45 × 483 × 450 mm)

W = 19” or 23” with mounting rails

D<600 mm with fiber management

Rack Compatibility 19 and 23”

Weight S100 blade: 7.58 kg (16.711 lbs)

12 × SFP+ PIU: 0.609 kg (1.343 lbs)

3 × CFP4 PIU: 0.603 kg (1.329 lbs)

Fan: 0.380 kg (0.838 lb)

Operating Environment

Operating Temperature 5 to +40 °C

Short Term Temperature –5 to +50 °C

Humidity, Normal Operating 5 to 85% noncondensing

Humidity, Short Term 5 to 93% noncondensing

Power

Power Supply Dual fixed power supplies

120 V AC No

–48 V DC –40 V DC to –57 V DC

Power Consumption 700 W (typical)

Regulatory and Compliance

FCC FCC Part 15, Class A

NEBS NEBS Level 3

UL/CSA UL/CSA 60950-1

CE CE

ROHS ROHS

IEC/EN IEC/EN 60825-1, 60825-2

WEEE WEEE

RCM RCM

CDRH FDQ CDRH

Page 4 of 4 us.fujitsu.com/telecom

Data Sheet Fujitsu 1FINITY S100 Switch

3.0/R2.1/12.17

© Copyright 2017 Fujitsu Network Communications, Inc. FLASHWAVE® is a trademark of Fujitsu Network Communications, Inc. (USA).

1FINITY™, VIRTUORA ®, FUJITSU (and design)® and “shaping tomorrow with you” are trademarks of Fujitsu Limited in the United States and other countries. All Rights Reserved.

All other trademarks are the property of their respective owners. Conguration requirements for certain uses are described in the product documentation.

Features and specications subject to change without notice.

Fujitsu Network Communications, Inc.

2801 Telecom Parkway, Richardson, TX 75082

Tel: 888.362.7763

us.fujitsu.com/telecom

Ethernet Switching

Switching Fabric 1.2 Tbps

Packets per Second 1.44 Gbps

MAC Address Table • 750 K table entries

• Enable/diable learning per port

Jumbo Frames 9608 bytes

VLAN Tagging 802.1Q 4094 C-VLANs

Provider Bridging 802.1ad 4094 S-VLANs

Tagging • CVLAN translation

• Double tagging

• Tagging, de-tagging, swapping

• Virtual untagged

Traffic QoS

Priority Queues 8 queues per port/4 queues per flow

Traffic Classification • IEEE 802.1Q, Port, VLAN, ToS, DSCP

• CIR/CBS and PIR/PBS

• 2-rate, 3-color (2R3C)

Bandwidth Meters • Bandwidth profiles

• Ingress and egress filters

• Per service in 1 Mbps increments

Ethernet OAM

Fault Management • IEEE 802.1Q, Port, VLAN, ToS, DSCP

• CIR/CBS and PIR/PBS

• 2-rate, 3-color (2R3C)

Loopbacks • Station loopback

• Loopback based on L2 and L3 filter

• MAC address swap for RFC 2544

Topology Discovery LLDP

Ethernet Services

E-Line Yes

E-Line MEF CE 2.0 Yes*

E-LAN Yes

E-LAN MEF CE 2.0 Yes*

Network Protection

Ethernet Protection • <50 ms protection switching

• 3.3 ms CCMs in hardware

• Nonrevertive/revertive

• ITU-T G.8031

• ITU-T G.8032

• Multiple instances/laddered rings

Link Aggregation 0:N LAG N<=16

1+1 LAG**

LAG over G.8032

MC-LAG**

Security

• L2 loop monitoring

• L2 loop protocol

• Filtering

* Supported in R2.2

** Supported in R2.3
