Handling precautions
◆
General
・
F-02A is waterproof, however, do not allow water to seep into the handset and do
not allow accessories or optional devices to get wet.
- This FOMA terminal is waterproof to IPX5 and IPX7 standards if the external connection jack
cap is strictly closed as well as the back cover is mounted and locked, however, it is not
completely waterproof. In the rain or with the handset wet, do not remove/insert the battery
pack or open/close the external connection jack cap or the back cover. Seeped water may cause
corrosion inside the terminal. Accessories and optional devices are not waterproof.
Malfunctions deemed to have been caused by water are not covered by the warranty. Since
these conditions are outside the scope of the warranty, a repair, if at all possible, is charged.
・
Clean FOMA terminal with a dry soft cloth (such as a cloth for eyeglasses).
- The display of FOMA terminal may have been applied special coating to improve clearness of
the color LCD. When cleaning FOMA terminal, rubbing it roughly with a dry cloth can scratch
the display. Take care when handling the unit, and clean it with a dry soft cloth (such as a cloth
for eyeglasses). Drops of water or dirt left on the display can cause stains or remove the
coating.
- If FOMA terminal is wiped with alcohol, paint thinner, benzine or detergent, the printing may
disappear or color may fade.
・
Clean the jack occasionally with a dry cotton swab.
- If the jack is dirty, the contact may become poor and the power may shut OFF. A dirty jack
can result in poor charging, so clean it with a dry cloth or cotton swab.
・
Do not place FOMA terminal near an air-conditioner outlet.
- The rapid change in temperature may cause condensation, causing internal corrosion and
malfunction.
・
When using, be careful not to subject excessive force to FOMA terminal or the
battery.
- If FOMA terminal is crammed into a brimming bag or placed in a pocket and sat on, display,
internal PCBs or battery pack may be damaged or malfunction. And, if external devices are
plugged into the external connection jack (earphone/microphone jack), the breakage of the
connector or malfunction may result.
・
Carefully read the separate instructions that come with FOMA terminal, adapter
(including battery charger) and desktop holder.
・
Do not rub or scrape the display with a metal piece etc.
- It may scratch the display, causing malfunction or damage.
・
Do not press the surface of the touch panel strongly or operate it with sharp
objects such as a nail, a ballpoint pen and a pin.
- It may damage the touch panel.
◆
FOMA terminal
・
Avoid extreme temperature.
- Use the FOMA terminal where the ambient temperature ranges between 5 and 40
℃
(for
temperatures of 36
℃
or higher, such as in a room with a bath, limit usage to a short period of
time) and the ambient humidity ranges between 45 and 85%.
・
FOMA terminal may affect land-line phones, TVs or radios in use nearby, so use
it as far as possible from these appliances.
・
Maintain a separate record of the data you saved in your FOMA terminal.
- If the data is deleted, DOCOMO assumes no responsibility for the loss of any data.
・
Do not plug external devices into the external connection jack (earphone/
microphone jack) at a slant, or do not pull it forcibly while it is plugged.
- May cause malfunction or damage.
・
Do not fold FOMA terminal with the strap held inside.
- May cause malfunction or damage.
・
It is normal for FOMA terminal to become warm during use or charging. Continue
to use it.
・
Do not leave FOMA terminal with the camera in areas under strong direct
sunlight.
- May cause discoloring or burn-in of materials.
・
The terminal should normally be used with the external connection jack cap
closed.
- Dust and/or water brought into FOMA terminal cause troubles.
・
Do not use FOMA terminal with the back cover removed.
- It may cause the battery to come off, or may cause a malfunction or damage.
・
Do not put an extremely thick sticker etc. on the display or keypad.
- May cause malfunction.
・
Do not turn FOMA terminal OFF while using microSD card.
- It may cause data loss or malfunction.
◆
Battery pack
・
The battery pack is a consumable part.
F-02A.book Page 17 Friday, October 10, 2008 8:32 PM
18 Easy Search/Contents/Precautions
F-02A_E1kou
- Replace the battery pack if FOMA terminal has extremely short operation time on a full
charge, though it may vary by operating conditions. Purchase a new battery pack of the
specified type.
・
Charge the battery in an area within the proper ambient temperature range (5-35
℃
).
・
Always charge before using it for the first time or after extended disuse.
・
The operation time provided by the battery pack varies by the operating
environment and battery pack's deterioration.
・
The battery pack may swell out as it comes to near the end of its lifetime
depending on the usage conditions, but it is not a problem.
・
Do not preserve or leave the battery pack as it is empty.
- It may cause the battery pack performance to be degraded or its lifetime to be shortened.
◆
Adapter (including battery charger)
・
Charge the battery in an area within the proper ambient temperature range (5-35
℃
).
・
Do not charge the battery in the areas below.
- In areas of excessive humidity, dust or vibrations
- Near land-line phones or TVs/radios
・
It is normal for the adapter (including battery charger) to become warm while
charging. Continue to use it.
・
When using the DC adapter for charging, keep the vehicle engine running.
- The vehicle's battery could become flat.
・
When using an outlet with a mechanism preventing unplugging, follow the
handling instructions for that outlet.
・
Do not give strong shock. Do not deform the charging jack.
- May cause malfunction.
・
When folding the desktop holder, take care to avoid catching your fingers or
adapter cables (including the charger cord) in the holder.
- May cause injuries or damage.
◆
UIM
・
Do not use excessive force to install/remove UIM.
・
It is normal for UIM to become warm during use. Continue to use it.
・
Note that DOCOMO assumes no responsibility for malfunctions occurring as the
result of inserting and using a UIM with another IC card reader/writer.
・
Always keep UIM ICs clean.
・
Clean UIM with a soft, dry cloth (such as a cloth for eyeglasses).
・
Maintain a separate record of the data you saved in UIM.
- If the data is deleted, DOCOMO assumes no responsibility for the loss of any data.
・
To preserve the environment, bring the old UIM to a sales outlet such as
DOCOMO Shop.
・
Avoid extreme temperature.
・
Take care not to scratch, touch accidentally or short IC.
- May cause data loss or malfunction.
・
Do not drop UIM or subject it to shocks.
- May cause malfunction.
・
Do not bend UIM or place heavy objects on it.
- May cause malfunction.
・
Do not install UIM into FOMA terminal with a label or sticker put on UIM.
- May cause malfunction.
◆
FeliCa reader/writer
・
FeliCa reader/writer function of FOMA terminal uses weak waves requiring no
licenses for radio stations.
・
It uses 13.56 MHz frequency band. When using other reader/writers in your
surroundings, keep FOMA terminal away sufficiently from them. Before using the
FeliCa reader/writer, confirm that there are no radio stations using the same
frequency band nearby.
F-02A.book Page 18 Friday, October 10, 2008 8:32 PM
19
Easy Search/Contents/Precautions
F-02A_E1kou
◆
CAUTION
・
Do not use a remodeled FOMA terminal. Using a remodeled terminal violates the
Radio Law.
FOMA terminal is certified according to technical standard conformance of
specified wireless equipment based on the Radio Law, and as a proof of it, the
"Technical Compliance Mark " is depicted on the engraved sticker of FOMA
terminal.
If you remodel FOMA terminal by removing its screws, your certification of
technical standard conformance becomes invalid.
Do not use FOMA terminal with its certification of technical standard
conformance invalid as it violates the Radio Law.
・
Be careful when you use FOMA terminal while driving a car etc.
Using a mobile phone while driving is subject to penal regulations.
If you inevitably receive a call, tell the caller that you will "call back" by handsfree,
then park in a safe place and call back.
・
Use FeliCa reader/writer function only in Japan.
FeliCa reader/writer function of FOMA terminal conforms to Japanese radio
standards.
If you use this function overseas, you may be punished.
Waterproofness
F-02A is waterproof to IPX5 (former JIS protection code 5)
*1
and IPX7 (former JIS
protection code 7)
*2
standards if the external connection jack cap is strictly closed
as well as the back cover is mounted and locked.
*1
IPX5 means that F-02A phone keeps functioning after directly applying a jet flow of 12.5 L/
min. for at least 3 minutes from a distance of 2.5-3 m on a rotating turntable.
*2
IPX7 means that F-02A phone keeps functioning after it is slowly submerged to depth of 1 m
in static tap water at room temperature, left there for 30 minutes and then taken out.
❖
Advantages in actual operation
・
You can talk or watch 1Seg programs without using an umbrella in the rain (for
rainfall of 20 mm or less per hour).
*
When your hands or FOMA terminal are wet, avoid installing/removing the back cover or
opening/closing the external connection jack cap.
・
You can wash the FOMA terminal by submerging and moving it forth and back in
still water in a basin etc.
*
When washing, use only your hands, not a brush or sponge, with FOMA terminal locked,
the back cover installed and the external connection jack cap held in position.
・
You can use the FOMA terminal in a poolside area. Do not put the terminal in the
water of a swimming pool.
*
If FOMA terminal gets wet with water from the swimming pool, wash it as described above.
*
Do not use FOMA terminal underwater. May cause malfunction.
・
You can use FOMA terminal in a bathroom. Do not put the terminal in the bathtub.
*
Never put FOMA terminal in hot spring water or water containing soap, detergent or bath
powder.
*
Do not use FOMA terminal underwater. May cause malfunction.
F-02A.book Page 19 Friday, October 10, 2008 8:32 PM
20 Easy Search/Contents/Precautions
F-02A_E1kou
◆
Important precautions
To keep the FOMA terminal waterproof, be sure to observe the points below.
・
Securely close the external connection jack cap and back cover.
・
Make sure that the cap and back cover are completely closed without floating.
・
Before using, make sure that the back cover lever is at the LOCK position.
■
Closing external connection jack cap
■

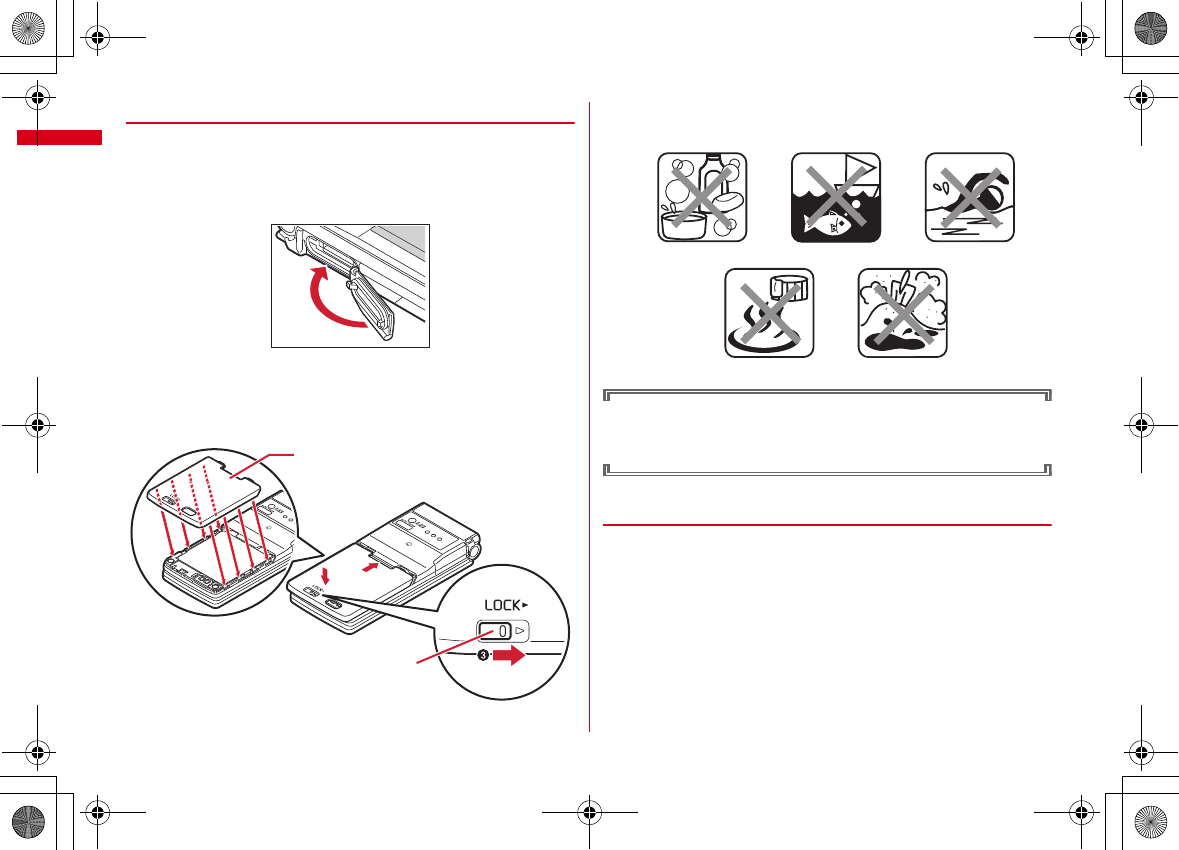

Installing back cover
Align 8 tabs of the back cover with concaves of FOMA terminal. While pressing the
back cover in the direction of
a
so that there is no gap between FOMA terminal and
back cover, slide the back cover in the direction of
b
to install, then slide the back
cover lever in the direction of
c
to lock.
・
Do not use FOMA terminal underwater (including opening/closing and keypad
operations).
・
Do not let FOMA terminal get wet with liquids other than water at room
temperature.
To keep the FOMA terminal waterproof, replacement of parts is required every 2
years regardless of whether FOMA terminal appears normal or abnormal.
DOCOMO replaces the parts as a chargeable service. Bring FOMA terminal to a
sales outlet such as a DOCOMO Shop.
◆
Precautions
・
Securely lock the back cover and firmly close the external connection jack cap.
Even a fine obstacle (one hair, one grain of sand, tiny fiber, etc.) put between
contact surfaces may allow water to enter.
・
If FOMA terminal gets wet with water or other liquids with the external connection
jack cap or back cover open, the liquid may get inside the terminal causing electric
shocks or malfunction. Stop using FOMA terminal, turn the power OFF, remove
the battery pack and contact a DOCOMO-specified repair office.
・
The external connection jack cap and the rubber packing of the inner lid play an
important role for keeping waterproof. Do not remove or scratch them. Also,
prevent dust from adhering to them.
・
Do not leave water on FOMA terminal. In a cold region, water may freeze causing
malfunction.
Back cover
ab
Lever
<Example>
Soap/Detergent/Bath powder Ocean water Swimming pool
Sand/Mud
Hot spring
F-02A.book Page 20 Friday, October 10, 2008 8:32 PM
21
Easy Search/Contents/Precautions
F-02A_E1kou
・
Do not apply water flow stronger than allowed (e.g., such water flow that gives
you pain when applied to your skin directly from a faucet or shower). May cause
malfunction though F-02A provides waterproof performance of IPX5.
・
Do not wash FOMA terminal in a washing machine etc.
・
Accessories and optional devices are not waterproof.
When watching 1Seg etc. with FOMA terminal installed in the desktop holder, do
not use it in a bath room, shower room, kitchen or lavatory even if it is not
connected to the AC adapter.
・
Do not put FOMA terminal in hot water, use it in a sauna or apply hot airflow (from
a hair dryer etc.) to it.
・
Never try to charge the battery pack when FOMA terminal is wet.
・
Do not poke the microphone, earpiece or speaker with a swab or sharp object.
May damage the waterproof performance.
・
Do not leave FOMA terminal wet. May short-circuit the power jacks.
・
FOMA terminal does not float on water.
・
Do not let FOMA terminal fall. It may become scratched causing the waterproof
performance to degrade.
・
If the back cover is damaged, replace it. Water may enter inside from a damaged
section causing troubles such as electric shocks or corrosion of the battery.
・
Do not leave water on the microphone, earpiece or speaker. Such water may
interfere with talking.
DOCOMO does not guarantee actual operations under all states. Malfunctions
deemed to be caused by inappropriate operation by the customer are not covered
by the warranty.
◆
Draining water when the FOMA terminal gets wet
When FOMA terminal is wet, water may flow out after wiping it off; drain the water
following the steps below.
a

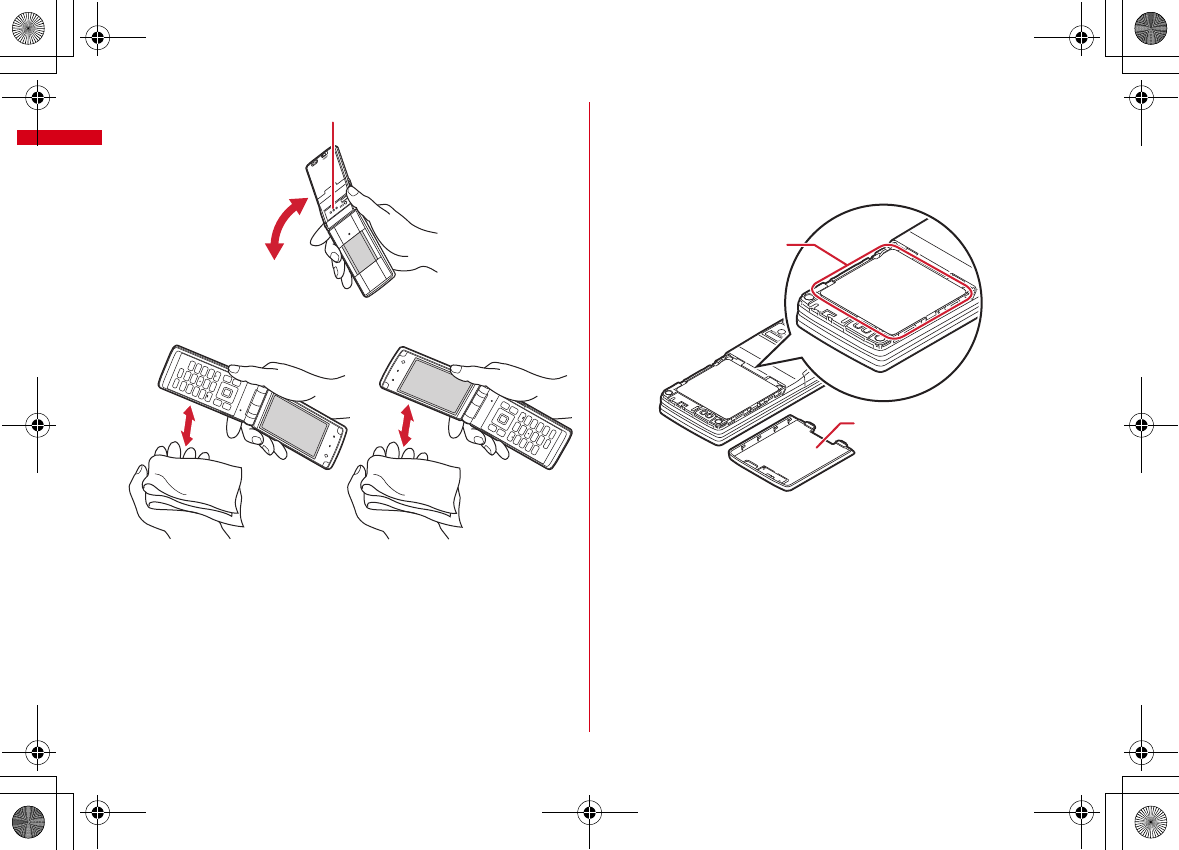

Wipe FOMA terminal surface with dry, clean cloth etc.
b
Shake FOMA terminal approximately 20 times, firmly holding its hinge section,
until there is no more water splattering.
F-02A.book Page 21 Friday, October 10, 2008 8:32 PM
22 Easy Search/Contents/Precautions
F-02A_E1kou
c
Softly press dry, clean cloth etc., against FOMA terminal to wipe off water
remaining in the microphone, earpiece, speaker, keys or hinges.
d
Remove the back cover and wipe off any drops of water around the inner lid and
the rear side of the back cover. After wiping off the water, install and lock the
back cover.
Removing back cover
→
P42
■
Attaching
a
in "Attaching/Removing battery
pack"
*
Never open the inner lid.
e
Wipe off water drained from FOMA terminal with dry, clean cloth etc.
*
Water, if any, remaining in FOMA terminal may ooze up after wiping off.
*
Do not wipe off water remaining in concaves directly with a cotton swab etc.
To drain water off the speaker, shake FOMA terminal with the speaker upward
Rear side of the back cover
Around the inner lid
F-02A.book Page 22 Friday, October 10, 2008 8:32 PM
23
Easy Search/Contents/Precautions
F-02A_E1kou
◆
Charging
Accessories and optional devices are not waterproof. Check the following before
and after charging.
・
Check that FOMA terminal is not wet. If wet, adequately drain FOMA terminal and
wipe off water with dry, clean cloth etc. before connecting a desktop holder or
opening the external connection jack cap.
・
When charging the battery after FOMA terminal is wet, adequately drain it and
wipe off water with a dry, clean cloth etc., before connecting a desktop holder or
opening the external connection jack cap.
・
When the external connection jack cap is opened for charging, close the cap
firmly after charging.
It is recommended that the desktop holder be used for charging to prevent water
from seeping inside from the external connection jack.
*
Never try to charge the battery pack when FOMA terminal is wet.
*
Do not touch the AC adapter or desktop holder with wet hands. May cause electric shock.
*
Do not use the AC adapter or desktop holder in a place subject to water. May cause fire or
electric shock.
*
Do not use the AC adapter or desktop holder in a bathroom, kitchen, lavatory or other highly
humid area. May cause fire or electric shock.
F-02A.book Page 23 Friday, October 10, 2008 8:32 PM
24 Easy Search/Contents/Precautions
F-02A_E1kou

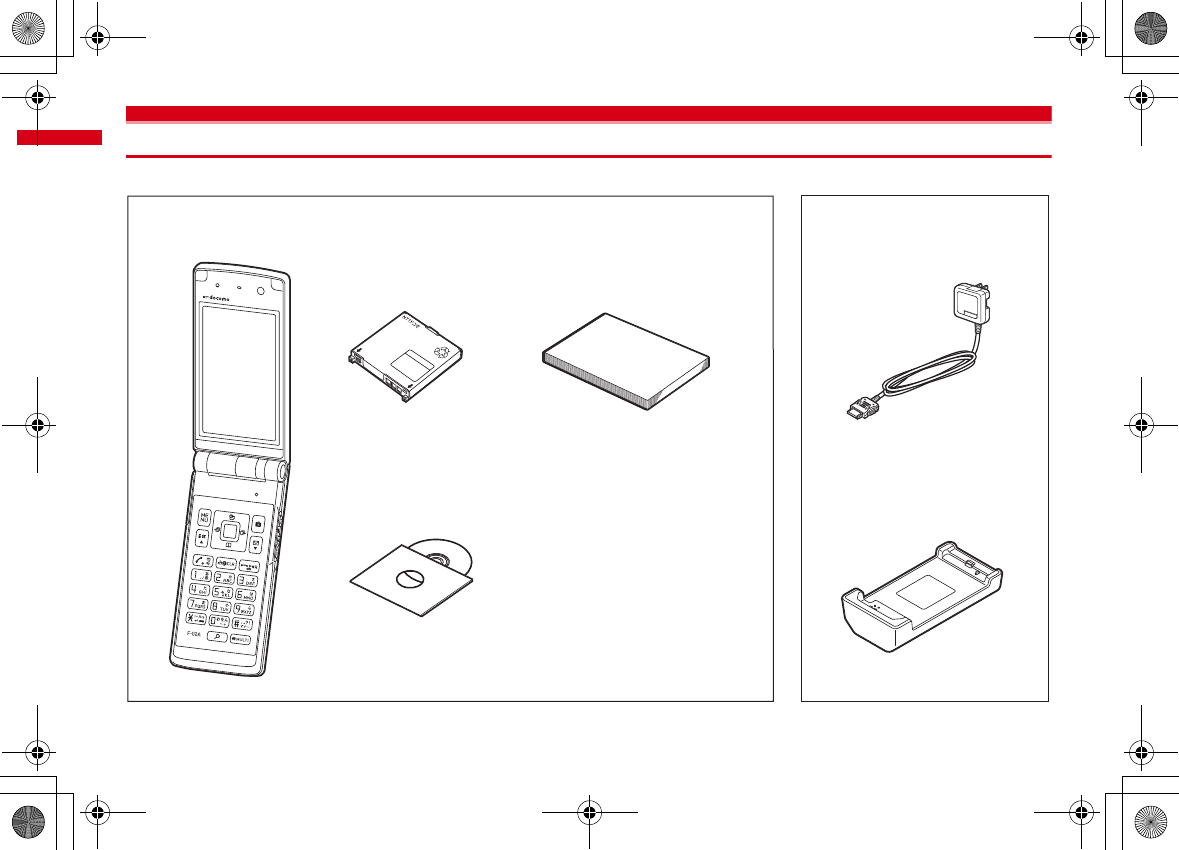

Accessories and main options
Other optional accessories
→
P383
F-02A
(including Back Cover F34 and the written warranty)
Instruction manual
CD-ROM for F-02A
* Quick Manual is appended
on PXXX.
* The PDF version of "Manual for PC Connection" and
"Kuten Code List" are contained in the CD-ROM.
<Basic package>
FOMA AC Adapter 01/02
(including written warranty and
operation manual)
<Optional accessories>
Desktop Holder F28
(including operation manual)
Battery Pack F09
Manual
F-02A.book Page 24 Friday, October 10, 2008 8:32 PM
25
F-02A_E1kou
Before Using the Handset
Part names and functions ................................................................................................................................................... 26
Viewing display ................................................................................................................................................................... 29
Sub-display/Light overview ............................................................................................................................................... 32
Selecting functions from menu .......................................................................................................................................... 35
Using motion sensor ........................................................................................................................................................... 38
Using UIM (FOMA card) ...................................................................................................................................................... 39
Attaching/Removing battery pack .................................................................................................................................... 42
Charging ............................................................................................................................................................................... 43
Checking battery level .............................................................................................................. Remaining battery level 46
Turning power ON/OFF ........................................................................................................................... Power ON/OFF 47
Changing screen display to English ...................................................................................................... Select language 48
Setting date and time ................................................................................................................................... Date & time 48
Notifying the other party of your phone number ......................................................................... Caller ID notification 49
Checking your own phone number ..................................................................................................... User information 50
F-02A.book Page 25 Friday, October 10, 2008 8:32 PM
26 Before Using the Handset
F-02A_E1kou

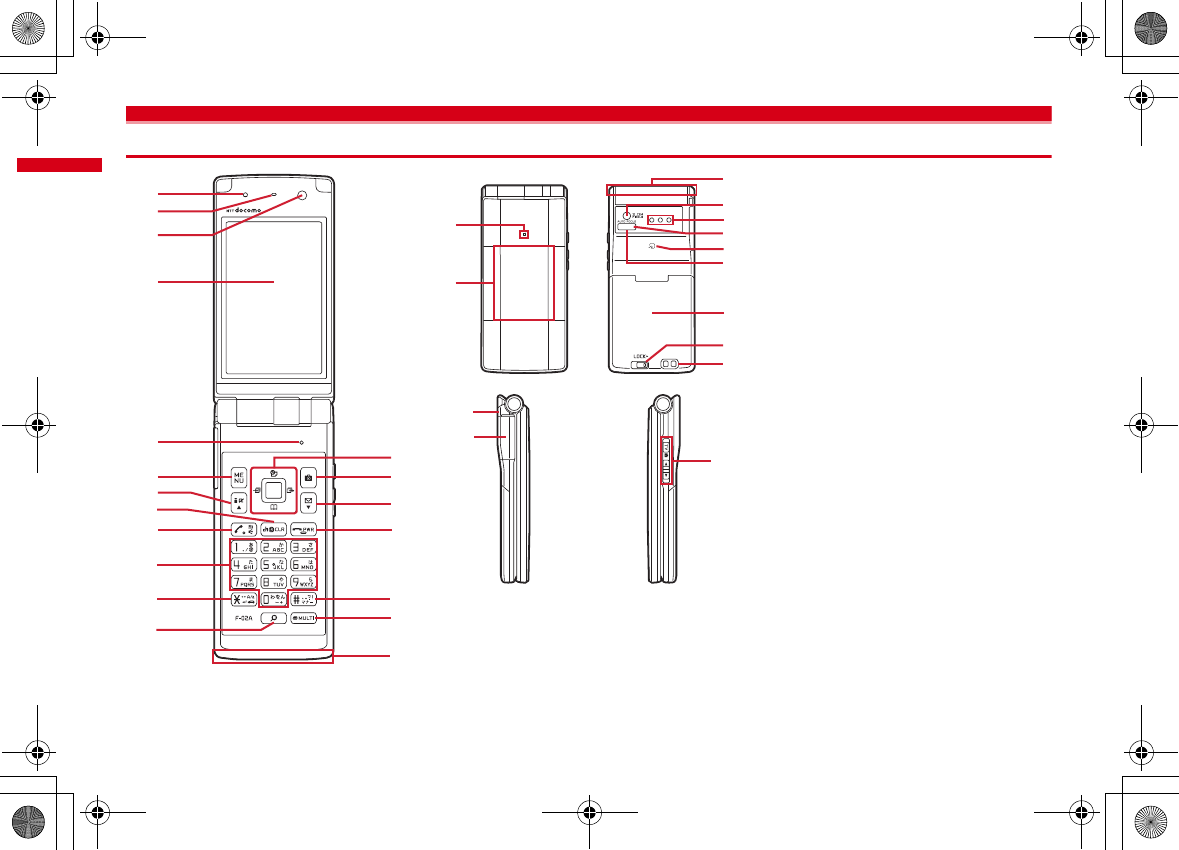

Part names and functions
<Functions of parts>
a
Light sensor
Sense the ambient luminance (automatic
adjustment of the brightness of the display).
*
Blocking the light sensor may disable correct adjustment
of the brightness.
b
Earpiece
Hear other party's voice from here.
c
In-camera
Shoot your own image, send your image via a
videophone call
d

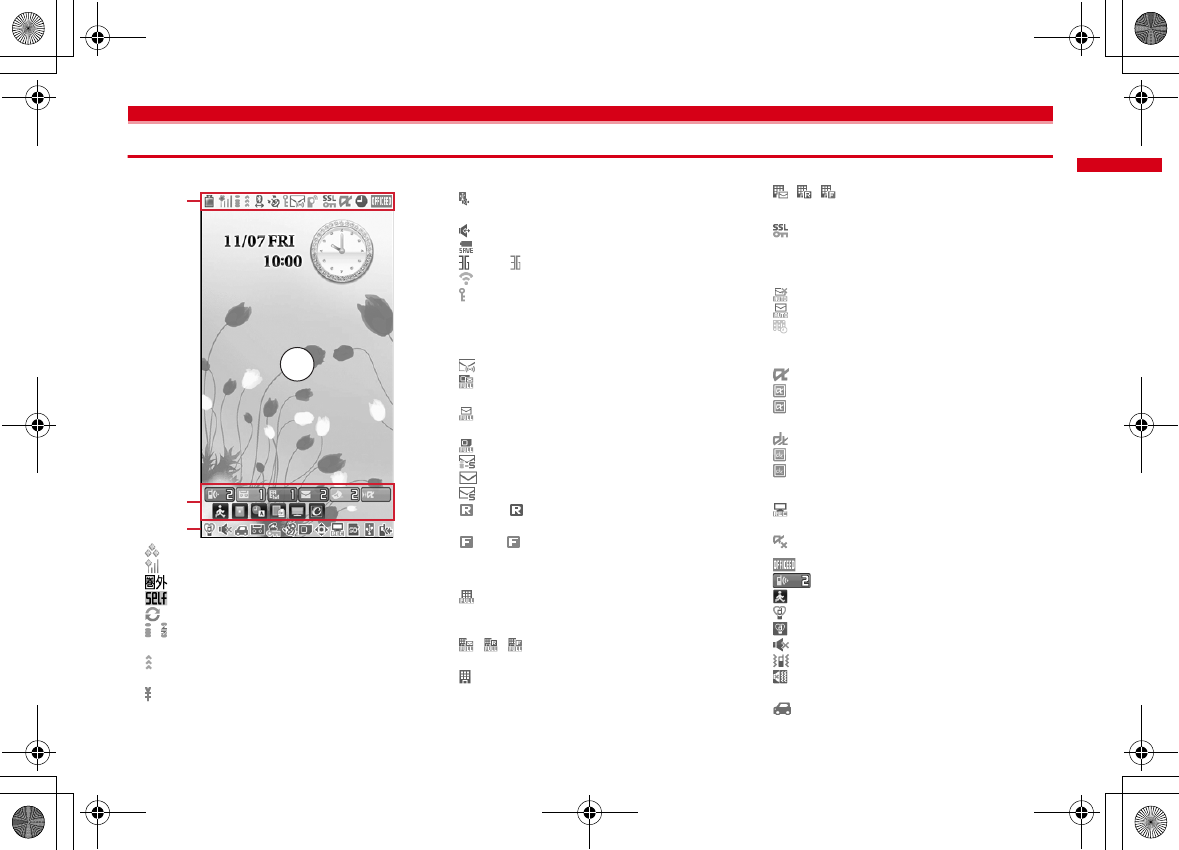

Display
→
P29
e
Microphone
Send your voice from here.
*
Do not cover with your finger while talking or recording
sound.
f
1Seg antenna
→
P205
*
The terminal has a built-in 1Seg antenna. For better signal
reception, do not cover the antenna with your hand.
g
Light
→
P95
Turn on or blink when activating Lock on close or
Auto keypad lock, shooting an image, recording a
movie, operating Music&Video Channel player or
MUSIC Player, and it operates according to the
settings of Indicator light or Light alert.
h
Sub-display
→
P32
i
FOMA Built-in antenna
*
The terminal has a built-in FOMA antenna. For better
voice quality, do not cover the antenna with your hand.
j
Out-camera
Shoot still images or movies, send images over a
videophone call.
k
Speaker
Hear ring alert or voice of the caller using the
speakerphone etc. from here.
d
a
b
c
g
a
b
c
d
f
e
e
f
h
j
k
l
i
m
h
g
q
i
j
n
k
m
l
p
o
n
s
r
F-02A.book Page 26 Friday, October 10, 2008 8:32 PM
27
Before Using the Handset
F-02A_E1kou
l
Shooting indication light
→
P67, 186
Camera light for videophone calls, still image
shooting or movie recording, or it turns on or blinks
for still image shooting or movie recording.
m
FeliCa mark
→
P256, 291
Installation of IC card
*
You can use Osaifu-Keitai by placing it over IC card
reader or send/receive data by iC transmission. The IC
card cannot be detached.
n
Infrared data port
→
P290, 294
Infrared communication, Infrared remote control.
o
Back cover
*
Remove the back cover, open the inner lid, and remove the
battery pack to access the microSD card slot.
→
P280
p
Back cover lever
→
P42
q
Charging jack
r
Strap opening
s
External connection jack
Connecting Earphone/Microphone with Switch
→
P316
<Functions of keys>
The functions available by pressing keys are as
below.
●
: Press
■
: Press for 1 second or more
am
MENU key
●
Display menus, perform the operation shown at
the upper left of the guide area.
■
Start/Cancel side key hold.
bI
i-mode/i-
α
ppli/
▲
(scroll)/Character
●
Display i-mode Menu.
●
Scroll upward the mail screen or site/website
display by pages.
●
Perform the operation shown in the lower-left
corner of the guide area, switch character entry
modes.
■
Display i-
α
ppli folder list.
cc
ch/
α
/Clear key
●
Display i-Channel list, switch i-
α
ppli stand-by
display and i-
α
ppli activation.
●
Delete characters or return to previous screen.
■
Start/Cancel Self mode.
dn
Start a voice call/ /Speakerphone/AF key
●
Make/Receive a voice call, return to the previous
character while entering characters.
●
Switching the speakerphone function, start/
cancel auto-focus.
■
Make a voice call using the speakerphone
function.
■
Restore the character string to its previous state.
e
Keypads
1
-
9
●
Enter phone numbers (1-9) or characters, select
menu/items.
■
Perform the function registered in Custom menu.
0
●
Enter phone number (0) or characters, select
menu/items.
■
Use Auto switch of Int'l call assist when making
international calls.
f*
＊
/A/a/Line feed/Public mode (Drive mode)
key
●
Enter "
＊
", "
゛
", "
゜
", etc., switch upper/lower
case.
●
Line feed while entering characters, select menu/
items.
●
Switch display/hide of guide area when shooting
a still image.
●
Switch horizontal and vertical displays while
playing movie/i-motion.
■
Start/Cancel Public mode (Drive mode).
gU
Search key
→
P297
●
Enter the target word, place or name and search.
h
Multi-cursor key
g
Enter key
●
Perform the operation, activate Focus mode.
■
Start i-
α
ppli registered for one-key shortcut.
u
Schedule/
↑
key
●
Display Scheduler.
●
Adjust volume, move the cursor upward.
■
Display alarm list
d
Phonebook/
↓
key
●
Display phonebook.
●
Adjust volume, move the cursor downward.
■
Add to the phonebook.
l
Received calls/
←
(previous) key
●
Display Received calls, switch displays, move the
cursor leftward.
■
Start/Cancel privacy mode when "Activate/
Deactivate" of Activation option is set to "Hold L-
cursor key".
r
Redial/
→
(next) key
●
Display Redial, switch displays, move the cursor
rightward.
■
Start/Cancel IC card lock.
*
May be described as
jhk
.
F-02A.book Page 27 Friday, October 10, 2008 8:32 PM
28 Before Using the Handset
F-02A_E1kou
iC
Camera key
●
Start still image shooting, perform the operation
shown at the upper right of the guide area.
■
Start movie recording.
ja
Mail/
▼
(scroll) key
●
Display mail menu, perform the operation shown
at the lower right of the guide area.
●
Scroll downward the mail screen or site/website
display by pages.
●
Press 2 times : Check new message
■
Display mail creation screen
kf
Power/End key
●
Terminate on-hold, calling/operating function,
display/hide calendar layout.
■
Press for 2 seconds or more : Turn power ON/
OFF.
l#
#/Macro shooting/Silent mode key
●
Enter "
＃
", "
、
", "
。
", "?", "!", "
・
", select menu/
items.
●
Turn Macro mode on or off while using the
camera.
■
Start/Cancel Silent mode.
ms
Multitask key
●
Perform another function while talking or
operating (Multiaccess/Multitask).
n
Side keys
T
TV key/Camera
●
Activate 1Seg.
●
When FOMA terminal is folded, start/stop
shooting/recording, save while Camera is
activated, display Multi information while
displaying a sub stand-by screen.
■
When FOMA terminal is folded, display Sub-
display menu.
S
●
Stop ring alert, alarm sound or vibrator.
●
Adjust volume, increase Listen volume during a
call.
●
Turn sub-display light on, switch display or select
menu item while FOMA terminal is folded.
■
Activate the quick answer machine while
receiving a call, activate/stop voice memo or
movie memo during a call.
■
With FOMA terminal folded, start/cancel Silent
mode
*
, with FOMA terminal opened, start
Ans.Machine&Voice memo on the stand-by
display.
D
●
Adjust volume, decrease Listen volume during a
call.
●
Turn sub-display light on, switch display, select
menu item or check arrival information with
FOMA terminal folded.
■
Check new messages
*
while FOMA terminal is
folded, mute while watching 1Seg or playing
video while the terminal is opened, check new
messages on the stand-by display.
*
The setting of Side key shortcut is the operation in the
default state.
F-02A.book Page 28 Friday, October 10, 2008 8:32 PM
29
Before Using the Handset
F-02A_E1kou

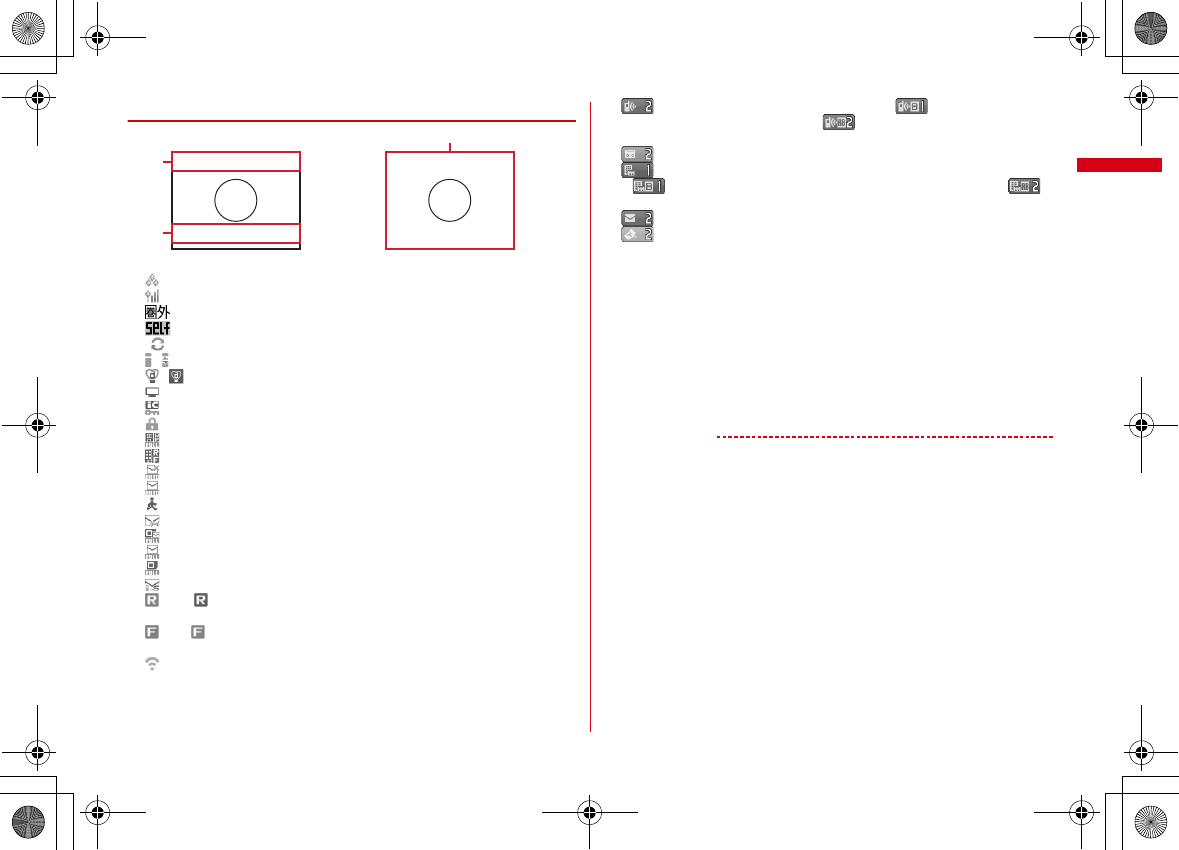

Viewing display
The current state can be checked by the icon appearing on the screen.
a
: Battery icon
→
P46
b
: Signal level icon
→
P47
: Out of service area
→
P47
: Self mode ON
→
P103
: Data transfer mode ON
*1
→
P109, 280, 290
c
/ : In i-mode (during i-mode connection)/(during
packet communication)
→
P160
d
: In infrared communication
→
P290
Infrared remote control in operation
→
P294
: The total calls cost exceeds the limit
→
P312
*2
e
: Communication using handsfree-compatible
device in progress
→
P60
: Speakerphone function in use
→
P53
: Power saving mode activated
→
P91
(blue)/ (red) : Network state
→
P342
f
: High-pitched alarm is set to "ON"
→
P300
g
: A phonebook entry or schedule has secret
attribute
→
P78, 305
*2
h
Unread Air Mail, unread mail, MessageR/F state
→
P129, 147, 149, 154
: Unread Area Mail
: Unread i-mode mail and SMS storage space is
full on UIM
: Unread i-mode mail and SMS storage space is
full
: SMS storage space is full on UIM
: Unread i-mode mail and SMS exist
: Unread i-mode mail exists
: Unread SMS exists
(red)/ (blue) : Unread MessageR storage
space is full or unread MessageR exists
(red)/ (green) : Unread MessageF storage
space is full or unread MessageF exists
*2
i
Storage state in i-mode Center
→
129, 147
: i-mode mail and MessageR/F storage are full or
one of these spaces is full and unreceived mails
exist in Data Center
/ / : i-mode mail or MessageR/F storage
space is full in Data Center
: Unreceived i-mode mail and MessageR/F exist
in Data Center
/ / : Unreceived i-mode mail, MessageR or
MessageF exists in Data Center
*2
j
: Displaying SSL page/Executing SSL session
with i-
α
ppli or using i-
α
ppli downloaded from SSL
page
→
P161
Displaying an SSL/TLS page
→
P180
: Mail failed to Auto-send exists
→
P128
: Auto-send mail exists
→
P128
: Music&Video Channel program obtaining
reservation exists
→
P219
k
i-
α
ppli/i-
α
ppliDX state
→
P233, 252
: During i-
α
ppli operation
(gray) : i-
α
ppli stand-by display ON
(orange) : i-
α
ppli is being started from the i-
α
ppli
stand-by display
: i-
α
ppliDX is running
(gray) : i-
α
ppliDX stand-by display ON
(orange) : i-
α
ppli is being started from the i-
α
ppliDX stand-by display
*3
l
: Performing 1Seg recording reservation/1Seg
recording (only watching stopped)
→
P211, 213
: i-
α
ppli Auto start failed
→
P251
*3
m
: Inside OFFICEED area
→
P337
n
: Arrival information
→
P37
: Shortcut icons
→
P305
o
: Silent mode ON
→
P84
: Personalized silent mode ON
→
P85
p
: Call alert volume is Silent
→
P82
: Vibrator for voice call ON
→
P82
: Call alert volume is Silent and vibrator for voice
call ON
→
P82
q
: In Public mode (Drive mode)
→
P63
n
a-m
o-z
仮
F-02A.book Page 29 Friday, October 10, 2008 8:32 PM
30 Before Using the Handset
F-02A_E1kou
r
/ : Answer machine ON/recorded messages
full
→
P64
*2
s
: Keypad dial lock ON
→
P105
: Side key hold ON
→
P110
*2
t
: Personal data lock ON
→
P104
/ : Music&Video Channel obtaining failure/
success
→
P219
/ : 1Seg recording reservation completed/
failed
→
P213
*2
u
: Reading UIM
→
P39, 47
(key is yellow) : IC card lock ON
→
P258
: Individual IC card lock
→
P258
v
/ : Displaying available multi-cursor key in
Focus mode
→
P37
: Lock on close/Auto keypad lock ON
→
P110
w
: Alarm clock ON
→
P299
: 1Seg watching/recording reservation, schedule
reminder ON
→
P212, 302
: Schedule reminder or 1Seg watching/recording
reservation and alarm clock are simultaneously
ON
→
P212, 299, 302
x
State of USB mode settings and microSD card
→
P280, 285
: microSD card installed during Communication
mode
(blue)/ (gray) : microSD card installed or not
during microSD mode
(blue)/ (gray) : microSD card installed or not
during MTP mode
*1
When data transfer mode is activated, the terminal is in the same state as out of service area and Multitask becomes unavailable.
*2
The current highest-priority item is displayed. These icons are listed in descending order of the priority from the top.
*3
Time appears on a screen other than the stand-by display.
✔
INFORMATION
･
Depending on the displayed function, an icon may be displayed at a different position, or some or all icons may not be displayed.
F-02A.book Page 30 Friday, October 10, 2008 8:32 PM
31
Before Using the Handset
F-02A_E1kou
◆

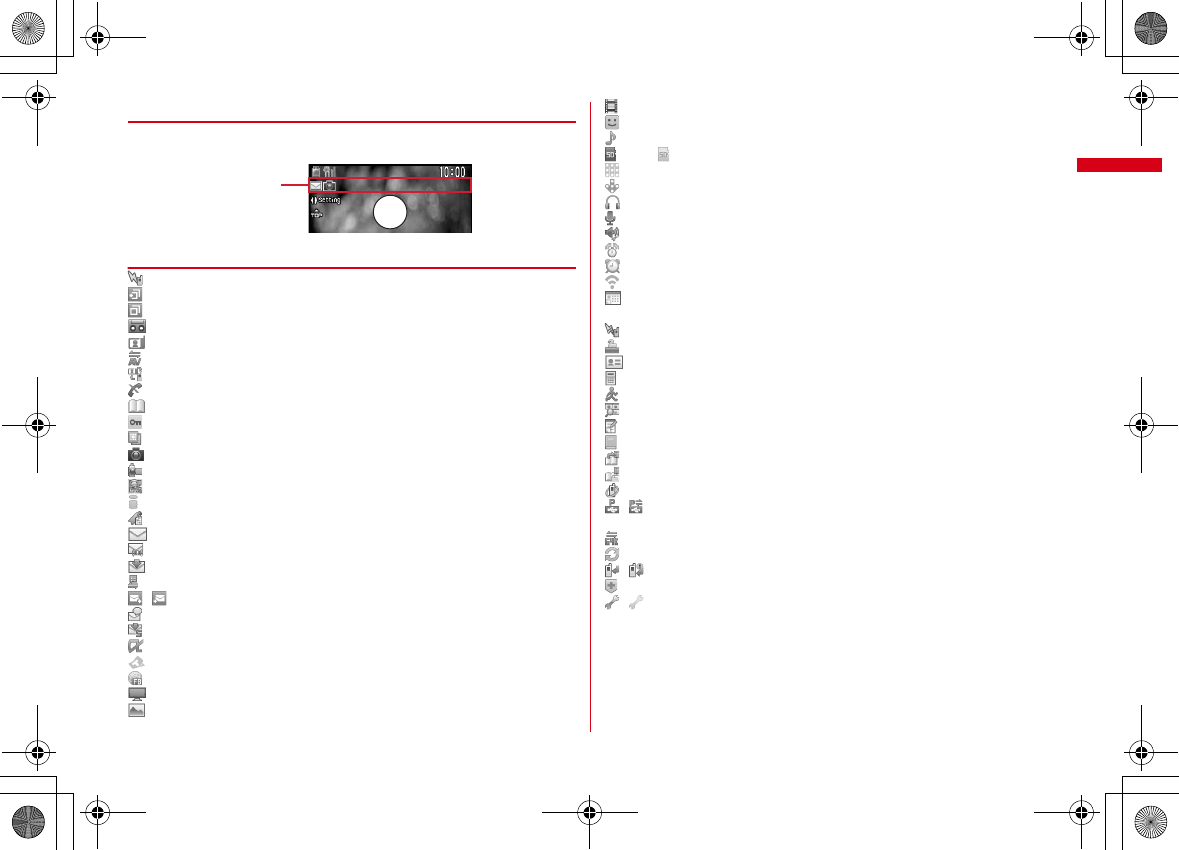

Task area
The icon indicating the function (task) in progress appears in the task area. During
Multiaccess or Multitasks, the icons show which functions are running.
❖
Icons indicated on the task area
: Voice call
: Received calls
: Redial
: Answer machine/Voice memo
: Videophone call
: Videophone using an external device
: Call (switching)
: Call (disconnecting)
: FOMA terminal phonebook
: Contact setting of Privacy mode
: Kisekae Tool
: Still camera
: Movie camera
: Bar code reader
: i-mode
: i-mode Bookmark/Go to location/Browser history/Screen memo/two-touch site
: Mail/MessageR/F
: Area Mail
: Receiving i-mode mail
: Inquiring for i-mode mail/SMS
/ : Sent msg log/Received msg log
: Chat mail
: Receiving SMS
: i-
α
ppli
: ToruCa
: Full Browser
: 1Seg
: My Picture
: Movie/i-motion
: Chara-den
: Melody
(blue)/ (gray) : Accessing microSD card/Standing by for accessing
: Activating Music&Video Channel
: Music&Video Channel program obtaining
: MUSIC Player
: Sound recorder
: Adjusting volume by Multitask
: Countdown timer
: Alarm clock
: High-pitched alarm
: Scheduler/Schedule reminder ringing (including activation notification of
1Seg)
: Fake call
: Toy's world
: User information
: Calculator
: Pedometer
: Search engine
: Notepad
: Dictionaries
: Accessing Data Center
: Displaying synchronization log
: Network services set
/ : Calling or communicating packets via USB/Sending or receiving packets
via USB
: 64K data communication
: Accessing external data
/ : Updating software/Software update notified
: Updating pattern definition/Displaying version
/ (gray) : Each function set or on hold
Task area
仮
F-02A.book Page 31 Friday, October 10, 2008 8:32 PM
Before Using the Handset
32
F-02A_E1kou
◆
Guide area
Operations that can be performed by pressing
m
,
I
,
g
,
C
and
a
are
displayed in the guide area. Displayed operations vary by the screen.
Display locations and keys correspond as shown in the figure.
･
on the guide area corresponds to multi-cursor keys
k
(It may be different
depending on the function you are using or how the site or website is made).
◆
List screen
a
When a list extends to multiple pages, the currently displayed page number and
the total number of pages appear.
b
Pressing the keypads corresponding to the item number or pressing the keys
below allows you to select an item.
:
*
:
S
:
#
:
D
:
T
c
indicates that there are items that can be selected above and below the cursor
position. Press
j
to move the cursor. When
d
is pressed on the last item of
the page, the next page appears, when
u
is pressed on the first item of the
page, the previous page appears.
indicates that there are items that can be selected over the multiple pages.
Press
h
to change the page. Some screens such as an icon selection screen
cannot be switched.
Sub-display/Light overview
With sub-display or light of FOMA terminal, various information or states can be
checked. Playing video recorded by 1Seg, shooting still images or recording
movies are also available.
◆
Displaying sub-display
When FOMA terminal is folded, the sub-display shows the stand-by display or
messages.
･
Folding FOMA terminal displays Open/Close animation. When the animation
stops, the sub-display light turns off. When Motion sensor is "ON", double-
tapping on the front or back side of FOMA terminal while the animation is
displayed also turns off the light.
･
When the sub-display light is turned off, pressing
T
turns on the light and the
sub stand-by screen appears. Animated arrival image appears when a missed call
or unread mail exists. When S-disp auto light on of Sub-display is set to "ON", the
light automatically turns on by picking up or tilting FOMA terminal.
･
When opening FOMA terminal with information displayed on the sub-display, the
information disappears.
･
In All lock, Omakase Lock or Side key hold, pressing
T
or
SD
shows a
message indicating the lock is set, and after a period of time, the sub stand-by
screen appears.
Guide area
a
c
b
F-02A.book Page 32 Friday, October 10, 2008 8:32 PM
33
Before Using the Handset
F-02A_E1kou
❖
Icons and states indicated on the sub stand-by screen
a
: Battery icon
b
: Signal level icon
: Out of service area
: Self mode ON
: In data transfer
c
/ : In i-mode communication (i-mode site)/(packet communication)
d
/ : Silent mode ON/Personalized silent mode ON
: During 1Seg recording reservation
e
: IC card lock ON
f
: Lock on close/Auto-keypad lock ON
g
: i-mode mail or MessageR/F storage space is full in Data Center
: i-mode mail or MessageR/F exists in Data Center
h
: Mail failed to Auto-send exists
: Auto-send mail exists
i
: Pedometer ON
j
: Unread Area Mail exists
: Unread i-mode mail or SMS is full, and SMS storage space is full in UIM
: Unread i-mode mail or SMS storage space is full
: SMS storage space is full in UIM
: Unread i-mode mail and SMS exist
(red)/ (blue) : Unread MessageR storage space is full or unread MessageR
exists
(red)/ (green) : Unread MessageF storage space is full or unread MessageF
exists
k
: High-pitched alarm is set to "ON"
l
: Missed calls exist (with 2in1 in Dual mode, appears when there is
a missed call only to Number B and appears when there are missed calls
to both Number A and B)
: Recorded messages exist
: Voice messages in Voice Mail service exist (with 2in1 in Dual mode,
appears when there is a voice message only to Number B and
appears when there are voice messages to both Number A and B)
: Unread mail exists
: Unread ToruCa exists
m
The states below are notified by message or image.
･
Status display of a voice call, videophone call (including Chaku-moji and voice
messages in Voice Mail service) and recorded message
･
While checking/receiving i-mode mail, SMS or Message R/F, or receiving Area
Mail
･
While watching /recording 1Seg, playing a melody, using Music&Video
Channel player, using Music player or using the microSD card
･
While alarm clock or schedule reminder (including activation notification of
1Seg) is sounding, Countdown timer is operating/sounding
･
Status display of packet communication, 64K communication, communication
via USB, infrared communication or iC transmission
✔
INFORMATION
･
Because of the characteristics of surface panel, sub-display may not be seen clearly at
places in the sunlight. In this case, check the display in the shade, or make a shadow
with your hand to check the display.
仮仮
l
m
Sub-display
State display (e.g. : While Alarm clock is emitting)
a-k
F-02A.book Page 33 Friday, October 10, 2008 8:32 PM
Before Using the Handset
34
F-02A_E1kou
❖
Displaying Multi information
Multi information enables you to quickly check the details and number of missed
calls, recorded messages, unread mail, unread MessageR/F or voice messages in
Voice Mail service, the number of steps in Pedometer, i-Channel ticker or calendar.
･
The applicable information does not appear when no missed call or unread mail
exists, Pedometer is set to "Not use", or you do not subscribe to i-Channel.
1
On the sub stand-by screen,
T
･
Each time you press
T
, the display switches in the order of the number of
unchecked information
→
pedometer information
→
i-Channel ticker
→
calendar
→
stand-by display.
Checking the number of arrival information :
D
･
Each time you press
D
, the number of items for each information is
displayed. Press
S
while checking the number to check details.
Switching calendar :
S
(previous month) or
D
(next month)
❖
Checking arrival information with vibration
1
On the sub stand-by screen,
D
･
The vibrator operates once when there is arrival information.
❖
Playing video or using camera on the sub-display
While playing video recorded by 1Seg, shooting a still image, recording a movie or
playing Toy's world with FOMA terminal folded, even after folding the terminal, you
can keep using the function on the sub-display and operate it with
T
or
SD
.
･
You can activate Still camera, Movie camera or Toy's world with FOMA terminal
folded.
❖
Selecting functions from the sub-display menu
Using the sub-display menu, you can use Silent mode ON/OFF, Check new
message, Start still camera, Start movie camera, MUSIC Player, Fake call or Mini-
game.
･
Side key shortcut is set by default.
<Example> Performing i-mode inquiry
1
On the sub stand-by screen,
T
(1 sec. or more)
e
Use
SD
to
move the cursor to "Check new message"
eT
･
When
T
is pressed (1 sec. or more) while the menu is displayed, the sub
stand-by screen reappears.
❖
Playing mini games
1
On the sub stand-by screen,
T
(1 sec. or more)
e
"Mini-game"
･
Pressing
T
(1 sec. or more) or
SD
also starts a game in some settings.
Exiting a game :
T
(1 sec. or more)
･
The game exits when FOMA terminal is opened or no operation is performed
for a certain period of time.
❖
Playing Toy's world
･
Playback is possible when Motion sensor is "ON" and Tap On is set.
1
Double-tap the side of FOMA terminal while the sub stand-by screen
is displayed
･
Playback ends after approximately 5 minutes. You can also end playback by
double-tapping the side of FOMA terminal during playback.
仮仮
E.g. : Arrival image E.g. : Pedometer
F-02A.book Page 34 Friday, October 10, 2008 8:32 PM

Navigation menu
