Thank you for purchasing "docomo PRIME series F-06B" mobile terminal.
Before using F-06B, read this manual to ensure safe use and handling.
Instruction manuals for F-06B
The operations of F-06B are described in this manual, "
使いかたガイド
(Guide)” (installed in FOMA terminal) and "Instruction manual (detailed version)"
(in pdf format).
･
In this "F-06B INSTRUCTION MANUAL", "F-06B" mobile terminal is usually referred to as "FOMA terminal".
･
The images or illustration used in this manual are examples. They may differ from the actual displays.
･
In this manual, "authenticate" indicates the operating procedure for entering the terminal security code in 4-8 digits (
⇒
P43) or performing fingerprint
authentication (
⇒
P45).
Basic package
･
Unauthorized copying of parts of or this entire manual is prohibited.
･
The contents in this manual, URL and contents are subject to change without prior notice.
Instruction manual (this
manual)
This manual provides information about screens and operations of basic functions.
*
is index term for "
使いかたガイド
(Guide)".
"
使いかたガイド
(Guide)"
(installed in FOMA terminal)
This guide provides overviews and operations of frequently-used functions. (In Japanese only)
In F-06B Stand-by display,
mef
LifeKit
e#
Guide
e
Select a search method
"Instruction manual
(detailed version)" (in pdf
format)
This manual provides detailed information and operations of all the functions. (In Japanese only)
(From a PC) This manual can be downloaded from NTT DOCOMO website.
http://www.nttdocomo.co.jp/support/trouble/manual/download/index.html
*
The URL and contents are subject to change without prior notice.
F-06B
(including
Back Cover F48
and warranty)

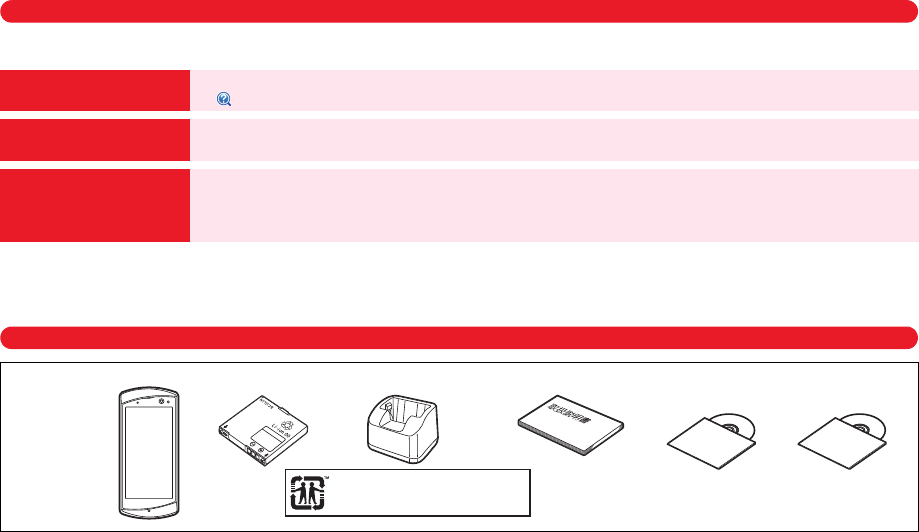

Compatible options
⇒
PXXX
Instruction manualCD-ROM
for F-06B
Battery Pack F16 Desktop Holder F30 Electronic dictionary
data DVD F01
Desktop Holder F30 is made of
recycled ABC from used products.
F-06B_EN_FCCF-06B_EN_FCCF-06B_EN_FCCF-06B_EN_FCC
1
Introduction
Basic
Operation
Connect
Search
Enjoy
More
Convenient
Others
Contents
Introduction
FOMA Terminal...............................................................
2
What you can do with F-06B .........................................
3
Part names and functions..............................................
4
Usage Styles ...................................................................
6
Precautions (ALWAYS FOLLOW THESE DIRECTIONS)
7
Handling precautions .....................................................
14
Waterproofness ..............................................................
18
Basic Operation
Before Using...................................
24
Screen Explanation........................
28
Character Entry ..............................
32
Sound/Screen Setting...................
36
Lock/Security .................................
44
Connect
Call Telephone................................
56
Mail..................................................
64
Phonebook......................................
67
Search
i-mode/Full Browser ......................
76
i-Channel .........................................
79
Map/GPS.........................................
80
Enjoy
Camera ............................................
86
1Seg.................................................
88
Music ...............................................
90
i-
α
ppli ..............................................
92
i-motion/Movie...............................
93
More convenient
Osaifu-Keitai ...................................
100
i-concier...........................................
101
Convenient tools ............................
102
Data management..........................
105
Others
Support ............................................................................
114
Appendix..........................................................................
124
INDEX...............................................................................
143
F-06B_EN_FCC
2
Introduction
FOMA Terminal
･
Because your FOMA terminal uses wireless transmission, it may
not function in locations where it is difficult for radio waves to
penetrate, such as tunnels, underground passages and some
buildings, in areas where radio waves are weak, or out of service
area. Even when you are high up in a tall building or condominium
and nothing blocks your view outside, your FOMA terminal may
not be able to receive or transmit signals. Also, communication
may be interrupted even when the signal meter on your FOMA
terminal indicates there are strong radio waves and you are not
moving (traveling).
･
Use your FOMA terminal in a way that does not disturb others in
public spaces, crowded locations or quiet places.
･
Because your FOMA terminal uses radio waves to communicate,
it is possible that a third party may attempt to tap your calls.
However, the W-CDMA, GSM/GPRS system automatically applies
a confidential communication function to all calls, so even if a third
party could somehow tap a call, they only hear noise.
･
Your FOMA terminal encodes voice communication as digital
data. When you are operating your FOMA terminal while moving
to a location subject to weaker radio wave conditions, the
transmitted digital data may not be correctly decoded and as a
result the decoded voice may differ somewhat from the actual
voice.
･
Maintain a separate record of the data (Phonebook, Schedule,
Note, Recorded messages, Voice memos, Moving picture memos,
etc.) you registered in your FOMA terminal. Note that DOCOMO
assumes no responsibility for any loss of saved contents of data
resulting from malfunction, repair, changing of the model or other
handling of FOMA terminal.
･
You are recommended to save important data to microSD card.
Using DOCOMO keitai datalink, you can transfer and save
phonebook, mail, schedule and other data to a PC.
･
The user hereby agrees that the user shall be solely responsible
for the result of the use of SSL/TLS.
Neither DOCOMO nor the certifier as listed herein makes any
representation and warranty as for the security in the use of SSL/
TLS. If the data should be erased, DOCOMO assumes no
responsibility for the loss of any data.
Certifier : VeriSign Japan K.K., Cybertrust Japan Co., Ltd.,
GlobalSign K.K., RSA Security Japan Ltd., SECOM Trust Systems
Co., Ltd., Comodo CA Ltd., Entrust, Inc.
･
This FOMA terminal supports FOMA Plus-Area and FOMA HIGH-
SPEED Area.
･
FOMA terminal can be used only via the FOMA network provided
by DOCOMO and DOCOMO's roaming area.
F-06B_EN_FCC
3
Introduction
What you can do with F-06B
AUTO-GPS
81
The AUTO-GPS function allows for useful
services that deliver information about the
weather or shops around where you are,
or sightseeing information.
使いかたガイド
(Guide)
Guide is useful for checking an operating
procedure of the function to use on FOMA
terminal. You can check it immediately
without Instruction manual at hand. (In
Japanese only)
i-concier
101
i-concier is a service to use FOMA terminal
conveniently in which a character on the
stand-by display (Machi-chara) notifies
you of useful information and schedules (i-
schedule) can be downloaded
automatically from a site.
International Roaming (WORLD WING)
62
While staying overseas, you can use the
same FOMA terminal, phone number and
mail address as those used in Japan (3G/
GSM Areas are supported).
Waterproofness
18
Waterproofness of IPX5 and IPX8 (which
exceeds IPX7) are provided by firmly
closing the external connection jack cap
and installing the back cover in a locked
state.
Full-fledged electronic dictionary
103
A full-fledged electronic dictionary function is
provided so that you can search collectively from
multiple dictionaries by a search key or
handwriting input. KOJI-EN Text version,
English-Japanese Dictionary for The General Reader, XXXXX are preinstalled in
FOMA terminal. You can copy various dictionaries such as KOJI-EN Multimedia
version, XXXX, XXXX etc. given in the attached electronic dictionary data DVD
to microSD card using a PC and bring it with you.
ｉコンシェルは
あなたの欲しい情報を
お届けします。
̌߭ߟߓߩߒߟߓߊࠎ ®
$WVNGT5JGGR̍
©066&1%1/1
F-06B_EN_FCC
4
Introduction
Part names and functions

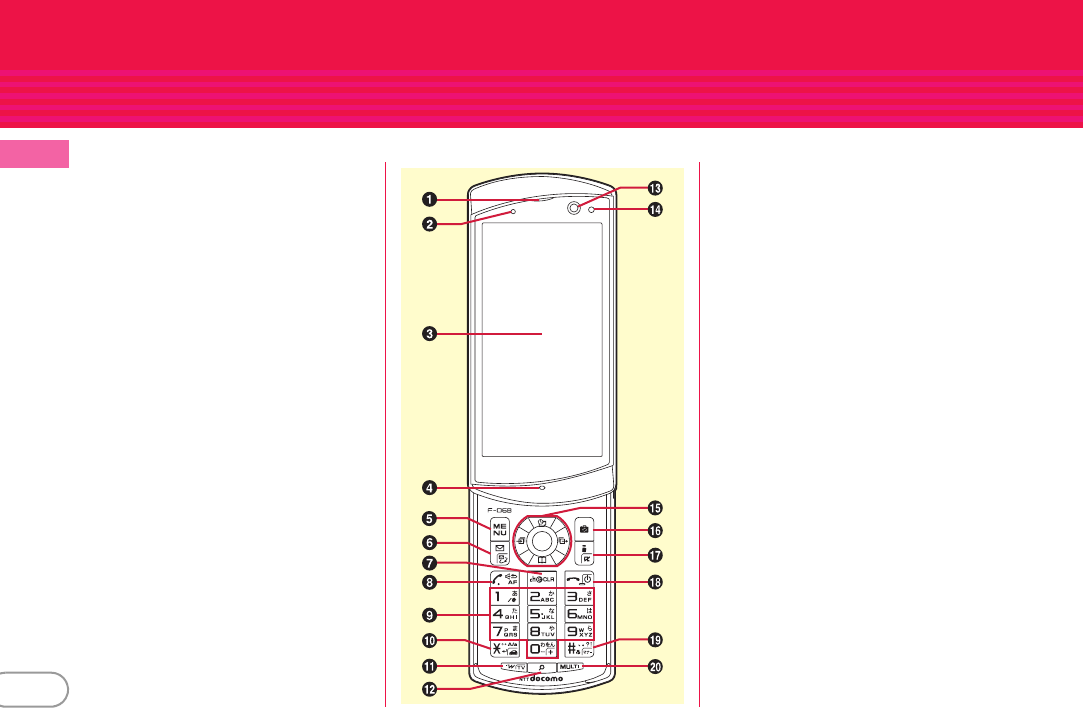

Part names of F-06B and major functions assigned to each part are as follows.
a
Earpiece
Hear other party's voice from here.
b
Indicator light
The light turns on and blinks when there is
an incoming call, receiving mail, or calling,
and it turns on while charging.
c
Display
⇒
P28, 31
d
Microphone
Send your voice from here.
em
MENU key
Display a menu.
fa
Mail/Character key
Display mail menu, or switch character
entry modes.
gc
ch/Clear key
Display i-Channel or return to the previous
screen.
hn
Start a voice call key
Start a voice call.
i0
-
9
Keypads
Enter phone number or characters, or
select an item.
j*
*/Public mode (Drive mode) key
Enter "*" or voiced/semi-voiced sound, or
start/cancel Public mode (Drive mode).
kT
i-Widget/TV key
Start/Exit i-Widget or start 1Seg.
lU
Search key
Start Quick search.
m
In-camera
Shoot yourself or send your image via
videophone call.
n
Light sensor
Sense the ambient luminance to
automatically adjust the brightness of the
display. Do not cover the sensor with your
hand or a sticker.
ok
Multi-cursor key
Move the cursor, or operate a menu.
g
:
Perform an operation.
u
:
Display Scheduler, or adjust the
volume.
d
:
Display Phonebook, or adjust the
volume.
l
:
Display Received calls.
r
:
Display Redial.
pC
Camera key
Start the still camera/movie camera.
qI
i-mode/i-
α
ppli key
Display i-mode menu or i-
α
ppli folder.
rf
Power/End key
Turn on/off FOMA terminal, or exit a
function.
s#
#/Silent mode key
Enter "#" or punctuation, or start/cancel
Silent mode.
F-06B_EN_FCC
5
Introduction
ts
Multitask key
Start/perform a different function.
u

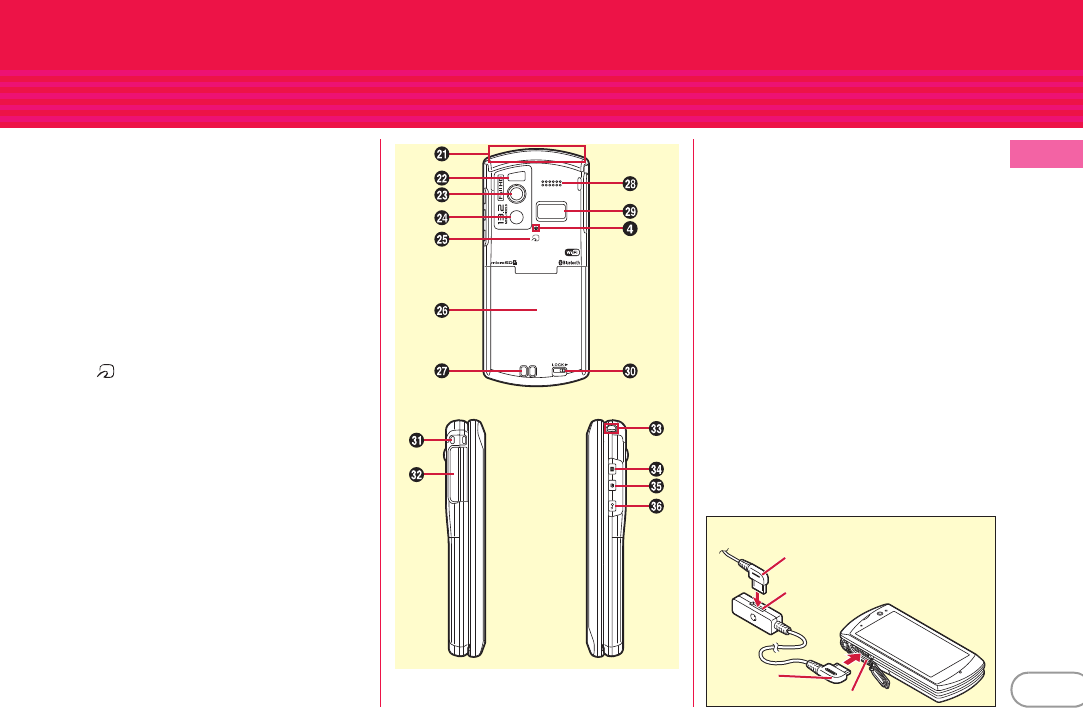

FOMA antenna (built into FOMA terminal)
For a call in better conditions, do not cover
the antenna with your hand.
v
Infrared data port
Use this port for infrared communication or
infrared remote control function.
w
Out-camera
Shoot still images or moving pictures.
x
Light
Use as a camera light.
y
Mark
Use Osaifu-Keitai or send/receive data by
iC transmission.
z
Back cover
*
To access the microSD card slot, remove the
back cover, open the inner cover, and then
remove the battery pack.
A
Charging jack
B
Speaker
Hear ring alert or voice of the caller using
the handsfree function.
C
Fingerprint sensor
Authenticate a fingerprint.
D
Back cover lever
*
Firmly install the back cover and lock it with
the lever before using to avoid water seepage
and dust ingress.
E
Strap opening
F
External connection jack
Available to connect an optional AC
adapter, DC adapter, FOMA USB Cable
with Charge Function, Earphone Plug
Adapter for External connector terminal
etc.
G
1Seg antenna
Pull out for better signal reception when
watching 1Seg.
HZ
Side camera key
Activate Still image shooting, record a
video during 1Seg watching, or stop ring
alert, alarm sounding or vibrator.
IN
Side multi key
Perform another function during a call or
activate/deactivate Manner mode.
Jz
Lock key
Activate/Deactivate Operation lock or
Privacy view, or activate High-pitched
alarm.
External connection jack
Plug for
the terminal
Flat-plug earphone jack
Connecting plug of Flat-Plug
Earphone/Microphone with Switch
Example of connecting Flat-Plug Earphone/
Microphone with Switch (optional)
F-06B_EN_FCC
6
Introduction

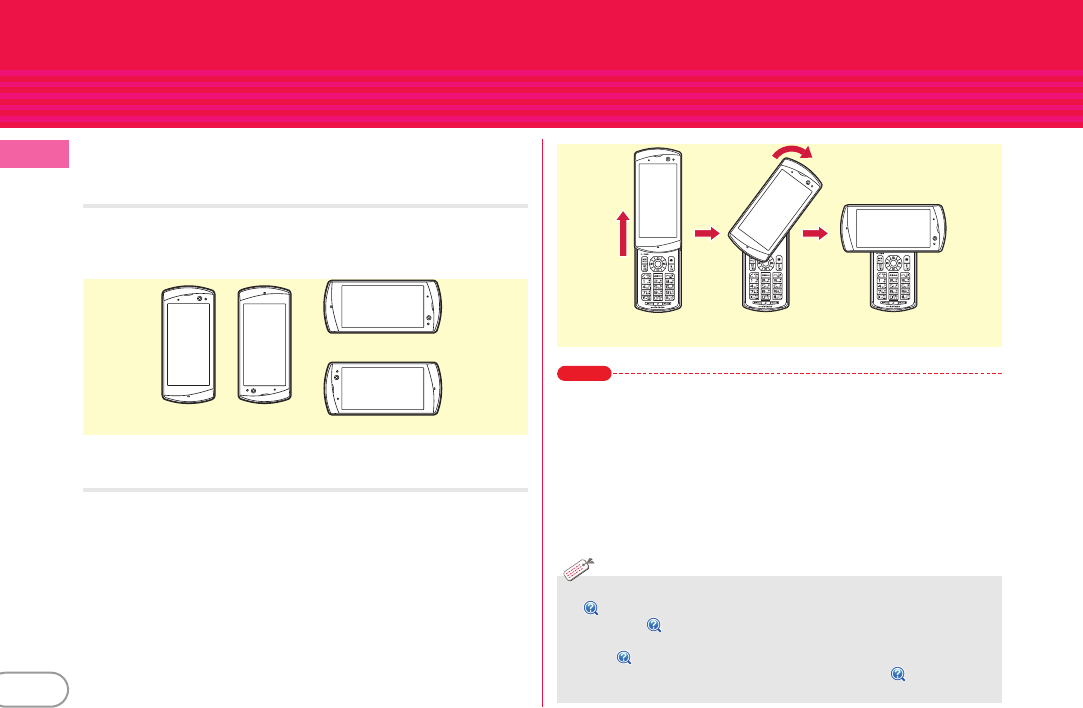

Usage Styles
You can use functions by key operation and touch operation on
FOMA terminal.
Basic style
Touch operation is available with FOMA terminal closed. With
auto-rotation function using motion sensor, the vertical/horizontal
display switches according to the tilt of FOMA terminal.
Slide style (Opened (vertical))/YOKO-MOTION (Opened
(horizontal))
It is touch operation and key operation supported style with FOMA
terminal opened.
To close FOMA terminal, rotate the display in the reverse direction
and slide it.
Point
･
When changing to slide style or YOKO-MOTION style, do not rotate the
display counterclockwise or by 90 degrees or more.
･
The sliding operation of FOMA terminal may be felt hard, but it is not
malfunction. When opening/closing or rotating, hold the display lightly
with your hand and move it until it clicks.
･
Before carrying FOMA terminal, activate Operation lock to prevent
inadvertent operations of the touch panel or to save battery power
consumption.
Basic style (vertical) Basic style (horizontal)
or
･
You can set to display editing screen of mail or note in slide style
【 スライド編集設定
(Slide and edit)
】
, or set functions to be activated
by swing
【 スイング設定
(Turn-display option)
】
.
･
You can answer a call by changing to slide style when receiving a voice
call,
【 着信中オープン応答
(Slide and answer)
】
or select to
disconnect/hold the call by changing to basic style
【 通話中クローズ
設定
(Close settings)
】
.
Slide style
(opened state (vertical))
YOKO-MOTION style
(opened state (horizontal))
Information
F-06B_EN_FCC
7
Introduction
Precautions (ALWAYS FOLLOW THESE DIRECTIONS)
・
Before using your FOMA terminal, or when necessary, read the
precautions below to ensure safe use and handling. After reading
this manual, keep it carefully.
・
These precautions are intended to protect you and others around
you. Read and follow them carefully to avoid injury, damage to the
product or damage to property.
・
The signs below differentiate between the levels of danger that can
occur if the product is not used within the specified guidelines.
・
The symbols below show specific directions.
■
Precautions contain the description below.
Handling FOMA terminal, battery pack, adapter, desktop holder and UIM
(common) .......................................................................................................... 8
Handling FOMA terminal...................................................................................... 9
Handling battery pack ......................................................................................... 11
Handling adapter and desktop holder ............................................................... 12
Handling UIM....................................................................................................... 13
Handling mobile phones near electronic medical equipment ........................ 13
DANGER
This sign denotes that death or serious
injury may directly result from improper use.
WARNING
This sign denotes that death or serious
injury may result from improper use.
CAUTION
This sign denotes that bodily injury or
damage to property may result from
improper use.
This symbol denotes that the action is prohibited.
This symbol denotes that disassembling the phone or its
components is not allowed.
Don’t
No disassembly
This symbol denotes that using the phone or its
components with wet hands is not allowed.
This symbol denotes that using the phone or its
components in a bathroom or other highly humid area is
not allowed.
This symbol denotes that an instruction must be obeyed at
all times.
This symbol denotes that the equipment should be
unplugged.
No wet hands
No liquids
Do
Unplug
F-06B_EN_FCC
8
Introduction
DANGER
Do not use, store, or leave the
equipment in hot areas such as near
flames or in areas under strong direct
sunlight such as inside a vehicle.
May cause the equipment to be deformed or
malfunction, and battery pack to leak, heat,
burst or ignite, and the capability or life to be
reduced or shortened. Overheating on parts
of the case may cause burns or injuries.
Do not disassemble or remodel the
equipment. Do not solder items onto
the equipment.
May cause fire, injuries, electric shock, or
malfunction. It may also cause the battery
pack to leak, heat, burst or ignite.
Do not let the equipment get wet.
Contact with water or other liquids can cause
heating, electric shock, fire, malfunctions or
injuries. Take care of the place for use and
treatment of the equipment.
Use the battery pack and adapter
specified by NTT DOCOMO for your
FOMA terminal.
Use of equipment not specified by DOCOMO
can cause FOMA terminal, battery pack and
other parts to leak, heat, burst, catch fire or
malfunction.
WARNING
Do not put the battery pack, FOMA
terminal, adapter or UIM in
microwave ovens or other heating
appliances or high-pressure
containers.
It may cause the battery pack to leak, heat,
burst or ignite, may cause FOMA terminal or
adapter to heat, smoke, ignite, or may
damage circuits.
Do not throw the equipment or give
hard shock to it.
May cause the battery pack to leak, heat, burst
or ignite, and the equipment to malfunction
or catch fire.
Keep conductive materials (metal
pieces, pencil lead, etc.) from coming
in contact with the charging jack or
external connection jack. Do not put
those materials inside the terminal.
May be subject to electrical short and could
cause fire or malfunction.
Turn FOMA terminal OFF before
entering a place such as a gas station
where flammable gases are
generated.
Do not charge the battery. The gas
may catch fire.
When using Osaifu-Keitai in a place as a gas
station, turn OFF the terminal before using it.
(When IC card lock is activated, deactivate it
before turning OFF the terminal.)
If the equipment starts giving off a
strange smell, overheats, becomes
discolored or deformed during use,
charging or in storage, immediately
perform the following operations.
1. Remove the power plug from the wall
outlet or cigarette lighter socket.
2. Turn FOMA terminal OFF.
3. Remove the battery pack from FOMA
terminal.
May cause the equipment to heat, burst or
ignite or the battery pack to leak if you keep
using the equipment.
CAUTION
Do not leave the equipment on
unstable or sloping surfaces.
May cause malfunction or injuries.
Do not store the equipment in
extremely humid, dusty or hot areas.
May cause malfunction.
Children using the equipment should
be instructed in proper operation by
an adult. Do not allow them to use the
equipment without adult supervision.
May cause injuries.
Store the equipment out of reach of
small children.
May be accidentally swallowed or cause
injuries.
Handling FOMA terminal,
battery pack, adapter, desktop
holder and UIM (common)
Don’t
No disassembly
No liquids
Do
Don’t
Don’t
Don’t
Do
Do
Don’t
Don’t
Do
Do
