user manual2
F-08B_EN_FCC
4
Introduction

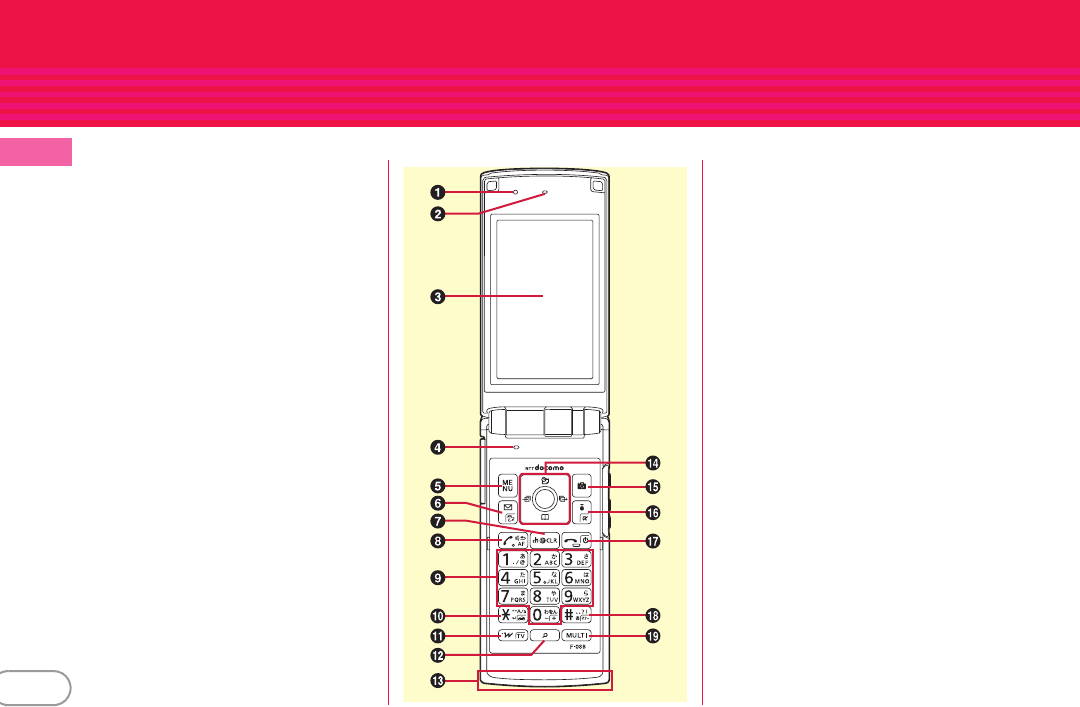

Part names and functions
Part names of F-08B and major functions assigned to each part are as follows.
a
Light sensor
Sense the ambient luminance to
automatically adjust the brightness of the
display. Do not cover the sensor with your
hand or a sticker.
b
Earpiece
c
Display
⇒
P6
d
Microphone
Do not cover the microphone during a call
or sound recording.
em
MENU key
Display a menu.
fa
Mail key/Character key
Display the mail menu and switch
character input mode.
gc
ch/Clear key
Display i-Channel or return to the previous
screen.
hn
Start a voice call key
i0
-
9
Keypads
Enter phone number or characters, or
select an item.
j*
*/Public mode (Drive mode) key
Enter "*" or voiced/semi-voiced sound, or
start/cancel Public mode (Drive mode).
kT
i-Widget/TV key
Start/Exit i-Widget or start 1Seg.
lU
Search key
Start Quick search.
m
1Seg antenna (built into FOMA terminal)
nK
Multi-cursor key
Move the cursor, or operate a menu.
g
:
Perform an operation.
u
:
Display Scheduler, or adjust the
volume.
d
:
Display Phonebook, or adjust the
volume.
l
:
Display Received calls.
r
:
Display Redial.
*
Operation in eight directions is available
depending on the functions.
oC
Camera key
Start the still camera/movie camera.
pI
i-mode/i-
α
ppli key
Display i-mode menu or i-
α
ppli folder.
qf
Power/End key
Turn on/off FOMA terminal, or exit a
function.
r#
#/Silent mode key
Enter "#" or punctuation, or start/cancel
Silent mode.
ss
Multitask key
Start/perform a different function.
t
Sub-display
⇒
P25
F-08B_EN_FCC
5
Introduction
u
Light (ekubo)
The light turns on or blinks when the
battery charges, etc.
v
Mark
Use Osaifu-Keitai or send/receive data by
iC transmission.
w
FOMA antenna (built into FOMA terminal)
Do not cover it with your hand.
x
Camera
Shoot still images or moving pictures.
y
Speaker
Hear ring alert or voice of the caller using
the handsfree function.
z
Infrared data port
Use this port for infrared communication or
infrared remote control function.
A
Back cover
*
To access the UIM slot and microSD card slot,
remove the back cover, open the inner lid and
remove the battery pack.
B
Charging jack
C
Back cover lever
*
Firmly install the back cover and lock it with
the lever before using to avoid water seepage.
D
Strap opening
E
External connection jack
Available to connect an optional AC
adapter, DC adapter, FOMA USB Cable
with Charge Function, Earphone Plug
Adapter for External connector terminal
etc.
F
Side keys
M
:
Use for operating MUSIC Player or
Music&Video Channel, or for shooting.
S
:
Stop the ring tone, alarm sound,
vibration, or adjust the volume, or scroll
Display source mail screen.
D
:
Adjust the volume, turn on the light on
the sub-display or switch the views, or
scroll Display source mail screen.
External connection jack
Plug for the terminal
Flat-plug earphone jack
Connecting plug of Flat-Plug
Earphone/Microphone with Switch
Example of connecting Flat-Plug Earphone/
Microphone with Switch (optional)
F-08B_EN_FCC
6
Introduction
Precautions (ALWAYS FOLLOW THESE DIRECTIONS)
・
Before using the FOMA terminal, or when necessary, read the
precautions below to ensure safe use and handling. After reading
this manual, keep it carefully.
・
These precautions are intended to protect you and others around
you. Read and follow them carefully to avoid injury, damage to the
product or damage to property.
・
The signs below differentiate between the levels of danger that can
occur if the product is not used within the specified guidelines.
・
The symbols below show specific directions.
■
Precautions contain the description below.
Handling FOMA terminal, battery pack, adapter desktop holder and UIM
(common)
............................................................................................................................7
Handling FOMA terminal ......................................................................................8
Handling battery pack ...........................................................................................9
Handling adapter and desktop holder ...............................................................10
Handling UIM .......................................................................................................11
Handling mobile phones near electronic medical equipment.........................11
DANGER
This sign denotes that death or serious
injury may directly result from improper use.
WARNING
This sign denotes that death or serious
injury may result from improper use.
CAUTION
This sign denotes that bodily injury or
damage to property may result from
improper use.
This symbol denotes that the action is prohibited.
This symbol denotes that disassembling the phone or its
components is not allowed.
Don’t
No disassembly
This symbol denotes that using the phone or its
components with wet hands is not allowed.
This symbol denotes that using the phone or its
components in a bathroom or other highly humid area is
not allowed.
This symbol denotes that an instruction must be obeyed at
all times.
This symbol denotes that the equipment should be
unplugged.
No wet hands
No liquids
Do
Unplug
F-08B_EN_FCC
7
Introduction
DANGER
Do not use, store, or leave the
equipment in hot areas such as near
flames or in areas under strong direct
sunlight such as inside a vehicle.
May cause fire, burns or injuries.
Do not disassemble or remodel the
equipment.
May cause fire, burns, injuries, electric shock.
Do not let the terminal get wet with
water, drinking water, urine of pet
animals, etc.
May cause fire, burns, injuries, electric shock.
Do not put the terminal into heating
cooking device such as microwave
oven or high-pressure container.
May cause fire, burns, injuries, electric shock.
Use the battery pack and adapter
specified by NTT DOCOMO for your
FOMA terminal.
May cause fire, burns, injuries, electric shock.
WARNING
Do not throw the equipment or give
hard shock to it.
May cause fire, burns, injuries, electric shock.
Keep conductive materials (metal
pieces, pencil lead, etc.) from coming
in contact with the charging jack or
external connection jack. Do not put
those materials inside the terminal.
May cause fire, burns, injuries, electric shock.
Turn FOMA terminal OFF and stop
charging before entering a place such
as a gas station where flammable
gases are generated.
The gas may catch fire.
When using Osaifu-Keitai in a place as a gas
station, turn OFF the terminal before using it.
(When IC card lock is activated, deactivate it
before turning OFF the terminal.)
If the equipment starts giving off a
strange smell, overheats, becomes
discolored or deformed during use,
charging or in storage, immediately
perform the following operations.
･
Remove the power plug from the wall
outlet or cigarette lighter socket.
･
Turn FOMA terminal OFF.
･
Remove the battery pack from FOMA
terminal.
May cause fire, burns, injuries, electric shock.
Do not cover or wrap the terminal
with a blanket, etc while using or
charging.
May cause fire or burns.
CAUTION
Do not leave the equipment on
unstable or sloping surfaces.
The terminal may fall and cause injuries.
Do not store the equipment in
extremely humid, dusty or hot areas.
May cause fire, burns, electric shock.
Children using the equipment should
be instructed in proper operation by
an adult. Do not allow them to use the
equipment without adult supervision.
May cause injuries.
Store the equipment out of reach of
small children.
May be accidentally swallowed or cause
injuries.
Handling FOMA terminal,
battery pack, adapter, desktop
holder and UIM (common)
Don’t
No disassembly
No liquids
Don’t
Do
Don’t
Don’t
Do
Do
Don’t
Don’t
Don’t
Do
Do
F-08B_EN_FCC
8
Introduction
Be careful especially when using
FOMA terminal connected to the
adapter continuously for a long time.
If you use i-
α
ppli, a videophone call or 1Seg
watching while charging the battery for a
long time, FOMA terminal, battery pack and
adapter may be heated.
Directly touching a hot part for a long time,
you may have redness, itching or rash on
your skin, or it may result in low-temperature
burns depending on your constitution and/or
health condition.
WARNING
Do not direct the infrared data port
toward your eye and transmit signals.
May cause harmful effect on eyes.
Do not direct the infrared data port
toward home electric applicances etc.
equipped with infrared device when
using infrared communcation.
May cause an accident because of
malfunction of infrared device.
Do not bring the light emitter close to
eyes and turn the light on.
May cause vision abnormality. May cause an
accident such as injuries because of being
dazzled or suprised.
Do not put foreign objects such as
liquid like water, metal pieces or
burnable things into UIM or microSD
card slot.
May cause fire, burns, injuries, electric shock.
Do not turn on the light aiming
directly at the driver of the car etc.
May disturb driving and cause an accident.
Turn FOMA terminal OFF in areas
where use is prohibited, such as in
airplanes and hospitals.
May cause electronic equipment or electronic
medical equipment to fail or malfunction. If
the function which automatically turns the
power ON is set, cancel the setting before
turning the power OFF.
When using the phone in a medical facility, be
sure to observe the regulations of the facility.
If you do prohibited act such as using the
phone in an airplane, you will be punished
according to law.
When you talk by setting handsfree or
ring alert is sounding, keep FOMA
terminal away from your ear.
And, when connecting the earphone/
microphone to FOMA terminal and
play a game or music, adjust the
volume moderately.
Too loud volume may cause a hearing loss.
And, if you cannot hear the sound around you
clearly, it may cause an accident.
If you have weak heart, be careful
when setting the Vibrate alert
(vibration) or alert volume setting.
May cause harmful effect on heart.
When you use electronic medical
equipment, check with the equipment
manufacturer to determine how the
device is affected by radio waves
before using.
May cause harmful effect on electronic
medical equipment etc.
Turn FOMA terminal OFF near high-
precision electronic control
equipment or electronic equipment
using low-power signals.
May cause the equipment to fail or
malfunction.
*
Examples of electronic equipment to avoid.
Hearing aids, implanted pacemakers or
defibrillators, other electronic medical equipment,
fire alarms, automatic doors and other automatic
control equipment.
Users wearing implanted pacemakers or
defibrillators or other electronic medical
equipment should check with the manufacturer or
sales outlet about the effect of radio frequencies
on the equipment.
Handling FOMA terminal
Do
Don’t
Don’t
Don’t
Don’t
Don’t
Do
Do
Do
Do
Do
F-08B_EN_FCC
9
Introduction
When the display or camera lens is
accidentally broken, be careful of
broken glass or exposed internal parts
of FOMA terminal.
Surfaces of display and camera lens are made
of plastic panels and they are structured for
the glass not to scatter, however, if you
mistakenly touch broken or exposed parts,
you may be injured.
To sound the high-pitched alarm,
always keep FOMA terminal away
from your ears.
May cause hearing defect.
CAUTION
Do not swing FOMA terminal by its
strap.
May cause accident such as injury to yourself
or others by hitting.
Do not use damaged FOMA terminal.
May cause fire, burns, injuries, electric shock.
When using the motion tracking or
motion sensor, check the safety
around you, hold FOMA terminal
firmly, and do not shake it
unnecessarily.
May cause accident such as injuries.
If the display part is accidentally
broken and liquid crystal leaks out, do
not make the liquid contact with your
skin of face or hands.
May cause loss of sight or skin problems.
If the liquid gets into your eyes or mouth,
rinse it with clean water and see a doctor
immediately.
And, if the liquid adheres to skin or clothing,
use alcohol etc. to wipe it off, then wash with
soap.
To use the terminal in car, check with
automobile manufacturer or dealer to
determine how the device is affected
by radio waves before using.
In rare cases, using the phone in some vehicle
models can cause the vehicle's electronic
equipment to malfunction. In that case, stop
using the terminal immediately.
Mobile phones can give some users
skin problems such as itching, allergic
reactions or rashes. If you develop skin
problems, stop using the phone
immediately, and see a doctor.
⇒
"Material list (P12)"
When opening or closing FOMA
terminal, take care not to have your
fingers or strap caught by the
terminal.
May cause accident such as injuries.
When watching the display, take a
certain distance from the display in a
fully bright place.
May reduce visual acuity.
■
Check that the battery type matches the
type displayed on the battery pack label.
DANGER
Do not connect a wire or other metal
objects to the jack. And, do not carry
or store FOMA terminal with objects
like a metal necklace.
May cause battery pack to ignite, burst, heat
or leak.
Check the orientation of battery pack
to install it to FOMA terminal, and do
not try to force the battery pack onto
FOMA terminal if you are having
trouble installing it.
May cause battery pack to ignite, burst, heat
or leak.
Do not throw the battery pack into the
fire.
May cause battery pack to ignite, burst, heat
or leak.
Do
Do
Don’t
Don’t
Don’t
Don’t
Do
Do
Do
Handling battery pack
Display Battery type
Li-ion 00 Li-ion battery
Do
Don’t
Don’t
Don’t
F-08B_EN_FCC
10
Introduction
Do not nail the battery pack, hit with
a hammer or step on it.
May cause battery pack to ignite, burst, heat
or leak.
If the battery pack's fluid contacts
eyes, immediately flush the eyes with
clean water and see a doctor right
away. Do not rub the eyes.
May cause loss of sight.
WARNING
If the battery pack seems to have
abnormalities such as deformation or
scratches due to falling, never use it.
May cause battery pack to ignite, burst, heat
or leak.
If the battery pack leaks or gives off a
strange smell, immediately remove it
from the vicinity of open flames.
The vapors from leaking battery pack fluid
may ignite or explode.
Be careful not to let your pet bite the
battery pack.
May cause battery pack to ignite, burst, heat
or leak.
CAUTION
Do not discard old battery packs
together with other garbage.
May cause igniting or environmental
destruction. Tape the terminals of old battery
packs to insulate them, and then bring them
into a sales outlet such as docomo Shop. If
your local municipality has a battery recycling
program, dispose of them as provided for.
Do not use or charge a wet battery
pack.
May cause battery pack to ignite, burst, heat
or leak.
If fluid leaks out from battery pack, do
not make the fluid contact with your
skin of face or hands.
May cause loss of sight or skin problems.
If the fluid put into your eyes or mouth, or
contacts skin or clothes, immediately flush
the contacted area with clean water.
If the fluid put into the eyes or mouth,
immediately see a doctor after flushing.
WARNING
Do not use the adapter cord if it gets
damaged.
May cause fire, burns, electric shock.
Do not use the AC adapter or desktop
holder in a bathroom or other highly
humid area.
May cause fire, burns, electric shock.
Always use the DC adapter with a
negative-ground vehicle. Do not plug
it into a positive-ground vehicle.
May cause fire, burns, electric shock.
When it starts to thunder, do not
touch adapter.
May cause electric shock.
Do not short the charging jack while it
is connected to the outlet or cigarette
lighter socket. Do not touch the
charging jack with a part of your body
such as your hand or finger.
May cause fire, burns, electric shock.
Do not place heavy objects on the
adapter cord.
May cause fire, burns, electric shock.
When you insert and remove AC
adapter from power outlet, do not
contact a metal strap or other metal
objects with the jack.
May cause fire, burns, electric shock.
Do not touch the adapter cord or
outlet with wet hands.
May cause fire, burns, electric shock.
Don’t
Do
Don’t
Do
Do
Handling adapter and desktop
holder
Don’t
Don’t
Do
Don’t
Don’t
Don’t
Don’t
Don’t
Don’t
Don’t
No wet hands
F-08B_EN_FCC
11
Introduction
Only use with the specified power
source and voltage.
When cahrging FOMA terminal
overseas, use AC Adapter for global
use.
If incorrect voltage is used, this may cause
fire, burns or electric shock.
AC adapter : AC100V
DC adapter : 12 or 24V DC (specific for
negative ground vehicle)
AC adapter for global use : Between 100V and
240V AC (Connect to the AC outlet for
internal household use)
If the DC adapter's fuse blows, replace
it only with the specified fuse.
Failure to do so may cause fire, burns, electric
shock. For the specified fuse, see the
instructions that come with the DC adapter.
Wipe off any dust that accumulates on
the power plug.
Failure to do so may cause fire, burns, electric
shock.
When you connect the AC adapter to
an outlet, do not fail to properly
connect to the outlet.
May cause fire, burns, electric shock.
When you disconnect the adapter
from the outlet or cigarette lighter
socket, do not pull the adapter cord
with excessive force. Instead, hold the
power plug to disconnect.
May cause fire, burns, electric shock.
Always remove the power plug from
the outlet or cigarette lighter when
not using the adapter for an extended
period.
Failure to do so may cause fire, burns, electric
shock.
Immediately remove the power plug
from the outlet or cigarette lighter
socket if water or other fluids get into
the adapter.
May cause fire, burns, electric shock.
Always remove the power plug from
the outlet or cigarette lighter socket
when cleaning the equipment.
Failure to do so may cause fire, burns, electric
shock.
CAUTION
Be careful of the cut surface when
removing UIM.
May cause injuries.
■
These precautions are based on the
guidelines produced at the Electromagnetic
Compatibility Conference Japan, regarding
the protection of electronic medical
equipment from radio waves emitted by
mobile phone units.
WARNING
Obey the following rules inside
medical facilities.
･
Do not bring FOMA terminal into operating
rooms (ORs), intensive care units (ICUs) or
coronary care units (CCUs).
･
Turn FOMA terminal OFF in hospital wards.
･
Turn FOMA terminal OFF in hospital
lobbies and corridors if electronic medical
equipment could be nearby.
･
If the medical facility has specified zones
where use or possession of mobile devices
is prohibited, obey those instructions.
･
If the function to automatically turn ON the
power is set, cancel the setting before
turning the power OFF.
Turn FOMA terminal OFF in crowded
trains or other public places where
pacemaker or defibrillator wearers
could be nearby.
FOMA terminal's signals may affect the
operation of implanted pacemakers or
defibrillators, and other devices.
Do
Do
Do
Do
Do
Handling UIM
Unplug
Unplug
Unplug
Do
Handling mobile phones near
electronic medical equipment
Do
Do
F-08B_EN_FCC
12
Introduction
Wearers of implanted pacemakers or
defibrillators must carry and use
FOMA terminal at least 22 cm away
from the implanted device.
FOMA terminal's signals may affect the
operation of implanted pacemakers or
defibrillators, and other devices.
When electronic medical equipment
other than implanted pacemakers or
defibrillators are in use outside of
medical facilities (such as in home care
settings), check with the device
manufacturer to determine how the
device is affected by electrical signals.
FOMA terminal's signals may affect the
performance of electronic medical
equipment.
Material list
Part Material Surface treatment
Charging jack SUS Gold plating
External
connection jack
Tinning
Movable back
panel
Paint
Screw SWCH16 Zinc plating
Battery pack
connector jack
Beryllium
copper
Gold plating
Nameplate attach
place
PC board
Do
Do
F-08B_EN_FCC
13
Introduction
Handling precautions
・
Keep water away from the FOMA terminal.
- Waterproofness of IPX5 and IPX8 (which exceeds IPX7) are provided on FOMA
terminal by firmly closing the external connection jack cap and installing the
back cover in a locked state. However it is not completely waterproofed. Do not
attach/remove the battery pack in the rain or with waterdrop attached, or do not
open/close the external connection jack cap or back cover. Water seepage may
cause corrode of inside or malfunction. Accessories and optional devices are not
waterproof. Malfunctions deemed to be caused by water are not covered by the
warranty. Since these conditions are outside the scope of the warranty, a repair,
if at all possible, is charged.
・
Clean FOMA terminal with a dry soft cloth (such as a cloth for eyeglasses).
- Rubbing it roughly with a dry cloth may scratch the display.
- Drops of water or dirt left on the display may cause stains.
- If FOMA terminal is wiped with alcohol, paint thinner, benzine or detergent, the
printing may disappear or color may fade.
・
Clean the jack occasionally with a dry cotton swab etc.
- If the jack is soiled, connection gets worse and it may cause power to be turned
off or insufficient battery charge, so clean the jack with a dry cotton swab etc.
Also, be careful never to damage the jack when cleaning it.
・
Do not place FOMA terminal near an air-conditioner outlet.
- The rapid change in temperature may cause condensation, causing internal
corrosion and malfunction.
・
When using, be careful not to subject excessive force to FOMA terminal or the
battery.
- If FOMA terminal is crammed into a brimming bag or placed in a pocket and sat
on, display, internal PCBs or battery pack may be damaged or malfunction. And,
if external devices are plugged into the external connection jack (earphone/
microphone jack), the breakage of the connector or malfunction may result.
・
Carefully read the separate instructions that come with FOMA terminal and
adapter.
・
Do not rub or scrape the display with a metal piece etc.
- It may scratch the display, causing malfunction or damage.
・
Avoid extreme temperature.
- Use FOMA terminal where the temperature ranges between 5 and 40
℃
(for more
than 36
℃
, temporary use in bathroom etc. only) and humidity ranges between
45 and 85%.
・
FOMA terminal may affect land-line phones, TVs or radios in use nearby, so use
it as far as possible from these appliances.
・
Maintain a separate record of the data you saved in your FOMA terminal.
- If the data is deleted, DOCOMO assumes no responsibility for the loss of any
data.
・
Do not drop FOMA terminal or subject it to shocks.
- May cause malfunction or damage.
・
Do not plug external devices into the external connection jack (earphone/
microphone jack) at a slant, or do not pull it forcibly while it is plugged.
- May cause malfunction or damage.
・
Do not close FOMA terminal with the strap etc. held inside.
- May cause malfunction or damage.
・
It is normal for FOMA terminal to become warm during use or charging.
Continue to use it.
・
Do not leave FOMA terminal with the camera in areas under strong direct
sunlight.
- May cause discoloring or burn-in of materials.
・
FOMA terminal should normally be used with the external connection jack cap
closed.
- Dust and/or water brought into FOMA terminal cause troubles.
・
Do not use FOMA terminal with the back cover removed.
- It may cause the battery to come off, or may cause a malfunction or damage.
・
Do not put extremely thick stickers on the display or the key side.
- May cause malfunction or damage.
・
While microSD card is being used, do not take the card out and do not turn off
FOMA terminal.
- May cause data loss or malfunction.
General FOMA terminal
F-08B_EN_FCC
14
Introduction
・
Do not bring magnetic cards etc. close to FOMA terminal or clip it with the
terminal.
- Magnetic data in cash cards, credit cards, telephone cards, floppy disks, etc. may
be erased.
・
Do not bring magnetized objects close to FOMA terminal.
- Bringing strong magnetism close may cause a malfunction.
・
The battery pack is a consumable part.
- Replace the battery pack if FOMA terminal has extremely short operation time
on a full charge, though it may vary by operating conditions. Purchase a new
battery pack of the specified type.
・
Charge the battery in an area within the proper ambient temperature range (5-
35
℃
).
・
The operation time provided by the battery pack varies by the operating
environment and battery pack's deterioration.
・
The battery pack may swell out as it comes to near the end of its lifetime
depending on the usage conditions, but it is not a problem.
・
Be careful especially about the following points when preserving or leaving the
battery pack for a long time.
- Keeping under the state of the full charge (right after charging ends)
- Keeping under the state of the empty charge (too exhausted to turn on FOMA
terminal)
They may cause the battery pack performance to be degraded or its lifetime to be
shortened.
For necessary battery level to keep for a long time, the display of battery icon is a
state of approximately 2 or 3 cells.
・
Charge the battery in an area within the proper ambient temperature range (5-
35
℃
).
・
Do not charge the battery in the areas below.
- In areas of excessive humidity, dust or vibrations
- Near land-line phones or TVs/radios
・
It is normal for the adapter to become hot while charging. Continue to use it.
・
When using the DC adapter for charging, keep the vehicle engine running.
- The vehicle's battery could become flat.
・
When using an outlet with a mechanism preventing unplugging, follow the
handling instructions for that outlet.
・
Do not give strong shock. Do not deform the charging jack.
- May cause malfunction.
・
Do not use excessive force to install/remove UIM.
・
Note that DOCOMO assumes no responsibility for malfunctions occurring as the
result of inserting and using a UIM with another IC card reader/writer.
・
Always keep UIM ICs clean.
・
Clean UIM with a soft, dry cloth (such as a cloth for eyeglasses).
・
Maintain a separate record of the data you saved in UIM.
- If the data is deleted, DOCOMO assumes no responsibility for the loss of any
data.
・
To preserve the environment, bring the old UIM to a sales outlet such as
docomo Shop.
・
Take care not to scratch, touch accidentally or short IC.
- May cause data loss or malfunction.
・
Do not drop UIM or subject it to shocks.
- May cause malfunction.
・
Do not bend UIM or place heavy objects on it.
- May cause malfunction.
・
Do not install UIM into FOMA terminal with a label or sticker put on UIM.
- May cause malfunction.
Battery pack
Adapter
UIM
