4 IN 1 WALLMOUNT ENTERTAINMENT SYSTEM
WITH DVD/CD/USB/BLUETOOTH/AM/FM/WEATHERBAND
DV1200 Instruction Manual
DV 1200
30
1
!
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated dangerous voltage
within the products enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert user to
the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
CLASS 1 LASER PRODUCT
Laser product symbol: located on the rear panel of the unit, indicate this player is a class
laser product, only use weak laser and no hazardous radiation outside of the unit.
1.Read through this instruction manual before installation and use.
2.Do not touch the power plug with wet hand.
3.Switch off the main power when the unit is not in use. (Disconnect the power plug from
the power outlet when you do not intend to use the unit for a prolonged period of time.)
Before moving the unit, remove the disc from the unit/ tray first.
4.Do not open the cover or touch any of the components exposed out of the unit, only for
qualified technicians.
5.Do not expose the unit under direct sunlight or nearby objects that radiate heat to avoid
damage the unit.
6.Do not place the unit in moist and humid conditions, which effect the pick-up of the unit
lead to out of work.
7.Place the unit on a flat surface and ventilative condition. Please ensure the ventilation
holes are not covered to avoid overheating and malfunction.
8.Clear the panel and case with soft dry cloth only, do not apply any kind of thinner,
alcohol or sprays.
9.The apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus .
WARNING: TO REDUCE THE
RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.
PRECAUTION
2
29
Contents
1. Before Operation...........................................................................................3
1.1 Feature................................................................................................. 3
1.2 Precautions............................................................................................3
1.3 Maintenance and Cleaning of Discs..........................................................4
1.4 Battery Information of the Remote Control.................................................4
1.5 The Remote Control Description...............................................................5
1.6 Locations and Names of the Controls.........................................................6

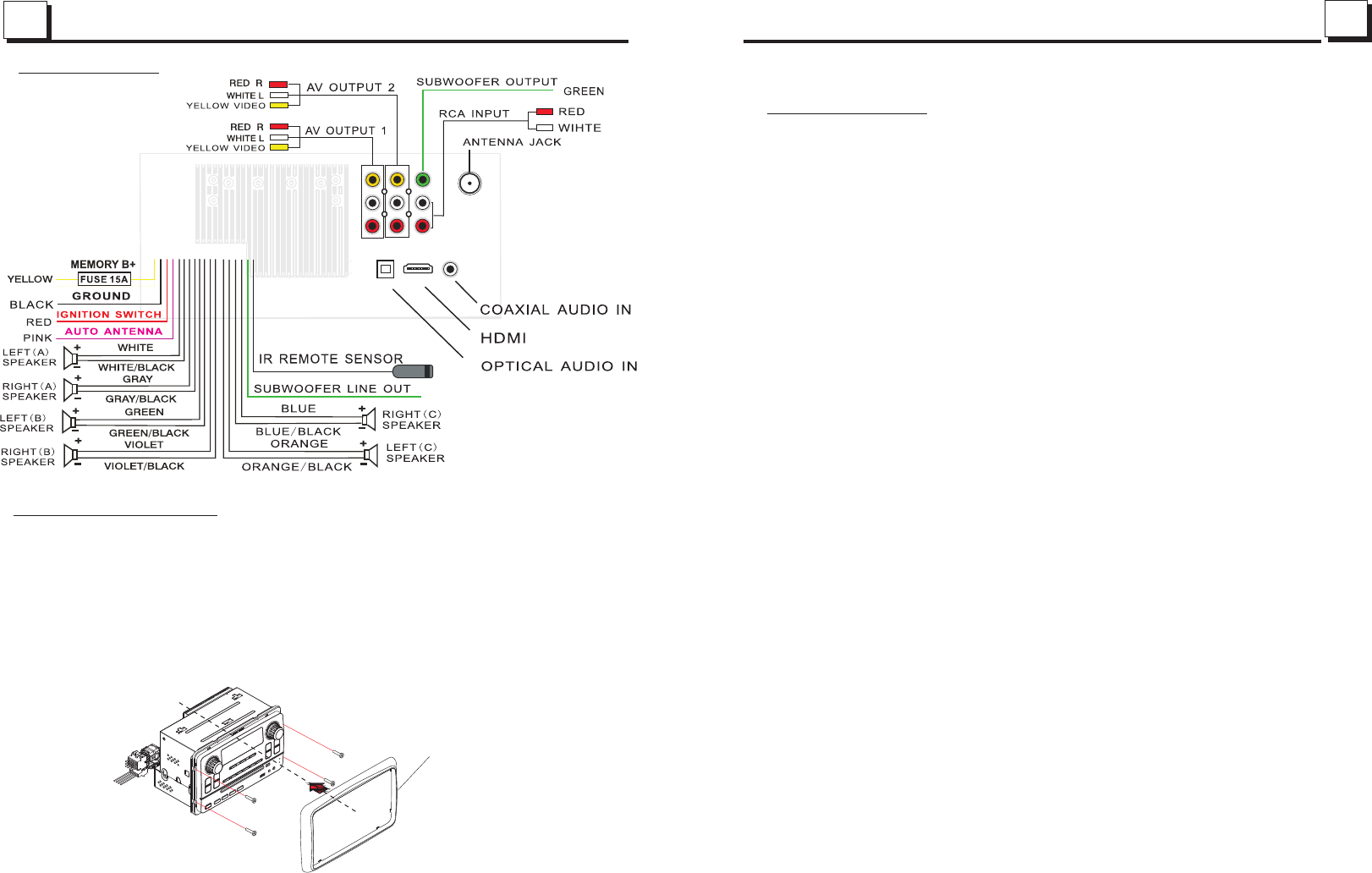

1.7 Wiring Diagram............................................... ........................................7
1.8 Mouting Installation..................................................................................7
2. Common Operation.......................................................................................8
3. Radio Operation..........................................................................................10
4. Basic Disc, USB Operation...........................................................................12
4.1 Begin Playback......................................................................................12
4.2 Pause Playback.....................................................................................13
4.3 Stop Playback .......................................................................................13
4.4 Select Chapter/Track with the the >>|/|<< Buttons.....................................13
4.5 Select Chapter/Track with the Number Buttons.........................................13
4.6 Select Chapter/Track with the Root/PBC Menu.........................................13
4.7 Terminate the Playback..........................................................................14
5. Advanced Disc, USB Operation....................................................................14
5.1 Playback with Speed..............................................................................14
5.2 Playback with Slow Speed......................................................................14
5.3 Playback with Still Frame ........................................................................15
5.4 Playback Repeatedly.............................................................................15
5.4.1 One/All Repeat...................................................................................15
5.4.2 A-B Repeat.........................................................................................15
5.5 Playback from a specified Chapter/Track or a Specified Time....................16
5.6 Playback in Random..............................................................................16
5.7 Playback in Different Angle.....................................................................16
5.8 Playback in Zoom Mode.........................................................................16
5.9 Change the Caption Language...............................................................17
5.10 Change the Audio Language.................................................................17
5.11 Look over the Playback Status..... ..........................................................17
5.12 Program Playback................... .............................................................18
5.13 Playback the Picture CD in JPEG Format................................................18
5.14 Mp4 OPERATION................................................................................19
5.15 ESP and ID3 Function..........................................................................19
5.16 USB Operation .....................................................................................19
5.17 The DVD System Menu Setup Operation................................................19
5.18 The Parental Control............................................................................23
5.19 The Region Code.................................................................................24
6. Bluetooth Handfree System..........................................................................25
7. The Trouble Shooting...................................................................................27
8. Specification...............................................................................................28
328
8. Specification
General Specification
Power Supply Requirement..................................................DC 12V
Maximum Power Output...................6 x 25W(measured at DC 14.4 V)
Maximum Sub woofer Power Output.....................................1 x 50W
Dimensions(w x h x d)...........................................281 x 173 x 175mm
DVD Deck Specification
Format.....................................DVD/VCD/JPEG/MP4/MP3/WMA/CD
Video System....................NTSC/PAL/PAL-M/PAL-N/AUTO(optional)
Audio System..............................................................24 bit/96KHz
Loading System.......................................................... Auto Loading
Mounting Angle.................................................................0 to +/-30
Video Specification
Video Type...................................................................16:9 and 4:3
Video Output level......................................Composite:1.0± 0.2Vp-p
Load impedance: 75 ohms
Horizontal Resolution................................................................600
Audio Specification
+0
Audio Output(Analog audio)..........................................2.0 -1.0Vrms
Frequency Response.............................20Hz ~ 20KHz(at 1KHz 0 dB)
S/N Ratio(Audio).............................................≥90dB(at 1KHz 0 dB)
Radio Specification
FM Section
Usable sensitivity......................................................................3uV
I.F Frequency....................................................................10.7MHz
AM Section
Frequency.......................................................530KHz - 1710KHz(US)
522KHz - 1620KHz(EU)
Frequency range...........................................87.5MHz - 107.9MHz(US)
87.5MHz -108.0MHz(EU)
1.Before Operation
Thank you for purchasing a Furrion Product, we hope you will enjoy using our
product. For maximum enjoyment please look through the following manual
to learn about all the features of your Furrion Stereo.
1.1 Features:
Digital AM / FM Tuner with Weather band (WB)
DVD/CD-R/RW/MP3/MP4/WMA Compatible
Auxiliary inputs on front and rear
USB input with charging function*
3 Zone output with built in Subwoofer output in Zone A
Backlit controls with Sleep Tight light function
Clock/Alarm Clock
1 x HDMI output for HD viewing
2 x RCA Audio/Video outputs for connecting 2 additional Tvs
Coaxial and Optical Audio input connections on the rear of the unit
*not all products can be charged from the unit.
1.2 Precautions
Ensure to connect this product to a 12V DC negative ground battery system
which is standard in North America and European Vehicles.
Ensure when installing the Stereo all wire ends which are not being used are
terminated with a insulated end to avoid wires shorting or earthing which
can lead to the risk of fire or electrical shock.
Avoid inserting foreign objects into the disk loading slot of the Stereo as this
will cause malfunction.
Do not expose this product in moist or wet environments, if condensation is
present in the screen, wait for 1 hour or more for the moisture to evaporate
If the interior of the vehicle is extremely hot, do not use the player until the
vehicle internal temperature has cooled down.
Do not use cleaning products on the front face of the product, only use a
slightly damp cloth for cleaning.
Do Not attempt to disassemble or adjust this product, contact a service cente
for assistance
4
27
7. The Trouble Shooting
Please read the user s manual carefully before using the DVD player. If you have any problems
with this product please refer to the bellow Trouble shooting guide to help you resolve the issue.
NO PICTURE, SOUND AND INDICATION
* Ensure that the power switch is on.
* Ensure that the wall inlet is ok.
* Ensure that the power cord is not damaged or the fuse is not blown.
* Ensure that the power plug is connected to the inlet tightly.
NO SOUND BUT PICTURE OK
* Ensure that the player s audio output has a good connection with TV s audio input.
* Check whether the audio connector is damaged.
* Check whether you have turned down the volume.
* Ensure that you have set the right AUDIO setup of the player.
* Ensure that the audio is not under mute.
NO PICTURE BUT SOUND OK
* Ensure that the player s video output has a good connection with TV s video input.
* Ensure that you have turned your TV to the AV input channel connecting to your player.
* Check whether the video connector is damaged.
* Ensure that you have set the right VIDEO settings of the player.
BLACK AND WHITE PICTURE OR SCREEN ROLLING
* Ensure that you have set the right TV SYSTEM (e.g. PAL, NTSC) setting.
FLAWS OF PICTURE OR SOUND
* Check whether the setting of AUDIO is right.
* Check whether the disc is scratched or stained.
* Check whether the AV connector and the output terminal is stained.
* Check whether there is condensation inside the Lens. If so, leave the player off for an hour
or so, then try again.
* Check whether the installation angle is less than 30.
DISPLAY NO DISC OR BAD DISC
* Ensure that you have put the disc on the tray.
* Check whether the disc is put in the reverse side.
* Check whether the disc is distorted.
* Check whether the disc is stained or scratched badly.
* Ensure that the disc format is compatible to the player.
* Ensure that the temperature inside the car is not too high. If so, cool off until the ambient
temperature returns to normal.
* Replace another disc to insert it into the disc compartment.
REMOTE CONTROL IS INSENSITIVE OR DOES NOT WORK
* Check the batteries of remote control and make sure that they are not flat.
* Direct the remote control to the IR sensor of the player.
* Check whether there are some obstacles between the remote control and IR sensor.
SOME FUNCTION BUTTONS DO NOT WORK
* Turn off the power, then turn on again.
* Reset the unit to zero, then turn on again.
* Remove the front panel from the unit, then install it again and then turn on again.
THE RADIO DOES NOT WORK
* Check whether the antenna cable is connected firmly. Or manually tune for a station.
1.3 Maintenance and Cleaning of Discs
Disc Maintenance
1. To keep the disc clean, handle the disc by its edge, do not touch the disc
surface of the play side.
2. Do not stick paper or tape on the disc. If there is glue (or analog) on the
disc surface, must wipe it up before using.
3. Do not expose the disc to direct sunlight, or nearby heat sources such as
caliduct, or leave it in a car parked in direct sunlight where there can be a
considerable rise in temperature.
4. Put the disc inside disc case to keep temperature after finishing playback.
Disc Cleaning
1. Before playing, wipe the disc with a clean lint. wipe the disc outwards from
the disc center.
2.
.
Do not use petrol, thinners, commercially available cleaners or anti-static
sprays for plastic LP's to wipe discs
1.4 Battery Information of the Remote Control
Replace Battery in the Remote Control:
1.Before using the remote control for the first time, pull the insulating
sheet out of the remote control as the direction indicated by the
arrow.(see fig.1)
2.Press the movable block hold as the direction indicated by the A arrow
(See fig.2), then pull the battery holder out of the remote control as
the direction indicated by the B arrow(see fig.2).
3.Replace the old battery by a new battery with (+) polarity side upward.
(See fig.3).
4.Insert the battery holder to the original position in remote control.
(See fig.3).
Note about the Battery of the Remote Control:
1.Improper use of battery may cause overheating or explosion. so that
Result in injury or fire .
2.Battery leakage may cause damage to the remote control(Battery
Life: 6 months with normal use in normal room temperature).
3.Do not short the battery.
4.Do not throw the battery into the fire.
5.To avoid the risk of accident, keep the battery out of reach of children.
Fig.1 Fig.2 Fig.3
A
B
+ side up
526
4.3 To redial the last phone number dialled
(1) Short press TEL button ,it will show last phone number on LCD, then it will
execute the dialling
(2) Short press REDIAL button, It will dial the last phone number.
5. Accept/Reject/End Call
5.1 Incoming call Ringing, short press TEL button to accept the call
5.2 To reject incoming call, short press HANG UP button to reject the call
5.3 During a phone call, short press HANG UP button to end the call
Note: When a incoming call is present the caller’s phone number will be displayed
on the screen.
6. Dialling or receiving call when the unit is in standby (while your phone is paired)
When the Stereo is in sleep mode (Acc on and standby), to execute a dialling
(with mobile phone) or recieving a call, the car audio will temporarily wake up.
7. To play a AUDIO le from a external bluetooth device (mobile phone) on the Wall
mount Stereo
After the device has been paired sucessfully and the Wall mount Stereo screen displays
LINK OK.
If your mobile device supports A2DP you will then we able to stream music from
your Blue Tooth device so it can be played by the stereo speaker.
You must select on your mobile blue tooth device to play the audio through bluetooth.
If your mobile device supports AVRCP then you will be able to control the basic phone audio
output functions by the Wall mount Stereo controls. Eg. Play Pause.
1.5 The Remote Control Description
16. SEARCH BUTTON
17. RDM BUTTON
18. RPT BUTTON
19. SUBTITLE/REDIAL BUTTON
20. TITLE/PBC BUTTON
21.ST/ANGEL/# BUTTON
22. ZOOM BUTTON
23. AUDIO BUTTON
24. CLOCK BUTTON
25. A-B BUTTON
26. EQ BUTTON
27. COAXIAL BUTTON
28. LOC/SLOW-FWD/* BUTTON
29. DVD/USB MODE BUTTON
30. STOP BUTTON
31. VOLUME- BUTTON
32. < BUTTON
33. OK BUTTON
34. VOLUME+ BUTTON
35. AUX MODE BUTTON
36. PROG BUTTON
37. OSD BUTTON
38. MUTE/LOUD BUTTON
39. STEP /TEL BUTTON
40. TA BUTTON
41. AF BUTTON
1. AV IN BUTTON
2. OPTICAL BUTTON
3. POWER BUTTON
4. ^ BUTTON
5. >>| BUTTON
6. > BUTTON
7. |<</CLEAR BUTTON
8. v BUTTON
9. SEL BUTTON
10. PLAY/PAUSE BUTTON
11. NUMBER(0~10,+10
-10) BUTTONS
12. 10+/PTY BUTTON
13. SETUP BUTTON
14. AM/FM WB BUTTON
15. APS/Hang Up BUTTON
1
2
3
4
5
6
7
98
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
40
41
39
36
37 38
6
25
6. BLUE TOOTH HANDFREE SYSTEM
1. Pairing and connection
1) Turn on the Bluetooth mode of the mobile phone;
2) Select the item of Finding the Bluetooth Device and enter it. After finishing the finding,
it will show the name of the Bluetooth Device if finding a Bluetooth Device. Select it
and enter it, then it will show a interface that ask you to input a password, input the
password 0000 and then enter it. Then it will tell you pair OK.
3) For some mobile phones, they can automatically connect with the BT device of the
car audio system after pairing is ok; for some mobile phones, they need to select the
paired BT device and press the CONNECTION button . When connection is ok, the
LCD of the car audio system will show LINK OK.
2. Use the mobile phone to do connection or disconnection
In the connection status, find the paired and connected Bluetooth Device, then press
the disconnection button to do disconnection.
In the disconnection status, find the paired and disconnected Bluetooth Device, then
press the connection button to do connection.
3. In the connection status: Mobile phone transfers to the car audio whenever a dialling
takes place; Mobile phone transfers to the car audio whenever receiving a call.
4. Dialling when in connection status
4.1 Dial with the mobile phone directly.
4.2 Dial with remote control with the following procedures:
(1) Input telephone number with number buttons 0-9
* Short press CLEAR button to cancel the wrongly input number if necessary
(2) Short press TEL to execute the dialling.
1.6 Locations and Names of the Controls
1. POWER BUTTON
2. DVD/USB MODE BUTTON
3. AM/FM MODE BUTTON
4. AUX MODE BUTTON
5. BT MODE /BACKLIGHT BUTTON
6. 1/2/3 BUTTON
7. 4/RPT BUTTON
8. 5/RDM BUTTON
9. 6/TITLE BUTTON
10. USB SOCKET
11. AV IN SOCKET
12. HEADPHONE SOCKET
13.MICROPHONE
14.RESET BUTTON
15. EJECT BUTTON
16. HANG UP/ST BUTTON
17. ALARM ON OFF BUTTON
18. SLEEP SET BUTTON
19. TEL /LOC BUTTON
20. >>|/|<< KNOB
21. VOL KNOB/SEL BUTTON
22. INDICATOR LIGHT
23. SPEAKER SELECTION BUTTON
24. LCD DISPLAY
25. MUTE/LOUD BUTTON
26.>|| PLAY/PAUSE BUTTON
27.EQ BUTTON
28.STOP BUTTON
29. DISC SLOT
30. SUBWOORER VOLUME ADJUSTER
23
22 24
127
28
2
345
6
789
10
11 12
13
14
15
16
17
18
19
20
21
25
26
29
SW ADJ
724
5.19 The Region Code
Q: No DVD playback. Screen displays REGION ERROR after inserting disc into
disc compartment. Why ?
A: Because the DVD player and disc have different region codes. If they do not
match, the DVD player cannot play the disc.
Appendix: The region code of DVD:
The Motion Picture Association of Amereca (MPAA) divided the world into 6
regions, and named every region a code, namely region code. The region codes
and the countries or areas represented by the region codes are as follows:
Region 1: America, Canada, East-Pacific Inlands;
Region 2: Japan, West Europe, North Europe, Egypt, South Africa, Middle East;
Region 3: South-east Asian countries include Taiwan, Hong Kong, South Corea,
Thailand, indonesia, etc.;
Region 4: Australia, New Zealand, Central South America, South Pacific Inlands;
Region 5: Russia, Mongolia, Indian Peninsula, Middle Asia, East Europe, North
Corea, North Africa, North-west Asia etc.;
Region 6: China mainland.
1.7 Wiring Diagram
1.8 Mounting Installation
Choose a mounting location away from humid areas, water sources, appliances or any
equipment that can radiate heat.
Select an area on a wall or cabinet which is free from cable, fuel or brake lines and ensure
the area behind the wall mount stereo has a vent hole or if it is an enclosed box and has
adaquate room around the rear of the unit for cooling.
Ensure when the stereo is mounted in the cut out that the wires at the rear of the unit are not
pressed against the heat sink.
Where possible leave around 1 to 2 inches of space inside the cabinet around the sides and
rear of the stereo housing tohelp with airow and ventilation.
PLASTIC FRAME
23 8
2. Common Operation
1.Turning On and Off the unit
By pressing the power button will turn on or enter standby mode
Sleep Tight function
By holding the power button for 5 seconds while the unit is in standby mode will enable
Sleep Tight mode, this is were all illumination on the front panel will turn off on the unit.
2.Selecting a Source:
DVD / USB - once a DVD or USB is inserted into the unit, the unit will automatically switch
to display this source menu. Press this function button to select DVD if a disk is already
installed and the unit is playing from another source.
AM/FM/WB - by pressing this button will scroll through the FM1, FM2, FM3, AM1, AM2,
WB (weather band). To switch this units AM/FM reciever between USA and Europe
frequencies press and hold the AM/FM button for 10 seconds untill the region is displayed
on the screen.
AUX-this button allows you to scroll through the AUX inputs fitted to the strereo
COAXIAL input - connection on the rear of the stereo
AUX input - connection on the rear of the unit, (normally used to connect TV sound input)
AV IN - connection on front of unit to connect a external audio source
OPTICAL - connection is on the rear of the unit
BLUETOOTH / DIMMER - by pressing this button will enable bluetooth connection, if the
button is held in forover 2 seconds it will then dim the face illumination by 1 of the 3 stages
each time pressed.
3.Volume Adjust
Rotate the volume knob clockwise to increase volume, rotate anticlockwise to reduce volume.
4. Mute
Press MUTE button to mute what ever source is playing and display mute on the screen.
Press the mute button again to release unit from mute.
5. Clock and Alarm Set
1) To display the clock on the LCD display, press Clock botton on the remote control
2) To Adjust or set the clock, press and hold the Clock Set button on the front of the
unit or hold the Clock button on the remote control until the clock set feature is
displayed on the LCD display of the stereo then use the volume knob on the unit
or + and - buttons on the remote control to adjust the time, push in the volume knob
on the stereo or press the SEL button on the remote control to change from setting
hours to minutes. Once time is set the stereo will automatically set after a few second
of not pressing any functions.
3) To set the Alarm Clock the Stereo must be in AM/FM mode when the Alarm Set
buttois held in. The alarm clock is set in the same way as above for the clock set.
Once the alarm clock is set, you will see the ALARM light illuminated under the LCD
display.
Press the alarm on /off button to turn on or cancel the alarm setting.
5.18 The Parental Control
Q:After inserting DVD disc into disc compartment, a dialogue window will appear
asking for a password of 4 digits. Why ?
A:This is because that the disc movie you are playing was rated with the Parental
Control, and the current rating level of DVD player is lower than one of current
disc. You must input right password and enter it to entry Parental Control setup
menu and then set a equal or higher rating level than one of current disc. So that
you can playback the disc.
! NOTE
* If you have not changed the password, the factory preset password for the DVD
player will be empty. So that you should input a desired password and input it
again to verify it to enter the Parental Control setup menu.
* For the rating level setup of Parental Control of the DVD player, please refer to
the relative content of LOCK setup menu for details.
Accessories: Parental Control
The Parental Control function of a DVD player can control the playback of movie
rated level in a disc. Can set the DVD player(include software player in PC) to be a
certain rating level with SETUP MENU on TV screen.If the rating level set in the
disc is higher than one set in the DVD player, the DVD player can not playback the
disc. Sometimes the Parental Control sequences in some discs are different from
each other. The rating level setup can be protected by the password. Therein, if you
select Unlock item, the Parental Control function will be invalid, the content of disc
will be played totally.
The disc movie can be designed as that the DVD player will playback the different
version of content of a same movie according to the different rating level set by
Parental Control. Depend on the DVD feature of seamless switching described above,
the scenes that are not fitting for children will be cleared or replaced by the other
fitting scene automatically.
All rating levels of Parental Control are as follows:
Unlock
1 Kid Safe
2 G
3 PG
4 PG 13
5 PG R
6 R
7 NC 17
8 Adult
922
6. To select a preset EQ mode
Press the EQ button to select the preset music equalizer curves: MOVIE,
MUSIC, CLASSIC, CONCERT .The sound effect will be changed.
7. To turn on/off LOUD mode
Press and hold LOUD button on the front panel to turn on/off LOUD
mode.
8.To adjust the sound equalizer curves
To adjust the sound equalizer curves, briefly and repeatedly press the SEL
button to select the sound equalizer curves of VOL, BAS(without preset EQ),
TRE (without preset EQ), BAL, FAD,BEEP(ON/OFF), then rotate the VOL knob
on the front panel or press the + or - button to adjust level.
9.To preset the unit to sleep mode
Press the SLEEP SET button to select the time you want to make the unit go
sleep mode in. There are four modes for select.
00: The sleep mode off
15: The NDICATOR light SLEEP will be lighted, The unit will go to sleep mode
in 15 minutes
30: The INDICATOR light SLEEP will be lighted, The unit will go to sleep mode
in 30 minutes
60: The INDICATOR light SLEEP will be lighted, The unit will go to sleep mode
in 60 minutes
NOTE: Only the ALARM ON mode is selected, the above preset function
can effect.
10.To preset the unit from sleep mode to turning on
Press and hold the SLEEP SET to pop up the preset clock interface. adjust the
time you want the unit to turn on in.
NOTE: Only the ALARM ON mode is selected, the above preset function
can effect.
11.ALARM ON OFF BUTTON
Press the ALARM ON OFF BUTTON to select the ALARM ON or ALARM OFF
mode.
ALARM ON: The INDICATOR light ALARM will be on.
ALARM OFF:The INDICATOR light ALARM will be off.
12. SPEAKER SELECTION BUTTON
Press the SPEAKER SELECTION BUTTON A/ B/C to select the speaker.
If the speakers are selected the light of the INDICATOR light will be turn on.
13.ADJUST THE BACKLIGHT BRIGHTNESS
Long press the BACKLIGHT button to adjust the backlight brightness.
14.To reset the unit
when the buttons are not effective or
sound is distorted, then
.
display is incorrect, or the function
use a sharp point to press the RESET button, that
will make the unit be reset to factory default and re-instate the correct functions
HUE
It is for adjusting the hue of the video output.
SATURATION
It is for adjusting the saturation of the video output.
SHARPNESS
It is for adjusting the sharpness of the video output.
5.17.5 SPEAKER SETUP
DOWNMIX
It is for selecting your desired sound effect when there is no center speaker
and subwoofer. There are 3 modes: LT/RT, STEREO, VSS.
LT/RT: When playing a disc with PRO LOGIC Dolby stereo effect, choose the
item, so it will output audio signal with vivid theatre effect.
STEREO: If you choose the item, when outputting audio signal with 5.1 channels,
it will output the left and right channels of signal ; when outputting audio signal
with 2 channels, it will output the common 2 channels of stereo signal.
VSS: If you choose the item, when playing a disc recorded with 5.1 channels,
the main channel speakers can output audio signal with VSS effect.
5.l7.6 OUTPUT SETUP
DYNAMIC RANGE
After selecting the compression mode of LINE OUT, set the item, so you can
adjust the linear compression ratio. If you set it to be FULL, the Peak-to-Peak
value of the audio signal is the minimum; if you set it to be OFF, the Peak-to-
Peak value is the maximum.
DUAL MONO
It is for selecting a desired audio output mode for the left and right ways of signal.
It is mainly for Karaoke of Ac3. There are 4 modes in all as follows:
STEREO, MONO L, MONO R, MIX MONO.
CONTRAST
It is for adjusting the contrast of the video output
21 10
3. Radio Operation
1. FREQUENCY SELECT
In RADIO mode. Press and hold the AM/FM button to select your desired frequency EUROPE ,USA1
or USA2.
2. AM/FM BUTTON
In RADIO mode, press the AM/FM WB button on the remote control or AM/FM button on the front
panel to select your desired radio band of FM1, FM2, FM3, AM1, AM2 and WB, and the selected band
will be displayed on the small monitor of the front panel.
Note: In weather band (WB) mode,press number button from 1 to 7 to select your desired station.
3. TUNE/SEEK UP/DOWN
In RADIO mode:
1) Rotate the TUN/TRK KNOB to the right or left limit position stopping for about 1 second or Press
and hold the >>|/ |<< button on the remote control to automatically search up/down for a available
station from the current frequency.
2) Rotate the TUN/TRK KNOB or the press the >>| / |<< button on the remote control
to manually search up or down with step by step for your desired station from the current
frequency.
4. AS/PS BUTTON
In RADIO mode:
1) When pressing and holding the AS/PS button on the front panel or APS button on the remote
control, the radio searches from the lowest frequency and checks the signal strength level until 1
cycle search is finished. And then the 6 strongest stations are preset to the corresponding preset
number memory bank. The AS operation is implemented in each bank of the selected band.
When the AS operation is finished, it will resume broadcasting
on the M1.(It can store 3x6 stations for FM and 2x6 stations for AM in all)
2) When briefly pressing the AS/PS button on the front panel or APS button on the remote control,
the radio searches for each preset station from the M1. When the field strength level is more than
the threshold level of the stop level, the radio holds at that preset number for a few seconds with
releasing mute, and then searches again. After finishing a circle of searching, it will stop
searching on the M1.
NOTE: In FM band, FM1,FM2,FM3 is checked one at a time.
In AM band, AM1, AM2 is checked one at a time.
5. PRESET STATION [ 1-6 ] BUTTONS
In RADIO mode:
1) To memorize the current frequency on the current band, press and hold any one of the six preset
buttons (1-6) .
2) To recall the preset memory on the current band, press one of the preset buttons [1-6] .
6. STEREO/MONO BUTTON
Press the ST button to select the STEREO or MONO sound mode in FM mode.
7. LOC BUTTON
1) In RADIO mode, when the signal of the distance radio station are very weak and the receiving
effect is bad during tuning, check whether there is the word LOC on LCD. If there is the word
LOC on LCD, press this button to turn off the LOC function, then tune again for the distance
radio station;
2) In RADIO mode, when the signals from the local radio stations are too strong, this could lead
to interference. press this button to turn on the LOC function, and the LOC icon will be lit up on
the LCD. Re-tune for the local station required.
5.17.2 LANGUAGE SETUP
OSD LANGUAGE
This item is for selecting the language of the SYSTEM MENU and all operating
prompt interface displayed during playback.
AUDIO LANG
This item is for selecting a audio language.
SUBTITLE LANG
This item is for selecting a subtitle language.
MENU LANG
This item is for selecting a disc menu language.
5.l7.3 AUDIO SETUP
AUDIO OUT
there is only ANALOG mode, i.e. SPDIF/OFF, not optional.
KEY
It is for selecting your desired basic music tone(from low to high).
5.17.4 VIDEO SETUP
BRIGHTNESS
It is for adjusting the brightness of the video output.
11 20
8. PTY (PROGRAM TYPE) BUTTON
Long press the SEL button on the front panel or press the PTY button on remote
shortly to select one of the following mode.
When PTY group is on, press the VOL+ or VOL- button on the remote
controller or rotate the VOL knob on the front panel to select one of PTY
programs: <-->NEWS<-->AFFAIRS<-->INFO<-->SPORT<-->EDUCATE
<-->DRAMA<-->CULTURE <-->SCIENCE<--> VARIED<-->WEATHER<-->
FINANCE<-->CHILDREN<-->SOCIAL<-->RELIGION<-->PHONE IN<-->
TRAVEL<-->LEISURE<-->DOCUMENT< -->PTY NONE<-->POP M< -->
ROCK M<-->EASY M<-->LIGHT M<--> CLASSICS<-->OTHER M<-->
JAZZ<-->COUNTRY<-->NATION M<-->OLDIES<-->FOLK M<-->
When PTY group is on, pressing the 6 number buttons also can select one of
PTY programs as above.
After selecting one of the PTY programs, it will display SEEK PTY and
automatically search for the station of the PTY program. If the station of
the PTY program does not exist, it will display PTY NONE and then return
back to the normal station.
Note: Press and hold the SPEAKER SELECTION BUTTON B on the front panel for
5 seconds can turn on/off RDS mode.
9. AF [ALTERNATIVE FREQUENCIES] BUTTON
Long press the SEL button on the front panel or press the AF button on the
remot control briefly, the AF switchingmode is selected and the state of the AF
switching mode is displayed by AF segment.
Segment off: AF switching mode off.
Segment on: AF switching mode on, and has RDS information.
Segment flashing: AF switching mode on, but RDS information is not received yet.
When the AF switching mode is selected, the radio checks the signal strength
of the AF all the time. The interval of checking time of each AFs depends on
the signal strength of the current station, from a few minute for the strong
station to a few seconds for the weak station. Every time that a new AF is
stronger than the current station, it switches over to that frequency for very
short time, and the NEW FREQUENCY is displayed for 1-2 second. Because
the mute time of the AF switching or the checking time is very short, it is
almost inaudible in case of normal program. (When AF flash on LCD, it will
search for the stronger RDS station. If AF and TP flash on LCD, it can only
search for the traffic announcement station).
In FM mode, when AF is on, SEEK, (SCAN), AUTO-MEMORY function can
only receive and save the RDS program.
10. TA [TRAFFIC ANNOUNCEMENT] BUTTON
Long press SEL button on the front panel then rotate it or press the TA button on
remote shortly to turn on/off TA search mode.
When traffic announcement is transmitted:
1).If the unit is in Disc Play mode, it will switch to radio mode temporarily.
2).Temporarily switch over to an EON linked station when EON detects a
traffic announcement on that other program, and TA, TP will be displayed
on LCD
* TA interruption function:
The current traffic announcement is cancelled by pressing TA button
shortly.
* When TA is on, SEEK, (SCAN), AUTO MEMORY function can be received
or saved only when traffic program identification code has been received.
For the DVD System Menu, there are 6 setup pages in all. They display as follows:
5.17.1 SYSTEM SETUP
TV SYSTEM
This product supports output of various TV system.
If your TV set has only NTSC or PAL system, the screen will blink and become
colorless when a wrong TV system is selected. In this case, press the direction button
to switch the right TV system to match the TV color system.
RESOLUTION
e
TV TYPE
The setup item is for matching TV screen size.
4:3 PS: Choose the item when connecting a TV set with 4:3 screen. When playing
the pictures with 16:9 size, the left and right parts of the video will be cut out,
and display in full screen.
4:3 LB: Choose the item when connecting a TV set with 4:3 screen. When playing
the pictures with 16:9 size, the top and bottom parts of the TV screen will be
turned into a black square respectively.
16:9: Choose the item when connecting a TV set with 16:9 wide screen.
PASSWORD
This setup item is for locking or unlocking the rating level of the Parental Control.
The defaulted state is locked. The defaulted password is 0000.
You can set a new password that you like: Select the PASSWORD item and then
press the > button to enter it, then input the original password 0000, and then
press the OK button to unlock it. Press the > button to enter it again, then input
a new password that you like and then press the OK button to make it effective.
Before the other persons see the Manual, you should get the password in mind
and cut out the part of PASSWORD in the Manual.
RATING
The item is for setting a new rating level of the Parental Control.
1. Select the PASSWORD item and then press the > button to enter it, then input
the password mentioned above, and then press the OK button to unlock the
setting of the rating level of the Parental Control.
2. Select the RATING item and then press the > button to enter it, then use the
direction buttons to select your desired rating level, then press the OK button
to confirm.
3. Select the PASSWORD item again and then press the > button to enter it, then
input the password, and then press the OK button to lock the new setting of
the rating level of the Parental Control.
DEFAULT
This item is for making all setup items change back to original status.
The setup item is for setting the resolution in TV mod
12
19
4.Disc, USB Operation
4.1 Begin playback
1. Press the POWER button briefly to turn on the DVD player.
After turning on the DVD player, please turn on the monitor, and ensure that
the video output of the monitor is the video input from the DVD player
connected with the monitor.
? Common Question
Q: There is not anything is displayed on TV screen when the DVD player is
turned on. How to solve the problem?
A: Ensure that the TV was set to right video input(not TV channel); for
example, if you make VIDEO1 INPUT of TV and DVD player connected
with each other, then you need set TV to VIDEO1.
2. Insert a disc into the DISC SLOT(Label surface up).
! NOTE
1. For some discs that are seriously scratched or poor manufacturing or
recording quality, it may not play.
2. If the player can not read disc under normal condition, please try to
eject and reload the disc again.
3. Remark:
1) In addition to normal CD and DVD, this unit supports to play CD-R,
CD-R/W, DVD-R and DVD-R/W as well; however, depending on the
conditions of the recording equipment, recording program or the disc
itself, some CD-R, CD-R/W, DVD-R or DVD-R/W may not play.
2) When dealing with CD-R, CD-R/W, DVD-R or DVD-R/W recording,
too high recording speed may result in poor signal quality and therefore,
it is recommendable to select as lower as possible recording speed.
3. During JPEG playback, press one of the >/</^/v buttons to change the angle of
viewing picture that is displaying as follows:
>: 90 deg cw; <: 90deg ccw; ^:UP<-->DOWN; v: LEFT<-->RIGHT
During JPEG playback, press the PROG button to change the mode of refresh picture.
During JPEG playback, press the STOP button to stop playing and return to the root
menu.
* During JPEG playback, the following buttons are not available: SLOW-FWD,
SUBTITLE, TITLE, ANGLE, STEP, AUDIO, RDM, INT and A-B.
* In JPEG mode,the other operations are same as ones in MP3/WMA mode.
5.14 MP4 Operation
1. The root menu is displayed on TV when beginning to switch on DISC mode, then it will
automatically play the first file.
During playback, press the STOP button to stop playing and return to the root menu.
2. When displaying the root menu, press the direction buttons to select your desired
FOLDER or file, then press the OK or PLAY button to open the FOLDER, or play the
selected file.
When displaying the root menu, you can also use the number buttons to select the
serial number of the file and play the file.
* The ANGLE, PROG, RDM and TITLE/PBC button are not valid.
* The other functions are same as ones in DVD disc; but the RPT function is same as
one in MP3/WMA.
5.15 ESP and ID3 Function
There is ESP function for all formats of discs.
In MP3/WMA mode, during playback, the information of the file name, folder name,
song s title, artist and album will be scrolling on the LCD display. As long as the
current playing MP3 music contains relevant ID3 tag information in version 1.0/2.0
format, the 3 items underlined above will be scrolling on the LCD display; otherwise,
they will not.
5.16 USB Operation
Power on the DVD player, then insert the USB storage, then the monitor will display
the root menu of the USB storage.
This device support picture(JPG format),audio(MP3 or WMA format) and Video(MP4 format),
all the operations are same as ones of the corresponding format.
Note:The USB input with charging function ( not all products can be charged from the unit)
5.17 The DVD System Menu Setup Operation
1. Press the SETUP button on the remote controller to access the DVD System Menu on
the monitor.
2. There are 6 setup pages in all for the System Menu. Press the > or < button to select
an desired setup page.
3. Press the ^ or v button to select an setup item in the selected setup page.
4. Press the > button to enter the setup item. Then press the v or ^ button to select a
desired mode of the setup item, finally press the OK button to confirm it.
* Press the < button to return to the upper level.
* Press the SETUP button again or use the direction buttons to highlight the item of the
EXIT SETUP and then press the OK button to exit the System Menu.
13 18
4.2 Pause Playback
When playing DVD/VCD/CD/MP4/MP3/WMA discs, press the PAUSE/PLAY
button on the front panel or remote control to pause the playback, press the
PAUSE/PLAY button again to resume normal playback.
4.3 Stop Playback
When playing DVD/VCD/MP3/WMA/CD discs, press the STOP button once to
pause the playback, then press the PLAY button to resume the normal playback;
press the STOP button twice to stop the playback, then press the PLAY button
to start playback from the beginning of the first chapter/track.
4.4 Select Chapter/Track with the TUN/TRK KNOB or the >>| / |<< Button
Rotate the TUN/TRK KNOB on the front panel or the >>| / |<< button on the
remote control during playback to select the next or last chapter/track to
playback.
Note: Rotate the TUN/TRK KNOB or press the >>|/|<< button multiple times to
advance multiple chapters/tracks forward or backward.
4.5 Select Chapter/Track with the Number Buttons
When playing DVD/VCD(PBC OFF)/MP3/WMA/CD discs, press one of the
1~9 and the 0/10 number buttons to directly select and play the 1st to 10th track /
chapter (the 0/10 button is used as the 10 button).
If you want to play the track/chapter with serial number bigger than 10,
use the 10+, 1~9 and 0/TA button. For example 1, to play the 13th track/
chapter, firstly press the 10+ button once, then press the 3 button. For
example 2, to play the 34th track/chapter, firstly press the 10+ button for 3
times, then press the 4 button.(the 0/TA button is used as the 0 button)
Note: pressing and holding the +10 or -10 buttons will allow you to play the next
10 or last 10 chapter/track(only for MP3/WMA).
4.6 Select Chapter/Track with the Root/PBC Menu (If the disc includes the
root/PBC menu)
When playing DVD discs:
1. Press the TITLE button on the remote control to display the title list.
2. Press the direction buttons to select your desired title, and then press the OK
or PLAY button to open the root menu of the selected title.
3. Press the direction buttons to select your desired chapter, finally press the
OK or PLAY button to play the selected chapter.
During playback,pressing the TITLE button on front panel or long press the
TITLE button on the remote can directly displaythe root menu of the title
that is playing.
5.12 Program Playback
It allows you to enter the order in which you want some chapters/tracks in
DVD/VCD/MP3/WMA/CD disc to play.
1 During playback, press the PROG button to enter a program interface as
follows:
for DVD discs for VCD/MP3/WMA/CD discs
2 Use the direction buttons to move cursor onto the desired place for inputting
the sequence number.
3 Use the number button to input desired sequence number of title/chapter/
track with desired sequence.
4 Use the direction button to move cursor onto Play item, then press the OK
button to play the programmed titles/chapters/tracks in programmed order;
only pressing the PLAY button also can play the programmed titles/chapters
/tracks in programmed order.
* To exit program playback, firstly press the STOP button, then press the PLAY
button to enter sequence playback; or press the PROG button twice again.
* To remove the all programmed sequence numbers, move the cursor onto
Clear item, then press the OK button.
* To change the programmed sequence, move the cursor onto the item you
want to change, input the desired sequence number.
* During VCD playback, if it is in PBC ON mode, at the same time of entering
the state of program playback, it turns off PBC mode.
5.13 Playback the Picture CD in JPEG Format
1. The root menu is displayed on the monitor when beginning to switch on DISC
mode. At the time, it plays MP3/WMA file.(the TITLE or MENU button is not
available).
In the root menu, the left file sort icon is for MP3/WMA file; the middle file sort
icon is for JPEG file; the right file sort icon is for VIDEO file. If one of these 3
file sort does not exist, you can not move cursor onto the file sort icon.
2. When displaying the root menu, press the direction buttons to select your
desired FOLDER, file or file sort icon, then press the OK or PLAY button to
open the FOLDER, or play the selected file, or play only this sort of file.
When displaying the root menu, you can also use the number buttons to
select the serial number of the file and play the file.
When you select a JPEG file sort icon, press the ^ or > button to select the
first JPEG file, then press the v button to select the desired JPEG file, finally
press the OK or PLAY/PAUSE button to display the JPEG picture in full screen
from the selected JPEG picture.
17 14
In VCD mode
1. When starting to turn on the PBC function, it will play from the beginning of
the disc till it display the PBC menu on TV screen if the disc include the PBC
menu.
2. Press the number buttons to select your desired track to play.
In MP3/WMA mode
1. The root menu is displayed on the monitor screen all the time(and the TITLE
or MENU button is not available).
2. Press the direction buttons to select your desired FOLDER, then press the
OK or PLAY button to open the FOLDER, and then press the direction buttons
to select your desired file, finally press the OK button to play the selected file.
In CD mode, the TITLE, PBC, MENU buttons are disabled.
4.7 Terminate the Playback
1. Press the EJECT button to eject disc.
2. Press and hold the POWER button on the front panel or briefly press the
POWER button on the remote controller to turn off the DVD player.
5. Advanced Disc, USB Operation
5.1 Playback with Speed
During normal playback, Rotate the TUN/TRK to the right or left limit position
stopping for about 1 second or press and hold the >>|/|<< button on the remote
controller continuously to fast forwards or backwards at the following
speeds: x2, x4, x8,x16, x20, normal.
During speed playback, press the PLAY button to resume normal playback.
5.2 Playback with Slow Speed
During playback , press the SLOW_FWD button to execute the Slow
Forward function.
With each consecutive pressing of the SLOW_FWD button, the playback
speed decreases. The speed levels in Slow Forward as follows:
x1/2,,x1/3,x1/4,x1/5,x1/6,1/7,normal.
ZOOMx2,ZOOMx3,ZOOMx4,ZOOMx1/2,ZOOMx1/3,ZOOMx1/4,ZOOM OFF.
Press one of the ^/v/>/< buttons to select the area you want to enlarge.
5.9 Change the Caption Language
When playing DVD discs, press the SUBTITLE button repeatedly to select
the language of the caption or turn off the caption.(depend on the disc used.)
When playing VCD/MP3/WMA/CD discs, the button is not available.
5.10 Change the Audio Language
1. When playing DVD discs, press the AUDIO button repeatedly on the IR
remote control to select the desired language type(depend on the disc used)
2. When playing VCD discs, press the AUDIO button repeatedly to select the
sound mode of the MONO L, MONO R, and Stereo, no language function.
3. When playing CD/WMA/MP3 discs, the AUDIO button is invalid.
5.11 Look over the Playback Status
1. When playing DVD discs, press the OSD button repeatedly on the remote
control to turn on/off the playback status. When it is on, it will display the
information such as: the serial number of the playing title, the serial number
of the playing chapter, the elapsed time of the playing chapter, the remaining
time of the playing chapter, the elapsed time of the playing title, the remaining
time of the playing title, etc.
2. When playing VCD/CD discs, press the OSD button repeatedly on the remote
control to turn on/off the playback status. When it is on, it will display the
information such as: the serial number of the playing track, the elapsed time
of the playing track, the remaining time of the playing track, the elapsted time
of the disc, the remaining time of the disc.
3. When playing MP3/WMA discs , press the OSD button repeatedly on the
remote control to turn on/off the playback status. When it is on, it will
display the information such as: the serial number of the playing track, the
elapsed time of the playing track, the remaining time of the playing track.
15 16
During slow forward, press the PLAY button to resume normal playback.
The function is only for video.
5.3. Playback with still frame
If the unit is currently running DVD.VCD disc,press the STEP button
consecutively to display the still frame forward with step by step.
Press the PLAY button to resume normal playback.
5.4 Playback Repeatedly
5.4.1 ONE/ALL Repeat
1. In the mode of DVD disc playback:
Press the RPT button to select REP CHAPTER, REP TITLE, REP ALL
or REP OFF.
2. In the mode of VCD(PBC OFF)/CD disc playback:
press the RPT button to select REP ONE, REP ALL or OFF.
When it is in the state of PBC ON, during VCD disc playing, the RPT
button are not available.
3. In the mode of MP3/WMA disc playback:
Press the RPT button to select REP ONE, REP DIR, REP ALL or OFF.
5.4.2 A-B Repeat
Press the A-B button if you want to repeat a specific segment on a disc
that you define:
1. Press the A-B button at a point (A) where you want it to be the start point
of the repeat segment. Press the A-B button again at a point (B) where you
want it to be the terminal point of the repeat segment. Then it will play the
segment repeatedly.
2. To cancel the A-B repeat mode and resume normal playback, press the A-B
button for the third time.
Note:
During VCD/MP3/WMA/CD playback, points A and B must be within the
same track.
During DVD playback, points A and B can be selected from different chapters.
5.5 Playback from a specified chapter/track or a specified time
1. When playing DVD discs, press the SEARCH button to display a interface
and highlight the title item, then use the number buttons to input the serial
number of the title; use the direction buttons to highlight the chapter item,
then use the number buttons to input the serial number of the chapter; you
can still use the direction buttons to highlight the time item, then use the
number buttons to input the desired time to start playback; finally press the
OK or PLAY button to play the selected chapter or play from the selected time.
2. When playing VCD/MP3/WMA/CD discs, press the SEARCH button to display
a interface and highlight the track item, then use the number buttons to input
the serial number of the track; you can still use the direction buttons to high-
light the time item, then use the number buttons to input the desired time to
start playback; finally press the OK or PLAY button to play the selected track
or play from the selected time.
5.6 Playback in Random
When playing DVD/VCD(PBC OFF)/MP3/WMA/CD discs, press the RDM
button to switch between RANDOM (ON)/RANDOM OFF. When in RANDOM
(ON) mode, it will play in random.
5.7 Playback in Different Angle
1. When playing VCD/MP3/WMA/CD discs, the ANGLE button on the IR remote
control is not available.
2. When playing DVD discs, press the ANGLE button repeatedly on the IR
remote control to view in different angle.(This function is only for the DVD
discs with ANGLE function)
5.8 Playback in Zoom Mode
In DVD/VCD mode, during playback, press the ZOOM button continuously
to enlarge a certain area of the images on the screen with these multiples:
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an e xperienced radio/TV technician for help.

Navigation menu
