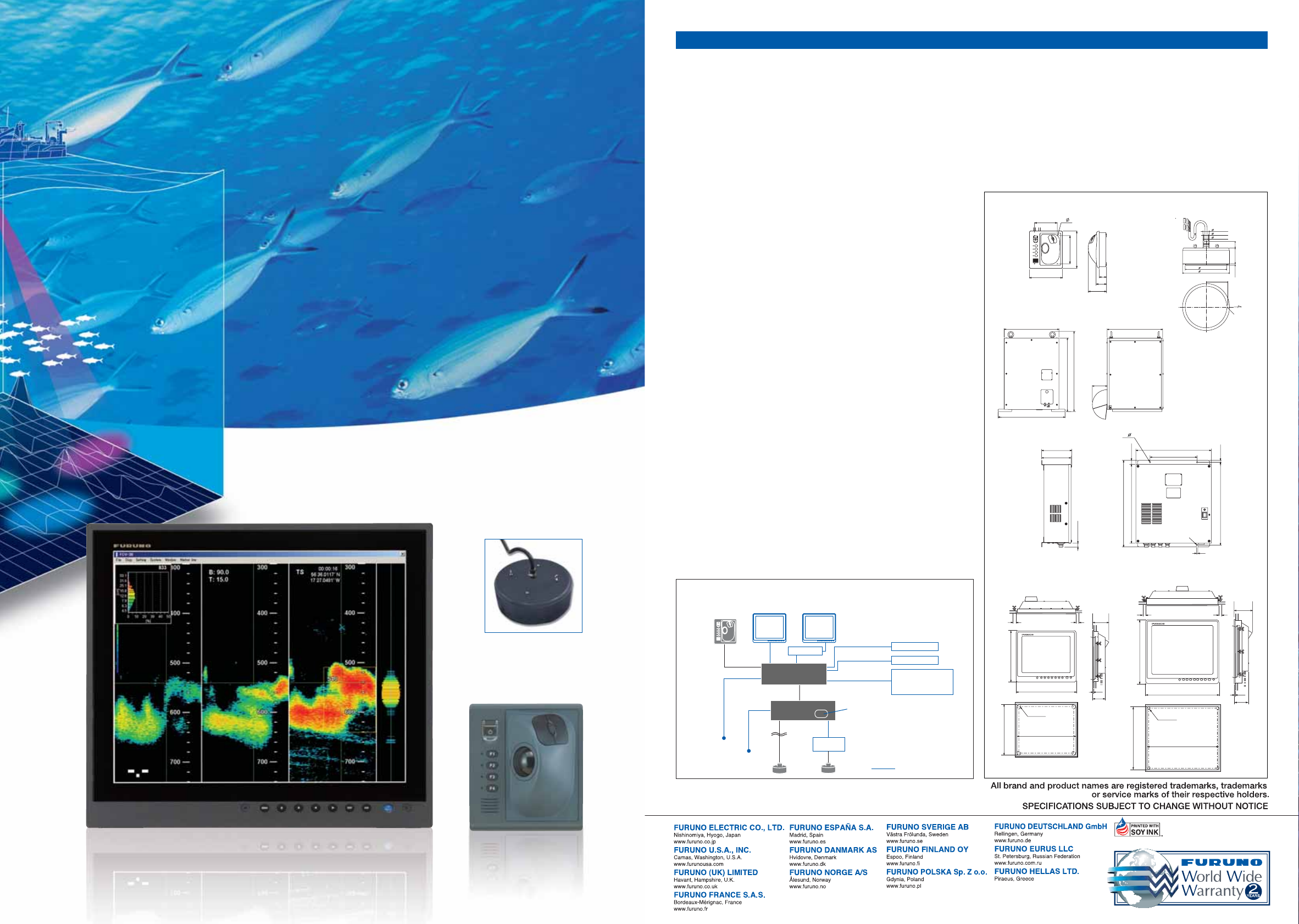

Multi directional detection, Split-Beam

19" color SXGA LCD

MU-190HD (option)

Trackball control unit

COLOR VIDEO SOUNDER

www.furuno.com

Multi - direction detection

The FCV-30 is a high-performance echo sounder designed

for variety of fishing applications. This echo sounder employs

two new innovate techniques. One is “Multi-Beam” that

facilitates multi directional and long-range fish detection.

The other is “Split-Beam” which is commonly used in fish

resource surveys. FURUNO’s leading-edge signal

processing technology makes the FCV-30 unparalleled in

this class of sounder.

The FCV-30 provides a wide variety of presentation modes

in high resolution SXGA or commonly used XGA resolution:

Multi-Beam, Split-Beam, Zoom, and A-scope. Multi-Beam

mode allows transmission in up to five directions

simultaneously to show the location and distribution of

a fish school around the vessel. The direction and tilt of each

beam can be determined by the setting. This also helps

understand the bottom composition, undulation and slope,

allowing the operator to make an accurate judgment of best

speed and course to trawl.

In the Split-beam mode, the FCV-30 has the unique functions

called “Fish size assessment” and “Fish distribution”.

The former indicates the length of the target fish in the fish

school by histogram. The later displays where the target fish

is in the detected area and plots the detected fish’s position.

The FCV-30 is of BlackBox configuration, consisting of

a control, processor, transceiver units and a transducer.

The control unit

consists only of a trackball,

thumbwheel and several soft

keys. Designed for use in

commercial fishing FURUNO LCD

MU-190HD (19'', SXGA), MU-150HD (15'', XGA)

or a PC monitor can be utilized as a display unit.

Furthermore, any two monitors can work in a dual display setup.

The transducer employs highly sensitive transducer elements

to achieve efficient energy conversion, which ensures long

range detection with minimal output. This 38 kHz transducer

features a narrow beamwidth (7°), which enables the detection

of the shapes of fish, fish schools and fish distribution in

minute detail.

With a built-in motion sensor, the beam stabilizer can be

facilitated to eliminate the loss of important targets due to

the ship’s motion in rough seas. All beams are maintained at

required tilt by compensating for ship’s pitch and roll.

FURUNO GPS satellite compass SC-50/110 detect ship’s

heave as well as pitch and roll. The satellite compass

improves the echo presentation by compensating for echo

ruffling caused by ship’s heave. This gives an unwavering

presentation of the echo images even in rough seas, and

enhances the accuracy of the measurement for the fish size

assessment display.

sFrequency: 38 kHz; Output power : 4 kW

sMulti-beam system presents images

received from up to five beams

simultaneously

sElectronic beam stabilizer eliminates

the loss of important targets due to

ship's motion in rough seas

(within up to 20 degrees)

s7-degree sharp beamwidth gives

a detailed echo image that is produced

by high frequency beams

sAutomatic range shift for continuous

bottom aquisition and tracking

Optimize your fishing

1007PDF Printed in Japan

Catalogue No. E-399e

110 4.3" 4- 4

160 6.3"

136 5.4"

180 7.1"

89 3.5"

50 2.0"

35 1.4"

365 14.4"

490 19.3"

534 21"

446 17.6"

370 14.5"

99 3.9"

2- 6

320 12.6"

200 7.9"

17 0.7"

368 14.5"

335 13.2"

352 13.9" 8 0.3"

6 0.2"

R3

128 5.0"

125 4.9"

17 0.7"

Bow

199 7.8''

R10

379 14.9''

19 0.8''

42 1.7''

58 2.3''

428 16.9''

59

2.3''

142 5.6''13 0.5''

372 14.6"

78 3.1"

17 0.7"

96

3.8"

17 0.7"

5

0.2"

322 12.7"

314 12.4"

364 14.3"

4-Ø18

109

4.3"

450 17.7"

86 3.4"

17 0.7"17 0.7"

5

0.2"

397 15.6"

389 15.3”

442 17.4"

4-Ø18

368 14.5"

Processor Unit CV-300

7.5 kg 16.5 lb

100-240 VAC

100-120/200-240 VAC

Satellite Compass

SC-50/110

GPS Navigator

External HDD

Net Sonde

Transceiver Unit

CV-302

Control Unit

CV-301

5 m

Ethernet

100 m max.

NMEA

CIF

06S4085

06S4085

Transducer

CV-303

15 m

15 m

10/20 m

02S6019

or

Option or local supply

5 m

Motion Sensor

JIMS-55S (specify when ordering)

Display Unit

MU-190HD/150HD or commercial monitor

Primary

Display

Secondary

Display

Junction Box

CV-304

USB-VGA

Processor Unit

CV-300

INTERCONNECTION DIAGRAM

Transceiver Unit CV-302

34 kg 75.0 lb

Control Unit CV-301

1.8 kg 4.0 lb

Transducer CV-303

42 kg 92.6 lb

SPECIFICATIONS OF FCV-30

Display Unit (option)

MU-150HD Flush Mount

5.4 kg 11.9 lb

and Split-beam technology

Control Unit

Transducer

19" Color SXGA LCD MU-190HD (option)

sHeaving compensation* provides

unwavering echo images

* The GPS satellite compass SC-50 or SC-110 works

as a heaving sensor

sFish size assessment display indicates

the length of selected fish in the targeted

fish school

sBlackBox system works with

conventional SXGA/XGA PC monitors

sStraightforward operation by

use of a trackball control unit

operation with

DISPLAY

Display Unit FURUNO 19'' LCD MU-190HD,

(Locally arranged) 15" LCD MU-150HD or commercial monitor

Resolution 1024x768 (XGA), 1280x1024 (SXGA)

Display Range

Range: 10-5000 m

Shift: 0-5000 m

Zoom Range: 2-200 m

Display Mode Split-beam, 3-beam, Split-beam + 2-beam, User1,

User2, User3

Display Window

Status, Temperature graph, Bottom discrimination graph, Fish

size histogram, Target position graph, Bottom lock zoom,

Bottom zoom, Marker zoom

Advance Speed Freeze, 1/8, 1/4, 1/2, 1/1, 2/1, 3/1, 4/1, 8/1

Alarm Bottom, Fish, Bottom fish, Temperature

A-scope Display Selectable among 1/6, 1/8 or 1/10 of screen width.

Each transmission displayed on A-scope

Record Raw data

Others Auto range, Auto shift

TRANSCEIVER

Output Power 4 kW

TX Rate Max. 600 pulse/min

Frequency 38 kHz

Beam Control Range

Direction: 0-360°

Tilt: within 20°

Stabilization

Pitch/Roll: ±20° max.

Heave*: ±100 m max.

*Requires SC-50/110

INTERFACE

I/O Port NMEA, CIF, USB (2.0), LAN (10/100base-T)

Input

NMEA (IEC61162-1, NMEA0183 Ver. 1.5/2.0/3.0):

att, BWC, GGA, GLC, GLL, GNS, GTD, HVE,

MTW, RMA, RMB, RMC, VHW, VTG,ZDA

CIF: Water temperature, Net depth

Output (IEC61162-1, NMEA0183 Ver. 1.5/2.0/3.0)

SDDBS, SDDBT, SDDPT, SDTLL, YCMTW,

SDvrm, SDbtm

POWER SUPPLY

Processor Unit 100-240 VAC, 3A-2A

Transceiver Unit 100-120/200-240 VAC, 5A-3A

ENVIRONMENT

Temperature

Processor Unit: 0°C to +40°C (32°F to +104°F)

Transducer: -5°C to +35°C (23°F to +95°F)

Transceiver Unit

• with Motion Sensor: -55°C to +45°C (5°F to +113°F)

• without Motion Sensor: -15°C to +55°C (°F to +131°F)

Control Unit: -15°C to +55°C (5°F to +131°F)

Waterproofing

Control Unit: IP22 (front panel)

EQUIPMENT LIST

Standard

1. Control Unit CV-301 1 unit

2. Processor Unit CV-300 1 unit

3. Transceiver Unit CV-302 (Specify when ordering) 1 unit

· Built-in Motion Sensor JIMS-55S

· Without Motion Sensor

4. Transducer CV-303 with 15 m cable 1 unit

5. Thru-hull Pipe TFB-1600 1 pc.

6. Installation Materials and Standard Spare Parts 1 set

Option

1. Junction Box CV-304

2. Transducer Tank T-625

MU-190HD Flush Mount

8.2 kg 18.1 lb

An Innovative Pr e

with Split-beam

Pitching and rolling produces adverse effect not only on

the sounding image, but also on measurement of fish

size. With FURUNO’s exclusive Stabilizer Technology,

the FCV-30 can stabilize both Tx and Rx beams

independently so that unmatched accuracy is assured.

Dual monitors can be used by

connecting a monitor to the

USB port on the processor

unit with an optional USB-

VGA (or SVGA) adapter.

Extending the screen sizes

across dual monitors allows

for viewing more information

together at the same time.

Even in rough sea conditions, the FCV-30

compensates for heaving, presenting a display

without undulations.

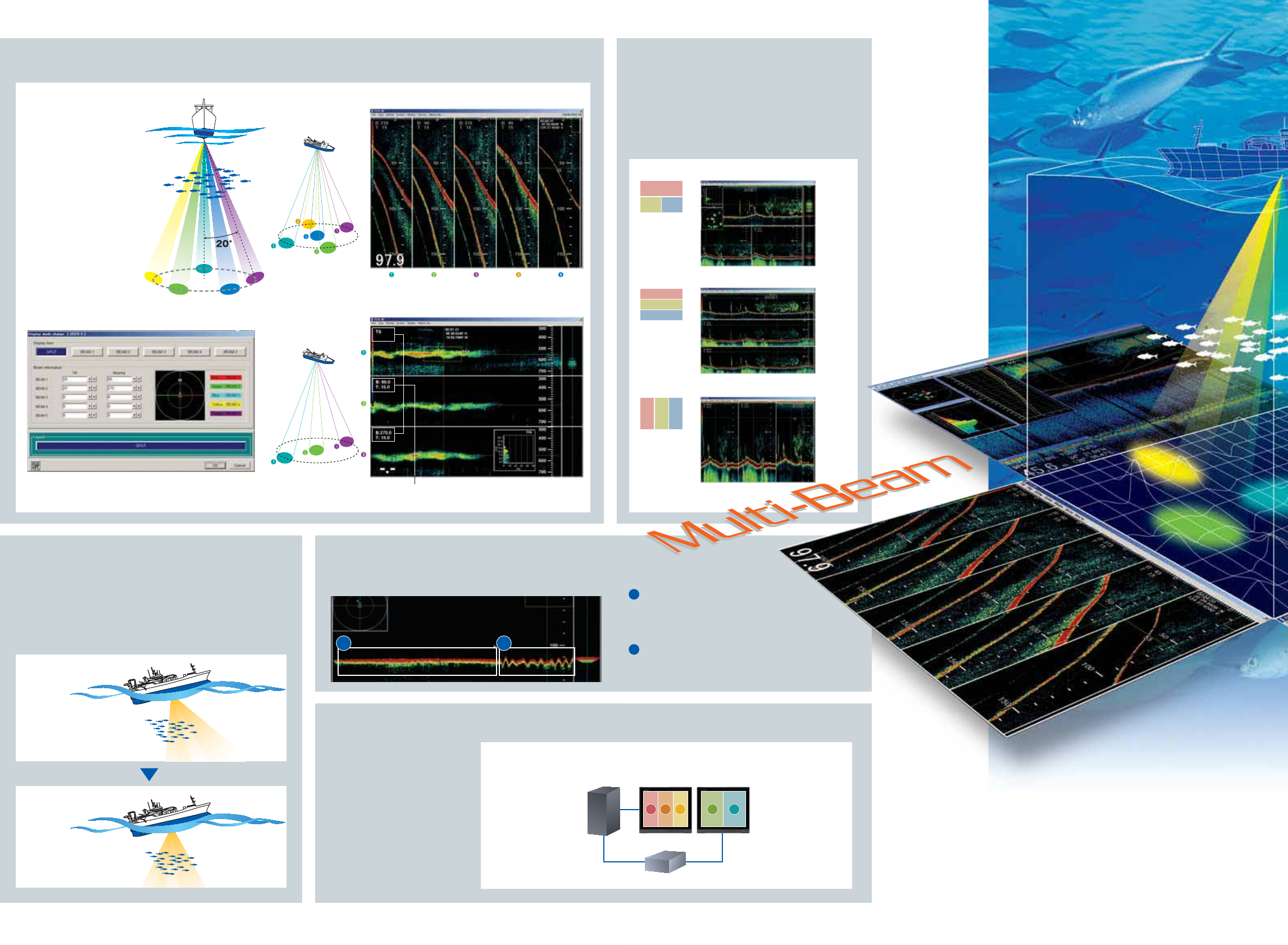

Multi-Beam

Why stabilizer is required !

The FCV-30 features multi-beam presentation

that displays echo images of up to five beams

on one display. Arrangement of the display can

be done from a menu window with just a few

clicks of a button.

Flexible display setting

Furuno’s exclusive Heaving

Compensation with SC-50/110

Increase the viewable sizes utilizing dual monitors

Stabilizer OFF

Stabilizer ON

Stabilizer keeps

the beam on

the designated

target.

A beam affected

by pitching and

rolling fails to detect

the target fish.

The FCV-30 detects fish

schools in any five

directions at the same

time so that the location

relative to the vessel and

distribution of the targeted

fish school can be

recognized.

The operator can set five

beams at any direction

within 20 degrees by

menu settings.

Direction and tilt of each echo beam can easily

be set in this window.

Five-beam presentation

Beam setting window

Three-beam presentation

Heaving compensation ON

The bottom and fish echoes are wavering due to

heaving of the vessel even though the bottom is flat.

Heaving compensation OFF

Five beams

Multi split

Horizontal split

Vertical split

Three beams

Beam’s direction and tilt

1 2

2

1

The whole screen spreads out between two monitors

tinU rossecorP

USB-VGA (or SVGA) adapter

D E

A B C

ecision Sounder

m Technology

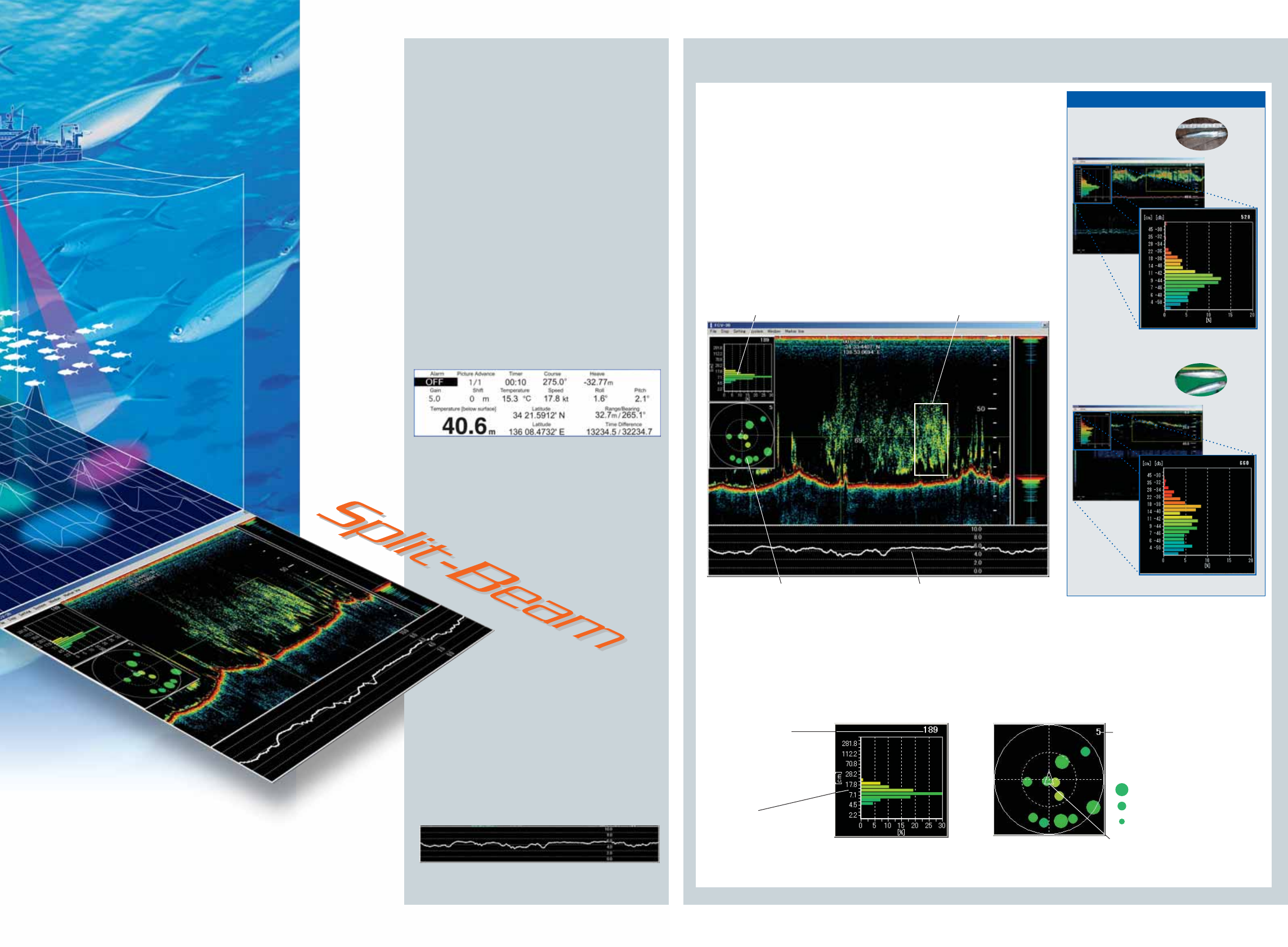

The fish distribution display shows the targeted fish’s

position and movement. They are shown on the circle,

whose scale is adjustable between ±2 to 5 degrees

under the vessel.

Fish distribution

FCV-30 can plot bottom hardness with a line

graph by analyzing the strength of returning

echoes. This is useful for searching for a good

fishing spot by finding bottom hardness. This

chart indicates hardness on a scale of one to ten.

The bottom characteristic

There are nine display windows, which can be

located anywhere on the screen. The background

of these windows can be transparent or opaque

allowing background images to be viewed.

Display window

Sample Images

14 cm

Anchovy

sStatus

sTemperature graph

sBottom hardness chart

(Bottom discrimination graph)

sFish size assessment

(Fish histogram)

sFish distribution

(Target position graph)

sBottom lock

sBottom zoom

sMarker zoom

Own ship

Radius scale

Fish distribution window

Latest three samples are shown.

Color of circle indicates strength of

individual fish echo.

(Large circle): latest data

(Small circle): 2nd latest data

(Medium circle): 3rd latest data

Fish size

assessment window

Section for fish size

assessment window

Fish distribution window Bottom hardness chart

21 cm

Sardine

Number of sample

Unit of measurement

Fish size assessment window

The greater the number

of samples the more

accurate the assessment

of the size.

Split-beam is an epoch-making technology for analyzing the size and

distribution of a targeted fish school. Split-beam allows you to analyze

a fish school before targeting it for to be catch.

• How long is the target fish in the targeted fish school

• How the fish school moves

By analyzing the size, volume and movement of a targeted fish

school, operators can easily decide what to catch and what not to

catch. It is indispensable for deciding when to go for a catch and

eliminates fish schools which are smaller than desired. Also, it greatly

contributes to fishery resource management or fish resources survey.

Split-Beam

The fish size assessment feature shows fish size

within a user-selected measuring area. The bar graph

shows size and proportion of fish in the measuring

area selected. The vertical axis shows fish length and

the horizontal axis shows distribution.

Fish size assessment

Status display
