User Manual I

Digital Proportional R/C System

1M23N11002

Thank you for purchasing the Futaba 3PK.

Prior to operating your 3PK, please read this manual thoroughly and use your

system in a safe manner.

After reading this manual store it in a safe place.

Application, Export and Reconstruction

1. Use this product in surface models only.

The product described in this manual is subject to regulations of the Ministry of

Radio/Telecommunications and is restricted under Japanese law to such pur-

poses.

2. Exportation Precautions

(a) When this product is exported from Japan, its use is to be approved by the

Radio Law of the country of the destination.

(b) Use of this product with other than models may be restricted by Export and

Trade Control Regulations. An application for export approval must be submit-

ted.

3. Modification, adjustment and replacement of parts.

Futaba is not responsible for unauthorized modification, adjustment and re-

placement of parts of this product.

THE FOLLOWING STATEMENT APPLIES TO THE

RECEIVER (FOR U.S.A.)

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions.

(1) This devise may not cause harmful interference, and

(2) This devise must accept any interference received, including interference

that may cause undesired operation.

THE RBRCTM SEAL (FOR U.S.A.)

The RBRCTM SEAL on the (easily removable) nickel-cadmium battery con-

tained in Futaba products indicates that Futaba Corporation of America is vol-

untarily participating in an industry program to collect and recycle these batter-

ies at the end of their useful lives, when taken out of service within the United

States. The RBRCTM program provides a convenient alternative to placing used

nickel-cadmium batteries into the trash or municipal waste which is illegal in

some areas.

Futaba Corporation of America's payments to RBRCTM makes it easy for you to

return the spent battery to Futaba for recycling purposes. You may also contact

your local recycling center for information on where to return the spent battery.

Please call 1-800-8-BATTERY for information on Ni-Cd battery recycling in

your area. Futaba Corporation of America's involvement in this program is part

of its commitment to protecting our environment and conserving natural re-

sources.

RBRCTM is a trademark of the Rechargeable Battery Recycling

Corporation.

-No part of this manual may be reproduced in any form without prior permission.

-The contents of this manual are subject to change without prior notice.

-This manual has been carefully written, please write to Futaba if you feel that any corrections or clarifica-

tions should be made.

-Futaba is not responsible for the use of this product.

For Your Safety As Well As That Of Others .........

Explanation of Symbols ...................................................................................

High Response System (H.R.S) Precautions .................................................

Operation Precautions ....................................................................................

Nicad Battery Handling Precautions..............................................................

Storage and Disposal Precautions ................................................................

Other Precautions..........................................................................................

Table Of Contents

Before Using ............................................................

Features...........................................................................................................

Set Contents ...................................................................................................

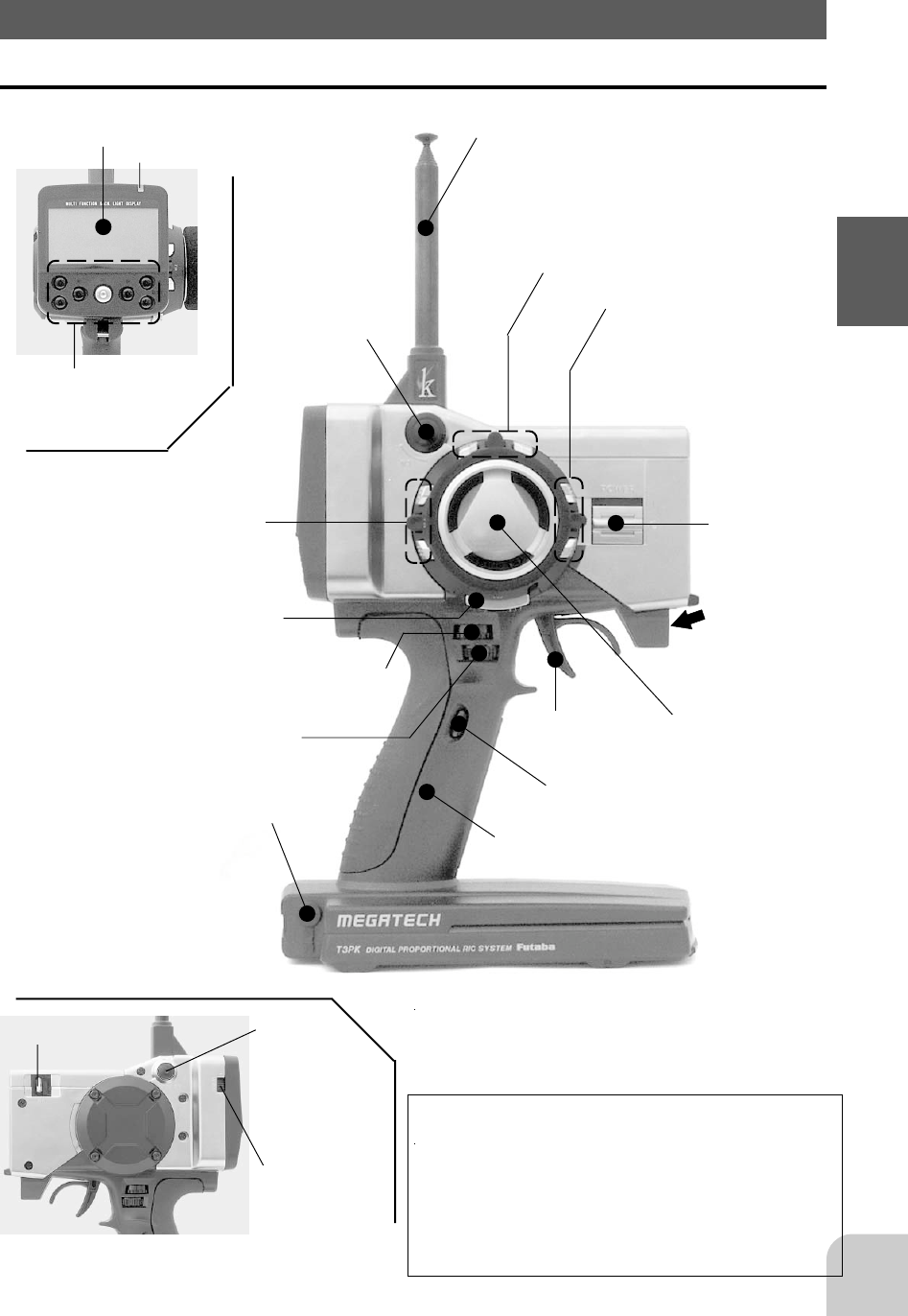

Nomenclature.................................................................................................

Installation................................................................

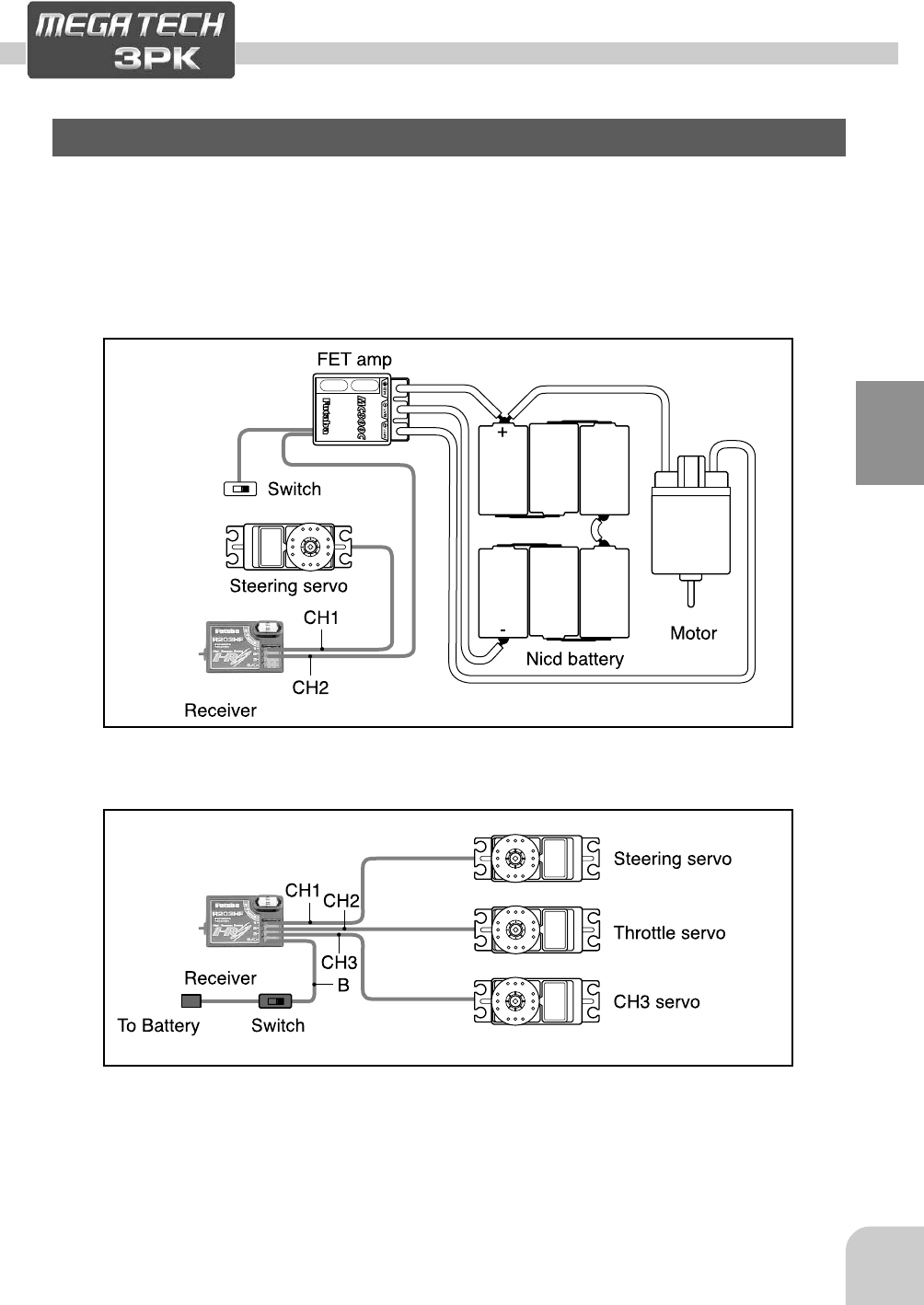

Receiver and Servo Connections ..................................................................

Installation Safety Precautions .....................................................................

Initial Set-Up............................................................

Preparations (Transmitter) ..........................................................................

Functions ..................................................................

End Point Adjuster .........................................................................................

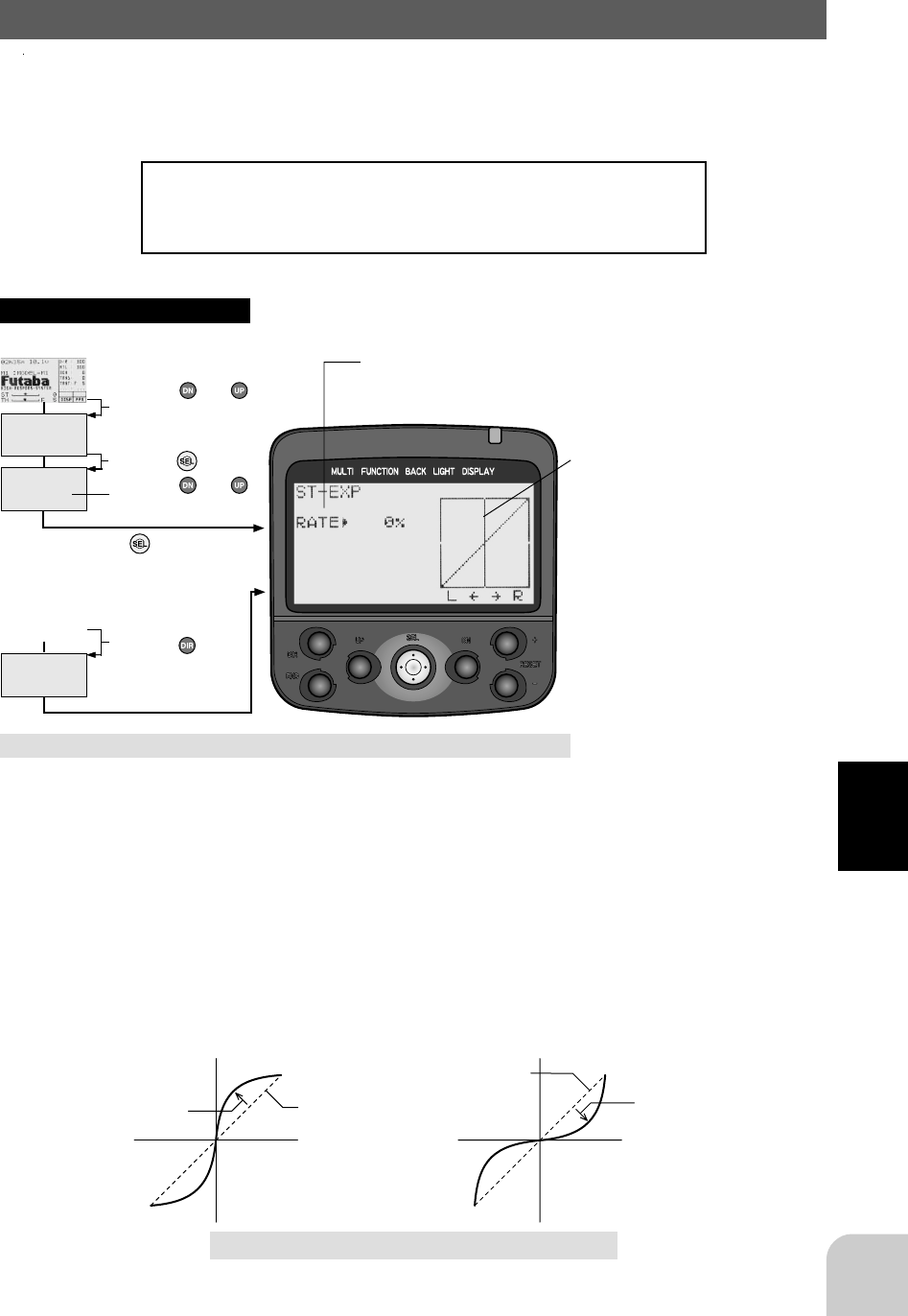

Steering EXP ..................................................................................................

Steering Speed................................................................................................

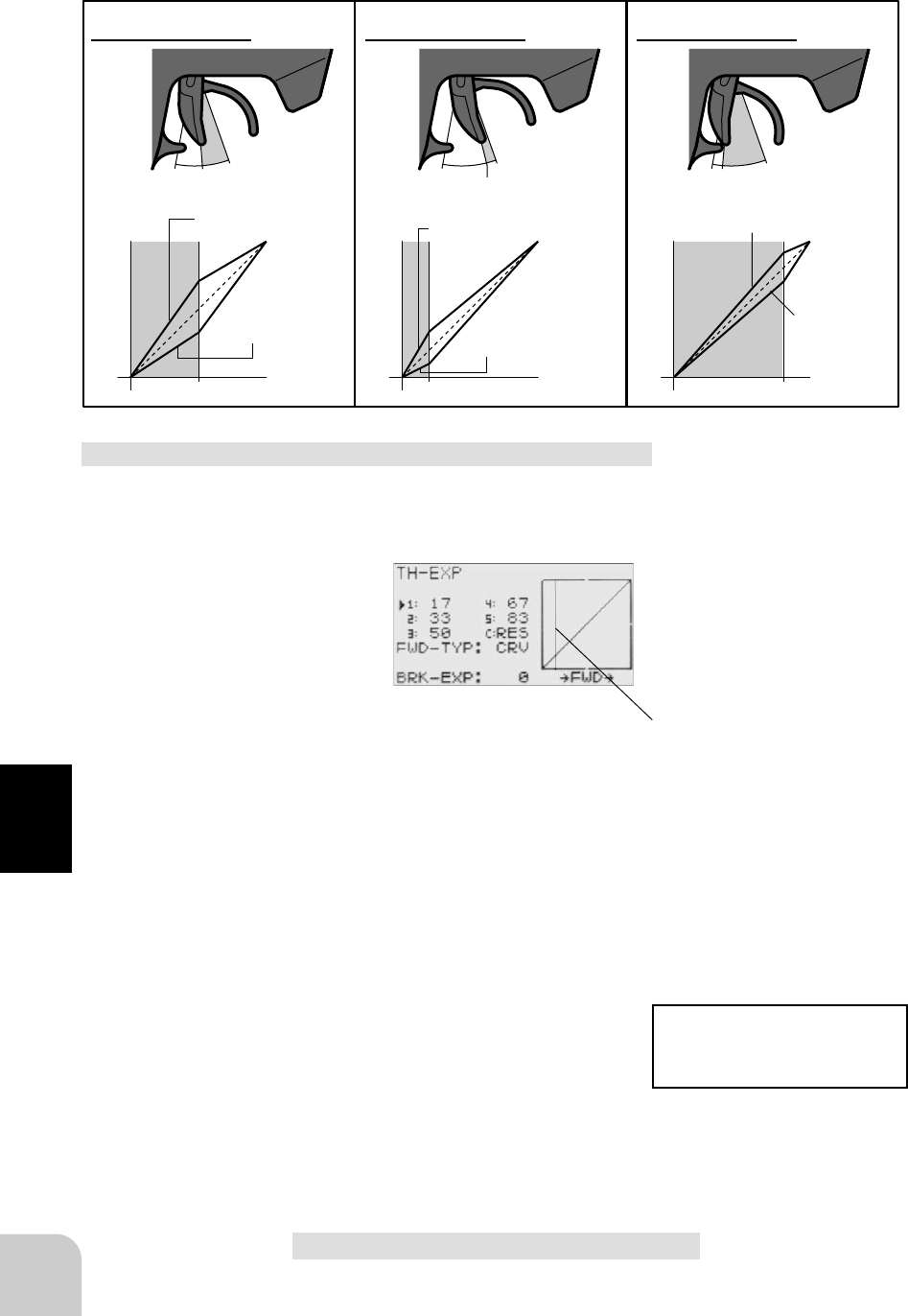

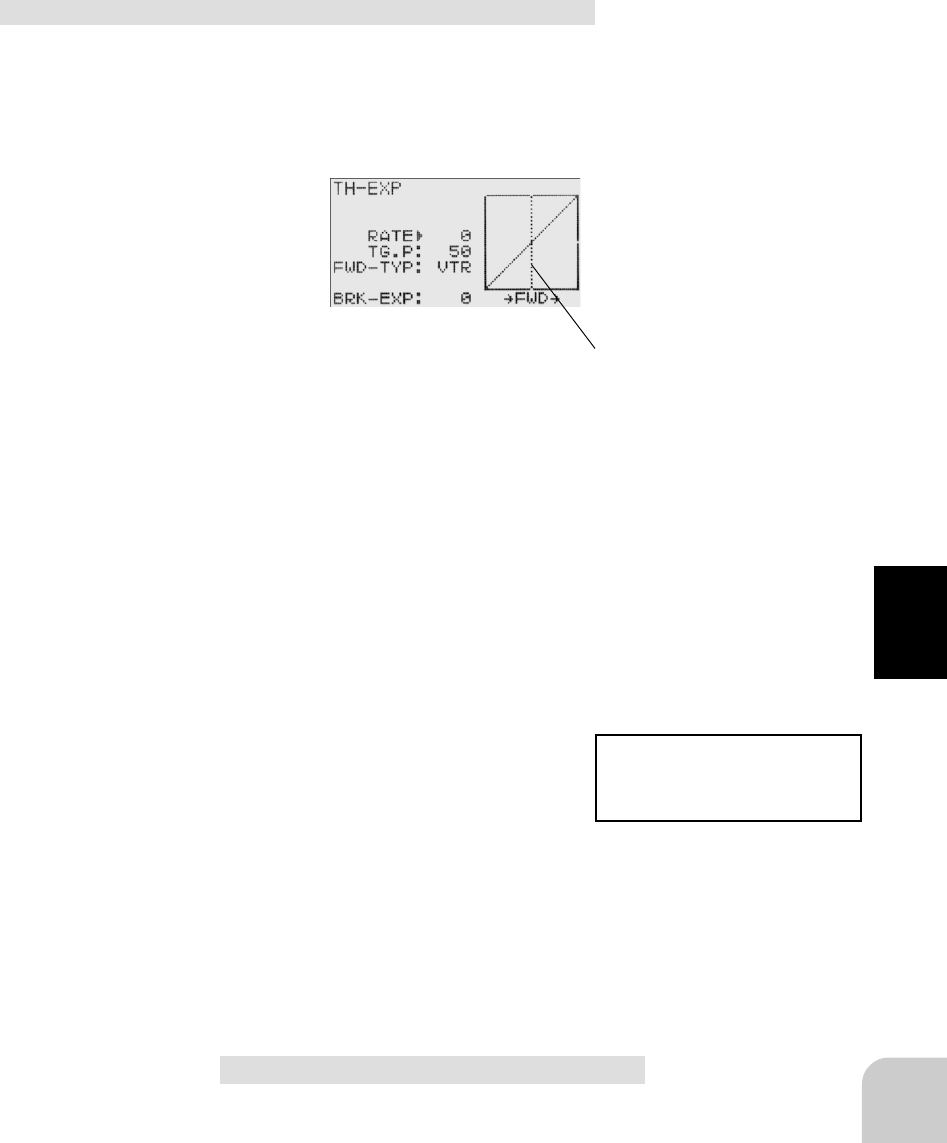

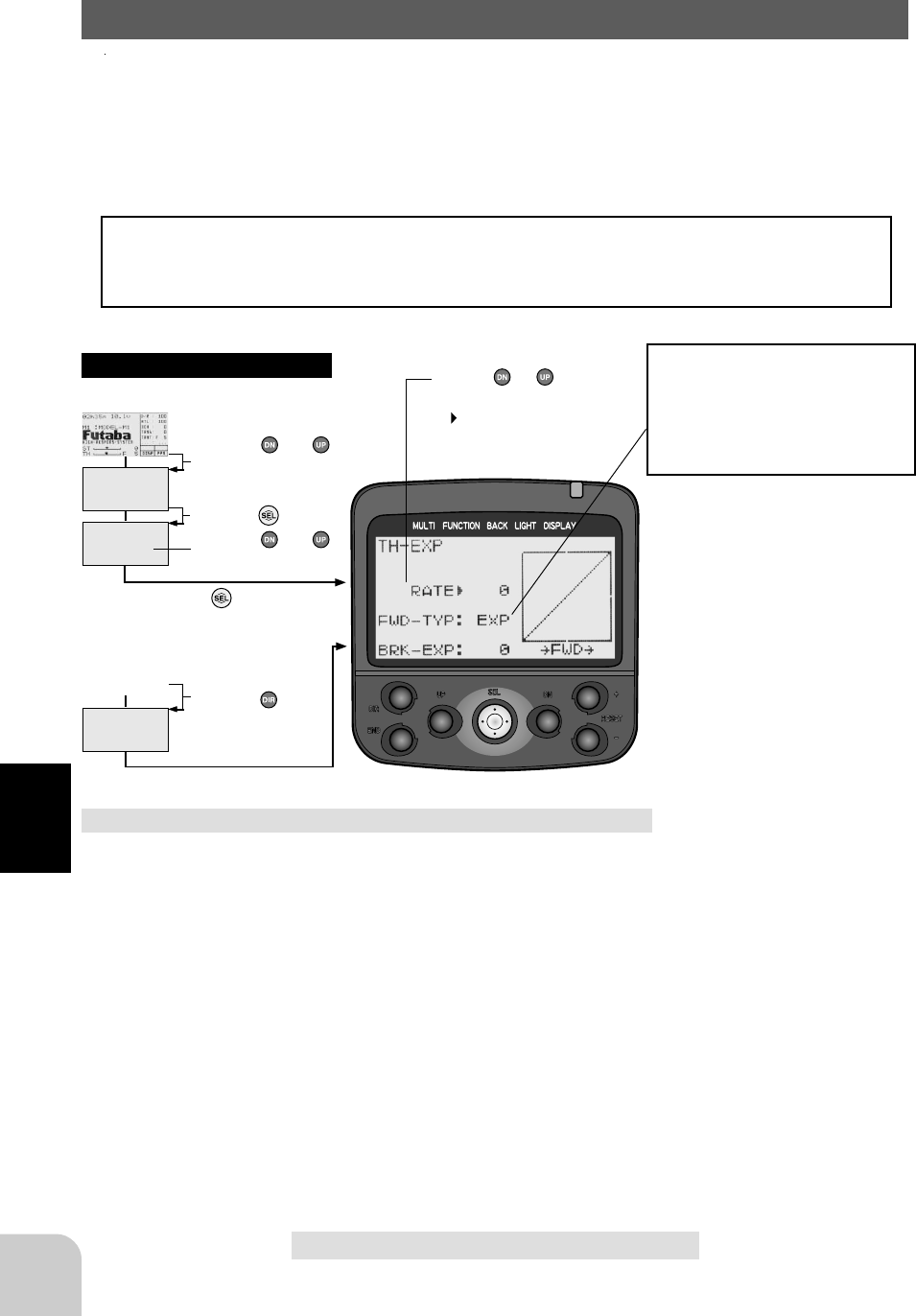

Throttle EXP ..................................................................................................

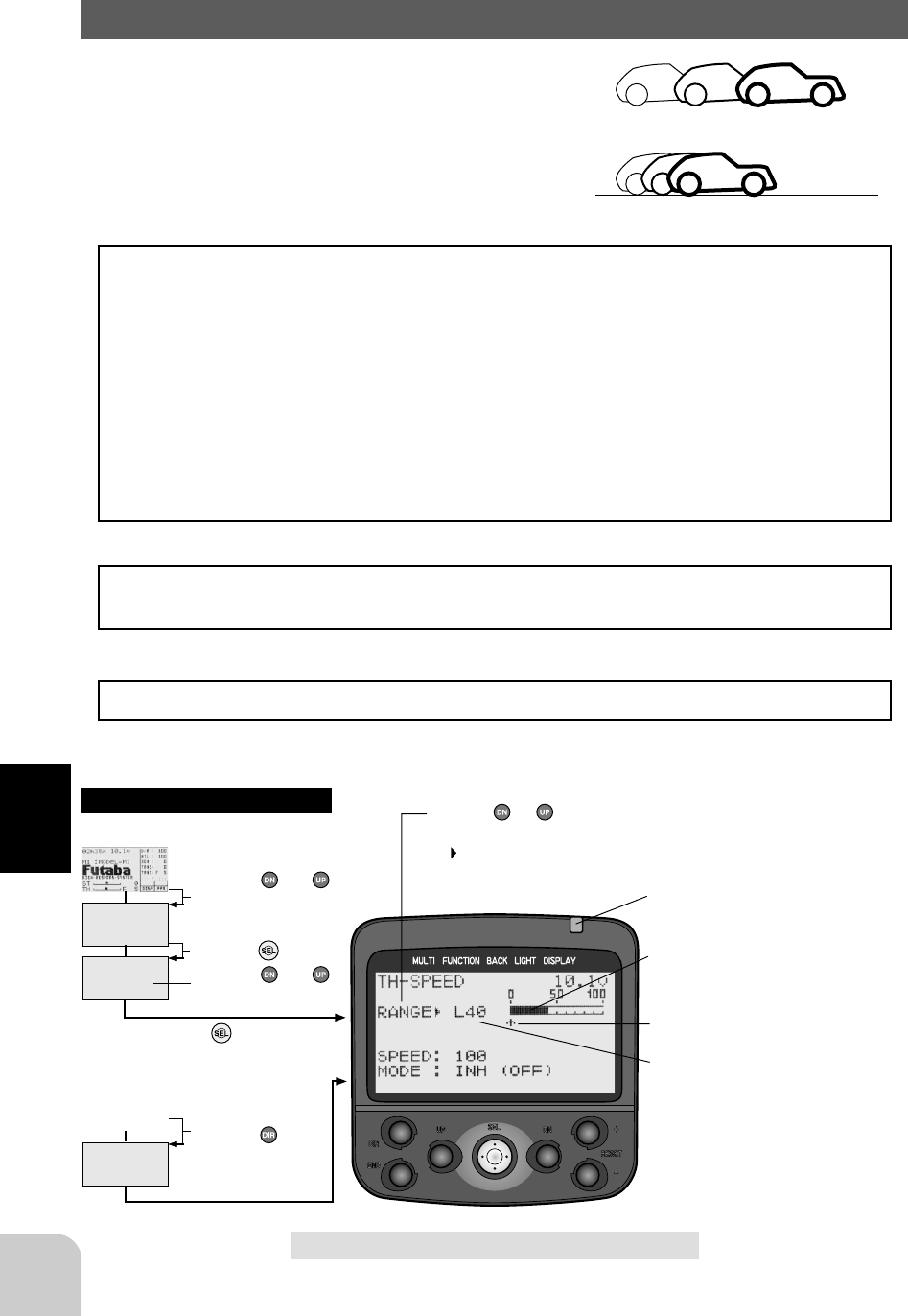

Throttle Speed ...............................................................................................

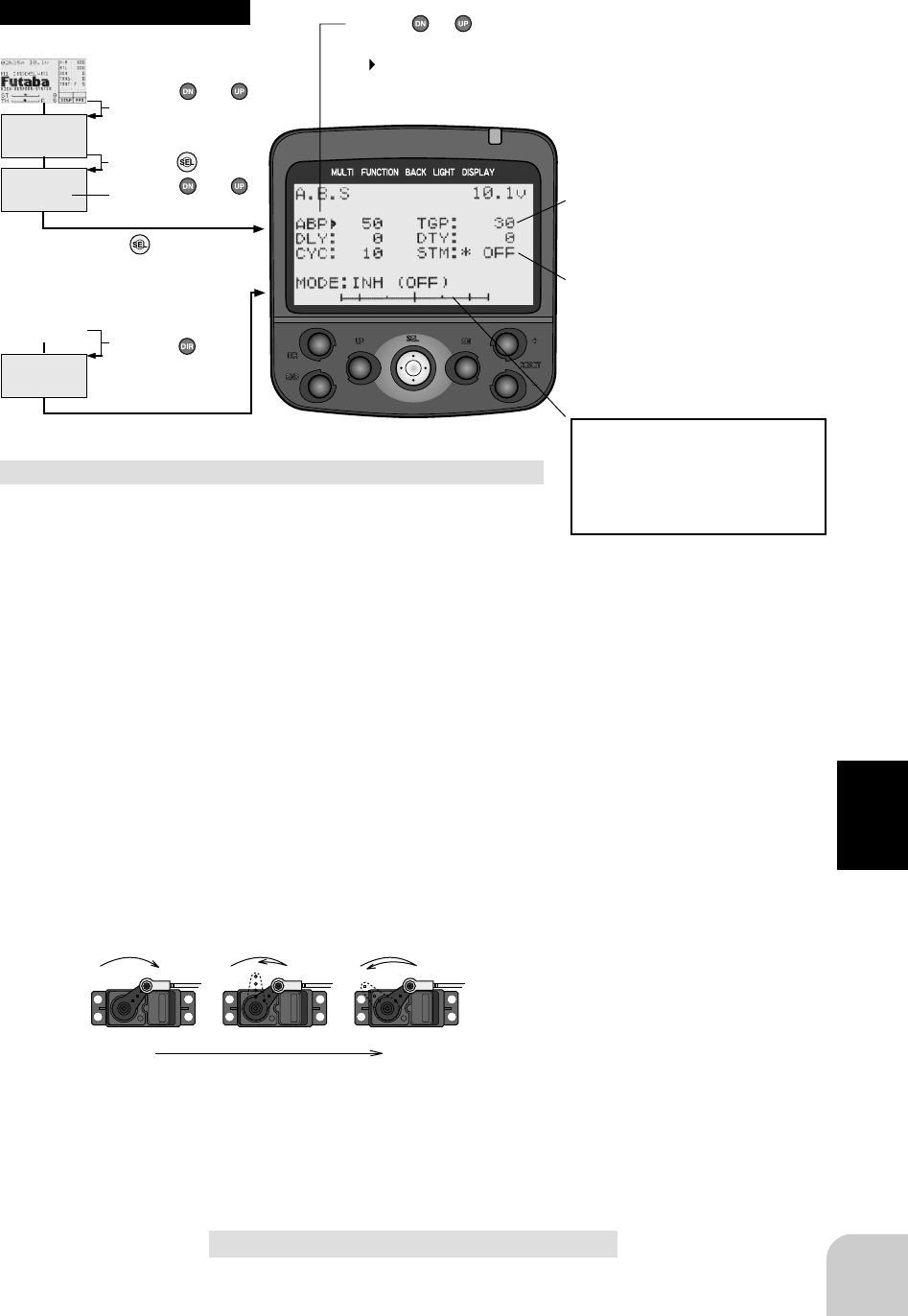

A.B.S. Function ...............................................................................................

Throttle Acceleration ....................................................................................

Start Function / Engine Cut ..........................................................................

Brake Mixing ...................................................................................................

Idle-Up .............................................................................................................

Timer ...............................................................................................................

Lap List ............................................................................................................

Programmable Mixing 1/2 .............................................................................

Boat Mode .......................................................................................................

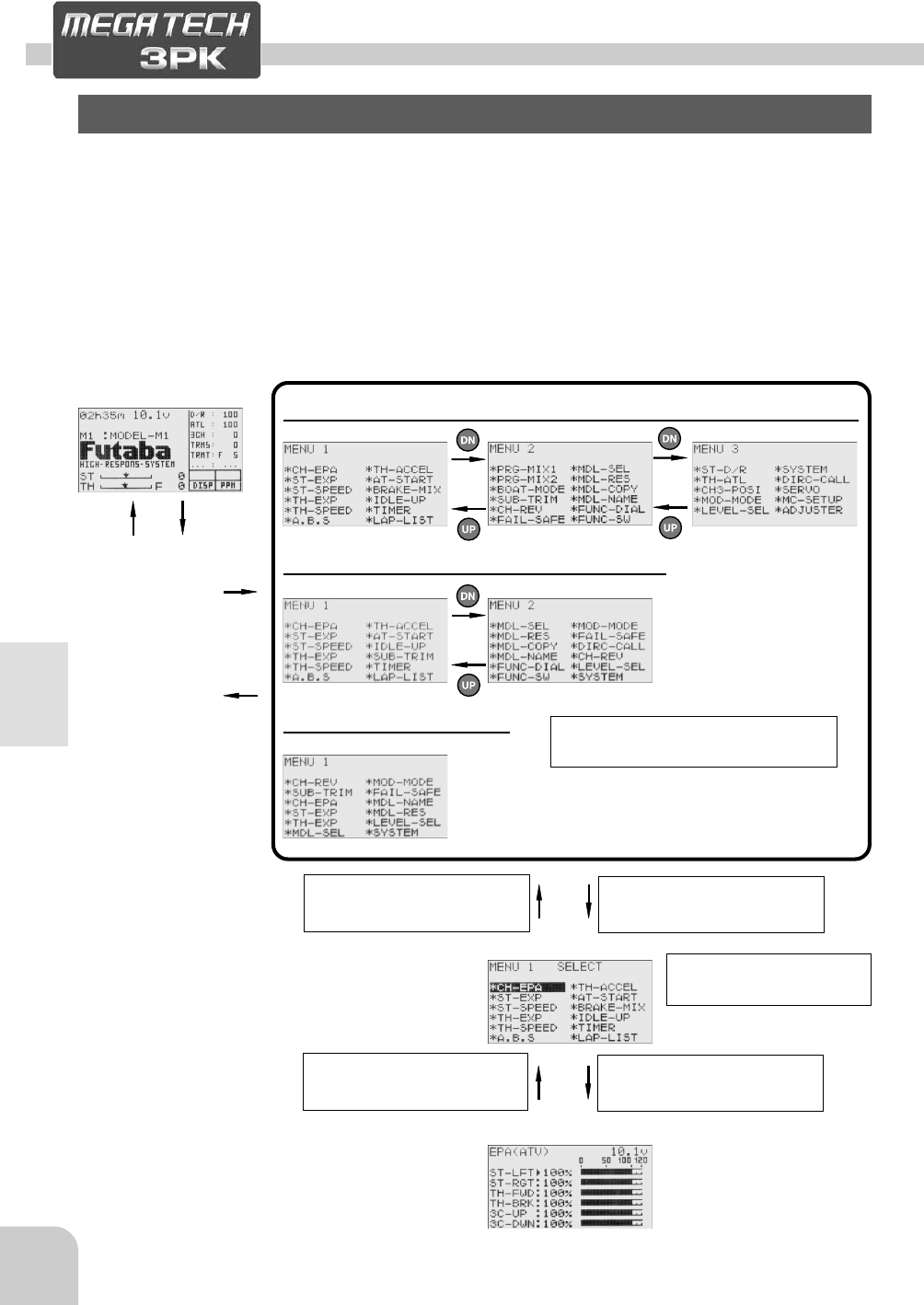

Function Map ...........................................................

Menu Selection ...............................................................................................

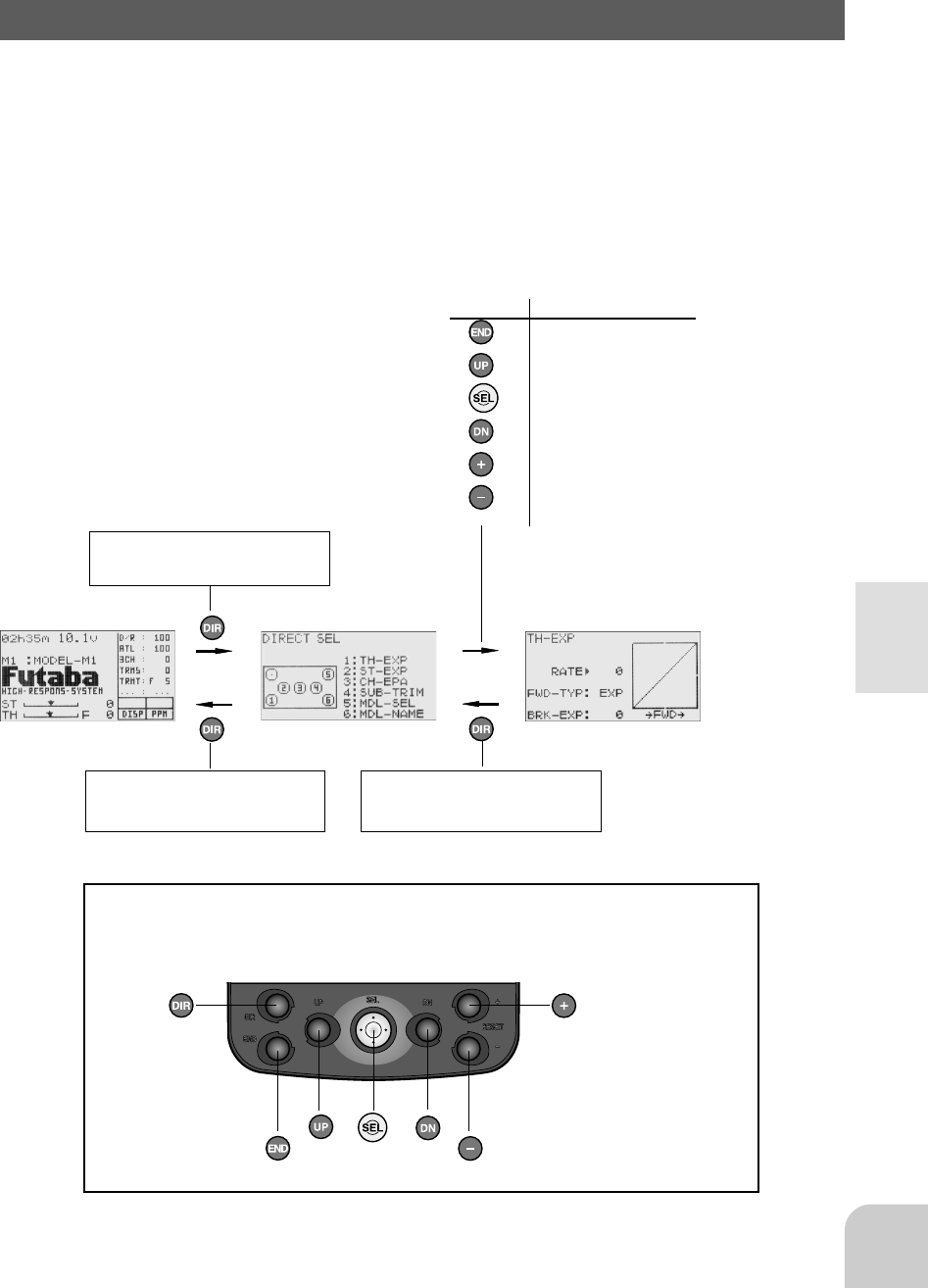

Direct Selection..............................................................................................

Subtrim .................................................................................................

Channel Reverse ..................................................................................

Fail Safe/Battery Fail Safe (HRS/PCM Mode Only) ..........................

Model Select .........................................................................................

Model Reset ..........................................................................................

Model Copy...........................................................................................

Model Name .........................................................................................

Function Select Dial ............................................................................

Function Select Switch ........................................................................

Dual Rate/Second Dual Rate ..............................................................

ATL Function .......................................................................................

Channel 3 Position ...............................................................................

HRS/PCM/PPM Select .........................................................................

Level Select ..........................................................................................

System functions ..................................................................................

Direct Selection Button ......................................................................

Servo View............................................................................................

HRS ESC Set Up ..................................................................................

Adjuster ................................................................................................

For Your Safety

As Well As

That Of Others

Before

Using

Installation

Initial

Set-Up

Function

Map

Functions

Reference

Reference ........................................................

Ratings.................................................................................................

Optional Parts ....................................................................................

Troubleshooting.................................................................................

Error Displays.....................................................................................

When requesting repair ..............................................

Glossary ..............................................................................................

Glossary (LCD Display) .....................................................................

3PK Data Sheet......................................................................

For Your Safety As Well As That Of Others

Use this product in a safe manner. Please observe the following safety precautions at

all times.

Explanation of Symbols

The parts of this manual indicated by the following symbols are extremely important

and must be observed.

Danger

Indicates a procedure which could lead to a dangerous situ-

ation and may cause death or serious injury if ignored and

not performed properly.

Warning Indicates procedures which may lead to dangerous situa-

tions and could cause death or serious injury as well as su-

perficial injury and physical damage.

Caution Indicates procedures that may not cause serious injury, but

could lead to physical damage.

Symbols: ; Prohibited ; Mandatory

Symbols Explanation

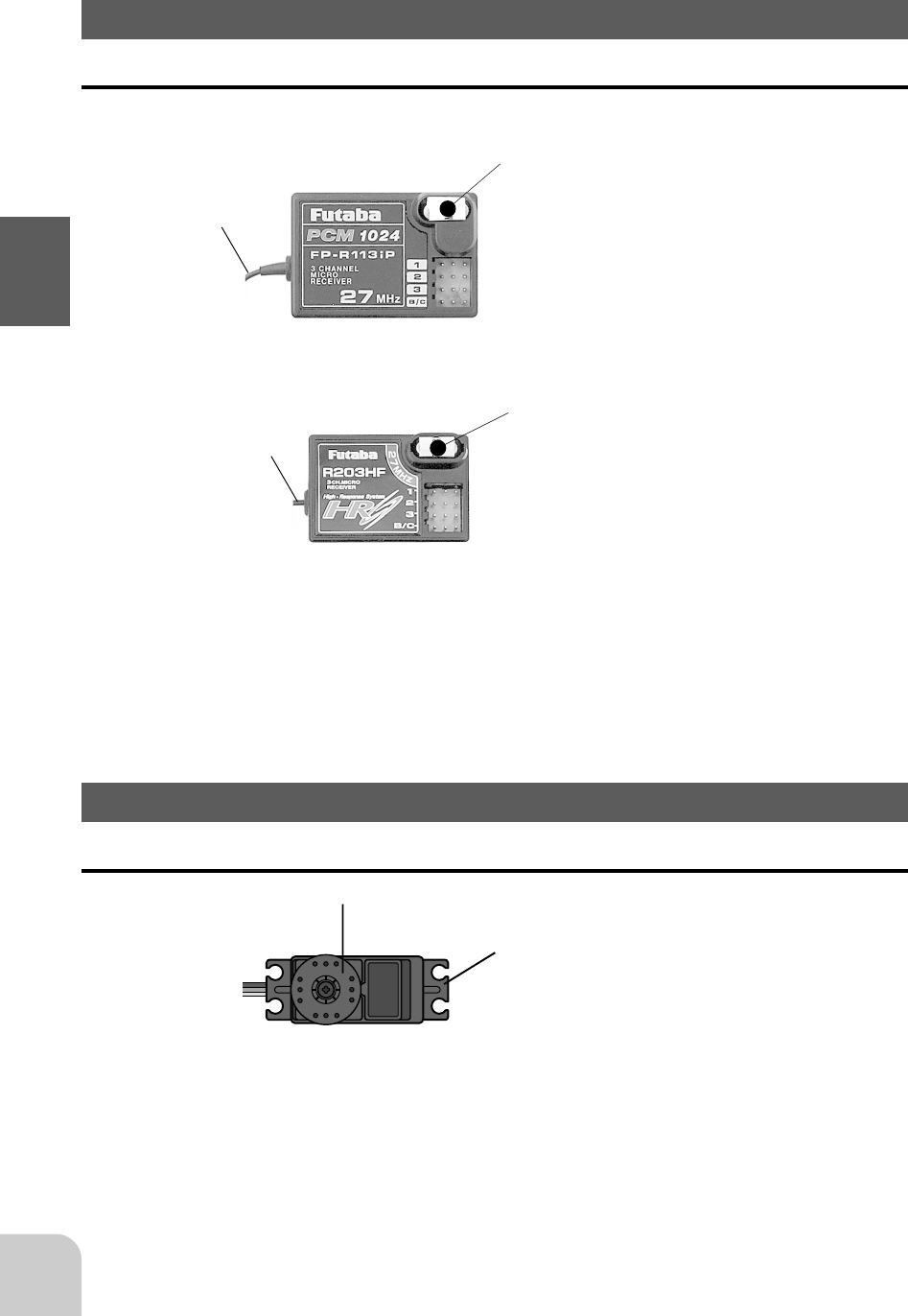

In case of the High Response System (H.R.S) receiver R203HF, always use only the

following conditions:

Servo; 6V type Digital Servo only

Power supply; 6V Nicd battery

Transmitter setting; "HRS" mode

If the conditions are different, control is impossible.

And Fail Safe Unit (FSU1) is not available.

Caution

High Response System (H.R.S) Precautions

Mandatory Procedures

FCC Compliance Statements:

Any adjustment or modification to the device not expressly authorized by the party responsible for

compliance could result in a violation of the FCC Rules and void the users authority to operate the

equipment.

For Your Safety As Well As That Of Others

Operation Precautions

Warning

Prohibited Procedures

Do not operate two or more models

on the same frequency at the same

time.

Operating two or more models at same time on the

same frequency will cause interference and loss of

control of both models.

AM, FM (PPM) and PCM are different methods

of modulation. Nonetheless the same frequency

can not be used at the same point in time, regard-

less of the signal format.

Do not operate outdoors on rainy

days , run through puddles of water or

when visibility is limited.

Should any type of moisture (water or snow) enter any

compoent of the system, erratic opreation and loss of

control may occur.

Do not operate in the following

places.

-Near other sites where other radio control

activity may occur.

-Near people or roads.

-On any pond when rowboats are present.

-Near high tension power lines or communi-

cation broadcasting antennas.

Interference could cause loss of control . Improper in-

stallation of your Radio Control System in your model

could result in serious injury.

Do not operate this R/C system when

you are tired, not feeling well or under

the influence of alcohol or drugs.

Your judgment is impaired and could result in a dan-

gerous situation that may cause serious injury to

yourself as well as others.

Mandatory Procedures

Extend the transmit-

ter antenna to its full

length.

If the transmitter antenna is not

fully extended the operating

range of the radio will be re-

duced.

Check the transmitter antenna to be

sure it is not loose.

If the transmitter antenna works loose, or is discon-

nected while the model is running signal transmission

will be lost. This will cause you to lose control of the

model..

Always perform a operating range

check prior to use.

Problems with the radio control system as well as im-

proper installation in a model could cause loss of con-

trol.

(Simple range test method)

Have a friend hold the model, or clamp it down or

place it where the wheels or prop can not come in

contact with any object. Walk away and check to

see if the servos follow the movement of the con-

trols on the transmitter. Should you notice any ab-

normal operation, Do not operate the model. Also

check to be sure the model memory matches the

model in use.

For Your Safety As Well As That Of Others

Caution

Prohibited Procedures

Mandatory Procedures

Do not touch the engine, motor, speed control or any part of

the model that will generate heat while the model is operating

or immediately after its use.

These parts may be very hot and can cause serious burns.

Turning on the power switches.

Always check the throttle trigger on the

transmitter to be sure it is at the neutral

position.

1. Turn on the transmitter power switch.

2. Turn on the receiver or speed control

power switch.

Turning off the power switches

Always be sure the engine is not

running or the motor is stopped.

1. Turn off the receiver or speed control power switch.

2. Then turn off the transmitter power switch.

If the power switches are turned off in the opposite

order the model may unexpectedly run out of control

and cause a very dangerous situation.

When making adjustments to

the model do so with the en-

gine not running or the motor

disconnected.

You may unexpectedly lose control and

create a dangerous situation.

When operating your model

always display a frequency

flag on your transmitter an-

tenna.

When adjusting the transmitter on land while preparing to run (cruise), take measures

so that the wind will not knock over the transmitter.

If the transmitter is knocked over, the throttle stick may be accidentally set to the operating position and you may

lose control.

(Fail safe function) ---H.R.S or PCM mode only

Before running (cruising), check the fail safe function.

Check Method;

Before starting the engine, check the fail safe function as follows:

1) Turn on the transmitter and receiver power switches.

2) Wait at least one minute, then turn off the transmitter power switch. (The transmitter automatically transfers the fail

safe data to the receiver every minute.)

3) Check if the fail safe function moves the servos to the preset position when reception fails.

The fail safe function is a safety feature that minimizes set damage by moving the servos to a preset position when

reception fails. However, if set to a dangerous position, it has the opposite effect. When the reverse function was used

to change the operating direction of a servo, the fail safe function must be reset.

Setting example: Throttle idle or brake position

For Your Safety As Well As That Of Others

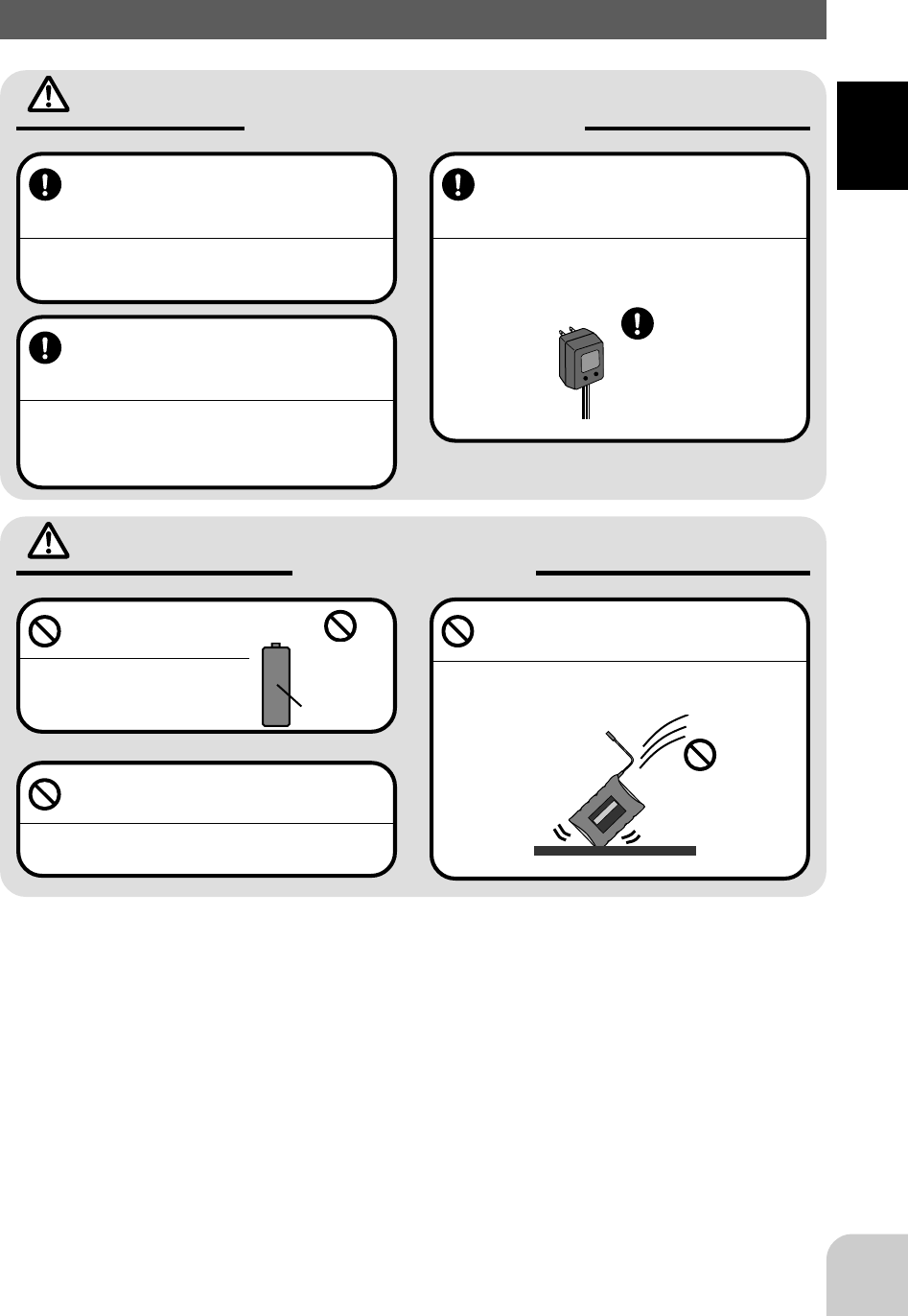

Nicad Battery Handling Precautions

(Only when Nicad batteries are used)

Warning

Mandatory Procedures

Always check to be sure your batter-

ies have been charged prior to oper-

ating the model.

Should the battery go dead while the model is operat-

ing loss of control will occur and create a very danger-

ous situation.

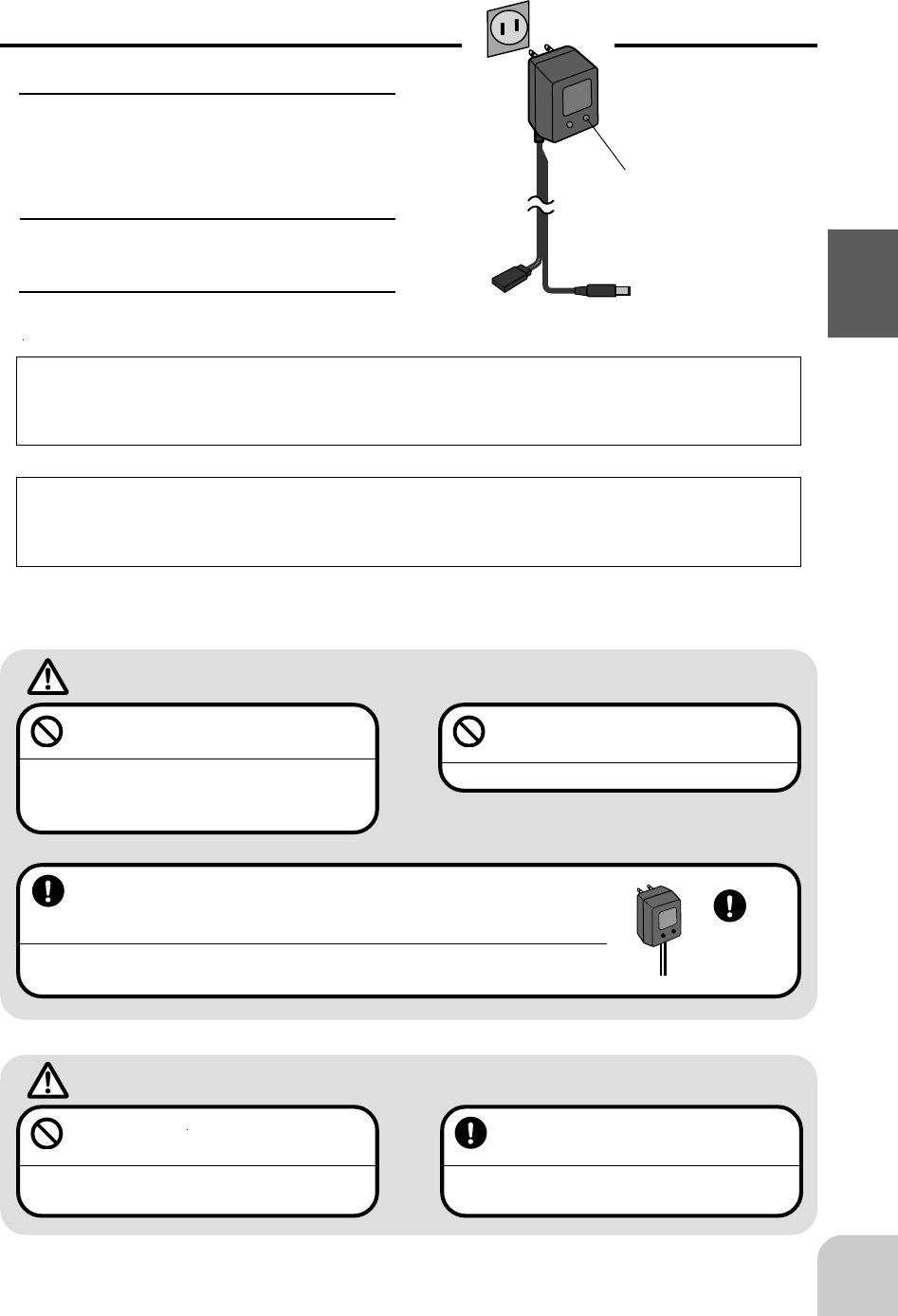

To recharge the transmitter Nicad ,

use the special charger made for this

purpose.

Overcharging could cause the Nicad battery to over-

heat, leak or explode. This may lead to fire, burns,

loss of sight and many other type's of injuries.

Caution Prohibited Items

Do not use commercial AA

size Nicad batteries.

Quick charging may cause the

battery contacts to overheat and

damage the battery holder.

Do not short circuit the Nicad battery

terminals.

Causing a short circuit across the battery terminals

may cause abnormal heating, fire and burns.

Do not drop the Nicad battery or ex-

pose it to strong shocks or vibrations.

The battery may short circuit and overheat, electrolyte

may leak out and cause burns or chemical damage.

When the model is not being used,

always remove or disconnect the

Nicad battery .

Should the battery be left connected this could create

a dangerous situation if someone accidentally turns

on the receiver power switch. Loss of control would

occur.

Special

Charger

Nicad AA size

batteries.

Use

prohibited

Shock

Prohibited

For Your Safety As Well As That Of Others

Storage and Disposal Precautions

Warning

Prohibited Procedures

Do not leave the radio system or

models within the reach of small chil-

dren.

A small child may accidentally operate the system,

this could cause a dangerous situation and injuries.

Nicad batteries can be very dangerous when mis-

handled and cause chemical damage.

Do not throw Nicad batteries into a

fire. Do not expose Nicad batteries to

extreme heat. Also do not disas-

semble or modify a Nicad battery

pack.

Overheating and breakage will cause the electrolyte

to leak from the cells and cause skin burns, loss of

sight as well as other injuries.

Mandatory Procedures

When the system will not be used for

any length of time store the system

with batteries in a discharged state.

Be sure to recharge the batteries prior

to the next time the system is used.

If the batteries are repeatedly recharged in a slightly

discharged state the memory effect of the nicad bat-

tery may considerably reduce the capacity . A reduc-

tion in operating time will occur even when the batter-

ies are charged for the recommended time.

The electrolyte in Nicad batteries is a strong alkali. Should you get even the

smallest amount of the electrolyte in your eyes, DO NOT RUB, wash immedi-

ately with water, seek medical attention at once. The electrolyte can cause blind-

ness. If electrolyte comes in contact with your skin or clothes, wash with water

immediately.

Caution

Prohibited Procedures

Do not store your R/C system in the

following places.

- Where it is extremely hot or cold.

- Where the system will be exposed to direct

sunlight.

- Where the humidity is high.

-Where vibration is prevalent.

-Where dust is prevalent.

-Where the system would be exposed to

steam and condensation.

Storing your R/C system under adverse conditions

could cause deformation and numerous problems

with opreation.

Mandatory Procedure

If the system will not be used for a

long period of time remove the batter-

ies from the transmitter and model

and store in a cool dry place.

If the batteries are left in the transmitter electrolyte

may leak and damage the transmitter. This applies to

the model also, remove the batteries from it also to

prevent damage.

A used Nicad battery is valuable resource. Insulate the battery terminals and

dispose the battery by taking it to a battery recycling center.

For Your Safety As Well As That Of Others

Other Precautions

Caution

Prohibited Procedures

Do not expose plastic parts to fuel,

motor spray, waste oil or exhaust.

The fuel, motor spray, waste oil and exhaust will pen-

etrate and damage the plastic.

Always use only genuine Futaba

transmitters, receivers, servos, FET

amps (electronic speed

controls),Nicad batteries and other

optional accessories.

Futaba will not be responsible for problems caused by

the use of other than Futaba genuine parts. Use the

parts specified in the instruction manual and catalog.

Mandatory Procedures

Before Using

- High Response System (H.R.S. system)

When used with the H.R.S. system, a speed of triple that of an FM system at average

response is realized. (Comparison with other Futaba products) The T3PK transmitter

compatible with the H.R.S. system, PCM1024 system, and PPM (FM) system.

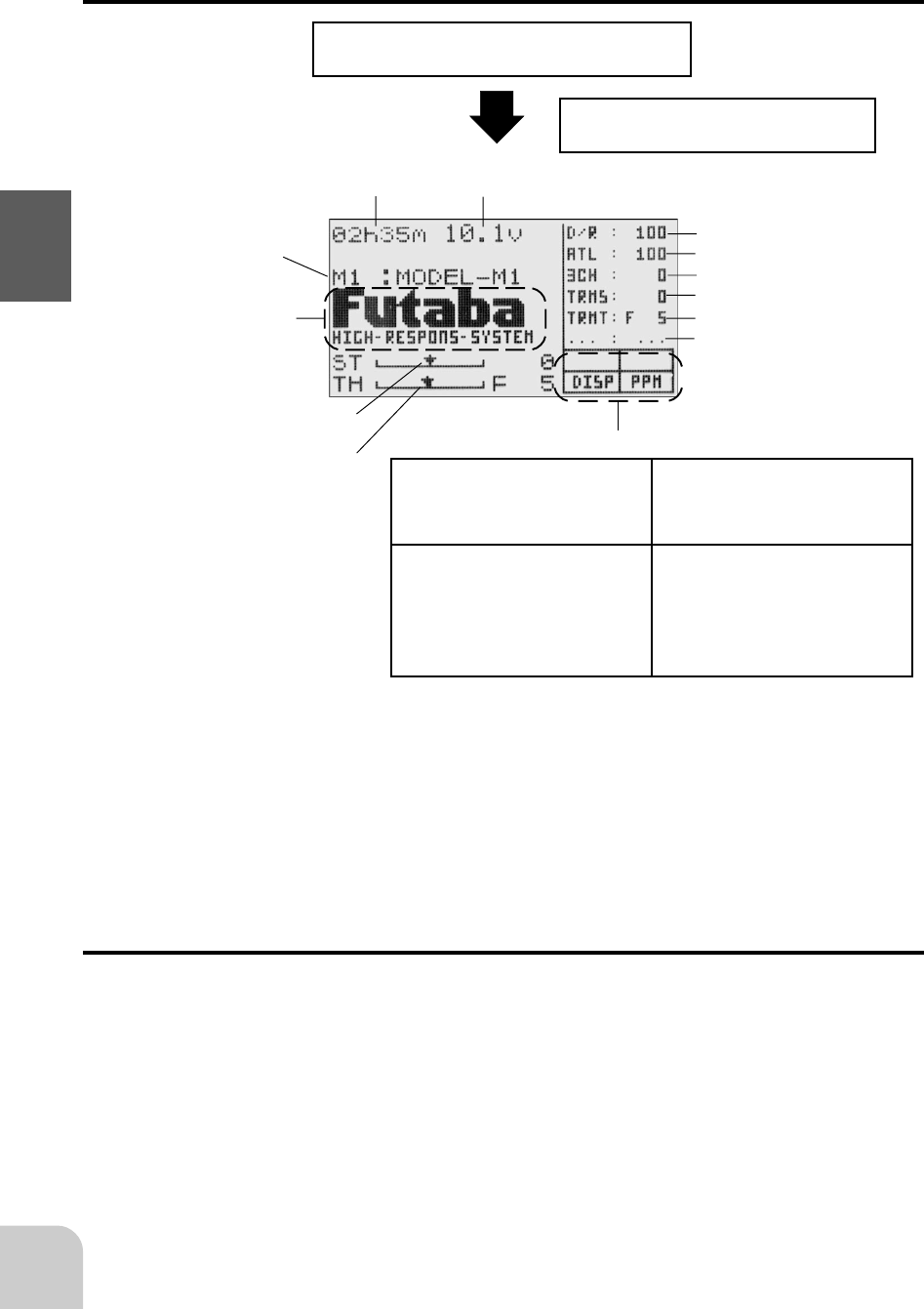

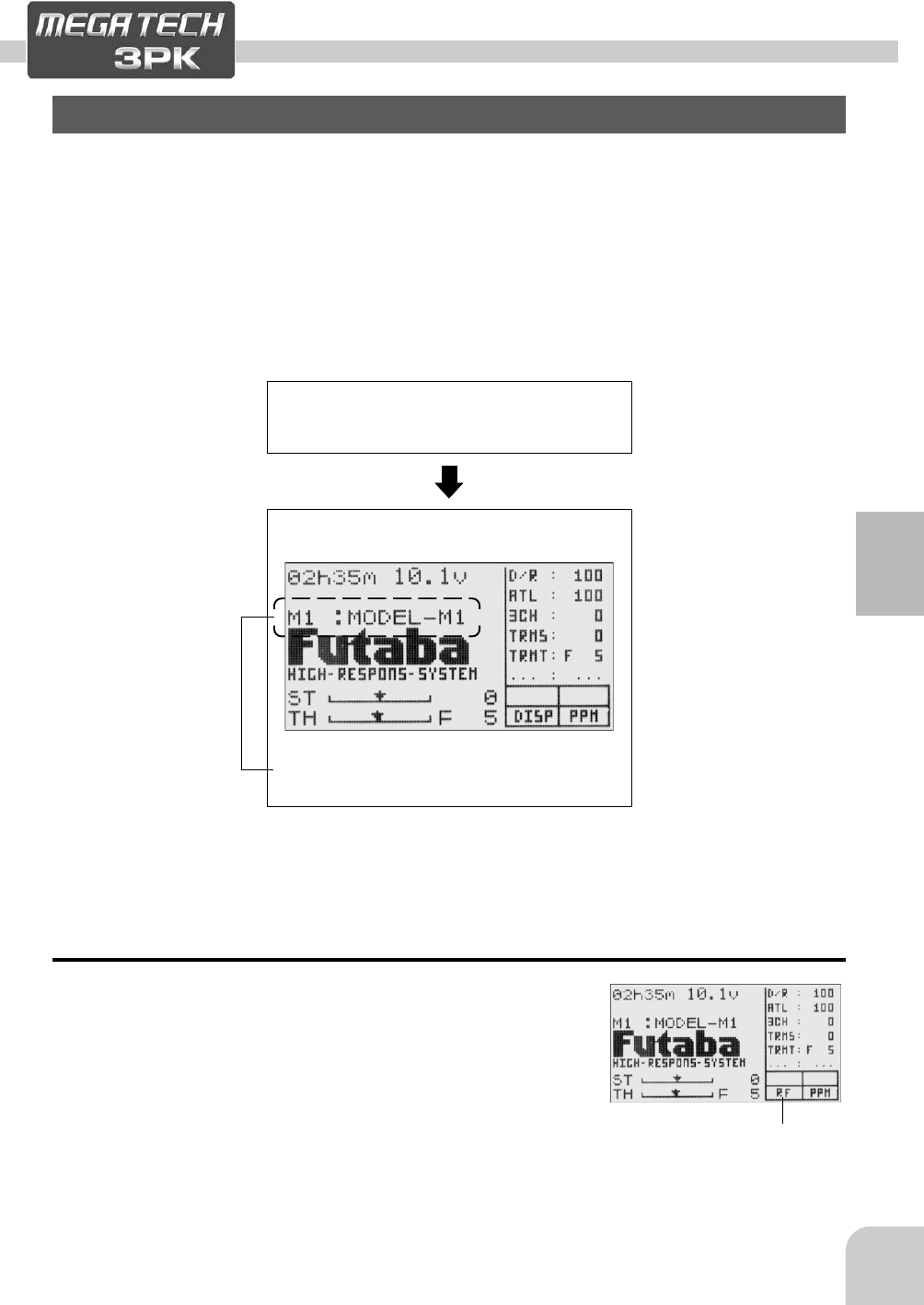

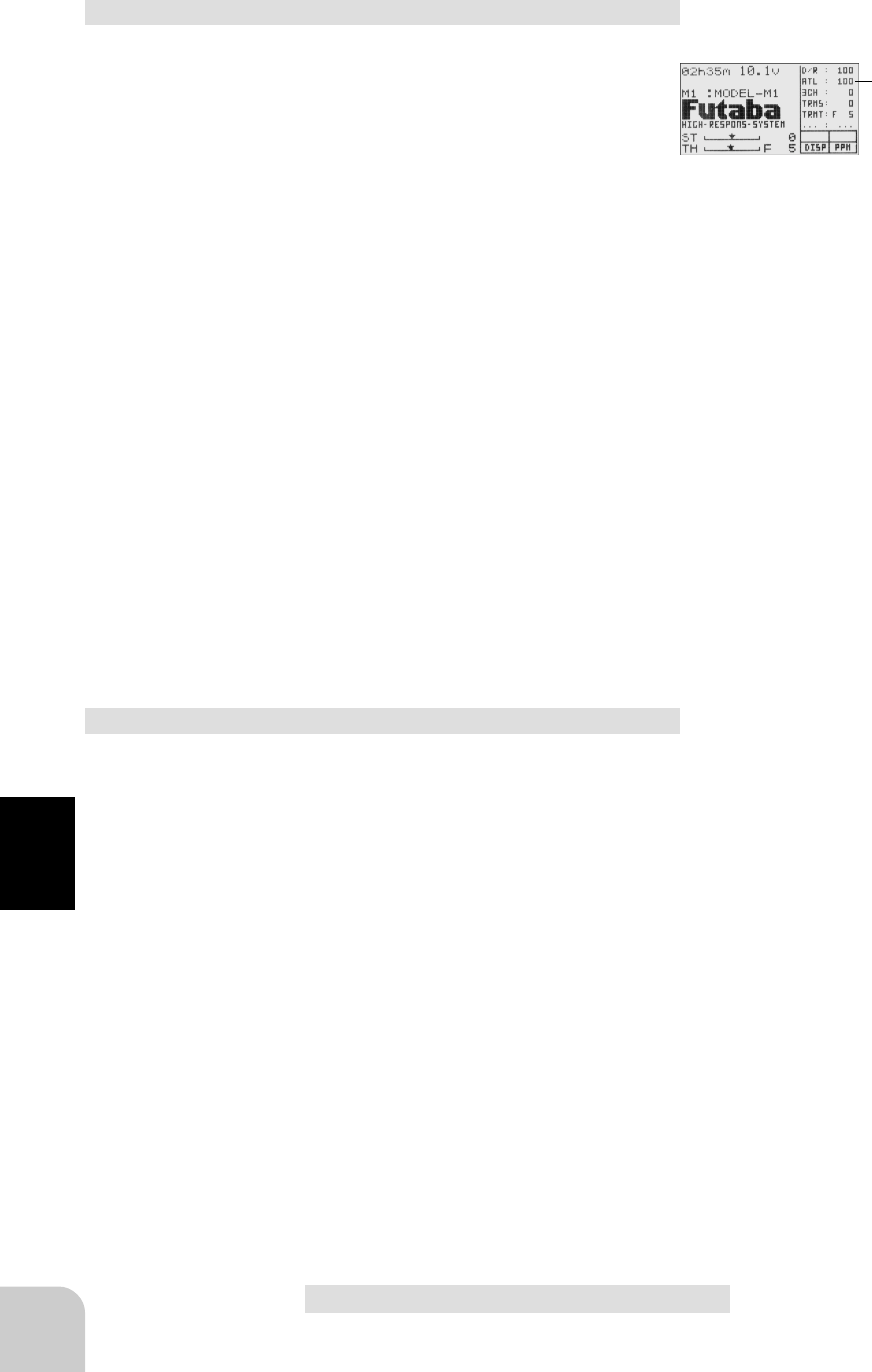

- 128x64 dot large graphic LCD/with backlighting

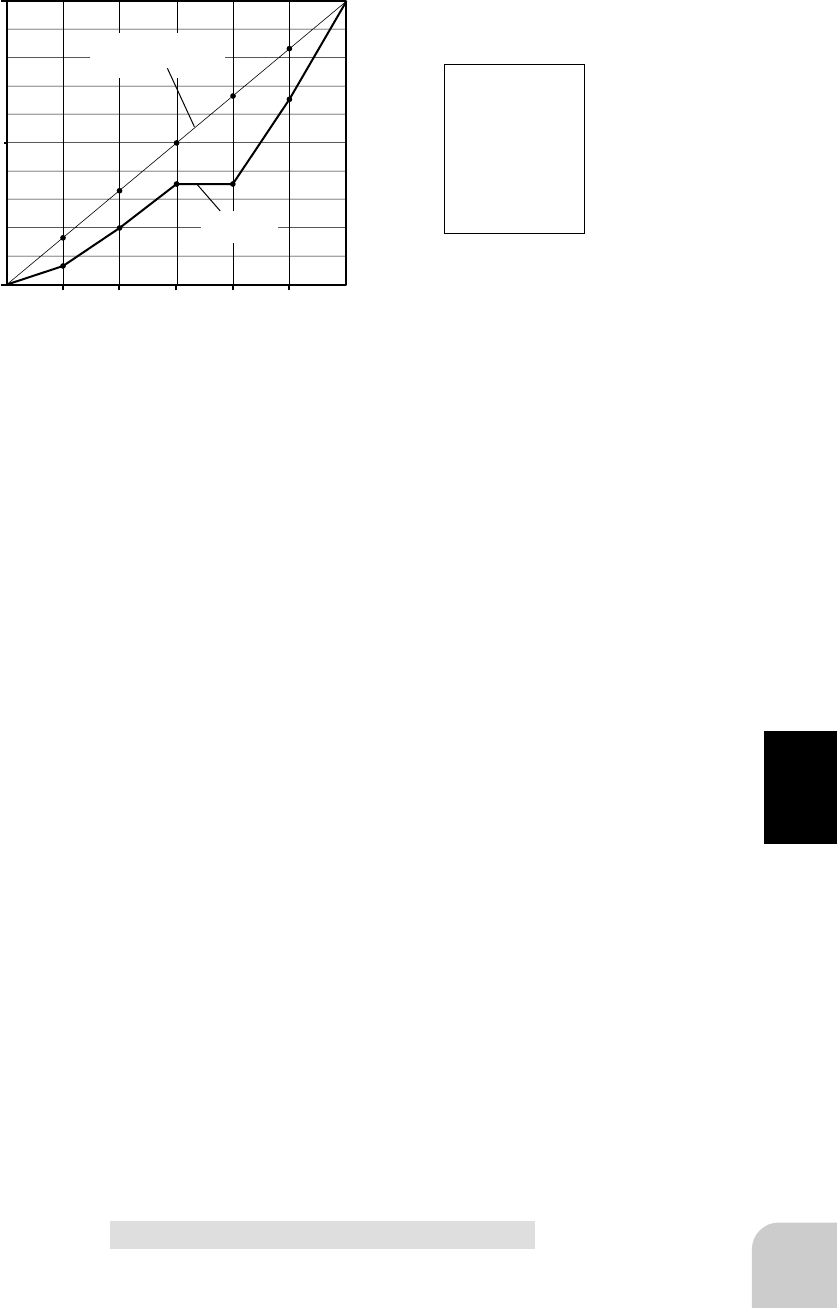

EXP curve, throttle curve, servo view, and other graph display and function selection

can batch display simple menus and function setup items, and data setup is easy.

Backlighting that can be turned ON/OFF also improves recognition at indoor cir-

cuits,

etc.

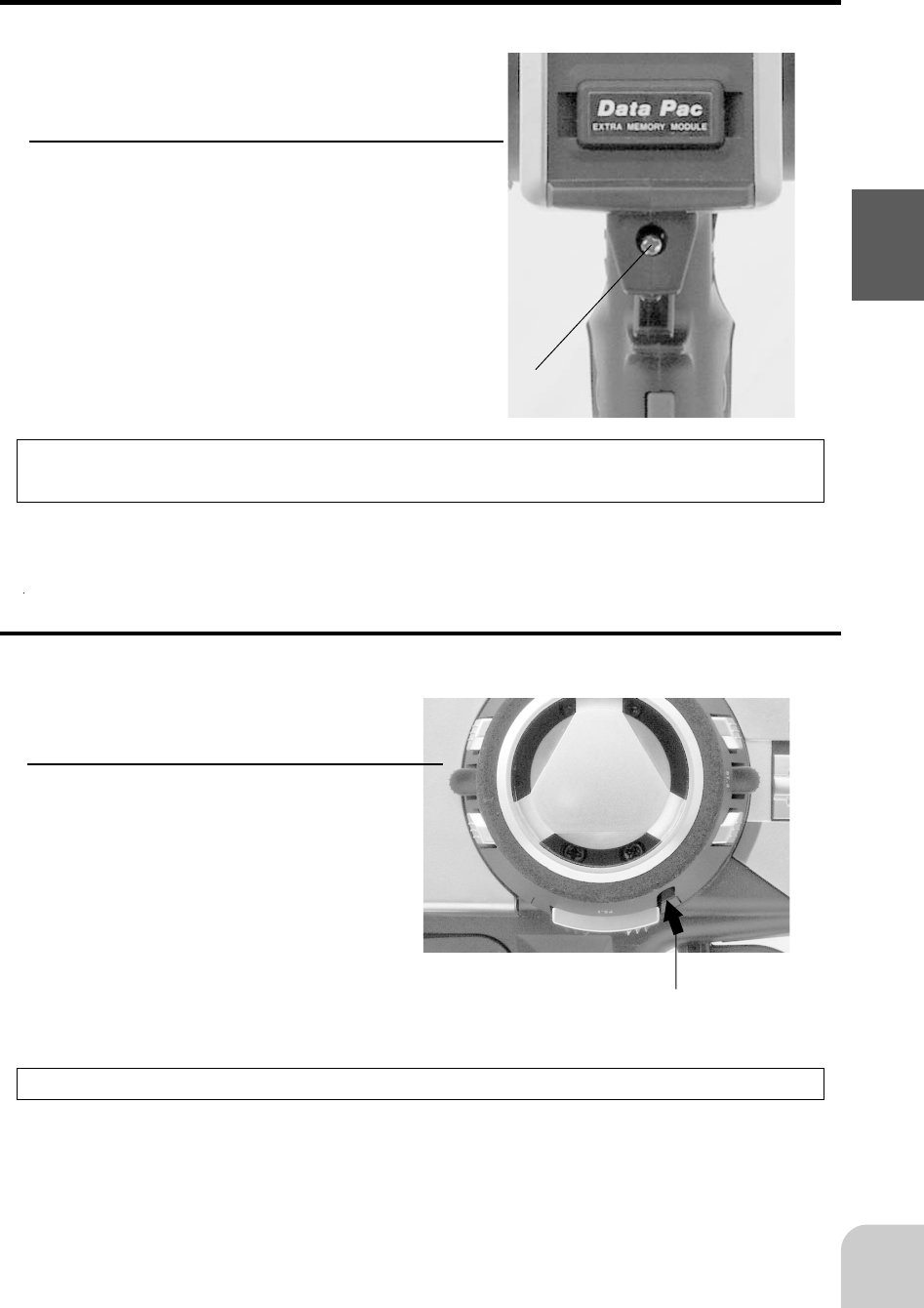

- 10 models memory/+ 10 models by using a data pack

Model names can use up to 10 letters, numbers, and symbols so that easily under-

stood

names can be set. Model copy function simplifies creation of a model memory with

different fine setups. An additional 10 models memory can be added by using the

optional data pack (DP-16K).

- Two function selection modes: Menu selection and direct call

Setup screens are called from a menu screen. The menu screen can be selected from

among 3 levels (LV1/LV2/LV3) to match the level of use.

Frequently used (high urgency) functions can be quickly called by assigning them to

direct call buttons. (6 functions)

- Brake mixing for large cars (BRAKE-MIX)

Brake mixing of the front and rear wheels of 1/5GP cars, etc. has delay and balance

adjustment functions.

- Second dual rate (2ND D/R)

Steering angle can be switched with one touch while running.

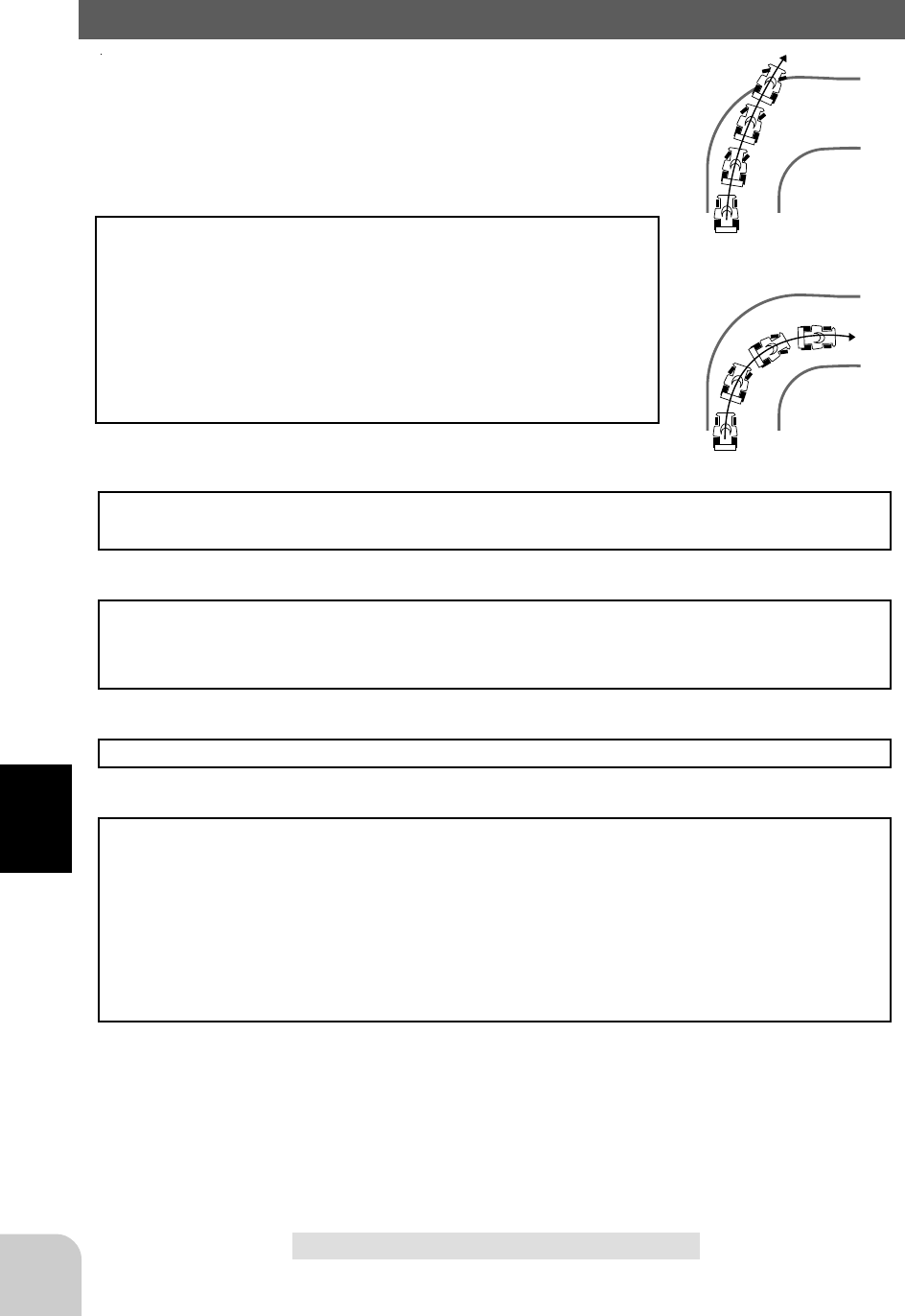

- Anti-skid Braking System (A.B.S.)

This function applies the brakes so that the tires of gasoline engine cars, etc. do not

their grip on the road even when braking at corners.

- Throttle acceleration (TH-ACCEL)

Gasoline engine cars have a time lag before the clutch and brakes are connected. The

TH-ACCEL function minimizes this time lag.

- Throttle speed (TH-SPEED)

Sudden trigger operation on slippery roads only spins the wheels unreasonably and

does not accelerate smoothly. Setup the throttle speed function allows smooth and

enjoyable operation while at the same time reducing battery consumption.

Before Using

Features

Before Using

- Start function (AT-START)

When the throttle trigger is set to full throttle simultaneously with starting on slippery

roads, the wheels spin and the vehicle does not accelerate (start). Setup the start

function allows smooth starting.

- Steering speed (ST-SPEED)

"When you sense that the steering servo is too fast, etc., the servo operating speed

(direction that suppresses the maximum speed) can be adjusted.

- Racing timer (TIMER)

A lap timer can record 99 lap times and the total time. The timer can also be started

automatically by trigger operation. The race time and an audible alarm can be set. A

navigation timer effective during training runs is provided. Target lap and refueling

time can be indicated by audible alarm. Other timers are an up timer and a down

timer.

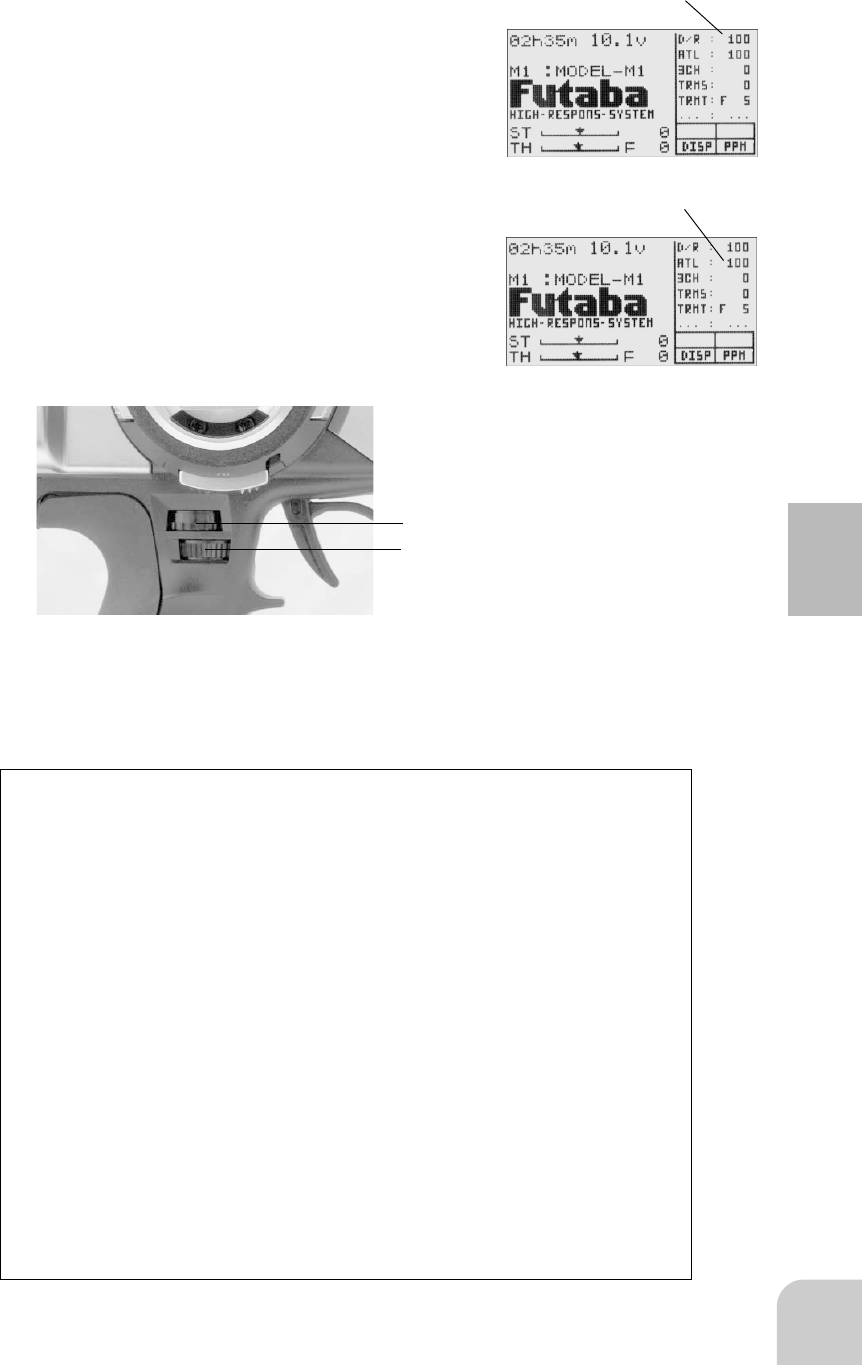

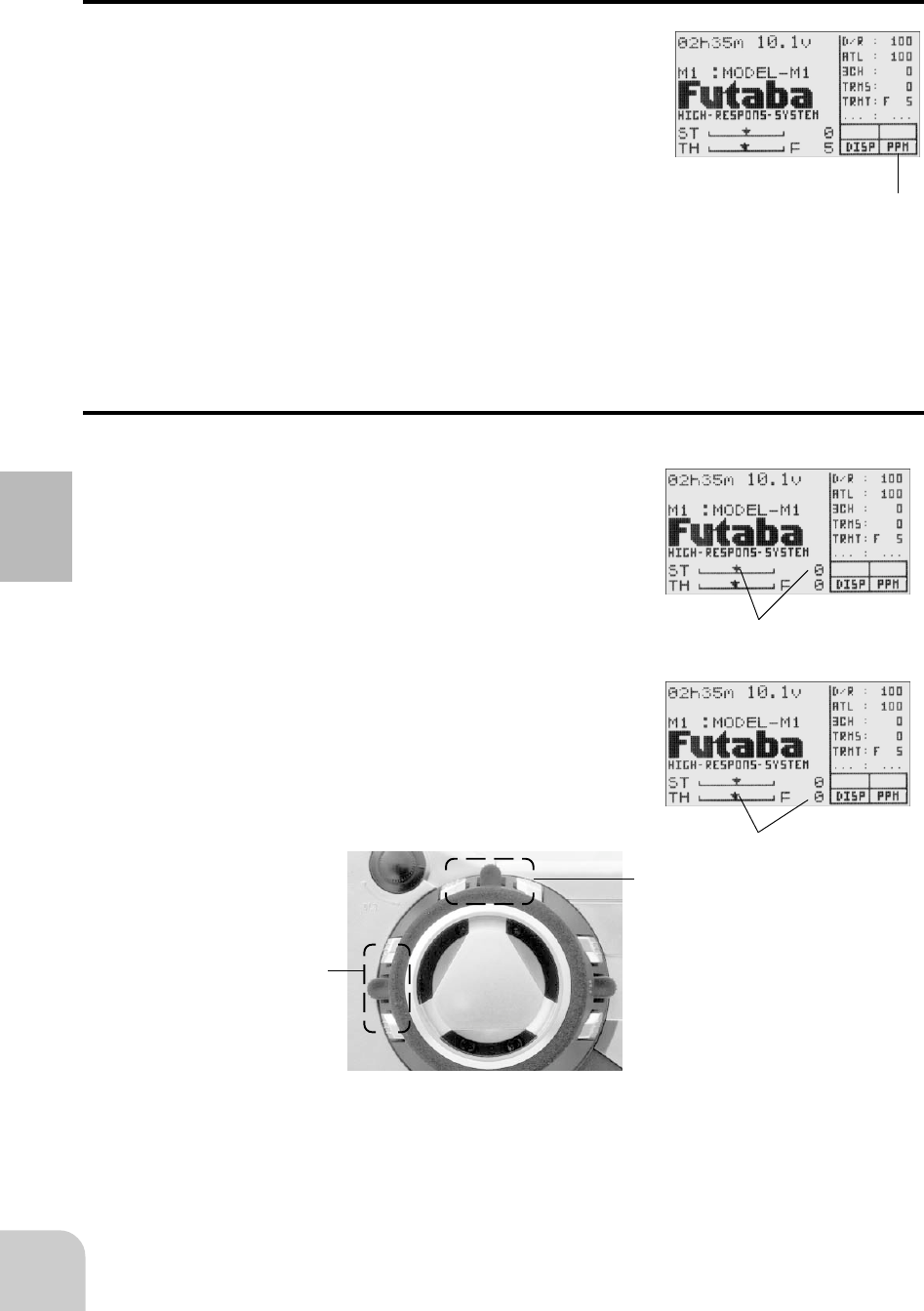

- Digital trim w/reset function

The trim position is constantly displayed on an LCD screen. The operation amount of

step can also be adjusted. Steering and throttle trim operations have no on the

maximum steering position.

- Function select dial function (FUNC-DIAL)

This function assigns a function to dials (digital trim, grip dial, knob). The step size

and operating direction can also be adjusted. Trim positioning at each model call is

unnecessary because all the dials are digital.

- Function select switch function (FUNC-SW)

This function assigns a function to the three installed switches. The operating direc-

tion

can also be set.

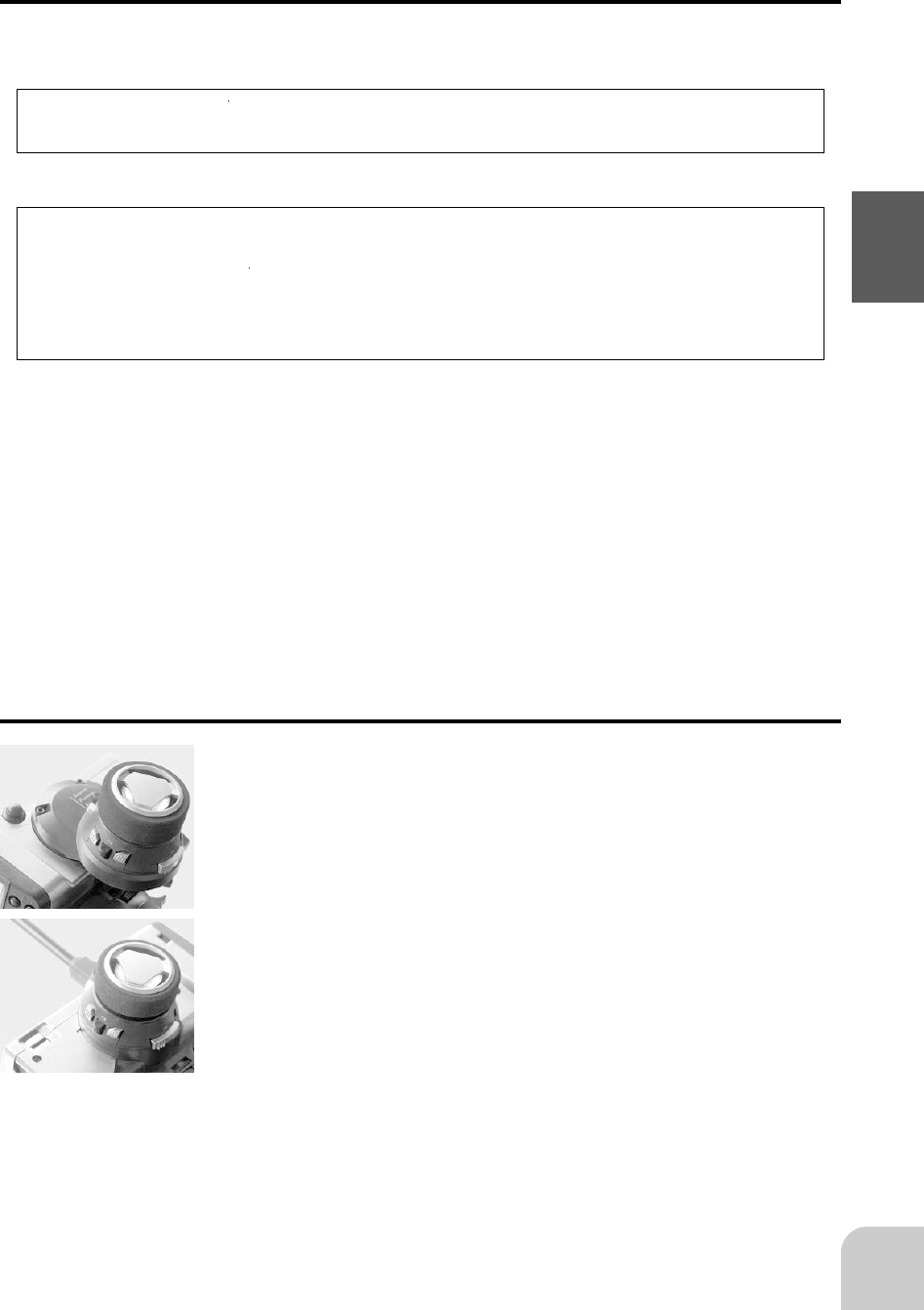

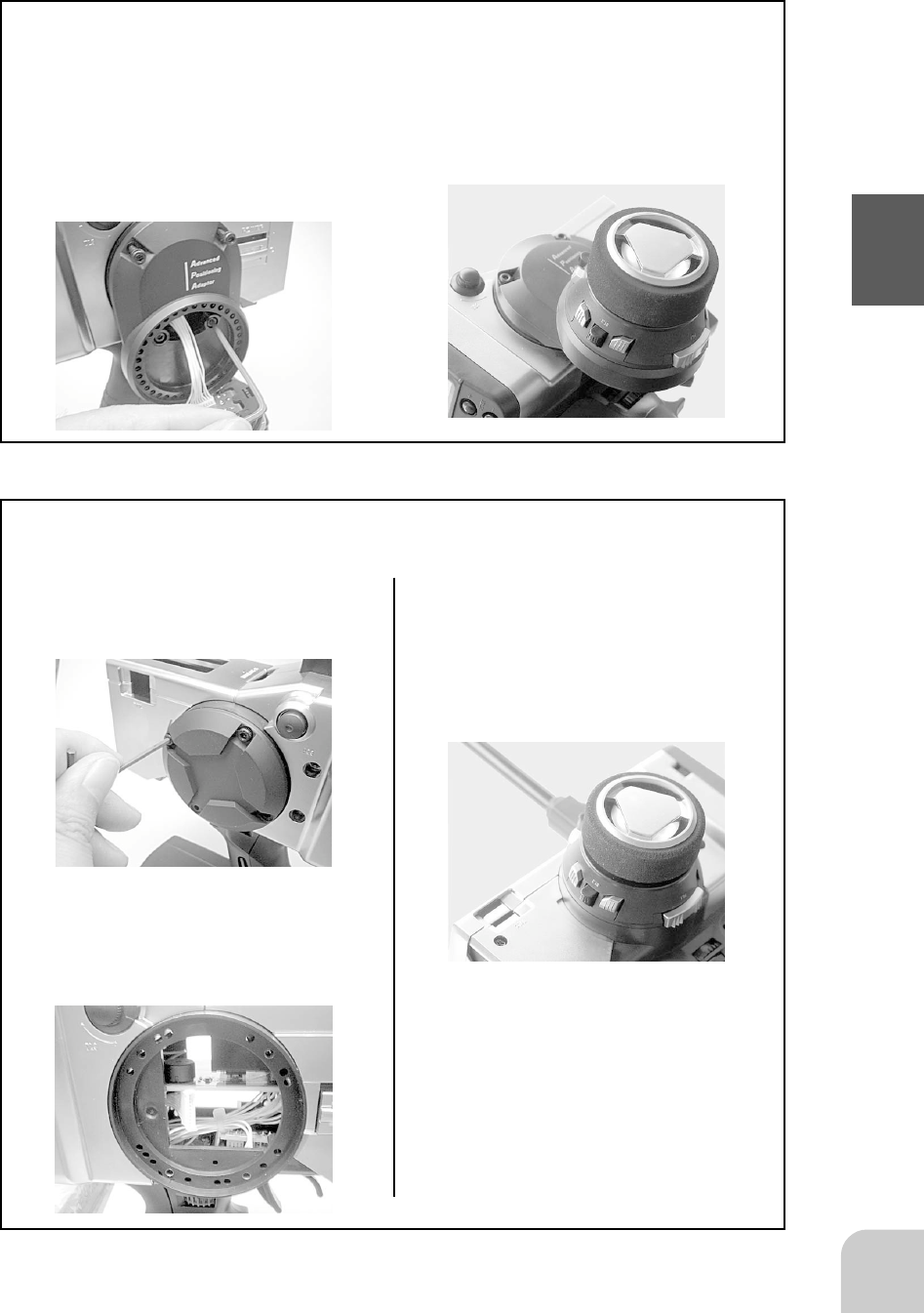

- Wheel position can be changed.

The wheel position can be changed by using the offset adapter (supplied). The angle

can also be adjusted.

- Adaptable for left-handed operators

The wheel section left and right mounting direction can be reversed.

- Black antenna

- NEW design considers operability and weight balance.

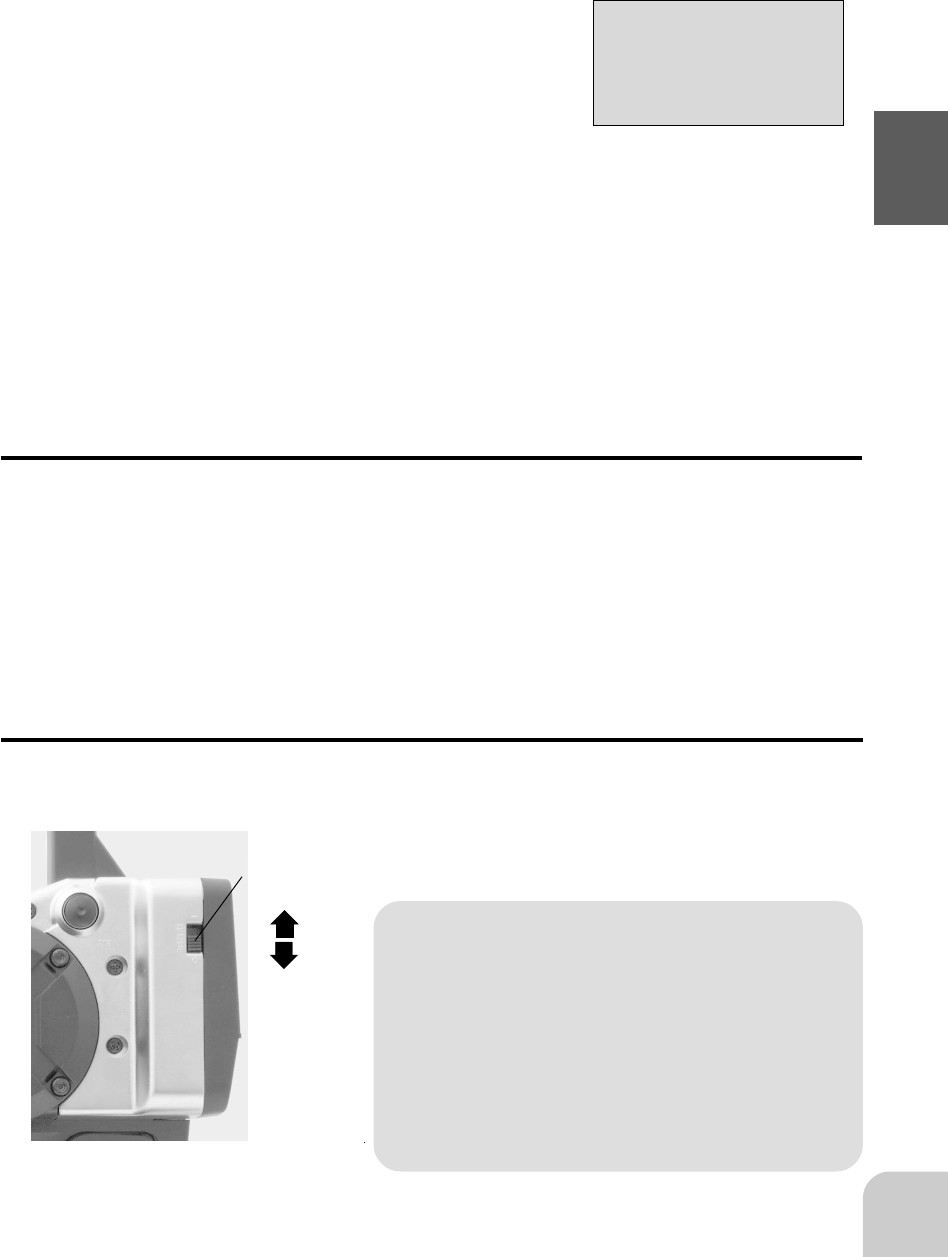

- Tension adjustment function

The wheel tension can be adjusted from the outside.

- Trigger stopper function (Mechanical ATL)

- Display switch

Functions can be set without emitting radio waves.

- Receiver w/DSC is standard equipment (Connection cord is option.)

HRS system: R203HF, PCMN type: R113iP

- 7-color LED pilot lamp

You can select your favorite color.

Before Using

Set Contents

After opening the box, first check if the contents conform to the following. The con-

tents depend on the set as shown below.

- If any of the set contents are missing, or you have any questions, please contact you

dealer.

Transmitter T3PK

RF module PK-FM

Receiver R203HF(HRS-FM) or R113iP(PCM)

Servo

Miscellaneous

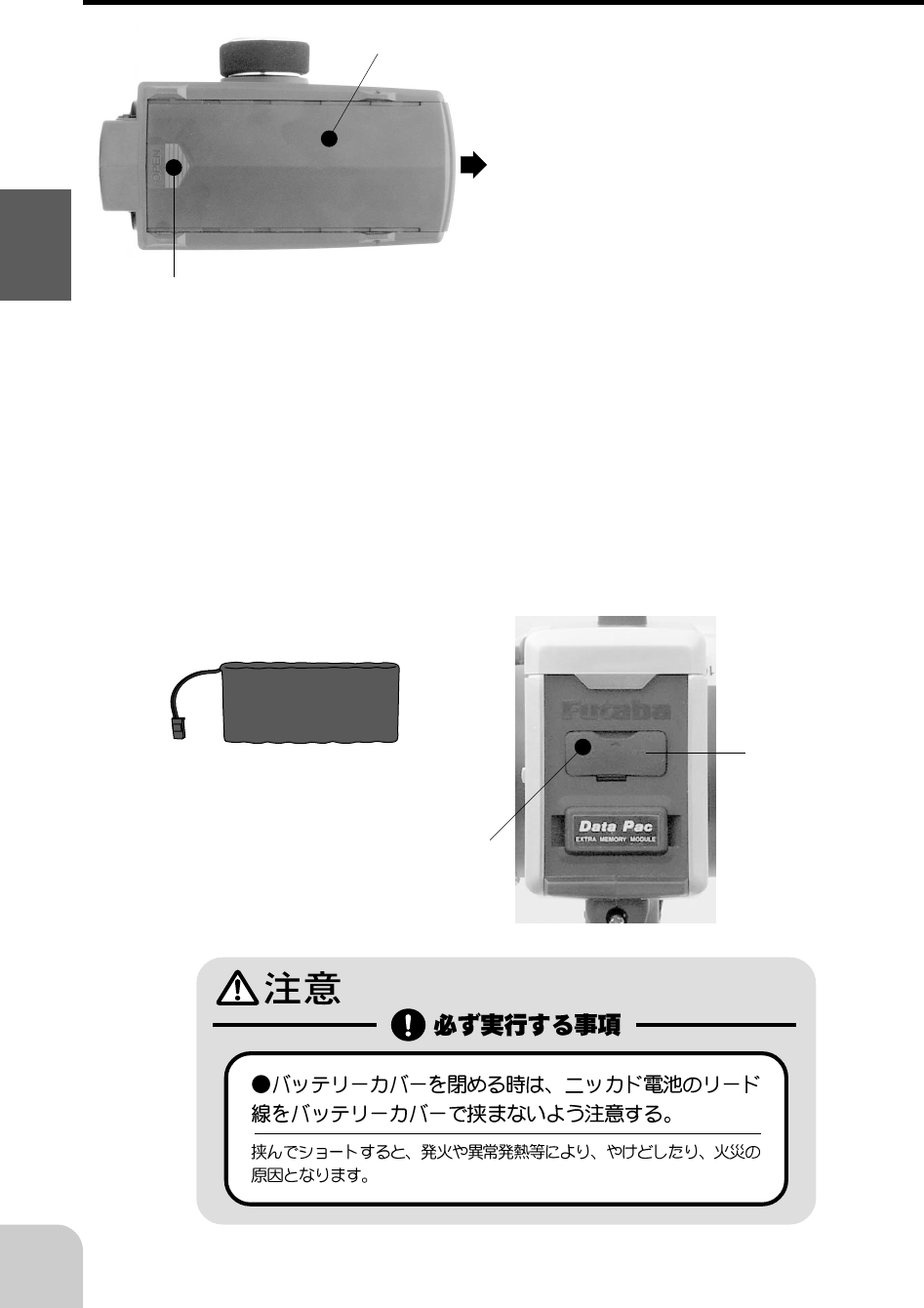

Transmitter Ni-cad battery pack NT8F700B

or Battery box

*Installed in transmitter.

Receiver switch

Wheel position offset adapter(A.P.A.)

Instruction manual

*Installed in transmitter.

Always use only genuine Futaba transmitter, receiver, FET amp, Ni-cad battery and

other optional parts.

Futaba will not be responsible for damage caused by other than genuine Futaba parts and components. Use only

the genuine Futaba parts and components listed in the instruction manual and catalog.

Caution

In case of the High Response System (H.R.S) receiver R203HF, always use only the

following conditions:

Servo; 6V type Digital Servo only

Power supply; 6V Nicd battery

Transmitter setting; "HRS" mode

If the conditions are different, control is impossible.

And Fail Safe Unit (FSU1) is not available.

Caution

Before Using

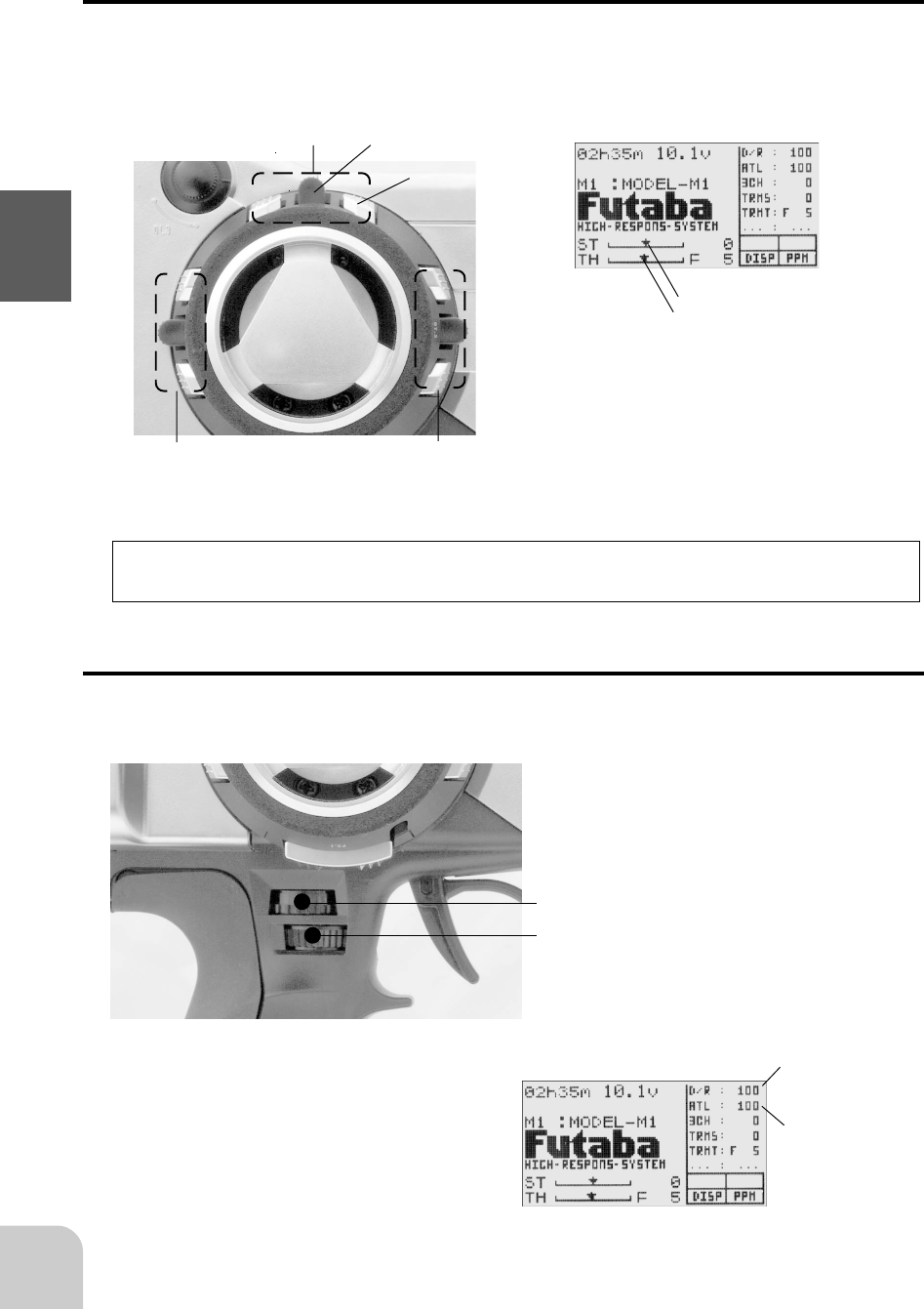

Transmitter T3PK

Nomenclature

Antenna

Throttle trim

(DT2)

Edit buttons

Steering wheel

Steering trim (DT1)

LCD screen

Push switch 1 (PS1)

Power

switch

Digital trim 3 (DT3)

Pilot lamp

CH3 knob

( DL3)

Mechanical ATL

adjusting screw

Throttle

trigger

(See page 16 for the operating

instructions.)

(See page 16 for the operating instructions.)

(See page 17 for the

adjustment instructions.)

(See page 16 for the operating

instructions.)

Grip Handle

Push

switch 3

(PS3)

Crystal

Display

switch

Steering dual rate dial (DL1)

(See page 16 for the operating instructions.)

Push switch 2 (PS2)

ATL dial (DL2)

(See page 16 for the operating instructions.)

*The switches, knobs, and trimmers in the

figure are shown in the initial setting position.

Precautions when turning the power

switch on and off.

When the data was changed using the edit

keys or trim levers, wait at least two seconds

before turning off the power. If the power is

turned off within two seconds after the data

was changed, the new data will not be written

to memory.

Sound port

- Use a commercial earphone.

(Use a radio earphone with a 3.5mm di-

ameter plug.)

- When the surroundings are noisy during

races, etc., you can listen to the alarm

tone using an earphone. The alarm tone

can also be heard from the transmitter.

Before Using

Digital Trim Operation

(Initial settings: DT1: Steering trim, DT2: Throttle trim, DT3: -------)

Operating by the lever: Push the lever to the left or right (up or down).

Operating by push button switch: Press the push button switch in the desired direc-

tion. The current position is displayed on the LCD screen.

Steering trim display

Throttle trim display

- Each step is indicated by a tone.

- When the trim exceeds the maximum trim adjustment

range, the tone will change pitch and the lever will not

move any farther.

- Return to the neutral position (center) by pressing both

the push button switches simultaneously for about one

second.

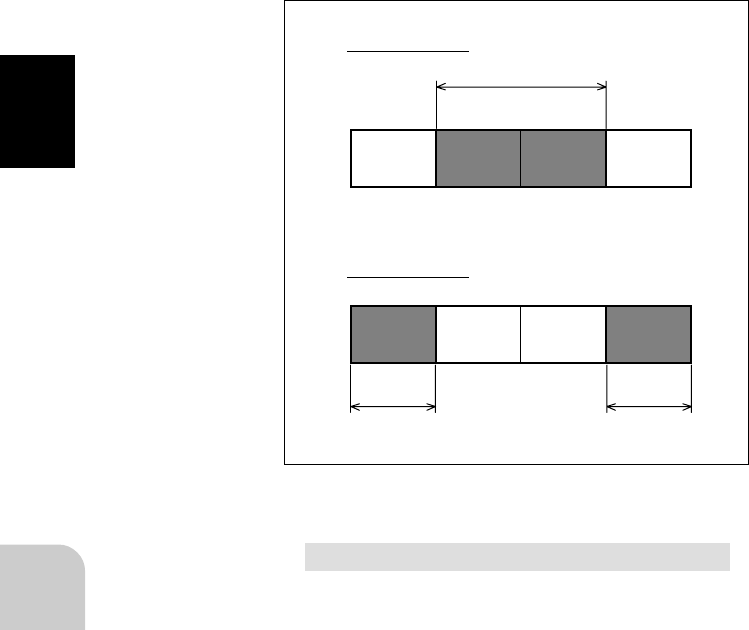

Trim Operation

With the center trim feature, trim adjustments have no effect on the maximum servo

travel. This prevents the linkages from binding when adjustments are made.

DT2

DT1 Lever

Push button switch

DT3

Grip dial operation

(Initial settings: DL1=Steering D/R, DL2=ATL)

Operate the dials by turning them. The current set value is displayed on the LCD

screen.

DL1

DL2

- A click sound is made at each step.

- When the maximum position is reached at each side,

the tone of the click changes. Thereafter, the set value

does not change.

ATL display

Steering D/R display

Before Using

Mechanical ATL Adjustment

Adjustment

Using a Phillips screwdriver, adjust the

trigger brake (back) side stroke by turning

the screw through the adjusting hole indi-

cated by the arrow in the figure. (The

screw moves the throttle trigger stopper.)

- When the adjusting screw is turned clockwise, the

stroke becomes narrower.

Make this adjustment when you want to make the throttle trigger brake (back) side

stroke narrower.

Mechanical ATL

adjusting screw

Caution

When the stroke was adjusted, the throttle servo travel must be adjusted by data set-

ting.

Wheel Tension Adjustment

Make this adjustment when you want to change the steering wheel spring tension.

Adjustment

Turn the screw inside the adjusting

hole using a 1.5mm hex wrench.

Caution

If turned too far counterclockwise, the adjusting screw may fall out.

Tension adjusting

screw

- Turning the adjusting screw

clockwise, increases the spring

tension.

Before Using

For Ni-cad battery system

The Ni-cad battery is connected by a connector so that it can be removed when you

will not be using the transmitter for a long time, or when replacing a dead battery with

a spare battery.

- Always use an NT8F700B Ni-cad battery.

For dry cell battery system

Load the eight batteries in accordance with the polarity markings on the battery

holder.

-Dry cell battery (x8)

Battery Replacement

Battery cover

While pressing this part.

1. Slide the transmitter battery

cover in the arrow direction while

pressing the part shown in the

figure.

2. Replace the Ni-cad battery pack

or Dry cell batteries.

3. Slide the battery cover back onto

the transmitter.

Charging jack

(Interior)

Cover

Ni-cad battery

NT8F700B

Before Using

Charging the Ni-cad Battery

Charging

1. Plug the transmitter cord of the

special charger into the charg-

ing jack on the rear of the trans-

mitter.

2. Plug the charger into an AC out-

let.

3. Check that the charging LED

lights.

Charger

Transmitter charging

LED

Cord to transmit-

ter charging jack

When charging the NT8F700B Ni-cad battery with the special charger, allow about

15 hours for charging. If the transmitter has not been used for some time, cycle the

battery by charging and discharging it two or three times.

Over current protection

The transmitter charging circuit is equipped with an over current protection circuits

(1.5A). If the battery is charged with a quick charger for other than digital propor-

tional R/C sets, it may not be fully charged.

Always use the special charger or a quick charger for digital pro-

portional R/C sets to charge a digital proportional R/C set Ni-cad

battery.

Overcharging a Ni-cad battery can result in burns, fire, injuries, or loss of sight due to

overheating, breakage, or electrolyte leakage.

Never try to recharge a dry cell bat-

tery.

The transmitter may be damaged or the battery

electrolyte may leak or the battery may break.

When the charger is not in use, dis-

connect it from the AC outlet.

Do this to prevent accidents and to avoid overheat-

ing.

Caution

Never plug it into an outlet other

than indicated voltage.

Plugging the charger into the wrong outlet may re-

sult in an explosion, sparking, or fire.

Do not insert and remove the

charger when you hands are wet.

It may cause an electric shock.

Warning

Use the

special

char

er.

AC outlet

Before Using

Handling the RF module

Removing the RF module

1 Remove the RF module cover by slid-

ing it in the arrow direction.

2.Pull the module upward while pushing

the left and right claws to the inside.

Inserting the RD module

1 Insert the module while being careful

that the transmitter side connector

pins are not bent.

2 Push in until the claws lock with a

"click".

3 Install the RF module cover by sliding

it.

- Crystal can be changed without removing the

RF module.

- See page for the crystals that can be used.

RF module temperature rise

When the transmitter is in use, the RF module temperature will rise slightly. This is

normal.

Handling the data pack

With the 3PK transmitter, the setup data of 10 models can be stored in the transmitter

itself and the setup data of 10- models can be stored in a DP-16 removable data pack

(Option).

DP-16K data

pack (Option)

RF module cover

Data pack insertion hole

- Hold the dust cap and insert the data

pack in all the way.

Before Using

MEMORY MODULE

INITIALIZE ?

YES > +

NO > -

OFF

When inserting and removing the data pack

Always turn off the transmitter power before removing or inserting the data pack.

Data pack initialization

When using the data pack, initialization is necessary so

that the data pack can be used with this transmitter. When

"INITIALIZE?" is displayed on the screen at power ON,

press the (+) button. This automatically initializes the data

pack. No further action is necessary.

When a data pack used with another model has been inserted, and initialization is

executed by pressing the (+) button when "INITIALIZE?" is displayed on the screen

at power ON, the old data is destroyed so the data pack can be used with the 3PK.

Data interchangeability with other models

Data is not interchangeable with 3PJsuper, 3VC, and other transmitters other than the

3PK.

Set data backup

The set data of each function (transmitter body and data pack) of the 3PK transmitter

is stored in a memory element that does not require a backup battery. Therefore, the

3PK transmitter can be used without paying attention to the backup battery life.

Display switch

If the display switch is turned on without turning on the power switch, transmitter

side data setup is possible without emitting radio waves.

Display switch

WARNING

( ) Prohibited item

Never turn on the power switch while this

function is in use.

If the power switch is turned on, radio waves

will be emitted and interfere with

vehicles (boats) operating on the same band

(frequency) and is very dangerous.

Before Using

DL1

DL2

DL3

DT1

DT2

DT3

* Function names and rate

assigned to dials are dis-

played.

* Displays whether or not a data

pack is inserted. When a data pack

is inserted, "DPAC" is displayed.

* "BLHT" is displayed when back-

lighting is ON.

* When radio waves are being emit-

ted, "RF" is displayed. When radio

waves are

not being emitted when turned on by

display switch and when the DSC

function is used, "DISP" is dis-

played.

* The current operation mode is dis-

played. ("PPM"/"PCM"/"HRS")

Display when power switch turned on

Power switch turned on

Beep confirmation sound is generated and

the initial screen shown below appears.

Total timer display (H:M)

Battery voltage display

Model name (10 characters)

* Display mode can be changed

by using the SYSTEM function.

(Page )

Steering trim display

Throttle trim display

User name display

When the (END) button is held down for 1 second or longer at the initial screen, the

Futaba logo and user name are displayed for about 2 seconds.

Total timer

The total timer shows the accumulated time from last reset.

The total time does not change even when the model changes.

Reset method

1 In the initial screen state, hold down the (+) and (-) buttons simultaneously

for 1 second.

* The total timer display counts up from 1 minute to 99hours 59 minutes.

Before Using

LCD Screen Contrast

The LCD screen contrast can be adjusted. (For more information, see page .)

Caution

Do not adjust the contrast so that the LCD is too bright or too dark.

When the display cannot be read due to a temperature change, data cannot be set.

LCD Screen Temperature Change

In the following cases, the LCD may become difficult to read due to a temperature

change.

- On hot summer days and cold winter days, the LCD may be easy to read indoors, but difficult to

read outdoors.

- If the contrast is too bright or too dark, temperature changes and lighting conditions may cause the

screen to become difficult to read.

Contrast adjustment when not called

1 Turn on the transmitter power again.

2 When the screen is too dark or too bright, adjust to a suitable contrast by pressing

the (-) or (+) button, respectively, while pressing the (SEL) button.

Changing wheel position/modifying for left-hand use

- Changing the wheel position

The wheel position can be offset by using the accessory offset

adapter. The wheel angle can also be adjusted.

- Modification for left-hand use

The wheel section left and right mounting direction can be re-

versed.

Before Using

Removing the steering wheel unit

1. After removing the wheel cap,

carefully remove the screw

holding the steering wheel.

2. Remove the steering wheel.

3. Remove the 4 screws from

the wheel unit cover.

4. Remove the wheel unit cover.

Be very careful the wheel

shaft will fall out.

5. Remove the 4 screws from

the wheel unit.

6. Disconnect the wheel unit

connector.

Steering Wheel

Wheel Unit

Cover Wheel Unit

screw (large)

screw (small)

screw (middle)

Before Using

Changing wheel position

Modifying for left-hand use

1. Connect the wheel unit con-

nector through the offset

adapter. Install the adapter

using four 2.5mm hex bolts at-

tached.

2. Reinstall the wheel unit,

wheel unit cover, wheel, and

wheel cap in same position

as they were removed.

1. Remove the wheel back cover

using 2.5mm hex wrench.

2. Push the wheel unit connector

in the opposite side.

3. In opposite side, connect the

wheel unit connector and rein-

stall the wheel unit, wheel unit

cover, wheel, and wheel cap

in same position as they were

removed.

Before Using

Receiver

Nomenclature

Crystal

When changing the frequency, use the

specified Futaba crystal set.

Antenna

Connectors

1: Steering servo (CH1)

2: Throttle servo (CH2)

3: CH3 servo (CH3)

B/C: Power connector/DSC connector

R113iP

receiver

For the receiver, servos, and other connections, see page 27. For the DSC cord (op-

tion) connections, see page 103.

to Receiver

Servo horn

Mounting flange

The following items are provided for setting:

- Spare servo horn

- Parts for servo installation

(For the installation precautions, see page 28.)

Crystal

When changing the frequency, use the

specified Futaba crystal set.

Antenna

Connectors

1: Steering servo (CH1)

2: Throttle servo (CH2)

3: CH3 servo (CH3)

B/C: Power connector/DSC connector

R203HF

receiver

Servo

Nomenclature

Installation

Receiver and Servo Connections

Installation When An FET Amp Is Used (MC800CFET Amp)

When connecting and installing the receiver and servos, read the “Installation Safety

Precautions” on the next page.

Installation For Gas Powered Models

Installation

Installation Safety Precautions

Warning

Connector Connections

Be sure the receiver, servo, crystal

and connectors are fully and firmly

connected.

If vibration from the model cause a connector to work

loose while the model is in operation. You may lose

control .

Electronic speed control

Install the heat sinks where they will

not come in contact with aluminum,

carbon fiber or other parts that con-

duct electricity.

If the FET Amp (Electronic speed control) heat sinks

touch other materials that conduct electricity a short

circuit could occur. This could result in loss of control

and damage to the system.

Receiver Vibration Damping and

Waterproofing

(Car)

Dampen the vibration to the receiver

by mounting to the chassis or mount-

ing plate with thick double sided tape

in electric powered models. In gas

powered models wrap the receiver in

foam and mount it where the vibration

is the least prevalent.

(Boat)

Dampen the vibration to the receiver

by wrapping it in foam. Waterproof by

placing it in plastic bag or watertight

radio box in model.

If the receiver is subjected to strong vibration or shock

erratic or loss of control may occur. If any moisture

comes in contact the receiver and servos you may

expertise the same result as well as damage to the

system.

Receiver Antenna

Do not cut or bundle the receiver an-

tenna

Do not bundle the receiver antenna

together with the servo lead wires

Keep the receiver antenna at least 1

inch away from the motor and battery

and wires that handle heavy current

loads..

Cutting, bundling or routing the receiver antenna near

any devise that produce noise will reduce the operat-

ing range of the system and result in loss of control.

*Also route the receiver antenna away from metal,

carbon fiber and other parts that conduct electric-

ity. These parts can transmit high frequency noise.

Servo Throw

Operate each servo over its full stroke

and be sure the linkage does not bind

or is loose.

The continuous application of unreasonable force to a

servo may cause damage and excessive battery

drain.

Servo Installation

When you install the servos always

use the rubber grommets provided in

servo hardware bags. Mount the ser-

vos so they do not directly come in

contact with the mount.

If the servo case comes in direct contact with the

mount vibration will be directly transmitted to the

servo.

If this condition continues for a long time the servo

may be damaged and control will be lost.

Motor Noise Suppression

Always install capacitors to suppress

noise when electric motors are used.

If capacitors are not properly installed you could ex-

perience erratic operation and reduced range as well

as loss of control.

Other Noise Suppression Methods

Be sure there are no metal parts in

your model which under vibration can

come in contact with other metal

parts.

Metal to metal contacts under vibration will omit a high

frequency noise that will effect the receivers perfor-

mance. You could experience erratic operation and

reduced range as well as loss of control.

Initial Set-Up

Preparations (Transmitter)

Before setting the transmitter functions, check and set items 1 to 3 below.

(Display when power switch turned on)

When the power switch is turned on, the currently selected model number is dis-

played. Check if this number is the model number you want to set-up. To change the

model number, use the Model Select function (page ).

Turn on the transmitter power.

1. RF Output Check

If signals are output normally, RF output monitor "RF"

will be displayed on the screen.

If RF is not displayed, check if the transmitter crystal and

RF module are installed.

If the transmitter is abnormal or faulty, contact your

Futaba dealer.

The model number is displayed.

(Start screen)

"RF"

Initial Set-Up

2. Modulation Mode Check

The T3PK transmitter output signal format can be

changed to match the type of receiver. Check if the

modulation mode is set to match the receiver used.

When using an FM receiver (e.g., R133F), the modula-

tion mode must be set to PPM. When using a PCM re-

ceiver (e.g., R113iP), the modulation mode must be set

to PCM. When using a H.R.S receiver (e.g., R203HF),

the modulation mode must be set to HRS. If this setting

is incorrect, change it with the HRS/PCM/PPM Select

(page ) function.

(PPM)

3. Trims Initial Set-Up

- Steering trim (DT1) check

At initial set-up, steering trim is assigned to digital trim

DT1 above the steering wheel. Operate the DT1 lever

and check if the steering trim display on the screen

changes. After checking the trim, set the trim display to

the center (N) position.

- Throttle trim (DT2) check

At initial set-up, throttle trim is assigned to digital trim

DT2 at the left side of the steering wheel. Operate the

DT2 lever and check if the throttle trim display on the

screen changes. After checking the trim, set the trim

display to the center (N) position.

Initial Set-Up

(Set-Up Procedure When Installed In a Car)

When installing the servos in a car, performing function set-up in the following order

is recommended.

1. Perform step 3. Trims Initial Set-Up of Preparations on the

preceding page.

2. Set the servo direction of operation using the Reverse

function. (Page )

The servo installation method and linkage direction depends

on the kit. Therefore, the servo operation direction may have

to be reversed relative to transmitter operation. Before in-

stalling the servo, check the operating direction and set it us-

ing the Reverse function.

3. Set the subtrim and adjust the servo neutral point. (Page )

4. Set the trigger travel by adjusting the throttle trigger me-

chanical ATL to you liking. (Page )

5. Set EPA of each channel and adjust the servo throw

(travel). (Pages )

- Steering dual rate (DL1) check

At initial set-up, steering dual rate is assigned to grip

dial DL1 (upper) at the grip of the transmitter. Operate

the DL1 dial and check if the D/R value displayed on

the screen changes. After checking D/R, set the steer-

ing dual rate to 100%.

- Throttle ATL (DL2) check

At initial setting, throttle ATL is assigned to grip dial

DL2 (lower) at the grip of the transmitter. Operate the

DL2 dial and check if the ATL value displayed on the

screen changes. After checking ATL, set throttle ATL

to 100%.

Function Map

In case of the LV3

Function Menu Screen

Function Map

Menu Selection

The function set-up screen can be easily selected from the function menu displayed

on the LCD screen.

The function menu can be selected from among the following 3 levels to match the

level of use. To select the level, use the Level Select function (page ).

-Level 3 (LV3): All functions can be selected. (For expert driver)

-Level 2 (LV2): For middle class driver

-Level 1 (LV1): Basic functions only

(Start Screen)

In case of the LV2

In case of the LV1

(Function Select Screen)

(Function Set-up Screen)

Function Map

INITIAL SETTING

Function

1. TH-EXP

2. ST-EXP

3. CHEPA

4. SUB-TRIM

5. MDL-SEL

6. MDL-NAME

The Direct Selection allows instant access to the six functions most frequently used.

The function set-up screen can be directly and quickly called with the special buttons

for each function of the six functions, they can be freely selected as the Direct Selec-

tion Button function.

Direct Selection

(Start Screen) ( Direct Selection Screen) (Function Set-up Screen)

Functions

End point adjuster/EPA (All channels)

Use this when performing steering left and right steering angle adjustments, throttle

high side/brake side operation amount adjustment, and channel 3 servo up side/down

side operation amount adjustment during linkage.

- Corrects the maximum steering angle and left and right steering angles when there

is a difference in the turning radius due to the characteristics, etc. of the vehicle.

Maximum steering angle

The EPA function basically determines the maximum steering angle of each channel.

The functions shown below may have been adjusted or the operating range set by

EPA function may be exceeded. Check the linkage each time the following functions

are adjusted.

- Sub trim (all channels)

- Program mixing slave side (all channels)

- Tilt mixing (steering, channel 3)

- Idle up (throttle)

- Throttle preset (throttle)

ATL trim

ATL trim allows adjustment of the brake side operation amount during operation.

Therefore, when the operating angle is adjusted with throttle EPA, ATL trim must

also be taken into account.

Remark

When the steering angle is insufficient even though EPA is increased to maximum

(120%), the steering angle can be increased somewhat by using program mixing.

(Setup example: See page .)

WARNING

! Make sure that the knuckle stopper is not contacted

during steering operation and that unreasonable force

is not applied to the servo during other channel opera-

tion.

If unreasonable force is applied to the servo horn at

the knuckle stopper during steering operation, the

servo may malfunction and the model may run out of

control.

Decide the EPA value at the

contact point.

Caution!

Be sure that the steering

servo does not howl.

Functions

(Initial screen)

Use the or

button to select the

menu screen.

Press the button.

Use the or

button to select the

function.

Press the button.

Calling the setup screen

* When the direct call button is set,

the setup screen is also called by the

following method:

MENU SELECT

DIRECT SEL

Press the button.

Press the button set

at this function.

* Calling from menu screen Use the or button to

select the setup item.

* blinks at the current

setup item.

(Initial screen)

100%

Setup items

ST-LFT : Steering (left side)

ST-RGT : Steering (right side)

TH-FWD : Throttle (forward side)

TH-BRK : Throttle (brake side)

3C-UP : 3rd channel (up side)

3C-DW : 3rd channel (down side)

Adjustment range

0~120% (each channel, each direc-

tion)

Adjustment buttons

- Use the (+) and (-) buttons to make

adjustments.

- Return to the initial value by pressing

the (+) and (-) buttons simultaneously

(approx. 1 sec).

Steering wheel steering angle (EPA) adjustment

(Preparation)

- Before setup the steering wheel steering angle, set the

steering D/R dial (initial setup: DL1) to the maximum

steering angle position 100%.

- Select setup item "ST-LFT" and make the following

adjustments:

1 Steering (left side) adjustment

Turn the steering wheel fully to the left and use

the (+) and (-) buttons to adjust the steering

angle.

2 Steering (right side) adjustment

Turn the steering wheel fully to the right and use

the (+) and (-) buttons to adjust the steering

angle.

3 When adjusting the steering angle of another

channel immediately after this, see the adjust-

ment method for that channel. When ending ad-

justment, return to the initial screen by pressing

the (END) button three times.

Setup item switching

- Use the (DN) and (UP) buttons to

switch the setup item.

- Others switch the setup item (direc-

tion) linked to the steering wheel.

Functions

3rd channel servo steering angle (EPA) adjustment

(Preparation)

- Select setup item "3C-UP" and make the following ad-

justments:

1 3rd channel servo (up side) adjustment

Set the 3rd channel dial fully to the up side (+

side) and use the (+) and (-) buttons to adjust the

steering angle.

2 3rd channel servo (down side) adjustment

Press the (DN) button and select setup item "3C-

DWN" and set the 3rd channel dial fully to the

down side (-) and use the (+) and (-) buttons to

adjust the steering angle.

3 When adjusting the steering angle of another

channel immediately after this, see the adjust-

ment method for that channel. When ending ad-

justment, return to the initial screen by pressing

the (END) button 3 times.

Setup item switching

- Use the (DN) or (UP) button to switch

the setup item.

100%

Throttle steering angle (EPA) adjustment

(Preparation)

- Before setting the throttle steering angle, set the throttle

ATL dial (initial setup: DL2) to the maximum steering

angle position 100%.

- Select setup item "TH-FWD" and make the following

adjustments:

1 Throttle (forward side) adjustment

Pull the throttle trigger fully to the high side and use

the (+) and (-) buttons to adjust the steering angle.

However, when using an FET amp, set to 100%.

2 Throttle (brake side/reverse side) adjustment

Push the throttle trigger fully to the brake side

and use the (+) and (-) buttons to adjust the

steering angle. However, when using an FET

amp, set to 100%.

3 When adjusting the steering angle of another

channel immediately after this, see the adjust-

ment method for that channel. When ending ad-

justment, return to the initial screen by pressing

the (END) button three times.

Setup item switching

- Use the (DN) and (UP) buttons to

switch the setup item.

- Others switch the setup item (direc-

tion) linked with the throttle trigger.

Functions

(Initial screen)

Use the or

button to select the

menu screen.

Press the button.

Use the or

button to select the

function.

Press the button.

Calling the setup screen

* When the direct call button is set,

the setup screen is also called by the

following method:

MENU SELECT

DIRECT SEL

Press the button.

Press the button set

at this function.

* Calling from menu screen

(Initial screen)

Steering EXP/ST-EXP (Steering system)

This function is used to change the sensitivity of the steering servo around the neutral

position. It has no effect on the maximum servo travel.

Racers Tip

When the setting is not determined, or the characteristics of

the model are unknown, start with 0%. (When EXP is set to

0%, servo movement is linear.)

Setup item

RATE: Steering EXP rate

Vertical cursor moves in step with

steering wheel operation.

Adjustment range

-100~0~+100%

Steering EXP adjustment

1 When you want to quicken steering operation,

use the (+) button to adjust the + side. When you

want to make steering operation milder, use the

(-) button to adjust the - side.

2 When ending adjustment, return to the initial

screen by pressing the (END) button 3 times.

サーボ動作量

ステアリング

スティック

動作量

0%（ノーマル）

+1%∼+100%

（クイック）

サーボ動作量

ステアリング

スティック

動作量

0%（ノーマル） -1%∼ -100%



（マイルド）



(Quick) (Mild)

Servo travel Servo travel

0% (normal)

+1% ~ +100% (quick) 0% (normal) -1% ~ -100% (mild)

Steering wheel travel Steering wheel travel

Adjustment buttons

- Use the (+) and (-) buttons to make

adjustments.

- Return to the initial value by pressing

the (+) and (-) buttons simultaneously

(approx. 1 sec).

Functions

(Initial screen)

Use the or

button to select the

menu screen.

Press the button.

Use the or

button to select the

function.

Press the button.

Calling the setup screen

* When the direct call button is set,

the setup screen is also called by the

following method:

MENU SELECT

DIRECT SEL

Press the button.

Press the button set

at this function.

* Calling from menu screen Use the or button to

select the setup item.

* blinks at the current

setup item.

(Initial screen)

Setup item

TURN: TURN direction

RETURN: RETURN direction

Adjustment range

1~100% (each direction)

Adjustment buttons

- Use the (+) and (-) buttons to make

adjustments.

- Return to the initial value by pressing

the (+) and (-) buttons simultaneously

(approx. 1 sec).

操作時のスピード可変範囲

時間



（約1.5∼0.1秒）

戻りのスピード可変範

囲

（約1.5∼0.1秒）

ス

テ

ィ

ッ

ク

操

作



"TURN"方向

"RETN"方向

Steering Speed/ST-SPEED (Steering system)

Quick steering operation will cause momentary understeering, loss of speed, or spin-

ning. This function is effective in such cases.

Understeering

Spin

Smooth cornering

Steering speed not set Steering speed set

Operation

- This function limits the maximum speed of

the steering servo. (Delay function)

- The steering speed when the steering wheel

is operated (TURN direction) and returned

(RETN direction) can be independently set.

TURN direction

Turning speed adjustment range

(Approx. 1.5 to 0.1 secs)

Stick operation

RETN direction

Return speed adjust-

ment range (Approx. 1.5

to 0.1 secs)

- If the steering wheel is turned

slower than the set speed, the steer-

ing servo is not affected. Time

Setting example (Steering servo: S9402) . . . (Setting criteria)

- Onroad TURN side: Approx. 50~80% RETN side: Approx. 60~100%

- Offroad TURN side: Approx. 70~100% RETN side: Approx. 80~100%

Functions

Steering Speed (ST-SPEED) adjustment

(Preparation)

- Select setup item "TURN" and make the following ad-

justments:

1 "TURN" direction adjustment

Use the (+) and (-) buttons to adjust the delay

amount.

2 3rd channel servo (down side) adjustment

Press the (DN) button and select setup item "RE-

TURN" and use the (+) and (-) buttons to adjust

the delay amount.

3 When ending adjustment, return to the initial

screen by pressing the (END) button 3 times.

Setup item switching

- Use the (DN) or (UP) button to switch

the setup item.

100% 1%

サーボの動作が遅くなる。



Setting range: 1~100%

At 100%, there is no delay.

At 1%, the delay is approximately 1.5

seconds.

Servo operation is delayed.

Functions

(Initial screen)

Use the or

button to select the

menu screen.

Press the button.

Use the or

button to select the

function.

Press the button.

Calling the setup screen

* When the direct call button is set,

the setup screen is also called by the

following method:

MENU SELECT

DIRECT SEL

Press the button.

Press the button set

at this function.

* Calling from menu screen Use the or button to

select the setup item.

* blinks at the current

setup item.

(Initial screen)

Throttle EXP/TH-EXP (Throttle system)

This function makes throttle trigger high side and brake side direction servo opera-

tion quicker or milder. It has no effect on the servo maximum operation amount.

For the high side, selection from among three kinds of curves (EXP/VTR/CRV) is

also possible.

Advice

When the course conditions are good and there is no sense of torque at the power unit,

set each curve to the + side (quick side). When the road surface is slippery and the

drive wheels do not grip it, set each curve to the - minus (mild) side.

Curve selection

First, select the type of forward side

curve at the "FWD-TYP" item. The

setup item (screen) varies with the

type of curve. The figure at the bottom

left is the EXP curve setup screen.

Setup items

RATE : Forward side rate

FWD-TYP : Forward side curve selection

BRK-EXP : Brake side rate

Adjustment range

RATE : -100 ~ 0 ~ +100%

FWD-TYP : EXP, VTR, CRV

BRK-EXP : -100 ~ 0 ~ +100%

Adjustment buttons

- Use the (+) and (-) buttons to make

adjustments.

- Return to the initial value by pressing

the (+) and (-) buttons simultaneously

(approx. 1 sec).

Adjustment method for EXP curve

(Preparation)

- Select "EXP" at setup item "FWD-TYP".

- Select setup item "RATE" and make the following ad-

justments:

1 Forward side adjustment

Use the (+) button to adjust the + side when you

want to quicken the rise and use the (-) button to

adjust the - side when you want to make the rise

milder.

2 Brake side adjustment

Select "BRK-EXP" by pressing the (DN) button

twice, and use the (+) button to adjust the + side

Setup item switching

0 Use the (DN) or (UP) button to

switch the setup item.

Functions

when you want to quicker the rise and use the (-

) button to adjust the - side when you want to

make the rise milder.

3 When ending adjustment, return to the initial

screen by pressing the (END) button 3 times.

Adjustment method for VTR curve

(Preparation)

- Select "VTR" at setup item "FWD-TYP".

-Select setup item "RATE" and make the following ad-

justments:

Setup items

RATE : Forward rate

TGP : Curve switching point

FWD-TYP : Forward curve selection

BRK-EXP : Brake side rate

Setup item switching

- Use the (DN) or (UP) button to switch the setup item.

1 Forward side adjustment

Use the (+) button to adjust at + side when you

want to quicken the rise and use the (-) button to

adjust the - side when you want to make the rise

milder.

2 Curve switching point adjustment

When you want to change the curve switching

point relative to the throttle stick, select setup

item "TG.P" by pressing the (DN) button and use

the (+) and (-) buttons to move to the point you

want to set.

3 Brake side adjustment

Select setup item "BRK-EXP" by pressing the

(DN) button. When you want to quicken the rise,

use the (+) button to adjust the + side and when

you want to make the rise milder, use the (-) but-

ton to adjust the - side.

4 When ending adjustment, return to the initial

screen by pressing the (END) button 3 times.

Switching point

A vertical cursor line that shows the

curve switching point is displayed on

the setup screen graph.

For the VTR curve, only the high

side can be set. The brake be-

comes the EXP curve.

Adjustment range

RATE : -100 ~ 0 ~ +100%

FWD-TYP : EXP, VTR, CRV

BRK-EXP : -100 ~ 0 ~ +100%

Adjustment buttons

- Use the (+) and (-) buttons to make

adjustments.

- Return to the initial value by pressing

the (+) and (-) buttons simultaneously

(approx. 1 sec).

Functions

100% 0%

50%

20%

80%

+1%∼+100%

-1%∼ -100%

+1%∼+100%

-1%∼ -100%

+1%∼+100%

-1%∼ -100%

100% 0%

TG.P=50% TG.P=20% TG.P=80%

Adjustment method for CRV curve

(Preparation)

- Select "CRV" at setup item "FWD-TYP".

Setup items

1:~5: Curve points 1~5

C:RES : Curve reset

FWD-TYP : Forward side curve selection

BRK-EXP : Brake side rate

Setup item switching

- Use the (DN) or (UP) button to switch the setup item.

1 Curve setup

Use the (DN) or (UP) button to select "1:" (1st

point), and use the (+) and (-) buttons to set the

1st point.

Set the throttle curve by sequentially setting "2:"

(2nd point) ~ "5:" (5th point).

2 Brake adjustment

Select setup item "BRK-EXP" by pressing the

(DN) button. When you want to quicken the rise,

use the (+) button to adjust the + side and when

you want to make the rise milder, use the (-) but-

ton to adjust the - side.

3 When ending adjustment, return to the initial

screen by pressing the (END) button 3 times.

Point in current setup

A vertical cursor line that shows the

point in the current setup is displayed

on the setup screen graph.

Returning entire curve to initial value

- Select setup item "C:RES" and re-

turn the set value of each point to the

initial value by simultaneously press-

ing (approx. 1 sec) the (+) and (-) but-

tons.

For the CRV curve, only the high

side can be set. The brake be-

comes the EXP curve.

Adjustment range

1: ~ 5: 0 ~ 100%

FWD-TYP : EXP, VTR, CRV

BRK-EXP : -100 ~ 0 ~ +100%

Adjustment buttons

- Use the (+) and (-) buttons to make

adjustments.

- Return to the initial value by pressing

the (+) and (-) buttons simultaneously

(approx. 1 sec).

Functions

Initial values

P1 : 17%

P2 : 33%

P3 : 50%

P4 : 67%

P5 : 83%

100%

50%

0% P1 スティックポイント

P2 P3 P4 P5

設

定

値



初期値

（ノーマルカーブ）

設定例

Throttle curve

Initial value

(normal curve)

Set value

Trigger point

Example

Functions

(Initial screen)

Use the or

button to select the

menu screen.

Press the button.

Use the or

button to select the

function.

Press the button.

Calling the setup screen

* When the direct call button is set,

the setup screen is also called by the

following method:

MENU SELECT

DIRECT SEL

Press the button.

Press the button set

at this function.

* Calling from menu screen Use the or button to

select the setup item.

* blinks at the current

setup item.

(Initial screen)

Throttle speed/TH-SPEED (Throttle system)

Sudden trigger operation on a slippery road only

causes the wheels to spin and the vehicle cannot ac-

celerate smoothly. Setting the throttle speed func-

tion reduces wasteful battery consumption while at

the same time permitting smooth, enjoyable opera-

tion.

Operation

Throttle servo (amp) operation is delayed so that the drive wheels will not spin even

if the trigger is operated more than necessary. This delay function is not performed

when the trigger is returned and at brake operation.

- Low side throttle speed (See [Operation range setup].)

Use when adjusting the speed from the neutral position to the set point.

- High side throttle speed (See [Operation range setup].)

Use when adjusting the high side speed from the set point.

Remark: Regarding the throttle speed set value; the actual delay value varies

depending on the system (HRS, PCM, PPM). The delay when the HRS system is used is approximately 1/

3 that of the PCM and PPM systems.

Switch setting

Use PS1, PS2, or PS3 to switch the throttle speed function ON/OFF.

See the function select switch function (page ).

Operation display

* The LED blinks while the throttle speed function is on.

No TH-SPEED/Tires slip and vehicle does not move

TH-SPEED/Smooth, quick starts possible

* The LED blinks while the throttle

speed function is on.

* The black part of the bar graph is the

operation range.

* Throttle trigger position

* "L40" indicates operation below

40%.

Adjustment buttons

- Use the (+) and (-) buttons to make

adjustments.

- Return to the initial value by pressing

the (+) and (-) buttons simultaneously

(approx. 1 sec).

Setup items

RA NGE : Operation range

SPEED : Speed amount

MODE : Function ON/OFF

Functions

Throttle speed adjustment

(Preparation)

- Select setup item "MODE" and make the following ad-

justments:

1 (Function ON/OFF)

Set the throttle speed function to the "ACT" state

by pressing the (+) or (-) button.

"INH(OFF)" : Function OFF

"ACT(ON)" : Function ON

"ACT(OFF)": Switch OFF state when setting switches

2 (Operation range setup)

Select setup item "RANGE" by pressing the (UP)

button twice and use the (+) and (-) buttons to set

the operation range.

"L**" : Operate within a range lower than **% (Low side throttle speed)

"H**" : Operation within a range higher than **% (High side throttle speed)

"ALL" : Operate in entire region

"OFF" : Function OFF

3 (Speed amount setup)

Select setup item "SPEED" by pressing the (DN)

button twice and use the (+) and (-) buttons to

adjust the speed amount.

"100" : Maximum speed (no delay)

"0" : Maximum delay

Setup example:

Adjust at the entire (0~100%) range according to conditions.

4 When ending adjustment, return to the initial

screen by pressing the (END) button 3 times.

Operation range:

L1 ~ L40 ~ L99, H1 ~ H99, OFF, ALL

Initial value; L40

Function ON/OFF:

INH(OFF), ACT(ON), ACT(OFF)

Speed amount:

0 ~ 100

Initial value;100

Functions

A.B.S. Function

When the brakes are applied while cornering with a 4 Wheel

Drive or other type of vehicle, understeer may occur. The

generation of understeer can be eliminated and corners can

be smoothly cleared by using this function.

Operation

- When the brakes are applied, the throttle servo will pulse

intermittently. This will have the same effect as pumping

the brakes in a full size car.

- The brake return amount, pumping cycle, and brake duty

can be adjusted.

- The region over which the ABS is effective can be set ac-

cording to the steering operation. (Mixing function)

Without A.B.S.

With A.B.S.

Switch Setting

The A.B.S. function ON/OFF switch can be set with the function select switch func-

tion. (Page ) PS1, PS2, or PS3 can be selected.

Dial / Trim Setting

The brake return amount (AB.P), delay amount (ABS.D) and cycle (CYCL) can be

controlled with grip dial DL1, DL2 or digital trim DT3, etc. with the function select

dial function. (Page )

Operation Display

When the A.B.S. function is activated, the LED flashes.

Fail Safe Unit

When the 3PK is used with the Futaba fail safe unit (FSU-1), it will operate as de-

scribed below.

- When the FSU-1 is connected to the throttle channel, and the A.B.S. function has

been activated, the FSU-1 LED will flash each time the servo operates. The reason

for this is that the FSU-1 responds to sudden data changes caused by A.B.S. function

pumping operation. It does not mean that the fail safe function is activated. The servo

will not be affected.

Functions

(Initial screen)

Use the or

button to select the

menu screen.

Press the button.

Use the or

button to select the

function.

Press the button.

Calling the setup screen

* When the direct call button is set,

the setup screen is also called by the

following method:

MENU SELECT

DIRECT SEL

Press the button.

Press the button set

at this function.

* Calling from menu screen Use the or button to

select the setup item.

* blinks at the current

setup item.

(Initial screen)

0% 100%

Setup items

ABP : Brake return amount

DLY : Delay amount

CYC : Cycle speed

MODE : Function ON/Off

TGP : Operation point

DTY : Cycle duty ratio

STM : Steering mixing

* When brake operation enters the set

range, "*" is displayed in front of the

number.

* When steering mixing is set and

steering operation enters the set

range, "*" is displayed in front of the

number. When mixing is OFF, the

A.B.S function can operate over the

entire steering range.

* A bar graph that shows the oper-

ating position of the throttle trigger

appears. During setup, A.B.S func-

tion operation can be checked at

this bar graph.

A.B.S function adjustment

(Preparation)

- Select setup item "MODE" and make the following ad-

justments:

1 (Function ON/OFF)

Set the function to the active state by pressing

the (+) or (-) button.

"INH(OFF)" : Function OFF

"ACT(ON)" : Function ON

"ACT(OFF)" : Switch OFF when setting switches

2 (Brake return amount adjustment)

Select setup item "ABP" by pressing the (UP)

button 3 times and use the (+) and (-) buttons to

adjust the return amount.

"0" : No return

"50" : Return to the 50% position of the brake operation amount

"100" : Return to the neutral position.

3 (Delay amount setup)

Select setup item "DLY" by pressing the (DN)

button once and use the (+) and (-) buttons to

adjust the delay amount.

"0" : A.B.S. function performed without any delay

"50" : A.B.S function performed after an approximate 0.7 sec delay.

"100" : A.B.S. function performed after an approximate 1.7 secs delay.

Function ON/OFF:

INH(OFF), ACT(ON), ACT(OFF)

Delay amount:

0 ~ 100

Initial value; 0

Adjustment buttons

- Use the (+) and (-) buttons to make

adjustments.

- Return to the initial value by pressing

the (+) and (-) buttons simultaneously

(approx. 1 sec).

Brake return amount:

0 ~ 50 ~ 100

Initial value; 50

Functions

4 (Cycle speed adjustment)

Select setup item "CYC" by pressing the (DN)

button once and use the (+) and (-) buttons to

adjust the speed.

- The lower the set value, the faster the cycle speed.

5 (Operation point setup)

Select set item "TGP" by pressing the (DN) but-

ton twice, and use the (+) and (-) buttons to set

the operation point.

- Sets the throttle trigger position at which the A.B.S. function is per-

formed. The number is the % display with the brake position made 100.

6 (Cycle duty ratio setup)

Select setup item "DTY" by pressing the (DN)

button once, and use the (+) and (-) buttons to

adjust the duty ratio.

"-3" : Brake application time becomes shortest. (Brakes lock with difficulty)

"+3" : Brake application time becomes longest (Brakes lock easily)

(Remark) For low grip, set at the - side and for high grip, set at the + side.

7 (Steering mixing setup)

Select setup item "STM" by pressing the (DN)

button once, and use the (+) and (-) buttons to

set the steering mixing range.

- Sets the range within which the A.B.S. function is performed relative to

steering wheel operation.

N50%の場合

L(E) N R(E)

L(E) N50% 50%

50%

＊マークが表示され

A.B.S.が働く範囲

＊マークが表示され

A.B.S.が働く範囲 ＊マークが表示され



A.B.S.が働く範囲



50%

R(E)

E50%の場合

N50%

A.B.S. operation range indicated by *

E50%

A.B.S operation range

indicated by *

A.B.S operation range

indicated by *

Cycle speed

1 ~ 30

Initial value; 10

Operation point

10 ~ 100

Initial value; 30

Duty ratio

-3 ~ 0 ~ +3

Initial value; 0

Steering mixing

OFF, N10 ~ N100, E10 ~ E100

Initial value; OFF

8 When ending adjustment, return to the initial

screen by pressing the (END) button 3 times.

Functions

Example of A.B.S. function setting when S9402 used (There will be a slight

difference depending on the state of the linkage.)

- Basic setting

AB.P: Approx. 30% (If this value is too high, the braking distance will increase.)

CYCL: 5~7

DUTY: 0 (When grip is low: - side, when grip is high: + side)

DLY: 10~15%

TG.P: Approx. 70%

STM: OFF

- When the wheels lock, or the car spins, when the brakes are applied fully

AB.P: Increase from 30%

DUTY: Shift from 0 to - side (-1, -2, -3)

DLY: Reduce the delay

- When the braking effect is poor and the braking distance is long when the brakes are

applied fully

AB.P: Decrease from 30%

DUTY: Shift from 0 to + side (+1, +2, +3)

DLY: Increase the delay

Futaba FP-PK-FM-75B Radio Control Transmitter User Manual I

Futaba Corporation Radio Control Transmitter I

Contents

User Manual I

Navigation menu

Namespaces

Views

Navigation
