User Manual

FX-20-2.4G

Futaba Corporation

FX-20

Radio Control

Instruction Manual

INTRODUCTION

Thank you for purchasing a Futaba digital proportional R/C system. In order for you to make the

best use of your system and to use it safely, please read this manual carefully. If you have any

difficulties while using your system, please consult the manual, our online Frequently Asked

Questions (on the web pages referenced below), your hobby dealer.

Owner’s Manual and Additional Technical Help

This manual has been carefully written to be as helpful to you, the new owner, as possible.

There are many pages of setup procedures and examples. However, it need not be your sole

resource of setup guidelines. For example, the back cover includes a quick-start set of

instructions and the Frequently Asked Questions web page referenced below includes this type

of step-by-step setup instructions for a variety of other model types.

Due to potential unforeseen changes in production procedures, the information contained in this

manual is subject to change without notice. No part of this manual may be reproduced in any

form, at any time, without prior permission.

Support and Service: It is recommended to have your Futaba equipment serviced annually

during your hobby’s “off season” to ensure safe operation.

FX-20-2.4G

Futaba Corporation

IN NORTH AMERICA

Please contact Uwe Frank Heinrich to assist you with any questions, problems or

service needs.

Uwe Frank Heinrich

1214 SW 39

Street

Cape Coral, FL 33914

Phone: 239-540-7872

Cell: 239-223-8581

OUTSIDE NORTH AMERICA

Please contact your Futaba importer in your region of the world to assist you with any

questions, problems or service needs.

Please recognize that all information in this manual, and all support availability, is

based upon the systems sold in North America only. Products purchased elsewhere

may vary. Always contact your region’s support center for assistance.

FX-20-2.4G

Futaba Corporation

Federal Communications Commission Interference Statement (for U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

--Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

To assure continued FCC compliance:

Any changes or modifications not expressly approved by the grantee of this device could void

the user's authority to operate the equipment.

Exposure to Radio Frequency Radiation

To comply with FCC RF exposure compliance requirements, a separation distance of at least

20cm must be maintained between the antenna of this device and all persons.

This device must not be co-located or operating in conjunction with any other antenna or

transmitter.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

FX-20-2.4G

Futaba Corporation

Instruction of the FX

Instruction of the FXInstruction of the FX

Instruction of the FX-

-20

2020

20-

-2.4G

2.4G2.4G

2.4G

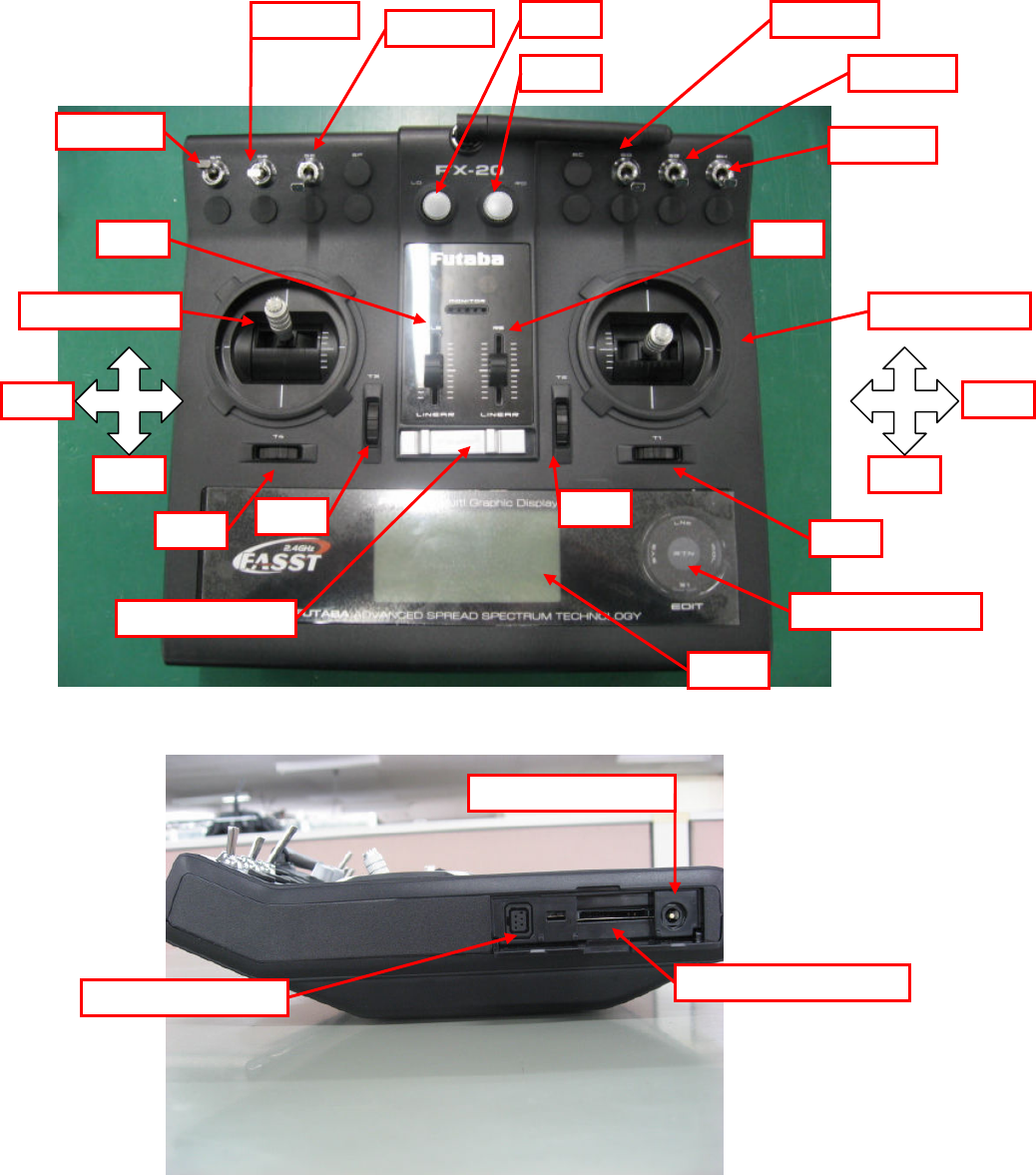

1.Location

Fig. Front view

Fig. side view

Touch sensor

Power Switch

Right Stick

Left Stick

LCD

DSC connector

Charge jack

SD card slot

FX-20-2.4G

Futaba Corporation

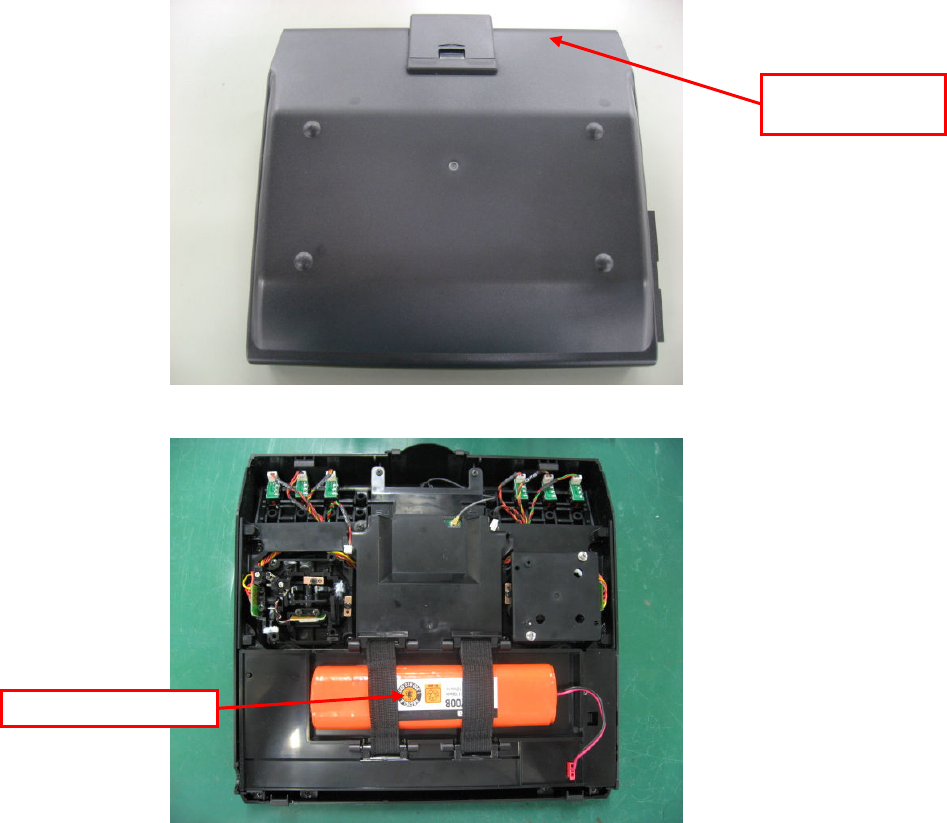

Fig. Bottom view

Fig. Inside view (Battery box)

2.2.

2.Charging the battery

Charging the batteryCharging the battery

Charging the battery

1-1. Please confirms the power switch is off.

1-2. Insert the plug of the charger to charging bush of transmitter.

1-3. During the charging, the LED of the charger is on.

The charging time is appx. 15 hours. Please do not charge the battery for 15hours or more.

The overcharge damages the battery.

The battery is 6 cells Ni-MH battery the capacity is 7.2 V/ 1,700mAH.

Slider

MH battery

FX-20-2.4G

Futaba Corporation

３．

３．３．

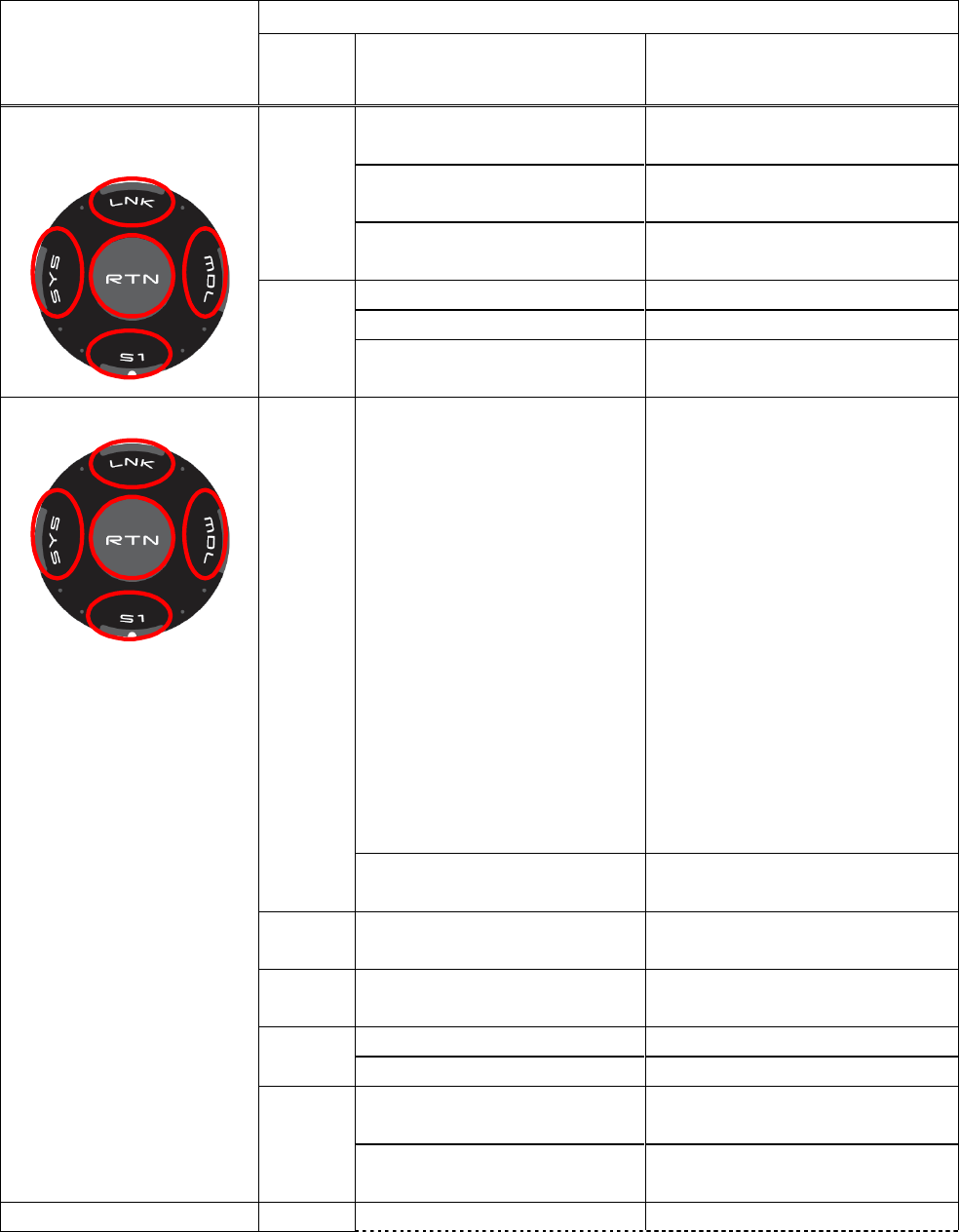

３．Operation of the touch sensor

Operation of the touch sensorOperation of the touch sensor

Operation of the touch sensor

Contents Operation

Touch

part

Condition Working

At the screen have some pages.

(Ex. P-MIX screen)

The cursor jumps to top of next

page

At the screen have Only one(１)

page.

The cursor jumps the top of page.

At the input data mode with

blinking the setting data.

The setting data is canceled.

At the moving cursor mode. Change to the input data mode.

At the input data mode. Change to the moving cursor mode.

Short touch

RTN

At the input data mode with

blinking the setting data.

The data is entered.

Home screen,

System menu,

Linkage Menu,

Model menu,

Selecting ON/OFF Switch,

USER NAME,

MODEL NAME,

DISPLAY, INFO,

MODEL SELECT,

MODEL TYPE,

FREQUECY,

DATA RESET,

TIMER,

Selecting Control,

Selecting Function,

SERVO MONITOR

Jump to “System Menu” screen

directly.

SYS

Except of above Jump to “SERVO MONITOR”

screen directly.

LNK At all screens Jump to “Linkage Menu” screen

directly.

MDL At all screens Jump to “Model Menu” screen

directly.

HOME screen Key lock On or Off S1

Except the HOME screen Jump to HOME screen directly.

RTN At the input data mode with

blinking the setting data.

Entered decision.

Long touch（1 second）

At the input data mode without

blinking the setting data.

Reset to the initialized value.

Scrolling Outline At the moving cursor mode The cursor is moved.

FX-20-2.4G

Futaba Corporation

of “RTN”

Input data mode Increment or decrement the data.

Select Yes or No, and so on.

4.4.

4.Turns on the transmitter

Turns on the transmitterTurns on the transmitter

Turns on the transmitter

4-1 Power switch is to be on. The red LED is light. LCD displays the bar graph at moment.

4-2 Then, LCD displays the Home screen immediately.

FX-20-2.4G

Futaba Corporation

5．

．．

． Basic operation of

Basic operation of Basic operation of

Basic operation of editing

editingediting

editing

LCD screen is consists of editing button and monitor display. You can go through editing menu

by touch sensor. If you want t o go back to previous menu, you move the cursor to screen title

and touch “RTN”.

6.6.

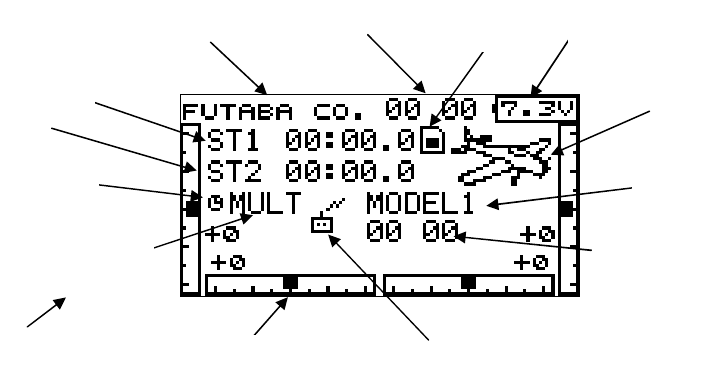

6.Home screen

Home screenHome screen

Home screen

You always enter this screen after turning on the power. It is a base screen to edit.

1. User Name 8. Mode (MULT / 7CH)

2. Timer #1 9. Timer #2

3. Model Name 10.

Trim Indicator

4. Clock icon (Jump to timer screen) 11.

Model Type Icon

5. Integrated Timer 12.

Memory Card Icon (at detected card)

6. Model Timer 13.

RF Transmit

7. Battery Gauge

FX-20-2.4G

Futaba Corporation

7.7.

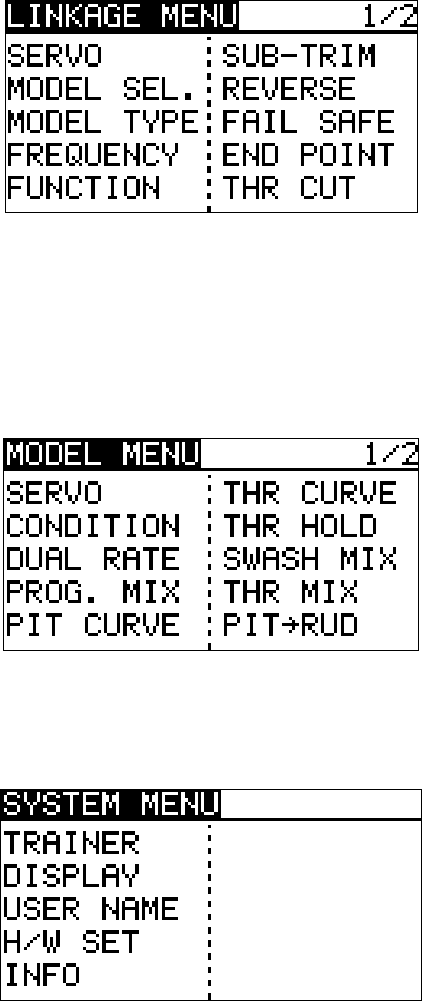

7.Linkage menu

Linkage menuLinkage menu

Linkage menu

The linkage menu sets the primary data of the each model. These data are common to every

flight condition.

If you touch “LNK” of the touch sensor over 1 second, you can get into the linkage menu screen.

8.8.

8.Model Menu

Model MenuModel Menu

Model Menu

The model menu sets the data of mixer. These data of each flight condition can be set.

If you touch “MDL” of the touch sensor over 1 second, you can get into model menu screen.

9.9.

9.System Menu

System MenuSystem Menu

System Menu

The system menu sets the transmitter setting data. For example, display contrast, stick mode.

If you touch “SYS” of the touch sensor over 1 second, you can get into system menu screen

FX-20-2.4G

Futaba Corporation

Specification

SpecificationSpecification

Specification

FX-20-2.4G SPECIFICATIONS

1 Radio Characteristics

Engineering standard Part 15.247 FCC (U.S.)

RF power output 50mW

Modulation Direct-Sequence Spread-Spectrum

Communication scheme Single communication

Frequency band 2405.376MHz - 2477.056MHz (general mode)

2407.424MHz - 2450.432MHz (France mode)

Channel 36 or 22

Data barer rate 136 kbps

Frequency control Crystal controlled frequency synthesizer

Antenna 1/2λ Pencil type antenna 1.5dBi (MAX)

2 Radio communication control

Error checking CRC-CCITT

3 Terminal interface

Physical interface none

4 Power Supplying

Supply voltage 7.2V DC

Current consumption 250 mA

5 Environmental

Operating temperature -10 to +45 ℃

Storage temperature -20 to +60 ℃

6 Miscellaneous

Indicator LCD display, 2 LED

Frequency setting programmable

Case Plastic

Outer dimensions 220(W)×210(D)×64(H) mm

Weight Approx. 740g
