Product Safety and RF Energy Exposure Booklet for
Digital Vehicular Repeater Systems (DVRS)
ATTENTION!
Before using this equipment, please read this booklet which contains
important operating instructions for safe usage, RF energy control and
compliance with exposure limits.
8F083X03 Rev. 7
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 2 of 15
RF Exposure
NOTE:
This equipment has been tested and found to comply with the limits for Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the installation manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
ATTENTION!
Changes or modifications not expressly approved by Futurecom Systems Group, ULC could void
the User’s authority to operate the equipment.
USA Users: Do not use the DVRS in the frequency band 406.0 – 406.1MHz. This frequency band
is reserved for distress beacons.
ATTENTION!
This radio is intended for use in occupational / controlled conditions, where users have full
knowledge of their exposure and can exercise control over their exposure to meet FCC
limits. This radio device is NOT authorized for general population, consumer, or any other
use.
It is the responsibility of the Repeater Operator to ensure that Maximum Permissible
Exposure (MPE) limits are observed at all times during repeater transmissions. If this
vehicular repeater is used in combination with a separate mobile radio transmitter, the
Repeater operator must ensure at all times that no person comes within the MPE distance
from the vehicle body to ensure compliance with the FCC’s RF energy exposure limits for
the general population.
The minimum lateral distance between all possible personnel and the body of the DVRS
equipped vehicle must be as specified in Table 1 (Stand-alone DVR) and Table 2 (DVR
interfaced to a Mobile Radio i.e. DVRS).
Failure to observe the MPE distance exclusion area around the antenna may expose
persons within this area to RF energy above the FCC exposure limit for bystanders
(general population).
Stand Alone DVR (20W)
Recommended Lateral Distance from Antenna
VHF
82cm (up to 50% Tx duty cycle)
UHF 380-512MHz
75cm (up to 50% Tx duty cycle)
700MHz
73cm (up to100% Tx duty cycle)
800MHz
76cm (up to100% Tx duty cycle)
Table 1 Recommended Lateral Distance - Stand Alone DVR
NOTE:
50% Tx duty cycle is defined as Push To Talk (PTT), 50% Talk - 50% Listen.
100% Tx duty cycle is defined as Push To Talk (PTT), 100% Talk.
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 3 of 15
Mobile Radio Rated Power
(up to 50% Tx duty cycle)
Recommended Lateral Distance from
Vehicle Body
DVRS with <7 Watt XTL Mobile Radio
20 cm
DVRS with 7 to 15 Watt XTL Mobile Radio
30 cm
DVRS with 16 to 39 Watt XTL Mobile Radio
60 cm
DVRS with 40 to 100 Watt XTL Mobile Radio
90 cm
DVRS with up to 100 Watt APX Mobile Radio
90 cm
Table 2 Recommended Lateral Distance – DVRS (DVR interfaced to a Mobile Radio)
IMPORTANT
The maximum allowed gain of the λ/4 omni-directional antenna for the Mobexcom P25 DVR
Repeater is Unity (0dBd).

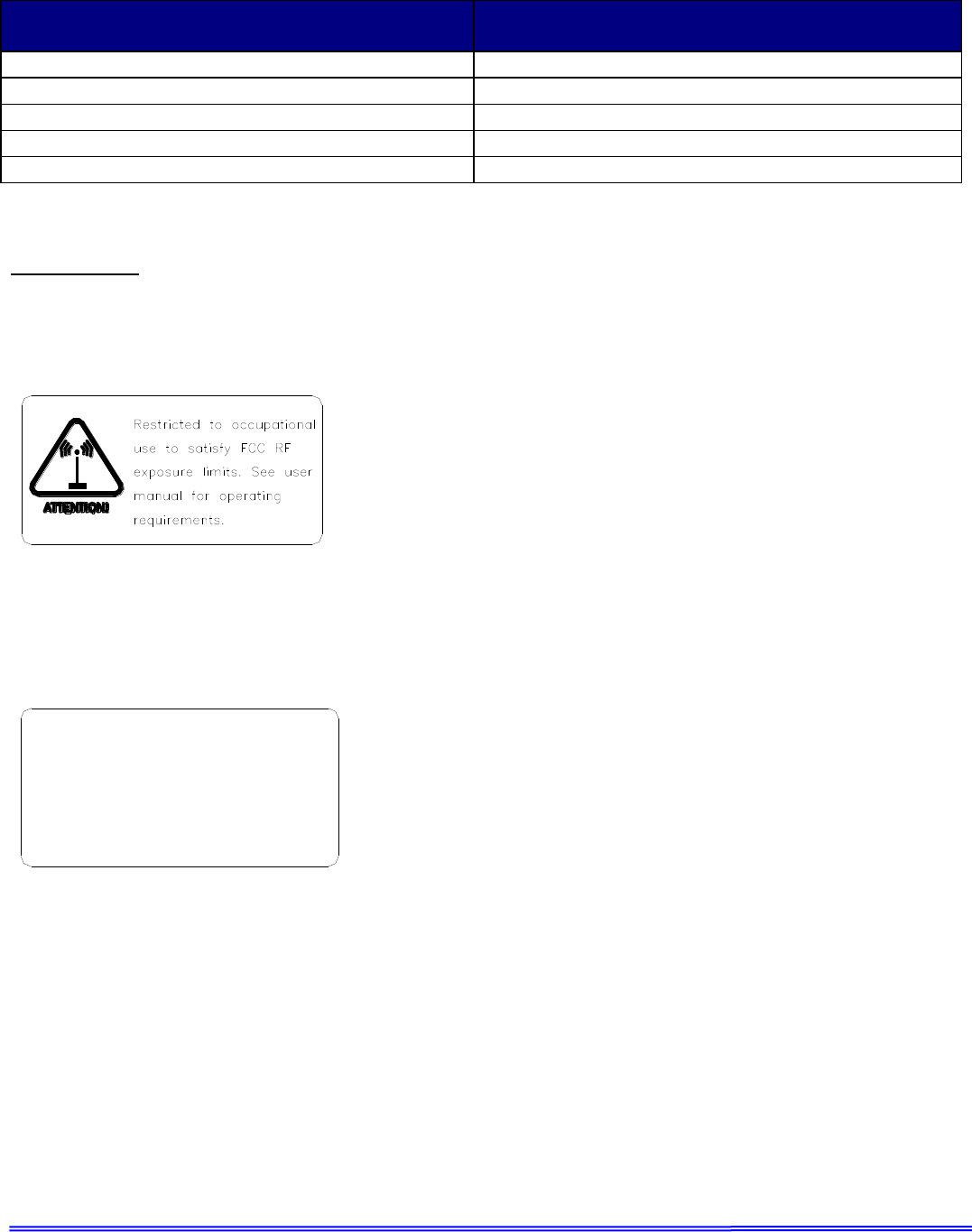

RF Exposure Label
The RF Exposure Label should be affixed in the vehicle beside the mobile radio control head.
The label should be in the direct view of the Repeater operator. The label is supplied with the
Mobexcom P25 DVR Repeater.
FCC Label
including interference that may cause undesired
2) This device must accept any interference received,
1) This device may not cause harmful interference, and
Operation is subject to the following two conditions:
This device complies with Part 15 of the FCC Rules.
operation.
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 4 of 15
Installation Requirements for Compliance with Radio
Frequency (RF) Energy Exposure Safety Standards
ATTENTION!
To ensure compliance with RF Energy Safety Standards:
Install only Futurecom / Motorola approved antennas and accessories and set conducted
power into the DVR and Mobile antennas equal to or lower then the approved power levels –
refer to Table 3 (Stand Alone DVR) or Table 4 (DVR interfaced to XTL Mobile Radio) or Table
5 (DVR interfaced to APX Mobile Radio).

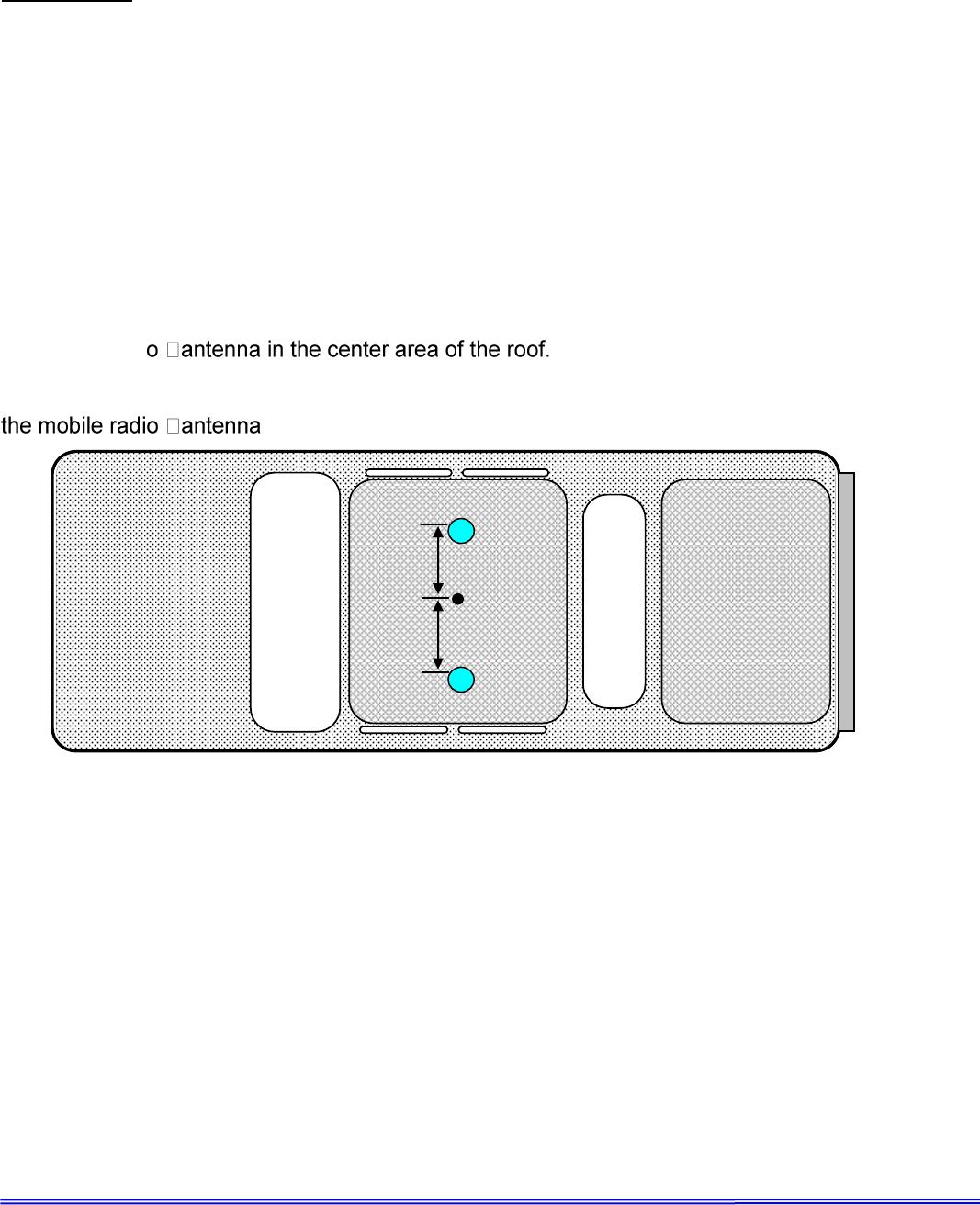

Ensure the antenna installation is consistent with the DVR Antenna Installation instructions
described in this document as well as with the Mobile Radio Antenna Installation Instructions
published in the applicable Motorola Installation Manual.
Ensure the Product & RF Safety Booklets enclosed with the Mobile Radio and the DVR are
available to the end user upon completion of the installation.
ANTENNA
STAND ALONE DVR MODEL
#
Kit #
Freq.
Range
[MHz]
Type
700 MHz
(20W)
(up to 100%
Tx duty
cycle)
800 MHz
(20W)
(up to 100%
Tx duty
cycle)
403-430
(20W)
(up to 50%
Tx duty
cycle)
450-470
(20W)
(up to 50%
Tx duty
cycle)
470-512
(20W)
(up to 50%
Tx duty
cycle)
VHF (20W)
(up to 50%
Tx duty
cycle)
1
*HAF4016
764-870
¼ wave
20W
20W
2
HAE6012A
380-433
¼ wave
20W
3
HAE4003A
450-470
¼ wave
20W
4
HAE4004
470-512
¼ wave
20W
5
HAD4006
136-144
¼ wave
20W
6
HAD4007
144-150.8
¼ wave
20W
7
HAD4008
150.8-162
¼ wave
20W
8
HAD4009
162-174
¼ wave
20W
Table 3 Approved Stand-Alone DVR Combinations
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 5 of 15
NOTE:
Mobile RF conducted antenna power in the tables below denotes up to 50% Tx duty cycle.
DVR RF conducted antenna power in the tables below denotes up to 100% Tx duty cycle.
DVR: 7V083X06 (DQPMDVR8000P) Freq Range: 806-825, 851-870MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRS800 Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
Table 4A Approved 800 DVRS Configurations – XTL5000 / XTL2500
DVR: 7V083X05 (DQPMDVR7000P) Freq Range: 764-776, 794-806MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRS700 Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 5W / 57W 5W / 57W 5W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 5W / 57W 5W / 57W 5W / 57W 20W / 120W *
* XTL5000 VHF (136-174MHz)
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 5W / 120W 5W / 120W 5W / 120W 5W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 5W / 48W 5W / 48W 5W / 48W 5W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 5W / 54W 5W / 54W 5W / 54W 5W / 54W 5W / 54W 5W / 57W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 5W / 42W 5W / 42W 5W / 42W 5W / 42W
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A, 1/4
wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
RAD4010A,
1/2 wave, 3dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
Table 4B Approved 700 DVRS Configurations – XTL5000 / XTL2500
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 6 of 15
DVR: 7V083X04 (DQPMDVR6000P) Freq Range: 470-512MHz, Trunk Mounted Antenna: HAE4004A, 1/4 wave, 0dBd, HAE6016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRSUHF Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4009A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
Table 4C Approved 470-512MHz DVRS Configurations – XTL5000 / XTL2500
DVR: 7V083X03 (DQPMDVR5000P) Freq Range: 450-470MHz, Trunk Mounted Antenna: HAE4003A, 1/4 wave, 0dBd, HAE6016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRSUHF Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
Table 4D Approved 450-470MHz DVRS Configurations – XTL5000 / XTL2500
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 7 of 15
DVR: 7V083X07 (DQPMDVR4000P) Freq Range: 380-430MHz, Trunk Mounted Antenna: HAE6012A, 1/4 wave, 0dBd
FCC ID: LO6-DVRSUHF Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4009A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
Table 4E Approved 380-430MHz DVRS Configurations – XTL5000 / XTL2500
DVR: 7V083X01 (DQPMDVR3000P) Freq Range: 136-174MHz, Trunk Mounted Antenna: HAD4006A, 1/4 wave, 0dBd, HAD4007A, 1/4 wave, 0dBd,
FCC ID: LO6-DVRSVHF
HAD4008A, 1/4 wave, 0dBd, HAD4009A, 1/4 wave, 0dBd
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 6W / 57W 6W / 57W 6W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 6W / 57W 6W / 57W 6W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 6W / 120W 6W / 120W 6W / 120W 6W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 6W / 48W 6W / 48W 6W / 48W 6W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 6W / 54W 6W / 54W 6W / 54W 6W / 54W 6W / 54W 6W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 6W / 42W 6W / 42W 6W / 42W 6W / 42W
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
Table 4F Approved 136-174MHz DVRS Configurations – XTL5000 / XTL2500
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 8 of 15
DVR: 7V083X06
(DQPMDVR8000P)
FCC ID: LO6-DVRS800
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3824
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W
APX6500/ APX7500
700/800MHz
FCC ID: AZ492FT5858
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3821
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4894
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4897
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R2
(450-520MHz)
FCC ID: AZ492FT4896
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX7500 7/800 MHz 35W -
VHF 50W
FCC ID: AZ492FT7037
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W 10W / 60W 10W / 60W 10W / 60W
APX7500 VHF 100W - 7/800
MHz 35W
FCC ID: AZ492FT7035
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 40W -
7/800 MHz 35W
FCC ID: AZ492FT7043
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 100W -
7/800 MHz 35W
FCC ID: AZ492FT7048
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R2 45W
7/800 MHz 35W
FCC ID: AZ492FT7044
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 VHF 50W - UHF
R1 40W
FCC ID: AZ492FT4895
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX7500 VHF 100W - UHF
R1 100W
FCC ID: AZ492FT4898
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX7500 VHF 50W - UHF
R2 45W
FCC ID: AZ492FT7047
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX6500 UHF R1 40W -
UHF R2 45W
FCC ID: AZ492FT4904
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
HAD4021A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAD4021A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4004A,
1/4 wave, 0dBd
HAE4004A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4021A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAF4014A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4017A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Freq Range: 806-825, 851-870MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4008A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
Table 5A Approved 800 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 9 of 15
DVR: 7V083X05
(DQPMDVR7000P)
FCC ID: LO6-DVRS700
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3824
Max Power: DVR / Mobile 5W / 60W 5W / 60W 5W / 60W
APX6500/ APX7500
700/800MHz
FCC ID: AZ492FT5858
Max Power: DVR / Mobile 5W / 42W 5W / 42W 5W / 42W 5W / 42W
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3821
Max Power: DVR / Mobile 5W / 120W 5W / 120W 5W / 120W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4894
Max Power: DVR / Mobile 5W / 48W 5W / 48W 5W / 48W 5W / 48W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4897
Max Power: DVR / Mobile 5W / 120W 5W / 120W 5W / 120W 5W / 120W
APX6500/ APX7500 UHF R2
(450-520MHz)
FCC ID: AZ492FT4896
Max Power: DVR / Mobile 5W / 54W 5W / 54W 5W / 54W 5W / 54W
APX7500 7/800 MHz 35W -
VHF 50W
FCC ID: AZ492FT7037
Max Power: DVR / Mobile 5W / 42W 5W / 42W 5W / 42W 5W / 42W 5W / 60W 5W / 60W 5W / 60W
APX7500 VHF 100W - 7/800
MHz 35W
FCC ID: AZ492FT7035
Max Power: DVR / Mobile 5W / 120W 5W / 120W 5W / 120W 5W / 42W 5W / 42W 5W / 42W 5W / 42W
APX7500 UHF R1 40W -
7/800 MHz 35W
FCC ID: AZ492FT7043
Max Power: DVR / Mobile 5W / 48W 5W / 48W 5W / 48W 5W / 48W 5W / 42W 5W / 42W 5W / 42W 5W / 42W
APX7500 UHF R1 100W -
7/800 MHz 35W
FCC ID: AZ492FT7048
Max Power: DVR / Mobile 5W / 120W 5W / 120W 5W / 120W 5W / 120W 5W / 42W 5W / 42W 5W / 42W 5W / 42W
APX7500 UHF R2 45W
7/800 MHz 35W
FCC ID: AZ492FT7044
Max Power: DVR / Mobile 5W / 54W 5W / 54W 5W / 54W 5W / 54W 5W / 42W 5W / 42W 5W / 42W 5W / 42W
APX7500 VHF 50W - UHF
R1 40W
FCC ID: AZ492FT4895
Max Power: DVR / Mobile 5W / 60W 5W / 60W 5W / 60W 5W / 48W 5W / 48W 5W / 48W 5W / 48W
APX7500 VHF 100W - UHF
R1 100W
FCC ID: AZ492FT4898
Max Power: DVR / Mobile 5W / 120W 5W / 120W 5W / 120W 5W / 120W 5W / 120W 5W / 120W 5W / 120W
APX7500 VHF 50W - UHF
R2 45W
FCC ID: AZ492FT7047
Max Power: DVR / Mobile 5W / 60W 5W / 60W 5W / 60W 5W / 54W 5W / 54W 5W / 54W 5W / 54W
APX6500 UHF R1 40W -
UHF R2 45W
FCC ID: AZ492FT4904
Max Power: DVR / Mobile 5W / 48W 5W / 48W 5W / 48W 5W / 48W 5W / 54W 5W / 54W 5W / 54W 5W / 54W
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4004A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4021A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4004A,
1/4 wave, 0dBd
Freq Range: 764-776, 794-806MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
HAE4004A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
Table 5B Approved 700 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 10 of 15
DVR: 7V083X07
(DQPMDVR4000P)
FCC ID: LO6-DVRSUHF
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3824
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W
APX6500/ APX7500
700/800MHz
FCC ID: AZ492FT5858
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3821
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4894
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4897
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R2
(450-520MHz)
FCC ID: AZ492FT4896
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX7500 7/800 MHz 35W -
VHF 50W
FCC ID: AZ492FT7037
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W 10W / 60W 10W / 60W 10W / 60W
APX7500 VHF 100W - 7/800
MHz 35W
FCC ID: AZ492FT7035
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 40W -
7/800 MHz 35W
FCC ID: AZ492FT7043
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 100W -
7/800 MHz 35W
FCC ID: AZ492FT7048
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R2 45W
7/800 MHz 35W
FCC ID: AZ492FT7044
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 VHF 50W - UHF
R1 40W
FCC ID: AZ492FT4895
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX7500 VHF 100W - UHF
R1 100W
FCC ID: AZ492FT4898
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX7500 VHF 50W - UHF
R2 45W
FCC ID: AZ492FT7047
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX6500 UHF R1 40W -
UHF R2 45W
FCC ID: AZ492FT4904
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4016A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4017A,
1/4 wave, 3dBd
HAE4004A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4014A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4017A,
1/4 wave, 3dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4008A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
Freq Range: 380-430MHz, Trunk Mounted Antenna: HAE6012A, 1/4 wave, 0dBd
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Table 5C Approved UHF R1 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 11 of 15
DVR: 7V083X03
(DQPMDVR5000P)
FCC ID: LO6-DVRSUHF
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3824
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W
APX6500/ APX7500
700/800MHz
FCC ID: AZ492FT5858
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3821
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4894
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4897
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R2
(450-520MHz)
FCC ID: AZ492FT4896
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX7500 7/800 MHz 35W -
VHF 50W
FCC ID: AZ492FT7037
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W 10W / 60W 10W / 60W 10W / 60W
APX7500 VHF 100W - 7/800
MHz 35W
FCC ID: AZ492FT7035
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 40W -
7/800 MHz 35W
FCC ID: AZ492FT7043
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 100W -
7/800 MHz 35W
FCC ID: AZ492FT7048
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R2 45W
7/800 MHz 35W
FCC ID: AZ492FT7044
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 VHF 50W - UHF
R1 40W
FCC ID: AZ492FT4895
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX7500 VHF 100W - UHF
R1 100W
FCC ID: AZ492FT4898
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX7500 VHF 50W - UHF
R2 45W
FCC ID: AZ492FT7047
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX6500 UHF R1 40W -
UHF R2 45W
FCC ID: AZ492FT4904
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
Freq Range: 450-470MHz, Trunk Mounted Antenna: HAE4003A, 1/4 wave, 0dBd
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAF4014A,
1/4 wave, 3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
Table 5D Approved UHF R2 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 12 of 15
DVR: 7V083X04
(DQPMDVR6000P)
FCC ID: LO6-DVRSUHF
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3824
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W
APX6500/ APX7500
700/800MHz
FCC ID: AZ492FT5858
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3821
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4894
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4897
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R2
(450-520MHz)
FCC ID: AZ492FT4896
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX7500 7/800 MHz 35W -
VHF 50W
FCC ID: AZ492FT7037
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W 10W / 60W 10W / 60W 10W / 60W
APX7500 VHF 100W - 7/800
MHz 35W
FCC ID: AZ492FT7035
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 40W -
7/800 MHz 35W
FCC ID: AZ492FT7043
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 100W -
7/800 MHz 35W
FCC ID: AZ492FT7048
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R2 45W
7/800 MHz 35W
FCC ID: AZ492FT7044
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 VHF 50W - UHF
R1 40W
FCC ID: AZ492FT4895
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX7500 VHF 100W - UHF
R1 100W
FCC ID: AZ492FT4898
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX7500 VHF 50W - UHF
R2 45W
FCC ID: AZ492FT7047
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX6500 UHF R1 40W -
UHF R2 45W
FCC ID: AZ492FT4904
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
Freq Range: 470-512MHz, Trunk Mounted Antenna: HAE4004A, 1/4 wave, 0dBd
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAF4014A,
1/4 wave, 3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
Table 5E Approved UHF R3 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 13 of 15
DVR: 7V083X01
(DQPMDVR3000P)
FCC ID: LO6-DVRSVHF
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3824
Max Power: DVR / Mobile 6W / 60W 6W / 60W 6W / 60W
APX6500/ APX7500
700/800MHz
FCC ID: AZ492FT5858
Max Power: DVR / Mobile 6W / 42W 6W / 42W 6W / 42W
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3821
Max Power: DVR / Mobile 6W / 120W 6W / 120W 6W / 120W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4894
Max Power: DVR / Mobile 6W / 48W 6W / 48W 6W / 48W 6W / 48W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4897
Max Power: DVR / Mobile 6W / 120W 6W / 120W 6W / 120W 6W / 120W
APX6500/ APX7500 UHF R2
(450-520MHz)
FCC ID: AZ492FT4896
Max Power: DVR / Mobile 6W / 54W 6W / 54W 6W / 54W 6W / 54W
APX7500 7/800 MHz 35W -
VHF 50W
FCC ID: AZ492FT7037
Max Power: DVR / Mobile 6W / 42W 6W / 42W 6W / 42W 6W / 60W 6W / 60W 6W / 60W
APX7500 VHF 100W - 7/800
MHz 35W
FCC ID: AZ492FT7035
Max Power: DVR / Mobile 6W / 120W 6W / 120W 6W / 120W 6W / 42W 6W / 42W 6W / 42W
APX7500 UHF R1 40W -
7/800 MHz 35W
FCC ID: AZ492FT7043
Max Power: DVR / Mobile 6W / 48W 6W / 48W 6W / 48W 6W / 48W 6W / 42W 6W / 42W 6W / 42W
APX7500 UHF R1 100W -
7/800 MHz 35W
FCC ID: AZ492FT7048
Max Power: DVR / Mobile 6W / 120W 6W / 120W 6W / 120W 6W / 120W 6W / 42W 6W / 42W 6W / 42W
APX7500 UHF R2 45W
7/800 MHz 35W
FCC ID: AZ492FT7044
Max Power: DVR / Mobile 6W / 54W 6W / 54W 6W / 54W 6W / 54W 6W / 42W 6W / 42W 6W / 42W
APX7500 VHF 50W - UHF
R1 40W
FCC ID: AZ492FT4895
Max Power: DVR / Mobile 6W / 60W 6W / 60W 6W / 60W 6W / 48W 6W / 48W 6W / 48W 6W / 48W
APX7500 VHF 100W - UHF
R1 100W
FCC ID: AZ492FT4898
Max Power: DVR / Mobile 6W / 120W 6W / 120W 6W / 120W 6W / 120W 6W / 120W 6W / 120W 6W / 120W
APX7500 VHF 50W - UHF
R2 45W
FCC ID: AZ492FT7047
Max Power: DVR / Mobile 6W / 60W 6W / 60W 6W / 60W 6W / 54W 6W / 54W 6W / 54W 6W / 54W
APX6500 UHF R1 40W -
UHF R2 45W
FCC ID: AZ492FT4904
Max Power: DVR / Mobile 6W / 48W 6W / 48W 6W / 48W 6W / 48W 6W / 54W 6W / 54W 6W / 54W 6W / 54W
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4009A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4016A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE4004A,
1/4 wave, 0dBd
Freq Range: 136-174MHz, Trunk Mounted Antenna: HAD4006A, 1/4 wave, 0dBd, HAD4007A,
1/4 wave, 0dBd, HAD4008A, 1/4 wave, 0dBd, HAD4009A, 1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAD4021A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
Table 5F Approved VHF DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 14 of 15
Antenna Installation Instructions
IMPORTANT
To assure optimum performance and compliance with RF Energy Safety standards, these
antenna installation guidelines and instructions are limited to metal-body vehicles with
appropriate ground planes and take into account the potential exposure of back seat
passengers and bystanders outside the vehicle.
Selecting an Antenna Site/Location on a Metal Body Vehicle
External installation
Check the requirements of the antenna supplier and install the vehicle antenna external to a metal
body vehicle in accordance with those requirements.
Roof top
XTL mobile: For optimum performance and compliance with RF Energy Safety standards, mount
the mobile radi
APX mobile: For optimum performance and compliance with RF Energy Safety standards, mount
at 45cm (18 inches) from the center as shown in the figure below.
Trunk lid
For optimum performance and compliance with RF Energy Safety standards, mount the DVRS
antenna in the center area of the trunk.
Before installing an antenna on the trunk lid:
Ensure that the distance from the antenna location on the trunk lid will be at least 85 cm (33
inches) from the front surface of the rear seat-back to assure compliance with RF Energy
Safety standards.
Ensure that the trunk lid is grounded by connecting grounding straps between the trunk lid and
the vehicle chassis.
Ensure that the antenna cable can be easily routed to the radio. Route the antenna cable as
far away as possible from any vehicle electronic control units and associated wiring.
Check the antenna location for any electrical interference.
Ensure that any other mobile radio antenna on this vehicle is at least 1ft (30.48cm) away from
the DVR and its associated mobile radio antennas.
A1
A1
Roof
45cm
45cm
8F083X03 Rev 7
DVRS - Product Safety and RF Energy Exposure Booklet Page 15 of 15
NOTE:
Any two metal pieces rubbing against each other (such as seat springs, shift levers, trunk and
hood lids, exhaust pipes etc.) in close proximity to the antenna can cause severe receiver
interference.
Mobile Radio / DVR Antenna separation
To ensure interference-free performance when both the Mobile Radio and the DVR are active, the
two antennas must be mounted in such way as to provide 30dB minimum antenna isolation.
