Futurecom Systems Group ULC. MOBEXCOM DVR Vehicular Repeater RF Safety Booklet
Contents
RF Safety Booklet
Futurecom Systems Group, ULC
DVRS
RF Safety Booklet
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 2 of 25
Document Revisions
Rev
Date
By
Notes & References
R10
May 24, 2017
Added APX 8500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 3 of 25
Product Safety and RF Energy Exposure Booklet for
Digital Vehicular Repeater Systems (DVRS)
ATTENTION!
Before using this equipment, please read this booklet which contains
important operating instructions for safe usage, RF energy control and
compliance with exposure limits.
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 4 of 25
RF Exposure
NOTE:
This equipment has been tested and found to comply with the limits for Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the installation manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
ATTENTION!
Changes or modifications not expressly approved by Futurecom Systems Group, ULC could void
the User’s authority to operate the equipment.
USA Users: Do not use the DVRS in the frequency band 406.0 – 406.1MHz. This frequency band
is reserved for distress beacons.
ATTENTION!
This radio is intended for use in occupational / controlled conditions, where users have full
knowledge of their exposure and can exercise control over their exposure to meet FCC
limits. This radio device is NOT authorized for general population, consumer, or any other
use.
It is the responsibility of the Repeater Operator to ensure that Maximum Permissible
Exposure (MPE) limits are observed at all times during repeater transmissions. If this
vehicular repeater is used in combination with a separate mobile radio transmitter, the
Repeater operator must ensure at all times that no person comes within the MPE distance
from the vehicle body to ensure compliance with the FCC’s RF energy exposure limits for
the general population.
The minimum lateral distance between all possible personnel and the body of the DVRS
equipped vehicle must be as specified in Table 1 (Stand-alone DVR) and Table 2 (DVR
interfaced to a Mobile Radio i.e. DVRS).
Failure to observe the MPE distance exclusion area around the antenna may expose
persons within this area to RF energy above the FCC exposure limit for bystanders
(general population).
Stand Alone DVR (20W)
Recommended Lateral Distance from Antenna
VHF
82cm (32.3 inches) (up to 50% Tx duty cycle)
UHF 380-512MHz
75cm (29.5 inches) (up to 50% Tx duty cycle)
700MHz
73cm (28.7 inches) (up to100% Tx duty cycle)
800MHz
76cm (29.9 inches) (up to100% Tx duty cycle)
Table 1 Recommended Lateral Distance - Stand Alone DVR
NOTE:
50% Tx duty cycle is defined as Push To Talk (PTT), 50% Talk - 50% Listen.
100% Tx duty cycle is defined as Push To Talk (PTT), 100% Talk.
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 5 of 25
Mobile Radio Rated Power
(up to 50% Tx duty cycle)
Recommended Lateral Distance from
Vehicle Body
DVRS with <7 Watt XTL Mobile Radio
20 cm (7.9 inches)
DVRS with 7 to 15 Watt XTL Mobile Radio
30 cm (11.8 inches)
DVRS with 16 to 39 Watt XTL Mobile Radio
60 cm (23.6 inches)
DVRS with 40 to 100 Watt XTL Mobile Radio
90 cm (35.4 inches)
DVRS with up to 100 Watt APX Mobile Radio
90 cm (35.4 inches
Table 2 Recommended Lateral Distance – DVRS (DVR interfaced to a Mobile Radio)
IMPORTANT
The maximum allowed gain of the λ/4 omni-directional antenna for the Mobexcom P25 DVR
Repeater is Unity (0dBd).

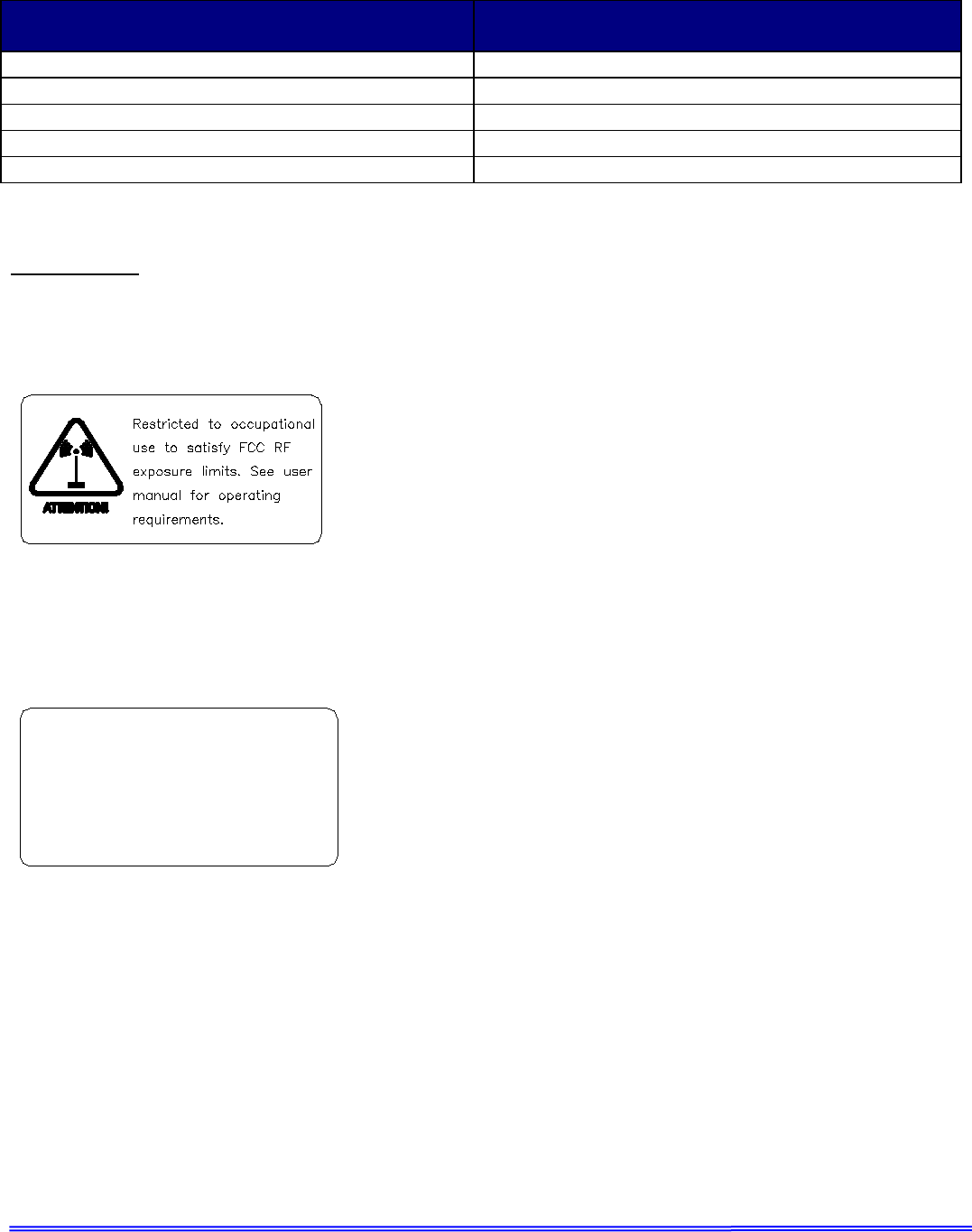

RF Exposure Label
The RF Exposure Label should be affixed in the vehicle beside the mobile radio control head.
The label should be in the direct view of the Repeater operator. The label is supplied with the
Mobexcom P25 DVR Repeater.
FCC Label
including interference that may cause undesired
2) This device must accept any interference received,
1) This device may not cause harmful interference, and
Operation is subject to the following two conditions:
This device complies with Part 15 of the FCC Rules.
operation.
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 6 of 25
Installation Requirements for Compliance with Radio
Frequency (RF) Energy Exposure Safety Standards
ATTENTION!
To ensure compliance with RF Energy Safety Standards:
Install only Futurecom / Motorola approved antennas and accessories and set conducted
power into the DVR and Mobile antennas equal to or lower then the approved power levels –
refer to Table 3 (Stand Alone DVR) or Table 4 (DVR interfaced to XTL Mobile Radio) or Table
5 (DVR interfaced to APX Mobile Radio).

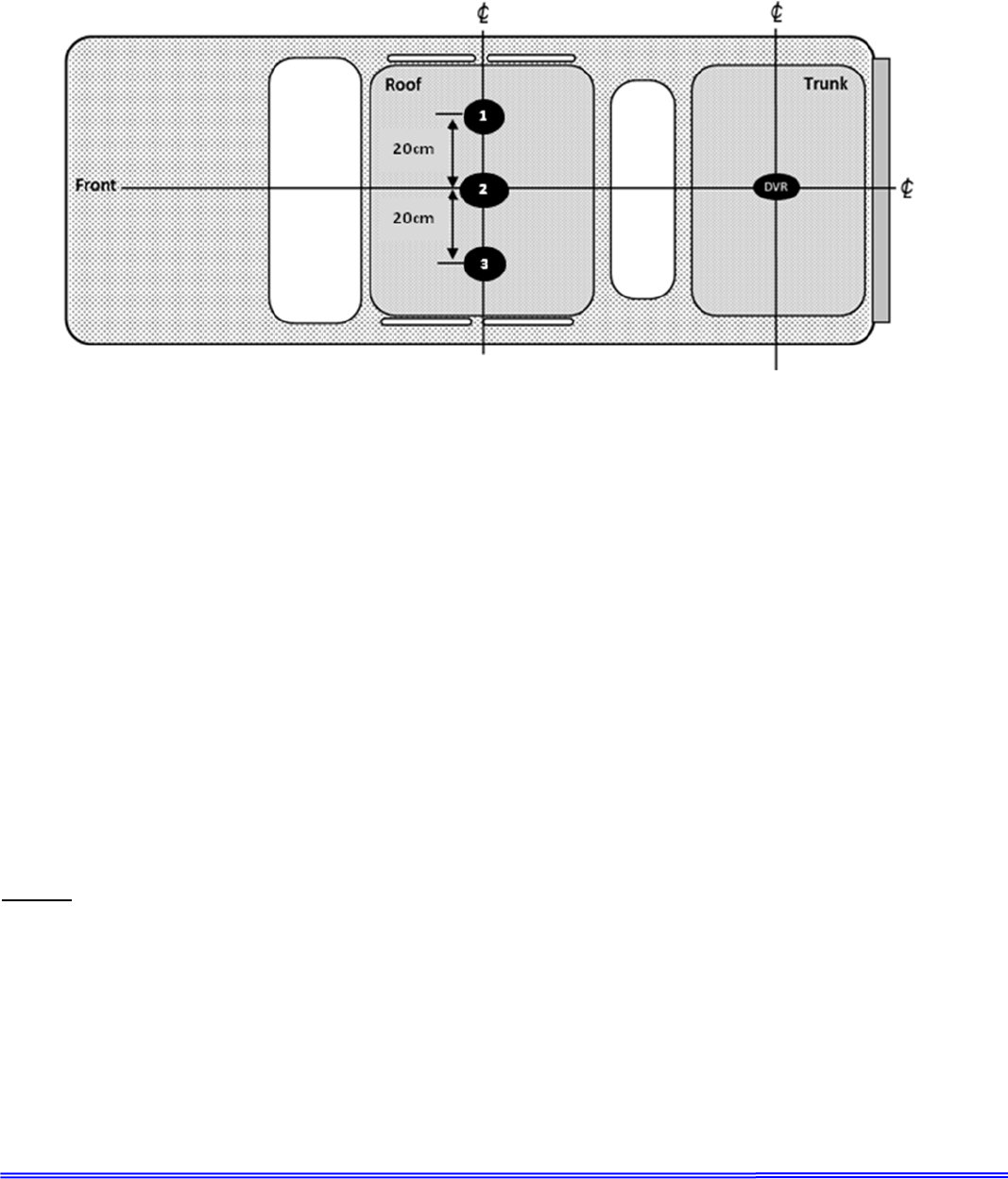

Ensure the antenna installation is consistent with the DVR Antenna Installation instructions
described in this document as well as with the Mobile Radio Antenna Installation Instructions
published in the applicable Motorola Installation Manual.
Ensure the Product & RF Safety Booklets enclosed with the Mobile Radio and the DVR are
available to the end user upon completion of the installation.
ANTENNA STAND ALONE DVR MODEL
# Kit # Freq.
Range
[MHz] Type
700 MHz
(20W)
(up to 100%
Tx duty
cycle)
800 MHz
(20W)
(up to 100%
Tx duty
cycle)
403-430
(20W)
(up to 50%
Tx duty
cycle)
450-470
(20W)
(up to 50%
Tx duty
cycle)
470-512
(20W)
(up to 50%
Tx duty
cycle)
VHF (20W)
(up to 50%
Tx duty
cycle)
1
HAF4016
764-870
¼ wave
20W
20W
2
HAE6012A
380-433
¼ wave
20W
3
HAE4003A
450-470
¼ wave
20W
4
HAE4004
470-512
¼ wave
20W
5
HAD4006
136-144
¼ wave
20W
6
HAD4007
144-150.8
¼ wave
20W
7
HAD4008
150.8-162
¼ wave
20W
8
HAD4009
162-174
¼ wave
20W
Table 3 Approved Stand-Alone DVR Combinations
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 7 of 25
NOTE:
Mobile RF conducted antenna power in the tables below denotes up to 50% Tx duty cycle.
DVR RF conducted antenna power in the tables below denotes up to 100% Tx duty cycle.
DVR: 7V083X06 (DQPMDVR8000P) Freq Range: 806-825, 851-870MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRS800 Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
Table 4A Approved 800 DVRS Configurations – XTL5000 / XTL2500
DVR: 7V083X05 (DQPMDVR7000P) Freq Range: 764-776, 794-806MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRS700 Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 5W / 57W 5W / 57W 5W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 5W / 57W 5W / 57W 5W / 57W 20W / 120W *
* XTL5000 VHF (136-174MHz)
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 5W / 120W 5W / 120W 5W / 120W 5W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 5W / 48W 5W / 48W 5W / 48W 5W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 5W / 54W 5W / 54W 5W / 54W 5W / 54W 5W / 54W 5W / 57W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 5W / 42W 5W / 42W 5W / 42W 5W / 42W
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A, 1/4
wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
RAD4010A,
1/2 wave, 3dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
Table 4B Approved 700 DVRS Configurations – XTL5000 / XTL2500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 8 of 25
DVR: 7V083X04 (DQPMDVR6000P) Freq Range: 470-512MHz, Trunk Mounted Antenna: HAE4004A, 1/4 wave, 0dBd, HAE6016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRSUHF Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4009A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
Table 4C Approved 470-512MHz DVRS Configurations – XTL5000 / XTL2500
DVR: 7V083X03 (DQPMDVR5000P) Freq Range: 450-470MHz, Trunk Mounted Antenna: HAE4003A, 1/4 wave, 0dBd, HAE6016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRSUHF Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
Table 4D Approved 450-470MHz DVRS Configurations – XTL5000 / XTL2500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 9 of 25
DVR: 7V083X07 (DQPMDVR4000P) Freq Range: 380-430MHz, Trunk Mounted Antenna: HAE6012A, 1/4 wave, 0dBd
FCC ID: LO6-DVRSUHF Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4009A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
Table 4E Approved 380-430MHz DVRS Configurations – XTL5000 / XTL2500
DVR: 7V083X01 (DQPMDVR3000P) Freq Range: 136-174MHz, Trunk Mounted Antenna: HAD4006A, 1/4 wave, 0dBd, HAD4007A, 1/4 wave, 0dBd,
FCC ID: LO6-DVRSVHF
HAD4008A, 1/4 wave, 0dBd, HAD4009A, 1/4 wave, 0dBd
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 6W / 57W 6W / 57W 6W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 6W / 57W 6W / 57W 6W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 6W / 120W 6W / 120W 6W / 120W 6W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 6W / 48W 6W / 48W 6W / 48W 6W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 6W / 54W 6W / 54W 6W / 54W 6W / 54W 6W / 54W 6W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 6W / 42W 6W / 42W 6W / 42W 6W / 42W
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
Table 4F Approved 136-174MHz DVRS Configurations – XTL5000 / XTL2500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 10 of 25
Table 5A Approved 800
DVRS Configurations –
APX6500 / APX7500
DVR:
7V083X06
(DQPMDVR8000P)
FCC ID:
LO6-DVRS800
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3824
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W
APX6500/ APX7500
700/800MHz
FCC ID: AZ492FT5858
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3821
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4894
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4897
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R2
(450-520MHz)
FCC ID: AZ492FT4896
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX7500 7/800 MHz 35W -
VHF 50W
FCC ID: AZ492FT7037
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W 10W / 60W 10W / 60W 10W / 60W
APX7500 VHF 100W -
7/800 MHz 35W
FCC ID: AZ492FT7035
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 40W -
7/800 MHz 35W
FCC ID: AZ492FT7043
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 100W -
7/800 MHz 35W
FCC ID: AZ492FT7048
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R2 45W
7/800 MHz 35W
FCC ID: AZ492FT7044
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 VHF 50W - UHF
R1 40W
FCC ID: AZ492FT4895
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX7500 VHF 100W - UHF
R1 100W
FCC ID: AZ492FT4898
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX7500 VHF 50W - UHF
R2 45W
FCC ID: AZ492FT7047
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX6500 UHF R1 40W -
UHF R2 45W
FCC ID: AZ492FT4904
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave,
3dBd
HAF4014A,
1/4 wave,
3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4021A,
1/4 wave,
0dBd
HAE4003A,
1/4 wave,
0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave,
3dBd
HAD4021A,
1/4 wave,
0dBd
HAE4003A,
1/4 wave,
0dBd
HAE4004A,
1/4 wave,
0dBd
HAF4013A,
1/4 wave,
3dBd
HAF4014A,
1/4 wave,
3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4016A,
1/4 wave,
0dBd
HAF4017A,
1/4 wave,
3dBd
HAE4003A,
1/4 wave,
0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4014A,
1/4 wave,
3dBd
HAE6015A,
1/2 wave,
2dBd
HAE6015A,
1/2 wave,
2dBd
HAE4003A,
1/4 wave,
0dBd
HAE4004A,
1/4 wave,
0dBd
HAE4004A,
1/4 wave,
0dBd
HAF4013A,
1/4 wave,
3dBd
HAF4014A,
1/4 wave,
3dBd
HAE6013A,
1/2 wave,
2dBd
HAE4004A,
1/4 wave,
0dBd
HAD4008A,
1/4 wave,
0dBd
HAD4009A,
1/4 wave,
0dBd
HAD4021A,
1/4 wave,
0dBd
HAE6012A,
1/4 wave,
0dBd
HAE6013A,
1/2 wave,
2dBd
HAE4003A,
1/4 wave,
0dBd
HAD4008A,
1/4 wave,
0dBd
HAD4009A,
1/4 wave,
0dBd
HAE6012A,
1/4 wave,
0dBd
HAE6013A,
1/2 wave,
2dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6012A,
1/4 wave,
0dBd
HAE6013A,
1/2 wave,
2dBd
HAE4003A,
1/4 wave,
0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6013A,
1/2 wave,
2dBd
HAE4003A,
1/4 wave,
0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4021A,
1/4 wave,
0dBd
HAF4017A,
1/4 wave,
3dBd
HAF4016A,
1/4 wave,
0dBd
HAF4017A,
1/4 wave,
3dBd
HAF4016A,
1/4 wave,
0dBd
HAF4016A,
1/4 wave,
0dBd
HAF4017A,
1/4 wave,
3dBd
HAD4008A,
1/4 wave,
0dBd
HAD4009A,
1/4 wave,
0dBd
HAD4021A,
1/4 wave,
0dBd
HAE6012A,
1/4 wave,
0dBd
HAE6015A,
1/2 wave,
2dBd
HAE4003A,
1/4 wave,
0dBd
HAF4013A,
1/4 wave,
3dBd
HAE6012A,
1/4 wave,
0dBd
HAF4013A,
1/4 wave,
3dBd
HAF4014A,
1/4 wave,
3dBd
HAF4016A,
1/4 wave,
0dBd
HAE6015A,
1/2 wave,
2dBd
HAD4009A,
1/4 wave,
0dBd
HAD4021A,
1/4 wave,
0dBd
HAF4017A,
1/4 wave,
3dBd
HAF4014A,
1/4 wave,
3dBd
HAE4003A,
1/4 wave,
0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4016A,
1/4 wave,
0dBd
HAF4017A,
1/4 wave,
3dBd
HAD4008A,
1/4 wave,
0dBd
HAD4009A,
1/4 wave,
0dBd
HAD4008A,
1/4 wave,
0dBd
HAD4009A,
1/4 wave,
0dBd
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Freq Range: 806-825, 851-870MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4021A,
1/4 wave,
0dBd
HAE6012A,
1/4 wave,
0dBd
HAE6012A,
1/4 wave,
0dBd
HAE6013A,
1/2 wave,
2dBd
HAE4003A,
1/4 wave,
0dBd
HAE6013A,
1/2 wave,
2dBd
HAE4003A,
1/4 wave,
0dBd
HAD4008A,
1/4 wave,
0dBd
HAD4008A,
1/4 wave,
0dBd
HAD4009A,
1/4 wave,
0dBd
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 11 of 25
DVR:
7V083X05
(DQPMDVR7000P)
FCC ID:
LO6-DVRS700
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3824
Max Power: DVR / Mobile 5W / 60W 5W / 60W 5W / 60W
APX6500/ APX7500
700/800MHz
FCC ID: AZ492FT5858
Max Power: DVR / Mobile 5W / 42W 5W / 42W 5W / 42W 5W / 42W
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3821
Max Power: DVR / Mobile 5W / 120W 5W / 120W 5W / 120W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4894
Max Power: DVR / Mobile 5W / 48W 5W / 48W 5W / 48W 5W / 48W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4897
Max Power: DVR / Mobile 5W / 120W 5W / 120W 5W / 120W 5W / 120W
APX6500/ APX7500 UHF R2
(450-520MHz)
FCC ID: AZ492FT4896
Max Power: DVR / Mobile 5W / 54W 5W / 54W 5W / 54W 5W / 54W
APX7500 7/800 MHz 35W -
VHF 50W
FCC ID: AZ492FT7037
Max Power: DVR / Mobile 5W / 42W 5W / 42W 5W / 42W 5W / 42W 5W / 60W 5W / 60W 5W / 60W
APX7500 VHF 100W - 7/800
MHz 35W
FCC ID: AZ492FT7035
Max Power: DVR / Mobile 5W / 120W 5W / 120W 5W / 120W 5W / 42W 5W / 42W 5W / 42W 5W / 42W
APX7500 UHF R1 40W -
7/800 MHz 35W
FCC ID: AZ492FT7043
Max Power: DVR / Mobile 5W / 48W 5W / 48W 5W / 48W 5W / 48W 5W / 42W 5W / 42W 5W / 42W 5W / 42W
APX7500 UHF R1 100W -
7/800 MHz 35W
FCC ID: AZ492FT7048
Max Power: DVR / Mobile 5W / 120W 5W / 120W 5W / 120W 5W / 120W 5W / 42W 5W / 42W 5W / 42W 5W / 42W
APX7500 UHF R2 45W
7/800 MHz 35W
FCC ID: AZ492FT7044
Max Power: DVR / Mobile 5W / 54W 5W / 54W 5W / 54W 5W / 54W 5W / 42W 5W / 42W 5W / 42W 5W / 42W
APX7500 VHF 50W - UHF
R1 40W
FCC ID: AZ492FT4895
Max Power: DVR / Mobile 5W / 60W 5W / 60W 5W / 60W 5W / 48W 5W / 48W 5W / 48W 5W / 48W
APX7500 VHF 100W - UHF
R1 100W
FCC ID: AZ492FT4898
Max Power: DVR / Mobile 5W / 120W 5W / 120W 5W / 120W 5W / 120W 5W / 120W 5W / 120W 5W / 120W
APX7500 VHF 50W - UHF
R2 45W
FCC ID: AZ492FT7047
Max Power: DVR / Mobile 5W / 60W 5W / 60W 5W / 60W 5W / 54W 5W / 54W 5W / 54W 5W / 54W
APX6500 UHF R1 40W -
UHF R2 45W
FCC ID: AZ492FT4904
Max Power: DVR / Mobile 5W / 48W 5W / 48W 5W / 48W 5W / 48W 5W / 54W 5W / 54W 5W / 54W 5W / 54W
HAD4008A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4021A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4004A,
1/4 wave, 0dBd
HAE4004A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
Freq Range: 764-776, 794-806MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
HAE4004A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Table 5B Approved 700 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 12 of 25
DVR:
7V083X07
(DQPMDVR4000P)
FCC ID:
LO6-DVRSUHF
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3824
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W
APX6500/ APX7500
700/800MHz
FCC ID: AZ492FT5858
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3821
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4894
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4897
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R2
(450-520MHz)
FCC ID: AZ492FT4896
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX7500 7/800 MHz 35W -
VHF 50W
FCC ID: AZ492FT7037
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W 10W / 60W 10W / 60W 10W / 60W
APX7500 VHF 100W - 7/800
MHz 35W
FCC ID: AZ492FT7035
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 40W -
7/800 MHz 35W
FCC ID: AZ492FT7043
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 100W -
7/800 MHz 35W
FCC ID: AZ492FT7048
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R2 45W
7/800 MHz 35W
FCC ID: AZ492FT7044
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 VHF 50W - UHF
R1 40W
FCC ID: AZ492FT4895
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX7500 VHF 100W - UHF
R1 100W
FCC ID: AZ492FT4898
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX7500 VHF 50W - UHF
R2 45W
FCC ID: AZ492FT7047
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX6500 UHF R1 40W -
UHF R2 45W
FCC ID: AZ492FT4904
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Freq Range:
380-430MHz,
Trunk Mounted Antenna:
HAE6012A, 1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4008A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4016A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4017A,
1/4 wave, 3dBd
HAE4004A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
Table 5C Approved UHF R1 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 13 of 25
DVR:
7V083X03
(DQPMDVR5000P)
FCC ID:
LO6-DVRSUHF
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3824
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W
APX6500/ APX7500
700/800MHz
FCC ID: AZ492FT5858
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3821
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4894
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4897
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R2
(450-520MHz)
FCC ID: AZ492FT4896
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX7500 7/800 MHz 35W -
VHF 50W
FCC ID: AZ492FT7037
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W 10W / 60W 10W / 60W 10W / 60W
APX7500 VHF 100W - 7/800
MHz 35W
FCC ID: AZ492FT7035
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 40W -
7/800 MHz 35W
FCC ID: AZ492FT7043
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 100W -
7/800 MHz 35W
FCC ID: AZ492FT7048
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R2 45W
7/800 MHz 35W
FCC ID: AZ492FT7044
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 VHF 50W - UHF
R1 40W
FCC ID: AZ492FT4895
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX7500 VHF 100W - UHF
R1 100W
FCC ID: AZ492FT4898
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX7500 VHF 50W - UHF
R2 45W
FCC ID: AZ492FT7047
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX6500 UHF R1 40W -
UHF R2 45W
FCC ID: AZ492FT4904
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAF4014A,
1/4 wave, 3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4017A,
1/4 wave, 3dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
Freq Range:
450-470MHz,
Trunk Mounted Antenna:
HAE4003A, 1/4 wave, 0dBd; HAE6016A,
1/4 wave, 0 dBd (HAE6016A offered only with DVR/ XTL combination)
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Table 5D Approved UHF R2 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 14 of 25
DVR: 7V083X04
(DQPMDVR6000P)
FCC ID: LO6-DVRSUHF
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3824
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W
APX6500/ APX7500
700/800MHz
FCC ID: AZ492FT5858
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3821
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4894
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4897
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX6500/ APX7500 UHF R2
(450-520MHz)
FCC ID: AZ492FT4896
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX7500 7/800 MHz 35W -
VHF 50W
FCC ID: AZ492FT7037
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W 10W / 60W 10W / 60W 10W / 60W
APX7500 VHF 100W - 7/800
MHz 35W
FCC ID: AZ492FT7035
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 40W -
7/800 MHz 35W
FCC ID: AZ492FT7043
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R1 100W -
7/800 MHz 35W
FCC ID: AZ492FT7048
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 UHF R2 45W
7/800 MHz 35W
FCC ID: AZ492FT7044
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 42W 10W / 42W 10W / 42W 10W / 42W
APX7500 VHF 50W - UHF
R1 40W
FCC ID: AZ492FT4895
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 48W 10W / 48W 10W / 48W 10W / 48W
APX7500 VHF 100W - UHF
R1 100W
FCC ID: AZ492FT4898
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W 10W / 120W
APX7500 VHF 50W - UHF
R2 45W
FCC ID: AZ492FT7047
Max Power: DVR / Mobile 10W / 60W 10W / 60W 10W / 60W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
APX6500 UHF R1 40W -
UHF R2 45W
FCC ID: AZ492FT4904
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAF4014A,
1/4 wave, 3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4017A,
1/4 wave, 3dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
Freq Range: 470-512MHz, Trunk Mounted Antenna: HAE4004A, 1/4 wave, 0dBd; HAE6016A,
1/4 wave, 0 dBd (HAE6016A offered only with DVR/ XTL combination)
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Table 5E Approved UHF R3 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 15 of 25
DVR:
7V083X01
(DQPMDVR3000P)
FCC ID:
LO6-DVRSVHF
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3824
Max Power: DVR / Mobile 6W / 60W 6W / 60W 6W / 60W
APX6500/ APX7500
700/800MHz
FCC ID: AZ492FT5858
Max Power: DVR / Mobile 6W / 42W 6W / 42W 6W / 42W
APX6500/ APX7500 VHF
(136-174MHz)
FCC ID: AZ492FT3821
Max Power: DVR / Mobile 6W / 120W 6W / 120W 6W / 120W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4894
Max Power: DVR / Mobile 6W / 48W 6W / 48W 6W / 48W 6W / 48W
APX6500/ APX7500 UHF R1
(380-470MHz)
FCC ID: AZ492FT4897
Max Power: DVR / Mobile 6W / 120W 6W / 120W 6W / 120W 6W / 120W
APX6500/ APX7500 UHF R2
(450-520MHz)
FCC ID: AZ492FT4896
Max Power: DVR / Mobile 6W / 54W 6W / 54W 6W / 54W 6W / 54W
APX7500 7/800 MHz 35W -
VHF 50W
FCC ID: AZ492FT7037
Max Power: DVR / Mobile 6W / 42W 6W / 42W 6W / 42W 6W / 60W 6W / 60W 6W / 60W
APX7500 VHF 100W - 7/800
MHz 35W
FCC ID: AZ492FT7035
Max Power: DVR / Mobile 6W / 120W 6W / 120W 6W / 120W 6W / 42W 6W / 42W 6W / 42W
APX7500 UHF R1 40W -
7/800 MHz 35W
FCC ID: AZ492FT7043
Max Power: DVR / Mobile 6W / 48W 6W / 48W 6W / 48W 6W / 48W 6W / 42W 6W / 42W 6W / 42W
APX7500 UHF R1 100W -
7/800 MHz 35W
FCC ID: AZ492FT7048
Max Power: DVR / Mobile 6W / 120W 6W / 120W 6W / 120W 6W / 120W 6W / 42W 6W / 42W 6W / 42W
APX7500 UHF R2 45W
7/800 MHz 35W
FCC ID: AZ492FT7044
Max Power: DVR / Mobile 6W / 54W 6W / 54W 6W / 54W 6W / 54W 6W / 42W 6W / 42W 6W / 42W
APX7500 VHF 50W - UHF
R1 40W
FCC ID: AZ492FT4895
Max Power: DVR / Mobile 6W / 60W 6W / 60W 6W / 60W 6W / 48W 6W / 48W 6W / 48W 6W / 48W
APX7500 VHF 100W - UHF
R1 100W
FCC ID: AZ492FT4898
Max Power: DVR / Mobile 6W / 120W 6W / 120W 6W / 120W 6W / 120W 6W / 120W 6W / 120W 6W / 120W
APX7500 VHF 50W - UHF
R2 45W
FCC ID: AZ492FT7047
Max Power: DVR / Mobile 6W / 60W 6W / 60W 6W / 60W 6W / 54W 6W / 54W 6W / 54W 6W / 54W
APX6500 UHF R1 40W -
UHF R2 45W
FCC ID: AZ492FT4904
Max Power: DVR / Mobile 6W / 48W 6W / 48W 6W / 48W 6W / 48W 6W / 54W 6W / 54W 6W / 54W 6W / 54W
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4008A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAD4009A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAF4016A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4011A,
1/2 wave,
3.5dBd
HAF4016A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE4004A,
1/4 wave, 0dBd
Freq Range:
136-174MHz,
Trunk Mounted Antenna:
HAD4006A, 1/4 wave, 0dBd, HAD4007A,
1/4 wave, 0dBd, HAD4008A, 1/4 wave, 0dBd, HAD4009A, 1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE6015A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAD4021A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
HAE6015A,
1/2 wave, 2dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave,
3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4021A,
1/4 wave, 0dBd
Table 5F Approved VHF DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 16 of 25
DVR: 7V083X06
(DQPMDVR8000P)
Freq Range: 806-825, 851-870MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRS800
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Mobile
Roof Mounted
Antenna
APX8500 VHF (136-
174MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR /
Mobile
10W / 60W
APX8500 UHF (380-
470MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR /
Mobile
10W / 54W
APX8500 UHF (450-
520MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR /
Mobile
10W / 54W
APX8500 7/800MHz AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR /
Mobile
10W / 42W
Table 6A Approved 800 DVRS Configurations – APX8500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 17 of 25
DVR: 7V083X05
(DQPMDVR7000P)
Freq Range: 764-776, 794-806MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRS700
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Mobile
Roof Mounted
Antenna
APX8500 VHF (136-174MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 5W / 60W
APX8500 UHF (380-470MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 5W / 54W
APX8500 UHF (450-520MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 5W / 54W
APX8500 7/800MHz AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 5W / 42W
Table 6B Approved 700 DVRS Configurations – APX8500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 18 of 25
DVR: 7V083X07 (DQPMDVR4000P)
Freq Range: 380-430MHz, Trunk Mounted Antenna: HAE6012A, 1/4 wave, 0dBd
FCC ID: LO6-DVRSUHF
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Mobile
Roof Mounted
Antenna
APX8500 VHF (136-174MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 10W / 60W
APX8500 UHF (380-470MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 10W / 54W
APX8500 UHF (450-520MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 10W / 54W
APX8500 7/800MHz AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 10W / 42W
Table 6C Approved UHF R1 DVRS Configurations – APX8500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 19 of 25
DVR: 7V083X03
(DQPMDVR5000P)
Freq Range: 450-470MHz, Trunk Mounted Antenna: HAE4003A, 1/4 wave, 0dBd; HAE6016A, 1/4 wave, 0 dBd
(HAE6016A offered only with DVR/ XTL combination)
FCC ID: LO6-DVRSUHF
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Mobile
Roof Mounted
Antenna
APX8500 VHF (136-174MHz) AN000131A01, 1/4
wave, 0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 10W / 60W
APX8500 UHF (380-470MHz) AN000131A01, 1/4
wave, 0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 10W / 54W
APX8500 UHF (450-520MHz) AN000131A01, 1/4
wave, 0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 10W / 54W
APX8500 7/800MHz AN000131A01, 1/4
wave, 0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 10W / 42W
Table 6D Approved UHF R2 DVRS Configurations – APX8500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 20 of 25
DVR: 7V083X04
(DQPMDVR6000P)
Freq Range: 470-512MHz, Trunk Mounted Antenna: HAE4004A, 1/4 wave, 0dBd; HAE6016A, 1/4 wave, 0 dBd
(HAE6016A offered only with DVR/ XTL combination)
FCC ID: LO6-DVRSUHF
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Mobile
Roof Mounted
Antenna
APX8500 VHF (136-174MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 10W / 60W
APX8500 UHF (380-470MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 10W / 54W
APX8500 UHF (450-520MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 10W / 54W
APX8500 7/800MHz AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 10W / 42W
Table 6E Approved UHF R3 DVRS Configurations – APX8500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 21 of 25
DVR: 7V083X01
(DQPMDVR3000P)
Freq Range: 136-174MHz, Trunk Mounted Antenna: HAD4006A, 1/4 wave, 0dBd, HAD4007A, 1/4 wave,
0dBd, HAD4008A, 1/4 wave, 0dBd, HAD4009A, 1/4 wave, 0dBd
FCC ID: LO6-DVRSVHF
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Mobile
Roof Mounted
Antenna
APX8500 VHF (136-174MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 6W / 60W
APX8500 UHF (380-470MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 6W / 54W
APX8500 UHF (450-520MHz) AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 6W / 54W
APX8500 7/800MHz AN000131A01, 1/4 wave,
0dBd
FCC ID: AZ492FT7089
Max Power: DVR / Mobile 6W / 42W
Table 6F Approved VHF DVRS Configurations – APX8500
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 22 of 25
Antenna Installation Instructions
IMPORTANT
To assure optimum performance and compliance with RF Energy Safety standards, these
antenna installation guidelines and instructions are limited to metal-body vehicles with
appropriate ground planes and take into account the potential exposure of back seat
passengers and bystanders outside the vehicle.
Selecting an Antenna Site/Location on a Metal Body Vehicle
External installation
Check the requirements of the antenna supplier and install the vehicle antenna external to a metal
body vehicle in accordance with those requirements.
Roof top
XTL mobile radio: For optimum performance and compliance with RF Energy Safety standards,
mount the mobile radio antenna in the center area of the roof.
APX mobile radio: For optimum performance and compliance with RF Energy Safety standards,
mount the mobile radio antennas (dual and single band) at 45cm (17.7 inches) from the center as
shown in the figure below. NOTE: For single band applications (one antenna), choose either side
for the installation (not the center).

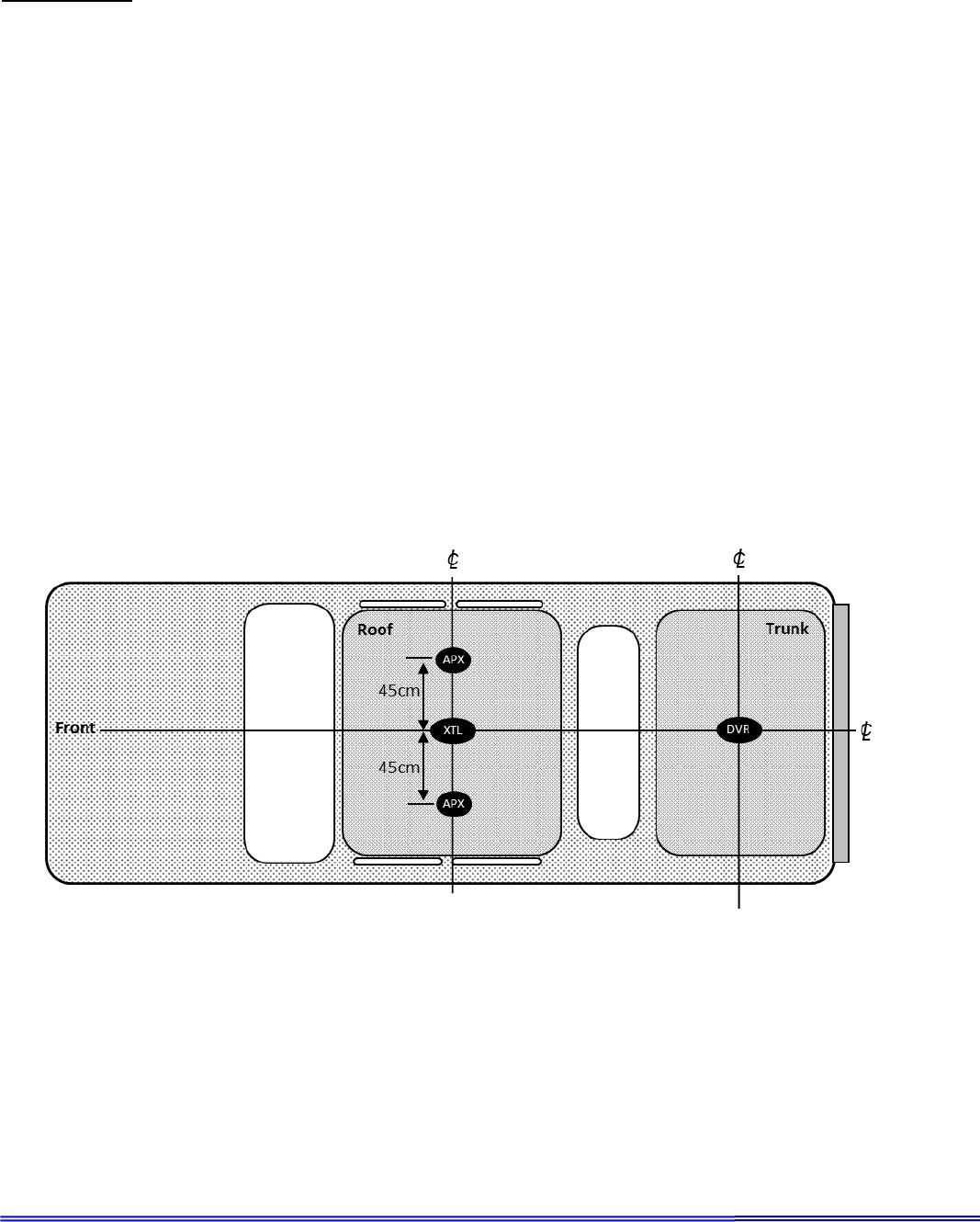

8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 23 of 25
APX8500 mobile radio: For optimum performance and compliance with RF Energy Safety
standards, mount the mobile radio antennas (all band and LMR 700/800 band) at location 2 only.
Standard LMR VHF and UHF antennas should only be placed at location 1 & 3, which is 20cm (8
inches) from the center as shown in the figure below.
Applicable to APX8500 only
Trunk lid
For optimum performance and compliance with RF Energy Safety standards, mount the DVR
antenna (DVR) in the center area of the trunk as shown above.
Before installing an antenna on the trunk lid:
• Ensure that the distance from the antenna location on the trunk lid will be at least 85 cm (33.5
inches) from the front surface of the rear seat-back to assure compliance with RF Energy
Safety standards.
• Ensure that the trunk lid is grounded by connecting grounding straps between the trunk lid and
the vehicle chassis.
• Ensure that the antenna cable can be easily routed to the radio. Route the antenna cable as
far away as possible from any vehicle electronic control units and associated wiring.
• Check the antenna location for any electrical interference.
• Ensure that any other mobile radio antenna on this vehicle is at least 1ft (30.5cm) away from
the DVR and its associated mobile radio antennas.
NOTE:
Any two metal pieces rubbing against each other (such as seat springs, shift levers, trunk and
hood lids, exhaust pipes etc.) in close proximity to the antenna can cause severe receiver
interference.
Mobile Radio / DVR Antenna separation
To ensure interference-free performance when both the Mobile Radio and the DVR are active, the
two antennas must be mounted in such way as to provide 30dB minimum antenna isolation.
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 24 of 25
Fixed DVRS Site Antennas
Mobile radio equipment is sometimes installed at a fixed location and operated as a control station
or as a fixed unit. In such cases the antenna installation must comply with the following
requirements in order to assure optimal performance and make sure human exposure to radio
frequency electromagnetic energy is within the guidelines set forth in the above standards.
• The antennas must be mounted outside the building.
• Mount the antennas on a tower if at all possible.
• If the antennas are to be mounted on a building then it must be mounted on the roof.
• As with all fixed site antenna installations, it is the responsibility of the licensee to manage the
site in accordance with applicable regulatory requirements and may require additional compliance
actions such as site survey measurements, signage, and site access restrictions in order to insure
that exposure limits are not exceeded.
Temporary-Fixed Site
Futurecom requires the P25 Transportable DVRS (TDVRS) operator to ensure FCC/IC
Requirements for Radio Frequency Exposure are met. It is the responsibility of the Licensee to
ensure that the appropriate separation distances between the antennas and bystanders are
established and followed to meet the FCC and IC Maximum Permissible Exposure (MPE)
Requirements in any particular Temporary-Fixed location. In situations where a site assessment is
not practical, it is recommended that the antennas be located at least 9 feet from bystanders.
This should ensure MPE compliance in any Temporary-Fixed application and is likely to be a
much greater separation distance than is necessary in most cases. Failure to observe the MPE
distance exclusion area around the antenna may expose persons within this area to RF energy
above the FCC/IC exposure limits for bystanders (general population).
8F083X03 Rev 10
DVRS - Product Safety and RF Energy Exposure Booklet Page 25 of 25
Approved Antennas and Maximum output power (W) for combination DVR and APX
mobiles for Temporary-Fixed Site
NOTE:
APX mobile RF conducted antenna power in the tables below denotes up to 50% Tx duty cycle.
DVR RF conducted antenna power in the tables below denotes up to 100% Tx duty cycle.
DVR
Band
Antenna
Power
(W)
VHF (136-174MHz)
DDN9014
6
UHF1 (406-430MHz)
DDN9015
10
UHF2 (450-470MHz)
DDN9015
10
UHF3 (470-512MHz)
DDN9015
10
700 (768-806MHz)
DDN9016
5
800 (806-869MHz)
DDN9016
10
APX
Band
Antenna
Power
(W)
VHF (136-174MHz)
DDN9014
60
UHF1 (406-470MHz)
DDN9015
48
UHF2 (450-520MHz)
DDN9015
54
700/800 (764-
870MHz)
DDN9016
42
Max Power (W) for combination DVR and APX
APX
DVR/APX
VHF
UHFR1
UHFR2
700/800MHz
DVR
VHF
6/60
6/48
6/54
6/42
UHFR1
10/60
10/48
10/54
10/42
UHFR2
10/60
10/48
10/54
10/42
UHFR3
10/60
10/48
10/54
10/42
700MHz
5/60
5/48
5/54
5/42
800MHz
10/60
10/48
10/54
10/42
