S813
Installation and User Instructions for S813 Readers
Model number:S813-KPMICLBR
The S813 is a combined fingerprint and contactless
smart-card reader with keypad that is capable of
reading Philips
.
S813
®®
®TM
MIFARE DESFire formatted cards, as
well as other standard and custom formats.
The uses a Bioscrypt MV1200 Sensor and
pseudo-random 20mA current loop communications

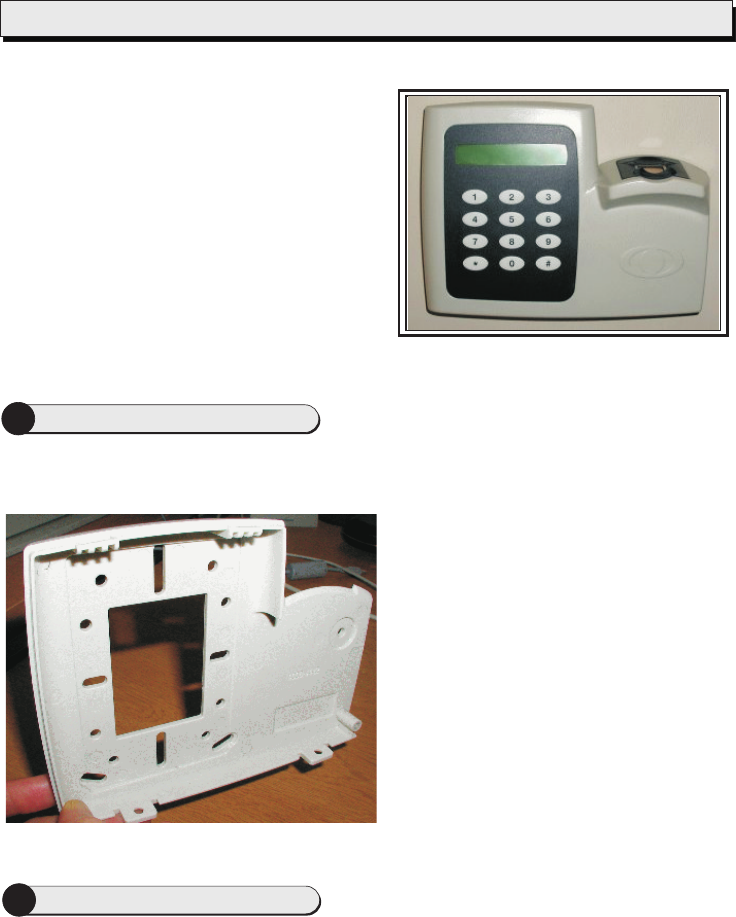

1Mount the Backplate
2Reader Links
To mount the backplate:
1) Detach the main body of the reader from the
backplate by releasing the two securing
screws along the bottom edge of the reader,
swinging the backplate upwards and easing
it away from the two top clips.
2) Mount the backplate adjacent to the opening
edge of the door and at a convenient height,
making sure that the finger pad is easily
reached. Feed the cable to the reader
through the backplate.
You should find that the backplate has suitable holes for
connection to most standard electrical backboxes.
TO BE REPLACED BY ILLUSTRATION
The following links are provided on the reader's PCB:
LK1 (Audio feedback) - Set to "0" for sound off. Set to "1" for sound on.
LK3 (Test) - Ensure that this link has been removed.
9600-0306. Installation and User Instructions for S813
Readers, Issue 1.0x1 22nd May 2003. AMAG
Technology, 2003.
Bioscrypt is a registered
trademark of Bioscrypt Inc.
FCC Notice: This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Any unauthorized modification to this device may void the
authority of the user to operate it.
All trademarks acknowledged. Philips and MIFARE are
registered trademarks of Philips Electronics, N.V. MV1200
is a trademark of Bioscrypt Inc.
©
4Using the Reader

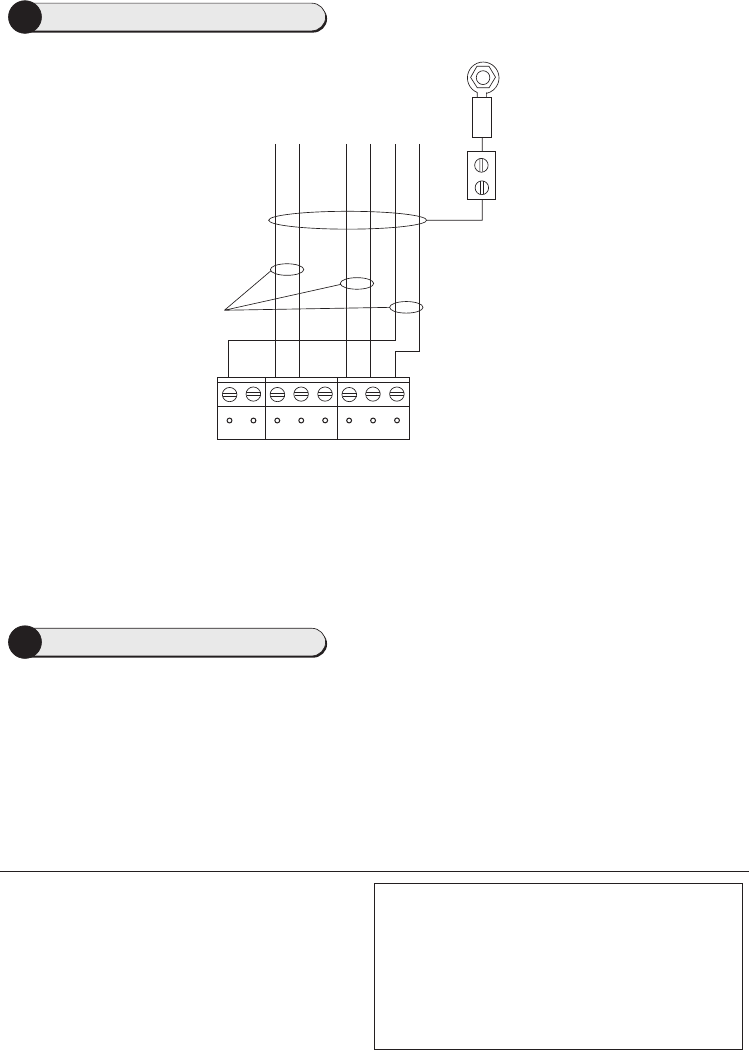

3Reader Connections
Connect screen at controller
end only (attach to case).
S813 Reader TB1
Specifications
Input voltage: 9-14V.
Input current: 100mA.
Operating temperature: 32 to 122 F (0 to 50 C).
Operating humidity: 15 to 90%, non-condensing.
Maximum read range: 1" (25mm).
Approvals: EN50133, R&TTE, IP605.
For internal use only.
°°
Present the proximity card face-on close to the reader until you hear a "bleep".
After presenting your card, you may be prompted to enter a PIN and/or place your finger on the
finger pad. You may also be prompted to place a second finger on the finger pad. Follow the on-
screen instructions.
The system can be set up to generate a "duress" transaction if the pre-defined duress finger is
placed on the pad. In two-finger mode, the duress finger must be placed first.
0V
RX+
RX-
TX+
TX-
12V
Controller connections
(20mA current loop)
0V
TX+
TX-
I/0
SCR (not used)
RX+
RX-
+12V
The I/O terminal is for connection to a
RIM - see the Installation Instructions for
S660 Remote Interface Module (RIM).
On completion, re-secure the reader to the backplate.
Twisted pairs (use
Belden 9503 cable)
