G4S Technology S821E S821 Enrolment Reader User Manual User and installation instructions
G4S Technology Limited S821 Enrolment Reader User and installation instructions
User and installation instructions
Installation and User Instructions for S821 Enrollment Readers
1Cable Connection
The S821 enrollment reader is used to encode Texas
Instruments (ISO 15693) smart cards using the
"smartMAX" format.
TM

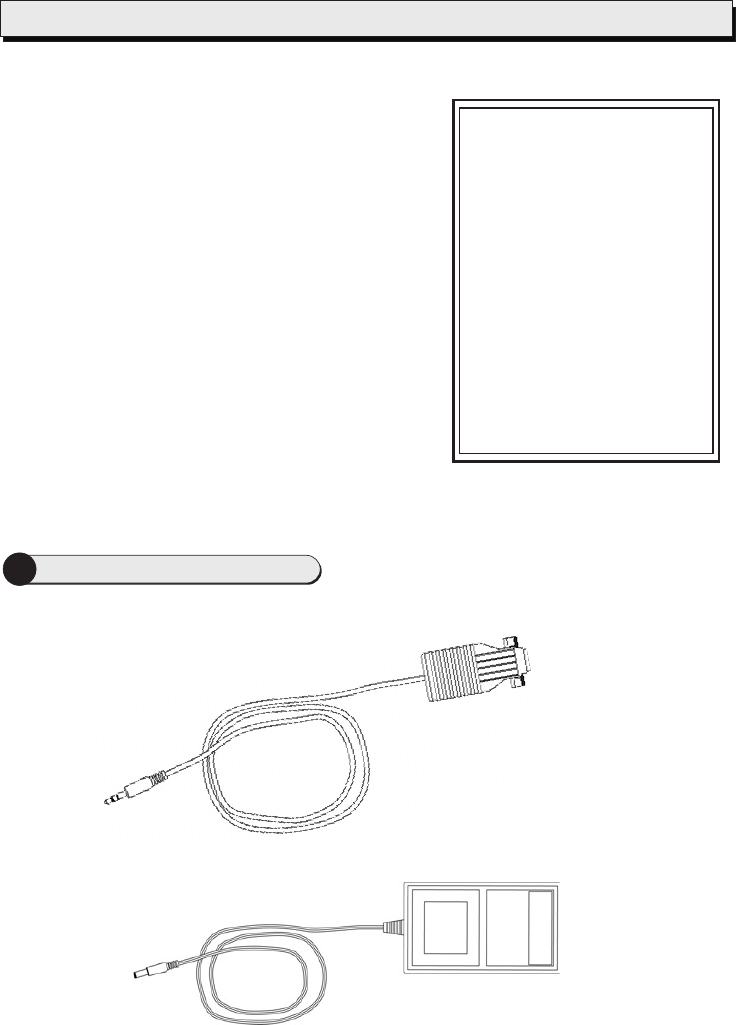

Insert the jack plug
into the box on the
end of the reader
cable.
Insert the power
plug into
.
the box on
the end of the
reader cable
Connect the 12Vdc
power source to the
mains supply.
Connect to a serial port
of a PC installed with the
SMS software. Set up the
port in the Install/Client
Ports screen of the SMS
software.
9600-0393. Installation and User Instructions for S821
Enrollment Readers, Issue 1.0x1 10th March 2004. Group 4
Technology, 2004.
FCC Notice: This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Any unauthorized modification to this device may void the
authority of the user to operate it.
All trademarks acknowledged. Texas Instruments is a
trademark of Texas Instruments Incorporated.
©Specifications
Input voltage: 9-14V.
Input current: 110mA @ nominal 12Vdc supply.
Operating temperature: -13 to 158 F (-25 to 70 C).
Operating humidity: 15 to 90%, non-condensing.
Maximum encoding range: 3" (75mm).
Approvals: EN50133, R&TTE, IP656.
For internal use only.
°°
2Enrollment Procedure
To encode a card:
1. Log in to the SMS software at the PC that the reader is connected to.
2. Start the enrollment procedure from the appropriate screen in the SMS software. For example,
if you are using a standard client, use the button in .
3.
Encode the Card Holders screen
When prompted, present the card to the encoder. You will hear a "bleep" when the card has
been encoded.
