G4S Technology S822E S822 Enrolment Reader User Manual
G4S Technology Limited S822 Enrolment Reader
User manual
Installation and User Instructions for S822 Encoders

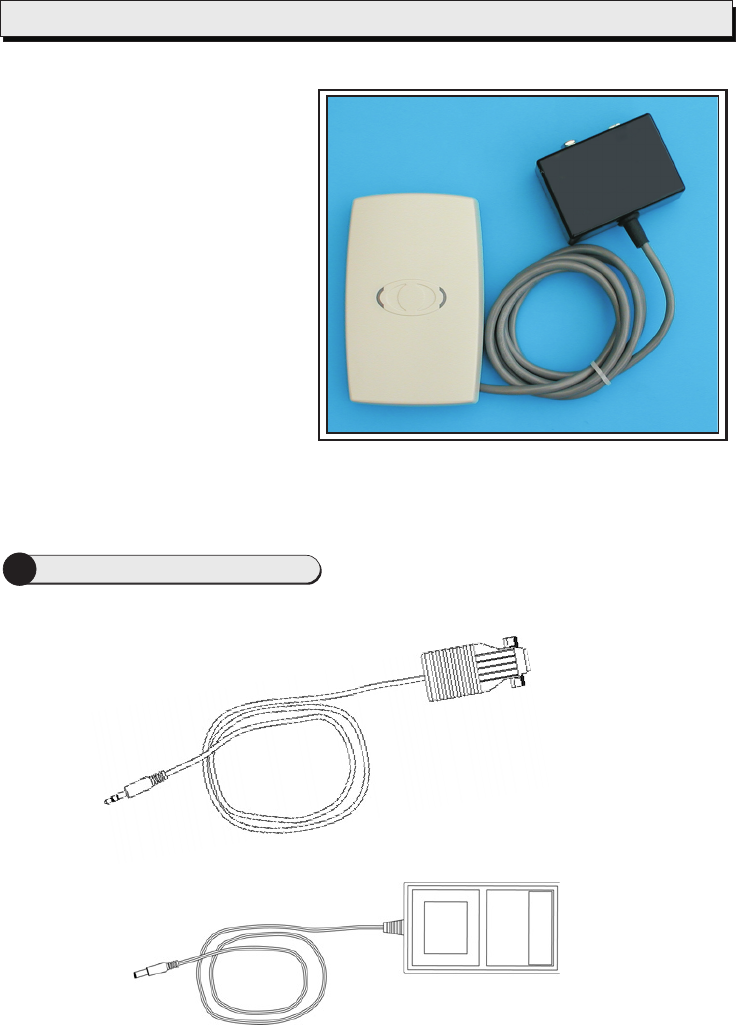

1Cable Connection
The S822 encoder is used to encode
blank HID i smart cards to
the "smartMAX" format, or to re-
encode existing "smartMAX" format
i cards.
CLASS
CLASS
TM®
Insert the jack plug
into the box on the
end of the encoder
cable.
Insert the power
plug into
.
the box on
the end of the
encoder cable
Connect the 12Vdc
power source to the
mains supply.
Connect this RS232-to-
RS485 converter to a
serial port of a PC
installed with the SMS
software. Set up the port
in the Install/Client Ports
screen of the SMS
software.
9600-0395. Installation and User Instructions for S822
Encoders, Issue 1.0 28th April 2004. Group 4 Technology,
2004.
HID is a registered trademark
of HID Corporation. i is a trademark of HID
Corporation.
FCC Notice: This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Any unauthorized modification to this device may void the
authority of the user to operate it.
All trademarks acknowledged.
CLASS
©Specifications
Input voltage: 9-15V.
Input current: 260mA @ nominal 12Vdc supply.
Operating temperature: -13 to 158 F (-25 to 70 C).
Operating humidity: 15 to 90%, non-condensing.
Maximum encoding range: 1" (25mm).
Approvals: EN50133, R&TTE, IP656.
For internal use only.
°°
2Encoding Procedure
To encode a card:
1. Log in to the SMS software at the PC that the encoder is connected to.
2. Start the encoding procedure from the appropriate screen in the SMS software. For example, if
you are using a standard client, use the button in .
3.
Encode the Card Holders screen
When prompted, present the card to the encoder. You will hear a "bleep" when the card has
been encoded.
- Lit when power is supplied to the encoder.
- Lit when the encoder has received data.
Beeps once when the card has been encoded successfully.
LEDs:
Sounder:
Red
Green
