Installation instructions
Installation and User Instructions for S823 Readers

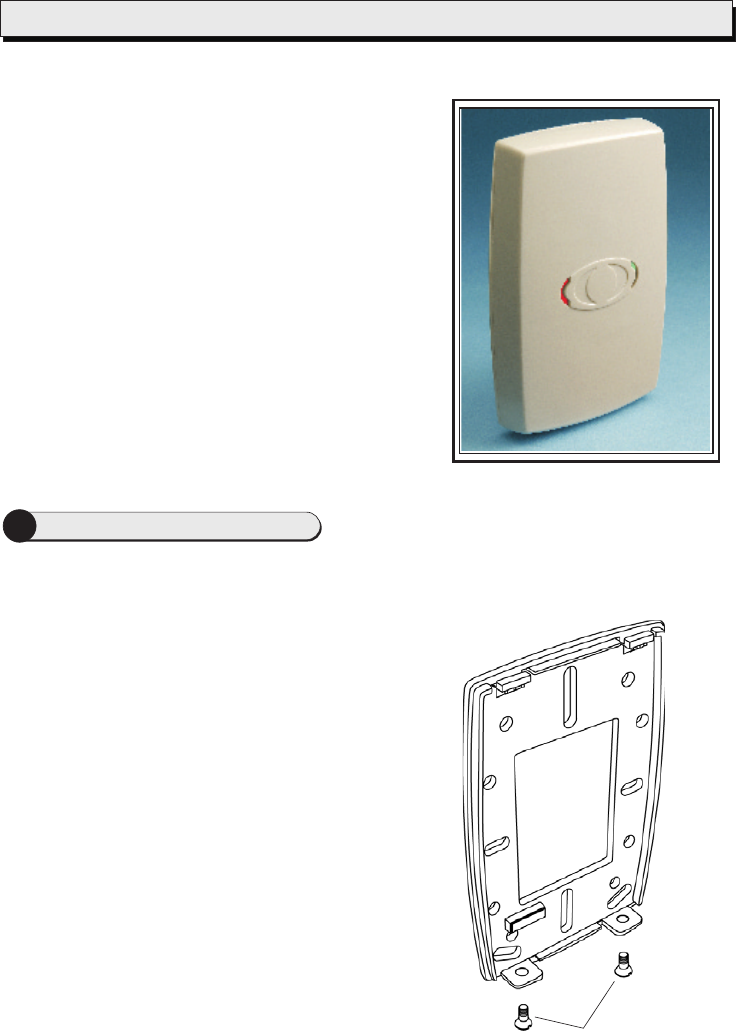

1Mount the Backplate
To mount the backplate:
1) Remove the two screws taped to the inside
of the backplate.
2) Mount the backplate adjacent to the opening
edge of the door and at a convenient height.
Feed the cable to the reader through the
backplate.
3) Use the screws removed in step 1 to secure
the backplate to the main body of the reader
(see opposite).
The backplate has suitable holes for connection to most standard electrical backboxes.
Screws to attach
backplate to reader
The S823 is a contactless smart-card reader, which uses
p.
The S823 is able to read Philips MIFARE and Philips
MIFARE DESfire smart cards.
For either type of card, the S823 supports the use of
unencoded cards (where only the unique card serial
number is read), or cards encoded with a card number.
Several encoding formats are supported.
The reader can simultaneously support two different card
types/formats (e.g. non-encoded MIFARE and smartMAX-
encoded MIFARE DESfire, or non-encoded MIFARE and
smartMAX-encoded MIFARE). The reader is
automatically configured to accept the first two card
types/formats presented.
20mA current loop seudo-random communications
®®
9600-0407. Installation and User Instructions for S823 Readers,
Issue 1.0 24th January 2005. AMAG Technology, 2005.
Philips and MIFARE are registered
trademarks of Philips Electronics N.V
FCC Notice: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that
may cause undesired operation.
Any unauthorized modification to this device may void the
authority of the user to operate it.
All trademarks acknowledged.
.
©
4Using the Reader
2Reader Connections

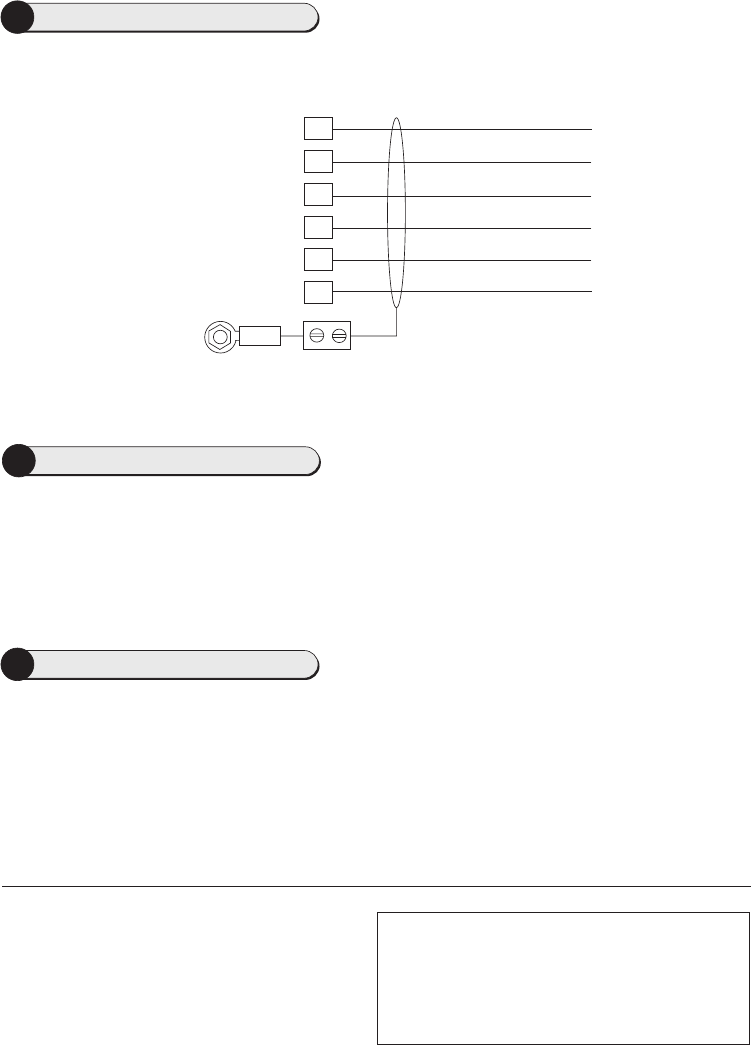

20mA Current Loop Reader Connections
0V
Connect shield at
controller end only
(attach to case)
Tx-
Tx+
Rx-
Rx+
12V
Controller connections
(20mA reader port)
Red
Black
White
Blue
Green
Orange
Note: the brown
wire is not used
Reader
Present the proximity card face-on to the reader until you hear a "bleep". The maximum read range is
typically 0.4" (10mm). If the green indicator is lit, the card has been accepted and the door is unlocked.
If the red indicator is lit, either the card has not been accepted, or you do not have access through the
door.
cards can be presented in rapid succession - there is no need to wait for the green or red LED to
extinguish before presenting another card.
If the red and green indicators flash alternatively, please wait.
Note:
Specifications
Input: 130mA max @ 10.6-12.7Vdc.
Operating temperature: -13 to 158 F (-25 to 70 C).
Operating humidity: 15 to 90%, non-condensing.
Maximum read range: 0.4" (10mm).
Approvals: EN50133, R&TTE, IP656.
°°
If the reader needs to read both MIFARE and MIFARE DESfire cards, make sure that one of each card
is presented to the reader immediately after the reader has been installed and the cards have been
encoded in the Admin/Card Holders screen of the SMS software. The reader supports the first two card
formats presented. If the two cards are the same type, only one format is supported.
3Reader Configuration
