G4S Technology Limited Proximity Card Reader Manual
Manual

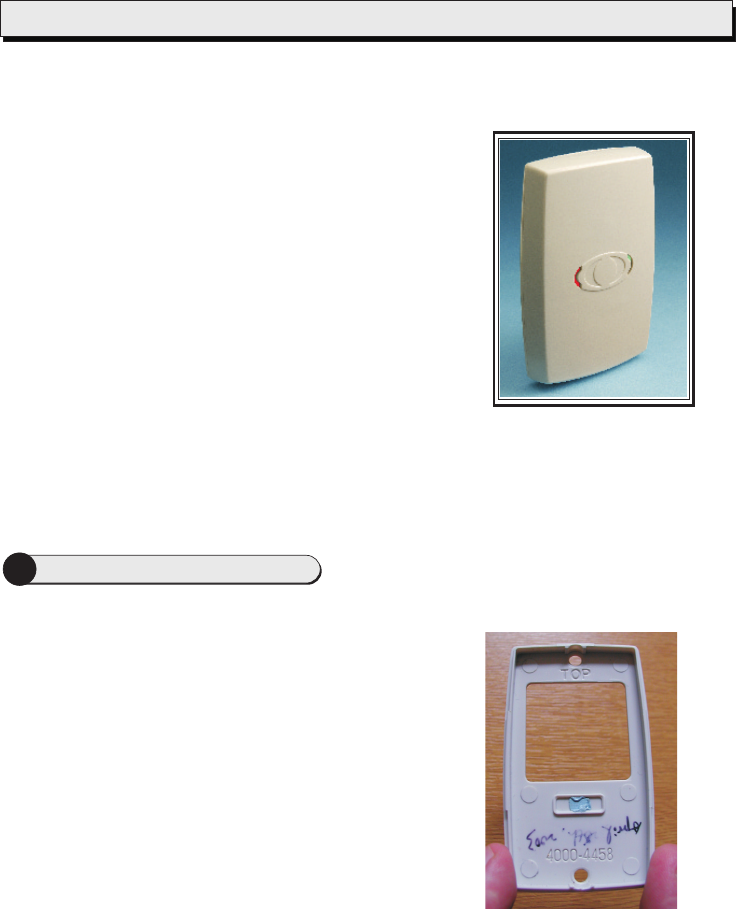

Installation and User Instructions for S830 Readers
Model number:S830-HICLR
The S830 is a small-footprint 125kHz proximity card
reader that is capable of reading HID format cards.
The S830 uses p
.
®
20mA current loop seudo-random
communications
1Mount the Backplate
To mount the backplate:
1) Detach the main body of the reader from the
backplate by inserting a fingernail into the groove in
the bottom edge of the reader and swinging the
reader upwards.
2) Mount the backplate adjacent to the opening edge
of the door and at a convenient height. Feed the
cable to the reader through the backplate.
9600-xxxx. Installation and User Instructions for S830
Readers, Issue 1.0x2 10th June 2003. AMAG
Technology, 2003.
FCC Notice: This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Any unauthorized modification to this device may void the
authority of the user to operate it.
All trademarks acknowledged. HID is a registered
trademark of HID Corporation.
©
3Using the Reader

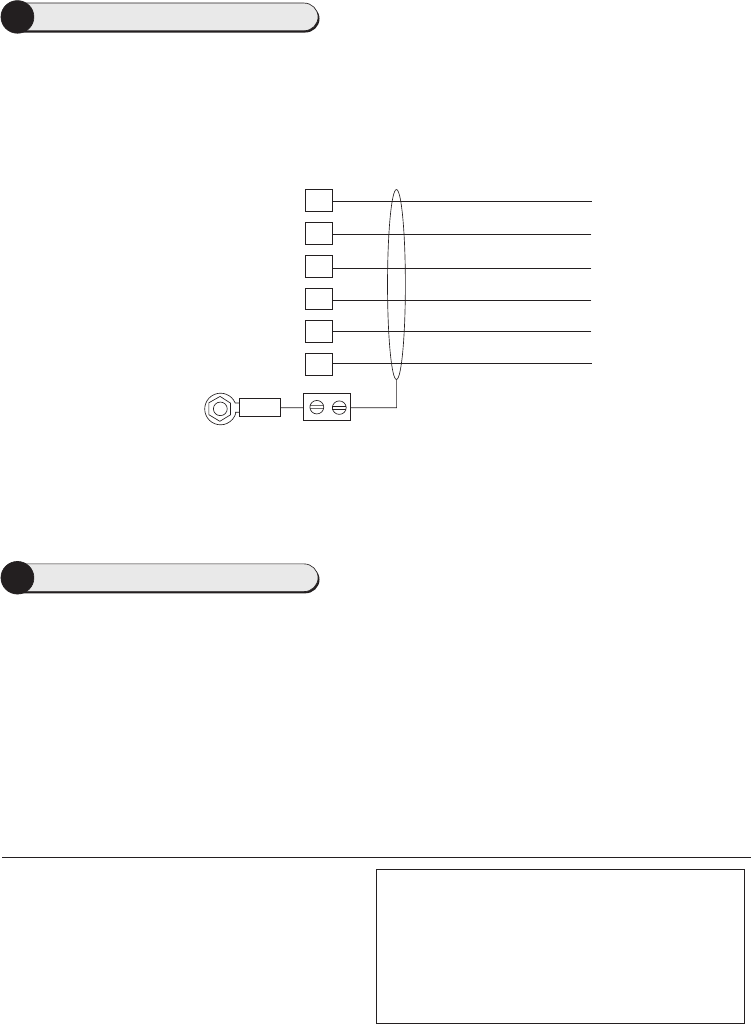

2Reader Connections
20mA Current Loop
Reader Connections
0V
Connect screen at
controller end only
(attach to case)
Tx-
Tx+
Rx-
Rx+ Tx+
Tx-
Rx+
Rx-
12V 12V
0V
Controller connections
(20mA reader port)
Red
Black
White
Blue
Green
Orange
Note: the brown
wire is not used
Reader
Present the proximity card face-on to the reader until you hear a "bleep". The maximum read range
is typically 2.5" (65mm). If the green indicator is lit, the card has been accepted and the door is
unlocked. If the red indicator is lit, either the card has not been accepted, or you do not have
access through the door.
cards can be presented in rapid succession - there is no need to wait for the green or red
LED to extinguish before presenting another card.
Note:
Specifications
Input voltage: 9-14V.
Input current: 75mA @ nominal 12Vdc supply.
Operating temperature: -4 to 150 F (-20 to 70 C).
Operating humidity: 15 to 90%, non-condensing.
Maximum read range: 2.5" (65mm).
Approvals: EN50133, R&TTE, IP656.
°°
