         Item #   Model #             ,            , UL Model # USE AND CARE GUIDEFC132-BKRL/FC140-BKRL 52/56-INCH CEILING FANQuestions, problems, missing parts? Before returning to the store call Hampton Bay Customer Service8 a.m. - 6 p.m., EST, Monday-Friday1-800-986-3460HOMEDEPOT.COM/HOMEDECORATORSTHANK YOUquality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!         Item #Model #

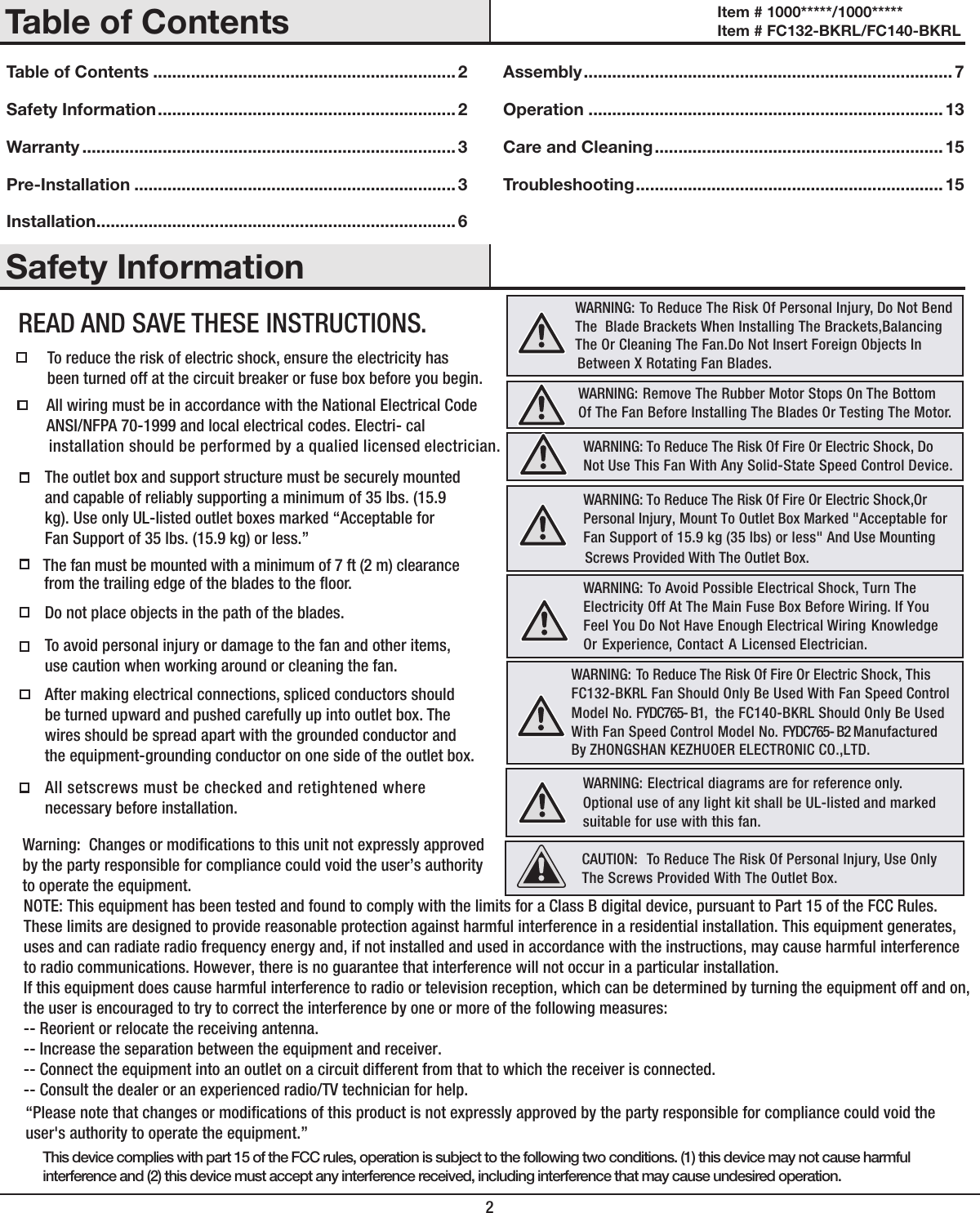

2Table of Contents ................................................................ 2Safety Information ............................................................... 2Warranty ............................................................................... 3Pre-Installation ....................................................................3Installation ............................................................................ 6Assembly .............................................................................. 7Operation ........................................................................... 13Care and Cleaning .............................................................15Troubleshooting ................................................................. 15To reduce the risk of electric shock, ensure the electricity has been turned off at the circuit breaker or fuse box before you begin.  All wiring must be in accordance with the National Electrical Code  ANSI/NFPA 70-1999 and local electrical codes. Electri- cal installation should be performed by a qualied licensed electrician.The outlet box and support structure must be securely mounted and capable of reliably supporting a minimum of 35 lbs. (15.9 kg). Use only UL-listed outlet boxes marked “Acceptable forFan Support of 35 lbs. (15.9 kg) or less.” The fan must be mounted with a minimum of 7 ft (2 m) clearance  Do not place objects in the path of the blades. To avoid personal injury or damage to the fan and other items, use caution when working around or cleaning the fan. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box.  All setscrews must be checked and retightened where necessary before installation.WARNING:  To Reduce The Risk Of Personal Injury, Do Not Bend  The  Blade Brackets When Installing The Brackets,Balancing     The Or Cleaning The Fan.Do Not Insert Foreign Objects In WARNING:   Remove The Rubber Motor Stops On The BottomOf The Fan Before Installing The Blades Or Testing The Motor. WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do  Not Use This Fan With Any Solid-State Speed Control Device. WARNING:  To Avoid Possible Electrical Shock, Turn The Electricity Off At The Main Fuse Box Before Wiring. If You Feel You Do Not Have Enough Electrical Wiring Knowledge Or Experience, Contact A Licensed Electrician. WARNING:   FC132-BKRL Fan Should Only Be Used With Fan Speed Control  Model No. FYDC765- B1,  the FC140-BKRL Should Only Be Used   With Fan Speed Control Model No. FYDC765- B2 Manufactured  By ZHONGSHAN KEZHUOER ELECTRONIC CO.,LTD. Safety InformationTable of ContentsCAUTION:   To Reduce The Risk Of Personal Injury, Use Only The Screws Provided With The Outlet Box.READ AND SAVE THESE INSTRUCTIONS.from the trailing edge of the blades to the oor. Between X Rotating Fan Blades.  WARNING: To Reduce The Risk Of Fire Or Electric Shock,Or Personal Injury, Mount To Outlet Box Marked "Acceptable for Fan Support of 15.9 kg (35 lbs) or less" And Use Mounting Screws Provided With The Outlet Box.This device complies with part 15 of the FCC rules, operation is subject to the following two conditions. (1) this device may not cause harmfulinterference and (2) this device must accept any interference received, including interference that may cause undesired operation.To Reduce The Risk Of Fire Or Electric Shock, This WARNING:  Electrical diagrams are for reference only. Optional use of any light kit shall be UL-listed and marked suitable for use with this fan.Item # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL “Please note that changes or modications of this product is not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.”Warning:  Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

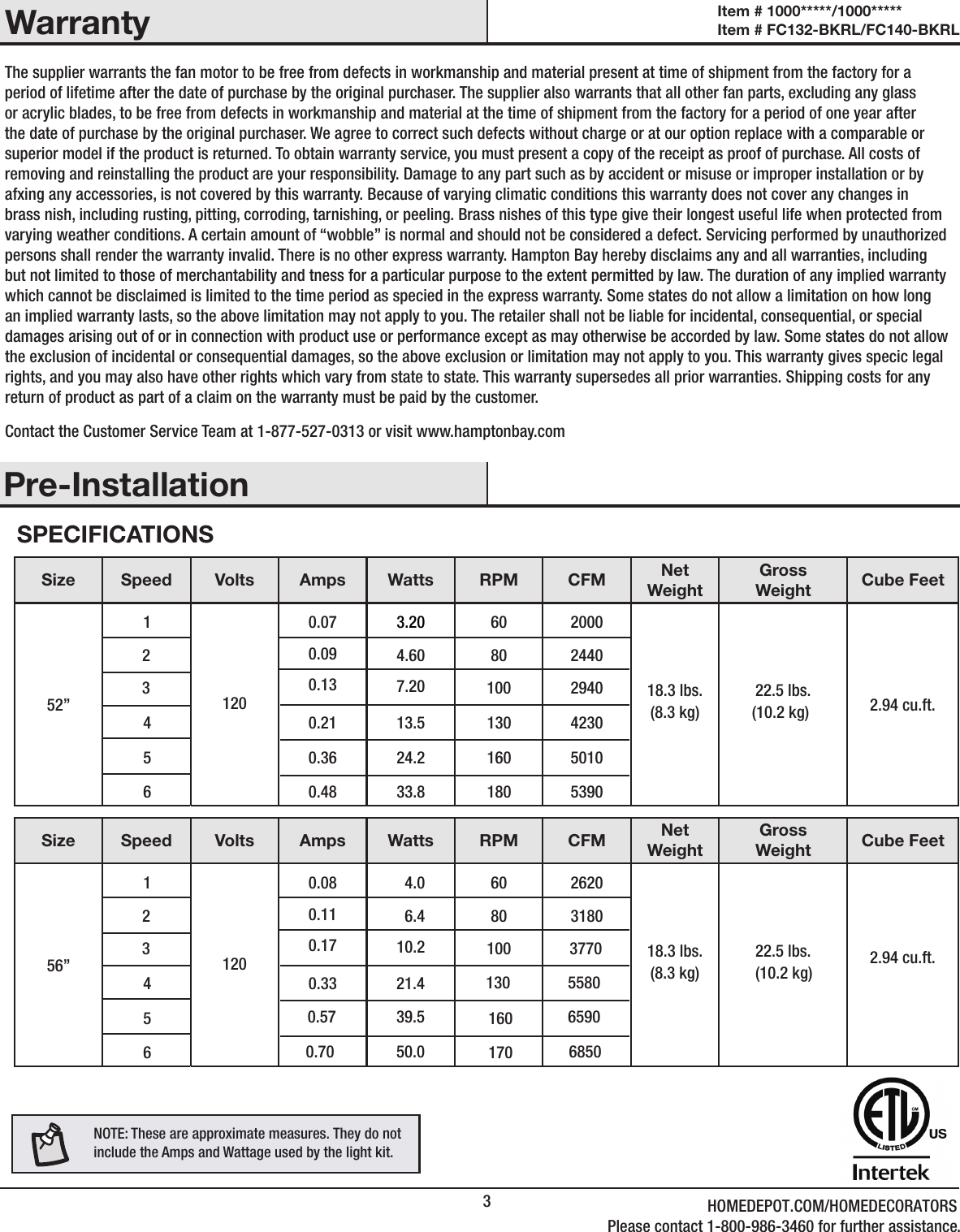

3Pre-InstallationWarrantyThe supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.Contact the Customer Service Team at 1-877-527-0313 or visit www.hamptonbay.comSPECIFICATIONSSize Speed Volts Amps Watts RPM CFM NetWeightGrossWeight Cube Feet52”1231200.070.090.133.204.607.2060 80100200024402940 18.3 lbs.(8.3 kg)22.5 lbs.(10.2 kg) 2.94 cu.ft.2.94 cu.ft.NOTE: These are approximate measures. They do notinclude the Amps and Wattage used by the light kit.456Size Speed Volts Amps Watts RPM CFM NetWeightGrossWeight Cube Feet56”1231200.080.110.17  4.0  6.410.260 8010026203180377055806590685018.3 lbs.(8.3 kg)22.5 lbs.(10.2 kg)4560.480.360.2133.824.213.518016013053905010423021.40.700.570.33  13050.039.5 170 160Item # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL HOMEDEPOT.COM/HOMEDECORATORSPlease contact 1-800-986-3460 for further assistance.

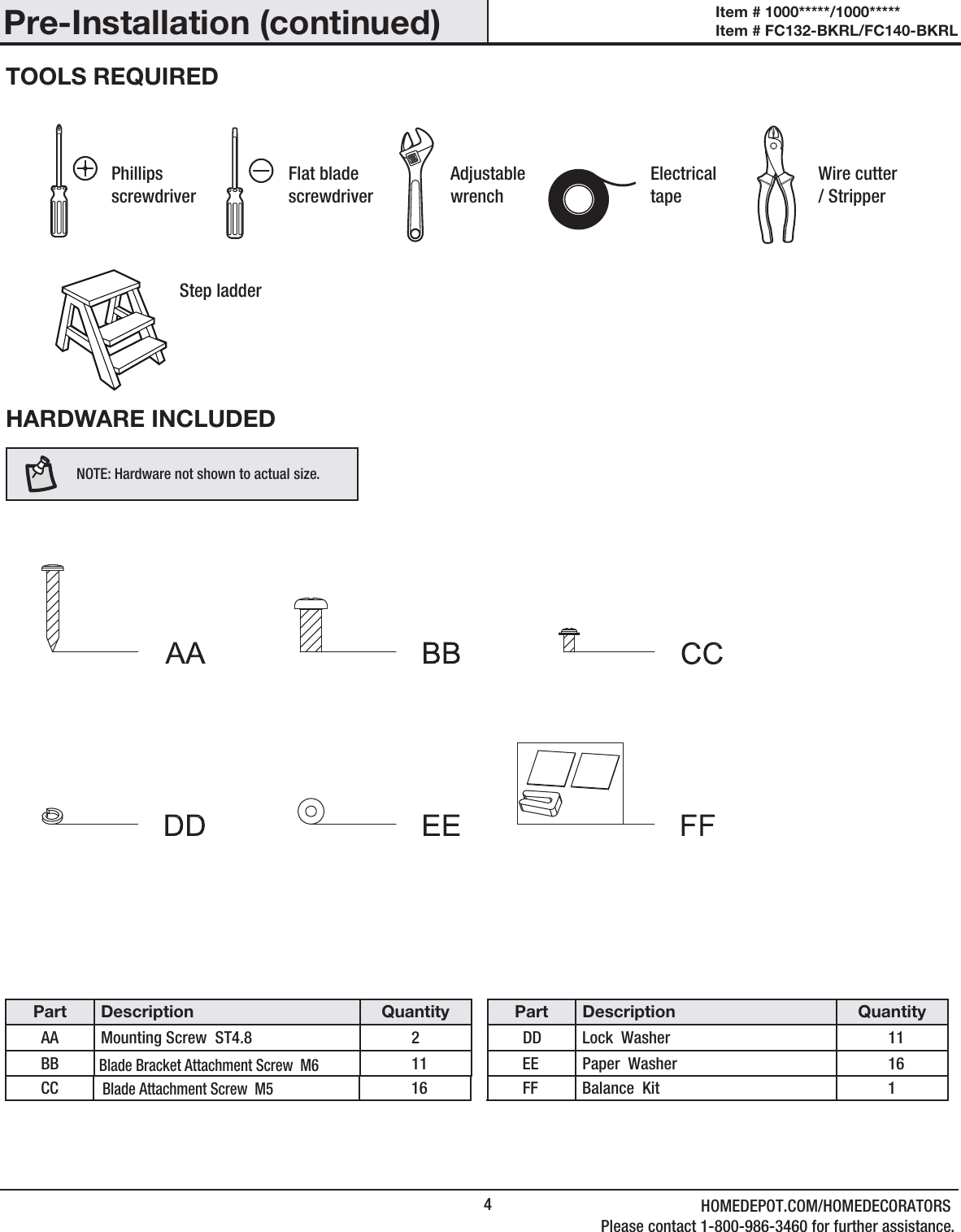

4Pre-Installation (continued)HARDWARE INCLUDEDNOTE: Hardware not shown to actual size.TOOLS REQUIREDPhillips screwdriverFlat blade screwdriverAdjustable wrenchElectrical tapeWire cutter / StripperStep ladderItem # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL Part Description QuantityAA Mounting Screw  ST4.8 2BBBlade Bracket Attachment Screw  M6Blade Attachment Screw  M511CC 16Part Description QuantityDD Lock  Washer 11EE Paper  Washer 16FF Balance  Kit 1HOMEDEPOT.COM/HOMEDECORATORSPlease contact 1-800-986-3460 for further assistance.

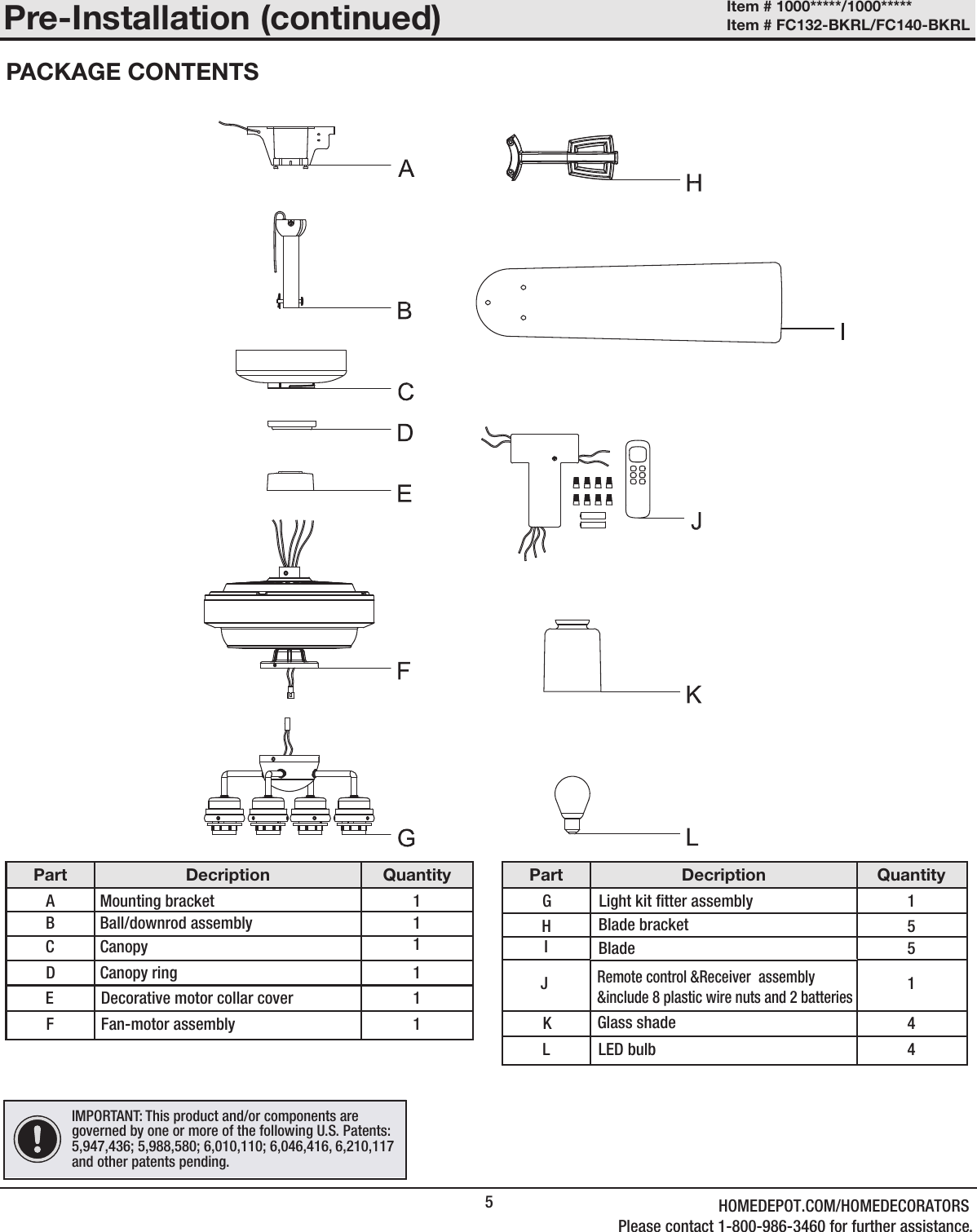

5Part Decription QuantityA Mounting bracket   1B Ball/downrod assembly 1D Canopy ring  1EFan-motor assembly1F 1Part Decription QuantityGBlade 5H   5JLED bulb1KLGlass shade4IMPORTANT: This product and/or components are governed by one or more of the following U.S. Patents: 5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117 and other patents pending.Pre-Installation (continued)PACKAGE CONTENTSC Canopy  1IBlade bracketDecorative motor collar coverLight kit tter assembly 14Remote control &Receiver  assembly &include 8 plastic wire nuts and 2 batteriesItem # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL HOMEDEPOT.COM/HOMEDECORATORSPlease contact 1-800-986-3460 for further assistance.

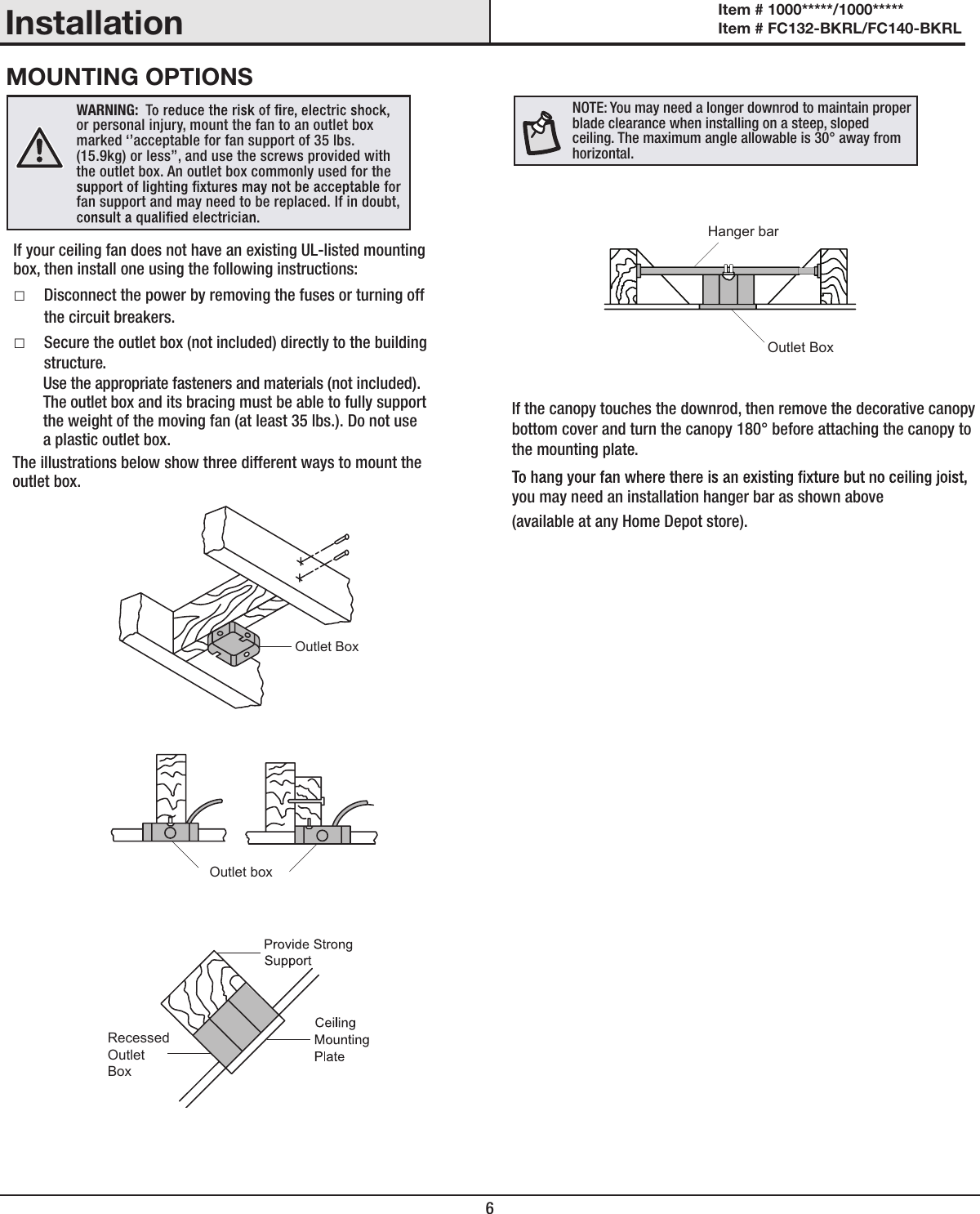

6InstallationMOUNTING OPTIONSWARNING: or personal injury, mount the fan to an outlet box marked ‘’acceptable for fan support of 35 lbs. (15.9kg) or less’’, and use the screws provided with the outlet box. An outlet box commonly used for the fan support and may need to be replaced. If in doubt, If your ceiling fan does not have an existing UL-listed mounting box, then install one using the following instructions: □Disconnect the power by removing the fuses or turning off the circuit breakers. □Secure the outlet box (not included) directly to the building structure. Use the appropriate fasteners and materials (not included).  The outlet box and its bracing must be able to fully support  the weight of the moving fan (at least 35 lbs.). Do not use  a plastic outlet box.The illustrations below show three different ways to mount the outlet box.If the canopy touches the downrod, then remove the decorative canopy bottom cover and turn the canopy 180° before attaching the canopy to the mounting plate.you may need an installation hanger bar as shown above(available at any Home Depot store).NOTE: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling. The maximum angle allowable is 30° away from horizontal.Outlet BoxOutlet boxRecessedOutletBoxOutlet BoxHanger barItem # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL
7Assembly - Standard Ceiling MountPreparing for routing the wiresRouting the wires and assembling the fan □Route the wires exiting the top of the fan-motorassembly (F) through the center of the canopy ring (D). □ □  Insert the ball/downrod (B) through the canopy (C) andand canopy ring (D) and slide the decorative motor collar cover (E) onto the end of the ball/downrod (B). Make sure the slots on the canopy (C) are on top.Route the wires exiting the top of the fan motorassembly (F) through the downrod as shown.Carefully insert the hanger pin (GG) through the holes in thecollar (M) and downrod (B). Be careful not to jam the hangerpin (HH) against the wiring inside the downrod (B).Insert the locking pin (HH) through the hole near the end ofthe hanger pin (GG) until it snaps into its locked position.Reinstall the setscrew (II) turning clockwise until tight.--- □ □Remove the hitch pin (GG) and lock pin (HH) from thedownrod (B).Loosen the two set screws (II) from the fan motor assembly (F) coupling.21WARNING:  Failure to properly install the locking pin could result in the fan becoming loose and possibly falling.□□□CAUTION:  To ensure wobble-free operation and to avoid damage to the fan, the downrod (B) and the setscrew (DD) must be completely tightenedItem # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL HOMEDEPOT.COM/HOMEDECORATORSPlease contact 1-800-986-3460 for further assistance.

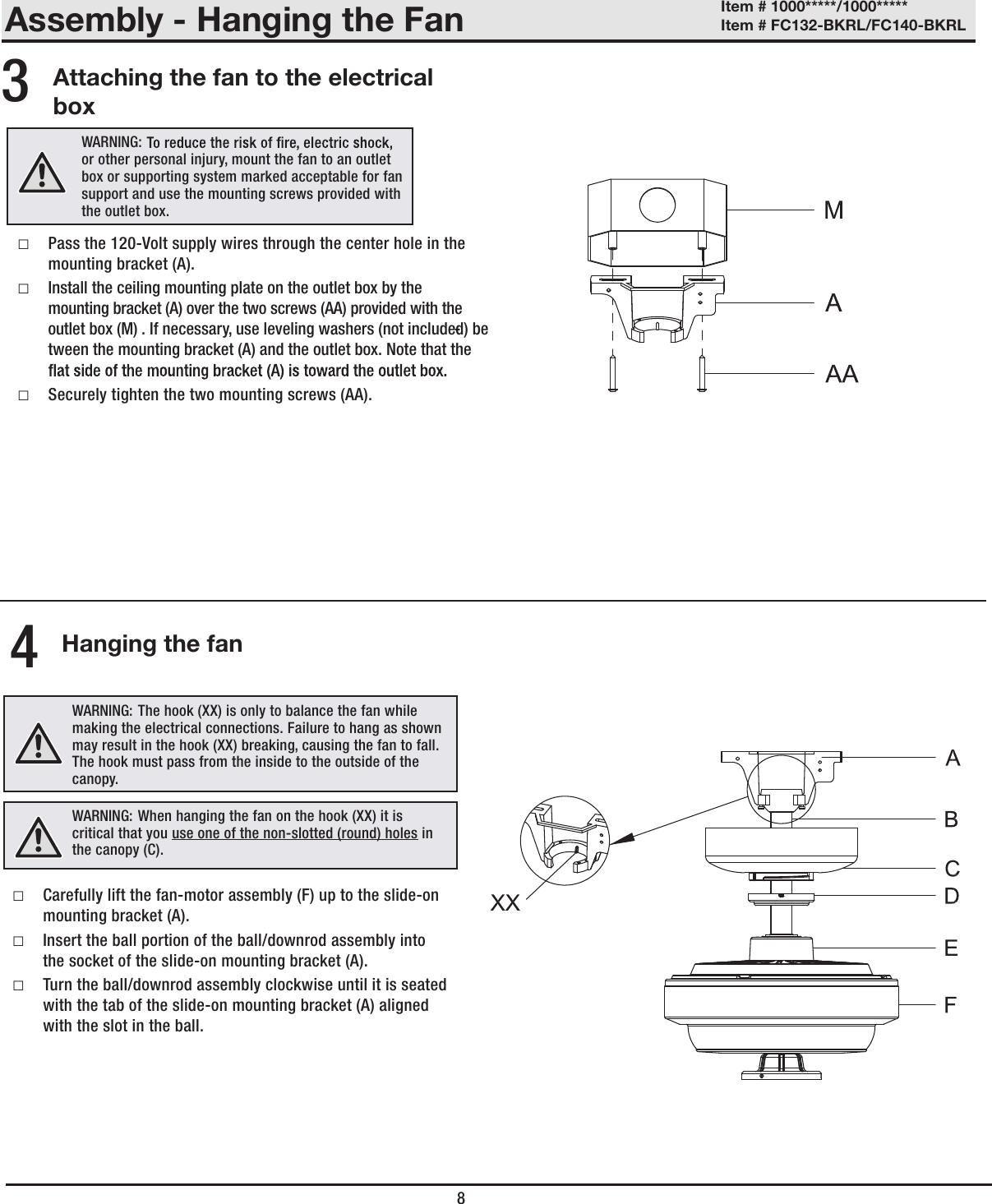

Assembly - Hanging the FanAttaching the fan to the electrical boxHanging the fan □Pass the 120-Volt supply wires through the center hole in the mounting bracket (A). □Install the ceiling mounting plate on the outlet box by the mounting bracket (A) over the two screws (AA) provided with the outlet box (M) . If necessary, use leveling washers (not included) be-tween the mounting bracket (A) and the outlet box. Note that the  □Securely tighten the two mounting screws (AA).34WARNING:  or other personal injury, mount the fan to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box.WARNING: The hook (XX) is only to balance the fan while making the electrical connections. Failure to hang as shown may result in the hook (XX) breaking, causing the fan to fall. The hook must pass from the inside to the outside of the canopy.WARNING: When hanging the fan on the hook (XX) it is critical that you use one of the non-slotted (round) holes in the canopy (C). □Carefully lift the fan-motor assembly (F) up to the slide-on mounting bracket (A). □Insert the ball portion of the ball/downrod assembly into the socket of the slide-on mounting bracket (A). □Turn the ball/downrod assembly clockwise until it is seated with the tab of the slide-on mounting bracket (A) aligned with the slot in the ball.8Item # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL

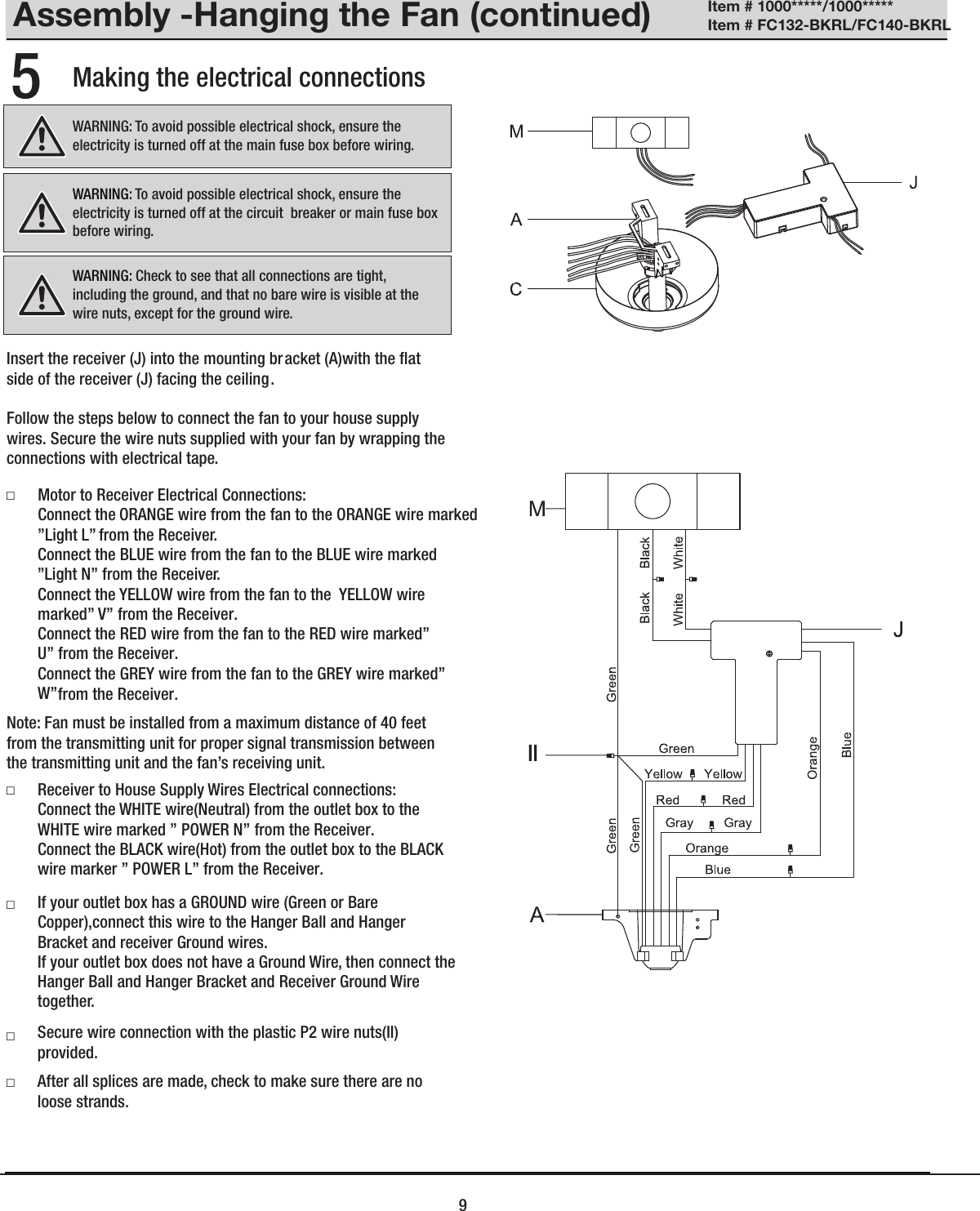

Assembly -Hanging the Fan (continued)Making the electrical connections5WARNING: To avoid possible electrical shock, ensure the electricity is turned off at the circuit  breaker or main fuse box before wiring.WARNING: Check to see that all connections are tight,including the ground, and that no bare wire is visible at the wire nuts, except for the ground wire. Motor to Receiver Electrical Connections:Connect the ORANGE wire from the fan to the ORANGE wire marked  ”Light L”  from the Receiver.. Connect the BLUE wire from the fan to the BLUE wire marked   ”Light N” from the Receiver.. Connect the YELLOW wire from the fan to the  YELLOW wire marked” V” from the Receiver.Connect the RED wire from the fan to the RED wire marked” U” from the Receiver.Connect the GREY wire from the fan to the GREY wire marked” W” from the Receiver.Receiver to House Supply Wires Electrical connections:Connect the WHITE wire(Neutral) from the outlet box to the WHITE wire marked ” POWER N” from the Receiver.Connect the BLACK wire(Hot) from the outlet box to the BLACK wire marker ” POWER L” from the Receiver.If your outlet box has a GROUND wire (Green or Bare Copper),connect this wire to the Hanger Ball and Hanger Bracket and receiver Ground wires.If your outlet box does not have a Ground Wire, then connect the Hanger Ball and Hanger Bracket and Receiver Ground Wire together.Secure wire connection with the plastic P2 wire nuts(II) provided. After all splices are made, check to make sure there are no loose strands.□□□□□Note: Fan must be installed from a maximum distance of 40 feet from the transmitting unit for proper signal transmission between the transmitting unit and the fan’s receiving unit.WARNING: To avoid possible electrical shock, ensure theelectricity is turned off at the main fuse box before wiring.Insert the receiver (J) into the mounting bracket (A)with the flat side of the receiver (J) facing the ceiling.Follow the steps below to connect the fan to your house supply wires. Secure the wire nuts supplied with your fan by wrapping the connections with electrical tape.9Item # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL II

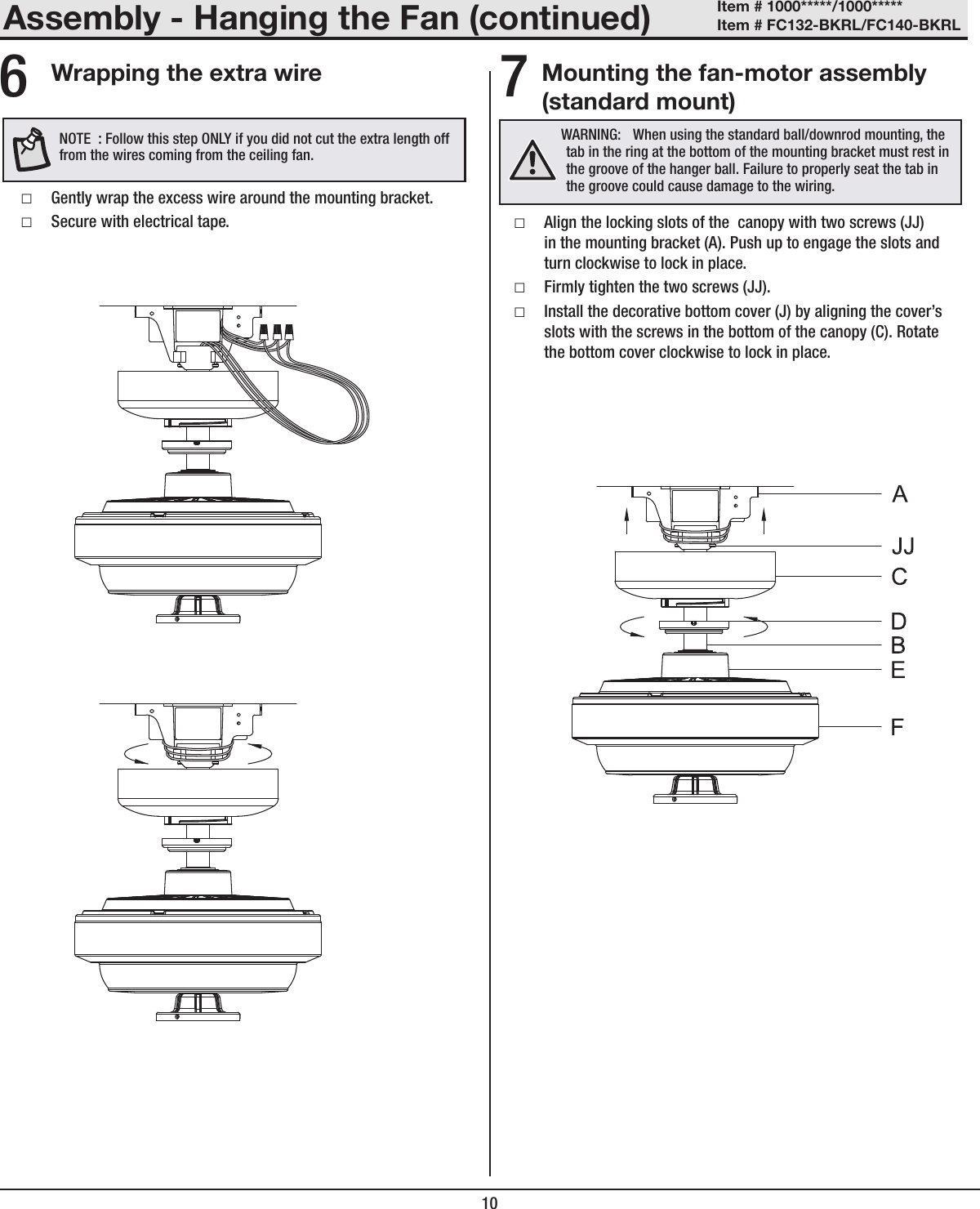

10Mounting the fan-motor assembly (standard mount) □Align the locking slots of the  canopy with two screws (JJ) in the mounting bracket (A). Push up to engage the slots and turn clockwise to lock in place. □Firmly tighten the two screws (JJ). □Install the decorative bottom cover (J) by aligning the cover’s slots with the screws in the bottom of the canopy (C). Rotate the bottom cover clockwise to lock in place.WARNING:  When using the standard ball/downrod mounting, the tab in the ring at the bottom of the mounting bracket must rest in the groove of the hanger ball. Failure to properly seat the tab in the groove could cause damage to the wiring.Assembly - Hanging the Fan (continued)7Wrapping the extra wire □Gently wrap the excess wire around the mounting bracket. □Secure with electrical tape.6NOTE  : Follow this step ONLY if you did not cut the extra length off from the wires coming from the ceiling fan.Item # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL

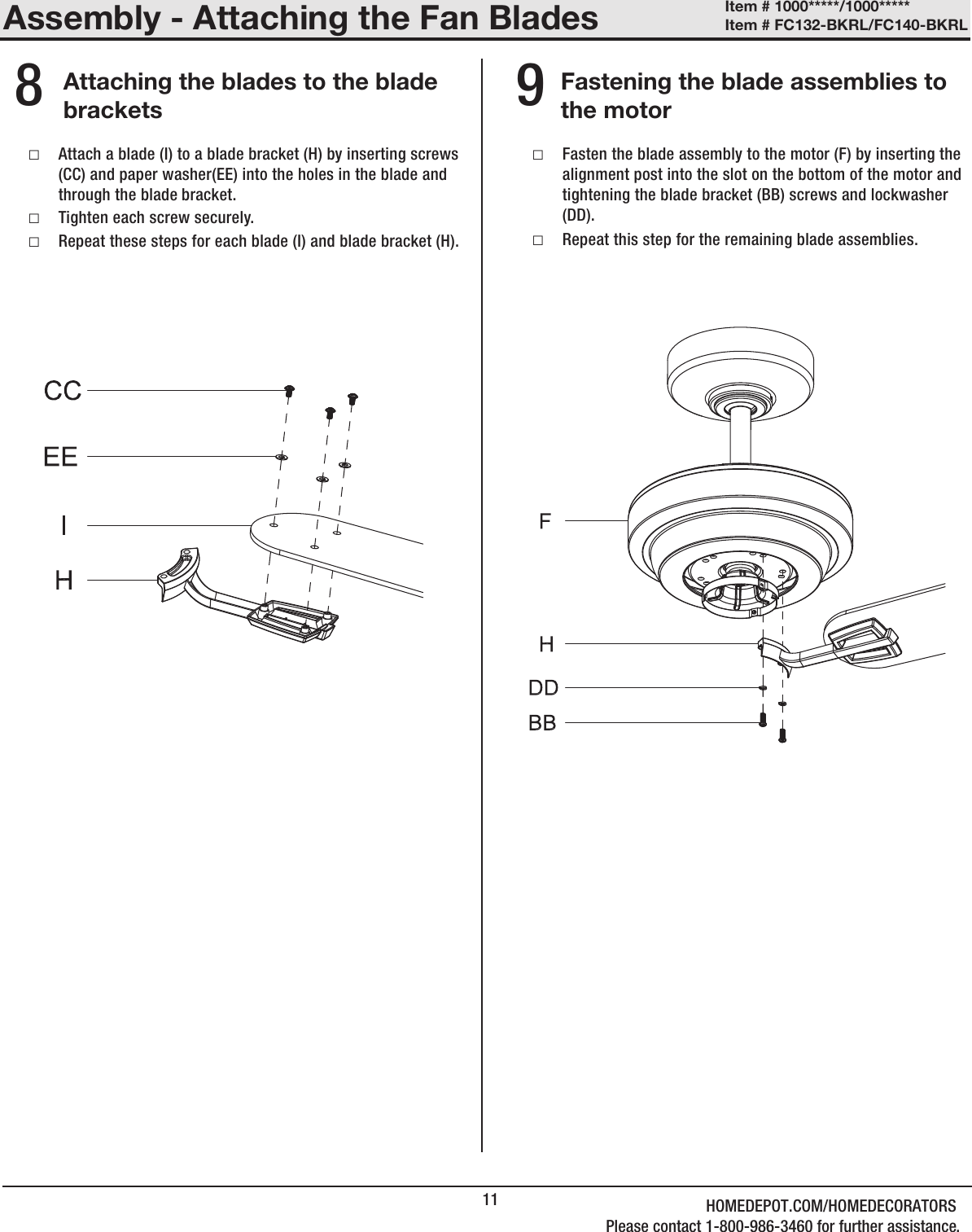

11Assembly - Attaching the Fan BladesAttaching the blades to the blade bracketsFastening the blade assemblies to the motor  8 9 □Attach a blade (I) to a blade bracket (H) by inserting screws (CC) and paper washer(EE) into the holes in the blade and through the blade bracket.  □Tighten each screw securely. □Repeat these steps for each blade (I) and blade bracket (H). □Fasten the blade assembly to the motor (F) by inserting the alignment post into the slot on the bottom of the motor and tightening the blade bracket (BB) screws and lockwasher (DD).  □Repeat this step for the remaining blade assemblies.Item # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL HOMEDEPOT.COM/HOMEDECORATORSPlease contact 1-800-986-3460 for further assistance.

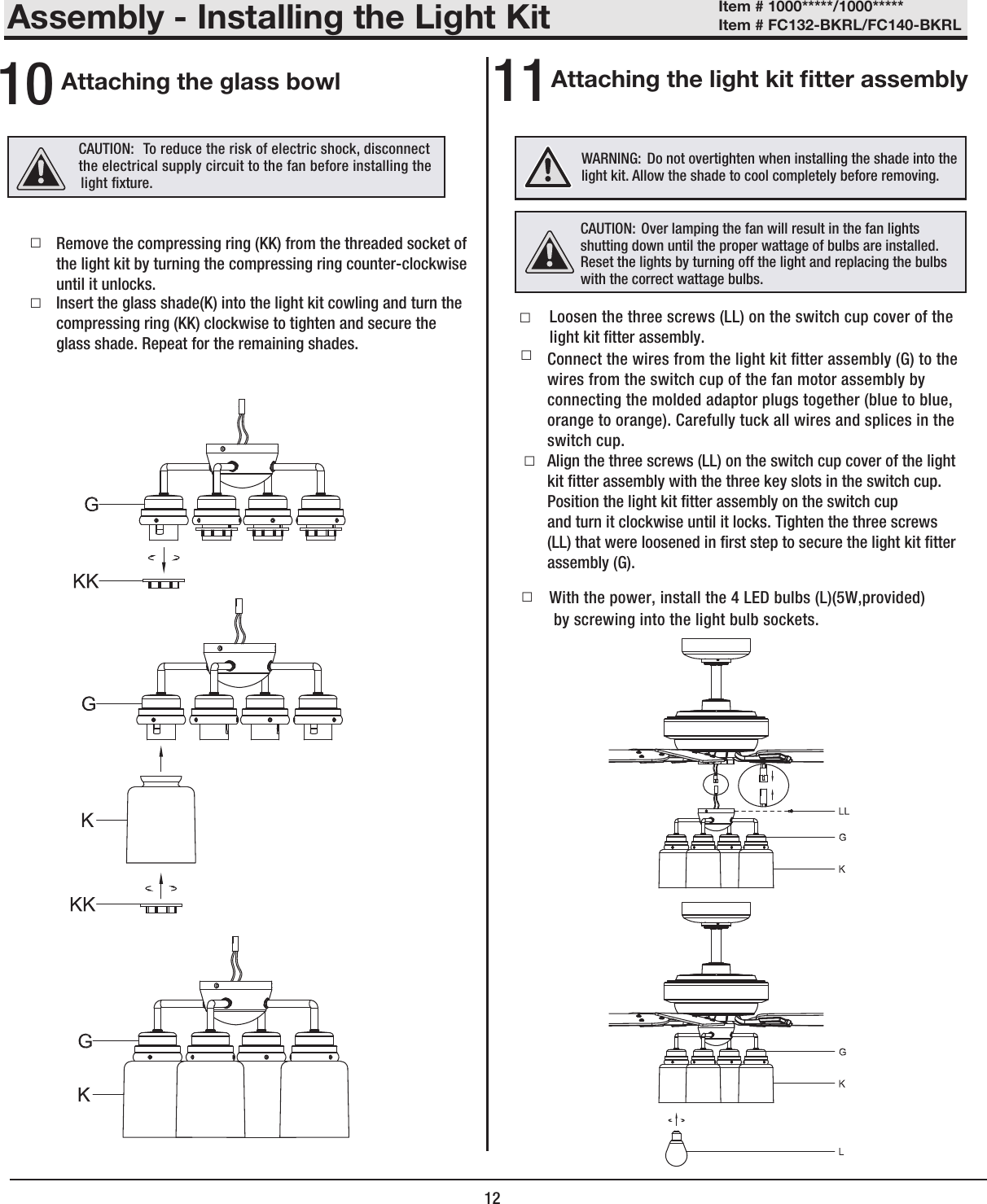

12Assembly - Installing the Light KitAttaching the glass bowl10 11 □Loosen the three screws (LL) on the switch cup cover of the light kit tter assembly.   □Connect the wires from the light kit tter assembly (G) to thewires from the switch cup of the fan motor assembly byconnecting the molded adaptor plugs together (blue to blue,orange to orange). Carefully tuck all wires and splices in theswitch cup.Align the three screws (LL) on the switch cup cover of the lightkit tter assembly with the three key slots in the switch cup.Position the light kit tter assembly on the switch cupand turn it clockwise until it locks. Tighten the three screws(LL) that were loosened in rst step to secure the light kit tterassembly (G).CAUTION:   To reduce the risk of electric shock, disconnect the electrical supply circuit to the fan before installing the  WARNING: Do not overtighten when installing the shade into the light kit. Allow the shade to cool completely before removing. □□ light xture. Attaching the light kit tter assembly□by screwing into the light bulb sockets.CAUTION: Over lamping the fan will result in the fan lights shutting down until the proper wattage of bulbs are installed. Reset the lights by turning off the light and replacing the bulbs with the correct wattage bulbs.With the power, install the 4 LED bulbs (L)(5W,provided)Remove the compressing ring (KK) from the threaded socket of the light kit by turning the compressing ring counter-clockwiseuntil it unlocks. □Insert the glass shade(K) into the light kit cowling and turn the  compressing ring (KK) clockwise to tighten and secure the glass shade. Repeat for the remaining shades.Item # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL

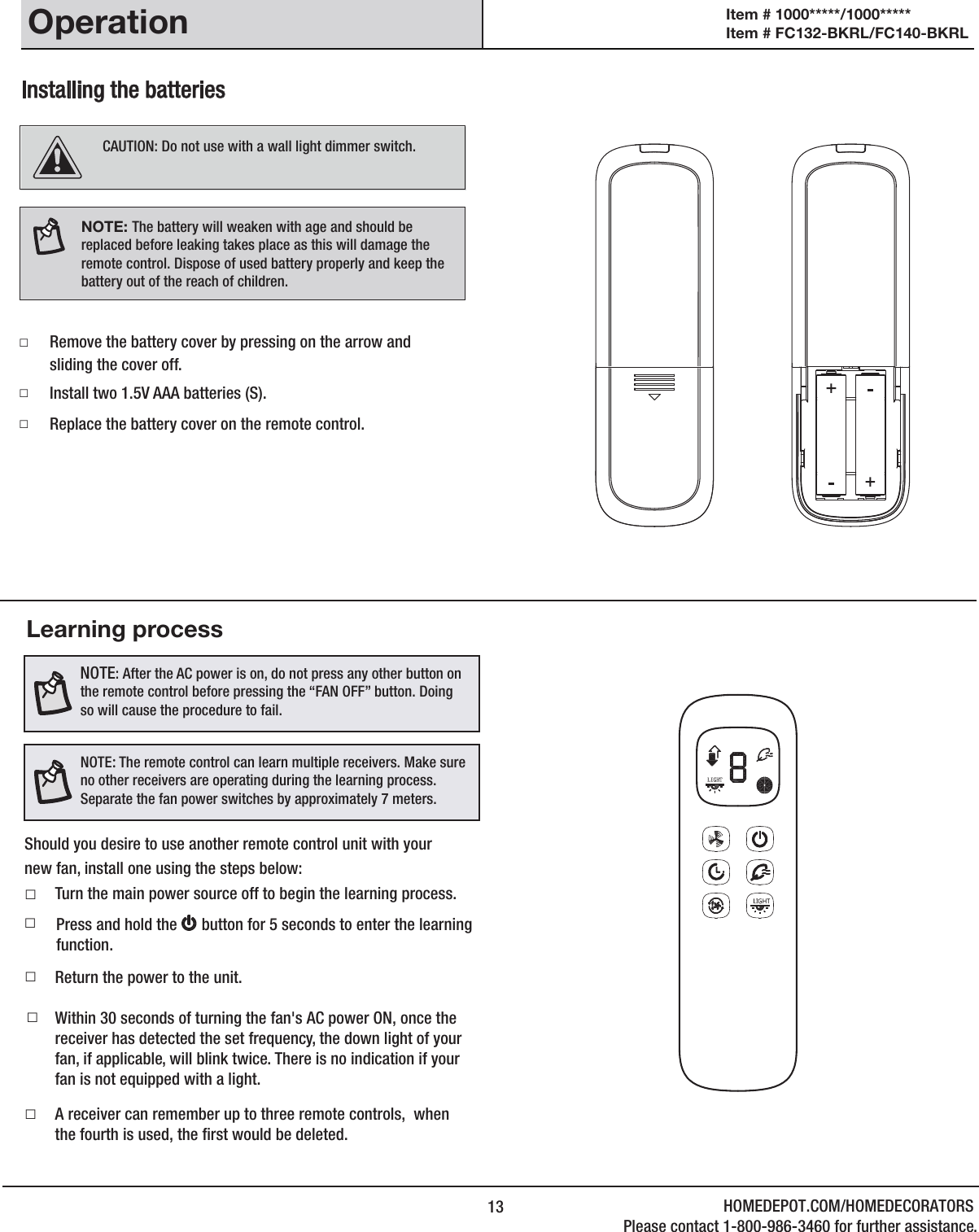

OperationInstalling the batteriesNOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used battery properly and keep the battery out of the reach of children.Remove the battery cover by pressing on the arrow andsliding the cover off.□Install two 1.5V AAA batteries (S).□Replace the battery cover on the remote control.□CAUTION: Do not use with a wall light dimmer switch.13Learning processShould you desire to use another remote control unit with yournew fan, install one using the steps below: □Turn the main power source off to begin the learning process. Return the power to the unit.Within 30 seconds of turning the fan's AC power ON, once the receiver has detected the set frequency, the down light of your fan, if applicable, will blink twice. There is no indication if your fan is not equipped with a light. □    NOTE: After the AC power is on, do not press any other button on the remote control before pressing the “FAN OFF” button. Doing so will cause the procedure to fail.NOTE: The remote control can learn multiple receivers. Make sure no other receivers are operating during the learning process. Separate the fan power switches by approximately 7 meters. □Press and hold the      button for 5 seconds to enter the learning function. □Item # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL HOMEDEPOT.COM/HOMEDECORATORSPlease contact 1-800-986-3460 for further assistance.A receiver can remember up to three remote controls,  when the fourth is used, the rst would be deleted. □

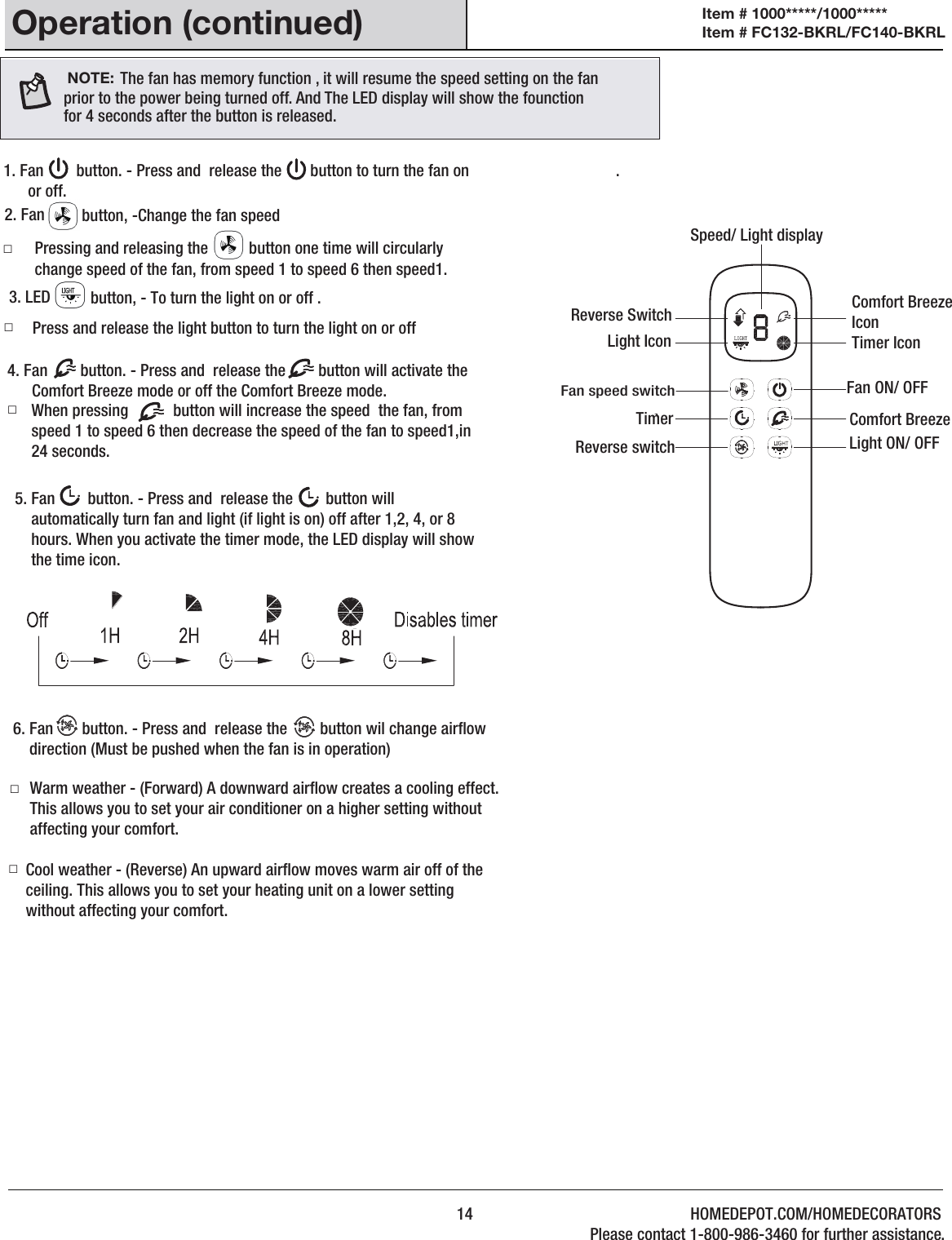

Operation (continued)2. Fan                     The fan has memory function , it will resume the speed setting on the fan prior to the power being turned off. And The LED display will show the founction  for 4 seconds after the button is released. NOTE: 1. Fan        button. - Press and  release the       button to turn the fan on       or off..button, -Change the fan speed  Pressing and releasing the          button one time will circularly  change speed of the fan, from speed 1 to speed 6 then speed1. Press and release the light button to turn the light on or off□□143. LED         button, - To turn the light on or off .      4. Fan        button. - Press and  release the        button will activate the       Comfort Breeze mode or off the Comfort Breeze mode. When pressing           button will increase the speed  the fan, from  speed 1 to speed 6 then decrease the speed of the fan to speed1,in  24 seconds.□5. Fan        button. - Press and  release the        button will     automatically turn fan and light (if light is on) off after 1,2, 4, or 8     hours. When you activate the timer mode, the LED display will show     the time icon.6. Fan       button. - Press and  release the        button wil change airow     direction (Must be pushed when the fan is in operation)□□ Warm weather - (Forward) A downward airow creates a cooling effect. This allows you to set your air conditioner on a higher setting without affecting your comfort.Cool weather - (Reverse) An upward airow moves warm air off of theceiling. This allows you to set your heating unit on a lower settingwithout affecting your comfort.Fan ON/ OFFReverse switchTimerFan speed switchLight ON/ OFFComfort Breeze Light Icon Timer IconComfort Breeze IconReverse SwitchSpeed/ Light displayItem # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL HOMEDEPOT.COM/HOMEDECORATORSPlease contact 1-800-986-3460 for further assistance.
8Care and Cleaning□     Check the support connections, brackets, and blade attachments twice a year. Ensure they are secure.  Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling.□     Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to minimize discoloration or tarnishing.□     (Optional) Apply a light coat of furniture polish to the wood blades.□     (Optional) Cover small scratches with a light application of shoe polish.Do□     Do not use water when cleaning. Water could damage the motor, or the wood, or possibly cause an electrical shock.□     Do not apply oil to your fan or motor. The motor has permanently-lubricated sealed ball bearings.Do not15TroubleshootingProblem SolutionThe fan will not start.  □Check the main and branch circuit fuses or breakers. □Check the line wire connections to the fan and switch wire connections in the switch housing. □Check the battery in the remote control. □Ensure you are in the normal range of 10-20 feet. □Remember to turn off the power supply before checking the dip switch settings.The fan is noisy.  □Ensure all motor housing screws are snug. □Ensure the screws that attach the fan blade bracket to the motor hub are tight. □Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing. □Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time. □If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light bulbs are also secure. □Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling. □Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.The fan wobbles.  □Check that all blade and blade arm screws are secure. □Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan for ten minutes. If the fan continues to wobble please contact Customer Service and a balancing kit will be sent to you at no charge.Item # 1000*****/1000***** Item # FC132-BKRL/FC140-BKRL HOMEDEPOT.COM/HOMEDECORATORSPlease contact 1-800-986-3460 for further assistance.
