USE AND CARE GUIDE
FC132-BKRL/FC140-BKRL 52/56-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store call
Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Item #
Model #
2
Table of Contents ................................................................ 2
Safety Information ............................................................... 2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation ............................................................................ 6
Assembly .............................................................................. 7
Operation ........................................................................... 13
Care and Cleaning .............................................................15
Troubleshooting ................................................................. 15
To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you begin.
All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70-1999 and local electrical codes. Electri- cal
installation should be performed by a qualied licensed electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs. (15.9
kg). Use only UL-listed outlet boxes marked “Acceptable for
Fan Support of 35 lbs. (15.9 kg) or less.”
The fan must be mounted with a minimum of 7 ft (2 m) clearance
Do not place objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the grounded conductor and
the equipment-grounding conductor on one side of the outlet box.
All setscrews must be checked and retightened where
necessary before installation.
WARNING: To Reduce The Risk Of Personal Injury, Do Not Bend
The Blade Brackets When Installing The Brackets,Balancing
The Or Cleaning The Fan.Do Not Insert Foreign Objects In
WARNING: Remove The Rubber Motor Stops On The Bottom
Of The Fan Before Installing The Blades Or Testing The Motor.
WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do
Not Use This Fan With Any Solid-State Speed Control Device.
WARNING: To Avoid Possible Electrical Shock, Turn The
Electricity Off At The Main Fuse Box Before Wiring. If You
Feel You Do Not Have Enough Electrical Wiring Knowledge
Or Experience, Contact A Licensed Electrician.
WARNING:
FC132-BKRL Fan Should Only Be Used With Fan Speed Control
Model No. FYDC765- B1, the FC140-BKRL Should Only Be Used
With Fan Speed Control Model No. FYDC765- B2 Manufactured
By ZHONGSHAN KEZHUOER ELECTRONIC CO.,LTD.
Safety Information
Table of Contents
CAUTION: To Reduce The Risk Of Personal Injury, Use Only
The Screws Provided With The Outlet Box.
READ AND SAVE THESE INSTRUCTIONS.
from the trailing edge of the blades to the oor.
Between X Rotating Fan Blades.
WARNING: To Reduce The Risk Of Fire Or Electric Shock,Or
Personal Injury, Mount To Outlet Box Marked "Acceptable for
Fan Support of 15.9 kg (35 lbs) or less" And Use Mounting
Screws Provided With The Outlet Box.
This device complies with part 15 of the FCC rules, operation is subject to the following two conditions. (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
To Reduce The Risk Of Fire Or Electric Shock, This
WARNING: Electrical diagrams are for reference only.
Optional use of any light kit shall be UL-listed and marked
suitable for use with this fan.
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
“Please note that changes or modications of this product is not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.”
Warning: Changes or modications to this unit not expressly approved
by the party responsible for compliance could void the user’s authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
3
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
period of lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass
or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after
the date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of
removing and reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by
afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in
brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from
varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized
persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties, including
but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a limitation on how long
an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special
damages arising out of or in connection with product use or performance except as may otherwise be accorded by law. Some states do not allow
the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal
rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any
return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-877-527-0313 or visit www.hamptonbay.com
SPECIFICATIONS
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cube Feet
52”
1
2
3120
0.07
0.09
0.13
3.20
4.60
7.20
60
80
100
2000
2440
2940 18.3 lbs.
(8.3 kg)
22.5 lbs.
(10.2 kg) 2.94 cu.ft.
2.94 cu.ft.
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
4
5
6
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cube Feet
56”
1
2
3120
0.08
0.11
0.17
4.0
6.4
10.2
60
80
100
2620
3180
3770
5580
6590
6850
18.3 lbs.
(8.3 kg)
22.5 lbs.
(10.2 kg)
4
5
6
0.48
0.36
0.21
33.8
24.2
13.5
180
160
130
5390
5010
4230
21.4
0.70
0.57
0.33 130
50.0
39.5
170
160
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
4
Pre-Installation (continued)

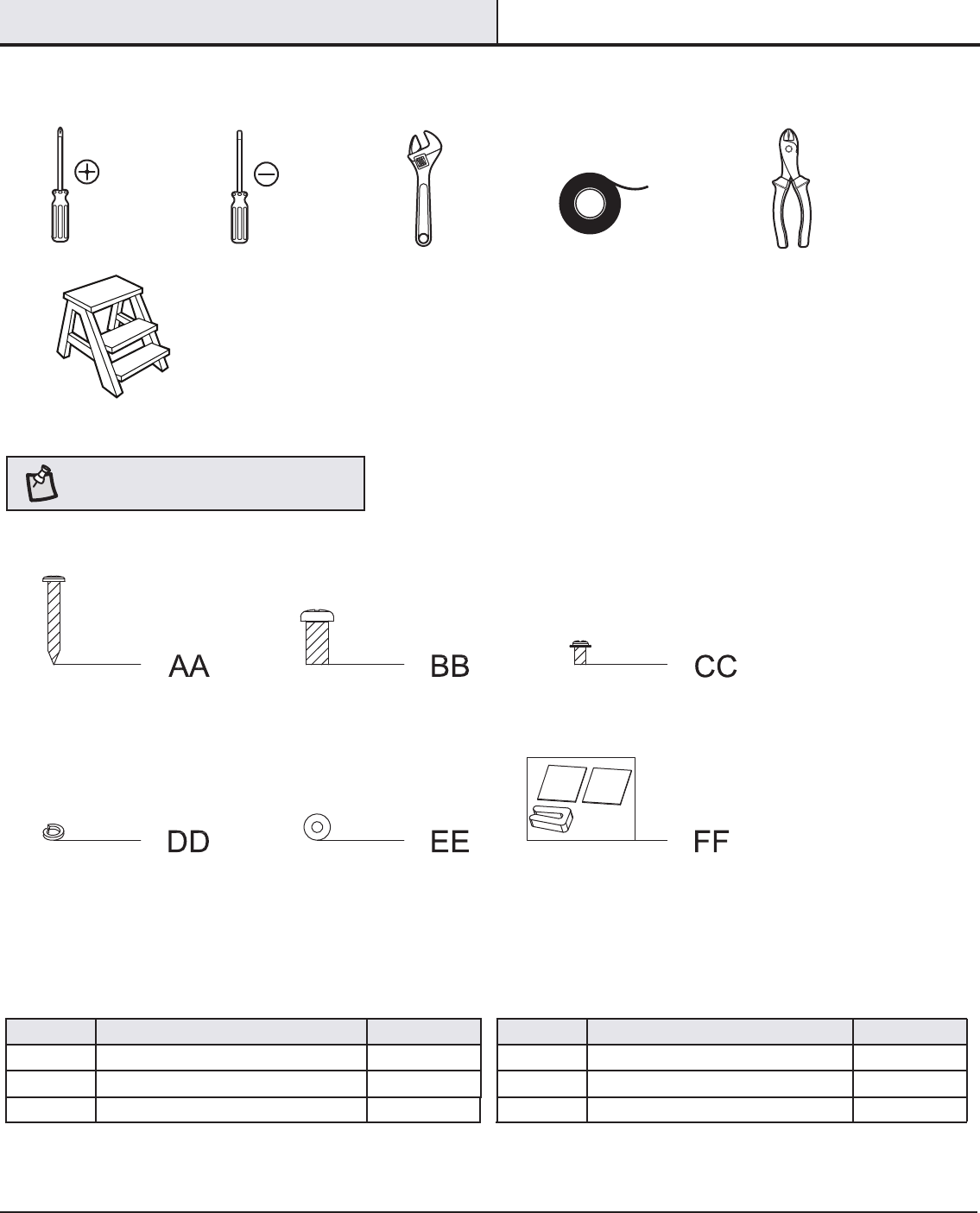

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire cutter
/ Stripper
Step ladder
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
Part Description Quantity
AA Mounting Screw ST4.8 2
BB
Blade Bracket Attachment Screw M6
Blade Attachment Screw M5
11
CC 16
Part Description Quantity
DD Lock Washer 11
EE Paper Washer 16
FF Balance Kit 1
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
5
Part Decription Quantity
A Mounting bracket 1
B Ball/downrod assembly 1
D Canopy ring 1
E
Fan-motor assembly
1
F 1
Part Decription Quantity
G
Blade 5
H 5
J
LED bulb
1
K
L
Glass shade
4
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)

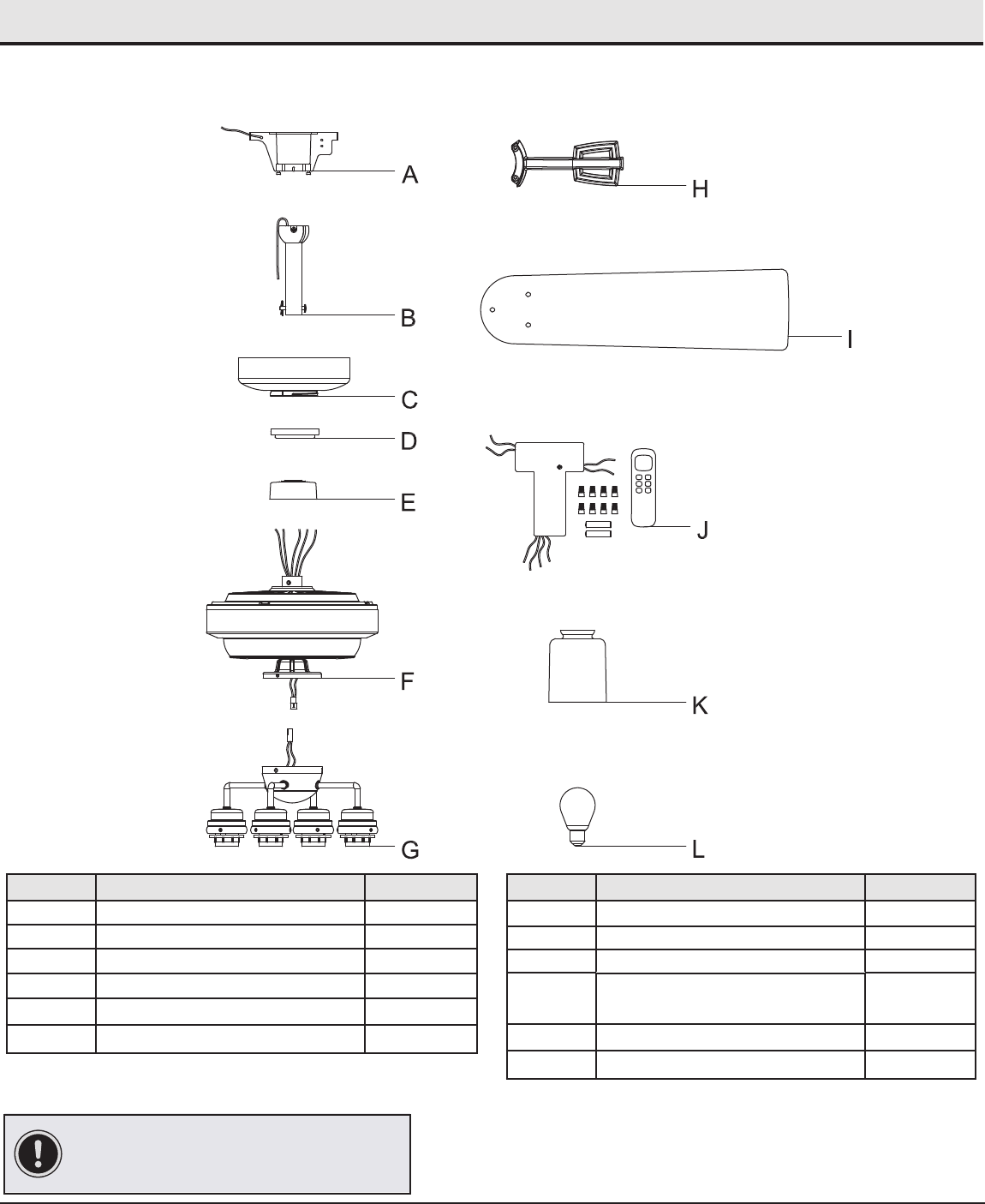

PACKAGE CONTENTS
C Canopy 1I
Blade bracket
Decorative motor collar cover
Light kit tter assembly 1
4
Remote control &Receiver assembly
&include 8 plastic wire nuts and 2 batteries
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
6
Installation

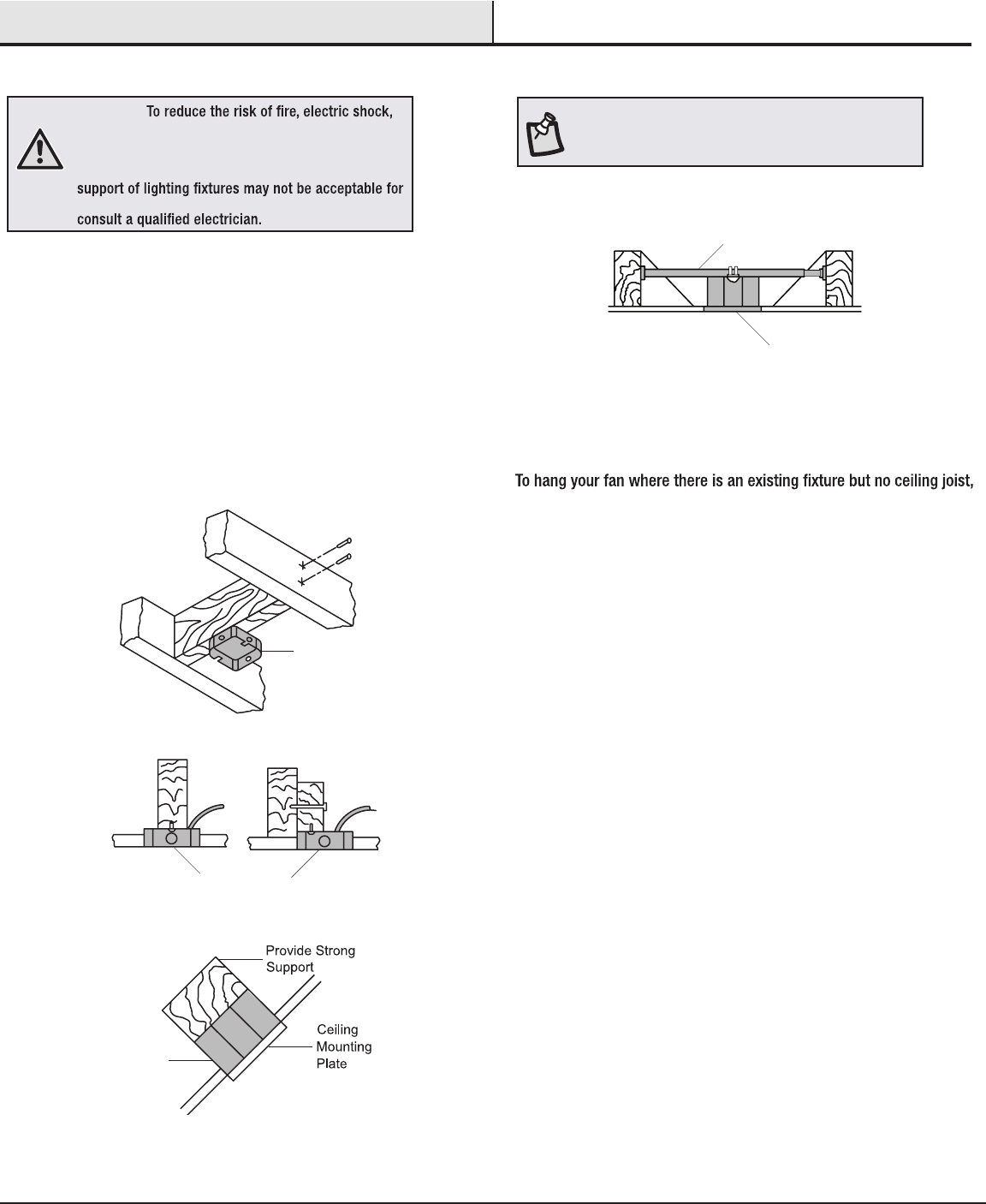

MOUNTING OPTIONS
WARNING:
or personal injury, mount the fan to an outlet box
marked ‘’acceptable for fan support of 35 lbs.
(15.9kg) or less’’, and use the screws provided with
the outlet box. An outlet box commonly used for the
fan support and may need to be replaced. If in doubt,
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (not included) directly to the building
structure.
Use the appropriate fasteners and materials (not included).
The outlet box and its bracing must be able to fully support
the weight of the moving fan (at least 35 lbs.). Do not use
a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover and turn the canopy 180° before attaching the canopy to
the mounting plate.
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet box
Recessed
Outlet
Bo
x
Outlet Box
Hanger bar
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
7

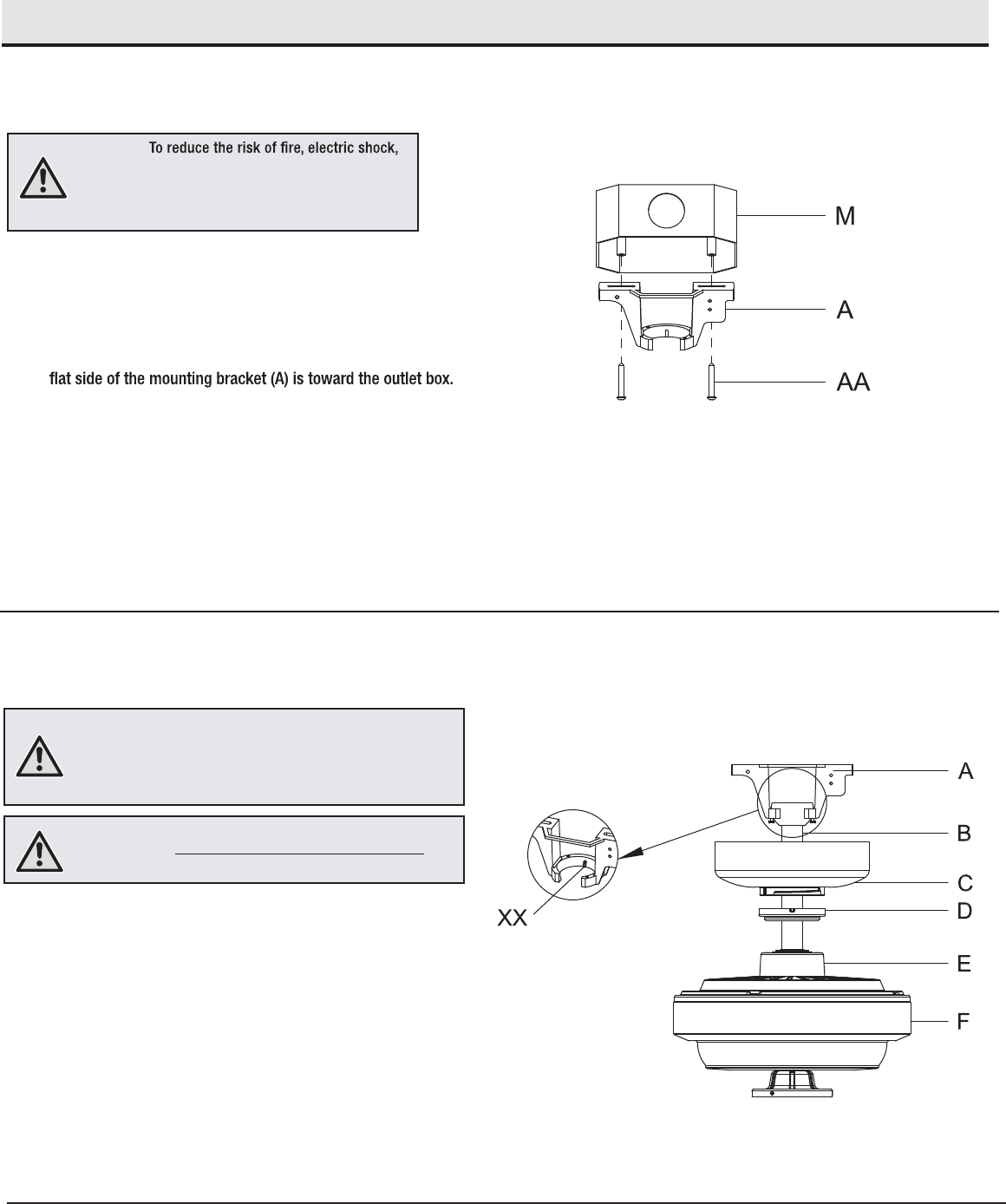

Assembly - Standard Ceiling Mount
Preparing for routing the wires
Routing the wires and assembling
the fan
□Route the wires exiting the top of the fan-motor
assembly (F) through the center of the canopy ring (D).
□
□
Insert the ball/downrod (B) through the canopy (C) and
and canopy ring (D) and slide the decorative motor collar
cover (E) onto the end of the ball/downrod (B). Make sure
the slots on the canopy (C) are on top.
Route the wires exiting the top of the fan motor
assembly (F) through the downrod as shown.
Carefully insert the hanger pin (GG) through the holes in the
collar (M) and downrod (B). Be careful not to jam the hanger
pin (HH) against the wiring inside the downrod (B).
Insert the locking pin (HH) through the hole near the end of
the hanger pin (GG) until it snaps into its locked position.
Reinstall the setscrew (II) turning clockwise until tight.---
□
□
Remove the hitch pin (GG) and lock pin (HH) from the
downrod (B).
Loosen the two set screws (II) from the fan motor assembly
(F) coupling.
2
1
WARNING: Failure to properly install the locking pin could
result in the fan becoming loose and possibly falling.
□
□
□
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew
(DD) must be completely tightened
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan
Attaching the fan to the electrical
box
Hanging the fan
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Install the ceiling mounting plate on the outlet box by the
mounting bracket (A) over the two screws (AA) provided with the
outlet box (M) . If necessary, use leveling washers (not included) be-
tween the mounting bracket (A) and the outlet box. Note that the
□Securely tighten the two mounting screws (AA).
3
4
WARNING:
or other personal injury, mount the fan to an outlet
box or supporting system marked acceptable for fan
support and use the mounting screws provided with
the outlet box.
WARNING: The hook (XX) is only to balance the fan while
making the electrical connections. Failure to hang as shown
may result in the hook (XX) breaking, causing the fan to fall.
The hook must pass from the inside to the outside of the
canopy.
WARNING: When hanging the fan on the hook (XX) it is
critical that you use one of the non-slotted (round) holes in
the canopy (C).
□Carefully lift the fan-motor assembly (F) up to the slide-on
mounting bracket (A).
□Insert the ball portion of the ball/downrod assembly into
the socket of the slide-on mounting bracket (A).
□Turn the ball/downrod assembly clockwise until it is seated
with the tab of the slide-on mounting bracket (A) aligned
with the slot in the ball.
8
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
Assembly -Hanging the Fan (continued)
Making the electrical connections
5
WARNING: To avoid possible electrical shock, ensure the
electricity is turned off at the circuit breaker or main fuse box
before wiring.
WARNING: Check to see that all connections are tight,
including the ground, and that no bare wire is visible at the
wire nuts, except for the ground wire.
Motor to Receiver Electrical Connections:
Connect the ORANGE wire from the fan to the ORANGE wire marked
”Light L” from the Receiver..
Connect the BLUE wire from the fan to the BLUE wire marked
”Light N” from the Receiver..
Connect the YELLOW wire from the fan to the YELLOW wire
marked” V” from the Receiver.
Connect the RED wire from the fan to the RED wire marked”
U” from the Receiver.
Connect the GREY wire from the fan to the GREY wire marked”
W”
from the Receiver.
Receiver to House Supply Wires Electrical connections:
Connect the WHITE wire(Neutral) from the outlet box to the
WHITE wire marked ” POWER N” from the Receiver.
Connect the BLACK wire(Hot) from the outlet box to the BLACK
wire marker ” POWER L” from the Receiver.
If your outlet box has a GROUND wire (Green or Bare
Copper),connect this wire to the Hanger Ball and Hanger
Bracket and receiver Ground wires.
If your outlet box does not have a Ground Wire, then connect the
Hanger Ball and Hanger Bracket and Receiver Ground Wire
together.
Secure wire connection with the plastic P2 wire nuts(II)
provided.
After all splices are made, check to make sure there are no
loose strands.
□
□
□
□
□
Note: Fan must be installed from a maximum distance of 40 feet
from the transmitting unit for proper signal transmission between
the transmitting unit and the fan’s receiving unit.
WARNING: To avoid possible electrical shock, ensure the
electricity is turned off at the main fuse box before wiring.
Insert the receiver (J) into the mounting bracket (A)with the flat
side of the receiver (J) facing the ceiling.
Follow the steps below to connect the fan to your house supply
wires. Secure the wire nuts supplied with your fan by wrapping the
connections with electrical tape.
9
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
II
10

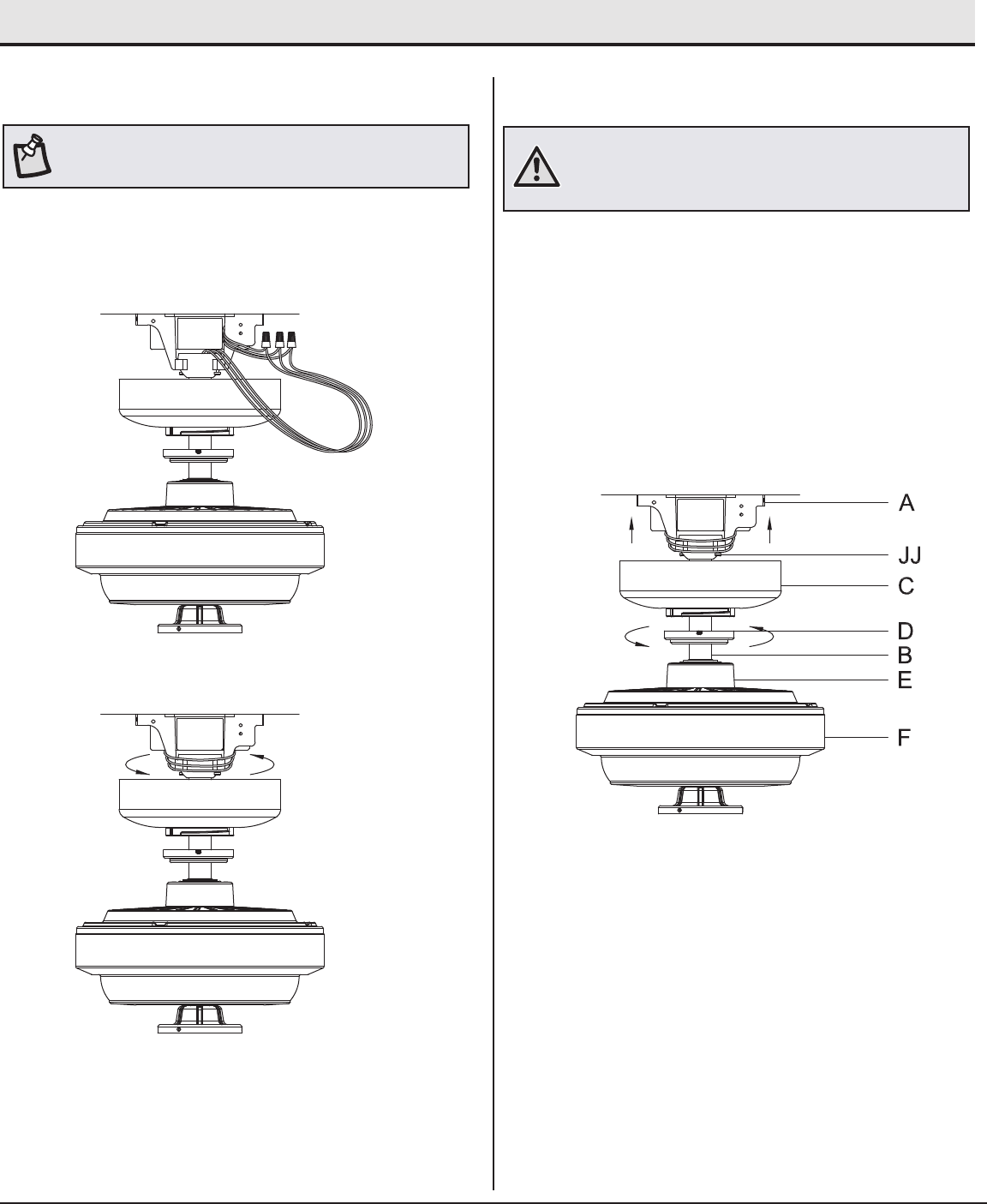

Mounting the fan-motor assembly
(standard mount)
□Align the locking slots of the canopy with two screws (JJ)
in the mounting bracket (A). Push up to engage the slots and
turn clockwise to lock in place.
□Firmly tighten the two screws (JJ).
□Install the decorative bottom cover (J) by aligning the cover’s
slots with the screws in the bottom of the canopy (C). Rotate
the bottom cover clockwise to lock in place.
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
Assembly - Hanging the Fan (continued)
7
Wrapping the extra wire
□Gently wrap the excess wire around the mounting bracket.
□Secure with electrical tape.
6
NOTE : Follow this step ONLY if you did not cut the extra length off
from the wires coming from the ceiling fan.
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
11

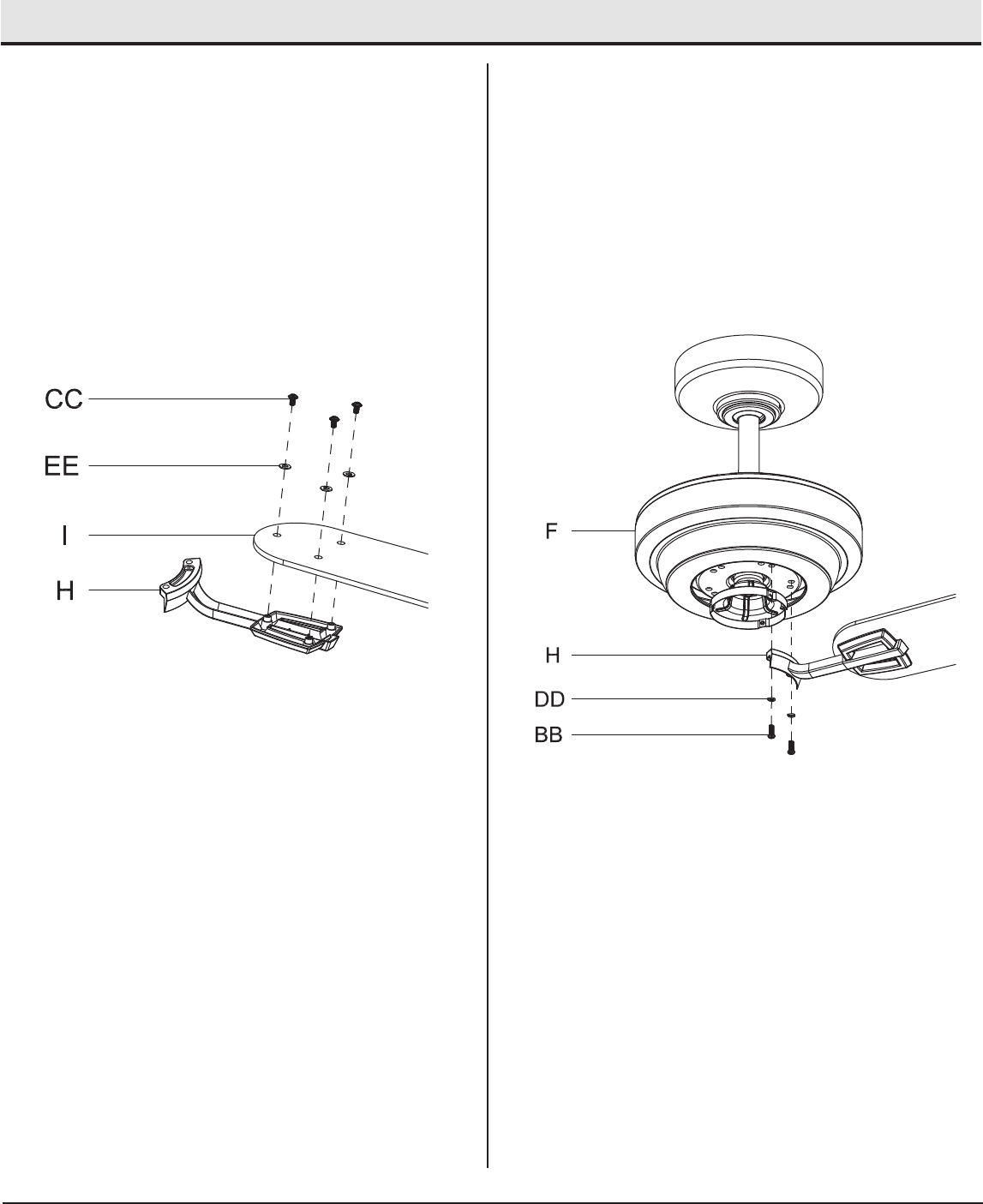

Assembly - Attaching the Fan Blades
Attaching the blades to the blade
brackets
Fastening the blade assemblies to
the motor
8 9
□Attach a blade (I) to a blade bracket (H) by inserting screws
(CC) and paper washer(EE) into the holes in the blade and
through the blade bracket.
□Tighten each screw securely.
□Repeat these steps for each blade (I) and blade bracket (H).
□Fasten the blade assembly to the motor (F) by inserting the
alignment post into the slot on the bottom of the motor and
tightening the blade bracket (BB) screws and lockwasher
(DD).
□Repeat this step for the remaining blade assemblies.
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
12

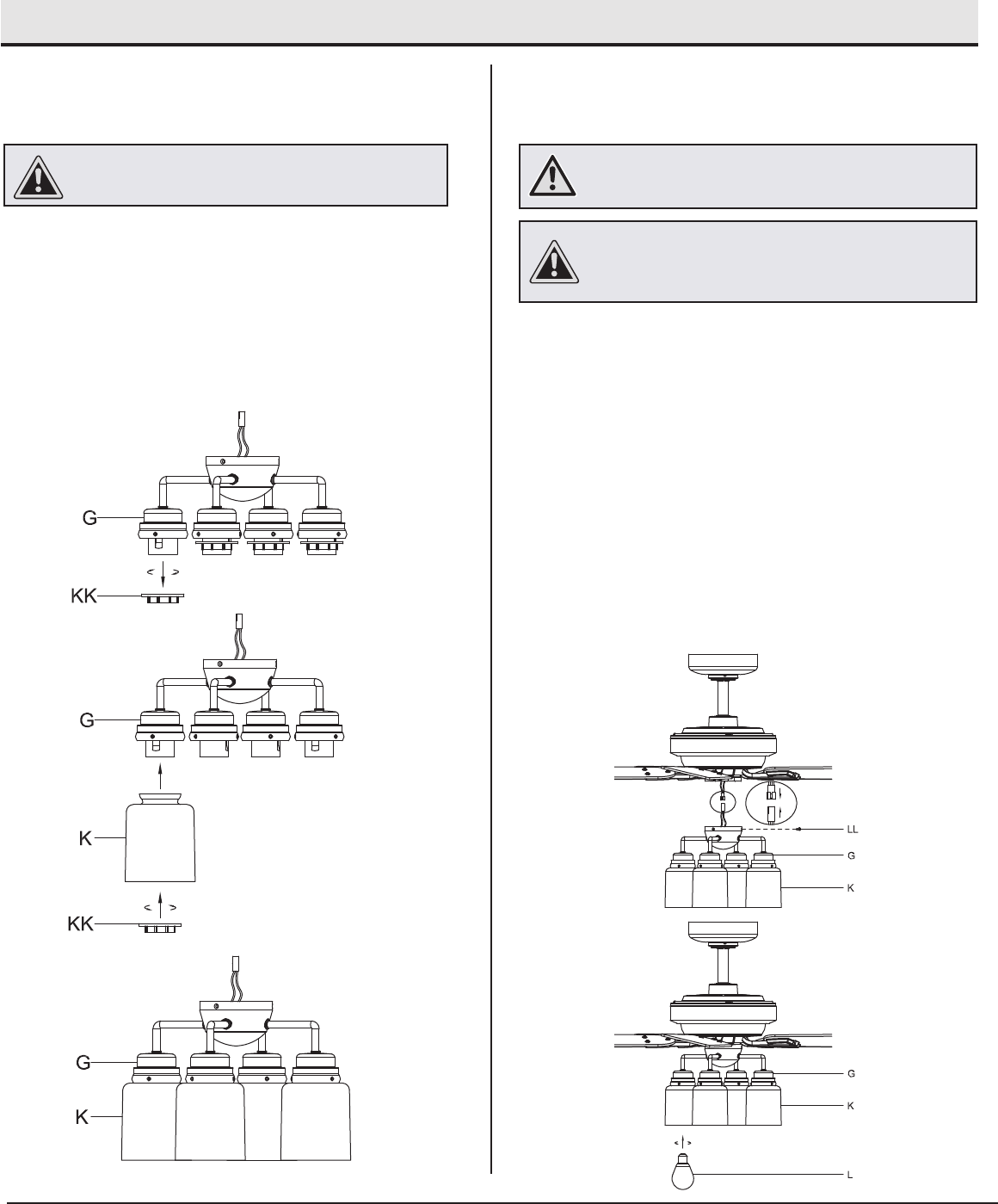

Assembly - Installing the Light Kit
Attaching the glass bowl
10 11
□Loosen the three screws (LL) on the switch cup cover of the
light kit tter assembly.
□Connect the wires from the light kit tter assembly (G) to the
wires from the switch cup of the fan motor assembly by
connecting the molded adaptor plugs together (blue to blue,
orange to orange). Carefully tuck all wires and splices in the
switch cup.
Align the three screws (LL) on the switch cup cover of the light
kit tter assembly with the three key slots in the switch cup.
Position the light kit tter assembly on the switch cup
and turn it clockwise until it locks. Tighten the three screws
(LL) that were loosened in rst step to secure the light kit tter
assembly (G).
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the WARNING: Do not overtighten when installing the shade into the
light kit. Allow the shade to cool completely before removing.
□
□
light xture.
Attaching the light kit tter assembly
□
by screwing into the light bulb sockets.
CAUTION: Over lamping the fan will result in the fan lights
shutting down until the proper wattage of bulbs are installed.
Reset the lights by turning off the light and replacing the bulbs
with the correct wattage bulbs.
With the power, install the 4 LED bulbs (L)(5W,provided)
Remove the compressing ring (KK) from the threaded socket of
the light kit by turning the compressing ring counter-clockwise
until it unlocks.
□
Insert the glass shade(K) into the light kit cowling and turn the
compressing ring (KK) clockwise to tighten and secure the
glass shade. Repeat for the remaining shades.
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
Operation

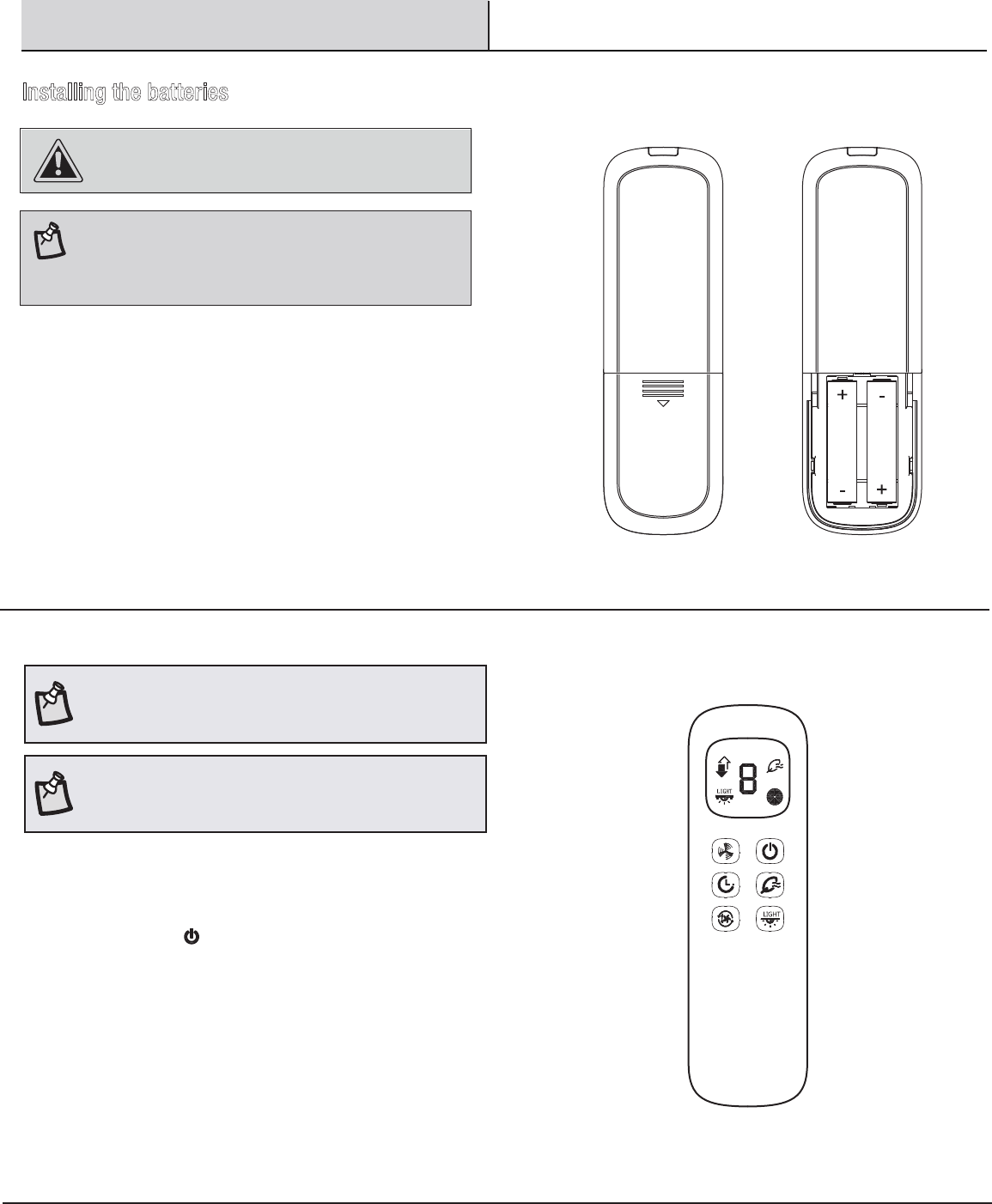

Installing the batteries
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
remote control. Dispose of used battery properly and keep the
battery out of the reach of children.
Remove the battery cover by pressing on the arrow and
sliding the cover off.
□
Install two 1.5V AAA batteries (S).
□
Replace the battery cover on the remote control.
□
CAUTION: Do not use with a wall light dimmer switch.
13
Learning process
Should you desire to use another remote control unit with your
new fan, install one using the steps below:
□Turn the main power source off to begin the learning process.
Return the power to the unit.
Within 30 seconds of turning the fan's AC power ON, once the
receiver has detected the set frequency, the down light of your
fan, if applicable, will blink twice. There is no indication if your
fan is not equipped with a light.
□
NOTE: After the AC power is on, do not press any other button on
the remote control before pressing the “FAN OFF” button. Doing
so will cause the procedure to fail.
NOTE: The remote control can learn multiple receivers. Make sure
no other receivers are operating during the learning process.
Separate the fan power switches by approximately 7 meters.
□Press and hold the button for 5 seconds to enter the learning
function.
□
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
A receiver can remember up to three remote controls, when
the fourth is used, the rst would be deleted.
□
Operation (continued)
2. Fan
The fan has memory function , it will resume the speed setting on the fan
prior to the power being turned off. And The LED display will show the founction
for 4 seconds after the button is released.
NOTE:
1. Fan button. - Press and release the button to turn the fan on
or off.
.
button, -Change the fan speed
Pressing and releasing the button one time will circularly
change speed of the fan, from speed 1 to speed 6 then speed1.
Press and release the light button to turn the light on or off
□
□
14
3. LED button, - To turn the light on or off .
4. Fan button. - Press and release the button will activate the
Comfort Breeze mode or off the Comfort Breeze mode.
When pressing button will increase the speed the fan, from
speed 1 to speed 6 then decrease the speed of the fan to speed1,in
24 seconds.
□
5. Fan button. - Press and release the button will
automatically turn fan and light (if light is on) off after 1,2, 4, or 8
hours. When you activate the timer mode, the LED display will show
the time icon.
6. Fan button. - Press and release the button wil change airow
direction (Must be pushed when the fan is in operation)
□
□ Warm weather - (Forward) A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.

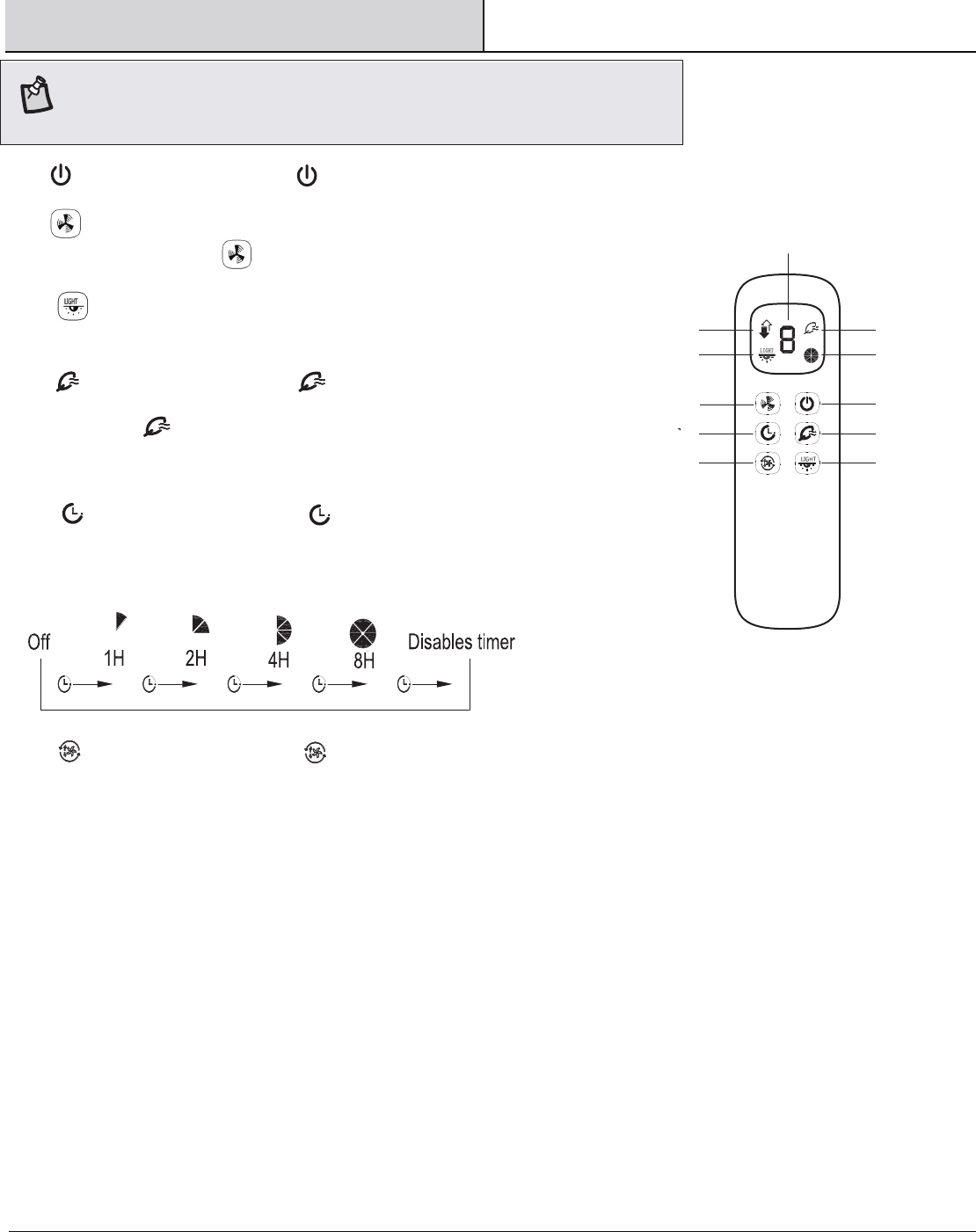

Fan ON/ OFF
Reverse switch
Timer
Fan speed switch
Light ON/ OFF
Comfort Breeze
Light Icon Timer Icon
Comfort Breeze
Icon
Reverse Switch
Speed/ Light display
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
8
Care and Cleaning
□ Check the support connections, brackets, and blade
attachments twice a year. Ensure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□ Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□ (Optional) Apply a light coat of furniture polish to the wood
blades.
□ (Optional) Cover small scratches with a light application of
shoe polish.
Do
□ Do not use water when cleaning. Water could damage the
motor, or the wood, or possibly cause an electrical shock.
□ Do not apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
15
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the remote control.
□Ensure you are in the normal range of 10-20 feet.
□Remember to turn off the power supply before checking the dip switch settings.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Customer Service and a balancing kit will be sent
to you at no charge.
Item # 1000*****/1000*****
Item # FC132-BKRL/FC140-BKRL
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
