Microwave Data Systems

MDS FIVE Series Digital

Radio Transceiver

User Reference and Installation Guide

Document Number: 05-4498A01, Rev. G

Date: 13 July 2006

This book and the information contained herein is the proprietary and confidential information of

Microwave Data Systems Inc. that is provided by Microwave Data SystemsTM exclusively for

evaluating the purchase of Microwave Data Systems Inc. technology and is protected by copyright

and trade secret laws.

No part of this document may be disclosed, reproduced, or transmitted in any form or by any means,

electronic or mechanical, for any purpose without the express written permission of Microwave Data

Systems Inc.

For permissions, contact Microwave Data Systems Inc. Marketing Group at 1-585-241-5510 or 1-585-

242-8369 (FAX).

Notice of Disclaimer

The information and specifications provided in this document are subject to change without notice.

Microwave Data Systems Inc. reserves the right to make changes in design or components as

progress in engineering and manufacturing may warrant.

The Warranty(s) that accompany Microwave Data Systems Inc., products are set forth in the sales

agreement/contract between Microwave Data Systems Inc. and its customer. Please consult the

sales agreement for the terms and conditions of the Warranty(s) proved by Microwave Data Systems

Inc. To obtain a copy of the Warranty(s), contact your Microwave Data Systems Inc. Sales

Representative at 1-585-241-5510 or 1-585-242-8369 (FAX).

The information provided in this Microwave Data Systems Inc., document is provided “as is” without

warranty of any kind, either expressed or implied, including, but not limited to, the implied warranties

of merchantability, fitness for a particular purpose, or non-infringement. Some jurisdictions do not

allow the exclusion of implied warranties, so the above exclusion may not apply to you.

In no event shall Microwave Data Systems Inc. be liable for any damages whatsoever – including

special, indirect, consequential or incidental damages or damages for loss of profits, revenue, use, or

data whether brought in contract or tort, arising out of or connected with any Microwave Data

Systems Inc., document or the use, reliance upon or performance of any material contained in or

accessed from this Microwave Data Systems Inc. document. Microwave Data Systems’s license

agreement may be provided upon request. Additional Terms and Conditions will be finalized upon

negotiation or a purchase.

The above information shall not be constructed to imply any additional warranties for Microwave Data

Systems Inc. equipment including, but not limited to, warranties of merchantability or fitness for an

intended use.

Trademark Information

Software Defined Indoor UnitTM (SDIDUTM) is a product and trademark of CarrierComm Inc.

JavaTM is a trademark of Sun Microsystems Inc.

Windows® is a registered trademark of Microsoft Corporation

All other brand or product names are trademarks or registered trademarks of their respective

companies or organizations.

Part Number: 05-4498A01

Table of Contents

1 SAFETY PRECAUTIONS......................................................................................................................1-1

2 SYSTEM DESCRIPTION.......................................................................................................................2-1

2.1 About This Manual............................................................................................................................2-1

2.2 Introduction.......................................................................................................................................2-1

2.3 System Features...............................................................................................................................2-4

2.4 Physical Description ........................................................................................................................2-5

2.4.1 Model Types................................................................................................................................2-5

2.4.2 Options ........................................................................................................................................2-6

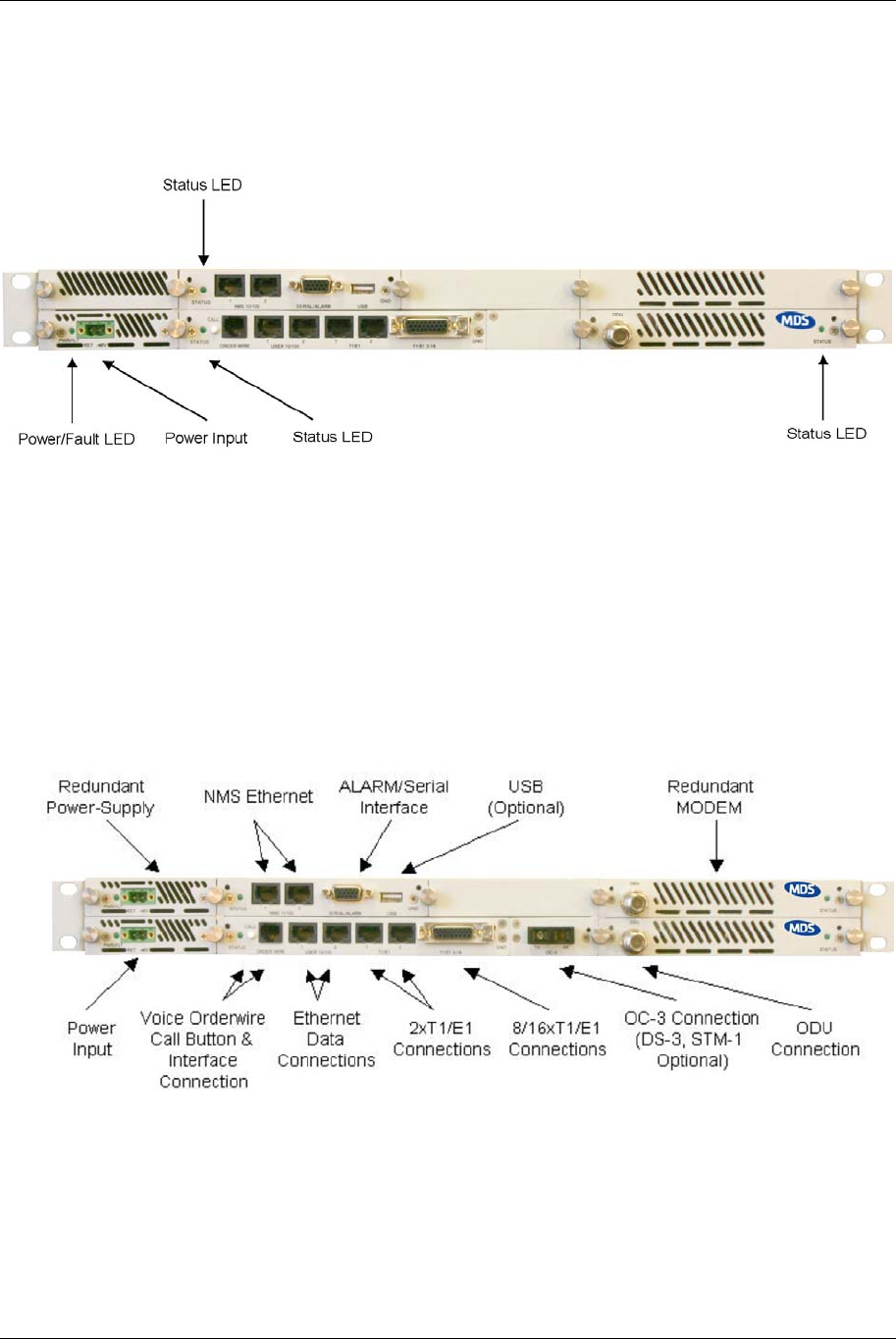

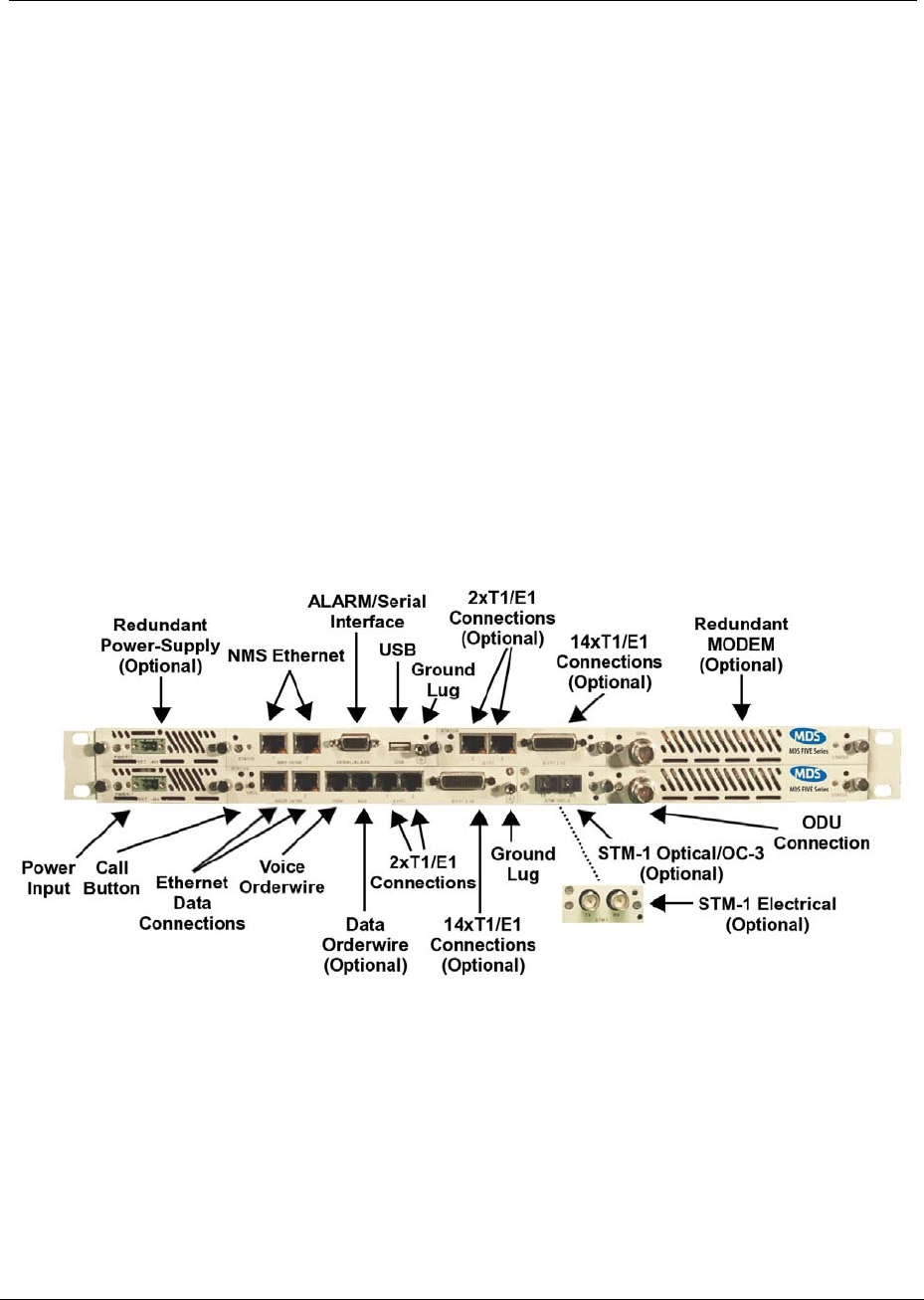

2.4.3 Front Panel Indicators .................................................................................................................2-7

2.4.4 Front Panel Connections.............................................................................................................2-8

2.5 System Description ........................................................................................................................2-11

2.6 Consecutive Point Architecture....................................................................................................2-14

2.7 2 + 0 (East-West) Configuration ....................................................................................................2-16

2.8 Spanning Tree Protocol (STP).......................................................................................................2-17

2.9 1+1 Protection.................................................................................................................................2-17

2.9.1 Protected Non-Diversity (Hot Standby) .....................................................................................2-18

2.9.2 Protected Diversity ....................................................................................................................2-18

2.10 1 + 1 Multi-hop Repeater Configuration .......................................................................................2-19

2.11 Data Interfaces ................................................................................................................................2-21

2.12 Crosspoint Switch ..........................................................................................................................2-21

2.13 Power Management........................................................................................................................2-22

2.14 MDS FIVE Series Software and Network Management...............................................................2-23

2.14.1 IP Address.................................................................................................................................2-24

2.14.2 Network......................................................................................................................................2-24

2.14.3 NMS Network Operational Principles........................................................................................2-24

2.14.4 Third Party Network Management Software Support................................................................2-25

2.15 System Loopbacks.........................................................................................................................2-25

3 INSTALLATION.....................................................................................................................................3-1

3.1 Unpacking..........................................................................................................................................3-1

3.2 Notices...............................................................................................................................................3-2

3.3 Required Tools..................................................................................................................................3-2

3.3.1 SDIDUTM Tools ............................................................................................................................3-2

3.3.2 ODU Tools...................................................................................................................................3-2

3.4 PRE-INSTALLATION NOTES ...........................................................................................................3-3

3.5 Overview of Installation and Testing Process...............................................................................3-3

3.6 Site Evaluation..................................................................................................................................3-5

3.6.1 Preparing for a Site Evaluation....................................................................................................3-6

3.6.2 Site Evaluation Process...............................................................................................................3-7

3.6.3 Critical System Calculations......................................................................................................3-12

3.6.4 Frequency Plan Determination..................................................................................................3-13

3.6.5 Antenna Planning ......................................................................................................................3-15

3.6.6 ODU Transmit Power Setup......................................................................................................3-15

3.6.7 Documenting a Site Evaluation .................................................................................................3-18

3.7 Installation of the MDS FIVE Series..............................................................................................3-21

3.7.1 Installing the MDS FIVE Series Software Defined IDUTM..........................................................3-21

3.7.2 Installing the MDS FIVE Series ODU........................................................................................3-22

3.7.3 Routing the ODU/ SDIDUTM Interconnect Cable .......................................................................3-24

3.8 Quick Start Guide ...........................................................................................................................3-26

3.8.1 Materials Required ....................................................................................................................3-26

3.8.2 Grounding the ODU...................................................................................................................3-26

3.8.3 Grounding the SDIDUTM ............................................................................................................3-28

3.8.4 Connecting the SDIDUTM to the PC and Power Source............................................................3-28

3.8.5 SDIDUTM Configuration..............................................................................................................3-29

3.8.6 ODU Antenna Alignment ...........................................................................................................3-31

3.8.7 Quick Start Settings...................................................................................................................3-32

3.9 SDIDU™ Service .............................................................................................................................3-33

3.9.1 Removing a Module...................................................................................................................3-33

3.9.2 Installing a Module.....................................................................................................................3-34

3.10 Documenting MDS FIVE Series Configuration............................................................................3-35

4 SUMMARY SPECIFICATION................................................................................................................4-1

5 FRONT PANEL CONNECTORS...........................................................................................................5-1

5.1 DC Input (Power) Connector............................................................................................................5-1

5.2 Ethernet 100BaseTX Payload Connector 1-2.................................................................................5-1

5.3 SONET Payload Connector..............................................................................................................5-2

5.4 STM-1 Payload Connector...............................................................................................................5-2

5.5 DS-3/E-3/STS-1 Payload Connector................................................................................................5-2

5.6 NMS 10/100BaseTX Connector 1-2 .................................................................................................5-3

5.7 Alarm/Serial Port Connector............................................................................................................5-3

5.8 ODU Connector.................................................................................................................................5-4

5.9 T1/E1 - Channels 1-2 Connector .....................................................................................................5-4

5.10 T1/E1 - Channels 3-16 Connector ...................................................................................................5-5

5.11 USB ....................................................................................................................................................5-7

5.12 Voice Order Wire...............................................................................................................................5-7

5.13 Data Order Wire ................................................................................................................................5-8

5.13.1 RS422..........................................................................................................................................5-8

5.13.2 RS-232.........................................................................................................................................5-8

6 APPENDIX.............................................................................................................................................6-1

6.1 Alarm Descriptions...........................................................................................................................6-1

6.2 Abbreviations & Acronyms............................................................................................................6-16

1 Safety Precautions

PLEASE READ THESE SAFETY PRECAUTIONS!

RF Energy Health Hazard

The radio equipment described in this guide uses radio frequency transmitters. Although the

power level is low, the concentrated energy from a directional antenna may pose a health hazard.

Do not allow people to come in close proximity to the front of the antenna while the transmitter is

operating. The antenna will be professional installed on fixed-mounted outdoor permanent

structures to provide separation from any other antenna and all persons as detailed on page 1-3.

Protection from Lightning

Article 810 of the US National Electric Department of Energy Handbook 1996 specifies that radio

and television lead-in cables must have adequate surge protection at or near the point of entry to

the building. The code specifies that any shielded cable from an external antenna must have the

shield directly connected to a 10 AWG wire that connects to the building ground electrode.

Warning – This is a Class A product

Warning – This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Warning – Turn off all power before servicing

Warning – Turn off all power before servicing.

Safety Requirements

Safety requirements require a switch be employed between the SDIDU™ external power supply

and the SDIDU™ power supplies.

05-4498A01, Rev. G

User Reference and Installation Guide 1-2

Proper Disposal

The manufacture of the equipment described herein has required the extraction and use of

natural resources. Improper disposal may contaminate the environment and present a health risk

due to the release of hazardous substances contained within. To avoid dissemination of these

substances into our environment, and to lessen the demand on natural resources, we encourage

you to use the appropriate recycling systems for disposal. These systems will reuse or recycle

most of the materials found in this equipment in a sound way. Please contact Microwave Data

Systems or your supplier for more information on the proper disposal of this equipment.

FCC Notice, USA

Microwave Data Systems Digital Radios comply with Part 15 of the FCC rules. The radios are

specifically designed to be used under Part 15, Section 15.247 of the FCC rules and regulations.

Operation is subject to following conditions:

• The device to utilize a fixed mount antenna, for use on a permanent outdoor structure.

• The device to be installed by qualified installation/deployment personnel. When the

device is operating, a minimum separation must exist between the device and persons as

shown in the table below. The following method was used to calculate the RF safety

distance:

SMPE = PG/4πrmin2 = EIRP/4πrmin2

which is solved for the minimum separation distance

rmin = (PG/4πSMPE)1/2 = (EIRP/4πSMPE)1/2

where P = power input to the antenna (mW), EIRP = Equivalent (effective) isotropic

radiated power, S = maximum permissible exposure (mW/cm2), G = numeric gain of the

antenna relative to an isotropic radiator, and rmin is the minimum separation distance to

the center of radiation (cm). The resulting separation distances are dependent on

frequency band.

Frequency Band Minimum Distance (cm)

UNII Band (nominal frequency = 5.25 GHz) 9

ISM Band (nominal frequency = 5.725 GHz) 371

• The device installers and operators should be aware of the transmitter operating

conditions, specified in the installation manual and other associated user documentation,

as well as the antenna co-location requirements of Part 1.1307 (b) (3), of FCC rules,

pertaining to RF exposure.

• The device may not cause harmful interference.

• The device must accept interference received, including interference that may cause

undesired operation.

05-4498A01, Rev. G

User Reference and Installation Guide 1-3

05-4498A01, Rev. G

The device is intended to be used only when installed in accordance with instructions outlined in

this manual. Failure to comply with these instructions may void the user's authority to operate

this device and/or the manufacturer's warranty. Furthermore, any unauthorized modification or

changes to this device without the express approval of Microwave Data Systems may also void

the user's authority to operate this device.

FCC Part 15 Notice

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area may cause harmful

interference, in which case the user will be required to correct the interference at his expense.

Any external data or audio connection to this equipment must use shielded cables.

05-4498A01, Rev. G

2 System Description

2.1 About This Manual

This manual is written for those who are involved in the “hands-on” installation of the

MDS FIVE Series Digital Transceiver, such as installation technicians, site evaluators, project

managers, and network engineers. It assumes the reader has a basic understanding of how to

install hardware, use Windows® based software, and operate test equipment.

The MDS FIVE Series includes a Software Defined Indoor UnitTM (SDIDUTM) and outdoor unit

(ODU). The SDIDUTM is a product and trademark of CarrierComm.

2.2 Introduction

The Microwave Data Systems family of digital radios provides high capacity transmission,

flexibility, features, and convenience for wireless digital communications networks. The

Microwave Data Systems digital point-to-point radios represent a new microwave architecture

that is designed to address universal applications for both PDH and SDH platforms. This

advanced technology platform is designed to provide the flexibility to customers for their current

and future network needs.

The Microwave Data Systems radio family is based upon a common platform to support a wide

range of network interfaces and configurations. It supports links for 16 x E1/T1, 100BaseTX

Ethernet, and DS-3/E-3/STS-1 (optional, consult factory for availability). The radio family is

spectrum and data rate scalable, enabling service providers or organizations to trade-off system

gain with spectral efficiency and channel availability for optimal network connectivity. The

Microwave Data Systems digital radio family enables network operators (mobile and private),

government and access service provides to offer a portfolio of secure, scalable wireless

applications for data, video, and Voice over IP (VoIP).

The MDS FIVE Series digital radio family operates in the Industrial, Scientific, and Medical (ISM)

band of 5.725 to 5.850 GHz, which is generically referred to as 5.8 GHz, and the Unlicensed

National Information Infrastructure (U-NII) band of 5.25 to 5.35 GHz, which is generically referred

to as 5.3 GHz. The MDS FIVE Series supports three types of user data payload connectivity:

• 100Base-TX intelligent bridging between two locations without the delay and expense of

installing cable or traditional microwave.

• Scalable Ethernet capability of 25 and 50 Mbps is included. These scalable radios provide

LAN connectivity and offer performance trade-offs between operational bandwidths, data

rates, and distance.

User Reference and Installation Guide 2-2

• 16E1 or T1 for cellular backhaul, enterprise voice applications and voice network redundancy

For customers such as cellular carriers requiring backhaul and backbone extension as well

as service providers requiring network redundancy, new Points of Presence (POPs), and last mile

access, the MDS FIVE Series radio is a cost effective alternative to leased lines with carrier-class

quality of performance. The MDS FIVE Series is a cost effective solution to meet the growing

demand for enterprise Local Area Network (LAN) connectivity between buildings and campuses

as well as service providers requiring reliable products for infrastructure expansion, extending

Metropolitan Area Network (MAN) fiber access, and network redundancy.

The MDS FIVE Series includes integrated Network Management functionality and design features

enabling simple commissioning when the radio network is initially set up in the field at the

customer’s premises. Furthermore, a highlight of MDS radio products is scalability and the

capability to support a ring-type architecture. This ring or consecutive point radio architecture is

self-healing in the event of an outage in the link and automatically re-routes data traffic, thereby

ensuring that service to the end user is not interrupted.

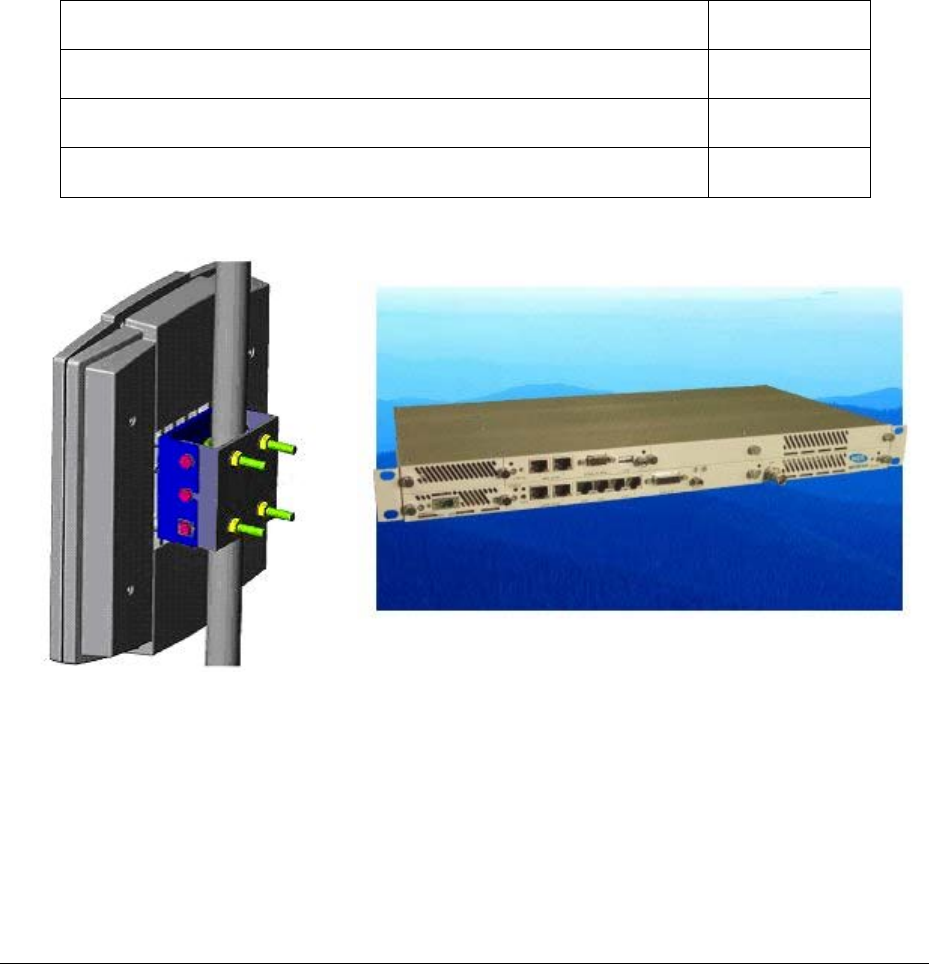

The MDS FIVE Series is composed of a Software Defined Indoor UnitTM (SDIDUTM) and Outdoor

Unit (ODU). It supports 1+0 and 1+1 protection and ring architectures in a single 1 RU chassis.

The modem and power supply functions are supported using easily replaceable plug-in modules.

An additional feature of the SDIDUTM is provision for a second plug-in modem/IF module to

provide repeater or east/west network configurations.

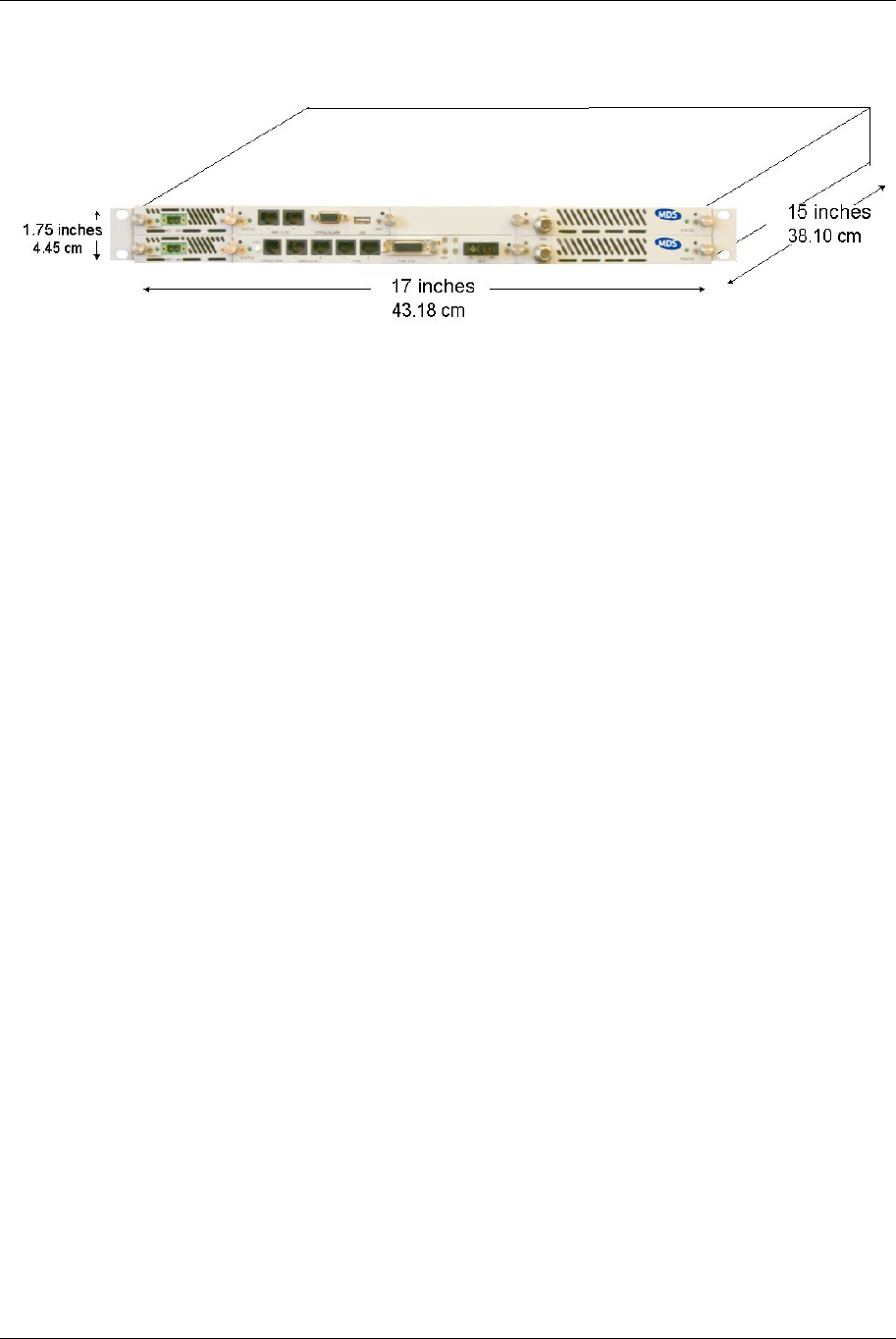

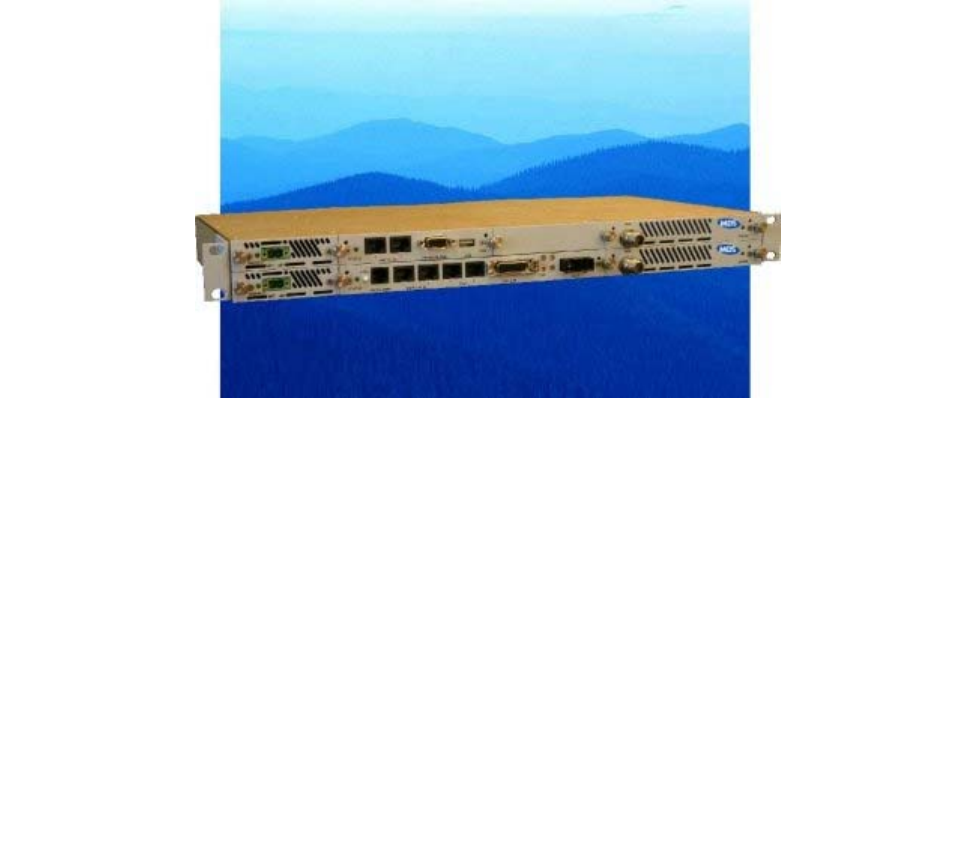

The overall architecture consists of a single 1RU rack mount Software Defined Indoor Unit

(SDIDUTM) with a cable connecting to an Outdoor Unit (ODU) with an external antenna.

Core Access

Network

Indoor Unit

Outdoor

Unit

Outdoor

Unit

Outdoor

Unit

Outdoor

Unit

Outdoor

Unit

Outdoor

Unit

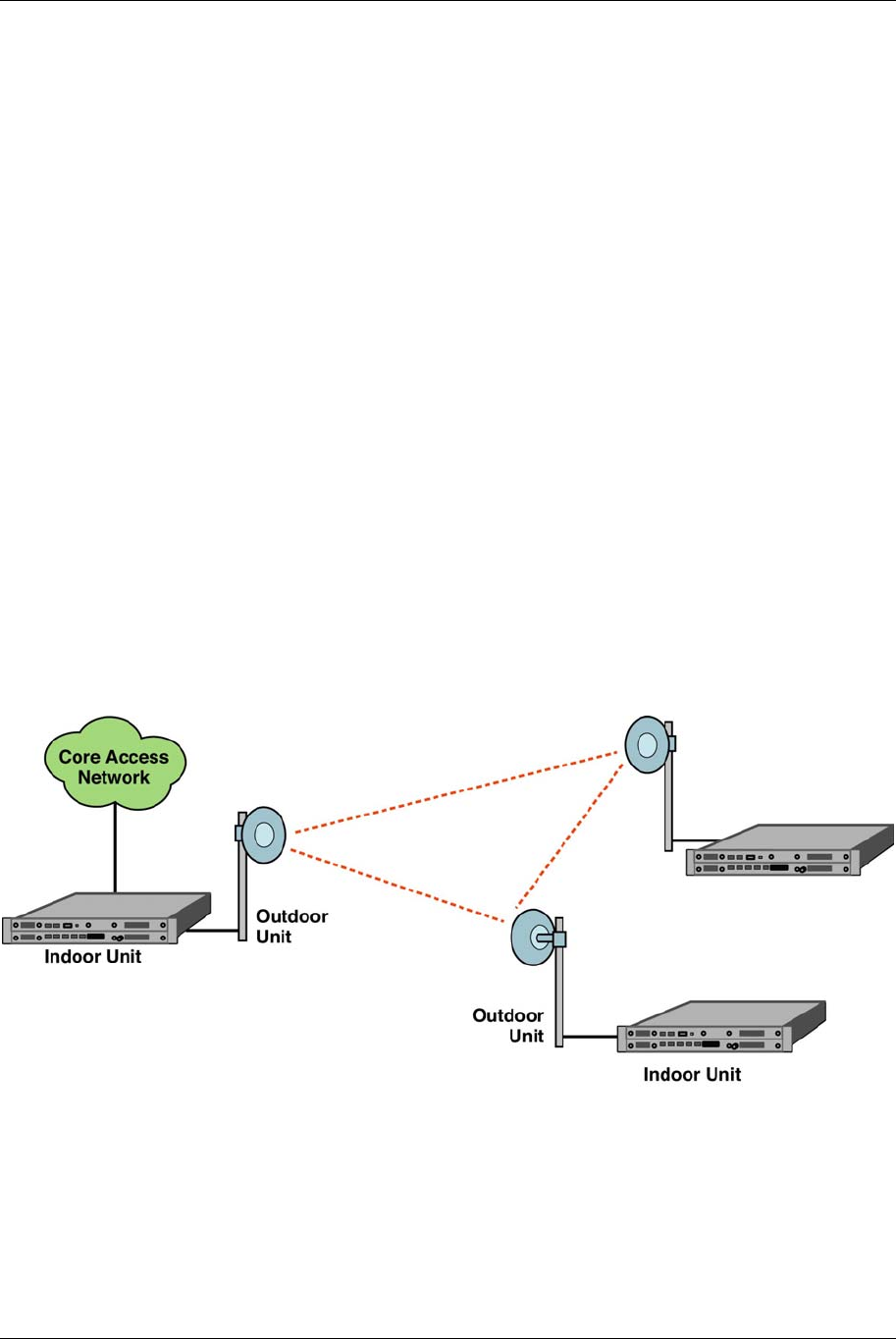

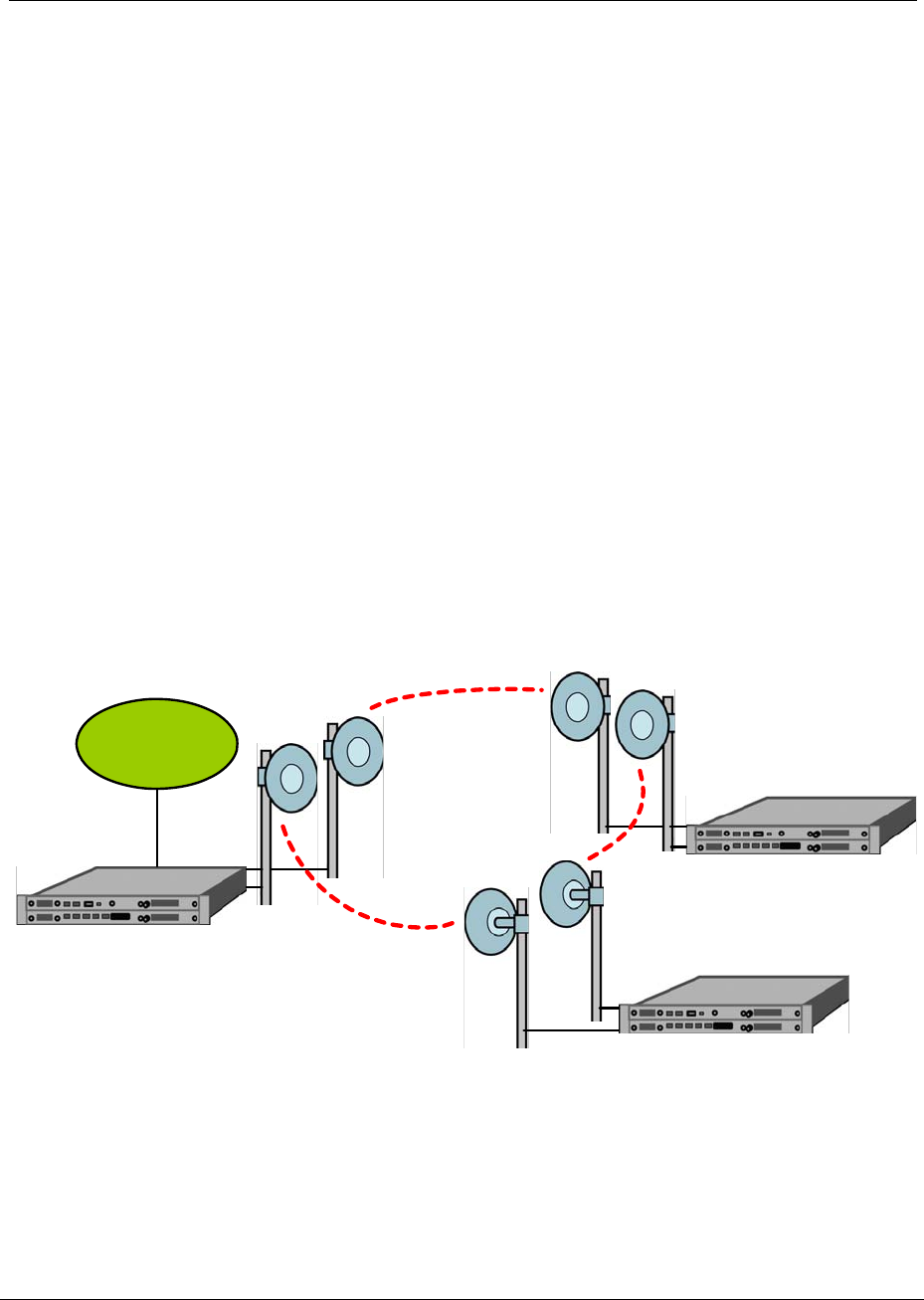

Figure 2-1. MDS FIVE Series SDIDUTM /ODU Architecture

Table 2-1 lists key features that MDS FIVE Series technology offers to those involved in the

design, deployment and support of broadband fixed wireless networks.

05-4498A01, Rev. G

User Reference and Installation Guide 2-3

05-4498A01, Rev. G

Table 2-1 Key Benefits and Advantages of MDS FIVE Series Radios

Benefits Advantages to Providers/Customers Reference

Wireless license-exempt system

ISM bands do not require expensive

license band fees or incur licensing delays.

Wireless connectivity supplements existing

cable (Ethernet).

Fast return on investment.

Lower total cost of total ownership.

Media diversity avoids single points of

failure.

2.2 –2.4

Easy to install units

Straightforward modular system enables

fast deployment and activation.

Carrier-class reliability.

Fast return on investment.

No monthly leased line fees.

3.5

Complete support of payload capacity with additional wayside channels

Aggregate capacity beyond basic payload

(34 Mbps or 50 Mbps or 100 Mbps).

Scalable and spectrally efficient system.

Separate networks for radio

overhead/management and user payload.

Increases available bandwidth of network.

Allows customer full use of revenue-

generating payload channel.

Up to 16 T1/E1 wayside channels supports

extension of PBX connectivity between

buildings without additional leased-line

costs.

Lowers total cost of ownership.

2.2– 0

Ring Architecture

Supports a ring (consecutive point)

configuration, thus creating a self-healing

redundancy that is more reliable than

traditional point-to-point networks.

In the event of an outage, traffic is

automatically rerouted via another part of

the ring without service interruption.

Ring/consecutive point networks can

overcome line-of-sight issues and reach

more buildings than other traditional

wireless networks.

Networks can be expanded by adding

more MDS FIVE Series units or more rings

without interruption of service.

Enables network scalability.

Increases deployment scenarios for initial

deployment as well as network expansion

with reduced line-of-sight issues.

Increases network reliability due to self-

healing redundancy of the network.

Minimizes total cost of ownership and

maintenance of the network.

Allows for mass deployment.

2.6,2.7,2.10

User Reference and Installation Guide 2-4

05-4498A01, Rev. G

Benefits Advantages to Providers/Customers Reference

A separate management channel allows

for a dedicated maintenance ring with

connections to each MDS FIVE Series

Digital Radio on the ring.

Adaptive Power Control

Automatically adjusts transmit power in

discrete increments in response to RF

interference.

Enables dense deployment.

Simplifies deployment and network

management.

2.12

Comprehensive Link/Network Management Software

A graphical user interface offers security,

configuration, fault, and performance

management via standard craft interfaces.

Suite of SNMP-compatible network

management tools that provide robust

local and remote management capabilities.

Simplifies management of radio network

and minimizes resources as entire network

can be centrally managed out of any

location.

Simplifies troubleshooting of single radios,

links, or entire networks.

Simplifies network upgrades with remote

software upgrades.

Allows for mass deployment.

2.14

2.3 System Features

 Selectable Rates and Interfaces

o Up to 16 x E1/T1 (wayside channels)

o 100BaseTX/Ethernet: Scalable 25-100 Mbps

o DS-3/E-3/STS-1 (option; consult factory for availability)

 Support for multiple configurations

o 1+0, 1+1 protection/diversity

o Hot Standby

o East/West Repeater (2 + 0)

 Selectable Spectral Efficiency of 0.8 to 6.25 bits/Hz (including FEC and spectral shaping

effects)

User Reference and Installation Guide 2-5

05-4498A01, Rev. G

 QPSK, 16 – 64 QAM Modulation

 Powerful Trellis Coded Modulation concatenated with Reed-Solomon Error Correction

 Built-in Adaptive Equalizer

 Support of Voice Orderwire Channels

 Peak output power at antenna port

o 30 dBm at 5.8 GHz

o 12 dBm at 5.3 GHz

 Receive Sensitivity: -84 dBm to -72 dBm (depending on data rate/modulation/FEC/ODU)

 Adaptive Power Control

 Built-in Network Management System (NMS)

 Consecutive Point ring architecture

 Built-in performance statistics

o Built-in Bit Error Rate (BER) performance monitoring

 Data encryption of all payload data and T1/E1 wayside channels for MDS FIVE Series-

100 and MDS FIVE Series-50 Ethernet models (Consult factory for availability)

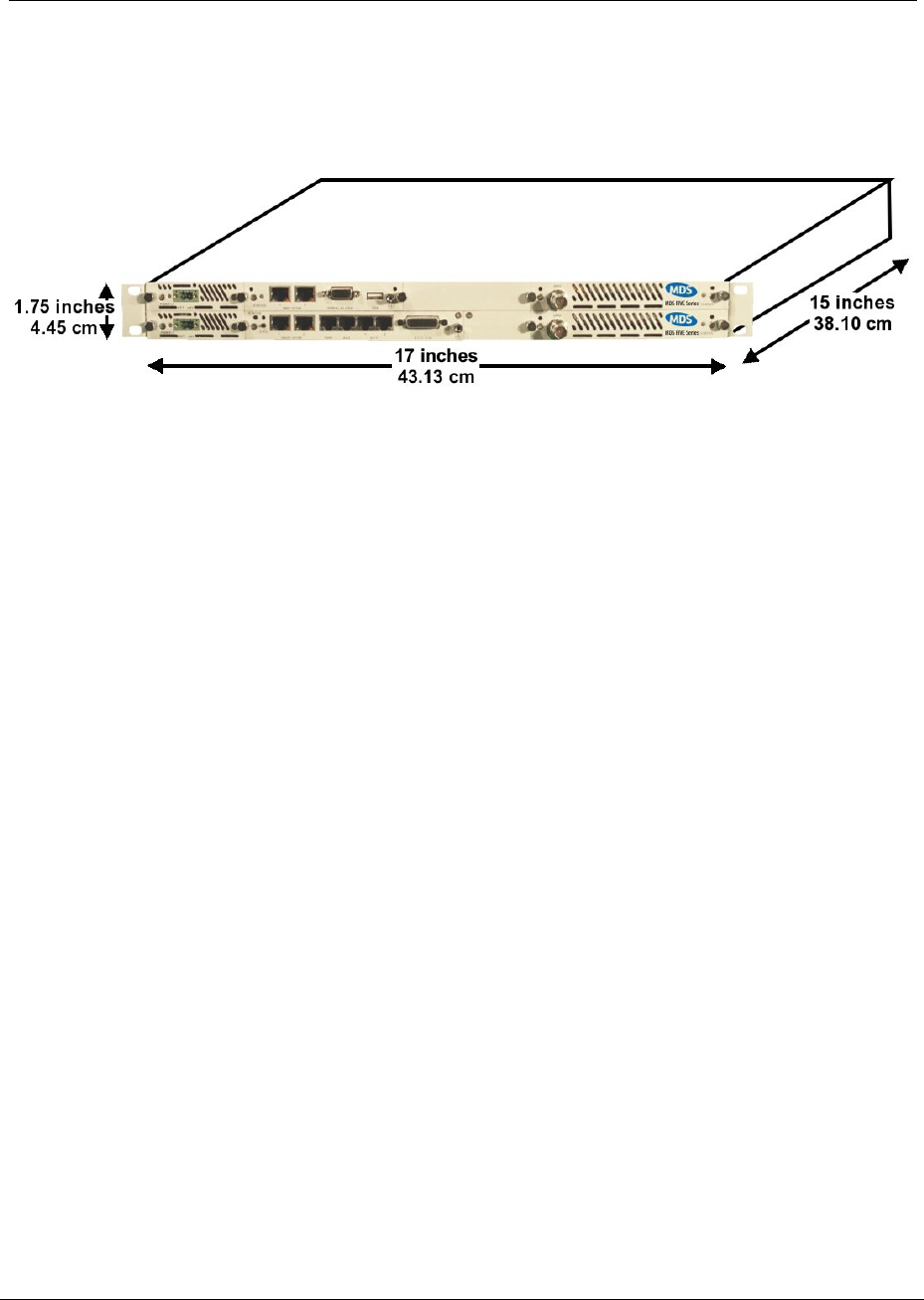

2.4 Physical Description

The following section details the physical features of the MDS FIVE Series digital radios

• Model types

• Front panel indicators

• Front panel connections

2.4.1 Model Types

Table 2-2 lists the MDS FIVE Series digital radios according to model number and associated

capabilities of throughput, data interface, and wayside channel. Table 2-3 lists the ODU model

numbers.

User Reference and Installation Guide 2-6

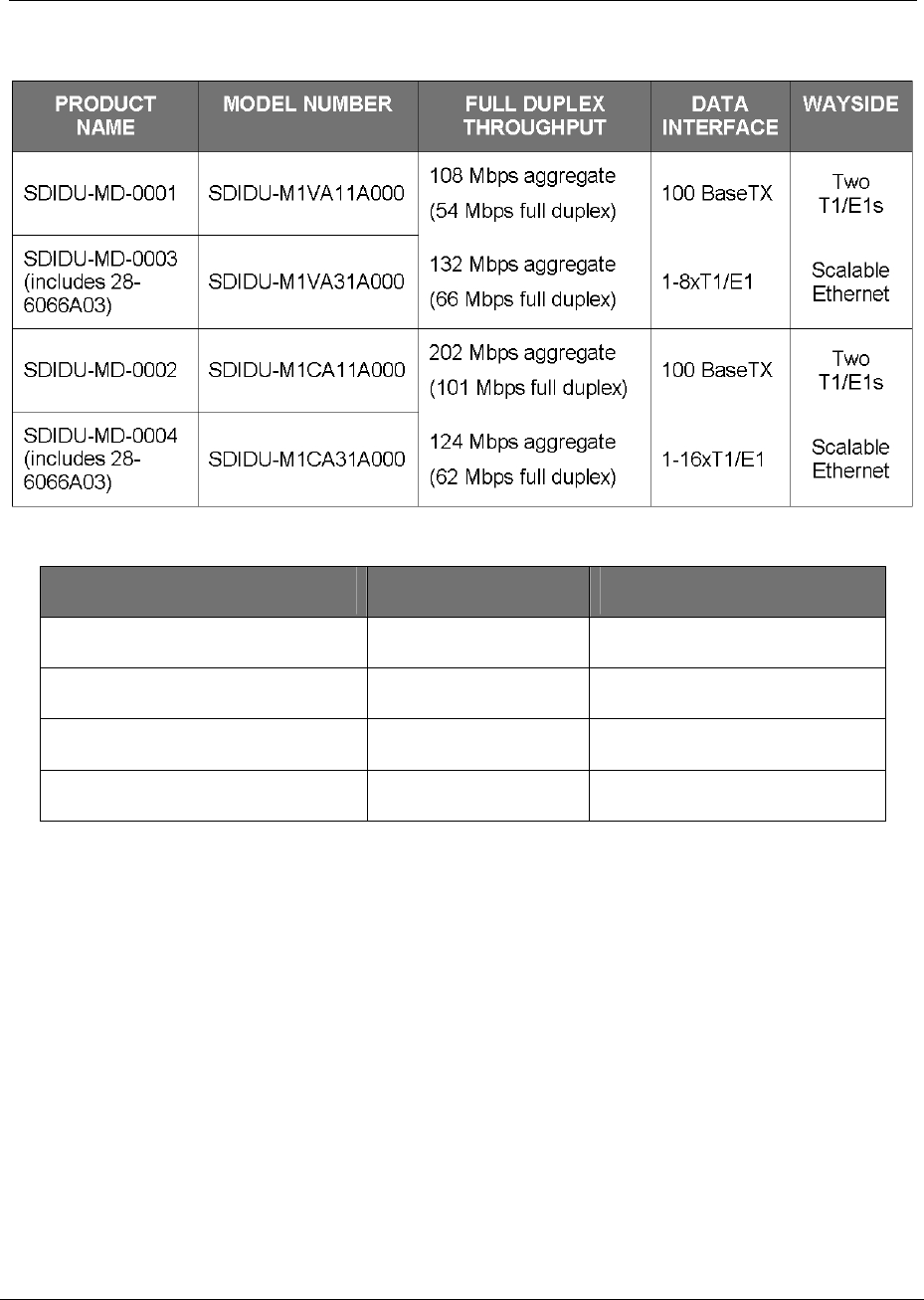

Table 2-2 MDS FIVE Series SDIDU™ Model Type

Table 2-3 MDS FIVE Series ODU Model Types

PRODUCT NAME MODEL NUMBER ANTENNA

MDS FIVE Series 5.8 ODU-I ODU5800MIP Integrated antenna

MDS FIVE Series 5.8 ODU-E ODU5800MEP External antenna required

MDS FIVE Series 5.3 ODU-I ODU5300MIP Integrated antenna

MDS FIVE Series 5.3 ODU-E ODU5300MEP External antenna required

2.4.2 Options

The following items are also available:

• AC/DC power supply

• Data Encryption

• Upgrade 50Mbps Ethernet systems to 100Mbps capability

• OC-3/STM-1 Mini-IO Module

Please consult the factory for more information.

05-4498A01, Rev. G

User Reference and Installation Guide 2-7

2.4.3 Front Panel Indicators

All models of the MDS FIVE Series support a variety of front panel configurations that are

dependent on the network interface and capacity configurations.

Figure 2-2 provides an example of the MDS FIVE Series 1+0 configuration and the associated

LEDs displayed on the SDIDUTM front panel. The controller, standard I/O, and each modem card

have a status LED.

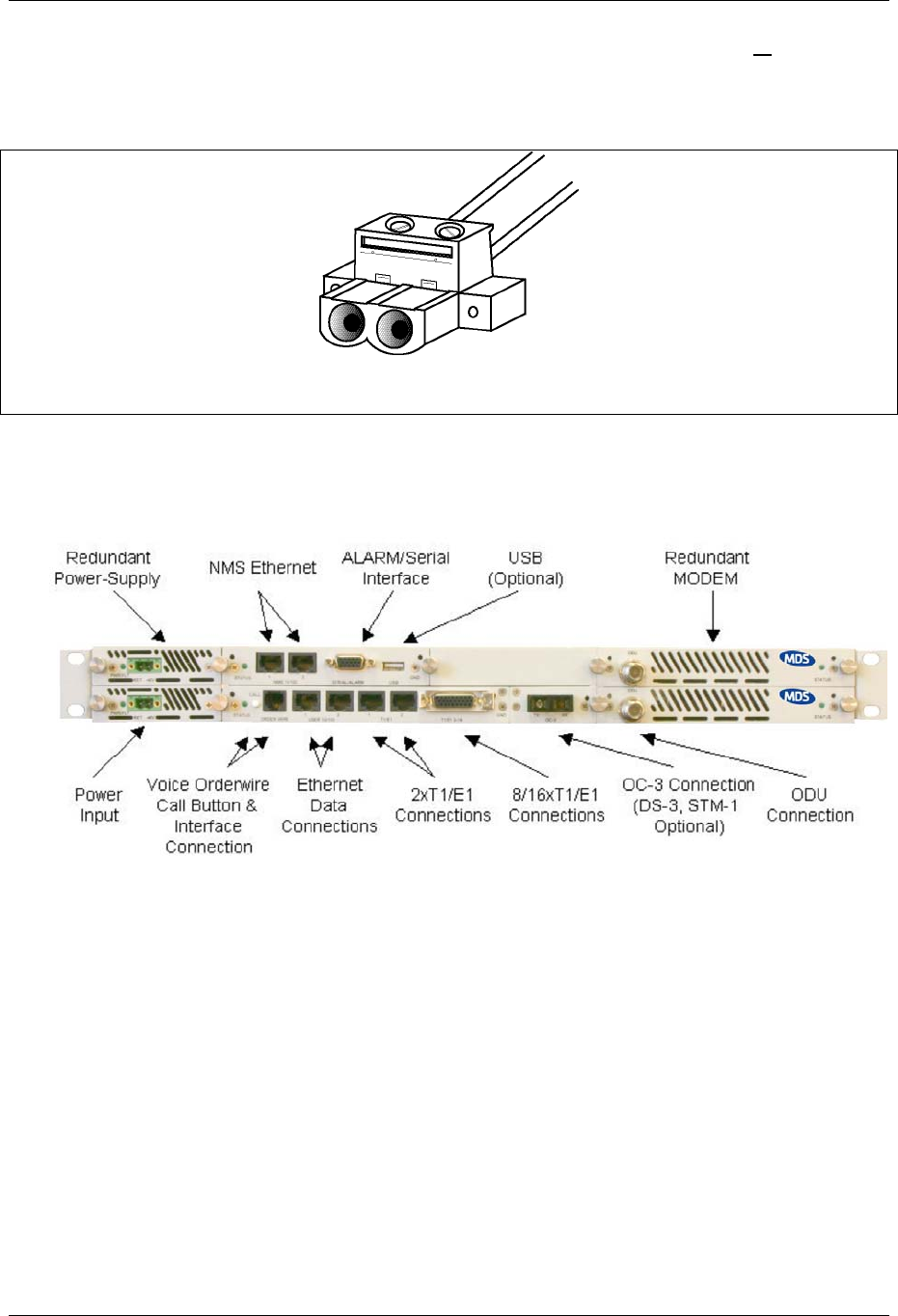

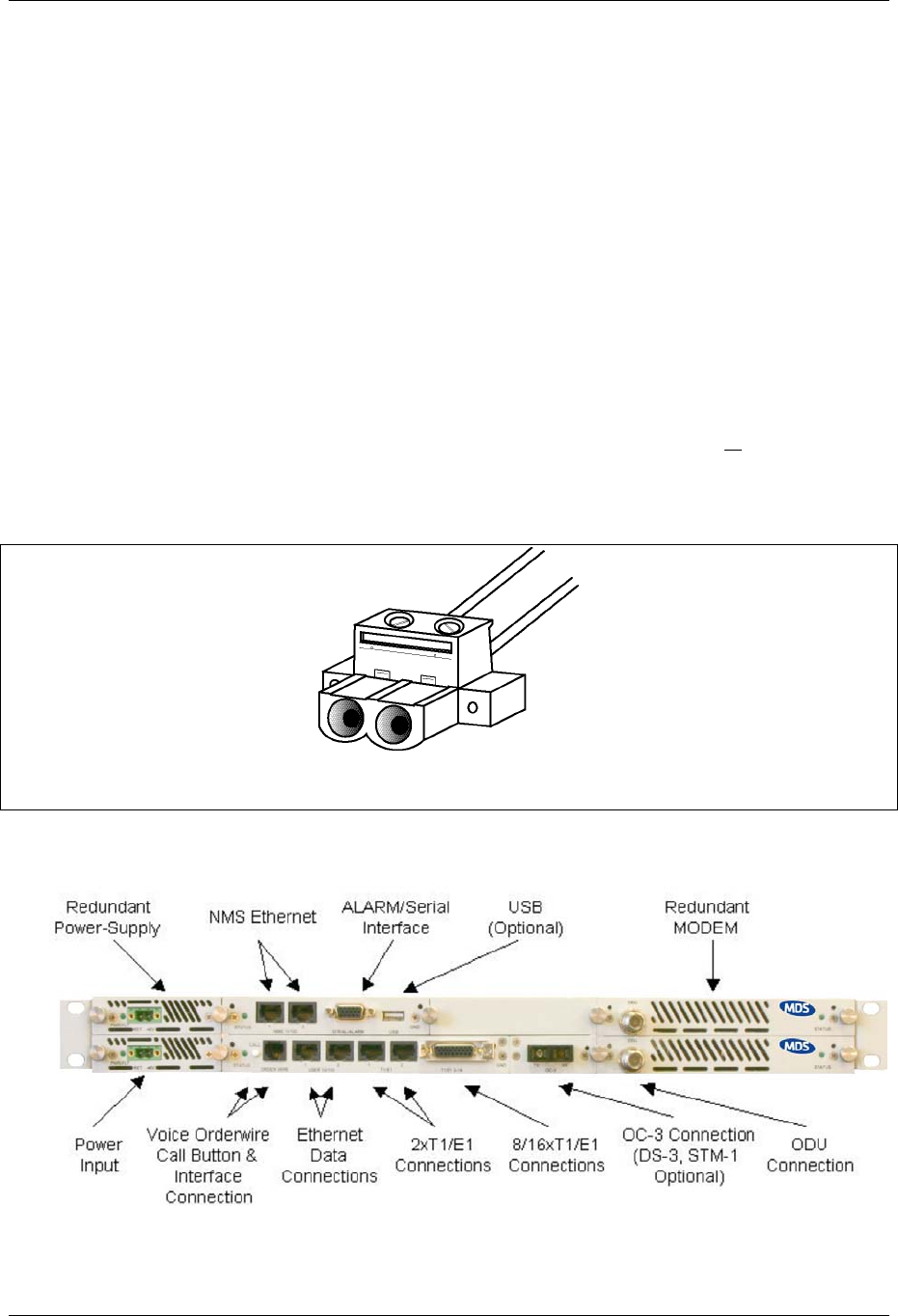

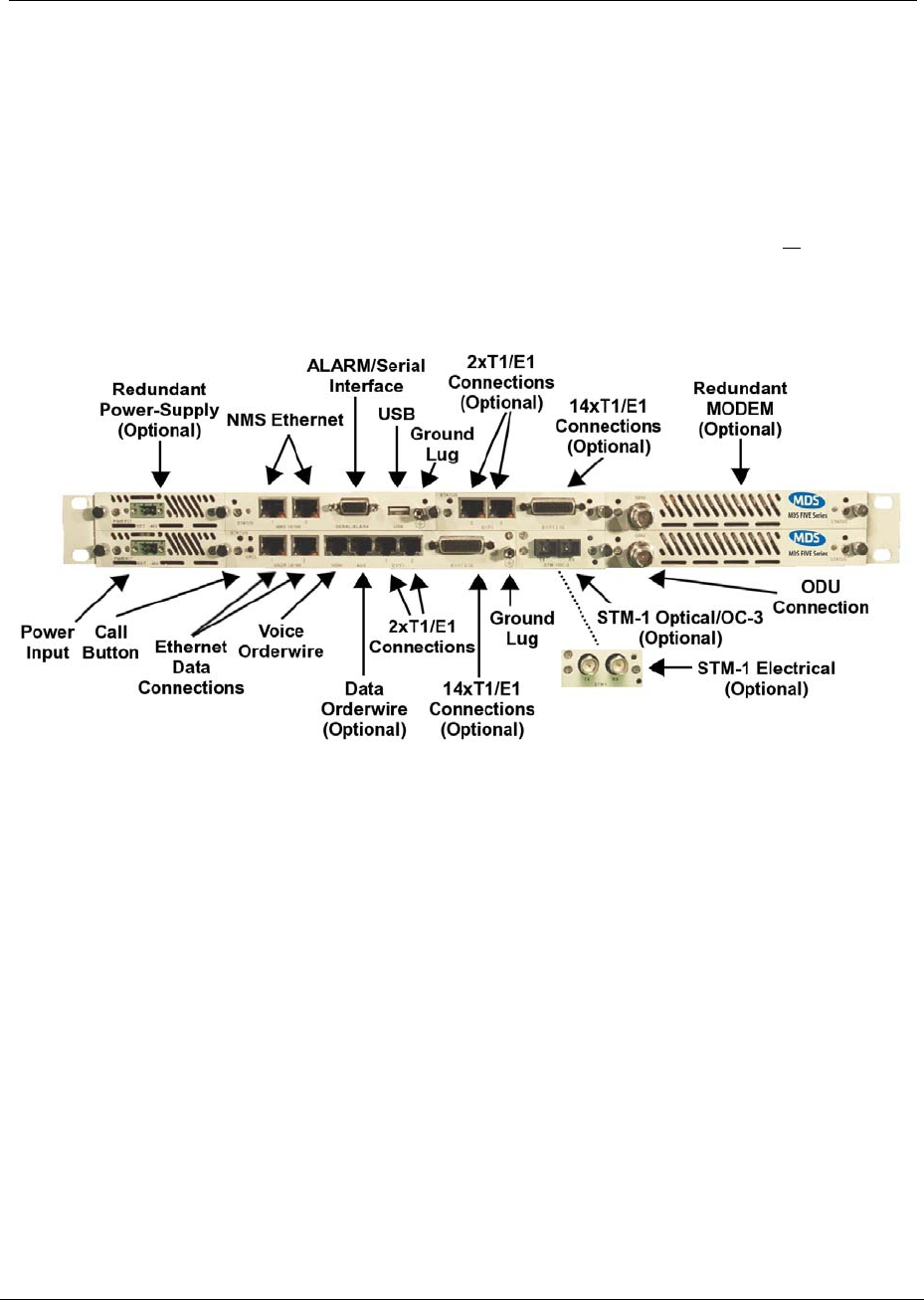

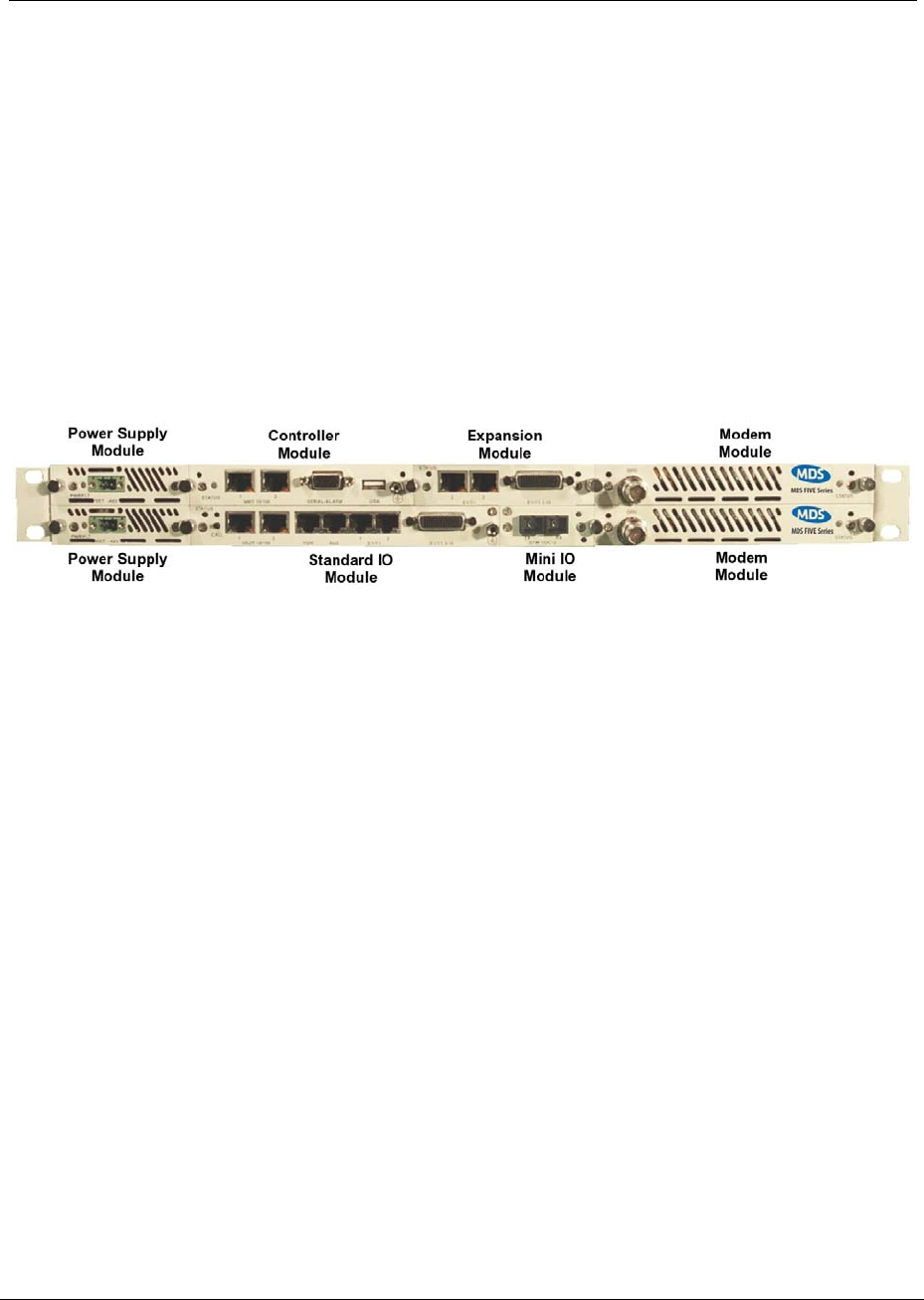

Figure 2-2. MDS FIVE Series LEDs: SDIDUTM Front Panel Configuration for MDS FIVE Series,

1+0 Configuration

The modem status LED indicates the modem status as described in Table 2-4.

Table 2-4. Modem status LED.

LED STATUS

Green Active Locked Link

Orange Standby Locked Link (1+1 Non-Diversity Only)

Flashing Green Low SNR

Flashing Orange Unlocked

The controller status LED is the primary front panel indicator of alarms. An alarm is generated

when a specific condition is identified and is cleared when the specified condition is no longer

detected. When an alarm is posted,

1. The controller status LED turns orange for 5 seconds

2. The controller status LED turns off for 5 seconds

05-4498A01, Rev. G

User Reference and Installation Guide 2-8

3. The controller status LED flashes orange the number of times specified by the first digit of

the alarm code

4. The controller status LED turns off for 3 seconds

5. The controller status LED flashes orange the number of times specified by the second

digit of the alarm code

Steps 2-5 are repeated for each alarm posted. The entire process is repeated as long as the

alarms are still posted.

The standard I/O and modem status LEDs are set to red when certain alarms are posted. A

complete list of alarms is provided in Appendix 6.1.

The alarm description is also displayed in the Graphical User Interface (GUI) as described in the

User Interface Reference Manual.

2.4.4 Front Panel Connections

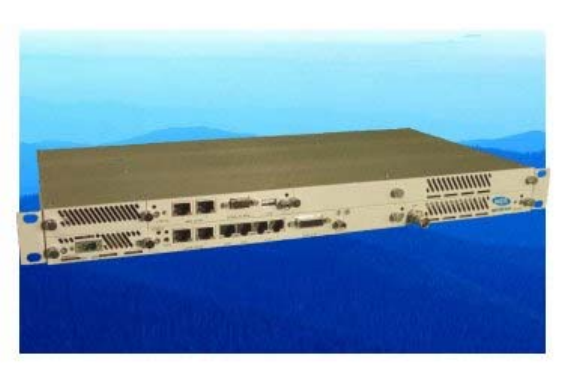

Please refer to the Figure 2-3 for an example of a MDS FIVE Series SDIDUTM front panel

followed by a descriptive text of the connections.

Figure 2-3. SDIDUTM Front Panel Connections

05-4498A01, Rev. G

User Reference and Installation Guide 2-9

05-4498A01, Rev. G

Power Supply Input

DC Input

-48 VDC

-48v (Isolated Input); 2-pin captive power connector. The

MDS FIVE Series requires an input of -48 volts dc ±10% at

the front panel DC Input connector. The total required power

is dependent on the option cards and protection configuration

(1+0, 1+1). The SDIDUTM front panel power connector pin

numbering is 1 through 2, from left to right, when facing the

unit front panel. Pin 1 is the power supply return and is

connected to unit chassis ground internally. Pin 2 should be

supplied with a nominal -48 V dc, with respect to the unit

chassis (ground). A ground-isolated supply may be used,

provided it will tolerate grounding of its most positive output.

The recommended power input is -44 to -52 V dc at 2 Amps

minimum. It is recommended that any power supply used be

able to supply a minimum of 100 W to the SDIDUTM.

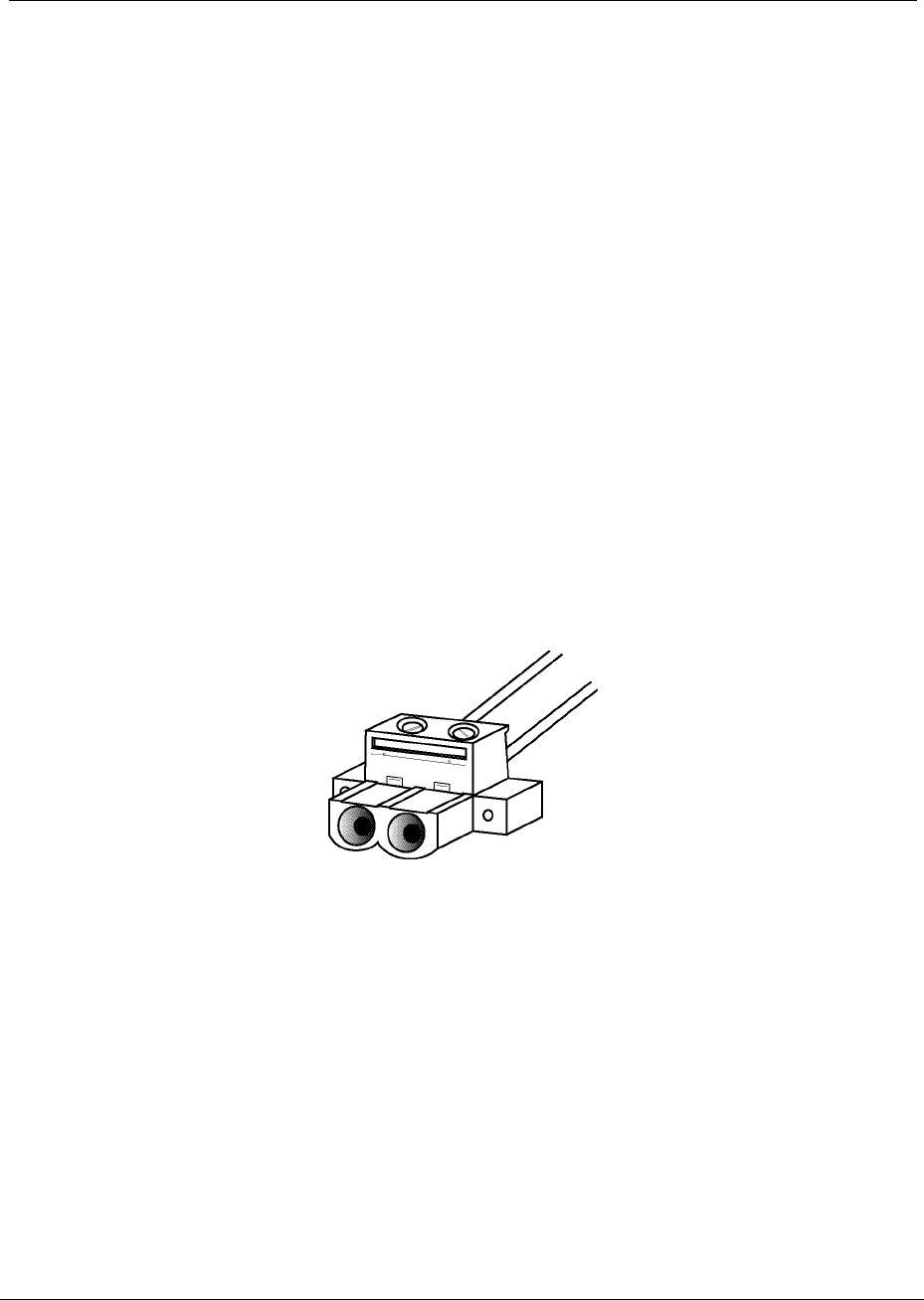

A mating power cable connector is supplied with the MDS

FIVE Series SDIDUTM. It is a 2-pin plug, 5 mm pitch,

manufactured by Phoenix Contact, P/N 17 86 83 1

(connector type MSTB 2,5/2-STF). This connector has

screw clamp terminals that accommodate 24 AWG to 12

AWG wire. The power cable wire should be selected to

provide the appropriate current with minimal voltage drop,

based on the power supply voltage and length of cable

required. The recommended wire size for power cables

under 10 feet in length supplying -48 Vdc is 18 AWG.

The SDIDUTM supplies the ODU with all required power via

the ODU/SDIDUTM Interconnect cable. The MDS FIVE

Series SDIDUTM does not have a power on/off switch. When

DC power is connected to the SDIDUTM, the digital radio

powers up and is operational. There can be up to 320 mW of

RF power present at the antenna port (external antenna

version). The antenna should be directed safely when power

is applied.

User Reference and Installation Guide 2-10

05-4498A01, Rev. G

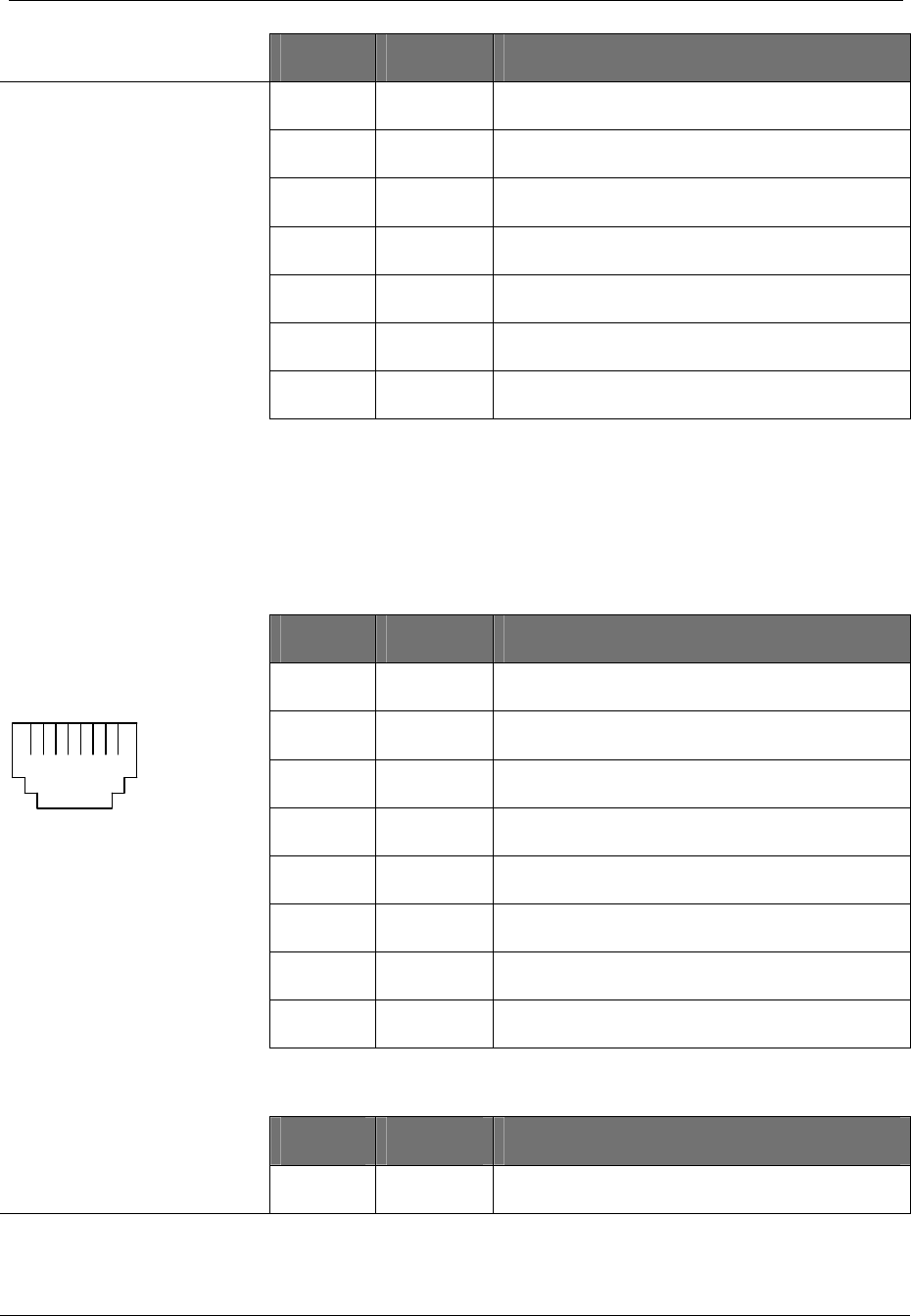

Alarm/Serial Interface

Alarms/Serial DB-15HD female connector for two Form-C relay alarm

outputs (rated load: 1A @ 24 VDC), two TTL alarm outputs,

four TTL alarm inputs, and Serial Console. The two Form-C

relay alarm outputs can be configured to emulate TTL alarm

outputs.

USB Interface

USB USB connector, reserved.

Voice Orderwire Connector

Call Button The voice orderwire provides a PTP connection via a PTT

handset and buzzer. The call button initiates a ring. Only the

SDIDU™’s link partner will receive the ring. VOW does not

ring all nodes or support “party line” calls.

Voice

Orderwire RJ-45 modular port connector for voice orderwire interface.

Data Orderwire Connector

Data Orderwire RJ-45 modular port connector for RS422/RS-232 data at 64

kbps.

NMS 10/100 Network Management System Connections

NMS 10/100 1 10/100Base-TX RJ-45 modular local port connector for

access to the Network Management System (SNMP) and

GUI.

NMS 10/100 2 10/100BaseTX RJ-45 modular remote port connector for

access to the Network Management System (SNMP). This

port to be used for consecutive point networks.

100/Ethernet Models: Ethernet 100BaseT Connections

USER 10/100 1 100Base-TX RJ-45 modular port connector for the local Fast

Ethernet interface.

USER 10/100 1 100Base-TX RJ-45 modular port connector. This port to be

used for consecutive point networks.

T1 Channels

T1 1-2 Two T1/E1 (RJ-48C) interface connections.

T1 3-16 Fourteen T1/E1 high density interface connector

User Reference and Installation Guide 2-11

05-4498A01, Rev. G

Ground Connection

Ground Lug Two ground lugs are provided on the front panel. Either may

be used to connect the SDIDU™ to ground.

2.5 System Description

The overall digital radio architecture consists of a single 1RU rack mount Software Defined Indoor

UnitTM (SDIDUTM) with a cable connecting to an Outdoor Unit (ODU). The ODU is available with

an integrated antenna or connectors to support an external antenna. Two ODU types are

available servicing the 5.8 GHz band or the 5.3 GHz band. This SDIDUTM /ODU architecture is

advantageous when compared to a single IDU with external mount antenna since supporting a

signal of 5.8 GHz from the IDU rack to the antenna will result in significant signal degradation,

which would require expensive coaxial cable or waveguide.

Figure 2-4 shows the SDIDUTM and interfaces from a functional point of view. The functional

partitions for the I/O, Modem/IF, and power supply modules are shown. The SDIDUTM comes

with the standard I/O capability that can be upgraded. In addition, the Modem/IF function is

modular. This allows the addition of a second Modem to support protection or ring architectures.

The power supply is similarly modular.

User Reference and Installation Guide 2-12

External

Antenna

Internal/

Horizontal

Antenna

Transfer

Switch Duplexer

Diversity

Switch

Transmitter

Up-Converter

Receiver

Down-Converter

350

MHz

140

MHz

DC/DC

Converters

-48Vdc +10Vdc

+5Vdc

+3Vdc

-5Vdc

Commlink

& Processor

5/10

MHz

ODU

RSL

(Received

Signal Level)

Voltage

Vertical

Antenna

TNC

N-type

BNC

5.3/

5.8

GHz

FRAMER

STM-1/OC3

DS-3/ES/

STS-1

2xSTM-1/

OC3

4xDS3/ES/

STS1

Future

64 kbps

Voice

16 T1/E1

User 2x

100Base-Tx Switch MODEM/

FEC ASIC

MODEM/

FEC ASIC

4x44.736/34.368/

51.84 Mbps

2x 155.52 Mbps

4x44.736/34.368/

51.84 Mbps

155.52 Mbps

2x 100 Mbps

16x 1.544/2.048

Mbps

Digital

Quad

Mux

SNMP 2x

100Base-Tx Switch

CPU

East/Primary Modem

West/Secondary Modem

Digital

Quad

Mux

2x 100 Mbps

IDU

CONTROLLER

Optional I/O Cards

(Small Slot)

Standard I/O Cards

Optional I/O Cards

(Large Slot) Primary Power

Supply

Secondary Power

Supply

Serial

RCH Serial

Modem Control

Telemetry

IDU

-48Vdc

Quad

Mux

-48Vdc

Multiplexed

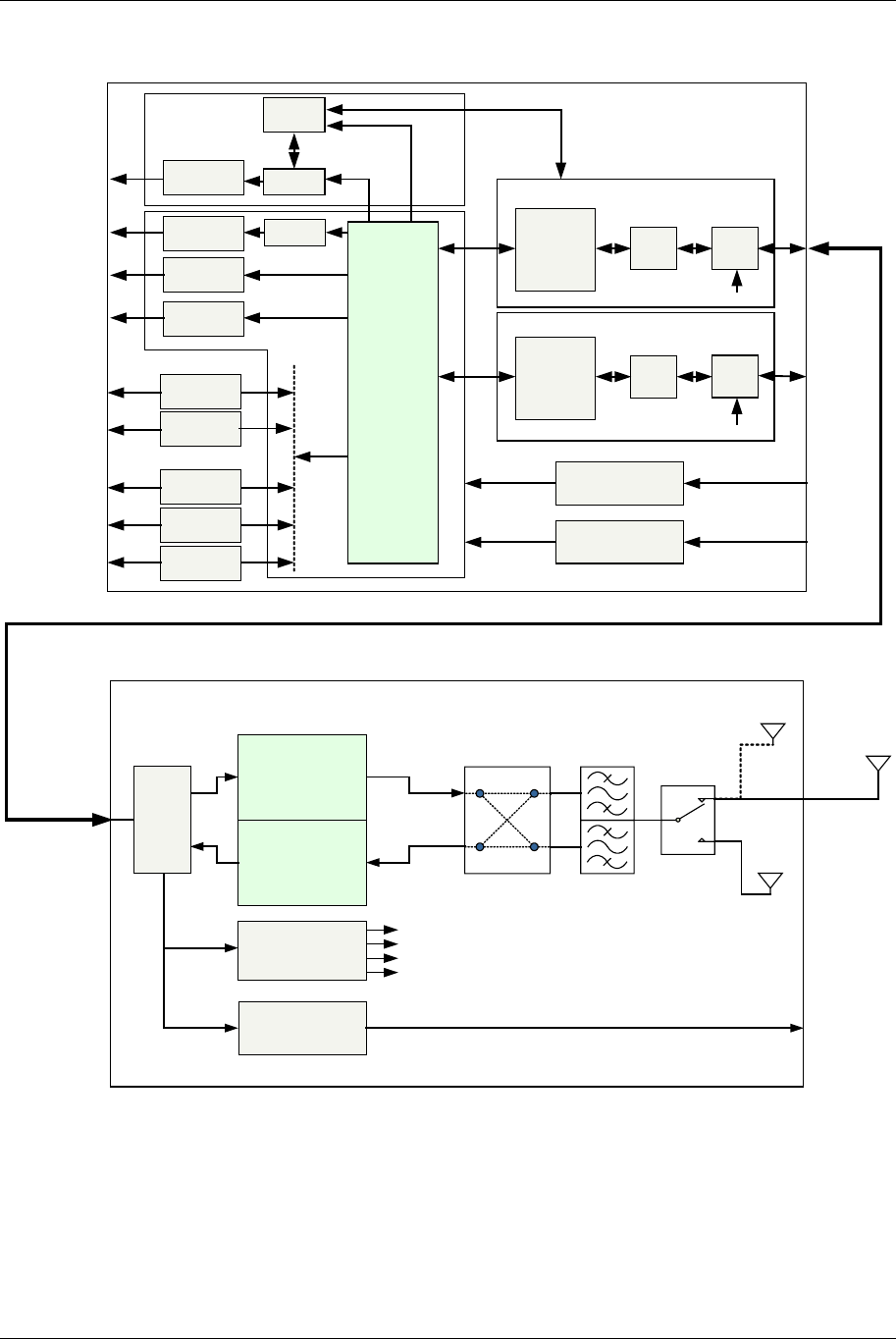

Figure 2-4. MDS FIVE Series System Block Diagram

The SDIDUTM interfaces with the ODU to receive and provide modulated transmit and receive

waveforms. The SDIDUTM interfaces provide Fast Ethernet 100Base-T (MDS FIVE Series-100)

connections to the network. Contact factory for availability of SONET OC-3 (MDS FIVE Series-

155) connections. In addition, two E1/T1 channels are provided for PBX extension. SNMP is

provided on 10/100BaseT ports.

05-4498A01, Rev. G

User Reference and Installation Guide 2-13

05-4498A01, Rev. G

The ODU RF Up/Down Converter card provides the interface to the antenna. The transmit

section up converts and amplifies the modulated Intermediate Frequency (IF) of 350 MHz from

the IF Processor and provides additional filtering. The receive section down converts the

received signal, provides additional filtering, and outputs an IF of 140 MHz to the IF Processor.

The 64-QAM Modem performs the modulation and demodulation of the payload and forward error

correction using advanced modulation and coding techniques. Using all-digital processing, the

64-QAM Modem uses robust modulation and forward error correction coding to minimize the

number of bit errors and optimize the radio and network performance. The 64-QAM Modem also

scrambles, descrambles and interleaves/deinterleaves the data stream in accordance with

Intelsat standards to ensure modulation efficiency and resilience to sustained burst errors. The

modulation will vary by application, data rate, and frequency spectrum. The highest order

modulation mode supported is 64 Quadrature Amplitude Modulation (QAM). Table 2-5

summarizes the TCM/convolutional code rates for each modulation type supported by the MDS

FIVE Series.

Table 2-5. MDS FIVE Series TCM/Convolutional Code Rates

Modulation Type Available Code

Rates

QPSK 1/2, 3/4, 7/8

16-QAM 3/4, 7/8, 11/12

32-QAM 4/5, 9/10

64-QAM 5/6, 11/12

The major functions of the SDIDUTM can be summarized as follows:

• I/O Processing – The SDIDUTM comes with a standard I/O capability that includes support for up to

16xT1/E1 and 2x100Base-TX user payloads, 2x100Base-TX for SNMP, and voice orderwire. In

addition, option cards for DS-3/E3/STS-1, 1-2 x STM-1/OC-3, and 4xDS-3/E3/STS-1 may be

added. The SDIDUTM architecture is flexible and allows for the addition of other I/O types in the

future.

• Switch/Framing – The SDIDUTM includes an Ethernet Switch and a proprietary Framer that are

designed to support 1+1 protection switching, ring architecture routing, and overall network control

functions.

• Network Processor – The SDIDUTM includes a Network Processor that performs SNMP and

Network Management functions.

• Modem/IF – The SDIDUTM Modem performs forward-error-correction (FEC) encoding, PSK/QAM

modulation and demodulation, equalization, and FEC decoding functions. The IF chain provides a

350 MHz carrier, receives 140 a MHz carrier, processes OOK telemetry, and provides –48V

power. Two modems can be used for 1+1 protection or ring architectures.

• Power Supply – The SDIDUTM power supply accepts -48 Vdc and supplies the SDIDUTM and ODU

with power. A second redundant power supply may be added as an optional module.

The Modem Processor and its associated RAM, ROM, and peripherals control the digital and analog

Modem operation. It also provides configuration and control for both the IF and I/O cards. The

User Reference and Installation Guide 2-14

05-4498A01, Rev. G

SDIDUTM interfaces with the ODU to receive and provide modulated transmit and receive

waveforms.

The SDIDUTM also provides the physical interface for the user payload and network management.

In transmit mode, the Framer merges user payload with radio overhead-encapsulated network

management data. This combined data stream is transmitted without any loss of user bandwidth.

In the receive mode, the Framer separates the combined data stream received from the 64-QAM

Modem. The SDIDUTM supports Scalable Ethernet data rates, such as 25 or 50 Mbps via the

100BaseT data interface port. The SDIDUTM provides network management data on 10 Mbps

ports accessible via the 10/100BaseTX port. The Central Processor Unit (CPU) provides the

embedded control and network element functionality of the NMS. The CPU also communicates

with other functions within the SDIDUTM for configuration, control, and status monitoring.

In Ethernet models, the payload of each user Ethernet data packet and all T1 can be encrypted

using an AES encryption algorithm. In addition, the encryption engine is re-seeded with a new,

randomly generated key stream every 10 seconds, in order to provide enhanced security. The

initial key is based off of a pass phrase entered into each MDS FIVE Series unit by the network

administrator. Consult factory for the availability of this encryption function.

The power supply converts -48 Vdc to the DC voltage levels required by each component in the

system.

2.6 Consecutive Point Architecture

The consecutive point network architecture is based upon the proven SONET/SDH ring.

Telecommunications service providers traditionally use the SONET/SDH ring architecture to

implement their access networks. A typical SONET/SDH network consists of the service

provider’s Point of Presence (POP) site and several customer sites with fiber optic cables

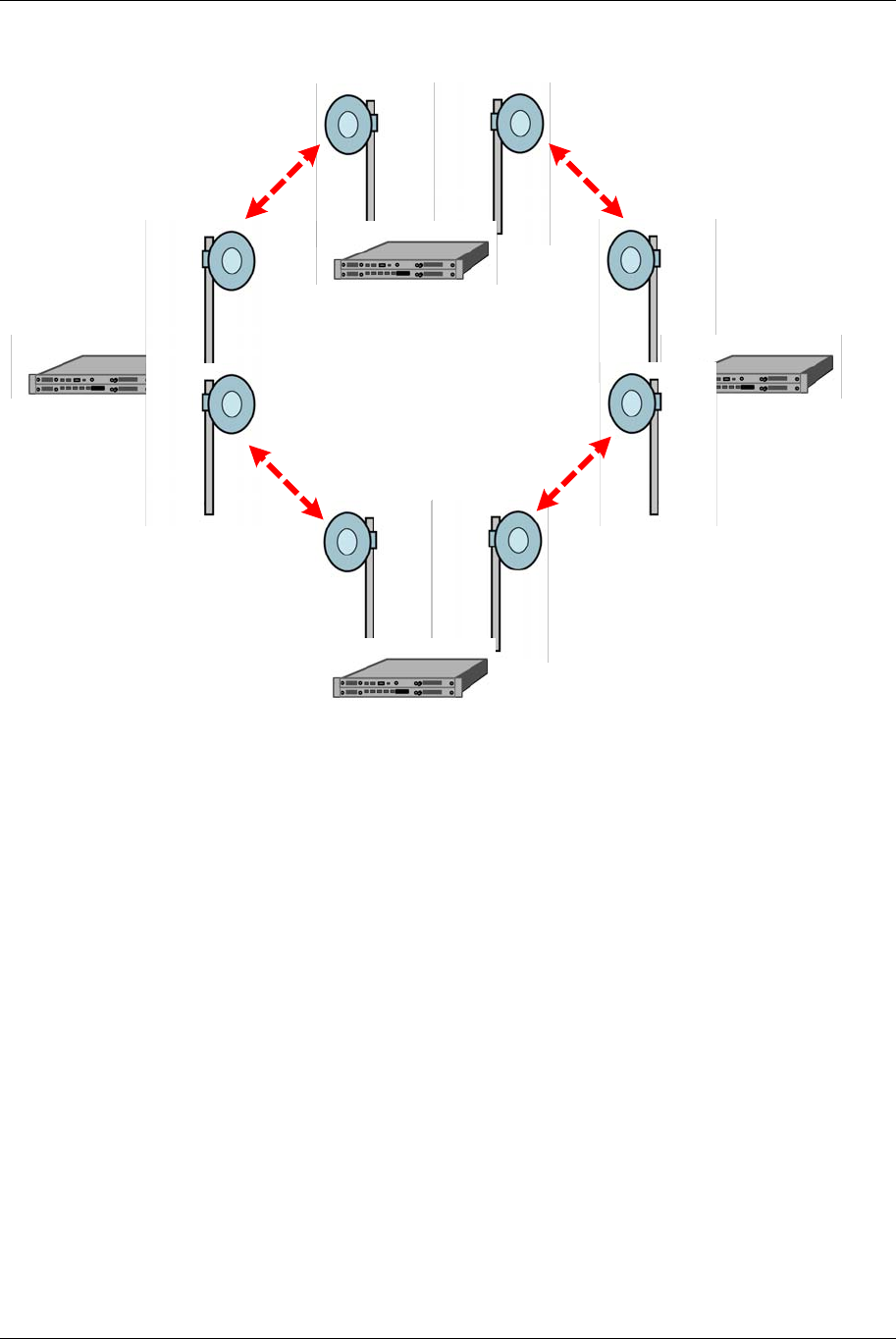

connecting these sites in a ring configuration (see Figure 2-5). This architecture lets providers

deliver high bandwidth with high availability to their customers.

User Reference and Installation Guide 2-15

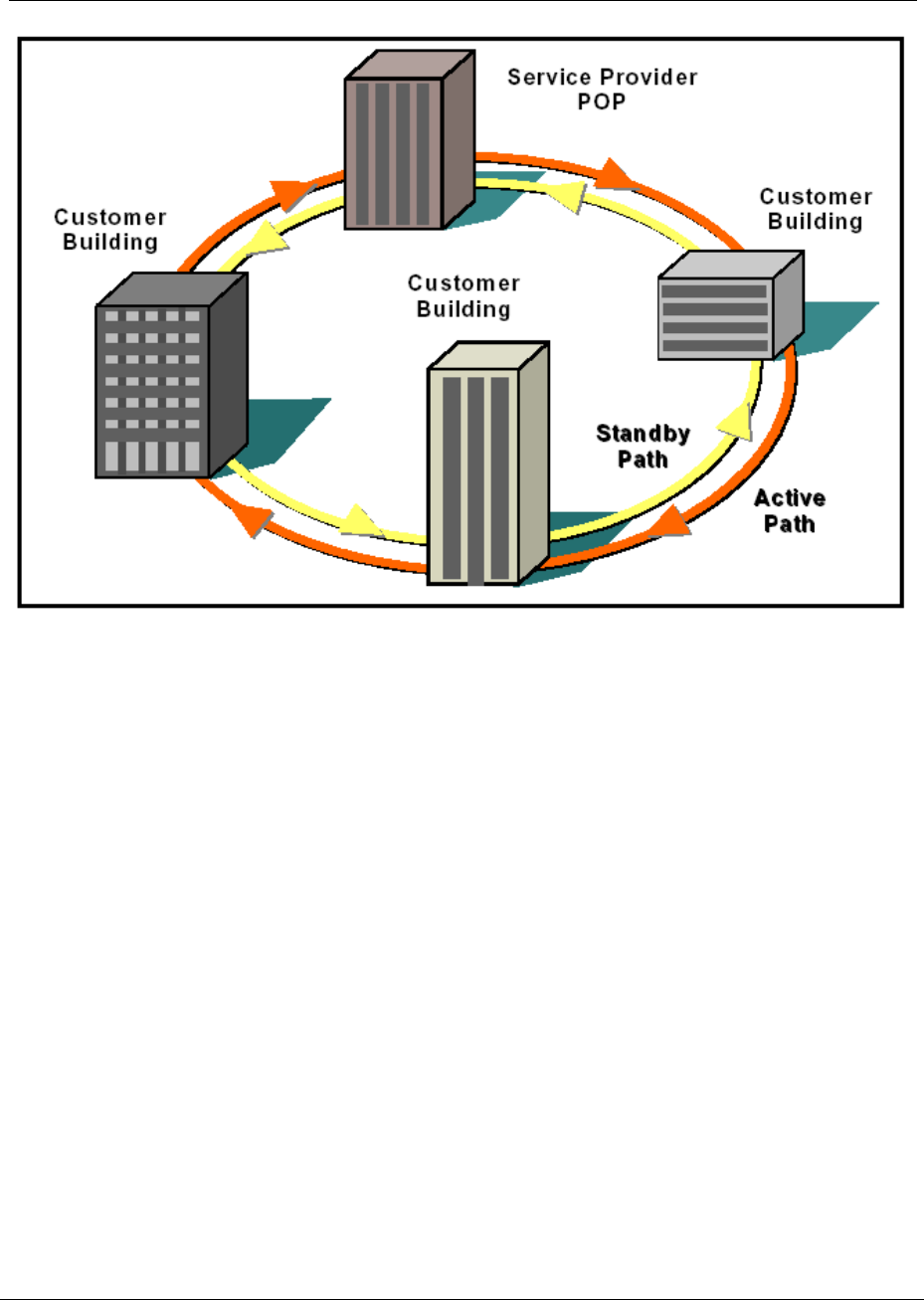

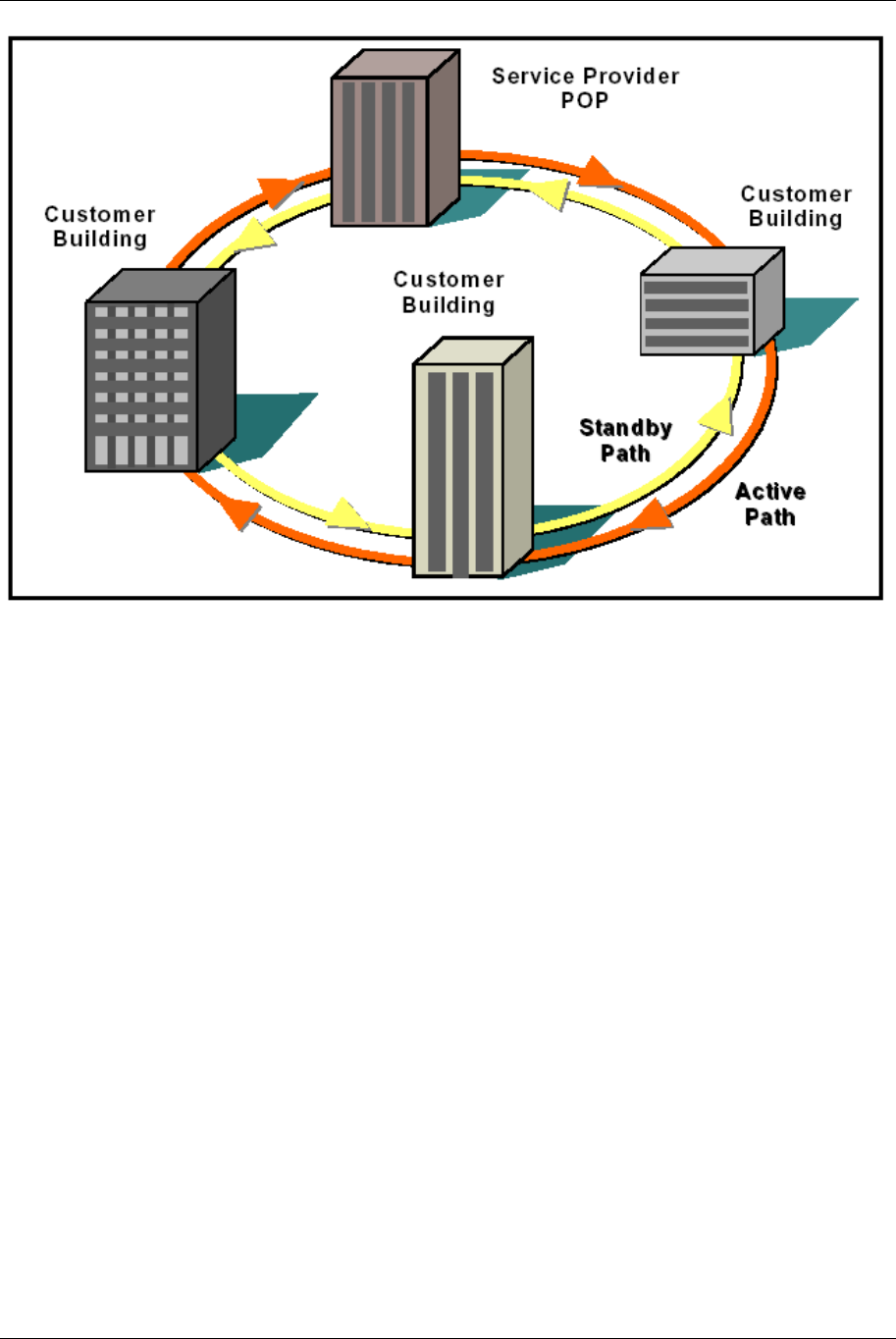

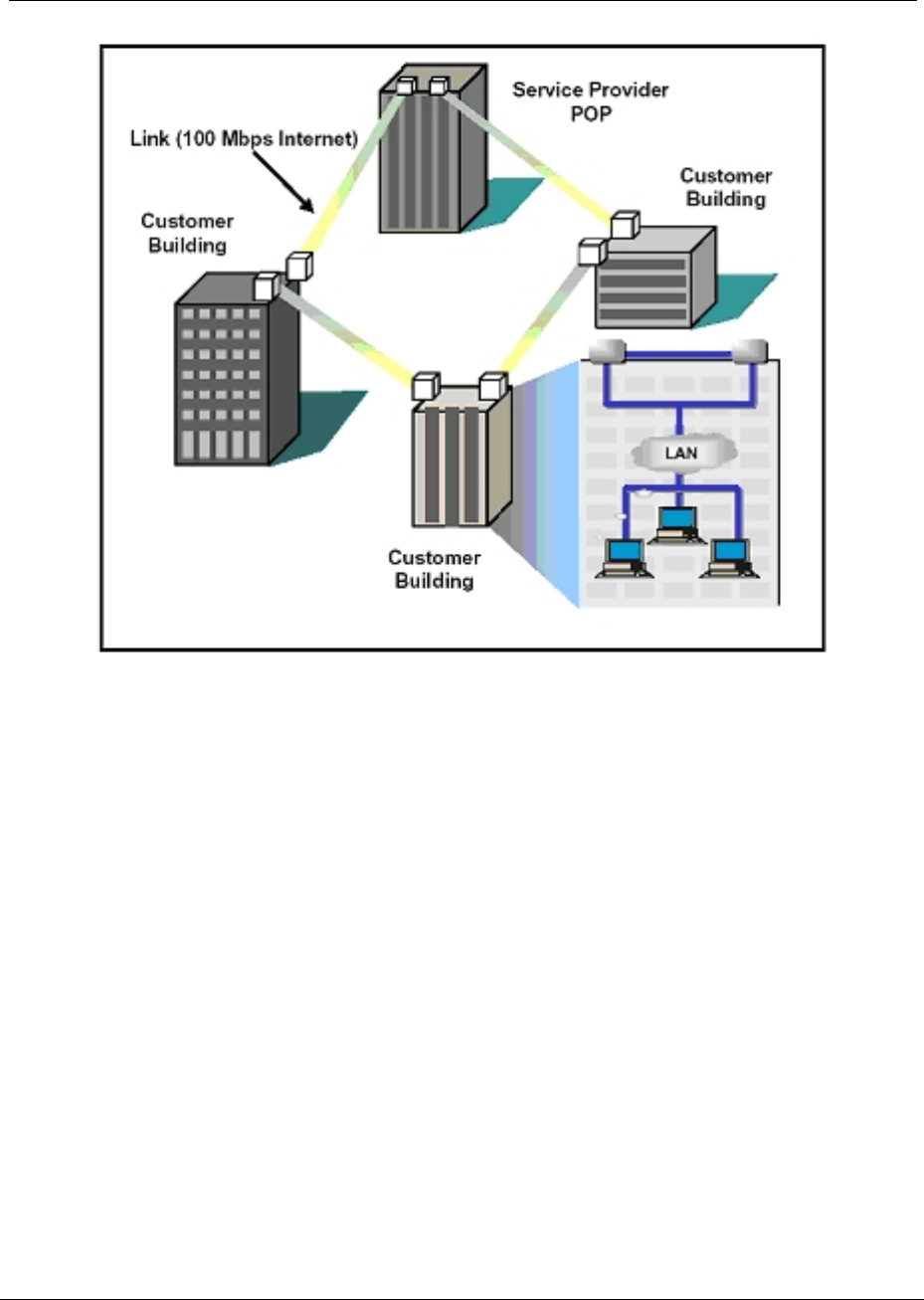

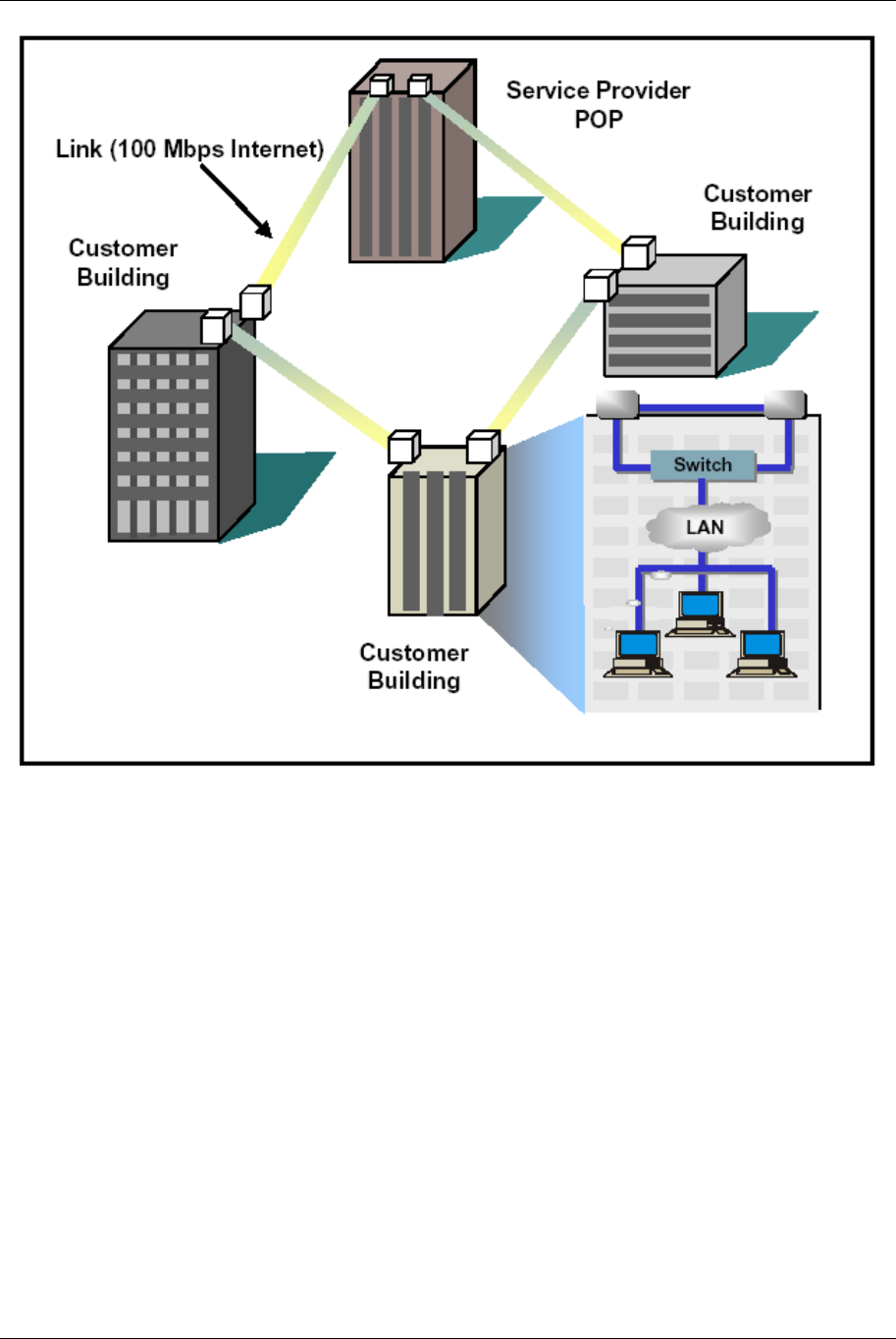

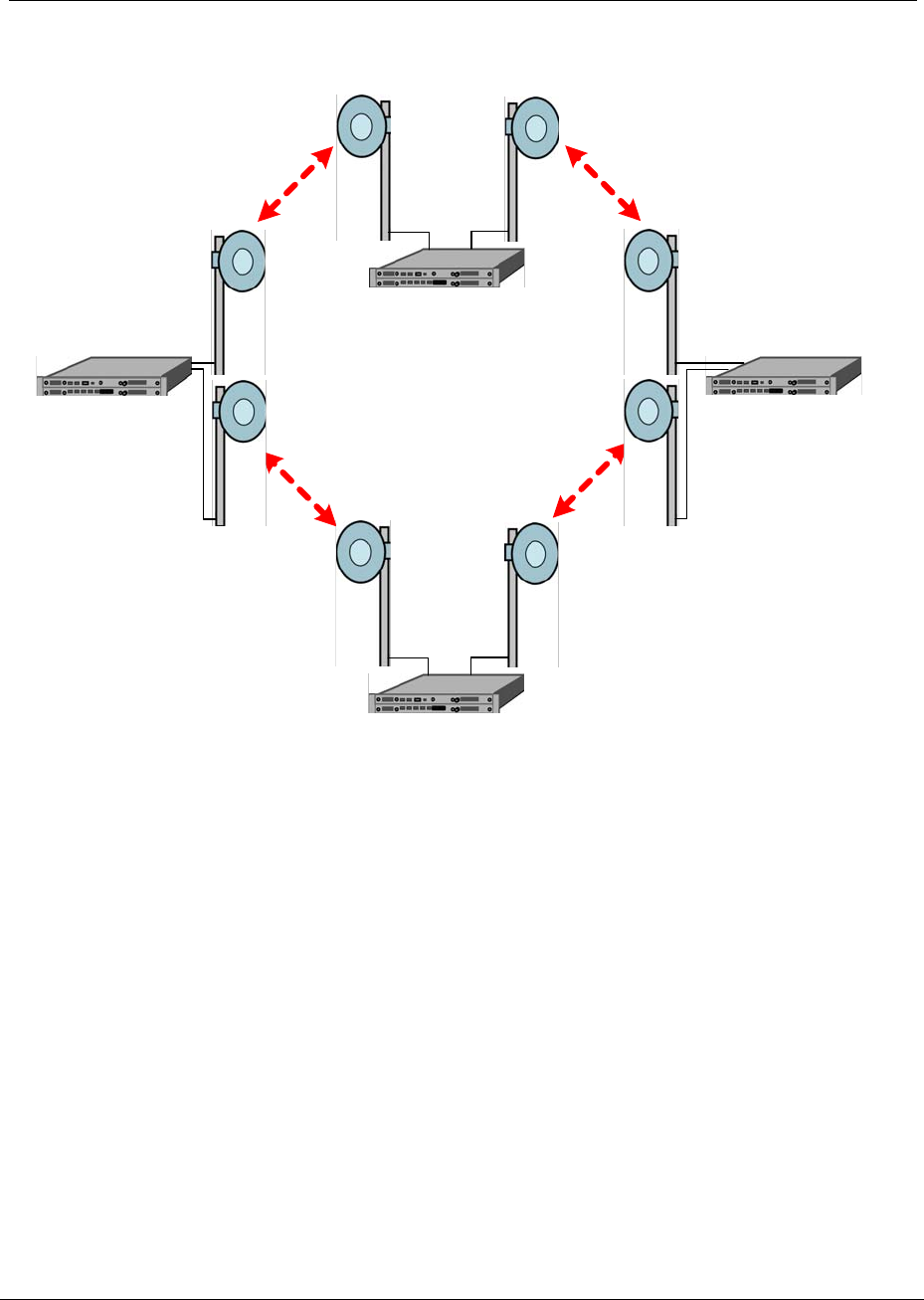

Figure 2-5. Ring Configuration.

SONET/SDH rings are inherently self-healing. Each ring has both an active path and a standby

path. Network traffic normally uses the active path. Should one section of the ring fail, the network

will switch to the standby path. Switchover occurs in seconds. There may be a brief delay in

service, but no loss of payload, thus maintaining high levels of network availability.

The consecutive point architecture implemented in the MDS FIVE Series Digital Radio family is

based on a point-to-point-to-point topology that mimics fiber rings, with broadband wireless links

replacing in-ground fiber cable. A typical consecutive point network consists of a POP and

several customer sites connected using MDS FIVE Series units. These units are typically in a

building in an east/west configuration. Using east/west configurations, each unit installed at a

customer site is logically connected to two other units via an over-the-air radio frequency (RF) link

to a unit at an adjacent site.

Each consecutive point network typically starts and ends at a POP. A pattern of wireless links and

in-building connections is repeated at each site until all buildings in the network are connected in

a ring as shown in Figure 2-6. . For 2 x 1+0 and 2 x 1+1 nodes payload and NMS connections

need to be jumpered between two SDIDUTMs. For 1 x 2+0 nodes, there is no need for jumpers as

there is a single SDIDUTM. For SDH or SONET payloads, the configuration is similar but an

external add/drop mux and a second SDH/SONET interface card are required.

05-4498A01, Rev. G

User Reference and Installation Guide 2-16

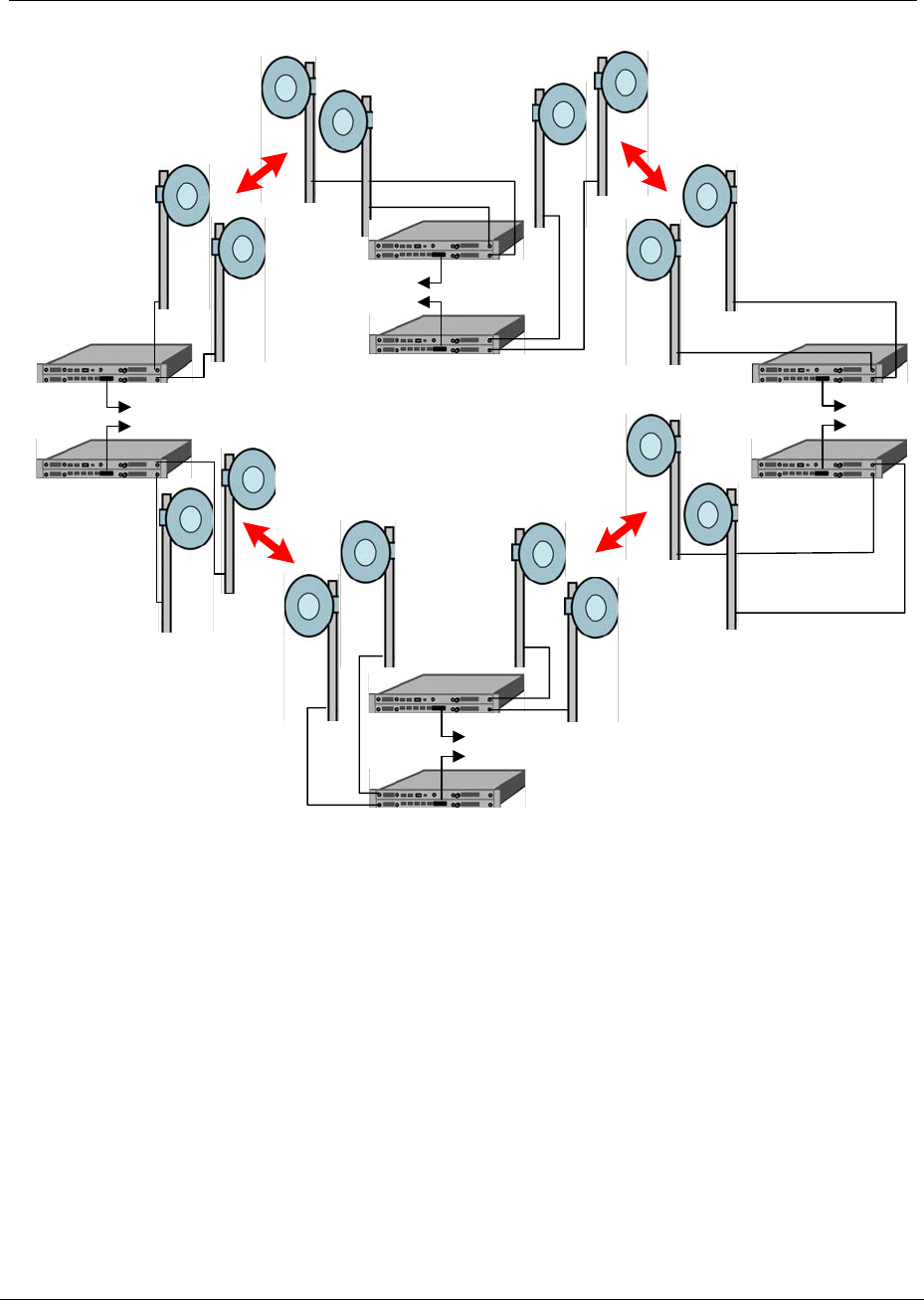

Figure 2-6. Consecutive Point Network

2.7 2 + 0 (East-West) Configuration

The SDIDUTM supports an east/west, or 2+0, configuration that allows a consecutive point

architecture to be achieved with only a single 1 RU chassis at each location. In this configuration

the SDIDUTM contains two modems supplies and may contain two power supplies. One modem

is referred to as the west modem and the other as the east modem. The SDIDUTM is connected

to two ODUs, one broadcasting/receiving in one direction of the ring architecture and the other

broadcasting/receiving in the other as shown in Figure 2-7.

05-4498A01, Rev. G

User Reference and Installation Guide 2-17

Connected to

east modem

Connected to

west modem

Connected to

east modem

Connected to

west modem

Connected to

west modem

Connected to

east modem

Connected to

west modem

Connected to

east modem

Figure 2-7. 2+0 (East-West) configuration.

2.8 Spanning Tree Protocol (STP)

Spanning Tree Protocol STP keeps Ethernet loops from forming in a ring architecture. Without

STP, loops would flood a network with packets. STP prevents loops by creating an artificial

network break. In the event of a network outage, STP automatically removes the artificial break,

restoring connectivity.

2.9 1+1 Protection

05-4498A01, Rev. G

The MDS FIVE Series supports 1+1 protection as an option for a critical link. In this

configuration, protection is provided in a single 1 RU chassis. The SDIDUTM contains two power

supplies and two modems. The power supply, ODU, IF/telemetry and modem are protected. The

digital framing and LIUs are not. One modem is referred to as the west modem and the other as

the east modem. 1+1 protection can be run in two modes called Protected Non-Diversity and

Protected Diversity.

User Reference and Installation Guide 2-18

2.9.1 Protected Non-Diversity (Hot Standby)

Figure 2-8Error! Reference source not found. shows operation in Protected Non-Diversity

mode, also called Hot Standby. In this mode, one ODU at each location transmits to two ODUs

at the other location. This mode does not require the extra bandwidth or interference protection.

It provides hitless receive switching and hot standby. The SDIDUTM automatically switches

transmit ODU upon appropriate ODU alarm or ODU interface error, minimizing transmit outage

time.

Connected to

west modem

Connected to

east modem

Connected to

west modem

Connected to

east modem

Figure 2-8. 1+1 protection in non-diversity mode

2.9.2 Protected Diversity

In Protected Diversity mode, the link between each pair of modems is the same, as shown in

Figure 2-9Error! Reference source not found., providing complete redundancy. This

arrangement requires bandwidth for both links and non-interference between the links, but it

provides hitless receive and transmit switching. The SDIDUTM supports both frequency and

spatial diversity.

Connected to

east modem

Connected to

west modem

Connected to

west modem

Connected to

east modem

Figure 2-9. 1+1 protection in diversity mode

05-4498A01, Rev. G

User Reference and Installation Guide 2-19

05-4498A01, Rev. G

2.9.2.1 Frequency Diversity

In frequency diversity, two frequencies are used to achieve non-interference. The proprietary

framer chooses the best, or error-free, data stream and forwards it to the Line Interface Units

(LIUs).

2.9.2.2 Spatial Diversity

In spatial diversity, two non-interfering paths are used. The proprietary framer chooses the best,

or error-free, data stream and forwards it to the Line Interface Units (LIUs).

2.9.2.2.1 Single Transmitter

Protected Non-Diversity, or Hot Standby, is also refered to as Single Transmitter Spatial Diversity.

For more information on this mode, see Section 2.9.1.

2.9.2.2.2 Dual Transmitter

When using Dual Transmitter Spatial Diversity, two active transmitters are physically isolated to

avoid crosstalk.

2.10 1 + 1 Multi-hop Repeater Configuration

The MDS FIVE Series supports a 1 + 1 multi-hop repeater configuration with drop/insert

capability as shown in Figure 2-10. This configuration provides individual 1 + 1 link protection as

described in section 2.8, as well as the full-scale protection inherent in the consecutive point

architecture as described in section 2.6. At each location within the network, data may be

dropped or inserted. Front panel connections for drop/insert capability are shown in Figure 2-11.

In this configuration each SDIDUTM contains two power supplies and two modems.

User Reference and Installation Guide 2-20

Data

drop/insert

Data

drop/insert

Data

drop/insert

Data

drop/insert

Protected

Link

Protected

Link

Protected

Link

Protected

Link

Figure 2-10. 1 + 1 Multi-hop Repeater Configuration

05-4498A01, Rev. G

User Reference and Installation Guide 2-21

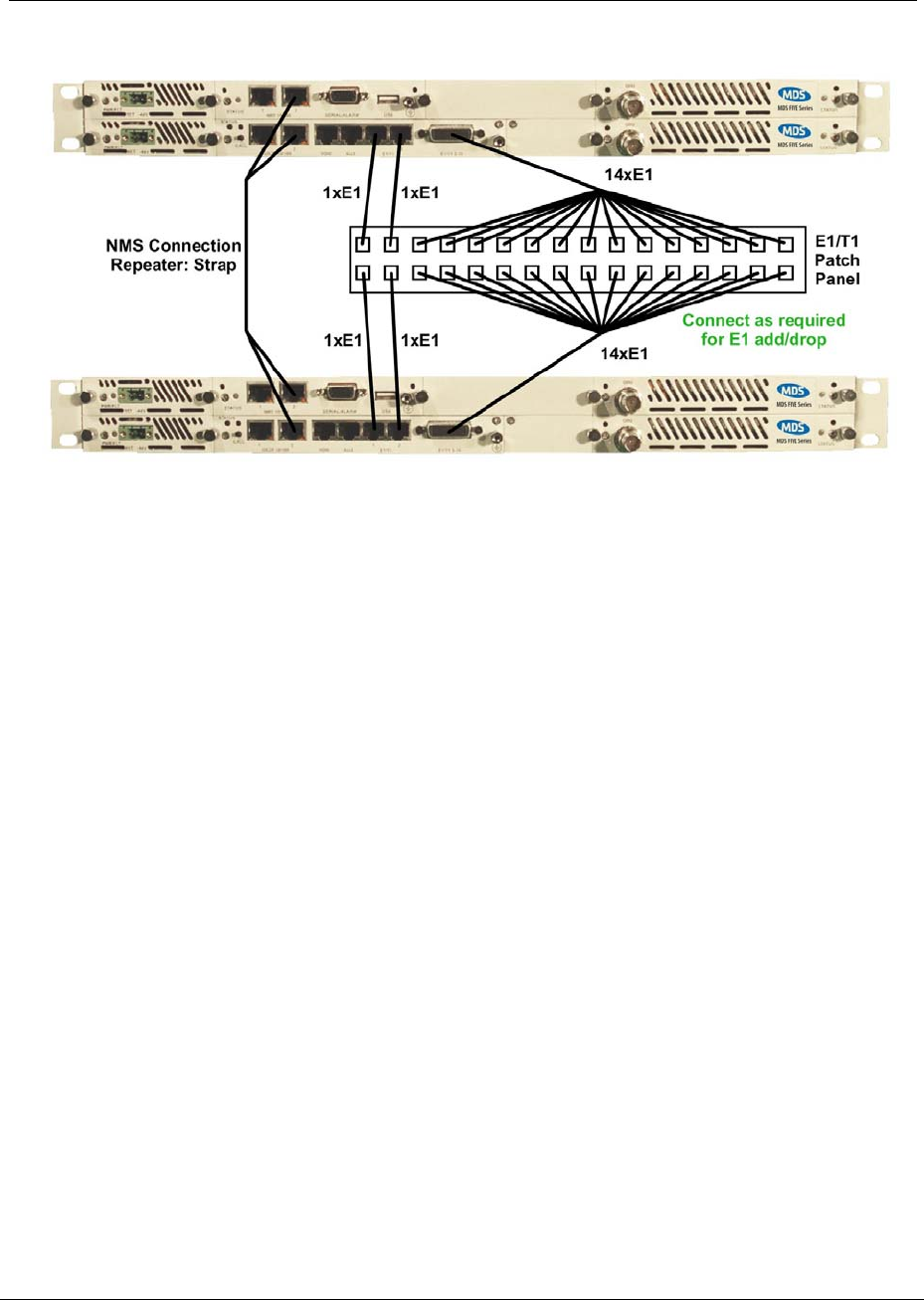

Figure 2-11. Front Panel connections in 1 + 1 multi-hop repeater configuration

2.11 Data Interfaces

The I/O card has 2x100BaseTX interfaces that can be configured as either primary payload, or

secondary wayside channels. The Over-the-air channel has a data-bandwidth capacity that is set

by the frequency-bandwidth, modulation, and coding. The data-bandwidth may be allocated to

various I/O card interfaces, including 155.52 Mbps for STM-1, 2 Mbps per E1, up to 100 Mbps

Ethernet, and up to 1 Mbps NMS. Only up to 100 Mbps of data-bandwidth may be allocated for

either net data, and the two I/O card 100BaseTX interfaces will share that 100 Mbps data-

bandwidth.

There is also an option mini-I/O card, which provides STM-1 Optical/OC-3 or STM-1 Electrical

interfaces. The optical interface is single mode at 1300 nm. Consult factory for availability of

Mini-IO STM-1/OC-3 Module.

2.12 Crosspoint Switch

The SDIDU™ crosspoint switch provides any-to-any E1/T1 routing between front panel ports and

RF links, as shown in Figure 2-12. Flexible channel mapping allows selection from predefined

routings or custom routing. Custom routings are uploaded to the SDIDU™ via FTP. Two

examples of the crosspoint capability are to use the crosspoint switch to configure a repeater or

an add/drop. These examples are shown in Figure 2-13. In the repeater example, the

Crosspoint Switch is used as a passthrough to send E1/T1s from the east modem to the west

modem. In the add/drop example, the crosspoint switch connects E1/T1s from the modems to

the front-panel ports.

05-4498A01, Rev. G

User Reference and Installation Guide 2-22

Framer

Modem East Modem West

Up to 32 E1 Up to 32 E1

Up to 16E1 Up to 16E1

Optional IO

Crosspoint

Switch

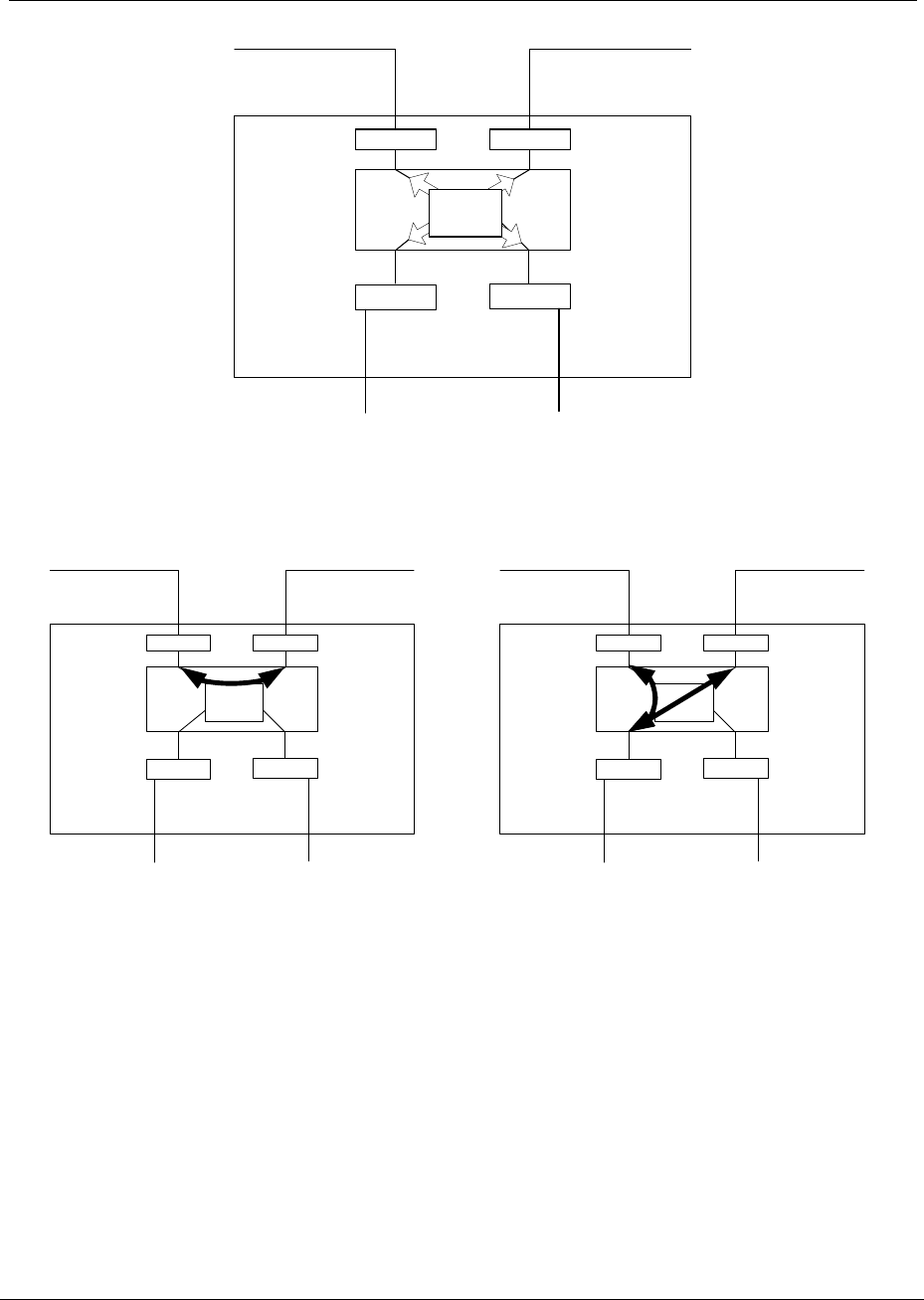

Figure 2-12 Crosspoint switch

Crosspoint

Switch

Framer

Modem East Modem West

Up to 32 E1 Up to 32 E1

Up to 16E1 Up to 16E1

Optional IO

Crosspoint

Switch

Framer

Modem East Modem West

Up to 32 E1 Up to 32 E1

Up to 16E1 Up to 16E1

Optional IO

Repeater Example Add/Drop Example

Figure 2-13 (a) Crosspoint switch used a passthrough in repeater configuration. (b)

Crosspoint switch allows access for add/drop.

2.13 Power Management

RF power management is a radio design feature that controls the power level (typically expressed

in dBm) of the RF signal received from a transmitter by a receiver. The traditional goal of power

management is to ensure that the RF signal at a receiver is strong enough to maintain the radio

link under changing weather and link conditions.

05-4498A01, Rev. G

User Reference and Installation Guide 2-23

05-4498A01, Rev. G

Traditional power management techniques such as Constant Transmit Power Control (CTPC)

and Automatic Transmit Power Control (ATPC) transmit at a high power level to overcome the

effects of fading and interference. However, these techniques continue to operate at a higher

power level than needed to maintain the link in clear weather. Because transmit power remains

high when the weather clears, the level of system interference increases.

Radios operating at high transmit power will interfere with other radios, even if the interfering

source is miles away from the victim. High interference levels can degrade signal quality to the

point that wireless radio links become unreliable and network availability suffers. The traditional

solution to system interference is to increase the distance between radios. However, the resulting

sparse deployment model is inappropriate for metropolitan areas.

In response to the need for a high-density deployment model the MDS FIVE Series use a unique

power control technique called AdTPC. AdTPC enables MDS FIVE Series units to transmit at the

minimum power level necessary to maintain a link regardless of the prevailing weather and

interference conditions. The MDS FIVE Series is designed and manufactured to not exceed the

+30 dBm maximum power allowed. The purpose of power management is to minimize transmit

power level when lower power levels are sufficient. AdTPC also extends the concept of power

management by controlling not only the power (dBm) of the RF signal, but its quality (signal-to-

noise ratio) as well.

In contrast to ATPC, the AdTPC technique dynamically adjusts the output power based on both

the actual strength and quality of the signal. Networked MDS FIVE Series units constantly

monitor receive power and maintain 10-12 BER performance under varying interference and

climate conditions. Each MDS FIVE Series unit can detect when there is a degradation in the

received signal level of quality and adjust the transmit power level of the far-end MDS FIVE

Series unit to correct for it.

AdTPC provides maximum power in periods of heavy interference and fading and minimum power

when conditions are clear. Minimal transmit power reduces potential for co-channel and adjacent

channel interference with other RF devices in the service area, thereby ensuring maximum

frequency re-use. The resulting benefit is that operators are able to deploy more MDS FIVE

Series units in a smaller area.

2.14 MDS FIVE Series Software and Network

Management

All of the MDS FIVE Series parameters are accessible in three ways:

1. Using a standard web-browser via HTTP to access the built in webserver.

2. Via SNMP using the fully featured MIB, allowing for automation of data collection and

network management.

3. Via a command line client accessible from a terminal client connected to the serial port, or

telnet over the NMS Ethernet.

The GUI, SNMP, and CLI control are discussed in the MDS FIVE Series User Interface Manual.

User Reference and Installation Guide 2-24

2.14.1 IP Address

Each SDIDU™ is configured independently for network parameters such as IP address, subnet,

and gateway. However, the SDIDU™ also supports acting as a DHCP client, in which case the

IP address can be assigned to the SDIDU™ using a DHCP server. A specific IP address may be

associated with a particular SDIDU™ by configuring the DHCP server to server IP address based

upon the SDIDU™ Ethernet MAC address.

2.14.2 Network

The SDIDU™ uses an “Out-of-Band” NMS network which is separated from the payload Ethernet

network. Each SDIDU™ contains a managed Layer 2 Ethernet switch that supports Spanning-

Tree Protocol (STP) for managing NMS traffic. This allows the SDIDU™ to be configured in a

protected ring configuration where the STP will prevent an Ethernet loop in the ring. This will alow

allow the ring to re-configure in the event of an outage. The SDIDU acts as a network bridge via

the Ethernet switch and STP. The SDIDU™ does not currently support NMS routing capability.

2.14.3 NMS Network Operational Principles

The SDIDU™ does not provide routing capability. Therefore, all SDIDUs™ must be on the same

subnet as the PC being used to access the SDIDUs™. If the SDIDUs™ and/or the PC are on

different subnets, a router must be used, with the gateway addresses set appropriately. Figure

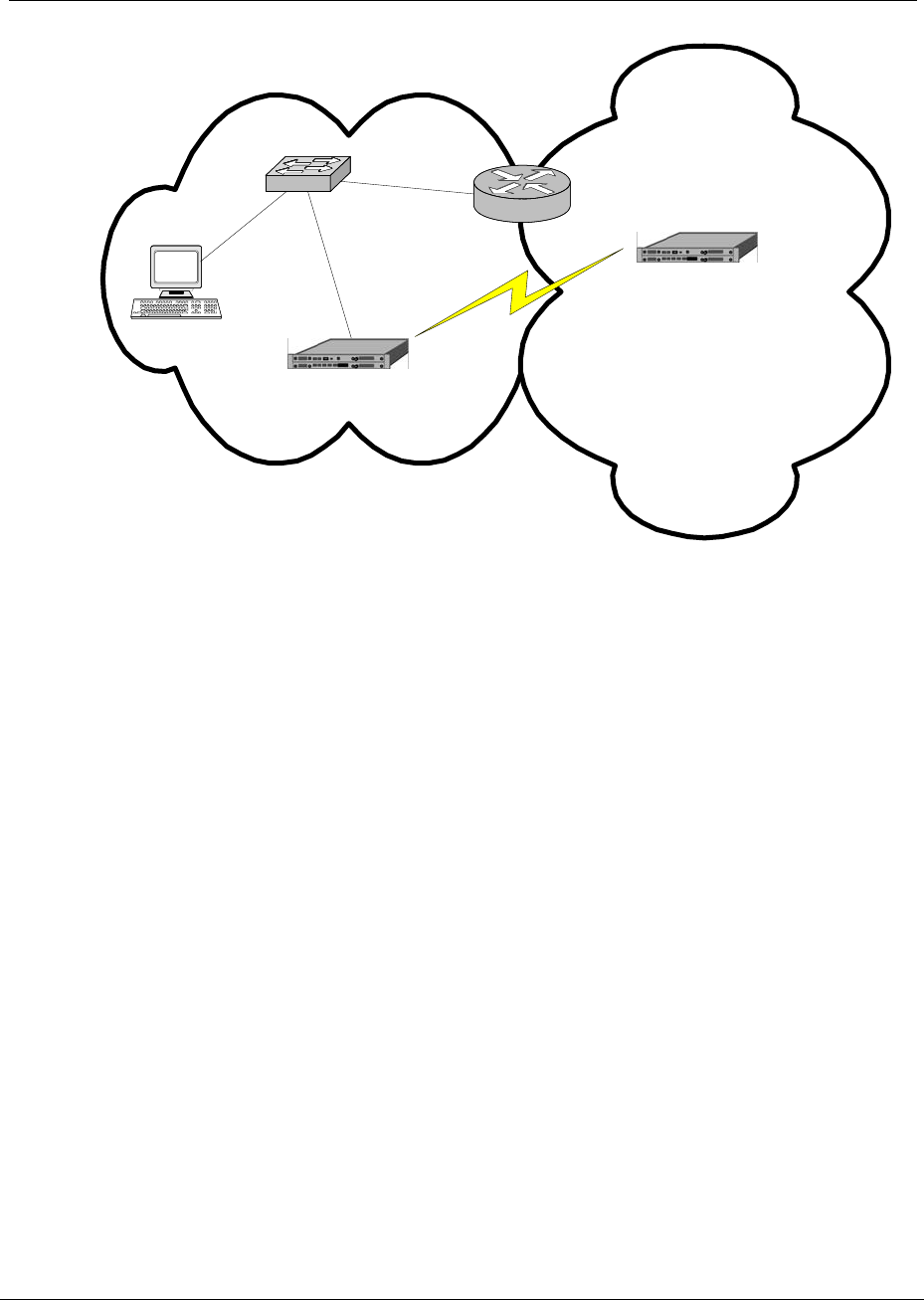

2-14 shows the PC and both SDIDUs™ in the same subnet. In this case, no router is required.

Figure 2-15 shows the PC and one of the SDIDUs™ in one subnet and the other SDIDU™ in

another. In this case, a router is required. Note how the GW addreses are set to allow

communication from the PC to the SDIDU™ in the other subnet.

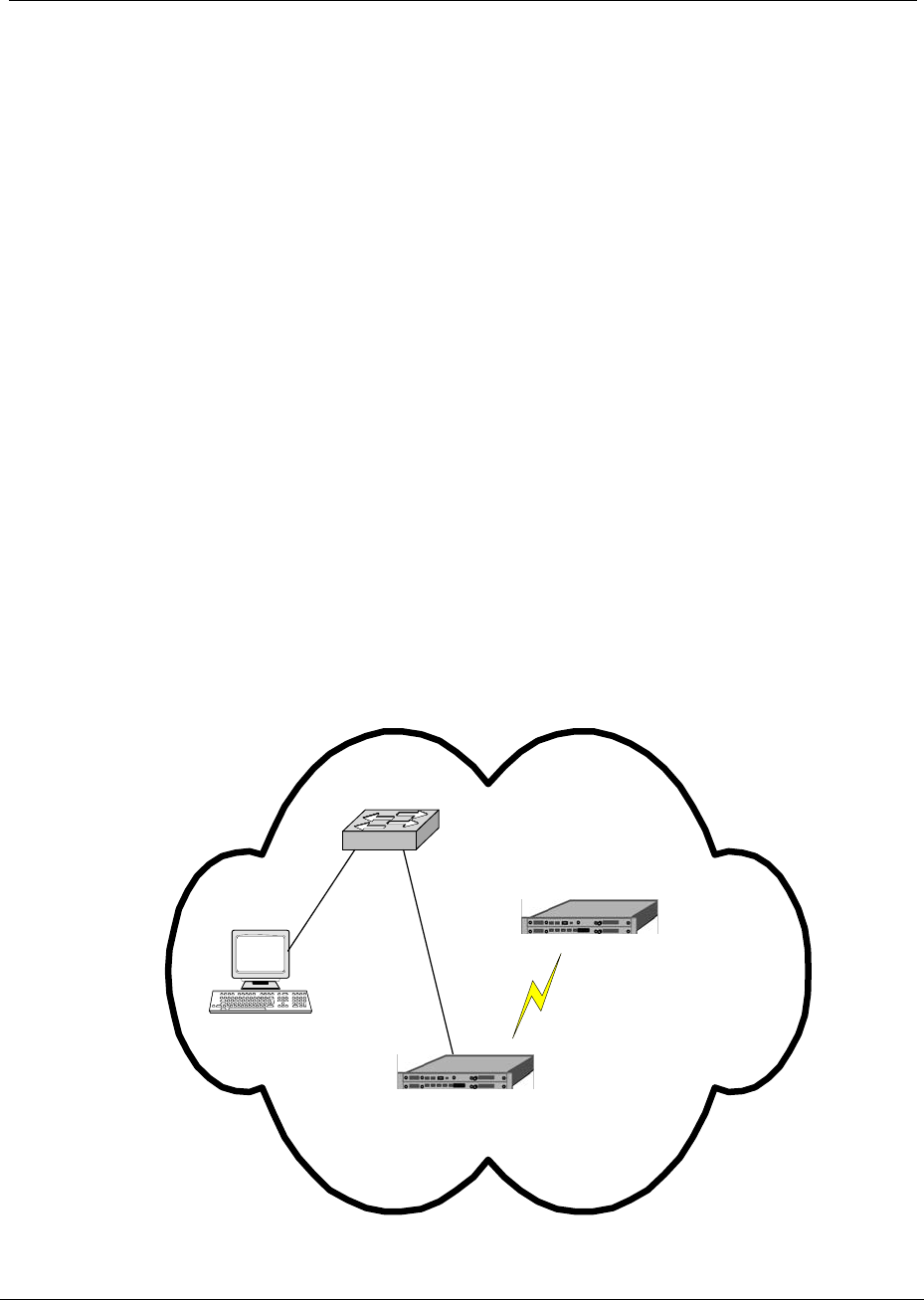

SUBNET PC

192.168.1.10

SWITCH

SDIDUTM

192.168.1.21

SDIDUTM

192.168.1.22

Figure 2-14. PC and SDIDUs™ on same subnet

05-4498A01, Rev. G

User Reference and Installation Guide 2-25

SUBNET 1 PC

IP: 192.168.1.10

GW: 192.168.1.1

SWITCH

SUBNET 2

ROUTER

IP1: 192.168.1.1

IP2: 192.168.2.1

SDIDUTM

IP: 192.168.1.21

GW: 192.168.1.1

SDIDUTM

IP: 192.168.2.33

GW: 192.168.2.1

Figure 2-15. SDIDUs™ on different subnets.

2.14.4 Third Party Network Management Software Support

The SDIDU™ supports SNMPv1, SNMPv2, and SNMPv3 protocols for use with third party

network management software. The SNMP agent will send SNMP traps to specified IP

addresses when an alarm is set or cleared. Information contained in the trap includes:

 IP address

 System uptime

 System time

 Alarm name

 Alarm set/clear detail

The SDIDU™ may also be managed via HTTP, TELNET, and SSH protocols.

2.15 System Loopbacks

The SDIDU™ provides system loopbacks as a means for test and verification of a unit, link,

and/or network. A variety of loopback points, included LIU selection, are available, Loopback

05-4498A01, Rev. G

User Reference and Installation Guide 2-26

05-4498A01, Rev. G

points are easily selected through the Graphical User Interface, for more information see the User

Interface Guide. Loopback duration is also selectable.

3 Installation

3.1 Unpacking

The following is a list of possible included items.

Description Quantity

Digital Radio SDIDUTM (1RU chassis) 1

ODU (with hardware) 1

Manual and/or Quick Start Guide 1

ODU

SDIDUTM

Figure 3-1. MDS FIVE Series Components

Be sure to retain the original boxes and packing material in case of return shipping. Inspect all

items for damage and/or loose parts. Contact the shipping company immediately if anything

appears damaged. If any of the listed parts are missing, call the distributor or the factory

immediately to resolve the problem.

05-4498A01, Rev. G

User Reference and Installation Guide 3-2

05-4498A01, Rev. G

3.2 Notices

CAUTION

DO NOT OPERATE EXTERNAL ANTENNA ODU UNITS WITHOUT AN ANTENNA,

ATTENUATOR, OR LOAD CONNECTED TO THE ANTENNA PORT. DAMAGE MAY OCCUR

TO THE TRANSMITTER DUE TO EXCESSIVE REFLECTED RF ENERGY.

ALWAYS ATTENUATE THE SIGNAL INTO THE RECEIVER ANTENNA PORT TO LESS THAN

–20 dBm. THIS WILL PREVENT OVERLOAD AND POSSIBLE DAMAGE TO THE RECEIVER

MODULE.

WARNING

HIGH VOLTAGE IS PRESENT INSIDE THE ODU and SDIDUTM WHEN THE UNIT IS

PLUGGED IN. TO PREVENT ELECTRICAL SHOCK, UNPLUG THE POWER CABLE

BEFORE SERVICING. UNIT SHOULD BE SERVICED BY QUALIFIED PERSONNEL ONLY.

3.3 Required Tools

The following tools are needed for installation.

3.3.1 SDIDUTM Tools

• 1/8” Slotted screwdriver for securing power supply connector

• Screwdriver for rack mount assembly. Size and types depends on rack mount screws

(not included).

3.3.2 ODU Tools

• 13 mm or adjustable wrench for ODU bracket mounting bolts

• 17 mm or adjustable wrench for U-Bolt

User Reference and Installation Guide 3-3

3.4 PRE-INSTALLATION NOTES

It may be useful to gain familiarity with the MDS FIVE Series via back-to-back bench testing prior

to final installation. We highly recommend installation of lightning protectors on the

ODU/SDIDUTM Interconnect Cable to prevent line surges from damaging expensive components.

Back-to-back bench testing prior to final installation is highly recommended in order to gain

familiarity with the product. The following additional equipment is required for back-to-back

testing:

• Low-loss cables, N-male connectors on ODU interfaces.

• Two inline RF attenuators, 30 dB each, rated for ODU frequency.

The SDIDUTM and ODUs must be configured in an operational configuration and set-up as shown

in Figure 3-2. When equipment is connected in operational configuration, no errors should be

reported on the front panel.

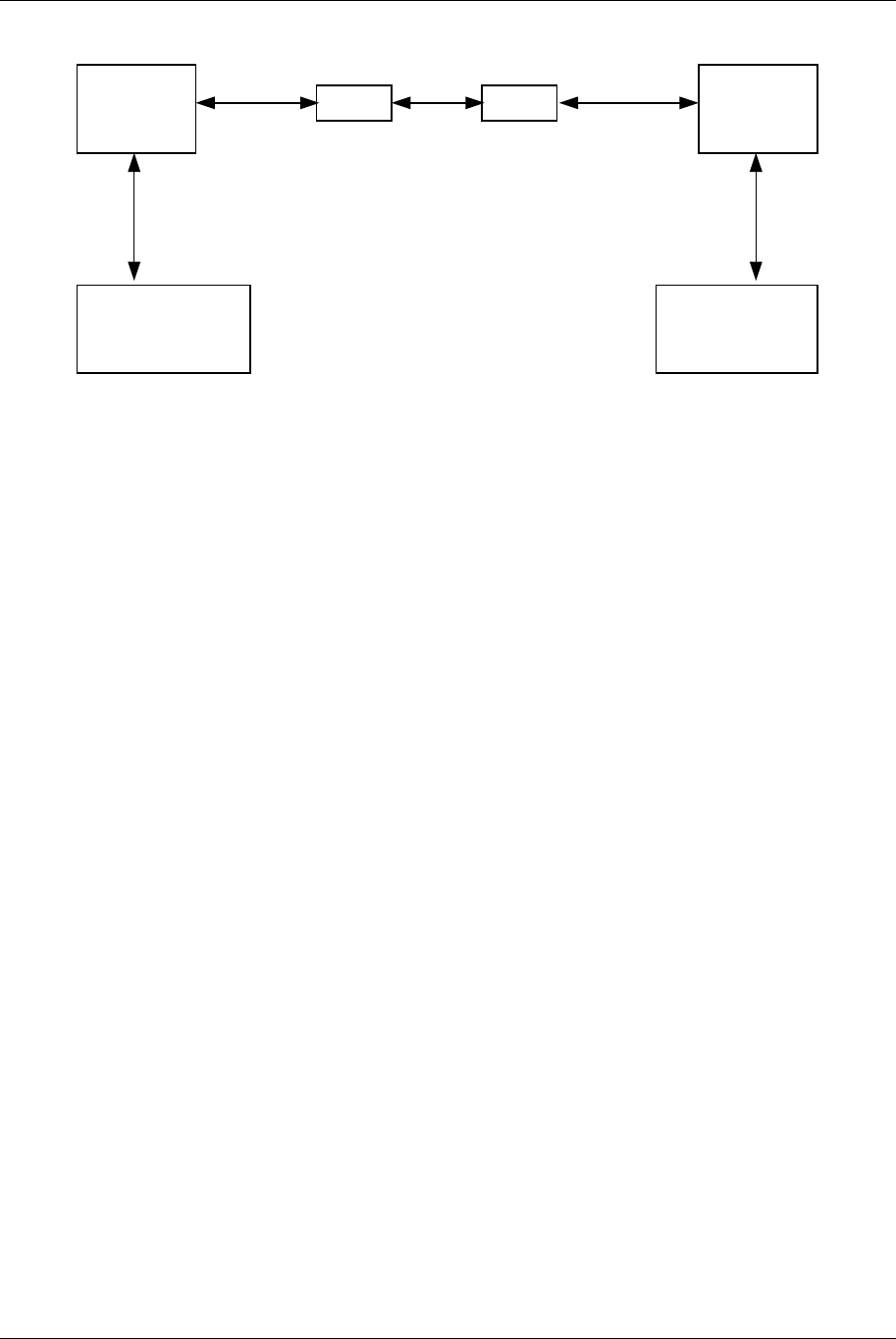

ODU - 1

SDIDU - 1

To IDU

Ant. Port

ODU - 2

SDIDU - 2

30 dB 30 dB

TM TM

Ant. Port

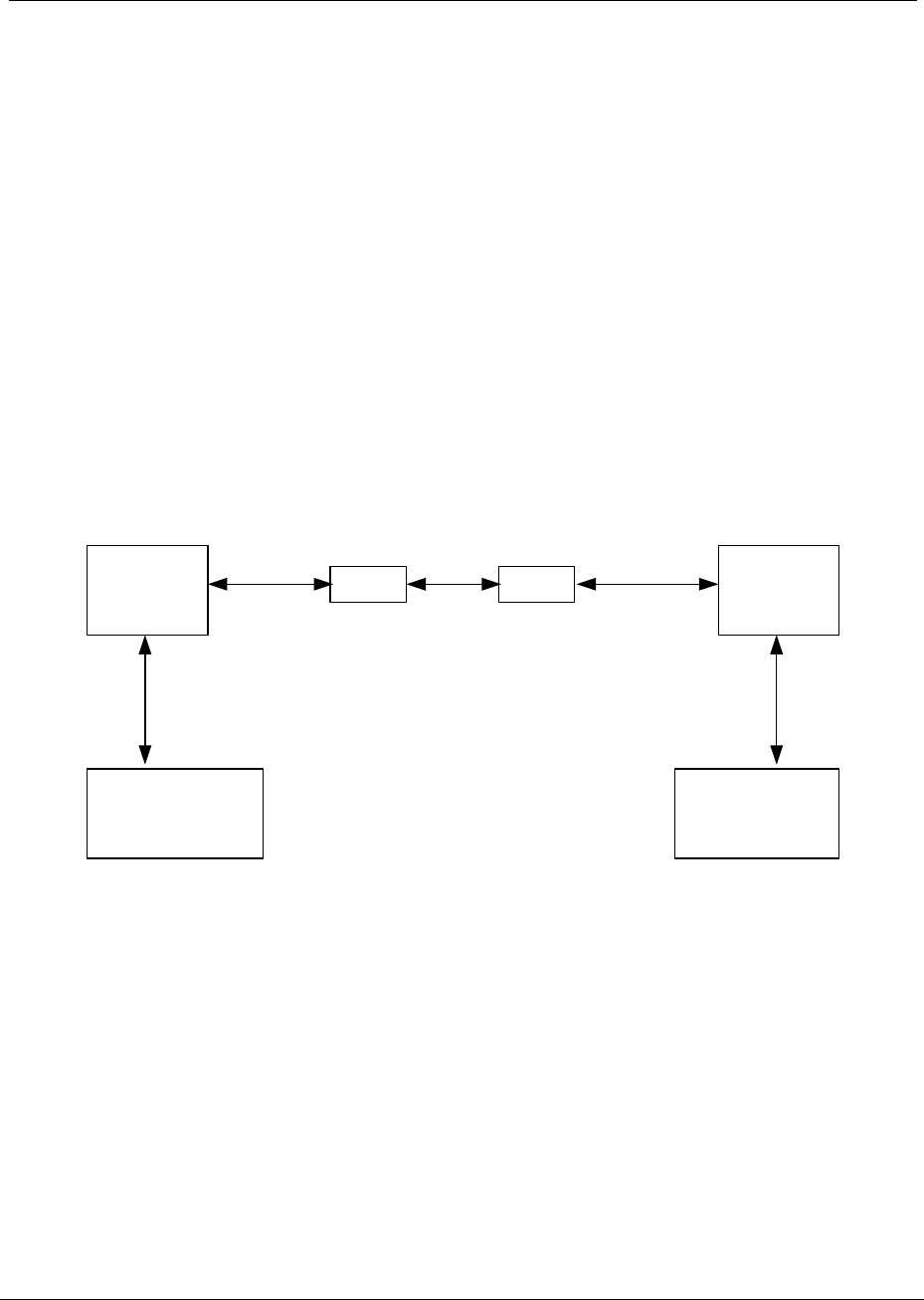

Figure 3-2. MDS FIVE Series Back-to-Back Testing Configuration

3.5 Overview of Installation and Testing

Process

The installation and testing process is accomplished by performing a series of separate, yet

interrelated, procedures, each of which is required for the successful implementation of a

production MDS FIVE Series network. These procedures are as follows:

• Site Evaluation: gathering specific information about potential MDS FIVE Series installation

sites.

05-4498A01, Rev. G

User Reference and Installation Guide 3-4

05-4498A01, Rev. G

• Cable and Installation: Testing and installing MDS FIVE Series ODU cables and optional

interface devices at installation sites.

• MDS FIVE Series ODU Mounting and Alignment: Mounting ODUs to a pole or wall,

performing link alignment and radio frequency (RF) verification.

• MDS FIVE Series Digital Radio Configuration: Using MDS FIVE Series Link Manager

software to install network- and site-specific parameters in the radios.

• MDS FIVE Series Digital Radio Testing: Performing cable continuity checks and RF tests for

links, the payload/radio overhead channel, and the management channel.

The following diagram shows where installation and commissioning resides within the MDS FIVE

Series network deployment life cycle and defines the sequence in which the processes that

comprise installation and commissioning should be performed.

User Reference and Installation Guide 3-5

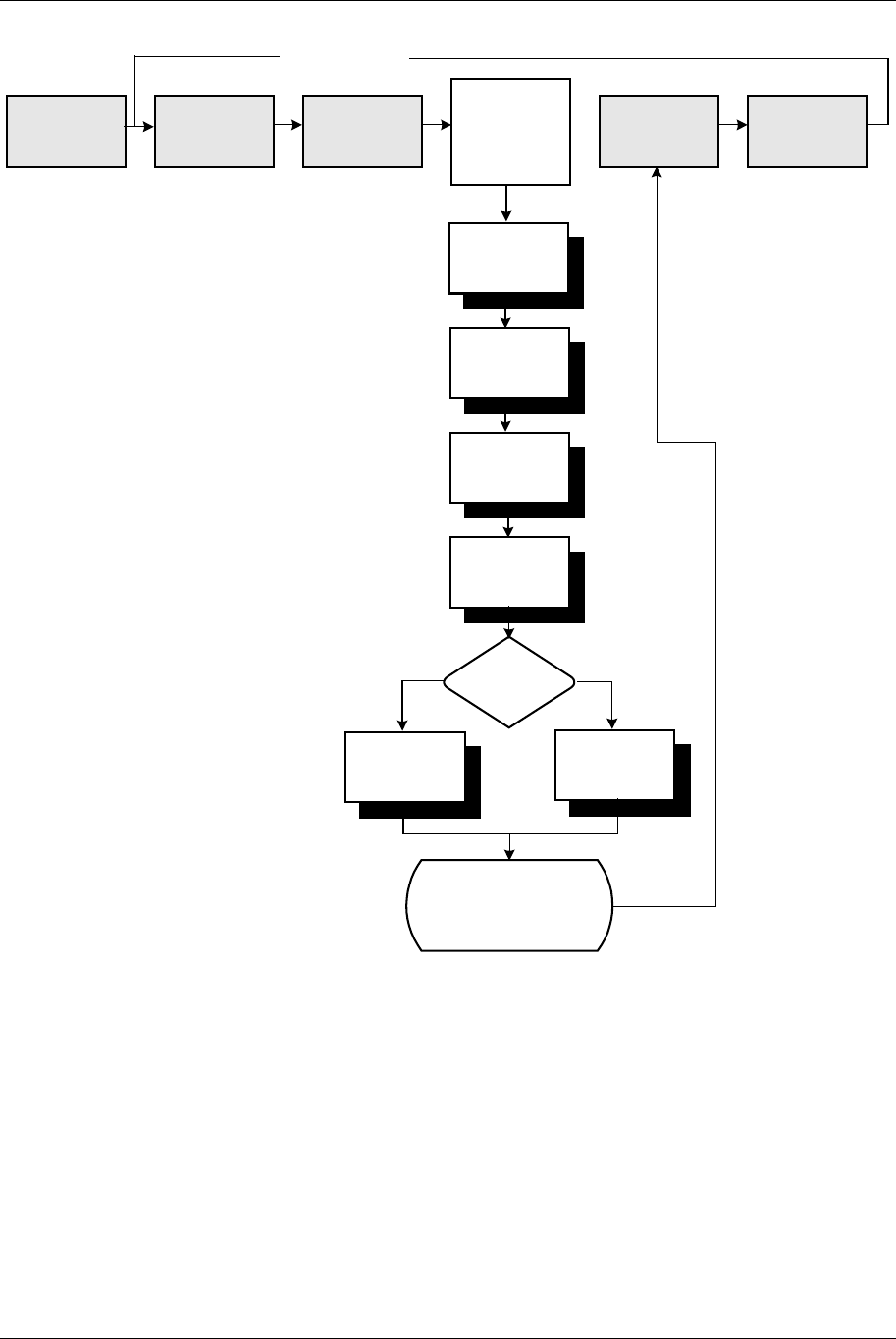

03-01-013b

Customer

Requirements

RF Planning

& Network

Design

Site Selection

& Acquisition Installation &

Commissioning

Network

Operation &

Maintenance

Network

Upgrade &

Expansion

Install Cables

Mount and Align

ODUs

Perform Site

Evaluation

Configure Digital

Software Defined

IDUTM

Perform Fast

PDH Network Test

Perform

SDH Network Test

Type of

Network?

Installation &

Commissioning

Complete

PDH SDH

Network Life Cycle

3.6 Site Evaluation

A site evaluation consists of a series of procedures for gathering specific information about

potential MDS FIVE Series locations. This information is critical to the successful design and

deployment of a network.

Site evaluations are required to confirm whether or not a building meets network design

requirements. The main objectives are as follows:

05-4498A01, Rev. G

User Reference and Installation Guide 3-6

05-4498A01, Rev. G

• Confirm

• Line of sight for each link

• MDS FIVE Series ODU mounting locations

• Site equipment locations

• Cable routes

• Any other potential RF sources

• Prepare site drawings and record site information

3.6.1 Preparing for a Site Evaluation

The following tools are required to perform a site evaluation:

• RF and network design diagrams (as required)

• Binoculars

• Global positioning system (GPS) or range finder

• Compass

• Measuring tape and/or wheel

• Digital camera

• Area map

• Aerial photograph (if available)

• List of potential installation sites (“targeted buildings”)

The following tasks must be completed prior to performing a site evaluation:

• Prepare the initial network design by performing the following:

• Identify potential buildings by identifying targeted customers (applicable if you’re a service

provider)

• Identify potential links by selecting buildings based on the high probability of line of sight

• Arrange for access with the facility personnel into the buildings, equipment rooms, and

architectural plans to become familiar with the location of all ducts, risers, etc.

User Reference and Installation Guide 3-7

3.6.2 Site Evaluation Process

The following steps must be completed to perform a successful site evaluation. Each step in the

process is detailed in the following subparagraphs:

• Ensure RF Safety compliance: Ensure that appropriate warning signs are properly placed

and posted at the equipment site or access entry. For a complete list of warnings, refer

the Safety Precautions listed at the beginning of this manual.

• Ensure Compliance with Laws, Regulations, Codes, and Agreements: Ensure that any

installation performed as a result of the site evaluation is in full compliance with applicable

federal and local laws, regulations, electrical codes, building codes, and fire codes.

• Establish Radio Line of Sight between MDS FIVE Series Radios: The most critical step

in conducting a site evaluation is confirming a clear visual and radio Line of Sight

(LOS) between a near MDS FIVE Series Radio and a far MDS FIVE Series Radio. If

LOS does not exist, another location must be used.

MDS FIVE Series Radios in a link must have a clear view of each other, or visual “line of

sight”. Binoculars may be used evaluate the path from the desired location of the near

MDS FIVE Series Radio to the desired location of the far MDS FIVE Series Radio.

To confirm Line of Sight:

- Ensure that no obstructions are close to the transmitting/receiving path. Take into

consideration trees, bridges, construction of new buildings, unexpected aerial traffic,

window washing units, etc.

- Ensure that each MDS FIVE Series can be mounted in the position required to

correctly align the MDS FIVE Series with its link partner.

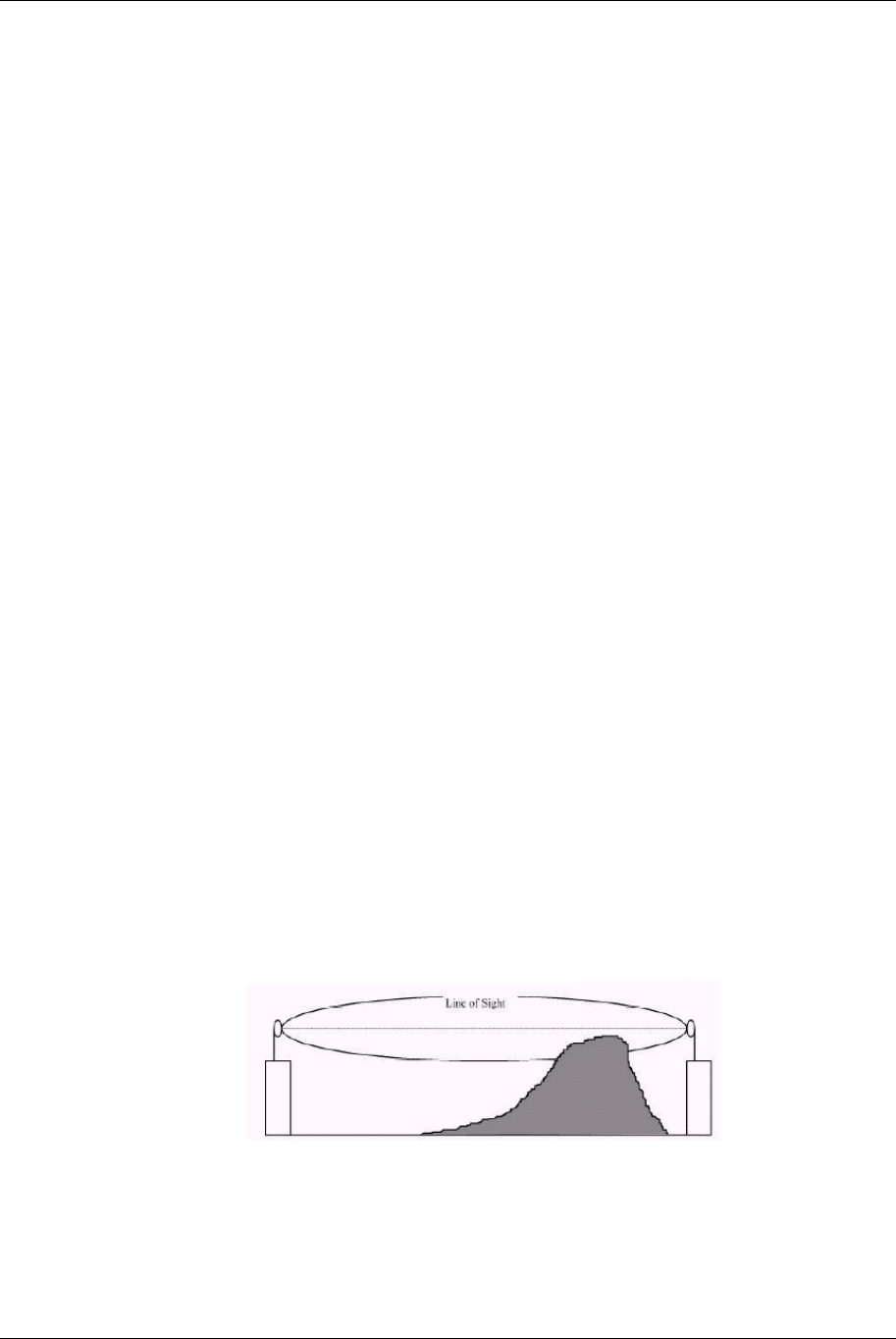

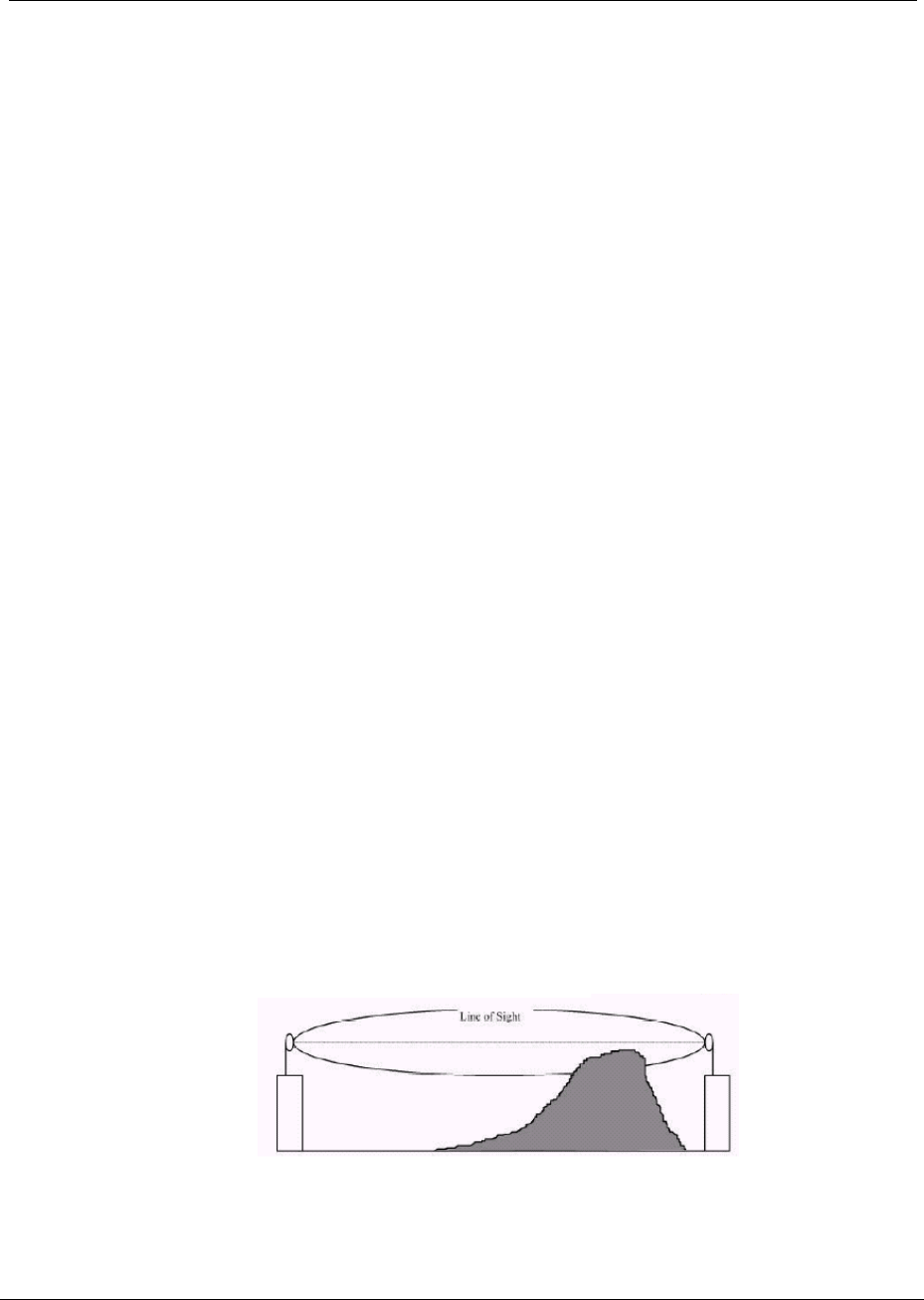

MDS FIVE Series Radios must also have a clear radio line of sight. If a hard object, such

as a mountain ridge or building, is too close to the signal path, it can damage the radio

signal or reduce its strength. This happens even though the obstacle does not obscure

the direct, visual line of sight. The Fresnel zone for a radio beam is an elliptical area

immediately surrounding the visual path. It varies in thickness depending on the length of

the signal path and the frequency of the signal. The necessary clearance for the Fresnel

zone can be calculated, and it must be taken into account when designing a wireless

links.

As shown in the picture above, when a hard object protrudes into the signal path within

the Fresnel zone, knife-edge diffraction can deflect part of the signal and cause it to reach

the receiving antenna slightly later than the direct signal. Since these deflected signals

are out of phase with the direct signal, they can reduce its power or cancel it out

05-4498A01, Rev. G

User Reference and Installation Guide 3-8

05-4498A01, Rev. G

altogether. If trees or other 'soft' objects protrude into the Fresnel zone, they can

attenuate (reduced the strength of) a passing signal. In short, the fact that you can see a

location does not mean that you can establish a quality radio link to that location.

Microwave Data Systems provides a link planner spreadsheet that calculates the Fresnel

ratio and helps determine link feasibility. Contact your technical support representative

for a copy of the spreadsheet.

 Determine MDS FIVE Series ODU Mounting Requirements: MDS FIVE Series ODUs can

be mounted on an antenna mast, brick, masonry or wall. Refer to detailed installation

sections.

• Determine MDS FIVE Series SDIDUTM Installation Location: MDS FIVE Series SDIDUsTM

can be installed tabletop or cabinet, wall mount, or rack mount. The site must provide DC

power or an optional AC/DC converter may be used. Refer to detailed installation

sections.

• Document Potential Sources of Co-location Interference: When MDS FIVE Series ODUs

are located on a roof or pole with other transmitters and receivers, an interference

analysis may be required to determine and resolve potential interference issues. The

interference analysis needs to be performed by an RF engineer. The specific information

required for each transmitter and receiver includes the following:

- Transmitting and/or receiving frequency

- Type of antenna

- Distance from MDS FIVE Series ODU (horizontal and vertical)

- Polarity (horizontal or vertical)

- Transmit power level

- Antenna direction

• Measure the Link Distance: The two ways to measure link distance are as follows:

- GPS: record the latitude and longitude for the near and far MDS FIVE Series ODU

sites and calculate the link distance. Record the mapping datum used by the GPS

unit and ensure the same mapping datum is used for all site evaluations in a given

network.

- Range finder: measure the link distance (imperial or metric units may be used).

Once the link distance has been measured, verify that the link distance meets the

availability requirements of the link. Microwave Data Systems has created a spreadsheet

tool that calculates the link availability based on the details of the link. The Microsoft Excel

spreadsheet is available on internet, at http://www.microwavedata.com/, and is shown on

the following page. The following parameters should be entered (items in yellow):

• Operating Frequency: Enter 5800 or 5300

User Reference and Installation Guide 3-9

05-4498A01, Rev. G

• Transmit Antenna Gain: Enter 23 for the internal antenna or enter the gain of the external

antenna if used.

• Transmit Output Power: Selectable between +5 to +23dB (5.8 GHz) and –18 to +5 (5.3

GHz) in 1 dB steps.

• Receive Antenna Gain: Enter 23 for the internal antenna or enter the gain of the external

antenna if used.

• Link Distance: Enter distance in miles or kilometers (must select the correct units: miles or

kilometers)

• Fresnel Clearance Ratio: This is a factor indicating the radio line of sight. A clear radio

line of site has a fresnel clearance ratio of +0.60. As the curvature of the earth or other

obstacles degrade the radio line of sight, the ratio can drop to –1. A separate spreadsheet

is provided to calculate the appropriate ratio. In this spreadsheet the path length, tower

heights and heights of any obstructions or ridges in the path of the link are entered.

• Climate Factor: Enter 0.1 for dry, 0.25 for average and 0.5 for humid environments

• Terrain Factor: Enter 0.25 for mountainous, 1 for average, and 4 for smooth (water)

• Determine the Length of Interconnect Cable from ODU to SDIDUTM: The primary

consideration for the outdoor interconnect cable from the ODU to SDIDUTM is the distance

and route between the ODU and SDIDUTM. Maximum cable lengths are listed in Table

3-1.

Table 3-1. Maximum cable lengths

Loss at (dB/100 m)

Cable Type 140 MHz 350 MHz Maximum

Length*

LMR-200 12.6 20.1 100 m

LMR-300 7.6 12.1 165 m

LMR-400 4.9 7.8 256 m

RG-214 8 13.1 153 m

Belden 7808 8.6 14 143 m

* Does not account for connector loss.

The link availability, dispersive fade margin and expected signal strength readings are calculated

based on the entered parameters. Maximum link distances based on the antenna and transmitter

power settings are also displayed.

User Reference and Installation Guide 3-10

MDS FIVE series Link Planner: 5.3GHz Availability

Parameter

Operating Frequency (MHz)

Transmit Antenna Gain (dBi)

Transmitter Output Power (dBm

)

Receive Antenna Gain (dBi)

Link Distance 3.93 miles

Fresnel Clearance Ratio

Climate Factor

Terrain Factor

MDS FIVE series Mode

5.3GHz Band Modem Data

Rate (Mbps)

Channel

Bandwidth

(MHz)

Receiver

Sensitivity3

(

dBm

)

Link Fade

Margin (dB) ODU RSSI

(dBm) Availability

(%)

5.3G-25FE1 31.112E+6 30.0 -83 12 -71 99.9987

5.3G-25FE2 31.112E+6 20.0 -82 11 -71 99.998

5.3G-25FE3 31.112E+6 13.3 -82 11 -71 99.998

5.3G-50FE1 56.733E+6 30.0 -80 9 -71 99.997

5.3G-50FE2 56.733E+6 20.0 -77 6 -71 99.9950

5.3G-50FE3 56.733E+6 13.3 -72 1 -71 99.984

5.3G-100FE1 107.797E+6 30.0 -73 2 -71 99.9876

5.3G-16E1-2 36.918E+6 20.0 -82 11 -71 99.998

5.3G-16T1-2 28.655E+6 20.0 -84 13 -71 99.9990

5.3G-16E1-3 36.918E+6 13.3 -82 11 -71 99.998

5.3G-16T1-3 28.655E+6 13.3 -84 13 -71 99.9990

Note1: FCC's definition; negative clearance indicates no optical LOS; range is [-1,…,0.6]; 0.6 is radio LOS condition.

Note2: Accounting for single knife-edge diffraction loss only.

Note3: BER<<1e-6.

Note4: Listed data rates inlcudes 2 E1 Wayside channels, except for 16E1/T1 modes.

(miles)

99.9

99.99

99.999

5.3G-25FE1 QPSK 3/4 -83 9

5.3G-25FE2 16QAM 3/4 -82 9

5.3G-25FE3 16QAM 3/4 -82 9

5.3G-50FE1 16QAM 3/4 -80 8

5.3G-50FE2 32QAM 4/5 -77 7

5.3G-50FE3 64QAM 11/12 -72

5.3G-100FE1 32QAM 9/10 -73

5.3G-16E1-2 16QAM 3/4 -82 9

5.3G-16T1-2 16QAM 3/4 -84 9

5.3G-16E1-3 16QAM 7/8 -82 9

5.3G-16T1-3 16QAM 7/8 -84 9

for Various Availability

Max Distance

Value

5300

MDS FIVE series Mode Modulation

and Code

Rate

Receiver

Sensitivity3

(

dBm

)

0.60

0.25

05-4498A01, Rev. G

User Reference and Installation Guide 3-11

Path Length (Km) 10

TX Tower Height (m) 30

RX Tow er Height (m ) 30

Frequency (MHz) 5800

Calculated Fresnel Clearance Ratio 0.48

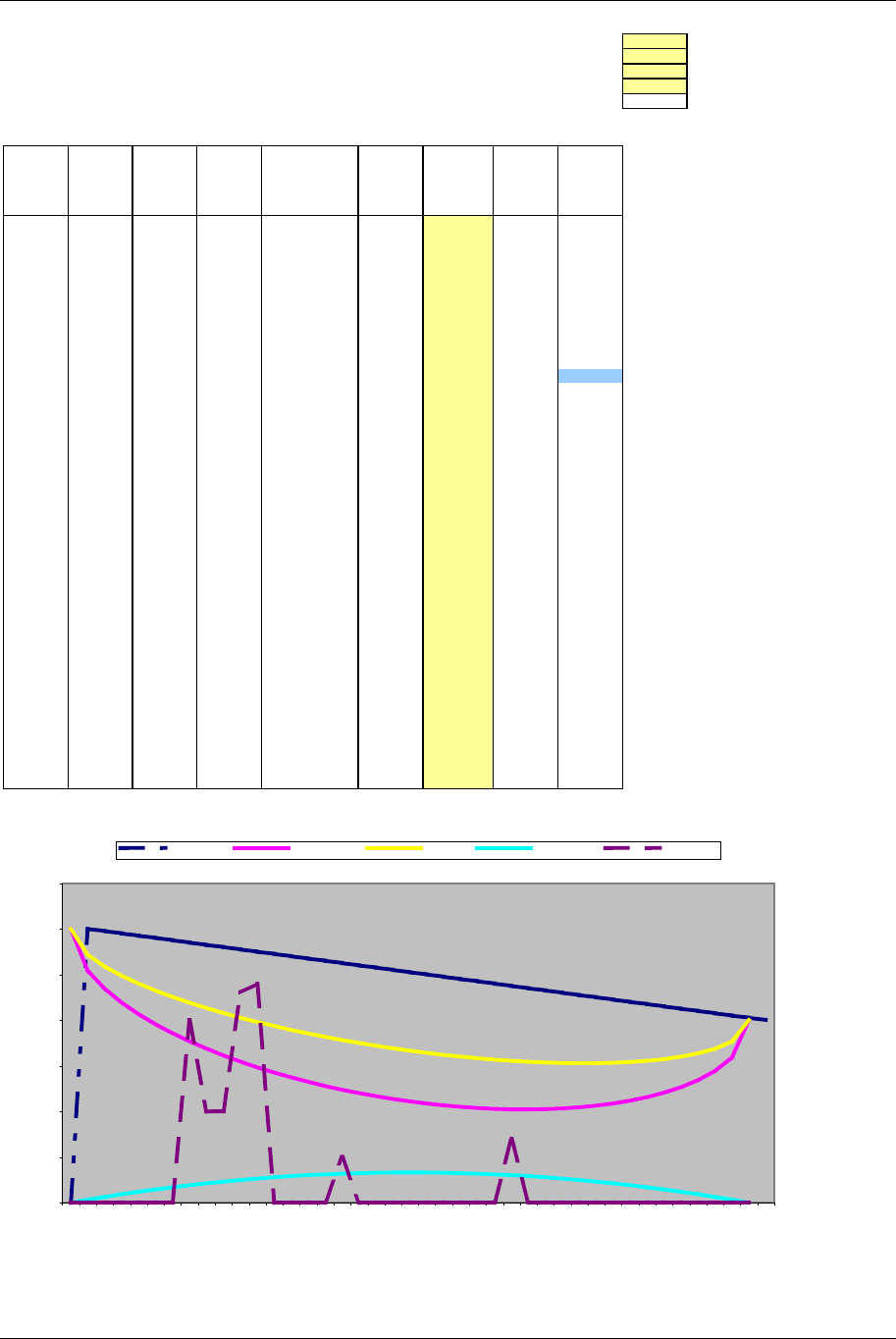

MDS FIVE series Link Planner: Fresnel Zone Clearance

Distance

from TX

(Km)

Optical

LOS

Height (m)

1st

Fre sne l

Zone

Radius (m)

1st

Fre snel

Zone

Height (m)

Radio LOS (60%

Fre sne l

Clearance) Zone

Height (m)

Ea r t h

Curvature1

(m)

Obstruction

Height (m )

Total Earth

Terrain

Height (m)

Fre sne l

Clearance

Ratio

0.0 30.0 0.0 30.0 30.0 0.0 0.0 0.0 -

0.3 30.0 3.5 26.5 27.9 0.1 0.0 0.1 8.42

6.00

4.95

4.32

3.91

3.61

1.06

2.10

2.00

0.60

2.76

2.70

2.65

2.60

1.67

2.54

2.53

2.52

2.51

2.52

2.53

2.54

2.57

2.60

0.94

2.70

2.76

2.84

2.94

3.05

3.20

3.38

3.61

3.91

4.32

4.95

6.00

8.42

0.5 30.0 5.0 25.0 27.0 0.3 0.0 0.3

0.8 30.0 6.0 24.0 26.4 0.4 0.0 0.4

1.0 30.0 6.8 23.2 25.9 0.5 0.0 0.5

1.3 30.0 7.5 22.5 25.5 0.6 0.0 0.6

1.5 30.0 8.1 21.9 25.1 0.8 0.0 0.8

1.8 30.0 8.6 21.4 24.8 0.8 20.8

2.0 30.0 9.1 20.9 24.5 0.9 10.9

2.3 30.0 9.5 20.5 24.3 1.0 11.0

2.5 30.0 9.8 20.2 24.1 1.1 24.1

2.8 30.0 10.1 19.9 23.9 1.2 25.2 0.48

3.0 30.0 10.4 19.6 23.8 1.2 0.0 1.2

3.3 30.0 10.6 19.4 23.6 1.3 0.0 1.3

3.5 30.0 10.8 19.2 23.5 1.3 0.0 1.3

3.8 30.0 11.0 19.0 23.4 1.4 0.0 1.4

4.0 30.0 11.1 18.9 23.3 1.4 11.4

4.3 30.0 11.2 18.8 23.3 1.4 0.0 1.4

4.5 30.0 11.3 18.7 23.2 1.5 0.0 1.5

4.8 30.0 11.3 18.7 23.2 1.5 0.0 1.5

5.0 30.0 11.4 18.6 23.2 1.5 0.0 1.5

5.3 30.0 11.3 18.7 23.2 1.5 0.0 1.5

5.5 30.0 11.3 18.7 23.2 1.5 0.0 1.5

5.8 30.0 11.2 18.8 23.3 1.4 0.0 1.4

6.0 30.0 11.1 18.9 23.3 1.4 0.0 1.4

6.3 30.0 11.0 19.0 23.4 1.4 0.0 1.4

6.5 30.0 10.8 19.2 23.5 1.3 19.8

6.8 30.0 10.6 19.4 23.6 1.3 0.0 1.3

7.0 30.0 10.4 19.6 23.8 1.2 0.0 1.2

7.3 30.0 10.1 19.9 23.9 1.2 0.0 1.2

7.5 30.0 9.8 20.2 24.1 1.1 0.0 1.1

7.8 30.0 9.5 20.5 24.3 1.0 0.0 1.0

8.0 30.0 9.1 20.9 24.5 0.9 0.0 0.9

8.3 30.0 8.6 21.4 24.8 0.8 0.0 0.8

8.5 30.0 8.1 21.9 25.1 0.8 0.0 0.8

8.8 30.0 7.5 22.5 25.5 0.6 0.0 0.6

9.0 30.0 6.8 23.2 25.9 0.5 0.0 0.5

9.3 30.0 6.0 24.0 26.4 0.4 0.0 0.4

9.5 30.0 5.0 25.0 27.0 0.3 0.0 0.3

9.8 30.0 3.5 26.5 27.9 0.1 0.0 0.1

10.0 30.0 0.0 30.0 30.0 0.0 0.0 0.0 -

Note1: Earth Curvature is based on a spherical Earth model w ith a nominal radius of 6371Km and a typical K-factor of 1.33.

20.0

10.0

23.0

24.0

10.0

18.5

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

0.0 2.0 4.0 6.0 8.0 10.0

Distance (km)

Height (m)

Optical LOS 1st Fresnel Radio LOS Earth Curvature Obstructions

05-4498A01, Rev. G

User Reference and Installation Guide 3-12

05-4498A01, Rev. G

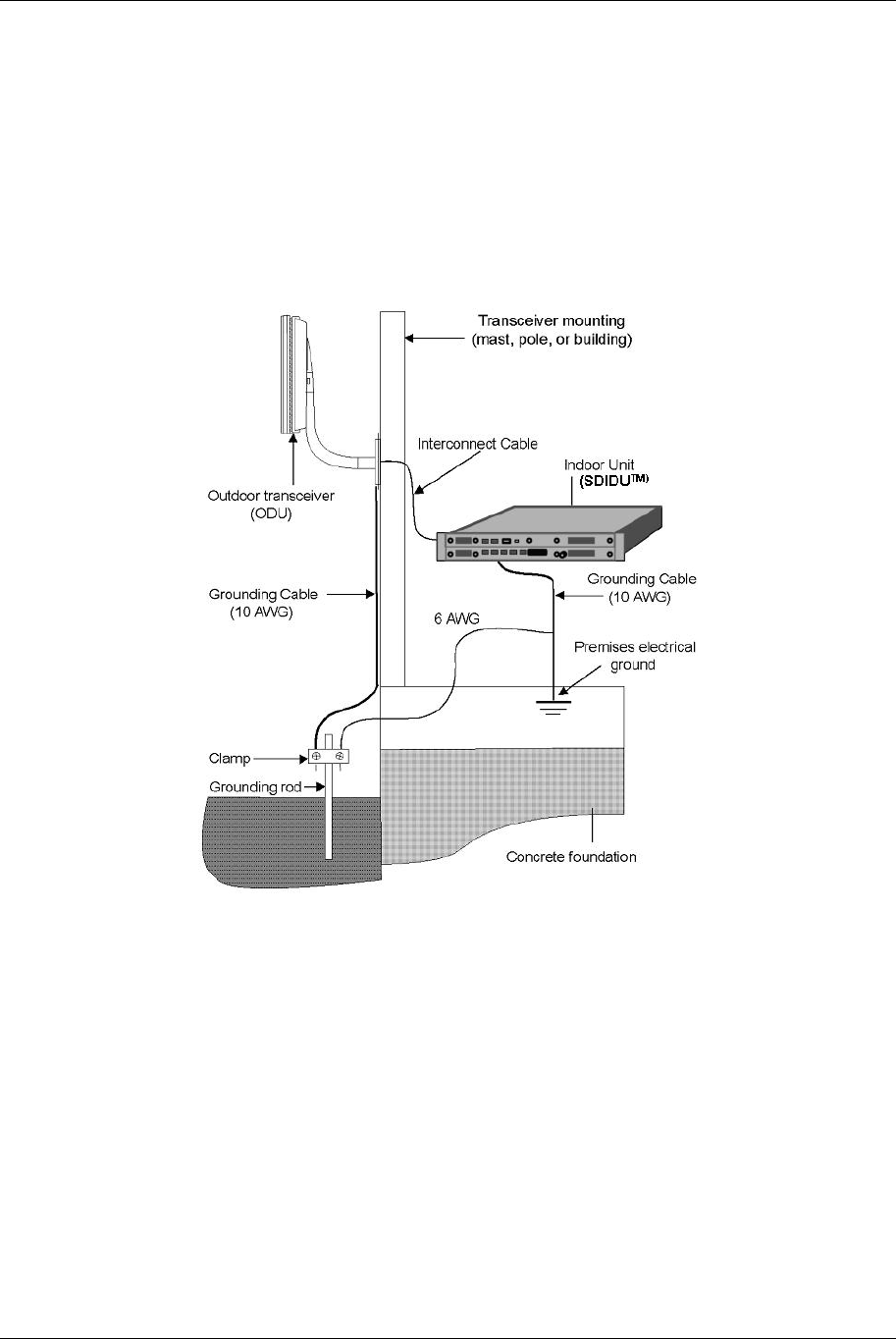

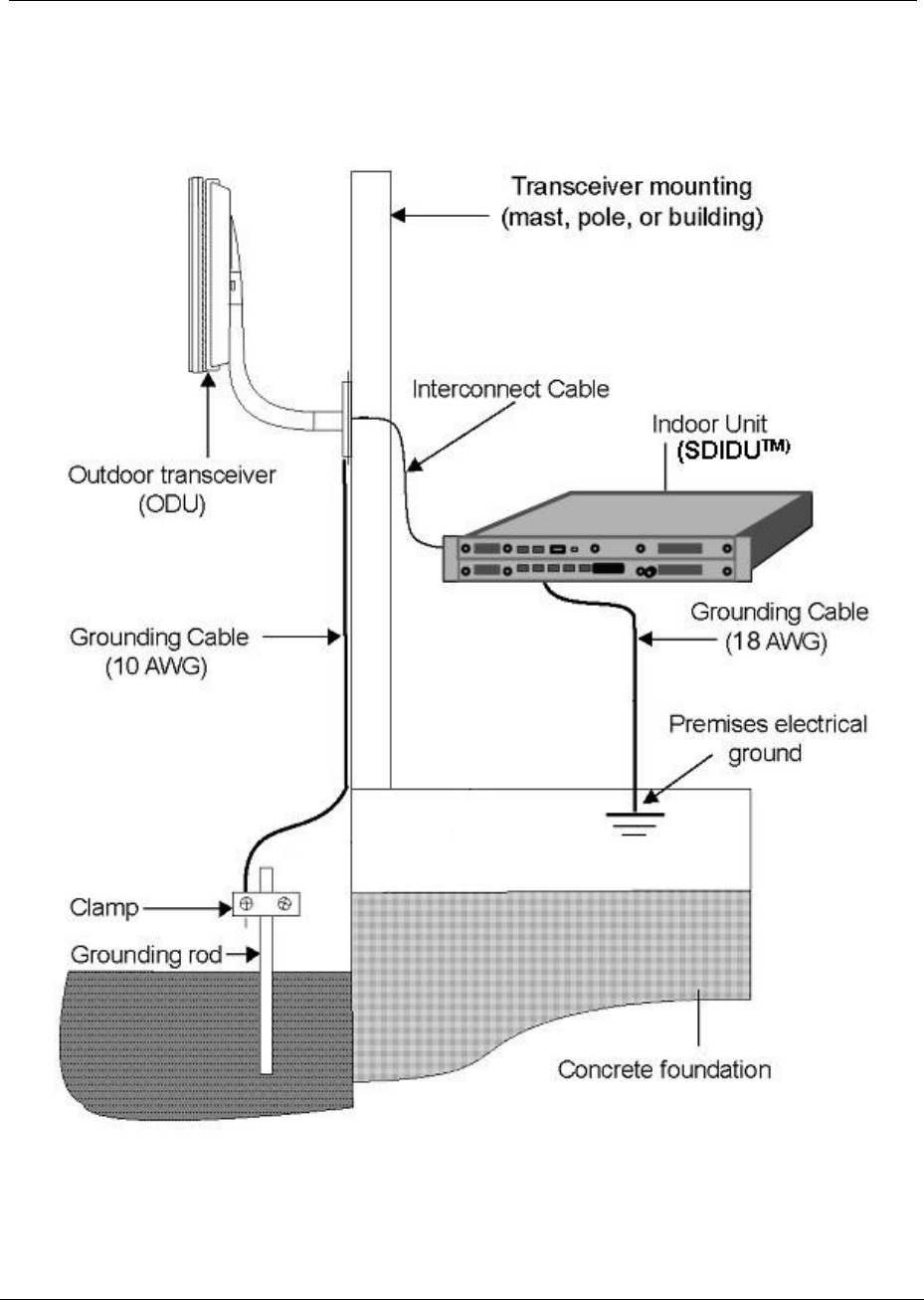

Select the Grounding Location for both the MDS FIVE Series ODU and SDIDUTM: The MDS

FIVE Series must be properly grounded in order to protect it and the structure it is installed on

from lightning damage. This requires

- Grounding all ODUs as specified by supplier

- Grounding all SDIDUTM to the rack.

• Confirm the Presence of DC Power for the MDS FIVE Series SDIDUTM.

• Ensure Building Aesthetics: Ensure that the ODU can be mounted so that it is

aesthetically pleasing to the environment and to the property owner. Aesthetics must be

approved by the property owner and the network engineer.

• Take Site Photographs

• Sketch the Site

3.6.3 Critical System Calculations

3.6.3.1 Received Signal Level (RSL) and Link Budget

The received signal level (RSL) can be estimated using the following formula:

RSL (dBm) = PTX + GTX ANT – LPath + GRX ANT

Where: PTX is the transmitter output power (in dBm)

GTX ANT is the gain of the transmit antenna (in dB), 23 dBi for ODU’s internal antenna

GRX ANT is the gain of the receive antenna (in dB), 23 dBi for ODU’s internal antenna

LPath is the Path loss, defined by:

LP (dB) = 36.6 + 20log10(F*D)

Where: F is the Frequency in MHz (5800 or 5300), D is the Distance of path in miles

This link budget is very important in determining any potential problems during installation. The

expected RSL and measured RSL should be close (+/- 5 to 10 dB)

3.6.3.2 Fade Margin Calculation

The fade margin is the difference between the actual received signal and the MDS FIVE Series

Radio’s threshold for the modulation mode selected. The fade margin can be used to determine

availability and should be at least 10 dB.

User Reference and Installation Guide 3-13

05-4498A01, Rev. G

3.6.3.3 Availability Calculation

Availability of the microwave path is a prediction of the percent of time that the link will operate

without producing an excessive BER due to multipath fading. Availability is affected by the

following:

• Path length

• Fade margin

• Frequency

• Terrain (smooth, average, mountainous, valleys)

• Climate (dry, temperate, hot, humid)

Depending on the type of traffic carried over the link and the overall network design redundancy,

fade margin should be included to support the desired availability rate. Critical data and voice

may require a very high availability rate (99.999% or 5.3 minutes of predicted outage per year).

To improve availability, the fade margin can be increased by shortening the path length,

transmitting at a higher power level, or by using higher gain antennas.

Availability can be computed using the following formula, which is known as the Vigants Barnett

Method.

Availability = 100 × (1 – P)

P = 2.5 × 10-9 × C × F × D3× 10(-FM/10)

Where F is the frequency in MHz (5300 or 5800)

D is the distance in miles

FM is the fade margin in dB

C is the climate/terrain factor as defined below:

Humid/Over Water: C = 4 (worst case channel)

Average Conditions: C = 1

Dry/Mountains: C = 0.25 (best case channel)

Example: Assume 21 dB fade margin, over 5 miles with average climate/terrain, at 5.8 GHz. The

availability comes out to be 99.9986. This corresponds to the link being unavailable for 7.6

minutes per year.

3.6.4 Frequency Plan Determination

When configuring MDS FIVE Series units in a point-to-point or consecutive point configuration,

careful engineering of the MDS FIVE Series frequency plans and antenna locations should be

performed in order to minimize potential interference between nearby radios. Nearby radios

should operate on different frequencies, transmitting in the same band (high side or low side).

User Reference and Installation Guide 3-14

When designing multi-radio configurations, antenna size, antenna polarization, and antenna

location are critical.

The frequency plan must be selected based on desired data rate and expected link conditions. In

a high interference environment or with lower gain antennas, higher bandwidth, more robust

modulation formats must be employed. The available frequency plans are illustrated in Figure

3-3 and Figure 3-4.

The channel assignments shown in the figures correspond to the channel numbers entered via

the graphical user interface (GUI) or SNMP.

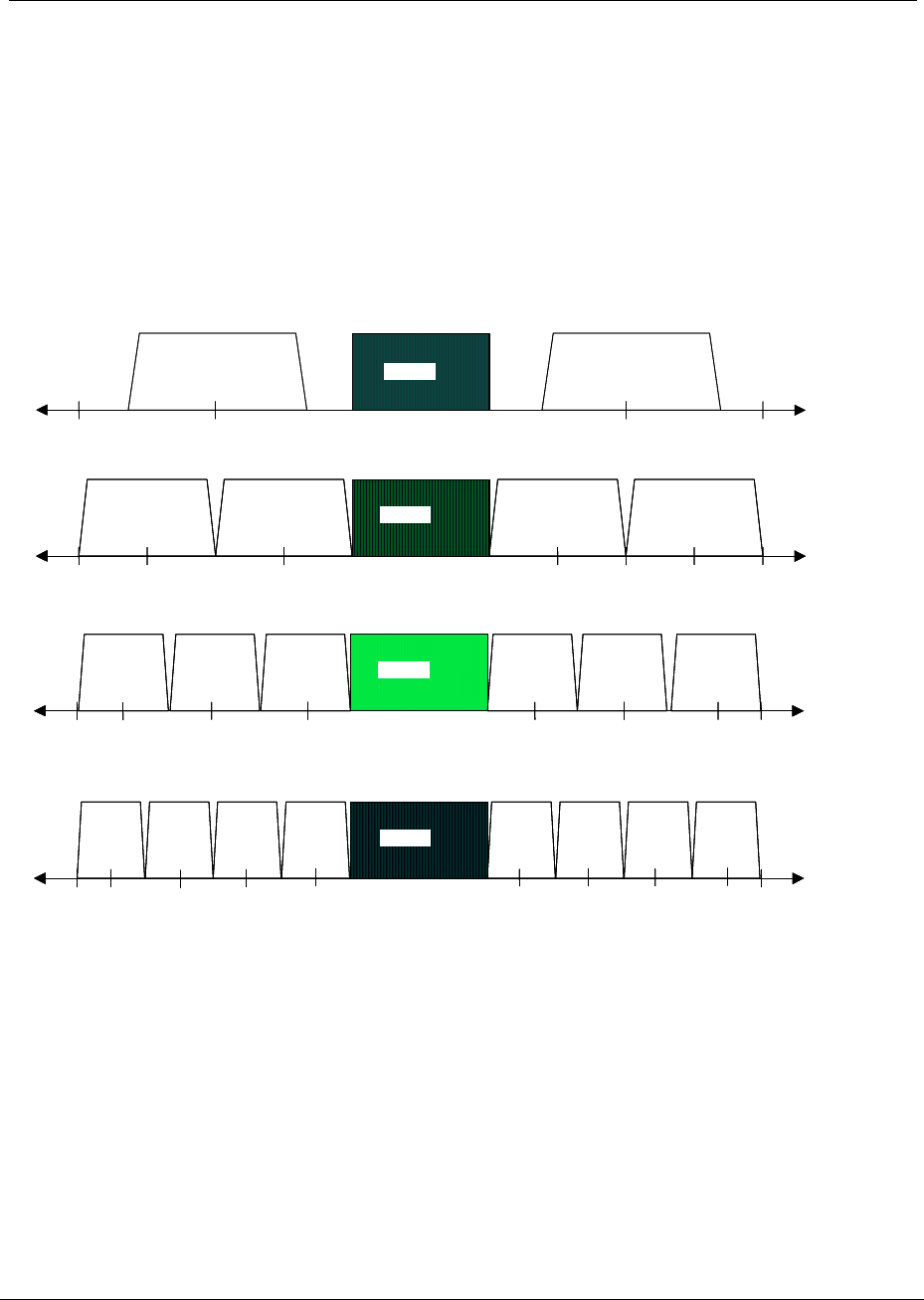

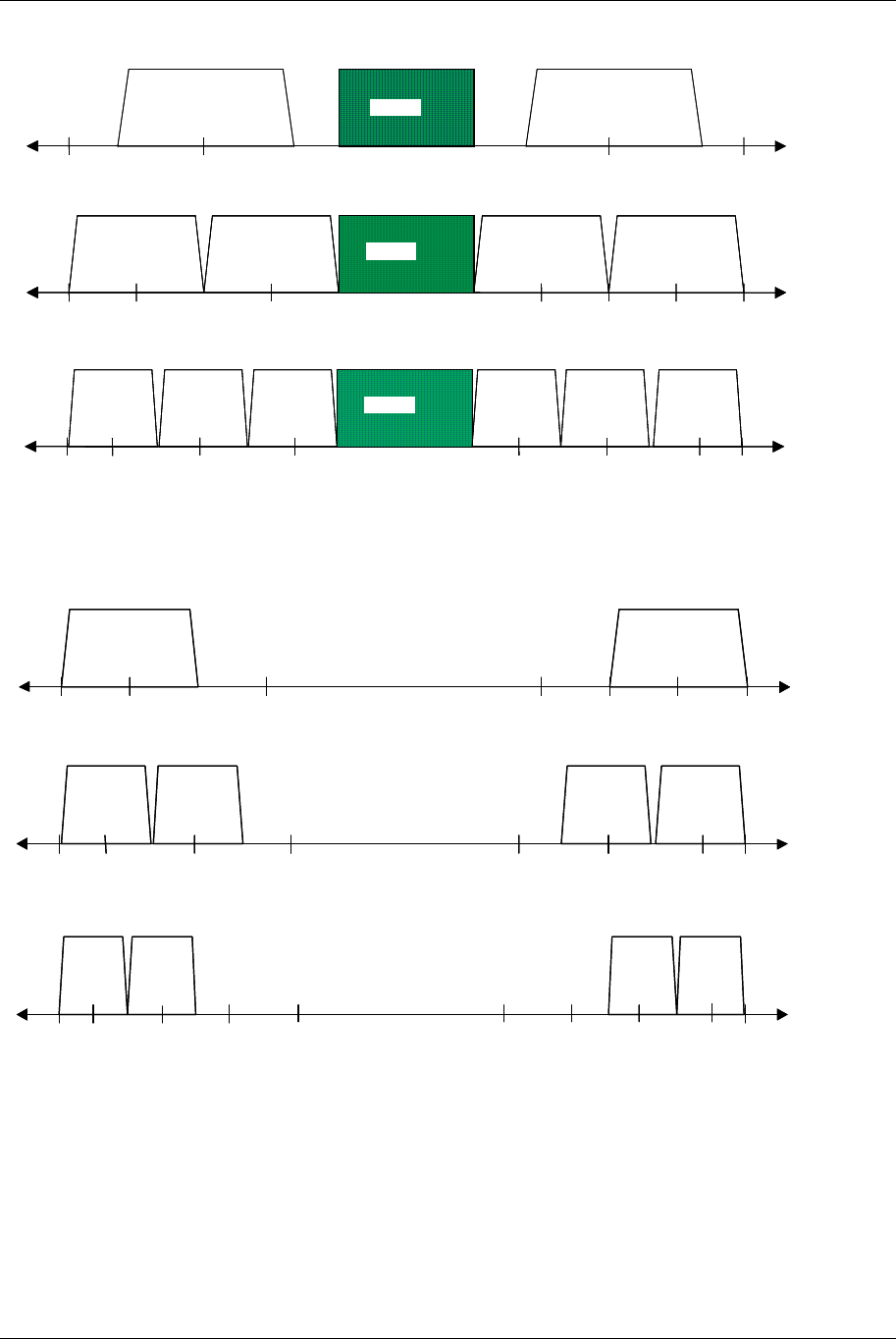

5725

F, MHz

5850

Diplexer

1 Channel Operation, 30MHz Bandwidth

5750 5825

A Tx

B Rx

A Rx

B Tx

2 Channel Operation, 25MHz Bandwidth

5725

F, MHz

5850

Diplexer

5762 5812

1A Tx

1B Rx

1A Rx

1B Tx

5737 5837

2A Rx

2B Tx

2A Tx

2B Rx

3 Channel Operation, 16.7MHz Bandwidth

5725

F, MHz

5850

Diplexer

5766 5808

1A Tx

1B Rx

1A Rx

1B Tx

5733 5841

2A Rx

2B Tx

2A Tx

2B Rx

3A Tx

3B Rx

5750

3A Rx

3B Tx

5825

5725

F, MHz

5850

Diplexer

4 Channel Operation, 12.5MHz Bandwidth

5756 5806

1A Tx

1B Rx

1A Rx

1B Tx

5731 5843

2A Rx

2B Tx

2A Tx

2B Rx

3A Tx

3B Rx

4A Tx

4B Rx

5743 5768

3A Rx

3B Tx

4A Rx

4B Tx

5818 5831

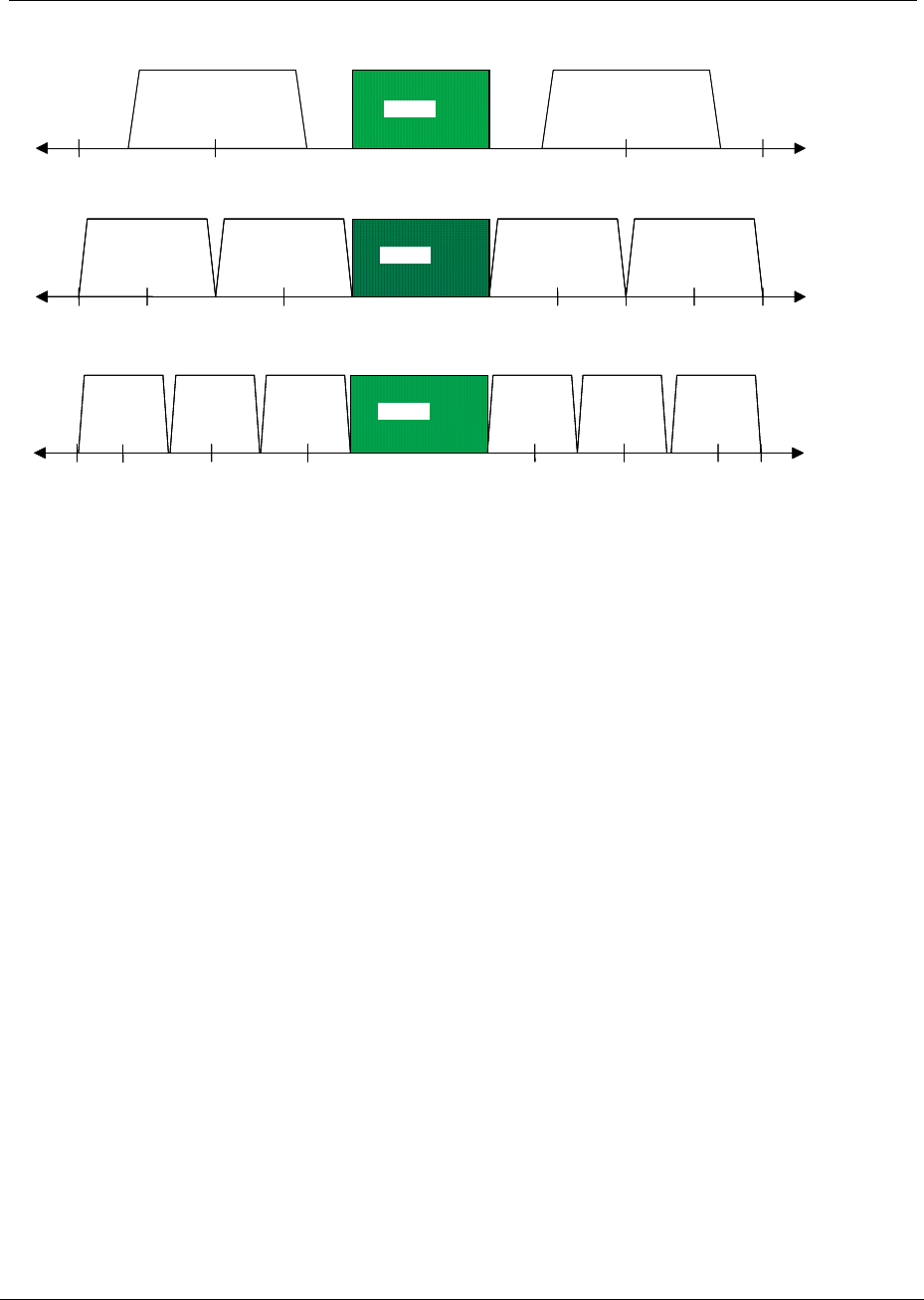

5725

F, MHz

5850

Diplexer

1 Channel Operation, 30MHz Bandwidth

5750 5825

A Tx

B Rx

A Rx

B Tx

2 Channel Operation, 25MHz Bandwidth

5725

F, MHz

5850

Diplexer

5762 5812

1A Tx

1B Rx

1A Rx

1B Tx

5737 5837

2A Rx

2B Tx

2A Tx

2B Rx

2 Channel Operation, 25MHz Bandwidth

5725

F, MHz

5850

Diplexer

5762 5812

1A Tx

1B Rx

1A Rx

1B Tx

5737 5837

2A Rx

2B Tx

2A Tx

2B Rx

3 Channel Operation, 16.7MHz Bandwidth

5725

F, MHz

5850

Diplexer

5766 5808

1A Tx

1B Rx

1A Rx

1B Tx

5733 5841

2A Rx

2B Tx

2A Tx

2B Rx

3A Tx

3B Rx

5750

3A Rx

3B Tx

5825

3 Channel Operation, 16.7MHz Bandwidth

5725

F, MHz

5850

Diplexer

5766 5808

1A Tx

1B Rx

1A Rx

1B Tx

5733 5841

2A Rx

2B Tx

2A Tx

2B Rx

3A Tx

3B Rx

5750

3A Rx

3B Tx

5825

5725

F, MHz

5850

Diplexer

4 Channel Operation, 12.5MHz Bandwidth

5756 5806

1A Tx

1B Rx

1A Rx

1B Tx

5731 5843

2A Rx

2B Tx

2A Tx

2B Rx

3A Tx

3B Rx

4A Tx

4B Rx

5743 5768

3A Rx

3B Tx

4A Rx

4B Tx

5818 5831

5725

F, MHz

5850

Diplexer

4 Channel Operation, 12.5MHz Bandwidth

5756 5806

1A Tx

1B Rx

1A Rx

1B Tx

5731 5843

2A Rx

2B Tx

2A Tx

2B Rx

3A Tx

3B Rx

4A Tx

4B Rx

5743 5768

3A Rx

3B Tx

4A Rx

4B Tx

5818 5831

Figure 3-3. MDS FIVE Series Channel 5.8 GHz Frequency Plan

05-4498A01, Rev. G

User Reference and Installation Guide 3-15

5250

F, MHz

5350

Diplexer

1 Channel Operation, 30MHz Bandwidth

5270 5330

A Tx

B Rx

A Rx

B Tx

2 Channel Operation, 20MHz Bandwidth

5250

F, MHz

5350

Diplexer

5280 5320

1A Tx

1B Rx

1A Rx

1B Tx

5260 5340

2A Rx

2B Tx

2A Tx

2B Rx

3 Channel Operation, 13.3MHz Bandwidth

5250

F, MHz

5350

Diplexer

5283 5317

1A Tx

1B Rx

1A Rx

1B Tx

5257 5343

2A Rx

2B Tx

2A Tx

2B Rx

3A Tx

3B Rx

5270

3A Rx

3B Tx

5330

5250

F, MHz

5350

Diplexer

1 Channel Operation, 30MHz Bandwidth

5270 5330

A Tx

B Rx

A Rx

B Tx

2 Channel Operation, 20MHz Bandwidth

5250

F, MHz

5350

Diplexer

5280 5320

1A Tx

1B Rx

1A Rx

1B Tx

5260 5340

2A Rx

2B Tx

2A Tx

2B Rx

2 Channel Operation, 20MHz Bandwidth

5250

F, MHz

5350

Diplexer

5280 5320

1A Tx

1B Rx

1A Rx

1B Tx

5260 5340

2A Rx

2B Tx

2A Tx

2B Rx

3 Channel Operation, 13.3MHz Bandwidth

5250

F, MHz

5350

Diplexer

5283 5317

1A Tx

1B Rx

1A Rx

1B Tx

5257 5343

2A Rx

2B Tx

2A Tx

2B Rx

3A Tx

3B Rx

5270

3A Rx

3B Tx

5330

3 Channel Operation, 13.3MHz Bandwidth

5250

F, MHz

5350

Diplexer

5283 5317

1A Tx

1B Rx

1A Rx

1B Tx

5257 5343

2A Rx

2B Tx

2A Tx

2B Rx

3A Tx

3B Rx

5270

3A Rx

3B Tx

5330

Figure 3-4. MDS FIVE Series Channel 5.3 GHz Frequency Plan

3.6.5 Antenna Planning

The ODU comes with a built in 23 dBi gain antenna. This should provide adequate link

performance for most applications.

Larger antennas have the advantage of providing narrower beamwidths and high isotropic gain,

which yields better link performance (higher fade margin, better availability), and improves

immunity to spatial interference (due to the smaller beamwidths). However, larger antennas are

more costly to purchase and install than smaller antennas and in some cases, they require

special equipment for installation due to narrower beamwidths. They are also more easily

affected by wind.

Only directional antennas can be used with MDS FIVE Series radios. Consult factory for antenna

manufacturer options.

The ISM (5.8 GHz) band does not restrict antenna gain or EIRP, therefore there is no need to

back off transmit power due to excessive antenna gain.

1. Select where the cable will enter the building from the outside.

2. Determine the length of cable required. Allow three extra feet on each end to allow for strain

relief, as well as any bends and turns.

3.6.6 ODU Transmit Power Setup

Setting the ODU transmit power is conditional on the band and application. The installer of

this equipment is responsible for proper selection of allowable power settings. If there are

05-4498A01, Rev. G

User Reference and Installation Guide 3-16

05-4498A01, Rev. G

any questions on power settings refer to your professional installer in order to maintain

the FCC legal ERP limits.

The SDIDUTM employs spectrally efficient shaped Quadrature Amplitude Modulation (QAM). This

waveform is not a constant envelope waveform. Therefore, the average power and peak power

are different. The difference in peak and average power depends on the constellation type and

shaping factor, where spectral efficiency such as more constellation points or lower shaping

factor leading to peak powers higher than average powers. The peak power is typically 5-7 dB

greater than the average power in the SDIDUTM, and never exceeds 7 dB. Regulatory

requirements are usually based on peak EIRP which is based on peak power and antenna gain.

3.6.6.1 5.8 GHz Band

For fixed point-to-point applications in the United States the maximum EIRP (Effective Isotropic

Radiated Power) is unlimited when using directional antennas in accordance with FCC part

15.247b(3). The ODU 5800 may therefore be operated at its maximum output power, +23 dBm,

for maximum system gain.

EIRP is calculated for link budget with external antennas as,

EIRP(avg) dBm = External Antenna Gain (dBi) + 23 dBm

For internal antenna (23 dBi) EIRP is,

EIRP(avg) = 46 dBm

3.6.6.2 5.3 GHz Band

In the 5.3 GHz U-NII band the peak EIRP (Effective Isotropic Radiated Power) is limited to +30

dBm at the antenna for bandwidths above 20 MHz and is reduced for narrower bandwidths in

accordance with FCC part 15.407a(3).

The installer is responsible during set up of transmit power to not exceed FCC limits on

transmission power. These maximum power levels are provided in Table 3-1 for both internal

antenna and external antenna ODU configurations, along with the operational bandwidths.

Note that though regulatory limits are stated in terms of peak power, the system transmit power

levels are calibrated as averaged power readings. Average power is used for link calculations.

Therefore the levels provided in the following table is average power levels that have been

certified to correspond with the maximum peak EIRP allowed.

3.6.6.2.1 ODU with Internal Antenna

Table 3-1 indicates the maximum average transmit power setting that may be selected ODU 5300

with internal (23 dBi) antenna.

The number of supported channels per band (low band or high band) is shown in the link

configuration wizard. The greater number of channels supported the lower the emission

bandwidth for each channel.

User Reference and Installation Guide 3-17

05-4498A01, Rev. G

For link budget, EIRP(Avg) = 23 dBi + Tx Power Setting (dBm).

3.6.6.2.2 ODU with External Antenna

When using external antennas with gains greater than 23 dBi, the transmit power must be

reduced in dB from that given in Table 3-1 by the antenna gain difference above 23 dBi for the

mode that is being used.

For example, using a 6 foot dish antenna with 37 dBi gain, the output power would be dropped by

Antenna Gain (External) – 23 dBi = Antenna Gain Difference

37.6 dBi – 23 dBi = 14.6 dB

For mode 100FE1 (single channel configuration with 30MHz emission bandwidth) the power

would be lowered from

Tx Power (Internal Antenna) – Antenna Gain Difference = Tx Power (External Ant)

+5 dBm – 14.6 dB = -9.6 dBm (-10 dBm).

Table 3-1 also presents transmit power settings for various antenna dish sizes.

For link budget, EIRP(Avg) dBm = 37 dBi + Tx Power Setting (dBm).

Table 3-2. Maximum Power Settings for 5.3GHz U-NII Band Operation (US).

Antenna

Diameter Antenna

Gain, dBi*

(example)

Maximum Tx

Power

Setting, dBm

1 Channel

Mode

(30MHz BW)

Maximum Tx

Power

Setting, dBm

2 Channel

Mode

(20MHz BW)

Maximum Tx

Power

Setting, dBm

3 Channel

Mode

(13.3MHz

BW)

6 foot dish 37.6 -10 -11 -12

4 foot dish 34.6 -7 -8 -9

3 foot dish 31.2 -3 -4 -5

2 foot dish 28.0 0 -1 -2

1.5 foot dish 25.3 +3 +2 +1

Internal 23.0 +5 +4 +3

* Note: Many antenna manufacturers rate antenna gain in dBd (dB referred to a dipole antenna)

in their literature. To convert to dBi, add 2.15 dB.

User Reference and Installation Guide 3-18

05-4498A01, Rev. G

Power settings for other modes of operation can be easily extrapolated from Table 3-2. For link

budget calculations,

EIRP(Avg) dBm= Antenna Gain (dBi) + Tx Power Setting (dBm).

Though transmitter radiated power is limited in the 5.3 GHz band regardless of antenna size, the

receiver benefits from gain of larger antennas.

3.6.7 Documenting a Site Evaluation

Use the site evaluation form provided on the following pages to document the results of your site

evaluation. Optimally, this complete site form would be stored with the SDIDUTM for future

reference.

User Reference and Installation Guide 3-19

Address Site Engineer

Contact Person

Phone

Site No Site Agent

Site Type

# Latitude Longitude

ODU

Example Information Information Information

ODU# 4

Clear Line of Sight Yes

Mounting Method Wall or Pole

FCC Compliance Yes

Collocation

Aesthetics

ODU Azimuth 60 degrees

GPS Reading 80 21' 48"

Cable Lengths

Alarm

Interconnect Cable 250 feet

Grounding/Lighting

Instructions

Photographs*

Photo 1

Photo 2

Photo 3

Sketches**

Sketch 1

Sketch 2

*Photographs **Sketches

Photo 1 - ODU mounting location Sketch 1- Roof and cable route to entry point

Phone 2 - View from the ODU mounting location to the link partner Sketch 2 - Details for grounding and lighting protection

Photo 3 - IDU location Sketch 3 - IDU room and cable routes from entry port

Site Evaluation Form

ODU Roof Location

Mapping Datum (ex. NDA27)

Roof Requirements

Recommendations for Site Photographs and Sketches

05-4498A01, Rev. G

User Reference and Installation Guide 3-20

Site Evaluation

Parameters Example Information Information Information Information

Source PCS

Tx and/or Rx Tx/Rx

Frequency 2.1 GHz

Distance from ODU 5 feet

Owner Sprint PCS

zimuth 210 degrees

Elevation 2 degrees downtilt

ntenna Type

Power

Power 14W

Parameters Example Information Information Information Information

IDU room Identified Yes

Space for cabinet Yes

Phone line Need to install

48 VDC available? Yes

Cables Confirm cables

Take Photo 3

Sketch 3

Front View Top View Side View

ment Cabinet

Batteries

Note

Equipment Dimensions

Colocated

SDIDUTM

Indoor S

ace

05-4498A01, Rev. G

User Reference and Installation Guide 3-21

05-4498A01, Rev. G

3.7 Installation of the MDS FIVE Series

The following sections provide installation guides for:

• SDIDUTM Installation

• ODU Installation

3.7.1 Installing the MDS FIVE Series Software Defined IDUTM

The MDS FIVE Series SDIDUTM can be installed in the following three options:

1. Table top or cabinet

2. Wall mount

3. Rack mount

The MDS FIVE Series SDIDUTM should be:

• Located where you can easily connect to a power supply and any other equipment used in

your network, such as a router or PC.

• In a relatively clean, dust-free environment that allows easy access to the rear grounding post

as well as the front panel controls and indicators. Air must be able to pass freely over the

chassis.

• Accessible for service and troubleshooting.

• Protected from rain and extremes of temperature (it is designed for indoor use).

3.7.1.1 Installing on a Table Top or Cabinet

The MDS FIVE Series SDIDUTM can be placed on a tabletop or cabinet shelf. In order to prevent

possible disruption, it is recommended to use a strap to secure the SDIDUTM.

3.7.1.2 Installing on a Wall

An installation option for the SDIDUTM is mounting the unit to a wall. If the wall mount option is

being considered, plan to position the MDS FIVE Series SDIDUTM at a height that allows LEDs,

the connectors on the front panel, and the rear grounding post to be visible at all times and easily

accessible. Also, including plastic clamps to support and arrange the ODU/ SDIDUTM

Interconnect Cable should also be considered.

User Reference and Installation Guide 3-22

3.7.1.3 Installing in a Rack

To rack-mount the SDIDUTM, use the supplied mounting brackets to secure the chassis to a 19

inch rack cabinet. As shown in Figure 3-5, the brackets can be attached to the front sides of the

enclosure. An optional 21 inch rack mount kit is also available (consult factory for details).

Figure 3-5. MDS FIVE Series SDIDUTM Dimensions

3.7.2 Installing the MDS FIVE Series ODU

The MDS FIVE Series ODU is intended for mounting on either a pole or antenna mast.

Each site must be assessed for the mounting method, location, and height. After defining the

mounting location and height for the MDS FIVE Series ODU, re-confirm the line of sight.

When operating a 1+1 configured SDIDU™, i.e. an SDIDU™ with two power supplies and two

modem modules installed, in 1+0 mode, the ODU must be connected to the modem in the bottom

slot. If the ODU is connected to the modem in the top slot, the SDIDU™ will not communicate

with the ODU, and a link cannot be established.

3.7.2.1 Installing the Mounting Poles

First install the mounting poles, on which you will mount the MDS FIVE Series ODU. It is

important to note the direction in which the ODU will point when installing the mounting pole.

The mounting pole must be mounted in a vertical position. Failure to do so may result in

improper alignment of the ODU. Vertical tilt of the ODU is accomplished from the tilt mounting

bracket.

The mounting pole must be grounded.

Now that you have installed the mounting pole, you are ready to install the MDS FIVE Series

ODU onto the mounting poles. Reference Figure 3-6 through Figure 3-9.

05-4498A01, Rev. G

User Reference and Installation Guide 3-23

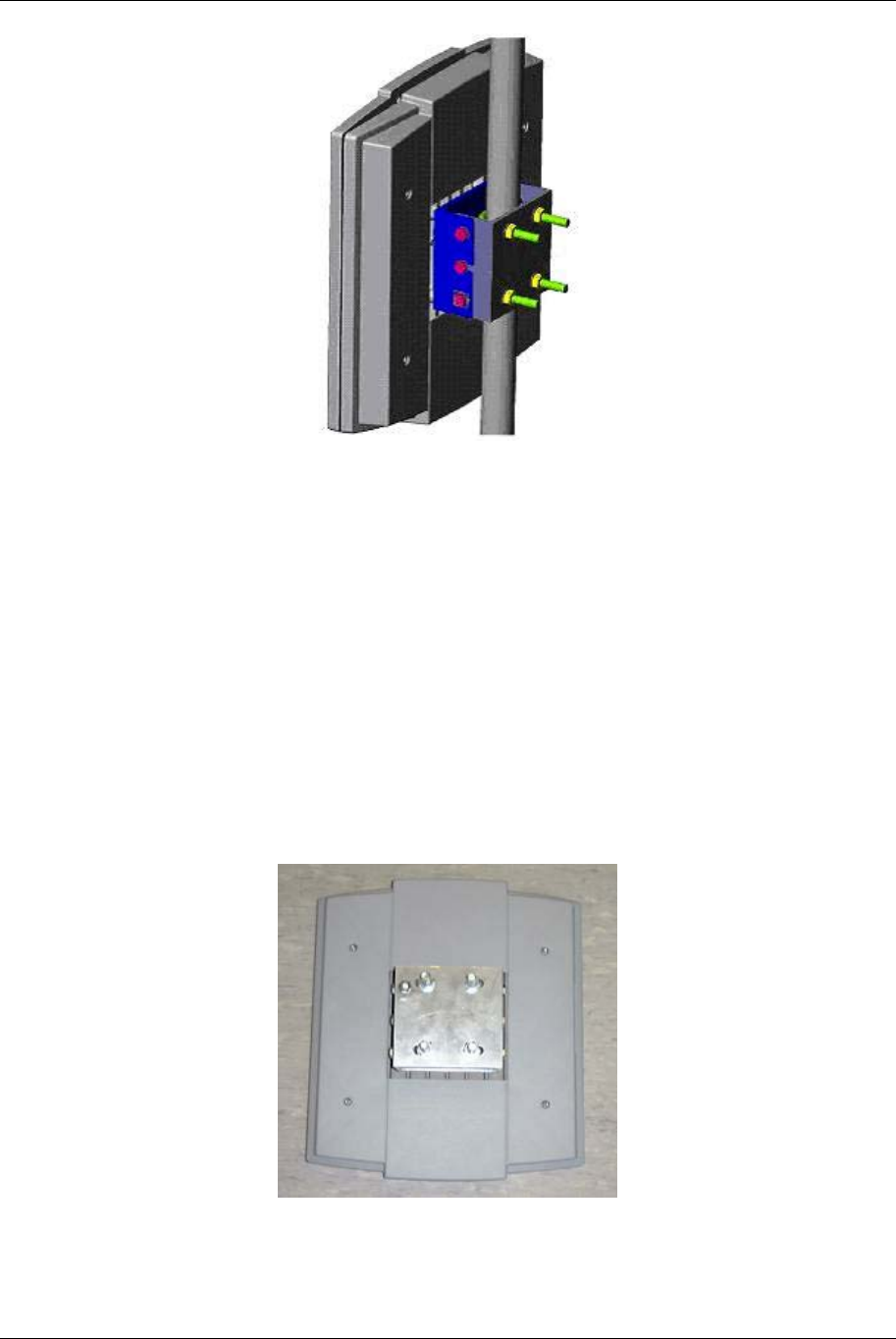

Figure 3-6. Mounting Parts for the MDS FIVE Series ODU

1. Remove the pole mount portion of the tilt bracket from the ODU by loosening the middle

bolts and removing the top and bottom bolts on each side.

2. Mount the tilt bracket to the mounting pole using the U-Bolts and nuts. Insert the U-bolts

around the pole and through the holes in the tilt bracket. Install a washer and nut to each

side of the threaded U-bolt and hand tighten. Repeat this step for the second U-bolt.

3. Place the MDS FIVE Series ODU on the mating half of the tilt bracket connected by the

two center bolts.

4. Add the remaining four bolts to the tilt bracket but do not tighten until the antenna

alignment is complete (only applies for internal antenna ODUs).

5. Manually point the ODU in the direction of the link partner ODU.

Figure 3-7. MDS FIVE Series ODU Rear View

05-4498A01, Rev. G

User Reference and Installation Guide 3-24

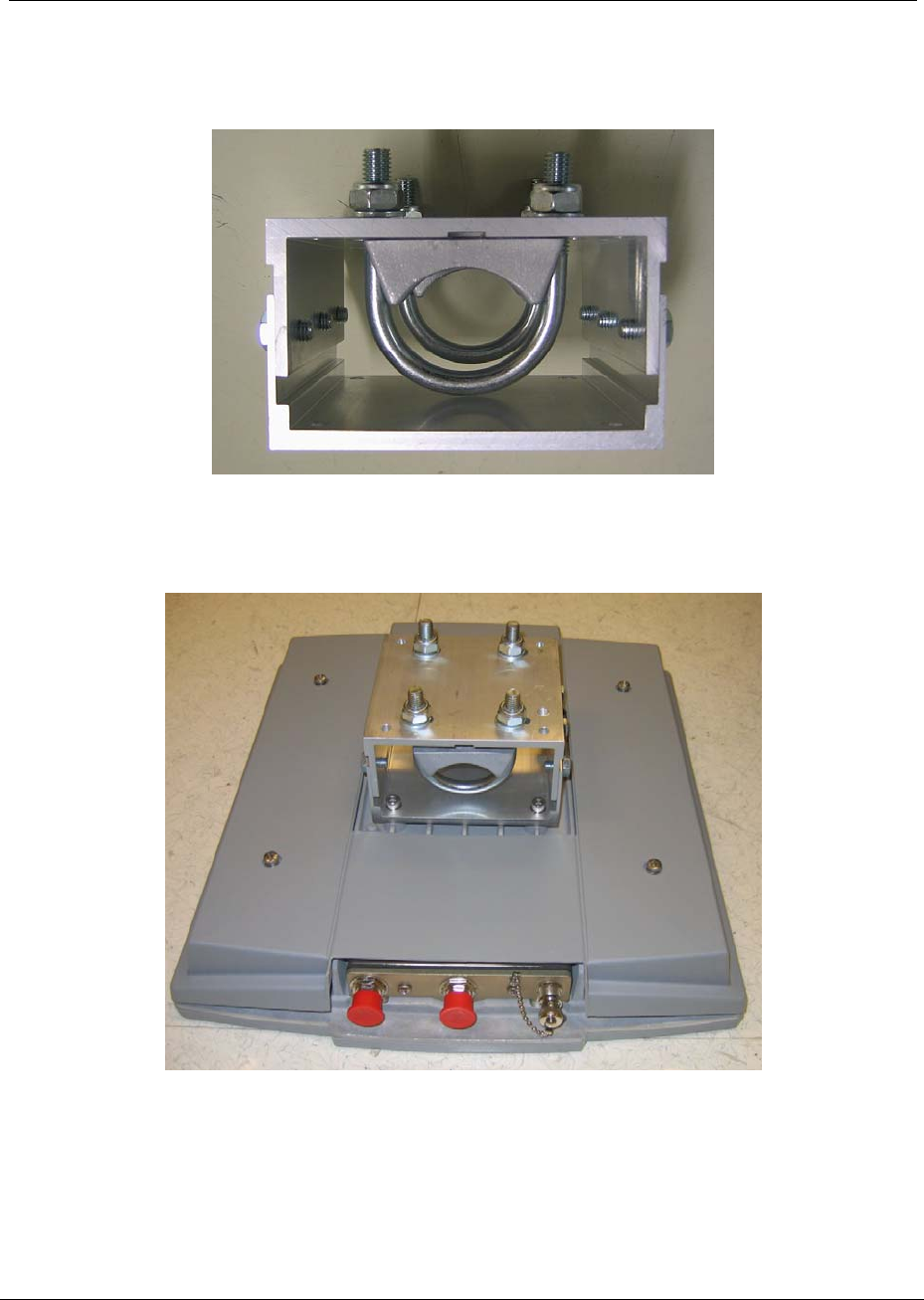

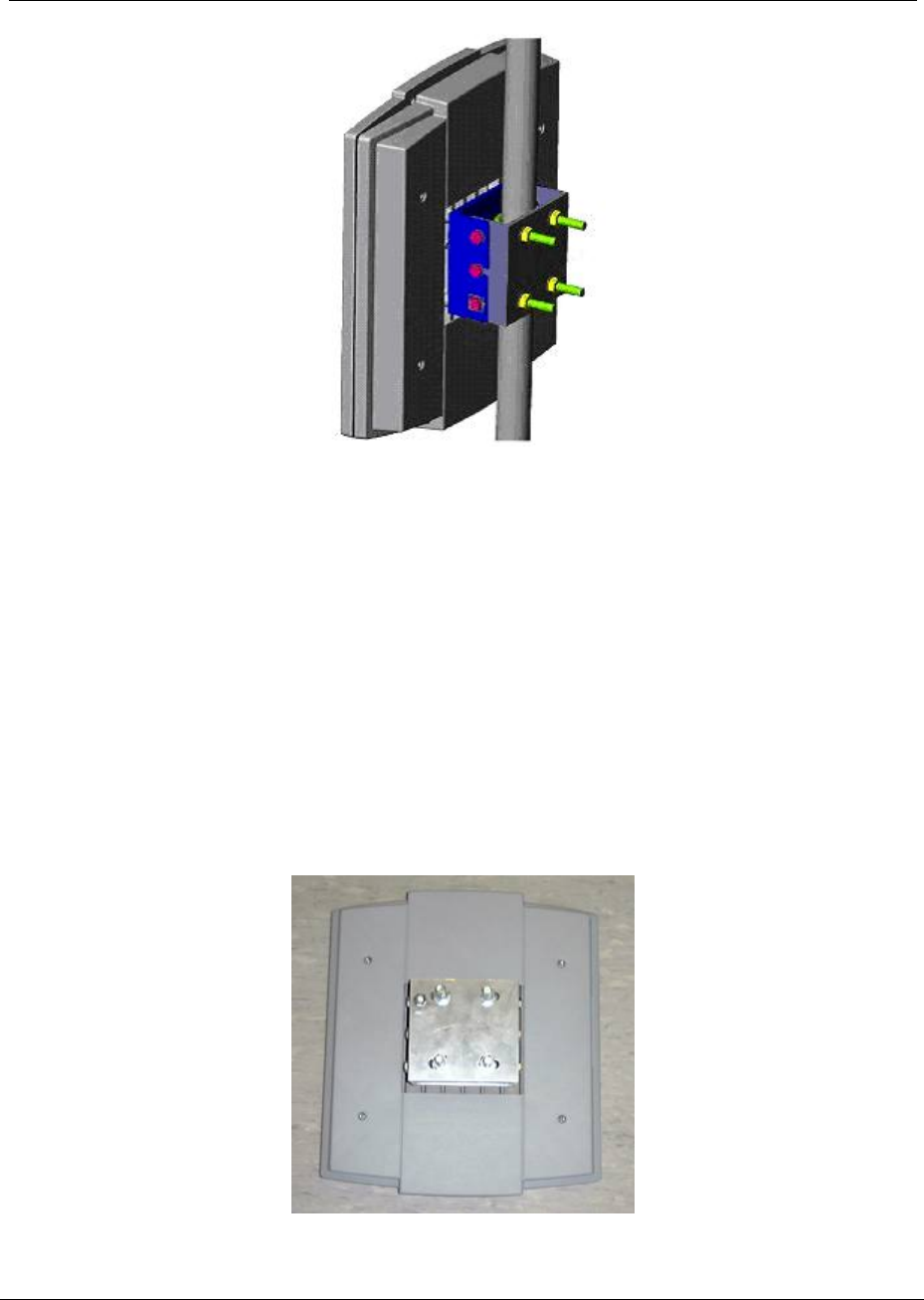

Figure 3-8. Tilt Bracket

Figure 3-9. MDS FIVE Series ODU with Mounted Tilt Bracket

3.7.3 Routing the ODU/ SDIDUTM Interconnect Cable

1. Select where the cable will enter the building from outside.

05-4498A01, Rev. G

User Reference and Installation Guide 3-25

05-4498A01, Rev. G

2. Determine the length of cable required. Allow three extra feet on each end to allow for strain

relief, as well as any bends and turns.

3. Route the cable.

The SDIDUTM is equipped with TNC female connector on the front of the chassis. Depending on

the ODU type, it will be equipped with either a N-type or TNC female connector at its

interconnecting port. A length of coaxial cable (such as Times Microwave Systems LMR-400,

LMR-300 or LMR-200) fitted with the appropriate N-type or TNC male connectors is required to

connect the ODU to the SDIDUTM. This cable assembly may be supplied in fixed lengths with the

digital radio. Bulk coaxial cable of equivalent specification may also be used, with terminating

connectors applied during cable installation.

Based on an evaluation of the cable routing path, pull the ODU/SDIDUTM Interconnect cable from

one unit to the other, utilizing cable trays, ducts, or conduit as required. Take care that the ODU/

SDIDUTM Interconnect cable is not kinked or damaged in any way during installation. Be sure to

protect the TNC connectors from stress, damage and contamination during installation (do not

pull the cable by the connectors). If multiple ODU/ SDIDUTM Interconnect cables are to be

installed along the same route, the cables should all be pulled at one time. Be sure the installed

cable does not have any bends that exceed the specified cable bend radius. The ODU/ SDIDUTM

Interconnect cable should be adequately supported on horizontal runs and should be restrained

by hangers or ties on vertical runs to reduce stress on the cable. Outside the building, support

and restrain the cable as required by routing and environmental conditions (wind, ice).

The MDS FIVE Series ODU/SDIDUTM and interconnection must be properly grounded in order to

protect it and the structure it is installed on from lightning damage. This requires that the ODU,

any mounting pole or mast and any exposed interconnect cable be grounded on the outside of

the structure. The SDIDUTM must be grounded to a rack or structure ground that also has direct

path to earth ground.

The ODU must be directly connected to a ground rod or equivalent earth ground. The ODU/

SDIDUTM interconnect cable should also be grounded at the ODU, where the cable enters the

structure and at intermediate points if the exposed cable run is long (typically at intervals of 100

ft), with the cable manufacturer’s grounding kits. Lightning protection devices used with the

interconnect cable must be appropriate for the transmission of the interconnect signals (DC to

350 MHz).

Provide a sufficient but not excessive length of cable at each end to allow easy connection to the

ODU and SDIDUTM without stress or tension on the cable. Excessive cable length, especially

outdoors, should be avoided to minimize signal attenuation and provide a more robust and

reliable installation. If installing using bulk coaxial cable, terminate the ODU/ SDIDUTM

Interconnect cable at each end with a TNC male connector on the SDIDUTM side and either a N-

type or TNC male connector on the ODU side that is appropriate for the cable type. Use of

connectors, tools and termination procedures specified by the cable manufacturer is

recommended.

Once the cable has been installed but before connection has been made to either unit, a simple

DC continuity test should be made to verify the integrity of the installed cable. A DC continuity

tester or digital multimeter may be used to verify a lack of DC continuity between the cable center

conductor and outer conductor, with the opposite end of the cable unconnected. With a

temporary test lead or shorting adapter connected to one end of the cable, DC continuity should

be verified between the center and outer conductors at the opposite end.

User Reference and Installation Guide 3-26

05-4498A01, Rev. G

3.8 Quick Start Guide

3.8.1 Materials Required

1. Power supply (-48 V DC @ 2 Amps) OR optional AC/DC power supply and power cable

(A Phoenix Contact P/N 17 86 83 1 connector is provided)

2. Digital voltmeter with test leads and BNC connector (optional, for ODU alignment).

3. SDIDUTM Serial Cable (Optional)

4. Computer with networking capability, consisting of either:

- Laptop computer and Ethernet card with any necessary adapters and a Cat-5 Ethernet

regular or crossover cable

- Networked computer and an additional Ethernet cable providing access to the network.

With the following system requirements:

Minimum:

• Pentium II 400MHz

• 128MB RAM

• 30MB available hard drive space

• Windows 98, Windows NT, Windows 2000, or Windows XP

• Internet Explorer 5.5 (available at http://www.microsoft.com) and above or Mozilla

Firefox 1.0.6 (available at http://www.firefox.com) with default settings.

• Sun Java JVM 1.5.0 or above (available at http://www.java.com)

Recommended:

• Pentium III 500MHz

• 256 RAM

• 30MB available hard drive space

• Windows 98SE, Windows NT, Windows 2000, or Windows XP

• Internet Explorer 5.5 (available at http://www.microsoft.com) and above or Mozilla

Firefox 1.0.6 (available at http://www.firefox.com) with default settings.

• Sun Java JVM 1.5.0 or above (available at http://www.java.com)

5. Site engineering folder with site drawings, or equivalent SDIDUTM configuration

information

6. 1/8” slotted screwdriver

3.8.2 Grounding the ODU

1. Place the grounding rod so as to allow for the shortest possible path from the grounding

cable to the ODU.

2. Drive the grounding rod into the ground at least eight inches from the ground surface.

User Reference and Installation Guide 3-27

3. Attach a grounding clamp to the grounding rod. You will use this clamp to attach

grounding wires for both the ODU and SDIDUTM, reference Figure 3-10.

Figure 3-10 Ground Connections to ODU

05-4498A01, Rev. G

4. Connect a ground lug to one end of the grounding wire.

User Reference and Installation Guide 3-28

5. Remove one of the lower mounting screws of the mounting pole. Insert a screw through

the grounding lug terminal and re-install it to the mounting pole.

6. Attach the grounding wire to the clamp on the grounding rod. If necessary, use wire

staples to secure the grounding wire to the outside wall.

3.8.3 Grounding the SDIDUTM

1. The SDIDU™ should be able to be connected to a system or building electrical ground

point (rack ground or power third-wire ground) with a cable of 36” or less.

2. Connect the grounding wire to either grounding point on the front panel. Use 6-32x5/16

maximum length screws (not provided) to fasten the lug of the grounding cable.

3. Connect the other end of the ground to the local source of ground in an appropriate

manner.

3.8.4 Connecting the SDIDUTM to the PC and Power Source

1. Using the supplied power cable connector, pin 2 (labeled -V) should be connected to the

power supply terminal supplying -48 V dc, while pin 1 (labeled RET) should be connected

to the power supply return. Refer to Figure 3-11. Use of a power supply with an

inappropriate ground reference may cause damage to the SDIDUTM and/or the supply.

2 1

Figure 3-11. SDIDUTM DC Power Cable Connector

2. Connect the SDIDUTM power cable to the -48 V dc power supply, and place the voltmeter

probes on the unconnected SDIDUTM end of the power cable, with the positive voltmeter

probe on pin 2 (-V) of the cable connector and the negative probe on pin 1(RET). The

connector terminal screw heads may be used as convenient monitor points. Refer to

Figure 3-11.

3. Turn on the –48 V dc supply. Verify that the digital voltmeter reads between -44 V dc and

-52 V dc when monitoring the cable points specified above. Adjust the power supply

output voltage and/or change the connections at the power supply to achieve this reading.

4. Turn the -48 V dc supply off.

5. Plug the SDIDUTM power cable into the SDIDUTM front panel DC Power connector (DC

Input). Place the voltmeter probes on the cable connector terminal screw heads as per

05-4498A01, Rev. G

User Reference and Installation Guide 3-29

step 2 above. Refer to Figure 3-11. Note that the MDS FIVE Series SDIDUTM does not

have a power on/off switch. When DC power is connected, the digital radio powers up

and is operational. There can be up to 320 mW of RF power present at the antenna port.

The antenna should be directed safely when power is applied.

6. Turn on the -48 V dc power supply, and verify that the reading on the digital voltmeter is

as specified in step 3 above.

7. Connect the SDIDUTM to the laptop computer, using a Cat-5 Ethernet cable or connect

the SDIDUTM to a computer network, using a Cat-5 Ethernet cable. Connect the Ethernet

cable to the NMS 1 or 2 connector on the SDIDUTM front panel. Refer to Figure 3-12 for

the SDIDUTM front panel connections.

Figure 3-12. MDS FIVE Series-SB, 1+1 Protection: SDIDUTM Front Panel Connections

3.8.5 SDIDUTM Configuration

Although basic configuration of the MDS FIVE Series SDIDUTM does not require a connection to

the ODU, it is recommended that the ODU and SDIDUTM are connected prior to configuring the

SDIDUTM. A connection to the ODU must be established prior to running the Link Configuration

process (section 5.2) in order to configure ODU related parameters.

3.8.5.1 Setting the SDIDU™ IP Address

1. The PC’s network configuration must be set with the parameters provided at the end of

this guide.

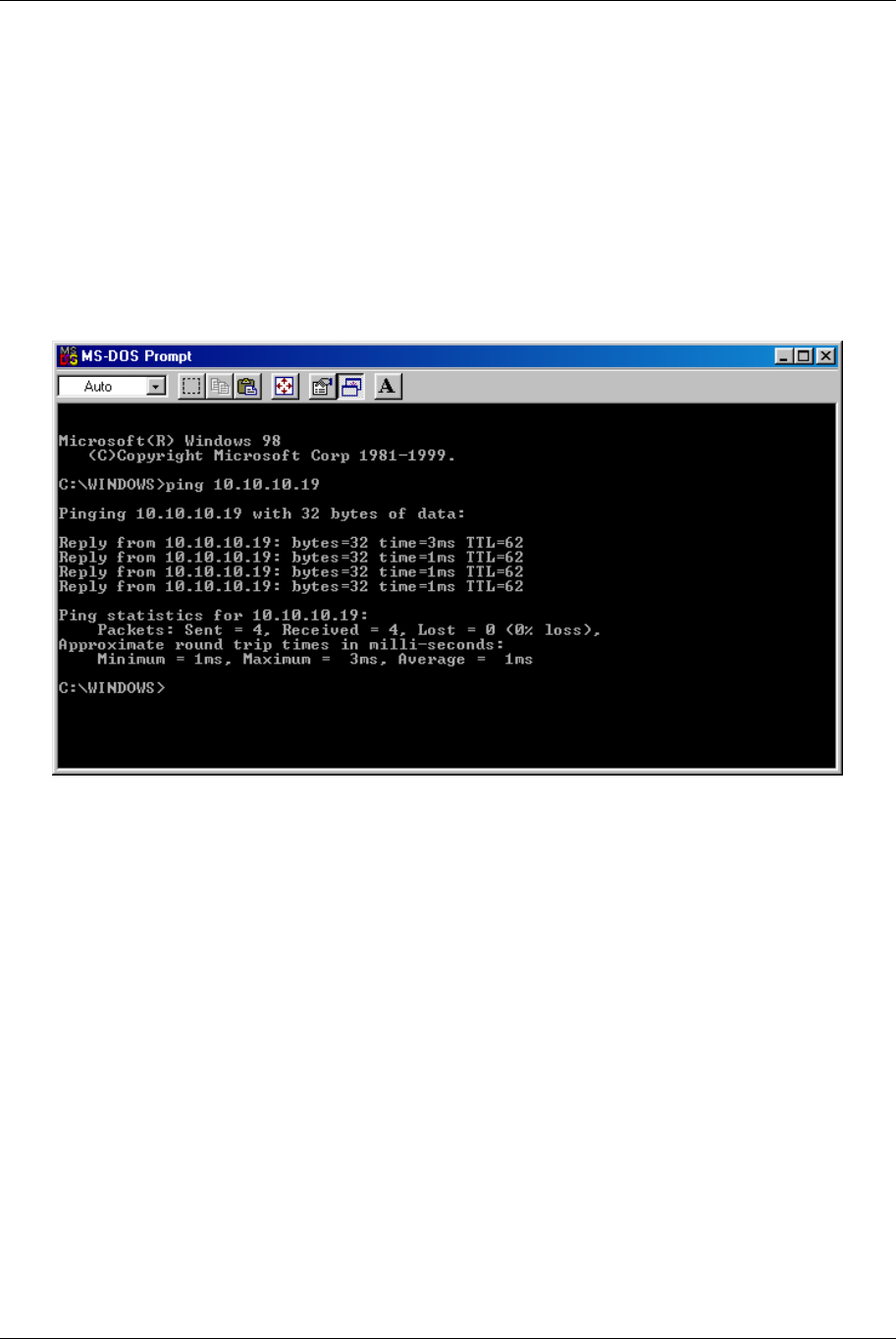

2. The IDU should be accessible from your PC at the default IP address provided at the end

of this guide. A network ‘ping’ can be done to verify connectivity to the IDU.

3. Start web browser and use the SDIDUTM default IP address as the url.

05-4498A01, Rev. G

User Reference and Installation Guide 3-30

05-4498A01, Rev. G

4. Log in at the login prompt. The username and password are provided at the end of this

guide.

5. The GUI includes a navigation menu in the left frame. If this navigation menu is not

visible, make sure the Java environment is properly installed and active. In the navigation

menu, select Administration, then Network Configuration, and then General. The IP

address, IP Netmask, and IP Gateway are shown.

6. Enter the new IP address, IP Netmask, and IP Gateway. The gateway must be in the

same subnet as the IP address for proper operation. Click “Update” to change the

values.

7. To verify the new IP address, change the PC's network configuration to be on the same

subnet as the new IP address set in the unit and a network 'ping' may be performed to the

new address.

8. To continue using the GUI, point the web browser to the new IP address.

3.8.5.2 Link Configuration

1. Start the SDIDUTM GUI.

2. Use the frame on the left side of the window to navigate to “Link Configuration”, then

“Radio Link.”

3. Select the subcategory “Link Configuration.”

4. Select the operating mode. If the SDIDUTM has one modem installed and is connected to

one ODU, select standard. If the SDIDUTM has two modems installed and is connected to

two ODUs, select 1+1 diversity or 1+1 non-diversity for a protected link or east-west for a

2+0 ring configuration.

5. Follow the wizard located here to enter the rest of the required settings.

3.8.5.3 Setting SDIDUTM Site Attributes

1. Start the SDIDUTM GUI.

2. In the navigation menu, select Administration, then Device Information, and then Device

Names.

3. Enter the Owner, Contact, Description, and Location. These values are not required for

operation, but will help keep a system organized.

3.8.5.4 Power on Reset to Factory Defaults

The SDIDU™ may be reset to factory defaults during power up. A power on reset affects the IP

address and the user logins/passwords. To perform a power on reset:

1. Power on the SDIDU™

User Reference and Installation Guide 3-31

05-4498A01, Rev. G

2. During bootup, the SDIDU™ will flash the controller-card LED alternating red/green for

five seconds.

3. Make sure the call button is not active at the start of this five second period.

4. While the LED is flashing, press the call button and release it one second prior to the LED

changing to static green.

3.8.5.5 CLI Access via NMS Ethernet

The CLI may be accessed via NMS Ethernet after connecting and configuring the PC as

described in the previous section. Then using a Telnet client, telnet to the SDIDUTM IP address.

You will be prompted for a username and password. Use the username and password supplied

at the end of this guide.

3.8.5.6 CLI Access via Serial Port

The CLI for configuring/monitoring the SDIDUTM may be accessed via the front-panel serial port.

Table 3-3 shows the pinout for constructing a DB-9 to HD-15 cable.

Table 3-3: Serial Cable Pinout

DB-9 Pin HDB-15 Pin

2 2

3 3

5 5

The serial port parameters are show in Table 3-4.

Table 3-4: Serial Port Parameters

Parameter Value

Speed 38400

Bits 8

Stop-Bits 1

Parity None

Flow-Control None

After powering-on the SDIDUTM, the CLI may be accessed by connecting the serial cable

between the PC and the SDIDUTM, launching and configuring a terminal program (e.g.

Hyperterm) and pressing the enter key. You will be prompted for a username and password,

which are supplied at the end of this guide.

3.8.6 ODU Antenna Alignment

To use the built-in tuning of the ODU antenna, a complete link is required, with both ends of the

link roughly pointed at each other, and transmitting.

Once the links are roughly pointed, connect the voltmeter to the RSSI (Receive Signal Strength

Indication) BNC connector seen on the ODU. This mode outputs 0 to +3 Volts. Adjust the

antenna for maximum voltage. The RSSI voltage is linearly calibrated from 2.5 Volts for maximum

User Reference and Installation Guide 3-32

RSL (received signal level) at –20 dBm to 0Volts for minimum RSL at -90 dBm. This mapping

characteristic is plotted below in Figure 3-13.

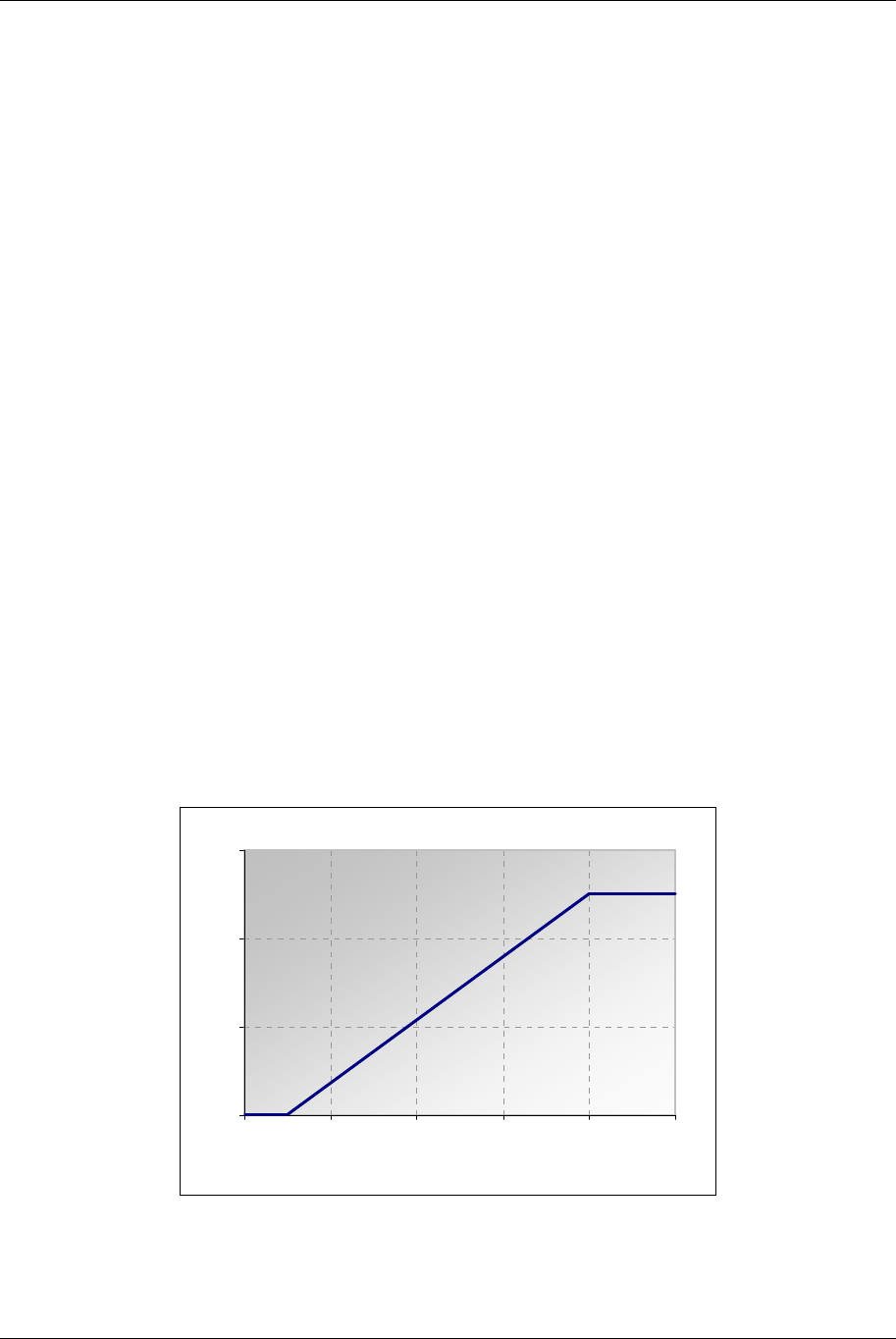

RSSI - Mapped Voltage Output

-100 -80 -60 -40 -20 0

Received Signal Level (dBm)

RSSI Output (V)

Figure 3-13. ODU RSSI Output vs. Received Signal.

3.8.7 Quick Start Settings

PC Network Configuration

The Web GUI may be accessed via NMS by connecting a CAT5 patch cable between

the SDIDUTM front-panel NMS port and a PC. The PCs network interface must be

configured to an open IP address within the same subnet. For the default SDIDUTM

configuration, the IP address of the PC needs to be 192.168.0.x, where x (between 2

and 253) provides an available IP address. DHCP may also be used to set the PC IP

address if a DHCP server is configured on the same subnet.

SDIDUTM Default IP Address

Parameter Value

IP Address 192.168.0.1

Netmask 255.255.255.0

Gateway 192.168.0.254

After configuring the PCs network interface, a web browser may be launched and the

following URL entered to access the Web GUI:

http://192.168.0.1/

Username and Password

A dialog box will show requesting a username and password:

05-4498A01, Rev. G

User Reference and Installation Guide 3-33

• User: administrator

• Pass: d1scovery

3.9 SDIDU™ Service

At times, it may be necessary to service the SDIDU™. This may include installing, removing, or

replacing an SDIDU™ module. There may be up to 8 modules installed in a single SDIDU™

chassis. Figure 3-14 shows the front panel of the SDIDU™ with each module labeled. The basic

procedure for removing and installing a module is common to all the modules, with slight

variations for the Power Supply Module, Controller Module, and Mini IO Module. These basic

procedures are described below. Variations are described in sub-items beneath each step.

Figure 3-14 SDIDU™ Modules

3.9.1 Removing a Module

1. Modules are static sensitive and should only be handled in an ESD-safe environment.

When packaging modules for shipment or storage, place in an ESD bag.

2. Remove front panel connections to the module.

3. Remove the two thumbscrews on either side of the module. Figure 3-15 shows the

locations of these thumb screws.

4. The thumbscrew for the Standard IO Module is located on the right side of the Mini IO

Module slot.

5. If a Mini IO module is installed and the Standard IO Module is to be removed, both

modules will be removed as one unit.

6. When removing only the Mini IO card, remove the corner screw indicated in Figure 3-15

and one thumb screw.

05-4498A01, Rev. G

User Reference and Installation Guide 3-34

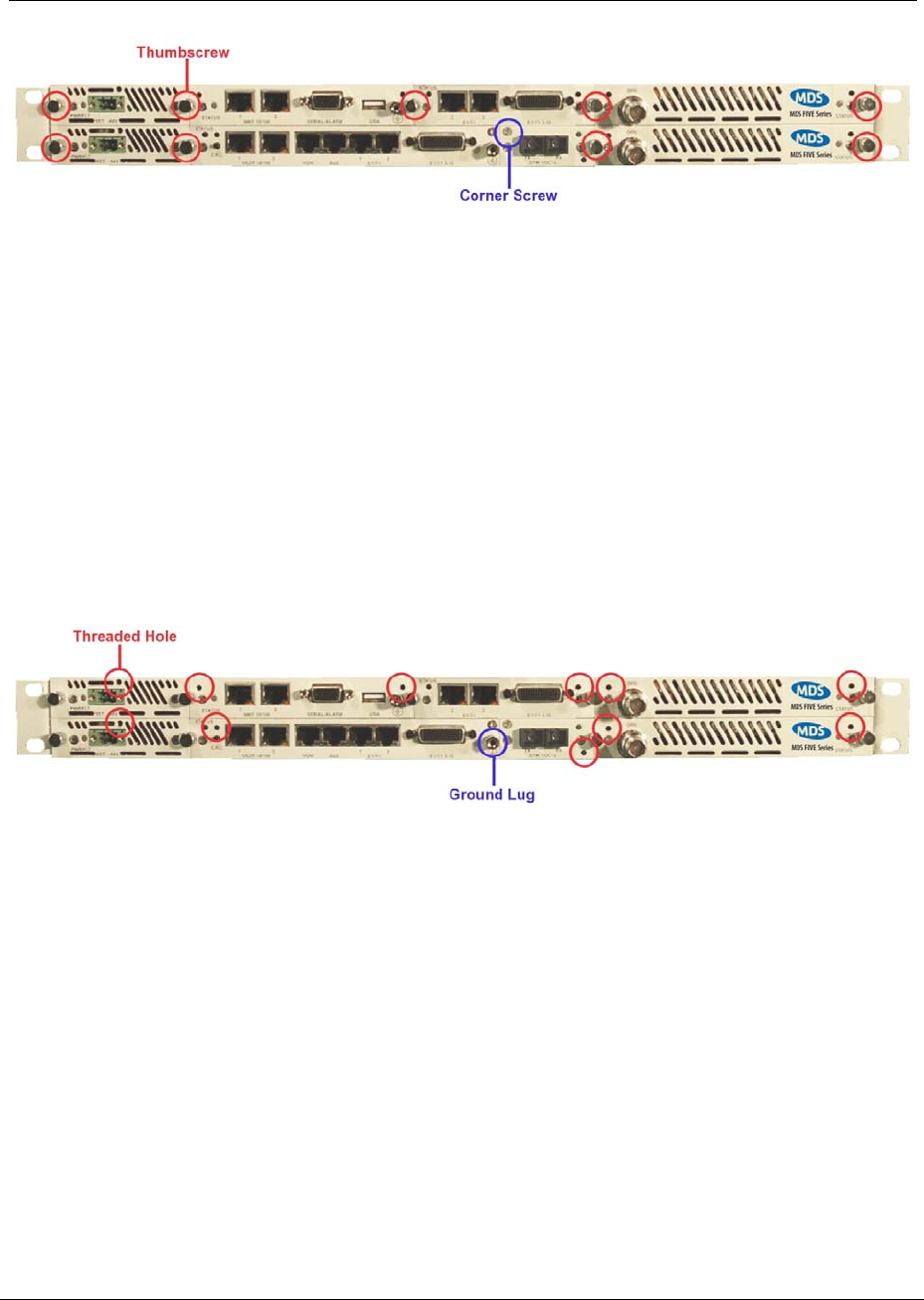

Figure 3-15 Thumbscrew and Corner Screw Locations

7. Thread thumbscrew(s) into hole(s) shown in Figure 3-16. Remove the module by

grasping the thumbscrew(s) and pulling module straight out of the SDIDU™. Both

thumbscrews should be used for all modules except the Power Supply and the Mini IO

Modules.

8. The Power Supply and Mini IO Modules have only one threaded hole each.

9. When removing the Standard IO Module, the ground lug indicated in Figure 3-16 is used

as the second threaded hole. If the SDIDU™ is to remain powered on and the ground lug

is being used to ground the unit, first move the ground connection to the ground lug

located on the Controller Module.

The SDIDU™ retains its current configuration when a module is removed, unless that

module is the Controller Module. In which case, the IP addresses will need to be

reprogrammed.

Figure 3-16 Threaded Hole Locations

3.9.2 Installing a Module

1. Modules are static sensitive and should only be handled in an ESD-safe environment.

When packaging modules for shipment or storage, place in an ESD bag.

2. Line up the module board with the guides in the chassis and slide the module into the

SDIDU™. Figure 3-17 shows a photo of the guides. As the module face plate comes flush

with the face of the SDIDU™, connectors on the back of the module will engage with the

SDIDU™ backplane. It is possible to encounter interference from adjacent module front

panels. If this occurs, loosen the thumbscrews holding the neighboring panels and shift

them as necessary to ensure fit.

a. The Mini IO Module only has one guide on the right side. Take care to insert the Mini

IO module carefully and correctly engage the rear connector with its mate on the

Standard IO Module.

05-4498A01, Rev. G

User Reference and Installation Guide 3-35

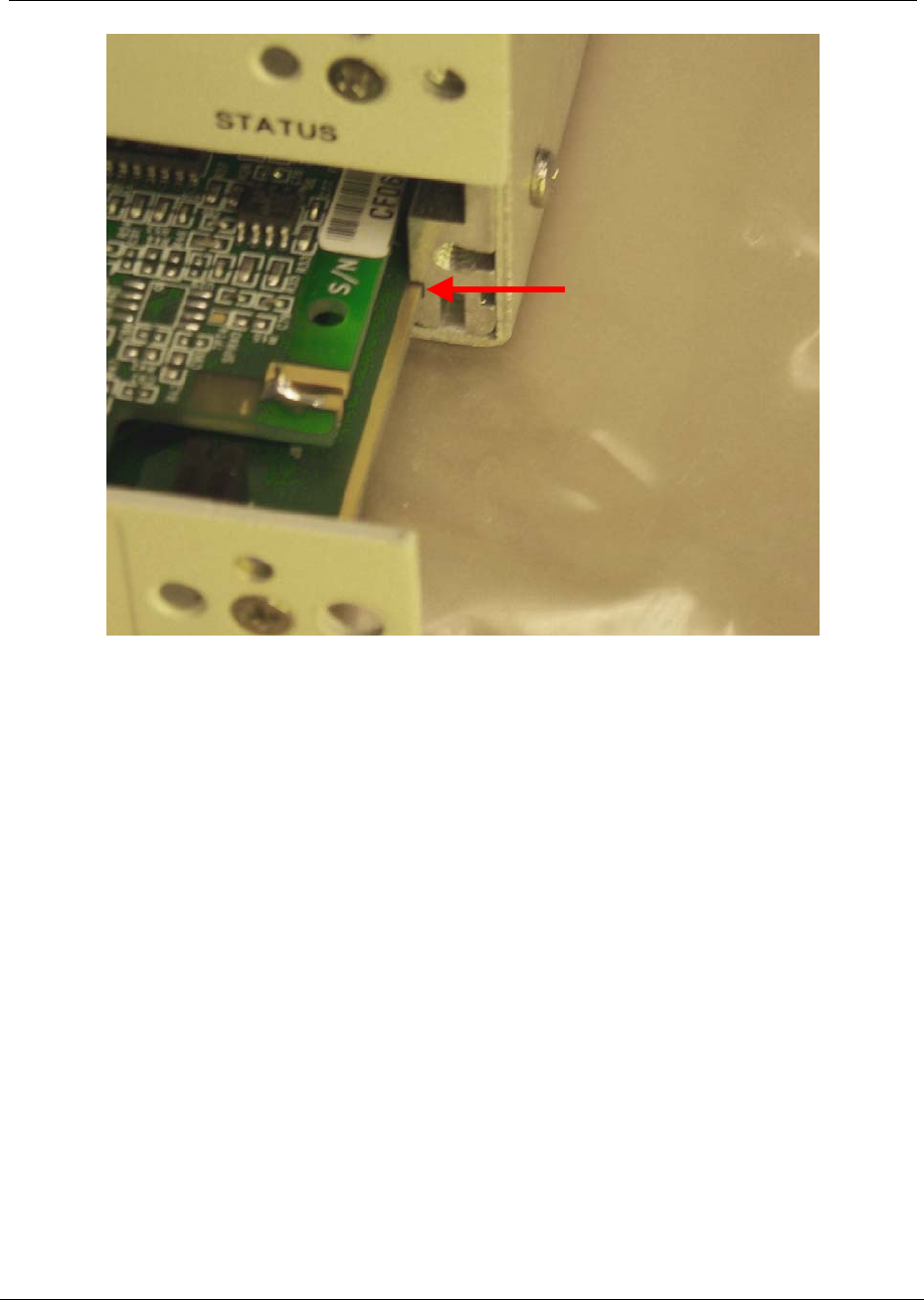

Guide

Figure 3-17 Guides

3. Install thumbscrews on either side of the module as shown in Figure 3-15.

a. The Mini IO card has a corner screw which should be installed. This corner screw is

shown in Figure 3-15.

4. Make front panel connections to the module and power on the SDIDU™ if necessary.

5. Verify proper operation of the unit.

a. If the Controller Module has been changed, reprogram the IP addresses.

3.10 Documenting MDS FIVE Series

Configuration

Use the MDS FIVE Series configuration form provided at the end of this section, or a similar form,

to document the results of the SDIDUTM configuration procedure. Optimally, this complete site

form would be stored with the SDIDUTM for future reference.

05-4498A01, Rev. G

Link ID Digital Radio Configuration Form

Radio Type(A/B) A = Low band, Horizontal polarization, odd serial number

B= High band & Vertical polarization, even serial number

Radio ID # Radio S/N

Site Name

Adresses Comissioning

Near IP Far IP Rain Model

Routing Frequency TX RX

Net Mask IP EMS 1 Grade of Service

NTP IP EMS 2 Rain Region

Gateway IP EMS 3

IP EMS 4 Link Distance GPS Location

SNMP Community Names Distance (meters) Near Latitude deg min sec

Trap Super User OR Near Longitude deg min sec

Read/Write Read Far Latitude deg min sec

Far Longitude deg min sec

Radio Type(A/B) A = Low band, Horizontal polarization, odd serial number

B= High band & Vertical polarization, even serial number

Radio ID # Radio S/N

Site Name

Adresses Comissioning

Near IP Far IP Rain Model

Routing Frequency TX RX

Net Mask IP EMS 1 Grade of Service

NTP IP EMS 2 Rain Region

Gateway IP EMS 3

IP EMS 4 Link Distance GPS Location

SNMP Community Names Distance (meters) Near Latitude deg min sec

Trap Super User OR Near Longitude deg min sec

Read/Write Read Far Latitude deg min sec

Far Longitude deg min sec

Link Administration

Network Administration Link Administration

Network Administration

05-4498A01, Rev. G

4 Summary Specification

Parameter 5.8 GHz 5.3 GHz

System

Capacity 100 Mbps Ethernet

1-16 T1/E1

Various combinations of above

100 Mbps Ethernet

1-16 T1/E1

Various combinations of above

Output Power – Average*

(at antenna port)

+5 to 23 dBm -18 to +5 dBm (Ext. Antenna)

-6 to +5 (Int. Antenna)

Output Power – Peak*

(at antenna port)

30 dBm 12 dBm

Input Sensitivity -84 dBm (or higher, based on

selected mode) -84 dBm (or higher, based on

selected mode)

Maximum Input Power -20 dBm -20 dBm

Modulation QPSK to 64-QAM QPSK to 64-QAM

Channelization 12.5, 16.7, 25, 30 MHz 13.3, 20, 30 MHz

Radio Interfaces

External Antenna N Type Female N Type Female

SDIDUTM /ODU Link TNC Female TNC Female

RSSI BNC Female BNC Female

Data Interfaces

Payload

Ethernet

2 T1/E1

14 T1/E1

100Base-Tx RJ-45

100 Ω / 120 Ω Balanced

RJ-48C Female (2)

100 Ω / 120 Ω Balanced

Molex High-Density 60-pin

100Base-Tx RJ-45

100 Ω / 120 Ω Balanced

RJ-48C Female (2)

100 Ω / 120 Ω Balanced

Molex High-Density 60-pin

SNMP 10Base-T/100Base-Tx RJ-45

Female 10Base-T/100Base-Tx RJ-

45 Female

Control

Network Management SNMP, web/http browser SNMP, web/http browser

NMS Connector 10Base-T/100Base-Tx 10Base-T/100Base-Tx

Voice Orderwire RJ-45 for PTT handset RJ-45 for PTT handset

Auxiliary Data (64 kbps) RS422 via RJ-45 RS422 via RJ-45

Encryption Proprietary, AES (optional) Proprietary, AES (optional)

User Reference and Installation Guide 4-2

05-4498A01, Rev. G

Parameter 5.8 GHz 5.3 GHz

Alarm Port 2 Form C (SPDT), 2 TTL

Output, 4 TTL Input, DB-15HD 2 Form C (SPDT), 2 TTL

Output, 4 TTL Input, DB-15HD

Power/Environment

DC Power -48 Volts ±10%, <70 W -48 Volts ±10%, <70 W

SDIDUTM Operational

Temperature -5º to 55º C -5º to 55º C

ODU Operational

Temperature -30º to 55º C -30º to 55º C

SDIDUTM Humidity 0 to 95%, non-condensing 0 to 95%, non-condensing

ODU Humidity Up to 100% at 45º C Up to 100% at 45º C

Altitude 15,000 feet/4572 meters,

maximum 15,000 feet/4572 meters,

maximum

Physical Dimensions

SDIDUTM Size (WxHxD) 17.2 x 1.75 x 14.5 inches

(43.7 x 4.5 x 36.0 cm)

17.2 x 1.75 x 14.5 inches

(43.7 x 4.5 x 36.0 cm)

SDIDUTM Weight 7 lbs (3.12 Kg) 7 lbs (3.12 Kg)

SDIDUTM

EIA Rack Mount 19 inch/48.2 cm, 1 rack unit 19 inch/48.2 cm, 1 rack unit

ODU Size (W x H x D) 14.6 x 15.4 x 2.6 inches 14.6 x 15.4 x 2.6 inches

ODU Weight 15 lbs (6.8 Kgs) 15 lbs (6.8 Kg)

ODU

Mounting Custom Bracket Custom Bracket

* For definitions of peak and average power, see Section3.6.6

5 Front Panel Connectors

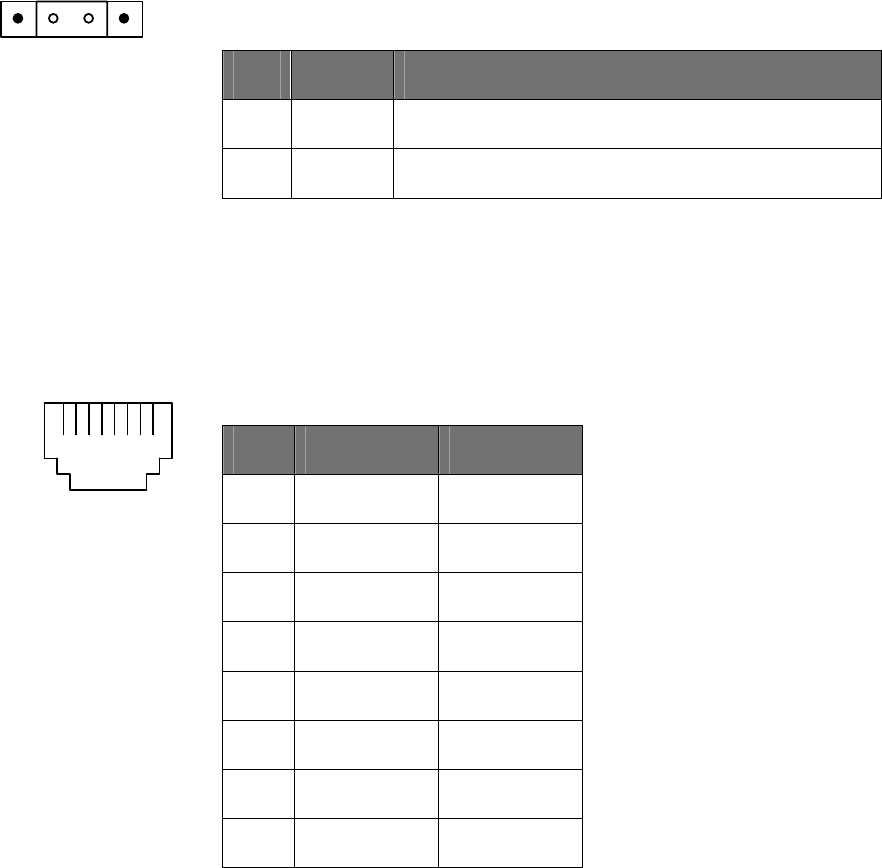

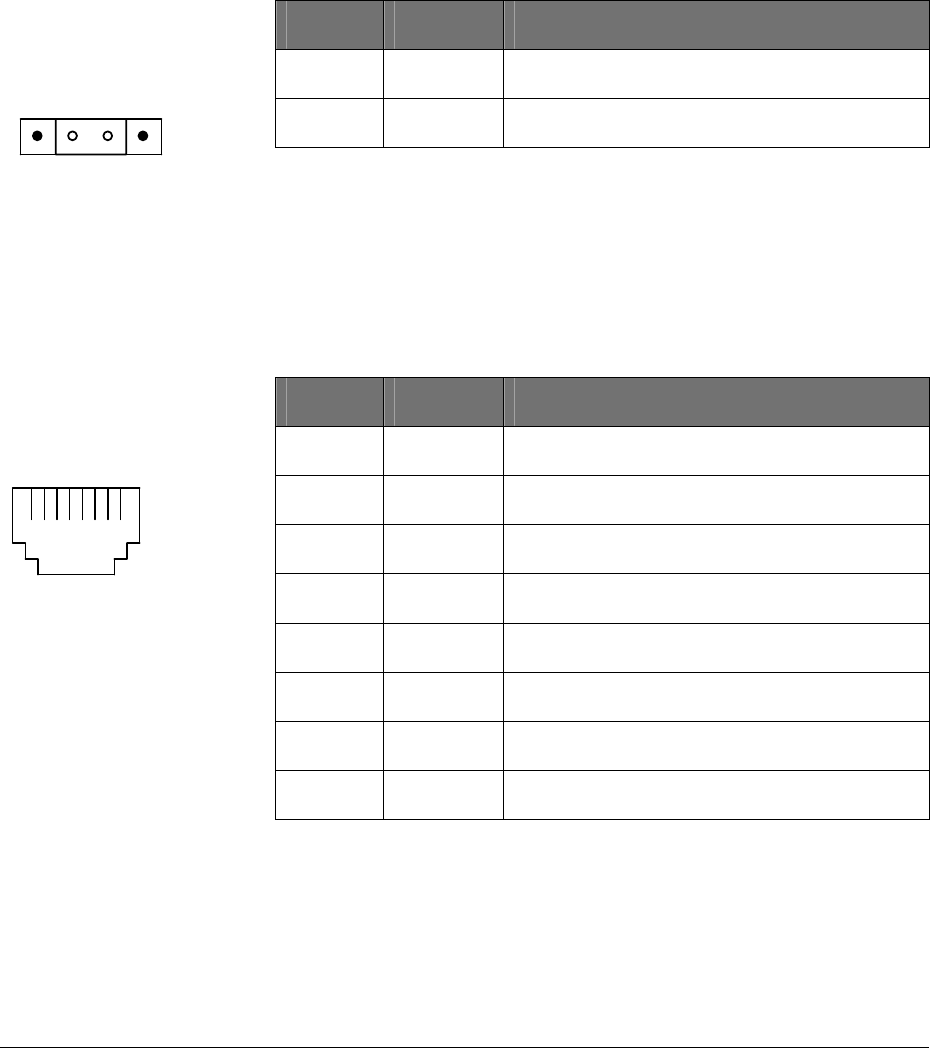

5.1 DC Input (Power) Connector

PIN TYPE SIGNAL

1 POWER Power supply return

2 POWER -48 Vdc, nominal

Two-pin male

5.2 Ethernet 100BaseTX Payload Connector 1-2

PIN TYPE SIGNAL

1 INPUT RX+

2 INPUT RX-

3 OUTPUT TX+

4 N/A N/A

5 N/A N/A

RJ-45 Female

12 3 4 5 6 7 8

6 OUTPUT TX-

7 N/A N/A

8 N/A N/A

05-4498A01, Rev. G

User Reference and Installation Guide 5-2

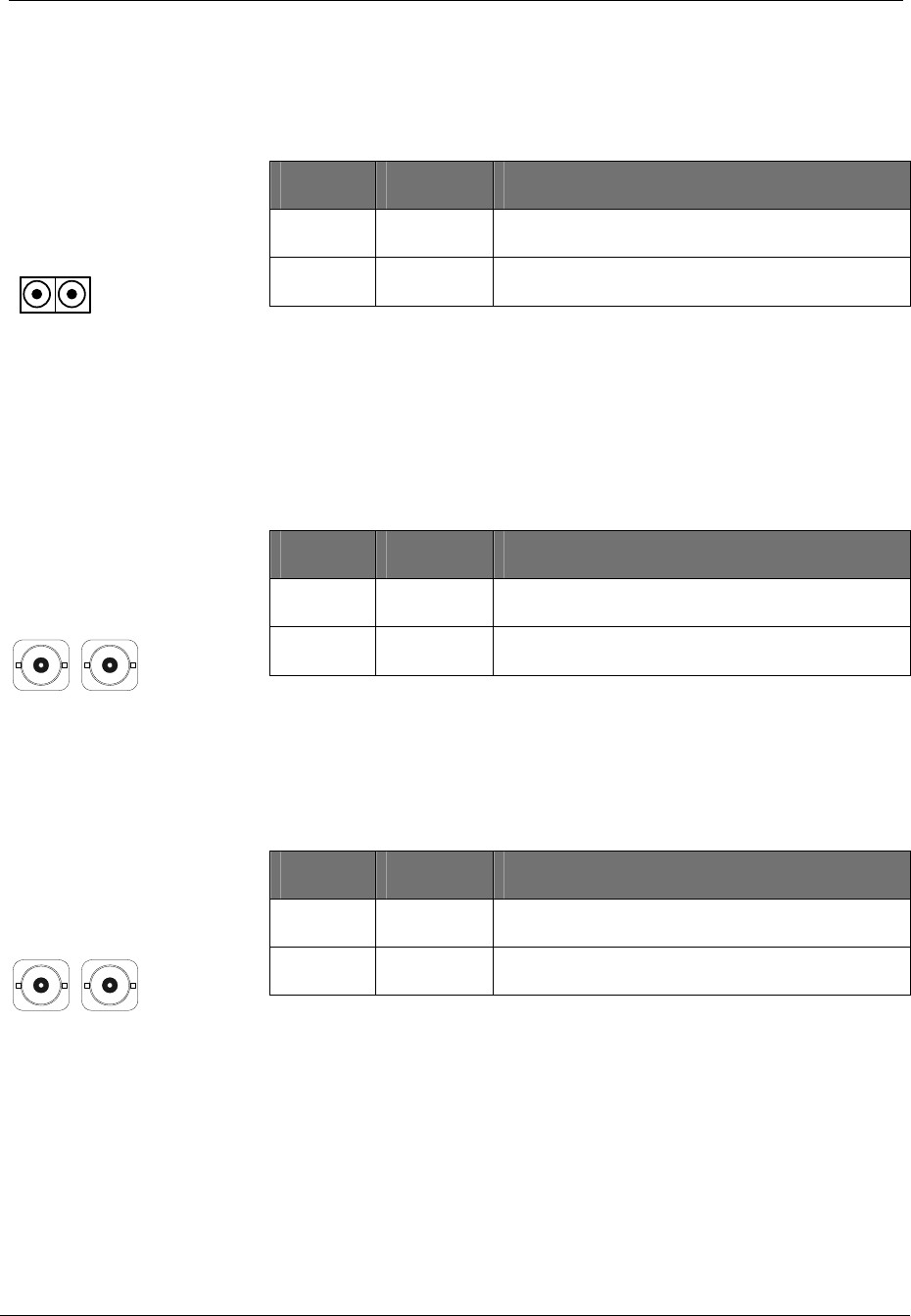

5.3 SONET Payload Connector

Consult factor for Mini-IO Optical Module for availability.

PIN TYPE SIGNAL

OUT OUTPUT SONET OC-3 payload output (optical)

IN INPUT SONET OC-3 payload input (optical)

SC Duplex Female Fiber

INOUT

5.4 STM-1 Payload Connector

Consult factor for Mini-IO Optical Module for availability.

PIN TYPE SIGNAL

TX OUTPUT SDH STM-1 payload output (electrical)

RX INPUT SDH STM-1 payload input (electrical)

BNC Duplex

RXTX

5.5 DS-3/E-3/STS-1 Payload Connector

PIN TYPE SIGNAL

TX OUTPUT DS-3/E-3/STS-1 payload output

RX INPUT DS-3/E-3/STS-1 payload input

BNC Duplex

RXTX

05-4498A01, Rev. G

User Reference and Installation Guide 5-3

5.6 NMS 10/100BaseTX Connector 1-2

PIN TYPE SIGNAL

1 OUTPUT TX+

2 OUTPUT TX-

3 INPUT RX+

4 N/A N/A

RJ-45 Female

12 3 4 5 6 7 8

5 N/A N/A

6 INPUT RX-

7 N/A N/A

8 N/A N/A

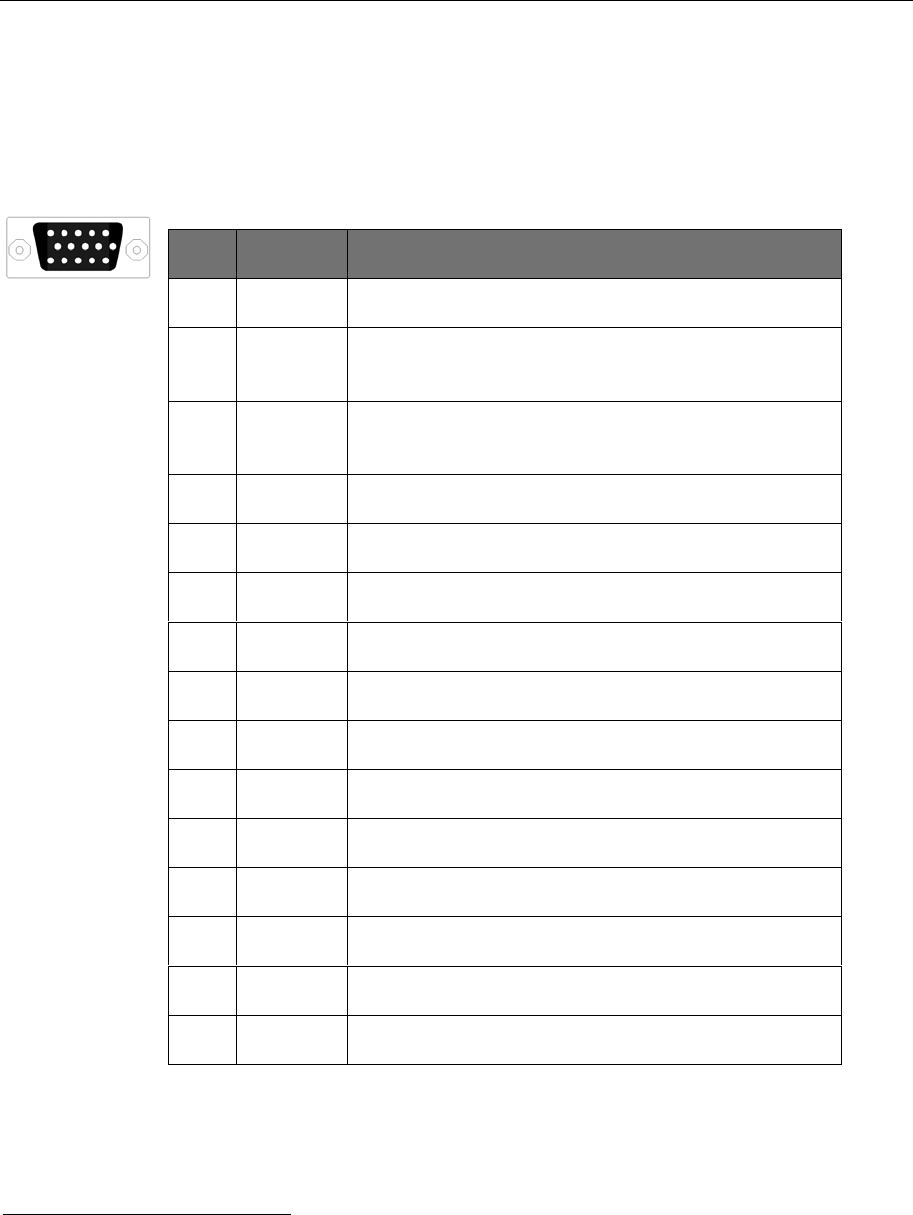

5.7 Alarm/Serial Port Connector

PIN TYPE SIGNAL

1 OUTPUT TTL Alarm Output 3

21INPUT/

Output RS-232 RX/TX

31OUTPUT/

Input RS-232 TX/RX

DB-15HD Female

4 OUTPUT TTL Alarm Output 4

5 N/A GROUND

2N/A Alarm 1 Form C Contact Normally Open

2N/A Alarm 1 Form C Contact Normally Closed

2N/A Alarm 2 Form C Contact Common

1 Pins 2 and 3 are hardware jumper configurable for DCE or DTE operation.

2 Form C Contacts are hardware jumper configurable to emulate TTL outputs.

05-4498A01, Rev. G

User Reference and Installation Guide 5-4

PIN TYPE SIGNAL

9 INPUT TTL Alarm Input 1

10 INPUT TTL Alarm Input 3

112N/A Alarm 1 Form C Contact Common

122N/A Alarm 2 Form C Contact Normally Open

132N/A Alarm 2 Form C Contact Normally Closed

14 INPUT TTL Alarm Input 2

15 Input TTL Alarm Input 4

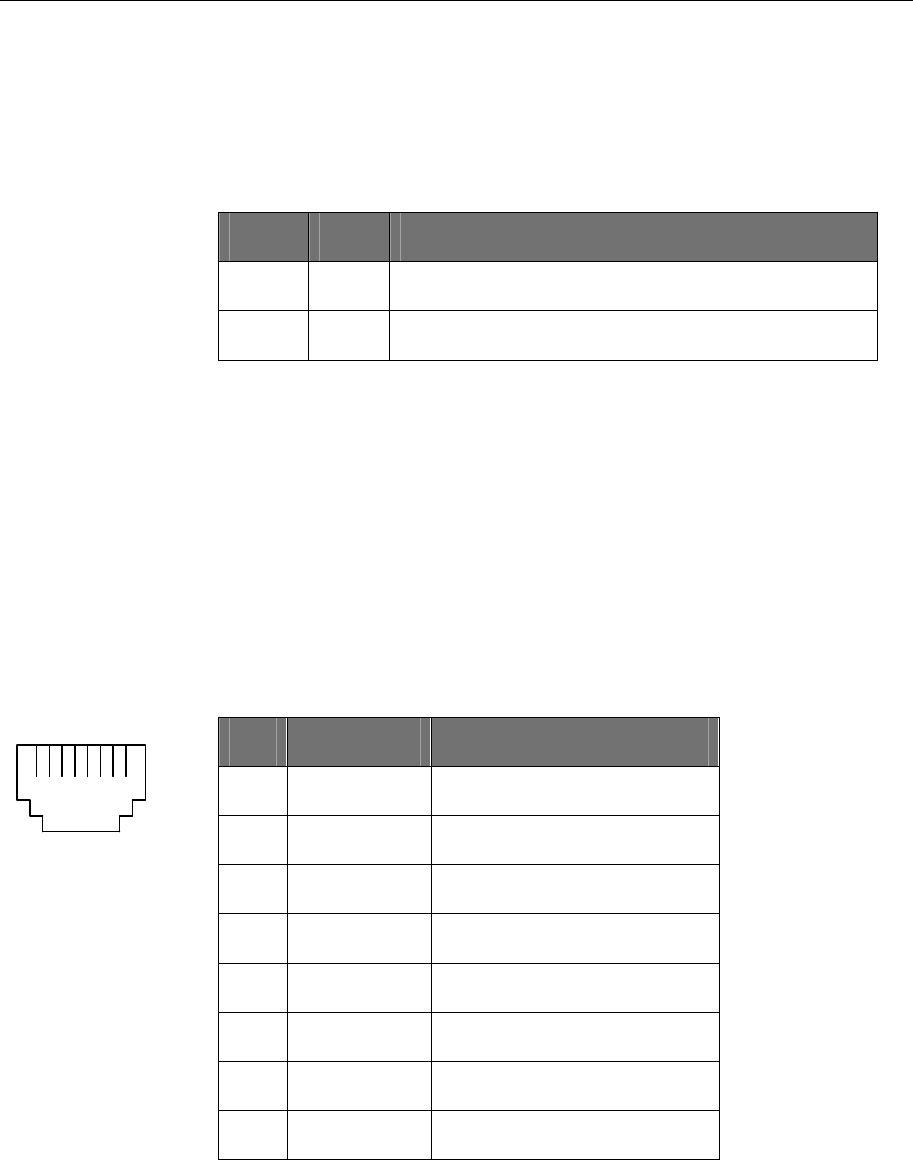

5.8 ODU Connector

PIN TYPE SIGNAL

Center I/O 350 MHz TX IF / 140 MHz RX IF / -48 VDC

Shield N/A Shield / Chassis GND

TNC coaxial female

5.9 T1/E1 - Channels 1-2 Connector

PIN TYPE SIGNAL

1 INPUT RX+

2 INPUT RX-

3 N/A GND

4 OUTPUT TX+

RJ-45 Female

100 Ω / 120 Ω Balanced

12 3 4 5 6 7 8

5 OUTPUT TX-

6 N/A GND

7 N/A N/A

8 N/A N/A

05-4498A01, Rev. G

User Reference and Installation Guide 5-5

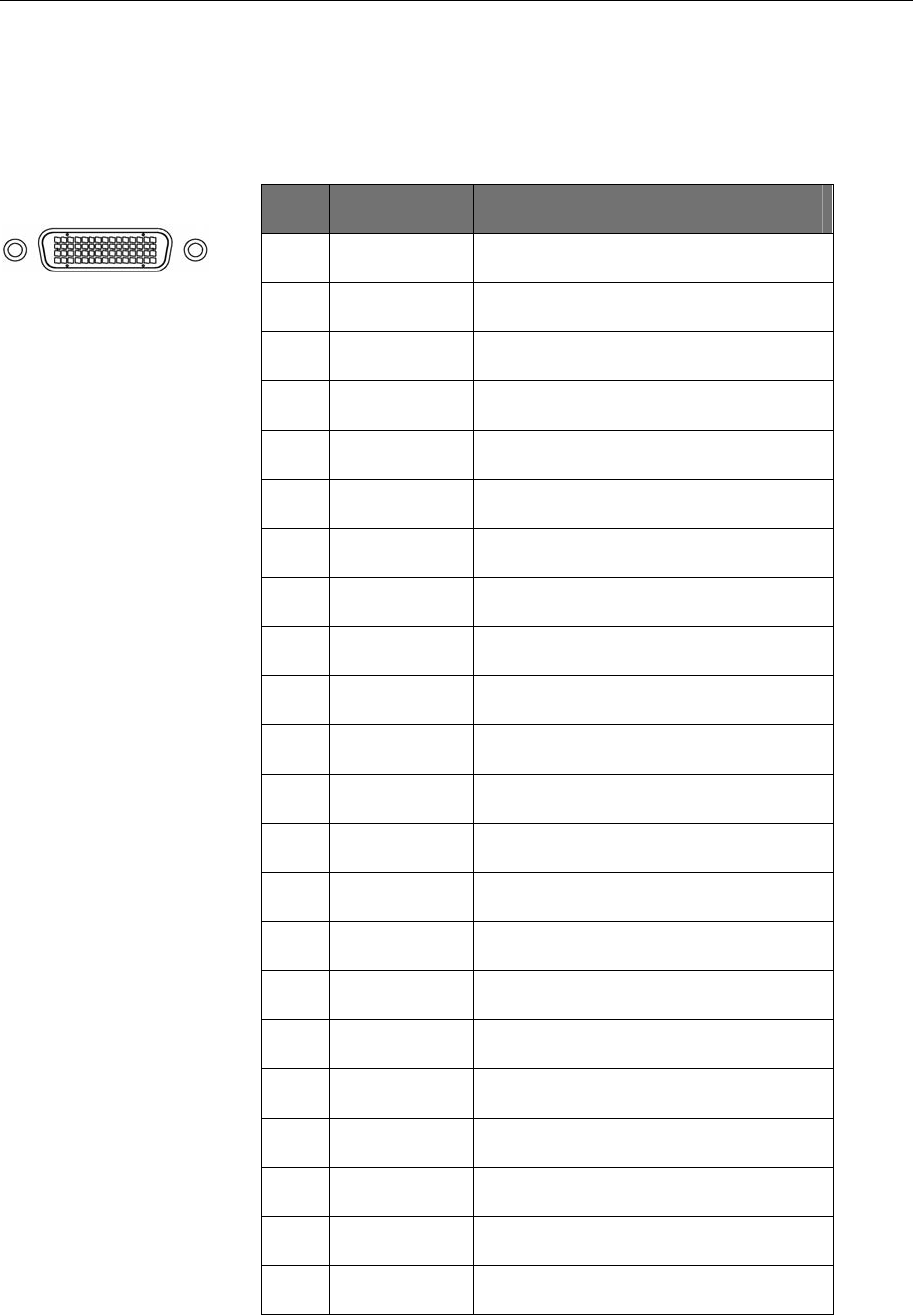

5.10 T1/E1 - Channels 3-16 Connector

PIN TYPE SIGNAL

1 OUTPUT T1 Channel 13 Transmit Tip

2 OUTPUT T1 Channel 14 Transmit Tip

3 OUTPUT T1 Channel 15 Transmit Tip

60-pin Molex

100 Ω / 120 Ω Balanced

4 OUTPUT T1 Channel 16 Transmit Tip

5 OUTPUT T1 Channel 9 Transmit Tip

6 OUTPUT T1 Channel 10 Transmit Tip

7 OUTPUT T1 Channel 11 Transmit Tip

8 OUTPUT T1 Channel 12 Transmit Tip

9 OUTPUT T1 Channel 5 Transmit Tip

10 OUTPUT T1 Channel 6 Transmit Tip

11 OUTPUT T1 Channel 7 Transmit Tip

12 OUTPUT T1 Channel 8 Transmit Tip

13 OUTPUT T1 Channel 3 Transmit Tip

14 OUTPUT T1 Channel 4 Transmit Tip

15 NC NC

16 NC NC

17 OUTPUT T1 Channel 4 Transmit Ring

18 OUTPUT T1 Channel 3 Transmit Ring

19 OUTPUT T1 Channel 8 Transmit Ring

20 OUTPUT T1 Channel 7 Transmit Ring

21 OUTPUT T1 Channel 6 Transmit Ring

22 OUTPUT T1 Channel 5 Transmit Ring

23 OUTPUT T1 Channel 12 Transmit Ring

05-4498A01, Rev. G

User Reference and Installation Guide 5-6

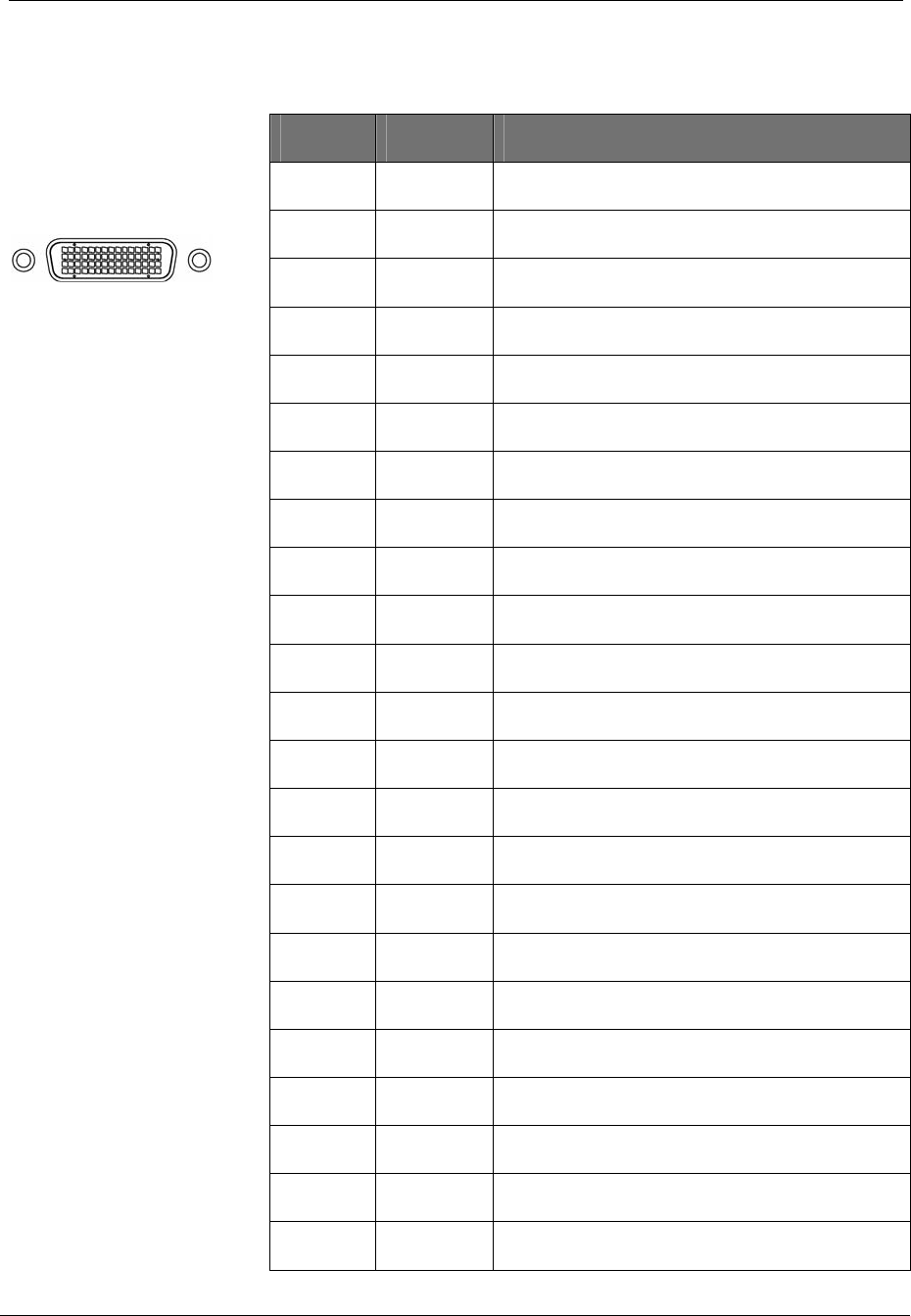

PIN TYPE SIGNAL

24 OUTPUT T1 Channel 11 Transmit Ring

25 OUTPUT T1 Channel 10 Transmit Ring

26 OUTPUT T1 Channel 9 Transmit Ring

27 OUTPUT T1 Channel 16 Transmit Ring

28 OUTPUT T1 Channel 15 Transmit Ring

29 OUTPUT T1 Channel 14 Transmit Ring

30 OUTPUT T1 Channel 13 Transmit Ring

31 INPUT T1 Channel 16 Receive Tip

32 INPUT T1 Channel 15 Receive Tip

33 INPUT T1 Channel 9 Receive Tip

34 INPUT T1 Channel 14 Receive Tip

35 INPUT T1 Channel 10 Receive Tip

36 INPUT T1 Channel 13 Receive Tip

37 INPUT T1 Channel 11 Receive Tip

38 INPUT T1 Channel 4 Receive Tip

39 INPUT T1 Channel 12 Receive Tip

40 INPUT T1 Channel 3 Receive Tip

41 INPUT T1 Channel 5 Receive Tip

42 INPUT T1 Channel 8 Receive Tip

43 INPUT T1 Channel 6 Receive Tip

44 INPUT T1 Channel 7 Receive Tip

45 NC NC

46 NC NC

47 INPUT T1 Channel 7 Receive Ring

48 INPUT T1 Channel 6 Receive Ring

05-4498A01, Rev. G

User Reference and Installation Guide 5-7

PIN TYPE SIGNAL

49 INPUT T1 Channel 8 Receive Ring

50 INPUT T1 Channel 5 Receive Ring

51 INPUT T1 Channel 3 Receive Ring

52 INPUT T1 Channel 12 Receive Ring

53 INPUT T1 Channel 4 Receive Ring

54 INPUT T1 Channel 11 Receive Ring

55 INPUT T1 Channel 13 Receive Ring

56 INPUT T1 Channel 10 Receive Ring

57 INPUT T1 Channel 14 Receive Ring

58 INPUT T1 Channel 9 Receive Ring

59 INPUT T1 Channel 15 Receive Ring

60 INPUT T1 Channel 16 Receive Ring

5.11 USB

PIN TYPE SIGNAL

1 OUTPUT +5V

2 I/O -Data

3 I/O +Data

USB Type A

4 N/A GND

5.12 Voice Order Wire

PIN TYPE SIGNAL

RJ-45 Female 1 N/A NC

05-4498A01, Rev. G

User Reference and Installation Guide 5-8

PIN TYPE SIGNAL

2 INPUT PTT

3 N/A GND

4 OUTPUT PO-

5 OUTPUT PO+

6 INPUT TI-

7 N/A GND

8 N/A NC

5.13 Data Order Wire

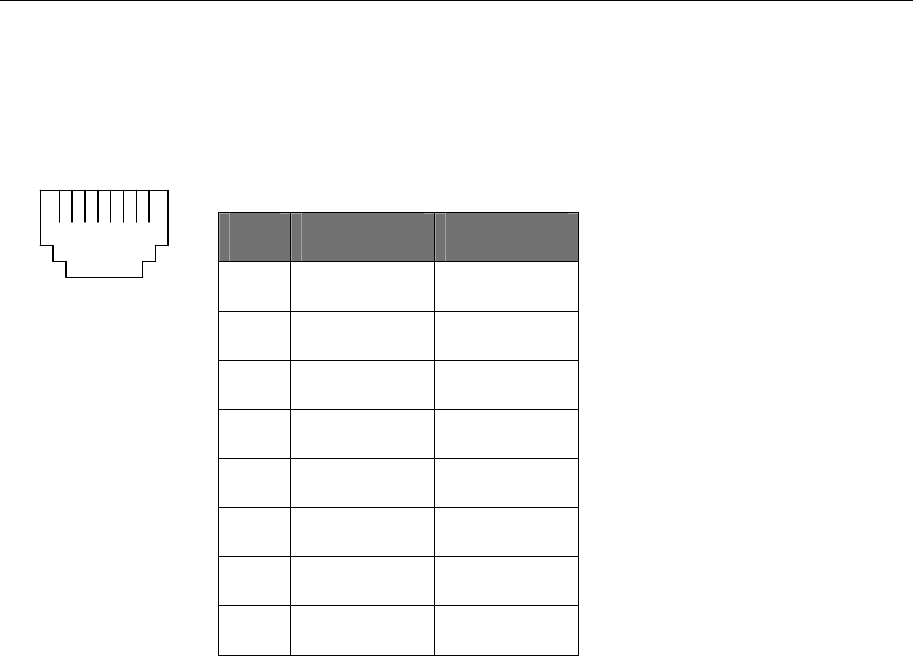

5.13.1 RS422

PIN TYPE SIGNAL

1 OUTPUT TX Clock -

2 OUTPUT TX Clock +

3 OUTPUT TX Data -

4 INPUT RX Data -

RJ-45 Female

12 3 4 5 6 7 8

5 INPUT RX Data +

6 OUTPUT TX Data +

7 INPUT RX Clock -

8 INPUT RX Clock +

5.13.2 RS-232

PIN TYPE SIGNAL

RJ-45 Female 1 N/A NC

05-4498A01, Rev. G

User Reference and Installation Guide 5-9

PIN TYPE SIGNAL

2 N/A NC

3 N/A Signal GND

4 N/A NC

5 INPUT RX Data +

6 OUTPUT TX Data +

7 N/A NC

8 N/A NC

05-4498A01, Rev. G

6 Appendix

6.1 Alarm Descriptions

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

Modem Fault

Lower Modem The specified Modem card

has indicated a fault. Fault

detection is via reading

Modem Hardware Status

from MODEM during start-up

and polling GPIO for MODEM

fault indication. Polling

interval 5 sec.

N/A 11 Critical

Modem Comm

Failiure Lower Modem The Controller Card is unable

to communicate with the

specified Modem card.

Modem

Lower 12 Critical

Modem Card

Removed Lower Modem The specified Modem card has

been removed from the IDU

(only if the specified Modem

card has been enabled for

use). Fault detection via card-

detect logic.

N/A 13 Major

Modem Card

Installed Lower Modem The specified Modem card

has been installed into the

IDU (only if the specified

Modem card is not enabled

for use). Fault detection via

card-detect logic. Alarm is

raised then lowered.

Modem

Lower 14 Info

Modem Unlock

Lower Modem The demodulation functional

components of the modem

have lost lock to the incoming

signal. The data received

through the RF link is not

valid. Fault detection via

modem status polling. Polling

interval: 1 sec.

N/A N/A Critical

User Reference and Installation Guide 6-2

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

RSL Low Lower Modem RSSI is approaching the

minimum operational level of

the link as set during

configuration. Fault detection

via modem status polling,

comparing RSSI value to

threshold value in

configuration table. Polling

interval 5 sec.

N/A N/A Major

Synthesizer

Unlock Lower Modem Modem synthesizer has

unlocked. Fault detection via

modem status polling. Polling

is done in conjunction with

Modem Unlock polling.

N/A N/A Critical

SNR Low Lower Modem The signal-to-noise ratio is

below the minimum

operational level of the link as

set during configuration. Fault

detection via modem status

polling, comparing Eb/N0

value to threshold value in

configuration table. Polling

interval 5 sec.

N/A N/A Major

Modem Fault

Upper Modem The specified Modem card

has indicated a fault. Fault

detection is via reading

Modem Hardware Status

from MODEM during start-up

and polling GPIO for MODEM

fault indication. Polling

interval 5 sec.

N/A 16 Critical

Modem Comm

Failiure Upper Modem The Controller Card is unable

to communicate with the

specified Modem card.

Modem

Lower 17 Critical

Modem Card

Removed Upper Modem The specified Modem card

has been removed from the

IDU (only if the specified

Modem card has been

enabled for use). Fault

detection via card-detect

logic.

N/A 18 Major

User Reference and Installation Guide 6-3

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

Modem Card

Installed Upper Modem The specified Modem card

has been installed into the

IDU (only if the specified

Modem card is not enabled

for use). Fault detection via

card-detect logic. Alarm is

raised then lowered.

Modem

Upper 19 Info

Modem Unlock

Upper Modem The demodulation functional

components of the modem

have lost lock to the incoming

signal. The data received

through the RF link is not

valid. Fault detection via

modem status polling. Polling

interval 1 sec.

N/A N/A Critical

RSL Low Upper Modem RSSI is approaching the

minimum operational level of

the link as set during

configuration. Fault detection

via modem status polling,

comparing RSSI value to

threshold value in

configuration table. Polling

interval 5 sec.

N/A N/A Major

SNR Low Upper Modem The signal-to-noise ratio is

below the minimum

operational level of the link as

set during configuration. Fault

detection via modem status

polling, comparing Eb/N0

value to threshold value in

configuration table. Polling

interval 5 sec.

N/A N/A Major

Synthesizer

Unlock Upper Modem Modem synthesizer has

unlocked. Fault detection via

modem status polling. Polling

is done in conjunction with

Modem Unlock polling.

N/A N/A Critical

User Reference and Installation Guide 6-4

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

Fan Failure Controller The Fan rotational speed is

too low. (Controller card LED

flashed red rather than

orange). Fault detection via

polling fan controller status.

Polling interval 10 sec.

Controller 21 Major

Controller Card

Fault Controller The CPU has detected a fault

in the controller card.

(Controller card LED flashes

red rather than orange). Fault

detection via software.

Controller 22 Critical

Low Battery

Voltage Controller The CPU has detected a low-

battery voltage condition.

(Controller card LED flashes

red rather than orange). Fault

detection via software polling

RTC via controller FPGA.

Controller 23 Info

Power Supply

Fault Lower Power Supply The Power Supply card has

indicated a fault. Fault

detection via polling GPIO.

Polling interval 5 sec.

N/A 31 Critical

Power Supply

Card Removed

Lower

Power Supply The specified Power Supply

card has been removed from

the IDU. Fault detection via

card-detect logic.

N/A 32 Major

Power Supply

Fault Upper Power Supply The Power Supply card has

indicated a fault. Fault

detection via polling GPIO.

Polling interval 5 sec.

N/A 36 Critical

Power Supply

Card Removed

Upper

Power Supply The specified Power Supply

card has been removed from

the IDU. Fault detection via

card-detect logic.

N/A 37 Major

Standard I/O

Card Removed StdIO The Standard I/O card has

been removed from the IDU.

Fault detect via card-detect

logic.

N/A 41 Critical

User Reference and Installation Guide 6-5

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

Ethernet

Payload

Disconnect

StdIO There is no cable detected at

either Ethernet payload on

Standard I/O card (only if

Ethernet mode enabled).

Fault detection via polling of

Ethernet PHY. Polling interval

5 sec.

Standard

I/O 42 Critical

Framer

Initialization

Timeout

StdIO There is an Initalization wait

for Framer to turn ON the

Framer Receiver side after

turning ON the Modem/ODU.

Fault detection via polling.

Poll only after timeout to

detect.

Standard

I/O 43 Critical

Mini I/O Card

Removed MiniIO The Mini I/O card has been

removed from the IDU (only if

Mini I/O card has been

enabled for use). Fault

detection via card-detect

logic.

Standard

I/O 46 Critical

Mini I/O Card

Installed MiniIO The Mini I/O card has been

installed into the IDU (only if

Mini I/O card is noted

enabled for use). Fault

detection via card-detect

logic. Alarm is raised then

lowered.

Standard

I/O 47 Info

Optional I/O

Card Removed OptIO The Optional I/O card has

been removed from the IDU

(only if the Optional I/O card

has been enabled for use).

Fault detection via card-

detect logic.

N/A 26 Critical

Optional I/O

Card Installed OptIO The Optional I/O card has

been installed into the IDU

(only if the Optional I/O card

is not enabled for use). Fault

detection via card-detect

logic. Alarm is cleared after 5

minutes.

Optional

I/O 27 Info

User Reference and Installation Guide 6-6

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

T1/E1 Channel

Alarm Ch x StdIO (1-16)

OptIO (17-32)

There is either no cable

detected at the specified

E1/T1 channel port on

Standard I/O Card or there is

an AIS condition detected

(only for active T1/E1

channels). Fault detection via

polling of LIUs on Standart

I/O card and Optional I/O

Card when installed. Polling

interval 2 channels per 1 sec.

Report of this alarm in the

GUI/Syslog/Alarm history

shall indicate whether this is

a disconnect or AIS condition.

If both conditions are present,

then the disconnect alarm

shall take precedence over

the AIS alarm.

Standard

I/O when

1-16

Optional

I/O when

17-32

Turn LED

orange

rather

than RED

51-58

(1-16)

61-68

(17-

32)

Critical

T1/E1 Test

Mode StdIO The user has selected a

T1/E1 test mode (loopback or

Tx Data). This alarm shall be

set when the user sets the

testmode for any of the T1/E1

channels, and cleared when

all T1/E1 channels are not in

loopback and Tx Data is

normal.

N/A 59 Info

BERT/LB/CW

Test Mode StdIO This alarm shall be set when

the user enables either

BERT,, Loopback, or CW

mode, and cleared when all

BERT, Loopback and CW

modes are disabled.

N/A 69 Info

ODU Fault

Lower ODU The ODU has indicated a

fault condition. Fault

detection via polling of ODU

or unsolicited message, if

supported. Polling interval 5

sec. Polling done via API

functional call. Report of this

alarm in the

GUI/Syslog/Alarm history

shall indicate the fault code

from the ODU.

N/A 71 Critical

User Reference and Installation Guide 6-7

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

ODU Comm

Failure Lower ODU The IDU is unable to

communicate with the ODU.

This could be a problem with

the ODU or a problem with

the cable connecting the

ODU to the IDU.

N/A 72 Critical

ODU Fault

Upper ODU The ODU has indicated a

fault condition or unsolicited

message, if supported. Fault

detection via polling of ODU.

Polling interval 5 sec. Polling

done via API function call.

Report of this alarm in the

GUI/Syslog/Alarm history

shall indicate the fault code

from the ODU.

N/A 73 Critical

ODU Comm

Failure Upper ODU The IDU is unable to

communicate with the ODU.

This could be a problem with

the ODU or a problem with

the cable connecting the

ODU to the IDU.

N/A 74 Critical

Protection

Switch MODEM/ODU This alarm shall be set when

an AL1 command is received

from the active

MODEM/ODU, then cleared

when an AL2 command is

received from the standby

MODEM/ODU. Report of this

alarm in the

GUI/Syslog/Alarm history

shall indicate the fault code

from the ODU, if received.

N/A 75 Major

East ATPC Tx at

Max Power ODU The IDU is unable to increase

the Tx Power as requested

by link partner due to

maximum power being

reached. Maximum power is

specified in the configuration

table.

N/A 76 Info

User Reference and Installation Guide 6-8

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

West ATPC Tx

at Max Power ODU The IDU is unable to increase

the Tx Power as requested

by link partner due to

maximum power being

reached. Maximum power is

specified in the configuration

table.

N/A 78 Info

Link Fault IDU Failed to receive link

heartbeat from link partner

via Radio Overhead (ROH)

channel. Fault detection via

timeout counter, which is

reset via reception of link

heartbeat message.

N/A 81 Critical

Remote Fault IDU Link Partner IDU indicating it

has a fault condition. Local

IDU receives Link Partner

Fault detection via Radio

Overhead (ROH) channel

message.

N/A 82 Info

Encryption

Failure IDU Data is not being decrypted

properly due to encryption

key mismatch between link

partners. Fault detection via

software detection of

unreadable ROH messages

from link partner.

N/A 83 Critical

Encryption

OneWay IDU Only one IDU has data

encryption enabled. Fault

detection via software

messages to/from link

partner.

N/A 84 Major

External Alarm 1 External The external Alarm 1 input

has been activated. Fault

detection via polling GPIO.

Polling interval 1 sec.

N/A 91 Info

External Alarm 2 External The external Alarm 2 input

has been activated. Fault

detection via polling GPIO.

Polling interval 1 sec.

N/A 92 Info

User Reference and Installation Guide 6-9

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

External Alarm 3 External The external Alarm 3 input

has been activated. Fault

detection via polling GPIO.

Polling interval 1 sec.

N/A 93 Info

External Alarm 4 External The external Alarm 4 input

has been activated. Fault

detection via polling GPIO.

Polling interval 1 sec.

N/A 94 Info

Remote IDU

Alarm Link Partner

IDU The link partner IDU has

indicated an alarm condition

via ROH.

N/A 95 Major

Remote IDU

External Alarm 1 Link Partner

External The link partner IDU has

indicated via ROH its external

alarm input 1 has been

activated.

N/A 96 Info

Remote IDU

External Alarm 2 Link Partner

External The link partner IDU has

indicated via ROH its external

alarm input 2 has been

activated.

N/A 97 Info

Remote IDU

External Alarm 3 Link Partner

External The link partner IDU has

indicated via ROH its external

alarm input 3 has been

activated.

N/A 98 Info

Remote IDU

External Alarm 4 Link Partner

External The link partner IDU has

indicated via ROH its external

alarm input 4 has been

activated.

N/A 99 Info

STM Loss of

Clock IDU The SDH/SONET clock has

lost lock. Fault detection via

polling of LIU.

N/A Solid Critical

STM RS_LOS IDU The SDH/SONET has a Loss

of Signal Defect. Fault

detection via polling of LIU.

N/A Solid Critical

User Reference and Installation Guide 6-10

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

STM RS_B1 IDU The SDH/SONET

Mux/Demux has a B1 Defect.

Fault detection via polling of

RS_B1_T bit in STM-1 Core.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

STM RS_LOF IDU The SDH/SONET

Mux/Demux has a Loss of

Frame Defect. Fault detection

via polling of RS_LOF_T bit

in STM-1 Core. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Critical

STM RS_OOF IDU The SDH/SONET

Mux/Demux has a Out of

Frame Defect. Fault detection

via polling of RS_OOF_T bit

in STM-1 Core. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Critical

STM RS_TIM IDU The SDH/SONET

Mux/Demux has a Trace

Identifier Mismatch Defect.

Fault detection via polling of

RS_TIM_T bit in STM-1 Core.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

STM MS-AIS IDU The SDH/SONET

Mux/Demux has detected an

AIS at the Multiplexer Level.

Fault detection via polling of

MS_AIS_T bit in STM-1 Core.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Critical

User Reference and Installation Guide 6-11

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

STM MS-REI IDU The SDH/SONET

Mux/Demux has detected a

Remote Error at the

Multiplexer Level. Fault

detection via polling of

MS_REI_T bit in STM-1

Core. Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

STM MS-RDI IDU The SDH/SONET

Mux/Demux has detected an

Remote Defect at the

Multiplexer Level. Fault

detection via polling of

MS_RDI_T bit in STM-1

Core. Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

STM MS_B2 IDU The SDH/SONET

Mux/Demux has a B2 Defect

at the Multiplex level. Fault

detection via polling of

MS_B2_T bit in STM-1 Core.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

STM AU-AIS x IDU The SDH/SONET

Mux/Demux has detected an

AIS at the AU Level. Fault

detection via polling of

AU_AIS_T bit in STM-1 Core.

Where ‘x’ is the HP index.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Critical

STM AU-LOP x IDU The SDH/SONET

Mux/Demux has detected an

Loss of Pointer Defect at the

AU Level. Fault detection via

polling of AU_LOP_T bit in

STM-1 Core. Where ‘x’ is the

HP index. Alternate detection

via Interrupt enabled in STM-

1 core.

N/A Solid Critical

User Reference and Installation Guide 6-12

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

STM HP-UNEQ

x IDU The SDH/SONET

Mux/Demux HP number ‘x’ is

Unequipped. Fault detection

via polling of HP_UNEQ_T bit

in STM-1 Core. Where ‘x’ is

the HP index. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Critical

STM HP-TIM x IDU The SDH/SONET

Mux/Demux HP number ‘x’

has a Trace Identifier

Mismatch. Fault detection via

polling of HP_TM_TIM_T bit

in STM-1 Core. Where ‘x’ is

the HP index. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Major

STM HP-REI x IDU The SDH/SONET

Mux/Demux HP number ‘x’

has a Remote Error

Indication. Fault detection via

polling of HP_REI_T bit in

STM-1 Core. Where ‘x’ is the

HP index. Alternate detection

via Interrupt enabled in STM-

1 core.

N/A Solid Major

STM HP-RDI x IDU The SDH/SONET

Mux/Demux HP number ‘x’

has a Remote Defect

Indication. Fault detection via

polling of HP_RDI_T bit in

STM-1 Core. Where ‘x’ is the

HP index. Alternate detection

via Interrupt enabled in STM-

1 core.

N/A Solid Major

STM HP-PLM x IDU The SDH/SONET

Mux/Demux HP number ‘x’

has a Path Identifier

Mismatch. Fault detection via

polling of HP_PLM_T bit in

STM-1 Core. Where ‘x’ is the

HP index. Alternate detection

via Interrupt enabled in STM-

1 core.

N/A Solid Critical

User Reference and Installation Guide 6-13

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

STM HP_B3 x IDU The SDH/SONET

Mux/Demux HP number ‘x’

has a CRC Error. Fault

detection via polling of

HP_B3_T bit in STM-1 Core.

Where ‘x’ is the HP index.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

STM TU-LOM

lkm IDU The SDH/SONET

Mux/Demux TU number ‘x’

has a Loss of Multiframe.

Fault detection via polling of

TU_LOMF_T bit in STM-1

Core. Where ‘lkm’ is the TU

index as LKM numbering.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Critical

STM TU-AIS

lkm IDU The SDH/SONET

Mux/Demux TU number ‘x’

has an AIS. Fault detection

via polling of TU_AIS_T bit in

STM-1 Core. Where ‘lkm’ is

the TU index as LKM

numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Critical

STM TU-LOP

lkm IDU The SDH/SONET

Mux/Demux TU number ‘x’

has a Loss of Pointer Defect.

Fault detection via polling of

TU_LOP_T bit in STM-1

Core. Where ‘lkm’ is the TU

index as LKM numbering.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Critical

User Reference and Installation Guide 6-14

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

STM LP-UNEQ

lkm IDU The SDH/SONET

Mux/Demux LP number ‘x’ is

Unequipped. Fault detection

via polling of LP_UNEQ_T bit

in STM-1 Core. Where ‘lkm’

is the LP index as LKM

numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Major

STM LP-TIM

lkm IDU The SDH/SONET

Mux/Demux LP number ‘x’

has a Trace Identifier

Mismatch. Fault detection via

polling of LP_TM_TIM_T bit

in STM-1 Core. Where ‘lkm’

is the LP index as LKM

numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Major

STM LP-REI lkm IDU The SDH/SONET

Mux/Demux LP number ‘x’

has a Remote Error

Indication. Fault detection via

polling of LP_REI_T bit in

STM-1 Core. Where ‘lkm’ is

the LP index as LKM

numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Major

STM LP-RDI

lkm IDU The SDH/SONET

Mux/Demux LP number ‘x’

has a Remote Defect

Indication. Fault detection via

polling of LP_RDI_T bit in

STM-1 Core. Where ‘lkm’ is

the LP index as LKM

numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Major

User Reference and Installation Guide 6-15

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

STM LP-PLM

lkm IDU The SDH/SONET

Mux/Demux LP number ‘x’

has a Path Identifier

Mismatch. Fault detection via

polling of LP_PLM_T bit in

STM-1 Core. Where ‘lkm’ is

the LP index as LKM

numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Critical

STM LP-RFI lkm IDU The SDH/SONET

Mux/Demux LP number ‘x’

has a Remote Fault

Indication. Fault detection via

polling of LP_RFI_T bit in

STM-1 Core. Where ‘lkm’ is

the LP index as LKM

numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Critical

STM LP-BIP2

lkm IDU The SDH/SONET

Mux/Demux LP number ‘x’

has a CRC Error. Fault

detection via polling of

LP_BIP2_T bit in STM-1

Core. Where ‘lkm’ is the LP

index as LKM numbering.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

SDIDU Power-

Up IDU During power-up raise then

lower this alarm. N/A Solid Info

SDIDU Re-boot IDU When a user reboots the

SDIDU, raise then lower this

alarm prior to re-booting.

N/A Solid Info

NTP Update IDU When the system time is

updated via NTP raise then

lower this alarm. The

previous system time and

new system time should be

noted in the alarm log, snmp

trap, and syslog messages.

N/A Solid Info

User Reference and Installation Guide 6-16

05-4498A01, Rev. G

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

Remote

Reconfiguration

Failure

IDU When a remote

reconfiguration fails and the

original configuration is

restored after timeout, raise

then lower this alarm.

N/A Solid Info

FPGA

Programming

Failure

IDU When the FPGA

programming fails, this alarm

shall be set.

N/A Solid Critical

Reconfiguration

Failure IDU When the local SDIDU

configuration fails raise then

lower this alarm.

N/A Solid Info

6.2 Abbreviations & Acronyms

AdTPC Adaptive Power Control

AIS Alarm Indication Signal

BER Bit Error Rate

Codec Coder-Decoder

CPU Central Processing Unit

DB Decibel

DBm Decibel relative to 1 mW

DCE Data Circuit-Terminating Equipment

DTE Data Terminal Equipment

EIRP Effective Isotropic Radiated Power

FCC Federal Communications Commission

FEC Forward Error Correction

FPGA Field Programmable Gate Array

GPIO General Purpose Input/Output

IF Intermediate frequency

IP Internet Protocol

LED Light-emitting diode

LOS Line of Sight

MIB Management Information Base

User Reference and Installation Guide 6-17

05-4498A01, Rev. G

Modem Modulator-demodulator

ms Millisecond

NC Normally closed

NMS Network Management System

OAM&P Operations, Administration, Maintenance, and Provisioning

OC-3 Optical Carrier level 3

ODU Outdoor Unit

PCB Printed circuit board

POP Point of Presence

QAM Quadrature Amplitude Modulation

QPSK Quadrature Phase Shift Keying

RF Radio Frequency

RSL Received Signal Level (in dBm)

RSSI Received Signal Strength Indicator/Indication

RX Receiver

SDH Synchronous Digital Hierarchy

SNMP Simple Network Management Protocol

SNR Signal-to-Noise Ratio

SDIDUTM Software Defined Indoor Unit (CarrierComm trademark)

SONET Synchronous Optical Network

STM-1 Synchronous Transport Module 1

TCP/IP Transmission Control Protocol/Internet Protocol

TTL Transistor-transistor logic

TX Transmitter

IN CASE OF DIFFICULTY...

MDS products are designed for long life and trouble-free operation. However, this equipment, as

with all electronic equipment, may have an occasional component failure. The following

information will assist you in the event that servicing becomes necessary.

TECHNICAL ASSISTANCE

Technical assistance for MDS products is available from our Technical Support Department

during business hours (8:00 A.M.–5:30 P.M. Eastern Time). When calling, please give the

complete model number of the radio, along with a description of the trouble/symptom(s) that you

are experiencing. In many cases, problems can be resolved over the telephone, without the need

for returning the unit to the factory. Please use one of the following means for product assistance:

Phone: 585 241-5510 E-Mail: mailto:TechSupport@microwavedata.com

FAX: 585 242-8369 Web: http://www.microwavedata.com/

FACTORY SERVICE

Component level repair of radio equipment is not recommended in the field. Many components

are installed using surface mount technology, which requires specialized training and equipment

for proper servicing. For this reason, the equipment should be returned to the factory for any PC

board repairs. The factory is best equipped to diagnose, repair and align your radio to its proper

operating specifications.

If return of the equipment is necessary, you will be issued a Service Request Order (SRO)

number and return shipping address. The SRO number will help expedite the repair so that the

equipment can be repaired and returned to you as quickly as possible. Please be sure to include

the SRO number on the outside of the shipping box, and on any correspondence relating to the

repair. No equipment will be accepted for repair without an SRO number.

A statement should accompany the radio describing, in detail, the trouble symptom(s), and a

description of any associated equipment normally connected to the radio. It is also important to

include the name and telephone number of a person in your organization who can be contacted if

additional information is required.

The radio must be properly packed for return to the factory. The original shipping container and

packaging materials should be used whenever possible.

When repairs have been completed, the equipment will be returned to you by the same shipping

method used to send it to the factory. Please specify if you wish to make different shipping

arrangements. To inquire about an in-process repair, you may contact our Product Services

Group at 585-241-5540 (FAX: 585-242-8400), or via e-mail at:

ProductServices@microwavedata.com

GE MDS DS-5800-2 MDS 5800 II Digital Radio Transceiver User Manual MK MAN 01

GE MDS LLC MDS 5800 II Digital Radio Transceiver MK MAN 01

Contents

manual

Navigation menu

Namespaces

Views

Navigation
