05-4446A01, Rev. C Mercury Reference Manual 55

¥Trap VersionThis specifies which version of SNMP is used to

encode the outgoing traps. The choices are v1_traps, v2_traps,

and v3_traps. When v3_traps is selected, v2-style traps are sent,

but with a v3 header. [v1_traps, v2_traps, v3_traps]

¥Auth Traps StatusIndicates whether or not traps are generated

for failed authentication of an SNMP PDU. [Disabled/Enabled;

Disabled]

¥SNMP V3 PasswordsDetermines whether v3 passwords are

managed locally or via an SNMP Manager. The different behav-

iors of the Agent, depending on the mode selected, are described

in SNMP Mode above.

¥Trap Manager #1—#4 Table of up to four locations on the net-

work to which traps are sent. [Any standard IP address]

NOTE: The number in the upper right-hand corner of the screen is the

SNMP Agents SNMPv3 Engine ID. Some SNMP Managers

may need to know this ID in order interface with the trans-

ceivers SNMP Agent. The ID only appears on the screen

when SNMP Mode is either v1-v2-v3 or v3_only.

NOTE: For more SNMP information, see NOTES ON SNMP on

Page 165.

3.4.5 AP Location Push Config Menu

This menu configures the AP for updating connected remotes with the

AP Locations File loaded on the AP.

Invisible place holder

Figure 3-23. AP Location Push Config Menu

¥TFTP Host AddressIP address of the TFTP server that holds the

AP locations file. [any valid IP address; 0.0.0.0]

¥Transfer OptionsMenu for configuring the TFTP transfer.

56 Mercury Reference Manual 05-4446A01, Rev. C

¥AP Locations FilenameName of the AP Locations file on the

server. [any valid filename string; ap_locations.txt]

¥Auto AP Location DownloadA setting to force connected

remotes to download immediately the AP Locations file on the

AP. Remotes that associate to an AP with this feature will also

download the file.

¥Retrieve Text FileDownload AP Locations text file from the

server.

¥Send Text FileUpload the local AP Locations file to the server.

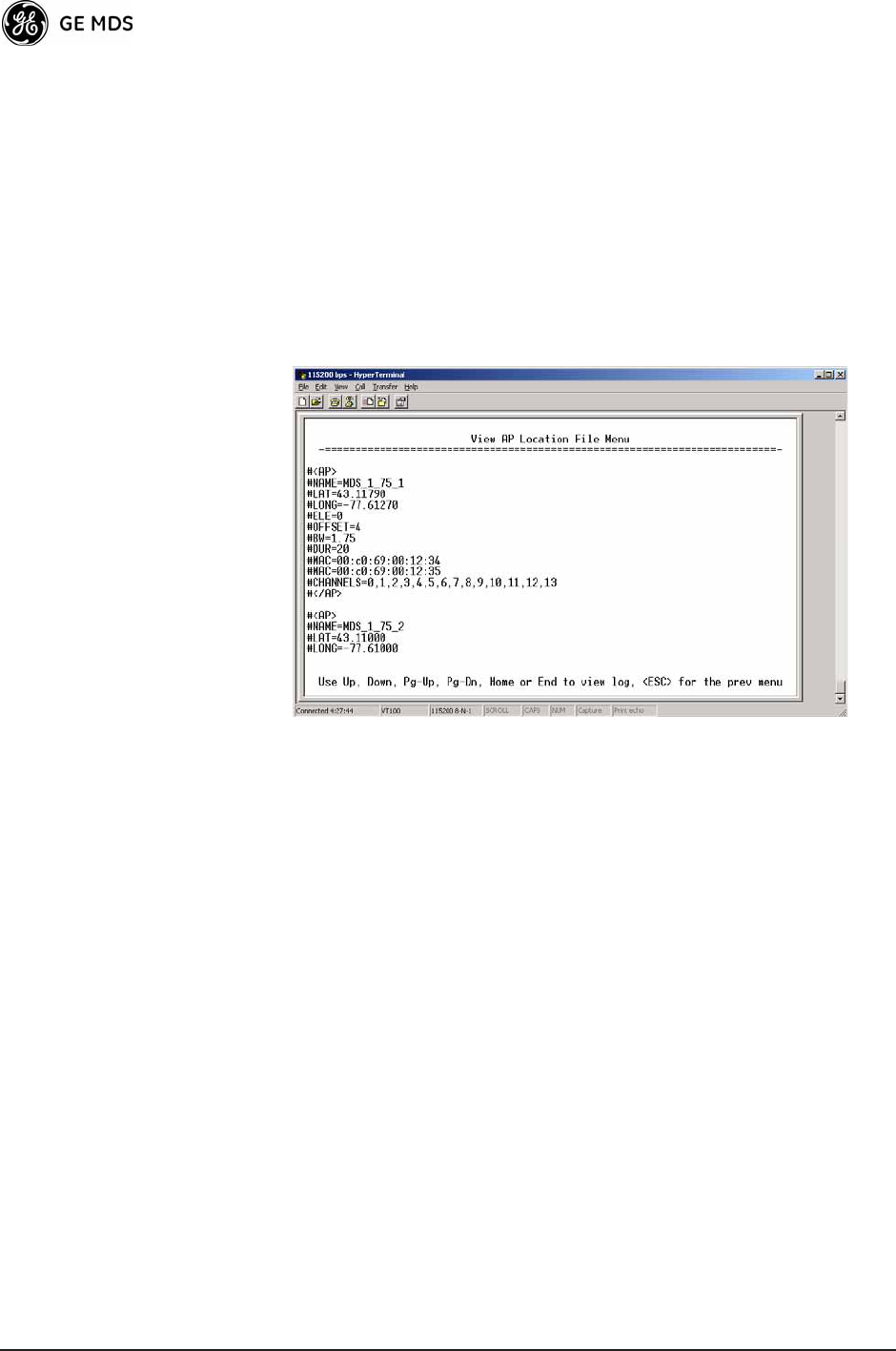

¥View AP Location FileAllows on-screen review of the AP Loca-

tions file. An example screen is shown in Figure 3-24.

Invisible place holder

Figure 3-24. AP Location Text File

AP Locations File Syntax and Guidelines

The AP Locations file is used by the Remote radio to determine which

Access Point to connect to when operating in Hopping w/ Hand-offs mode.

The AP Locations file is a simple text file containing information about

the location and configuration of all Access Points that the Remote can

associate with. The file is filled in by creating AP definition blocks

using tags and labels. The <AP> tag is used to begin a definition block

and the </AP> tag ends the block. Within the block, you can declare sev-

eral parameters using a LABEL=VALUE syntax. The possible labels

are:

¥NAMEThe name of the AP. Typically set to the Device Name

configured on the AP

¥LATGPS Latitude of the AP in decimal degrees

¥LONGGPS Longitude of the AP in decimal degrees

¥OFFSETPattern Offset configured on the AP

¥BWBandwidth (1.75 or 3.5) configured on the AP

¥DURFrame duration (10 or 20) configured on the AP

¥MACThe Wireless MAN Address configured on the AP

¥CHANNELSSpecifies which channels are being used by the AP

05-4446A01, Rev. C Mercury Reference Manual 57

¥GROUPName of a grouping of Access Points. A Remote con-

figured with Eth Follows Association enabled does not disable its

wired port when moving between APs of the same group.This

is useful when two or more APs are on the same subnet.

¥MODESingle or Hopping. Specifies the Frequency Mode of the

AP.

¥SINGLE_CHANSpecifies the APs Single Frequency mode

channel.

The MAC label may appear twice if a P23 redundant Access Point is

installed at that location. In this case, one MAC statement provides the

MAC address of the A radio and the other MAC statement provides the

MAC address of the B radio. The CHANNELS statement only needs to be

present if the channel selection feature is used at the Access Point to

limit which channels are active. If all channels are used, you can leave

out the CHANNELS statement. You can leave out the BW statement for

APs that are configured to 1.75 MHz bandwidth. You can also leave out

the DUR statement for APs that are configured with a 20 millisecond

frame duration.

The following shows the syntax of the AP Locations file:

# Mercury Remote AP Locations file

# These lines are comments

# The following line defines the beginning of an AP definition block

<AP>

NAME=MyAccessPoint

LAT=43.11790

LONG=-77.61270

OFFSET=3

BW=1.75

DUR=20

MAC=00:06:3D:00:01:23

CHANNELS=1,3,5,7,9,11,13

# The following line defines the end of the AP definition block

</AP>

3.4.6 SNTP Server Configuration

The Simple Network Time Protocol (SNTP) allows the Mercury to

obtain time of day data from a network server.

NOTE: The Mercury can also obtain time of day data from the GPS

receiver, if the receiver has a satellite fix.

58 Mercury Reference Manual 05-4446A01, Rev. C

Invisible place holder

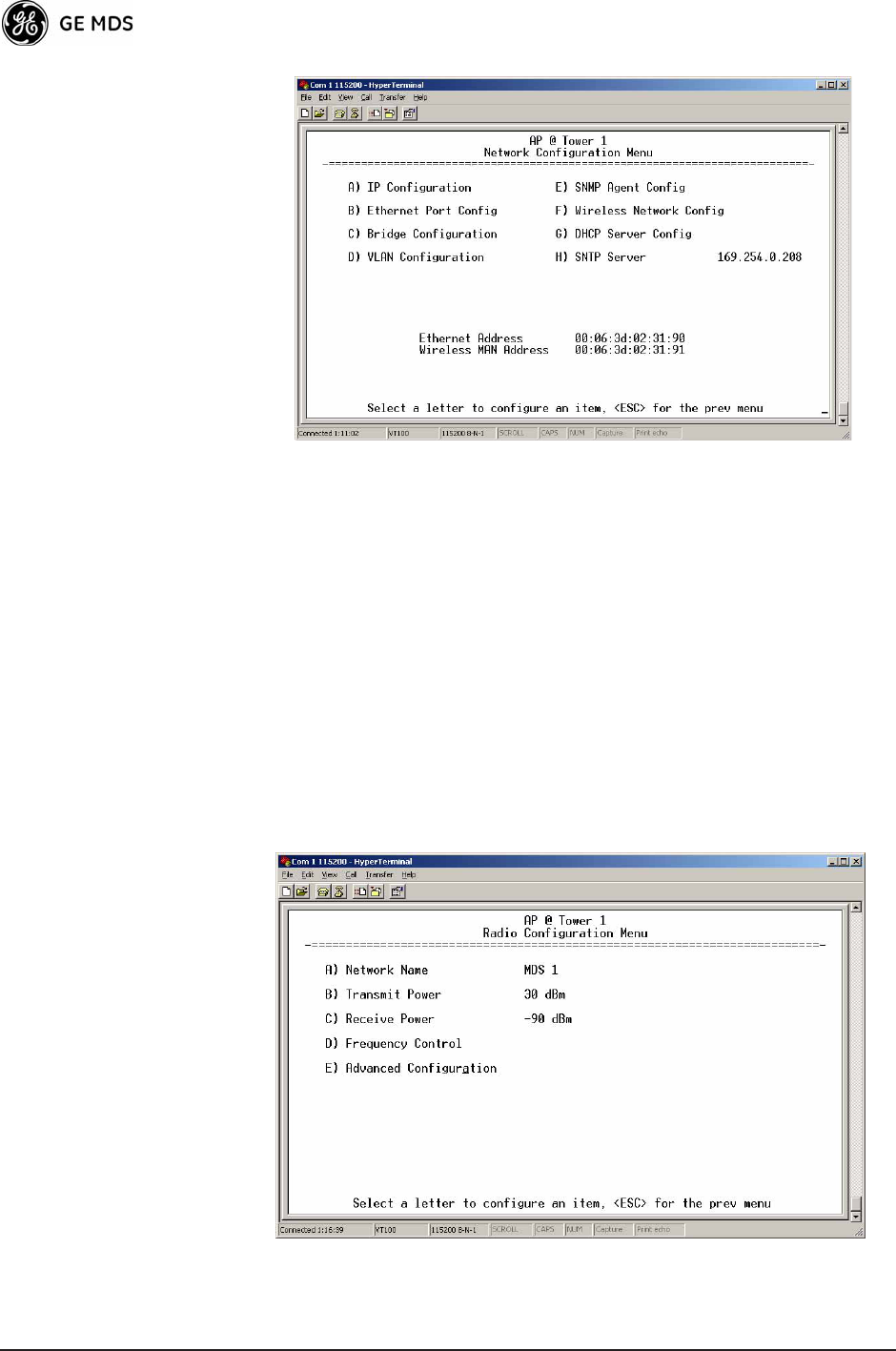

Figure 3-25. SNTP Server Entry (on Network Configuration Menu)

When SNTP Server is selected (item H), the area to the right of the param-

eter becomes active, allowing you to enter a valid SNTP server address.

Press the Return key to make the address entry active.

3.5 RADIO CONFIGURATION

There are two primary layers in the transceiver networkradio and

data. Since the data layer is dependent on the radio layer working prop-

erly, configure and set the radio items before proceeding. This section

explains the Radio Configuration Menu, (Figure 3-26 for AP,

Figure 3-27 for Remote).

3.5.1 Radio Configuration Menu

Figure 3-26. Radio Configuration Menu

(From Access Point)

05-4446A01, Rev. C Mercury Reference Manual 59

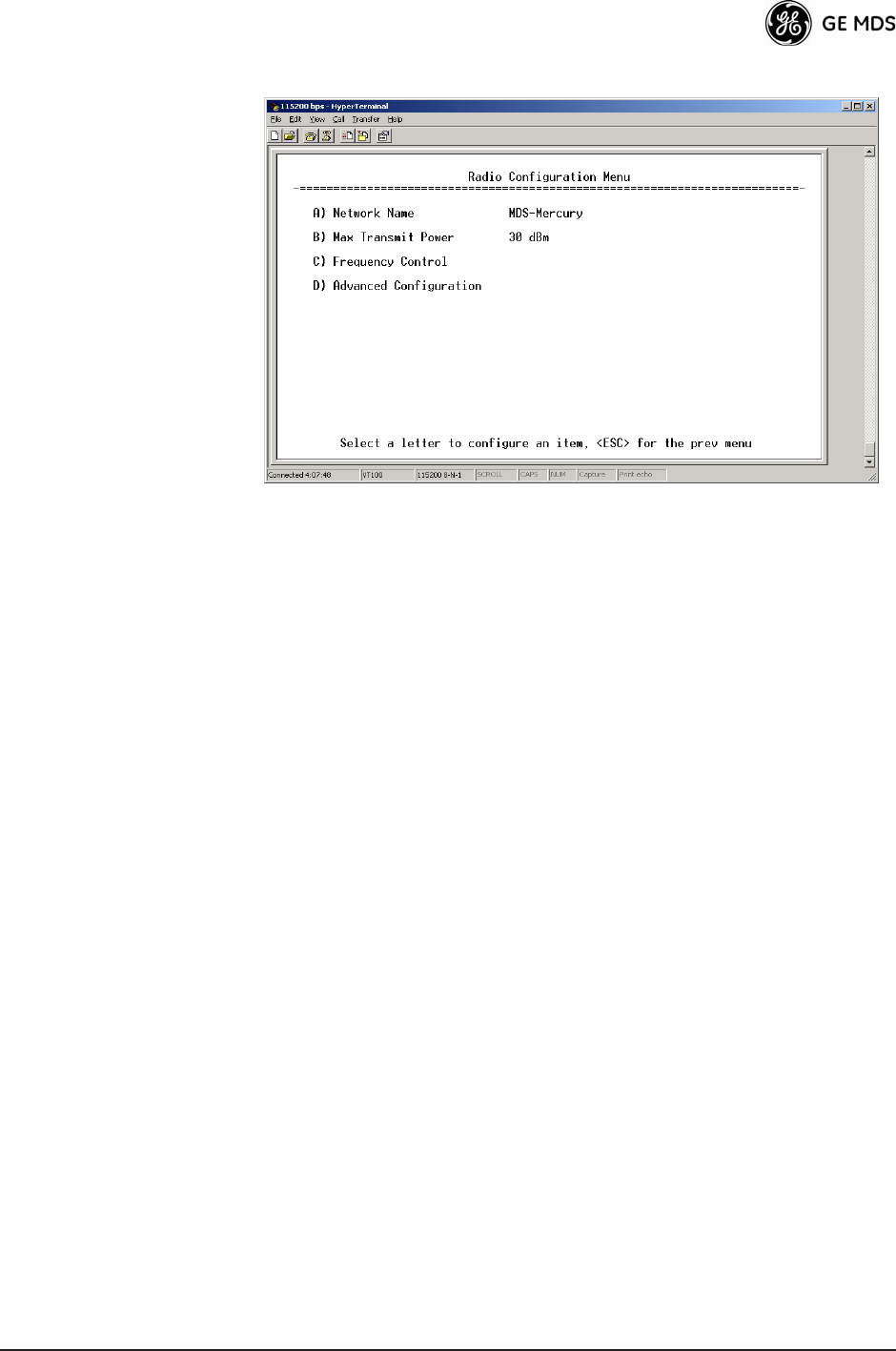

Figure 3-27. Radio Configuration Menu

(From Remote Unit)

¥Network NameThe user-defined name for the wireless network.

[Any 40 character string; MDS-Mercury]

¥Transmit Power (AP Only)Sets/displays RF power output level

in dBm. This setting should reflect local regulatory limitations

and losses in antenna transmission line. (See How Much Out-

put Power Can be Used? on Page 155 for information on how

to calculate this value.) [0—30; 30]

¥Max Transmit Power (Remote Only)Sets/displays maximum RF

power output level in dBm of the Remote. Power level is still

controlled by the AP, but it is limited to the maximum level set

here. This setting should reflect local regulatory limitations and

losses in antenna transmission line. (See How Much Output

Power Can be Used? on Page 155 for information on how to

calculate this value.) [0—30; 30]

¥Receive Power (AP Only)View/set the receiver gain setpoint

for the expected strength of incoming signals from Remotes.

This setting indicates at what level (in dBm) the AP expects to

hear the Remote stations. A setting of -70 would set the AP

receivers gain to a relatively low level, while a setting of -85

would be a comparatively high gain setting. [-100 to -20; -75]

¥Frequency ControlOpens a submenu where you can view or set

frequency mode bandwidth, channel and other parameters as

described in Frequency Control Menu below.

¥Advanced ConfigurationOpens a submenu where you can view

or set modulation, protection/hysteresis margins, data compres-

sion, ARQ settings, and other parameters as described in

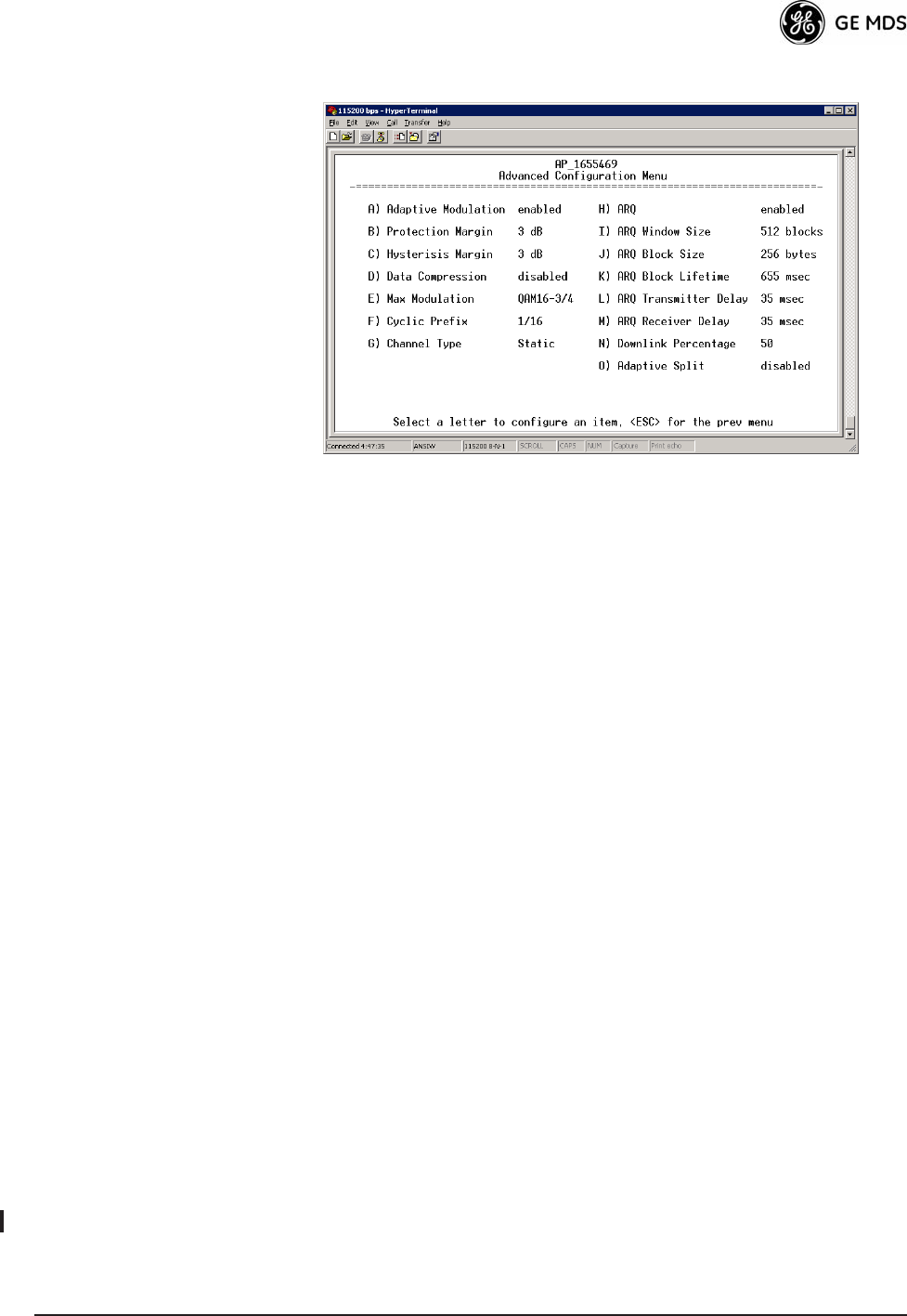

Advanced Configuration Menu on Page 65.

60 Mercury Reference Manual 05-4446A01, Rev. C

Frequency Control Menu

The items shown on this menu vary depending on the Frequency Mode

Selection (Single Channel, Static Hopping, Hopping w/Hand-offs). Examples

of all three screens are provided below, followed by a description of the

menu items.

Invisible place holder

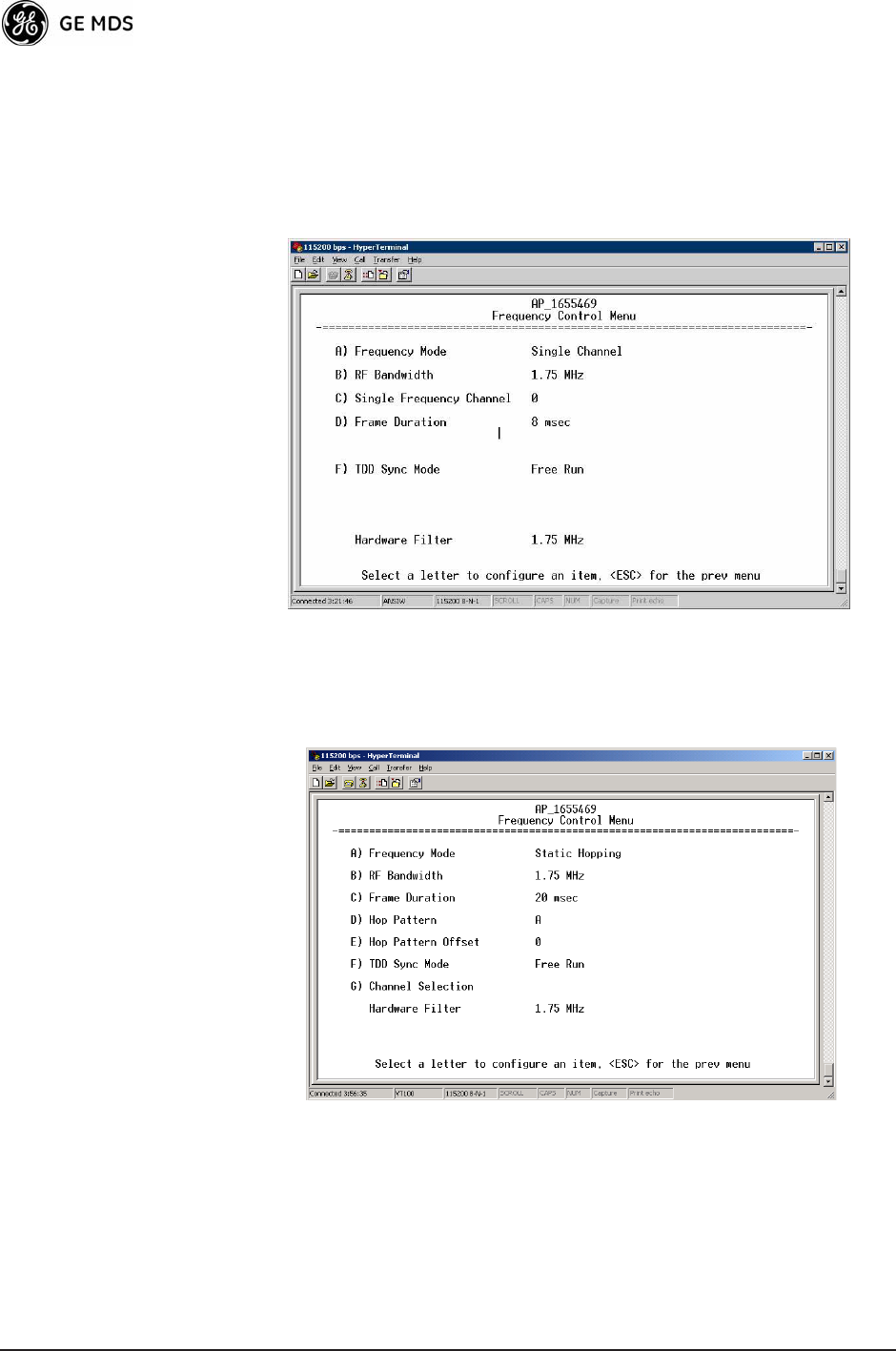

Figure 3-28. Frequency Control Menu

(Single Channel Freq. Mode)

Invisible place holder

Figure 3-29. Frequency Control Menu

(Static Hopping Freq. Mode)

05-4446A01, Rev. C Mercury Reference Manual 61

Invisible place holder

Figure 3-30. Frequency Control Menu

(Hopping w/Hand-offs Freq. Mode [Remote only])

¥Frequency ModeThe unit can operate on one selected fre-

quency or frequency hop. Remotes have the option of using a

static hopping configuration or using the AP locations file to

select an AP and perform hand-offs. For more information on

hand-offs, see Table 3-2 on Page 64. Changing this parameter

requires a radio reboot.

[Static Hopping, Hopping with Hand-offs, Single Channel;

Single Channel]

NOTE: Frequency Mode Static Hopping on Access Points requires

TDD Sync Mode GPS Required.

Channel/Frequency Allocations for Single Channel operation

are shown in Table 3-1. The transceiver utilizes up to 14 chan-

nels (0-13) depending on the bandwidth used (1.75 MHz or

3.5 MHz).

Table 3-1. Channel/Frequency Allocations

Channel 1.75 MHz B/W 3.5 MHz B/W

0 903.000000 904.000000

1 904.800000 907.600000

2 906.600000 911.400000

3 908.600000 915.000000

4 910.400000 918.600000

5 912.200000 922.400000

6 914.000000 926.000000

7 916.000000

8 917.800000

9 919.600000

62 Mercury Reference Manual 05-4446A01, Rev. C

¥RF BandwidthView/set the radios RF operating bandwidth.

Radios are factory-configured for either 1.75 MHz or 3.5 MHz

maximum bandwidth. Determine the factory configuration of a

radio by viewing the CONFIG number on the label at the bot-

tom of the radio. 1.75 MHz units will have a Configuration

string starting with HGA/R9N1, and 3.5 MHz units will have a

string starting with HGA/R9N3.

The bandwidth setting on this menu does not necessarily have

to match the configured bandwidth of the radio, but it is limited

by it. That is, you can set a 3.5 MHz radio to either 1.75 or 3.5,

but you can only set a 1.75 MHz radio to 1.75. Note that setting

a 3.5 MHz bandwidth radio to operate at 1.75 MHz bandwidth

will cause a slight degradation of interference rejection capabil-

ity. [1.75MHz, 3.5MHz]

¥Hop PatternSelects a pre-defined series of channels that is fol-

lowed when hopping.

¥Hop Pattern OffsetInserts an offset into the hop pattern that is

synchronized with the GPS. For example, if the offset is 0, then

the start of the pattern is aligned with the GPS timing. If the off-

set is 3, then the fourth hop of the pattern is aligned with the

GPS timing. All of the APs that are part of a network should use

the same pattern and each one should have its own offset.

In the diagram below, one Remote is configured for static hop-

ping and will only associate with AP1 because they are both

10 921.400000

11 923.400000

12 925.200000

13 927.000000

Table 3-1. Channel/Frequency Allocations

Channel 1.75 MHz B/W 3.5 MHz B/W

05-4446A01, Rev. C Mercury Reference Manual 63

using Offset 0. The hand-off configured Remote, using its AP

Locations file, may connect to AP1, AP2, or AP3. The Remote

does this by determining the Offset for each AP, then configur-

ing its radio.

¥Current APShows the name of the AP that the Remote is trying

to associate with.

¥Advanced ControlProvides access to frequency setup parame-

ters.

¥TDD Sync ModeIndicates if the Access Points transmissions

should synchronize with the GPS timing. Configure this param-

eter to GPS Required when the AP is configured for Static Hopping.

TDD Sync Mode (Time-Division Duplex) is useful in eliminat-

ing same-network interference for multiple-AP installations.

When enabled, all AP transmissions are synchronized using

GPS timing information. The result is that no AP transmits

while another is receiving, which prevents AP-to-AP interfer-

ence. Changing this parameter requires a radio reboot.

[Free Run, GPS Required; Free Run] Note: Do not use the Prefer GPS

setting.

¥Channel SelectionOpens a submenu where you can specify

channel usage.

¥Single Frequency ChannelThe RF frequency that the integrated

radio will operate on when in single frequency (non-hopping)

mode. [0 to 6 for 3.5-MHz, 0 to 13 for 1.75-MHz; 0].

¥Frame DurationDefines the over-the-air media access control

framing. [5, 8, 10, or 20 msec; 20 msec]

¥Hardware FilterThis field provides a read-only indication of the

maximum bandwidth of the radio. [1.75 MHz or 3.5 MHz]

Hand-Off Mode

Parameters Remote radios can move and associate with different APs depending on

their locations. The process by which the Remote ends the connection

with one AP and begins a connection with another AP is called

AP 1

Pattern A

Offset 0

AP 2

Pattern A

Offset 1

AP 3

Pattern A

Offset 2

Static Hopping

Offset 0

Hopping w/

Hand-offs

64 Mercury Reference Manual 05-4446A01, Rev. C

hand-off. Table 3-2 lists the hand-off parameters for Remote trans-

ceivers and explains how they operate under different signal conditions.

NOTE: In Table 3-2 on Page 64, modes using the Closest 3 APs first

attempt to connect to the closest AP. If after the maximum

number of scanning seconds (Max. Scanning Seconds) a link is

not established, then the next closest AP is chosen. If after

another maximum number of scanning seconds a link is not

established, then the third closest AP is chosen. If a link still is

not established, the Remote again chooses the closest AP and

continues this cycle until it is associated to one of the APs.

NOTE: In Table 3-2 on Page 64, modes which use the RSSI and SNR

Thresholds use them in an or logic fashion. That is, if the

RSSI is below the set threshold OR the SNR is below

threshold, the Remote drops the current AP.

Table 3-2. Remote Hand-Off Parameters

Strict

Distance

Strict

Connection

Strict

Signal

Signal and

Distance

Signal, Dis-

tance, and

Bearing

Description The Remote

always chooses

the closest AP

regardless of

connection

status, RSSI,

etc.

The Remote will

only choose a

new AP when

the modem link

is lost.

The Remote

chooses a new

AP when the

modem link is

lost or when the

RSSI or SNR

falls below the

threshold. The

Remote then

chooses the

closest AP.

Operates the

same way as the

Strict SIgnal

method except

that the current

AP is abandoned

only if the next

AP is within the

distance

threshold.

Operates the

same way as the

Signal and

Distance method

except that the

current AP is

abandoned only

if the bearing is

away from the

current AP.

AP(s) Used

(see note be-

low Table 3-2)

Only closest. Closest 3 APs. Closest 3 APs. Closest 3 APs;

AP must be

within Distance

Threshold.

Closest 3 APs;

AP must be

within Distance

Threshold.

Max. Scanning

Seconds

N/A Applicable Applicable Applicable Applicable

RSSI

Threshold

N/A N/A Applicable Applicable Applicable

SNR Threshold N/A N/A Applicable Applicable Applicable

Distance

Threshold

N/A N/A N/A Applicable Applicable

Blacklist Time N/A Applicable Applicable Applicable Applicable

05-4446A01, Rev. C Mercury Reference Manual 65

Advanced Configuration Menu Invisible place holder

Figure 3-31. Advanced Configuration Menu

¥Adaptive ModulationEnables automatic selection of modulation

and FEC rate based on SNR. [enabled, disabled; enabled]

¥Protection MarginA number of decibels of SNR added to the

minimum SNR required for a given modulation and FEC rate.

See Modulation Protection and Hysteresis Margins on

Page 66 for more information. [0-50; 3]

¥Hysteresis MarginA number of decibels of SNR added to the

maximum SNR required before shifting to the next higher mod-

ulation and FEC rate. See Modulation Protection and Hyster-

esis Margins on Page 66 for more information. [0-50; 3]

¥Data CompressionThis setting determines whether over-the-air

data packets will be compressed. [enabled, disabled; enabled]

¥Max ModulationSets the highest modulation speed the trans-

ceiver will use.

[BPSK, QPSK-1/2, QPSK-3/4, 16QAM-1/2, 16QAM-3/4, 64QAM-2/3,

64QAM-3/4; QAM16-3/4]

¥Cyclic PrefixAmount of additional information added to the

over-the-air packets to mitigate the effects of channel multipath.

[1/4, 1/8, 1/16,1/32; 1/16]

¥Channel TypeThis parameter, available on Access Point units,

must be set appropriately according to the signal conditions of a

network. For installations with strong signals, low interference,

and minimal fading, set the Channel Type parameter to Static.

This setting is generally appropriate for Access Points whose

Remotes are in fixed locations. It supports a large offered pay-

load with high packet rates.

For installations with significant interference and fading or

nomadic Remotes, set the Channel Type parameter to Dynamic.

[Static, Dynamic; Static]

66 Mercury Reference Manual 05-4446A01, Rev. C

¥ARQEnables the Automatic Repeat Request function.

[enable, disable; enabled]

¥ARQ Window SizeThe maximum number of blocks to send

before receiving an acknowledgement. [1—1024; 512]

¥ARQ Block SizeARQ is applied to payload data in blocks of this

size. [4—2040; 256]

¥ARQ Block LifetimeARQ blocks are valid for this length of

time. [0—655; 655]

¥ARQ Transmitter DelayThe length of time the transmitter waits

before repeating an unacknowledged packet.

[1—655; 35]

¥ARQ Receiver DelayThe length of time the receiver waits before

repeating an unacknowledged packet. [1—655; 35]

¥Downlink PercentageThe percentage of link time given to

downstream traffic. It should be set to 50% when Adaptive Split is

set to enabled. [10-90%; 50%]

¥Adaptive SplitThe adaptive split feature provides improved

link utilitization and throughput for burst payload traffic. The

Mercury is a TDD system and normally allocates 50% of its

capacity to the downlink and 50% to the uplink. When adaptive

split is enabled, the Media Access Controller (MAC) in the

Access Point monitors the traffic flow continuously in the

downlink and uplink directions. The MAC auotmatically modi-

fies the downlink split in response to the traffic load. When

more traffic is flowing upstream, the downlink split changes to

allocate additional capacity to the uplink. When more traffic is

flowing downstream, the downlink gets additional capacity. If

TDD synchronization is used to synchronize Access Points and

minimize inter-Access Point interference, Adaptive Split should

be disabled. [enabled, disabled; enabled]

Modulation

Protection and

Hysteresis Margins

Table 3-3 on Page 67 shows the relationship between the radios Protec-

tion Margin, Hysteresis Margin, and the SNR range allowed for each

form of modulation.

Column A lists the available modulation types for the radio, while col-

umns B and C show the minimum SNR range required to operate in each

modulation. For example, an SNR of 5.8 dB in Column B is required for

QPSK modulation with an FEC rate of 1/2. An SNR of 8.4 dB is

required for QPSK modulation with an FEC rate of 3/4.

Columns B and C have a Hysteresis Margin of 0 dB. This means there

is no overlap between the maximum SNR for BPSK (5.8 dB) and the

minimum SNR for QPSK-1/2 (5.8 dB).

Columns D and E show the SNR ranges with a Protection Margin and

Hysteresis Margin of 3 dB. The Protection Margin is added to each

value in Columns B and C to get the corresponding value in Columns D

and E. The Hysteresis Margin is then added to the Max SNR value.

05-4446A01, Rev. C Mercury Reference Manual 67

For example, the third SNR value in Column D is 11.4 dB (8.4 + 3 =

11.4 dB), and the third SNR value in Column E is 17.1 (11.1 + 3 + 3 =

17.1 dB). Note that with a Hysteresis Margin of 3 dB, there is an overlap

of 3 between the Max SNR of one modulation and the Min SNR of the

next higher modulation.

In this case, if a link is operating with an SNR of 15 dB, then QPSK-3/4

modulation is used. The SNR must go above 17.1 dB before the link

shifts up to 16QAM-1/2 modulation. Conversely, the SNR will need to

drop below 11.4 dB before the link shifts down to QPSK-1/2.

The blank entries (--) in the table indicate infinite SNR (i.e., the top of

the range). For example, in columns B and C, 64QAM-3/4 modulation

is used for all SNR values from 20 dB and up.

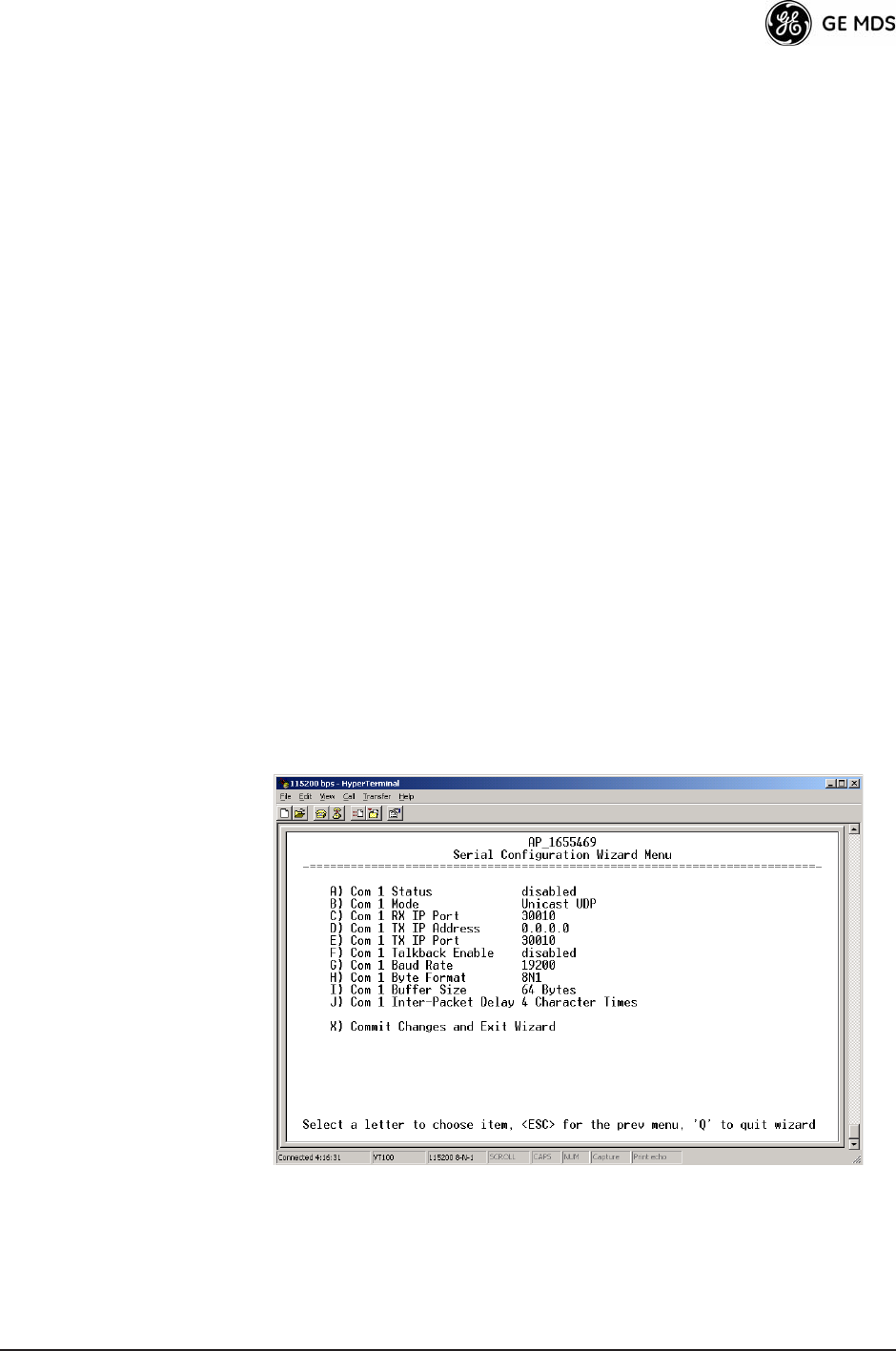

3.5.2 Serial Port Configuration

Overview

The transceiver includes an embedded serial device server that provides

transparent encapsulation over IP. In this capacity, it acts as a gateway

between serial and IP devices. Two common scenarios are PC applica-

tions using IP to talk to remote devices, and serial PC applications

talking to remote serial devices over an IP network. These data services

are available from the COM1 port of the radio.

COM1 Port—Dual

Purpose Capability The COM1 port is used as a local console connection point and to pass

serial data with an external device. Setting the COM1 port status to Enable

prevents access to the Management System (MS) through this port.

However, the MS can still be accessed via the LAN port using Telnet or

a web browser.

Table 3-3. Adaptive Modulation Protection and Hysteresis Margins

A B C D E F G

Protection 0 Protection 3 Protection 5

Hysteresis 0 Hysteresis 3 Hysteresis 3

Min SNR Max SNR Min SNR Max SNR Min SNR Max SNR

BPSK 3.3 5.8 3.3 11.8 3.3 13.8

QPSK-1/2 5.8 8.4 8.8 14.4 10.8 16.4

QPSK-3/4 8.4 11.1 11.4 17.1 13.4 19.1

16QAM-1/2 11.1 14.4 14.1 20.4 16.1 22.4

16QAM-3/4 14.4 18.4 17.4 24.4 19.4 26.4

64QAM-2/3 18.4 20 21.4 26 23.4 28

64QAM-3/4 20 -- 23 -- 25 --

68 Mercury Reference Manual 05-4446A01, Rev. C

NOTE: To restore the COM1 port to support Management System

services, connect a terminal to the port, select the proper baud

rate (115,200 is default), and enter an escape sequence (+++) to

reset it to the console mode.

There is a configuration parameter for the console baud rate and

another parameter for the serial data baud rate. These items can

be different, so when switching out of data mode to console

mode, the port might also change its baud rate.

TCP vs. UDP TCP and UDP services are used by the transceivers embedded serial

device server. TCP provides a connection-oriented link with end-to-end

acknowledgment of data, but with some added overhead. UDP provides

a connectionless best-effort delivery service with no acknowledgment.

Most polled protocols are best served by UDP service as the protocol

itself has built-in error recovery mechanisms. UDP provides the needed

multidrop operation by means of multicast addressing.

On the other hand, TCP services are best suited for applications without

a recovery mechanism (error-correction) and must have the guaranteed

delivery that TCP provides in spite of the extra overhead. The

IP-to-Serial Application Example on Page 74 shows how to do this.

Serial Encapsulation Transparent encapsulation, or IP tunneling, provides a mechanism to

encapsulate serial data in an IP envelope. All bytes received through the

serial port are put into the data portion of a TCP or UDP packet (TCP or

UDP are user-configurable options). In the same manner, all data bytes

received in a TCP or UDP packet are output through the serial port.

When the radio receives data through the serial port, it is buffered until

the packet is received completely. There are two events that signal an

end-of-packet to the radio: a period of time since the last byte was

received, or a number of bytes that exceed the buffer size. Both of these

triggers are user-configurable.

One radio can perform serial data encapsulation (IP-to-Serial) and talk

to a PC. You can use two radios together (or one radio and a terminal

server) to provide a serial-to-serial channel. For more information, see

IP-to-Serial Application Example on Page 74 and Point-to-Point

Serial-to-Serial Application Example on Page 75.

TCP Client vs. TCP

Server On a TCP session there is a server side and a client side. You can con-

figure the transceiver to act as either a server or a client. The server

always waits for requests from clients.

The client mode attempts to establish a connection to a server (typically

running on a PC) whenever it receives data on the serial port. There is

also a Client/Server mode, where the client establishes a connection

when data is received on the serial port and the server is not currently

handling a connection.

05-4446A01, Rev. C Mercury Reference Manual 69

UDP Multicast IP provides a mechanism to perform a limited broadcast to a specific

group of devices. This is known as multicast addressing. Multicast

addressing requires the use of a specific branch of IP addresses set apart

by the Internet Assigned Numbers Authority (IANA) for this purpose.

UDP multicast is generally used to transport polling protocols typically

used in SCADA applications where multiple remote devices will

receive and process the same poll message.

As part of the Multicast implementation, the radio sends IGMP member-

ship reports and IGMP queries, and responds to membership queries. It

defaults to V2 membership reports, but responds to both V1 and V2 que-

ries.

The Point-to-Multipoint Serial-to-Serial Application Example on

Page 76 shows how to provide multicast services.

Data Buffering Data buffering is always active regardless of the selected mode. If you

connect EIA-232 serial devices to the transceiver, review these parame-

ters carefully.

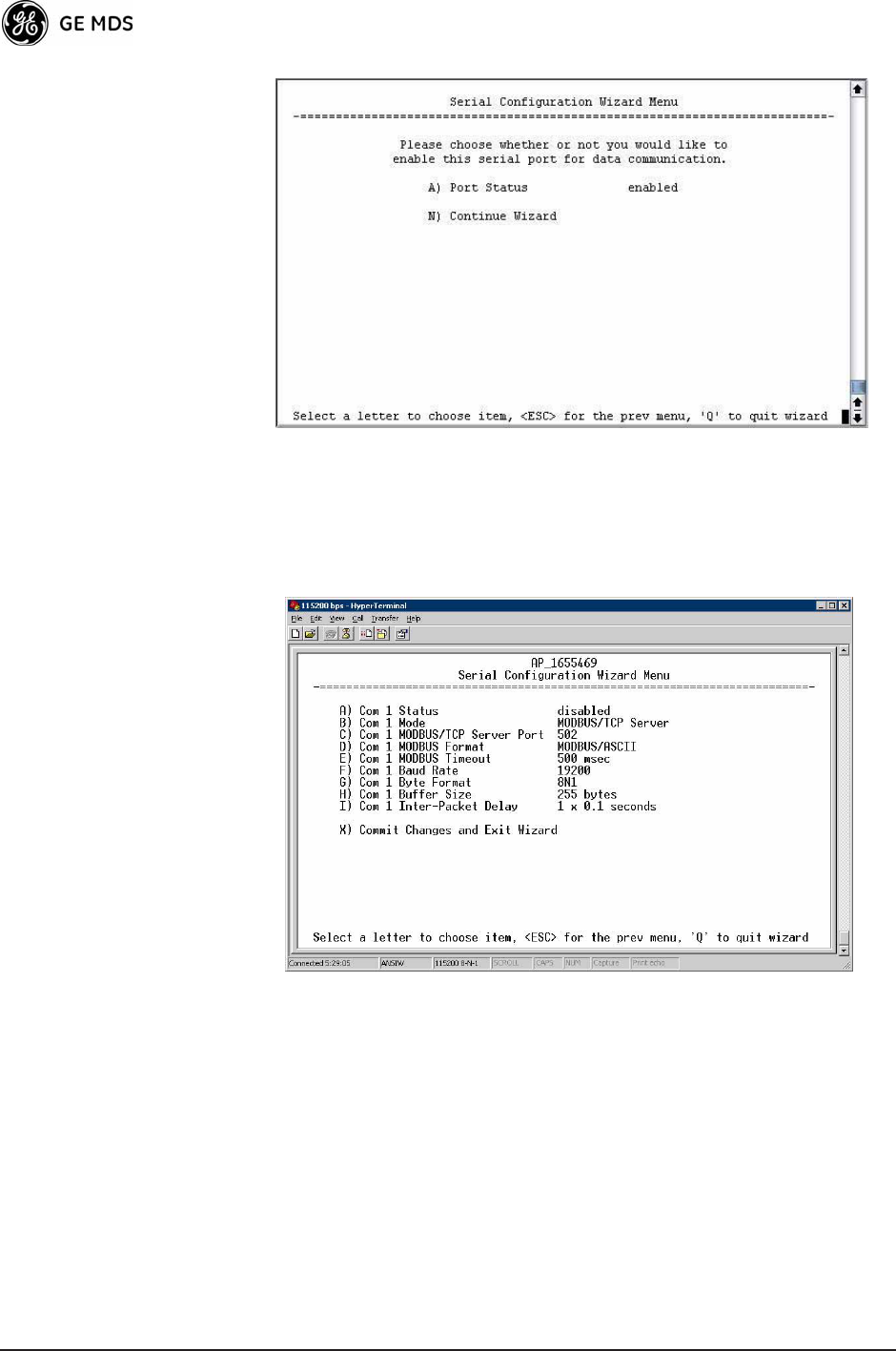

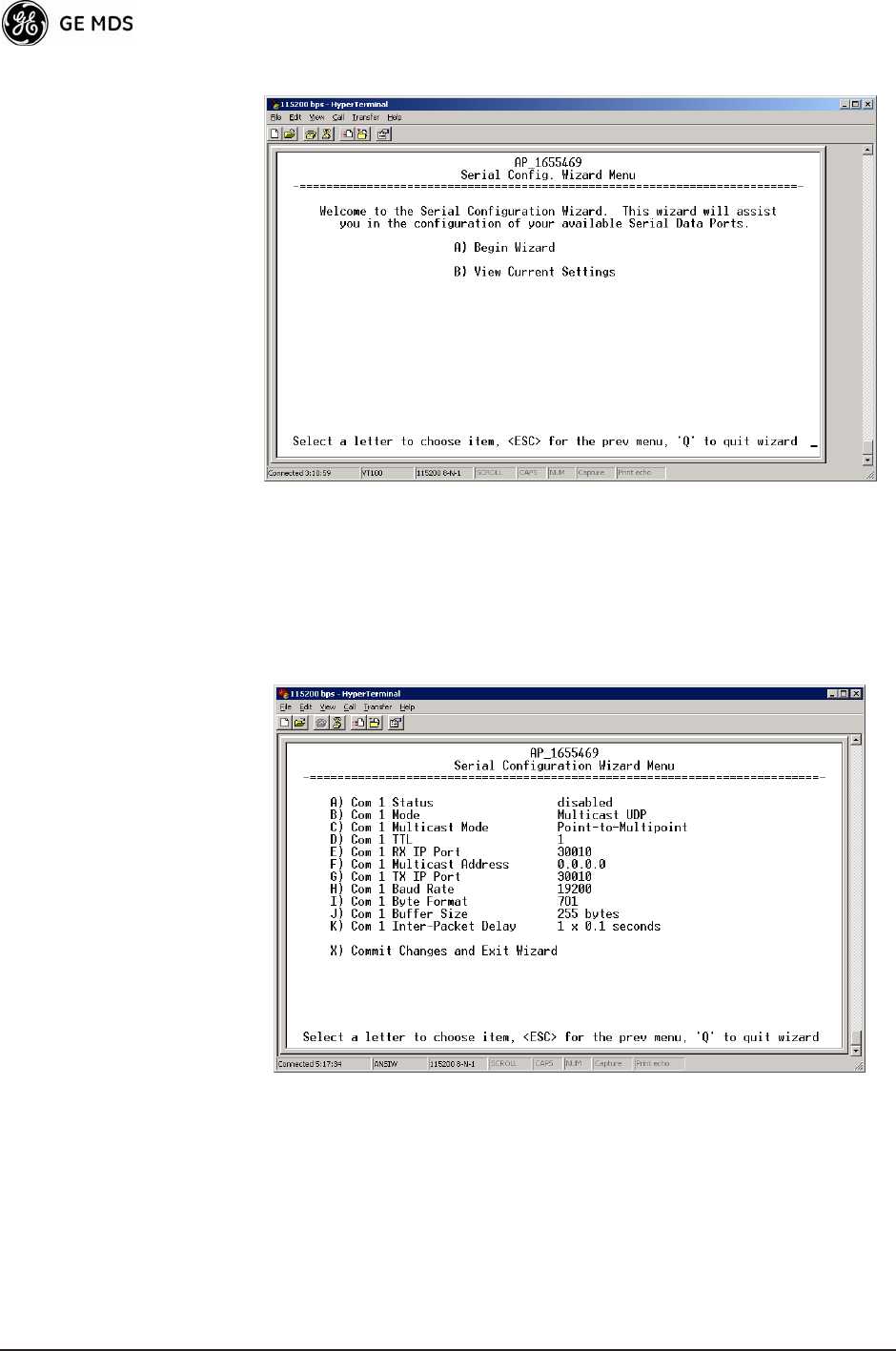

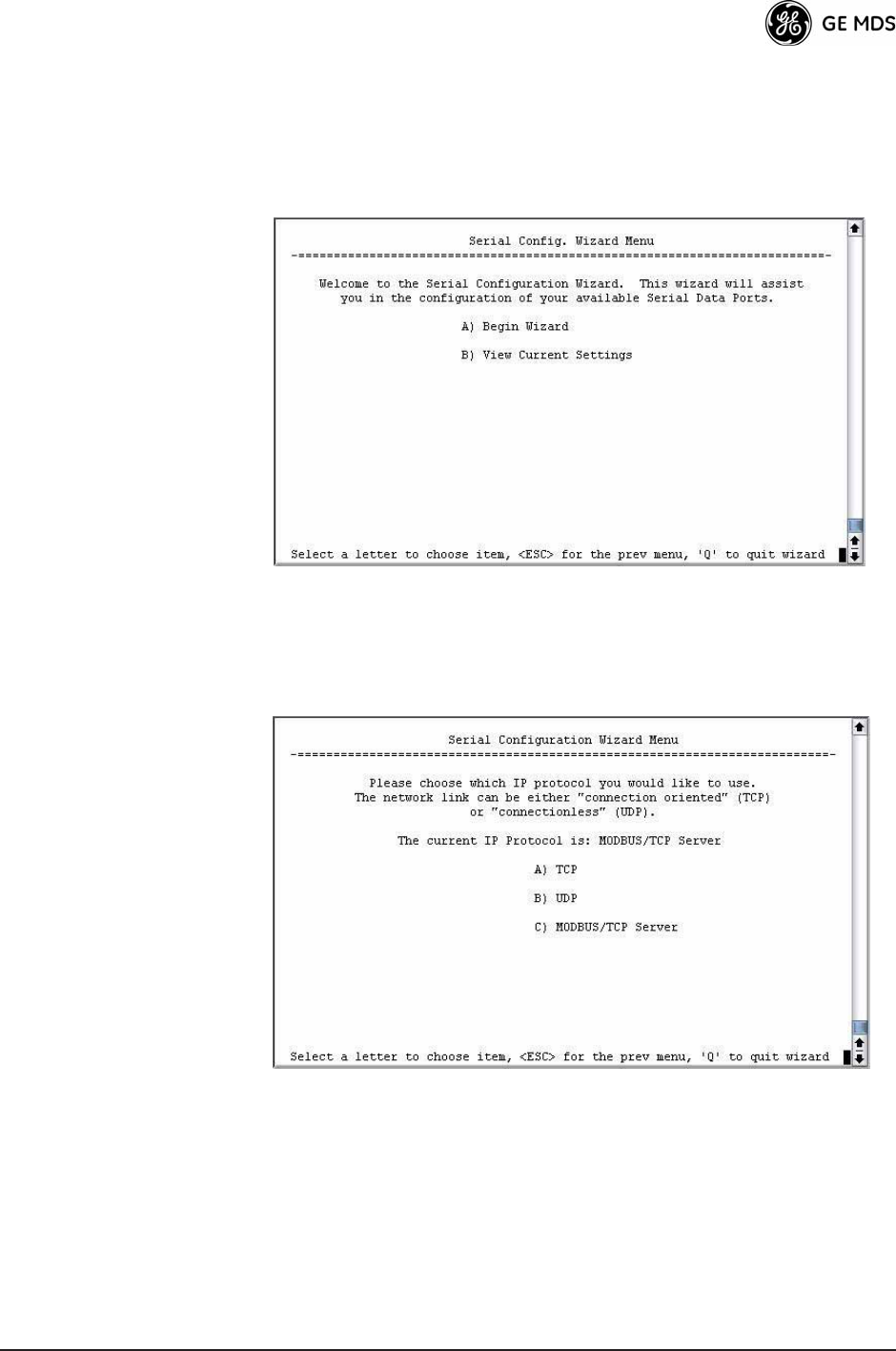

Serial Configuration Wizard

GE MDS recommends the Serial Configuration Wizard, available

through the Serial Port Configuration Menu, for configuration of the serial

terminal services. The wizard uses a step-by-step process, eliminates

possible conflicting settings, and streamlines complex configurations.

You can bypass the wizard by selecting option B) View Current Settings

and adjusting the individual settings of the appropriate parameter.

Serial Port

Configuration Menu Invisible place holder

Figure 3-32. Serial Port Configuration Menu

70 Mercury Reference Manual 05-4446A01, Rev. C

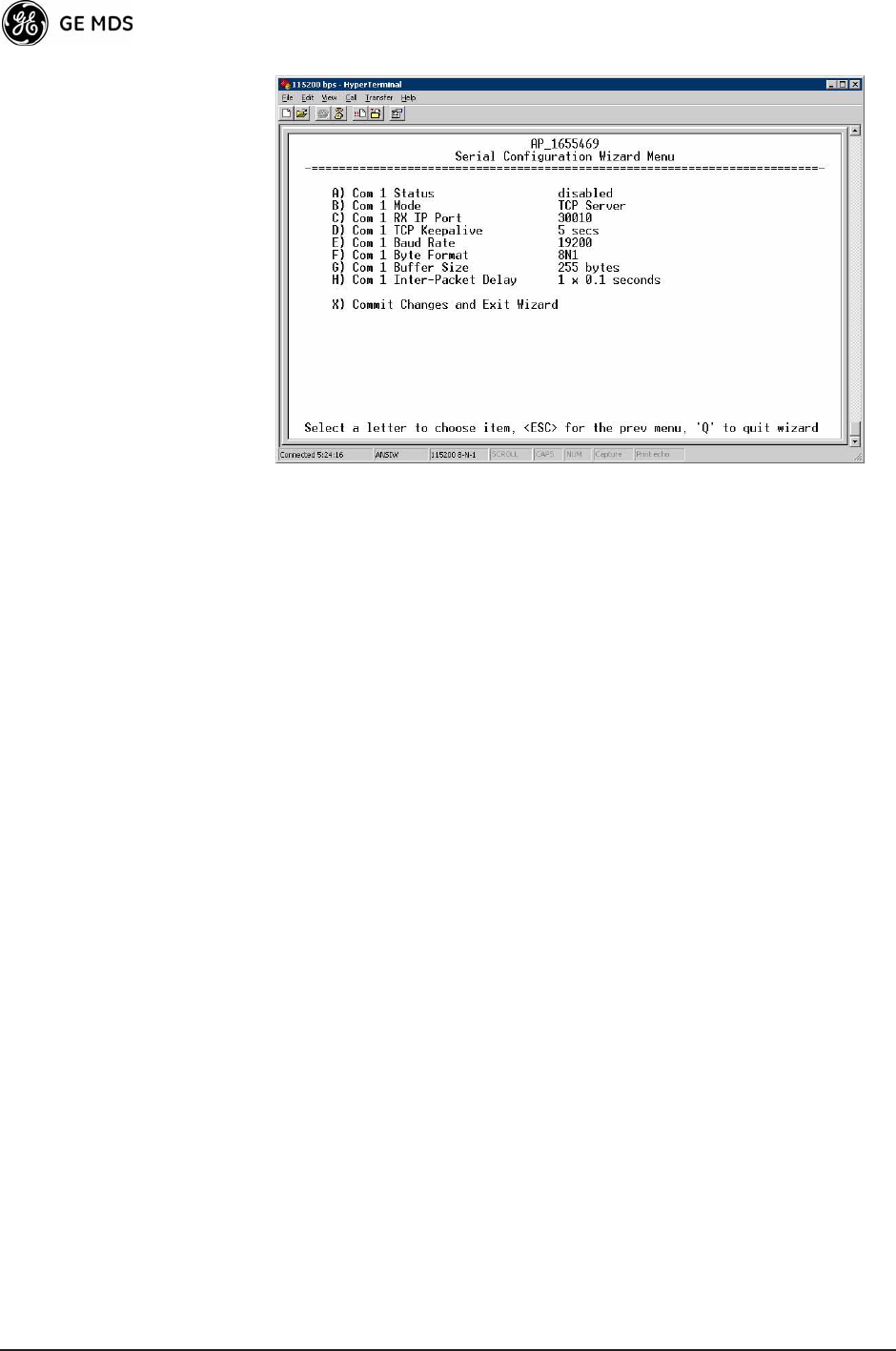

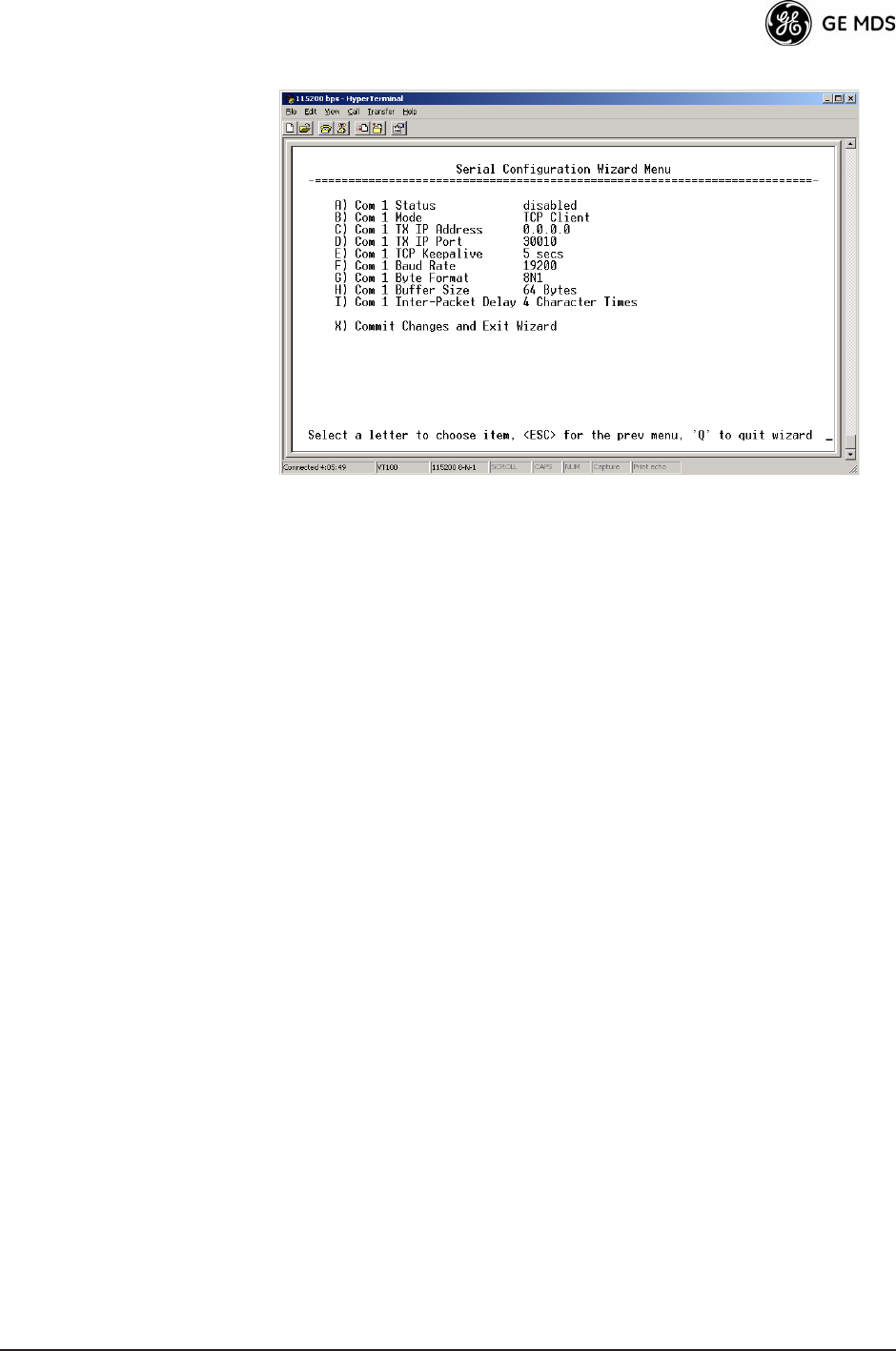

Figure 3-33. Serial Configuration Wizard

¥Begin WizardTool for configuring serial ports using a

step-by-step process.

¥View Current SettingsDisplays all setable options. Varies

depending on the selected IP protocol.

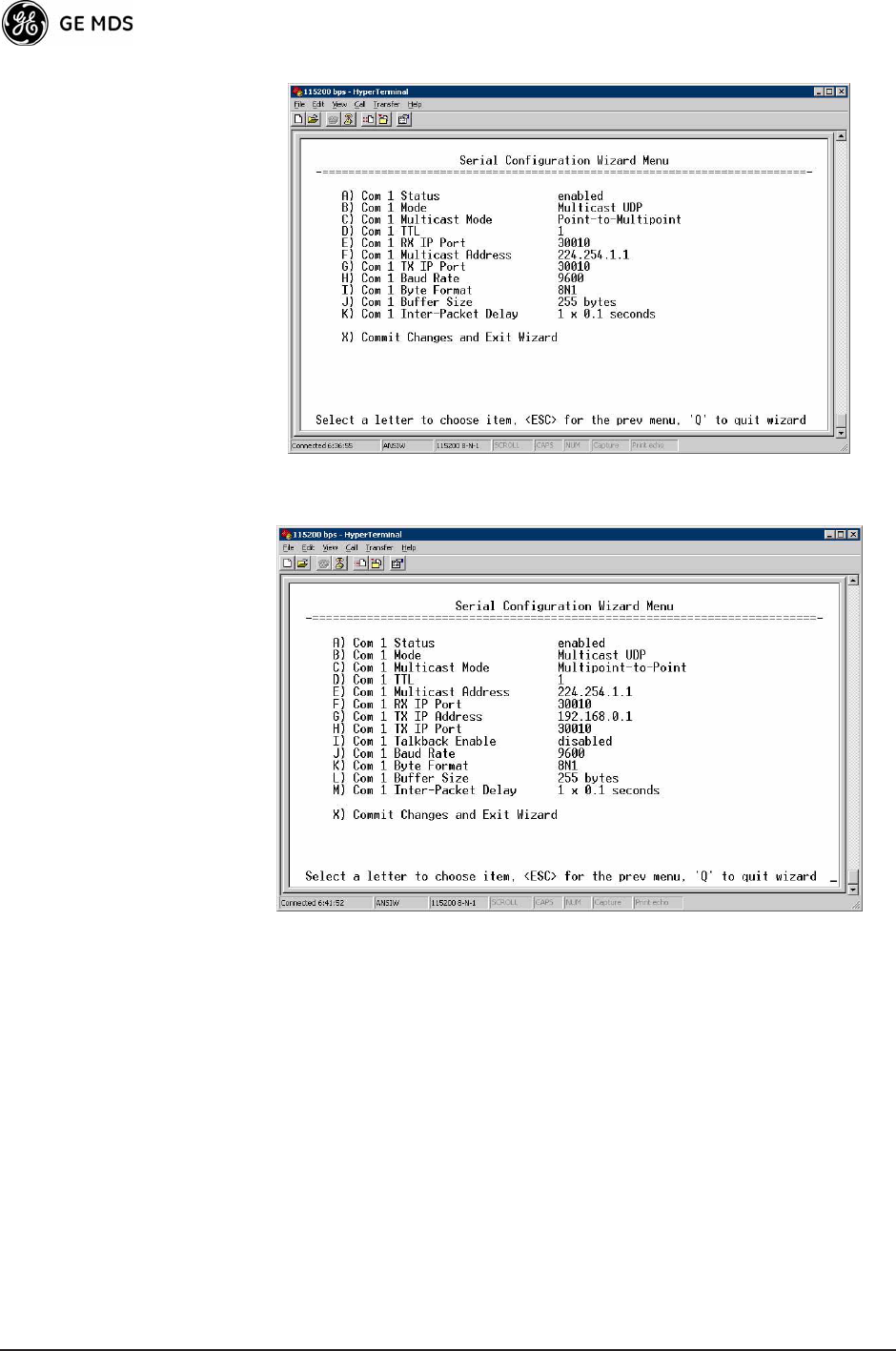

Configuring for UDP

Point-to-Multipoint Invisible place holder

Figure 3-34. UDP Point-to-Multipoint Menu

Use UDP point-to-multipoint to send a copy of the same packet to mul-

tiple destinations, such as in a polling protocol.

¥StatusEnable/Disable the serial data port.

¥ModeThe type of IP port offered by the transceivers serial

device server. [TCP, UDP; TCP]

05-4446A01, Rev. C Mercury Reference Manual 71

¥RX IP PortReceive IP data from this source and pass it

through to the connected serial device. The port number must

be used by the application connecting to local TCP or UDP

socket. [Any valid IP port; 30010]

¥TX IP Address (used instead of Local IP Address when using

UDP Point-to-Multipoint) Configure with a valid Multi-

cast address (224.0.0.0—239.255.255.255). IP packets

received with a matching destination address are processed

by this unit. [Any legal IP address; 0.0.0.0]

¥TX IP Port (used instead of Local IP Port when using UDP

Point-to-Multipoint)This port number must match the

number used by the application connecting to local TCP or

UDP socket. [1-64,000; 30010]

¥Baud RateData rate (payload) for the COM port, in

bits-per-second. [1,200—115,200; 19200]

¥Byte FormatFormatting of data bytes, representing data bits,

parity and stop bits. [7N1, 7E1, 7O1, 8N1, 8E1, 8O1, 8N1, 7N2, 7E2,

7O2, 8N2, 8E2, 8O2; 8N1]

¥Buffer SizeMaximum amount of characters that the Remote

end buffers locally before transmitting data through the serial

port. [1—255; 255]

¥Inter-Packet DelayAmount of time that signal the end of a

message, measured in tenths of a second. [default = 1 (that is,

1/10th of a second)]

¥Commit Changes and Exit WizardSave and execute changes

made on this screen (shown only after changes have been

entered). Invisible place holder

Figure 3-35. UDP Point-to-Point Menu

Configuring for UDP

Point-to-Point Use UDP point-to-point configuration to send information to a single

device.

¥StatusEnable/Disable the serial data port.

72 Mercury Reference Manual 05-4446A01, Rev. C

¥ModeUDP Point-to-Point. This is the type of IP port

offered by the transceivers serial device server.

[TCP, UDP; TCP]

¥RX IP PortPort number where data is received and passed

through to the serial port. The application connecting to this

transceiver must use this port number.

[1—64,000; 30010]

¥TX IP AddressData received through the serial port is sent to

this IP address. To reach multiple Remotes in the network,

use UDP Point-to-Multipoint.

[Any legal IP address; 0.0.0.0]

¥TX IP PortThe destination IP port for data packets received

through the serial port on the transceiver.

[1—64,000; 30010]

¥Talkback EnableTalkback is a mode where the radio returns

a serial message received within a time-out period back to the

last address of an incoming UDP message. If the time-out

expires, the unit sends the serial data to the configured

address. [Enable, Disable; Disabled]

¥Baud RateData rate (payload) for the COM port, in

bits-per-second. [1,200—115,200; 19200]

¥Byte FormatFormatting of data bytes. Data bits, parity and

stop bits. [7N1, 7E1, 7O1, 8N1, 8E1, 8O1, 8N1, 7N2, 7E2, 7O2, 8N2,

8E2, 8O2; 8N1]

¥Buffer SizeMaximum amount of characters that the Remote

end buffers locally before transmitting data through the serial

port. [1—255; 255]

¥Inter-Packet DelayAmount of time that signal the end of a

message, measured in tenths of a second. [default = 1 (that is,

1/10th of a second)]

¥Commit Changes and Exit WizardSave and execute changes

made on this screen (shown only after changes have been

entered).

05-4446A01, Rev. C Mercury Reference Manual 73

Configuring for TCP

Mode Invisible place holder

Figure 3-36. TCP Client Menu (Remote)

¥StatusEnable/Disable the serial data port.

¥ModeTCP Client. This is the type of IP port offered by the

transceivers serial device server. [

TCP, UDP; TCP]

¥TX IP AddressThe IP address to be used as a destination for

data received through the serial port.

[Any legal IP address; 0.0.0.0]

¥TX IP PortThe destination IP port for data packets received

through the serial port on the transceiver.

[Any valid IP port; 30010]

¥TCP KeepaliveAmount of time (in seconds) that the trans-

ceiver waits for data before terminating the TCP session.

[0—600; 600]

¥Baud RateData rate (payload) for the COM port, in

bits-per-second. [1,200—115,200; 19200]

¥Byte FormatInterface signaling parameters. Data bits, parity

and stop bits.

[7N1, 7E1, 7O1, 8N1, 8E1, 8O1, 8N1, 7N2, 7E2, 7O2, 8N2, 8E2, 8O2;

8N1]

¥Buffer SizeMaximum amount of characters that the Remote

end buffers locally before transmitting data through the serial

port. [1—255; 255]

¥Inter-Frame Packet DelayA measurement representing the

end of a message, measured in tenths of a second.

[default = 1 (that is, 1/10th of a second)]

¥Commit Changes and Exit WizardSave and execute changes

made on this screen (shown only after changes have been

entered).

74 Mercury Reference Manual 05-4446A01, Rev. C

Invisible place holder

Figure 3-37. TCP Server Menu (AP)

¥StatusEnable/Disable the serial data port.

¥ModeTCP Server. This is the type of IP port offered by the

transceivers serial device server.

[TCP, UDP; TCP]

¥RX IP PortReceive IP data from this source and pass it

through to the connected serial device. The application con-

necting to the local TCP or UDP socket must use this port

number.

[Any valid IP port; 30010]

¥Baud RateData rate (payload) for the COM port, in

bits-per-second. [1,200—115,200; 19200]

¥Byte FormatInterface signaling parameters. Data bits, parity

and stop bits.

[7N1, 7E1, 7O1, 8N1, 8E1, 8O1, 8N1, 7N2, 7E2, 7O2, 8N2, 8E2, 8O2;

8N1]

¥Buffer SizeMaximum amount of characters that the Remote

end buffers locally before transmitting data through the serial

port. [1—255; 255]

¥Inter-Packet DelayAmount of time that signal the end of a

message, measured in tenths of a second. [default = 1 (that is,

1/10th of a second)]

¥Commit Changes and Exit WizardSave and execute changes

made on this screen (shown only after changes have been

entered).

IP-to-Serial Application Example

You must choose UDP or TCP to establish communications. This

depends on the type of device you are communicating with at the other

end of the IP network. In this example, we will use TCP to illustrate its

use.

05-4446A01, Rev. C Mercury Reference Manual 75

In TCP mode, the transceiver remains in a passive mode, offering a

socket for connection. Once a request is received, data received at the

serial port is sent through the IP socket and vice versa, until the connec-

tion is closed or the link is interrupted. In this mode, the transceiver

behaves the same, whether it is an Access Point or a Remote.

(See Figure 3-38 and Table 3-4)

NOTE: The TCP session has a timeout of 10 minutes (600 seconds). If

inactive for that time, the session is closed. The transceiver

offers the port again for connection after this time expires.

Establishing a

Connection From the PC, establish a TCP connection to the IP address of the

Remote transceiver and to the IP port as configured above (30010). Use

a Telnet client application to establish this connection. Data can now be

sent between the PC and the RTU or other connected device.

Invisible place holder

Figure 3-38. IP-to-Serial Application Diagram

Point-to-Point Serial-to-Serial Application Example

Once you have configured the transceivers, they begin processing data

presented at the COM ports. Data presented at the Access Points COM

port is packetized and sent via UDP to the Remote. Upon receiving the

packet, the Remote strips the data out of the UDP packet and sends it out

its COM port. Likewise, data presented at the Remotes COM port is

packetized, sent to the Access Point, stripped, and sent out the Access

Points

COM port. This configuration does not use multicast addressing.

Ethernet

Crosssover

RTU

EIA-232

Computer

or Network

192.168.0.10 192.168.0.1 192.168.0.2

NCOM

1COM

2PW

RLIN

Remote

Access Point

Table 3-4. Serial Port Application Configuration

IP-to-Serial Connection

Transceiver

Location

Menu Item Setting

Access Point None is required None is required

Remote Unit IP Address 192.168.0.2

Status Enabled

IP Protocol TCP

Baud Rate 9,600 (Example)

Flow Control None

Local IP Port 30010

76 Mercury Reference Manual 05-4446A01, Rev. C

Invisible place holder

Figure 3-39. Point-to-Point Serial-to-Serial Application Diagram

Point-to-Multipoint Serial-to-Serial Application Example

The operation and data flow for this mode is very similar to

Point-to-Point serial-to-serial application, except that it uses multicast

addressing. The primary difference is that data presented at the Access

Points

COM port is packetized and sent using UDP to all of the

Remotes. Upon receiving the packet, all of the Remotes strip the data

from the UDP packet and send it out their COM ports. Likewise, data

presented at any of the Remotes

COM ports is packetized, sent to the

Access Point, stripped, and sent out the Access Points

COM port (see

Figure 3-40, Table 3-6, Figure 3-41, and Figure 3-42 on Page 78).

EIA-232

RTU

EIA-232

Terminal

or Computer

192.168.0.10 192.168.0.1 192.168.0.2

Remote

Access Point

NCOM

1COM

2PW

RLIN

Table 3-5. Serial Port Application Configuration

Transceiver Location Menu Item Setting

Access Point (COM1) Status Enabled

Data Baud Rate 9,600 (Example)

SIFD 4

IP Protocol UDP

Remote IP

Address

192.168.0.2

(IP address of the Remote radio)

Remote IP Port 30010

Local IP Port 30010

Remote Unit (COM1) Status Enabled

Data Baud Rate 9,600 (Example)

Flow Control X-ON/X-OFF (Example)

SIFD 4 (Characters)

IP Protocol UDP

Remote IP

Address

192.168.0.1

(IP address of the AP)

Remote IP Port 30010

Local IP Port 30010

05-4446A01, Rev. C Mercury Reference Manual 77

Invisible place holder

Figure 3-40. Point-to-Multipoint Serial-to-Serial Application

Diagram

Invisible place holder

192.168.0.3

192.168.0.4

EIA-232

Terminal

or Computer

RTU

EIA-232

192.168.0.10 192.168.0.1

192.168.0.2

Access Point

NCOM

1COM

2PW

RLIN

Remote

NCOM

1COM

2PW

RLIN

Remote

NCOM

1COM

2PW

RLIN

Remote

Table 3-6. Serial Port Application Configuration

Transceiver Location Menu Item Setting

Access Point (COM1) Status Enabled

Baud Rate 9600 (Example)

Flow Control Disabled

IP Protocol UDP

Remote IP Address 224.254.1.1

Multicast Address1

Remote IP Port 30010

Local IP Port 30010

Remote Units (COM1) Enable Enabled

Baud Rate 2,400 (Example)

Flow Control Hardware (Example)

IP Protocol UDP

Remote IP Address 192.168.0.1

Remote IP Port 30010

Local IP Port 30010

Local Multicast

Address

224.254.1.1 

Multicast Address2

1. This address is an example only. Any Class D IP address

(224.0.0.0—239.255.255.255) will work.

78 Mercury Reference Manual 05-4446A01, Rev. C

Figure 3-41. Serial Port ConfigurationAccess Point

Figure 3-42. Radio Serial Port ConfigurationRemote

Mixed Modes

In this example, the TCP mode does not involve the Access Point. Thus,

the transceiver in a single network can run in both modes at the same

time. In other words, you can configure some Remotes for TCP mode

and others (along with the Access Point) for UDP mode.

In this configuration, the Host PC can use both data paths to reach the

RTUs. This is helpful when a mixed collection of RTUs is present where

some RTUs can operate in a broadcast form while others cannot (see

Figure 3-43 on Page 79 and Table 3-7 on Page 79).

05-4446A01, Rev. C Mercury Reference Manual 79

Operation and Data

Flow ¥ Communicate with RTU A by Telneting to Remote 1, port 30010.

¥ Communicate with RTU B by Telneting to Remote 2, port 30010.

¥ Communicate with RTUs C and D by sending and receiving data

from the Access Points

COM port.

¥ All communication paths can be used simultaneously.

Invisible place holder

Figure 3-43. Mixed-Modes Application Diagram

EIA-232

Terminal

or Computer

RTU–C

EIA-232

RTU–D

EIA-232

Ethernet

Crosssover

RTU–B

RTU–A

Access Point

Transceiver

NCOM

1COM

2PW

RLIN

Remote 1

NCOM

1COM

2PW

RLIN

Remote 2

NCOM

1COM

2PW

RLIN

Remote 3

NCOM

1COM

2PW

RLIN

Remote 4

Table 3-7. Serial Port Application Configuration

Transceiver Location Menu Item Setting

Access Point Status Enabled

Baud Rate 9,600

Flow Control Disabled

IP Protocol UDP

Send to Address A multicast IP address such as

224.254.1.1

Send to Port 30010

Receive on Port 30010

Receive on Address 0.0.0.0 (Not Used)

Remote Units 1 & 2 (COM1) Status Enabled

Baud Rate 2,400

Flow Control Disabled

IP Protocol TCP

Receive on Port 30010

Remote Units 3 & 4 (COM1) Status Enabled

Baud Rate 9,600

Flow Control Disabled

IP Protocol UDP

Send to Address IP address of the AP

Send to Port 30010

80 Mercury Reference Manual 05-4446A01, Rev. C

3.6 MODBUS / TCP SERVER

CONFIGURATION

Modbus is a serial communications protocol developed by Schneider

Electric (Modicon) for communication between programmable logic

controllers (PLCs), remote terminal units (RTUs) and other industrial

electronic devices. It has become an established standard in the industry,

and is now used by many manufacturers of industrial data equipment.

Mercury Series transceivers running version 2.2.0 firmware or later

include Modbus functionality. This section of the addendum contains an

overview of the Modbus/TCP Server and provides menu details for

using this feature. You should also review Configuring for TCP Mode

section on Page 73.

NOTE: This material assumes you have an understanding of Ethernet

networking, TCP/IP, and Modbus serial protocols. Refer to the

following web site for additional information:

www.modicon.com/TECHPUBS/intr7.html.

NOTE: Modbus/TCP functionality is provided on the COM1 port of

the transceiver only.

3.6.1 Modbus/TCP in Mercury TransceiversAn

Overview

The transceiver implements a Modbus/TCP server that bridges

Modbus/TCP to either: Modbus RTU or Modbus/ASCII. It does not

function as a Modbus/TCP client.

The transceiver converts Modbus/TCP requests to either RTU or ASCII

serial Modbus packets and sends them to the configured serial port. It

waits up to the timeout period for a reply on the serial port, and if one

arrives, it converts the response back to Modbus/TCP and sends it to the

connected Modbus/TCP client.

3.6.2 Menu Selections

Connect a PC to the transceiver as described in STEP 3CONNECT PC

TO THE TRANSCEIVER section on Page 23, and access the embedded

Receive on Port 30010

Receive on Address 224.254.1.1

(The multicast IP address used

for the APs Send To Address

above)

Table 3-7. Serial Port Application Configuration (Continued)

Transceiver Location Menu Item Setting

05-4446A01, Rev. C Mercury Reference Manual 81

management system. Follow the steps below to proceed with

Modbus/TCP configuration.

1. From the Serial Configuration Wizard opening screen (Figure 3-44

on Page 81), select A to begin the wizard.

Invisible place holder

Figure 3-44. Configuration Wizard Opening Screen

2. Choose the IP protocol you wish to use (TCP, UDP, or Mod-

bus/TCP) by selecting the appropriate letter from the menu.

Figure 3-45. IP Protocol Selection Screen

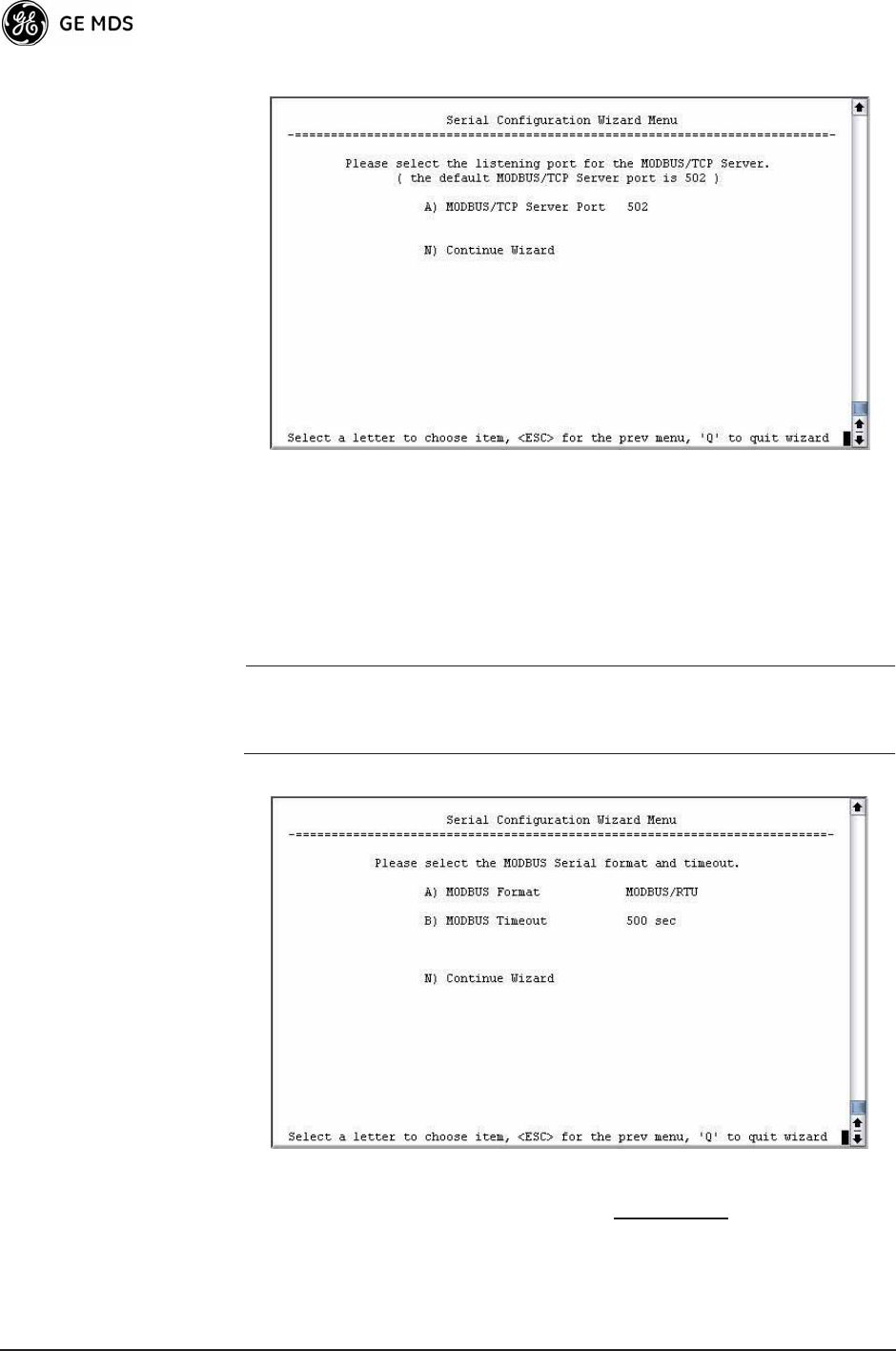

3. On the next screen (Figure 3-46 on Page 82), choose the listening

port you wish to use for the Modbus/TCP server. The default is port

502. Press N to continue.

82 Mercury Reference Manual 05-4446A01, Rev. C

Figure 3-46. Modbus/TCP Server Listening Port

4. On the next screen (Figure 3-47), press A to change the Modbus

serial format, then press the space bar to toggle between the avail-

able formats (MODBUS/RTU or MODBUS/ASCII). Press B to enter the

Modbus serial timeout value in milliseconds. Press N to continue the

wizard.

NOTE: The only difference between Modbus/RTU and

Modbus/ASCII is the form of the framing sequence, error

check pattern, and address interpretation.

Figure 3-47. Choose Modbus Serial Format and Timeout Value

Note: Modbus Timeout setting is in milliseconds, not seconds

as displayed in the example above.

05-4446A01, Rev. C Mercury Reference Manual 83

5. When the next screen appears (Figure 3-48), press A to select the

desired data baud rate and B to select the data byte format. Press N to

continue.

Figure 3-48. Select Data Baud Rate and Byte Format

6. The screen shown in Figure 3-49 appears next. Press A to select the

Buffer Size of message packets, and B to select the Inter-Frame

Delay. Press N to continue with the wizard.

Invisible place holder

Figure 3-49. Buffer Size and Inter-Frame Delay Values

7. On the next screen (Figure 3-50 on Page 84), select A and use the

spacebar to enable the serial port for data communication. Press N to

continue the wizard.

84 Mercury Reference Manual 05-4446A01, Rev. C

Invisible place holder

Figure 3-50. Serial Port Status Screen

8. Review all settings on the summary screen shown in Figure 3-51. If

all settings are correct, press X to confirm and exit the wizard. If not,

select the letter of the item(s) you wish to change.

Invisible place holder

Figure 3-51. Serial ConfigurationSummary Screen

This completes the menu selections for Modbus/TCP operation.

05-4446A01, Rev. C Mercury Reference Manual 85

3.7 SECURITY CONFIGURATION

The transceivers security features are grouped into four major catego-

ries and are accessible from the Security Configuration Menu (see

Figure 3-52). These categories are:

Device SecurityContains settings for controlling access to the radio

itself for configuration and management.

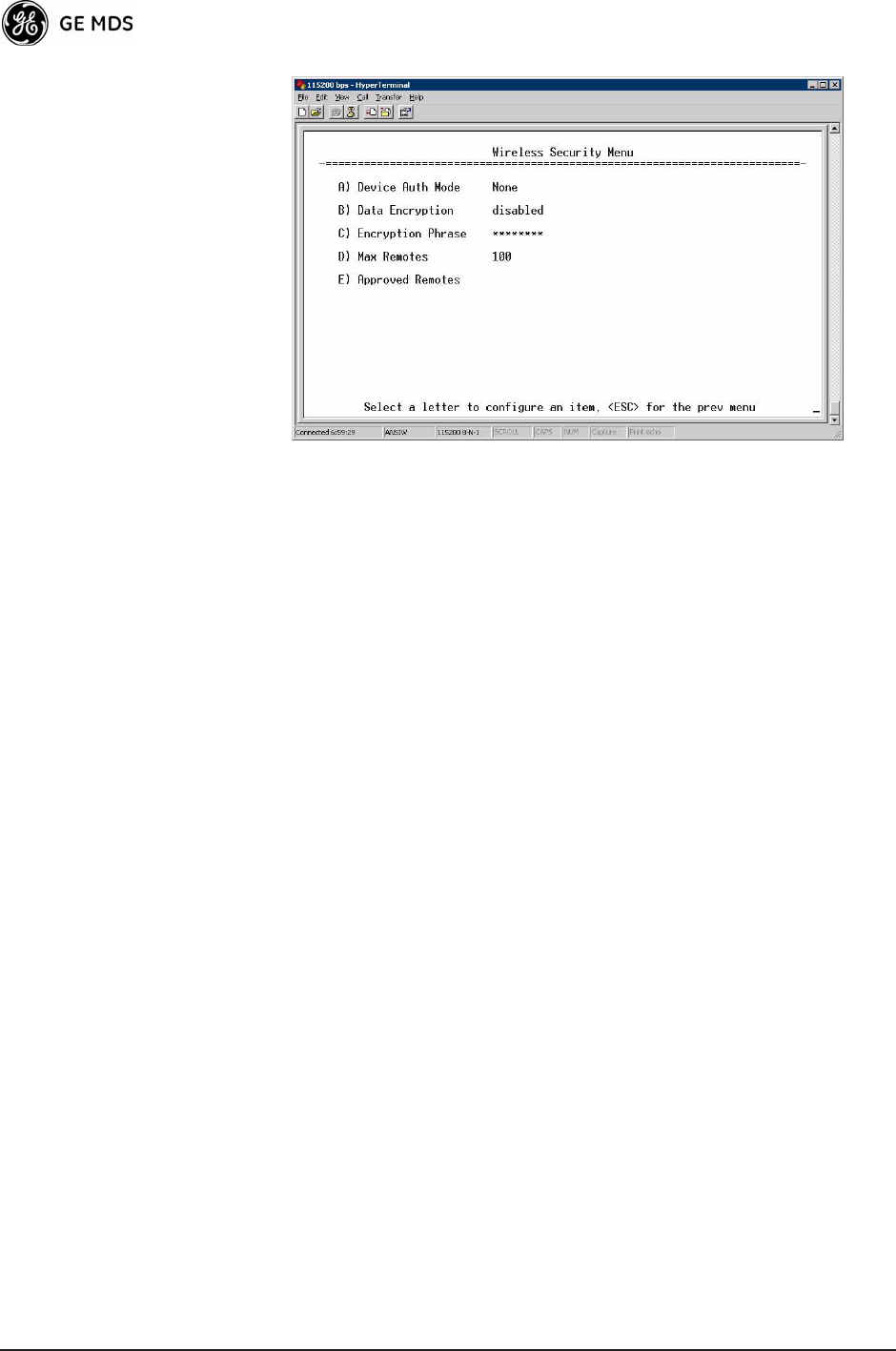

Wireless SecurityControls how and when radios communicate with

each other, as well as how data traffic is handled.

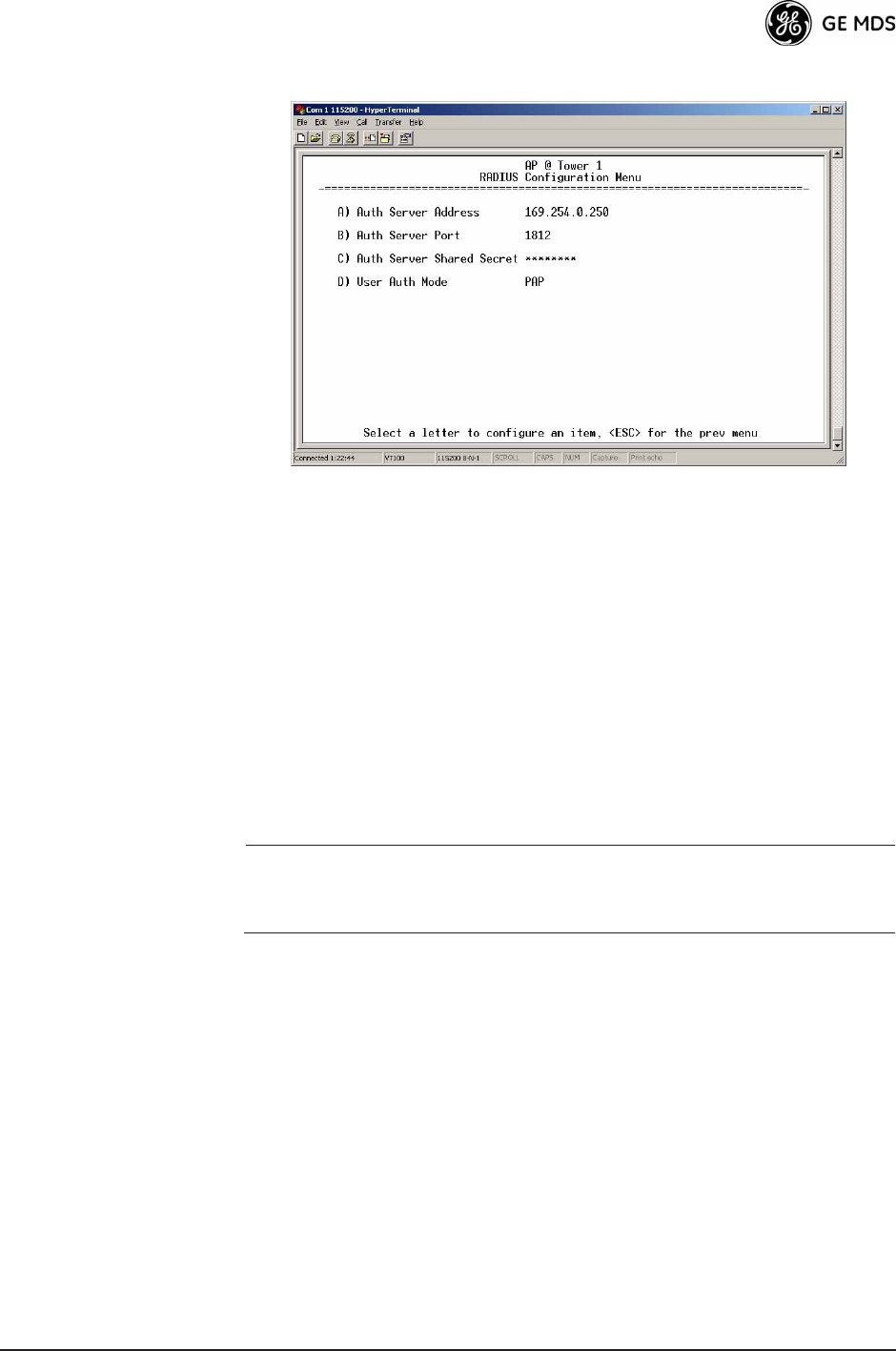

RADIUS ConfigurationDeals with IEEE 802.1x device authentication

and authorization using a central server.

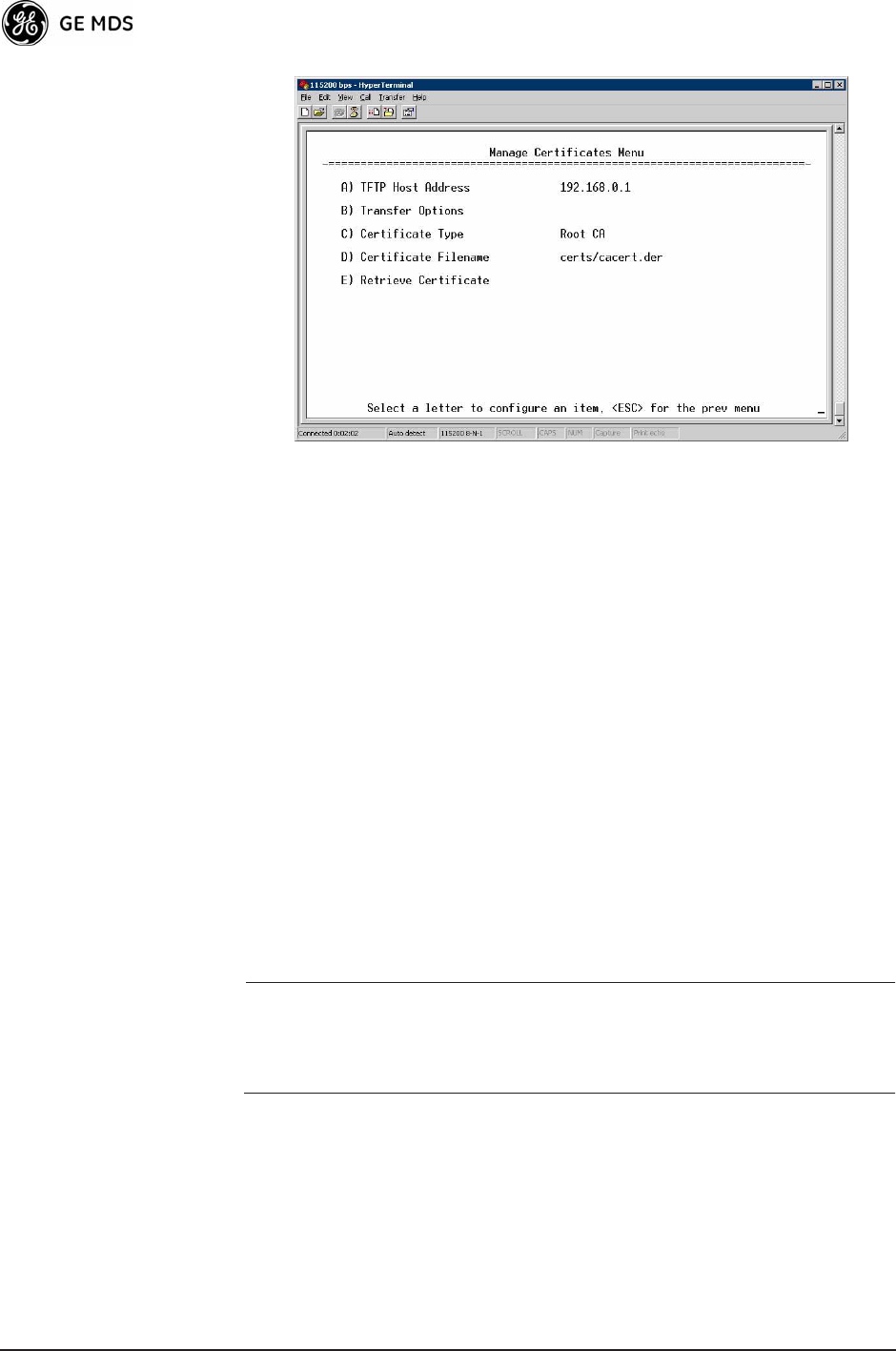

Manage Certificates (Remote only)Allows setting of certificate types,

download paths, and TFTP parameters.

Invisible place holder

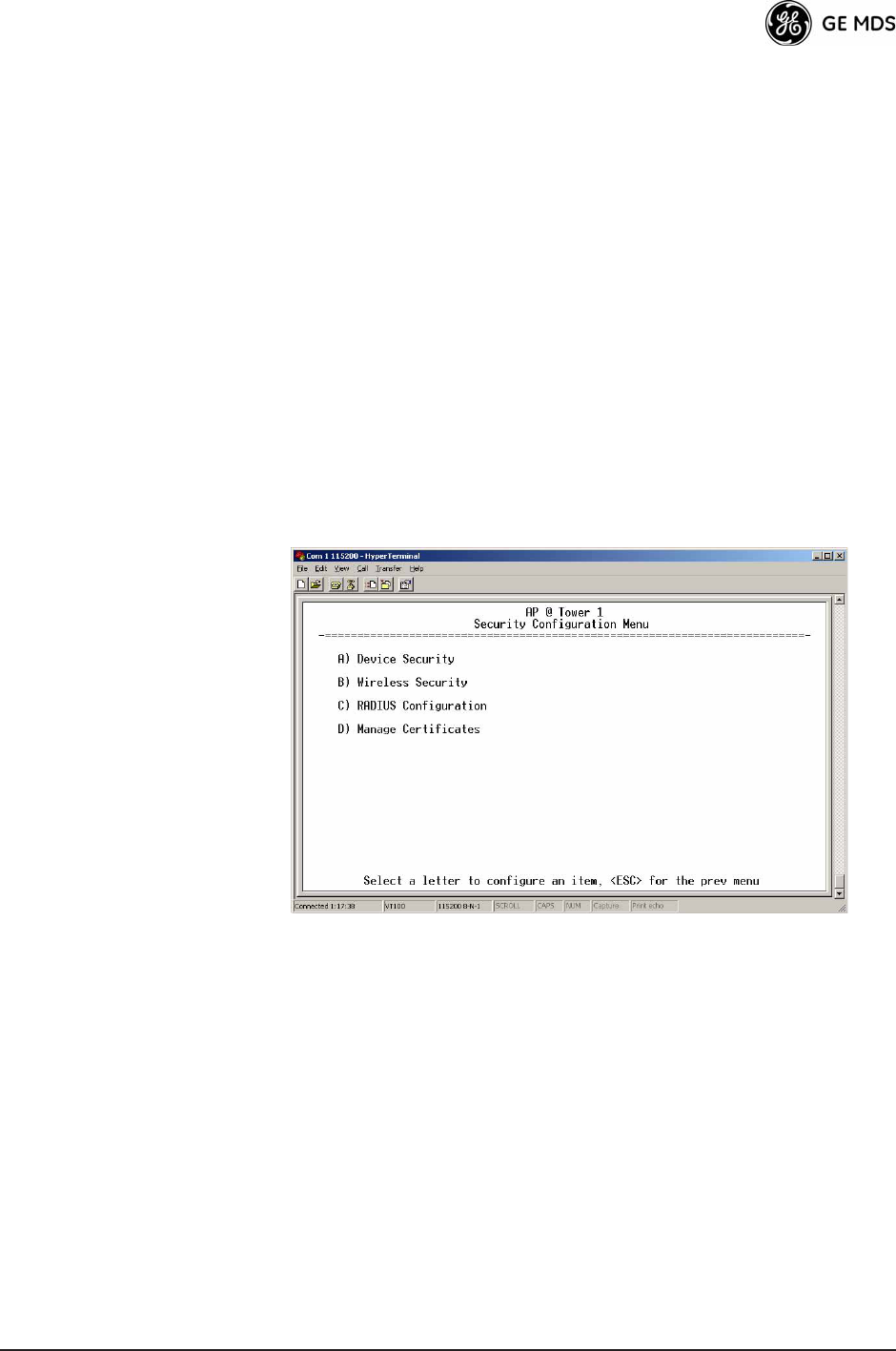

Figure 3-52. Security Configuration Menu

Selecting any of the Security Configuration Menu items opens a sub-

menu where you can view or change settings. Examples of these screens

and more detailed descriptions of their contents are provided below.

86 Mercury Reference Manual 05-4446A01, Rev. C

3.7.1 Device Security Menu

The Device Security Menu (Figure 3-53) controls how the radios can be

accessed either locally or remotely for configuration and management.

Invisible place holder

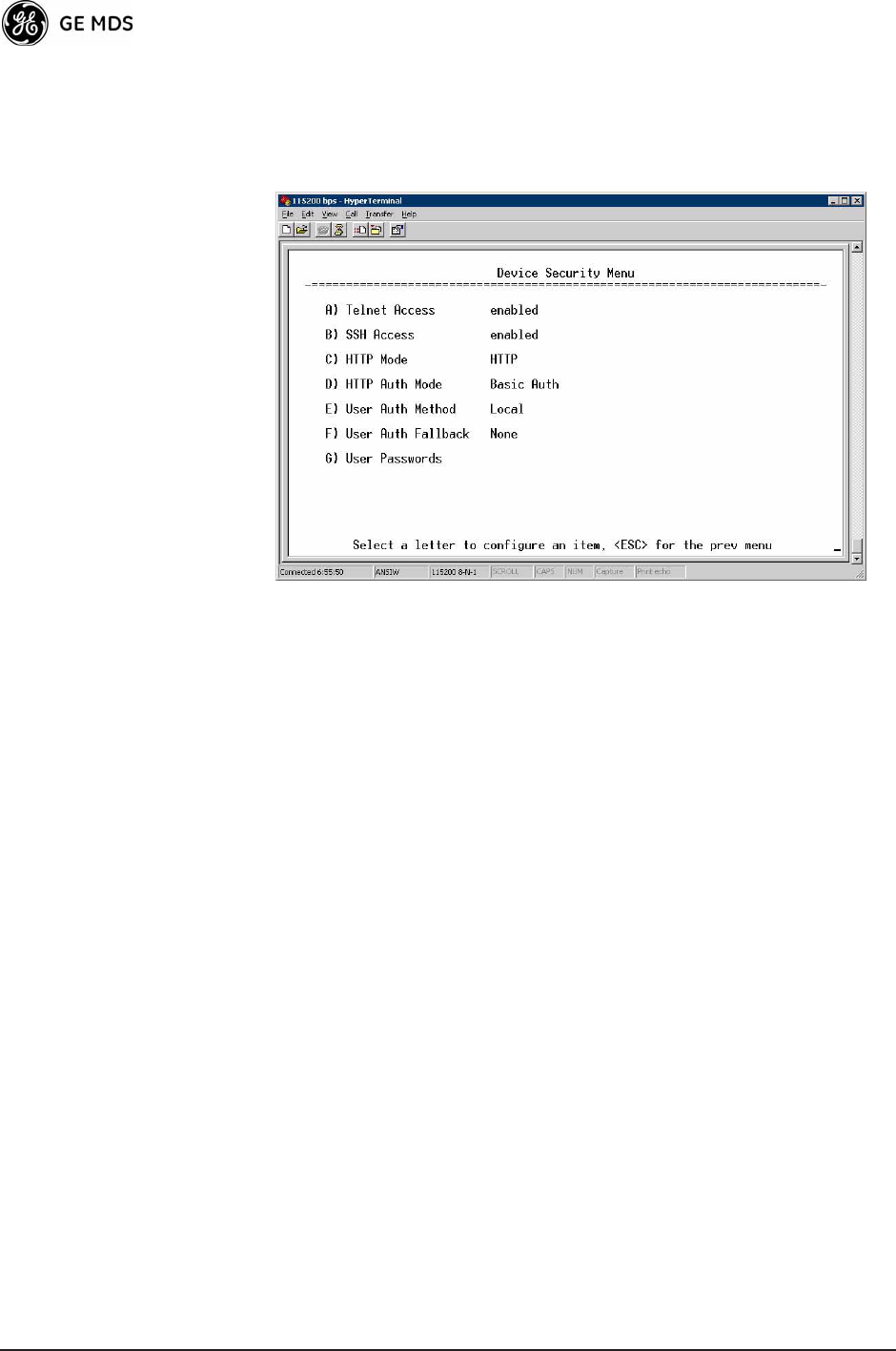

Figure 3-53. Device Security Menu

¥Telnet AccessControls Telnet access to the transceivers man-

agement system. [enabled, disabled; enabled]

¥SSH AccessControls access to the Secure Shell (SSH) server.

[enabled, disabled; enabled]

¥HTTP ModeControls access to the transceivers management

system via the web server. [disabled, HTTP, HTTPS; HTTP]

¥HTTP Auth ModeSelects the mode used for authenticating a

web user. [Basic Auth, MD5 Digest; Basic Auth]

¥User Auth MethodView/set the method of authentication for

users. [Local, Radius; Local]

¥User Auth FallbackView/set method of authentication to use if

the RADIUS server is unavailable. [None, Local; None]

¥User PasswordsAllows changing of Administrative and Guest

passwords. When selected, a new screen appears (Figure 3-54

on Page 87).

05-4446A01, Rev. C Mercury Reference Manual 87

User Passwords Menu Invisible place holder

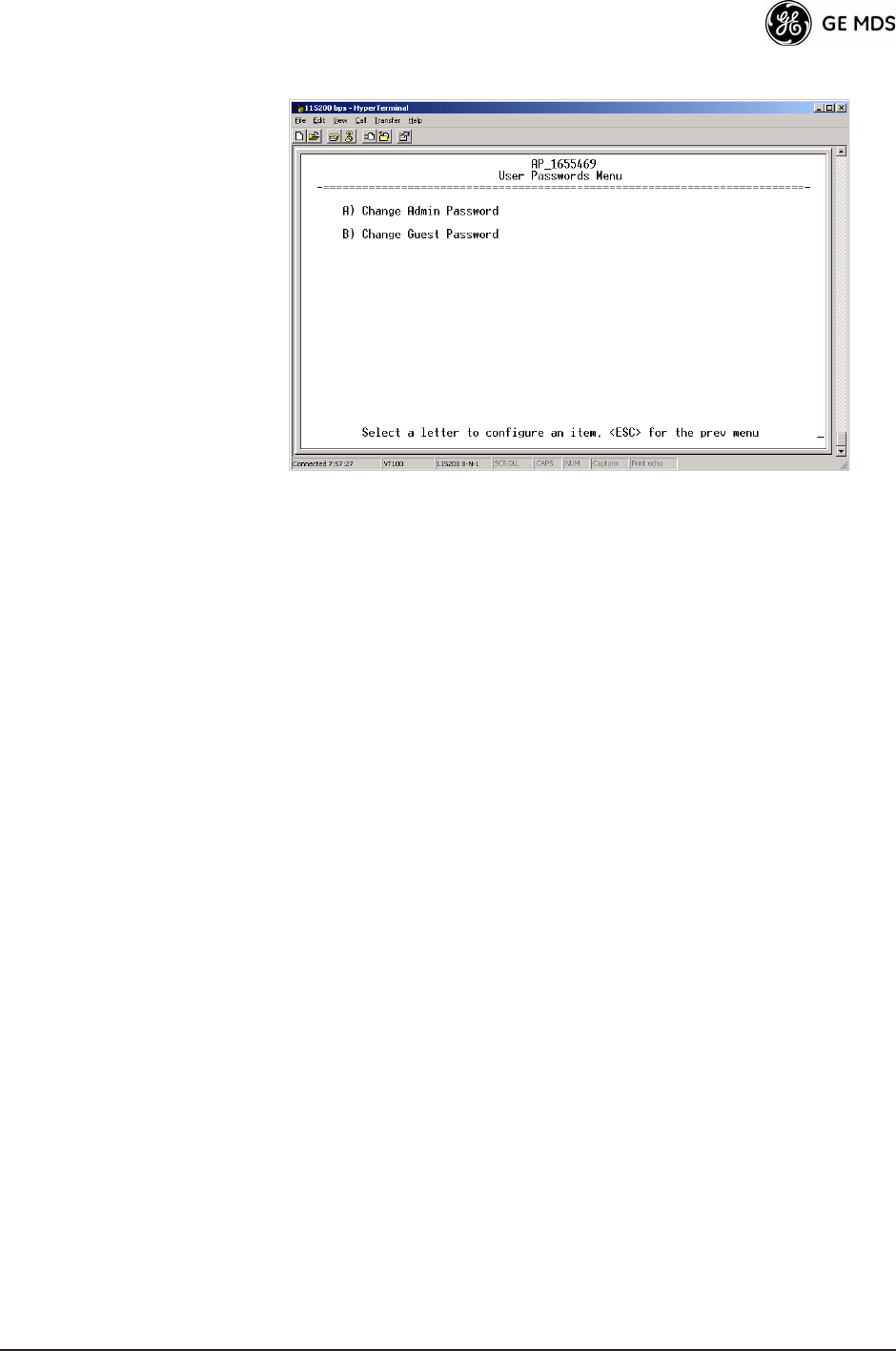

Figure 3-54. User Passwords Menu

To change the Administrator or Guest password, select the appropriate

menu item (A or B). A flashing cursor appears to the right. From here,

type the new password, which can be any alpha-numeric string up to 13

characters long. The change is asserted when you press the Return key.

¥Change Admin PasswordAllows you to set a new password.

[any alpha-numeric string up to 13 characters; admin]

¥Change Guest PasswordAllows you to set a new password.

[any alpha-numeric string up to 13 characters; guest]

TIP: For enhanced security, consider using misspelled words, a combi-

nation of letters and numbers, and a combination of upper and

lower case letters. Also, the more characters used (up to 13), the

more secure the password. These strategies help protect against

sophisticated hackers who use a database of common words (for

example, dictionary attacks) to determine a password.

3.7.2 Wireless Security Menu

The features in the Wireless Security menu (Figure 3-55 on Page 88)

control the communication of data across the wireless link. You can

authenticate the radios locally via a list of authorized radios, or remotely

via a centralized IEEE 802.1x device authentication server. This server

provides a centralized authentication mechanism based on standards.

88 Mercury Reference Manual 05-4446A01, Rev. C

Invisible place holder

Figure 3-55. Wireless Security Menu

¥Device Auth ModeView/set the devices authentication method.

[None, Local, IEEE 802.1X; None]

¥Data EncryptionControls the over-the-air payload datas

AES-128 bit encryption. [enable, disable; disabled]

¥Encryption PhraseView/set the phrase used to generate encryp-

tion keys when encrypting over-the-air payload.

[any alpha-numeric string of 8 to 15 characters; <empty>]

¥Max Remotes (AP only)The maximum number of remotes an

AP can associate with.

¥Approved Remotes (AP only)Launches a submenu where you

can view, add, or delete approved Remotes. (See Figure 3-56.)

Approved Remotes

Submenu Setting the Device Auth Mode to Local forces an AP to check the Approved

Remotes List before establishing a radio link. A Remote must be in the

list before the AP associates and grants authorization. Before enabling

this option, at least one entry must already exist in the View Approved

Remotes list.

05-4446A01, Rev. C Mercury Reference Manual 89

Invisible place holder

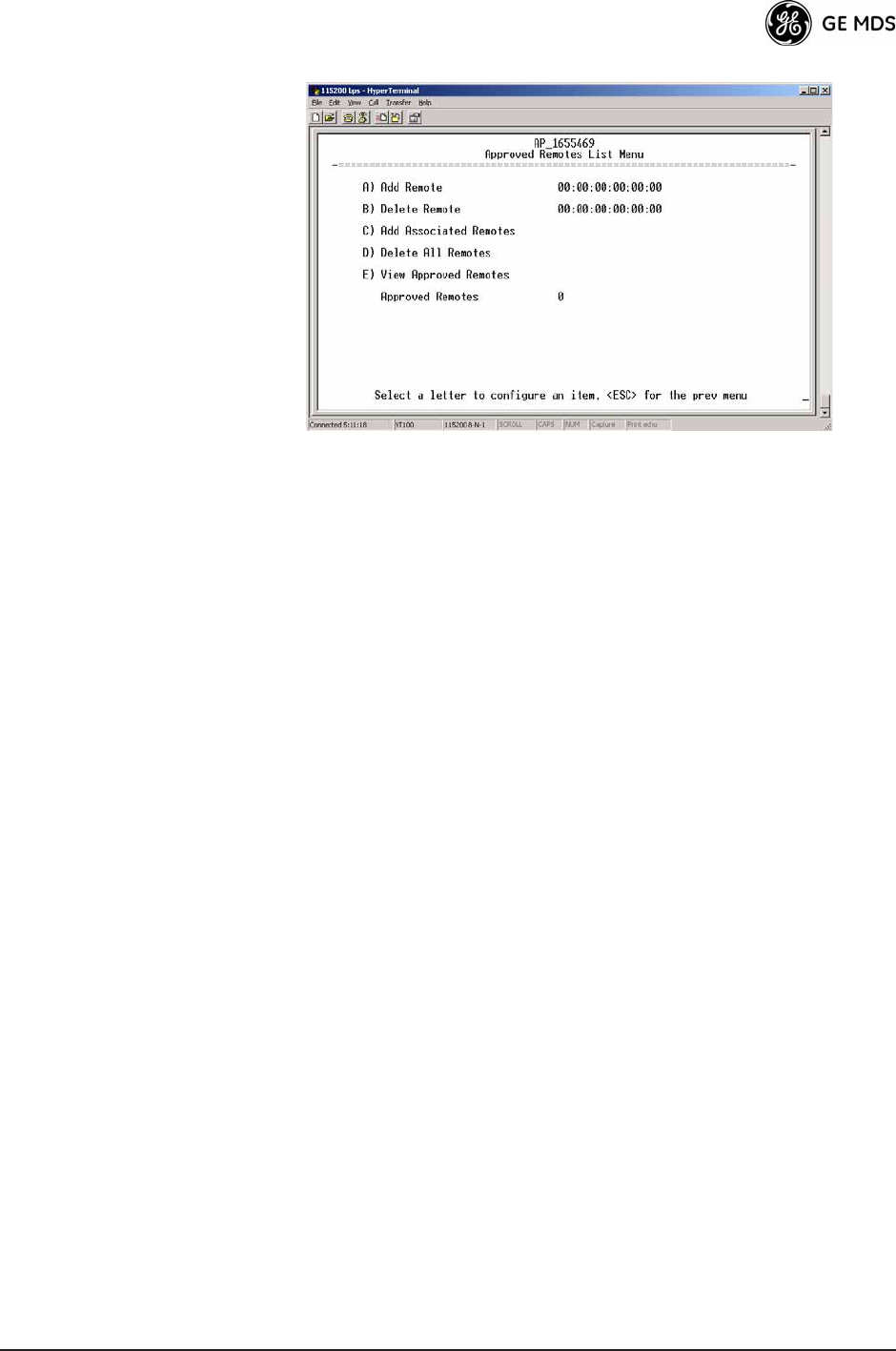

Figure 3-56. Approved Remotes Submenu

¥Add RemoteEnter the MAC address of Remote.

[Any valid 6-digit hexadecimal MAC address; 00:00:00:00:00:00]

¥Delete RemoteEnter the MAC address of Remote. For security

purposes, you should delete a stolen or deprovisioned radio

from this list.

¥Add Associated RemotesAdd all currently associated remotes to

the approved remote list. Alternatively, you can enter each

Remote MAC manually.

¥Delete All RemotesRemove (complete purge) all Remotes from

current list.

¥View Approved RemotesListing of approved Remotes by MAC

address. These radios are authorized to join this AP. If a Remote

is not in this list, it cannot associate with this AP.

3.7.3 IEEE 802.1x Device Authentication

This section covers the configuration needed for the radios to access the

IEEE 802.1x device authentication server, which provides Device Level

Security and for Wireless Access Security. GE MDS does not provide

the server software.

Operation of Device Authentication

Device authentication forces the radio to authenticate before allowing

user traffic to traverse the wireless network. When Device Security is

configured to use IEEE 802.1x as the Authentication Method, Remote

radios need three types of certificates: public (client), private, and root

(Certificate Authority). These files are unique to each Remote radio and

must first be created at the server and then installed into each unit via

TFTP. The certificate files must be in DER format.

Device authentication uses the serial number of each radio as the

Common Name (CN) in its certificate and in its RADIUS identity field.

90 Mercury Reference Manual 05-4446A01, Rev. C

Each Access Point and Remote radio must be identified/recognized by

the device authentication server through the Common Name (Serial

number) and IP address entries.

NOTE: Consult your network administrator for assistance in configu-

ration, or for help with other issues that may arise.

To activate device authentication, select Device Auth Method and set

RADIUS as the active mode. The behavior of this setting differs

depending on whether it is implemented on an Access Point or a Remote

transceiver. An explanation of these behaviors is given below:

Access Point: When Device Auth Method is set to RADIUS, the AP disasso-

ciates all associated Remotes and waits for the device authentication

server to authenticate the Remotes before allowing data from them to

pass. When approval is received from the authentication server, data

from the Remote passes.

Remote: When Device Auth Method is set to RADIUS, the Remote halts any

data it is passing, and requests Authentication from the device authenti-

cation server. If accepted, data is transmitted.

Operation of User Authentication

User Authentication controls authentication of users who can manage

the device. This is in contrast to Device Authentication (above), which

authenticates devices that can participate in the data network. When user

authentication is set to Local or RADIUS, you must enter a valid user name

and password before you can manage the radio. In RADIUS mode, both

of these fields can be up to 40 characters long. In Local mode the user

name is admin and the password can be up to 13 characters long.

When set to RADIUS, all logins to the local configuration services must

be authenticated via the device authentication server, including Telnet

and SSH (Secure Shell) sessions. Authentication must be accepted

before access to the radio menu is granted.

05-4446A01, Rev. C Mercury Reference Manual 91

RADIUS Configuration Menu Invisible place holder

Figure 3-57. Radius Configuration Menu

¥Auth Server AddressThe IP address of the authentication

server. [any valid IP address; 0.0.0.0]

¥Auth Server PortThe UDP Port of the authentication server.

[1812, 1645, 1812]

¥Auth Server Shared SecretUser authentication and Device

authentication require a common shared secret to complete an

authentication transaction. This entry must match the string

used to configure the appropriate files on the authentication

server.

[<empty>; any alpha-numeric string up to 16 characters]

¥User Auth ModeRADIUS Authentication algorithm.

[PAP, CHAP, EAP; PAP]

NOTE: CHAP is more secure than PAP. PAP may display the login

password in log files at the authentication server while CHAP

will encrypt the login password.

3.7.4 Manage Certificates

Use Certificate generation software to generate certificate files, then

install these files into each Remote unit using TFTP. This is done using

the Manage Certificates Menu (Figure 3-58 on Page 92).

The certificate files must be in DER format. The Common Name (CN)

field in the public certificate file must match the serial number of the

unit it is installed on.

92 Mercury Reference Manual 05-4446A01, Rev. C

Invisible place holder

Figure 3-58. Manage Certificates Menu

¥TFTP Host Address(Telnet/Terminal only)IP address of the com-

puter on which the TFTP server resides. This same IP address is

used in other screens/functions (reprogramming, logging, etc.).

Changing it here also changes it for other screens/functions.

[Any valid IP address; 127.0.0.1].

¥Transfer OptionsA menu for configuring the TFTP transfer.

(See Figure 3-59 on Page 93.)

Three certificate files (Root CA, Client, and Private Key) must be

present in each of the Remote radios. Use the commands described

below to install these files into each Remote radio:

¥Certificate TypeSelects one of the three certificate file types

mentioned above. [Root CA, Client, Private Key; Root CA]

¥Certificate FilenameSpecifies the software path and filename

for downloading certificates.

¥Retrieve CertificateInitiates the retrieval of the certificate file

from the storage location. A successful installation issues a Com-

plete status message.

NOTE: It is imperative that the three certificate files are installed

correctly into the Remote radio, in their respective file types.

If they are not, the Remote is un-authenticated for data traffic.

Consult your network administrator for more information.

05-4446A01, Rev. C Mercury Reference Manual 93

Invisible place holder

Figure 3-59. Transfer Options Menu

¥TFTP TimeoutThe time the client radio will wait for a response

from the server before ending the transfer.

¥TFTP Block SizeThe amount of data sent in each TFTP packet.

3.8 REDUNDANCY CONFIGURATION

(AP ONLY)

For operation in protected (redundant) mode, an AP must be in a Pack-

aged P23 enclosure with a backup radio. See MDS publication

05-4161A01 for details. This manual is available under the Downloads

tab at www.GEmds.com.

The Redundancy Configuration Menu (Figure 3-60) is where you

enable/disable redundancy operation and define the triggers that will

cause a switchover.

94 Mercury Reference Manual 05-4446A01, Rev. C

Invisible place holder

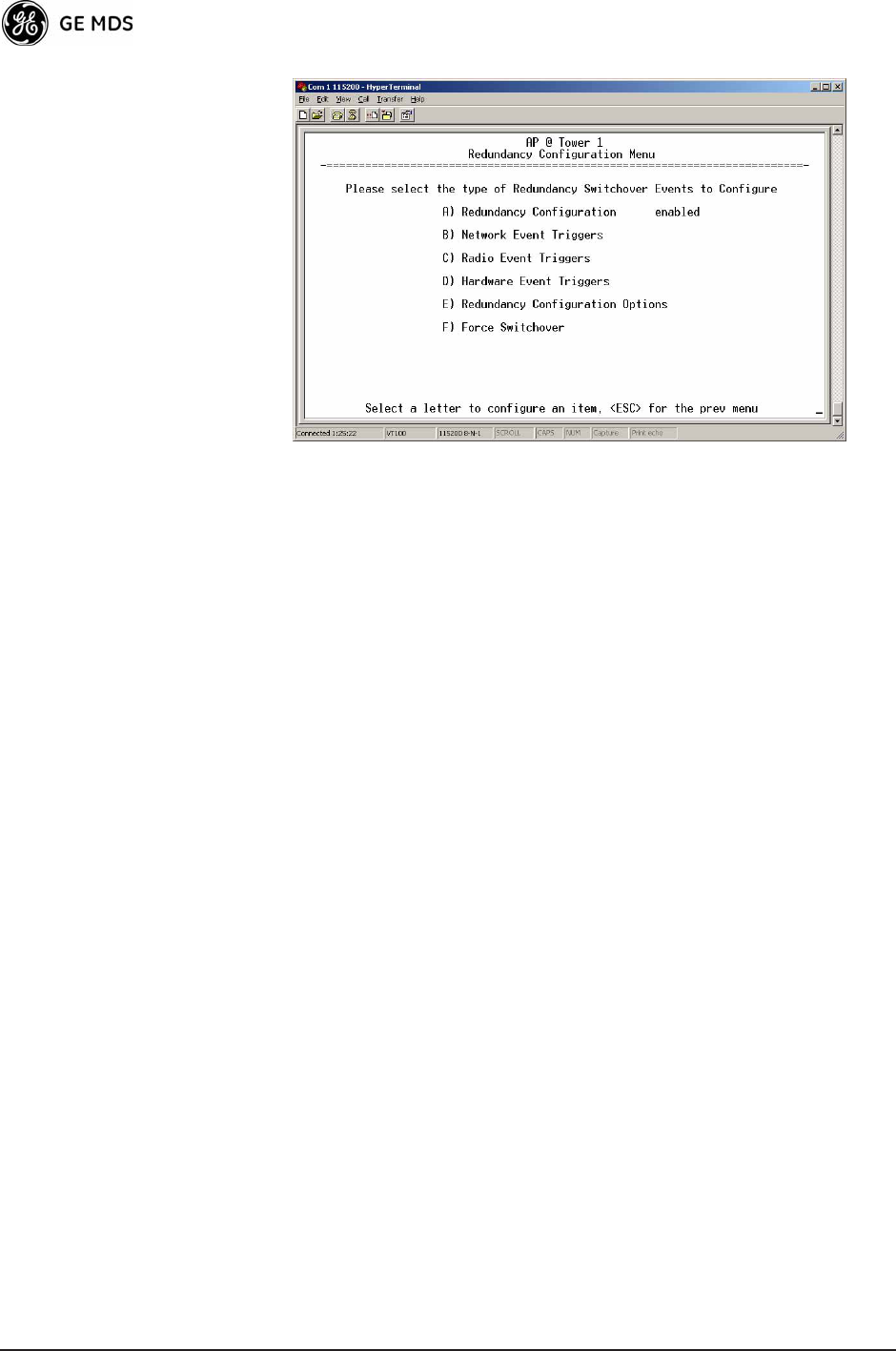

Figure 3-60. Redundancy Configuration Menu (AP Only)

¥Redundancy ConfigurationEnable/disable redundancy switcho-

ver for AP. [enabled, disabled; disabled]

¥Network Event TriggersThis selection opens a submenu

(Figure 3-61 on Page 95) where you can set/view the trigger sta-

tus for Network Events.

¥Radio Event TriggersThis selection opens a submenu

(Figure 3-62 on Page 95) where you can set/view the trigger sta-

tus for Radio Events, such as a loss of associated Remotes or

excessive packet errors.

¥Hardware Event TriggersThis selection opens a submenu

(Figure 3-63 on Page 96) where you can set/view the trigger sta-

tus for initialization/hardware errors.

¥Redundancy Configuration OptionsThis selection opens a sub-

menu (Figure 3-64 on Page 96) where you can set the threshold

criteria for declaring an error event.

¥Force SwitchoverSelecting this option forces a manual (user

initiated) switchover to the backup AP. The challenge ques-

tion

Are you sure? (y/n) is presented to avoid an unintended

switchover. To invoke the change, press the letter y followed by

the Enter key.

05-4446A01, Rev. C Mercury Reference Manual 95

Network Event Triggers Menu Invisible place holder

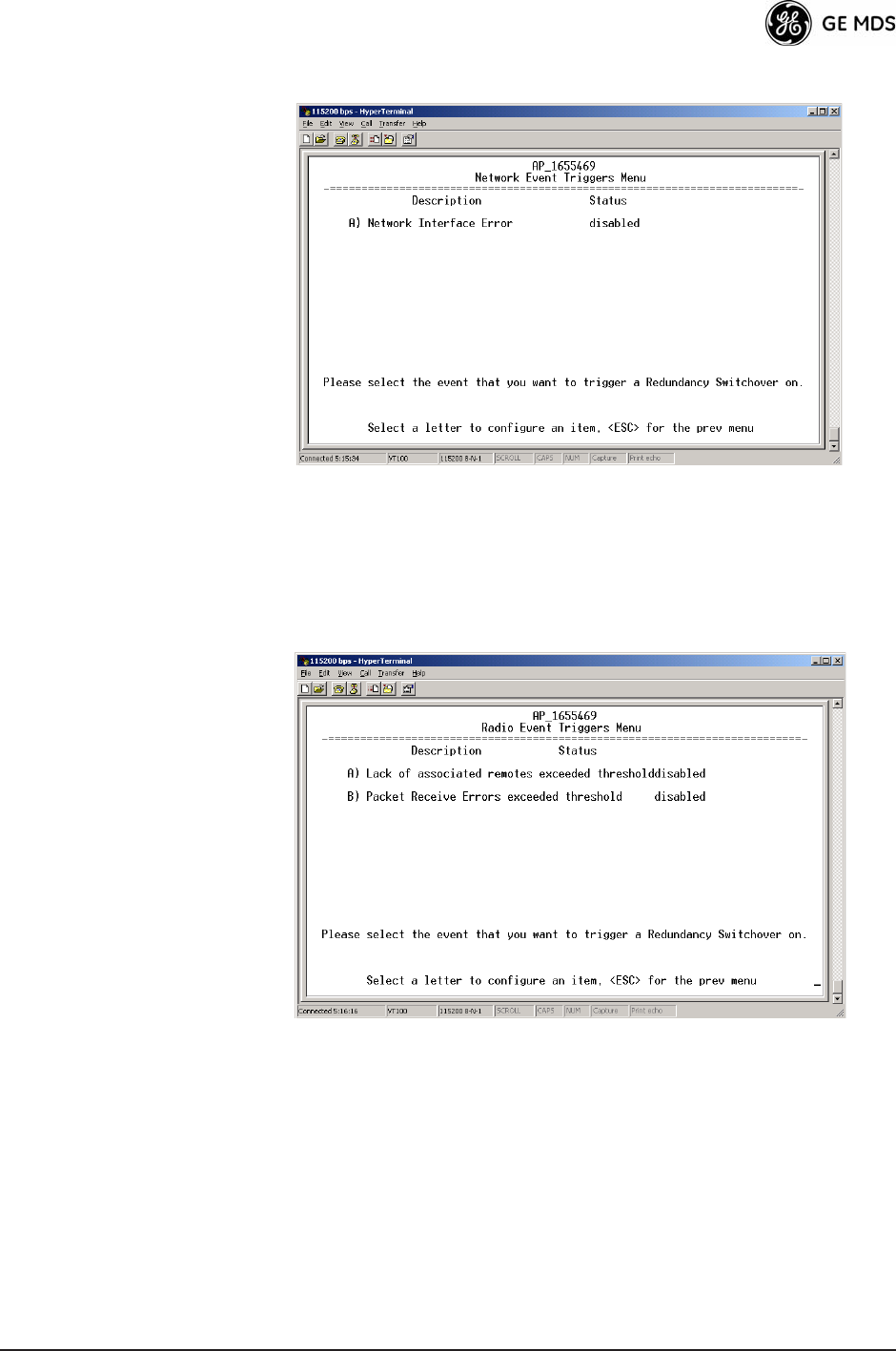

Figure 3-61. Network Events Triggers Menu

¥Network Interface ErrorThis setting determines whether or not a

network interface error will cause redundancy switchover.

[enabled, disabled; disabled]

Radio Event Triggers Invisible place holder

Figure 3-62. Radio Event Triggers

¥Lack of associated remotes exceeded thresholdThis setting deter-

mines whether or not a switchover occurs when a lack of asso-

ciated Remote units exceeds the time period set in Figure 3-65

on Page 97. [enabled, disabled; disabled]

¥Packet Receive Errors exceeded thresholdThis setting determines

whether or not a switchover occurs when the number of Packet

Receive errors exceeds the number set in Figure 3-66 on

Page 97. [enabled, disabled; disabled]

96 Mercury Reference Manual 05-4446A01, Rev. C

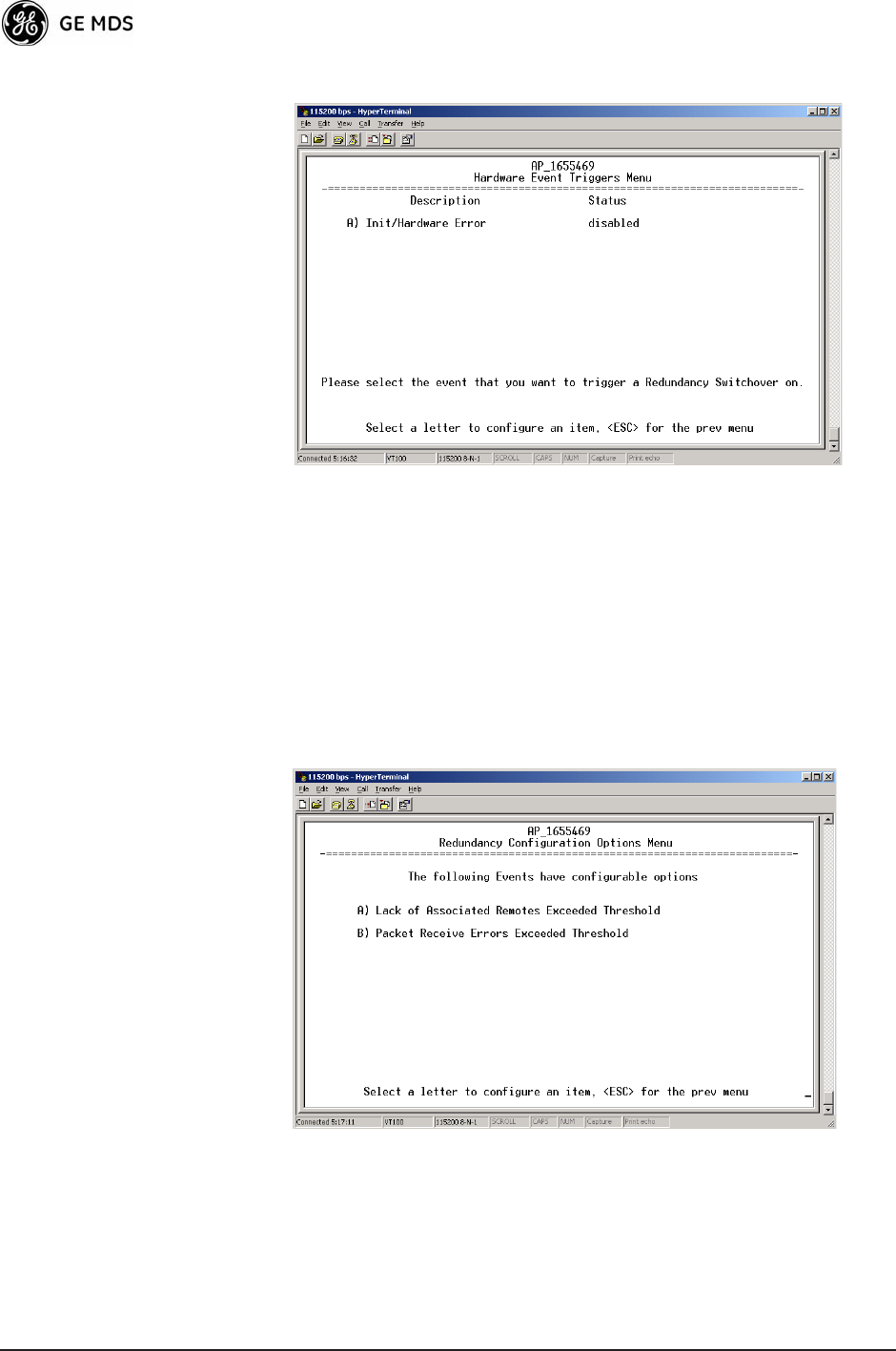

Hardware Event Triggers Invisible place holder

Figure 3-63. Hardware Event Triggers

¥Init/Hardware ErrorThis setting determines whether or not an

initialization or hardware error results in a redundancy switcho-

ver. [enabled, disabled; disabled]

Redundancy Configuration Options Menu

Use this menu (Figure 3-64) to set the thresholds for the Lack of Asso-

ciated Remotes and Packet Receive Errors. Selecting either item opens

a submenu where you can view or change settings.

Invisible place holder

Figure 3-64. Redundancy Configuration Options Menu

¥Lack of Associated Remotes Exceeded ThresholdThis selection

opens a submenu (Figure 3-65) where you can view or change

the time period allowed for a lack of associated Remotes.

05-4446A01, Rev. C Mercury Reference Manual 97

¥Packet Receive Errors Exceeded ThresholdThis selection opens a

submenu (Figure 3-66 on Page 97) where you can view or

change the maximum allowable number of receive errors.

Lack of Associated

Remotes Exceeded

Threshold Menu Invisible place holder

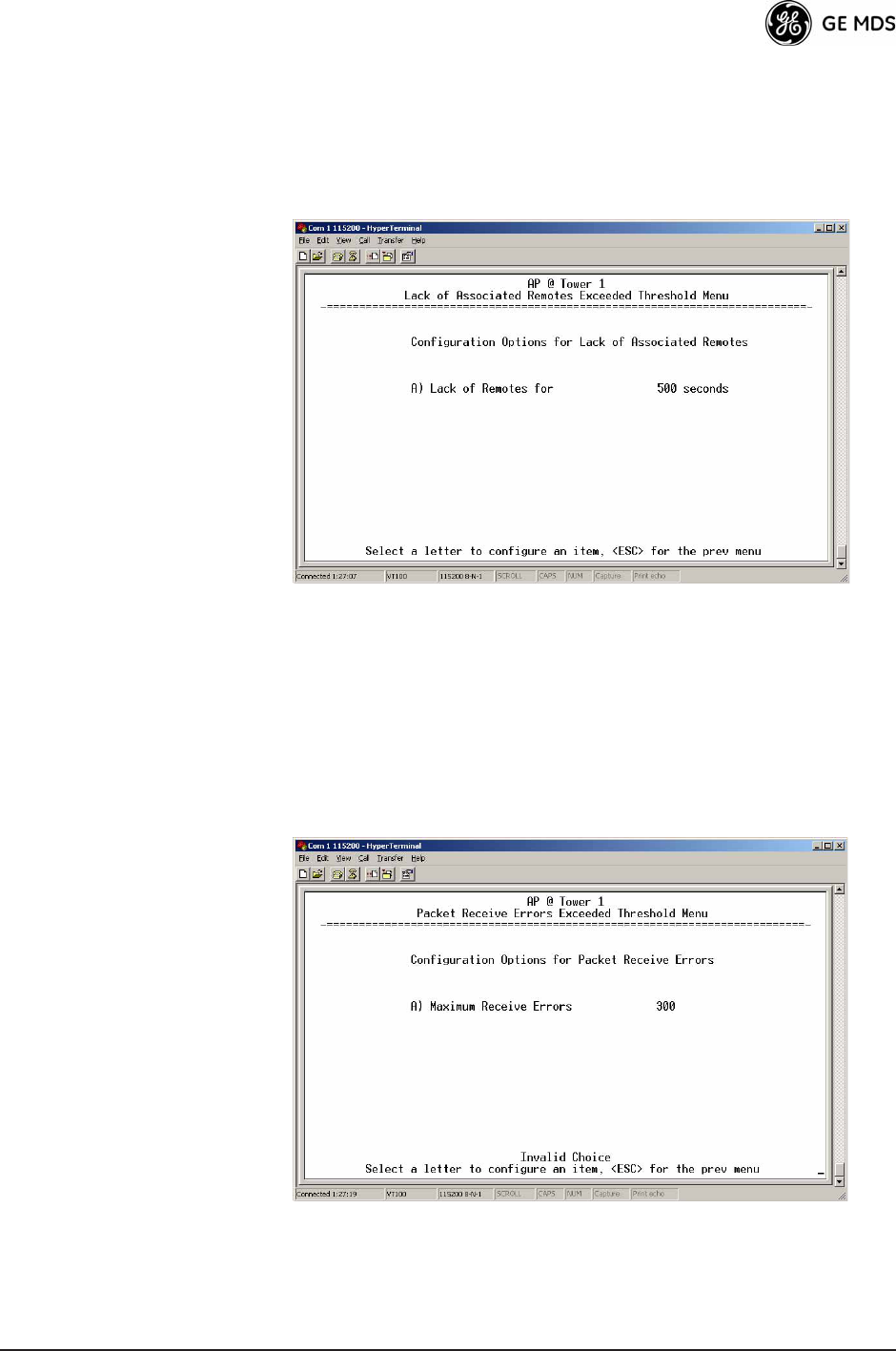

Figure 3-65. Lack of Associated Remotes

Exceeded Threshold Menu

¥Lack of Remotes forSelect this item to change the time setting

(in seconds) for a lack of associated Remotes. When there are

no associated Remotes for a period exceeding this time, a redun-

dancy switchover occurs. [60-500; 500]

Packet Receive

Errors Exceeded

Threshold Menu Invisible place holder

Figure 3-66. Packet Receive Errors Exceeded Threshold Menu

98 Mercury Reference Manual 05-4446A01, Rev. C

¥Maximum Receive ErrorsSelect this item to change the maxi-

mum allowable number of receive errors. When the number of

errors exceeds this number, a redundancy switchover occurs.

[0-1000; 500]

3.9 GPS CONFIGURATION (REMOTE

ONLY)

This menu allows you to view or set important parameters for the

built-in Global Positioning System (GPS) receiver in the Mercury

Remote.

Invisible place holder

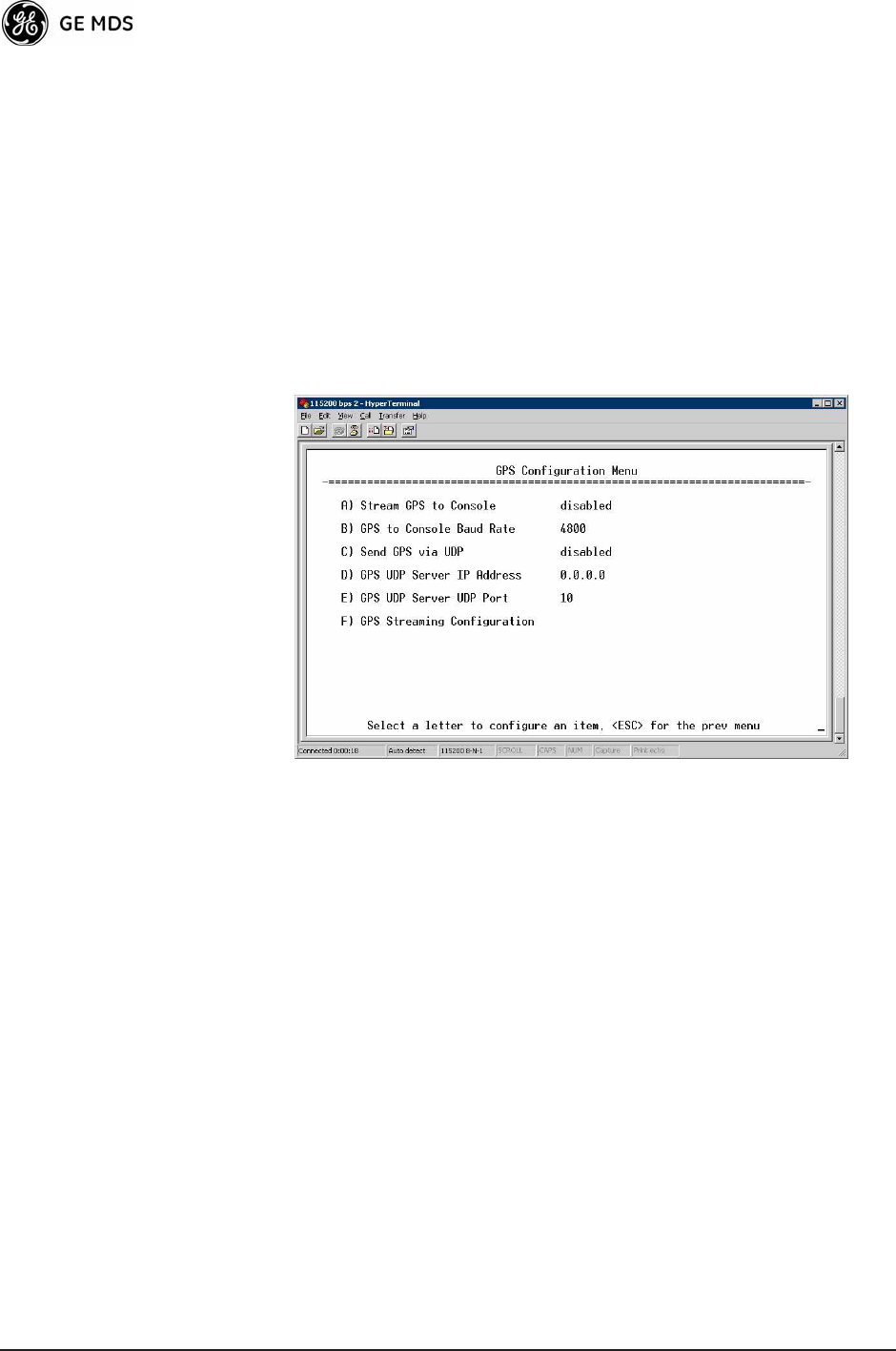

Figure 3-67. GPS Configuration Menu (Remote Only)

¥Stream GPS to ConsoleUsed to enable/disable streaming of

GPS NMEA data to the console port (COM1). Baud rate is 4800

baud when Stream GPS to console is enabled.

[enabled, disabled; disabled]

¥GPS to Console Baud RateThe serial baud rate when GPS

streaming is enabled.

¥Send GPS via UDPUsed to enable/disable sending GPS NMEA

data to a server via UDP. [enabled, disabled; disabled]

¥GPS UDP Server IP AddressSpecify the destination address for

GPS NMEA UDP packets. [any valid IP address; 0.0.0.0]

¥GPS UDP Server UDP PortDestination UDP port for GPS

NMEA UDP packets. [valid UDP port number; 0]

¥GPS Streaming ConfigurationA submenu for setting GPS

NMEA outputs. (See Figure 3-68 on Page 99.)

05-4446A01, Rev. C Mercury Reference Manual 99

Invisible place holder

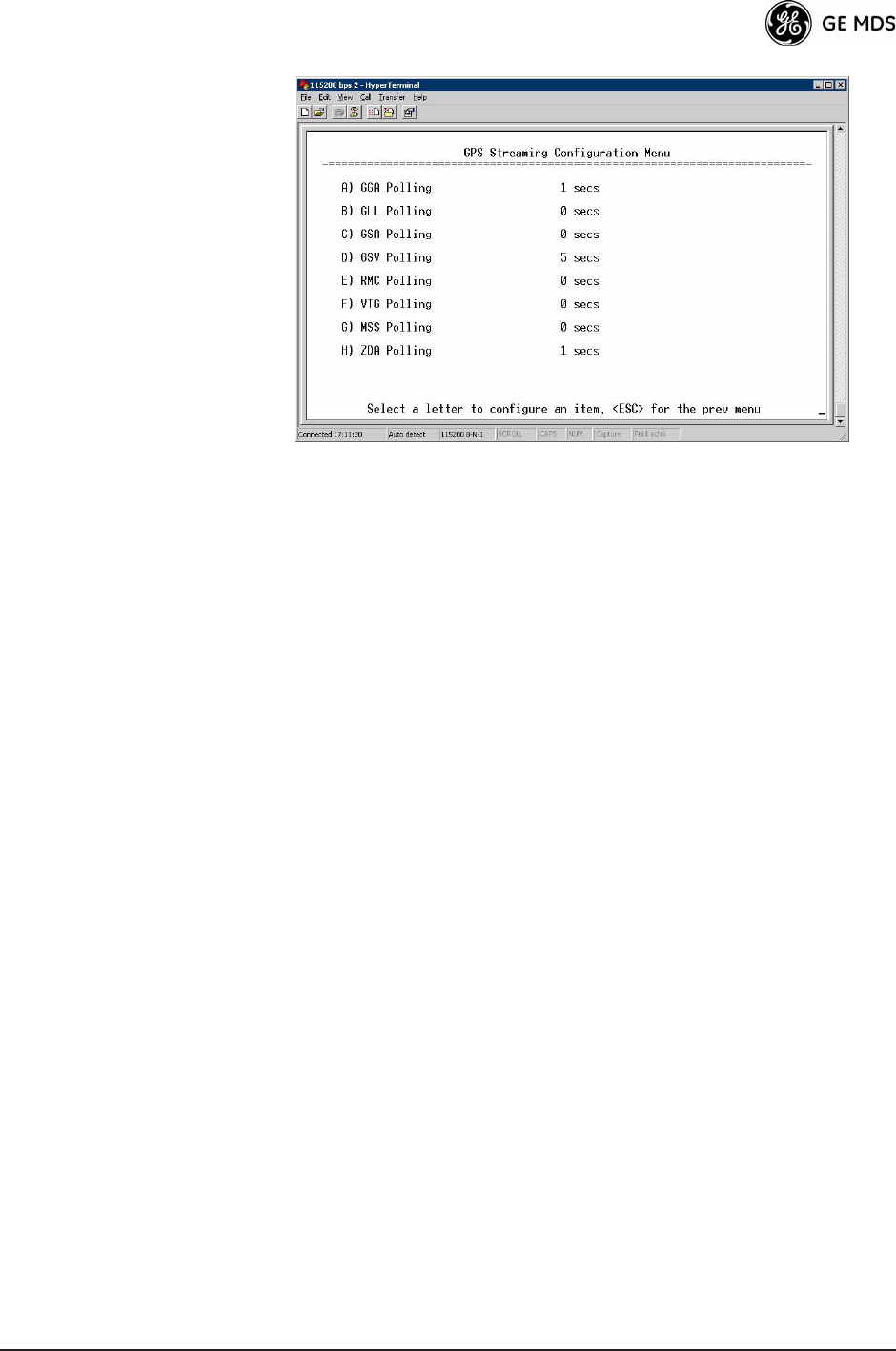

Figure 3-68. GPS Streaming Configuration Menu

¥GGA PollingSeconds between GGA string outputs, the satellite

fix information.

¥GLL PollingSeconds between GLL string outputs, the latitude

and longitude information.

¥GSA PollingSeconds between GSA string outputs, the overall

satellite data.

¥GSV PollingSeconds between GSV string outputs, the detailed

satellite data.

¥RMC PollingSeconds between RMC string outputs, the recom-

mended minimum data.

¥VTG PollingSeconds between VTG string outputs, the vector

track and speed over ground.

¥MSS PollingSeconds between MSS string outputs, the beacon

receiver status information.

¥ZDA PollingSeconds between ZDA string outputs, data, and

time.

100 Mercury Reference Manual 05-4446A01, Rev. C

3.10 DEVICE INFORMATION MENU

Figure 3-69 shows the menu that displays basic administrative data on

the unit to which you are connected. It also provides access to user-spe-

cific parameters such as date/time settings and device names.

Figure 3-69. Device Information Menu

¥Model (Display only)

¥Serial Number (Display only)

¥Uptime (Display only)Elapsed time since boot-up.

¥DateCurrent date being used for the transceiver logs. User-set-

able. (Value lost with power failure if SNTP [Simple Network

Time Protocol] server not accessible.)

¥TimeCurrent time of day. User-setable.

Setting: HH:MM:SS

(Value lost with power failure if SNTP server not accessible.)

¥Date FormatSelect presentation format:

¥ Generic = dd Mmm yyyy

¥ European = dd-mm-yyyy

¥ US = mm-dd-yyyy

¥Console Baud RateUsed to set/display data communications

rate (in bits-per-second) between a connected console terminal

and the radio. [115200]

¥UTC Time OffsetSet/view the number of hours difference

between your local clock time and Universal Coordinated Time.

Offsets for U.S. times zones are shown in the chart below.

Time Zone

(U.S.)

UTC Offset

(Hours)

PST -8

MST -7

CST -6

EST -5

05-4446A01, Rev. C Mercury Reference Manual 101

¥Device NamesFields used at users discretion for general

administrative purposes. The Device Name field is shown on all

menu screen headings. (See Figure 3-70 on Page 101)

NOTE: The transceivers do not save time and date information when

power is removed.

Device Names Menu

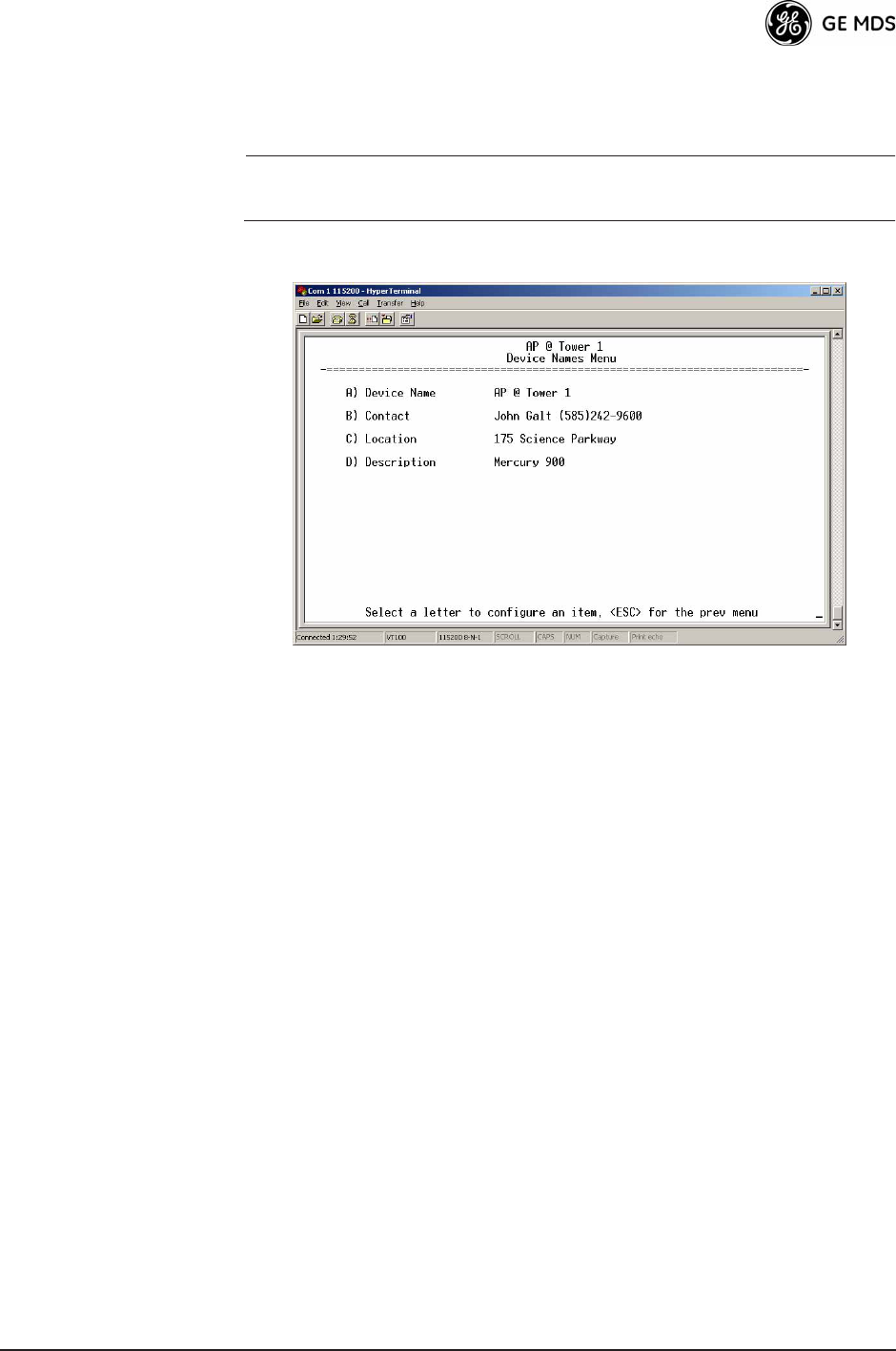

Figure 3-70. Device Names Menu

¥Device NameUsed by the transceiver as the Realm name

for network login (web browser only) and menu headings.

¥ContactUser defined; appears on this screen only.

¥LocationUser defined; appears on this screen only.

¥DescriptionUser defined; appears on this screen only.

3.11 PERFORMANCE INFORMATION

The Performance Information Menu (Figure 3-71 on Page 102) is the

entry point for a series of submenus where you can evaluate transceiver

operating status and network performance. You can use this menu as an

important troubleshooting tool, or for evaluating changes made to the

network configuration or equipment.

102 Mercury Reference Manual 05-4446A01, Rev. C

Invisible place holder

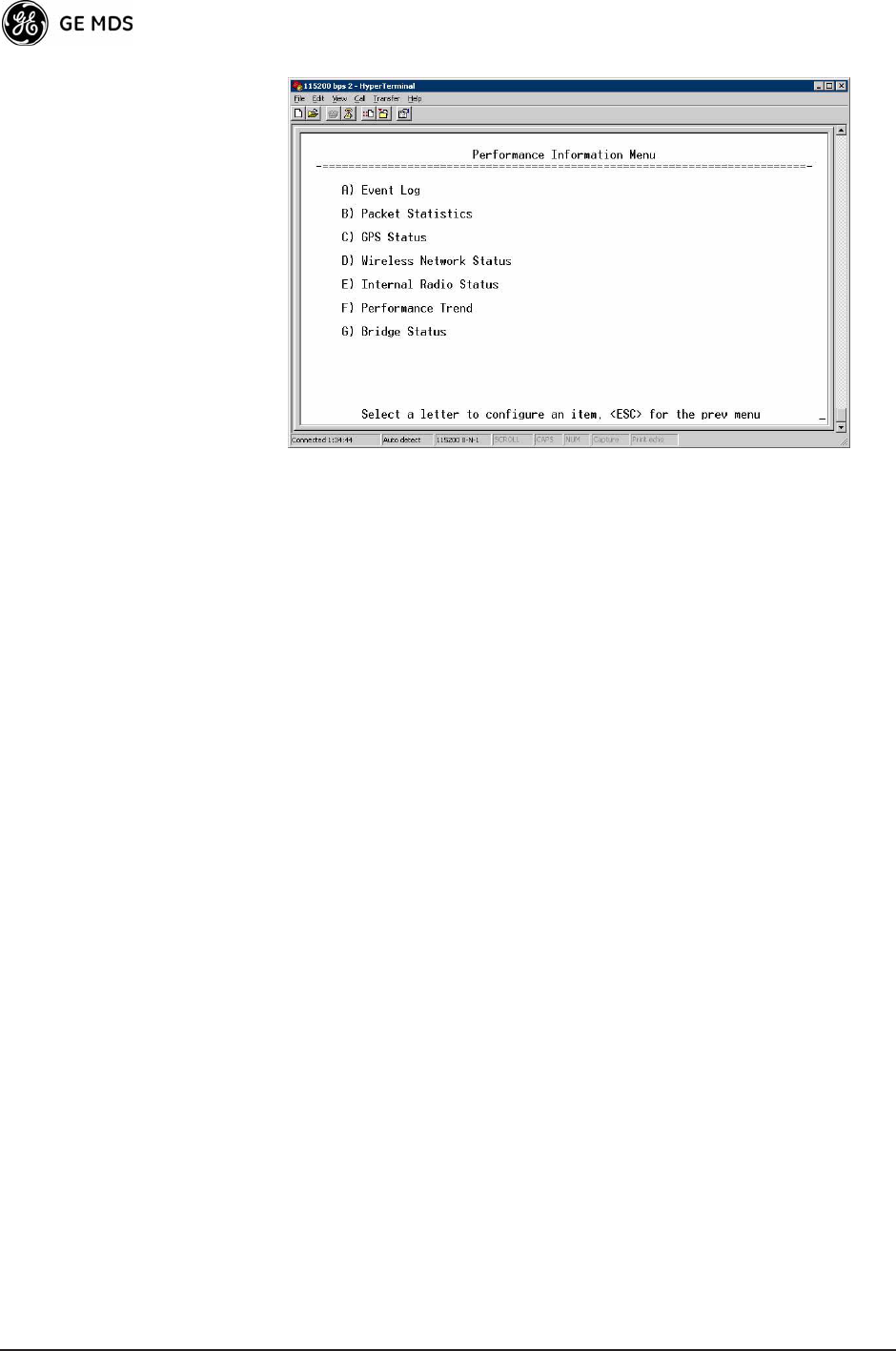

Figure 3-71. Performance Information Menu

¥Event LogAccess this menu for managing the units opera-

tional activities log. (See Figure 3-74 on Page 104 for details.)

¥Packet StatisticsMultiple radio and network operating statis-

tics. (See Figure 3-76 on Page 106 for details.)

¥GPS StatusShows satellite fix status, number of satellites

being received, and unit location data. (See Figure 3-77 on

Page 107 for details.)

¥Wireless Network StatusCurrent AP association state and MAC

address. (See Figure 3-79 on Page 109 for details.)

¥Internal Radio Status (Remote Only)Shows connection status,

RF parameters, and total FEC count for the unit. (See

Figure 3-84 on Page 111 for details.)

¥Performance Trend (Remote Only)Launches a continuously

updated list of performance parameters (RSSI, Signal-to-Noise

Ratio, Transmit Power, Latitude, Longitude, Connection Status,

and FEC Blocks). (See Figure 3-72 on Page 103.)

¥Bridge StatusDisplays the network bridge status. (See

Figure 3-73 on Page 103.)

05-4446A01, Rev. C Mercury Reference Manual 103

Invisible place holder

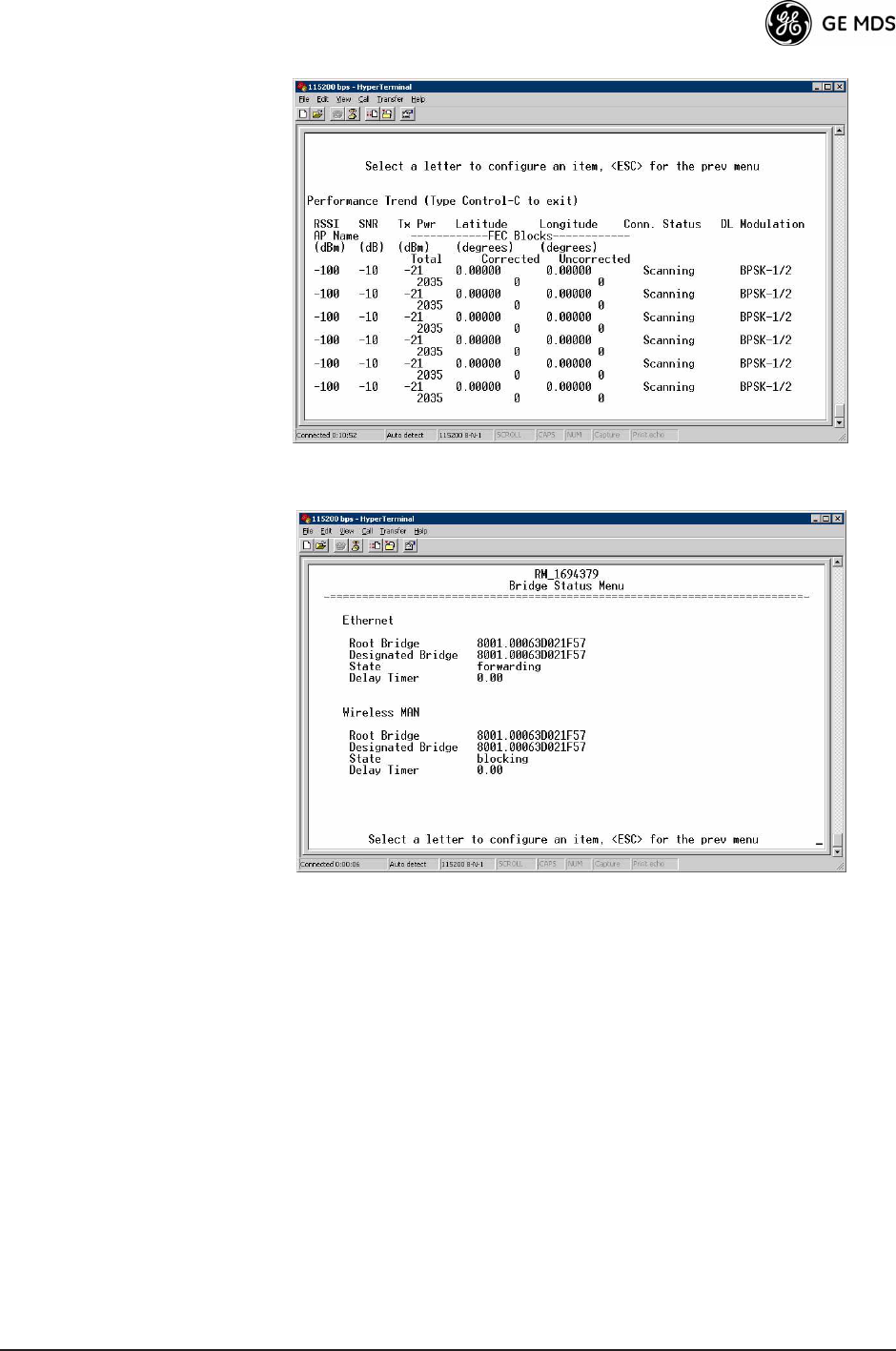

Figure 3-72. Performance Trend Screen

Invisible place holder

Figure 3-73. Bridge Status Menu

104 Mercury Reference Manual 05-4446A01, Rev. C

Event Log Menu Invisible place holder

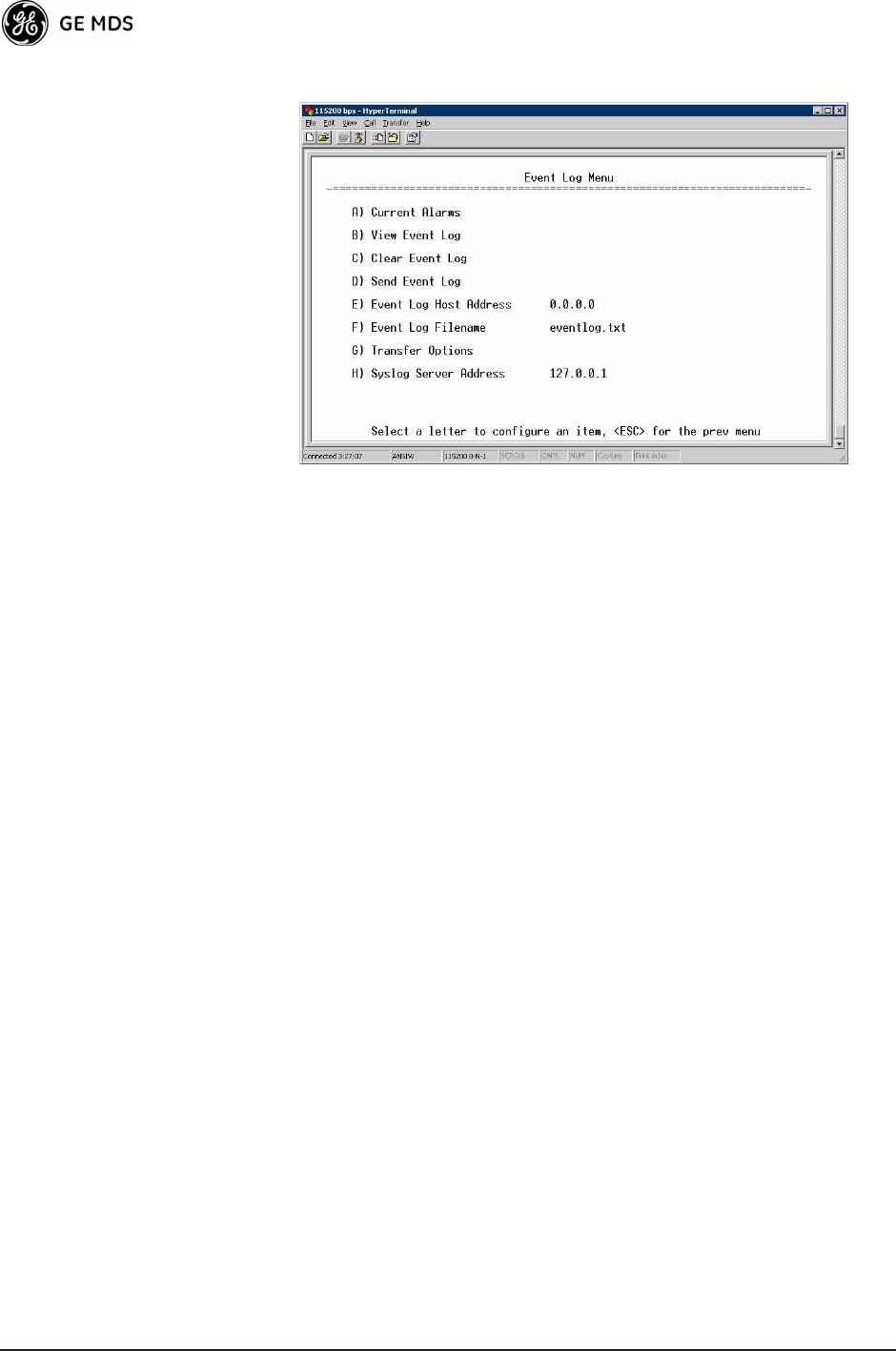

Figure 3-74. Event Log Menu

¥Current AlarmsShows active alarms (if any) reported by the

transceiver.

¥View Event LogDisplays a log of radio events arranged by event

number, date, and time. (Example shown in Figure 3-75 on

Page 105).

¥Clear Event LogErases all previously logged events.

¥Send Event LogSends the event log to the server. You must

answer the challenge question Send File? y/n before the request

proceeds.

¥Event Log Host AddressSet/display the IP address of the TFTP

server. [any valid IP address; 0.0.0.0]

¥Event Log FilenameSet/display the name of the event log file on

the TFTP server. [any valid filename; eventlog.txt]

¥Transfer OptionsA menu for configuring the TFTP transfer.

¥Syslog Server AddressUse this selection to set or view the IP

address of the Syslog server. Syslog is a standardized protocol

for sending IP log data across a network. Low cost (or even free)

Syslog downloads are available online by searching for the term

Syslog Server. [

any valid IP address; 0.0.0.0]

05-4446A01, Rev. C Mercury Reference Manual 105

View Event Log

Menu Invisible place holder

Figure 3-75. View Event Log Menu

The transceivers microprocessor monitors many operational parame-

ters and logs them. Events are classified into four levels of importance,

which are described in Table 3-8. Some of these events result from a

condition that prevents normal operation of the unit. These are critical

events that cause the unit to enter an alarmed state and the

PWR LED

to blink until the condition is corrected. All events are stored in the

Event Log..

Time and Date The events stored in the Event Log are time-stamped using the time and

date of the locally connected device. The Access Point obtains the time

and date from a Time Server. This server is typically a standard Win-

dows PC server SNTP application. In the absence of the SNTP services,

the user must manually enter time and date information at the Access

Point. (See DEVICE INFORMATION MENU on Page 100 for SNTP

server identification.) The manually set time and date clock relies on the

units primary power. A loss of power resets the clock to

02 Jan 2005 but

does not affect previously stored error events.

Packet Statistics Menu

The transceivers maintain running counters of different categories of

events in the Ethernet protocol. The Packet Statistics refer to each

Ethernet interface from the perspective of the radio.

Table 3-8. Event Classifications

Level Description/Impact

Informational Normal operating activities

Minor Does not affect unit operation

Major Degraded unit performance but

still capable of operation

Critical Prevents the unit from operating

106 Mercury Reference Manual 05-4446A01, Rev. C

Invisible place holder

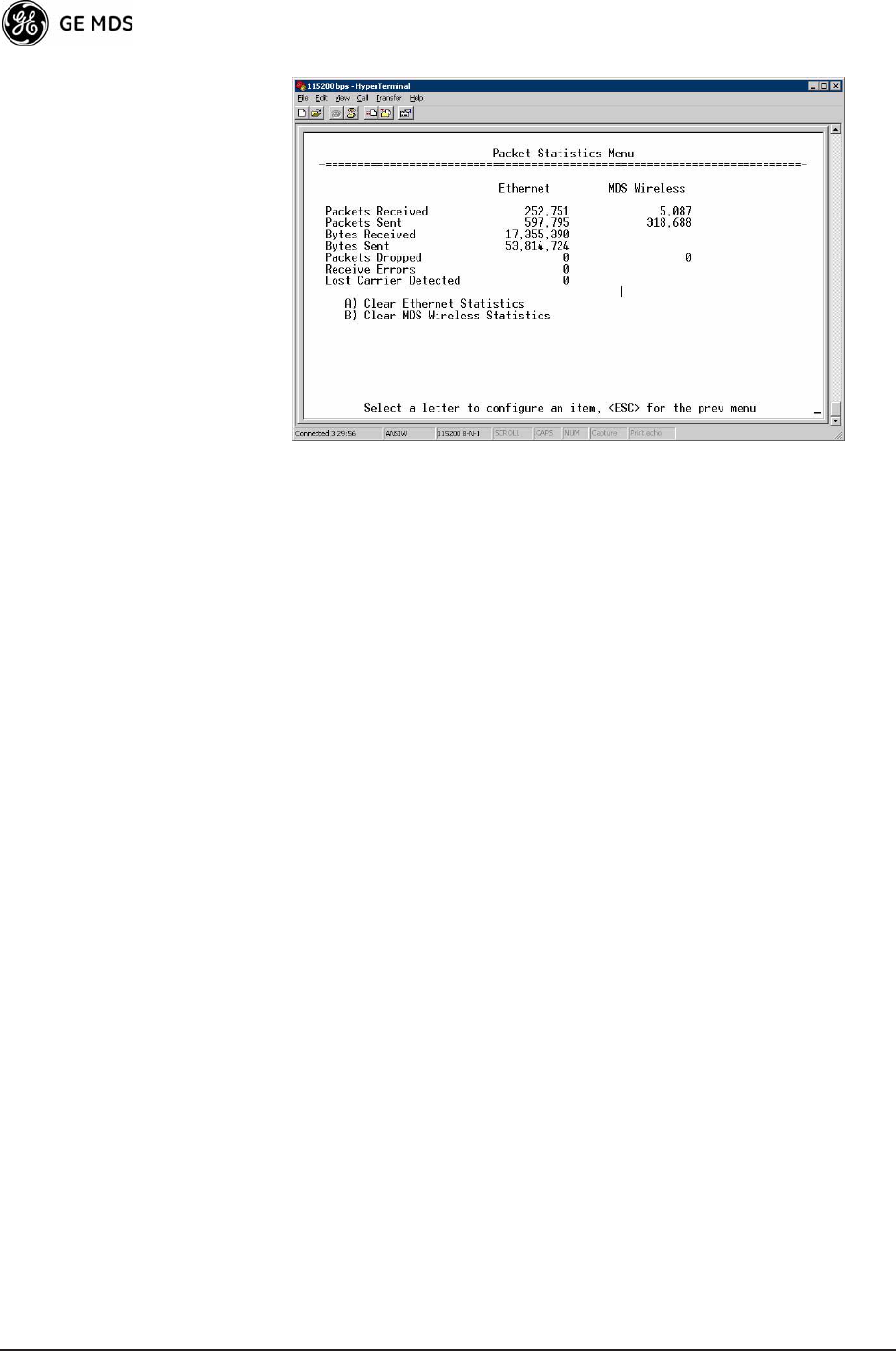

Figure 3-76. Packet Statistics Menu

¥Packets ReceivedData packets received by this unit.

¥Packets SentData packets sent by this unit.

¥Bytes ReceivedData bytes received by this unit.

¥Bytes SentData bytes sent by this unit.

¥Packets DroppedTo-be-transmitted packets dropped because

of a lack of buffers in the outbound queue.

¥Receive ErrorsPackets that do not pass CRC. This may be due

to transmissions corrupted by RF interference, Ethernet colli-

sions, or degradation. If significant Ethernet Receive Errors are

observed, check the quality of your Ethernet cabling and con-

nectors, or that you do not have cable lengths exceeding the

specification limits.

¥Lost Carrier DetectedThis parameter reports how many times

the wired Ethernet connection has lost link.

¥Clear Ethernet StatisticsResets the statistics counter. You must

answer the challenge question Send File? y/n before the request

proceeds.

¥Clear MDS Wireless StatisticsResets the statistics counter. You

must answer the challenge question Send File? y/n before the

request proceeds.

05-4446A01, Rev. C Mercury Reference Manual 107

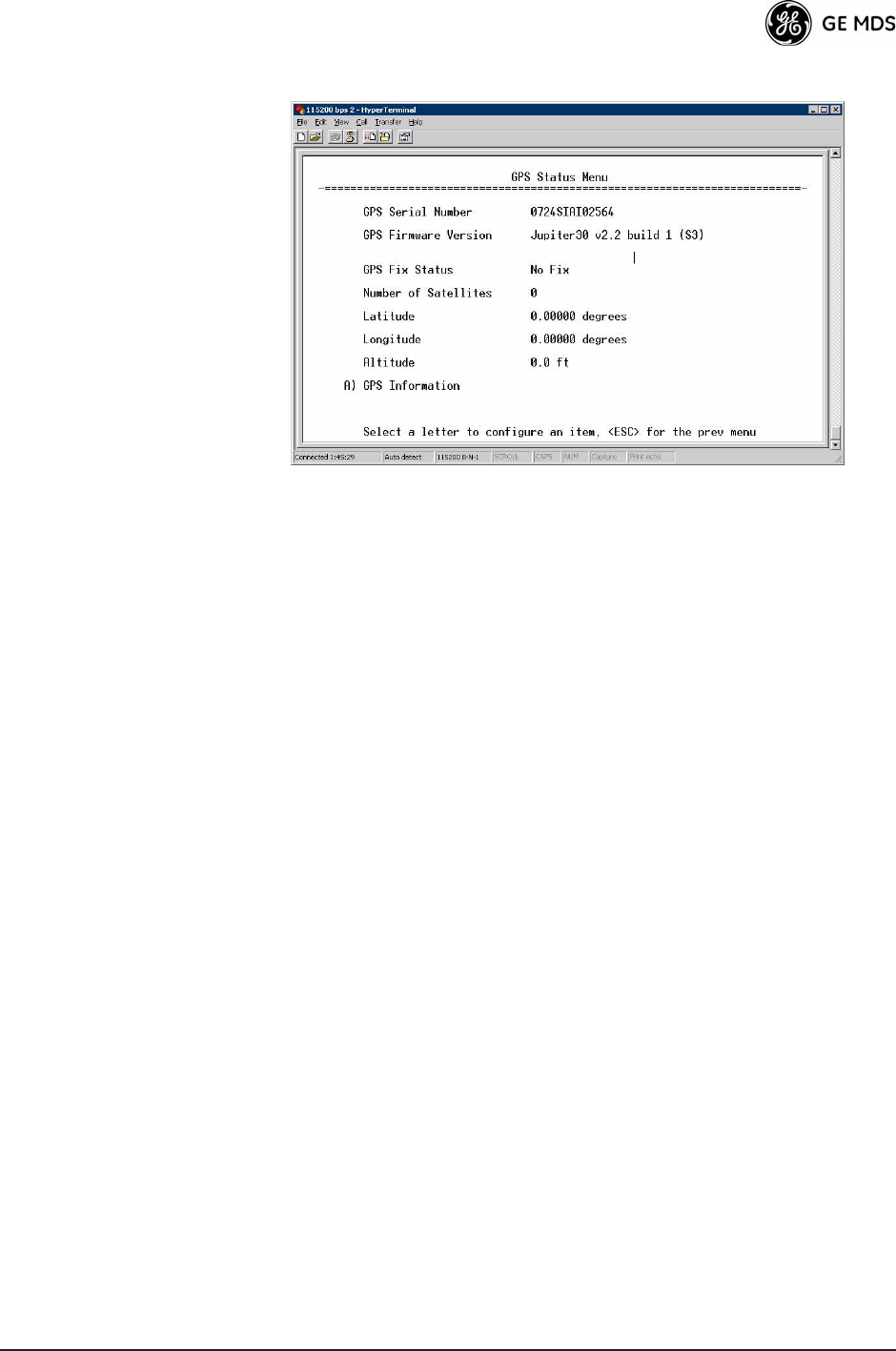

GPS Status Menu Invisible place holder

Figure 3-77. GPS Status Menu

¥GPS Serial NumberThe serial number of the GPS unit in the

radio.

¥GPS Firmware VersionThe firmware version running on the

GPS chip.

¥Satellite Fix StatusIndicates whether or not the unit has

achieved signal lock with the minimum required number of

GPS satellites. The transceiver requires a fix on five satellites to

achieve Precise Positioning Service (PPS) and four to maintain

PPS. [No Fix, Fix]

¥Number of SatellitesShows the number of GPS satellites

received by the transceiver. Although there are typically 24

active GPS satellites orbiting the Earth twice a day, only a sub-

set of these is visible to a receiver at a given location. A good

signal provides information from six to ten satellites.

¥LatitudeShows the transceivers latitudinal location (in

degrees), based on GPS data received from the satellites.

¥LongitudeShows the transceivers longitudinal location (in

degrees), based on GPS data received from the satellites.

¥AltitudeShows the transceivers altitude above sea level (in

feet), based on GPS data received from the satellites.

¥GPS InformationShows data about the individual satellites

being received, including the Pseudo-Random Noise (PRN)

code (a unique bit stream for each satellite), the satellites ele-

vation (in degrees), azimuth (in degrees), and the sig-

nal-to-noise ratio of the carrier signal (SNR). Figure 3-78 on

Page 108 shows a layout example for this screen.

108 Mercury Reference Manual 05-4446A01, Rev. C

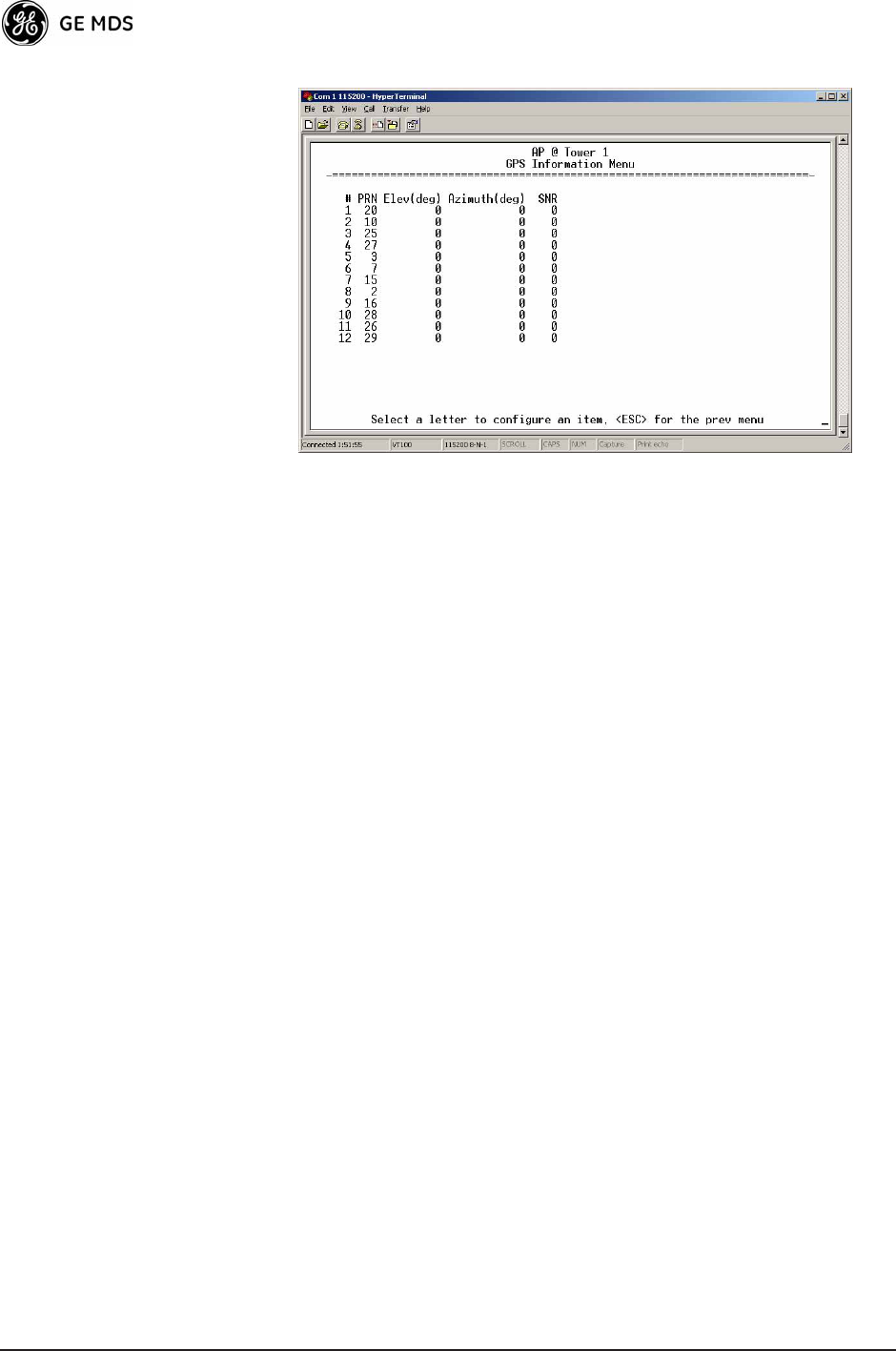

GPS Information

Menu Invisible place holder

Figure 3-78. GPS Information Menu

Wireless Network Status Menu

The Wireless Network Status screen provides information on a key

operating process of the transceiverthe association of the Remote

with the Access Point. The following is a description of how this process

takes place and is monitored by the menu system.

The Transceivers

Association Process If the Access Point and Remote are configured for single channel oper-

ation, the Remote monitors the channel for Access Point transmissions.

The Remote synchronizes its power, timing, and frequency to the

Access Point, then requests access to the network. The Access Point and

Remote check each others authorization and authentication according

to the configuration of the Device Authorization and Encryption Enable

parameters, and the Network Name parameter. The Remote is then associ-

ated.

If the Access Point and Remote are configured for frequency hopping,

the Remote hops with the Access Point according to Access Points con-

figuration. Once the Remote is hopping in sync with the Access Point,

the rest of the association process is the same as for single channel oper-

ation.

05-4446A01, Rev. C Mercury Reference Manual 109

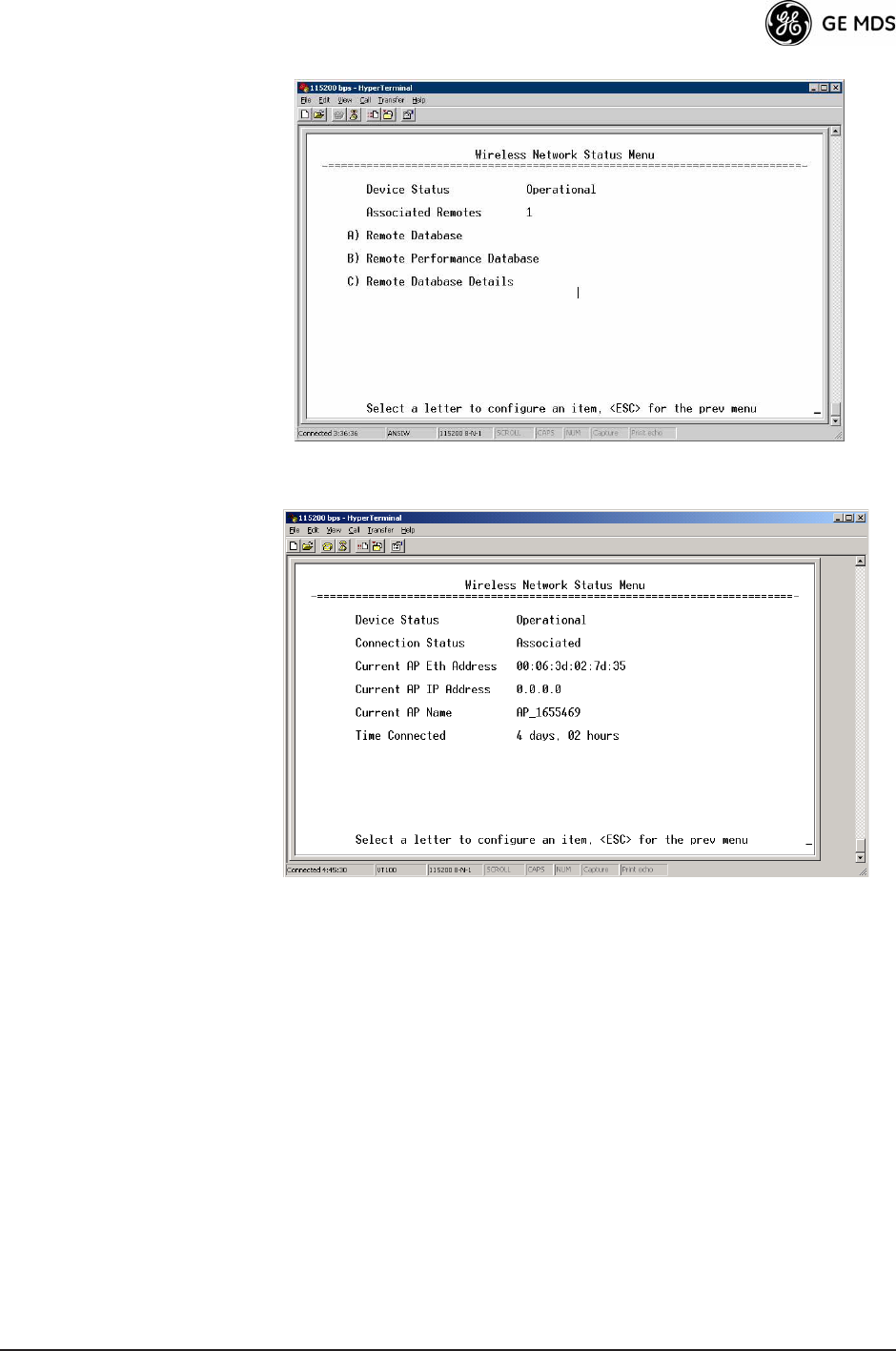

Invisible place holder

Figure 3-79. Wireless Network Status Menu (AP)

Invisible place holder

Figure 3-80. Wireless Network Status Menu (Remote)

¥Device StatusDisplays the overall operating condition of the

transceiver. [Operational, Alarmed]

¥Associated Remotes (AP Only)Shows the number of Remote

transceivers currently associated with the AP.

¥PA TemperatureShows the power amplifier temperature in

degrees Celsius.

¥Remote Database (AP Only)Displays a submenu where associ-

ated Remotes are listed in table form according to their number,

operational state, MAC address, IP address, and name (if

assigned). (See Figure 3-81 on Page 110.)

¥Remote Performance Database (AP Only)Displays a submenu

where associated Remote performance data is listed in table

form. Remotes are presented according to their number, MAC

address, RSSI, SNR, modulation type, uplink modulation, and

FEC total. (See Figure 3-82 on Page 110.)

110 Mercury Reference Manual 05-4446A01, Rev. C

¥Connection Status (Remote Only)Displays the current state of

the wireless network communication as follows: Scanning, Rang-

ing, Connecting, Authenticating, Associated, or Alarmed. A complete

explanation of these operating states is provided in Table 4-3 on

Page 138.

¥Current AP Eth AddressDisplays the Ethernet MAC address of

the current AP.

¥Current AP IP AddressShows the IP address of the current AP.

¥Current AP NameDisplays the device name of the current AP.

¥Time ConnectedShows the time at which the remote connected

to the AP. The Remote has been continually connected since

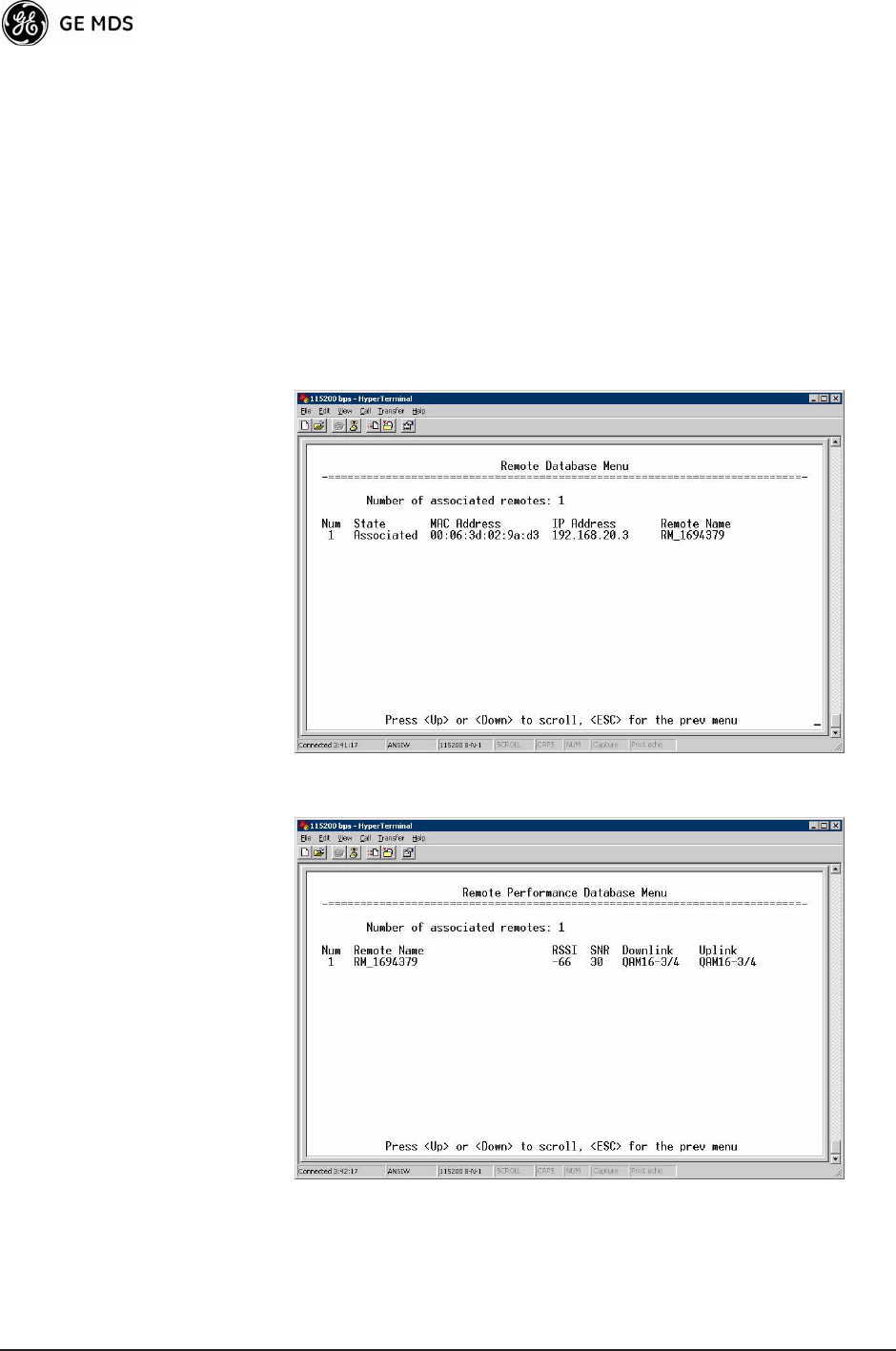

this time. Invisible place holder

Figure 3-81. Remote Database Menu

Invisible place holder

Figure 3-82. Remote Performance Database Menu

05-4446A01, Rev. C Mercury Reference Manual 111

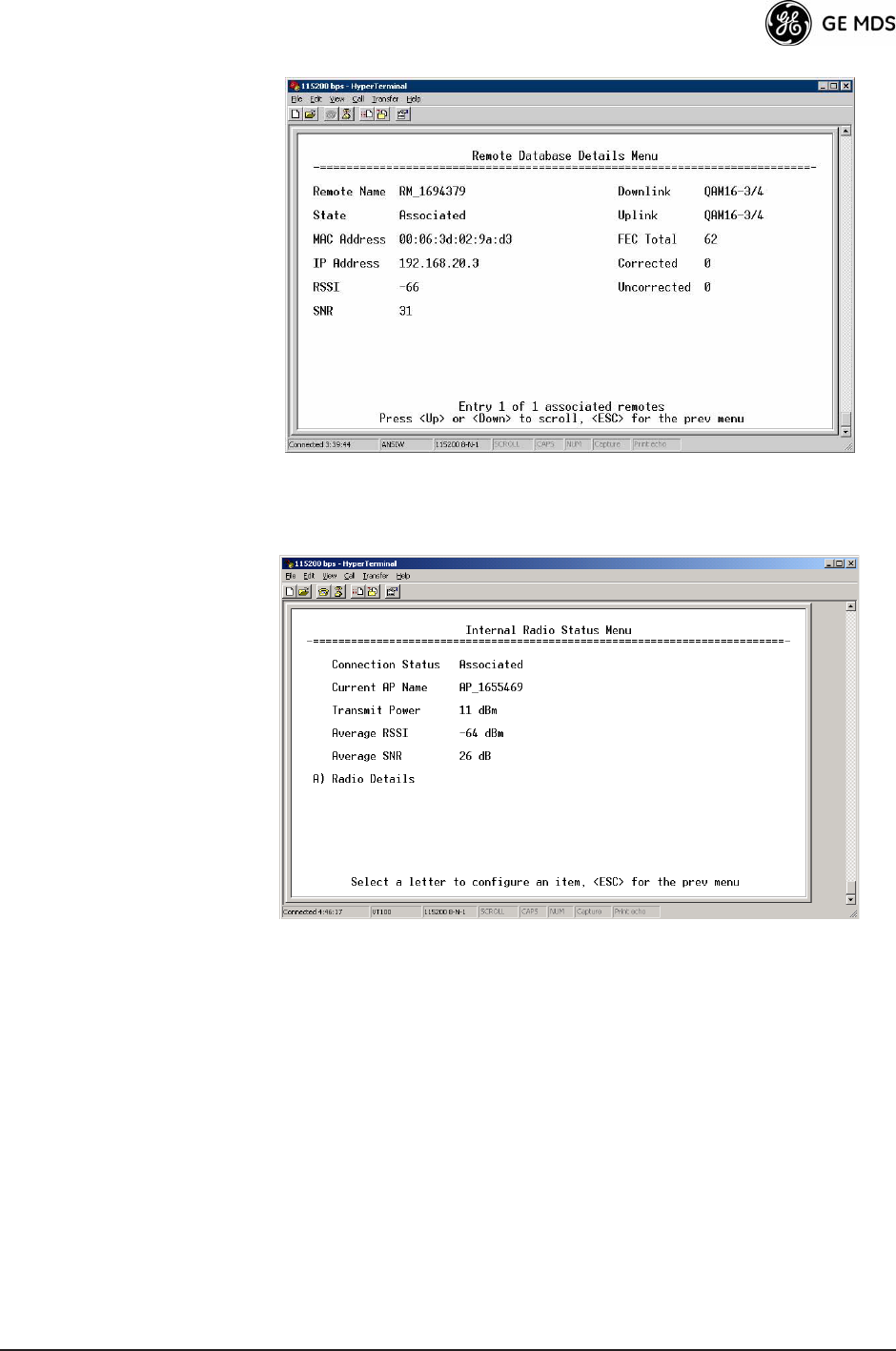

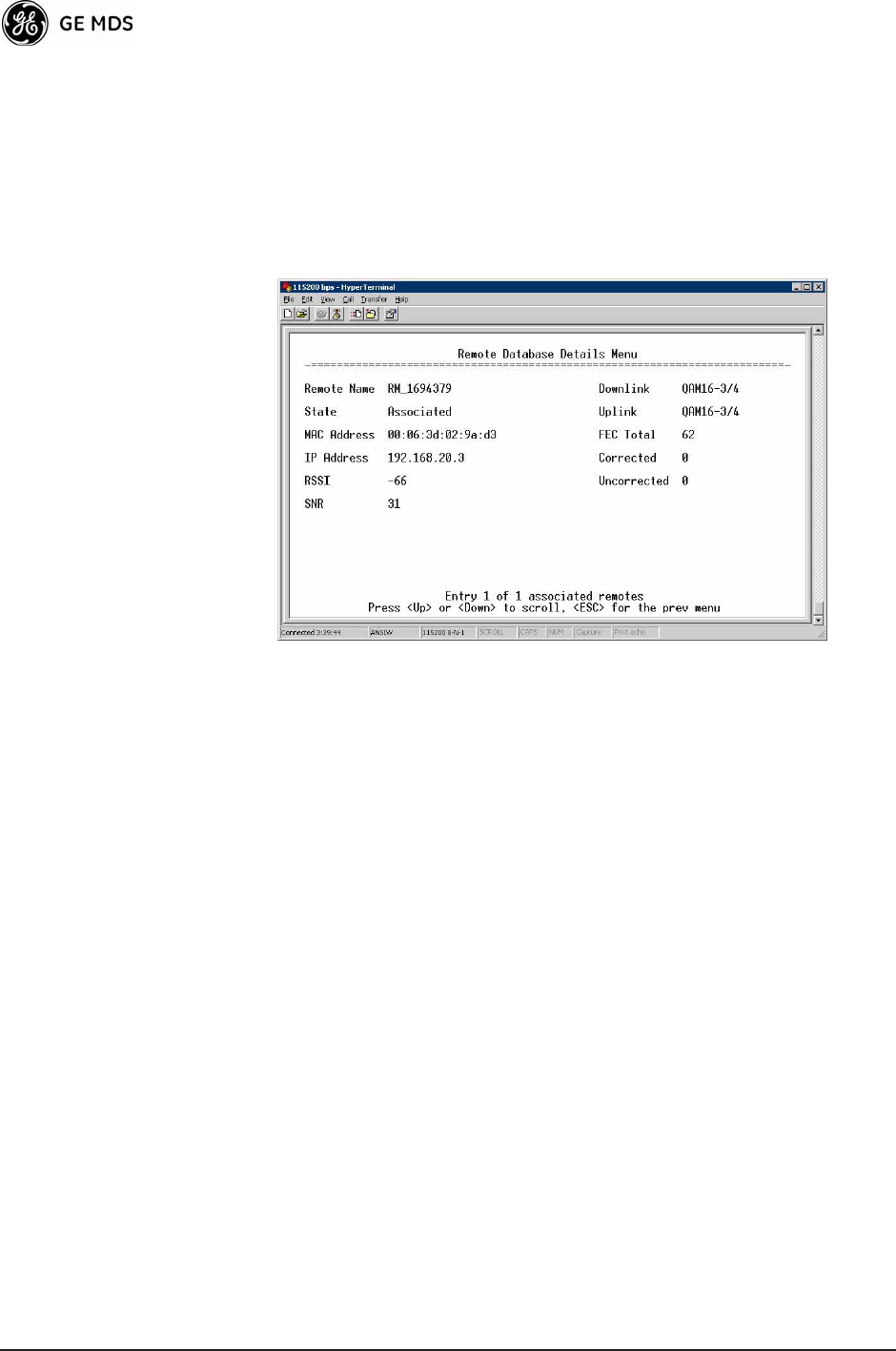

Invisible place holder

Figure 3-83. Remote Database Details Menu (AP)

Internal Radio Status Menu (Remote Only)

Invisible place holder

Figure 3-84. Internal Radio Status (Remote Only)

¥Connection StatusIndicates whether or not the Remote station

has associated with an AP. [Associated, Scanning, Ranging, Con-

necting, Authorizing]

¥Current AP NameShows the Device Name of the current AP.

¥Transmit PowerShows the RF power output from the transmit-

ter. The AP changes the transmit power of the Remote to match

the desired receive power at the APs receiver. This provides

end-to-end power control.

¥Average RSSIShows average received signal strength indica-

tion (RSSI) of incoming RF signals, displayed in dBm.

112 Mercury Reference Manual 05-4446A01, Rev. C

¥Average SNRShows average signal-to-noise-ratio (SNR) of

received signals, displayed in dB. This is a measurement of the

quality of the incoming signal. It is possible for incoming sig-

nals to be strong, yet be affected by interference or other noise,

resulting in a low SNR. Use this parameter to help determine the

actual quality of signals.

¥Radio DetailsThis selection presents a screen (Figure 3-85)

showing key operating details of the transceiver.

Invisible place holder

Figure 3-85. Radio Details Menu

¥RSSIShows received signal strength indication (RSSI) in

dBm.

¥SNRShows signal-to-noise ratio (SNR) in dB.

¥TX Frequency OffsetShows the RF carrier shift of the Remotes

transmitter, measured in Hertz (Hz). The transmitted frequency

is continually reviewed and adjusted to agree with what the AP

expects to see. This optimization results in more efficient oper-

ation, corrects for doppler shift, and results in higher throughput

between AP and Remote stations.

¥RX Frequency OffsetThis is a measurement of how far in fre-

quency the Remotes receiver has shifted (in Hz) to accommo-

date the incoming signal from the AP.

¥Total FEC CountThis parameter shows the total number of For-

ward Error Correction (FEC) blocks handled by the radio.

¥Corrected FEC CountDisplays the number of errored blocks

corrected with FEC by the radio.

¥Uncorrected FEC CountShows the number of errored blocks that

cant be corrected with FEC by the radio.

05-4446A01, Rev. C Mercury Reference Manual 113

3.12 MAINTENANCE/TOOLS MENU

In the course of operating your network, you may wish to upgrade trans-

ceiver firmware to take advantage of product improvements, work with

configuration scripts, conduct ping tests of your system, or reset oper-

ating parameters to factory default settings. All of these tasks are per-

formed using the Maintenance/Tools Menu (Figure 3-86). This section

explains how to take advantage of these services.

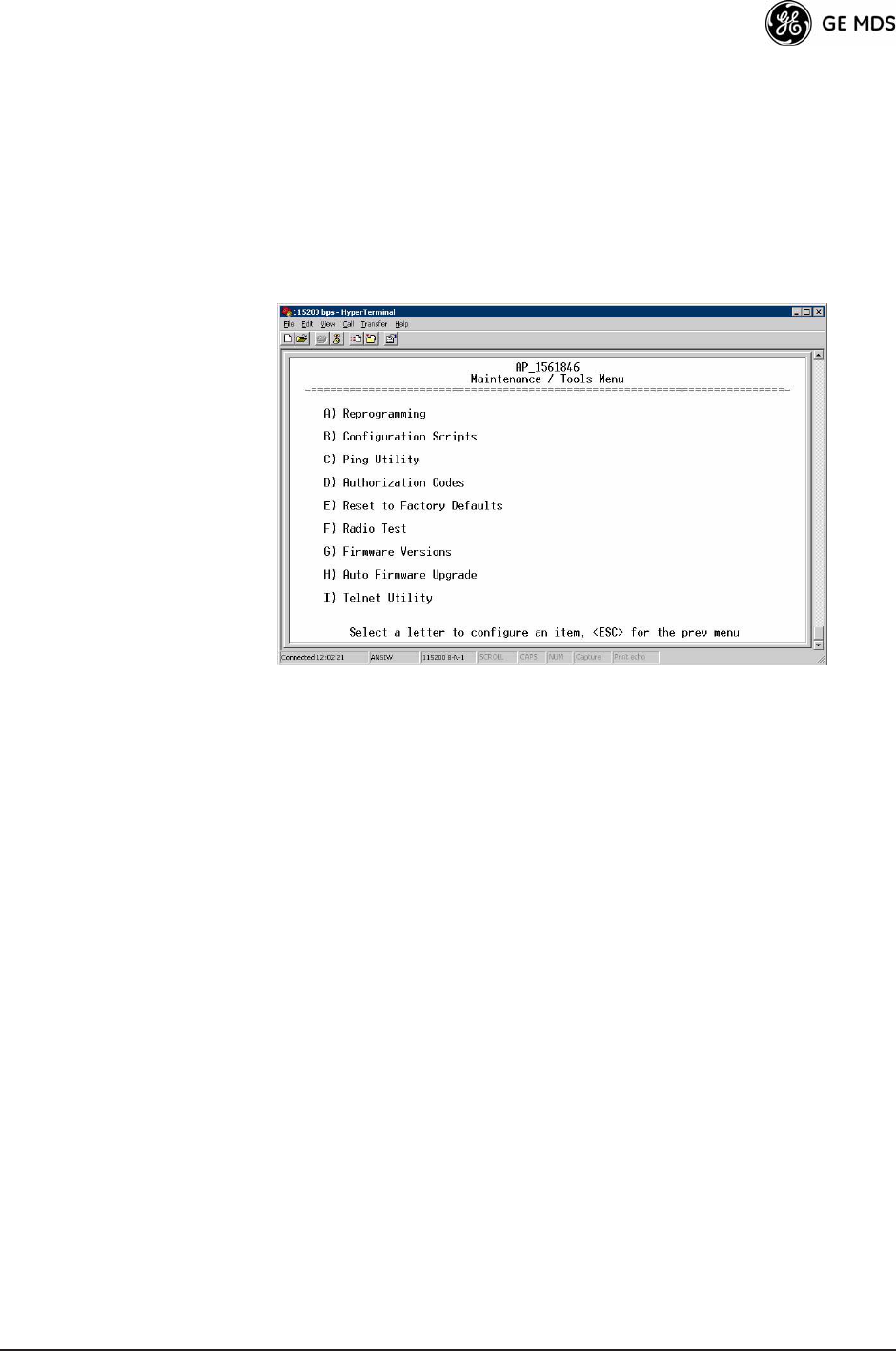

Invisible place holder

Figure 3-86. Maintenance/Tools Menu

¥ReprogrammingManaging and selecting the units operating

system firmware resources. (See Reprogramming Menu on

Page 114)

¥Configuration ScriptsSaving and importing data files contain-

ing unit operating parameters/settings. (See Configuration

Scripts Menu

on Page 119)

¥Ping UtilityDiagnostic tool to test network connectivity.

(See Ping Utility Menu on Page 122)

¥Authorization CodesAlter the units overall capabilities by

enabling the built-in resources. (See Authorization Codes on

Page 123)

¥Reset to Factory DefaultsRestores parameters to factory default

settings. (See Reset to Factory Defaults on Page 123)

¥Radio TestA diagnostic tool for testing RF operation.

(See Radio Test Menu on Page 125)

¥Firmware VersionsShows the firmware code versions stored in

the radio and indicates which one is the active image. (See

Figure 3-87 on Page 114.)

¥Auto Firmware UpgradeBrings up a submenu where you can

perform tasks related to loading new firmware. (See Auto

Firmware Upgrade Menu (AP Only) on Page 124.)

¥Telnet UtilityA submenu for opening Telnet connections to net-

work devices (Figure 3-88 on Page 114).

114 Mercury Reference Manual 05-4446A01, Rev. C

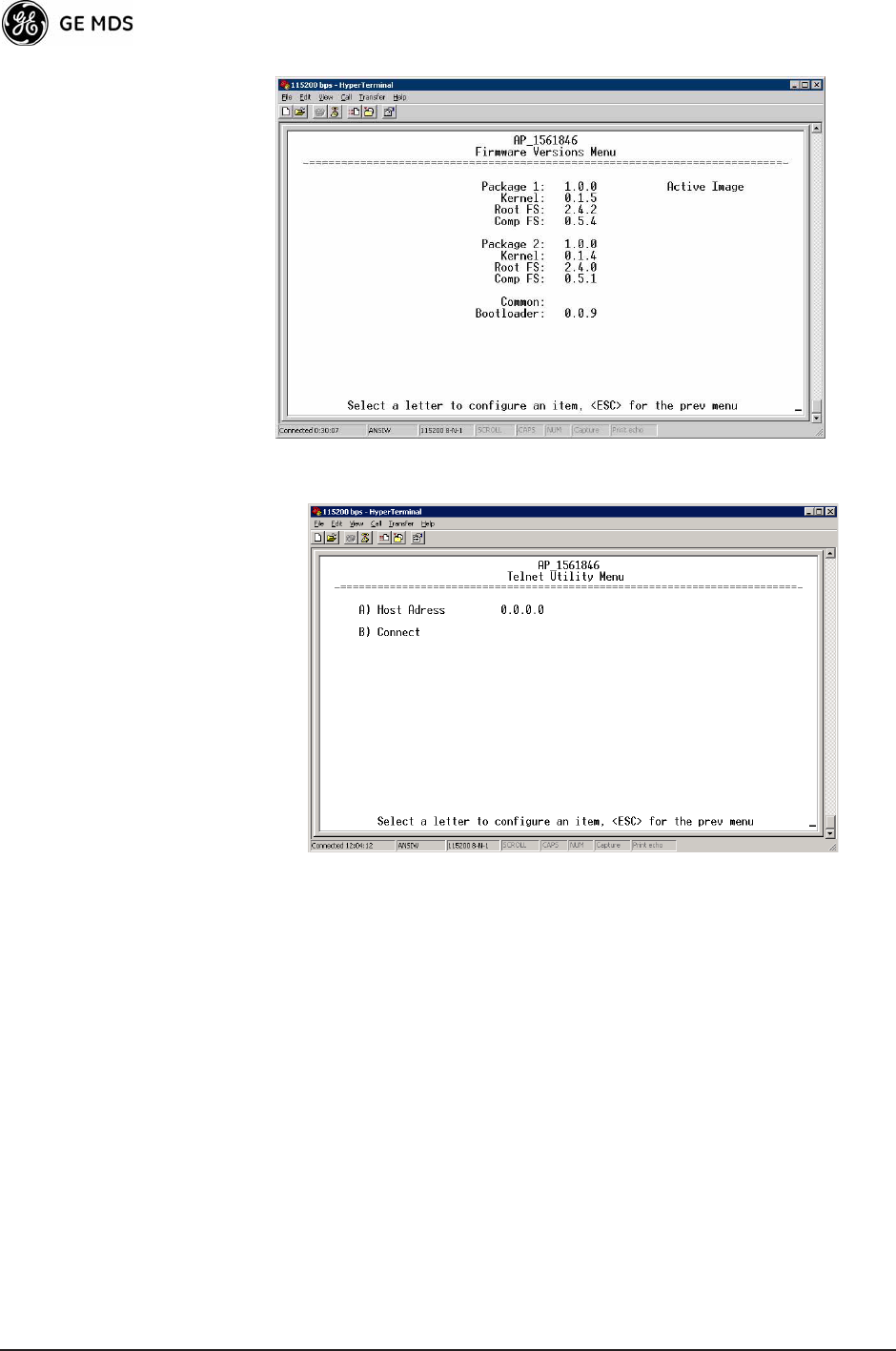

Invisible place holder

Figure 3-87. Firmware Versions Menu

Figure 3-88. Telnet Utility Menu

¥Host AddressThe IP address of the target device.

¥ConnectConnect to the target device at the host address.

Reprogramming Menu

The factory sometimes offers upgrades to the transceiver firmware.

Loading new firmware into the unit will not alter any privileges pro-

vided by Authorization Keys and does not require you to take the trans-

ceiver off-line until you want to operate the unit with the newly installed

firmware image.

Firmware images are available free-of-charge at:

www.GEmds.com/Resources/TechnicalSupport/

05-4446A01, Rev. C Mercury Reference Manual 115

NOTE: Firmware for AP radios is different than for Remotes, and may

not be interchanged. This was only true for earlier (pre-2.1.0)

firmware.

NOTE: Always read the release notes for downloaded firmware. These

notes contain important information on compatibility and any

special steps needed for proper installation.

All units and versions have two resident images. Version 1.4.4 had two

.mpk files, one for the Access Point and one for the Remote. As of ver-

sion 2.1.0, there is only one .mpk file which you can use with both

Access Points and Remotes.

The transceiver has two copies of the firmware (microprocessor code)

used for the operating system and applications. One copy is active and

the second is standing by, ready to be used once activated. You can load

new firmware into the inactive position and place it in service whenever

you desire.

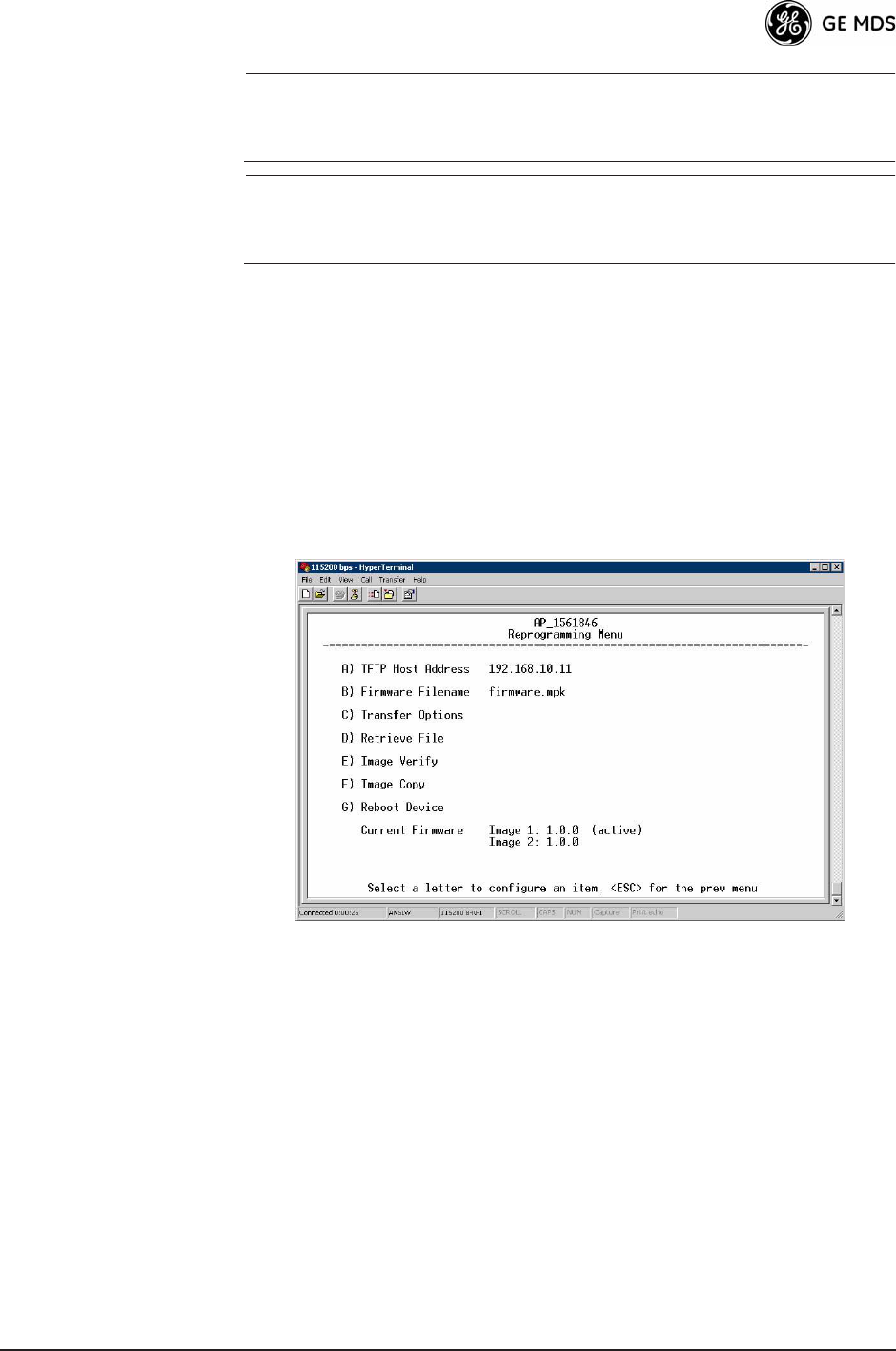

Invisible place holder

Figure 3-89. Reprogramming Menu

¥TFTP Host AddressIP address of the host computer from which

to get the file. [Any valid IP address] This same IP address is used

in other screens/functions (reprogramming, logging, etc.).

Changing it here also changes it for other screens/functions.

¥Firmware FilenameName of file to be received by the TFTP

server. [Any 40-character alphanumeric string] Verify that this cor-

responds to the TFTP directory location. May require sub-direc-

tory, for example: me-bkrc-2_1_0.mpk.

¥Transfer OptionsA menu for configuring the TFTP transfer.

¥Retrieve FileInitiates the file transfer from the TFTP server.

The new file is placed into inactive firmware image. [Y, N ]

¥Image VerifyInitiate the verification of the integrity of firmware

file held in unit.

116 Mercury Reference Manual 05-4446A01, Rev. C

¥Image CopyInitiate the copying of the active firmware into the

inactive image.

¥Reboot DeviceInitiates rebooting of the transceiver. This will

interrupt data traffic through this unit, and the network if per-

formed on an Access Point. Intended to be used for switching

between firmware images 1 and 2.

¥Current FirmwareDisplays the versions of firmware images

installed in the transceiver and shows whether Image 1 or Image

2 is currently active.

NOTE: See Upgrade Procedure on Page 117 for details on setting up

the TFTP server.

Firmware images are available free-of-charge at:

www.GEmds.com/Resources/TechnicalSupport/.

NOTE: You may not install AP firmware in Remote radios, or

vice-versa. This was only true for earlier (pre-2.1.0) firmware.

To install firmware by TFTP, you will need:

¥ A PC with a TFTP server running

¥ The IP address of the PC running the TFTP server

¥ A valid firmware file

The IP address of the radio can be found under the Management

Systems

Starting Information Screen. (See Starting Information Screen

on Page 40.)

A TFTP server is available on the GE MDS Web site at:

www.GEmds.com/Resources/TechnicalSupport/.

TIP: If you do not know your computers address on a Windows PC, you

can use the RUN function from the Start menu and enter winipcfg or

ipconfig to determine your local PCs IP address.

There are several alternatives to connecting the transceiver for firmware

upgrades. Figure 3-90 and Figure 3-91 show two variations. It is essen-

tial that all equipment be on the same subnet.

05-4446A01, Rev. C Mercury Reference Manual 117

Invisible place holder

Figure 3-90. Firmware Upgrade SetupOption 1

(TFTP Server and Firmware File on Same CPU)

Invisible place holder

Figure 3-91. Firmware Upgrade SetupOption 2

(TFTP Server and Firmware File on Remote Server)

NOTE: The LAN and COM1 ports share a common data channel when

loading firmware over-the-air. Transferring the radio firmware

image file (≈ 6 MB) might take several minutes depending on

traffic between the TFTP server and the transceiver.

Regardless of your connection to the transceiver, loading firm-

ware/configuration files into the units flash memory is much

slower than loading software onto a PC hard drive or RAM.

Upgrade Procedure To load a new firmware file (filename.mpk) into the transceiver, use the

following procedure:

LAN

PORT

LOCAL WINDOWS PC

WITH CONFIG. FILES

IP ADDRESS: 172.0.0.A

IP ADDRESS: 172.0.0.B

TFTP

SERVER

& TELNET

TRANSCEIVER

INITIATE UPLOAD

FROM HERE

TRANSCEIVER

IP ADDRESS: 172.0.0.B

TFTP

SERVER ETHERNET

PORT

COM1

PORT

(DCE)

INITIATE UPLOAD

FROM HERE

REMOTE PC

W/FIRMWARE FILES

HUB/LAN/WAN/MAN

TCP/IP

LAN

PORT

COM1, 2, ETC.

(DTE)

IP ADDRESS: 172.0.0.A

LOCAL WINDOWS PC

IP ADDRESS: w.x.y.z

118 Mercury Reference Manual 05-4446A01, Rev. C

1. Launch a TFTP server on a PC connected either directly or via a

LAN to the Ethernet port (LAN) of the radio. Point the server

towards the directory containing the firmware image file.

2. Connect to the Management System by whichever means is conve-

nient: browser or Telnet via the LAN, or Terminal emulator via the

COM1 port.

3. Go to the MS Reprogramming Menu.

(Main Menu>>Maintenance Menu>>Reprogramming Menu)

4. Fill in the information for the:

¥TFTP Host AddressIP Address of server (host computer) run-

ning TFTP server.

¥Firmware FilenameName of file ( filename.mpk) to be down-

loaded from the TFTP server holding the firmware file.

5. Download the firmware file from the TFTP server into the trans-

ceiver.

(Main Menu>>Maintenance Menu>>Reprogramming Menu>>Retrieve File)

Status messages on the transfer are posted on the Management Sys-

tem screen.

NOTE: The new firmware image file that replaces the Inactive

Image file is automatically verified.

6. Reboot the transceiver.

Main Menu>>Maintenance Menu>>Reprogramming Menu>>Reboot Device

7. Test the transceiver for normal operation.

End of Procedure

Error Messages During File Transfers

It is possible to encounter errors during a file transfer. In most cases, you

can correct errors by performing the corrective actions described in

Table 3-9.

Table 3-9. Common Errors During TFTP Transfer

Error Message Likely Cause/Corrective Action

Invalid File Type Indicates that the file is not a valid firmware

file. Locate proper file and re-load.

File not found Invalid or non-existent filename on TFTP

server.

Invalid file path Invalid or non-existent file path to TFTP server.

Timeout TFTP transfer time expired. Increase the

timeout value.

05-4446A01, Rev. C Mercury Reference Manual 119

Configuration Scripts Menu

A configuration script file contains all of a radios setable parameters

that are accessible through the menu interface, with a few exceptions. A

configuration script file is in plain text format and can be easily edited

in any text program.

Configuration scripts can be helpful in several ways. Three common

uses for them are:

¥ To save known-good configuration files from your radios.

These can be used for later restoration if a configuration prob-

lem occurs, and it is unclear what parameter is causing the issue.

¥ To facilitate the rapid configuration of a large number of radios.

¥ To provide troubleshooting information when you contact the

factory for technical support. A technician can often spot poten-

tial problems by reviewing a configuration file.

How Configuration Files Work

When a configuration script file is downloaded to a radio (Retrieve File),

the radio executes the parameters as commands and takes the values

contained in it. When a configuration script file is uploaded from the

radio (Send), it contains the current values of the radios configuration

parameters. Figure 3-92 on Page 120 shows the Configuration Scripts

Menu.

Flash Error Flash memory error. Contact factory for

assistance.

Bad CRC Cyclic Redundancy Check reporting a

corrupted file. Attempt to re-load, or use a

different file.

Version String Mismatch Invalid file detected. Attempt to re-load, or use

a different file.

Table 3-9. Common Errors During TFTP Transfer (Continued)

Error Message Likely Cause/Corrective Action

GE MDS DS-MERCURY3650 Wireless IP/Ethernet Transceiver User Manual Book1

GE MDS LLC Wireless IP/Ethernet Transceiver Book1

Contents

Revised user manual 2 of 3

Navigation menu

Namespaces

Views

Navigation
