X82-BLST-SP77X_User Manual_Rev1
Electronic Ballast For Electrodeless Fluorescent Lamp
1.Product code.
150W SP779#
200W SP780#
Note: # means the model designation may be followed by suffix.
2.Outside characteristic.
The outside picture of Electronic Ballast For Electrodeless Fluorescent Lamp as below,
there are three wires at input port, L line is blue,N line is gray, GND line is yellow and green.
There are two white wires at output port. The input wires connect to the power grid, and the
output wires connect to the Electrodeless Fluorescent Lamp.

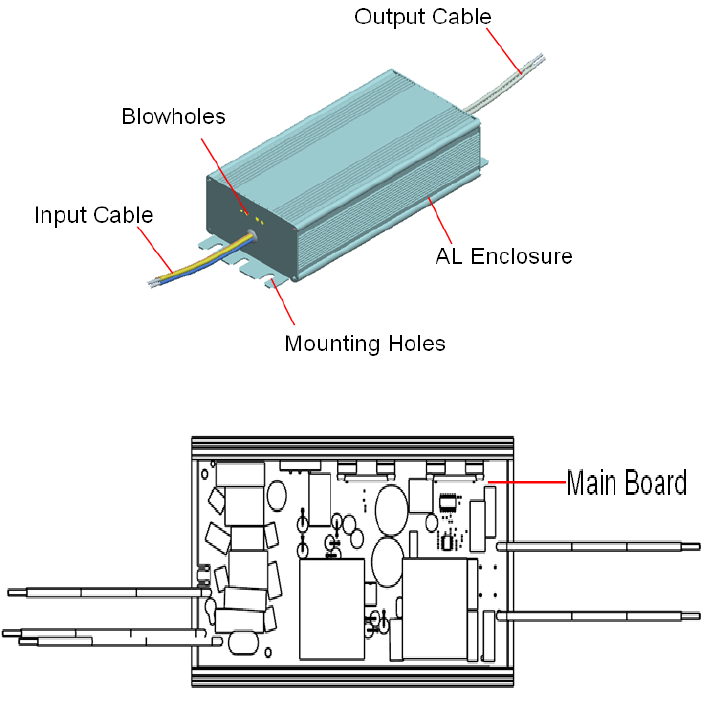

Outside picture
Inside picture

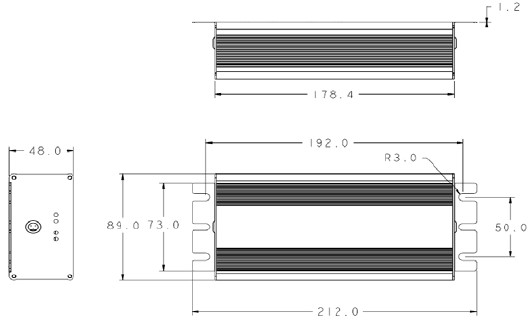

Size:
Size picture
3.Electrical characteristic.
1) Input Voltage: 90-150Vac
2)Input Rating Current
1.5A @120V--electrodeless lamp 150W
1.9A @120V--electrodeless lamp 200W
3)Output Rating Current
0.81A (load,electrodeless lamp 150W)
0.96A (load,electrodeless lamp 200W)
4)Output Rating Voltage
190V (load,electrodeless lamp 150W)
210V (load,electrodeless lamp 200W)
5)Start Trigger Voltage
2000±100Vop (load,electrodeless lamp 150W)
2350±100Vop (load,electrodeless lamp 200W)
6)Output Frequency
230K±30kHz(load,electrodeless lamp 150W)
230K±30kHz(load,electrodeless lamp 200W)
7)Open circuit and short circuit protection
4.Ambient temperature.
Generally the ballast is set up in the lamps and lanterns to use, the ambient temperature of
ballast is -40--60℃ in lamps and lanterns.
FCC STATEMENT:
This light device has been tested and found to comply with the limits for Consumer
RF Lighting device, pursuant to Part 18 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
This product may cause interference to radio equipment and should not be installed
near maritime safety communications equipment or other critical navigation or
communication equipment operating between 0.45 – 30MHz.
