Electronic Ballast for Electrodeless Fluorescent Lamp
SP779-Y01A 150W & SP780-Y01A 200W
LINEAGE POWER 1
Description

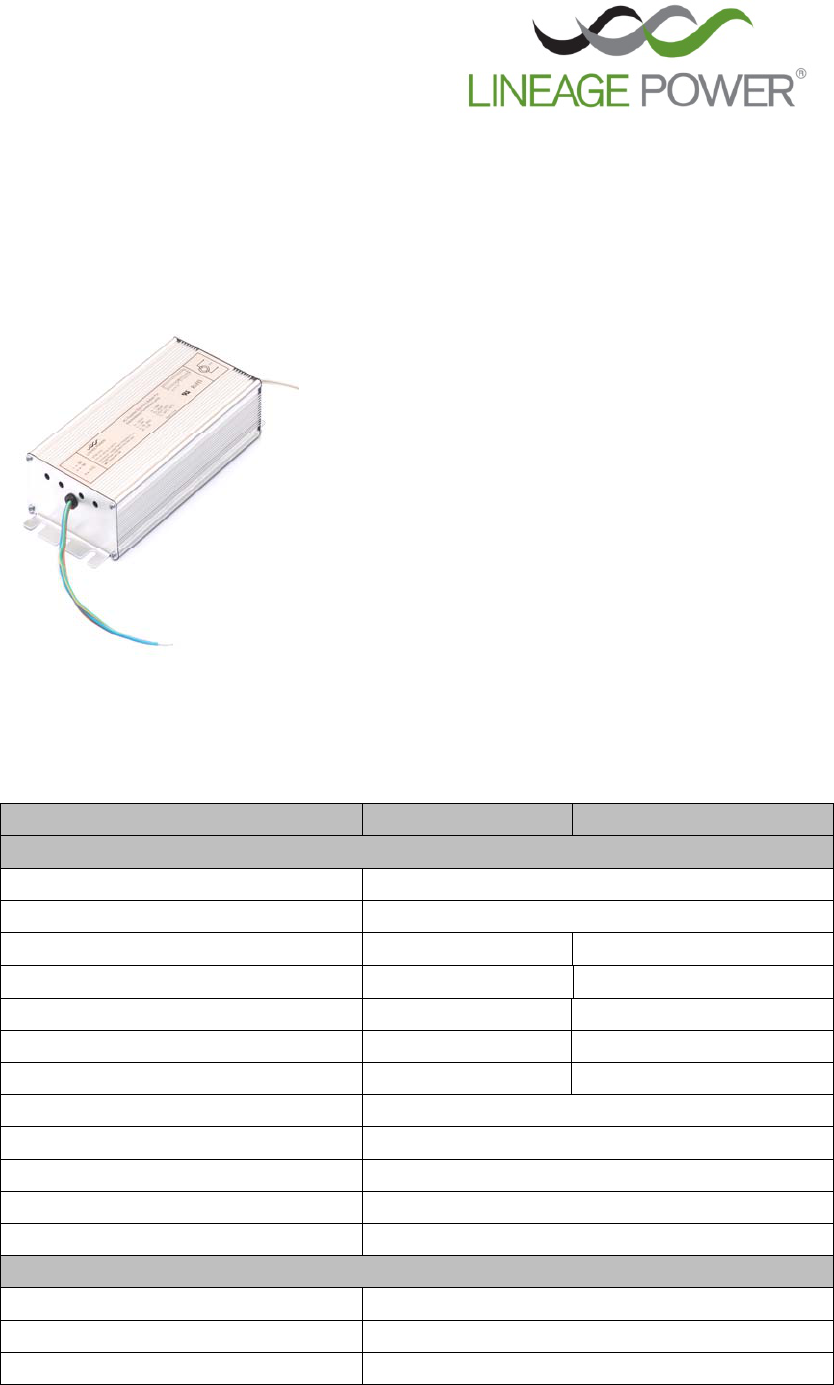

Specifications
Items SP779-Y01A 150W SP780-Y01A 200W
Electronic
Input Voltage Range 90 ~305Vac
Input Frequency Range 47 ~ 63Hz
Rated Input Current 120Vac/277Vac 1.5A/0.59A 1.9A/0.8A
Inrush Current ≤60Apk ≤65Apk
Efficiency (120Vac) ≥ 90% ≥ 90%
Rated Lamp Current 0.81A 0.96A
Rated Lamp Voltage 190Vac 210Vac
Uout 300V
Power Factor > 0.95
THD < 15%
Output Operation Frequency 230K ± 30kHz
Protection*1 No load , load short and lamp removed
Environmental
Ambient Operating Temperature*2 (Ta) -40 - 60℃
Max case Temperature (Tc) 70 ℃
Usage*3 In Fixture Only
SP779-Y01A and SP780-Y01A electronic ballasts
for electrodeless fluorescent Lamp offer improved
energy efficiency. The electronic ballasts are
extremely robust, using the high quality
components, and extremely efficient. There allow
them to run at an ambient temperature from -40℃
to +60 ℃ and at maximum case temperature of
70℃. In addition, input voltage fluctuations do not
affect the Ballast’s output power, ensuring steady
light output within the entire specified voltage
range. The Electronic Ballasts are designed with
a variety of safeguards to protection. The ballast
meets with UL.
Datasheet
April, 2011
LINEAGE POWER 2
Electronic Ballast for Electrodeless Fluorescent Lamp
SP779-Y01A 150W & SP780-Y01A 200W
Specifications (Continued)
Isolation
Isolation Resistance
Isolation Voltage
> 200MΩ
1600Vac
Max Ignition Voltage 2000Vpeak 2350Vpeak
Emission*4 FCC Part 18
Safety Standards UL935
Approvals*5 UL
Other General Standards QB/T2871
Service Life 5 Years (Rated Input Voltage, Ta= 40℃)
RoHS*6 RoHS 5/6 Compliance
Physical
Cooling Nature Cooling
Dimensions (L X W X H) 212.0 X 89.0 X 48.0 mm
Weight 0.91kg
1. Reset method: power off and waiting for over 15second, then power up again.
2. Generally the ballast is set up in the lamps and lanterns to use, the ambient temperature of ballast is -40--60
℃
in
lamps and lanterns, use low temperature lamp under -20
℃
.
3. For installation, please refer to installation manual.
4. This product may cause interference to radio equipment and should not be installed near maritime safety
communications equipment or other critical navigation or communication equipment operating between
0.45–30MHz.
5. Those products have been evaluated for using in TYPE 1 OUTDOOR; belong to CLASS P PROTECTED,
INHERENT THERMAL PROTECTION BALLAST; Earthing connection essential before connecting AC supply.
6. Please contact Lineage Power representative if need RoHS 6 compliance products.
Datasheet
April, 2011
LINEAGE POWER 3
Electronic Ballast for Electrodeless Fluorescent Lamp
SP779-Y01A 150W & SP780-Y01A 200W

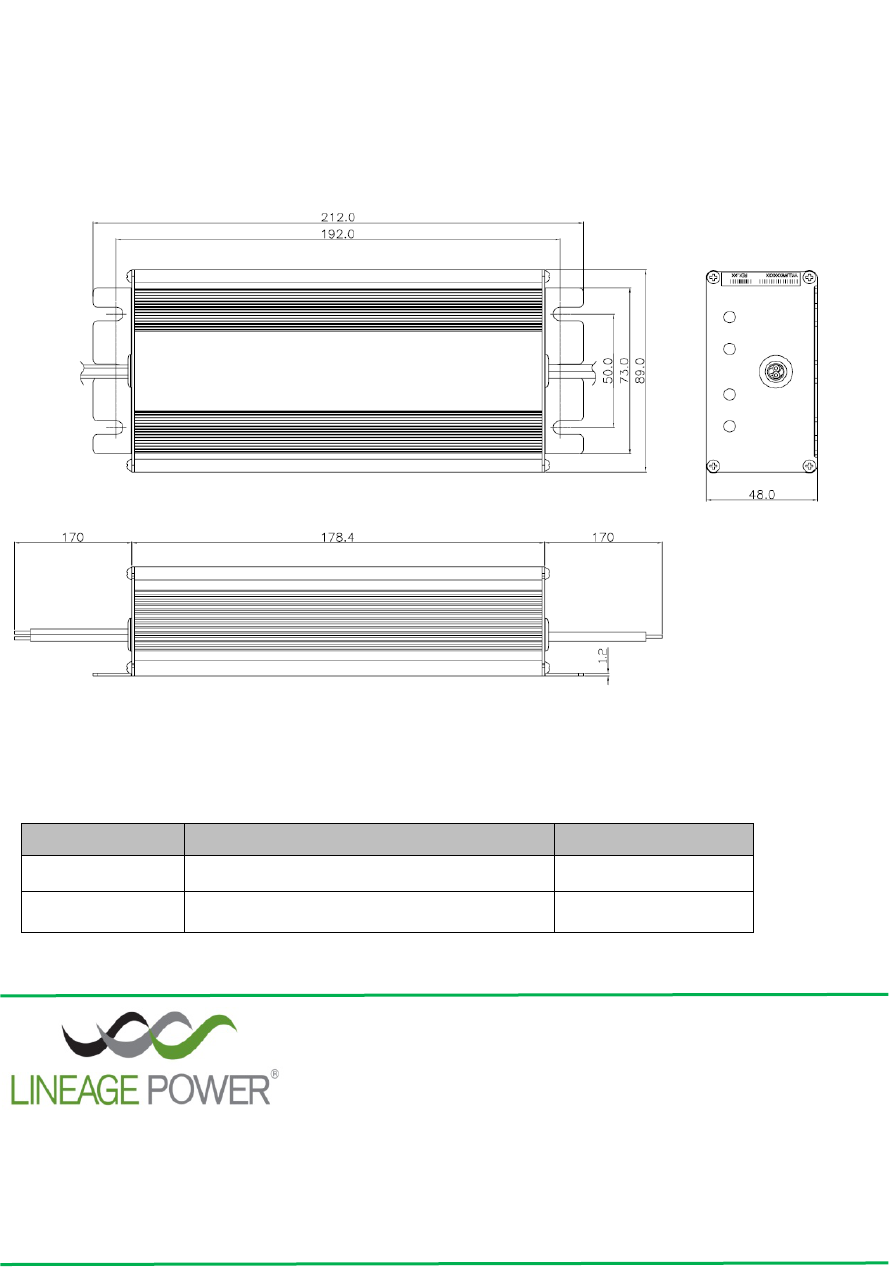

Dimensions (mm)
Ordering Information
Item Description Comcode
EP200_LL electronic ballast for 200W lamp CC109163845
EP150_LL electronic ballast for 150W lamp CC109164356
If additional information is needed, please consult with your Lineage Power representative for more details.
Lineage Power (Shanghai) Co., Ltd
+86 021 54279977
www.lineagepower.com
Address: 1-2F, Building #58, No. 461 Hongcao Road, Caohejing Hi-Tech Park, Shanghai 200233,China
Lineage Power reserves the right to make changes to the product(s) or information contained herein without notice. No liability
is assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or
information.
© 2011 Lineage Power (Shanghai) Co., Ltd. All International Rights Reserved.
Revision: 1.0
