GE Power Electronics BLST-SP792 Electric Discharge Lamp Control Equipment User Manual User s Manual rev2
GE Power Electronics (Shanghai) Co., Ltd. Electric Discharge Lamp Control Equipment User s Manual rev2
User's Manual_rev2
Electronic Ballast For Electrodeless Fluorescent Lamp
1.Product code.
300W SP792-Y01A or SP792-Z01A
2.Outside characteristic.

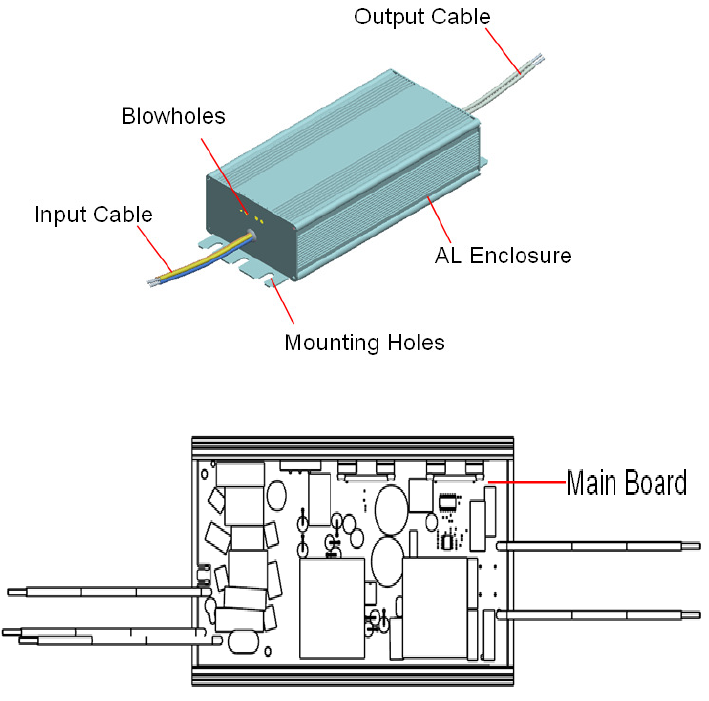

The outside picture of Electronic Ballast For Electrodeless Fluorescent Lamp as below,
there are three wires at input port, L line is blue,N line is gray, GND line is yellow and green.
There are two white wires at output port. The input wires connect to the power grid, and the
output wires connect to the Electrodeless Fluorescent Lamp.
Outside picture
Inside picture

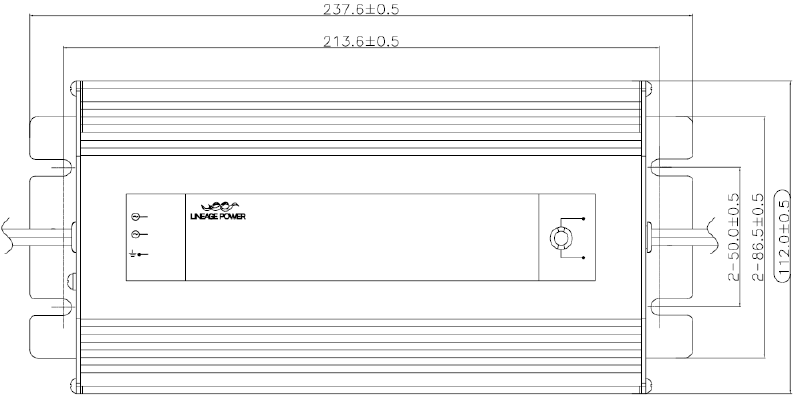

Size:
Size picture
3.Electrical characteristic.
1) Rated Input Voltage: 120~277Vac
2)Input Rating Current
2.83A/1.48A/1.26A
@
120Vac/230Vac/277Vac
--electrodeless lamp 300W
3)Output Rating Current
1.25A (load, electrodeless lamp 300W)
4)Output Rating Voltage
240V (load, electrodeless lamp 300W)
5)Start Trigger Voltage
2350±100Vop (load,electrodeless lamp 300W)
6)Output Frequency
230K±30kHz(load,electrodeless lamp 300W)
7)Open circuit and short circuit protection
4.Ambient temperature.
Generally the ballast is set up in the lamps and lanterns to use, the ambient temperature of
ballast is -40--55℃ in lamps and lanterns.
5. Warning:
This product may cause interference to radio equipment and should not be installed near
maritime safety communications equipment, ships at sea or other critical navigation or
communication equipment operating between 0.45–30MHz.
