ge.com

F--

oL__

LJj

{!1

Safety Instructions .......... 2,s

Operating Instructions

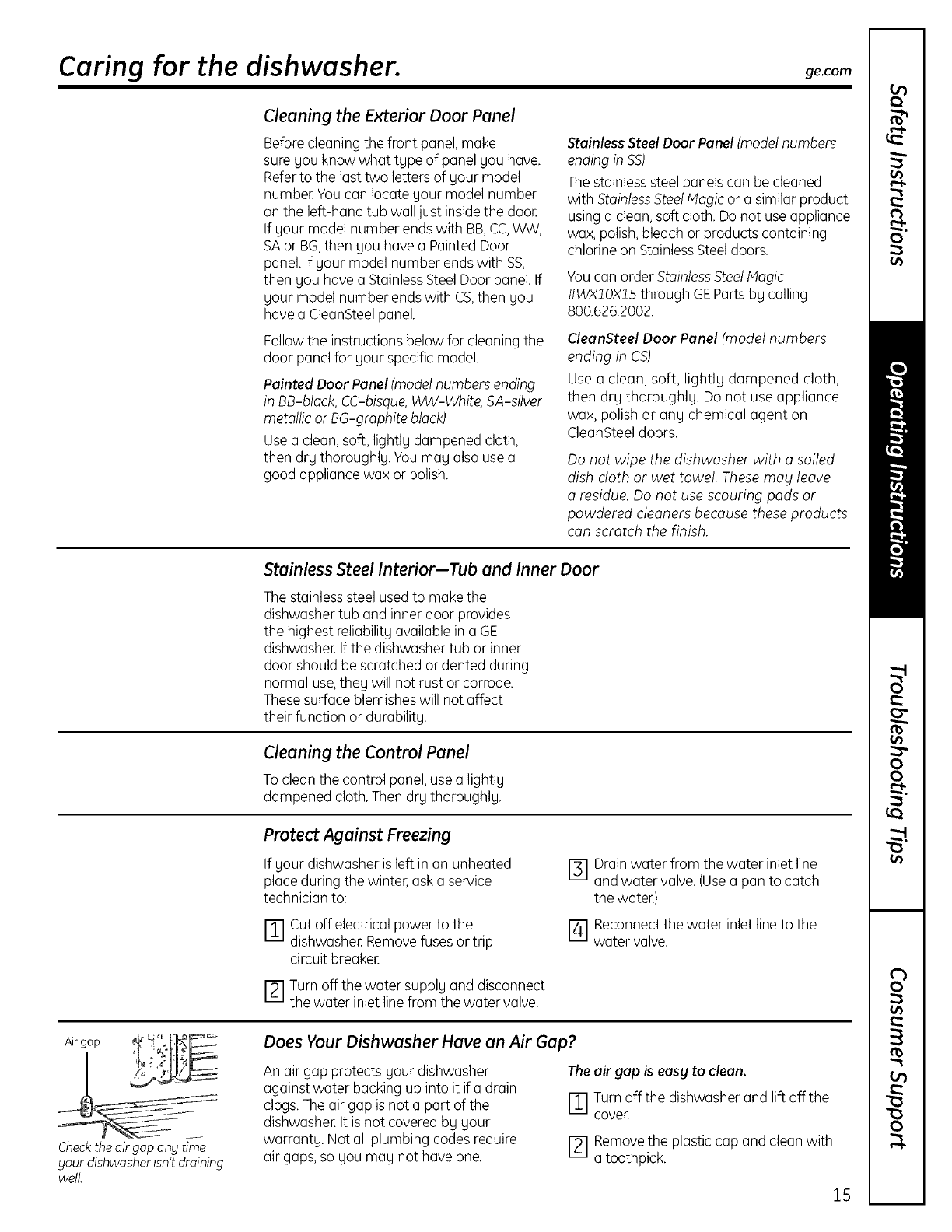

Care and Cleaning ................ 15

Control Panel and Settings ....... 4-7

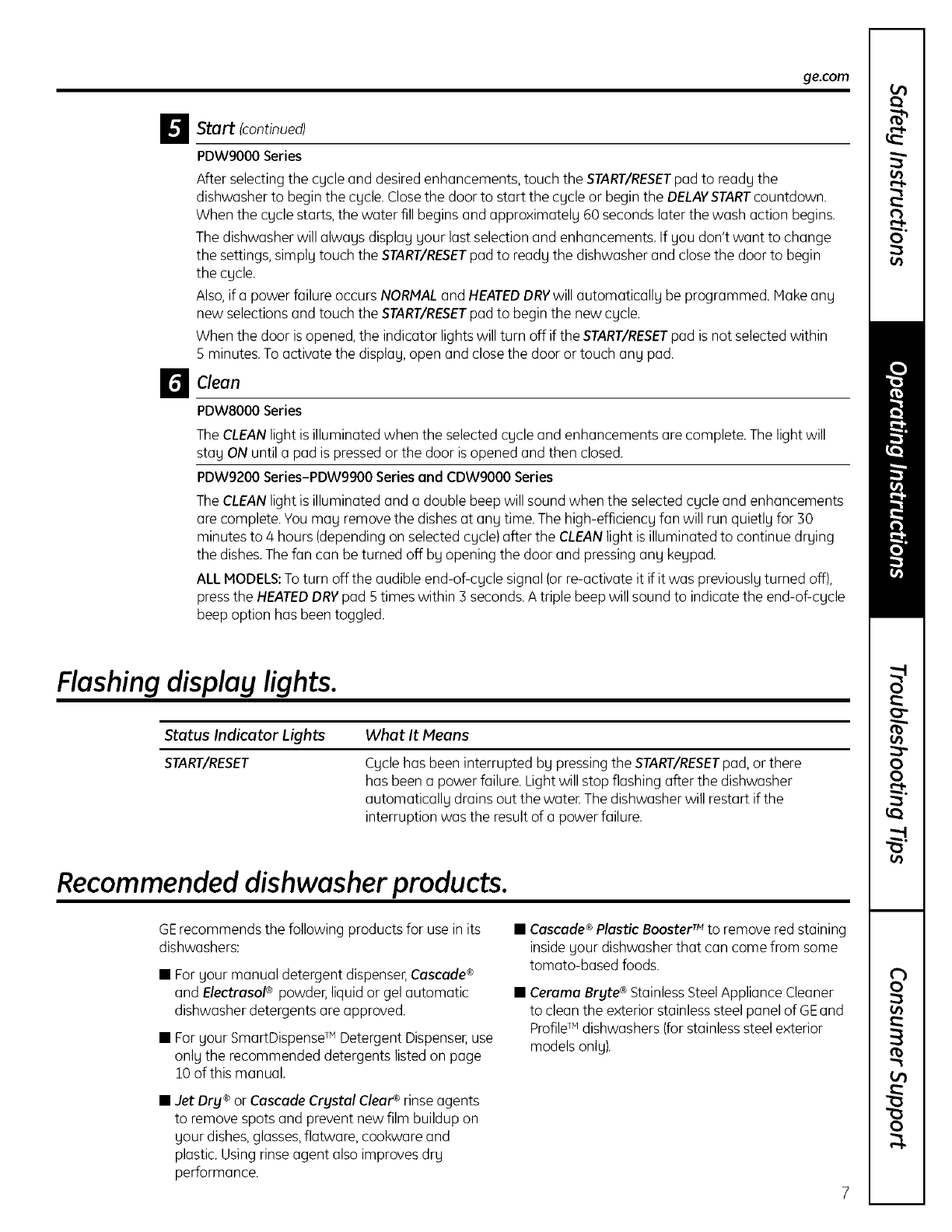

Flashing Displag Lights .............. 7

Loading Place Settings ............ 14

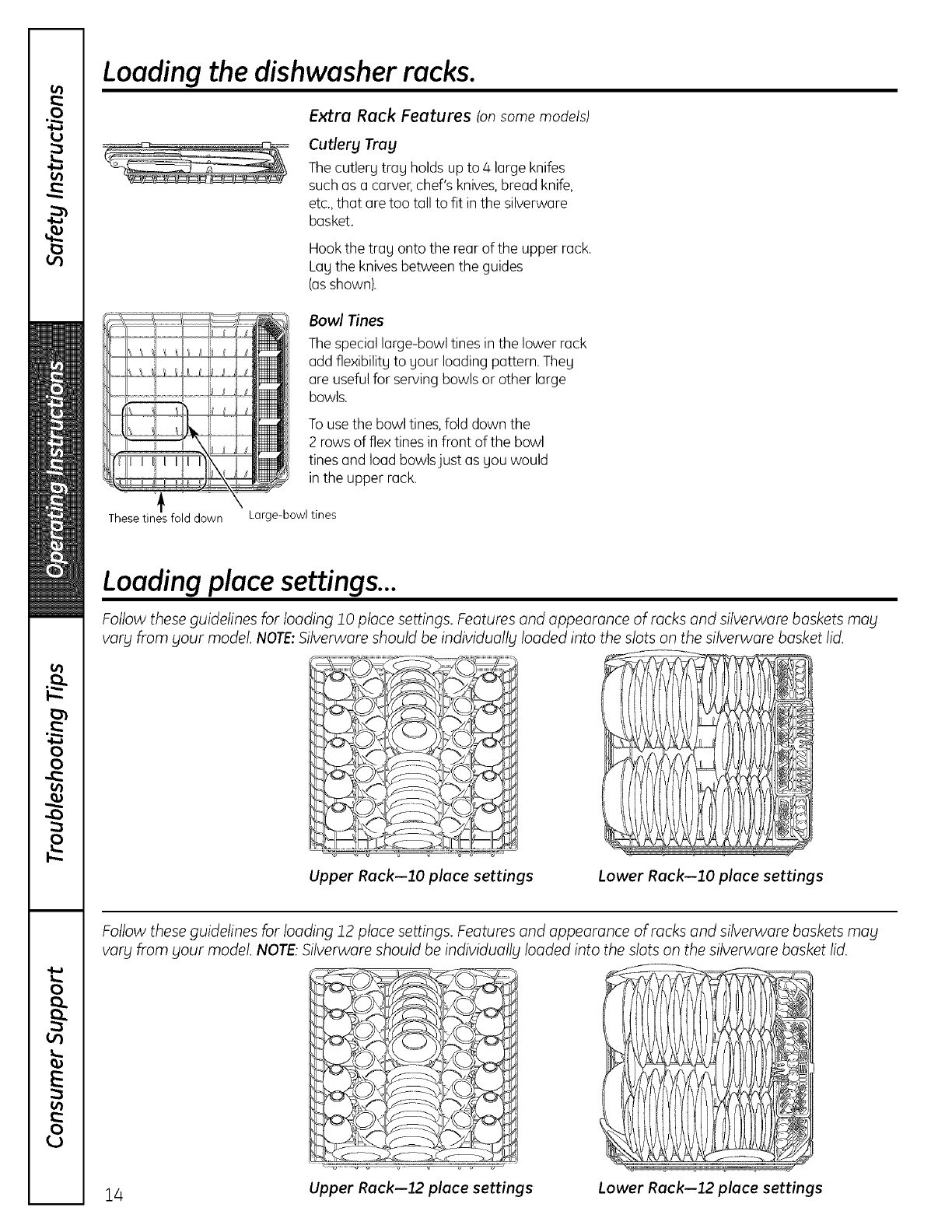

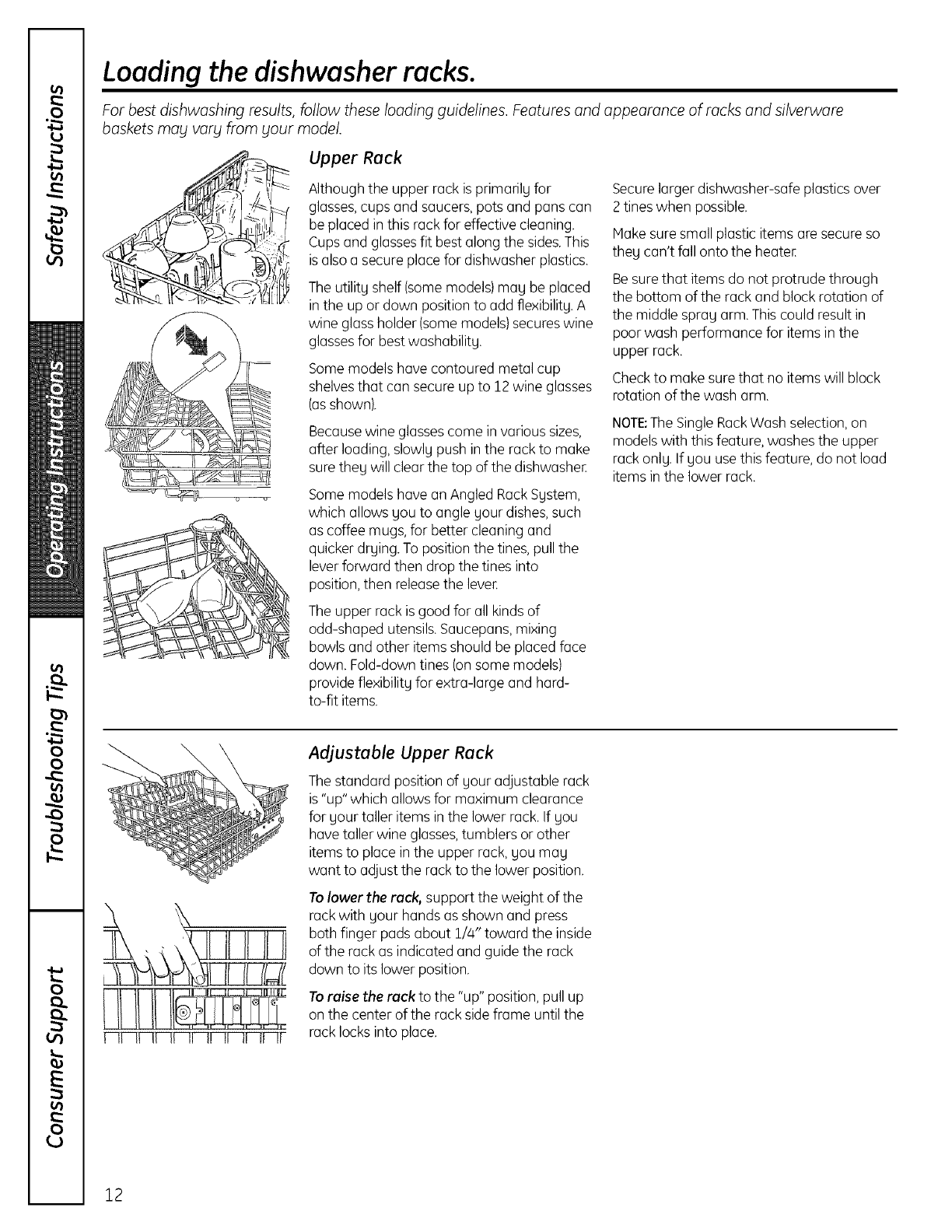

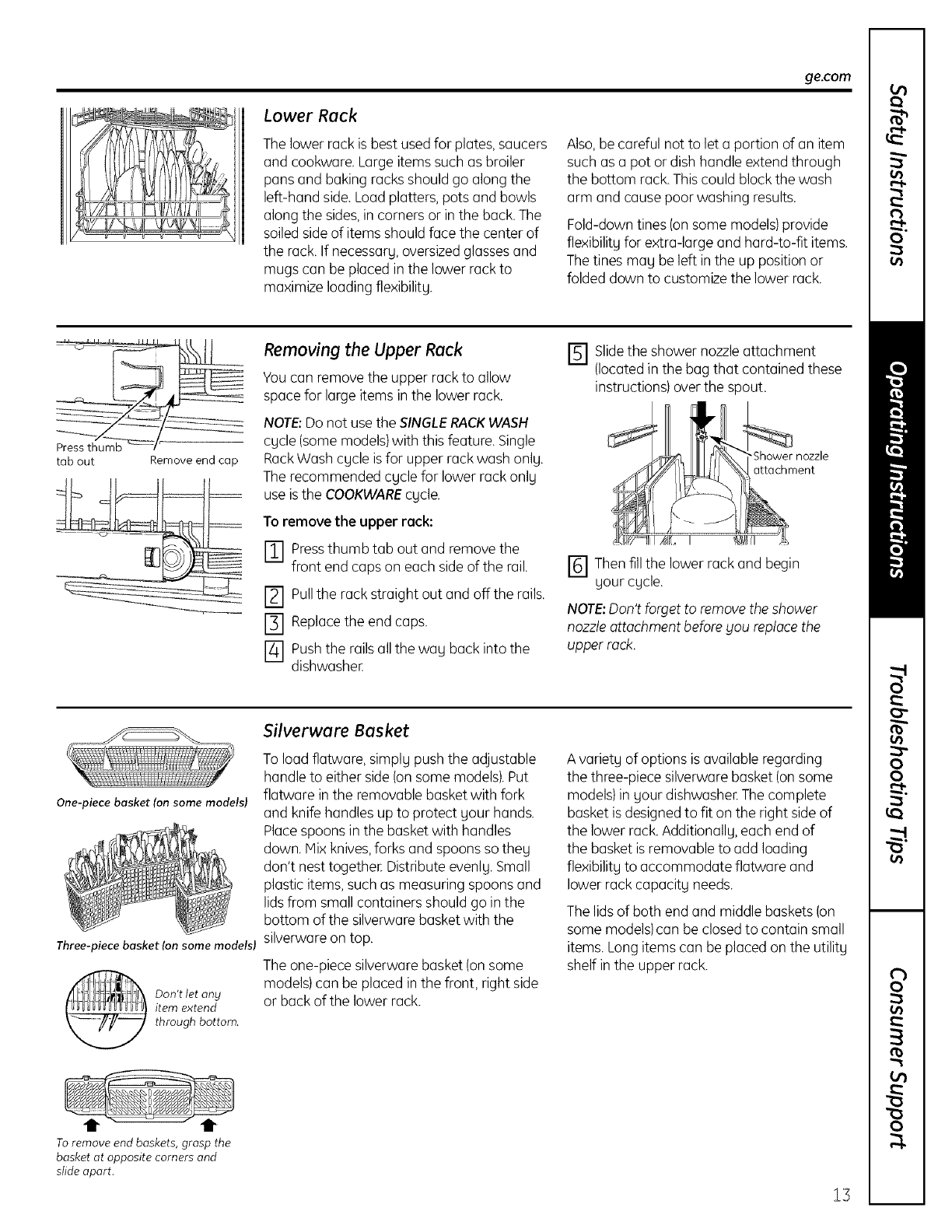

Loading the Racks ............. 12-14

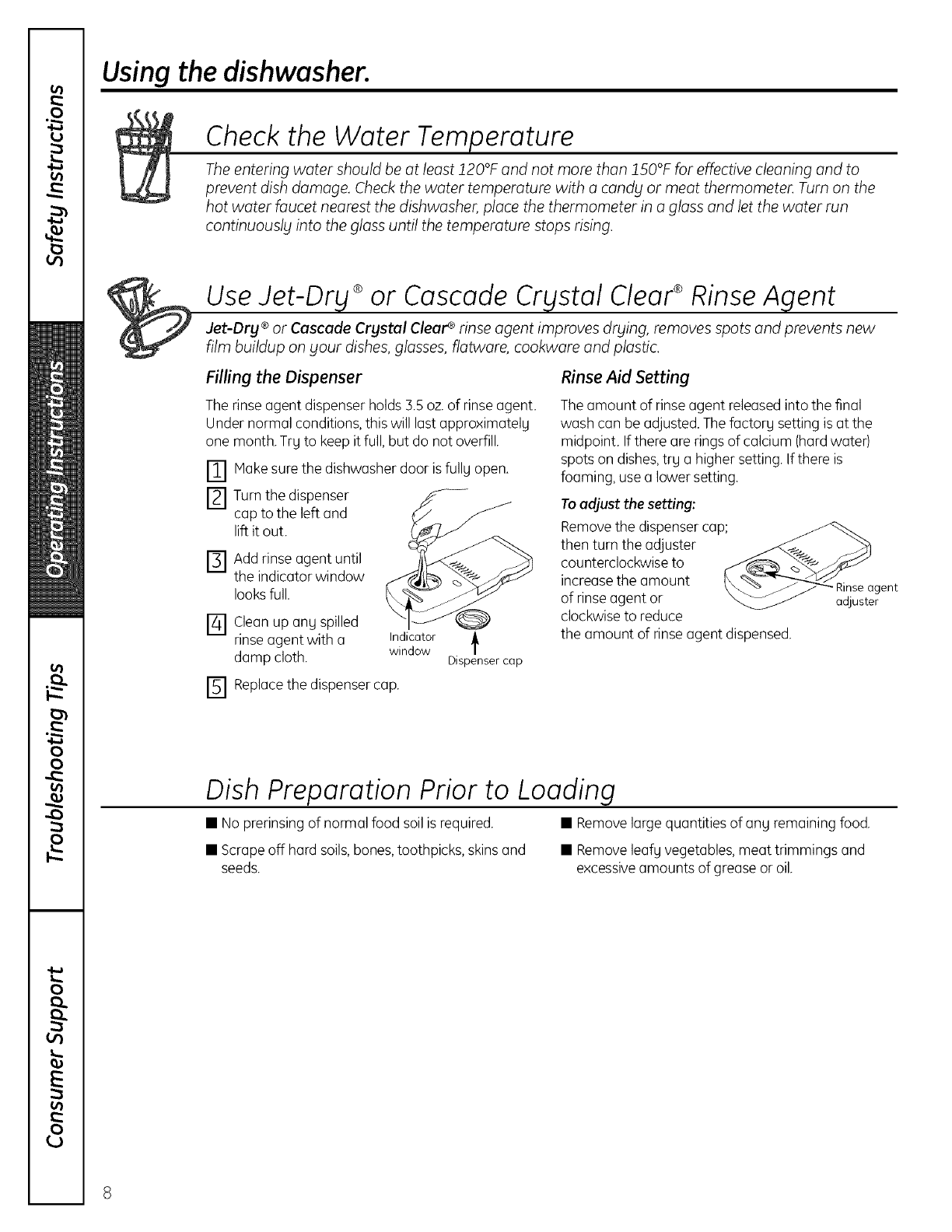

Using the Dishwasher ........... 8-11

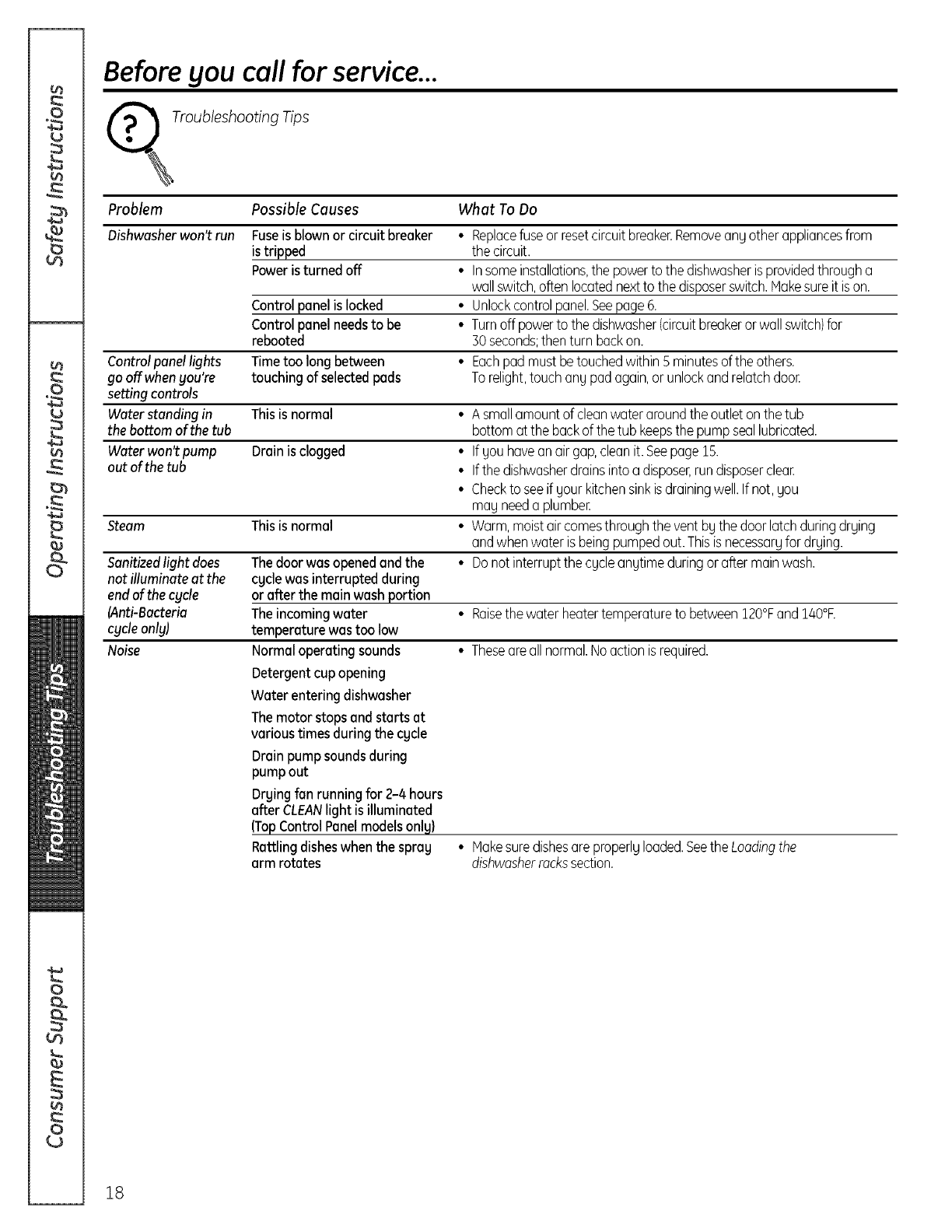

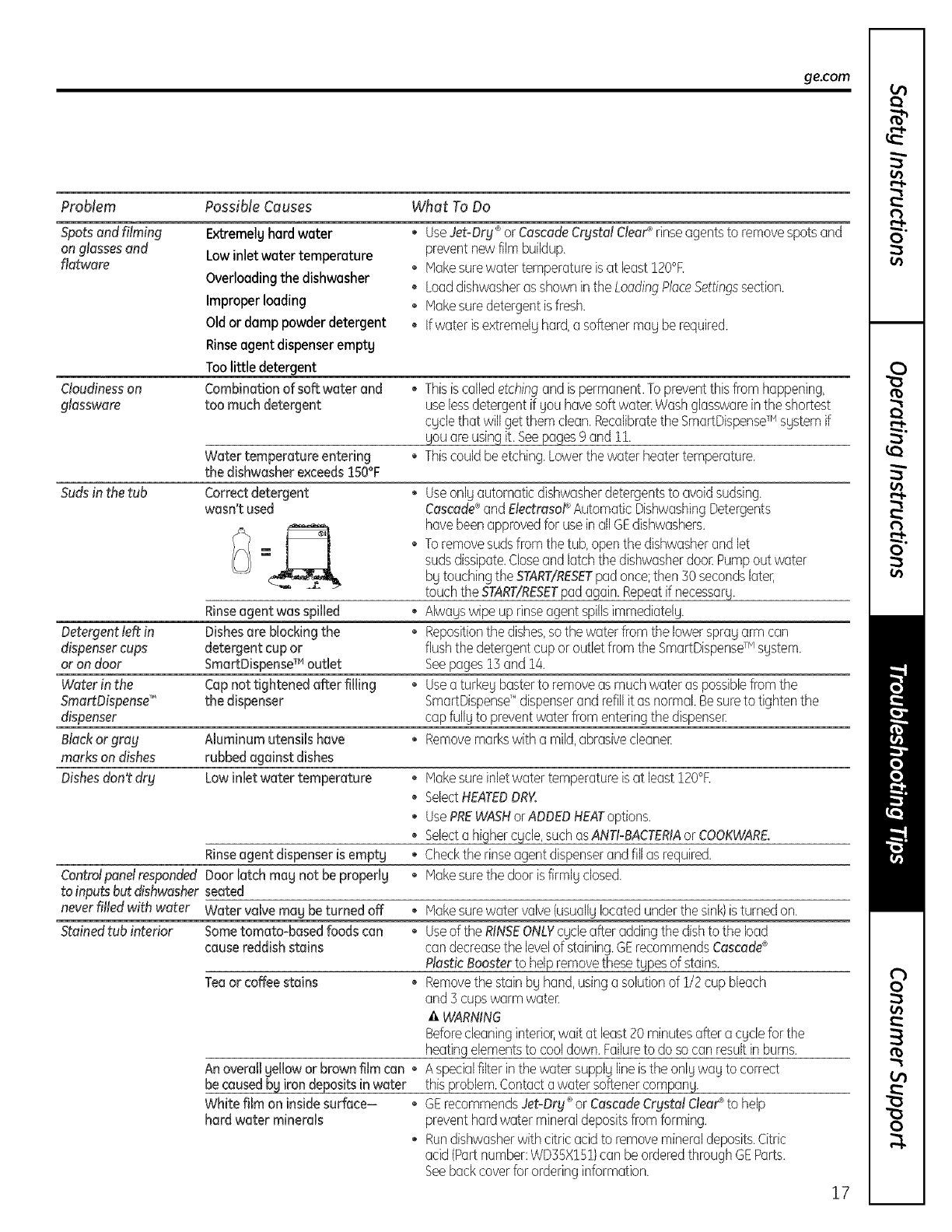

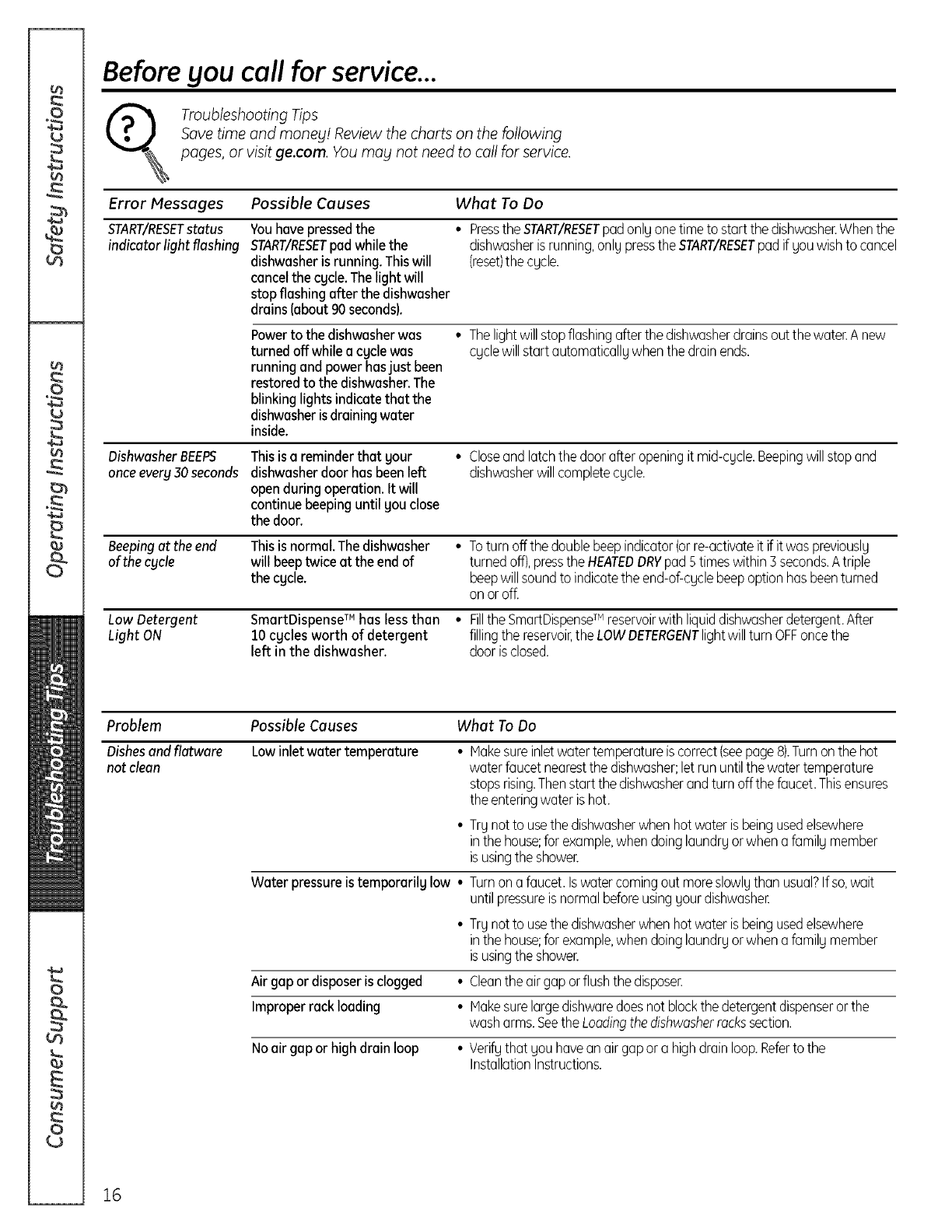

Troubleshooting Tips ..... 16-18

Consumer Support

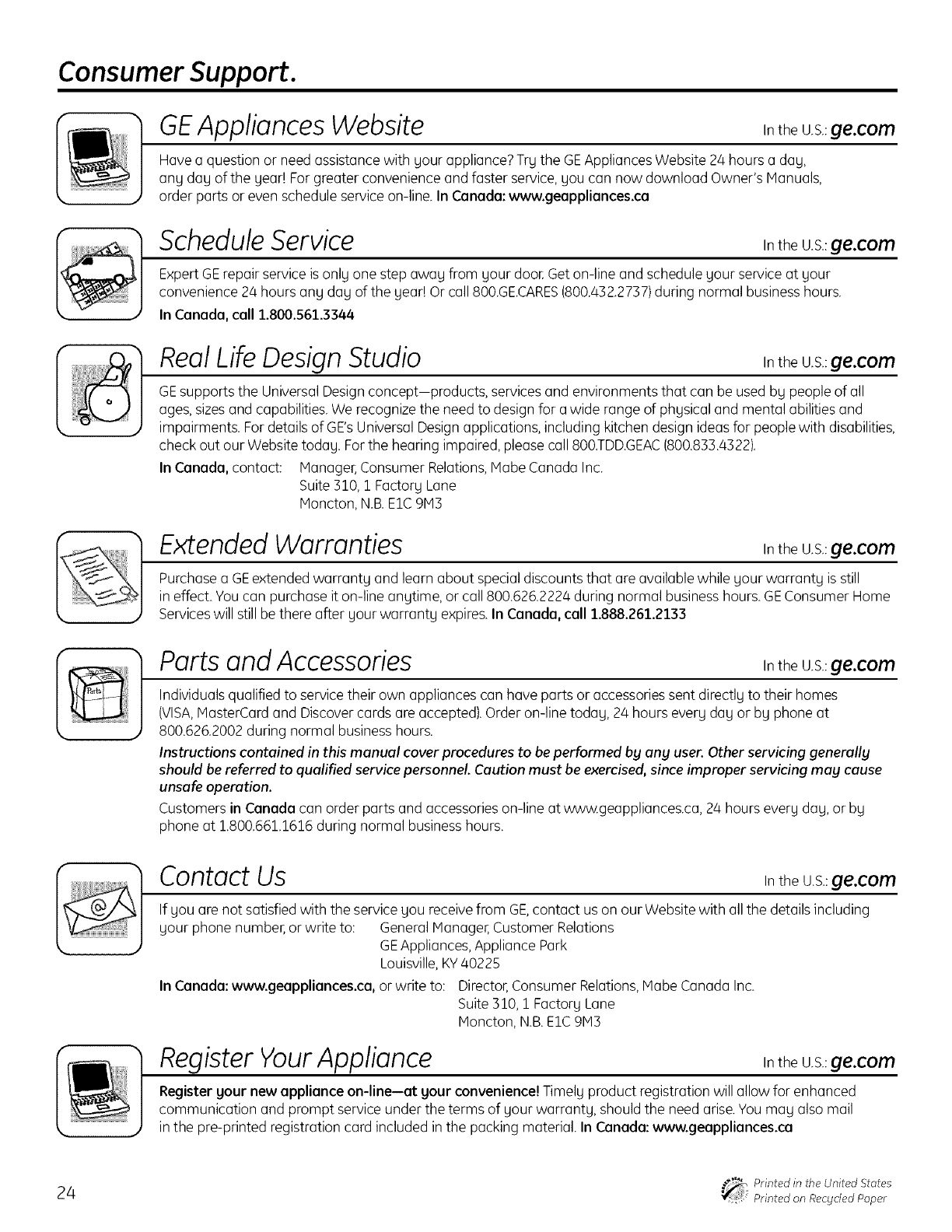

Consumer Support ................ 24

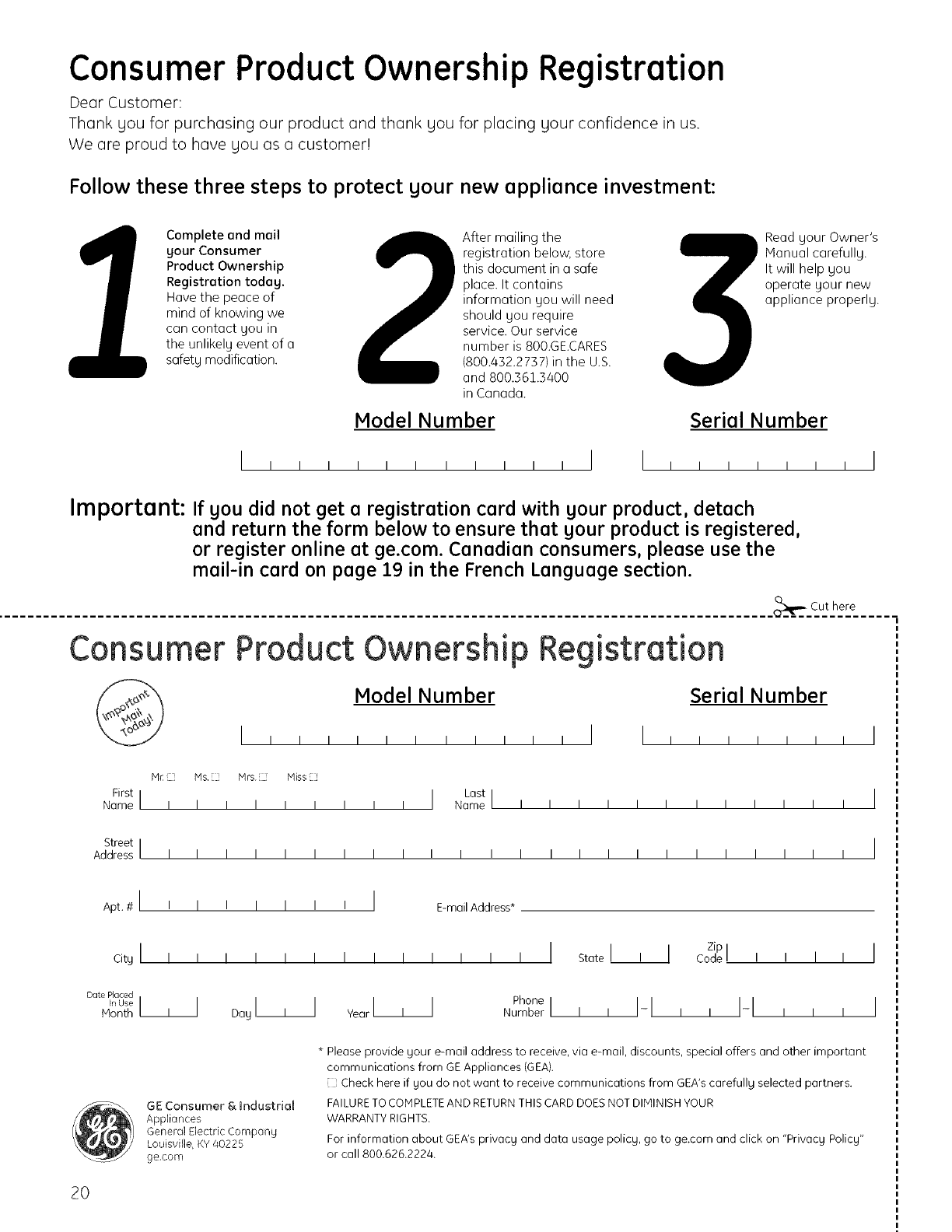

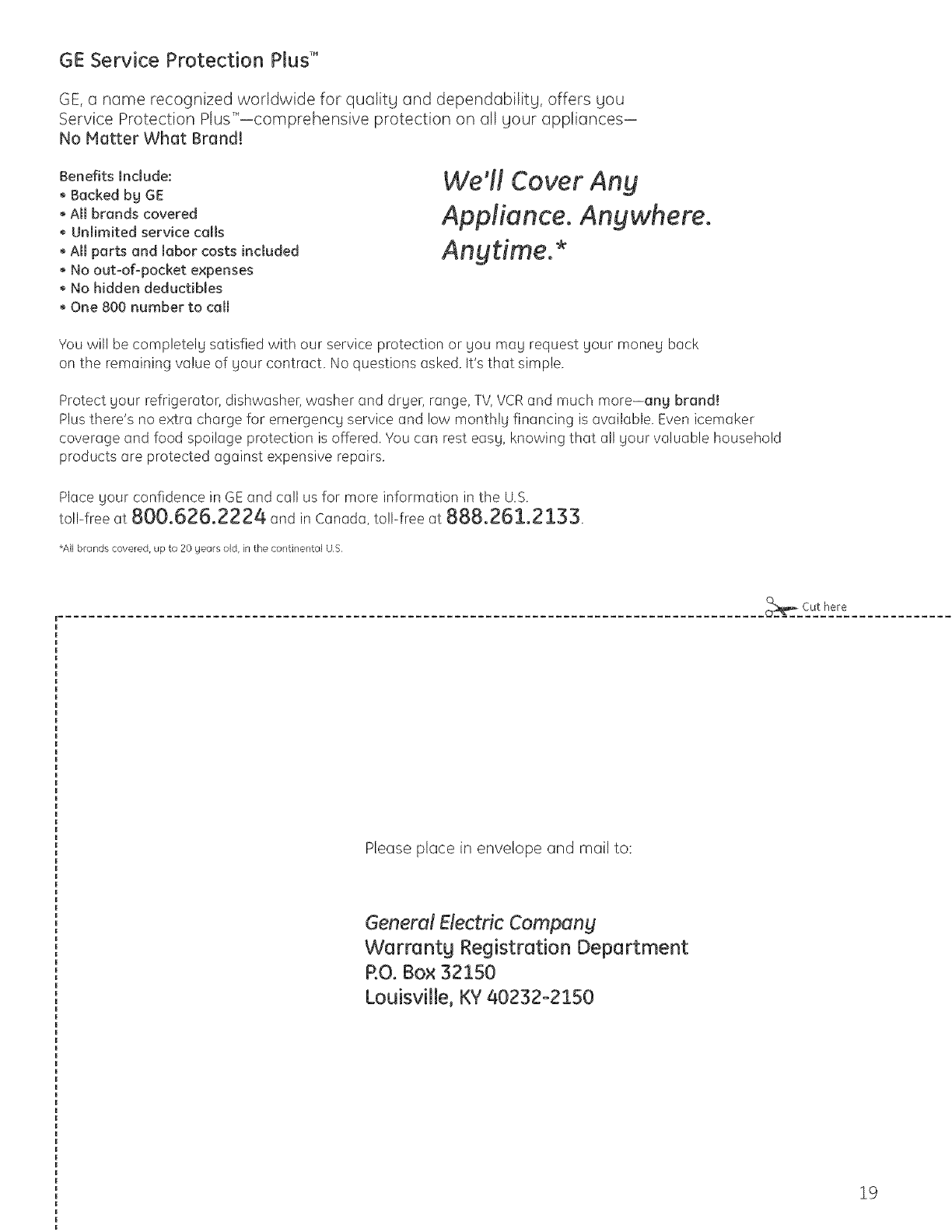

Product Registration ........... 19, 20

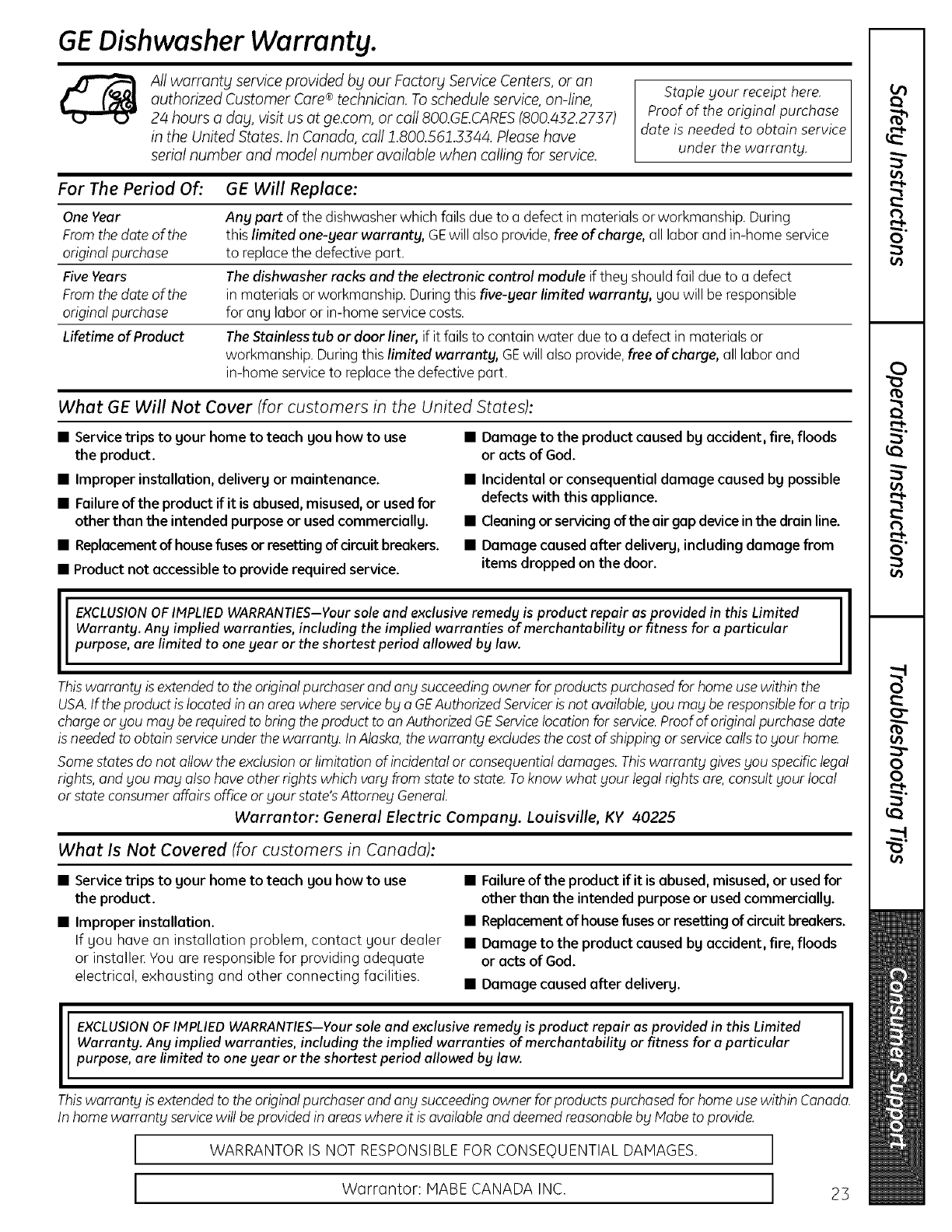

Warranty ......................... 23

CDWgO00 Series

PDW8000 Series

PDWgO00 Series

Write the model and serial

numbers here:

Model #

Serial #

Youcan find them on the tub wall

just inside the dooE

165D4700P361 49-55036 06-07 JR

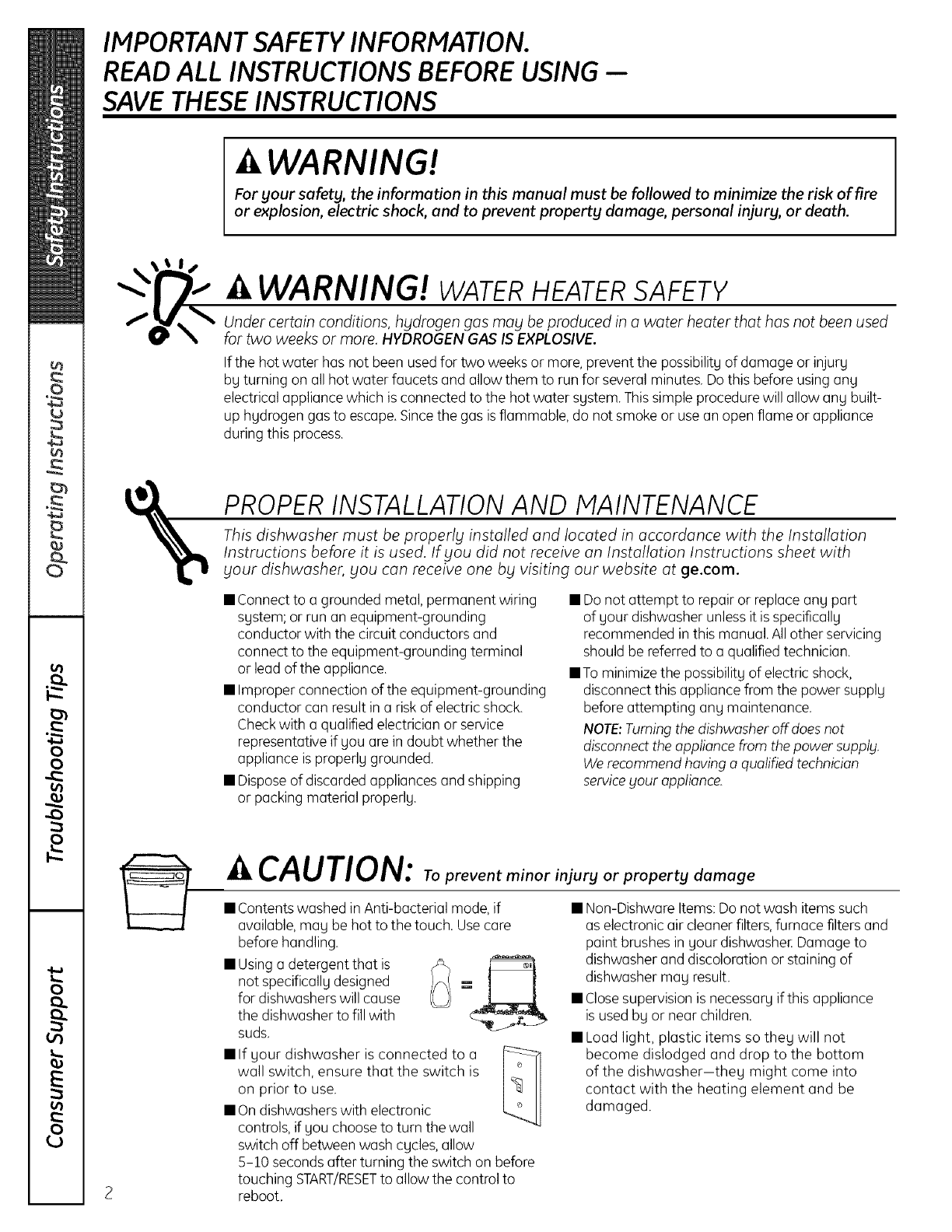

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING --

SAVE THESE INSTRUCTIONS

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire

or explosion, electric shock, end to prevent property damage, personal injury, or death.

_l IS

.4,WARNING! WATERHEATERSAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used

'__ _ for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.

Ifthe hot water has not been used for two weeks or more, prevent the possibility of damage or injury

by turning on all hot water faucets and allow them to run for several minutes. Do this before using ang

electrical appliance which is connected to the hot water system.This simple procedure will allow any built-

up hgdrogen gas to escape. Sincethe gas isflammable, do not smoke or use an open flame or appliance

during this process.

%PROPERINSTALLATIONAND MAINTENANCE

This dishwasher must be properly installed and located in accordance with the Installation

Instructions before it is used. If you did not receive on Installation Instructions sheet with

gout dishwasher, you can receive one bg visiting our website at ge.com.

•Connect to a grounded metal, permanent wiring

system; or run an equipment-grounding

conductor with the circuit conductors and

connect to the equipment-grounding terminal

or lead of the appliance.

• Improper connection of the equipment-grounding

conductor can result in a risk of electric shock.

Check with a qualified electrician or service

representative if you are in doubt whether the

appliance is properly grounded.

• Disposeof discarded appliances and shipping

or packing material properly.

• Do not attempt to repair or replace any part

of your dishwasher unlessit is specifically

recommended in this manual. All other servicing

should be referred to a qualified technician.

• To minimize the possibility of electric shock,

disconnect this appliance from the power supply

before attempting any maintenance.

NOTE:Turning the dishwasher off does not

disconnect the appliance from the power supply.

We recommend having o qualified technician

service your appliance.

CAUTION: Topreventminorinjurgorpropertgdamage

• Contentswashed in Anti-bacterial mode, if

available,may be hot to the touch. Usecare

before handling.

• Usinga detergent that is

not specifically designed

for dishwashers will cause

the dishwasher to fill with

suds.

• If your dishwasher is connected to a

wall switch, ensure that the switch is

on prior to use.

• On dishwasherswith electronic

controls, if you choose to turn the wall

switch off between wash cgcles,allow

5-10 seconds after turning the switch on before

touching START/RESETto allow the control to

reboot.

• Non-Dishware Items:Donot wash items such

as electronic air cleaner filters, furnace filters and

paint brushes in your dishwasher Damage to

dishwasher and discoloration or staining of

dishwasher mag result.

• Closesupervision is necessary if this appliance

is used bg or near children.

• Load light, plastic items so theg will not

become dislodged and drop to the bottom

of the dishwasher-theg might come into

contact with the heating element and be

damaged.

ge.com

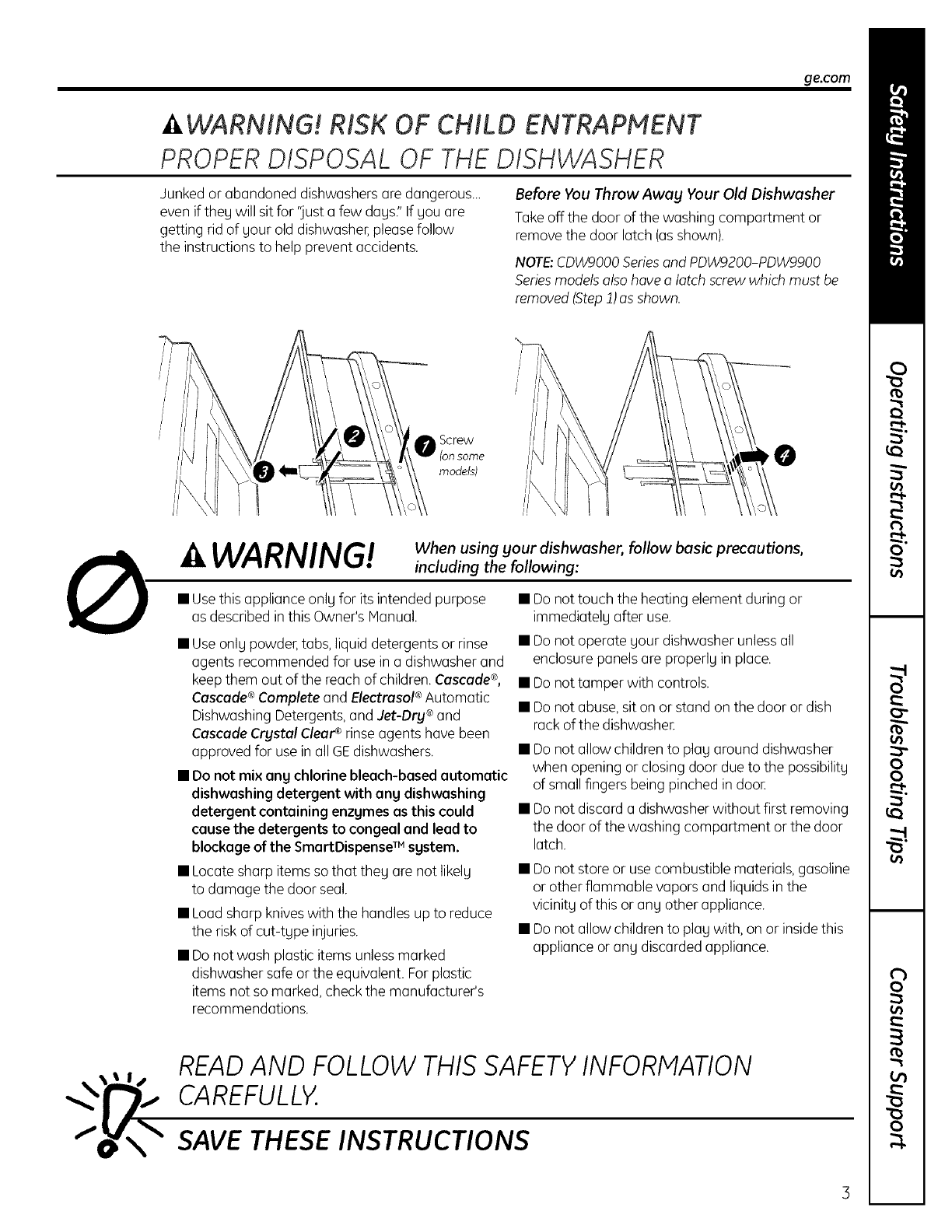

kWARNING/ RISK OF CHILD ENTRAPMENT

PROPERDISPOSAL OF THE DISHWASHER

Junked or abandoned dishwashers are dangerous...

even if theg will sit for 'just a few dags/' If gou are

getting rid of gour old dishwasher,please follow

the instructions to help prevent accidents.

Before You Throw Away Your Old Dishwasher

Take off the door of the washing compartment or

remove the door latch (as shown).

NOTE: CDW9000 Series and PDW9200-PDW9900

Series models also hove a latch screw which must be

removed (Step 1) as shown.

Screw

(on some

models)

WARNING! When using your dishwasher, follow basic precautions,

including the following:

• Usethis appliance onlg for its intended purpose

as described in this Owner's Manual.

• Use onlg powder,tabs, liquid detergents or rinse

agents recommended for use in a dishwasher and

keep them out of the reach of children.Cascade®,

Cascade ®Complete and Electrosol ®Automatic

Dishwashing Detergents, and Jet-Dru ®and

Cascade Crustal Clear_ rinse agents have been

approved for use in a(IGE dishwashers,

• Do not mix any chlorine bleach-based automatic

dishwashing detergent with any dishwashing

detergent containing enzymes as this could

cause the detergents to congeal and lead to

blockage of the SmartDispense m system.

• Locate sharp items so that theg are not likelg

to damage the door seal.

• Load sharp knives with the handles up to reduce

the risk of cut-tgpe injuries.

• Do not wash plastic items unless marked

dishwasher safe or the equivalent. For plastic

items not so marked, check the manufacturer's

recommendations.

• Donot touch the heating element during or

immediatelg after use.

• Do not operate gout dishwasher unlessall

enclosure panels are properlg in place.

• Do not tamper with controls.

• Donot abuse, sit on or stand on the door or dish

rack of the dishwasher

• Do not allow children to plag around dishwasher

when opening or closing door due to the possibilitg

of small fingers being pinched in door

• Do not discard a dishwasher without first removing

the door of the washing compartment or the door

latch.

• Do not store or use combustible materials, gasoline

or other flammable vapors and liquids in the

vicinitg of this or ang other appliance.

• Do not allow children to plag with, on or inside this

appliance or ang discarded appliance.

READAND FOLLOW THIS SAFETYINFORMATION

CAREFULLY.

SAVE THESE INSTRUCTIONS

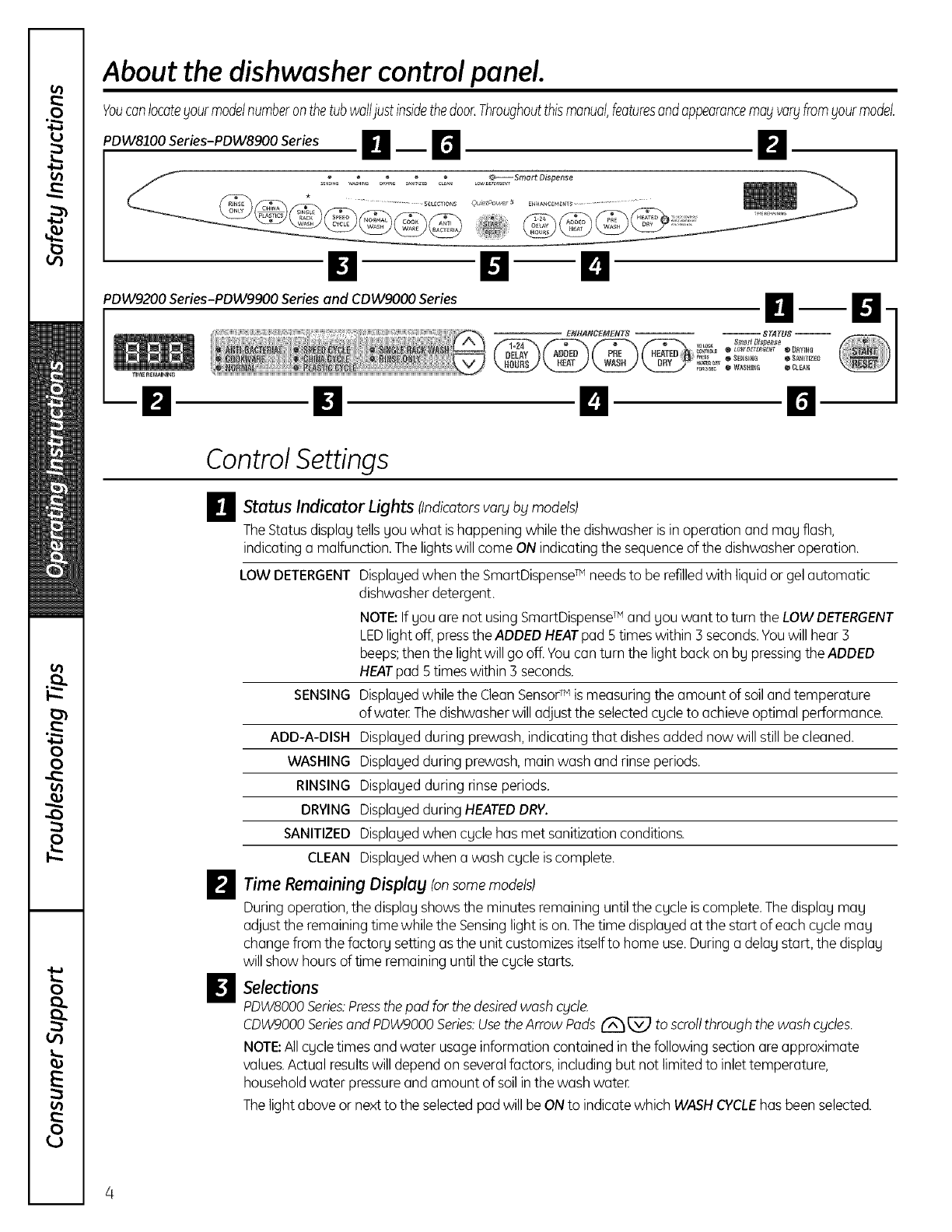

About the dishwasher control panel.

Youcanlocateyourmodelnumberonthetubwalljustinsidethedoor.Throughoutthismanual,featuresandappearancemayvaryfromyour model.

PDW8100 Series-PDW8900 Series H _ r_ n

irt n El

PDW9200 Series-PDW9900 Series and CDW9000 Series

ENHANCEMENTS

El D m

Control Settings

HStatus Indicator Lights (Indicatorsvary by models)

TheStatus displagtells gou what is happening while the dishwasheris in operation and mag flash,

indicating a malfunction. The lightswill come ON indicating the sequenceof the dishwasher operation.

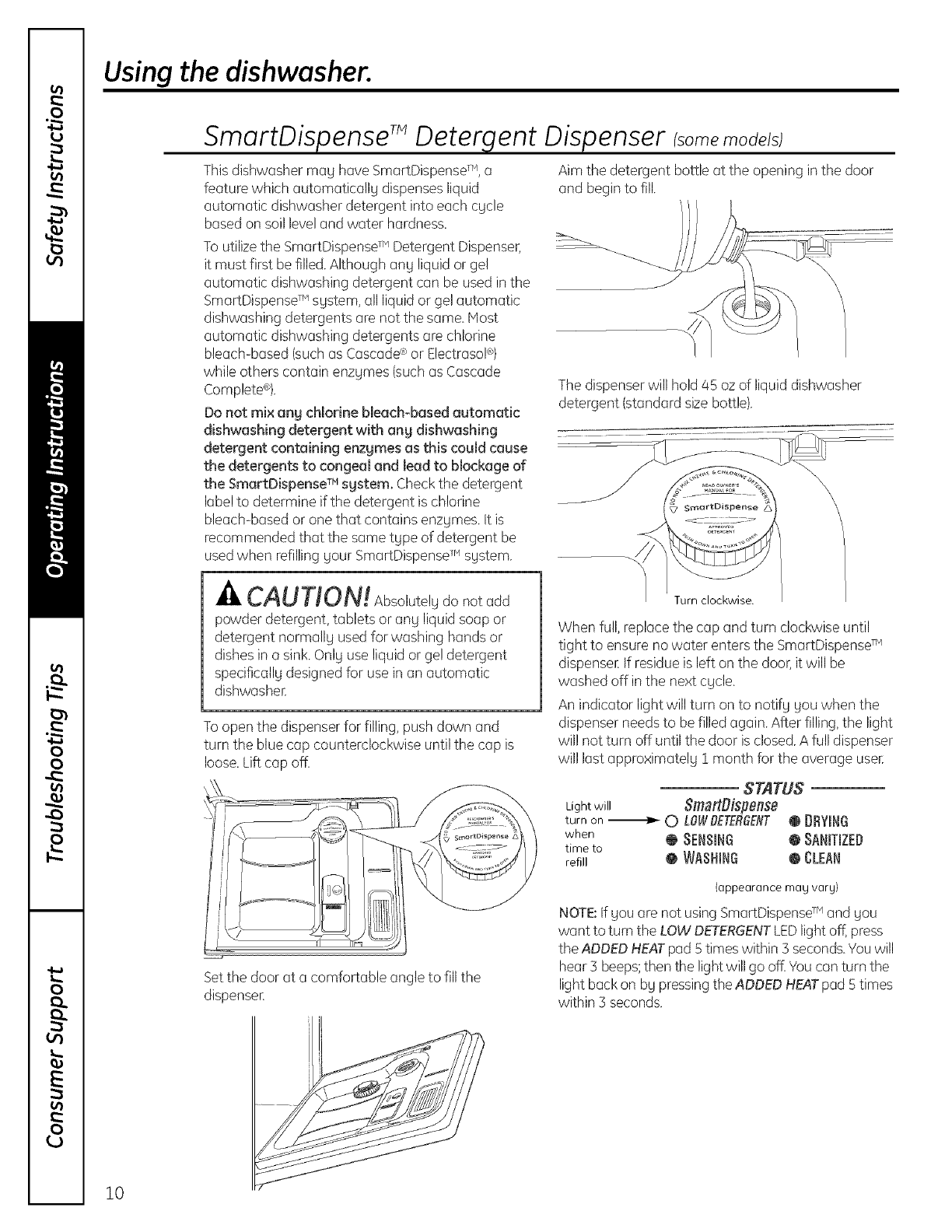

LOW DETERGENTDisplagedwhen the SmartDispenseTM needsto be refilledwith liquid or gelautomatic

dishwasher detergent.

NOTE:Ifgou are not usingSmartDispenseTM and gou want to tum the LOW DETERGENT

LEDlight off, pressthe ADDED HEATpad 5times within 3 seconds.Youwill hear 3

beeps;then the light will go off.Youcan turn the light back on bg pressingthe ADDED

HEATpad 5times within 3 seconds.

SENSING Displagedwhile the CleanSensorMis measuring the amount of soil and temperature

of wate_The dishwasher will adjust the selectedcgcleto achieveoptimal performance.

ADD-A-DISH Displaged during prewash, indicating that dishes added now will still be cleaned.

WASHING Displagedduring prewash, main wash and rinseperiods.

RINSING Displaged during rinse periods.

DRYING Displagedduring HEATEDDRY.

SANITIZED Displagedwhen cgde has met sanitizationconditions,

CLEAN Displagedwhen a wash cgde iscomplete,

DTime Remaining Displag (onsomemodels)

During operation,the displag shows the minutes remaining until the cgcleis complete.The displag mag

adjust the remaining time while the Sensinglight is on.The time displagedat the start of each cgcle mag

change from the factorg setting as the unit customizesitself to home use.During a delag start, the displag

will show hours of time remaining until the cgcle starts.

_lSelections

PDW8000Series:Pressthe pod for the desiredwash cycle.

CDW9000Seriesand PDW9000Series:UsetheArrow Pods _ _ to scrollthrough the wash cycles.

NOTE:All cgcletimes and water usage information contained in the following section are approximate

values.Actual resultswill depend on severalfactors, including but not limited to inlet temperature,

household water pressureand amount of soil in the wash wate_

Thelight above or nextto the selected pad will beON to indicate which WASHCYCLEhas been selected.

ge.com

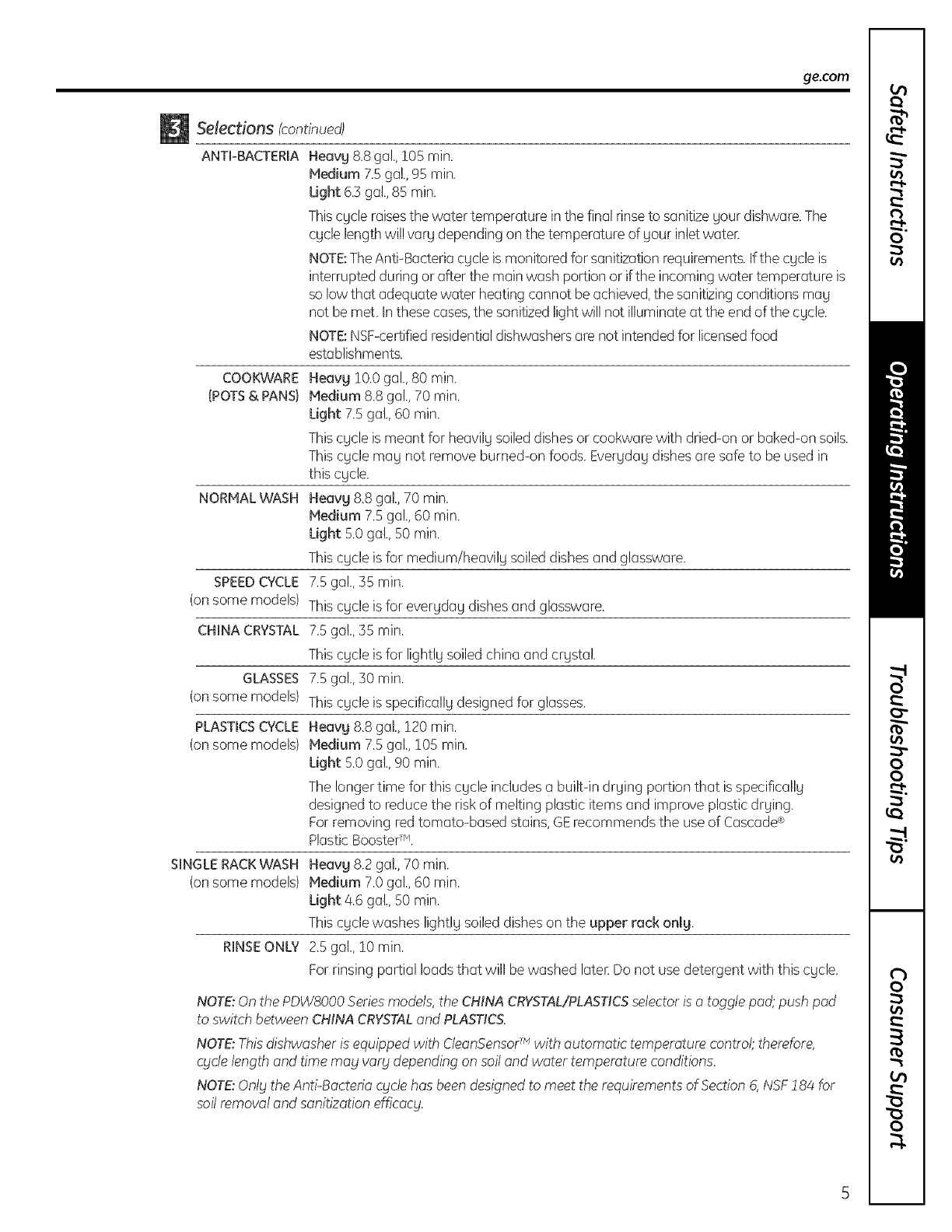

Selections (continued)

ANTFBACTERIAHeavg &8 gaL 105 rain.

Medium 7,5gaL 95 min,

Ught 6.3gaL 85 rain.

Thiscgcle raisesthe water temperature in the final rinseto sanitize gout dishware.The

cgcle length will varg depending on the temperature of gout inlet water.

NOTE:The Anti-Bacteria cycle is monitored for sanitization requirements,ffthe cgcleis

interrupted during or after the main wash portion or if the incoming water temperature is

so low that adequate water heating cannot be achieved,the sanitizing conditions may

not be met. In these cases,the sanitizedlight will not illuminate at the end of the cgcle.

NOTE:NSF-certifiedresidentialdishwashersare not intended for licensedfood

establishments.

Heavg 10.0gaL 80 rain.

Medium 8.8 gaL 70 rain.

Light 7.5gal.,60 rain.

Thiscgcle is meant for heavily soiled dishesor cookware with dried-on or baked-on soils.

Thiscgcle mag not remove burned-on foods. Evergdag dishesare safeto be used in

this cgcle.

Heavg 8.8 go!.,70 rain.

Medium 7.5 ga!.,60 min.

Light 5.0gal., 50 rain.

Thiscgcle is for medium/heavilg soiled dishes and glassware,

7.5go!.,35 min.

Thiscgcle is for evergdag dishesand glassware,

7.5ga!.,35 min.

Thiscgcle is for lightlg soiled china and crgsta!.

7.5go!.,30 min.

Thiscgcle is specificallg designed for glasses.

Heavg 8.8 gaL 120 min.

Medium 7.5 gal.,105 min.

Light 5.0gaL 90 min.

The longer time for this cgcle includes a builtdn drging portion that is specificallg

designed to reduce the risk of melting plastic items and improve plastic drging.

Forremoving redtomato-based stains,GErecommends the use of Cascade_>

PlasticBoosterrn.

Heavg 8.2 go!.,70 min.

Medium 7.0 gal.,60 min.

Light 4.6 ga!., 50 min.

Thiscgcle washes lightlg soiled dishes on the upper rack onlg.

2.5gal., 10 min.

Forrinsing partial loads that will be washed later.Do not use detergent with this cgcle.

COOKWARE

(POTS & PANS)

NORMAL WASH

SPEED CYCLE

(on some models)

CHINA CRYSTAL

GLASSES

(on some models)

PLASTmCSCYCLE

(on some models)

SINGLE RACK WASH

(on some models)

RINSE ONLY

NOTE:On the PDWSO00Seriesmodels, the CHINA CRYSTAL/PLASTICSselectoris atoggle pad, push pad

to switch between CHINACRYSTALand PLASTICS.

NOTE:Thisdishwasher is equipped with CleanSensorr_with automatic temperature control,-therefore,

c£clelength and time ma£ vor£ depending on soil and water temperature conditions.

NOTE:Onl£the Anti-Bacteria c£cle has been designedto meet the requirements of Section6, NSF184 for

soil removal and sonitization efficoc£.

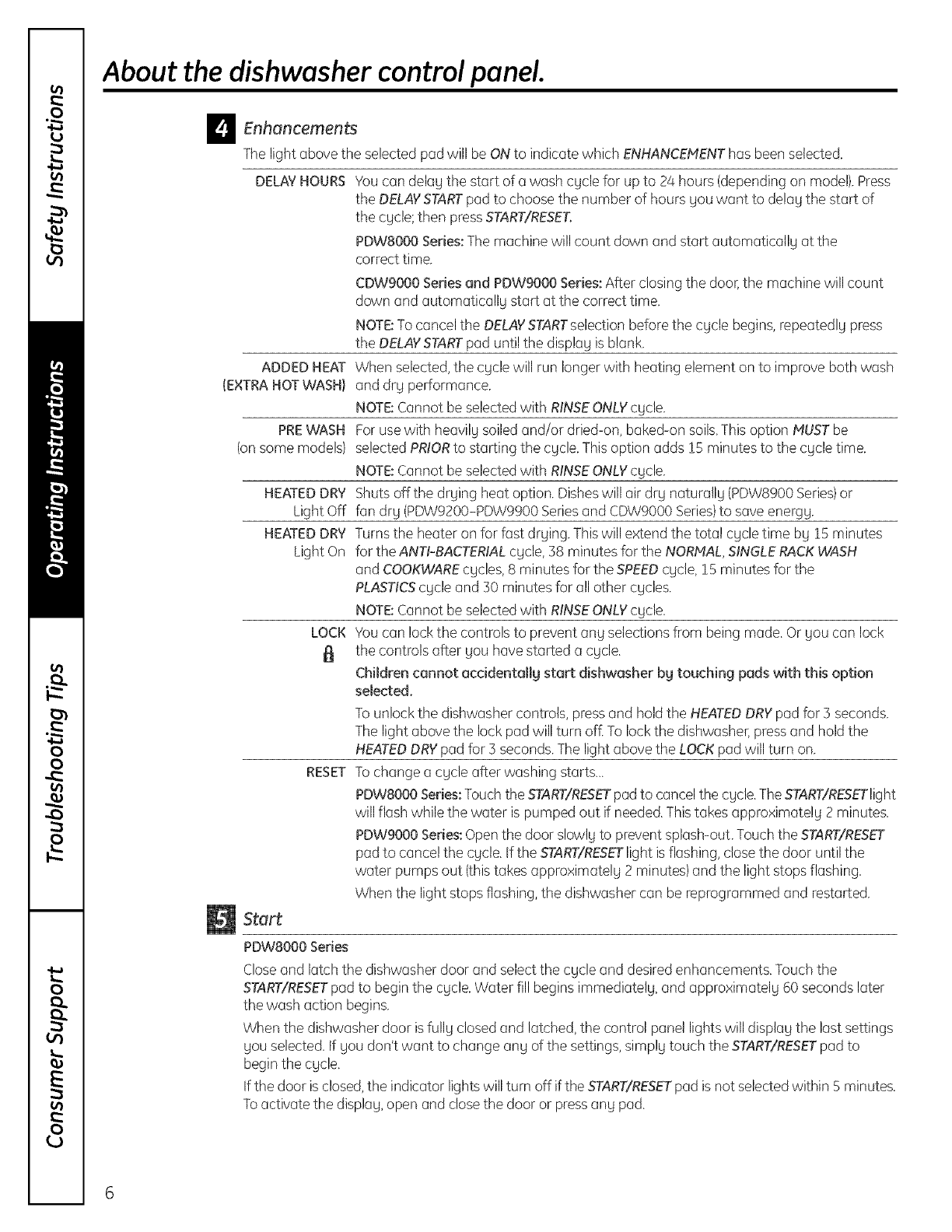

About the dishwasher control panel.

_.l_ Enhancements

ADDED HEAT

IE×TRA HOT WASH}

The light above the selected pad will be ON to indicate which ENHANCEMENThas been selected.

DELAYHOURS Youcan delay the start of a wash cgcle for up to 24 hours (dependingon model).Press

the DELAYSTARTpad to choose the number of hours you want to delay the start of

the cycle; then pressSTART/RESET,

PDW8000 Series:The machine will count down and start automatically at the

correct time.

CDW9000 Seriesand PDW9000 Series:After closing the door, the machine will count

down and automatically start at the correct time.

NOTE:To cancel the DELAYSTARTselection before the cycle begins, repeatedly press

the DELAYSTARTpad until the display is blank.

When selected,the cycle will run longerwith heating element on to improve both wash

and dry performance.

NOTE:Cannot be selected with RINSEONLYcycle.

PREWASH For use with heavily soiled and/or dried-on, baked-on soils.Thisoption MUSTbe

(on some models) selected PRIORto starting the cycle. Thisoption adds 15 minutes to the cycle time.

NOTE:Cannot be selected with RINSEONLYcycle.

HEATEDDRY Shuts offthe drying heat option. Disheswill air dry naturally (PDW8900Series)or

Light Off fan dry (PDWg200-PDWg900Seriesand CDW9000 Series)to save energy.

HEATEDDRY Turnsthe heater on for fast drying. Thiswill extend the total cycle time by 15 minutes

Light On for the ANTI-BACTERIALcycle, 38 minutes for the NORMAL,SINGLERACKWASH

and COOKWAREcycles, 8 minutes for the SPEEDcycle, 15 minutes for the

PLASTICScycle and 30 minutes for all other cycles.

NOTE:Cannot be selected with RINSEONLYcycle.

LOCK Youcan lock the controls to prevent any selections from being made. Or you can lock

_1 the controls after you have started a cycle.

Children cannot accidentallg start dishwasher bg touching pads with this option

selected.

To unlock the dishwasher controls, pressand hold the HEATEDDRYpad for 3 seconds.

The light above the lock pad will turn off.To lock the dishwasher,pressand hold the

HEATEDDRYpad for 3 seconds.The light above the LOCKpad will turn on.

RESETTo change a cycle after washing starts...

PDW8000Series:Touchthe START/RESETpad to cancelthe cycle.The START/RESETlight

will flash while the water is pumped out if needed.This takes approximately 2 minutes.

PDW9000 Series:Openthe door slowly to prevent splash-out. Touchthe START/RESET

pad to cancel the cycle. If the START/RESETlight is flashing, closethe door until the

water pumps out (thistakes approximately 2 minutes) and the light stops flashing.

When the light stops flashing, the dishwasher can be reprogrammed and restarted.

Start

PDW8000 Series

Closeand latch the dishwasher door and select the cycle and desired enhancements. Touch the

START/RESETpad to beginthe cycle.Water fill begins immediately, and approximately 60 seconds later

the wash action begins.

When the dishwasher door is fully closed and latched, the control panel lights will display the last settings

you selected,if you don't want to change any of the settings, simply touch the START/RESETpad to

begin the cycle.

If the door is closed,the indicator lightswill turn off if the START/RESETpad is not selectedwithin 5 minutes.

Toactivate the display, open and closethe door or pressany pad.

ge.com

_]_ Start (continued)

PDW9000Series

After selecting the cycle and desired enhancements, touch the START/RESETpad to ready the

dishwasher to begin the cycle. Closethe door to start the cycle or begin the DELAYSTARTcountdown.

When the cycle starts, the water fill begins and approximately 60 seconds later the wash action begins.

The dishwasher will always display your last selection and enhancements. If you don't want to change

the settings, simply touch the START/RESETpad to ready the dishwasher and closethe door to begin

the cycle.

Also,if a power failure occurs NORNALand HEATEDDRYwill automatically be programmed. Makeany

new selectionsand touch the START/RESETpad to begin the new cycle.

When the door is opened, the indicator lights will turn off if the START/RESETpad is not selected within

5 minutes.To activate the display, open and close the door or touch any pad.

Clean

PDW8000Series

The CLEANlight is illuminated when the selected cycle and enhancements are complete. The light will

stay ON until a pad is pressedor the door is opened and then closed.

PDW9200Series-PDW9900 Series and CDW9000 Series

The CLEANlight is illuminated and a double beep will sound when the selected cycle and enhancements

are complete. You may remove the dishes at any time. The high-efficiency fan will run quietly for 30

minutes to 4 hours (depending on selected cycle) after the CLEANlight is illuminated to continue drying

the dishes.The fan can be turned off by opening the door and pressingany keypad.

ALL MODELS:To turn off the audible end-of-cycle signal (or re-activate it if it was previously tumed off),

pressthe HEATEDDRYpad 5 times within 3seconds.A triple beep will sound to indicate the end-of-cycle

beepoption has been toggled.

Flashingdisplay lights.

Status Indicator Lights What It Means

START/RESET Cycle has been interrupted by pressingthe START/RESETpad, or there

has been a power failure. Light will stop flashing after the dishwasher

automatically drains out the water. The dishwasher will restart if the

interruption was the result of a power failure.

Recommended dishwasher products.

GErecommends the following products for use in its

dishwashers:

• For your manual detergent dispenser,Cascade®

and ElectrasoF powder,liquid or gel automatic

dishwasher detergents are approved.

• For your SmartDispenseTM Detergent Dispenser,use

only the recommended detergents listed on page

10of this manual.

•Jet Dry ®or Cascade Crystal Clear¢ rinse agents

to remove spots and prevent new film buildup on

your dishes,glasses,flatware, cookware and

plastic. Using rinse agent also improves dry

performance.

• Cascade®PlasticBoosterTM to remove red staining

inside your dishwasher that can come from some

tomato-based foods.

• Cerama Brgte ®StainlessSteelAppliance Cleaner

to clean the exterior stainlesssteel panel of GEand

ProfileTM dishwashers (for stainlesssteel exterior

models only).

Using the dishwasher.

Check the Water Temperature

The entering water should be at least 120°F and not more than 150°F for effective cleaning and to

prevent dish damage. Check the water temperature with a candy or meat thermometer. Turn on the

hot water faucet nearest the dishwasher, place the thermometer in a gloss and let the water run

continuously into the gloss until the temperature stops rising.

Use ®or Cascade Cr_jstal Clear®Rinse Agent

Jet-Dry ®or Cascade Crystal Clear erinse agent improves drying, removes spots and prevents new

film buildup on your dishes, glosses, flatware, cool<wore and plastic.

Filling the Dispenser Rinse Aid Setting

The rinse agent dispenser holds 5.5 oz.of rinse agent.

Under normal conditions,this will last approximately

one month. Try to keep it full, but do not overfill.

[] Make sure the dishwasher door is fully open.

'2] Turn the dispenser

cap to the left and

lift it out.

r_Add rinse agent until

the indicator window

looks full.

[] Clean up any spilled

rinse agent with a Indicator t

damp cloth, window Dispenser cap

The amount of rinse agent released into the final

wash can be adjusted. The factory setting is at the

midpoint. If there are rings of calcium (hardwater)

spots on dishes,try a higher setting. If there is

foaming, use a lower setting.

TOadjust the setting:

Remove the dispenser cap;

then turn the adjuster

counterclockwise to

increasethe amount Jent

of rinse agent or adjuster

clockwise to reduce

the amount of rinse agent dispensed.

[] Replacethe dispenser cap.

Dish Preparation Prior to Loading

• No prerinsing of normal food soilisrequired. • Removelarge quantities of any remaining food.

• Scrapeoff hard soils,bones,toothpicks, skins and • Remove leafy vegetables,meat trimmings and

seeds, excessiveamounts of grease or oil.

ge.com

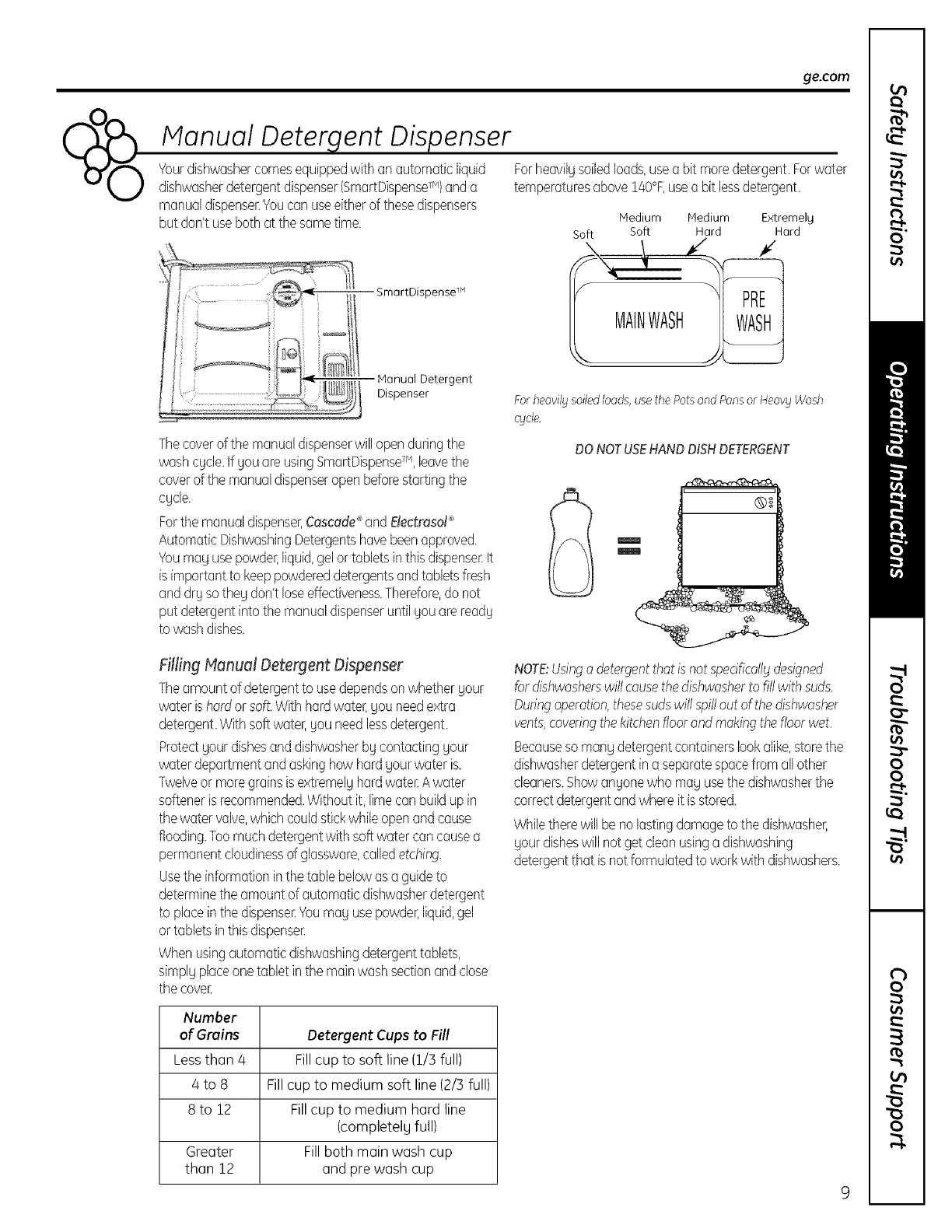

Manual Detergent Dispenser

Yourdishwashercomesequippedwithan automaticliquid Forheavilysoiledloads,usea bit moredetergent.Forwater

dishwasherdetergentdispenser(SmartDispenseTM) and a temperaturesabove140°F,usea bitlessdetergent.

manualdispenserYoucan useeitherof thesedispensers

but don'tusebothat the sametime.

SmartDispense mn

Hanual Detergent

Dispenser

Hedium Hedium Extremely

Soft Soft Hard Hard

MAINWASH

Forheavil_lsoiledloads,usethePatsandPansor HeavyWash

Thecoverof the manualdispenserwillopenduringthe

washcycle,if you areusingSmartDispenseTM, leavethe

coverof the manualdispenseropenbeforestartingthe

cycle.

Forthemanualdispenser-,Cascade_'and ElectrasoP_

AutomaticDishwashingDetergentshavebeenapproved.

Youmayusepowder,liquid,gelortabletsinthisdispenserit

is importantto keeppowdereddetergentsandtabletsfresh

anddry sothey don'tloseeffectiveness.Therefore,do not

put detergentinto themanualdispenseruntilyouare ready

to washdishes.

Filling Hanual Detergent Dispenser

Theamountofdetergentto usedependsonwhetheryour

waterishardor soft.Withhardwater,you needextra

detergent.Withsoftwater,you needlessdetergent.

Protectyourdishesanddishwasherby contactingyour

waterdepartmentand askinghow hardyour wateris.

Twelveormoregrainsis extremelyhardwater Awater

softeneris recommended.Withoutit, limecanbuildupin

thewatervalve,whichcouldstickwhileopenandcause

flooding.Toomuchdetergentwithsoft watercancausea

permanentcloudinessof glassware,calledetching.

Usethe informationinthetable belowasa guideto

determinetheamountof automaticdishwasherdetergent

to placein the dispenserYoumay usepowder,liquid,gel

ortabletsinthisdispenser

Whenusingautomaticdishwashingdetergenttablets,

simplyplaceonetabletinthe mainwashsectionandclose

the cover

Number

of Grains Detergent Cups to Fill

Lessthan 4 Fillcup to soft line (1/3 full)

4 to 8 Fill cup to medium soft line (2/3 full)

8 to 12 Fillcup to medium hard line

(completely full)

Greater Fill both main wash cup

than 12 and pre wash cup

DONOTUSEHANDDISHDETERGENT

NOTE:Usingo detergentthatisnot specificollgdesigned

for dishwasherswill causethedishwasherto fillwith suds.

Duringoperation,thesesudswillspillout ofthe dishwasher

vents,coveringthekitchenfloorandmakingthefloorwet.

Becausesomanydetergentcontainerslookalike,storethe

dishwasherdetergentina separatespacefromall other

cleaners.Showanyonewho mayusethe dishwasherthe

correctdetergentandwhereit isstored.

Whiletherewill be nolastingdamageto the dishwasher,

your disheswill not get cleanusinga dishwashing

detergentthat isnotformulatedto workwithdishwashers.

Using the dishwasher.

SmortDispense TMDetergent Dispenser (somemodelsl

This dishwasher may have SmartDispenseTM, a

feature which automatically dispenses liquid

automatic dishwasher detergent into each curie

based on soil leveland water hardness.

To utilizethe SmartDispenseTM Detergent Dispenser,

it must first be filled.Although ang liquid or ge!

automatic dishwashing detergent cart be used in the

SmartDispenseTM sgstem, all liquid or gel automatic

dishwashing detergents are not the same. Host

automatic dishwashing detergents are chlorine

bleach-based (suchas Cascade_ or ElectrasoP)

while others contain enzgmes (suchas Cascade

Complete%

Do not mix any chlorine bleach-based automatic

dishwashing detergent with any dishwashing

detergent containing enzymes as this could cause

the detergents to congeal and lead to blockage of

the SmartDispenseTM sgstem. Checkthe detergent

label to determine if the detergent is chlorine

bleach-based or one that contains enzgmes. It is

recommended that the same tgpe of detergent be

used when refilling gout SmartDispenseTHsgstem.

CAUTION! Absdotelydonotadd

powder detergent, tablets or ang liquid soap or

detergent normallg used for washing hands or

dishesin a sink. Onlg use liquid or ge! detergent

specificallg designed for use in an automatic

dishwasher.

To open the dispenser for filling, push down and

turn the blue cap counterclockwise until the cap is

loose. Lift cap off.

Aim the detergent bottle at the opening in the door

and begin to fill.

The dispenserwill hold 45 oz of liquid dishwasher

detergent (standard sizebottle).

Turn clockwise, i

When full,replace the cap and turn clockwise until

tight to ensure no water enters the SmartDispenseTM

dispenser If residueis left on the door, it will be

washed off in the next cgcle.

An indicator light will turn on to notifg gou when the

dispenser needsto be filled again. After filling, the light

wil! not turn off until the door is closed.A full dispenser

will last approximatelg i month for the average user.

STATUS

Light will SmartDispense

turn on _ 0 LOWDETERGENT@DRYING

when _ SENSING 0 SANITIZED

time to

refill O WASHING @CLEAN

Setthe door at a comfortable angle to fill the

dispenser.

(appearance mag varg)

NOTE:Ifgou are not using SmartDispense'Hand gou

want to turn the LOW DETERGENTLEDlight off, press

the ADDEDHEATpad 5 times within 3 seconds.Youwill

hear 3 beeps;then the light will go off. Youcan turn the

light backon bg pressingthe ADDEDHEATpad 5 times

within 3 seconds.

ge.com

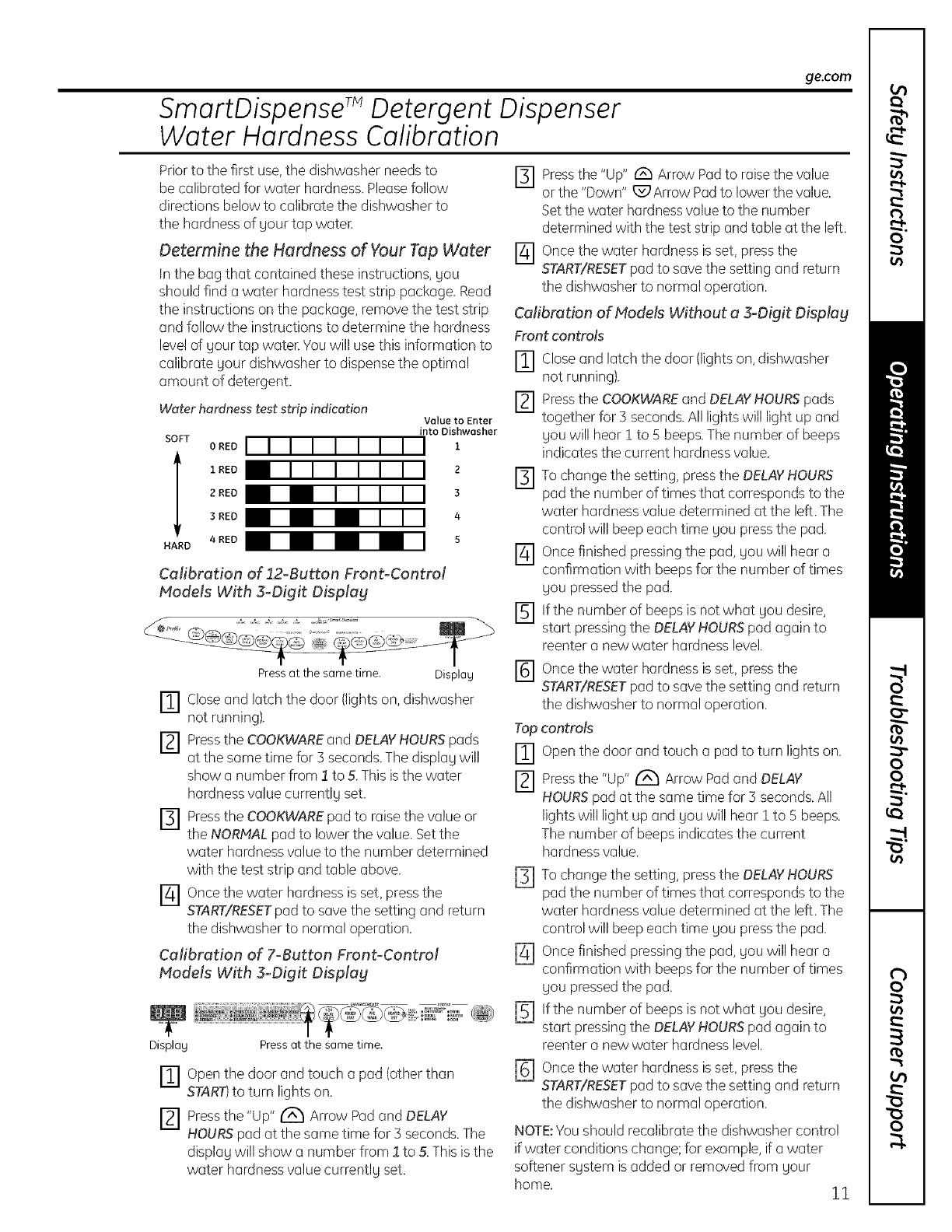

SmartDispense :MDetergent Dispenser

Water Hardness Calibration

Priorto the first use,the dishwasher needs to

be calibrated for water hardness. Pleasefollow

directions below to calibrate the dishwasher to

the hardnessof your tap water.

Determine the Hardness of Your Tap Water

In the bag that contained these instructions, you

should find a water hardness test strip package. Read

the instructions on the package, remove the test strip

and follow the instructions to determine the hardness

level of your tap water. Youwill use this information to

calibrate your dishwasher to dispensethe optimal

amount of detergent.

Water hardness test strip indication

SOFT 0RED

1RED

2 RED

3 RED

4-RED

NARD

Value to Enter

into Dishwasher

I I I I I I I I I 1

Calibration of 12oButton Front-Control

Models With 3-Digit Display

Press at the same time. Display

[] Closeand latch the door (lightson, dishwasher

not running).

F] Pressthe COOKWAREand DELAYHOURSpads

at the same time for 3 seconds.The display will

show a number from 1 to 5. Thisis the water

hardness value currently set.

r_ pressthe COOKWAREpad to raise the value or

the NORMALpad to lower the value. Set the

water hardnessvalue to the number determined

with the test strip and table above.

[4-1 Once the water hardness is set, the

press

START/RESETpadto save the setting and return

the dishwasher to normal operation.

Calibration of 7°Button Front-Control

Models With 3-Digit Display

Displag Press at the sarne time.

r_ Open the door and touch a pad (other than

START)to turn lights on.

1-21Pressthe "Up" 1_ Arrow Padand DELAY

HOURSpad at the same time for 3 seconds.The

display will show a number from :[to S.This is the

water hardnessvalue currently set.

r-31 Pressthe "Up" _ Arrow Padto raisethe value

or the "Down" _ Arrow Padto lower the value.

Setthe water hardnessvalue to the number

determined with the test strip and table at the left.

14-1Once the water hardness is set, the

press

START/RESETpad to save the setting and return

the dishwasher to normal operation.

Calibration of Hodels Without a3-Digit Display

Front controls

[] Closeand latch the door (lights on, dishwasher

not running).

r-2-1pressthe COOKWAREand DELAYHOURSpads

together for 3 seconds.All lightswill light up and

you will hear 1to 5 beeps.The number of beeps

indicates the current hardness value.

r'_To change the setting, pressthe DELAYHOURS

pad the number of times that corresponds to the

water hardnessvalue determined at the left. The

control will beep each time you pressthe pad.

Once finished pressingthe pad, you will hear a

confirmation with beepsfor the number of times

you pressedthe pad.

[] If the number of beeps is not what you desire,

start pressingthe DELAYHOURSpad again to

reenter a new water hardness level.

i-6-] Once the water hardness is set, the

press

START/RESETpad to save the setting and return

the dishwasher to normal operation.

Top controls

]Open the door and touch a pad to turn lights on.

[] Pressthe "Up" _ Arrow Pad and DELAY

HOURSpad at the same time for 5 seconds.All

lights will light up and you will hear 1to 5 beeps.

The number of beeps indicates the current

hardness value.

D To change the setting, pressthe DELAYHOURS

pad the number of times that corresponds to the

water hardnessvalue determined at the left. The

control will beep each time you pressthe pad.

Once finished pressingthe pad, you will hear a

confirmation with beepsfor the number of times

you pressedthe pad.

[] If the number of beeps is not what you desire,

start pressingthe DELAYHOURSpad again to

reenter a new water hardness level.

[_ Once the water hardness is set, pressthe

START/RESETpad to save the setting and return

the dishwasher to normal operation.

NOTE:Youshould recalibrate the dishwasher control

if water conditions change; for example, if a water

softener system is added or removed from your

home. 11

Loading the dishwasher racks.

For best dishwoshing results, follow these loading guidelines. Features and appearance of racks and silverware

baskets may vary from gout model.

Upper Rack

Although the upper rack is primarily for

glasses,cups and saucers,pots and pans can

beplaced in this rack for effective cleaning.

Cupsand glassesfit best along the sides.This

is also a secure place for dishwasher plastics.

The utility shelf (somemodels)may be placed

in the up or down position to add flexibility. A

wine glass holder (some models)secures wine

glassesfor best washability.

Some models have contoured metal cup

shelvesthat can secure up to 12 wine glasses

(asshown).

Becausewine glassescome in various sizes,

after loading, slowly push in the rack to make

sure they will clear the top of the dishwasher.

Some models have an Angled Rack System,

which allows you to angle your dishes,such

as coffee mugs, for better cleaning and

quicker drying. To position the tines, pull the

leverforward then drop the tines into

position,then releasethe lever.

The upper rack is good for all kindsof

odd-shaped utensils.Saucepans,mixing

bowls and other items should be placed face

down. Fold-down tines (onsome models)

provide flexibility for extra-large and hard-

to-fit items.

Secure larger dishwasher-safe plastics over

2 tines when possible.

Make sure small plastic items are secure so

they can't fall onto the heater.

Be sure that items do not protrude through

the bottom of the rack and block rotation of

the middle spray arm.This could result in

poor wash performance for items in the

upper rack.

Checkto make sure that no items will block

rotation of the wash arm.

NOTE:The Single RackWash selection,on

models with this feature, washes the upper

rack only. If you use this feature, do not load

items in the lower rack.

/II/t M

! II It II I! II I! II I! !I I!

Adjustable Upper Rack

The standard position of your adjustable rack

is "up" which allows for maximum clearance

for your taller items in the lower rack. If you

have taller wine glasses,tumblers or other

items to place in the upper rack, you may

want to adjust the rack to the lower position.

To lower the rack, support the weight of the

rackwith your hands as shown and press

both finger pads about Z/a,"toward the inside

of the rack as indicated and guide the rack

down to its lower position.

To raise the rack to the "up" position, pull up

on the center of the rack side frame until the

rack locks into place.

ge.com

Lower Rock

The lower rack is best used for plates, saucers

and cookware, Large items such as broiler

pans and baking racks should go along the

left-hand side. Loadplatters, pots and bowls

along the sides,in corners or in the back. The

soiled side of items should face the center of

the rack. If necessary, oversized glassesand

mugs can be placed in the lower rack to

maximize loading flexibility.

Also,be careful not to let a portion of an item

such as a pot or dish handle extend through

the bottom rack. Thiscould block the wash

arm and cause poor washing results.

Fold-down tines (onsome models)provide

flexibility for extra-large and hard-to-fit items.

The tines mag be left in the up position or

folded down to customize the lower rack.

tab out Remove end cap

Removing the Upper Rack

Youcan remove the upper rack to allow

space for large items in the lower rack.

NOTE:Do not use the SINGLERACKWASH

cycle (some models)with this feature. Single

RackWash cycle is for upper rack wash only.

The recommended cycle for lower rack only

use isthe COOKWARE cycle.

To remove the upper reck:

r_ Pressthumb tab out and remove the

front end caps on each side of the rail.

r-_ Pullthe rack straight out and off the rails.

[] Replacethe end caps.

Push the rails all the way back into the

dishwasher

151 Slide the shower nozzle attachment

(located in the bag that contained these

instructions) over the spout.

"Shower nozzle

attachment

[] Then fill the lower rack and begin

your cycle.

NOTE: Don't forget to remove the shower

nozzle attachment before you replace the

upper rock.

One-piece basket Ion some models)

Three-piece basket Ion some models)

Don't let any

item extend

through bottom.

Silverware Basket

To load flatware, simply push the adjustable

handle to either side (on some models).Put

flatware in the removable basket with fork

and knife handles up to protect your hands.

Place spoons in the basket with handles

down. Mix knives,forks and spoons so they

don't nest together Distribute evenly. Small

plastic items, such as measuring spoons and

lids from small containers should go in the

bottom of the silverware basket with the

silverware on top.

The one-piece silverware basket (on some

models) can be placed in the front, right side

or back of the lower rack.

A variety of options is available regarding

the three-piece silverware basket (on some

models) in your dishwasher The complete

basket is designed to fit on the right side of

the lower rack. Additionally, each end of

the basket is removable to add loading

flexibility to accommodate flatware and

lower rack capacity needs.

The lids of both end and middle baskets (on

some models)can be closedto contain small

items. Long items can be placed on the utility

shelf in the upper rack.

t t

To remove end baskets, grasp the

basket at opposite corners and

slide apart.

Loading the dishwasher racks.

Extra Rack Features (onsomemodels)

Cutlery Tray

The cutlery trag holds up to 4 large knifes

such as a carver, chef's knives, bread knife,

etc., that are too tall to fit in the silverware

basket.

Hook the trag onto the rear of the upper rack.

Lag the knives between the guides

(as shown).

These tines fold down

Bowl Tines

The special large-bowl tines in the lower rack

add flexibility to your loading pattern. They

are useful for serving bowls or other large

bowls.

To use the bowl tines, fold down the

2 rows of flex tines in front of the bowl

tines and load bowls just as SOUwould

in the upper rack.

Large-bowl tines

Loadingplacesettings...

Follow these guidelines for loading 10 place settings. Features and appearance of racks and silverware baskets mag

vary from your model. NOTE:Silverware should be individually loaded into the slots on the silverware basket lid.

IF_fYL7/V/_ _ _/W/k_It&

Jl f f I I If I 7 I If I I I_€=L_ /ll[_\lll Iltl

Upper Rack--lO place settings Lower Rack--lO place settings

Follow these guidelines for loading 12 place settings. Features and appearance of racks and silverware baskets mag

vary from your model. NOTE: Silverware should be individually loaded into the slots on the silverware basket lid.

14 Upper Rack--12 place settings Lower Rack--12 place settings

Caring for the dishwasher, gecom

Cleaning the Exterior Door Panel

Before cleaning the front panel, make

sure you know what type of panel you have.

Referto the last two letters of your model

number. Youcan locate your model number

on the left-hand tub walljust inside the door.

If your model number ends with BB,CC,WW,

SAor BG,then you have a Painted Door

panel. If your model number ends with SS,

then you have a StainlessSteelDoor panel. If

your model number ends with CS,then you

have a CleanSteelpanel.

Follow the instructions below for cleaning the

door panel for your specific model.

Pointed Door Panel (model numbers ending

in BB-block, CC-bisque,WW-White, SA-silver

metallic or BG-graphite black)

Use a clean, soft, lightly dampened cloth,

then dry thoroughly. Youmay also use a

good appliance wax or polish.

Stainless Steel Door Panel (model numbers

ending in SS)

The stainlesssteel panels can be cleaned

with StainlessSteelMagic or a similar product

using a clean, soft cloth. Do not use appliance

wax, polish,bleach or products containing

chlorine on StainlessSteeldoors.

Youcan order StainlessSteel Magic

#WXZOXZ5through GEParts by calling

800.626.2002.

CleonSteel Door Panel (model numbers

ending in CS)

Use a clean, soft, lightly dampened cloth,

then dry thoroughly. Do not use appliance

wax, polish or any chemical agent on

CleanSteel doors.

Do not wipe the dishwasher with a soiled

dish cloth or wet towel. Thesema_l leave

a residue. Do not use scouring pads or

powdered cleaners because these products

con scratch the finish.

Stainless Steel Interior-Tub and Inner Door

The stainlesssteel used to make the

dishwasher tub and inner door provides

the highest reliability available in a GE

dishwasher.If the dishwasher tub or inner

door should be scratched or dented during

normal use,they will not rust or corrode.

Thesesurface blemishes will not affect

their function or durability.

Cleaning the Control Panel

To clean the control panel, use a lightly

dampened cloth. Then dry thoroughly.

Protect Against Freezing

If your dishwasher is left in an unheated

place during the winter, ask a service

technician to:

r_Cut off electrical power to the

dishwasher.Remove fuses or trip

circuit breaker.

[-_ Turn off the water supply and disconnect

the water inlet linefrom the water valve.

r_ Drain water from the water inlet line

and water valve. (Usea pan to catch

the water.)

F) Reconnectthe water inlet line to the

water valve.

Check the air gap any time

your dishwasher isn't draining

well.

Does Your Dishwasher Have an Air Gap?

An air gap protects your dishwasher

against water backing up into it if a drain

clogs. The air gap is not a part of the

dishwasher.It is not covered by your

warranty. Not all plumbing codes require

air gaps,so you may not have one.

The air gap is easg to cleon.

[] Turn off the dishwasher and lift offthe

cover.

r-_-] Remove the plastic cap and clean with

a toothpick,

Before you call for service...

Troubleshooting Tips

Save time and money! Review the charts on the following

pages, or visit ge.com. You may not need to call for service.

Error Messages Possible Causes What To Do

START/RESETstatus You have pressed the

indicator light flashing START/RESETpad while the

dishwasher is running. This will

cancel the cgcle. The light will

stop flashing after the dishwasher

drains (about 90 seconds).

• PresstheSTART/RESETpadonluonetimetostartthedishwasher.Whenthe

dishwasherisrunning,onlupressthe START/RESETpadif Uouwishto cancel

(reset)the cucle.

Powerto the dishwasherwas

turned offwhile acgclewas

runningand power hasjust been

restoredto the dishwasher.The

blinkinglights indicatethat the

dishwasherisdrainingwater

inside.

•Thelightwillstopflashingafterthedishwasherdrainsoutthe water.Anew

cuclewill startautomaticalluwhenthe drainends.

Dishwasher BEEPS

once every 30 seconds Thisis a reminderthat gour

dishwasherdoor hasbeenleft

openduringoperation.It will

continuebeepinguntil gouclose

the door.

•Closeandlatchthe doorafteropeningit mid-cucle.Beepingwillstopand

dishwasherwillcompletecucle.

Beeping at the end

of the cycle

This is normal. The dishwasher

will beep twice at the end of

the cgcle.

•Toturn offthe doublebeepindicator(orre-activateit if it was previouslu

turnedoff),pressthe HEATEDDRYpad5timeswithin3 seconds.Atriple

beepwill soundto indicatethe end-of-cuclebeepoptionhasbeenturned

on oroff.

Low Detergent

Light ON SmartDispense TM has less than •Fillthe SmurtDispenseTM reservoir with liquid dishwasher detergent. After

10 cgcles worth of detergent filling the reservoir,the LOW DETERGENTlight will turn OFFonce the

left in the dishwasher, door is closed.

Problem

Dishesandflatware

not clean

Possible Causes Whet To Do

Lowinlet water temperature •Hake sure inlet water temperature iscorrect (see page 8).Turn on the hot

water faucet nearest the dishwasher; let run until the water temperature

stops rising.Then start the dishwasher and turn offthe faucet. Thisensures

the entering water is hot.

•TrUnot to usethe dishwasherwhenhot waterisbeingusedelsewhere

inthe house;for example,when doinglaundryorwhena family member

isusingthe shower.

Water pressure is temporarilg low •Turn on a faucet. Iswater coming out more slowly than usual? If so, wait

until pressure is normal before using your dishwashen

•Try not to use the dishwasher when hot water isbeing used elsewhere

in the house;for example, when doing laundry or when a family member

isusing the shower.

Air gap or disposer is clogged •Cleanthe air gap or flush the disposer.

Improper rack loading •Hake sure large dishware does not block the detergent dispenser or the

wash arms. Seethe Loading the dishwasher rocks section.

No air gap or high drain loop •Verify that you have an air gap or a high drain loop. Referto the

Installation Instructions.

ge.com

Problem Possible Causes What To Do

Spots andfilming

onglassesand

flatware

Cloudiness on

glassware

Sudsin the tub

Detergent left in

dispensercups

or ondoor

Waterin the

SmartDispense_"

dispenser

Blackor gray

markson dishes

Dishesdont dry

Extremelyhardwater

Lowinlet water temperature

Overloadingthe dishwasher

Improperloading

Oldordamp powderdetergent

Rinseagent dispenserempty

Toolittle detergent

Combinationof soft water and

too muchdetergent

Water temperatureentering

the dishwasherexceeds150°F

Correctdetergent

wasn't used

Rinseagent wasspilled

Dishesare Nockingthe

detergentcup or

SmartDispenseTMoutlet

Capnot tightenedafter finning

the dispenser

Aluminumutensilshave

rubbedagainstdishes

Lowinlet water temperature

Rinseagent dispenseris empty

Controlpanelresponded Doorlatch may not beproperly

to inputsbut dishwasherseated

neverfilled with water Water valvemay beturned off

Stainedtub interior Sometomato-basedfoodscan

causereddishstains

• UseJet-Dry®orCascadeCrystalClear*'rinseagentstoremovespotsand

preventnewfilm buildup.

• Hakesurewatertemperatureisat least120°R

• Loaddishwasherasshownin the LoadingPlaceSettingssection.

• Hakesuredetergentisfresh.

• Ifwaterisextremelyhard,asoftenermay berequired.

Teaorcoffee stains

• Thisiscalledetchingandis permanent.Topreventthisfrom happening,

uselessdetergentif youhavesoftwatenWashglasswareinthe shortest

cyclethatwill getthemclean.Recalibratethe SmartDispenseTnsystemif

you areusingit. Seepages9and 11.

•Thiscouldbeetching.Lowerthe waterheatertemperature.

• Useonlyautomaticdishwasherdetergentsto avoidsudsing.

Cascade®anddeetrasoPAutomaticDishwashingDetergents

havebeenapprovedfor useinallGEdishwashers.

• Toremovesudsfromthe tub,openthe dishwasherandlet

sudsdissipate.Closeandlatch the dishwasherdoor Pumpout water

by touchingthe START/RESETpadonce;then 30secondslater,

touchthe START/RESETpadagain.Repeatif necessa%

•Alwayswipeup rinseagentspillsimmediately.

•Repositionthe dishes,sothe waterfromthe lowersprayarm can

flushthe detergentcupor outletfromthe SmartDispensdnsystem.

Seepages13and 14.

•Useaturkey basterto removeasmuchwateras possiblefromthe

SmartDispenseT"dispenserand refillit as normal.Besureto tightenthe

capfullyto preventwaterfromenteringthe dispenser

Removemarkswitha mild,abrasivecleaner

Anoverallyelloworbrownfilm can •

becausedbgirondepositsinwater

White film on insidesurfaceJ •

hard water minerals

Hakesureinletwatertemperatureisat least120°R

SelectHEATEDDRY.

UsePREWASHorADDEDHEAToptions.

Selecta highercycle,suchasANTI-BACTERIAor COOKWARE.

• Checkthe rinseagentdispenserandfill asrequired.

• Hakesurethe doorisfirmly closed.

Hakesurewatervalve(usuallylocatedunderthesink)isturnedon.

Useof theRINSEONLYcycleafteraddingthe dishto the load

candecreasethe levelof staining.GErecommendsCosca@®

PlasticBoosterto helpremovethesetypesof stains.

Removethe stainbghand,usinga solutionof 1/2cup bleach

and3 cupswarmwater

AWARNING

Beforecleaninginterior,wait at least20 minutesaftera cyclefor the

heatingelementsto cooldown.Failureto do socan resultin burns.

Aspecialfilterinthe watersupplylineisthe onlywagto correct

thisproblem.Contacta watersoftenercompany.

GErecommendsJet-Dry_'or CascadeCrystalCleaY_to help

preventhardwatermineraldepositsfromforming.

Rundishwasherwithcitricacidto removemineraldeposits.Citric

acid(Partnumber:WD35X151)can beorderedthroughGEParts.

Seebackcoverfor orderinginformation.

Before you call for service...

Troubleshooting Tips

Problem Possible Causes What To Do

Dishwasherwon't run • ReplacefuseorresetcircuitbreakenRemoveanuotherappliancesfrom

the circuit.

• Insomeinstallations,the powerto the dishwasheris providedthrougha

wallswitch,oftenlocatednextto the disposerswitch.Hakesureit is on.

Controlpanelis locked • Unlockcontrolpanel.Seepage6.

Controlpanelneedsto be • Turnoff powerto the dishwasher(circuitbreakerorwall switch)for

rebooted 30seconds;thenturn backon.

Controlpanellights Timetoo long between • Eachpadmustbetouchedwithin5minutesof the others.

gooffwhen you're touchingof selectedpads To relight,touchanupadagain,orunlockandrelatchdoon

setting controls

Waterstandingin Thisis normal • Asmallamountof cleanwateraroundthe outletonthetub

the bottom of the tub bottomat the backof thetub keepsthe pumpseallubricated.

Waterwon't pump Drainis clogged • If Uouhaveanair gap,cleanit.Seepage15.

out of the tub • Ifthe dishwasherdrainsintoa disposer,rundisposerclean

• Checkto seeif uourkitchensinkisdrainingwell.If not,Uou

mau needa plumben

Steam Thisis normal • Warm,moistaircomesthroughthevent buthe doorlatchduringdruing

andwhenwateris beingpumpedout.Thisisnecessarufor druing.

Sanitizedlight does Thedoorwasopenedand the • Donot interruptthe cucleanutimeduringoraftermainwash.

not illuminateat the cycle wasinterrupted during

endof the cgde or after the main washportion

(Anti-Bacteria Theincomingwater • Raisethe waterheatertemperatureto between120°Fand140°R

cgde only) temperature wastoo low

Noise Normaloperating sounds • Theseareallnormal.Noactionisrequired.

Detergentcup opening

Water enteringdishwasher

Themotor stopsand starts at

varioustimes duringthe cycle

Drainpump soundsduring

pumpout

Drgingfan running for 2-4 hours

offer CLEANlight isilluminated

(TopControlPanelmodelsonly)

Rattlingdisheswhen the sprag

arm rotates

Fuseis blownor circuit breaker

is tripped

Poweristurned off

• Hakesuredishesareproperlgloaded.SeetheLoadingthe

dishwasherrackssection.

GE Service Protection Plus'"

6E, a name recognized worldwide for quality and dependability, offers you

Service Protection PlusT"--comprehensive protection on all gout appliances-

No Matter What Brand!

Benefits Include:

Backed bg GE

o All brands covered

o Unlimited service calls

o All parts and labor costs included

No out-of-pocket expenses

No hidden deductibles

One 800 number to call

We'll Cover Any

Appliance. Anywhere.

Anytime.*

You will be completely satisfied with our service protection or you may request your money back

on the remaining value of your contract. No questions asked. It's that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV,VCRand much more-ang brand!

Plus there's no extra charge for emergency service and low monthlg financing is available. Even icemaker

coverage and food spoilage protection is offered. You can rest easg knowing that all gour valuable household

products are protected against expensive repairs.

Place your confidence in GEand call us for more information in the U_S.

toll-free at 800.626.2224 and in Canada, toll-free at 888.261.2133

*All b_onds covered, up to 20 geo_s old, in the continental US

Please place in envelope and mail to:

General Electric Company

Warranty Registration Department

RO.Box32150

Louisville,KY40232-2150

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us.

We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

Complete and mail

your Consumer

Product Ownership

Registration today.

Have the peace of

mind of knowing we

can contact you in

the unlikely event of a

safety modification.

After mailing the

registration below, store

this document in a safe

place. It contains

information you will need

should you require

service. Our service

number is 800.GE.CARES

(800.432.2737) in the U.S.

and 800.361.3400

in Canada.

Model Number

Read your Owner's

Hanual carefully.

It will help you

operate your new

appliance properly.

Serial Number

IIIIIII

Important: If gou did not get a registration card with gour product, detach

and return the form below to ensure that gour product is registered,

or register online at ge.com. Canadian consumers, please use the

mail-in card on page 19 in the French Language section.

._,,_ Cut here

Consumer ip Registration

Model Number Serial Number

I,,,,,, , , , , , I I , , , , , ,

Mc Ms. Mrs i Mbsi

FirstI I Lastl

Name I I I I I I I I I Name I I I I I I I I I I I I

Street IAddress l I I I I I I I I I I I I I I I I I I I I I I I I

Apt.#I I I I I I I I I E-mailAddress*

zipI

Dityl I, I I I I, I I I I I I I statel, 1 Dode'' ' I I

Date Placed

i.u_ol, I I , I I , I phone

Numberl I, I-I,, I-I,,, I

Month Day Year

GE Consumer & hdustdal

Appliances

General Electric Company

Louisville, KY 40225

ge.com

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important

communications from GE Appliances (GEA).

Check here if you do not want to receive communications from GEA's carefully selected partners.

FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR

WARRANTY RIGHTS.

For information about GEA's privacy and data usage policy, go to ge.com and click on "Privacy Policy"

or call 800.626.2224.

Notes.

ct_

u'l

Notes.

GEDishwasher Warrants.

All warranty service provided bg our Factory Service Centers, or an

authorized Customer Care ®technician. To schedule service, on-line,

24 hours a dog, visit us at go.cam, or call 800.GE.CARES (800.432.2737)

in the United States. In Canada, call 1.800.561.3344. Please have

serial number and model number available when calling for service.

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

For The Period Of: GE Will Replace:

One Year Any port of the dishwasher which fails due to a defect in materials or workmanship. During

From the date of the this limited one-year warranty, GEwill also provide,free of charge, all labor and in-home service

original purchase to replace the defective part.

Five Years The dishwasher rocks end the electronic control module if theg should fail due to a defect

From the date of the in materials or workmanship. During this five-gear limited warranty, Sou will be responsible

original purchase for ang labor or in-home service costs.

Lifetime of Product The Stainless tub or door liner, if it fails to contain water due to a defect in materials or

workmanship. During this limited warranty, GEwillalso provide, free of charge, all labor and

in-home service to replace the defective part.

What GE Will Not Cover (for customers in the United States):

• Service trips to gour home to teach gou how to use

the product.

• Improper installation, deliverg or maintenance.

• Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commerciallg.

• Replacement of house fuses or resetting of circuit breakers.

• Product not accessible to provide required service.

• Damage to the product caused bg accident, fire, floods

or acts of God.

• Incidental or consequential damage caused bg possible

defects with this appliance.

• Cleaning or servicing of the air gap device in the drain line.

• Damage caused after deliverg, including damage from

items dropped on the door.

EXCLUSION OF IMPLIED WARRANTIES--Your sole end exclusive remedy is product repair us provided in this Limited

Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for o particular

purpose, ore limited to one year or the shortest period allowed by low.

Thiswarrantblis extendedto the original purchaser and onblsucceedingowner for products purchasedfor home use within the

USA.If the product is locatedin an area where serviceby a GEAuthorizedServiceris not available,Sou may be responsiblefor a trip

charge or Sou may berequired to bring the product to anAuthorized GEServicelocation for service.Proof of original purchasedote

is neededto obtain serviceunder the warranty. InAlaska,the warranty exdudes the cost of shipping or servicecallsto your home

Some statesdo not allow the exclusion or limitation of incidentalor consequential damages. Thiswarranty gives you specific legal

rights, and you mablalso hove other rights which vary from state to state.To know what your legal rights are, consult blourlocal

or state consumer affairs office or your state'sAttomebl General.

Warrantor: General Electric Compung. Louisville, KY 40225

What Is Not Covered (for customers in Canada):

• Service trips to gour home to teach gou how to use

the product.

• Improper installation.

If Sou have an installation problem, contact sour dealer

or installer You are responsible for providing adequate

electrical, exhausting and other connecting facilities.

• Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commerciallg.

• Replacement of house fuses or resetting of circuit breakers.

• Damage to the product caused bg accident, fire, floods

or acts of God.

• Damage caused after deliverg.

IEXCLUSIONOFIMPLIEDWARRANTIES--Yoursole endexclusive remedy is product repair us provided in this Limited I

Warranty. Ang implied warranties, including the implied warranties of merchantability or fitness for o particular I

purpose, ore limited to one gear or the shortest period allowed by low.

This warrantbl is extended to the originalpurchaser and any succeeding owner for products purchased for home use within Canada.

tn home warrants service will be provided in areas where it is available and deemed reasonable bg Mabe to provide.

IWARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES. I

IWarrantor: HABE CANADA INC. I23

Consumer Support.

IGEAppliances Website IntheU.S.:ge.com

Have a question or need assistance with your appliance? Try the GEAppliances Website 24 hours a day,

' any day of the gear! Forgreater convenience and faster service,you can now download Owner's Manuals,

order parts or even schedule service on-line. In Canada: www.geappliances.ca

Schedule Service In the U.S.:ge.com

Expert GErepair service is only one step away from your door. Get on-line and schedule gour service at your

convenience 24 hours any dug of the gear! Or call 800.GE.CARES(800.432.2737)during normal business hours.

In Canada, call 1.800.561.3344

Real Life Design Studio IntheU.S.:ge.com

GEsupports the Universal Designconcept-products, services and environments that can be used bg people of all

ages,sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and

impairments. For details of GE'sUniversal Designapplications, including kitchen design ideas for people with disabilities,

check out our Website today. For the hearing impaired, please call 800.TDD.GEAC(800.833.4322).

In Canada, contact: Manager,Consumer Relations,Mabe Canada Inc.

Suite B10, 1 Factory Lane

Moncton, NB. E1C9M3

Extended Warranties ,ntheU,S.:ge.com

Purchasea GEextended warranty and learn about specialdiscounts that are available while your warranty is still

in effect. You can purchase it on-line anytime, or call 800.626.2224during normal business hours. GEConsumer Home

Serviceswill still be there after your warranty expires. In Canada, call 1.888.261.2133

[ "I

Parts and Accessories In the U.S.:ge.com

Individuals qualified to service their own appliances can have parts or accessoriessent directly to their homes

(VISA,MasterCardand Discovercards are accepted).Orderon-line today, 24 hours every day or by phone at

800.626.2002during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally

should be referred to qualified service personnel Caution must be exercised, since improper servicing mug cause

unsafe operation.

Customers in Canada can order parts and accessories on-line at www.geappliances.ca, 24 hours every day, or by

phone at 1.800,661.1616 during normal business hours.

If you are not satisfied with the service you receive from GE,contact us on our Website with all the details including

your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

In Canada: www.geappliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

"I Register YourAppliance IntheU.S.:ge.com

communication and prompt service under the terms of your warranty, should the need arise.Youmay also mail

in the pre-printed registration card included in the packing material. In Canada: www.geappliances.ca

214 _ Printed in the United States

.... Printed on Rec!jcled Paper

GE CDW9380N00SS User Manual CAFE DISHWASHER Manuals And Guides L0706360

GE Dishwasher Manual L0706360 GE Dishwasher Owner's Manual, GE Dishwasher installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
