GENERAL TOOLS and INSTRUMENTS DCS400T Wireless Video Transmitter User Manual

GENERAL TOOLS & INSTRUMENTS COMPANY LLC Wireless Video Transmitter Users Manual

Users Manual

Wireless video Transmitter/Wireless video ReceiverModel: DCS400T/ DCS400ROperation Manual

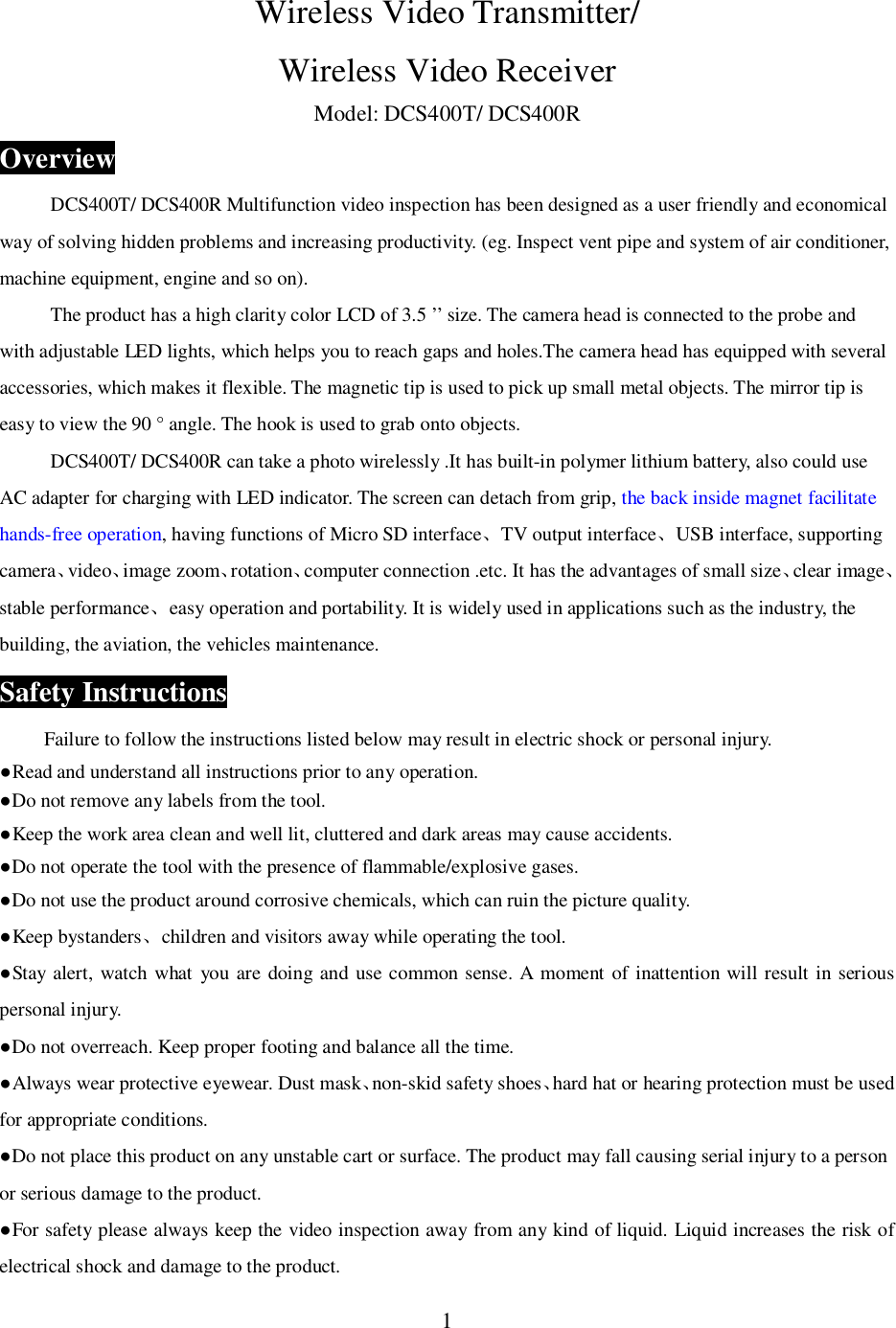

1Wireless Video Transmitter/Wireless Video ReceiverModel: DCS400T/ DCS400ROverviewDCS400T/ DCS400R Multifunction video inspection has been designed as a user friendly and economicalway of solving hidden problems and increasing productivity. (eg. Inspect vent pipe and system of air conditioner,machine equipment, engine and so on).The product has a high clarity color LCD of 3.5 ’’ size. The camera head is connected to the probe andwith adjustable LED lights, which helps you to reach gaps and holes.The camera head has equipped with severalaccessories, which makes it flexible. The magnetic tip is used to pick up small metal objects. The mirror tip iseasy to view the 90 ° angle. The hook is used to grab onto objects.DCS400T/ DCS400R can take a photo wirelessly .It has built-in polymer lithium battery, also could useAC adapter for charging with LED indicator. The screen can detach from grip, the back inside magnet facilitatehands-free operation, having functions of Micro SD interfaceTV output interfaceUSB interface, supportingcameravideoimage zoomrotationcomputer connection .etc. It has the advantages of small sizeclear imagestable performanceeasy operation and portability. It is widely used in applications such as the industry, thebuilding, the aviation, the vehicles maintenance.Safety InstructionsFailure to follow the instructions listed below may result in electric shock or personal injury.Read and understand all instructions prior to any operation.Do not remove any labels from the tool.Keep the work area clean and well lit, cluttered and dark areas may cause accidents.Do not operate the tool with the presence of flammable/explosive gases.Do not use the product around corrosive chemicals, which can ruin the picture quality.Keep bystanderschildren and visitors away while operating the tool.Stay alert, watch what you are doing and use common sense. A moment of inattention will result in seriouspersonal injury.Do not overreach. Keep proper footing and balance all the time.Always wear protective eyewear. Dust masknon-skid safety shoeshard hat or hearing protection must be usedfor appropriate conditions.Do not place this product on any unstable cart or surface. The product may fall causing serial injury to a personor serious damage to the product.For safety please always keep the video inspection away from any kind of liquid. Liquid increases the risk ofelectrical shock and damage to the product.

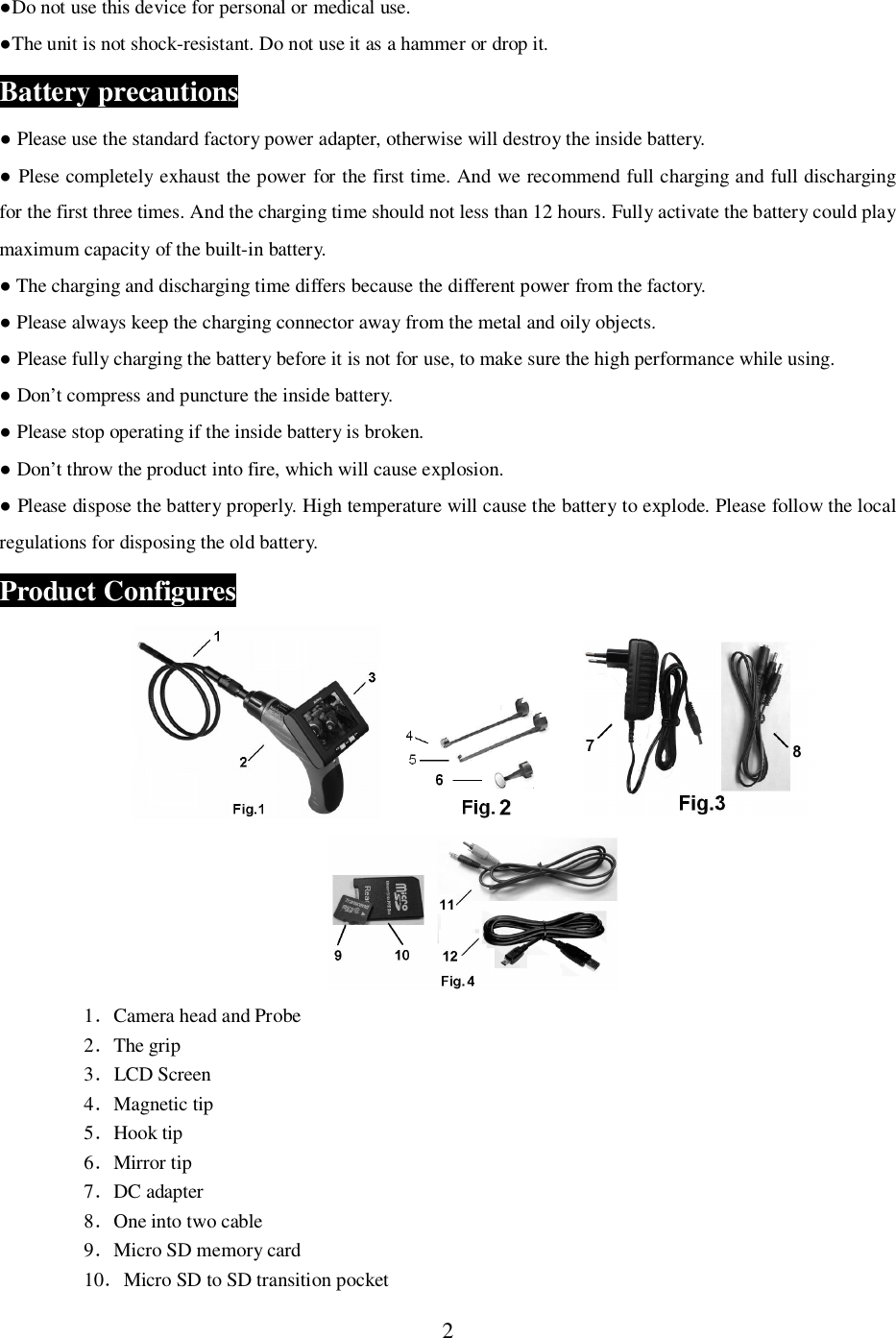

2Do not use this device for personal or medical use.The unit is not shock-resistant. Do not use it as a hammer or drop it.Battery precautions Please use the standard factory power adapter, otherwise will destroy the inside battery. Plese completely exhaust the power for the first time. And we recommend full charging and full dischargingfor the first three times. And the charging time should not less than 12 hours. Fully activate the battery could playmaximum capacity of the built-in battery. The charging and discharging time differs because the different power from the factory. Please always keep the charging connector away from the metal and oily objects. Please fully charging the battery before it is not for use, to make sure the high performance while using. Don’t compress and puncture the inside battery. Please stop operating if the inside battery is broken. Don’t throw the product into fire, which will cause explosion. Please dispose the battery properly. High temperature will cause the battery to explode. Please follow the localregulations for disposing the old battery.Product Configures1Camera head and Probe2The grip3LCD Screen4Magnetic tip5Hook tip6Mirror tip7DC adapter8One into two cable9Micro SD memory card10Micro SD to SD transition pocket

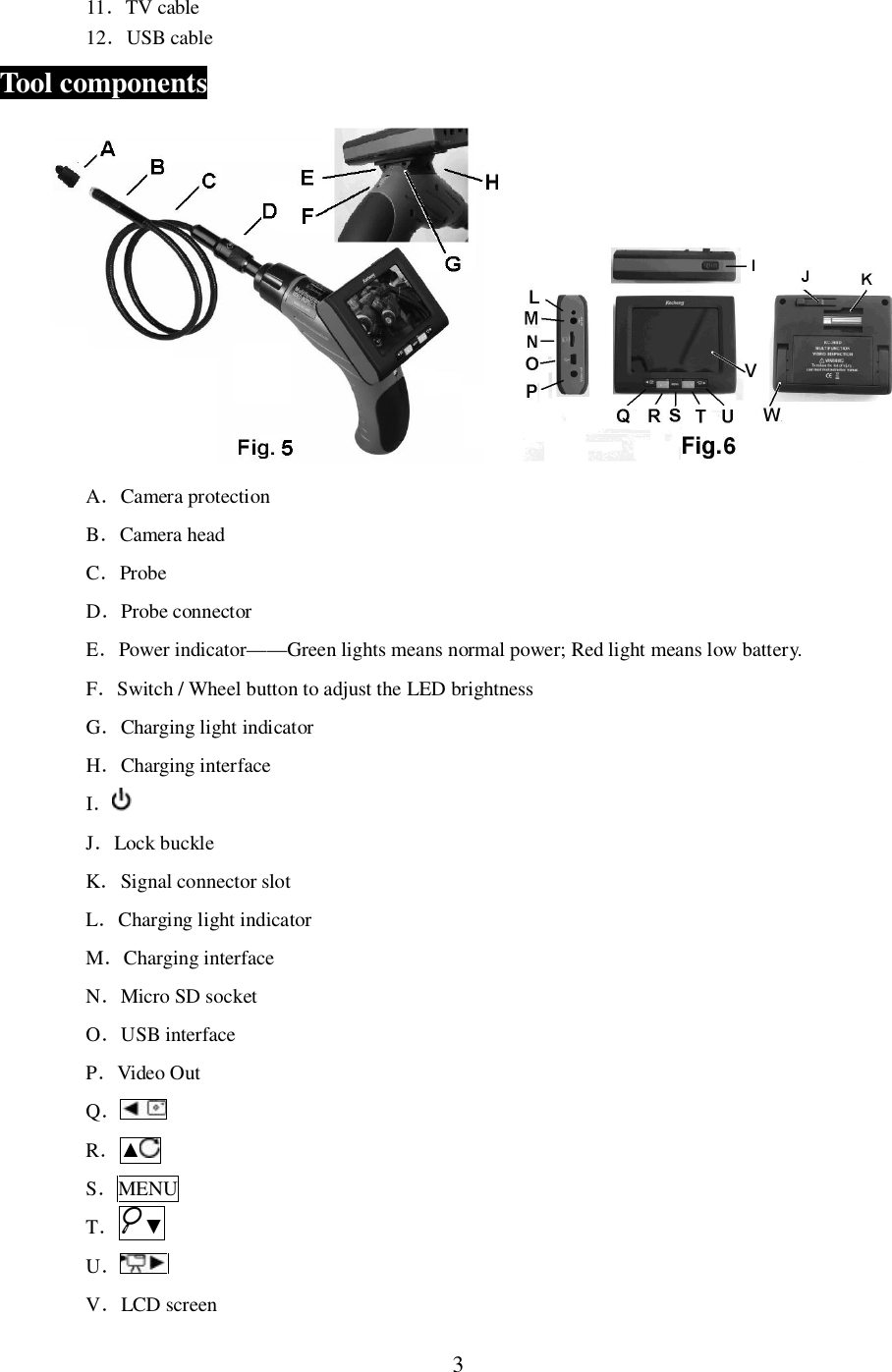

311TV cable12USB cableTool componentsACamera protectionBCamera headCProbeDProbe connectorEPower indicator——Green lights means normal power; Red light means low battery.FSwitch / Wheel button to adjust the LED brightnessGCharging light indicatorHCharging interfaceIJLock buckleKSignal connector slotLCharging light indicatorMCharging interfaceNMicro SD socketOUSB interfacePVideo OutQRSMENUTUVLCD screen

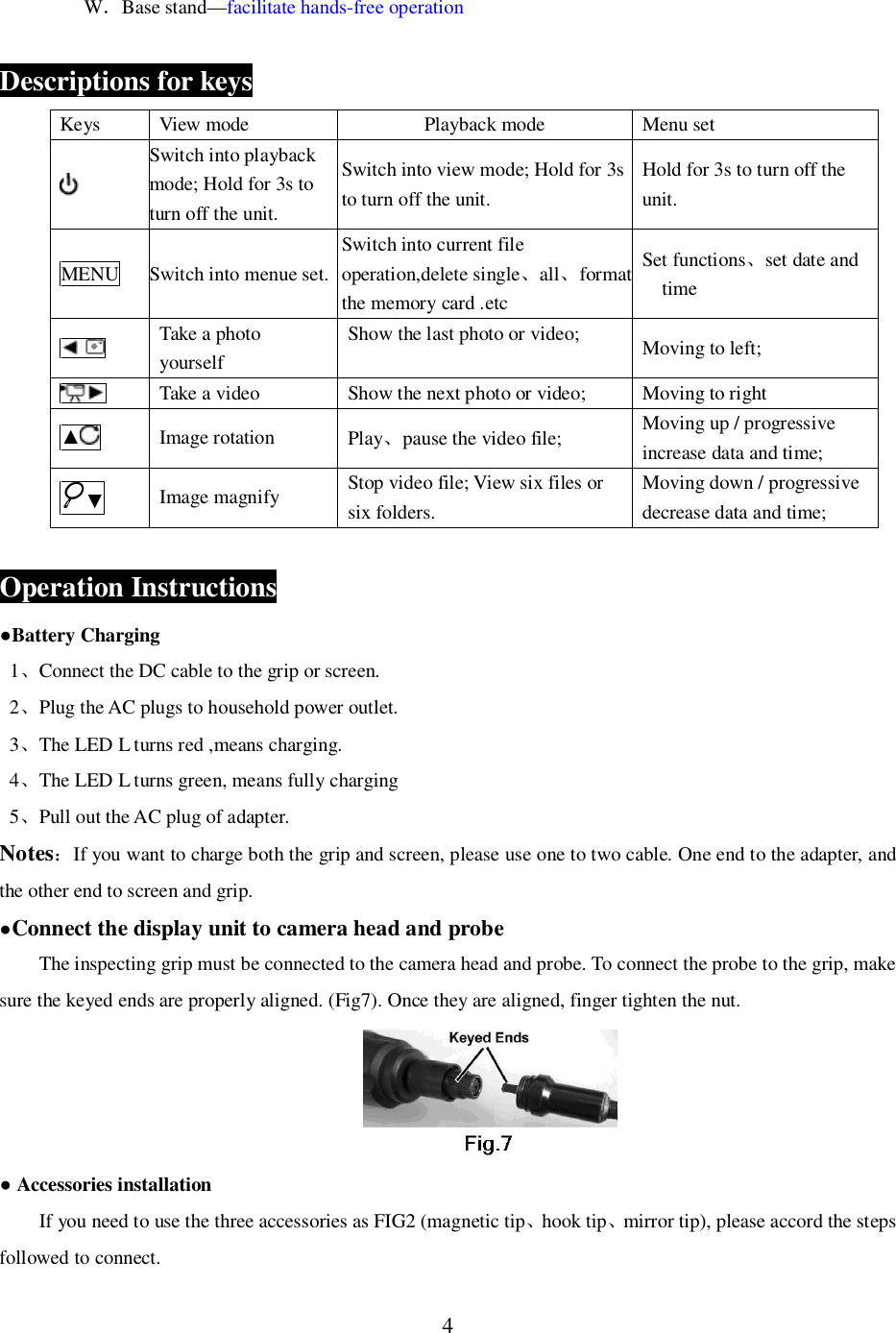

4WBase stand—facilitate hands-free operationDescriptions for keysKeys View mode Playback mode Menu setSwitch into playbackmode; Hold for 3s toturn off the unit.Switch into view mode; Hold for 3sto turn off the unit.Hold for 3s to turn off theunit.MENU Switch into menue set.Switch into current fileoperation,delete singleallformatthe memory card .etcSet functionsset date andtimeTake a photoyourselfShow the last photo or video; Moving to left;Take a video Show the next photo or video; Moving to rightImage rotation Playpause the video file; Moving up / progressiveincrease data and time;Image magnify Stop video file; View six files orsix folders.Moving down / progressivedecrease data and time;Operation InstructionsBattery Charging1Connect the DC cable to the grip or screen.2Plug the AC plugs to household power outlet.3The LED L turns red ,means charging.4The LED L turns green, means fully charging5Pull out the AC plug of adapter.NotesIf you want to charge both the grip and screen, please use one to two cable. One end to the adapter, andthe other end to screen and grip.Connect the display unit to camera head and probeThe inspecting grip must be connected to the camera head and probe. To connect the probe to the grip, makesure the keyed ends are properly aligned. (Fig7). Once they are aligned, finger tighten the nut.Accessories installationIf you need to use the three accessories as FIG2 (magnetic tiphook tipmirror tip), please accord the stepsfollowed to connect.

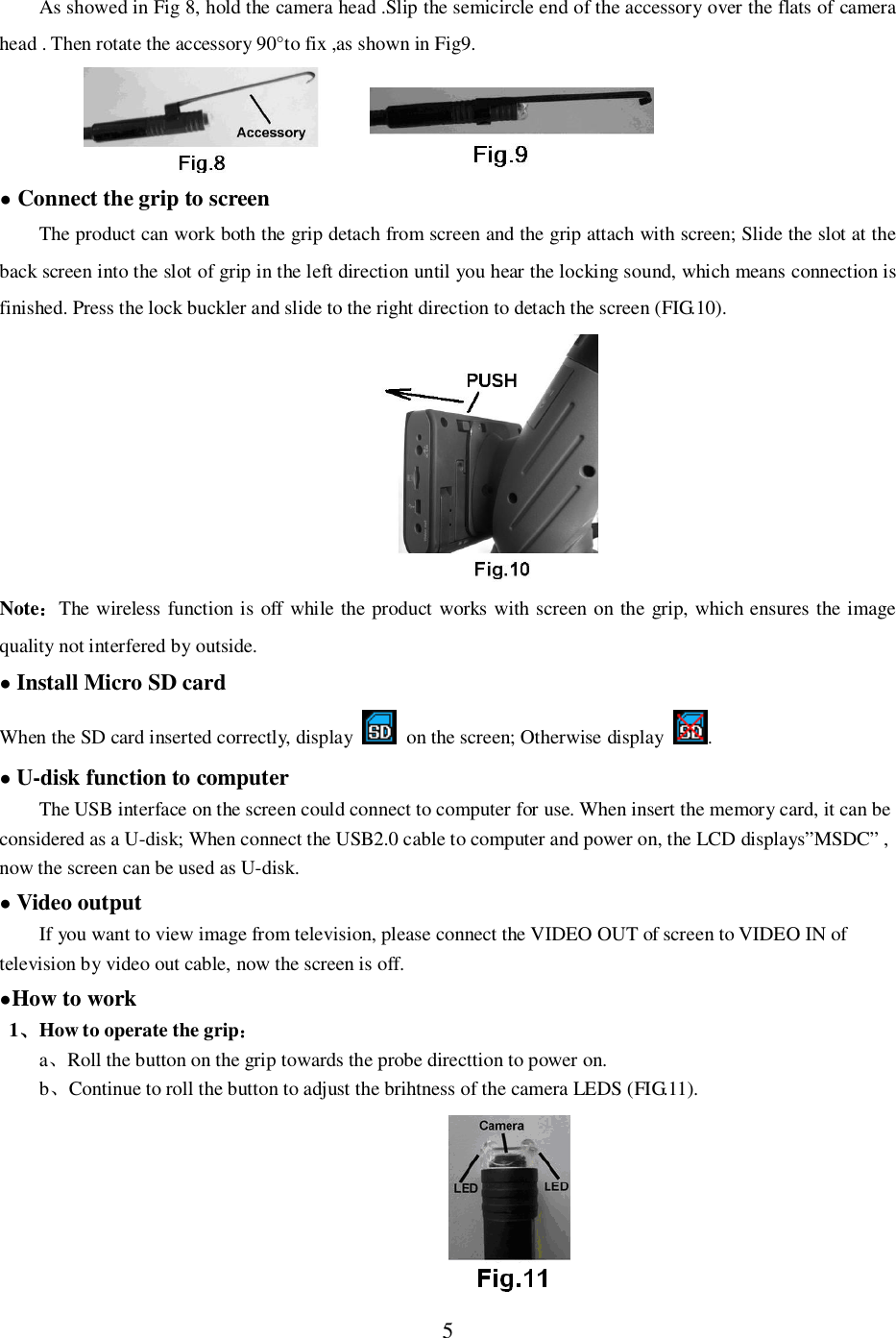

5As showed in Fig 8, hold the camera head .Slip the semicircle end of the accessory over the flats of camerahead . Then rotate the accessory 90°to fix ,as shown in Fig9. Connect the grip to screenThe product can work both the grip detach from screen and the grip attach with screen; Slide the slot at theback screen into the slot of grip in the left direction until you hear the locking sound, which means connection isfinished. Press the lock buckler and slide to the right direction to detach the screen (FIG.10).NoteThe wireless function is off while the product works with screen on the grip, which ensures the imagequality not interfered by outside.Install Micro SD cardWhen the SD card inserted correctly, display on the screen; Otherwise display .U-disk function to computerThe USB interface on the screen could connect to computer for use. When insert the memory card, it can beconsidered as a U-disk; When connect the USB2.0 cable to computer and power on, the LCD displays”MSDC” ,now the screen can be used as U-disk.Video outputIf you want to view image from television, please connect the VIDEO OUT of screen to VIDEO IN oftelevision by video out cable, now the screen is off.How to work1How to operate the gripaRoll the button on the grip towards the probe directtion to power on.bContinue to roll the button to adjust the brihtness of the camera LEDS (FIG.11).

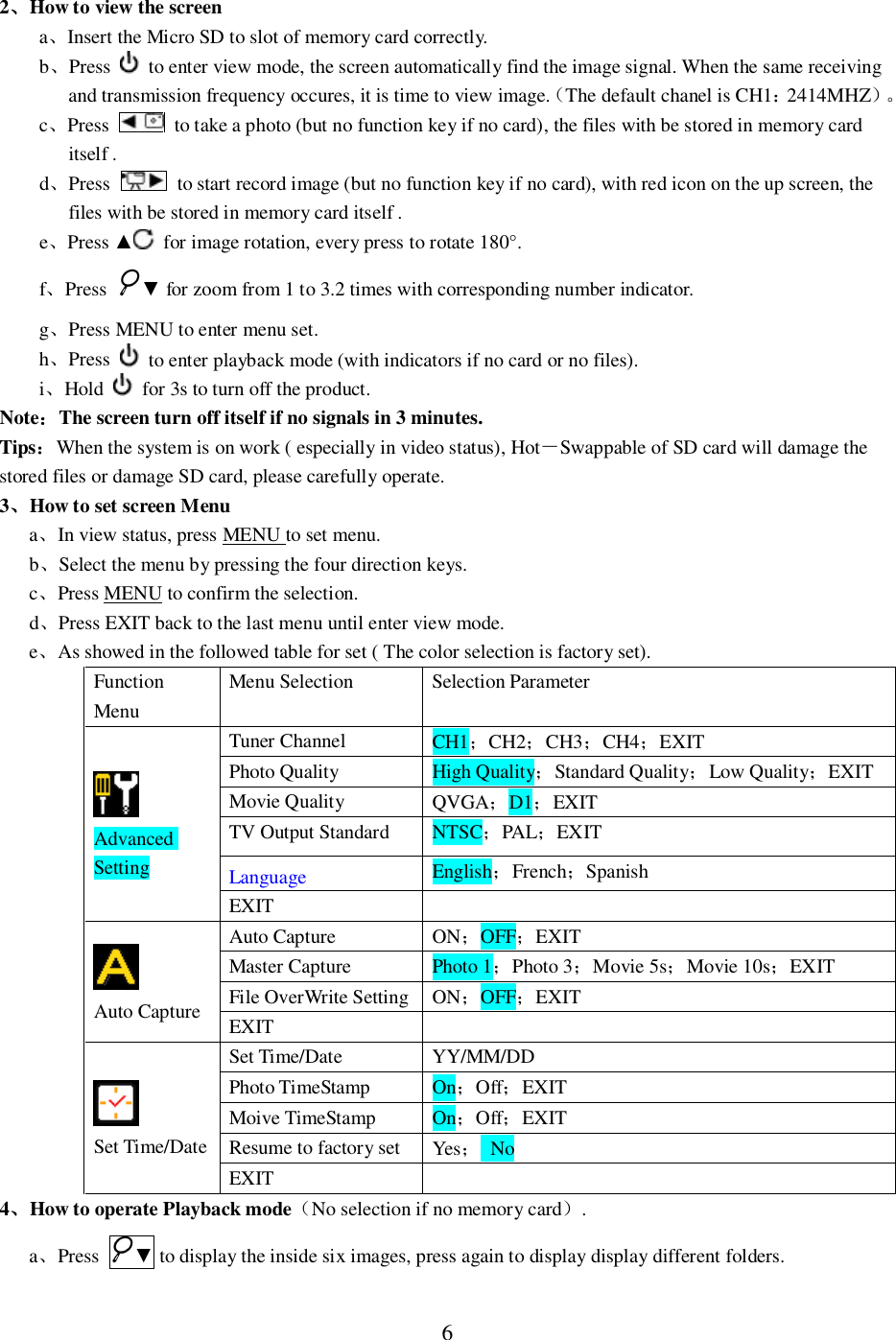

62How to view the screenaInsert the Micro SD to slot of memory card correctly.bPress to enter view mode, the screen automatically find the image signal. When the same receivingand transmission frequency occures, it is time to view image.The default chanel is CH12414MHZc  Press to take a photo (but no function key if no card), the files with be stored in memory carditself .dPress to start record image (but no function key if no card), with red icon on the up screen, thefiles with be stored in memory card itself .ePress  for image rotation, every press to rotate 180°.fPress  for zoom from 1 to 3.2 times with corresponding number indicator.gPress MENU to enter menu set.hPress to enter playback mode (with indicators if no card or no files).iHold for 3s to turn off the product.NoteThe screen turn off itself if no signals in 3 minutes.TipsWhen the system is on work ( especially in video status), HotSwappable of SD card will damage thestored files or damage SD card, please carefully operate.3How to set screen MenuaIn view status, press MENU to set menu.bSelect the menu by pressing the four direction keys.cPress MENU to confirm the selection.dPress EXIT back to the last menu until enter view mode.eAs showed in the followed table for set ( The color selection is factory set).FunctionMenuMenu Selection Selection ParameterAdvancedSettingTuner Channel CH1CH2CH3CH4EXITPhoto Quality High QualityStandard QualityLow QualityEXITMovie Quality QVGAD1EXITTV Output Standard NTSCPALEXITLanguage EnglishFrenchSpanishEXITAuto CaptureAuto Capture ONOFFEXITMaster Capture Photo 1Photo 3Movie 5sMovie 10sEXITFile OverWrite Setting ONOFFEXITEXITSet Time/DateSet Time/Date YY/MM/DDPhoto TimeStamp OnOffEXITMoive TimeStamp OnOffEXITResume to factory set Yes NoEXIT4How to operate Playback modeNo selection if no memory card.aPress  to display the inside six images, press again to display display different folders.

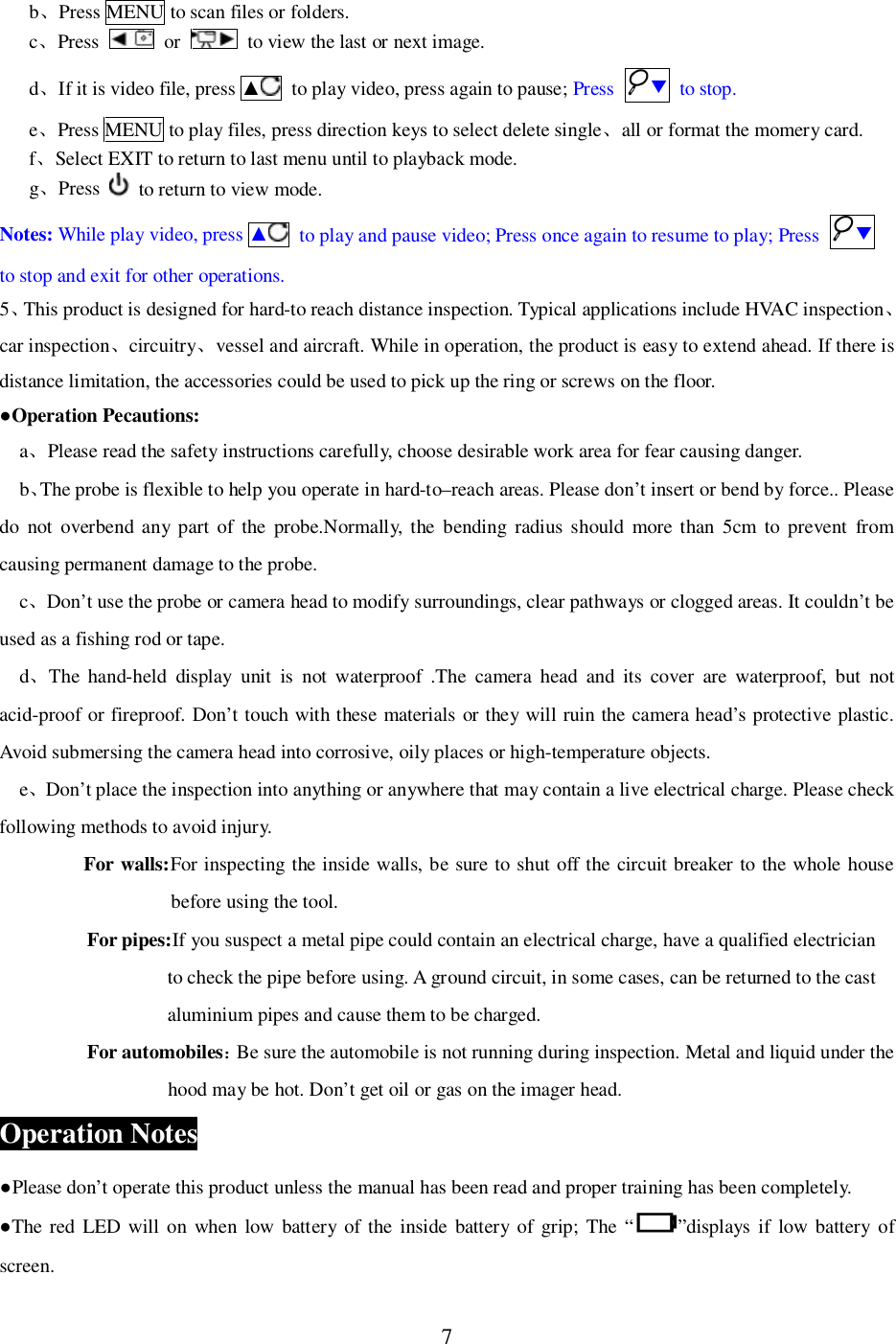

7bPress MENU to scan files or folders.cPress or to view the last or next image.dIf it is video file, press  to play video, press again to pause; Press  to stop.ePress MENU to play files, press direction keys to select delete singleall or format the momery card.fSelect EXIT to return to last menu until to playback mode.gPress to return to view mode.Notes: While play video, press  to play and pause video; Press once again to resume to play; Press to stop and exit for other operations.5This product is designed for hard-to reach distance inspection. Typical applications include HVAC inspectioncar inspectioncircuitryvessel and aircraft. While in operation, the product is easy to extend ahead. If there isdistance limitation, the accessories could be used to pick up the ring or screws on the floor.Operation Pecautions:aPlease read the safety instructions carefully, choose desirable work area for fear causing danger.bThe probe is flexible to help you operate in hard-to–reach areas. Please don’t insert or bend by force.. Pleasedo not overbend any part of the probe.Normally, the bending radius should more than 5cm to prevent fromcausing permanent damage to the probe.cDon’t use the probe or camera head to modify surroundings, clear pathways or clogged areas. It couldn’t beused as a fishing rod or tape.dThe hand-held display unit is not waterproof .The camera head and its cover are waterproof, but notacid-proof or fireproof. Don’t touch with these materials or they will ruin the camera head’s protective plastic.Avoid submersing the camera head into corrosive, oily places or high-temperature objects.eDon’t place the inspection into anything or anywhere that may contain a live electrical charge. Please checkfollowing methods to avoid injury.For walls:For inspecting the inside walls, be sure to shut off the circuit breaker to the whole housebefore using the tool.For pipes:If you suspect a metal pipe could contain an electrical charge, have a qualified electricianto check the pipe before using. A ground circuit, in some cases, can be returned to the castaluminium pipes and cause them to be charged.For automobilesBe sure the automobile is not running during inspection. Metal and liquid under thehood may be hot. Don’t get oil or gas on the imager head.Operation NotesPlease don’t operate this product unless the manual has been read and proper training has been completely.The red LED will on when low battery of the inside battery of grip; The “ ”displays if low battery ofscreen.

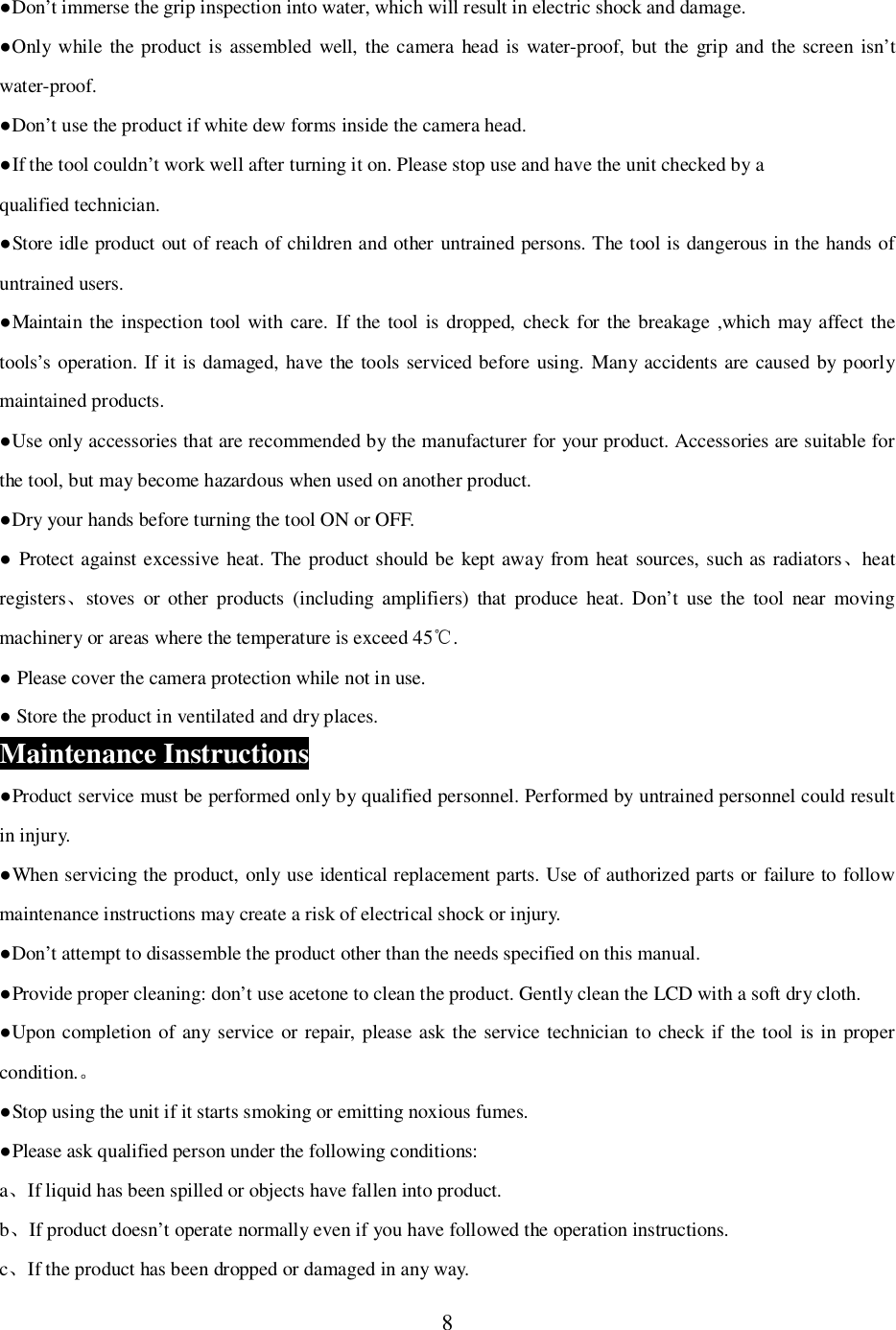

8Don’t immerse the grip inspection into water, which will result in electric shock and damage.Only while the product is assembled well, the camera head is water-proof, but the grip and the screen isn’twater-proof.Don’t use the product if white dew forms inside the camera head.If the tool couldn’t work well after turning it on. Please stop use and have the unit checked by aqualified technician.Store idle product out of reach of children and other untrained persons. The tool is dangerous in the hands ofuntrained users.Maintain the inspection tool with care. If the tool is dropped, check for the breakage ,which may affect thetools’s operation. If it is damaged, have the tools serviced before using. Many accidents are caused by poorlymaintained products.Use only accessories that are recommended by the manufacturer for your product. Accessories are suitable forthe tool, but may become hazardous when used on another product.Dry your hands before turning the tool ON or OFF. Protect against excessive heat. The product should be kept away from heat sources, such as radiatorsheatregistersstoves or other products (including amplifiers) that produce heat. Don’t use the tool near movingmachinery or areas where the temperature is exceed 45 . Please cover the camera protection while not in use. Store the product in ventilated and dry places.Maintenance InstructionsProduct service must be performed only by qualified personnel. Performed by untrained personnel could resultin injury.When servicing the product, only use identical replacement parts. Use of authorized parts or failure to followmaintenance instructions may create a risk of electrical shock or injury.Don’t attempt to disassemble the product other than the needs specified on this manual.Provide proper cleaning: don’t use acetone to clean the product. Gently clean the LCD with a soft dry cloth.Upon completion of any service or repair, please ask the service technician to check if the tool is in propercondition.Stop using the unit if it starts smoking or emitting noxious fumes.Please ask qualified person under the following conditions:aIf liquid has been spilled or objects have fallen into product.bIf product doesn’t operate normally even if you have followed the operation instructions.cIf the product has been dropped or damaged in any way.

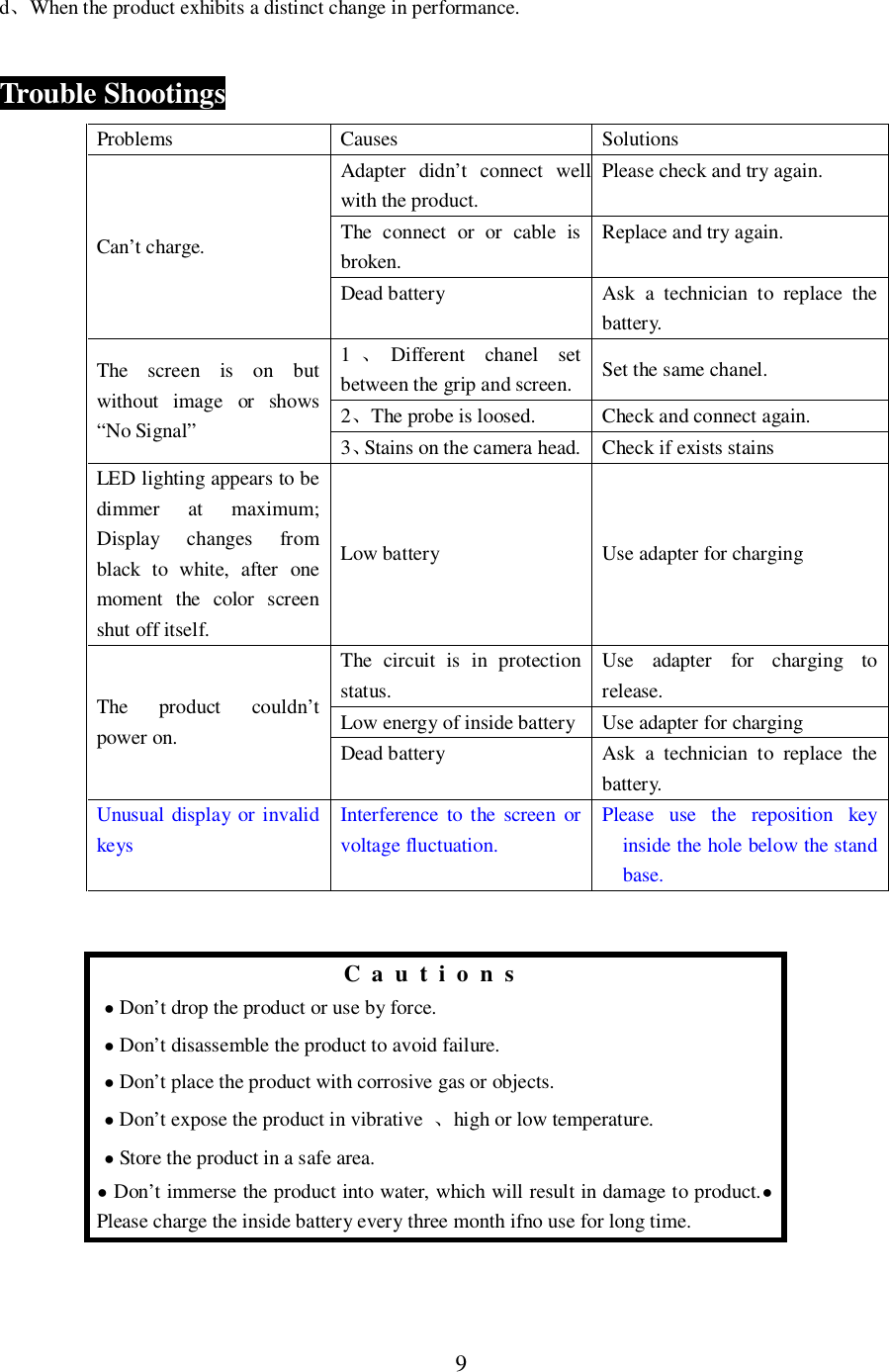

9dWhen the product exhibits a distinct change in performance.Trouble ShootingsProblems Causes SolutionsCan’t charge.Adapter didn’t connect wellwith the product.Please check and try again.The connect or or cable isbroken.Replace and try again.Dead battery Ask a technician to replace thebatter y.The screen is on butwithout image or shows“No Signal”1Different chanel setbetween the grip and screen. Set the same chanel.2The probe is loosed. Check and connect again.3Stains on the camera head. Check if exists stainsLED lighting appears to bedimmer at maximum;Display changes fromblack to white, after onemoment the color screenshut off itself.Low battery Use adapter for chargingThe product couldn’tpower on.The circuit is in protectionstatus.Use adapter for charging torelease.Low energy of inside battery Use adapter for chargingDead battery Ask a technician to replace thebatter y.Unusual display or invalidkeysInterference to the screen orvoltage fluctuation.Please use the reposition keyinside the hole below the standbase.Cautions Don’t drop the product or use by force. Don’t disassemble the product to avoid failure. Don’t place the product with corrosive gas or objects. Don’t expose the product in vibrative high or low temperature. Store the product in a safe area. Don’t immerse the product into water, which will result in damage to product.Please charge the inside battery every three month ifno use for long time.

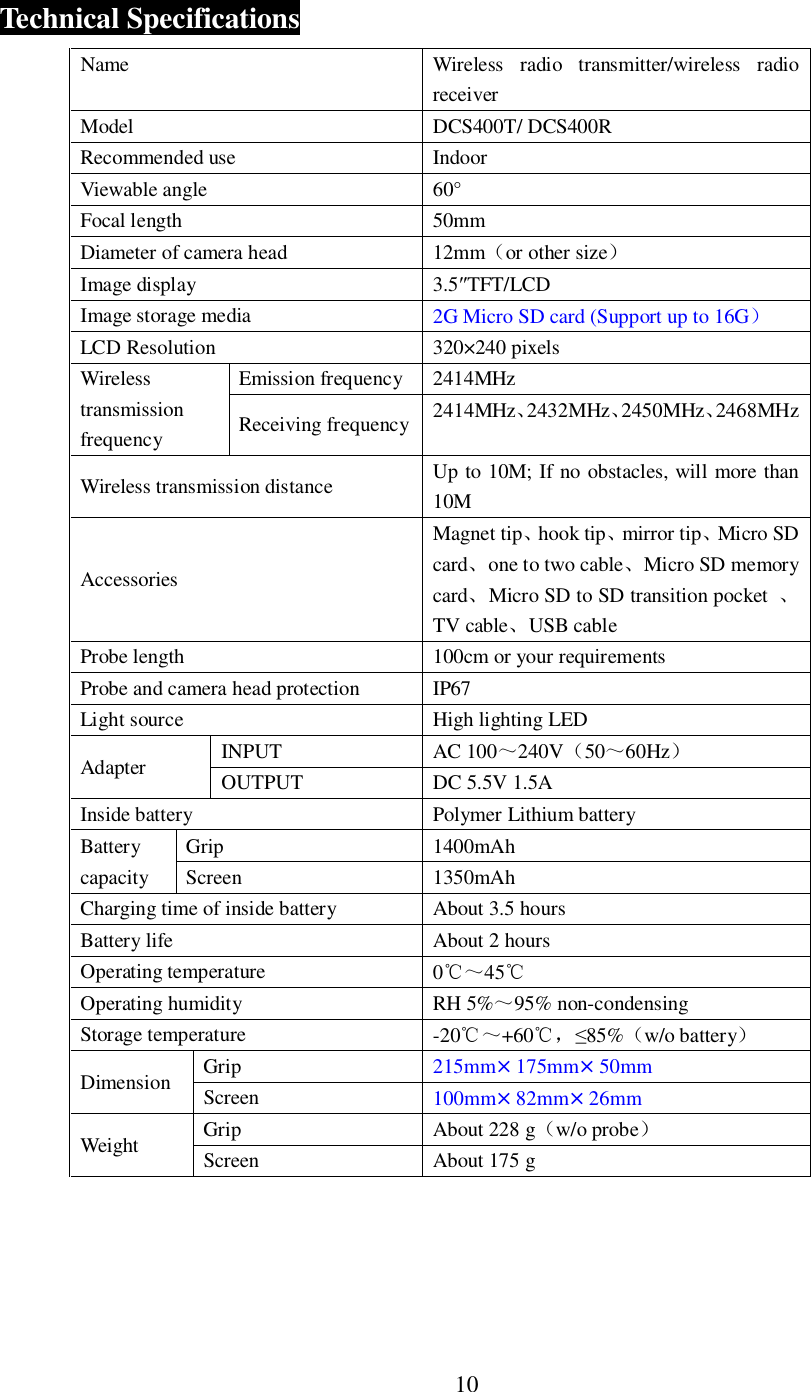

10Technical SpecificationsName Wireless radio transmitter/wireless radioreceiverModel DCS400T/ DCS400RRecommended use IndoorViewable angle 60°Focal length 50mmDiameter of camera head 12mmor other sizeImage display 3.5TFT/LCDImage storage media 2G Micro SD card (Support up to 16GLCD Resolution 320×240 pixelsWirelesstransmissionfrequencyEmission frequency 2414MHzReceiving frequency 2414MHz2432MHz2450MHz2468MHzWireless transmission distance Up to 10M; If no obstacles, will more than10MAccessoriesMagnet tiphook tipmirror tipMicro SDcardone to two cableMicro SD memorycardMicro SD to SD transition pocket TV cableUSB cableProbe length 100cm or your requirementsProbe and camera head protection IP67Light source High lighting LEDAdapter INPUT AC 100240V5060HzOUTPUT DC 5.5V 1.5AInside battery Polymer Lithium batteryBatterycapacityGrip 1400mAhScreen 1350mAhCharging time of inside battery About 3.5 hoursBattery life About 2 hoursOperating temperature 045Operating humidity RH 5%95% non-condensingStorage temperature -20+6085%w/o batteryDimension Grip 215mm×175mm×50mmScreen 100mm×82mm×26mmWeight Grip About 228 gw/o probeScreen About 175 g

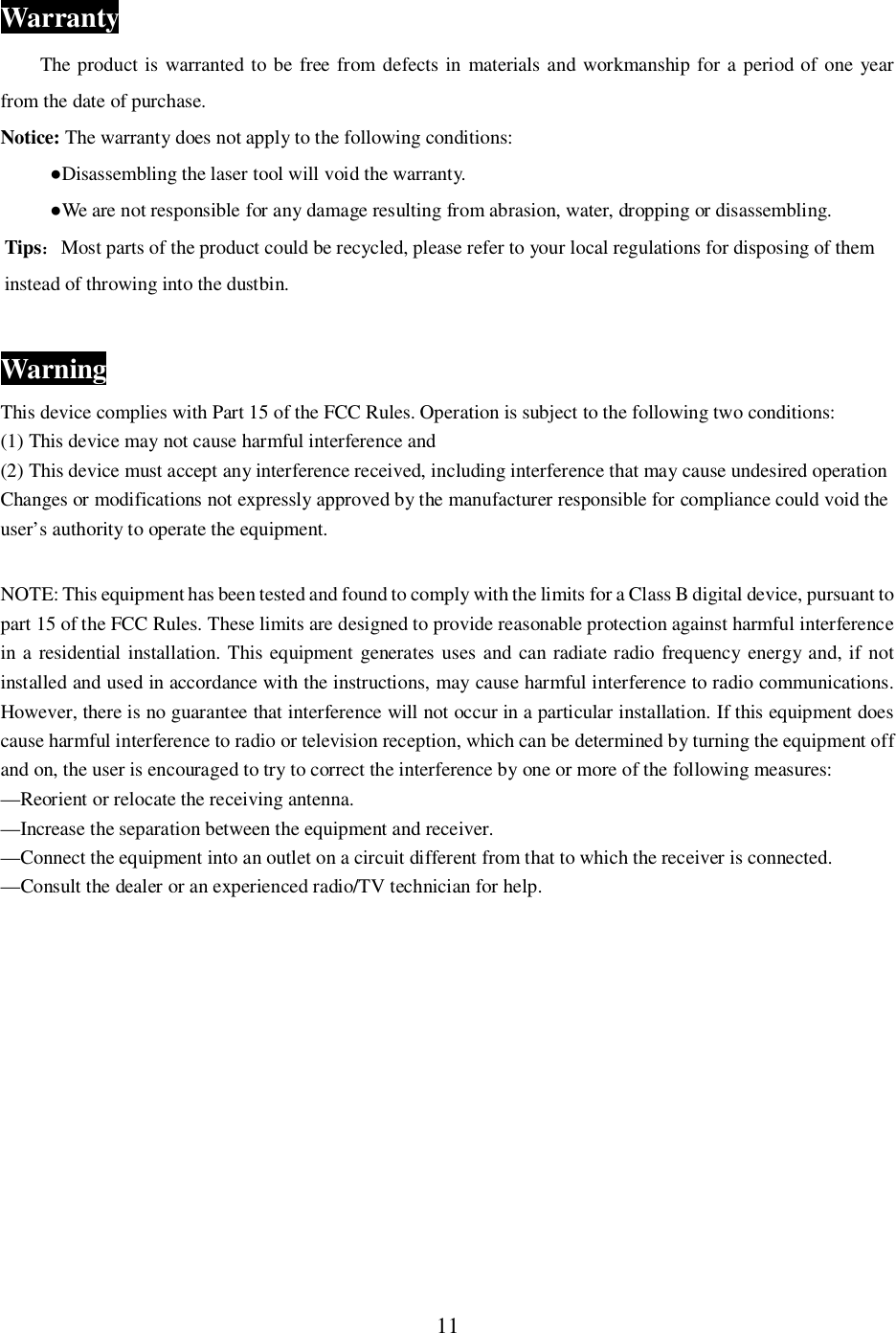

11WarrantyThe product is warranted to be free from defects in materials and workmanship for a period of one yearfrom the date of purchase.Notice: The warranty does not apply to the following conditions:Disassembling the laser tool will void the warranty.We are not responsible for any damage resulting from abrasion, water, dropping or disassembling.TipsMost parts of the product could be recycled, please refer to your local regulations for disposing of theminstead of throwing into the dustbin.WarningThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference and(2) This device must accept any interference received, including interference that may cause undesired operationChanges or modifications not expressly approved by the manufacturer responsible for compliance could void theuser’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant topart 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferencein a residential installation. This equipment generates uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.
