SkyVision WS100
User’s Manual
Copyright
© 2012 GIGABYTE TECHNOLOGY CO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. (“GBT”). No part of this manual may be
reproduced or transmitted
in any form without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the properties of their respective owners.
Notice
Please do not remove any labels on this product. Doing so may void the warranty of this
before publication of this manual. The author assumes no responsibility for any errors or
omissions that may appear in this document nor does.The author make a commitment to
update the information contained herein.
Rovi Product Notice:
This product incorporates copyright protection technology that is protected by U.S. patents
and other intellectual property rights. Use of this copyright protection technology must be
authorized by Rovi Corporation, and is intended for home and other limited viewing uses only
unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is
prohibited.
![](/img.php?id=1711878&img=bg2.png)
English
-2-
Supported Resolution
Please make sure the source device is compliant with the following
standards. If the source device does not support the following frame rate,
the OSD will show that no video displayed or the video quality is poor.
640x480p @ 59.94 / 60 Hz
480p
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
720x480p @ 59.94 Hz
576p
720x480p @ 60 Hz
720p
720x576p @ 50 Hz
1280x720p @ 50 Hz
1280x720p @ 59.94 / 60 Hz
1920x1080i @ 50 Hz
1920x1080i @ 59.94 / 60 Hz
1920x1080p @ 50 Hz
1920x1080p @ 59.94 / 60 Hz
1920x1080p @ 29.97 / 30 Hz
640x480 @ 59.94 / 72.809 Hz
800x600 @ 60.317 / 72.188 Hz
1024x768 @ 60 / 70.069 Hz
1280x768 @ 60 Hz
1280x1024 @ 60 Hz
1366x768
1920x1080
Video Forate Timing Resolution Supported
1080i
1080p / 60
1080p / 24
VGA
SVGA
XGA
WXGA
SXGA
![](/img.php?id=1711878&img=bg3.png)
English
-3-
Featuring WHDI (Wireless Home Digital Interface) technology,
GIGABYTE SkyVision WS100 can seamlessly transmit 1080p high-
definition videos or Blu-ray movies from any HDMI-ready device to
HDTV or display. It can transmit uncompressed video contents up to 10
meters (Line of sight) with no latency (latency < 1ms).
Wireless Technology WHDI 1.0
Host Interface HDMI (Type A)
Video quality Uncompressed
Video resolution
Audio
Operating frequency
Range
Latency
Power supply
I/O port
Dimensions
SkyVision WS100
HD: 480p,576p,720p,1080i, 1080p/60Hz
PC: VGA (640x480), SVGA (800x600),
XGA (1024x768), SXGA (1280x1024)
Panel: 1280x768, 1366x768, 1920x1080
Up to 18Mbps audio stream
5.1 channel, up to 48KHz 24 Bit, AC3 and DTS
USA/CANADA:
5170-5250 (MHz)
5735-5815 (MHz)
EUROPE/ RUSSIA:
5170-5210 (MHz), 5210-5250 (MHz)
Up to 10 meters (Line of sight)*
(transmission quality varies with the environment)
< 1ms
TX: 5V micro USB cable(female)
RX: 5V, 2A micro USB power cable
TX: HDMI port*1, Micro USB*1
RX: HDMI port*1, DC-In*1
TX: 93x32x15.3 mm (LxWxH)
RX: 93x82x32 mm (LxWxH)
![](/img.php?id=1711878&img=bg4.png)
English
-4-

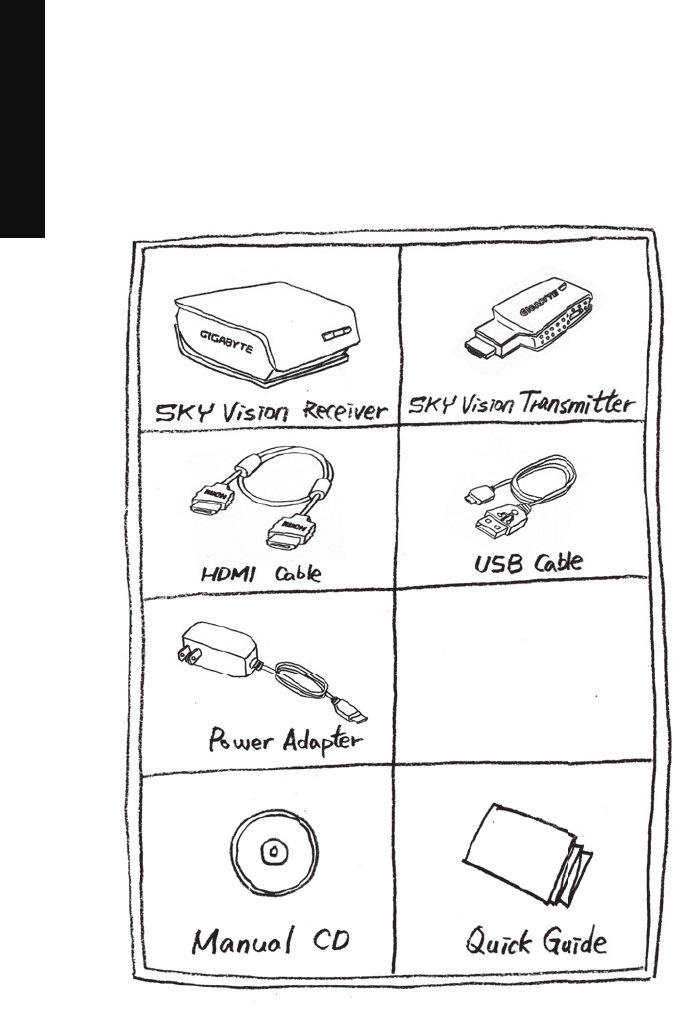

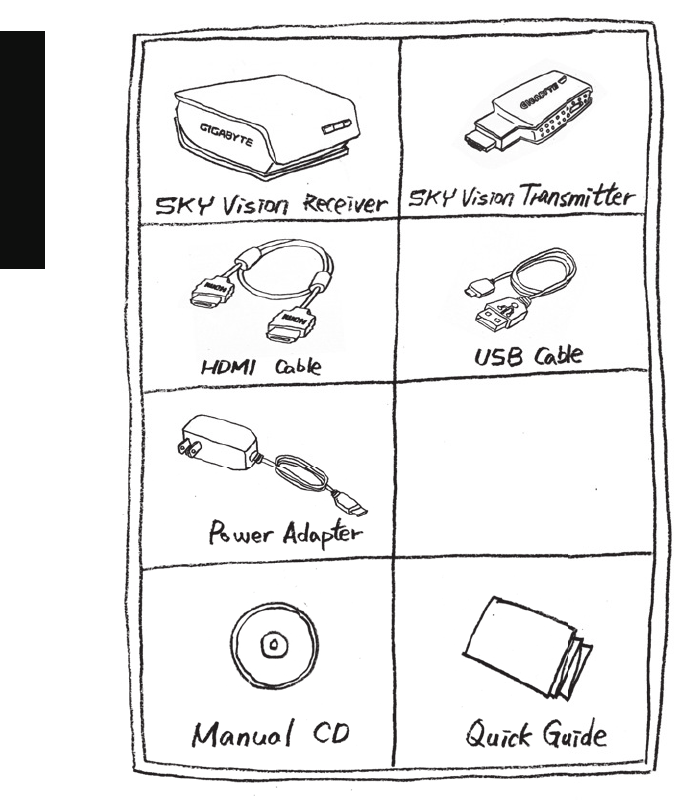

Packing Content
Before setting up, please check whether the following items are in the
package. If any item is missed or damaged, please contact your retailer.
![](/img.php?id=1711878&img=bg5.png)
English
-5-

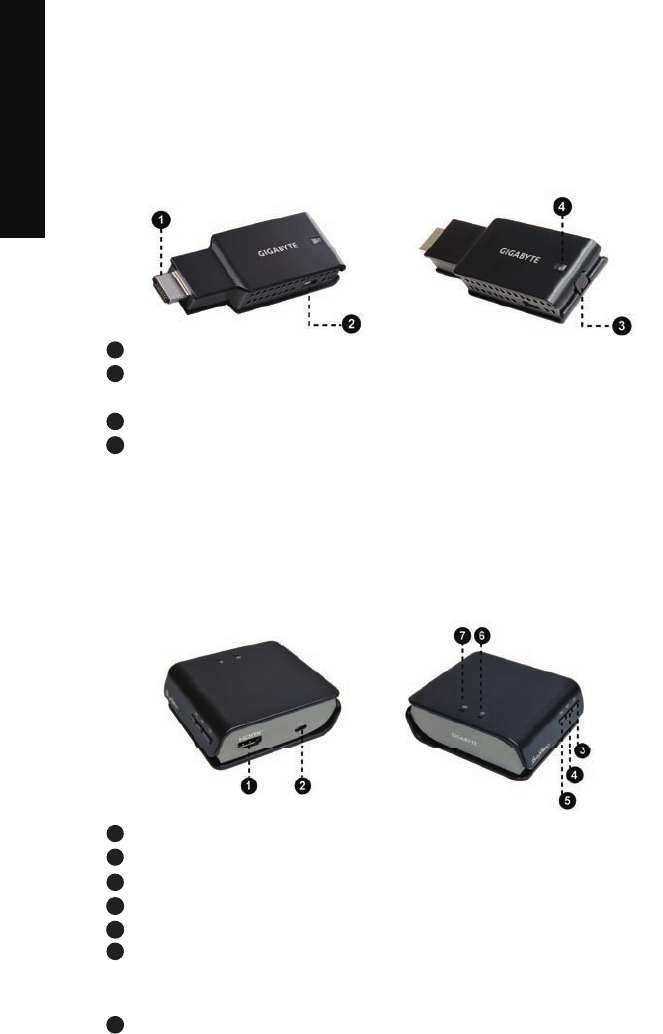

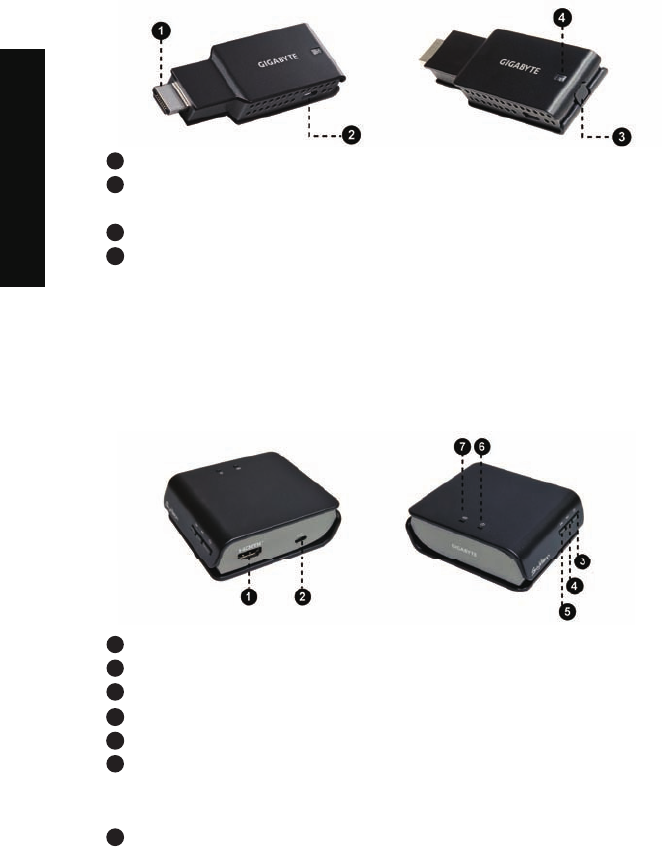

Overview
1. Before You Begin

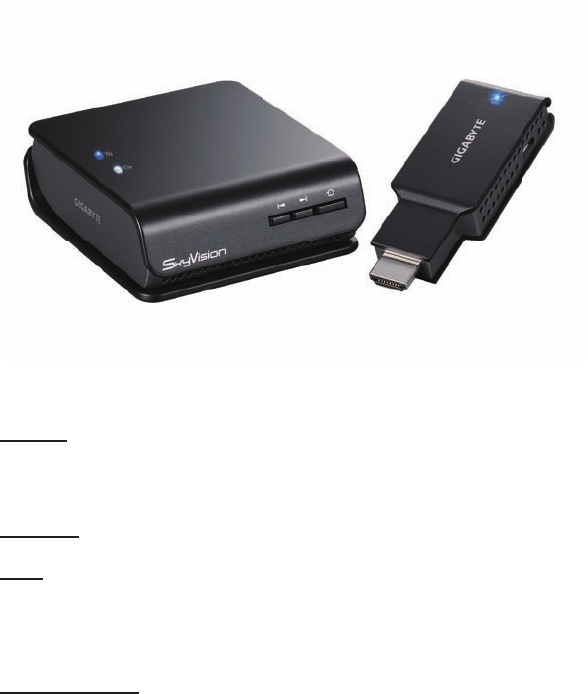

SkyVision WS100 transmitter
SkyVision WS100 receiver
HDMI connector: Connects to the HDMI port of the source device
Micro USB power connector: Connects to the USB port of the source
device with bundled USB cable.
Registration button: Registration button is reserved for receiver paring use.
LED indicator:
On: LED indicator is solid blue
Linking to SkyVision WS100 receiver: LED indicator is blinking
HDMI port: Connects to HDMI-ready TV or display with bundled HDMI cable
Micro USB power port: Connects to external power with bundled power adapter
Menu button: Setup menu
Up button: Scrolls up through the menu
Down button: Scrolls down through the menu
Power LED indicator:
Power on: LED indicator is solid white
Power off: LED indicator is off
Link LED indicator:
Linked: LED indicator is solid blue
Linking to SkyVision WS100 transmitter: LED indicator is blinking
1
1
2
2
3
3
4
4
5
6
7
![](/img.php?id=1711878&img=bg6.png)
English
-6-
Note:
1. When SkyVision WS100 is functioning normally, power LED indicator
will be in solid white and link LED indicator will be in solid blue. Please
refer to the following table for LED behavior.
Standby
Initial boot up
Searching channels
Wireless linked
In power saving mode Solid white off
Blinking blue
Blinking blue
Solid blue
Solid blue
Solid blue
Solid white
Solid white
Solid white
Solid white
Solid white
Boot up needs
15 to 20 seconds
Searching for
available channels
No input from
selected source
Video format
not recognized
Video format
is recognized
Mode Status description Power LED Link LED
![](/img.php?id=1711878&img=bg7.png)
English
-7-
2.3 Rename SkyVision WS100
1. Press Menu button
2. Press Up or Down button to select Settings
3. Select Rename Video Source
4. Press Menu button to select the video source to be renamed
5. Use Up and Down buttons to move horizontally and highlight the
character to be changed
6. Press Menu button to select the character to be renamed
7. Press Up or Down button to change the character
9. Press and hold Menu button to Apply or Cancel Rename Video
Source section
2. On Screen Display (OSD) Instruction:
The Menu button on SkyVision WS100 receiver allows you to add,
remove, or rename SkyVision WS100 transmitter. You can also
disconnect SkyVision here.
2.1 To add another SkyVision WS100 transmitter or remove existing
SkyVision WS100 transmitter
1. Press Menu button
2. Press Up or Down button to select Settings
3. Press Up or Down button to select Add New Video Source or Remove
Video Source
4. Press Menu button to select video source you want to add or remove
5. Select OK to apply the change
2.2 Disconnect SkyVision WS100
1. Press Menu button
2. Press Up or Down button to select Settings
3. Select Disconnect SkyVision
4. Select OK to apply the change
![](/img.php?id=1711878&img=bg8.png)
English
-8-
Installation
SkyVision WS100 can wirelessly transmit high-definition video/audio
contents from devices such as PC, laptop, Blu-ray player, set-top box,
PS3, and Xbox to TV or display*.
* Both source and display device must have HDMI ports

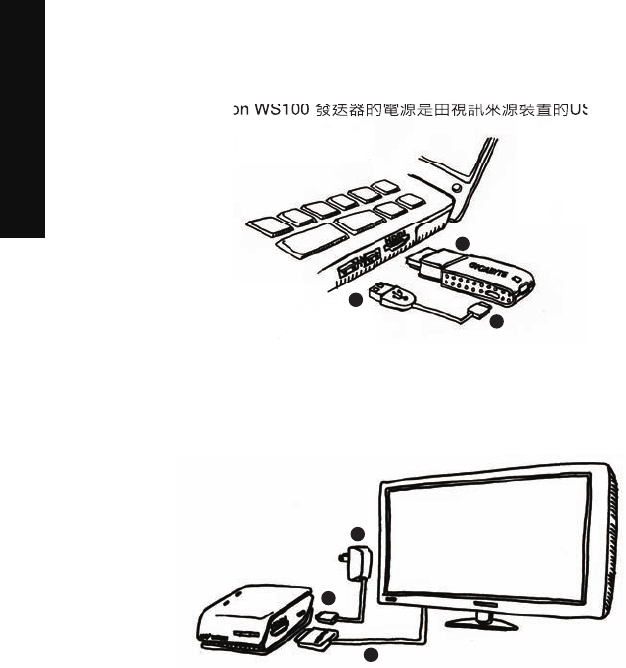

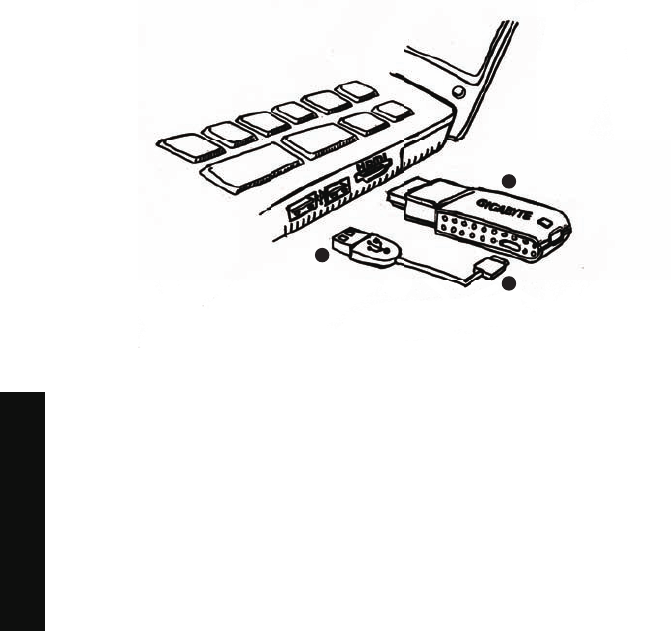

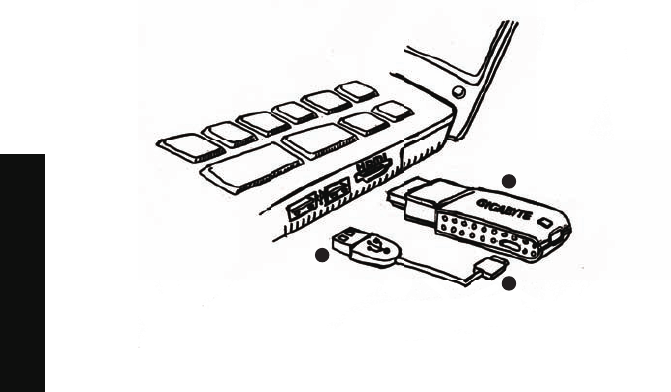

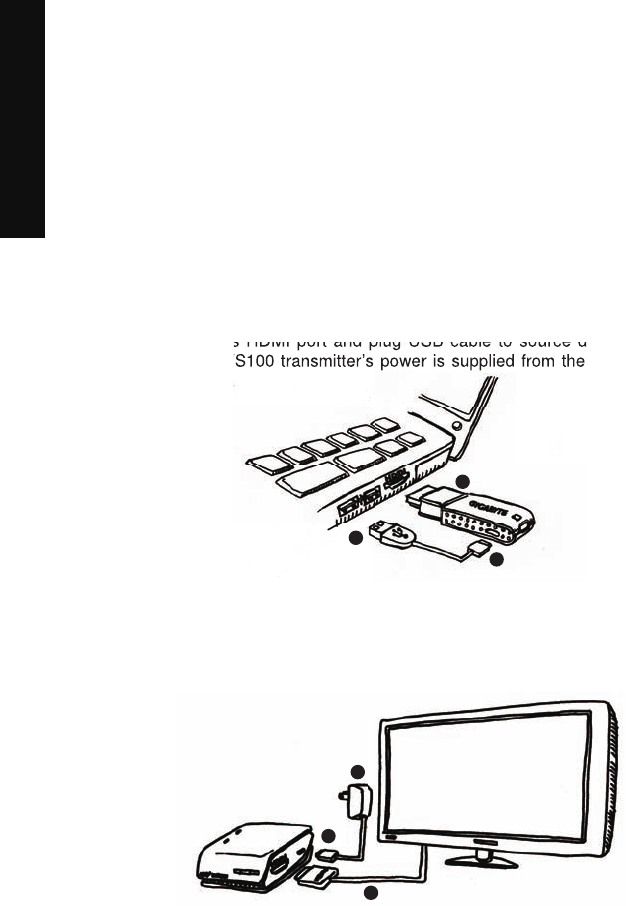

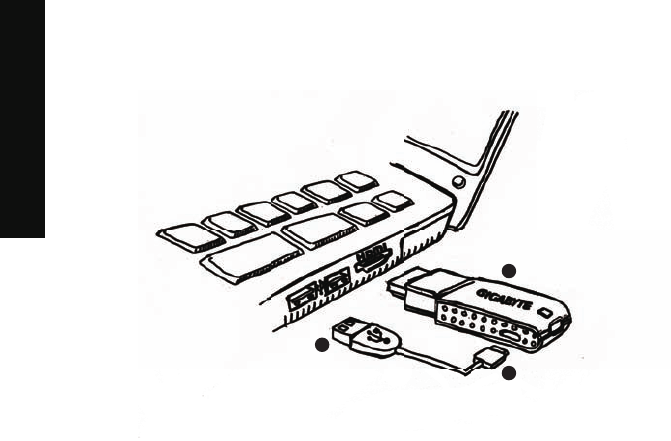

Step 1.

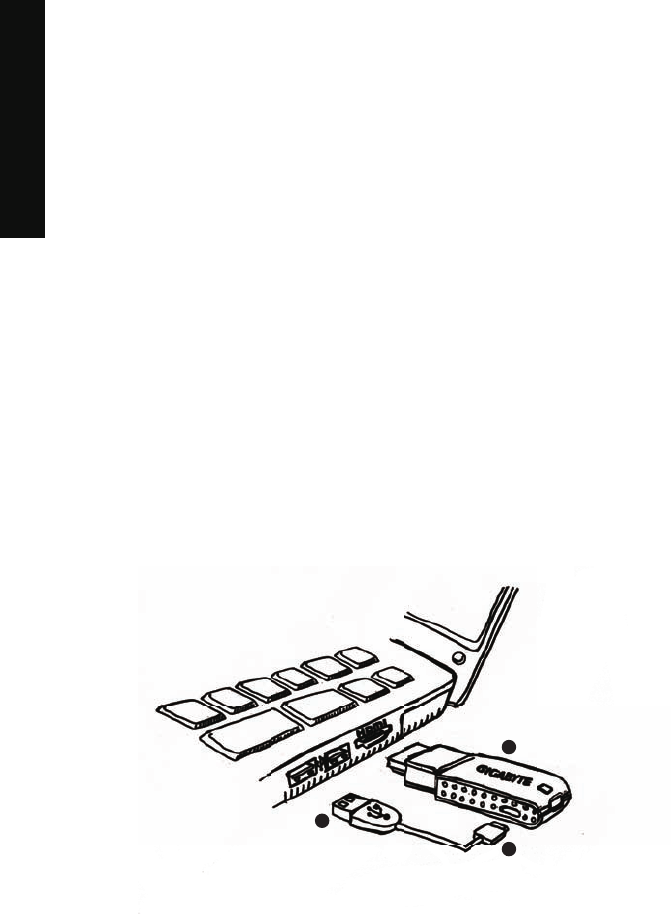

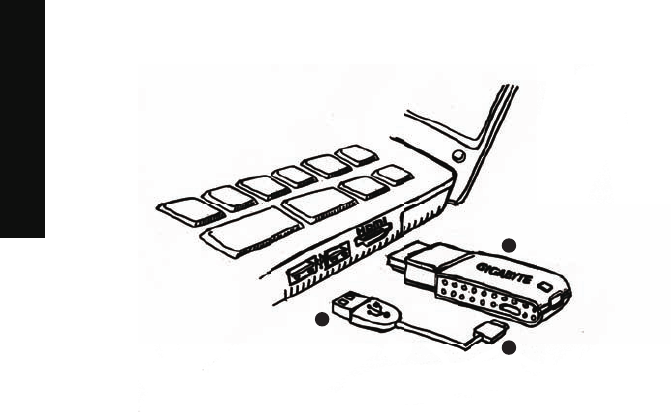

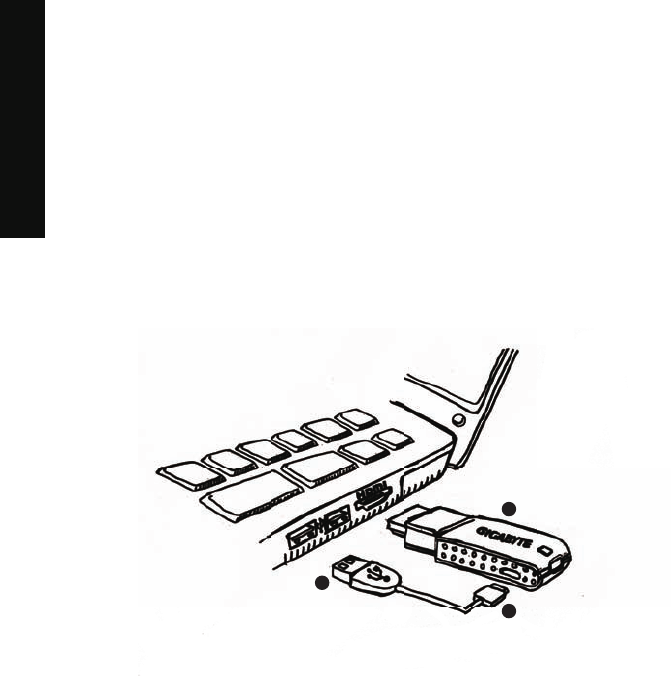

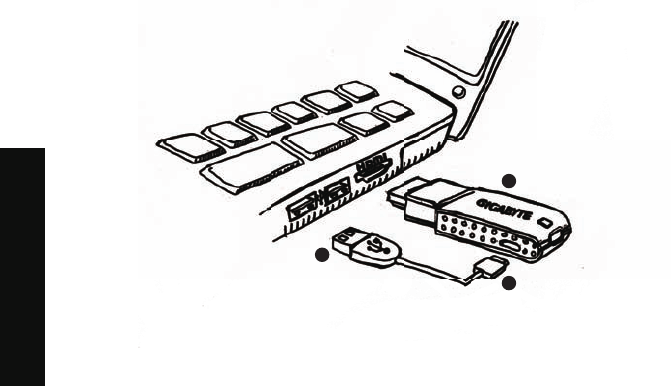

Setup SkyVision WS100 Transmitter
Connect the bundled USB cable to SkyVision WS100 and then connect
SkyVision WS100 and USB cable to the source device. Please plug SkyVision
to source device’s HDMI port and plug USB cable to source device’s USB
port. SkyVision WS100 transmitter’s power is supplied from the USB port of
the source device.

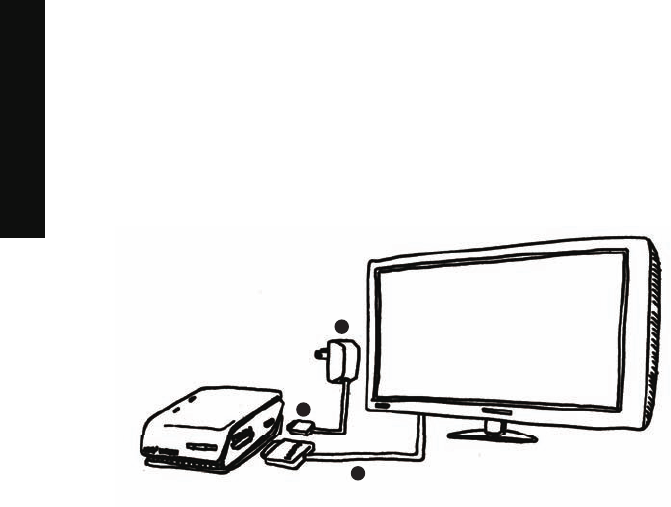

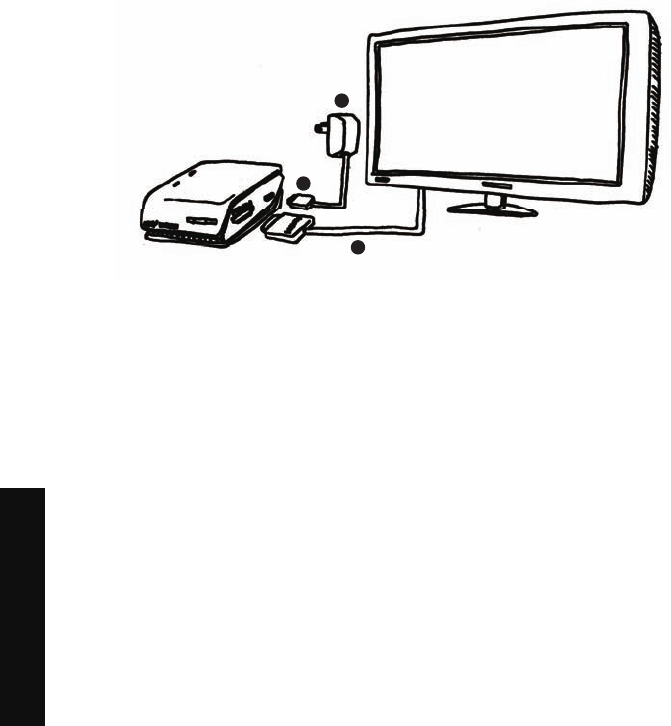

Step 2.

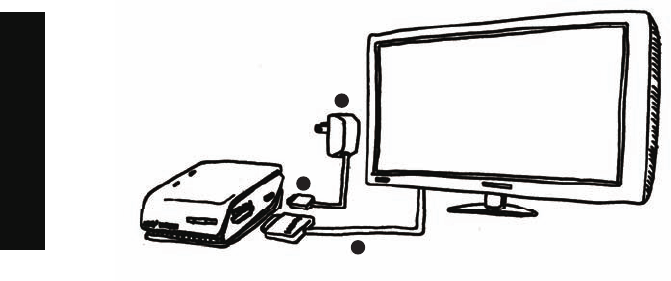

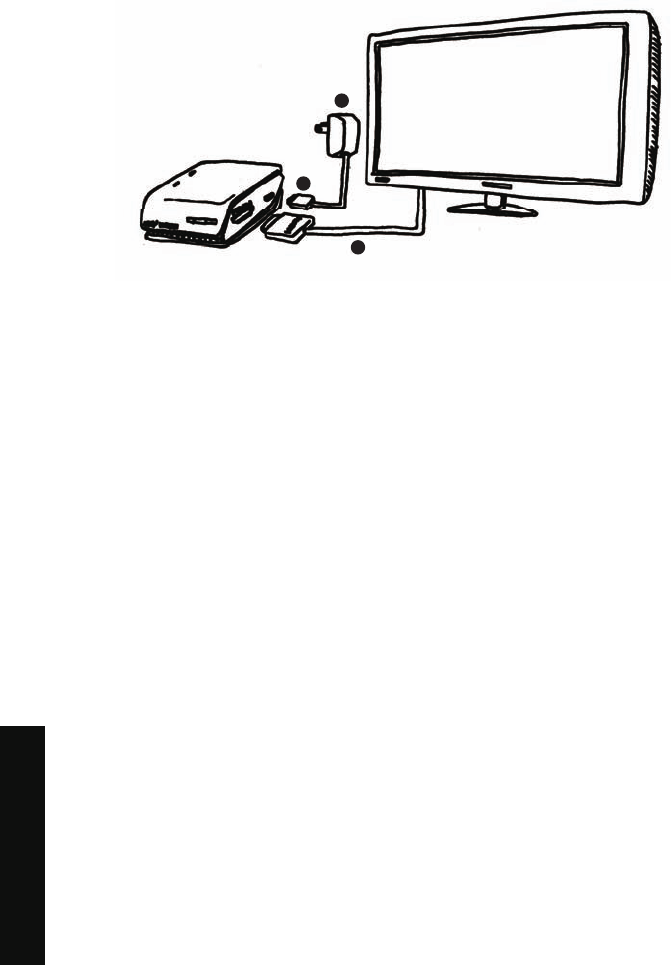

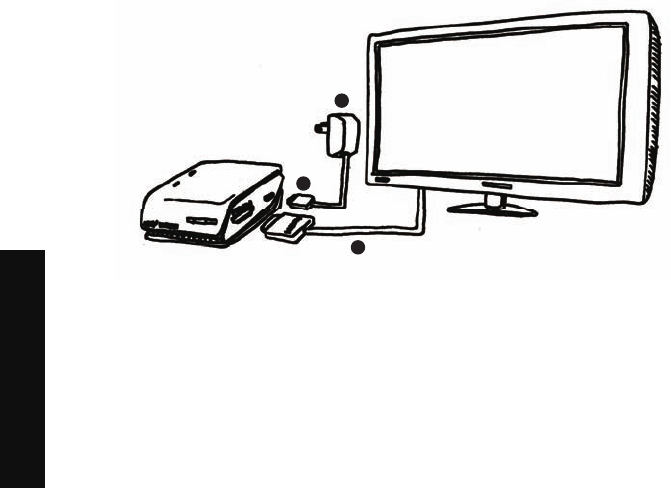

Setup SkyVision WS100 Receiver
Connect the bundled power adapter to SkyVision WS100 and insert the power
adapter into a power outlet then connect SkyVision WS100 to the external display
through bundled HDMI cable.
Note:
1. Please make sure your display is in “HDMI” input mode. When the components
are connected correctly and the correct source is selected, the image on the
source device will be showed on the display.
2. It may take a few seconds for SkyVision WS100 to link each other and for the
image on the source device to the display. During the linking period, link LED
indicators on the transmitter and receiver will blink in blue. When linking, link
LED indicators will be solid blue.
to source device’s HDMI port and plug USB cable to source device’s USB
port. SkyVision WS100 transmitter’s power is supplied from the USB port of
1
1
2
2
3
3
![](/img.php?id=1711878&img=bg9.png)
English
-9-
Display Setting
Adjust Screen Resolution
SkyVision WS100 supports duplicate mode, extend mode, and projector
only mode on external display. Please follow the steps below to enable
external display.
SkyVision WS100 supports 1080p full HD video resolution without
latency (latency < 1ms). You can manually adjust preferred resolution by
the following steps.

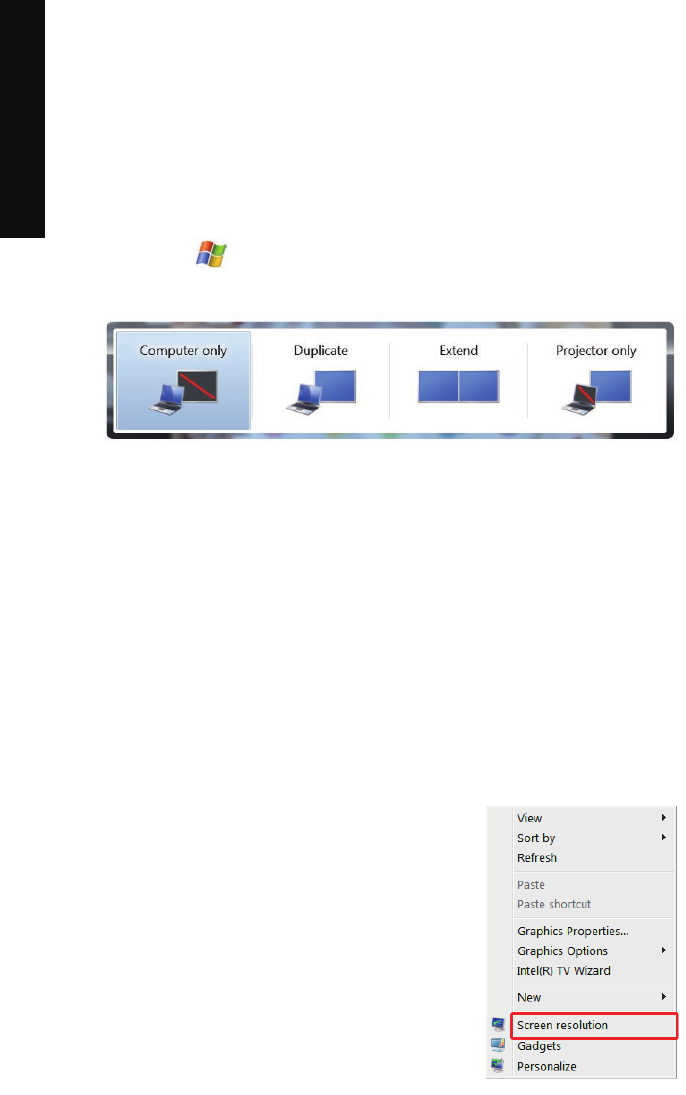

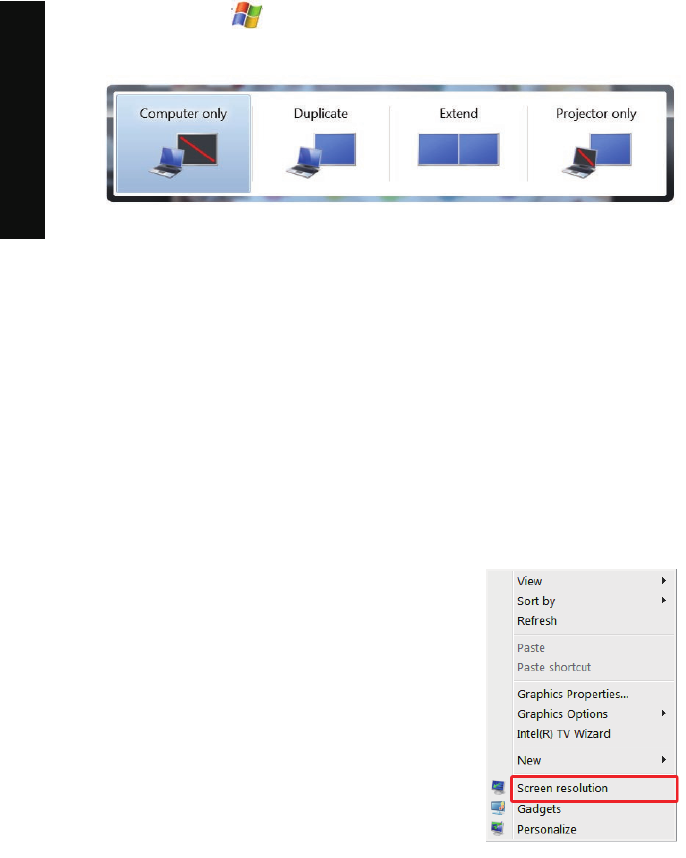

1. Windows Utility
Step1. Press and tap P
Step2. Select Clone mode, Extend display, or Project out only
2. MAC OS
Step1. Click System Performance to open Displays
Step2. Click Detect Display to detect external display
1. Windows Utility
Adjust screen resolutions on both source device and external display
Note:
MAC OS will automatically detect external display and switch to a better resolution
when external display cable is plugged in.
Step1. Right click the mouse on Windows desktop
and choose Screen resolution
Step2. Dropdown the Resolution list and select
preferred resolution
Step3. Click Apply
Step4. Click Keep Change
message pop out
Step5. Click OK
![](/img.php?id=1711878&img=bga.png)
English
-10-

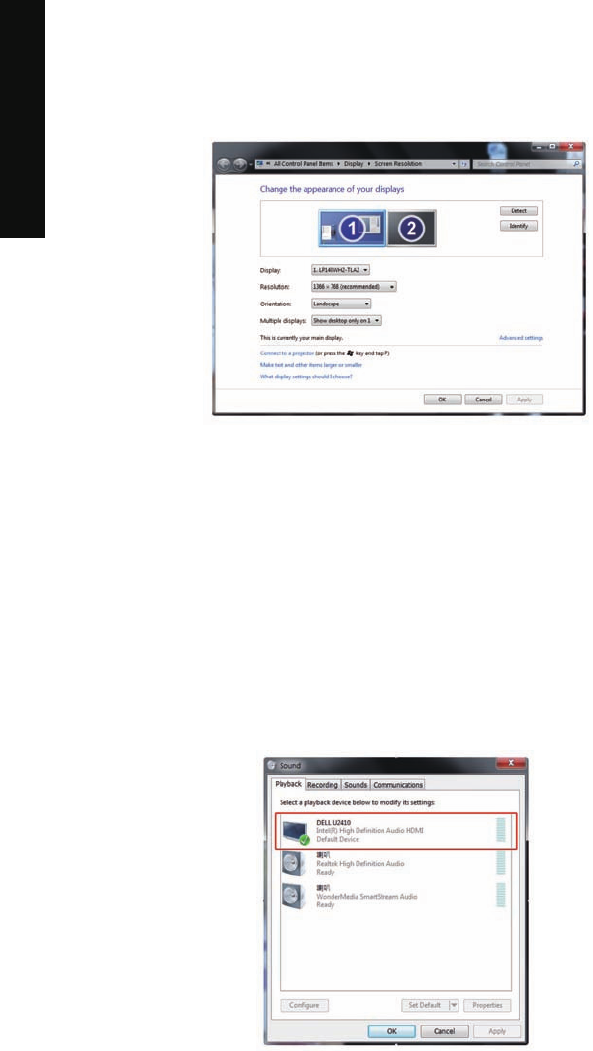

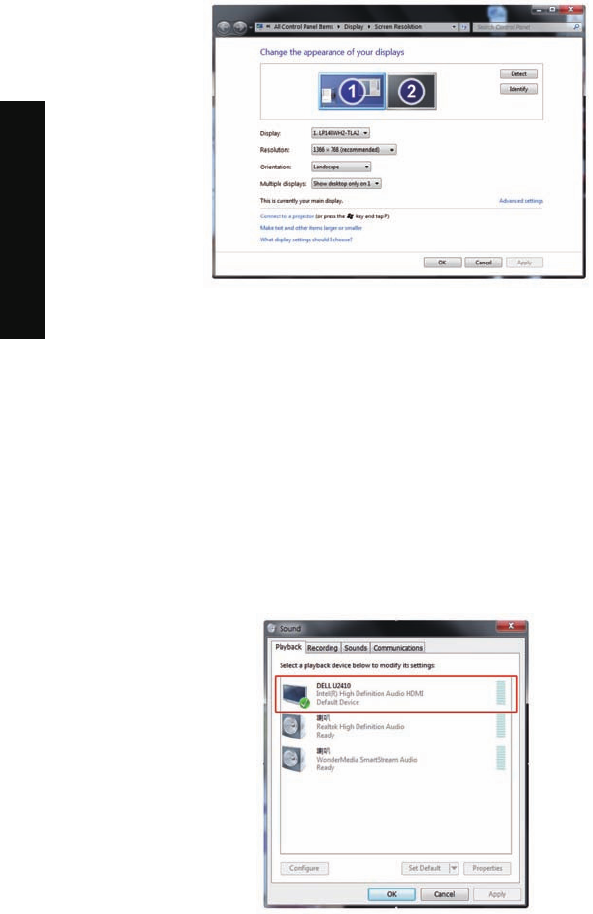

Adjust screen resolutions on source device or external display
Adjust Audio Setting
Step1. Right click the mouse on Windows desktop and choose Screen resolution
Step2. Dropdown the Resolution list and select preferred resolution for the
Step3. Click Apply
Step4. Click Keep Change
Step5. For generic PnP monitor and Intel Graphic Media accelerator HD screen,
click monitor and select 60Hz as the screen refresh rate
Step6. Click OK
Step1. Please open Audio Setting form control panel
Step2. Select HDMI output and click OK
![](/img.php?id=1711878&img=bgb.png)
English
-11-
Trouble Shooting
No display output on the
external display
Please make sure all cables are
connected properly.
Please make sure your display is in “HDMI”
input mode.
Please check the distance between SkyVision
WS100 transmitter and receiver.
Maximum transmit distance is 10 meters and
may vary from the environment.
Unplug SkyVision WS100 transmission kit
and then re-plug.
set and not in Mute mode.
properly connected.
*Please refer to Adjust Audio Setting section
for more details
screen resolution or external display screen’s
resolution.
No audio
Video output not entirely fit
the external display screen
Issue Solution
![](/img.php?id=1711878&img=bgc.png)
English
-12-
Notice:
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
bands are country dependent and are firmware programmed at the
factory to match the intended destination. The firmware setting is not
accessible by the end user.
![](/img.php?id=1711878&img=bgd.png)
繁體中文
-1-
支援解析度
請確認視訊來源符合下列標準。若視訊來源無法支援下列畫面更新率,
SkyVision WS1000 在螢幕上將顯示視訊無法播放或視訊畫面品質不佳的
訊息。
640x480p @ 59.94 / 60 Hz
480p
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
720x480p @ 59.94 Hz
576p
720x480p @ 60 Hz
720p
720x576p @ 50 Hz
1280x720p @ 50 Hz
1280x720p @ 59.94 / 60 Hz
1920x1080i @ 50 Hz
1920x1080i @ 59.94 / 60 Hz
1920x1080p @ 50 Hz
1920x1080p @ 59.94 / 60 Hz
1920x1080p @ 29.97 / 30 Hz
640x480 @ 59.94 / 72.809 Hz
800x600 @ 60.317 / 72.188 Hz
1024x768 @ 60 / 70.069 Hz
1280x768 @ 60 Hz
1280x1024 @ 60 Hz
1366x768
1920x1080
Video Forate Timing Resolution Supported
1080i
1080p / 60
1080p / 24
VGA
SVGA
XGA
WXGA
SXGA
![](/img.php?id=1711878&img=bge.png)
繁體中文
-2-
附件內容
請確認以下物件確實在GIGABYTE SkyVision WS100包裝盒中。若有任
何物件遺失或遭到破壞,請儘速聯絡您的經銷商。
![](/img.php?id=1711878&img=bgf.png)
繁體中文
-3-
使用說明
1. 產品說明
SkyVision WS100 發送器
SkyVision WS100 接收器
HDMI 連接埠:用於連接視訊來源裝置的HDMI埠
Micro USB 電源埠: 利用本產品所附的USB纜線連接視訊來源裝置的USB接
頭來供應電源。
Registration按鍵:此鍵是用來與接收端訊號配對使用。
LED指示燈:
已連線:藍色LED燈持續穩定亮燈
連線中:藍色LED燈閃爍
HDMI 連接埠:利用本產品所附的HDMI纜線連接擁有HDMI接槽的電視或顯示器
Micro USB電源埠:利用本產品所附的電源轉換器連接至外接電源
目錄鍵:進入OSD主目錄
向上鍵:在目錄中將功能選項向上移動
向下鍵:在目錄中將功能選項向下移動
Led 電源指示燈:
電源開啟:白色LED指示燈持續穩定亮燈
電源關閉:白色LED指示燈熄滅
Led 連線指示燈:
已連線:藍色LED指示燈持續穩定亮燈
連線中:藍色LED指示燈閃爍
1
1
2
2
3
3
4
4
5
6
7
![](/img.php?id=1711878&img=bg10.png)
繁體中文
-4-
注意事項:
當SkyVsion WS100正常運作時,白色Led電源指示燈將續穩定亮燈,且藍
色連線指示燈將持續穩定亮燈。詳細燈號顯示情況請參考下列表格:
待機中
啟動中
頻道搜尋
SkyVision WS100
無線訊號已連線
節源模式 穩定白燈
穩定白燈
穩定白燈
關
閃爍藍燈
閃爍藍燈
穩定藍燈
穩定藍燈
穩定藍燈
穩定白光
穩定白光
穩定白光
啟動所需時間15-20秒
搜尋可用頻道
視訊來源未輸入
視訊格式無法辨識
視訊格式已辨識
模式 指示燈表現 電源指示燈連線指示燈
![](/img.php?id=1711878&img=bg11.png)
繁體中文
-5-
2.3 重新命名SkyVision WS100
1. 按目錄鍵
2. 用向上與向下鍵選擇Settings
3. 選擇重新命名視訊來源
4. 用目錄鍵選擇欲重新命名的視訊來源
5. 用向上與向下鍵選擇欲改變字母
6. 按目錄鍵,確認所選擇字母
7. 用向上與向下鍵改變字母
8. 按目錄鍵,確認變更後的字母
9. 長按目錄鍵確認執行或取消重新命名
2. 螢幕顯示控制選單(on-screendisplay)
在SkyVision WS100接收器的目錄鍵中,您可以加入、移除或是重新命名
SkyVision WS100 發送器。同時您也可以由此中斷SkyVision的連線。
2.1 新增SkyVision WS100 發送器或移除現有SkyVision WS100 發送器
1. 按目錄鍵
2. 用向上與向下鍵選擇Settings
3. 用向上與向下鍵選擇新增或移除視訊來源
4. 按目錄鍵選擇想新增或移除的視訊來源
5. 選擇OK
2.2 中斷SkyVision的連線
1. 按目錄鍵
2. 用向上與向下鍵選擇Settings
3. 從選擇中斷SkyVision
4. 選擇OK
![](/img.php?id=1711878&img=bg12.png)
繁體中文
-6-
如何安裝
SkyVision WS100能夠搭配個人電腦、筆記型電腦、藍光播放器、機上
盒、 PS3或XBox,將高清視訊無線傳輸到顯示器上*。
*視訊來源裝置與顯示器必須具備HDMI連接埠
步驟一:
設定SkyVisionWS100發送器
將所附的USB纜線與SkyVision WS100連接,然後將SkyVision WS100與USB
纜線連接到視訊來源裝置。請將SkyVision WS100發送器插入視訊來源裝置的
HDMI埠。SkyVision WS100 發送器的電源是由視訊來源裝置的USB端提供。
步驟二:
設定SkyVisionWS100接收器
將所附的電源轉換器與SkyVision WS100相連接,並且接電源轉換器插入到家
用插座。再用所附的HDMI纜線連接SkyVision WS100與顯示器。
注意事項:
1. 請確認您的顯示器處於「HDMI 輸入」的模式。當所有裝置都以正確的方式
連接,視訊來源裝置的畫面將會被正確地顯示在顯示器上。
2. SkyVision WS100發送器與接收器需要數秒鐘時間進行無線連線。在連線時,
發送器與接收器的連線LED指示燈會顯示藍色閃爍燈號,當正確連線後,LED
顯示燈會發續穩定亮藍燈。
1
1
2
2
3
3
![](/img.php?id=1711878&img=bg13.png)
繁體中文
-7-
顯示器設定
調整螢幕解析度
SkyVision WS100支援「同步顯示」模式、「延伸模式」、以及「只有投
影機」模式。請按照下列步驟設定您的顯示器。
SkyVision WS100 能毫無延遲(系統延遲小於1毫秒)地無線傳輸1080p 高清
視訊。您可依照以下的步驟,以手動方式調整您偏好的解析度。
1. Windows 系統
步驟一:同時按下 與 P鍵
步驟二:選擇「同步顯示」模式、「延伸模式」、或「只有投影機」模式
2. MAC OS 作業系統
步驟一:按下「系統偏好設定」,選擇「顯示器」
步驟二:選擇「偵測顯示器」,以偵測外接顯示器
1. Windows系統
調整視訊來源裝置與顯示器兩端的螢幕解析度
注意:
MAC OS作業會在 SkyVision WS100 正確連線後,自動偵測到外接顯示器,並且轉
換到較適當的螢幕解析度。
步驟一:在桌面按下滑鼠右鍵並選擇「螢幕解析度」
步驟二:拉出解析度的選單並選擇喜好的解析度
步驟三:按下「套用」
步驟四:按下「確定」
![](/img.php?id=1711878&img=bg14.png)
繁體中文
-8-
調整視訊來源裝置或顯示器其中一個的螢幕解析度
音訊設定
步驟一:在桌面按下滑鼠右鍵並選擇「螢幕解析度」
步驟二:選擇欲改變的顯示器
步驟三:拉出解析度的選單並選擇喜好的解析度
步驟四:按下「套用」
步驟五:按下「確定」
步驟一:請在控制台打開「聲音」
步驟二:選擇 HDMI output 並按「確定」
![](/img.php?id=1711878&img=bg15.png)
繁體中文
-9-
疑難排解
螢幕上沒有顯示
•請確認所有的纜線都確實連接
•請確認顯示器在HDMI 輸入模式
•請檢查SkyVision WS100發送器和接收器
的距離是在設定範圍之內。(最大傳輸距離十
公尺,但依使用環境狀態不同會有出入)
•請重新插拔SkyVision WS100 發送器
•請確認您的外接顯示器音效非處於靜音模式
•請檢查外接顯示器的揚聲器傳輸纜線是否正
確連接
*更多細節請參考本手冊音訊設定的部分
請重新設定裝置的螢幕解析度
沒有音訊輸出
畫面輸出不符合外接顯示器螢幕
問題 解決方案
![](/img.php?id=1711878&img=bg16.png)
Deutsch
-1-
Installation
SkyVision WS100 kann hochauflösende Video/Audioinhalte von Geräten
wie PCs, Laptops, Blu-ray Playern, Set-Top Boxen, PS3 und Xbox auf einen
Fernseher oder Monitor* übertragen.
*Sowohl das Quell- als auch das Anzeigegerät müssen über HDMI Anschlüsse verfügen
Mit der WHDI (Wireless Home Digital Interface) Technologie kann GIGABYTE
SkyVision WS100 problemlos hochauflösende 1080p Videos oder Blu-ray
Filme von HDMI-fähigen Geräten an HD-Fernseher oder Monitore senden.
Unkomprimierte Videoinhalte können bis zu 10 Meter (Sichtlinie) ohne Latenz
(Latenz < 1ms) übertragen werden.
Schritt 1.
SkyVision WS100 Sender einrichten
Schließen Sie das beiliegende Kabel an SkyVision WS100 an und verbinden
Sie SkyVision WS100 und das USB-Kabel anschließend mit dem Quellgerät.
Bitte schließen Sie SkyVision an den HDMI Anschluss des Quellgerätes an
und stecken Sie das USB-Kabel in den USB-Anschluss des Quellgerätes. Der
SkyVision WS100 Sender wird über den USB-Anschluss des Quellgerätes mit
Strom versorgt.
1
2
3
![](/img.php?id=1711878&img=bg17.png)
Deutsch
-2-
Schritt 2.
SkyVision WS100 Empfänger einrichten
Schließen Sie das beiliegende Netzteil an SkyVision WS100 an und verbinden
Sie es mit einer Steckdose. Schließen Sie SkyVision WS100 anschließend über
das beiliegende HDMI-Kabel an den externen Bildschirm an.
1
2
3
Bitte stellen Sie sicher, dass sich der Bildschirm im „HDMI“ Eingangsmodus
befindet. Wenn die Komponenten korrekt angeschlossen sind und die
richtige Quelle ausgewählt ist, wird das Bild des Quellgerätes auf dem
Bildschirm angezeigt.
Es könnte einige Sekunden dauern, bis sich SkyVision WS100 miteinander
verbindet und bis das Bild des Quellgerätes auf dem Bildschirm angezeigt
wird. Während der Verbindungsphase werden die LED Verbindungsanzeigen
am Sender und Empfänger blau blinken. Bei bestehender Verbindung werden
die LED Anzeigen blau leuchten.
1.
2.
Hinweis:
![](/img.php?id=1711878&img=bg18.png)
Español
-1-
Instalación
El WS100 SkyVision transmite de forma inalámbrica contenidos de audio
Gracias a la tecnología WHDI (Interfaz Digital Inalámbrica en el Hogar), l
WS100 SkyVision de GIGABYTE transmite ininterrumpidamente videos en
a una TV HD o pantalla. Transmite contenidos de vídeo descomprimido a
> 1ms).
Paso 1.
Instalación del Transmisor WS100 SkyVision
Conecte el cable USB suministrado al WS100 SkiVision y conecte a su vez el
WS100 SkyVision y el cable USB al dispositivo de fuente de entrada. Conecte el
SkyVision al puerto HDMI y el cable USB al puerto USB del dispositivo de fuente
de entrada. La electricidad del transmisor WS100 Skyvision es suministrada
desde el puerto USB del dispositivo de fuente de entrada.
1
2
3
![](/img.php?id=1711878&img=bg19.png)
Español
-2-
Paso 2.
Instalación del receptor WS100
SkyVision a la pantalla externa a través del cable HDMI suministrado.
1
2
3
Asegúrese de que su pantalla esté en el modo de entrada “HDMI”. Cuando
los componentes estén bien conectados y la fuente correcta haya sido
seleccionada, se mostrará la imagen del dispositivo de fuente de entrada en
la pantalla.
El WS100 SkyVision tardará unos segundos en conectarlos y la imagen
del dispositivo de fuente de entrada en la pantalla. Durante el periodo de
permanecerán encendidos en color azul.
1.
2.
Nota:
![](/img.php?id=1711878&img=bg1a.png)
Portugués
-1-
Instalação
* Both source and display device must have HDMI ports
Com a tecnologia WHDI (Wireless Home Digital Interface), GIGABYTE
HDMI para o HDTV ou monitor. Ele pode transmitir conteúdos de vídeo
Passo 1.
Instalação do Transmissor SkyVision WS100
Ligue o cabo USB incorporado ao SkyVision WS100 e em seguida ligue
SkyVision WS100 e o cabo USB ao dispositivo de origem. Conecte SkyVision
na porta HDMI do dispositivo de origem e conecte o cabo USB na porta USB do
a partir da porta USB do dispositivo de origem.
1
2
3
![](/img.php?id=1711878&img=bg1b.png)
Portugués
-2-
Passo 2.
Instalação do Receptor SkyVision WS100
WS100 a um monitor externo através do cabo HDMI incorporado.
1
2
3
Certifique-se de que o seu monitor esteja no modo de entrada “HDMI”.
Quando os componentes estiverem ligados correctamente e a origem
correcta for seleccionada, a imagem no dispositivo de origem será exibido
no monitor.
Pode levar alguns segundos para que o SkyVision WS100 vincule um
ao outro e para aparecer a imagem do dispositivo de origem no monitor.
1.
2.
Nota:
![](/img.php?id=1711878&img=bg1c.png)
Français
-1-
Installation
Le SkyVision WS100 peut transmettre sans fil des contenus vidéo/audio
haute définition provenant de différentes sources comme un PC, un
ordinateur portable, un lecteur Blu-ray, une box internet, une PS3 ou une
Xbox vers un téléviseur ou un écran*.
Intégrant la technologie WHDI (Wireless Home Digital Interface), le
GIGABYTE SkyVision WS100 peut parfaitement transmettre des vidéos
en haute définition 1080p ou des films Blu-ray à partir de n'importe quel
appareil compatible HDMI sur un téléviseur HD ou un écran. Il peut
transmettre des contenus vidéo non compressés jusqu'à 10 mètres (en
ligne de vue) sans latence (temps de latence < 1ms).
Etape 1.
Paramétrer le transmetteur SkyVision WS100
Connectez le câble USB fournile SkyVision WS100 puis connectez le SkyVision
WS100 et le câble USB sur l'appareil qui fournira la source du signal.
Veuillez connecter le SkyVision sur le port HDMI de la source et le câble USB sur
le port USB de la source (2). L'alimentation électrique du transmetteur SkyVision
WS100 est assurée par le port USB de la source (1).
1
2
3
![](/img.php?id=1711878&img=bg1d.png)
Français
-2-
Etape 2.
Paramétrer le récepteur SkyVision WS100
Connectez l'adaptateur secteur fourni sur le SkyVision WS100 et branchez la
prise électrique sur le secteur puis connectez le SkyVision WS100 sur l'écran
externe avec le câble HDMI fourni.
1
2
3
Veuillez vous assurer que votre écran est réglé sur le mode « entrée HDMI
». Lorsque les composants sont connectés correctement et que la bonne
source est sélectionnée, alors l'image sur l'appareil source s'affiche sur
l'écran.
Il peut prendre quelques secondes pour que les deux éléments du
SkyVision WS100 se connectent ensemble et pour que l'image apparaisse
sur l'écran. Pendant la période de connexion, Les indicateurs à DEL de
connexion sur le transmetteur et sur le récepteur vont clignoter en bleu. Une
fois la connexion établie, les DEL resteront allumées.
1.
2.
Note:
![](/img.php?id=1711878&img=bg1e.png)
Italiano
-1-
Installazione
SkyVision WS100 può trasmettere via wireless contenuti audio e video ad
Xbox a una TV o a uno schermo*.
* Sia la sorgente che lo schermo devono disporre di porte HDMI
Dotato di tecnologia WHDI (Wireless Home Digital Interface), SkyVision
WS100 di GIGABYTE può trasmettere video ad alta definizione 1080p o
schermo. Può trasmettere video non compressi a una distanza massima di
10 metri (senza ostacoli) senza tempi di latenza (latenza < 1 ms).
Fase 1.
Installazione del trasmettitore SkyVision WS100
Collegare il cavo USB fornito a SkyVision WS100, quindi collegare SkyVision
WS100 e il cavo USB al dispositivo sorgente. Collegare SkyVision alla porta HDMI
del dispositivo sorgente e il cavo USB alla porta USB del dispositivo sorgente. Il
trasmettitore SkyVision WS100 è alimentato tramite la porta USB del dispositivo
sorgente.
1
2
3
![](/img.php?id=1711878&img=bg1f.png)
Italiano
-2-
Fase 2.
Installazione del ricevitore SkyVision WS100
Collegare l'alimentatore fornito a SkyVision WS100, quindi inserire l'adattatore in
una presa di corrente e collegare SkyVision WS100 allo schermo esterno tramite
il cavo HDMI fornito.
1
2
3
assicurarsi che lo schermo sia in modalità ingresso “HDMI”. Se i componenti
sono collegati correttamente ed è selezionata la sorgente corretta, l'immagine
sul dispositivo sorgente verrà visualizzata sullo schermo.
Attendere alcuni secondi per consentire ai dispositivi SkyVision WS100
di realizzare la connessione prima di poter visualizzare sullo schermo
l'immagine del dispositivo sorgente. Mentre viene stabilita la connessione,
gli indicatori LED di connessione sul trasmettitore e sul ricevitore
lampeggiano con luce blu. Una volta stabilita la connessione, gli indicatori
1.
2.
Nota:
![](/img.php?id=1711878&img=bg20.png)
-1-
1
2
3
![](/img.php?id=1711878&img=bg21.png)
-2-
1
2
3
1.
2.
![](/img.php?id=1711878&img=bg22.png)
-1-
Instalace
a Xbox do TV nebo na displej *.
GIGABYTE SkyVision WS100 s technologií WHDI (bezdrátové domácí
Krok 1.
1
2
3
![](/img.php?id=1711878&img=bg23.png)
-2-
Krok 2.
do zásuvky a poté zapojte SkyVision WS100 do externího displeje, k tomu
1
2
3
zobrazí obraz.
Spojení SkyVision WS100 s ostatními a zobrazení obrazu na zdrojovém
1.
2.
Poznámka:
![](/img.php?id=1711878&img=bg24.png)
MAGYAR
-1-
Üzembe helyezés
A SkyVision WS100 vezetéknélküli kapcsolaton keresztül képes
A WHDI (Wireless Home Digital Interface, vezetéknélküli házi digitális
problémamentesen tud továbbítani (késlekedés < 1 ms).
1. lépés A SkyVision WS100 adóegységének beállítása
Csatlakoztassa a mellékelt USB-kábelt a SkyVision WS100 készülékhez,
majd csatlakoztassa a SkyVision WS100 készüléket és az USB-kábelt a forrás
eszközhöz. Dugja be a SkyVisiont a forrás eszköz HDMI portjába, és dugja be
1
2
3
![](/img.php?id=1711878&img=bg25.png)
MAGYAR
-2-
1
2
3
Néhány másodpercig eltarthat, amíg a SkyVision WS100 létrehozza a
elkezdenek folyamatosan kéken világítani.
1.
2.
Megjegyzés:
![](/img.php?id=1711878&img=bg26.png)
Polski
-1-
Instalacja
Krok 1.
Ustawienie transmitera SkyVision WS100
1
2
3
![](/img.php?id=1711878&img=bg27.png)
Polski
-2-
Krok 2.
Ustawienie odbiornika SkyVision WS100
1
2
3
niebieski.
1.
2.
UWAGA:
![](/img.php?id=1711878&img=bg28.png)
-1-
1
2
3
![](/img.php?id=1711878&img=bg29.png)
-2-
1
2
3
1.
2.
![](/img.php?id=1711878&img=bg2a.png)
한국어
-1-
설치
SkyVision WS100은 PC, 노트북, Blu-ray 플레이어, 셋톱박스, PS3 및 Xbox
와 같은 장치로부터 고해상도 비디오/오디오 컨텐츠를 TV 또는 디스플레이로
무선으로 전송할 수 있습니다*.
* 소스와 디스플레이 장치는 모두 HDMI 포트를 가지고 있어야 합니다.
WHDI (Wireless Home Digital Interface) 기술을 내장한 GIGABYTE
SkyVision WS100은 HDMI-ready 기기로부터 1080p 고해상도 비디오 및
Blu-ray 영화를 HDTV 및 디스플레이로 매끄럽게 전송할 수 있습니다. 또한
최대 10미터 거리에서(가시거리) 무압축 비디오 컨텐츠를 지연시간(지연시간
< 1ms) 없이 전송할 수 있습니다.
단계 1.
SkyVision WS100 전송기 설정하기
번들 USB 케이블을 SkyVision WS100에 연결한 후, SkyVision WS100과
USB 케이블을 소스 장비에 연결합니다. SkyVision을 소스 장비의 HDMI 포트에
연결하고, USB 케이블을 소스 장비의 USB 포트에 연결해 주십시오. SkyVision
WS100 전송기의 전원은 소스 장비의 USB 포트를 통해 공급됩니다.
1
2
3
![](/img.php?id=1711878&img=bg2b.png)
한국어
-2-
단계2.
SkyVision WS100 수신기 설정하기
번들 전원 어댑터를 SkyVision WS100에 연결하고 전원 어댑터를 콘센트에 연결
한 후, 번들 HDMI 케이블을 이용해 SkyVision WS100을 외부 디스플레이에 연결
합니다.
1
2
3
사용자의 디스플레이를 “HDMI” 입력 모드로 전환합니다. 구성 요소들이 올바
르게 연결되고 알맞은 소스가 선택되면, 소스 장비의 이미지가 디스플레이에
표시될 것입니다.
SkyVision WS100가 각각에 연결되고 소스 장비의 이미지가 디스플레이에 전
송되는데 몇 초간의 시간이 소요됩니다. 연결 시간 동안, 전송기와 수신기의 링
크 LED 표시등이 청색으로 깜박일 것입니다. 연결되면, 링크 LED 표시등이 청
색으로 켜질 것입니다.
1.
2.
주의:
![](/img.php?id=1711878&img=bg2c.png)
Türkçe
-1-
Kurulum
veya ekrana* kablosuz olarak aktarabilir.
kadar aktarabilir (gecikme < 1ms).
SkyVision WS100 Vericisini Kurun
1
2
3
![](/img.php?id=1711878&img=bg2d.png)
Türkçe
-2-
1
2
3
gösterilecektir.
1.
2.
Not:
![](/img.php?id=1711878&img=bg2e.png)

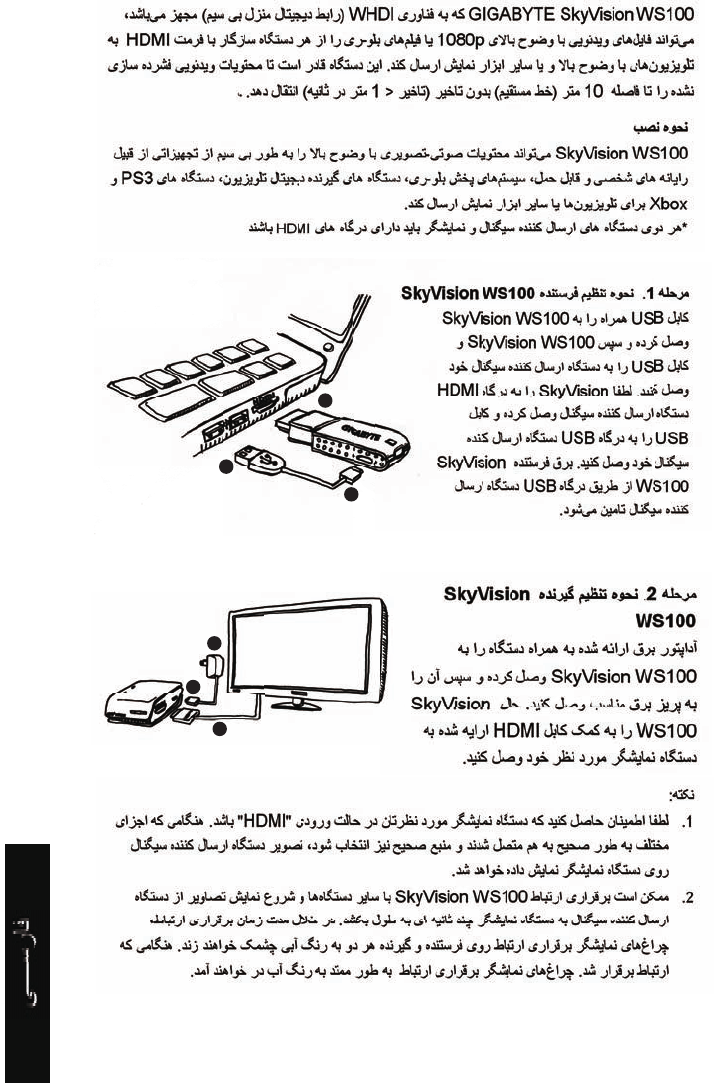

-1-
1
2
3
1
2
3
