GIGA BYTE TECHNOLOGY GN-B46B Wireless Broadband Router/Wireless Broadband AP User Manual
GIGA-BYTE TECHNOLOGY CO., LTD. Wireless Broadband Router/Wireless Broadband AP Users Manual
Contents
- 1. Users Manual Model 2 Revised
- 2. Users Manual Model 1 Part 2 Revised
- 3. Users Manual Model 1 Part 1 Revised
Users Manual Model 1 Part 1 Revised
![](/img.php?id=351044&img=bg1.png)
GN-B46B
Wireless Broadband Router
User Guide
Copyright ©2003 Gigabyte Technology Co., Ltd. All Rights Reserved.
http://www.gigabyte.com.tw
Rev. 1.0 First Edition
25A08-0B46B-F00
2
GN-B46B Wireless Broadband Router User Guide
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications
not expressly approved by the party responsible for compliance could void the user’s
authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
GN-B46B Wireless Broadband Router User Guide
3
Contents
Chapter1 Introduction...................................................................................................................................4
Overview........................................................................................................................................................4
Features...........................................................................................................................................................4
Package Contents..........................................................................................................................................5
The Rear Panel................................................................................................................................................5
The Front Panel LEDs....................................................................................................................................6
Chapter 2 Connect to the Router.................................................................................................................7
Preparation.....................................................................................................................................................7
Hardware Requirements...............................................................................................................................7
System Requirements...................................................................................................................................7
Internet Configuration Requirements.........................................................................................................7
Wired Connect to a PC..................................................................................................................................8
Wireless Connect to a PC..............................................................................................................................8
Chapter3 Configuration of the PCs.............................................................................................................9
Overview.........................................................................................................................................................9

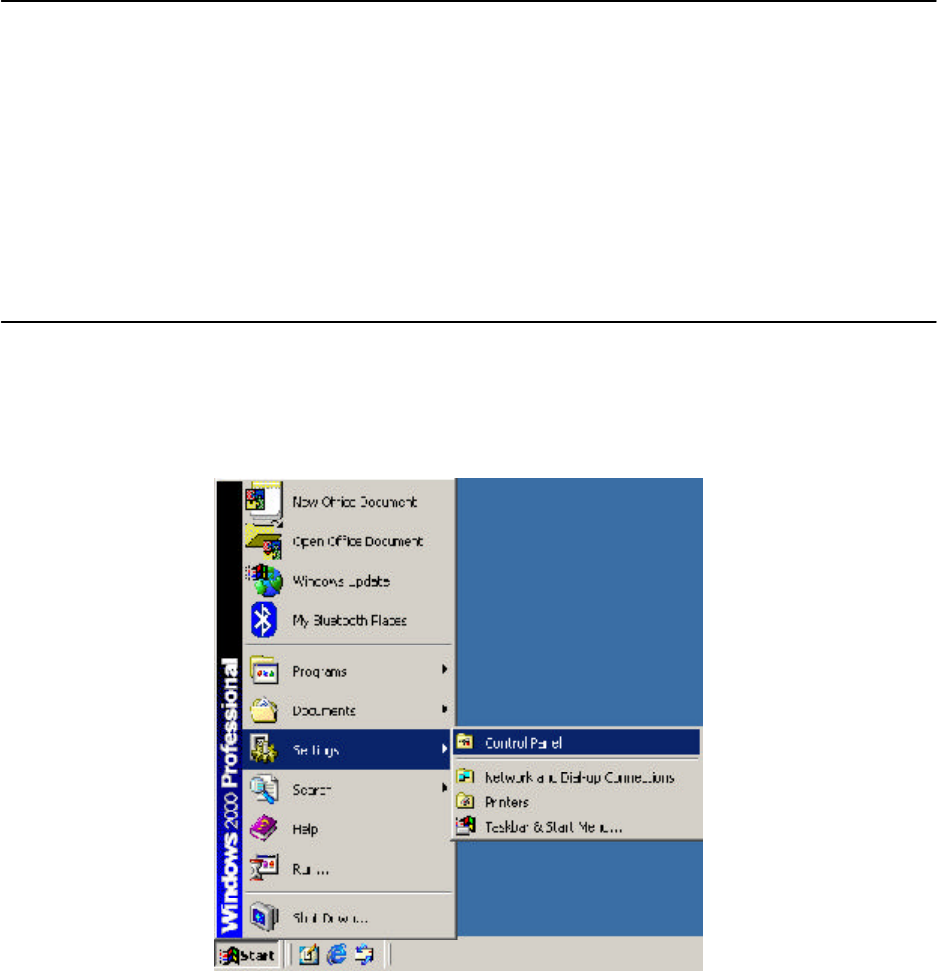

The Settings under Windows 2000..............................................................................................................9
The Settings under Windows 95/98/Me.......................................................................................................15
The Settings under Windows XP.................................................................................................................21
Chapter4 Basic Setup for Router................................................................................................................27
Log in to the Router.......................................................................................................................................27
Setup Wizard................................................................................................................................................28
Status...........................................................................................................................................................39
Logout...........................................................................................................................................................39
Chapter5 Advanced Setup...........................................................................................................................40
Network Configuration................................................................................................................................40
Wireless Configuration..................................................................................................................................47
Static Routing Table....................................................................................................................................50
Virtual Server................................................................................................................................................51
Firewall Rule..................................................................................................................................................54
DNS Reply......................................................................................................................................................59
Chapter6 Management Tool.........................................................................................................................60
PPP Monitor.................................................................................................................................................60
Reboot.............................................................................................................................................................60
Initilization.......................................................................................................................................................61
Change Password.......................................................................................................................................61
Change WAN MAC.......................................................................................................................................62
Upgrade Firmware.......................................................................................................................................62
BackUp Restore............................................................................................................................................63
Log Information...........................................................................................................................................63
Save Maintenance..........................................................................................................................................65
Ping.................................................................................................................................................................65
Chapter7 Troubleshooting.........................................................................................................................66
Appendix A: Glossary..................................................................................................................................68
Appendix B: Specification..........................................................................................................................71
Physical Interface...........................................................................................................................................71
802.11b System Specification......................................................................................................................71
![](/img.php?id=351044&img=bg4.png)
4
GN-B46B Wireless Broadband Router User Guide
Chapter1 Introduction
Overview
Features
GN-B46B Router is a full function broadband router. This router equip with powerful firewall
and DoS protection, which can give the user maximum protection to prevent from damage
by malicious internet user. The UPnP and MSN messenger support can provide the envi-
ronment for user to surfing internet with out any trouble. The GN-B46B wireless router is
composed of the Realtek CCU, 802.11b wireless, Switch and 10/100 Ethernet. This prod-
uct adopts the direct sequence spread spectrum (DSSS) technology and the DBPSK,
DQPSK, and CCK modulation mode to provide a very stable wireless communication
quality and an excellent signal receiving capability. This product features the compact
size, low power consumption, and power management functions, and provides a high-
speed wireless data communication.
nConforms to IEEE 802.11b specification.
nTransmits data rate up to the maximum speed of 11Mbps.
nDynamically scales the data rate to 11, 5.5, 2, and 1Mbps.
nSupport 64-bit /128-bit WEP encryption.
nSupport PPPoE and PPPoE Unnumbered DSL connection
nSupport up to 4 WAN configuration records
nSupport DHCP client for cable/DSL connection
nSupport DHCP server with static and dynamic style
nSupport UPnP IGD 1.0
nSupport MSN messenger and most Internet applications
nSupport Firewall Filtering
nSupport Virtual Server
nSupport DMZ
nSupport Stateful Packet Inspection (SPI)
nSupport DoS Protection
nSupport Stealth Mode
nVPN Packets Pass Through (Support PPTP/IPSec/L2TP Protocol)
nLog Management (Support Firewall/UPnP/WAN Connection Log)
nEasy Web Management
nSupport WAN side Remote Management
nDNS Relay
nWeb based Firmware upgrade
nMDI/MDIX Auto crossover detect
![](/img.php?id=351044&img=bg5.png)
GN-B46B Wireless Broadband Router User Guide
5
The Rear Panel
The router’s ports are located on the router’s rear panel.
RJ-45, Auto-sensing and Auto-MDI/MDIX for 10/100M Ethernet WAN connection
RJ-45, Auto-sensing and Auto-MDI/MDIX for 10/100M Ethernet LAN connection
Initial reset (Init to factory default)
The power port is where you connect the power adapter.
nOne Ethernet WAN Port
nFour Ethernet LAN Port
nInit Bottom
nWireless antenna
One 2.4 GHz antenna
nPower
![](/img.php?id=351044&img=bg6.png)
6
GN-B46B Wireless Broadband Router User Guide
The Front Panel LEDs
The router’s LEDs display information about the router’s status.
nPower
nWLAN
On
Blinking
ADSL/Cable Modem is connected to WAN port.
Transmit or receive data via the WAN port.
(Green Light)
nWAN
(Green Light)
Blinking Package transmit
nLAN1- LAN4
10/100 Mbps Network Connection
10/100 Mbps Data Transmission Rate
On
Blinking
(Green Light)
![](/img.php?id=351044&img=bg7.png)
GN-B46B Wireless Broadband Router User Guide
7
Chapter 2 Connect to the Router
It needs to prepare these three things before you begin:
1. An active Internet service such as that provided by an cable or ADSL broadband
account.
2. Make sure the Internet Service Provider (ISP) configuration information for your ADSL
account.
System Requirements
To use the Wireless Broadband Router on your network, each computer needs an
installed Ethernet Network Interface Card (NIC) and an Ethernet cable (RJ-45) or a
PCMCIA wireless adapter for laptop computer.
Hardware Requirements
nA Computer with Windows, Macintosh, or Linux-based operating system.
nA Javascript-enabled web browser program which supports HTTP upIoads such as
Microsoft Internet Explorer or Netscape Navigator version 4.0 or above.
Internet Configuration Requirements
In order to connect your router to Internet, you will need one or more of these
configuration parameters provided by your ISP:
vHost and Domain Names
vISP Login Name and Password
vISP Domain Name Server (DNS) Address
vFixed IP Address which is also known as Static IP Address
vSubnet mask
vDefault Gateway
Preparation
![](/img.php?id=351044&img=bg8.png)
8
GN-B46B Wireless Broadband Router User Guide
Note: Please check if the light of the WAN port of the GN-B46B is lit. If not, try to use the
cross over Ethernet cable.
Wireless Connect to a PC
Step1.Turn off your network’s hardware, including the Router, PCs and cable or ADSL
modem.
Step2.Connect an Ethernet cable form your cable or ADSL modem to the WAN port of
the GN-B46B.
Step3.Connect the power adapter to the power connection slot of the GN-B46B, and
then plug the power adapter into a power outlet.
Step4.Power on the cable or ADSL modem, PCs. The connection procedure is
completed then go to the “Chapter3 Configuration of the PCs”.
Note: If you use wireless connection, please refer to the wireless LAN card manual
which provided by your wireless card manufacture. The SSID of the Wireless LAN
card should be the same as the SSID of the GN-B46B. The default value is
“GIGABYTE” (or “any”, if your wireless LAN card can support.), please do notice
the form of the SSID value whether is captial or not.
Step1.Turn off your network’s hardware, including the Router, PCs and cable or ADSL
modem.
Step2.Connect an Ethernet cable form your cable or ADSL modem to the WAN port of
the GN-B46B.
Step3.Connect one end of an Ethernet cable to one of the LAN ports (LAN 1-4) on the
router, and the other end to an Ethernet port on a PC.
Wired Connect to a PC
Step4.Connect the power adapter to the power connection slot of the GN-B46B, and
then plug the power adapter into a power outlet.
Step5.Power on the cable or ADSL modem, PCs. The connection procedure is
completed then go to the “Chapter3 Configuration of the PCs”.
![](/img.php?id=351044&img=bg9.png)
GN-B46B Wireless Broadband Router User Guide
9
Chapter3 Configuration of the PCs
Overview
To connect to the router, your computer needs to be configured to obtain an IP address
automatically via DHCP server. Please follow the instructure to perform the setup under
the TCP/IP network environment. By default Windows 98, Me, 2000 and XP has TCP/IP
installed. If you have not installed the TCP/IP communication Protocol, please install it
now, and then select your operating system for the setup.
The Settings under Windows 2000
Step1.Click “Start” in the desktop of the Windows to select “Settings”, and then
select “Control Panel”.
![](/img.php?id=351044&img=bga.png)
10
GN-B46B Wireless Broadband Router User Guide
Step3.Double-click the “LAN CONNECTION” and click the “Properties” button.
Step2.Double-click the “Network and Dial-up Connections” icon.
![](/img.php?id=351044&img=bgb.png)
GN-B46B Wireless Broadband Router User Guide
11

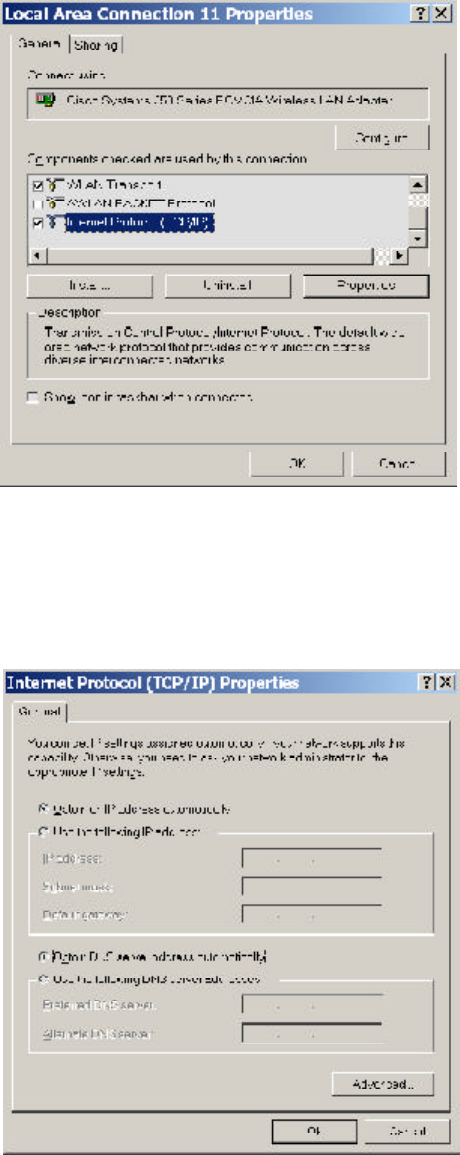

Step4.The “Local Area Connection Properties” dialog box will appear. Verfiy that
the Internet Protocol (TCP/IP) item is checked. And then double-click the
“Internet Protocol (TCP/IP)” item.
Step5.Select “Obtain an IP address automatically” and “Obtain DNS server
address automatically”, click the “OK” button to return to Local Area
Connection Properties. Click the “OK” button again to complete the PC
configuration.
Now, the computer will obtain an IP address automatically from GN-B46B then you can go
to the Step10 directly. If you would like to obtain an IP address manually, please refer to
Step6~Step9.
![](/img.php?id=351044&img=bgc.png)
12
GN-B46B Wireless Broadband Router User Guide

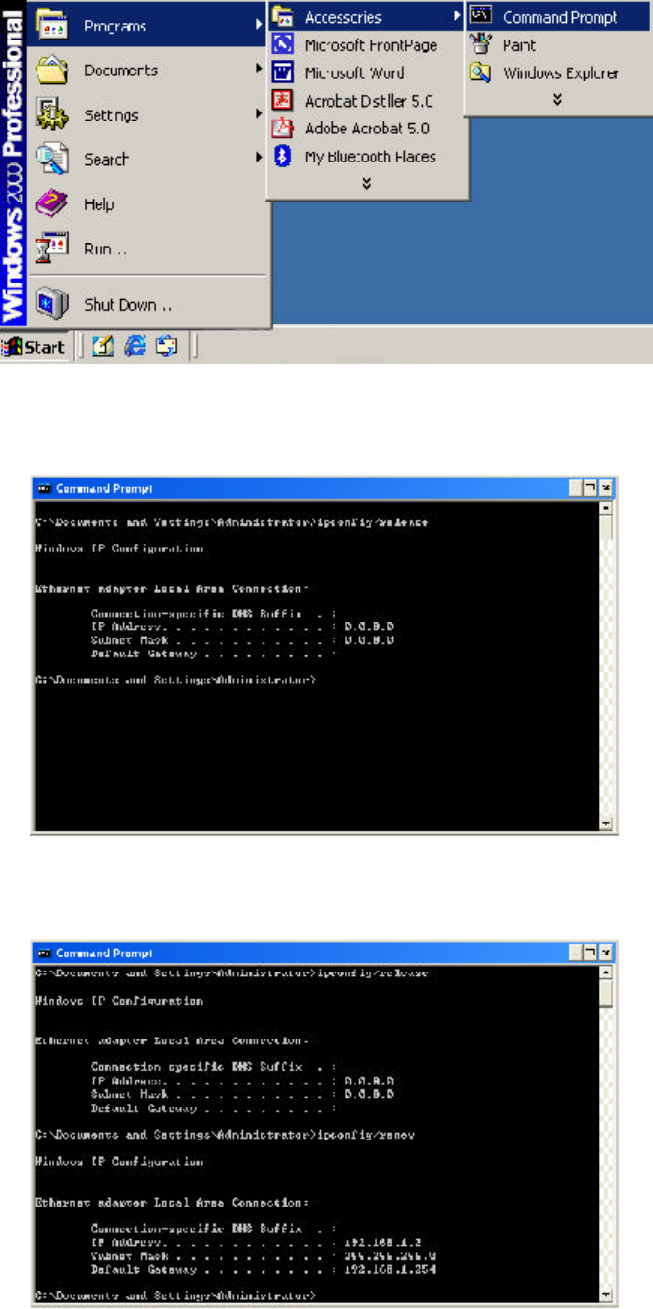

Step6.Click “Start” at the desktop of the Windows, and then “Programs”,
“Accessories”and “Command Prompt” in sequence.

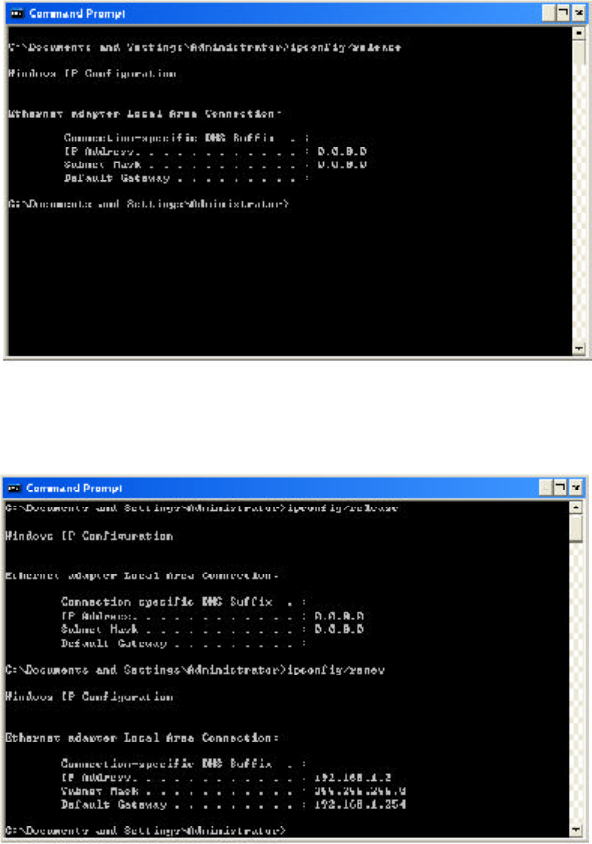

Step7.Key in the command “ipconfig / release” in DOS mode and then enter.
Step8.Key in the command “ipconfig / renew” and then enter.
![](/img.php?id=351044&img=bgd.png)
GN-B46B Wireless Broadband Router User Guide
13
Step10. In your “IE Browser” select “Internet Options” under “Tools”.
Step9.Key in “exit” and then enter.
Note: If the IP address of the GN-B46B is 192.168.1.254, the IP address of your
computer must be 192.168.1.X (where “X” is a number between 1 and 253. Each
computer on your network must have a different IP address within that range where
“X” represents a number between 1 and 253.) The default gateway must be 192.
168.1.254.
![](/img.php?id=351044&img=bge.png)
14
GN-B46B Wireless Broadband Router User Guide
Step12.Please DO NOT tick all of the selection boxes. Click the “OK” button after
finishing with the setup, and go to the “Chapter4 Basic Setup for Router”.
Note: If your ISP Company has a designated Proxy setting, Key in the setting after you
complete the GN-B46B configuration.
Step11. In this dialog box, please click the “LAN Settings” on the “Connections” tab.
![](/img.php?id=351044&img=bgf.png)
GN-B46B Wireless Broadband Router User Guide
15
The Settings under Windows 95/98/Me
Step1.Click “Start” at the desktop of the Windows and select “Settings”, and then
select the “Control Panel”.
Step2.Double-click the “Network” icon.
![](/img.php?id=351044&img=bg10.png)
16
GN-B46B Wireless Broadband Router User Guide
Step3. On the Configuration tab, please choose your appropriate setting “TCP/IP->
your network LAN card” and click “Properties” button.
Step4.Select the “IP Address” tab. Please select “Obtain an IP address
automatically” and then select the “Gateway” tab.
![](/img.php?id=351044&img=bg11.png)
GN-B46B Wireless Broadband Router User Guide
17
Step6. On the “DNS Configuration” tab, please select “Disable DNS” and then click
the “OK” button.
Step5. On the “Gateway” tab, please clear all installed gateways and do not fill any of
the blanks and then select the “DNS Configuration” tab.
![](/img.php?id=351044&img=bg12.png)
18
GN-B46B Wireless Broadband Router User Guide
Step7.Click the “OK” button again. Windows will ask you to restart your PC. Please
click the “Yes” button. If Windows does not ask you to restart , please restart
your computer anyway.
After booting the computer, the computer will obtain an IP address automatically from the
GN-B46B then you can go to the Step11 directly. If you would like to obtain an IP address
manually, please refer to Step8~Step10.
Note: The Windows may ask you for the original Windows installation disk or additional
files. Please insert your Windows CD-ROM into your CD-ROM drive and check
the correct location, e.g., D:\win98, D:\win9x, etc. (If “D” is your CD-ROM drive).
Step8.Click “Start” at the desktop of the Windows and select “Run..”.
Step9.Key in “winipcfg” and click the “OK” button.
![](/img.php?id=351044&img=bg13.png)
GN-B46B Wireless Broadband Router User Guide
19

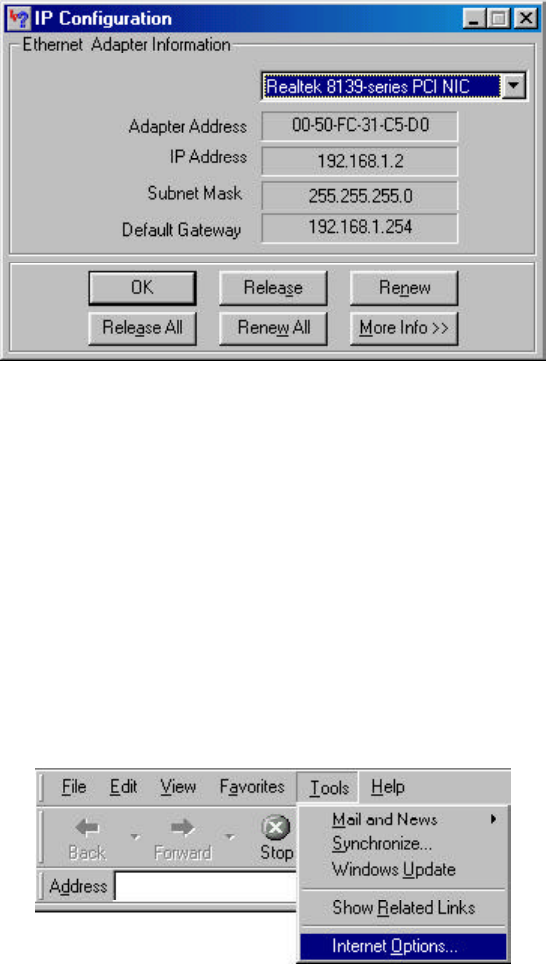

Step10. In the pulled down menu, please select your network LAN card and click the
“Release All” button, and then click the “Renew All” button. Click the “OK”
button.
Step11. In your “IE Browser” select “Internet Options” under “Tools”.
Note: If the IP address of the GN-B46B is 192.168.1.254, the IP address of your
computer must be 192.168.1.X (where “X” is a number between 1 and 253. Each
computer on your network must have a different IP address within that range where
“X” represents a number between 1 and 253.) The default gateway must be 192.
168.1.254.
![](/img.php?id=351044&img=bg14.png)
20
GN-B46B Wireless Broadband Router User Guide
Step13.Please DO NOT tick all of the selection boxes. Click the “OK” button after
finishing with the setup, and go to the “Chapter4 Basic Setup for Router”.
Note: If your ISP Company has a designated Proxy setting, Key in the setting after you
complete the GN-B46B configuration.
Step12. In this dialog box, please click the “LAN Settings” on the “Connections” tab.
![](/img.php?id=351044&img=bg15.png)
GN-B46B Wireless Broadband Router User Guide
21
The Settings under Windows XP
Step1.Click “Start” in the desktop of the Windows to select “Settings”, and then
select “Control Panel”.
Step2.Double-click the “Network and Dial-up Connections” icon.
![](/img.php?id=351044&img=bg16.png)
22
GN-B46B Wireless Broadband Router User Guide
Step4.The “Local Area Connection Properties” dialog box will appear. Verfiy that
the Internet Protocol (TCP/IP) item is checked. And then double-click the
“Internet Protocol (TCP/IP)” item.
Step3.Double-click the “LAN CONNECTION” and click the “Properties” button.
![](/img.php?id=351044&img=bg17.png)
GN-B46B Wireless Broadband Router User Guide
23
Now, the computer will obtain an IP address automatically from GN-B46B then you can go
to the Step10 directly. If you would like to obtain an IP address manually, please refer to
Step6~Step9.

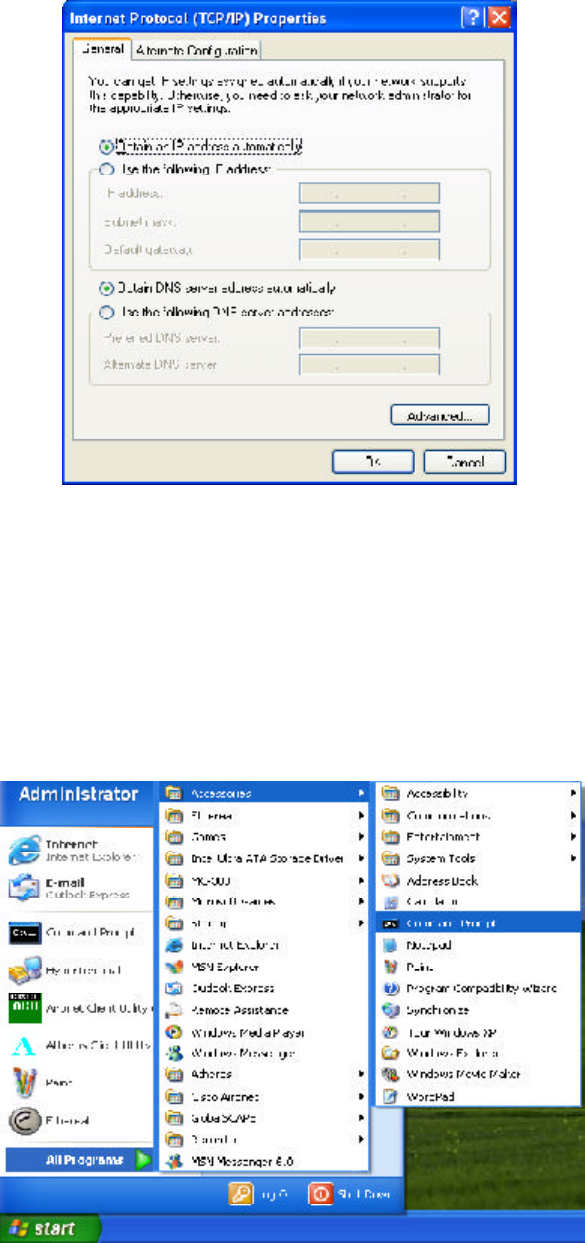

Step5.Select “Obtain an IP address automatically” and “Obtain DNS server
address automatically”, click the “OK” button to return to Local Area
Connection Properties. Click the “OK” button again to complete the PC
configuration.
Step6.Click “Start” at the desktop of the Windows, and then “Programs”,
“Accessories”and “Command Prompt” in sequence.
![](/img.php?id=351044&img=bg18.png)
24
GN-B46B Wireless Broadband Router User Guide

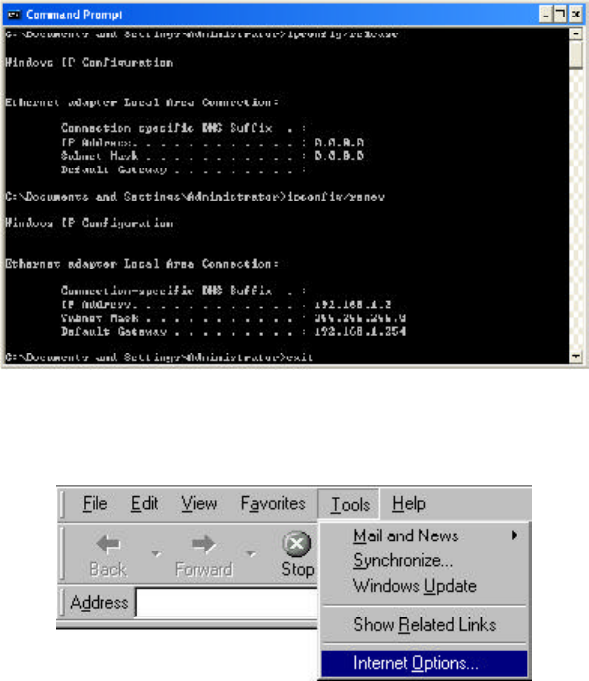

Step8.Key in the command “ipconfig / renew” and then enter.
Step7.Key in the command “ipconfig / release” in DOS mode and then enter.
Note: If the IP address of the GN-B46B is 192.168.1.254, the IP address of your
computer must be 192.168.1.X (where “X” is a number between 1 and 253. Each
computer on your network must have a different IP address within that range where
“X” represents a number between 1 and 253.) The default gateway must be 192.
168.1.254.
![](/img.php?id=351044&img=bg19.png)
GN-B46B Wireless Broadband Router User Guide
25
Step9.Key in “exit” and then enter.
Step10. In your “IE Browser” select “Internet Options” under “Tools”.

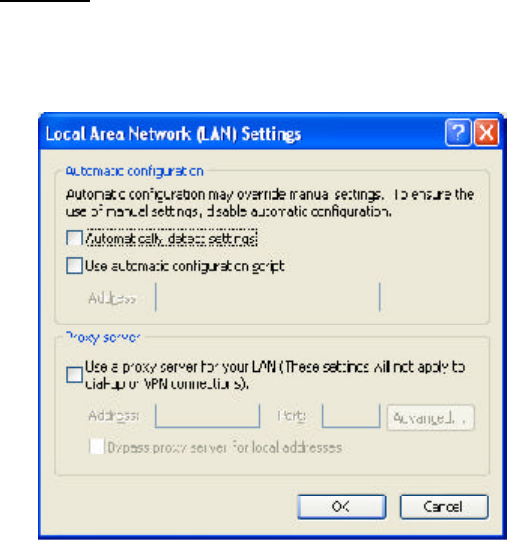

Step11. In this dialog box, please click the “LAN Settings” on the “Connections” tab.
![](/img.php?id=351044&img=bg1a.png)
26
GN-B46B Wireless Broadband Router User Guide
Step12.Please DO NOT tick all of the selection boxes. Click the “OK” button after
finishing with the setup, and go to the “Chapter4 Basic Setup for Router”.
Note: If your ISP Company has a designated Proxy setting, Key in the setting after you
complete the GN-B46B configuration.
![](/img.php?id=351044&img=bg1b.png)
GN-B46B Wireless Broadband Router User Guide
27
The GN-B46B provides Web based configuration. You can configure your GN-B46B
through your Internet Explorer browser or Netscape Communicator.

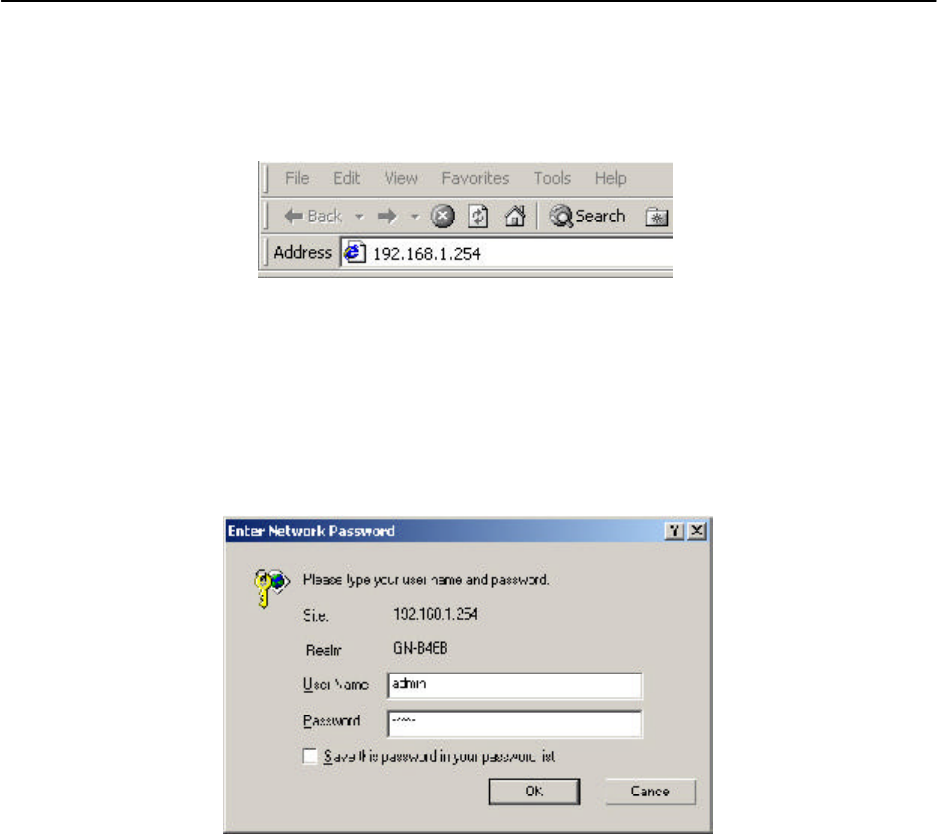

Step2.The dialogue box will appear as shown in the following diagram, and key in the
default user name “admin” for the wideband network GN-B46B and the
default password “admin”, and then press “OK”.
Step1.Key in the preset IP address“192.168.1.254” in the address column in the
browser, and then press enter.
Chapter4 Basic Setup for Router
Log in to the Router
![](/img.php?id=351044&img=bg1c.png)
28
GN-B46B Wireless Broadband Router User Guide
Setup Wizard
Step3.The homepage of the GN-B46B will appear as shown below, and click the
“Setup Wizard” on the screen, and such Setup Wizard will guide you to
complete the necessary steps for the setup on screen as follows.

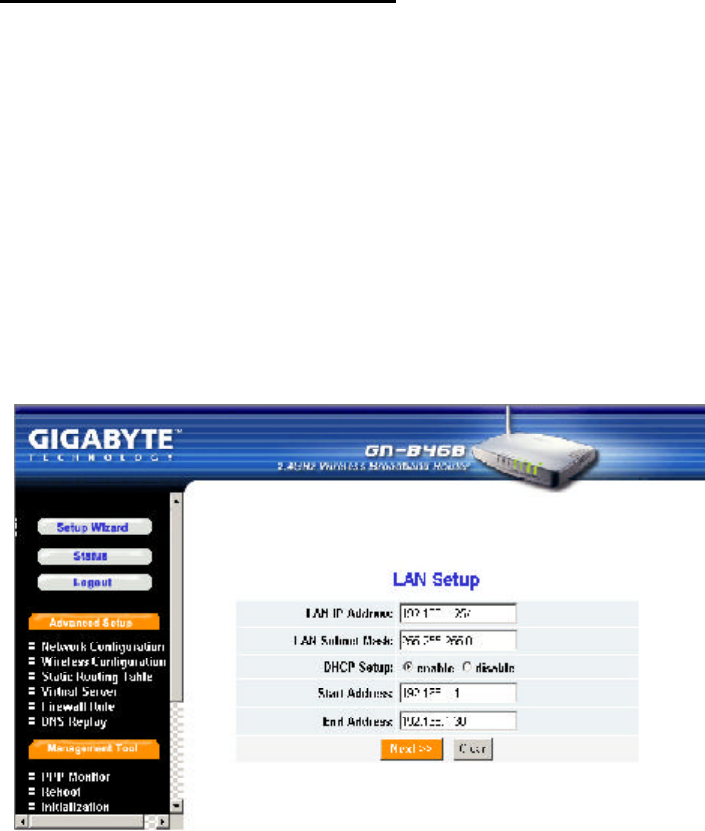

LAN Setup
Step4.“LAN Setup” is shown in the diagram. Each setup item of the local area
network is default setting, and is not necessary to make change to it for normal
operation. Please input the settings on your own if change is needed.
IP Address & Subnet Mask
The values are the Router’s IP Address and Subnet Mask. The default values
are 192.168.1.254 for the IP Address and 255.255.255.0 for the Subnet Mask.
DHCP Setup
v“enabled” indicates that the DHCP function of the router is initialized, and
will automatically assign an IP Address to the computer that is connected
to the LAN end of the router.
v”disabled” indicates that all IP Address of all the computers need to
assign the IP address manually.
![](/img.php?id=351044&img=bg1d.png)
GN-B46B Wireless Broadband Router User Guide
29
DHCP Start Address / End Address
When the DHCP setting is “enable”, the GN-B46B uses this allocable range of
the IP address as the initial value to assign the IP to the PC connected to the
LAN end.
For example,
The DHCP start address is 192.168.1.1 and the end address is 192.168.1.50.
The IP allocable range of the DHCP is from 192.168.1.1 to 192.168.1.50.
Click “Next”, go to next step.
![](/img.php?id=351044&img=bg1e.png)
30
GN-B46B Wireless Broadband Router User Guide
Step5.Choose your desired wide area network mode.
n“PPPoE”: If you are using the hourly rate for the ADSL, please select this
item. And then please follow Step 6
n“Dynamic IP Address”: If you use the wideband fixed connection of ADSL/
Cable Modem, but do not have a static IP, please select this item. And
then please follow Step 10
n“Static IP Address”: If you use the wideband fixed connection of ADSL/
Cable Modem,but have a static IP, please select this item. And then
please follow Step 14
n“PPPoE Unnumber”: If you are the user of the PPPoE Unnumber, please
select thisitem. And then please follow Step18.
After your desired wide area network mode is selected, please press “Next”.
![](/img.php?id=351044&img=bg1f.png)
GN-B46B Wireless Broadband Router User Guide
31
Step6. If you select “PPPoE” under the WAN TYPE SELECT, key in the User ID and
password. The wideband company provides the above data, and press
“Finish” to go to next step.
nPPPoE User ID and Password:
The “User ID” and “Password” are your ISP assigned to you.
Step7.Press “Reboot” to go to next step.
PPPoE
![](/img.php?id=351044&img=bg20.png)
32
GN-B46B Wireless Broadband Router User Guide

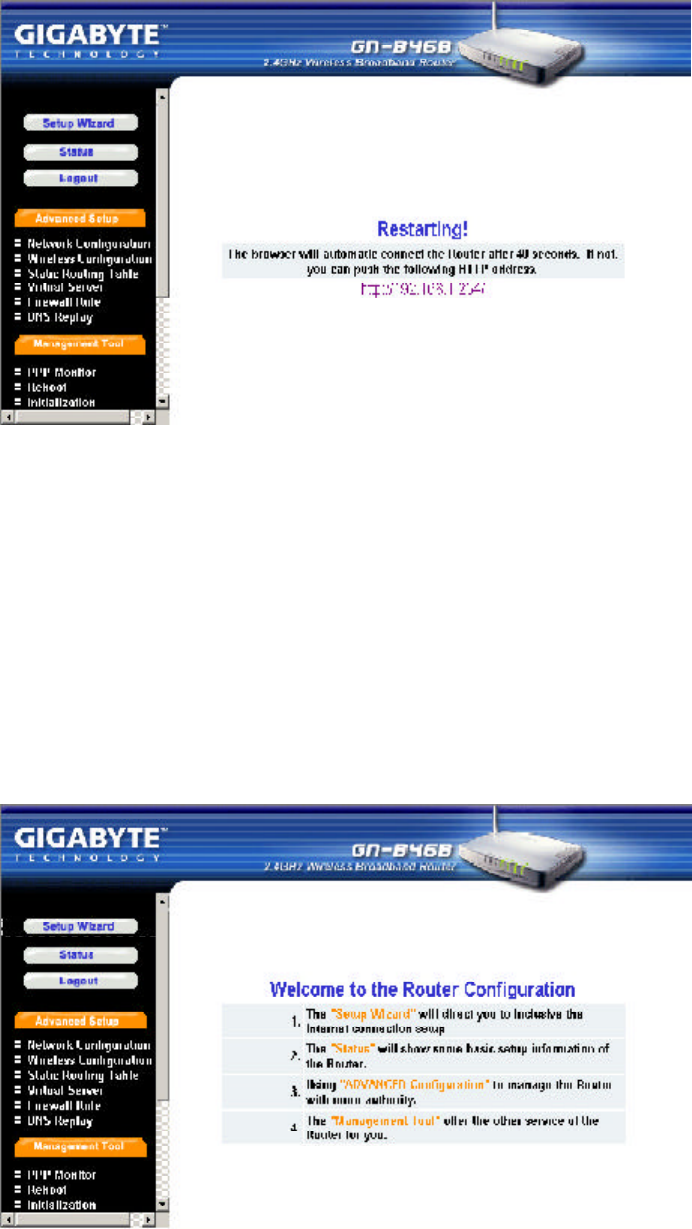

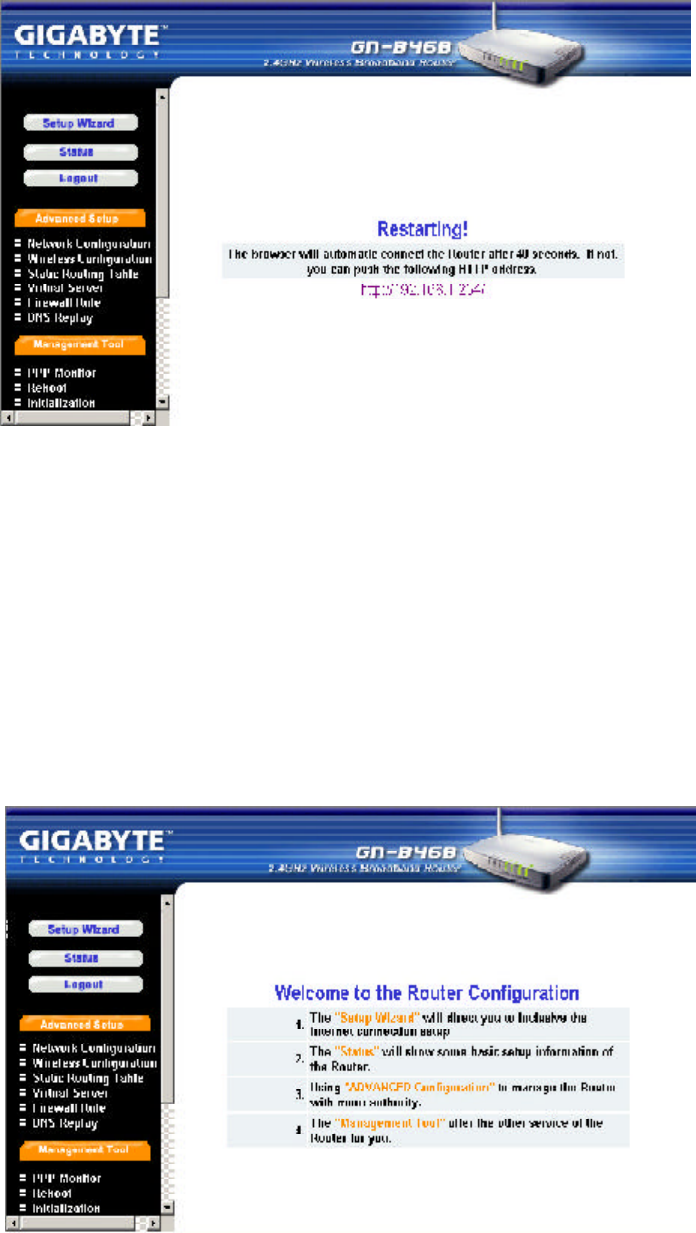

Step8.Please wait a moment.
Step9.The IE browser will be automatically connected to the main menu, and your
setup has completed by then. Please use your IE connect to Internet.
Note: If you can connect to the Internet , the setting is completed. If you use
the Wireless Lan Card connection or need further setting, please
continue to Chapter5 Advanced Setup.
![](/img.php?id=351044&img=bg21.png)
GN-B46B Wireless Broadband Router User Guide
33

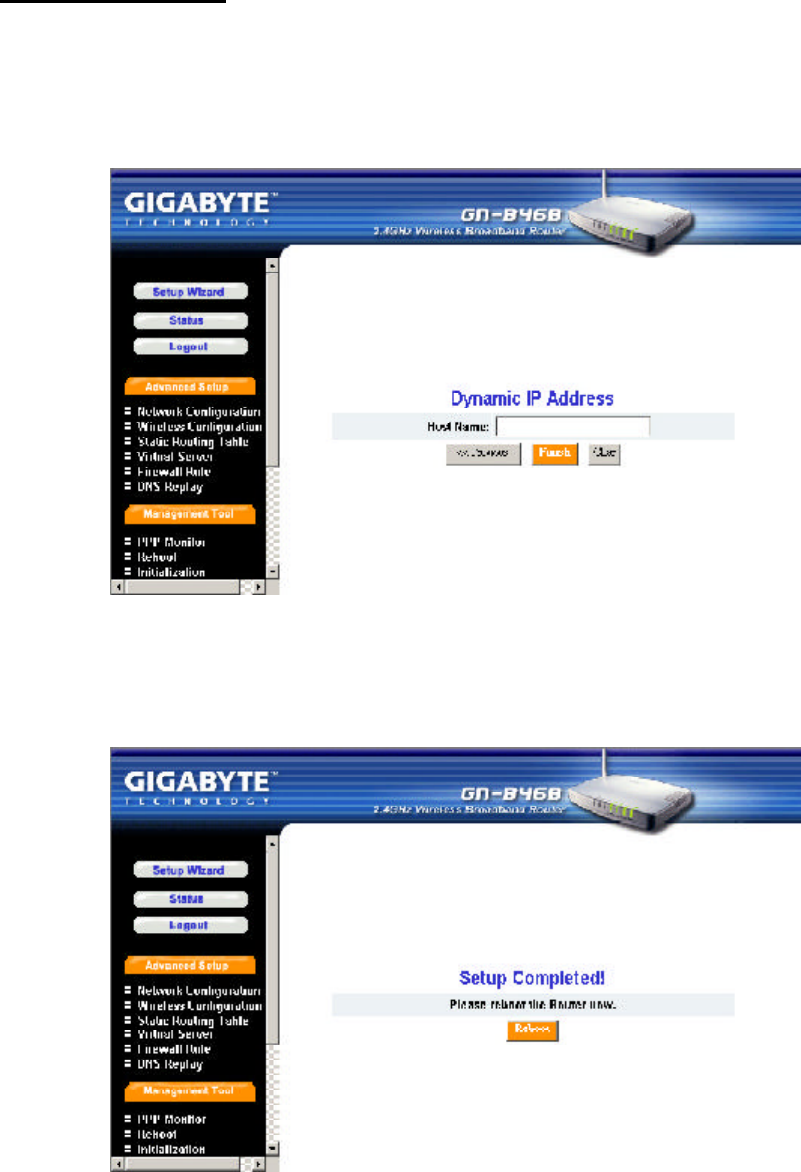

Step10. If you select the “Dynamic IP Address” in the WAN TYPE SELECT, the
following screen will appear. Please key in the Host Name if your ISP has
provided. And then press “Finish” to go to next step.
Dynamic IP Address
Step11.Press “Reboot” to go to next step.
![](/img.php?id=351044&img=bg22.png)
34
GN-B46B Wireless Broadband Router User Guide
Step12.Please wait a moment.
Step13.The IE browser will be automatically connected to the main menu, and your
setup has completed by then. Please use your IE connect to Internet.
Note: If you can connect to the Internet , the setting is completed. If you use
the Wireless Lan Card connection or need further setting, please
continue to Chapter5 Advanced Setup.
![](/img.php?id=351044&img=bg23.png)
GN-B46B Wireless Broadband Router User Guide
35

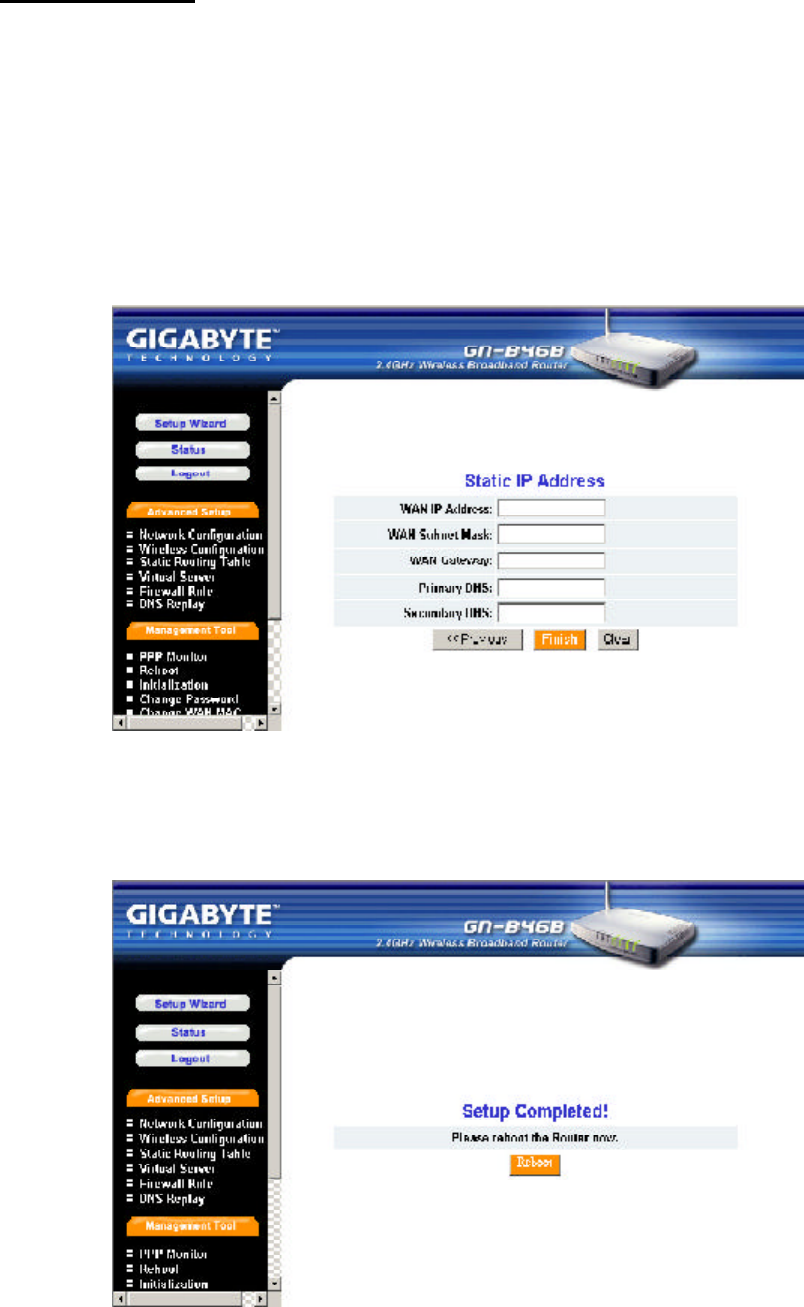

Step14. If you select “Static IP Address” in the WAN TYPE SELECT, please key in the
data provided by the wideband company in the following fields as shown below.
And then press “Finish” to go to next step.
Static IP Address
Note: If your wideband company gives you more than one IP address, then
select one of them to fill in the column in the following fields.
Step15.Press “Reboot” to go to next step.
![](/img.php?id=351044&img=bg24.png)
36
GN-B46B Wireless Broadband Router User Guide
Step16.Please wait a moment.
Step17.The IE browser will be automatically connected to the main menu, and your
setup has completed by then. Please use your IE connect to Internet.
Note: If you can connect to the Internet , the setting is completed. If you use
the Wireless Lan Card connection or need further setting, please
continue to Chapter5 Advanced Setup.
![](/img.php?id=351044&img=bg25.png)
GN-B46B Wireless Broadband Router User Guide
37
PPPoE Unnumber
Step18. If you select “PPPoE Unnumber” in the WAN TYPE SELECT, please key in
the data provided by the wideband company in the following fields as shown
below. And then press “Finish” to go to next step.
Note: If your wideband company gives you more than one IP address, then
select one of them to fill in the column in the following fields.
Step19.Press “Reboot” to go to next step.
![](/img.php?id=351044&img=bg26.png)
38
GN-B46B Wireless Broadband Router User Guide
Step20.Please wait a moment.
Step21.The IE browser will be automatically connected to the main menu, and your
setup has completed by then. Please use your IE connect to Internet.
Note: If you can connect to the Internet , the setting is completed. If you use
the Wireless Lan Card connection or need further setting, please
continue to Chapter5 Advanced Setup.
![](/img.php?id=351044&img=bg27.png)
GN-B46B Wireless Broadband Router User Guide
39
Status
You can use this status screen to view the router’s current connection status.and
configuration.
Logout
As you finished the configuration of the GN-B46B, please choose “Logout”.
Note: After 5 minutes idle time, the system will be logout automatically.
![](/img.php?id=351044&img=bg28.png)
40
GN-B46B Wireless Broadband Router User Guide
Chapter5 Advanced Setup
This chapter will show you the advanced setup of the GN-B46B if you need require
special configuration.
Network Configuration
The Network Configuration function allows you to access to the LAN Configuration, WAN
Confguration and WAN Configuration Setting.
LAN Configuration
nLAN Configuration
From this table, you can modify the LAN setting if it necessary.
nForce IP-MAC Mapping
This function allows you to assign a specific IP address to one specific
PC.
Verify the desired setting and then click the “Submit” button to set the value into GN-
B46B.
