MP30
13.56MHz Multiple Read/Write Module with Antenna
INTRODUCTION

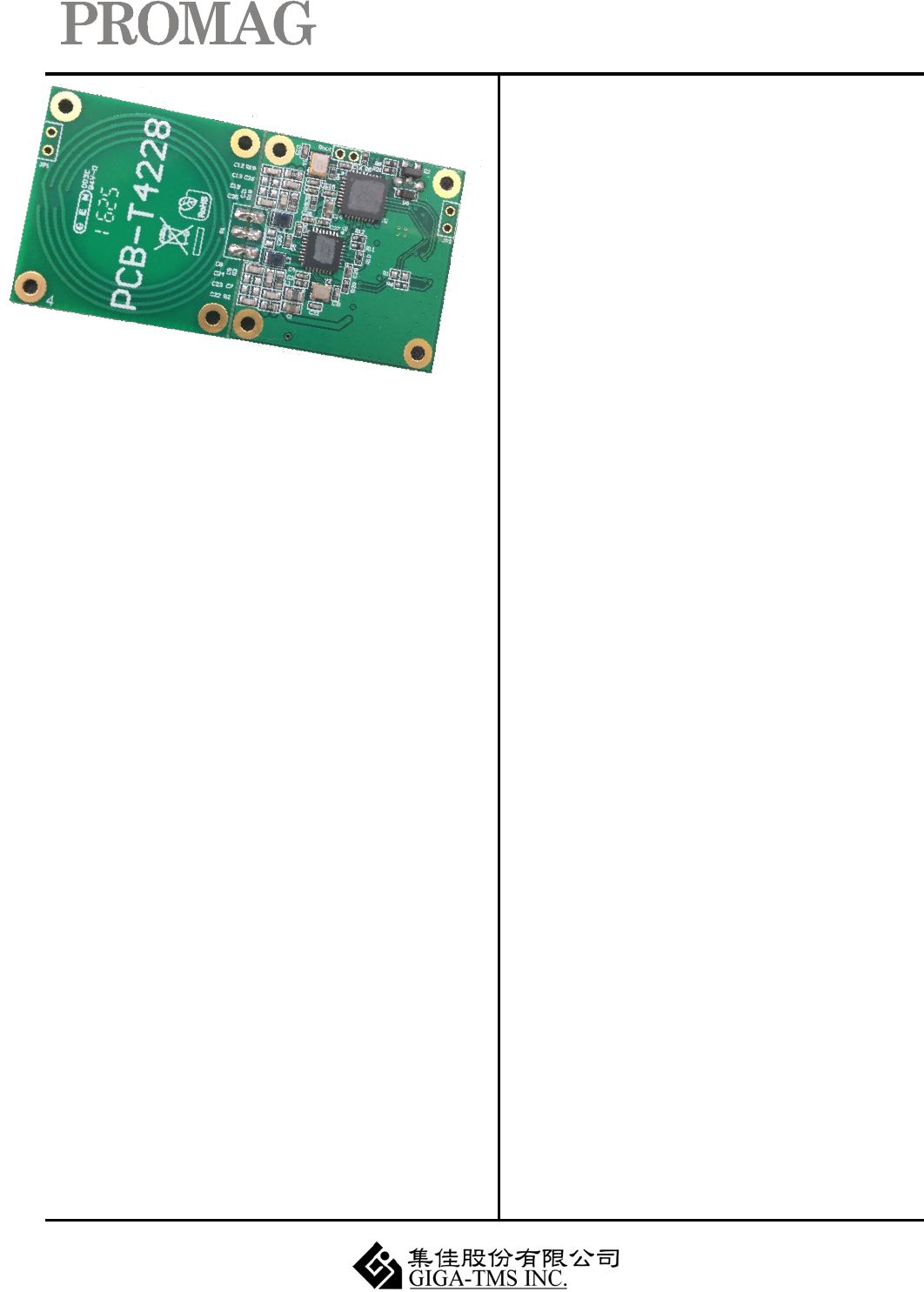

The MP30 is a OEM read/write module with antenna
designed for simple integration. The Serial TTL-interface
can be directly connected to microprocessors and easily
converted to the RS232 serial interface device. The
typical reading range of the module is up to 20~40mm
depending on the antenna and TAG.
The MP30 is a RFID Module for all popular 13.56-MHz
RFID/contactless standard protocols. The MP30
supports and compatibles with all major global secured
baseband ISO standards including ISO14443 Type A,
Type B, and Smartlabel ISO15693.
The MP30 is well suited for mobile devices due to its
low power consumption and low operating voltage from
5V. The on-chip 3.3V regulators are provided to
stabilize the chip’s power, and simultaneously supply
the power to the external companion microcontroller up
to 120 mA.
The MP30 support the DLL and easy to control this
module, The ActiveX Control can be using any terminal
program (VB .NET , C#…etc)
Standard Configurations:
9 MP30R----RS232 Interface
9 MP30U----USB Virtual COM Interface
FEATURES
z Supported Protocols
ISO14443A/B, all bit rates : 106 kbps
ISO15693, all modes
Downlink 1 of 4 and 1 of 256
Uplink 6.6/13/26/53 kbps with 1 & 2 sub-
carrier
z Card Compatibilities
ISO14443A
ISO14443B
ISO15693
ISO14443-3
ISO14443-4
NFC1-4 TAGs
z Ultra small outline 60x30x6.0 mm
z Information Support
Visual C# demonstration Software
Protocol Information
z Low power, low profile for portable
designed
z Plug-in fitting for 13.56Mhz
z Serial TTL Interface.
z Baud Rate 19200,N,8,1
z Power supply Active 120mA @5VDC
z Firmware Update
9 We welcome OEM inquiries
9 Custom device programming
is available 新北市汐止區康寧街 169 巷31 號8樓
TEL: +886-2-26954214
FAX: +886-2-26954213
e-mail: sales@gigatms.com.tw
http://www.gigatms.com.tw
1
TM
MP30
13.56MHz Multiple Read/Write Module with Antenna
SPECIFICATIONS:
POWER REQUIREMENT 5V regulated for Operate Voltage . A linear regulator is recommended.
CURRENT REQUIREMENTS Active 120mA @5VDC
INTERFACE Serial TTL (reserved)/ RS232 / USB HID (reserved)/ USB Virtual COM Interface
SUPPORTED PROTOCOLS ISO14443A/B, all bit rates : 106 kbps
ISO15693, all modes
Downlink 1 of 4 and 1 of 256
Uplink 6.6/13/26/53 kbps with 1 & 2 sub-carrier
CARD TYPE ISO14443A
ISO14443B
ISO15693
ISO14443-3
ISO14443-4
NFC1-4 TAGs
FERQUENCY 13.56MHz standard.
READ RANGE Mifare : 1~3 cm
ISO 15693 : 2~4 cm
TRANSPONDER Read / Write
BAUD RATE 19200,N,8,1
DIMENSIONS SMT: 60(L) x 30(W) x 6.0(H) mm
WEIGHT 5.0g
ENVIRONMENT Operating Temp : -20℃ ~ +80℃
Humidity : 10 ~ 90 % relative
PACKAGE DESCRIPTION
9 We welcome OEM inquiries
9 Custom device programming
is available 新北市汐止區康寧街 169 巷31 號8樓
TEL: +886-2-26954214
FAX: +886-2-26954213
e-mail: sales@gigatms.com.tw
http://www.gigatms.com.tw
2

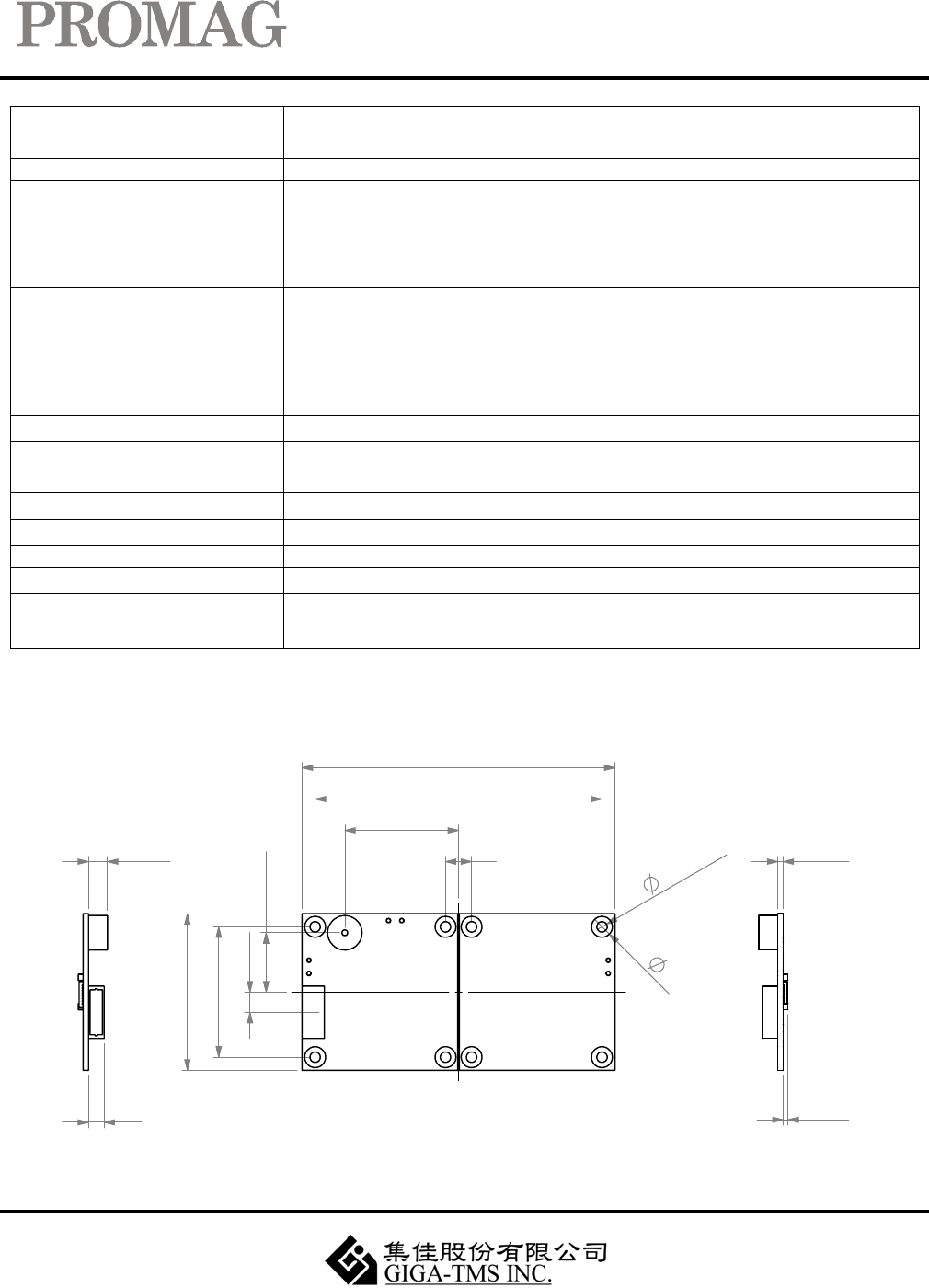

60
5
55
21.80
25
30
11.35
8-
2 Hole
4
3.90
3.65
3
T=1.0
0.95
TM
MP30
13.56MHz Multiple Read/Write Module with Antenna
MP30R- 00 MP30U- 00
Description RS232 USB
(Virtual serial port)
Pin Numbers 8 8
Connector JST SH 1.0mm JST SH 1.0mm
PIN#
1 +5 VDD +5 VDD
2 TXD D-
3 RXD D+
4 GND GND
5 SHIELD SHIELD
6 -- --
7 -- --
8 -- --
9 We welcome OEM inquiries
9 Custom device programming is
available 新北市汐止區康寧街 169 巷31 號8樓
TEL: +886-2-26954214
FAX: +886-2-26954213
e-mail: sales@gigatms.com.tw
http://www.gigatms.com.tw
3

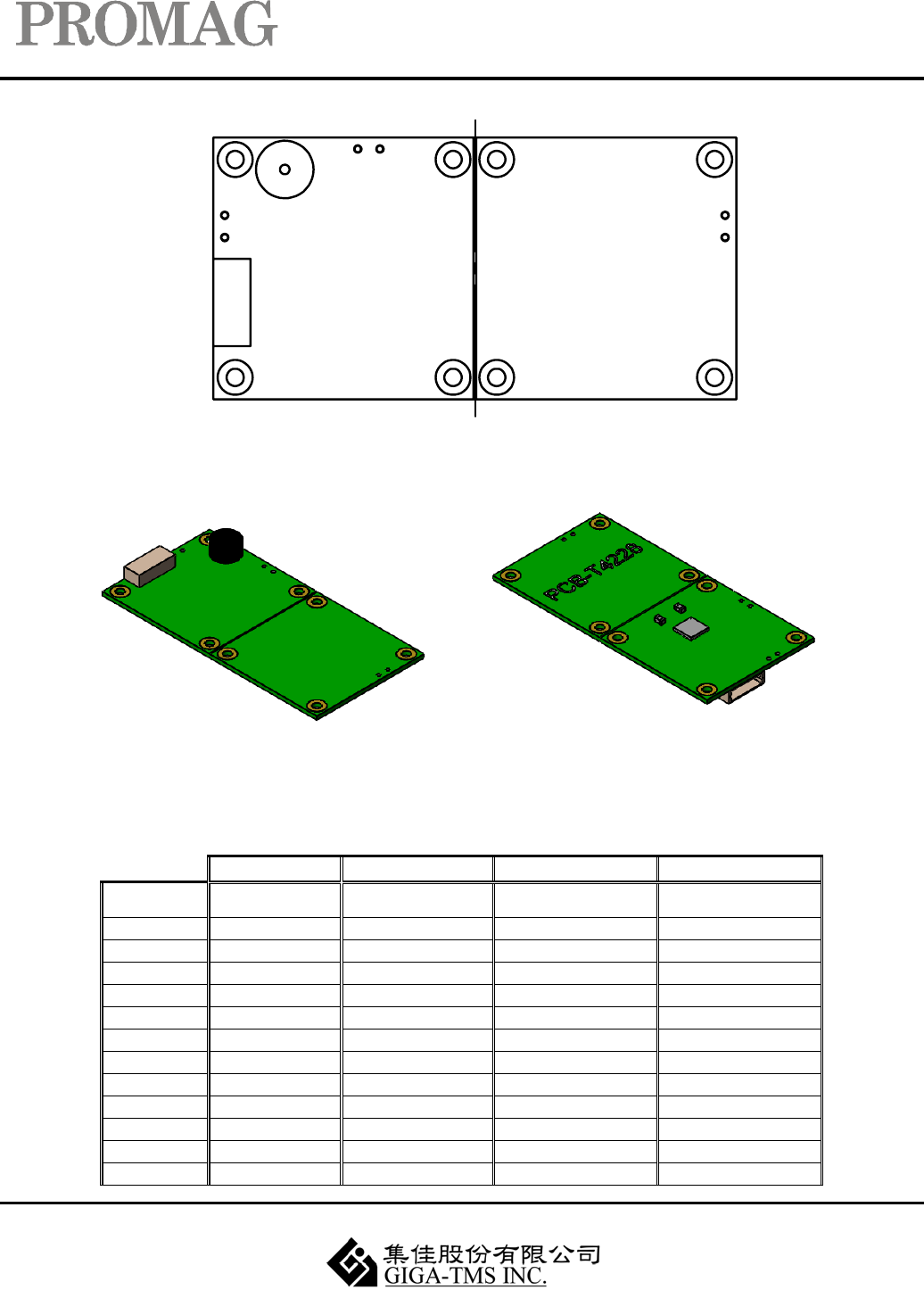

Main board Antenna
V-Cut
TM
MP30
13.56MHz Multiple Read/Write Module with Antenna
Appendix A
9 We welcome OEM inquiries
9 Custom device programming is
available 新北市汐止區康寧街 169 巷31 號8樓
TEL: +886-2-26954214
FAX: +886-2-26954213
e-mail: sales@gigatms.com.tw
http://www.gigatms.com.tw
4
TM
MP30
13.56MHz Multiple Read/Write Module with Antenna
5
