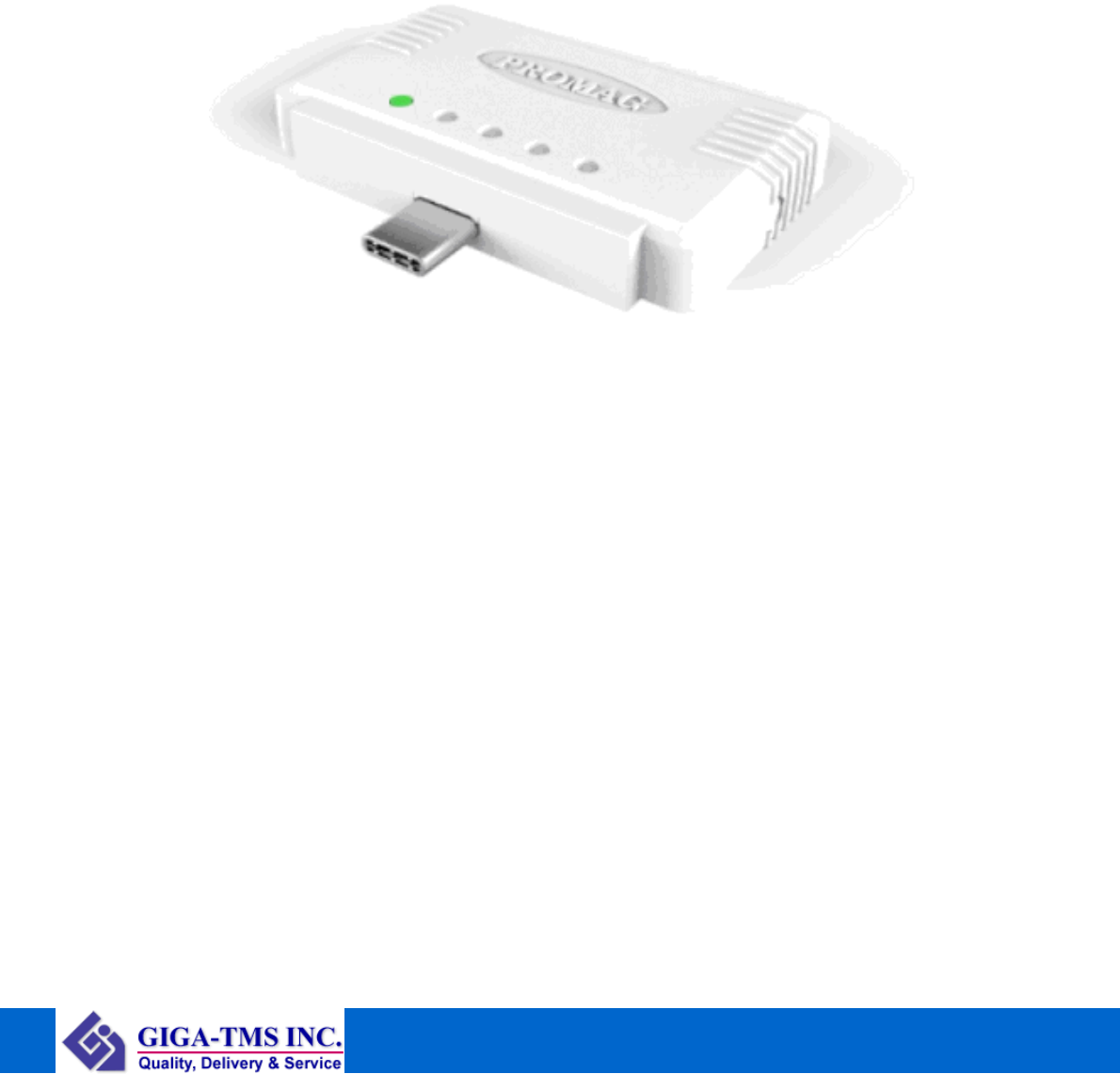

GIGA TMS MU400 UHF RFID Reader User Manual

GIGA-TMS INC. UHF RFID Reader Users Manual

Users Manual

MU400
Hardware User Guide
TM951356-01
Aug 31, 2018
Any part of the contents of this document, without the express written
GIGA-TMS permission, shall not in any documents, electronic, mechanical form of
remakes or spread. File contents are subject to change without notice.
Revisions
Revision Date Description
01 Aug 31, 2018 Preliminary draft
Copyright
©
2018
GIGA-TMS INC.
Printed in Taiwan
Has been tested in accordance to essential protection requirements of the R&TTE
Directive 1999/5/EC on the approximation of the laws of the Member States relating to
Radio Spectrum Matters and found the test results indeed meet the limitation of the
relevant test standard(s) listed below:
EMC Radio Spectrum LVD MPE SAR
EN301489-1-3 EN300328_868MHZ EN62368 EN62479
EN55032/EN55024
Test standard: FCC rules Part 15 subpart C 15.247 (2013 - 10)
Test Result: No deviations from the technical specification(s) were ascertained in the
course of the tests performed.
Test standard: FCC rules Part 15 subpart B
Test Result: Radiated Emission. FCC Part 15. 107 Class B. Test passed.
NCC RF LP0002_Base on FCC
Warning
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following
measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment. (Example - use only shielded interface cables
when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The antennas used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
LIMITED WARRANTY
Giga-Tms warrants that the products sold pursuant to this Agreement will perform in
accordance with Giga-Tms’s published specifications. This warranty shall be provided
only for a period of one year from the date of the shipment of the product from
Giga-Tms (the “Warranty Period”). This warranty shall apply only to the “Buyer” (the
original purchaser, unless that entity resells the product as authorized by Giga-Tms, in
which event this warranty shall apply only to the first re-purchaser).
During the Warranty Period, should this product fail to conform to Giga-Tms’s
specifications, Giga-Tms will, at its option, repair or replace this product at no
additional charge except as set forth below. Repair parts and replacement products will
be furnished on an exchange basis and will be either reconditioned or new. All
replaced parts and products become the property of Giga-Tms. This limited warranty
does not include service to repair damage to the product resulting from accident,
disaster, unreasonable use, misuse, abuse, negligence, or modification of the product
not authorized by Giga-Tms. Giga-Tms reserves the right to examine the alleged
defective goods to determine whether the warranty is applicable.
Without limiting the generality of the foregoing, Giga-Tms specifically disclaims any
liability or warranty for goods resold in other than Giga-Tms’s original packages, and
for goods modified, altered, or treated without authorization by Giga-Tms.
Service may be obtained by delivering the product during the warranty period to
Giga-Tms (8F No. 31 Lane 169, Kang Ning Street, Hsi Chih Dist New Taipei City,
Taiwan). If this product is delivered by mail or by an equivalent shipping carrier, the
customer agrees to insure the product or assume the risk of loss or damage in transit,
to prepay shipping charges to the warranty service location, and to use the original
shipping container or equivalent. Giga-Tms will return the product, prepaid, via a three
(3) day shipping service. A Return Material Authorization (“RMA”) number must
accompany all returns. Buyers may obtain an RMA number by contacting with
sales@gigatms.com.tw
EACH BUYER UNDERSTANDS THAT THIS GIGA-TMS PRODUCT IS OFFERED
AS IS. GIGA-TMS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND
GIGA-TMS DISCLAIMS ANY WARRANTY OF ANY OTHER KIND, INCLUDING ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
IF THIS PRODUCT DOES NOT CONFORM TO GIGA-TMS’S SPECIFICATIONS,
THE SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED
ABOVE. GIGA-TMS’S LIABILITY, IF ANY, SHALL IN NO EVENT EXCEED THE
TOTAL AMOUNT PAID TO GIGA-TMS UNDER THIS AGREEMENT. IN NO EVENT
WILL GIGA-TMS BE LIABLE TO THE BUYER FOR ANY DAMAGES, INCLUDING
ANY LOST PROFITS, LOST SAVINGS, OR OTHER INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF, OR INABILITY TO
USE, SUCH PRODUCT, EVEN IF GIGA-TMS HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY.
LIMITATION ON LIABILITY
EXCEPT AS PROVIDED IN THE SECTIONS RELATING TO GIGA-TMS’S LIMITED
WARRANTY, GIGA-TMS’S LIABILITY UNDER THIS AGREEMENT IS LIMITED TO
THE CONTRACT PRICE OF THIS PRODUCT.
GIGA-TMS MAKES NO OTHER WARRANTIES WITH RESPECT TO THE PRODUCT,
EXPRESSED OR IMPLIED, EXCEPT AS MAY BE STATED IN THIS AGREEMENT,
AND GIGA-TMS DISCLAIMS ANY IMPLIED WARRANTY, INCLUDING WITHOUT
LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE.
GIGA-TMS SHALL NOT BE LIABLE FOR CONTINGENT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES TO PERSONS OR PROPERTY. GIGA-TMS
FURTHER LIMITS ITS LIABILITY OF ANY KIND WITH RESPECT TO THE
PRODUCT, INCLUDING ANY NEGLIGENCE ON ITS PART, TO THE CONTRACT
PRICE FOR THE GOODS.
GIGA-TMS’S SOLE LIABILITY AND BUYER’S EXCLUSIVE REMEDIES ARE
STATED IN THIS SECTION AND IN THE SECTION RELATING TO GIGA-TMS’S
LIMITED WARRANTY.
Contents
Chapter 1 : Introduction ......................................................................... 1
Introduce .............................................................................................................. 1
Fitting ................................................................................................................... 1
Chapter 2About MU400 ....................................................................... 2
Specification ........................................................................................................ 2
LED Indication ..................................................................................................... 3
Chapter 3How to use MU400 .............................................................. 4
Before Installing .................................................................................................. 4
Start to use MU400 .............................................................................................. 4
Chapter 4Troubleshooting ................................................................. 5
Contact Us ............................................................................................... 6
© 2018 GIG
A
-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
MU400 Hardware User Guide
1
Chapter 1 : Introduction
Introduce
The MU400 is a Ultra High Frequency RFID Reader compliant to ISO18000-6C EPC Gen 2
protocol with an operating range of 860 to 960 MHz. MU400 have two interface type (Com
port or USB HID ). And operate on Android device which is easy to read EPC
Before using the MU400 Reader. We recommend that you should already read this user
guide.
Fitting

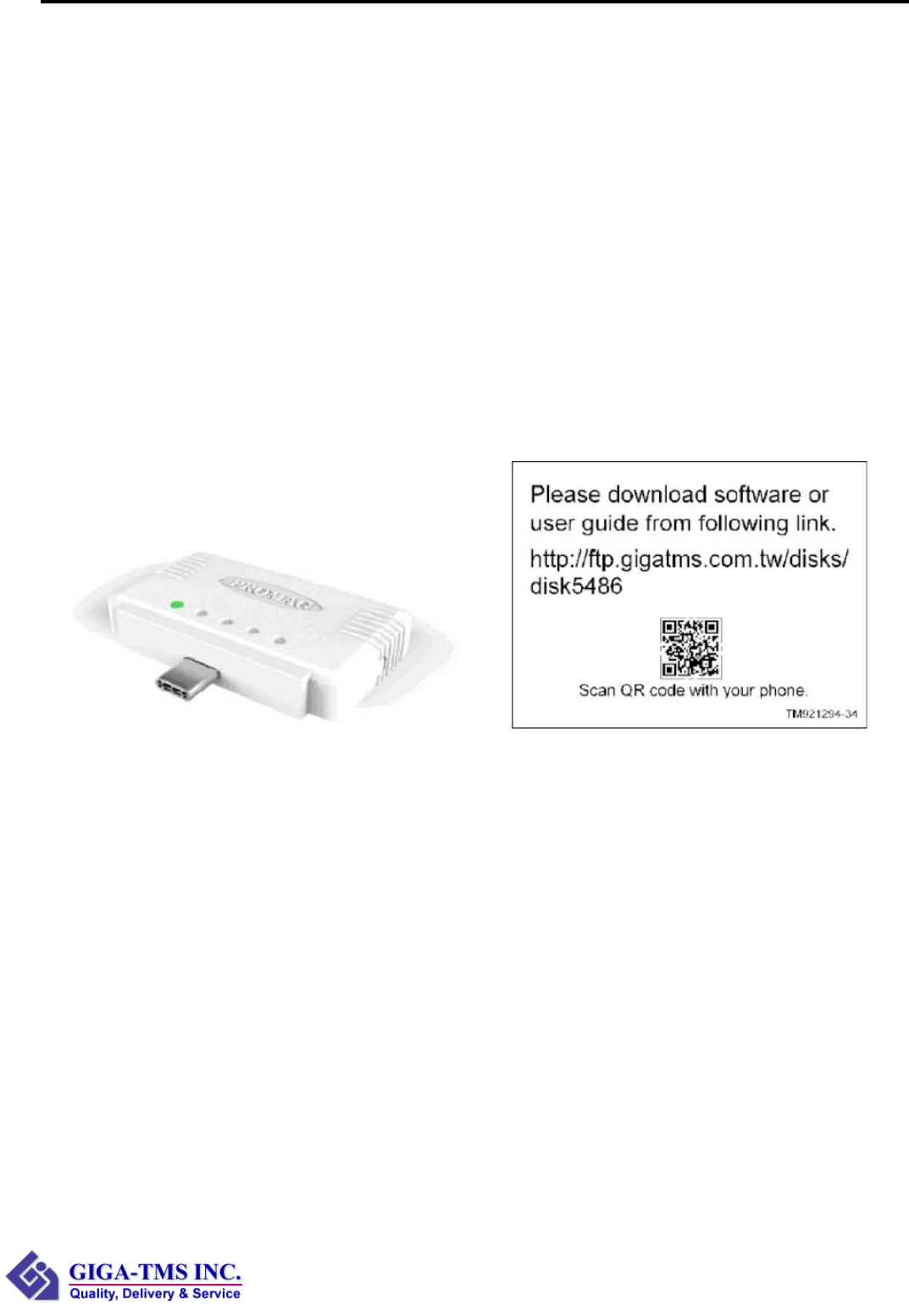

MU400 include antenna. The appearance as shown below
MU400 Top View Software download table
© 2018 GIG
A
-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
MU400 Hardware User Guide
2
Chapter 2About MU400
Specification
MU400
PART NO MU400C
Standard
RFID spec ISO 18000-6C, EPC Class1 Gen2
Interface COM PORT
Power Require Standby : Max 30mA@5VDC
Working : Max 300mA@5VDC
Dimension L: 55.5mm / W: 41.5mm / H: 10.3mm
Physical Characteristics
Weight 17.5g
Environment parameter
Temperature Operating : -10°C ~ +60°C
Storage : -15°C ~ +65°C
Humidity Operating : +0% ~ +90% (no coagulation)
Storage : MAX 90% (no coagulation)
Regulatory approvals
Authentication CE R&TTE FCC ID NCC
EN300328_868MHZ PART 15B/C
EN301489-1-3
EN55032/EN55024
EN62368
EN62479
ESD Contact : 4kv , Air : 5kv
© 2018 GIG
A
-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
MU400 Hardware User Guide
3

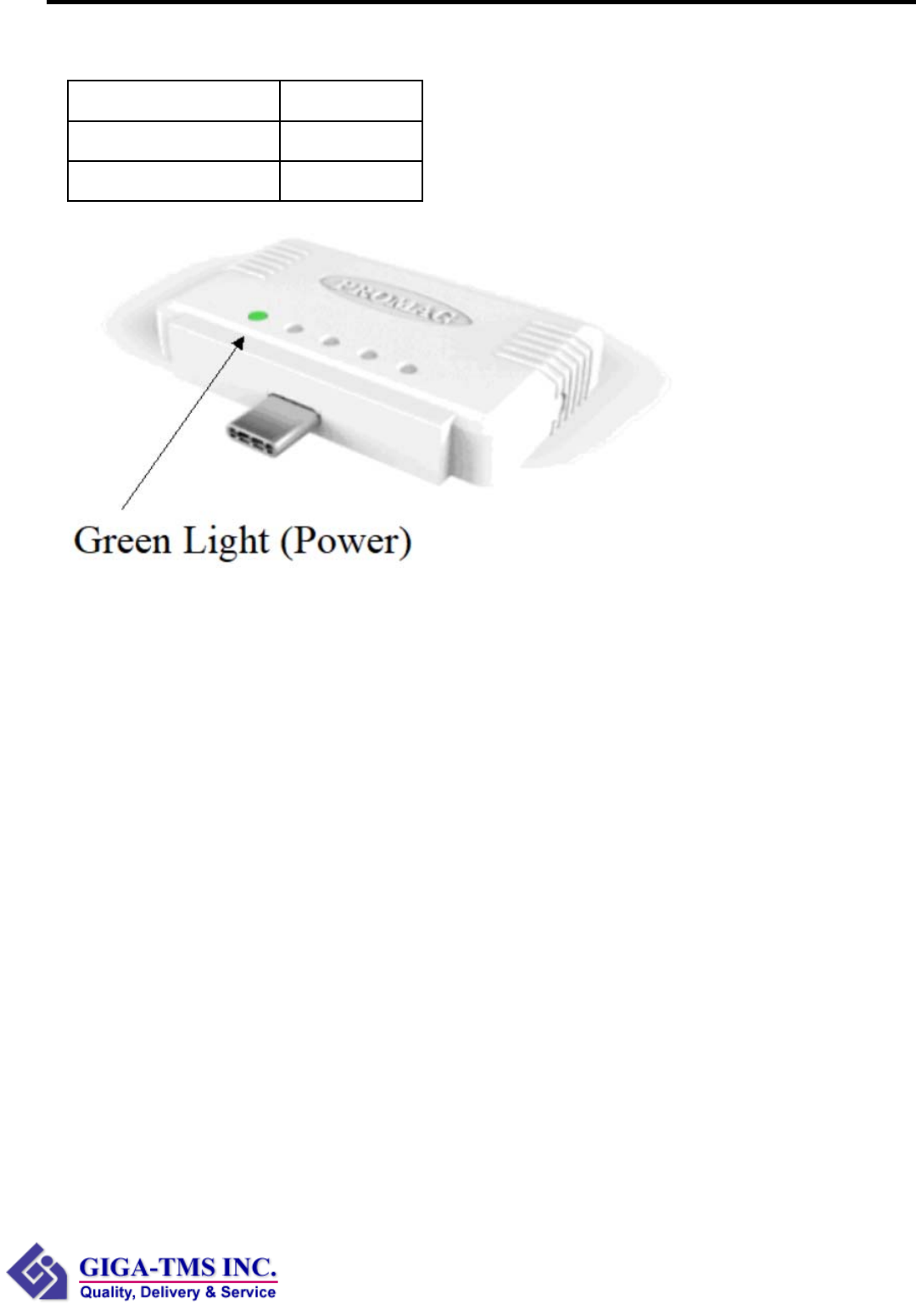

LED Indication
STATUS / COLOR Green Light
POWER ON ON
POWER OFF OFF
© 2018 GIG
A
-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
MU400 Hardware User Guide
4
Chapter 3How to use MU400
Before Installing
Before Install MU400. Please make sure the following items are ready.
A MU400
An Android device which have Type C interface and already installed MU400 APP
(DISK5486)
Start to use MU400

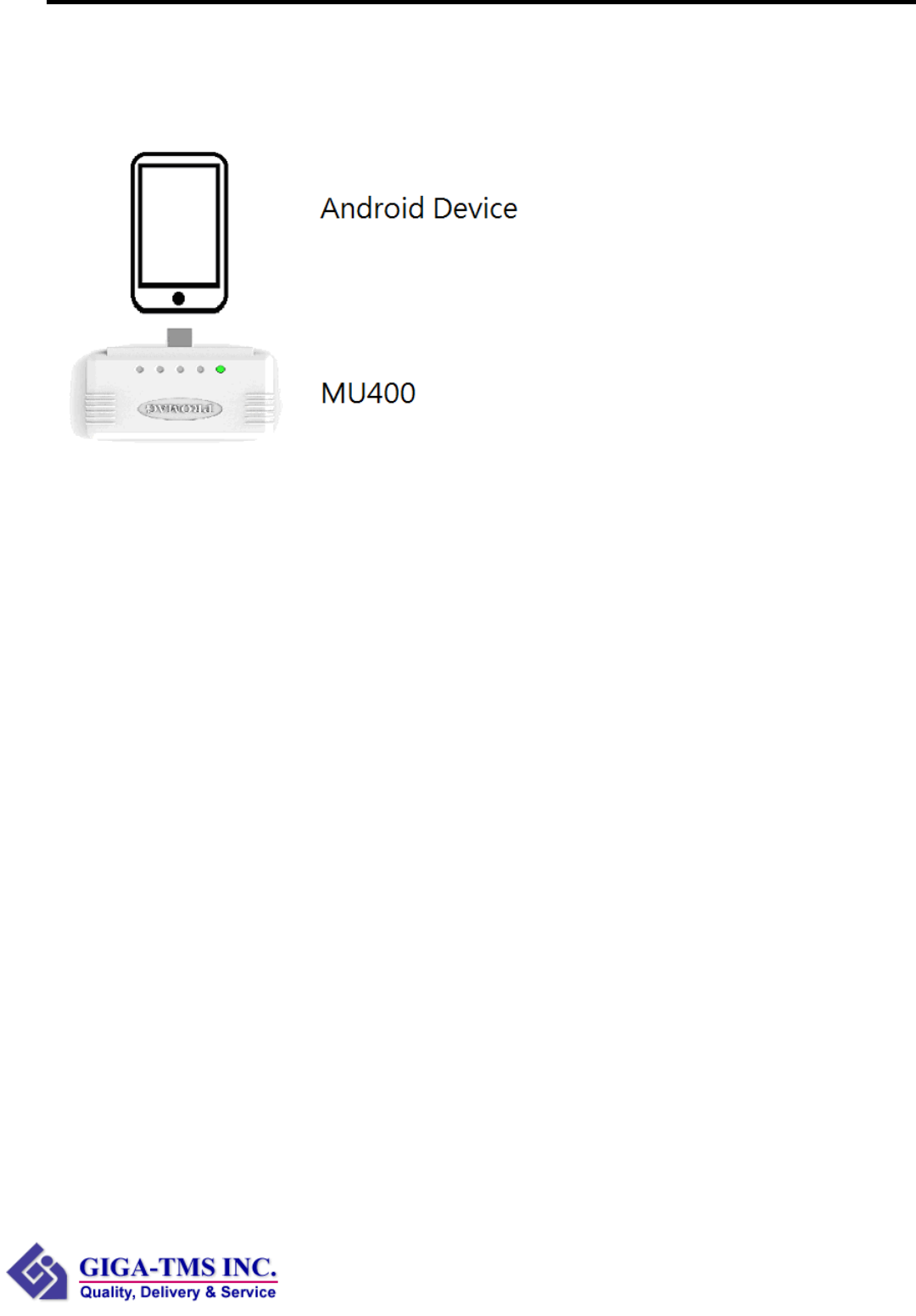

The MU400 use a Type C to connect the Android device.
Open MU400 APP to connect the MU400.
Please refer to MU400 Software User Guide. There are instructions about how to
read tags.
© 2018 GIG
A
-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
MU400 Hardware User Guide
5
Chapter 4Troubleshooting
1. Cannot connect to MU400 with MU400 APP?
Please check that the MU400 is actually connected to the Android device
Please check the power light of MU400 is lighting
© 2018 GIG
A
-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
MU400 Hardware User Guide
6
Contact Us
Address:
8F, NO.31, Lane 169, Kang-Ning Street, His-Chih Dist, New Taipei City, Taiwan
Tel:
886-2-26954214
Fax:
886-2-26954213
Websites:
www.gigatms.com.tw
Email:
Sales inquiry email - promag@gigatms.com.tw
After sales service - support@gigatms.com.tw
