Users Manual
UE600
User Guide
April 16, 2015
TM951326 - 01
Any part of the contents of this document, without the express written GIGA-TMS
permission, shall not in any documents, electronic, mechanical form of remakes or
spread. File contents are subject to change without notice.
Revisions
Revision Date Description
01 April 16, 2015 preliminary draft
Copyright
©
2015
GIGA-TMS INC.
Printed in Taiwan
Has been tested in accordance to essential protection requirements of the R&TTE
Directive 1999/5/EC on the approximation of the laws of the Member States relating to
Radio Spectrum Matters and found the test results indeed meet the limitation of the
relevant test standard(s) listed below:
EMC Radio Spectrum Safety
EN 301 489 - 1: V1.9.2
(2011)
EN 302 208 - 2: V1.4.1 :
2011
EN 60950-1:2006+A11:2009+A1:2010+
A12:2011+A2:2013
EN 301 489 - 3: V1.6.1
(2013)
EN 302 208 - 1: V1.4.1 :
2011
Test standard: FCC rules Part 15 subpart C 15.247 (2013 - 10)
Test Result: No deviations from the technical specification(s) were ascertained in the
course of the tests performed.
Test standard: FCC rules Part 15 subpart B
Test Result: Radiated Emission. FCC Part 15. 109 / 15.107 Class B. Test passed.
Warning
Federal Communication Commission (FCC) Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
To assure continued compliance, any changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to
operate this equipment. (Example - use only shielded interface cables when
connecting to computer or
peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The antennas used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
Contents
Chapter 1：Introduction...........................................................................1
Chapter 2：About UE600 .........................................................................2
Specification........................................................................................................ 2
LED Indication ..................................................................................................... 3
Chapter 3：How to Use UE600 ................................................................4
Before Installing .................................................................................................. 4
Start to Use UE600 .............................................................................................. 4
Chapter 4：Troubleshooting ...................................................................5
Contact us..................................................................................................6
UE600 User Guide
1
© 2015 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
Chapter 1：Introduction
Introduce
The UE600 is a desktop Ultra High Frequency RFID Reader compliant to ISO18000-6C
EPC Gen 2 protocol with an operating range of 840 to 960 MHz. And UE600 also easy to
use USB HID to connect PC and have auto sensor which can auto read 、write Tag.
The software UE600 Tag Issuer is supplied with the reader for Tag reading and writing.
Before using the UE600 Reader. We recommend that you should already read this user
guide.
Fitting

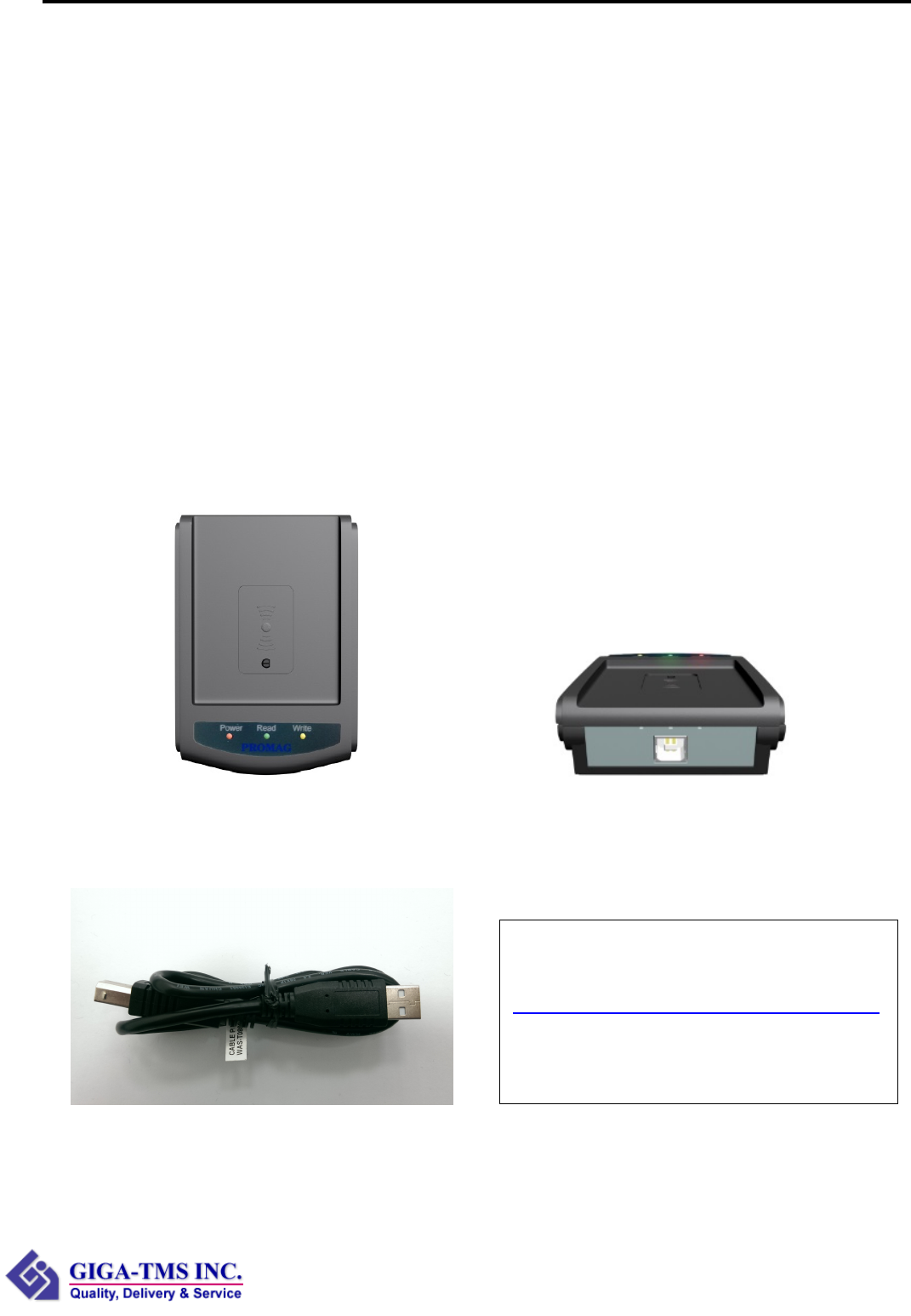

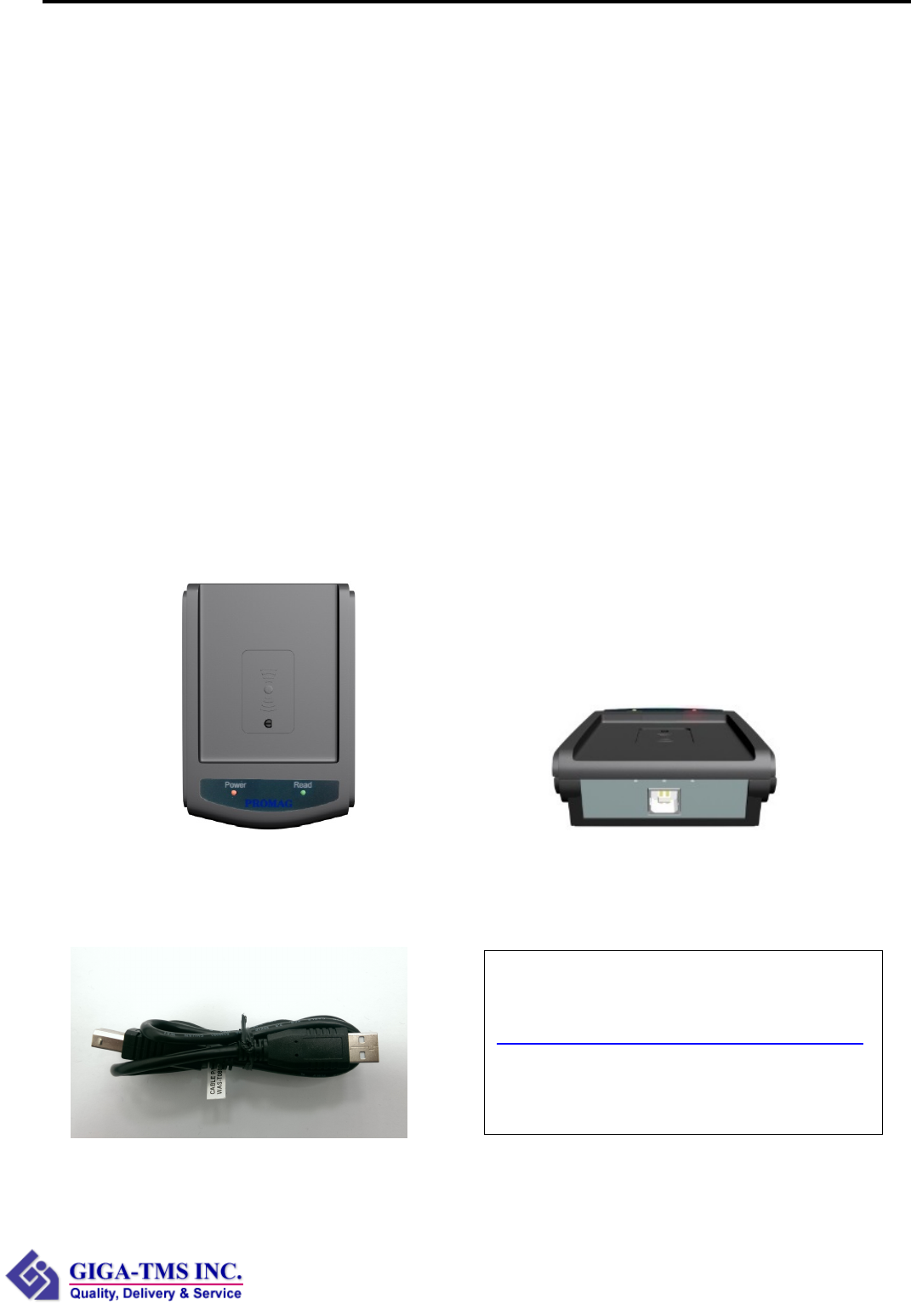

UE600 include antenna. The appearance as shown below
UE600 Top view UE600 USB Interface
60cm USB cable table
Please download software or user guide
from following link:
http://ftp.gigatms.com.tw/disks/disk5472/
UE600 User Guide
2
© 2015 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
Chapter 2：About UE600
Specification
USA Europe
UE600 UE600-00 UE600-30
Standard
RFID spec ISO 18000-6C, EPC Class1 Gen2
Frequency
Range
902~928 MHz 865~868 MHz
RF power Max 16dBm
Interface USB HID
Power Require Standby : 110mA@5VDC
Working : 300mA@5VDC,
Min power require : 500mA@ 5VDC
RF Reading
Range
Max 20 cm (depending on Tag)
Dimension L: 120mm / W: 86mm / H: 79mm
Physical Characteristics
Weight 150g ( not Include USB cable )
Environment parameter
Temperature Operating : -10°C ~ 60°C
Storage : -15°C ~ 65°C
Humidity Operating : 10% ~ 90% (no coagulation)
Storage : Max 90% (no coagulation)
Regulatory approvals
CE R&TTE
EN 302 208-1/-2
EN 301 489-1/-3
EN 60950-1
FCC ID
PART 15B/C
Authentication
ESD Conduct : 6kv , Air : 8kv
UE600 User Guide
3
© 2015 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw

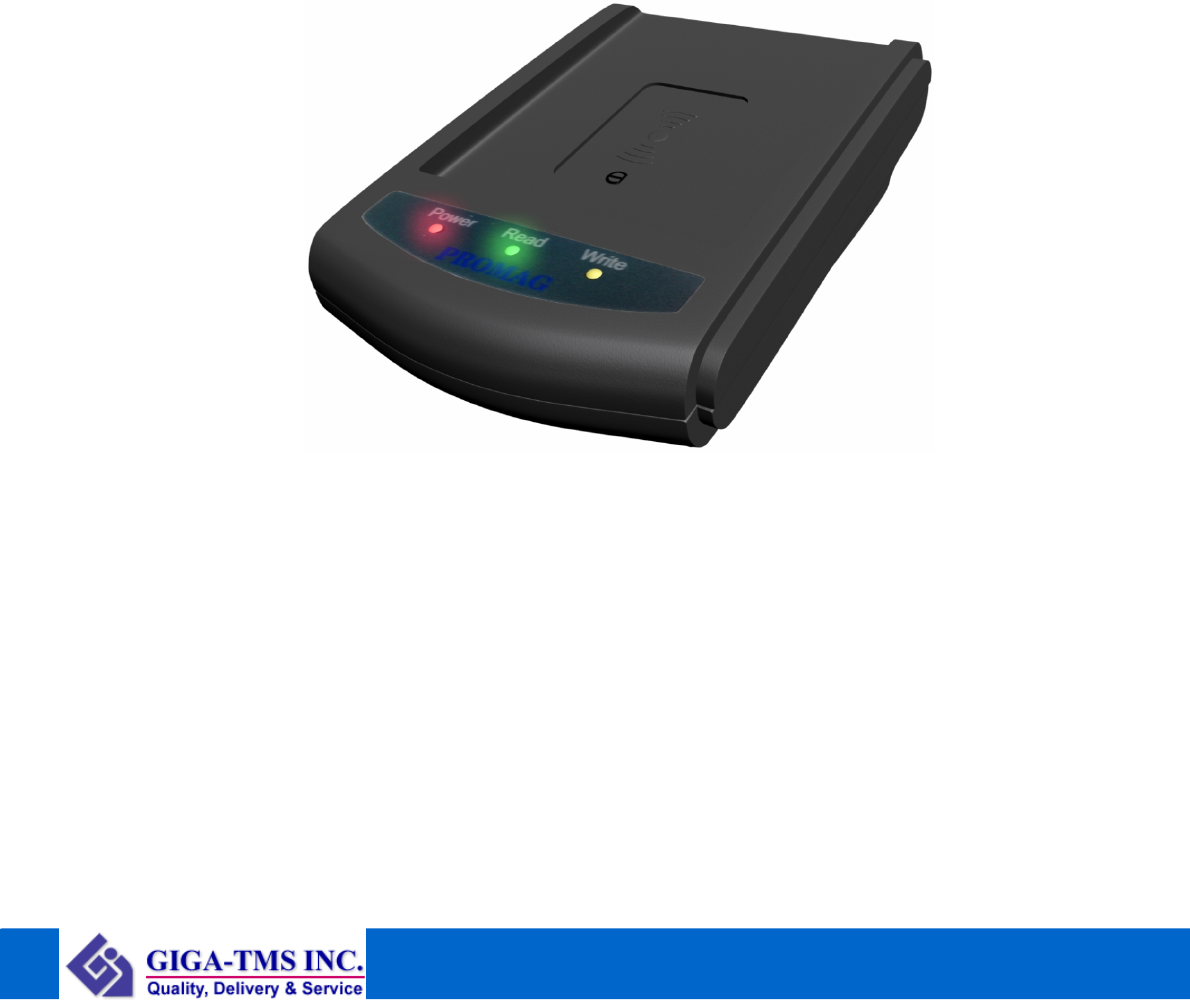

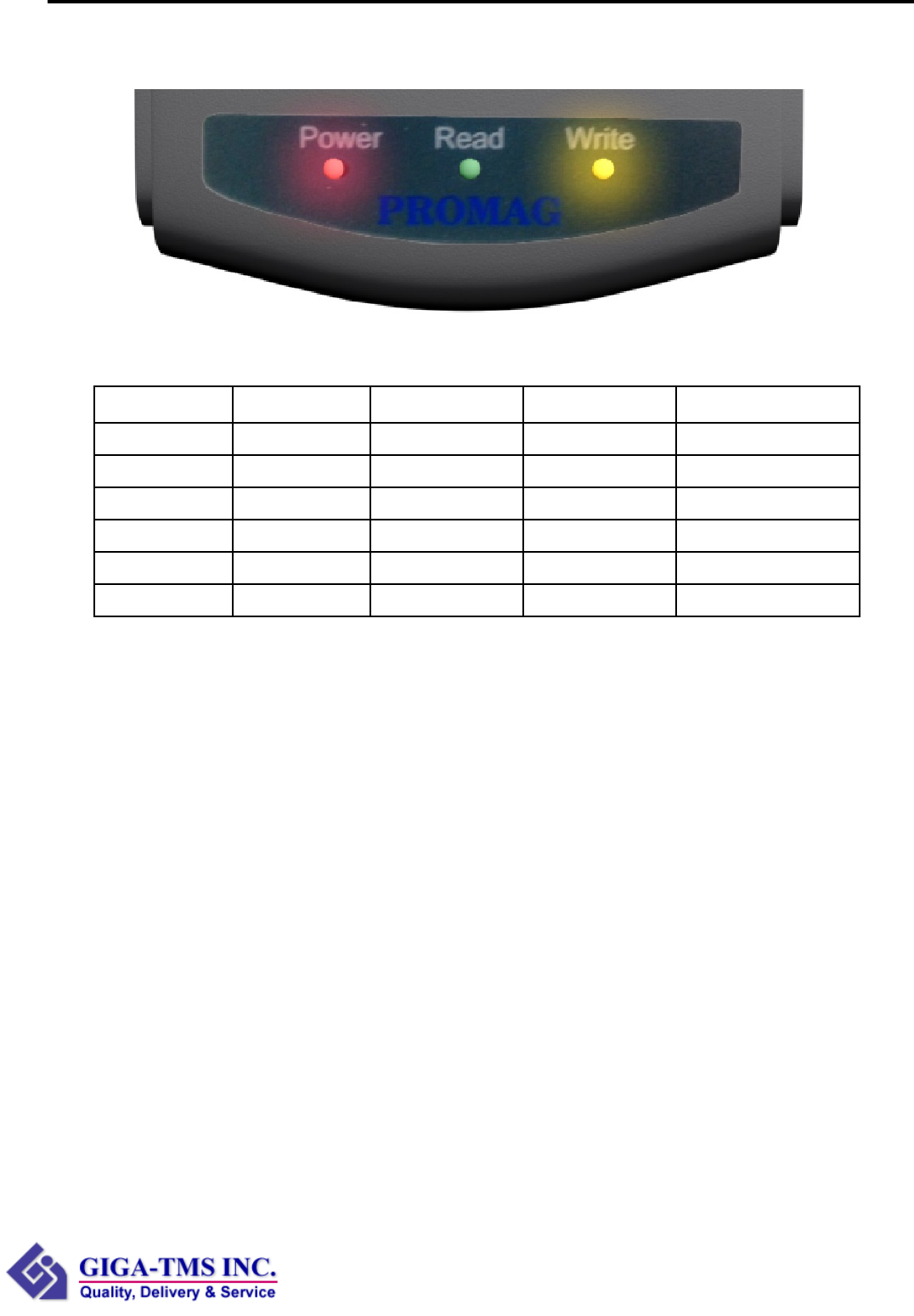

LED Indication
Status / Color
Power / Red
Read / Green
Write / Yellow
Buzzer / Beep
Power ON ON
ON
ON
a beep
Standby ON
OFF
OFF
OFF
Read Success
ON
ON
OFF
a beep
Read Fail ON
ON
OFF
3 beeps
Write Success
ON
OFF
ON
a beep
Write Fail ON
OFF
ON
3 beeps
UE600 User Guide
4
© 2015 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
Chapter 3：How to Use UE600
Before Installing
Before Install UE600. Please make sure the following items are ready.
A computer (Window XP / Vista / 7 or higher version systems) which already installed
UHF Tag Manager.
A UE600 reader with USB cable.
UHF Tags (ISO18000 Class 1 Gen 2).
Start to Use UE600

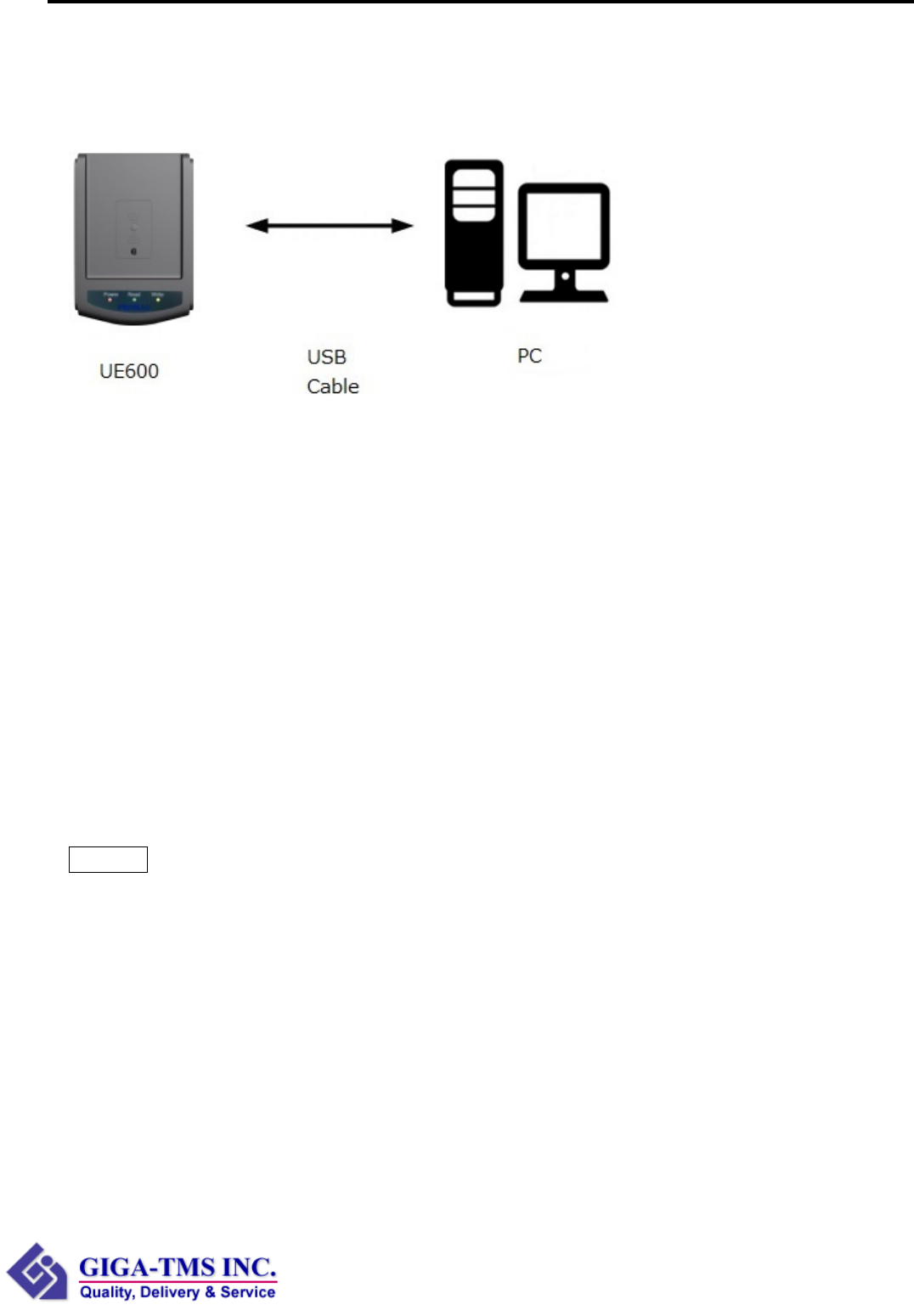

Connecting UE600 on USB port of your PC.
Executing the software UHF Tag Manager to connect UE600.
Please refer to UE600 Software User Guide. There are instructions about how to
read/write tags.
NOTE
The performance might be better or worse according to different tags and working
environments.
UE600 can only read one tag at a time. Therefore, please keep other tags about 40cm
away to reduce the interference.
Do not put tags to or near metal objects or liquid surface as possible.
Make sure there are not any same frequency devices or large power equipment in the
same area.
UE600 User Guide
5
© 2015 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
Chapter 4：Troubleshooting
1. Cannot connect to UE600 with UHF Tag Manager?
Please check the Power light of UE600 is lighting.
Please check USB cable is connecting well to PC.
2 Cannot read UHF Tags?
Please check the software UHF Tag Manager can find out UE600 and connect to it.
Please check the tag is a ‘UHF’ tag and is functional.
While you put a UHF tag on the top of UE600 and execute read command (or Auto) ,
the ‘Read’ light shall light up once.
UE600 User Guide
6
© 2015 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
Contact us
Address:
8F, NO.31, Lane 169, Kang-Ning Street, His-Chih Dist, New Taipei City, Taiwan
Tel:
886-2-26954214
Fax:
886-2--26954213
Websites:
www.gigatms.com.tw
Email:
Sales inquiry email - promag@gigatms.com.tw
After sales service - support@gigatms.com.tw
